Coordination Polymer Based on a Triangular Carboxylate Core {Fe(μ3-O)(μ-O2CR)6} and an Aliphatic Diamine

by
Vladimir A. Bushuev
1,2,
Natalia V. Gogoleva
1,
Stanislav A. Nikolaevskii
1,
Sergey V. Novichihin
3,
Dmitriy S. Yambulatov
1,*,
Mikhail A. Kiskin
1 and
Igor L. Eremenko
1
1
Kurnakov Institute of General and Inorganic Chemistry, Russian Academy of Sciences, 31 Leninsky Prosp., 119991 Moscow, Russia
2
Higher School of Economics, National Research University, 101000 Moscow, Russia
3
N. N. Semenov Institute of Chemical Physics, Russian Academy of Sciences, Kosygina Str. 4, 119991 Moscow, Russia
*
Author to whom correspondence should be addressed.
Molecules 2024, 29(9), 2125; https://doi.org/10.3390/molecules29092125
Submission received: 12 April 2024 / Revised: 29 April 2024 / Accepted: 30 April 2024 / Published: 3 May 2024
(This article belongs to the Special Issue Synthesis, Structure, Molecular Modeling, and Bioactivity of Metal Complexes)
Browse Figures
Versions Notes

Abstract

:
Interaction of the pre-organized complex of iron(II) trimethylacetate and 1,10-phenanthroline (phen) [Fe2(piv)4(phen)2] (1) (piv = (Me)3CCO2−)) with 1,6-diaminohexane (dahx) in anhydrous acetonitrile yielded a 1D coordination polymer [Fe3O(piv)6(dahx)1.5]n (2) and an organic salt of pivalic acid (H2dahx)(piv)2 (3). The structure of the obtained compounds was determined by single-crystal X-ray diffraction analysis. The phase purity of the complexes was determined by powder X-ray diffraction analysis. According to the single-crystal X-ray analysis, coordination polymer 2 is formed due to the binding of a triangular carboxylate core {Fe3(μ3-O)(μ-piv)6} with an aliphatic diamine ligand. Thermal behavior was investigated for compounds 1 and 2 in an argon atmosphere.

1. Introduction

Coordination polymers are formed by binding metal ions or metal-containing cores with bridging ligands, whose variation in structure-forming parameters allows for control over the polymer’s structure [1,2,3,4,5,6,7,8,9,10], as well as luminescent [11,12,13,14], sorption [4,15,16,17,18], magnetic [19,20,21,22], and other properties. Iron(II) coordination polymers exhibit selective catalytic activity in the hydroboration of aldehydes and ketones [23], the oxidative functionalization of alkanes [24], and in dimerization reactions of aromatic halogen derivatives [25]. Mixed-valent derivatives with a metal core {FeIIFeIIIFeIIIO} can be used in the creation of molecular switches [3,26,27].
Aliphatic diamines, which are starting compounds for polyamides, are widely used in textile and machine engineering and are therefore among the most commercially available bridging ligands can be used to form coordination polymers [28,29,30,31,32,33,34,35,36]. Metal complexes with aliphatic diamines are particularly interesting for studying their structure in crystals [30,32,33,34,36,37,38,39,40], developing bistable systems [19,28,29,41,42], and creating materials with almost zero thermal expansion effect [35].
1,6-Diaminohexane (dahx), an aliphatic diamine discovered over 100 years ago [43], is manufactured on a million-ton scale for a wide range of applications, like the production of ubiquitous polymers such as Nylon-66 (polymerization with adipic acid) [44]. According to the Scopus database, research on 1,6-diaminohexane is rapidly growing, with the number of publications doubling between 2000 and 2023. About 50% of publications are from the BRICS countries–the world’s fastest growing economies—which is evidence of 1,6-diaminohexane’s high importance in industrial applications.
Metal complexes with 1,6-diaminohexane are at the forefront of research due to their unique physical properties. Recently, work was published on the synthesis of perovskites based on antimony and bismuth halides linked by hexamethylenediamine bridges;, the authors found unique optoelectronic characteristics [45]. A study on pivalate complexes of cobalt(II) and chromium(III) with 1,6-diaminohexane was published, where the authors obtained components for molecular machines such as rotaxanes and molecular shuttles [46]. It was also shown that based on pentaiodobismutate linked by 1,6-diaminohexane bridges, it is possible to create a molecular ferroelectric semiconductor, and it is also possible to create its thin films [47]. Last year, a work was published where layered lead perovskites were studied, in which the layers were formed with protonated 1,6-diaminohexane bridges [48]. 1,6-diaminohexane can be used to obtain self-assembled hybrid layered molybdates [49], photo-electroactive indium and antimony chalcogenides [50], dynamic organic–inorganic hybrid [H2dahx]ZnBr4 crystals with the ability to control phase transitions [51], and hybrid organic–inorganic borate frameworks [52].
In our previous work, we showed that the interaction of cobalt(II) pivalate with 1,6-diaminohexane led to the formation of a 1D coordination polymer [Co(piv)2(dahx)]n, exhibiting a structural phase transition below 205 K, which was followed by a change in the coordination environment of cobalt(II) ions, the network of intra- and intermolecular hydrogen bonds, and the packing density of molecules in the crystal [19].
Despite the long history of using 1,6-diaminohexane to synthesize coordination compounds, according to the Cambridge Structural Database (CSD version 5.45 (November 2023)), only 34 compounds containing structure-directing fragments in which any metal is connected with a nitrogen atom of 1,6-diaminohexane are known, and to the best of our knowledge, there are no previously structurally characterized molecular complexes or coordination polymers of iron with 1,6-diaminohexane. Moreover, the CCDC database does not contain data on other structurally characterized iron polymers, where aliphatic diamine ligands, including 1,4-diaminobutane, 1,5-diaminopentane, 1,7-diaminoheptane, 1,8-diaminooctane, 1,9-diaminononane, and 1,10-diaminodecane, could also act as flexible bridging ligands.
Building upon previous research, the purpose of the current work is to study the reactivity of 1,6-diaminohexane towards the complex of iron(II) pivalate with 1,10-phenanthroline (phen). As a result, a new coordination polymer with an {Fe3(μ3-O)(μ-piv)6} core was synthesized and its crystal structure and thermal properties were studied.

2. Results and Discussion

2.1. Synthesis and Characterization of 1–3

The interaction of polymeric cobalt(II) trimethylacetate (pivalate) {Co(piv)2}n in anhydrous acetonitrile with 1,6-diaminohexane led to the formation of the coordination polymer [Co(Piv)2(dahx)]n [19], the hydrogen bonds in which are changed under the influence of temperature, leading to control over the magnetic characteristics. Iron(II) pivalate is a coordination polymer that is extremely unstable to atmospheric oxygen and is poorly soluble in acetonitrile and ethanol. Our multiple attempts to induce the direct reaction of iron(II) trimethylacetate and 1,6-diaminohexane in an acetonitrile medium and an inert atmosphere led to the formation of a mixture of products from which we were unable to isolate individual substances. Therefore, a two-step approach was elaborated. Firstly, a pre-organized carboxylate complex with a well-studied bidentate ligand was synthesized to break the coordination polymer chains. This product was then isolated, structurally characterized, and checked for phase purity. Subsequently, the pre-organized complex was treated with 1,6-diaminohexane to obtain the desired polymer complex. The mechanism of this reaction, involving either substitution of the bidentate ligand or the formation of a heteroleptic complex, remained uncertain due to the possibility of both pathways [29,30,53,54]. We previously proposed a similar synthetic protocol to obtain 3d–4f heterometallic carboxylate complexes with N-heterocyclic carbenes [55] and phosphine ligands [56].
The interaction of equimolar amounts of iron(II) pivalate and 1,10-phenanthroline in anhydrous and degassed acetonitrile led to the formation of the product [Fe2(piv)4(phen)2] (1); the addition of 1,6-diaminohexane to complex 1 led to the formation of coordination polymer [Fe3O(piv)6(dahx)1.5]n (2) and organic salt (H2dahx)(piv)2 (3) (Scheme 1). Complexes 1 and 2 were isolated from the reaction mixture in the form of blue–green and red crystals, respectively.
The formation of complex 2 upon the addition of 1,6-diaminohexane to the pre-organized complex is not readily apparent, considering the inert reaction atmosphere. We hypothesize the existence of a reaction of disproportionation and reduction of iron(II) in the presence of 1,6-diaminohexane, as was shown in [57], where 1,6-diaminohexane acted as a reducing agent without hydrogen in relation to the initial iron {Fe[N(SiMe3)2]2}2 complex. This assumption in our case is supported by the phase purity of the resulting compounds, the formation of pivalic acid, and its binding with 1,6-diaminohexane to form a dication–anion organic salt. In [27], a mixed-valent pivalate iron complex was obtained by controlling the volume of oxygen, since its excess led to the formation of the iron(III) product.
The fact that a chelated bidentate 1,10-phenatroline ligand is replaced by a monodentate-linked amino group seems unlikely under these conditions. We assume that this reaction occurs as a result of the oxygen traces present in the reaction mixture during crystallization and the further partial oxidation of iron(II) ions, and the formation of an oxo-carboxylate metal core is accompanied by the decoordination of 1,10-phenathroline molecules. This assumption is indirectly confirmed by the appearance of an oxo group in the final product. We emphasize the fact of partial oxidation, since, as a rule, the oxidation of iron(II) carboxylates occurs with the formation of iron(III) oxo-carboxylates, but the lack of oxygen as an oxidizing agent produces a mixed-valent complex with a yield of 38%. The decoordination of 1,10-phenatroline suggests the formation of a more stable iron(II/III) complex with two or three chelating ligands in the coordination sphere, which are more soluble n acetonitrile than the coordination polymer, and we could not isolate them from the mother liquor.
The IR spectrum of compound 2 (see Supplementary Materials, Figure S2) contains characteristic absorption bands at 3370, 3263, and 3134 cm−1 of stretching vibrations [58], and at 1596 and 890 cm−1 of bending vibrations of the amino group of primary amines [32,38]. There is a characteristic absorption of stretching vibrations of the C-N bond at 1221 cm−1 [30]. It is worth noting that in the IR spectrum of organic salt 3 (see Supplementary Materials, Figure S3), there are no absorption bands corresponding to the free amino group of primary amines, while strong absorption is observed at 1525 (δas(NH3+) and 1482 cm−1 (δs(NH3+), corresponding to vibrations of the ammonium group (R-NH3+) [59].

2.2. Crystal Structures of 1–3

The structure of compounds 1–3 in crystals was determined using single-crystal X-ray diffraction analysis.
In the binuclear molecule of complex 1, the metal atoms (4.568 Å) are connected by two bridging carboxylate groups (Figure 1a, Table 1). The coordination environment of each atom corresponds to a distorted FeN2O4 octahedron, which is completed by the coordination of the chelate carboxylate group and the chelate 1,10-phenanthroline molecule. Coordinated 1,10-phenanthroline molecules participate in the formation of intra- and intermolecular π–π interactions, which leads to the formation of supramolecular layers parallel to the 0ab plane (Figure 1b, Table 2), which contact each other due to van der Waals interactions between tert-butyl groups on both sides of the layer. Additionally, the supramolecular layer is strengthened by C–H…O contacts (Table 3). We have found that the stacking of 1,10-phenanthroline ligands and their parallel orientation are possible only in anhydrous media, since the coordination of water molecules and hydrogen bonding interactions between the coordinated water molecules makes π–π interactions less possible [60,61].
Compound 2 is a one-dimensional coordination polymer consisting of triangular fragments {Fe3(μ3-O)(μ-piv)6} and μ-bridged 1,6-diaminohexane molecules (Figure 2a). The structure of {Fe3O(piv)6} (Table 1) is similar to the known ones in the molecular and polymer complexes [21,62,63]. The difference in the lengths of the Fe-O(μ3-O) bonds (Fe(1/3)–O 1.84 Å and Fe(2)–O 2.01 Å) suggests a difference in the oxidation states of iron ions, FeIII2FeII, which is consistent with the electrical neutrality of the compound and interatomic distances in known compounds with a metal core {FeIII2MII(μ3-O)(μ-O2CR)6} (MII = Mn, Fe, Co, Ni) [2,3,4,26,27]. Early studies on mixed-valence triangular oxo-carboxylate iron(II/III) complexes showed that the Fe-O(μ3-O) bond length obtained from X-ray diffraction data determines the oxidation state of the metal ion in the complex (FeIII-O(μ3-O) are in the range of 1.8–1.9 Å;, the bond length FeII-O(μ3-O) is much larger and is close to 2.0–2.1 Å), which is reasonably confirmed by Mössbauer spectroscopy [27,64,65,66]. The coordination polyhedra of FeNO5 iron atoms formed by oxo-, carboxylate, and amino groups correspond to a distorted octahedron. The Fe1 and Fe2 atoms of two fragments {Fe3O(piv)6} (Fe…Fe 9.954 Å) are connected by a bridging diamine molecule (N1-C6-N2), which corresponds to the growth of the chain in the form of a zigzag along the 0c axis (Figure 2b). Pairs of Fe3 atoms of two adjacent vertices of a zigzag as part of a pair of chains (Fe…Fe 11.013 Å) are connected by diamine molecules; this leads to the formation of a “corrugated tape (or ladder)” (Figure 2b,c). The nitrogen atoms of the amino groups participate in the formation of H-bonds with the O atoms of the bridging carboxylate groups (Table 3). In the crystal, the chains are laid parallel to each other.
Organic salt 3 consists of pivalic acid anions and 1,6-diaminohexane dications in a ratio of 2:1 (Figure 3). In the crystal, each NH3 group participates in the formation of three H-bonds with O atoms of three carboxylate groups (Table 3).
It was previously shown that using the interaction of aliphatic diamines of different lengthsNH2(CH2)nNH2 with the same carboxylate anion of triphenylacetic acid leads to the formation of molecular (n = 6) as well as one-dimensional (n = 7–9) and two-dimensional (n = 10–11) coordination polymers [67]. In our case, despite the sterically hindered trimethyl acetate group, the organic salt forms chains due to the branched hydrogen bonds.
Based on the analysis of single-crystal X-ray diffraction data, we can draw a valuable conclusion: we succeeded at obtaining a coordination polymer of iron(II) based on the aliphatic diamine bridging ligand 1,6-diaminohexane for the first time. To the best of our knowledge, prior to this work, such compounds with unambiguously determined molecular and crystal structures were not described.

2.3. Powder X-ray Diffraction Analysis

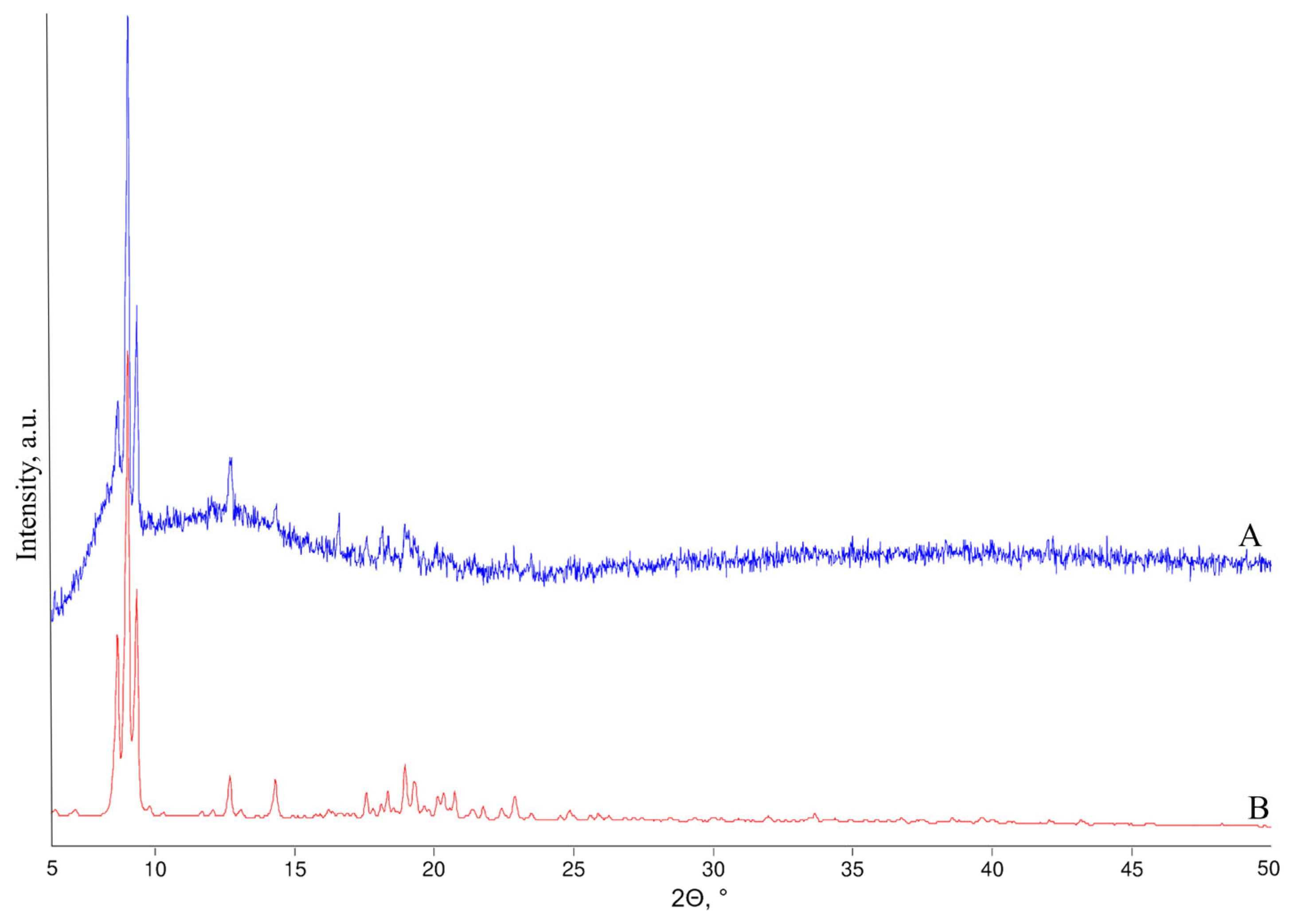

When working with an isolated substance, it is very important to confirm that the entire sample phase corresponds to the data obtained by means of single-crystal X-ray diffraction analysis.

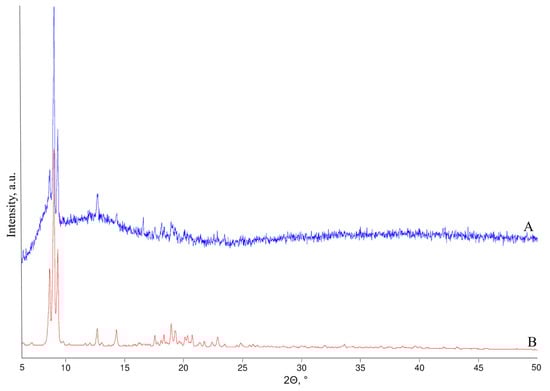

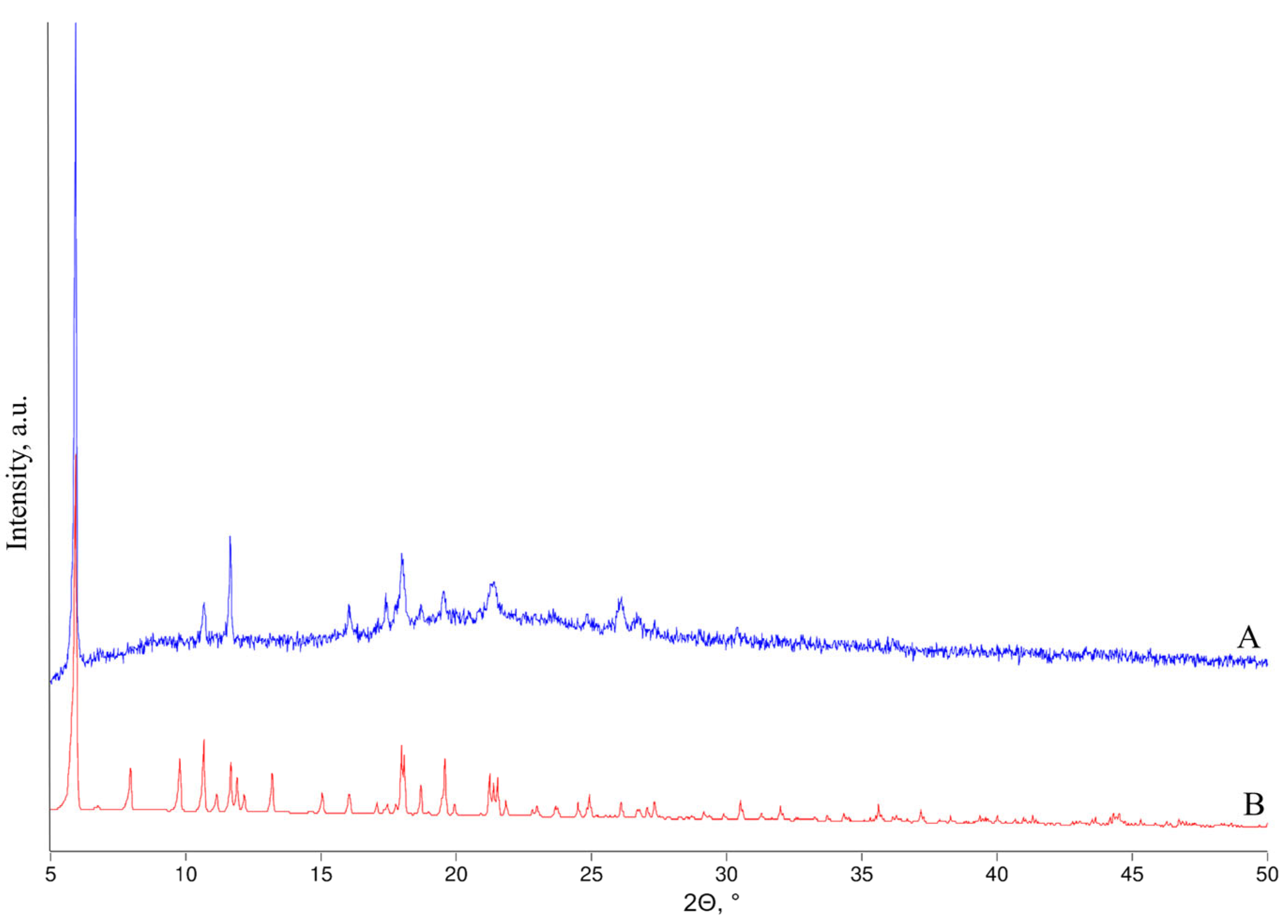

Powder X-ray diffraction data calculated by the Rietveld method proves the correspondence of the polycrystalline phase to the structure determined by means of single-crystal X-ray diffraction for compounds 1 and 2 (Figure 4 and Figure 5). According to experimental data, complex 1 retains its crystal structure for more than 2 months (Figure S6). After keeping sample 2 in air for 5 h and performing the X-ray diffraction experiment for 8 h (Figure S7), the amorphous component in the diffraction pattern increases. After storing the sample 2 for 2 months, an additional phase related to structure 3 is detected in the sample of complex 2 (Figure S7). Thus, from the experimental diffraction patterns, it follows that the iron(II) complex 1 we obtained in solid form is resistant to moisture and atmospheric oxygen, while complex 2 is exposed to air with the destruction of crystallinity and the formation of organic salt 3.

2.4. Thermal Behavior

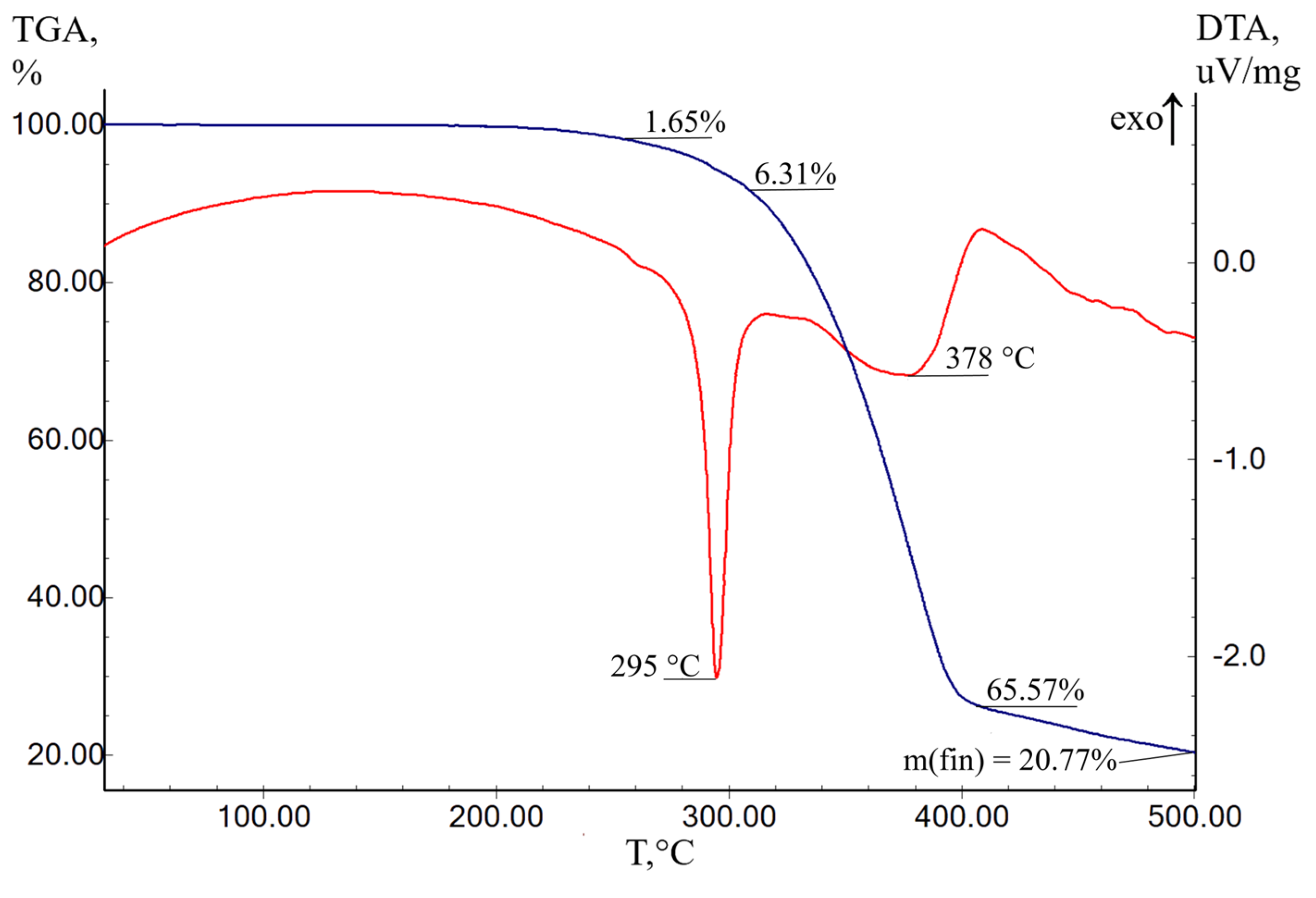

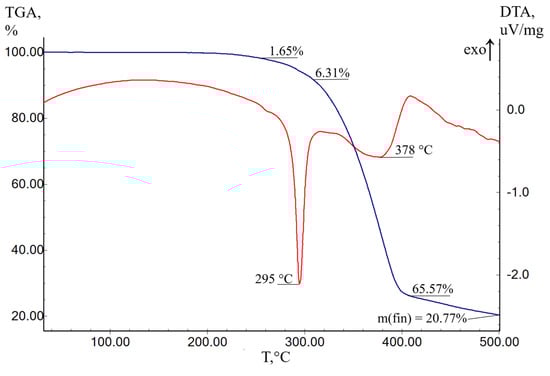

The thermal behavior of complexes 1 and 2 was investigated by simultaneous thermal analysis (STA), a combination of thermogravimetric analysis (TGA) and differential thermal analysis (DTA), in an argon flow (Figure 6 and Figure 7). Complex 1 is stable up to 255 °C (Δm = 1.65%). In the range of 255–308 °C, there is a smooth mass loss (Δm = 6.31%) accompanied by the narrow strong endothermic effect with a peak at 295 °C in the DTA curve, which corresponds to the start of the 1,10-phenanthroline fragment decomposition (tbp = 300 °C, Δmtheor = 41.07%) and the melting of the thermolysis product (tonset = 290 °C). Decomposition of pivalate groups [68] and further destruction and elimination of phen takes place in the range of 308–406 °C (Δm = 65.57%), accompanied by the complex-shaped slight endothermic effect with a peak at 378 °C in the DTA curve. It is worth noting that in the gas-phase mass spectra of trimethylacetate complexes of d-metals at 305–470 °C, the destruction products of trimethyl acetate ions, [C4H9]+, [C3H5]+, [C2H5]+, CH2O+, and others, are recorded [69]. According to DTG and DTA data, it is not possible to separate the individual stages of decomposition, which overlap each other. In the range of 406–500 °C, further decomposition of the thermolysis products occurs with a weight loss of 6.03%. The residual mass of the sample is higher than theoretically expected for Fe2O3 and amounts to mexp = 20.77%/mtheor = 18.25% due to the incomplete process of thermal decomposition in an inert atmosphere.

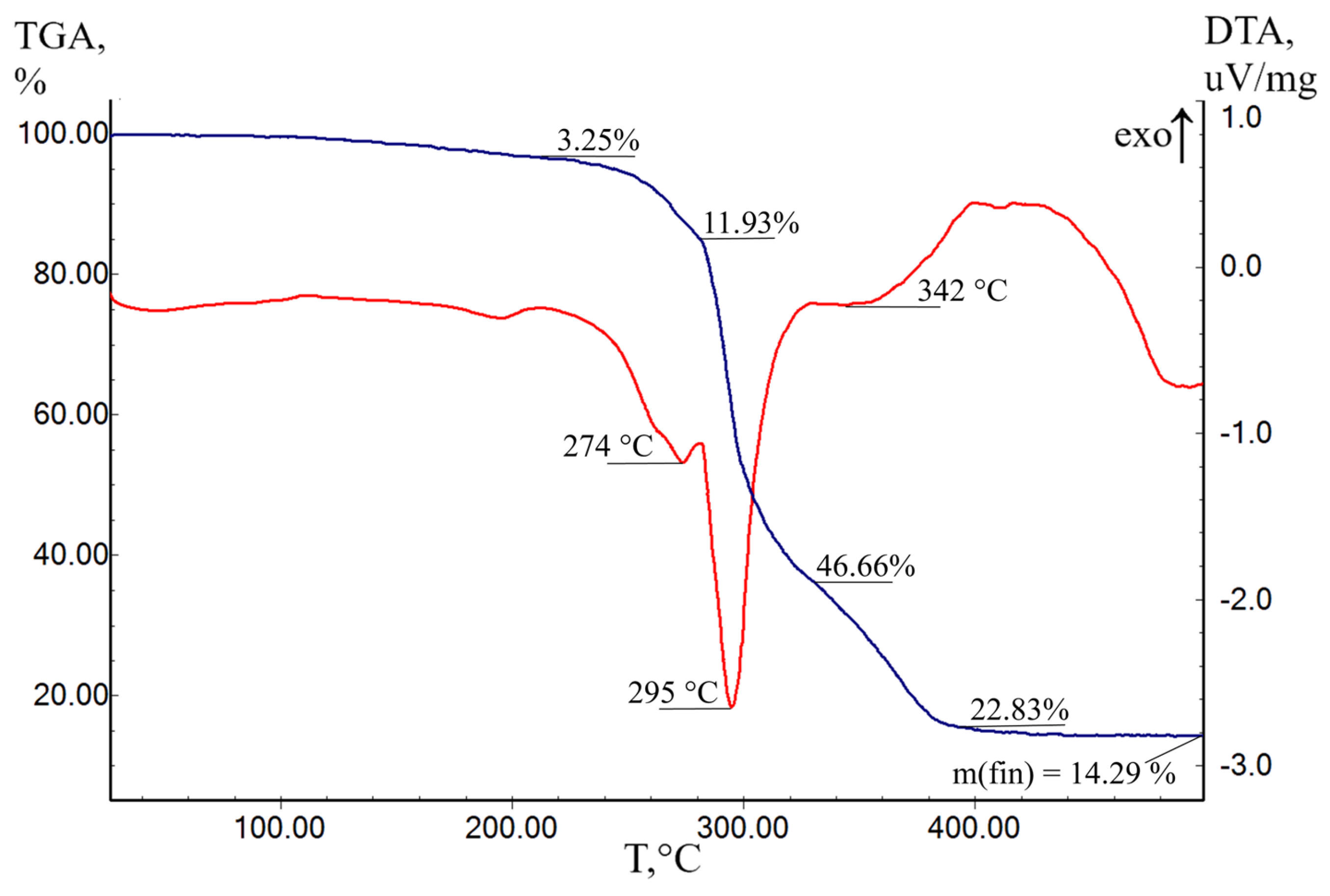

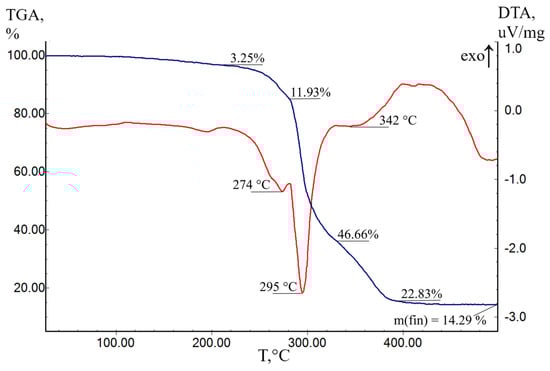

In the case of compound 2, the initial mass loss of 3.25% in the temperature range of 94–212 °C is probably associated with the presence of solvent molecules occluded by the polycrystalline sample. The thermal degradation of organic fragments of complex 2 begins at 212 °C, which is consistent with data known from the previously published papers for complexes with 1,6-diaminohexane [70,71]. In the range of 212–282 °C, there is a smooth weight loss (Δm = 11.93%), accompanied by a weak endothermic effect of the complex form on the DTA curve with a peak at 274 °C, associated with the decomposition and elimination of one 1,6-diaminohexane molecule (tbp = 205 °C; Δmtheor = 12.03%). The process overlaps with the destruction and elimination of the remaining 0.5 molecule of NH2(CH2)nNH2 (Δmtheor = 6.02%) and coordinated pivalate anions in the range of 282–332 °C (Δm = 46.66%). Melting of the intermediate thermolysis product [68] appeared on the DTA curve as a strong endothermic effect (tonset = 276 °C) with a peak at 295 °C. The decomposition of the remaining fragments of trimethylacetate anions takes place in the range of 332–392 °C, accompanied by a mass loss of 22.83% and a weak endothermic effect on the DTA curve (peak at 342 °C). Above 392 °C, residual weight loss occurs (Δm = 1.18%). The residual mass of the sample is lower than the theoretical one for Fe2O3 and amounts to mexp = 14.29%/mtheor = 24.9%. The ability of intermediate thermolysis products of trimethyl acetate iron(II,III) complexes to be volatile is consistent with that known from the literature [72] and is confirmed by the presence of a red–brown sediment on the outer surface of the crucible after heating in the case of complexes 1 and 2.
Thus, thermal studies of new iron complexes showed that molecular complex 1 is stable up to 255 °C, while coordination polymer 2 begins to decompose at 212 °C. Both complexes 1 and 2 demonstrate volatility and melting of the intermediate thermolysis products with a peak on the DTA curve at 295 °C.

3. Materials and Methods

3.1. General Remarks

The synthesis of the compounds 1–3 was carried out using a modified Schlenk technique. Photographs of the main stages of synthesis are available in the Supplementary Materials (Figures S4 and S5). Acetonitrile CH3CN (Khimmed, reagent-grade, Russia) was dried over phosphorus(V) oxide, distilled, and stored in an evacuated glass flask with activated molecular sieves (3 Å), from where it was taken by condensation into a chemical reactor (glass ampule with a Teflon stopcock) immediately before synthesis; ethanol EtOH (95%, Ferein, Russia) was degassed and taken by condensation into the chemical reactor. Iron sulfate heptahydrate FeSO4∙7H2O (Khimmed, reagent grade, Russia), 1,10-phenanthroline monohydrate (Sigma-Aldrich, pure grade, Steinheim, Germany), and 1,6-diaminohexane (Merck, analytical grade, Germany) were used without additional purification. Potassium pivalate (Kpiv) was obtained according to a known synthetic procedure [73]. Before reacting with iron(II) sulfate, potassium pivalate was heated at 140 °C in an oil bath for 24 h in a dynamic vacuum. Iron(II) pivalate [Fe(piv)2]n was obtained by an exchange reaction from FeSO4∙7H2O and Kpiv [5]. Iron pivalate is poorly soluble in ethanol and acetonitrile; it forms a gel-like mass. Adding excess pyridine or an equimolar amount of 1,10-phenanthroline converts iron(II) pivalate into soluble complexes of the composition [Fe2(piv)4(py)2] [74] or [Fe2(piv)4(phen)2] (current work), which allows filtration from insoluble potassium sulfate.
Simultaneous thermal analysis (STA), a combination of thermogravimetric analysis (TGA) and differential thermal analysis (DTA), was performed for 1 and 2 on a synchronous thermal analyzer DTG–60 (Shimadzu, Kyoto, Japan) in an argon flow (100 mL/min) at a speed of 10 °C/min in the range of 23–500 °C. The measurements were carried out in Al crucibles with a hole. The mass of the samples was 4.18–4.60 mg.
IR spectra of the compounds were recorded in the range of 400–4000 cm–1 on a Perkin Elmer Spectrum 65 spectrophotometer (Waltham, MA, USA) equipped with a Quest ATR Accessory (Specac, Orpington, UK) using the attenuated total internal reflection (ATR) method. Elemental analysis was performed on an automatic CHNS analyzer “EuroEA–3000” (EuroVektor, Pavia, Italy).
X-ray powder diffraction analysis of samples 1 and 2 was carried out on a Bruker D8 Advance diffractometer (Bruker AXS, Madison, WI, USA) (step: 0.02° 2θ; interval: 5–50° 2θ) (CuKα, λ = 1.54060 Å, Ni filter, LYNXEYE detector, reflection geometry) at 20 °C. Comparisons of experimental and theoretical diffraction patterns, as well as modeling of the calculated curve, were carried out in the TOPAS 4 software program package using structures of the compounds, obtained from low-temperature single-crystal diffraction data.
X-ray structural analysis of single crystals of the studied compounds was carried out on a Bruker D8 Venture automatic diffractometer (CCD detector, MoKα/CuKα, graphite monochromator) (Bruker AXS, Madison, WI, USA). A semi-empirical correction for absorption was used [75]. The structure was solved by the direct and Fourier methods and refined in the full-matrix anisotropic approximation for all non-hydrogen atoms. Hydrogen atoms at carbon atoms of organic ligands are generated geometrically and refined in the “rider” model. Calculations were carried out using the SHELXL 2018/3 software package [76] using the OLEX2 software package [77]. The structure of 1 was refined, taking into account the disorder of the tert-butyl group. The structure of 2 was refined, taking into account the disorder of tert-butyl groups and 1,6-diaminohexane using standard constraints (ISOR, DFIX, RIGU, EADP). The structure of 3 was solved, taking into account twinning (twin -1 0 0 0 -1 0 0 0 -1, Flack parameter is 0.113(18)). Crystallographic parameters and structure refinement details are given in Table 4. Atomic coordinates, thermal parameter values, and a list of all reflections are deposited in the Cambridge Structural Data Bank (CCDC 2336889–2336891 for 1–3, respectively) and can be obtained upon request to [email protected] or http://www.ccdc.cam.ac.uk/structures (accessed on 4 March 2024).

3.2. Synthesis of [Fe2(piv)4(Phen)2] (1)

To the iron(II) pivalate prepared in situ from FeSO4∙7H2O (0.278 g, 1.0 mmol) and Kpiv (0.280 g, 2.0 mmol), 10 mL of acetonitrile was condensed and added 1,10–phenanthroline monohydrate (0.198 g, 1 mmol). The red–colored reaction mixture was filtered to remove potassium sulfate. The filtrate was sealed in a glass ampoule, heated in an oil bath at a temperature of 120 °C for 10 h (caution! high pressure), further cooling to room temperature led to the formation of blue–green crystals. The yield of 1 is 0.341 g (78%). The structure of the complex was determined with single crystal X-ray diffraction analysis. The phase purity of sample 1 was determined by X-ray powder diffraction analysis. Calc. for C44H52Fe2N4O8 (%): C, 60.29; H, 5.98; N, 6.39. Found (%): C, 60.25; H, 5.91; N, 6.24. IR (ATR, ν, cm–1): 3060 w, 3017 w, 2951 m, 2901 w, 2863 w, 1579 m, 1536 w, 1478 m, 1413 vs, 1356 m, 1222 s, 1144 w, 1102 w, 1032 w, 985 w, 940 w, 890 m, 848 m, 790 m, 722 m, 635 w, 601 m, 556 w, 535 w, 504 w, 477 w.

3.3. Synthesis of [Fe3O(piv)6(dahx)1.5]n (2)

A solution of 1,6–diaminohexane (0.130 g, 1.12 mmol) in 2 mL of anhydrous MeCN was added to 1 mmol of complex 1 prepared in situ in 10 mL of acetonitrile. The reaction mixture was sealed in a glass ampoule and heated in an oil bath at 100 °C for 5 h until a solution was formed (caution! high pressure). Cooling to room temperature (24 °C) led to the formation of red crystals of 2 (0.122 g, the yield is 38% per 1 mmol of 1) and white crystals of (H2dahx)(piv)2 (3). Separation of 2 and 3 was carried out by multiple decantation. The structure of the compounds was determined by single-crystal X-ray diffraction analysis. The phase purity of sample 2 was determined by X-ray powder diffraction analysis. Calc. for C39H78Fe3N3O13 (%): C, 48.56; H, 8.15; N, 4.36. Found (%): C, 48.03; H, 8.24; N, 4.21.
IR of 2 (ATR, ν, cm–1): 3370 w, 3263 w, 3134 w, 2958 m, 2924 w, 2861 w, 1690 w, 1596 m, 1550 w, 1480 m, 1413 s, 1357 m, 1221 m, 1002 m, 890 m, 788 w, 709 w, 661 w, 597 s, 524 w, 417 vs.
IR of 3 (ATR, ν, cm–1): 2948 m, 2861 w, 2656 w, 2574 w, 2173 w, 1630 m, 1525 vs, 1482 s, 1402 s, 1357 s, 1325 w, 1219 s, 1154 w, 1089 w, 1001 w, 882 m, 838 w, 792 m, 728 w, 590 m, 532 s, 433 w.

4. Conclusions

Thus, a new 1D polymer 2 based on the triangular oxo-carboxylate moiety of {Fe3O(O2CR)6} and aliphatic 1,6-diaminohexane was prepared. The resulting 1D polymer 2 has a corrugated tape topology in which two polymer chains {Fe3(μ3-O)(piv)6(dahx)}n are linked by bridging diamine molecules. In fact, obtaining this complex is determined by chance. Currently, our attempts to isolate the reaction product of iron(II) pivalate and 1,6-diaminohexane have been confronted with difficulties to isolate the product from a mixture of different polycrystals. The use of the new complex 1 as a starting reagent that is soluble in acetonitrile did not lead to the isolation of a polymer product, which contains carboxylate anions, 1,10-phenatroline and 1,6-diaminohexane, but, as we assume, traces of atmospheric oxygen led to the rearrangement of the dimer iron(II) into a oxo-carboxylate fragment {Fe3(μ3-O)(piv)6} and iron complex(es) with 1,10-phenanthroline. Note that we were previously unable to isolate such a complex from iron(III) oxo-carboxylates due to the presence of oxygen-containing ligands in the coordination environment of oxophilic metal atoms, but this became possible against the background of their deficiency in the reaction mixture. This unpredictable result showed that the production of iron complexes based on oxo-carboxylate fragments and polyamines is possible through the synthesis of ferrous iron complexes and the generation of {Fe3O(O2CR)6} under conditions of deficiency of O-containing ligands.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/molecules29092125/s1: Figures S1–S3: IR spectra of compounds 1–3; Figure S4: Graphical information of the synthetic procedure to obtain compound [Fe2(piv)4(phen)2] 1; Figure S5: Graphical information of the synthetic procedure to obtain compound [Fe3O(piv)6(dahx)1.5]n (2) and 3; Figure S6: Comparison of experimental (A, black line, 26 March 2024; B, blue line, 12 January 2024) and theoretical (C, red line) diffraction patterns for sample 1; Figure S7: Comparison of experiments for sample 2 over time in air atmosphere (blue line (B)—after 40 min in air; black line (A)—after 13 h in air) and theoretical diffraction patterns for 2 (red line (C)) and 3 (pink line (D)); Figure S8: Comparison of experimental for sample 2 over time in air atmosphere (blue line (B)—after 40 min in air; black line (A)—after 2 months in air) and theoretical diffraction patterns for 2 (red line (C)) and 3 (pink line (D)).

Author Contributions

Design of the study: D.S.Y. and V.A.B. synthesized tested compounds. Manuscript writing, review and editing: D.S.Y., M.A.K., S.A.N. and S.V.N.: Mössbauer spectroscopy. X-ray analysis: M.A.K. and N.V.G. Funding acquisition: I.L.E., D.S.Y. and N.V.G.: thermal analysis. All authors have read and agreed to the published version of the manuscript.

Funding

This research was financially supported by the Russian Science Foundation (project 23-73-01079).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The structure parameters of the obtained compound were deposited into the Cambridge Structural Database (CCDC Nos. 2336889 (1), 2336890 (2), 2336891 (3)) [email protected] or http://www.ccdc.cam.ac.uk/data_request/cif (accessed on 4 March 2024).

Acknowledgments

This work was partially performed using the equipment of the Joint Research Centre of the Kurnakov Institute of General and Inorganic Chemistry of the Russian Academy of Science. The authors express their gratitude to P.V. Prikhodchenko for the opportunity to perform thermal analysis.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Agafonov, M.A.; Alexandrov, E.V.; Artyukhova, N.A.; Bekmukhamedov, G.E.; Blatov, V.A.; Butova, V.V.; Gayfulin, Y.M.; Garibyan, A.A.; Gafurov, Z.N.; Gorbunova, Y.G.; et al. Metal-Organic Frameworks in Russia: From the Synthesis and Structure to Functional Properties and Materials. J. Struct. Chem. 2022, 63, 671–843. [Google Scholar] [CrossRef]
  2. Dulcevscaia, G.M.; Filippova, I.G.; Speldrich, M.; van Leusen, J.; Kravtsov, V.C.; Baca, S.G.; Kögerler, P.; Liu, S.-X.; Decurtins, S. Cluster-Based Networks: 1D and 2D Coordination Polymers Based on {MnFe2(Μ3-O)}-Type Clusters. Inorg. Chem. 2012, 51, 5110–5117. [Google Scholar] [CrossRef] [PubMed]
  3. Lytvynenko, A.S.; Kolotilov, S.V.; Kiskin, M.A.; Cador, O.; Golhen, S.; Aleksandrov, G.G.; Mishura, A.M.; Titov, V.E.; Ouahab, L.; Eremenko, I.L.; et al. Redox-Active Porous Coordination Polymers Prepared by Trinuclear Heterometallic Pivalate Linking with the Redox-Active Nickel(II) Complex: Synthesis, Structure, Magnetic and Redox Properties, and Electrocatalytic Activity in Organic Compound Dehalogenatio. Inorg. Chem. 2014, 53, 4970–4979. [Google Scholar] [CrossRef]
  4. Polunin, R.A.; Kolotilov, S.V.; Kiskin, M.A.; Cador, O.; Golhen, S.; Shvets, O.V.; Ouahab, L.; Dobrokhotova, Z.V.; Ovcharenko, V.I.; Eremenko, I.L.; et al. V Structural Flexibility and Sorption Properties of 2D Porous Coordination Polymers Constructed from Trinuclear Heterometallic Pivalates and 4,4′-Bipyridine. Eur. J. Inorg. Chem. 2011, 2011, 4985–4992. [Google Scholar] [CrossRef]
  5. Petrov, P.A.; Nikolaevskii, S.A.; Yambulatov, D.S.; Starikova, A.A.; Sukhikh, T.S.; Kiskin, M.A.; Sokolov, M.N.; Eremenko, I.L. Heteroleptic Anionic Cobalt(II) Pivalate Complex with a Bridging Trimethylsiloxy Ligand: Synthesis, Structure, and Formation Mechanism. Russ. J. Inorg. Chem. 2023, 68, 1255–1264. [Google Scholar] [CrossRef]
  6. Voronina, J.K.; Gavronova, A.S.; Yambulatov, D.S.; Nikolaevskii, S.A.; Kiskin, M.A.; Eremenko, I.L. Reactivity of 1,4-Diaza-1,3-Butadienes towards Cu(II) Pivalate: A Rare Case of Polymeric Structure Formed by Bridging Diazabutadiene Ligands. Russ. J. Coord. Chem. 2022, 48, 916–923. [Google Scholar] [CrossRef]
  7. Adonin, S.A.; Novikov, A.S.; Smirnova, Y.K.; Tushakova, Z.R.; Fedin, V.P. Heteroligand Cu(II) Complexes with 2-Halogenopyridines: Crystal Structure and Features of Halogen⋯Halogen Contacts in the Solid State. J. Struct. Chem. 2020, 61, 712–718. [Google Scholar] [CrossRef]
  8. Adonin, S.A.; Usoltsev, A.N.; Novikov, A.S.; Kolesov, B.A.; Fedin, V.P.; Sokolov, M.N. One- and Two-Dimensional Iodine-Rich Iodobismuthate(III) Complexes: Structure, Optical Properties, and Features of Halogen Bonding in the Solid State. Inorg. Chem. 2020, 59, 3290–3296. [Google Scholar] [CrossRef] [PubMed]
  9. Li, M.; Zhang, Z.; Yu, Y.; Yuan, H.; Nezamzadeh-Ejhieh, A.; Liu, J.; Pan, Y.; Lan, Q. Recent Advances in Zn-MOFs and Their Derivatives for Cancer Therapeutic Applications. Mater. Adv. 2023, 4, 5050–5093. [Google Scholar] [CrossRef]
  10. Zhao, J.; Dang, Z.; Muddassir, M.; Raza, S.; Zhong, A.; Wang, X.; Jin, J. A New Cd(II)-Based Coordination Polymer for Efficient Photocatalytic Removal of Organic Dyes. Molecules 2023, 28, 6848. [Google Scholar] [CrossRef]
  11. Yang, S.; Zhang, S.; Hu, F.; Han, J.; Li, F. Circularly Polarized Luminescence Polymers: From Design to Applications. Coord. Chem. Rev. 2023, 485, 215116. [Google Scholar] [CrossRef]
  12. Liu, J.-Q.; Luo, Z.-D.; Pan, Y.; Kumar Singh, A.; Trivedi, M.; Kumar, A. Recent Developments in Luminescent Coordination Polymers: Designing Strategies, Sensing Application and Theoretical Evidences. Coord. Chem. Rev. 2020, 406, 213145. [Google Scholar] [CrossRef]
  13. Demakov, P.A.; Ryadun, A.A.; Fedin, V.P. Zn(II) Coordination Polymer with π-Stacked 4,4′-Bipyridine Dimers: Synthesis, Structure and Luminescent Properties. Polyhedron 2022, 219, 115793. [Google Scholar] [CrossRef]
  14. Demakov, P.A.; Ryadun, A.A.; Dorovatovskii, P.V.; Lazarenko, V.A.; Samsonenko, D.G.; Brylev, K.A.; Fedin, V.P.; Dybtsev, D.N. Intense Multi-Colored Luminescence in a Series of Rare-Earth Metal–Organic Frameworks with Aliphatic Linkers. Dalton Trans. 2021, 50, 11899–11908. [Google Scholar] [CrossRef] [PubMed]
  15. Emerson, A.J.; Chahine, A.; Batten, S.R.; Turner, D.R. Synthetic Approaches for the Incorporation of Free Amine Functionalities in Porous Coordination Polymers for Enhanced CO2 Sorption. Coord. Chem. Rev. 2018, 365, 1–22. [Google Scholar] [CrossRef]
  16. Agarwal, R.A.; Gupta, N.K. CO2 Sorption Behavior of Imidazole, Benzimidazole and Benzoic Acid Based Coordination Polymers. Coord. Chem. Rev. 2017, 332, 100–121. [Google Scholar] [CrossRef]
  17. Zaguzin, A.S.; Mahmoudi, G.; Sukhikh, T.S.; Sakhapov, I.F.; Zherebtsov, D.A.; Zubkov, F.I.; Valchuk, K.S.; Sokolov, M.N.; Fedin, V.P.; Adonin, S.A. 2D and 3D Zn(II) Coordination Polymers Based on 4′-(Thiophen-2-Yl)-4,2′:6′,4′’-Terpyridine: Structures and Features of Sorption Behavior. J. Mol. Struct. 2022, 1255, 132459. [Google Scholar] [CrossRef]
  18. Zaguzin, A.S.; Sukhikh, T.; Sokolov, M.N.; Fedin, V.P.; Adonin, S.A. Zn(II) Three-Dimensional Metal-Organic Frameworks Based on 2,5-Diiodoterephthalate and N,N Linkers: Structures and Features of Sorption Behavior. Inorganics 2023, 11, 192. [Google Scholar] [CrossRef]
  19. Yambulatov, D.S.; Voronina, J.K.; Goloveshkin, A.S.; Svetogorov, R.D.; Veber, S.L.; Efimov, N.N.; Matyukhina, A.K.; Nikolaevskii, S.A.; Eremenko, I.L.; Kiskin, M.A. Change in the Electronic Structure of the Cobalt(II) Ion in a One-Dimensional Polymer with Flexible Linkers Induced by a Structural Phase Transition. Int. J. Mol. Sci. 2023, 24, 215. [Google Scholar] [CrossRef]
  20. Bazyakina, N.L.; Makarov, V.M.; Ketkov, S.Y.; Bogomyakov, A.S.; Rumyantcev, R.V.; Ovcharenko, V.I.; Fedushkin, I.L. Metal–Organic Frameworks Derived from Calcium and Strontium Complexes of a Redox-Active Ligand. Inorg. Chem. 2021, 60, 3238–3248. [Google Scholar] [CrossRef]
  21. Alborés, P.; Rentschler, E. Structural and Magnetic Characterization of a μ-1,5-Dicyanamide-Bridged Iron Basic Carboxylate [Fe3O(O2C(CH3)3)6] 1D Chain. Inorg. Chem. 2008, 47, 7960–7962. [Google Scholar] [CrossRef] [PubMed]
  22. Li, D.; Liu, Y.; Xiang, R.; Li, Y.; Qin, T.; Dong, X.Y.; Sakiyama, H.; Muddassir, M.; Liu, J. Synthesis, Structure, and Investigation of Unique Magnetic Properties in Two Novel Mn-Based Coordination Polymers. CrystEngComm 2023, 25, 6777–6785. [Google Scholar] [CrossRef]
  23. Zhang, G.; Cheng, J.; Davis, K.; Bonifacio, M.G.; Zajaczkowski, C. Practical and Selective Hydroboration of Aldehydes and Ketones in Air Catalysed by an Iron(II) Coordination Polymer. Green Chem. 2019, 21, 1114–1121. [Google Scholar] [CrossRef]
  24. Zhao, N.; Li, Y.; Gu, J.; Kirillova, M.V.; Kirillov, A.M. Synthesis, Structural Features, and Catalytic Activity of an Iron(II) 3D Coordination Polymer Driven by an Ether-Bridged Pyridine-Dicarboxylate. Crystals 2019, 9, 369. [Google Scholar] [CrossRef]
  25. Wu, Q.; Han, Y.; Shao, Z.; Li, J.; Hou, H. Stable Fe(II)-Based Coordination Polymers: Synthesis, Structural Diversity and Catalytic Applications in Homo-Coupling Reactions. Dalton Trans. 2018, 47, 8063–8069. [Google Scholar] [CrossRef] [PubMed]
  26. Scheins, S.; Overgaard, J.; Timco, G.A.; Stash, A.; Chen, Y.-S.; Larsen, F.K.; Christensen, M.; Jørgensen, M.R.V.; Madsen, S.R.; Schmøkel, M.S.; et al. Pressure versus Temperature Effects on Intramolecular Electron Transfer in Mixed-Valence Complexes. Chem.-A Eur. J. 2013, 19, 195–205. [Google Scholar] [CrossRef] [PubMed]
  27. Wu, R.; Poyraz, M.; Sowrey, F.E.; Anson, C.E.; Wocadlo, S.; Powell, A.K.; Jayasooriya, U.A.; Cannon, R.D.; Nakamoto, T.; Katada, M.; et al. Electron Localization and Delocalization in Mixed-Valence Transition Metal Clusters: Structural and Spectroscopic Studies of Oxo-Centered Trinuclear Complexes [Fe3O(OOCCMe3)6(Py)3]+/0 and [Mn3O(OOCCMe3)6(Py)3]+/0. Inorg. Chem. 1998, 37, 1913–1921. [Google Scholar] [CrossRef]
  28. Lim, A.R.; Kim, A.Y. Structural Geometry and Molecular Dynamics of Hybrid Organic–Inorganic [NH3(CH2)6NH3]CdCl4 Crystals Close to Phase Transition Temperatures. J. Mol. Struct. 2023, 1279, 134993. [Google Scholar] [CrossRef]
  29. Sakata, Y.; Okada, M.; Akine, S. Guest Recognition Control Accompanied by Stepwise Gate Closing and Opening of a Macrocyclic Metallohost. Chem.-A Eur. J. 2021, 27, 2284–2288. [Google Scholar] [CrossRef]
  30. Yeşilel, O.Z.; Karamahmut, B.; Semerci, F.; Darcan, C.; Yılmaz, F. A Series of Silver(I) Coordination Polymers with Saccarinate and Flexible Aliphatic Diamines. J. Solid State Chem. 2017, 249, 174–188. [Google Scholar] [CrossRef]
  31. Long, Z.; Wei, L.; Shuang, L.; Jifei, W.; Huanlei, W.; Jiaxin, C. Fe3O4 Nanoplates/Carbon Network Synthesized by in Situ Pyrolysis of an Organic-Inorganic Layered Hybrid as a High-Performance Lithium-Ion Battery Anode. J. Mater. Chem. A 2015, 3, 14210–14216. [Google Scholar] [CrossRef]
  32. Pladzyk, A.; Baranowska, K. Mono- and Polynuclear Co(II) Silanethiolates with Aliphatic Diamines. J. Mol. Struct. 2014, 1058, 252–258. [Google Scholar] [CrossRef]
  33. Pladzyk, A.; Baranowska, K.; Dziubińska, K.; Ponikiewski, Ł. One Dimensional Coordination Polymers Generated from Cd(II) Tri-Tert-Butoxysilanethiolates and Flexible Aliphatic Diamines. Polyhedron 2013, 50, 121–130. [Google Scholar] [CrossRef]
  34. Harrison, W.T.A.; Currie, W.R. 1,5-Diaminopentane As A Structure-Directing Agent for Zincophosphate Networks: Zn3(PO4)2(C5H14N2)2·3H2O and C5H16N2·Zn3(PO4)2(HPO4)·H2O. Crystals 2012, 2, 974–983. [Google Scholar] [CrossRef]
  35. Li, J.; Bi, W.; Ki, W.; Huang, X.; Reddy, S. Nanostructured Crystals: Unique Hybrid Semiconductors Exhibiting Nearly Zero and Tunable Uniaxial Thermal Expansion Behavior. J. Am. Chem. Soc. 2007, 129, 14140–14141. [Google Scholar] [CrossRef]
  36. Behera, J.N.; Rao, C.N.R. Coordination Polymers with Co(II) Sulfate Layers Linked by Alkanediamines of Varying Chain Length. Can. J. Chem. 2005, 83, 668–673. [Google Scholar] [CrossRef]
  37. Ren, C.-X.; Zhu, H.-L.; Yang, G.; Chen, X.-M. Syntheses and Crystal Structures of Five Two-Dimensional Networks Constructed from Staircase-like Silver(I) Thiocyanate Chains and Bridging Polyamines. J. Chem. Soc. Dalt. Trans. 2001, 85–90. [Google Scholar] [CrossRef]
  38. Criado, J.J.; Jiménez-Sánchez, A.; Cano, F.H.; Sáez-Puche, R.; Rodríguez-Fernández, E. Preparation and Characterization of Tetrachlorocobaltates(II) of α,ω-Alkylenediammonium. Magnetic and Thermal Properties. Crystal Structure of [NH3(CH2)5NH3]CoCl4. Acta Crystallogr. Sect. B Struct. Sci. 1999, 55, 947–952. [Google Scholar] [CrossRef]
  39. Garland, J.K.; Emerson, K.; Pressprich, M.R. Structures of Four- and Five-Carbon Alkyldiammonium Tetrachlorocuprate(II) and Tetrabromocuprate(II) Salts. Acta Crystallogr. Sect. C 1990, 46, 1603–1609. [Google Scholar] [CrossRef]
  40. Bañares, M.A.; Angoso, A.; Rodriguez, E. Preparation and Characterization of Tetrachlorocobaltates of α,ω-Alkanediammonium. Polyhedron 1984, 3, 363–364. [Google Scholar] [CrossRef]
  41. Rao, C.N.R.; Sampathkumaran, E.V.; Nagarajan, R.; Paul, G.; Behera, J.N.; Choudhury, A. Synthesis, Structure, and the Unusual Magnetic Properties of an Amine-Templated Iron(II) Sulfate Possessing the Kagomé Lattice. Chem. Mater. 2004, 16, 1441–1446. [Google Scholar] [CrossRef]
  42. Needham, G.F.; Willett, R.D.; Franzen, H.F. Phase Transitions in Crystalline Models of Bilayers. 1. Differential Scanning Calorimetric and X-ray Studies of (C12H25NH3)2MCl4 and (NH3C14H29NH3)2MCl4 Salts (M = Mn2+, Cd2+, Cu2+). J. Phys. Chem. 1984, 88, 674–680. [Google Scholar] [CrossRef]
  43. Curtius, T.; Curtius, T.; Clemm, H. Hydrazide Und Azide Organischer Säuren; XVII. Abhandlung. Synthese Des 1, 3-Diaminopropans Und 1, 6-Diaminohexans Aus Glutarsäure Resp. Korksäure. J. für Prakt. Chemie 1900, 62, 189–211. [Google Scholar] [CrossRef]
  44. Smiley, R.A. Hexamethylenediamine. In Ullmann’s Encyclopedia of Industrial Chemistry; Wiley: Hoboken, NJ, USA, 2000; ISBN 9783527306732. [Google Scholar]
  45. Mandal, A.; Gupta, S.; Dutta, S.; Pati, S.K.; Bhattacharyya, S. Transition from Dion-Jacobson Hybrid Layered Double Perovskites to 1D Perovskites for Ultraviolet to Visible Photodetection. Chem. Sci. 2023, 14, 9770–9779. [Google Scholar] [CrossRef]
  46. Lee, C.F.; Leigh, D.A.; Pritchard, R.G.; Schultz, D.; Teat, S.J.; Timco, G.A.; Winpenny, R.E.P. Hybrid Organic-Inorganic Rotaxanes and Molecular Shuttles. Nature 2009, 458, 314–318. [Google Scholar] [CrossRef]
  47. Zhang, H.-Y.; Wei, Z.; Li, P.-F.; Tang, Y.-Y.; Liao, W.-Q.; Ye, H.-Y.; Cai, H.; Xiong, R.-G. The Narrowest Band Gap Ever Observed in Molecular Ferroelectrics: Hexane-1,6-Diammonium Pentaiodobismuth(III). Angew. Chemie Int. Ed. 2018, 57, 526–530. [Google Scholar] [CrossRef]
  48. Yang, L.; Xuan, W.; Webster, D.; Jagadamma, L.K.; Li, T.; Miller, D.N.; Cordes, D.B.; Slawin, A.M.Z.; Turnbull, G.A.; Samuel, I.D.W.; et al. Manipulation of the Structure and Optoelectronic Properties through Bromine Inclusion in a Layered Lead Bromide Perovskite. Chem. Mater. 2023, 35, 3801–3814. [Google Scholar] [CrossRef] [PubMed]
  49. Bujoli-Doeuff, M.; Dessapt, R.; Deniard, P.; Jobic, S. New Hybrid Layered Molybdates Based on 2/∞[MonO3n+1]2– Units (n = 7, 9) with Systematic Organic–Inorganic Interfaces. Inorg. Chem. 2012, 51, 142–149. [Google Scholar] [CrossRef]
  50. Wu, J.; Pu, Y.-Y.; Zhao, X.-W.; Qian, L.-W.; Bian, G.-Q.; Zhu, Q.-Y.; Dai, J. Photo-Electroactive Ternary Chalcogenido-Indate-Stannates with a Unique 2-D Porous Structure. Dalton Trans. 2015, 44, 4520–4525. [Google Scholar] [CrossRef]
  51. Lim, A.R.; Ju, H. Organic–Inorganic Hybrid [NH3(CH2)6NH3]ZnBr4 Crystal: Structural Characterization, Phase Transitions, Thermal Properties, and Structural Dynamics. RSC Adv. 2022, 12, 28720–28727. [Google Scholar] [CrossRef]
  52. Chen, C.-A.; Pan, R.; Li, X.-Y.; Qin, D.; Yang, G.-Y. Four Inorganic–Organic Hybrid Borates: From 2D Layers to 3D Oxoboron Cluster Organic Frameworks. Inorg. Chem. 2021, 60, 18283–18290. [Google Scholar] [CrossRef] [PubMed]
  53. Dreos, R.; Randaccio, L.; Siega, P.; Tavagnacco, C.; Zangrando, E. Guest Driven Self-Assembly of a Rectangular Box from Methylaquacobaloxime and 4,4′-Biphenyldiboronic Acid. Inorganica Chim. Acta 2010, 363, 2113–2124. [Google Scholar] [CrossRef]
  54. Yuge, H.; Nishikiori, S.-I.; Iwamoto, T. Double and Triple Interpenetrations of the Three-Dimensional Frameworks [Cd(Mea)(Daptn){Ni(CN)4}] and [Cd(Mea)(Dahxn){Ni(CN)4}].H2O (Mea = 2-Aminoethanol, Daptn = 1,5-Diaminopentane, Dahxn = 1,6-Diaminohexane). Acta Crystallogr. Sect. C 1996, 52, 575–578. [Google Scholar] [CrossRef]
  55. Nikolaevskii, S.A.; Petrov, P.A.; Sukhikh, T.S.; Yambulatov, D.S.; Kiskin, M.A.; Sokolov, M.N.; Eremenko, I.L. Simple Synthetic Protocol to Obtain 3d-4f-Heterometallic Carboxylate Complexes of N-Heterocyclic Carbenes. Inorganica Chim. Acta 2020, 508, 119643. [Google Scholar] [CrossRef]
  56. Nikolaevskii, S.A.; Yambulatov, D.S.; Voronina, J.K.; Melnikov, S.N.; Babeshkin, K.A.; Efimov, N.N.; Goloveshkin, A.S.; Kiskin, M.A.; Sidorov, A.A.; Eremenko, I.L. The First Example of 3 D-4 f-Heterometallic Carboxylate Complex Containing Phosphine Ligand. ChemistrySelect 2020, 5, 12829–12834. [Google Scholar] [CrossRef]
  57. Meffre, A.; Lachaize, S.; Gatel, C.; Respaud, M.; Chaudret, B. Use of Long Chain Amine as a Reducing Agent for the Synthesis of High Quality Monodisperse Iron(0) Nanoparticles. J. Mater. Chem. 2011, 21, 13464–13469. [Google Scholar] [CrossRef]
  58. Stewart, J.E. Vibrational Spectra of Primary and Secondary Aliphatic Amines. J. Chem. Phys. 1959, 30, 1259–1265. [Google Scholar] [CrossRef]
  59. Baran, E.J.; Piro, O.E.; Zinczuk, J. A New Supramolecular Assembly Obtained by Reaction Between Thiosaccharin and Hexamethylenediamine. Zeitschrift für Naturforsch. B 2007, 62, 1530–1534. [Google Scholar] [CrossRef]
  60. Boudalis, A.K.; Sanakis, Y.; Raptopoulou, C.P.; Psycharis, V.; Terzis, A. Further Investigations on the Fe(ClO4)3/RCO2-/Phen Reaction System: Syntheses, Structural and Physical Characterization of Complexes [Fe2O(O2CCCl3)2(Phen)2(H2O)2](ClO4)2 and [Fe2O(O2CCMe3)2(Phen)2(H2O)2](ClO4)2. Polyhedron 2006, 25, 1391–1398. [Google Scholar] [CrossRef]
  61. Alborés, P.; Rentschler, E. Rational Design of Covalently Bridged [FeIII2MIIO] Clusters. Dalton Trans. 2010, 39, 5005–5019. [Google Scholar] [CrossRef]
  62. Novitchi, G.; Helm, L.; Anson, C.; Powell, A.K.; Merbach, A.E. NMR Study of Ligand Exchange and Electron Self-Exchange between Oxo-Centered Trinuclear Clusters [Fe3(μ 3-O)(μ-O2CR)6(4-R′py)3]+/0. Inorg. Chem. 2011, 50, 10402–10416. [Google Scholar] [CrossRef] [PubMed]
  63. Georgopoulou, A.N.; Sanakis, Y.; Psycharis, V.; Raptopoulou, C.P.; Boudalis, A.K. Mössbauer Spectra of Two Extended Series of Basic Iron(III) Carboxylates [Fe3O(O2CR)6(H2O)6]A (A− = ClO4−, NO3−). Hyperfine Interact. 2010, 198, 229–241. [Google Scholar] [CrossRef]
  64. Sato, T.; Ambe, F.; Endo, K.; Katada, M.; Maeda, H.; Nakamoto, T.; Sano, H. Mixed-Valence States of [Fe3O(CH2XCO2)6(H2O)3]·nH2O (X = H, Cl, and Br) Characterized by X-Ray Crystallography and 57Fe-Mössbauer Spectroscopy. J. Am. Chem. Soc. 1996, 118, 3450–3458. [Google Scholar] [CrossRef]
  65. Nakamoto, T.; Katada, M.; Sano, H. Mixed-Valence States of Iron Long-Chain Carboxylate Complexes. Inorganica Chim. Acta 1999, 291, 127–135. [Google Scholar] [CrossRef]
  66. Overgaard, J.; Rentschler, E.; Timco, G.A.; Gerbeleu, N.V.; Arion, V.; Bousseksou, A.; Tuchagues, J.P.; Larsen, F.K. Multi-Temperature X-ray Diffraction, Mössbauer Spectroscopy and Magnetic Susceptibility Studies of a Solvated Mixed-Valence Trinuclear Iron Formate, [Fe3O(HCO2)6(NC5H4CH3)3]·1.3(NC5H4CH3). J. Chem. Soc. Dalt. Trans. 2002, 15, 2981–2986. [Google Scholar] [CrossRef]
  67. Sasaki, T. Alkyl Chain Length-Dependent Dimensionality in Linking of Hydrogen-Bonding Supramolecular Columns. Cryst. Growth Des. 2022, 22, 3326–3332. [Google Scholar] [CrossRef]
  68. Lutsenko, I.A.; Kiskin, M.A.; Nelyubina, Y.V.; Efimov, N.N.; Maksimov, Y.V.; Imshennik, V.K.; Zueva, E.M.; Goloveshkin, A.S.; Khoroshilov, A.V.; Rentschler, E.; et al. Tri- and Tetranuclear Heteropivalate Complexes with Core {Fe2NixO} (X = 1, 2): Synthesis, Structure, Magnetic and Thermal Properties. Polyhedron 2019, 159, 426–435. [Google Scholar] [CrossRef]
  69. Gogoleva, N.V.; Shmelev, M.A.; Evstifeev, I.S.; Nikolaevskii, S.A.; Aleksandrov, G.G.; Kiskin, M.A.; Dobrokhotova, Z.V.; Sidorov, A.A.; Eremenko, I.L. Heterometallic Trinuclear {CdII—MII—CdII} Pivalates (M = Mg, Ca, or Sr): Ways of Assembly and Structural Features. Russ. Chem. Bull. 2016, 65, 181–190. [Google Scholar] [CrossRef]
  70. Adam, A.M.A.; Refat, M.S.; Saad, H.A. Spectral, Thermal, XRD and SEM Studies of Charge-Transfer Complexation of Hexamethylenediamine and Three Types of Acceptors: π-, σ- And Vacant Orbital Acceptors That Include Quinol, Picric Acid, Bromine, Iodine, SnCl4 and ZnCl2 Acceptors. J. Mol. Struct. 2013, 1051, 144–163. [Google Scholar] [CrossRef]
  71. Alhadhrami, A. Competition between Five Different Chelates to Capture of Uranyl Ion: Synthesis, Spectroscopic, Thermal, Surface and Biological Investigations. J. Mol. Liq. 2018, 252, 83–96. [Google Scholar] [CrossRef]
  72. Lutsenko, I.A.; Kiskin, M.A.; Efimov, N.N.; Ugolkova, E.A.; Maksimov, Y.V.; Imshennik, V.K.; Goloveshkin, A.S.; Khoroshilov, A.V.; Lytvynenko, A.S.; Sidorov, A.A.; et al. New Heterometallic Pivalates with FeIII and ZnII Ions: Synthesis, Structures, Magnetic, Thermal Properties. Polyhedron 2017, 137, 165–175. [Google Scholar] [CrossRef]
  73. Kiskin, M.A.; Fomina, I.G.; Aleksandrov, G.G.; Sidorov, A.A.; Novotortsev, V.M.; Shvedenkov, Y.G.; Eremenko, I.L.; Moiseev, I.I. First Triangular Carboxylate Cluster with the Fe(II)Fe(II)Fe(II) Metal Core. Inorg. Chem. Commun. 2004, 7, 734–736. [Google Scholar] [CrossRef]
  74. Randall, C.R.; Shu, L.; Chiou, Y.-M.; Hagen, K.S.; Ito, M.; Kitajima, N.; Lachicotte, R.J.; Zang, Y.; Que, L. X-Ray Absorption Pre-Edge Studies of High-Spin Iron(II) Complexes. Inorg. Chem. 1995, 34, 1036–1039. [Google Scholar] [CrossRef]
  75. Krause, L.; Herbst-Irmer, R.; Sheldrick, G.M.; Stalke, D. Comparison of Silver and Molybdenum Microfocus X-Ray Sources for Single-Crystal Structure Determination. J. Appl. Crystallogr. 2015, 48, 3–10. [Google Scholar] [CrossRef]
  76. Sheldrick, G.M. SHELXL-2018 (2018) Program for Crystal Structure Refinement; University of Göttingen: Göttingen, Germany, 2018. [Google Scholar]
  77. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A Complete Structure Solution, Refinement and Analysis Program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
Molecules 29 02125 sch001

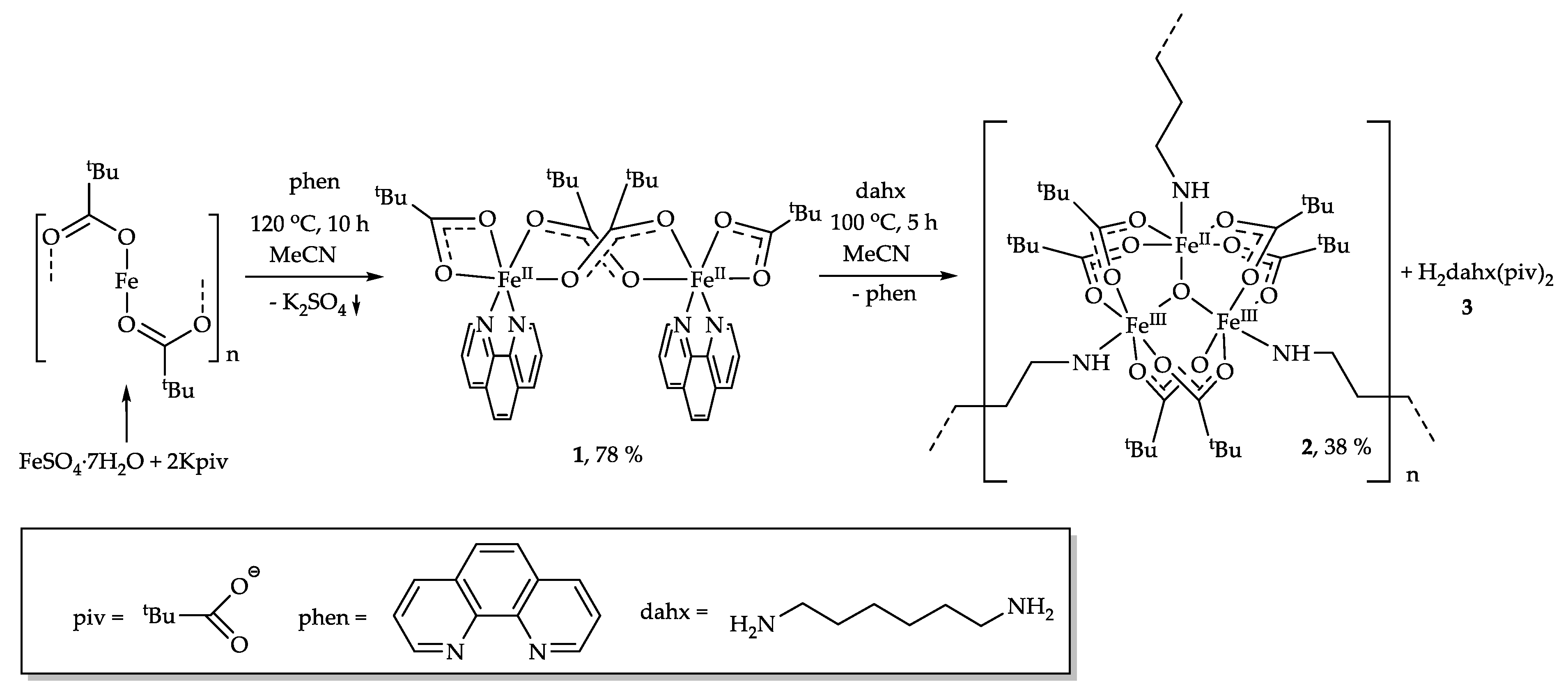

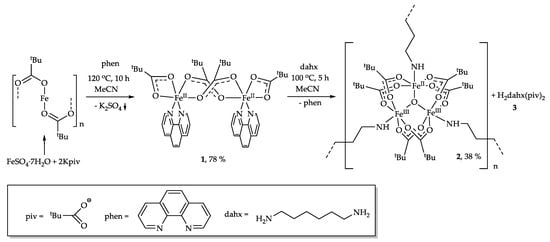

Scheme 1. The formation of complexes 1, 2 and an organic salt 3.
Scheme 1. The formation of complexes 1, 2 and an organic salt 3.
Molecules 29 02125 sch001
Molecules 29 02125 g001aMolecules 29 02125 g001b

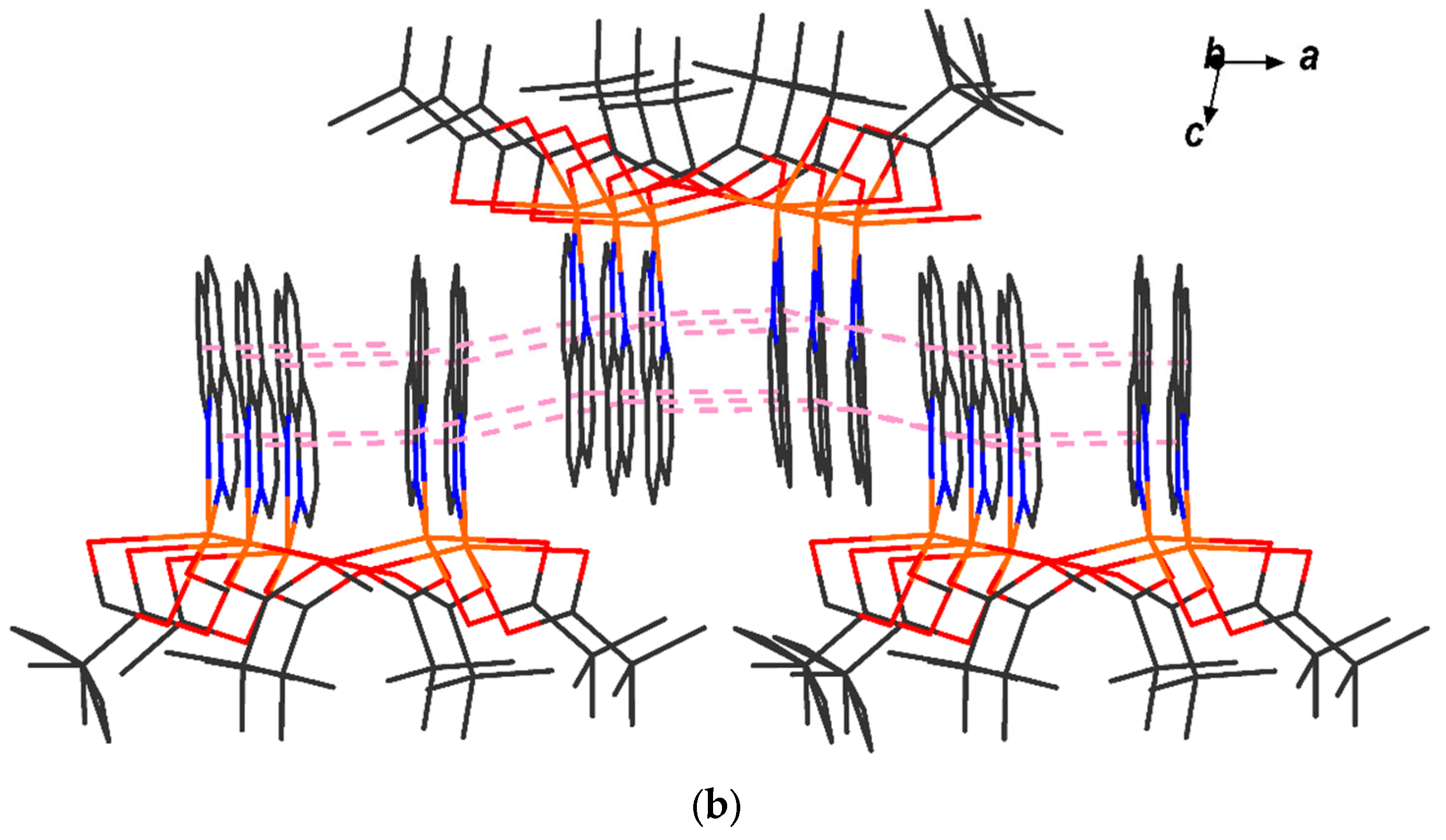

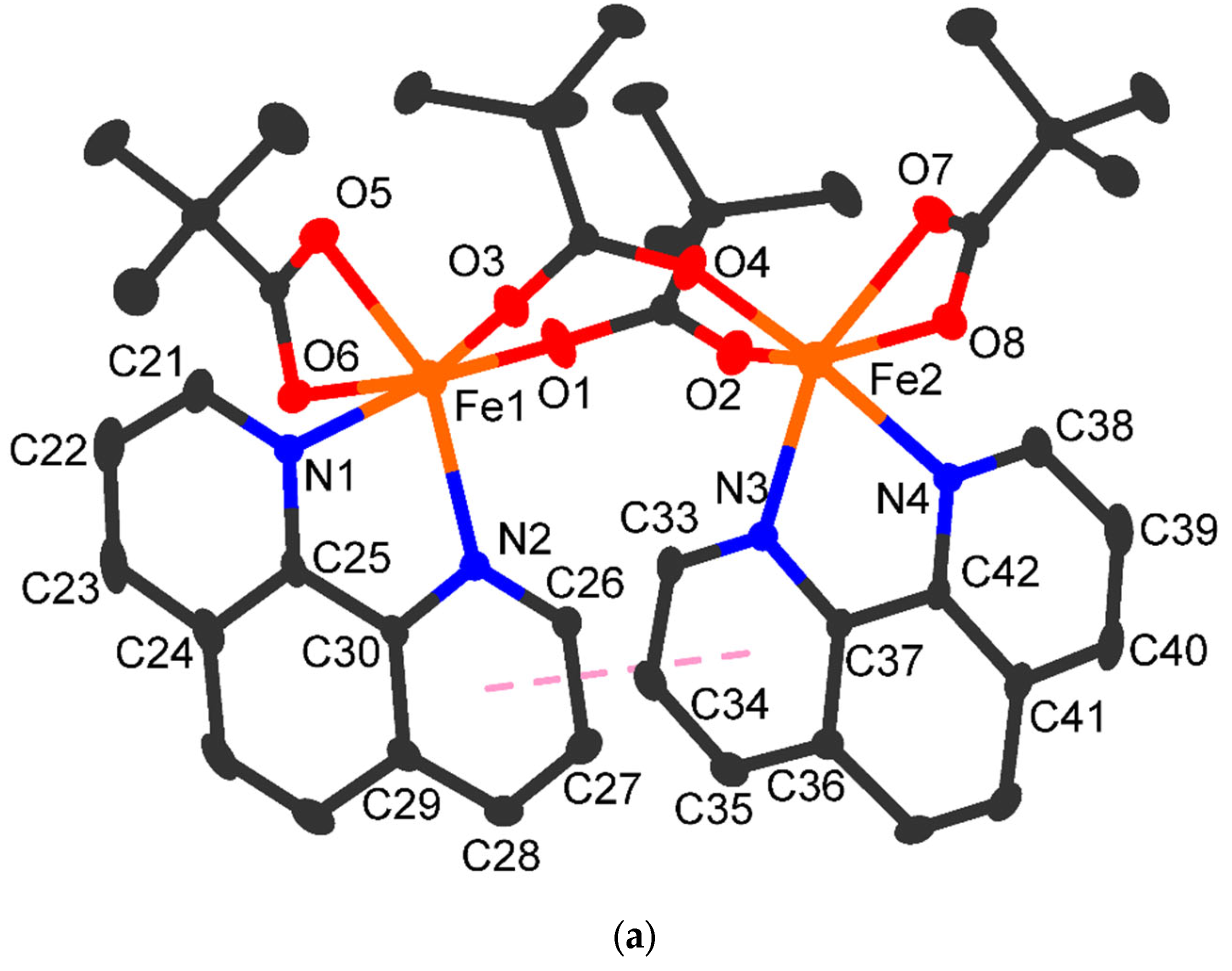

Figure 1. Molecular structure (a) and crystal packing (b) of 1 ((a)—thermal ellipsoids with a probability of 30%; (a,b)—hydrogen atoms are not shown, π–π contacts are indicated by dotted lines between the centroids of the aromatic rings N2C26–C30 and N3C33–C37).
Figure 1. Molecular structure (a) and crystal packing (b) of 1 ((a)—thermal ellipsoids with a probability of 30%; (a,b)—hydrogen atoms are not shown, π–π contacts are indicated by dotted lines between the centroids of the aromatic rings N2C26–C30 and N3C33–C37).
Molecules 29 02125 g001aMolecules 29 02125 g001b
Molecules 29 02125 g002

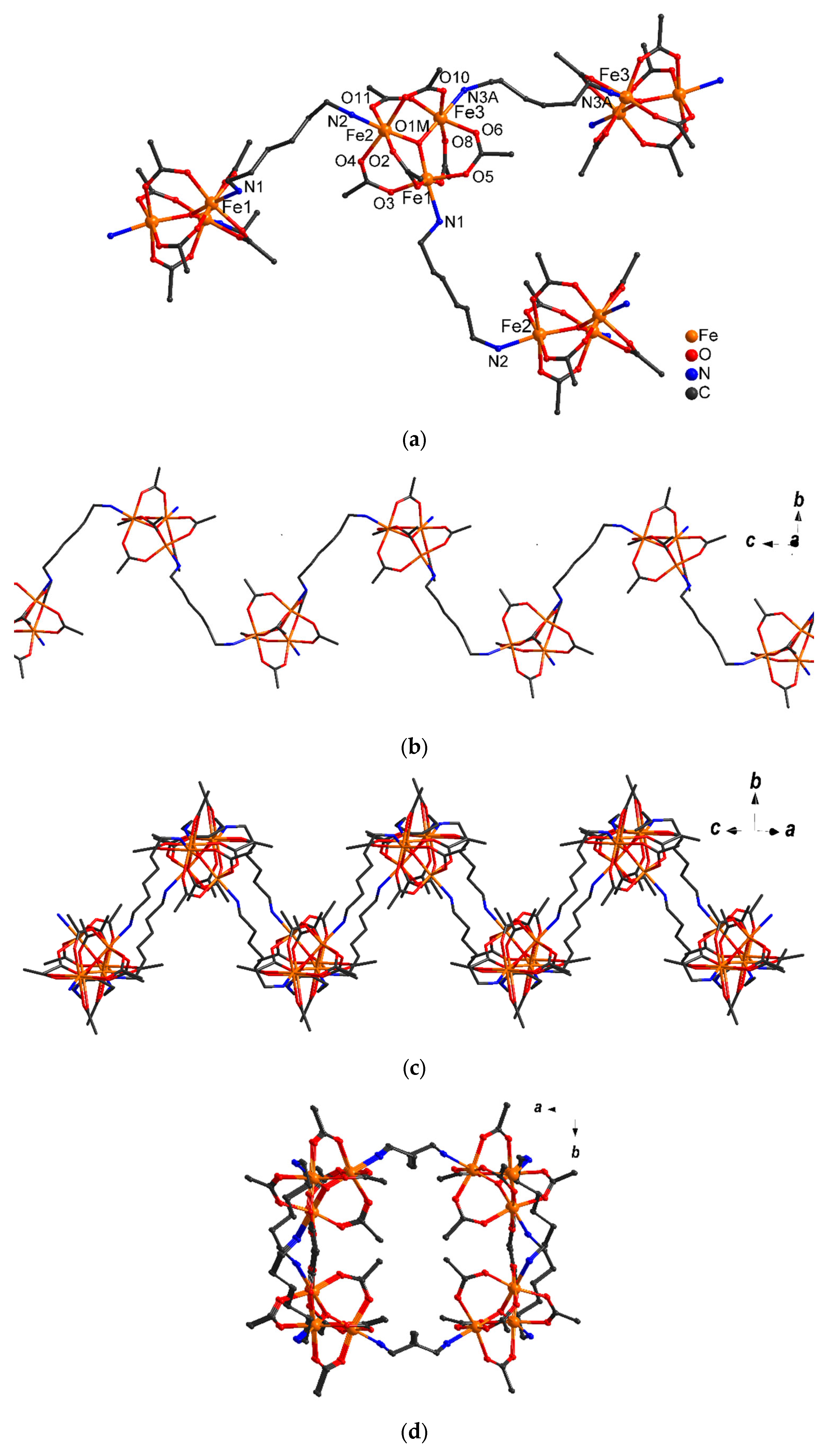

Figure 2. Fragments of 1D polymer structure 2: (a)—binding of triangular fragments {Fe3O(piv)6} by μ-bridging molecules of 1,6-diaminohexane, (b)—fragment of a chain formed by binding {Fe3O(piv)6} through Fe1 and Fe2 atoms along axes 0c, (c)—fragment of corrugated tape, (d)—projection of the tape packing on the 0ab plane (hydrogen atoms and CH3 groups are not shown).
Figure 2. Fragments of 1D polymer structure 2: (a)—binding of triangular fragments {Fe3O(piv)6} by μ-bridging molecules of 1,6-diaminohexane, (b)—fragment of a chain formed by binding {Fe3O(piv)6} through Fe1 and Fe2 atoms along axes 0c, (c)—fragment of corrugated tape, (d)—projection of the tape packing on the 0ab plane (hydrogen atoms and CH3 groups are not shown).
Molecules 29 02125 g002
Molecules 29 02125 g003

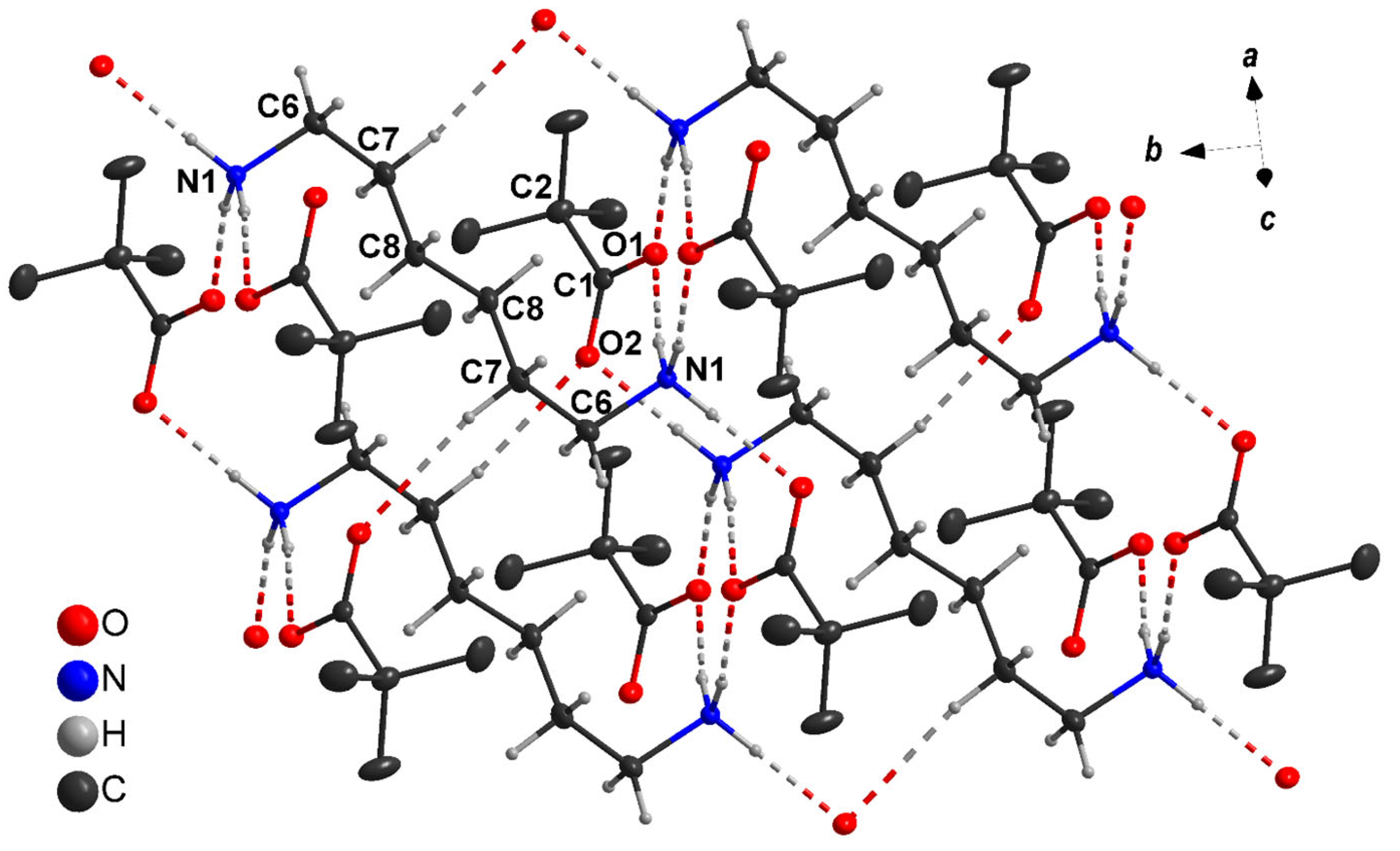

Figure 3. Fragment of the crystal packing of compound 3 (thermal ellipsoids with a probability of 30%, hydrogen atoms at CH3 groups are not shown, N–H…O and C–H…O interactions are indicated by the dotted line).
Figure 3. Fragment of the crystal packing of compound 3 (thermal ellipsoids with a probability of 30%, hydrogen atoms at CH3 groups are not shown, N–H…O and C–H…O interactions are indicated by the dotted line).
Molecules 29 02125 g003
Molecules 29 02125 g004
Figure 4. Comparison of experimental (A, blue line) and theoretical (B, red line) diffraction patterns for sample 1.
Figure 4. Comparison of experimental (A, blue line) and theoretical (B, red line) diffraction patterns for sample 1.
Molecules 29 02125 g004
Molecules 29 02125 g005
Figure 5. Comparison of experimental (A, blue line) and theoretical (B, red line) diffraction patterns for sample 2.
Figure 5. Comparison of experimental (A, blue line) and theoretical (B, red line) diffraction patterns for sample 2.
Molecules 29 02125 g005
Molecules 29 02125 g006
Figure 6. TGA (blue) and DTA (red) curves for complex 1.
Figure 6. TGA (blue) and DTA (red) curves for complex 1.
Molecules 29 02125 g006
Molecules 29 02125 g007
Figure 7. TGA (blue) and DTA (red) curves for complex 2.
Figure 7. TGA (blue) and DTA (red) curves for complex 2.
Molecules 29 02125 g007
Table 1. Main bond lengths (Å) and angles (degrees) in the coordination polyhedra of compounds 1 and 2.
Table 1. Main bond lengths (Å) and angles (degrees) in the coordination polyhedra of compounds 1 and 2.
1
Fe1-O12.037 (3)Fe2-O22.059 (3)O-Fe1-O59.30 (11), 88.69 (12)–99.42 (13)
Fe1-O32.064 (3)Fe2-O42.050 (3)O-Fe1-N85.86 (11)–101.62 (13)
Fe1-O52.100 (3)Fe2-O72.119 (3)N-Fe1-N76.26 (12)
Fe1-O62.321 (3)Fe2-O82.310 (3)O-Fe2-O59.52 (11), 94.44 (15)–100.51 (13)
Fe1-N12.175 (3)Fe2-N32.179 (3)O-Fe2-N87.17 (12)–102.18 (13)
Fe1-N22.173 (3)Fe2-N42.175 (3)N-Fe2-N76.15 (12)
2
Fe-O(μ3-O)1.831 (7), 1.840 (6), 2.009 (7)Fe-N2.177 (10), 2.180 (9), 2.068 (14)O-Fe-O85.1 (3)–98.0 (3)
Fe-O(O2CR)1.994 (8)–2.133 (8)Fe-O(μ3-O)-Fe118.2 (3)–123.2 (4)O-Fe-N80.8 (3)–83.1 (3)
Table 2. Parameters of π⋅⋅⋅π interactions in crystal packing of 1 (Cg is the centroid of the phenyl ring; Cg-Perp is the shortest distance from Cg to the plane of the neighboring cycle; α is the angle between the planes of Cg).
Table 2. Parameters of π⋅⋅⋅π interactions in crystal packing of 1 (Cg is the centroid of the phenyl ring; Cg-Perp is the shortest distance from Cg to the plane of the neighboring cycle; α is the angle between the planes of Cg).
InteractionCg⋅⋅⋅Cg, ÅCg⋅⋅⋅Perp, Åα, deg
Cg1(N2C26-C30)…Cg3(N3C33-C37)3.673 (3)3.4 (2)3.4597 (18)
Cg1…Cg2(N1C21–C27) [1 − x, 1/2 + y, 1 − z]3.655 (3)1.4 (2)3.4027 (18)
Cg2…Cg4(N4C38–C42) [x, 1 + y, z]3.562 (3)4.2 (2)3.2932 (18)
Table 3. Parameters of hydrogen bonds in crystals 1–3.
Table 3. Parameters of hydrogen bonds in crystals 1–3.
Hydrogen BondD–H, ÅH⋅⋅⋅A, ÅD⋅⋅⋅A, ÅD–H⋅⋅⋅A, deg
1
C19-H19C…O70.982.462.850 (11)103
C31-H31…O6 [1 − x, 1/2 + y, 1 − z]0.952.343.224 (6)154
C44-H44…O8 [2 − x, −1/2 + y, 1 − z]0.952.403.284 (6)156
2
N1-H1B…O70.912.412.732 (13)100
N2-H2AB…O9 [x, 1 − y, −1/2 + z]0.912.422.798 (13)103
C8-H8A…O40.982.592.922 (14)100
C10-H10C…O40.982.422.797 (16)103
C15-H15C…O60.982.492.870 (17)103
C28-H28A…O12 2.562.898 (14)100
3
N1-H1A…O1 [2 − x, 1 − y, 1 − z]0.911.902.7762 (15)162
N1-H1B…O10.911.902.7954 (14)170
N1-H1C…O2 [1 − x, 1 − y, 1 − z]0.911.812.7134 (14)172
C7-H7A…O2 [1 − x, 2 − y, 1 – z]0.992.503.4580 (17)163
Table 4. Crystallographic data, details of the data collection, and characteristics of the data refinement for 1–3.
Table 4. Crystallographic data, details of the data collection, and characteristics of the data refinement for 1–3.
ParameterValue
123
Molecular formulaC44H52Fe2N4O8C39H78Fe3N3O13C16H36N2O4
Mr876.59964.59320.47
T (K)150100150
λ (Å)0.710731.541780.71073
Space groupP21PbcnP–1
a (Å)13.573 (3)19.0022 (5)6.2580 (16)
b (Å)10.069 (4)27.4782 (7)7.0260 (19)
c (Å)15.668 (4)19.9912 (5)11.487 (2)
α (°)909082.544 (7)
β (°)101.762 (8)9089.035 (9)
γ (°)909083.774 (9)
V (Å3)2096.3 (11)10438.3 (5)497.9 (2)
Z281
ρcalc (g·cm−3)1.2281.3891.069
µ (mm−1)0.7507.0530.075
Crystal size (mm)0.25 × 0.25 × 0.040.12 × 0.10 × 0.080.25 × 0.20 × 0.10
Tmin, Tmax0.6355, 0.74650.4814, 0.74890.6538, 0.7460
θ (o)2.22–33.152.83–45.143.28–29.97
Number of reflections collected24,31929,6393576
Number of unique reflections13,96142262313
Number of reflections with I > 2σ(I)12,05928911907
Rint0.02980.03990.0229
R1/wR(F2), [I > 2σ]0.0602/0.14350.0715/0.19240.0430/0.1092
R1/wR(F2), (for all reflections)0.0717/0.15160.1053/0.21700.0522/0.1154
S1.0951.0611.026
Parameters567671104
Δρmax/Δρmin (e Å−3)2.858/−0.4850.442/−0.3090.287/−0.151
X-ray sourceMoKα, 0.71073 ÅCuKα, 1.54178 ÅMoKα, 0.71073 Å
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Bushuev, V.A.; Gogoleva, N.V.; Nikolaevskii, S.A.; Novichihin, S.V.; Yambulatov, D.S.; Kiskin, M.A.; Eremenko, I.L. Coordination Polymer Based on a Triangular Carboxylate Core {Fe(μ3-O)(μ-O2CR)6} and an Aliphatic Diamine. Molecules 2024, 29, 2125. https://doi.org/10.3390/molecules29092125

AMA Style

Bushuev VA, Gogoleva NV, Nikolaevskii SA, Novichihin SV, Yambulatov DS, Kiskin MA, Eremenko IL. Coordination Polymer Based on a Triangular Carboxylate Core {Fe(μ3-O)(μ-O2CR)6} and an Aliphatic Diamine. Molecules. 2024; 29(9):2125. https://doi.org/10.3390/molecules29092125

Chicago/Turabian Style

Bushuev, Vladimir A., Natalia V. Gogoleva, Stanislav A. Nikolaevskii, Sergey V. Novichihin, Dmitriy S. Yambulatov, Mikhail A. Kiskin, and Igor L. Eremenko. 2024. "Coordination Polymer Based on a Triangular Carboxylate Core {Fe(μ3-O)(μ-O2CR)6} and an Aliphatic Diamine" Molecules 29, no. 9: 2125. https://doi.org/10.3390/molecules29092125

Article Metrics

Back to TopTop
