Genome-Wide Identification and Comprehensive Analysis of the FtsH Gene Family in Soybean (Glycine max)

by
Qi Shan
1,
Baihui Zhou
1,
Yuanxin Wang
1,
Feiyu Hao
1,
Lin Zhu
1,
Yuhan Liu
1,
Nan Wang
1,
Fawei Wang
1,
Xiaowei Li
1,
Yuanyuan Dong
1,
Keheng Xu
2,
Yonggang Zhou
2,
Haiyan Li
2,
Weican Liu
1,* and
Hongtao Gao
2,*
1
Engineering Research Center of the Chinese Ministry of Education for Bioreactor and Pharmaceutical Development, College of Life Sciences, Jilin Agricultural University, Changchun 130118, China
2
Sanya Institute of Breeding and Multiplication, School of Breeding and Multiplication, Hainan University, Sanya 572025, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(23), 16996; https://doi.org/10.3390/ijms242316996
Submission received: 30 October 2023 / Revised: 26 November 2023 / Accepted: 27 November 2023 / Published: 30 November 2023
(This article belongs to the Special Issue Genetics- and Genomics-Based Crop Improvement and Breeding 2.0)
Browse Figures
Review Reports Versions Notes

Abstract

:
The filamentation temperature-sensitive H (FtsH) gene family is critical in regulating plant chloroplast development and photosynthesis. It plays a vital role in plant growth, development, and stress response. Although FtsH genes have been identified in a wide range of plants, there is no detailed study of the FtsH gene family in soybean (Glycine max). Here, we identified 34 GmFtsH genes, which could be categorized into eight groups, and GmFtsH genes in the same group had similar structures and conserved protein motifs. We also performed intraspecific and interspecific collinearity analysis and found that the GmFtsH family has large-scale gene duplication and is more closely related to Arabidopsis thaliana. Cis-acting elements analysis in the promoter region of the GmFtsH genes revealed that most genes contain developmental and stress response elements. Expression patterns based on transcriptome data and real-time reverse transcription quantitative PCR (qRT-PCR) showed that most of the GmFtsH genes were expressed at the highest levels in leaves. Then, GO enrichment analysis indicated that GmFtsH genes might function as a protein hydrolase. In addition, the GmFtsH13 protein was confirmed to be localized in chloroplasts by a transient expression experiment in tobacco. Taken together, the results of this study lay the foundation for the functional determination of GmFtsH genes and help researchers further understand the regulatory network in soybean leaf development.

1. Introduction

As the primary site of photosynthesis in plants, maintaining the internal homeostasis of chloroplasts is crucial for plant growth and development. However, due to their specific semi-autonomous nature, the proteins within them are encoded by both nuclear and chloroplast genes [1], which leads to the need for the reprocessing of most proteins as well as the degradation of excess and damaged proteins [2]. As key players in balancing protein synthesis and hydrolysis, chloroplast proteases are essential for photosynthesis and other biochemical processes within the chloroplast [3]. In higher plants, three major chloroplast proteases have been identified: Clp (caseinolytic protease), Deg (periplasmic protein degradation), and FtsH (filamentation temperature-sensitive H) [4,5]. Among them, FtsH protease is an ATP-dependent metalloprotease bound to the endosome with proteolytic activity and molecular chaperone activity [6]. The FtsH gene was initially discovered and named after the temperature-sensitive fibrillar mutant ftsh1 obtained through chemical mutagenesis [7]. The FtsH gene belongs to the AAA+ protease family and has three conserved structural domains: the N-terminal transmembrane structural domain, the C-terminal ATPase structural domain, and the M41 protein hydrolase structural domain [8]. The metalloprotease structural domain, which contains a zinc-binding sequence (HEXXH), is the active center of protease hydrolysis and is required for its catalytic activity [9]. The FtsH protein works by oligomerizing to form a hexameric complex [10], which encapsulates the active site of protein hydrolysis in the polymer’s center and renders individual subunits inactive [11].
The plant FtsH gene was first identified in spinach leaves [12] and subsequently found in several species, including tobacco [13], Arabidopsis [14], and rice [15]. Its encoded proteins are usually localized in chloroplasts and mitochondrial membranes. Most members have been shown to affect chloroplast development and homeostatic homeostasis, including involvement in biological processes such as vesicle formation [16], PS II photodamage repair [17], early assembly of the PS I complex [18], the degradation of cytochrome b6f complex subunits [19], and ATP synthase assembly under heat stress [20] and have a direct effect on plant phenotype changes. Previous research discovered that deleting AtFtsH2 (var2) and AtFtsH5 (var1) resulted in an increase in reactive oxygen species. The formation of albino spotted leaves in Arabidopsis [21], while knockdown of AtFtsH12 and AtFtsHi1 directly led to Arabidopsis embryonic death [22,23]; not only that, but similar phenotypes were found in other species: the NtFtsH2- and RNA-interfering lines of NtFtsH1 exhibit yellowish, heterochromatic tobacco leaves; osftsh2 knockout mutant rice not only produces albino leaves but also fails to grow to the trifoliate stage [15]. Furthermore, FtsH protease is important for increasing crop yield [24], heat tolerance [20], salt tolerance, and drought tolerance [25].
Soybean is an important oilseed cash crop that belongs to the legume family of annual plants and is grown primarily in China, India, the United States, Brazil, and Argentina [26]. Several factors affect its growth, developmental status, and yield, the most important of which are photosynthesis and light levels [27]. Previous research has shown that increasing the expression of photosynthesis-related genes improves photosynthesis in soybeans while increasing seed yield [28,29]. However, the specific regulatory mechanisms controlling photosynthesis in soybean leaves remain largely unknown, especially the FtsH family-mediated pathway. As a result, the FtsH gene family of Glycine max was thoroughly examined in this study, including analyses of phylogenetic relationship, gene structure, motif composition, promoter elements, chromosome localization, protein structure, and GO enrichment. The evolutionary relationships between soybean and other species, as well as the expression profiles in different tissues and the subcellular localization, were then investigated further. This study provides insight into the function of the GmFtsH gene family and hopes to provide a basis for future mechanistic studies of the GmFtsH genes in soybean leaf development.

2. Results

2.1. Identification of the FtsH Gene Family in Soybean (Glycine max)

To identify the FtsH gene family in Glycine max, we searched the Phytozome database (Glycine max Wm82.a2.v1) using AtFtsH gene sequences and obtained 34 candidate sequences. Additionally, we used CD-search and Pfam to look for genes that had the structural domains AAA (PF00004) and peptidase M41 (PF01434), which are exclusive to the FtsH gene family. Finally, we obtained 34 FtsH gene family members of Glycine max, reported as GmFtsH1-25 and GmFtsHi1-GmFtsHi9 (without a Zn2+-binding module) [24]. According to sequence analysis, the 34 GmFtsHs have proteins with lengths ranging from 228 (GmFtsH12) to 1288 amino acids (GmFtsHi4); their molecular weights range from 25,504.24 (GmFtsH12) to 147,844.1 kD (147,844.1); their isoelectric points range from 5.01 (GmFtsH23) to 9.55 (GmFtsHi8), of which the acidic proteins accounted for 75%, indicating that most GmFtsHs are rich in caustic bases; the instability coefficients were 29.58–50.51. The most stable protein was GmFtsH5, which had a stability index of 29.58. All members’ hydrophobicity indices were negative (−0.545–−0.077), indicating varied degrees of hydrophilicity in all GmFtsH proteins, and the lipolysis index ranged from 81.4 to 96.11, indicating that all GmFtsH proteins were lipolysis proteins. The predicted results of subcellular localization showed that most GmFtsHs were located in mitochondria and extracellular tissues, except for GmFtsH12, which was expressed in chloroplasts (Table 1).

2.2. Phylogenetic Analysis of GmFtsH Genes

To investigate the phylogenetic relationships of GmFtsH genes, we constructed phylogenetic trees using FtsH protein sequences from Arabidopsis thaliana (17), Oryza sativa (9), Nicotiana tabacum (20), and Glycine max. By comparing the full-length protein sequences of 80 FtsH genes from the four species, these genes were divided into eight groups, which is consistent with the classification of FtsH in Pyrus bretschneideri [30]. We named these Groups I–VIII, and each group’s genes had their own specific highly conserved amino acid sequences (Figure 1 and Figure S1). Each group contained 22, 13, 11, 14, 8, 4, 4, and 4 FtsH genes, respectively. FtsH genes from the four species were present in Groups I, II, III, and IV. This result, along with multiple sequence alignment results, suggests that these members of the four plant species may have undergone similar evolutionary patterns. There was also an unequal distribution in the evolutionary tree, with more AtFtsHs and GmFtsHs clustered together and similarities in the gene structure of members of the same subfamily, suggesting that the evolutionary relationship of Arabidopsis and soybean FtsH genes may be closer. AtFtsHs were distributed in Groups I to VIII, while most OsFtsHs were concentrated in Groups I and IV and were more distantly related to most of the genes, suggesting that GmFtsH genes may have experienced similar evolutionary patterns. AtFtsHs were distributed from Group I to Group VIII. In contrast, OsFtsHs were primarily concentrated in Group I and Group IV and evolved more distantly from most genes, suggesting that GmFtsHs were more closely related to AtFtsHs and NtFtsHs than to OsFtsHs, which may be because Glycine max, Arabidopsis thaliana, and Nicotiana tabacum are dicotyledonous plants.

2.3. Gene Structure and Conserved Motif Analysis of the GmFtsH Gene Family

To further determine the structural differences and evolutionary relationships among GmFtsH genes, we constructed a phylogenetic tree and analyzed the gene structures, conserved structural domains, and motifs of the GmFtsH genes (Figure 2). Gene structure analysis showed that all GmFtsHs contained multiple introns and exons (Figure 2A,B), and the number of exons ranged from 3 (GmFtsH23) to −27 (GmFtsH15). Among them, 31 GmFtsH genes had an untranslated region (UTR), and GmFtsH genes in the same group had similar gene structures, suggesting that GmFtsH genes have a highly conserved exon-intron structure. We analyzed the conserved structural domains of GmFtsH genes by TBtools and, according to the results, all GmFtsH genes contained FtsH-related specific structural domains (ftsH, FtsH_fam superfamily, FtsH_ext) (Figure 2D), and other conserved domains existed in individual genes, which might be related to their gene functions. The ten conserved motifs (Motif1-10) of the GmFtsH genes were further predicted using the MEME website (Figure 2C), and the results showed that 21 GmFtsH genes contained all the conserved motifs, and all members except GmFtsH16 contained Motif3, which suggests that this motif can be used as a marker for the identification of FtsH genes. Cooperative phylogenetic tree analysis revealed that the number and distribution of motifs were similar among members of the same subfamily, and the distribution of motifs among the sequences of genes distributed in different subfamilies varied considerably, and there might be differences in gene function as well.

2.4. Chromosome Location and Collinearity Analysis

Based on the soybean genome annotation, we mapped the physical localization of GmFtsH genes on soybean chromosomes. As shown in Figure S2, 34 GmFtsH genes were unevenly distributed on 17 chromosomes, among which GmFtsH11 was distributed on Scaffold_25, which might be caused by FtsH gene duplication during soybean evolution. Gene duplication is a major factor in increasing the number of genes and evolutionary innovations, so we analyzed gene duplication events in GmFtsH genes. GmFtsH6 and GmFtsH7 located on chromosome 12 (Gm12) and GmFtsH19, GmFtsH20, and GmFtsH21 on chromosome 14 (Gm14) were tandemly duplicated sequences. We further analyzed the duplication events of the GmFtsH genes by covariance analysis using MCScanXs. The results showed 19 covariant gene pairs generated by genome-wide duplication events in the GmFtsH gene family. The paired covariant genes may have similar biological functions (Figure 3). To trace the origin and evolution of the GmFtsH gene family, we constructed a covariance map of Glycine max with Arabidopsis thaliana, Oryza sativa, Nicotiana attenuata, and Solanum lycopersicum (Figure 4). The results showed that 21 pairs of covariance relationships were found in the covariance analysis of soybean genes and Arabidopsis genes, eight pairs of covariance relationships were found with rice, 20 pairs of covariance relationships were found with tomato, and only 2 pairs of covariance relationships were found with tobacco. We thus speculate that the FtsH gene family of soybean is more closely related to Arabidopsis, which is consistent with the results of the phylogenetic tree analysis.

2.5. Cis-Acting Elements Analysis of GmFtsH Genes

The 2000 bp upstream promoter sequence of the GmFtsH genes’ start site was utilized, and the PlantCARE online database was used to analyze the cis-acting elements of the GmFtsH genes. The prediction results showed that all GmFtsHs contained many CAAT boxes and TATA boxes, proving that they could be transcribed usually. Furthermore, they contained five classes of stress-related elements, including anaerobic-inducibility elements (71), low-temperature responsiveness elements (20), defence and stress responsiveness elements (17), drought-inducibility elements (14), and anoxic-specific inducibility elements (5); eight classes of developmental associated elements, including light-response elements (423), cell cycle regulation elements (3), seed-specific regulation elements (3), meristem expression elements (25), endosperm expression elements (6), circadian control elements (7), zein metabolism regulation elements (18), and palisade cells differentiation elements (1); and five classes of hormone-related elements, including abscisic acid responsiveness elements (76), MeJA responsiveness elements (66), gibberellin responsiveness elements (28), Auxin responsiveness elements (17), and salicylic acid responsiveness elements (20). Among these cis-elements, light-response elements (135) accounted for the largest category, followed by abscisic acid responsiveness elements (76), which accounted for the second largest category. Interestingly, the promoters of GmFtsH genes contain many elements involved in MeJA responsiveness elements, suggesting that the function of GmFtsH genes may be related to the damage response. In addition, the vast majority of GmFtsH genes contained MYB binding sites (239) and MYC binding sites (139) (Figure 5, Table S1). The above results suggest that GmFtsH genes may affect soybean growth and development, various hormones, and stress-related responses.

2.6. Gene Ontology (GO) Enrichment Analysis

Gene ontology (GO) enrichment analysis is a standard method for gene function analysis, so we performed GO enrichment analysis of GmFtsH gene family members. The results showed that the GmFtsH genes might be involved in various biological, cellular, and molecular processes, including five biological process terms, seven cellular component terms, and six molecular function terms (Figure 6, Table S2). The three most abundant molecular process terms were “ATP-dependent peptidase activity”, “metallopeptidase activity”, and “ATPase activity”, suggesting that the GmFtsH genes may have different enzymatic activities to regulate molecular processes. It is worth noting that the most enriched category of cellular components was “chloroplast vesicle” and the most enriched category of biological processes was “protein hydrolysis”. These results suggest that GmFtsH genes may function as enzymes in chloroplast-like vesicles for protein hydrolysis biology.

2.7. Expression Pattern of FtsH Genes in Glycine max under Different Tissues

To investigate the role of GmFtsH genes in the growth and development of soybeans, we analyzed the expression pattern of each member of the GmFtsH gene family based on gene expression matrices downloaded from the Phytozome genome database for a variety of organs, including leaves, nodules, root hairs, pods, stems, seeds, shoot apical meristems, flowers, and roots (Figure 7, Table S3). The results showed that GmFtsH genes were expressed differently in different tissues of soybean. We found that the expression patterns of GmFtsHi1-GmFtsHi9 and GmFtsH22; GmFtsH24 and GmFtsH25; GmFtsH20 and GmFtsH21; GmFtsH13, GmFtsH14, and GmFtsH15; and GmFtsH1, GmFtsH2, GmFtsH3, and GmFtsH4 were more similar. GmFtsHi1-GmFtsHi9 and GmFtsH22 were expressed at higher levels in all tissues except roots. GmFtsH24 and GmFtsH25 were both expressed at lower levels in seeds and shoot apical meristems. GmFtsH20 and GmFtsH21 were expressed at lower levels in stems. GmFtsH13, GmFtsH14, and GmFtsH15 all had low expression in roots, nodules, and root hairs and higher expression in leaves and flowers. GmFtsH1, GmFtsH2, GmFtsH3, and GmFtsH4 were highly expressed in leaves, had low expression in roots and nodules, and were moderately expressed in other tissues. In addition, GmFtsH23 was not expressed in all tissues, GmFtsH17 was not expressed in all tissues except seeds, and all members except GmFtsH5, GmFtsH6, GmFtsH12, GmFtsH23, and GmFtsH17 were significantly highly expressed in leaves. Most of the GmFtsH genes showed low expression in roots. From this, we hypothesized that different GmFtsH genes may play different functions in affecting soybean development, but most GmFtsH genes may play essential roles in soybean leaf development.
In addition, based on the results of phylogenetic relationship analyses, we selected 14 of the 34 GmFtsH genes to further determine the expression patterns of GmFtsH genes. GmFtsH1, GmFtsH2, GmFtsH5, GmFtsH10, GmFtsH11, GmFtsH12, GmFtsH13, GmFtsH16, GmFtsH18, GmFtsH24, GmFtsHi1, GmFtsHi4, GmFtsHi5, and GmFtsHi6 were expressed in nine tissues (new leaf, old leaf, shoot apical meristem, stem, main root, lateral root, flower, seed pod, and seed embryo) with relative expression levels. The results showed that the qRT-PCR expression patterns of most GmFtsH genes were consistent with the general trends of transcriptome expression patterns, with almost identical results for GmFtsH11, GmFtsH18, GmFtsH24, and GmFtsHi6 (Figure 8). We found that all genes except GmFtsH13 were highly expressed in new and old leaves, and GmFtsH1, GmFtsH5, GmFtsH10, GmFtsH11, GmFtsH13, GmFtsH18, GmFtsH24, and GmFtsHi5 were moderately expressed in flowers. However, most genes were expressed at low levels in the shoot apical meristem tissue, which differed from the transcriptome data, which may have been due to sample differences in sequencing and qRT-PCR.

2.8. Subcellular Localization Analysis of GmFtsH13

According to the predicted subcellular localization of GmFtsH proteins, these proteins were located in the mitochondria, chloroplast, and extracellular tissues. The GmFtsH13 gene has been found to share biological roles with the AtFtsH1 and AtFtsH5 genes through examination of the gene’s structure, conserved domains, and phylogenetic tree. Therefore, we amplified the GmFtsH13 gene and built it into the plant expression vector pGDG containing a green fluorescent protein tag (mGFP) driven by the 35S promoter for the transient transformation of tobacco to clarify its subcellular localization in order to further validate the results of the subcellular localization prediction. The findings demonstrated that the GmFtsH13 protein was localized in chloroplasts since the GmFtsH13-mGFP green fluorescence signal coincided with the chloroplast autofluorescence signal and was concentrated there (Figure 9).

3. Discussion

As chloroplast proteases, FtsH proteins are crucial for plant growth, development, and resistance to environmental stress, particularly when it comes to controlling chloroplast formation [14,20,31,32]. Recent research on the soybean plant has demonstrated that GmFtsH25 increases seed output through improved photosynthesis, and it was discovered that the GmFtsH9 gene may have a role in controlling PS II activity [33]. As a result, it is essential to thoroughly examine the roles and molecular processes by which the GmFtsH gene family affects soybean development and stress resistance. To date, the FtsH gene family has been identified in various types of plants, such as tobacco [13], Arabidopsis, rice [34], maize [35], and pear [30]. However, additional knowledge is required regarding the FtsH gene family in Glycine max.
To better understand the biological functions of the GmFtsH gene family, we performed bioinformatics analysis and expression pattern analysis. In this study, we identified 34 FtsH family members of Glycine max, named GmFtsH1-25 and GmFtsHi1-i9, all of which contained FtsH-associated conserved structural domains. Phylogenetic analysis was also performed on the soybean, Arabidopsis, rice, and tobacco FtsH gene families and these members were divided into eight groups, which is consistent with the classification of FtsH genes in Arabidopsis and pear [30,34]. The findings from the analyses of gene structure and conserved motifs further supported the higher degree of sequence similarity among GmFtsH genes from the same groups.
Gene duplication contributes additional genes and genetic material to the body of the plant, which is a necessary mechanism for species development and evolution [36]. In the GmFtsH gene family, the current investigation discovered 19 sets of fragment duplication events and 2 sets of tandem duplication events. Compared to previous studies in tobacco and pear [13,30], the GmFtsH family gene duplication was much more significant, especially fragment duplication, and had more members, almost four times the number of members in rice (9). This extensive replication may be connected to two polyploid soybean genome duplications that occurred about 59 and 13 million years ago [37]. The two duplication events were followed by genetic diversification and extensive chromosomal rearrangements, resulting in highly replicated genomes. This shows that the FtsH gene family’s proliferation is dependent on instances of gene duplication and connected to the species itself.
With the continuous development of and improvement in biological sciences, identifying specific genes and their functions is crucial for the survival of organisms, and gene ontology is a vital method to structure the knowledge of gene functionality [38], so we performed GO enrichment analyses of GmFtsH proteins. According to the gene enrichment results, most GmFtsH proteins are found in chloroplasts and mitochondria, which are important organelles, as well as in cell membranes. They participate in biological processes including digestion and protein hydrolysis. Previous studies have also confirmed the involvement of FtsH proteins in the degradation of proteins related to the photosynthetic system. For instance, suppressing NtFtsH1 and NtFtsH2 expression decreased PSII activity and postponed the degradation of the D1 protein, disturbing the cystoid membrane and resulting in the formation of heterochromatic tobacco leaves [39]. In Chlamydomonas sulphur or nitrogen deficiency, FtsH degraded the cytochrome b6f complex, controlling protein quality during nutrient deficiency [19]. And the results of the GO enrichment analysis suggest that the FtsH gene is involved in embryonic development at the end of seed dormancy, which may be responsible for the lethal phenotype of Arabidopsis embryos following FtsH deletion [23,40]. Furthermore, the molecular functional analysis showed that GmFtsH proteins have ATP-dependent peptidase activity and chloroplast protein-transporting ATPase activity, which is consistent with the biological processes it mediates. Based on the analysis of celluar components and biological processes analysis, the GmFtsH genes may act as enzymes in chloroplast thylakoids to perform protein hydrolysis biological functions, which is consistent with the molecular functions of FtsH proteins in Arabidopsis [14], rice [15], and cyanobacterial [17]. The above results suggest that FtsH proteins mainly perform functions such as protein hydrolysis in chloroplasts, affecting leaf photosynthesis and thus plant growth status.
In addition, the FtsH gene family plays an important role in plant growth and development, and we identified some developmentally relevant cis-acting elements in the promoter of the GmFtsH genes, such as cell cycle regulatory elements, seed-specific regulatory elements, meristematic tissue expression elements, endosperm expression elements, and fenestrated cell differentiation elements. Previous research has demonstrated that FtsH genes are mostly expressed in a variety of organs, particularly leaves, floral organs, and seeds [13,24]. Transcriptomic data showed that most of the GmFtsH genes were highly expressed in leaves, and quantitative data showed that the expression of GmFtsH genes was significantly higher in new versus old leaves than in other tissues, which supported the hypothesis that GmFtsH genes play an important role in leaves as well as in chloroplast development. However, there were differences between the expression patterns of many FtsH genes in new and old leaves, which may be related to the biological roles of the genes. Meanwhile, we found that most of the GmFtsH genes were highly expressed in flowers, which can be hypothesized to be able to influence the flower development process.
Previous research showed that the FtsH complex connected to chloroplast development is made up of heterohexamers of (FtsH1 and FtsH5) A-types and (FtsH2 and FtsH8) B-types and that the simultaneous deletion of either A or B types led to lethal albinism in the plant, indicating that FtsH exerts its biological function in the form of a hexameric presence. It was found that homologs from different species usually have similar functions in biological processes. For example, OsFtsH2, a homolog of AtFtsH2, is involved in the development of rice chloroplasts. In the present study, we cloned GmFtsH13, a homolog of AtFtsH5 and AtFtsH1, from “Williams 82”, and verified the subcellular localization of the homolog of AtFtsH5 and AtFtsH1, as well as its function in the chloroplast.
In this study, we identified and characterized the FtsH gene family of Glycine max and evaluated its gene structure, conserved motifs, Cis-acting elements, phylogenetic relationships, chromosome location, collinearity, expression patterns, and subcellular localization. These results provide a basis and framework for further investigation of their potential in influencing the leaf and chloroplast development of Glycine max.

4. Materials and Methods

4.1. Identification of the GmFtsH Gene Family

The genomic sequences for Oryza sativa, Glycine max, Arabidopsis thaliana, and Nicotiana tabacum are available for download from the Ensembl Plants database (https://plants.ensembl.org/index.html, accessed on 30 April 2023). The Ensembl Plants database and the Phytozome database (https://phytozome-next.jgi.doe.gov/, accessed on 30 April 2023) were used to retrieve the protein sequences of the FtsH gene family from Arabidopsis [24], rice [34], and tobacco [13]. Using the FtsH protein sequence of Arabidopsis thaliana as a template, the candidate FtsH protein sequence of Glycine max (E-value ≤ 1 × 10−5) was identified using the blast program in TBtools-II (v2.012) [41]. The candidate genes were then identified by the CD-search function of NCBI (https://www.ncbi.nlm.nih.gov/Structure/bwrpsb/bwrpsb.cgi, accessed on 30 April 2023) and the Pfam database (http://pfam-legacy.xfam.org/, accessed on 30 April 2023) for conserved structural domains. The final protein candidates, designated GmFtsH1-25 and GmFtsHi1-GmFtsHi9 [42], were sequences with the FtsH protein-specific AAA structure domain (PF00004), peptidase M41 structural domain (PF01434), and FtsH Extracellular structural domain (PF06480) [42]. The protein sequences were then submitted to ExPasy (https://web. expasy. org/protparam/, accessed on 30 April 2023) [43] to predict their molecular weight, amino acid number, isoelectric point, and other information, using the online tool Softberry (http://linux1.softberry.com/berry.phtml, accessed on 30 April 2023) to predict subcellular localization [44].

4.2. Phylogenetic Relationship Analysis

Multiple sequence comparisons of Glycine max, Arabidopsis thaliana, Oryza sativa, and Nicotiana tabacum FtsH proteins were performed using Clustal W, and Neighbor-Jioning clustering analysis (Bootstrap = 1000) was performed using MEGAX64 (10.2.6) [45]. The phylogenetic tree was then embellished using the ChiPlot online tool (https://www.chiplot.online/#Phylogenetic-Tree, accessed on 1 May 2023).

4.3. Gene Structure and Conserved Motif Analysis

The exon–intron structure of GmFtsHs was determined using the online website Gene Structure Display Server (GSDS2.0, http://gsds.gao-lab.org/, accessed on 1 May 2023) [46]. And the conserved motifs of GmFtsHs were predicted by Multiple Expectation maximization for Motif Elicitation (MEME, https://meme-suite.org/meme/tools/meme, accessed on 1 May 2023), with the number of motifs set to 10, the minimum number of amino acids set to 6, and the maximum number of amino acids set to 50 [47]. Finally, TBtools-II (v2.012) was used to summarize and enhance the data.

4.4. Chromosome Location and Collinearity Analysis

To find out where GmFtsHs are located on the chromosomes, the soybean genome annotation files were loaded onto Gene Location Visualize from the GTF/GFF program of TBtools-II (v2.012). Gene duplication event analysis was completed using the Advanced Circos program and multi-species covariance analysis was completed using the Dual Synteny Plot program of TBtools-II (v2.012) [41].

4.5. Analysis of Promoter Cis-Acting Elements

The 2000 bp upstream sequences of GmFtsHs were obtained from the Phytozome database and analyzed for cis-acting elements using the PlantCARE database (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/, accessed on 3 May 2023) [48]. The cis-acting elements were visualized by Microsoft Excel 2019.

4.6. GO Enrichment Analysis

GO functional category annotation of GmFtsHs was performed using the Functional Annotation Tool program of the DAVID database (https://david.ncifcrf.gov/, accessed on 6 May 2023) [49]. After performing the −log10 conversion on the p value values, the data were shown as bubble charts using the ChiPlot online tool (https://www.chiplot.online/bar plot_width category.html, accessed on 6 May 2023).

4.7. Expression Pattern Analysis

Based on the Phytozome database [50], the transcriptome information (FPKM values) for GmFtsHs in nine different tissues (leaves, rhizomes, root hairs, seed pods, stems, seeds, stem-tip meristematic tissues, flowers, and roots) of “Glycine max Wm82.a2.v1” was retrieved [50]. The expression levels of GmFtsHs were determined as the number of fragments per kilobase of transcript per million mapping reads. The number of transcriptional pieces per million mapped reads was used to define expression levels. Visual heat maps were completed based on the data using the software TBtools-II (v2.012).

4.8. Plant Materials and qRT-PCR Analysis

Soybean seeds of “Williams 82” provided by the Engineering Research Center of the Chinese Ministry of Education for Bioreactor and Pharmaceutical Development of Jilin Agricultural University were sown in the experimental field of Jilin Agricultural University. Flowers, stems, stem tips, new leaves, old leaves, seed pods (R5 stage), seed embryos (R5 stage), main roots, and lateral roots were collected from three well-grown plants after about 70 days. For a subsequent qRT-PCR analysis, samples were promptly frozen in liquid nitrogen or kept in a −80 °C refrigerator. RNAiso plus reagent (TAKARA, Beijing, China) was used to extract the samples’ total RNA, and agarose gel electrophoresis and the Nanodrop 2000 spectrophotometer (Implen, Germany) were used to determine the quantity and purity of the extracted RNA. And, using the MonScriptTM RTIII All-in-One Mix with dsDNase (Monad, MR0501M, Suzhou, China) reagent, the RNA was reverse transcribed into cDNA. In total, 14 GmFtsH genes were chosen for transcript pattern analysis. The GmActin gene was used as an internal reference to normalize gene expression and qRT-PCR primers were created using Primer5 (V5.5.0) (Table S4). Utilizing the MonAmpTM ChemoHS qPCR Mix (Monad, MQ00401S, Suzhou, China) reagent, the qRT-PCR was carried out. In total, 3 biological replicates and 2 technical replicates were performed for each reaction, and the relative expression of genes was calculated by the 2−∆∆Ct method.

4.9. Subcellular Localization Analysis

To determine the location of GmFtsH13 protein expression in cells, the full-length coding sequence without a terminator (CDS) was cloned to the pGDG vector, which contained a green fluorescent protein tag (mGFP) driven by a 35S promoter. For this purpose, homologous recombinant primers with Xho I and Sal I restriction sites were designed (Table S4), the recombinant fragment products were recovered and linked to the pGDG vector, and the recombinant plasmids were transferred into Agrobacterium tumefaciens GV3101 using the freeze-thaw method. The pGDG-GmFtsH13 vector and the pGDG empty vector were infiltrated into the leaves of tobacco (Nicotiana benthamiana), respectively. Using an LSM 710 confocal laser scanning microscope (Zeiss, Jena, Germany), mGFP fluorescence images were seen 2–3 days afterward.

5. Conclusions

In this study, a comprehensive analysis of the GmFtsH gene family was performed. First, based on the evolutionary links of FtsH genes in Arabidopsis, rice, and tobacco, phylogenetic tree analysis was used to separate the 34 discovered GmFtsH genes into eight groups. Subsequently, exon–intron structure analysis, conserved domain analysis, and conserved motif analysis demonstrated that GmFtsH genes in the same group were highly conserved. Intraspecific and interspecific covariance analysis helped to study the evolutionary process of the GmFtsH gene family. In addition, promoter cis-acting element analysis, GO enrichment analysis, and gene expression analysis for different tissues of Glycine max indicated that the GmFtsH genes may play important roles in plant growth and development, especially for leaf and chloroplast development. Finally, we demonstrated that the GmFtsH13 protein was localized in chloroplasts. The above results indicate that the GmFtsH genes may play a role in the growth and development of soybeans, provide preliminary information for future studies of the GmFtsH gene family in soybean leaf development, and provide scientific references for further research on the biological functions and mechanisms of the GmFtsH genes.

Supplementary Materials

The supporting information can be downloaded at https://www.mdpi.com/article/10.3390/ijms242316996/s1.

Author Contributions

Q.S., W.L. and H.G. conceived and designed the experiments; Q.S., B.Z., Y.W. and F.H. performed the experiments and the bioinformatics analysis; L.Z., Y.L., N.W. and F.W. performed the statistical analysis; Q.S. wrote the draft; X.L., Y.D., K.X. and Y.Z. performed the modification; W.L., H.L. and H.G. revised the final manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Natural Science Foundation of China (32001464) and Science and Technology Development Plan Project of Jilin Province (20190201259JC and 20220402049GH).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article and supplementary materials.

Conflicts of Interest

The authors declare that they have no known competing financial interest or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Rochaix, J.D.; Ramundo, S. Chloroplast signaling and quality control. Essays Biochem. 2018, 62, 13–20. [Google Scholar] [CrossRef]
  2. Adam, Z.; Clarke, A.K. Cutting edge of chloroplast proteolysis. Trends Plant Sci. 2002, 7, 451–456. [Google Scholar] [CrossRef] [PubMed]
  3. Adam, Z. Chloroplast proteases: Possible regulators of gene expression? Biochimie 2000, 82, 647–654. [Google Scholar] [CrossRef] [PubMed]
  4. Nishimura, K.; Kato, Y.; Sakamoto, W. Essentials of Proteolytic Machineries in Chloroplasts. Mol. Plant 2017, 10, 4–19. [Google Scholar] [CrossRef] [PubMed]
  5. Adam, Z.; Rudella, A.; Van Wijk, K.J. Recent advances in the study of Clp, FtsH and other proteases located in chloroplasts. Curr. Opin. Plant Biol. 2006, 9, 234–240. [Google Scholar] [CrossRef] [PubMed]
  6. Nishimura, K.; Kato, Y.; Sakamoto, W. Chloroplast Proteases: Updates on Proteolysis within and across Suborganellar Compartments. Plant Physiol. 2016, 171, 2280–2293. [Google Scholar] [CrossRef]
  7. Schumann, W. FtsH—A single-chain charonin? FEMS Microbiol. Rev. 1999, 23, 1–11. [Google Scholar] [CrossRef]
  8. Janska, H.; Kwasniak, M.; Szczepanowska, J. Protein quality control in organelles—AAA/FtsH story. Biochim. Biophys. Acta (BBA) Mol. Cell Res. 2013, 1833, 381–387. [Google Scholar] [CrossRef]
  9. Jayasekera, M.M.; Foltin, S.K.; Olson, E.R.; Holler, T.P. Escherichia coli Requires the Protease Activity of FtsH for Growth. Arch. Biochem. Biophys. 2000, 380, 103–107. [Google Scholar] [CrossRef]
  10. Langer, T. AAA proteases: Cellular machines for degrading membrane proteins. Trends Biochem. Sci. 2000, 25, 247–251. [Google Scholar] [CrossRef]
  11. Asahara, Y.; Atsuta, K.; Motohashi, K.; Taguchi, H.; Yohda, M.; Yoshida, M. FtsH Recognizes Proteins with Unfolded Structure and Hydrolyzes the Carboxyl Side of Hydrophobic Residues. J. Biochem. 2000, 127, 931–937. [Google Scholar] [CrossRef]
  12. Lindahl, M.; Tabak, S.; Cseke, L.; Pichersky, E.; Andersson, B.; Adam, Z. Identification, characterization, and molecular cloning of a homologue of the bacterial FtsH protease in chloroplasts of higher plants. J. Biol. Chem. 1996, 271, 29329–29334. [Google Scholar] [CrossRef]
  13. Pu, T.; Mo, Z.; Su, L.; Yang, J.; Wan, K.; Wang, L.; Liu, R.; Liu, Y. Genome-wide identification and expression analysis of the ftsH protein family and its response to abiotic stress in Nicotiana tabacum L. BMC Genom. 2022, 23, 503. [Google Scholar] [CrossRef] [PubMed]
  14. Liu, X.; Yu, F.; Rodermel, S. Arabidopsis chloroplast FtsH, var2 and suppressors of var2 leaf variegation: A review. J. Integr. Plant Biol. 2010, 52, 750–761. [Google Scholar] [CrossRef] [PubMed]
  15. Wu, Q.; Han, T.; Yang, L.; Wang, Q.; Zhao, Y.; Jiang, D.; Ruan, X. The essential roles of OsFtsH2 in developing the chloroplast of rice. BMC Plant Biol. 2021, 21, 445. [Google Scholar] [CrossRef] [PubMed]
  16. Li, J.Y.; Sun, J.L.; Tian, Y.Y.; Liu, J.X. The FtsH-Inactive Protein FtsHi5 Is Required for Chloroplast Development and Protein Accumulation in Chloroplasts at Low Ambient Temperature in Arabidopsis. Front. Plant Sci. 2022, 12, 830390. [Google Scholar] [CrossRef] [PubMed]
  17. Nixon, P.J.; Barker, M.; Boehm, M.; De Vries, R.; Komenda, J. FtsH-mediated repair of the photosystem II complex in response to light stress. J. Exp. Bot. 2005, 56, 357–363. [Google Scholar] [CrossRef] [PubMed]
  18. Järvi, S.; Suorsa, M.; Tadini, L.; Ivanauskaite, A.; Rantala, S.; Allahverdiyeva, Y.; Leister, D.; Aro, E.M. Thylakoid-Bound FtsH Proteins Facilitate Proper Biosynthesis of Photosystem I. Plant Physiol. 2016, 171, 1333–1343. [Google Scholar] [CrossRef]
  19. Malnoë, A.; Wang, F.; Girard-Bascou, J.; Wollman, F.A.; De Vitry, C. Thylakoid FtsH protease contributes to photosystem II and cytochrome b6f remodeling in Chlamydomonas reinhardtii under stress conditions. Plant Cell 2014, 26, 373–390. [Google Scholar] [CrossRef]
  20. Yue, X.; Ke, X.; Shi, Y.; Li, Y.; Zhang, C.; Wang, Y.; Hou, X. Chloroplast inner envelope protein FtsH11 is involved in the adjustment of assembly of chloroplast ATP synthase under heat stress. Plant Cell Environ. 2023, 46, 850–864. [Google Scholar] [CrossRef]
  21. Kato, Y.; Miura, E.; Ido, K.; Ifuku, K.; Sakamoto, W. The variegated mutants lacking chloroplastic FtsHs are defective in D1 degradation and accumulate reactive oxygen species. Plant Physiol. 2009, 151, 1790–1801. [Google Scholar] [CrossRef] [PubMed]
  22. Wagner, R.; Aigner, H.; Funk, C. FtsH proteases located in the plant chloroplast. Physiol. Plant 2012, 145, 203–214. [Google Scholar] [CrossRef] [PubMed]
  23. Kadirjan-Kalbach, D.K.; Yoder, D.W.; Ruckle, M.E.; Larkin, R.M.; Osteryoung, K.W. FtsHi1/ARC1 is an essential gene in Arabidopsis that links chloroplast biogenesis and division. Plant J. 2012, 72, 856–867. [Google Scholar] [CrossRef] [PubMed]
  24. Wang, L.; Yang, Y.; Yang, Z.; Li, W.; Hu, D.; Yu, H.; Li, X.; Cheng, H.; Kan, G.; Che, Z.; et al. GmFtsH25 overexpression increases soybean seed yield by enhancing photosynthesis and photosynthates. J. Integr. Plant Biol. 2023, 65, 1026–1040. [Google Scholar] [CrossRef] [PubMed]
  25. Xiao, J.J.; Zhang, R.X.; Khan, A.; Ul Haq, S.; Gai, W.X.; Gong, Z.H. CaFtsH06, A Novel Filamentous Thermosensitive Protease Gene, Is Involved in Heat, Salt, and Drought Stress Tolerance of Pepper (Capsicum annuum L.). Int. J. Mol. Sci. 2021, 22, 6953. [Google Scholar] [CrossRef] [PubMed]
  26. Fang, C.; Kong, F. Soybean. Curr. Biol. 2022, 32, R902–R904. [Google Scholar] [CrossRef]
  27. Valladares, F.; Niinemets, U. Shade Tolerance, a Key Plant Feature of Complex Nature and Consequences. Annu. Rev. Ecol. Evol. Syst. 2008, 39, 237–257. [Google Scholar] [CrossRef]
  28. Hu, D.; Li, X.; Yang, Z.; Liu, S.; Hao, D.; Chao, M.; Zhang, J.; Yang, H.; Su, X.; Jiang, M.; et al. Downregulation of a gibberellin 3β-hydroxylase enhances photosynthesis and increases seed yield in soybean. New Phytol. 2022, 235, 502–517. [Google Scholar] [CrossRef]
  29. Yu, H.; Wang, Q.; Zhang, Z.; Wu, T.; Yang, X.; Zhu, X.; Ye, Y.; Leng, J.; Yang, S.; Feng, X. Genetic Mapping of the Gmpgl3 Mutant Reveals the Function of GmTic110a in Soybean Chloroplast Development. Front. Plant Sci. 2022, 13, 892077. [Google Scholar] [CrossRef]
  30. Guo, Z.H.; Gao, X.; Cai, H.Q.; Yu, L.; Gu, C.; Zhang, S.L. Genome-wide identification, evolution and expression analysis of the FtsH gene during fruit development in pear (Pyrus bretschneideri). Plant Biotechnol. Rep. 2021, 4, 537–550. [Google Scholar] [CrossRef]
  31. Aluru, M.R.; Yu, F.; Fu, A.; Rodermel, S. Arabidopsis variegation mutants: New insights into chloroplast biogenesis. J. Exp. Bot. 2006, 57, 1871–1881. [Google Scholar] [CrossRef] [PubMed]
  32. Zaltsman, A.; Feder, A.; Adam, Z. Developmental and light effects on the accumulation of FtsH protease in Arabidopsis chloroplasts—Implications for thylakoid formation and photosystem II maintenance. Plant J. 2005, 42, 609–617. [Google Scholar] [CrossRef] [PubMed]
  33. Yin, Z.; Meng, F.; Song, H.; Wang, X.; Chao, M.; Zhang, G.; Xu, X.; Deng, D.; Yu, D. GmFtsH9 expression correlates with in vivo photosystem II function: Chlorophyll a fluorescence transient analysis and eQTL mapping in soybean. Planta 2011, 234, 815–827. [Google Scholar] [CrossRef] [PubMed]
  34. Zhang, J.; Sun, A. Genome-wide comparative analysis of the metalloprotease ftsH gene families between Arabidopsis thaliana and rice. Sheng Wu Gong Cheng Xue Bao 2009, 25, 1402–1408. [Google Scholar] [PubMed]
  35. Yue, G.; Hu, X.; He, Y.; Yang, A.; Zhang, J. Identification and characterization of two members of the FtsH gene family in maize (Zea mays L.). Mol. Biol. Rep. 2010, 37, 855–863. [Google Scholar] [CrossRef] [PubMed]
  36. Lallemand, T.; Leduc, M.; Landès, C.; Rizzon, C.; Lerat, E. An Overview of Duplicated Gene Detection Methods: Why the Duplication Mechanism Has to Be Accounted for in Their Choice. Genes 2020, 11, 1046. [Google Scholar] [CrossRef]
  37. Schmutz, J.; Cannon, S.B.; Schlueter, J.; Ma, J.; Mitros, T.; Nelson, W.; Hyten, D.L.; Song, Q.; Thelen, J.J.; Cheng, J.; et al. Genome sequence of the palaeopolyploid soybean. Nature 2010, 463, 178–183. [Google Scholar] [CrossRef]
  38. The Gene Ontology Consortium. The Gene Ontology Resource: 20 years and still GOing strong. Nucleic Acids Res. 2019, 47, D330–D338. [Google Scholar] [CrossRef]
  39. Kato, Y.; Kouso, T.; Sakamoto, W. Variegated tobacco leaves generated by chloroplast FtsH suppression: Implication of FtsH function in the maintenance of thylakoid membranes. Plant Cell Physiol. 2012, 53, 391–404. [Google Scholar] [CrossRef]
  40. Mishra, L.S.; Mielke, K.; Wagner, R.; Funk, C. Reduced expression of the proteolytically inactive FtsH members has impacts on the Darwinian fitness of Arabidopsis thaliana. J. Exp. Bot. 2019, 70, 2173–2184. [Google Scholar] [CrossRef]
  41. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An Integrative Toolkit Developed for Interactive Analyses of Big Biological Data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef] [PubMed]
  42. Mistry, J.; Chuguransky, S.; Williams, L.; Qureshi, M.; Salazar, G.A.; Sonnhammer, E.L.L.; Tosatto, S.C.E.; Paladin, L.; Raj, S.; Richardson, L.J.; et al. Pfam: The protein families database in 2021. Nucleic Acids Res. 2021, 49, D412–D419. [Google Scholar] [CrossRef] [PubMed]
  43. Duvaud, S.; Gabella, C.; Lisacek, F.; Stockinger, H.; Ioannidis, V.; Durinx, C. Expasy, the Swiss Bioinformatics Resource Portal, as designed by its users. Nucleic Acids Res. 2021, 49, W216–W227. [Google Scholar] [CrossRef] [PubMed]
  44. Sanusi, N.S.N.M.; Rosli, R.; Halim, M.A.A.; Chan, K.L.; Nagappan, J.; Azizi, N.; Amiruddin, N.; Tatarinova, T.V.; Low, E.L. PalmXplore: Oil palm gene database. Database. 2018, bay095, 1–9. [Google Scholar] [CrossRef]
  45. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular Evolutionary Genetics Analysis across Computing Platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef] [PubMed]
  46. Hu, B.; Jin, J.; Guo, A.Y.; Zhang, H.; Luo, J.; Gao, G. GSDS 2.0: An upgraded gene feature visualization server. Bioinformatics 2015, 31, 1296–1297. [Google Scholar] [CrossRef] [PubMed]
  47. Bailey, T.L.; Johnson, J.; Grant, C.E.; Noble, W.S. The MEME Suite. Nucleic Acids Res. 2015, 43, W39–W49. [Google Scholar] [CrossRef] [PubMed]
  48. Lescot, M.; Déhais, P.; Thijs, G.; Marchal, K.; Moreau, Y.; Van de Peer, Y.; Rouzé, P.; Rombauts, S. PlantCARE, a database of plant cis-acting regulatory elements and a portal to tools for in silico analysis of promoter sequences. Nucleic Acids Res. 2002, 30, 325–327. [Google Scholar] [CrossRef]
  49. Dennis, G., Jr.; Sherman, B.T.; Hosack, D.A.; Yang, J.; Gao, W.; Lane, H.C.; Lempicki, R.A. DAVID: Database for Annotation, Visualization, and Integrated Discovery. Genome Biol. 2003, 4, P3. [Google Scholar] [CrossRef]
  50. Goodstein, D.M.; Shu, S.; Howson, R.; Neupane, R.; Hayes, R.D.; Fazo, J.; Mitros, T.; Dirks, W.; Hellsten, U.; Putnam, N.; et al. Phytozome: A comparative platform for green plant genomics. Nucleic Acids Res. 2012, 40, D1178–D1186. [Google Scholar] [CrossRef]
Ijms 24 16996 g001

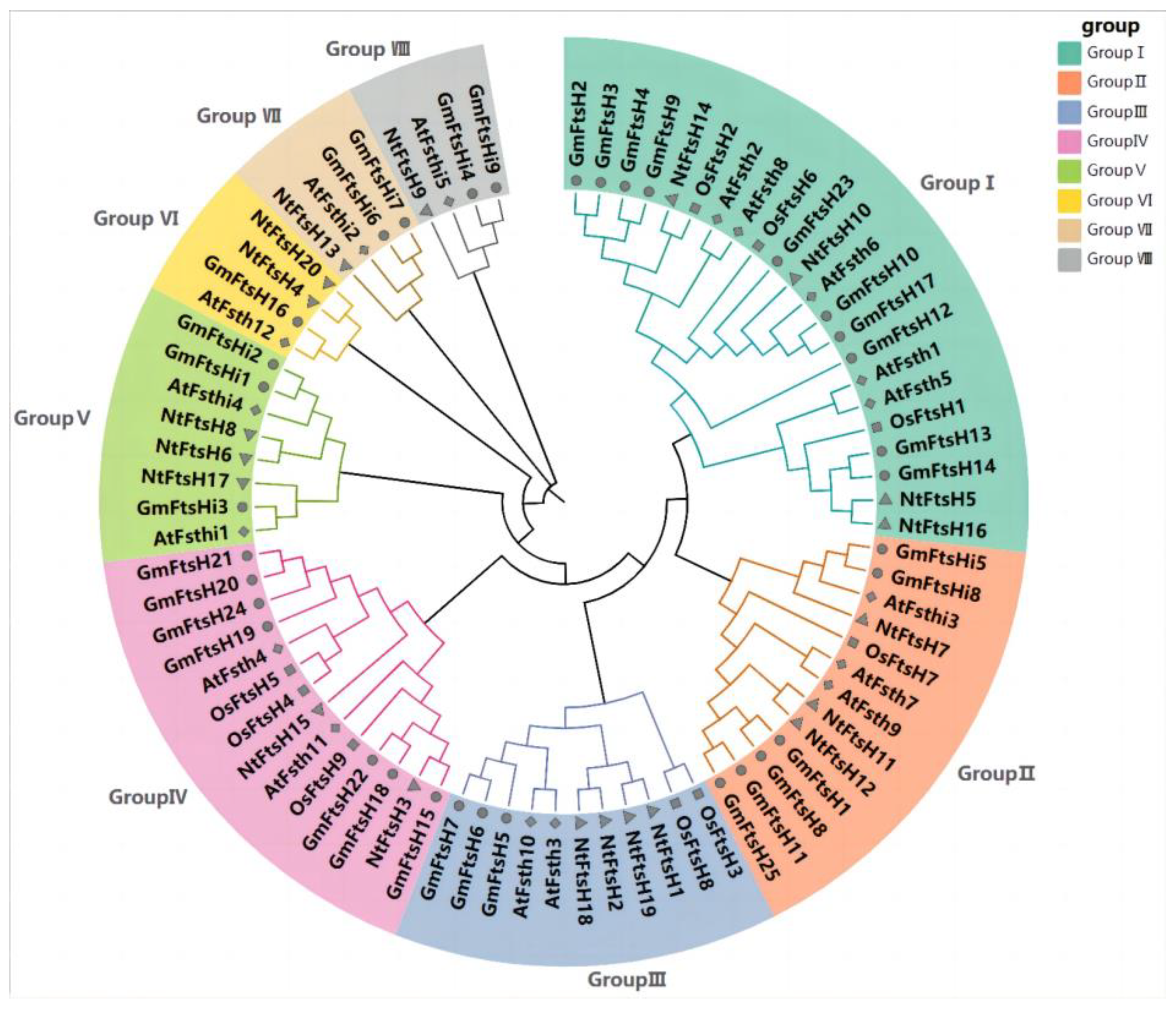

Figure 1. Phylogenetic tree of the FtsH gene family in Glycine max, Oryza sativa, Arabidopsis thaliana, and Nicotiana tabacum. A phylogenetic tree (1000 bootstrap replicates) was constructed using MEGAX64. Classes of different colors represent different groups. The genes beginning with “Gm” represent the genes of Glycine max, “At” represents the genes of Arabidopsis thaliana, “Os” represents the genes of Oryza sativa, and “Nt” represents the genes of Nicotiana tabacum.
Figure 1. Phylogenetic tree of the FtsH gene family in Glycine max, Oryza sativa, Arabidopsis thaliana, and Nicotiana tabacum. A phylogenetic tree (1000 bootstrap replicates) was constructed using MEGAX64. Classes of different colors represent different groups. The genes beginning with “Gm” represent the genes of Glycine max, “At” represents the genes of Arabidopsis thaliana, “Os” represents the genes of Oryza sativa, and “Nt” represents the genes of Nicotiana tabacum.
Ijms 24 16996 g001
Ijms 24 16996 g002

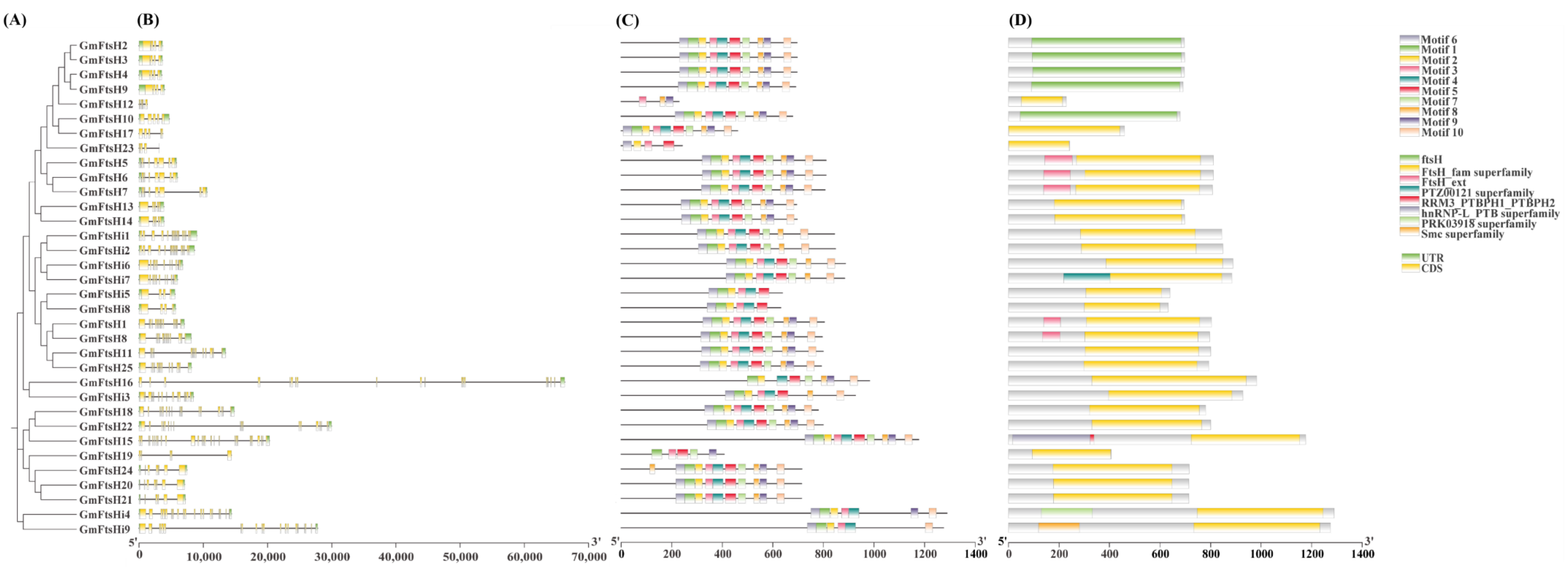

Figure 2. Analysis of the phylogenetic relationship, gene structure, conserved domains, and conserved motifs of GmFtsH genes. (A) Phylogenetic relationship analysis of GmFtsH genes. (B) Gene structure of GmFtsH genes—green boxes indicate 5′ or 3′ UTR regions, yellow boxes indicate exons, and black lines represent introns. (C) Conserved domains of GmFtsH genes. (D) Conserved motifs of GmFtsH genes.
Figure 2. Analysis of the phylogenetic relationship, gene structure, conserved domains, and conserved motifs of GmFtsH genes. (A) Phylogenetic relationship analysis of GmFtsH genes. (B) Gene structure of GmFtsH genes—green boxes indicate 5′ or 3′ UTR regions, yellow boxes indicate exons, and black lines represent introns. (C) Conserved domains of GmFtsH genes. (D) Conserved motifs of GmFtsH genes.
Ijms 24 16996 g002
Ijms 24 16996 g003

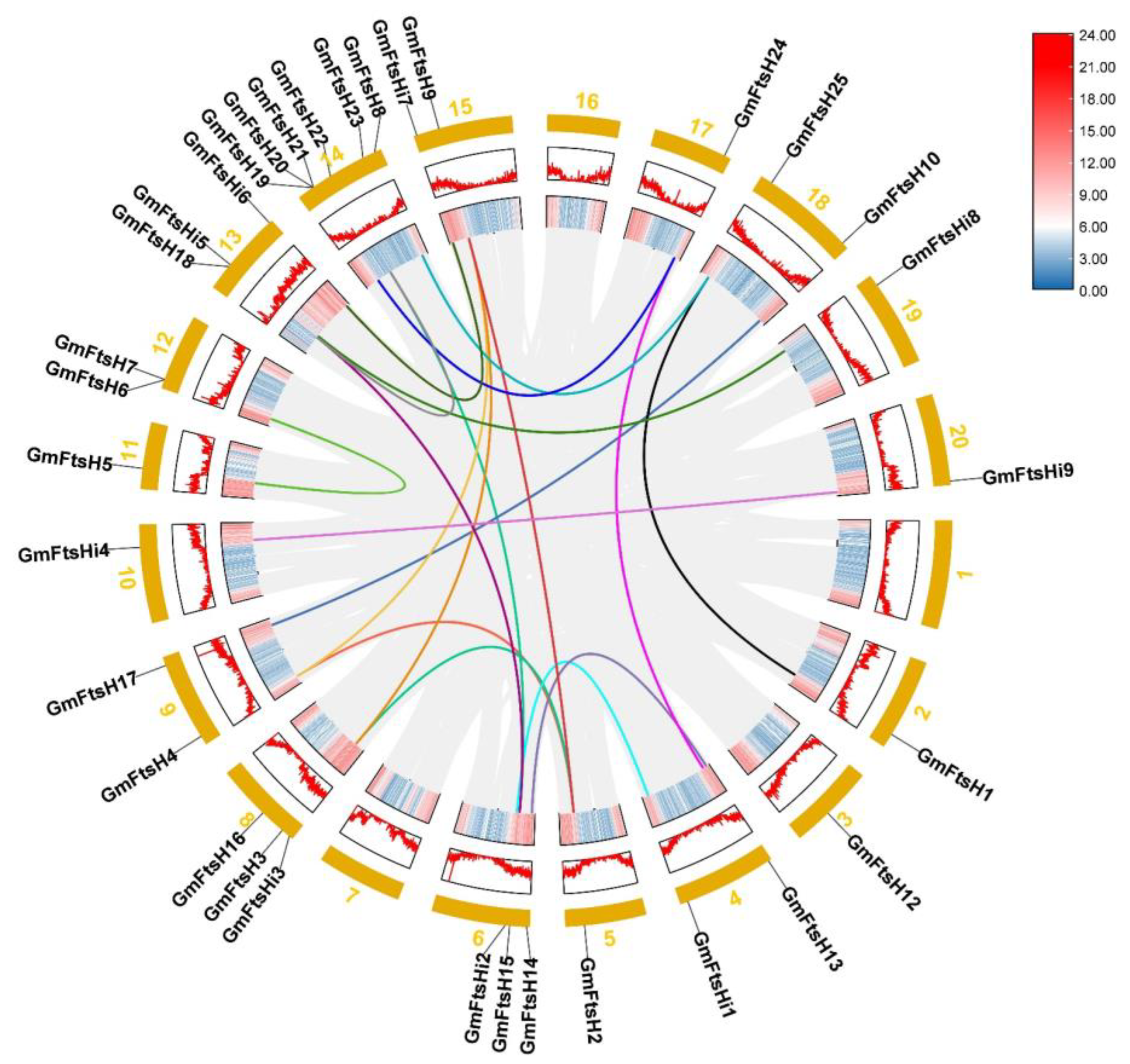

Figure 3. Chromosome location and gene duplication analysis of GmFtsH genes. Gray lines represent all collinear blocks in the genome of Glycine max; other colored lines represent duplicated GmFtsH gene pairs. The heat map in the inner circle indicates chromosomal gene density.
Figure 3. Chromosome location and gene duplication analysis of GmFtsH genes. Gray lines represent all collinear blocks in the genome of Glycine max; other colored lines represent duplicated GmFtsH gene pairs. The heat map in the inner circle indicates chromosomal gene density.
Ijms 24 16996 g003
Ijms 24 16996 g004

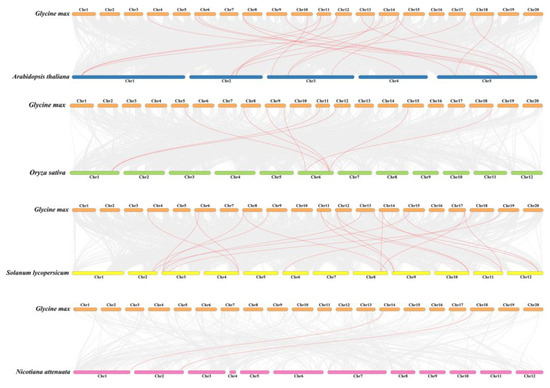

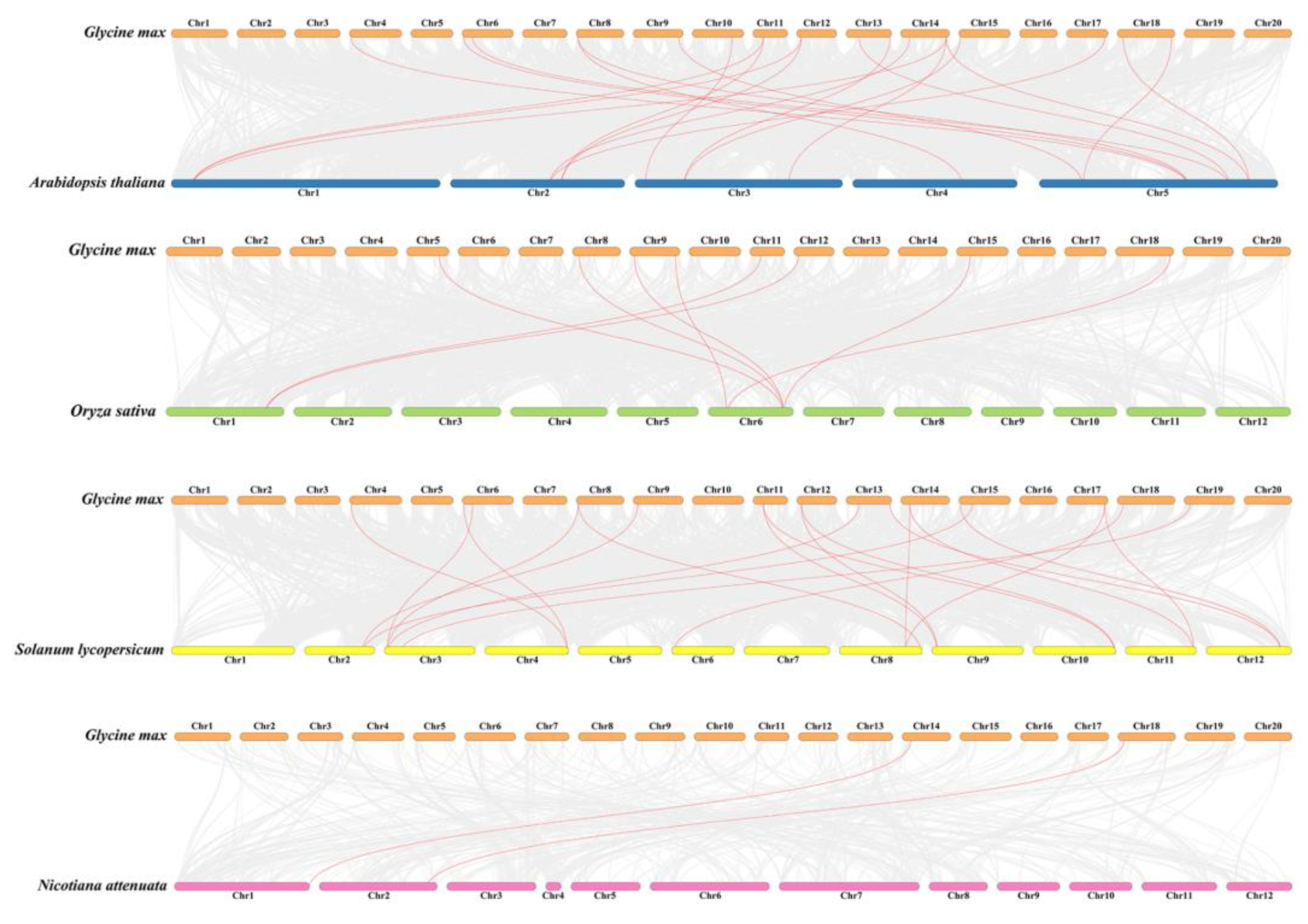

Figure 4. Collinearity analysis of the FtsH family of Glycine max, Arabidopsis thaliana, Oryza sativa, Nicotiana attenuata, and Solanum lycopersicum. Gray lines represent collinear blocks in Glycine max and other plant genomes and red lines highlight collinear FtsH gene pairs.
Figure 4. Collinearity analysis of the FtsH family of Glycine max, Arabidopsis thaliana, Oryza sativa, Nicotiana attenuata, and Solanum lycopersicum. Gray lines represent collinear blocks in Glycine max and other plant genomes and red lines highlight collinear FtsH gene pairs.
Ijms 24 16996 g004
Ijms 24 16996 g005

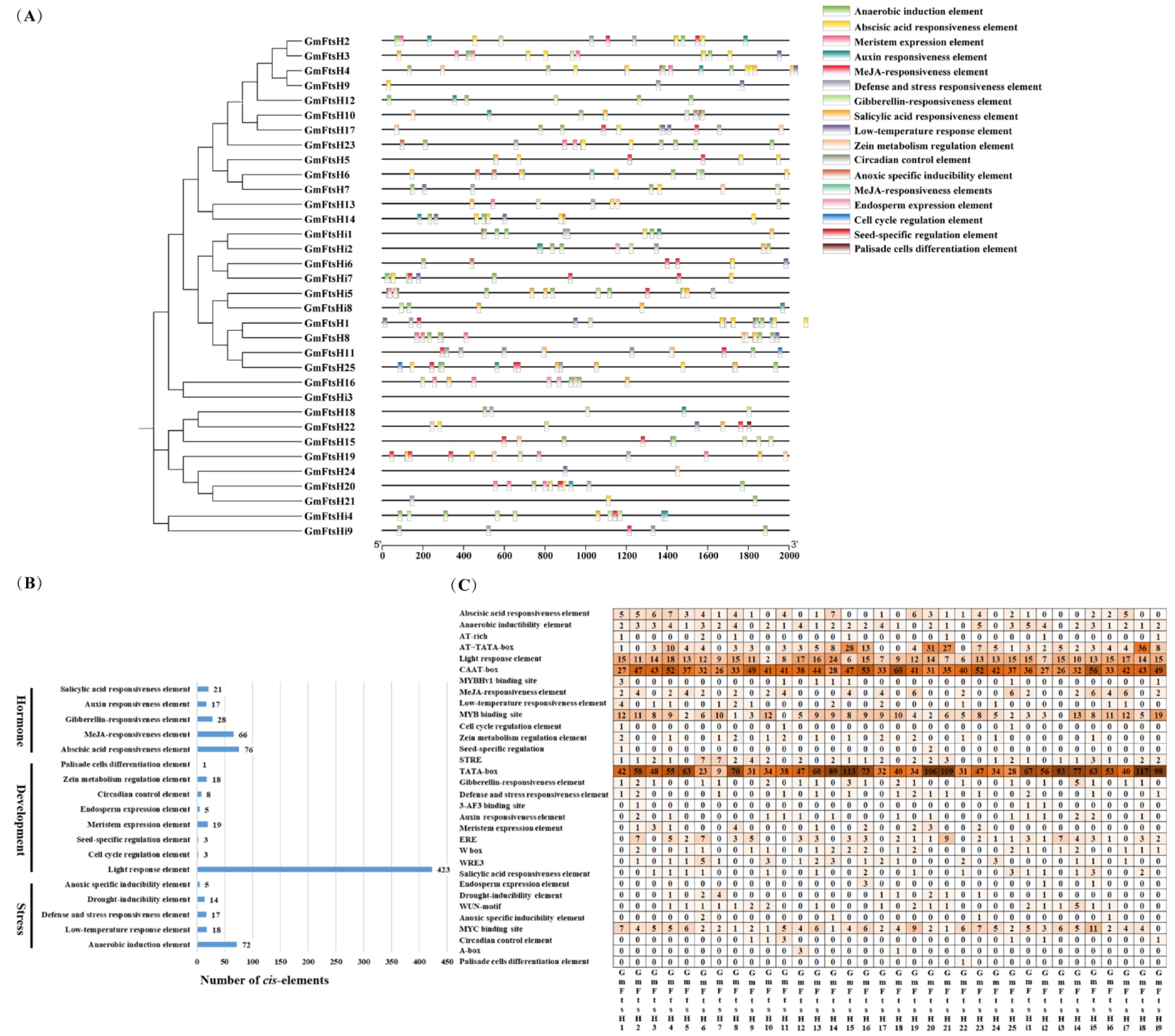

Figure 5. Schematic diagram of the cis-acting element analysis of the GmFtsH genes promoter. (A) The black line indicates the length of the GmFtsH genes promoter. Rectangular boxes with different colored boxes represent different types of cis-acting elements. The clustering of GmFtsH genes was based on the phylogenetic tree shown in Figure 2. (B) The bar chart shows the different types and numbers of three cis-acting elements contained in the GmFtsH genes promoter. (C) Shades of orange and numbers in the grid represent the number of corresponding cis-acting elements, and the darker the orange color, the more cis-acting elements there are.
Figure 5. Schematic diagram of the cis-acting element analysis of the GmFtsH genes promoter. (A) The black line indicates the length of the GmFtsH genes promoter. Rectangular boxes with different colored boxes represent different types of cis-acting elements. The clustering of GmFtsH genes was based on the phylogenetic tree shown in Figure 2. (B) The bar chart shows the different types and numbers of three cis-acting elements contained in the GmFtsH genes promoter. (C) Shades of orange and numbers in the grid represent the number of corresponding cis-acting elements, and the darker the orange color, the more cis-acting elements there are.
Ijms 24 16996 g005
Ijms 24 16996 g006

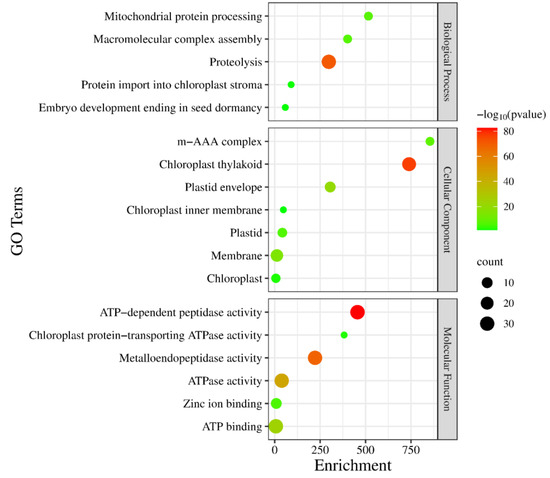

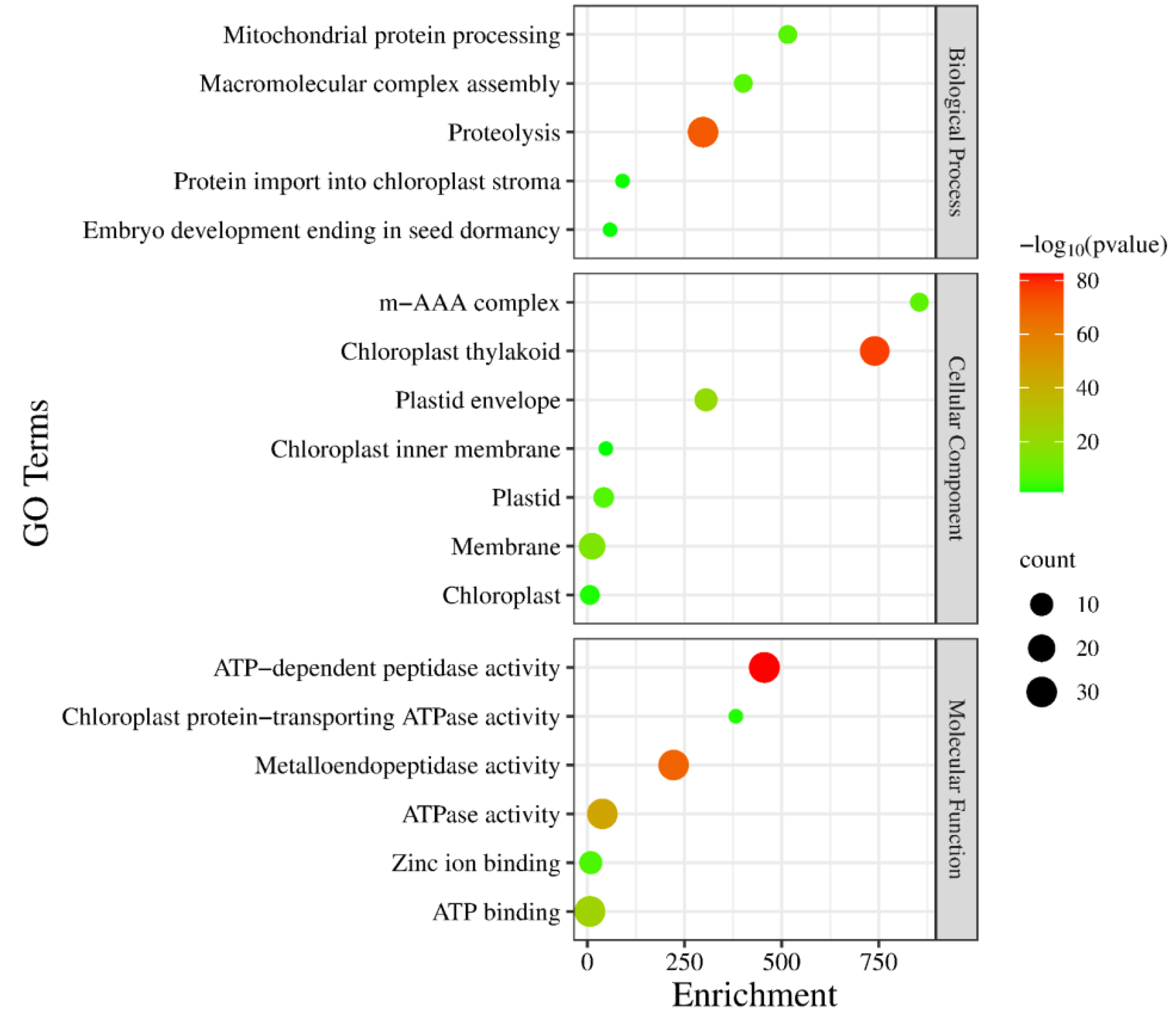

Figure 6. GO enrichment analysis of GmFtsH genes. Gene ontology (GO) enrichment analyses were divided into three main categories: molecular function (MF), cellular component (CC), and biological process (BP). GO terms associated with a p value < 0.05 were identified as significant.
Figure 6. GO enrichment analysis of GmFtsH genes. Gene ontology (GO) enrichment analyses were divided into three main categories: molecular function (MF), cellular component (CC), and biological process (BP). GO terms associated with a p value < 0.05 were identified as significant.
Ijms 24 16996 g006
Ijms 24 16996 g007

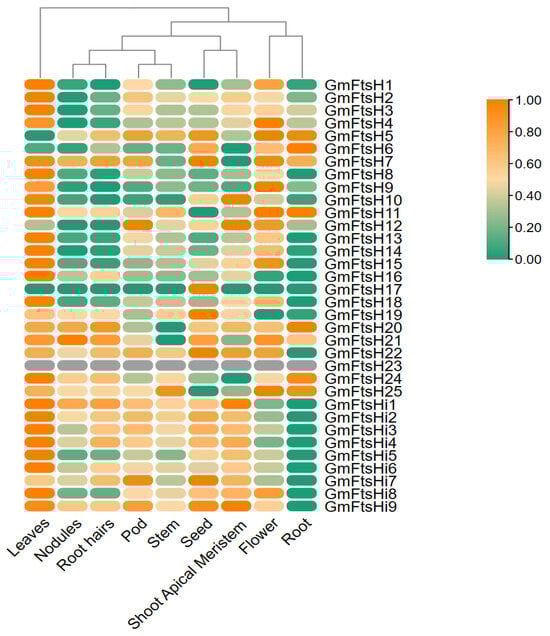

Figure 7. Expression heat map of GmFtsH genes in different tissues of Glycine max. The relative expression level is represented on the heat map’s right side by a color scale, and a gradient from dark green to orange-yellow shows an increase in expression level.
Figure 7. Expression heat map of GmFtsH genes in different tissues of Glycine max. The relative expression level is represented on the heat map’s right side by a color scale, and a gradient from dark green to orange-yellow shows an increase in expression level.
Ijms 24 16996 g007
Ijms 24 16996 g008

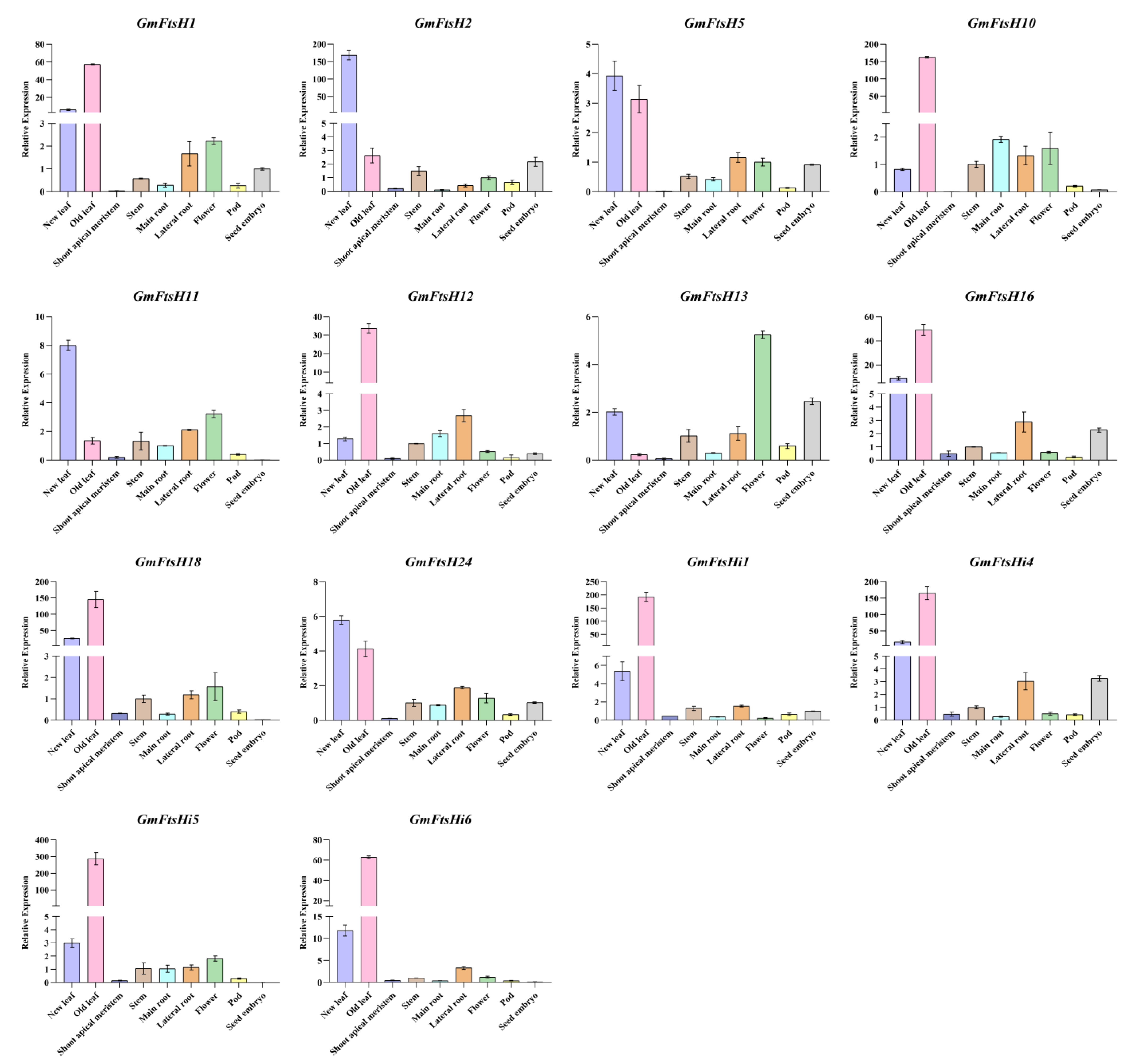

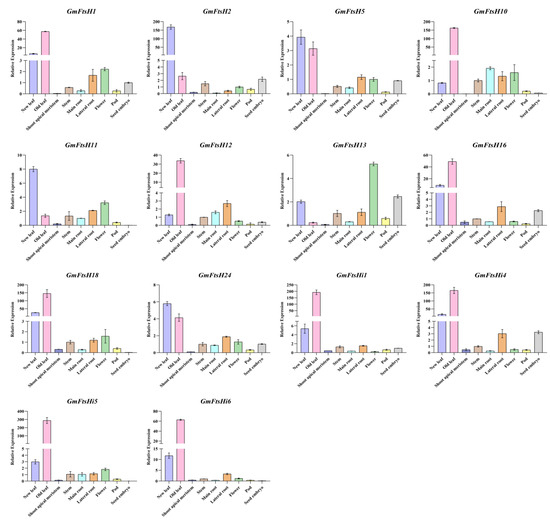

Figure 8. Expression profiles of different tissues of GmFtsH genes by qRT-PCR. The expression profiles of 14 GmFtsH genes at different developmental stages were determined by qRT-PCR analysis. The expression analysis was normalized using the GmActin gene as an internal reference. Error bars were estimated based on the differences in expression patterns of three independent replicates.
Figure 8. Expression profiles of different tissues of GmFtsH genes by qRT-PCR. The expression profiles of 14 GmFtsH genes at different developmental stages were determined by qRT-PCR analysis. The expression analysis was normalized using the GmActin gene as an internal reference. Error bars were estimated based on the differences in expression patterns of three independent replicates.
Ijms 24 16996 g008
Ijms 24 16996 g009
Figure 9. Subcellular localization of GmFtsH13. The control (35S::GFP) and fusion (35S::GmFtsH13-GFP) vectors were separately expressed in tobacco (Nicotiana benthamiana) leaves. GFP indicates green fluorescent protein signal. Merged indicates the merged signal. Scale bar = 50 µm.
Figure 9. Subcellular localization of GmFtsH13. The control (35S::GFP) and fusion (35S::GmFtsH13-GFP) vectors were separately expressed in tobacco (Nicotiana benthamiana) leaves. GFP indicates green fluorescent protein signal. Merged indicates the merged signal. Scale bar = 50 µm.
Ijms 24 16996 g009
Table 1. Analysis of physicochemical properties of GmFtsH genes.
Table 1. Analysis of physicochemical properties of GmFtsH genes.
GeneGene_LocusNumber of Amino AcidsMolecular Weight (Average)PIInstability IndexAliphatic IndexGrand Average of HydropathicitySubcellular Localization
GmFtsH1Glyma.02G22530080386,930.028.5537.1792.76−0.193Extr
GmFtsH2Glyma.05G13200069574,816.315.5633.8891.51−0.139Mito
GmFtsH3Glyma.08G08660069674,980.525.7333.9291.11−0.144Mito
GmFtsH4Glyma.09G05260069574,631.555.8934.5294.4−0.058Mito
GmFtsH5Glyma.11G13770081089,324.678.5129.5881.4−0.37Mito
GmFtsH6Glyma.12G06120081089,316.767.9632.4383.65−0.331Mito
GmFtsH7Glyma.12G06140080688,528.656.7231.383.14−0.305Mito
GmFtsH8Glyma.14G19210079586,419.518.83891.25−0.224Extr
GmFtsH9Glyma.15G15890069074,096.775.8935.6491.29−0.106Mito
GmFtsH10Glyma.18G25970067873,349.25.8837.7195.53−0.126Mito
GmFtsH11Glyma.U02680079986,937.028.3841.5691.05−0.195Extr
GmFtsH12Glyma.03G08920022825,504.245.9930.4690.66−0.314Chlo
GmFtsH13Glyma.04G01910069474,160.565.8737.6891.96−0.092Mito
GmFtsH14Glyma.06G01940069674,393.955.9337.0191.82−0.077Mito
GmFtsH15Glyma.06G1260001176128,842.865.8949.1291.74−0.206Extr
GmFtsH16Glyma.08G237500982113,514.786.847.1587.91−0.397Extr
GmFtsH17Glyma.09G23790045949,413.525.2431.0495.82−0.132Mito
GmFtsH18Glyma.13G04170077985,157.155.350.5190.69−0.248Mito
GmFtsH19Glyma.14G09570040643,905.25.0337.4790.05−0.105Mito
GmFtsH20Glyma.14G09600071376,969.758.2142.6487.91−0.237Mito
GmFtsH21Glyma.14G09610071377,151.988.8943.0288.04−0.249Mito
GmFtsH22Glyma.14G12490079987,074.635.5747.9291.21−0.182Mito
GmFtsH23Glyma.14G16220024126,544.185.0132.7492.57−0.3Mito
GmFtsH24Glyma.17G22810071477,332.228.846.5888.47−0.243Mito
GmFtsH25Glyma.18G06560079286,240.298.3844.6691.96−0.194Extr
GmFtsHi1Glyma.04G21380084394,795.315.6544.689.6−0.278Extr
GmFtsHi2Glyma.06G15250084795,554.225.8643.787.91−0.329Extr
GmFtsHi3Glyma.08G023900926104,155.249.0441.3596.11−0.25Extr
GmFtsHi4Glyma.10G1648001288147,844.17.5843.6688.73−0.37Extr
GmFtsHi5Glyma.13G04980063870,631.469.4645.9890.3−0.188Extr
GmFtsHi6Glyma.13G355400887100,936.979.4243.5383.25−0.545Extr
GmFtsHi7Glyma.15G018800883100,161.319.4344.2683.17−0.516Extr
GmFtsHi8Glyma.19G04020063169,692.629.5543.6390.7−0.174Extr
GmFtsHi9Glyma.20G2270001274146,660.978.3341.7689.84−0.357Extr
“Extr” represents extracellular, “Mito” represents mitochondrion, “Chlo” represents chloroplast.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Shan, Q.; Zhou, B.; Wang, Y.; Hao, F.; Zhu, L.; Liu, Y.; Wang, N.; Wang, F.; Li, X.; Dong, Y.; et al. Genome-Wide Identification and Comprehensive Analysis of the FtsH Gene Family in Soybean (Glycine max). Int. J. Mol. Sci. 2023, 24, 16996. https://doi.org/10.3390/ijms242316996

AMA Style

Shan Q, Zhou B, Wang Y, Hao F, Zhu L, Liu Y, Wang N, Wang F, Li X, Dong Y, et al. Genome-Wide Identification and Comprehensive Analysis of the FtsH Gene Family in Soybean (Glycine max). International Journal of Molecular Sciences. 2023; 24(23):16996. https://doi.org/10.3390/ijms242316996

Chicago/Turabian Style

Shan, Qi, Baihui Zhou, Yuanxin Wang, Feiyu Hao, Lin Zhu, Yuhan Liu, Nan Wang, Fawei Wang, Xiaowei Li, Yuanyuan Dong, and et al. 2023. "Genome-Wide Identification and Comprehensive Analysis of the FtsH Gene Family in Soybean (Glycine max)" International Journal of Molecular Sciences 24, no. 23: 16996. https://doi.org/10.3390/ijms242316996

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
