Water Stable Isotopes in the Central Altai Mountainous Rivers as Indicator of Glacier Meltwater Fraction in Runoff

by
Dmitrii Bantcev
1,*,
Valeriia Rasputina
1,
Anaiit Ovsepian
1,
Semyon Griga
1,
Anna Kozachek
1,2,
Kirill Tchikhatchev
2 and
Dmitrii Ganyushkin
1
1
Institute of Earth Sciences, St. Petersburg State University, St. Petersburg 199034, Russia
2
Arctic and Antarctic Research Institute, St. Petersburg 199397, Russia
*
Author to whom correspondence should be addressed.
Water 2024, 16(9), 1288; https://doi.org/10.3390/w16091288
Submission received: 5 April 2024 / Revised: 22 April 2024 / Accepted: 25 April 2024 / Published: 30 April 2024
(This article belongs to the Topic Analysis and Separations of Trace Elements in the Environment)
Browse Figures
Versions Notes

Abstract

:
We used stable water isotopes (δ18O and δ2H) to identify the fractions of glacier meltwater and summer precipitation in the runoff in the Taldura River in the Altai mountains. The mean isotopic characteristics of glacier ice, snow, summer precipitation and river water were obtained. Using isotopic separation of hydrographs, we determined that glacier feeding completely prevails throughout the Taldura River in the middle of the ablation season. In general, the fraction of glacier meltwater in the Taldura River’s runoff in the ablation season varies from 80% to 95% depending on local weather conditions.

1. Introduction

The main purpose of this study is the estimation of the glacier meltwater fraction in runoff in the Taldura river basin using stable isotope data. This research was carried out on the South-Chuya ridge. The hydrological knowledge of this ridge is extremely insufficient. Currently, most of the gauge stations in the entire Altai Mountains are closed. Closest to the ridge is the Kucherla station on the Kucherla River, located 107 km northwest of the Katunsky ridge in completely different conditions: higher maximal elevation of the ridge, larger amount of precipitation and larger glaciation area. In the Altai region, glacier-originated rivers have a great impact on the economic activities of the local population; therefore, an estimate of the contribution of modern glaciation and other water sources to the runoff is necessary to assess possible changes in the water balance under the conditions of changing climate and deglaciation.
Water stable isotopes (18O and 2H) are currently widely used in upland hydrology. These isotopes in general are used as tracers to identify and estimate water sources. This kind of research is widespread in mainly glaciated mountain territories, especially in the Himalayas [1]. However, such studies have not been carried out practically for the Russian Altai. The complex isotope hydrological studies closest to Altai were carried out on the territory of China at the Urumqi river basin [2], on the Tibetan Plateau [3,4,5,6] and in mountainous areas of southwestern China [7]. Isotope studies in Altai are primarily associated with the deep-core drilling of glaciers on the Belukhas plateau [8] and at the Tsambagarav massif in Northwestern Mongolia [9]. For the Altai Mountains and its foothills, isotope analysis of precipitation was performed and compared with model data [10,11,12].
Earlier, we performed isotope studies at the Tavan-Bogdo-Ola, Tsambagarav and Mongun-Taiga mountain ranges [13,14]. In 2022, the first isotope samples were taken in the Taldura river basin [15].
The Taldura drainage basin belongs to the upper reaches of the unified Ob-Irtysh river system. The isotopic composition of the Ob River in the city of Barnaul was recently investigated [16], but at the same time, isotope data are insufficient in the high mountainous parts of the Ob river basin.

2. Materials and Methods

2.1. Study Area

Isotope hydrological studies were carried out in July–August 2023 in the Taldura River catchment area located in the upper reaches of the Chuya river basin, which is part of the Ob’ river basin. The Taldura river originates from the glaciers on the South-Chuya ridge. This ridge is located in the Central Altai and extends from west to east for 120 km. The highest elevation is 3967 m. The South-Chuya ridge is characterized by a large number of glaciers: the total glaciation area is the second largest in the Russian Altai (Figure 1).
As a result of climate change, which according to [17] in the territory of the Russian Federation began in the late 1970s, the glaciers of the South-Chuya ridge are shrinking. At the moment, the glaciation area of the South-Chuya Ridge continues to decrease. The total area of glaciers is estimated as 118 km2. Around 70 glaciers with a total area of 39.8 km2 are located in the Taldura river basin. The equilibrium line elevation is 3000–3100 m [18]. The Taldura River originates from the Bolshaya Taldura glacier. The river valley is located on the northern macroslope of the South-Chuya ridge (Figure 1). According to the Catalogue of Glaciers of Russia [19], the Bolshaya Taldura glacier system had an area of 20.46 km2 with a maximum length of 4760 m, a vertical range of 1240 m and an average height of the firn line of 3120 m in 2017.
In this part of Altai, the annual precipitation amount is 400–600 mm. On the windward slopes, it can reach 800–1000 mm. From April to October, 70–85% of the annual precipitation falls. Its monthly maximum is usually observed in June–July [20].
The area of the studied part of the Taldura river basin is 347.8 km2 (Figure 1). The total glaciation of this part of the basin was estimated at 11.4%.

2.2. Methods

Sample collection was carried out in the middle of the ablation season, from July to August. Most of the samples were taken at the 3 temporary gauging stations (Figure 1). The lower Taldura gauging station was established at an altitude of 1936 m. The upper Taldura gauging station was established at an altitude of 2420 m at a distance of 1600 m from the edge of the Bolshaya Taldura glacier. The observation period at the upper station was 28 days, at the lower one was 18 days. On the right tributary of the Taldura River, at an altitude of 2760 m, the additional gauging station was established. The observation period was 24 days.
At each gauge, the water level was measured 4 times a day and the discharge was also measured periodically. The stage–discharge relation was calculated and for each value of water level, the discharge value was obtained.
At all gauging stations, meteorological observations were also carried out. The air temperature was recorded using the EClerk-M-RHT automatic recorder [21]. The amount of precipitation was determined using a portable rain gauge.
Total dissolved solids (TDS) in water samples was measured by a HANNA HI 98311 Dist5 conductivity meter [22].
Isotope samples at the gauging stations were taken in 50 mL test tubes twice a day: at 08:00 and 20:00. In cases of intense precipitation or high melting, an additional sample was taken, usually at 16:00. Samples of glacier ice, snow, precipitation and different streams were also taken. Glacier ice was collected from the surface of glaciers into plastic bags, then melted at the surrounding temperature and poured into test tubes. The samples from the streams were taken directly into the test tubes. Precipitation was usually sampled twice a day (08:00 and 20:00) from a portable rain gauge.
The relative isotopic composition is indicated by the δ SMOW (standard mean ocean water) and is accepted as the zero standard [23].
δ18O = ([(18O/16O)sample − (18O/16O)SMOW]/(18O/16O)SMOW) × 103
δ2H = ([(2H/H)sample − (2H/H)SMOW]/(2H/H)SMOW) × 103
The analysis of isotopic characteristics was carried out at the Laboratory for Climate and Environmental Change in the Arctic and Antarctic Research Institute (St. Petersburg, Russia) by Cavity Ring-Down Spectroscopy (CRDS) using Picarro L2130-i and Picarro L2140-I analyzers [24]. Distilled tap water from St. Petersburg was used as a laboratory standard, and it had the following characteristics: –9.66 ‰ in δ18O and –74.1 ‰ in δ2H relative to the IAEA “V-SMOW2” standard. The measurement precision was 0.04 ‰ for δ18O and 0.4 ‰ for δ2H, which is sufficient for this kind of research.
Using stable isotopes as tracers, it is possible to divide the hydrograph into components. The use of stable isotopes in glaciology and hydrology is based on natural differences in the isotopic composition of the water from different sources, e.g., glacier meltwater, groundwater and precipitation. Using only δ18O values, only two-component separation can be carried out using the isotope balance formula, which generally has the following form:
R18O1f1 + R18O2f2 = R18O
with R18O1—isotopic content of the first component; f1—fraction of the first component; R18O2—isotopic content of the second component; f2—fraction of the second component; R18O—resulting isotopic composition [25].

3. Results

3.1. Isotopic Composition of Precipitation

Precipitation samples were taken at different altitudinal levels: at each gauging station and additionally from the surface of the corrie glacier near gauge no. 3 at an elevation of 3000 m. The isotopic composition of the precipitation at every sampling point is shown in Figure 2.
The local meteoric water line (LMWL) was plotted from the event-based precipitation samples for each elevation separately. The slope of these lines is lower than that of the GMWL, which is common for Inner Asia summer precipitation [13,14,26,27]. The LMWL of the samples from the glacier surface (Figure 2, 3000 m) is close to the GMWL. The weighted-average δ18O of the samples ranges from −8.3‰ to −10.4‰.
The weighted-average δ18O values of 18O were compared with the modeled values from the online calculator OIPC (The Online Isotopes in Precipitation Calculator), which allows the monthly or annual isotopic composition to be calculated using geographical coordinates and elevation (Table 1). This calculator is based on the interpolation of IsoMAP data based on GNIP (Global Network of Isotopes in Precipitation) weather stations [28,29,30].
The modeled monthly δ18O values are rather close to obtained δ18O, except at the lowest sampling point. The isotopic composition of precipitation (Figure 2, Table 1) also shows a lack of altitude effect (decrease in δ18O with increasing altitude) in July 2023. Since the altitude effect was absent or weakly expressed in the precipitation, differences in the isotopic composition of precipitation at different altitudinal levels can be ignored in the process of hydrograph separations during summer 2023.

3.2. Isotopic Composition of Ice and Snow

Ice samples were taken from the ablation zone of the surface of the Bolshaya Taldura glacier at relatively regular intervals. This technique has been used before and has proven itself fit for determining the average isotopic composition of ice [31]. (Seasonal snow was collected from two snow pits in snow fields on the surface of the glacier tongue. In total, 45 ice and 17 snow samples were collected.) The sampling points and the isotopic composition of the ice and snow are shown in Figure 3.
The mean and range of δ18O in glacier ice indicate the formation of ice from precipitation of the transitional seasons (autumn–spring). In the seasonal snow on the glacier surface, lower values of δ18O are presented, so we can indicate this snow as winter snow from 2022–2023. The meteoric lines in the ice and snow are close to each other and close to the GMWL: δ2H = 7.82 × δ18O + 13.29 in ice and δ2H = 7.78 × δ18O + 9.38 in snow. These meteoric lines are almost very close to the meteoric line (δ2H = 7.8 × δ18O + 7.7) obtained from 524 samples of firn core on the Belukha plateau in 2002 [8]. A summary of the ice and snow characteristics is shown in Table 2.
The ice is characterized by very low values of total dissolved solids (TDS). In the snow, the mean TDS is 8.4 ppm; this value is also quite low. The high confidence interval is explained by the smaller number of snow samples taken.

3.3. Isotopic Composition of Water

For every observation day at each gauging station, the mean δ18O was calculated. Figure 4 shows that the variability in δ18O at the lower hydrological post is less than that at the upper one, while the courses of the δ18O values at the two gauges for the total period coincide. Precipitation at the lower post practically has no effect on the isotopic composition of the water.
The increase in δ18O at each gauge is associated with precipitation. At the same time, the highest value of δ18O at the upper gauging station was recorded on 29.07, when a large amount of precipitation occurred at the period of low air temperature and, consequently, minimal melting. In general, there was a tendency for an increase in δ18O at the upper gauging station after 21.06.
At the lower gauging station, the situation is uncommon: the δ18O values in general are lower than at the upper one, which indicates a greater fraction of glacier meltwater to the runoff, despite the distance of 34 km from the edge of the Bolshaya Taldura glacier. But a separate sample taken at the lower post on 06.08 showed that there was a tendency for δ18O to increase, as well as at the upper post. There is also minimal variability in δ18O at the lower gauge during the observation period.
At the gauging station on the tributary, the range of δ18O is greater and the mean δ18O is higher, which indicates a greater influence of precipitation on the runoff in the small tributary. As the other two gauges, there is trend of an increase in δ18O over time and the peaks of δ18O after precipitation events are pronounced.
Samples were also taken from different tributaries of both glacial and non-glacial origin. The water characteristics obtained from the gauges and tributaries are shown in Table 3.
The obtained mean value and the range of δ18O (from −18.79 to −16.57‰) of water from glacier originated tributaries are very close to the isotopic composition of water at the gauging stations on the Taldura River. It can be suggested that these values are typical for the glacier rivers of the ridge in the middle of the ablation season.
The mean δ18O value in the streams of non-glacial origin is −15.77‰ (from −17.11 to −14.55‰). The relatively low isotopic composition indicates the contribution of snowmelt water to their feeding.
In the upper reach of the Taldura River (gauge 2), the TDS changes slightly during the observation period (within 2–4 ppm). At the lower reach of the Taldura river (gauge 1), the TDS was 10 times higher because of enrichment from the dissolved mineral compounds. On the right tributary of the Taldura River, the TDS remains almost unchanged throughout the observation period (7–8 ppm).
The TDS in the glacier-originated tributaries is lower than the mineralization of non-glacial originated tributaries but higher than the water conductivity at gauges 2 and 3, because of the filtration through moraine.

3.4. Isotopic Separation

The isotopic composition of the water on the gauges of the Taldura River reflects a mixture of water from different sources (Figure 5). The positions of the gauges on this diagram show the dominance of meltwater in river feeding.
According to the isotope balance equation, Equation (3), a two-component separation of hydrographs was performed. Several assumptions have been made to facilitate the separation. Only glacier meltwater and precipitation were considered components because it is possible to separate only two components using only δ18O as a tracer. It was also assumed that there is no separate groundwater reservoir in the studied basin, which differs in isotopic composition from summer precipitation and meltwater. This fact is confirmed by the absence of significant springs forming large tributaries in the Taldura river basin.
The average value δ18O of the glacial ice of the Bolshaya Taldura glacier was taken as the isotopic composition of meltwater. Precipitation was considered the second component, since the trends in the isotopic composition of water at all gauging stations showed that precipitation affects changes in the isotopic composition of river water. The isotopic composition of precipitation was taken as the weighted-average value of δ18O for the day before sampling, and the daily course of the isotopic composition of water showed that the run-up time did not exceed 24 h. If no precipitation occurred, the separation was performed using the isotopic composition of the last precipitation event. The results of isotopic separation at the Taldura River gauging stations are shown in Figure 6.
At the upper hydrological gauging station, the fraction of precipitation in runoff varied from 4 to 22% and averaged 9%. The average daily discharge formed from atmospheric precipitation varied from 0.18 to 3.19 m3/s. The maximum fraction of precipitation was observed on 29–30 July after a large amount of precipitation, with a decrease in temperature and, as a result of the low temperature, a decrease in melting.
At the lower gauging station, over a shorter observation period (until 23.07), the fraction of precipitation varied from 2 to 9%, with an average precipitation fraction of 5%. The average daily discharge formed from precipitation varied from 0.64 to 2.70 m3/s. During this period the discharges formed by precipitation in the upper gauging station were 0.18–1.88 m3/s. This fact may indicate that the isotopic separation results are correct. The maximum precipitation fraction in the runoff was observed on 21–23 July after precipitation in the upper part of the basin. It was also found that on 06.08 (based on an additional sample, not included in Figure 5), the fraction of precipitation increased to 17%.
The tributary (gauge 3) is characterized by an order of magnitude lower discharge. It was found that the fraction of precipitation varied from 5 to 32% (on average 15%), which is greater than on the Taldura River, but it is still mostly insignificant.

4. Discussion

First, it is necessary to sum up the obtained data on the isotopic composition of precipitation. The altitude effect of changes in the isotopic composition of precipitation is not pronounced: a decrease in the values of δ18O with an increase in altitude is not observed. The absence of an altitude effect can be explained by precipitation from a single condensation level when the air mass does not rise up along the valley or slopes. The reverse altitude effect (minimal δ18O at the lower gauge) may be associated with various sources of moisture and the turbulent mixing of air masses on orographic barriers [32].
A comparison of precipitation δ18O with OIPC data showed a close agreement. Therefore, the data from this online calculator may be used for further large-scale isotope hydrological studies.
The isotopic composition of the ice from Bolshaya Taldura can be used in further isotopic separation research in the upper Chuya basin as the isotopic composition of meltwater. The obtained mean δ18O value is close to the isotopic composition of ice in the Eastern Altai [14]. In the Western Altai, glacier ice must be enriched with stable isotopes according to the greater fraction of summer snow in glacier feeding. This is confirmed by ice drilling results on the Belukha plateau [8].
Changes in the water δ18O at each gauge reflect the influence of precipitation and changes in melting intensity. The low variability in δ18O in the lower gauge is explained by averaging the isotopic characteristics of all the water in the basins studied. Small tributaries are more affected by precipitation and temperature changes. This is reflected in the greater variability in water δ18O.
It is interesting that the fraction of glacier feeding in the Taldura River increases with distance from the Bolshaya Taldura glacier. The decrease in the precipitation fraction in the Taldura River from the upper part of the basin to the lower part is explained by the influence of glacier-originated tributaries with a natural decrease in precipitation in the lower part of the basin. The waters of the tributaries, as mentioned above, have an average value of δ18O −17.61‰. Some of them are characterized by the dominance of glacier meltwater with low δ18O values in water, e.g., the mean δ18O from three samples in the Dzelo River (see Figure 1) is −18.17 ‰. In addition, the amount of precipitation in the lower part of the catchment area is naturally decreasing. Thus, glacial feeding prevails completely in the runoff in the Taldura River throughout its entire length and in the runoff in its main tributaries.
Judging by the low values of δ18O at the start of the observation period at all gauging stations (Figure 4), we can suggest that snow meltwater, which is characterized by the lowest δ18O (Table 2), contributed to the feeding of rivers. The hydrograph can be divided into three components (glacier meltwater, snow meltwater and precipitation) using two tracers. TDS is usually used as the second one, but in this case the values of the TDS of the ice, snow and precipitation were too close to each other. It is also possible to perform three-component separation using excess deuterium [1]. But for a correct three-component separation, we need more data on the isotopic composition of snow from the glaciers and snowfields over the entire catchment area. In any case, the low values of δ18O in the lower reaches of the Taldura River can also be explained by an increase in the fraction of snow meltwater.
It is also interesting to investigate the interannual variability in the isotopic composition. Some samples were taken from the Taldura River a year before this research, in 2022. In 2022 and 2023, sampling was carried out in approximately one part of the ablation season (mainly in July), while various meteorological conditions were observed, which makes it possible to assess the variability in the contribution of glacier runoff to the feeding of the Taldura River. A comparison of isotopic characteristics and meteorological conditions for the example of the upper gauging station is shown in Table 4.
In 2022, the colder conditions with more precipitation, as a result of which the fraction of glacier runoff in the Taldura River’s feeding was lower, were reflected in the isotopic composition. At the same time, for the precipitation in the Taldura River, the fraction in 2022 generally did not exceed 20%. Thus, even under different conditions in the middle of the ablation season, glacier meltwater completely prevails in Taldura River feeding.

5. Conclusions

Based on the results of a complex of field work and laboratory measurements, it was determined that glacier feeding completely prevails throughout the Taldura River in the middle of the ablation season. At the same time, there is even a slight increase in the fraction of glacier meltwater in the lower part of the basin, far from the Bolshaya Taldura glacier. The meltwater fraction at the mouth of the Taldura River can reach 95%. Near the source of the Taldura River, the meltwater fraction in general is around 80–95%. The second most important source of water is summer precipitation, but its contribution, depending on the conditions, usually does not exceed 10–20%. Thus, further degradation of the South-Chuya ridge’s glaciation will inevitably affect the runoff in the Taldura River and the water balance of the upper Chuya basin as a whole. Now, the role of glacier runoff in the Taldura River is very high, but with further retreat of the glaciers, in addition to a reduction in their area, the intensity of their melting will decrease, since the edges of the glaciers will be higher. Consequently, in the near future, glacier runoff may even increase, but with continued degradation of glaciation, it will inevitably decrease, which will lead to a significant decrease in runoff in the Taldura River.

Author Contributions

Methodology, D.B. and A.K.; formal analysis, A.O.; investigation, D.B., S.G., A.K. and K.T.; writing—original draft preparation, D.B.; writing—review and editing, V.R. and A.K.; visualization, V.R. and A.O.; project administration, D.G.; funding acquisition, D.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Russian Science Foundation, grant number 23-27-00173. «Estimation of various components contribution to the glacial streams runoff in the Southeastern Altai according to isotope indicators».

Data Availability Statement

Isotopic data used for hydrographs separation is available at https://disk.yandex.ru/i/VvaJvO-nlLRbuw.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jeelani, G.; Lone, S.A.; Nisa, A.U.; Deshpande, R.D.; Padhya, V. Use of stable water isotopes to identify and estimate the sources of groundwater recharge in an alluvial aquifer of Upper Jhelum Basin (UJB), Western Himalayas. Hydrol. Sci. J. 2021, 66, 2330–2339. [Google Scholar] [CrossRef]
  2. Sun, C.; Li, W.; Chen, Y.; Li, X.; Yang, Y. Isotopic and hydrochemical composition of runoff in the Urumqi River, Tianshan Mountains, China. Environ. Earth Sci. 2015, 74, 1521–1537. [Google Scholar] [CrossRef]
  3. Fan, Y.; Chen, Y.; He, Q.; Li, W.; Wang, Y. Isotopic Characterization of River Waters and Water Source Identification in an Inland River, Central Asia. Water 2016, 8, 286. [Google Scholar] [CrossRef]
  4. Li, Z.; Feng, Q.; Liu, W.; Wang, T.; Guo, X.; Li, Z.; Gao, Y.; Pan, Y.; Guo, R.; Jia, B.; et al. The stable isotope evolution in Shiyi glacier system during the ablation period in the north of Tibetan Plateau, China. Quat. Int. 2015, 380–381, 262–271. [Google Scholar] [CrossRef]
  5. Wang, C.; Dong, Z.; Qin, X.; Zhang, J.; Du, W.; Wu, J. Glacier meltwater runoff process analysis using δD and δ18O isotope and chemistry at the remote Laohugou glacier basin in western Qilian Mountains, China. J. Geogr. Sci. 2016, 26, 722–734. [Google Scholar] [CrossRef]
  6. Zhao, L.J.; Yin, L.; Xiao, H.L.; Cheng, G.; Zhou, M.; Yang, Y.; Li, C.; Zhou, J. Isotopic evidence for the moisture origin and composition of surface runoff in the headwaters of the Heihe River basin. Chin. Sci. Bull. 2011, 56, 406–415. [Google Scholar] [CrossRef]
  7. Meng, Y.; Liu, G.; Li, M. Tracing the Sources and Processes of Groundwater in an Alpine Glacierized Region in Southwest China: Evidence from Environmental Isotopes. Water 2015, 7, 2673–2690. [Google Scholar] [CrossRef]
  8. Aizen, V.; Aizen, E.; Fujita, K.; Nikitin, S.; Kreutz, K.; Takeuchi, L. Stable-isotope time series and precipitation origin from firn-core and snow samples, Altai glaciers, Siberia. J. Glaciol. 2005, 51, 637–654. [Google Scholar] [CrossRef]
  9. Herren, P.A.; Eichler, A.; Machguth, H.; Papina, T.; Tobler, L.; Zapf, A.; Schwikowski, M. The onset of Neoglaciation 6000 years ago in western Mongolia revealed by an ice core from the Tsambagarav mountain range. Quat. Sci. Rev. 2013, 69, 59–68. [Google Scholar] [CrossRef]
  10. Malygina, N.S.; Eirikh, A.N.; Kurepina, N.Y.; Papina, T.S. Isotopic composition of precipitation in Altai foothills: Observation and interpolation data. Bull. Tomsk. Polytech. Univ. 2019, 330, 44–54. (In Russian) [Google Scholar] [CrossRef]
  11. Malygina, N.S.; Eirikh, A.N.; Kurepina, N.Y.; Papina, T.S. Isotope composition of winter precipitation and snow cover in the foothills of the Altai. Ice Snow 2017, 57, 57–68. (In Russian) [Google Scholar] [CrossRef]
  12. Papina, T.S.; Malygina, N.S.; Blyakharchuk, T.A.; Nenasheva, G.I.; Ryabchinskaya, N.A.; Eyrikh, A.N. Isotopic composition and pollen spectra of precipitation and ice at the edge part of Korumdu Glacier (North Chu ridge, Altai Mountains). Ice Snow 2015, 55, 40–48. (In Russian) [Google Scholar] [CrossRef]
  13. Bantcev, D.V.; Ganyushkin, D.A.; Chistyakov, K.V.; Volkov, I.V.; Ekaykin, A.A.; Veres, A.N.; Tokarev, I.V.; Shtykova, N.B.; Andreeva, T.A. The Components of the Glacial Runoff of the Tsambagarav Massif from Stable Water Isotope Data. Geosciences 2019, 9, 297. [Google Scholar] [CrossRef]
  14. Bantsev, D.V.; Ganyushkin, D.A.; Chistyakov, K.V.; Ekaykin, A.A.; Tokarev, I.V.; Volkov, I.V. Formation of glacier runoff on the northern slope of Tavan Bogd mountain massif based on stable isotopes data. Ice Snow 2018, 58, 333–342. (In Russian) [Google Scholar] [CrossRef]
  15. Bantcev, D.V.; Ovsepyan, A.A.; Rasputina, V.A.; Kozachek, A.V.; Tchikhatchev, K.B.; Ganyushkin, D.A. The Use of Isotope Indicators in Hydrological Studies in the Taldura River Basin, Central Altai. Ice Snow 2023, 63, 513–524. (In Russian) [Google Scholar] [CrossRef]
  16. Papina, T.; Eirikh, A.; Kotovshchikov, A.; Noskova, T. Impact of Snowmelt Conditions on the Isotopic Composition of the Surface Waters of the Upper Ob River during the Flood Period. Water 2023, 15, 2096. [Google Scholar] [CrossRef]
  17. Akentyeva, E.M.; Anisimov, O.A.; Bardin, M.Y.; Zhuravlev, S.A.; Kattsov, V.M.; Kiselev, A.A.; Klyueva, M.V.; Konstantinov, P.I.; Korotkov, V.N.; Kostyanoy, A.G.; et al. The Third Assessment Report of Roshydromet on Climate Change and Its Consequences on the Territory of the Russian Federation: General Summary; Naukoemkie Tehnologii: Saint-Petersburg, Russia, 2022. (In Russian) [Google Scholar]
  18. Okishev, P.A. Relief and Glaciation of Russian Altai; Tomsk University Publishing House: Tomsk, Russia, 2011. (In Russian) [Google Scholar]
  19. Khromova, T.Y.; Nosenko, G.A.; Glazovsky, A.F.; Muraviev, A.Y.; Nikitin, S.A.; Lavrentiev, I.I. New Inventory of the Russian glaciers based on satellite data (2016–2019). Ice Snow 2021, 61, 341–358. (In Russian) [Google Scholar] [CrossRef]
  20. Resources of Surface Waters of the USSR; Responsible editor Semenov V.A.; Hydrometeoizdat: Leningrad, Russia, 1969; Volume 15. (In Russian)
  21. Temperature and Humidity Logger with Indication EClerk-M-RHT. Available online: https://relsib.com/product/logger-vlazhnosti-i-temperatury-registrator-eclerk-m-rht?ysclid=lvao1tcns292535277 (accessed on 22 April 2024).
  22. Hanna Instruments Laboratory and Industrial Analytical Equipment. Available online: https://www.hannarus.ru/ (accessed on 22 April 2024).
  23. Reference Materials-VSMOW2. Available online: https://analytical-reference-materials.iaea.org/vsmow2 (accessed on 22 April 2024).
  24. Picarro. Available online: https://www.picarro.com/ (accessed on 22 April 2024).
  25. Chizhova, Y.u.N.; Rec, E.P.; Vasil’chuk, Y.u.K.; Tokarev, I.V.; Budanceva, N.A.; Kireeva, M.B. Two approaches to hydrograph separation of the glacial river runoff using isotopic methods. Ice Snow 2016, 56, 161–168. (In Russian) [Google Scholar] [CrossRef]
  26. Saidaliyeva, Z.; Shahgedanova, M.; Yapiyev, V.; Wade, A.; Akbarov, F.; Esenaman, M.; Kapitsa, V.; Kassatkin, N.; Kayumova, D.; Rakhimov, I.; et al. Isotopic composition as a tracer of different source contributions to stream flow in the glacierized catchments of Central Asia. In Proceedings of the Abstracts EGU General Assembly. EGU General Assembly, Vienna, Austria, 24–28 April 2023. EGU23-10181. [Google Scholar] [CrossRef]
  27. Yamanaka, T.; Tsujimura, M.; Oyunbaatar, D.; Gombo, D. Isotopic variation of precipitation over eastern Mongolia and its implication for the atmospheric water cycle. J. Hydrol. 2007, 333, 21–34. [Google Scholar] [CrossRef]
  28. Bowen, G.J. The Online Isotopes in Precipitation Calculator, Version 3.1. [Online]. 2017. Available online: https://www.waterisotopes.org (accessed on 3 February 2024).
  29. Bowen, G.J.; Wassenaar, L.I.; Hobson, K.A. Global application of stable hydrogen and oxygen isotopes to wildlife forensics. Oecologia 2005, 143, 337–348. [Google Scholar] [CrossRef]
  30. IAEA/WMO. Global Network of Isotopes in Precipitation. The GNIP Database [Online]. 2015. Available online: https://nucleus.iaea.org/wiser (accessed on 3 February 2024).
  31. Bantcev, D.; Ganyushkin, D.; Terekhov, A.; Ekaykin, A.; Tokarev, I.; Chistyakov, K. Isotopic Composition of Glacier Ice and Meltwater in the Arid Parts of the Altai Mountains (Central Asia). Water 2022, 14, 252. [Google Scholar] [CrossRef]
  32. Vasil’chuk, Y.K.; Chizhova, J.N. Altitudinal gradient of δ18O and δD in precipitation and snow cover in high mountains. Earth’s Cryosphere 2010, 14, 13–21. [Google Scholar]
Water 16 01288 g001
Figure 1. Map of the study area. 1—Lower gauging station. 2—Upper gauging station. 3—Additional gauging station on the tributary.
Figure 1. Map of the study area. 1—Lower gauging station. 2—Upper gauging station. 3—Additional gauging station on the tributary.
Water 16 01288 g001
Water 16 01288 g002

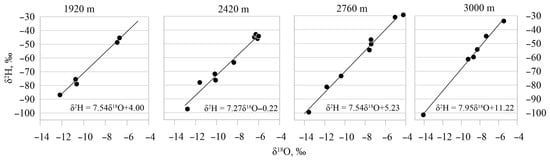

Figure 2. Isotopic composition of the summer precipitation of 2023 at different altitudinal levels.
Figure 2. Isotopic composition of the summer precipitation of 2023 at different altitudinal levels.
Water 16 01288 g002
Water 16 01288 g003

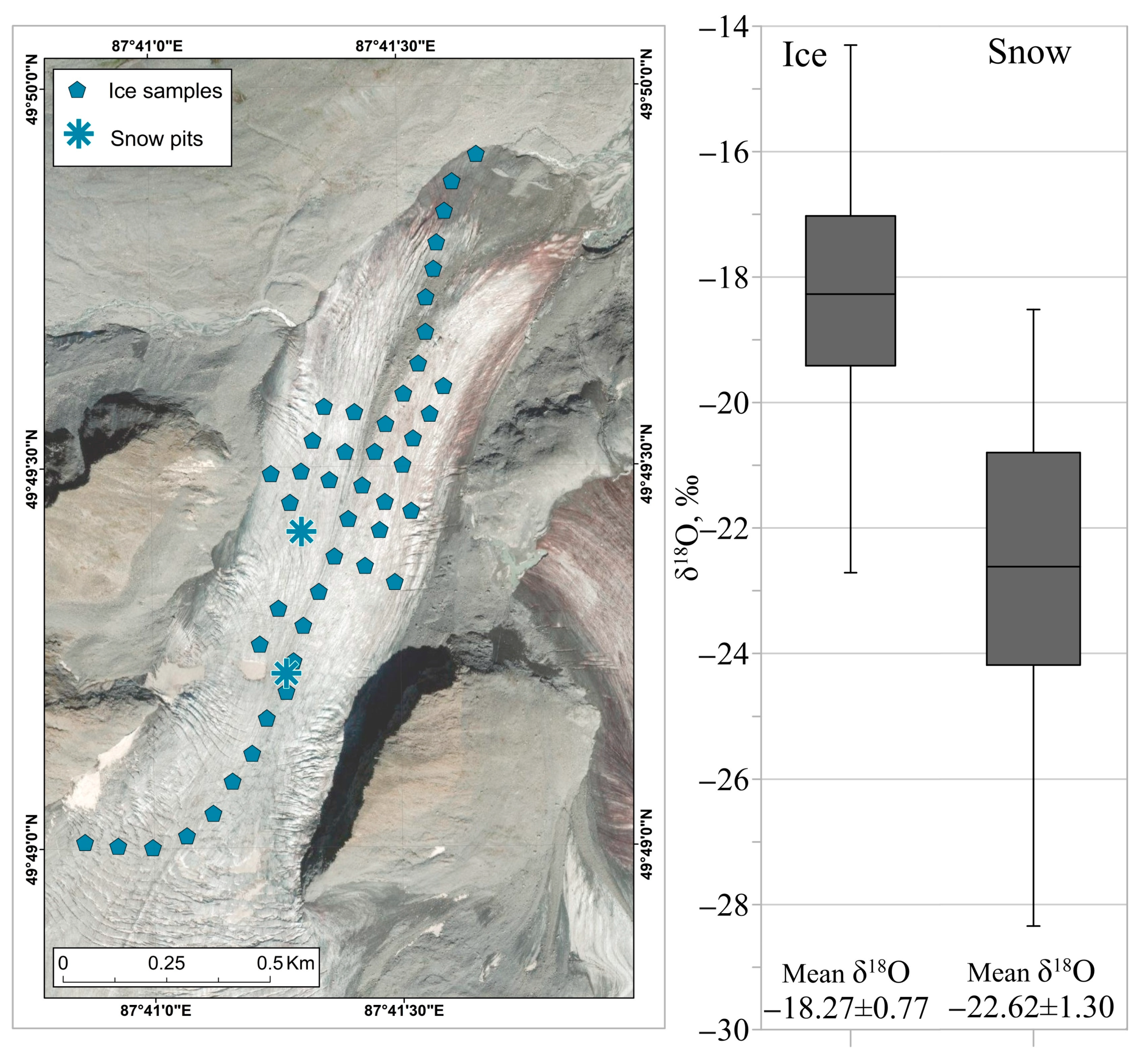

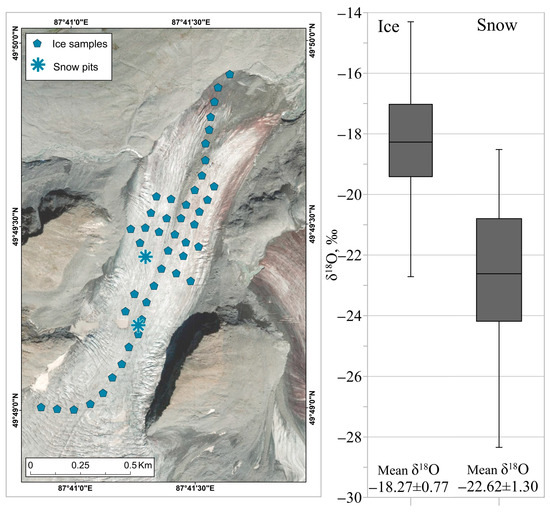

Figure 3. Sampling points on the surface of the Bolshaya Taldura glacier and δ18O box plots for the glacier ice and snow.
Figure 3. Sampling points on the surface of the Bolshaya Taldura glacier and δ18O box plots for the glacier ice and snow.
Water 16 01288 g003
Water 16 01288 g004

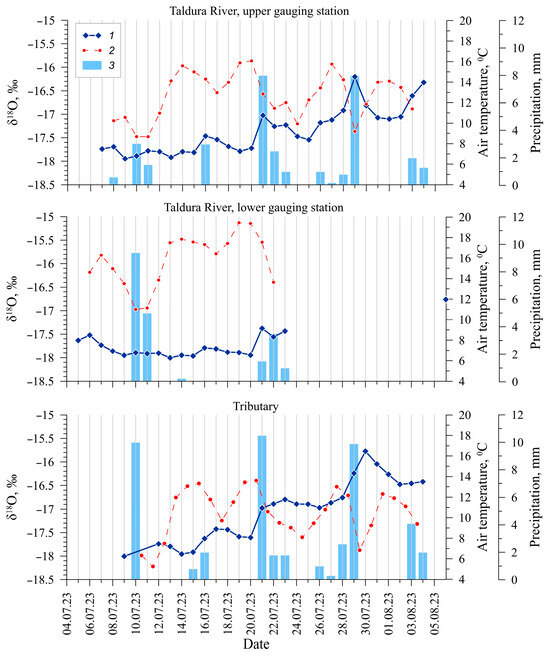

Figure 4. Changes in δ18O and meteorological parameters at gauging stations. 1—δ18O; 2—temperature; 3—precipitation.
Figure 4. Changes in δ18O and meteorological parameters at gauging stations. 1—δ18O; 2—temperature; 3—precipitation.
Water 16 01288 g004
Water 16 01288 g005

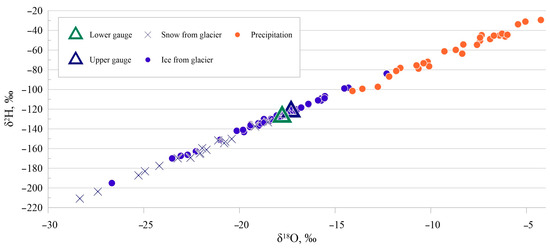

Figure 5. δ18O–δ2H diagram for different groups of the samples.
Figure 5. δ18O–δ2H diagram for different groups of the samples.
Water 16 01288 g005
Water 16 01288 g006

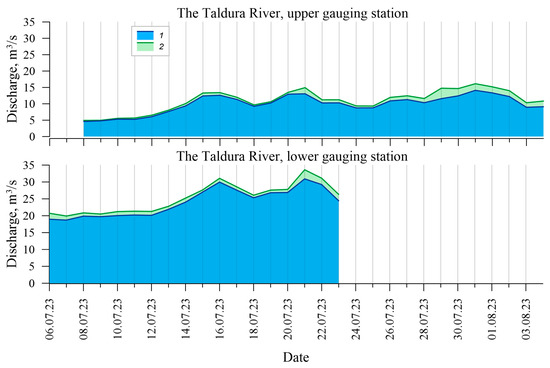

Figure 6. Separated hydrographs of the Taldura River: 1—meltwater of glaciers; 2—precipitation.
Figure 6. Separated hydrographs of the Taldura River: 1—meltwater of glaciers; 2—precipitation.
Water 16 01288 g006
Table 1. Comparison of weighted-average δ18O of precipitation in July–August 2023 and OIPC model data (Bowen et al., 2005, Bowen, 2017) [28,29].
Table 1. Comparison of weighted-average δ18O of precipitation in July–August 2023 and OIPC model data (Bowen et al., 2005, Bowen, 2017) [28,29].
Weighted-Average δ18O, ‰δ18O in July by OIPC, ‰
Gauge 1, 1920 m−10.4−8.3
Gauge 2, 2420 m−8.3−8.8
Gauge 3, 2760 m−9.8−9.2
Glacier near the gauge 3, 3000 m−9.3−9.6
Table 2. Characteristics of the ice and snow from Bolshaya Taldura glacier.
Table 2. Characteristics of the ice and snow from Bolshaya Taldura glacier.
TypeNumber of SamplesRange of δ18O, ‰Mean δ18O, ‰TDS, ppmMeteoric Water Line
Ice45−26.67–−12.31−18.27 ± 0.772.5 ± 0.8δ2H = 7.82 × δ18O + 13.29
Snow17−18.52–−28.34−22.62 ± 1.308.4 ± 5.4δ2H = 7.78 × δ18O + 9.38
Table 3. Average characteristics of water samples by group.
Table 3. Average characteristics of water samples by group.
Type of the SamplesMean Discharge, m3/sMean δ18O, ‰Mean TDS, ppm
Gauge 1, lower Taldura25.0−17.7741.9
Gauge 2, upper Taldura10.95−17.303.3
Gauge 3, tributary1.08−17.057.8
Glacier-originated tributaries-−17.5818.4
Non-glacier-originated tributaries-−15.7736.3
Table 4. Comparison of data from 2022 and 2023 for the upper gauging station at the Taldura River.
Table 4. Comparison of data from 2022 and 2023 for the upper gauging station at the Taldura River.
Year20222023
Observation period11.07–29.0711.07–29.07
Range of δ18O in Taldura River, ‰−15.05–−16.92−16.06–−18.04‰
Mean δ18O, ‰ (upper gauge)−16.22−17.30
Mean T, °C (upper gauge)+9.1+12.7
Precipitation, mm3833
