To verify the effectiveness of the improved strategies and the excellent performance of the improved algorithm, the SSA, ISSA, and ISSA-NSGAII algorithms were tested under the same conditions. For the tests, this study focused on several evaluation indicators of the intelligent population optimization algorithm, including convergence time, evolutionary algebra, and global search ability. However, it should be noted that these evaluation indicators usually cannot be optimized at the same time because of the trade-off relationship between them. Usually, as the population size increases, the change in direction of each evaluation indicator will be contradictory. In order to accelerate the convergence speed of the algorithm on the basis of improving global search ability, the population size of all algorithms was set to 10 to ensure a fair performance comparison under the same population size. This setting can better test the performance of the algorithm in different aspects and help find the algorithm that is most suitable for the specific problems.
4.1. Benchmark Function
We selected the four benchmark functions in
Table 1. Among them, ZDT1 is a multi-dimensional unimodal flat-bottom function with random interference. ZDT2 is a multimodal test function. The distance between the global minimum point and the next local minimum point of ZDT2 is a geometric distance, which is deceptive, and may cause the algorithm to converge in the wrong direction. ZDT3 is also a multimodal test function and has a large search space and many local minima. ZDT4 is a test function for global optimization. It has six local minima, two of which are global minima. Through these four benchmark functions, the SSA, ISSA, and ISSA-NSGAII algorithms were tested in terms of anti-interference, the ability to global search, and so on.

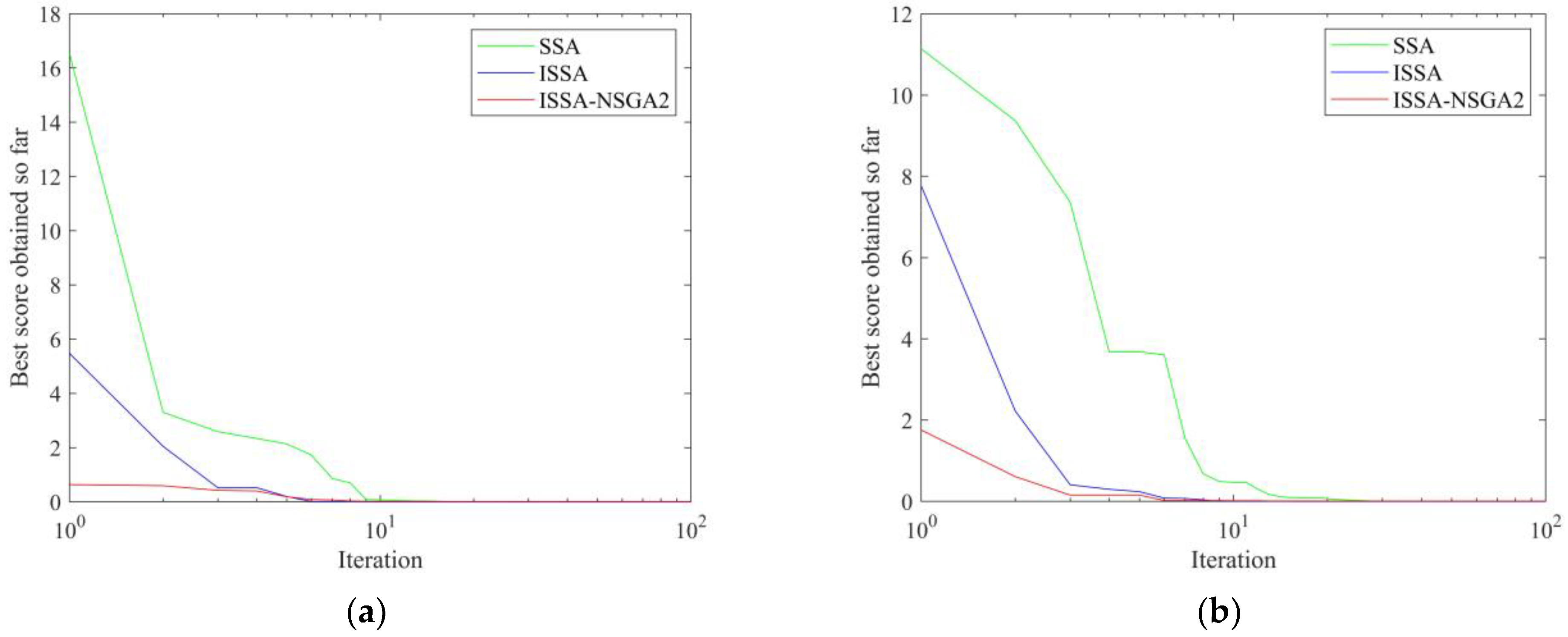

Considering that the randomness of the initial position of the population will affect the optimization process, the average values of 25 tests were taken as the final results to avoid contingencies and make the test results more authentic. The test results of the benchmark functions iterated 500 times are shown in

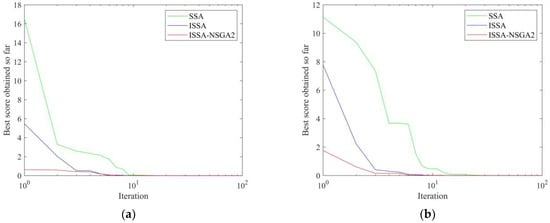

Figure 7.
The performance of the algorithms was tested under the same parameters, iterations, and test environment. Because the initial value was randomly selected, the results of each algorithm at the first iteration are different. Specifically, thanks to the more homogenous initial distribution of the population, the initial value of ISSA-NSGAII is the closest to the optimal feasible solution. It can be seen from
Figure 7a that ISSA-NSGAII had strong anti-interference performance under the ZDT1 with fast convergence speed and a smooth convergence curve. The performance of ISSA is poor, and the performance of SSA is the worst. It can be seen in
Figure 7b that ISSA and ISSA-NSGAII converge at fewer than 10 iterations, while SSA converges at more than 10 iterations. It can be seen from

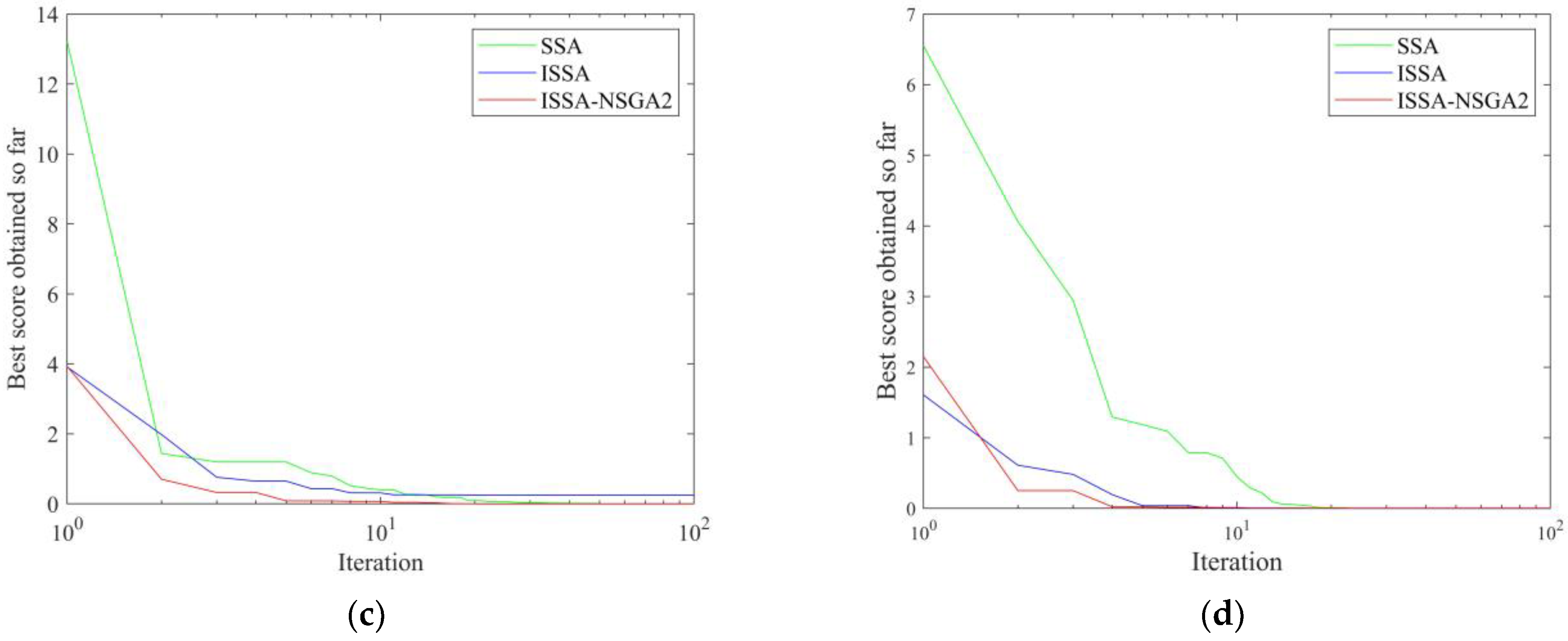

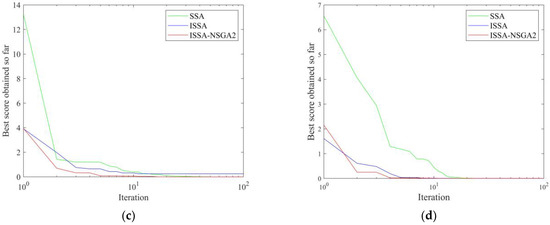

Figure 7c that ISSA-NSGAII converges to the optimal value the fastest. ISSA falls into the local optimum, and SSA converges to the optimal value more slowly. As shown in
Figure 7d, ISSA-NSGAII converges the fastest. ISSA converges more slowly, and SSA converges at more than 10 iterations. To summarize, ISSA-NSGAII converges the most smoothly without obvious jump changes. Its advantages are mainly reflected in its convergence speed, anti-interference ability, and high global search ability. ISSA has a slightly weaker performance, and SSA has the worst performance.
In order to evaluate the performance of the multi-objective algorithm, inverted generational distance (IGD) was chosen as the performance indicator of the algorithm, which represents the average value of the distance from each reference point to the nearest solution [
35]. IGD can reflect the convergence of the algorithm. The smaller the IGD, the more the algorithm converges to the true Pareto frontier and the better the comprehensive performance of the algorithm. The calculation formula of IGD is
where
denotes the set of points distributed on the true Pareto frontier;
denotes the number of points in
;
denotes the set of Pareto optimal solutions solved by the algorithm; and
denotes the minimum Euclidean distance from
to the points in
.
The IGD values of each algorithm under the benchmark function are shown in
Table 2. The mean values of SSA under ZDT1, ZDT2, ZDT3, and ZDT4 are 1.5364, 0.8428, 51.364, and 40.309, respectively. The mean values of ISSA are 1.7228, 0.7523, 0.8152, and 40.211. The mean values of ISSA-NSGAII are 0.1971, 0.1524, 0.03242, and 40.024, which are the optimal values. This shows that ISSA-NSGAII is better in terms of search performance and stability compared to ISSA and SSA under the same experimental conditions.
4.3. Experiments Based on Real Industrial Operation Data

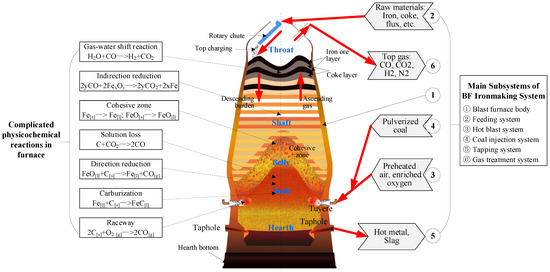

At the BF ironmaking site, the operation status of the BF is monitored in real time, and the operation data is recorded by the information management system. Some BF parameters can be directly measured by the monitoring devices, and some BF parameters need to be calculated by relevant formulas based on the directly measured parameters. Additionally, some BF parameters require offline analysis before being imported into the information management system, such as silicon content ([Si]), sulfur content ([S]), and phosphorus content ([P]), which are all MIQ indicators. Considering the current production conditions and equipment, there are 19 input variables to be selected, such as furnace top pressure, pressure drop, and feed blast ratio, and 4 output variables to be selected, including [Si], [S], [P], and molten iron temperature (MIT). Among the 19 input variables, some cannot be directly measured and some cannot be controlled. Because of the high coupling among the variables, not all of them are suitable as control parameters. Considering the large number of variables and the fact that not all of them are suitable as control or controlled variables, it is necessary to select input and output variables that reduce the dimension of the model. Because BF operators typically focus on [Si] and MIT, these two MIQ indicators were selected as the output variables of the model. Then, six variables that have a high correlation with the output variables were selected by the canonical correlation analysis. Furthermore, the correlation analysis was used to find out the combinations of variables with a higher correlation among these six variables. The results of canonical correlation analysis and correlation analysis are shown in
Table 4. The measurable and controllable variables among the combinations were selected as the input variables of the model. Finally, the flow rate of cold air, pressure drop, volume of coal injection, and flow rate of rich oxygen were determined as the input variables of the model, and [Si] and MIT were determined as the output variables of the model.
The experiments were conducted based on the BF body data and the MIQ data of the 2# blast furnace of the Liuzhou Steel Group. Among the collected industrial data, the sampling frequency of the process input variables was more uniform at around 10 s, while the sampling frequency of the MIQ indicators was not uniform and the timing of the inputs and outputs was not consistent. Therefore, time-matching of the input variables and MIQ indicators was required prior to conducting the experiment. Before time-matching, outliers and missing values were removed. Considering that the offline analysis time for the MIQ indicators is around 1 h, it was necessary to bring forward the MIQ data by 1 h and then select the MIQ data that correspond to the sampling interval of approximately 1 h. Because it is not possible to strictly satisfy the sampling interval of 1 h, the sampling interval of the MIQ data obtained will have an error of approximately 10 min. Using the approximately uniformly sampled MIQ data as the reference, input variable data whose sampling time difference was less than a certain threshold (1 min was taken in this experiment) was selected, and the average value of the multiple process variables obtained was taken as the final process variables. The data were normalized to facilitate further processing. The aim was to predict [Si] and MIT for a future period of sampling. The ironmaking number represents the sampling time at 1 h intervals. Using the preprocessed data, the LSTM, SSA-LSTM, ISSA-LSTM, and ISSA-NSGAII-LSTM models were used to model the MIQ parameters of BF. The processed BF body data were grouped. Of them, 255 groups were selected as the training set for modeling, and 100 groups were used as the test set for modeling.
To ensure fairness of the test results, the ISSA-NSGAII-LSTM, ISSA-LSTM, SSA-LSTM, and unoptimized LSTM models were compared and analyzed with the same test set under the same experimental environment. The population size was set to 10, the maximum number of iterations was 20, the initial position was random, and the early warning value was set to 0.5. The proportions of producers, scroungers, and sentinels were 0.2, 0.6, and 0.2, respectively. The hyperparameters, including the number of nodes in the first hidden layer (L1), the number of nodes in the second layer (L2), the learning rate (lr), and the number of iterations (K) of the model, were optimized by the algorithms.

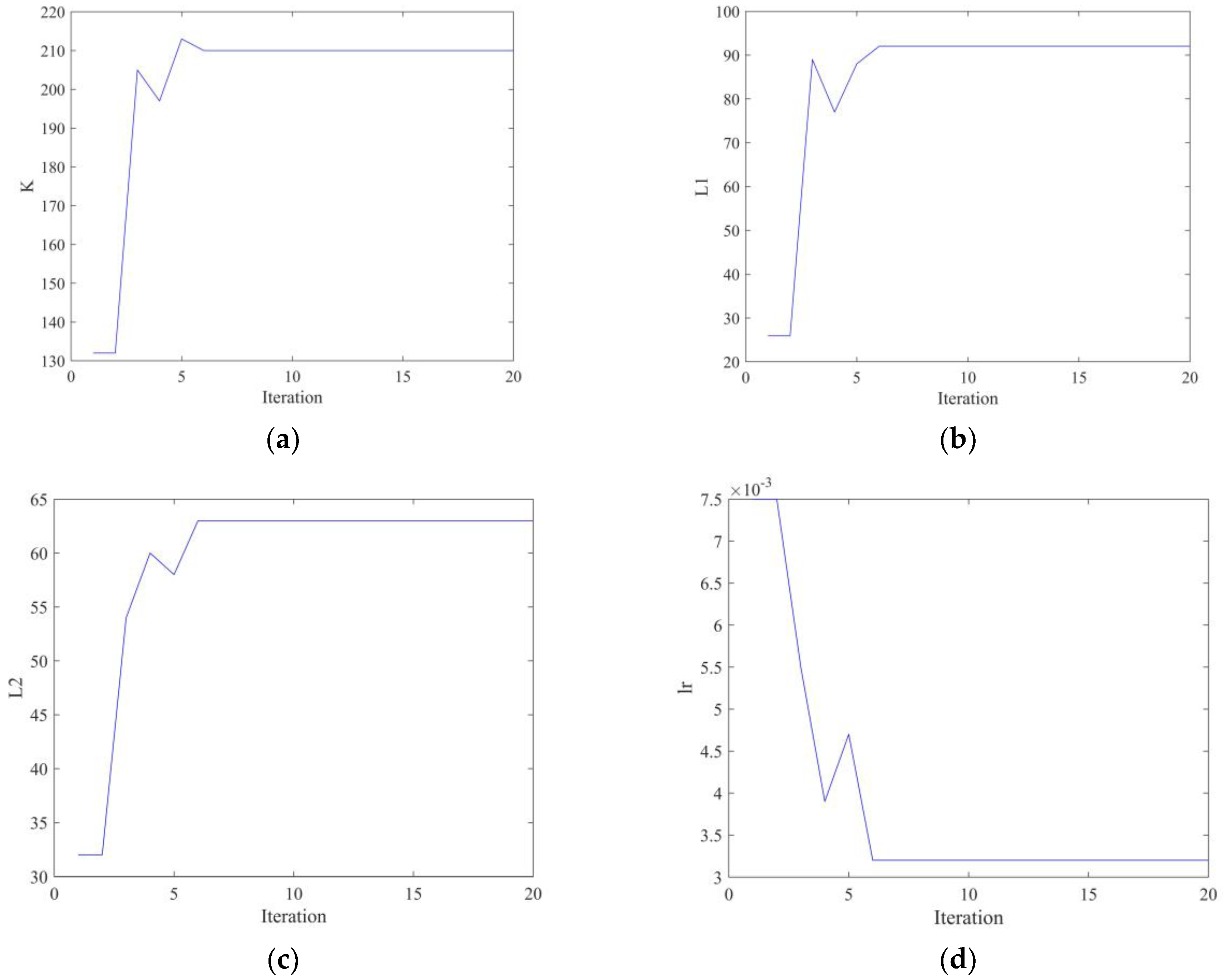

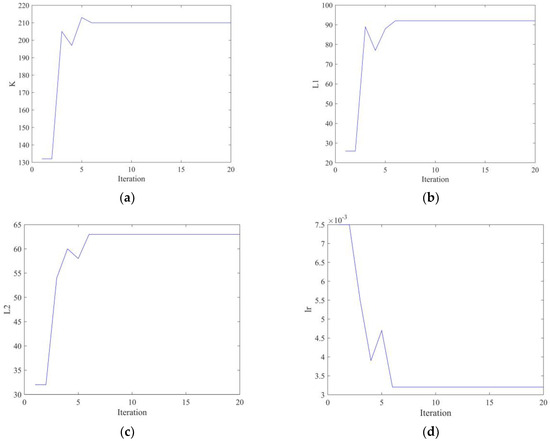

The search processes of the hyperparameters are shown in
Figure 9. It can be seen that the main changes in the four hyperparameters are mainly concentrated in the third to sixth iterations. The number of iterations
K finally converges to 210. The number of nodes in the first hidden layer
L1 converges to 92. The number of nodes in the second hidden layer
L2 converges to 63. The learning rate
lr converges to 0.0032.
Based on the screened and processed BF operation data and the four hyperparameters in

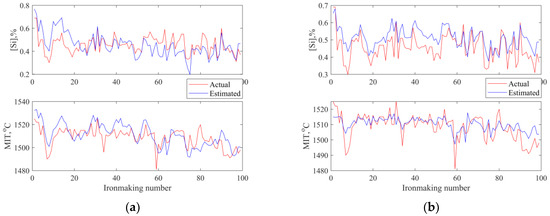

Table 5, a dataset was established, and the four different models were used to predict the MIQ parameters [Si] and MIT. The prediction results are shown in
Figure 10.
In molten iron quality modeling, the root mean square error (RMSE) is commonly used as a model evaluation indicator [
36]. The calculation formula for RMSE is
where
and
denote the predicted value and the true value of the
-th sample, respectively, and
. The smaller the result of the RMSE, the better the performance of the model.

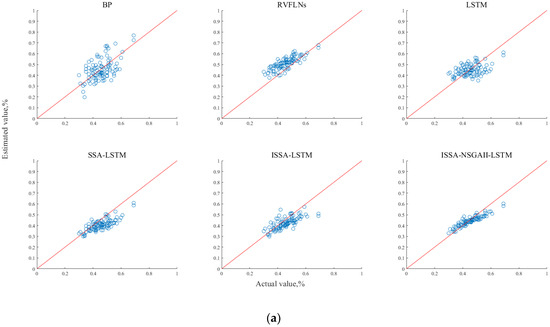

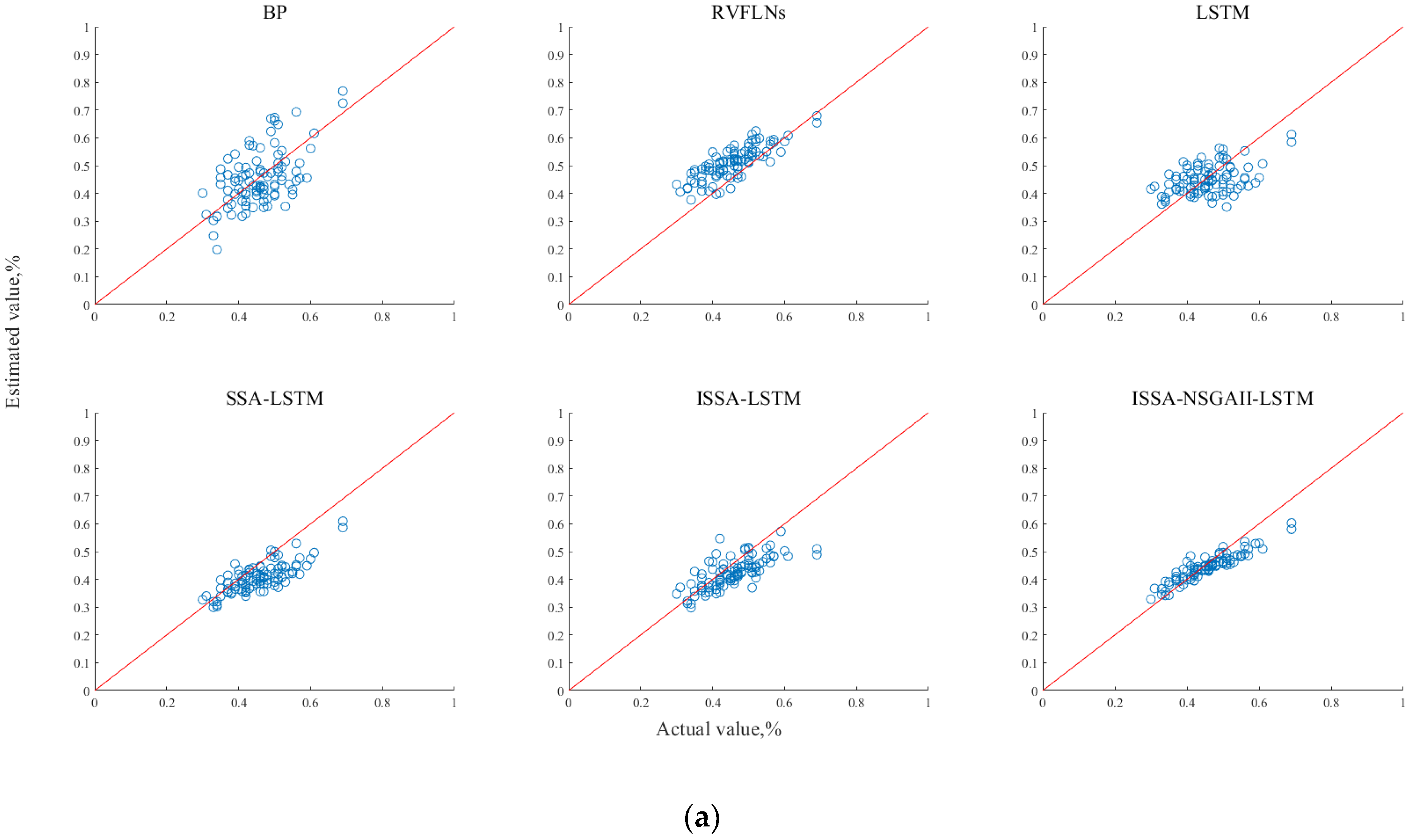

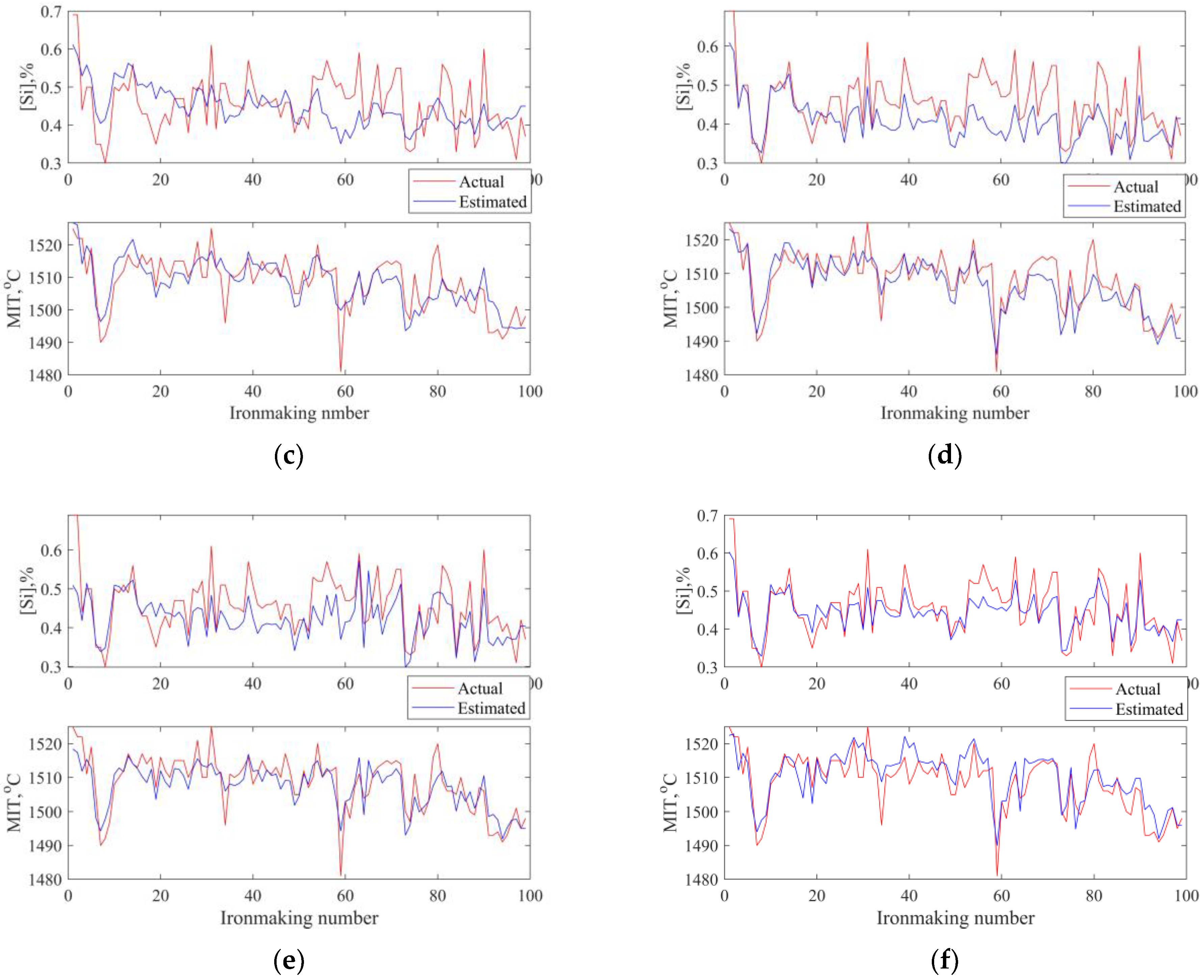

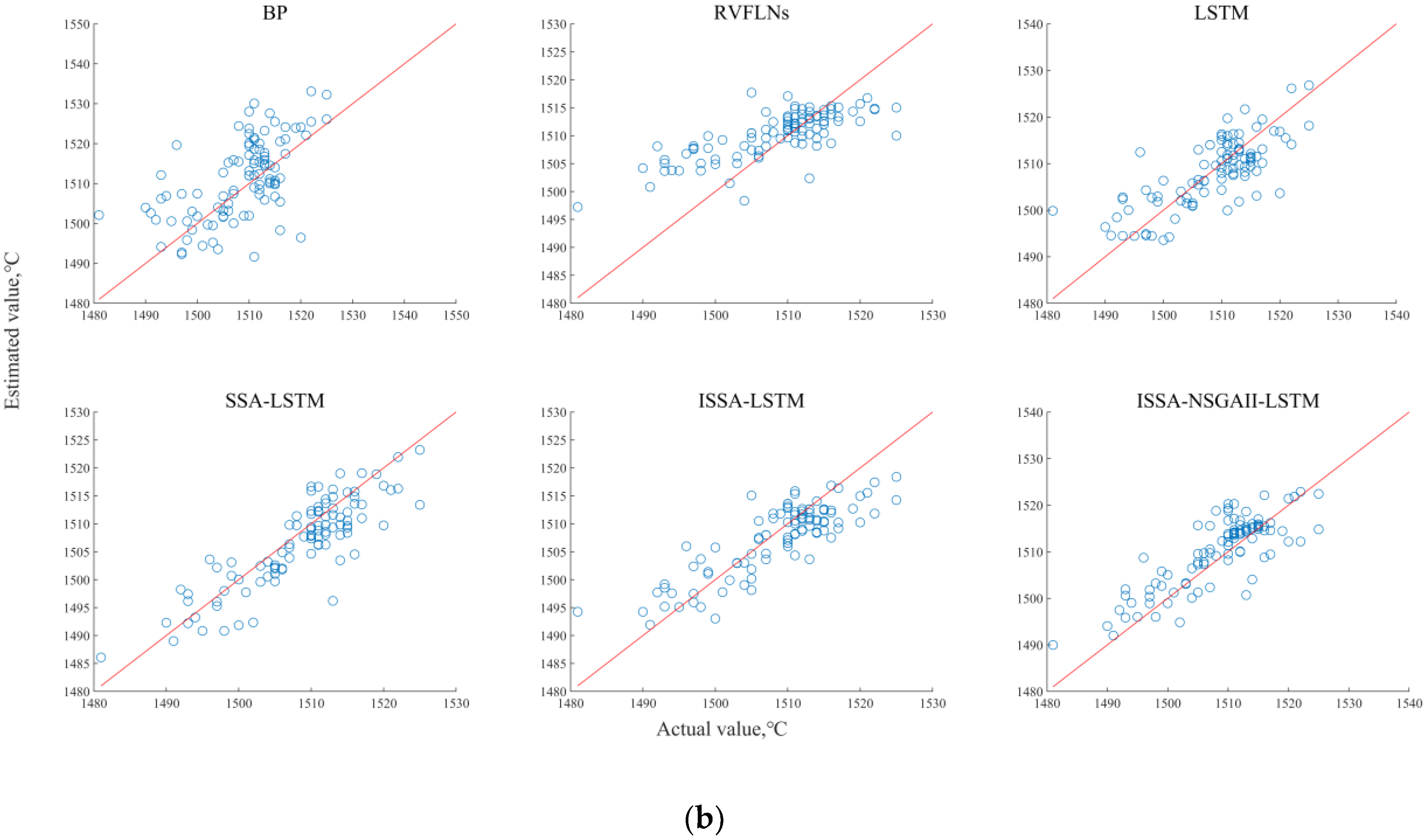

Figure 10a–f show the prediction results of the six different models. Scatter diagrams of the sampling points of the MIQ parameters versus the prediction results are given in
Figure 11, with each diagram comparing the prediction effectiveness of each algorithm on the MIQ parameters [Si] and MIT. The x-axis of each subplot is the actual value of the parameters, and the y-axis is the estimated value using the different algorithms. If the scatter is distributed closer to the red diagonal, it indicates a better prediction. If the estimated value matches the actual value, the scatter is distributed along the diagonal.
Table 6 lists the RMSEs of each model for [Si] and MIT. As shown in
Figure 11, conventional prediction models have scatters far from the diagonal. The scatters of the four LSTM-based models are closer to the diagonal. The scatters of the LSTM model based on the proposed algorithm are closest to the diagonal, which indicates the proposed algorithm has better prediction performance. According to
Figure 10 and
Table 6, the RMSEs of the backpropagation and random vector functional link networks are larger than those of the models based on the LSTM network, suggesting that the LSTM network has better performance in predicting time series data. Among the results of the four models based on LSTM, it can be seen that ISSA-NSGAII-LSTM predicts [Si] and MIT better than the others. ISSA-LSTM ranks second, SSA-LSTM is worse, and the unoptimized LSTM is the worst. This indicates that the proposed algorithm improves the performance of the original algorithm, especially in predicting time series data. It can be seen that the RMSE of LSTM for [Si] is 0.0702, and the RMSE of MIT is 5.6069. The RMSE of LSTM for [Si] is 0.0692, and the RMSE of MIT is 4.5841. The RMSE of ISSA-LSTM for [Si] is 0.0613, and the RMSE of MIT is 4.5703. The RMSE of ISSA-NSGAII-LSTM for [Si] is 0.0388, and the RMSE of MIT is 4.3859, both of which are the optimal values. Compared to ISSA-LSTM, SSA-LSTM, and LSTM, the RMSEs of ISSA-NSGAII-LSTM for [Si] are lower by 44.73%, 43.93%, and 36.70%, and the RMSEs of MIT are lower by 21.78%, 4.324%, and 4.035%, respectively. To summarize, the above experimental results show that the ISSA-NSGAII-LSTM model is more stable and has a smaller error than the other models.
