Abstract

:
This work presents the detection of hypoxanthine (HXA), a purine derivative that is similar to nucleic acids who overconsumption can cause health issues, by using hydrothermally synthesized cerium phosphate (CePO4) followed by a sonochemical approach for CePO4 decorated with a functionalized carbon nanofiber (CePO4@f-CNF) nanocomposite. The formation of the nanocomposite was confirmed with X-ray powder diffraction (XRD), scanning electron microscopy (SEM), and energy-dispersive spectroscopy (EDS). A CePO4@f-CNF nanocomposite is used to modify a glassy carbon electrode (GCE) to analyze the electrochemical detection of HXA. Cyclic voltammetry (CV), Electrochemical impedance spectroscopy (EIS), and Differential pulse voltammetry (DPV) were used to examine the electrochemical properties of the composite. As a result, the modified electrode exhibits a larger active surface area (A = 1.39 cm2), a low limit of detection (LOD) at 0.23 µM, a wide linear range (2.05–629 µM), and significant sensitivity. Therefore, the CePO4@f-CNF nanocomposite was used to study the real-time detection in chicken and fish samples, and it depicted significant results.

1. Introduction

Hypoxanthine (HXA: 1, 7-dihydro-6H-purine-6-one) is a degradation of purine metabolism in the animal and human body [1]. It helps with the synthesis of purine nucleotides, which are essential building blocks of DNA and RNA [2]. It is produced during the purine metabolism, and it is transformed from xanthine (XN) to uric acid (UA), along with the production of reactive oxygen species (ROS), with the action of the enzyme xanthine oxidase (XO) [1]. The microbial decomposition of adenosine triphosphate (ATP) produces uric acid (UA) in this human serum degradation step [3]. There is an abundant concentration of hypoxanthine in chicken and fish food products, which can be easily detectable [4]. Its small, polar, stable shape makes it easy to accumulate in biological tissues and fluids [1]. Purines, including HXA, can act as signaling molecules in various cellular processes, and they are involved in neurotransmission and other signaling pathways. Purine metabolism abnormalities, including excess hypoxanthine levels, can be causally associated with metabolic disorders such as Lesch–Nyhan syndrome [5]. Since the presence of HXA in our extracellular fluids has caused some diseases, including xanthinuria, goat, urolithiasis, joint inflammation, hyperuricemia, kidney failure, Alzheimer’s, etc., because of these reasons, the detection and quantity measurement of HXA has become increasingly important [3,6]. Also, fish and chicken foods are important elements of a healthy diet, and global requirements are increasing for fresh and packed meat foodstuffs. Food freshness and safety are major issues for consumers and are challenging for the food industries. The existence of HXA serves as an effective biomarker to predict the degradation and quality of food, and if it is used in high concentrations, may cause animal death and the durability of storage [7]. Also, the measurement of HXA levels is extremely important in meat-based products for clinical diagnosis and quality controls.
There are many conventional techniques used to analyze the HXA, including fluorescence spectroscopy [8], spectrophotometry [9], gas chromatography-mass spectrometry (GCMS) [10], and high-performance liquid chromatography (HPLC) [10]. Among these conventional techniques, electrochemical sensors are an affordable method due to taking less time to detect, their friendly nature, and their low cost, etc. Electrochemical studies show excellent redox behavior, oxygen storage capacity, catalytic activity, and versatility, which makes it a valuable component. In general, electrochemical sensors are capable of detecting many different kinds of metal ions, natural substances, and organic and inorganic compounds. It is used in different kinds of sectors, including environmental and biological monitoring and industry. Modified electrodes also possess an important role in the electrochemical technique, because the electrochemical analyzing system is deficient in exact detection caused by its high overpotential desire, interference from contaminants, and reversibility, all of these represent significant analytical challenges [11]. On the other hand, the modified electrodes show tremendous active sites, good stability, and excellent sensitivity. They are rich in possibilities to modify the working electrode active surface area using materials, including several nanoparticles, inorganic and organic redox agents, metal oxides, metal sulfides, metal nitrides, polymers, carbon materials, etc. [11].
Lanthanides have specific electronic structures and similar inner 4f electronic energy levels [12]. Among the lanthanide compounds, Cerium phosphate (CePO4) has remarkable properties, which include stability, nontoxicity, huge surface area, and good ion conductivity. In addition, the Ce element’s charge valence can be shifted between +3 and +4, resulting in its high redox conversion capacity [13]. Metal phosphate (CePO4) is extensively utilized in various applications like catalysis [14], sensors [15], solar cells [16], and supercapacitors [17]. Carbonous materials have high surface area, cavities, and micropores, which include graphene oxides (GO), graphitic carbon nitrate (GCN), carbon nanotubes (CNT), carbon nanodots, and carbon nanofibers (CNF), which are widely acknowledged as outstanding conductive composite materials that attract considerable attention [11]. Since CNF compounds with superior charge transfer have the potential to accelerate electron and ion transfer substantially, they can improve the modified electrode’s electrochemical performance [18]. CePO4 has a large active surface area and superior electrochemical performance, making it an effective electrode material. On the other hand, f-CNF offers good conductivity and stability for facilitating electron transfer in electrochemical sensors. Synergistic effects and the electrostatic interaction ( π - π —interaction) between CePO4 and f-CNF show enhanced improvement in electrochemical sensors [11]. Functionalization provides higher sensitivity, selectivity, and increased active surface area [19]. Therefore, the f-CNF exhibits better redox properties than the pristine CNF. This action was approved by P. Bharathi et al. [20]. Furthermore, this work shows that the CePO4@f-CNF detects the HXA analyte for electrochemical sensor applications.
In this work, the CePO4@f-CNF nanocomposite was formed via a hydrothermal followed sonochemical approach, which was used to prepare a modified electrode to detect HXA, as shown in Scheme 1. The prepared CePO4@f-CNF composite was characterized using morphological and spectroscopic analysis. Additionally, DPV, EIS, and CV were taken to inspect the electrochemical study of the CePO4@f-CNF nanocomposite. The CePO4@f-CNF-modified electrode exhibits enhanced electrochemical activity for hypoxanthine determination in real samples.

2. Experimental Methods

2.1. Preparation of f-CNF

The surface of the pristine CNFs was modified or functionalized through acid treatment. Initialer, Conc., HNO3: H2SO4 was made in a 3:1 ratio, and a solution was stirred at 65 °C/6 h. After naturally cooling down to room temperature, the solution was centrifuged to separate the acidic solution and accumulate the CNF suspension. After that, the solution was washed repeatedly using DI water until the pH reached neutral. Then, it was dried out from a hot air oven at 60 °C for 20 h [11,21]. The outcome was labeled as f-CNF.

2.2. Synthesis of Cerium Phosphate (CePO4)

All chemicals were taken with an analytical grade, and it was used without purification. Ce(NO3)3·6H2O was used as a cerium source, NaH2PO4 was used as a phosphorus source, and CO(NH2)2 was used as a surfactant in the hydrothermal method to synthesize CePO4. Firstly, Ce(NO3)3·6H2O and NaH2PO4 were added to the exact ratio of 0.1: 0.2 M in 100 mL DI water, After continuous stirring, CO(NH2)2 was added to the mixture, and then stirred for 120 min to acquire a consistent mixture. This homogeneous solution was delivered into a Teflon-coated autoclave and hydrothermally approached for 24 h at 150 °C. It was then left to naturally cool to its ambient temperature. After the last stage of the reaction, centrifugation was used to extract the CePO4 precipitate from the mixture. Also, multiple DI and ethanol washes were then utilized, and the mixture was dried at 60 °C. The obtained CePO4 powder was used in all further studies.

2.3. Preparation of CePO4@f-CNF

A simple stirring approach method was used to synthesize a cerium phosphate functionalized carbon nanotube (CePO4@f-CNF) nanocomposite. The properly prepared CePO4 and f-CNF were introduced in 20 mL of ethanol with a 1:1 weight ratio. In total, 25 min were spent stirring the mixture, and it was then ultrasonicated for 2 h at 100 W and 50 kHz in an ultrasonic bath. The CePO4@f-CNF nanocomposite was dried at 60 °C to completely evaporate the moisture. The final product was a consistent CePO4@f-CNF powder.

2.4. Preparation of Modified Glassy Carbon Electrode (GCE)

The surface area of GCE was polished mechanically over a velvet micro-cloth and fine alumina powder sludge, and then were washed with distilled water and ethanol after earlier depositing the prepared nanocomposite. In total, 2 mg of the synthesized CePO4@f-CNF nanocomposite was dissipated in 1 mL of ethanol and sonication toward 45 min. Then, approximately 6 mg/µL of the CePO4@f-CNF nanocomposite solution was dropped over the working electrode and dried out. The modified electrode is represented by CePO4@f-CNF/GCE. Similarly, CePO4/GCE and f-CNF/GCE were developed for electrochemical examination.

2.5. Real Sample Analysis

Chicken and fish products are purchased from a local market and cut into small pieces. Then, 2 gm of small pieces of meat samples were diluted in deionized water by a stirring approach for 60 min and then centrifuged at 10,000 rpm for 10 min. The obtained solution was mixed with 0.1 M PBS (pH = 7.0) with a 1:10 dilution ratio (v/v) [9,22,23].

3. Results and Discussion

3.1. Choice of Material

Transition metal oxides are more frequently used than metal ions. However, particular transition metals, such as Au, Ag, and Pt, are costly, and the sources are minimal. Researchers are trying to develop a technique to derive materials using low-cost transition metals to deal with this issue. Generally, f-block elements, like lanthanides and actinides, are inner transition metals and have good electrical and thermal conductivity. In addition, the Ce element has charge valences that can be shifted between +3 and +4, resulting in its high redox conversion capacity [13]. Metal phosphate (CePO4) has notable advantages, such as excellent ion conductivity, good active surface area, great stability, a crystal structure, an electronic band structure, and nontoxicity [24]. Similarly, because of their high active surface area, large potential range, low resistivity, and low background current, carbon materials are excellent choices for the fabrication of electrodes.
In this work, the CePO4@f-CNF composite offers a number of active sites from the functionalization of CNF, which enhances chemical reactivity and provides sites for binding with CePO4 material. In addition, CePO4 receives great attention due to its unique physiochemical properties and the ability of Ce3+/Ce4+ to make it a promising material for electrochemical sensors [25]. Hence, this synergism between CePO4 and f-CNF enhances its electrochemical performance for HXA determination.

3.2. X-ray Diffraction (XRD) Crystallographic Phase

The XRD analysis of f-CNF, CePO4, and CePO4@f-CNF nanocomposite is displayed in Figure 1A. A significant peak can observe the presence of carbon elements at 26.3° which are assigned on the (002) plane of f-CNF (black) [11,20]. The material demonstrates good crystallinity, purity, and structural properties, as demonstrated by the sharp and clear characteristic peaks of the CePO4 synthesized in this work. The as-synthesized samples’ diffraction peaks correlate with those of the monoclinic CePO4 (JCPDS-01-077-0429), indicating the space group P21/n, with the space group number 14. Furthermore, the ɑ = γ = 90.00°, β = 103.60°, and unit cell are a = 6.77 Å, b = 6.99 Å, and c = 6.45 Å. The indexed major XRD peaks appeared at the corresponding lattice planes (111), (111), (200), (120), (012), (202), (112), (130), (103), (212), (132), (023), (322), (132), (140), (014), (124), (513), and there were multiple prominent diffraction peaks found at 2θ values 21.3°, 25.2°, 27°, 28.9°, 31.2°, 34.5°, 36.8°, 41°, 42.1°, 46.2°, 48.6°, 50.8°, 51.9°, 52.6°, 54.2°, 60.4°, 70.2°, and 77.2°, which are matched with the prepared CePO4 [26]. The peak position (2θ°) and lattice planes’ (hkl) values of CePO4 are shown in Table S1. The CePO4@f-CNF displays all of the specific peaks of CePO4 that were acquired on behalf of the highly crystalline structure, and the f-CNF peak overlies with CePO4 the f-CNF are not apparent on the nanocomposite XRD. Also, the diffraction peaks of f-CNF and CePO4 were used to confirm a successful formation using the sonication method, and CePO4@f-CNF was confirmed using FTIR analysis. Figure 2B shows the crystal structure of the monoclinic formation of CePO4 (ball-stick model).

3.3. FTIR Analysis

FTIR (Fourier transform infrared) spectroscopy is a useful instrument for investigating functional groups and the surfaces of materials. Under some conditions, FTIR spectroscopy is also able to identify surface sites that influence the material’s reactivity. To observe the interactions between cerium phosphate and functionalized carbon nanofiber, the FT-IR technique was employed to analyze the chemical structures of CePO4, f-CNF, and the CePO4@f-CNF composite, shown in Figure 1C, with a range of 500 to 4000 cm−1. f-CNFs exhibited IR bands ranging between 400 to 2000 cm−1, which corresponded to the stretching wavelengths of –CH, and C-O [11] in the FTIR spectrum, corresponding to the bending vibration of the PO4 bands obtained between 530–620 cm−1, and corresponding to the stretching vibrations of the PO4 bands visible between 950–1100 cm−1 [27]. In the O-H group of organic compounds, a peak is observed at nearly 3500 cm−1, which may represent an indication of moisture absorption.

3.4. Raman Analysis

The Raman spectra of CePO4, f-CNF, and CePO4@f-CNF were analyzed to determine the phase purity, as shown in Figure 1D. The vibration bands represented symmetric bending (δS) at ~420–530 cm−1 and asymmetric bending (δAS) at ~580–670 cm−1 of Raman shift of the P-O Bands. Similarly, the two bands at ~1000 and ~1100 cm−1 in the spectrum determine the symmetric stretching (טS) and asymmetric stretching (טAS) vibrations of the P-O band of the prepared sample [28]. Also, Raman spectroscopy has become extensively used for the verification of carbon-based substances, detecting irregular structures and formations in carbon materials. The C-C stretching of graphitic structure and sp2-bonded sites are responsible for the D and G bands seen in f-CNF at ~1360 and ~1600 cm−1, respectively. Furthermore, the Raman spectra of the CePO4@f-CNF nanocomposite show all the essential bands to identify their good formation of the corresponding composite [29].

3.5. Morphological Analysis

The SEM characterization studies, shown in Figure 2, evidently demonstrate the surface morphology of f-CNF, CePO4, and CePO4@f-CNF. It is widely acknowledged that the geometry of a substance has an impact on its electrochemical performance. Figure 2A,B show the SEM images of hydrothermally synthesized CePO4, a sponge-like morphology with numerous irregular agglomerated particles which provide a higher curvature surface. The fiber structure of f-CNF can be observed in the SEM image shown in Figure 2C,D. It shows that the network-like architecture resulting from the interconnection between these nanofibers improves both conductivity and sensing functions. The synthesized CePO4@f-CNF nanocomposite’s SEM image, which is displayed in Figure 2E,F, exhibits CePO4 accumulated in carbon f-CNFs. This verified that CePO4@f-CNF nanocomposites were successfully synthesized. The increased interaction between CePO4 and f-CNFs when they are dispersed also contributes to increased electrocatalytic performance and synergism. An analysis of the atomic element distribution in the nanocomposite has been performed using elemental mapping. The composition of elements of the CePO4@f-CNF nanocomposite is displayed in Figure 3A–F, as established using EDS analysis. The presence of Ce, O, P, and C atoms indicates the successful configuration of the nanocomposite.

3.6. Electrochemical Measurement

Electrochemical Impedance Spectroscopy (EIS) and Cyclic Voltammetry (CV)

Electrochemical impedance spectroscopy (EIS) was utilized to investigate the interfacial charge transfer kinetics, conductivity, and impedance behavior of the modified GCEs (labelled CePO4/GCE, f-CNF/GCE, and CePO4@f-CNF/GCE, respectively) shown in Table S1. EIS was executed in a 5 mM [Fe(CN)6] 3−/4− containing 0.1 M KCl solution. The Rs and Rct (electrolyte resistance and charge transfer resistance) were examined using Randel’s equivalent circuit model to fit the observed data and examine analysis, as displayed in Figure 4A. Moreover, Nyquist plots are used for EIS measurements for Rct, which are represented as semi-circles arranged in parallel on the electrode surface as an outcome of the electrode impedance. CePO4@f-CNF/GCE expresses a straight line in a low-frequency region and a short semicircle of Rct = 253.24 Ω·cm2 in the high-frequency region, indicating that mass diffusion limiting factors regulate the electron transfer mechanism. Along with this, the Rct values of the f-CNF/GCE and CePO4/GCE show 331.82 Ω·cm2 and 767.87 Ω·cm2, respectively, and the width of the semicircle represents the charge transfer resistance at the electrode surface considerably greater. Here, the CePO4@f-CNF/GCE modified electrode’s Rct value shows up to be lower than that of the f-CNF/GCE- and CePO4/GCE-modified electrodes, which perfectly demonstrates that the nanocomposite-modified electrodes exhibit lower diffusion of resistance and charge-transfer resistance, displayed in Table S2.
The CePO4/GCE, f-CNF/GCE, and CePO4@f-CNF/GCE cyclic voltammetry (CV) curves in 0.1 M KCl solution with 5 mM [Fe(CN)6] 3−/4− (scan rate: 50 mV/s) are shown in Figure 4B [30]. CePO4@f-CNF/GCE has the maximum peak current and the lowest peak potential difference (∆Ep = Epa − Epc) due to the highest level of charge transport efficiency. Figure 4C demonstrates several scan rate studies from 0.02 to 0.2 V/s in 5 mM [Fe(CN)6]3−/4−. At increasing various scan rates, the anodic peak currents increased significantly. Figure 4D illustrates the linear correlation between the square root of the scan rate and the redox peak current response, The linearity of the two scales has y = 515.32x + 10.374 and y = −399.97x − 22.6, and the R2 values are 0.9991 and 0.9988, accordingly. In conclusion, the remarkable electrochemical redox activity of the recently prepared CePO4@f-CNF/GCE demonstrated a large active surface area of 1.39 cm2, determined using the Randle’s–Sevcik equation (Equation (1)).
I p = 2.69 × 10 5 n 3 2 A D 1 2 C v 1 2

3.7. Electrochemical Behaviors of Electrodes

3.7.1. Different Modified Electrodes towards Hypoxanthine

The CV technique was investigated to determine the electrochemical performance of the different modified electrodes in the presence of 100 µM HXA in 0.1 M PBS. However, oxidation peak currents have been observed to be significantly enhanced in each case. In the electrochemical characteristics of bare GCE, CePO4/GCE, f-CNF/GCE, and the prepared nanocomposite CePO4@f-CNF/GCE have been assessed, which achieved the highest peak current relative to the other electrodes shown in Figure 5A. Because of the high surface area and flow of electrons, Hypoxanthine is an acknowledged purine molecule, showing adsorptive abilities at certain electrode surfaces. Furthermore, large oxidation current response peaks against hypoxanthine detection are observed in all of the modified electrodes. The surface of the modified electrode can absorb hypoxanthine when it is added to the PBS electrolyte. The heterojunction formation and synergetic effects are responsible for this most intense anodic peak current within the f-CNF/GCE and CePO4/GCE. The synthesized nanocomposite CePO4@f-CNF/GCE is superior to the other modified electrodes for the detection and optimizations of hypoxanthine with the oxidation peak potential at 1.02 V and the highest oxidation peak current intensity of 11.98 µA. The corresponding various electrodes with the peak current bar diagram in Figure 5B prove that, compared to the other control materials, composites show the highest peak current. These results suggest that the modified CePO4@f-CNF nanocomposite electrode is appropriate to use for the electrochemical detection of Hypoxanthine.

3.7.2. Effect of Different Loadings

The optimization test was performed using multiple loading concentrations to determine the most suitable catalytic loading amount. In Figure S1A,B, CV determines the result of the CePO4@f-CNF/GCE at different loading amounts of 4 to 8 mg/µL, and was used for drop-casting in 100 µM HXA in 0.1 M PB (pH-7.0). The lowest current, 3.01 µA, was obtained at 4 mg/µL of CePO4@f-CNF/GCE. In total, 4 mg/µL of modified electrode, demonstrated in a less active site and less current that the electrode’s surface was not completely coated with the CePO4@f-CNF nanocomposite. Therefore, the huge current was detected with a 6 mg/µL loading amount of 11.98 µA. The oxidation current response rises gradually as the loading amount is increased from 4 to 6 mg/µL, but as the loading is increased to 8 mg/µL, the current response decreases. This indicates that the formation of a large number of molecules over the electrode surface causes the GCE to reach its saturation point at 8 mg/µL, and the passivation effect and coating thickness have an impact on this outcome. Thus, a perfect concentration of 6 mg/µL was determined and is used in further studies.

3.7.3. Effect of Various pH

At various electrolyte pH ranges (basic, neutral, and acidic), the modified surface of the electrode significantly affects the oxidation current potential. Because CePO4@f-CNF has active functional groups on its surface, the pH of the solution had adverse effects on the material’s surface. Figure 5C,D shows the CV graphs of CePO4@f-CNF/GCE with 100 µM of HXA at a scan rate of 50 mV/s under pH values ranging from pH 3–11 in 0.1 M PB solution. The slight rise in oxidation peak current values between pH 3 to 7 and the gradual reduction from pH 7–11 is attributed to the preference for the movement of protons in electrolyte functional groups. In acidic conditions, a relatively small oxidation peak current demonstrates that the large amounts of protons within the suspension restrict the movement of electrons, which results in better conductivity. This suggests that HXA is pH-dependable in electrochemical sensors and that electrochemical analysis is optimal at pH 7. Since this sensor device’s electrode operation has improved at neutral pH, it is optimal for evaluation in real samples. According to the previously reported work, a plausible mechanism for the electrooxidation of HXA was proposed. Here, the HXA reaction would seem to be a −2H+ + 2e oxidation of HXA to 6,8-dioxypurine at the N7 = C8 double bond [31], as shown in Figure S4.

3.7.4. Different Concentrations of HXA and Scan Rates

In the CV approach, the performance of the CePO4@f-CNF/GCE-modified electrode at various HXA concentrations was measured. The CV characteristics at a scan rate of 50 mV/s are shown in Figure 5E, ranging from 25 to 125 µM of HXA in 0.1 M of PB aqueous solution. When increasing the HXA concentration, there was also a gradual and linearly increase in the oxidation peak current, which established the increased conductivity of ions of the modified GCE as revealed by the raised level of HXA. The prepared nanocomposite achieves a suitable electrolyte for rapid electron transfer, which encourages the electrochemical reaction and improves the peak current. Furthermore, the rise in the peak current demonstrates the CePO4@f-CNF/GCE antifouling properties. Additionally, the linear correlation between the concentration of the solution and the irreversible redox peak current response is shown in Figure 5E (inset picture), with obtained regression equations of Ipa = 0.0673x + 1.7568 and R2 values of 0.9962 (oxidation). The CV curves for HXA detected by CePO4@f-CNF/GCE consist of a single oxidation peak, as shown in Figure 5F, suggesting that HXA exhibits an irreversible oxidation reaction. Furthermore, the peak current of the CV curve progressively rises while the scan rate increases from 0.02 to 0.2 V/s. Additionally, the irreversible redox peak current response and the scan rate are displayed to be linearly correlated in Figure 5F (inset graph), with the R2 values of 0.9924 and the derived regression equations of Ipa = 16.997x + 2.2613. Thus, the CePO4@f-CNF/GCE-modified electrode predicted that scan rates would show an absorption-controlled process.

3.8. Determination of Calibration Plot and Limit of Detection

The analytical amount for CePO4@f-CNF/GCE-modified GCE was obtained via differential pulse voltammetry (DPV) to detect HXA using electrochemical measurements. Figure 6A displays the DPV of anodic peak currents that cause the oxidation of HXA at potential 1.02 V. As the concentration increases from 0.1 to 629 μM, the anodic current also increases uniformly. Increasing the low to high concentration of HXA results in a strong peak current response, which indicates the better conductivity of both CePO4 and f-CNF. Figure 6B shows a linear calibration line for the DPV current and concentration. The regression equation estimated is given as Ipa = −0.0579x + 6.7055 with a regression coefficient of R2 = 0.9919. The prepared device’s diagnostic properties were analyzed through a limit of detection (LOD) of 0.23 μM, and it was calculated by using LOD = 3 × (standard deviation of low concentration)/(slope of the calibration plot) [32,33,34] in the wide linear ranges of 2.05–629 µM, shown in Table S3. The results from this study demonstrate that the synthesized CePO4@f-CNF does not simply have a smaller detection limit, but also has a larger linear range for HXA sensing.

3.9. Selectivity Studies

The sensor system has to determine hypoxanthine in the presence of other analytes. To test the selectivity of the CePO4@f-CNF/GCE-modified electrode, extra quantities of interference chemical compounds like Uric acid, Adenine, Caffeine, Creatinine, Ascorbic acid, and Glucose were added toward the electrolyte solution along with HXA. Figure 6C shows the negligible effect of interfering substances, suggesting that HXA has overcome the overlapping effect of other compounds. As a result, the suggested sensor has an appropriate amount of selectivity for HXA detection. CV analysis of the CePO4@f-CNF/GCE examined the repeatability, displayed in Figure S2A,B., indicating excellent repeatability of the synthesized nanocomposite as determined by the results, which reveals a significant similarity between the peak current and relative standard deviation of all four electrodes. These outcomes demonstrate that there was no impact on the peak current of the CePO4@f-CNF-modified GCE, including the 100 μM/mg HXA analyte. Furthermore, the stability studies of the CePO4@f-CNF/GCE on HXA were carried out by calculating the peak current approximately similar between 30 cycles with a bar diagram displayed in Figure S3A,B. This bar diagram confirmed the current decreased by below 10% from the first cycle to the 30th cycle. Based on the results, we confirmed that CePO4@f-CNF shows better stability towards the detection of HXA.

3.10. Practical Applicability

Additionally, we analyzed real samples to confirm the modified electrode’s reliability. When the obtained samples were analyzed using the DPV method to get an un-spiked HXA pick, no current response was displayed (Figure 7A,B). After mixing an HXA concentration (5, 10, 15, and 20 μM of 0.01 μM/mg solution of the analyte), a response was found concerning the expected current, and also the observed LOD values of chicken and fish samples were 0.8 and 0.6 μM in real sample analysis. The newly developed electrode exhibited better recovery ranges, demonstrating that it is a suitable as well as beneficial platform for measuring HXA in fish and chicken samples. The prepared sensor shows that the expectational recovery and intense practicality are demonstrated using the detection of HXA in the real sample.

4. Conclusions

In summary, we synthesized a CePO4@f-CNF nanocomposite using a facile hydrothermal and sonication approach and used it for efficient electrochemical HXA detection. The successful formation of a CePO4@f-CNF nanocomposite was confirmed through morphological and spectroscopic analysis. The synergism between CePO4 and f-CNF shows high electron transfer efficiency and a large specific surface area, which gives wide linear ranges, lower electrode/electrolyte resistance, low limits of detection, and good electrochemical stability, which are necessary for electrochemical sensors. Furthermore, using CV and DPV techniques, the electrochemical activity of CePO4@f-CNF for the detection of HXA was determined, exhibiting the nanocomposite material’s enhanced catalytic behavior. In addition, the proposed sensor gives significant stability (30 cycles), good LOD at 0.23 µM, repeatability with four repeated measurements, and selectivity with seven interfering substances. Hence, the CePO4@f-CNF nanocomposite depicts superior electrochemical performance towards HXA determination. A good HXA-spiked response was observed by using CePO4@f-CNF-modified electrodes in real-life samples with fish and chicken.

Supplementary Materials

The following Supporting Information can be downloaded at https://www.mdpi.com/article/10.3390/chemosensors12050084/s1, Figure S1: (A) CV curves for various loading amounts of CePO4@f-CNF towards the detection of hypoxanthine in 0.1 M PB (pH-7.0). (B) Respective bar diagram for various loading amounts; Figure S2: (A) and (B) CV curves for a repeatability study towards HXA in electrolyte PB (pH-7.0) and respective bar diagram; Figure S3: (A and B). Cycle stability of CePO4@f-CNF with the presence of hypoxanthine, with a bar diagram; Figure S4: Possible electro-oxidation mechanism of hypoxanthine; Table S1: Crystallographic analysis of CePO4 peak position (2θ°) and lattice planes (hkl) value; Table S2: Summarized Rct values obtained from different modified electrodes; Table S3: Comparison of the proposed method with other electrochemical methods for the determination of HX. References [35,36,37,38,39,40,41,42] are cited in the supplementary materials.

Author Contributions

S.-F.W.: Validation, Conceptualization, Resources, Data Curation, Supervision, Funding acquisition, Writing—Review and Editing. P.K.K.: Writing—Original Draft, Methodology, Investigation, Formal Analysis, Visualization, Data Curation. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Taipei University of Technology (NTUT).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article and the Supplementary Materials.

Acknowledgments

This work was financially supported by the National Taipei University of Technology (NTUT).

Conflicts of Interest

The authors declare no competing financial interest.

References

  1. Garg, D.; Singh, M.; Monika, N.V. Review on recent advances in fabrication of enzymatic and chemical sensors for hypoxanthine. Food Chem. 2022, 375, 131839. [Google Scholar] [CrossRef]
  2. King, M.E.; Honeysett, J.M.; Howell, S.B. Regulation of de novo purine synthesis in human bone marrow mononuclear cells by hypoxanthine. J. Clin. Investig. 1983, 72, 965–970. [Google Scholar] [CrossRef] [PubMed]
  3. Dey, B.; Ahmad, W.; Sarkhel, G.; Lee, G.H.; Choudhury, A. Fabrication of niobium metal organic frameworks anchored carbon nanofiber hybrid film for simultaneous detection of xanthine, hypoxanthine and uric acid. Microchem. J. 2023, 186. [Google Scholar] [CrossRef]
  4. Nakatani, H.S.; Santos, L.V.D.; Pelegrine, C.P.; Gomes, S.T.M.; Matsushita, M.; de Souza, N.E.; Visentainer, J.V. Biosensor Based on Xanthine Oxidase for Monitoring Hypoxanthine in Fish Meat. Am. J. Biochem. Biotechnol. 2005, 1, 85–89. [Google Scholar] [CrossRef]
  5. Torres, R.J.; Prior, C.; Garcia, M.G.; Puig, J.G. A review of the implication of hypoxanthine excess in the physiopathology of Lesch–Nyhan disease. Nucleosides Nucleotides Nucleic Acids 2016, 35, 507–516. [Google Scholar] [CrossRef] [PubMed]
  6. Jiang, Z.; Dong, H.; Zhou, Y.; Chen, Y.; Hao, W.; Zhang, Z.; Hao, Y.; Liu, L.; Wang, X.; Xu, M. Simultaneous and Ratiometric Electrochemical Determination of Uric Acid and Hypoxanthine Based on In Situ Carbonized Polydopamine Graphene Paper. ACS Appl. Nano Mater. 2023, 6, 9268–9275. [Google Scholar] [CrossRef]
  7. Peter, J.N.; Ulse, N.P.; Ole, T.; Num, R.; Eph, S.T.; Oyasjet, A.; Oi, A.D. Changes in Oxypurine Concentrations in Vitreous Humor of Pigs during Hypoxemia and Post-Mortem. Pediatr. Res. 1990, 28, 482–484. [Google Scholar]
  8. Cao, Y.; Song, Y.; Wei, T.; Feng, T.; Li, M.; Xue, C.; Xu, J. MnO2 in-situ coated upconversion nanosystem for turn-on fluorescence detection of hypoxanthine in aquatic products. Food Chem. 2024, 431, 137131. [Google Scholar] [CrossRef]
  9. Mustafa, F.; Andreescu, S. Paper-Based Enzyme Biosensor for One-Step Detection of Hypoxanthine in Fresh and Degraded Fish. ACS Sens. 2020, 5, 4092–4100. [Google Scholar] [CrossRef]
  10. Pu-Werman, G.J.; Shaikh, B.; Hallmark, M.R.; Sawyer, C.G.; Hixson, C.V.; Perini, F. Simultaneous Analysis of Substrates, Products, and Inhibitors of Xanthine Oxidase by High-Pressure Liquid Chromatography and Gas Chromatography. Anal. Biochem. 1979, 98, 18–26. [Google Scholar]
  11. Khandagale, D.D.; Wang, S.F. Fabrication of tin sulfide@functionalized carbon nanofiber composites for the electrochemical detection of the oxidative stress biomarker trolox. New J. Chem. 2023, 47, 14933–14942. [Google Scholar] [CrossRef]
  12. Xia, Y.; Calahoo, C.; Rodrigues, B.P.; Griebenow, K.; Graewe, L.; Wondraczek, L. Structure and properties of cerium phosphate and silicophosphate glasses. J. Am. Ceram. Soc. 2023, 106, 2808–2819. [Google Scholar] [CrossRef]
  13. Feng, N.; Liu, Y.; Dai, X.; Wang, Y.; Guo, Q.; Li, Q. Advanced applications of cerium oxide based nanozymes in cancer. RSC Adv. 2022, 12, 1486–1493. [Google Scholar] [CrossRef] [PubMed]
  14. Altass, H.M.; Khder, A.S.; Ahmed, S.A.; Morad, M.; Alsabei, A.A.; Jassas, R.S.; Althagafy, K.; Ahmed, A.I.; Salama, R.S. Highly efficient, recyclable cerium-phosphate solid acid catalysts for the synthesis of tetrahydrocarbazole derivatives by Borsche–Drechsel cyclization. React. Kinet. Mech. Catal. 2021, 134, 143–161. [Google Scholar] [CrossRef]
  15. Kushwaha, A.; Singh, G.; Sharma, M. Designing of cerium phosphate nanorods decorated reduced graphene oxide nanostructures as modified electrode: An effective mode of dopamine sensing. Microchem. J. 2021, 166, 106224. [Google Scholar] [CrossRef]
  16. Kim, S.; Choi, M.; Park, J. Cerium-Doped Oxide-Based Materials for Energy and Environmental Applications. Crystals 2023, 13, 1631. [Google Scholar] [CrossRef]
  17. Yoon, J.H.; Jinsoo, B.; Cho, I.; Vinodh, R.; Pollet, B.G.; Babu, R.S.; Kim, H.J.; Kim, S. Novel Supercapacitor Electrode Derived from One Dimensional Cerium Hydrogen Phosphate (1D-Ce(HPO4)2·xH2O). Molecules 2022, 27, 7691. [Google Scholar] [CrossRef] [PubMed]
  18. Varun, D.N.; Manjunatha, J.G.; Hareesha, N.; Sandeep, S.; Mallu, P.; Karthik, C.S.; Prinith, N.S.; Sreeharsha, N.; Asdaq, S.M.B. Simple and sensitive electrochemical analysis of riboflavin at functionalized carbon nanofiber modified carbon nanotube sensor. Monatshefte Für Chem.-Chem. Mon. 2021, 152, 1183–1191. [Google Scholar] [CrossRef]
  19. Marenco, A.J.; Pillai, R.G.; Harris, K.D.; Chan, N.W.; Jemere, A.B. Electrochemical Determination of Fentanyl Using Carbon Nanofiber-Modified Electrodes. ACS Omega 2024, 9, 17592–17601. [Google Scholar] [CrossRef]
  20. Bharathi, P.; Wang, S.F. Strontium phosphate/functionalized carbon nanofiber composite: A promising electrode material for amperometric detection of flufenamic acid. Process Saf. Environ. Prot. 2023, 178, 642–651. [Google Scholar] [CrossRef]
  21. Periyasamy, S.; Lee, C.H.; Fu, C.C.; Liu, S.H.; Juang, R.S. Ultrasound-assisted synthesis of barium tungstate encapsulated carbon nanofiber composite for real-time sensing of p-cresol in human urine samples. Microchem. J. 2021, 166, 106239. [Google Scholar]
  22. Cui, L.; Yang, Y.; Jiang, S.; Cao, X.; Chu, W.; Chen, J.; Sun, B.; Ren, K.; Zhang, C.Y. Exogenous Co-Reactant-Free Electrochemiluminescent Biosensor for Ratiometric Measurement of α-Glucosidase Based on a ZIF-67-Regulated Hydrogen-Bonded Organic Framework. ACS Sens. 2024, 9, 1023–1030. [Google Scholar] [CrossRef]
  23. Dalapati, R.; Biswas, S. A pyrene-functionalized metal–organic framework for nonenzymatic and ratiometric detection of uric acid in biological fluid via conformational change. Inorg. Chem. 2019, 58, 5654–5663. [Google Scholar] [CrossRef] [PubMed]
  24. Rajesh, K.; Mukundan, P.; Pillai, P.K.; Nair, V.R.; Warrier, K.G.K. High-surface-area nanocrystalline cerium phosphate through aqueous sol-gel route. Chem. Mater. 2004, 16, 2700–2705. [Google Scholar] [CrossRef]
  25. Zhu, K.; Chao, X.F.; Liu, Y.; Luo, Y.H.; Zhang, Q.Y.; Zhao, Z.A.; Zhu, Q.; Chen, F.Y.; Zhang, D.E. Facial Construction of CePO4-Reduced Graphene Oxide Composite for Enhanced Electrochemical Detection of Dopamine and Acetaminophen. J. Electrochem. Soc. 2022, 169, 067505. [Google Scholar] [CrossRef]
  26. Navarro-Jaén, S.; Romero-Sarria, F.; Centeno, M.A.; Laguna, O.H.; Odriozola, J.A. Phosphate-type supports for the design of WGS catalysts. Appl. Catal. B 2019, 244, 853–862. [Google Scholar] [CrossRef]
  27. Kirubanithy, M.; Irudayaraj, A.A.; Raj, A.D.; Manikandan, S. Synthesis, characterization and photoluminescence behaviours of CePO4 and Tb-doped CePO4 nanostructures. Mater. Today Proc. 2015, 2, 4344–4347. [Google Scholar] [CrossRef]
  28. Asuvathraman, R.; Gnanasekar, K.I.; Clinsha, P.C.; Ravindran, T.R.; Kutty, K.G. Investigations on the charge compensation on Ca and U substitution in CePO4 by using XPS, XRD and Raman spectroscopy. Ceram. Int. 2015, 41, 3731–3739. [Google Scholar] [CrossRef]
  29. Sriram, B.; Govindasamy, M.; Wang, S.F.; Joseph, X.B. A ternary nanocomposite based on nickel (iii) oxide@ f-CNF/rGO for efficient electrochemical detection of an antipsychotic drug (Klonopin) in biological samples. New J. Chem. 2020, 44, 10250–10257. [Google Scholar] [CrossRef]
  30. Subbiah, K.D.; Nesakumar, N.; Kulandaisamy, A.J.; Rayappan, J.B. Ferricyanide/reduced graphene oxide as electron mediator for the electrochemical detection of methanol in canned citrus sinensis and citrus limetta. Sens. Actuators B Chem. 2017, 248, 708–717. [Google Scholar] [CrossRef]
  31. Wei, M.J.; Lu, X.Y.; Li, J.; Kong, F.Y.; Zhou, J.; Wang, Z.X.; Wang, W. Coupling highly conductive covalent organic framework with nitrogen doped carbon nanotubes enables simultaneous and sensitive quantification of xanthine and hypoxanthine. Microchem. J. 2023, 194, 109205. [Google Scholar] [CrossRef]
  32. Ramanathan, S.; Elanthamilan, E.; Obadiah, A.; Durairaj, A.; Santhoshkumar, P.; Merlin, J.P.; Ramasundaram, S.; Vasanthkumar, S. Electrochemical Detection of Trace Amounts of Arsenic (III) in Poultry Using a Graphene Oxide-Bis(2-(4,5-diphenyl-1H-imidazol-2-yl)phenoxy)Cobalt Composite Modified Electrode. J. Electron. Mater. 2019, 48, 4498–4506. [Google Scholar] [CrossRef]
  33. Cecilia, C.; Palchetti, I.; Mascini, M.; Parenti, A. Electrochemical sensor and biosensor for polyphenols detection in olive oils. Food Chem. 2000, 71, 553–562. [Google Scholar]
  34. Zhao, C.; Chen, M.; Liu, X.; Yuan, W.; Li, K.; Wang, Y.; Chen, C.; Zhang, M.; Dong, Y.; Xiao, Y.; et al. Direct single-molecule detection of CoA-SH and ATP by the membrane proteins TMEM120A and TMEM120B. Nanoscale 2024, 16, 6087–6094. [Google Scholar] [CrossRef] [PubMed]
  35. Vishnu, N.; Gandhi, M.; Rajagopal, D.; Kumar, A.S. Pencil graphite as an elegant electrochemical sensor for separation–free and simultaneous sensing of hypoxanthine, xanthine and uric acid in fish samples. Anal. Methods 2017, 9, 2265–2274. [Google Scholar] [CrossRef]
  36. Lavanya, N.; Sekar, C.; Murugan, R.; Ravi, G. An ultrasensitive electrochemical sensor for simultaneous determination of xanthine, hypoxanthine and uric acid based on Co doped CeO2 nanoparticles. Mater. Sci. Eng. C 2016, 65, 278–286. [Google Scholar] [CrossRef] [PubMed]
  37. Kumar, A.S.; Swetha, P. Ru(DMSO)4Cl2 nano–aggregated Nafion membrane modified electrode for simultaneous electrochemical detection of hypoxanthine, xanthine and uric acid. J. Electroanal. Chem. 2010, 642, 135–142. [Google Scholar] [CrossRef]
  38. Kumar, S.A.; Shanmugam, R. Simple method for simultaneous detection of uric acid, xanthine and hypoxanthine in fish samples using a glassy carbon electrode modified with as commercially received multiwalled carbon nanotubes. Anal. Methods 2011, 3, 2088–2094. [Google Scholar] [CrossRef]
  39. Thangaraj, R.; Kumar, A.S. Graphitized mesoporous carbon modified glassy carbon electrode for selective sensing of xanthine, hypoxanthine and uric acid. Anal. Methods 2012, 4, 2162–2171. [Google Scholar] [CrossRef]
  40. Dou, Z.Y.; Cui, L.L.; He, X.Q. Electrochimical determination of uric acid, xanthine and hypoxanthine by poly(xylitol) modified glassy carbon electrode. J. Cent. South Univ. 2014, 21, 870–876. [Google Scholar] [CrossRef]
  41. Zen, M.; Lai, Y.; Yang, H.; Kumar, A.S. Multianalyte sensor for the simultaneous determination of hypoxanthine, xanthine and uric acid based on a preanodized nontronite–coated screen–printed electrode. Sens. Actuators B Chem. 2002, 84, 237–244. [Google Scholar] [CrossRef]
  42. Raj, M.A.; John, S.A. Simultaneous determination of uric acid, xanthine, hypoxanthine and caffeine in human blood serum and urine samples using electrochemically reduced graphene oxide modified electrode. Anal Chim Acta 2013, 771, 14–20. [Google Scholar] [CrossRef] [PubMed]
Scheme 1. Schematic presentation of the synthesis of CePO4 and CePO4@f-CNF nanocomposites for the detection of HXA.
Scheme 1. Schematic presentation of the synthesis of CePO4 and CePO4@f-CNF nanocomposites for the detection of HXA.
Chemosensors 12 00084 sch001

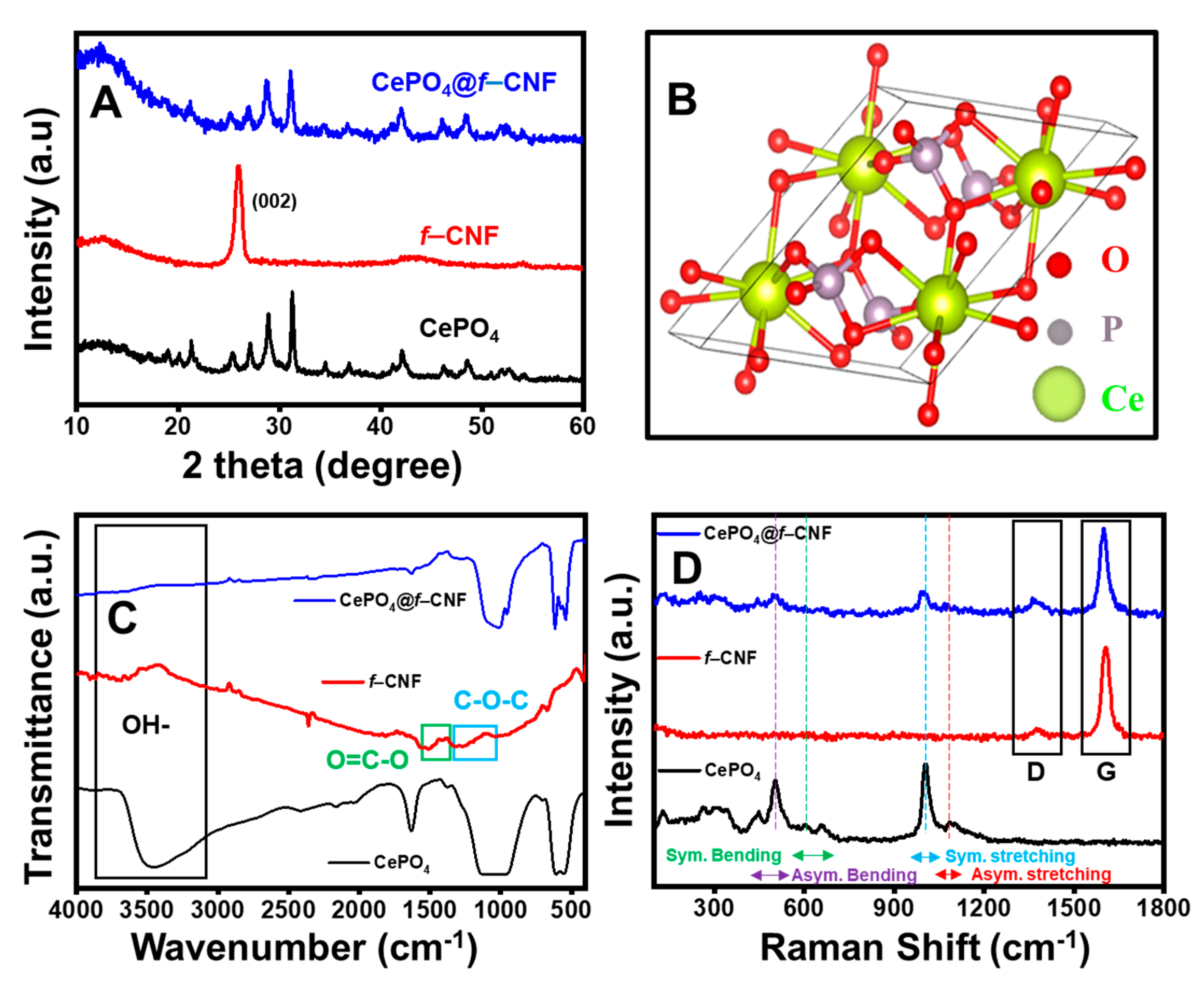

Figure 1. (A) XRD patterns and (B) Crystal structure of CePO4. (C,D) FTIR and Raman spectra of CePO4, f-CNF, and CePO4@f-CNF.
Figure 1. (A) XRD patterns and (B) Crystal structure of CePO4. (C,D) FTIR and Raman spectra of CePO4, f-CNF, and CePO4@f-CNF.
Chemosensors 12 00084 g001
Figure 2. SEM image of (A,B) CePO4, (C,D) f-CNF, and (E,F) CePO4@f-CNF nanocomposite.
Figure 2. SEM image of (A,B) CePO4, (C,D) f-CNF, and (E,F) CePO4@f-CNF nanocomposite.
Chemosensors 12 00084 g002

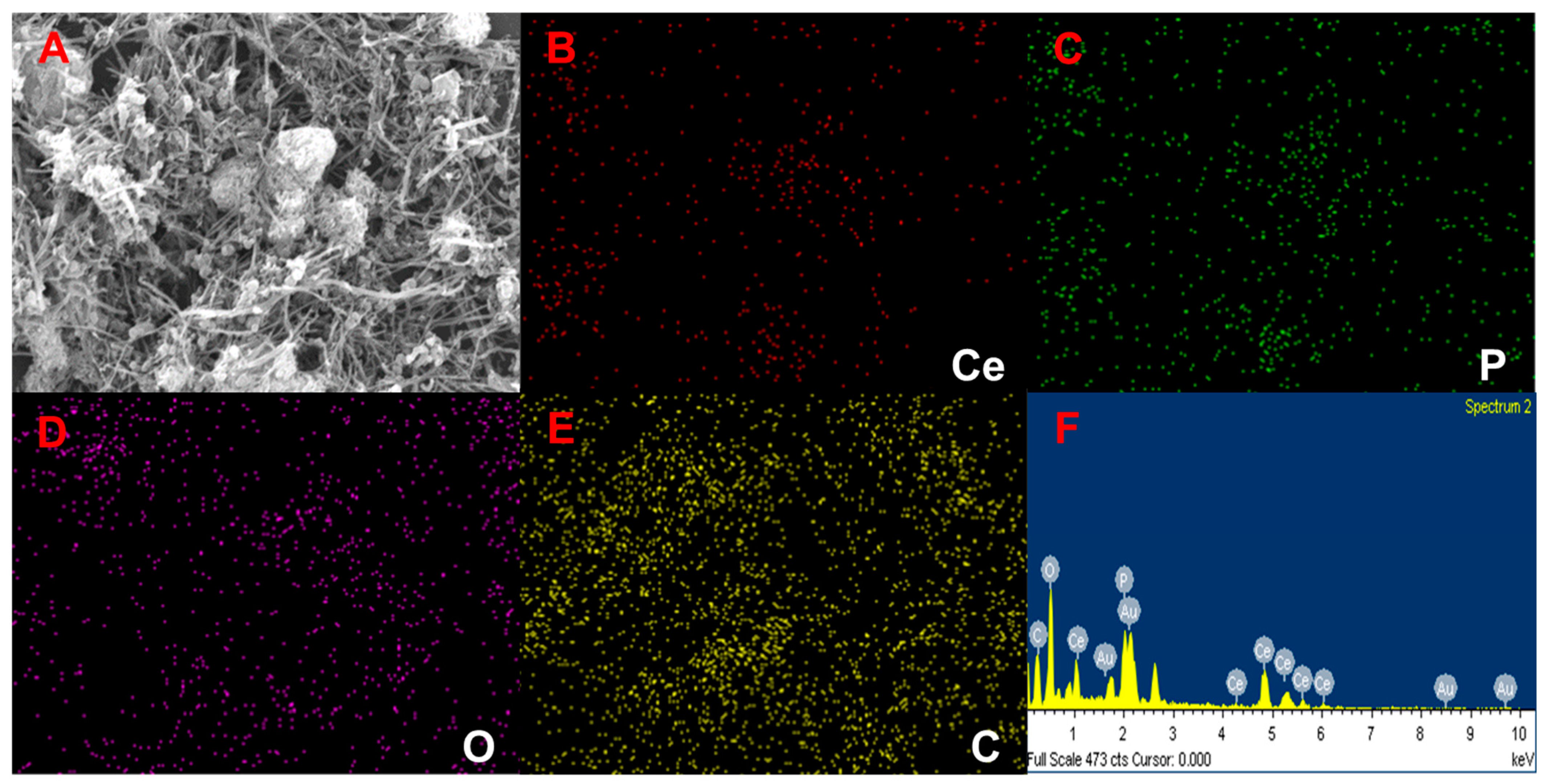

Figure 3. (AF) SEM image and EDS of CePO4@f-CNF.
Figure 3. (AF) SEM image and EDS of CePO4@f-CNF.
Chemosensors 12 00084 g003

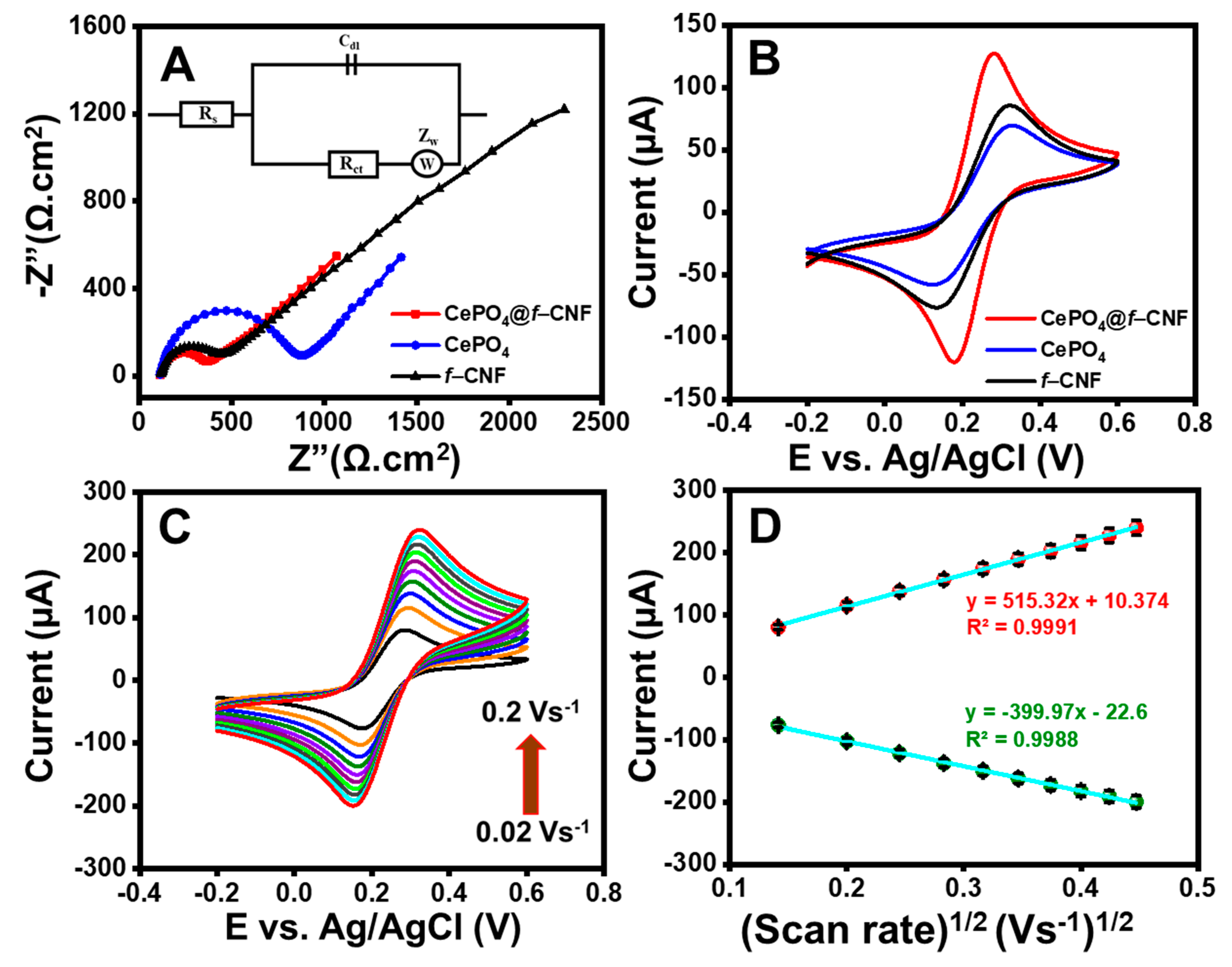

Figure 4. (A) EIS (the Nyquist plot (inset; Randle’s circuit model), (B) and CV scan of f-CNF/GCE, CePO4/GCE, and CePO4@f-CNF/GCE. (C) CV curves of CePO4@f-CNF/GCE at different scan rates (0.02–0.2 Vs−1). (D) Linear fitting graph for different scan rates.
Figure 4. (A) EIS (the Nyquist plot (inset; Randle’s circuit model), (B) and CV scan of f-CNF/GCE, CePO4/GCE, and CePO4@f-CNF/GCE. (C) CV curves of CePO4@f-CNF/GCE at different scan rates (0.02–0.2 Vs−1). (D) Linear fitting graph for different scan rates.
Chemosensors 12 00084 g004

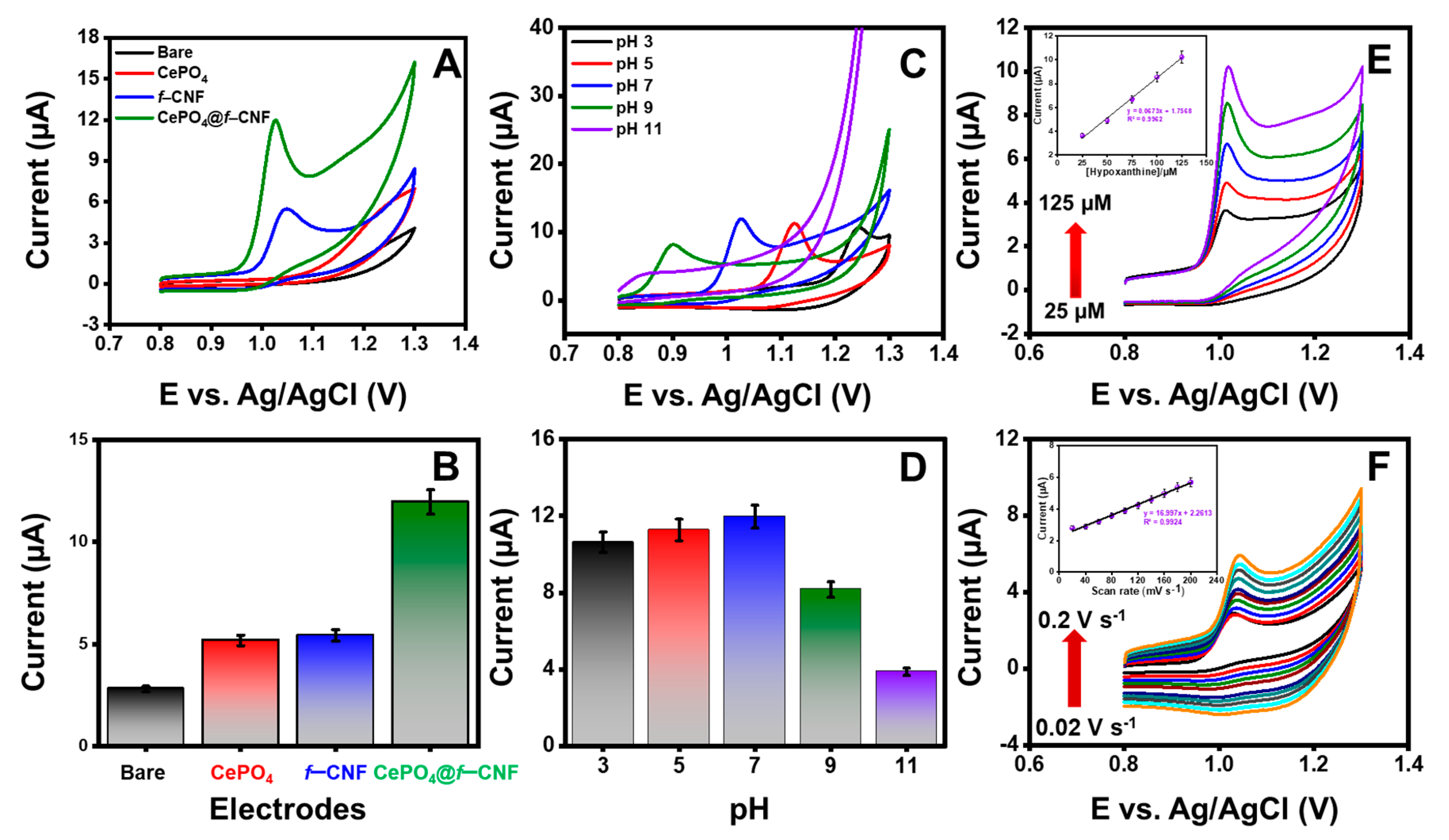

Figure 5. (A,B) CV profile of bare GCE, f-CNF/GCE, CePO4/GCE, and CePO4@f-CNF/GCE in 0.1 M PB (pH-7), with the existence of 100 mM HXA and the relative histogram of electrode towards the current. (C,D) CV curves of the CePO4@f-CNF/GCE at various electrolyte pH values (0.1 M PB pH 5–9), with the corresponding bar diagram of pH towards the current (mA). (E) CV scan of the CePO4@f-CNF/GCE with different concentrations from 25 to 125 µM HXA, and the respective (insert) linearity plot of different concentrations. (F) CV curves of the CePO4@f-CNF/GCE at different scan rates in the presence of 100 mM HXA; the inset is the corresponding linear plot for different scan rates.
Figure 5. (A,B) CV profile of bare GCE, f-CNF/GCE, CePO4/GCE, and CePO4@f-CNF/GCE in 0.1 M PB (pH-7), with the existence of 100 mM HXA and the relative histogram of electrode towards the current. (C,D) CV curves of the CePO4@f-CNF/GCE at various electrolyte pH values (0.1 M PB pH 5–9), with the corresponding bar diagram of pH towards the current (mA). (E) CV scan of the CePO4@f-CNF/GCE with different concentrations from 25 to 125 µM HXA, and the respective (insert) linearity plot of different concentrations. (F) CV curves of the CePO4@f-CNF/GCE at different scan rates in the presence of 100 mM HXA; the inset is the corresponding linear plot for different scan rates.
Chemosensors 12 00084 g005

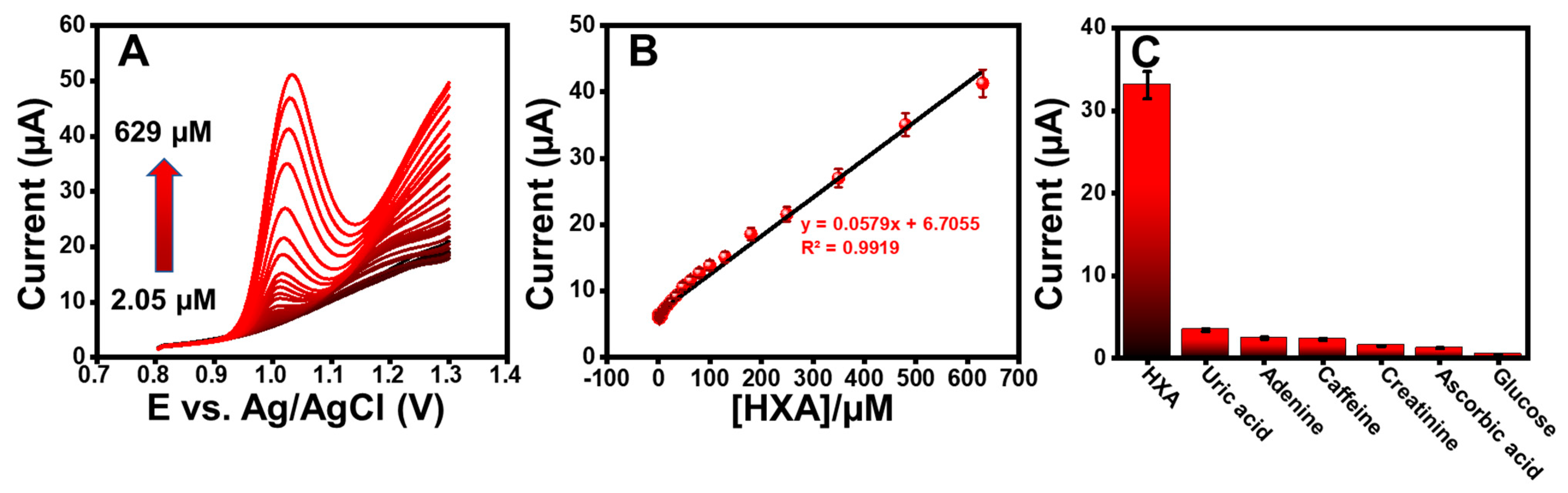

Figure 6. (A) DPV measurements for accelerating the deposition of HXA into the CePO4@f-CNF/GCE. (B) Calibration plot for the current acquired with the increment of HXA. (C) Interference study of various analytes over HXA.
Figure 6. (A) DPV measurements for accelerating the deposition of HXA into the CePO4@f-CNF/GCE. (B) Calibration plot for the current acquired with the increment of HXA. (C) Interference study of various analytes over HXA.
Chemosensors 12 00084 g006

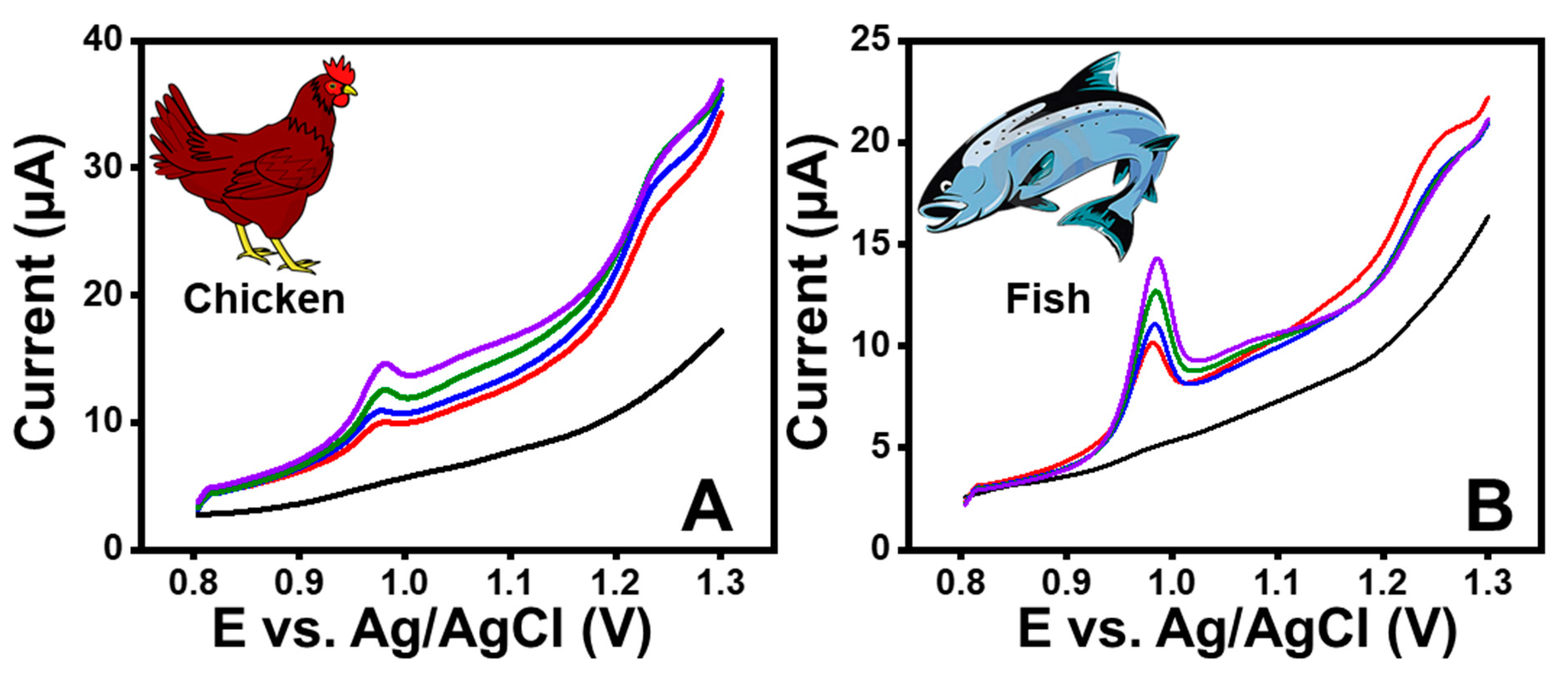

Figure 7. DPV reading of CePO4@f-CNF/GCE in the presence of HXA: (A) chicken, (B) fish sample.
