nZVI Mobility and Transport: Laboratory Test and Numerical Model
Abstract
:1. Introduction
- -
- Physical mechanisms: the filtration and straining phenomena. The first one is a generally irreversible phenomenon, according to which the particles are greater than the pores, so the colloids remain trapped [30,31]. On the contrary, the latter is a reversible process in which particles, being smaller than pores, are filtered by the intergranular contact points [30,31];
- -
- Chemical mechanisms. These mechanisms typically result in dynamic deposition and release phenomena, with different behaviors in the early and advanced stages of deposition. During the initial phase, no particle is attached on the surface of the solid grains, and therefore the attached colloids do not influence the total interaction energy between particles and solid grains. During the advanced stages of deposition, a significant number of particles is already deposed on the porous matrix, and thus influences deposition kinetics. In this way, the collector includes both the porous medium and the deposed particles [30]. The main processes are: (i) irreversible attachment, if attractive Van der Waals forces are predominant and the nZVI attachment in primary minimum is generally considered to be irreversible; (ii) linear reversible attachment (known as attachment—detachment), if attractive Van der Waals forces and EDL repulsive forces are similar and the deposition is not limited or affected by the amount of deposed particles [24,32,33]; (iii) blocking phenomenon, if repulsive energies are predominant and the deposed particles exclude the suspended colloids that are close to the soil grain, reaching a maximum concentration of colloids on the surface grain [30,32] and (iv) ripening phenomenon, if attractive energies are predominant and the deposed particles tend to attract the suspended ones, leading to higher concentrations of attached colloids until the porous medium is completely clogged [24,30].
2. Materials and Methods

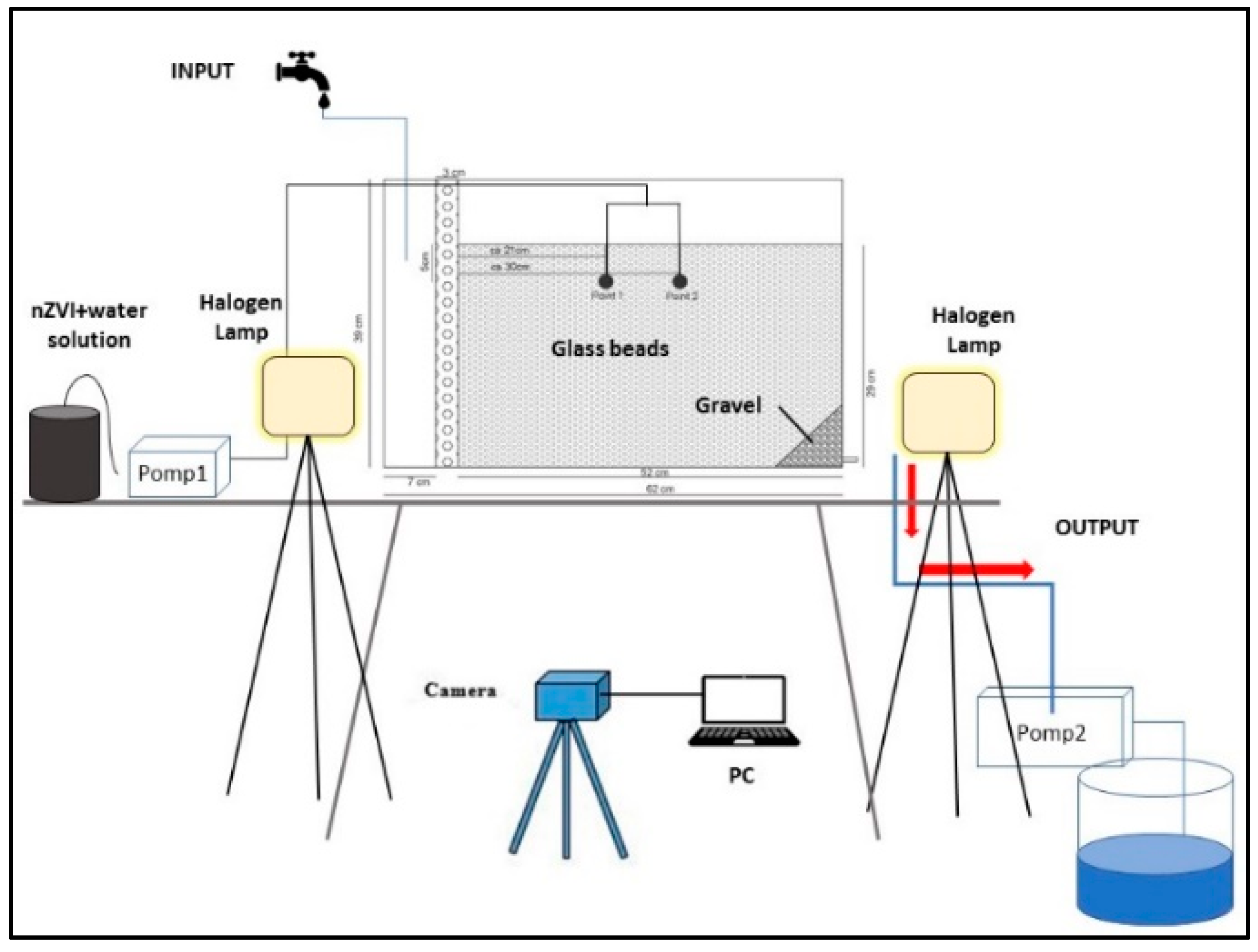

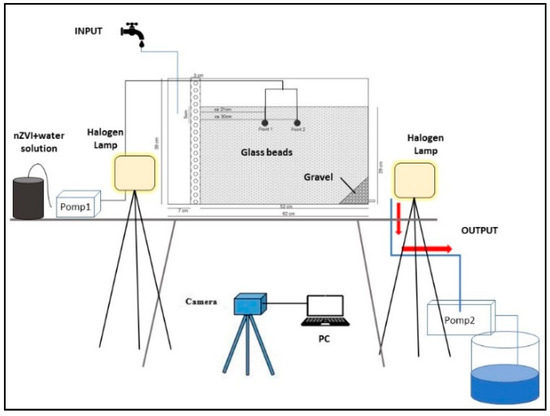

2.1. Laboratory Investigation: Experimental Set-Up
- -
- Point 1 (P1): x = 21 cm and y = 5 cm
- -
- Point 2 (P2): x = 30 cm and y = 5 cm

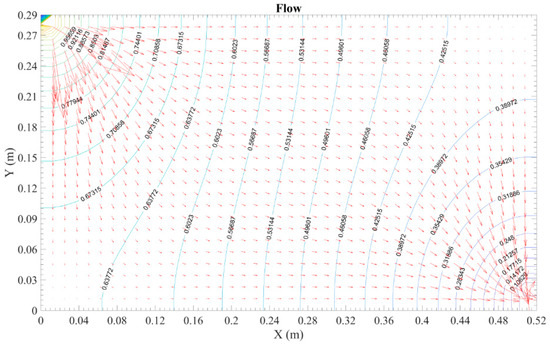

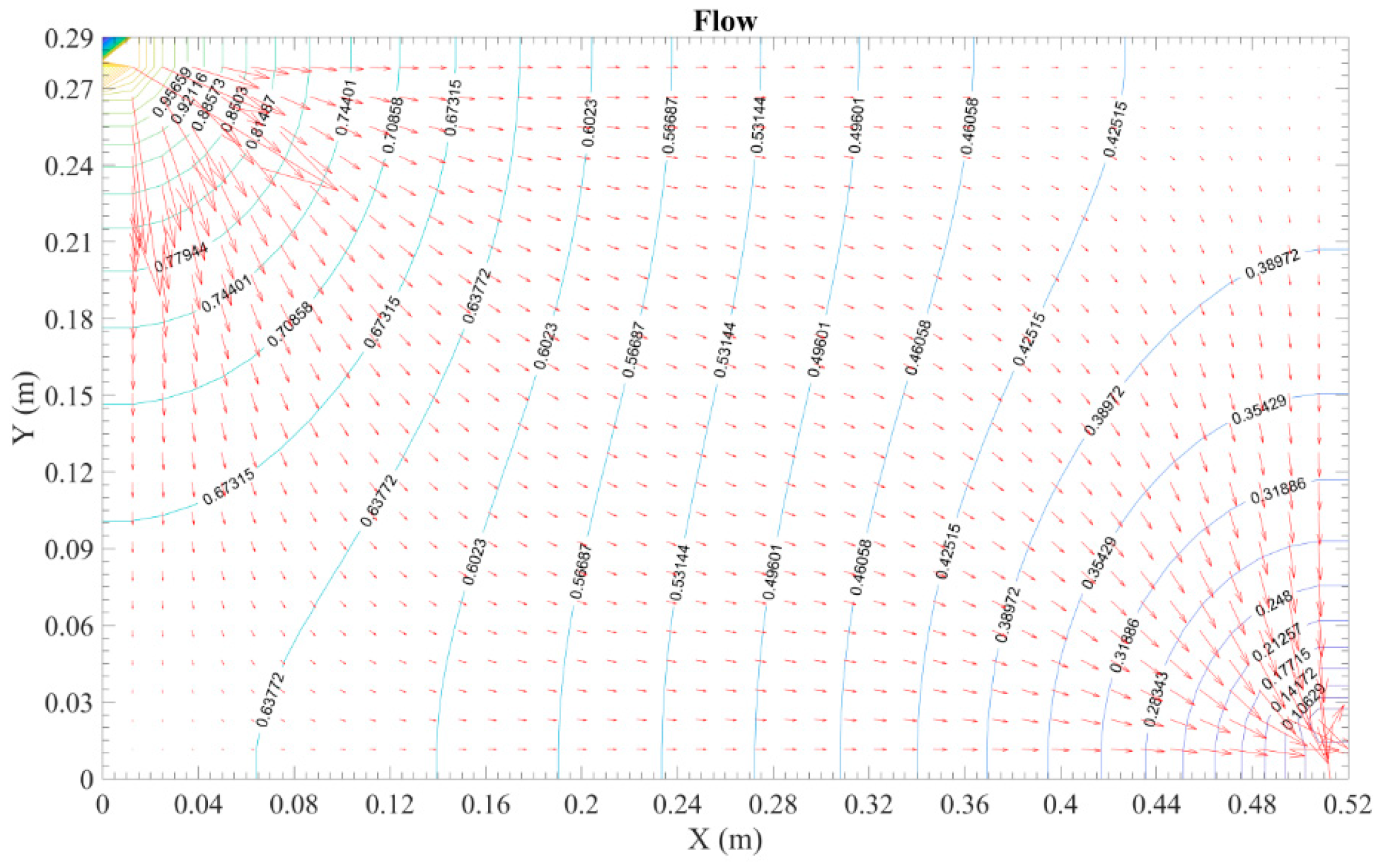

2.2. Numerical Model

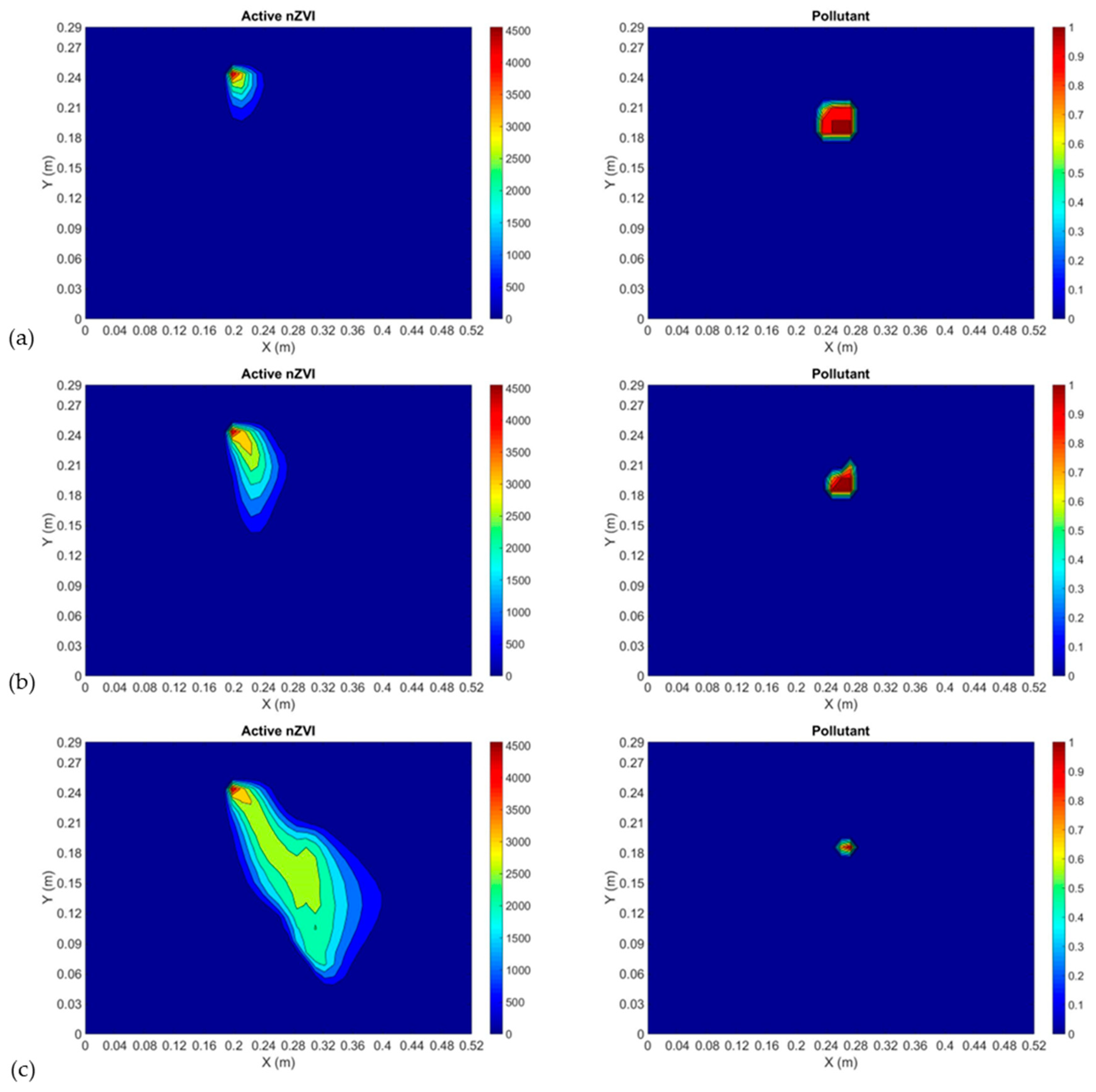

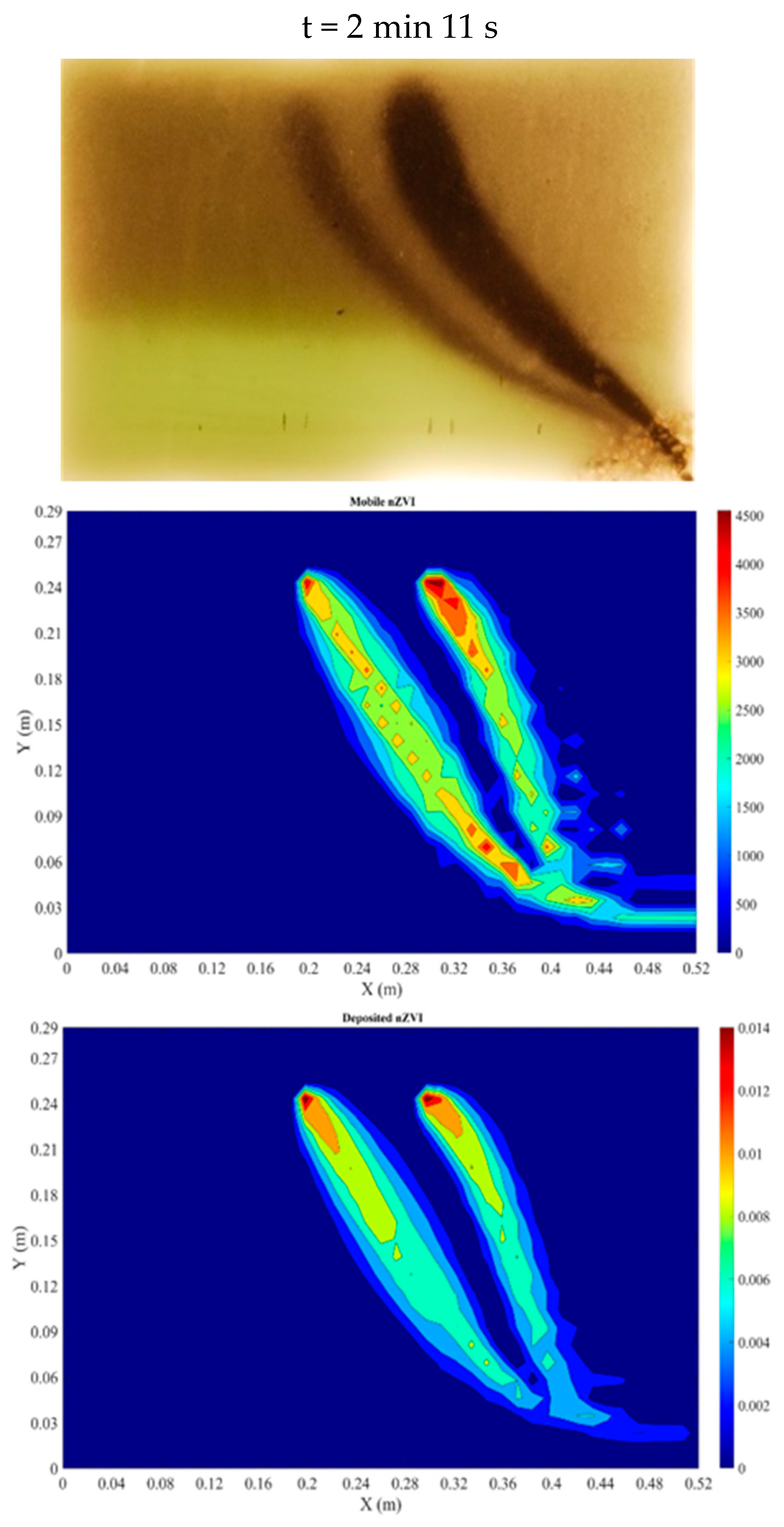

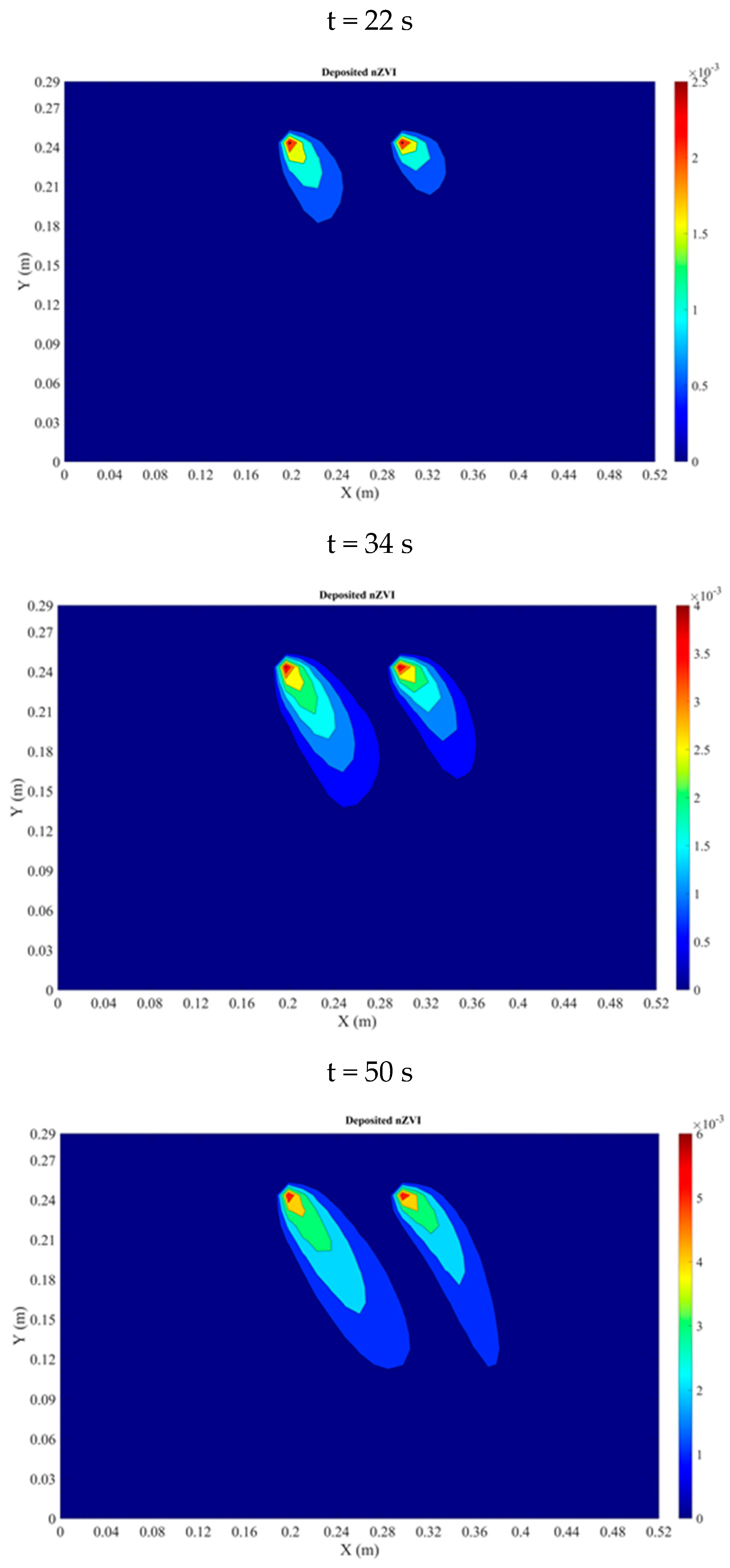

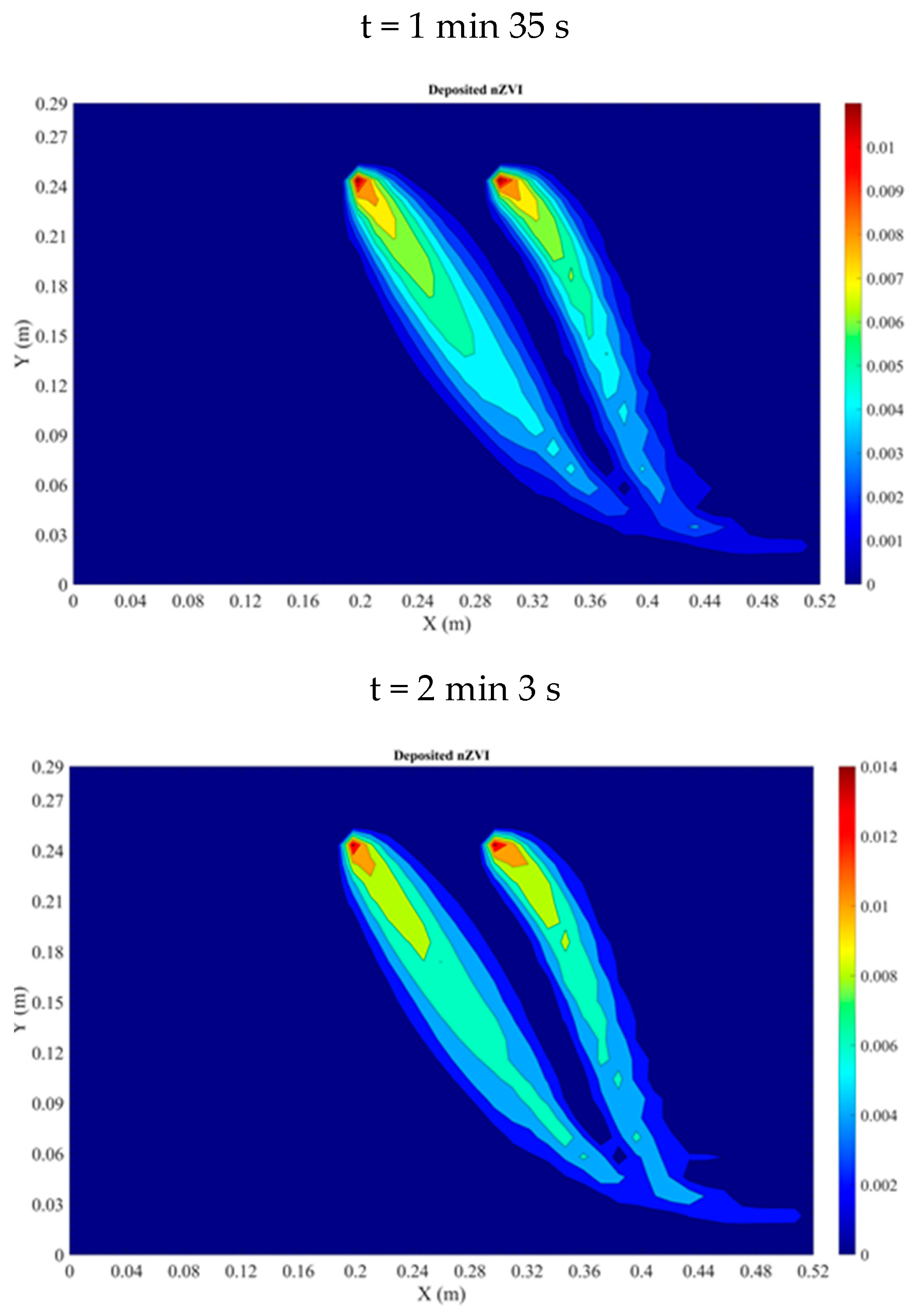

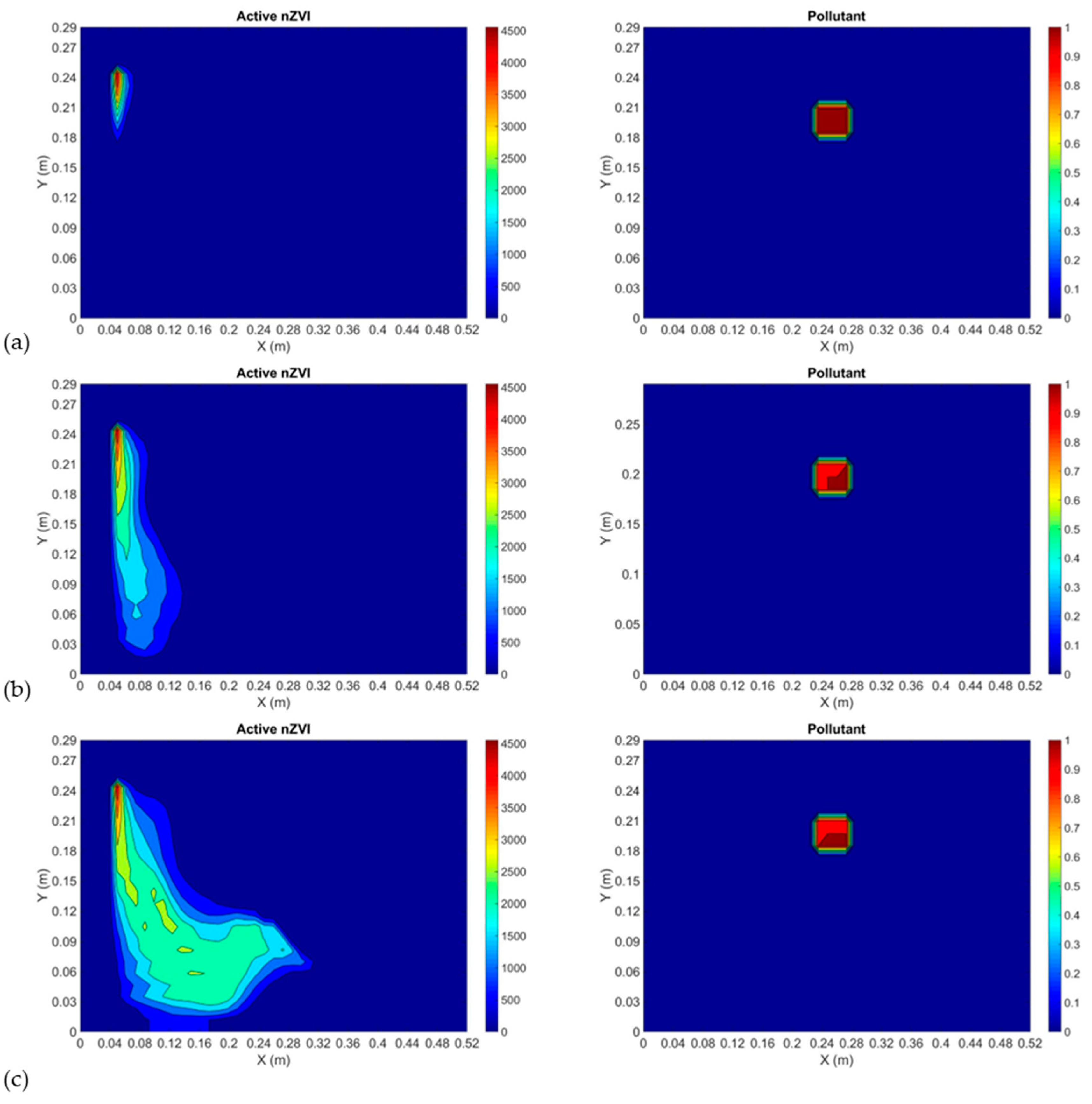

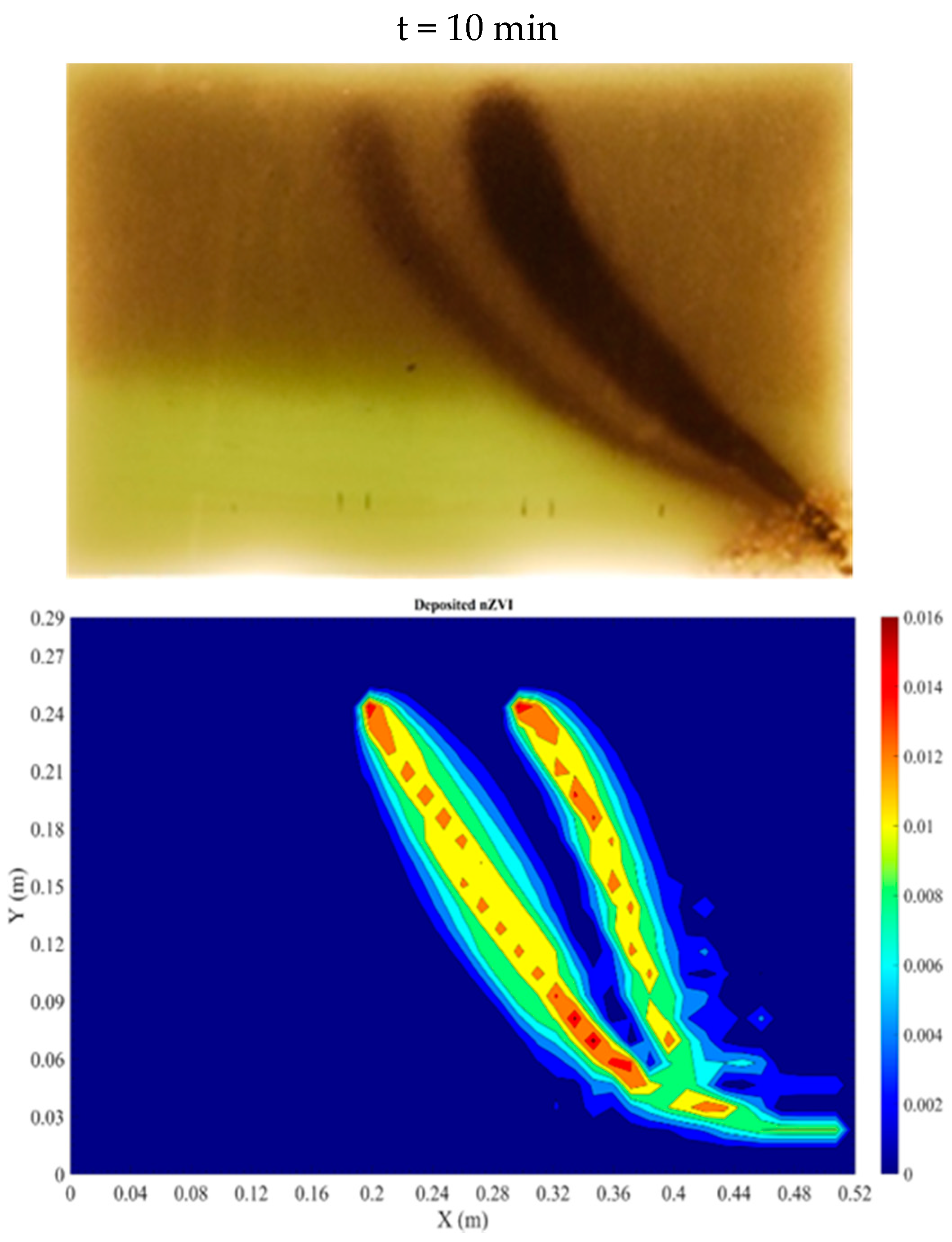

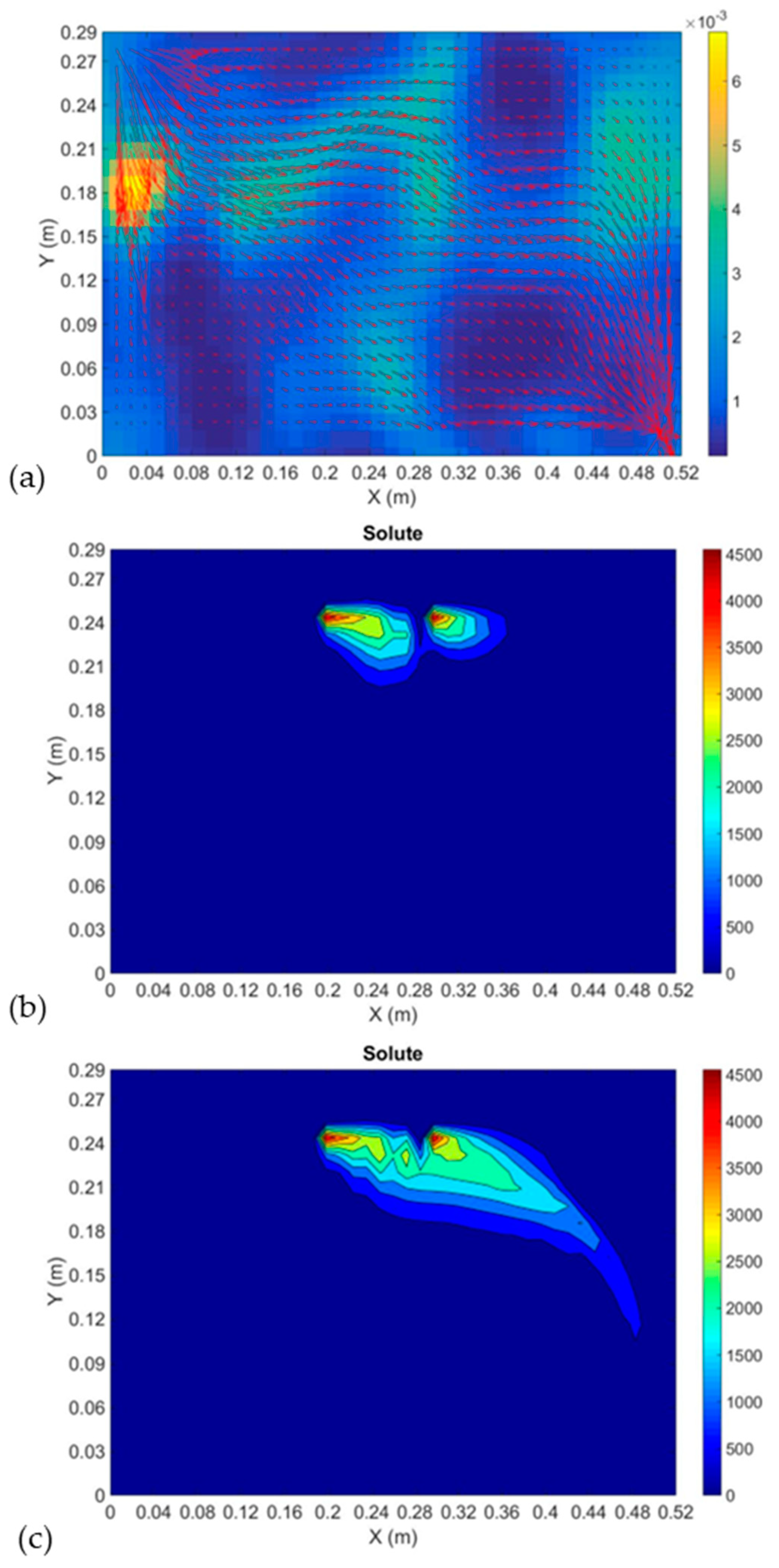

3. Results and Discussion
4. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Barbieri, M.; Nigro, A.; Sappa, G. Soil contamination evaluation by Enrichment Factor (EF) and Geoaccumulation Index (Igeo). Senses Sci. 2015, 2, 94–97. [Google Scholar] [CrossRef]
- Liu, L.; Li, W.; Song, W.; Guo, M. Remediation techniques for heavy metal-contaminated soils: Principles and applicability. Sci. Total Environ. 2018, 633, 206–219. [Google Scholar] [CrossRef] [PubMed]
- Alazaiza, M.Y.D.; Ramli, M.H.; Copty, N.K.; Sheng, T.J.; Aburas, M.M. LNAPL saturation distribution under the influence of water table fluctuations using simplified image analysis method. Bull. Eng. Geol. Environ. 2020, 79, 1543–1554. [Google Scholar] [CrossRef]
- Rabbani, M.M.; Ahmed, I.; Park, S.-J. Application of Nanotechnology to Remediate Contaminated Soils. In Environmental Remediation Technologies for Metal-Contaminated Soils; Springer: Tokyo, Japan, 2016; pp. 1–254. ISBN 9784431557593. [Google Scholar]
- Viotti, P.; Di Palma, P.R.; Aulenta, F.; Luciano, A.; Mancini, G.; Papini, M.P. Use of a reactive transport model to describe reductive dechlorination (RD) as a remediation design tool: Application at a CAH-contaminated site. Environ. Sci. Pollut. Res. 2014, 21, 1514–1527. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Bardos, P.; Merly, C.; Kvapil, P.; Koschitzky, H.P. Status of nanoremediation and its potential for future deployment: Risk-benefit and benchmarking appraisals. Remediation 2018, 28, 43–56. [Google Scholar] [CrossRef]
- Tatti, F.; Petrangeli Papini, M.; Torretta, V.; Mancini, G.; Boni, M.R.; Viotti, P. Experimental and numerical evaluation of Groundwater Circulation Wells as a remediation technology for persistent, low permeability contaminant source zones. J. Contam. Hydrol. 2019, 222, 89–100. [Google Scholar] [CrossRef]
- Silvani, L.; Di Palma, P.R.; Riccardi, C.; Eek, E.; Hale, S.E.; Viotti, P.; Petrangeli Papini, M. Use of biochar as alternative sorbent for the active capping of oil contaminated sediments. J. Environ. Chem. Eng. 2017, 5, 5241–5249. [Google Scholar] [CrossRef]
- Tatti, F.; Papini, M.P.; Raboni, M.; Viotti, P. Image analysis procedure for studying Back-Diffusion phenomena from low-permeability layers in laboratory tests. Sci. Rep. 2016, 6, 30400. [Google Scholar] [CrossRef] [Green Version]
- Guerra, F.D.; Attia, M.F.; Whitehead, D.C.; Alexis, F. Nanotechnology for environmental remediation: Materials and applications. Molecules 2018, 23, 1760. [Google Scholar] [CrossRef] [Green Version]
- Gallo, A.; Bianco, C.; Tosco, T.; Sethi, R. Ferro zerovalente nanoscopico per la bonifica di acquiferi contaminari. Geoing. Ambient. E Min. 2018, 155, 5–16. [Google Scholar]
- Gamallo, M.; Fernández, L.; Feijoo, G.; Moreira, M.T. Nano-based technologies for environmental soil remediation. In Nanomaterials for Sustainable Energy and Environmental Remediation; Elsevier: Amsterdam, The Netherlands, 2020; pp. 307–331. [Google Scholar] [CrossRef]
- Ribas, D.; Černík, M.; Benito, J.A.; Filip, J.; Marti, V. Activation process of air stable nanoscale zero-valent iron particles. Chem. Eng. J. 2017, 320, 290–299. [Google Scholar] [CrossRef] [Green Version]
- Gil-Díaz, M.; Rodríguez-Valdés, E.; Alonso, J.; Baragaño, D.; Gallego, J.R.; Lobo, M.C. Nanoremediation and long-term monitoring of brownfield soil highly polluted with As and Hg. Sci. Total Environ. 2019, 675, 165–175. [Google Scholar] [CrossRef] [PubMed]
- Sappa, G.; Barbieri, M.; Viotti, P.; Tatti, F.; Andrei, F. Assessment of Zerovalent Iron Nanoparticle (nZVI) Efficiency for Remediation of Arsenic-Contaminated Groundwater: Two Laboratory Experiments. Water 2022, 14, 3261. [Google Scholar] [CrossRef]
- US.EPA. Nanotechnology: Applications for Environmental Remediation. Available online: https://clu-in.org/techfocus/default.focus/sec/nanotechnology%3A_applications_for_environmental_remediation/cat/Application/ (accessed on 10 September 2022).
- Li, X.Q.; Elliott, D.W.; Zhang, W.X. Zero-valent iron nanoparticles for abatement of environmental pollutants: Materials and engineering aspects. Crit. Rev. Solid State Mater. Sci. 2006, 31, 111–122. [Google Scholar] [CrossRef]
- Ji, Y. Ions removal by iron nanoparticles: A study on solid-water interface with zeta potential. Colloids Surfaces A Physicochem. Eng. Asp. 2014, 444, 1–8. [Google Scholar] [CrossRef]
- Galdames, A.; Ruiz-Rubio, L.; Orueta, M.; Sánchez-Arzalluz, M.; Vilas-Vilela, J.L. Zero-valent iron nanoparticles for soil and groundwater remediation. Int. J. Environ. Res. Public Health 2020, 17, 5817. [Google Scholar] [CrossRef]
- Lin, Y.H.; Tseng, H.H.; Wey, M.Y.; Lin, M. Der Characteristics of two types of stabilized nano zero-valent iron and transport in porous media. Sci. Total Environ. 2010, 408, 2260–2267. [Google Scholar] [CrossRef]
- Phenrat, T.; Saleh, N.; Sirk, K.; Tilton, R.D.; Lowry, G.V. Aggregation and sedimentation of aqueous nanoscale zerovalent iron dispersions. Environ. Sci. Technol. 2007, 41, 284–290. [Google Scholar] [CrossRef]
- Saleh, N.; Sirk, K.; Liu, Y.; Phenrat, T.; Dufour, B.; Matyjaszewski, K.; Tilton, R.D.; Lowry, G.V. Surface modifications enhance nanoiron transport and NAPL targeting in saturated porous media. Environ. Eng. Sci. 2007, 24, 45–57. [Google Scholar] [CrossRef] [Green Version]
- Shrestha, S.; Wang, B.; Dutta, P. Nanoparticle processing: Understanding and controlling aggregation. Adv. Colloid Interface Sci. 2020, 279, 102162. [Google Scholar] [CrossRef]
- Mondal, A.; Dubey, B.K.; Arora, M.; Mumford, K. Porous media transport of iron nanoparticles for site remediation application: A review of lab scale column study, transport modelling and field-scale application. J. Hazard. Mater. 2021, 403, 123443. [Google Scholar] [CrossRef] [PubMed]
- Ryan, J.N.; Elimelech, M. Colloid mobilization and transport in groundwater. Colloids Surfaces A Physicochem. Eng. Asp. 1996, 107, 1–56. [Google Scholar] [CrossRef]
- He, F.; Zhao, D. Preparation and characterization of a new class of starch-stabilized bimetallic nanoparticles for degradation of chlorinated hydrocarbons in water. Environ. Sci. Technol. 2005, 39, 3314–3320. [Google Scholar] [CrossRef] [PubMed]
- He, F.; Zhao, D. Response to comment on manipulating the size and dispersibility of zerovalent iron nanoparticles by use of carboxymethyl cellulose stabilizers. Environ. Sci. Technol. 2008, 42, 3480. [Google Scholar] [CrossRef]
- Reddy, K.R.; Darnault, C.J.G.; Darko-Kagya, K. Transport of lactate-modified nanoscale iron particles in porous media. J. Geotech. Geoenvironmental Eng. 2014, 140, 04013013. [Google Scholar] [CrossRef] [Green Version]
- Liang, Q.; Zhao, D. Immobilization of arsenate in a sandy loam soil using starch-stabilized magnetite nanoparticles. J. Hazard. Mater. 2014, 271, 16–23. [Google Scholar] [CrossRef]
- Tosco, T.; Petrangeli Papini, M.; Cruz Viggi, C.; Sethi, R. Nanoscale zerovalent iron particles for groundwater remediation: A review. J. Clean. Prod. 2014, 77, 10–21. [Google Scholar] [CrossRef]
- Bianco, C.; Tosco, T.; Sethi, R. A 3-dimensional micro- and nanoparticle transport and filtration model (MNM3D) applied to the migration of carbon-based nanomaterials in porous media. J. Contam. Hydrol. 2016, 193, 10–20. [Google Scholar] [CrossRef] [Green Version]
- Ma, C.; Huangfu, X.; He, Q.; Ma, J.; Huang, R. Deposition of engineered nanoparticles (ENPs) on surfaces in aquatic systems: A review of interaction forces, experimental approaches, and influencing factors. Environ. Sci. Pollut. Res. 2018, 25, 33056–33081. [Google Scholar] [CrossRef]
- Elimelech, M.; O’Melia, C.R. Effect of Particle Size on Collision Efficiency in the Deposition of Brownian Particles with Electrostatic Energy Barriers. Langmuir 1990, 6, 1153–1163. [Google Scholar] [CrossRef]
- Mueller, N.C.; Braun, J.; Bruns, J.; Černík, M.; Rissing, P.; Rickerby, D.; Nowack, B. Application of nanoscale zero valent iron (NZVI) for groundwater remediation in Europe. Environ. Sci. Pollut. Res. 2012, 19, 550–558. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Tosco, T.; Gastone, F.; Luna, M.; Sethi, R.; Torino, P. Micro e nanoparticelle di ferro per la bonifica di acquiferi contaminati: Dal laboratorio all’applicazione in campo. Ing. Dell’ambiente 2015, 2, 59–68. [Google Scholar]
- Gil-Díaz, M.; Alonso, J.; Rodríguez-Valdés, E.; Gallego, J.R.; Lobo, M.C. Comparing different commercial zero valent iron nanoparticles to immobilize As and Hg in brownfield soil. Sci. Total Environ. 2017, 584–585, 1324–1332. [Google Scholar] [CrossRef] [PubMed]
- Andrei, F.; Sappa, G.; Boni, M.R.; Mancini, G.; Viotti, P. Mobility of nZVI in a Reconstructed Porous Media Monitored by an Image Analysis Procedure. Water 2021, 13, 2797. [Google Scholar] [CrossRef]
- Eglal, M.M.; Ramamurthy, A.S. Nanofer ZVI: Morphology, particle characteristics, kinetics, and applications. J. Nanomater. 2014, 2014, 29. [Google Scholar] [CrossRef] [Green Version]
- Chekli, L.; Brunetti, G.; Marzouk, E.R.; Maoz-Shen, A.; Smith, E.; Naidu, R.; Shon, H.K.; Lombi, E.; Donner, E. Evaluating the mobility of polymer-stabilised zero-valent iron nanoparticles and their potential to co-transport contaminants in intact soil cores. Environ. Pollut. 2016, 216, 636–645. [Google Scholar] [CrossRef]
- Galdames, A.; Mendoza, A.; Orueta, M.; de Soto García, I.S.; Sánchez, M.; Virto, I.; Vilas, J.L. Development of new remediation technologies for contaminated soils based on the application of zero-valent iron nanoparticles and bioremediation with compost. Resour. Technol. 2017, 3, 166–176. [Google Scholar] [CrossRef]
- Schrick, B.; Hydutsky, B.W.; Bishop, E.J.; Schrick, B.; Blough, J.L.; Mallouk, T.E. Zero-valent metal nanoparticles for soil and groundwater remediation. ACS Natl. Meet. B Abstr. 2004, 228, 2187–2193. [Google Scholar] [CrossRef]
- Kanel, S.R.; Nepal, D.; Manning, B.; Choi, H. Transport of surface-modified iron nanoparticle in porous media and application to arsenic(III) remediation. J. Nanoparticle Res. 2007, 9, 725–735. [Google Scholar] [CrossRef]
- Lin, Y.H.; Tseng, H.H.; Wey, M.Y.; Lin, M. Der Characteristics, morphology, and stabilization mechanism of PAA250K-stabilized bimetal nanoparticles. Colloids Surfaces A Physicochem. Eng. Asp. 2009, 349, 137–144. [Google Scholar] [CrossRef]
- Babakhani, P.; Bridge, J.; Doong, R.A. Phenrat, T. Continuum-based models and concepts for the transport of nanoparticles in saturated porous media: A state-of-the-science review. Adv. Colloid Interface Sci. 2017, 246, 75–104. [Google Scholar] [CrossRef] [PubMed]
- Sappa, G.; Andrei, F.; Viotti, P. Nanoparticles in Envinronmental Applications: First Laboratory Assesments of Nanoparticles Mobility in Porous Media. In Proceedings of the International Multidisciplinary Scientific GeoConference SGEM 2020, Vienna, Austria, 8–11 December 2020; p. 5593. [Google Scholar]
- Babakhani, P.; Fagerlund, F.; Shamsai, A.; Lowry, G.V.; Phenrat, T. Modified MODFLOW-based model for simulating the agglomeration and transport of polymer-modified Fe0 nanoparticles in saturated porous media. Environ. Sci. Pollut. Res. 2018, 25, 7180–7199. [Google Scholar] [CrossRef] [PubMed]
- Tosco, T.; Sethi, R. MNM1D: A numerical code for colloid transport in porous media: Implementation and validation. Am. J. Environ. Sci. 2009, 5, 516–524. [Google Scholar] [CrossRef] [Green Version]
- Tiraferri, A.; Sethi, R. Enhanced transport of zerovalent iron nanoparticles in saturated porous media by guar gum. J. Nanoparticle Res. 2009, 11, 635–645. [Google Scholar] [CrossRef]
- Tosco, T.; Tiraferri, A.; Rajandrea, S. Ionic Strength Dependent Transport of Microparticles in Saturated Porous Media: Modeling Mobilization and Immobilization Phenomena under Transient Chemical Conditions. Environ. Sci. Technol. 2009, 43, 4425–4431. [Google Scholar] [CrossRef]
- Kanel, S.R.; Manning, B.; Charlet, L.; Choi, H. Removal of arsenic(III) from groundwater by nanoscale zero-valent iron. Environ. Sci. Technol. 2005, 39, 1291–1298. [Google Scholar] [CrossRef]
Micro Glass Beads | |
---|---|
Diameter | 400–800 μm |
Refractive index | 1.52 |
Porosity ε (measured) | 0.4 |
Bulk density | 1.49 kg/L |
Hardness (according to Mohs) | ≥6 |
Nanofer25S | |
---|---|
Composition mixture (weight % content) | 77% Water 14–18% Iron (Fe) 3% Polyacrylic acid (PAA). 2–6% Magnetite (Fe3O4) 0–1% Carbon © |
Granulometry | d50 < 50 nm |
pH | 11–12 |
Specific surface | >25 m2/g |
Specific gravity | 1.15–1.25 g/cm3 (20 °C) |
nZVI + Water Solution for Permeation Injection Test | ||
---|---|---|
nZVI stock solution concentration | 250 | g/L |
nZVI volume | 10 | mL |
nZVI mass | 2.5 | g |
nZVI + water solution volume | 550 | mL |
nZVI + water solution concentration | 4.54 | g/L |
Attachment and Detachment Coefficients | ||
---|---|---|
kATT | 0.1 | 1/s |
kDET | 0.0001 | 1/s |
Parameter | Values | Units | |
---|---|---|---|
Physical width | 0.52 | m | |
Physical height | 0.29 | m | |
Rows (m) | 26 | - | |
Columns (n) | 43 | - | |
Injection/Extraction flow rate (Q) | 168 | L/h | |
Porosity (ε) | 0.4 | - | |
Micro glass beads hydraulic conductivity | kx | 2.5 × 10−3 | m/s |
ky | 4.3 × 10−3 | m/s | |
Micro glass beads dispersion 1 (D) | 2.6 × 10−5 | m2/s | |
Bulk Density (ρb) | 1.49 × 106 | g/m3 | |
Injection Point 1 (P1) | xP1 | 0.21 | m |
yP1 | 0.05 | m | |
Injection Point 2 (P2) | xP2 | 0.30 | m |
yP2 | 0.05 | m | |
nZVI + water solution concentration | 4.545 × 103 | g/m3 | |
nZVI volume | 10 | mL | |
nZVI mass | 2.5 | g |
