Investigating Thermal Controls on the Hyporheic Flux as Evaluated Using Numerical Modeling of Flume-Derived Data
Abstract
:1. Introduction
2. Materials and Methods

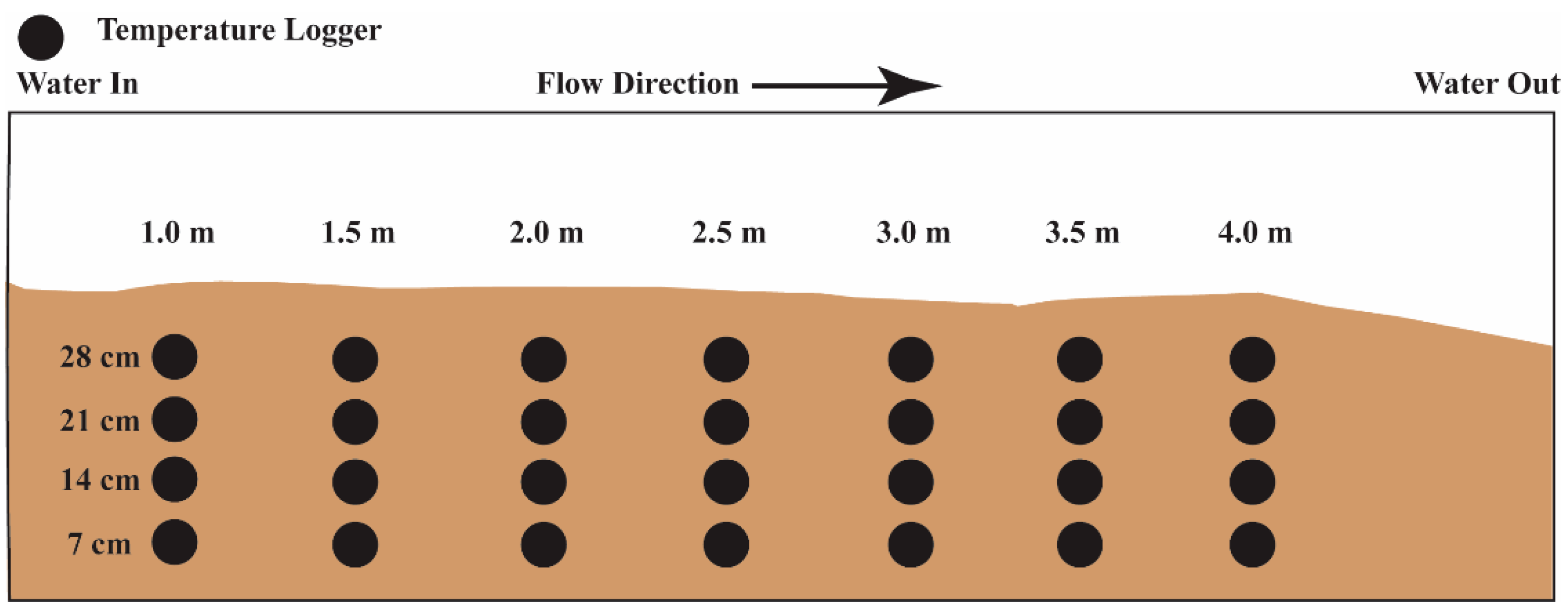

2.1. Data Acquisition: Flume Trials
2.2. Numerical Modeling: VS2DHI
2.3. VS2DHI Calibration
2.4. Data Processing
3. Results
4. Discussion
4.1. The Nature of the Model
4.2. Comparisons and Applications

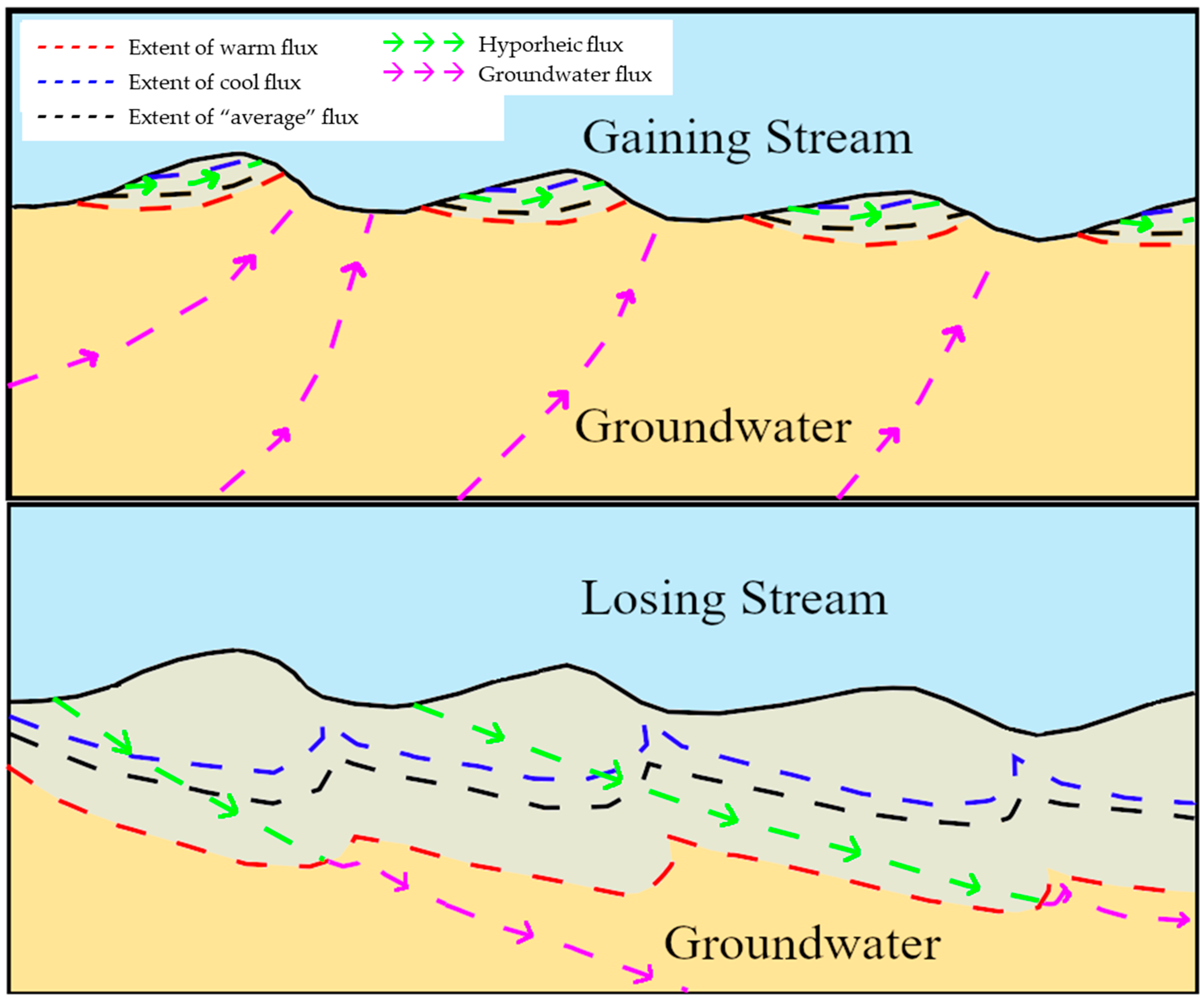

4.3. Implications for Seasonal and Diel Fluctuations
4.4. Limitations
5. Conclusions

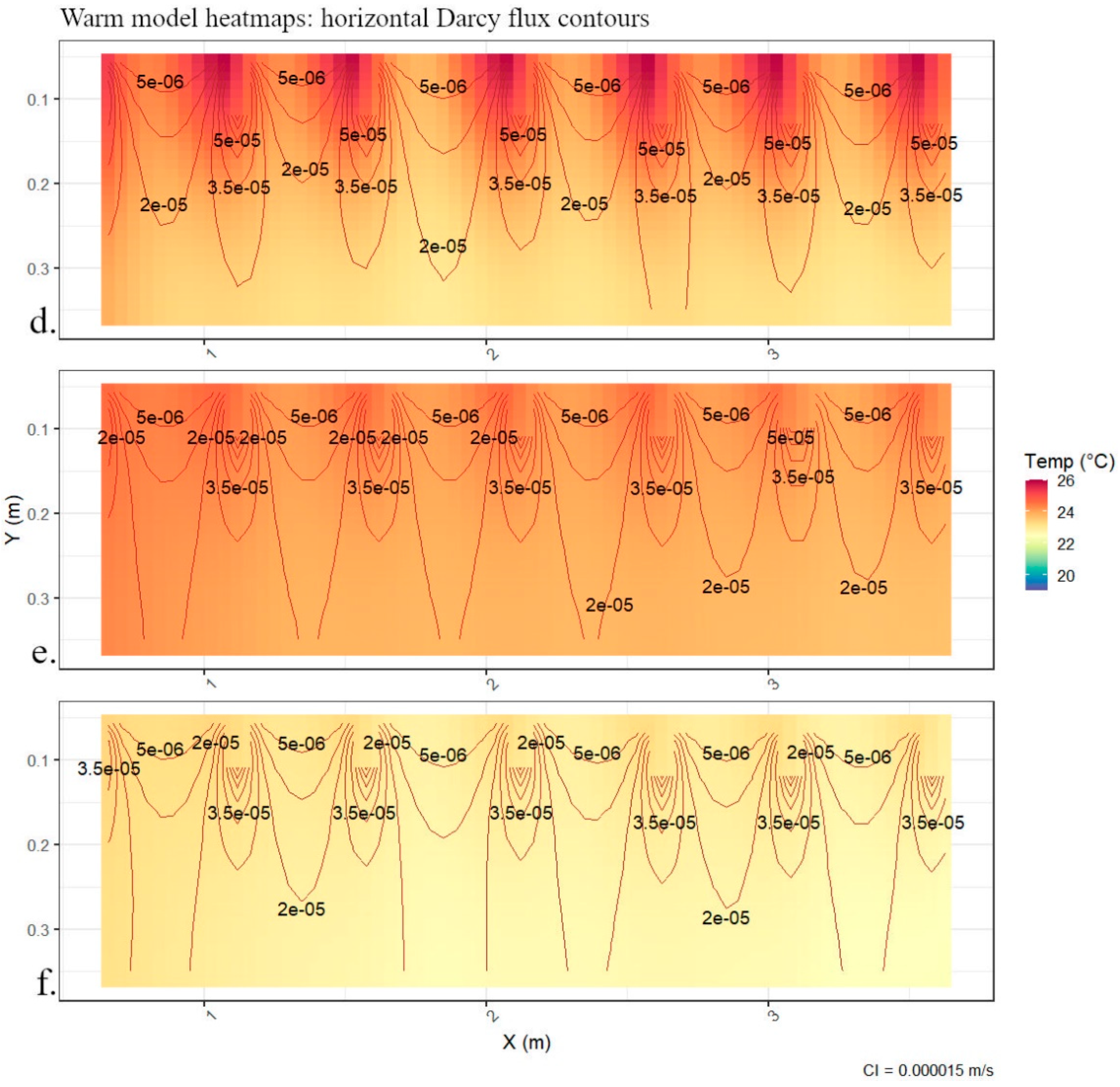

- Warmer waters have decreased kinematic viscosity, thus improving the efficiency of flow in both horizontal and vertical directions. A deeper hyporheic zone along with greater and more spatially spread advective flux was observed when temperature was increased in the flume.

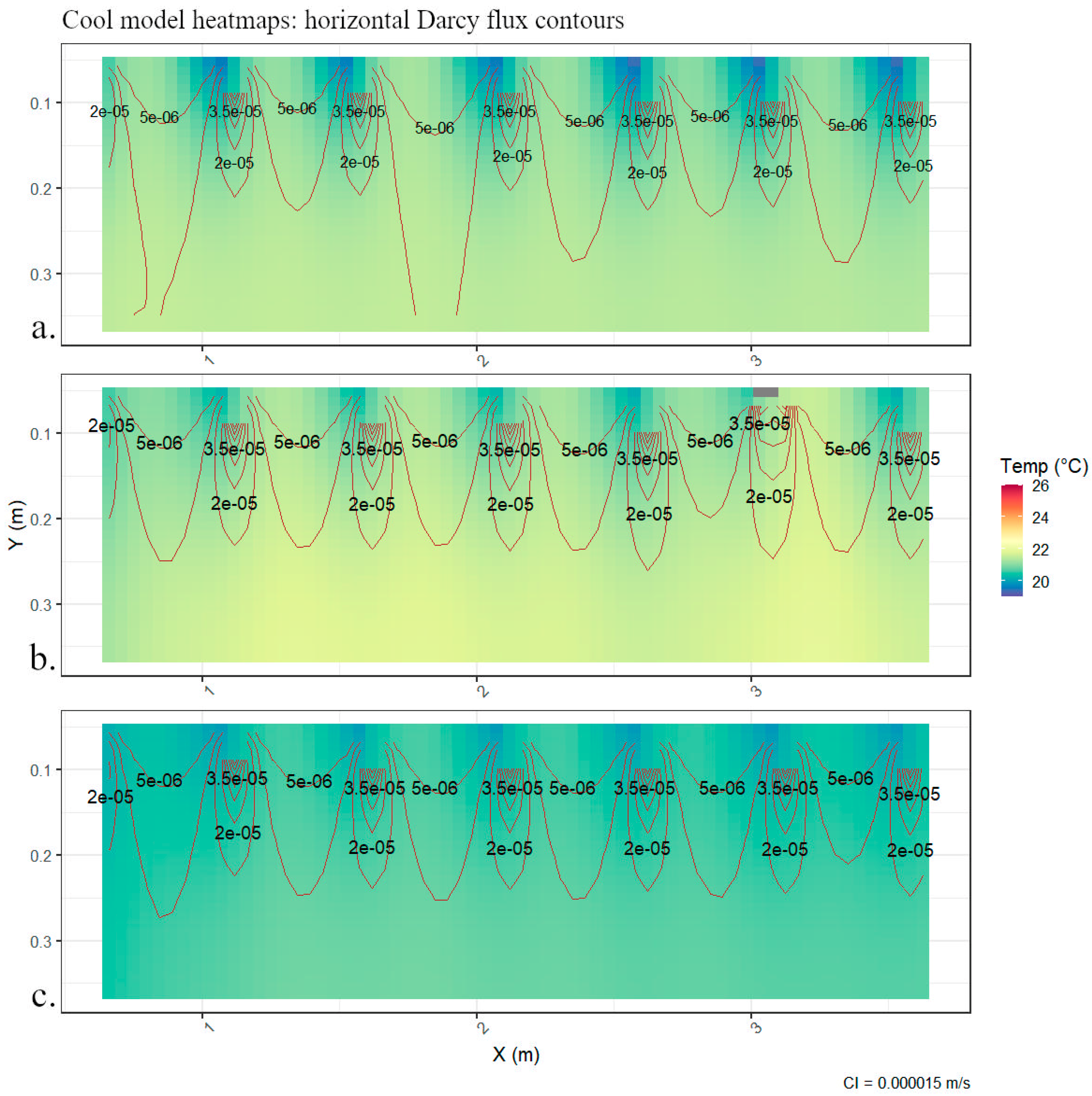

- Colder waters have higher kinematic viscosity, thus reducing the efficiency of flow in both horizontal and vertical directions. A shallower hyporheic zone along with reduced and less especially spread advective flux was observed when the temperature was decreased in the flume.
- The depth of advective thermal transport is greater in warm runs than in cold runs.

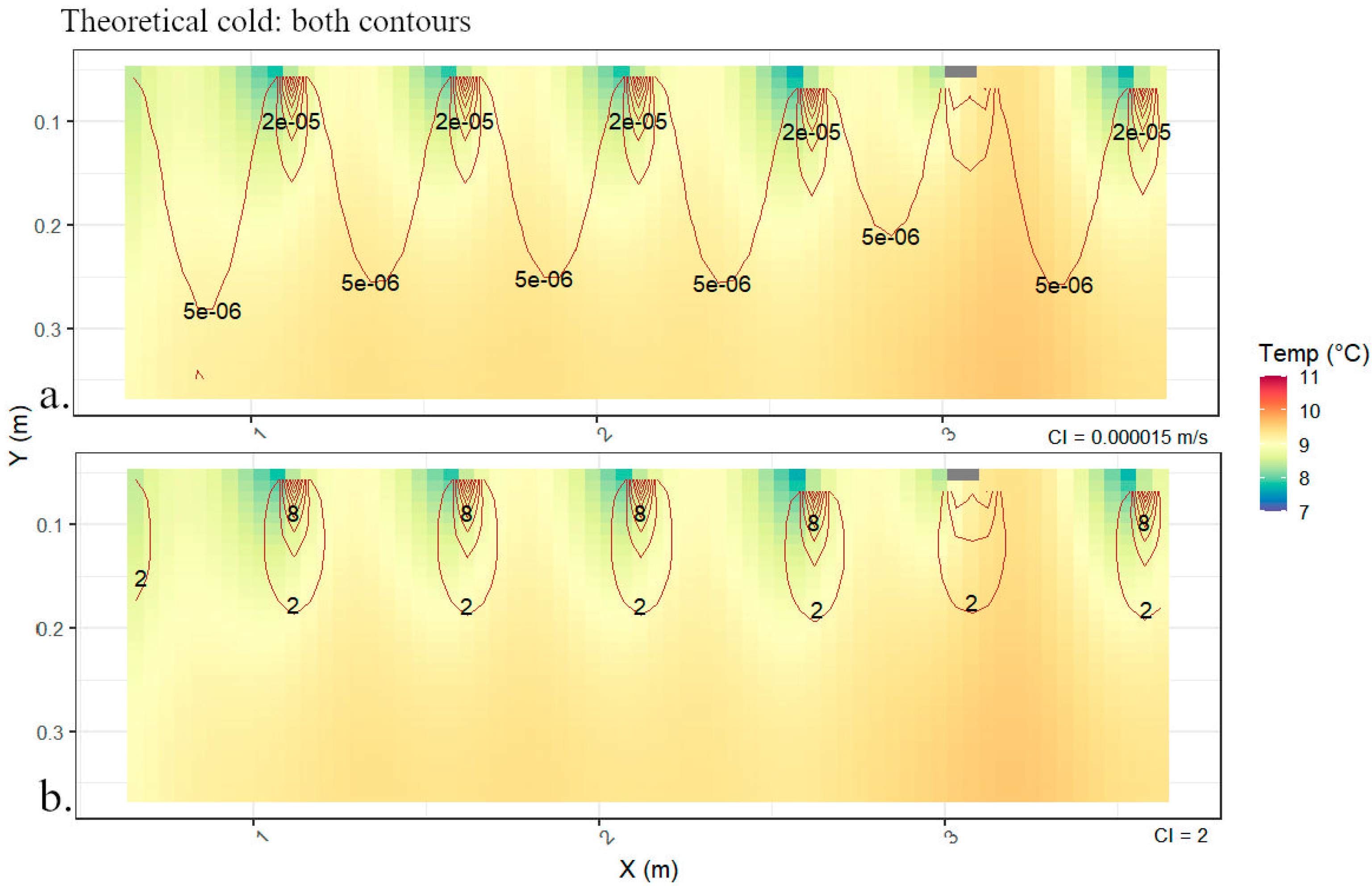

- A significant difference in flow exists between our warmest trial and the theoretical cold run (the temperature difference of which represents a typical yearly max and min), implying a definitive impact of thermal conditions on hyporheic forcing.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Silliman, S.E.; Ramirez, J.; McCabe, R.L. Quantifying downflow through creek sediments using temperature time series: One-dimensional solution incorporating measured surface temperature. J. Hydrol. 1995, 167, 99–119. [Google Scholar] [CrossRef]
- Silliman, S.E.; Booth, D.F. Analysis of time-series measurements of sediment temperature for identification of gaining vs. losing portions of Juday Creek, Indiana. J. Hydrol. 1993, 146, 131–148. [Google Scholar] [CrossRef]
- Lapham, W.W. Use of temperature profiles beneath streams to determine rates of vertical ground-water flow and vertical hydraulic conductivity. Water-Supply Pap. 1989, 2337, 35. [Google Scholar]
- Stallman, R.W. Computation of ground-water velocity from temperature data. USGS Water Supply Pap. 1963, 1544, 36–46. [Google Scholar]
- Briggs, M.A.; Lautz, L.K.; Buckley, S.F.; Lane, J.W. Practical limitations on the use of diurnal temperature signals to quantify groundwater upwelling. J. Hydrol. 2014, 519, 1739–1751. [Google Scholar] [CrossRef]
- Zlotnik, V.; Tartakovsky, D.M. Interpretation of heat-pulse tracer tests for characterization of three-dimensional velocity fields in hyporheic zone. Water Resour. Res. 2018, 54, 4028–4039. [Google Scholar] [CrossRef]
- Menichino, G.T.; Hester, E.T. Hydraulic and thermal effects of in-stream structure-induced hyporheic exchange across a range of hydraulic conductivities. Water Resour. Res. 2014, 50, 4643–4661. [Google Scholar] [CrossRef]
- Healy, R.W.; Ronan, A.D. Documentation of Computer Program VS2DH for Simulation of Energy Transport in Variably Saturated Porous Media: Modification of the U.S. Geological Survey’s Computer Program VS2DT; United States Geological Survey: Denver, CO, USA, 1996; p. 36. [Google Scholar]
- Conant, B., Jr. Delineating and quantifying ground water discharge zones using streambed temperatures. Ground Water 2004, 42, 243–257. [Google Scholar] [CrossRef]
- Keery, J.; Binleya, A.; Crook, N.; Smith, J.W.N. Temporal and spatial variability of groundwater–surface water fluxes: Development and application of an analytical method using temperature time series. J. Hydrol. 2007, 336, 1–16. [Google Scholar] [CrossRef]
- Hatch, C.E.; Fisher, A.T.; Revenaugh, J.S.; Constantz, J.; Ruehl, C. Quantifying surface water-groundwater interactions using time series analysis of streambed thermal records: Method development. Water Resour. Res. 2006, 42, 1–14. [Google Scholar] [CrossRef]
- Luce, C.H.; Tonina, D.; Gariglio, F.; Applebee, R. Solutions for the diurnally forced advection-diffusion equation to estimate bulk fluid velocity and diffusivity in streambeds from temperature time series. Water Resour. Res. 2013, 49, 488–506. [Google Scholar] [CrossRef]
- Constantz, J.; Cox, M.H.; Su, G.W. Comparison of heat and bromide as ground water tracers near streams. Ground Water 2003, 41, 647–656. [Google Scholar] [CrossRef] [PubMed]
- Hatch, C.E.; Fisher, A.T.; Ruehl, C.R.; Stemler, G. Spatial and temporal variations in streambed hydraulic conductivity quantified with time-series thermal methods. J. Hydrol. 2010, 389, 276–288. [Google Scholar] [CrossRef]
- Irvine, D.J.; Briggs, M.A.; Lautz, L.K.; Gordon, R.P.; McKenzie, J.M.; Cartwright, I. Using Diurnal Temperature Signals to Infer Vertical Groundwater-Surface Water Exchange. Groundwater 2017, 55, 10–16. [Google Scholar] [CrossRef] [PubMed]
- Harris, F.C.; Peterson, E.W. 1-D Vertical Flux Dynamics in a Low-Gradient Stream: An Assessment of Stage as a Control of Vertical Hyporheic Exchange. Water 2020, 12, 16. [Google Scholar] [CrossRef]
- Rau, G.C.; Andersen, M.S.; McCallum, A.M.; Roshan, H.; Acworth, R.I. Heat as a tracer to quantify water flow in near-surface sediments. Earth-Sci. Rev. 2014, 129, 40–58. [Google Scholar] [CrossRef]
- McCallum, A.M.; Andersen, M.S.; Rau, G.C.; Acworth, R.I. A 1-D analytical method for estimating surface water–groundwater interactions and effective thermal diffusivity using temperature time series. Water Resour. Res. 2012, 48, 2815–2829. [Google Scholar] [CrossRef]
- Bastola, H.; Peterson, E.W. Heat tracing to examine seasonal groundwater flow beneath a low-gradient stream. Hydrogeol. J. 2016, 24, 181–194. [Google Scholar] [CrossRef]
- Cardenas, M.B. Stream-aquifer interactions and hyporheic exchange in gaining and losing sinuous streams. Water Resour. Res. 2009, 45, 1–13. [Google Scholar] [CrossRef]
- Fox, A.; Boano, F.; Arnon, S. Impact of losing and gaining streamflow conditions on hyporheic exchange fluxes induced by dune-shaped bed forms. Water Resour. Res. 2014, 50, 1895–1907. [Google Scholar] [CrossRef]
- Singh, T.; Wu, L.; Gomez-Velez, J.D.; Lewandowski, J.; Hannah, D.M.; Krause, S. Dynamic hyporheic zones: Exploring the role of peak flow events on bedform-induced hyporheic exchange. Water Resour. Res. 2019, 55, 218–235. [Google Scholar] [CrossRef]
- Peterson, E.W.; Hayden, K.M. Transport and Fate of Nitrate in the Streambed of a Low-Gradient Stream. Hydrology 2018, 5, 55. [Google Scholar] [CrossRef] [Green Version]
- Oware, E.K.; Peterson, E.W. Storm Driven Seasonal Variation in the Thermal Response of the Streambed Water of a Low-Gradient Stream. Water 2020, 12, 2498. [Google Scholar] [CrossRef]
- Webb, B.W.; Hannah, D.M.; Moore, R.D.; Brown, L.E.; Nobilis, F. Recent advances in stream and river temperature research. Hydrol. Process. Int. J. 2008, 22, 902–918. [Google Scholar] [CrossRef]
- Lee, R.M.; Rinne, J.N. Critical thermal maxima of five trout species in the southwestern United States. Trans. Am. Fish. Soc. 1980, 109, 632–635. [Google Scholar] [CrossRef]
- Hester, E.T.; Doyle, M.W. Human Impacts to River Temperature and Their Effects on Biological Processes: A Quantitative Synthesis1. JAWRA J. Am. Water Resour. Assoc. 2011, 47, 571–587. [Google Scholar] [CrossRef]
- Hanaki, K.; Wantawin, C.; Ohgaki, S. Nitrification at low levels of dissolved oxygen with and without organic loading in a suspended-growth reactor. Water Res. 1990, 24, 297–302. [Google Scholar] [CrossRef]
- Wu, L.; Singh, T.; Gomez-Velez, J.; Nützmann, G.; Wörman, A.; Krause, S.; Lewandowski, J. Impact of dynamically changing discharge on hyporheic exchange processes under gaining and losing groundwater conditions. Water Resour. Res. 2018, 54, 10076–10093. [Google Scholar] [CrossRef]
- Anderson, M.P. Heat as a ground water tracer. Ground Water 2005, 43, 951–968. [Google Scholar] [CrossRef]
- Constantz, J. Heat as a tracer to determine streambed water exchanges. Water Resour. Res. 2008, 44, 1–20. [Google Scholar] [CrossRef]
- Constantz, J. Interaction between stream temperature, streamflow, and groundwater exchanges in alpine streams. Water Resour. Res. 1998, 34, 1609–1615. [Google Scholar] [CrossRef]
- Peterson, E.W.; Sickbert, T.B.; Moore, S.L. High frequency stream bed mobility of a low-gradient agricultural stream with implications on the hyporheic zone. Hydrol. Process. 2008, 22, 4239–4248. [Google Scholar] [CrossRef]
- Domenico, P.A.; Schwartz, F.W. Physical and Chemical Hydrogeology; John Wiley & Sons: New York, NY, USA, 1990; p. 824. [Google Scholar]
- Earle, S. Physical Geology; BCcampus: Victoria, BC, Canada, 2015. [Google Scholar]
- Deming, D. Introduction to Hydrogeology; McGraw-Hill College: New York, NY, USA, 2002; p. 468. [Google Scholar]
- Cardenas, M.B.; Wilson, J.L. Thermal regime of dune-covered sediments under gaining and losing conditions. J. Geophys. Res. 2007, 112, 1–12. [Google Scholar] [CrossRef]
- Beach, V.; Peterson, E.W. Variation of hyporheic temperature profiles in a low gradient third-order agricultural stream—A statistical approach. Open J. Mod. Hydrol. 2013, 3, 55–66. [Google Scholar] [CrossRef] [Green Version]
Flume Trial | Surface Slope (%) | Pump Rate (L/s) | Air Temperature (°C) | Water Temperature (°C) |
---|---|---|---|---|
Cool 1 | 0.5 | 8.5 | 21.5 | 16.1 |
Cool 2 | 0.5 | 8.5 | 22.3 | 13.6 |
Cool 3 | 0.5 | 4.9 | 22.3 | 15.6 |
Warm 1 | 0.5 | 8.5 | 22.0 | 29.9 |
Warm 2 | 0.5 | 8.5 | 22.4 | 30.1 |
Warm 3 | 0.5 | 4.9 | 21.9 | 30.5 |
Parameter | Value Range |
---|---|
Hydraulic conductivity (m s−1) | 9 × 10−7–6 × 10−3 a |
Heat capacity (J m−3 K−1) | |
Solid | 1.1 × 106–1.3 × 106 b |
Liquid | 4.2 × 106 b |
Saturated solid | 2.5 × 106–3.2 × 106 b |
Porosity | 0.30–0.50 c |
Thermal conductivity (W m−1 K−1) | 1.4–2.2 b |
Dispersivity | 0.0005 b |
Trial | Ex. Depth (cm) | Specific Discharge (m/s) | Avg. T (HZ) (°C) | RMSE (°C) | Modeled K (m/s) | Calculated K (m/s) |
---|---|---|---|---|---|---|
Cool 1 | 21 | 2.1 × 10−5 | 20.5 | 0.55 | 0.0009 | 0.0010 |
Cool 2 | 21 | 2.8 × 10−5 | 20.9 | 0.62 | 0.0018 | 0.0009 |
Cool 3 | 21 | 2.1 × 10−5 | 20.8 | 0.57 | 0.0018 | 0.0010 |
Warm 1 | 26 | 4.3 × 10−5 | 23.8 | 0.65 | 0.0022 | 0.0011 |
Warm 2 | 26 | 3.5 × 10−5 | 23.3 | 0.33 | 0.0020 | 0.0011 |
Warm 3 | 25 | 3.1 × 10−5 | 22.9 | 0.59 | 0.0020 | 0.0011 |
Cold a | 13 | 9.3 × 10−6 | 8 | - | 0.0001 | 0.0007 |
