Impacts of Harmonic Voltage Distortions on the Dynamic Behavior and the PRPD Patterns of Partial Discharges in an Air Cavity Inside a Solid Dielectric Material
Abstract
:1. Introduction

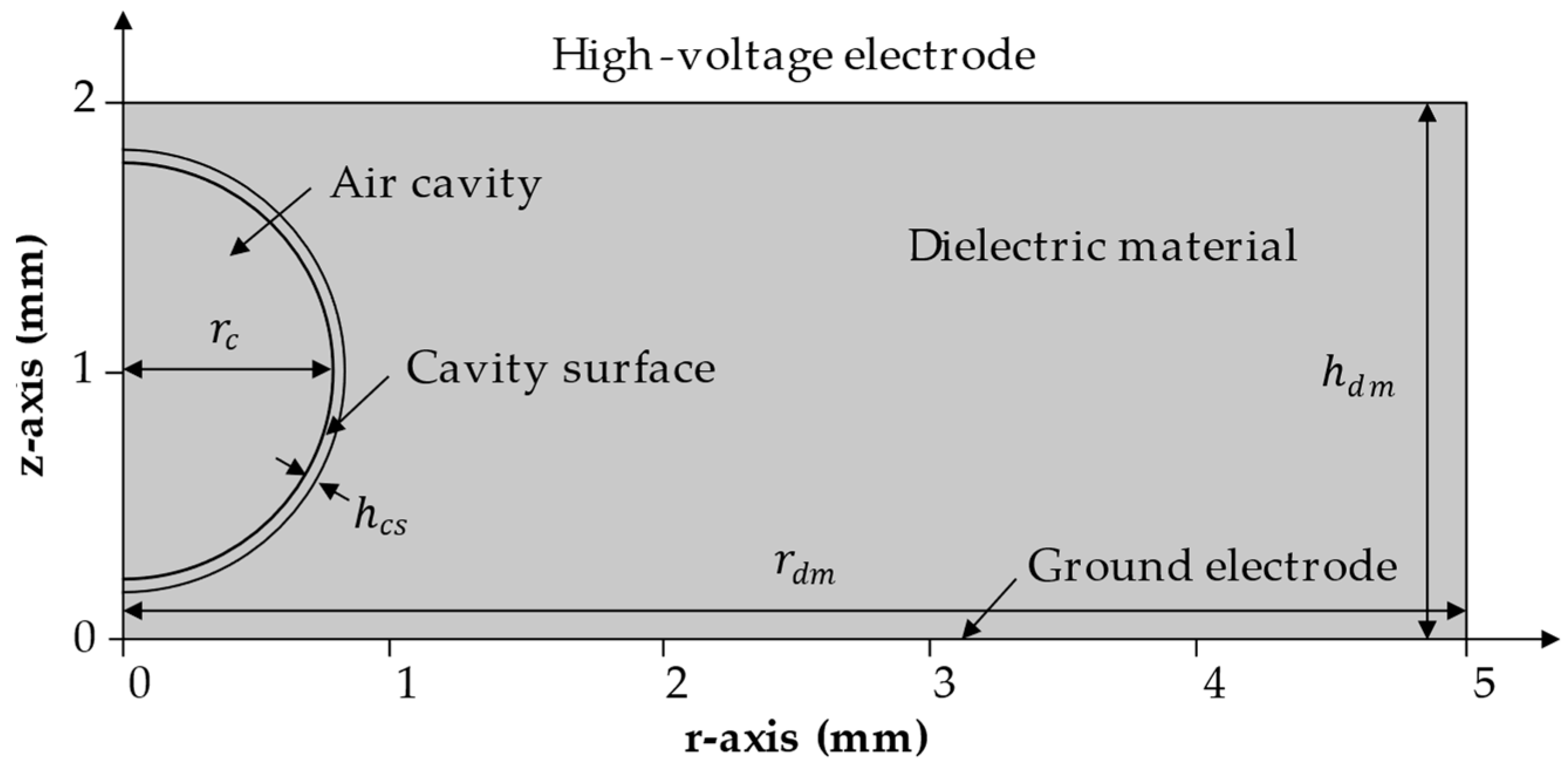

2. FEA Model Geometry and Fundamental Equations
3. PD Modeling
3.1. PD Inception Criteria
3.2. Cavity Conductivity

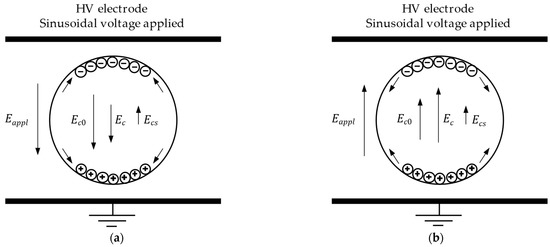

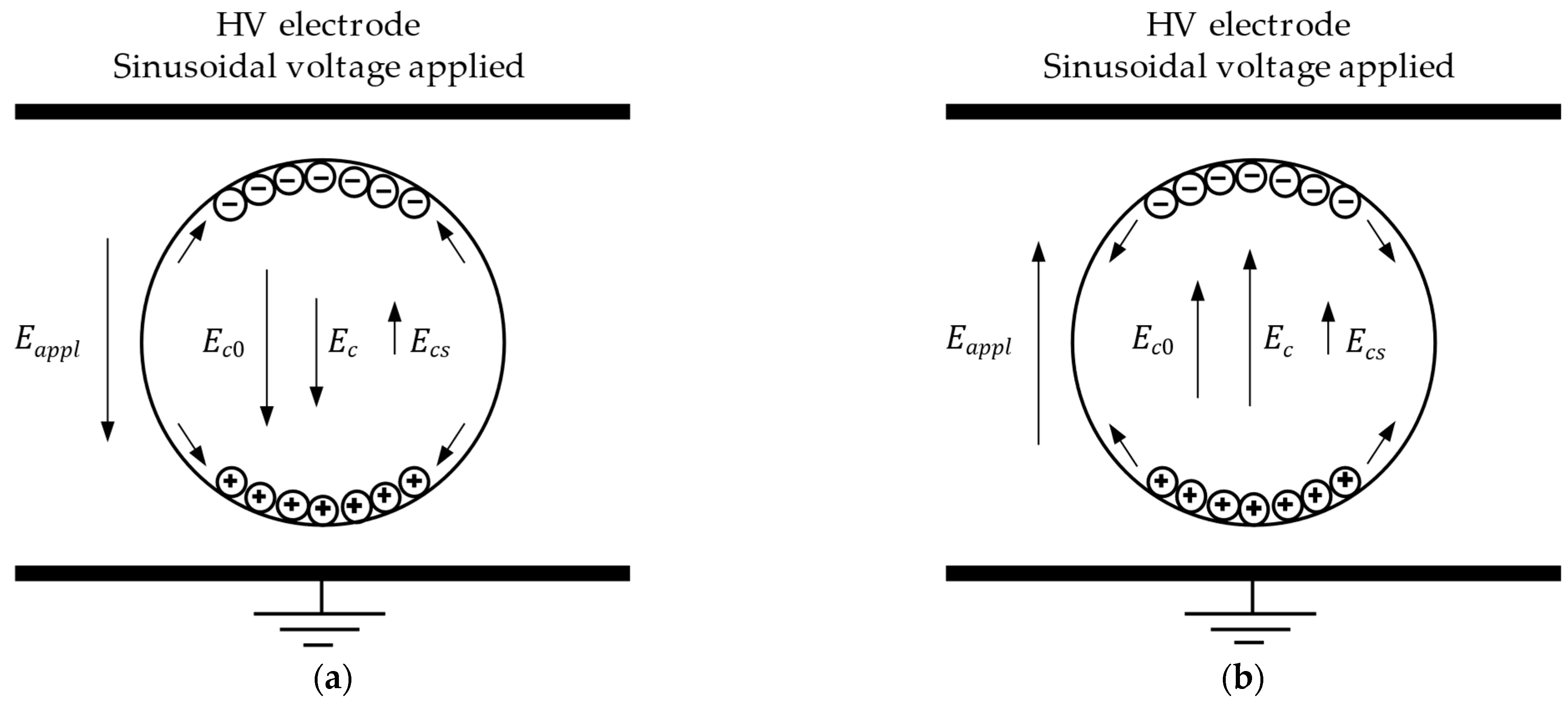

3.3. Surface Charge Decay
3.4. Calculation of True and Apparent Charges of the PDs
3.5. PD Model Parameters

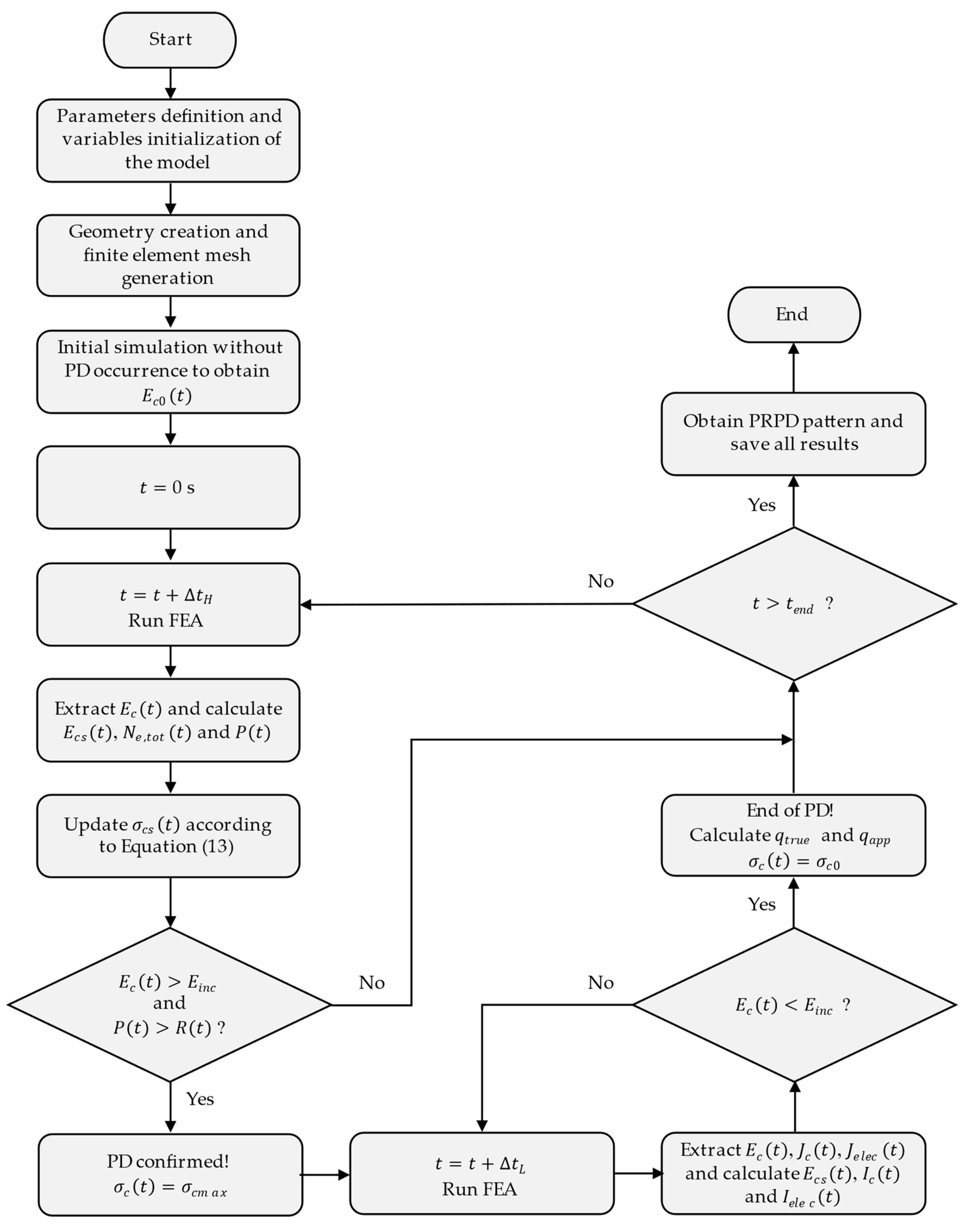

3.6. PD Modeling Algorithm

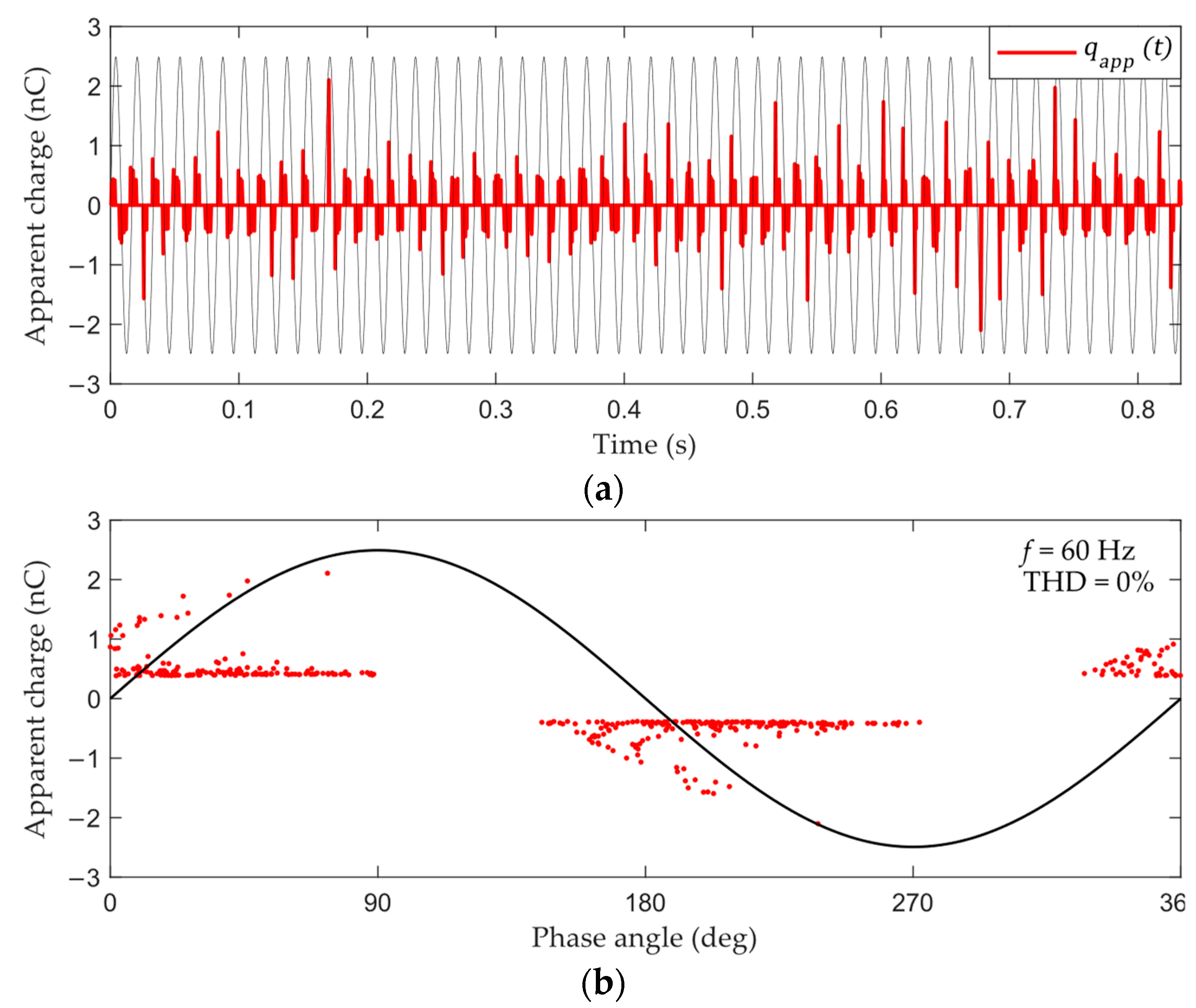

4. Results and Discussion

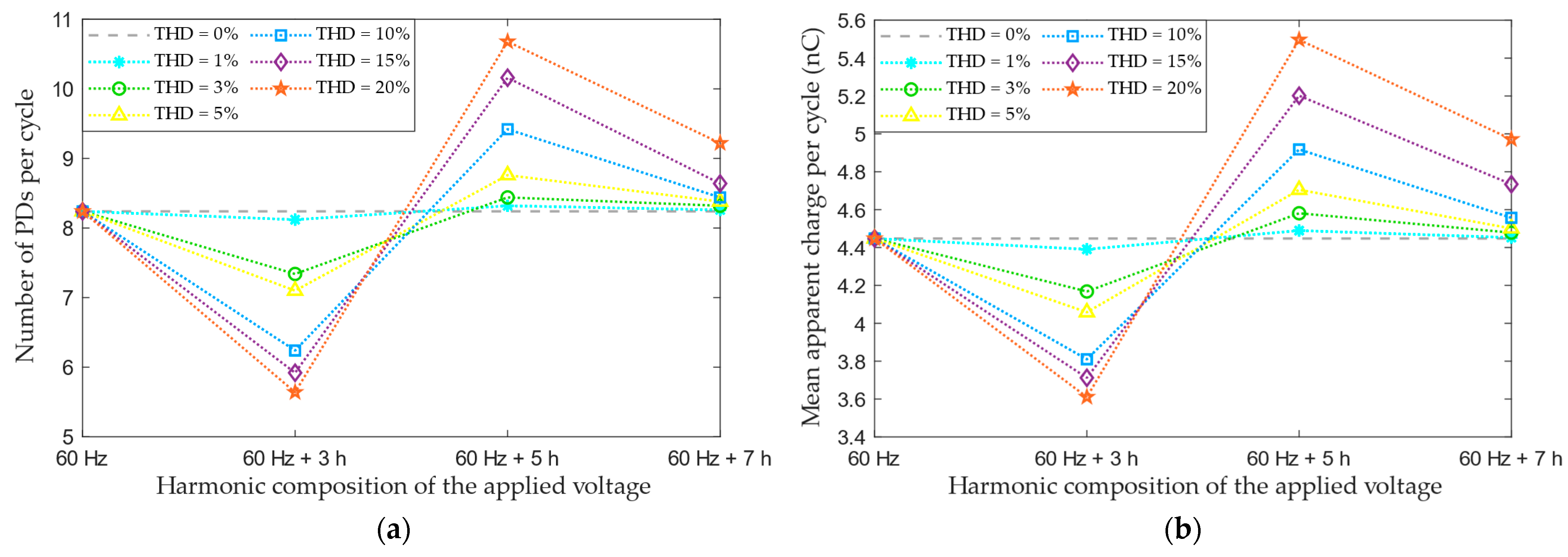

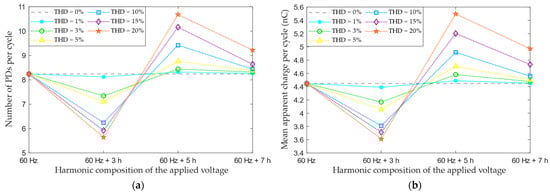

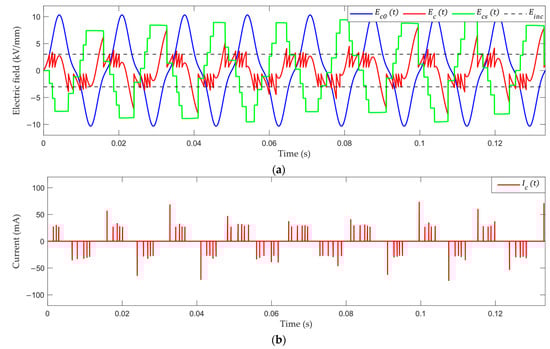

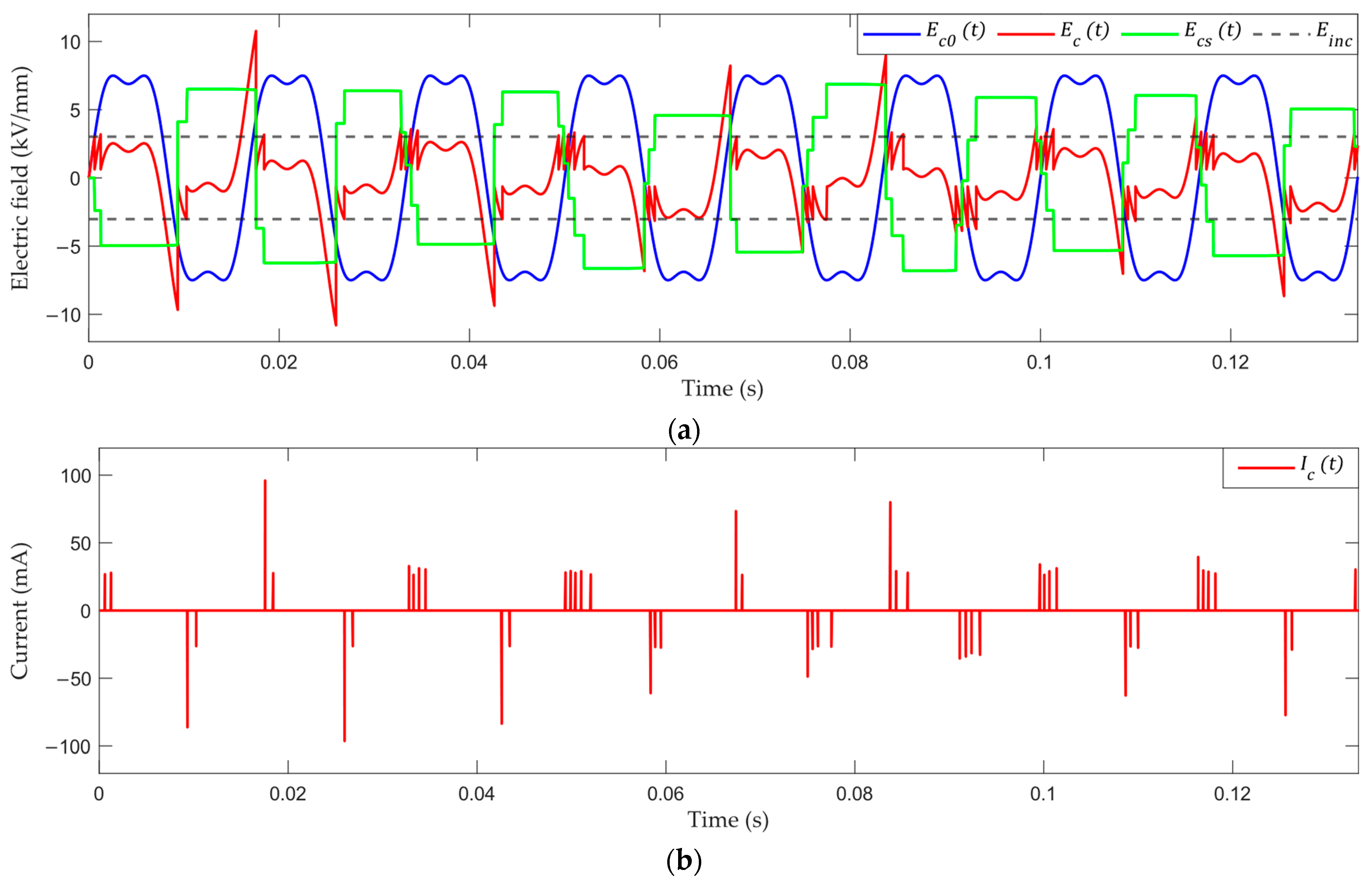

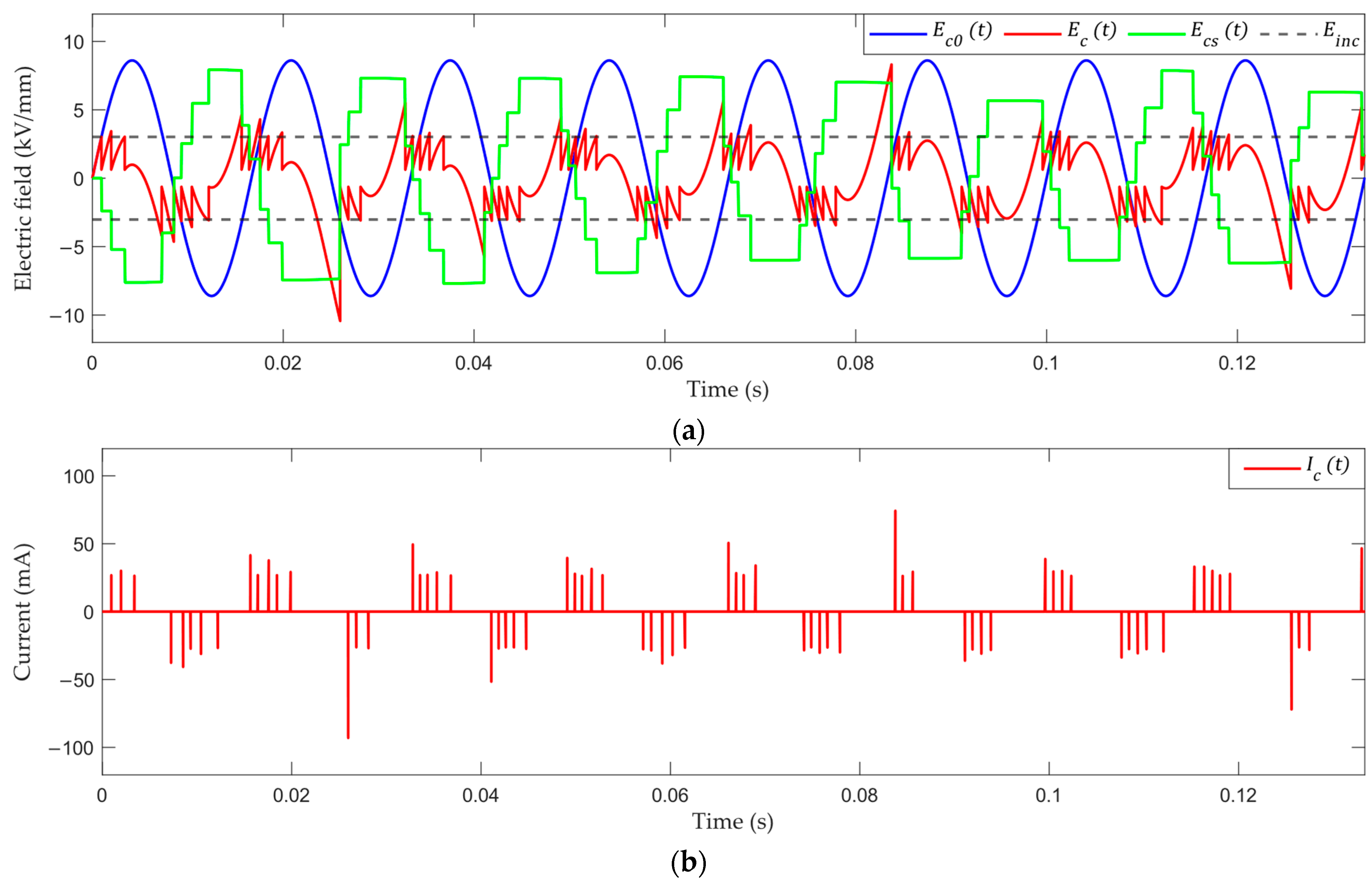

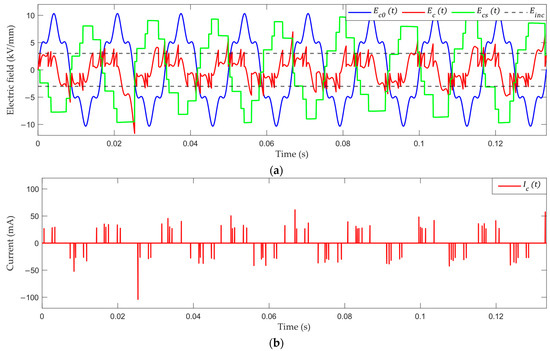

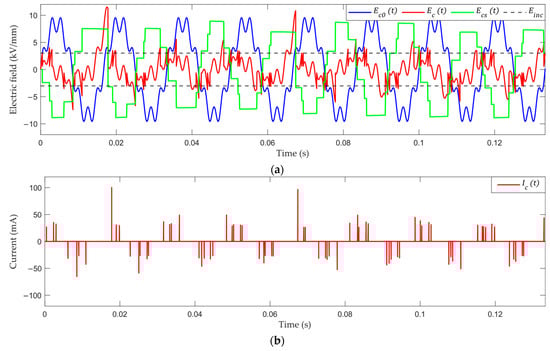

4.1. Impacts of Harmonic Voltage Distortions on the PDs Dynamic Behavior

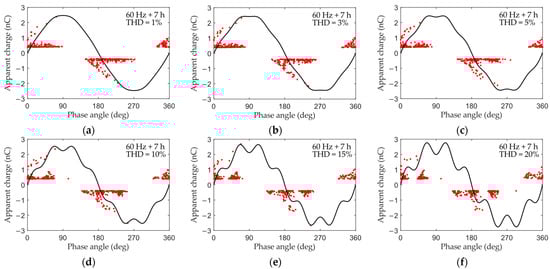

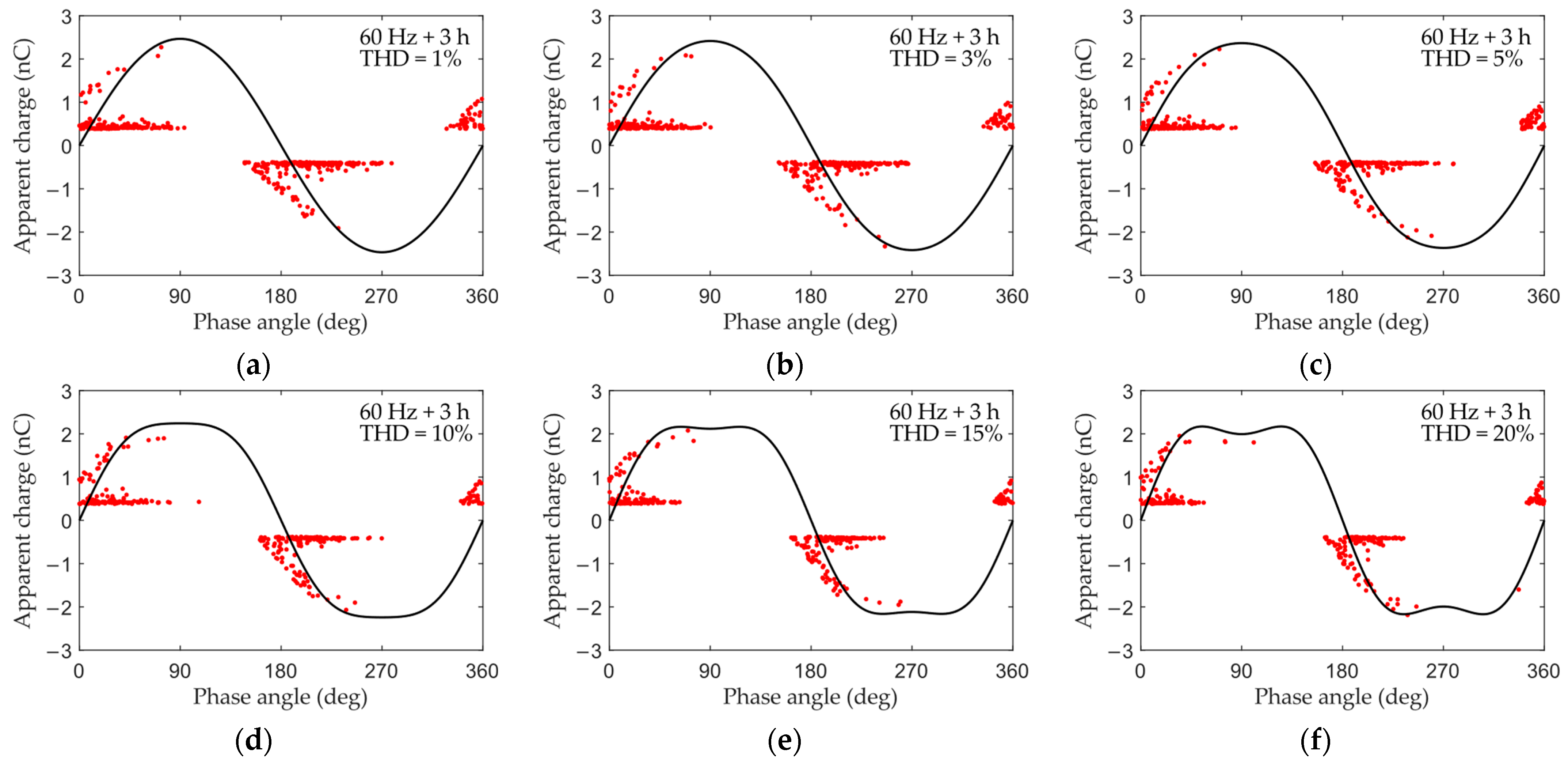

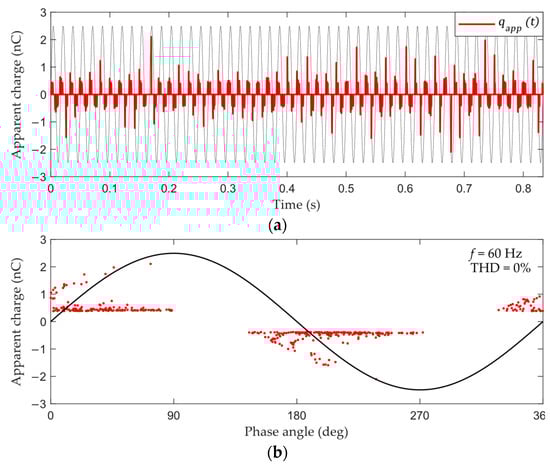

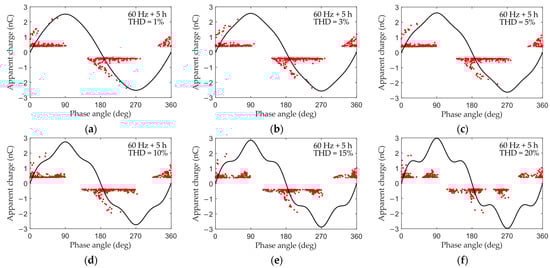

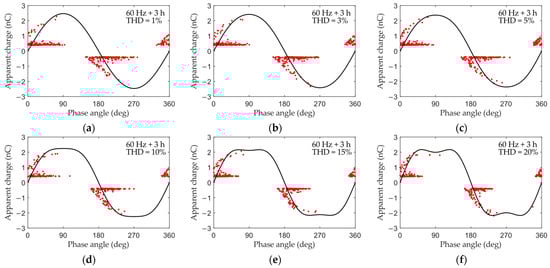

4.2. Impacts of Harmonic Voltage Distortions on the PRPD Patterns

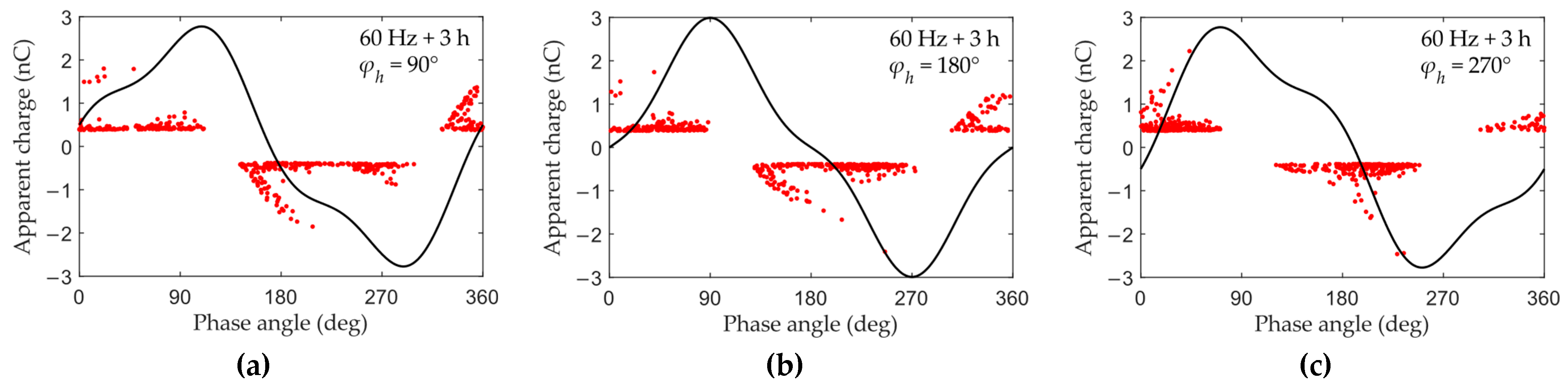

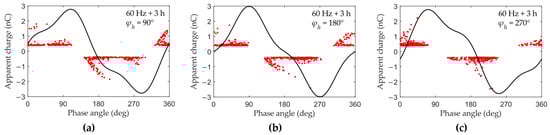

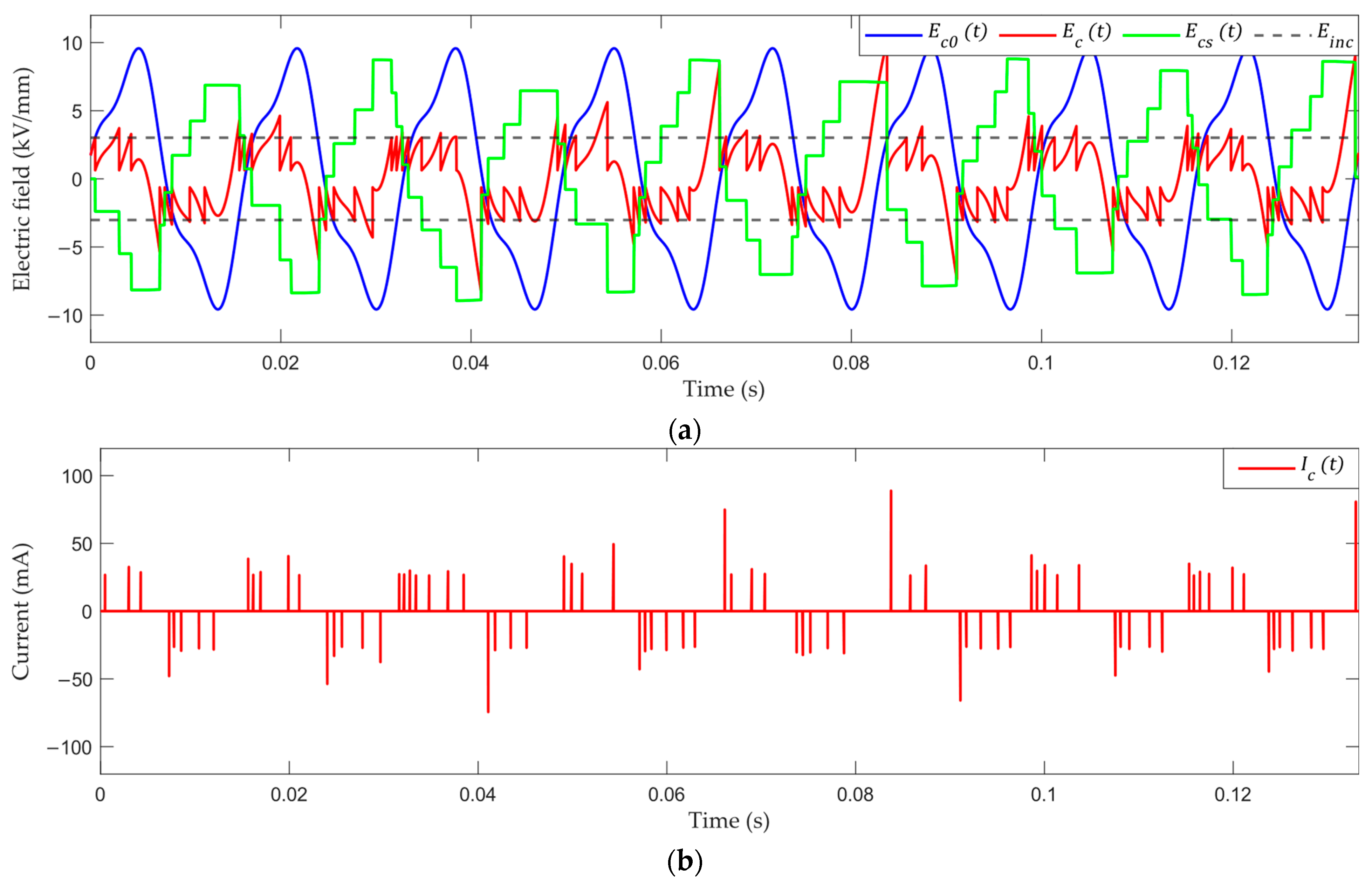

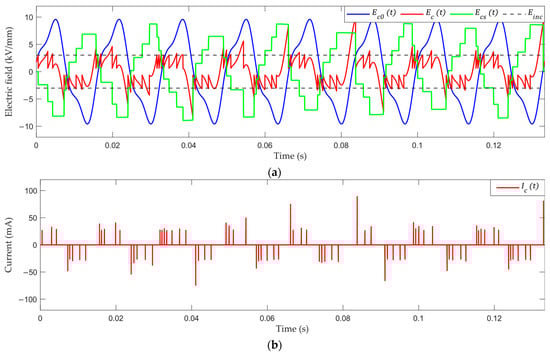

4.3. Impacts of Changing the Third Harmonic Component Phase Angle on the PDs Characteristics
4.4. Comparison between Simulated Results and Experimentally Measured Results Reported in the Literature
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Kessler, O. The importance of partial discharge testing: PD testing has proven to be a very reliable method for detecting defects in the insulation system of electrical equipment and for assessing the risk of failure. IEEE Power Energy Mag. 2020, 18, 62–65. [Google Scholar] [CrossRef]
- IEC 60270:2000+AMD1:2015 CSV; High-Voltage Test Techniques—Partial Discharge Measurements. International Electrotechnical Commission: Geneva, Switzerland, 2015.
- Stone, G.C. Partial discharge diagnostics and electrical equipment insulation condition assessment. IEEE Trans. Dielectr. Electr. Insul. 2005, 12, 891–904. [Google Scholar] [CrossRef]
- Montanari, G.; Fabiani, D. The effect of nonsinusoidal voltage on intrinsic aging of cable and capacitor insulating materials. IEEE Trans. Dielectr. Electr. Insul. 1999, 6, 798–802. [Google Scholar] [CrossRef]
- Sonerud, B.; Bengtsson, T.; Blennow, J.; Gubanski, S.M. Dielectric heating in insulating materials subjected to voltage waveforms with high harmonic content. IEEE Trans. Dielectr. Electr. Insul. 2009, 16, 926–933. [Google Scholar] [CrossRef]
- Sumaryadi; Gumilang, H.; Suslilo, A. Effect of power system harmonic on degradation process of transformer insulation system. In Proceedings of the 2009 IEEE 9th International Conference on the Properties and Applications of Dielectric Materials, Harbin, China, 19–23 July 2009; pp. 261–264. [Google Scholar] [CrossRef]
- Cavallini, A.; Fabiani, D.; Montanari, G.C. Power electronics and electrical insulation systems—Part 1: Phenomenology overview. IEEE Electr. Insul. Mag. 2010, 26, 7–15. [Google Scholar] [CrossRef]
- Subramaniam, A.; Sahoo, A.; Manohar, S.S.; Panda, S.K. Voltage and current-harmonics induced ageing in electrical insulation. In Proceedings of the 2017 International Symposium on Electrical Insulating Materials (ISEIM), Toyohashi, Japan, 11–15 September 2017; pp. 403–406. [Google Scholar] [CrossRef]
- Florkowski, M. Influence of high voltage harmonics on partial discharge patterns. In Proceedings of the 5th International Conference on Properties and Applications of Dielectric Materials, Seoul, Korea, 25–30 May 1997; pp. 303–306. [Google Scholar] [CrossRef]
- Florkowska, B.; Florkowski, M.; Zydron, P. The role of harmonic components on partial discharge mechanism and degradation processes in epoxy resin insulation. In Proceedings of the 2007 IEEE International Conference on Solid Dielectrics, Winchester, UK, 8–13 July 2007; pp. 560–563. [Google Scholar] [CrossRef]
- Florkowski, M.; Florkowska, B.; Furgał, J.; Zydron, P. Impact of high voltage harmonics on interpretation of partial discharge patterns. IEEE Trans. Dielectr. Electr. Insul. 2013, 20, 2009–2016. [Google Scholar] [CrossRef]
- Florkowski, M.; Florkowska, B.; Zydron, P. High voltage harmonics induced modifications of PD phase-resolved patterns. Arch. Electr. Eng. 2018, 67, 231–246. [Google Scholar] [CrossRef]
- Hassan, W.; Mahmood, F.; Andreotti, A.; Pagano, M.; Ahmad, F. Influence of Voltage Harmonics on Partial Discharge Diagnostics in Electric Motors Fed by Variable Frequency Drives. IEEE Trans. Ind. Electron. 2021. [Google Scholar] [CrossRef]
- Aydogan, A.; Atalar, F.; Ersoy Yilmaz, A.; Rozga, P. Using the Method of Harmonic Distortion Analysis in Partial Discharge Assessment in Mineral Oil in a Non-Uniform Electric Field. Energies 2020, 13, 4830. [Google Scholar] [CrossRef]
- Illias, H.A. Measurement and Simulation of Partial Discharges within a Spherical Cavity in a Solid Dielectric Material; University of Southampton: Southampton, UK, 2011. [Google Scholar]
- Illias, H.; Chen, G.; Lewin, P.L. Modeling of partial discharge activity in spherical cavities within a dielectric material. IEEE Electr. Insul. Mag. 2011, 27, 38–45. [Google Scholar] [CrossRef]
- Illias, H.; Chen, G.; Lewin, P.L. Partial discharge behavior within a spherical cavity in a solid dielectric material as a function of frequency and amplitude of the applied voltage. IEEE Trans. Dielectr. Electr. Insul. 2011, 18, 432–443. [Google Scholar] [CrossRef]
- Illias, H.; Chen, G.; Lewin, P. Partial discharge within a spherical cavity in a dielectric material as a function of cavity size and material temperature. IET Sci. Meas. Technol. 2012, 6, 52–62. [Google Scholar] [CrossRef]
- Illias, H.; Jian, L.T.; Mokhlis, H. Partial discharge simulation under various applied voltage waveforms. In Proceedings of the 2012 IEEE International Conference on Power and Energy (PECon), Kota Kinabalu, Malaysia, 2–5 December 2012; pp. 967–972. [Google Scholar] [CrossRef] [Green Version]
- Illias, H.; Chen, G.; Bakar, A.; Mokhlis, H.; Tunio, M. Partial discharges within two spherical voids in an epoxy resin. J. Phys. D Appl. Phys. 2013, 46, 335301. [Google Scholar] [CrossRef] [Green Version]
- Illias, H.A.; Tunio, M.A.; Mokhlis, H.; Chen, G. Partial discharge behaviours within a void-dielectric system under square waveform applied voltage stress. IET Sci. Meas. Technol. 2014, 8, 81–88. [Google Scholar] [CrossRef]
- Cardoso, J.R. Electromagnetics through the Finite Element Method: A Simplified Approach Using Maxwell’s Equations; CRC Press: Boca Raton, FL, USA, 2016. [Google Scholar]
- Gutfleisch, F.; Niemeyer, L. Measurement and simulation of PD in epoxy voids. IEEE Trans. Dielectr. Electr. Insul. 1995, 2, 729–743. [Google Scholar] [CrossRef]
- Matsumura, S.; Chen, S.L. Effect of plasma resistance on electron temperature measurement by means of an electrostatic probe. J. Appl. Phys. 1972, 43, 3357–3361. [Google Scholar] [CrossRef]
- Sahoo, N.; Salama, M.; Bartnikas, R. Trends in partial discharge pattern classification: A survey. IEEE Trans. Dielectr. Electr. Insul. 2005, 12, 248–264. [Google Scholar] [CrossRef]
- Okamoto, T.; Tanaka, T. Novel partial discharge measurement computer-aided measurement systems. IEEE Trans. Electr. Insul. 1986, EI-21, 1015–1019. [Google Scholar] [CrossRef]
- Raymond, W.J.K.; Illias, H.A.; Mokhlis, H. Partial discharge classifications: Review of recent progress. Measurement 2015, 68, 164–181. [Google Scholar] [CrossRef] [Green Version]
- Fuhr, J.; Aschwanden, T. Identification and localization of PD-sources in power-transformers and power-generators. IEEE Trans. Dielectr. Electr. Insul. 2017, 24, 17–30. [Google Scholar] [CrossRef]
- Florkowski, M. Anomaly Detection, Trend Evolution, and Feature Extraction in Partial Discharge Patterns. Energies 2021, 14, 3886. [Google Scholar] [CrossRef]
- IEC 60034-27-2; Rotating Electrical Machines-Part 27-2: On-Line Partial Discharge Measurements on the Stator Winding Insulation of Rotating Electrical Machines. International Electrotechnical Commission: Geneva, Switzerland, 2012.
- IEEE Std 1434-2014; IEEE Guide for the Measurement of Partial Discharges in AC Electric Machinery. Institute of Electrical and Electronics Engineers: New York, NY, USA, 2014. [CrossRef]
- Fruth, B.; Fuhr, J. Partial discharge pattern recognition-a tool for diagnosis and monitoring of aging. In Proceedings of the Cigre, Paris, France, 26 August – 1 September 1990. [Google Scholar]
- Hudon, C.; Belec, M. Partial discharge signal interpretation for generator diagnostics. IEEE Trans. Dielectr. Electr. Insul. 2005, 12, 297–319. [Google Scholar] [CrossRef]
- Florkowski, M. Classification of partial discharge images using deep convolutional neural networks. Energies 2020, 13, 5496. [Google Scholar] [CrossRef]
- Araújo, R.C.F.; de Oliveira, R.M.S.; Barros, F.J.B. Automatic PRPD Image Recognition of Multiple Simultaneous Partial Discharge Sources in On-Line Hydro-Generator Stator Bars. Energies 2022, 15, 326. [Google Scholar] [CrossRef]
Parameter | Definition | Value |
---|---|---|
Dielectric material thickness | 2 mm | |
Dielectric material radius | 5 mm | |
Air cavity radius | 0.775 mm | |
Cavity surface thickness | 0.05 mm | |
Applied voltage amplitude | 14 kV | |
Applied frequency | 60 Hz | |
Dielectric material temperature | 293.15 K | |
Ambient temperature | 293.15 K | |
Cavity inception field | 3.02 kV/mm | |
Cavity extinction field | 0.6265 kV/mm | |
Time step between PD events | 33.3333 µs | |
Time step during PD events | 1 ns | |
Relative permittivity of the dielectric material | 4.4 | |
Relative permittivity of the air cavity | 1 | |
Relative permittivity of the air cavity surface | 4.4 | |
Conductivity of the dielectric material | 1 × 10−13 S/m | |
Air cavity conductivity between PD events | 0 S/m | |
Air cavity conductivity during PD events | 0.005 S/m | |
Initial conductivity of the air cavity surface | 1 × 10−13 S/m | |
Maximum conductivity of the air cavity surface | 6.2891 × 10−10 S/m | |
Effective charge decay time constant | 0.002 s | |
Electron generation rate due to volume ionization | 137.71 s−1 | |
Electron generation rate due to a high surface emission | 2100 s−1 | |
Electron generation rate due to a low surface emission | 300 s−1 |
Third Harmonic Phase Angle | Number of PDs per Cycle | Mean Apparent Charge per Cycle |
---|---|---|
0° | 5.64 | 3.61 nC |
90° | 9.16 | 4.94 nC |
180° | 10.52 | 5.42 nC |
270° | 9.72 | 5.07 nC |
