Experimental Analysis of Smart Drilling for the Furniture Industry in the Era of Industry 4.0
Abstract
:1. Introduction
2. Experimental Procedure

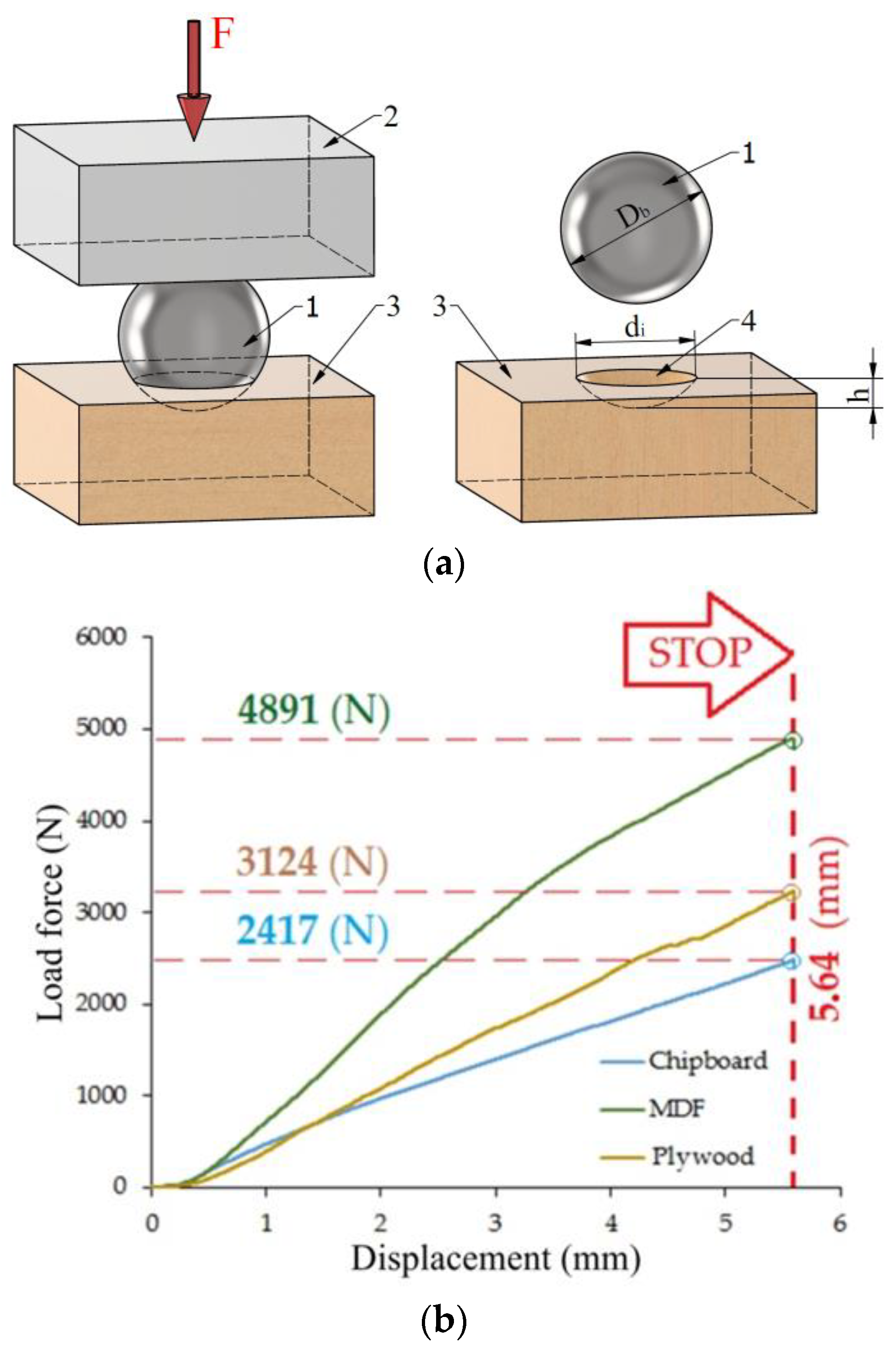

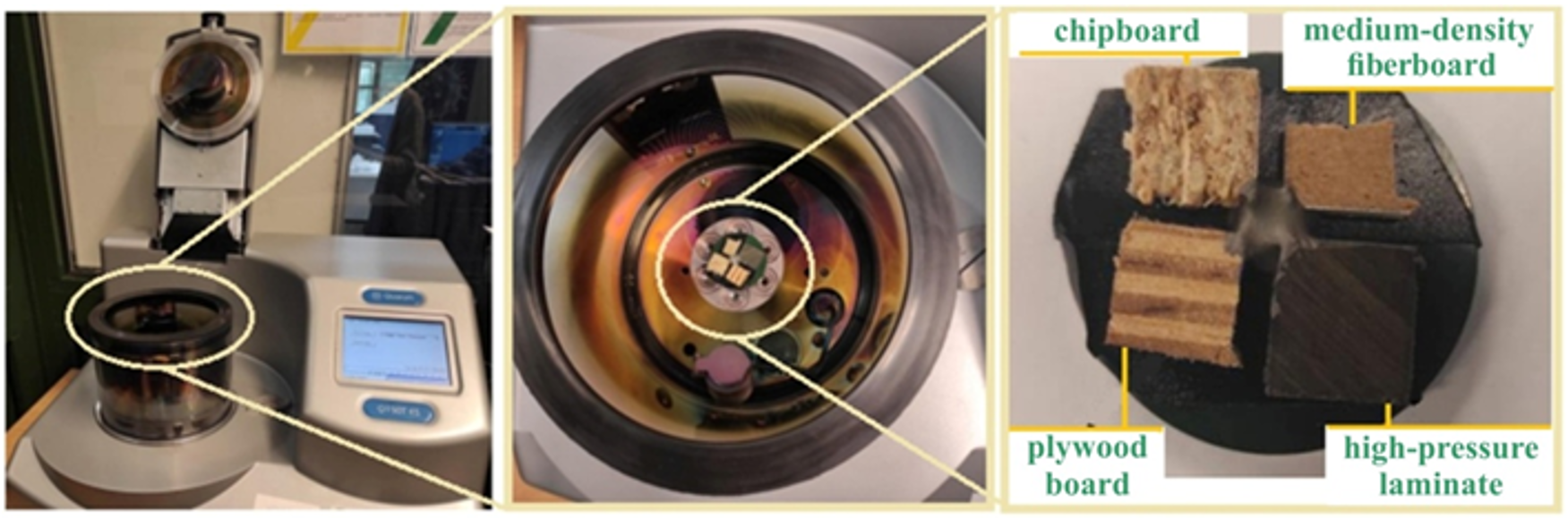

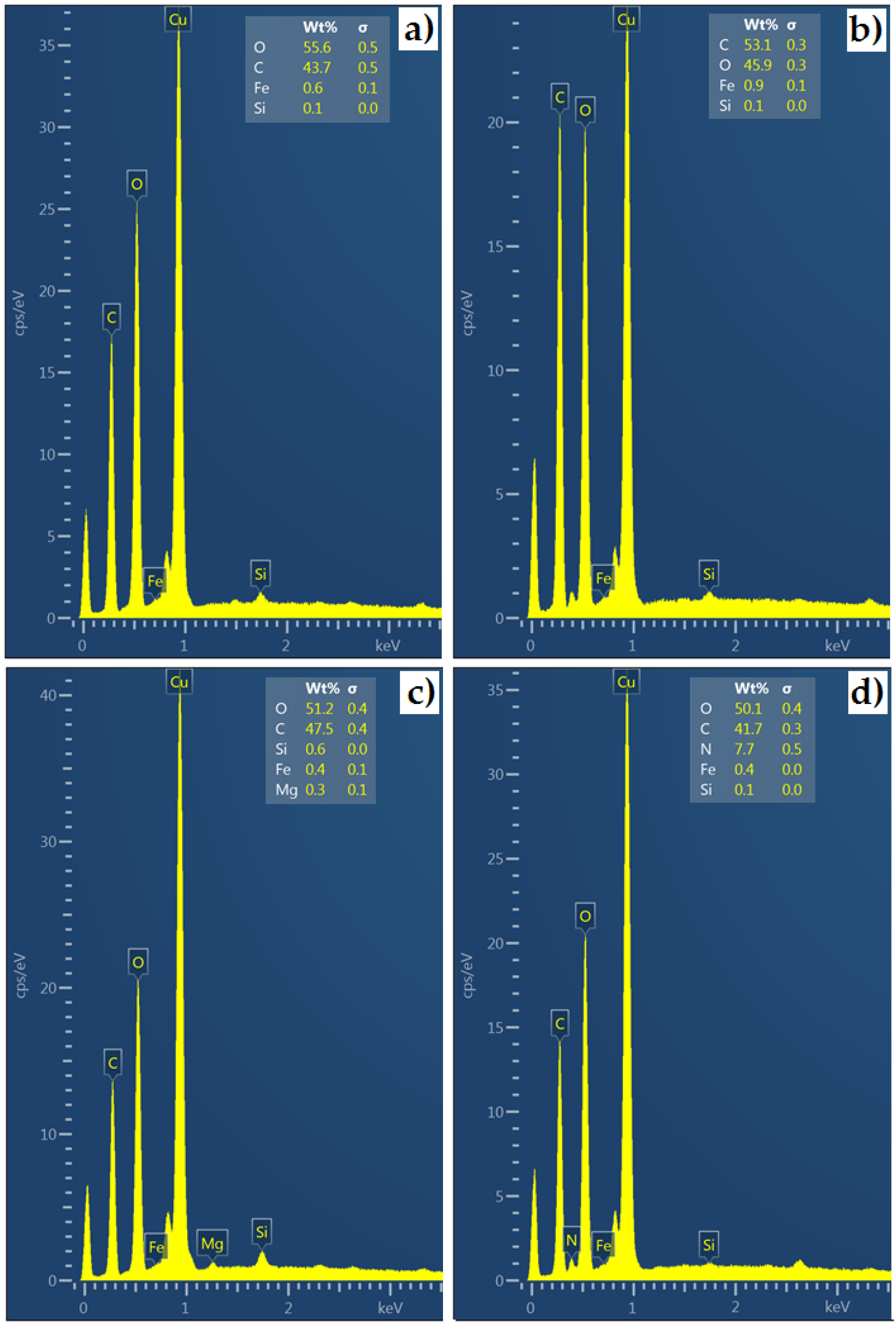

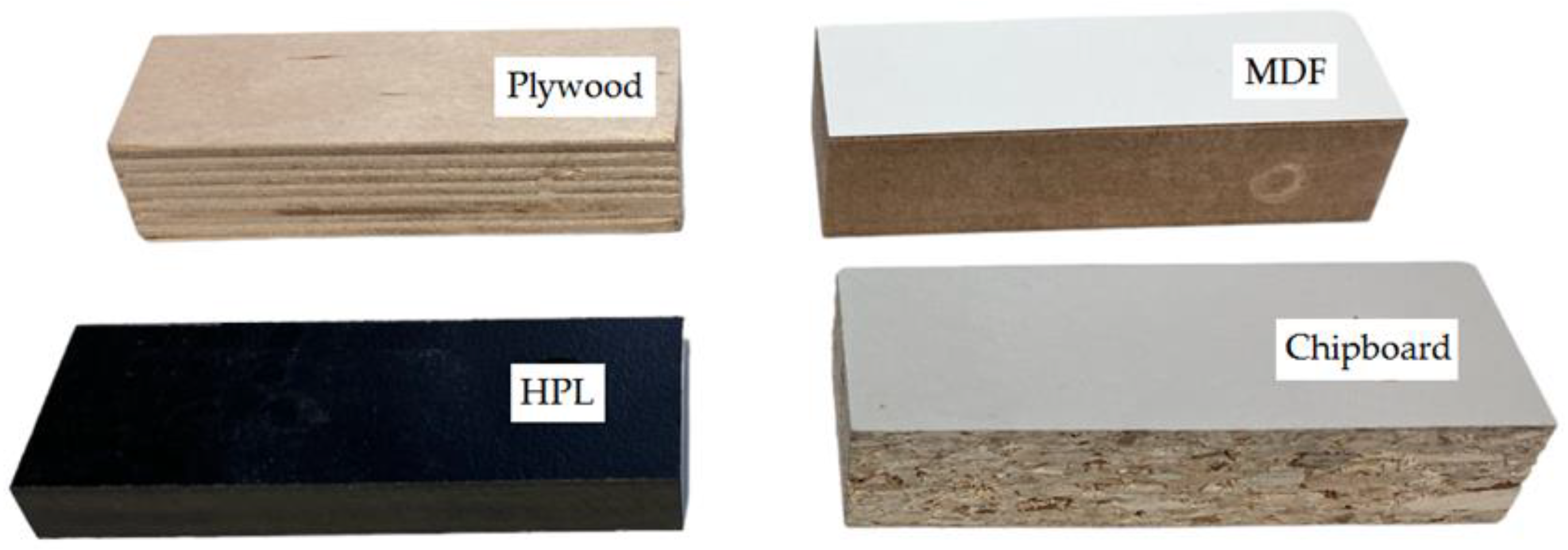

2.1. Test Materials

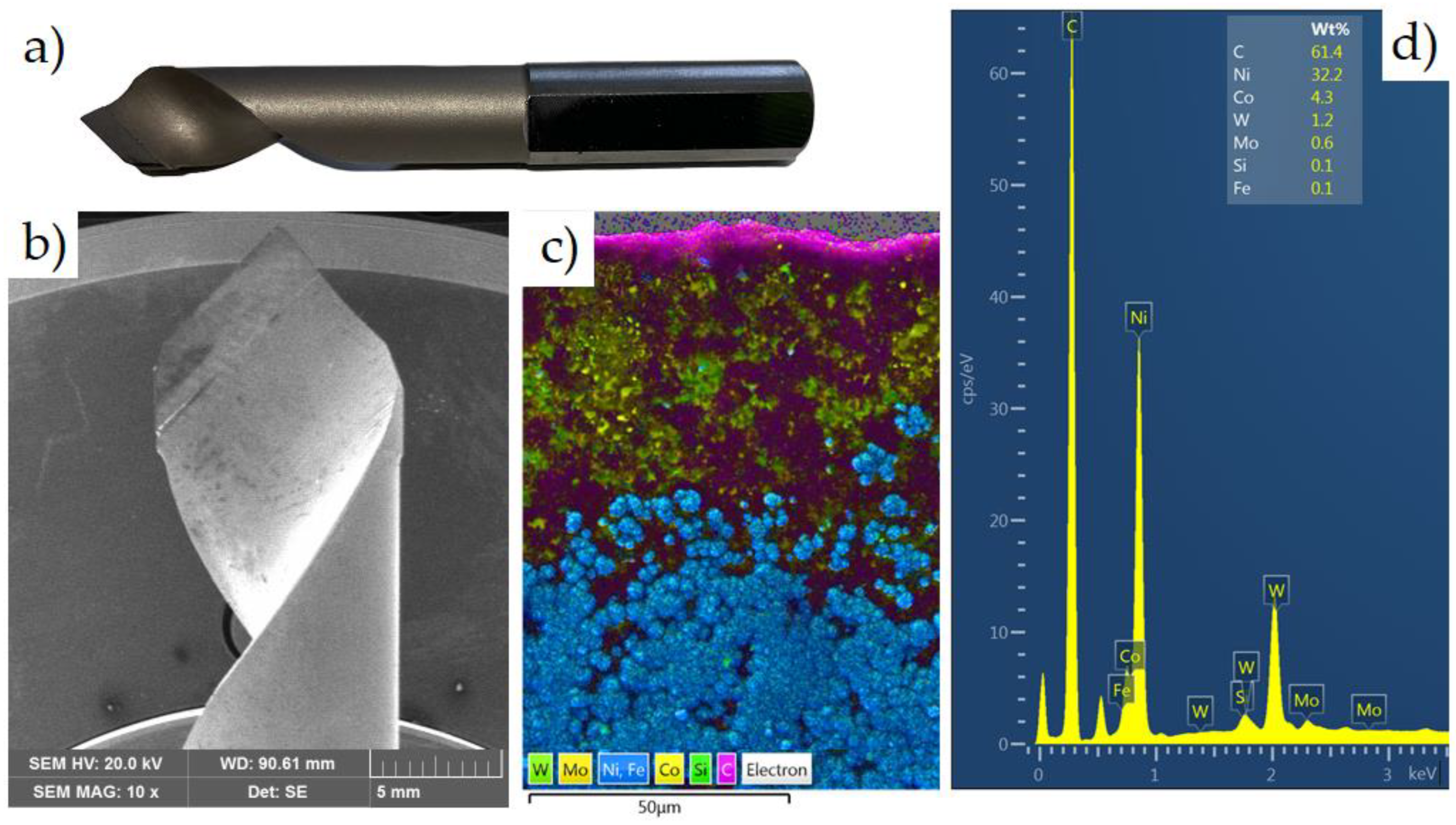

2.2. Cutting Tool

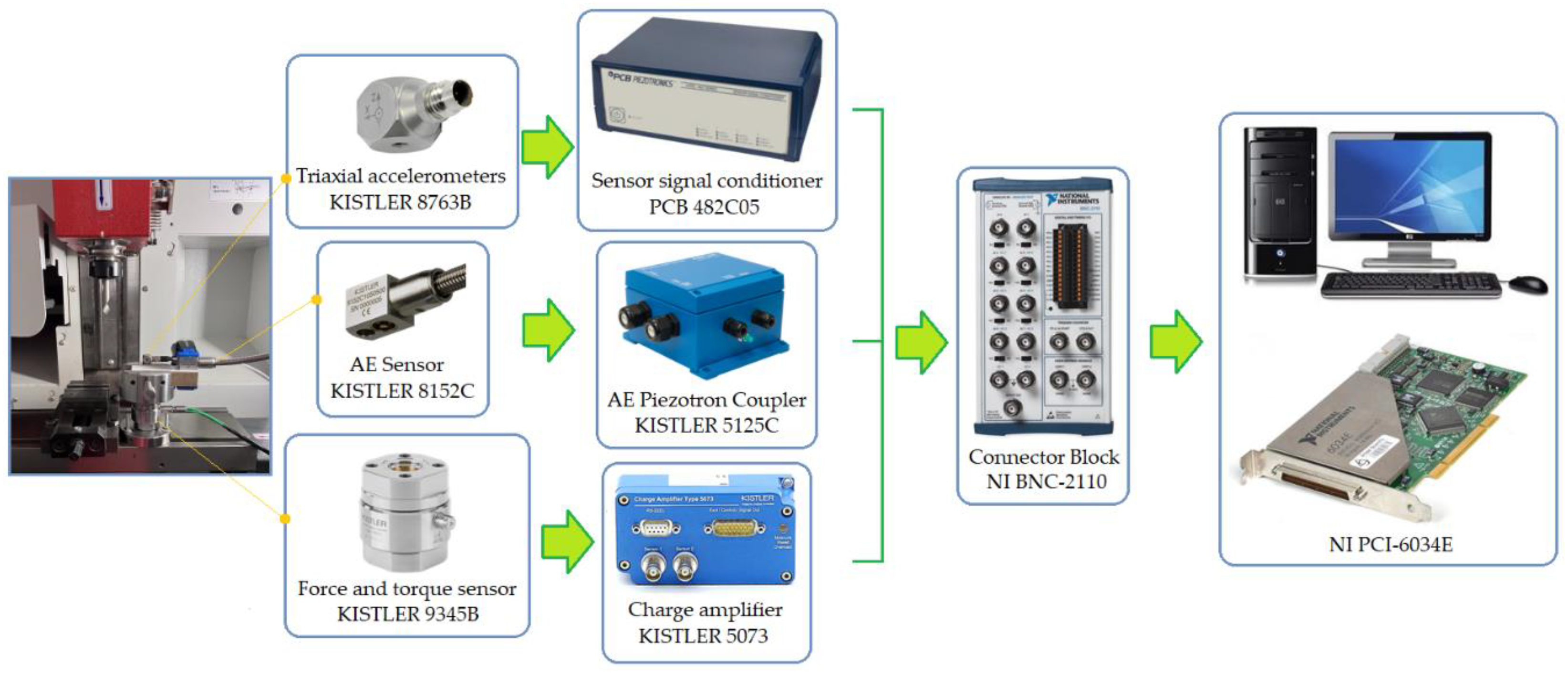

2.3. Equipment and Machining Conditions
3. Results

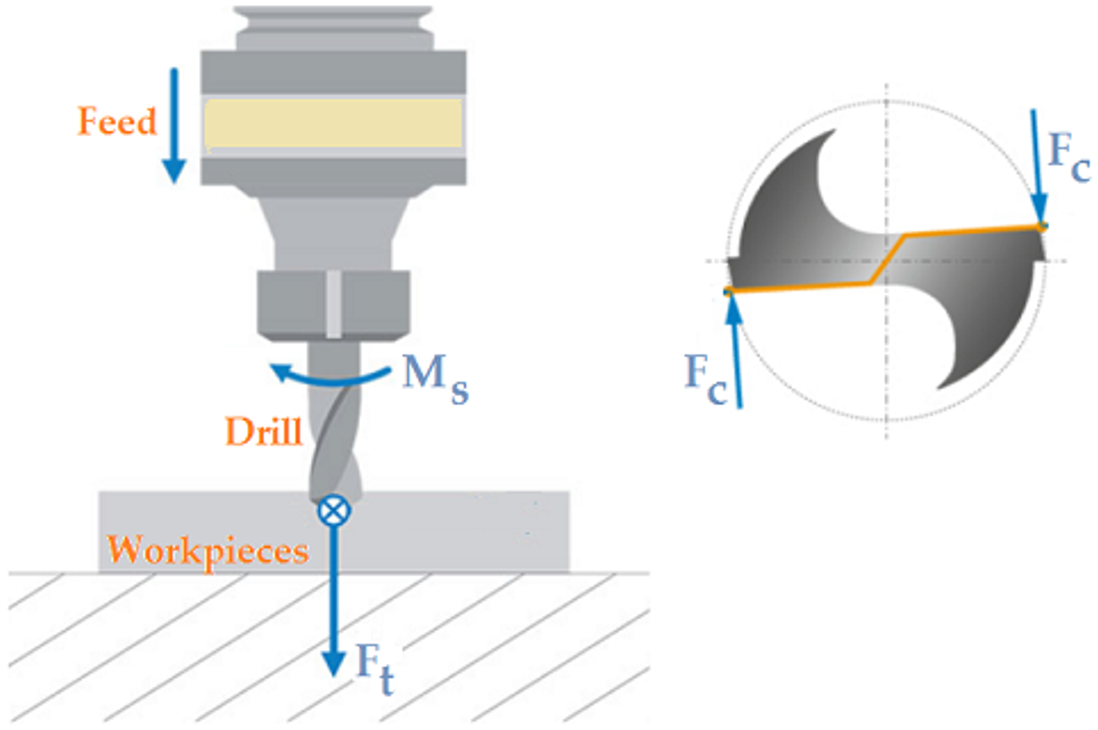

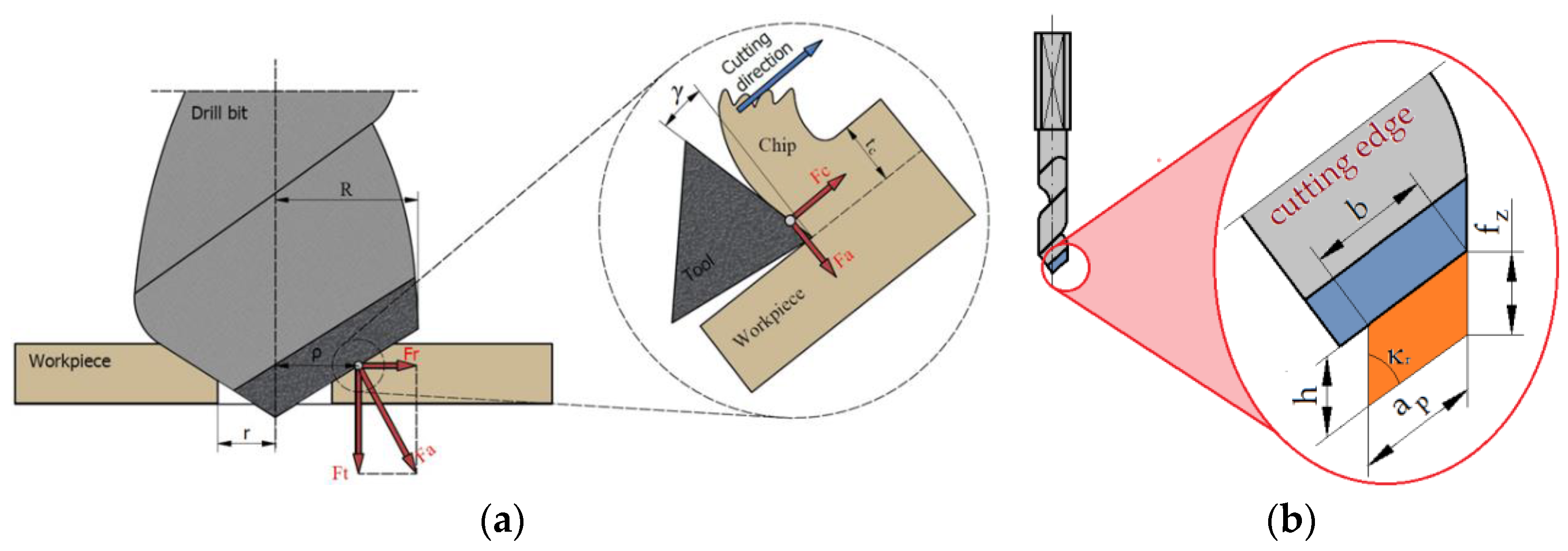

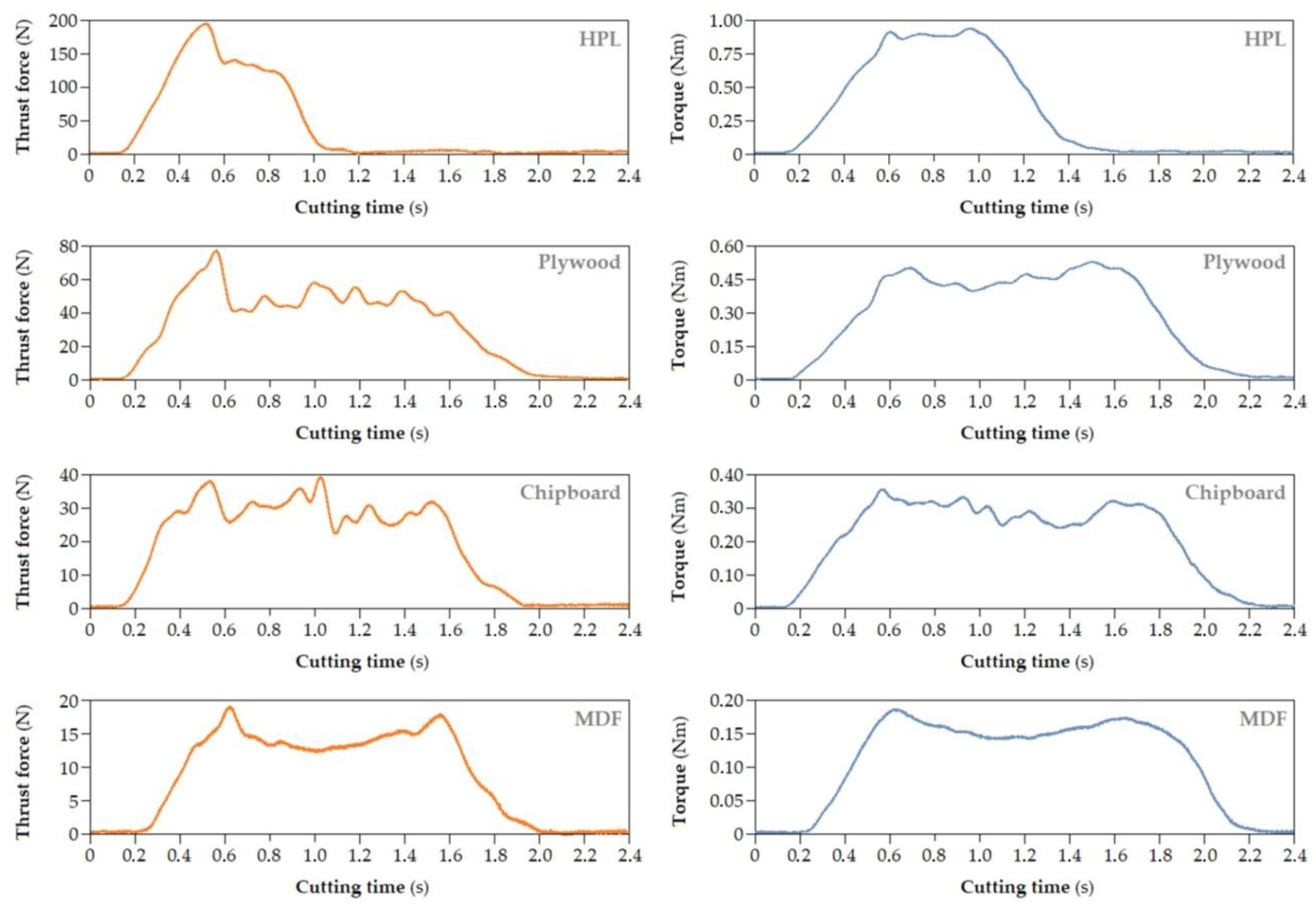

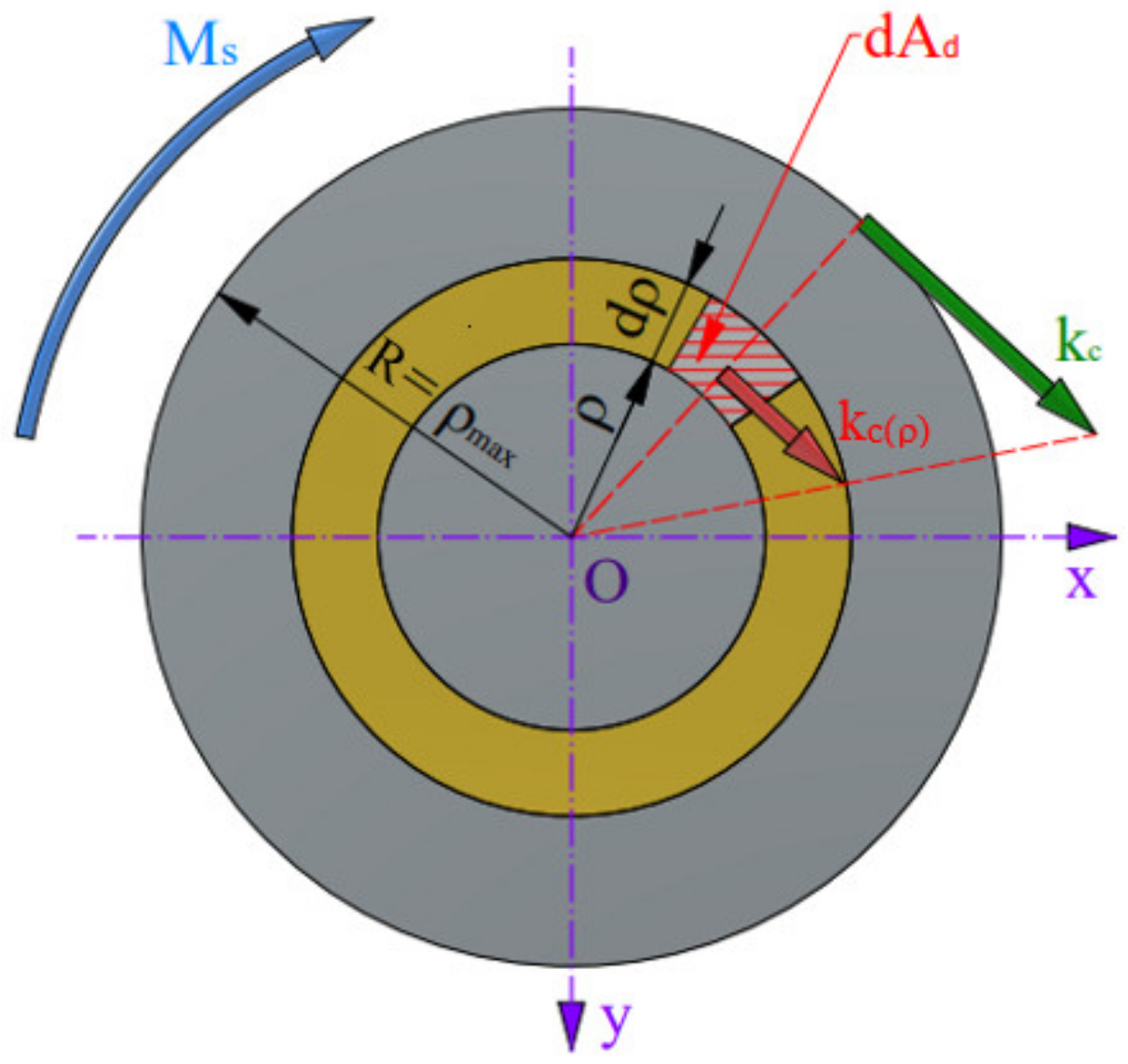

3.1. Cutting Resistance

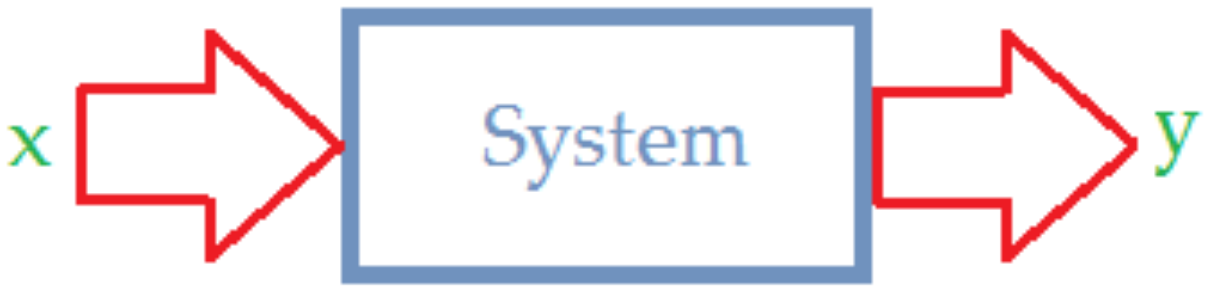

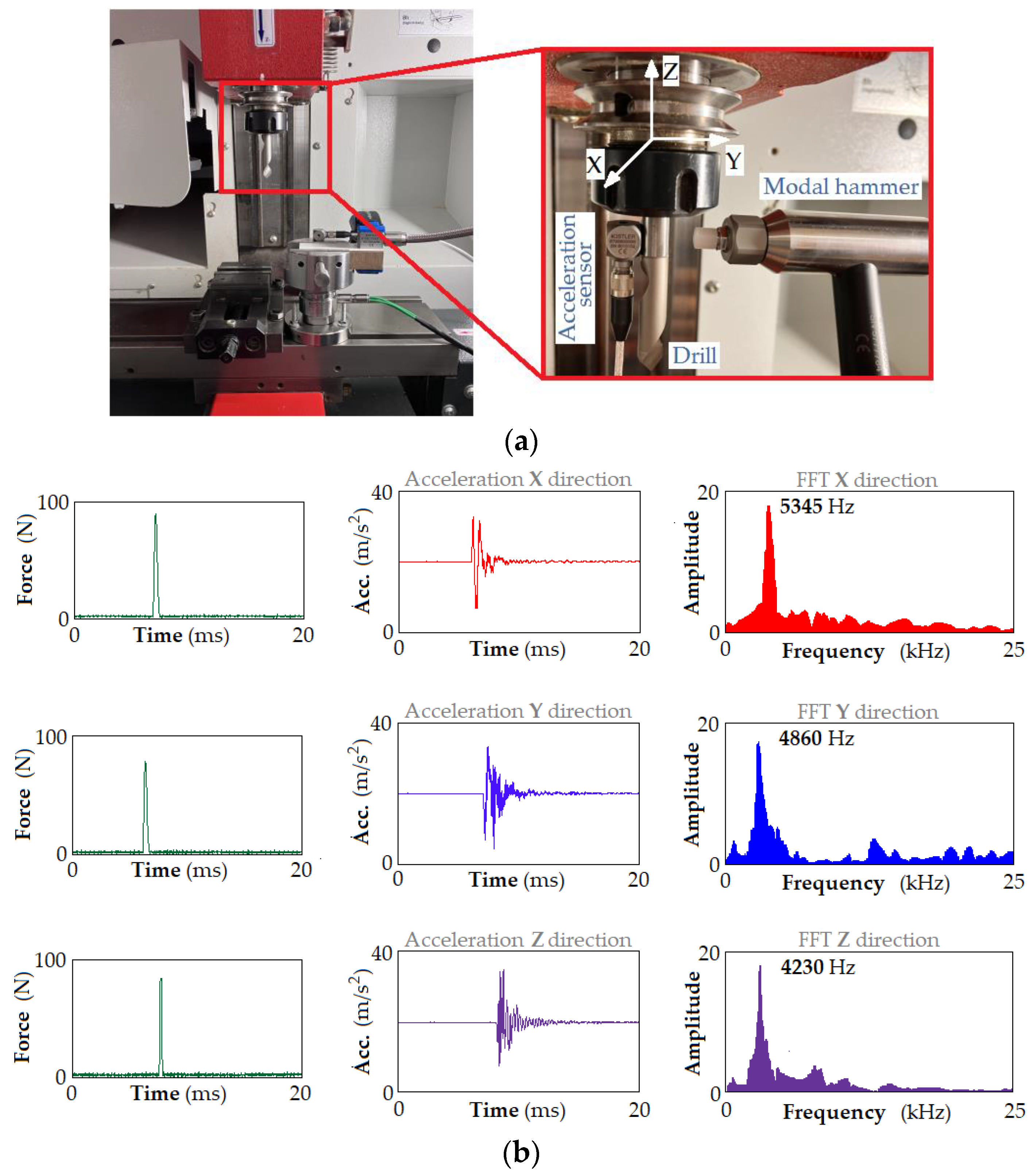

3.2. Dynamic Characteristics of the System

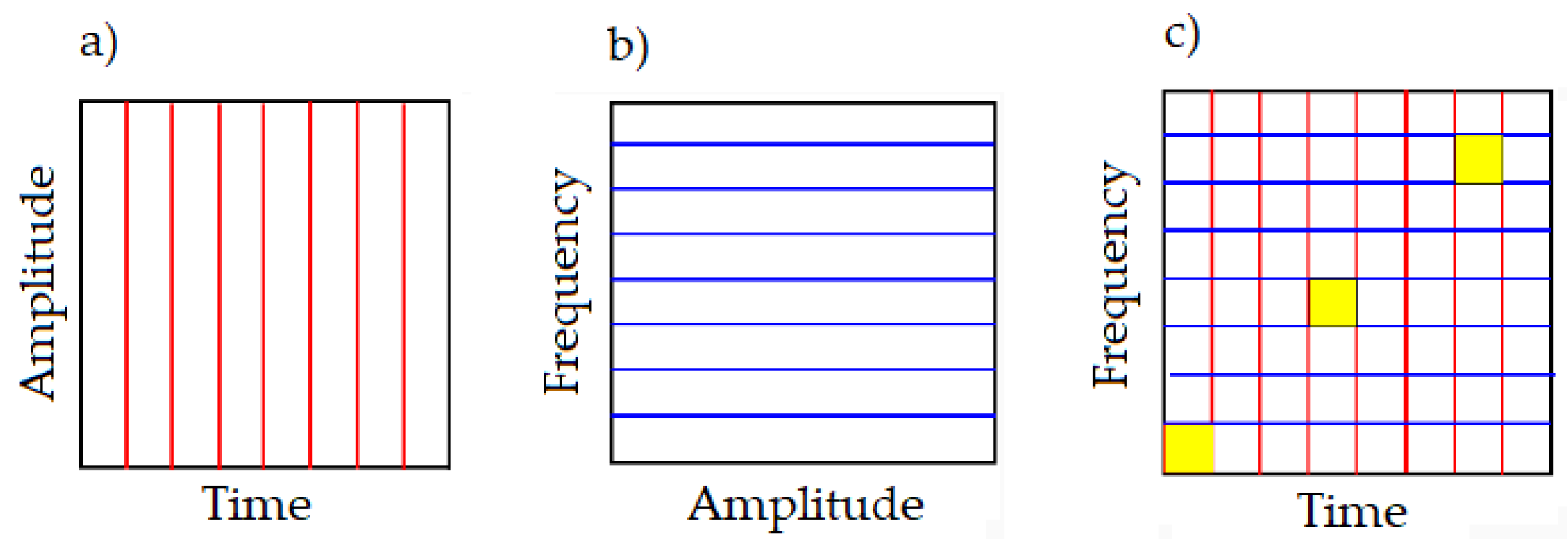

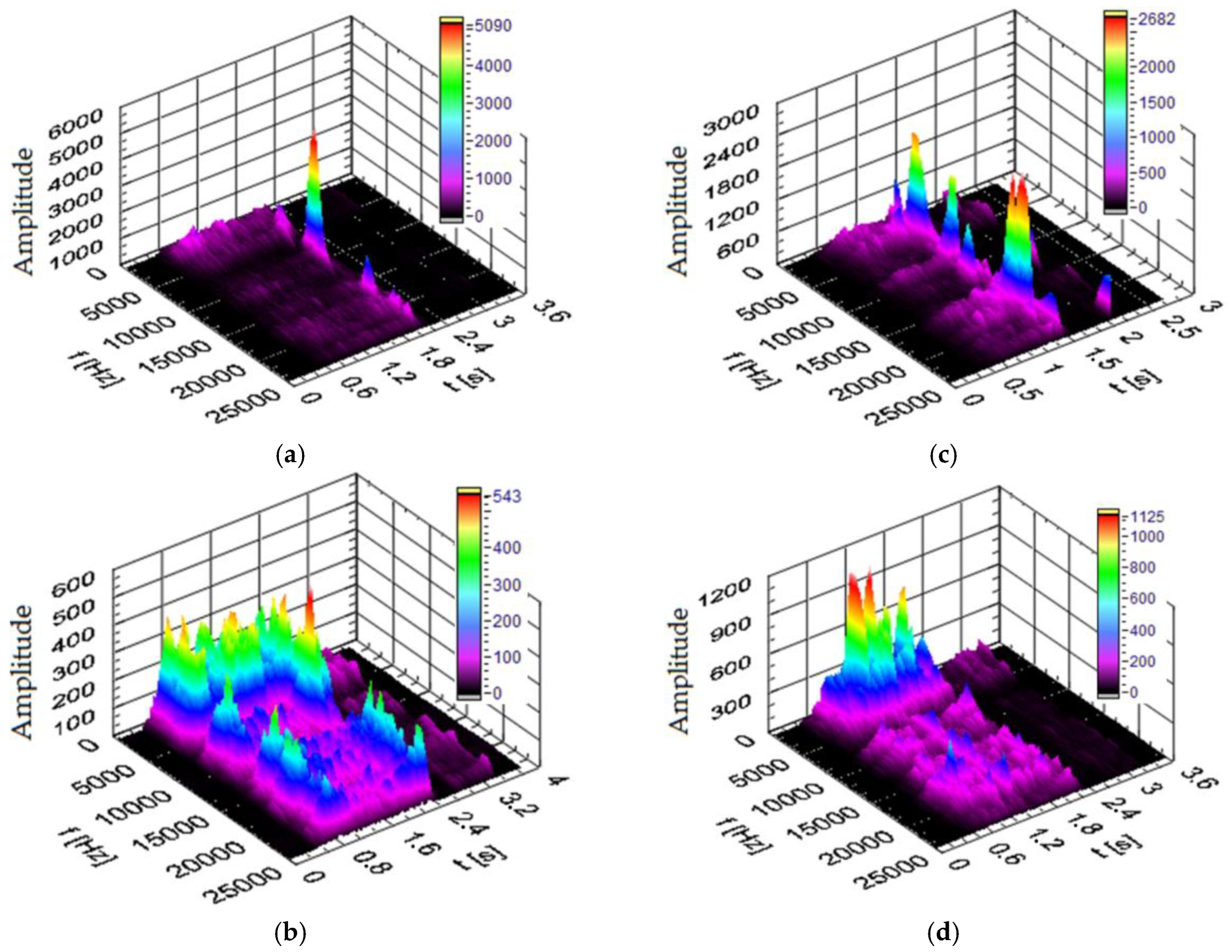

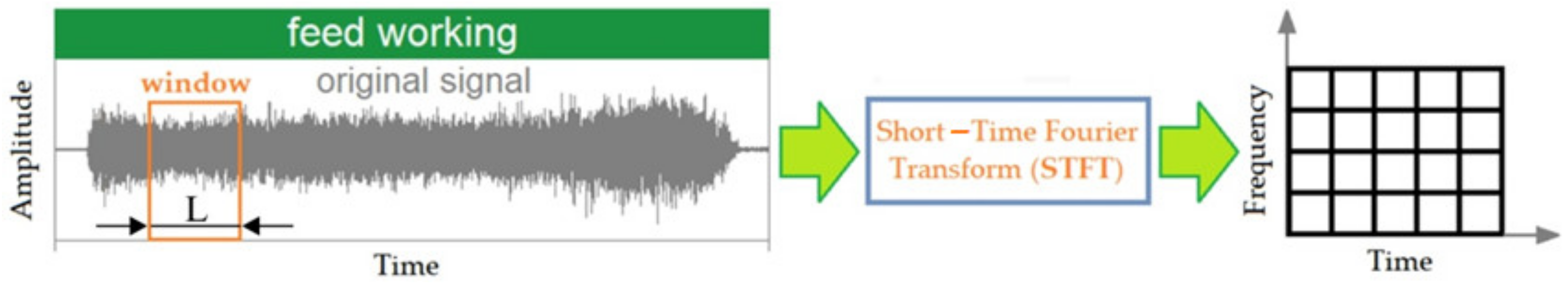

3.3. Analysis of Short-Time Fourier Transform Signals
- The vibrating length of the drill in the transverse and axial directions does not change during the drilling process, thus maintaining a rather constant frequency,
- Natural frequencies in the lateral and axial directions of the MHC system during drilling are essentially insensitive to the drill diameter, which simplifies monitoring for a wide range of drill sizes,
- The vibration in the X, Y and Z directions is influenced by the cutting torque and thrust force, which are the main sources of excitation during drilling.

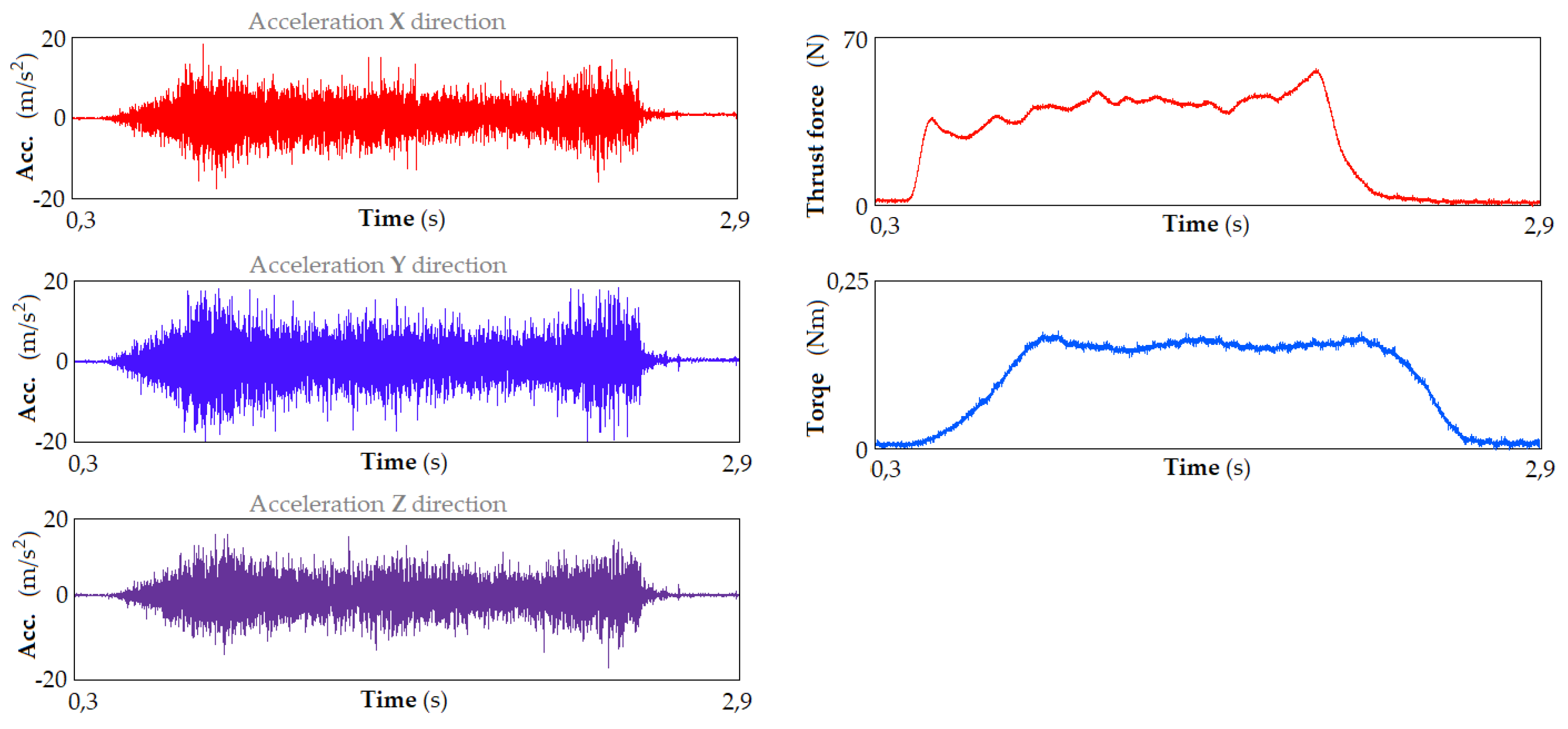

3.3.1. Signal Analysis in the Time Domain

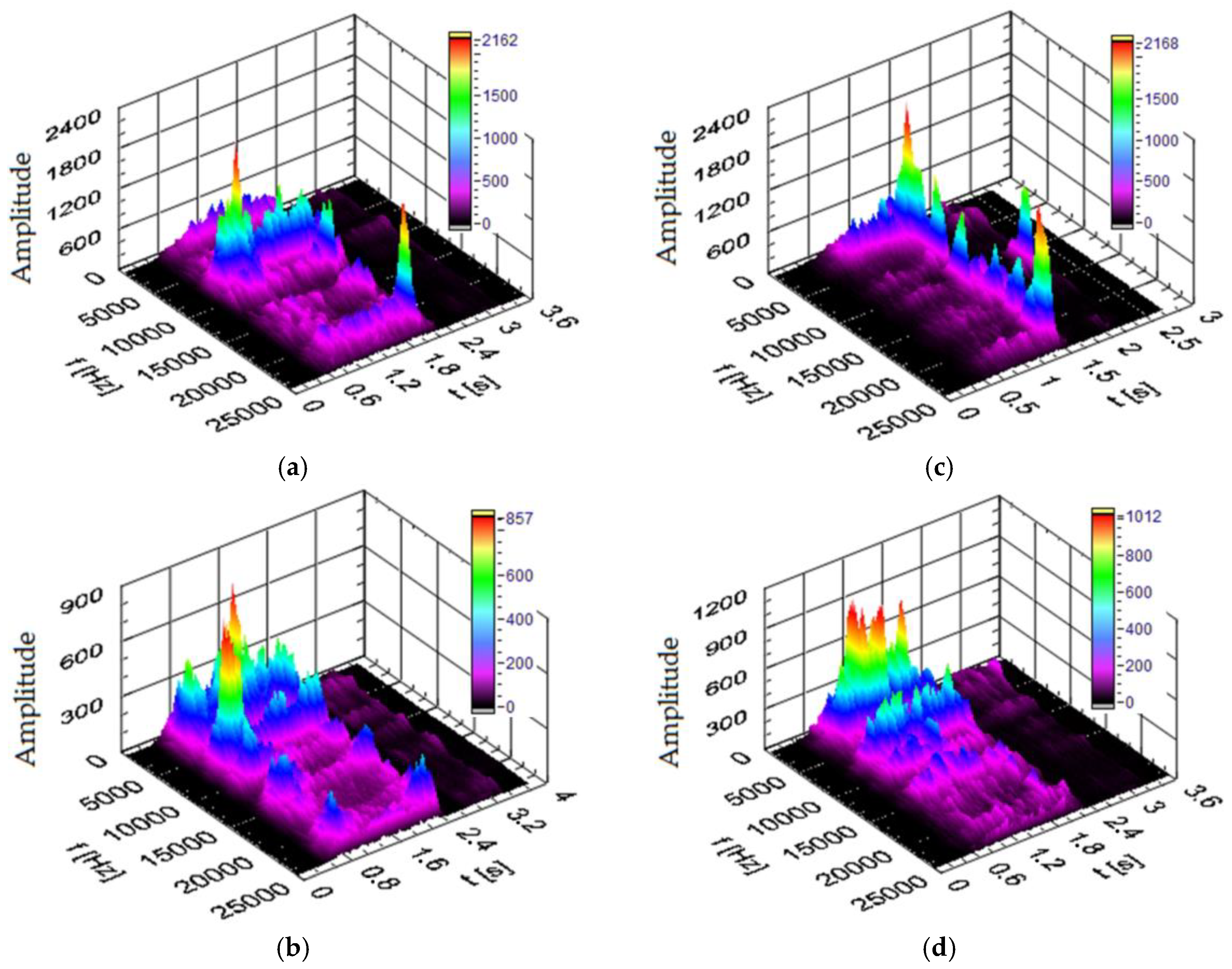

3.3.2. Vibration Spectra in the Transverse X and Y Directions

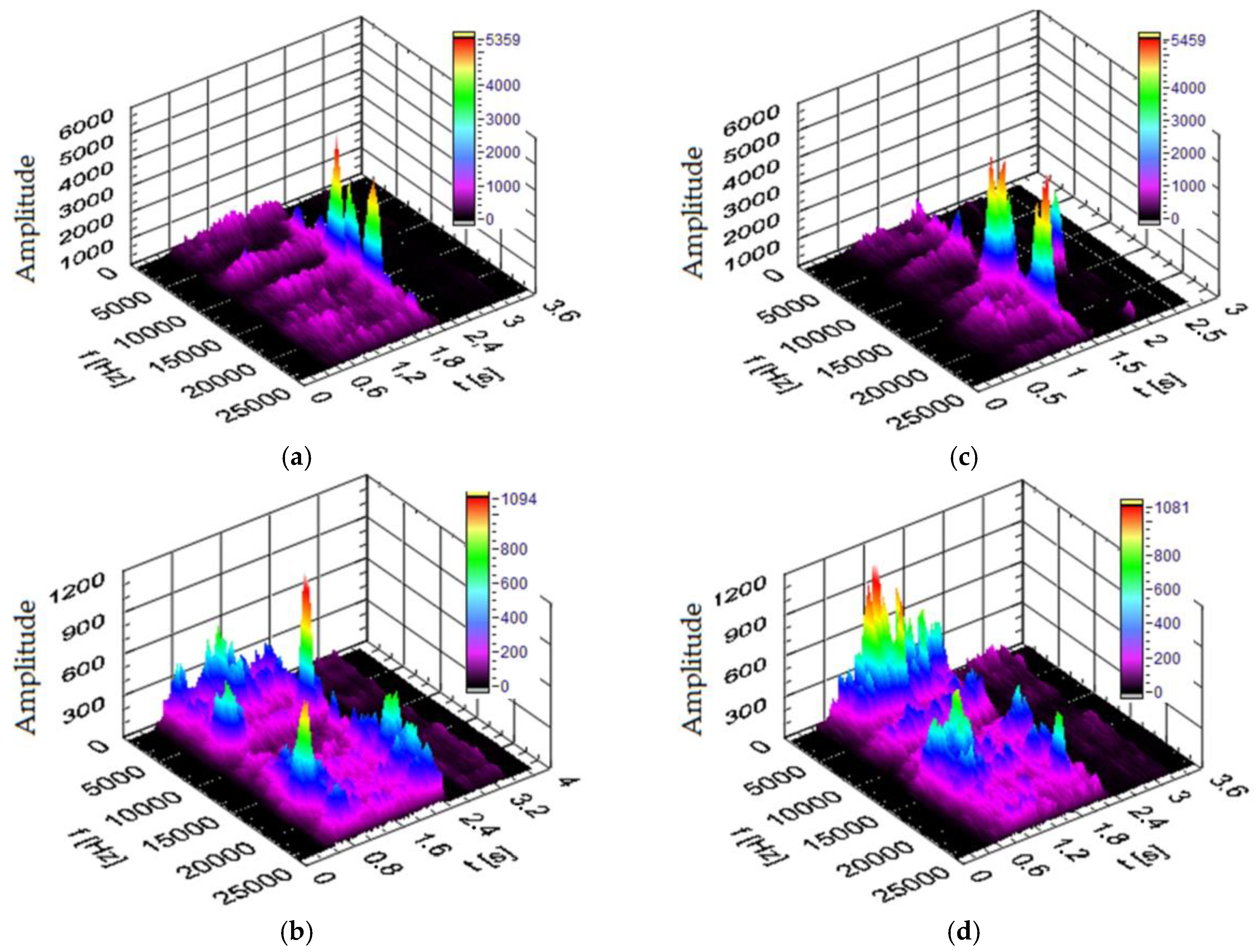

3.3.3. Vibration Spectra in the Z Direction

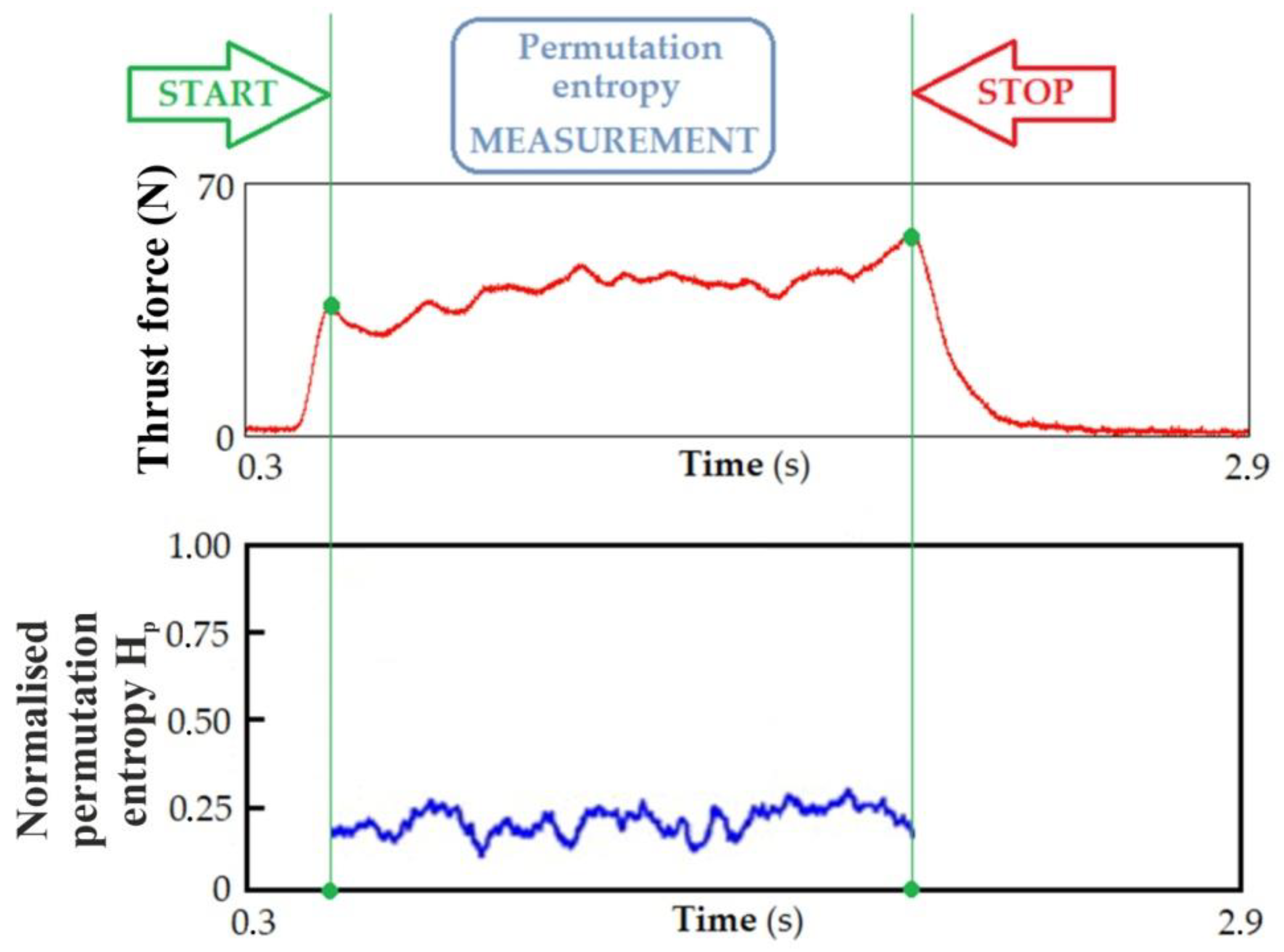

3.4. Permutation Entropy
4. Conclusions
- Identification of the material being processed during the drilling process is possible based on both cutting force Fc, cutting torque Mc and acceleration signals.
- Identification based on the cutting force and cutting torque signals is based on the value of the unit cutting resistance kc1.1 and on the basis of the change in the value of PermEn Hp.
- Identification based on STFT analysis of the acceleration signals in specific directions X, Y and Z uses the assessment of the dominant frequency amplitudes depending on the material being processed. There is no need to know the signal history to be able to identify the processed material.
- This article presents the usefulness of the cutting torque signal in the drilling process of wood-based materials, with the aim of identifying the material during the cutting process. As expected, the unit cutting resistance kc1.1 varied in value depending on the type of material being processed, which allowed for a clear distinction between materials. The results show that the proposed methodology can be used as an intelligent technique in the drilling process to identify machined materials.
- Additionally, the applied material identification based on changes in the PermEn Hp value of the cutting force Fc signal during the drilling process worked reliably for all processed materials analyzed. This measure turned out to be insensitive to the combinations of drilling parameters used in the investigations. The proposed method enables the reliable detection of tool contact with the workpiece material and identification of the material during the drilling process.
- There are no clearly visible differences in the recorded vibroacoustic signals in the time domain when changing the processed material. However, after transforming the signal into the frequency domain, characteristic frequency ranges with dominant amplitude can be observed depending on the material being processed.
- A methodology is proposed that can be used as an intelligent technique to support the drilling process in order to detect the material being processed using data from sensors installed on the machine tool. Typically, in the woodworking industry, processing parameters are selected to correspond to the most difficult to process material in stacks at runtime, which increases cutting time, efficiency and processing quality. Intelligent machining techniques contribute to the real-time adaption of cutting parameters to the identified material.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Cai, Z.; Senalik, C.A.; Ross, R.J. Mechanical properties of wood-based composite materials. In Wood Handbook—Wood as an Engineering Material; General Technical Report FPL-GTR-282; Department of Agriculture, Forest Service, Forest Products Laboratory: Madison, WI, USA, 2021; Chapter 12; p. 15. [Google Scholar]
- Magalhães, R.; Nogueira, B.; Costa, S.; Paiva, N.; Ferra, J.M.; Magalhães, F.D.; Martins, J.; Carvalho, L.H. Effect of panel moisture content on internal bond strength and thickness swelling of medium density fiberboard. Polymers 2021, 13, 114. [Google Scholar] [CrossRef]
- Wang, J.; Cao, X.; Liu, H. A review of the long-term effects of humidity on the mechanical properties of wood and wood-based products. Eur. J. Wood Prod. 2021, 79, 245–259. [Google Scholar] [CrossRef]
- Zahedi, M.; Najafi, S.K.; Füssl, J.; Elyasi, M. Characterization of engineering elastic parameters of oriented strand board (OSB) manufactured from poplar (Populus deltoides) strands using ultrasonic contact pulse transmission. Drv. Ind. 2020, 71, 227–234. [Google Scholar] [CrossRef]
- Karaman, A.; Balcioglu, H.E. An Investigation of flexural behavior of pure and hybrid wood composite panels using weibull analyses. Drv. Ind. 2021, 72, 201–210. [Google Scholar] [CrossRef]
- Szwajka, K.; Trzepieciński, T. Effect of tool material on tool wear and delamination during machining of particleboard. J. Wood Sci. 2016, 62, 305–315. [Google Scholar] [CrossRef]
- Szwajka, K.; Trzepieciński, T. The influence of machining parameters and tool wear on the delamination process during milling of melamine-faced chipboard. Drewno 2017, 60, 117–131. [Google Scholar] [CrossRef]
- Iždinský, J.; Vidholdová, Z.; Reinprecht, L. Particleboards from recycled wood. Forests 2020, 11, 1166. [Google Scholar] [CrossRef]
- Klímek, P.; Wimmer, R.; Meinlschmidt, P. TOF-SIMS molecular imaging and properties of pMDI-Bonded particleboards made from cup-plant and wood. Appl. Sci. 2021, 11, 1604. [Google Scholar] [CrossRef]
- Nazerian, M.; Nanaii, H.A.; Vatankhah, E.; Koosha, M. Performance of ANN in predicting internal bonding of cement particleboard manufactured from giant reed and bagasse. Drv. Ind. 2021, 72, 255–271. [Google Scholar] [CrossRef]
- Papadopoulos, A.N. Advances in wood composites. Polymers 2019, 12, 48. [Google Scholar] [CrossRef]
- Davim, J.P.; Clemente, V.C.; Silva, S. Drilling investigation of MDF (medium density fibreboard). J. Mater. Proc. Technol. 2008, 203, 537–541. [Google Scholar] [CrossRef]
- Nacetti, M.; Mannucci, M.; Brunetti, M. Automatic assessment of insect degradation depth in structural solid wood elements by drilling resistance measurements. Constr. Build. Mater. 2022, 366, 130273. [Google Scholar] [CrossRef]
- Kumar, A.M.; Jayakumar, K. Drilling studies on Particle Board composite using HSS twist drill and spade drill. Mater. Today Proc. 2018, 5, 16346–16351. [Google Scholar] [CrossRef]
- Valarmathi, T.N.; Palanikumar, K.; Sekar, S. Modeling of thrust force in drilling of plain medium density fiberboard (MDF) composite panels using RSM. Procedia Eng. 2012, 38, 1828–1835. [Google Scholar] [CrossRef]
- Benlatreche, Y.; Nouveau, C.; Marchal, R.; Martins, J.P.F.; Aknouche, H. Applications of CrAlN ternary system in wood machining of medium density fibreboard (MDF). Wear 2009, 267, 1056–1061. [Google Scholar] [CrossRef]
- Fan, J.; Chu, Y.; Sun, X.; Wang, K. A density on-line measurement and control technology of medium density fiberboard(MDF). Energy Procedia 2012, 17, 152–156. [Google Scholar] [CrossRef]
- Gaitonde, V.N.; Karnik, S.R.; Davim, J.P. Taguchi multiple-performance characteristics optimization in drilling of medium density fibreboard (MDF) to minimize delamination using utility concept. J. Mater. Process. Technol. 2009, 196, 73–78. [Google Scholar] [CrossRef]
- Prakash, S.; Mercy, J.L.; Salugu, M.K.; Vineeth, K.S.M. Optimization of drilling characteristics using Grey Relational Analysis (GRA) in medium density fiber board (MDF). Mater. Today Proc. 2015, 2, 1541–1551. [Google Scholar] [CrossRef]
- Prakash, S.; Mercy, J.M.; Teja, P.V.S.; Vijayalakshmi, P. ANFIS modeling of delamination during drilling of medium density fiber (MDF) board. Procedia Eng. 2014, 97, 258–266. [Google Scholar] [CrossRef]
- Zhu, J.; Wang, X. Research on enabling technologies and development path of intelligent manufacturing of wooden furniture. J. For. Eng. 2021, 6, 177–183. [Google Scholar] [CrossRef]
- Chen, J.; Hu, P.; Zhou, H.; Yang, J.; Xie, J.; Jiang, Y.; Gao, Z.; Zhang, C. Toward intelligent machine tool. Engineering 2019, 5, 679–690. [Google Scholar] [CrossRef]
- Wenkler, E.; Arnold, F.; Hänel, A.; Nestler, A.; Brosius, A. Intelligent characteristic value determination for cutting processes based on machine learning. Procedia CIRP 2019, 79, 9–14. [Google Scholar] [CrossRef]
- Crnjac, M.; Veža, I.; Banduka, N. From concept to the introduction of Industry 4.0. Int. J. Ind. Eng. Manag. 2017, 8, 21–30. [Google Scholar] [CrossRef]
- Brozzi, R.; Forti, D.; Rauch, E.; Matt, D.T. The advantages of Industry 4.0 applications for sustainability: Results from a sample of manufacturing companies. Sustainability 2020, 12, 3647. [Google Scholar] [CrossRef]
- Vrchota, J.; Řehoř, P.; Maříková, M.; Pech, M. Critical success factors of the project management in relation to Industry 4.0 for sustainability of projects. Sustainability 2020, 13, 281. [Google Scholar] [CrossRef]
- Mabkhot, M.M.; Al-Ahmari, A.M.; Salah, B.; Alkhalefah, H. Requirements of the smart factory system: A survey and perspective. Machines 2018, 6, 23. [Google Scholar] [CrossRef]
- Wiśniewska-Sałek, A. Sustainable development in accordance with the concept of Industry 4.0 on the example of the furniture industry. MATEC Web Conf. 2018, 183, 04005. [Google Scholar] [CrossRef]
- Pinzone, M.; Fantini, P.; Perini, S.; Garavaglia, S.; Taisch, M.; Miragliotta, G. Jobs and skills in Industry 4.0: An exploratory research. In Collaboration in a Hyperconnected World, 1st ed.; Afsarmanesh, H., Camarinha-Matos, L.M., Soares, A.L., Eds.; Springer: Cham, Switzerland, 2017; pp. 282–288. [Google Scholar]
- Industry 5.0. Available online: https://research-and-innovation.ec.europa.eu/research-area/industrial-research-and-innovation/industry-50_e (accessed on 15 March 2024).
- Podziewski, P.; Szymanowski, K.; Górski, J.; Czarniak, P. Relative machinability of wood-based boards in the case of drilling—Experimental study. BioResources 2018, 13, 1761–1772. [Google Scholar] [CrossRef]
- Podziewski, P.; Śmietańska, K.; Górski, J. Experimental verification of a highly simplified, preliminary machinability test for wood-based boards in the case of drilling. Forests 2021, 12, 1334. [Google Scholar] [CrossRef]
- Jemielniak, K. Obróbka Skrawaniem–Podstawy, Dynamika, Diagnostyka; Oficyna Wydawnicza Politechniki Warszawskiej: Warszawa, Poland, 2018. [Google Scholar]
- Szwajka, K.; Trzepieciński, T. On the machinability of medium density fiberboard by drilling. BioResources 2018, 13, 8263–8278. [Google Scholar] [CrossRef]
- Górski, J.; Podziewski, P.; Borysiuk, P. The machinability of flat-pressed, single-layer wood-plastic particleboards while drilling—Experimental study of the impact of the type of plastic used. Forests 2022, 13, 584. [Google Scholar] [CrossRef]
- ISO 1183-1; Plastics-Methods for Determining the Density of Non-Cellular Plastics—Part 1: Immersion Method, Liquid Pycnometer Method and Titration Method. ISO: Geneva, Switzerland, 2019.
- EN 622-5; Fibreboards-Specifications—Part 5: Requirements for Dry Process Boards (MDF). European Standard: Plzen, Czech Republic, 2010.
- ISO 178; Plastics—Determination of Flexural Properties. ISO: Geneva, Switzerland, 2019.
- EN 310; Wood-Based Panels-Determination of Modulus of Elasticity in Bending and of Bending Strength. European Standard: Plzen, Czech Republic, 1993.
- ASTM D1037-12; Standard Test Methods for Evaluating Properties of Wood-Base Fiber and Particle Panel Materials. ASTM International: West Conshohocken, PA, USA, 2020.
- Das, M.K.; Tobias, S.A. The relation between the static and the dynamic cutting of metals. Int. J. Mach. Tool Des. Res. 1967, 7, 63–89. [Google Scholar] [CrossRef]
- Kinzle, O. Die Bestimmung von Kräffen und Leistungen an spanenden Werkzeuden und Werkzeugmaschinen. VDI–Z 1952, 94, 299–305. (In German) [Google Scholar]
- Szwajka, K.; Zielińska-Szwajka, J.; Trzepieciński, T. The use of a radial basis function neural network and fuzzy modelling in the assessment of surface roughness in the MDF milling process. Materials 2023, 16, 5292. [Google Scholar] [CrossRef] [PubMed]
- Bandt, C.; Pompe, B. Permutation entropy: A natural complexity measure for time series. Phys. Rev. Lett. 2002, 88, 174102. [Google Scholar] [CrossRef] [PubMed]
- Keller, K.; Lauffer, H.; Sinn, M. Ordinal analysis of EEG time series. In Chaos and Complexity Letters, 1st ed.; Orsucci, F.F., Sala, N., Eds.; Nova Science Publishes: Hauppauge, NY, USA, 2007; pp. 247–258. [Google Scholar]
- Amigó, J. Permutation Complexity in Dynamical Systems: Ordinal Patterns, Permutation Entropy and All That; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2010. [Google Scholar]
- Teti, R.; Jemielniak, K.; O’Donnell, G.; Dornfeld, D. Advanced monitoring of machining operations. CIRP Ann. 2010, 59, 717–739. [Google Scholar] [CrossRef]
- Rosso, O.A.; Larrondo, H.A.; Martin, M.T.; Plastino, A.; Fuentes, M.A. Distinguishing noise from chaos. Phys. Rev. Lett. 2007, 99, 154102. [Google Scholar] [CrossRef]
- Zanin, M.; Zunino, L.; Rosso, O.A.; Papo, D. Permutation entropy and its main biomedical and econophysics applications: A review. Entropy 2012, 14, 1553–1577. [Google Scholar] [CrossRef]
Test Material | Density (kg/m3) | Bending Strength (MPa) | Elasticity Modulus (MPa) | Janka Hardness (N) |
---|---|---|---|---|
Plywood board | 650 (32) | 85 (9) | 5600 (261) | 3228 (189) |
MDF | 730 (23) | 38 (4) | 2530 (176) | 4932 (245) |
HPL | 1470 (29) | 110 (13) | 9250 (349) | - |
Chipboard | 690 (19) | 12 (3) | 1850 (138) | 2367 (153) |
Cutting Speed vc (m/min) | Feed Per Tooth fz (mm) | Feed Rate vf (mm/min) | Rotational Speed of Tool n (rpm) |
---|---|---|---|
78 | 0.15 | 375 | 2500 |
0.20 | 450 | ||
0.25 | 525 | ||
94 | 0.15 | 500 | 3000 |
0.20 | 600 | ||
0.25 | 700 | ||
109 | 0.15 | 625 | 3500 |
0.20 | 750 | ||
0.25 | 875 |
Thickness of the Cutting Layer b (mm) | Feed Per Tooth fz (mm) | Feed Rate vf (mm/min) |
---|---|---|
0.05 | 0.07 | 177 |
0.10 | 0.14 | 354 |
0.15 | 0.21 | 530 |
0.20 | 0.28 | 707 |
0.25 | 0.35 | 884 |
0.30 | 0.42 | 1061 |
0.35 | 0.49 | 1237 |
Test Material | Thickness of the Cutting Layer (mm) | ||||||
0.05 | 0.10 | 0.15 | 0.20 | 0.25 | 0.30 | 0.35 | |
Cutting torque (Nm) | |||||||
Plywood board | 0.21 | 0.32 | 0.28 | 0.40 | 0.47 | 0.66 | 0.71 |
MDF | 0.08 | 0.12 | 0.15 | 0.17 | 0.20 | 0.24 | 0.28 |
HPL | 0.45 | 0.62 | 0.80 | 0.87 | 0.99 | 1.08 | 1.18 |
Chipboard | 0.11 | 0.15 | 0.22 | 0.23 | 0.26 | 0.31 | 0.33 |

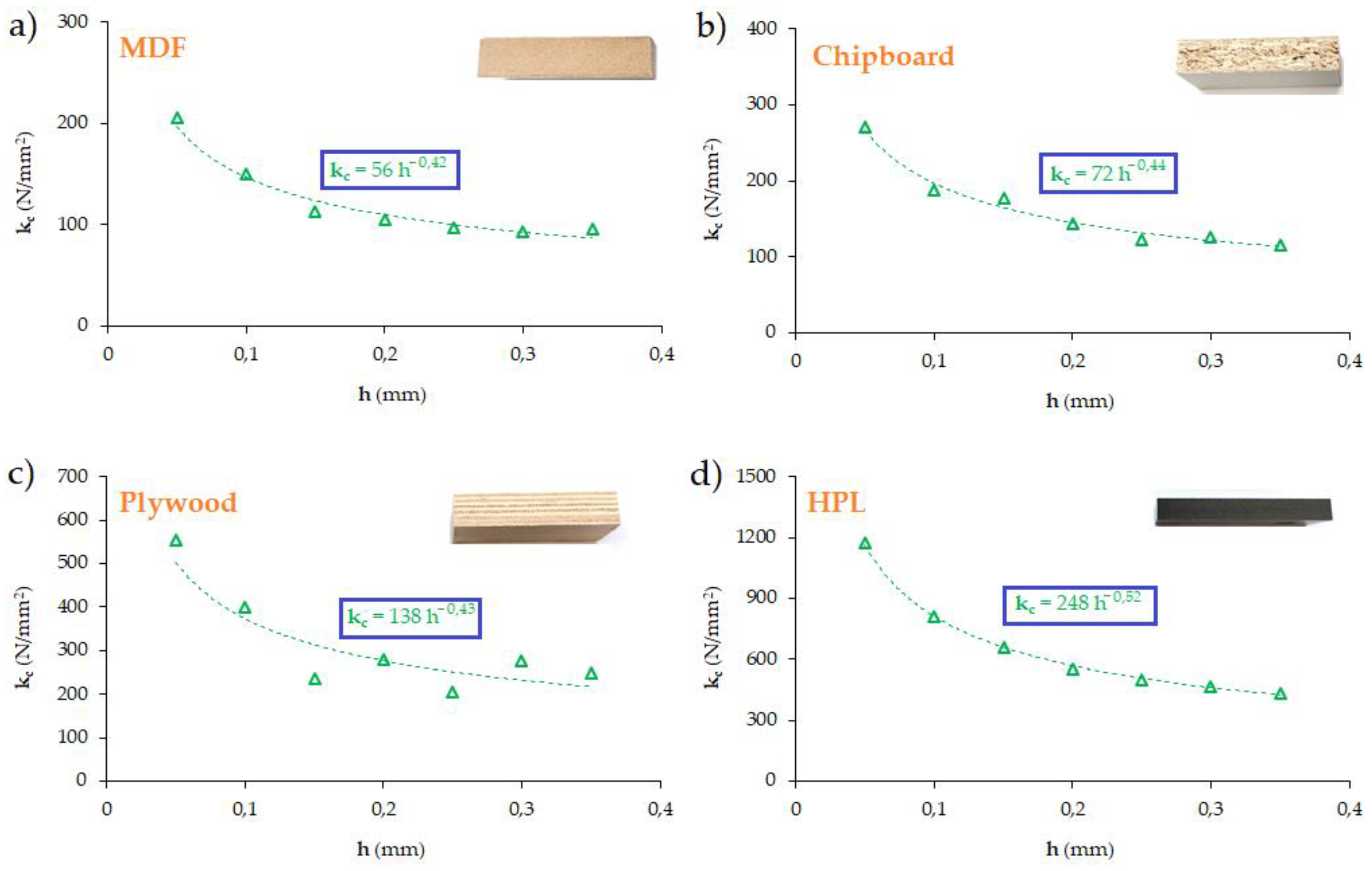

Workpiece Material | kc1.1 (N/mm2) | mc |
---|---|---|
MDF | 56 | −0.42 |
Chipboard | 72 | −0.44 |
Plywood board | 138 | −0.43 |
HPL | 248 | −0.52 |
Test Material | Hp |
---|---|
MDF | 0.32 |
Chipboard | 0.53 |
Plywood board | 0.48 |
HPL | 0.21 |
