Investigation of the Positive Temperature Coefficient Resistivity of Nb-Doped Ba_0.55Sr_0.45TiO₃ Ceramics

Abstract

The demands of low-Curie-temperature (~−10 °C) positive temperature coefficient (PTC) thermistors are increasing in advanced precision integrated circuits and other industries. In this paper, the Nb-doped Ba_0.55Sr_0.45TiO₃(BST)-based PTC resistivity materials are reported. The effects of the sintering process, especially the cooling rate on the PTC properties of the material, are investigated. The results indicate that the Ba_0.55Sr_0.45Ti_0.9985Nb_0.0015O₃ composition of the prepared PTC ceramics demonstrates promising PTC characteristics. These include a Curie temperature as low as −13 °C, a high temperature coefficient of 0.296 at −3.4 °C, a large enough resistivity change of 3.1 over a narrow phase transition temperature range of approximately 38 °C, and moderate resistivity below the Curie temperature. Such properties suggest that the Ba_0.55Sr_0.45Ti_0.9985Nb_0.0015O₃ ceramics are likely suitable for use in thermal management systems designed for low-temperature control.

1. Introduction

Materials that exhibit a positive temperature coefficient (PTC) of resistivity are commonly used in applications such as thermistors, temperature-regulated heaters, and thermostat components. Their resistivity can increase dramatically, often by several orders of magnitude, either at a specific temperature or within a particular temperature range, attributed to the material’s phase transition. In practical applications, this specific temperature or temperature range is often referred to as the switch temperature, because the PTC component functions as a temperature switch.

Up to now, most of the reported PTC resistivity materials focus on applications in which the switch temperatures are higher than room temperature (>50 °C, normally). However, the demands for temperature control at low temperatures have been increasing. For instance, it is well known that the performance degradation of Li-ion batteries is a great challenge for electric vehicles in winter and low-temperature environments (<10 °C) [1,2]. Various thermal preheating and management systems for Li-ion batteries are proposed to support the batteries’ functionality in low-temperature environment [3,4,5,6]. In the above systems, proper PTC thermistors ($T_c$ ~ −10 °C) are required to manage the work of heaters. In addition, PTC thermistors with low switch temperatures (~−10 °C) are also demanded in aerospace and precision integrated circuits and other industries.

Currently, PTC resistivity materials with low switch temperatures, especially lower than −0 °C, have been paid increasing attention. As a traditional inorganic PTC ceramic, BaTiO₃ (BT) has a large PTC intensity. The PTC effect of BT ceramics arises from the phase transition from the ferroelectric phase to paraelectric phase. When the temperature exceeds the Curie temperature of the BT ceramics, the phase structures will change from ferroelectric into paraelectric and their resistivities will show exponential growth around $T_c$. The $T_c$ of pure BT ceramics is around 120 °C. Its $T_c$ could be modulated to higher or lower temperatures by proper element doping. So far, the switch temperatures of BT-based PTC ceramics are almost higher than 50 °C. Even though the Curie temperature could be shifted to a lower temperature (<0 °C) by heavy doping on the A-site or B-site [7,8], there are few reports of BT-based PTC materials with a low temperature (<0 °C). A significant challenge is that heavy doping often results in an inhomogeneous composition, which can cause a relaxation phase transition that would weaken the PTC performance of BT-based PTC ceramics, such as reduced PTC intensity, and a wide phase transition temperature span [9,10,11]. For instance, when the Curie temperature moves to below 25 °C, the temperature range of the phase transition, $∆T$, tends to widen, and there is a significant reduction in the magnitude of the resistivity jump.

The previous work indicates that the resistivity anomaly increase is related to the barrier layer of the BT ceramic grain boundary. Hasegawa et al. [12,13,14] reported that the PTC performance of BT ceramics could be enhanced by increasing the height of the ceramic grain boundary barrier ${\phi }_0$, and the height of the barrier ${\phi }_0$ is directly proportional to the square of the interface state density at the grain boundary of BT ceramics [12]. According to the above knowledge, one of the possible approaches could be to increase the adsorbed oxygen on the grain boundaries by the proper reoxidation process or proper elements dropping combined with the proper sintering process in which the adsorbed oxygen would be increased on the grain boundaries and form the interface states.

The Nb-doped BaTiO₃ ceramics were demonstrated to show a pronounced PTCR effect [15,16,17]. In this work, Nb-doped Ba_0.55Sr_0.45TiO₃(BST) and Ba_0.55Sr_0.45Ti_(1−x)Nb_xO₃ ceramics were fabricated and the PTC properties of the prepared ceramics were investigated. Different ceramic sintering processes with five different cooling rates were investigated to promote the PTC performance. The influence of the cooling rate on the ceramic grain boundary barrier ${\phi }_0$ and interface states of the grain boundary were analyzed, respectively.

2. Materials and Methods

Ceramic powders composed of Ba_0.55Sr_0.45Ti_(1−x)Nb_xO₃ (x = 0.001, 0.0015, 0.002, 0.0025, 0.003) were synthesized using the sol-gel method. The precursor materials Ba(CH₃COOH)₂ (Aladdin, Shanghai, China, 99%), Sr(CH₃COOH)₂ (Aladdin, Shanghai, China, 99%), Ti(OC₄H₉)₄ (Chron, Chengdu, China, 98.5%), and Nb(OC₂H₅)₅ (Acmec, Shanghai, China, 99%), were weighed to match the intended stoichiometric proportions. As solvents in the process, diethanol methyl ether, ethanol acetic acid, and deionized water were utilized. First, Ba(CH3COO)₂ and Sr(CH3COO)₂ were dissolved in water. Second, Ti(OC₄H₉)₄ and Nb(OC₂H₅)₅ were then dissolved in a mixture of ethanol and acetic acid with a volume ratio of 1:1. The two sets of solutions were blended and stirred for 60 min until a clear and transparent sol formed at 60 °C. This solution gradually transitioned into a gel. The gel was then air-dried at 80 °C. The resulting xerogel underwent carbonization at 350 °C and was calcined at 950 °C for 3 h in air. The resulting fine powder was then granulated and compressed into discs measuring 1.0 cm in diameter and 1.0 mm in thickness at a pressure of 10 MPa, using polyvinyl alcohol (PVA) as a binder. These discs were subsequently calcined at 550 °C to remove the PVA binder. Following this, the pellets were sintered at 1400 °C in the air for 3 h and then quenched to room temperature. To explore the effect of the cooling rate, the specimen with the composition of Ba_0.55Sr0_.45Ti_0.9985Nb_0.0015O₃ was sintered in air at 1400 °C for 3 h and then cooled to 900 °C with cooling rates of 250 °C/h, 210 °C/h, 180 °C/h, 150 °C/h, and 90 °C/h, respectively.

The phase structure of the specimens was examined using X-ray diffraction (DX-2700, Dandong, China) with Cu Kα radiation This analysis was conducted at 40 kV and 30 mA, using a step size of 0.02 and a duration of 1 s per step. Additionally, the microscopic morphology of the specimens was investigated through a Cold Field Emission Scanning Electron Microscope (JSM-7500F, Tokyo, Japan).

The resistance-temperature ($R$-$T$) characteristics of the ceramic specimens were evaluated from −40 to 100 °C using an Electrometer (Keithley 6517B, Cleveland, OH, USA) at an operating voltage of 2 V, within a temperature-controlled chamber equipped with a programmable controller. The R-T performance was assessed through continuous heating and cooling cycles.

The temperature characteristics of the capacitors were measured using LCR meters (Tonghui TH2827C, Changzhou, China). The capacitance temperature tests were conducted at a frequency of 100 kHz, within a temperature span of −60 to 120 °C. For impedance data, the tests were carried out at a voltage of 2 V, across a frequency range from 20 Hz to 1 MHz.

3. Results and Discussion

3.1. The Temperature Dependence of the Electrical Resistivity of Nb-Doping BST Ceramics

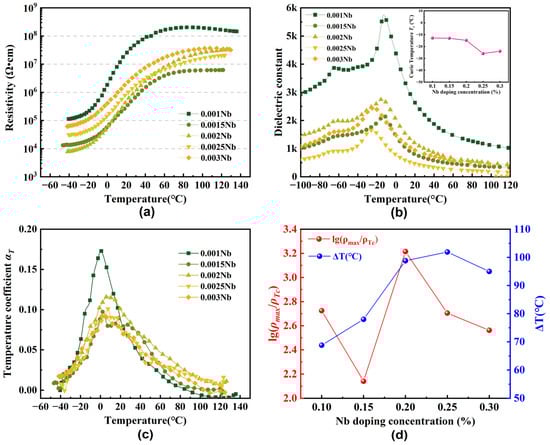

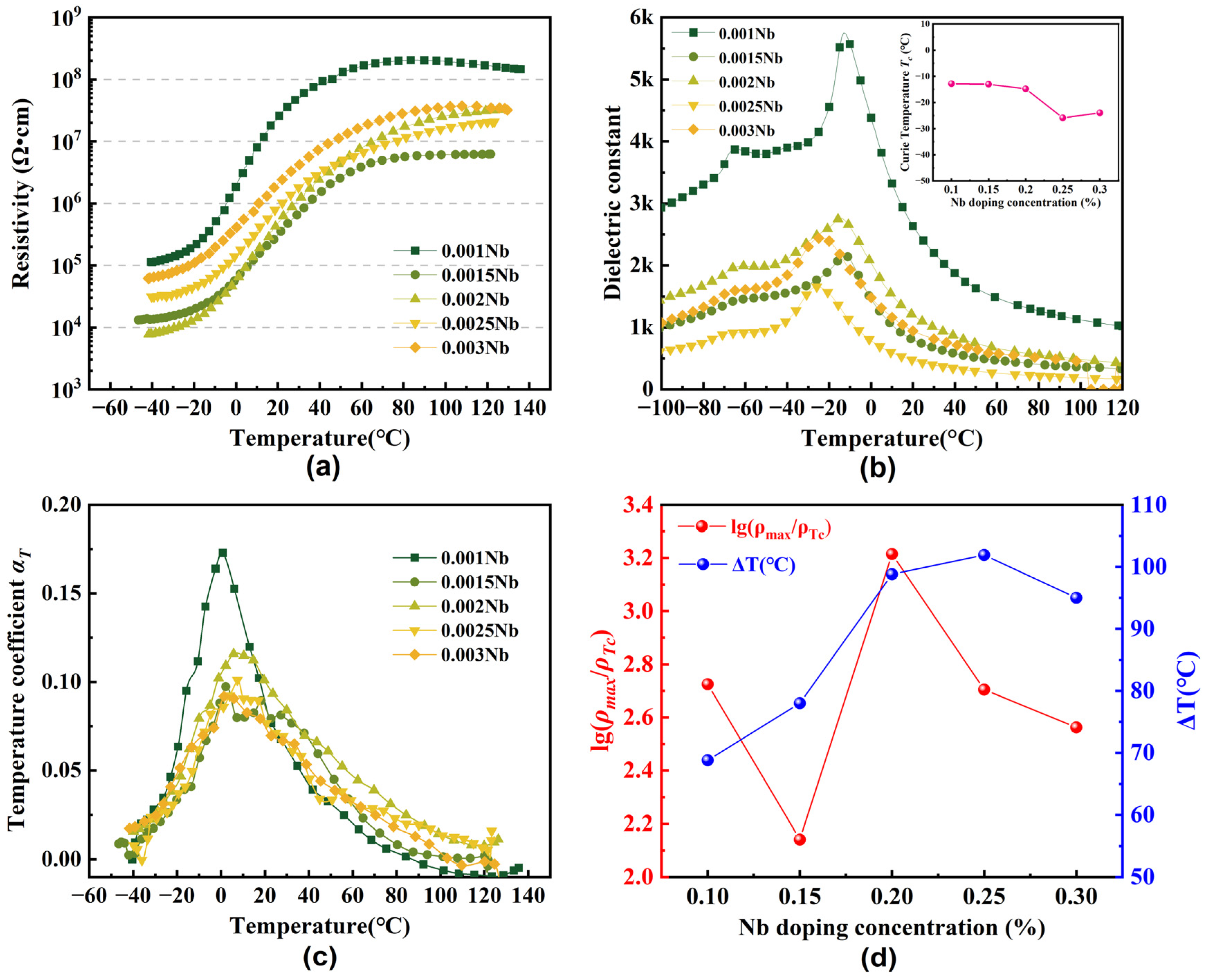

The resistivity-temperature ($\rho$-$T$) curves for specimens with varying Nb doping concentrations are displayed in Figure 1a. To clearly assess the resistivity-temperature response, ${\rho }_{min}$ is designated as the resistivity at −40 °C, since the resistivities exhibit a monotonic increase before the phase transition within the examined temperature range, as illustrated in Figure 1a. Additionally, the Curie temperature T_c of the ceramics is established by analyzing the dielectric constant–temperature curves presented in the Figure 1b inset. The temperature coefficient of resistivity (${\alpha }_T$) was calculated as follows:

$${\alpha }_T=\frac{1}{R_T}\frac{d{R}_T}{dT}\times 100\%$$

(1)

R_T means the resistivity corresponding to the temperature $T$. The resistivity jumping of the ceramics is defined as $lg({\rho }_{max}/{\rho }_{Tc}).$ The maximum resistivity ${\rho }_{max}$ is defined as the resistivity values that ${\alpha }_T$ values drop to 0.025 after phase transition. As shown in Figure 1a, the resistivities increase monotonically even after the phase transition, except the one with x = 0.001 in our case. The temperature range of the phase transition, denoted as ΔT, is defined as ΔT = T_ρmax − $T_c$. A narrow ΔT means a rapid phase transition.

The curves in Figure 1a show that all the ceramics with different Nb content possess an obvious PTC effect, and the resistivity jumps are around two to three orders of magnitude for all specimens. There is a mild negative temperature coefficient phenomenon that appeared after the phase transition in the tested temperature range for the specimens with x = 0.001, attributed to a decrease in the barrier height [14]. For the specimen with x = 0.0015, a nearly flat plateau is noted in the temperature range from 40 °C to 130 °C. For the other specimens, the resistivities show a slight increase with the increase in temperature from 40 °C to 130 °C. In the region of the Nb⁵⁺ doping concentration, the ${\rho }_{min}$ shows the smallest value of 7.2 × 10³ Ω·cm at an Nb content of 0.002. For the other ceramics, the ${\rho }_{min}$ values are approximately 10⁴ Ω·cm.

The fluctuation of T_c with the Nb⁵⁺ concentration is shown in the Figure 1b inset. The T_c of the specimens with x = 0.001, 0.0015, and 0.002 are −12.8 °C, −13.1 °C, and −14.3 °C, respectively. With the further increase in the Nb⁵⁺ concentration, the Tc reduced to lower than −20 °C. Figure 1c shows the temperature dependences of the temperature coefficient of resistivity ${\alpha }_T$ of the specimens. Among them, the specimens with x = 0.001 give the highest value of ~17.5%, and the ${\alpha }_T$ decreases with the increase in the doping Nb⁵⁺ concentration. Because the dielectric constant -temperature peaks tend to widen with the increase in the Nb⁵⁺ concentration (see Figure 1b), the results reveal that the phase transition of Ba_0.55Sr_0.45Ti_(1−x)Nb_xO₃ ceramics tends to be relaxed due to the increasing Nb⁵⁺ entering into the BST lattice. The broadening of the phase transition temperature range is a result of the relaxation phase transition. Additionally, a notable broader ΔT when the Nb⁵⁺ content exceeds 0.0015 also confirms this (see Figure 1d).

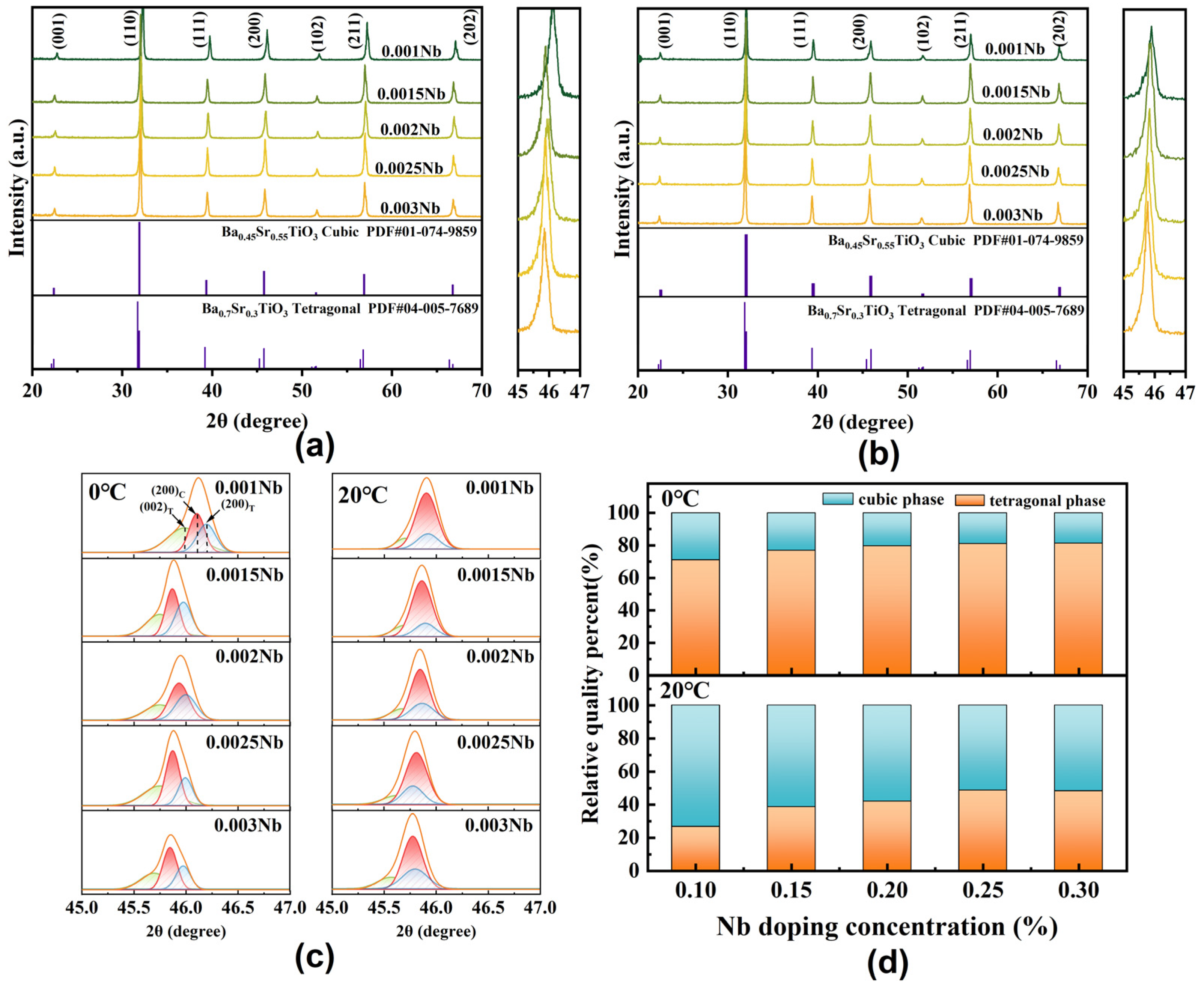

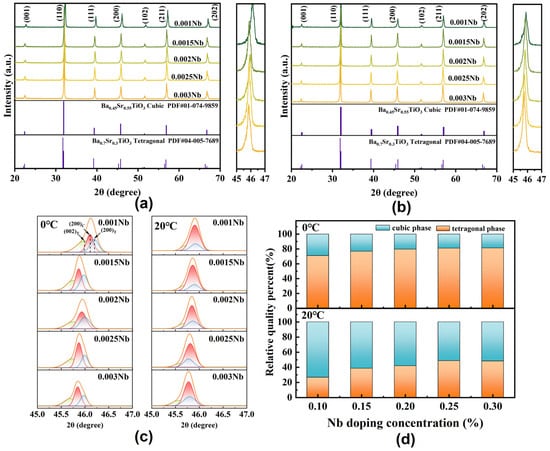

Figure 2 shows the XRD patterns of all specimens. Figure 2a is conducted at 0 °C, and Figure 2b is 20 °C, respectively. Compared with the PDF cards #074-9859 and #005-7689, all the specimens show a pure perovskite phase, and no second phase was detected in the tested range. The diffraction peaks of all the specimens show slight left-shifting with the increase in the Nb⁵⁺ concentration, which indicates the enlarged lattice due to the Nb⁵⁺ entered into the BST lattice. Clear asymmetrical (200) peaks can be observed at around 46 degrees in Figure 2a,b. These peaks’ shapes can be fitted as the overlapping of the cubic (200) peaks and the tetragonal (002) and (200) peaks (see Figure 2c). The results suggest that the specimens were undergoing the phase transition from the tetragonal to the cubic phase at the temperatures. The phase compositions of the specimens were calculated by the RIR method according to the XRD data (see Figure 2d). The results show that the tetragonal phase was still the main phase component at 0 °C for all the specimens, even though the phase transition started at a Tc far below 0 °C. As the temperature rose to 20 °C, the situation changed. The main phase component turned to be a cubic phase, especially for the specimens with 0.001, 0.0015, and 0.002 Nb⁵⁺ contents. Anyway, the phase transition is not finished at this stage. The results are consistent with the results in Figure 1a.

Given that smaller values of both ${\rho }_{min}$ and ΔT are desirable for practical applications, it is important to note that a smaller ${\rho }_{min}$ lowers the power consumption of PTC thermistors, while a narrower $\mathsf{\Delta }T$ enhances the temperature control. The specimen with 0.0015 Nb⁵⁺ content was chosen for further exploration, as it showed both low resistivity (1.4 × 10⁴ Ω·cm) and a narrow temperature span (~78 °C) comprehensively. The possibility of improving the PTC performance of the Ba_0.55Sr_0.45Ti_0.9985Nb_0.0015O₃ceramics by optimizing the cooling rate of the ceramic sintering process is explored in this work.

3.2. Influences of the Cooling Rate on Nb-BST Ceramics

Previous research demonstrates that the PTC properties of BaTiO₃ ceramics are highly sensitive to the specimens’ microstructure and defect chemistry. These factors are in turn greatly influenced by the processing parameters like the sintering condition [18,19] and heat treatment [20,21], etc. The Ba_0.55Sr_0.45Ti_0.9985Nb_0.0015O₃ ceramics were sintered by different cooling rates, and the influence of the cooling rate on the microstructure and the PTC properties were investigated.

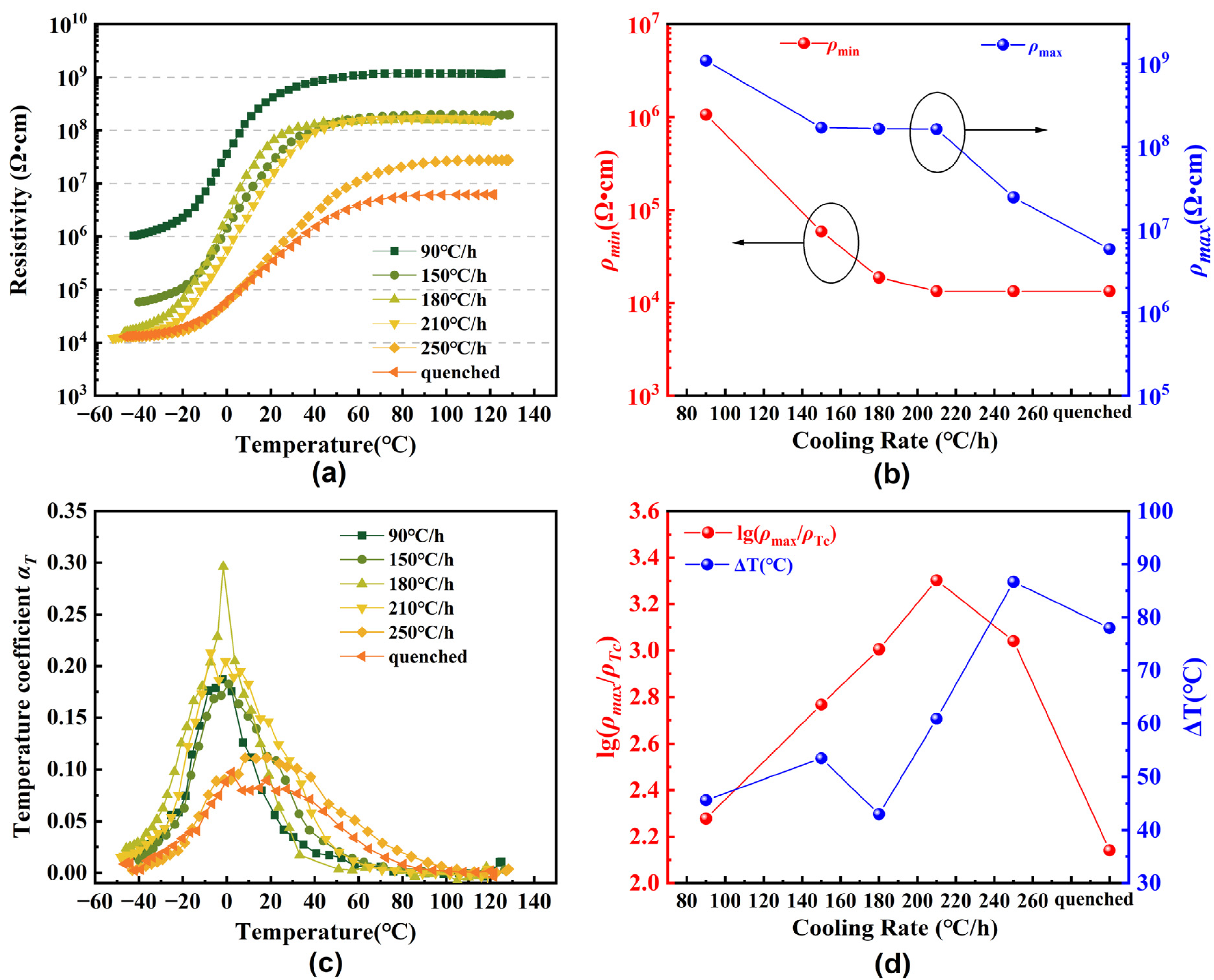

Figure 3a shows the $\rho$-$T$ curves of the Ba_0.55Sr_0.45Ti_0.9985Nb_0.0015O₃ ceramic specimens with different cooling rates. Compared with the specimen quenched, the PTC intensities of the others were enhanced significantly. Some of the resistivity jumps exceed three orders of magnitude. All the curves show almost plateau shapes after the phase transition. Within the entire testing temperature range, the resistivity and the temperature are positively correlated. Figure 3b shows the influence of the cooling rates on ${\rho }_{min}$ and ${\rho }_{max}$. Both the ${\rho }_{min}$ and ${\rho }_{max}$ values increased with a decrease in the cooling rate. They show different changing characteristics. The ${\rho }_{min}$ values increased slightly from 1.4 × 10⁴ Ω·cm to 1.8 × 10⁴ Ω·cm when the cooling rate was higher than 180 °C/h and then increased sharply with the decrease in the cooling rate, while the ${\rho }_{max}$ values increased sharply at first from 5.9 × 10⁶ Ω·cm to 1.6 × 10⁸ Ω·cm when the cooling rate reduced to 210 °C /h from 250 °C/h and tended to become milder at the cooling rates of 210 °C/h, 180 °C/h, and 150 °C/h and then increase largely at 90 °C/h. The results indicate that the specimens with cooling rates of 180 °C/h and 210 °C/h could produce a large resistivity jump during the phase transition. The fluctuation of the temperature coefficient ${\alpha }_T$ with temperature is shown in Figure 3c. Compared with the quenched specimen, all ${\alpha }_T$ values of the specimens with different cooling rates were improved. Among them, the specimen with the cooling rate of 180 °C /h shows the largest increase, from 0.10 to 0.296, and the sharpest $\alpha$ vs. $T$ curve, which reveals the narrowest phase transition temperature span. Figure 3d gives the cooling rate dependence of ${lg(\rho }_{max}$/${\rho }_{T_c}$) and ΔT. The magnitude of the resistivity change is higher than 3 for specimens with a cooling rate of 210 °C/h to 180 °C/h, reaching 3.3 and 3.1, respectively. The values of ΔT reduced significantly with the decrease in the cooling rate. Among them, the specimen with a 180 °C/h cooling rate shows the smallest value, ~38 °C.

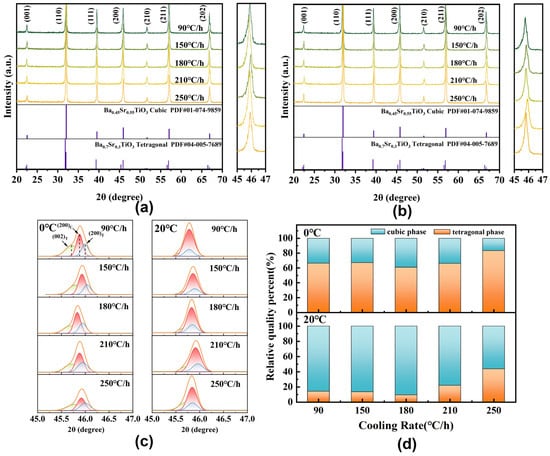

Figure 4 illustrates the XRD patterns of the specimens with different cooling rates. The tests were carried out at around 0 °C and 20 °C, respectively. Compared with the results of Figure 2, no second phase was detected. Similar asymmetrical (200) peaks can also be observed at around 46 degrees in Figure 4a,b, which indicates the coexistence of the cubic phase and tetragonal phase in the specimens. The phase compositions at 0 °C and 20 °C were determined using RIR methods, based on the XRD data presented in Figure 4a,b. As shown in Figure 4d, different from the results in Figure 2d, the results reveal that the main phase component turned to be the cubic phase for all specimens, and the transition from the ferroelectric to the paraelectric phase is almost complete at 20 °C for those specimens with the cooling rates of 90 °C/h, 150 °C/h, and 180 °C/h. The results are consistent with the results in Figure 3a.

The cooling rate influenced the resistivity and its change during the phased transition significantly; in turn, the PTC properties of the ceramics were enhanced markedly.

The surface morphology of the specimens with different cooling rates is shown in Figure 5. The SEM images indicate that there are little differences in grain morphology, as all the specimens were sintered at the same temperature. The grains are fully developed with sharp polyhedral edges, and the cleavage plane is distinct. The granular structures exhibit similar characteristics across all samples, with approximately 90% of theoretical density, grain sizes of about 2–3 μm, and a consistent size distribution, regardless of the cooling conditions. Figure 5 shows that, in our work, the morphology of the specimens is not significantly affected by variations in the cooling rate. The uniformity in morphology across all samples indicates that changes in electrical properties likely stem from the impact of defect restoration and/or adsorbed oxygen on the grain boundaries in the specimens by different cooling rate sintering processing.

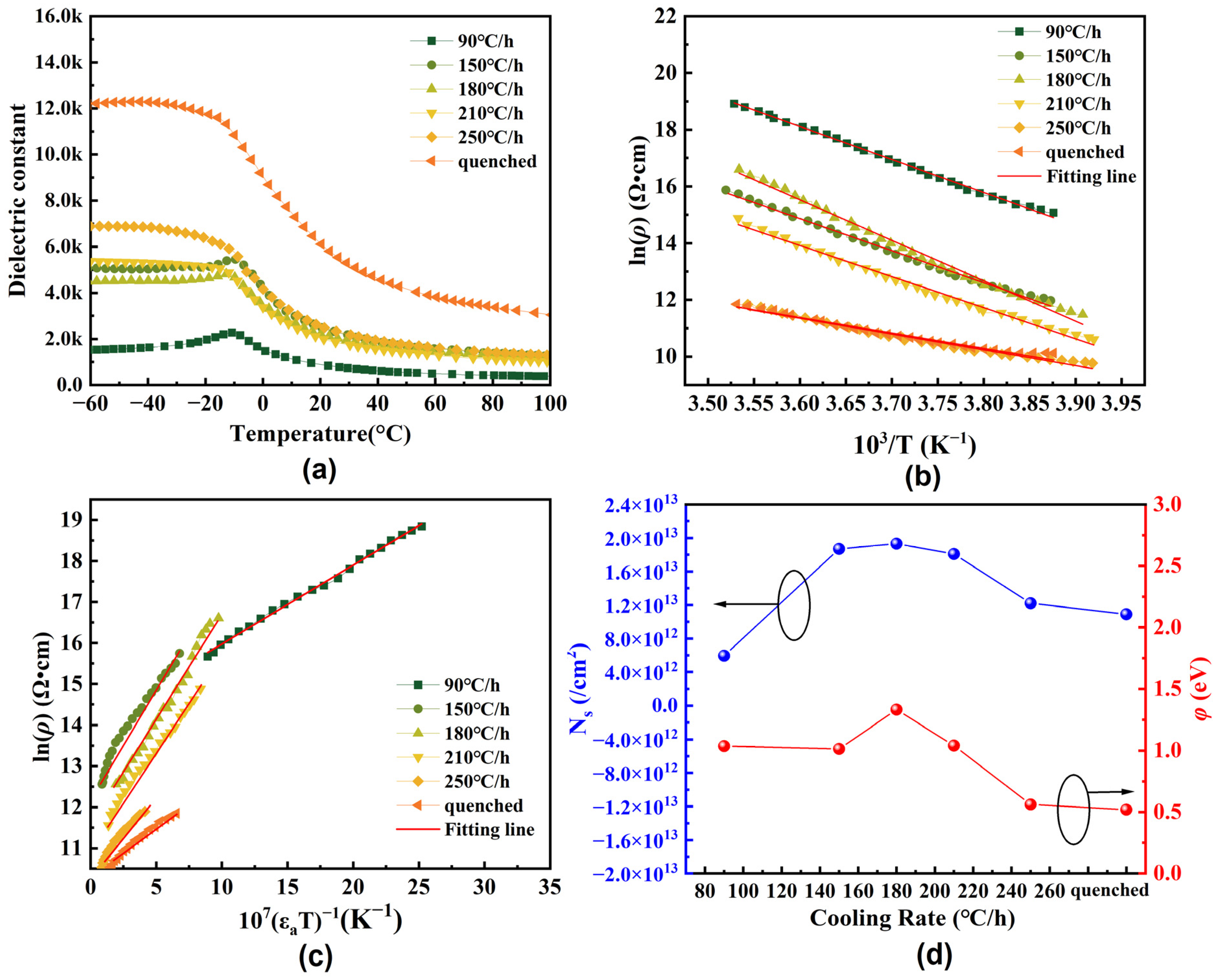

Figure 6a shows the change in the dielectric constant as a function of temperature for all specimens in Figure 3a. The grain boundary barrier ${\phi }_0$ and interface state density $N_s$ of the specimens in Figure 3a were calculated from the data in Figure 6b and Figure 6c, respectively, and are shown in Figure 6d.

The height of the potential barrier (${\phi }_0$) can be determined using the formula below [22]:

$${\rho }_s={\alpha \rho }_v·\mathrm{e}\mathrm{x}\mathrm{p}\left(\frac{e{\phi }_0}{kT}\right)$$

(2)

where ${\rho }_s$ is the resistivity of the grain boundary, and ${\rho }_v$ means the grain bulk resistivity. The resistivity of ceramics $\rho$ = ${\rho }_s$ + ${\rho }_v$. When the temperature is much higher than $T_c$, the value of ${\rho }_s$ will far exceed the value of ${\rho }_v$, so $\rho$ ≈ ${\rho }_s$ [22]. Then, Equation (2) can be rewritten as

$$ln{\rho }_s=ln\left(\alpha {\rho }_v\right)+e{\phi }_0/kT$$

(3)

The ${\phi }_0$ can be calculated from the slope of $ln{\rho }_s$ vs. $1/T$. The potential barrier ${\phi }_0$ results from a two-dimensional electron trap at the grain boundary, where interface states attract electrons from the bulk and can be expressed as [23]

$${\phi }_0(T>T_c)=\frac{e{N_S}^2}{8{\epsilon }_0{\epsilon }_r{N}_d}=\frac{e{N}_{s}r}{16{\epsilon }_0{\epsilon }_a}$$

(4)

Here, $N_S$ means the ceramic grain boundary interface state density and $N_d$ is the charged carrier density, ${\epsilon }_0$ is the vacuum absolute dielectric constant, ${\epsilon }_r$ is the dielectric constant of the grain boundary, $e$ is the constant of elementary charge, r is the grain size, and ${\epsilon }_a$ is the apparent dielectric constant. Similarly, Equation (3) can be rewritten as

$$ln{\rho }_s=ln\left(\alpha {\rho }_v\right)+e^{2}r{N}_s/16{k\epsilon }_0{\epsilon }_{a}T$$

(5)

It is clear that the value of $N_S$ is related to the slope of $ln\left(\rho \right)$ vs. $1/{\epsilon }_{a}T$. Compared with the quenched specimen, the ${\phi }_0$ and $N_S$ values of other specimens increased obviously. Among them, the specimens with 180 °C /h and 210 °C /h show a high increase in both ${\phi }_0$ and $N_S$. The results show that the concentration of the interface state density $N_S$ varies with the cooling rate and the larger interface state density $N_S$ results in a higher potential barrier.

4. Conclusions

In this work, low-Curie-temperature (<−10 °C) PTCR Ba_0.55Sr_0.45Ti_(1−x)Nb_xO₃ ceramics were prepared and their PTCR properties were investigated experimentally. Proper Nb doping could cause the $T_C$ of Ba_0.55Sr_0.45TiO₃ ceramics to lower around −10 °C and exhibit a satisfactory PTCR performance. The effect of the cooling rate on the PTC effect of ceramics was investigated. The results indicate that a proper cooling rate would be helpful in increasing the absorption of oxygen located at the grain boundaries during the sintering. The absorbed oxygen at the ceramic boundaries could act as the surface states to increase the grain boundary potential barrier. As a result, the PTC property of the ceramics could be improved. The Ba_0.55Sr_0.45Ti_0.9985Nb_0.0015O₃ ceramics with a 180 °C /h cooling rate showed a resistivity jump of 3.1 in a narrow $∆T$ of 38 °C and a very high temperature coefficient of 0.296 at −3.4 °C. The T_c is ~13 °C. Compared with the reported low-Curie-temperature PTCR materials [9,10,11,24,25], Ba_0.55Sr_0.45Ti_0.9985Nb_0.0015O₃ ceramics exhibit outstanding comprehensive PTCR performance. In particular, the proper $T_c$ (~−13 °C), the acceptable narrow temperature span ($∆T$, 38 °C), and the sufficiently large resistivity jump value (~3.1) make them potential candidates in the application of the internal heating control systems of lithium–ion batteries.
