Microstructural Optimization of Sn-58Bi Low-Temperature Solder Fabricated by Intense Pulsed Light (IPL) Irradiation

Abstract

In this study, intense pulsed light (IPL) soldering was employed on Sn-58Bi solder pastes with two distinct particle sizes (T3: 25–45 μm and T9: 1–8 μm) to investigate the correlation between the solder microstructure and mechanical properties as a function of IPL irradiation times. During IPL soldering, a gradual transition from an immature to a refined to a coarsened microstructure was observed in the solder, impacting its mechanical strength (hardness), which initially exhibited a slight increase followed by a subsequent decrease. It is noted that hardness measurements taken during the immature stage may exhibit slight deviations from the Hall–Petch relationship. Experimental findings revealed that as the number of IPL irradiation sessions increased, solder particles progressively coalesced, forming a unified mass after 30 sessions. Subsequently, after 30–40 IPL sessions, notable voids were observed within the T3 solder, while fewer voids were detected at the T9-ENIG interface. Following IPL soldering, a thin layered structure of Ni₃Sn₄ intermetallic compound (IMC) was observed at the Sn-58Bi/ENIG interface. In contrast, reflow soldering resulted in the abundant formation of rod-shaped Ni₃Sn₄ IMCs not only at the reaction interface but also within the solder bulk, accompanied by the notable presence of a P-rich layer beneath the IMC.

1. Introduction

Modern electronic packaging technology, which facilitates the interconnection of semiconductor chips and packages through solder bonding, stands as a pivotal component in ensuring device reliability [1,2,3,4,5]. While conventional reflow soldering techniques utilizing convection ovens have been extensively employed, there is a persistent drive to address substrate warpage stemming from disparate coefficients of thermal expansion among electronic package materials, alongside endeavors to curtail soldering expenses [6,7]. This impetus has fueled the continual evolution of technologies such as laser-assisted bonding (LAB) and intensive pulsed light (IPL) soldering.

LAB technology, exploiting a laser wavelength that exhibits heightened absorption characteristics in Si chips relative to polymer materials, offers the notable advantage of mitigating substrate heating and minimizing warpage [8,9,10]. Through decades of dedicated research, a repertoire of materials and methodologies applicable to LAB, including flux-free underfills, has been cultivated. Nonetheless, LAB equipment is encumbered by the requisite inclusion of a homogenizer to transform the laser point source into a planar source, and achieving large-area irradiation poses a formidable challenge. Conversely, IPL technology has traditionally found utility in aggregating and sintering minute nanoparticles via diffusion-mediated reactions. Recently, there has been a burgeoning interest in repurposing this technology for soldering processes. These advancements underscore the relentless pursuit within the electronic packaging industry of ways to bolster the reliability of soldering operations, address substrate warpage concerns, and optimize cost efficiency.

Only a limited number of documented instances involve the application of IPL soldering to Sn-based solder formulations within operational electronic packages [11,12,13,14,15,16]. Jung et al. [11] presented findings detailing the IPL soldering of Sn-58Bi, illustrating a mere 2.5% duration requirement relative to conventional reflow techniques, alongside a 40% enhancement in mechanical strength. Ha et al. [12] conducted an evaluation of the reliability impact on Sn–3.0Ag–0.5Cu ball grid array (BGA) packages with Electroless Nickel Electroless Palladium Immersion Gold (ENEPIG) surface treatment, employing the IPL soldering methodology. Experimental observations under optimized IPL parameters revealed an approximate 6.7-fold increase in the number of failure cycles compared to reflow soldering. Furthermore, Min et al. [13] provided comprehensive experimental results contrasting IPL soldering against conventional reflow soldering. Their analysis indicated significantly lower power consumption during the IPL radiation soldering process (17.95 kWh) compared to the traditional convection reflow process (29.50 kWh). Moreover, IPL-soldered joints exhibited a substantial improvement in drop impact reliability (with a recorded number of drops to failure of 277) compared to reflow-soldered joints (with a recorded number of drops to failure of 103). These findings underscore the considerable potential of IPL soldering in reducing process duration, controlling intermetallic compound (IMC) thickness to enhance drop impact reliability, and optimizing power consumption.

In addition to the aforementioned advantages, IPL soldering exhibits distinctive attributes. For instance, in reflow soldering, post-process grain growth in solders is prominently observed. Conversely, the IPL process affords facile manipulation of the degree to which metal particles constituting the solder paste are liquefied, through adjustments in process parameters such as frequency, pulse width, and intensity. This inherent flexibility facilitates the generation of varied microstructural configurations, spanning from refined microstructures with diminutive grain sizes to those characterized by larger grain dimensions. In this study, meticulous scrutiny of the microstructural evolution of Sn-58Bi solder paste was undertaken, spanning from its nascent stages to later stages of reaction. The investigation encompassed an analysis of the correlation between grain size and resultant mechanical properties. It is posited that such investigations furnish valuable insights pertinent to future applications of IPL in soldering processes.

2. Materials and Methods

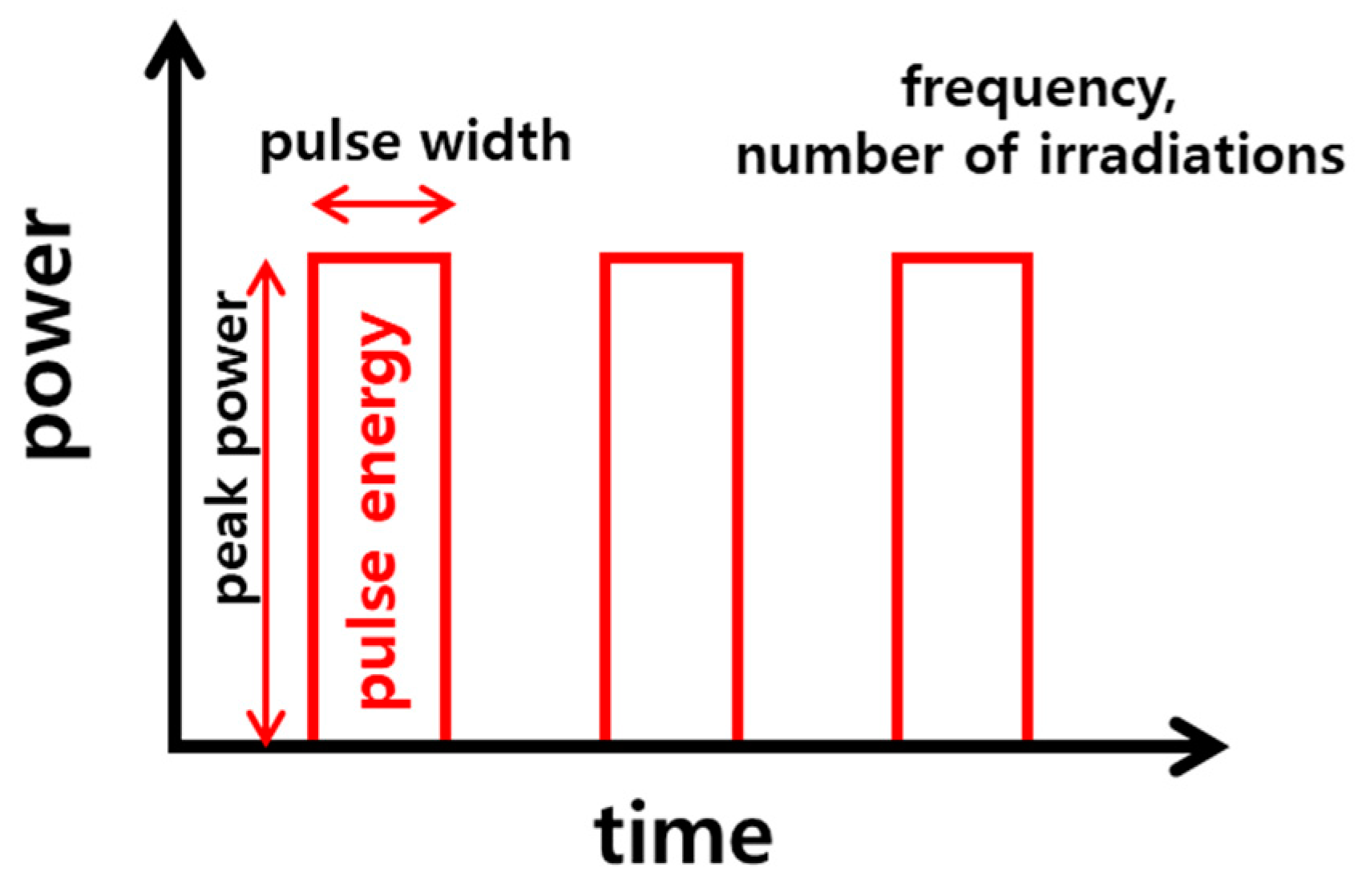

Two distinct sizes of Sn-58Bi solder paste were procured from BBEIN: type 3 (BBI-LESP04, 25–45 µm) and type 9 (BBI-NCLFSP048, 1–8 µm). A printed circuit board (PCB) featuring Electro-less Nickel Immersion Gold (ENIG)-treated 400 µm metal pads was fabricated for substrate application, possessing dimensions of 77 × 132 mm² with a 6 × 12 array for ball alignment. Solder paste deposition onto the PCB was facilitated using a metal mask with a thickness of 0.2 mm. For IPL soldering, the charge voltage and peak current were maintained at 1500 V and 2000 A, respectively. The IPL irradiation area spanned 20 × 30 cm². Process variables for IPL, including frequency and pulse width, were set at 3 Hz and 2.0 ms, respectively, with IPL irradiation sessions ranging from 10 to 70 during soldering operations. Figure 1 provides a graphical representation of the IPL process variable configurations for enhanced comprehension. Furthermore, the experimental parameters utilized in this investigation are summarized in

Table 1. IPL soldering conditions and sample identification.

Sample ID	Frequency	Pulse Width	Number of IPL Irradiation	Total Energy	Power Consumption	Time
	(Hz)	(ms)	(n)	(J/cm2)	(kWh)	(sec)
IPL 10	3	2	10	100	18	3.3
IPL 20	3	2	20	200	18	6.6
IPL 30	3	2	30	300	18	9.9
IPL 40	3	2	40	400	18	13.2
IPL 50	3	2	50	500	18	16.5
IPL 60	3	2	60	600	18	19.8
IPL 70	3	2	70	700	18	23.1
reflow						600

. Depending on the experimental conditions, the applied energy increased proportionally with IPL irradiation sessions, ranging from 100 to 700 J/cm², while maintaining a consistent power consumption of 18 kWh.

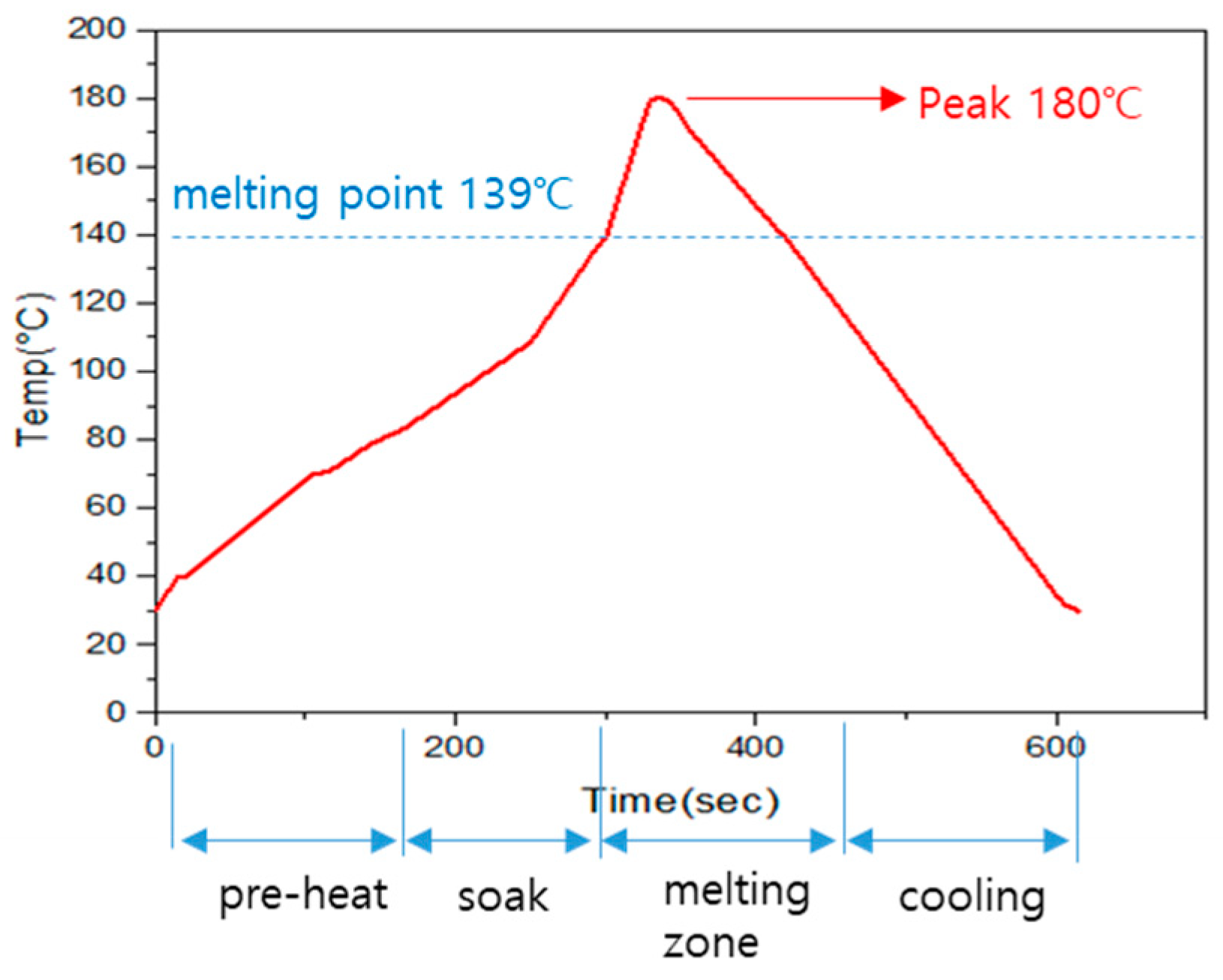

For comparative analysis, a reflow-soldered joint was fabricated utilizing a reflow machine (model: BT301N) manufactured by Autotronik-SMT GmbH, Amberg, Germany. The peak temperature during reflow was set at 180 °C, and the specific reflow profile employed in the experimental setup is delineated in Figure 2. Microstructural and compositional characterization of the solder joints was conducted utilizing field emission scanning electron microscopy (FE-SEM, model: JEOL JSM-7900) coupled with energy dispersive spectroscopy (EDS, model: JEOL JXA-8500F). The thickness of the IMC in the SEM micrographs was quantified by employing image analysis software, whereby the thickness of the IMC layer was defined as the total area occupied by the phase divided by its length. Average thickness values were derived from measurements acquired from six distinct regions within each reaction specimen. Electron Backscattered Diffraction (EBSD) analysis was performed utilizing FE-SEM (model: HITACHI S-5000) equipped with EDAX Velocity super. The hardness of the solder joints post-IPL irradiation was assessed utilizing MMT-X7A equipment from MATSUZAWA. The hardness assessment involved the averaging of measurements taken at six distinct locations for each solder, with a measurement interval of 100 μm, using a load of 5 gf and a dwell time of 10 s.

3. Results and Discussion

3.1. Microstructural Evolution during IPL Soldering

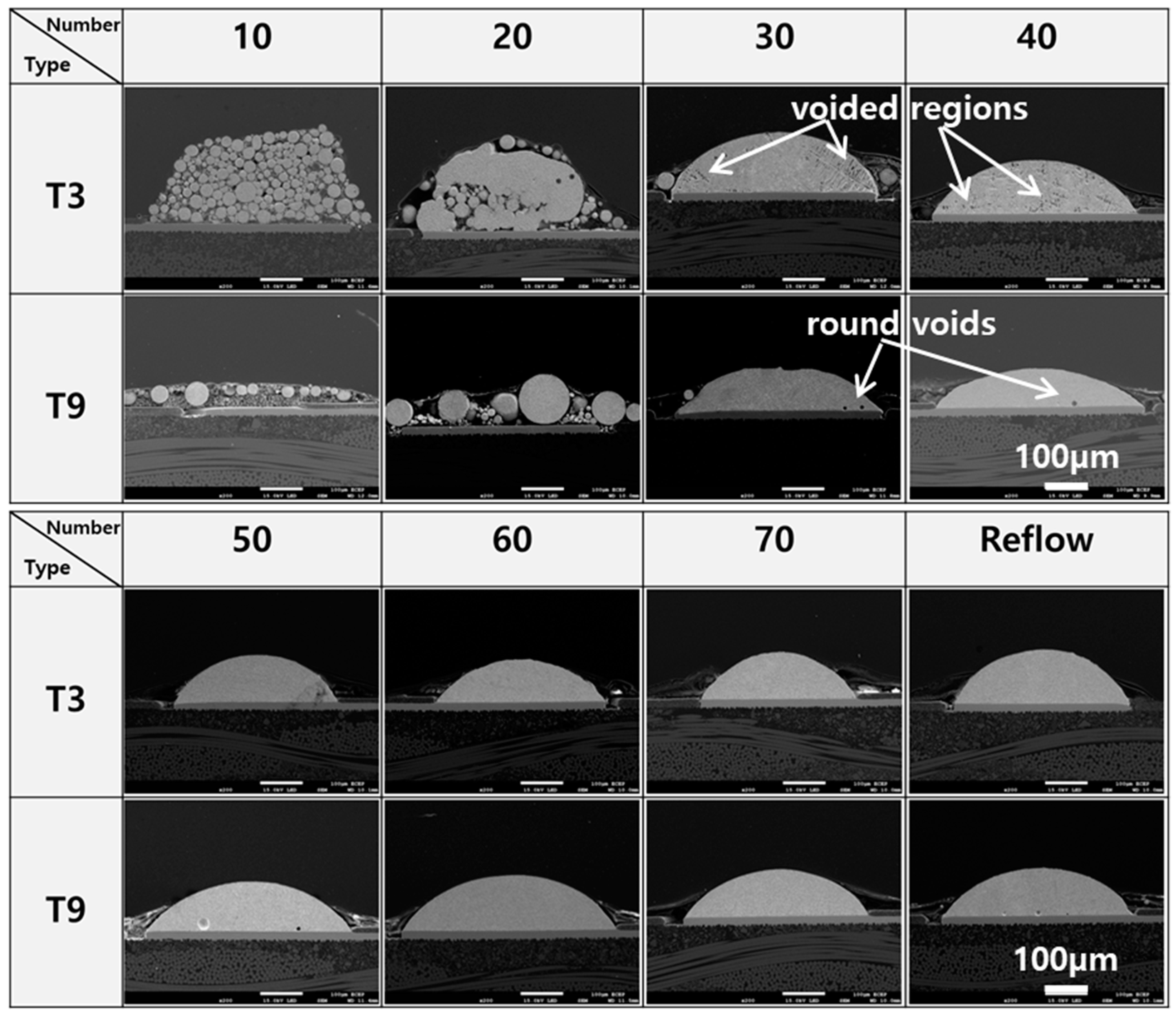

When IPL soldering was conducted under the prescribed conditions of a 3 Hz frequency and a 2 ms pulse width, the evolution of macrostructural features in Sn-58Bi solder paste was observed as a function of the number of IPL irradiation sessions, as illustrated in Figure 3. Following 10 IPL irradiation sessions, it is evident that a substantial portion of both type 3 (T3) and type 9 (T9) solder paste particles remained unmelted, retaining their initial particle size distribution. Notably, in the case of T9, partial melting and recombination of particles can be observed predominantly in the upper region, resulting in an enlargement of particle dimensions from the initial 1–8 μm range to several tens of micrometers.

After 20 IPL irradiation sessions, notable particle bonding occurred, particularly evident in the T3 solder paste despite its larger initial particle size. Significant solder lump formation, primarily concentrated in the upper portion, can be observed, with partial lump formation occurring in regions interfacing with the ENIG substrate. Notably, remnants of smaller particles persist in the mid-section. Conversely, in T9, the agglomeration phenomenon initiated in the uppermost region propagates downward, albeit with limited advancement observable at the lower extremity.

Following 30 IPL irradiation sessions, complete fusion of solder particles from both T3 and T9 culminated in the formation of a singular, substantial solder bump. Subsequent to 30–40 IPL irradiation sessions, a considerable prevalence of voids can be observed within the T3 solder bump, whereas T9 exhibits only sparse, round voids primarily localized at the lower extremity of the solder bump. The occurrence of voids during IPL soldering can be attributed to the size and aggregation process of the initial solder particles in the solder paste, as well as the wetting characteristics on ENIG, the substrate surface treatment. In the T3 sample, substantial aggregates form as a unified entity, with voids emerging in between, whereas in the T9 sample, initial formation comprises small and medium-sized aggregates that subsequently coalesce into a single large aggregate. Notably, for the T9 sample, the initial solder particle size is smaller, and there is improved spreading on ENIG, resulting in a minimal occurrence of voids. Beyond 50 IPL irradiation sessions, both T3 and T9 configurations manifest a densified microstructure with minimal void formation, with discernible convergence in structural characteristics.

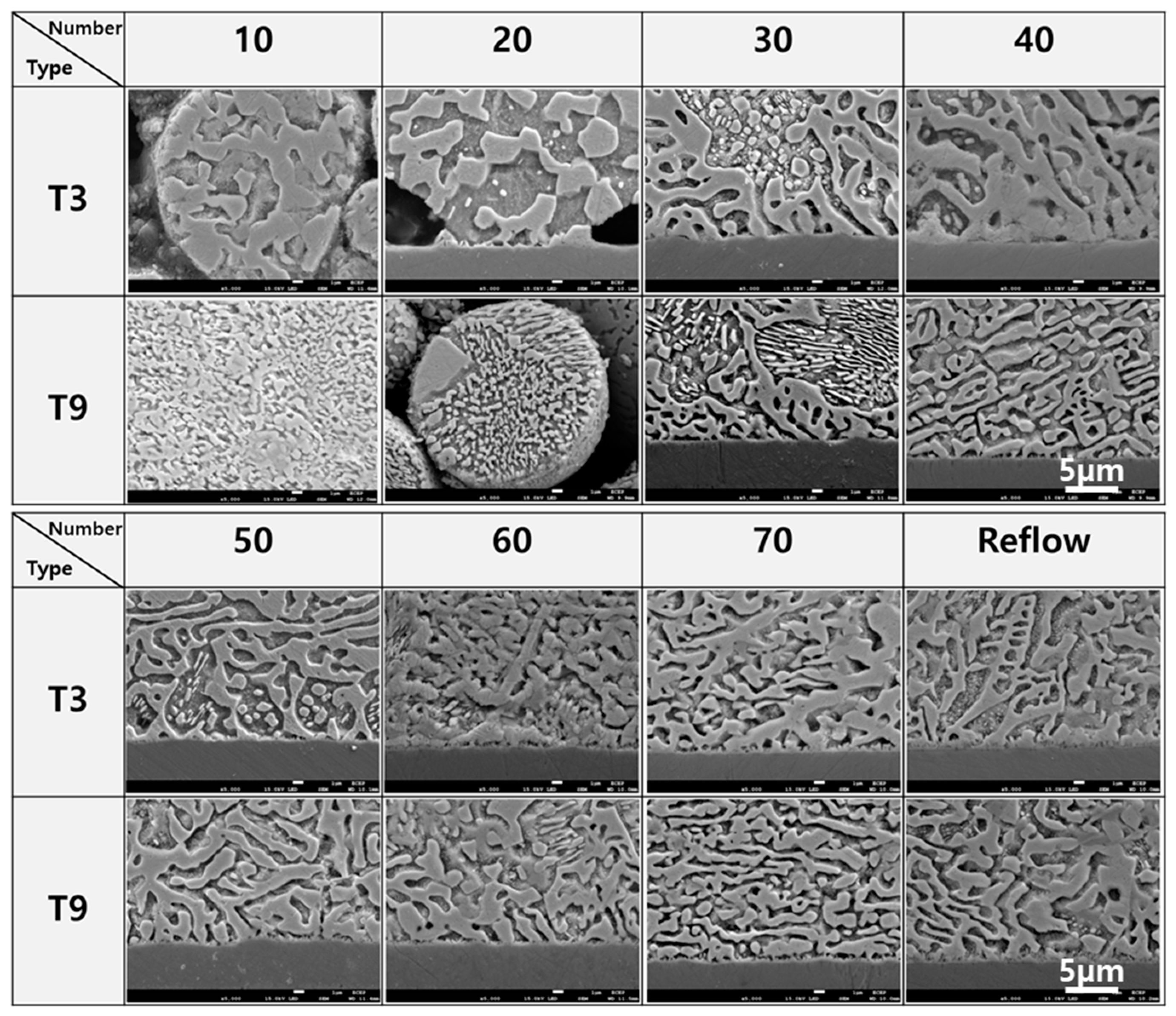

Under the conditions of a 3 Hz frequency and a 2.0 ms pulse width, the alterations in the microstructural characteristics of Sn-58Bi solder paste as a function of the number of IPL irradiation sessions were as depicted in Figure 4. Initial inspection of the Sn-58Bi solder particles after 10–20 IPL sessions revealed a notably finer microstructure in type 9 (T9) compared to type 3 (T3). Notably, the bright, protruding regions within the solder particles corresponded to Bi, while the darker, recessed regions represented Sn, forming an alternately arranged lamellar structure. The lamellar width was in the order of several micrometers in T3, whereas it diminished to submicron dimensions in T9.

As IPL reached 30–40 sessions, the emergence of interparticle bonding and the coarsening of lamellar structures within the particles became increasingly apparent. Particularly in the case of T9, the microstructure following 30 IPL iterations exhibited a coexistence of regions characterized by submicron-sized lamellae and coarsened regions featuring lamellae several micrometers wide. Subsequent IPL irradiation sessions led to a predominant transformation of the microstructure, where the solder area predominantly comprised coarsened regions. Beyond 50 IPL sessions, discerning differences in microstructural features between T3 and T9 became challenging.

It is established that the reaction between Sn-58Bi solder and ENIG results in the formation of Ni₃Sn₄ IMCs at the interface [17,18,19,20,21,22,23,24]. Initially, when the number of IPL irradiation sessions is limited, the thickness of the formed IMC remains minimal. However, as the number of irradiation sessions increases to 70, Ni₃Sn₄ IMCs with thicknesses comparable to those observed in conventional reflow soldering can be discerned at the interface. Notably, the degree of IMC formation appears independent of the solder particle size, indicating a consistent reaction mechanism across different particle sizes.

3.2. Correlation between Microstructure and Mechanical Properties of Sn-58Bi Solder

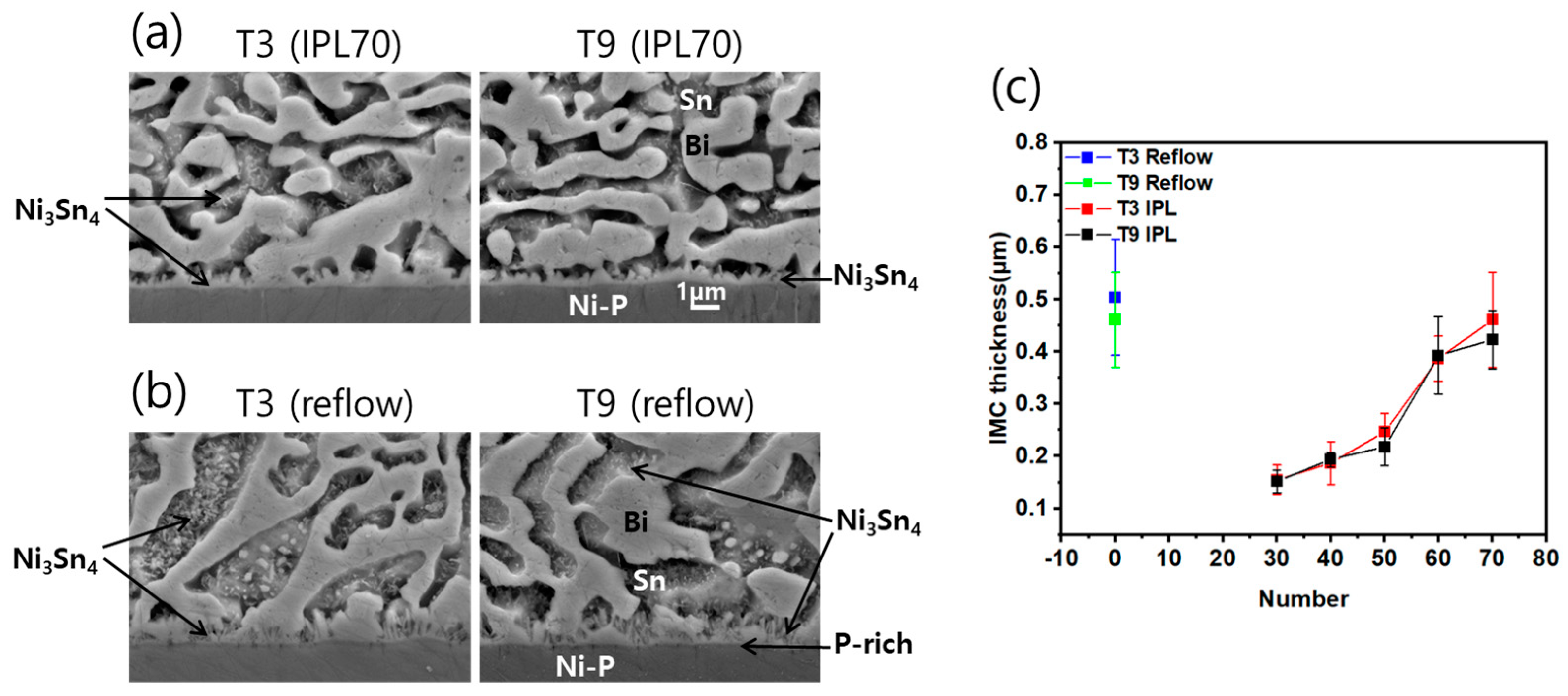

The morphological features of the Sn-58Bi/ENIG reaction interfaces following 70 rounds of IPL irradiation and conventional reflow processing are depicted in Figure 5. Post 70 IPL rounds, a thin layered structure of Ni₃Sn₄ IMCs can be observed at the interface, alongside the presence of a minor quantity of feather-shaped IMCs within the Sn-rich region within the solder matrix. In contrast, after the reflow process, rod-shaped Ni₃Sn₄ IMCs are evident at the interface, accompanied by a notable abundance of feather-shaped IMCs distributed throughout the solder volume. Notably, a distinct P-rich layer atop the Ni-P layer is prominently visible in the reflow specimen, presenting as a thin, dark band [25,26,27,28]. Conversely, this P-rich layer is conspicuously absent from the IPL specimen. These observations suggest a heightened level of chemical reactivity occurring at the Sn-58Bi/ENIG interface during the conventional reflow process.

During the IPL process, the intermittent application of instantaneous light followed by rapid cooling cycles leads to inadequate interdiffusion between the solder and ENIG. In contrast, the reflow process maintains the solder in a molten state for an extended duration, facilitating sufficient interdiffusion between the solder and ENIG. Consequently, once Ni atoms are introduced into the solder, they can diffuse over an extended period and react with Sn to form additional Ni₃Sn₄ IMCs within the solder matrix.

Initially, the thickness of Ni₃Sn₄ IMCs formed at the interface during the IPL process is minimal, and the growth rate is sluggish. However, after 50 IPL irradiation sessions, the IMC growth rate accelerates significantly compared to the initial stages of the reaction, as shown in Figure 5c. Nonetheless, even after 70 IPL irradiation sessions, the overall thickness of the IMCs remains inferior to that observed in the reflow process.

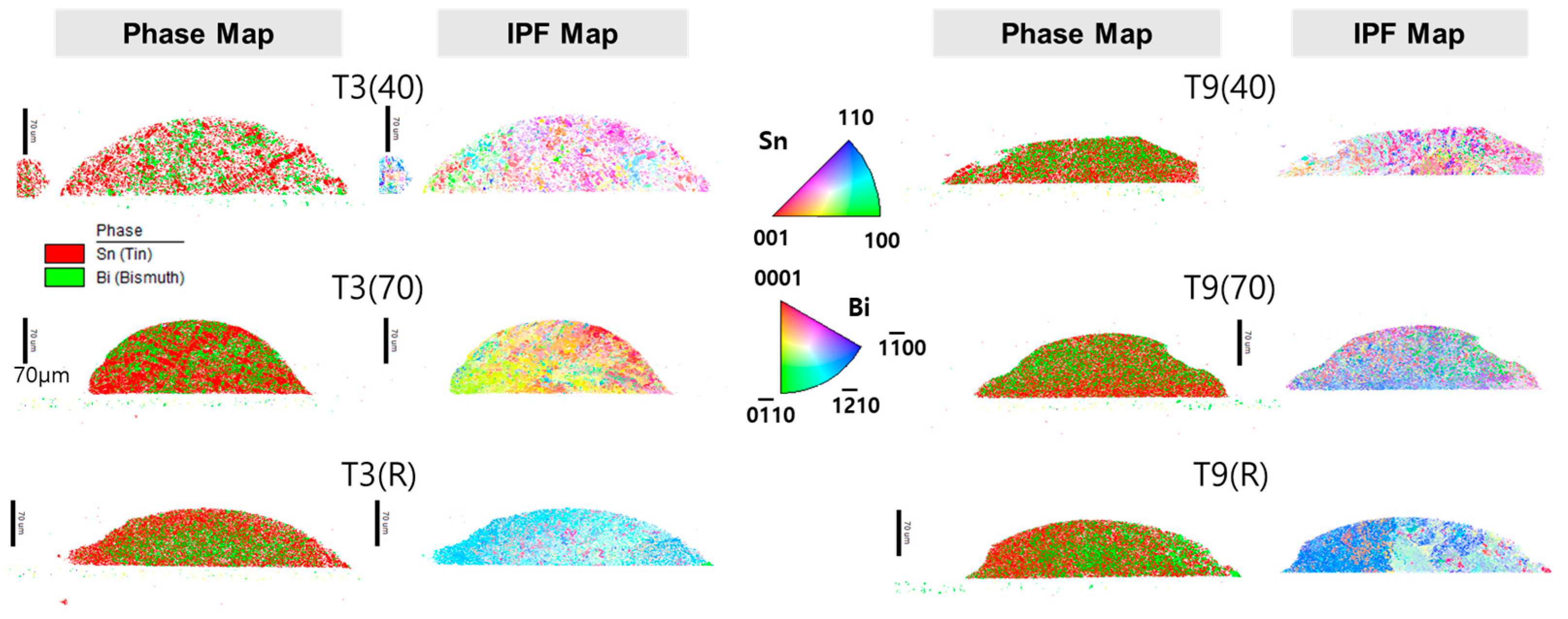

Following IPL and reflow soldering, EBSD analysis was conducted to assess the microstructural characteristics and grain orientation within the solder specimens. Phase maps and inverse pole figures (IPFs) for each solder variant were generated, as depicted in Figure 6. In the phase map, the red region signifies Sn while the green region corresponds to Bi. Post-IPL and reflow soldering, discernible variations in grain orientation were observed within the solder specimens.

Upon IPL soldering for 40 cycles, the orientation of Sn grains was situated within the intermediary region between the (001) and (110) planes in both T3 and T9 specimens. With an increase in the number of IPL irradiation sessions to 70, T9 specimens maintained a similar orientation, while T3 specimens exhibited an orientation spanning from (001) to (100). Conversely, after reflow soldering, a dominance of orientation within the intermediate region of the (100) and (110) planes was observed in both T3 and T9 specimens, with the left-hand side of T9 grains exhibiting a direct (110) orientation in addition.

Regarding Bi grains, the (1$\overline{2}$10) orientation emerged as the predominant orientation across all specimens, irrespective of the soldering method employed. Additionally, the presence of the (0001) orientation was noted alongside the (1$\overline{2}$10) orientation exclusively within the grains of 70-IPL-session specimens. This observed shift in solder grain orientation contingent upon the soldering method or degree of irradiation presents an intriguing discovery warranting further investigation.

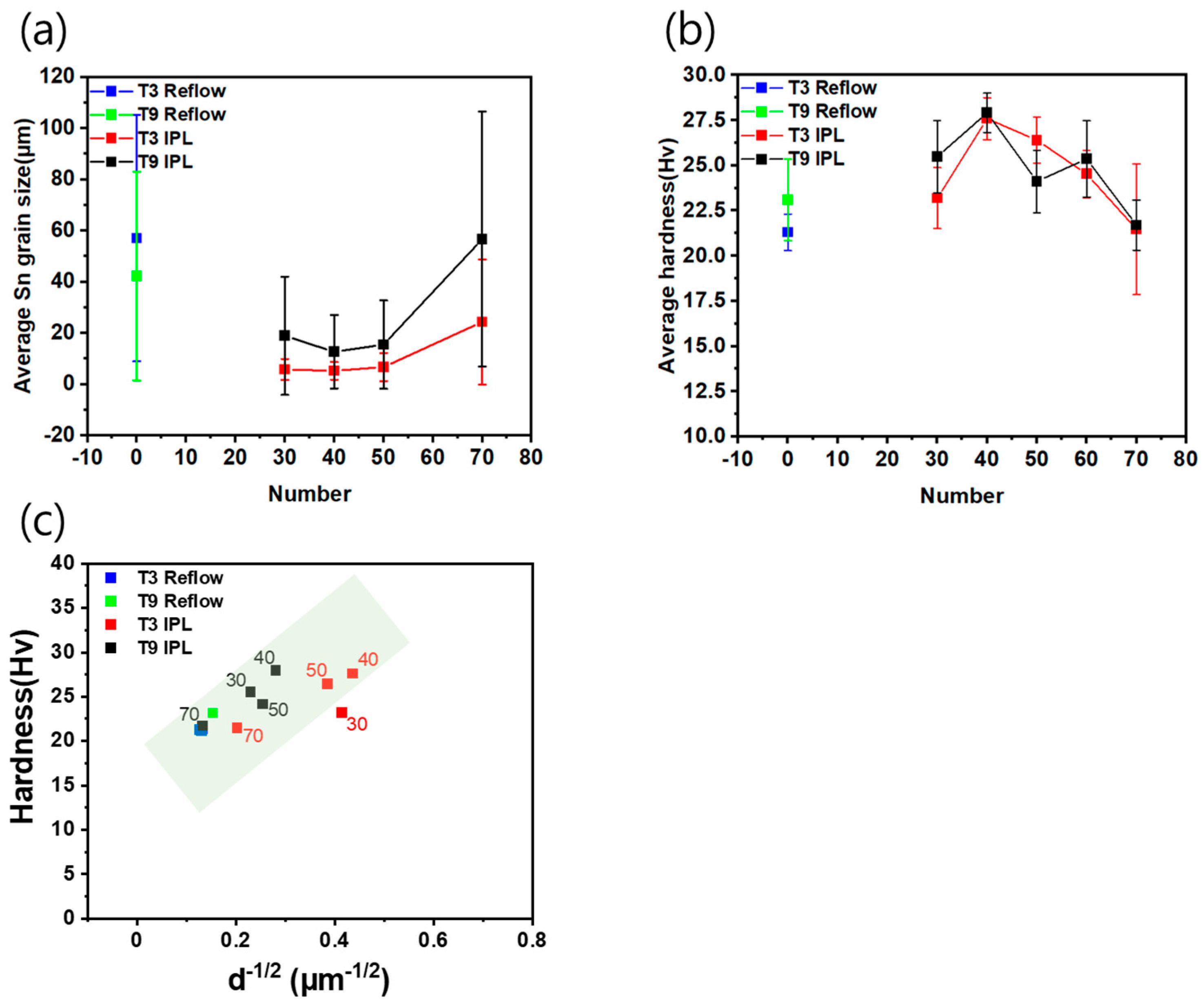

Figure 7 illustrates the variations in average Sn grain size and hardness across each solder variant, as determined through EBSD analysis and hardness testing. The average grain size was quantified based on the enumeration and dimensions of grains within a 180 × 550 μm² area of each specimen. Notably, the grain size of Sn, constituting the solder, exhibited a nadir at 40 IPL sessions, subsequently increasing with additional IPL irradiation sessions. Conversely, the hardness value displayed a maximum at 40 IPL sessions, declining with escalating IPL irradiation counts.

It is widely acknowledged that as the microstructure coarsens, mechanical properties such as hardness and strength tend to degrade [29,30,31,32,33]. Specifically, hardness often conforms to the well-established Hall–Petch relationship, which correlates hardness with the inverse square root of grain size [29,30].

$$H=H_0+k{d}^{-1/2}$$

(1)

where H is hardness and d the average grain size. H₀ and k are constants. Figure 7c displays a graph illustrating the relationship between the inverse square root of average grain size (d^−1/2) and hardness (H), as determined by substituting the measured grain size and hardness values from each solder variant produced via IPL and reflow soldering into the Hall–Petch relationship. Overall, it is evident that, with the exception of the IPL T3 specimen irradiated 30 times, the graph demonstrates a predominantly linear correlation between d^−1/2 and H, thus adhering to the Hall–Petch relationship.

In the realm of solder compositions, studies have highlighted that mechanical strength tends to improve with the refinement of the internal structure. For instance, Li et al. [32] investigated composite solders comprising Sn-58%Bi alloyed with 0, 0.03, 0.05, and 0.1 wt% Cu₆Sn₅ nanoparticles. They observed that the addition of Cu₆Sn₅ nanoparticles, particularly those sized at 10 nm, led to microstructural refinement of the Sn-58%Bi solder, with the solder containing 0.05 wt% Cu₆Sn₅ nanoparticles exhibiting superior performance. This enhancement in solder strength was attributed to the refinement of matrix phases, aligning with the principles outlined in the Hall–Petch equation. Similarly, Zhang et al. [33] demonstrated that Ga additions in Sn-XGa alloys (where X = 0.5, 1.0, 2.0 wt%) could moderately refine β-Sn grains while rendering the alloys more prone to recrystallization during cross-sectioning and polishing processes. Notably, Sn-1.0Ga exhibited significantly elevated yields and tensile strengths compared to pure Sn, attributed to the robust solid-solution strengthening effect of Ga and the refinement of β-Sn grains.

In this study, an intriguing observation was made where, despite an increase in the number of IPL irradiation sessions from 30 to 40 during the initial stages of the IPL process, the hardness of Sn-58Bi solders exhibited an increase, contrary to the expectations based on the Hall–Petch relationship. This anomaly is believed to be associated with the densification of the solders. As depicted in Figure 3, the solder initially possessed a coarse microstructure with internal voids at 30 IPL sessions, gradually transitioning into a denser structure with diminishing voids as the number of IPL sessions increased. This transformation in the microstructure of the solder likely contributed to the enhancement of its mechanical properties.

Min et al. [13] explored the feasibility of IPL soldering for BGA package assembly under varying IPL soldering conditions. During the soldering process, Ag and Cu components within the Sn-3.0Ag-0.5Cu solder underwent transformation into Ag₃Sn and Cu₆Sn₅ IMCs. At lower IPL energies (or fewer irradiation sessions), partially unreacted Ag was detected within the solders, resulting in lower shear strength and hardness values. However, with an increase in IPL energy (or irradiation count), complete transformation of Ag to Ag₃Sn occurred, leading to improved strength and hardness. From these findings, it can be inferred that during the initial stages of the IPL soldering process, all solder particles melt and coalesce into a unified lump, yet the resulting solder lump may still exhibit an immature microstructure. The specimens subjected to 30 IPL sessions in this study likely resembled such cases, displaying an immature structure characterized by internal voids and consequently exhibiting lower hardness values. The deviation of the 30-IPL specimen from the linear relationship depicted in Figure 7c can thus be attributed to this phenomenon.

4. Conclusions

In this study, Sn-58Bi solder with two different particle sizes of 1–8 μm (T9) and 25–45 μm (T3) was used and the number of IPL irradiation sessions was increased under the frequency and pulse width conditions of 3 Hz and 2.0 ms. Through an examination of alterations in solder microstructure and hardness, the following conclusions were drawn.

(1)

As the number of IPL irradiation sessions increases, the initial solder particles gradually agglomerate and aggregate into a single lump after 30 irradiation sessions. After 30–40 IPL sessions, a large number of voids was observed overall inside the T3 solder, and a small number of round voids was discovered at the interface with ENIG in T9.

(2)

After IPL soldering, a thin layered structure of Ni₃Sn₄ IMC forms at the Sn-58Bi/ENIG interface, and the P-rich layer is not prominently visible. In contrast, after reflow soldering, rod-shaped Ni₃Sn₄ IMCs are abundantly formed not only at the reaction interface but also within the solder bulk, accompanied by the notable presence of a P-rich layer beneath the IMC.

(3)

After IPL soldering, the orientation of Sn grains is situated within the intermediary region between the (001) and (110) planes. On the other hand, after reflow soldering, a dominance of orientation within the intermediate region of the (100) and (110) planes can be observed. Regarding Bi grains, the (1$\overline{2}$10) orientation emerges as the predominant orientation across all specimens, irrespective of the soldering method employed.

(4)

During IPL soldering, as the number of irradiation sessions increases gradually, a progression from an immature to a fine to a coarsened microstructure occurs in the solder. Consequently, the mechanical strength (hardness) of the solder exhibits a tendency to initially increase slightly, before decreasing. The hardness measured in the immature stage may deviate slightly from the range predicted by the Hall–Petch relationship.

(5)

Based on the experimental findings, for IPL at a frequency of 3 Hz and a pulse width of 2 ms, optimal outcomes were achieved within the IPL exposure range of 40–50 sessions, characterized by a diminutive grain size, elevated hardness, and minimal IMC thickness.
