1. Introduction
Geopolymers are currently being developed as an environmentally beneficial alternative to Portland cement for concrete production, offering comparable performance and cost-efficient techniques while reducing greenhouse gas emissions [
1,
2]. Geopolymerization could convert a wide range of metallurgical waste alumino-silicate materials including fly ash (FA), slag, and steel slag into cementitious materials, such as pastes and binders. Nevertheless, the multifunctional design of geopolymers has attracted increasing attention by adjusting multi-component metallurgical solid wastes [
3,
4,
5], such as fire protection, thermal stability, and ultra-high toughness, as well as the freezing–thawing resistance.
Meanwhile, previous reports have manifested that slag affects most of the physical and chemical properties of the alkali-activated slag/FA paste, playing an important role during synthesis and also in determining long-term durability [
6,
7]. It has been determined that noticeable amounts of slag exert a strengthening effect on the preparation of FA-based geopolymers cured at room temperature (RT), rather than the heating curing at about 80 °C for energy saving. Ismail et al. [
8] investigated the performance of alkali silicate-activated FA/slag geopolymer binders subjected to sulfate exposure. Because the main products of alkali-activated FA/slag contain hydrotalcite and C-S-H gels, they lead to an increase in the total amount of chemical shrinkage [
9]. Nevertheless, the mechanical strength of the alkali-activated slag/fly ash geopolymer paste under frost attack remains to be studied to meet the requirements of cold regions.
However, the alkali-activated slag/FA binder possesses strong fragility and poor pliability; a lot of methods have been explored to reinforce and toughen the binder [
10,
11]. To track this problem with a cost-effective approach, the incorporation of other solid wastes has been attracting increasing attention, such as calcium carbide residue and Glauber’s salt [
12], calcium carbide slag and sodium metasilicate powder [
13], and salt-loss soda residue and oxalate acid [
14], as well as the waste perlite powder [
15]. Therefore, the multicomponent geopolymer consists of various solid wastes and is in full swing to pursue high-performance and multi-function cementitious materials, such as freezing–thawing resistance and cost effectiveness. Essentially, the alkali activation is the chemical interactions between cations like K
+, Na
+, and Ca
2+ and anions like CO
32−, OH
−, Al(OH)
−, SiO
32−, and PO
43−, the depolymerized silica tetrahedra are prone to crosslink the activated aluminum-oxygen tetrahedra or octahedral and transform into N-(C)-A-S-H chains or networks [
13,
14,
15], and the cations are trapped into the networks for equilibrium charge.
Currently, very few studies have taken silica fume (SF) into account for further optimizing the service property of alkali-activated slag/FA binder. Theoretically, SF possesses an amorphous structure and high reaction activity, which has attracted much attention and investigation in the Portland cement system. However, in the non-sintered cement system, SF-derived activators give reaction products that are very similar to those obtained using commercial silicate solutions. As a consequence of the high reactivity of this precursor, SF provides high concentrations of Si to the systems from the early stages of the reaction [
16]. Jose et al. [
17] suggest that the optimum silica replacement is 5%–10%, served as heterogeneous nucleation centers for the hydration products after the dissolution of the glassy slag by the alkali-activation.
Thus, the mechanical strength of SF-doped alkali-activated slag/FA binder needs to be further clarified to explore low-cost geopolymers with high performance. Additionally, the frost-thawing resistance of alkali-activated binder is also crucial to evaluate its usability [
18], especially for the severe-cold regions. Because of the coupling effect of internal frost-heave stress induced by phase transition and external frost-heave stress induced by ice contraction [
19], the alkali-activated slag/FA binder is vulnerable and fragile to undertake the frost attack. Regarding the SF-doped alkali-activated slag/FA binder, the SF could improve the mechanical strength. But the freeze–thaw resistance of the trinary binder needs to be clarified because a higher compressive strength does not necessarily indicate a better freeze–thaw resistance [
20].
Consequently, the identification of a strong correlation between FA, slag, and SF in the slag/FA binder studied here is significant in determining whether these materials would meet wide approval in the local market. It is necessary to explore a simple-yet-effective solution for the utilization of industrial solid waste. The primary purpose of this paper is to address the following questions based on the optimum slag dosage in alkali-activated slag/FA-based geopolymer and micro-structure evaluation of SF doped slag/FA binder is investigated through the replacement of FA with 10 wt% SF [
21]. The mechanical properties, freeze–thaw resistance, pore structure, differential scanning calorimetry (DSC), morphology, and x-ray diffraction (XRD) spectra are studied systematically to clarify the SF effect on the freeze–thaw resistance of slag/FA geopolymer paste. Generally, it explores a cost-effective, benign facile approach to design heat-free curing alkali-activated slag/FA geopolymer paste with good freezing–thawing resistance. It clarifies the reactive priority between the (N, C)-A-S-H chains and the C-S-H gels to construct durable cementitious materials.
3. Results and Discussion
3.1. Mechanical Properties of Specimens

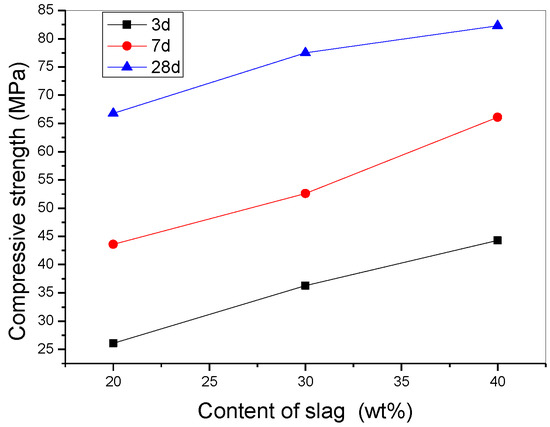

Figure 1 displays the compressive strengths of specimens, which climbs with the increasing dosage of slag. It determines that incorporated slag facilitates a higher cementitious reactivity with a substantial increase in compressive strength. The 28d compressive strength of the specimen with 40 wt% slag reached 82.3 MPa while it was 66.8 MPa for the specimen with 20 wt% slag, which revealed that the active calcium derived from slag plays an important role in improving the mechanical performance. It is proposed [
14,
22] that the hardening process is initiated by the precipitation of C-S-H/(N, C)-A-S-H gels together and that rapid hardening continues on account of accelerated geopolymerization.

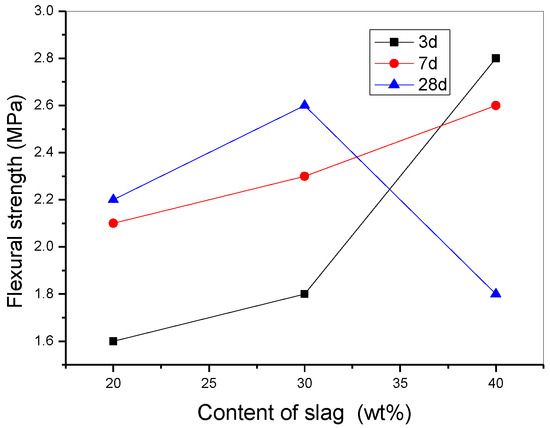

On the contrary, the 28d flexural strength of the specimen with 40 wt% slag decreases sharply after 7d curing as shown in
Figure 2. It dropped to 1.8 MPa while it was 2.6 MPa for the specimen with 30 wt% slags, implying that excess free calcium exerts a reverse effect, to the disadvantage of the flexural strength. Due to the interruption of the (N, C)-A-S-H chain gels by the newly formed C-S-H gels, inhibiting or impeding the chain propagation, more interfaces or cracks form and grow, leading to a decrease in flexural strength. As a whole, it determines that there is a critical dosage (30 wt%) of slag content for slag/FA geopolymer paste to attain excellent compressive strength as well as flexural strength.

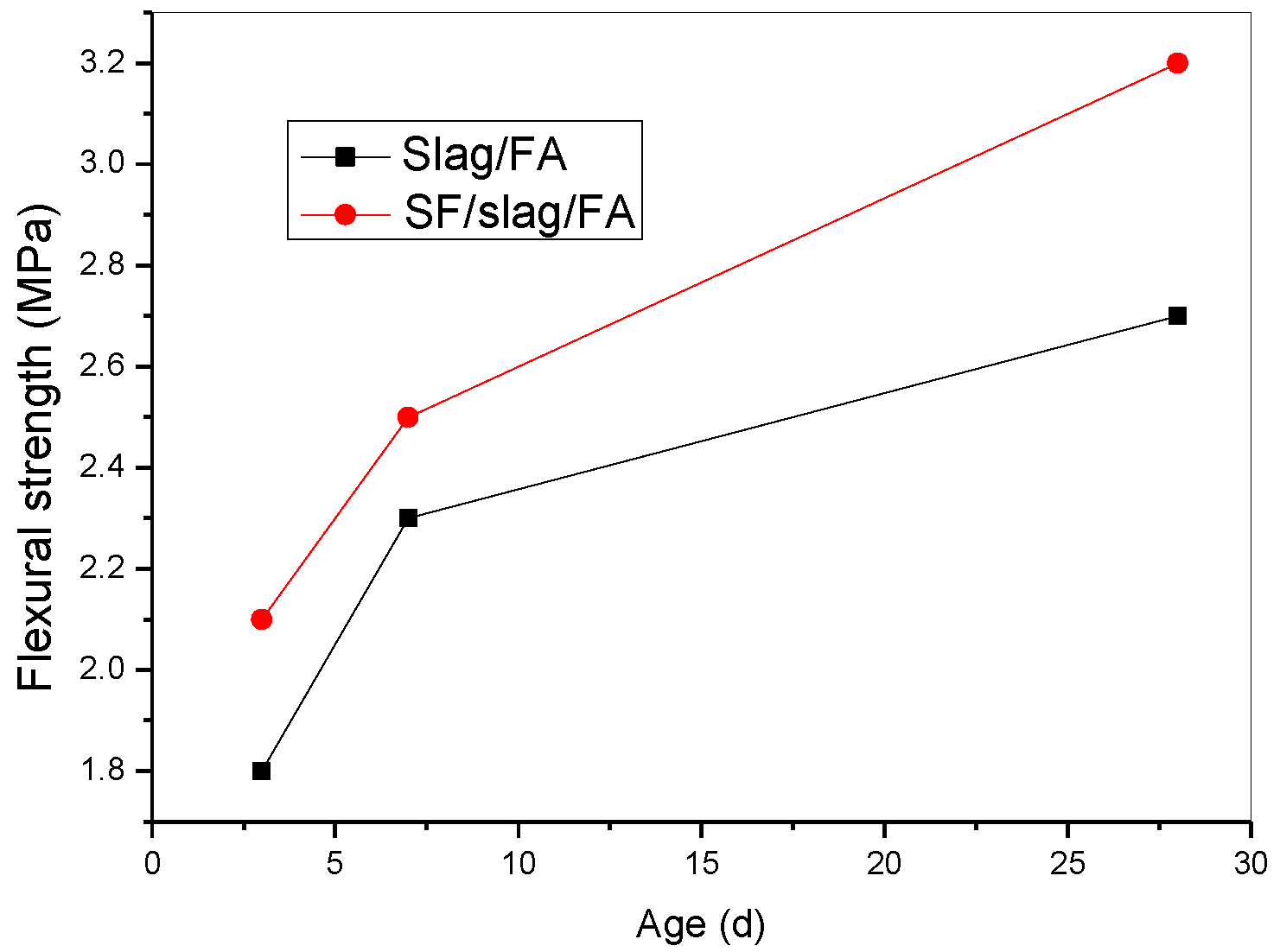

Meanwhile, the mechanical performance of SF doped slag/FA (SF:slag:FA = 10:30:60, wt%) binder is shown in

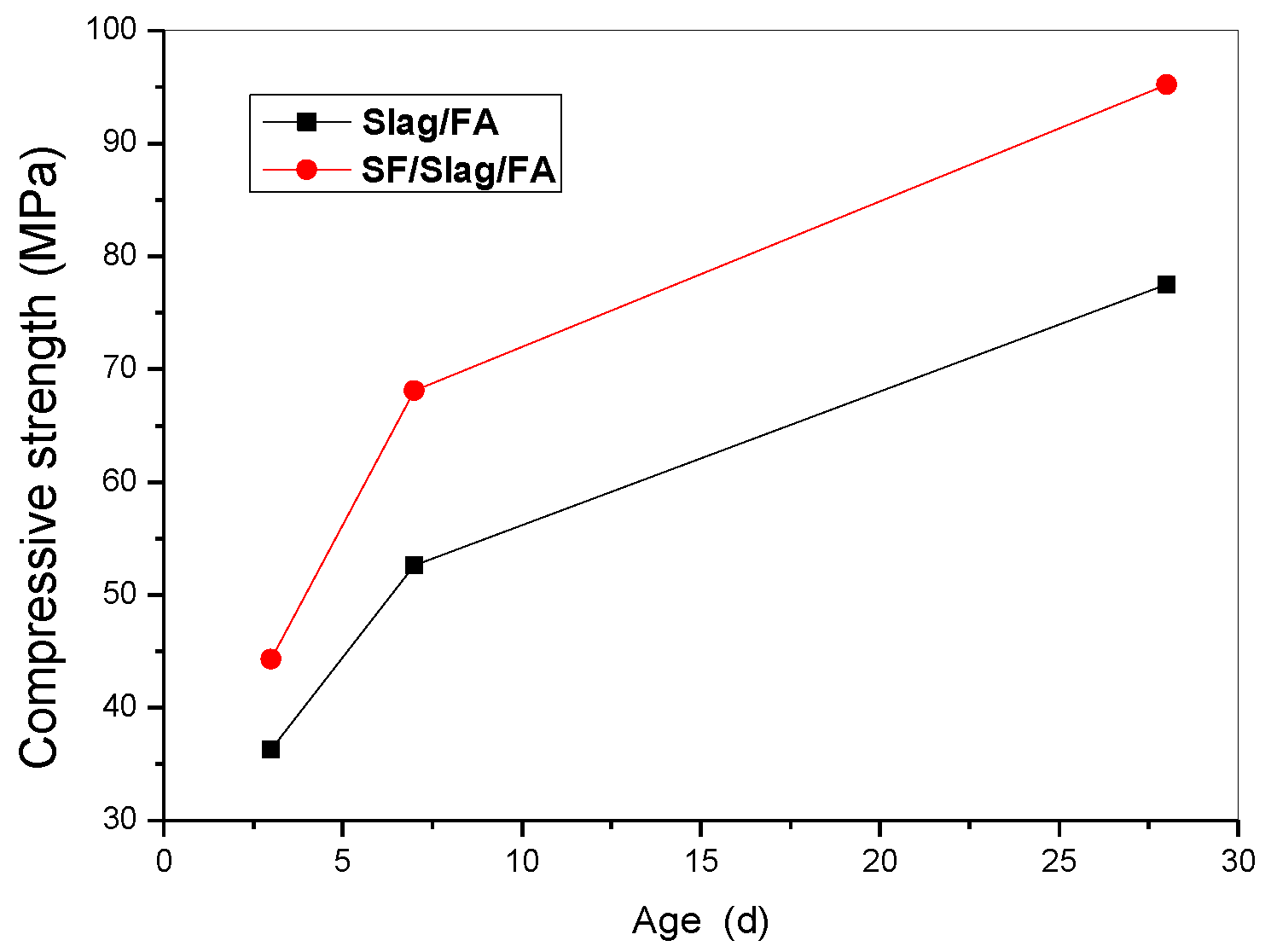

Figure 3 and
Figure 4, using the alkali-activated slag/FA (30:70, wt%) binder as the reference. The 28d compressive strength is improved to 95.2 MPa (increased by 22.8%) and the flexural strength rises to 3.2 MPa (increased by 23.1%) after replacement of 10 wt% FA with SF. It demonstrates that incorporating SF into slag/FA binder is an effective method to alleviate the inherent fragility of alkali-activated slag/FA binder. This is because the more amorphous Si(OH)
4 derived from the SF is prone to crosslink with the (N, C)-A-S-H chain, rather than transform into C-S-H gels, as evidenced by the simultaneously increased flexural strength, compared with the reduced flexural strength of sample 40S.
3.2. Pore Distributions of Specimens
The pore size distributions of specimens are summarized in
Table 2. Combined with the mechanical performance, it is found that the median pore diameter and total porosity are inversely proportional to the compressive strength. The median pore diameter of the specimen drops from 48.2 nm to 6.4 nm with the increasing slag dosage gradually. Meanwhile, the pore volume of pore with a diameter < 20 nm increases following the compressive strength because the FA is transformed into geopolymerical gels and slag, which could hydrolyze to active C-H-S and (N, C)-A-S-H sols under an alkaline environment. They could insert and fill into the clearance of the cross-linked network derived from the gels, forming a compact microstructure with a lower porosity and a reduced median pore diameter.
Interestingly, the increasing tortuosity matches the improvement of compressive strength value, the compact micro-structure holds tortuous pore channels which are triggered by the filling effect of the amorphous paste. Song et al. [
23,
24] suggest that the increase of tortuosity with hydration is indicative of both the filling of pores and the decreasing connectivity of the pore structure in an alkali-activated slag system because slag pastes have a very disconnected pore structure. Combined with the former reports, it determines that tortuosity could be used as a critical measure of mechanical properties. Because the coexistence of C-S-H and (N, C)-A-S-H mainly derives from slag and amorphous geopolymer, more disconnected pore and cross-link network structures reconstruct prompting more irregular and tortuous structure of the binder. This is in agreement with the investigation of Collins et al. [
25] that the capillary pores within alkali-activated slag concrete have variable cross-section shape, surface roughness, tortuosity, and random meeting and divergence with adjacent pores.
It is the replacement of FA with 10 wt% SF that diminishes the porosity (13.47%) and improves the tortuosity (116.9) as is evident in
Table 2. More as-formed Si(OH)
4 hydrolyzed from the incorporation of SF into the alkali-activated slag/FA system boosts and extends the ≡Si-O-Si≡ chains due to the polycondensation or cross-linking. It promotes the formation of electronegative polymeric cages with three-dimensional networks and the Ca
2+ is easily attracted and trapped into the cages for equilibrium charge.
3.3. Mechanical Properties of Specimens Subjected to Freeze–Thaw Cycles

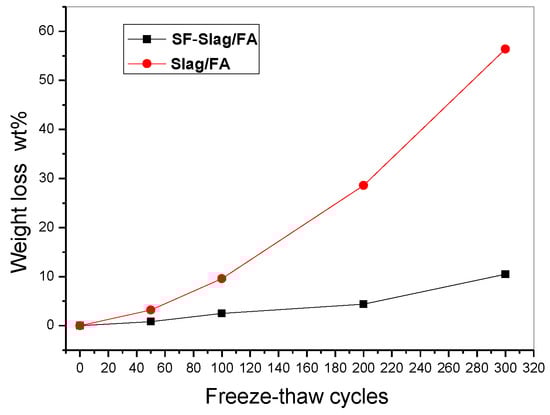

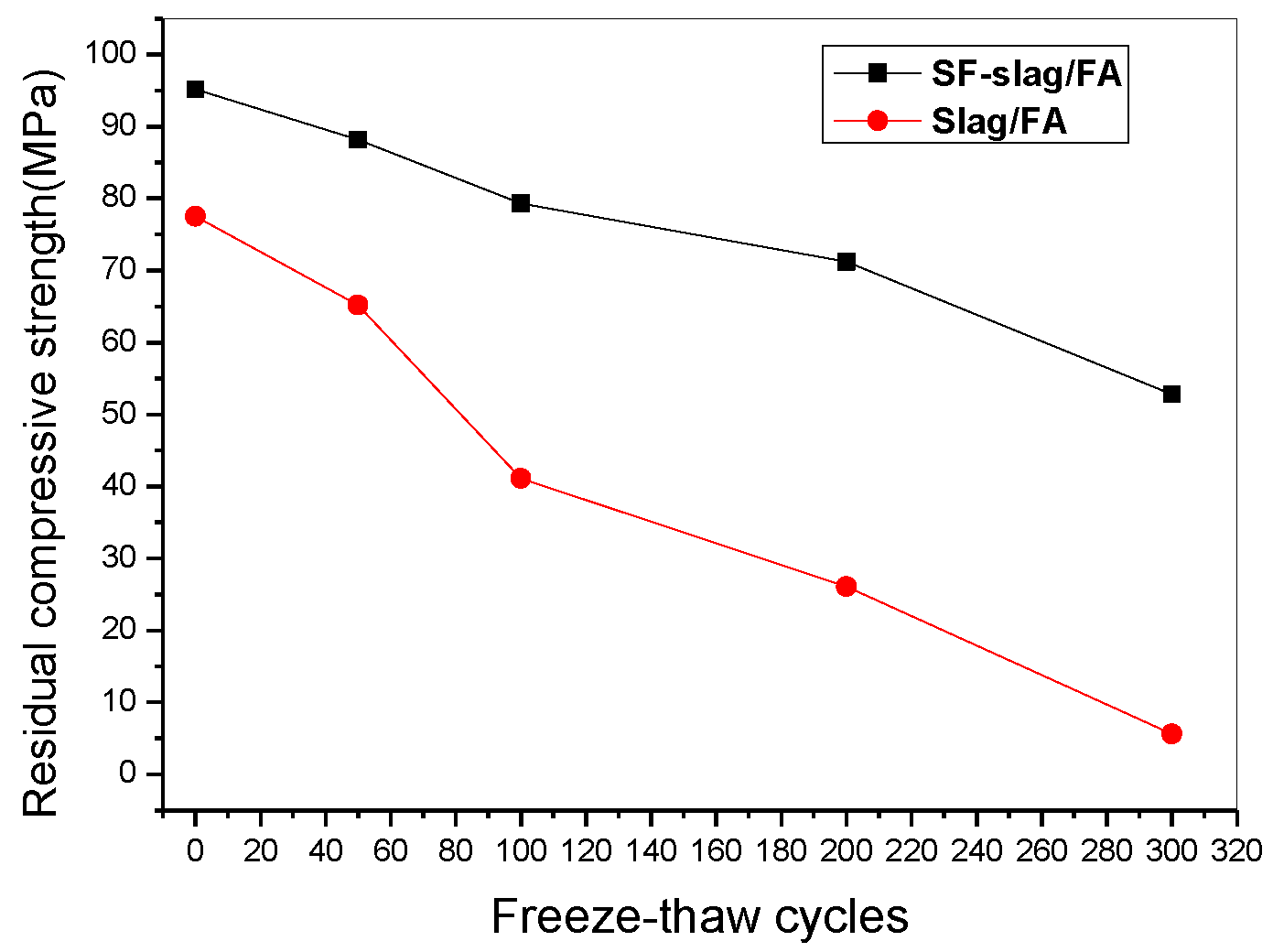

The residual compressive strength and weight loss of specimens subjected to freeze–thawing cycles are shown in

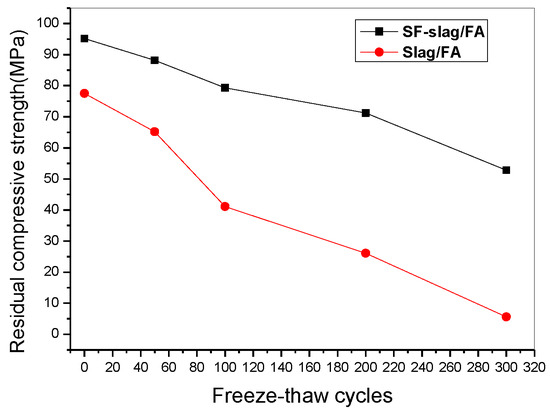

Figure 5 and
Figure 6. It presents a continuous decline with the increasing cycle, but the residual compressive strength of the SF-containing specimen drops from 95.2 to 52.8 after 300 cycles (decreasing by 44.5%), while that of the specimen without SF decreases by 92.8%. However, the weight loss of the specimen without SF attains 56.4% while that of the SF-containing specimen is only 10.5 wt% after 300 cycles. It demonstrates that trinary SF/slag/FA binders hold higher frost resistance than binary specimens without SF.
Combined with the results of pore size distribution, the lower porosity and higher pore volume with a pore diameter < 20 nm after incorporating SF favor a lower absorption of free water. Therefore, the expansion stress derived from the freeze–thawing of water involved in the matrix decreases and suspends the deterioration of specimens because the addition of SF in Portland cement causes a significant slowdown of capillary water uptake and a higher frost resistance [
26,
27]. Sun et al. [
28] also suggest that the freeze–thawing durability of FA-based alkali-activated mortars is superior to that of Portland cement mortars. This implies that SF holds great potential to improve the frost resistance of inorganic siliceous binders to some extent.
During the freezing–thawing cycles, (i) freezing increases hydraulic water pressure and augments volume; (ii) ice crystals are formed within the capillary pores; and (iii) in the liquid state, the lack of acid-base equilibrium results in osmotic pressure [
19,
29]. The doped SF could transform into reactive Si(OH)
4 under alkaline activation, which could crosslink the (N, C)-A-S-H and facilitate the chain propagation, leading to an increase in the pore volume with a pore diameter < 20 nm, as well as reduced free water within the paste. Li et al. [
30] propose that the effects of nano-nucleation, nano-filling, crack arrest, and mechanical interlocking of modified carbon nanotubes make geopolymer mortars denser, decreasing the percentage of the capillary pore. Chen et al. [
31] also assert that the as-formed C–S–H gel further fills the capillary pores and diminishes the frost attack. Generally, the doped SF facilitates the propagation of the (N, C)-A-S-H chains within the trinary SF/slag/FA binder, improving its freezing–thawing resistance effectively.
3.4. XRD Analysis

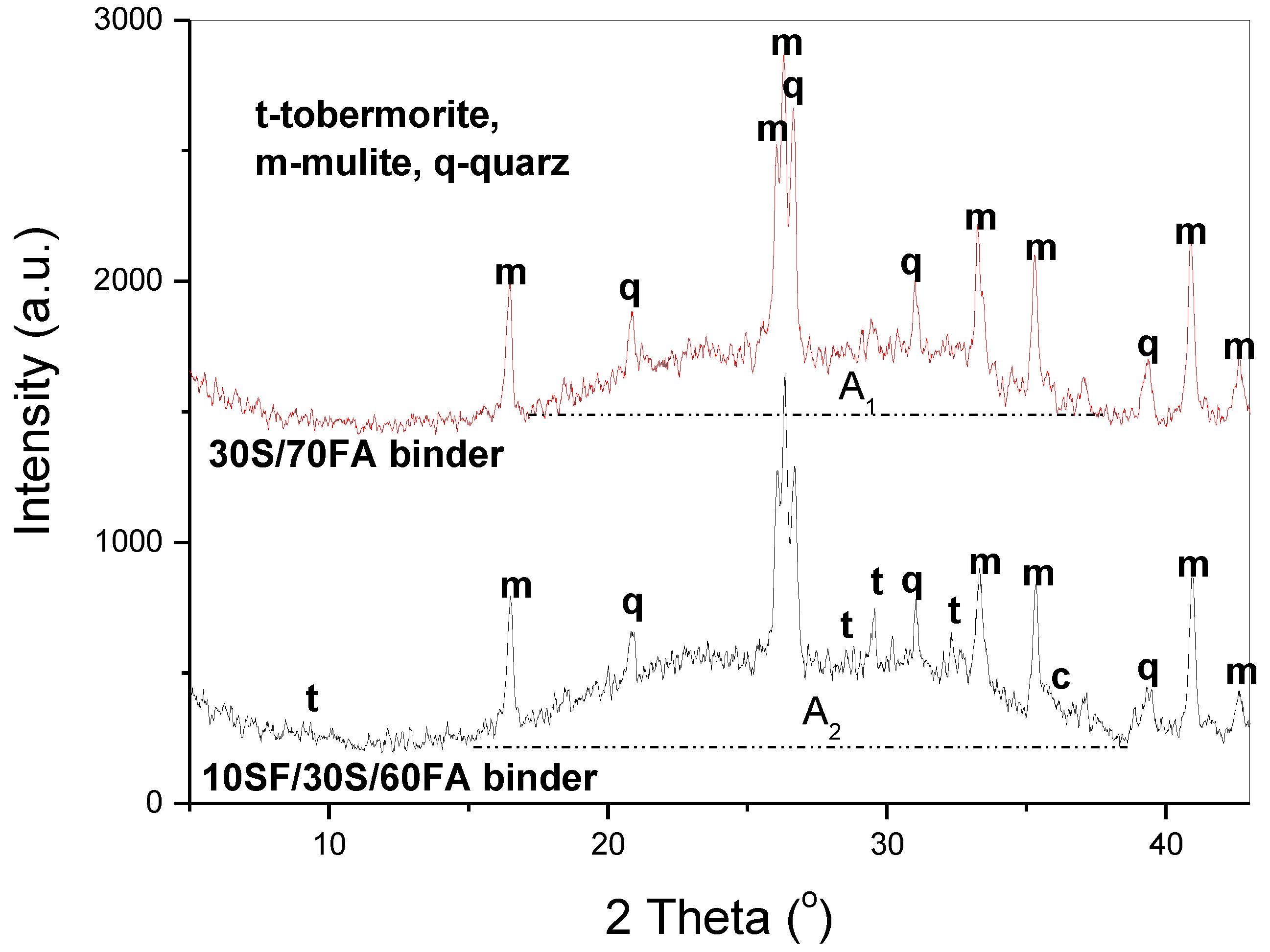

The XRD spectra are shown in

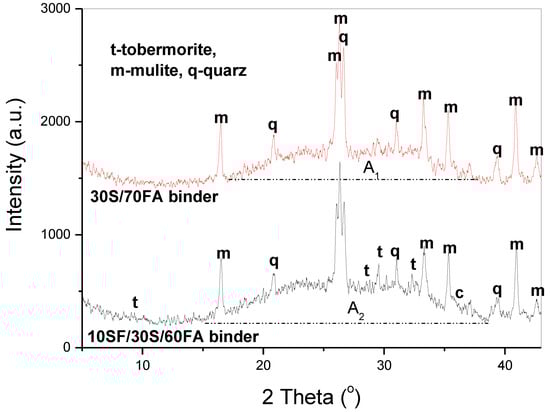

Figure 7, and the coexistence of mullite, quartz, tobermorite, and hydrated calcium silicate is displayed in the samples. Noticeably, there is a hump between 2θ = 15~38° due to the amorphous silicates involved in the paste specimen. The hump area of the SF-containing specimen is larger than that of the specimen without SF (A
2 > A
1), corresponding to the increased content of vitreous silicates to some extent, matching the higher mechanical strength. The amorphous silicates mainly consist of the (N, C)-A-S-H and the C-S-H gels, which derive from the reconstruction of the activated [Si(OH)
4] and [Al(OH)
4]
−, as well as the active C-H-S from the slag. Enhanced crosslinking or chain propagation is crucial for obtaining excellent mechanical strength and the enhanced silicates indicate that the doped SF favors the crosslinking and reconstruction of amorphous silicate chains.
Meanwhile, the mullite and quartz belong to inert substances derived from FA, which are inert to participate in the geopolymerization. However, the slightly characteristic peaks of tobermorite are detected after the substitution of 10 wt% SF for 10 wt% FA. It is demonstrated that active silicon dioxide favors the formation of tobermorite to some extent. Combined with this, excessive Ca2+ is detrimental to flexural strength whereas the SF-containing geopolymer is beneficial to improve flexural strength. Therefore, the doped SF also favors the chain propagation of the amorphous silicates of (N, C)-A-S-H. However, the XRD patterns of specimens subjected to freezing–thawing cycles are absent, due to the nearly identical spectra detected for all SF-containing specimens. This is the because the freezing–thawing cycles mainly generate the frost-heave stress induced by phase transition and ice contraction, rather than the mineral-phase transformation, thus identical spectra do not appear.
3.5. DSC
The heat flow curves of the samples are shown in

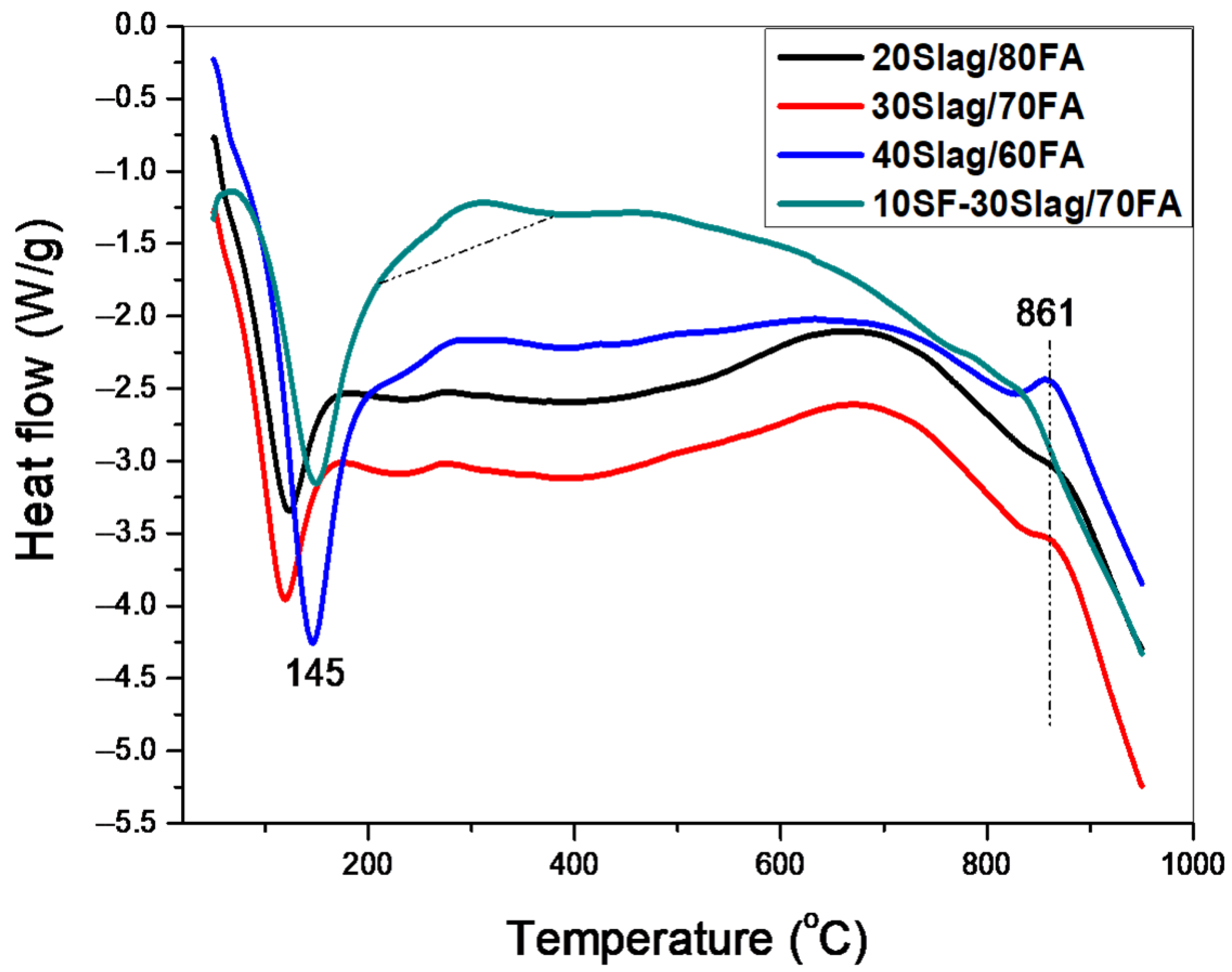

Figure 8, illustrating that continuous heat absorption occurs on the samples. There is a clear endothermic peak during 50–200 °C predominantly, which is assigned to the free water evaporation involved in the micro-voids and dehydration of the calcium-rich silicate gels. The specimen of 40 s possesses an increased endothermic peak of 145 °C, compared with the 105 °C for the specimen of 20 s approximately. It shifts slightly to a higher temperature with the increasing content of slag, due to the increased content of C-S-H because the new-formed C-S-H holds cementitious reactivity to fill and insert the pores of geopolymer paste, leading to a decrease in the pore diameter. Combined with the results of MIP, it deduces that the smaller median pore diameter facilitates the higher evaporation temperature. Zhang et al. [
10] suggest that the resin has a filling effect and improves the evaporation temperature in alkali-activated metakaolin/slag-based geopolymer.
Meanwhile, there is no endothermic peak during 300–500 °C, indicating that the calcium hydroxide does not exist in the sample. On the other hand, the area of the endothermic peak increases and a slight exothermic peak appears with the increase of slag amount. The alkali-activated slag/FA (slag:FA = 40:60) specimen presents the maximum area and an obvious exothermic peak at 861 °C, which is attributed to the decarboxylation of calcite [
32], due to the increased C-S-H content between the reactive calcium and silicate.
However, the area of the endothermic peak between 100–200 °C decreases for the 10 wt% SF-containing samples due to the enhanced crosslinking or the propagation of the (N, C)-A-S-H chains, which could combine the Si-OH in Si(OH)4 monomer and also make the Ca2+ involved in C-S-H transform into (N, C)-A-S-H chains as charge balancing of the negative ≡Si-O-Si≡ chains. Meanwhile, the peak at 861 °C is mainly assigned to the decomposition of calcium carbonate: the slag-rich sample generates some calcium carbonate derived from the reactive CaO with air CO2 and partial Ca(OH)2 reacts with the CO2 at the beginning stage to some extent, especially for the sample (slag:FA = 40:60). However, it disappears for the trinary SF/slag/FA binder. This indirectly indicates that the doped SF facilitates the Ca2+ participation in the formation of (N, C)-A-S-H chains, rather than the C-S-H, leading to enhanced freezing–thawing resistance. Generally, the doped SF provides the Si-rich sol system derived from the reactive Si(OH)4, and the Ca2+ in slag is preferred crosslink with ≡Si-O-Si≡ chains transform into he (N, C)-A-S-H chains to from C-S-H, presenting higher freezing–thawing resistance than C-S-H.
3.6. Morphology and Microstructure
The morphological fracture surface of the pastes after 28d curing is presented as a series of electron micrographs with an amplification of 5000× in

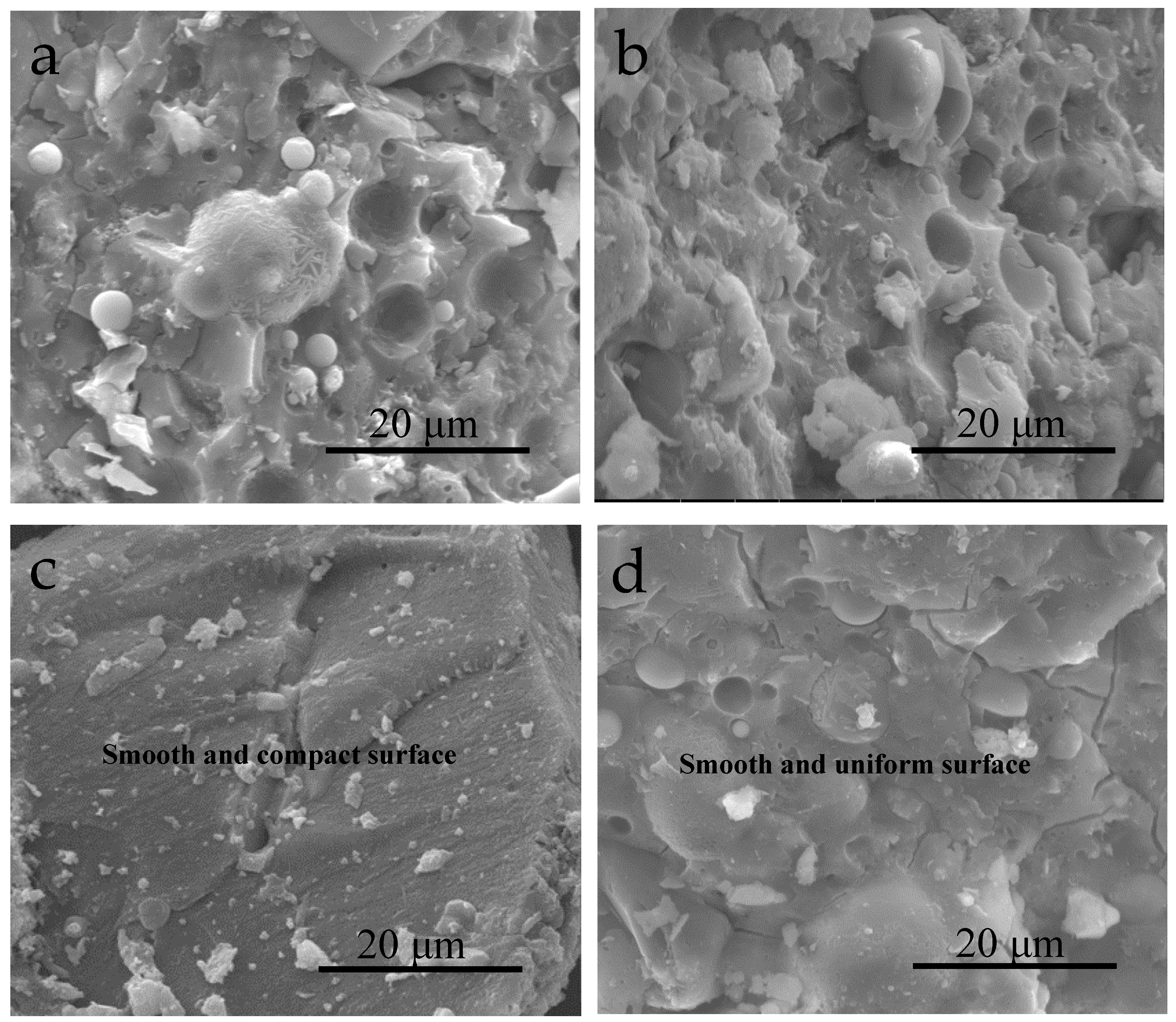

Figure 9a–d. The FA has been partially activated with spherical particles in
Figure 9a, displaying the coexistence of the amorphous geopolymer gels. The C-S-H and (N, C)-A-S-H chains are amorphous silicate with irregular shapes, but the C-S-H possesses a shorter chain and angular texture, while the (N, C)-A-S-H chains hold the crosslinking network structure. Partially unreacted spherical FA particles are observed, which gradually disappear with the increasing content of slag, presenting smooth and compact surfaces due to the as-formed C-S-H and (N, C)-A-S-H chain gels as shown in
Figure 9c.
However, compared with the fracture surface of the SF-containing sample as shown in
Figure 9d, the amorphous silicates exhibit a smooth and uniform surface. Spherical FA particles almost disappear, and compact structures are observed, which might be attributed to the enhanced geopolymerization by doping SF, leading to more network structures. This serves as silicon-aluminate cages for adsorbing Ca
2+ and [AlO
4]
5−, thus inhibiting the C-S-H from growing effectively, corresponding to higher mechanical performance and freezing–thawing resistance. It determines that doped SF plays an important role in microstructure densification by extending the (N, C)-A-S-H chains.

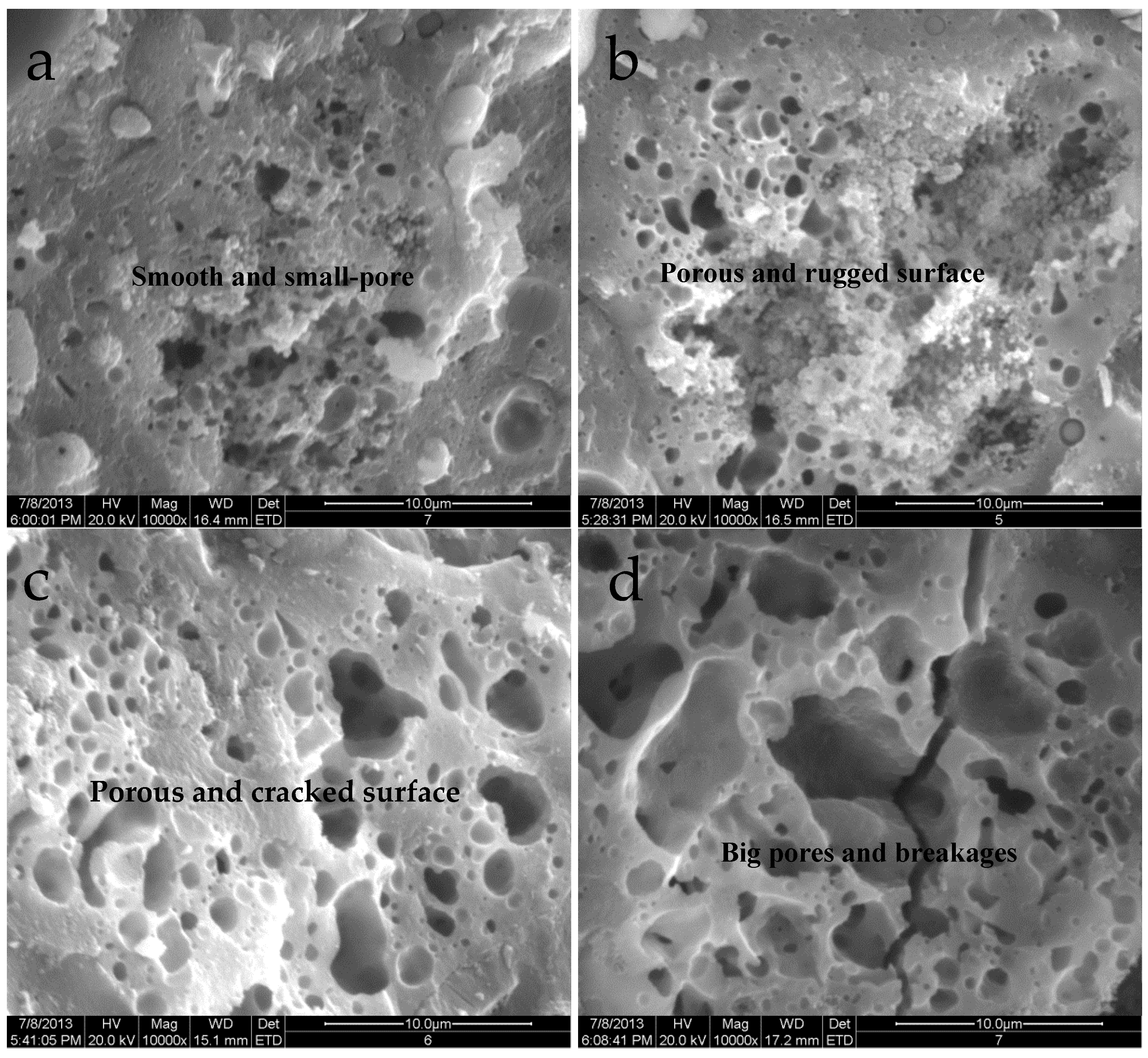

Morphologies of specimens after freeze–thawing cycles are presented as a series of electron micrographs with an amplification of 10,000× in
Figure 10a–d. The porous and rugged fracture surface is observed for the specimen without SF after freeze–thawing cycles as shown in
Figure 10b,d, compared with the smooth and small-pore fracture in
Figure 10a,c. Meanwhile, the trinary SF/slag/FA binder also presents gradual deterioration with increasing freezing–thawing resistance, evidenced by the porous and cracked surface. However, the binary slag/FA binder exhibits even worse deterioration, with the big pores and breakages are shown in
Figure 10d.
This demonstrates that the compact micro-structures of the trinary SF/slag/FA binder inhibit the deterioration during freeze–thawing cycles, combining with the results of MIP. The higher pore volume of larger pores hold a stronger capacity for absorbing free water and favors the greater expansion stress from frost attack, which facilitates the structural damage predominantly. On the other hand, combined with the XRD results, the formation and growth of the amorphous (N, C)-A-S-H gels prompt the compact with higher anti-freezing performance. Behfarnia et al. [
33] also assert that nano-SiO
2 particles recover the particle packing density of the concrete and improve the microstructure as nano-filler, leading to considerable improvement in frost resistance.
Generally, the slag and FA are depolymerized into reactive [Si(OH)
4] and [Al(OH)
4]
− under the Na
2SiO
3 activation, the Na
2SiO
3 inherently hydrolyzes into ≡Si-O-Si≡ precursor chains which provide the prerequisites of the subsequent chain propagation. The activated calcium involved in slag facilitates the higher mechanical property for heat-free curing. However, there is competition between the formation of C-S-H and amorphous (N, C)-A-S-H silicates (also denoted as M
n[-(Si-O
2)
z-Al-O]
n·
wH
2O) for the XRD. The latter holds chain structure and favors compact and uniform stacking, while the former is prone to transform disorderly non-uniform microstructure with an increased porosity from the results of SEM and MIP. Meanwhile, incorporating SF provides abundant activated silica tetrahedra [Si(OH)
4] for the alkali-activated slag/FA system. It promotes the propagation of (N, C)-A-S-H chains through crosslinking between short-chain silicates and [Si(OH)
4], triggering the formation of cross-linked networks or cages for trapping Ca
2+ by electrostatic interactions. Because the Ca
2+ involved in C-S-H is easily attracted and packaged by electrostatic force due to the electronegative [Al(OH)
4]
−, transforming into more (N, C)-A-S-H from incipient C-S-H leads to a decrease in porosity (drops from19.08% to 13.47%). Thus, it exerts higher mechanical strength during the freezing–thawing cycles, as shown in

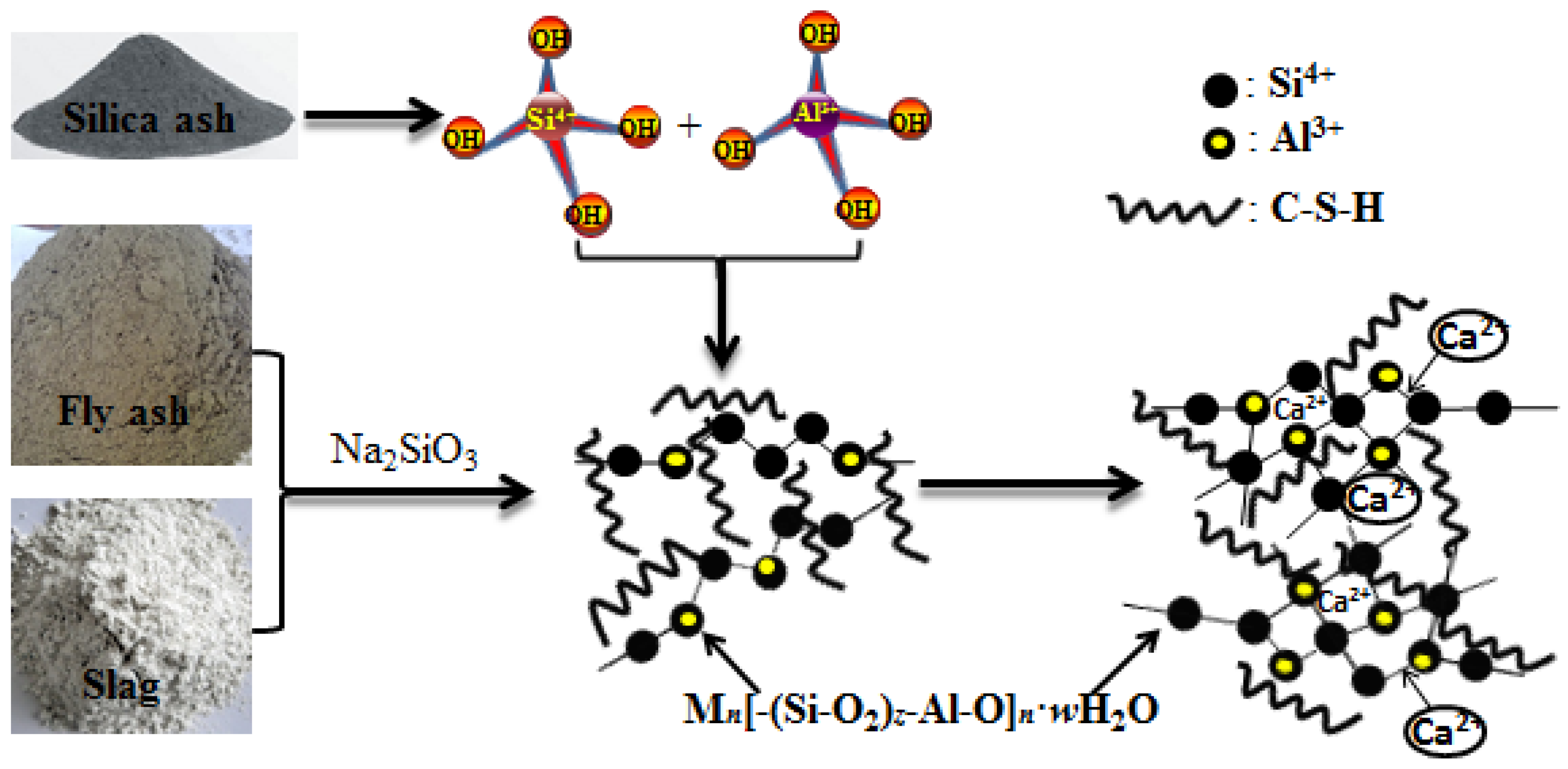

Figure 11.
4. Conclusions
A simple-yet-effective solution for the utilization of industrial solid wastes is explored in this paper, and the optimum slag dosage in heat-free curing alkali-activated slag/FA-based geopolymer is determined. Meanwhile, the SF is employed to construct the trinary slag/FA/SF (SF:slag:FA = 10:30:60, wt%) paste through the replacement of FA with 10 wt% SF and the following conclusions are drawn.
(1) An appropriate dosage (30 wt%) of slag is necessary to attain heat-free alkali-activated slag/FA geopolymer paste with excellent mechanical strength. The incorporated 10 wt% SF as starting material is an effective approach to further alleviate its inherent fragility, evidenced by the compressive and flexural strength of 95.2 and 3.2 MPa, respectively.
(2) Incorporation of 10 wt% SF promotes the propagation of (N, C)-A-S-H chains rather than the formation of C-S-H. It is evidenced by the absent exothermic peak at about 861 °C from the DSC curves, leading to the increases in the pores volume with a pore diameter < 20 nm and tortuosity by MIP results.
(3) The trinary slag/FA/SF paste exerts an improved freezing–thawing resistance with a residual compressive strength of 52.8 MPa and a weight loss of 10.5% after 300 freeze–thawing cycles.
