Enhanced Hydrogen-Storage Properties of MgH₂ Catalyzed via a Cerium Doped TiCrV BCC Alloy

Abstract

In this work, Ce-doped Ti₆Cr₁₄V₈₀ BCC hydrogen-storage alloys have been synthesized as catalysts to enhance the hydrogen-storage performance of MgH₂ based on its room-temperature activation features and excellent durability. The Ti₆Cr₁₄V₈₀Ce₁ alloy was pre-ball milled under a hydrogen atmosphere into a Ti₆Cr₁₄V₈₀Ce₁H_x hydride. Different amounts of the Ti₆Cr₁₄V₈₀Ce₁H_x hydride were incorporated into MgH₂ by ball milling to obtain the MgH₂ + y wt%Ti₆Cr₁₄V₈₀Ce₁H_x (y = 0, 3, 5, 10, 15) nano-composites. With an optimization doping of 10 wt%Ti₆Cr₁₄V₈₀Ce₁H_x, the initial dehydrogenated temperature was decreased to 160 °C. Moreover, the composite can rapidly release 6.73 wt% H₂ within 8 min at 230 °C. Also, it can absorb 2.0 wt% H₂ within 1 h even at room temperature and uptake 4.86 wt% H₂ within 10 s at 125 °C. In addition, the apparent dehydrogenated activation energy of the MgH₂ + 10 wt%Ti₆Cr₁₄V₈₀Ce₁H_x composite was calculated to be 62.62 kJ mol⁻¹ fitted by the JMAK model. The capacity retention was kept as 84% after 100 cycles at 300 °C. The ball milled Ti₆Cr₁₄V₈₀Ce₁H_x transformed from the initial FCC phase structure into a BCC phase after complete dehydrogenation and back into an FCC phase when fullly hydrogenated. A catalyst mechanism analysis revealed that the ‘autocatalytic effect’ originating in Ti₆Cr₁₄V₈₀Ce₁H_x plays a crucial role in boosting the de-/hydrogenation properties of MgH₂. This work provides meaningful insights into rational designs of nano-compositing with different hydrogen-storage alloy catalyzed MgH₂.

1. Introduction

The current prevailing energy sources, fossil fuels, have brought severe challenges for human survival such as pollution and irreversible carbon emission [1,2]. Excessive reliance on unsustainable fossil fuels is undesirable and the crisis of energy exhaustion is gradually approaching. Exploring alternative energy sources to fossil fuels has been a basic consensus of all the countries. Consequently, it is undoubted that developing alternative environmentally cleaner fuels are crucial for a sustainable future [3]. Hydrogen, as a clean energy carrier, has drawn sustained attention as an alternative to fossil fuels owing to its pollution-free and high calorific value of combustion. It is believed that hydrogen acts as the most promising non-fossil fuel and will play a crucial role in reducing the release of greenhouse gases and realizing zero carbon emissions. However, one major concern for widespread implementation of hydrogen is lack of safe, convenient and economic hydrogen-storage methods [4,5]. Currently, hydrogen is often stored in the gas by compression in pressure vessels or in liquid form at below 20 K in cryogenic tanks [6,7]. Even though these two types of hydrogen storage have been matured and commercialized, its use is still challenging for various applications due to high energy demands, expensive tank cost and intrinsic safety risks [8,9]. Therefore, it is imperative to develop safe, cost-effective, reliable hydrogen-storage techniques for large-scale application. Thus, the solid-state storage technique has attracted increasing attention; it possesses the extra advantages of being lightweight, high-capacity, reliable, easy to operate and cost-effective compared to other techniques [10,11]. It is worth pointing out that metal hydrides are widely researched and developed because they show high hydrogen-storage densities, excellent sorption reversibility and fast kinetic performance [12,13,14].

Metal hydrides usually form interstitial hydrides in which atomic hydrogen occupies interstitial voids in the crystal, which typically includes LaNi₅, AB, AB₂ or V-based body-centered cubic (BCC) alloys [15,16,17,18]. Though the V-based BCC alloys have maximum theoretical hydrogen-storage capacity~3.8 wt% among them, they face the problem of difficult activation and keeping residual hydrogen in the alloys [19]. Furthermore, it has been verified that the content of vanadium plays a crucial role in the cyclic stability of the typical Ti-Cr-V BCC-type hydrogen-storage alloy [20]. It has been reported that the Ti-Cr-V alloy with the V content exceeding 75 at% demonstrated excellent durability [21]. The higher the V content they have, the stronger the toughness the alloy possesses and the more difficult it is to break. One of the typical shortcomings of the Ti-Cr-V alloys is that it is challenging to activate under ambient conditions. Nevertheless, doping with few light rare earth lanthanum (La) or cerium (Ce) could make the V-based BCC alloy easier to activate and cause faster absorption of hydrogen [22,23]. It has been reported that La/Ce elements have strong affinity with oxygen. Liu et al. [24] found that a small amount of 0.4% Ce doped into Ti₃₂Cr₄₆V₂₂ alloy can activate it and cause it to absorb hydrogen at room temperature. Xue et al. [23] prepared TiCr₃V₁₆Ce_x alloys by doping different amount of Ce and revealed the hydrogen-storage mechanism of the alloy.

Magnesium hydride was considered as a promising solid hydrogen-storage medium on account of its outstanding reversible storage capacity of 7.6 wt% and the abundance of magnesium resources on earth. However, sluggish de-/absorption kinetics and stable thermodynamic characteristics cause it to have high operation temperature and inferior sorption rate [25]. To this end, massive strategies have been carried out to tailor its thermodynamics and kinetics, combining the alloying, nanosizing, catalyzing and compositing with other hydrides, and so on [26,27,28,29]. Recently, by adding the AB₂ or BCC hydrogen-storage alloys, with excellent hydrogen de-/absorption features at room temperature, as catalytic additives into MgH₂ to fabricate nano-compounds, one can regulate the thermodynamics and kinetics of MgH₂ during the de-/hydrogenation process. Yu et al. [30] found that the ball milled MgH₂-20 wt%Ti_0.4Cr_0.15Mn_0.15V_0.3 composite could absorb 90% of its initial hydrogen capacity within 1.5 h at below 100 °C. Lu et al. [31] adopt the prepared Ti_0.9Zr_0.1Mn_1.5V_0.3 (AB₂ Laves phase) alloy accompanied with CNTs as aid agent to modify the hydrogen-storage properties of MgH₂. The ball milled MgH₂ + 10 wt%Ti_0.9Zr_0.1Mn_1.5V_0.3 + 1wt% CNTs composite can uptake H₂ at room temperature and release 6.1 wt% in 5 min at 300 °C. It was verified both experimentally and theoretically that local destabilization of Mg-H bonds was induced by MgH₂/alloy interfaces. Zhang et al. [32] also synthesized the MgH₂-20 wt% Ti_0.35Cr_0.45V_0.2 composite by reactive ball milling under 5.0 MPa H₂, which revealed nanocrystalline β-MgH₂, γ-MgH₂ and Ti-Cr-V_0.2H_y (1.91 < y < 2.01) phases were generated in the composites and the favorable synergetic desorption effect from three phases probably results in remarkable dehydrogenation kinetics performance of the Mg/MgH₂ system. However, different particle sizes existed in the current alloy-catalyzed MgH₂ systems. The diversity was attributed to the large grain size of the alloy created by the difficult activation. In particular, the alloys were often activated after high-temperature processing and then added into MgH₂ according to the previous Ti-Cr-V alloy-catalyzed MgH₂ [33,34]. Here, we adopt Ce-doped Ti₆Cr₁₄V₈₀ BCC hydrogen-storage alloys via pre-ball milled under hydrogen pressure to generate the Ti₆Cr₁₄V₈₀Ce₁H_x hydride; these were then added into MgH₂ to build the compounded material. The Ce-doped Ti₆Cr₁₄V₈₀ alloy can easily absorb hydrogen under mild conditions. Pre-ball milling in a hydrogen atmosphere can make it more uniform and cause it to have finer hydride particles. It was favorable to form the nano-phase composite. The micro-morphology, crystal structures and non-/isothermal de-/hydrogenation properties of the MgH₂-Ti₆Cr₁₄V₈₀Ce₁H_x composite were systematically investigated.

2. Experimental Section

2.1. Preparation of Ti₆Cr₁₄V₈₀Ce₁ Hydrogen-Storage Alloy

The raw materials 0.5491 g Ti (sponge, 99.9%), 1.3918 g Cr (granules, 99.9%), 7.7912 g V (granules, 99.8%) and 0.2732 g Ce (bulk, 99.8%, an additional 2 wt% Ce added to reduce Ce losses) were selected to prepare as-cast Ti₆Cr₁₄V₈₀Ce₁ alloys (designed as 10 g/pcs) fabricated via non-consumable vacuum arc melting within a water-cooled copper crucible in an argon atmosphere (−0.5 bar) purified via individual Ti melting to minimize oxygen content. To ensure chemical homogeneity, each ingot was subjected to a melting current of 120–140 A, repeatedly flipped over and smelted four times.

2.2. Synthesis of MgH₂-Ti₆Cr₁₄V₈₀Ce₁H_x Composites

The prepared Ti₆Cr₁₄V₈₀Ce₁ ingot was polished with an electric grinder to remove impurities and oxide layers. A part of each of them was then mechanically crushed into chips then loaded into the 250 mL stainless-steel jar, which was charged with 40.0 bar hydrogen and transformed into planetary ball mill equipment. The Ti₆Cr₁₄V₈₀Ce₁ chips were ball milled with the following procedure: 400 rpm with a stainless-steel ball (80% diameter ϕ 6 mm, 20% diameter ϕ 10 mm) with a weight ratio, i.e., ball to sample ratio, equal to 40:1. This was continuously performed for 1 h and then we went back to the glovebox to take out the synthesized hydrogenated Ti₆Cr₁₄V₈₀Ce₁ powder (named Ti₆Cr₁₄V₈₀Ce₁H_x). The commercial MgH₂ (98 wt%, Shanghai Mg Power Technology Ltd., Shanghai, China) +y wt% Ti₆Cr₁₄V₈₀Ce₁H_x (y = 0, 3, 5, 10, 15) composites were synthesized via ball milling in 50.0 bar H₂ at 450 rpm for 8 h. The ball to sample weight ratio was set as 80:1 (milling balls were set as 80% diameter ϕ 6 mm, 20% diameter ϕ 10 mm). To avoid local overheating, this was implemented by alternating milling for 12 min, followed by a pause of 6 min. All the powder sample handling was carried out in an Ar-filled glovebox (Etelux Lab 2000, Beijing, China), where the contents of O₂ and H₂O were kept below 0.1 ppm.

2.3. Characterization of Materials

The microcrystal structure and phase composition of the prepared samples were analyzed via X-ray diffraction (XRD, PANalytical X’Pert, Almelo, The Netherlands) using Cu Kα radiation (40 kV, 40 mA). The powders including Mg/MgH₂ were covered with a polyimide film to prevent the oxidization and spontaneous ignition of Mg/MgH₂ during transfer and testing. The micro-morphology and compositional analysis were characterized via a field emission scanning electron microscope (SEM, JEOL JSM-IT800, Tokyo, Japan) along with energy dispersive spectroscopy (EDS). The microscopic morphology and microstructure information were obtained via a high-transmission electron microscope (TEM, FEI Talos-F200s, Waltham, MA, USA) equipped with an energy dispersive X-ray spectrometer (EDS). The thermodynamic properties were measured using differential scanning calorimetry (DSC, Netzsch STA 449F3, Bavaria, Germany) at the heating rate of 2 °C·min⁻¹ with Ar as the purge gas.

For hydrogen-storage performance testing, the kinetics and pressure–composition–temperature (PCT) curves of the Ti₆Cr₁₄V₈₀Ce₁ alloy were determined by utilizing a Sievert-type apparatus (MH-PCT, GRIMAT Engineering Institute, Beijing, China) over a temperature range of 5~65 °C. A constant temperature could be maintained with the circulating water bath (DC-2006, Tenlin, Yancheng, China). The Ti₆Cr₁₄V₈₀Ce₁H_x catalyzed MgH₂ composites’ isothermal de-/rehydrogenation curves were tested using a Sievert-type apparatus (ZDHM-4, Zhejiang University, Hangzhou, China). For non-isothermal experiments, the composite was heated with a heating rate of 2 °C·min⁻¹ using a resistance furnace in a vacuum. The isothermal hydrogen de-/rehydrogenation experiments were carried out at 0.001 bar for dehydrogenation and an initial hydrogen pressure of 50.0 bar for rehydrogenation. Moreover, the PCT curves and cyclic hydrogen de-/absorption tests of the composites were measured at corresponding temperatures via a commercialized Sievert’s apparatus (HPSA-autoPro device, Shanghai, China) along with loading approximately 150 mg of the sample for each test. Cyclic tests were performed at 300 °C and the duration of each was 10 min for de-/rehydrogenating. The above-mentioned Sievert’s apparatus was calibrated by loading 1g commercial LaNi₅ powder for measuring the hydrogen de-/absorption kinetics and pressure–composition–isothermal temperature (P-C-I) curves based on the test method outlined in GB/T 33291-2016 [35].

3. Results and Discussion

3.1. The Structural and Morphological Characterization

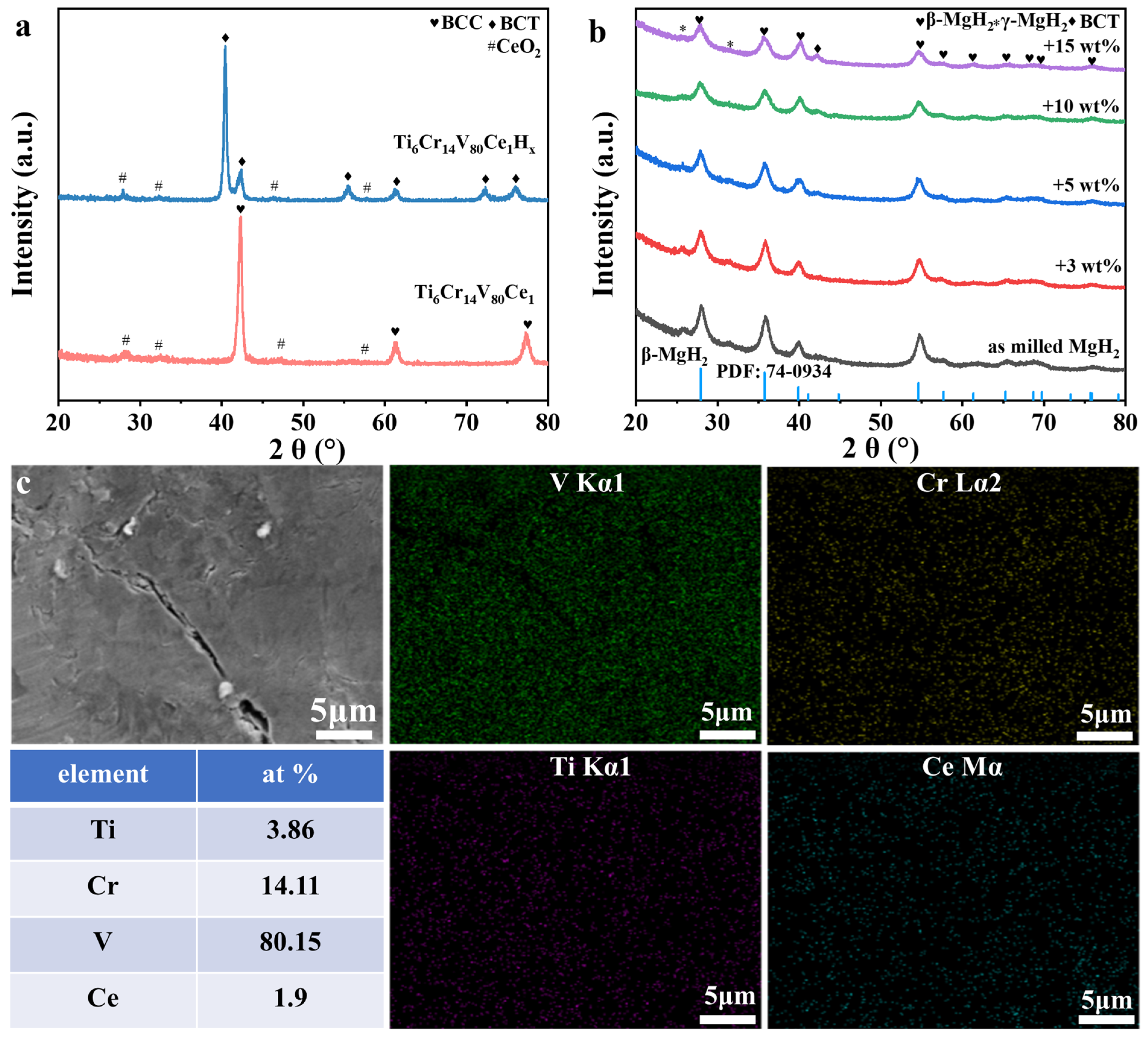

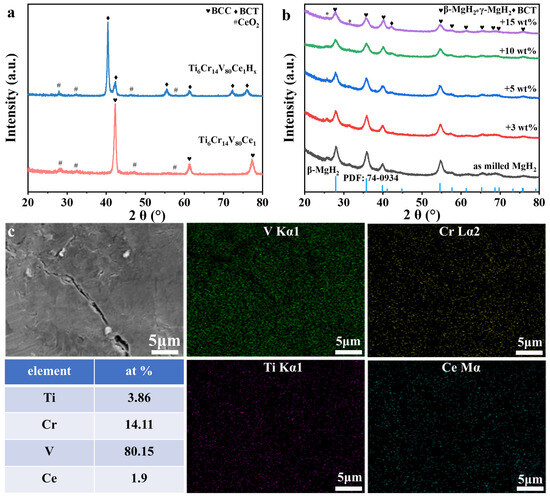

Figure 1a shows the XRD patterns of the as-cast Ti₆Cr₁₄V₈₀Ce₁ alloy and the obtained Ti₆Cr₁₄V₈₀Ce₁H_x samples after pre-ball milling. It can be found that the prepared Ti₆Cr₁₄V₈₀Ce₁ alloy presents the single BCC phase with a lattice constant of 3.025 Å. The phase structure of the hydrogenated state Ti₆Cr₁₄V₈₀Ce₁H_x powder after pre-ball milling in a hydrogen atmosphere transformed into an FCC phase ascribed to the formation of the VH₂ phase, which has been reported in the corresponding literature studies [36,37]. Actually, the BCT phase was presented in the ball milled Ti₆Cr₁₄V₈₀Ce₁ sample (in Figure 1a), was attributed to the generation of the V₂H phase and can be explained from the measured PCT curves at ambient conditions (shown in Figure S1). The occurrence of hysteresis was attributed to severe lattice deformation and dislocation existing at the interface of the solution phase (α-phase) and the hydride phase (β-phase) due to the different equilibrium volumes of their unit cells resulting from their respective hydrogen accommodation conditions [38,39]. That is, the hysteresis is considered to be derived from the deformation strain and stress due to the unit cell volume contraction and expansion during the dynamic hydrogen sorption process. In addition, the as-cast Ti₆Cr₁₄V₈₀Ce₁ alloy was observed via SEM and the elemental compositions were also identified, as shown in Figure 1c. The EDS results show that each element was homogeneously distributed in the alloy, and the actual composition coincided with the nominal composition. Moreover, it shows that the Ti₆Cr₁₄V₈₀Ce₁H_x powders were composed of several submicron-sized particles in SEM image (Figure S2a). The XRD patterns of the ball milled MgH₂-y wt%Ti₆Cr₁₄V₈₀Ce₁H_x (y =0, 3, 5, 10, 15) composite were shown in Figure 1b, which shows that the compound was composed of the dominant phase of β-MgH₂ and a small BCT phase from Ti₆Cr₁₄V₈₀Ce₁H_x. In addition, a small γ-MgH₂ phase was also detected in the composite. The XRD patterns of the ball milled MgH₂ and pure MgH₂ are also compared in Figure S3. The figure indicates that the diffraction peaks of the ball milled state of MgH₂ subjected to ball milling for a long time became broader than pure MgH₂. Zhang et al. [40] also reported similar results in MgH₂-20 wt%Ti_0.16Cr_0.24V_0.6 powder synthesized via reactive ball milling. To better uncover morphology information, the ball milled MgH₂-10 wt%Ti₆Cr₁₄V₈₀Ce₁H_x composite was observed. Figure S2b shows that many micro/nano-sized Ti₆Cr₁₄V₈₀Ce₁H_x particles were embedded in the MgH₂ substrate.

The micro phase and morphology details of the ball milled MgH₂-10 wt%Ti₆Cr₁₄V₈₀Ce₁H_x composite were further characterized via TEM and HRTEM, as shown in Figure 2. Figure 2a shows that there are different interplanar spacings corresponding to the different phase structures identified in the composite. Lattice fringes with interplanar spacings of 2.501 Å and 2.490 Å can be determined to be the (101) planes of β-MgH₂. The corresponding selected area diffraction pattern (SADP) from Figure 2b is also displayed in Figure 2c, which demonstrates there was β-MgH₂ and BCC phase of Ti₆Cr₁₄V₈₀Ce₁. The corresponding EDS elemental mapping images were also produced and we demonstrated that Ti, Cr, V and Ce elements are homogeneously distributed on the surface of MgH₂ powder. According to the Mg, Ti, Cr, V and Ce elemental mappings results, it can be inferred that the Ti₆Cr₁₄V₈₀Ce₁H_x located in the glossy white area was uniformly dispersed in the MgH₂ substrate from the dark area in the HAADF image (in Figure 2d).

3.2. Hydrogen de-/Absorption Properties

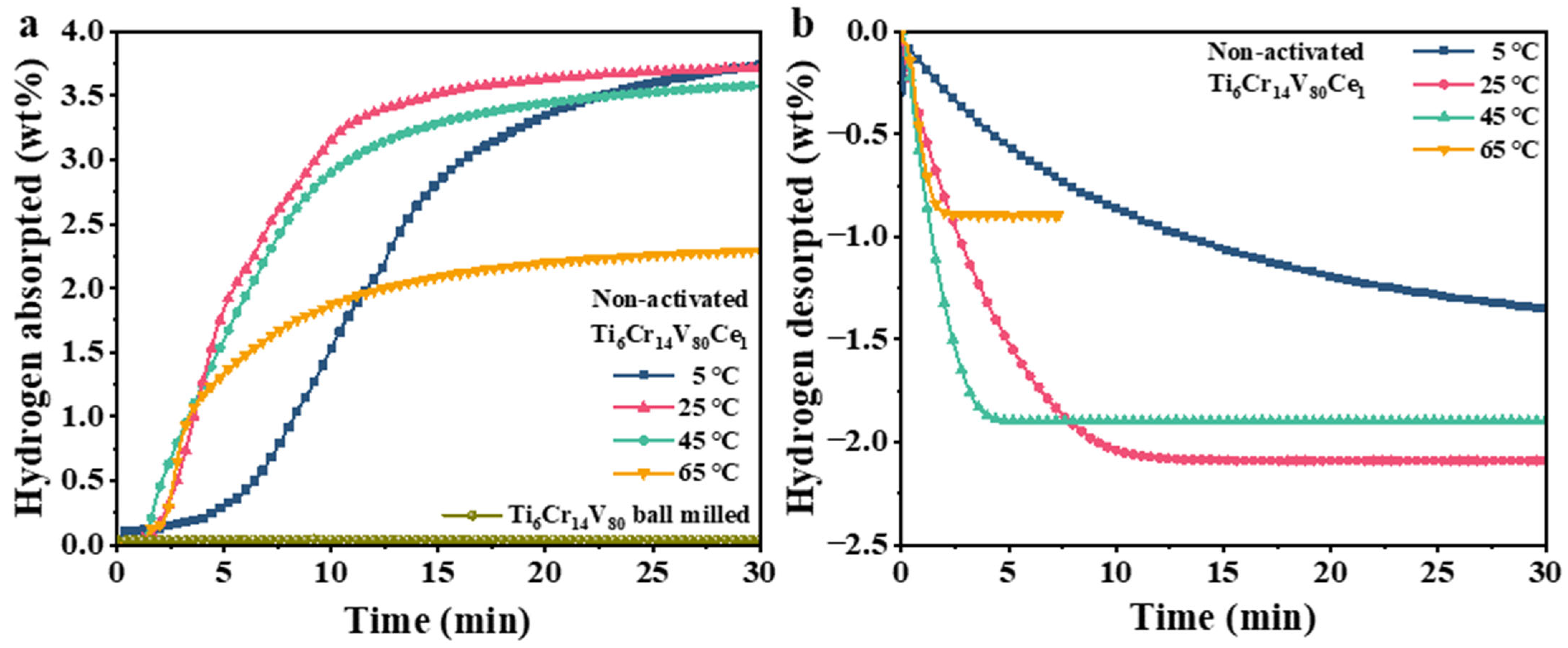

The Ti₆Cr₁₄V₈₀ alloy after Ce doping has a superior ability to rapidly absorb hydrogen at room temperature without going through activation at 400 °C. This is because cerium can effectively reduce the oxygen concentration in the alloy. Figure 3 presents the hydrogen de-/absorption kinetics curves of the Ti₆Cr₁₄V₈₀Ce₁ alloy at 5–65 °C without any activation through a high-temperature process. It can be evidently observed that there is a very short initial incubation period for absorbing kinetics in Figure 3a. The Ti₆Cr₁₄V₈₀Ce₁ alloy can rapidly absorb 3.7 wt% H₂ at 25 °C within 15 min. However, the maximum hydrogen absorption capacity at 65 °C is approximately 2.3 wt%. In addition, we measured the hydrogen-absorption properties of the undoped-Ce Ti₆Cr₁₄V₈₀ alloy when processed by ball milling; the measurement suggests that it is unable to absorb hydrogen. In addition, the desorption kinetics curves at the corresponding temperature of the Ti₆Cr₁₄V₈₀Ce₁ alloy after absorption saturation are shown in Figure 3b. The dehydrogenation capacity of the alloy reaches 1.32, 2.10, 1.90 and 0.91 wt% within 30 min at 5, 25, 45 and 65 °C, respectively. It can be observed that the hydrogen capacity decreases when the temperature increases. This is because the hydrogen absorption of the alloy is an exothermic reaction while the hydrogen desorption process is an endothermic reaction. From the PCT curves (shown in Figure S1), it can be seen that the content of the residual hydrogen can almost be matched, which is derived from the V₂H phase being difficult to release. This is in good agreement with relevant reports.

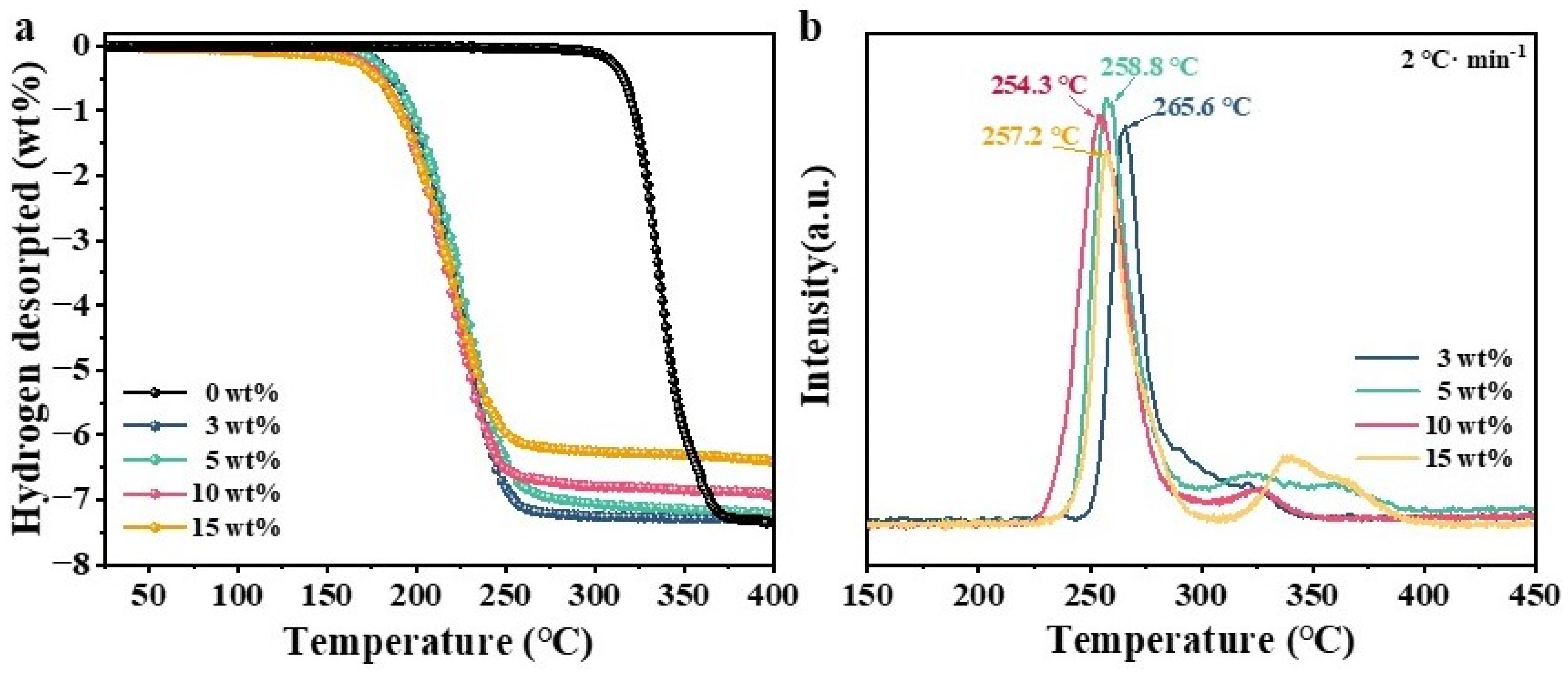

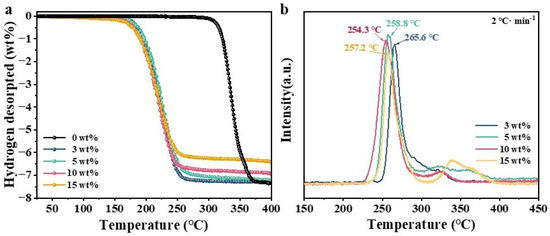

To evaluate the catalytic effects of the Ti₆Cr₁₄V₈₀Ce₁H_x alloy compounded with MgH₂, non-/isothermal hydrogen-desorption curves of the corresponding composites were constructed. Figure 4a displays the temperature programmed desorption (TPD) curves of the composites, and demonstrates that the initial dehydrogenated temperature was reduced to approximately 160 °C when the Ti₆Cr₁₄V₈₀Ce₁H_x powder was incorporated. However, there is a slight distinction in the initial dehydrogenated temperature when different amounts of Ti₆Cr₁₄V₈₀Ce₁H_x were introduced. Further, the DSC curves at a heating rate of 2 °C·min⁻¹ for the MgH₂-Ti₆Cr₁₄V₈₀Ce₁H_x composite are also displayed in Figure 4b; the peak dehydrogenated temperature was identified as 265.6, 258.8, 254.3 and 257.2 °C for MgH₂-3 wt%Ti₆Cr₁₄V₈₀Ce₁H_x, MgH₂-5 wt%Ti₆Cr₁₄V₈₀Ce₁H_x, MgH₂-10 wt%Ti₆Cr₁₄V₈₀Ce₁H_x and MgH₂-15 wt%Ti₆Cr₁₄V₈₀Ce₁H_x, respectively. These results suggest the incorporation of Ti₆Cr₁₄V₈₀Ce₁H_x remarkably enhances the dehydrogenation performance of MgH₂.

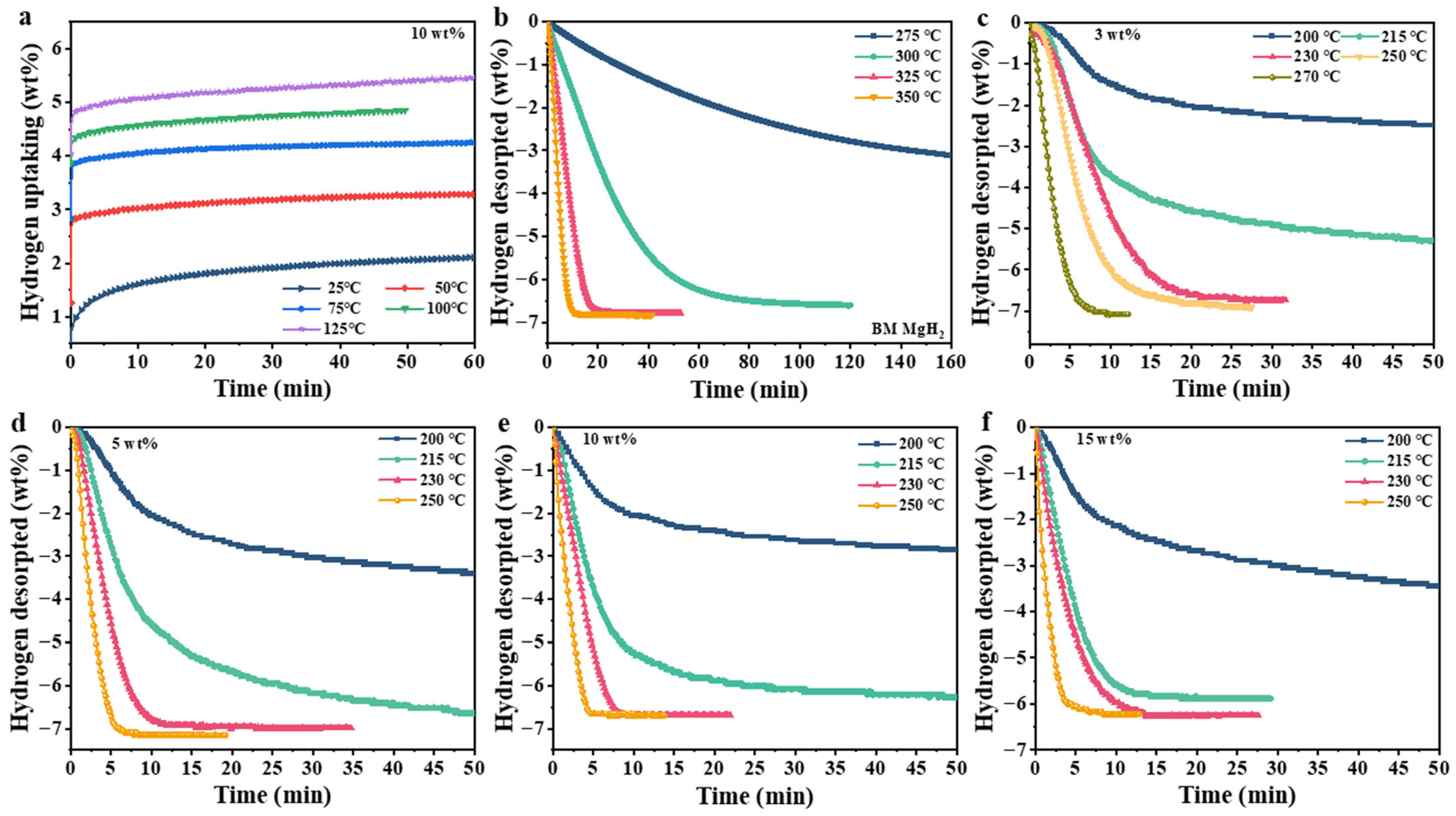

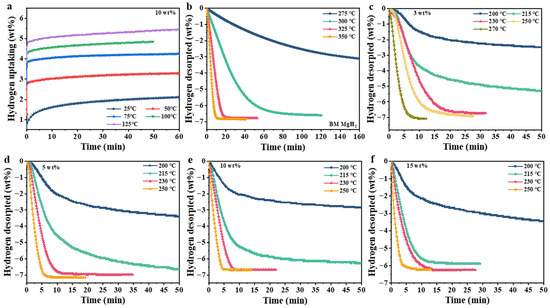

Figure 5a shows the isothermal hydrogen-absorption curves of the MgH₂-10 wt%Ti₆Cr₁₄V₈₀Ce₁H_x composite. It shows that 2.0 wt% H₂ could be uptaked within 1 h even at room temperature and 4.86 wt% H₂ was recharged within 10 s at 125 °C. Figure 5b–f demonstrate the isothermal dehydrogenation curves for the MgH₂-y wt%Ti₆Cr₁₄V₈₀Ce₁H_x (y = 0, 3, 5, 10, 15) composite at various temperatures. Hydrogen could be liberated from the ball milled pristine MgH₂ when the procedure was performed at above 275 °C, as illustrated in Figure 5b. When 3 wt% Ti₆Cr₁₄V₈₀Ce₁H_x was introduced (shown in Figure 5c), the composite can release 6.60 and 6.85 wt% H₂ within 20 min at 230 and 250 °C, respectively. In addition, the MgH₂-5 wt% Ti₆Cr₁₄V₈₀Ce₁H_x composite can release 6.91 and 7.15 wt% H₂ within 12 min at 230 and 250 °C (depicted in Figure 5d), respectively. It is worth noting that, as illustrated in Figure 5e, the dehydrogenation capacity reached 6.67 wt% °C at 230 °C for 8 min and at 250 °C for 5 min when 10 wt% Ti₆Cr₁₄V₈₀Ce₁H_x was added into MgH₂. Furthermore, the duration was 8 min for complete dehydrogenation capacity of 6.2 wt% at 250 °C in the MgH₂-15 wt% Ti₆Cr₁₄V₈₀Ce₁H_x composite, as presented in Figure 5f. The above-mentioned results reveal that the Ti₆Cr₁₄V₈₀Ce₁H_x catalysts with varying addition amounts can significantly accelerate the liberation of hydrogen of MgH₂, and the total amount of hydrogen desorption decreased as Ti₆Cr₁₄V₈₀Ce₁H_x increased. Overall, the MgH₂-10 wt%Ti₆Cr₁₄V₈₀Ce₁H_x composite demonstrated the best catalytic effect based on the desorption rate and amount of hydrogen at varying temperatures.

To further study the dehydrogenated reaction kinetics of the Ti₆Cr₁₄V₈₀Ce₁H_x-modified MgH₂, it is essential to analyze kinetic models during the de-/absorption process. In general, with the classical Johnson–Mehl–Avrami–Kolmogorov (JMAK) model, the nucleation and growth mechanism is suitable for describing the hydrogen de-/absorption behaviors [41,42]. Equation (1) is as follows:

ln[−ln(1 − α)] = nlnk + nlnt

(1)

where α is the reaction fraction via t (α is the ratio of de-/absorption to the total capacity at any moment), k is the rate constant of hydrogen de-/absorption. n is the Avrami exponent for reaction order. k can be obtained from the intercept by establishing the linear relationship between ln[−ln(1 − α)] and lnt.

Thus, the activation energy (E_a) of the composite during the de-/absorption process can be achieved through the Arrhenius Formulas (2) and (3):

$$k=A{e}^{-\frac{E_a}{RT}}$$

(2)

$$\ln k=-\frac{E_a}{RT}+\ln A$$

(3)

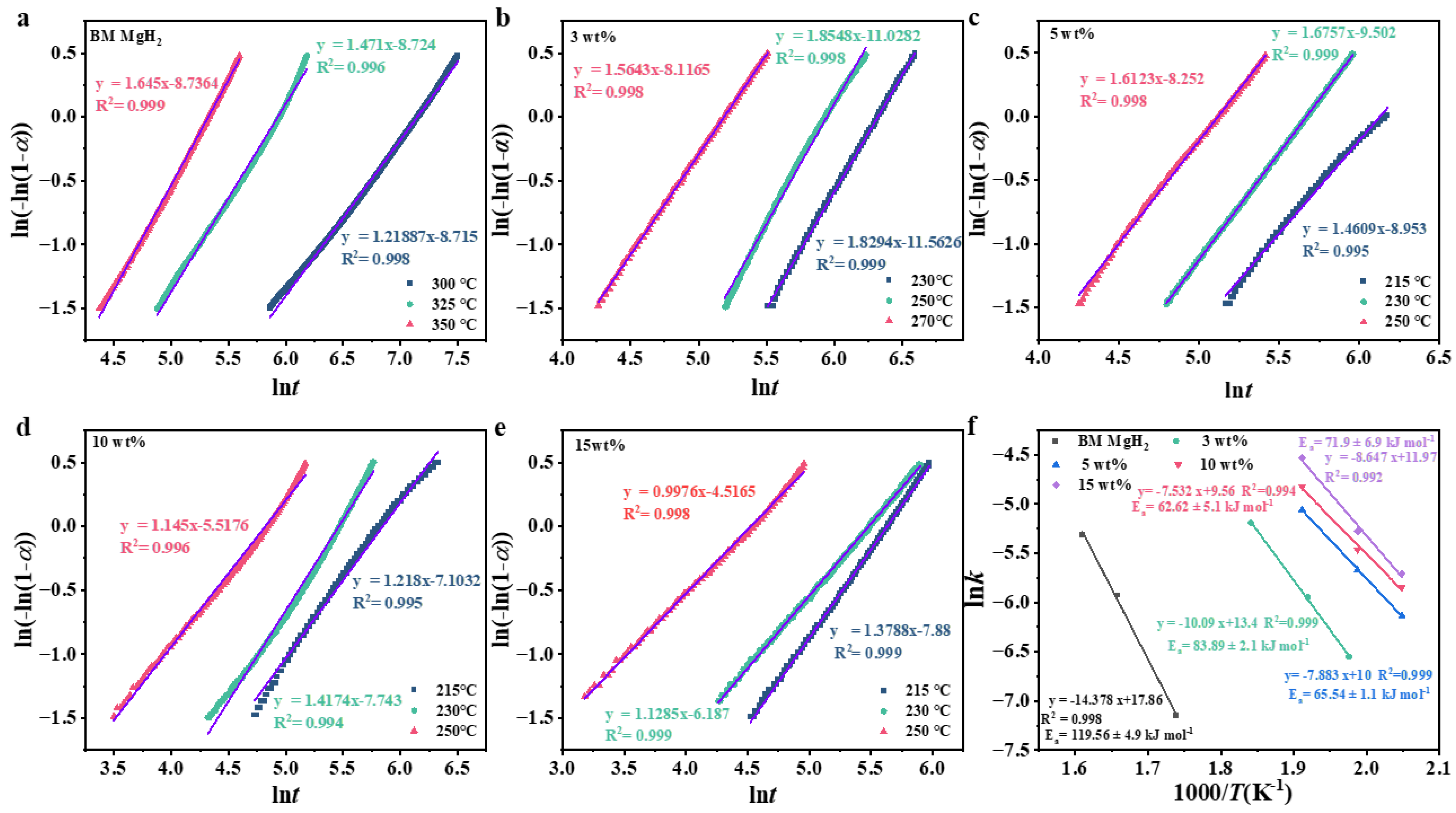

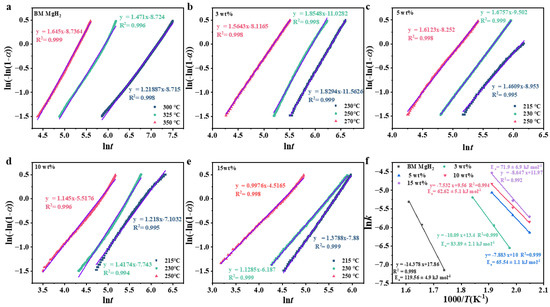

where A is the pre-exponential factor and E_a is the activation energy. By plotting lnk (calculated from Equation (1)) against 1/T, the E_a can be evaluated. In accordance with the isothermal dehydrogenated kinetics experimental data in Figure 5b–f, we plotted the data with 0.2 < α < 0.8 at different temperatures. Figure 6a–e exhibit the JMAK model fitting results of ln[−ln(1−α)] vs. lnt for dehydrogenation of the MgH₂-y wt%Ti₆Cr₁₄V₈₀Ce₁H_x (y = 0, 3, 5, 10, 15) composites at the corresponding temperatures. It can be seen that the reaction order (n, the slope) value for dehydrogenation is approximately 1~2, which infers that the dehydrogenated rate-limiting steps of the composite are determined to be the diffusion-controlled growth model [43]. After fitting the lnk vs. 1000/T values, the apparent dehydrogenated activation energies (E_a) of the relative composites were calculated and are presented in Figure 6f. It was found that the E_a of the composites with non-/doping, 3, 5, 10, 15 wt% Ti₆Cr₁₄V₈₀Ce₁H_x is 119.56 ± 4.9, 83.89 ± 2.1, 65.54 ± 1.1, 62.62 ± 5.1 and 71.90 ± 6.8 kJ·mol⁻¹H₂, respectively. It can be found that the MgH₂-10 wt%Ti₆Cr₁₄V₈₀Ce₁H_x composite exhibits the lowest dehydrogenated activation energy during them. Obviously, the introduction of the Ti₆Cr₁₄V₈₀Ce₁H_x catalyst can significantly decrease the E_a of MgH₂; in particular, the E_a is reduced by 52% when doping with 10 wt%Ti₆Cr₁₄V₈₀Ce₁H_x. The comparison of the corresponding reported catalyst-modified MgH₂ is listed in Table S1.

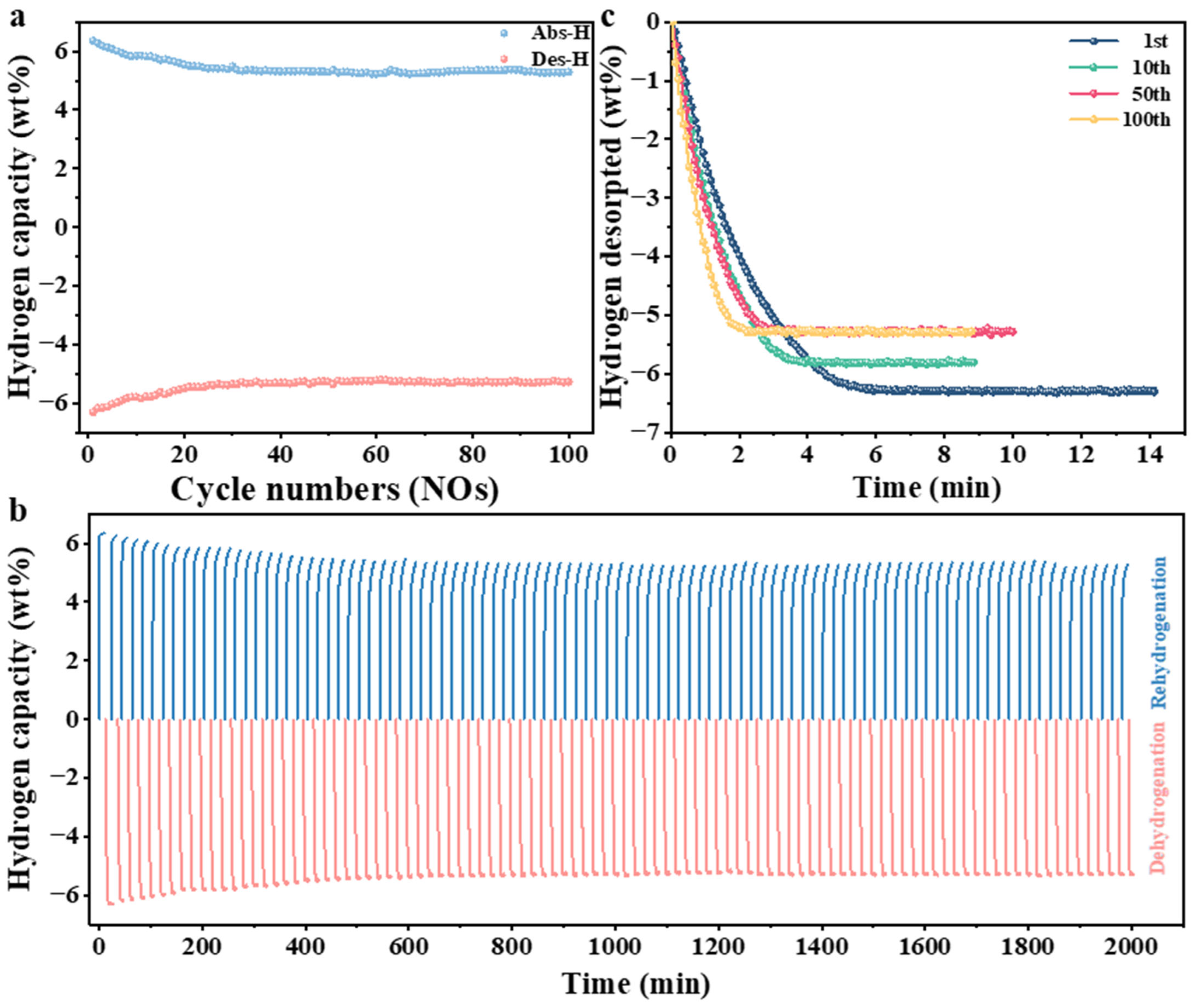

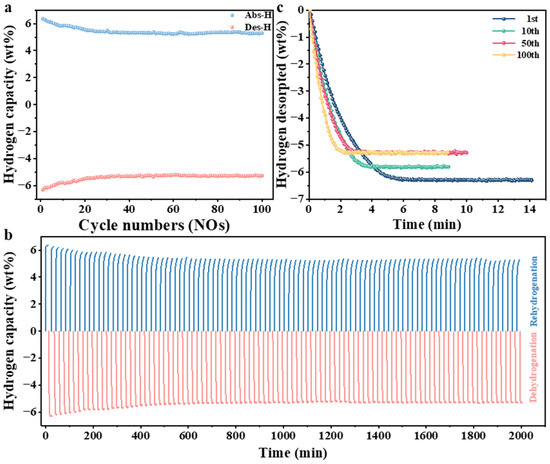

Reversable isothermal de-/rehydrogenation tests were performed covering 100 cycles to evaluate the cyclic stability of the MgH₂-10 wt%Ti₆Cr₁₄V₈₀Ce₁H_x composite at 300 °C with the initial hydrogen pressure of 50.0 bar. Figure 7a,b depicted that the composite maintains 84% retention along with the first dehydrogenated capacity of 6.28 wt% and the final dehydrogenated capacity of 5.27 wt% after 100 cycles. The loss of the hydrogen capacity was ascribed to the residual hydrogen generated from the Ti₆Cr₁₄V₈₀Ce₁ catalyst, which could not be completely released within 15 min. The desorption kinetics of the first, 10th, 50th and 100th cycles of the composite are shown in Figure 7c; it was found that the dehydrogenation rate after several cycles was obviously accelerated. Therefore, it can be deduced that the ‘autocatalytic effect’ originating in Ti₆Cr₁₄V₈₀Ce₁H_x plays a crucial role in boosting the de-/hydrogenation performance of MgH₂.

3.3. The Catalytic Mechanism

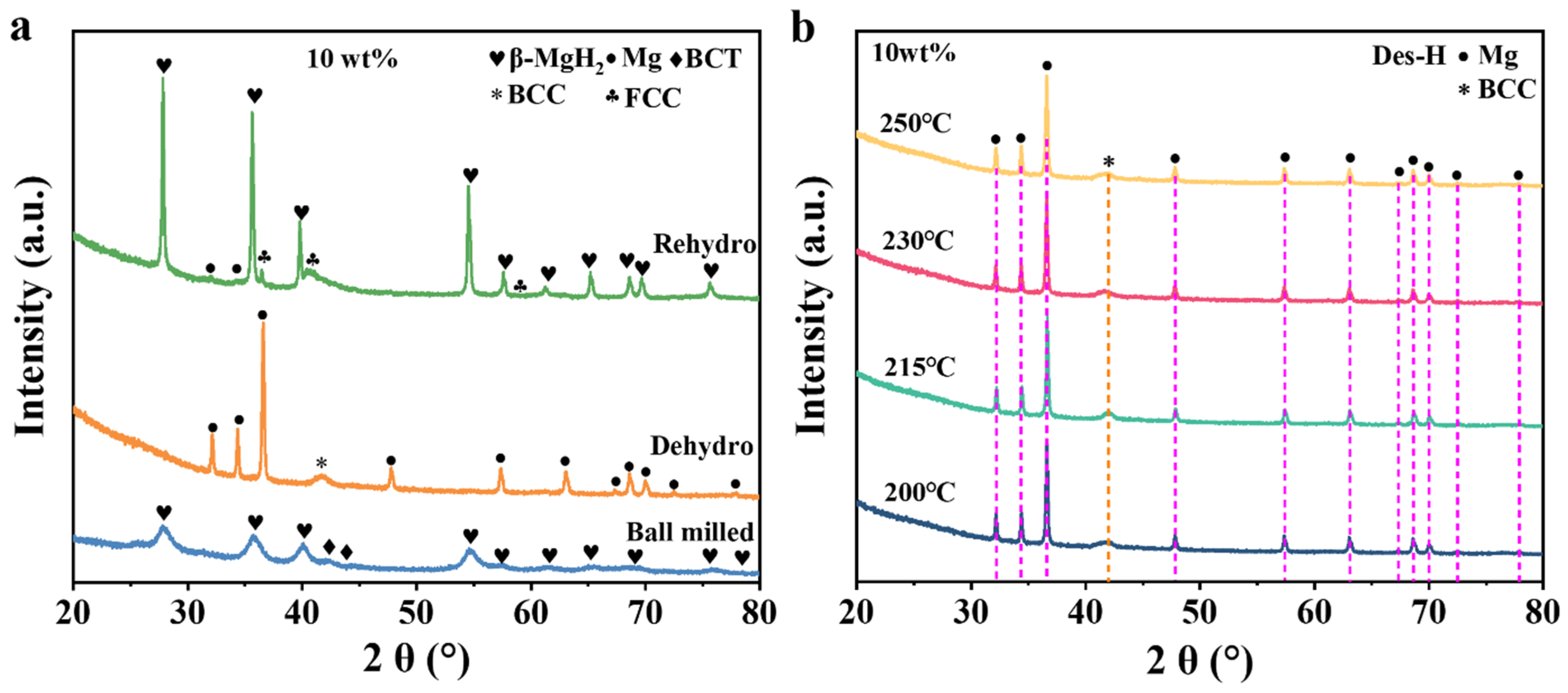

To further explore the catalytic mechanism of the remarkable hydrogen de-/absorption kinetics from the Ti₆Cr₁₄V₈₀Ce₁H_x-catalyzed MgH₂, XRD and TEM were applied to elucidate the structure evolution of Ti₆Cr₁₄V₈₀Ce₁H_x at different states. The XRD pattern results of the ball milled de-/re-hydrogenated state of the 10 wt% Ti₆Cr₁₄V₈₀Ce₁H_x-catalyzed MgH₂ are shown in Figure 8a. The BCT phase of the alloy naturally emerged in the ball milled composite due to its desorption plateau pressure features, which is confirmed in Figure S1. Although β-MgH₂ has undisputedly become the dominant phase of the ball milled and rehydrogenated state, some Mg phases could be detected in the hydrogenated sample. This was because the interior of an Mg particle is not easily fully hydrogenated due to the agglomeration phenomenon. Ti₆Cr₁₄V₈₀Ce₁H_x after dehydrogenation will transform into a BCC phase and return to a FCC phase when rehydrogenated. Furthermore, the XRD results of the 10 wt% Ti₆Cr₁₄V₈₀Ce₁H_x-catalyzed MgH₂ after the different dehydrogenated temperatures are depicted in Figure 8b. It can be clearly observed that there is a peak located at 42 ° which corresponds to the (110) plane of the BCC phase from the Ti₆Cr₁₄V₈₀Ce₁ alloy. It is also proved that Ti₆Cr₁₄V₈₀Ce₁H_x has a superior catalytic effect on dissociation of Mg-H bonds even at 200 °C, as reflected in the XRD patterns.

To further investigate the microstructural characteristics of the composite, TEM observations on the dehydrogenated composite were obtained. As shown in Figure 9a,b, the Mg phase (P6₃/mmc (194)) is observed in HRTEM images (Figure 9c) with lattice spacing of 0.245 nm. Besides, it can be also observed that there are apparent interfaces between Mg and the Ti₆Cr₁₄V₈₀Ce₁ with the BCC phase in Figure 9c. As depicted in Figure 9d, the diffraction spot lattice of the Fourier transform pattern exhibits the typical BCC phase (110) zone axis. Furthermore, it can be clearly observed that there are jointed interfaces from Mg and BCC phases, which presents the obvious layer fault in HRTEM images (Figure 9c). This suggests that massive dislocation defects were generated during the high-energy ball milling. Figure 9e shows the angle annual dark-field (HAADF) images of the dehydrogenated sample and the corresponding EDS mappings. It can be seen that the Ti₆Cr₁₄V₈₀Ce₁ particles with an average grain size of 200 nm are dispersed in the Mg/MgH₂ matrix. The Ti, V, Cr and Ce elements were homogeneously distributed on the surface of Mg/MgH₂. The brighter nanoparticles are considered as the Ti₆Cr₁₄V₈₀Ce₁ alloy introduced in the MgH₂.

Based on the above discussions, the catalytic process of the Ti₆Cr₁₄V₈₀Ce₁H_x compounded with MgH₂ can be speculated on. The pre-ball milled Ti₆Cr₁₄V₈₀Ce₁ alloy transformed into Ti₆Cr₁₄V₈₀Ce₁H_x hydrides under hydrogen pressure. The obtained Ti₆Cr₁₄V₈₀Ce₁H_x ball milled with MgH₂ stayed as the BCT phase in the composite in ambient conditions. After dehydrogenation, the catalyst Ti₆Cr₁₄V₈₀Ce₁H_x transformed into the BCC phase and returned into the FCC phase when it was rehydrogenated. The structure evolution of the Ti₆Cr₁₄V₈₀Ce₁ alloy was in accordance with that of the reported V-based BCC-type hydrogen-storage alloys [44,45]. In terms of the hydrogen-storage alloy with the BCC phase, the inherent features of superior de-/absorption kinetics contribute to the remarkable catalytic effect on MgH₂. We called it the ‘autocatalytic effect’ of the hydrogen-storage alloy, and it had a fast de-/absorption rate and was the priority of the hydrogen diffusion during the hydrogen dissociation and recombination in the composite. The autocatalytic reaction was also reported by Zhu et al. [46]. They studied melted MmNi_5−x(CoAlMn)_x alloy milling with Mg to form a nano-phase composite by fitting the kinetic curve and found that it matched with the rate equation of the autocatalysis process. On one hand, the Ti₆Cr₁₄V₈₀Ce₁H_x nano-particles act as the active sites to de-/absorb hydrogen and dissociate from H atoms. The de-/absorption behavior of the Ti₆Cr₁₄V₈₀Ce₁H_x particles can thus trigger the migration of H atoms into the Mg/MgH₂ matrix. One the other hand, the generated plentiful dislocations offer extra stacking fault energy and distortion energy, which provide massive hydrogen diffusion channels in the composite. The elements Ti, Cr, V and Ce of Ti₆Cr₁₄V₈₀Ce₁H_x have lower electronegativity than Mg, which significantly weakens the Mg-H bonds and further facilitates the dehydrogenation reaction. Consequently, the favorable self-absorption or desorption hydrogen kinetics characteristics from the Ti₆Cr₁₄V₈₀Ce₁H_x particles and the structure transitions significantly enhance the de-/hydrogenation kinetic performance of MgH₂.

4. Conclusions

The Ce-doped Ti₆Cr₁₄V₈₀Ce₁ hydrogen-storage alloy was prepared via arc melting and hydrogenated into Ti₆Cr₁₄V₈₀Ce₁H_x hydrides via ball milling in a hydrogen atmosphere. The MgH₂ + y wt%Ti₆Cr₁₄V₈₀Ce₁H_x (y = 0, 3, 5, 10, 15) nano-composites were prepared via ball milling to explore the catalytic effect of the Ti₆Cr₁₄V₈₀Ce₁H_x alloy on the hydrogen de-/absorption properties of MgH₂. Experimental results exhibit that the 10 wt% Ti₆Cr₁₄V₈₀Ce₁H_x-catalyzed MgH₂ showed an initial dehydrogenated temperature of 160 °C and can absorb 2.0 wt% H₂ within 1 h at room temperature. Moreover, the composite can rapidly release 6.73 wt% H₂ within 8 min at 230 °C. Meanwhile, the composite has a reversible de-/absorption hydrogen capacity retention of 84% after 100 cycles at 300 °C. In addition, the calculated dehydrogenated activation energy of the composite via the JMAK model was identified to be 62.62 kJ mol⁻¹. A catalytic mechanism analysis revealed that the reversible phase transformation (BCC-FCC) originating in the Ti₆Cr₁₄V₈₀Ce₁H_x hydrides can offer more diffusion pathways for hydrogen migration and act as the active nucleation sites for Mg/MgH₂. In addition, plentiful of dislocations and defects originating in the connected interfaces from Ti₆Cr₁₄V₈₀Ce₁H_x and MgH₂ can provide extra interface energy and effectively weaken the Mg-H bonds. This work offers an effective strategy for fabricating a hydrogen-storage alloy compounded with MgH₂ with superior hydrogen sorption kinetics characteristics.
