Comparison of Aqueous and Gelled 3.5% NaCl Electrolytes for Assessing the Corrosion Resistance of Thermal Spray Stainless-Steel Coatings in Electrochemical Corrosion Tests

Abstract

Corrosion testing with gel electrolytes gained attention in the past decade due to the advantage of almost non-destructive and in situ electrochemical measurements of bulk materials. Regarding thermal spray coatings, gel electrolytes offered the opportunity to prevent the infiltration of the typical microstructural features such as pores and microcracks. Using the example of stainless-steel AISI 316L coatings deposited by high velocity air fuel (HVAF) spraying on mild and stainless-steel substrates, the electrochemical corrosion behavior was analyzed in 3.5% NaCl electrolytes in an aqueous and gelled state. In this context, potentiodynamic polarization tests were carried out in a three-electrode corrosion cell, which was adapted for gel electrolyte testing. Gelling was realized with a technical gelatin. The characteristic corrosion values, such as open circuit potential, corrosion potential, and corrosion current density, revealed for the gelled state that the influence of the substrate material used could be eliminated and thus, the coatings itself could be characterized. In contrast, the coating specific microstructure and substrate material significantly affected the potentiodynamic polarization curve in the 3.5% NaCl aqueous electrolyte. Optical microscopy of the coating surfaces and cross-sections proved that the corrosion attack caused by aqueous electrolytes could be mimicked with the gel electrolyte.

1. Introduction

Gel electrolytes are increasingly considered in corrosion science with the focus on visual corrosion inspection for specific applications and electrochemical-instrumented measurements [1,2,3,4,5,6,7,8,9,10,11,12]. The advantages addressed are an easier handling than using liquid electrolytes, e.g., for geometrical complex structures, almost non-destructive measurements, and the imitation of specific atmospheres. In most cases, the electrolytes are gelatinized by Agar, a polycarbohydrate, which are often stabilized by adding additives. One established corrosion test is the KorroPad indication test, which is designed for passivating steels to evaluate their susceptibility concerning pitting corrosion [1,2,3]. Further applications are corrosion assessment at sculptures and monuments [4,8] and reconstruction of specific atmospheric conditions like moisturizing films on zinc coatings [6,12] or artificial mud [11].

With regard to thermal spray coatings, Kutschmann et al. showed in a previous study that an infiltration of the characteristic microstructures, such as pores and cracks, of arc and plasma-sprayed AISI 316L coatings can be prevented when using gel electrolytes in electrochemical-instrumented corrosion tests [13]. The corrosion attack can be transferred to the surface and the corrosion properties of the coating itself and the applied spraying conditions are revealed.

The corrosion behavior of thermal spray coatings is generally investigated with focus on the composite of the coating and the substrate not normally differentiating the substrate material used. Hence, the applied corrosion tests are generally destructive. The salt spray test or the Corrodkote test are specifically designed to induce sub-corrosion in order to test the apparent density of the coatings. In research, studies often deal with electrochemical-instrumented tests such as potentiodynamic polarization, electrochemical impedance, and immersion tests in 3.4% to 5% sodium chloride (NaCl) solutions [14,15,16,17]. For these corrosion tests, the following observations can be summarized: the open circuit potential (OCP) and the corrosion potential (E_Corr), respectively, decreases with immersion time due to electrolyte infiltration of the coating toward the substrate. Consequently, a galvanic pair emerges between the coating and substrate resulting in the detection of mixed potentials. Hence, thermal spray coatings with a homogeneous and compact coating microstructure with less oxidation are preferred for corrosive application. In order to improve the corrosion behavior, several authors studied the influence of the spray parameters [15,16,17,18,19,20,21] or post treatments like sealing [22,23,24] or heat treatments [18,25,26]. Post treatments are cost and time consuming and can alter the substrate. Nevertheless, influencing factors still are fluctuations in the coating process or deviations in the quality of the feedstock material. Image analysis methods are not capable to detect these changed spraying conditions in the coating microstructure. Corrosion tests can be used to assess such defects [25].

A novel corrosion test for thermal spray coatings using gel electrolytes describes the potential of characterizing the corrosion behavior of the coating itself. On the one hand, gel electrolytes attack only the coating surface and prevent coating damage up to the substrate. As a result, an almost non-destructive test strategy can be provided, which can be transferred on coated components as well. On the other hand, an electrochemical-instrumented corrosion test based on the three-electrode cell enables a quantitative and timeless assessment of the corrosion resistance. Both advantages can be utilized to establish a test method for quality assurance during production. This study focuses on the influence of the substrate material on the measured corrosion values using potentiodynamic polarization tests in aqueous and gelled 3.5% NaCl electrolytes. Stainless-steel AISI 316L coatings were produced by the high velocity air fuel (HVAF) spraying process on structural steel (EN 1.0117) and stainless steel (EN 1.4404 corresponds to AISI 316L) substrates, respectively providing coatings with minimal defects such as porosity, in situ oxidation, and depletion of beneficial elements like Cr.

2. Materials and Methods

2.1. Coating Production and Characterization

Stainless-steel coatings were produced with a HVAF M3^TM equipment (Uniquecoat Technologies, LLC, Oilville VA, USA). Gas-atomized AISI 316L stainless-steel powder was chosen as feedstock material. Propane and air were combusted to accelerate the powder, and nitrogen was used as carrier gas for coating deposition. Thus, coatings with a thickness of ~300 µm were deposited on mild steel and stainless-steel substrates. As substrate samples, 100 mm × 100 mm × 4 mm structural steel plates (EN 1.0117), further labelled as mild steel, and Ø 25 mm × 5 mm stainless-steel coupons (EN 1.4404) were used as substrate and uncoated reference materials. Before coating deposition, the samples were grit blasted with corundum and cleaned with a strong compressed air flow.

After coating preparation, the steel plates were cut into 20 mm × 20 mm × 4 mm pieces, flat grounded to a coating thickness of 200 µm ± 18 µm and afterwards diamond polished according to standard metallographic sample preparation up to 1 µm diamond polish. The surface preparation routine was used for all coated samples. The reference bulk materials obtained the same polishing surface finish as the coated samples.

For characterization, metallographic cross-sections of the powder, coating, and reference samples were prepared by standard metallographic procedures. The cross-sections were investigated with an optical microscope GX51 (Olympus, Shinjuku, Japan) equipped with a SC 50 camera (Olympus, Shinjuku, Japan). The coatings’ porosities, as an average of five measurements, were evaluated using a digital image analyzing method provided by the camera software. In order to study the powder and coating microstructure in detail, a scanning electron microscope (SEM) LEO 1455VP (Zeiss, Jena, Germany) with an acceleration voltage of 25 kV was used. The AISI 316L powder particle size distribution was examined with a laser particle size analyzer CILAS930 (Cilas, Orléas, France). Chemical compositions were analyzed by energy dispersive X-ray spectroscopy EDS (GENESIS, EDAX, Mahwah, NJ, USA). The corroded surface areas were additionally visualized with a stereo microscope MVX10 (Olympus, Shinjuku, Japan).

2.2. Corrosion Testing

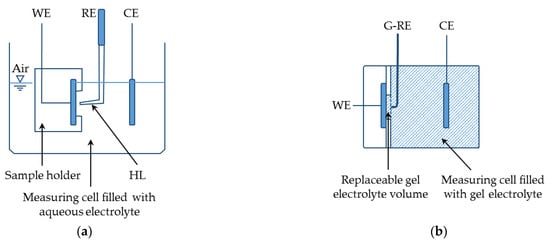

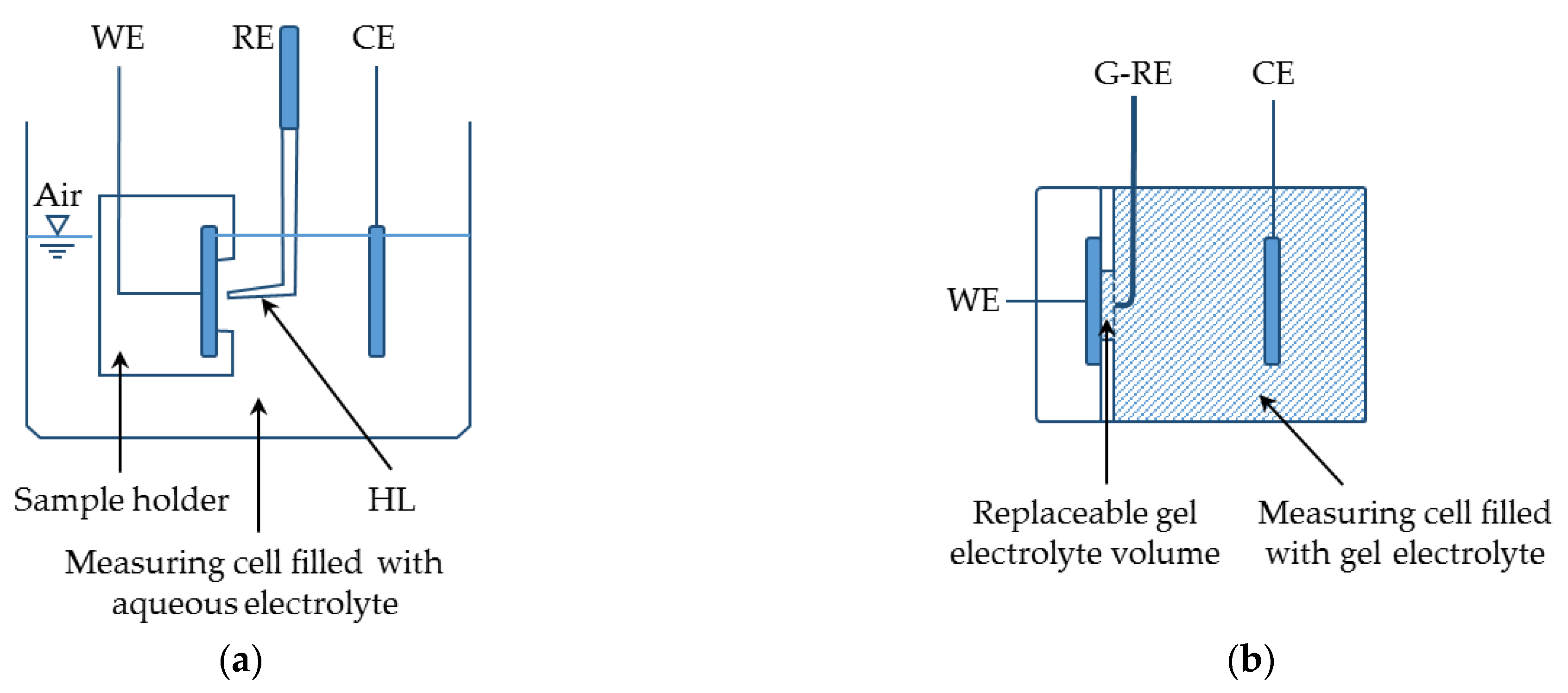

The corrosion behavior of the AISI 316L coatings and reference bulk materials was investigated in a stagnant and naturally aerated 3.5% NaCl electrolytes, corresponding to 0.56 M NaCl electrolyte, using the potentiodynamic polarization test. As cell setup the conventional three-electrode configuration were used (Figure 1), in which the test sample acts as the working electrode (WE), a platinum sheet serves as a counter electrode (CE) and the third one is a reference electrode (RE and G-RE, respectively). For the corrosion experiments in the aqueous electrolyte, the RE was an Ag/AgCl-saturated KCl electrode (+0.197 V vs. SHE), which was contacted by a Haber-Luggin capillary (HL) and an electrolyte bridge with the cell circuit (Figure 1a). The 3.5% NaCl solution with a pH value of 5.9 at 23 °C ± 2 °C was exchanged after each experiment, the volume being 200 mL.

For the gel electrolyte tests, a measuring cell was developed based on the three-electrode arrangement that permits an improved user-friendliness compared to the standard measuring cell, which allows a rapid corrosion test directly on a component surface in later development stages. The position and shape of the counter electrode was kept as in the established three-electrode configuration (Figure 1b). The Haber-Luggin capillary and Ag/AgCl RE were replaced by a platinum wire (G-RE, +1.12 V vs. SHE) with a diameter of 0.5 mm and placed a few 100 µm in front of the surface of the WE. The gel electrolyte studied consisted of a 3.5% NaCl solution, which was gelled by using a mass fraction of 30% of a technical gelatin and further addition of preservatives and substances to prevent bubble formation, etc. At room temperature, the gel has a viscosity higher than 3000 mPa·s, which was measured with a viscometer at 37 °C. The electrical resistance of the gel electrolyte is comparable to the aqueous NaCl solution. The measuring cell was filled with a gel at a temperature of approximately 50 °C, at which the gel has a low viscosity of ~2000 mPa·s. The gel with a volume of 150 mL to 200 mL was then allowed to cool to room temperature. After each measurement, a small volume of gel electrolyte (~10 mL) contaminated with corrosion products was replaced (Figure 1b, replaceable gel electrolyte volume).

The measurement conditions were kept constant with the focus on implementing a rapid test strategy. Before starting the potentiodynamic polarization scan, the open circuit potential (OCP) was measured for 15 min. An exception is the OCP measurement of the reference mild steel with a duration of 10 min due to the occurrence of rust traces on the sample surface within 15 min of immersion time in the aqueous electrolyte. The scan rate was 1 mV/s, scanning a potential range of −100 mV to +300 mV relative to the measured OCP. Although a 1 mV/s was adopted in this stage of the experimentations, it is remarked that potential scan rate has no substantial provided distortions in the polarization curves or the polarization parameters (e.g., corrosion current density i_Corr and corrosion potential E_Corr) obtained. However, it is worth noting that potential scan rate has an important role in order to minimize the effect of distortion in Tafel slopes and corrosion current density analyses, as previously reported [27,28,29]. In addition, anodic potential scans up to +1000 mV relative to the OCP were performed in order to compare the corrosion attack of the aqueous and gel electrolyte. For both measuring cells, a sample area of 10 mm in diameter were exposed to the electrolyte. The recording of the OCP and the polarization curves were carried out with an electrochemical workstation ZAHNER ZENNIUM and the ThalesXT 5.6.0 USB software package (Zahner Elektrik GmbH & Co. KG, Kronach, Germany). The corrosion current density i_Corr and corrosion potential E_Corr were computed by Tafel analysis. Linear portions of the anodic and cathodic curves were fitted by Tafel exploration using a self-provided MATLAB R2020a (9.8.0.1323502) script. Mainly, the cathodic and anodic curves ±50 mV around the E_Corr are essential for the determination of i_Corr. All sample surfaces were rinsed with deionized water and degreased using ethanol before starting the corrosion tests. At least three samples were tested for each sample type and electrolyte, respectively. For the characteristic values, OCP, E_Corr, and i_Corr, the mean and standard deviations are reported and in the diagrams, one representative curve is shown for each case.

3. Results and Discussion

3.1. AISI 316L Powder and HVAF Coating Characterization

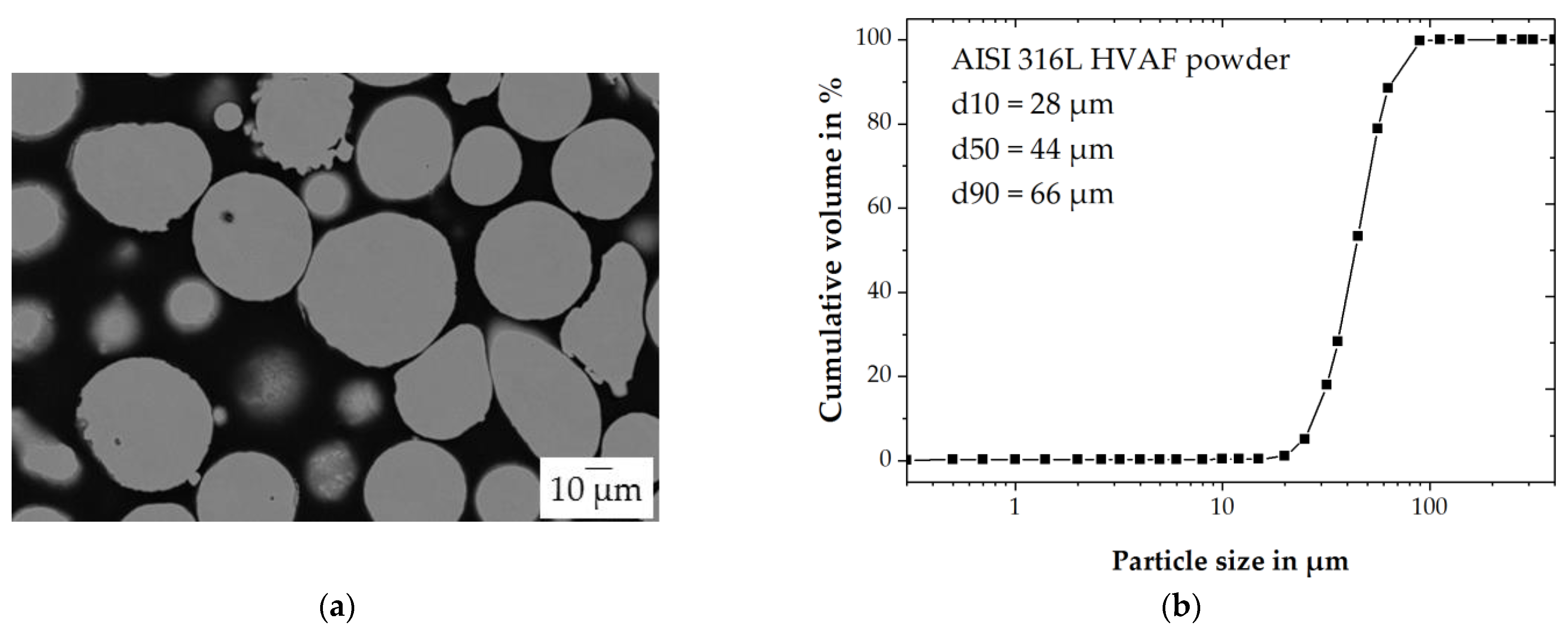

The AISI 316L powder used has a predominately spherical particle shape (Figure 2a), which generally results in good flow properties. The backscattered scanning electron microscope image (BSD-SEM) reveals a homogeneous alloy distribution. The particle size analyzed with laser particle size analyzer CILAS verifies a narrow distribution of −66 µm +28 µm (Figure 2b), which is preferred for producing coating microstructures with less-oxidized particle inclusions and pores.

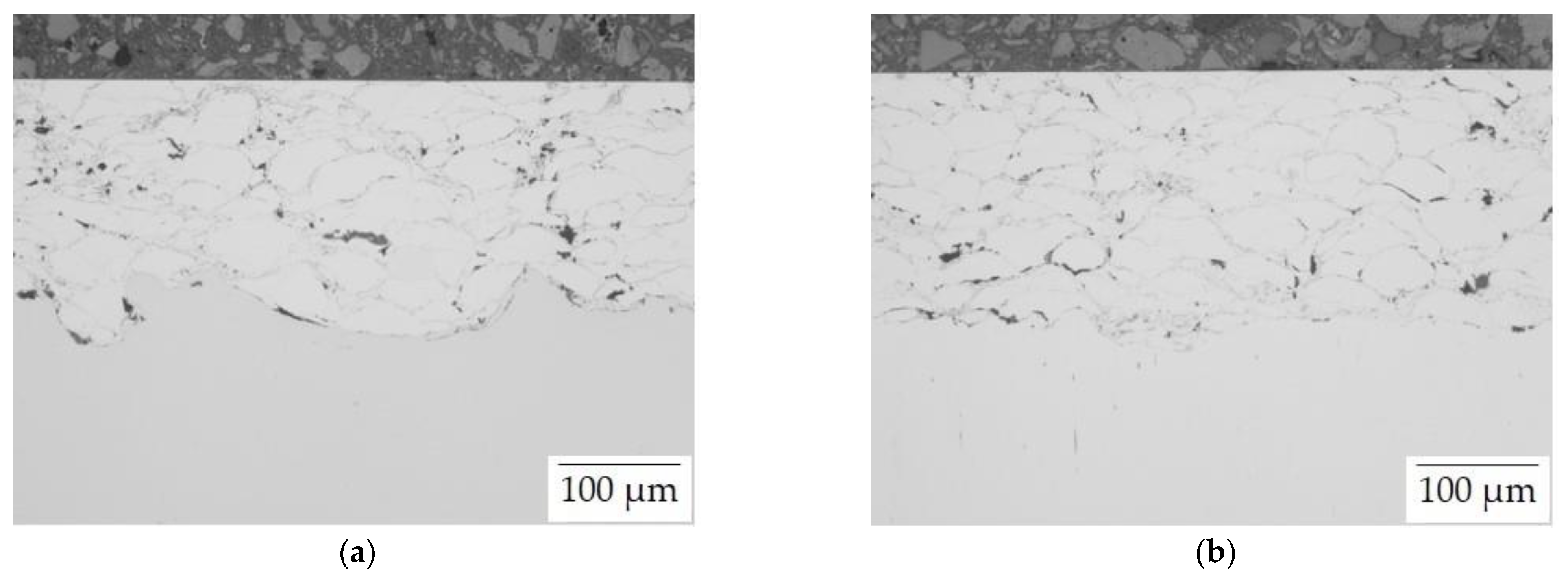

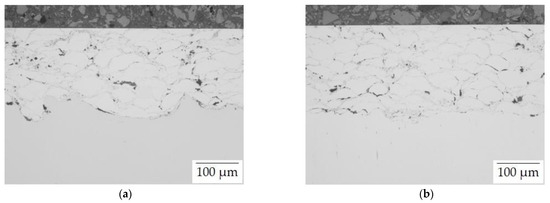

Figure 3 shows an overview of both AISI 316L HVAF coatings on mild steel and stainless-steel substrate with a polished surface finish. Both coatings reveal a dense microstructure with distinguishable particle boundaries, i.e., the spraying parameters enabled a good compaction with few pores. The porosity was quantified to <1.5% for the deposition on mild steel and <1.3% on stainless steel, respectively. Thus, both coatings systems have comparable microstructures as well as coating thicknesses of ~200 µm.

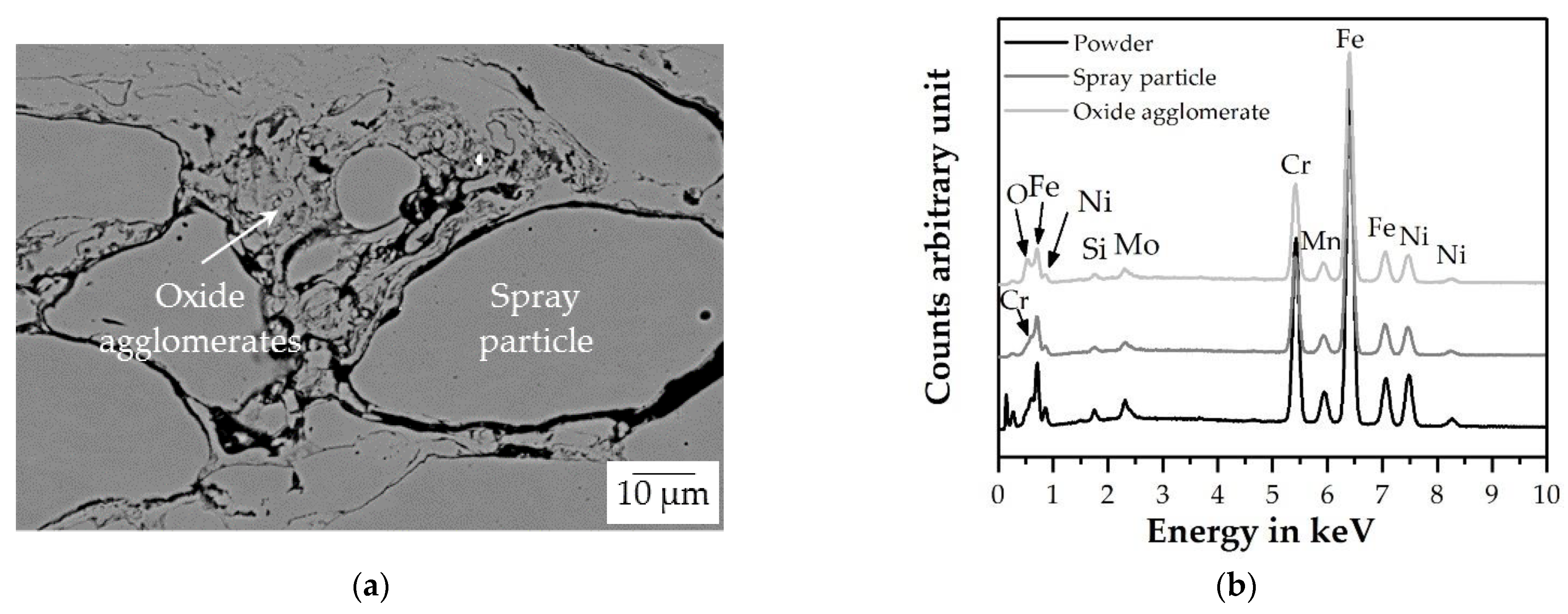

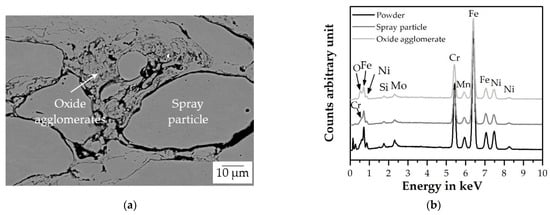

In addition, one coating system was examined in detail in a SEM (Figure 4a). Between the single spray particles, agglomerates of fine and oxidized particles were built into the coating layer. The dark contours at the spray particle surfaces much likely correspond to thin oxide layers. According to EDS analysis (Figure 4b), the powder and spray particle composition lies within the nominal composition of an AISI 316L alloy, this means the chemical composition of the feedstock material is retained in the coatings. These findings coincide with the study by Milanti et al., who characterized AISI 316L coatings sprayed with 2nd and 3rd HVAF spray systems in detail [12]. Between the splats, the oxide agglomerates show an insignificant chromium depletion but a qualitative oxide amount.

3.2. Poteniodynamic Polarization Test Results in 3.5% NaCl Solution

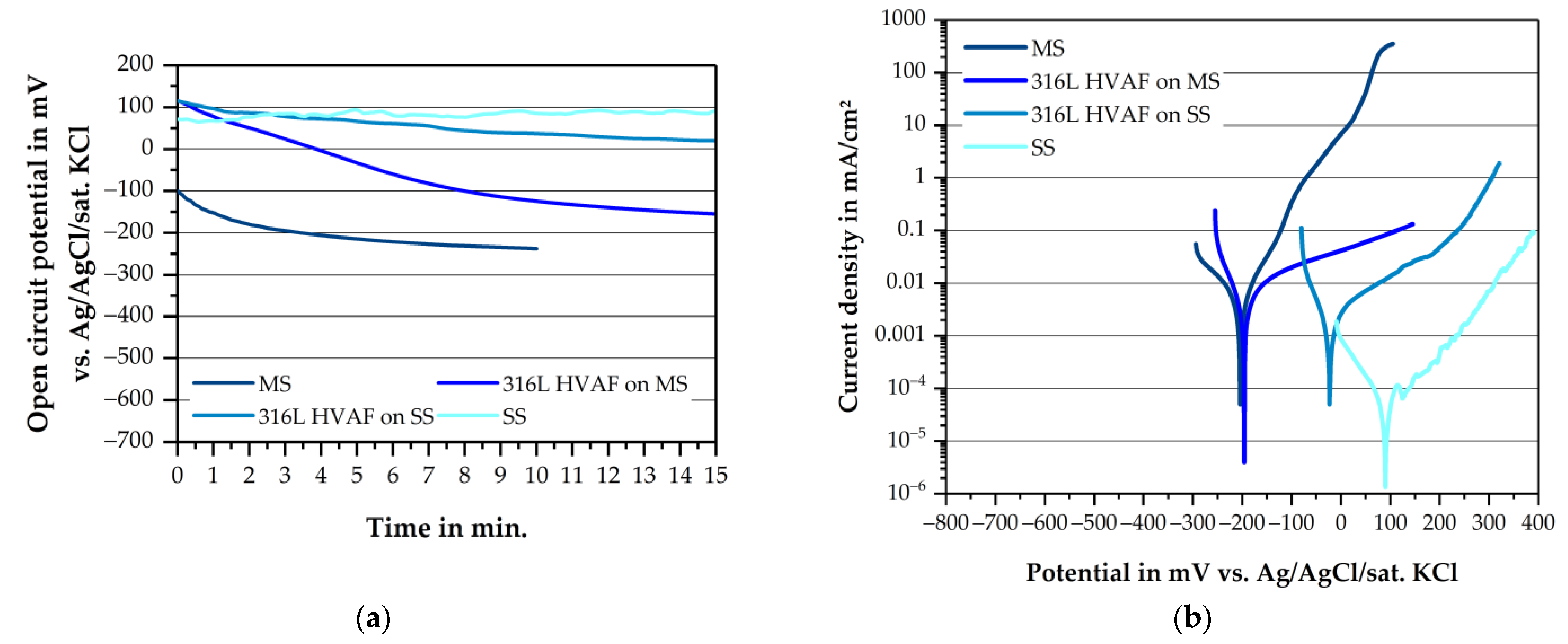

The results of the corrosion tests of the AISI 316L HVAF coatings and the reference bulk materials are summarized in Figure 5, which illustrates representative curves for each case. During immersion of the samples in 3.5% NaCl aqueous electrolyte for 15 min (Figure 5a), the OCP values of the AISI 316L coatings steadily decrease, which indicates a continuing corrosion. Thereby, the decline of the coatings deposited on mild steel is larger, resulting in a mean OCP value of −136 mV ± 24 mV compared to +19 mV ± 1.7 mV for AISI 316L-coated stainless steel. This difference can be explained by the electrolyte infiltration up to the substrate, which favors the formation of a galvanic pair between substrate and coating, and therefore the OCP represents a mixed potential. However, the OCP of the coated mild steel does not lie within the range of the mild steel bulk material reaching, 210 mV ± 24 mV after 10 min. An extension of the OCP measurement up to 3 h confirmed that a steady state for the AISI 316L coatings could not be confirmed but converged to the OCP of the mild steel substrate. Suegama et al. carried out immersion tests in aerated and aqueous 3.4% NaCl solution of HVOF AISI 316L-sprayed coatings with a thickness of 220 µm and showed that the open circuit potential (OCP) stabilizes after 10 h. The abrupt OCP descent within the first hour is attributed to chloride adsorption, dissolution of iron oxides by chloride ions, a change in oxygen and metallic ions concentration, which can affect a diffusion layer, alteration of the surface activity due to electrolyte infiltration into the coating, and metallic oxides formation and dissolution [15]. The OCP deviation of the stainless-steel coating and bulk reference can be referred to the coating’s imperfections, which leads to crevice and galvanic corrosion within the coating. In addition, the OCP for the stainless-steel bulk material with +101 mV ± 11 mV and the coatings also differ significantly.

Figure 5b shows the poteniodynamic polarization curves. The corrosion potential E_Corr and the corrosion current densities i_Corr of the AISI 316L-coated mild steel and the reference bulk material are on a similar level. The E_Corr with −179 mV ± 20 mV of the AISI 316L coating on mild steel is lower compared to the OCP after 15 min of −136 mV ± 24 mV, which might result from the coatings’ active corrosion behavior. This behavior is further confirmed by the coated stainless-steel sample (E_Corr = −23 mV ± 0.6 mV, OCP = +19 mV ± 1.7 mV). Using a stainless-steel substrate also results in a shift of the E_Corr to positive values and lower current densities, i.e., the ignoble substrate dominates the resulting corrosion parameters in the electrochemical-instrumented measurements. With regard to the anodic curve characteristics, the bulk mild steel shows the steepest ascent after passing E_Corr of, +17 mV ± 19 mV, which indicates an active corrosion. In comparison, the anodic slopes of the AISI 316L coatings rise gently, independently of the deposited substrate material. Nevertheless, the bulk stainless steel performs significantly better than the coatings (E_Corr = +88 mV ± 2 mV). These results are as well reported and discussed in detail for AISI 316L HVOF and HVAF coatings in [15,17,30,31].

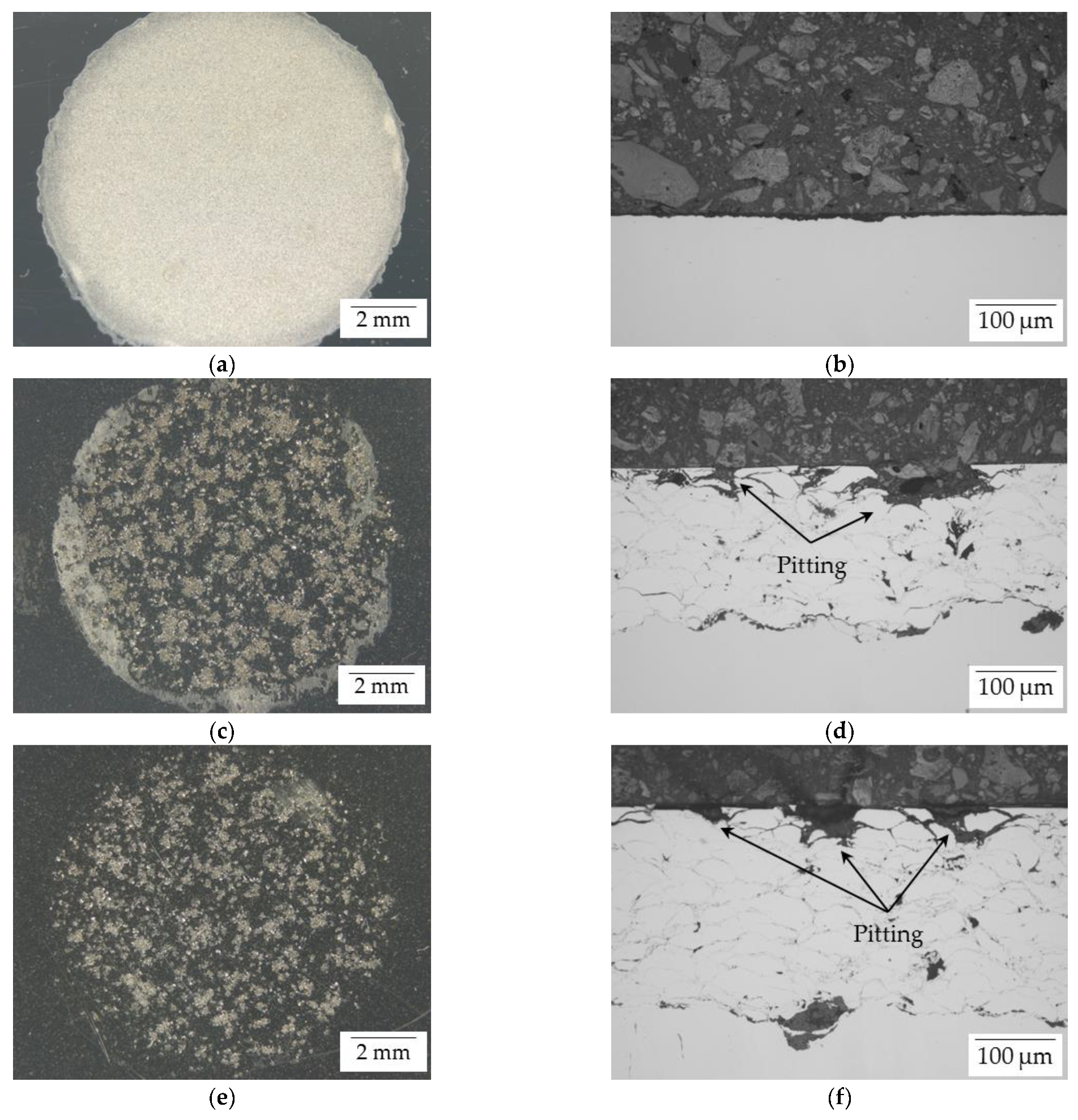

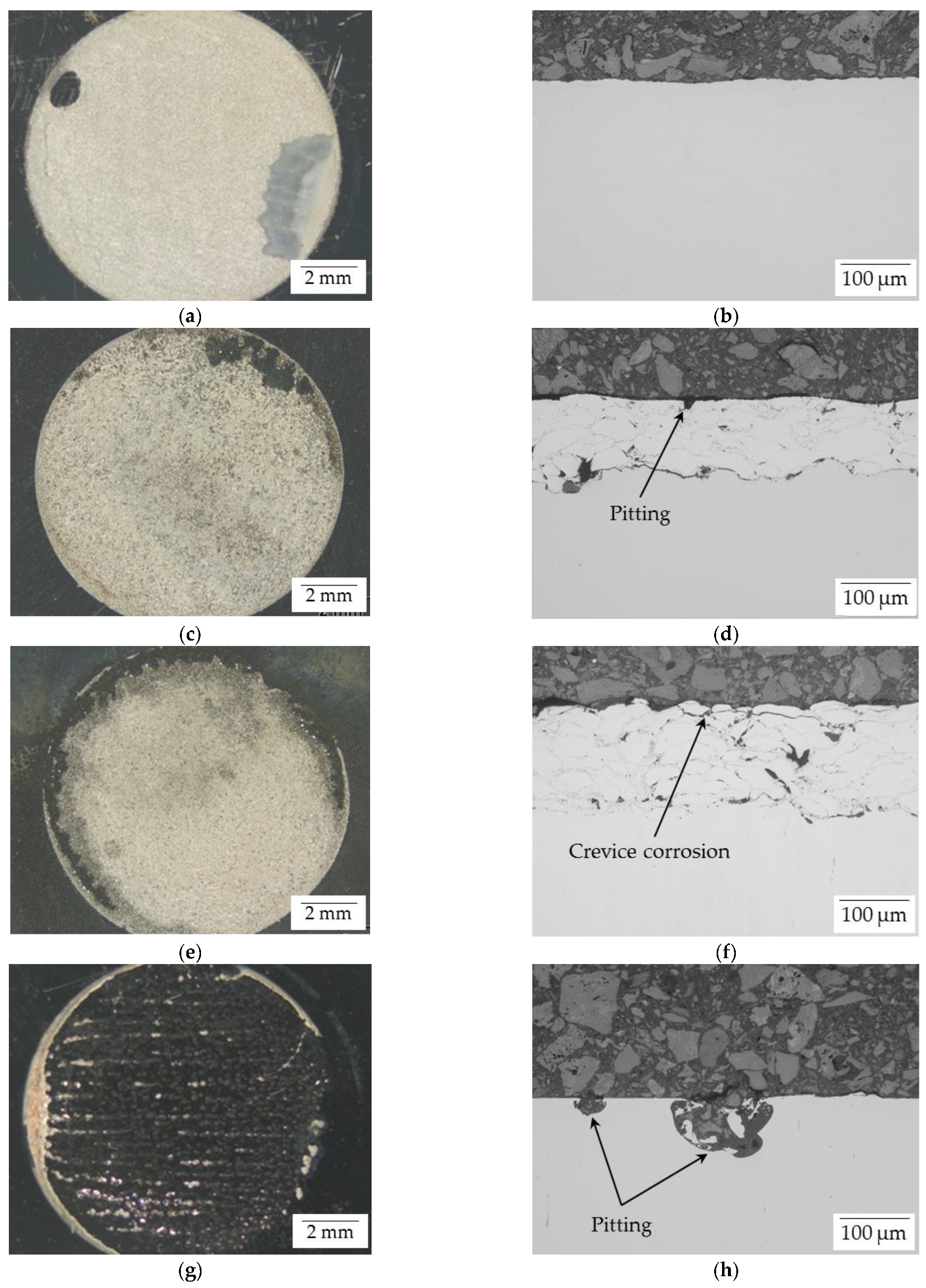

For the evaluation of the corrosion attack, samples were examined after potentiodynamic polarization tests up to +1000 mV relative to the OCP using a stereomicroscope for top view and a light microscope for cross-sectional investigations (Figure 6). The top view images show a two-dimensional corrosion attack and material removal of the bulk mild steel and the AISI 316L coatings, with typical pitting occurring in bulk stainless steel (Figure 6, left column). Figure 6d,f demonstrates that the penetration of the aggressive chloride anions took place at the surface of the coating leaving a coating thickness of >100 µm and >150 µm, respectively. García-Rodríguez et al. showed a similar attack at the external zone of AISI 316L HVOF coatings on magnesium substrates in 3.5% NaCl electrolyte, when the coating was applied with optimized spray parameters achieving compact and dense coatings [20]. In the study, a scan rate of 1 mV/s was selected as well. It is to be noted that the scan rate has to be considered while evaluating the corrosion attack of thermal spray coatings. As indicated in Figure 6d,f, the corrosion starts at inhomogeneities like oxide inclusions and microcracks, which favor crevice corrosion, as well as pitting occurs at single spray particles. The selective corrosion at the particle boundaries and the sites of oxide agglomerates, which correspond generally to Cr depleted areas as proved in Figure 4b, leads to fallen out particles at the surface. After etching of polished surfaces of 316L coatings deposited by HVAF and HVOF the same mechanisms are observed [24]. With progressive anodic polarization, reaching high current densities of ~180 mA/cm², the coating is increasingly dissolved. For comparison with the gel electrolyte, Figure 6h shows typical pitting corrosion in cross-section as observed for the reference stainless-steel material.

The results of the electrochemical corrosion test in aqueous NaCl electrolyte demonstrate for the AISI 316L HVAF coatings deposited on mild steel and stainless steel, respectively, that the different behavior in the potentiodynamic polarization curves (Figure 5b) nevertheless led to an equal corrosion attack of the coatings (Figure 6c–f). It is therefore not possible to evaluate the corrosion resistance of the coating system independent of the substrate material used.

3.3. Potentiodynamic Polarization Test Results in 3.5% NaCl Gel Electrolyte

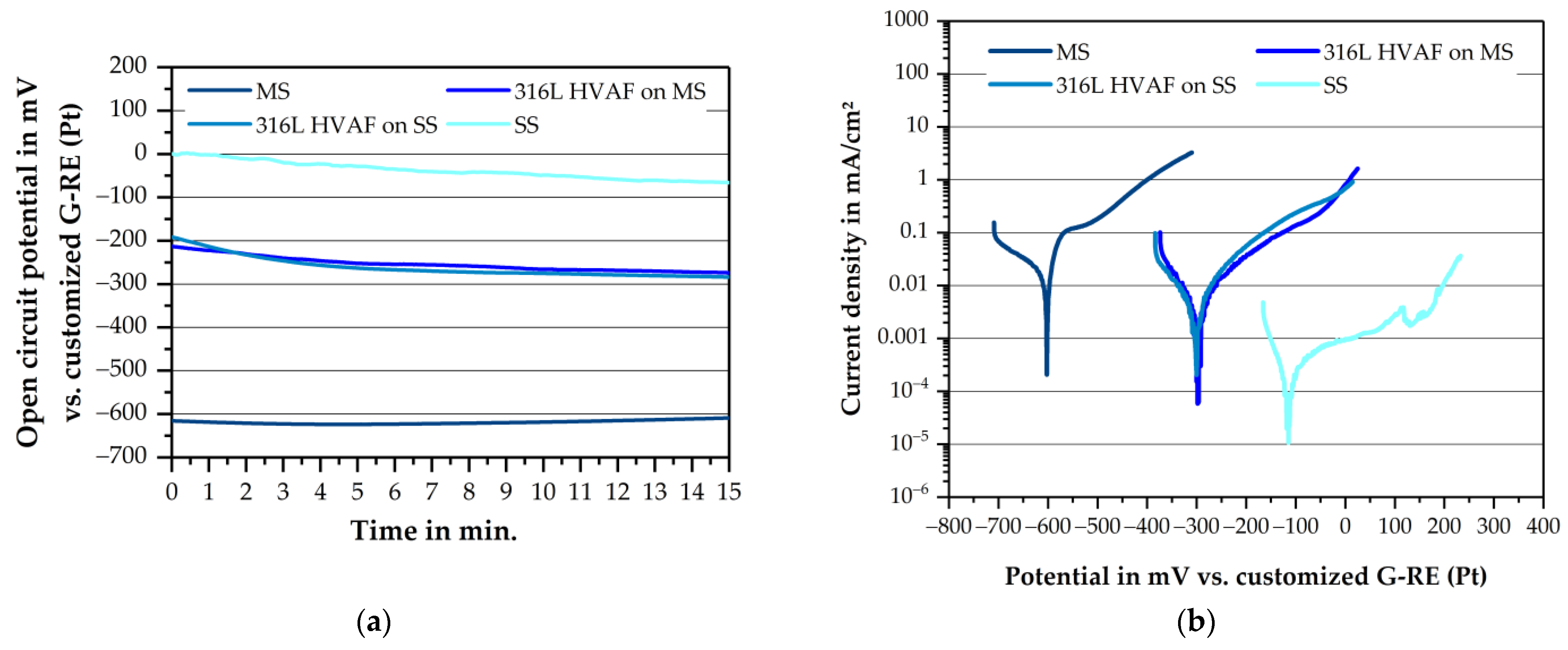

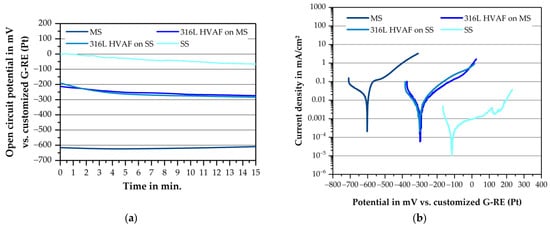

Figure 7a presents representative OCP measurements of the AISI 316L coatings and the reference materials in the 3.5% NaCl gel electrolyte. Due to the substitution of the Ag/AgCl reference electrode by a platinum wire, the OCPs are in other potential ranges and are slightly further spread in comparison to the aqueous electrolyte (Figure 5a). Likewise, however, the bulk stainless steel shows the highest value of −54 mV ± 51 mV and the bulk mild steel shows the lowest OCP value of −595 mV ± 30 mV. However, the OCP curves of the AISI 316L HVAF coatings are almost independent of the substrate material used reaching −274 mV ± 18 mV for the mild steel and −302 mV ± 16 mV for the stainless-steel substrates after 15 min. This already indicates that the use of the gel electrolyte can prevent infiltration of the coatings. All curves drop slightly at the beginning, but then remain largely constant.

Polarization curves are shown in Figure 7b. The E_Corr are slightly shifted to lower values compared to the corresponding OCPs, which is valid for all considered samples. For the AISI 316L coatings, independent of the substrate material, the difference is about 20 mV, which is less than in the aqueous electrolyte. The absolute E_Corr values are −296 mV ± 26 mV for the coated mild steel and −321 mV ± 20 mV for stainless steel, respectively. The mild steel bulk material reaches E_Corr values of −589 mV ± 29 mV and the stainless steel of −90 mV ± 69 mV. As expected, the current densities determined for reference stainless steel are considerably lower than for mild steel. When looking at the anodic polarization curves, it is noticeable that compared to the aqueous electrolyte (Figure 5b), the curves rise steeply in the case of the AISI 316L coatings, whereas the curves for the bulk materials are flatter. This behavior can be justified by the fact that no electrolyte exchange takes place at the sample surface due to the immobility of the gel and thus, the corrosion progress is inhibited. In the case of AISI 316L HVAF coatings, the influence of the increasing corrosion area with longer measuring times is significantly reduced.

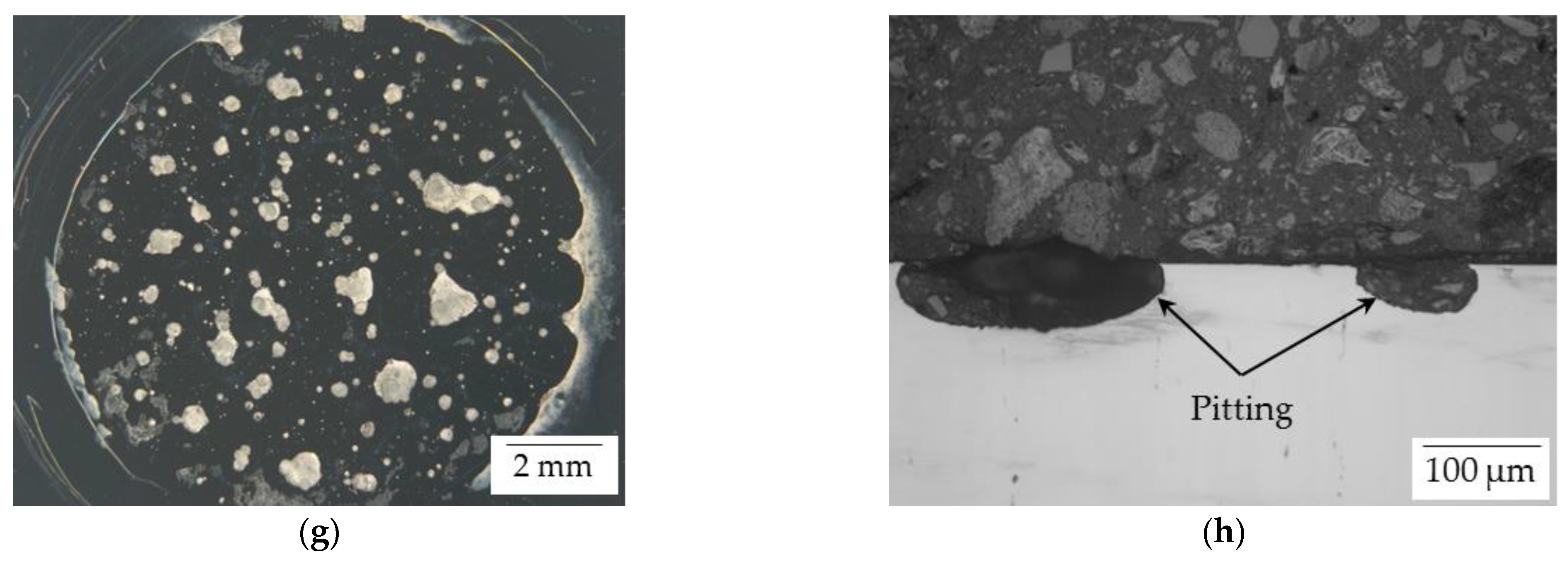

In order to compare the corrosion attack, some samples were anodically polarized up to +1000 mV relative to the OCP as carried out for the 3.5% NaCl solution. By increasing the polarization range, all samples reached a maximum corrosion current value of 43 mA/cm², which is less than in the aqueous three-electrode arrangement (~180 mA/cm²). This must be considered when comparing the corrosion attack of both measuring cells. The top view images of the corroded samples show significant pitting for the AISI 316L coatings (Figure 8c,e) and the bulk stainless steel (Figure 8g), although the corrosion attack on the coatings is considerably more severe. One reason for this could be the high number of splat boundaries the sprayed coatings have, which are considered as potential starting points for corrosion. The cross-sections in Figure 8d,f confirm that crevice corrosion is inhibited due to the elimination of the coating infiltration, which leads to increased local pitting on the individual spray particles. No differences are recognizable between the AISI 316L coating on mild steel and stainless steel. Figure 8d,f,h reveals hemispherical shaped pits in comparison to the provoked pits in the NaCl solution (Figure 6h). These findings are comparable with the study of Heyn, which compared the pitting corrosion appearance on stainless steel grade EN 1.4301 as bulk material after corrosion tests in Agar gel and liquid NaCl electrolytes [10]. The mild steel, on the other hand, failed to show pitting but a uniform corrosion attack (Figure 8a,b), which corresponds to results in 3.5% NaCl solution (Figure 6a).

The results of the electrochemical corrosion test in gelled NaCl electrolyte show that the high viscosity prevents the gel from infiltration of the coatings microstructure. Thus, the corrosion attack is limited to the upper micrometers at the surface and any corrosion at the coating-substrate interface can be eliminated. No difference can be observed in the potentiodynamic polarization curves (Figure 7) and the corrosion attack (Figure 8) of the AISI 316L HVAF coatings on mild steel or stainless steel. The results of the bulk materials prove that the targeted response of the aqueous electrolyte can be mimicked using gel electrolytes. In order to compare the corrosion attack of the coatings, potentiodynamic polarization tests with the same maximal corrosion densities as a termination criterion would be necessary to perform. Despite the different anodic slopes, the corrosion current density i_Corr, which is determined in a narrow range around the E_Corr, can be used approximately for a comparative evaluation of the corrosion resistance of the AISI 316L HVAF-sprayed coatings in both media.

3.4. Summary of the Corrosion Results in 3.5% NaCl Aqueous and Gel Electrolyte

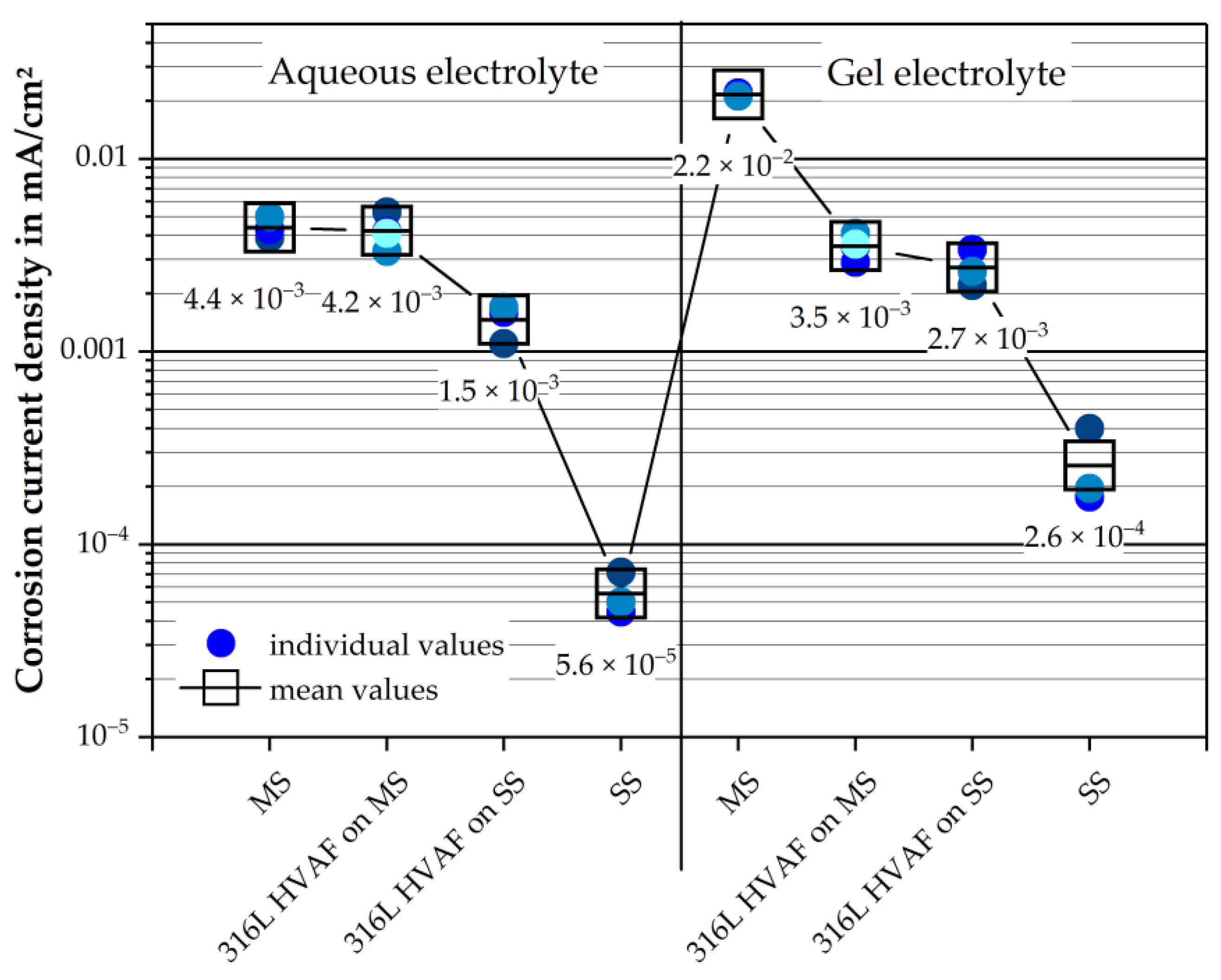

As a summary, the i_Corr values, determined by means of Tafel analysis, of all tested samples are compared in Figure 9. In general, using the adapted measuring cell with the gel electrolyte the i_Corr values are higher than in the 3.5% NaCl solution using the conventional three-electrode arrangement. Especially, mild steel shows significantly higher i_Corr values of 2.2 × 10⁻² mA/cm² ± 4.6 × 10⁻⁴ mA/cm² in the gel compared to 4.4 × 10⁻³ mA/cm² ± 5.6 × 10⁻⁴ mA/cm² in the aqueous electrolyte. The stainless steels obtain i_Corr of 5.6 × 10⁻⁵ mA/cm² ± 1.4 × 10⁻⁵ mA/cm² and 2.6 × 10⁻⁴ mA/cm² ± 1.2 × 10⁻⁴ mA/cm², respectively. This is probably caused by water evaporation during storage of the gel electrolyte, and thus, the chloride concentration was raised. An exception is the AISI 316L-coated mild steel, whose potentiodynamic polarization behavior is significantly influenced by the substrate material, when an aqueous electrolyte is used. The i_Corr values with a mean of 4.2 × 10⁻³ mA/cm² ± 8.2 × 10⁻⁴ mA/cm² are even comparable to the reference mild steel. The AISI 316L-coated stainless steel perform much better (i_Corr = 1.5 × 10⁻³ mA/cm² ± 3.2 × 10⁻⁴ mA/cm²). The AISI 316L HVAF coatings tested in the gel electrolyte confirm the same corrosion properties independent of the layer deposition on mild steel or stainless steel with i_Corr values of 3.5 × 10⁻³ mA/cm² ± 4.9 × 10⁻⁴ mA/cm² and 2.7 × 10⁻³ mA/cm² ± 6.1 × 10⁻⁴ mA/cm², respectively, as discussed in Ch. 3.3. The deviation among the individual measurements is within the usual accepted range for electrochemical-instrumented tests. Overall, the corrosion resistance decreases in the order bulk material stainless steel, AISI 316L HVAF coating, bulk material mild steel.

4. Conclusions

In this study, a new approach to electrochemical-instrumented corrosion testing of thermal spray coatings using gel electrolytes was presented, which allows to study the corrosion behavior of the coating itself. Potentiodynamic polarization tests in 3.5% NaCl solution in aqueous and gelled state were carried out comparing AISI 316L HVAF-coated samples on mild and stainless-steel substrates. Therefore, a measuring cell was adapted based on the three-electrode cell. The results of the polarization tests are as follows:

• The oxide agglomerates and oxidized splat boundaries are weak points and reduce the corrosion resistance of the HVAF-sprayed AISI 316L coatings.
• The infiltration of the coating microstructural characteristics is prevented by using gel electrolytes.
• Followed from this, the corrosion characteristic values such as OCP, E_Corr, and i_Corr obtained are independent of whether the AISI 316L HVAF coating was deposited on mild steel or stainless-steel substrates when using gel electrolyte.
• In contrast, the aqueous electrolyte can penetrate the coating up to the substrate and hence, the characteristic values are significantly influenced.
• The NaCl gel electrolyte used allows the desired corrosive effect of the pitting attack to be mimicked.

Further experiments will focus on coatings produced with different spray parameters and spray processes in order to qualify the corrosion measurement with gel electrolytes for quality assurance during production.
