Expanded Graphite (EG) Stabilization of Stearic and Palmitic Acid Mixture for Thermal Management of Photovoltaic Cells

Abstract

In this work, passive cooling systems for the revamping of existent silicon photovoltaic (PV) cells were developed and analysed in order to mitigate the efficiency loss caused by temperature rise in the hot season. For this purpose, expanded graphite (EG) was used to stabilize a phase change material (PCM) with a melting temperature close to 53 °C in order to realize thermal management systems (TMSs) able to store heat at constant temperature during melting and releasing it in crystallization. In particular, stearic and palmitic acid mixture (PA-SA) was shape-stabilized in EG at different concentrations (10, 12 and 14 part per hundred ratio) under vacuum into a rotary evaporation apparatus followed by cold compaction; PA-SA leakage was reduced due to its intercalation between the graphite lamellae, and the thermal conductivity necessary to maximize the heat transfer to a bulk TMS was improved via powder cold compaction, which minimizes voids and creates preferential thermal conductive patterns. The composite materials, stable till 150 °C, were tested by differential scanning calorimetry (DSC) at 1 °C/min to precisely determine the phase transition temperatures and the enthalpic content, which was only slightly reduced from 196 J/g of the neat PCM to 169 J/g due to the very low EG fraction necessary for the stabilization. Despite only the 14:100 EG-to-PA-SA ratio, the system’s thermal conductivity was enhanced 40 times with respect to the neat PCM (from 0.2 to 8.3 W/(m K), value never reached in works present in the literature), with a good convergence of the values evaluated through hot disk tests and laser flash analysis (LFA), finding correlation with both graphitic content and density. In order to completely avoid leaking with the consequent dispersion of PCM in the environment during the final application, all the samples were encapsulated in a PE-made film. The mechanical properties were evaluated with compression tests at 30 °C and 80 °C simulating a possible compressive stress deriving from the contact needed to maintain the TMS position on the rear of the PV cells. Finally, the material response was simulated by imposing thermal cycles into a climatic chamber and reproducing the three hottest and coldest days of summer 2022 of two Italian locations, Verona (Veneto, 45° N, 11° E) and Gela (Sicily, 37° N, 14° E), thus highlighting the thermal management effects with delays in temperature increase and daily peak temperature smoothing. The role of EG is strategic for the processing and the properties of the resulting composites in order to realize a proper compromise between the melting enthalpy of PCM and the thermal conductivity enhancement given by EG.

1. Introduction

The excessive consumption of fossil fuels has led to an energy crisis and environmental issues like global warming, greenhouse gas emissions and ozone depletion. This has raised demands for clean and renewable energy technologies to reduce dependency on fossil fuels. Solar energy is the most widely accepted renewable energy source due to its cleanliness, accessibility, sustainability and unlimited potential.

Photovoltaic modules (PVs) represent a clean and sustainable energy generation technology that has the capacity to grow. They absorb part of the sun’s energy and dissipate the rest into heat. Module temperatures can rise due to excessive heat, which can shorten their lifespan and reduce their efficiency. The conversion efficiency of crystalline silicon solar cells decreases by 0.4–0.6% for each degree above the standard test conditions’ temperature [1]. Therefore, it is essential to develop solar cell cooling systems (either active or passive [2]) in order to maintain the lowest possible working temperatures. Because active cooling requires the use of energy specifically dedicated to cooling the devices, passive cooling represents a more convenient approach.

Phase change materials (PCMs) are latent heat storage materials that absorb an incoming heat flux, liquefy when they reach the melting point, store a significant quantity of thermal energy and maintain a constant temperature. Likewise, when the temperature decreases, the material solidifies and releases the stored latent heat [3]. PCMs have several applications. First, they can be used as insulating materials in eco-sustainable architecture to improve the energy efficiency of buildings [4,5]. Thanks to the temperature control capacity, PCMs may be applied to batteries to avoid overheating [6] or on the back of photovoltaic (PV) modules as passive cooling systems [7,8]. In PV panels, they counterbalance the effect of the thermal coefficient [9], limit the decrease in power conversion efficiency and mitigate the degradation phenomena. PCM panels have also been proposed for low-temperature thermal storage [10]. From a chemical point of view, phase change materials can be divided in different classes [11].

Paraffins, fatty acids and poly(ethylene glycol) derivatives make up the family of organic PCMs. They are chemically stable and have a relatively high latent heat of fusion; paraffins do not exhibit the supercooling phenomenon and are not corrosive. On the other hand, they are expensive and have a low thermal conductivity. They are also flammable and exhibit a significant dimensional variability upon melting. Besides metals and alloys, salts and salts hydrated are the most representative inorganic PCMs. They are cheap, not flammable and have high thermal conductivity. The supercooling is an undesired characteristic of salt-based PCMs; they are also corrosive and have a poor stability. Furthermore, eutectic mixture (either organic–organic, inorganic–inorganic or organic–inorganic) allow for the fine tuning of the operating temperature of PCMs [12].

To solve the issue of low thermal conductivity in organic PCMs, the strategy of adding carbon (nano)materials has often been followed successfully [12]. Such carbon materials (graphene [13], graphene oxide [14], carbon nanotubes [15], expanded graphite [16]) have other benefits: besides increasing the thermal conductivity, they act as IR-antennae [11] and improve the heat absorption properties of the composite.

The main limitation of paraffinic PCMs is their confinement once molten, which can be solved with the use of macro- [17] or microencapsulation [18]. A third solution could be the shape stabilization of the PCM dispersing it into a matrix, as thermoplastic polymers [19,20], acrylic resins [21], styrene-(ethylene-co-butylene)-styrene triblock copolymer (SEBS) [22], ethylene propylene diene monomer (EPDM) rubber [23] or inorganic materials such as carbonaceous substances are able to improve thermal conductivity at the same time.

Carbon-based materials can rely on their excellent pore structure to efficiently absorb PCM, to prepare high-stability composite PCM [24]. As first choice candidates, graphene oxide products, notwithstanding some excellent properties, were discarded due to the high cost [11]. PCMs based on paraffins and expanded graphite (EG) have a special interest, thanks to the low density, high specific surface area, good chemical stability and the relatively low cost of raw materials compared to other low-melting matrices and carbon compound precursors [25,26], along with the stabilization effect that is able to limit leaking [27], which is favourable for the creation of thermal conductive networks within the shape-stabilized composite PCM [28]. The improvement of the thermal conductivity of PCM-based systems is particularly important in order to allow fast charging and discharging rates that are critical issues when these materials are applied for the temperature management of electrical/electronic devices and batteries [29].

In the open literature, despite the existence of several works investigating the stabilization of PCMs within EG, the reported thermal conductivity values are generally low (from less than 1 W/(m K) [30,31] to 2.1 W/(m K) [32], rarely exceeding this value [29], along with the use of EG unless its fraction is higher than the PCM one [16]), and the PCM amount is limited to values below certain thresholds in order to avoid leaking (also below 70 wt.% [32]) with consequent complications in the production process and limitations in the use phase. In some works, thermal conductivity is enhanced only of less than 400% even with the addition of 20 wt.% EG [33].

Recently, fatty acid mixtures have been extensively studied in a wide variety of compositions [34,35,36], even if often their use in combination with EG excessively reduces the enthalpy of the composite material [37].

Based on these considerations, in this study, a novel EG vacuum impregnation method is reported for the shape stabilization of a bio-based mixture of stearic and palmitic acids (PA-SAs) used as PCMs. Cold compaction of the stabilized powder allows the enhancement of thermal conductivity by 40 times, using only 14 parts per hundred ratio (phr) of EG, guaranteeing high melting enthalpy (169 J/g), which is useful for the thermal management of electronic devices, with a particular focus on PV panels.

2. Materials and Methods

2.1. Materials

The selection of a PCM with a melting point in the range 50–60 °C was performed in order to make possible a thermal management action on silicon PV cells, avoiding a detrimental electrical conversion efficiency loss typical of the hottest summer days in Mediterranean regions.

The combination of fatty acids stabilized into EG was chosen due to the good interaction of these polar chains between the graphitic lamellae with respect to aliphatic chains as paraffin waxes, which provides good PCM stability above the melting point, in combination with the ability to provide a high thermal conductivity.

A vegetally originated fatty acid mixture of stearic (≥40 wt.%) and palmitic acids (≥50 wt.%), commercially named FATTY ACIDS C16-18 (PA-SA) provided by Carlo Erba Reagents (Val De Ruil, France), was selected as a PCM for its declared melting point (T_m) of 55 °C, discretely high melting enthalpy and sustainability offered by a bio-derived material.

The shape stabilization was performed using EG SIGRAFLEX^® EXPANDAT provided by SGL CARBON GmbH (Meitingen, Germany).

In

Table 1. Raw material thermophysical properties according to datasheets.

Raw Material	Tm	Density	Particle Size
	[°C]	[g/cm3]	[µm]
PA-SA	55	0.890	-
EG	>600	0.025	4–40

, the main thermophysical properties of the raw materials are summarized according to the producers’ datasheets.

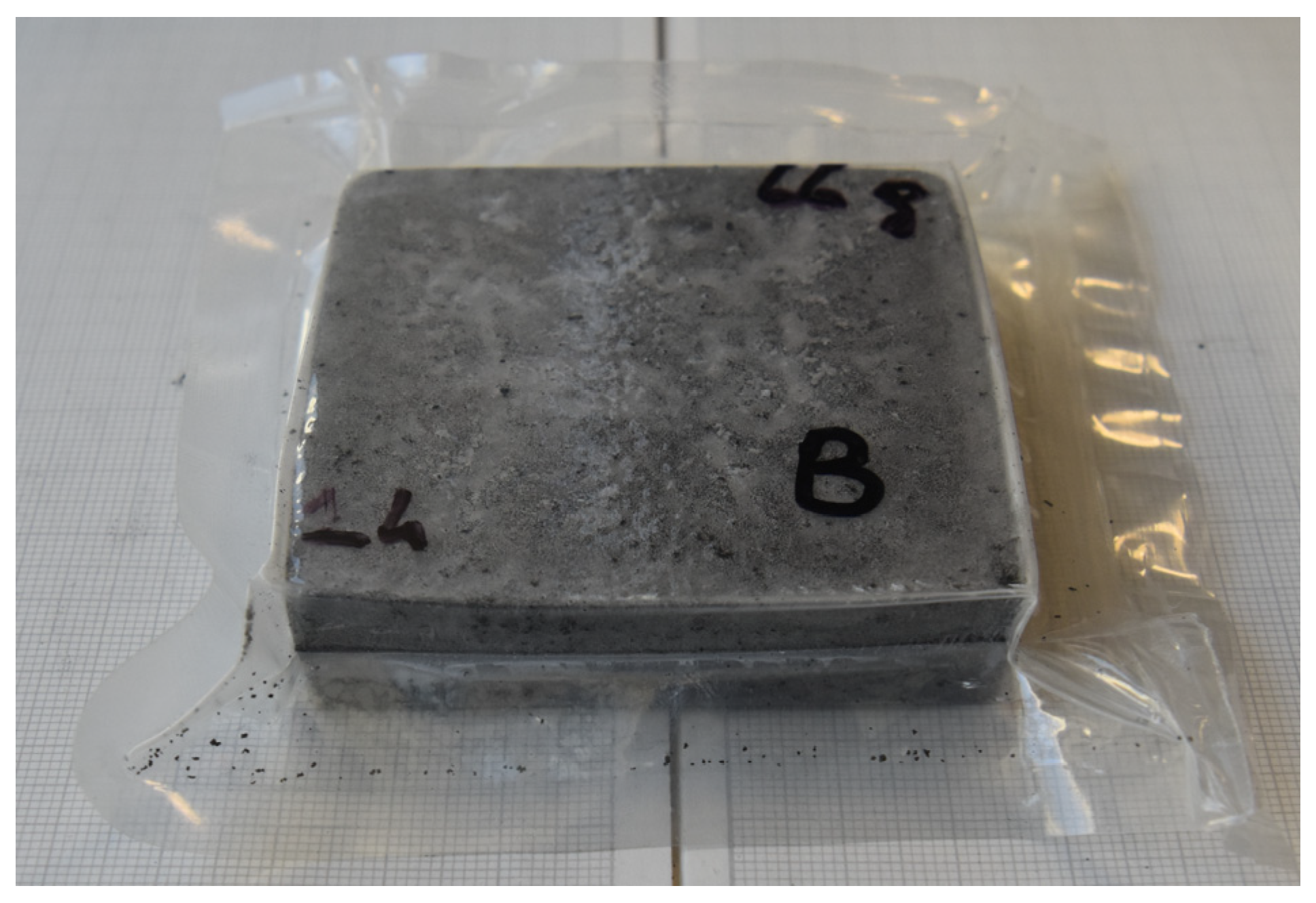

In order to completely avoid PCM leakage, a polyethylene (PE) envelope with a thickness of 95 μm for alimentary applications provided by ORVET S.p.A. (Musile di Piave, Italy) was applied as the external envelope.

2.2. Sample Preparation

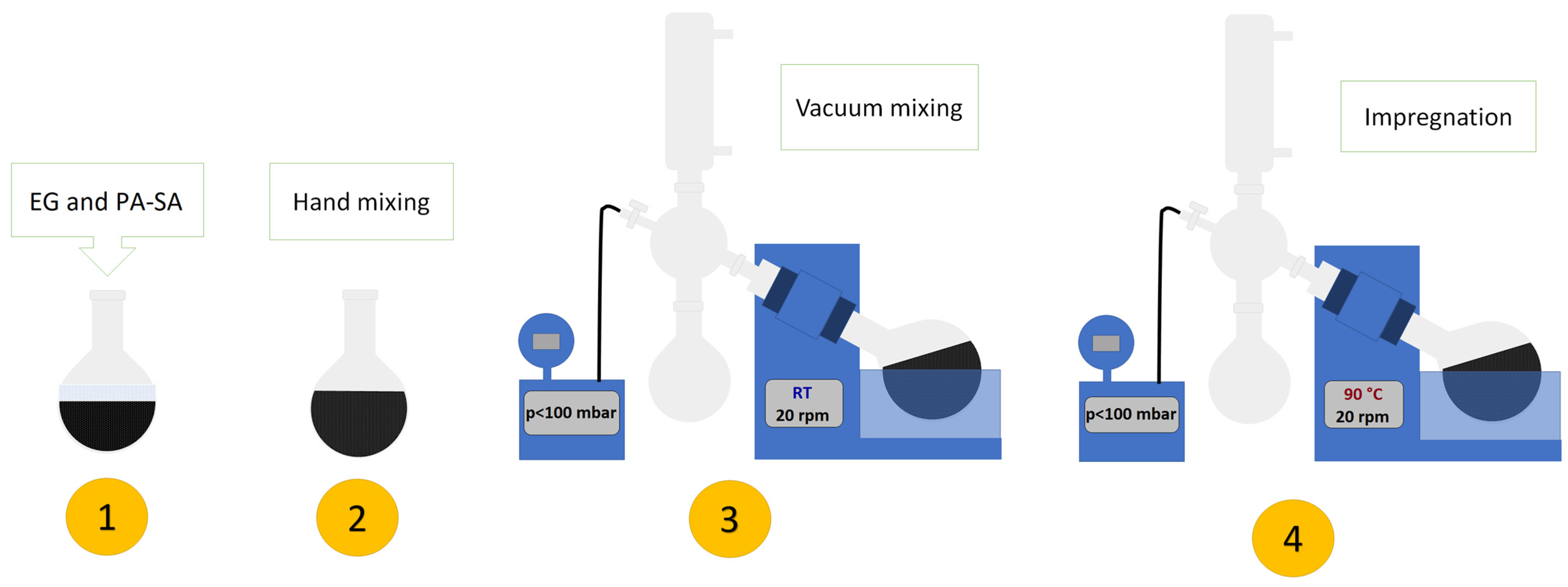

In this work, commercial raw EG was impregnated PA-SA adopting a one-step method. First, 10, 12 and 14 parts of EG per hundred PA-SA “matrix” were weighted and inserted into a distillation flask. The mixture was manually stirred to obtain an initial dispersion of the two components. The mixture containing flask was then connected to a rotary evaporation apparatus (rotavapor) and both vacuum and rotation were applied, down to base vacuum levels (typically below 100 mbar). This operation was conducted at room temperature and had the main purpose of removing trapped air from the pores of the graphite and further disperse the components. Heat was then applied (90 °C) to the heat-carrying fluid (water) up to a full PA-SA melting point and the mixture was rotated under vacuum for 30 min at 20 rotations per minute (rpm). In Figure 1, the subsequent steps of the described preparative are schematically presented.

The rotavapor allows us to obtain a homogeneous composite PCM in powdery form even with a low-density filler like the EG used in this work. The intercalation of the PCM was obtained under vacuum conditions instead of the conventional procedures of melt impregnation through stirring [38,39,40,41], in which blocks of fixed densities are obtained after solidification.

The powders were then cold-compacted using a Carver^® press, obtaining samples with sizes of 40 × 40 × 10 mm³ and 63 × 63 × 20 mm³. The selected method consisted of compaction at room temperature in order to avoid the squeezing of the molten PCM out of the porous matrix, applying variable pressures depending on the desired density. A pressure of 10 MPa had to be applied for at least 30 s to obtain a density of 0.94 g/cm³, in order to permit the material to accommodate and plastically deform.

For the evaluation of the thermal energy storage capability described below, the PE film has been thermo-welded on prepared bricks using a thermo-welding machine ORVET VM-16 under vacuum. The advantage of applying the envelope around a shape-stabilized PCM is the limited volumetric expansion after the PCM melting; hence, there should be no ullage provided to guarantee better heat transfer and limited deformations and stresses to the PE film with respect to the macro-encapsulation of neat PCMs [42].

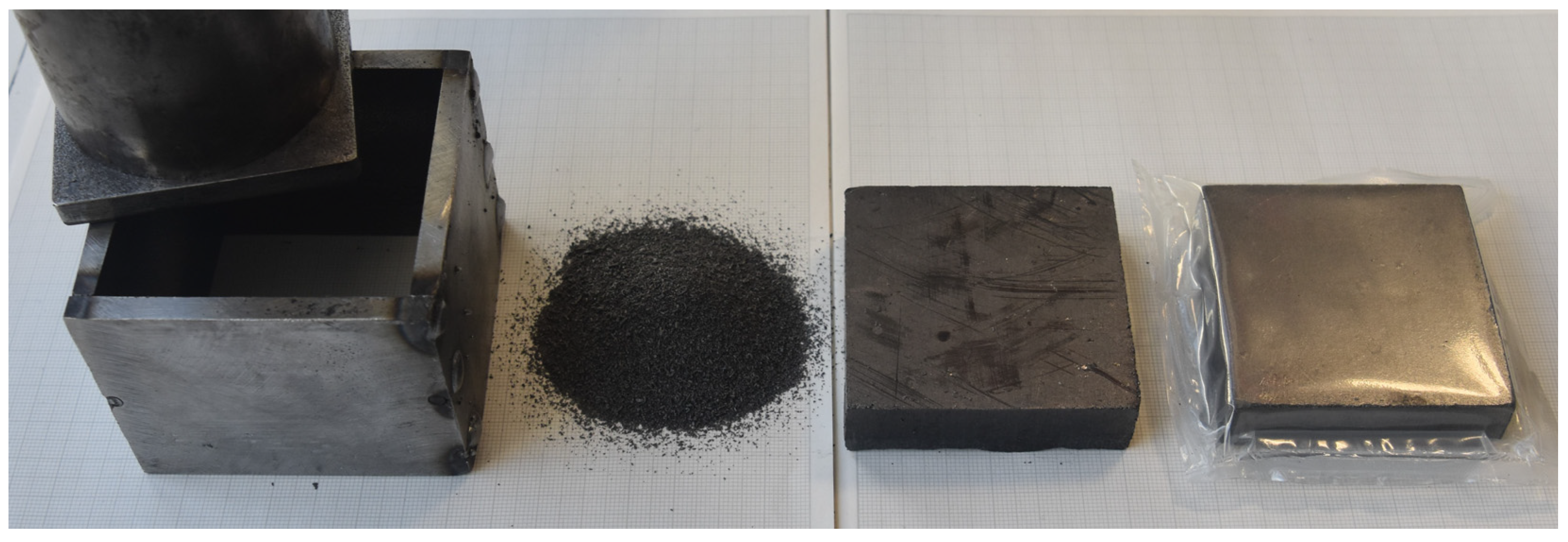

In Figure 2, the used mould with an internal dimension of 63 × 63 × 60 mm³, a powder batch and two produced samples with a height measuring 20 mm, wherein the latter was vacuum-confined into the PE envelope, are reported in sequence.

In

Table 2. Samples’ coding and compositions.

Sample Code	PA-SA		EG
	[phr]	[wt.%]	[phr]	[wt.%]
PA-SA/EG10	100	90.9	10	9.1
PA-SA/EG12	100	89.3	12	10.7
PA-SA/EG14	100	87.7	14	12.3

, the samples considered for the full characterization and their composition are listed.

2.3. Experimental Metodologies

2.3.1. Raw Materials and Powder Characterization

Regarding the EG characterization, scanning electron microscopy (SEM) observation of the powder was performed using a Jeol IT300 microscope (Tokyo, Japan) equipped with a secondary electron (SE) detector and working at an acceleration voltage of 20 kV.

The tap density (ρ_tap) of the EG was evaluated by weighing the mass contained in a 500 mL container using a Kern (Balingen, Germany) PNJ600-3M balance (sensitivity 0.001 g) and performing 5 measurements of different specimens.

The apparent density (ρ_app) measurements of the neat PA-SA and impregnated powdery mixtures were conducted using an AccuPycII 1330 helium pycnometer (Micrometrics Instrument Corporation, Norcross, GA, USA) operating at a temperature of 23 °C. For each sample, 30 measurements were performed using a testing chamber of 1 cm³. The theoretical density (ρ_th) was evaluated by considering the weight fractions of the phases as well as the phase density, the PA-SA measured density and a reference value of 2.26 g/cm³ for graphite [43].

The void fraction (${\mathsf{\vartheta }}_v$) was calculated using Equation (1):

$${\mathsf{\vartheta }}_v=\frac{{\rho }_{th}-{\rho }_{app}}{{\rho }_{th}} ·100$$

(1)

The thermogravimetric analysis (TGA) of all the materials was performed in a temperature interval between 30 °C and 700 °C, at a heating rate of 10 °C/min through a Mettler TG50 thermobalance (Mettler-Toledo, Greifensee, Switzerland) in the presence of nitrogen or air flow of 100 mL/min, using an alumina crucible. The specimen masses were 2.5 mg for EG and 20 mg for the other samples. The onset of the thermal degradation (T_onset) was determined as the point at which the derivative of the TGA (DTGA) corresponds to 0.01%/°C. The temperature associated with a mass loss of 5 wt.% (T_5%) and the temperature associated with the maximum rate of degradation (T_peak) were also determined. Moreover, weight fractions at 200 °C (m₂₀₀), 500 °C (m₅₀₀), 600 °C (m₆₀₀) and the residual mass at 700 °C (m₇₀₀) were reported.

Differential scanning calorimetry (DSC) tests were performed using a Mettler DSC30 calorimeter (Mettler-Toledo, Greifensee, Switzerland). The neat PA-SA was preliminary tested at three different rates (0.1 °C/min, 1 °C/min and 10 °C/min) in the range 20–75 °C in order to determine the best velocity to precisely appreciate the transition enthalpies and temperatures, selecting 1 °C/min for the characterization of the composite samples. The tests were performed under a nitrogen flow of 100 mL/min with a thermal cycle of heating/cooling/heating in the range 40 °C to 60 °C into aluminium crucibles having 40 μL volume. The melting temperatures during the first and the second heating scan (T_m1 and T_m2), the crystallization temperature (T_c) in cooling and the specific melting and crystallization enthalpy values (ΔH_m1, ΔH_c and ΔH_m2) were obtained. The effective PCM content of the specimens was determined by considering the second heating scan (${PCM}_{m2}^{eff}$) as the ratio between the specific enthalpy of the specimens and the corresponding specific enthalpy values of the neat PCM, as shown in Equation (2), while in Equation (3), the calculation for the efficiency of melting (η_m2) during the second melting scan is reported:

$${PCM}_{m2}^{eff}=\frac{{∆H}_{m2}}{{∆H}_{m2,PCM}} ·100$$

(2)

$${\eta }_{m2}=\frac{{∆H}_{m2}}{{∆H}_{m2,PCM} · W_{PCM}} ·100$$

(3)

where ΔH_m2 and ΔH_m2,PCM are, respectively, the specific enthalpy values associated with melting during the second heating scan of the sample and neat PCM, while W_PCM is the weight fraction of the PCM. The results were reported considering both the theoretical weight fraction of PA-SA and those derived from TGA.

2.3.2. Plates’ Characterization

The ability of the compacted plates to retain PCM was investigated through leaking tests of disks or plates, consisting in monitoring the mass of specimens placed into an oven at 60 °C as a function of time. A preliminary test for having direct comparison with works present in the literature [24,30,44] was conducted to small disks of 20 mm diameter, 1 mm thick (surface-to-volume ratio 8.2 mm⁻¹) and 1 g of mass on filter paper for 5 h, quantifying the specimens’ weight loss after 30 min, 60 min, 90 min and at the end of the 5 h. The second test was conducted using 110 × 110 × 3 mm³ plates (surface-to-volume ratio 7.0 mm⁻¹) with masses of 30 g on an absorbent paper towel for a period of 40 days. In this case, the residual PCM content was calculated as the weight fraction with respect to the total specimen weight. The relative loss fraction (f) was determined as the ratio between weight loss (Δ%) and PCM content (Equation (4)) and it was also normalized (f*) to the EG content (EG%), as shown in Equation (5):

$$f=\frac{∆\%}{\mathrm{PCM} \mathrm{content}}$$

(4)

$$f^{*}=\frac{f}{\mathrm{EG}\%}$$

(5)

At the beginning of the test, the theoretical PCM contents in Table 2 were assumed and the weight losses with time were totally associated with PCM leakage.

The fracture surfaces of the compacted plates were observed using a Zeiss Supra 40 (Carl Zeiss, Oberkochen, Germany) field emission scanning electron microscope equipped with an SE detector and working at an acceleration voltage of 2.5 kV. Before the observations of the fractured surfaces, the specimens were metallized through the deposition of a thin electrically conductive coating of Pt-Pd inside a vacuum chamber.

Thermal conductivity (λ) was determined as the product between specific heat capacity (c_p), thermal diffusivity (α) and bulk density (ρ) as reported in Equation (6):

$$\lambda =\alpha · \rho ·c_p$$

(6)

The specific heat capacity was determined following ASTM E1269-11 standard [45]. Three specimens for each sample were tested with a Mettler DSC30 machine, performing thermal cycles consisting of 4 min of isotherm at 20 °C, heating at 5 °C/min from 20 °C to 90 °C and another 4 min of isotherm at 90 °C. By comparing the DSC curves obtained from testing a sapphire reference of known specific heat capacity, the c_p of the samples at 30 °C (c_p30) and 80 °C (c_p80) were determined.

The thermal diffusivity was determined using two different instrumentations:

• A Neztsch Analysing & Testing (Selb, Germany) laser flash analyser (LFA) 446 on specimens having disk shapes and dimensions measuring 12.7 mm in diameter and 3 mm in thickness, obtained via cold compression. The tests were carried out at a 30 °C, imposing laser signals of 250 V for a pulse width of 0.6 ms.
• A hot disk thermal analyser (Hot Disk Instruments, Göteborg, Sweden), equipped with a 7577 sensor (diameter of 4.002 mm), according to ISO 22007 standard [46] on specimens with a disk shape and dimensions of 20 mm in diameter and 5 mm in thickness, inserted into a Memmert HCP climatic chamber (Schwabach, Germany) at 30 °C and controlled relative humidity fixed at a value of 30%, with an application of 80 mW of power for 1 s. These operating parameters were chosen in order to guarantee a thermal increase of at least 2 °C for each specimen, as reported in the standard. At least three measurements were performed for each sample.

The bulk density was evaluated as the ratio of the weighted disks using a Kern PNJ600-3M balance (sensitivity 0.001 g) and the volume computed measuring their dimensions with a calliper having 0.01 mm of sensitivity. In order to distinguish the thermal conductivity values measured with the two different techniques, the symbols λ_HD and λ_LFA were introduced to refer, respectively, to the hot disk and LFA tests. Measurements above the PA-SA melting temperature were not possible due to the leaking problems of the composite material.

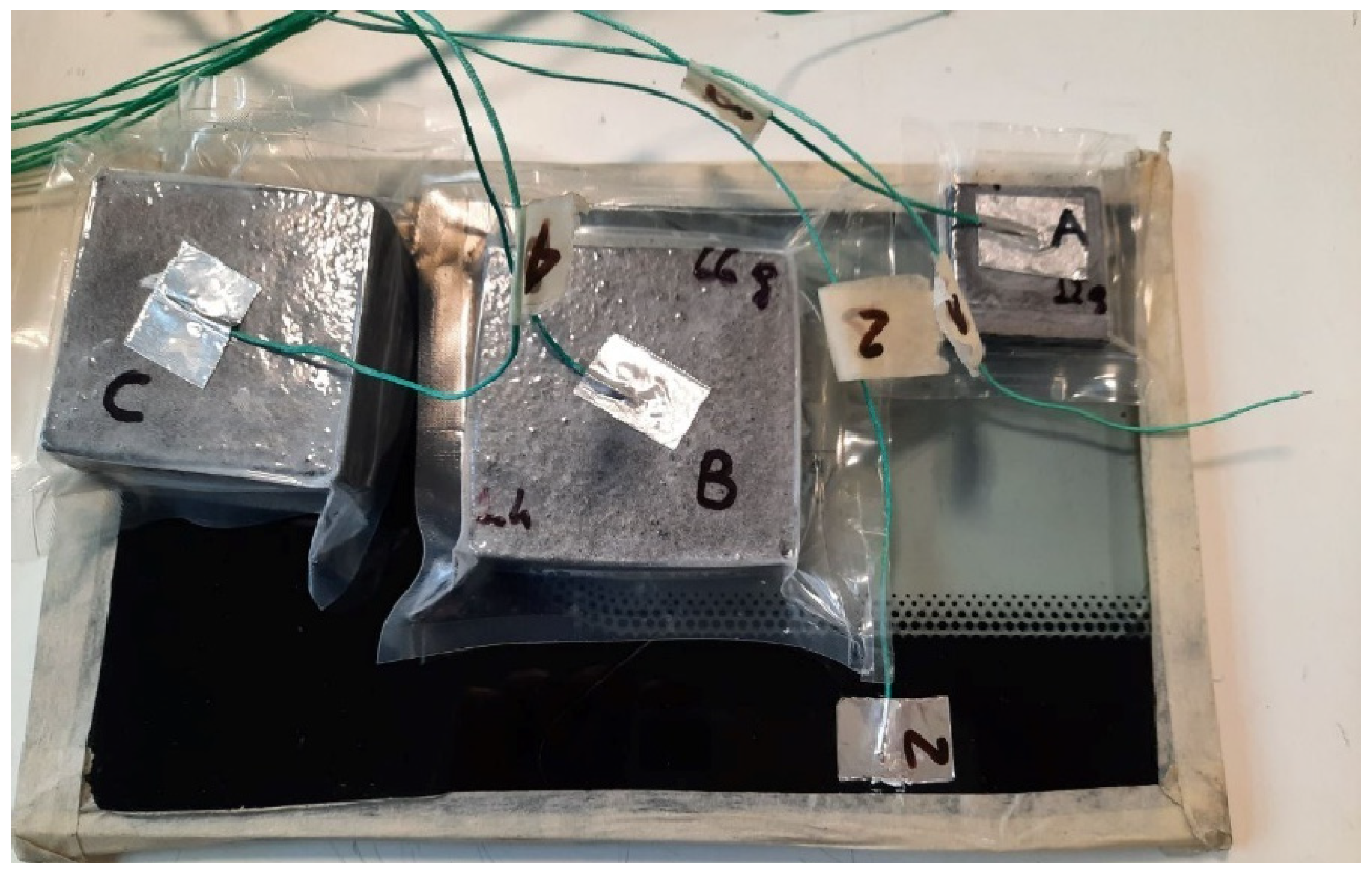

In order to obtain practical information regarding the efficacy of the prepared bricks for the thermal management of PV systems, tests simulating reached temperatures by the PV cells were performed. PE-encapsulated specimens of masses 12 g (A), 66 g (B) and 92 g (C) were tested using a climatic chamber (model DM340C by Angelantoni Industrie S.r.l., Massa Martana, Italy), simulating the material response during the three hottest and coldest days of summer 2022 of two different Italian locations, Verona (Veneto, 45° N, 11° E) and Gela (Sicily, 37° N, 14° E). The thermal cycles were set, reproducing the temperatures reached by the panel (T_p, Equation (7) [47]) with an inclination of 30° with respect to the horizontal, imposing temperature steps with a duration of one hour.

$$T_p=T_a+K· \varphi$$

(7)

where T_a is the ambient temperature, K is a coefficient between 0.025 and 0.030 and $\varphi$ is the incident irradiation in the same plane as the PV panel. The data of T_a and $\varphi$ hour by hour for all of summer in 2022 were provided by ARPAV (Agenzia Regionale per la Prevenzione e Protezione Ambientale del Veneto) [48] for Verona and SIAS (Servizio Informativo Agrometeorologico Siciliano, Regione Sicilia) [49] for Gela. The adopted K parameter was 0.029, selected reversing Equation (7) using T_p, T_a and $\varphi$ data for a real Sicilian case. The chamber was programmed by setting 72 h long cycles composed of 1 h increments, preceded by 2 h of isotherm at the starting temperature of the cycles. In Figure 3a–d, the temperature profiles of air and panel (using Equation (7)) at tilt angles of 0° and 30°—common values of the application conditions to optimize the incoming irradiance—are reported.

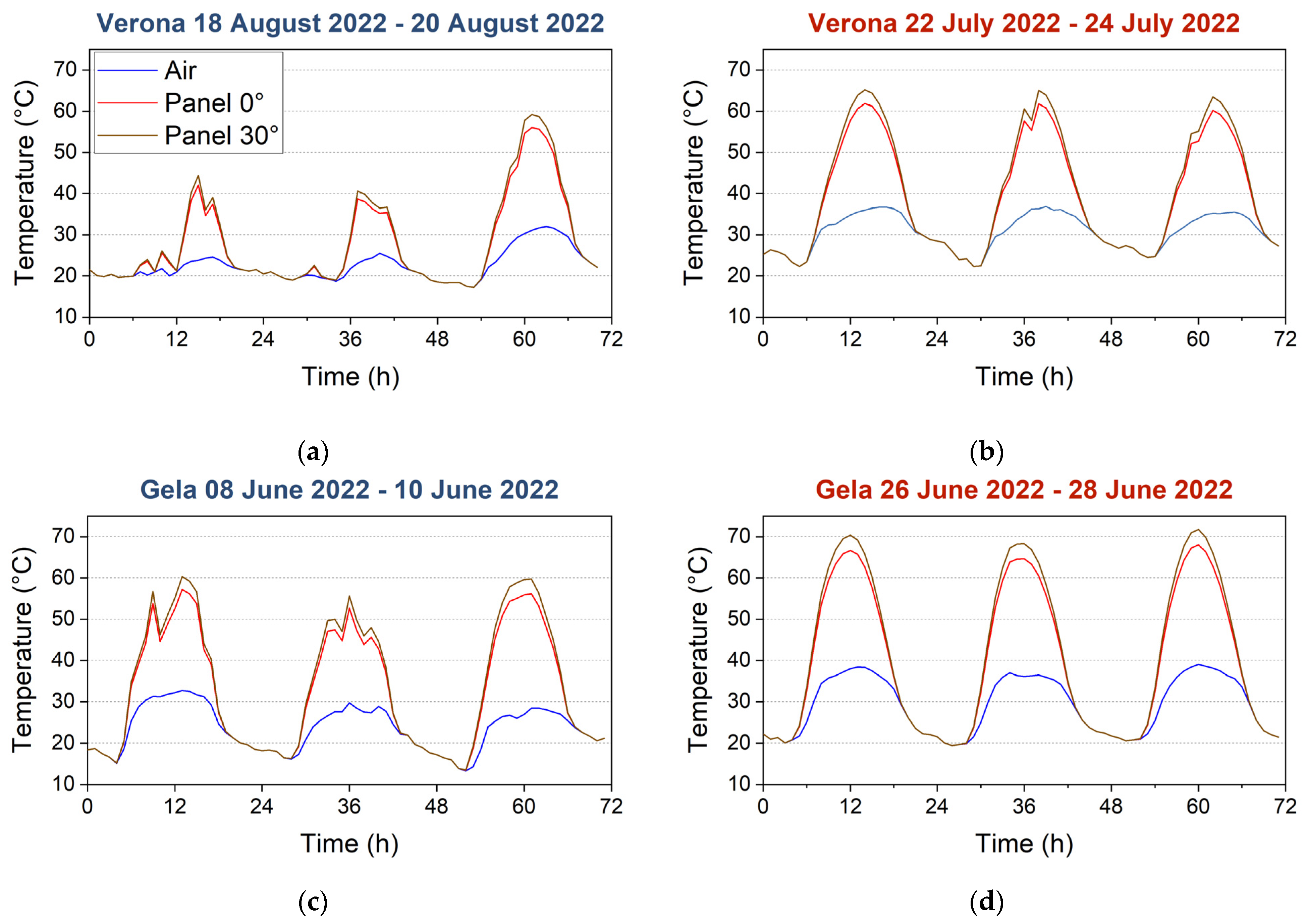

The simulating temperatures inside the climatic chamber were those of the panel inclined at 30°, thus constituting the worst situation in terms of temperature increment as well as the most common one. The temperature was recorded every 30 s using an OM-HL-EH-TC Temperature Datalogger (Omega Engineering, Norwalk, CA, USA) equipped with type-K thermocouples (resolution 0.1 °C): three thermocouples were located on the surfaces of the specimens and one in the air in order to record the temperature profile of the climatic chamber. The specimens were put on the surface of a glass in order to simulate the real working conditions of the materials in a PV panel. In Figure 4, the testing configuration of samples and thermocouples is reported.

The mechanical behaviour was evaluated through compression tests using an Instron (Pianezza, Italy) 5969 testing machine equipped with a load cell of 10 kN and a climatic chamber. PE-encapsulated specimens of dimensions 40 × 40 × 10 mm³ were tested, both at 30 °C and at 80 °C, at a rate of 1 mm/min. From the obtained stress–strain curves, the compressive modulus of elasticity (E_C) in the linear part of the curve between 7% and 10% of strain and the stress at 10% of deformation (σ₁₀) were evaluated for both the tests at 30 °C and 80 °C. For the tests at 30 °C, the strain at 5 MPa of stress (ε₅) was computed, while for the tests at 80 °C, the strain at 0.5 MPa (ε_0.5) was selected due to the different response of the specimens in function of the temperature. Furthermore, the stress at 20% of deformation (σ₂₀) was evaluated at 80 °C.

3. Results and Discussion

3.1. SEM Observations of EG before Impregnation

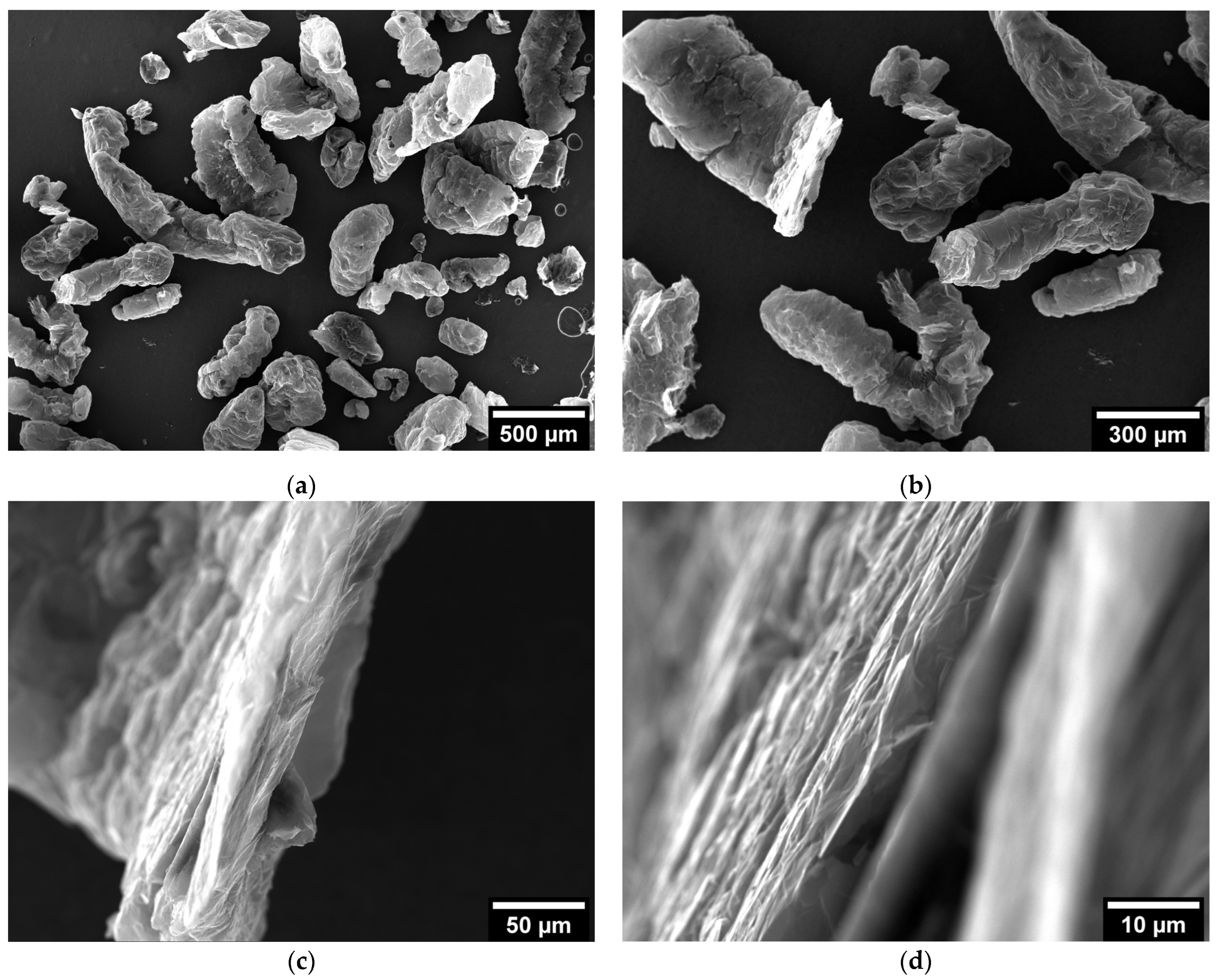

In Figure 5, the micrographs of the EG at different magnifications are reported.

The typical worm-like structure [24,39,50] is recognizable, with longitudinal and transversal dimensions computed from Figure 5a, respectively, of 840 ± 270 µm and 280 ± 110 µm, having a broad particle size distribution typical of EG. The tap density of the powdery EG was 0.031 ± 0.001 g/cm³, which is slightly higher than that specified by the producer’s datasheet. The EG under investigation can be considered quite coarse and less expanded compared with the one used by Yu et al. in a similar work (80 meshes, 600 mL/g expandable volume) [51], while the dimensions are similar to those used by Liu et al. (50 meshes) [50]. The morphology is quite different to that of the more rounded EG produced by Tian et al., characterized by V-type open or semi-open interconnected pores on the surface, whose pore sizes range from dozens of microns to hundreds of microns, even if the granular dimension is comparable [52]. The skeleton density evaluated with helium pycnometer was 2.268 ± 0.004 g/cm³, in accordance with graphite theoretical density (2.26 g/cm³) [43].

3.2. Density Measurements

In

Table 3. Densities and void fractions of neat PA-SA and EG-stabilized systems.

Sample	ρapp [g/cm3]	ρth [g/cm3]	ϑv [wt.%]
PA-SA	0.945 ± 0.007	-	-
PA-SA/EG10	0.919 ± 0.013	1.065 ± 0.006	13.7 ± 1.3
PA-SA/EG12	0.807 ± 0.012	1.086 ± 0.006	17.8 ± 1.2
PA-SA/EG14	0.701 ± 0.008	1.107 ± 0.006	36.7 ± 0.9

, the density values measured for neat PA-SA and powdery impregnated samples are listed. Moreover, a comparison with the theoretical density values, accompanied to the values of void fraction are reported.

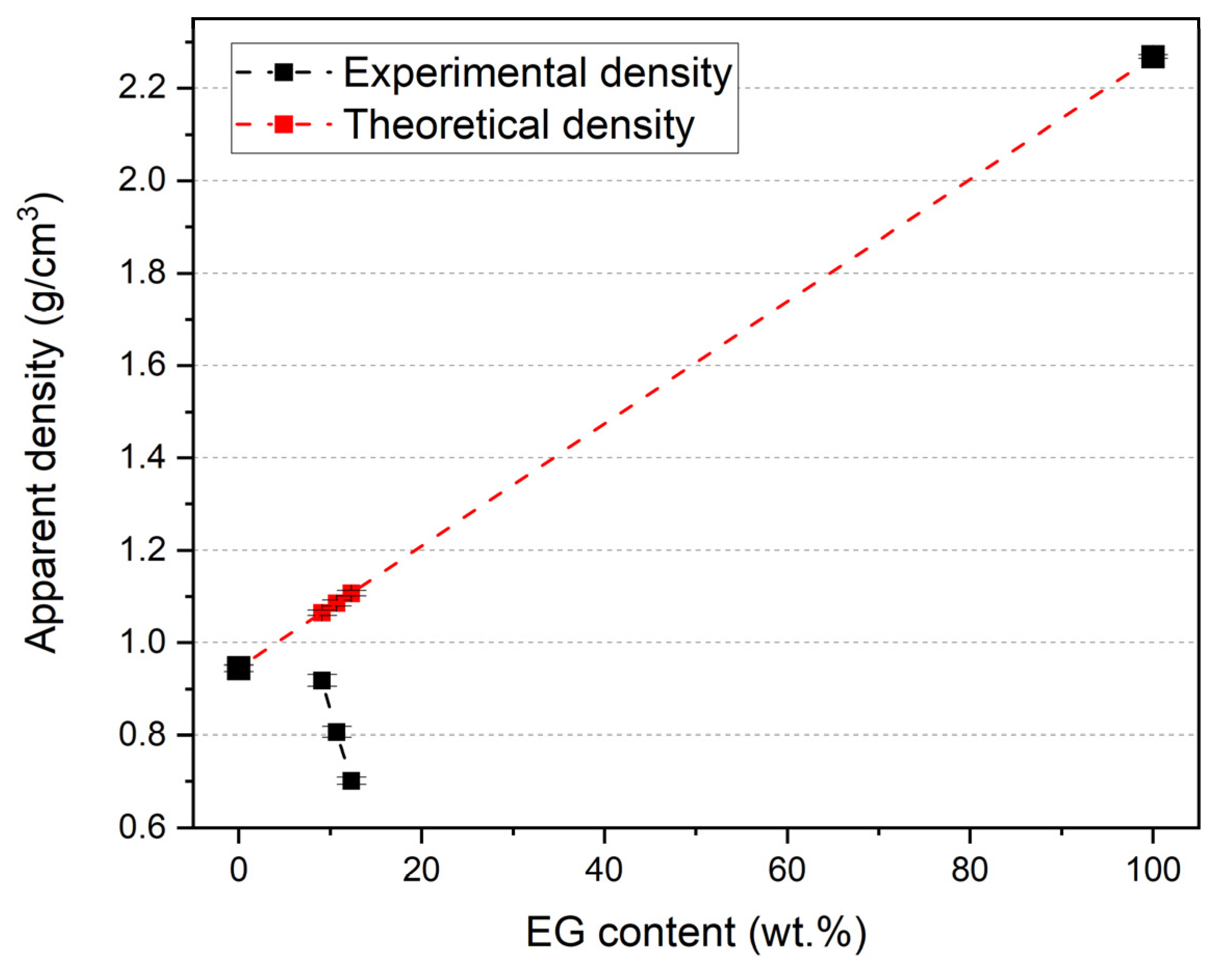

In Figure 6, the trend of theoretical and experimental density for PA-SA/EG powders in the function of the EG content is reported.

A decrease in system density increases the EG content, which is opposite to the trend shown from the theoretical density, with a consequent increase in void fraction. This trend can be explained due to the highly porous nature of EG, which behaves as a matrix in which the PA-SA can intercalate, remaining entrapped due to the action of capillary forces, surface tension and physical interaction [24,41,53]. These powders are then compacted for panel realization, reaching higher densities and reducing intergranular porosity.

The powder density is an important parameter to be considered in the cold compaction operation since it influences the mould volume, which also needs to be adjusted depending on the selected EG content, final required density and final thickness.

3.3. Thermogravimetric Analysis (TGA)

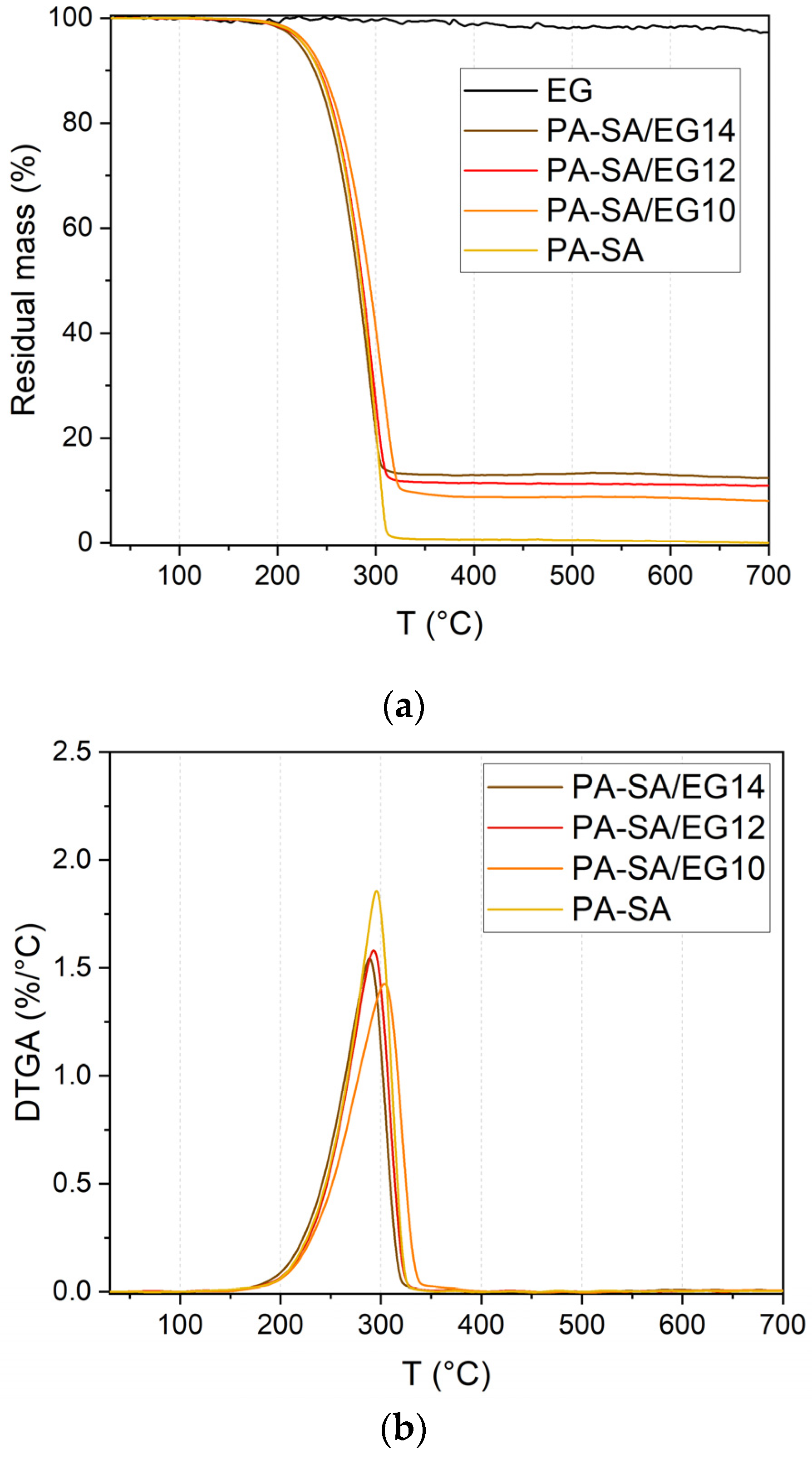

In order to investigate the material stability in temperature, thermogravimetric analysis was performed. In Figure 7, the TGA curves in nitrogen of neat PA-SA, EG and samples investigated as residual mass and derivative of weight loss (DTGA) are reported, while in

Table 4. Selected results of TGA and DTGA analyses in nitrogen.

Sample	Tonset [°C]	T5% [°C]	Tpeak [°C]	m200 [wt.%]	m500 [wt.%]	m600 [wt.%]	m700 [wt.%]
PA-SA	153	226.8	295.4	98.7	0.5	0.3	0.0
PA-SA/EG10	156	230.2	303.6	98.9	8.7	8.6	8.0
PA-SA/EG12	160	226.7	292.7	98.5	11.2	11.1	10.9
PA-SA/EG14	159	222.3	288.7	98.3	13.2	12.9	12.3
EG	-	-	-	99.1	98.4	98.3	97.3

, the characteristic temperatures and weight fractions are listed.

PA-SA starts the degradation at about 153 °C, reaching relatively complete degradation at 400 °C with the absence of any residue at the end of the tests. In the case of composite materials, the values of T_onset, T_5% and T_peak are similar to the neat PCM even though the derivative of the mass loss presents a less pronounced peak due to the stabilization effect of the EG. Some mass residue remains in all the three compositions (8.0 wt.%, 10.9 wt.% and 12.3%), proportionally to the theoretical fraction of EG (9.1 wt.%, 10.7 wt.% and 12.3 wt.%) in accordance with other studies in PCM/EG systems [30]. The residues slightly differ from the predicted values due to probable inhomogeneities derived from the small specimens considered and the weight loss of the EG itself. Nonetheless, EG presents stability in both atmospheres till 700 °C, compared to that produced by Tiang at al., which presents weight loss higher than 30 wt.% at 700 °C and a degradation onset at around 70 °C [52]. This indicates that the EG used in this work was probably pretreated at a temperature comparable or higher than 700 °C.

3.4. Differential Scanning Calorimetry (DSC)

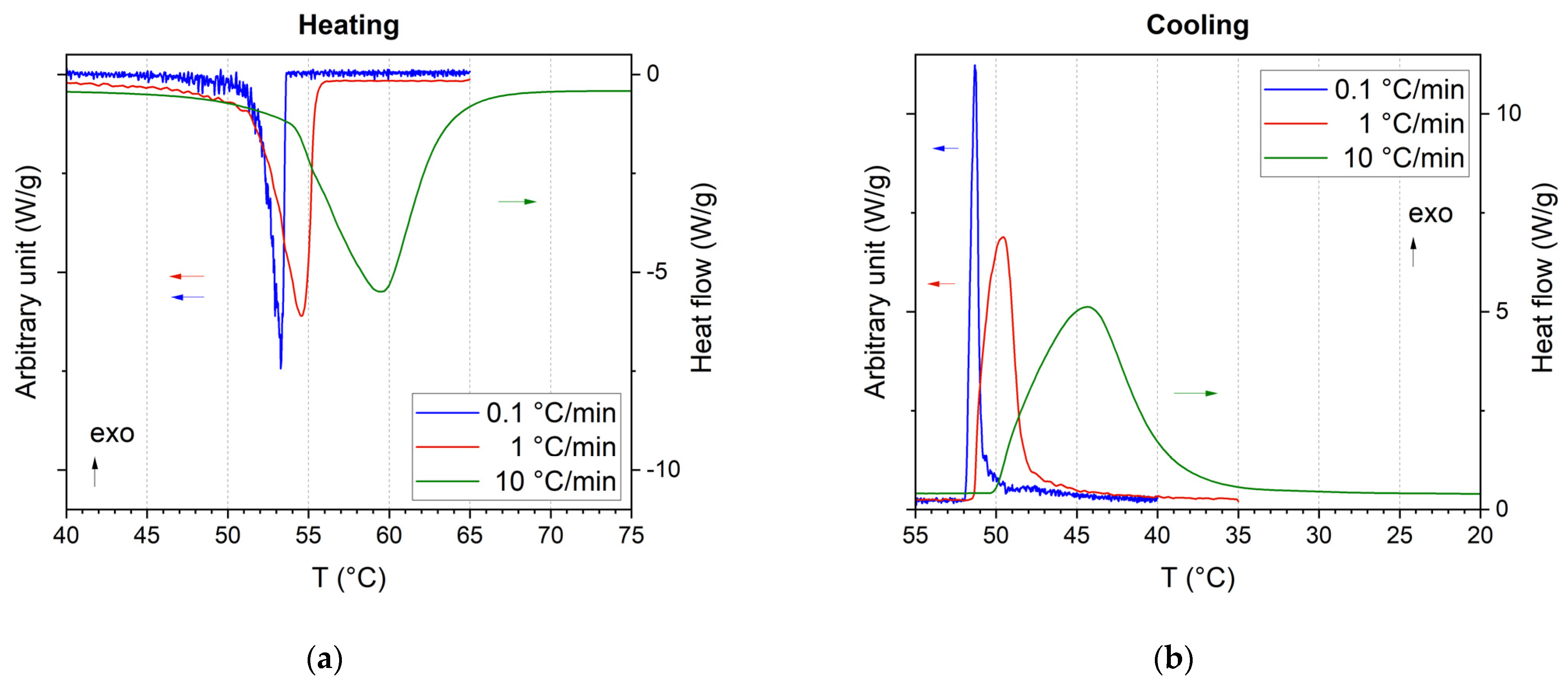

The selection of the most suitable rate to determine the phase transition temperature was performed comparing the DSC curves obtained testing the neat PCM at three different rates, as reported in Figure 8. In order to appreciate, in comparable scales, the peak shapes and positions, the curves obtained at 1 °C/min and 0.1 °C/min were normalized by multiplying, respectively, a factor of 5 and 25 with respect to the heat flux signal at 10 °C/min.

The lower the scanning rate, the narrower the interval of transitions, in particular, about 3, 7 and 12 degrees, for 0.1, 1 and 10 °C/min, respectively. Moreover, a shift in the transition temperatures can be noticed, which is a consequence of thermal inertia effects increasing at higher scanning rates. Melting peaks were registered at 53.3, 54.6 and 59.6 °C after heating at 0.1, 1 and 10 °C/min, respectively. The slower the heating (cooling) ramp, the more precise the evaluation of transition temperature range and peak due to the similarity to real environmental conditions that involve very slow transitions (~0.01 °C/min). At 0.1 °C/min, the thermogram is too noisy to guarantee a precise integration to quantify the enthalpy. For these reasons, 1 °C/min was selected as the scanning rate for the thermal characterization of the systems for the most precise possible determination of transition temperatures and enthalpy, as comprehensively explained by Valentini et al. [54].

The DSC curves of neat PA-SA and samples tested at 1 °C/min are reported in Figure 9 and the main results are summarized in

Table 5. Results of DSC tests at 1 °C/min using 40 μL crucibles.

Sample	Tm1 [°C]	ΔHm1 [J/g]	Tc [°C]	ΔHc [J/g]	Tm2 [°C]	ΔHm2 [J/g]	${\mathit{P}\mathit{C}\mathit{M}}_{\mathit{m}2}^{\mathit{e}\mathit{f}\mathit{f}}$ [wt.%]	${\mathit{\eta }}_{\mathit{m}2}$ [wt.%]	${\mathit{\eta }}_{\mathit{m}2}$ * [wt.%]
PA-SA	53.4	195.4	50.9	193.3	53.4	196.1	100	100	100
PA-SA/EG10	54.5	180.0	50.2	179.5	54.5	180.9	92.3	101.5	100.3
PA-SA/EG12	53.4	175.7	50.9	172.9	53.4	176.0	89.8	100.5	100.7
PA-SA/EG14	53.7	168.6	50.8	168.0	53.6	168.7	86.0	98.1	98.1

* Efficiency evaluated considering as EG weight fraction the residues at 700 °C from TGA.

.

The melting temperature of 53.4 °C of the PA-SA mixture indicates that the composition is closed to the eutectic one, with a PA-to-SA mass ratio ranging from 58.8 to 41.2 and a melting temperature of 53.2 °C, as evaluated using Schroder’s equation by Zhang et al. [44], which lowers the melting point of both PA (61.99 °C) and SA (68.54 °C) even if the melting enthalpy is higher (196.1 J/g vs. 178.1 J/g), but which is nonetheless lower than the single aliphatic acid, i.e., neat PA (198.4 J/g) and SA (201.8 J/g) [44].

The stabilization of the PCM using EG has almost no influence on its thermal properties; as reported in Table 5, the melting and crystallization temperatures are very closed, as well as the thermogram profiles. Transition enthalpies and temperatures are coherent to those evaluated in many studies [24,25,39].

The melting enthalpies are coherent with those predicted considering the EG weight fraction, with differences from 0.5 to 2 wt.% (η_m2) that could be attributed to any inhomogeneity of the systems. With 14 phr of EG content, the melting enthalpy is reduced to 168.9 J/g, which corresponds to 86% of the neat PA-SA value.

The crystallization enthalpy values are lower than those of melting due to the impossibility for the PCM to completely crystallize with the consequent presence of a few remaining amorphous regions, even if this effect should be reduced due to the heterogeneous nucleation enhancement provided by EG, which acts as a nucleating agent [24]. The crystallization temperatures are slightly lower in comparison with the melting ones due to the energy barrier that must be overcome for both melting in heating and crystallizing in cooling, accompanied with thermal inertia effects which cannot be completely neglected.

3.5. Leaking Test

Moving on to compacted system characterization, the ability to retain the PCM above the melting point was evaluated by performing leaking tests, whose results are reported in Figure 10, expressing the total mass loss for the short test and residual PCM content as a function of time for the long one. In

Table 6. Parameters for the determination of the efficiency in leakage reduction, referring to the 5-h long test, of disks with a surface-to-volume ratio (S/V) of 8.2 mm⁻¹.

Sample	EG% [wt.%]	Δ% [wt.%]	f [wt.%]	f* [-]	1/f* [-]
PA-SA/EG10	9.1	8.6	9.5	1.04	1.0
PA-SA/EG12	10.7	3.3	3.8	0.35	2.8
PA-SA/EG14	12.3	2.9	3.4	0.28	3.6

, EG content (EG%), weight loss (Δ%), relative loss fraction (f), its normalized value (f*) and its reciprocal value are reported. This last parameter can be considered as an efficiency in leakage reduction, which refers to the short leaking test.

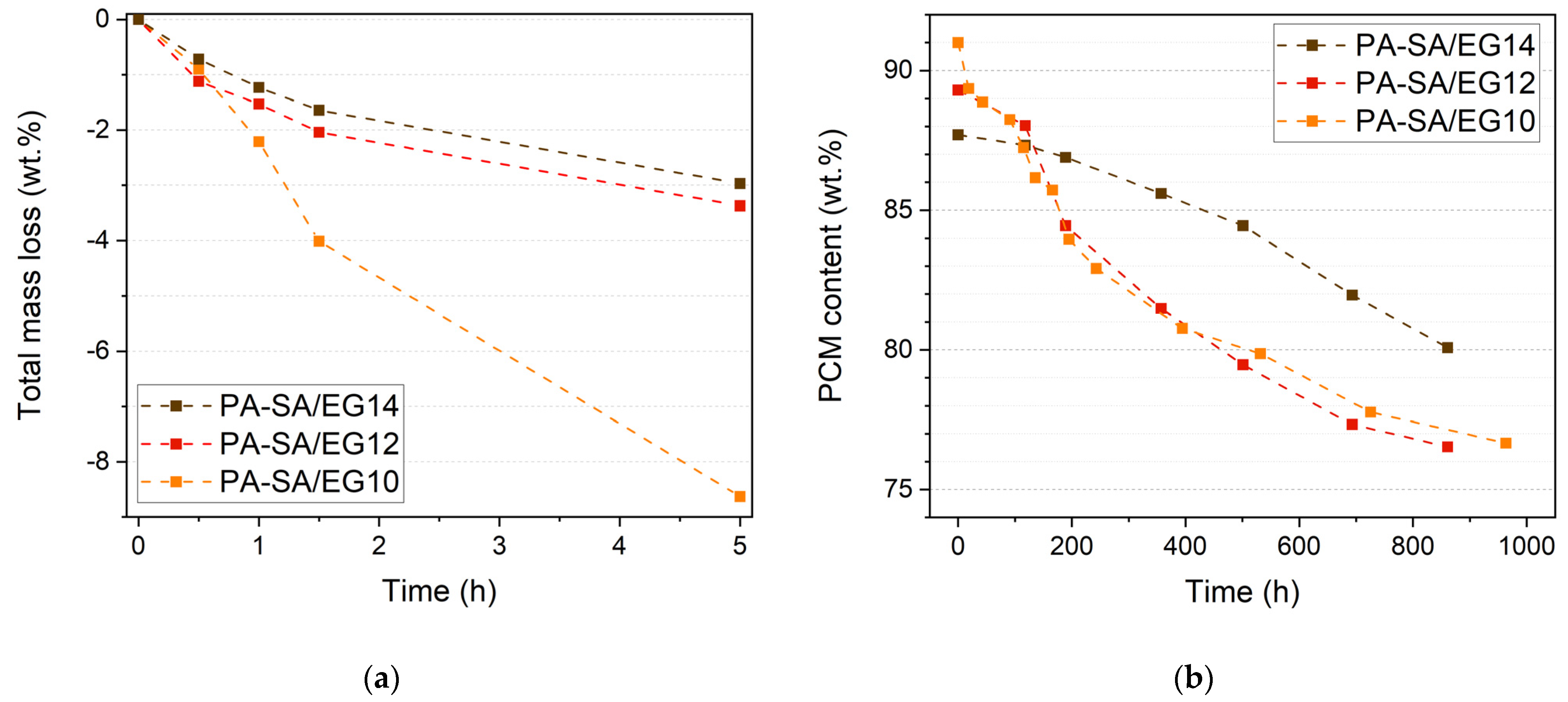

From the short test, the beneficial effect of increasing the EG content in the PCM stability can be observed, limiting the mass loss from 8.6 wt.% to 2.9 wt.% passing from 10 phr to 14 phr of EG content in 5 h with an improvement of the 1/f* parameter, respectively, from 1.0 to 2.6 and 3.6, with a drastic loss reduction at only 12 phr. Despite the fact that the shape of the tested disks was well maintained, the mass losses in some cases were higher than those obtained in similar works presented in the literature. Zhang et al. [44], with only 8.3 wt.% EG, obtained only 1 wt.% of mass loss after 1 h of pretreating the EG in a microwave oven, a result that in the present work was not even obtained at 12.3 wt.% EG. Another study shows that with 9 wt.% EG (close to the fraction of the PA-SA/EG10 sample), the leakage can also be completely avoided after 5 h [50].

The leakage performances are nevertheless comparable with respect to that obtained by Ao et al. (−1 wt.% after 30 min adding 12 wt.% of EG) [24] and are also better in comparison with those by Liu et al. (−5 wt.% in 90 min after vacuum impregnation with 12 wt.% of EG) [30].

In

Table 7. Parameters for the determination of the efficiency in leakage reduction, referring to the 40-day test of plates with a surface-to-volume ratio (S/V) f 7.0 mm⁻¹.

Sample	EG% [wt.%]	Δ% [wt.%]	f [wt.%]	f* [-]	1/f* [-]
PA-SA/EG10	9.1	14.3	15.8	1.73	0.6
PA-SA/EG12	10.7	12.8	14.3	1.34	0.8
PA-SA/EG14	12.3	7.6	8.7	0.71	1.4

, the same parameters evaluated for the test, within a 40-day duration, are reported.

Looking at the results of the longer test, the continuous PCM loss, which is much less pronounced at 14 phr content, is observable. After an initial intense leakage of the PA-SA/EG10 sample, the trends at 10 and 12 phr were similar with the double PCM loss (−14.3 wt.% and −12.8 wt.%) in comparison with the PA-SA/EG14 sample (−7.6 wt.%). An EG content of 14 phr can be thus considered the minimum amount to stabilize PA-SA (also, in this case, the highest 1/f* value), probably because with lower contents, the interlamellar space is not sufficient to retain all the PCM. Gao et al., using higher amounts for a further stabilization effect, reached no leakage at all (without application of pressures) at 20 wt.% of EG content [25], while Fang et al. observed no leakage at only 17 wt.% after microwave EG expansion [38]. Observing the trend of Figure 10b, a probable threshold to stop the PA-SA loss can be at around 25 wt.% of EG, which is more than the double contained in the PA-SA/EG14 sample. A compromise adopted to maximize PA-SA content using the minimum possible amount of EG to stabilize it is the selection for the 14 phr EG, which also reflects the best thermal conductivity improvement.

A practical solution to completely avoid leakage without an excessive decrease in the PCM content of the composite is the encapsulation using the PE envelope film.

Alternatively, a solution could be the use of another piece of graphite or try to pretreat it to further expand the graphite (with a microwave oven [44] or via thermal treatment in a muffle [53]).

3.6. Scanning Electron Microscopy (SEM) Observation

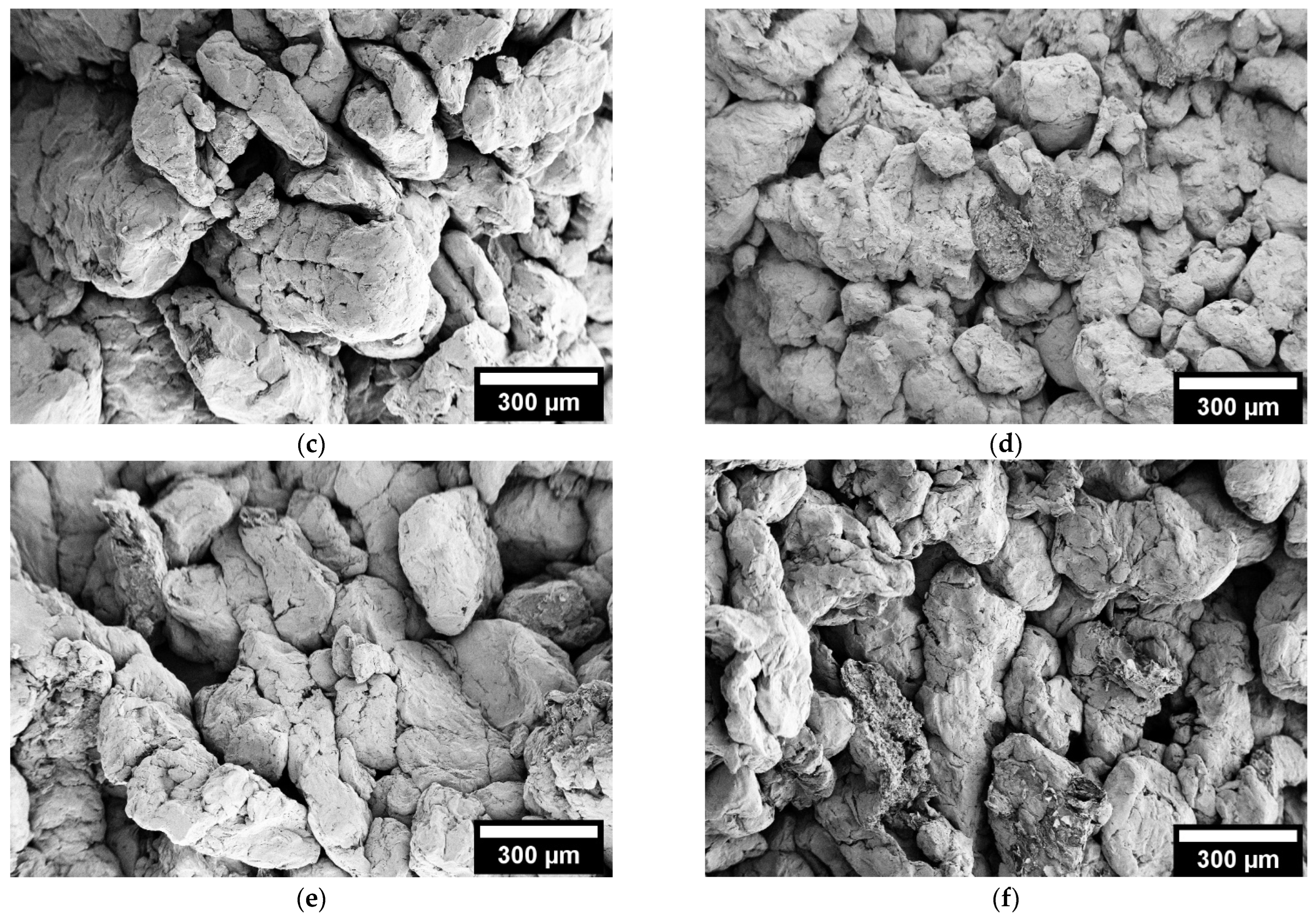

In Figure 11a–f, SEM micrographs of the fracture surfaces of compacted samples before PA-SA melting (left) and after at least one melting cycle (right) are shown.

This low magnification gives an overview of the composite materials’ morphologies; single powdery granules, that are able to adhere to each other due to weak interactions and mechanical interlocking after cold compaction, are recognizable. After melting, in particular for the PA-SA/EG10 sample (Figure 11b), the PCM escapes from the EG matrix, acting as a binder between the granules; this behaviour is confirmed by handling the samples that, after a thermal cycle above 60 °C, become less friable. After PA-SA melting, fracture surfaces of the granules can be observed, whereas before melting, the fracture occurs between the powder particles. Hence, during the production process, a thermal cycle above the PA-SA melting point can be useful to obtain a more resistant composite material, reducing the risks to break the panel before the PE envelope thermo-welding operation. Moreover, the morphology is found to be homogeneous for all the three compositions, although the PA-SA/EG10 has an excessive PCM content which is not entrapped into the interconnected EG porosity, as observed from the leaking test.

In Figure 12, SEM micrographs are shown at higher magnification in order to help better recognize morphological features.

The lamellar structure of graphite having a high surface area, among which PA-SA intercalates and stabilizes itself, and which is entrapped within the matrix due to the surface tension effect and capillary forces can be observed. No phase separation clearly appears, which determines high stability. These SEM observations and derived microstructural behaviour are in accordance with the studies of Li et al. [39], Wu et al. [41] and Zhang et al. [44]. A high interconnection of EG flakes is recognizable, forming a graphitic network in which the PCM is intercalated. Moreover, when the EG content is increased, the material appears more homogeneous.

3.7. Specific Heat Capacity

Specific heat capacity is a fundamental property of PCM-based materials, giving complementary information to transition enthalpy to determine the heat storage behaviour and evaluate the thermal conductivity. The obtained c_p values at 30 °C and 80 °C for PA-SA and the composite systems are reported in

Table 8. Evaluated specific heat capacity on neat PA-SA and disks having a density of 1 g/cm³ at 30 °C and 80 °C.

Sample	cp30 [J/(g K)]	cp80 [J/(g K)]
PA-SA	2.11 ± 0.09	2.30 ± 0.06
PA-SA/EG10	1.97 ± 0.13	2.20 ± 0.13
PA-SA/EG12	1.94 ± 0.08	2.16 ± 0.09
PA-SA/EG14	1.93 ± 0.09	2.17 ± 0.09

.

A slightly decreasing trend in c_p values with EG addition can be noticed. The trend is coherent to that found by Wang et al. [31]. The obtained values are slightly lower than those of the compared work because the analysed fatty acid mixtures were different and the transition onset was below 30 °C; hence, only a comparison at different temperatures could be performed. The c_p values increase by around 0.2 J/(g K) when passing from the PCM solid state at 30 °C to the liquid one at 80 °C.

3.8. Thermal Conductivity

High thermal conductivity is a fundamental property that must be guaranteed to a bulk TMS in order to permit a proper heat transfer to the PCM, whose thermal conductivity is 0.2 W/(m K) from the datasheet. In Figure 13, the thermal conductivity values at 30 °C from both hot disk and LFA techniques for the EG-stabilized PA-SA as a function of geometrical density and EG content are reported.

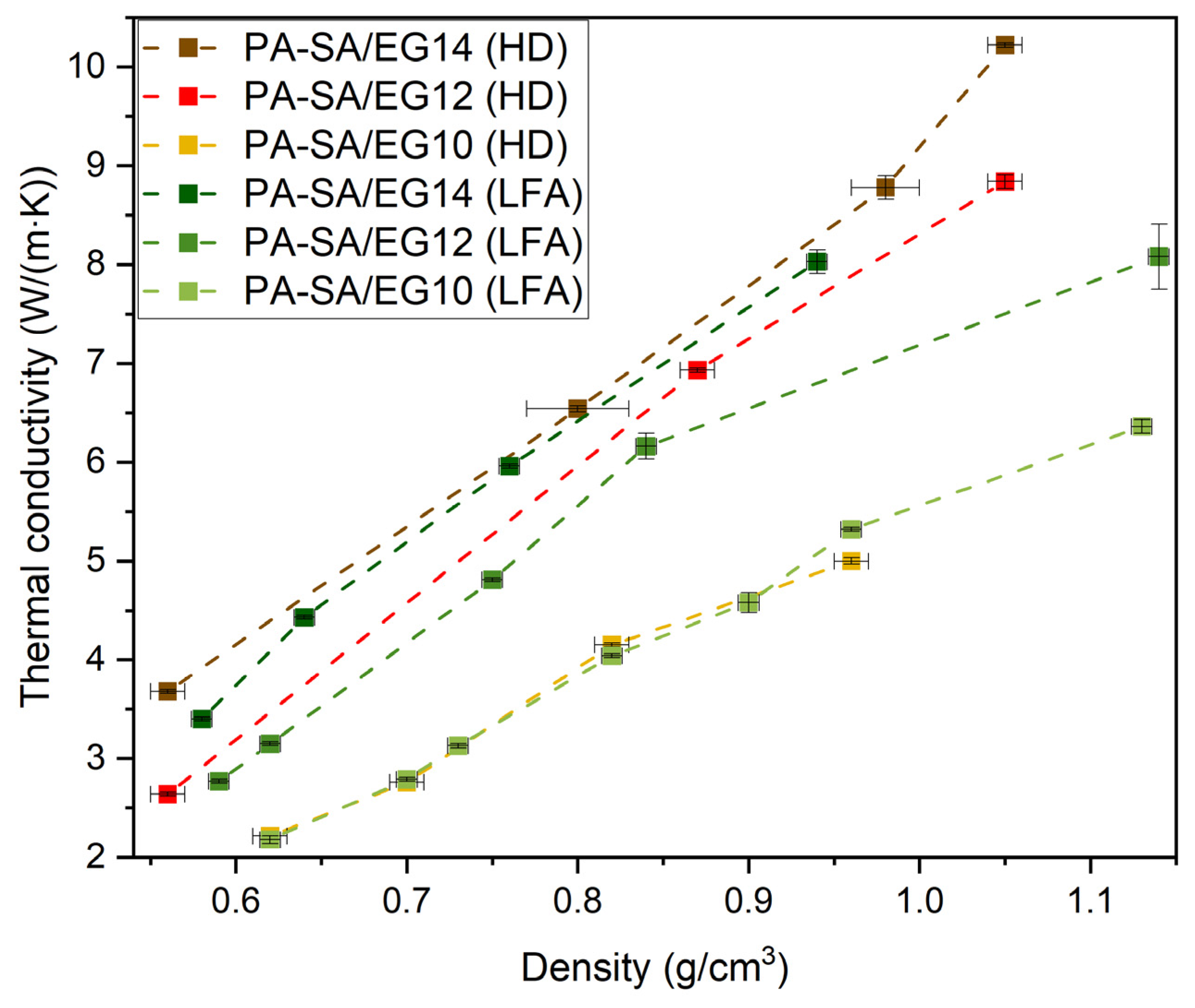

From Figure 13, the linear increase in thermal conductivity as a function of density is evident. This is in accordance with Equation (6); thus, a denser material possesses a higher thermal conductivity, considering the constant c_p and α affected by void fraction. Moreover, a beneficial effect in the improvement of thermal conductivity by increasing the EG content is clearly evident when passing from 10 phr to 12 phr rather than from 12 phr to 14 phr. This is one of the objectives of the PCM stabilization with a carbon-based matrix, whose effect in increasing thermal conductivity and diffusivity is confirmed by many studies on PA-SA/EG systems, with a threshold of around 10–15 wt% EG, above which the increase in thermal conductivity is less pronounced [55,56,57].

The improvement in thermal conductivity is thence more relevant when increasing the compaction of the powder than when exceeding with the EG content [41]. However, limits in the cold compaction process must be considered due to the high pressures necessary to overcome 0.94 g/cm³, for 14 phr EG content, 0.93 g/cm³ for 12 phr and 0.92 g/cm³ for 10 phr, which are considered as the threshold in this work to obtain blocks suitable for PV cells. At these densities, the obtained λ_HD values that can be extrapolated from the curves are 4.6 W/(m K) for PA-SA/EG10, 7.5 W/(m K) for PA-SA/EG12 and 8.3 W/(m K) for PA-SA/EG14, hence 40 times more with respect to the neat PCM, that is about 0.2 W/(m K) according to the literature [31,41,50]. These values can be increased up to 5.2 W/(m K) for PA-SA/EG10, 8.3 W/(m K) for PA-SA/EG12 and 9.2 W/(m K) for PA-SA/EG14 by increasing the compaction density to 1 g/cm³. The thermal conductivity of pressed EG having a bulk density of 1.90 g/cm³ (Figure S1), evaluated through LFA, was 25.60 ± 0.03 W/(m K).

The use of rotavapor preparation followed by compression moulding allows us to obtain higher thermal conductivity values than those obtained via melt impregnation considering the same EG content [24,25,26], also in the case of an additional contribution of an aluminium honeycomb structure [50]. Much higher values only in a preferential direction can be obtained by pressing graphite layers using 25 wt.% EG, obtaining a laminar structure having an anisotropic thermal conductivity, reaching values higher than 20 W/(m K) in the radial direction at a density higher than 0.8 g/cm³, as obtained by Wu et al. [41]; this result confirmed the quality of the pressed EG measurement obtained using LFA. Thermal conductivity can be further increased by selecting higher EG fractions, obtaining as a second advantage an improvement in leaking resistance at the expense of enthalpy and thus the ability to subtract heat for unit of mass. In addition, significantly exceeding the EG content (20 wt.% or more) may lead to compaction problems due to the formation of cracks in the plates just after tens of thermal cycles [41].

A limited difference between the values found using hot disk and LFA techniques is evident; these discrepancies are not so marked and are acceptable in the present study: for the case of 10 phr, the two curves well overlap; at 14 phr, the differences are in the order of 0.1 W/(m K); while in the case of 12 phr, the differences are higher, especially above 0.8 g/cm³. Sources of errors could be inhomogeneities of the tested material, i.e., imprecisions in the determination of bulk density and in the case of hot disk tests, in which the sensor was stuck between two different specimens. The calibration of the pressure to be applied in order to obtain the proper density of a small disk was not easy; thus, some measurements cannot be precise if the densities of the two specimens were too different. These aspects are quite common when thermal conductivity tests are performed, as noticed and extensively treated by Weingrill et al. [58].

Finally, the role of the PE film used as an external envelope had to be considered. It possessed λ in the order of 0.5 W/(m K); however, due to the low thickness (95 µm), the thermal barrier effect can be considered to be not detrimental for the thermal response of the multilayer material. In the case of PA-SA/EG14, when simplifying the heat transmission for conduction only in the direction perpendicular to the thickness, the conductive thermal resistance of the PE envelope was only 0.05 K/W, a contribution that can be linearly added to the 0.59 K/W of the brick with a thickness of 2 cm. Moreover, for real applications, it is essential to guarantee a good contact between the PCM-based composite material and the PV cell in order to guarantee the heat transfer with a thermal conduction mechanism; otherwise, a thin layer of air can behave as an undesired thermal insulation barrier.

3.9. Test in Climatic Chamber

From the results of the leakage and thermal conductivity tests, PA-SA/EG14 is selected as the best composition for PCM stabilization. The further characterizations were performed only for this optimized sample. In Figure 14, the temperature profiles of the PA-SA/EG14 bricks having three different masses (12 g, 66 g and 92 g), thicknesses (10 mm, 17 mm and 25 mm) and surface densities (9.4 kg/m², 5.3 kg/m² 3.8 kg/m²) subjected to the thermal cycles of the three coldest and hottest days of summer 2022 for the cities of Verona and Gela are reported. The recorded air temperature simulates the temperature reached by the PV cell inclined at 30° with respect to the horizontal. The temperature of the glass base sheet supporting the specimens is also reported for a comparative evaluation.

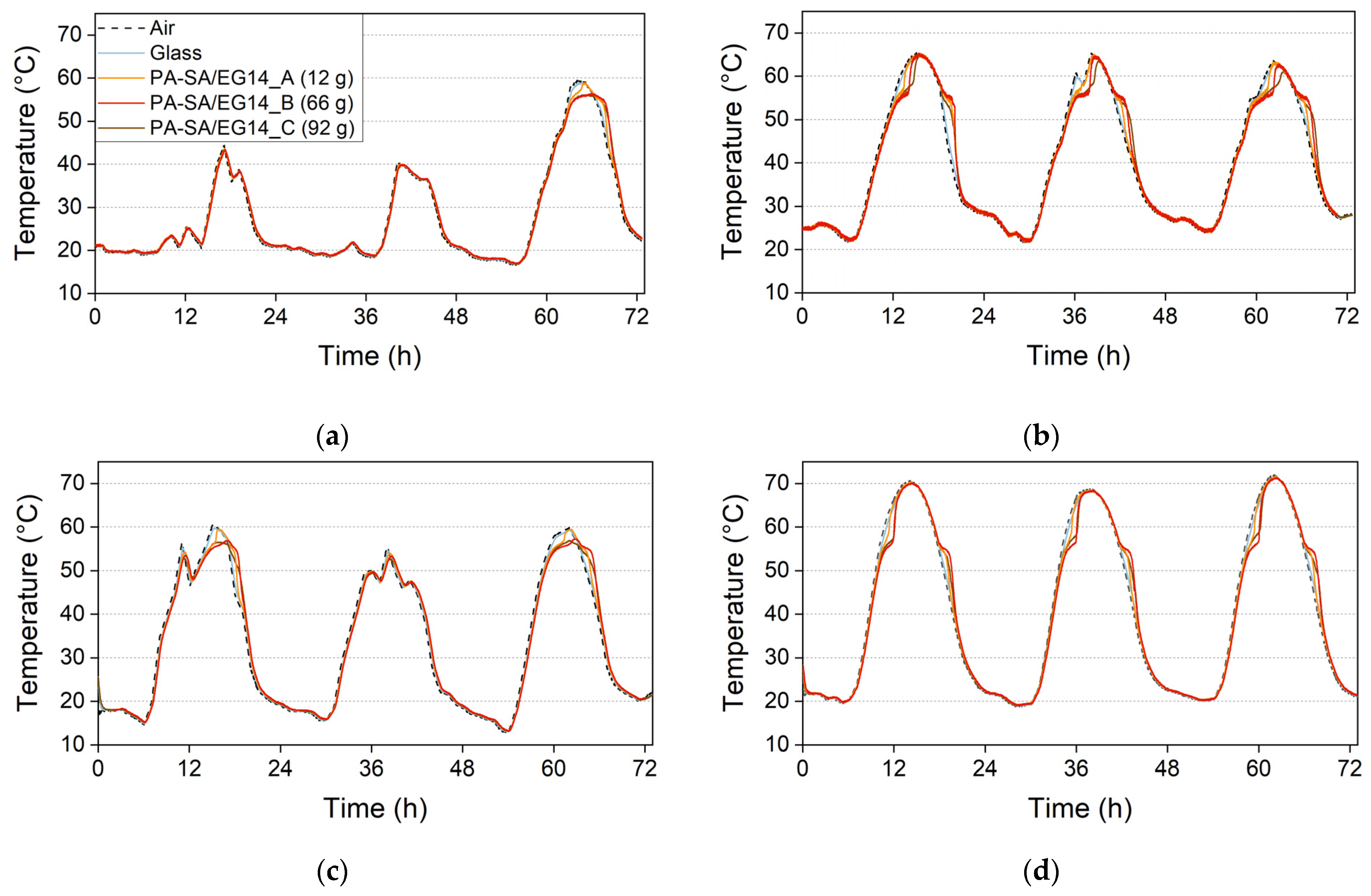

Observing the curves shown in Figure 14a, no PCM melting can be noticed in the first two coldest days due to the low reached temperatures, so the maximum and minimum temperatures are similar for all the specimens. During the third day, the thermal management mechanism is activated, and in particular, for the specimens with masses higher than 66 g, the amount of PCM is sufficient to completely avoid reaching the peak temperature, decreasing it of 3 °C (Table S3). This is an example of a proper calibration of the enthalpy required for the TMS, with a fraction of PCM which never melts unless in the hottest days for a few hours in an entire year. During cooling, the delay in reaching 53 °C with respect to the environment for all the samples is close to 1 h (Table S3).

In the three hottest days in Verona (Figure 14b), PA-SA melts with a delay effect in the temperature increase after melting that can be quantified in 1 to 3 h, depending on the mass (Table S4), with the maximum temperature decreasing to just tenths of degrees (always higher than 65 °C). This behaviour is similar to that in the three hottest days in Gela (Figure 14d, Table S6). During crystallization, this delay occurs as well, but at lower temperatures and for a lower time, guaranteeing a total balance in the reached temperatures with a potential time benefit for PV efficiency.

For the first of the three coldest days in Gela (Figure 14c), the thermal management mechanism is activated and, with sufficient mass (at least 66 g for the considered test), it is able to maintain the peak temperature 3.8 °C below the imposed one (Table S5) with a behaviour similar to that observed in Figure 14a. During the second day, the temperatures are too low to melt the PA-SA, while in the third day, the thermal management provides a delay in reaching the maximum temperature in the case of sample A and a peak temperature reduction of 2.8 °C for sample C (Table S5).

Finally, the minimum temperatures in all the 12 simulated days present no significant variations with respect to the values reached by the glass. This is an advantage because it means that during the night, the release of the stored heat occurs completely with crystallization and there is enough time for the material to stabilize its temperature with the environment, thereby guaranteeing the minimum possible temperature when the temperature starts to rise at the beginning of the day.

The tested blocks present good reliability with a good maintenance of their shape, as shown in Figure 15, with no presence of cracks (as contrarily experienced in a similar work at higher EG fractions [41]). High reliability is also experienced in other studies after 100 [53] to 500 cycles [30].

3.10. Mechanical Properties

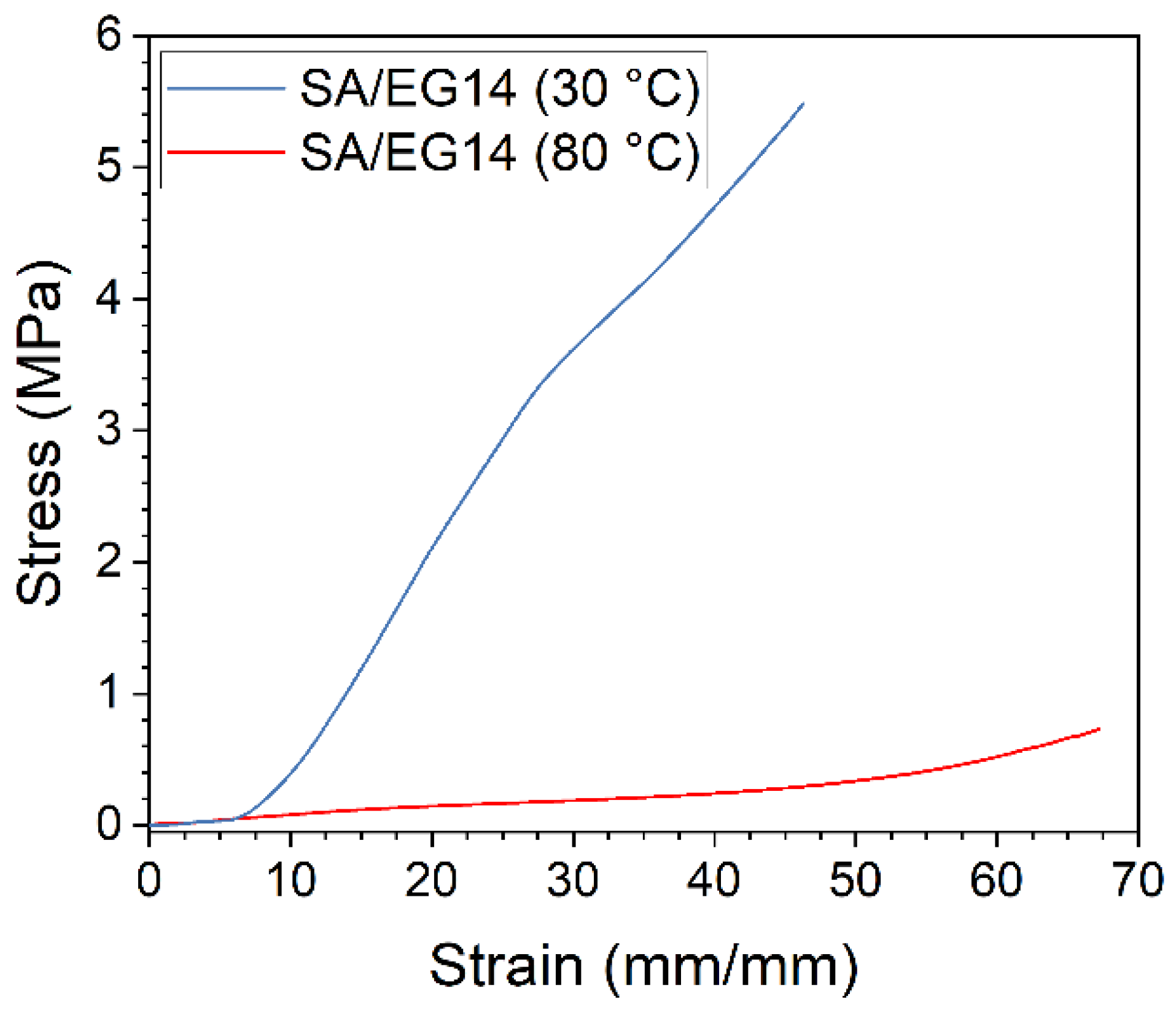

The TMS blocks were tested under compression to quantify a pressure which can be applied to maintain their attachment on the rear of the PV cells. In Figure 16, a representative compression stress–strain curve for the PA-SA/EG14 sample at 30 °C and 80 °C is reported, while in

Table 9. Results of PA-SA/EG14 compression tests at 30 °C and 80 °C.

T [°C]	EC [MPa]	σ10 [MPa]	σ20 [MPa]	ε0.5 [%]	ε5 [%]
30	16.0 ± 8.0	0.7 ± 0.4	2.4 ± 0.5	9.0 ± 2.0	40.8 ± 1.9
80	0.72 ± 0.06	0.082 ± 0.002	0.143 ± 0.004	58.8 ± 0.6	-

, the characteristic parameters at 30 °C and 80 °C are listed.

From the results at 30 °C, a quite strong and rigid behaviour of the material can be noticed, hence the bricks can be subjected to pressures higher than 1 MPa without shape stability problems below the PA-SA melting point. At 80 °C a decrease of one order of magnitude in the applicable stress occurs alongside an evident increase in strain at break. This is due to the very abundant leakage of molten PA-SA, which is squeezed out to the EG matrix once a pressure is applied. The first portion of the curves in which the strain increases without a relevant detection of stresses can be attributed to the compensations of the testing instrumentation and to the eventual accommodation of the PE film. At 80 °C, the compressive modulus is drastically reduced by about 20 times due to the very high fraction of PCM squeezed out under load. After the application of 0.2 MPa, the PCM leakage occurs and the test ends with the break of the PE envelope and PCM wetting of the lower plate of the machine.

In Figure 17, a picture of two specimens of PA-SA/EG14 tested at 30 °C and 80 °C can be observed, underlying the spreading of the material tested at 80 °C with a complete destruction of the specimens. At 30 °C, all the envelopes remain without any damage after the tests.

For real applications, a lateral containment of the material is needed to preserve the shape and structural integrity of the systems above the PA-SA melting point.

3.11. Enveloped Sheet Behaviour at 60 °C

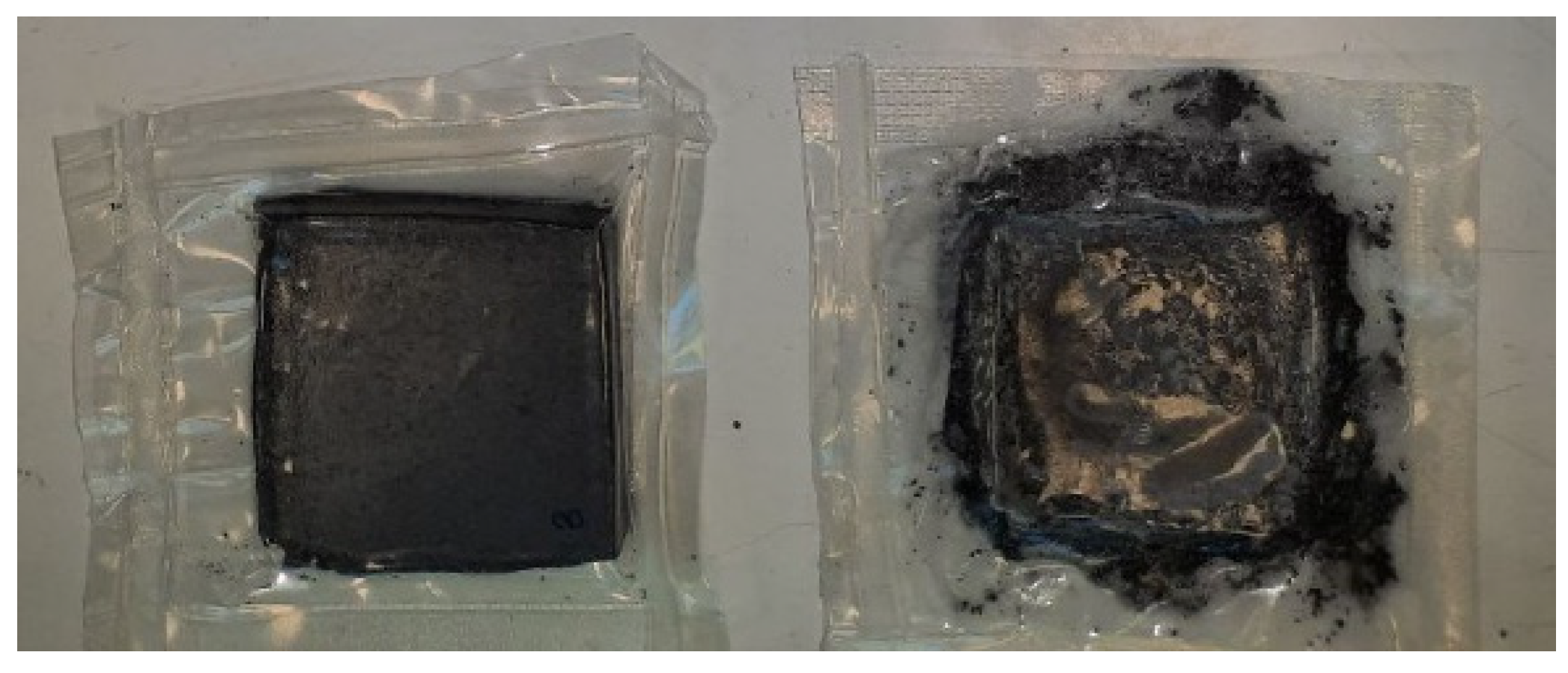

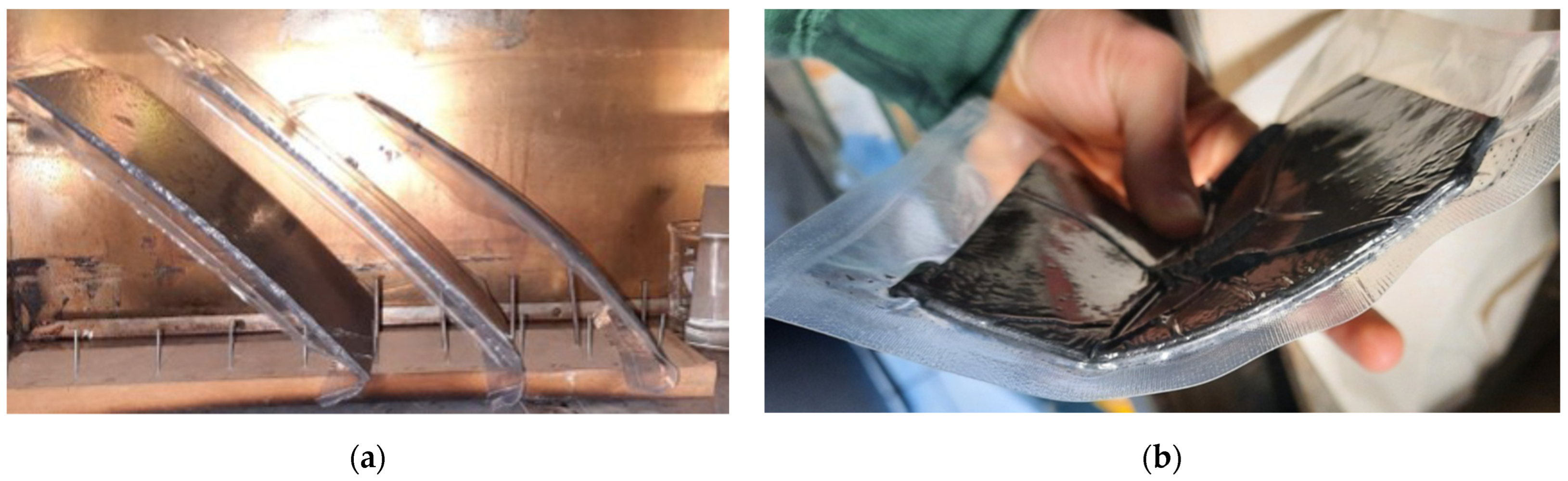

In Figure 18, enveloped PA-SA/EG specimens heated in an oven at 60 °C are shown. The sheets, having a thickness of 3 mm, deflect under the action of their own weight, and in a more evident manner particularly for the 10 phr EG content.

A change in the behaviour of the PA-SA/EG samples appears evident: at room temperature, the sheets present themselves as rigid and brittle, while at 60 °C, they become flexible. This behaviour can be explained by the plasticizing effect of the molten PCM among the EG particles, which in crystallized form is rigid and brittle.

3.12. Optimum Selected System Summary

In

Table 10. Specifics of optimum TMS.

TMS Bricks	ρ [g/cm3]	SD [kg/m2]	cp30 [J/(g K)]	λ30 [W/(m K)]	Tm [°C]	Tc [°C]	ΔHm [J/g]	TMA [MJ/m2]
PA-SA/EG14	0.94	18.8	1.93	8.3	53.6	50.7	169	3.2

ρ = density, SD = surface density of a panel 2 cm thick, c_p30 = the specific heat capacity at 30 °C, λ₃₀ = thermal conductivity at 30 °C, T_m = melting temperature, T_c = crystallization temperature, ΔH_m = melting enthalpy, TMA = thermal management ability of a system 2 cm thick and normalized to the surface, which corresponds to the heat that the device is able to remove from the PV cell.

, the characteristics of the PA-SA/EG14 sample, selected as the best candidate for the TMS realization due to the compromise between enthalpy, high thermal conductivity and PCM stabilization, are summarized.

4. Conclusions

Expanded graphite (EG) was successfully used to stabilize a mixture of stearic and palmitic acid for thermal management applications. In particular, the behaviour of a PCM having melting temperatures close to 53 °C and a melting enthalpy of 196 J/g has been shape-stabilized with EG, using a strategy that is able to improve the thermal conductivity, and finding the optimal amount of EG at 14 phr.

The result is an homogeneous system having a density of 0.94 g/cm³, melting enthalpy of 169 J/g and thermal conductivity of 8.3 W/(m K), which can be enhanced till 9 W/(m K), increasing the density by applying a higher pressure in the cold compaction process. The obtained enthalpy is higher than the majority of works present in the literature, exploiting PA-SA mixtures; hence, the investigated systems can be considered particularly suitable for heat subtraction in thermal management applications at 53 °C.

A good compromise between high PCM content and leakage resistance was found by fixing the amount of EG at 14 phr (12.3 wt.%), underlying its capability to be used as a filler in skeletons in PCM-based composites. In this study, a thermo-welded PE envelope around the TMS blocks is necessary to safely contain the material without dispersions in the environment. Moreover, the thermal conductivity of the composite was extraordinarily high, about 40 times more with respect to the neat PCM.

From the simulation of temperatures inside the climatic chamber, reached by the PV cells in Verona and Gela and referring to summer 2022 temperatures, thermal management effects with delays in temperature increase are confirmed for the hottest days, while reductions in daily peak temperatures are guaranteed only for days with intermediate temperatures. These results can suggest the study of lower-melting-point PCMs for the thermal management of PV cells.

This research detailed the production and the properties of various compositions of PCM systems with EG content in the range 10–14 phr, with a good leakage stability and a TMA value of 3.2–3.4 MJ/m², offering a proper compromise between transition enthalpy and thermal conductivity. The critical temperature to avoid or limit the dramatic reduction in the efficiency was set at 60 °C, and the selection of the PCMs was performed by searching for melting temperature peaks slightly lower than 55 °C. On the other hand, for a better thermal management action, PCMs with lower melting temperatures should be properly selected and prepared. In conclusion, these composite blends of stearic and palmitic acid stabilized with EG, compared with other PCM materials, evidenced high stability, good cost-effectiveness and good scalability.

Future work will be devoted to the selection of PCMs as a function of the region where the PV panel will be installed, calibrating the melting point and the amount of material on the basis of the available environmental data, and optimizing the EG content in order to find the best compromise between costs and thermal properties.
