Article

Chance or Chaos? Fractal Geometry Aimed to Inspect the Nature of Bitcoin

by
Esther Cabezas-Rivas
1,*,
Felipe Sánchez-Coll
2 and
Isaac Tormo-Xaixo
2
1
Departament de Matemàtiques, Universitat de València, Dr. Moliner 50, 46100 Burjassot, Spain
2
Departamento de Contabilidad y Finanzas, Edem Escuela de Empresarios, 46024 Valencia, Spain
*
Author to whom correspondence should be addressed.
Fractal Fract. 2023, 7(12), 870; https://doi.org/10.3390/fractalfract7120870
Submission received: 3 November 2023 / Revised: 1 December 2023 / Accepted: 5 December 2023 / Published: 7 December 2023
(This article belongs to the Section General Mathematics, Analysis)

Abstract

:
The aim of this paper is to analyse Bitcoin in order to shed some light on its nature and behaviour. We select 9 cryptocurrencies that account for almost 75% of total market capitalisation and compare their evolution with that of a wide variety of traditional assets: commodities with spot and future contracts, treasury bonds, stock indices, and growth and value stocks. Fractal geometry will be applied to carry out a careful statistical analysis of the performance of Bitcoin returns. As a main conclusion, we have detected a high degree of persistence in its prices, which decreases the efficiency but increases its predictability. Moreover, we observe that the underlying technology influences price dynamics, with fully decentralised cryptocurrencies being the only ones to exhibit self-similarity features at any time scale.

1. Introduction

Within the context of great uncertainty regarding the regulation of Bitcoin (btc), with a wide variety of legislative solutions ranging from prohibition to full incorporation into economies, the key question to characterize its nature and behaviour has spread beyond the financial press. Indeed, there are multitudes of scientific papers with the aim of providing grounded arguments for its classification as money [1], a technology-based product [2], or a safe-haven investment [3].
Paradoxically, a deep understanding of the behaviour of btc and similar assets is still pending, as the academic literature has reached no common consensus, for instance, about the market efficiency of cryptocurrencies (cc hereafter). In fact, on one side, the pioneering works by Urquhart [4] and Bariviera [5] conclude that btc is mostly inefficient, but evolving towards random dynamics. On the contrary, there are sources claiming that btc moves similarly most of the time, but there is no agreement between those who advocate that the mainstream characterists are efficiency [6,7,8], long-term memory [9,10,11,12], or anti-persistency [13], no matter the frequency or time frame considered.
In this unsettled framework, the overall goal of this paper is to shed some light on the nature of btc in order to foresee whether its prices move randomly or in a chaotic but predictable way, which would be a starting point to allow forecasting opportunities. Additionally, as claimed by Grobys in the recent paper [10], the economy has lately been suffering from widespread disruptions caused by COVID-19, as well as the current Russian–Ukrainian conflict, leading to the crucial need to re-inspect the market efficiency of both traditional and digital assets.
More precisely, the author in [10] focuses exclusively on btc (with a sample of 512 weekly observations) and its direct comparison to S&P 500 as a paradigm of a long-established market, after which he encourages future more detailed reseach including other cc. We take up this suggestion by considering 9 different digital coins which accummulate almost 75% of the traded volume, and our sample takes observations in much higher frequencies (daily, 1 h and each 15 min), as this will better reflect the fast trading in digital exchanges. Moreover, we do not restrict to a single classical asset for comparison, but consider a range of 13 traditional assets of a different nature: gold, crude oil, wheat, silver, 10-year US bonds, two indices and 6 stocks, including value and growth companies.
Here is a quick overview of our analysis:
To identify factors detecting differences in the dynamics of cc in the markets, we have chosen cc representing diverse consensus protocols.
For each of the 21 different assets, as already mentioned, we have three time series corresponding to daily and two different intraday frecuencies. Moreover, we will split each sample in two different non-overlapping subperiods, which we will analyze in parallel to the full sample. The goal is to judge whether varying the time frame or frequency would lead to different indicators or whether the data present scale invariance properties.
After construction of the corresponding series of logarithmic returns and the mandatory descriptive statistics (including a normality test), we conduct a careful analysis of the precise characteristics of our samples, in order to choose an ad hoc method to address the question about their efficiency.
  • First, we tested the potential presence of multifractality features in our series (see Section 6.1). Our outcomes agree with those by Bariviera in [14], who analyzes 84 cc to conclude that the most capitalized ones (like our selection of nine cc) display monofractal patterns.
  • Then, as stationarity is a crucial feature to decide the technique, we perform the classical Augmented Dickey–Fuller (ADF) unit root test. Moreover, to double check its findings, we have implemented a second generation unit root test (KSS) which tackles the possible failure of ADF in the presence of non linearities. The outcomes (see Section 6.2 and Section 6.3) confirm that our series are stationary at 99% confidence.
After these a priori tests to check that the assumptions of monofractality and stationarity are fulfilled by our data, we are enabled to apply the R / S method, which goes back to Mandelbrot’s original development of fractal geometry [15,16], to compute the fractal dimension (by means of the Hurst exponent), boosted with suitable inference tests to validate our outcomes (see Section 5.3 for a detailed account of the methodology).
Apart from applying the technique to the different time frequencies and periods to assess self-similarity properties, to avoid that our estimates include spurious effects due to the presence of autocorrelations in the time series, we generate randomly shuffled copies of them for which we re-calculate the Hurst exponent.
Finally, we study how cc are correlated between them and with a selection of 13 already established asset classes.
As highlights of our findings, for all cc with purely decentralized technologies (that is, without intermediaries or audit control), we detect clear signs of inefficiency. Furthermore, the computation of the fractal dimension under different time frames and scales certainly reveals that these cc present long-term memory and self-similarity properties. Hence, a technical analysis of past data is well-founded but shifting the scale is helpless to obtain finer predictions. This information will be helpful to develop forecasting algorithms in future research.
We also confirm that these properties are shared neither by centralized cc nor by assets like gold, silver, crude, wheat or treasury bonds, which are quite poorely correlated to btc that is in turn tightly interrelated to most actors of the cryptosphere. This disables any narrative or marketing strategy to declare btc or new gold and its often claimed diversifying power.
Our results upgrade the previous literature in several directions: we pioneer in disclosing that it is the underlying technology, instead of the capitalization, that is the crucial element influencing cc prices. Accordingly, it is interesting to assess in subsequent research whether the change of protocol in Ethereum (which is the second most capitalized cc) from 15 September 2022 modifies its efficiency, self-similarity patterns and trends in comparison to btc.
We also open a new research line that challenges the widely accepted impermeability of the cc market to the macroeconomic environment. In fact, we detect a major paradigm shift (driven possibly by rising inflation and interest rates) in cc interrelations, and provide feedback on external products by zooming in on the last trimester of 2022 and 2023 data.
If we focus on btc, the present paper is very much in the line of [10], since we share the conclusions that btc is persistent with behaviour that does not change over time. Methodologically, the author in [10] also applies the R / S method enhanced by several robustness tests to confirm its current validity, as opposed to the large amount of replication failures in finance studies (which is well recorded in [17]). The latter even suggests to treat with caution and re-examine conclusions derived from standard statistical models (see further discussion in Section 5.2). In short, several authors share our concern about the rigorous application of the techniques, by a careful check of the hypotheses before using a procedure and a later confirmation of the statistical significance of the computations; However, both steps are often naively ignored in the financial literature, as pointed out in [18].
This paper is organized as follows: in Section 2, we introduce the basic notions concerning cc consensus protocols, the memory/efficiency character of time series and the fractality that will be used extensively throughout the paper; whereas, Section 3 includes a detailed survey of the literature to stress that the debate about the nature of btc is a vivid area of current research that has not yet reached any consensus and deserves further attention, and contradictory results in previous papers could be a statistical artefact of inaccurate techniques. Later on, in Section 4, we provide descriptive statistics of our datasets explaining the sources and criteria of selection of the different assets. Then, we explain the details of how we perfom the R / S method (cf. Section 5) and thoroughly discuss the outcomes and the corresponding implications in Section 6. Finally, we include a summary of main conclusions (Section 7) and, for completion, three appendices with additional tables on the overview of the techniques used in the previous literature and calculations of the Hurst exponent, as well as full correlation matrices.

2. Background Material: Basic Facts and Definitions

2.1. Blockchain and Its Different Consensus Algorithms

The paradigm change brought by btc represents an evolution towards decentralised networks, allowing peer-to-peer interactions (with no need of intermediaries or central authorities that audit the operations) and a secure exchange, not only of information, but also of value. The technology that enables the latter is known as blockchain; roughly speaking, it uses cryptographic techniques to run a shared and secure digital register to record transactions, like a ledger.
Different consensus protocols/algorithms have been developed to validate and secure operations: Proof-of-Work (PoW), where different users (miners) compete to solve a mathematical problem that requires high computational cost; or Proof-of-Stake (PoS), which selects validators randomly, giving a higher probability to those who deposit a larger amount of cc as a guarantee.
We will not go into technical details of other variants, like Nominated PoS (NPoS), PoS Authority (PoSA), Delegated PoS (DPoS) and Ripple Protocol Consensus Algorithm (RPCA). Let us just point out that some of them are controlled by very few nodes as in the traditional transaction systems.
In short, the consensus method provides each cc with distinct features in terms of energy efficiency, security and scalability; thus, we wonder the following:
  • Does the technology of cc influence their behaviour in the markets?
Accordingly, we will focus on the comparative study of cc with different consensus mechanisms (see second table in Section 4.1). Up to our knowledge, it is the first time that the underlying technology is used in the literature as a distinctive characteristic.

2.2. Efficiency versus Persistence and Fractality

An essential yet unresolved matter is the predictability of the cc behaviour, a notion that challenges the Efficient Market Hypothesis (EMH), which is one of the key cornerstones for modeling financial data [19]. A market is efficient if prices follow a random Brownian motion, reflecting all available information; thus, a market is said to be efficient if past data cannot be exploited to predict future returns.
More precisely, three characteristics determine this motion: independence (i.e., prices have no memory and their dynamics are fully random), stationarity (the magnitude of changes does not vary with time) and normality, which implies that extreme events occur with very low probability. The latter cannot explain the sudden and sharp movements in financial markets. Illustratively, from 1916 to 2003, the Dow Jones index had 48 days with a swing bigger than 7%, but under a normal distribution this should occur 1 day every 300,000 years [20].
In short, the evidence from real data leads us to look for alternatives to EMH that allow us to predict these abrupt changes, which also happen in waves and are not isolated nor orderly, thus showing the chaotic fluctuation of prices. This is precisely what led B. Mandelbrot to use chaos theory as an inspiration to create fractal geometry in the 1970s, which seeks to quantify complex patterns in nature.
Indeed, fractal objects work like chaotic systems where instantaneous shifts can have significant effects in the long term. Roughly speaking, two main features define a fractal: it has a fractional (non-integer) dimension, and it is scale invariant or self-similar, i.e., it presents copies of itself as it is zoomed in (like a snowflake). For a time series, this means that its basic features are kept if we consider time subperiods or alter the data frequency of the sample.
When prices evolve inefficiently (then predictably), there are two types of memory: antipersistent or mean reverting if an increase is followed by a fall and, conversely, drawing an oscillatory path around the mean; and persistent or long-term memory, that is, after a rise/drop comes another move with the same trend. In practice, the higher the persistence is, the more difficult it is for the values to return to their predetermined target in the event of a fall or exogenous shock.

3. Literature Review

This section pretends to highlight that, despite the expansive literature about this topic, there is still no agreement (in fact, one finds clear contradictions from one paper to another) concerning the nature of btc in terms of efficiency and self-similar dynamics. Clarifying this by means of a meticulous application of the methods to avoid misleading conclusions is a key issue and any new contribution is welcome, as argued in [10], because of the raising popularity of cc as investment tools, the high amounts of money traded and the crucial time for policy-makers due to the pressing need to decide how to regulate this reality.
Let us first stress that, despite this heterogeneous landscape and apart from the coincidence with [10], our conclusions about persistent behaviour, no matter the time period, are also in line with new approaches to the problem by means of wavelet analysis [21], or deep learning techniques [22]. However, both of them restrict their interest to daily returns of btc as an isolated object. In contrast, we expand our view to other cc in relation to a wide variety of traditional assets and consider not only daily returns, but also higher intraday frequencies, in order to grasp the extremely quick movements of digitally traded markets.

3.1. Under Which Label Do We Classify Bitcoin?

The right description of btc is a desirable goal to grasp its potential role in the market for risk management and portfolio diversification. While its design has similarities with gold (mining, decentralization, not government-backed and globally traded 24/7) and currencies (medium of exchange), if btc were a real unit of account or a store of value, it would not exhibit the high volatility characterized by bubbles and crashes (cf. [23]). Recall that volatility/fluctuation are typically characterized in terms of the standard deviation for the sampling time period.
In this spirit, it more closely resembles a highly speculative asset than a typical commodity or currency (see [24]), or at least belongs to a category in between the latter two (cf. [25]). Moreover, ref. [26] shows that btc has its own risk-return features and is uncorrelated with traditional assets. Because of this, refs. [27,28] conclude that it cannot play the role of a safe-haven from an econometric perspective.
In fact, its evolution does not respond to monetary policy news, but it reacts to events related to cc, having significant correlations with them [29,30]. Analogously, ref. [31] claims that the isolation of btc from the global financial system implies that it is not an actual source of economic instability.
However, the dependence between cc and other assets may change over time. Indeed, ref. [32] checks that the gold-btc correlation reached a maximum during the peak of COVID-19, dropping to almost zero in July 2021. Because of this, it is not completely hopeless to include cc in a portfolio. Even more, ref. [25] argues that btc is helpful for risk-averse investors in anticipation of negative shocks, as its reactions to market sentiment are quicker.

3.2. Efficient Market Hypothesis (EMH) in the “Cryptosphere”

Despite the extensive analysis about EMH’s applicability to the btc market (see [33] and Table A1 for a survey), there is no agreement on whether the periods of efficiency alternate either with mean reverting dynamics (as claimed in [4,34]) or with long-term memory trends (stated by [5,35,36]).
More precisely, ref. [37] unveils a decreasing trend in the predictability, confirmed in [38] by checking a reduction in the price reaction time to unexpected events. This is further supported in [39], as no pattern in returns can be discovered away from price clustering. But, there is no common narrative to explain the varying efficiency over time: according to [40], inefficiency is higher during price rises; ref. [7] found out that liquidity (volatility) has a significant positive (negative) effect on the efficiency, which can be enhanced by introducing btc futures [41].
Despite the almost exclusive restriction to btc, some authors compare it with other cc. In this spirit, ref. [42] concludes that btc is the least predictable, which is reinforced by [14], with notable efficiency in lower volume quantiles and anti-persistance in higher ones. However, refs. [43,44] also find evidence of the reverse arguments, showing that less capitalized coins are more efficient than btc, while the latter presents long-term memory (see also [45]).
Finally, efficiency can be altered during exceptional circumstances, such as the COVID-19 pandemic, which introduced significant regime changes in crypto and traditional markets (see [46]). Surprisingly enough, btc is more resilient to efficiency decreases than other financial assets (cf. [47]).

3.3. Unraveling Complexity by Means of Fractal Geometry

Refs. [48,49] claim that the efficiency of cc varies across frequencies, as there is heterogeneous memory behaviour against the self-similarity required for fractal objects. This view is shared by [7], which checked that the higher the frequency, the lower the pricing efficiency. In the same spirit, refs. [44,50] conclude that the regime of persistence depends on the time scale and the period considered.
On the contrary, ref. [51] reports similar memory patterns, no matter the time frequencies, implying a self-similar process. This is confirmed in [52] via a big data-driven study joint with statistical testing, providing evidence of dominant fractal traits at all high frequency rates for btc prices.
Later on, ref. [14] clearly reveals that one cannot apply a common model to address the whole cc landscape. Indeed, highly capitalized coins display roughly unifractal processes, and thus can be described via fractional Brownian motion; however, cryptoassets with fewer liquidities exhibit strong multifractality, and more sophisticated models would be required for capturing their complex dynamics.
As pointed out in [53], multifractal features are not exclusive of cc; in fact, they are similar to that of stock markets, but differ from regular coins. Additionally, ref. [54] checked that btc shows higher fractality than gold, which reopens the debate about its nature also from the outlook of fractal geometry.

4. Data and Descriptive Statistics

4.1. Types of Assets: Selection Criteria and Sources

We have worked with a dataset (obtained from Binance) containing the prices of btc and eight other cc (see Table 1) over the time period from 20 August 2020 to 24 February 2023, considering opening values every 15 min ( N = 88 , 060 observations), 1 h ( N = 22 , 019 ) and 1 day ( N = 919 ). The aim is to contrast daily dynamics with intraday or high frequency movements in the view of seeking self-similarity features.
In order to compare with other assets traded on traditional financial markets, time series have been selected from Bloomberg with daily values of:
Three commodities with future contracts (gold, crude oil and wheat);
One spot commodity (silver);
A 10-year US Treasury bond future contract (FC);
Two stock market indices (Nasdaq and EuroStoxx);
Three growth stocks (Tesla (Austin, TX, USA), Netflix (Los Gatos, CA, USA) and Amazon (Seattle, WA, USA)) and three value stocks (The Coca-Cola Co. (Atlanta, GA, USA), Procter & Gamble (Cincinnati, OH, USA), and Johnson & Johnson (New Brunswick, NJ, USA)).
We conjecture that growth stocks (i.e., those with a 5-year average sales growth over 15%) will perform similar to cryptoassets having an actual positive correlation; while it is expected that when cc go up, value stocks (that is, the ones with price-to-sales ratio < 1 ) will go down.
On the other hand, to assess whether cc perform as a safe haven asset, commodities have been chosen, as well as low volatility assets as treasury bonds. Moreover, to compare the cryptoeconomy to the traditional financial market, we include stock indices, which act as a thermometer of market movements.
Regarding the selection of cc, we applied the Pareto principle to their capitalisation, according to which 80% of the results are due to 20% of the variables involved. Although the 9 selected cc “only” accumulate approximately 74% of the total market capitalisation (see Table 2), we have ruled out cc with volume percentages below 0.5%, which we consider to be unrepresentative. Let us stress that we have chosen archetypes of five different consensus protocols to enable our aim of comparing cc on the basis of their underlying technology.

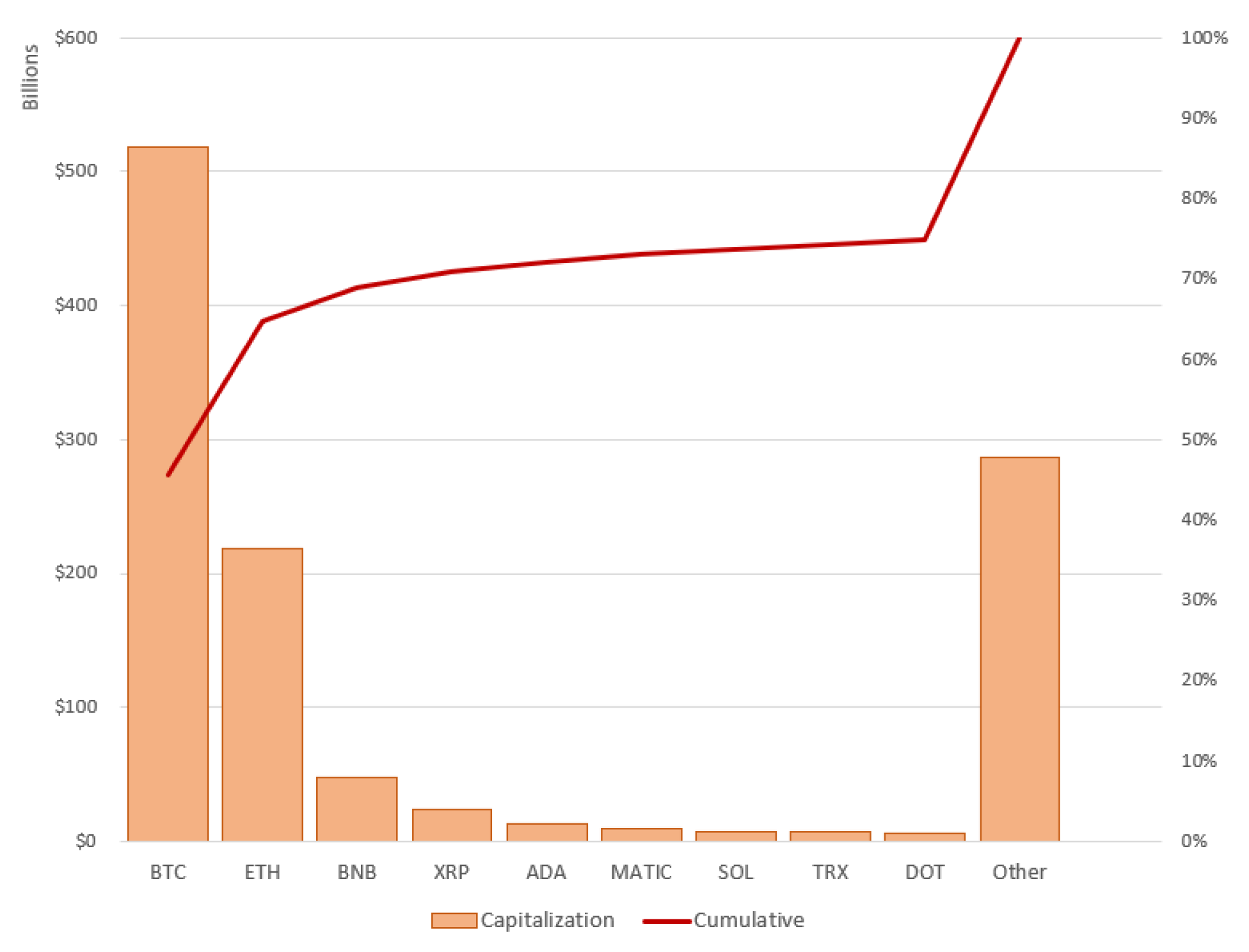

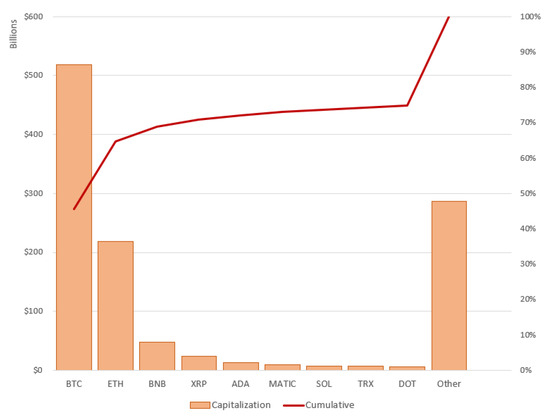

As can be observed in Figure 1, btc and eth account for almost 65% of the total volume, while the 9 chosen cc together have a total capitalisation of more than USD 851 billion, which will provide us a global view of the market by accounting for almost 75% of the total capitalisation estimated at USD 1138 trillion, according to Investing (www.investing.com), as of 24 May 2023.

4.2. Descriptive Statistical Analysis of Data

Let us first point out that daily opening values have been taken. In addition, to facilitate the direct comparison, for the descriptive statistics (see Table 3) and the computation of correlations (cf. Section 6.7) only weekday values are included, even though cc are still trading on weekends.

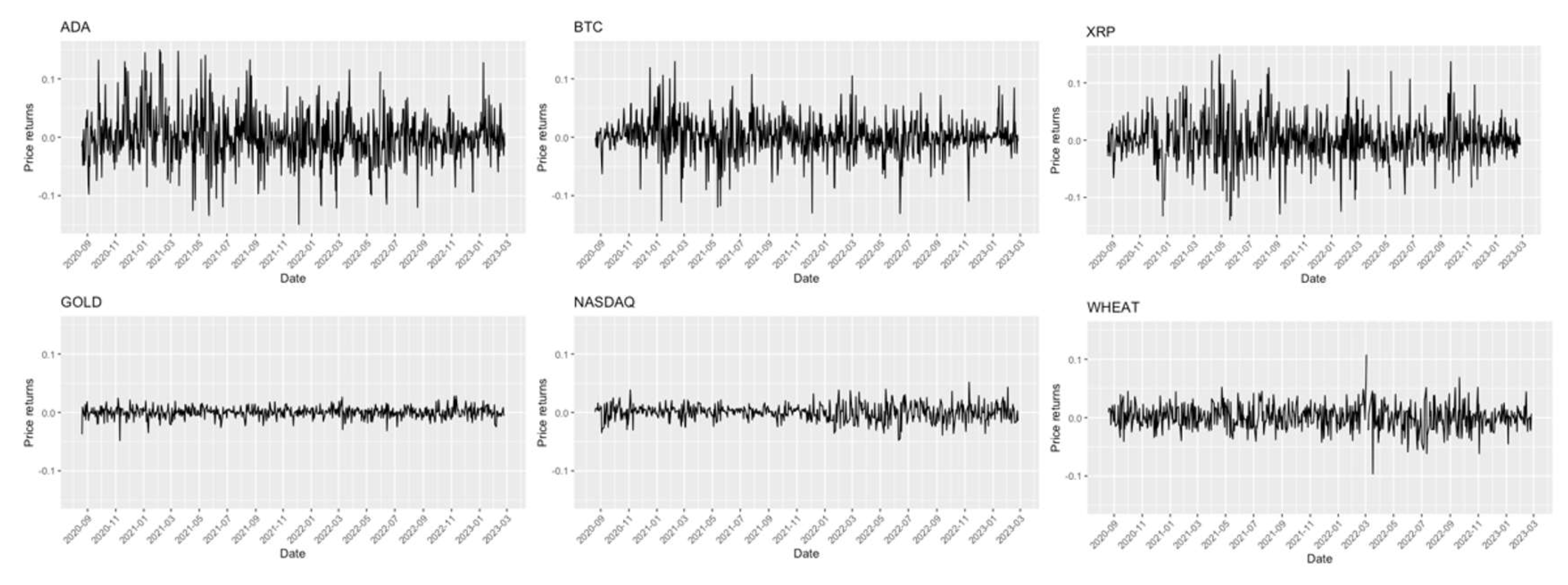

To analyse the normality of the time series, one typically converts them from price series P = { P t : t N } to return series R = { R t : t N } . In our case, we have calculated a total of 608 returns for each series on a logarithmic scale, i.e., we work with the sample R = { R t : t = 1 , , 608 } , where
R t : = log P t P t 1 = log P t log P t 1 .
Table 3 reports the descriptive statistics for the full sample period from 2 August 2020 to 24 February 2023, which leads us to the following preliminary conclusions:
cc have a much higher volatility than other assets; in particular, btc’s volatility (3.85) is much higher than gold’s volatility (0.92). As a result, this is the first indication that btc does not behave as a safe haven asset.
For a normal distribution, the kurtosis is around three and the skewness is near zero. The values of the latter do not seem conclusive, as most of them are close to zero; however, the kurtosis seems to point out that neither cc nor traditional stock market players follow a normal pattern.
The normality test (Jarque Bera) provides strongly significant evidence that none of the series under study follows Gaussian moves, which confirms Mandelbrot’s criticism [20] to classical economic theories arguing that the normality assumption does not properly capture price evolution.
Additionally, we split our sample into two subperiods (see Table 4) in order to test whether the efficiency varied over time. A first inspection shows that descriptive statistics are quite stable for btc, while other assets present sign shifts in the mean (trx, nflx) or kurtosis (silver). This provides a first hint that self-similarity features may not be shared for all items under review. Let us also point out that the significativity level for the normality test rises to 5% during the second subperiod for wheat, oil, gold, silver, Nasdaq, US bonds, tsla and jnj, which may foresee a change in performance.
Finally, let us mention that we do not display descriptive statistics for intraday frequencies of cc for brevity, since there are not remarkable differences with Table 3, apart from the higher number of observations.

5. Methodology: R/S Analysis Enhanced by a Test of Significance

5.1. Hurst Exponent: Origin, Definition and Interpretation

A fractal is defined by the scale invariance and chaotic nature, whose complexity is measured by the fractal dimension D. As the graphs of returns are bumpy/peaky curves in the plane, D should be between 1 (dim. of a smooth curve) and 2 (dim. of the plane); then, we can write D = 2 H , with 0 < H < 1 .
For time series, one typically computes the value of H, known as Hurst exponent, which was introduced to study the Nile overflows [55,56]. Economists use H to assess the efficiency of the market; thus, it is considered efficient if H = 0.5 , and inefficient otherwise (see more details in Table 5).

5.2. Justification of the Chosen Methodology: R / S versus DFA

Hereafter, we apply the rescaled range ( R / S ) method (cf. [16,57,58]) to obtain H without imposing independence nor a normality of the returns (as other methods more widely used in the literature do). The only restriction is to work with stationary series, but we will check that this is the case (see Section 6.2, where we perform a traditional ADF test, and Section 6.3, which confirms the results of such a test by applying a second generation unit root test which accounts for the presence of non-linearities in the time series).
One of the additional advantages of the R / S analysis is that it is robust in the sense that can detect non-periodic cycles even if they are longer than the sample period, as well as long-term correlations. For instance, ref. [59] applied it to conclude that many natural phenomena are not independent random processes. We choose this instead of the modified R / S statistic, as [60] evidenced that the latter produces a strong bias towards accepting the null hypothesis of data independence.
Apart from a solid pure mathematical theory (that is, the fractal geometry developed by Mandelbrot) on the basis of the R / S method, the belief that it is an outdated technique, displaced by new algorithms, is dismissed by its relevance in recent studies such as [10], which also warns about standard statistical models based on the assumption of finite variances, as they may produce misleading answers.
In contrast to the deep mathematical base of the R / S technique, the probabilistic foundations of Detrended Fluctuation Analysis (DFA, and its subsequent modifications) are still unclear [61] and a current topic of research, despite being one of the most popular algorithms to handle non-stationarities. Further advances in this direction of providing a theoretical justification for DFA is regarded in [61] as a key step towards the assessment of statistical estimation errors.
In fact, the criticism towards the efficacy of DFA in addressing nonstationarities is not new: Bryce and Sprague [62] already pointed out that its validity is overemphasized by several reasons: it introduces uncontrollable biases, its computational demands surpass those of the R / S analysis; and it fails to grant an effective and comprehensive protection against non-stationarities. In this spirit, ref. [63] highlights that the nonlinear filtering characteristics of DFA’s detrending process may induce instabilities in estimating the scaling exponent, leading to estimation errors when computing H.
In short, while methodological enhancements and the theoretical backup for DFA are developed, we will double check the stationarity of our series, and we opted for the R / S method, which has very recently been applied in similar settings by [10]. Let us finally point out that the search of new methods to beat DFA is an active topic of research, including Bayesian methods [64], wavelet analysis [21] or deep learning models [22].

5.3. Details of the Rescaled Range Algorithm ( R / S Method)

We have divided the calculation procedure into the steps described below:
(1)
Take a series of returns R = R 1 , , R N , computed as in (1).
(2)
Split the full series R into d sub-series of length n = N d :
1st sub-series: { R 1 1 , , R n 1 } ,
2nd sub-series: { R 1 2 , , R n 2 } , and so on, up to the
dth sub-series: { R 1 d , , R n d } .
In short, we consider a pack { R i m } i = 1 , , n ; m = 1 , , d with all sub-series. This step is conducted with d = 1 , 2 , 3 , , N n for different values of 6 < n < N .
(3)
For each sub-series R i m , compute the mean E m and the standard deviation S m (which will be functions of n).
(4)
Determine the series of distances to the mean Z i m by means of
Z i m = R i m E m ,
and create the cumulative time series Y i m for each sub-series m = 1 , 2 , , d :
Y i m = Z 1 m + Z 2 m + Z i m = j = 1 i Z j m .
(5)
Find the range R m of each cumulative subset, for all m:
R m ( n ) = max { Y 1 m , Y 2 m , , Y n m } min { Y 1 m , Y 2 m , , Y n m } .
Then, divide this by the corresponding standard deviation S m , that is, compute R m / S m . Thus, one obtains a dimensionless measure that depends on n and allows for comparing the relative variability of sets of different sizes.
(6)
Obtain the rescaled range statistic ( R / S ) n by averaging for all sub-series:
( R / S ) n = 1 d m = 1 d R m S m ( n )
Note that the different partition sizes (d) from (2) lead to the set of values:
( R / S ) N , ( R / S ) N 2 , ( R / S ) N 4 , , ( R / S ) 6 = ( R / S ) n n = N , N 2 , N 3 ,
(7)
Computation of H . With an analogy of Hurst’s ideas, assume that the variability of the data follows a potential law of the form:
( R / S ) n = c · n H ,
and now take logarithms on both sides to reach the linear relation
log ( R / S ) n = log c + H log n .

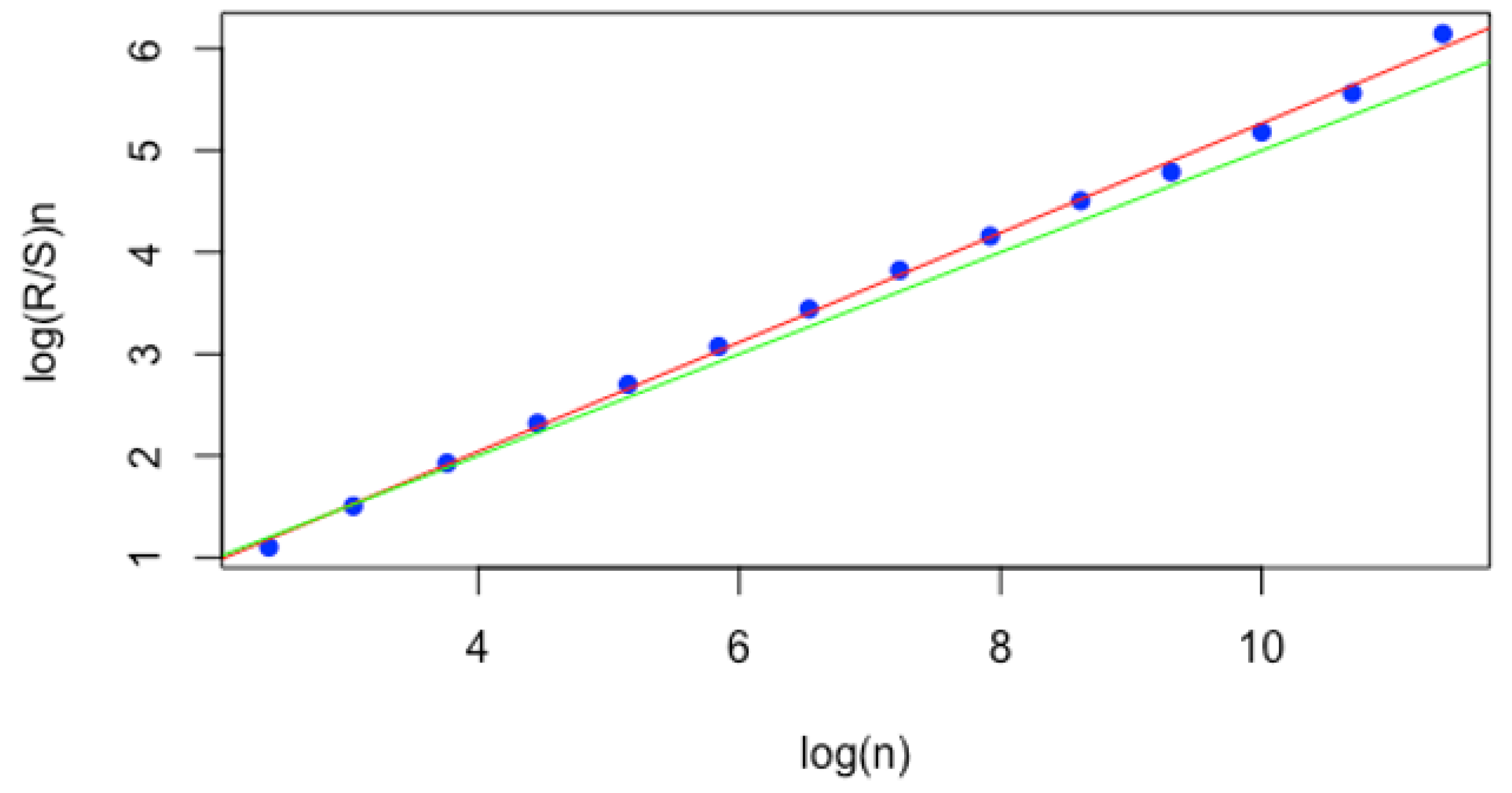

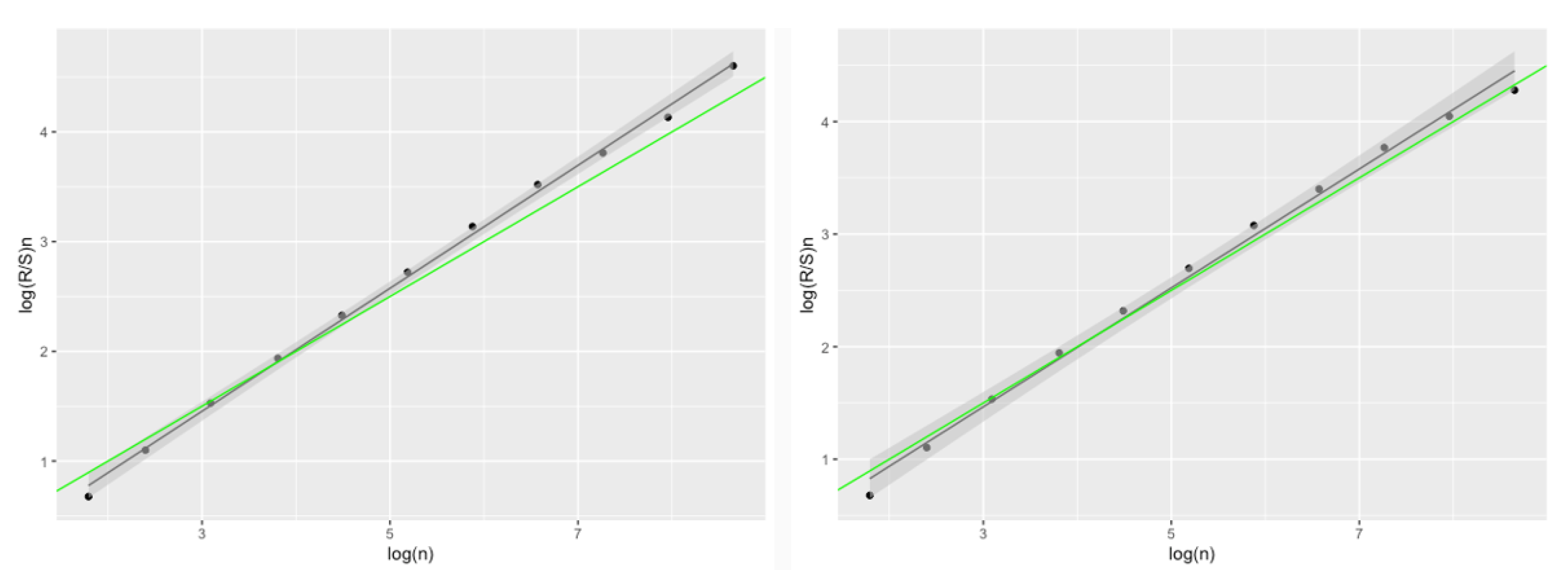

We can plot ( log n , log ( R / S ) n ) for n N , N 2 , N 3 , , and obtain the corresponding regression line (see Figure 2), whose slope is the desired H.
Many papers in the literature stop here, which is a naive approach, as pointed out in [18], since one needs an extra statistical test to judge whether H computed for the sample is significatively different from the value 0.5 characterizing an independent process. This is why we have developed our own R script to top up the R / S method by adding a t-test for the slope of the line (see Figure 3). Let us stress that the code is just a trivial modification of the standard routine included in the pracma R library to additionally perform an inference test on the slope of the linear regression used to estimate H. Moreover, all our results for H coincide up to the second decimal place with the R outputs for corrected H provided by the instruction hurstexp.
Additionally, to avoid estimates of H being misleading or including spurious effects due to the presence of autocorrelations in our time series, we generate randomly shuffled copies of our series (applying a sample function in R multiple times to each series, independently) and re-compute the Hurst exponent for them.

6. Results and Discussion

First, let us point out that, in general, we work with much tighter significance levels (0.1% and 1%) than those normally found in finance literature, where typical results use levels of 5% and even 10%.

6.1. Test for Monofractality via the Mass Exponent

Our study takes, as a starting point, the outcomes by Bariviera in [14], who analyzed a sample of 84 cc and concluded that the largest coins (those in the first quartile of the traded volume) seem to move according to monofractal processes. Although we only work with the most capitalized cc, here we check by ourselves whether the claims in [14] are valid for our concrete time series.
Let us briefly recall that if a stochastic process follows a monofractal pattern, the scaling function or mass exponent τ ( q ) : = q H ( q ) 1 as a function of an integer q should be close to a straight line, where H ( q ) denotes the generalized Hurst exponent introduced by [65]. In turn, the presence of concavities/curvature in this function is a sign of multifractality.

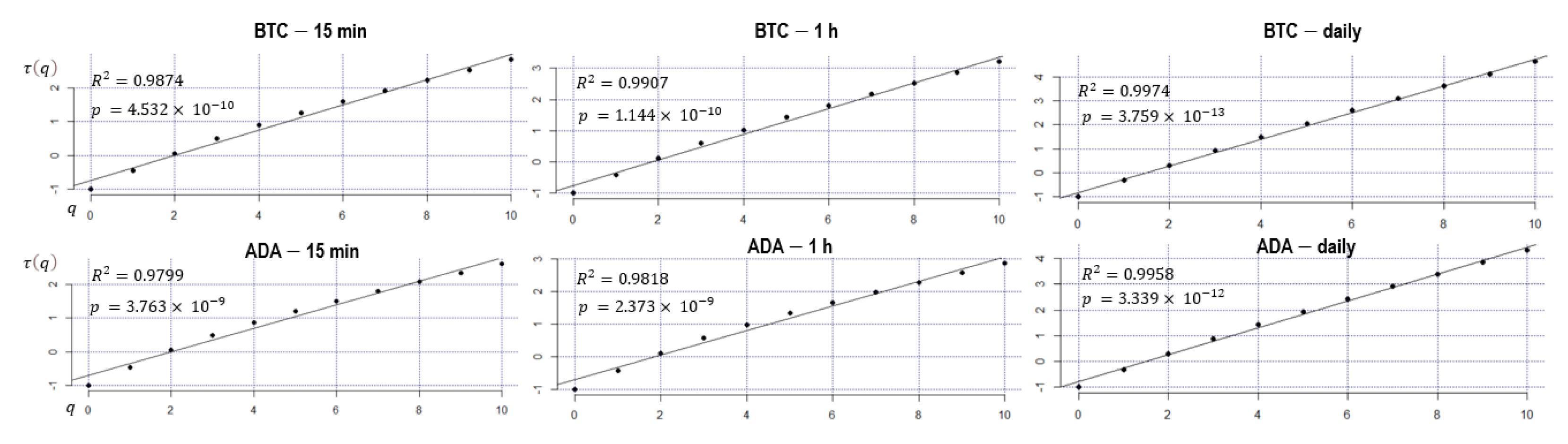

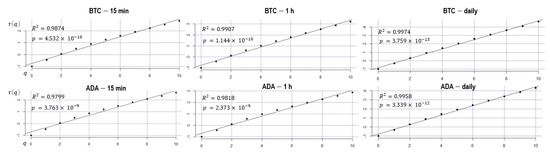

Accordingly, we need to estimate τ ( q ) and perform a linear regression to test the plausibility of its linearity. With this goal, we use the MFDFA package developed by [66] in the R language. Our outcomes are totally in line with the aforementioned results from [14], as all the regressions we performed show that the function τ ( q ) admits a good approximation by a linear function of q, no matter the time frequency of picking the samples. As all our results are very similar, as an illustration, Figure 4 shows the linear plots for the btc, which monopolises 45% of the total capitalization as compared with ADA, which accounts for less than 2% of the traded volume (see Table 2).

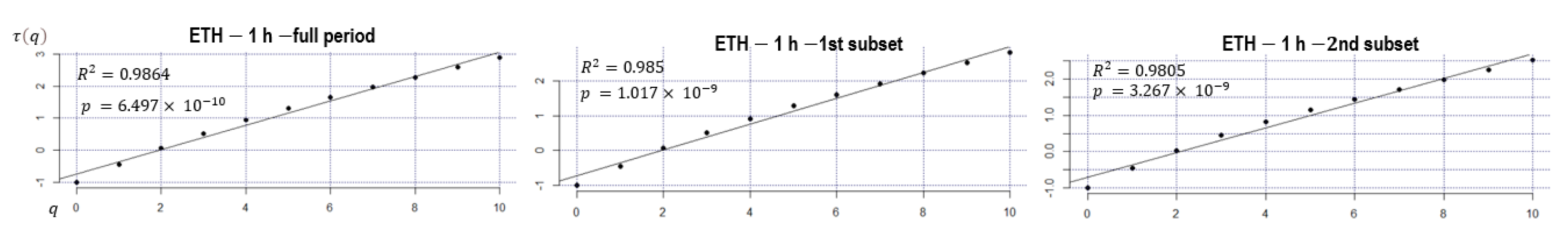

These upshots are also stable for the three different periods under consideration, as exemplified by Figure 5.

6.2. Test for Stationarity as Prerequisite for R/S Analysis

Despite this step often being skipped, in order to be rigorous, one needs to check that the assumptions of a method are fulfilled before applying it. In this case, the assumption is that all time series are stationary. For the cc, the corresponding test ensures, at more than 99% confidence, that this is the case (see Table 6) at any scale in the full interval (these results are not altered for the subperiods).
Concerning the remaining assets, stationarity is guaranteed at the same level of significance for daily data in all the three periods under study, as can be checked in Table 7.
Let us stress that, regardless of the stationary character of all of the return series, a quick visual inspection (see Figure 6) already provides us with an early warning about the different complexity levels in the graphs of cc versus traditional assets (even though the curves for cc are drawn with average daily values to smooth out irregularities). The tool to quantify this and grasp finer disparities within cc, which are not displayed at first sight by the graphs, is the fractal dimension or, equivalently, the Hurst exponent that we compute in the sequel.

6.3. Second Generation Stationarity Test to Account for Nonlinearities

Although the conclusions of the previous subsection pointed clearly towards the stationary character of all time series under consideration, we can still perform an additional double-check to assess whether the presence of non-linearities could alter the outcomes of conventional unit root tests, like ADF, which may have a limited power in distinguishing non-linear equilibrium adjustments.
To detect non-stationary features hidden behind non-linear effects, we apply the non-linear KSS unit root test designed by Kapetanios, Shin and Snell [67]. The outcomes ensure at more than 99.9% confidence that the series of cc under consideration are stationary (see Table 8) at any scale in the full interval (these results are similar for the subsamples).
The table above displays results for raw data, but similar outputs are obtained for detrended series; the AIC method was chosen to find the optimal lag. The outputs for traditional assets are also in the same line as those displayed for cc, and hence support the use of the R / S method, as no signs of non-stationarity are detected.

6.4. Memory and Efficiency in Cryptocurrencies and Traditional Assets

We start by analysing the Hurst index (see Table 9) of the time series for the full temporal frame with daily opening data for cc, commodities, stock indices and the US bonds. At a first glance, we conclude that all cc (except xrp) have long-term memory, and thus it would make sense to carry out a technical analysis to predict their future behaviour. As a corollary, cc do not fulfil the EMH of the statistical independence of prices.
The same is true for most of the remaining assets; however, our data do not provide enough evidence to discard the fact that silver or gold move randomly. Hence, they “forget” the past. Nasdaq and two of the stocks that compose it (amzn and nflx) also have aleatory patterns; in contrast, Eurostoxx has a long-term memory and, paradoxically, from an efficiency viewpoint it more closely resembles the btc than the other index, which includes more disruptive companies.
Notice that the aleatory behaviour of xrp already provides a hint that the consensus methods may influence the efficiency of cc. Indeed, xrp cannot be regarded as decentralised, since most of its nodes are controlled by a single company. This is because its aim is not to replace banks as intermediaries; it is to improve their effectiveness, as a substitute for the banking swift.
Next, to discern whether trx and bnb, of which neither are fully decentralised, also display random patterns, we will perform a more refined fractal analysis, considering different time periods and/or modifying the time frequencies. Actually, when varying the latter and taking opening values every 15 min, 1 h or day, the outcomes in Table 10 reveal that btc’s movements are non-efficient at any scale, which also exhibits long-term memory. In contrast, xrp and trx operate mostly in an efficient way.
But, to observe traits of aleatoriness in bnb, we still need to reduce the time arc (or zoom in) to the second subperiod (see Table 11). As before, although using daily splits trx exhibits long-term memory, if we take high frequency data, it behaves following a random motion, which is an early clue of the lack of self-similarity.
Regarding the other six cc, whose algorithms are completely decentralised, they show persistent memory in the full period (Table A2), and in both sub-intervals (Table A3 and Table A4). Moreover, this remains invariant at any time scale; thus, we can claim that they have a consistent inefficient behaviour.

6.5. Fractal Features: Does the Graph Change When Zooming in?

Next, we inspect whether the return graphs of btc and other assets exhibit self-similarity features, that is, whether they look the same on different time scales. For this to hold, the efficiency character must not vary at different subintervals or if we change the frequency to take the data.
Unlike btc, which moves persistently at any frequency (cf. Table 10), silver and Eurostoxx (Table 12) change the pattern as we reduce the partition. Specifically, for daily data, the silver moves randomly, but it is mean-reverting for high frequencies. Due to this shift, we deduce that it does not behave as a fractal.
Moreover, one can also observe that traditional assets display a change in the memory character for different periods (see Table 13). Therefore, none of them can be regarded as a fractal object. Let us further mention that confidence intervals are not displayed for the simplicity of the table, as p-values over 0.01 already denote that the result is not significative enough to reject the null hypothesis of randomness. As an illustration of this, the 99%-CI of gold in the second subperiod turns out to be ( 0.42126 , 0.91643 ) , meaning that any value in that wide range (including 0.5) has the same probabilities as the slope of the linear regression used to compute H. Again, as 0.5 belongs to this interval, despite the high H = 0.67 , our data do not provide enough evidence to reject the hypothesis of random dynamics.
In contrast, the scale-invariance of btc is shared by the five cc whose consensus protocols are fully decentralised (see Figure 7). This holds both in the complete study period and in the two sub-intervals considered, thus confirming the fractal nature of cc that operates peer-to-peer. Furthermore, this corroborates our guess that the underlying consensus protocol is the key to determine the efficiency (instead of the capitalization, as claimed in previous literature, since bnb and xrp are third and fourth in volume, respectively; recall Table 2).

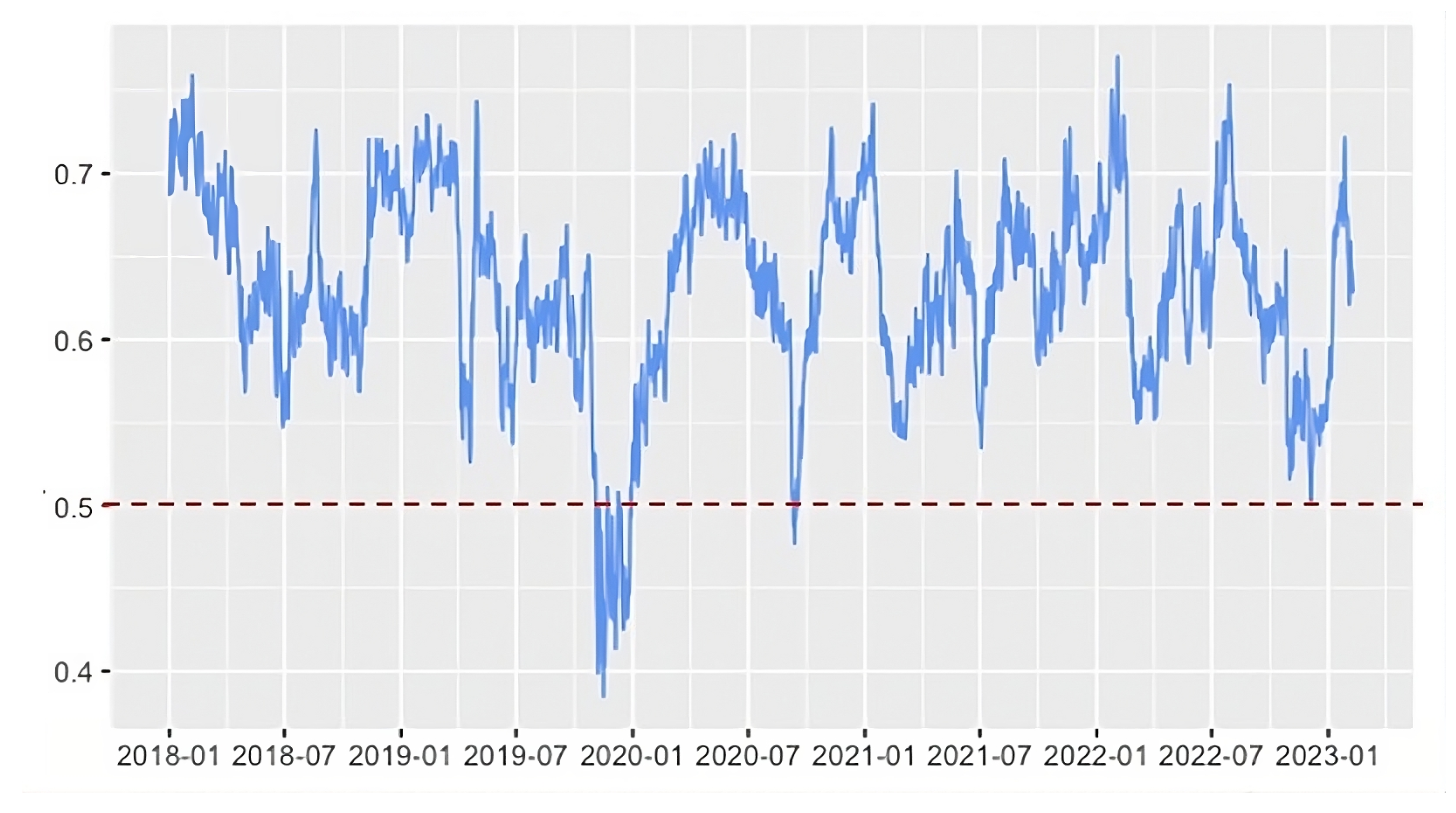

Additionally, we analysed how the btc’s Hurst values vary as a function of time from March 2018 to February 2023 with daily opening data. To address this question and calculate H ( t ) , a 150-value rolling window was used. The outcomes (see Figure 8) show that btc presents long-term memory most of the time, with H values between 0.55 and 0.75, except at specific moments such as November 2019, when sharp oscillations within the anti-persistence zone occur.
Notice that in the last trimester of 2022, the dynamics seem quite random, which could be influenced by the macroeconomomic situation tensioned by high inflation and rising interest rates.

6.6. A Striking Turnabout: Efficiency May Happen (under a Change of Variable)

We were puzzled by the claim in [6] that if, instead of working directly with the btc returns defined via the (1), we take the values R t 17 , then the resulting series becomes more efficient, except for the fact that their tests do not provide enough evidence to reject independence. As the authors restrict to btc and do not compute the Hurst exponent, we decided to update their study and broaden it to include the variety of cc and traditional assets we are dealing with.

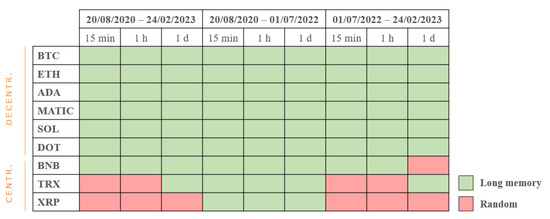

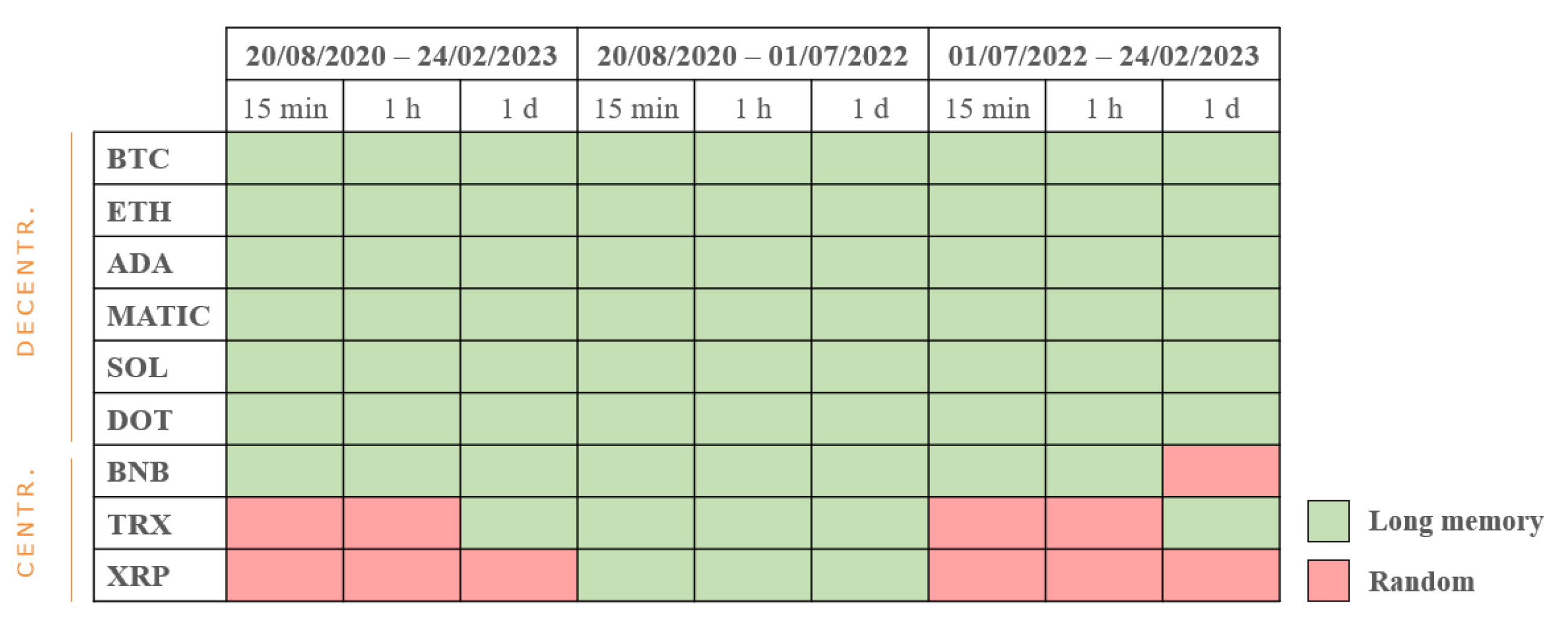

A quick glance at Figure 9 compared to Figure 7 already reveals that this simple transformation distorts the conclusions about efficiency, and unlike [6], we also learn that, for most time frames and scales, the new values behave independently. Furthermore, if we relax the significance requirements to 1%, most of the table will be coloured randomly.
Nevertheless, our outcomes also reveal that the reply to the change of variable and shift to higher efficiency is not consistent, as trx moves oppositely towards the long-term memory character. Additionally, we lose information, since the new outcomes do not evidence any coherent common trend or difference according to neither technology nor liquidity.
Interestingly, traditional assets are more resilient to changes in the efficiency character in a coherent way (compare Table 13 and Table 14), which provides further support from an alternative perspective to our conclusion about the different nature of cc versus traditional assets.
For the purposes of the present paper, we leave this subsection as a matter of curiosity that deserves further and closer inspection, as we disagree with the premature statement in [6] that any odd power will produce similar results. Indeed, very recent research [68] proves that for a return series with R t > 0 for all t, the fractional dimension keeps the invariant under the change R t q for every q.
It is actually an interesting future research line to find an optimal change of variable that turns any time series into a random Brownian motion, as this will enable us to use the plethora of statistical techniques based on the normal distribution, and drive conclusions after undoing the transformation. However, despite some numerical experiments being helpful, a rigorous approach to this problem should wait for extra advances in fractal geometry, as it is an open problem to find a concrete formula of how the dimension would vary.

6.7. Interdependence of Bitcoin and Other Assets

To determine whether a diversified portfolio can be built with cc alone or whether it should be combined with other types of products, we obtain the Pearson correlations between the different assets in the whole period and in both sub-intervals. Let us point out that all time stamps have been converted to Central European Time (CET) to facilitate the direct comparison of values from different assets. In view of the outcomes (see Table 15), the second option can occur, as btc has very strong positive correlations with all cc except matic.
We also confirm our previous guess that growth stocks (tsla, nflx and amzn, and hence the Nasdaq index) have similar dynamics as btc. However, Bitcoin has a weak linear relation with value stocks, hence the mix of these with btc has no diversification power, and it is a clever strategy to combine Bitcoin with, e.g., nflx, with whom strong negative correlations pop up (see Table A8). Moreover, we conclude that btc is far from acting like the more conservative safe haven products for investors, as no correlation with them arose.
If we now restrict to the interrelations within the cryptosphere, all cc are very tightly correlated as expected (see Table A5 and Table A6 for the full matrices of the full period and the first subinterval, respectively). Nevertheless, it is quite surprising that, if we focus on the last subperiod, the completely unprecedented event of negative correlations between them emerges (cf. Table A7).
If we move from the whole time frame to the earlier subset, most of the values match up to the first decimal, except some shifts in the interdependences of gold and silver with growth stocks (see Table A8 and Table A9). But, if we look at the last subinterval, unexpectedly the landscape changes quite radically. Certainly, btc loses correlation strength with growth stocks (cf. Table A10); in parallel, slight negative correlations start to emerge with assets such as jnj or silver.

7. Conclusions

Our main goal was to decide whether the evolution of btc prices is random (as assumed by the EMH) or follows chaotic (but more predictable) patterns, opening the door to forecasting opportunities (see, e.g., new prediction models in [69]). Via the Hurst values (H), we confirm that the btc dynamics are not independent, but have a long-term memory, even if we change the time interval or the frequency of data collection. The latter indicates that the graphs of btc returns are self similar, which is an essential feature to confirm their nature as fractals.
On the contrary, when changing the scale, we obtain efficiency shifts for traditional assets, as well as the cc whose consensus protocols have centralised features (bnb, trx and xrp). To our knowledge, we pioneer in stressing that it is the underlying technology (intead of the liquidity) that the key to determine differences between the performance of cc within the market.
As a corollary, the fractality of btc, characterised by chaotic events occurring in waves rather than isolatedly, contradicts every conservative investor’s desire for it to be a store of value. This invalidates that btc could be considered a safe haven, while not holding the narrative that it is digital gold.
From our correlational study, btc generally exhibits the same trends as other cc and growth stocks. In practice, this implies that it is not possible to build a risk-controlled portfolio with these types of assets alone. At the same time, there is no tight correlation of btc with conservative products; consequently, it is also very difficult to exploit btc as a diversification tool.
Complementarily, if we focus on the later subperiod, the correlations of all assets become disrupted. It will be interesting for future work to analyse whether this paradigm shift is an isolated event or is sustained over time. A plausible justification within the actual context could come from the influence of a sharp rise in interest rates, combined with a global economy strained by inflation.
To recap, we detect a high degree of persistence in btc prices. This may be due to the lack of investor confidence in this market, as it is unstructured and lacks oversight by the authorities. With more legislative certainty, participation will increase, which may lead to a rise in efficiency (or decrease in predictability) that would stabilise the cryptoeconomy.

Author Contributions

Methodology, E.C.-R., F.S.-C. and I.T.-X.; Investigation, E.C.-R., F.S.-C. and I.T.-X.; Writing—original draft, E.C.-R., F.S.-C. and I.T.-X.; Funding acquisition, E.C.-R. All authors have read and agreed to the published version of the manuscript.

Funding

The work of the first author is partially supported by the AEI (Spain) and FEDER project PID2019-105019GB-C21, and by the GVA project AICO 2021 21/378.01/1. The first author was also partially supported by the network RED2022-134077-T funded by MCIN/AEI/10.13039/501100011033.

Data Availability Statement

Data will be available upon request.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A. Table Providing a Literature Overview

Table A1. Overview of literature about efficiency/persistence.
Table A1. Overview of literature about efficiency/persistence.
Ref.CoinPeriodMethodConclusions
[4]BTC1 August 2010–31 July 2016standard tests, R/S statisticstrong anti-persistance, but moving to efficiency in 2nd half
[39]BTC1 May 2012–30 April 2017regression, clustering kurtosis testprice clustering at round numbers, no significant pattern otherwise
[37]BTC, LTC, XRP2013–2017R/S analysis and fractional integrationdecreasing trend in inefficiency
[6]BTC1August 2010–31 July 20168 different tests (no Hurst)after raise to 17th-power, returns are efficient
[38]75 CC31 August 2015–31 August 20183 delay measuresaverage price delay decreases during the last 3 years
[5]BTC18 August 2011–15 February 2017dynamic Hurst, detrended fluctuation analysis (DFA)long term memory, becoming more efficient over time. Volatility is persistent for the whole period.
[44]BTC, ETH, intraday1 June 2013–23 June 2018 (from 1 June 2016, ETH)generalized Hurst, asymmetric multifractal DFA (A-MF-DFA)ETH more efficient, inefficiency more accentuated when the market moves downwards
[34]BTC30 June 2013–30 June 2017DFA over sliding windowsperiods of efficiency alternating with anti-persistence (at day, hour and second frequencies)
[40]BTC-USD, BTC-CYN18 July 2010–31 July 2017, 1 February 2014–31 July 2017Efficiency Indexinefficient, apart from periods of ‘‘cooling off’’ after price surges
[42]73 CC31 August 2015–30 November 2017different variance ratio tests, R/S statisticCC become less predictable / inefficient as liquidity increases.
[36]224 CCvarying start- until 31 July 2017Ljung–Box (L–B) Q-test for autocorrelation, and normality testsall show long memory, leverage, stochastic volatility and heavy tailedness
[8]BTC18 July 2010 - 16 June 2017“various long-range dependence estimators”efficient with some exception to the period of April–August 2013 and August–November 2016.
[13]BTC, high frequency1 April 2017–30 November 2017Wavelet transform modulus maxima, MF-DFAanti-persistent, being the main drivers high kurtosis and fat tails
[9]BTC, USD, gold, MSCI18 July 2010–31 September 2017MF-DFAlong-memory in all four markets: BTC is the most inefficient and MSCI intex the least one
[12]BTC1 December 2110–30 November 2017generalized Hurstlong-memory, does not become efficient over time
[18]BTC, ETH, LTC, XRP, XMR, ETCJuly 2016–March 2019Auto-Regressive Integrated Moving Average (ARIMA), fractional (ARFIMA)except for BTC, the other CC are mean reverting, showing a lower predictability.
[11]31 CC17 August 2017–16 January 2019panel unit root testscross-sectional dependence among the CC. Confirms inefficiency in highly-traded CC
[45]BTC, LTC, ETH, XRP29 April 2013–1 February 2018 8 August 2015–2 February 2018ICSS algorithms testsinefficiency of all the considered markets, with the exception of ETH
[29]7 biggest size CC1 January 2019–20 January 2021fractal connectivity matrix, ARFIMAusing high-frequency returns, the null hypothesis of long memory is rejected for all series
[7]BTC-USD, BTC-EUR1 January 2013–5 March 2018permutation entropyBTC-USD market is slightly more efficient. Higher the frequency, lower the efficiency.
[49]8 major CC25 August 2015–13 March 2018Log-periodogram, ARFIMA-FIGARCH modelsmarket (in)efficiency and the intensity of volatility persistence is sensitive to time-scales
[10]BTC28 July 2013–14 May 2023R/S analysis (weekly data)persistent, character does not change over time
[47]BTC, gold, S&P 500, USD2 January 2018–29 May 2020”entropy via RCMFE method, efficiency index”COVID-19 leads to efficiency decreases in all four markets. Resiliency of BTC market efficiency and disjoint change with other markets

Appendix B. Complete Tables with Hurst Exponents

Table A2. Hurst exponent: cryptocurrencies between 20 August 2020 and 24 February 2023.
Table A2. Hurst exponent: cryptocurrencies between 20 August 2020 and 24 February 2023.
Hurstp-Value Hurstp-Value Hurstp-Value
BTC XRP SOL
15 min0.5374 1.12 × 10 4 15 min0.51400.0697015 min0.5480 1.45 × 10 4
1 h0.5523 9.92 × 10 5 1 h0.52190.047461 h0.5632 2.39 × 10 4
Daily0.6417 8.56 × 10 5 Daily0.5942 2.41 × 10 3 Daily0.6703 5.53 × 10 4
ETH ADA TRX
15 min0.5375 2.87 × 10 6 15 min0.5356 1.52 × 10 3 15 min0.51740.04995
1 h0.5525 5.99 × 10 7 1 h0.5540 8.30 × 10 4 1 h0.52190.04746
Daily0.6334 2.28 × 10 5 Daily0.6574 7.57 × 10 4 Daily0.5942 2.41 × 10 3
BNB MATIC DOT
15 min0.5513 1.11 × 10 6 15 min0.5539 3.77 × 10 5 15 min0.5276 8.51 × 10 4
1 h0.5647 1.30 × 10 5 1 h0.5767 3.56 × 10 5 1 h0.5413 5.00 × 10 4
Daily0.6559 6.20 × 10 5 Daily0.6863 1.48 × 10 5 Daily0.6373 3.81 × 10 4
Table A3. Hurst exponent: cryptocurrencies between 20 August 2020 and 1 July 2022.
Table A3. Hurst exponent: cryptocurrencies between 20 August 2020 and 1 July 2022.
Hurstp-Value Hurstp-Value Hurstp-Value
BTC XRP SOL
15 min0.5462 1.62 × 10 6 15 min0.5271 5.88 × 10 4 15 min0.5627 5.13 × 10 6
1 h0.5651 6.70 × 10 7 1 h0.5446 3.75 × 10 5 1 h0.5819 9.38 × 10 6
Daily0.6670 1.20 × 10 5 Daily0.5820 3.52 × 10 3 Daily0.7275 5.69 × 10 5
ETH ADA TRX
15 min0.5450 1.72 × 10 5 15 min0.5411 2.04 × 10 4 15 min0.5310 6.40 × 10 4
1 h0.5637 9.66 × 10 6 1 h0.5630 8.95 × 10 5 1 h0.5384 8.33 × 10 4
Daily0.6685 1.43 × 10 4 Daily0.6733 8.42 × 10 4 Daily0.5949 1.42 × 10 3
BNB MATIC DOT
15 min0.5569 1.20 × 10 6 15 min0.5505 6.43 × 10 4 15 min0.5352 6.60 × 10 6
1 h0.5736 5.70 × 10 6 1 h0.5752 4.11 × 10 4 1 h0.5528 2.58 × 10 6
Daily0.6622 4.05 × 10 4 Daily0.6918 2.85 × 10 3 Daily0.6398 3.11 × 10 4
Table A4. Hurst exponent: cryptocurrencies between 1 July 2022 and 24 February 2023.
Table A4. Hurst exponent: cryptocurrencies between 1 July 2022 and 24 February 2023.
Hurstp-Value Hurstp-Value Hurstp-Value
BTC XRP SOL
15 min0.5406 1.36 × 10 4 15 min0.51450.1475415 min0.5604 1.03 × 10 7
1 h0.5508 2.39 × 10 4 1 h0.51410.28596 10 5 1 h0.5854 2.83 × 10 7
Daily0.6227 4.60 × 10 3 Daily0.56820.13156Daily0.6767 1.85 × 10 4
ETH ADA TRX
15 min0.5491 1.41 × 10 7 15 min0.5376 1.46 × 10 5 15 min0.51720.07521
1 h0.5641 6.68 × 10 7 1 h0.5531 1.56 × 10 5 1 h0.52540.04041
Daily0.6645 9.69 × 10 4 Daily0.6832 3.98 × 10 5 Daily0.6267 1.35 × 10 3
BNB MATIC DOT
15 min0.5363 1.04 × 10 3 15 min0.5377 4.22 × 10 4 15 min0.5322 1.54 × 10 3
1 h0.5390 9.70 × 10 3 1 h0.5506 5.50 × 10 4 1 h0.5463 2.41 × 10 3
Daily0.6297 0.04020 Daily0.6468 2.50 × 10 3 Daily0.6829 2.74 × 10 3

Appendix C. Correlation Matrices for Cryptoassets and BTC versus Traditional Assets

Hereafter *** (**, *) denotes significance at 0.1% (1%, 5%) significance level.
Table A5. Correlation between cryptoassets between 20 August 2020 & 24 February 2023.
Table A5. Correlation between cryptoassets between 20 August 2020 & 24 February 2023.
BTCBNBTRXSOLMATICETHDOTADAXRP
BTC1
BNB0.7318 ***1
TRX0.7089 ***0.8866 ***1
SOL0.6606 ***0.7489 ***0.5968 ***1
MATIC0.5037 ***0.8222 ***0.5711 ***0.7780 ***1
ETH0.8422 ***0.9057 ***0.7742 ***0.8825 ***0.8378 ***1
DOT0.9527 ***0.7042 ***0.7252 ***0.6598 ***0.4609 ***0.8008 ***1
ADA0.8275 ***0.7456 ***0.7379 ***0.7017 ***0.6312 ***0.8524 ***0.8423 ***1
XRP0.8050 ***0.7997 ***0.8387 ***0.6221 ***0.5788 ***0.8152 ***0.8233 ***0.8548 ***1
Table A6. Correlation between cc for the first subperiod between 20 August 2020 and 1 July 2022.
Table A6. Correlation between cc for the first subperiod between 20 August 2020 and 1 July 2022.
BTCBNBTRXSOLMATICETHDOTADAXRP
BTC1
BNB0.8217 ***1
TRX0.7785 ***0.8917 ***1
SOL0.6259 ***0.7686 ***0.5974 ***1
MATIC0.5779 ***0.8250 ***0.5768 ***0.8175 ***1
ETH0.8342 ***0.9392 ***0.7925 ***0.8741 ***0.8827 ***1
DOT0.9380 ***0.7820 ***0.7933 ***0.6235 ***0.5258 ***0.7821 ***1
ADA0.7851 ***0.7998 ***0.7793 ***0.6684 ***0.6965 ***0.8371 ***0.8029 ***1
XRP0.7656 ***0.8538 ***0.8927 ***0.5820 ***0.6313 ***0.7979 ***0.7868 ***0.8290 ***1
Table A7. Correlation between cc for the second subperiod between 1 July 2022 and 24 February 2023.
Table A7. Correlation between cc for the second subperiod between 1 July 2022 and 24 February 2023.
BTCBNBTRXSOLMATICETHDOTADAXRP
BTC1
BNB0.5929 ***1
TRX0.9059 ***0.2921 ***1
SOL0.6932 ***0.13680.8407 ***1
MATIC0.4791 ***0.7286 ***0.2211 **−0.1586 *1
ETH0.8396 ***0.7048 ***0.6931 ***0.5532 ***0.5588 ***1
DOT0.8011 ***0.3992 ***0.8477 ***0.8809 ***0.13090.7540 ***1
ADA0.7125 ***0.2197 ***0.8101 ***0.9460 ***−0.06520.6323 ***0.9413 ***1
XRP0.044 ***0.3717 ***−0.002 ***0.090 ***0.1914 *0.0062−0.0515−0.04961
Table A8. Correlation between CC and traditional assets (20 August 2020–24 February 2023).
Table A8. Correlation between CC and traditional assets (20 August 2020–24 February 2023).
BTCTSLANFLXAMZNKOPGJNJOILWHEATZNM23SILVERGOLDCCMPSX5E
BTC1
TSLA0.6240 ***1
NFLX0.5564 ***0.1255 **1
AMZN0.5540 ***0.3264 ***0.8124 ***1
KO−0.1100 **0.2883 ***−0.7136 ***−0.5929 ***1
PG0.1017 *0.4000 ***−0.1337 ***−0.05110.6250 ***1
JNJ0.2074 ***0.3453 ***−0.4702 ***−0.3805 ***0.7655 ***0.4230 ***1
OIL0.1331 ***0.4739 ***−0.6360 ***−0.4502 ***0.8346 ***0.4178 ***0.7680 ***1
WHEAT0.1005 *0.4453 ***−0.5995 ***−0.3983 ***0.7225 ***0.4370 ***0.6566 ***0.8853 ***1
ZNM230.2886 ***−0.07230.8077 ***0.8527 ***−0.7906 ***−0.1962 ***−0.6048 ***−0.7307 ***−0.6281 ***1
SILVER0.3457 ***−0.1752 ***0.6281 ***0.5899 ***−0.5643 ***−0.1753 ***−0.2711 ***−0.5135 ***−0.4070 ***0.7052 ***1
GOLD−0.1281 **−0.1695 ***0.1380 ***0.1976 ***−0.07550.3312 ***−0.1653 ***−0.1631 ***0.0180.3385 ***0.5770 ***1
CCMP0.8458 ***0.6579 ***0.7100 ***0.7734 ***−0.1598 ***0.2298 ***0.1021 *−0.0114−0.0680.4794 ***0.3704 ***0.00161
SX5E0.6749 ***0.4388 ***0.3532 ***0.1908 ***0.2798 ***0.3701 ***0.4401 ***0.2734 ***0.1016 *−0.06760.1415 ***−0.0750.7065 ***1
Table A9. Correlation between CC and traditional assets (20 August 2020–1 July 2022).
Table A9. Correlation between CC and traditional assets (20 August 2020–1 July 2022).
BTCTSLANFLXAMZNKOPGJNJOILWHEATZNM23SILVERGOLDCCMPSX5E
BTC1
TSLA0.6812 ***1
NFLX0.3544 ***0.08531
AMZN0.2980 ***0.0984 *0.8644 ***1
KO0.2099 **0.5322 ***−0.6331 ***−0.4738 ***1
PG0.0924 *0.5644 ***−0.2808 ***−0.1528 **0.7504 ***1
JNJ0.4573 ***0.5669 ***−0.4379 ***−0.2835 ***0.7824 ***0.4341 ***1
OIL0.3493 ***0.5853 ***−0.6032 ***−0.5135 ***0.8831 ***0.5302 ***0.8046 ***1
WHEAT0.2084 ***0.5141 ***−0.6787 ***−0.5854 ***0.8468 ***0.5623 ***0.7137 ***0.9100 ***1
ZNM23−0.2597 ***−0.5172 ***0.7155 ***0.6348 ***−0.8814 ***−0.5346 ***−0.7664 ***−0.9465 ***−0.8981 ***1
SILVER0.012−0.2938 ***0.3056 ***0.4494 ***−0.4883 ***−0.5377 ***−0.2296 ***−0.4530 ***−0.4421 ***0.5016 ***1
GOLD−0.5741 ***−0.1756 ***−0.3667 ***−0.1677 ***−0.1346 **0.2643 ***−0.1043 *0.0080.2110 ***−0.0330.2536 ***1
CCMP0.7984 ***0.7068 ***0.5825 ***0.6223 ***0.1693 ***0.2419 ***0.3897 ***0.2023 ***0.0303−0.041−0.007−0.47231
SX5E0.8005 ***0.6782 ***0.3206 ***0.3571 ***0.4124 ***0.3419 ***0.5725 ***0.4249 ***0.1995 ***−0.2916 ***−0.1215 **−0.5028 ***0.9041 ***1
Table A10. Correlation between CC and traditional assets (1 July 2022–24 February 2023).
Table A10. Correlation between CC and traditional assets (1 July 2022–24 February 2023).
BTCTSLANFLXAMZNKOPGJNJOILWHEATZNM23SILVERGOLDCCMPSX5E
BTC1
TSLA0.4625 ***1
NFLX−0.0057−0.6776 ***1
AMZN0.5396 ***0.9061 ***−0.6243 ***1
KO0.00530.0187−0.08550.08681
PG−0.1615 *−0.3325 ***0.1678 *−0.2334 **0.8862 ***1
JNJ−0.5115 ***−0.3869 ***−0.0964−0.3739 ***0.5586 ***0.6238 ***1
OIL0.3249 ***0.5943 ***−0.7818 ***0.5898 ***0.1343−0.1611 *0.08871
WHEAT−0.07840.4506 ***−0.5450 ***0.3125 ***−0.6074 ***−0.7372 ***−0.2562 **0.4156 ***1
ZNM230.4490 ***0.4700 ***−0.4555 ***0.5972 ***0.6617 ***0.4577 ***0.1813 *0.5487 ***−0.2809 ***1
SILVER−0.1935 *−0.8158 ***0.7776 ***−0.6900 ***0.2269 **0.5357 ***−0.2835 ***−0.6520 ***−0.6288 ***−0.1823 *1
GOLD0.20761 **−0.5669 ***0.6723 ***−0.3722 ***0.3678 ***0.5710 ***0.0768−0.4172 ***−0.7638 ***0.2084 **0.8354 ***1
CCMP0.6902 ***0.6555 ***−0.1618 *0.7480 ***0.4621 ***0.2024 *−0.2785 ***0.3319 ***−0.2431 **0.7113 ***−0.2581 **0.15081
SX5E0.1553−0.5850 ***0.8704 ***−0.5044 ***0.2686 ***0.4704 ***0.0049−0.6055 ***−0.7780 ***−0.08510.7946 **0.8497 ***0.12781

References

  1. Hazlett, P.K.; Luther, W.J. Is bitcoin money? And what that means. Q. Rev. Econ. Financ. 2020, 77, 144–149. [Google Scholar] [CrossRef]
  2. White, R.; Marinakis, Y.; Islam, N.; Walsh, S. Is Bitcoin a currency, a technology-based product, or something else? Technol. Forecast. Soc. Chang. 2020, 151, 119877. [Google Scholar] [CrossRef]
  3. Shahzad, S.J.H.; Bouri, E.; Roubaud, D.; Kristoufek, L.; Lucey, B. Is Bitcoin a better safe-haven investment than gold and commodities? Int. Rev. Financ. Anal. 2019, 63, 322–330. [Google Scholar] [CrossRef]
  4. Urquhart, A. The inefficiency of Bitcoin. Econ. Lett. 2016, 148, 80–82. [Google Scholar] [CrossRef]
  5. Bariviera, A.F. The inefficiency of Bitcoin revisited: A dynamic approach. Econom. Lett. 2017, 161, 1–4. [Google Scholar] [CrossRef]
  6. Nadarajah, S.; Chu, J. On the inefficiency of Bitcoin. Econ. Lett. 2017, 150, 6–9. [Google Scholar] [CrossRef]
  7. Sensoy, A. The inefficiency of Bitcoin revisited: A high-frequency analysis with alternative currencies. Financ. Res. Lett. 2019, 28, 68–73. [Google Scholar] [CrossRef]
  8. Tiwari, A.K.; Jana, R.K.; Das, D.; Roubaud, D. Informational efficiency of Bitcoin—An extension. Econ. Lett. 2018, 163, 106–109. [Google Scholar] [CrossRef]
  9. Al-Yahyaee, K.H.; Mensi, W.; Yoon, S.M. Efficiency, multifractality, and the long-memory property of the Bitcoin market: A comparative analysis with stock, currency, and gold markets. Financ. Res. Lett. 2018, 27, 228–234. [Google Scholar] [CrossRef]
  10. Grobys, K. A fractal and comparative view on the memory of Bitcoin and S&P 500 returns. Res. Int. Bus. Financ. 2023, 66, 102021. [Google Scholar]
  11. Hu, Y.; Valera, H.G.A.; Oxley, L. Market efficiency of the top market-cap cryptocurrencies: Further evidence from a panel framework. Financ. Res. Lett. 2019, 31, 138–145. [Google Scholar] [CrossRef]
  12. Jiang, Y.; Nie, H.; Ruan, W. Time-varying long-term memory in Bitcoin market. Financ. Res. Lett. 2018, 25, 280–284. [Google Scholar] [CrossRef]
  13. Stavroyiannis, S.; Babalos, V.; Bekiros, S.; Lahmiri, S.; Uddin, G.S. The high frequency multifractal properties of Bitcoin. Phys. A 2019, 520, 62–71. [Google Scholar] [CrossRef]
  14. Bariviera, A.F. One model is not enough: Heterogeneity in cryptocurrencies’ multifractal profiles. Financ. Res. Lett. 2021, 39, 101649. [Google Scholar] [CrossRef]
  15. Avram, F.; Taqqu, M.S. Robustness of the R/S statistic for fractional stable noises. Stat. Inference Stoch. Process. 2000, 3, 69–83. [Google Scholar] [CrossRef]
  16. Mandelbrot, B.; Taqqu, M. Robust R/S analysis of long-run serial correlation. Bull. Int. Stat. Inst. 1979, 48, 59–104. [Google Scholar]
  17. Hou, K.; Xue, C.; Zhang, L. Replicating anomalies. Rev. Financ. Stud. 2020, 33, 2019–2133. [Google Scholar] [CrossRef]
  18. Couillard, M.; Davison, M. A comment on measuring the Hurst exponent of financial time series. Phys. A 2005, 348, 404–418. [Google Scholar] [CrossRef]
  19. Fama, E.F. Efficient capital markets: A review of theory and empirical work. J. Financ. 1970, 25, 383–417. [Google Scholar] [CrossRef]
  20. Mandelbrot, B.B.; Hudson, R.L. The (Mis) Behaviour of Markets: A Fractal View of Risk, Ruin and Reward; Profile Books Ltd.: London, UK, 2010. [Google Scholar]
  21. Delfin-Vidal, R.; Romero-Meléndez, G. The Fractal Nature of Bitcoin: Evidence from Wavelet Power Spectra; Springer International Publishing: Cham, Switzerland, 2016; pp. 73–98. [Google Scholar]
  22. Escobar, J.J.M.; Matamoros, O.M.; Páez, A.L.C.; Padilla, R.T. Dynamic analysis of Bitcoin fluctuations by means of a fractal predictor. In Intelligent Systems and Applications: Proceedings of the 2021 Intelligent Systems Conference (IntelliSys); Springer International Publishing: Cham, Switzerland, 2022; Volume 1, pp. 791–804. [Google Scholar]
  23. Cheah, E.T.; Fry, J. Speculative bubbles in Bitcoin markets? An empirical investigation into the fundamental value of Bitcoin. Econom. Lett. 2015, 130, 32–36. [Google Scholar] [CrossRef]
  24. Gajardo, G.; Kristjanpoller, W.D.; Minutolo, M. Does Bitcoin exhibit the same asymmetric multifractal crosscorrelations with crude oil, gold and DJIA as the Euro, Great British Pound and Yen. Chaos Solitons Fractals 2018, 109, 195–205. [Google Scholar] [CrossRef]
  25. Dyhrberg, A.H. Bitcoin, gold and the dollar—A GARCH volatility analysis. Financ. Res. Lett. 2016, 16, 85–92. [Google Scholar] [CrossRef]
  26. Baur, D.G.; Dimpfl, T.; Kuck, K. Bitcoin, gold and the US dollar—A replication and extension. Financ. Res. Lett. 2018, 25, 103–110. [Google Scholar] [CrossRef]
  27. Klein, T.; Pham Thu, H.; Walther, T. Bitcoin is not the New Gold—A comparison of volatility, correlation, and portfolio performance. Int. Rev. Financ. Anal. 2018, 59, 105–116. [Google Scholar] [CrossRef]
  28. Wątorek, M.; Kwapień, J.; Drożdż, S. Cryptocurrencies Are Becoming Part of the World Global Financial Market. Entropy 2023, 25, 377. [Google Scholar] [CrossRef] [PubMed]
  29. Assaf, A.; Mokni, K.; Yousaf, I.; Bhandari, A. Long memory in the high frequency cryptocurrency markets using fractal connectivity analysis: The impact of COVID-19. Res. Int. Bus. Financ. 2023, 64, 101821. [Google Scholar] [CrossRef]
  30. Vidal-Tomás, D.; Ibañez, A. Semi-strong efficiency of bitcoin. Financ. Res. Lett. 2018, 27, 259–265. [Google Scholar] [CrossRef]
  31. Ji, Q.; Bouri, E.; Gupta, R.; Roubaud, D. Network causality structures among Bitcoin and other financial assets: A directed acyclic graph approach. Q. Rev. Econ. Financ. 2018, 70, 203–213. [Google Scholar] [CrossRef]
  32. Zhang, S.; Mani, G. Popular cryptoassets (Bitcoin, Ethereum, and Dogecoin), Gold, and their relationships: Volatility and correlation modeling. Data Sci. Manag. 2021, 4, 30–39. [Google Scholar] [CrossRef]
  33. Corbet, S.; Lucey, B.; Urquhart, A.; Yarovaya, L. Cryptocurrencies as a financial asset: A systematic analysis. Int. Rev. Financ. Anal. 2019, 62, 182–199. [Google Scholar] [CrossRef]
  34. Alvarez-Ramirez, J.; Rodriguez, E.; Ibarra-Valdez, E. Long-range correlations and asymmetry in the Bitcoin market. Phys. A Stat. Mech. Appl. 2018, 492, 948–955. [Google Scholar] [CrossRef]
  35. Partida, A.; Gerassis, S.; Criado, R.; Romance, M.; Giráldez, E.; Taboada, J. The chaotic, self-similar and hierarchical patterns in Bitcoin and Ethereum price series. Chaos Solitons Fractals 2022, 165, 112806. [Google Scholar] [CrossRef]
  36. Phillip, A.; Chan, J.S.; Peiris, S. A new look at cryptocurrencies. Econ. Lett. 2018, 163, 6–9. [Google Scholar] [CrossRef]
  37. Caporale, G.M.; Gil-Alana, L.; Plastun, A. Persistence in the cryptocurrency market. Res. Int. Bus. Financ. 2018, 46, 141–148. [Google Scholar] [CrossRef]
  38. Köchling, G.; Müller, J.; Posch, P.N. Price delay and market frictions in cryptocurrency markets. Econ. Lett. 2019, 174, 39–41. [Google Scholar] [CrossRef]
  39. Urquhart, A. Price clustering in bitcoin. Econ. Lett. 2017, 159, 145–148. [Google Scholar] [CrossRef]
  40. Kristoufek, L. On Bitcoin markets (in)efficiency and its evolution. Phys. A 2018, 503, 257–262. [Google Scholar] [CrossRef]
  41. Ruan, Q.; Meng, L.; Lv, D. Effect of introducing Bitcoin futures on the underlying Bitcoin market efficiency: A multifractal analysis. Chaos Solitons Fractals 2021, 153, 111576. [Google Scholar] [CrossRef]
  42. Brauneis, A.; Mestel, R. Price discovery of cryptocurrencies: Bitcoin and beyond. Econ. Lett. 2018, 165, 58–61. [Google Scholar] [CrossRef]
  43. David, S.A.; Inacio, C.M.C., Jr.; Nunes, R.; Machado, J.T. Fractional and fractal processes applied to cryptocurrencies price series. J. Adv. Res. 2021, 2, 85–98. [Google Scholar] [CrossRef]
  44. Mensi, W.; Lee, Y.J.; Al-Yahyaee, K.H.; Sensoy, A.; Yoon, S.M. Intraday downward/upward multifractality and long memory in Bitcoin and Ethereum markets: An asymmetric multifractal detrended fluctuation analysis. Financ. Res. Lett. 2019, 31, 19–25. [Google Scholar] [CrossRef]
  45. Charfeddine, L.; Maouchi, Y. Are shocks on the returns and volatility of cryptocurrencies really persistent? Financ. Res. Lett. 2019, 28, 423–430. [Google Scholar] [CrossRef]
  46. Lahmiri, S.; Bekiros, S. The effect of COVID-19 on long memory in returns and volatility of cryptocurrency and stock markets. Chaos Solitons Fractals 2021, 151, 111221. [Google Scholar] [CrossRef] [PubMed]
  47. Wang, J.; Wang, X. COVID-19 and financial market efficiency: Evidence from an entropy-based analysis. Financ. Res. Lett. 2021, 42, 101888. [Google Scholar] [CrossRef] [PubMed]
  48. Aslan, A.; Sensoy, A. Intraday efficiency-frequency nexus in the cryptocurrency markets. Financ. Res. Lett. 2020, 35, 101298. [Google Scholar] [CrossRef]
  49. Omane-Adjepong, M.; Alagidede, P.; Akosah, N. Wavelet time-scale persistence analysis of cryptocurrency market returns and volatility. Phys. A 2019, 514, 105–120. [Google Scholar] [CrossRef]
  50. Lahmiri, S.; Bekiros, S.; Bezzina, F. Multi-fluctuation nonlinear patterns of European financial markets based on adaptive filtering with application to family business, green, Islamic, common stocks, and comparison with Bitcoin, NASDAQ, and VIX. Phys. A 2020, 538, 122858. [Google Scholar] [CrossRef]
  51. Bariviera, A.F.; Basgall, M.J.; Hasperué, W. Some stylized facts of the Bitcoin market. Phys. A 2017, 484, 82–90. [Google Scholar] [CrossRef]
  52. Lahmiri, S.; Bekiros, S. Big data analytics using multi-fractal wavelet leaders in high-frequency Bitcoin markets. Chaos Solitons Fractals 2020, 131, 109472. [Google Scholar] [CrossRef]
  53. Stosic, D.; Stosic, D.; Ludermir, T.B.; Stosic, T. Multifractal behavior of price and volume changes in the cryptocurrency market. Phys. A 2019, 520, 54–61. [Google Scholar] [CrossRef]
  54. Telli, Ş.; Chen, H. Multifractal behavior in return and volatility series of Bitcoin and gold in comparison. Chaos Solitons Fractals 2020, 139, 109994. [Google Scholar] [CrossRef]
  55. Hurst, H.E. Long-term storage capacity of reservoirs. Trans. Am. Soc. Civ. Eng. 1951, 11, 770–808. [Google Scholar] [CrossRef]
  56. Hurst, H.E. A suggested statistical model of some time series which occur in nature. Nature 1957, 180, 494. [Google Scholar] [CrossRef]
  57. Mandelbrot, B. Statistical methodology for non-periodic cycles: From the covariance to R/S analysis. Ann. Econ. Soc. Measurem. 1972, 1, 259–290. [Google Scholar]
  58. Mandelbrot, B. Limit theorems on the self-normalized range for weakly and strongly dependent processes. Probab. Theory Related Fiel. 1975, 31, 271–285. [Google Scholar]
  59. Mandelbrot, B.B.; Wallis, J.R. Some long-run properties of geophysical records. Water Resour. Res. 1969, 5, 321–340. [Google Scholar] [CrossRef]
  60. Teverovsky, V.; Taqqu, M.S.; Willinger, W. A critical look at Lo’s modified R/S statistic. J. Stat. Plan. Inference 1999, 80, 211–227. [Google Scholar] [CrossRef]
  61. Sikora, G.; Höll, M.; Gajda, J.; Kantz, H.; Chechkin, A.; Wyłomańska, A. Probabilistic properties of detrended fluctuation analysis for Gaussian processes. Phys. Rev. E 2020, 101, 032114. [Google Scholar] [CrossRef] [PubMed]
  62. Bryce, R.M.; Sprague, K.B. Revisiting detrended fluctuation analysis. Sci. Rep. 2012, 2, 315. [Google Scholar] [CrossRef] [PubMed]
  63. Kiyono, K.; Tsujimoto, Y. Nonlinear filtering properties of detrended fluctuation analysis. Phys. A 2016, 462, 807–815. [Google Scholar] [CrossRef]
  64. Likens, A.D.; Mangalam, M.; Wong, A.Y.; Charles, A.C.; Mills, C. Better than DFA? A Bayesian method for estimating the Hurst exponent in Behavioral Sciences. arXiv 2023, arXiv:2301.11262. [Google Scholar]
  65. Di Matteo, T.; Aste, T.; Dacorogna, M.M. Long-term memories of developed and emerging markets: Using the scaling analysis to characterize their stage of development. J. Bank. Financ. 2005, 29, 827–851. [Google Scholar] [CrossRef]
  66. Laib, M.; Golay, J.; Telesca, L.; Kanevski, M. Multifractal analysis of the time series of daily means of wind speed in complex regions. Chaos Solitons Fractals 2018, 109, 118–127. [Google Scholar] [CrossRef]
  67. Kapetanios, G.; Shin, Y.; Snell, A. Testing for a unit root in the nonlinear STAR framework. J. Econom. 2003, 112, 359–379. [Google Scholar] [CrossRef]
  68. Yu, B.; Liang, Y. Fractal dimension variation of continuous functions under certain operations. Fractals 2023, 31, 2350044. [Google Scholar] [CrossRef]
  69. Yang, Y.; Xiong, J.; Zhao, L.; Wang, X.; Hua, L.; Wu, L. A Novel Method of Blockchain Cryptocurrency Price Prediction Using Fractional Grey Model. Fractal Fract. 2023, 7, 547. [Google Scholar] [CrossRef]
Figure 1. Pareto diagram of the cryptocurrency market according to capitalization.
Figure 1. Pareto diagram of the cryptocurrency market according to capitalization.
Fractalfract 07 00870 g001
Figure 2. Graphic representation of the Hurst exponent. The slope of the red line represents the Hurst exponent, while the green line has a slope of 0.5. Blue dots represent the values of ( log n , log ( R / S ) n ) .
Figure 2. Graphic representation of the Hurst exponent. The slope of the red line represents the Hurst exponent, while the green line has a slope of 0.5. Blue dots represent the values of ( log n , log ( R / S ) n ) .
Fractalfract 07 00870 g002
Figure 3. Graphical example of estimation of Hurst exponent (slope of the black line) and its 99% confidence interval (shadow region) for a long-term memory time series (left) and a random process (right). The green lines have slope of exactly 0.5.
Figure 3. Graphical example of estimation of Hurst exponent (slope of the black line) and its 99% confidence interval (shadow region) for a long-term memory time series (left) and a random process (right). The green lines have slope of exactly 0.5.
Fractalfract 07 00870 g003
Figure 4. The function τ ( q ) versus q and the corresponding linear regression, showing the corresponding adjusted R 2 and p-value.
Figure 4. The function τ ( q ) versus q and the corresponding linear regression, showing the corresponding adjusted R 2 and p-value.
Fractalfract 07 00870 g004
Figure 5. Linear regression for τ ( q ) across the different time periods under consideration for ETH.
Figure 5. Linear regression for τ ( q ) across the different time periods under consideration for ETH.
Fractalfract 07 00870 g005
Figure 6. Comparison of daily return graphs for several assets during the whole period.
Figure 6. Comparison of daily return graphs for several assets during the whole period.
Fractalfract 07 00870 g006
Figure 7. Illustration of the self-similarity of cc for different time frames and frequencies (made with the outcomes from Table A2, Table A3 and Table A4). Coloured to show 0.1% significance.
Figure 7. Illustration of the self-similarity of cc for different time frames and frequencies (made with the outcomes from Table A2, Table A3 and Table A4). Coloured to show 0.1% significance.
Fractalfract 07 00870 g007
Figure 8. Evolution of the Hurst exponent of BTC over time. Blue line indicates the Hurst values estimated, and the dashed line is the randomness barrier that separates the areas of long memory (over) and anti-persistance (below).
Figure 8. Evolution of the Hurst exponent of BTC over time. Blue line indicates the Hurst values estimated, and the dashed line is the randomness barrier that separates the areas of long memory (over) and anti-persistance (below).
Fractalfract 07 00870 g008
Figure 9. Illustration of the self-similarity of cc for different time frames and frequencies (with the values of the return series raised to 17). Coloured to show 0.1% significance.
Figure 9. Illustration of the self-similarity of cc for different time frames and frequencies (with the values of the return series raised to 17). Coloured to show 0.1% significance.
Fractalfract 07 00870 g009
Table 1. Description of cryptoassets and traditional commodities.
Table 1. Description of cryptoassets and traditional commodities.
AssetTickerMarketInitial Release/Public Offering/Description
BitcoinBTCBinance9 January 2009
EthereumETHBinance30 July 2015
Binance CoinBNBBinance3 July 2017
Ripple XRP Binance2 June 2012
Cardano ADA Binance27 September 2017
PolygonMATICBinance24 April 2019
SolanaSOLBinance24 March 2020
TronTRXBinance25 July 2018
PolkadotDOTBinance26 May 2020
AmazonAMZNNASDAQ15 May 1997
TeslaTSLANASDAQ29 June 2010
NetflixNFLXNASDAQ23 May 2002
Procter & GamblePGNYSE13 January 1978
Johnson & JohnsonJNJNYSE24 September 1944
The Coca-Cola Co.KONYSESeptember 1919
SilverXAGUSDLBMASpot price per ounce in US dollars
GoldGCG23COMEX100 troy ounce FC due in February 2023
Crude oilCLK23NYMEXWest Texas Intermediate FC due May 2023
WheatZWK23NYMEXFC expiring in May 2023
US Treasury bondsZNM23 CBOT 10-year FC due in June 2023
NasdaqCCMPNASDAQ1971
EuroStoxxSX5EEUROSTOXX26 February 1998
Table 2. Description of the 9 selected cc (from www.binance.com, 24 May 2023).
Table 2. Description of the 9 selected cc (from www.binance.com, 24 May 2023).
TickerProtocolCapitalization (Million $)PercentageCumulative
BTCPoW517,89045.51%45.51%
ETHPoW/PoS218,23019.18%64.69%
BNBPoSA48,0604.22%68.91%
XRPRPCA23,5902.07%70.98%
ADAPoS12,7601.12%72.10%
MATICPoS10,0800.89%72.99%
SOLPoS76900.68%73.66%
TRXDPoS69600.61%74.28%
DOTNominated PoS63000.55%74.83%
Table 3. Descriptive statistics and normality test (Jarque Bera) for daily returns from 20 August 2020 to 24 February 2023. *** means significant results at 0.1% level of significance.
Table 3. Descriptive statistics and normality test (Jarque Bera) for daily returns from 20 August 2020 to 24 February 2023. *** means significant results at 0.1% level of significance.
AssetMeanMedianStd.Max.Min.Skew.Kurt.J. Bera
BTC0.0401−0.01903.845117.8448−16.7093−0.24195.9025376.16 ***
ETH0.14280.23905.195423.3707−32.4864−0.42507.5343288.07 ***
BNB0.22170.16305.639029.5648−41.6751−0.215811.59247311.6 ***
XRP−0.15970.14246.680236.6201−53.8523−0.673615.86843289.8 ***
ADA−0.0909−0.19095.939828.7239−31.13170.15386.5777435.14 ***
matic0.4301−0.07068.156648.7557−41.00801.02099.64731639.1 ***
SOL0.0081−0.22357.962338.0494−54.9008−0.57849.8461665.94 ***
TRX0.05560.19065.502934.3355−38.8245−0.237311.58031096.2 ***
DOT−0.0957−0.21266.531128.0615−48.3208−0.356910.0600271.22 ***
AMZN−0.11670.00162.518910.4044−15.1499−0.36806.4681296.59 ***
TSLA0.07070.13844.305114.4446−17.0308−0.13754.359347.421 ***
NFLX−0.1004−0.06273.038712.0963−30.6729−2.477728.141615228 ***
PG0.00340.07681.14693.6368−7.5586−0.87487.1694498.61 ***
JNJ−0.00430.02701.04305.5584−3.78040.15674.643166.278 ***
KO0.04190.08691.14055.5815−7.0610−0.26226.9038333.44 ***
Silver−0.0544−0.06371.83507.9983−8.5103−0.11675.6815154.02 ***
Gold−0.01430.04290.92102.8140−4.8252−0.51774.9956134.18 ***
Crude0.08920.22082.570311.6753−12.3624−0.18275.1919181.26 ***
Wheat0.0630−0.13752.250817.5554−9.63040.82619.61931179.1 ***
Bonds−0.0303−0.00360.42811.7628−1.48950.07684.333746.587 ***
Nasdaq−0.00050.16161.61196.8863−7.0825−0.37654.474522.102 ***
EuroSt.0.03100.10081.09925.6815−5.3614−0.22275.9040276.7 ***
Table 4. Extract from the descriptive statistics of the two subsample periods.
Table 4. Extract from the descriptive statistics of the two subsample periods.
Sample PeriodNMeanSDSkew.Kurt.
BTC
20 August 2020–1 July 20226810.03954.1134−0.19865.2739
1 July 2022–24 February 20232390.03582.9172−0.53968.9691
TRX
20 August 2020–1 July 20226810.12296.2265−0.23749.4431
1 July 2022–24 February 2023239−0.1431−0.6032−0.53965.9418
NFLX
20 August 2020–1 July 2022470−0.25973.0527−3.481934.9563
1 July 2022–24 February 20231640.364982.94820.70963.9657
Silver
20 August 2020–1 July 2022485−0.07101.7950−0.47916.0914
1 July 2022–24 February 2023169−0.01990.71240.70964.5917
Table 5. Interpretation of the values of the Hurst exponent.
Table 5. Interpretation of the values of the Hurst exponent.
H = 0.5 0 < H < 0.5 0.5 < H < 1
MotionRandom BrownianFractional BrownianFractional Brownian
PersistenceNone (independent)Anti-persistent (mean-reverting)Persistent
Memory/CorrelationNoneShort termLong term
EfficiencyEfficientInefficientInefficient
Table 6. Results of the Augmented Dickey–Fuller (ADF) test for stationarity for cryptoassets with different frequencies for the period of 20 August 2020–24 February 2023. ** concludes that all series are stationary at less than 1% level of significance.
Table 6. Results of the Augmented Dickey–Fuller (ADF) test for stationarity for cryptoassets with different frequencies for the period of 20 August 2020–24 February 2023. ** concludes that all series are stationary at less than 1% level of significance.
15 min (Lag Order = 44)1 h (Lag = 28)Daily (Lag = 9)
ADA−44.340 **−29.644 **−8.2618 **
BNB−42.009 **−29.384 **−7.5603 **
BTC−43.426 **−28.566 **−8.7709 **
DOT−43.915 **−29.196 **−9.8369 **
ETH−43.757 **−28.549 **−9.1639 **
MATIC−43.159 **−29.456 **−9.3751 **
SOL−44.326 **−29.367 **−8.3510 **
TRX−43.360 **−30.270 **−9.0032 **
XRP−43.736 **−27.587 **−8.9680 **
Table 7. Results of the Augmented Dickey-Fuller (ADF) test for stationarity for traditional assets with daily values for the three different periods. ** concludes that all series are stationary at less than 1% level of significance.
Table 7. Results of the Augmented Dickey-Fuller (ADF) test for stationarity for traditional assets with daily values for the three different periods. ** concludes that all series are stationary at less than 1% level of significance.
Full Period (Lag Order = 8)1st Subset (Lag = 7)2nd Subset (Lag = 5)
Gold−8.7680 **−8.7733 **−5.2928 **
Silver−8.8266 **−8.1462 **−5.6915 **
Nasdaq−8.0335 **−8.5723 **−5.1938 **
Eurotoxx−7.8613 **−8.1981 **−5.1350 **
Oil−10.0500 **−9.6601 **−6.7996 **
US bonds−8.1775 **−7.6914 **−4.9403 **
Wheat−6.8168 **−5.5172 **−4.8443 **
AMZN−8.1451 **−8.2698 **−5.1547 **
NFLX−7.8880 **−7.6475 **−5.2018 **
Table 8. Results of the KSS unit root test for cryptoassets with different frequencies for the period of 20 August 2020–24 February 2023. *** concludes that all series are stationary at <0.1% level of significance.
Table 8. Results of the KSS unit root test for cryptoassets with different frequencies for the period of 20 August 2020–24 February 2023. *** concludes that all series are stationary at <0.1% level of significance.
15 min (Lag Order = 44)1 h (Lag = 28)Daily (Lag = 9)
ADA−8.9580 ***−13.2326 ***−7.1024 ***
BNB−6.2327 ***−12.4460 ***−7.5603 ***
BTC−14.0094 ***−3.5715 ***−7.7599 ***
DOT−17.9212 ***−5.7037 ***−3.9958 ***
ETH−10.6192 ***−10.3832 ***−4.2671 ***
MATIC−16.3656 ***−9.7870 ***−6.0347 ***
SOL−4.8659 ***−11.9307 ***−3.8921 ***
TRX−10.1991 ***−11.8249 ***−5.0051 ***
XRP−20.3144 ***−5.0958 ***−5.0386 ***
Table 9. Hurst exponent between 20 August 2020 and 24 February 2023 with daily data. The error is estimated by displaying the p -value, as well as a 99% confidence interval. For the shuffled series, *** and ** mean that the null hypothesis of efficiency is rejected at <0.1% and 1 % level of significance, respectively. No asterisk reveals that there is not enough evidence to support that the series does not follow a Gaussian path.
Table 9. Hurst exponent between 20 August 2020 and 24 February 2023 with daily data. The error is estimated by displaying the p -value, as well as a 99% confidence interval. For the shuffled series, *** and ** mean that the null hypothesis of efficiency is rejected at <0.1% and 1 % level of significance, respectively. No asterisk reveals that there is not enough evidence to support that the series does not follow a Gaussian path.
NameNHurstp-Value99%-CIH-Shuffled
BTC9190.64169 8.56 × 10 5 (0.58542, 0.69796)0.61997 ***
ETH9190.63337 2.28 × 10 5 (0.59135, 0.67540)0.60187 ***
BNB9190.65587 6.20 × 10 5 (0.59739, 0.71435)0.62742 ***
XRP9190.566460.01623(0.49199, 0.64093)0.55066
ADA9190.65739 7.57 × 10 4 (0.56451, 0.75027)0.55847 **
MATIC9190.68630 1.48 × 10 5 (0.63179, 0.74082)0.63666 ***
SOL9190.67028 5.53 × 10 4 (0.57552, 0.76505)0.65067 ***
TRX9190.59418 2.41 × 10 3 (0.52457, 0.66378)0.60926 **
DOT9190.63734 3.81 × 10 4 (0.56599, 0.70869)0.56258 **
Silver6530.501820.97286(0.29685, 0.70678)0.53399
Gold6520.541790.23721(0.41627, 0.66731)0.56801
Crude6330.59764 3.29 × 10 4 (0.55248, 0.64279)0.56763 **
Wheat6080.58424 5.67 × 10 3 (0.51091, 0.65757)0.58761 **
Bonds6330.54451 2.41 × 10 3 (0.51276, 0.57625)0.58484 **
Nasdaq6330.535800.32121(0.40463, 0.66697)0.55920
EuroSt.6500.58617 3.96 × 10 4 (0.54471, 0.62762)0.59152 ***
AMZN6330.459610.28361(0.32397, 0.59524)0.51260
NFLX6330.625430.03299(0.45225, 0.79861)0.53410
Table 10. Hurst exponent: BTC, XRP, TRX and BNB for the full period but different time frequencies: 15 min ( N = 88 , 060 observations), 1 h ( N = 22 , 019 ) and daily ( N = 919 ). For the shuffled series, *** and ** mean that the hypothesis of efficiency is rejected at <0.1% and 1 % level of significance, respectively. No asterisk says that there is not enough evidence to ensure that the data is non-random.
Table 10. Hurst exponent: BTC, XRP, TRX and BNB for the full period but different time frequencies: 15 min ( N = 88 , 060 observations), 1 h ( N = 22 , 019 ) and daily ( N = 919 ). For the shuffled series, *** and ** mean that the hypothesis of efficiency is rejected at <0.1% and 1 % level of significance, respectively. No asterisk says that there is not enough evidence to ensure that the data is non-random.
Hurstp-Value99%-CIH-Shuffled
BTC
15 min0.53736 1.12 × 10 4 (0.51707, 0.55766)0.55294 ***
1 h0.55226 9.92 × 10 5 (0.52562, 0.57889)0.55334 ***
Daily0.64169 8.56 × 10 5 (0.58542, 0.69796)0.61997 ***
XRP
15 min0.514010.06970(0.49252, 0.53550)0.52702
1 h0.525510.01164(0.49926, 0.55177)0.51974
Daily0.566460.01623(0.49199, 0.64093)0.55066
TRX
15 min0.517400.04995(0.49301, 0.54179)0.52523
1 h0.521920.04746(0.49117, 0.55268)0.52843
Daily0.59418 2.41 × 10 3 (0.52457, 0.66378)0.60926 **
BNB
15 min0.55127 1.11 × 10 6 (0.53386, 0.56868)0.54502 ***
1 h0.56468 1.30 × 10 5 (0.53876, 0.59061)0.54211 ***
Daily0.65587 6.20 × 10 5 (0.59739, 0.71435)0.62742 ***
Table 11. Hurst exponent: XRP, TRX and BNB for the second subperiod (1 July 2022–24 February 2023) and different time frequencies: 15 min ( N = 22 , 869 observations), 1 h ( N = 5718 ) and daily ( N = 239 ).
Table 11. Hurst exponent: XRP, TRX and BNB for the second subperiod (1 July 2022–24 February 2023) and different time frequencies: 15 min ( N = 22 , 869 observations), 1 h ( N = 5718 ) and daily ( N = 239 ).
Hurstp-Value99%-CI
XRP
15 min0.514500.14754(0.48522, 0.54377)
1 hora0.514190.28596(0.47254, 0.55585)
Daily0.568160.13156(0.40223, 0.73408)
TRX
15 min0.517190.07521(0.48975, 0.54463)
1 h0.525350.04041(0.49053, 0.56017)
Daily0.62667 1.35 × 10 3 (0.55335, 0.69999)
BNB
15 min0.53628 1.04 × 10 3 (0.51107, 0.56149)
1 h0.53901 9.70 × 10 3 (0.50823, 0.57778)
Daily0.62968 0.04020 (0.43023, 0.82913)
Table 12. H index: silver and Eurostoxx between 20 August 2020 and 24 February 2023 and different frequencies.
Table 12. H index: silver and Eurostoxx between 20 August 2020 and 24 February 2023 and different frequencies.
NHurstp-Value99%-CI
Silver
15 min.60,3200.42234 3.82 × 10 5 (0.38585, 0.45883)
1 h15,4630.42702 4.03 × 10 4 (0.38251, 0.47153)
Daily6530.501820.97286(0.29685, 0.70678)
Eurostoxx
15 min.23,3760.45768 1.43 × 10 3 (0.42730, 0.48807)
1 h58490.483180.06186(0.45753, 0.50883)
Daily6500.58617 3.96 × 10 4 (0.54472, 0.62763)
Table 13. Hurst exponent: traditional assets for different time periods and daily frequency. With colors, we mark random and long-term memory behaviour.
Table 13. Hurst exponent: traditional assets for different time periods and daily frequency. With colors, we mark random and long-term memory behaviour.
20 August 2020–24 February 202320 August 2020–1 July 20221 July 2022–24 February 2023
 Hurst p -ValueHurst p -ValueHurst p -Value
Silver0.50180.972860.57460.049570.6340 2.81 × 10 3
Gold 0.54180.237210.5880 3.82 × 10 3 0.66880.02832
Crude0.5976 3.29 × 10 4 0.55610.03144 0.44980.38206
Wheat0.5842 5.67 × 10 3 0.5861 5.36 × 10 3 0.56470.23887
US bonds0.5445 2.41 × 10 3 0.56310.021220.6406 3.43 × 10 3
Nasdaq 0.53580.32121 0.58350.03252 0.64750.01860
Eurostoxx 0.5862 3.96 × 10 4 0.6135 1.19 × 10 3 0.67680.01810
Table 14. Hurst exponent: traditional assets for various periods and daily frequency (with return series raised to 17). Colors mark random and long-term memory behaviour.
Table 14. Hurst exponent: traditional assets for various periods and daily frequency (with return series raised to 17). Colors mark random and long-term memory behaviour.
20 August 2020–24 February 202320 August 2020–1 July 20221 July 2022–24 February 2023
 Hurst p -ValueHurst p -ValueHurst p -Value
Silver 0.52130.0627 0.52550.04340.56540.0264
Gold 0.52910.09710.52730.02050.6534 2.68 × 10 3
Crude0.48450.3450.48470.45600.6208 8.55 × 10 5
Wheat0.5241 3.76 × 10 3 0.5329 7.32 × 10 3 0.55420.0205
US bonds 0.5600 7.94 × 10 4 0.59130.01400.55860.0709
Nasdaq0.52030.2530 0.5814 9.32 × 10 5 0.56030.0102
Eurostoxx 0.5928 3.86 × 10 4 0.5977 4.49 × 10 4 0.55710.0154
Table 15. Correlation of daily returns (for weekdays) between btc and other assets: period from 20 August 2020 to 24 February 2023, sub-intervals from 20 August 2020 to 1 July 2022 and from 1 July 2022 to 24 February 2023. *** (**, *) denotes significance at 0.1% (1%, 5%) significance level.
Table 15. Correlation of daily returns (for weekdays) between btc and other assets: period from 20 August 2020 to 24 February 2023, sub-intervals from 20 August 2020 to 1 July 2022 and from 1 July 2022 to 24 February 2023. *** (**, *) denotes significance at 0.1% (1%, 5%) significance level.
Full Period1st Subperiod2nd Subperiod
BNB0.7318 ***0.8217 ***0.5129 ***
TRX0.7089 ***0.7785 ***0.9059 ***
SOL0.6606 ***0.6259 ***0.6932 ***
MATIC0.5037 ***0.5779 ***0.4791 ***
ETH0.8422 ***0.8342 ***0.8396 ***
DOT0.9527 ***0.9380 ***0.8011 ***
ADA0.8275 ***0.7851 ***0.7125 ***
XRP0.8050 ***0.7656 ***0.0441
TSLA0.6240 ***0.6812 ***0.4635 ***
NFLX0.5564 ***0.3544 ***−0.006
AMZN0.5540 ***0.2980 ***0.5396 ***
KO−0.1100 **0.2099 ***0.0053
PG0.1017 *0.0924 *−0.1615 *
JNJ0.2074 ***0.4573 ***−0.5148 ***
Crude0.1331 ***0.3493 ***0.3249 ***
Wheat0.1005 *0.2084 ***−0.0784
US bonds0.2886 ***−0.2597 ***0.4490 ***
Silver0.3457 ***0.012−0.1935 *
Gold−0.1281 **−0.5741 ***0.2076 **
Nasdaq0.8458 ***0.7984 ***0.6902 ***
EuroStoxx0.6749 ***0.8005 ***0.1553
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Cabezas-Rivas, E.; Sánchez-Coll, F.; Tormo-Xaixo, I. Chance or Chaos? Fractal Geometry Aimed to Inspect the Nature of Bitcoin. Fractal Fract. 2023, 7, 870. https://doi.org/10.3390/fractalfract7120870

AMA Style

Cabezas-Rivas E, Sánchez-Coll F, Tormo-Xaixo I. Chance or Chaos? Fractal Geometry Aimed to Inspect the Nature of Bitcoin. Fractal and Fractional. 2023; 7(12):870. https://doi.org/10.3390/fractalfract7120870

Chicago/Turabian Style

Cabezas-Rivas, Esther, Felipe Sánchez-Coll, and Isaac Tormo-Xaixo. 2023. "Chance or Chaos? Fractal Geometry Aimed to Inspect the Nature of Bitcoin" Fractal and Fractional 7, no. 12: 870. https://doi.org/10.3390/fractalfract7120870

Article Metrics

Back to TopTop
