Technical and Economic Viability of Underground Hydrogen Storage
Abstract
:1. Introduction

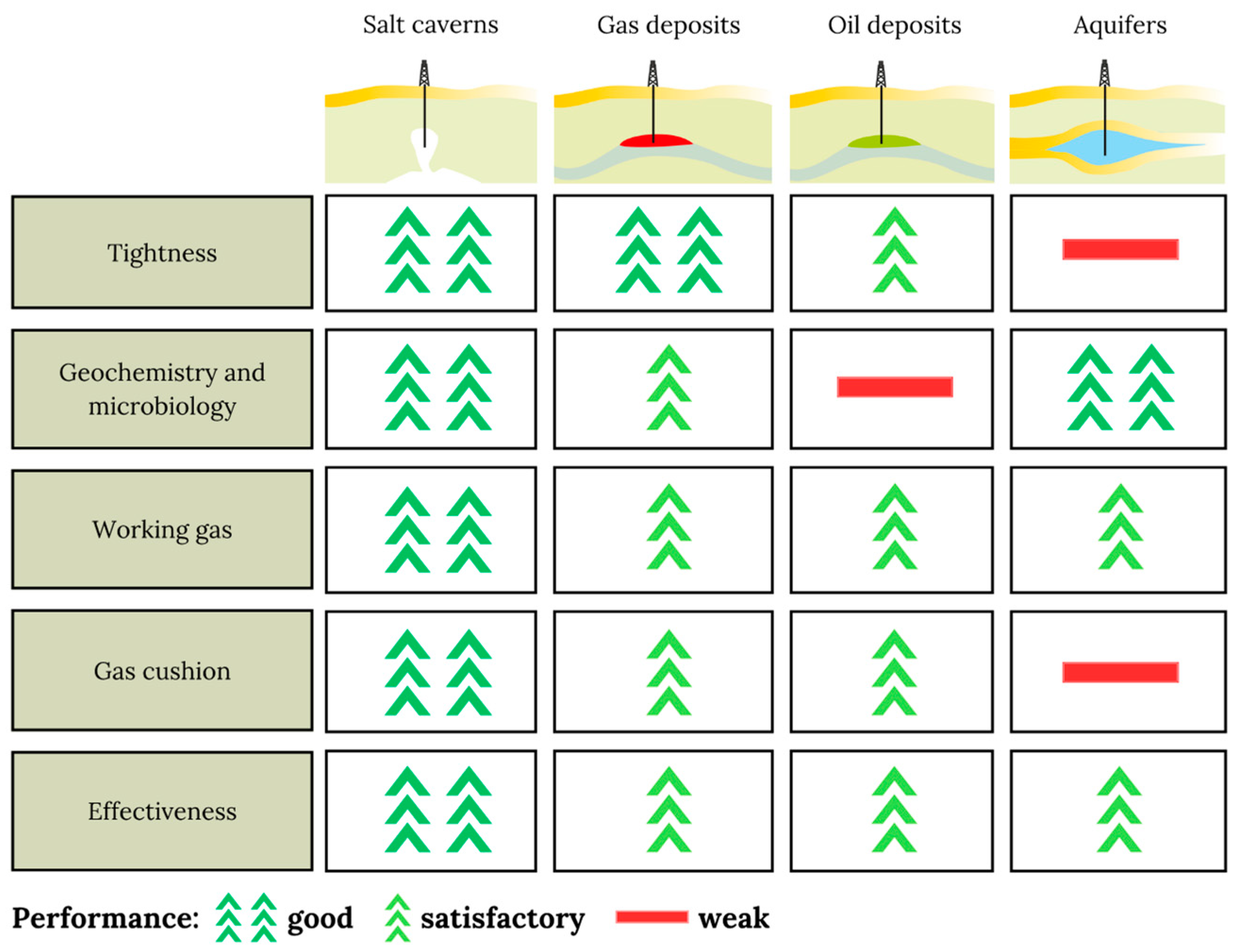

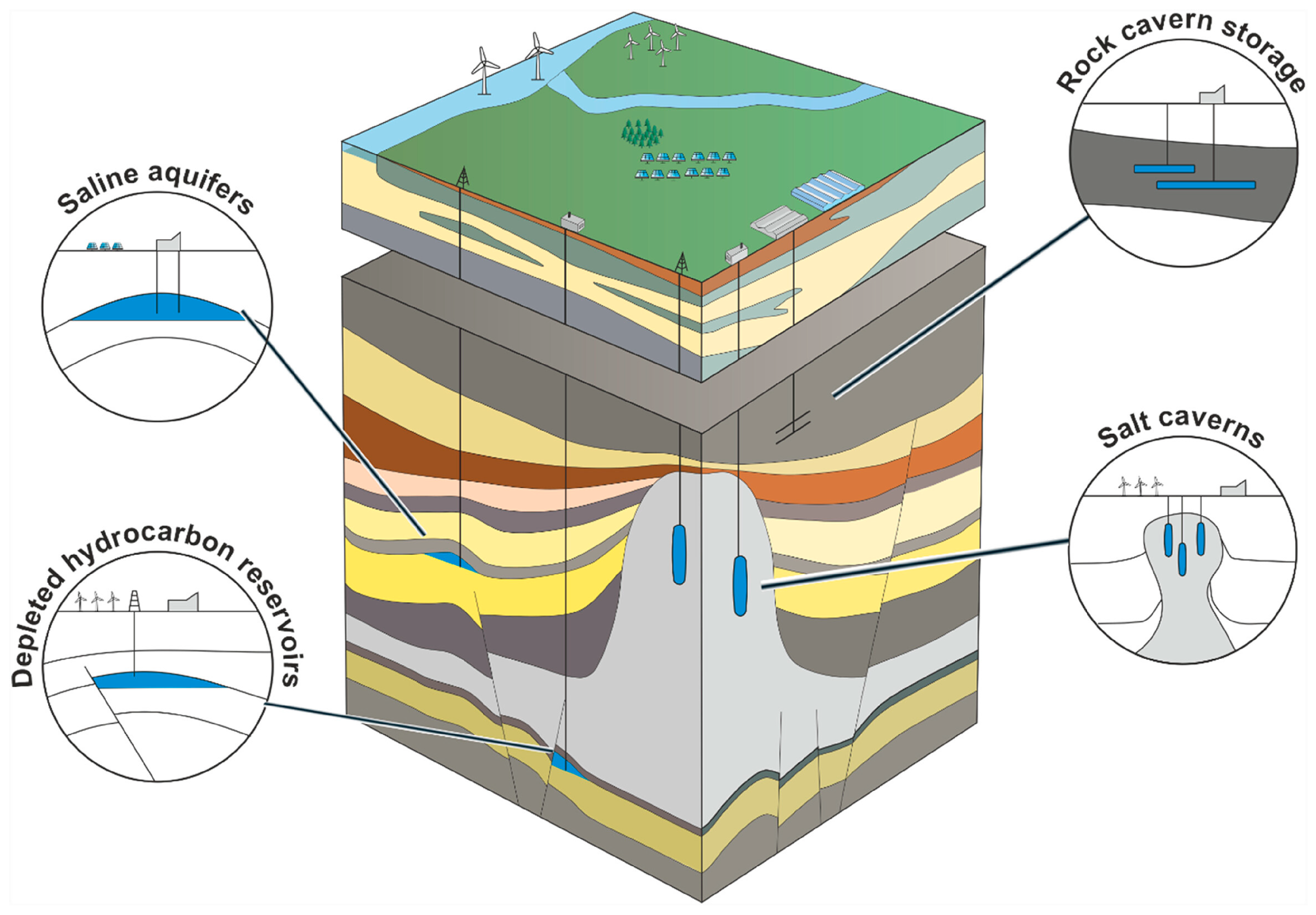

2. Geological Structures for Underground Hydrogen Storage and Relevant Parameters
2.1. Depleted Oil and Gas Reservoirs
2.2. Aquifers

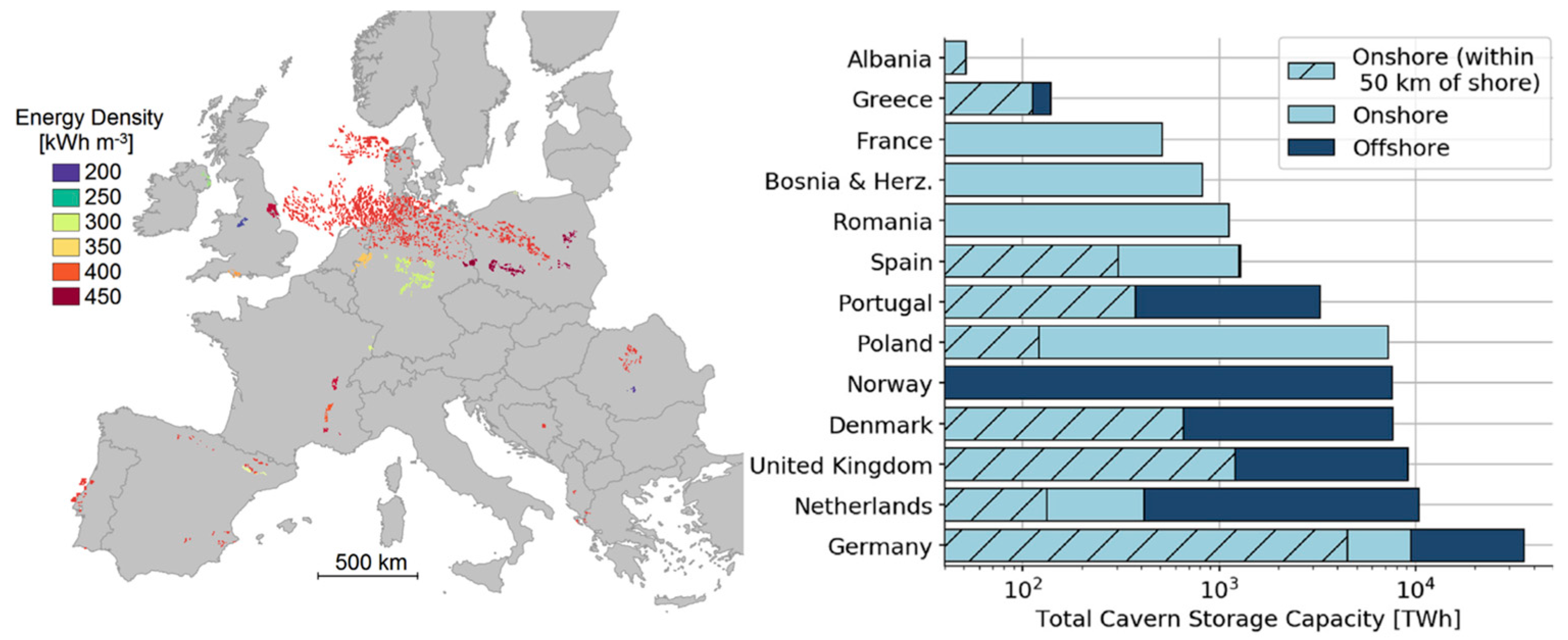

2.3. Salt Caverns
2.4. Parameters

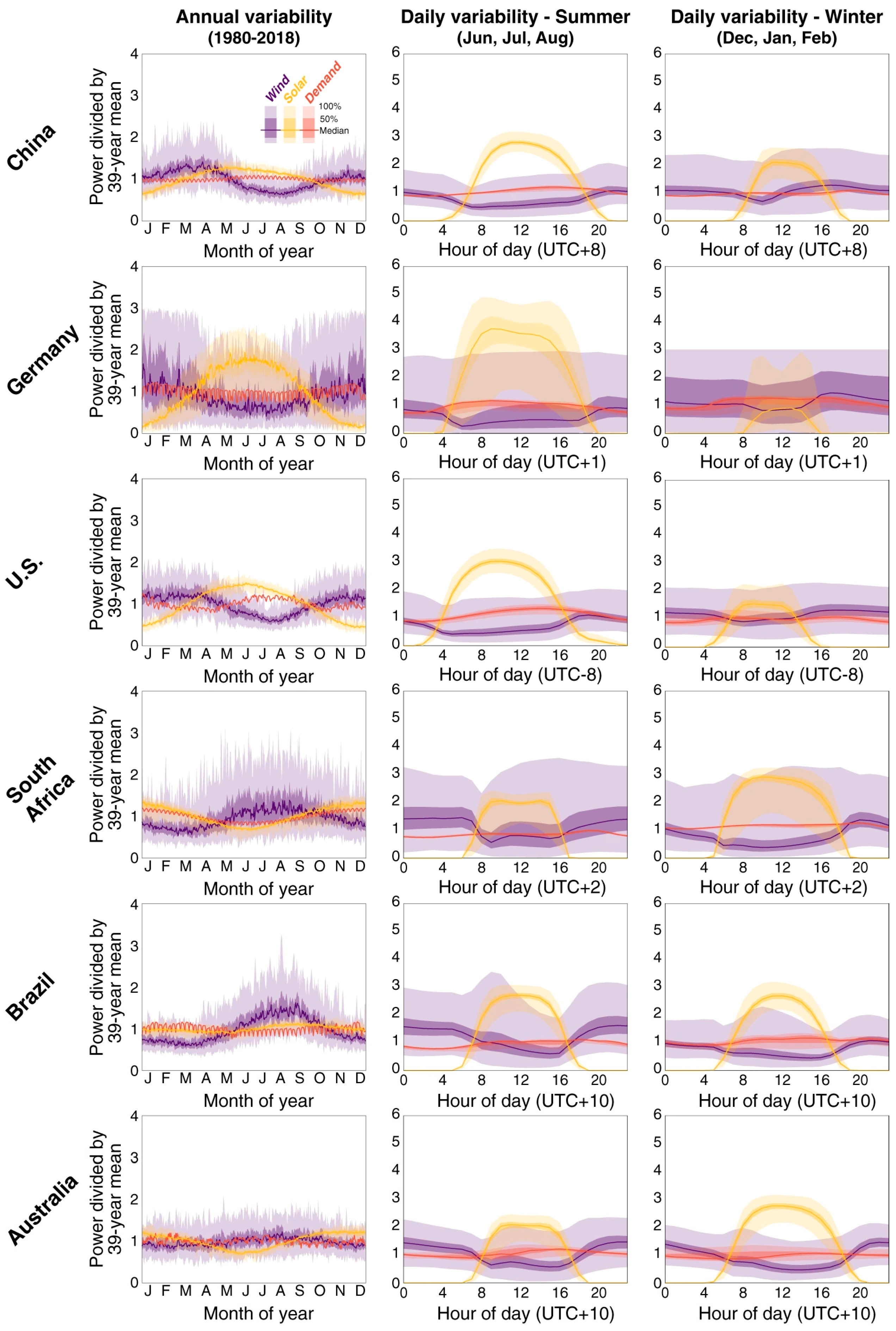

2.5. Seasonal Storage

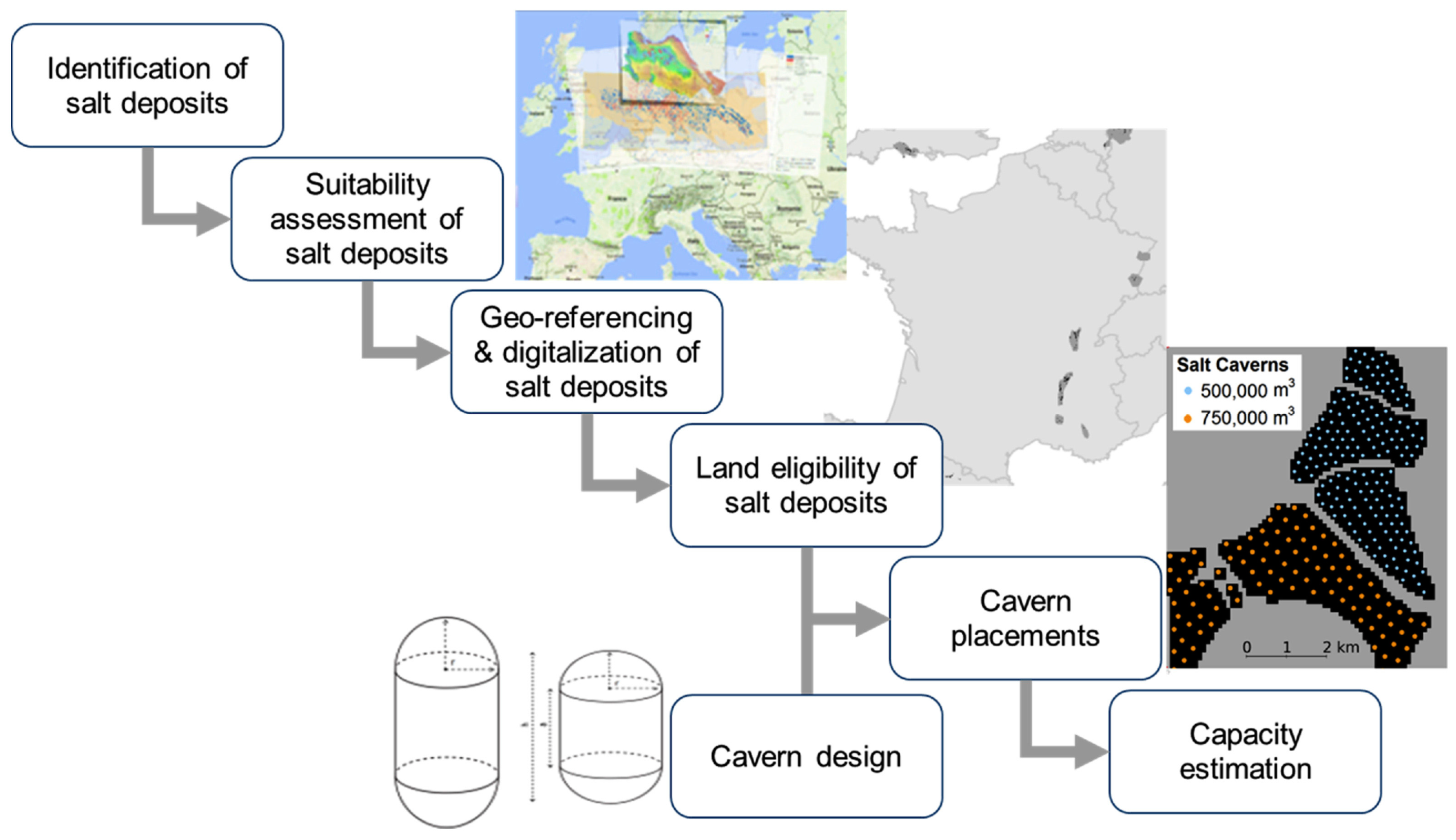

3. Site Selection
- Problem identification: define the decision problem and establish the objectives and criteria relevant to the decision;
- Criteria selection: Select the criteria that will be used to evaluate the alternatives. These criteria should be measurable, relevant to the decision, and reflect the objectives;
- Weighting of criteria: Assign relative weights to each criterion reflecting its significance. Weights indicate the relative importance of each criterion in the decision-making process;
- Alternative generation: generate a set of alternatives that could potentially address the problem;
- Evaluation of alternatives: Assess each alternative. This may involve quantitative analysis, qualitative assessments, expert opinions, or a combination of approaches;
- Scoring and ranking: assign scores or ratings to each alternative based on their performance or suitability with respect to the criteria;
- Decision analysis and decision making: analyze the scores or rankings of the alternatives to identify the best or preferred option.
4. Technical Challenges Ahead

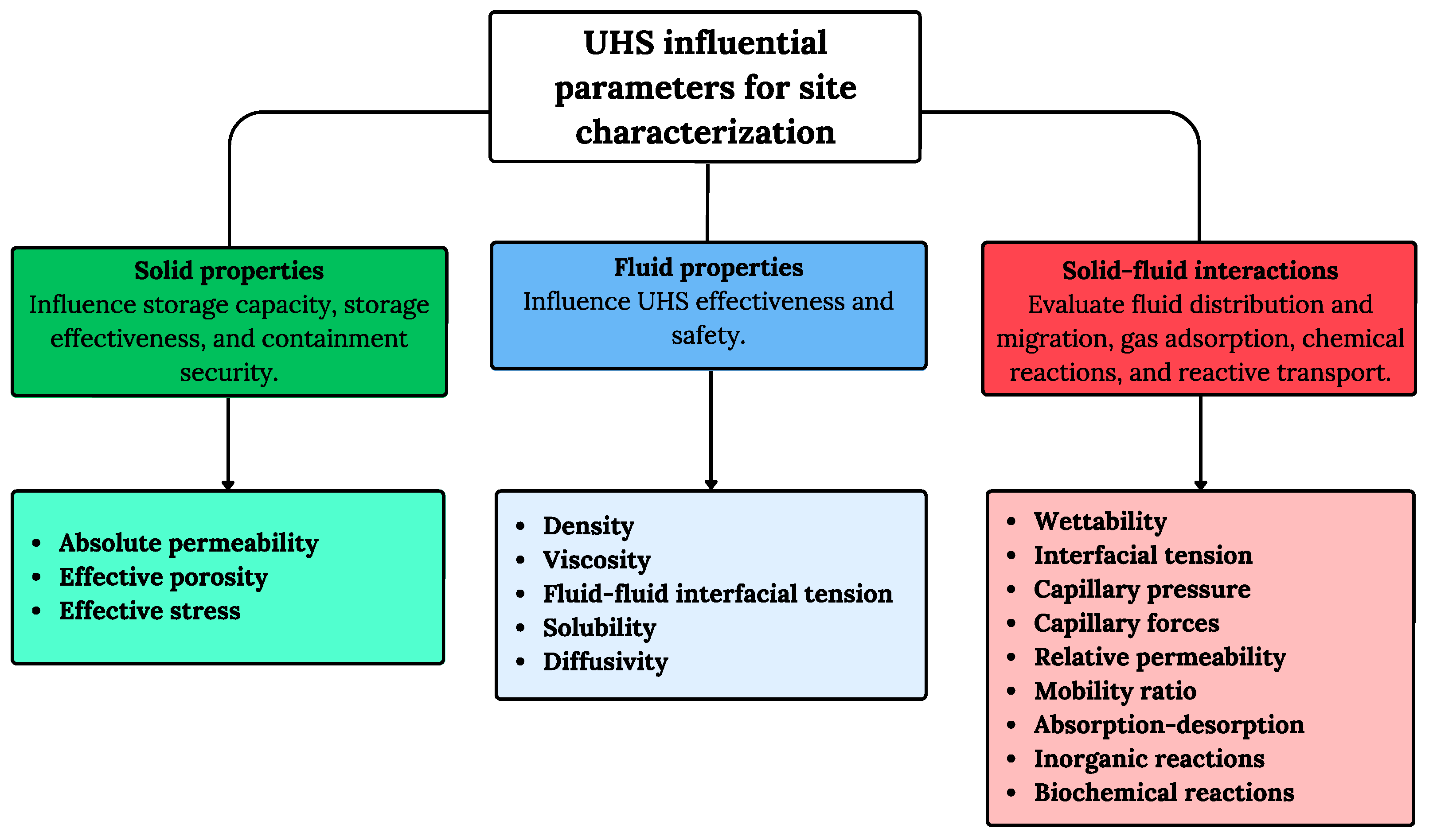

4.1. Site Characterization
4.2. Injection Strategies
4.3. Biological, Geochemical, and Bacterial Effects
4.4. Mechanism and Monitoring
4.5. Withdrawal Strategies
5. Past Experience and Ongoing Projects

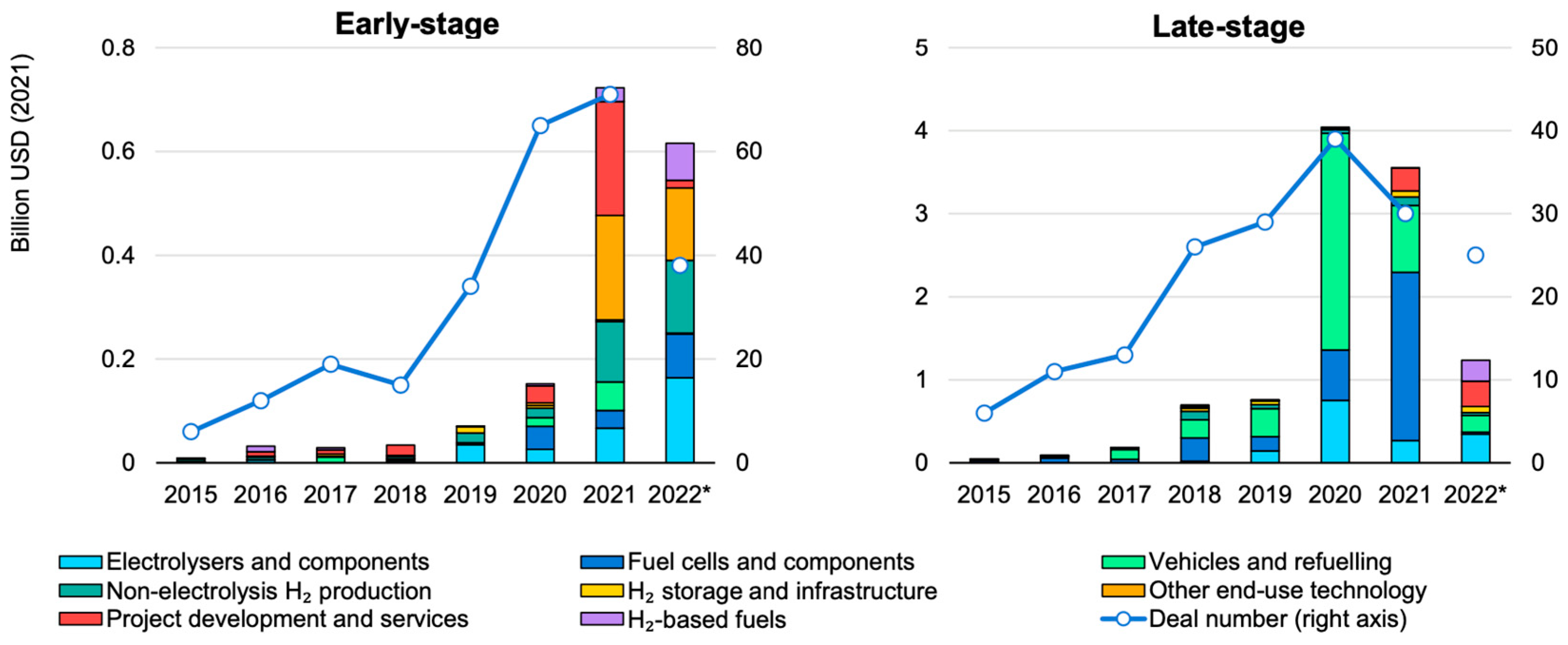

6. Market Size
- Purity requirement for hydrogen grids: The viability of business cases related to hydrogen injection into transport pipelines will be impacted by quality specifications, primarily driven by purification costs. It is noteworthy that purification expenses tend to be higher for depleted fields than salt caverns;
- Immature market for hydrogen storage: The demand for large-scale pure hydrogen storage has not yet been established. While this demand will arise in the coming 10–20 years, the forecasts and expected application areas remain unclear. Consequently, there is no clear insight into the future UHS business case and how the returns on investments will evolve. This hinders investors from committing to long-term investment decisions, resulting in delays in the progress of viable cases. The type of market regulation (regulated vs. third-party) on UHS development should be examined;
- Lack of experience in UHS operations: the practical experience with high-purity hydrogen storage has been confined to just a handful of salt cavern storage sites;
- Availability and knowledge of suitable geological structures: The assessment and ranking of viable geological reservoirs is still in the early phases. Selecting and improving potential site identification might need significant financial support for exploration, appraisal, sampling, and testing. Moreover, an uneven distribution of salt deposits, hydrocarbon reservoirs, and aquifers could restrict the prospect of developing economically achievable scenarios.
7. Infrastructure
8. Conclusions
9. Future Outlook
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
Appendix A
Country | Project Name | Type | Expected Capacity | Development Status | Expected Start | Description | Source |
---|---|---|---|---|---|---|---|
Argentina | Hychico | Depleted gas field | Unknown (testing only) | Testing | n/a | Investigating storage of blended hydrogen (10%) in depleted hydrocarbon reservoirs, including geomethanation. Until 2018, the project focused on producing “green methane”, and it seems to be changing to developing this technology. | [33] |
Austria | Sun Storage 2030 | Depleted gas field | Unknown | Construction | n/a | Aims to develop safe, seasonal hydrogen storage in depleted natural gas reservoirs. | [34] |
Sun Storage | Depleted gas field | Unknown (testing only) | Testing completed | 2016 | Experimental trials of injection of 10% hydrogen mixture in a gas field. | [35,36] | |
Sun Conversion, FlexStore | Depleted gas field | Unknown (testing only) | Testing completed | n/a | Conducting experiments on underground methanation through the injection of hydrogen and carbon dioxide. | [37,38] | |
HyStorage Bierwang | Depleted gas field | Testing | 2025 | Three operation phases using different natural gas/hydrogen gas blends (5, 10, 25 vol.% H2 in natural gas) to be injected into the natural gas reservoir and withdrawn after a three-month holding period. First hydrogen injection in September 2023. | [39,40] | ||
Belgium | Loenhout Hydrogen | Aquifer | 2–3 TWh | Pre-feasibility | n/a | Tests with hydrogen–natural gas mixtures. | [41,42,43,44] |
Denmark | Green Hydrogen Hub | Salt cavern | 200 GWh | Pre-feasibility | 2025 | Aims to be the first viable commercial UHS with large-scale green hydrogen production and compressed-air energy storage. | [45,46] |
France | Hypster | Salt cavern | 3 tons | Construction | 2023 | E.U.-supported large-scale green UHS. | [47,48,49] |
Emil’Hy | Salt cavern | Unknown | Proposal | 2023 | Salt cavern in Cerville, Meurthe-et-Moselle department. Starting in 2023 with a production capacity of 5 MW, this project will build a new salt cavern in 2025 to support the increase in the production capacity, which should be in the 50–100 MW range by then. | [49,50] | |
HyGreen Provence | Salt cavern | Unknown | Proposal | 2028 | H2 will be stored within salt caverns at the Manosque storage site and distributed for different applications. | [49,51] | |
HyGéo | Salt cavern | 1.5 GWh | Pre-feasibility | 2024 | Constructed on a previous salt cavern site in a municipality within the Nouvelle Aquitaine region, the facility is designed to store 1.5 GWh of energy. | [49,52] | |
Germany | H2Cast | Salt cavern | Unknown (scalable) | Testing | 2024 | To showcase the viability of extensive UHS and demonstrate the suitability of salt caverns in Etzel. | [53,54] |
Jemgum Storage | Salt cavern | 48 Mm3 | Pre-feasibility, FEED | 2030 | Evaluating the adequacy for UHS of a salt cavern used to store natural gas in Jemgum. | [55] | |
HPC Krummhörn | Salt cavern | 0.2 Mm3 | Pre-feasibility | 2024 | Project aiming for 100% hydrogen storage in the former Krummhörn natural gas storage site. The pilot facility is commissioned to store up to 0.25 M m3 of H2. | [56] | |
Westküste 100 | Salt cavern | Unknown | Pre-feasibility | n/a | A cavern storage system designed for UHS will use surplus wind energy to produce a continuous hydrogen stream for industry. | [57,58] | |
Bad Lauchstädt | Salt cavern | 150 GWh | Pre-feasibility | n/a | Green hydrogen is produced using an adjacent wind farm and temporarily housed in a salt cavern. Supplied to the hydrogen infrastructure of the chemical sector in central Germany, it is also envisioned for future urban transportation systems. | [59,60] | |
GET H2 Nukleus Gronau-Epe | Salt cavern | 67 GWh | Planning, permitting | 2027 | Plans include expanding the existing surface infrastructure to incorporate hydrogen injection, storage, and withdrawal systems in caverns. The facility will have 6 M m3 of hydrogen in stock. An additional 28 M m3 will be available for customers to store hydrogen. | [61,62,63] | |
HyCAVMobil Rüdersdorf | Salt cavern | 500 m3 | Construction | 2023 | Construction of the test cavern began in 2021 and finished in March 2023. It will be filled with hydrogen in 2023, and a “wet” hydrogen-drying system will be tested. Findings should be transferred to caverns with 1000× larger volumes. The main goal is to use caverns with 0.5 M m3 for large-scale UHS. | [64] | |
Hungary | Aquamarine | Depleted gas field | Unknown | Construction | n/a | The Aquamarine project aims to deploy an electrolysis system with an estimated total capacity of 2.5 MW, as well as the associated hydrogen infrastructure, at the Kardoskut Underground Gas Storage site. The hydrogen produced will be blended with natural gas and employed in the Gas Storage Ltd.’s gas-operated equipment. | [65,66] |
Ireland | Green hydrogen @Kinsale | Depleted gas field | 3 TWh | Pre-feasibility | n/a | This project (pending license and planning approvals) will have a capacity of up to 3 TWh of green hydrogen and hydrogen carriers. An ample work program is underway, encompassing subsurface research, mineralogical studies, capacity modeling, injection and withdrawal rates, compression mechanisms, drilling assessment, well design, retention assurance, monitoring, electrolysis, and infrastructure integration. | [67] |
Italy | North Adriatic Hydrogen Valley | Depleted gas field | Unknown | n/a | n/a | Evaluation of potential gas fields and aquifers. | [68] |
Netherlands | HyStock | Salt cavern | 6000 tons | FEED and permitting | 2027 | Initial borehole tests and demonstration in 2022. The first cavern will be operational in 2027, with a plan to upscale the capacity to four caverns by 2030. | [69,70] |
Poland | Damasławek | Salt cavern | Unknown | n/a | 2030 | The first UHS facility to be operational in 2030. Placement and geological settings offer an opportunity to establish a storage site crucial to Poland’s energy security and the base of a hydrogen economy. The facility is well suited to integrate hydrogen clusters created around industrial centers and offshore and renewable energy storage facilities. | [71] |
Portugal | Sines H2 Hub, Carriço | Salt cavern | n/a | Pre-feasibility | 2030 | A significant industrial project is underway for the production of green hydrogen in Sines, which encompasses multiple aspects, including production, processing, storage (at Carriço), transportation (internal and export), and consumption. | [72,73,74] |
Slovakia | H2I | Depleted gas field | n/a | Pre-feasibility | n/a | The initial stage of H2I S&D has experts searching for a suitable site for storing hydrogen blends (with natural gas). After the identification of the underground structure, lab studies will start. | [75] |
Spain | Undergy | Depleted gas field | n/a | Pre-feasibility | n/a | Technologies for establishing long-term energy storage considering green hydrogen as a key part of the smart grid. | [76] |
Sweden | HyBRIT | Lined rock cavern | n/a | Testing | 2024 | Pilot plant with a size of 100 m3. Later, a full-scale hydrogen storage facility of 0.10–0.12 M m3 will be necessary. | [77] |
U.K. | Teesside | Salt cavern | 25–27 GWh | Operational | 1972 | Pure hydrogen storage for industry feedstock supply. | [78,79] |
ANGUS+ | Depleted gas field | n/a | Pre-feasibility | n/a | Studying the feasibility of connecting the Saltfleetby facility to the UK National Grid and exploring the potential for storage and methanation. | [80] | |
HySecure | Salt cavern | Over 1000 tons | Pre-feasibility | n/a | Demonstration project for building a salt cavern for storing hydrogen at Stublach, the U.K.’s largest storage facility for natural gas. | [81,82] | |
U.S. | Clemens Dome | Salt cavern | 81–92 GWh | Operational | 1983 | Storage of pure hydrogen for industrial purposes. | [78,79] |
Moss Bluff | Salt cavern | 120–123 GWh | Operational | 2007 | Storage of pure hydrogen for industrial purposes. | [78,79] | |
Spindle Top | Salt cavern | 274 GWh | Operational | 2016 | Storage of pure hydrogen for industrial purposes. | [78,79] | |
Advanced Clean Energy Storage | Salt cavern | 300 GWh | FEED | 2025 | Two caverns, each with a capacity of 150 GWh, will store hydrogen produced by a close hydrogen-capable gas turbine combined-cycle power plant of 840 MW. | [83,84] |
Country | Project Name | Description |
---|---|---|
Austria | BIOPore | Studying microbial growth and its implications from the pore to intermediate scales. |
Europe | HyStories | Investigating UHS technologies for pure hydrogen storage in depleted fields and aquifers. |
HyUSPRe | Assessing the viability and possibilities of introducing the extensive storage of renewable hydrogen in European porous reservoirs. | |
HyUnder | Assessing the potential actors and commercial frameworks for large-scale UHS in Europe (2012–2014). | |
France | Abiotic Reactivity of Minerals at Elevated H2 Concentrations | Examining fluid–rock alteration processes within deep aquifers pressurized with hydrogen. |
Germany | HyInteger | Investigating the impact of microbial activity on the well structural integrity. |
H2 React and H2 React Phase 2 | Research on fundamentals of UHS. The project aims to gather empirical data concerning the kinetics of chemical reactions, microbial activities, and hydrogen transport mechanisms within deep geological systems under in situ conditions. | |
UMAS | The project examines the techno-economic and socio-economic viability and the ecological potential of underground methanation in aquifers. | |
HyPos-H2UGS | Development of a standardized and transferrable procedure for constructing and converting salt caverns for UHS. | |
TestUM-II Aquifer | Geophysical and hydrogeological field testing for investigating and monitoring reactive multi-phase transport processes in shallow aquifers induced by subsurface use. It is a continuation project of TestUM Aquifer. | |
Bio-UGS | Investigating the reaction of green hydrogen with carbon dioxide to produce methane in subsurface storage systems using naturally present microorganisms. | |
CliMb | Exploring the viability of conversion processes by combining experimental studies with numerical modeling and simulations in a multi-scale approach targeting from the micro- to macroscale. | |
Netherlands | ADMIRE | Multi-scale numerical–experimental studies of hydro-thermo-mechanics of UHS for the site choice and operation, based on high-PT hydrogen lab. |
Caves&Waves | Quantification of the probability of induced seismicity associated with large-scale hydrogen storage in Dutch salt formations. | |
SafeInCave | Mechanics of salt cavern UHS and reservoir-scale simulator for evaluating the time-dependent salt cavern state of stress under cyclic loading. | |
HyStoreReact | Aims to improve fundamental knowledge of UHS technical viability using salt caverns and porous reservoirs by examining the effects of geo- and biochemical reactions of hydrogen with rocks, fluids, and microorganisms on the subsurface. | |
New Zealand | PūHiko ukutū | Assessing the technical feasibility, cost effectiveness, and environmental and social impacts of large hydrogen storage (>50 M m3) in sedimentary rock formations in New Zealand, specifically in the Taranaki Basin. |
Norway | Hydrogeni | Center for supporting the development of a sustainable hydrogen economy in Norway and Europe. |
HyPE | Research on the physical and microbial processes that regulate the underground gas capacity, deliverability, and hydrogen injection rates in porous media. A numerical simulator will also be established based on lab data from hydrogen storage-related research. | |
HyValue | Promoting knowledge, methodology, and innovative approaches for hydrogen energy carriers to shape and support a viable hydrogen energy sector. | |
CSSR | Makes available required studies to address main adversities and create awareness of potential opportunities of reservoir operations in a net-zero future. | |
Biorisks in Salt Caverns | Gaining critical information about halophilic microbes existing in salt caverns and their potential effects on UHS. | |
U.K. | GeoEnergy Observatory, Cheshire | An array of wells fit for the comprehension of the flow through porous rocks in an actual operational environment. |
HyStorPor | Investigating possible U.K. porous reservoir rock sites for hydrogen storage. | |
IDRIC | Addresses crucial multi-disciplinary and cross-cutting challenges involved in decarbonizing industry, including UHS development. | |
U.S. | SHASTA | Evaluating the viability, safety, and consistency of the subsurface storage of 100% hydrogen or blends with natural gas. |
