Efficient (Bio)emulsification/Degradation of Crude Oil Using Cellulose Nanocrystals
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Emulsion Preparation
2.3. Rheological Behavior of Emulsions
2.4. Acid–Base Properties of o/w Emulsion
2.5. Optical Light Microscopy
2.6. Transmission Electron Microscopy (TEM)
2.7. Atomic Force Microscopy (AFM)
2.8. Biodegradability of Crude Oil and co/w Emulsions
2.9. Microbial Inoculums Preparation
2.10. Assessment of Residual Total Petroleum Hydrocarbons (TPH) Content
3. Results and Discussion
3.1. Conditions for Formation and Stability of Emulsions
3.2. Study of Acid–Base Properties of Emulsions
3.3. Rheological Properties of CNC-Stabilized o/w Emulsions
3.4. Biodegradation of CNC-Stabilized o/w Emulsions
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Low, L.E.; Siva, S.P.; Ho, Y.K.; Chan, E.S.; Tey, B.T. Recent advances of characterization echniques for the formation, physical properties and stability of Pickering emulsion. Adv. Colloid Interface Sci. 2020, 277, 102117. [Google Scholar] [CrossRef] [PubMed]
- Binks, B.P.; Lumsdon, S.O. Pickering emulsions stabilized by monodisperse latex particles: Effects of particle size. Langmuir 2001, 17, 4540–4547. [Google Scholar] [CrossRef]
- Tsugita, A.; Takemoto, S.; Mori, K.; Yoneya, T.; Otani, Y. Studies on OW emulsions stabilized with insoluble montmorillonite-organic complexes. J. Colloid Interface Sci. 1983, 95, 551–560. [Google Scholar] [CrossRef]
- Avazpour, R.; Latifi, M.; Chaouki, J.; Fradette, L. Physical beneficiation of rare earth-bearing ores by Pickering emulsification. Miner. Eng. 2019, 144, 106034. [Google Scholar] [CrossRef]
- Radnia, H.; Nazar, A.R.S.; Rashidi, A. Effect of asphaltene on the emulsions stabilized by graphene oxide: A potential application of graphene oxide in en-hanced oil recovery. J. Pet. Sci. Eng. 2019, 175, 868–880. [Google Scholar] [CrossRef]
- Kalashnikova, I.; Bizot, H.; Cathala, B.; Capron, I. New Pickering emulsions stabilized by bacterial cellulose nanocrystals. Langmuir 2011, 27, 7471–7479. [Google Scholar] [CrossRef]
- Perrin, E.; Bizot, H.; Cathala, B.; Capron, I. Chitin nanocrystals for Pickering high internal phase emulsions. Biomacromolecules 2014, 15, 3766–3771. [Google Scholar] [CrossRef]
- Trache, D.; Tarchoun, A.F.; Derradji, M.; Hamidon, T.S.; Masruchin, N.; Brosse, N.; Hussin, M.H. Nanocellulose: From Fundamentals to Advanced Applications. Front. Chem. 2020, 8, 392. [Google Scholar] [CrossRef]
- Kalashnikova, I.; Bizot, H.; Cathala, B.; Capron, I. Modulation of cellulose nanocrystals amphiphilic properties to stabilize oil/water interface. Biomacromolecules 2012, 13, 267–275. [Google Scholar] [CrossRef]
- Kalashnikova, I.; Bizot, H.; Bertoncini, P.; Cathala, B.; Capron, I. Cellulosic nanorods of various aspect ratios for oil in water Pickering emulsions. Soft. Matter. 2013, 9, 952–959. [Google Scholar] [CrossRef]
- Bai, L.; Greca, L.G.; Xiang, W.; Lehtonen, J.; Huan, S.; Nugroho, R.W.N.; Tardy, B.L.; Rojas, O.J. Adsorption and assembly of cellulosic and lignin colloids at oil/water interfaces. Langmuir 2018, 35, 571–588. [Google Scholar] [CrossRef] [PubMed]
- Cerbelaud, M.; Aimable, A.; Videcoq, A. Role of electrostatic interactions in oil-in-water emulsions stabilized by heteroaggregation: An experimental and sim-ulation study. Langmuir 2018, 34, 15795–15803. [Google Scholar] [CrossRef]
- Hu, Z.; Ballinger, S.; Pelton, R.; Cranston, E.D. Surfactant-enhanced cellulose nanocrystal Pickering emulsions. J. Colloid Interface Sci. 2015, 439, 139–148. [Google Scholar] [CrossRef] [PubMed]
- Torlopov, M.A.; Martakov, I.S.; Mikhaylov, V.I.; Golubev, Y.A.; Sitnikov, P.A.; Udoratina, E.V. A Fenton-like system (Cu (II)/H2O2) for the preparation of cellulose nanocrystals with a slightly modified surface. Ind. Eng. Chem. 2019, 58, 20282–20290. [Google Scholar] [CrossRef]
- Capron, I.; Cathala, B. Surfactant-free high internal phase emulsions stabilized by cellulose nanocrystals. Biomacromolecules 2013, 14, 291–296. [Google Scholar] [CrossRef] [PubMed]
- Li, C.; Zhang, H.; Long, Y.; Ni, Y. Preparation of cellulose nanocrystals from asparagus (Asparagus officinalis L.) and their applications to palm oil/water Pickering emulsion. Carbohydr. Polym. 2016, 151, 1–8. [Google Scholar] [CrossRef]
- Chen, Q.; Liu, Q. Bitumen coating on oil sands clay minerals: A Review. Energy Fuels 2019, 33, 5933–5943. [Google Scholar] [CrossRef]
- Alves, D.R.; Carneiro, J.S.A.; Oliveira, I.F.; Façanha, F., Jr.; Santos, A.F.; Dariva, C.; Franceschi, E.; Fortune, M. Influence of the salinity on the interfacial properties of a Brazilian crude oil–brine systems. Fuel 2014, 118, 21–26. [Google Scholar] [CrossRef]
- Nour, A.H.; Yunus, R.M.; Anwaruddin, H. Water-in-crude oil emulsions: Its stabilization and demulsification. J. Appl. Sci. 2007, 7, 3512–3517. [Google Scholar] [CrossRef]
- Anaclet, P.; Depardieu, M.; Laurichesse, E.; Julien, V.; Hung, Y.; Schmitt, V.; Backov, R. Bitumen@ SiO2 core-shell particles green synthesis towards flowable powdered bitumen and their binder applications. Colloids Surf. A 2019, 570, 531–543. [Google Scholar] [CrossRef]
- Ortiz, D.P.; Baydak, E.N.; Yarranton, H.W. Effect of surfactants on interfacial films and stability of water-in-oil emulsions stabilized by asphaltenes. J. Colloid Interface Sci. 2010, 351, 542–555. [Google Scholar] [CrossRef] [PubMed]
- González, M.M.; Blanco-Tirado, C.C.; Combariza, M.Y. Nanocellulose as an inhibitor of water-in-crude oil emulsion formation. Fuel 2020, 264, 116830. [Google Scholar] [CrossRef]
- Löser, C.; Seidel, H.; Zehnsdorf, A.; Stottmeister, U. Microbial degradation of hydrocarbons in soil during aerobic/anaerobic changes and under purely aerobic conditions. Appl. Microbiol. Biotechnol. 1998, 49, 631–636. [Google Scholar] [CrossRef]
- Wu, M.; Dick, W.A.; Li, W.; Wang, X.; Yang, Q.; Wang, T.; Xu, L.; Zhang, M.; Chen, L. Bioaugmentation and biostimulation of hydrocarbon degradation and the microbial community in a petrole-um-contaminated soil. Int. Biodeterior. Biodegrad. 2016, 107, 158–164. [Google Scholar] [CrossRef]
- Beškoski, V.P.; Gojgić-Cvijović, G.; Milić, J.; Ilić, M.; Miletić, S.; Šolević, T.; Vrvić, M.M. Ex situ bioremediation of a soil contaminated by mazut (heavy residual fuel oil)—A field experiment. Chemosphere 2011, 83, 34–40. [Google Scholar] [CrossRef]
- Birch, H.; Hammershøj, R.; Comber, M.; Mayer, P. Biodegradation of hydrocarbon mixtures in surface waters at environmentally relevant levels–Effect of inoculum origin on kinetics and sequence of degradation. Chemosphere 2017, 184, 400–407. [Google Scholar] [CrossRef]
- Polyak, Y.M.; Bakina, L.G.; Chugunova, M.V.; Mayachkina, N.V.; Gerasimov, A.O.; Bure, V.M. Effect of remediation strategies on biological activity of oil-contaminated soil-A field study. Int. Biodeterior. Biodegrad. 2018, 126, 57–68. [Google Scholar] [CrossRef]
- Ahearn, D.G.; Meyers, S.P. The Microbial Degradation of Oil Pollutants: Workshop Held at Georgia State University, Atlanta, December, 1972; Ahearn, D.G., Meyers, S.P., Eds.; Center for Wetland Resources, Louisiana State University: Baton Rouge, LA, USA, 1973; Volume 73, No. 1. [Google Scholar]
- Parajuli, S.; Alazzam, O.; Wang, M.; Mota, L.C.; Adhikari, S.; Wicks, D.; Ureña-Benavides, E.E. Surface properties of cellulose nanocrystal stabilized crude oil emulsions and their effect on petroleum biodegradation. Colloids Surf. A 2020, 596, 124705. [Google Scholar] [CrossRef]
- Torlopov, M.A.; Mikhaylov, V.I.; Udoratina, E.V.; Aleshina, L.A.; Prusskii, A.I.; Tsvetkov, N.V.; Krivoshapkin, P.V. Cellulose nanocrystals with different length-to-diameter ratios extracted from various plants using novel system acetic acid/phosphotungstic acid/octanol-1. Cellulose 2018, 25, 1031–1046. [Google Scholar] [CrossRef]
- Ionescu, C.M.; Birs, I.R.; Copot, D.; Muresan, C.I.; Caponetto, R. Mathematical modelling with experimental validation of viscoelastic properties in non-Newtonian fluids. Phil. Trans. R. Soc. A 2020, 378, 20190284. [Google Scholar] [CrossRef]
- Abbastabar, B.; Azizi, M.H.; Adnani, A.; Abbasi, S. Determining and modeling rheological characteristics of quince seed gum. Food Hydrocol. 2015, 43, 259–264. [Google Scholar] [CrossRef]
- Ryazanov, M.A.; Dudkin, B.N. Acid-base properties of the surface of the α-Al2O3 suspension. Russ. J. Phys. Chem. A 2009, 83, 2318–2321. [Google Scholar] [CrossRef]
- Tarabukin, D.V.; Torlopov, M.A.; Shchemelinina, T.N.; Anchugova, E.M.; Shergina, N.N.; Istomina, E.I.; Belyy, V.A. Biosorbents based on esterified starch carrying immobilized oil-degrading microorganisms. J. Biotechnol. 2017, 260, 31–37. [Google Scholar] [CrossRef] [PubMed]
- Van der Vegte, E.W.; Hadziioannou, G. Acid− base properties and the chemical imaging of surface-bound functional groups studied with scanning force mi-croscopy. J. Phys. Chem. B 1997, 101, 9563–9569. [Google Scholar] [CrossRef]
- Fras, L.; Laine, J.; Stenius, P.; Stana-Kleinschek, K.; Ribitsch, V.; Doleček, V. Determination of dissociable groups in natural and regenerated cellulose fibers by different titration methods. J. Appl. Polym. Sci. 2004, 92, 3186–3195. [Google Scholar] [CrossRef]
- Thomas, B.; Raj, M.C.; Athira, B.K.; Rubiyah, H.M.; Joy, J.; Moores, A.; Drisko, G.L.; Sanchez, C. Nanocellulose, a versatile green platform: From biosources to materials and their applications. Chem. Rev. 2018, 118, 11575–11625. [Google Scholar] [CrossRef]
- Abitbol, T.; Kam, D.; Levi-Kalisman, Y.; Gray, D.G.; Shoseyov, O. Surface charge influence on the phase separation and viscosity of cellulose nanocrystals. Langmuir 2018, 34, 3925–3933. [Google Scholar] [CrossRef]
- Simon, S.; Theiler, S.; Knudsen, A.; Øye, G.; Sjöblom, J. Rheological properties of particle-stabilized emulsions. J. Dispers. Sci. Technol. 2010, 31, 632–640. [Google Scholar] [CrossRef]
- Frigaard, I.A.; Paso, K.G.; de Souza Mendes, P.R. Bingham’s model in the oil and gas industry. Rheol. Acta 2017, 56, 259–282. [Google Scholar] [CrossRef]
- Ariffin, T.S.T.; Yahya, E.; Husin, H. The Rheology of light crude oil and water-in-oil-emulsion. Procedia Eng. 2016, 148, 149–1155. [Google Scholar] [CrossRef]
- Ghasemi, R.; Fazlali, A.; Mohammadi, A.H. Effects of TiO2 nanoparticles and oleic acid surfactant on the rheological behavior of engine lubricant oil. J. Mol. Liq. 2018, 268, 925–930. [Google Scholar] [CrossRef]
- Mikhailov, V.I.; Torlopov, M.A.; Martakov, I.S.; Krivoshapkin, P.V. Stability of nanocrystalline cellulose in aqueous KCl solutions. Colloid. J. 2017, 79, 226–233. [Google Scholar] [CrossRef]
- Pal, R. A simple model for the viscosity of Pickering emulsions. Fluids 2018, 3, 2. [Google Scholar] [CrossRef]
- Elshafie, A.; AlKindi, A.Y.; Al-Busaidi, S.; Bakheit, C.; Albahry, S.N. Biodegradation of crude oil and n-alkanes by fungi isolated from Oman. Mar. Pollut. Bull. 2007, 54, 1692–1696. [Google Scholar] [CrossRef] [PubMed]
- Al-Hawash, A.B.; Alkooranee, J.T.; Abbood, H.A.; Zhang, J.; Sun, J.; Zhang, X.; Ma, F. Isolation and characterization of two crude oil-degrading fungi strains from Rumaila oil field, Iraq. Biotechnol. Rep. 2018, 17, 104–109. [Google Scholar] [CrossRef]
- Maddela, N.R.; Burgos, R.; Kadiyala, V.; Carrion, A.R.; Bangeppagari, M. Removal of petroleum hydrocarbons from crude oil in solid and slurry phase by mixed soil microorganisms isolated from Ecuadorian oil fields. Int. Biodeterior. Biodegrad. 2016, 108, 85–90. [Google Scholar] [CrossRef]
- You-Qing, L.I.; Hong-Fang, L.I.U.; Zhen-Le, T.; Li-Hua, Z.H.U.; Ying-Hui, W.U.; He-Qing, T. Diesel pollution biodegradation: Synergetic effect of Mycobacterium and filamentous fungi. Biomed. Environ. Sci. 2008, 21, 181–187. [Google Scholar] [CrossRef]
- Asemoloye, M.D.; Ahmad, R.; Jonathan, S.G. Synergistic action of rhizospheric fungi with Megathyrsus maximus root speeds up hydrocarbon degradation kinetics in oil polluted soil. Chemosphere 2017, 187, 1–10. [Google Scholar] [CrossRef]
- Czemierska, M.; Szcześ, A.; Pawlik, A.; Wiater, A.; Jarosz-Wilkołazka, A. Production and characterisation of exopolymer from Rhodococcus opacus. Biochem. Eng. J. 2016, 112, 1110–1116. [Google Scholar] [CrossRef]
- Jain, R.M.; Mody, K.; Mishra, A.; Jha, B. Physicochemical characterization of biosurfactant and its potential to remove oil from soil and cotton cloth. Carbohydr. Polym. 2012, 89, 143–152. [Google Scholar] [CrossRef]
Parameter | Value |
---|---|
Density at 20 °C (kg/m3) | 877.5 |
Water (wt.%) | 0.09 |
Mass concentrations of chloride salts (mg/dm3) | 22.1 |
Sulfur (wt.%) | 1.24 |
Mechanical impurities (wt.%) | 0.0092 |
Paraffin (wt.%) | 7.2 |
Resins (wt.%) | 15.66 |
Asphaltenes (wt.%) | 3.81 |
Crystallization temperature (°C) | +7 |
Mass fraction of organic chlorides (ppm) | <1 |
Mass fraction of hydrogen sulfide (ppm) | 9.7 |
Mass fraction of methyl-ethyl mercaptan (ppm) | 6.2 |

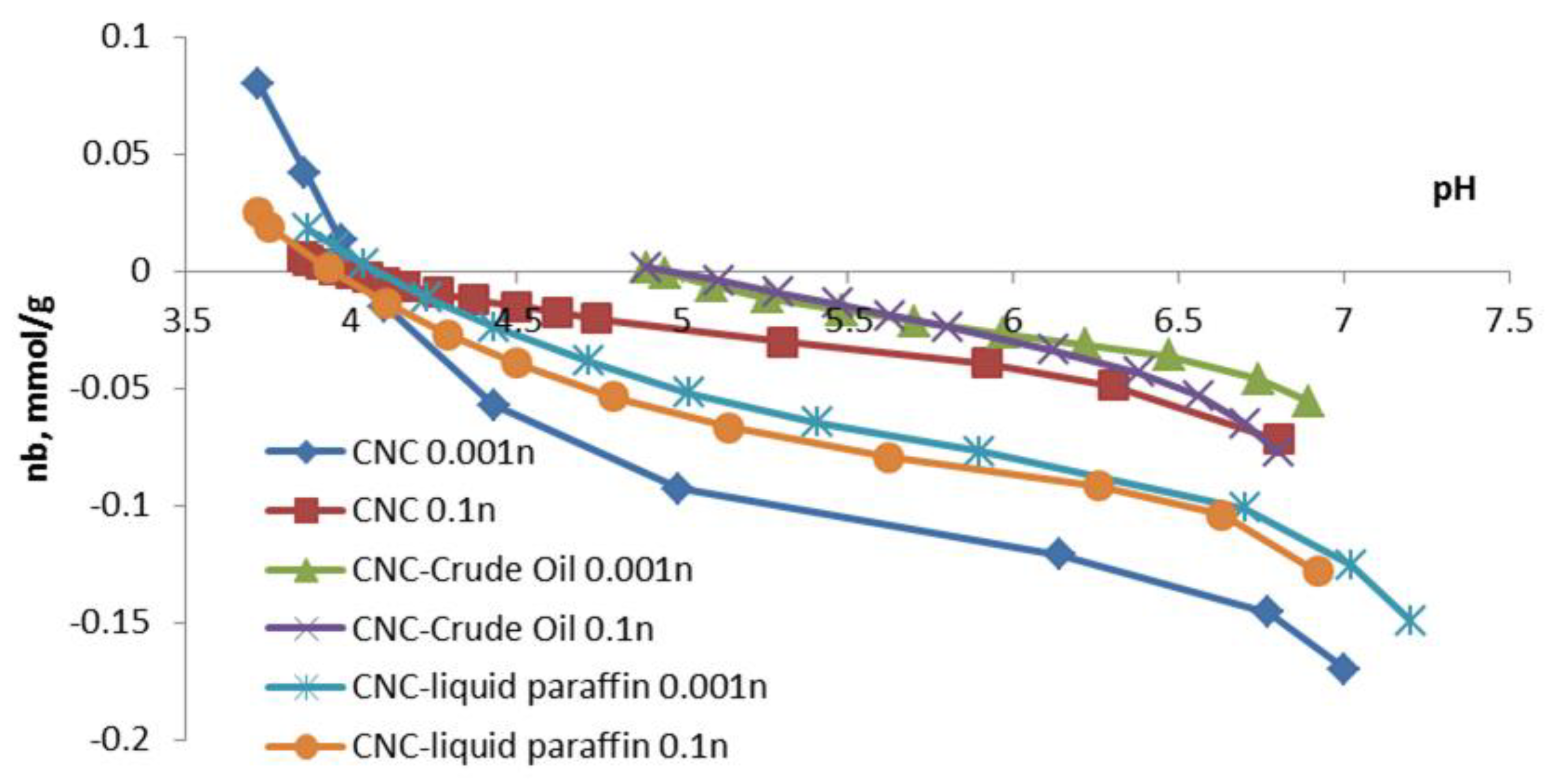

Sample | C (NaCl), M | pKi, Δ ± 0.15 | qi, mmol/g, Δ ± 0.005 | NS, pcs/nm2 Δ ± 0.003 |
---|---|---|---|---|
CNC | 0.001 | pKCOOH = 3.95 | qCOOH = 0.245 | 0.354 |
pKOH = 6.35 | qOH = 0.035 | 0.051 | ||
0.1 | pKCOOH = 3.95 | qCOOH = 0.060 | 0.087 | |
pKOH = 6.50 | qOH = 0.030 | 0.043 | ||
CNC–liquid paraffin | 0.001 | pKCOOH = 4.85 | qCOOH = 0.095 | 0.137 |
pKOH = 6.50 | qOH = 0.030 | 0.043 | ||
0.1 | pKCOOH = 4.85 | qCOOH = 0.105 | 0.152 | |
pKOH = 6.50 | qOH = 0.035 | 0.051 | ||
CNC–crude oil | 0.001 | pKCOOH = 5.60 | qCOOH = 0.057 | 0.082 |
pKOH = 6.65 | qOH = 0.032 | 0.046 | ||
0.1 | pKCOOH = 5.60 | qCOOH = 0.053 | 0.077 | |
pKOH = 6.55 | qOH = 0.045 | 0.065 |

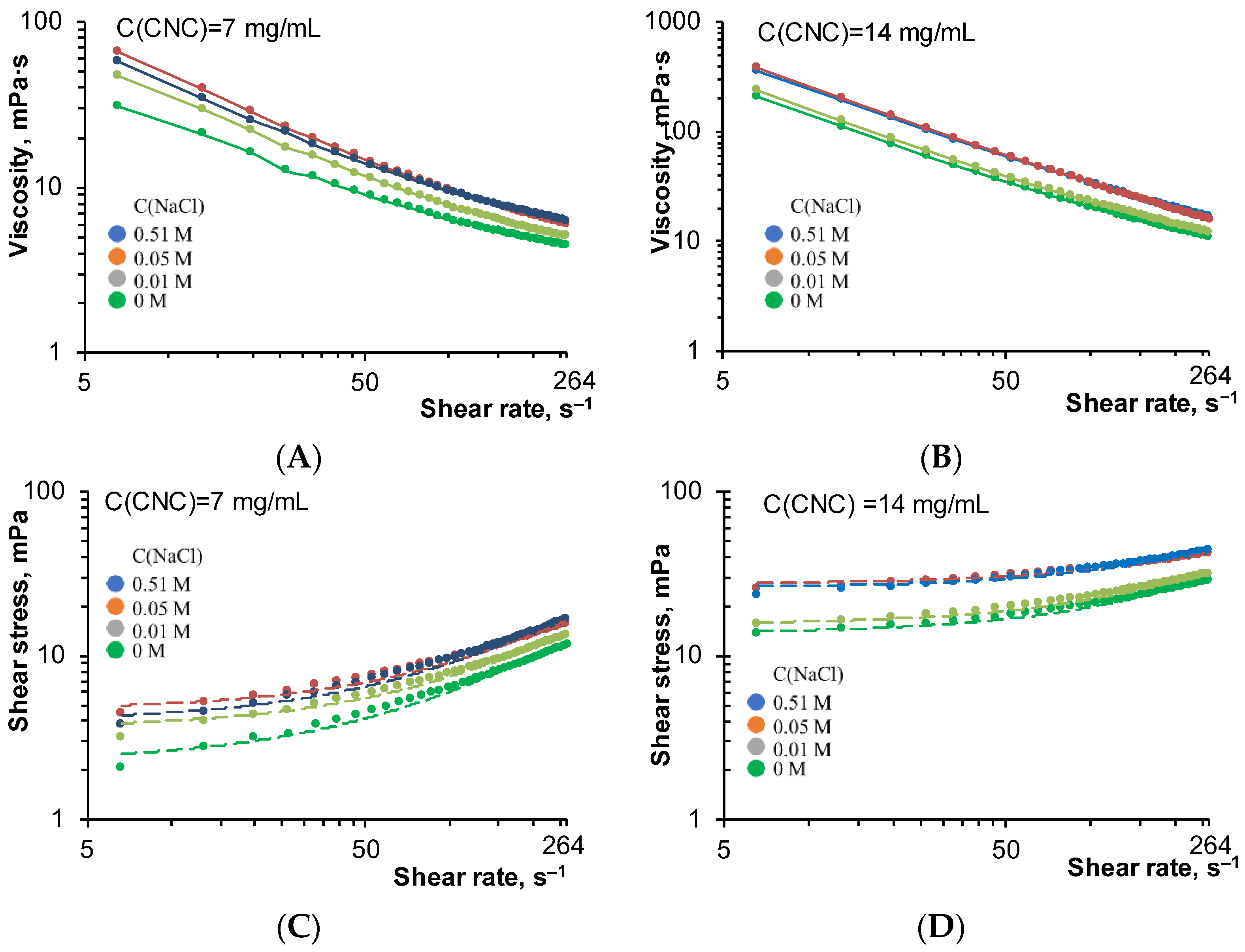

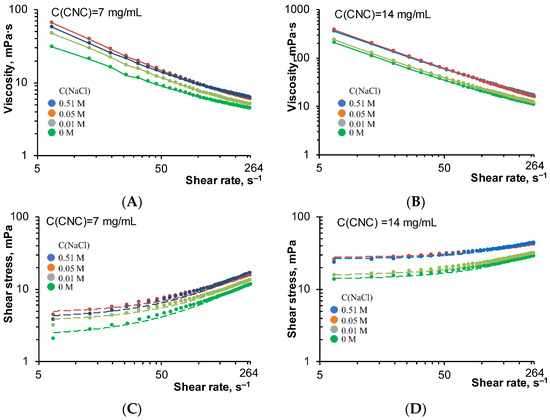

CNC, mg/mL | C(NaCl), M | Bingham Law | Power Law | ||||||
---|---|---|---|---|---|---|---|---|---|
τ0, mPa | μp, mPa·s | r2 | (50 s−1) | K | n | (50 s−1) | r2 | ||
7 | 0 | 2.267 | 0.038 | 0.987 | 0.082 | 0.697 | 0.493 | 0.096 | 0.985 |
0.01 | 3.625 | 0.038 | 0.991 | 0.111 | 1.220 | 0.413 | 0.123 | 0.978 | |
0.05 | 4.002 | 0.050 | 0.987 | 0.130 | 1.378 | 0.432 | 0.149 | 0.978 | |
0.51 | 4.686 | 0.044 | 0.983 | 0.138 | 1.827 | 0.373 | 0.152 | 0.974 | |
14 | 0 | 13.797 | 0.061 | 0.980 | 0.337 | 7.527 | 0.229 | 0.369 | 0.948 |
0.01 | 15.581 | 0.065 | 0.978 | 0.377 | 8.719 | 0.220 | 0.412 | 0.945 | |
0.05 | 26.145 | 0.070 | 0.978 | 0.593 | 15.152 | 0.181 | 0.615 | 0.963 | |
0.51 | 27.660 | 0.058 | 0.977 | 0.612 | 17.595 | 0.150 | 0.633 | 0.960 |

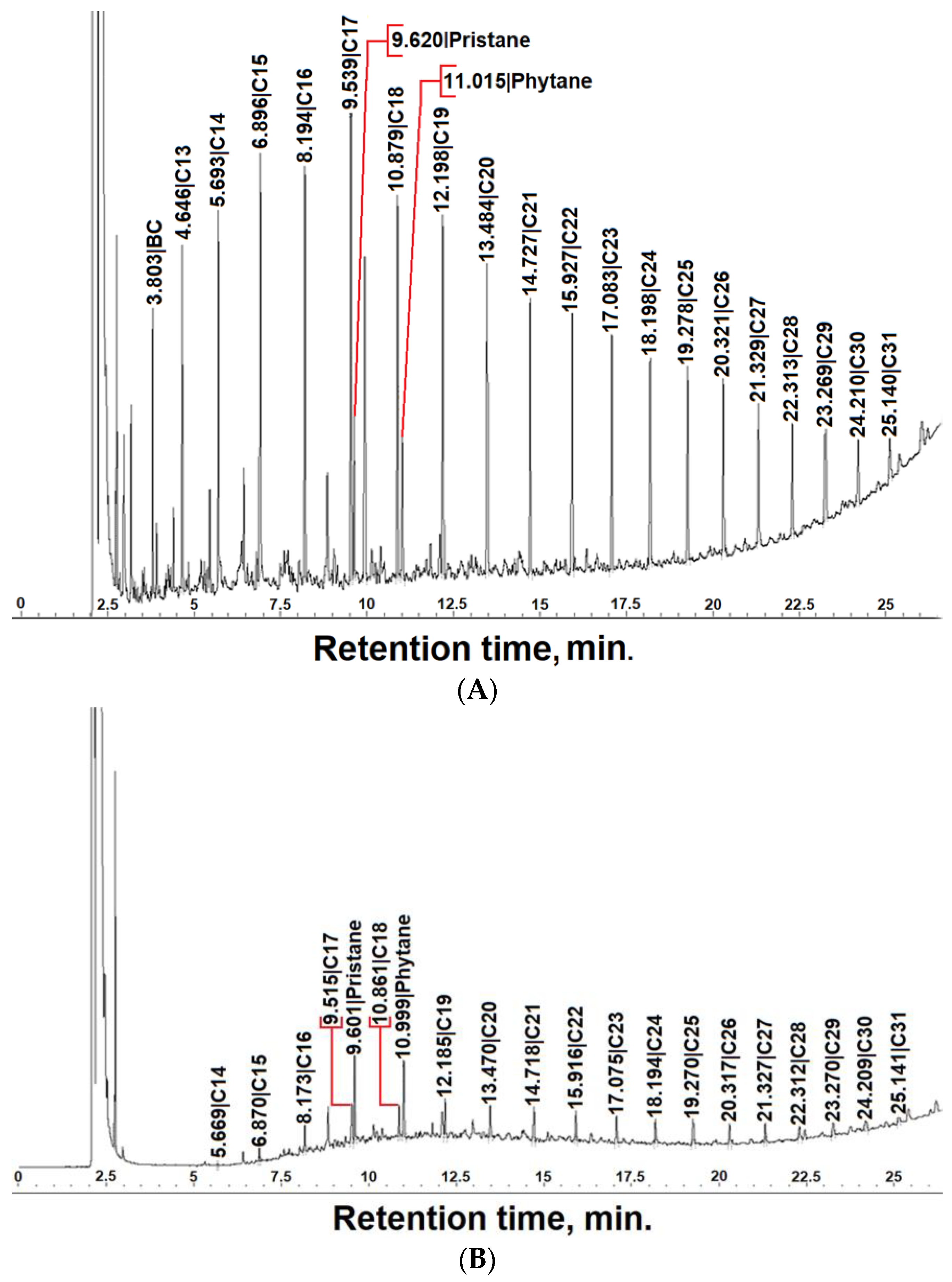

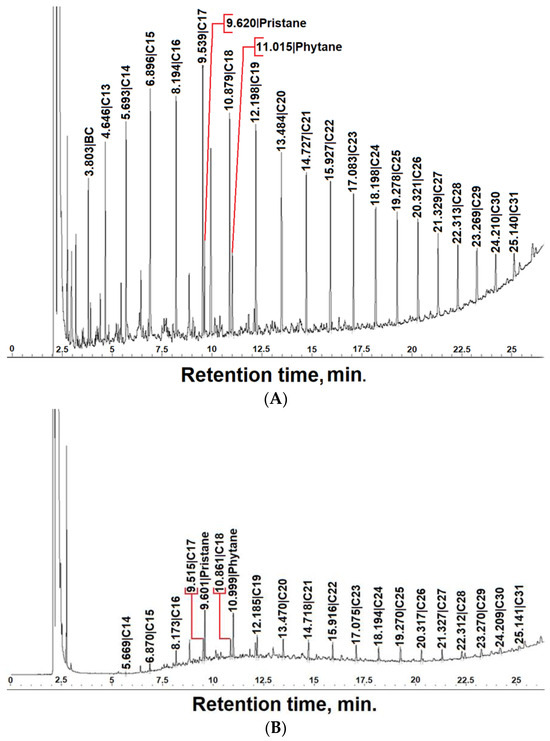

Description | Control, Crude Oil | Rhodococcus egui | Emulsion | Rhodococcus egui and Emulsion |
---|---|---|---|---|
Residual content of mineral oils, % | 97 ± 20 | 72 ± 16 | 74 ± 17 | 31 ± 8 |
