Visualization of Effectiveness: The Use of a Set of Colored Cleaning Wipes for Visible Disinfection of Ultrasound Probes

Abstract

The German health authorities’ guidelines for medical devices in 2012 highlighted the importance of cleaning ultrasound probes, emphasizing their validation and reliability. In addition to automated and validated options, alternative manual methods such as wipe disinfection have gained traction due to their independence from additional hardware. The study examines the effectiveness of a manual cleaning process using wipes, addressing concerns raised by the Robert Koch Institute regarding the lack of validation for wipe disinfection of semi-critical devices. The EQUINOS colored wipe disinfection kit identified wetting gaps in all cleanings across four probes tested. The results indicate significant challenges in ensuring complete surface wetting, particularly in complex device parts such as clip-on areas and fixtures for additional biopsy attachments, suggesting that manual methods alone may not adequately mitigate the risk of infection transmission (p value < 0.0001). The study concludes that while manual disinfection methods are a commonly used alternative to automated reprocessing, there is a critical need for enhanced training and potentially the development of more effective manual disinfection techniques or colored wipes to ensure patient safety and compliance with healthcare hygiene standards.

1. Introduction

In 2012, the German commission for hospital hygiene and infection prevention (German abbreviation KRINKO) and the federal institute for drugs and medical devices (German abbreviation BfArM) published guidelines on the cleaning of medical devices, including ultrasound (US) probes [1]. Over recent years, automated reprocessing has become more and more popular due to the comprehensive validation capabilities of the entire process [1,2]. However, other alternatives for cleaning US probes have been established as well, which do not require the expensive purchase of separate hardware: immersion disinfection and wipe disinfection. The Robert Koch Institute’s (RKI) Epidemiological Bulletin No. 44/2021 highlights the lack of validation of final disinfection of semi-critical medical devices through wipe disinfection, especially for US probes with mucosal contact [3]. Similar controversial and inconsistent aspects of some disinfection guidelines are also discussed in the context of endoscopes and flexible bronchoscopes in the past [4,5].

The use of high-level disinfection wipes with alcohol or chlorine dioxide for surface disinfection of non-critical and semi-critical medical devices like US probes is an essential component of infection control in healthcare settings worldwide [6]. Chlorine dioxide has many advantages as a disinfectant and has the potential to effectively reduce the risk of infection transmission from contaminated US probes and endoscopes [7,8]. Disposable chlorine dioxide wipes provide high-level disinfection in laboratory and clinical settings. They offer a rapid, safe, and cost-effective method for disinfecting semi-critical devices such as endoscopes or US probes [9]. Studies have shown that pH changes can affect chlorine-containing disinfectants, highlighting the importance of optimizing disinfectant properties for maximum efficacy, and this may be relevant to chlorine dioxide wipes as well [10].

Systematic reviews have shown that certain disinfectants, such as chlorhexidine and chlorine dioxide, are effective in reducing bacterial contamination during stethoscope disinfection. This suggests that these disinfectants may also be effective for US probe disinfection [11]. The use of high-level disinfection wipes with chlorine dioxide for surface disinfection of semi-critical US probes is an effective strategy for minimizing the risk of infection transmission. The evidence supports the potential of these wipes to offer a feasible disinfection solution in healthcare settings, thereby enhancing patient safety and infection control practices.

Among other wipes for disinfection, the Tristel Trio Wipes System (Tristel, Cambridgeshire, United Kingdom) is described as meeting the stringent validation requirements for the reprocessing of semi-critical medical devices, including compliance with manufacturer’s specifications and the easy use of several steps to ensure safety and traceability [8,12]. However, there is a notable omission in the discussion. Specifically, there is a lack of detailed analysis concerning the system’s ability to provide consistent wetting across all surfaces during the application process. This detail is critical, as uneven wetting can lead to areas of insufficient disinfection, potentially compromising the safety and efficacy of the reprocessing. To fully meet the criteria of being suitable, validated, and safe, it is essential that there is clear empirical evidence of the system’s ability to maintain consistent wetting, thereby ensuring uniform disinfection and compliance with the highest standards of hygiene. Without this evidence, there remains a gap in the validation process, calling into question the system’s overall reliability in meeting the stated hygiene requirements.

US probes utilized in semi-critical applications, such as, for example, endocavitary probes, necessitate meticulous reprocessing post-use to mitigate the risk of cross-contamination and infections [13]. However, in the case of ultrasound-guided puncture or biopsy, for example of the breast, or—as it is common in nuclear medicine—screening and treatment of thyroid nodules suspected of being malignant, hygienic reprocessing also plays a key role [6,14]. Immediately following patient examination, probes should be cleansed of any visible contaminants using a manufacturer-recommended wipe suitable for the purpose. Users can identify faulty applications or cleaning gaps only if they are made aware through visible means of existing wetting gaps during the training process, as demonstrated in a previous study on hand hygiene training [15]. Subsequently, a high-efficacy disinfection process is imperative. This often involves achieving a sporicidal effect, which can be accomplished through wipe disinfection or with the aid of automated disinfection systems, such as a trophon device. The probes must be handled in accordance with the manufacturer’s guidelines and prevailing infection control standards, paying close attention to the contact time of the disinfectant and its compatibility with the probe material. Following disinfection, it is crucial to dry the probe and store it in a clean and dry environment to prevent recontamination. Documentation of the entire reprocessing procedure is vital to ensure traceability and adherence to hygiene regulations.

In fact, it is necessary to understand where problem areas for manually wipe disinfection exist, which this work tried to investigate. Within the study, the thoroughness of the cleaning process using wipes was visualized using a EQUINOS colored wipe disinfection kit.

2. Materials and Methods

2.1. Participants

Two participants were chosen for the study, each with a period of experience between two and five years using Tristel Trio Wipes to clean US probes after guided biopsy procedures. They proved to be highly proficient and compliant with the stringent disinfection protocols required in medical facilities. According to the manufacturers of disinfectant wipes, their knowledge not only ensures a high level of hygiene and patient safety, but also ensures that the decontamination process is rationalized and the turnaround time between procedures is shortened. They know the importance of chronological use of the wipes, including cleaning, high-level disinfection, and rinsing. Participants also had knowledge of the importance of following manufacturer and hospital guidelines to maintain equipment integrity and ensure patient safety, as evidenced by a detailed, paper-based protocol booklet for all applications. The results of each color application were not shown to the participants.

2.2. Probes

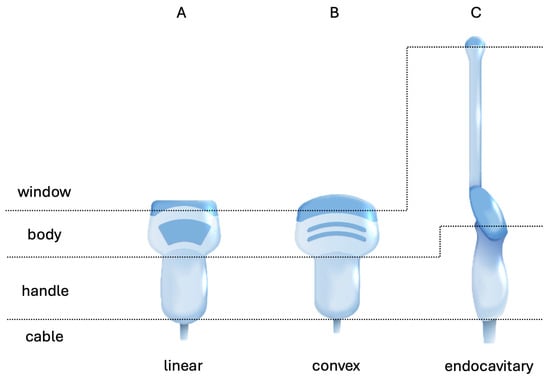

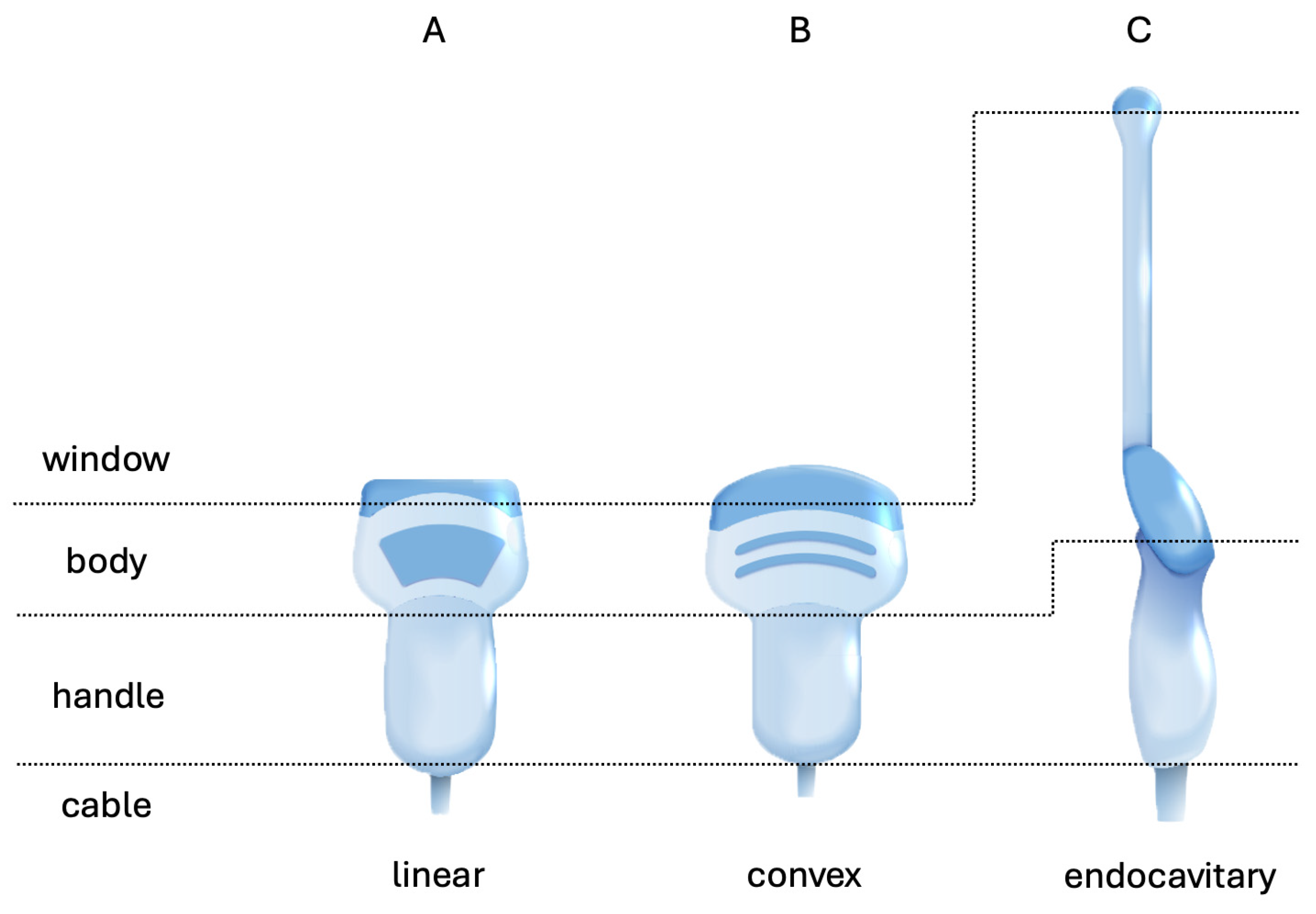

US probes are mostly composed of a window area, a body, a handle, and a cable (Figure 1). The cable extends from the handle to a plug that connects to the US device. Particularly in linear and convex probes, depending on the procedure, even if only the window area has direct contact with the patient’s skin during routine work, all parts of the probe may come into contact with the patient. When using endocavitary probes for gynaecological purposes, there is always contact between the mucous membranes and the window area and probe body.

Most ultrasonic probes have an orientation marker (indicator) on the side of the window or the body, which allows the user to quickly locate the left side of the image on the monitor for all standard applications. Depending on the model and manufacturer, the clip for the reusable bracket and the disposable snap-on are located on the opposite side (if applicable).

Four probes of three different types were used in this study. These probes play different but complementary roles in diagnostic US imaging and fulfil different clinical requirements for medical specialties. They were selected for this series of tests as decommissioned devices that were no longer used on patients. Two linear probes were chosen, the VF10-5 (Siemens Healthineers AG, Forchheim, Germany) and the X6-16L (Vinno Technology Co., Suzhou, Jiangsu, China), which are primarily utilized for high-resolution imaging of superficial structures and small parts of the body, such as the thyroid, and can be used with additional brackets for image guided biopsy, for example, of thyroid nodules (see Figure 1A) [16]. One convex probe was selected, the CH5-2 probe (Siemens Healthineers AG, Forchheim, Germany) designed for abdominal imaging (see Figure 1B). This probe also has attachment points for customizable multi-purpose needle-guided systems. Its curved shape allows deeper penetration into the body, making it suitable for visualizing organs like the liver, with special fusion imaging possibilities for the kidneys [17]. Finally, one endocavitary probe was considered, the E8CS (GE Healthcare, Waukesha, WI, USA) for abdominal or even gynaecological applications. The E8CS also has attachment grooves for sterilizable reusable biopsy needle guide clips for transrectal and transvaginal procedures with different types of needles.

2.3. Wipes

The instrument disinfection system (EQUINOS, Heyfair GmbH, Jena, Germany) is a novel manual instrument reprocessing kit for US probes and other non-critical or semi-critical medical devices. It facilitates indicators to validate complete and effective cleaning and disinfection. The kit includes two individually packed wipes (20 × 20 cm). The first wipe is used to clean the surface. It is embedded with a blue dye, which reveals the extent of wetted areas on the US head. The underlying theory is that once all surfaces and areas have been colored, the surface has been cleaned, thus removing coarse dirt and stains. The second wipe is a disinfection wipe of the same dimensions, which contains in situ-generated chlorine dioxide. The decolorization generates a validated process when the entire probe is completely cleaned and covered with the dye as a result of the first step.

2.4. Study Cleaning Procedure

For the sake of this study, both steps were performed while wearing blue filter glasses, which blinded the participants to the color and therefore obstructed the immediate visibility of wetting gaps. This study setting provided a scenario comparable to common, uncolored wipes.

The participants were instructed to wear blue filter glasses before putting on gloves. In the initial stage, the study assistant distributed the first pack of blue dye wipes. The blue dye wipe was applied by the user without any time limit until they declared the pre-cleaning process complete. The study assistant documented all four sides of the US probe by taking pictures of the front, back, left, and right sides. Meanwhile, the participants continued to wear the blue filter goggles. This study did not document or analyze the second step, which involved using another pack containing a chlorine dioxide wipe for disinfection. This step was necessary to completely remove the dye film from the US probe.

2.5. Statistics

The Fisher exact test was performed to statistically analyze the data. The hypothesis posited that probe sides featuring attachment grooves would be less effectively disinfected compared with smooth surfaces. To implement the Fisher exact test, the data were organized into a contingency table where the columns represented aggregated counts for back and front versus left and right sides of the probes, reflecting grouped comparisons of probe orientations. The rows were categorized into procedures with wetting gaps and without wetting gaps, indicating the presence or absence of moisture retention spaces that could impact disinfection efficacy. The analysis was conducted with a significance level set at 0.05.

3. Results

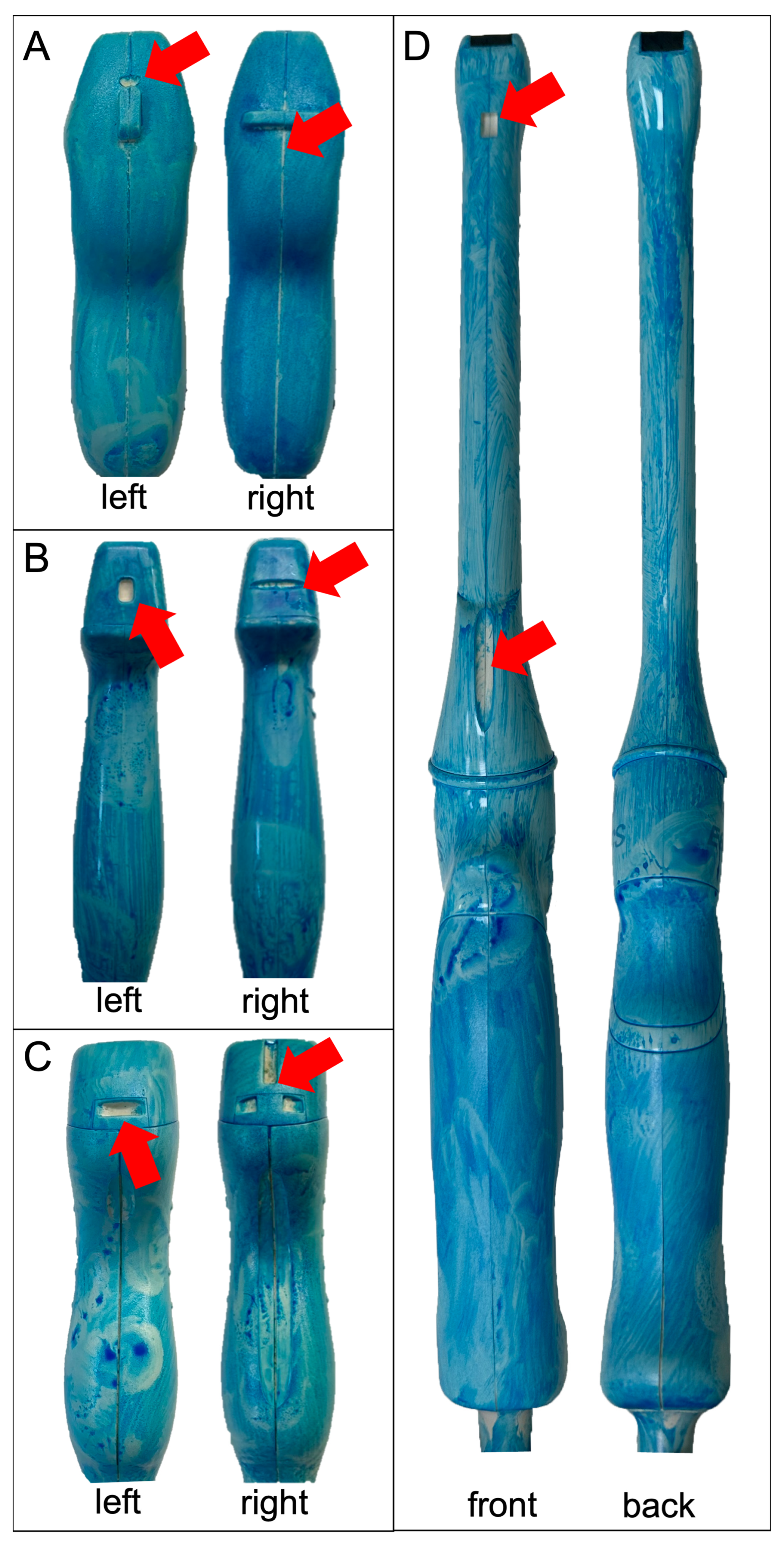

All measurements and implementations were technically successful (Figure 2). Through photo documentation, it was possible to conduct a retrospective examination of all wetting gaps. This allowed relative and qualitative analysis, revealing areas that were not fully covered by cleaning. The visual evidence provided by the photographs served as a critical tool in assessing the thoroughness of the steps of the disinfection process, highlighting the effectiveness of using EQUINOS wipes for identifying and addressing incomplete disinfection of US probes.

In all procedures, regardless of the type of US probe, the attachment grooves and clip-on areas were not sufficiently stained blue. This indicates that they had not been disinfected in the second step in a verifiable or valid manner.

4. Discussion

The use of disinfectant wipes on US probes, particularly in the context of wetting gaps at the junctions with snap-lock brackets for needle-guided biopsy, necessitates a thorough examination of the effectiveness of disinfection methods and the challenges arising from the complexity of device shapes. As shown in Figure 2 and

Table 1. Distribution of applications on each probe side with wetting gaps or not (regardless of the absolute area size of the wetting gaps).

Probe	Typ	Part	Front Side *	Back Side *	Left *	Right *	p Value
VF10-5	linear	window	0/25 (0%)	1/24 (4%)	1/24 (4%)	0/25 (0%)	1
		body	0/25 (0%)	1/24 (4%)	25/0 (100%)	22/3 (88%)	<0.0001
		handle	1/24 (4%)	0/25 (0%)	2/23 (8%)	1/24 (4%)	0.6173
X6-16L	linear	window	0/25 (0%)	0/25 (0%)	1/24 (4%)	1/24 (4%)	0.4949
		body	0/25 (0%)	1/24 (4%)	25/0 (100%)	20/5 (80%)	<0.0001
		handle	0/25 (0%)	1/24 (4%)	1/24 (4%)	2/23 (8%)	0.6173
CH5-2	convex	window	1/24 (4%)	0/25 (0%)	1/24 (4%)	1/24 (4%)	1
		body	2/23 (8%)	2/23 (8%)	25/0 (100%)	25/0 (100%)	<0.0001
		handle	1/24 (4%)	2/23 (8%)	1/24 (4%)	1/24 (4%)	1
E8CS	endocavitary	window	0/25 (0%)	0/25 (0%)	1/24 (4%)	1/24 (4%)	0.4949
		body	25/0 (100%)	0/25 (0%)	0/25 (0%)	0/25 (0%)	<0.0001
		handle	2/23 (8%)	1/24 (4%)	1/24 (4%)	1/24 (4%)	1

* no. with wetting gaps/no. without wetting gaps (%).

, the areas inside the attachment grooves in most cases (80–100% of the applications) had not been colored blue and therefore had not been properly cleaned. For the VF10-5, X6-16L, and CH5-2, the attachment grooves were located on the left and right sides, for the E8CS only on the front side. It can be assumed that the chlorine dioxide wipe (in the second, undocumented step) could not achieve sufficient disinfection in this area (p value < 0.0001).

Former studies, such as that by Rutala et al., have already shown that especially in US examinations, biopsy holders must be removed during cleaning in order to achieve a sufficient reduction in bacterial load [18]. The results of this work showed that, even without brackets attached, the areas around the clip were difficult to completely wet, i.e., clean, with wipes using standard disinfection processes. Figure 2 shows that for one model, it was also difficult to achieve complete wetting of the seam between the two halves of the housing (Figure 2A right).

Manual disinfection methods are considered difficult to validate objectively. Although Tristel Trio Wipes, as one commercially available product, promise that complete cleaning with wipe disinfection can be validated at moderate cost, the initial test results in this work indicate that this is not fully possible for the user without dye. Only when the wipe disinfectant contacts all areas is it possible to eliminate bacterial contamination and pathogenic germs completely. A study by other authors compared manual disinfection methods with UV-C light. Both techniques effectively eliminated pathogenic germs, including Enterococcus faecalis and Klebsiella pneumoniae. However, manual disinfection with disinfectant wipes showed a higher contamination rate in terms of all bacteria, indicating the limits of manual disinfection on complex surface structures and highly curved housing shapes [19].

The persistence of microbial contamination on covered transvaginal US probes despite low-level disinfection procedures highlights the need for a thorough re-evaluation of disinfection methods. One study demonstrated that significant microbial persistence was observed on disinfected probes despite the use of wipes impregnated with a quaternary ammonium compound and chlorhexidine [20].

These findings suggest that the application of disinfectant wipes on US probes, particularly those with complex shapes and hard-to-reach areas such as snap-lock junctions, may not be sufficient to ensure complete cleaning, limiting the possibility of their disinfection. Research emphasizes the importance of carefully selecting disinfection procedures and considering potentially complementary methods to effectively reduce microbial contamination and minimize the risk of cross-contamination.

This study included some limitations and potential biases. Only a small group of experienced users of wipe disinfection of older ultrasound probes were included in the study. The cleaning applications were conducted over a relatively short period of time, and users were not provided with feedback on their performance. A longer duration of the cleaning process could have reduced the potential for bias.

The use of colored wipes underscores the RKI’s statement in 2020 indicating that the validity of normal wipe disinfection of semi-critical medical devices is uncertain [3]. Further investigation with a larger sample of US probes and simultaneous determination of the absolute and relative non-wetted surface areas is required. The investigation should be performed by users with varying levels of experience, in order to identify probe-specific problem areas. It is important to quantitatively evaluate the learning effect after understanding these problem areas. Furthermore, a comprehensive assessment of both steps, cleaning with colored wipes and disinfection with chlorine dioxide, should be taken into account in a broader investigation.

5. Conclusions

This work showed that experienced users of manual wipe disinfection did not achieve complete surface wetting. Colored wipes almost perfectly wetted larger and smooth surfaces during wipe disinfection. However, in all applications, clip-on areas and attachment grooves for clamps/holders for biopsy aids were not completely covered with the dye. The results indicate that the concept of colorless wipe disinfection should be revised. Otherwise, immersion disinfection or mist droplet disinfection appear to be more effective methods of ensuring surface wetting. This should be analyzed in further studies.
