Communication

Nickel–Iron-Layered Double Hydroxide Electrocatalyst with Nanosheets Array for High Performance of Water Splitting

by
Zhi Lu
1,2,*,
Shilin Li
1,2,
Laiyuan Ning
3,
Kun Tang
1,2,
Yifan Guo
1,2,
Long You
1,
Chong Chen
1 and
Guangxin Wang
1,2,*
1
School of Materials Science and Engineering, Henan University of Science and Technology, Luoyang 471003, China
2
Henan Engineering Research Center for High Purity Materials and Sputtering Targets, Luoyang 471003, China
3
School of Material Science and Engineering, Zhengzhou University, Zhengzhou 450001, China
*
Authors to whom correspondence should be addressed.
Molecules 2024, 29(9), 2092; https://doi.org/10.3390/molecules29092092
Submission received: 31 December 2023 / Revised: 20 January 2024 / Accepted: 23 January 2024 / Published: 1 May 2024
(This article belongs to the Special Issue Current Development Prospects of Electrocatalysis Today)
Browse Figures
Versions Notes

Abstract

:
Developing high-performance and cost-competitive electrocatalysts have great significance for the massive commercial production of water-splitting hydrogen. Ni-based electrocatalysts display tremendous potential for electrocatalytic water splitting. Herein, we synthesize a novel NiFe-layered double hydroxide (LDH) electrocatalyst in nanosheets array on high-purity Ni foam. By adjusting the Ni/Fe ratio, the microstructure, and even the behavior of the electrocatalyst in the oxygen evolution reaction (OER), changes significantly. The as-obtained material shows a small overpotential of 223 mV at 10 mAcm−2 as well as a low Tafel slope of 48.9 mV·dec−1 in the 1 M KOH electrolyte. In addition, it can deliver good stability for at least 24 h of continuous working at 10 mAcm−2. This work proposes a strategy for engineering catalysts and provides a method for the development of other Ni-based catalysts with excellent performance.

1. Introduction

With the advantage of a high heat value and convenience for both use and transport, H2 energy has been known as an environmentally friendly and splendid energy carrier, and a promising energy source to replace fossil fuels [1]. Separation of H2 from the air is uneconomical because its proportion in the air is too low, so most of the H2 used in the industry comes from the dissociation of fossil fuels. This causes not only an enormous waste of resources, but also environmental pollution and enormous greenhouse gas emissions [2]. Meanwhile, the global demand for hydrogen has risen from 59 million tons in 2000 to 74 million tons in 2010 and then to 88 million tons in 2020. It is predicted that the demand will rise to 211 million tons in 2030 and 528 million tons in 2050. Before 2020, hydrogen was mainly used in industrial processes. In future, it will be widely used in transport, NH3 fuel, synfuels, buildings, etc. It is estimated that the hydrogen-related industrial chain will bring about USD 7–8 trillion worth of investments by 2050 and create USD 3 trillion worth of revenues [3].
Among the approaches to produce H2, water splitting is the most sustainable and environmentally friendly means [4,5,6]. As the devices for water electrolysis are simple and easy to control, its industrialization is potential and profitable. Water splitting involves the HER and the OER, in which the OER is always a restricted process, so it is a key factor in water electrolysis [7,8]. To improve the efficiency of water splitting, many technologies have been developed to reduce the OER overpotential [9,10,11]. Nowadays, some precious metal-based electrocatalysts, for example, Pt-based and Ir-based electrocatalysts, seem most effective in HERs and OERs, which may be due to their electronic orbit structure, which can decrease the overpotential and increase the rate of electrolysis reaction significantly [12,13]. But the small reserve and costs hindered their wide application.
Recently, many efforts were put into developing low-cost metal-based electrocatalysts. Among them, transition metal-layered double hydroxides (LDHs) have showed exceptional catalytic behavior and stability when used in water splitting [14,15,16]. LDHs are easy to operate and provide sufficient surface active sites through an intermediate when undergoing polarization during the reaction [17,18,19]. This attributes to their unique microstructure and is a benefit to their efficiency of water splitting. There is plenty of research about LDHs, for example, the Ni–Al-based LDH [20,21], Ni–Co-based LDH [22,23], Co–Zn-based LDH [15,24], etc. For example, Feng et al. synthesized a nano-porous NiAl-LDH based on nickel foam via the hydrothermal process [20]. The unique microstructure endowed the material with an optimized electron orbit structure and sufficient active sites, which would contribute to the electricity and mass conductivity and mass transportation. The Ni-Al-based LDH showed an excellent property in water splitting. Zhang et al. reported a ZnFe-LDH OER cocatalyst that integrated with anatase and rutile TiO2 via the photoassisted electrodeposition method [25]. By virtue of coordination, O vacancies were introduced into the composite electrode and contributed to the further regulation of isolation and transfer of the charge carriers, which could improve the separation efficiency of the carriers. The existence of the ZnFe-LDH can ensure the accelerated kinetics of the water oxidation reaction in the electrode surface. Then, an excellent catalytic activity in water splitting would be obtained. Wang et al. prepared a MnFeCoNiCu LDH via the hydrothermal method and decorated it with Au atoms and O vacancies through electrochemical deposition [26]. It was found that the decoration of single atoms contribute to upshifting O atom orbits and weakening the metal–O bonds, which would be conducive to activate and redox the related lattice oxygen. Then, the multielement LDH showed excellent OER activity and stability. The OER behavior depends on the unique property of the as-prepared composite, as well as its connection to the morphology [27,28]. The nanostructure catalysts possess quite a stable structure and high surface area to provide sufficient active sites; a favorable electron and mass transfer capacity will be presented to them, thereby allowing a considerable enhanced electrocatalytic performance to be achieved [29,30].
Herein, we report a series of NiFe-LDH nanosheets array on high-purity nickel foam by a one-step hydrothermal process. Hydrothermal processes are inexpensive and benefit regulation of the microstructure and further affect the material performance. The microstructure of the composite can be adjusted through adjusting the Ni/Fe ratio. The nanosheets array can provide sufficient active sites during the hydrolysis reaction. Excellent OER performance and stability have been obtained. This work proposes a strategy for engineering catalysts and provides inspiration for the development of other Ni-based catalysts with excellent performance.

2. Results and Discussion

2.1. Characterization of the Electrocatalyst

Through hydrothermal processes, the Ni–Fe-based LDH nanosheets grew on the NF substrate. Comparing the SEM images of the NF surfaces before and after preparation shows that the NF obviously becomes rough, as shown in Figure 1, which are the samples on the NF surface. The “treated NF” in Figure 1 means the new Ni foam was cleaned by HCl solution, ethanol and ultrapure water.
To further explore the influence of synthesis, low magnification morphologies, high magnification morphologies and XRD of the Ni–Fe-based LDH have been carried out. As shown in Figure 2, the as-prepared electrocatalysts show a morphology of nanosheets. But the microstructure of the electrocatalysts have a significant difference from the others. Figure 3 is the high magnification morphologies of the as-prepared electrocatalyst. As can be seen, when the molar ratio of Ni:Fe was 1:1, the microstructure of the Ni–Fe LDH showed thick nanosheets and the nanosheets were distributed densely. When the molar ratio was 1:2, it seemed that the nanosheets became thick and the nanosheets were still distributed very densely, which may be no good for the catalytic performance. If the Fe element was increased continually, significant changes would be observed. When the molar ratio was adjusted to 1:3 and 1:4, the nanosheets became thinner obviously. The number of pores between the nanosheets increased greatly, which is good for the catalytic performance. The average length and average thickness of the nanosheets can be measured easily.
Table 1 is the parameters of the specimens in Figure 3. In the table, “Length” is the average value of the length of the nanosheets; “Thickness” is the average value of the thickness of the nanosheets, “Ratio of L/T” is the ratio of “Length” to “Thickness”. As shown in Table 1, the lengths of NiFe-LDH/NF, NiFe2-LDH/NF, NiFe3-LDH/NF and NiFe4-LDH/NF are 0.72 μm, 1.083 μm, 0.934 μm and 0.846 μm, respectively. The thickness values of NiFe-LDH/NF, NiFe2-LDH/NF, NiFe3-LDH/NF and NiFe4-LDH/NF are 84 nm, 107 nm, 69 nm and 73 nm, respectively. Through calculation, it is found that the Ratio of L/T values of NiFe-LDH/NF, NiFe2-LDH/NF, NiFe3-LDH/NF and NiFe4-LDH/NF are 8.57, 10.12, 13.54, and 11.59.
Parameters such as the thickness of the nanostructure may be affected by the ratio of metal cation in the metal-based LDHs, thereby affecting the performance of the electrocatalyst [31]. Combining the microstructure morphologies and parameters above, it can be concluded that with the increasing Fe element, the ratio of length/thickness increases and then decreases. To obtain a larger total surface area, the molar ratio of Ni:Fe should be kept as 1:3, which may contribute to increasing the active sites and promoting OERs.
Figure 4 is an X-ray diffraction of the Ni–Fe-based LDH that excludes the effect of the Ni foam substrate. As shown, the diffraction peaks at 11.8°, 23.8°, 34.7°, and 39.3° correspond to the planes (003), (006), (012), and (015) of Fe2Ni2(CO3)(OH)8·2H2O (JCPDF, No. 49-0188) and Ni5.64Fe2.36(OH)16(CO3)1.18·7.52H2O (JCPDF, No. 51-0463). The diffraction peaks at 35.7°, 37.3°, and 56.3° correspond to the planes (311), (222), and (511) of NiFe2O4 (JCPDF, No. 10-0325). It indicates that the Ni–Fe-based LDH electrocatalyst with nanosheets array has been synthesized on the high-purity Ni foam successfully.
To deeply investigate the microstructure of the as-prepared electrocatalyst, Figure 5 shows a TEM analysis of the NiFe3-LDH. It shows that the NiFe3-LDH consists of ultrathin nanosheets, with dimensions between 100 and 200 nm (Figure 5a), which is beneficial for the exposure of surface active sites for the reaction. Figure 5b is a selected area electron diffraction; it shows two light diffraction rings, which correspond to the (101) plane of Fe2Ni2(CO3)(OH)8·2H2O and the (113) plane of Ni5.64Fe2.36(OH)16(CO3)1.18·7.52H2O, respectively. The interplanar distances of the lattice fringes in Figure 5c were 0.155 nm and 0.295 nm, corresponding to the (110) plane of Fe2Ni2(CO3)(OH)8·2H2O and the (220) plane of NiFe2O4 [32], respectively.
Moreover, the EDS images (Figure 6) verified that Ni, Fe, and O have been distributed uniformly throughout the entire surface of the sample. The results may induce greater stability during application of the electrocatalysts. The EDS data in Figure 6e shows Ni 39.1 wt% and Fe 22.3 wt%. According to the international atomic weight of Ni and Fe, the atom ratio of Ni/Fe can be worked out to be 1.75, which lies inbetween the values for Ni5.64Fe2.36(OH)16(CO3)1.18·7.52H2O and Fe2Ni2(CO3)(OH)8·2H2O.

2.2. Electronic States of NiFe3-LDH

The valent state of constituent atoms of the NiFe3-LDH were examined by XPS analysis. The XPS survey spectrum of the NiFe3-LDH (Figure 7a) indicates the four major elements, Ni, C, Fe, O, with the atomic percentages analyzed being C 48.4%, O 36.7%, Fe 3.8% and Ni 8.9%, respectively. The spectra of Ni 2p, C 1s, Fe 2p, and O 1s can be identified clearly.
The Ni 2p spectrum can be separated into Ni 2p3/2 and Ni 2p1/2 (Figure 7b), which are located at 856.6 eV and 873.9 eV along with the corresponding satellite peaks at 862.2 eV and 880.8 eV. These results are attributed to the presence of Ni2+ [33]. The Fe 2p spectrum (Figure 7c) can be separated into Fe 2p3/2 and Fe 2p1/2, which are located at 713.48 eV and 726.88 eV. Based on the XPS data, the atomic molar ratio of Ni:Fe:O = 2.38:1:9 is close to the stoichiometry of Ni5.64Fe2.36(OH)16(CO3)1.18, and this agrees with the formation of Ni5.64Fe2.36(OH)16(CO3)1.18·7.52H2O that was detected by the tests above [34].

2.3. Electrochemical Performance of NiFe-Based LDH

The performance of the OER of the NiFe-based LDH was tested in the electrolyte of 1 M KOH at a 10 mA·cm−2 current density. The overpotential is subtracted from the potential value by 1.23 V. The NiFe3-LDH/NF shows the lowest overpotential of 223 mV (Figure 8a), which obviously has an advantage over NiFe-LDH (240 mV), NiFe2-LDH (234 mV), and NiFe4-LDH (227 mV).
The Tafel slopes of the NiFe-LDH/NF (70.1 mV·dec−1), NiFe2-LDH/NF (55.3 mV·dec−1), NiFe3-LDH/NF (48.9 mV·dec−1), and NiFe4-LDH/NF (52.1 mV·dec−1) are displayed in Figure 8b. The Tafel slope of the NiFe3-LDH/NF is smaller than that of the NiFe-LDH/NF, NiFe2-LDH/NF and NiFe4-LDH/NF, indicating the fast OER kinetics of the NiFe3-LDH/NF [35]. Taking the overpotential and Tafel slope data of the NiFe-LDH/NF, NiFe2-LDH/NF, NiFe3-LDH/NF and NiFe4-LDH/NF together, it indicates that the OER activity of the NiFe3-LDH/NF is far greater than the others.
The oxygen evolution reaction of electrocatalysts in hydrolysis is deemed to be a four-step reaction. First, the molecules of water are adsorbed to the active sites of the nanostructure and are transformed into some kind of [OH] (the square brackets indicate an O vacancy on the surface) intermediate. Second, the intermediate is oxidized into [O] on the active sites. Third, [O] combines with the water molecule to form a [OOH] intermediate. Finally, the [OOH] breaks down into O2 [36]. It can be concluded that the performance of the electrocatalyst depends on the quantity of the active sites and the reaction kinetics between H2O and the intermediates.
The electrochemical active surface area (ECSA) is always used to estimate the quantity of active sites in a catalytic reaction. It can be calculated from the following equation [37]: ECSA = Cdl/Cs, where Cdl and Cs are the electrochemical double-layer capacitance and the specific capacitance of the electrocatalyst. For the Ni foam-based electrocatalyst, Cs = 0.04 mF cm−2 [38].
The Cdl of the NiFe3-LDH/NF (61.75 mF·cm−2) is much higher than that of the NiFe-LDH/NF (475.42 mF·cm−2), NiFe2-LDH/NF (533.28 mF·cm−2), and NiFe4-LDH/NF (581.38 mF·cm−2) (Figure 8c). This indicates that there are more active sites in the NiFe3-LDH/NF, and the sufficient active sites may be rooted from the introduction of a moderate amount of the Fe element [37].
EIS was employed to further investigate the catalytic reaction kinetics (Figure 8d). The NiFe3-LDH/NF has the smallest semicircle diameter when compared to the others. The Rct value of the NiFe3-LDH/NF is 3.16 Ω, which is smaller than that of the NiFe-LDH/NF (3.59 Ω), NiFe2-LDH/NF (4.73 Ω), and NiFe4-LDH/NF (3.19 Ω), which demonstrates the faster charge transfer process of the NiFe3-LDH/NF. This may contribute to the accelerated charge transfer between the interfaces of the electrode and electrolyte [39,40].
The effect of Fe on the OER performance of the NiFe-based LDH/NF may be attributed to several factors [41]. Firstly, with increasing Fe content, the electronic interaction between Ni and Fe becomes strong, which may modify the electronic structure of the NiFe-based LDH and would be conducive to activate and redox the related lattice oxygen; secondly, the moderate introduction of the Fe element can increase the ratio of “Length” to “Thickness”, which may contribute to increasing the electrochemical surface area and active sites of the LDHs for the catalytic reaction [42]; and thirdly, the moderate addition of the Fe element may influence the absorption of [OH] and [O], weakening the Gibbs free energy of the transformation from [OH] to [O], and bring down the overpotential of the NiFe-based LDH in the OER [42,43]. Some research indicates that the low oxidation state of Ni cations benefits the OER activity of the catalyst. Ni plays an active role and Fe plays a stable role in NiFe catalysts. The presence of Fe in NiFe-based catalysts has a function to inhibit the electrochemical oxidation of Ni, so the transformation of NiOOH from Ni(OH)2 was suppressed. Then, the average oxidation state of the nominally Ni3+ sites decrease with Fe incorporation. This results in higher OER activity [44].
Stability of the electrocatalyst is a critical factor for application [45,46]. As shown in Figure 9, the NiFe3-LDH/NF exhibits quite a stable voltage under 10 mA·cm−2 after 24 h in 1.0 M KOH. The excellent stability is mainly attributed to the moderate doping of the Fe element.

3. Materials and Methods

3.1. Materials

Fe (NO3)3·9H2O (99%), Ni (NO3)2·6H2O (99%), CO(NH2)2(99%), KOH (99%), ethyl alcohol (99%) and Ni foam (NF, 99.9%) were supplied by Aladdin (Shanghai, China). HCl, NH4F (99%) were purchased from Sinopharm Group (Beijing, China).

3.2. Electrocatalyst Preparation

Ni foams were tailored to a size of 2 cm × 2 cm and subjected to ultrasonic cleaning by 1 M HCl solution for 30 min. Then, they were cleaned by ethanol and ultrapure water several times to remove the impurities on the surface. Next, the samples were aired in a vacuum oven. NiFe-based LDH nanosheets will be prepared on Ni foams via a hydrothermal process. In a typical process, 1 mmol Ni(NO3)2·6H2O, 1 mmol CO(NH2)2, and 3 mmol Fe(NO3)3·9H2O into 50 mL was dissolved in ultrapure water and stirred continuously. Then, 10 mmol urea was added to the mixed solution. After stirring for 15 min, the cleaned Ni foams and the mixed solutions above were transferred into a 100 mL polyethylene reactor with a stainless-steel shell and kept at 160 °C for 5 h. When cooled to room temperature, the Ni foams are taken out and washed using ethanol and ultrapure water in turn, three times each, and then aired at 60 °C in a vacuum oven for one night. For comparison, several contents of Fe(NO3)3·9H2O (1 mmol, 2 mmol, 3 mmol, 4 mmol and 5 mmol) were used to synthesize the NiFe-based LDH, and the corresponding samples were flagged as the NiFe-LDH, NiFe2-LDH, NiFe3-LDH, NiFe4-LDH and NiFe5-LDH.

3.3. Physical Characterization

XRD pattern was carried out by a X-ray diffractometer (Bruker-AXS D8 Advance) with Cu Kα radiation (5°/min, 10–85°). A field emission scanning electron microscope (JEOL JSM-7800F) was applied to examine the microscopic images and the energy dispersive spectroscopy of the electrocatalysts. A transmission electron microscopy (JEOL JEM-2100) was used to examine the TEM of the electrocatalysts. XPS was examined by a Thermo Scientific K-Alpha (Shanghai, China).

3.4. Electrochemical Performance

A standard CHI 660D electrochemical workstation (Tesco, Shanghai, China) was carried out to obtain the electrochemical behavior of the samples.
The obtained electrocatalysts were used as working electrodes, a Ag/AgCl electrode was applied as the reference electrode. Platinum was used as a counter electrode. The electrolyte was a 1 M KOH solution. Potentials in this work were converted into RHE following the equation ERHE = EAg/AgCl + 0.1989 + 0.0591 × pH. The LSV curve was measured under 2 mVs−1 with iR compensation. Overpotentials were calculated following the equation η(V) = ERHE − 1.23. EIS was measured from 0.01 to 104 Hz. CV was measured at 1.0–5.0 mV/s. Electrochemical double-layer capacitance (Cdl) was measured from CV. The stability was tested by chronoamperometry at 10 mA cm−2.

4. Conclusions

In summary, NiFe-based LDH/NF electrocatalysts with nanosheets array were successfully synthesized using a hydrothermal process. The ultrathin nanosheets microstructure of the NiFe-based LDH/NF can be regulated through controlling the Fe content. In comparison with the series of NiFe-based LDH/NF electrocatalysts, the NiFe3-LDH/NF exhibits outstanding OER behavior and stability. When using the NiFe3-LDH/NF as an OER catalyst, the overpotential is 223 mV at 10 mA·cm−2, and the Tafel slope is 48.9 mV·dec−1. These are significantly better than the others. The transformation of the ultrathin nanosheets microstructure may contribute towards increasing the catalytic active sites on the catalyst. This is conducive to improving the transfer of electrons between the electrocatalyst and electrolyte. In addition, NiFe-based LDH/NF electrocatalysts show excellent stability during reactions. This work can provide a new method to the producing of low-cost and efficient catalysts for water splitting.

Author Contributions

Investigation, writing, Z.L.; investigation, visualization, formal analysis, S.L. and L.N.; investigation, visualization, formal analysis, K.T. and Y.G.; supervision, methodology, L.Y. and C.C.; writing, funding acquisition, G.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (No. 2022050), the Henna Province science and technology research project (No. 232102230061) and the Student Research Train Program of Henan University of Science and Technology (No. 2022050).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Fan, C.; Zhai, X.; Chen, L.; Peng, S.; Jiang, R.; Yu, J.; Li, Y.; Zhang, Y.; Kong, W.; Ge, G.; et al. Synthesis and electrocatalytic mechanism of ultrafine MFe2O4 (M: Co, Ni, and Zn) nanocrystallites: M/Fe synergistic effects on the electrochemical detection of Cu(ii) and hydrogen evolution reaction performances. J. Mater. Chem. A 2021, 9, 22277–22290. [Google Scholar] [CrossRef]
  2. Li, H.; Chen, L.; Jin, P.; Li, Y.; Pang, J.; Hou, J.; Peng, S.; Wang, G.; Shi, Y. NiCo2S4 microspheres grown on N, S co-doped reduced graphene oxide as an efficient bifunctional electrocatalyst for overall water splitting in alkaline and neutral pH. Nano Res. 2022, 15, 950–958. [Google Scholar] [CrossRef]
  3. Guan, D.Q.; Wang, B.W.; Zhang, J.G.; Shi, R.; Jiao, K.; Li, L.C.; Wang, Y.; Xie, B.; Zhang, Q.W.; Yu, J.; et al. Hydrogen society: From present to future. Energy Environ. Sci. 2023, 16, 4926–4943. [Google Scholar] [CrossRef]
  4. Liu, Y.; Yao, Q.; Wu, X.; Chen, T.; Ma, Y.; Ong, C.N.; Xie, J. Gold nanocluster sensitized TiO2 nanotube arrays for visible-light driven photoelectrocatalytic removal of antibiotic tetracycline. Nanoscale 2016, 8, 10145–10151. [Google Scholar] [CrossRef]
  5. Zhou, S.; Yue, P.; Huang, J.; Wang, L.; She, H.; Wang, Q. High-performance photoelectrochemical water splitting of BiVO4@Co-MIm prepared by a facile in-situ deposition method. Chem. Eng. J. 2019, 371, 885–892. [Google Scholar] [CrossRef]
  6. Cai, Q.; Liu, Z.; Han, C.; Tong, Z.; Ma, C. CuInS2/Sb2S3 heterostructure modified with noble metal co-catalyst for efficient photoelectrochemical water splitting. J. Alloys Compd. 2019, 795, 319–326. [Google Scholar] [CrossRef]
  7. Wang, D.; Chang, Y.-X.; Li, Y.-R.; Zhang, S.L.; Xu, S.L. Well-dispersed NiCoS2 nanoparticles/rGO composite with a large specific surface area as an oxygen evolution reaction electrocatalyst. Rare Metals 2021, 40, 3156–3165. [Google Scholar] [CrossRef]
  8. Cai, J.; Ding, J.; Wei, D.; Xie, X.; Li, B.; Lu, S.; Zhang, J.; Liu, Y.; Cai, Q.; Zang, S. Coupling of Ru and O-vacancy on 2D Mo-based electrocatalyst via a solid-phase interface reaction strategy for hydrogen evolution reaction. Adv. Energy Mater. 2021, 11, 2100141. [Google Scholar] [CrossRef]
  9. Dong, F.Y.; Zhang, M.H.; Xu, X.Y.; Pan, J.; Zhu, L.Y.; Hu, J.G. Orbital modulation with P doping improves acid and alkaline hydrogen evolution reaction of MoS2. Nanomaterials 2022, 12, 4273. [Google Scholar] [CrossRef]
  10. Zhang, L.; Yuan, H.; Li, X.; Wang, Y. Hydrothermal synthesis of NiCo2O4@NiCo2O4 core-shell nanostructures anchored on Ni foam for efficient oxygen evolution reactions catalysts. Coatings 2022, 12, 1240. [Google Scholar] [CrossRef]
  11. Yoon, S.J.; Lee, S.J.; Kim, M.H.; Park, H.A.; Kang, H.S.; Bae, S.Y.; Jeon, I.Y. Recent tendency on transition-metal phosphide electrocatalysts for the hydrogen evolution reaction in alkaline media. Nanomaterials 2023, 13, 2613. [Google Scholar] [CrossRef] [PubMed]
  12. Qiu, Y.; Feng, Z.; Ji, X.; Liu, J. Surface self-reconstruction of nickel foam triggered by hydrothermal corrosion for boosted water oxidation. Int. J. Hydrog. Energy 2021, 46, 1501–1508. [Google Scholar] [CrossRef]
  13. Liu, Z.; Zeng, L.; Yu, J.; Yang, L.; Zhang, J.; Zhang, X.; Han, F.; Zhao, L.; Li, X.; Liu, H.; et al. Charge redistribution of Ru nanoclusters on Co3O4 porous nanowire via the oxygen regulation for enhanced hydrogen evolution reaction. Nano Energy 2021, 85, 105940. [Google Scholar] [CrossRef]
  14. Yang, L.; Lin, Q.; Guo, D.Y.; Wu, L.H.; Guan, Z.X.; Jin, H.L.; Fang, G.Y.; Chen, X.A.; Wang, S. Nitrogen plasma activates CoMn-layered double hydroxides for superior electrochemical oxygen evolution. Inorg. Chem. 2023, 62, 17565–17574. [Google Scholar] [CrossRef] [PubMed]
  15. Huang, Z.F.; Song, J.J.; Du, Y.H.; Xi, S.B.; Dou, S.; Nsanzimana, J.M.V.; Wang, C.; Xu, Z.C.; Wang, X. Chemical and structural origin of lattice oxygen oxidation in Co-Zn oxyhydroxide oxygen evolution electrocatalysts. Nat. Energy 2019, 4, 329–338. [Google Scholar] [CrossRef]
  16. Li, A.; Chao, W.; Min, L.; Liu, H.W.; Chen, Y.B.; Scherer, G.G.; Fisher, A.C.; Xi, P.X.; Xu, Z.C.; Yan, C.H. Recent development of oxygen evolution electrocatalysts in acidic environment. Adv. Mater. 2021, 33, 2006328. [Google Scholar]
  17. Li, S.; Wang, L.; Li, Y.D.; Zhang, L.; Wang, A.; Xiao, N.; Gao, Y.; Li, N.; Song, W.; Ge, L.; et al. Novel photocatalyst incorporating Ni-Co layered double hydroxides with P-doped CdS for enhancing photocatalytic activity towards hydrogen evolution. Appl. Catal. B Environ. 2019, 254, 145–155. [Google Scholar] [CrossRef]
  18. Gu, K.Z.; Zhu, X.Y.; Wang, D.D.; Zhang, N.N.; Huang, G.; Li, W.; Long, P.; Tian, J.; Zou, Y.Q.; Wang, Y.Y.; et al. Ultrathin defective high-entropy layered double hydroxides for electrochemical water oxidation. J. Energy Chem. 2021, 60, 121–126. [Google Scholar] [CrossRef]
  19. He, D.Y.; Cao, L.Y.; Huang, J.F.; Kajiyoshi, K.J.; Wu, J.P.; Wang, C.C.; Liu, Q.Q.; Yang, D.; Feng, L.L. In-situ optimizing the valence configuration of vanadium sites in NiV-LDH nanosheet arrays for enhanced hydrogen evolution reaction. J. Energy Chem. 2020, 60, 121–126. [Google Scholar] [CrossRef]
  20. Feng, L.; Du, Y.; Huang, J.; Cao, L.; Feng, L.; Feng, Y.; Liu, Q.; Yang, D.; Kajiyoshi, K. Nanoporous NiAl-LDH nanosheet arrays with optimized Ni active sites for efficient electrocatalytic alkaline water splitting. Sustain. Energy Fuels 2020, 4, 2850–2858. [Google Scholar] [CrossRef]
  21. Liu, H.; Wang, Y.; Lu, X.; Hu, Y.; Zhu, G.; Chen, R.; Ma, L.; Zhu, H.; Tie, Z.; Liu, J.; et al. The effects of Al substitution and partial dissolution on ultrathin NiFeAl trinary layered double hydroxide nanosheets for oxygen evolution reaction in alkaline solution. Nano Energy 2017, 35, 350–357. [Google Scholar] [CrossRef]
  22. Ye, J.H.; Zhai, X.W.; Chen, L.; Guo, W.; Gu, T.T.; Shi, Y.L.; Hou, J.; Han, F.; Liu, Y.; Fan, C.C.; et al. Oxygen vacancies enriched nickel cobalt based nanoflower cathodes: Mechanism and application of the enhanced energy storage. J. Energy Chem. 2021, 62, 252–261. [Google Scholar] [CrossRef]
  23. Ye, C.; Zhang, L.; Yue, L.; Deng, B.; Cao, Y.; Liu, Q.; Luo, Y.; Lu, S.; Zheng, B.; Sun, X. A NiCo LDH nanosheet array on graphite felt: An efficient 3D electrocatalyst for the oxygen evolution reaction in alkaline media. Inorg. Chem. Front. 2021, 8, 3162–3166. [Google Scholar] [CrossRef]
  24. Wang, J.; Tan, C.F.; Zhu, T.; Ho, G.W. Topotactic consolidation of monocrystalline CoZn hydroxides for advanced oxygen evolution electrodes. Angew. Chem. Int. Ed. 2016, 55, 10326–10330. [Google Scholar]
  25. Zhang, S.C.; Liu, Z.F.; Chen, D.; Guo, Z.G.; Ruan, M.N. Oxygen vacancies engineering in TiO2 homojunction/ZnFe-LDH for enhanced photoelectrochemical water oxidation. Chem. Eng. J. 2020, 395, 125101. [Google Scholar] [CrossRef]
  26. Wang, F.Q.; Zou, P.C.; Zhang, Y.Y.; Pan, W.L.; Li, Y.; Liang, L.M.; Chen, C.; Liu, H.; Zheng, S.J. Activating lattice oxygen in high-entropy LDH for robust and durable water oxidation. Nat. Commun. 2023, 14, 6019. [Google Scholar] [CrossRef]
  27. Guo, F.; Wu, Y.; Chen, H.; Liu, Y.; Yang, L.; Ai, X.; Zou, X. High-performance oxygen evolution electrocatalysis by boronized metal sheets with self-functionalized surfaces. Energy Environ. Sci. 2019, 12, 684–692. [Google Scholar] [CrossRef]
  28. Zhang, L.; Lu, C.; Ye, F.; Pang, R.; Liu, Y.; Wu, Z.; Shao, Z.; Sun, Z.; Hu, L. Selenic acid etching assisted vacancy engineering for designing highly active electrocatalysts toward the oxygen evolution reaction. Adv. Mater. 2021, 33, e2007523. [Google Scholar] [CrossRef]
  29. Zhong, W.; Wang, Z.; Gao, N.; Huang, L.; Lin, Z.; Liu, Y.; Meng, F.; Deng, J.; Jin, S.; Zhang, Q.; et al. Coupled vacancy pairs in Ni-doped CoSe for improved electrocatalytic hydrogen production through topochemical deintercalation. Angew. Chem. 2020, 59, 22743–22748. [Google Scholar] [CrossRef]
  30. Wurster, B.; Grumelli, D.; Hotger, D.; Gutzler, R.; Kern, K. Driving the oxygen evolution reaction by nonlinear cooperativity in bimetallic coordination catalysts. J. Am. Chem. Soc. 2016, 138, 3623–3626. [Google Scholar] [CrossRef]
  31. Xue, Y.; Ren, Z.; Xie, Y.; Du, S.; Wu, J.; Meng, H.; Fu, H. CoSex Nanocrystalline-dotted CoCo layered double hydroxide nanosheets: A synergetic engineering for enhanced electrocatalytic water oxidation. Nanoscale 2017, 8, 10827–10835. [Google Scholar]
  32. Wu, X.; Han, S.; He, D.; Yu, C.; Lei, C.; Liu, W.; Zheng, G.; Zhang, X.; Lei, L. Metal organic framework derived Fe-doped CoSe2 incorporated in nitrogen-doped carbon hybrid for efficient hydrogen evolution. ACS Sustain. Chem. Eng. 2018, 6, 8672–8678. [Google Scholar] [CrossRef]
  33. Cai, T.; Zhao, L.; Hu, H.; Li, T.; Li, X.; Guo, S.; Li, Y.; Xue, Q.; Xing, W.; Yan, Z.; et al. Stable CoSe2/carbon nanodice@reduced graphene oxide composites for high-performance rechargeable aluminum-ion batteries. Energy Environ. Sci. 2018, 11, 2341–2347. [Google Scholar] [CrossRef]
  34. Xia, X.F.; Lei, W.; Hao, Q.L.; Wang, W.J.; Wang, X. One-step synthesis of CoMoO4/graphene composites with enhanced electrochemical properties for supercapacitors. Electrochim. Acta 2013, 99, 253–261. [Google Scholar] [CrossRef]
  35. Guan, D.Q.; Shi, C.L.; Xu, H.Y.; Gu, Y.X.; Zhong, J.; Sha, Y.C.; Hu, Z.W.; Ni, M.; Shao, Z.P. Simultaneously mastering operando strain and reconstruction effects via phase-segregation strategy for enhanced oxygen-evolving electrocatalysis. J. Energy Chem. 2023, 82, 572–580. [Google Scholar] [CrossRef]
  36. Friebel, D.; Louie, M.W.; Bajdich, M.; Sanwald, K.E.; Cai, Y.; Wise, A.M.; Cheng, M.-J.; Sokaras, D.; Weng, T.C.; Alonso, R. Identification of highly active Fe sites in (Ni, Fe) OOH for electrocatalytic water splitting. J. Am. Chem. Soc. 2015, 137, 1305–1313. [Google Scholar] [CrossRef]
  37. Sun, H.; Li, L.; Chen, Y.; Kim, H.; Xu, X.; Guan, D.; Hu, Z.; Zhang, L.; Shao, Z.; Jung, W.C. Boosting ethanol oxidation by NiOOH-CuO nano-heterostructure for energy-saving hydrogen production and biomass upgrading. Appl. Catal. B Environ. 2023, 325, 122388. [Google Scholar] [CrossRef]
  38. Lv, J.; Wang, L.; Li, R.; Zhang, K.; Zhao, D.; Li, Y.; Li, X.; Huang, X.; Wang, G. Constructing a hetero-interface composed of oxygen vacancy-enriched Co3O4 and crystalline–amorphous NiFe-LDH for oxygen evolution reaction. ACS Catal. 2021, 11, 14338–14351. [Google Scholar] [CrossRef]
  39. Sun, H.; Xu, X.; Kim, H.; Jung, W.; Zhou, W.; Shao, Z. Electrochemical water splitting: Bridging the gaps between fundamental research and industrial applications. Energy Environ. Mater. 2022, 6, e12441. [Google Scholar] [CrossRef]
  40. Baz, A.; Holewinski, A. Predicting macro-kinetic observables in electrocatalysis using the generalized degree of rate control. J. Catal. 2021, 397, 233–244. [Google Scholar] [CrossRef]
  41. Jin, H.; Mao, S.; Zhan, G.; Xu, F.; Bao, X.; Wang, Y. Fe incorporated α-Co (OH)2 nanosheet with remarkably improved activity towards oxygen evolution reaction. J. Mater. Chem. A 2017, 7, 11035–11042. [Google Scholar]
  42. Wang, Z.; Liu, W.; Hu, Y.; Xu, L.; Guan, M.; Qiu, J.; Huang, Y.; Bao, J.; Li, H. Fe-doped NiV LDH ultrathin nanosheet as a highly efficient electrocatalyst for efficient water oxidation. Inorg. Chem. Front. 2019, 3, 1361–1368. [Google Scholar] [CrossRef]
  43. Zhu, X.; Tang, C.; Wang, H.; Li, B.; Zhang, Q.; Li, C.; Yang, C.; Wei, F. Monolithic-structured ternary hydroxides as freestanding bifunctional electrocatalysts for overall water splitting. J. Mater. Chem. A 2016, 4, 6164–6172. [Google Scholar] [CrossRef]
  44. Louie, M.W.; Bell, A.T. An Investigation of Thin-Film Ni-Fe Oxide Catalysts for the Electrochemical Evolution of Oxygen. J. Am. Chem. Soc. 2013, 135, 12329–12337. [Google Scholar] [CrossRef] [PubMed]
  45. Li, Z.Y.; Zhang, Y.; Liu, Z.S.; Sun, H.B.; Shi, Z.N.; Xu, J.L. Enhanced electrocatalytic performance of NiFe layered double hydroxide for oxygen evolution reaction by CoW surface codoping. Int. J. Hydrogen Energy 2024, 51, 895–903. [Google Scholar] [CrossRef]
  46. Gui, Y.; Liu, X.; Dou, Y.; Zhang, L.; Al-Mamun, M.; Jiang, L.; Yin, H.; He, C.-T.; Zhao, H. Manipulating the assembled structure of atomically thin CoSe2 nanomaterials for enhanced water oxidation catalysis. Nano Energy 2019, 57, 371–378. [Google Scholar] [CrossRef]
Molecules 29 02092 g001

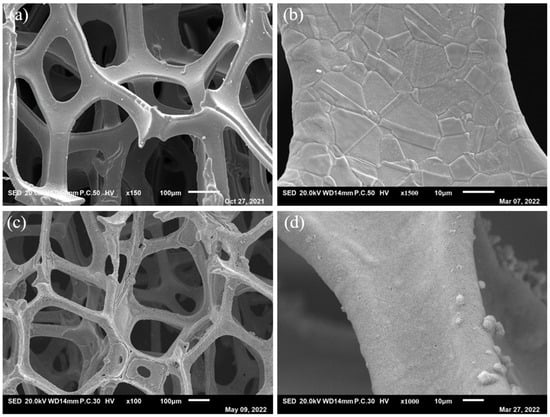

Figure 1. SEM images of (a,b) treated NF and (c,d) NiFe3-LDH/NF after preparation.
Figure 1. SEM images of (a,b) treated NF and (c,d) NiFe3-LDH/NF after preparation.
Molecules 29 02092 g001
Molecules 29 02092 g002

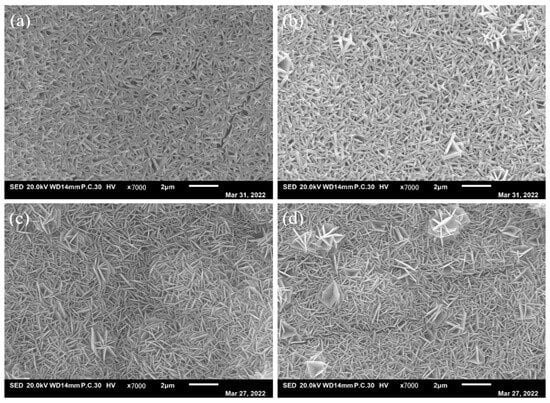

Figure 2. Low magnification morphologies of (a) NiFe-LDH, (b) NiFe2-LDH, (c) NiFe3-LDH, and (d) NiFe4-LDH nanosheets array.
Figure 2. Low magnification morphologies of (a) NiFe-LDH, (b) NiFe2-LDH, (c) NiFe3-LDH, and (d) NiFe4-LDH nanosheets array.
Molecules 29 02092 g002
Molecules 29 02092 g003

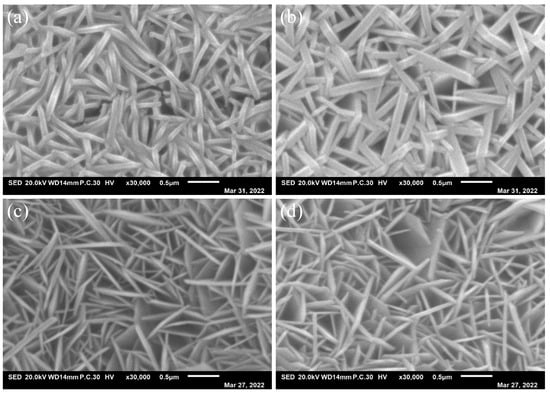

Figure 3. High magnification morphologies of (a) NiFe-LDH, (b) NiFe2-LDH, (c) NiFe3-LDH, and (d) NiFe4-LDH nanosheets array.
Figure 3. High magnification morphologies of (a) NiFe-LDH, (b) NiFe2-LDH, (c) NiFe3-LDH, and (d) NiFe4-LDH nanosheets array.
Molecules 29 02092 g003
Molecules 29 02092 g004

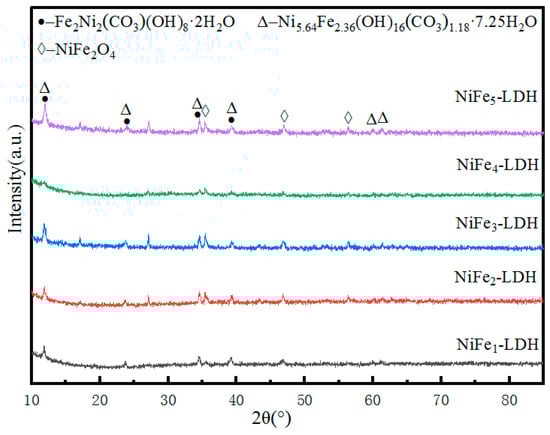

Figure 4. XRD patterns of NiFe-based LDH.
Figure 4. XRD patterns of NiFe-based LDH.
Molecules 29 02092 g004
Molecules 29 02092 g005

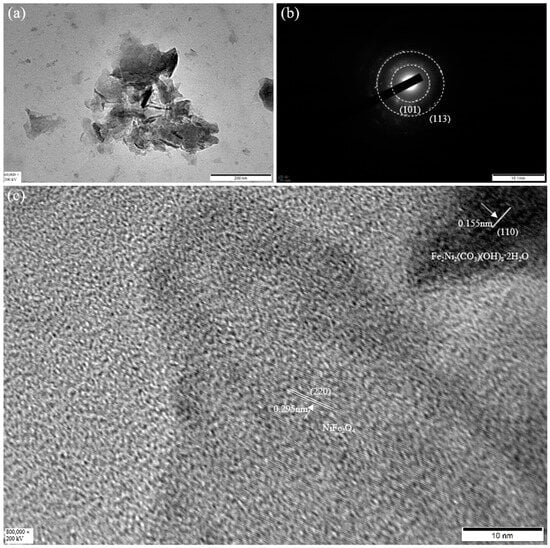

Figure 5. (a) TEM image of NiFe3-LDH, (b) SAED image of NiFe3-LDH, and (c) HRTEM image of NiFe3-LDH.
Figure 5. (a) TEM image of NiFe3-LDH, (b) SAED image of NiFe3-LDH, and (c) HRTEM image of NiFe3-LDH.
Molecules 29 02092 g005
Molecules 29 02092 g006

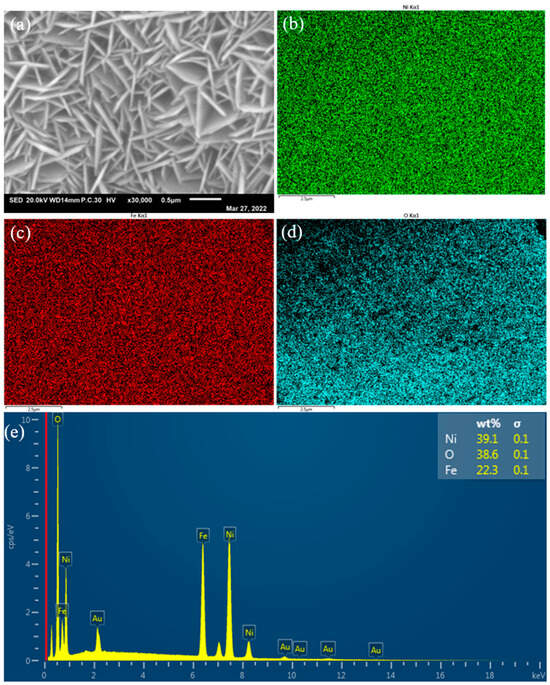

Figure 6. EDS of NiFe3-LDH nanosheets array. (a) SEM image of NiFe3-LDH, the distribution of (b) Ni, (c) Fe, (d) O, (e) Surface energy spectrum of NiFe3-LDH.
Figure 6. EDS of NiFe3-LDH nanosheets array. (a) SEM image of NiFe3-LDH, the distribution of (b) Ni, (c) Fe, (d) O, (e) Surface energy spectrum of NiFe3-LDH.
Molecules 29 02092 g006
Molecules 29 02092 g007

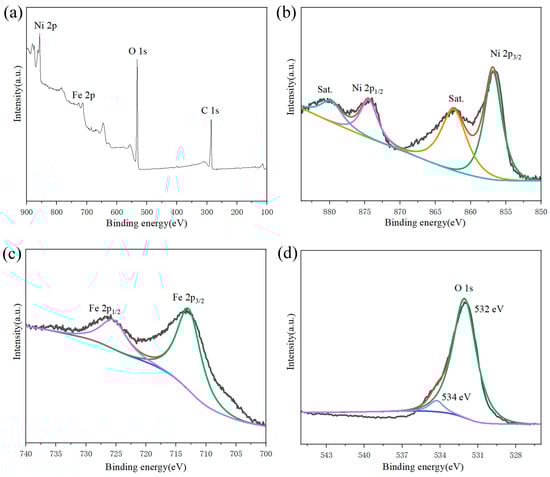

Figure 7. XPS spectra of (a) survey spectrum, (b) Ni 2p, (c) Fe 2p, and (d) O 1s in the NiFe3-LDH electrocatalyst.
Figure 7. XPS spectra of (a) survey spectrum, (b) Ni 2p, (c) Fe 2p, and (d) O 1s in the NiFe3-LDH electrocatalyst.
Molecules 29 02092 g007
Molecules 29 02092 g008

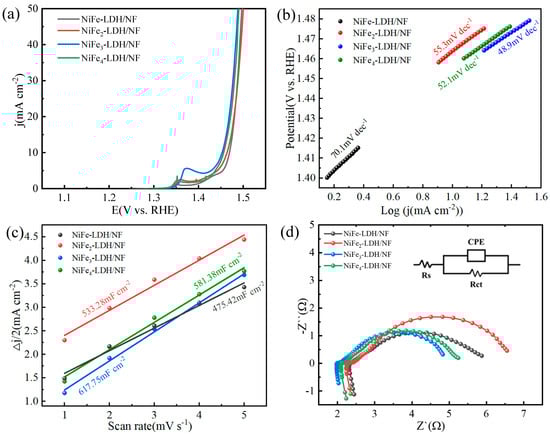

Figure 8. (a) LSV curves of NiFe−LDH, NiFe2−LDH, NiFe3−LDH, and NiFe4−LDH, (b) Tafel slopes of NiFe−LDH, NiFe2−LDH, NiFe3−LDH, and NiFe4−LDH, (c) Cdl curves of NiFe−LDH, NiFe2−LDH, NiFe3−LDH, and NiFe4−LDH, and (d) EIS tests of NiFe−LDH, NiFe2−LDH, NiFe3−LDH, and NiFe4−LDH. The inset diagram is the equivalent circuit.
Figure 8. (a) LSV curves of NiFe−LDH, NiFe2−LDH, NiFe3−LDH, and NiFe4−LDH, (b) Tafel slopes of NiFe−LDH, NiFe2−LDH, NiFe3−LDH, and NiFe4−LDH, (c) Cdl curves of NiFe−LDH, NiFe2−LDH, NiFe3−LDH, and NiFe4−LDH, and (d) EIS tests of NiFe−LDH, NiFe2−LDH, NiFe3−LDH, and NiFe4−LDH. The inset diagram is the equivalent circuit.
Molecules 29 02092 g008
Molecules 29 02092 g009

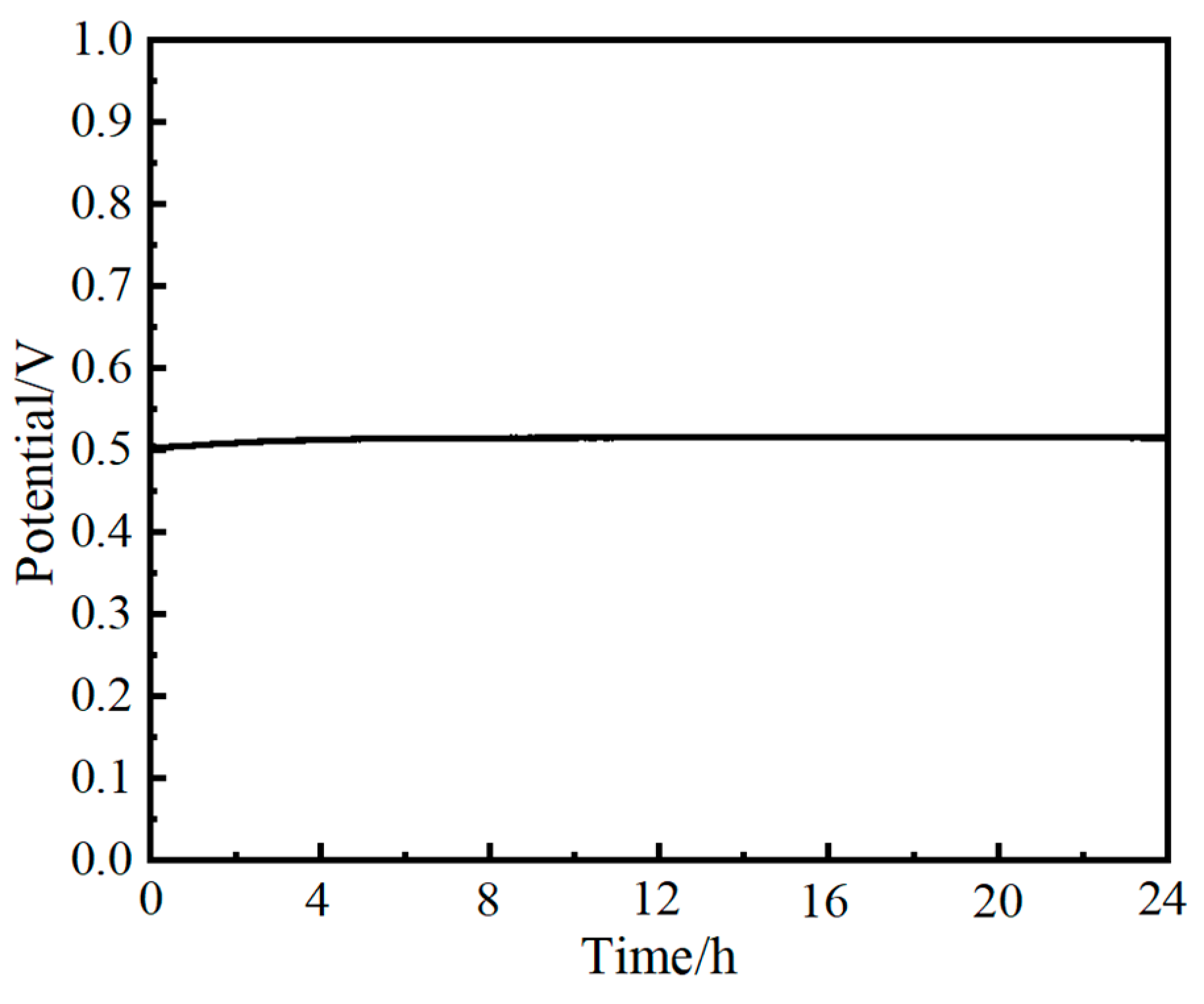

Figure 9. Stability curve of NiFe3-LDH/NF in chronoamperometry.
Figure 9. Stability curve of NiFe3-LDH/NF in chronoamperometry.
Molecules 29 02092 g009
Table 1. Parameters of NiFe-based LDH.
Table 1. Parameters of NiFe-based LDH.
Products Length (µm) Thickness (nm) Ratio of L/T
NiFe-LDH0.72848.57
NiFe2-LDH1.08310710.12
NiFe3-LDH0.9346913.54
NiFe4-LDH0.8467311.59
