Review

Molecular Mechanisms of Drug Resistance and Epidemiology of Multidrug-Resistant Variants of Neisseria gonorrhoeae

by
Beata Mlynarczyk-Bonikowska
1,*,
Cezary Kowalewski
1,
Aneta Krolak-Ulinska
2 and
Wojciech Marusza
2,*
1
Department of Dermatology, Immunodermatology and Venereology, Medical University of Warsaw, Koszykowa 82a, 02-008 Warsaw, Poland
2
Academy of Face Sculpting, Jana Kazimierza 11B, 01-248 Warsaw, Poland
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(18), 10499; https://doi.org/10.3390/ijms231810499
Submission received: 30 July 2022 / Revised: 5 September 2022 / Accepted: 7 September 2022 / Published: 10 September 2022
(This article belongs to the Collection State-of-the-Art Molecular Microbiology in Poland)
Browse Figure
Versions Notes

Abstract

:
The paper presents various issues related to the increasing drug resistance of Neisseria gonorrhoeae and the occurrence and spread of multidrug-resistant clones. One of the most important is the incidence and evolution of resistance mechanisms of N. gonorrhoeae to beta-lactam antibiotics. Chromosomal resistance to penicillins and oxyimino-cephalosporins and plasmid resistance to penicillins are discussed. Chromosomal resistance is associated with the presence of mutations in the PBP2 protein, containing mosaic variants and nonmosaic amino acid substitutions in the transpeptidase domain, and their correlation with mutations in the mtrR gene and its promoter regions (the MtrCDE membrane pump repressor) and in several other genes, which together determine reduced sensitivity or resistance to ceftriaxone and cefixime. Plasmid resistance to penicillins results from the production of beta-lactamases. There are different types of beta-lactamases as well as penicillinase plasmids. In addition to resistance to beta-lactam antibiotics, the paper covers the mechanisms and occurrence of resistance to macrolides (azithromycin), fluoroquinolones and some other antibiotics. Moreover, the most important epidemiological types of multidrug-resistant N. gonorrhoeae, prevalent in specific years and regions, are discussed. Epidemiological types are defined as sequence types, clonal complexes and genogroups obtained by various typing systems such as NG-STAR, NG-MAST and MLST. New perspectives on the treatment of N. gonorrhoeae infections are also presented, including new drugs active against multidrug-resistant strains.

1. Introduction

The increasing antimicrobial drug resistance of Neisseria gonorrhoeae, the etiologic agent of gonorrhea, is becoming a global problem. Gonorrhea is among the most common bacterial sexually transmitted infections, with the WHO estimating in 2020 that 82,400,000 cases of the disease occurred worldwide [1]. In addition, the incidence of reported cases of gonorrhea in the European Union is increasing. Per 100,000 people in the population, an increase was observed from 6.6 in 2009 to 26.9 in 2018 [2,3]. According to the Centers for Disease Control and Prevention (CDC) in the United States, the incidence of gonorrhea increased by 111% from 2009 to 2020. In 2019, the number of cases per 100,000 people was 187.8 and in 2020, 206.5 [4]. The susceptibility of N. gonorrhoeae to drugs (ceftriaxone, cefixime, azithromycin, ciprofloxacin, spectinomycin and gentamicin) in EU countries and the UK is monitored on an ongoing basis as part of the European Gonococcal Antimicrobial Susceptibility Programme (Euro-GASP), which is funded by the European Centre for Disease Prevention and Control (ECDC) [5,6,7,8]. The antibiotic resistance of N. gonorrhoeae is monitored in the United States as part of the GISP (Gonococcal Isolate Surveillance Project), funded by the CDC.
In 2017, N. gonorrhoeae was included in a WHO-created list of 12 pathogens whose drug resistance poses a global health threat and which most urgently require the development of new antibiotics due to the worldwide emergence of multidrug-resistant strains including those resistant to beta-lactams (ceftriaxone, cefixime and penicillin) and simultaneously resistant to oxyimino-cephalosporins (ceftriaxone, cefixime) and azithromycin [9]. In recent years, N. gonorrhoeae strains collected from various EU countries, including Poland, have been characterized by the Euro-GASP for antibiotic susceptibility, which was studied using conventional methods, and their genomes were sequenced using the WGS (whole-genome sequencing) method. The WGS method makes it possible to specify the genetic determinants of resistance and replaces other methods of bacteria molecular typing, allowing simultaneous determination of membership in such sequence types as NG-MAST, NG-STAR and MLST. The results of these studies, depicting the epidemiological situation in the countries studied, have been published [5,6,10]. Sequences of newly described determinants of resistance to antibiotics and new epidemiological types are constantly updated in the worldwide NG-STAR, NG-MAST and MLST databases.

2. Resistance to Beta-Lactam Antibiotics

Beta-lactams act on certain enzymes (transpeptidases, transglycosylases, carboxypeptidases) involved in the synthesis of peptidoglycan, a key component of the bacterial cell wall. Proteins inactivated by beta-lactams are referred to as PBPs (penicillin-binding proteins). There are four PBPs in N. gonorrhoeae. The two high-molecular-weight PBPs, PBP1 (class A) and PBP2 (class B), play a key role in beta-lactam resistance. Both are characterized by their high molecular weight. The other two proteins, PBP3 and PBP4, which are characterized by a low molecular weight and exhibit both carboxypeptidase and endopeptidase activities, are not important in the acquisition of beta-lactam resistance in N. gonorrhoeae. Inactivation of specific PBPs leads to bacterial cell death. The targets of action of beta-lactam antibiotics are shown in Figure 1.

2.1. Resistance to Oxyimino-Cephalosporins (Ceftriaxone and Cefixime)

The resistance criteria for ceftriaxone, cefixime and cefotaxime according to the EUCAST is MIC > 0.125 mg/L [11]. The CLSI [12] has not established resistance criteria for ceftriaxone and cefixime, but provides susceptibility criteria for these antibiotics (MIC ≤ 0.25 mg/L). N. gonorrhoeae strains with a ceftriaxone MIC of 0.25 mg/L were isolated in Canada as early as 1982–84 [13]. N. gonorrhoeae strains with a ceftriaxone MIC of 0.5 mg/L have been appearing sporadically on various continents for a long time, but did not spread until 2015. Five such strains have been described in the US, with the first one isolated as early as 1987 in San Diego (California), another two such strains in 1992 and 1993 in Cincinnati (Ohio), another in 1997 in Philadelphia, (Pennsylvania) and another in 2012 in Oklahoma City (Oklahoma) [14,15]. The first N. gonorrhoeae strain resistant to ceftriaxone (MIC = 0.5 mg/L) found in multiple countries and continents was FC428 isolated in Japan in 2015 [3,16,17,18,19]. The characteristics of FC428 are shown in Table 1.
In recent years, N. gonorrhoeae strains with a ceftriaxone MIC ≥ 0.5 mg/L have been most frequently described in Asian countries [20,21,22,23,24,25,26]. Among 259 N. gonorrhoeae strains isolated in 2017–20 in China, 9 (3.5%) were resistant to ceftriaxone (MIC ≥ 0.5 mg/L) and cefixime (MIC ≥ 2 mg/L). The ceftriaxone MIC range for these 259 isolates was 0.06 to 1 mg/L (MIC50, 0.125 mg/L; MIC90, 0.125 mg/L) and the cefixime MIC range was 0.06 to ≥4 mg/L (MIC50, 0.125 mg/L; MIC90, 0.5 mg/L) [26]. Among the 2375 N. gonorrhoeae strains isolated in 26 European countries in 2018, 1 ceftriaxone-resistant strain (MIC = 0.5 mg/L) similar to FC428 and 36 cefixime-resistant strains (MICs 0.25–2 mg/L) were found [27]. All 36 cefixime-resistant isolates had mosaic mutations in PenA: 25 isolates NG-STAR PenA allele: 10.001 (MICs 0.25–0.50 mg/L); 9 isolates NG-STAR PenA allele: 34.001 (MIC = 0.25 mg/L); 1 isolate NG-STAR PenA allele: 60.001 (MIC = 2 mg/L); and 1 NG-STAR PenA allele: 171.001 (MIC = 0.25 mg/L) [27]. In Europe, a decline in the incidence of ceftriaxone-resistant N. gonorrhoeae strains has been observed since 2009 [3]. This trend may have been due in part to a treatment change introduced by the 2012 European gonorrhea guidelines, in which cefixime 400 mg was replaced by ceftriaxone 500 mg plus azithromycin 2 g in dual therapy as the recommended empiric first-line treatment for uncomplicated gonorrhea. In 2020, the recommended first-line treatment was refined to ceftriaxone 1 g plus azithromycin 2 g or ceftriaxone 1 g monotherapy in well-controlled settings where there is no resistance to ceftriaxone [3,28]. Internationally isolated N. gonorrhoeae strains with ceftriaxone MICs ≥ 0.5 mg/L are shown in Table 1 [17,18,19,20,21,22,23,24,25,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46].
Crucial in the development of N. gonorrhoeae resistance to ceftriaxone and cefixime are mutations in the penA gene, especially in the domain encoding PBP2 transpeptidase. An increase in the MICs of these drugs can also result from the overproduction of MtrCDE membrane pump proteins (most commonly a deletion of −35A) in the mtrR promoter region, and substitutions in the MtrR protein (G45D) and amino acid substitutions in the PorB1b protein, but both of these mechanisms alone do not determine resistance [47]. Although the link between N. gonorrhoeae resistance to oxyimino-cephalosporins and the above-mentioned mutations is indisputable, strains with identical or very similar genetic characteristics but drastically different MICs of cephalosporins have been isolated [48,49,50,51,52]. The implication is that some factor determining resistance to ceftriaxone and cefixime is being missed, and it is impossible to predict from DNA sequencing alone whether N. gonorrhoeae is resistant to cefixime and ceftriaxone. This may involve regulatory mechanisms regarding PBP2 protein expression, which translates into the amount of PBP2 protein in the N. gonorrhoeae cell. Mechanisms of resistance to beta-lactams resulting from the overproduction of PBP proteins have been described in Gram-positive bacteria [53]. The effect of certain mutations in the rpoB and rpoD genes (they encode DNA-dependent RNA polymerase subunits) on changes in the MIC and the development of resistance to ceftriaxone and cefixime is presented in Table 2 [54].However, the mechanism of this resistance is not currently understood.
Mutations in the penA gene encode PBP2 transpeptidase. Based on sequencing of a 1745–1752 bp fragment of the penA gene, about 489 alleles of the PBP2 protein have been described, which are divided into 234 major types (I-V, VII, IX-XIX, XXI-XXII, XXVII, XXXIV-XXXV, 37-234) and many subtypes (Table 3 and Table 4).The proteins encoded by the individual alleles contain from 1 to over 60 amino acid mutations compared to ancestral wild-type alleles. Mutation-induced changes in the amino acid pattern of PBP2 transpeptidase (mostly substitutions and single amino acid deletions and insertions), are referred to as mosaic, semimosaic or nonmosaic patterns of PBP2. The mosaic-like structure of the penA gene in N. gonorrhoeae has evolved by intragenic recombination with penA genes of other Neisseria species, which are mainly commensal: Neisseria perflava, Neisseria sicca, Neisseria cinerea, Neisseria flavescens and Neisseria meningitidis. Mosaic alleles of PBP2 have approximately 60 amino acid alterations from the PBP2 of wild-type strains and most often the D346a insertion is absent [55,56]. Semimosaic alleles usually have 20–30 amino acid alterations and some have the D346a insertion [57]. The nonmosaic alleles usually have a D346a insertion and between 1 and 13 (most often 4–8) mutations in the C-terminus [57]. In mosaic patterns, the most important substitutions responsible for ceftriaxone and cefixime resistance (MIC > 0.125 mg/L) are A311V, I312M, V316P/T, T483S, A501P/V/T/T, F504L, N512Y A516G and G545S [40,47,57,58,59,60], and in nonmosaic patterns, the substitutions are A501P/V/T/R/S, F504L, N512Y, A516G, G542S and P551S [47,57,58,59,61,62]. Moreover, A516G does not appear to alter resistance very much [62]. The main types of nonmosaic, semimosaic and mosaic PenA are shown in Table 3 and Table 4 [30,40,41,42,43,44,52,54,57,63,64,65]. There are differences in the numbering of some amino acids (usually by 1) between the source papers and the NG-STAR databases.
Tomberg et al. showed that the transformation of FA19 (an antibiotic-susceptible strain) with the WHO X penA allele is sufficient to confer resistance to ceftriaxone and cefixime that surpasses the EUCAST- and CDC-defined resistance (MICs for ceftriaxone = 0.31 mg/L and for cefixime = 1.6 mg/L) [59]. However, the presence of a mosaic penA allele alone in most cases is not sufficient for the resistance to these antibiotics and other determinants, as substitutions in the proteins PonA (L421P) and PorB, mutations in the promoter region of the mtrR gene (most often deletion −35A) and mtrCDE, and/or substitutions in the MtrR protein (G45D) are needed [20,23,66,67].
The MtrCDE membrane pump removes beta-lactams, macrolides, tetracyclines, rifampicin and detergents. The expression of mtrCDE in wild-type gonococci is repressed by MtrR and, in the presence of an inductor, is activated by MtrA. MtrA and MtrR bind to regions within a 250 bp sequence that contains overlapping, divergent promoters for the transcription of mtrR and mtrCDE. The overproduction of membrane pump proteins is determined by substitutions in the MtrR pump repressor protein (G45D and A39T) and mutations in the region upstream of the mtrR gene (e.g., deletion of adenine at the −35 position preceding the mtrR gene and mutation conditioning the formation of a new mtrCDE promoter, the so-called mtr120, which is not regulated by MtrR and MtrA) [68,69,70,71,72,73]. The expression and efficiency of the MtrCDE pump are also significantly influenced by mosaic changes within the mtrR and mtrCDE genes, probably caused by the transformation and recombination of DNA from saprophytic Neisseria spp. (e.g., N. lactamica) and N. meningitidis. Mosaic sequences within the gene encoding the inner membrane transporter protein mtrD have shown a strong linkage and epistatic effects that likely enhance the efflux pump activity of MtrCDE [70,73]. Alterations within the mtrR and mtrCDE genes, especially mosaic alterations within mtrD, are one of the most important determinants in N. gonorrhoeae of a novel azithromycin resistance phenotype (MIC of 2 to 4 mg/L), which is not associated with 23S rRNA mutations (for details, see Section 3) [70,73].
Amino acid substitutions of the PorB1b protein at positions 120 and 121 result in changes in the MIC of penicillins, cephalosporins and tetracyclines. Based on the sequencing of a 30 bp fragment of PorB1b, the amino acid substitutions of the PorB1b protein were determined to be G120C, D, E, K, N, P, Q, R, S or T and A121D, G, H, N, P, S or V [71]. Mutations in the porB gene determining substitutions in the PorB1b protein (G120K, G120D/A121D, G120P/A121P and G120R/A121H) are named penB mutations [73,74,75]. PorB mutations reduce antibiotic diffusion into the periplasmic space only in the presence of mtrR or mtr promoter mutations [73]. The combined occurrence of mutations in the porB and mtr genes in strain FA19penA4 (penA4 being the allele from FA6140, a pen-resistant isolate) increased the MIC of penicillin from 0.12 mg/L to 1.0 mg/L and the MIC of tetracycline from 0.15 mg/L to 1.0 mg/L. The combined presence of mutations in the porB and mtr genes and the pilQ mutation (named the penC mutation) in this strain increased the MIC of penicillin to 2.0 mg/L and the MIC of tetracycline to 2.0 mg/L, whereas the simultaneous occurrence of four mutations in the porB, mtr, ponA (L429P in the PonA protein) and pilQ genes increased the MIC of penicillin to 4.0 mg/L [74].Together, the PilQ protein and type IV pili form an SDS-resistant multimeric complex that acts as a pore for antibiotics and small molecules. A mutation causing a G666L substitution in the PilQ protein, known as the pilQ2 or penC mutation, hinders the formation of the PilQ multimer, disrupting pore formation and thereby reducing penicillin influx [76]. The pilQ mutations in these studies arise spontaneously and at a high frequency in the laboratory. However, no study has found that pilQ mutations are present in clinical isolates, likely because the bacteria require an intact type IV pilus machinery for infection [77].

2.2. Penicillin Resistance

The cause of resistance to benzylpenicillin (MIC > 1 mg/L according to the EUCAST [11] and MIC ≥ 2 mg/L according to the CLSI [12]) is mutations in specified chromosomal genes or the production of beta-lactamase. The following genes play the most important role in chromosomal resistance to penicillin: genes determining the overproduction of MtrCDE proteins [66,67,78,79,80], as well as penA (substitutions in PenA: I312M, V316P/T, ins346D, T483S, A501P/T/V, G542S, G545S, P551S) [40,58,59], porB1b (substitutions in PorB1bG120K/A121N/D) pilQ (G666L substitution in the PilQ protein)and ponA (substitution in PonA L421P) [72,74] (Figure 1). The combinations of mentioned substitutions may determine the resistance to penicillin (MIC 2 − 4 mg/L).
The second major reason for penicillin resistance in N. gonorrhoeae is the production of plasmid-encoded beta-lactamases: TEM-1 (most common), TEM-1B, TEM-135 (M182T substitution), TEM-220 (M182T and A185T substitutions), TEM-141 (K34E substitution), TEM-198 (T271I substitution) and new alleles that are constantly being described [81,82,83,84,85,86]. Thus far, seven types of penicillinase plasmids have been described: Asia (7405–7428 bp; pJD4 prototype; beta-lactamase TEM-1 or TEM-135; GenBank NC_002098, U20374-U20375, NZ_MK973072-NZ_MK973081) [87,88], Africa (5597–5601 bp; pJD5 prototype; Asia plasmid with deletion from 1880 bp to 3708 bp; beta-lactamase TEM-1 or TEM135; GenBank acc. NZ_MK973082-NZ_MK973086 and NZ_MH140435) [89,90], Toronto/Rio (5154–5161 bp; pSJ5.2, pJD7 and pGo4717 prototypes; Asia plasmid with deletion from 3802 to 6075 bp; beta-lactamase TEM-135, TEM-1 or TEM220; GenBank acc. NC_010881, DQ355980; U20419) [91], Nimes (6798 bp; pGF1 prototype; Asia plasmid with deletion from 1880 to 3708 and IS5 insertion of 1200 bp between 604 and 605 nucleotides; GenBank acc. U20421) [87], New Zealand (9309 bp; pAS84/417 prototype; Asia plasmid, tandem repeat duplication 1883 bp from nucleotide 593; GenBank U20422) [87], Johannesburg (4865 bp; pEM1 prototype; Asia plasmid with two deletions 1928–4487 and 6236; beta-lactamase TEM1; GenBank acc. HM756641, NC_019211) [92], and Australia (3269 bp; Asia plasmid with two deletions 502-2385 and 3795-6066 and transition T7424C; beta-lactamase TEM-135; GenBank acc. NC_025191, KJ842484) [93]. The prevalence of penicillinase-producing strains (PPNGs) varies in different years and according to geographic region. High percentages of PPNGs were found in some Asian countries: Thailand (84% of PPNGs), Sri Lanka (63.6% of PPNGs), India (45% of PPNGs), Myanmar (35% of PNPGs) and Bhutan (88.9% of PPNGs) in isolated strains in 2009–2012 [94]. In China, PPNGs account for 41% in 2011–2012 and 2015–2017 [89].
TEM beta-lactamases are common in bacteria. In total, 197 (numbering from 1 to 246, some numbers removed) types of these enzymes have been described, and enzymes with an extended spectrum that hydrolyze oxyimino-cephalosporins, i.e., ceftriaxone and cefixime, among others, are commonly used in the treatment of gonorrhea [95,96]. It is only a matter of time before such TEM variants appear in N. gonorrhoeae. It is difficult to predict whether these will be sporadic incidents or whether a strain with such an enzyme variant is likely to spread endemically or pandemically in the population.

3. Macrolide (Azithromycin) Resistance

Azithromycin binds to a four-nucleotide fragment of rRNA (in the peptidyltransferase region) within the V domain of the 23S rRNA in the 50S subunit of the ribosome, which results in the inhibition of protein synthesis (Figure 1). The azithromycin resistance criterion according to the EUCAST is an MIC > 1.0 mg/L [11]. The CLSI only gives a criterion for azithromycin susceptibility (MIC ≤ 1.0 mg/L) [12]. Transition of A2059G (Escherichia coli numbering) in all four alleles of the 23S rRNA gene determines resistance and an MIC of azithromycin > 256 mg/L. Transition of C2611T or transversion of C2611G in all four alleles of the 23S rRNA gene determines resistance and an MIC of azithromycin that is 2–32 mg/L [97,98,99] (Figure 1).
In addition, the overproduction of MtrCDE proteins is usually caused by mutations in the promoter region of the mtrR gene, which is most often −35A, and within the mtrR gene, which is most often a substitution in the MtrR protein G45D [99,100]. Substitutions in the MtrR protein of G45S, A86T and Y105H have also been described, conditioning azithromycin resistance (MIC 2–8 mg/L) in some strains, as well as substitutions of D79N, A39T, L99G or H which increased the MIC value, but most often did not cause resistance [68]. The cited paper lacks complete molecular characterization of strains in which azithromycin resistance or elevated MICs were detected; therefore, substitutions in MtrR may not be related to azithromycin MIC changes and the cause may be different. The cause of azithromycin MIC changes may also be mosaic changes in mtrR and/or mtrD resulting from the transformation and recombination with DNA from other Neisseria species [70]. Furthermore, also described is N. gonorrhoeae strain FA19 (mtrR, wt; mtrR promoter/mtrCDE promoter, wt; mtrD, wt; azithromycin MIC = 0.5 mg/L) and five variants of this strain: CR.100 (MtrR, D79N, S183N, M197I; mtrR promoter/mtrCDE promoter, -C35T/-T35G; mtrD, wt; azithromycin MIC = 1.0 mg/L), CR.101 (mtrR, wt; mtrR promoter/mtrCDE promoter, -C35T/-T35G; mtrD, wt; azithromycin MIC = 1.0 mg/L), CR.102 (MtrR, D79N; mtrR promoter/mtrCDE promoter, wt/wt; mtrD, wt; azithromycin MIC = 0.5 mg/L), CR.103 (MtrR, D79N, S183N, M197I; mtrR promoter/mtrCDE promoter, -C35T/-T35G; mtrD, 3-end mosaic-like; azithromycin MIC = 2.0 mg/L) and CR.104 (MtrR, D79N, S183N, M197I; mtrR promoter/mtrCDE promoter, -C35T/-T35G; MtrD, S821A, K823E; azithromycin MIC = 2.0 mg/L). Mutations in the mtrR promoter/mtrCDE promoter regions and in the mtrD gene have been shown to have the greatest impact on the increase in azithromycin MIC, and that the described mutations in the mtrD gene increase the efficiency of the mtrCDE pump relative to azithromycin [69]. A group of 107 N. gonorrhoeae isolates were also described (no mutations in 23S rRNA; mtrR mosaic; mtrR promoter C substitution; MtrD K823E; MLST: ST9363 and ST11422), among which 42 isolates had an MIC = 2 mg/L and 1 isolate had an MIC = 4 mg/L [101].
Mutations in the rplV genes that condition tandem duplications of ARAK at position 90 or KGPSLK at position 83 in ribosomal protein L22 [102] and mutations in the rplD gene that condition a G70D substitution in ribosomal protein L4 may also be the cause of the azithromycin MIC increase. This mutation causes an increase in the MIC of azithromycin 2.5-4-fold to a level of 0.4–0.5 mg/L, which does not cause azithromycin resistance according to current criteria [103].
Mutations in the promoter region of the macA–macB efflux system may also be the cause of the azithromycin MIC increase [104].
ErmB and ErmF 23S rRNA methylases were also detected in N. gonorrhoeae (Figure 1). The MIC of azithromycin in these strains had values ranging from 1 to 4 mg/L [105]. The lack of complete molecular characterization of these strains makes it impossible to determine what caused azithromycin resistance in thes e strains. The presence of ermB, ermC, ermF and mefA genes (encoding a membrane pump protein categorized as MFS) in many N. gonorrhoeae strains isolated between 1940 and 1987 has also been described [106]. The occurrence of different erm and mefA genes is characteristic for Gram-positive cocci and for Gram-negative anaerobic bacilli Bacteroides spp. [106,107].
In recent years, a successive increase in the percentage of azithromycin-resistant N. gonorrhoeae strains has been observed in many European countries [108].

4. Resistance to Fluoroquinolones (Ciprofloxacin)

Fluoroquinolones are classified as bactericidal drugs. They inhibit the activity of topoisomerase II (gyrase) and topoisomerase IV enzymes responsible for DNA supercoiling and relaxation (Figure 1). The resistance criteria for N. gonorrhoeae according to the EUCAST for ciprofloxacin is an MIC > 0.06 mg/L and for ofloxacin is an MIC > 0.25 mg/L [11]. According to the CLSI, the criterion for N. gonorrhoeae resistance to ciprofloxacin is an MIC ≥ 1.0 mg/L [12].
The cause of resistance to fluoroquinolones (most commonly to ciprofloxacin) are cumulative mutations in the QRDR (quinolone resistance-determining region) of gyrA (DNA gyrase subunit A, EC5.99.1.3), parC (DNA topoisomerase IV subunit A), and sometimes, parE (DNA topoisomerase IV subunit B, EC5. 99.1), causing amino acid substitutions in topoisomerase II and IV proteins: GyrA (S91F or T; D95A, G, N or Y) and ParC (D86N, S87C, I, K, N, R or Y; S88A or P, E91A, G, K or Q) [71,109,110] (Figure 1).
The MIC of ciprofloxacin depends on the character and combination of substitutions [101]. There is a huge range of MICs described for a single mutation and combinations of them. Although the strains were tested in genetically related groups, they may differ in the presence of other resistance determinants not included in the study. A lack of substitution was present in 935 isolates of ST6962 and ST9363 (MLST), with the range of MICs from ≤0.25 to 32 mg/L, and most often, MICs ≤ 0.25 mg/L (99%). One substitution of ParC, S97R, occurred in ST13526 (MLST) and conditioned a range of MICs from ≤0.25 to 4 mg/L, and most often, an MIC ≤ 0.25 mg/L (95%). Two GyrA substitutions, S91F and D95A, occurred in ST1583 (MLST) and conditioned a range of MICs from ≤ 0.25 to 2 mg/L, and most often, the MIC = 1 mg/L (35%). Three substitutions, two in GyrA: S91F, D95A and one in ParC: S87N, were present in ST1588 (MLST) and conditioned a range of MICs from ≤0.25 to 4 mg/L, and most often, the MIC = 2 mg/L (44%). Three GyrA substitutions, S91F, D95A and ParC: D86N, were present in ST8143 and ST9365 (MLST) and conditioned a range of MICs from ≤0.25 to 16 mg/L, and most often, the MIC = 4 mg/L (39%) or the MIC = 8 mg/L (31%). Three GyrA substitutions, S91F, D95A and ParC: S87R, were present in ST13526, ST10314, ST8143 and ST7822 (MLST) and conditioned a range of MICs from ≤0.25 to 32 mg/L, and most often, the MIC = 4 mg/L (56%) or the MIC = 8 mg/L (37%). Three GyrA substitutions, S91F, D95G and ParC: S87R, were present in ST1901 and ST1579 (MLST) and conditioned a range of MICs from ≤0.25 to 32 mg/L, and most often, the MIC = 4 mg/L (42%). Three GyrA substitutions, S91F, D95G and ParC: E91G, were present in ST7363 (MLST) and conditioned a range of MICs from ≤0.25 to 32 mg/L, and most often, the MIC = 8 mg/L (41%). Three GyrA substitutions, S91F, D95G and ParC: D86N, occurred in ST7827 (MLST) and conditioned a range of MICs from ≤0.25 to 32 mg/L, and most often, the MIC = 8 mg/L (39%). Three substitutions of GyrA, S91F, D95N and ParC: S87I, occurred in ST7371 (MLST) and conditioned an MIC of 32 mg/L (100%) [101].

5. Resistance to Tetracyclines

Tetracyclines are antibiotics that inhibit protein synthesis by interfering with the 30S subunit of the ribosome (Figure 1). The criterion for tetracycline resistance according to the EUCAST is an MIC > 1.0 mg/L, and according to the CLSI, is an MIC ≥ 2.0 mg/L [11,12].
The TetM (ribosomal protection) protein is encoded by conjugative plasmids. Two variants of the tetM gene have been described, which have been named Dutch and American (MIC tetracycline 16–64 mg/L), and were found in 41,998–42,003 bp conjugative plasmids (GenBank acc. CP068762, CP045833). Two types of plasmids of 25.2 Mda have also been described, which have also been named Dutch (pOZ101; GenBank L12242) and American (pOZ100; GenBank L12241). In Poland, as in many other European countries, the Dutch TetM type was more common than the American type [111]. The most common correspondence is between gene type and plasmid type [112,113].
Other mechanisms determine the MIC of tetracycline 2–4 mg/L. Individually, the MIC can be >4 mg/L. Out of 1479 isolates, 8 such strains have been described [101]. These include mutations in the chromosomal gene mtrR and its promoter regions, causing overproduction of the membrane pump protein MtrCDE, and mutations in the genes porB, pilQ and rpsJ (V57M substitution in the ribosomal protein S10) [114] (Figure 1). However, alterations of the pilQ gene in N. gonorrhoeae are unlikely contributors to decreased susceptibility to tetracyclines in clinical gonococcal strains because the bacteria require an intact type IV pilus machinery for infection [77].

6. Resistance to Spectinomycin

Spectinomycin, an antibiotic classified as an aminocyclitol, inhibits protein translation by binding to 16S rRNA (helix 34; near base-paired nucleotides G1064-C1192) within the 30S subunit of the ribosome (Figure 1), and inhibits elongation factor G (EF-G) translocation, which is catalyzed by peptidyl-tRNA translocation from the A site to the P site during polypeptide elongation [115,116,117,118,119].
The criterion for spectinomycin resistance according to the EUCAST is an MIC > 64 mg/L, and according to the CLSI, is an MIC ≥ 128 mg/L [11,12]. The cause of N. gonorrhoeae resistance to spectinomycin may be due to a C1192U transition in 16SrRNA and mutations in the rpsE gene encoding the 5S ribosomal protein (deletion of codon 27 (valine) and a K28E substitution) [11].

7. Resistance to Gentamicin

Gentamycin is classified as an aminoglycoside. Aminoglycosides are bactericidal antibiotics that inhibit protein synthesis by interfering with the 30S subunit of the ribosome (Figure 1). There are no criteria for the resistance of N. gonorrhoeae to gentamicin according to the EUCAST and CLSI.
A missense mutation in the fusA gene, which encodes elongation factor G (EF-G) and causes an A563V substitution in the IV domain of EF-G, has been described (Figure 1). The mutant allele was named fusA2. Holley et al. showed that fusA2 could increase the MIC of gentamicin 4-fold to an MIC = 32 mg/L. Although possession of fusA2 impaired neither in vitro gonococcal growth nor protein synthesis, it caused a fitness defect during the experimental infection of the lower genital tract in female mice [120].

8. Other Drugs Active against N. gonorrhoeae

8.1. Zoliflodacin

Zoliflodacin (spiropyrimidinetrione gyrase inhibitor, ETX0914) is a 5,5′-pyrimidinetrione derivative with an adjacent benzisoxazole ring [121] (Figure 1). The drug is currently in phase III clinical trials. MICs of zoliflodacin were tested in 1209 N. gonorrhoeae strains isolated in 2018 in 25 EU/EEA countries. The MIC50, MIC90 and MIC range of zoliflodacin were 0.125, 0.125 and ≤0.004–0.5 mg/L, respectively. Resistance to ciprofloxacin, azithromycin, cefixime and ceftriaxone was 49.9%, 6.7%, 1.6% and 0.2%, respectively [122]. A study of 873 N. gonorrhoeae strains isolated in 21 European countries between 2012 and 2014 showed the MIC range, modal MIC, MIC50 and MIC90 were ≤0.002 to 0.25 mg/L, 0.125 mg/L, 0.064 mg/L and 0.125 mg/L, respectively [123]. Zoliflodacin showed no cross-resistance with the other antimicrobial agents tested. GyrB was highly conserved, and no gyrB mutations conditioning zoliflodacin resistance were found. None of the fluoroquinolone-target resistance mutations, GyrA or ParC, or mutations causing overexpression of the efflux pump MtrCDE had a significant effect on the MIC of zoliflodacin [122]. In a phase II clinical trial (RCT), a single 3 g dose of zoliflodacin resulted in a 100% cure rate for uncomplicated genitourinary (47/47) and rectal (6/6) gonorrhea, and the cure rate for pharyngeal gonorrhea was 78% (7/9). Zoliflodacin was well tolerated, with limited transient gastrointestinal side effects [124]. To date, no clinical isolates of zoliflodacin-resistant gonococci have been identified, but in vitro mutants with GyrB D429A/N or K450N/T substitutions have been selected that had zoliflodacin MICs of 1–2 mg/L [122,125].

8.2. Sitafloxacin

Sitafloxacin (DNA gyrase and topoisomerase IV inhibitor) belongs to a new generation of fluoroquinolones. The activity of sitafloxacin was studied against 250 strains of N. gonorrhoeae isolated between 1991 and 2013. Sitafloxacin had bactericidal activity, with MIC, MIC50 and MIC90 ranges of ≤0.001–1, 0.125 and 0.25 mg/L, respectively. There was a high correlation between the MICs of sitafloxacin and ciprofloxacin, but the MIC50 and MIC90 of sitafloxacin were 6-fold and >6-fold lower, respectively [126]. The MIC of sitafloxacin was tested in 35 ciprofloxacin-resistant N. gonorrhoeae isolates (ciprofloxacin MIC from 2 to 32 mg/L). The MIC of sitafloxacin ranged from 0.03 to 0.5 mg/L. None of the identified substitutions in the QRDR of GyrA and ParC increased the MIC of sitafloxacin above 0.5 mg/L [127].

8.3. Delafloxacin

Delafloxacin is an inhibitor of DNA gyrase and topoisomerase IV belonging to the new generation of fluoroquinolones. [128]. The activity of delafloxacin was tested against 117 strains of N. gonorrhoeae isolated between 2012 and 2015. The MIC50, MIC90 and MIC range of delafloxacin were 0.06 mg/L, 0.125 mg/L and ≤0.001 to 0.25 mg/L, respectively. The frequency of spontaneous mutation ranged from 10−7 to <10−9 [128]. The mutant had an S91Y substitution in GyrA and a delafloxacin MIC of 1 mg/L [128].

8.4. Gepotidacin

Gepotidacin (GSK2140944) is a novel, first-in-class triazaacenaphthylene, DNA gyrase and topoisomerase IV inhibitor [129,130,131] (Figure 1). Phase II clinical trials (RCTs) evaluating the use of gepotidacin in a single oral dose of 1.5 and 3 g for the treatment of uncomplicated gonorrhea showed 97% and 95% efficacy, respectively. The activity of gepotidacin against 252 strains of N. gonorrhoeae was tested. The modal MIC, MIC50, MIC90 and MIC range of gepotidacin were 0.5, 0.5, 1 and 0.032–4 mg/L, respectively [129]. Inactivation of the efflux pump MtrCDE was shown to lower the MIC of gepotidacin. A D86N substitution in ParC and A92T substitution in GyrA were found to be associated with high MIC values of gepotidacin [129]. In another study, the MIC50, MIC90 and MIC range of gepotidacin were 0.12–0.25, 0.5 and 0.06–1 mg/L, respectively. Two N. gonorrhoeae strains with MICs of 1 mg/L achieved treatment failure after a single dose of gepotidacin and the MICs of N. gonorrhoeae strains increased from 1 to ≥32 mg/L [131]. The PAEs (postantibiotic effects) for gepotidacin against the wild-type strain ranged from 0.5 to >2.5 h, and the PAE-SMEs (subinhibitory effects) were >2.5 h [130].

8.5. Solithromycin

Solithromycin (CEM-101) is a novel oral fluoroketolide antimicrobial with substantial in vitro activity against N. gonorrhoeae.
It also shows activity against Chlamydia trachomatis and Mycoplasma genitalium. Solithromycin binds to the 23S rRNA in the 50S subunit of the ribosome, which causes inhibition of bacterial protein synthesis [132,133] (Figure 1). The drug is currently in phase III clinical trials. Solithromycin displayed a MIC50 and MIC90 of 0.0625 and 0.125 mg/L for clinical strains of N. gonorrhoeae [134]. Two groups of gonorrhea patients were studied. One group received oral solithromycin 1000 mg and the other group received intramuscular ceftriaxone 500 mg plus oral azithromycin 1000 mg. Eradication of N. gonorrhoeae was achieved in 80% of patients receiving solithromycin and in 84% of patients receiving ceftriaxone plus azithromycin. The incidence of adverse events was higher in the solithromycin group than in the ceftriaxone plus azithromycin group (53% and 34%), most commonly, diarrhea (24% and 15%) and nausea (21% and 11%) [135].

8.6. Lefamulin

Lefamulin (BC 3781) is a new semisynthetic pleuromutilin. Lefamulin inhibits bacterial protein synthesis by interfering with the peptidyltransferase center in the 23S rRNA in the 50S subunit of the ribosome [136,137,138] (Figure 1). Modal MIC, MIC50 and MIC90 values and the MIC range of lefamulin are 0.5 mg/L, 0.25 mg/L, 1 mg/L and 0.004 to 2 mg/L, respectively. The efflux pump MtrCDE activity was shown to have a significant effect on the MIC values of lefamulin. Inactivation of the efflux pump MtrCDE reduced lefamulin MIC values by 15- to 60-fold in various N. gonorrhoeae strains while inactivation of the efflux pump MacAB and NorM did not change the lefamulin MIC [136].

8.7. Ertapenem

Ertapenem is a beta-lactam antibiotic from the carbapenem group and is used to treat infections with certain Gram-negative bacilli. MICs of ertapenem were tested in 259 N. gonorrhoeae isolated in 2013–19 in China. The MIC range was 0.006 mg/L to 0.38 mg/L, MIC50 was 0.032 mg/L and MIC90 was 0.125 mg/L. A total of 17.0% of isolates had MICs of ertapenem ≥0.125 mg/L, and 3.9% had MICs ≥ 0.25 mg/L. In nine isolates of N. gonorrhoeae resistant to oxyimino-cephalosporins (MIC ceftriaxone ≥ 0.5 mg/L and MIC cefixime ≥ 2 mg/L), the MIC range of ertapenem was 0.023 to 0.19 mg/L, MIC50 was 0.094 mg/L and MIC90 was 0.19 mg/L. The MIC50 and MIC90 values of ertapenem increased from 0.023 mg/L and 0.047 mg/L in 2013 to 0.047 mg/L and 0.125 mg/L in 2019, respectively [26].

8.8. Modithromycin and EDP 322

Modithromycin (6,11-bridged bicyclolides, EDP-420, EP-013420, S-013420) and EDP-322 are new macrolide drugs in clinical trials. [139]. Modithromycin interferes with the II and V domains of the 23S rRNA in the 50S subunit of the ribosome, which leads to inhibition of protein synthesis [139]. The sensitivity of 250 N. gonorrhoeae strains to modithromycin and EDP-322 was determined. The MIC range, modal MIC, MIC50 and MIC90 for modithromycin and EDP-322 were 0.004-256, 0.25, 0.25 and 1 mg/L and 0.008-16, 0.5, 0.5 and 1 mg/L, respectively. The activity of modithromycin and EDP-322 was higher than that of azithromycin [139].

8.9. Aminoethyl Spectinomycins

A series of aminoethyl spectinomycins (AmSPCs) obtained by modifying the 3′ keto group in the C ring of spectinomycin were studied. AmSPC preparations were shown to have slightly higher in vitro activity against N. gonorrhoeae and Chlamydiatrachomatis than spectinomycins. N. gonorrhoeae strains resistant to spectinomycin were also resistant to AmSPC [140].

8.10. Fosfomycin

The fosfomycin phosphoenolpyruvate analogue antibiotic is used in the treatment of cystitis. It acts as a bactericide by binding to the enolpyruvate transferase (MurA), and consequently, inhibiting cell wall synthesis (Figure 1). The susceptibility of 89 N. gonorrhoeae isolates to fosfomycin was tested. The MIC50, MIC90 and MIC range were 8 mg/L, 16 mg/L and ≤1 to 32 mg/L, respectively [141].

8.11. TP0480066 and Other Antimicrobials

TP0480066 is a novel 8-(methylamino)-2-oxo-1,2-dihydroquinoline (MAOQ) derivative (DNA gyrase and topoisomerase IV inhibitor). The TP0480066 MIC of fourteen N. gonorrhoeae reference strains (including strains resistant to ciprofloxacin and levofloxacin, as well as to other drug groups) was determined. The MIC range obtained for these strains was from ≤0.00012 to 0.0005 mg/L [142].
The activity (MIC 0.125 mg/L) of the newly synthesized compounds N-(1,3,4-oxadiazol-2-yl) benzamides (HSGN-237 and -HSGN-238) was also demonstrated against a strain of N. gonorrhoeae with a high resistance to azithromycin [143].

9. Epidemiological Typing of N. gonorrhoeae

Closely related to the acquisition and presence of resistance genes in N. gonorrhoeae is molecular typing, a fundamental method in the study of many bacterial species. Molecular typing makes it possible to trace the occurrence, spread and evolution of multidrug-resistant strains globally. Various molecular typing systems exist. In N. gonorrhoeae, in some typing systems (e.g., NG-STAR), sequence types are determined solely on the basis of mutations in genes associated with resistance or reduced sensitivity to beta-lactams, macrolides and fluoroquinolones.
The typing of N. gonorrhoeae is usually carried out based on four methods related to the sequencing of the whole genome or its fragments: WGS (whole-genome sequencing), NG-MAST (Neisseria gonorrhoeae multi-antigen sequence typing), MLST (multi-locus sequence typing) and NG-STAR (Neisseria gonorrhoeae sequence typing for antimicrobial resistance).

9.1. Whole-Genome Sequencing (WGS)

The WGS method makes it possible to divide the population of strains under study into related groups which we call clades. Initially, the WGS method played primarily an auxiliary role, allowing us to determine the sequence types of N. gonorrhoeae NG-MAST, MLST and NG-STAR strains under study. By the end of 2022, a global database of N. gonorrhoeae clades had not been created, making it impossible to compare strains with a broader perspective. Harisson et al. [49] divided the studied pool of N. gonorrhoeae strains based on WGS into eight clusters. Clusters 1–4 included strains ST1901 (MLST), cluster 5 (ST1588), cluster 6 (ST1893), cluster 7 (ST9363) and cluster 8 (ST1580). Reimche et al. [101] divided the 1479 N. gonorrhoeae strains isolated in the US in 2018 into 23 major clusters and into 2 lineages, A and B. Lineage A (76%) had elevated MICs for multiple antibiotics and lineage B (24%) was mostly antibiotic sensitive. The three largest were cluster 16 (278 isolates (19%); MLSTs: ST9363, ST11422, ST11428, ST8134), cluster 17 (159 isolates (11%); MLST: ST81433, ST13526) and cluster 10 (96 isolates (6.5%); MLST: ST10314, ST7822, ST1901) [101].

9.2. Neisseria gonorrhoeae Multi-Antigen Sequence Typing (NG-MAST)

The NG-MAST method has been the most widely used method for typing N. gonorrhoeae since 2004. It involves sequencing a 490 bp fragment of the porB gene (430–511 bp as of mid-2021), encoding porin B and a 390 bp fragment of the tbpB gene (367–416 bp as of mid-2021) and encoding the B subunit of the transferrin-binding protein. The allele number of each gene under study is being determined in the worldwide NG-MAST database [144]. By the end of 2020, about 12,800 alleles of the porB gene and about 3200 alleles of the tbpB gene had been described. [71]. In mid-2021, the NG-MAST database was reorganized (current name NG-MASTv2.0). porB sequences with a number greater than 11,028 and tbpB sequences with a number greater than 2868 were removed. Currently (20 July 2022), the database contains 11911 porB alleles (numbering from 1 to 12059) and 2994 tbpB alleles (numbering from 1 to 3087). Based on the combination of porB and tbpB alleles, the NG-MAST sequence type is determined. By the end of 2020, about 22,000 NG-MAST sequence types had been described [71]. As a result of the reorganization of the database in mid-2021, sequence types with numbers higher than 11028 were removed. About 100 removed STs were re-entered into the database, but under different numbers. Currently (20 July 2022), the base contains 20218 STs (numbering from 1 to 20,729). Using the WGS method, NGMASTER is a tool for rapidly determining NG-MAST types in silico from N. gonorrhoeae genomes [145]. Sequenced NG-MAST types are grouped within several hundred genogroups. Genogroup membership is determined by comparing the porB and tbpB sequences of the sequence type from which the genogroup is named (e.g., ST-A) with the porB and tbpB sequences of another ST (e.g., ST-B and ST-C). If porB differs by ≤5 bp and tbpB is the same, tbpB differs by ≤4 bp and porB is the same, or the sum of differences in porB and tbpB in ST-A and ST-B and ST-A and ST-C is ≤5 bp (substitutions, insertions, deletions, inversions are treated as a change of 1 bp), then we can include ST-B and ST-C in genogroup GST-A. From this definition, it follows that between ST-B and ST-C, they can differ by 1 to 10 bp. The choice of genogroup name (traditional or referring to the most common ST in a particular area or time period) is also debatable. The largest genogroup, G1407, includes more than 500 sequence types, and each of the other large genogroups such as G21, G51, G225, G2992, G4822 and G10799 contains more than 200 sequence types. Among the N. gonorrhoeae isolated in 21 EU countries in 2013 and characterized by the Euro-GASP, the most frequently isolated were ST1407 (7.6%), ST2992 (6.6%), ST2400 (3.9%), ST4995 (3. 0%) and ST21 (2.4%). The most frequently isolated genogroups were G1407 (14.8%), G2992 (7.7%), G21 (6.2%), G2400 (5.6%), G51 (5.1%), G225 (4.0%), G4995 (3.2%) and G387 (2.5%) [146]. Among the N. gonorrhoeae isolated in 26 EU countries and the UK in 2018 and characterized by the Euro-GASP, the most frequently isolated were ST11461 (4.7%), ST5441(3.7%), ST12302 (3.4%), ST14994 (3.2%) and 14769 (3.0%) [27]. The most frequently isolated NG-MAST genogroups in the EU in 2018 were: G12302 (5.6%), G5441 (5.6%) and G11461 (5.4%). The incidence of the G1407 genogroup, which was dominant in the EU in 2009–10 (23.3%) and 2013 (16.5%), decreased to 2.1% in 2018. G12302 is most often NG-STAR CC168 and CC63, and MLST ST9363. G5441 is most often NG-STAR CC442. G11461 is most often NG-STAR CC42 [27]. The most common NG-MAST sequence types found in selected countries are shown in Table 5 [26,27,42,50,51,52,101,146,147,148,149,150,151].

9.3. Multi-Locus Sequence Typing (MLST)

The MLST method has long been used to type many bacterial and some fungal species. Typing of N. gonorrhoeae involves sequencing fragments of 450–500 bp of seven basal metabolism genes: abcZ (putative ABC transporter), adk (adenylate kinase), aroE (shikimate dehydrogenase), fumC (fumarate hydratase), gdh (glucose-6-phosphate dehydrogenase), pdhC (pyruvate dehydrogenase subunit) and pgm (phosphoglucomutase). In the publicly available worldwide PubMLST database of Neisseria spp., the allele number of each gene under study is determined, and based on the combination of the seven alleles, the MLST sequence type is determined [78,152]. The database contains only 1264 MLST sequence types of N. gonorrhoeae (numbering from ST1024 to ST16767 with breaks), which indicates a relatively low degree of differentiation of N. gonorrhoeae strains. The method performs much better for other Neisseria species. The most common MLST N. gonorrhoeae sequence types isolated were ST1901, ST7363, ST7822, ST7827, ST9362, ST9363, ST10314, ST11429, ST11463, ST11516, ST11864 and ST11990. In EU countries, the most common MLST N. gonorrhoeae sequence types are ST1901, ST9363 and ST7363. Among N. gonorrhoeae isolated in 26 EU countries in 2018, ST9363 was the most common (9.3%) [27]. Among the 1479 N. gonorrhoeae strains isolated in the US in 2018, ST9363 (10.7%), ST8143 (6.4%), ST1584 (4%), ST7363 (3.9%) and ST1599 (3.8%) were the most frequently isolated [101].

9.4. Neisseria gonorrhoeae Sequence Typing for Antimicrobial Resistance (NG-STAR)

The NG-STAR method, used since 2017 [64,65], involves sequencing fragments of seven genes of N. gonorrhoeae: penA (encodes PBP2; 524 alleles), mtrR (encodes membrane pump repressor protein mtrCDE; 515 alleles), porB (encodes porin B; 64 alleles), ponA (encodes PBP1; 19 alleles, numbered 1–18 and 100), gyrA (encodes gyrase subunit; 58 alleles), parC (encodes topoisomerase IV subunit; 175 alleles) and 23S rRNA (contains target site for azithromycin; 71 alleles). Some mutations in the above-mentioned genes condition resistance to beta-lactam antibiotics, fluoroquinolones and macrolides. It is unfortunate that in the case of mutations in the 23S rRNA, no account was taken of how many alleles of the gene (the 23S rRNA gene always occurs in four copies) the mutation occurs in, which would translate directly into azithromycin resistance or lack thereof.
There are two publicly available global databases: the Canadian NG-STAR v. 2.0 [153] and the European Pub MLST NG-STAR [64]. Based on the sequence (usually using the WGS method), the allele number of each gene under study is determined, and based on the combination of the seven alleles, the NG-STAR sequence type is determined. As of May 2022, 4340 ST NG-STAR types have been described (numbering up to ST4464). Among the N. gonorrhoeae isolated in 26 EU countries in 2018 and surveyed by the Euro-GASP, the most frequently isolated NG-STAR type was ST442 [18]. Among the 1479 N. gonorrhoeae isolated in the US in 2018, the most frequently isolated NG-STAR type was ST436 (6%), ST63 (4.9%) and ST520 (3.9%) [101]. In 2021, Golparian et al. [39] divided 1-2602 ST NG-MAST into 317 clonal complexes (CC) and 169 sequence types that (ST) NG-MAST defined as ungroupable.

10. Conclusions

The most serious problem regarding N. gonorrhoeae drug resistance is the emergence and spread of clones resistant to ceftriaxone and azithromycin. Many strains of N. gonorrhoeae with an MIC ≥ 0.5 mg/L of ceftriaxone have been described, but most of them have not spread worldwide. The first such clone, FC428, was described in Japan in 2015 and has spread in Asian countries, but is not observed in Europe and the US. A second possible option for acquisition of ceftriaxone resistance is the emergence and spread of extended-spectrum TEM beta-lactamase variants (many such variants have been described in Gram-negative bacilli, but the spectrum of none incules carbapenems). This event is also more likely in Asian countries where there is a high percentage of beta-lactamase production by N. gonorrhoeae. Additionally, of concern is the increase in the number of azithromycin-resistant N. gonorrhoeae strains observed in Europe in 2016–19. In light of these risks, it is expedient to search for new drugs active against N. gonorrhoeae.

Author Contributions

Conceptualization, B.M.-B., W.M., C.K. and A.K.-U.; data curation, B.M.-B., W.M., C.K. and A.K.-U.; writing—original draft preparation, B.M.-B., W.M., A.K.-U. and C.K.; writing—review and editing, W.M., C.K., B.M.-B. and A.K.-U.; visualization, B.M-.B., W.M., A.K.-U. and C.K. supervision, W.M., C.K., B.M.-B. and A.K.-U. All authors have read and agreed to the published version of the manuscript. Please use the CRediT taxonomy for term explanations.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

CLSIClinical and Laboratory Standards Institute
CDCCenters for Disease Control and Prevention
ECDCEuropean Centre for Disease Prevention and Control
EUCASTEuropean Committee on Antimicrobial Susceptibility Testing
Euro-GASPEuropean Gonococcal Antimicrobial Surveillance Programme
MICminimum inhibitory concentration
MLSTmulti-locus sequence typing
NG-MASTNeisseria gonorrhoeae multi-antigen sequence typing
NG-STARNeisseria gonorrhoeae sequence typing for antimicrobial resistance
PBPpenicillin-binding protein
STsequence type
WGSwhole-genome sequencing

References

  1. WHO. Global Progress Report on HIV, Viral Hepatitis and Sexually Transmitted Infections. 2021. Available online: https://www.who.int/publications/i/item/9789240027077 (accessed on 18 June 2022).
  2. European Centre for Disease Prevention and Control [ECDC]. Data from the ECDC Surveillance Atlas of Infectious Diseases. 2021. Available online: https://atlas.ecdc.europa.eu/public/index.aspx?Dataset=27&HealthTopic=4 (accessed on 18 June 2022).
  3. Hadad, R.; Golparian, D.; Velicko, I.; Ohlsson, A.-K.; Lindroth, Y.; Ericson, E.-L.; Fredlund, H.; Engstrand, L.; Unemo, M. First National Genomic Epidemiological Study of Neisseria gonorrhoeae Strains Spreading Across Sweden in 2016. Front. Microbiol. 2022, 12, 820998. [Google Scholar] [CrossRef] [PubMed]
  4. Sexually Transmitted Diseases—Reported Cases and Rates of Reported Cases, United States, 1941–2020. Available online: https://www.cdc.gov/std/statistics/2020/tables/1.htm (accessed on 16 June 2022).
  5. Cole, M.J.; Quinten, C.; Jacobsson, S.; Day, M.; Amato-Gauci, A.J.; Woodford, N.; Spiteri, G.; Unemo, M.; Euro-GASP Network. The European gonococcal antimicrobial surveillance programme (Euro-GASP) appropriately reflects the antimicrobial resistance situation for Neisseria gonorrhoeae in the European Union/European Economic Area. BMC Infect. Dis. 2019, 19, 1040. [Google Scholar] [CrossRef]
  6. Cole, M.J.; Quaye, N.; Jacobsson, S.; Day, M.; Fagan, E.; Ison, C.; Pitt, R.; Seaton, S.; Woodford, N.; Stary, A.; et al. Ten years of external quality assessment (EQA) of Neisseria gonorrhoeae antimicrobial susceptibility testing in Europe elucidate high reliability of data. BMC Infect. Dis. 2019, 19, 281. [Google Scholar] [CrossRef] [PubMed]
  7. Cole, M.J.; Spiteri, G.; Jacobsson, S.; Pitt, R.; Grigorjev, V.; Unemo, M. Is the tide turning again for cephalosporin resistance in Neisseria gonorrhoeae in Europe? Results from the 2013 European surveillance. BMC Infect. Dis. 2015, 15, 321. [Google Scholar] [CrossRef]
  8. Jacobsson, S.; Cole, M.J.; Spiteri, G.; Day, M.; Unemo, M. Associations between antimicrobial susceptibility/resistance of Neisseria gonorrhoeae isolates in European Union/European Economic Area and patients’ gender, sexual orientation and anatomical site of infection, 2009–2016. BMC Infect. Dis. 2021, 21, 273. [Google Scholar] [CrossRef]
  9. World Health Organization. Global Priority List of Antibiotic-Resistant Bacteria to Guide Research, Discovery, and Development of New Antibiotics. Available online: http://www.who.int/medicines/publications/global-priority-list-antibiotic-resistant-bacteria/en/Geneva2017 (accessed on 18 June 2022).
  10. Harris, S.R.; Cole, M.J.; Spiteri, G.; Sánchez-Busó, L.; Golparian, D.; Jacobsson, S.; Goater, R.; Abudahab, K.; Yeats, C.A.; Bercot, B.; et al. Public health surveillance of multidrug-resistant clones of Neisseria gonorrhoeae in Europe: A genomic survey. Lancet Infect. Dis. 2018, 18, 758–768. [Google Scholar] [CrossRef]
  11. European Committee on Antimicrobial Susceptibility Testing (EUCAST) v. 12.0. 2022. Available online: https://www.eucast.org/fileadmin/src/media/PDFs/EUCAST_files/Breakpoint_tables/v_12.0_Breakpoint_Tables.pdf (accessed on 18 June 2022).
  12. M100-S32; Performance Standarts for Antimicrobial Susceptibility Testing; Twenty-First Information Supplement. Clinical and Laboratory Standarts Institute (CLSI): Wayne, PA, USA, 2022.
  13. Bowie, W.R.; Shaw, C.E.; Chan, D.G.; Jones, H.D.; Black, W.A. In-vitro susceptibility of 400 isolates of Neisseria gonorrhoeae in Vancouver, 1982-84. Can. Med. Assoc. J. 1986, 135, 489–493. [Google Scholar]
  14. Katz, A.R. Ceftriaxone-Resistant Neisseria gonorrhoeae, Canada, 2017. Emerg. Infect. Dis. 2018, 24, 608. [Google Scholar] [CrossRef] [PubMed]
  15. Centers for Disease Control and Prevention. Sexually Transmitted Diseases Surveillance. 2016. Available online: https://www.cdc.gov/std/stats16/CDC_2016_STDS_Report-for508WebSep21_2017_1644.pdf (accessed on 18 June 2022).
  16. Chen, S.-C.; Han, Y.; Yuan, L.-F.; Zhu, X.-Y.; Yin, Y.-P. Identification of Internationally Disseminated Ceftriaxone-Resistant Neisseria gonorrhoeae Strain FC428, China. Emerg. Infect. Dis. 2019, 25, 1427–1429. [Google Scholar] [CrossRef]
  17. Lee, K.; Nakayama, S.-I.; Osawa, K.; Yoshida, H.; Arakawa, S.; Furubayashi, K.-I.; Kameoka, H.; Shimuta, K.; Kawahata, T.; Unemo, M.; et al. Clonal expansion and spread of the ceftriaxone-resistant Neisseria gonorrhoeae strain FC428, identified in Japan in 2015, and closely related isolates. J. Antimicrob. Chemother. 2019, 74, 1812–1819. [Google Scholar] [CrossRef]
  18. Lahra, M.M.; Martin, I.; Demczuk, W.; Jennison, A.V.; Lee, K.-I.; Nakayama, S.-I.; Lefebvre, B.; Longtin, J.; Ward, A.; Mulvey, M.R.; et al. Cooperative Recognition of Internationally Disseminated Ceftriaxone-Resistant Neisseriagonorrhoeae Strain. Emerg. Infect. Dis. 2018, 24, 735–740. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Golparian, D.; Rose, L.; Lynam, A.; Mohamed, A.; Bercot, B.; Ohnishi, M.; Crowley, B.; Unemo, M. Multidrug-resistant Neisseria gonorrhoeae isolate, belonging to the internationally spreading Japanese FC428 clone, with ceftriaxone resistance and intermediate resistance to azithromycin, Ireland, August 2018. Eurosurveillance 2018, 23, 1800617. [Google Scholar] [CrossRef] [PubMed]
  20. Zhang, L.; Zhang, C.; Zeng, Y.; Li, Y.; Huang, S.; Wang, F.; Peng, J. Emergence and Characterization of a Ceftriaxone-Resistant Neisseria gonorrhoeae FC428 Clone Evolving Moderate-Level Resistance to Azithromycin in Shenzhen, China. Infect. Drug Resist. 2021, 14, 4271–4276. [Google Scholar] [CrossRef] [PubMed]
  21. Yuan, Q.; Li, Y.; Xiu, L.; Zhang, C.; Fu, Y.; Jiang, C.; Tang, L.; Peng, J. Identification of multidrug-resistant Neisseria gonorrhoeae isolates with combined resistance to both ceftriaxone and azithromycin, China, 2017–2018. Emerg. Microbes Infect. 2019, 8, 1546–1549. [Google Scholar] [CrossRef] [PubMed]
  22. Wang, H.; Wang, Y.; Yong, G.; Li, X.; Yu, L.; Ma, S.; Luo, T. Emergence and genomic characterization of the ceftriaxone-resistant Neisseria gonorrhoeae FC428 clone in Chengdu, China. J. Antimicrob. Chemother. 2020, 75, 2495–2498, Erratum in J. Antimicrob. Chemother. 2020, 75, 2714. [Google Scholar] [CrossRef]
  23. Yan, J.; Chen, Y.; Yang, F.; Ling, X.; Jiang, S.; Zhao, F.; Yu, Y.; van der Veen, S. High percentage of the ceftriaxone-resistant Neisseria gonorrhoeae FC428 clone among isolates from a single hospital in Hangzhou, China. J. Antimicrob. Chemother. 2021, 76, 936–939. [Google Scholar] [CrossRef] [PubMed]
  24. Lin, X.; Chen, W.; Xie, Q.; Yu, Y.; Liao, Y.; Feng, Z.; Qin, X.; Wu, X.; Tang, S.; Zheng, H. Dissemination and genome analysis of high-level ceftriaxone-resistant penA 60.001 Neisseria gonorrhoeae strains from the Guangdong Gonococcal antibiotics susceptibility Programme (GD-GASP), 2016–2019. Emerg. Microbes Infect. 2022, 11, 344–350. [Google Scholar] [CrossRef]
  25. Trinh, T.M.; Nguyen, T.T.; Le, T.V.; Nguyen, T.T.; Ninh, D.T.; Duong, B.H.; Van Nguyen, M.; Kesteman, T.; Pham, L.T.; van Doorn, H.R. Neisseria gonorrhoeae FC428 Subclone, Vietnam, 2019–2020. Emerg. Infect. Dis. 2022, 28, 432–435. [Google Scholar] [CrossRef]
  26. Li, X.; Le, W.; Lou, X.; Genco, C.A.; Rice, P.A.; Su, X. In Vitro Activity of Ertapenem against Neisseria gonorrhoeae Clinical Isolates with Decreased Susceptibility or Resistance to Extended-Spectrum Cephalosporins in Nanjing, China (2013 to 2019). Antimicrob. Agents Chemother. 2022, 66, e0010922. [Google Scholar] [CrossRef]
  27. Sánchez-Busó, L.; Cole, M.J.; Spiteri, G.; Day, M.; Jacobsson, S.; Golparian, D.; Sajedi, N.; Yeats, C.A.; Abudahab, K.; Underwood, A.; et al. Europe-wide expansion and eradication of specific Neisseria gonorrhoeae lineages elucidate an increased azithromycin resistance and decreased cephalosporin resistance: A genomic surveillance study. Lancet Microbe 2022, 3, e452–e463. [Google Scholar] [CrossRef]
  28. Unemo, M.; Ross, J.; Serwin, A.; Gomberg, M.; Cusini, M.; Jensen, J. Background review for the ‘2020 European guideline for the diagnosis and treatment of gonorrhoea in adults’. Int. J. STD AIDS 2021, 32, 108–126. [Google Scholar] [CrossRef] [PubMed]
  29. Zhang, C.; Wang, F.; Zhu, C.; Xiu, L.; Li, Y.; Li, L.; Liu, B.; Li, Y.; Zeng, Y.; Guo, B.; et al. Determining antimicrobial resistance profiles and identifying novel mutations of Neisseria gonorrhoeae genomes obtained by multiplexed MinION sequencing. Sci. China Life Sci. 2020, 63, 1063–1070. [Google Scholar] [CrossRef] [PubMed]
  30. Nakayama, S.-I.; Shimuta, K.; Furubayashi, K.-I.; Kawahata, T.; Unemo, M.; Ohnishi, M. New Ceftriaxone- and Multidrug-Resistant Neisseria gonorrhoeae Strain with a Novel Mosaic penA Gene Isolated in Japan. Antimicrob. Agents Chemother. 2016, 60, 4339–4341. [Google Scholar] [CrossRef] [PubMed]
  31. Terkelsen, D.; Tolstrup, J.; Johnsen, C.H.; Lund, O.; Larsen, H.K.; Worning, P.; Unemo, M.; Westh, H. Multidrug-resistant Neisseria gonorrhoeae infection with ceftriaxone resistance and intermediate resistance to azithromycin, Denmark, 2017. Eurosurveillance 2017, 22, 17–00659. [Google Scholar] [CrossRef] [PubMed]
  32. Lefebvre, B.; Martin, I.; Demczuk, W.; Deshaies, L.; Michaud, S.; Labbé, A.-C.; Beaudoin, M.-C.; Longtin, J. Ceftriaxone-Resistant Neisseria gonorrhoeae, Canada, 2017. Emerg. Infect. Dis. 2018, 24, 381–383. [Google Scholar] [CrossRef] [PubMed]
  33. Whiley, D.M.; Jennison, A.; Pearson, J.; Lahra, M.M. Genetic characterisation of Neisseria gonorrhoeae resistant to both ceftriaxone and azithromycin. Lancet Infect. Dis. 2018, 18, 717–718. [Google Scholar] [CrossRef]
  34. Eyre, D.W.; Town, K.; Street, T.; Barker, L.; Sanderson, N.; Cole, M.J.; Mohammed, H.; Pitt, R.; Gobin, M.; Irish, C.; et al. Detection in the United Kingdom of the Neisseria gonorrhoeae FC428 clone, with ceftriaxone resistance and intermediate resistance to azithromycin, October to December 2018. Eurosurveillance 2019, 24, 1900147. [Google Scholar] [CrossRef]
  35. Berenger, B.M.; Demczuk, W.; Gratrix, J.; Pabbaraju, K.; Smyczek, P.; Martin, I. Genetic Characterization and Enhanced Surveillance of Ceftriaxone-Resistant Neisseria gonorrhoeae Strain, Alberta, Canada, 2018. Emerg. Infect. Dis. 2019, 25, 1660–1667. [Google Scholar] [CrossRef]
  36. Poncin, T.; Fouere, S.; Braille, A.; Camelena, F.; Agsous, M.; Bebear, C.; Kumanski, S.; Lot, F.; Mercier-Delarue, S.; Ngangro, N.N.; et al. Multidrug-resistant Neisseria gonorrhoeae failing treatment with ceftriaxone and doxycycline in France, November 2017. Eurosurveillance 2018, 23, 1800264. [Google Scholar] [CrossRef]
  37. Fifer, H.; Hughes, G.; Whiley, D.; Lahra, M.M. Lessons learnt from ceftriaxone-resistant gonorrhoea in the UK and Australia. Lancet Infect. Dis. 2020, 20, 276–278. [Google Scholar] [CrossRef]
  38. Gianecini, R.; Oviedo, C.; Stafforini, G.; Galarza, P. Neisseria gonorrhoeae resistant to ceftriaxone and cefixime, Argentina. Emerg. Infect. Dis. 2016, 22, 1139–1141. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Golparian, D.; Sánchez-Busó, L.; Cole, M.; Unemo, M. Neisseria gonorrhoeae Sequence Typing for Antimicrobial Resistance (NG-STAR) clonal complexes are consistent with genomic phylogeny and provide simple nomenclature, rapid visualization and antimicrobial resistance (AMR) lineage predictions. J. Antimicrob. Chemother. 2021, 76, 940–944. [Google Scholar] [CrossRef]
  40. Unemo, M.; Golparian, D.; Nicholas, R.; Ohnishi, M.; Gallay, A.; Sednaoui, P. High-Level Cefixime- and Ceftriaxone-Resistant Neisseria gonorrhoeae in France: Novel penA Mosaic Allele in a Successful International Clone Causes Treatment Failure. Antimicrob. Agents Chemother. 2012, 56, 1273–1280. [Google Scholar] [CrossRef] [PubMed]
  41. Hanao, M.; Aoki, K.; Ishii, Y.; Shimuta, K.; Ohnishi, M.; Tateda, K. Molecular characterization of Neisseria gonorrhoeae isolates collected through a national surveillance programme in Japan, 2013: Evidence of the emergence of a ceftriaxone-resistant strain from a ceftriaxone-susceptible lineage. J. Antimicrob. Chemother. 2021, 76, 1769–1775. [Google Scholar] [CrossRef] [PubMed]
  42. Chen, S.-C.; Yin, Y.-P.; Dai, X.-Q.; Unemo, M.; Chen, X.-S. First nationwide study regarding ceftriaxone resistance and molecular epidemiology of Neisseria gonorrhoeae in China. J. Antimicrob. Chemother. 2016, 71, 92–99. [Google Scholar] [CrossRef] [PubMed]
  43. Chen, S.C.; Yin, Y.-P.; Dai, X.-Q.; Unemo, M.; Chen, X.-S. Antimicrobial resistance, genetic resistance determinants for ceftriaxone and molecular epidemiology of Neisseria gonorrhoeae isolates in Nanjing, China. J. Antimicrob. Chemother. 2014, 69, 2959–2965. [Google Scholar] [CrossRef]
  44. Ohnishi, M.; Saika, T.; Hoshina, S.; Iwasaku, K.; Nakayama, S.; Watanabe, H.; Kitawaki, J. Ceftriaxone-resistant Neisseria gonorrhoeae, Japan. Emerg. Infect. Dis. 2011, 17, 148–149. [Google Scholar] [CrossRef]
  45. Lahra, M.M.; Ryder, N.; Whiley, D.M. A New Multidrug-Resistant Strain of Neisseria gonorrhoeae in Australia. New Engl. J. Med. 2014, 371, 1850–1851, Erratum in New Engl. J. Med. 2015, 373, 982. [Google Scholar] [CrossRef]
  46. Càmara, J.; Serra-Pladevall, J.; Ayats, J.; Bastida, T.; Carnicer-Pont, D.; Andreu, A.; Ardanuy, C. Molecular characterization of two high-level ceftriaxone-resistant Neisseria gonorrhoeae isolates detected in Catalonia, Spain. J. Antimicrob. Chemother. 2012, 67, 1858–1860. [Google Scholar] [CrossRef]
  47. Lee, S.-G.; Lee, H.; Jeong, S.H.; Yong, D.; Chung, G.T.; Lee, Y.S.; Chong, Y.; Lee, K. Various penA mutations together with mtrR, porB and ponA mutations in Neisseria gonorrhoeae isolates with reduced susceptibility to cefixime or ceftriaxone. J. Antimicrob. Chemother. 2010, 65, 669–675. [Google Scholar] [CrossRef]
  48. Lee, H.; Unemo, M.; Kim, H.J.; Seo, Y.; Lee, K.; Chong, Y. Emergence of decreased susceptibility and resistance to extended-spectrum cephalosporins in Neisseria gonorrhoeae in Korea. J. Antimicrob. Chemother. 2015, 70, 2536–2542. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Harrison, O.B.; Clemence, M.; Dillard, J.P.; Tang, C.M.; Trees, D.; Grad, Y.H.; Maiden, M. Genomic analyses of Neisseria gonorrhoeae reveal an association of the gonococcal genetic island with antimicrobial resistance. J. Infect. 2016, 73, 578–587. [Google Scholar] [CrossRef] [PubMed]
  50. Gernert, K.M.; Seby, S.; Schmerer, M.W.; Thomas, J.C.; Pham, C.D.; Cyr, S.S.; Schlanger, K.; Weinstock, H.; Shafer, W.M.; Raphael, B.H.; et al. Azithromycin susceptibility of Neisseria gonorrhoeae in the USA in 2017: A genomic analysis of surveillance data. Lancet Microbe 2020, 1, e154–e164. [Google Scholar] [CrossRef]
  51. Gose, S.; Nguyen, D.; Lowenberg, D.; Samuel, M.; Bauer, H.; Pandori, M. Neisseria gonorrhoeae and extended-spectrum cephalosporins in California: Surveillance and molecular detection of mosaic penA. BMC Infect. Dis. 2013, 13, 570. [Google Scholar] [CrossRef] [PubMed]
  52. Thomas, J.C.; Seby, S.; Abrams, A.J.; Cartee, J.; Lucking, S.; Vidyaprakash, E.; Schmerer, M.; Pham, C.D.; Hong, J.; Torrone, E.; et al. Evidence of Recent Genomic Evolution in Gonococcal Strains With Decreased Susceptibility to Cephalosporins or Azithromycin in the United States, 2014–2016. J. Infect. Dis. 2019, 220, 294–305. [Google Scholar] [CrossRef]
  53. Mlynarczyk, A.; Mlynarczyk, B.; Kmera-Muszynska, M.; Majewski, S.; Mlynarczyk, G. Mechanisms of the resistance and tolerance to beta-lactam and glycopeptide antibiotics in pathogenic gram-positive cocci. Mini-Rev. Med. Chem. 2009, 9, 1527–1537. [Google Scholar] [CrossRef]
  54. Palace, S.G.; Wang, Y.; Rubin, D.H.; Welsh, M.A.; Mortimer, T.; Cole, K.; Eyre, D.; Walker, S.; Grad, Y.H. RNA polymerase mutations cause cephalosporin resistance in clinical Neisseria gonorrhoeae isolates. Elife 2020, 9, e51407. [Google Scholar] [CrossRef]
  55. Takahata, S.; Senju, N.; Osaki, Y.; Yoshida, T.; Ida, T. Amino Acid Substitutions in Mosaic Penicillin-Binding Protein 2 Associated with Reduced Susceptibility to Cefixime in Clinical Isolates of Neisseria gonorrhoeae. Antimicrob. Agents Chemother. 2006, 50, 3638–3645. [Google Scholar] [CrossRef]
  56. Ameyama, S.; Onodera, S.; Takahata, M.; Minami, S.; Maki, N.; Endo, K.; Goto, H.; Suzuki, H.; Oishi, Y. Mosaic-Like Structure of Penicillin-Binding Protein 2 Gene (penA) in Clinical Isolates of Neisseria gonorrhoeae with Reduced Susceptibility to Cefixime. Antimicrob. Agents Chemother. 2002, 46, 3744–3749. [Google Scholar] [CrossRef]
  57. Młynarczyk-Bonikowska, B.; Majewska, A.; Malejczyk, M.; Młynarczyk, G.; Majewski, S. Multiresistant Neisseria gonorrhoeae: A new threat in second decade of the XXI century. Med. Microbiol. Immunol. 2019, 209, 95–108. [Google Scholar] [CrossRef]
  58. Tomberg, J.; Unemo, M.; Davies, C.; Nicholas, R.A. Molecular and Structural Analysis of Mosaic Variants of Penicillin-Binding Protein 2 Conferring Decreased Susceptibility to Expanded-Spectrum Cephalosporins in Neisseria gonorrhoeae: Role of Epistatic Mutations. Biochemistry 2010, 49, 8062–8070. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Tomberg, J.; Unemo, M.; Ohnishi, M.; Davies, C.; Nicholas, R.A. Identification of Amino Acids Conferring High-Level Resistance to Expanded-Spectrum Cephalosporins in the penA Gene from Neisseria gonorrhoeae Strain H041. Antimicrob. Agents Chemother. 2013, 57, 3029–3036. [Google Scholar] [CrossRef] [PubMed]
  60. Tomberg, J.; Fedarovich, A.; Vincent, L.R.; Jerse, A.E.; Unemo, M.; Davies, C.; Nicholas, R.A. Alanine 501 Mutations in Penicillin-Binding Protein 2 from Neisseria gonorrhoeae: Structure, Mechanism, and Effects on Cephalosporin Resistance and Biological Fitness. Biochemistry 2017, 56, 1140–1150. [Google Scholar] [CrossRef] [PubMed]
  61. Fenton, B.A.; Tomberg, J.; Sciandra, C.A.; Nicholas, R.A.; Davies, C.; Zhou, P. Mutations in PBP2 from ceftriaxone-resistant Neisseria gonorrhoeae alter the dynamics of the β3–β4 loop to favor a low-affinity drug-binding state. J. Biol. Chem. 2021, 297, 101188. [Google Scholar] [CrossRef] [PubMed]
  62. Powell, A.J.; Tomberg, J.; Deacon, A.M.; Nicholas, R.A.; Davies, C. Crystal Structures of Penicillin-binding Protein 2 from Penicillin-susceptible and -resistant Strains of Neisseria gonorrhoeae Reveal an Unexpectedly Subtle Mechanism for Antibiotic Resistance. J. Biol. Chem. 2009, 284, 1202–1212. [Google Scholar] [CrossRef] [PubMed]
  63. Gianecini, R.A.; Golparian, D.; Zittermann, S.; Litvik, A.; Gonzalez, S.; Oviedo, C.; Melano, R.G.; Unemo, M.; Galarza, P.; Gonococcal Antimicrobial Susceptibility Surveillance Programme-Argentina (GASSP-AR) Working Group. Genome-based epidemiology and antimicrobial resistance determinants of Neisseria gonorrhoeae isolates with decreased susceptibility and resistance to extended-spectrum cephalosporins in Argentina in 2011-16. J. Antimicrob. Chemother. 2019, 74, 1551–1559. [Google Scholar] [CrossRef]
  64. Neisseria gonorrhoeae Sequence Typing for Antimicrobial Resistance (PubMLST NG-STAR). Available online: https://pubmlst.org/bigsdb?db=pubmlst_neisseria_seqdef&page=schemeInfo&scheme_id=67 (accessed on 18 June 2022).
  65. Demczuk, W.; Sidhu, S.; Unemo, M.; Whiley, D.M.; Allen, V.G.; Dillon, J.R.; Cole, M.; Seah, C.; Trembizki, E.; Trees, D.L.; et al. Neisseria gonorrhoeae Sequence Typing for Antimicrobial Resistance, a Novel Antimicrobial Resistance Multilocus Typing Scheme for Tracking Global Dissemination of N. gonorrhoeae Strains. J. Clin. Microbiol. 2017, 55, 1454–1468. [Google Scholar] [CrossRef]
  66. Warner, D.M.; Shafer, W.M.; Jerse, A.E. Clinically relevant mutations that cause derepression of the Neisseria gonorrhoeae MtrC-MtrD-MtrE Efflux pump system confer different levels of antimicrobial resistance and in vivo fitness. Mol. Microbiol. 2008, 70, 462–478. [Google Scholar] [CrossRef]
  67. Shafer, W.M.; Balthazar, J.T.; Hagman, K.E.; Morse, S.A. Missense mutations that alter the DNA-binding domain of the MtrR protein occur frequently in rectal isolates of Neisseria gonorrhoeae that are resistant to faecal lipids. Microbiology 1995, 141, 907–911. [Google Scholar] [CrossRef]
  68. Ohneck, E.A.; Zalucki, Y.M.; Johnson, P.J.T.; Dhulipala, V.; Golparian, D.; Unemo, M.; Jerse, A.E.; Shafer, W.M. A Novel Mechanism of High-Level, Broad-Spectrum Antibiotic Resistance Caused by a Single Base Pair Change in Neisseria gonorrhoeae. mBio 2011, 2, e00187-11. [Google Scholar] [CrossRef]
  69. Rouquette-Loughlin, C.E.; Reimche, J.L.; Balthazar, J.T.; Dhulipala, V.; Gernert, K.M.; Kersh, E.N.; Pham, C.D.; Pettus, K.; Abrams, A.J.; Trees, D.L.; et al. Mechanistic Basis for Decreased Antimicrobial Susceptibility in a Clinical Isolate of Neisseria gonorrhoeae Possessing a Mosaic-Like mtr Efflux Pump Locus. mBio 2018, 9, e02281-18. [Google Scholar] [CrossRef] [Green Version]
  70. Wadsworth, C.B.; Arnold, B.J.; Sater, M.R.A.; Grad, Y.H. Azithromycin resistance through interspecific acquisition of an epi-stasis-dependent efflux pump component and transcriptional regulator in Neisseria gonorrhoeae. mBio 2018, 9, e01419-18. [Google Scholar] [CrossRef] [PubMed]
  71. Smolarczyk, K.; Mlynarczyk-Bonikowska, B.; Rudnicka, E.; Szukiewicz, D.; Meczekalski, B.; Smolarczyk, R.; Pieta, W. The Impact of Selected Bacterial Sexually Transmitted Diseases on Pregnancy and Female Fertility. Int. J. Mol. Sci. 2021, 22, 2170. [Google Scholar] [CrossRef] [PubMed]
  72. Olesky, M.; Hobbs, M.; Nicholas, R.A. Identification and Analysis of Amino Acid Mutations in Porin IB That Mediate Intermediate-Level Resistance to Penicillin and Tetracycline in Neisseria gonorrhoeae. Antimicrob. Agents Chemother. 2002, 46, 2811–2820. [Google Scholar] [CrossRef] [PubMed]
  73. Olesky, M.; Zhao, S.; Rosenberg, R.L.; Nicholas, R.A. Porin-Mediated Antibiotic Resistance in Neisseria gonorrhoeae: Ion, Solute, and Antibiotic Permeation through PIB Proteins with penB Mutations. J. Bacteriol. 2006, 188, 2300–2308. [Google Scholar] [CrossRef]
  74. Ropp, P.A.; Hu, M.; Olesky, M.; Nicholas, R.A. Mutations in ponA, the Gene Encoding Penicillin-Binding Protein 1, and a Novel Locus, penC, Are Required for High-Level Chromosomally Mediated Penicillin Resistance in Neisseria gonorrhoeae. Antimicrob. Agents Chemother. 2002, 46, 769–777. [Google Scholar] [CrossRef]
  75. Guymon, L.F.; Walstad, D.L.; Sparling, P.F. Cell envelope alterations in antibiotic-sensitive and-resistant strains of Neisseria gonorrhoeae. J. Bacteriol. 1978, 136, 391–401. [Google Scholar] [CrossRef]
  76. Costa-Lourenço, A.P.R.; dos Santos, K.T.B.; Moreira, B.M.; Fracalanzza, S.E.L.; Bonelli, R.R. Antimicrobial resistance in Neisseria gonorrhoeae: History, molecular mechanisms and epidemiological aspects of an emerging global threat. Braz. J. Microbiol. 2017, 48, 617–628. [Google Scholar] [CrossRef]
  77. Whiley, D.M.; Jacobsson, S.; Tapsall, J.W.; Nissen, M.D.; Sloots, T.P.; Unemo, M. Alterations of the pilQ gene in Neisseria gonorrhoeae are unlikely contributors to decreased susceptibility to ceftriaxone and cefixime in clinical gonococcal strains. J. Antimicrob. Chemother. 2010, 65, 2543–2547. [Google Scholar] [CrossRef]
  78. Sánchez-Busó, L.; Yeats, C.A.; Taylor, B.; Goater, R.J.; Underwood, A.; Abudahab, K.; Argimón, S.; Ma, K.C.; Mortimer, T.D.; Golparian, D.; et al. A community-driven resource for genomic epidemiology and antimicrobial resistance prediction of Neisseria gonorrhoeae at Pathogenwatch. Genome Med. 2021, 13, 61. [Google Scholar] [CrossRef]
  79. Unemo, M.; Golparian, D.; Sánchez-Busó, L.; Grad, Y.; Jacobsson, S.; Ohnishi, M.; Lahra, M.M.; Limnios, A.; Sikora, A.E.; Wi, T.; et al. The novel 2016 WHO Neisseria gonorrhoeae reference strains for global quality assurance of laboratory investigations: Phenotypic, genetic and reference genome characterization. J. Antimicrob. Chemother. 2016, 71, 3096–3108. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  80. Veal, W.L.; Nicholas, R.A.; Shafer, W.M. Overexpression of the MtrC-MtrD-MtrE Efflux Pump Due to an mtrR Mutation Is Required for Chromosomally Mediated Penicillin Resistance in Neisseria gonorrhoeae. J. Bacteriol. 2002, 184, 5619–5624. [Google Scholar] [CrossRef] [PubMed]
  81. Ohnishi, M.; Ono, E.; Shimuta, K.; Watanabe, H.; Okamura, N. Identification of TEM-135 β-Lactamase in Penicillinase-Producing Neisseria gonorrhoeae Strains in Japan. Antimicrob. Agents Chemother. 2010, 54, 3021–3023. [Google Scholar] [CrossRef] [PubMed]
  82. Gianecini, R.A.; Oviedo, C.; Guantay, C.; Piccoli, L.; Stafforini, G.; Galarza, P. Prevalence of bla TEM-220 gene in Penicillinase-producing Neisseria gonorrhoeae strains carrying Toronto/Rio plasmid in Argentina, 2002–2011. BMC Infect. Dis. 2015, 15, 571. [Google Scholar] [CrossRef] [PubMed]
  83. Gianecini, R.; Oviedo, C.; Littvik, A.; Mendez, E.; Piccoli, L.; Montibello, S.; Galarza, P. Identification of TEM-135 β-Lactamase in Neisseria gonorrhoeae Strains Carrying African and Toronto Plasmids in Argentina. Antimicrob. Agents Chemother. 2015, 59, 717–720. [Google Scholar] [CrossRef] [PubMed]
  84. Muhammad, I.; Golparian, D.; Dillon, J.-A.R.; Johansson, A.; Ohnishi, M.; Sethi, S.; Chen, S.-C.; Nakayama, S.-I.; Sundqvist, M.; Bala, M.; et al. Characterisation of bla TEM genes and types of β-lactamase plasmids in Neisseria gonorrhoeae—The prevalent and conserved bla TEM-135 has not recently evolved and existed in the Toronto plasmid from the origin. BMC Infect. Dis. 2014, 14, 454. [Google Scholar] [CrossRef] [PubMed]
  85. Micaëlo, M.; Goubard, A.; La Ruche, G.; Denamur, E.; Tenaillon, O.; Cambau, E.; Jacquier, H.; Bercot, B. Molecular epidemiology of penicillinase-producing Neisseria gonorrhoeae isolates in France. Clin. Microbiol. Infect. 2017, 23, 968–973. [Google Scholar] [CrossRef]
  86. Golparian, D.; Kittiyaowamarn, R.; Paopang, P.; Sangprasert, P.; Sirivongrangson, P.; Franceschi, F.; Jacobsson, S.; Wi, T.; Unemo, M. Genomic surveillance and antimicrobial resistance in Neisseria gonorrhoeae isolates in Bangkok, Thailand in 2018. J. Antimicrob. Chemother. 2022, dkac158. [Google Scholar] [CrossRef]
  87. Pagottoa, F.; Amanb, A.T.; Ng, L.-K.; Yeung, K.-H.; Brettd, M.; Dillon, J.-A.R. Sequence Analysis of the Family of Penicillinase-Producing Plasmids of Neisseria gonorrhoeae. Plasmid 2000, 43, 24–34. [Google Scholar] [CrossRef]
  88. Pagotto, F.; Salimnia, H.; Totten, P.; Dillon, J. Stable shuttle vectors for Neisseria gonorrhoeae, Haemophilus spp. and other bacteria based on a single origin of replication. Gene 2000, 244, 13–19. [Google Scholar] [CrossRef]
  89. Yan, J.; Zhang, J.; van der Veen, S. High prevalence of TEM-135 expression from the Asian plasmid in penicillinase-producing Neisseria gonorrhoeae from Hangzhou, China. Int. J. Antimicrob. Agents 2019, 54, 361–366. [Google Scholar] [CrossRef] [PubMed]
  90. Dillon, J.; Li, H.; Yeung, K.-H.; Aman, T. A PCR assay for discriminating Neisseria gonorrhoeae β-lactamase-producing plasmids. Mol. Cell. Probes 1999, 13, 89–92. [Google Scholar] [CrossRef] [PubMed]
  91. Scharbaai-Vázquez, R.; Candelas, T.; Torres-Bauzá, L. Mobilization of the gonococcal 5.2kb β-lactamase plasmid pSJ5.2 into Escherichia coli by cointegration with several gram-conjugative plasmids. Plasmid 2007, 57, 156–164. [Google Scholar] [CrossRef] [PubMed]
  92. Müller, E.E.; Fayemiwo, S.A.; Lewis, D.A. Characterization of a novel -lactamase-producing plasmid in Neisseria gonorrhoeae: Sequence analysis and molecular typing of host gonococci. J. Antimicrob. Chemother. 2011, 66, 1514–1517. [Google Scholar] [CrossRef] [PubMed]
  93. Trembizki, E.; Buckley, C.; Lawrence, A.; Lahra, M.; Whiley, D.; GRAND Study Investigators. Characterization of a Novel Neisseria gonorrhoeae Penicillinase-Producing Plasmid Isolated in Australia in 2012. Antimicrob. Agents Chemother. 2014, 58, 4984–4985. [Google Scholar] [CrossRef] [PubMed]
  94. Bala, M.; Kakran, M.; Singh, V.; Sood, S.; Ramesh, V.; Members of WHO GASP SEAR Network. Monitoring antimicrobial resistance in Neisseria gonorrhoeae in selected countries of the WHO South-East Asia Region between 2009 and 2012: A retrospective analysis. Sex. Transm. Infect. 2013, 89, iv28–iv35. [Google Scholar] [CrossRef]
  95. Bush, K.; Bradford, P.A. Epidemiology of β-Lactamase-Producing Pathogens. Clin. Microbiol. Rev. 2020, 33, e00047-19. [Google Scholar] [CrossRef]
  96. National Library of Medicine; National Center for Bitechnology Information. Available online: https://www.ncbi.nlm.nih.gov/pathogens/refgene/#TEM (accessed on 20 May 2022).
  97. Chisholm, S.A.; Dave, J.; Ison, C.A. High-Level Azithromycin Resistance Occurs in Neisseria gonorrhoeae as a Result of a Single Point Mutation in the 23S rRNA Genes. Antimicrob. Agents Chemother. 2010, 54, 3812–3816. [Google Scholar] [CrossRef]
  98. Ng, L.-K.; Martin, I.; Liu, G.; Bryden, L. Mutation in 23S rRNA Associated with Macrolide Resistance in Neisseria gonorrhoeae. Antimicrob. Agents Chemother. 2002, 46, 3020–3025. [Google Scholar] [CrossRef]
  99. Jacobsson, S.; Golparian, D.; Cole, M.; Spiteri, G.; Martin, I.; Bergheim, T.; Borrego, M.J.; Crowley, B.; Crucitti, T.; Van Dam, A.P.; et al. Whole genome sequence analysis and molecular resistance mechanisms in azithromycin resistant Neisseria gonorrhoeae isolates in Europe from 2009 to 2014. J. Antimicrob. Chemother. 2016, 71, 3109–3116. [Google Scholar] [CrossRef]
  100. Cousin, S.L., Jr.; Whittington, W.L.; Roberts, M.C. Acquired macrolide resistance genes and the 1 bp deletion in the mtrR promoter in Neisseria gonorrhoeae. J. Antimicrob. Chemother. 2002, 51, 131–133. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  101. Reimche, J.L.; Chivukula, V.L.; Schmerer, M.W.; Joseph, S.J.; Pham, C.D.; Schlanger, K.; Cyr, S.B.S.; Weinstock, H.S.; Raphael, B.H.; Kersh, E.N.; et al. Genomic Analysis of the Predominant Strains and Antimicrobial Resistance Determinants within 1479 Neisseria gonorrhoeae Isolates from the US Gonococcal Isolate Surveillance Project in 2018. Sex. Transm. Dis. 2021, 48, S78–S87. [Google Scholar] [CrossRef] [PubMed]
  102. Grad, Y.H.; Harris, S.R.; Kirkcaldy, R.D.; Green, A.G.; Marks, D.S.; Bentley, S.D.; Trees, D.; Lipsitch, M. Genomic Epidemiology of Gonococcal Resistance to Extended-Spectrum Cephalosporins, Macrolides, and Fluoroquinolones in the United States, 2000–2013. J. Infect. Dis. 2016, 214, 1579–1587. [Google Scholar] [CrossRef]
  103. Ma, K.C.; Mortimer, T.D.; Duckett, M.A.; Hicks, A.L.; Wheeler, N.E.; Sánchez-Busó, L.; Grad, Y.H. Increased power from conditional bacterial genome-wide association identifies macrolide resistance mutations in Neisseria gonorrhoeae. Nat. Commun. 2020, 11, 5374. [Google Scholar] [CrossRef]
  104. Rouquette-Loughlin, C.E.; Balthazar, J.T.; Shafer, W.M. Characterization of the MacA–MacB efflux system in Neisseria gonorrhoeae. J. Antimicrob. Chemother. 2005, 56, 856–860. [Google Scholar] [CrossRef] [PubMed]
  105. Roberts, M.C.; Chung, W.O.; Roe, D.; Xia, M.; Marquez, C.; Borthagaray, G.; Whittington, W.L.; Holmes, K.K. Erythromycin-Resistant Neisseria gonorrhoeae and Oral Commensal Neisseria spp. Carry Known rRNA Methylase Genes. Antimicrob. Agents Chemother. 1999, 43, 1367–1372. [Google Scholar] [CrossRef] [PubMed]
  106. Cousin, S.; Whittington, W.L.H.; Roberts, M.C. Acquired Macrolide Resistance Genes in Pathogenic Neisseria spp. Isolated between 1940 and 1987. Antimicrob. Agents Chemother. 2003, 47, 3877–3880. [Google Scholar] [CrossRef]
  107. Mlynarczyk, B.; Mlynarczyk, A.; Kmera-Muszynska, M.; Majewski, S.; Mlynarczyk, G. Mechanisms of Resistance to Antimicrobial Drugs in Pathogenic Gram-Positive Cocci. Mini-Rev. Med. Chem. 2010, 10, 928–937. [Google Scholar] [CrossRef]
  108. Day, M.J.; Jacobsson, S.; Spiteri, G.; Kulishev, C.; Sajedi, N.; Woodford, N.; Blumel, B.; van der Werf, M.J.; Amato-Gauci, A.J.; Unemo, M.; et al. Significant increase in azithromycin “resistance” and susceptibility to ceftriaxone and cefixime in Neisseria gonorrhoeae isolates in 26 European countries, 2019. BMC Infect. Dis. 2022, 22, 524. [Google Scholar] [CrossRef]
  109. Cassu-Corsi, D.; Santos, F.F.; Cayô, R.; Martins, W.M.B.S.; Nodari, C.S.; Almeida, L.G.P.; Martins, R.A.; Carvalho da Silva, R.J.; Vasconcelos, A.T.R.; Pignatari, A.C.C.; et al. Genomic analyses of ciprofloxacin-resistant Neisseria gonorrhoeae isolates recovered from the largest South American metropolitan area. Genomics 2022, 114, 110287. [Google Scholar] [CrossRef]
  110. Unemo, M.; Shafer, W.M. Antimicrobial resistance in Neisseria gonorrhoeae in the 21st century past, evolution, and future. Clin. Microbiol. Rev. 2014, 27, 587–613. [Google Scholar] [CrossRef] [Green Version]
  111. Młynarczyk-Bonikowska, B.; Kujawa, M.; Malejczyk, M.; Młynarczyk, G.; Majewski, S. Plasmid-mediated resistance to tetracyclines among Neisseria gonorrhoeae strains isolated in Poland between 2012 and 2013. Adv. Dermatol. Allergol. 2016, 33, 475–479. [Google Scholar] [CrossRef] [PubMed]
  112. Turner, A.; Gough, K.R.; Leeming, J.P. Molecular epidemiology of tetM genes in Neisseria gonorrhoeae. Sex. Transm. Infect. 1999, 75, 60–66. [Google Scholar] [CrossRef] [PubMed]
  113. Pachulec, E.; van der Does, C. Conjugative Plasmids of Neisseria gonorrhoeae. PLoS ONE 2010, 5, e9962. [Google Scholar] [CrossRef] [PubMed]
  114. Hu, M.; Nandi, S.; Davies, C.; Nicholas, R.A. High-Level Chromosomally Mediated Tetracycline Resistance in Neisseria gonorrhoeae Results from a Point Mutation in the rpsJ Gene Encoding Ribosomal Protein S10 in Combination with the mtrR and penB Resistance Determinants. Antimicrob. Agents Chemother. 2005, 49, 4327–4334. [Google Scholar] [CrossRef]
  115. Bilgin, N.; Richter, A.A.; Ehrenberg, M.; Dahlberg, A.E.; Kurland, C.G. Ribosomal RNA and protein mutants resistant to spectinomycin. EMBO J. 1990, 9, 735–739. [Google Scholar] [CrossRef]
  116. Ramakrishnan, V.; White, S.W. The structure of ribosomal protein S5 reveals sites of interaction with 16S rRNA. Nature 1992, 358, 768–771. [Google Scholar] [CrossRef]
  117. Moazed, D.; Noller, H.F. Interaction of antibiotics with functional sites in 16S ribosomal RNA. Nature 1987, 327, 389–394. [Google Scholar] [CrossRef]
  118. Sigmund, C.D.; Ettayebi, M.; Morgan, E.A. Antibiotic resistance mutations in 16S and 23S ribosomal RNA genes of Escherichia coli. Nucleic Acids Res. 1984, 12, 4653–4663. [Google Scholar] [CrossRef]
  119. Unemo, M.; Golparian, D.; Skogen, V.; Olsen, A.O.; Moi, H.; Syversen, G.; Hjelmevoll, S.O. Neisseria gonorrhoeae Strain with High-Level Resistance to Spectinomycin Due to a Novel Resistance Mechanism (Mutated Ribosomal Protein S5) Verified in Norway. Antimicrob. Agents Chemother. 2013, 57, 1057–1061. [Google Scholar] [CrossRef]
  120. Holley, C.L.; Dhulipala, V.; Balthazar, J.T.; Le Van, A.; Begum, A.A.; Chen, S.-C.; Read, T.D.; Matoga, M.; Hoffman, I.F.; Golparian, D.; et al. A Single Amino Acid Substitution in Elongation Factor G Can Confer Low-Level Gentamicin Resistance in Neisseria gonorrhoeae. Antimicrob. Agents Chemother. 2022, 25, e0025122. [Google Scholar] [CrossRef] [PubMed]
  121. Jacobsson, S.; Golparian, D.; Alm, R.A.; Huband, M.; Mueller, J.; Jensen, J.S.; Ohnishi, M.; Unemo, M. High In Vitro Activity of the Novel Spiropyrimidinetrione AZD0914, a DNA Gyrase Inhibitor, against Multidrug-Resistant Neisseria gonorrhoeae Isolates Suggests a New Effective Option for Oral Treatment of Gonorrhea. Antimicrob. Agents Chemother. 2014, 58, 5585–5588. [Google Scholar] [CrossRef] [PubMed]
  122. Unemo, M.; Ahlstrand, J.; Sánchez-Busó, L.; Day, M.; Aanensen, D.; Golparian, D.; Jacobsson, S.; Cole, M.J.; European Collaborative Group. High susceptibility to zoliflodacin and conserved target (GyrB) for zoliflodacin among 1209 consecutive clinical Neisseria gonorrhoeae isolates from 25 European countries, 2018. J. Antimicrob. Chemother. 2021, 76, 1221–1228. [Google Scholar] [CrossRef]
  123. Unemo, M.; Ringlander, J.; Wiggins, C.; Fredlund, H.; Jacobsson, S.; Cole, M.; The European Collaborative Group Collaborators. High in vitro susceptibility to the novel spiropyrimidinetrione AZD0914 among contemporary clinical Neisseria gonorrhoeae isolates in 21 European countries. Antimicrob. Agents Chemother. 2015, 59, 5220–5225. [Google Scholar] [CrossRef] [PubMed]
  124. Taylor, S.N.; Marrazzo, J.; Batteiger, B.E.; Hook, E.W.; Seña, A.C.; Long, J.; Wierzbicki, M.R.; Kwak, H.; Johnson, S.M.; Lawrence, K.; et al. Single-Dose Zoliflodacin (ETX0914) for Treatment of Urogenital Gonorrhea. New Engl. J. Med. 2018, 379, 1835–1845. [Google Scholar] [CrossRef] [PubMed]
  125. Förster, S.; Golparian, D.; Jacobsson, S.; Hathaway, L.J.; Low, N.; Shafer, W.M.; Althaus, C.L.; Unemo, M. Genetic Resistance Determinants, In Vitro Time-Kill Curve Analysis and Pharmacodynamic Functions for the Novel Topoisomerase II Inhibitor ETX0914 (AZD0914) in Neisseria gonorrhoeae. Front. Microbiol. 2015, 6, 1377. [Google Scholar] [CrossRef]
  126. Jönsson, A.; Foerster, S.; Golparian, D.; Hamasuna, R.; Jacobsson, S.; Lindberg, M.; Jensen, J.S.; Ohnishi, M.; Unemo, M. In vitro activity and time-kill curve analysis of sitafloxacin against a global panel of antimicrobial-resistant and multidrug-resistant Neisseria gonorrhoeae isolates. APMIS 2018, 126, 29–37. [Google Scholar] [CrossRef]
  127. Hamasuna, R.; Ohnishi, M.; Matsumoto, M.; Okumura, R.; Unemo, M.; Matsumoto, T. In Vitro Activity of Sitafloxacin and Additional Newer Generation Fluoroquinolones against Ciprofloxacin-Resistant Neisseria gonorrhoeae Isolates. Microb. Drug Resist. 2018, 24, 30–34. [Google Scholar] [CrossRef]
  128. Soge, O.O.; Salipante, S.J.; No, D.; Duffy, E.; Roberts, M.C. In Vitro Activity of Delafloxacin against Clinical Neisseria gonorrhoeae Isolates and Selection of Gonococcal Delafloxacin Resistance. Antimicrob. Agents Chemother. 2016, 60, 3106–3111. [Google Scholar] [CrossRef]
  129. Jacobsson, S.; Golparian, D.; Scangarella-Oman, N.; Unemo, M. In vitro activity of the novel triazaacenaphthylene gepotidacin (GSK2140944) against MDR Neisseria gonorrhoeae. J. Antimicrob. Chemother. 2018, 73, 2072–2077. [Google Scholar] [CrossRef]
  130. Farrell, D.J.; Sader, H.S.; Rhomberg, P.R.; Scangarella-Oman, N.E.; Flamm, R.K. In Vitro Activity of Gepotidacin (GSK2140944) against Neisseria gonorrhoeae. Antimicrob. Agents Chemother. 2017, 61, e02047-16. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  131. Taylor, S.N.; Morris, D.H.; Avery, A.K.; Workowski, K.A.; Batteiger, B.E.; Tiffany, C.A.; Perry, C.R.; Raychaudhuri, A.; Scangarella-Oman, N.E.; Hossain, M.; et al. Gepotidacin for the Treatment of Uncomplicated Urogenital Gonorrhea: A Phase 2, Randomized, Dose-Ranging, Single-Oral Dose Evaluation. Clin. Infect. Dis. 2018, 67, 504–512. [Google Scholar] [CrossRef] [PubMed]
  132. Hook, I.E.W.; Golden, M.; Jamieson, B.D.; Dixon, P.B.; Harbison, H.S.; Lowens, S.; Fernandes, P. A Phase 2 Trial of Oral Solithromycin 1200 mg or 1000 mg as Single-Dose Oral Therapy for Uncomplicated Gonorrhea. Clin. Infect. Dis. 2015, 61, 1043–1048. [Google Scholar] [CrossRef] [PubMed]
  133. Alirol, E.; Wi, T.E.; Bala, M.; Bazzo, M.L.; Chen, X.S.; Deal, C.; Dillon, J.R.; Kularatne, R.; Heim, J.; Hooft van Huijsduijnen, R.; et al. Multidrug-resistant gonorrhea: A research and development roadmap to discover new medicines. PLoS Med. 2017, 14, e1002366. [Google Scholar] [CrossRef] [PubMed]
  134. Mallegol, J.; Fernandes, P.; Seah, C.; Guyard, C.; Melano, R.G. Determination of In Vitro Activities of Solithromycin at Different pHs and Its Intracellular Activity against Clinical Isolates of Neisseria gonorrhoeae from a Laboratory Collection. Antimicrob. Agents Chemother. 2013, 57, 4322–4328. [Google Scholar] [CrossRef] [PubMed]
  135. Chen, M.Y.; McNulty, A.; Avery, A.; Whiley, D.; Tabrizi, S.N.; Hardy, D.; Das, A.F.; Nenninger, A.; Fairley, C.K.; Hocking, J.S.; et al. Solithromycin versus ceftriaxone plus azithromycin for the treatment of uncomplicated genital gonorrhoea (SOLITAIRE-U): A randomised phase 3 non-inferiority trial. Lancet Infect. Dis. 2019, 19, 833–842. [Google Scholar] [CrossRef]
  136. Jacobsson, S.; Paukner, S.; Golparian, D.; Jensen, J.S.; Unemo, M. In Vitro Activity of the Novel Pleuromutilin Lefamulin (BC-3781) and Effect of Efflux Pump Inactivation on Multidrug-Resistant and Extensively Drug-Resistant Neisseria gonorrhoeae. Antimicrob. Agents Chemother. 2017, 61, e01497-17. [Google Scholar] [CrossRef]
  137. Paukner, S.; Gruss, A.; Jensen, J.S. In Vitro Activity of Lefamulin against Sexually Transmitted Bacterial Pathogens. Antimicrob. Agents Chemother. 2018, 62, e02380-17. [Google Scholar] [CrossRef]
  138. Suay-García, B.; Pérez-Gracia, M.T. Future Prospects for Neisseria gonorrhoeae Treatment. Antibiotics 2018, 7, 49. [Google Scholar] [CrossRef]
  139. Jacobsson, S.; Golparian, D.; Phan, L.T.; Ohnishi, M.; Fredlund, H.; Or, Y.S.; Unemo, M. In vitro activities of the novel bicyclolides modithromycin (EDP-420, EP-013420, S-013420) and EDP-322 against MDR clinical Neisseria gonorrhoeae isolates and international reference strains. J. Antimicrob. Chemother. 2014, 70, 173–177. [Google Scholar] [CrossRef]
  140. Butler, M.M.; Waidyarachchi, S.L.; Connolly, K.; Jerse, A.E.; Chai, W.; Lee, R.E.; Kohlhoff, S.A.; Shinabarger, D.L.; Bowlin, T.L. Aminomethyl Spectinomycins as Therapeutics for Drug-Resistant Gonorrhea and Chlamydia Coinfections. Antimicrob. Agents Chemother. 2018, 65, e00325-18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  141. Hauser, C.; Hirzberger, L.; Unemo, M.; Furrer, H.; Endimiani, A. In Vitro Activity of Fosfomycin Alone and in Combination with Ceftriaxone or Azithromycin against Clinical Neisseria gonorrhoeae Isolates. Antimicrob. Agents Chemother. 2015, 59, 1605–1611. [Google Scholar] [CrossRef] [PubMed]
  142. Masuko, A.; Takata, I.; Fujita, K.; Okumura, H.; Ushiyama, F.; Amada, H.; Sugiyama, H. In Vitro and In Vivo Activities of TP0480066, a Novel Topoisomerase Inhibitor, against Neisseria gonorrhoeae. Antimicrob. Agents Chemother. 2021, 65, e02145-20. [Google Scholar] [CrossRef]
  143. Naclerio, G.A.; Abutaleb, N.S.; Alhashimi, M.; Seleem, M.N.; Sintim, H.O. N-(1,3,4-Oxadiazol-2-yl)Benzamides as Antibacterial Agents against Neisseria gonorrhoeae. Int. J. Mol. Sci. 2021, 22, 2427. [Google Scholar] [CrossRef] [PubMed]
  144. Neisseria gonorrhoeae Multi Antigen Sequence Typing V2.0 (PubMLST NG-MAST V2.0). Available online: https://pubmlst.org/bigsdb?db=pubmlst_neisseria_seqdef&page=schemeInfo&scheme_id=71 (accessed on 20 July 2022).
  145. Kwong, J.C.; da Silva, A.G.; Dyet, K.; Williamson, D.A.; Stinear, T.P.; Howden, B.P.; Seemann, T. NGMASTER: In Silico multi-antigen sequence typing for Neisseria gonorrhoeae. Microb. Genom. 2016, 2, e000076. [Google Scholar] [CrossRef] [PubMed]
  146. European Centre for Disease Prevention and Control. Molecular Typing of Neisseria gonorrhoeae—A Study of 2013 Isolates; ECDC: Stockholm, Sweden, 2008. [Google Scholar] [CrossRef]
  147. Młynarczyk-Bonikowska, B.; Malejczyk, M.; Majewski, S.; Unemo, M. Antibiotic resistance and NG-MAST sequence types of Neisseria gonorrhoeae isolates in Poland compared to the world. Adv. Dermatol. Allergol. 2018, 35, 346–551. [Google Scholar] [CrossRef] [PubMed]
  148. European Centre for Disease Prevention and Control. Molecular Typing of Neisseria gonorrhoeae—Results from a Pilot Study 2010–2011; ECDC: Stockholm, Sweden, 2012. [CrossRef]
  149. National Surveillance of Antimicrobial Susceptibilities of Neisseria gonorrhoeae Annual Summary. 2018. Available online: https://www.canada.ca/en/public-health/services/publications/drugs-health-products/national-surveillance-antimicrobial-susceptibilities-neisseria-gonorrhoeae-annual-summary-2018.html (accessed on 18 June 2022).
  150. National Surveillance of Antimicrobial Susceptibilities of Neisseria gonorrhoeae Annual Summary 2013. Available online: https://www.canada.ca/en/public-health/services/publications/drugs-health-products/national-surveillance-antimicrobial-susceptibilities-neisseria-gonorrhoeae-annual-summary-2013.html (accessed on 18 June 2022).
  151. Shaskolskiy, B.; Dementieva, E.; Kandinov, I.; Chestkov, A.; Kubanov, A.; Deryabin, D.; Gryadunov, D. Genetic diversity of Neisseria gonorrhoeae multi-antigen sequence types in Russia and Europe. Int. J. Infect. Dis. 2020, 93, 1–8. [Google Scholar] [CrossRef]
  152. Multi-Locus Sequence Typing (Pub MLST). Available online: https://pubmlst.org/bigsdb?db=pubmlst_neisseria_iso-lates&page=query&prov_field1=f_species&prov_value1=Neisseria%20gonorrhoeae&submit=1 (accessed on 18 June 2022).
  153. Neisseria gonorrhoeae Sequence Typing for Antimicrobial Resistance (NG-STAR Version 2.0). Available online: https://ngstar.canada.ca/sequence_types?lang=enhttps://ngstar.canada.ca/sequence_types?lang=en (accessed on 20 June 2022).
Ijms 23 10499 g001 550

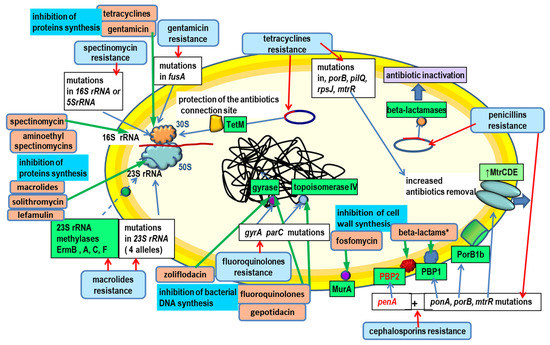

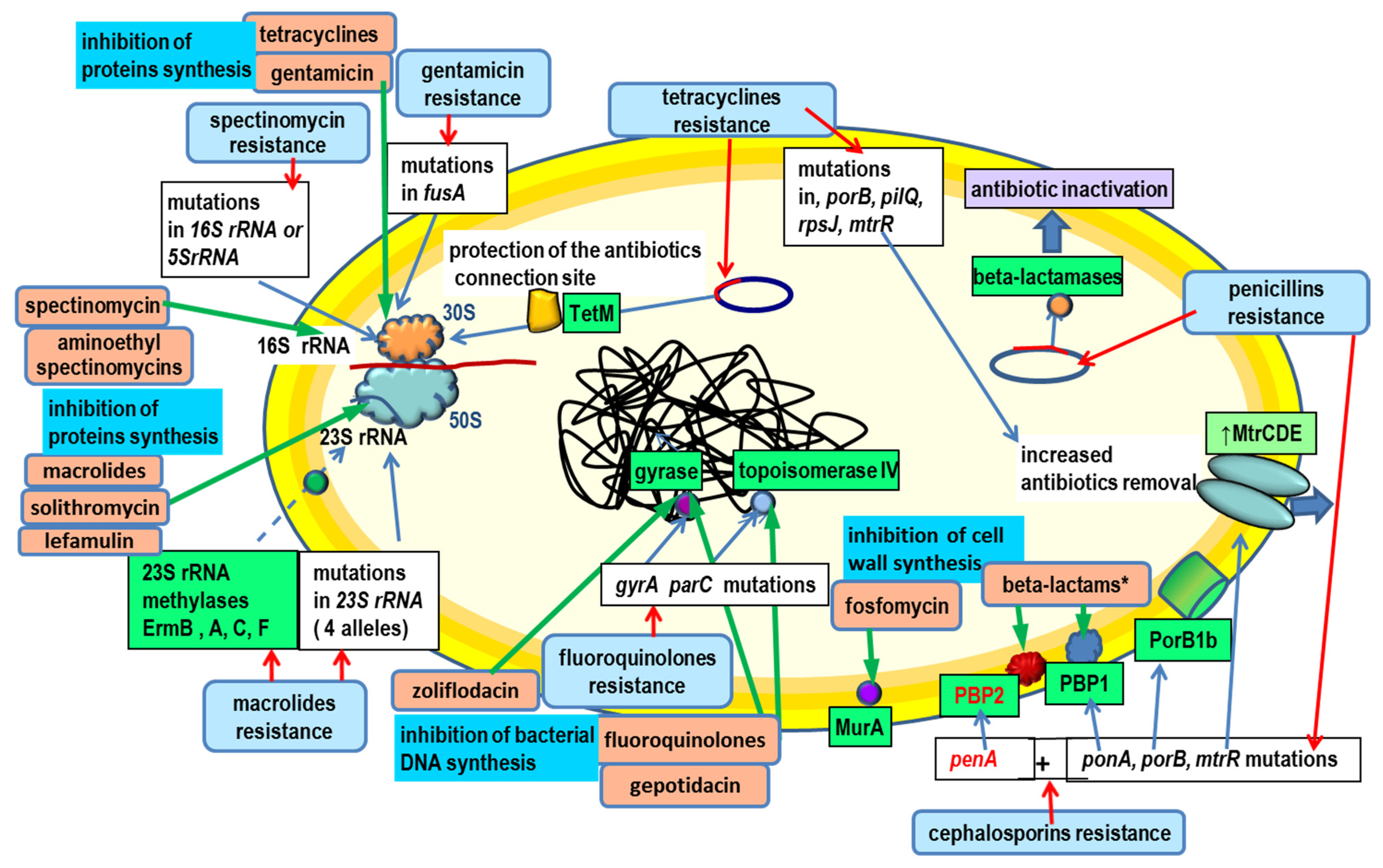

Figure 1. The most important targets of antibiotics (green arrows) and mechanisms of resistance (red arrows) in N. gonorrhoeae. See text for details. Beta-lactams*: penicillins, cephalosporins (ceftriaxone, cefixime), carbapenems (ertapenem).
Figure 1. The most important targets of antibiotics (green arrows) and mechanisms of resistance (red arrows) in N. gonorrhoeae. See text for details. Beta-lactams*: penicillins, cephalosporins (ceftriaxone, cefixime), carbapenems (ertapenem).
Ijms 23 10499 g001
Table
Table 1. N. gonorrhoeae strains with ceftriaxone MIC ≥ 0.5 mg/L.
Table 1. N. gonorrhoeae strains with ceftriaxone MIC ≥ 0.5 mg/L.
CountryYearStrainCRO MIC mg/LST NG-STAR (CC)PenAPorB G120/A121mtrR/MtrRST NG-MAST (GST)ST MLST
China2020YL201 *0.752238 (NA)60.001K/D−35A Delnew1600
Vietnam2019–20VN128T0.523360.001K/D−35A Del7237 (G431)13,871
Vietnam2019–20VN20T0.7523360.001K/D−35A Del1086 (G431)13,871
Singapore2019–2018DG342123360.001K/D−35A Del1086 (G431)13,871
China2019SRRSH21412208 (NA)60.001K/D−35A Del19,972 a1600
China2019SRRSH22912208 (NA)60.001K/D−35A Del19972 a1600
China2019DG191120.5233 (199)60.001K/D−35A Del20408 a13943
China2019SS740.5new60.001NA−35A Delnew1903
China2018ZH5450.52239 (NA)60.001D/wt−35A Del13272 (G13272)7365
China2018GC250 *0.51143 (199)60.001K/G−35A Delnew7365
China2018SC18-25≥0.5233 (199)60.001K/D−35A Delnew1903
China2018SC18-26≥0.5233 (199)60.001K/D−35A Delnew1903
China2018SC18-68≥0.5233 (199)60.001K/D−35A Del16059 (G564)7363
China2018DG181930.5new60.001NA−35A Delnew1903
China2018MM140.5233 (199)60.001K/D−35A Del1086 (G359)1903
Canada2018517420.5233 (199)60.001K/D−35A Del3435 (G564)1903
Ireland2018IR720.51133 (199)60.001K/N−35A Del17842 (G564)1903
Australia2018A2543 **0.5996 (73)60.001K/D−35 Del; G45D16848 (G1866)12039
The UK2018G97687 *0.5996 (73)60.001K/D−35 Del; G45D16848 (G1866)12039
The UK2018G7944 *0.5996 (73)60.001K/D−35 Del; G45D16848 (G1866)12039
The UK2018H18-5021.0233 (199)60.001K/D−35A Del1614 (G5267)1903
The UK2018H18-2091.0233 (199)60.001K/D−35A Del1614 (G5267)1903
China2017GC18511143 (199)60.001K/G−35A Delnew1903
China2017SZ20171910.5233 (199)60.001K/D−35A Del15240 (G564)1903
France2017F900.5133 (38)54.00K/D−35 Del; G45D3435 (G564)1903
Denmark2017GK1240.5233 (199)60.001K/D−35A Del1614 (G5267)1903
Canada2017477071.0233 (199)60.001K/D−35A Del1614 (G5267)1903
Australia2017A75360.5233 (199)60.001K/D−35A Del15925 (G11110)1903
Australia2017A78460.5233 (199)60.001K/D−35A Del1614 (G5267)1903
Japan2017KM3830.5233 (199)60.001K/D−35A Del16186 (G431)1903
Japan2017KU170390.5233 (199)60.001K/D−35A Del16186 (G431)1903
Japan2016KU160540.5233 (199)60.001K/D−35A Del3435 (G564)1903
China2016BJ161480.5233 (199)60.001K/D−35A Del3435 (G564)1903
Japan2015FC4980.75233 (199)60.001K/D−35A Del3435 (G564)1903
Japan2015FC4280.5233 (199)60.001K/D−35A Del3435 (G564)1903
Japan2015FC4600.5233 (199)60.001K/D−35A Del3435 (G564)1903
Argentina2014CCETS-70690.5139 (139)9.001K/D−35A Del13064 (G21)13637
Japan2013Tum157480.5NA169.001NAND6771 (G9909)7359
Australia2013A8806; WHO-Z0.5227 (348)64.001K/Dwt4015 (G11018)7363
China2012/13GD40.5NAIINAND10208 (G5062)NA
China2012/13HN90.5NAXXINAND5913 (G1791)NA
Spain2012F89; WHO-Y1.016 (90)34.001K/N−35A Del1407 (G1407)1901
France2010F89; WHO-Y1.016 (90)42.001K/N−35A Del1407 (G1407)1901
Japan2009HO41; WHO-X2.0226 (348)37.001K/D−35A Del4220 (G4019)7363
China2007NA0.5NAXVIINAND2288 (G1791)NA
* Strain resistant to azithromycin, ** strain resistant to high concentration of azithromycin MIC ≥ 256 mg/L; ND, no data; CRO, ceftriaxone; CC, clonal complex; GST, genogroup; a sequence type (ST) removed from NG-MAST database in 2021.
Table
Table 2. The effect of mutations in the rpoB and rpoD genes on changes in ceftriaxone and cefixime MICs.
Table 2. The effect of mutations in the rpoB and rpoD genes on changes in ceftriaxone and cefixime MICs.
StrainRpoBRpoDPenA *PorB G120/A121PonACeftriaxone MIC mg/LCefixime MIC mg/L
GCGS0364wtwt9.001K/DL421P0.023NA
GCGS0364G158Vwt9.001K/DL421P0.5NA
GCGS0364P157Lwt9.001K/DL421P0.75NA
GCGS0457wtwt9.001G/VL421P0.0120.016
GCGS0457R201Hwt9.001G/VL421P0.19>0.5
GCGS0457wtE98K9.001G/VL421P0.1250.5
GCGS0457wt92–95 del9.001G/VL421P0.190.5
* NG-STAR PenA allele; wt, wild-type; NA, not applicable.
Table
Table 3. Nonmosaic-type PenA.
Table 3. Nonmosaic-type PenA.
PenASubstitution *PenASubstitution *PenASubstitution *
I (18) 88 (1)A501V, A516G170 (2)-
II (56) abcF504L, A516G90 (1)A516G174 (1)A516G
III (4)A516G94 (1)N512Y175 (1)A516G
IV (1)A516G, G542S95 (1)-176 (1)-
V (15) bcF504L, A516G, G542S96 (1)-178 (1)N512Y
VII (1) cA501V, A516G, G542S97 (1)-179 (1)-
IX (11) abcA516G98 (2)-181 (1)A501V, A516G, G542S
XI (2)A501V, A516G99 (1)A311V182 (1)N512Y
XII (10) bcF504L, A516G100 (15)wt183 (1)-
XIII (9) bc
13.008		A501V, A516G
A201V		102 (1)A516G184 (1)-
XIV (19)A516G103 (6)
103.006		A501V, A516G
A516G		185 (1)-
XV (10)-104 (1)A501T, A516G, G542S186 (1)-
XVI (1)A516G106 (1)A516G, G542S187 (1)-
XVII (1) abcA501V, A516G, G542S107 (1) cA501T, A516G, G542S189 (1)A516G, N542S
XVIII (5) bc
18.005		A501V, A516G, G542S
A516G, G542S		109 (1) cA501V, A516G190 (1)A516G
XIX (18)A516G119 (1)-191 (1)A516G
XXI (4) abcA501V, A516G120 (1)A501V, A516G192 (1)A516G
XXII (16)F504L, A516G122 (1)A501V, A516G193 (1)A516G
40 (1)-123 (1)-194 (1)A516G
41 (2)A516G, G542S125 (1)A501T, A516G, G542S197 (1)A501P, A516G
43 (7) cA501V, A516G126 (1)A501T, A516G, G542S199 (1)A516G
44 (7)A501T, A516G127 (1)N512Y200 (1)A516G
45 (3)A516G132 (1)A516G201 (1)A516G
46 (1) cA516G137 (1)A516G, G542S202 (1)A311V, A516G
48 (2)A516G141 (1)A501V, A516G203 (1)A516G
49 (1)A501T, A516G142 (1)A501V, A516G204 (1)A516G
50 (2) cA516G143 (1)A501V, A516G208 (1)A516G
54 (3)A501V, A516G144 (1)A501V, A516G209 (1)A501P, A516G
56 (1)A501V, A516G146 (1)A501T, A516G, G542S210 (1)A516G
57 (1)A501V, A516G147 (1)A501V, A516G213 (1)A501P, A516G
61 (1)A516G148 (1) bcA516G218 (2)A516G
66 (1)N512Y151 (1)A516G220 (1)-
68 (1) cA516G153 (1)A516G221 (1)A516G
69 (5)A516G154 (1)A501V A516G222 (1)A516G
70 (1)A516G155 (1)A501V A516G224 (1)A516G
76 (3)-156 (1)A311V A516G225 (1)A516G
77 (1)A501T, A516G157 (1)A516G226 (1)A516G, G542S
79 (2)-158 (1)A501V A516G227 (1)A516G, G542S
82 (1)-159 (1)A516G228 (1)A516G
83 (1)A516G160 (1)A516G229 (1)A516G
84 (1)-161 (1)A516G230 (1)
86 (1)A516G162 (1)A516G231 (1)A501V, A516G
87 (2)A501T, A516G163 (1)A516G G542S234 (1)
Strains with ceftriaxone MICs of: a ≥0.5 mg/L, b 0.25 mg/L, c 0.125 mg/L; PenA = PBP2 was described, with the number of subtypes in parentheses; * selected substitutions in PenA alleles.
Table
Table 4. Mosaic- and semimosaic-type PenA.
Table 4. Mosaic- and semimosaic-type PenA.
PenASubstitution *PenASubstitution *PenASubstitution *
Mosaic-type PenA
X (12) cV316T, F504L, N512Y85 (1)A501V, N512Y166 (1)N512Y
XXVII (4) cN512Y92 (1)N512Y168 (1)A501V, N512Y
XXXIV (27) abcN512Y101 (1)A501V169 (1) aA311V, N512Y
XXXV (3) 105 (1)N512Y171 (1)N512Y
37 (1) abcA311V, N512Y108 (1)N512Y172 (1)
38(1) abc 110 (1)N512Y180 (1)N512Y
42 (1) abcA501P, N512Y111 (1)N512Y188 (1)N512Y
51 (1) cN512Y115 (1) 195 (1)A311V, N512Y
52 (2)N512Y117 (1)N512Y196 (1)N512Y
53 (3) cN512Y118 (1)N512Y198 (1)N512Y
55 (1) cN512Y121 (2)A311V A516G205 (1)N512Y
58 (1)N512Y124 (1)A311V, N512Y206 (1)N512Y
59 (1) abcA311V, N512Y129 (1)A516G207 (1)A501P, A516G
60 (1) abcA311V, N512Y131 (1) 211 (1)N512Y
62 (1)N512Y133 (1)N512Y212 (1)N512Y
63 (1) 134 (1)A516G214 (1)A311V, N512Y
64 (1) abcA311V, N512Y136 (1)N512Y215 (1)A516G, G542S
67 (3)N512Y138 (1)N512Y217 (1)N512Y
71 (1) cN512Y139 (1)Mosaic wild-type219 (1)N512Y
72 (1)N512Y145 (1)N512Y223 (1)N512Y
74 (1)N512Y149 (1)A501V232 (1)A311V, N512Y
75 (1) 152 (1)N512Y233 (1)
Semimosaic-type PenA
39 (1) c 93 (1) 150 (1)A516G G542S
47 (1) 112 (1)N512Y164 (1)N512Y
65 (1) 113 (1)N512Y165 (1)N512Y
73 (1)N512Y114 (1) 167 (1)N512Y
78 (2)A501T, N512Y116 (1) 173 (1)
80 (2)A516G128 (1)A501V, A516G177 (1)
81 (1)N512Y130 (1)N512Y216 (1)N512Y
89 (1) 135 (1)N512Y
91 (1)N512Y140 (1)A516G
Strains were described with ceftriaxone MIC: a ≥0.5 mg/L, b 0.25 mg/L, c 0.125 mg/L; (), number of subtypes; * selected substitutions in PenA alleles.
Table
Table 5. Prevalence of NG-MAST sequence types in Europe and selected non-European countries.
Table 5. Prevalence of NG-MAST sequence types in Europe and selected non-European countries.
CountryYearnNG-MAST ST (Genogroup)% ST
Austria2013
2018		54
183		3785 (G3785)/11575 (G11575)/4995 (G4995)/387 (G387)/225 (G225)
12302 (G4822)/387 (G387)/11461 (G11461)		16.7/11.1/7.4/7.4/7.4
11.5/5.5/4.4
Belgium2013
2018		55
76		1407 (G1407)/387 (G387)/2992 (G2992)
5441 (G5441)/1513 (G1407)/2992 (G2992)		16.4/14.6/14.6
5.3/4/4
Denmark2013
2018		56
99		1993 (G1993)/1407 (G1407)/2400 (G2400)
1993 (G1993)/11461 (G11461)/5441 (G5441)		17.9/12.5/7.1
31.3/5.1/4
France2013
2018		58
37		645 (G645)/11352 (G11352)/225 (G225)/2400 (G2400)/2992 (G2992)
14769 (G14769)/15589 (G15589)/2 (G2)		8.6/5.2/3.5/3.5/3.5
10.8/8.1/5.4
Germany2013
2018		50
114		4995 (G4995)/25 (G51)/359 (G359)/5441 (G5441)/9500 (G9500)
10386 (G11352)/15589 (G15589)/387 (G387)		8.3/6.3/6.3/6.3/6.3
5.3/5.3/4.4
Greece2013
2018		50
79		3128 (G1407)/225 (G225)/4730 (G4730)/11055 (G225)
14994 (G14994)/3128 (G1407)/7445 (G7445)		18.8/10.4/10.4/10.4
10.1/6.3/6.3
Hungary2013
2018		48
89		1407 (G1407)/995 (G995)/387 (G387)/8115 (G2400)/11046 (G11046)
387 (G387)/11461 (G11461)/13113 (G387)		20.8/12.5/6.3/6.3/6.3
6.7/5.3/5.3
Ireland2013
2018		45
169		2992 (G2992)/384 (G30)/21 (G21)/437 (G225)/10843 (G225)
14769 (G14769)/10386 (G11352)/14700 (G11089)		15.6/11.1/4.4/4.4/4.4
19.5/5.9/5.3
Italy2013
2018		49
98		2992 (G2992)/6360 (G2400)/2400 (G2400)/1407 (G1407)
5441 (G5441)/10386 (G11352)/11461 (G11461)		18.4/12.2/12.2/10.2
8.2/7.1/5.1
The Netherlands2013
2018		89
190		2992 (G2992)/2400 (G2400)/8919 (G8919)
11461 (G11461)/15589 (G15589)/14994 (G14994)		10.1/10.1/5.6
6.8/5.3/4.7
Norway2013
2018		55
113		1407 (G1407)/4275 (G1407)/2400 (G2400)
14700 (G11089)/4186 (G9909)/3935 (G4822)		9.1/7.3/5.5
10.6/8/7.1
Poland2012
2018		108
73		1407 (G1407)/8391 (G225)/1861 (G225)/2992 (G2992)
11461 (G11461)/14769 (G14769)/1407 (G1407)		43.3/7.4/4.1/4.1
25/9.4/6.3
Portugal2013
2018		109
122		1407 (G1407)/7445 (G7445)/2 (G2)
645 (G645)/4261 (G4261)/5441 (G5441)		15.6/11.0/4.6
11.4/5.2/5.2
Slovakia2013
2018		56
76		1407 (G1407)/359 (G359)/11042 (G51)
10800 (G51)/9918 (G9918)/13595 (G225)		14.3/14.3/12.5
31.6/5.3/5.3
Slovenia2013
2018		55
104		21 (G21)/10801 (G10801) /10800 (G51)/10798 (G10798)
15589 (G15589)/11461 (G11461)/5441 (G5441)		12.7/12.7/9.1/9.1
22.1/10.6/3.9
Spain2013
2018		119
173		1407 (G1407)/2992 (G2992)/21 (G21)
14994 (G14994)/4186 (G9909)/5743 (G387)		10.9/6.7/6.7
6.9/5.8/2.9
Sweden2013
2018		50
199		5445 (G21)/7445 (G7445)7164 (G7164)
9909 (G9909)/225 (G225)/5441 (G5441)		10/6/6
8/7/6
The UK2013
2018		127
207		2992 (G2992)/51 (G51)/4995 (G4995)
11461 (G11461)/5441 (G5441)/14769 (G14769)		10.2/10.2/9.5
6.3/5.8/4.8
Europe (Euro-GASP)2013
2018		1189
2375		1407 (G1407)/2992 (G2992)/2400 (G2400)
ST11461 (G11461)/ ST5441 (G5441)/ ST12302 (G4822),		7.6/6.6/3.9
4.7/3.7/3.4
Canada2013
2018		1183
3379		2400 (G2400)/9663(G9663)/5985 (G1710)
12302 (G4822)/14994 (G14994)/5985 (G1710)		12.1/7.4/6.1
18.2/16.6/5.8
China2012–13
2013–19		920
259		2318 (G11352)/1866 (G1866)/4846 (G1933)
5308 (G5308)/7554 (G5308)/3356 (G2160)/270 (G809)/4539 (G10799)		3.6/2.7/2.0
8.5/6.6/2.2/2.7/2.7
Russia2013
2018		142
151		807 (G51)/1152 (G387)/5941 (G51)
228 (G228)/14942 (G14942)/807 (G51)		11.3/6.3/4.2
14.6/5.3/4.6
The US2014–16
2015–17
2018		649
399
1479		3935 (G4822)/8241 (G4822)/1407 (G1407)
3935 (G4822)/3169 (G225)/7638 (G7638)/8241 (G4822)
9918 (G9918)/11461 (G11461)/3935 (G4822)		5.3/3.4/3.2
7.3/4.8/3.8/3.0
3.6/2.6/2.0
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mlynarczyk-Bonikowska, B.; Kowalewski, C.; Krolak-Ulinska, A.; Marusza, W. Molecular Mechanisms of Drug Resistance and Epidemiology of Multidrug-Resistant Variants of Neisseria gonorrhoeae. Int. J. Mol. Sci. 2022, 23, 10499. https://doi.org/10.3390/ijms231810499

AMA Style

Mlynarczyk-Bonikowska B, Kowalewski C, Krolak-Ulinska A, Marusza W. Molecular Mechanisms of Drug Resistance and Epidemiology of Multidrug-Resistant Variants of Neisseria gonorrhoeae. International Journal of Molecular Sciences. 2022; 23(18):10499. https://doi.org/10.3390/ijms231810499

Chicago/Turabian Style

Mlynarczyk-Bonikowska, Beata, Cezary Kowalewski, Aneta Krolak-Ulinska, and Wojciech Marusza. 2022. "Molecular Mechanisms of Drug Resistance and Epidemiology of Multidrug-Resistant Variants of Neisseria gonorrhoeae" International Journal of Molecular Sciences 23, no. 18: 10499. https://doi.org/10.3390/ijms231810499

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
