A Study on the Production of Anhydrous Neodymium Chloride through the Chlorination Reaction of Neodymium Oxide and Ammonium Chloride

Abstract

The chlorination mechanism of neodymium oxide for the production of anhydrous neodymium chloride was analyzed based on the reaction temperature and reaction ratio of ammonium chloride, considering the suppression of the generation of NdOCl, an intermediate product of the reaction process. The results were obtained by distinguishing the shape of the produced NdCl₃ (powder and bulk) and the setup of the chlorination equipment, reflecting its sensitivity to moisture and oxygen. The powdered form of NdCl₃ produced at 400 °C and under argon gas flow was identified as NdCl₃·6(H₂O), while the bulk form of NdCl₃ produced by melting at 760 °C after a chlorination process consisted of anhydrous NdCl₃ and NdCl₃∙n(H₂O). The powdered NdCl₃ produced in an argon gas environment with a controlled level of oxygen (below 16.05 ppm) and moisture (below 0.01 ppm) content was identified as single-phase anhydrous NdCl₃ and showed the highest chlorination conversion rate of 98.65%. The addition of overstoichiometric ratios of NH₄Cl in the chlorination process decreased the total amount of impurities (N, H, and O) in the NdCl₃ product and increased the conversion rate of NdCl₃.

1. Introduction

Driven by global concerns about climate change, policies are being strengthened to reduce greenhouse gas emissions from industrial processes, and research is actively underway to replace carbon-based processes. The electric vehicle market in the automotive industry is growing rapidly to achieve the national carbon neutrality goals set by the 2015 Paris Agreement [1]. This trend is also affecting the metal market, increasing the demand for neodymium–iron–boron (NdFeB) permanent magnets, an essential component of electric vehicle motors, and the development of efficient and environmentally friendly production processes is in demand [2,3].

Neodymium metal, a key component of permanent magnets, is produced by removing oxygen from Nd₂O₃ (Neodymium oxide) powder obtained from the physical and chemical treatment of rare earth minerals or industrial waste, such as bastnaesite and monazite. The electrowinning process, a commercialized rare earth smelting method in China, uses the heat released during electrolysis and molten salts to produce metal from metal oxides and has the advantage of being able to operate continuously in an atmospheric environment. However, the generation of CO/CO₂ gas due to the use of graphite anodes and the formation of harmful gases such as CF₄ and C₂F₆ generated from the electrolyte during operation require improvement in terms of its environmental impact [4,5]. A method used for the chlorination of rare earth oxides using imidazolium chloridoaluminate ILs, such as [BMIm]Cl·nAlCl₃, has been reported [6]. This method has the advantage of being able to prepare anhydrous RECl₃ (rare earth chloride) at a relatively low temperature of 175 °C using less toxic materials. Unfortunately, this method requires a relatively long processing time (>24 h) and subsequent washing with toluene and DCM to purify the product after chlorination. In addition, there was an issue with the residual washing solution in the sample. These factors can reduce the production efficiency in continuous processes, where chlorinated products are used as raw materials (Nd sources) in metal production steps. Among the carbon-free smelting processes, metallothermic reduction, which produces metals through the direct reaction of metal oxides with reducing agents such as Ca and Mg, offers the advantage of reduced operational steps owing to the simplified process steps and the possibility of producing products in the form of alloys, which also allows for reduced process temperatures. However, the generation of slag via the combination of a reducing agent and oxygen during the reaction process requires additional processes to recycle the slag after operation [7]. One way to prevent slag generation is to convert metal oxides into metal salts through chlorination or fluorination reactions and use them as raw materials (Nd sources) for metal manufacturing. The mechanism of chlorination and fluorination reactions, based on thermal energy, involves the use of a reducing agent or catalyst to convert oxygen bound to metal oxides into gaseous compounds and to combine metal elements with chlorine or fluorine to form metal salts. Among the studies reported on the chlorination and fluorination of metal oxides [8,9,10,11], the carbochlorination process used to produce neodymium chloride (NdCl₃) offers the advantages of low reaction temperatures and formation of anhydrous chloride because of the use of carbon as a reducing agent. However, the use of carbon and chlorine gas can lead to greenhouse gas generation and reactor corrosion, and in some cases, the intermediate products of the chlorination reaction, neodymium oxychloride (NdOCl) and NdCl₃∙n(H₂O) with crystallization water, can be produced [8].

Another method for the chlorination of Nd₂O₃ is the use of ammonium chloride (NH₄Cl) as the chlorinating agent. In the chlorination of Nd₂O₃ using NH₄Cl, the hydrogen in ammonium chloride combines with the oxygen in Nd₂O₃ and is removed as a gas, while chlorine combines with neodymium to form NdCl₃. NH₄Cl can convert Nd₂O₃ into NdCl₃ at a relatively low temperature and does not generate greenhouse gases or slag during this process [9]. However, research on the chlorination of Nd₂O₃ using NH₄Cl is lacking.

Therefore, this study aimed to elucidate the thermodynamic mechanism of the chlorination process between Nd₂O₃ and NH₄Cl and to derive the preparation conditions for anhydrous NdCl₃. In addition, the control of impurity concentration was investigated as a way to suppress the formation of NdOCl and NdCl₃∙n(H₂O) phase in the chlorination process for the preparation of anhydrous NdCl₃.

2. Materials and Methods

2.1. Materials

The calcination process of Nd₂O₃ (Alfa Aesar, 99%) for removing impurities prior to the chlorination process was investigated using simultaneous DSC-TG (differential scanning calorimetry-thermogravimetric analysis) measurements and XRD (X-ray diffraction) analysis.

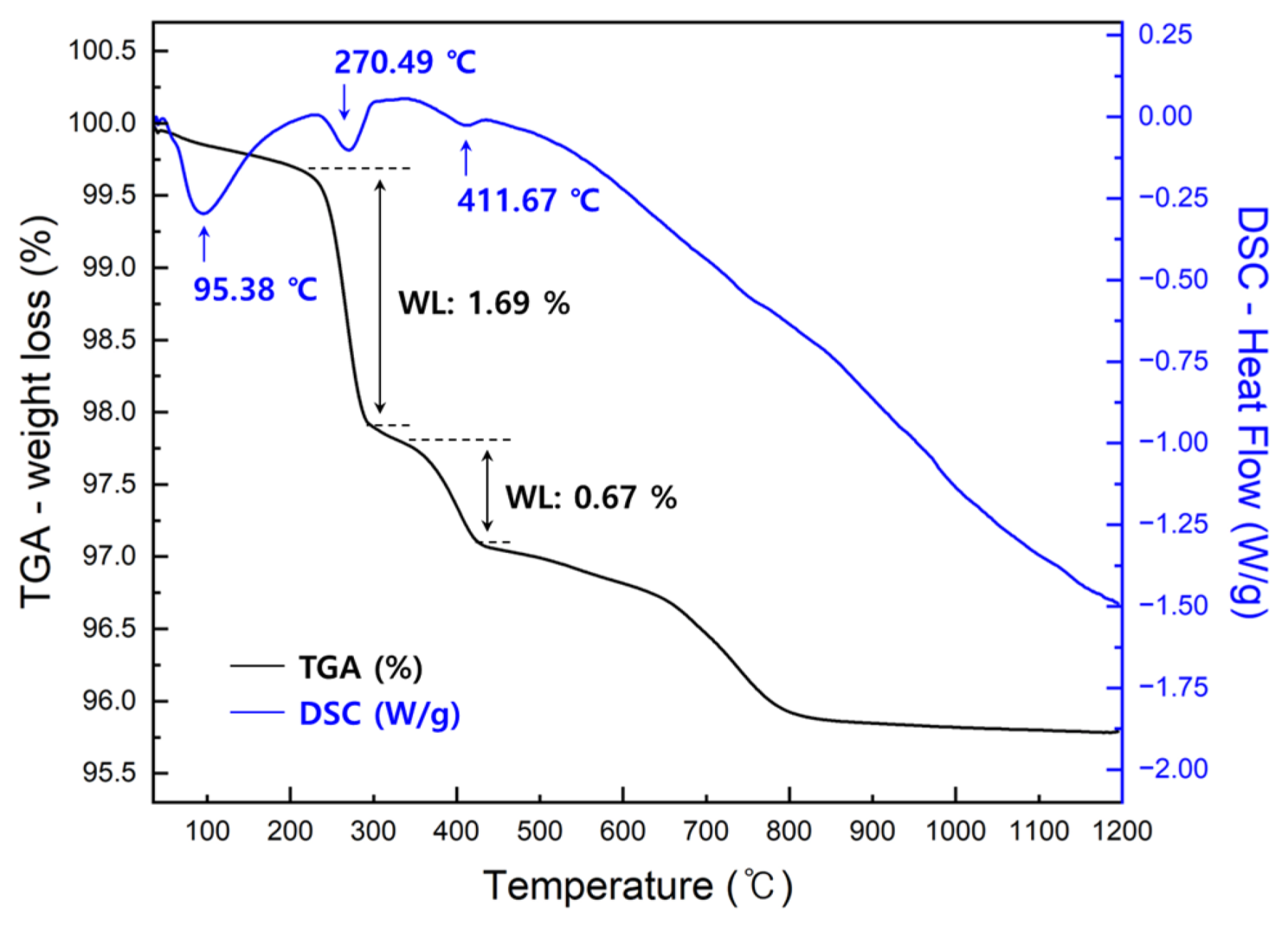

Figure 1 shows the DSC-TG curves of raw Nd₂O₃ powder. Three endothermic peaks and stepwise mass losses were observed during the heating process at temperatures up to 1200 °C in a nitrogen atmosphere. The first endothermic peak observed at 95.38 °C is expected to be due to the evaporation of moisture present in the Nd₂O₃ powder, while the subsequent endothermic peaks measured around 270.49 °C and 411.67 °C were confirmed to be caused by the phase transformation of Nd(OH)₃. The stepwise phase transformation of Nd(OH)₃ is as follows [12,13]:

Nd(OH)_3(s) → NdOOH_(s) + H₂O_(L) (T > 270 °C)

(1)

2NdOOH_(s) → Nd₂O_3(s) + H₂O_(L) (T > 430 °C)

(2)

The mass loss of the sample due to the evaporation of H₂O_(g) during the phase transition was found to be 1.69 wt.% at 270.49 °C and 0.67 wt.% at 411.67 °C. The phase transition temperature of NdOOH showed a deviation of about 19 °C compared to Refs. [12,13]. The total mass reduction of the sample through the stepwise reaction was found to be 4.21 wt.%.

Figure 2a presents the X-ray diffraction (XRD) pattern of Nd₂O₃ before calcination, whereas Figure 2b illustrates the phase composition of the Nd₂O₃ powder dried at 850 °C for 2 h in an Ar atmosphere. The calcination process confirmed the transformation of Nd(OH)₃ present in Nd₂O₃ into the cubic Nd₂O₃ phase. Therefore, the Nd₂O₃ powder used in this study was subjected to a drying process in an argon atmosphere at 850 °C for 2 h prior to the chlorination experiment.

Thermodynamic analysis was performed to derive a drying temperature that considered the sublimation point to remove residual moisture in the NH₄Cl powder (JUNSEI, 98.5%) used in the chlorination experiment. To satisfy the diffusion equilibrium condition $d{\mu }_s\left(T,P\right)=d{M}_v\left(T,P\right)$ between the solid and gas phases of a single-component system, the Clausius–Clapeyron (C-C) equation was applied under the condition that NH₄Cl_(g) does not dissociate into NH_3(g) and HCl_(g) in the gas phase. The equilibrium vapor pressure of NH₄Cl according to the C-C relationship is expressed as shown in Equation (3) [14]:

$$\begin{gathered} \ln \left(\frac{P}{Torr}\right)=33.043-10868.3\left(\frac{K}{T}\right)-1.34\ln \left(\frac{T}{K}\right) \\ \left(Latent heat of sublimation: \Delta h_{v/s}^o \left(550 \mathrm{K}\right)=10868.3 \mathrm{J}/\mathrm{mol}\right) \end{gathered}$$

(3)

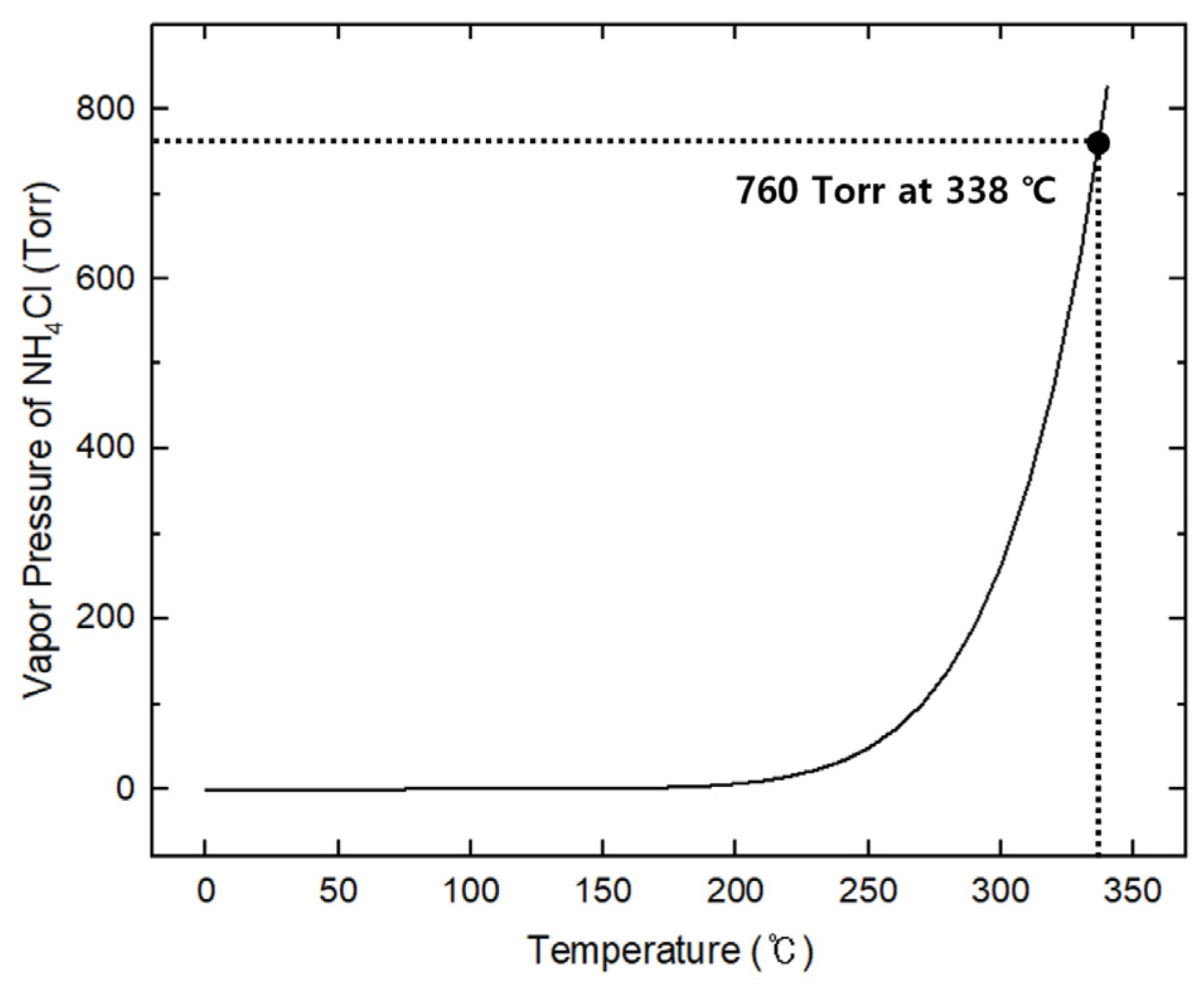

Figure 3 represents the equilibrium vapor pressure curve of NH₄Cl for each temperature calculated from the C-C relationship in Equation (3), and it was confirmed that pure NH₄Cl has a vapor pressure of 760 Torr at 338 °C. A visible increase in vapor pressure was observed from approximately 200 °C, and the thermodynamic analysis confirmed that pure NH₄Cl underwent a phase transition from the CsCl structure to the NaCl structure at a temperature of 184.5 °C. Thus, the NH₄Cl powder used in the chlorination experiment was dried at 150 °C for 2 h in an Ar atmosphere prior to the chlorination experiment.

Table 1. Reaction temperatures with substances (reactants and product) for each crucible at temperatures below 1000 °C.

Crucible	Nd2O3	NH4Cl	NdCl3
MgO	Stable	0~1000	0~1000
Al2O3	Stable	500	300
SiO2	Stable	Stable	700

represents the estimated reaction temperature of ceramic-based crucibles and materials (reactants and products) in the chlorination process at a temperature of 1 atm, 1000 °C or below. Thermodynamic analyses were conducted using the FactPS, FTfrtz, and FToxid databases in FactSage 8.2, and chlorination experiments were performed using ideal quartz crucibles.

2.2. Experimental Apparatus

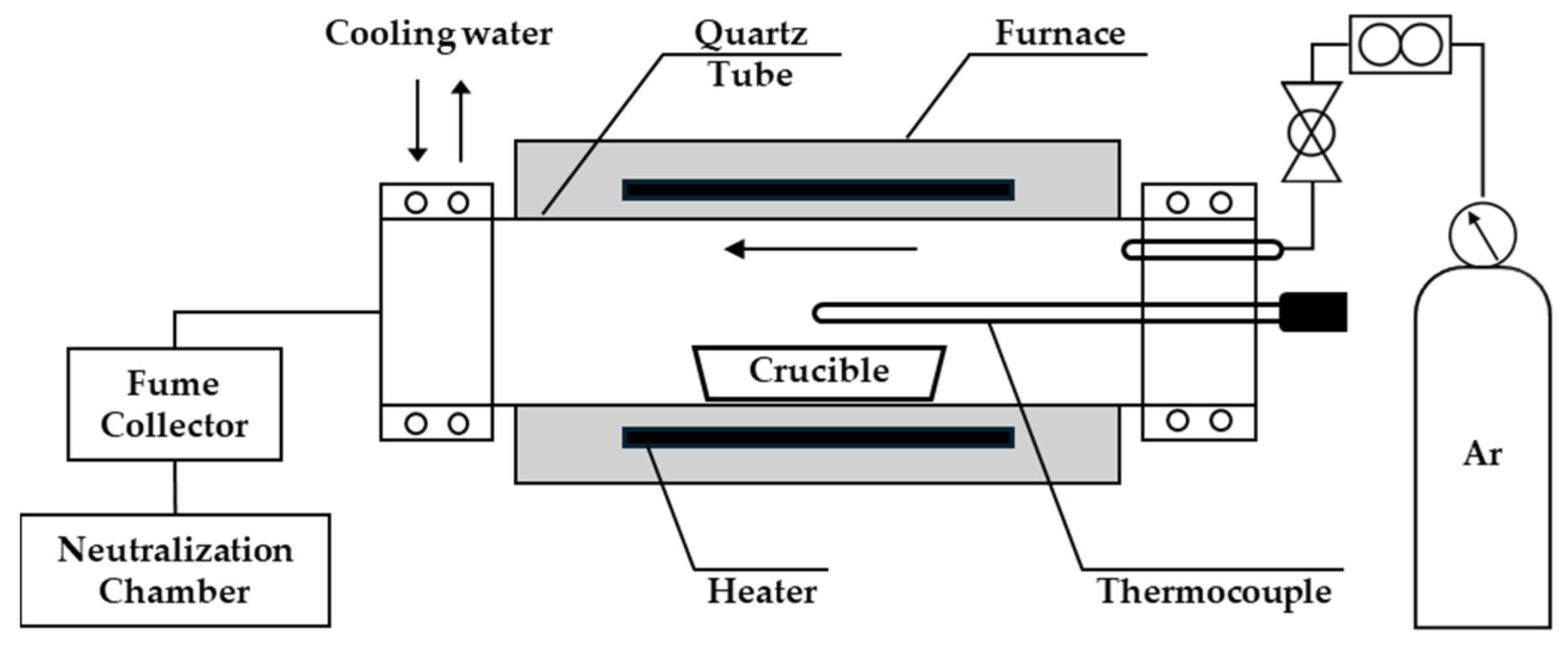

Figure 4 shows a schematic of the horizontal tube furnace with the argon gas flow atmosphere used in this study. The reaction tube consisted of a quartz tube (L600 mm × D49 mm × T2 mm) and a water-cooled SUS covered with an O ring at both ends. A quartz tube was used to prevent corrosion caused by salt in the chlorination reaction area. The Ar gas (>99.99%) line consisted of a flow meter (max: 500 mL/min) to regulate the gas supply and a check valve to prevent corrosion. An R-type thermocouple coated with alumina was used to prevent salt corrosion. The area connected to the metal cover was sealed with Teflon tape to prevent leakage and then coupled with an O-ring. The gas outlet line consisted of an Erlenmeyer flask to collect fumes and a neutralization chamber to collect the gas products.

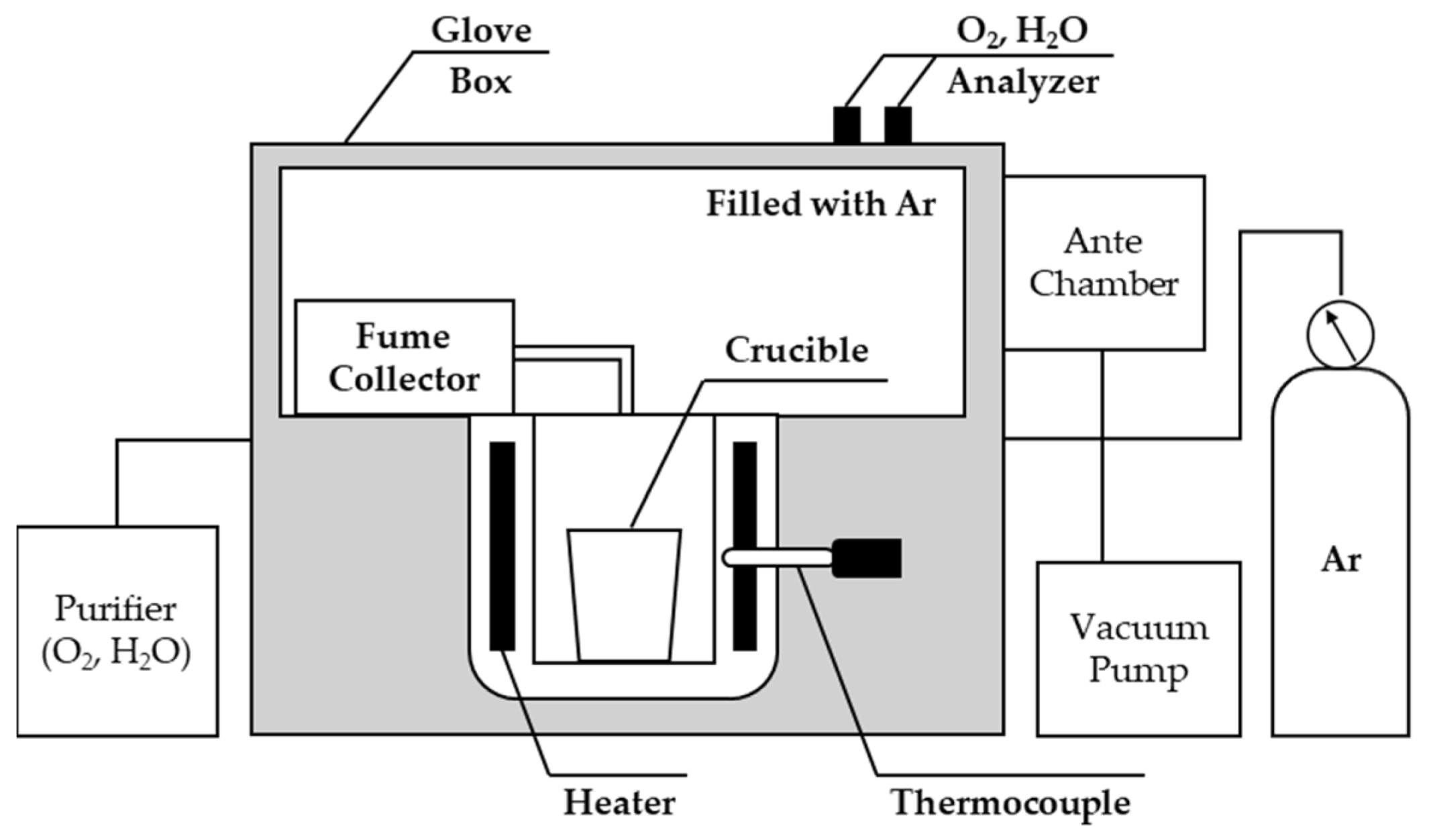

Figure 5 shows a schematic of the experimental setup in a glove box filled with Ar gas. The main compartment of the glove box was primarily purged by Ar gas, and O_2(g) and H₂O_(g) concentrations were controlled at an average of 16.05 ppm and 0.01 ppm, respectively. The heater was attached to the reactor compartment located at the bottom of the main compartment of the glove box. A thermocouple was attached to the reactor crucible. The raw materials were maintained in an antechamber under vacuum (1 × 10⁻⁵ bar) for 6 h to remove the air present in the powder and then charged into the reactor. The line was attached to the top of the heater and connected to an Erlenmeyer flask to collect the fumes generated during the reaction.

2.3. Experimental Analysis

The phases of Nd₂O₃ before and after calcination and those of Nd chlorides prepared in a horizontal tube furnace were confirmed via X-ray diffraction (XRD) analysis. The measurements were performed using a Rigaku UltimaIV powder diffractometer (Tokyo, Japan) with CuKα1 radiation (λ = 0.154060 nm) over a 2θ range of 0–80° at a scan rate of 3°/min. The calcination temperature of Nd₂O₃ was investigated using a simultaneous DSC-TG thermal analyzer (TA Instruments, SDT 650, New Castle, DE, USA). The sample was heated from room temperature to 1200 °C at a rate of 5 °C/min under a nitrogen atmosphere. The particle size distribution of the Nd chloride prepared in powder form was confirmed using a laser diffraction particle size analyzer (Mastersizer 3000, Malvern Panalytical Ltd., Malvern, Worcs, UK). Scanning electron microscopy (SEM) images were obtained using a Schottky microscope (JEOL, JSM-IT800SHL, Tokyo, Japan). The samples were sputter-coated with platinum before examination. The concentrations of impurities (nitrogen, hydrogen, and oxygen) in the Nd chloride were confirmed via elemental analysis. N and H were analyzed using a UNI cube instrument (EA KOREA, Hanam, Korea), and the oxygen concentration was determined using a RAPID OXY cube instrument (EA KOREA, Hanam, Republic of Korea). The phase of NdCl₃ produced in the glove box under an Ar atmosphere was confirmed via X-ray diffraction measurements using a “Bruker, D8 Advance A25 Plus, Billerica, MA, USA” diffractometer with CuKα1 radiation (λ = 0.15406 nm) and an airtight holder (Bruker model). A 2θ range of 0–90° was scanned at a rate of 3°/min.

2.4. Experimental Procedure

2.4.1. Horizontal Tube Furnace Apparatus: Manufacturing of NdCl₃ Powder

Dried Nd₂O₃ powder and NH₄Cl powder were mixed in the required proportions, placed in a quartz crucible, and placed in the center of a reaction tube. The Ar gas flow rate was maintained at 500 mL/min for 30 min to remove gaseous impurities from the reaction tube. Afterward, the temperature was raised to 400 °C at a heating rate of 5 °C/min under Ar flow. This condition was maintained for 120 and 240 min, depending on the experimental batch, and the furnace was then naturally cooled to room temperature. After the completion of the experiment, the mass of the product was measured and placed in a sealed conical tube to protect the product from moisture. Subsequently, the analyses (XRD, PSA, SEM, and elemental analysis) were performed.

2.4.2. Horizontal Tube Furnace Apparatus: Manufacturing of Bulk NdCl₃

The production of NdCl₃ in a bulk form via the chlorination reaction reduces the impact of the reaction with moisture contained in the air, owing to the significant reduction in the contact surface of the powder product and moisture contained in the air. The temperature was raised to 400 °C under the same conditions as in the NdCl₃ powder manufacturing process and maintained for 75 and 120 min, respectively. Subsequently, it was heated to 760 °C at a heating rate of 5 °C/min under Ar flow, maintained for 1 min at 760 °C, and then the furnace was naturally cooled to room temperature. Minimizing the duration that the product is maintained at 760 °C is necessary due to the complicated separation of the bulk product from the quartz crucible when maintained for more than 1 min. This could potentially affect the recovery rate of NdCl₃. After the completion of the experiment, the product was recovered, its mass was measured, the product was placed in a conical tube, and the tube was sealed to protect it from moisture. The bulk products were pulverized into a powder of 45 μm or less for XRD and elemental analysis.

2.4.3. Glove Box Apparatus: Manufacturing of NdCl₃ Powder

The raw materials and crucible were placed in a glove box using an antechamber, and each powder was placed in an individual quartz crucible and then dried separately in the reactor area of the glove box. Firstly, Nd₂O₃ powder was heated to 850 °C with a heating rate of 5 °C/min, maintained for 2 h, and naturally cooled to room temperature. Secondly, the NH₄Cl powder was heated to 150 °C with a heating rate of 5 °C/min, maintained for 2 h, and then naturally cooled to room temperature. Dried Nd₂O₃ powder and NH₄Cl powder were mixed in the required proportions and placed in a quartz crucible, which was placed at the center of the reactor area. Afterward, the reactor was heated to 400 °C with a heating rate of 5 °C/min, maintained for 120 min, and then naturally cooled to room temperature. After the completion of the experiment, the product was recovered, its mass was measured, and some samples were stored in an airtight holder (Bruker model) for XRD analysis. To prepare for the PSA, SEM, and elemental analyses, the sample was stored in a conical tube and opened immediately before analysis to minimize the effects of moisture.

2.5. Conversion Rate of Chlorination

The chlorination conversion rate was derived by comparing the theoretical mass of NdCl₃ that could be produced from the Nd₂O₃ used with the mass of anhydrous NdCl₃ obtained experimentally. Elemental analysis of nitrogen (N), hydrogen (H), and oxygen (O) was performed to derive the concentration of impurities present in the product as intermediate products, such as NdOCl, hydrate NdCl₃∙n(H₂O) and residual NH₄Cl. The chlorination conversion rate, considering the concentration of impurities, is given by Equation (4):

$$Conversion rate\left(\%\right)=\frac{\left[Mass of sample\right]-\left[Mass of impurities\right]}{Theoretical production amount of NdC{l}_3}\times 100\%$$

(4)

2.6. Chlorination Variables

Since pure NdCl₃ undergoes a phase transition to NdCl₃·(H₂O)₆ and NdOCl when reacted with moisture and oxygen at room temperature, respectively, the gaseous atmosphere was formed with Ar during the chlorination process. Considering the contact and reaction areas of the product and air after chlorination, the experiments were conducted by separating the geometries of the apparatus and product. The chlorination temperature and reaction rate were derived from a thermodynamic analysis using FactSage 8.2, and the reaction time was applied starting from 4 h and gradually decreasing.

Table 2. Experimental conditions.

No.	Apparatus	Gas Atmosphere	Product Form	Chlorination		Melting		Reactants [g]
				Temp. [°C]	Time [min]	Temp. [°C]	Time [min]	Nd2O3	NH4Cl
1	Horizontal furnace	Ar gas blowing	Powder	400	240	-		5	7.4796
2									9.0455
3									19.2753
4					120				7.4796
5									9.0455
6									19.2753
7			Bulk	400	120	760	1	5	7.4796
8									9.0455
9									19.2753
10					75				7.4796
11									9.0455
12									19.2753
13	Glove box	O2: 16.05 ppm H2O: 0.01 ppm	Powder	400	120	-		5	7.4796

lists the chlorination conditions used in this study.

3. Results

3.1. Thermodynamic Considerations

3.1.1. Calcination

Thermodynamic analysis confirmed that Nd(OH)₃ present in Nd₂O₃ reacted with NH₄Cl during chlorination to produce NdCl₃ and NdOCl, as shown in Figure 6a. The presence of NdOCl in NdCl₃ may result in the use of metal-reducing agents above stoichiometric ratios and additional salts to reduce slag activity in the subsequent Nd metal production steps. Figure 6b shows the equilibrium composition of Nd(OH)₃ at different system temperatures. It was observed that Nd(OH)₃ exhibited noticeable decomposition behavior above 800 °C. The thermodynamic calcination of Nd(OH)₃ is as follows:

2Nd(OH)₃(s) → Nd₂O₃(s) + 3H₂O(g), T > 800 °C

(5)

3.1.2. Chlorination

Thermodynamic analysis was conducted using the FactPS and FTfrtz databases in FactSage 8.2 to determine the chlorination temperature and reaction ratio of Nd₂O₃: NH₄Cl (mol/mol). Based on Ref. [10], the thermodynamic reaction for the chlorination of Nd₂O₃ can be expressed as

Nd₂O_3(s) + 2NH₄Cl_(s) → 2NdOCl_(s) + 2NH_3(g) + H₂O_(g), T < 306.47 °C

(6)

Nd₂O_3(s) + 2NH₄Cl_(s) → 2NdOCl_(s) + 2NH_3(g) + H₂O_(g)
NdOCl_(s) + 2NH₄Cl_(s) → NdCl_3(s) + 2NH_3(g) + H₂O_(g), T = 306.47 °C

(7)

Nd₂O_3(s) + 9.4NH₄Cl_(s) → 2NdCl_3(s) + 9.4NH_3(g) + 3H₂O_(g) + 3.4HCl_(g),
T = 400 °C, ∆G^o_673.15K = −233.97 kJ

(8)

It was confirmed that NdOCl_(s), an intermediate product of the chlorination reaction of Nd₂O_3(s) and NH₄Cl_(s), was converted to NdCl_3(s), NH_3(g), and H₂O_(g) at temperatures above 306.47 °C, as shown in Equation (6). Increasing the system temperature increased the amount of NH₄Cl_(s) required to produce NdCl_3(s) and promoted the formation of HCl_(g). Using Equation (8) as an example, the molar ratio of NH₄Cl_(s) required to produce 2 moles of NdCl_3(s) increased to 9.4 moles and HCl_(g) was formed as the system temperature increased to 400 °C. Excess NH₄Cl_(S) contributed to the acidic nature of the reaction process and readily dissociated into HCl_(g) and NH_3(g), converting Nd₂O_3(s) into NdCl_3(s) via an acid–base reaction to prevent the hydrolysis of the produced NdCl_3(s) [9].

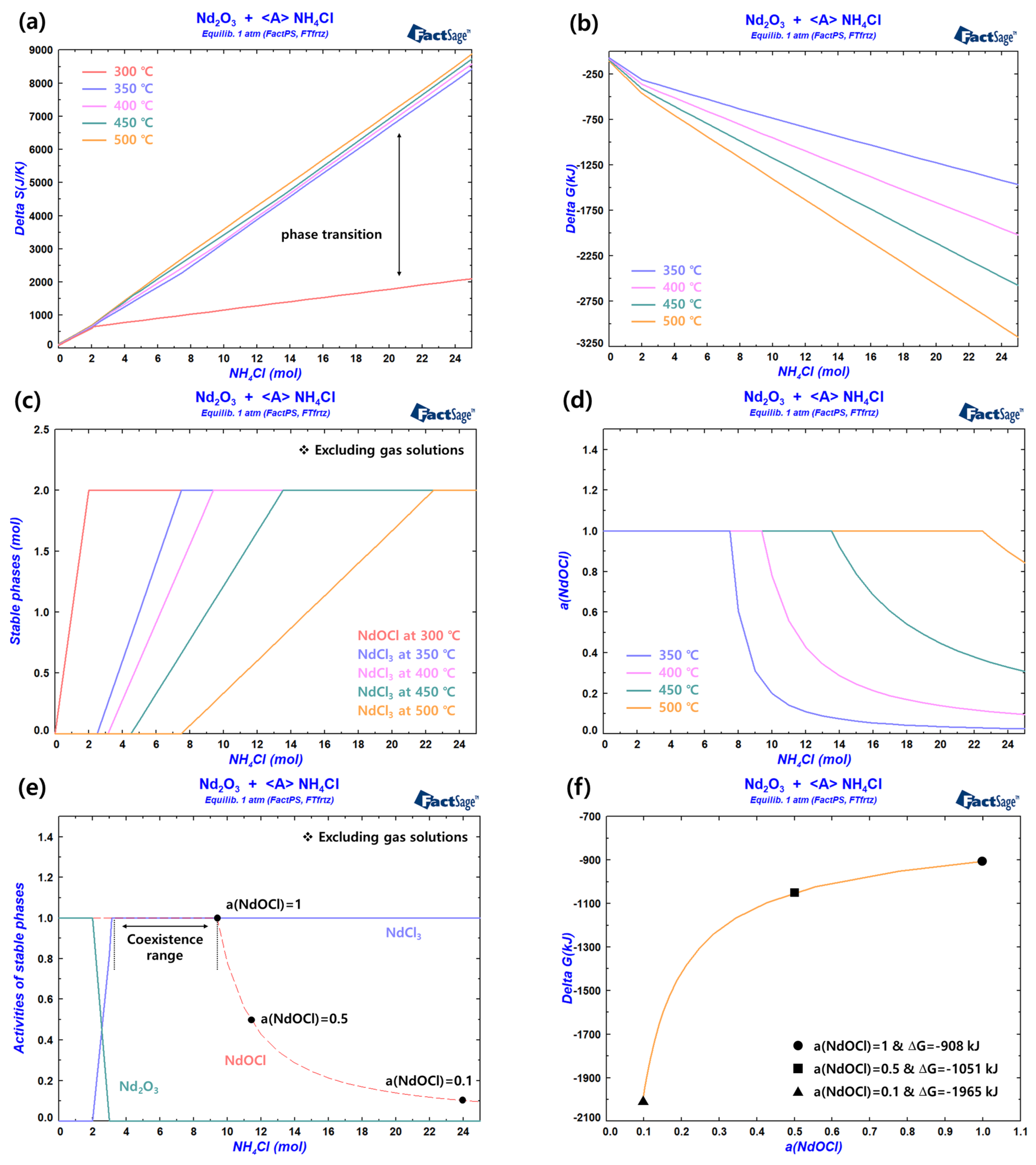

Thermodynamic modelling to derive the reaction ratio of Nd₂O_3(s) and NH₄Cl_(s) and the chlorination temperature from Equation (8) is shown in Figure 7. Figure 7a shows the reaction entropy with an increasing reaction ratio of NH₄Cl/Nd₂O₃ (mol/mol) for each system temperature, and it was confirmed that the entropy change increased rapidly due to the phase transition of oxygen in NdOCl_(s) to H₂O_(g) at temperatures above 306.47 °C. Figure 7b shows the Gibbs free energy of reaction(ΔG_rxn) with an increasing reaction ratio of NH₄Cl/Nd₂O₃ (mol/mol) for each system temperature. When the system temperature was constant, an increase in the reaction ratio of NH₄Cl_(s) leads to a decrease in ΔG_rxn, and the corresponding decrease in the Gibbs free energy change was attributed to the increase in gaseous products and the formation of a gaseous solution after the reaction. Figure 7c represents the number of moles of the stable phase as the reaction ratio of NH₄Cl_(s) increased for each system temperature based on 1 mole of Nd₂O_3(s), and it was observed that a higher system temperature increased the amount of NH₄Cl_(s) required to generate 2 mole of NdCl_3(s). Figure 7d illustrates the variation in NdOCl_(s) activity in the system with an increasing reaction ratio of NH₄Cl/Nd₂O₃ (mol/mol) at different system temperatures. Thermodynamically, the activity of a pure solid is defined as 1. According to the calculation method and assumptions in the FactSage program, when the activity of a pure solid is less than 1, the formation of a solid phase is considered impossible [15]. Therefore, increasing the NH₄Cl_(s) molar ratio decreased NdOCl_(s) activity, and the system reached equilibrium in a direction that suppressed the formation of the NdOCl_(s) phase. In contrast, the NdOCl_(s) activity increased at higher temperatures at a fixed NH₄Cl_(s) molar ratio. Consequently, increasing the temperature of the system was beneficial for improving the reaction driving force; however, it could also increase the NdOCl_(s) activity and the amount of NH₄Cl_(s) required for NdCl_3(s) formation. Figure 7e shows the activity of the stable phases as the reaction ratio of NH₄Cl/Nd₂O₃ (mol/mol) increased, based on 1 mole of Nd₂O_3(s) at a temperature of 400 °C, and NdOCl was found to decrease after passing through a coexistence region where it forms a phase mixture with Nd₂O_3(s) in the range of about 2.5 to 9.4 mole of NH₄Cl_(s). Therefore, to suppress the production of NdOCl_(s) in the chlorination reaction, the reaction ratios of NH₄Cl_(s) were selected in amounts corresponding to the activity of NdOCl_(s) of 0.1, 0.5, and 1. Figure 7f represents the changes in Gibbs free energy according to changes in the activity of NdOCl_(s) at a system temperature of 400 °C, and it is confirmed that the change in free energy was decreased at lower activities of NdOCl_(s). The points in Figure 7f represent the same states as those in Figure 7e.

The Gibbs free energy (∆G) in a non-standard state can be obtained with the Van’t Hoff reaction isotherm in Equations (9) and (11), which represents the reaction quotient in the chlorination reaction at 400 °C. Due to the formation of a gaseous solution during the reaction, ∆G has a lower value than the standard Gibbs free energy change (∆G^o), which increases the driving force of the chlorination reaction.

Table 3. Thermodynamic parameters according to the reaction ratio of Nd₂O₃: NH₄Cl in chlorination reaction at 400 °C calculated with the FactPS, FTfrtz database in Factsage 8.2 software.

Temp. [°C]	NH4Cl/Nd2O3 [mol/mol]	a(NdOCl)	∆Grxn [kJ]	∆Hrxn [kJ]	∆Srxn [J]
400	9.41	1	−908	1524	3027
400	11.38	0.5	−1051	1927	3735
400	24.25	0.1	−1965	4549	8308

presents the thermodynamic parameters in the non-standard state according to the system temperature and the reaction ratio of NH₄Cl/Nd₂O₃(mol/mol).

$$\Delta G=\Delta G^o+RTlnQ$$

(9)

where R: gas constant (J/mol·K), T: absolute temperature (K), Q: Reaction quotient

$$K_C=exp\left(\frac{-\Delta G^o}{RT}\right)=1.43\times {10}^{18}$$

(10)

where Kc: equilibrium constant at 400 °C

$$Q=\frac{{(a_{NdC{l}_3})}^2\times {(P_{N{H}_3})}^{9.4}\times {(P_{H_2})}^3\times {(P_{HCl})}^{3.4}}{{(a_{N{d}_2{O}_3})}^2\ast {(a_{N{H}_{4}Cl})}^{9.4}} \left[ Q<1\right]$$

(11)

where P: partial pressure, a: activity (pure condensed species in their standard states have an activity of 1).

3.2. Horizontal Tube Furnace Apparatus: Manufacturing of NdCl₃ Powder

Figure 8 shows the phase compositions of the products manufactured at 400 °C with various reaction ratios of Nd₂O₃ and NH₄Cl (1:9.41, 1:11.38, 1:24.25 mol/mol) and reaction times (120 and 240 min) as chlorination process parameters. NdCl₃·(H₂O)₆ was detected as the main product in all samples.

Particle size analysis was conducted to investigate the effects of the Nd₂O₃ to NH₄Cl reaction ratio and chlorination time on the particle characteristics of NdCl₃.

Table 4. Characteristics of Nd chloride obtained from particle size distribution under various chlorination conditions.

No.	Chlorination Time [min]	NH4Cl/Nd2O3 [mol/mol]	d90	d50	d10	Specific Surface Area [m2/g]
			[μm]	[μm]	[μm]
Nd2O3	-	-	7.546	3.085	0.508	4.468
1	240	9.41	12.865	5.572	2.056	2.539
2		11.38	14.076	5.596	2.073	2.463
3		24.25	48.433	6.828	2.443	2.023
4	120	9.41	10.946	5.376	2.022	2.613
5		11.38	11.977	5.473	2.059	2.552
6		24.25	18.001	6.210	2.305	2.203

summarizes the particle size characteristics of the samples prepared with raw Nd₂O₃ and the various chlorination conditions, where three distribution points (d10, d50, and d90) and specific surface area values are presented. d90 was measured as varying from 10 to 48 μm depending on the chlorination treatment conditions. Figure 9 shows the particle size distributions of the chlorinated samples, with raw Nd₂O₃ represented as a dotted plot. The particle size distribution increased with an increasing reaction ratio of NH₄Cl/Nd₂O₃ (mol/mol) and chlorination time. The specific surface area of the particles decreased with increasing particle size.

Scanning electron microscopy (SEM) was conducted to investigate the effect of the chlorination treatment conditions on the morphology of the Nd chloride powder. The SEM images of the Nd chloride powders according to the reaction ratio of Nd₂O₃ and NH₄Cl and the chlorination treatment time are shown in Figure 10.

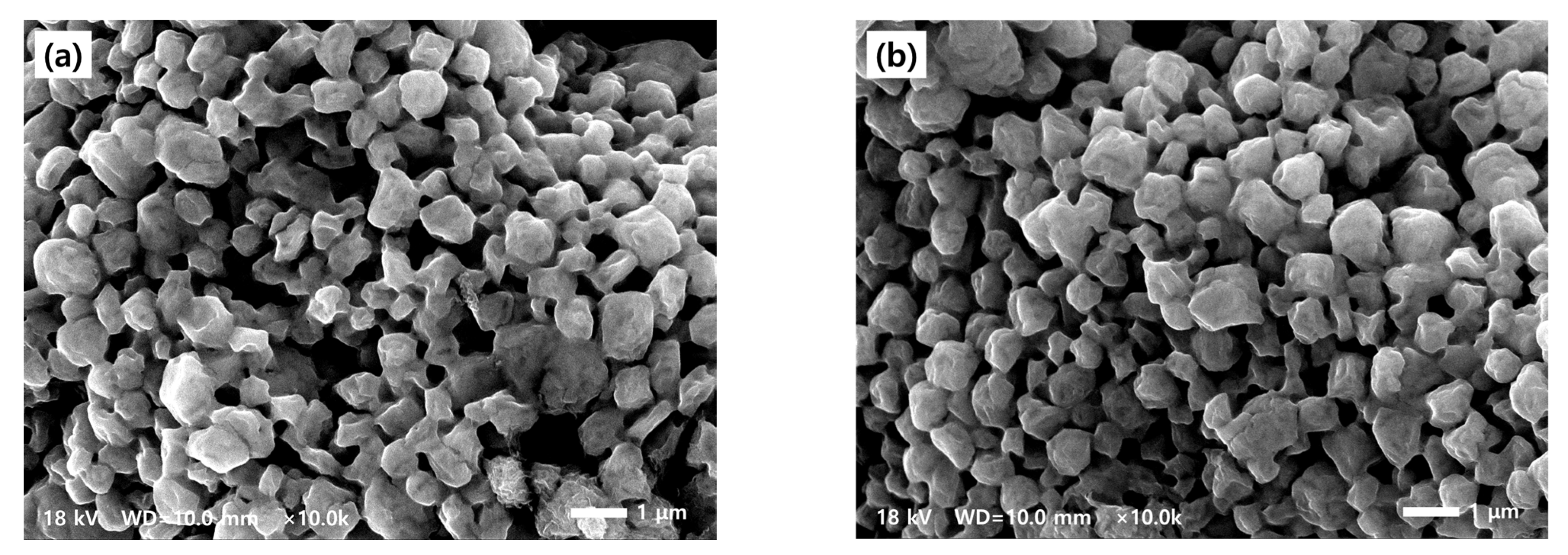

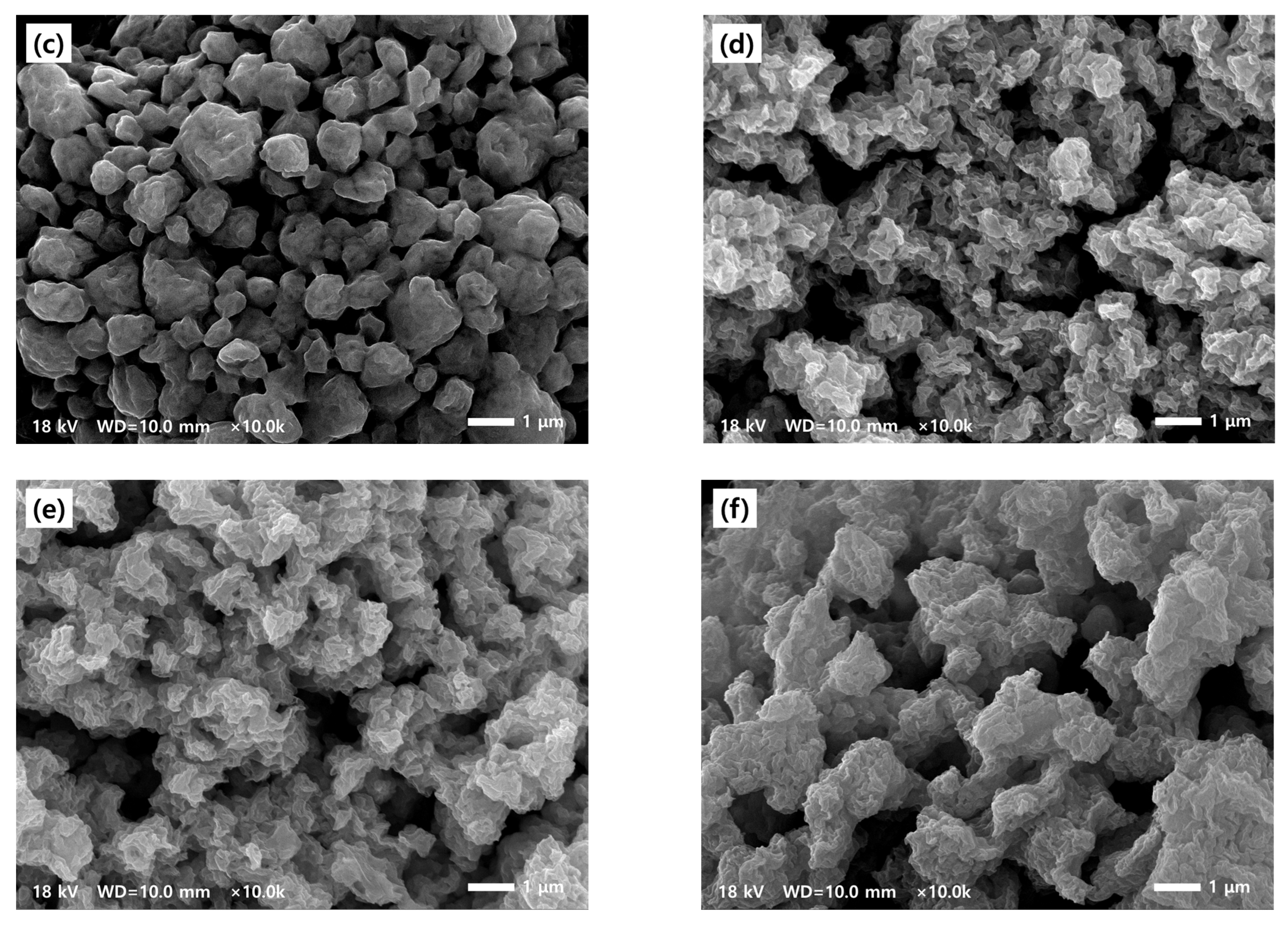

The particles of the powder chlorinated for 120 min (Figure 10a–c) mostly exhibit a spherical shape with a particle size of approximately 1 μm. The fact that the ratio of NH₄Cl did not affect the morphology of NdCl₃ powder might also mean that it did not affect the mechanism and/or rate of the reaction.

The powders chlorinated for 240 min (Figure 10d–f) had a rougher and more irregular morphology than the samples chlorinated for 120 min, and no spherical particles were observed. The agglomeration of the particles made it difficult to define the particle size, and agglomeration was observed to increase with increasing NH₄Cl reaction ratio.

Table 5. Elemental analysis and impurity concentration of Nd chloride powder prepared in the horizontal tube furnace.

No.	Chlorination Time [min]	NH4Cl/Nd2O3 [mol/mol]	Impurities [wt.%]			Product [g]	Impurities [g]
			N	H	O
1	240	9.41	0.590	0.626	1.054	6.9401	0.158
2		11.38	0.560	0.599	0.795	7.0211	0.137
3		24.25	0.620	0.516	0.808	7.3434	0.143
4	120	9.41	0.610	0.692	1.119	7.1062	0.172
5		11.38	0.740	0.611	0.998	7.1146	0.167
6		24.25	0.640	0.782	0.814	7.2812	0.163

shows the results of the ‘elemental analysis’ performed to determine the concentration of impurities (N, H, and O) present in the chlorinated product; the total amount of impurities was calculated based on the mass of the product measured after the experiment. The total amount of impurities was higher in the samples chlorinated for 120 min than in those chlorinated for 240 min. The oxygen concentration and total amount of impurities in the product decreased at a higher reaction ratio of NH₄Cl.

Table 6. Conversion rate of NdCl₃ prepared as powder in the horizontal tube furnace.

No.	Chlorination		NH4Cl/Nd2O3 [mol/mol]	Nd2O3 [g]	NH4Cl [g]	Theoretical Mass of NdCl3 [g]	Experimental Mass of NdCl3 [g]	Recovery Rate [%]
	Temp. [°C]	Time [min]
1	400	240	9.41	5	7.4796	7.4477	6.783	91.07
2			11.38		9.0455		6.884	92.43
3			24.25		19.2753		7.201	96.68
4		120	9.41		7.4796		6.934	93.10
5			11.38		9.0455		6.947	93.28
6			24.25		19.2753		7.118	95.58

shows that the recovery rate of NdCl₃ varied with the conditions, and the experimental mass of NdCl₃ was calculated as the difference between the masses of the product and the impurities, as listed in Table 5. No correlation between the recovery rate of NdCl₃ and the duration of the chlorination process was found. However, the recovery rate of NdCl₃ increased with higher reaction ratios of NH₄Cl. The theoretical production amounts of NdCl₃ and NdCl₃∙(H₂O)₆ were 7.4477 g and 10.6601 g, respectively, based on 5 g of Nd₂O₃, and all six samples showed values close to the theoretical production amount of NdCl₃.

3.3. Horizontal Tube Furnace Apparatus: Manufacturing of Bulk NdCl₃

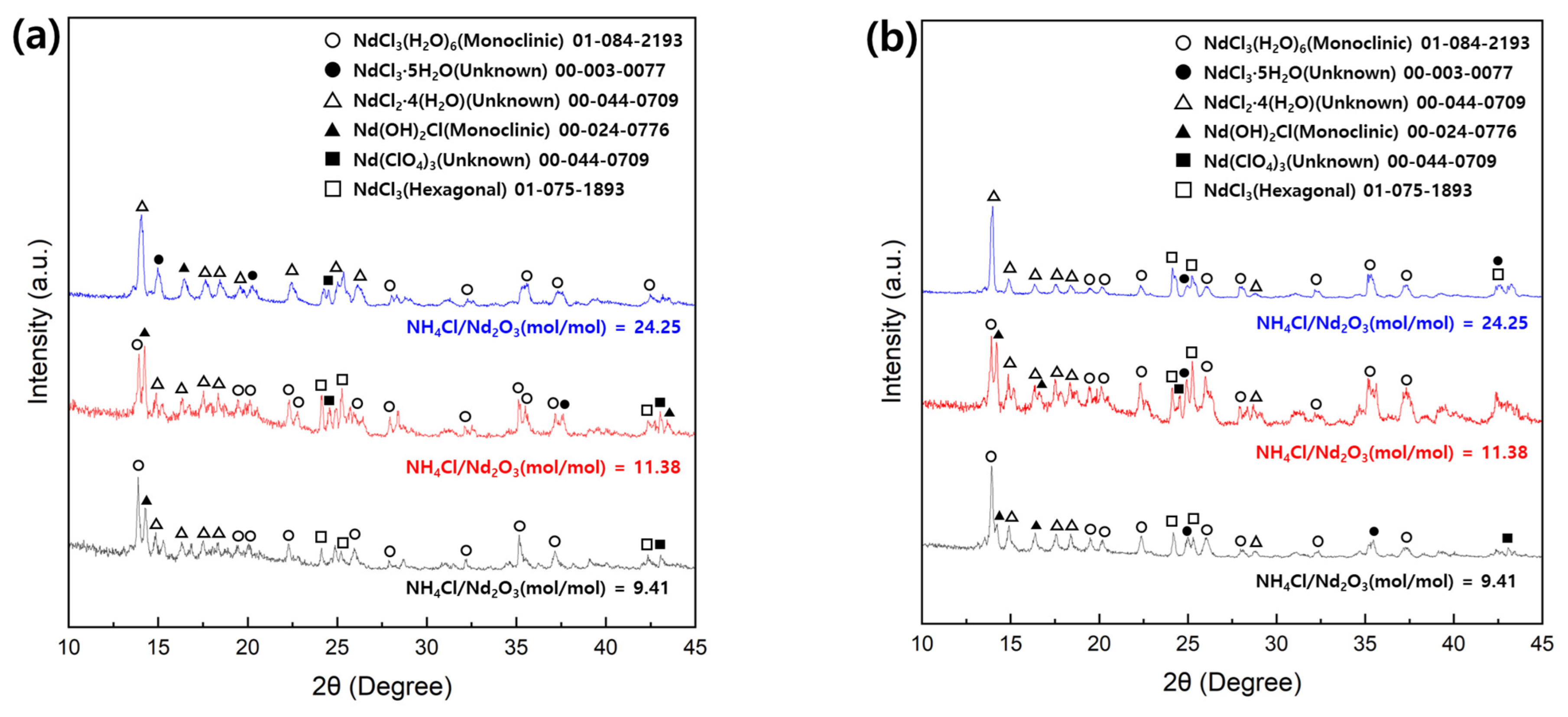

Figure 11 shows the phase composition of the bulk-shaped products manufactured by chlorination at 400 °C and subsequent heating to 760 °C, where the chlorination variables are the reaction ratio of Nd₂O₃ to NH₄Cl (1:9.41, 1:11.38, and 1:24.25 mol/mol) and the reaction time (75 and 120 min). In all samples, NdCl₃ and hydrated phases (NdCl₃∙(H₂O)₆, NdCl₃∙5H₂O, NdCl₂∙4(H₂O), Nd(OH)₂Cl, and Nd(ClO₄)₃) were detected together, and the NdCl₃ phase was detected at 2θ > 30° when compared to the XRD pattern of the powder form of NdCl₃ product. The major peaks of the samples chlorinated for 75 and 120 min with a reaction ratio of 1:24.25 were identified as the NdCl₂·4(H₂O) phase.

Table 7. Elemental analysis and impurity concentration of bulk Nd chloride prepared in the horizontal tube furnace.

No.	Chlorination Time [min]	NH4Cl/Nd2O3 [mol/mol]	Impurities [wt.%]			Product [g]	Impurities [g]
			N	H	O
7	120	9.41	0.540	0.696	0.932	7.0521	0.153
8		11.38	0.570	0.505	0.889	7.0733	0.139
9		24.25	0.490	0.481	0.823	7.2932	0.131
10	75	9.41	0.660	0.479	1.032	7.0753	0.154
11		11.38	0.650	0.555	1.073	7.1461	0.163
12		24.25	0.630	0.522	0.803	7.2032	0.141

shows the results of the ‘elemental analysis’ of the products under chlorination conditions. Results similar to those of the powder manufacturing experiments were confirmed. The total amount of impurities was higher in the sample chlorinated for 75 min than in the sample chlorinated for 120 min, and as the reaction ratio of NH₄Cl increased, the oxygen concentration and total amount of impurities in the product decreased. In addition, a comparison of the products (No. 4–6) chlorinated at 400 °C for 120 min and the products (No. 7–9) melted at 760 °C after the chlorination reaction under the same conditions showed that the impurity concentration decreased overall as the product was melted.

Table 8. Conversion rate of NdCl₃ prepared in bulk form in the horizontal tube furnace.

No.	Chlorination		Melting		NH4Cl/Nd2O3 [mol/mol]	Nd2O3 [g]	NH4Cl [g]	Theoretical Mass of NdCl3 [g]	Experimental Mass of NdCl3 [g]	Recovery Rate [%]
	Temp. [°C]	Time [min]	Temp. [°C]	Time [min]
7	400	120	760	1	9.41	5	7.4796	7.4477	6.899	92.64
8					11.38		9.0455		6.934	93.11
9					24.25		19.2753		7.162	96.17
10		75			9.41		7.4796		6.922	92.94
11					11.38		9.0455		6.983	93.76
12					24.25		19.2753		7.062	94.83

shows the recovery of NdCl₃ under different conditions, and the experimental mass of NdCl₃ was derived to reflect the concentration of impurities, as shown in Table 7. Similarly, no correlation between the recovery rate of NdCl₃ and the duration of chlorination process was found, and the recovery rate of NdCl₃ increased with an increase in the reaction ratio of NH₄Cl. In addition, the comparison of products (No. 4–6) chlorinated at 400 °C for 120 min and products (No. 7–9) melted at 760 °C after the chlorination reaction under the same conditions confirmed that melting of NdCl₃ product has an insignificant effect on the recovery rate of NdCl₃.

3.4. Glove Box Apparatus: Manufacturing of NdCl₃ Powder

Figure 12 shows the XRD pattern of the product manufactured by mixing dried Nd₂O₃ powder with NH₄Cl at a ratio of 1:9.41 (mol/mol) and then chlorinating it at 400 °C for 120 min. The phase composition was determined to be single-phase anhydrous NdCl₃. A high background peak detected in the low angle region (θ < 20°) occurred due to the use of an airtight holder.

SEM and PSA analyses were performed to investigate the characteristics of the NdCl₃ particles, and the results are presented in Figure 13.

As shown in Figure 13a, the particles exhibited irregular and agglomerated morphologies. Compared with Figure 10a (powder prepared under identical chlorination conditions in a horizontal tube furnace), the surface roughness and degree of agglomeration were higher for the particles prepared in the glove box.

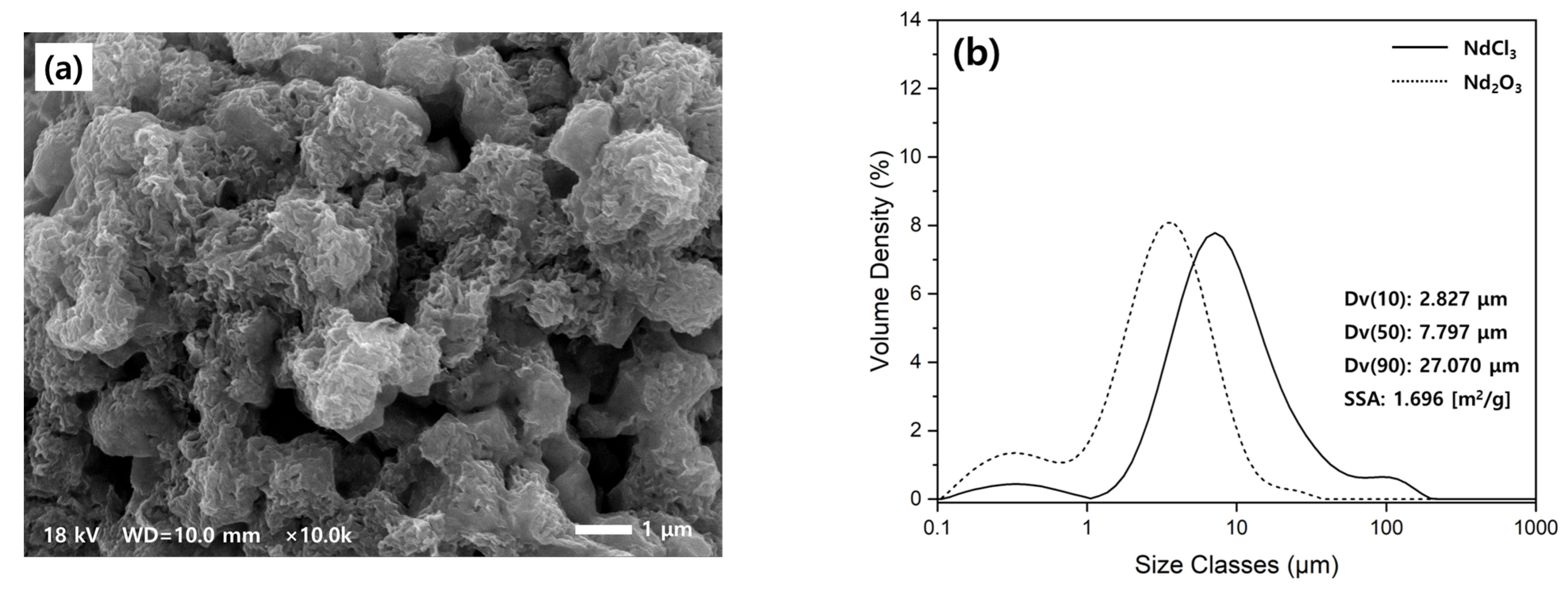

Figure 13b shows the particle size distributions of the raw Nd₂O₃ and NdCl₃. The graph shows three distribution points (d10, d50, and d90) and specific surface area values for NdCl₃ particles, and raw Nd₂O₃ is represented by a dotted line. Compared with sample No. 4 in Table 4, the powder prepared in the glove box exhibited a broader particle size distribution and reduced specific surface area.

Table 9. Elemental analysis and impurity concentration of Nd chloride powder prepared in the glove box.

No.	Impurities [wt.%]			Product [g]	Impurities [g]
	N	H	O
13	0.330	0.349	0.517	7.4364	0.089

shows the results of the ‘elemental analysis’ of the Nd chloride produced in the glove box, where it can be seen that the concentration of impurities was significantly reduced compared to the product (No. 4) produced under the same conditions in the horizontal tube furnace.

Table 10. Conversion rate of NdCl₃ prepared as powder in the glove box.

No.	Chlorination		NH4Cl/Nd2O3 [mol/mol]	Nd2O3 [g]	NH4Cl [g]	Theoretical Mass of NdCl3 [g]	Experimental Mass of NdCl3 [g]	Recovery Rate [%]
	Temp. [°C]	Time [min]
13	400	120	9.41	5	7.4796	7.4477	7.347	98.65

lists the chlorination conditions in the glove box and the recovery rate of the produced NdCl₃. Considering the concentration of impurities, the recovery rate of NdCl₃ was 98.65%, which was the highest recovery rate compared to all products manufactured in a horizontal tube furnace.

4. Discussion

4.1. Impurity Control

The production of anhydrous NdCl₃ requires a reduction in the oxygen and hydrogen levels present as NdOCl and NdCl₃·n(H₂O) in the product. Thermodynamic analysis suggested that calcination, chlorination temperature, NH₄Cl reaction ratio, and gas atmosphere control these impurities. Calcination removes the hydrogen present as Nd(OH)₃ from Nd₂O₃, suppressing NdOCl formation during chlorination (Figure 6). Increasing the chlorination temperature enhances the driving force of the chlorination reaction but requires careful temperature control to avoid increasing NdOCl activity in the system. A higher NH₄Cl/Nd₂O₃ (mol/mol) reaction ratio decreased the NdOCl activity, indicating that temperature and chlorination reaction ratio variations significantly affected the NdCl₃ impurity levels (Figure 7).

The use of excess NH₄Cl with a stoichiometric ratio higher than the reference value of 9.41 in the chlorination reaction was confirmed to reduce the oxygen concentration in the product. This finding aligns with the results of the thermodynamic analysis, which suggests that controlling the NH₄Cl reaction ratio can regulate the NdOCl activity in the system (Table 5 and Table 7).

The melting of the chlorinated products in a horizontal tube furnace has several implications. The reduced surface area of the products owing to melting minimizes the reaction area with ambient moisture and oxygen. Powder samples prepared from a horizontal tube furnace were confirmed to be a single-phase NdCl₃∙(H₂O)₆, while bulk Nd chloride samples exhibited a mixture of NdCl₃∙(H₂O)₆ and NdCl₃ phases (Figure 8 and Figure 11). The formation of the NdCl_3(s) phase can be misleadingly attributed to the decomposition of crystallization water through the melting of the product after chlorination at 400 °C. Figure 14 shows the equilibrium composition of pure NdCl₃(H₂O)_6(s) as a function of temperature. It can be observed that NdCl₃∙(H₂O)₆ begins to decompose at 100 °C and transforms into NdOCl above 371 °C. Considering the melting point of pure NdOCl (1100 °C) and that of the product at 760 °C, it was expected that the main phase of the samples chlorinated at 400 °C was NdCl₃. Additionally, the theoretical masses of NdCl₃ and NdCl₃∙(H₂O)₆ that can be produced from the 5 g of Nd₂O₃ used are 7.4477 g and 10.66 g, respectively. The powdered and bulk samples showed close approximations of the theoretical mass of NdCl₃ (Table 6 and Table 8). This led to the conjecture that the source of crystallization water in the bulk product was in contact with atmospheric moisture, similar to the preparation of the powder.

The gas atmosphere during chlorination was also found to be very important. The Nd chloride produced in a glove box under an Ar atmosphere was found to contain two orders of magnitude fewer impurities than the Nd chloride produced under the same chlorination conditions in a horizontal tube furnace (Table 5 and Table 9). The detection of anhydrous NdCl₃ suggests that the regulation of oxygen and moisture is crucial during the chlorination process and also confirms that chlorinated NdCl₃ is very sensitive to moisture.

4.2. Recovery Rate of NdCl₃

An overstoichiometric ratio of NH₄Cl in the chlorination process increased the recovery rate of NdCl₃, while the oxygen concentration and the total amount of impurities (N, H, and O) in the product decreased (Table 5, Table 6, Table 7 and Table 8). This was expected because excess NH₄Cl inhibited the production of NdOCl (195.69 g/mol) during the reaction while promoting the production of NdCl₃ (250.60 g/mol) and H₂O (g). Then, it can be inferred that the residual NH₄Cl was removed by sublimation after the reaction. It was considered that the lower recovery rate of NdCl₃ produced in the horizontal tube furnace compared to that in the glove box was caused by the continuous transport of the gaseous phase of NdCl₃ by the Ar gas flow from the crucible during the reaction process without reaching equilibrium with the condensed phase.

4.3. Particle Property

The particle characteristics of NdCl₃ during the chlorination process were controllable by the reaction ratio of Nd₂O₃ to NH₄Cl and the reaction time. According to the PSA analysis, increasing the NH₄Cl/Nd₂O₃ (mol/mol) reaction ratio in the samples chlorinated for 120 and 240 min resulted in a wider particle size distribution and a decrease in specific surface area (Figure 9, Table 4). The SEM images show no significant difference in the particle size of the particles chlorinated for 2 h, depending on the NH₄Cl/Nd₂O₃ (mol/mol) reaction ratio (Figure 10a–c). The particles chlorinated for 4 h could not be defined in terms of particle size, but agglomeration of the particles was observed with increasing reaction ratios (Figure 10d–f). Therefore, it can be confirmed that the chlorination reaction time has a greater impact on particle morphology than the reaction ratio of NH₄Cl. The particle sizes of all the prepared Nd chlorides were larger in the PSA analysis than in the SEM images (Figure 9, Figure 10 and Figure 13). This indicates that the prepared Nd chloride powder has an uneven dispersion state owing to complex reasons such as water adsorption and electrostatic charges. Consequently, increasing the NH₄Cl/Nd₂O₃ (mol/mol) reaction ratio during chlorination can improve the thermodynamic driving force of the reaction and reduce the concentration of impurities in the product. However, further optimization of the chlorination process conditions is required to obtain NdCl₃ powder with precise particle size and uniform dispersion. Because the NdCl₃ produced in the chlorination process is used for further Nd metal production, the particle size and specific surface area of sodium chloride can act as important factors for reaction efficiency.

5. Conclusions

The aim of this study was to generate anhydrous NdCl₃ via the chlorination of Nd₂O₃ with NH₄Cl. To reduce the oxygen concentration in Nd chloride, the thermodynamic mechanisms that suppress the formation of NdOCl, an intermediate product of the chlorination process, were analyzed. Thermodynamic analysis confirmed that excess NH₄Cl during the chlorination process enhanced the reaction driving force and reduced the NdOCl(s) activity in the system. As a result of chlorination, the concentration of impurities (N, H, and O) in the product decreased, and the recovery of NdCl₃ increased as the reaction ratio of NH₄Cl/Nd₂O₃ (mol/mol) increased. The NdCl₃ products synthesized in a horizontal tube furnace under Ar gas flow were mainly identified as hydrated phases, such as NdCl₃∙(H₂O)₆. The formation of hydrates was attributed to the exposure to ambient air after chlorination. Based on the crystal structures and NdCl₃ recovery rates of the chlorinated samples, the optimal chlorination time was determined to be 120 min. An increase in the NH₄Cl/Nd₂O₃ (mol/mol) reaction ratio results in a broader particle size distribution and a decrease in the specific surface area. The interparticle sintering phenomenon was found to be more affected by the chlorination time than by the reaction ratio of NH₄Cl/Nd₂O₃ (mol/mol). Nd chloride produced in a glove box with controlled oxygen and moisture levels at the ppm level was identified as single-phase NdCl₃. The generated particles exhibited irregular and agglomerated morphologies. In addition, the impurity concentration was reduced by more than two times compared to the horizontal tube furnace, and the highest recovery rate (98.65%) was obtained. Therefore, the conditions for increasing the conversion rate and process efficiency of Nd₂O₃ to NdCl₃ at 400 °C are as follows: calcination of raw materials (Nd₂O₃, NH₄Cl), a reaction ratio of Nd₂O₃/Nd₂O₃(mol/mol) of 9.41 or higher, a reaction time within 2 h, and maintenance of Ar atmosphere. Further research on the conversion rate according to temperature and reducing agent ratio in a glove box with an Ar atmosphere is necessary.
