Combined Use of Fatty Acid Profiles and Elemental Fingerprints to Trace the Geographic Origin of Live Baits for Sports Fishing: The Solitary Tube Worm (Diopatra neapolitana, Annelida, Onuphidae) as a Case Study

by
Fernando Ricardo
1,*,
Marta Lobão Lopes
1,
Renato Mamede
1,
M. Rosário Domingues
2,3,
Eduardo Ferreira da Silva
4,
Carla Patinha
4 and
Ricardo Calado
1,*
1
Laboratório para a Inovação e Sustentabilidade dos Recursos Biológicos Marinhos (ECOMARE), Centro de Estudos do Ambiente e do Mar (CESAM), Departamento de Biologia, Universidade de Aveiro, Campus Universitário de Santiago, 3810-193 Aveiro, Portugal
2
Centro de Estudos do Ambiento e do Mar (CESAM), Departamento de Química, Universidade de Aveiro, Campus Universitário de Santiago, 3810-193 Aveiro, Portugal
3
Laboratório Associado para a Química Verde (LAQV-REQUIMTE), Departamento de Química, Universidade de Aveiro, Campus Universitário de Santiago, 3810-193 Aveiro, Portugal
4
Geobiosciências, Geoengenheiria e Geotecnologias (GEOBIOTEC), Departamento de Geociências, Universidade de Aveiro, Campus Universitário de Santiago, 3810-193 Aveiro, Portugal
*
Authors to whom correspondence should be addressed.
Animals 2024, 14(9), 1361; https://doi.org/10.3390/ani14091361
Submission received: 15 February 2024 / Revised: 26 April 2024 / Accepted: 30 April 2024 / Published: 30 April 2024
(This article belongs to the Section Ecology and Conservation)
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

The overexploitation of the bristle worm Diopatra neapolitana in Ria de Aveiro, a coastal lagoon in mainland Portugal, has led to a generalized decline of its local populations, as it is commonly used as live bait for sports fishing. Several management actions have been put forward to reduce the impact of its harvesting, although illegal poaching still threatens the sustainable use of this marine resource. In an attempt to verify if D. neapolitana was sourced from no-take zones or if it was indeed collected from the place of origin claimed by live bait traders, this study evaluated if the geographic origin of D. neapolitana could be correctly assigned using a combination of fatty acid profiles and elemental fingerprints of its whole body and jaws, respectively. Results showed that both fatty acid profiles and elemental fingerprints differ significantly among locations, making it possible to discriminate the geographic origin of D. neapolitana. This discrimination achieves even higher accuracy when combining these two natural barcodes than when employing each one of them individually. The present work can, therefore, contribute to the enforcement of management plans for the sustainable use of this commercially important marine resource.

Abstract

Diopatra neapolitana Delle Chiaje, 1841 (Annelida, Onuphidae) is one of the most exploited polychaete species in European waters, particularly in Ria de Aveiro, a coastal lagoon in mainland Portugal, where the overexploitation of this resource has led to a generalized decline of local populations. In an attempt to reduce the impact of harvesting, several management actions were implemented, but illegal poaching still fuels a parallel economy that threatens the sustainable use of this marine resource. The present study evaluated the combination of fatty acid profiles and elemental fingerprints of the whole body and jaws, respectively, of D. neapolitana collected from four harvesting locations within Ria de Aveiro in order to determine if their geographic origin could be correctly assigned post-harvesting. Results showed that both fatty acid profiles and elemental fingerprints differ significantly among locations, discriminating the geographic origin with higher accuracy when combining these two natural barcodes than when employing each individually. The present work can, therefore, contribute to the implementation of an effective management plan for the sustainable use of this marine resource, making it possible to detect if D. neapolitana was sourced from no-take zones and if it was collected from the place of origin claimed by live bait traders.

1. Introduction

The collection of polychaetes in subtidal and intertidal mudflat habitats is a widespread activity worldwide, playing a key role in coastal economies [1,2,3]. Live polychaetes are used for multiple purposes, from maturation diets for crustacean and finfish broodstock in aquaculture facilities [4] to performing bioremediation processes on marine fish farm effluents [5,6] and as live baits for recreational and commercial fishing [2]. Several polychaetes species are exploited for these purposes, such as Arenicola marina, Atilla virens, Diopatra neapolitana, Glycera dibranchiata, Halla parthenopeia, Hediste diversicolor, Marphysa sanguinea, Namalycastis rhodochorde, Ophelia neglecta, Perinereis linea, Scoletoma impatiens, and Sigalion squamosus [1,2]. Over the past decades, D. neapolitana has been one of the main polychaete species harvested in Ria de Aveiro, a coastal lagoon in mainland Portugal, as well as in other estuaries along the Portuguese coastline (e.g., Tagus estuary, Sado estuary, and the coastal lagoon Ria Formosa) [2,7,8,9,10]. The reproductive biology of this species is relatively unknown [7]. D. neapolitana is a broadcast spawner with free-swimming larvae. In Ria de Aveiro, the main reproduction peak occurs from May to August, and the male–female sex ratio is about 1:1 throughout the year [7]. This species has a regenerative capacity, being able to survive when a few anterior chaetigers are removed, mainly by predation. However, when D. neapolitana is harvested, usually more than 20 chaetiger are harvested, compromising the survival of the posterior part of the specimen that remains in the burrow it inhabits [7]. The overexploitation of this resource has prompted a decline in local populations [1], and in an attempt to reduce the impact of the harvesting activity, several measures have subsequently been implemented. According to Portuguese legislation (Portaria n° 1228/2010), bait gatherers can only operate with a personal license and are only allowed to work using hand gathering or restricted gear. A more recent Ordinance was published in January 2014 (Portaria n° 14/2014) in an attempt to define the maximum daily catch limit. The daily limit is assumed to reflect the maximum sustainable yield (MSY) of digging, ensuring a sustainable income for diggers.
According to this Ordinance, the daily catch limit for annelids should be 0.5 L day−1 per digger, excluding the tube [11]. In 1999, a commercial bait harvesting value of around 200 million euros was estimated for Europe, but the existing gaps in the supervision and regulation of this activity could result in an underestimation of the real value [12]. In 2001/2002, the harvesting of D. neapolitana was quantified for the first time in Ria de Aveiro, with an estimated annual catch volume of around 45 tons and a commercial value of approximately 350 thousand euros [13]. Nevertheless, most commercial diggers, at a national and international level, do not have valid licenses nor properly report their harvesting; as such, they contribute to fostering a parallel economy by not declaring their sales for tax purposes and impair any management plan ruling this activity to be successfully implemented [12,14]. The commercial potential of live fishing bait is so high that several attempts were made to intensively culture D. neapolitana [15,16]. Nonetheless, several constraints still hamper this approach, and the harvesting of specimens from wild populations remains the sole supply source for this highly priced polychaete species.
The effects of bait harvesting on species density and population structure have a direct impact on the community (neglecting non-target species) and, consequently, on ecosystem functioning and processes [17,18]. The polychaete population’s response to harvesting is influenced by the nature and extent of bait-digging pressure and by the demographic characteristics of the population being exploited [14]. The current status of this species and the sustainability of its harvest are issues of growing concern [11]. As such, reliably tracing the geographic origin of polychaetes harvested from the wild could be paramount for a sustainable management plan for bait harvesting that could foresee no take periods and areas, as well as expose illegal poaching activities by less scrupulous bait diggers.
At present, several tools have been applied to confirm the geographic origin of marine organisms [19,20]. Fatty acid (FA) profiles recorded in soft tissues (e.g., adductor muscle of bivalves) have been successfully used for this purpose in common cockles (Cerastoderma edule) [21,22] and manila clams (Ruditapes decussatus) [23]. The particular physicochemical conditions of each ecosystem shape the FA composition of marine organisms in the sense that salinity and temperature are known to modulate the structure, fluidity, and, thus, the composition of cell membranes [24]. Higher salinity fluctuations and/or lower water temperatures promote a decrease in the levels of saturated FA (SFA) and an increase in the concentration of polyunsaturated FA (PUFA), responsible for the stabilization of the bilayer structure [24]. Elemental fingerprints (EFs) use the elemental profile recorded in hard biogenic structures, such as shells of common cockles (C. edule) [25,26], otoliths of California halibut (Paralichthys californicus) and Garibaldi (Hypsypops rubicundus) [27], and bony plates of Long-Snouted Seahorse (Hippocampus guttulatus) [28]. Considering that elements are influenced by the environmental and chemical features of each ecosystem [29] and that these mineral structures grow throughout the year, EFs have already been successfully used to discriminate specimens originating from geographically close locations [30,31,32].
The combination of two different traceability tools can be more effective in confirming the geographic origin of marine organisms, as already confirmed by Zhang et al. [33] and Perez et al. [34], who showed that the use of stable isotope ratios in combination with FA profiles could successfully discriminate scallop species (Patinopecten yessoensis, Chlamys farreri, and Argopecten irradians) and warty venus (Venus vecurrosa), respectively, from different geographic locations. This combination of tools was also able to trace the geographic origin and seasonality of the whitemouth croaker (Micropogonias furnieri) [35]. Moreover, Matos et al. [36], using stable isotopes and elemental fingerprints, effectively traced the geographic origin of eastern oysters (Crassostrea virginica).
In an attempt to contribute to better management of D. neapolitana stocks, the present study tested, for the first time, if the combination of FA profiles of the whole polychaete body and the EF of its jaws differs between specimens originating from different locations in Ria de Aveiro, a coastal lagoon in mainland Portugal, where the capture of this polychaete being used as live bait for sports fishing is an important economic and social activity.

2. Materials and Methods

2.1. Sample Collection

A total of forty adult specimens of D. neapolitana (total body length ranging from 314 mm to 584 mm) were randomly collected during low tide during the Spring of 2015 using a shovel, mimicking the method used by professional bait collectors in Espinheiro (E), Ílhavo (I), and Mira (M1 and M2) channels located in Ria de Aveiro, mainland Portugal (Figure 1). This coastal lagoon is one of the most important locations for the harvesting of D. neapolitana for recreational and commercial fishing on mainland Portugal [2,37]. Ten specimens of D. neapolitana were sourced from each location described above, stored in aseptic plastic boxes, and kept refrigerated during sampling and transport to the laboratory. Upon arrival at the laboratory, specimens were left to depurate for 24 h in containers with artificial seawater (prepared by mixing Tropic Marin Pro Reef salt (Tropic Marin, Wartenberg, Germany) and freshwater purified by a reverse osmosis unit). All specimens were split up into two sub-groups: whole body for FA analysis and jaw for elemental analysis (4 locations × 2 methods × 10 replicates = 80 samples). The jaws of each specimen were dissected using a scalpel with ceramic-coated blades. Subsequently, the whole body and jaws were individually homogenized using a mortar grinder (RM 200, Retsch, Hann, Germany) and stored at −80 °C until further analysis.

2.2. Fatty Acid Analysis

Methyl esters of fatty acids (FAME) of D. neapolitana (~50 mg) were prepared following the method described by Aued-Pimentel et al. [38] (through transmethylation of FA using a mixture of methanolic solution KOH (2 M) and saturated NaCl). The resulting FAME were analyzed in a QP2010 Ultra Shimadzu gas chromatography–mass spectrometry, equipped with an auto-sampler a DB-FFAP column with 30 m length, 0.32 mm internal diameter, and 0.25 µm film thickness (J&W Scientific, Folsom, CA, USA). The column was initially programmed to 80 °C, increasing 25 °C min−1 until 160 °C, 2 °C min−1 from 160 to 220 °C, and 30 °C min−1 from 220 to 250 °C, using helium as the carrier gas, at a flow of 1.8 mL min−1. FAME identification was accomplished through comparison of retention times with those mixed FAME standards (C4–C24, Supelco 37 Component Fame Mix) and by comparison of the mass spectrum of each relative to standard spectra from the library “AOCS Lipid Library” (http://lipidlibrary.aocs.org/ (accessed on 5 January 2024)).

2.3. ICP-MS

The jaws of D. neapolitana (~50 mg) were weighed in digestion tubes (DigiTUBEs). Digestion tubes were soaked with high-purity concentrated HNO3, HCl (37%), and H2O2 (30% w/v) on a digestion block (DigiPrep, SCP Science, Baie-d’Urfé, QC, Canada) at 85 °C for over 15 min. Subsequently, solutions were diluted with Milli-Q (Millipore) water to a final HNO3 concentration of 1–2% to reduce acid concentration and prevent damage to the equipment. Finally, total concentrations of aluminum (Al), barium (Ba), calcium (Ca), cerium (Ce), cobalt (Co), iron (Fe), potassium (K), lanthanum (La), magnesium (Mg), manganese (Mn), sodium (Na), nickel (Ni), phosphorus (P), strontium (Sr), and yttrium (Y) were analyzed using an Agilent 7700 ICP-MS equipped with an octopole reaction system (ORS) collision/reaction cell technology to minimize spectral interferences. Blanks and certified reference materials, BCS-CRM-513 (SGT Limestone 1; LGC Standards, UK), were treated using the same method.

2.4. Data and Statistical Analysis

2.4.1. Analysis of Fatty Acid Profiles

The FA profiles were represented by the relative abundance of the total pool of FA per replicate for each location. The FA were grouped by the following classes: saturated FA (SFA), monounsaturated FA (MUFA), and polyunsaturated FA (PUFA). A Boruta analysis [39] was performed to select the most relevant FA to discriminate specimens originating from different sampling locations. The outcome grouped the variables into three categories: tentative variables (not enough to accept or reject), confirmed variables, and rejected variables. For the tentative variables, the “TentativeRoughFix” function was applied. Statistical differences (p < 0.05) in FA profiles among locations were tested using the vegan adonis function for permutational multivariate analysis of variance (PERMANOVA) [40] using Euclidean distances. To test differences among locations for each FA individually, a one-way analysis of variance (ANOVA) was performed. A Radom Forest (RF) classification [41] was used to evaluate the possibility of successfully discriminating the geographic origin of specimens through the FA profile. To test for normality and the assumption of homogenous variances, the Shapiro.test and bartlett.test functions were used, respectively, and data were transformed (log x+1). All statistical analyses were performed in R [42]. The PERMANOVA and ANOVA were performed using the package “vegan,” while Boruta analysis and RF were performed using the package “Random Forest”.

2.4.2. Analysis of Elemental Fingerprint

The concentration of elements present in the jaws of D. neapolitana was expressed as a ratio relative to Ca (mg/mg) in order to minimize mass effects [25,28,43]. For a better understanding of our results, a Boruta analysis using the “TentativeRoughFix” function [39] (see above for details) was used to determine the most important elements to discriminate between different sampling locations. A resemblance matrix using the ratio of each element per sample was prepared using Euclidean distance with the vegdist function after performing a scale transformation. A PERMANOVA was performed to detect significant differences in the EF of jaws from D. neapolitana originating from different locations. A one-way ANOVA was used to assess differences among locations for each individual element after confirming normality with the Shapiro test and homogeneity of variance with the Bartlett test. An RF classification was performed to evaluate the potential use of elements present in the jaws of this polychaete to discriminate between different locations. All statistical analyses were performed in R [43] (see above for details about R packages).

2.4.3. Combination of Fatty Acid Profiles and Elemental Fingerprint

In order to increase the number of predictor variables, a combination of FA profiles and EF was used. This combination underwent the application of the ‘TentativeRoughFix’ function within a Boruta analysis [39] (see details in Section 2.4.1) to select the best subset of variables that may explain potential differences in specimens of D. neapolitana originating from different sampling locations [44]. A PERMANOVA was performed to assess differences among locations, and an RF classification was applied to test if the combination of FA and EF could be used to predict the geographic origin from which each polychaete was collected. All data were scale transformed and used to produce a matrix using Euclidean distances with the vegdist function in the vegan package. All statistical analyses were performed in R [42] (see above for details about R packages).

3. Results

3.1. Fatty Acid Profiles

The average FA profiles recorded for the whole body of D. neapolitana at different locations are presented in Table S1 (as Supplementary Data). A total of twenty-four FAs were identified, comprising eight SFA, six MUFA, and ten PUFA. SFA comprised 40% and 50% (locations M2 and I, respectively; Table S1) of all FA identified in the whole body of D. neapolitana from different locations. The main SFAs were palmitic acid (16:0) and stearic acid (18:0), corresponding to more than 76% of all SFAs. MUFA represented 14% and 20% (locations M1 and E, respectively; Table S1) of all FA. Dominant MUFAs were vaccenic (18:1n-7) and eicosenoic (20:1n-9) acids, representing over 50% of all MUFAs. PUFA comprised 32% and 43% (locations E and M2, respectively; Table S1) of all FA. The most abundant PUFA were eicosapentaenoic (20:5n-3; EPA) and docosadienoic (22:2n-9; DHA) acids, representing over 42% of all PUFA.
The Boruta analysis performed showed that the FA 18:1n-7, 20:0, 18:2n-6, 16:0, 15:0, 22:4n-6, 17:0, 16:1n-7, 20:4n-6, 18:3n-3, 18:0, 20:1n-11, and 20:5n-3 (Figure 2a) were the ones that most contributed to the differences recorded among locations. The PERMANOVA performed revealed the existence of significant differences among locations, apart from those within the Mira Channel (M1 and M2) (p < 0.05; Table S2 on Supplementary Data). Considering each FA individually, FA 22:1n-11 and FA 20:5n-3 did not display any significant difference among locations (Table S2). At the same time, no significant differences in FA 20:0 were only recorded between M1 and I (Table S2). Comparatively to the other locations, specimens from location E recorded significantly higher levels of 15:0, 16:0, 17:0, 18:1n-7, 18:2n-6, and 18:3n-3 (Table S2). Specimens from location M2 presented the highest levels of 16:1n-7, 20:4n-6, and 22:4n-6, being significantly different from other locations (Table S2). Location I presented higher levels of FA 18:0, with significant differences between this location and the others; the sole exception was with M1.
The RF classification showed an overall accuracy of 77.5% (Table 1 and Figure 3a). Specimens from location E exhibited the highest percentage of correct classification (100%; UA—100%). Specimens of D. neapolitana originating from Mira Channel (M1 and M2) registered two and three misclassified replicates, resulting in a correct classification of 70 (UC and 80%). Most misclassifications were associated with specimens sourced from location I, with only 60% of correct classifications (Figure 3a and Table 1).

3.2. Elemental Fingerprints

The concentration of the fourteen elements recorded on the EF determined for the jaws of D. neapolitana in the different locations of Ria de Aveiro is shown in Figure S1 (Supplementary Data). The Boruta analysis revealed that Ba, Mn, K, Na, Ni, and Y were the elements that most contributed to the differences recorded among locations (Figure 2b). The PERMANOVA revealed significant differences among locations, with the exception of specimens collected in locations E vs. I and M1 vs. I (Table S2 on Supplementary Data). Concerning individual elements, all specimens collected in the locations surveyed in this study displayed a similar Y ratio for this element. The highest concentration of Ba was registered in location M2, with significant differences occurring between locations M2 vs. E, M2 vs. I, and M1 vs. E (Figure S1). The jaws of D. neapolitana presented the highest levels of Mn in location M2, with significant differences being recorded between this location and location E. Specimens from M1 registered significantly higher concentrations of Na, compared with locations E and I (Figure S1). Concerning Ni, the highest concentrations were recorded in specimens from locations M2 and I, whereas K was more concentrated in specimens from location M1, with no significant differences being recorded among locations for both of these elements (Figure S1).
The RF classification revealed an accuracy of 72.5% when using EF to assign D. neapolitana to its geographical origin. Specimens from location I showed the highest percentage of correct allocation (90%; one replicate was misclassified), followed by those originating from location M1, with an accuracy of 80% (two replicates were misclassified). Most misclassifications were associated with D. neapolitana collected in locations E and M2, with 40% of collected specimens being erroneously assigned to other locations (Figure 3b and Table 1).

3.3. Elemental Fingerprints

The Boruta analysis showed that the most relevant combination of predictive variables when simultaneously considering FA profiles and EF were Ba, 18:1n-7, 18:2n-6, 16:0, 20:0, 15:0, 17:0, 22:4n-6, 18:3n-3, 16:1n-7, 20:4n-6, 18:0, 22:1n-11, Ni, 20:5n-3, and Na (Figure 2c). The PERMANOVA revealed the existence of significant differences among all locations (Table S2). The RF classification resulted in an overall accuracy of 87.5% (Figure 3c and Table 1). Location E had the highest percentage of correct allocation (100%), whereas single replicates from locations I and two replicates from locations M1 and M2 were misclassified, resulting in an overall correct allocation of 90 and 80%, respectively.

4. Discussion

The use of FA profiles of soft tissues and EF of mineral structures in marine species has been optimized to put forward faster and more accurate methods of analysis that can also reduce potential environmental impacts (associated with the residues they generate) that allow to best discriminate the geographic origin of these organisms, namely those that feature an important commercial value [23,28,44,45,46,47,48,49,50]. Most of the available studies to date using these methods, either when they are applied individually or combining more than one approach (e.g., FA profiles and stable isotopes [34], elemental fingerprints and stable isotopes [36]), are mostly focused on food safety issues rather than the implementation of effective management plans for endogenous marine resources that may be vulnerable to poaching. The present study showed, for the first time, that the combination of biogeochemical tools (FA profiles and EF) using the whole body and the jaws of D. neapolitana (respectively) can successfully be used to confirm the geographic origin of bait digging with a high accuracy level (Table 1). It is, therefore, legitimate to say that these natural barcodes can be successfully used towards the implementation of more effective fishery management plans, allowing the enforcement of no-take zones.
The FA profiles displayed by the whole body of D. neapolitana revealed that the most dominant FA was 16:0, followed by the PUFA 20:5n-3. In general, this trend was similar to that found for other polychaetes by Fernandes et al. [50] for Hediste diversicolor and by Jerónimo et al. [51] for H. diversicolor, D. neapolitana, Sabella cf. pavonina, and Terebella lapidaria, all collected in the same location in Ria de Aveiro. The same was found for Alvinella pompejana [52], Arenicola marina [53], Nepthys hombergii and Lanice conchilega [54] sampled in other locations.
The FA belonging to the SFA and PUFA classes were responsible for most of the differences recorded among locations (p < 0.05; Table S1 on Supplementary Data). These dissimilarities in FA profiles of polychaetes among locations were likely associated with a differential physiological response to changes in environmental conditions (e.g., salinity and temperature) that shape the environment in their sampling locations [22,50,55,56]. At higher temperatures, the reorganization of the membrane structure is needed to maintain membrane fluidity and homeostasis, leading to an increase in FA saturation or the prevalence of shorter-chain FA [57]. Salinity is responsible for changes in FA profiles involved in the osmoregulation process, inducing changes in membrane permeability [58]. Higher salinities, like those registered at M1, I, and E, are associated with a decrease in PUFA to reduce membrane permeability [59].
The biogenic carbonate-hard parts of marine species, such as shells, otoliths, plates, fish scales, and fish bones, incorporate and retain elements from the surrounding environment throughout their lifetimes [28,48,60,61,62,63]. It is important to note that this study represents the first dataset reporting the EF of polychaete jaws. Similar to other mineral structures (e.g., Cerastoderma edule shells [26,64]), the levels of elements recorded in the aragonitic jaws of D. neapolitana [65] differed among locations within Ria de Aveiro. These discrepancies are associated with both local physical conditions and the availability of elements in the environment. Considering that location M2 is more upstream than M1 (within the same channel and closer to the inlet), hydrological conditions differ, which results in a substantial enrichment of Ba and Mn upstream due to freshwater inputs and nutrient runoff, as suggested by Ricardo et al. [26]. In fact, the presence of high levels of Ba and Mn in location M2 had already been previously reported by these authors in C. edule shells [26]. The highest concentrations of K and Na observed in M1 could be related to its geographical proximity to the inlet of the coastal lagoon, suggesting a potential association with the physicochemical properties of oceanic seawater (e.g., temperature and salinity [66,67]). Locations I and M2 registered the highest levels of Ni in D. neapolitana jaws. This trend was previously reported for the body of D. neapolitana by Pires et al. [68], exactly in those same locations. High levels of Ni could be associated with anthropogenic impacts [69,70], such as the presence of an important shipyard, commercial harbor, and industrial activities in location I [71], along with agriculture runoff in location M2 [72]. Similarities in the EF of D. neapolitana jaws between locations E and I and locations M1 and I (Table S2; Supplementary Information) were likely associated with the similar environmental conditions experienced by the specimens sampled in these locations.
The use of Random Forest classifications based on FA profiles and EF enhanced the discrimination of geographic origin between specimens of D. neapolitana (Table 1). Indeed, the use of each tool individually was associated with some constraints. When FA profiles were used alone to determine the geographic origin of collected specimens, location E was well discriminated against, contrary to the other locations. When using EF, locations I and M1 were discriminated against with a high level of accuracy, contrary to locations E and M2 (Table 1). Thus, the combination of FA profiles and EF proved to be a more efficient approach to successfully allocating sampled specimens of D. neapolitana to their true geographic origin, thus increasing the success rate (Table 1). The combination of different fingerprinting methods (e.g., FA profiles with stable isotopes or multi-elements with stable isotopes) had already been successfully employed to discriminate the geographic origin of different species. When using FA profiles combined with stable isotope analysis, the geographic origin of sea cucumbers (Apostichopus japonicus) [73], jumbo squids (Dosidicus gigas) [74], and scallops (Patinopecten yessoensis, Chlamys farreri, and Argopecten irradians) [33] was determined with a high success rate of correct allocations. Employing a multi-element and stable isotope approach for different prawn species (Penaeus indicus, P. merguiensis, P. monodon, P. notialis, P. vannamei, Pleoticus muelleri, and Pandalus borealis) was also highly successful when aiming to allocate their geographic origin [75]. These approaches were also used to distinguish production methods (farmed vs. wild), namely by using FA profiles and stable isotopes on European eel (Anguilla anguilla) [76] and Atlantic salmon (Salmo salar) [77], as well as for prawns when using multi-elements and stable isotope analysis (see above; [74]).

5. Conclusions

The present study showed that the combination of FA profiles of the body of D. neapolitana and EF of its jaws is an accurate and reliable traceability tool that can be used to confirm the geographic origin of live specimens of this species sourced from different locations within a coastal lagoon with a resolution < 2 km. Despite being an initial study, the results here presented can play a key role in supporting the implementation of conservation/management plans for bait harvesting activities in this coastal lagoon and elsewhere, namely estuarine systems where bait harvesting is more intense and relevant from an economic, social, and ecological perspective. The use of statistical methods, such as the Boruta selection function used in this study, can also be applied in other areas of marine science, such as benthic habitat mapping [78]. The selection performed by Boruta helps to achieve more robust and accurate models, as well as to understand which explanatory variables (e.g., elements and FA) characterize each categorical response variable (e.g., location).” To improve the potential use of this tool, further insights are required on the existence of temporal variability (both seasonal and interannual), which pinpoints how frequently the predictive model needs to be calibrated to secure an accurate classification of the place of origin of the specimens being surveyed. Extending the application of this methodology to other polychaete species with commercial interest could also be important to contribute to a more sustainable use of these important marine living resources.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/ani14091361/s1, Figure S1: Ratios of elements to calcium (Ca) concentrations (mg to mg) (average ± SD; n = 10) of Diopatra neapolitana jaws from four locations within the coastal lagoon Ria de Aveiro, mainland Portugal: Espinheiro Channel (E), Ílhavo Channel (I), and Mira Channel (M1 and M2). Different letters indicate significant differences among sampling locations at p < 0.05; Table S1: Fatty acid profiles (data presented as percentage of relative abundances) of the whole body of Diopatra neapolitana (values are means of 10 replicates ± SD) from Espinheiro (E), Ílhavo (I), and Mira (M1 and M2) channels in the coastal lagoon Ria de Aveiro, mainland Portugal. SFAs—saturated fatty acids; MUFAs—monounsaturated fatty acids; and PUFAs—polyunsaturated fatty acids. Different superscript letters indicate significant differences among sampling locations at p < 0.05; Table S2: Permutational multivariate analysis of variance (PERMANOVA) among fatty acid profiles of the whole body, elemental ratios of jaws, and combinations of fatty acid profiles of the whole body and elemental ratios of jaws of the polychaete Diopatra neapolitana sourced from Espinheiro Channel (E), Ílhavo Channel (I), and Mira Channel (M1 and M2). Significant differences: p < 0.05.

Author Contributions

Conceptualization, F.R. and R.C.; methodology, F.R., M.L.L. and R.M.; validation, M.R.D., C.P. and R.C.; formal analysis, F.R. and R.C.; investigation, F.R., M.R.D., C.P. and R.C.; resources, M.R.D., C.P. and R.C.; writing—original draft preparation, F.R. and R.C.; writing—review and editing, F.R., M.L.L., R.M., M.R.D., E.F.d.S., C.P. and R.C.; visualization, F.R.; supervision, M.R.D., E.F.d.S., C.P. and R.C.; project administration, R.C.; funding acquisition, C.P. and R.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by project CITAQUA, “Desenvolvimento do Projeto de Reforço do Polo de Aveiro (H4)”, framed within Measure 10 of Investment TC-C10-i01—Hub Azul—Rede de Infraestruturas para a Economia Azul, financed by the Recovery and Resilience Plan (PRR) and supported by Fundo Azul of the Portuguese Government. The authors acknowledge the University of Aveiro, Fundação para a Ciência e a Tecnologia (FCT, Portugal), and Ministério da Ciência e Tecnologia (MCT) for the financial support for the research units CESAM (UIDP/50017/2020 + UIDB/50017/2020 + LA/P/0094/2020) and LAQV-REQUIMTE (FCT UIDB/50006/2020).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All raw data on the relative abundance (%) of fatty acids (FAs) and ICP-MS analysis are available as Supplementary Material (Table S1 and Table S2, respectively).

Acknowledgments

We thank Andreia Santos for their technical support.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study, in the collection, analysis, or interpretation of data, in the writing of the manuscript, or in the decision to publish the results.

References

  1. Olive, P. Management of the exploitation of the lugworm Arenicola marina and the ragworm Nereis virens (Polychaeta) in conservation areas. Aquat. Conserv. 1993, 3, 1–24. [Google Scholar] [CrossRef]
  2. Cunha, T.; Hall, A.; Queiroga, H. Estimation of the Diopatra neapolitana annual harvest resulting from digging activity in Canal de Mira, Ria de Aveiro. Fish. Res. 2005, 76, 56–66. [Google Scholar] [CrossRef]
  3. Olive, P. Polychaeta as a world resource: A review of pattern of exploitation as sea angling baits and the potential for aquaculture based production. Mémoires Mus. Natl. D’histoire Nat. 1994, 162, 603–610. [Google Scholar]
  4. Meunpol, O.; Meejing, P.; Piyatiratitivorakul, S. Maturation diet based on fatty acid content for male Penaeus monodon (Fabricius) broodstock. Aquac. Res. 2005, 36, 1216–1225. [Google Scholar] [CrossRef]
  5. Marques, B.; Lillebø, A.I.; Ricardo, F.; Nunes, C.; Coimbra, M.A.; Calado, R. Adding value to ragworms (Hediste diversicolor) through the bioremediation of a super-intensive marine fish farm. Aquacult. Environ. Interac. 2018, 10, 79–88. [Google Scholar] [CrossRef]
  6. Jerónimo, D.; Lillebø, A.I.; Santos, A.; Cremades, J.; Calado, R. Performance of polychaete assisted sand filters under contrasting nutrient loads in an integrated multi-trophic aquaculture (IMTA) system. Sci. Rep. 2020, 10, 20871. [Google Scholar] [CrossRef]
  7. Pires, A.; Gentil, F.; Quintino, V.; Rodrigues, A.M. Reproductive biology of Diopatra neapolitana (Annelida, Onuphidae), an exploited natural resource in Ria de Aveiro (Northwestern Portugal). Mar. Ecol. 2012, 33, 56–65. [Google Scholar] [CrossRef]
  8. Pires, A.; Freitas, R.; Quintino, V.; Rodrigues, A.M. Can Diopatra neapolitana (Annelida: Onuphidae) regenerate body damage caused by bait digging or predation? Estuar. Coast. Shelf Sci. 2012, 110, 36–42. [Google Scholar] [CrossRef]
  9. Aleixo, A.; Queiroga, H.; Xenarios, S.; Lillebø, A. Catch estimates and bioecomomic analysis of bait digging: The case of the tube worm Diopatra neapolitana. Bioforsk Rapp. 2014, 9, 136. [Google Scholar]
  10. Costa, F.E.; Sá, E.; Alves, A.S.; Cabral, S.; Castro, N.; Picard, D.; Castro, J.J.; Cancela Da Fonseca, L.; Chainho, P.; Canning-Clode, J. Anelídeos poliquetas como isco vivo: Caracterização da atividade de apanha em ambientes salobros costeiros Portugueses. Entre Rios Mares Património Ambientes História Saberes 2016, 33–43. [Google Scholar] [CrossRef]
  11. Xenarios, S.; Queiroga, H.; Lillebø, A.I.; Aleixo, A. Introducing a regulatory policy framework of bait fishing in European coastal lagoons: The case of Ria de Aveiro in Portugal. Fishes 2018, 3, 2. [Google Scholar] [CrossRef]
  12. Olive, P.J. Polychaete aquaculture and polychaete science: A mutual synergism. In Reproductive Strategies and Developmental Patterns in Annelids; Springer: Dordrecht, The Netherlands, 1999; pp. 175–183. [Google Scholar]
  13. Freitas, F.; Cunha, T.; Hall, A.; Queiroga, H. Diopatra neapolitana, Importância Sócio-económica e Sustentabilidade das Capturas, no Canal de Mira, Ria de Aveiro. In Proceedings of the Jornadas da Ria de Aveiro, Aveiro, Portugal, 2–4 May 2011; Universidade de Aveiro: Aveiro, Portugal, 2011; pp. 60–66. [Google Scholar]
  14. De Carvalho, A.N.; Vaz, A.S.L.; Sérgio, T.I.B.; dos Santos, P.J.T. Sustainability of bait fishing harvesting in estuarine ecosystems–Case study in the Local Natural Reserve of Douro Estuary, Portugal. Rev. Gestão Costeira Integr. J. Integr. Coast. Zone Manag. 2013, 13, 157–168. [Google Scholar] [CrossRef]
  15. Conti, G.; Massa, F. Experienze de allavamento del polichete Diopatra neapolitana Delle Chiaje, 1841 nella Laguna di S. Gilla (Sardegna Meridionale). Biol. Mar. Mediterr. 1998, 5, 1473–1480. [Google Scholar]
  16. Safarik, M.; Redden, A.M.; Schreider, M.J. Density-dependent growth of the polychaete Diopatra aciculata. Sci. Mar. 2006, 70, 337–341. [Google Scholar]
  17. Kraan, C.; Piersma, T.; Dekinga, A.; Koolhaas, A.; Van der Meer, J. Dredging for edible cockles (Cerastoderma edule) on intertidal flats: Short-term consequences of fisher patch-choice decisions for target and non-target benthic fauna. ICES J. Mar. Sci. 2007, 64, 1735–1742. [Google Scholar] [CrossRef]
  18. Fonseca, L.; Costa, P.; Fidalgo, E. Poliquetas: Sua obtenção, impactos e medidas de gestão. In Proceedings of the 14° Congresso da Associação Portuguesa para o Desenvolvimento Regional-Ambiente e Conservação da Natureza, Tomar, Portugal, 4–5 July 2008; p. 851. [Google Scholar]
  19. Leal, M.C.; Pimentel, T.; Ricardo, F.; Rosa, R.; Calado, R. Seafood traceability: Current needs, available tools, and biotechnological challenges for origin certification. Trends Biotechnol. 2015, 33, 331–336. [Google Scholar] [CrossRef] [PubMed]
  20. Santos, A.; Ricardo, F.; Domingues, M.R.M.; Patinha, C.; Calado, R. Current trends in the traceability of geographic origin and detection of species-mislabeling in marine bivalves. Food Control 2023, 152, 109840. [Google Scholar] [CrossRef]
  21. Ricardo, F.; Maciel, E.; Domingues, M.R.; Calado, R. Spatio-temporal variability in the fatty acid profile of the adductor muscle of the common cockle Cerastoderma edule and its relevance for tracing geographic origin. Food Control 2017, 81, 173–180. [Google Scholar] [CrossRef]
  22. Ricardo, F.; Pimentel, T.; Moreira, A.S.P.; Rey, F.; Coimbra, M.A.; Rosário Domingues, M.; Domingues, P.; Costa Leal, M.; Calado, R. Potential use of fatty acid profiles of the adductor muscle of cockles (Cerastoderma edule) for traceability of collection site. Sci. Rep. 2015, 5, 11125. [Google Scholar] [CrossRef] [PubMed]
  23. Mamede, R.; Ricardo, F.; Santos, A.; Díaz, S.; Santos, S.A.O.; Bispo, R.; Domingues, M.R.M.; Calado, R. Revealing the illegal harvesting of Manila clams (Ruditapes philippinarum) using fatty acid profiles of the adductor muscle. Food Control 2020, 118, 107368. [Google Scholar] [CrossRef]
  24. Nemova, N.N.; Fokina, N.N.; Nefedova, Z.A.; Ruokolainen, T.R.; Bakhmet, I.N. Modifications of gill lipid composition in littoral and cultured blue mussels Mytilus edulis L. under the influence of ambient salinity. Polar Rec. 2013, 49, 272–277. [Google Scholar] [CrossRef]
  25. Ricardo, F.; Mamede, R.; Bruzos, A.L.; Díaz, S.; Thébault, J.; da Silva, E.F.; Patinha, C.; Calado, R. Assessing the elemental fingerprints of cockle shells (Cerastoderma edule) to confirm their geographic origin from regional to international spatial scales. Sci. Total Environ. 2022, 814, 152304. [Google Scholar] [CrossRef]
  26. Ricardo, F.; Génio, L.; Costa Leal, M.; Albuquerque, R.; Queiroga, H.; Rosa, R.; Calado, R. Trace element fingerprinting of cockle (Cerastoderma edule) shells can reveal harvesting location in adjacent areas. Sci. Rep. 2015, 5, 11932. [Google Scholar] [CrossRef]
  27. Carson, H.S.; López-Duarte, P.C.; Cook, G.S.; Fodrie, F.J.; Becker, B.J.; DiBacco, C.; Levin, L.A. Temporal, spatial, and interspecific variation in geochemical signatures within fish otoliths, bivalve larval shells, and crustacean larvae. Mar. Ecol. Prog. Ser. 2013, 473, 133–148. [Google Scholar] [CrossRef]
  28. Cabral, A.E.; Ricardo, F.; Patinha, C.; Silva, E.F.d.; Correia, M.; Palma, J.; Planas, M.; Calado, R. Successful Use of Geochemical Tools to Trace the Geographic Origin of Long-Snouted Seahorse Hippocampus guttulatus Raised in Captivity. Animals 2021, 11, 1534. [Google Scholar] [CrossRef]
  29. Takesue, R.K.; Bacon, C.R.; Thompson, J.K. Influences of organic matter and calcification rate on trace elements in aragonitic estuarine bivalve shells. Geochim. Cosmochim. Acta 2008, 72, 5431–5445. [Google Scholar] [CrossRef]
  30. Becker, B.J.; Fodrie, F.J.; McMillan, P.; Levin, L.A. Spatial and temporal variation in trace elemental fingerprints of mytilid mussel shells: A precursor to invertebrate larval tracking. Limnol. Oceanogr. 2004, 50, 48–61. [Google Scholar] [CrossRef]
  31. Sorte, C.J.; Etter, R.J.; Spackman, R.; Boyle, E.E.; Hannigan, R.E. Elemental Fingerprinting of Mussel Shells to Predict Population Sources and Redistribution Potential in the Gulf of Maine. PLoS ONE 2013, 8, e80868. [Google Scholar] [CrossRef]
  32. Zacherl, D.C. Spatial and temporal variation in statolith and protoconch trace elements as natural tags to track larval dispersal. Mar. Ecol. Prog. Ser. 2005, 290, 145–163. [Google Scholar] [CrossRef]
  33. Zhang, X.; Han, D.; Chen, X.; Zhao, X.; Cheng, J.; Liu, Y. Combined use of fatty acid profile and fatty acid δ13C fingerprinting for origin traceability of scallops (Patinopecten yessoensis, Chlamys farreri, and Argopecten irradians). Food Chem. 2019, 298, 124966. [Google Scholar] [CrossRef]
  34. Perez, V.; Olivier, F.; Tremblay, R.; Neumeier, U.; Thébault, J.; Chauvaud, L.; Meziane, T. Trophic resources of the bivalve, Venus verrucosa, in the Chausey archipelago (Normandy, France) determined by stable isotopes and fatty acids. Aquat. Living Resour. 2013, 26, 229–239. [Google Scholar] [CrossRef]
  35. Chaguri, M.P.; Maulvault, A.L.; Nunes, M.L.; Santiago, D.A.; Denadai, J.C.; Fogaça, F.H.; Sant’Ana, L.S.; Ducatti, C.; Bandarra, N.; Carvalho, M.L. Different tools to trace geographic origin and seasonality of croaker (Micropogonias furnieri). LWT-Food Sci. Tech. 2015, 61, 194–200. [Google Scholar] [CrossRef]
  36. Matos, M.P.; Engel, M.E.; Mangrum, J.B.; Jackson, G.P. Origin determination of the Eastern oyster (Crassostrea virginica) using a combination of whole-body compound-specific isotope analysis and heavy metal analysis. Anal. Methods 2021, 13, 3493–3503. [Google Scholar] [CrossRef]
  37. Cabral, S.; Alves, A.S.; Castro, N.; Chainho, P.; Sá, E.; da Fonseca, L.C.; e Costa, P.F.; Castro, J.; Canning-Clode, J.; Pombo, A. Polychaete annelids as live bait in Portugal: Harvesting activity in brackish water systems. Ocean Coast. Manag. 2019, 181, 104890. [Google Scholar] [CrossRef]
  38. Aued-Pimentel, S.; Lago, J.H.G.; Chaves, M.H.; Kumagai, E.E. Evaluation of a methylation procedure to determine cyclopropenoids fatty acids from Sterculia striata St. Hil. Et Nauds seed oil. J. Chromatogra A 2004, 1054, 235–239. [Google Scholar] [CrossRef] [PubMed]
  39. Kursa, M.B.; Jankowski, A.; Rudnicki, W.R. Boruta—A system for feature selection. Fundam. Informaticae 2010, 101, 271–285. [Google Scholar] [CrossRef]
  40. Breiman, L. Random Forests. Mach. Learn. 2001, 45, 5–32. [Google Scholar] [CrossRef]
  41. Anderson, M.; Clarke, K.; Gorley, R. PERMANOVA+ for Primer. Guide to Software and Statistical Methods; University of Auckland and PRIMER-E Ltd.: Plymouth, UK, 2008. [Google Scholar]
  42. R Core Team, R. A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2021. [Google Scholar]
  43. Ricardo, F.; Mamede, R.; Bispo, R.; Santos, A.; Ferreira da Silva, E.; Patinha, C.; Calado, R. Cost-efficiency improvement of bivalves shells preparation when tracing their geographic origin through ICP-MS analysis of elemental fingerprints. Food Control 2020, 118, 107383. [Google Scholar] [CrossRef]
  44. Ricardo, F.; Gonçalves, D.; Pimentel, T.; Mamede, R.; Rosário, M.; Domingues, M.; Lillebø, A.I.; Calado, R. Prevalence of phylogenetic over environmental drivers on the fatty acid profiles of the adductor muscle of marine bivalves and its relevance for traceability. Ecol. Indic. 2021, 129, 108017. [Google Scholar] [CrossRef]
  45. da Costa, E.; Ricardo, F.; Melo, T.; Mamede, R.; Abreu, M.H.; Domingues, P.; Domingues, M.R.; Calado, R. Site-Specific Lipidomic Signatures of Sea Lettuce (Ulva spp., Chlorophyta) Hold the Potential to Trace Their Geographic Origin. Biomolecules 2020, 10, 489. [Google Scholar] [CrossRef] [PubMed]
  46. Mamede, R.; Ricardo, F.; Gonçalves, D.; Ferreira da Silva, E.; Patinha, C.; Calado, R. Assessing the use of surrogate species for a more cost-effective traceability of geographic origin using elemental fingerprints of bivalve shells. Ecol. Indic. 2021, 130, 108065. [Google Scholar] [CrossRef]
  47. Mamede, R.; Ricardo, F.; Abreu, M.H.; da Silva, E.F.; Patinha, C.; Calado, R. Spatial variability of elemental fingerprints of sea lettuce (Ulva spp.) and its potential use to trace geographic origin. Algal Res. 2021, 59, 102451. [Google Scholar] [CrossRef]
  48. Bennion, M.; Morrison, L.; Shelley, R.; Graham, C. Trace elemental fingerprinting of shells and soft tissues can identify the time of blue mussel (Mytilus edulis) harvesting. Food Control 2020, 121, 107515. [Google Scholar] [CrossRef]
  49. Bennion, M.; Morrison, L.; Brophy, D.; Carlsson, J.; Abrahantes, J.C.; Graham, C.T. Trace element fingerprinting of blue mussel (Mytilus edulis) shells and soft tissues successfully reveals harvesting locations. Sci. Total Environ. 2019, 685, 50–58. [Google Scholar] [CrossRef]
  50. Fernandes, J.F.; Ricardo, F.; Jerónimo, D.; Santos, A.; Domingues, M.R.; Calado, R.; Madeira, D. Modulation of fatty acid profiles by global and local ocean change drivers in the ragworm Hediste diversicolor: Implications for aquaculture production. Aquaculture 2021, 542, 736871. [Google Scholar] [CrossRef]
  51. Jerónimo, D.; Lillebø, A.I.; Maciel, E.; Domingues, M.R.M.; Cremades, J.; Calado, R. Unravelling the fatty acid profiles of different polychaete species cultured under integrated multi-trophic aquaculture (IMTA). Sci. Rep. 2021, 11, 10812. [Google Scholar] [CrossRef]
  52. Phleger, C.F.; Nelson, M.M.; Groce, A.K.; Cary, S.C.; Coyne, K.; Gibson, J.A.; Nichols, P.D. Lipid biomarkers of deep-sea hydrothermal vent polychaetes—Alvinella pompejana, A. caudata, Paralvinella grasslei and Hesiolyra bergii. Deep Sea Res. Part I Ocean. Res. 2005, 52, 2333–2352. [Google Scholar] [CrossRef]
  53. Olive, P.J.; Duangchinda, T.; Ashforth, E.; Craig, S.; Ward, A.C.; Davies, S.J. Net gain of long-chain polyunsaturated fatty acids (PUFA) in a lugworm Arenicola marina bioturbated mesocosm. Mar. Ecol. Prog. Ser. 2009, 387, 223–239. [Google Scholar] [CrossRef]
  54. Braeckman, U.; Provoost, P.; Sabbe, K.; Soetaert, K.; Middelburg, J.J.; Vincx, M.; Vanaverbeke, J. Temporal dynamics in the diet of two marine polychaetes as inferred from fatty acid biomarkers. J. Sea Res. 2012, 68, 6–19. [Google Scholar] [CrossRef]
  55. Dalsgaard, J.; St John, M.; Kattner, G.; Müller-Navarra, D.; Hagen, W. Fatty acid trophic markers in the pelagic marine environment. Adv. Mar. Biol. 2003, 46, 225–340. [Google Scholar]
  56. Madeira, D.; Fernandes, J.F.; Jerónimo, D.; Martins, P.; Ricardo, F.; Santos, A.; Domingues, M.R.; Diniz, M.S.; Calado, R. Salinity shapes the stress responses and energy reserves of marine polychaetes exposed to warming: From molecular to functional phenotypes. Sci. Total Environ. 2021, 795, 148634. [Google Scholar] [CrossRef]
  57. Török, Z.; Crul, T.; Maresca, B.; Schütz, G.J.; Viana, F.; Dindia, L.; Piotto, S.; Brameshuber, M.; Balogh, G.; Péter, M.; et al. Plasma membranes as heat stress sensors: From lipid-controlled molecular switches to therapeutic applications. Biochim. Biophys. Acta Biomembr. 2014, 1838, 1594–1618. [Google Scholar] [CrossRef] [PubMed]
  58. Holmstrup, M.; Hovvang, M.H.; Slotsbo, S. Salinity of the growth medium is important for production potential and nutritional value of white worms (Enchytraeus albidus Henle). Aquac. Res. 2020, 51, 2885–2892. [Google Scholar] [CrossRef]
  59. Frolov, A.V.; Pankov, S.L.; Geradze, K.N.; Pankova, S.A. Influence of salinity on the biochemical composition of the rotifer Brachionus plicatilis (Muller). aspects of adaptation. Comp. Biochem. Physi. A 1991, 99, 541–550. [Google Scholar] [CrossRef]
  60. Lavaud, R.; Thébault, J.; Lorrain, A.; van der Geest, M.; Chauvaud, L. Senilia senilis (Linnaeus, 1758), a biogenic archive of environmental conditions on the Banc d’Arguin (Mauritania). J. Sea Res. 2013, 76, 61–72. [Google Scholar] [CrossRef]
  61. Albuquerque, R.; Queiroga, H.; Swearer, S.E.; Calado, R.; Leandro, S.M. Harvest locations of goose barnacles can be successfully discriminated using trace elemental signatures. Sci. Rep. 2016, 6, 27787. [Google Scholar] [CrossRef]
  62. Campana, S.E.; Thorrold, S.R. Otoliths, increments, and elements: Keys to a comprehensive understanding of fish populations? Can. J. Fish. Aquat. Sci. 2001, 58, 30–38. [Google Scholar] [CrossRef]
  63. Morán, P.; Cal, L.; Cobelo-García, A.; Almécija, C.; Caballero, P.; Garcia de Leaniz, C. Historical legacies of river pollution reconstructed from fish scales. Environ. Pollut. 2018, 234, 253–259. [Google Scholar] [CrossRef]
  64. Ricardo, F.; Pimentel, T.; Génio, L.; Calado, R. Spatio-temporal variability of trace elements fingerprints in cockle (Cerastoderma edule) shells and its relevance for tracing geographic origin. Sci. Rep. 2017, 7, 3475. [Google Scholar] [CrossRef] [PubMed]
  65. Colbath, G.K. Jaw mineralogy in eunicean polychaetes (Annelida). Micropaleontology 1986, 32, 186–189. [Google Scholar] [CrossRef]
  66. Elegbede, I.; Lawal-Are, A.; Favour, O.; Jolaosho, T.; Goussanou, A. Chemical compositions of bivalves shells: Anadara senilis, Crassostrea gasar, and Mytilus edulis and their potential for a sustainable circular economy. SN Appl. Sci. 2022, 5, 44. [Google Scholar] [CrossRef]
  67. Nambiar, R.; Hauzer, H.; Gray, W.R.; Henehan, M.J.; Cotton, L.; Erez, J.; Rosenthal, Y.; Renema, W.; Müller, W.; Evans, D. Controls on potassium incorporation in foraminifera and other marine calcifying organisms. Geochim. Cosmochim. Acta 2023, 351, 125–138. [Google Scholar] [CrossRef]
  68. Pires, A.; Velez, C.; Figueira, E.; Soares, A.M.V.M.; Freitas, R. Effects of sediment contamination on physiological and biochemical responses of the polychaete Diopatra neapolitana, an exploited natural resource. Mar. Pollut. Bull. 2017, 119, 119–131. [Google Scholar] [CrossRef] [PubMed]
  69. Sprovieri, M.; Feo, M.L.; Prevedello, L.; Manta, D.S.; Sammartino, S.; Tamburrino, S.; Marsella, E. Heavy metals, polycyclic aromatic hydrocarbons and polychlorinated biphenyls in surface sediments of the Naples harbour (southern Italy). Chemosphere 2007, 67, 998–1009. [Google Scholar] [CrossRef]
  70. Iyaka, Y.A. Nickel in soils: A review of its distribution and impacts. Sci. Res. Essays 2011, 6, 6774–6777. [Google Scholar]
  71. Lopes, J.; Dias, J.; Cardoso, A.; Silva, C. The water quality of the Ria de Aveiro lagoon, Portugal: From the observations to the implementation of a numerical model. Mar. Environ. Res. 2005, 60, 594–628. [Google Scholar] [CrossRef]
  72. Pereira, F.; Picado, A.; Pereira, H.; Pinheiro, J.P.; Lopes, C.L.; Dias, J.M. Impact of Extreme Wind and Freshwater Runoff on the Salinity Patterns of a Mesotidal Coastal Lagoon. Journal of Mar. Sci. Eng. 2023, 11, 1338. [Google Scholar] [CrossRef]
  73. Zhang, X.; Liu, Y.; Li, Y.; Zhao, X. Identification of the geographical origins of sea cucumber (Apostichopus japonicus) in northern China by using stable isotope ratios and fatty acid profiles. Food Chem. 2017, 218, 269–276. [Google Scholar] [CrossRef]
  74. Gong, Y.; Li, Y.; Chen, X.; Chen, L. Potential use of stable isotope and fatty acid analyses for traceability of geographic origins of jumbo squid (Dosidicus gigas). Rapid Commun. Mass Spectrom. 2018, 32, 583–589. [Google Scholar] [CrossRef]
  75. Ortea, I.; Gallardo, J.M. Investigation of production method, geographical origin and species authentication in commercially relevant shrimps using stable isotope ratio and/or multi-element analyses combined with chemometrics: An exploratory analysis. Food Chem. 2015, 170, 145–153. [Google Scholar] [CrossRef] [PubMed]
  76. Vasconi, M.; Lopez, A.; Galimberti, C.; Moreno Rojas, J.M.; Muñoz Redondo, J.M.; Bellagamba, F.; Moretti, V.M. Authentication of farmed and wild european eel (Anguilla anguilla) by fatty acid profile and carbon and nitrogen isotopic analyses. Food Control 2019, 102, 112–121. [Google Scholar] [CrossRef]
  77. Thomas, F.; Jamin, E.; Wietzerbin, K.; Guérin, R.; Lees, M.; Morvan, E.; Billault, I.; Derrien, S.; Moreno Rojas, J.M.; Serra, F.; et al. Determination of Origin of Atlantic Salmon (Salmo salar): The Use of Multiprobe and Multielement Isotopic Analyses in Combination with Fatty Acid Composition to Assess Wild or Farmed Origin. J. Agric. Food Chem. 2008, 56, 989–997. [Google Scholar] [CrossRef]
  78. Nemani, S.; Cote, D.; Misiuk, B.; Edinger, E.; Mackin-McLaughlin.; Templeton, A.; Shaw, J.; Robert, K. A Multi-Scale feature selection approach for predicting benthic assemblages. Estuar. Coast. Shelf Sci. 2022, 277, 108053. [Google Scholar] [CrossRef]
Animals 14 01361 g001

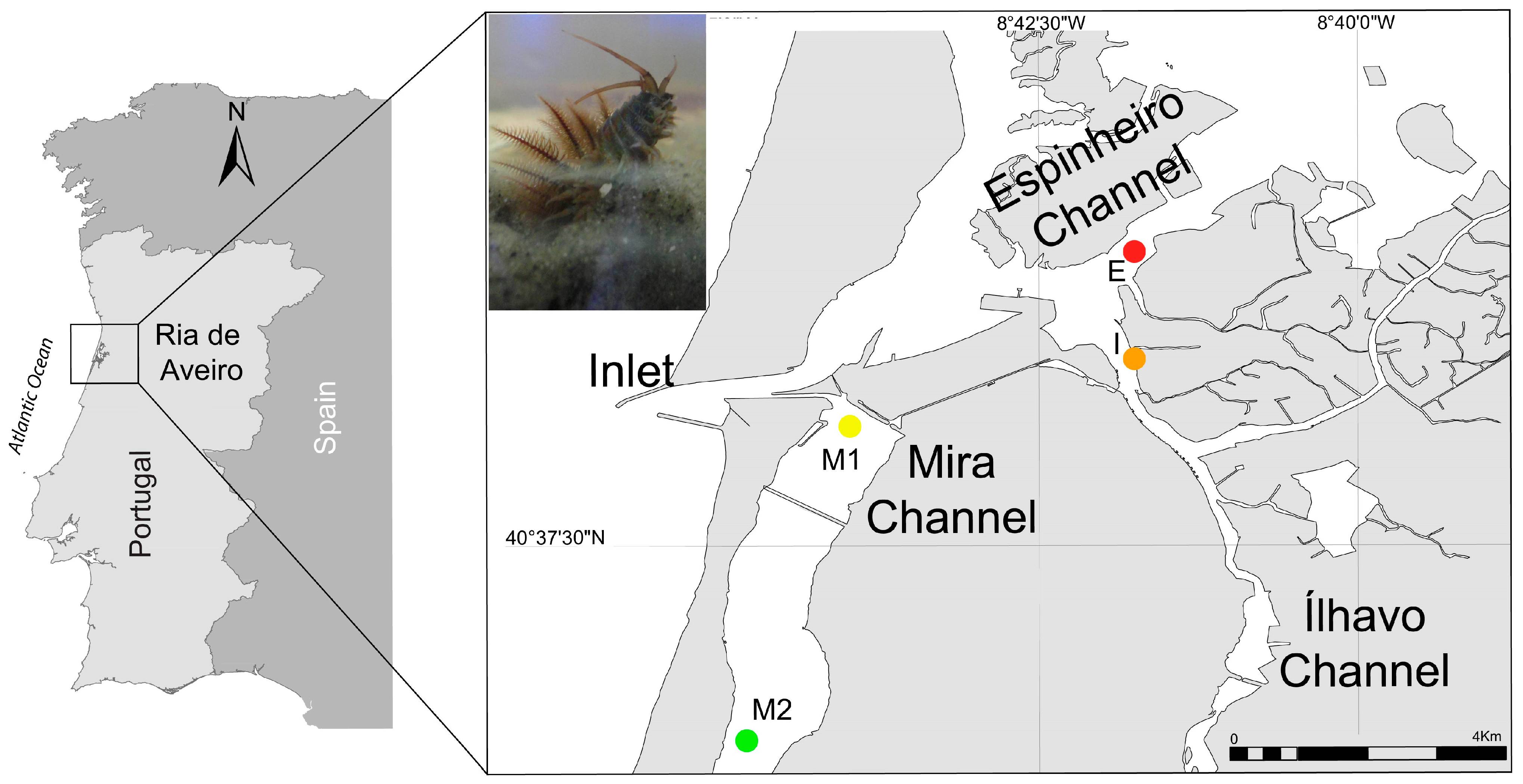

Figure 1. Sampling locations of Diopatra neapolitana in the coastal lagoon Ria de Aveiro, mainland Portugal: Espinheiro Channel (E: 40°39′48.50″ N, 8°41′45.03” W), Ílhavo Channel (I: 40°38′35.40″ N, 8°41′35.40″ W), and Mira Channel (M1: 40°38′26.30″ N, 8°43′58.90″ W and M2: 40°35′58.30″ N, 8°44′47.80″ W). Top left corner: picture of a Diopatra neapolitana. Photo: Fernando Ricardo, Universidade de Aveiro.
Figure 1. Sampling locations of Diopatra neapolitana in the coastal lagoon Ria de Aveiro, mainland Portugal: Espinheiro Channel (E: 40°39′48.50″ N, 8°41′45.03” W), Ílhavo Channel (I: 40°38′35.40″ N, 8°41′35.40″ W), and Mira Channel (M1: 40°38′26.30″ N, 8°43′58.90″ W and M2: 40°35′58.30″ N, 8°44′47.80″ W). Top left corner: picture of a Diopatra neapolitana. Photo: Fernando Ricardo, Universidade de Aveiro.
Animals 14 01361 g001
Animals 14 01361 g002

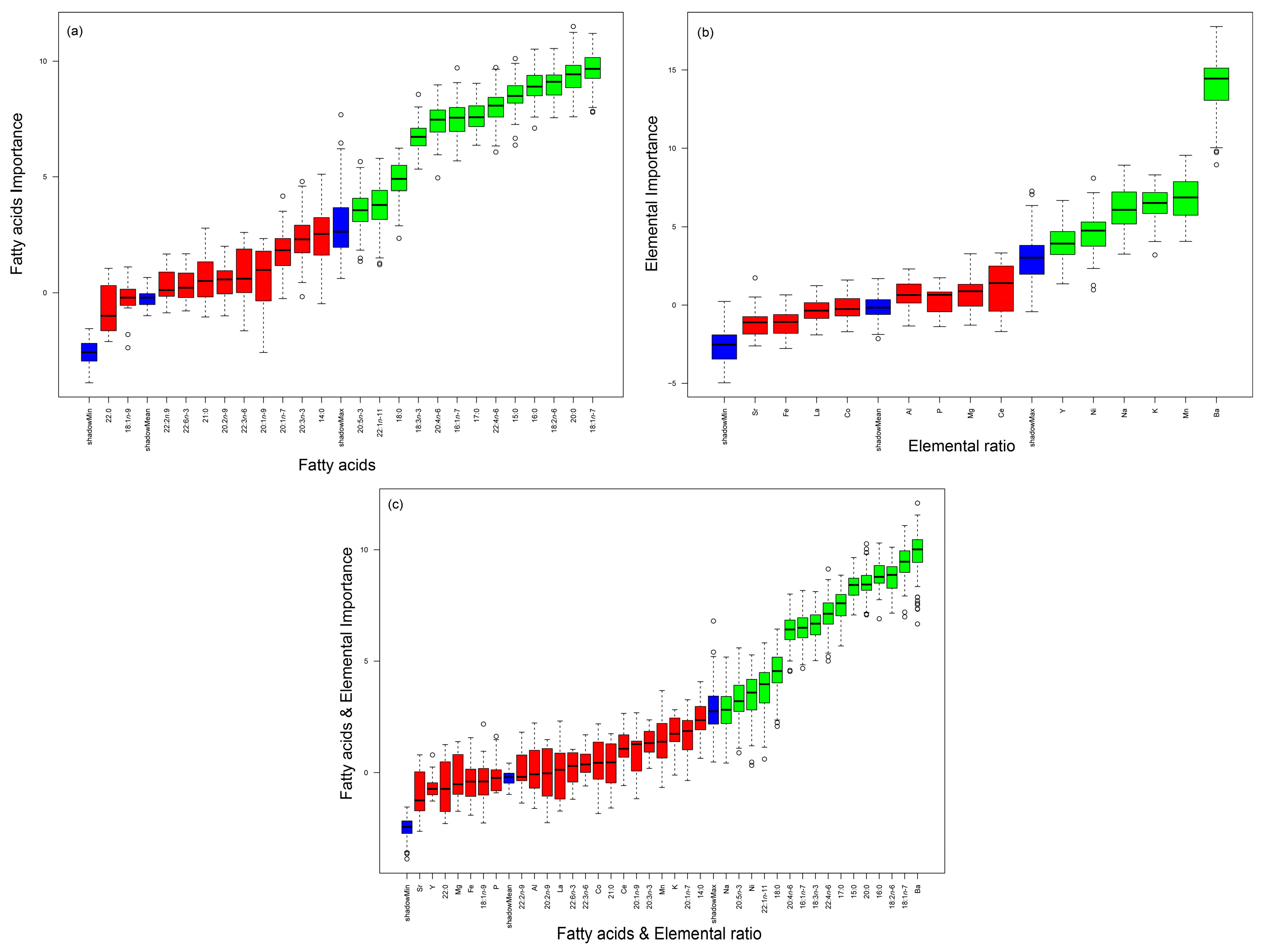

Figure 2. Box plots of Z-scores registered by the Boruta algorithm were used to determine the most relevant (a) fatty acids present on the whole body of Diopatra neapolitana, (b) elemental ratios of the jaws of these polychaetes, and (c) a combination of fatty acids from the whole body and the elemental ratios of the jaws of these organisms sourced from different locations within the coastal lagoon Ria de Aveiro, mainland Portugal. Shadow variables are in blue, variables confirmed as unimportant are in red, and the most relevant are in green.
Figure 2. Box plots of Z-scores registered by the Boruta algorithm were used to determine the most relevant (a) fatty acids present on the whole body of Diopatra neapolitana, (b) elemental ratios of the jaws of these polychaetes, and (c) a combination of fatty acids from the whole body and the elemental ratios of the jaws of these organisms sourced from different locations within the coastal lagoon Ria de Aveiro, mainland Portugal. Shadow variables are in blue, variables confirmed as unimportant are in red, and the most relevant are in green.
Animals 14 01361 g002
Animals 14 01361 g003

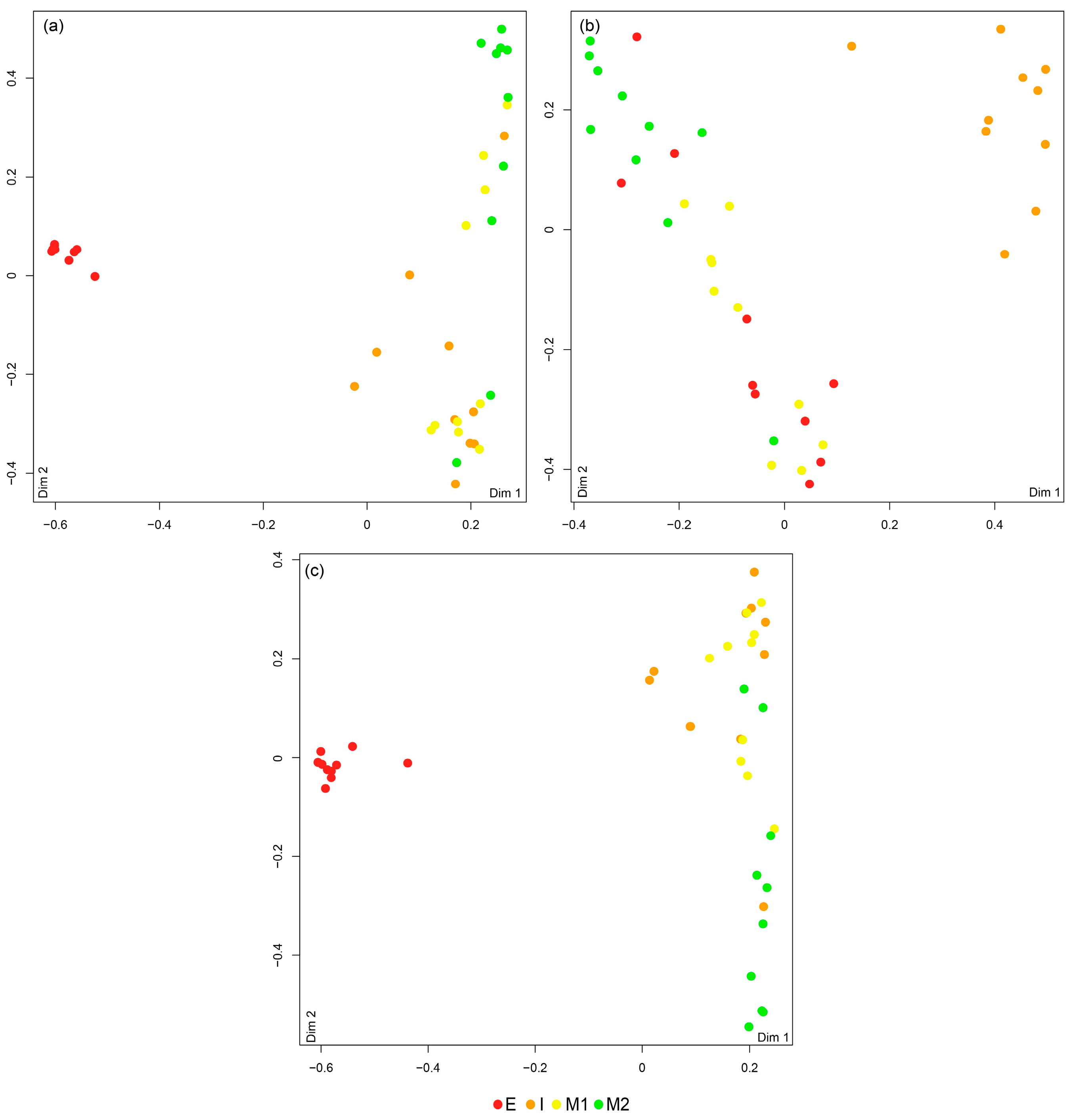

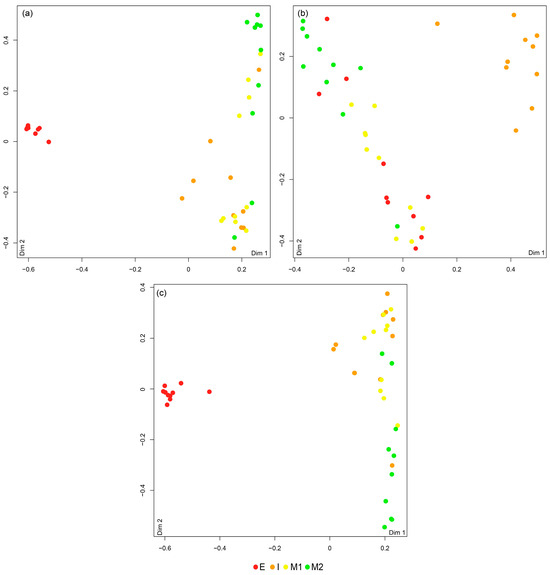

Figure 3. Multidimensional scaling (MDS) ordinations of proximity scores from Random Forest classifications based on (a) fatty acids present on the whole body of Diopatra neapolitan, (b) elemental ratios of the jaws of these polychaetes, and (c) a combination of fatty acids from the whole body and the elemental ratios of the jaws of these organisms sourced from different locations within the coastal lagoon Ria de Aveiro, mainland Portugal. Espinheiro Channel (E), Ílhavo Channel (I), and Mira Channel (M1 and M2).
Figure 3. Multidimensional scaling (MDS) ordinations of proximity scores from Random Forest classifications based on (a) fatty acids present on the whole body of Diopatra neapolitan, (b) elemental ratios of the jaws of these polychaetes, and (c) a combination of fatty acids from the whole body and the elemental ratios of the jaws of these organisms sourced from different locations within the coastal lagoon Ria de Aveiro, mainland Portugal. Espinheiro Channel (E), Ílhavo Channel (I), and Mira Channel (M1 and M2).
Animals 14 01361 g003
Table 1. This classification success (by location and structure(s)) of the Random Forest model when using fatty acid profiles of the whole body, b) elemental ratios of jaws, and c) a combination of fatty acid profiles of the whole body and elemental ratios of jaws of the polychaete Diopatra neapolitana. Espinheiro Channel (E), Ílhavo Channel (I), and Mira Channel (M1 and M2).
Table 1. This classification success (by location and structure(s)) of the Random Forest model when using fatty acid profiles of the whole body, b) elemental ratios of jaws, and c) a combination of fatty acid profiles of the whole body and elemental ratios of jaws of the polychaete Diopatra neapolitana. Espinheiro Channel (E), Ílhavo Channel (I), and Mira Channel (M1 and M2).
Structure (s) Fingerprint (s)Original LocationPredicted LocationTotal per Location% Correct% Correct (Location)
EIM1M2
Whole body—FA profileE100001010077.5
I06311060
M102711070
M201181080
User accuracy 100676480
Jaws—EFE6103106072.5
I09011090
M120801080
M230161060
User accuracy 55908960
Whole body and Jaws—FA profile and EFE100001010087.5
I09011090
M101811080
M201181080
User accuracy 100828980
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ricardo, F.; Lopes, M.L.; Mamede, R.; Domingues, M.R.; Ferreira da Silva, E.; Patinha, C.; Calado, R. Combined Use of Fatty Acid Profiles and Elemental Fingerprints to Trace the Geographic Origin of Live Baits for Sports Fishing: The Solitary Tube Worm (Diopatra neapolitana, Annelida, Onuphidae) as a Case Study. Animals 2024, 14, 1361. https://doi.org/10.3390/ani14091361

AMA Style

Ricardo F, Lopes ML, Mamede R, Domingues MR, Ferreira da Silva E, Patinha C, Calado R. Combined Use of Fatty Acid Profiles and Elemental Fingerprints to Trace the Geographic Origin of Live Baits for Sports Fishing: The Solitary Tube Worm (Diopatra neapolitana, Annelida, Onuphidae) as a Case Study. Animals. 2024; 14(9):1361. https://doi.org/10.3390/ani14091361

Chicago/Turabian Style

Ricardo, Fernando, Marta Lobão Lopes, Renato Mamede, M. Rosário Domingues, Eduardo Ferreira da Silva, Carla Patinha, and Ricardo Calado. 2024. "Combined Use of Fatty Acid Profiles and Elemental Fingerprints to Trace the Geographic Origin of Live Baits for Sports Fishing: The Solitary Tube Worm (Diopatra neapolitana, Annelida, Onuphidae) as a Case Study" Animals 14, no. 9: 1361. https://doi.org/10.3390/ani14091361

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
