Study on the Particle Surface Fractal Characteristics of Sulfide Ores

Abstract

The fractal dimension is widely used in many fields as a parameter to characterize the geometric complexity and geometric distribution relationship of research objects. To study the surface characteristics of sulfide ore particles, the fractal theory was applied to quantitatively characterize the surface fractal dimension Ds of sulfide ore microparticles in three particle size ranges, 60–100 mesh, 100–140 mesh and >200 mesh, based on the area–perimeter method. Using an optical microscope, grain projection images of the particles were obtained. The grain shape and characteristics of sulfide ore particles were studied by means of an image processing system. The results demonstrate that the grain shape of sulfide ore particles can be expressed by fractal dimension, and the particle surface fractal dimension ranges from 2.4392 to 2.5492. It was found that the fractal properties begin to decrease due to the increasing of the particle size. The larger the fractal dimension, the finer the particles are. The fractal dimension of sulfide ore particles can be used as an important indicator of their particle shape distribution characteristics, which can provide important information for further study of the relevant physical and chemical properties of sulfide ore particles and provide a new theoretical method and basis for the adhesion and removal of sulfide ore dust. With the quantitative description of the fractal distribution of sulfide ore particles, a new way to study the adhesive force between particles is offered for further research.

1. Introduction

A large amount of dusts are produced from mining, metal smelting and other production activities. Dust pollution is one of the world’s public hazards. With the development of the mining industry in China, especially the improvement of mechanization in mining, dust pollution is becoming a serious problem [1,2,3,4]. Workers who are exposed to high dust concentrations for an extended length of time run a serious risk to their health and safety [5,6,7,8]. China reported more than 1,012,000 cases of occupational diseases by the end of 2020, with pneumoconiosis making up over 88.6% of these cases. The status of occupational sickness in China is still dire, and pneumoconiosis is still the most dangerous occupational disease, despite the fact that many production businesses have adopted numerous effective dust protection measures. It was put forward by Chao Wu, Fu-qiang Yang, Wei Pan et al. [9,10,11,12] that sulfide ore dust is very representative in metal and nonmetal mines; it is characterized by complicated composition, hydrophobic nature and causing large and widespread damage. Sulfide ore dust, especially at the micron-level, is present in high concentrations at production sites and difficult to remove, causing widespread dust pollution and occupational hazards Therefore, it has very important meaning and practical value for sulfide ore dust research. At present, dust pollution has caused serious damage to the environment, production and life. To solve the problem of microparticle pollution, it is necessary to study the interaction mechanism of adhesion between microparticles and interfaces, so that the adhesion effect between microparticles and interfaces can be effectively controlled or utilized. The surface adhesion problem is a comprehensive subject involving physics, chemistry, biology and mechanics. The magnitude of the adhesion force between dust microparticles and the interface can measure the difficulty of dust being removed. To study the magnitude of the adhesion force, it is particularly important to study the geometric fractal shape of the dust microparticles.

It is well known that the geometry of particles is one of the most important parameters to describe their geometric features [13,14,15]. For non-cohesive soil (sand, silt), particle shape has a close relation with its mechanical properties such as compressibility and filling property [16,17]. Recent studies show that the fractal geometry theory, which was proposed and developed by Mandelbrot and Feder [18,19], provides a strong tool to describe the heterogenization of natural particulates (such as rock particles, soil particles, proteins, floes and catalyst particles). Based on the fractal geometry theory, many intensive studies on the testing method of the fractal dimension [20,21,22,23,24,25,26] have been carried out by domestic and foreign scholars. Dust control in metal and nonmetal mines is very important. Currently, many research works about sulfide ore particles mainly focus on spontaneous combustion tendency [27,28,29,30,31,32], but less work has considered the particle shape fractal of sulfide ores.

In this work, based on the area–perimeter method, the shape fractal characteristics of sulfide ore particles were analyzed and summed up, providing a new approach for studying the adhesive force between particles. By combining with numerical calculation and the fractal geometry theory, the experimental result was identified and explained, revealing that the fractal dimension of sulfide ore particles can serve as an important indicator of their particle shape distribution characteristics. Simultaneously, this provides valuable information for further studying the relevant physical and chemical properties of sulfide ore particles and establishes a new theoretical method and foundation for the adhesion and removal of sulfide ore dust.

2. Materials and Methods

2.1. Materials

The original sample of sulfide ore microparticles for testing was taken from a processed sulfide iron ore in Henan Province. The mineral composition and structural configuration of the ore samples were determined using a physical microanalysis system.

Sulfide ore is a sulfur-based polymetallic deposit. The natural types of ore are pyrite ore, pyrite-type copper ore, leached copper ore, lead–zinc ore and magnetite ore, all of which are primary ores. Ore structure is mainly dense massive, brecciated, vein-like, etc. The structure of ore is mainly self-formed semi-automorphic crystal structure, accountable fusion structure and colloidal structure, etc. The mineral composition of ore includes pyrite, colloidal pyrite, magnetite, sphalerite, galena, etc. The minor metal minerals include hematite, magnetic pyrite, speckled copper ore, pyroxene, etc.

Appropriate sulfide ore particle samples were dried and set aside before testing. The original samples were screened, and particles larger than 60 m in size were eliminated in order to regulate the test conditions and outcomes. In this experiment, three particle sizes—60–100 mesh, 100–140 mesh and greater than 200 mesh—were used.

2.2. Specimen Preparation

The sampling and preparation of sulfide ore particles should be representative; that is, the samples which were taken for analysis should represent the average composition of the bulk ore samples. The well-ground sulfide ore particles were screened and then dried in a programmable oven for 10 h, where the oven temperature was 80 °C. The samples of sulfide ores were examined using plasma emission spectroscopy, and the results of the chemical analysis are displayed in Figure 1 and

Table 1. The main chemical composition of the sulfide ores.

Fe (%)	S (%)	Mn (%)	Zn (%)	Cu (%)	Ca (%)	Na (%)	Si (%)	Mg (%)	Al (%)
40.22	26.02	4.11	1.42	1.23	1.14	1.04	1.03	0.54	0.43

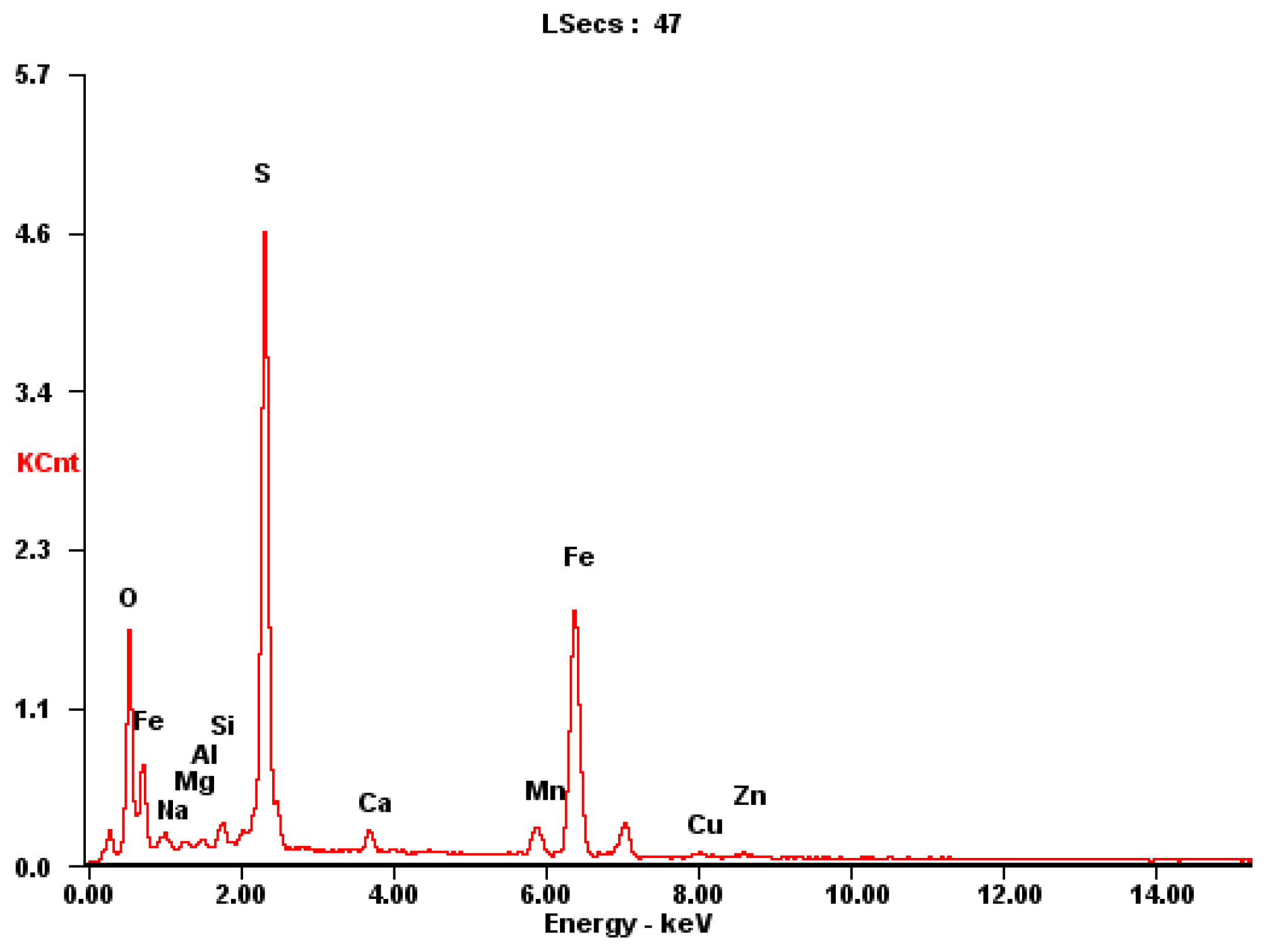

. Sulfide minerals have an extremely complicated chemical composition; the most abundant elements are Fe, S, Mn and Zn (Table 1).

The representative mineral phases are shown in Figure 2. From Figure 2, we can see that the actual sulfide ores contain a variety of minerals and the crystal particle size and shape, texture and structure are different from each other.

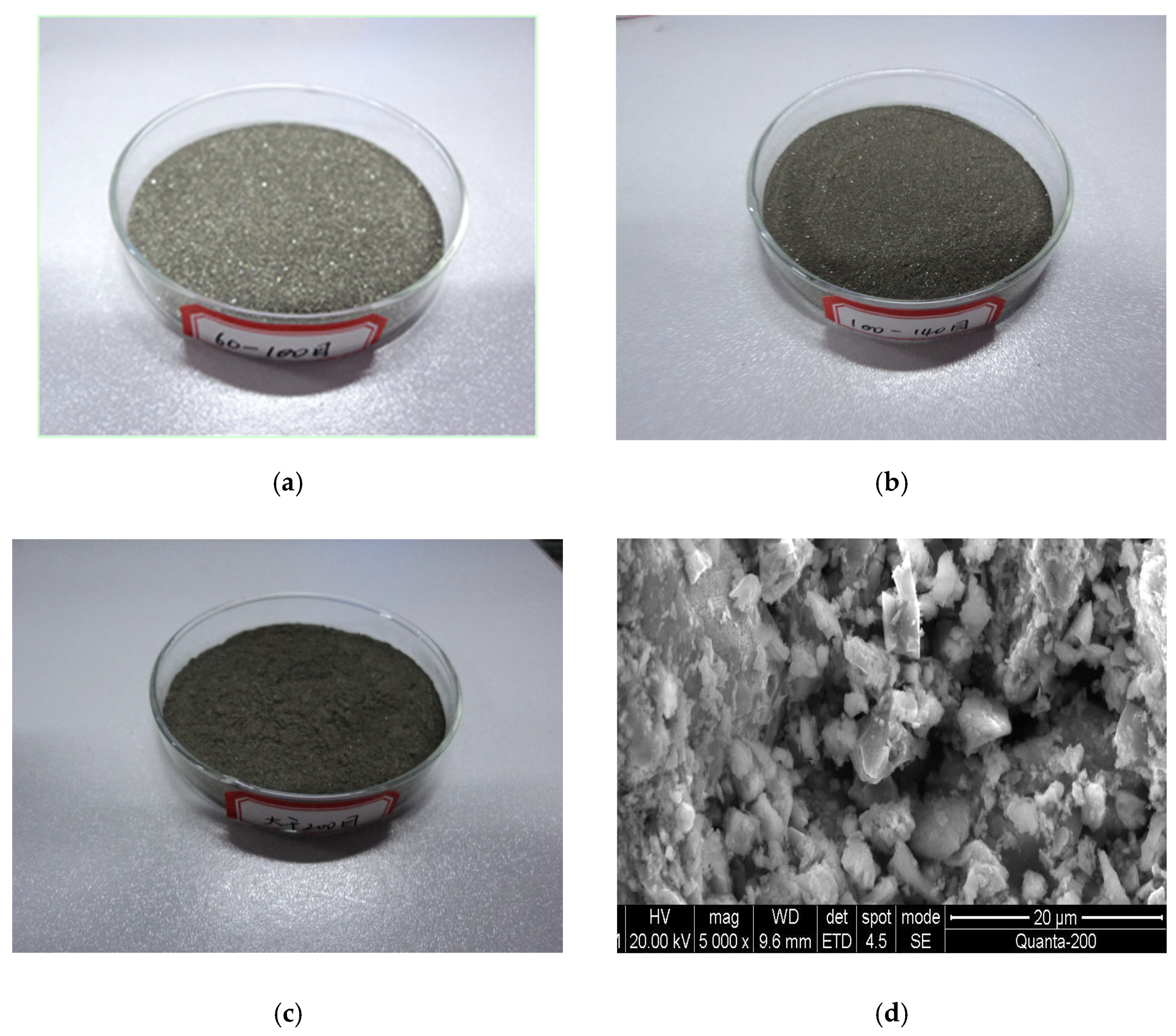

The sulfide ore particle samples that were utilized in the experiment are shown in Figure 3. From the scanning electron microscope images, it is clear that the surface of the sulfide particle was in the form of fragmented loose powder with numerous small particulate materials clinging to it. Analysis revealed that the surface structure of the sulfide ores had changed as a result of oxidation.

2.3. Apparatus

The experiments were carried out using a micro-image analysis system (Beijing Tech (Beijing, China), SS3300), laser particle size analyzer (Omicron LS-800) and programmable temperature chamber (Chongqing Hanba (Chongqing, China), HT302E).

2.4. Experimental Procedure for Observing Sulfide Ore Powder

First, we took a small amount of sulfide ore powder on a glass rod and shook it gently onto the surface of a slide (slide sizes 76.2 mm × 25.4 mm × 1 mm). We labeled the slides, where the glass slide with 60~100 mesh sulfide particles was labeled as a, the glass slide with 100~140 mesh sulfide particles was labeled as b and the glass slide with 200 mesh sulfide particles was labeled as c. We clamped the sides of the slide, then put it on the table. We observed each of the slides using the microscopic analysis system. In order to improve the accuracy of the experiment, we sampled three times using the same operation mode, and then observed the samples, respectively.

Following sampling, we placed the glass slides under the microscope, chose the center of the slide’s center line as the object to be examined, magnified the object 400 times and then studied the selected area. The graphics were binarized to obtain a graphical profile of the particles, and parameters such as particle size, area and perimeter of each microparticle projection could be measured.

3. Calculation Models

The perimeter–area approach is derived in the manner described below. The perimeter L of a geometric object with a regular shape, such a circle, is proportional to the area A, so

$${(L)}^{1/1}=2{\pi }^{1/2}{(A)}^{1/2}$$

(1)

In addition, a square has an area of A and a perimeter of L, so

$${(L)}^{1/1}=4{(A)}^{1/2}$$

(2)

The regular geometric figure’s perimeter L is proportionate to its area A, as can be shown from (1) and (2), which means

$${(L)}^{1/1}\propto {(A)}^{1/2}$$

(3)

According to our study, a geometric figure with an irregular shape would be

$${(L)}^{D_L/1}\propto {(A)}^{1/2}$$

(4)

where D_L is the particle’s fractal dimension.

The tiny structure of an irregular particle will continue to be discovered with the improvement in the resolution of the measuring microscope or scanning electron microscope since its center of gravity is in the most stable condition. Under various magnification circumstances, the perimeter and area that the microparticle’s projection showed were measured; the relationship between the two may be found in the following formula:

$${(1/D_L)\lg L=k_0+(1/2)\lg A }_{(k_0 \mathrm{is} a \mathrm{plus} \mathrm{constant})}$$

(5)

$${\lg L=(D_L/2)\lg A+k_0 }_{(k_0 \mathrm{is} a \mathrm{plus} \mathrm{constant})}$$

(6)

Making a straight line based on the relationship of LgL-LgA, then D_L is 2 times the line slope, that is

$$\frac{D_L}{2}=k$$

(7)

The method described above can be used to determine the projection profile fractal dimension of particulate materials, and the formula [13,14] that follows can be used to determine the single particle surface fractal dimension:

Ds = D_L + 1 (2≤ Ds ≤3)

(8)

Through the use of microscopic analysis apparatus, the projected area A and projected perimeter L of a single particle can be determined in this study. Using the formula above, the fractal dimension of the projection of a single particle and the surface fractal dimension can then be estimated.

4. Experimental Results and Analysis

We put the glass slides under the microscope after sampling, then chose the center region of the center line on the slide as the subject of observation and analysis. The size, area, perimeter and other characteristics of the particle in the observation region were disclosed by the test analysis. The binary images of the samples are shown in Figure 4.

Analysis of Microparticles on the Surface of Slides

The samples with large and obvious data in the three experiments were taken as the study objects, and parameters such as the number of particles on the three slides were measured, respectively. The analysis results are shown in

Table 2. Results of microparticle analysis on the surface of slides.

Number	Number of Particles at the Observation Point	Maximum Particle Size/μm	Average Particle Size/μm	Total Particle Area/μm2	Total Perimeter of Particles/μm
A	177	594.138	22.829	47,129.00	11,397.830
B	307	313.274	19.235	99,896.00	17,046.280
C	159	126.940	15.787	30,943.00	7300.86

and

Table 3. Results of microparticle analysis on slide C.

Microparticle Number	Microparticle Size/μm	Microparticle Area/μm2	Microparticle Circumference/μm
1	8.176	43	21.728
2	2.089	5	4.414
3	2.036	6	5.828
4	25.479	214	68.113
5	8.541	39	21.899
6	17.702	144	52.87
7	4.088	16	11.828
8	6.677	23	17.485
9	37.110	360	108.74
10	33.013	576	104.498
11	16.070	103	43.213
12	7.203	15	19.485
13	20.087	210	62.598
14	2.182	5	4.414
15	4.100	12	11.243
16	27.168	456	95.669
17	17.697	145	48.698
18	37.329	402	122.255
19	14.846	131	49.042
20	3.011	9	8.657
21	19.009	103	43.728
22	2.080	6	5.000
23	104.935	2591	449.659
24	11.833	64	30.314
25	14.005	108	38.385
26	14.142	98	39.142
27	8.380	41	22.314
28	2.103	7	5.828
29	15.359	118	43.142
30	18.997	152	51.213
31	6.999	35	20.899
32	4.078	10	9.071
33	13.081	78	38.799
34	17.326	114	43.385
35	4.470	12	10.657
36	2.000	5	4.243
37	20.248	204	59.284
38	7.922	31	19.485
39	12.900	97	35.971
40	37.392	813	133.225
41	25.819	218	68.113
42	17.394	156	51.627
43	44.220	1061	189.51
44	126.940	4104	471.145
45	7.556	17	16.657
46	60.018	1226	199.752
47	19.875	131	60.941
48	28.627	379	122.882
49	11.329	85	33.385
50	11.660	75	33.142
51	1.264	3	2.414
52	3.137	9	7.828
53	3.084	8	7.243
54	4.166	16	11.243
55	3.279	16	11
56	10.258	71	29.971
57	3.152	9	7.657
58	4.352	13	10.657
59	4.952	13	10.657
60	46.103	611	149.953
61	13.746	126	41.971
62	11.045	47	27.142
63	7.065	21	19.485
64	20.196	167	53.284
65	8.097	53	24.314
66	58.585	794	185.167
67	3.452	9	7.828
68	19.275	117	47.627
69	3.189	10	8.414
70	15.228	162	46.284
71	11.605	86	31.971
72	52.299	885	187.652
73	13.313	75	38.042
74	35.999	370	87.598
75	14.009	133	43.213
76	11.913	71	31.385
77	1.341	3	2.414
78	1.000	2	1.000
79	6.986	30	18.485
80	10.527	74	30.799
81	25.631	367	92.598
82	2.000	3	3.000
83	2.143	5	4.414
84	3.031	8	6.828
85	8.809	42	22.899
86	3.966	11	9.657
87	75.893	2263	286.493
88	2.028	6	5.828
89	1.000	2	1.000
90	2.157	6	5.243
91	12.033	84	38.799
92	20.380	206	56.456
93	8.196	39	23.142
94	27.320	295	75.527
95	24.945	236	70.355
96	13.618	89	34.556
97	4.969	23	13.828
98	22.325	293	66.698
99	7.250	33	18.314
100	3.385	12	9.243

.

Due to the large amount of data, only some of the analysis results of sulfide ore microparticles on slide C are listed. They are shown in Table 3.

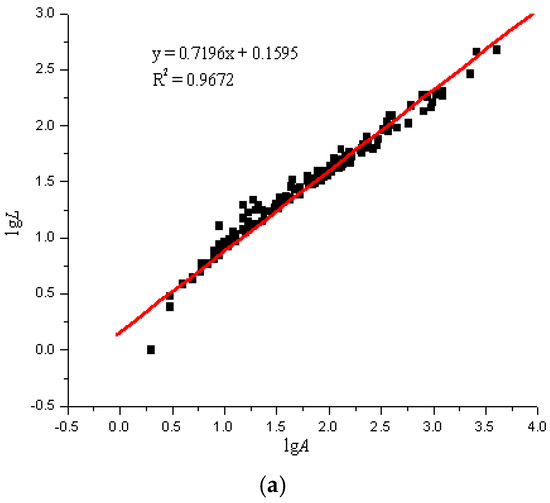

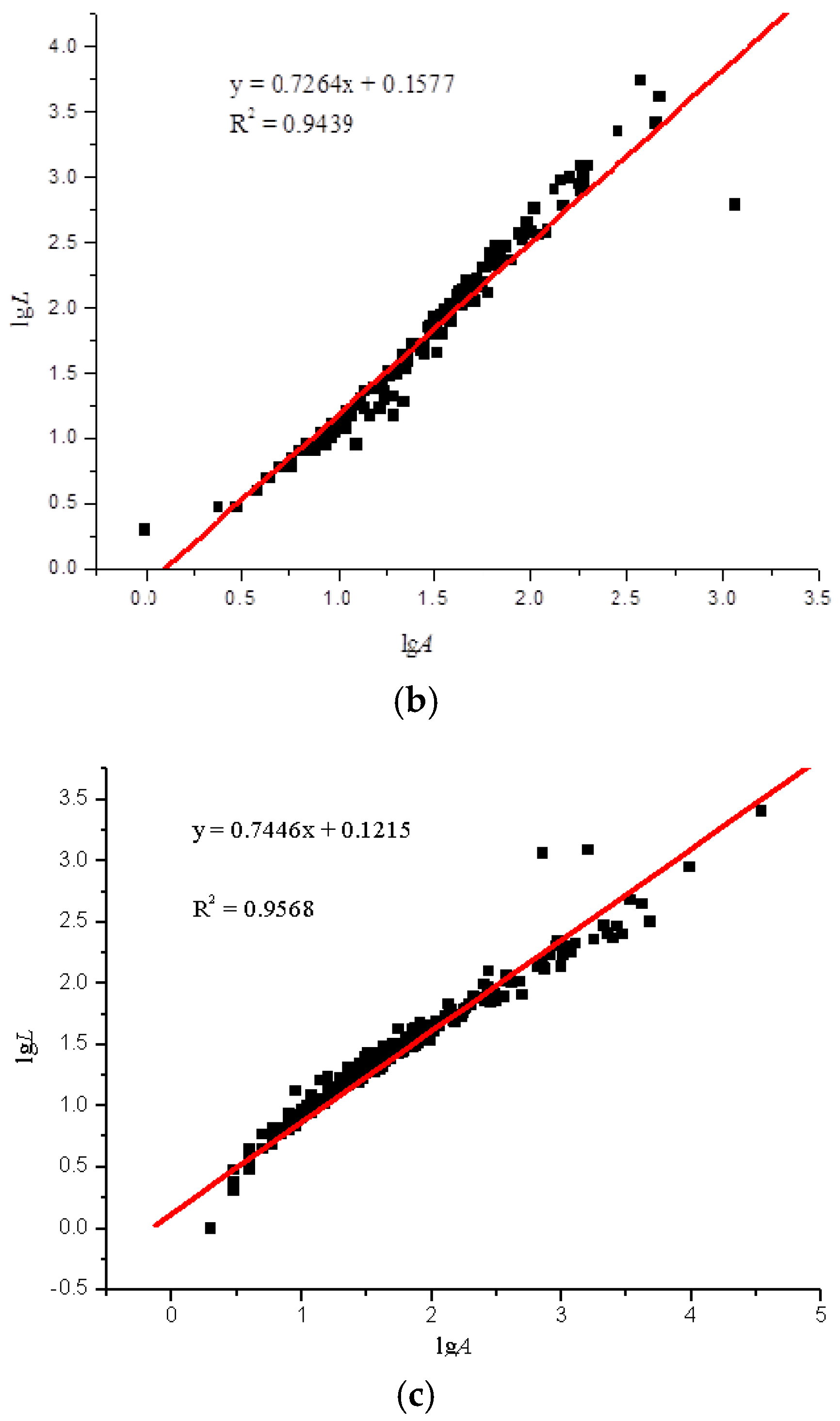

Using the image analysis technique previously described, the perimeter and area of the particle projection were computed. According to the particles in the areas on the glass slides, the LgL-LgA curves of the three slides were drawn. Due to the overwhelming amount of test data, we only selected a set of representative data for analysis, as seen in Figure 5.

The fractal dimension of the projection of a single particle and the surface fractal dimension were determined by comparing the experimental results in accordance with Equations (7) and (8). The statistical results are shown in

Table 4. Statistical results of sulfide ores’ fractal dimension.

Number	Slope K	Fractal Dimension DL	Fractal Dimension Ds	Correlation Coefficient R2
A	0.7196	1.4392	2.4392	0.9672
B	0.7264	1.4528	2.4528	0.9439
C	0.7746	1.5492	2.5492	0.9568

.

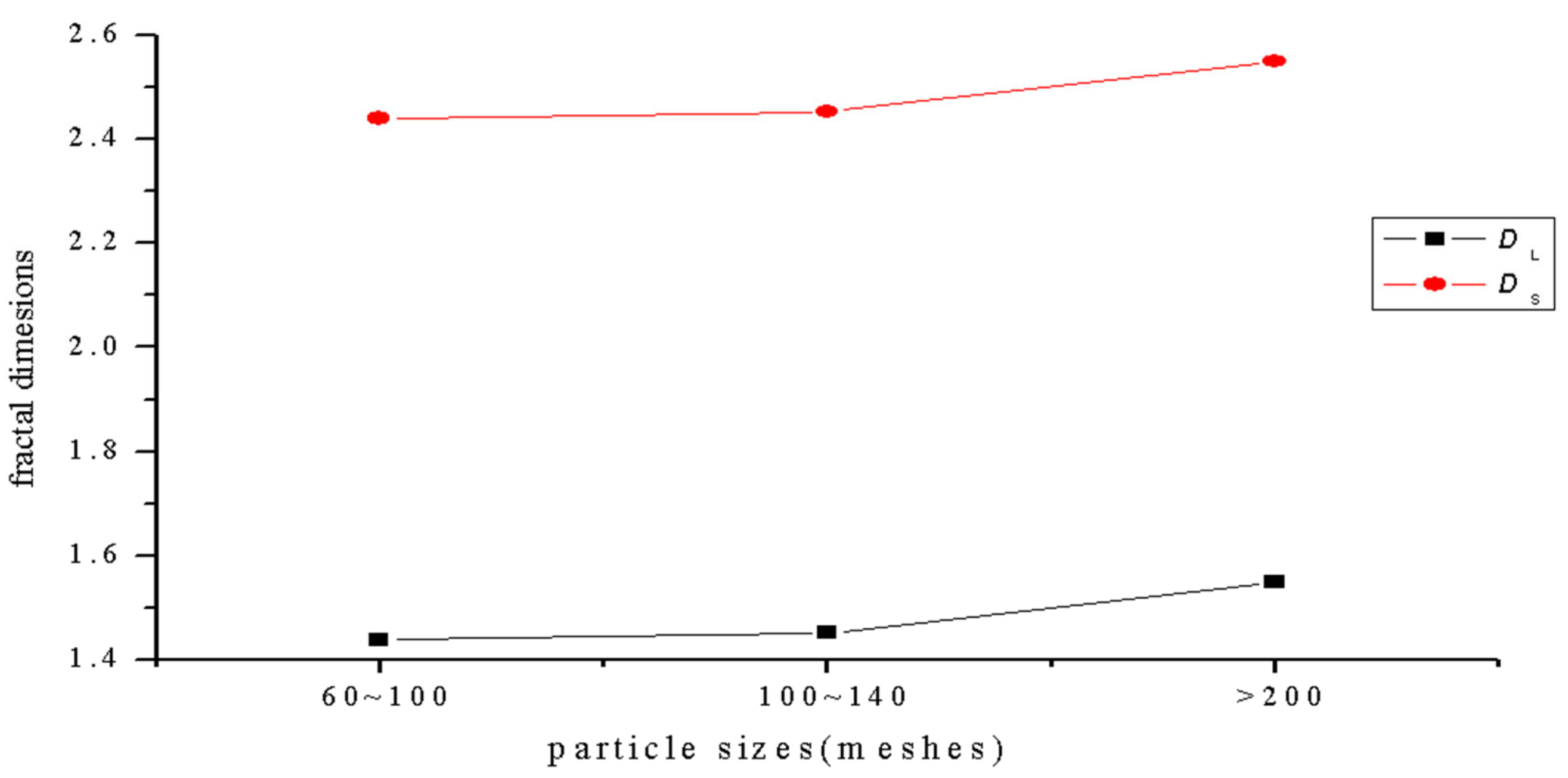

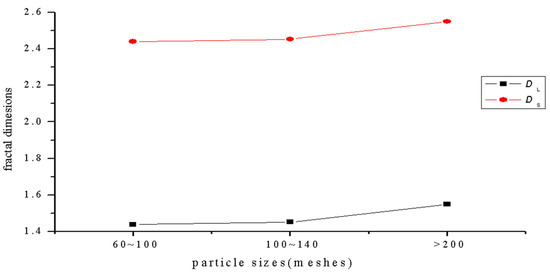

The fractal dimensions of the projection of a single particle range from 1.4392 to 1.5492, and the surface fractal dimension ranges from 2.4392 to 2.5492 for the sulfide ore particles examined in the experiment, as shown in Figure 6 and Table 4. According to the calculation results, the correlation coefficients of the three fractal dimension curves of the sulfide ore particles were all above 0.94, which shows that the differences between the fractal properties of the three different types of particle are substantial.

The complexity of the projection profile of sulfide ores can be characterized by the various particle projection profile fractal dimensions. The greater the fractal dimension, the more irregular the shape of the particles. The projection profile fractal dimension of the particles with size greater than 200 mesh is the largest, and it reached a value of 1.5492, as shown in Figure 6 above. This indicates that the projection profile curve of the sulfide ore particles is far off the circular path. The surface fractal dimension of particles larger than 200 mesh is up to 2.5492, and it is the largest fractal dimension in the three groups. This indicates that the group of particles has a lot of multi-level fine structures on it, and it has a large degree of self-similarity. At the same time, the particles have concave convex surfaces.

5. Conclusions

(1) The particle projection profile fractal dimensions and surface fractal dimensions of the sulfide ore particles were calculated on the basis of a large amount of experimental data. We proved that the shape of sulfide ore particles in the experiment has obvious fractal characteristics.

(2) The sulfide ore particles’ projection fractal dimension is from 1.4392 to 1.5492, and the surface fractal dimension ranges from 2.4392 to 2.5492. The correlation coefficients of the three fractal dimension curves of the sulfide ore particles were all above 0.94, which indicates that the fractal characteristics of three kinds of particle are significantly different. The projection profile fractal dimension of the particles with size ranging from 60~100 mesh is the smallest, and the projection profile fractal dimension of the particles whose size is larger than 200 mesh is the largest.

(3) The particle projection profile fractal dimensions characterize the complexity of the projection contour curvature variation of sulfide ore particles. The projection profile fractal dimensions of microparticles larger than 200 mesh is the largest, with a value of 1.5492, which indicates that the projection contour curve of this group of particles deviates from the circle to the largest extent. The surface fractal dimension of particles larger than 200 mesh reaches 2.5492, which is also the largest group of fractal dimension among these three groups of sulfide ore particles, which indicates that the surface fine structure of this group of granules has many levels and a large degree of self-similarity, and at the same time, the surface concavity of this group of granules is the largest.

(4) Because the finer particles are also associated with the larger surface area, and thus the higher adsorption capacities, the shape fractal dimension value is believed to be able to reflect the adsorption capacities of other finer particles.

(5) The preliminary analysis of the geometric shape was based on the conventional statistical method and the fractal theory. How to analyze the particle shape, size and interaction between particles overall and systematically then establish models and relationships between them and the micro mechanical properties need to be further studied.
