Article

Trichoderma virens and Pseudomonas chlororaphis Differentially Regulate Maize Resistance to Anthracnose Leaf Blight and Insect Herbivores When Grown in Sterile versus Non-Sterile Soils

by
Pei-Cheng Huang
1,
Peiguo Yuan
1,
John M. Grunseich
2,
James Taylor
1,
Eric-Olivier Tiénébo
3,4,
Elizabeth A. Pierson
1,3,
Julio S. Bernal
2,
Charles M. Kenerley
1 and
Michael V. Kolomiets
1,*
1
Department of Plant Pathology and Microbiology, Texas A&M University, College Station, TX 77843-2132, USA
2
Department of Entomology, Texas A&M University, College Station, TX 77843-2475, USA
3
Department of Horticultural Sciences, Texas A&M University, College Station, TX 77843-2133, USA
4
Agronomic Sciences and Transformation Processes Joint Research and Innovation Unit, Institut National Polytechnique Félix Houphouët-Boigny, Yamoussoukro P.O. Box 1093, Côte d’Ivoire
*
Author to whom correspondence should be addressed.
Plants 2024, 13(9), 1240; https://doi.org/10.3390/plants13091240
Submission received: 13 March 2024 / Revised: 22 April 2024 / Accepted: 26 April 2024 / Published: 30 April 2024
(This article belongs to the Special Issue Beneficial Plant-Microorganisms Interactions: Augmented Defenses of Plants and Physiological Responses)
Browse Figures
Review Reports Versions Notes

Abstract

:
Soil-borne Trichoderma spp. have been extensively studied for their biocontrol activities against pathogens and growth promotion ability in plants. However, the beneficial effect of Trichoderma on inducing resistance against insect herbivores has been underexplored. Among diverse Trichoderma species, consistent with previous reports, we showed that root colonization by T. virens triggered induced systemic resistance (ISR) to the leaf-infecting hemibiotrophic fungal pathogens Colletotrichum graminicola. Whether T. virens induces ISR to insect pests has not been tested before. In this study, we investigated whether T. virens affects jasmonic acid (JA) biosynthesis and defense against fall armyworm (FAW) and western corn rootworm (WCR). Unexpectedly, the results showed that T. virens colonization of maize seedlings grown in autoclaved soil suppressed wound-induced production of JA, resulting in reduced resistance to FAW. Similarly, the bacterial endophyte Pseudomonas chlororaphis 30-84 was found to suppress systemic resistance to FAW due to reduced JA. Further comparative analyses of the systemic effects of these endophytes when applied in sterile or non-sterile field soil showed that both T. virens and P. chlororaphis 30-84 triggered ISR against C. graminicola in both soil conditions, but only suppressed JA production and resistance to FAW in sterile soil, while no significant impact was observed when applied in non-sterile soil. In contrast to the effect on FAW defense, T. virens colonization of maize roots suppressed WCR larvae survival and weight gain. This is the first report suggesting the potential role of T. virens as a biocontrol agent against WCR.

1. Introduction

Maize is the top-yielding cereal crop produced globally and a major source of livestock feed, biofuel, and staple food for many regions worldwide [1]. Pathogen infection and insect herbivory are constant threats to crop production, causing over 20% yield losses of maize annually on a global level and resulting in substantial economic impact and food insecurity [2]. The hemibiotrophic fungal pathogen Colletotrichum graminicola is the causal agent of anthracnose leaf blight and stalk rot in maize and accounts for millions of dollars in yield losses annually in the United States [3,4,5]. Fall armyworm (FAW; Spodoptera frugiperda) originates in the Americas and has recently invaded Europe, Africa, Asia, and Australia, causing serious damage [6,7]. FAW larvae feed on all of the aboveground tissues of maize, resulting in several billions of dollars in yield losses globally [6]. Western corn rootworm (WCR; Diabrotica virgifera virgifera) is the most economically important maize pest in the United States, and causes losses in excess of US $1 billion annually in the United States and Europe [8,9,10]. WCR larvae cause the most significant damage through feeding on the maize root, while WCR adult beetles damage the silks [8,11]. Published evidence indicates that the plant phytohormone salicylic acid (SA) plays a critical role in maize defense against C. graminicola [12,13], while resistance to chewing insects, including FAW, is mainly mediated by the lipid-derived phytohormone jasmonic acid (JA) [14,15,16]. However, resistance mechanisms against root-feeding WCR remain largely unknown [17].
Microbial biological control agents, including plant growth-promoting rhizobacteria and fungi (PGPR and PGPF, respectively), have been widely used to increase resistance in plants against pathogens and pests [18,19,20]. Isolates of soil-borne Trichoderma spp. And the bacterium Pseudomonas chlororaphis are well-known biocontrol agents and have been extensively studied for their beneficial traits, including growth promotion and enhanced disease resistance in host plants [21,22,23,24]. However, using Trichoderma spp. as biocontrol agents against pests has only recently been considered, and their impact on defense against chewing insects remains largely unexplored [25,26]. Several studies have shown that T. virens induces systemic resistance (ISR) against leaf-infecting pathogens, the physiological process of which is tightly regulated by the fungal small secreted proteins Sm1 and Sir1, which play pivotal but contrasting roles in triggering ISR responses [27,28,29,30]. Analyses of T. virens sm1 deletion mutants have revealed that they are unable to induce ISR against fungal pathogens in above-ground organs, suggesting that the Sm1 peptide is a positive regulator of ISR [27,28]. In sharp contrast, deletion of SIR1 resulted in elevated SM1 expression [30] and a much stronger ISR response [29]. Wang et al. (2020) [30] showed that T. virens colonization in maize roots upregulated genes involved in the biosynthesis of JA precursors, including 12-OPDA (12-oxo-10(Z),15(Z)-phytodienoic acid) and OPC-4:0 {(Z)-4-[3-oxo-2-(pent-2-en-1-yl)cyclopentyl]butanoic acid}, yet downregulated genes downstream of 12-OPDA for JA biosynthesis. Whether T. virens colonization affects wound-induced JA production in leaves and confers resistance to leaf-feeding FAW and root-feeding WCR larvae remains unexplored.
The original objective of this study was to investigate the effects of T. virens and its secreted peptide signals on the production of wound-induced JA and other defensive oxylipin metabolites, and to test whether the beneficial effects of this endophyte extend to increasing resistance against FAW. Contrary to our expectation, the results demonstrated that maize seedlings grown in sterile soil amended with wild-type T. virens (TvWT), specifically sm1 or sir1 single or double mutants, were found to exhibit suppressed wound-induced JA biosynthesis, resulting in reduced resistance to FAW. Such unexpected results prompted us to further test whether such a detrimental effect on defense against herbivory could be ascribed to another well-studied growth-promoting bacterial endophyte, P. chlororaphis. Colonization of roots by the P. chlororaphis 30-84 also reduced production of JA and defense against FAW in sterile soil. These results necessitated the next objective, which was to test whether reduced defense against herbivory could also be observed in plants grown under non-sterile soil conditions. The results showed no detrimental change in resistance to FAW. Such a differential impact of soil sterility prompted us to test whether soil conditions alter the effectiveness of ISR triggered by both biocontrol agents against the leaf pathogen C. graminicola, and the results showed strong induction of ISR regardless of soil condition. The final objective of this study was to test whether T. virens treatment impacts maize interactions with root-feeding WCR larvae. We showed that colonization of roots by T. virens reduced larvae survival and growth.

2. Results

2.1. Colonization of Maize Roots by Either Δsir1 or Δsm1Δsir1 Enhanced Greater Levels of ISR against Anthracnose Leaf Blight Caused by C. graminicola

While our previous research characterized the contrasting functions of the secreted peptides, Sm1 and Sir1, in the regulation of ISR against pathogens, the hypothesized antagonistic interaction between the two signaling peptides has not been tested previously. Wang et al. (2020) [30] showed that the expression of SIR1 in Δsm1 remained similar to the level seen in the wild-type T. virens strain (TvWT), while Δsir1 had elevated expression of SM1. To test whether increased ISR by Δsir1 is due to elevated SM1 expression in this strain, we created a Δsm1Δsir1 double mutant and tested its capability to induce resistance to C. graminicola. The results showed that colonization by both Δsir1 and Δsm1Δsir1 mutants triggered a greater level of ISR against C. graminicola compared to TvWT (32%, 59%, and 56% reduction in lesion areas on TvWT-, Δsir1-, and Δsm1Δsir1-treated plants, respectively, compared to control) (Figure 1). These results suggest that functional Sir1 suppresses disease resistance to C. graminicola by not only suppressing SM1, but also through other as yet unknown mechanisms.

2.2. T. virens Colonization Suppressed Insect Defense

Because the effect of T. virens on ISR against insect herbivores has not been explored before, we tested whether TvWT and the secreted peptide signaling mutants Δsm1, Δsir1, and Δsm1Δsir1 induce differential resistance to the foliar-feeding FAW. Surprisingly, the results showed that FAW larvae gained significantly more weight after feeding on T. virens-colonized plants for 7 days (60% to 95% increase) (Figure 2A), and third-instar larvae consumed more leaf area on T. virens-colonized plants (64% to 83% increase) (Figure 2B). Treatment with T. virens reduced resistance to FAW, regardless of the mutation of these two signaling peptides.

2.3. T. virens Treatment Reduced Wound-Induced JA Accumulation by Suppressing Biosynthesis and Enhancing Its Catabolism

Because T. virens treatment decreased insect defense, and JA dominantly modulates defense responses against chewing insects [14], we tested whether T. virens colonization regulates wound-induced JA production in leaves. Phytohormone and oxylipin profiling showed that significantly lower amounts of jasmonates, including JA precursors, 12-OPDA, OPC-4:0, and JA, and the bioactive JA derivatives, JA-isoleucine (JA-Ile), JA-leucine (JA-Leu), and JA-valine (JA-Val) conjugates, were accumulated in the T. virens-treated plants at 1 and 2 h post wounding (hpw) (Figure 3A). Specifically, JA accumulation was reduced by 23% to 37% and 33% to 38% and JA-Ile content was reduced by 8% to 37% and 44% to 50% compared to the amounts accumulated in the control plants at 1 and 2 hpw, respectively (Figure 3B,C). Notably, we also found that one of the JA catabolites, 12OH-JA, accumulated to a significantly higher level in the T. virens-treated plants in response to mechanical wounding (83% to 171% and 23% to 82% increase compared to the contents in the control plants at 1 and 2 hpw, respectively) (Figure 3A,D). This latter result suggests that one potential reason behind decreased JA content may be its increased catabolism. To confirm that the reduced insect defense by T. virens colonization was modulated by JA signaling, we tested the effect of T. virens on resistance to FAW in the JA-deficient opr7opr8 mutant [14]. The result showed that T. virens colonization did not increase susceptibility to FAW in opr7opr8 double mutants, suggesting that attenuated JA signaling plays an essential role in T. virens-mediated suppression of defense against FAW (Figure 4). Interestingly, the levels of the α-ketol 9,10-KODA (9-hydroxy-10-oxo-12(Z),15(Z)-octadecadienoic acid) were significantly reduced at 1 hpw (24% to 37% reduction compared to the contents in the control plants) by all strains of T. virens (Figure 3E). This molecule has been recently shown to play a major JA-dependent signaling role in defense against FAW [31]. Together, these results indicate that T. virens colonization suppressed defense against FAW via downregulating JA biosynthesis and/or enhancing JA catabolism and its downstream ketol biosynthesis.

2.4. T. virens and P. chlororaphis Colonization Induced Resistance to C. graminicola in Both Sterile and Non-Sterile Soil Conditions, but Enhanced Growth and Suppressed Insect Defense against FAW Only in Sterile Soil

Because of the detrimental effect of the growth-promoting T. virens on herbivory resistance, we next tested whether another growth-promoting microorganism would have a similar impact on defense. For this, we chose the bacterial endophyte P. chlororaphis 30-84, which has been reported to promote plant growth and suppress the growth of fungal pathogens [32,33]; however, its role in insect defense against foliar-feeding insects has remained mostly unexplored. Specifically, we tested the impact of this bacterium on plant growth, defense against FAW, and pathogen resistance, and the effect of combining T. virens and P. chlororaphis on these physiological processes. Because beneficial microorganisms are commonly tested in agriculturally-relevant settings, we further tested their effect in both sterile and non-sterile soil mixtures of field soil and potting mix. Similar to T. virens treatment, colonization by P. chlororaphis 30-84 promoted plant growth (12% to 15% increase in plant height), but suppressed defense against FAW (41% to 51% increase in larvae weight gain) in the sterile soil mixture (Figure 5A,B). Plant growth and insect defense were not significantly affected when seedlings were grown in a non-sterile soil mixture upon treatment with either T. virens or P. chlororaphis 30-84. However, both T. virens and P. chlororaphis were able to increase resistance to C. graminicola in both soil types (53% to 66% reduction and 44% to 55% reduction in lesion areas in non-sterile and sterile soils, respectively) (Figure 5C). Together, these data suggest that both T. virens and P. chlororaphis 30-84 colonization induced resistance to C. graminicola in both sterile and non-sterile soil, while insect defense was compromised only in the sterile soil condition.

2.5. T. virens and P. chlororaphis 30-84 Colonization Reduced Wound-Induced JA Only in Plants Grown in Sterile Soil

Decreased FAW resistance found with the amendment of P. chlororaphis 30-84 in this study prompted us to investigate whether this biocontrol agent impacts JA homeostasis in response to wounding in sterile soil. Phytohormone and oxylipin profiling revealed that P. chlororaphis 30-84 treatment reduced wound-induced accumulation of jasmonates, including 12-OPDA, JA, JA-Ile, and JA-Leu, in sterile soil (Figure 6A). More specifically, treatment with T. virens, P. chlororaphis 30-84, and the mixture of T. virens and P. chlororaphis 30-84 resulted in 25%, 21%, and 19% reductions in JA accumulation and 27%, 32%, and 27% reductions in JA-Ile level at 1 hpw, respectively (Figure 6B,C). Moreover, JA catabolism was increased by 50%, 13%, and 21% in the plants treated with T. virens, P. chlororaphis 30-84, and the mixture of T. virens and P. chlororaphis 30-84, respectively (Figure 6D). Interestingly, suppression of wound-induced JA biosynthesis (Figure 6) and FAW insect defense (Figure 5) by either T. virens or P. chlororaphis 30-84 was only observed in the sterile soil condition. A similar accumulation pattern was observed for 9,10-KODA (17% to 34% reduction) in sterile soil (Figure 6E). Together, these results suggest that T. virens and P. chlororaphis 30-84 suppress foliar-feeding insect defense via regulating JA homeostasis in response to wounding only in plants grown in sterile soil amended with either of these biocontrol agents.

2.6. T. virens Colonization Suppressed WCR Larval Survival and Weight Gain

Because T. virens colonizes roots endophytically and is known to produce a variety of secondary metabolites toxic to other organisms, we hypothesized that, unlike the effect of leaf herbivores, T. virens treatment may affect its interaction with a root-feeding insect, such as WCR larvae. The results showed that significantly fewer larvae were recovered (50% fewer) (Figure 7A), and WCR larvae gained significantly less weight after feeding on T. virens-colonized plants (57% less) (Figure 7B). However, T. virens treatment did not reduce tissue consumption (Figure 7C,D). These results suggest that T. virens may be considered as a potent biocontrol agent against WCR by suppressing WCR larval survival and weight gain.

3. Discussion

Soil-borne Trichoderma spp. are ubiquitous in soil worldwide, and have been used as biocontrol agents against pathogens for decades [23,34,35,36,37]. However, the potential utility of Trichoderma spp. as biocontrol agents against insect pests has just begun to be addressed [26], and information on their effects against foliar-feeding and root-feeding insects is scarce. Accumulating evidence suggests that root colonization by certain Trichoderma spp. triggers ISR against insects, such as aphids [38,39,40,41], whiteflies [42], thrips [43], and Lepidoptera [39,44,45,46,47,48], and also enhances defense against spider mites [49] and nematodes [50,51,52]. However, T. virens has not been tested for its effects on insects to date. Previous reports [27,28,30] and this study have shown that T. virens confers increased resistance to C. graminicola. In addition, these studies have identified a fungal-secreted peptide, Sm1, as a signal necessary for inducing systemic resistance by showing that the Δsm1 deletion mutant of T. virens is unable to induce ISR [27,28,30]. In contrast to Δsm1, another signaling peptide mutant of T. virens, Δsir1 [29,30], has been found to trigger enhanced ISR against C. graminicola. As this mutant overexpresses SM1 transcripts [30], we hypothesized that the increased ISR following colonization by this mutant is due to elevated SM1 expression. We tested this hypothesis by deleting SM1 in the Δsir1 mutant background and found that the Δsm1Δsir1 double mutant still displayed stronger resistance as compared to the wild-type strain. We suggest that the Sir1 peptide acts to suppress ISR against C. graminicola not only by downregulating SM1 expression, but also by employing other as-yet unknown mechanisms of ISR suppression.
Several reports have shown that several Trichoderma spp. directly impact Lepidoptera spp. by producing antifeedant compounds and toxic secondary metabolites [26,53,54,55,56,57], or indirectly impact them via activation of JA-mediated systemic defense, production of parasitoid-attracting volatile compounds, or disruption of insect gut microbiota and metabolomes [39,40,44,45,46,48,58]. Here, we demonstrated that treatment with T. virens suppressed defense against FAW by reducing wound-induced JA production, and increased JA catabolism in plants grown in sterile soil. Consistent with our findings, Lelio et al. (2021) [45] showed that when grown at cool temperatures (20 °C as compared to 25 °C), tomato plants colonized with T. afroharzianum T22 had less negative impact on Spodoptera littoralis larvae, and this was accompanied by suppressed JA biosynthesis and signaling pathways. Also consistent with our results, Kinyungu et al. (2023) [47] showed that treatment with the T. atroviride F2S21 strain resulted in a higher leaf defoliation rate by FAW larvae. The fact that some studies have shown increased resistance to certain chewing insects due to Trichoderma spp. treatment [39,44,48] while others, including the current study, have shown an opposite effect of Trichoderma treatment, suggests that the effects of Trichoderma on plant interactions with insect herbivores are species- and strain-specific, as well as environment-dependent. Interestingly, our results indicate that the observed reduced insect defense is independent of the fungal secreted peptides Sm1 and Sir1, suggesting that fungal signals regulating ISR against pathogens and induced susceptibility against chewing insects involve different molecular signals, to be identified in the future.
Previous reports have shown that root colonization by T. virens induces biosynthesis of the JA precursor, 12-OPDA, and ketols [30,59]. Both 12-OPDA and ketols have been shown to act as xylem-mobile long-distance signals that prime the above-ground organs for greater resistance against pathogens in maize [30,59]. In contrast to these oxylipins, JA-Ile levels in xylem sap were not significantly increased in response to T. virens treatment, and transfusion of maize seedlings with xylem sap supplemented with JA-Ile increased their susceptibility to C. graminicola [30]. The role of JA as a susceptibility factor against anthracnose leaf blight caused by C. graminicola was further supported by the studies of Gorman et al. (2020) [12] and Huang et al. (2023) [13]. Moreover, transcriptome analysis has shown that maize roots respond to colonization by T. virens with increased expression of 12-OPDA biosynthesis genes, but suppressed expression of the genes required for 12-OPDA conversion to JA-Ile [30]. Because JA is widely reported to suppress growth in numerous plant species [60,61,62], it is tempting to speculate that attenuated synthesis of JAs in roots colonized by T. virens is a potential mechanism accounting for the growth promotion effect conferred by this symbiont, as observed in this study and previous reports. Similar to the T. virens-mediated induction of growth promotion and ISR against pathogens, we showed that root colonization by the bacterial symbiont P. chlororaphis 30-84 resulted in increased seedling growth and systemic resistance against C. graminicola, suggesting a similar mechanism underlying these two beneficial responses. However, as in the case of T. virens, P. chlororaphis 30-84 treatment reduced JA production and decreased resistance to herbivory by FAW when treated plants were grown in sterile soil. Therefore, it is likely that the induction of growth promotion and ISR against the hemibiotrophic pathogen C. graminicola by both of the beneficial microorganisms, T. virens and P. chlororaphis 30-84, is linked to their ability to suppress JA synthesis and JA-mediated signaling. Interestingly, wound-induced JA accumulation and insect defense were not affected when maize seedlings were treated with T. virens or P. chlororaphis 30-84 in non-sterile soil, suggesting that natural microbial communities dampened the JA suppression activities of both endophytes.
WCR root feeding causes substantial economic damage to maize production in the United States and Europe [63,64], and the insect has adapted to overcome most of the available management techniques, including chemical insecticides and Bacillus thuringiensis (Bt) toxins [64,65]. So far, there has been a lack of efficient management of this notorious pest and, thus, there is an urgent need for a sustainable and economical management approach, such as utilizing efficient biocontrol agents. In this study, we showed that T. virens colonization significantly enhanced the mortality of, and suppressed weight gain in, WCR larvae. Our previous report showed that increased WCR mortality was correlated with greater levels of herbivory-induced production of insecticidal death acids and ketols [16]. Therefore, one of the potential mechanisms of T. virens-mediated WCR defense may be activation of the production of insecticidal defensive compounds. The other potential mechanism behind the detrimental effect on larvae survival and growth conferred by T. virens may be the production of some fungus-derived insecticidal metabolites, as reported in several studies [26,53,54,55,56,57]. Further experiments are needed to explore whether T. virens has a direct insecticidal impact on the WCR root-feeding larvae, or has an indirect effect due to the induction of the host-mediated synthesis of toxic compounds.

4. Materials and Methods

4.1. Plant, Growth Medium, and Plant-Beneficial Inoculants

The maize (Zea mays) inbred line B73 and opr7opr8 double mutant (Yan et al., 2012) [14] were used in this study. Plants were grown in conical pots (20.5 × 4 cm) filled with autoclaved (121 °C for 60 min, two cycles) commercial potting mix (Jolly Gardener Pro Line C/20) on light shelves at room temperature (22–24 °C) with a 16 h light period. To test the efficacy of the beneficial microorganisms in an agricultural setting, the maize B73 seeds were grown in a mixture of field soil (collected from Texas A&M University Research Farm in the fall of 2022 after maize was harvested) and potting mix (Jolly Gardener Pro Line C/20) at a ratio of 1 to 3. The mixture was either autoclaved (121 °C for 60 min, two cycles; henceforth referred to as sterile) or untreated (hence referred to as non-sterile) after mixing. Chlamydospores of T. virens strains TvWT (Gv29-8; Baek and Kenerly, 1998) [66], Δsm1 (Djonovic’ et al., 2006; Djonovic et al., 2007) [27,28], Δsir1 (formerly D77560; Lamdan et al., 2015) [29], and Δsm1Δsir1 (this study) were obtained from liquid cultures grown in molasses-yeast extract medium as described in Wang et al. (2020) [30]. P. chlororaphis 30-84 was grown in Luria-Bertani (LB) medium containing 5 g of NaCl per liter at pH 7 and 28 °C with agitation at 200 rpm, as described in Yuan et al. (2020) [33]. Seven days after sowing, seedlings were treated with 0.05 g of T. virens chlamydospores, or 300 μL of P. chlororaphis 30-84 suspension at OD620 = 0.8, or a mixture of both T. virens and P. chlororaphis in the same amounts as described above (added to the soil at a depth of approximately 2 cm around the seeds), or left untreated.

4.2. Anthracnose Leaf Blight Assay

C. graminicola strain 1.001 was grown on half-strength potato dextrose agar (PDA) plates for 2–3 weeks to allow sporulation. Two weeks after being colonized by beneficial microorganisms, the plants were inoculated with 10 μL of conidial suspension (106 conidia/mL) with six droplets of spore suspensions per leaf collected from hemibiotrophic fungal pathogen C. graminicola plates, as described in Huang et al. (2023a) [13]. The leaves were scanned and the lesion areas were measured using ImageJ software (IJ 1.46r) [67] seven days post-inoculation.

4.3. Fall Armyworm Assay

The laboratory strain of fall armyworm (FAW; Spodoptera frugiperda) was purchased from Benzon Research (Carlisle, PA, USA). Two weeks after incubation with the beneficial microorganisms, six FAW neonates were placed to the whorls of maize seedlings contained in individual plastic jars and allowed to move and feed on the plants freely for 7 days, as described in Huang et al. (2023b) [16]. Seven days post-infestation, FAW larvae were removed from the plants, and their total weights were determined. To evaluate insect resistance and leaf damaged area, one maize leaf was individually caged in a handmade clip-cage and infested with one third-instar FAW larva per spot for approximately one hour, then moved toward the base of the plant. Leaves were then scanned, and eaten areas were measured with ImageJ software [67].

4.4. Oxylipin Profiling of Wounded Leaf Tissue

For the wounding treatment, the third fully expanded leaf of seedlings grown in sterile or non-sterile soil conditions that were previously colonized with beneficial microorganisms for two weeks or left untreated was wounded seven times using a hemostat, with three wound sites on one side and four on the other side of the midvein with the wound sites approximately 1 cm apart. The wounded regions were then harvested and placed in 2 mL screw-cap Fast-Prep tubes (Qbiogene, Carlsbad, CA, USA) in liquid nitrogen and stored in a −80 °C freezer. Phytohormone and oxylipin extraction and profiling of wounded leaf tissue were performed as described previously [13].

4.5. Western Corn Rootworm Bioassays

Western corn rootworm (WCR; Diabrotica virgifera virgifera) eggs were provided by USDA-ARS North Central Agriculture Research Laboratory (Brookings, SD, USA). Two weeks after being colonized by beneficial microorganisms, ten WCR neonates were placed on the soil surface in individual cone-tainers with a maize seedling and allowed to burrow and feed for ten days. WCR larvae were removed from the soil, and the total weight was determined ten days post-infestation. The fresh weights of shoot and root tissues were measured after the soil was remove, and the ratio was analyzed as larvae damaged over control root mass, as described in Huang et al. (2023) [16].

4.6. Statistical Methods

Statistical analyses were performed using the software program JMP Pro 17 (SAS Institute Inc., Cary, NC, USA). Lesion areas, FAW larval weight, leaf eaten areas, wound-induced accumulation of metabolites, and plant heights were analyzed using one-way analysis of variance (ANOVA) with post-hoc Tukey HSD (honestly significant difference). FAW larval weight after feeding on opr7opr8 double mutants and wild-type seedlings treated with T. virens or left untreated, along with root and shoot ratios after WCR infestation, were analyzed using two-way ANOVA with Tukey HSD. The effect of sterile and non-sterile mixture was analyzed using a Student’s t-test.

5. Conclusions

The elevated level of ISR against C. graminicola triggered by both T. virens Δsir1 and Δsm1Δsir1 double mutants revealed that a functional Sir1 signal peptide reduces disease resistance by not only downregulating SM1 (as demonstrated previously by Wang et al. (2020)), but via other unknown mechanisms as well. The colonization of plants grown in sterile soil by different T. virens mutants suppressed wound-induced JA accumulation, resulting in reduced defense against FAW, which was independent of both signal peptides, Sm1 and Sir1. When testing both of the beneficial microorganisms T. virens and P. chlororaphis 30-84 using both sterile and non-sterile mixtures of field soil and potting mix, both biocontrol agents triggered ISR against C. graminicola in both soil types. However, these agents reduced defense against FAW only when the treated plants were grown in sterile soil due to reduced JA. In contrast to the effect on leaf-feeding FAW, T. virens colonization suppressed root-feeding WCR larvae survival and weight gain. This marks the first report revealing the potential of T. virens as a biocontrol agent against WCR.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants13091240/s1. Table S1. List of metabolites of phytohormone and oxylipin profiling and the abbreviation.

Author Contributions

Designed the research and analyzed the data, P.-C.H. and M.V.K.; performed most of the experiments and drafted the article, P.-C.H.; treatment with P. chlororaphis 30-84, P.Y.; conducted the WCR bioassays, J.M.G. and P.-C.H..; created Δsm1Δsir1 double mutant, J.T.; helped design the experiments and wrote the article with input from and revisions by J.M.G., J.T., E.-O.T., E.A.P., J.S.B. and C.M.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported in part by United States Department of Agriculture (USDA)-National Institute of Food and Agriculture (NIFA) 2017-67013- 26524 to M.V.K. and 2021-67013-33568 grants awarded to M.V.K. and J.S.B.

Data Availability Statement

The datasets used and analyzed during the current study are available from the corresponding author upon reasonable request.

Acknowledgments

We thank Andie Miller and Greg Sword, Department of Entomology, Texas A&M University, for kindly sharing FAW eggs/neonates.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Erenstein, O.; Jaleta, M.; Sonder, K.; Mottaleb, K.; Prasanna, B.M. Global maize production, consumption and trade: Trends and R&D implications. Food Secur. 2022, 14, 1295–1319. [Google Scholar] [CrossRef]
  2. Savary, S.; Willocquet, L.; Pethybridge, S.J.; Esker, P.; McRoberts, N.; Nelson, A. The global burden of pathogens and pests on major food crops. Nat. Ecol. Evol. 2019, 3, 430–439. [Google Scholar] [CrossRef] [PubMed]
  3. Belisário, R.; Robertson, A.E.; Vaillancourt, L.J. Maize Anthracnose Stalk Rot in the Genomic Era. Plant Dis. 2022, 106, 2281–2298. [Google Scholar] [CrossRef] [PubMed]
  4. Bergstrom, G.C.; Nicholson, R.L. The Biology of Corn Anthracnose: Knowledge to Exploit for Improved Management. Plant Dis. 1999, 83, 596–608. [Google Scholar] [CrossRef] [PubMed]
  5. Dean, R.; Van Kan, J.A.L.; Pretorius, Z.A.; Hammond-Kosack, K.E.; Di Pietro, A.; Spanu, P.D.; Rudd, J.J.; Dickman, M.; Kahmann, R.; Ellis, J.; et al. The Top 10 fungal pathogens in molecular plant pathology. Mol. Plant Pathol. 2012, 13, 414–430. [Google Scholar] [CrossRef]
  6. Kenis, M.; Benelli, G.; Biondi, A.; Calatayud, P.A.; Day, R.; Desneux, N.; Harrison, R.D.; Kriticos, D.; Rwomushana, I.; Van den Berg, J.; et al. Invasiveness, biology, ecology, and management of the fall armyworm, Spodoptera frugiperda. Entomol. Gen. 2023, 43, 55. [Google Scholar] [CrossRef]
  7. Overton, K.; Maino, J.L.; Day, R.; Umina, P.A.; Bett, B.; Carnovale, D.; Ekesi, S.; Meagher, R.; Reynolds, O.L. Global crop impacts, yield losses and action thresholds for fall armyworm (Spodoptera frugiperda): A review. Crop Prot. 2021, 145, 105641. [Google Scholar] [CrossRef]
  8. Gray, M.E.; Sappington, T.W.; Miller, N.J.; Moeser, J.; Bohn, M.O. Adaptation and invasiveness of western corn rootworm: Intensifying research on a worsening pest. Annu. Rev. Entomol. 2009, 54, 303–321. [Google Scholar] [CrossRef]
  9. Darlington, M.; Reinders, J.D.; Sethi, A.; Lu, A.L.; Ramaseshadri, P.; Fischer, J.R.; Boeckman, C.J.; Petrick, J.S.; Roper, J.M.; Narva, K.E.; et al. RNAi for Western Corn Rootworm Management: Lessons Learned, Challenges, and Future Directions. Insects 2022, 13, 57. [Google Scholar] [CrossRef]
  10. Wechsler, S.; Smith, D. Has resistance taken root in US corn fields? Demand for insect control. Am. J. Agric. Econ. 2018, 100, 1136–1150. [Google Scholar] [CrossRef]
  11. Gyeraj, A.; Szalai, M.; Pálinkás, Z.; Edwards, C.R.; Kiss, J. Effects of adult western corn rootworm (Diabrotica virgifera virgifera LeConte, Coleoptera: Chrysomelidae) silk feeding on yield parameters of sweet maize. Crop Prot. 2021, 140, 105447. [Google Scholar] [CrossRef]
  12. Gorman, Z.; Christensen, S.A.; Yan, Y.; He, Y.; Borrego, E.; Kolomiets, M.V. Green leaf volatiles and jasmonic acid enhance susceptibility to anthracnose diseases caused by Colletotrichum graminicola in maize. Mol. Plant Pathol. 2020, 21, 702–715. [Google Scholar] [CrossRef] [PubMed]
  13. Huang, P.C.; Tate, M.; Berg-Falloure, K.M.; Christensen, S.A.; Zhang, J.; Schirawski, J.; Meeley, R.; Kolomiets, M.V. A non-JA producing oxophytodienoate reductase functions in salicylic acid-mediated antagonism with jasmonic acid during pathogen attack. Mol. Plant Pathol. 2023, 24, 725–741. [Google Scholar] [CrossRef]
  14. Yan, Y.; Christensen, S.; Isakeit, T.; Engelberth, J.; Meeley, R.; Hayward, A.; Emery, R.J.; Kolomiets, M.V. Disruption of OPR7 and OPR8 reveals the versatile functions of jasmonic acid in maize development and defense. Plant Cell 2012, 24, 1420–1436. [Google Scholar] [CrossRef] [PubMed]
  15. Christensen, S.A.; Nemchenko, A.; Borrego, E.; Murray, I.; Sobhy, I.S.; Bosak, L.; DeBlasio, S.; Erb, M.; Robert, C.A.; Vaughn, K.A.; et al. The maize lipoxygenase, ZmLOX10, mediates green leaf volatile, jasmonate and herbivore-induced plant volatile production for defense against insect attack. Plant J. Cell Mol. Biol. 2013, 74, 59–73. [Google Scholar] [CrossRef] [PubMed]
  16. Huang, P.C.; Grunseich, J.M.; Berg-Falloure, K.M.; Tolley, J.P.; Koiwa, H.; Bernal, J.S.; Kolomiets, M.V. Maize OPR2 and LOX10 Mediate Defense against Fall Armyworm and Western Corn Rootworm by Tissue-Specific Regulation of Jasmonic Acid and Ketol Metabolism. Genes 2023, 14, 1732. [Google Scholar] [CrossRef] [PubMed]
  17. Castano-Duque, L.; Loades, K.W.; Tooker, J.F.; Brown, K.M.; Paul Williams, W.; Luthe, D.S. A Maize Inbred Exhibits Resistance Against Western Corn Rootwoorm, Diabrotica virgifera virgifera. J. Chem. Ecol. 2017, 43, 1109–1123. [Google Scholar] [CrossRef] [PubMed]
  18. Köhl, J.; Kolnaar, R.; Ravensberg, W.J. Mode of Action of Microbial Biological Control Agents Against Plant Diseases: Relevance Beyond Efficacy. Front. Plant Sci. 2019, 10, 845. [Google Scholar] [CrossRef]
  19. Tiénébo, E.O.; Harrison, K.; Abo, K.; Brou, Y.C.; Pierson, L.S., 3rd; Tamborindeguy, C.; Pierson, E.A.; Levy, J.G. Mycorrhization Mitigates Disease Caused by “Candidatus Liberibacter solanacearum” in Tomato. Plants 2019, 8, 507. [Google Scholar] [CrossRef]
  20. El-Saadony, M.T.; Saad, A.M.; Soliman, S.M.; Salem, H.M.; Ahmed, A.I.; Mahmood, M.; El-Tahan, A.M.; Ebrahim, A.A.M.; Abd El-Mageed, T.A.; Negm, S.H.; et al. Plant growth-promoting microorganisms as biocontrol agents of plant diseases: Mechanisms, challenges and future perspectives. Front. Plant Sci. 2022, 13, 923880. [Google Scholar] [CrossRef]
  21. Zin, N.A.; Badaluddin, N.A. Biological functions of Trichoderma spp. for agriculture applications. Ann. Agric. Sci. 2020, 65, 168–178. [Google Scholar] [CrossRef]
  22. Tyśkiewicz, R.; Nowak, A.; Ozimek, E.; Jaroszuk-Ściseł, J. Trichoderma: The Current Status of Its Application in Agriculture for the Biocontrol of Fungal Phytopathogens and Stimulation of Plant Growth. Int. J. Mol. Sci. 2022, 23, 2329. [Google Scholar] [CrossRef] [PubMed]
  23. Yao, X.; Guo, H.; Zhang, K.; Zhao, M.; Ruan, J.; Chen, J. Trichoderma and its role in biological control of plant fungal and nematode disease. Front. Microbiol. 2023, 14, 1160551. [Google Scholar] [CrossRef] [PubMed]
  24. Anderson, A.J.; Kim, Y.C. Insights into plant-beneficial traits of probiotic Pseudomonas chlororaphis isolates. J. Med. Microbiol. 2020, 69, 361–371. [Google Scholar] [CrossRef] [PubMed]
  25. Contreras-Cornejo, H.A.; Macías-Rodríguez, L.; del-Val, E.; Larsen, J. The root endophytic fungus Trichoderma atroviride induces foliar herbivory resistance in maize plants. Appl. Soil Ecol. 2018, 124, 45–53. [Google Scholar] [CrossRef]
  26. Poveda, J. Trichoderma as biocontrol agent against pests: New uses for a mycoparasite. Biol. Control 2021, 159, 104634. [Google Scholar] [CrossRef]
  27. Djonović, S.; Pozo, M.J.; Dangott, L.J.; Howell, C.R.; Kenerley, C.M. Sm1, a proteinaceous elicitor secreted by the biocontrol fungus Trichoderma virens induces plant defense responses and systemic resistance. Mol. Plant-Microbe Interact. MPMI 2006, 19, 838–853. [Google Scholar] [CrossRef]
  28. Djonovic, S.; Vargas, W.A.; Kolomiets, M.V.; Horndeski, M.; Wiest, A.; Kenerley, C.M. A proteinaceous elicitor Sm1 from the beneficial fungus Trichoderma virens is required for induced systemic resistance in maize. Plant Physiol. 2007, 145, 875–889. [Google Scholar] [CrossRef] [PubMed]
  29. Lamdan, N.L.; Shalaby, S.; Ziv, T.; Kenerley, C.M.; Horwitz, B.A. Secretome of Trichoderma interacting with maize roots: Role in induced systemic resistance. Mol. Cell. Proteom. MCP 2015, 14, 1054–1063. [Google Scholar] [CrossRef]
  30. Wang, K.D.; Borrego, E.J.; Kenerley, C.M.; Kolomiets, M.V. Oxylipins Other Than Jasmonic Acid Are Xylem-Resident Signals Regulating Systemic Resistance Induced by Trichoderma virens in Maize. Plant Cell 2020, 32, 166–185. [Google Scholar] [CrossRef]
  31. Yuan, P.; Borrego, E.; Park, Y.S.; Gorman, Z.; Huang, P.C.; Tolley, J.; Christensen, S.A.; Blanford, J.; Kilaru, A.; Meeley, R.; et al. 9,10-KODA, an α-ketol produced by the tonoplast-localized 9-lipoxygenase ZmLOX5, plays a signaling role in maize defense against insect herbivory. Mol. Plant 2023, 16, 1283–1303. [Google Scholar] [CrossRef] [PubMed]
  32. Yu, J.M.; Wang, D.; Pierson, L.S., 3rd; Pierson, E.A. Effect of Producing Different Phenazines on Bacterial Fitness and Biological Control in Pseudomonas chlororaphis 30-84. Plant Pathol. J. 2018, 34, 44–58. [Google Scholar] [CrossRef] [PubMed]
  33. Yuan, P.; Pan, H.; Boak, E.N.; Pierson, L.S., 3rd; Pierson, E.A. Phenazine-Producing Rhizobacteria Promote Plant Growth and Reduce Redox and Osmotic Stress in Wheat Seedlings Under Saline Conditions. Front. Plant Sci. 2020, 11, 575314. [Google Scholar] [CrossRef] [PubMed]
  34. Harman, G.E.; Howell, C.R.; Viterbo, A.; Chet, I.; Lorito, M. Trichoderma species—Opportunistic, avirulent plant symbionts. Nat. Rev. Microbiol. 2004, 2, 43–56. [Google Scholar] [CrossRef] [PubMed]
  35. Lorito, M.; Woo, S.L.; Harman, G.E.; Monte, E. Translational research on Trichoderma: From ‘Omics to the field. Annu. Rev. Phytopathol. 2010, 48, 395–417. [Google Scholar] [CrossRef] [PubMed]
  36. Woo, S.L.; Hermosa, R.; Lorito, M.; Monte, E. Trichoderma: A multipurpose, plant-beneficial microorganism for eco-sustainable agriculture. Nat. Rev. Microbiol. 2023, 21, 312–326. [Google Scholar] [CrossRef] [PubMed]
  37. Khan, R.A.A.; Najeeb, S.; Chen, J.; Wang, R.; Zhang, J.; Hou, J.; Liu, T. Insights into the molecular mechanism of Trichoderma stimulating plant growth and immunity against phytopathogens. Physiol. Plant. 2023, 175, e14133. [Google Scholar] [CrossRef] [PubMed]
  38. Coppola, M.; Cascone, P.; Chiusano, M.L.; Colantuono, C.; Lorito, M.; Pennacchio, F.; Rao, R.; Woo, S.L.; Guerrieri, E.; Digilio, M.C. Trichoderma harzianum enhances tomato indirect defense against aphids. Insect Sci. 2017, 24, 1025–1033. [Google Scholar] [CrossRef]
  39. Coppola, M.; Cascone, P.; Lelio, I.D.; Woo, S.L.; Lorito, M.; Rao, R.; Pennacchio, F.; Guerrieri, E.; Digilio, M.C. Trichoderma atroviride P1 Colonization of Tomato Plants Enhances Both Direct and Indirect Defense Barriers Against Insects. Front. Physiol. 2019, 10, 813. [Google Scholar] [CrossRef]
  40. Coppola, M.; Diretto, G.; Digilio, M.C.; Woo, S.L.; Giuliano, G.; Molisso, D.; Pennacchio, F.; Lorito, M.; Rao, R. Transcriptome and Metabolome Reprogramming in Tomato Plants by Trichoderma harzianum strain T22 Primes and Enhances Defense Responses Against Aphids. Front. Physiol. 2019, 10, 745. [Google Scholar] [CrossRef]
  41. Islam, M.S.; Subbiah, V.K.; Siddiquee, S. Efficacy of Entomopathogenic Trichoderma Isolates against Sugarcane Woolly Aphid, Ceratovacuna lanigera Zehntner (Hemiptera: Aphididae). Horticulturae 2022, 8, 2. [Google Scholar] [CrossRef]
  42. Jafarbeigi, F.; Samih, M.A.; Alaei, H.; Shirani, H. Induced Tomato Resistance Against Bemisia tabaci Triggered by Salicylic Acid, β-Aminobutyric Acid, and Trichoderma. Neotrop. Entomol. 2020, 49, 456–467. [Google Scholar] [CrossRef]
  43. Muvea, A.M.; Meyhöfer, R.; Subramanian, S.; Poehling, H.M.; Ekesi, S.; Maniania, N.K. Colonization of onions by endophytic fungi and their impacts on the biology of Thrips tabaci. PLoS ONE 2014, 9, e108242. [Google Scholar] [CrossRef]
  44. Contreras-Cornejo, H.A.; del-Val, E.; Macías-Rodríguez, L.; Alarcón, A.; González-Esquivel, C.E.; Larsen, J. Trichoderma atroviride, a maize root associated fungus, increases the parasitism rate of the fall armyworm Spodoptera frugiperda by its natural enemy Campoletis sonorensis. Soil Biol. Biochem. 2018, 122, 196–202. [Google Scholar] [CrossRef]
  45. Di Lelio, I.; Coppola, M.; Comite, E.; Molisso, D.; Lorito, M.; Woo, S.L.; Pennacchio, F.; Rao, R.; Digilio, M.C. Temperature Differentially Influences the Capacity of Trichoderma Species to Induce Plant Defense Responses in Tomato Against Insect Pests. Front. Plant Sci. 2021, 12, 678830. [Google Scholar] [CrossRef]
  46. Papantoniou, D.; Vergara, F.; Weinhold, A.; Quijano, T.; Khakimov, B.; Pattison, D.I.; Bak, S.; van Dam, N.M.; Martínez-Medina, A. Cascading Effects of Root Microbial Symbiosis on the Development and Metabolome of the Insect Herbivore Manduca sexta L. Metabolites 2021, 11, 731. [Google Scholar] [CrossRef] [PubMed]
  47. Kinyungu, S.W.; Agbessenou, A.; Subramanian, S.; Khamis, F.M.; Akutse, K.S. One stone for two birds: Endophytic fungi promote maize seedlings growth and negatively impact the life history parameters of the fall armyworm, Spodoptera frugiperda. Front. Physiol. 2023, 14, 1253305. [Google Scholar] [CrossRef]
  48. Di Lelio, I.; Forni, G.; Magoga, G.; Brunetti, M.; Bruno, D.; Becchimanzi, A.; De Luca, M.G.; Sinno, M.; Barra, E.; Bonelli, M.; et al. A soil fungus confers plant resistance against a phytophagous insect by disrupting the symbiotic role of its gut microbiota. Proc. Natl. Acad. Sci. USA 2023, 120, e2216922120. [Google Scholar] [CrossRef] [PubMed]
  49. Pappas, M.L.; Samaras, K.; Koufakis, I.; Broufas, G.D. Beneficial Soil Microbes Negatively Affect Spider Mites and Aphids in Pepper. Agronomy 2021, 11, 1831. [Google Scholar] [CrossRef]
  50. Medeiros, H.A.d.; Araújo Filho, J.V.d.; Freitas, L.G.d.; Castillo, P.; Rubio, M.B.; Hermosa, R.; Monte, E. Tomato progeny inherit resistance to the nematode Meloidogyne javanica linked to plant growth induced by the biocontrol fungus Trichoderma atroviride. Sci. Rep. 2017, 7, 40216. [Google Scholar] [CrossRef]
  51. Fan, H.; Yao, M.; Wang, H.; Zhao, D.; Zhu, X.; Wang, Y.; Liu, X.; Duan, Y.; Chen, L. Isolation and effect of Trichoderma citrinoviride Snef1910 for the biological control of root-knot nematode, Meloidogyne incognita. BMC Microbiol. 2020, 20, 299. [Google Scholar] [CrossRef] [PubMed]
  52. Saharan, R.; Patil, J.A.; Yadav, S.; Kumar, A.; Goyal, V. The nematicidal potential of novel fungus, Trichoderma asperellum FbMi6 against Meloidogyne incognita. Sci. Rep. 2023, 13, 6603. [Google Scholar] [CrossRef]
  53. Berini, F.; Caccia, S.; Franzetti, E.; Congiu, T.; Marinelli, F.; Casartelli, M.; Tettamanti, G. Effects of Trichoderma viride chitinases on the peritrophic matrix of Lepidoptera. Pest Manag. Sci. 2016, 72, 980–989. [Google Scholar] [CrossRef] [PubMed]
  54. Vijayakumar, N.; Alagar, S.; Madanagopal, N. Effects of chitinase from Trichoderma viride on feeding, growth and biochemical parameters of the rice moth, Corcyra cephalonica Stainton. J. Entomol. Zool. Stud. 2016, 4, 520–523. [Google Scholar]
  55. Massry, S.; Shokry, H.M.; Hegab, M. Efficiency of Trichoderma harzianum and some organic acids on the cotton bollworms, Earias insulana and Pectinophora gossypiella. J. Plant Prot. Pathol. 2016, 7, 143–148. [Google Scholar] [CrossRef]
  56. Chinnaperumal, K.; Govindasamy, B.; Paramasivam, D.; Dilipkumar, A.; Dhayalan, A.; Vadivel, A.; Sengodan, K.; Pachiappan, P. Bio-pesticidal effects of Trichoderma viride formulated titanium dioxide nanoparticle and their physiological and biochemical changes on Helicoverpa armigera (Hub.). Pestic. Biochem. Physiol. 2018, 149, 26–36. [Google Scholar] [CrossRef] [PubMed]
  57. Ghosh, S.K.; Pal, S. Entomopathogenic potential of Trichoderma longibrachiatum and its comparative evaluation with malathion against the insect pest Leucinodes orbonalis. Environ. Monit. Assess. 2015, 188, 37. [Google Scholar] [CrossRef] [PubMed]
  58. Zhou, D.; Huang, X.-F.; Guo, J.; dos-Santos, M.L.; Vivanco, J.M. Trichoderma gamsii affected herbivore feeding behaviour on Arabidopsis thaliana by modifying the leaf metabolome and phytohormones. Microb. Biotechnol. 2018, 11, 1195–1206. [Google Scholar] [CrossRef] [PubMed]
  59. Wang, K.D.; Gorman, Z.; Huang, P.C.; Kenerley, C.M.; Kolomiets, M.V. Trichoderma virens colonization of maize roots triggers rapid accumulation of 12-oxophytodienoate and two ᵧ-ketols in leaves as priming agents of induced systemic resistance. Plant Signal. Behav. 2020, 15, 1792187. [Google Scholar] [CrossRef]
  60. Yan, Y.; Huang, P.-C.; Borrego, E.; Kolomiets, M. New perspectives into jasmonate roles in maize. Plant Signal. Behav. 2014, 9, e970442. [Google Scholar] [CrossRef]
  61. Huang, H.; Liu, B.; Liu, L.; Song, S. Jasmonate action in plant growth and development. J. Exp. Bot. 2017, 68, 1349–1359. [Google Scholar] [CrossRef] [PubMed]
  62. Wang, J.; Song, L.; Gong, X.; Xu, J.; Li, M. Functions of Jasmonic Acid in Plant Regulation and Response to Abiotic Stress. Int. J. Mol. Sci. 2020, 21, 1446. [Google Scholar] [CrossRef] [PubMed]
  63. Bažok, R.; Lemić, D.; Chiarini, F.; Furlan, L. Western Corn Rootworm (Diabrotica virgifera virgifera LeConte) in Europe: Current Status and Sustainable Pest Management. Insects 2021, 12, 195. [Google Scholar] [CrossRef] [PubMed]
  64. Paddock, K.J.; Robert, C.A.M.; Erb, M.; Hibbard, B.E. Western Corn Rootworm, Plant and Microbe Interactions: A Review and Prospects for New Management Tools. Insects 2021, 12, 171. [Google Scholar] [CrossRef] [PubMed]
  65. Carrière, Y.; Brown, Z.; Aglasan, S.; Dutilleul, P.; Carroll, M.; Head, G.; Tabashnik, B.E.; Jørgensen, P.S.; Carroll, S.P. Crop rotation mitigates impacts of corn rootworm resistance to transgenic Bt corn. Proc. Natl. Acad. Sci. USA 2020, 117, 18385–18392. [Google Scholar] [CrossRef] [PubMed]
  66. Baek, J.; Kenerley, C. Detection and enumeration of a genetically modified fungus in soil environments by quantitative competitive polymerase chain reaction. FEMS Microbiol. Ecol. 2006, 25, 419–428. [Google Scholar] [CrossRef]
  67. Schneider, C.A.; Rasband, W.S.; Eliceiri, K.W. NIH Image to ImageJ: 25 years of image analysis. Nat. Methods 2012, 9, 671–675. [Google Scholar] [CrossRef]
Plants 13 01240 g001

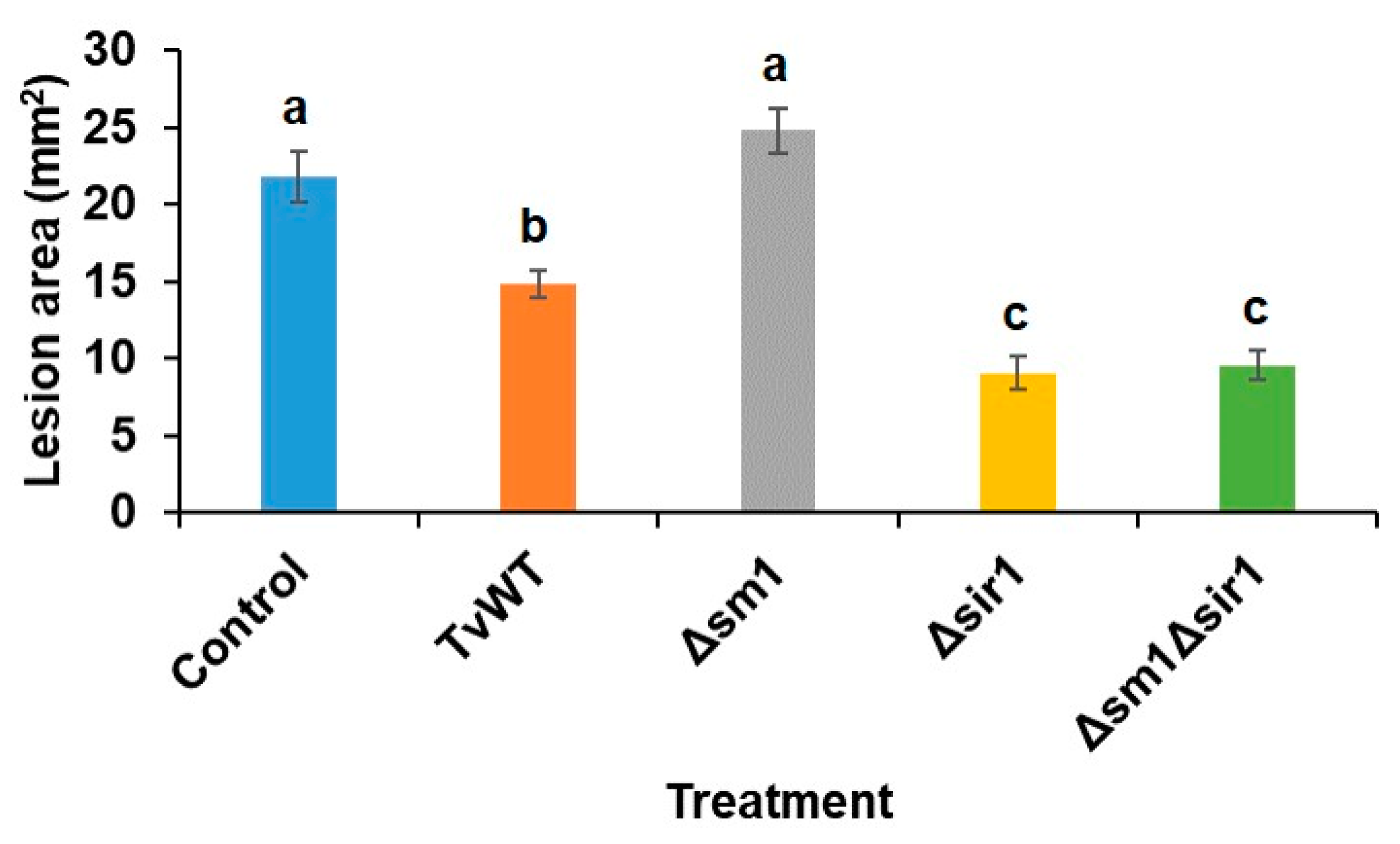

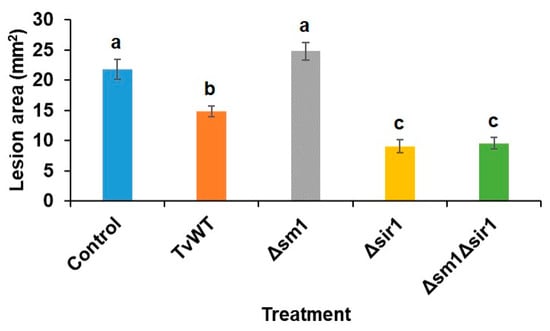

Figure 1. Both T. virens Δsir1 and Δsm1Δsir1 treatments elicited a greater level of ISR against C. graminicola than TvWT. Lesion areas of maize seedlings colonized by different T. virens strains after inoculation with C. graminicola for 7 days. Bars are means ± SE (n ≥ 23). Different letters indicate statistically significant differences (Tukey’s HSD test, p < 0.05).
Figure 1. Both T. virens Δsir1 and Δsm1Δsir1 treatments elicited a greater level of ISR against C. graminicola than TvWT. Lesion areas of maize seedlings colonized by different T. virens strains after inoculation with C. graminicola for 7 days. Bars are means ± SE (n ≥ 23). Different letters indicate statistically significant differences (Tukey’s HSD test, p < 0.05).
Plants 13 01240 g001
Plants 13 01240 g002

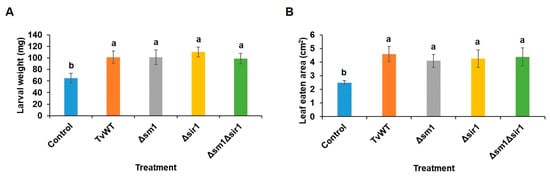

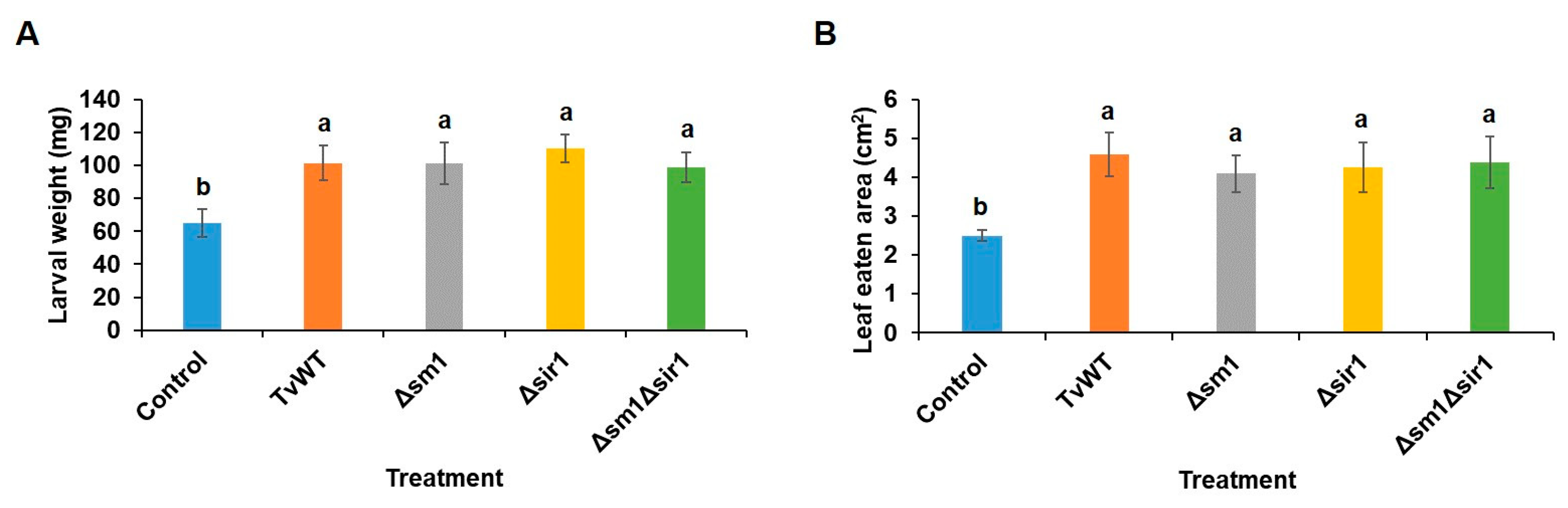

Figure 2. T. virens colonization suppressed maize defense against insect herbivory. One-week old maize seedlings were colonized by T. virens strains for 14 days before FAW infestation. (A) FAW larval weight was determined after neonates feeding on maize plants for 7 days (n ≥ 23). (B) Maize leaf consumed area by 3rd-instar FAW larvae for 6 h (n ≥ 4). Bars are means ± SE. Different letters indicate statistically significant differences (Tukey’s HSD test, p < 0.05).
Figure 2. T. virens colonization suppressed maize defense against insect herbivory. One-week old maize seedlings were colonized by T. virens strains for 14 days before FAW infestation. (A) FAW larval weight was determined after neonates feeding on maize plants for 7 days (n ≥ 23). (B) Maize leaf consumed area by 3rd-instar FAW larvae for 6 h (n ≥ 4). Bars are means ± SE. Different letters indicate statistically significant differences (Tukey’s HSD test, p < 0.05).
Plants 13 01240 g002
Plants 13 01240 g003

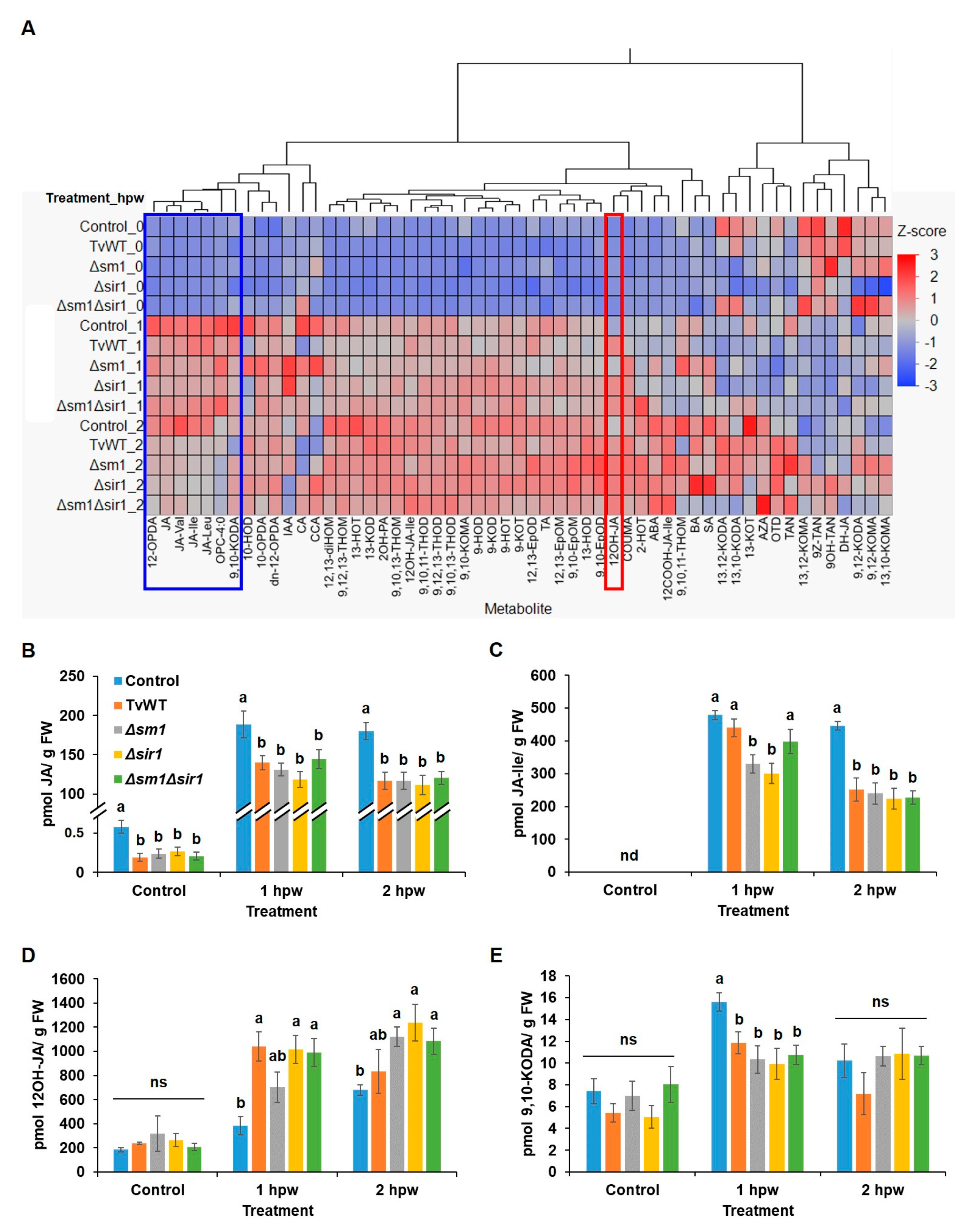

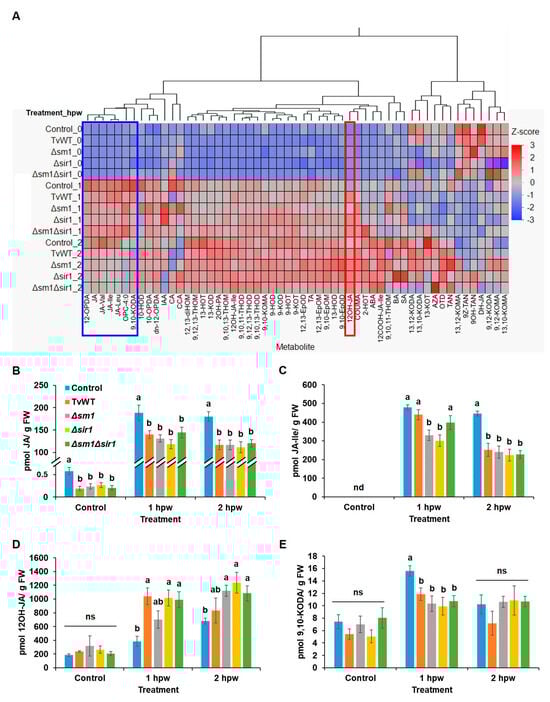

Figure 3. T. virens colonization suppressed wound-induced 9,10-KODA and JA biosynthesis and enhanced JA catabolism. (A) Heatmap showing relative accumulation of oxylipins and phytohormones in leaves of B73 seedlings colonized by different T. virens stains or untreated control at 0, 1, and 2 h post wounding. Contents of (B) JA, (C) JA-Ile, (D) 12OH-JA, and (E) 9,10-KODA in different T. virens strain-colonized or control plants at 0, 1, and 2 h post wounding. Abbreviations for compounds are listed in Supplemental Table S1. Bars are means ± SE (n = 6). Different letters indicate statistically significant differences within the same time points (Tukey’s HSD test, p < 0.05). Abbreviations for statistical analysis: ns, not significant; nd, signal not detected.
Figure 3. T. virens colonization suppressed wound-induced 9,10-KODA and JA biosynthesis and enhanced JA catabolism. (A) Heatmap showing relative accumulation of oxylipins and phytohormones in leaves of B73 seedlings colonized by different T. virens stains or untreated control at 0, 1, and 2 h post wounding. Contents of (B) JA, (C) JA-Ile, (D) 12OH-JA, and (E) 9,10-KODA in different T. virens strain-colonized or control plants at 0, 1, and 2 h post wounding. Abbreviations for compounds are listed in Supplemental Table S1. Bars are means ± SE (n = 6). Different letters indicate statistically significant differences within the same time points (Tukey’s HSD test, p < 0.05). Abbreviations for statistical analysis: ns, not significant; nd, signal not detected.
Plants 13 01240 g003
Plants 13 01240 g004

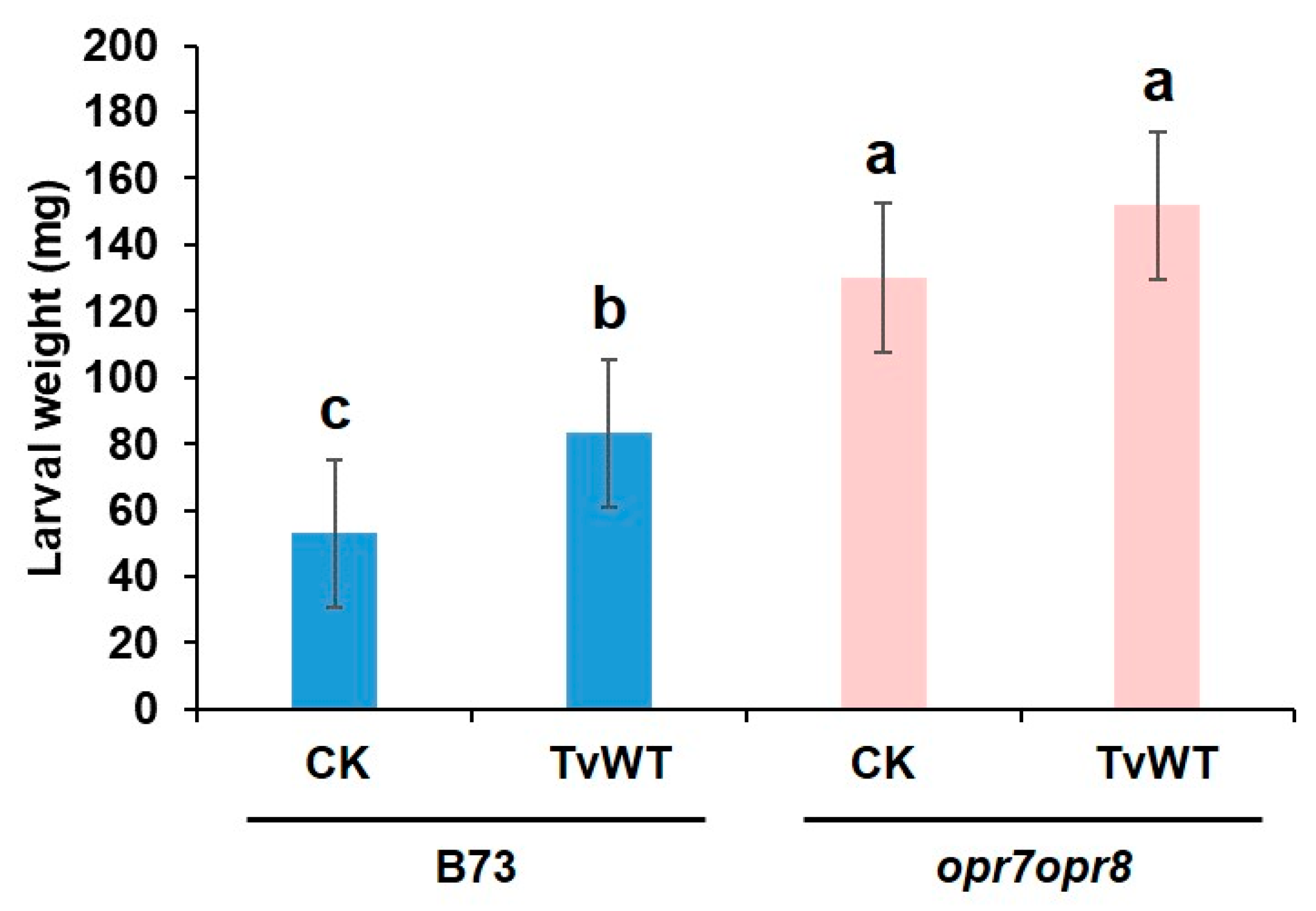

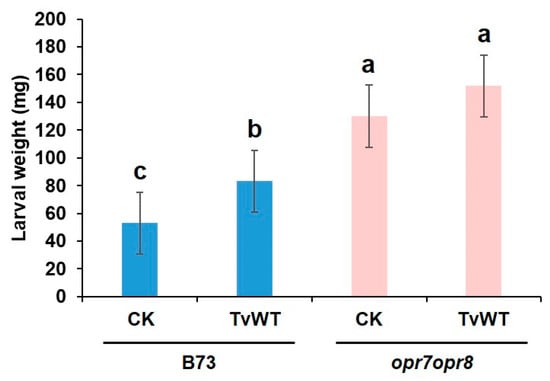

Figure 4. Reduced resistance against FAW in response to T. virens colonization is modulated by JA signaling. Maize B73 wild-type or opr7opr8 double mutant seedlings were colonized by TvWT for 14 days or left as untreated control (CK) before FAW infestation. FAW larval weight was determined after neonates feeding on maize plants for 7 days. Bars are means ± SE (n ≥ 13). Different letters indicate statistically significant differences on log-transformed data (two-way ANOVA with Tukey’s HSD test, p < 0.05).
Figure 4. Reduced resistance against FAW in response to T. virens colonization is modulated by JA signaling. Maize B73 wild-type or opr7opr8 double mutant seedlings were colonized by TvWT for 14 days or left as untreated control (CK) before FAW infestation. FAW larval weight was determined after neonates feeding on maize plants for 7 days. Bars are means ± SE (n ≥ 13). Different letters indicate statistically significant differences on log-transformed data (two-way ANOVA with Tukey’s HSD test, p < 0.05).
Plants 13 01240 g004
Plants 13 01240 g005

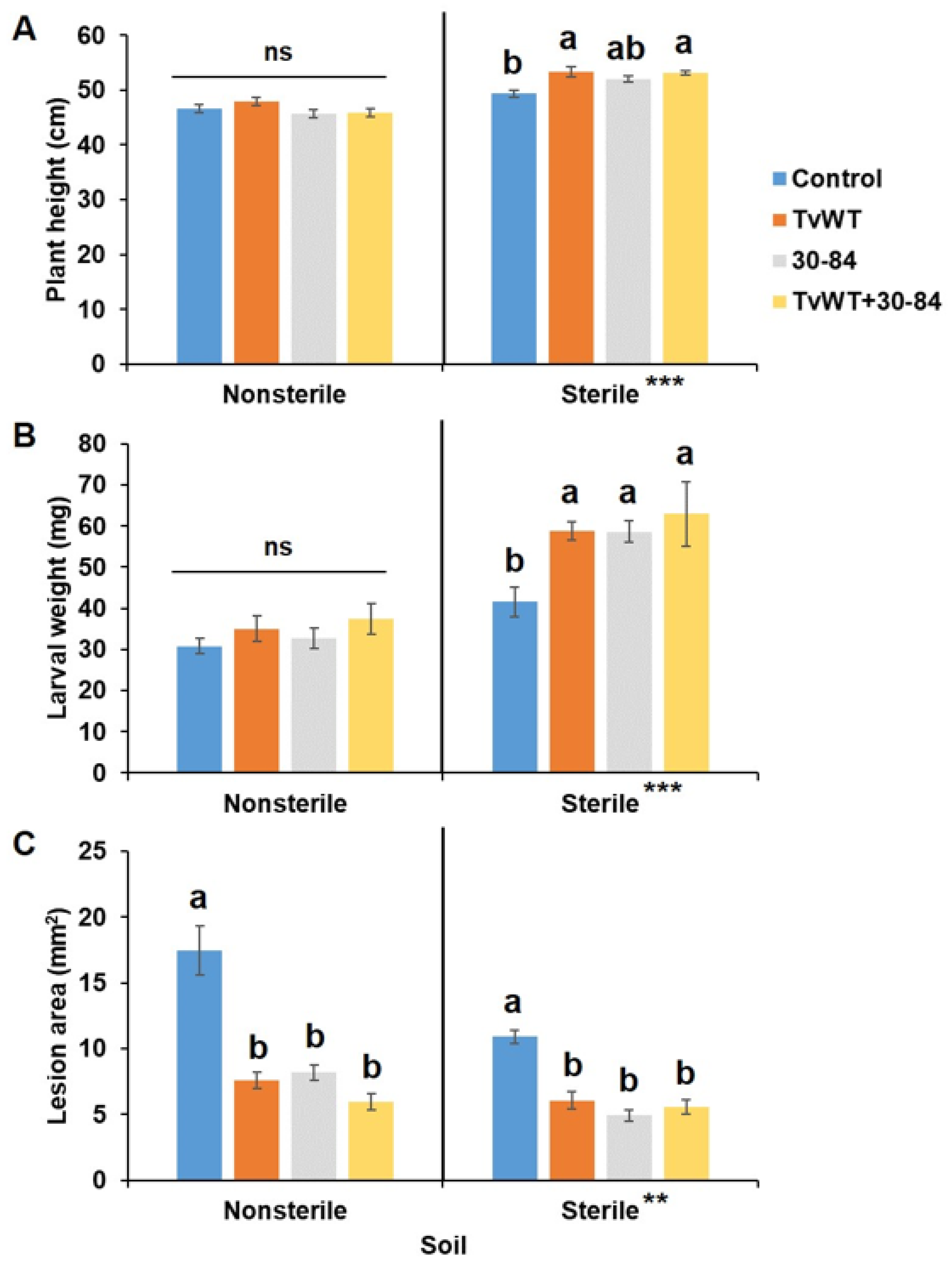

Figure 5. T. virens and P. chlororaphis 30-84 colonization enhanced growth but suppressed defense against FAW only in sterile soil, and increased resistance to C. graminicola in both soil types. Maize seedlings were colonized by TvWT, P chlororaphis 30-84, or both for 14 days before plant height measurement and C. graminicola infection or FAW infestation. (A) Plant height measured at 14 days after colonization (n ≥ 8). (B) FAW larval weight (n ≥ 12) and (C) lesion areas (n = 18) were determined at 7 days after infection or infestation. Bars are means ± SE. Different letters indicate statistically significant differences on log-transformed data within the same treatment (Tukey’s HSD test, p < 0.05). Asterisks represent statistically significant differences between sterile and non-sterile soils (Student’s t-test, ** p < 0.01, *** p < 0.001). Abbreviations for statistical analysis: ns, not significant.
Figure 5. T. virens and P. chlororaphis 30-84 colonization enhanced growth but suppressed defense against FAW only in sterile soil, and increased resistance to C. graminicola in both soil types. Maize seedlings were colonized by TvWT, P chlororaphis 30-84, or both for 14 days before plant height measurement and C. graminicola infection or FAW infestation. (A) Plant height measured at 14 days after colonization (n ≥ 8). (B) FAW larval weight (n ≥ 12) and (C) lesion areas (n = 18) were determined at 7 days after infection or infestation. Bars are means ± SE. Different letters indicate statistically significant differences on log-transformed data within the same treatment (Tukey’s HSD test, p < 0.05). Asterisks represent statistically significant differences between sterile and non-sterile soils (Student’s t-test, ** p < 0.01, *** p < 0.001). Abbreviations for statistical analysis: ns, not significant.
Plants 13 01240 g005
Plants 13 01240 g006

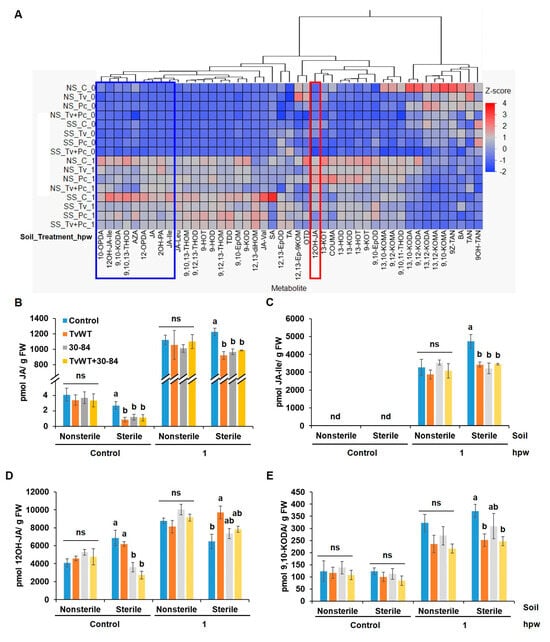

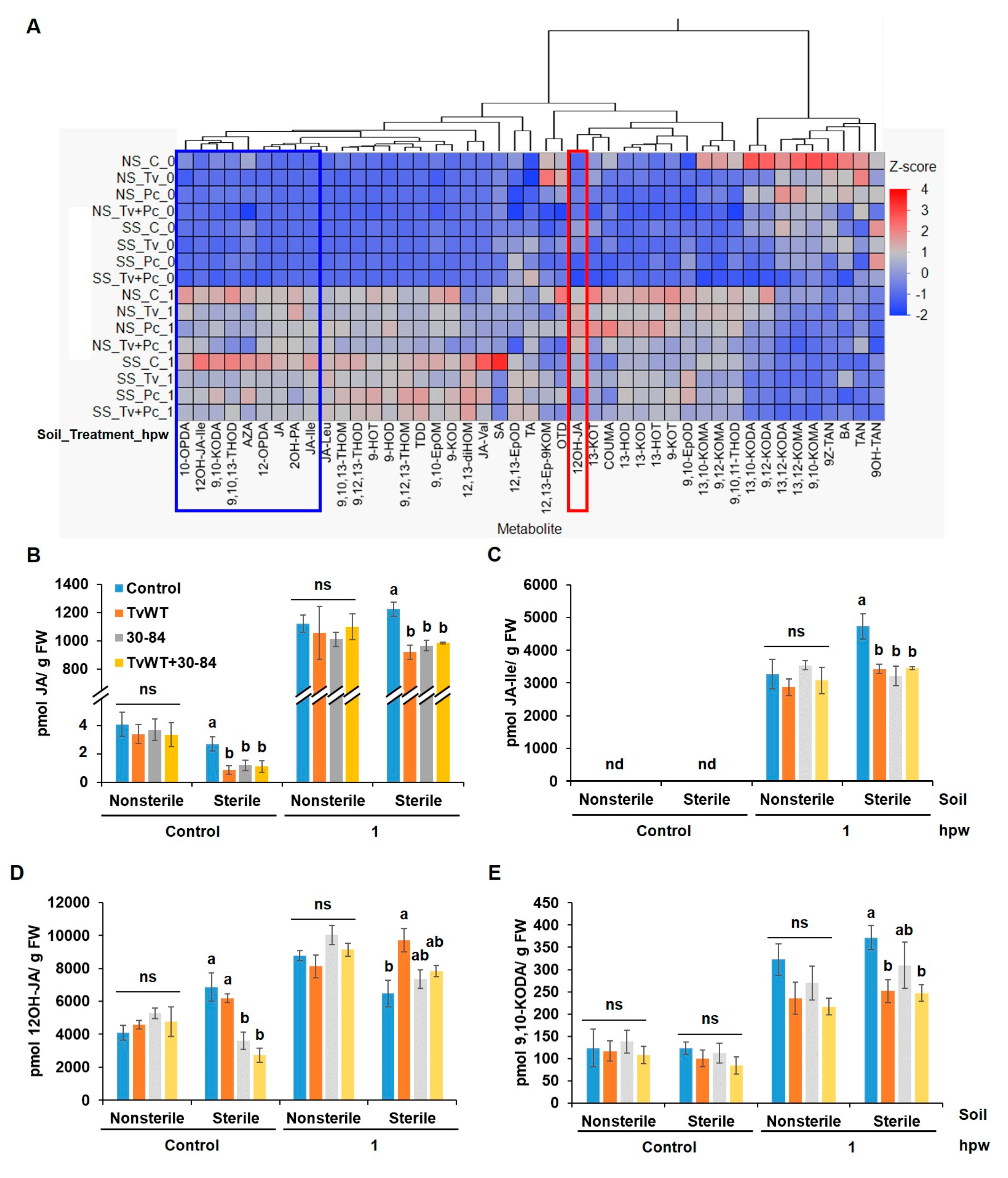

Figure 6. T. virens and P. chlororaphis 30-84 colonization suppressed wound-induced JA biosynthesis and enhanced JA catabolism in sterile soil. (A) Heatmap showing relative accumulation of oxylipins and phytohormones. Contents of (B) JA, (C) JA-Ile, (D) 12OH-JA, and (E) 9,10-KODA in plants colonized by T. virens, P. chlororaphis 30-84, and both or control in response to wounding at 0 and 1 hpw. Abbreviations for samples: NS, non-sterile soil; SS, sterile soil. Abbreviations for compounds are listed in Supplemental Table S1. Bars are means ± SE (n = 4). Different letters indicate statistically significant differences within the same treatment per time point (Tukey’s HSD test, p < 0.05). Abbreviations for statistical analysis: ns, not significant; nd, signal not detected.
Figure 6. T. virens and P. chlororaphis 30-84 colonization suppressed wound-induced JA biosynthesis and enhanced JA catabolism in sterile soil. (A) Heatmap showing relative accumulation of oxylipins and phytohormones. Contents of (B) JA, (C) JA-Ile, (D) 12OH-JA, and (E) 9,10-KODA in plants colonized by T. virens, P. chlororaphis 30-84, and both or control in response to wounding at 0 and 1 hpw. Abbreviations for samples: NS, non-sterile soil; SS, sterile soil. Abbreviations for compounds are listed in Supplemental Table S1. Bars are means ± SE (n = 4). Different letters indicate statistically significant differences within the same treatment per time point (Tukey’s HSD test, p < 0.05). Abbreviations for statistical analysis: ns, not significant; nd, signal not detected.
Plants 13 01240 g006
Plants 13 01240 g007

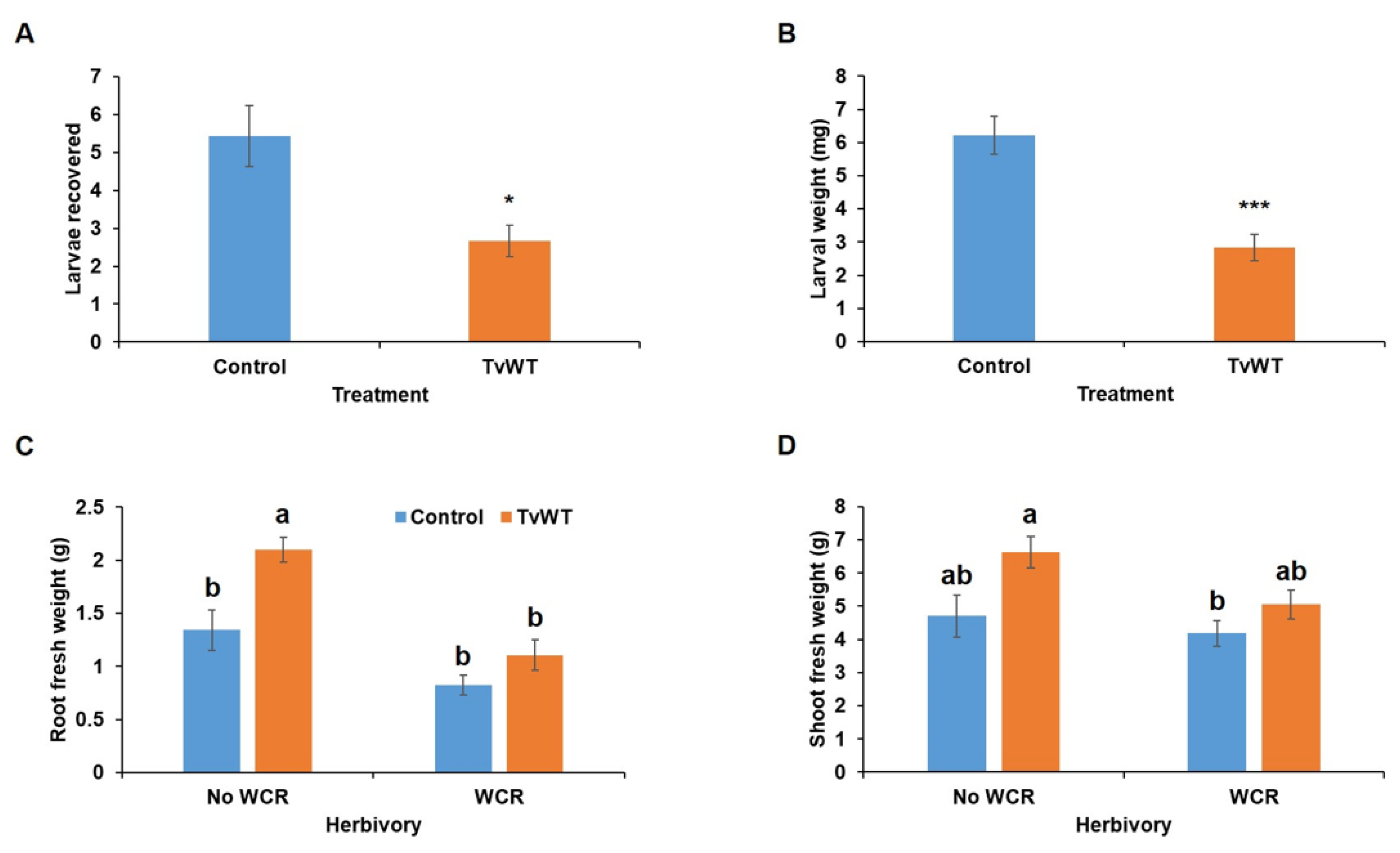

Figure 7. T. virens colonization suppressed WCR larval survival and weight gain. (A) Larvae recovery (n = 7), (B) larval mass (n = 7), (C) root (n ≥ 4), and (D) shoot ratios (n ≥ 4) were recorded 10 days post-infestation. Bars are means ± SE. Asterisks represent statistically significant differences (Student’s t-test, * p < 0.05, *** p < 0.001). Different letters indicate statistically significant differences (two-way ANOVA with Tukey’s HSD test, p < 0.05).
Figure 7. T. virens colonization suppressed WCR larval survival and weight gain. (A) Larvae recovery (n = 7), (B) larval mass (n = 7), (C) root (n ≥ 4), and (D) shoot ratios (n ≥ 4) were recorded 10 days post-infestation. Bars are means ± SE. Asterisks represent statistically significant differences (Student’s t-test, * p < 0.05, *** p < 0.001). Different letters indicate statistically significant differences (two-way ANOVA with Tukey’s HSD test, p < 0.05).
Plants 13 01240 g007
