Accurate Satellite Operation Predictions Using Attention-BiLSTM Model with Telemetry Correlation

Abstract

In satellite health management, anomalies are mostly resolved after an event and are rarely predicted in advance. Thus, trend prediction is critical for avoiding satellite faults, which may affect the accuracy and quality of satellite data and even greatly impact safety. However, it is difficult to predict satellite operation using a simple model because satellite systems are complex and telemetry data are copious, coupled, and intermittent. Therefore, this study proposes a model that combines an attention mechanism and bidirectional long short-term memory (attention-BiLSTM) with telemetry correlation to predict satellite behaviour. First, a high-dimensional K-nearest neighbour mutual information method is used to select the related telemetry variables from multiple variables of satellite telemetry data. Next, we propose a new BiLSTM model with an attention mechanism for telemetry prediction. The dataset used in this study was generated and transmitted from the FY3E meteorological satellite power system. The proposed method was compared with other methods using the same dataset used in the experiment to verify its superiority. The results confirmed that the proposed method outperformed the other methods owing to its prediction precision and superior accuracy, indicating its potential for application in intelligent satellite health management systems.

1. Introduction

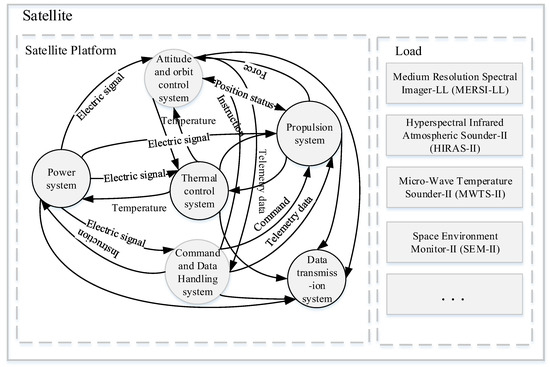

Satellites are complex systems that contain all types of subsystems and loads with a coupling relationship. Abnormalities can easily occur and may cause systematic faults that affect services and the accuracy of satellite data and significantly impact the safety of satellites. However, satellite health management relies mainly on manual operation, which is time-consuming and laborious, with faults mostly resolved after an event. If satellite operation trends are predicted, then health assessment or anomaly detection can be performed through the design of a certain algorithm. This can allow for real-time monitoring of the satellite’s health status and the timely detection of abnormalities.

Telemetry parameter data that reflect the satellite’s operational status are measured by the satellite’s sensor configuration from satellite deployment to in-orbit operation and eventually retirement. This generates large amounts of data with different telemetry features, which can be mined and analysed to predict a satellite’s operational status. However, it is difficult to determine the features related to satellite trends for all types of telemetry feature data. Currently, feature extraction methods such as principal component analysis (PCA) [1,2,3], grey relational analysis (GRA) [4], and mutual information (MI) [5,6,7,8] are widely used to extract critical variables or information. PCA combines new variables linearly with the original variables in high-dimensional data and can centrally reflect the information in the original variables; however, this method is not suitable for non-linear data [2]. When calculating the grey degree of correlation for the GRA method, many factors affect the results, such as the adjustment order of the characteristic parameters [4]. The MI is a criterion for measuring the degree of interdependence between two random variables. However, in feature extraction, it presents two main difficulties: Identifying a suitable feature evaluation strategy and accurately estimating the MI [5]. A data-driven feature selection framework constructed by the k-nearest neighbour (KNN) method [9] is suitable for data with non-linear and irregular distribution characteristics; however, this approach can produce a “dimensional disaster”.

Current trend prediction methods mainly include statistical, mathematical, intelligence-based, and information-fusion predictions. Among them, the autoregressive moving average (ARMA), support vector regression (SVR), backpropagation (BP) neural network, and long short-term memory (LSTM) prediction models have been widely studied and applied. The ARMA prediction model is a linear model with finite parameters. For short-term predictions, the model has a high fitting accuracy [10,11]. However, this approach is unsuitable for non-linear and non-stationary sequences. The SVR prediction model, which is based on structural risk minimisation, has better generalizability for small sample training sets and higher prediction accuracy than the ARMA model [12]. However, these algorithms can be used only as short-term prediction algorithms. SVR is now widely used to solve practical problems in various fields by combining it with other algorithms [13,14,15]. BP neural networks are among the most widely used neural network models owing to their strong non-linear mapping and self-learning abilities [16,17,18]. However, slow convergence, a lack of a scientific basis for determining the hidden layer nodes, and easy convergence to local minima limit their application [19]. Deep learning is a branch of neural networks. Recurrent neural networks (RNNs) with depth and time series have been widely used as prediction models for sequence data [20,21,22]. Although RNNs can handle time series problems, they have serious gradient dispersion problems. To ameliorate the adverse effects of gradient disappearance and long-distance dependence on neural networks, the long-term memory ability of RNNs can be improved by replacing RNN chain units with long-term memory units (LSTM chains) [23]. LSTM, which uses an additional memory cell to store states, has a better ability for time series prediction than RNNs. Recently, LSTM has achieved significant success in many fields [24,25,26]. Although the LSTM model has a good predictive ability for non-linear time series [27], it takes historical time series data as input, neglects the availability of future time series data, and obviates deep data mining.

The literature confirms that trend prediction has been widely applied in many fields, and deep learning has developed into a mainstream method. Satellite operation prediction, an important aspect of satellite health management, must urgently be studied in combination with deep learning methods, which present challenges at the practical application level. Zeng et al. [28] proposed an anomaly detection framework using a causal network and feature-attention-based long short-term memory (CN-FA-LSTM) network, which is used to study causality in multivariate and large-scale telemetry data and is more sensitive to anomalies for prediction. Napoli et al. [29] developed a wavelet RNN for the multistep-ahead prediction of multidimensional time series, which was applied to the prediction of satellite telemetry data. Chen et al. [30] presented an anomaly detection model based on Bayesian deep learning without domain knowledge that is highly robust to imbalanced satellite telemetry data. Yang et al. [31] proposed an improved deep-learning-based anomaly detection method for detecting anomalous spacecraft telemetry data, which combines LSTM with a multiscale detection strategy to enhance detection performance. Although these methods effectively analyse telemetry data using deep learning, it is unclear how the telemetry data that describe certain operating conditions are obtained. Because the satellite system is complex and telemetry data are copious, coupled, and intermittent, it is difficult to predict satellite operation using a simple model.

By analysing these feature extraction methods, this study presents a method that combines KNN with MI that selects the related telemetry variables from multiple satellite variables; this method is termed high-dimensional KNN-MI (HKNN-MI). Bidirectional LSTM (BiLSTM) is a variant of LSTM that can process sequence data both forward and backwards and provide past and future sequence information for each time in the sequence [32]. Moreover, a combination of the BiLSTM prediction model and attention mechanism can determine the importance of information at each input time, and the training efficiency of the model can be improved. Therefore, in this study, a model combining an attention mechanism and BiLSTM (attention-BiLSTM) with correlation telemetry is proposed to predict the operation trend of satellites.

The remainder of this paper is organised as follows. Related works on MI, attention mechanisms, and BiLSTM deep models are reviewed in Section 2. The problem statement and proposed method are introduced in detail in Section 3. The dataset was collected from FY3E to validate the feasibility of the proposed method. Section 4 provides the results of the evaluation, which were compared to demonstrate the validity of the method. Finally, Section 5 provides conclusions regarding the approach and suggestions for further research.

2. Related Work

This section reviews the related literature on MI, attention mechanisms, and BiLSTM. The MI is used to analyse the correlation between variables, an attention mechanism is applied to assign weights based on the importance of information, and BiLSTM is used to handle large amounts of time series data.

2.1. Mutual Information

In information theory, the concept of MI represents the relationship that connects information. The MI [33] can accurately describe linear and non-linear correlations between variables. Nguyen et al. [34] proposed an approach for constructing higher-dimensional MI-based feature selection methods that consider higher-order feature interactions, which differs from most previous methods that use low-dimensional MI quantities that are effective only at detecting low-order dependencies between variables. By combining MI and a kernel function, Bi et al. [35] proposed an approach for feature selection with non-linear models by defining kernels for feature and class-label vectors. For feature selection, Zhou et al. [36] proposed MI with correlation, which combines the correlation coefficient and MI to measure the relationships between different features. Liu et al. [37] proposed using MI to obtain the correlation ranking of the tested sequence and the degradation process to obtain a strongly correlated feature subset that efficiently deletes redundant and irrelevant features.

2.2. Attention Mechanism

The attention mechanism is widely used for deep learning in many fields, such as natural language processing, finance, and mechanical engineering, and it mimics systems including the human visual attention mechanism and human cognitive system. The core idea of the attention mechanism [38] is to assign a weight; that is, to assign a high weight to important information to reasonably change the attention of the outside world toward that information, ignore irrelevant information, and enlarge the required information. Variants of the attention mechanism have been designed to solve different problems. Chu et al. [39] proposed a convolution-based dual-stage attention architecture combined with LSTM networks for univariate time series forecasting. Deep attention user-based collaborative filtering [40] mines the complex relationships between users and items for recommendation from historical data. Sangeetha and Prabha [41] proposed a multi-head attention fusion model of the world and context embedding for LSTM to analyse sentiment in student feedback. Multi-head attention is a set of multiple heads that jointly learn different representations at each position in a sequence. For speech enhancement, a DNN-based model with self-attention on the feature dimension was proposed, which can make full use of the key information in frame-level features [42].

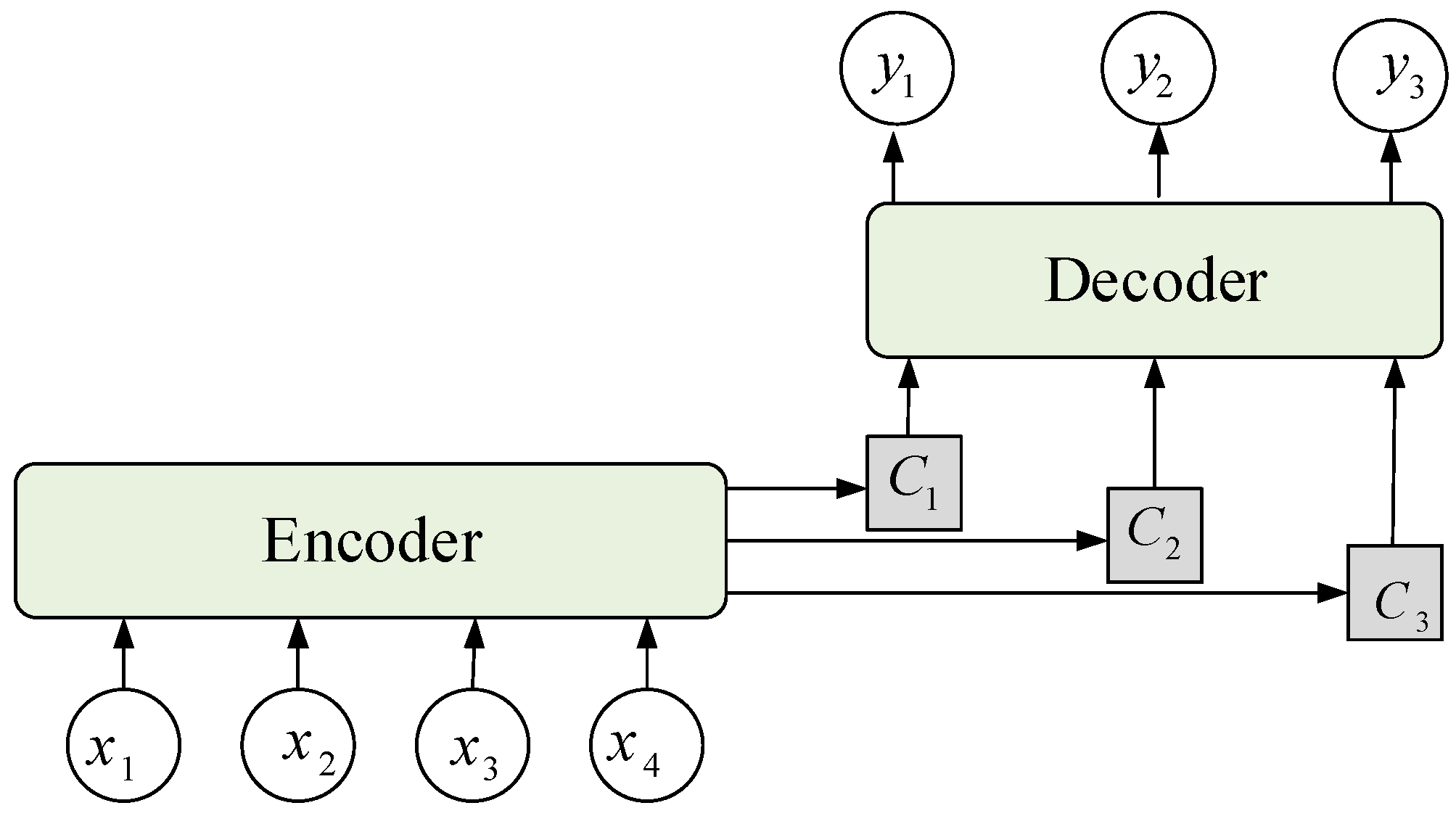

When the traditional encoder–decoder model processes an input sequence, the encoder encodes input sequence X_t into hidden vector h with a fixed length and assigns the same weight to components of the hidden vector. The decoder decodes the output based on hidden vector h. When the length of the input sequence increases, the weights of the components remain the same, and the model does not discriminate input sequence X_t, thus degrading the model’s performance. In this study, an attention mechanism was used to improve the effectiveness of the encoder–decoder model; this mechanism assigns corresponding weights to hidden vector h of the input sequence at different times, merges the hidden vector into a new hidden vector according to its importance, and then inputs it to the decoder. The encoder–decoder model with the attention mechanism is shown in Figure 1, where x₁, …, x₄ are the input sequences; C₁, C₂, and C₃ are the new hidden vectors that are merged by the weight and hidden vector of the input vector; and y₁, …, y₄ are the output sequences.

2.3. Deep BiLSTM Model

The BiLSTM concept is derived from a bidirectional RNN that uses two separate hidden layers to process sequence data both forward and backwards. Bi-LSTM networks have successfully solved a variety of problems in many fields. A BiLSTM model based on multivariate time series data [43] was proposed for trading area forecasts to collect purchasing data and SNS data on ‘restaurants’ in the trading area for progressive learning. A short-term wind power prediction model based on BiLSTM-CNN-WGAN-GP [44] was proposed to address instability and low prediction accuracy in short-term wind power prediction. To predict heart disease, Dileep et al. [45] proposed a cluster-based bidirectional LSTM algorithm, which provided better prediction results than conventional classifiers. For implicit sentiment analysis, a BiLSTM model was proposed with multipolarity orthogonal attention [46], which outperformed the traditional method. Compared with the standard one-way LSTM, BiLSTM can obtain correlations from historical and current information, thereby improving the prediction capability [47].

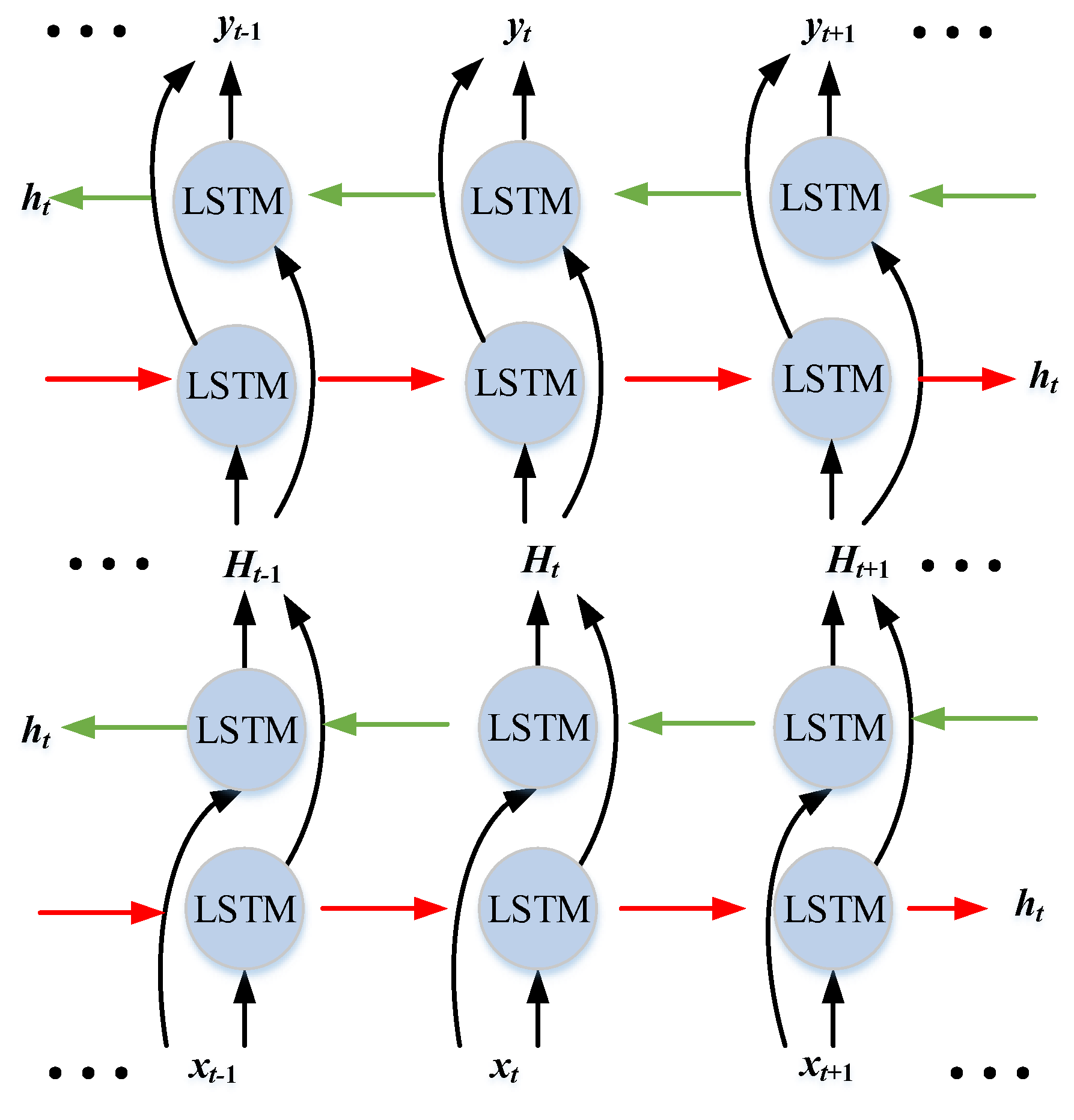

Recently, deep structures formed by stacking multiple LSTMs [48] that can be trained through multiple non-linear layers have been proven to exhibit good model training effects. The output of the previous layer is provided to the next layer as the input data for continuous learning, and additional hidden information can be learned at the learning level. Therefore, in this study, deep BiLSTM was also used for model training, as shown in Figure 2, where x_t−1, x_t, and x_t+1 denote the input sequence; h_t denotes the hidden vector; H_t−1, H_t, and H_t+1 are the outputs of the previous and input data of the next layer; and y_t−1, y_t, and y_t+1 denote the output sequence.

3. Proposed Method

In this section, the problem of predicting satellite operations is first described in detail, and a method for obtaining the optimal correlation feature for the input of the model is subsequently presented. Finally, the model architecture for predicting satellite operations is described.

3.1. Problem Statement

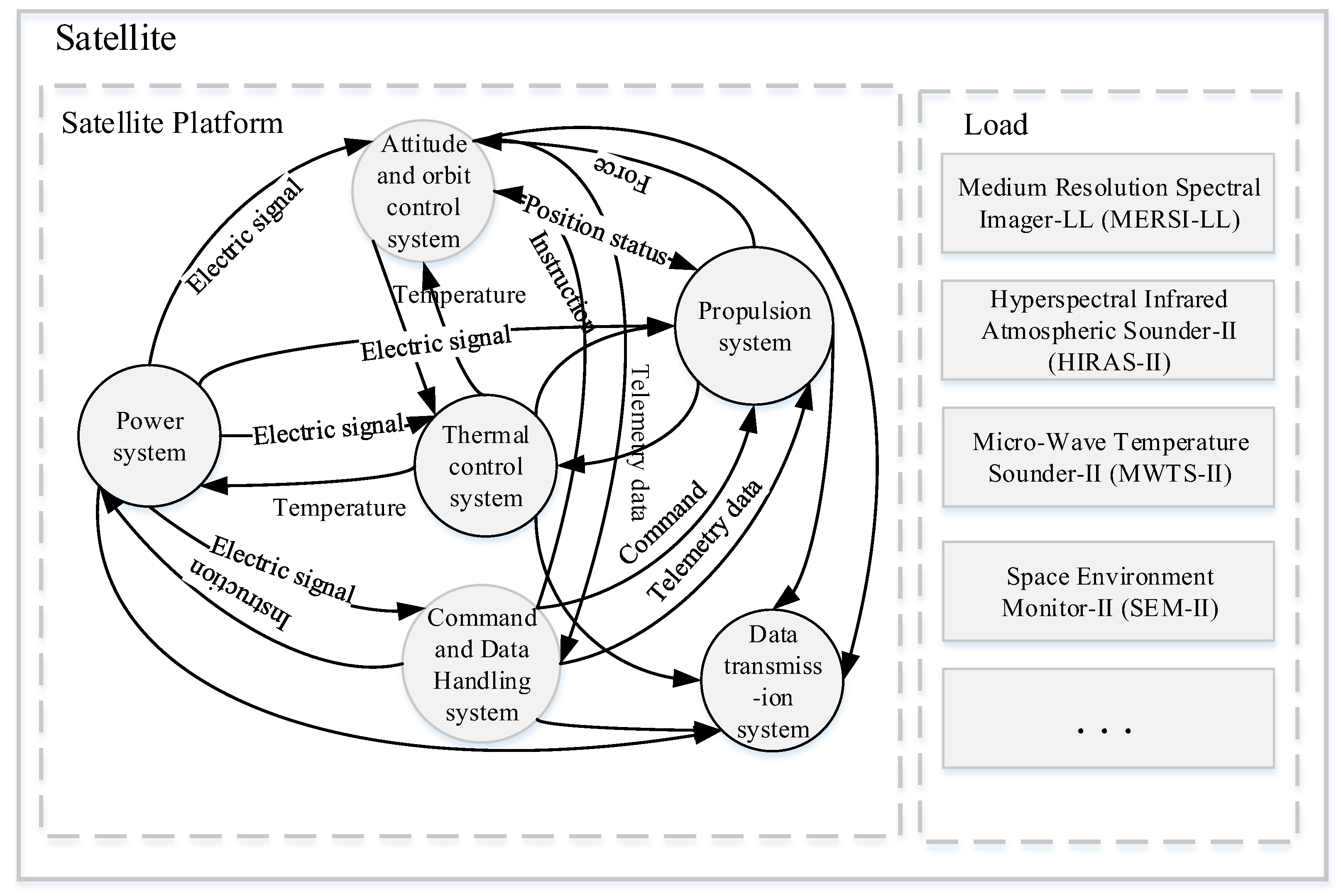

Satellite health management is critical for ensuring the safety of an asset. However, current health management methods are largely manual, are effective, and time-consuming. This study intends to use an artificial intelligence algorithm to solve these problems by deeply mining and analysing telemetry data, which restricts the stable operation of satellites and prevents abnormalities from being found quickly.

Considering the safety and reliability requirements of satellites in orbit, sensors are incorporated into the main functional modules of each key subsystem. These sensors provide telemetry parameter data for satellites from launch, throughout in-orbit operation, and until retirement. Satellite telemetry includes thermodynamic, power system, and dynamic parameters. These large amounts of telemetry data, which are stored in a time series, reflect the state of the satellite payload and the operation of the satellite subsystems. Therefore, a satellite’s operational pattern is related to the amount of temporal data. Telemetry data contain several objective laws and knowledge that can be used to predict trends. The operational trends of the satellite platform and load can be predicted based on these numerous coupled and time-related telemetry data (Figure 3 shows some parameters). However, this study faced the following challenges:

(1)

Feature representation is difficult because there are thousands of satellite telemetry data variables, and owing to the coupling and correlation of satellite systems, no single parameter can be used to comprehensively describe performance; moreover, determining which parameters can accurately define particular aspects of performance is challenging.

(2)

It is difficult to predict trends because satellite systems are complex, the telemetry signal is non-stationary and non-linear, and the telemetry parameters have three different variation patterns: stationary, abrupt, and periodic.

Traditional feature extraction methods no longer satisfy the requirements of satellite data feature representation. Therefore, selecting the features of satellite data that can accurately and comprehensively express system information is one of the key problems to be solved. After analysing the classical machine learning algorithms for time series prediction, the traditional algorithms are no longer suitable for trend prediction for complex satellites. Hence, this study proposes a new satellite prediction model.

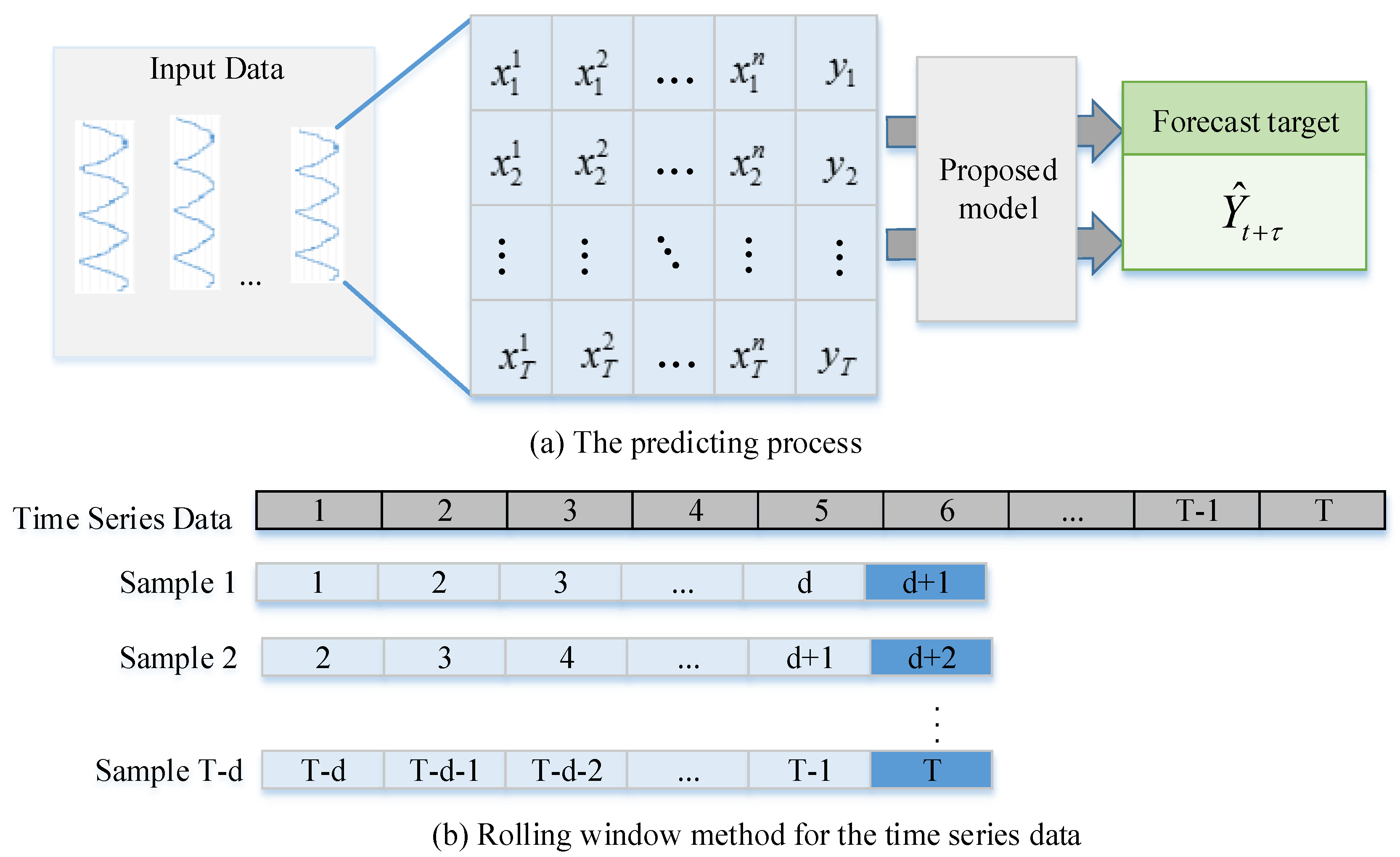

In predicting satellite operations, we use $X_t={(x_t^1,x_t^2,\dots ,x_t^n)}^T$ to denote a vector of all the variables at time t, employ $X^k={(x_1^k,x_2^k,\dots ,x_T^k)}^T$ to represent the k-th variable series of window T, and apply $Y={(y_1,y_2,\dots ,y_T)}^T$ to denote the target series within the length of window T. Target Y is predicted as follows:

$${\stackrel{⌢}{Y}}_{t+\tau }=f(X_t,X_{t-1},\cdots ,X_{t-\tau })$$

(1)

where ${\widehat{Y}}_{t+\tau }$ is the predicted object in the next $\tau$ hours, f represents the final model trained on the historical data, X_t denotes the dataset at the moments being predicted, and $X_{t-\tau }$ is the dataset in $\tau$ hours before the moments being predicted. Figure 4 shows the prediction process and how the sliding window mechanism operates. In Figure 4a, the time series data are considered the input data for the proposed model. In Figure 4b, the first d points of a sequence are regarded as the input, and d + 1 is labelled as the target.

3.2. Telemetry Correlation Analysis Based on the HKNN-MI Dataset

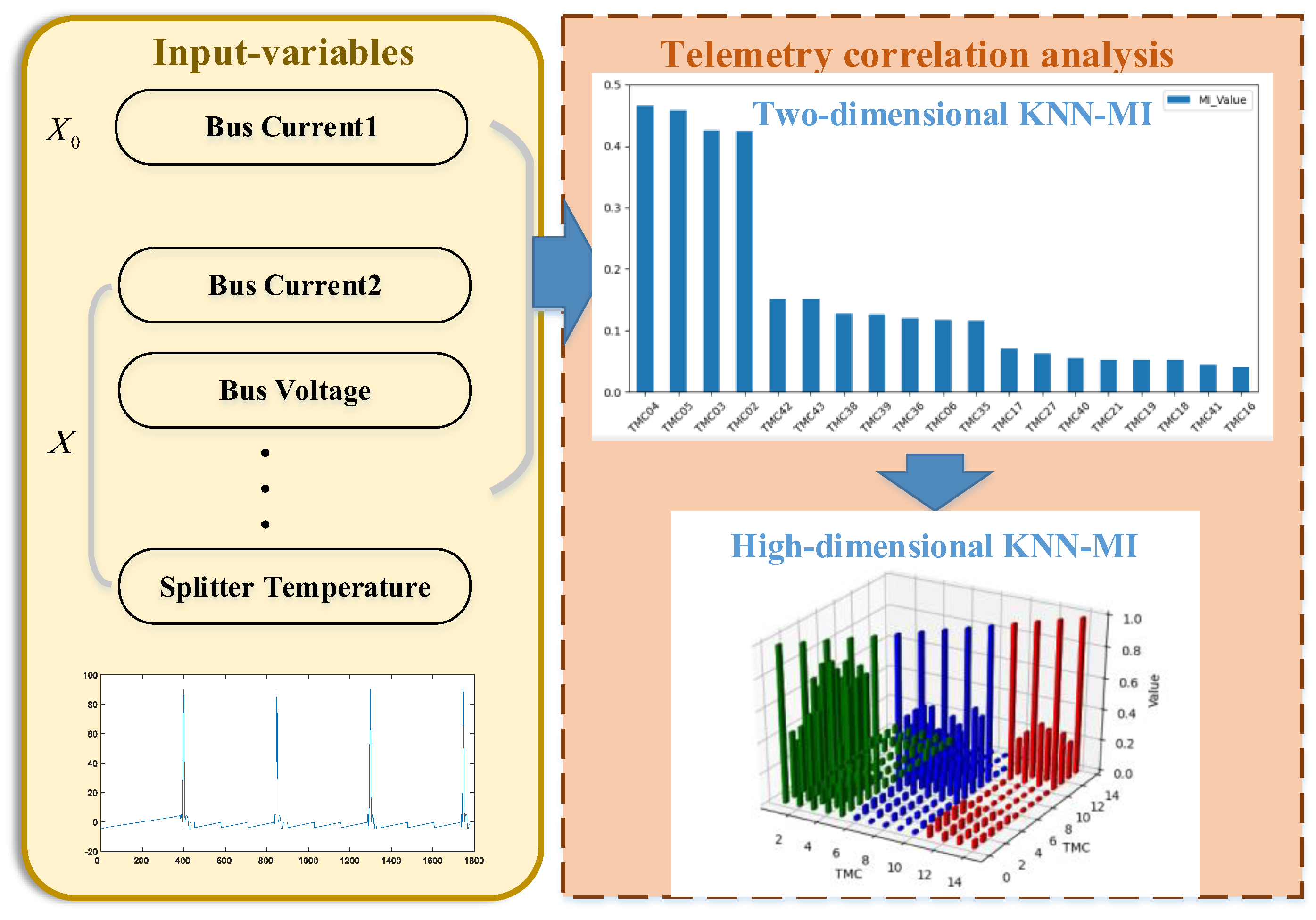

Satellites with complex structures contain a variety of loads and many types of telemetry data. Determining which variables are related to the prediction of the satellite or load operation is difficult, and the telemetry feature variables to be selected are extremely large. Therefore, we propose the KNN-MI method (Figure 5), which selects the correlation of multivariate time series variables to obtain a set of related variables, and the two-dimensional KNN-MI method is extended to estimate the MI between high-dimensional feature variables, i.e., high-dimensional KNN-MI. Moreover, a cumulative search strategy is used to obtain the optimal ranking of all features, and weakly correlated features are eliminated. Then, redundant features are eliminated using the cross-search strategy, and an optimal correlation feature subset is ultimately formed. The specific process is as follows:

(1)

Determine a strongly correlated feature X₀ according to the satellite subsystem or payload to be predicted and set the k value and number of irrelevant features.

(2)

Calculate the high-dimensional MI of all input features X and X₀ and save it in an array.

(3)

Sort the array according to the MI value; the feature corresponding to the maximum MI is considered the first correlation feature X₁, followed by the second correlation feature X₂.

(4)

The weak correlation features are eliminated according to the pre-set number of irrelevant features, and the strong correlation feature subset is obtained.

(5)

Calculate the MI between two pairs in the correlation feature set, determine the feature group corresponding to the maximum MI, and obtain the optimal strongly correlated feature subset.

3.3. Combining Attention and BiLSTM for Satellite Operation Prediction

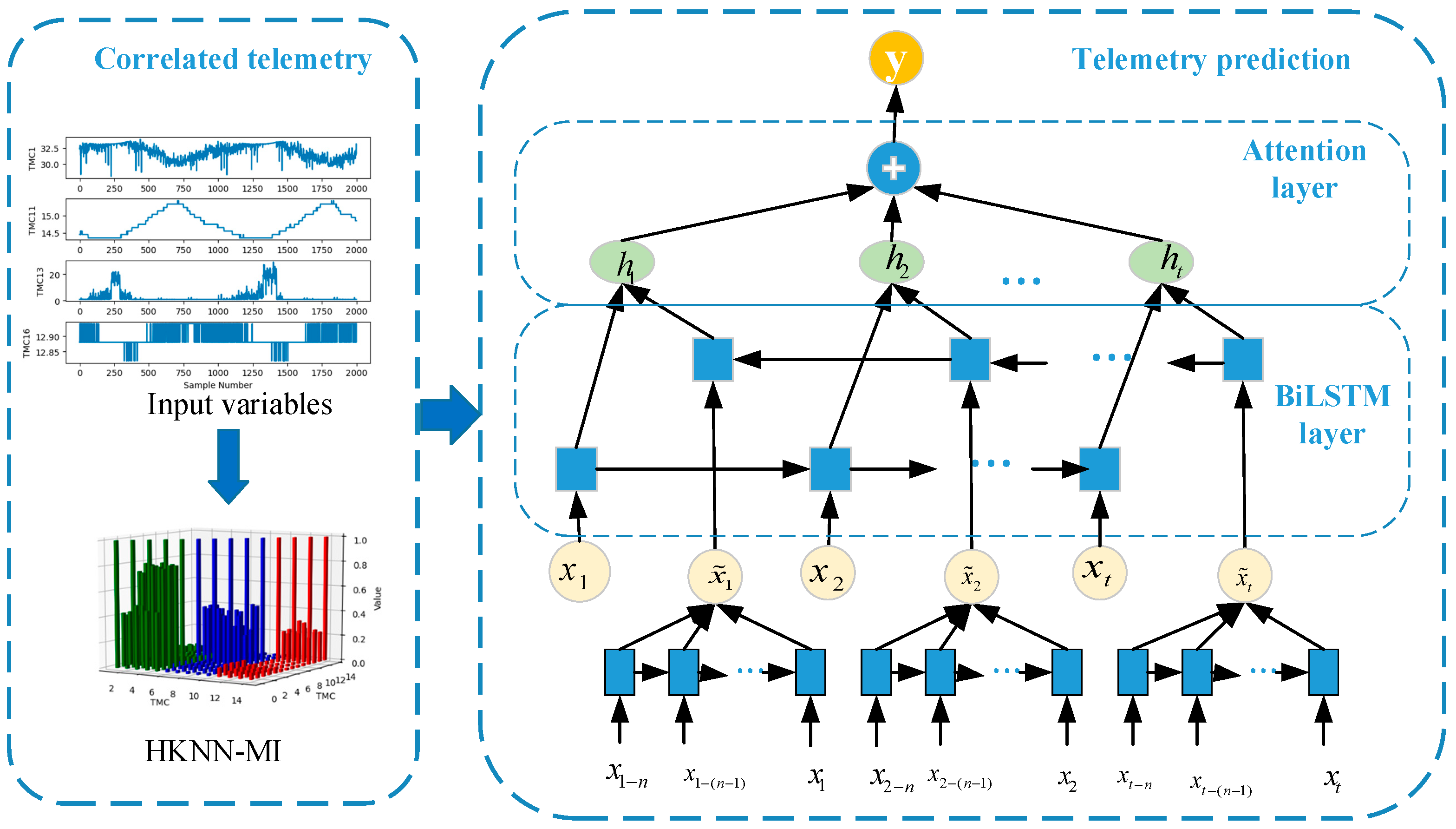

Satellite operation is characterised by telemetry data transmitted from satellites with certain spatial and temporal correlations. BiLSTM can solve the problem of long-term dependence between current and past moments and address the correlation between current and future moments. Accordingly, this study introduces BiLSTM to predict satellites’ operational trends. Moreover, the attention mechanism is employed to assign greater weight to timeframes that have a greater impact on the prediction results.

However, in practical applications, we cannot obtain future time series data; therefore, this study presents the use of the LSTM model to predict future trends and takes the prediction results and historical data as the input of BiLSTM. To improve the model training effect, a deep BiLSTM was designed to learn more hidden information at the training level. Figure 6 shows the workflow of the proposed method. The process consisted of two parts: telemetry correlation and prediction.

BiLSTM comprises forward- and backwards-propagating LSTM. In the LSTM structure, a memory controller is used to decide which information to forget and retain, and the input and output of information are realised through three structures: The input, forget, and output gates. Suppose that c_t−1 denotes the cell state of the previous moment; h_t−1 is the output of the former LSTM; and x_t and h_t represent the input and state outputs, respectively, for the current moment. f_t, i_t, and o_t represent the output values of the forget, input, and output gates, respectively. The updating process can be summarised as follows:

$${\tilde{c}}_t=\mathrm{t}\mathrm{a}\mathrm{n}\mathrm{h}(W_c·\left[h_{t-1},x_t\right]+b_c)$$

(2)

$$f_t=\mathsf{\sigma }(W_f·\left[h_{t-1},x_t\right]+b_f)$$

(3)

$$i_t=\mathsf{\sigma }(W_i·\left[h_{t-1},x_t\right]+b_i)$$

(4)

$$c_t=f_t{c}_{t-1}+i_t{\tilde{c}}_t$$

(5)

$$o_t=\mathsf{\sigma }(W_o·\left[h_{t-1},x_t\right]+b_c)$$

(6)

$$h_t=o_t\mathrm{t}\mathrm{a}\mathrm{n}\mathrm{h}\left(c_t\right)$$

(7)

where ${\tilde{c}}_t$ and c_t represent the candidate and current cell states, respectively. W_c, W_f, W_i, and W_o denote the weights of the candidate input, forget, input, and output gates, respectively. b_c, b_f, b_i, and b_o represent the biases of the candidate input, forget, input, and output gates, respectively. $\sigma$ and tanh represent the sigmoid and hyperbolic tangent activation functions, respectively.

In the BiLSTM network, after telemetry correlation analysis based on HKNN-MI, the historical time series data X = [x₁, x₂, …, x_t] are input into the forward network unit of the BiLSTM, which obtains the forward hidden layer state ${\overrightarrow{h}}_t$. The historical time series data X = [x_1−n, x_1−(n−1), …, x₁] are used as the input of the LSTM network to predict the future time series data ${\tilde{x}}_1$. The post-telemetry correlation analysis of the predicted time series data $\tilde{X}=[{\tilde{x}}_1,{\tilde{x}}_2,\dots ,{\tilde{x}}_t]$ are input to the backwards network unit of BiLSTM, which obtains the backwards hidden layer states ${\overleftarrow{h}}_t$. ${\overrightarrow{h}}_t$ and ${\overleftarrow{h}}_t$ are expressed separately as

$${\overrightarrow{h}}_t=\sigma (W_{x\overrightarrow{h}}{x}_t+W_{\overrightarrow{h}\overrightarrow{h}}{\overrightarrow{h}}_{t-1}+b_{\overrightarrow{h}})$$

(8)

$${\overleftarrow{h}}_t=\sigma (W_{x\overrightarrow{h}}{x}_t+W_{\overleftarrow{h}\overleftarrow{h}}{\overleftarrow{h}}_{t-1}+b_{\overleftarrow{h}})$$

(9)

where $\sigma$ is the non-linear activation function of the hidden layer, $W_{x\overrightarrow{h}}$ is the weight from input x of the current neuron to the hidden layer ${\overrightarrow{h}}_t$ at this moment, $W_{\overrightarrow{h}\overrightarrow{h}}$ is the weight from the state quantity at the previous moment to the current state quantity, ${\overrightarrow{h}}_{t-1}$ is the output value of the hidden layer at the previous moment, and $b_{\overrightarrow{h}}$ is the offset term. ${\overrightarrow{h}}_t$ and ${\overleftarrow{h}}_t$ are pieced together for h_t, which is the hidden state of BiLSTM at timestep t. The linear combination H of BiLSTM hidden vectors with n time steps is defined as

H = (h₁, h_2, …, h_n)

(10)

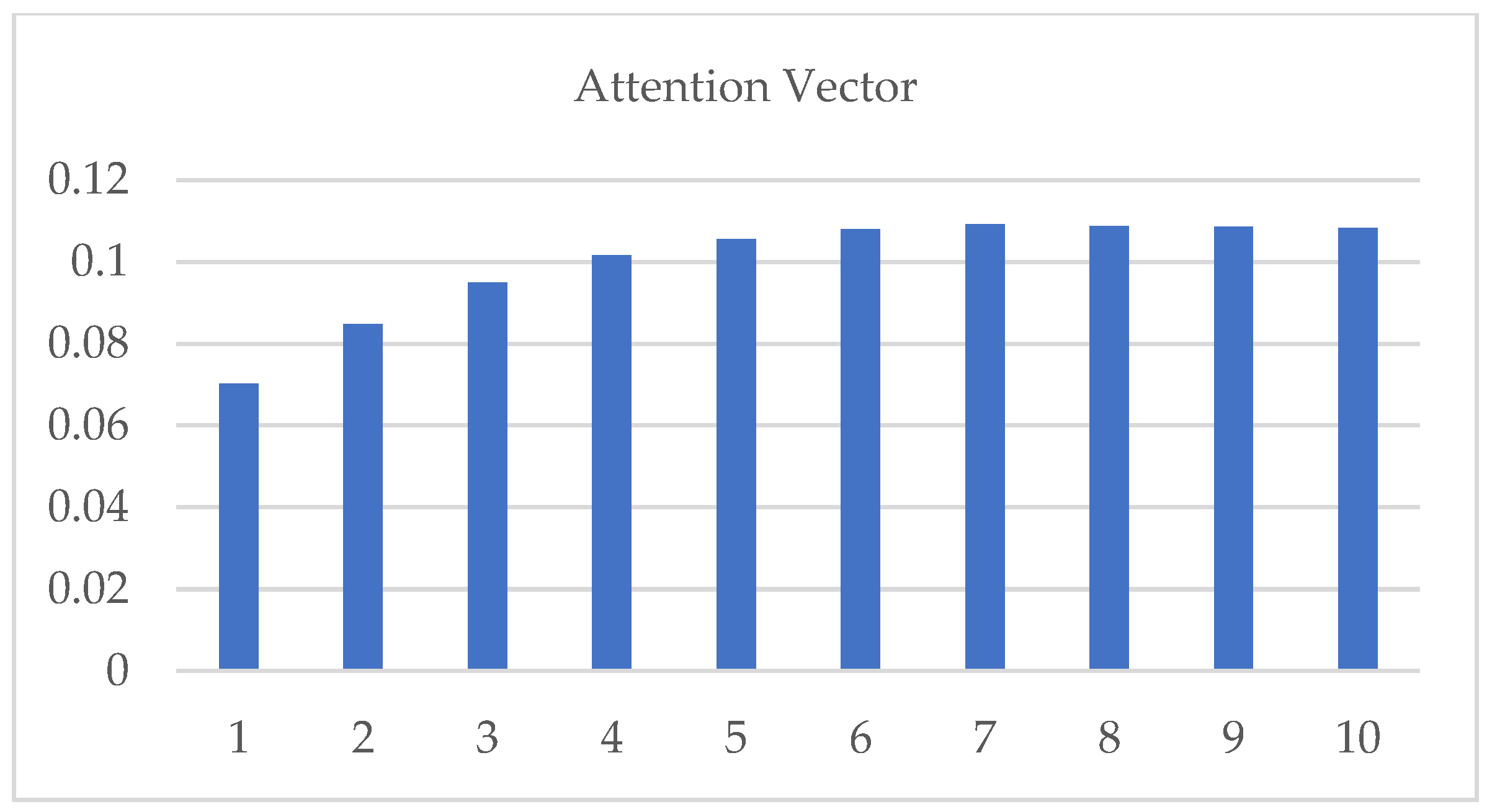

To improve the ability of the BiLSTM prediction model, a temporal attention mechanism was adopted in the decoder stage to select and weigh the relevant encoder’s hidden state across time steps. Thus, the temporal relationships of the input sequences can be learned, and the model assigns a corresponding weight to the input part during training. Supposing that the previous decoder hidden state is $h_{i-1}^{\prime }$ and the encoder hidden state is h_j, the attention weights of the encoded hidden state can be computed as

$$e_{ij}=v\tanh (W·h_j+U·h_{i-1}^{\prime }+b)$$

(11)

$$a_{ij}=\frac{\exp (e_{ij})}{{\displaystyle {\sum }_{k=t-n}^t\exp (e_{ik})}}$$

(12)

$$C={\displaystyle {\sum }_{j=t-n}^t{a}_{ij}{h}_j}$$

(13)

Here, e_ij is the relationship score between $h_{i-1}^{\prime }$ and h_j; the higher the value, the greater the correlation. a_ij is the attention coefficient corresponding to e_ij and is assigned to the different intermediate states h_j. The vector C obtained by summarising a_ij and h_j is input into the decoder, which calculates the prediction result through the fully connected layer the next time.

4. Results and Discussion

4.1. Datasets

FY3E is a second-generation polar-orbiting meteorological satellite and the first civil dawn-dusk orbit meteorological satellite in the world. The system includes a power system, control system, thermal control system, and attitude and orbit control system, which have 11 loads, namely, the Medium Resolution Spectral Imager-LL (MERSI-LL), Hyperspectral Infrared Atmospheric Sounder-II (HIRAS-II), and Micro-Wave Temperature Sounder-III (MWTS-III) loads. The operating trends of the power system were used to evaluate the performance of the proposed approach. The telemetry data of the power system, which were generated and transmitted from the FY3E satellite, were used to identify the method.

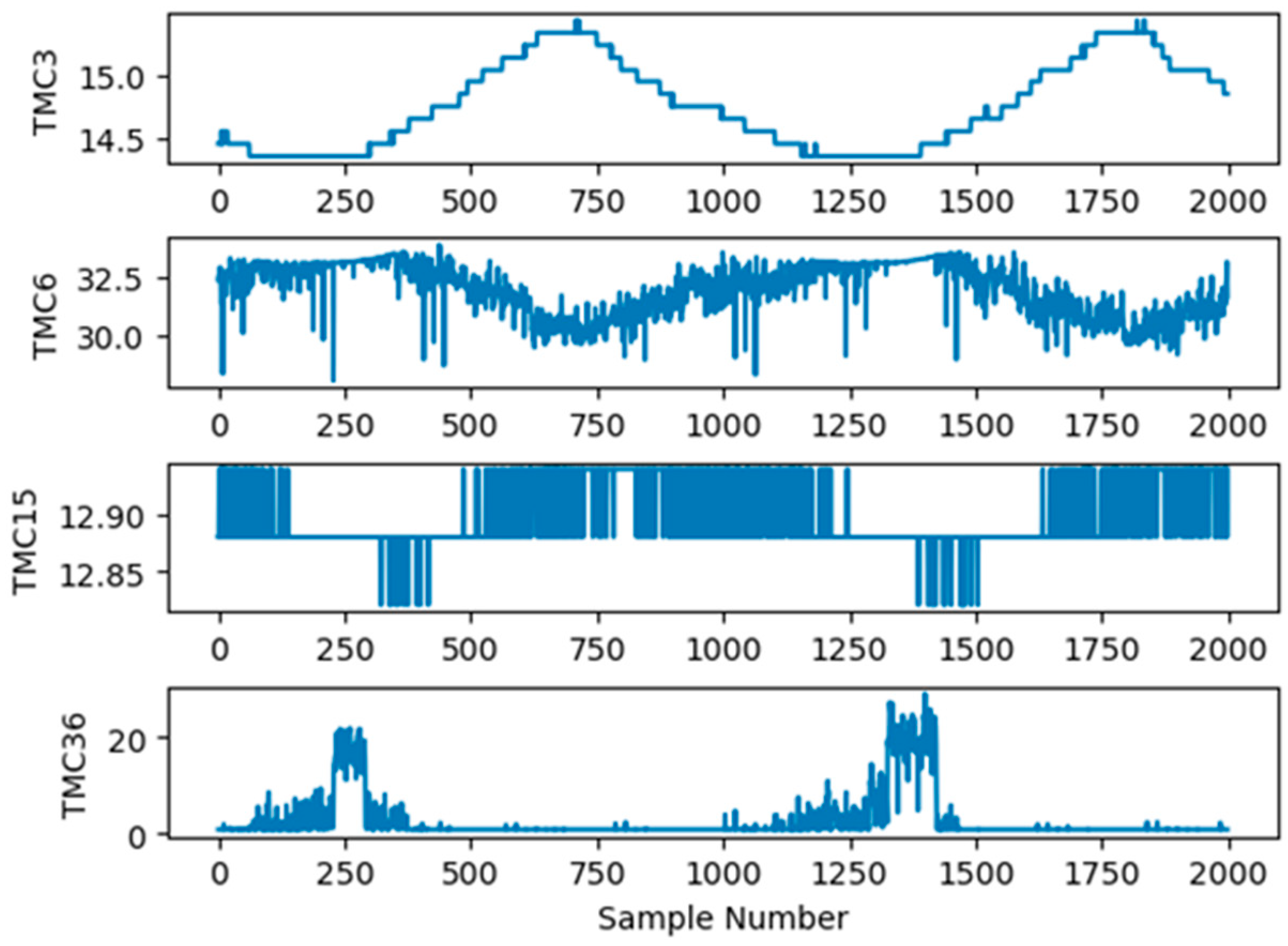

Seventy-six observation variables corresponding to the telemetry values generated from the power system of the FY3E satellite were used to predict the operational trends of the power system. Therefore, each sample dataset for trend prediction consisted of 76 variables, that is, X = [TMC1 TMC2 … TMC76], as shown in

Table 1. Satellite telemetry variables.

Variable Name	Variable Symbol
Bus Current1	TMC1
A-way Charging Array Current	TMC2
B-way Charging Array Current	TMC3
A7 Current of Solar Cell Powered Array	TMC4
B7 Current of Solar Cell Powered Array	TMC5
Bus Current2	TMC6
Bus Voltage	TMC7
Voltage of Group A Battery	TMC8
A-way Charging Control State	TMC9
Voltage of Group B Battery	TMC10
B-way Charging Control State	TMC11
1~9 Voltage of Group A Battery	TMC12
10~18 Voltage of Group A Battery	TMC13
19~27 Voltage of Group A Battery	TMC14
28~36 Voltage of Group A Battery	TMC15
Switch State of Group A Battery Discharge	TMC16
Discharge Regulation Circuit A1 Voltage	TMC17
Discharge Regulation Circuit A2 Voltage	TMC18
Discharge Regulation Circuit A3 Voltage	TMC19
Discharge Regulation Circuit A4 Voltage	TMC20
.	.
.	.
.	.
Temperature of Solar Cell Outer Panel	TMC75
Splitter Temperature	TMC76

. The dataset was generated at a sampling interval of 5 s. In total, 108,708 samples were collected as training and test samples. Figure 7 shows that TMC3, TMC6, TMC15, and TMC36 changed with time from 00:00:00 to 00:03:14 on some days. As shown in Figure 7, different variables exhibited different operation trends with time.

4.2. Evaluation Metrics

To assess the performance of the proposed model, the mean absolute error (MAE) and root mean square error (RMSE) were calculated. The MAE is the average value of the absolute error and reflects the real situation of the prediction error. The MAE is calculated as follows:

$$MAE=\frac{1}{n}{\displaystyle \sum _{i=1}^n|{\widehat{y}}_i-y_i|}$$

(14)

where ${\widehat{y}}_i$ and y_i represent the predicted and real values, respectively, at time point i and n is the number of samples. A smaller MAE indicates a more accurate prediction.

The RMSE is the square root of the square sum of the errors divided by the number of samples and is defined by Equation (15):

$$RMSE=\sqrt{\frac{1}{n}{\displaystyle \sum _{i=1}^n{({\widehat{y}}_i-y_i)}^2}}$$

(15)

where n is the number of samples, y_i is the actual value, and ${\widehat{y}}_i$ is the corresponding prediction for the target series. A smaller RMSE indicates a more accurate prediction.

The MAE and RMSE can be used to measure prediction error. The difference is that the RMSE can penalise large errors, whereas the MAE cannot. However, the MAE better reflects the actual situation of the predicted value error.

4.3. Experimental Analysis

4.3.1. Telemetry Correlation Analysis

The load, charging, and shunt currents at all levels are the most important factors in the power system of the FY3E meteorological satellite. The sum of these terms is the bus current, which is the output current of the solar array. The product of the bus current and voltage is the output power of the solar array. Therefore, the bus current is considered a focus in the power system. These parameters can also be used to determine the use of power systems in each satellite subsystem.

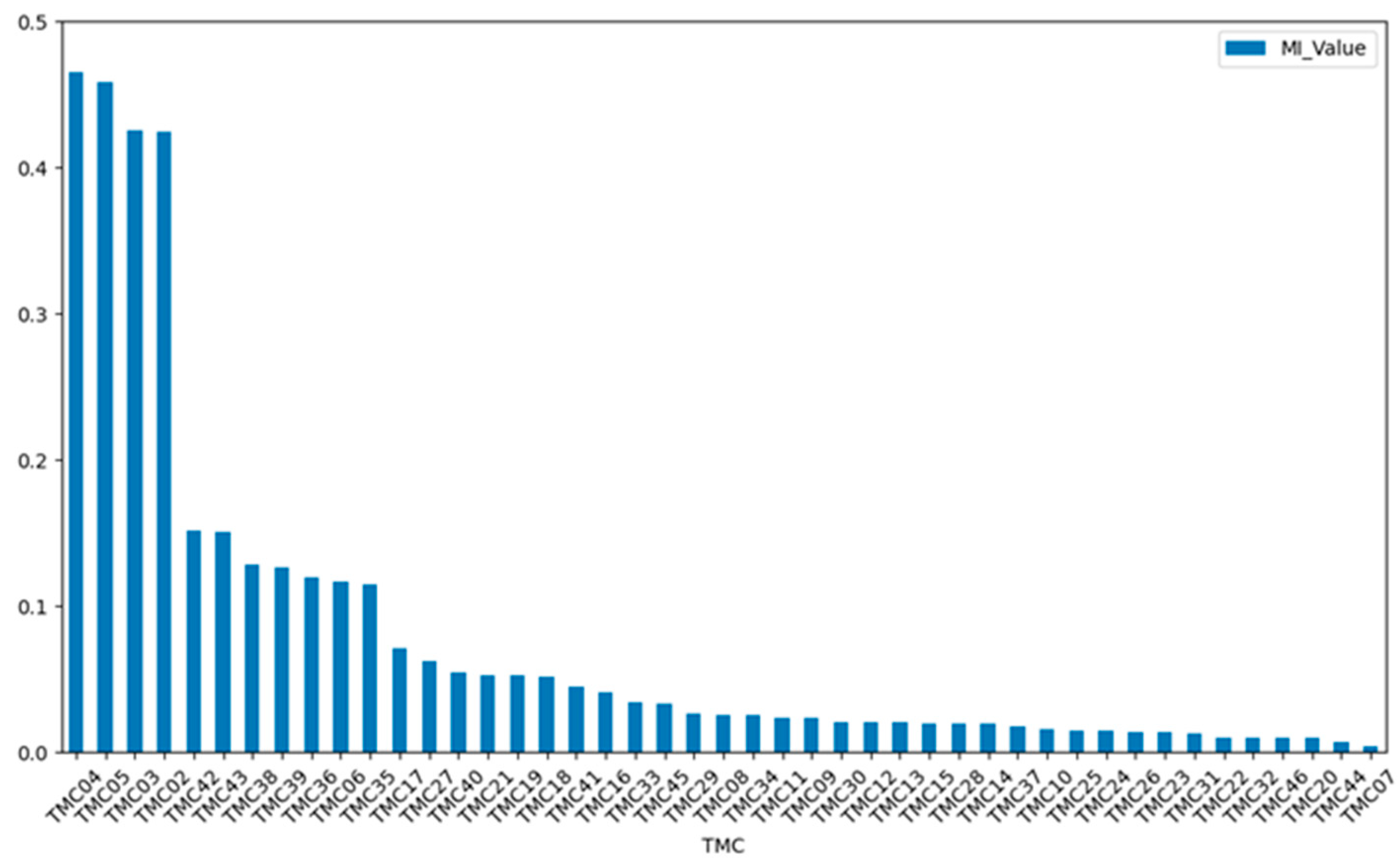

As mentioned, the telemetry bus current TMC1 (Bus Current1) is the strongly correlated feature X₀ in the operation trend of the power system. The MI results obtained with other telemetry methods are shown in Figure 8, and only the first 45 results are displayed. In Figure 8, the horizontal axis represents each telemetry channel, and the vertical axis represents the MI values of TMC1 and the other telemetry channels. As shown in Figure 8, of the 76 main telemetries of the power system, the first 21 are appropriately selected as correlation features, and the last 55 are irrelevant.

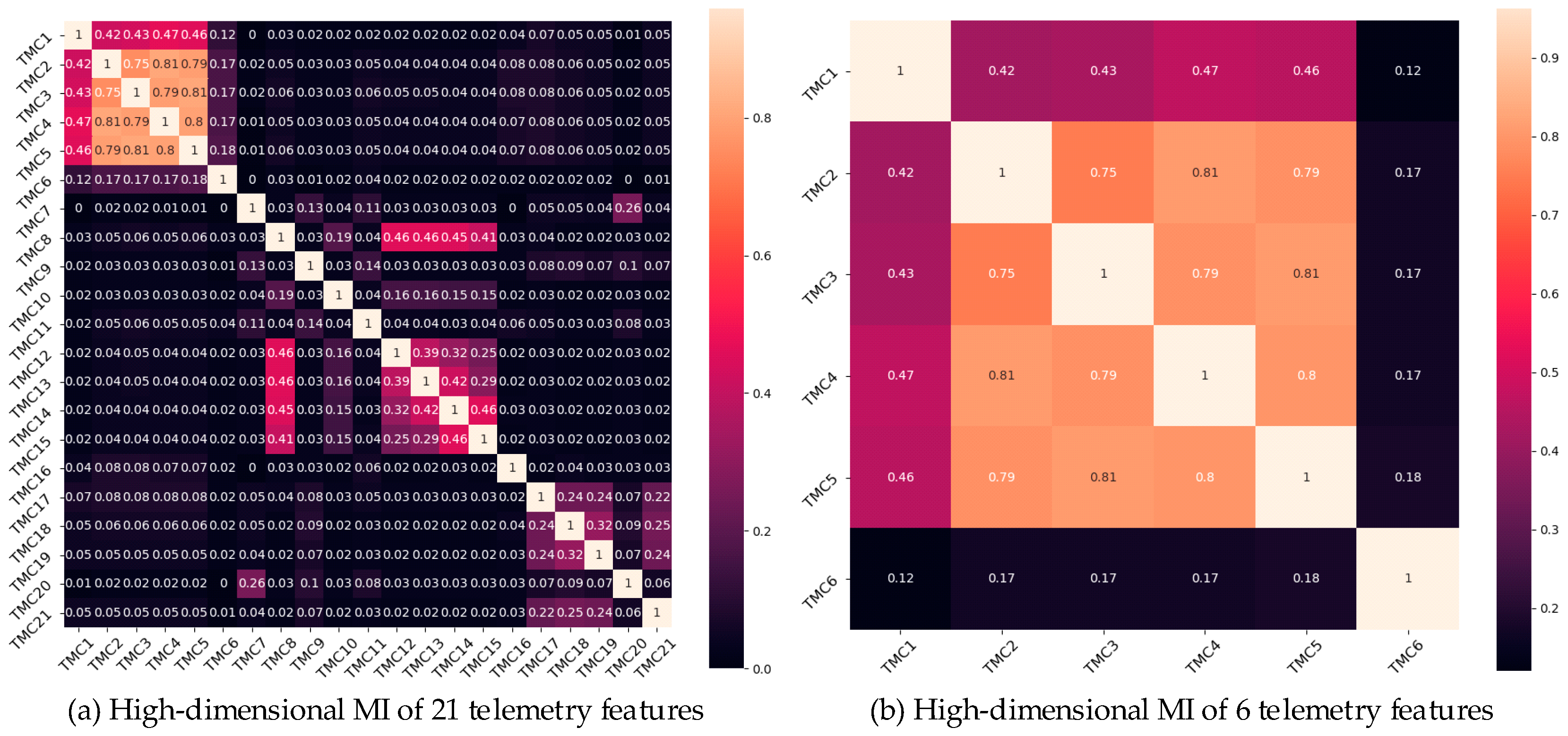

The high-dimensional MI of the 21 selected telemetry features was calculated. Figure 9 displays the MI values for 21 and the first 6 of 21 telemetry channels, as shown in Figure 9a and Figure 9b, respectively. As shown in Figure 9, TMC1, TMC2, TMC3, TMC4, and TMC5 had high correlations; TMC8, TMC12, TMC13, TMC14, and TMC15 had high correlations; and TMC17, TMC18, TMC19, and TMC21 had high correlations. These telemetry channels profoundly affect the operations of power systems. To explain this matter more intuitively, the MI connecting these 14 telemetry devices (including itself) is shown in Figure 10. The different coloured bars indicate that these telemetry variables are closely related. These results suggest that the operation of the power system can be characterised by these telemetry channels. Therefore, TMC1, TMC2, TMC3, TMC4, TMC5, TMC8, TMC12, TMC13, TMC14, TMC15, TMC17, TMC18, TMC19, and TMC21 are considered important features for predicting the future operation of a power system.

4.3.2. Analysis of Parameters

The dataset was normalised to reduce the impact of dimensional differences in its characteristics. After reprocessing, the dataset was partitioned using the roulette method, with 70%, 20%, and 10% as the training, verification, and test sets, respectively. Two experiments were conducted to evaluate the performance of the proposed method. In Part 1, an algorithm was employed to determine the optimal hyperparameters. Part 2 used a fixed hyperparameter value. The results showed that the proposed method achieved the best performance.

Because the experimental parameter settings had a significant impact on the results of the model training, the results of the final experiment after adjustment are shown in

Table 2. Parameter settings of our model.

Parameter Name	Value	Parameter Name	Value
Epoch	20	Batch size	8
Optimiser	Adam	Learning rate	0.0001
Dropout	0.5	Number of hidden units	128

. The number of different hidden units had a considerable influence on the prediction performance of the designed model. Furthermore, on the sample, the training accuracy was highest when using 128 hidden units, 20 epochs, the Adam optimiser [49], a dropout rate of 0.5, a batch size of 8, and a learning rate of 0.0001.

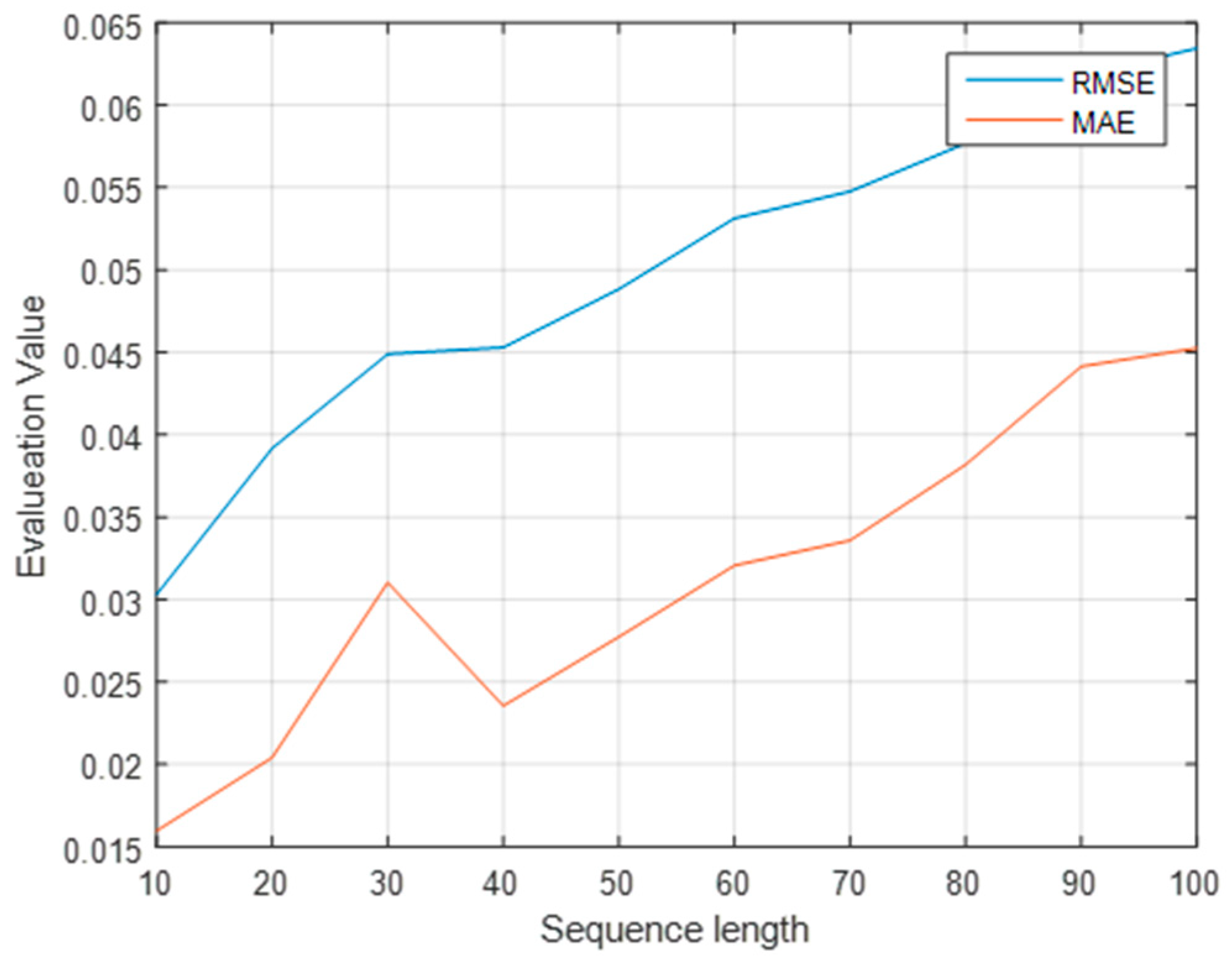

Because the input sequence contains information at multiple points before the prediction point, the length of the input sequence must be determined. Consequently, the model can simplify the calculation process and shorten the calculation time while ensuring accuracy. The experiments were conducted when the lengths of the input sequences were 10, 20, and 100. The lowest MAE and RMSE values were obtained with a length of 10. Moreover, the forecast accuracy was the highest, as shown in Figure 11. As shown in Figure 12, for the 10 input sequences, the attention vector was applied to the output of the BiLSTM layer, with the attention mechanism as a function of the input dimensions.

4.4. Performance Evaluation

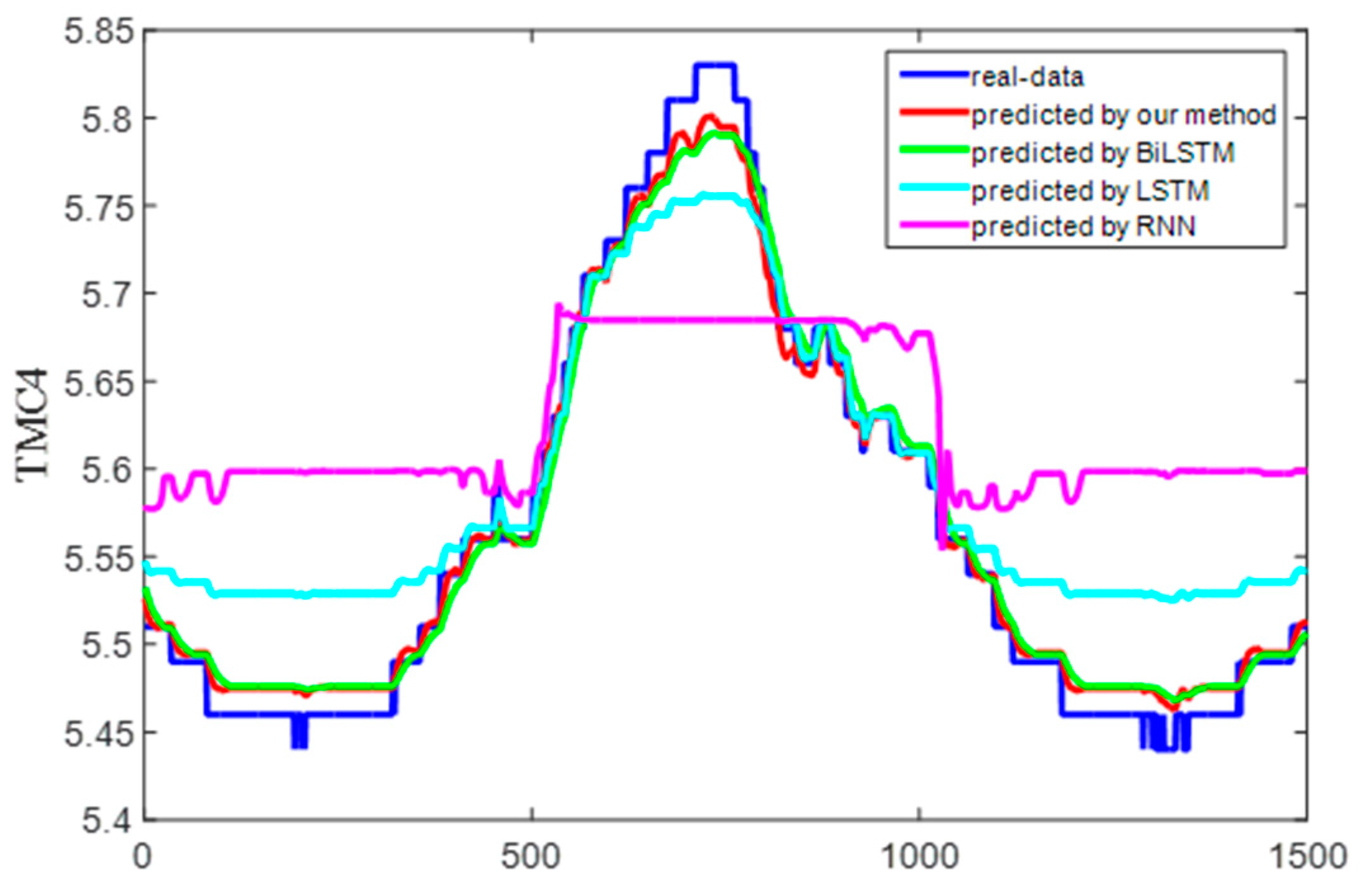

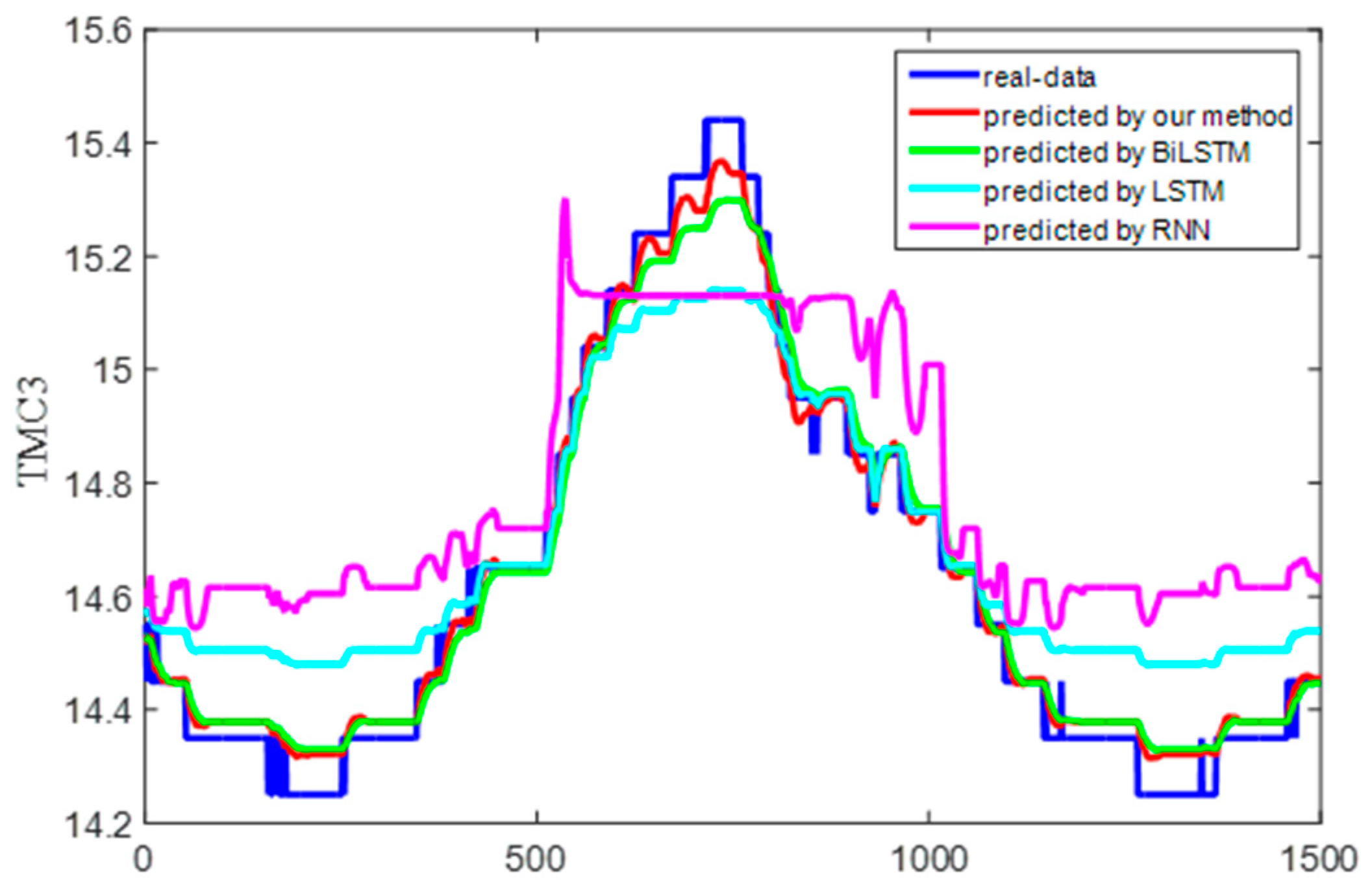

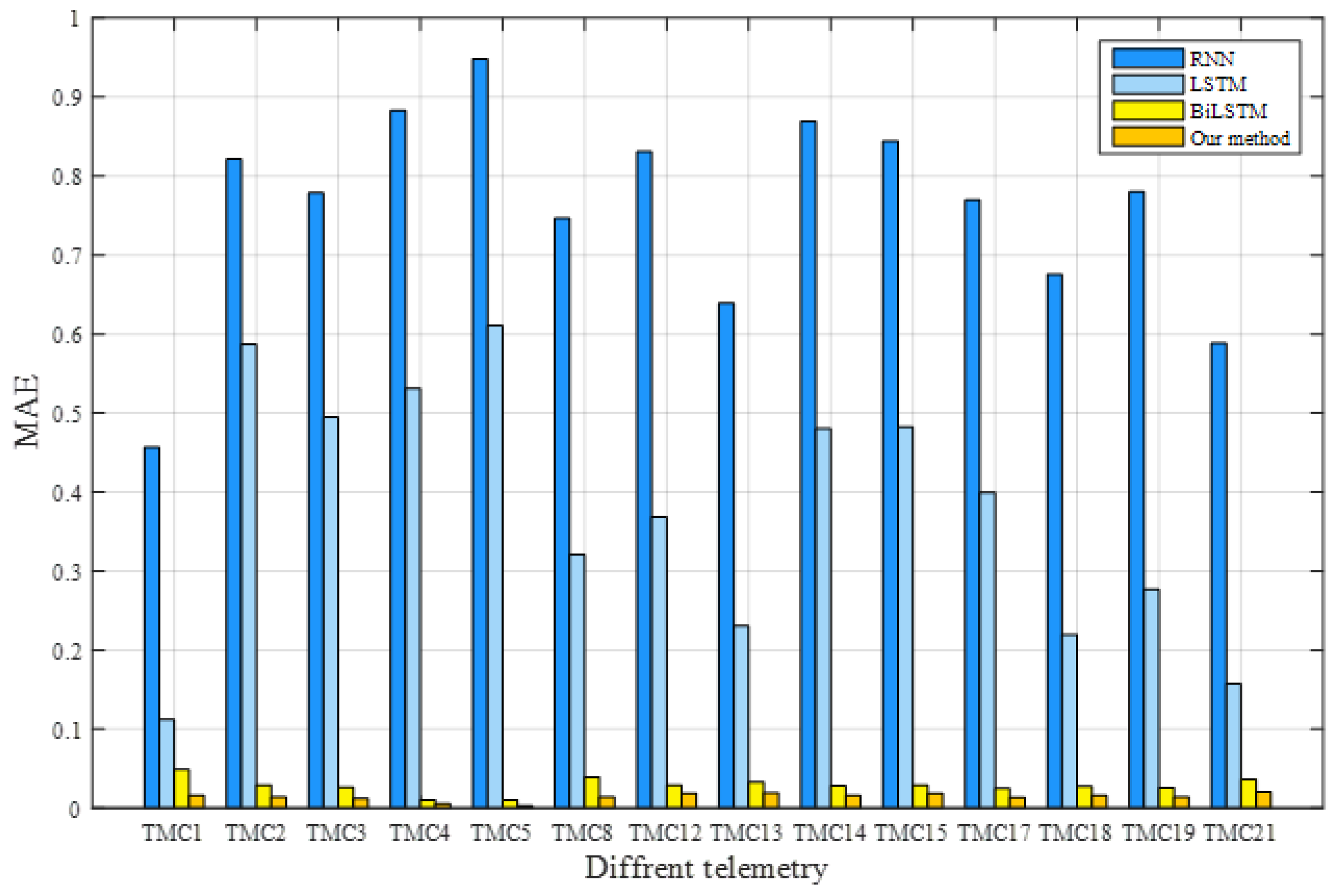

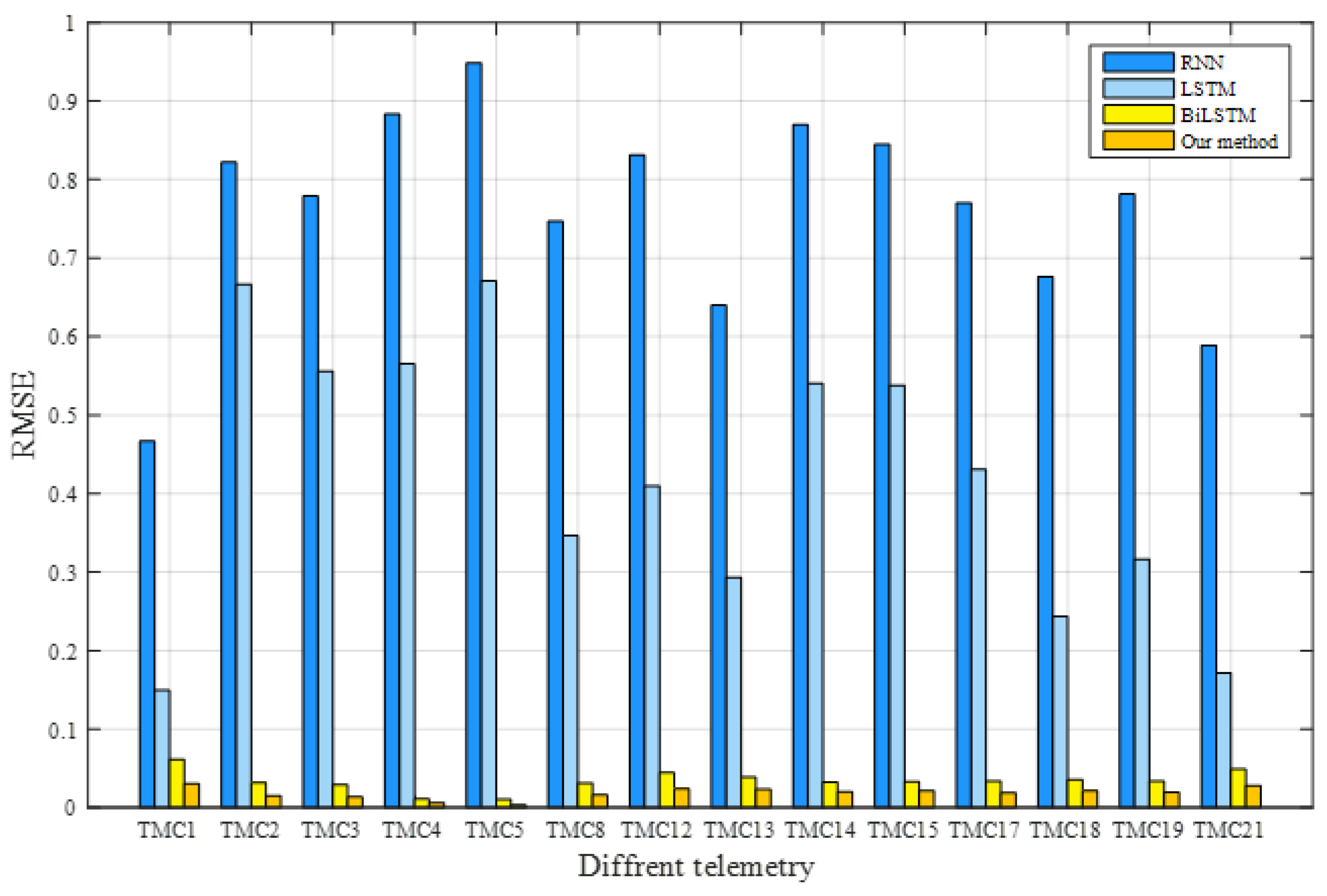

To verify the effectiveness of the proposed method, experiments were conducted to compare the three baseline models, BPNN, RNN, and LSTM, using the same training and test data in an identical operating environment. All the experiments were conducted using an Intel (R) Core (TM) i7-1.99 GHz, 8.00 GB RAM, and Windows 10 platform. The development environment included Python 3.6 and PyTorch 1.0.1.

In the experiment, TMC1, TMC2, TMC3, TMC4, TMC5, TMC8, TMC12, TMC13, TMC14, TMC15, TMC17, TMC18, TMC19, and TMC21 characterised the operating conditions of the satellite power system. The training dataset was used to train the model, the verification dataset was used to optimise its parameters, and the trained model was applied to predict the test dataset for all models. The RMSE and MAE of each method were calculated according to the real and predicted values. The prediction results of these methods are listed in

Table 3. Prediction performance comparison of various models.

Telemetries	Evaluation Metric	Model
		RNN	LSTM	BiLSTM	Our Method
TMC1	RMSE	0.46669	0.14936	0.06132	0.03030
	MAE	0.45680	0.11217	0.04886	0.01596
TMC2	RMSE	0.82187	0.66640	0.03209	0.01511
	MAE	0.82162	0.58720	0.02940	0.01368
TMC3	RMSE	0.77889	0.55579	0.02928	0.01347
	MAE	0.77861	0.49463	0.02668	0.01208
TMC4	RMSE	0.88306	0.56522	0.01094	0.00627
	MAE	0.88289	0.53139	0.01017	0.00507
TMC5	RMSE	0.94832	0.67078	0.01053	0.00342
	MAE	0.94807	0.61076	0.01009	0.00285
TMC8	RMSE	0.74684	0.34636	0.03135	0.01618
	MAE	0.74634	0.32107	0.03921	0.01366
TMC12	RMSE	0.83101	0.40984	0.04435	0.02430
	MAE	0.83075	0.36860	0.02916	0.01878
TMC13	RMSE	0.63976	0.29317	0.03865	0.02327
	MAE	0.63937	0.23051	0.03306	0.01948
TMC14	RMSE	0.87005	0.54022	0.03228	0.02016
	MAE	0.86907	0.48015	0.02840	0.01571
TMC15	RMSE	0.84486	0.53786	0.03294	0.02157
	MAE	0.84427	0.48220	0.02902	0.01873
TMC17	RMSE	0.77010	0.43085	0.03355	0.01901
	MAE	0.76960	0.39963	0.02528	0.01316
TMC18	RMSE	0.67605	0.24346	0.03563	0.02177
	MAE	0.67569	0.21981	0.02771	0.01562
TMC19	RMSE	0.78155	0.31655	0.03339	0.01960
	MAE	0.78004	0.27662	0.02611	0.01411
TMC21	RMSE	0.58878	0.17176	0.04887	0.02791
	MAE	0.58815	0.15765	0.03634	0.02059

. The best assessment results for each telemetry service are shown in bold. Our model attained the lowest RMSE and MAE values, indicating its superiority. To further visualise the prediction performance, Figure 13 and Figure 14 compare the RMSE and MAE values, respectively, of the telemetry methods that represent the operation of satellite power systems. These results confirm that, in terms of predicting satellite operation trends, the proposed model outperforms the classical methods.

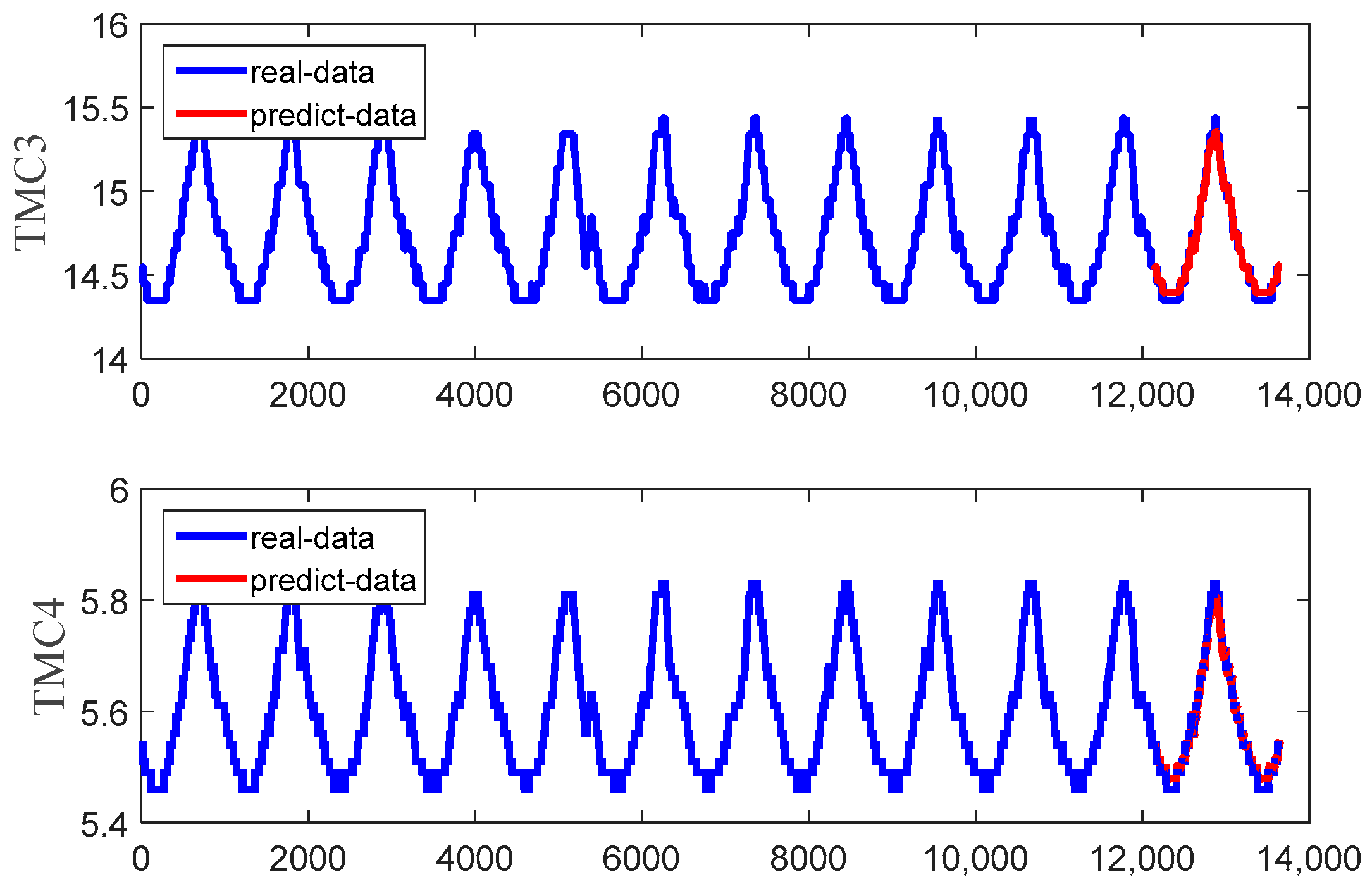

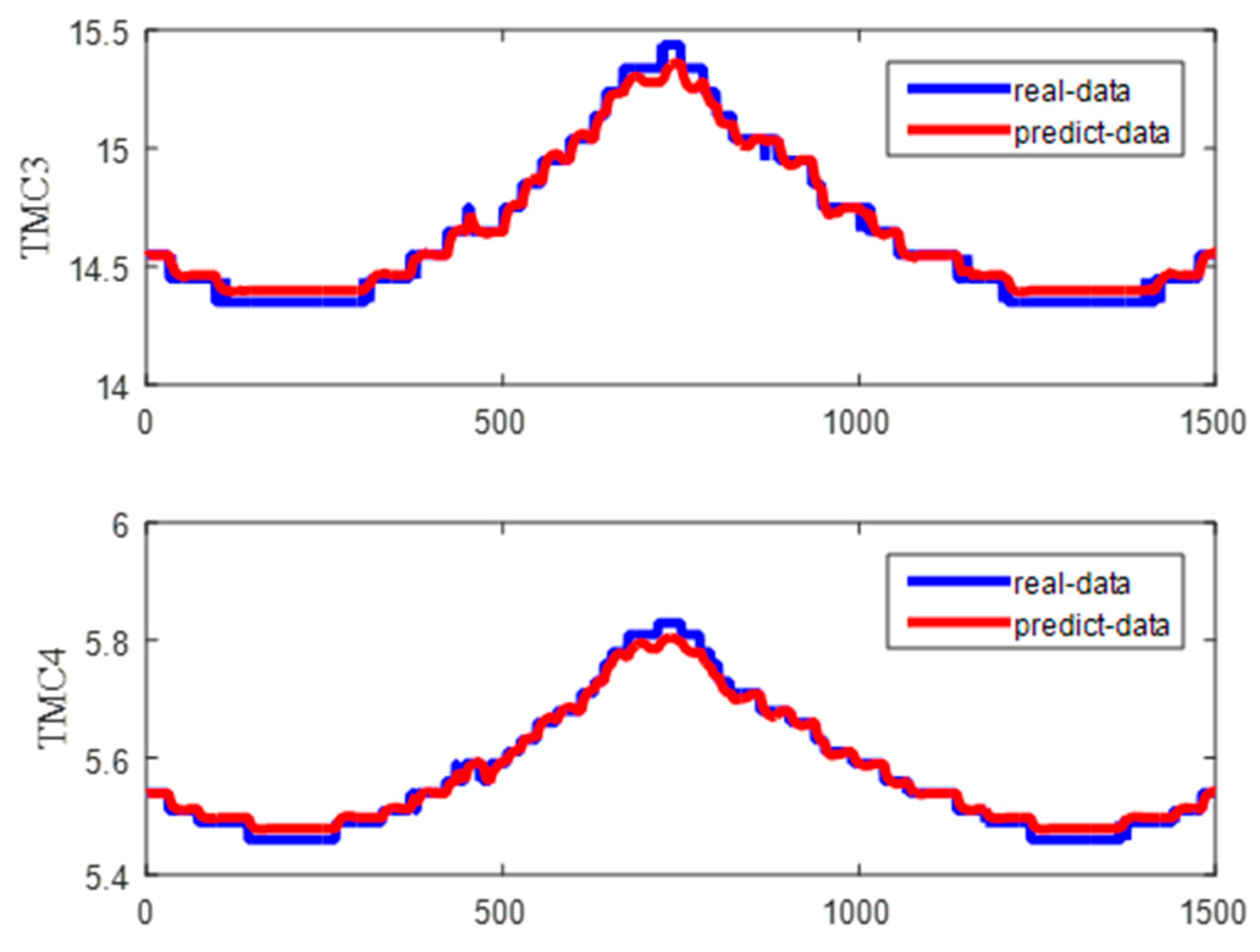

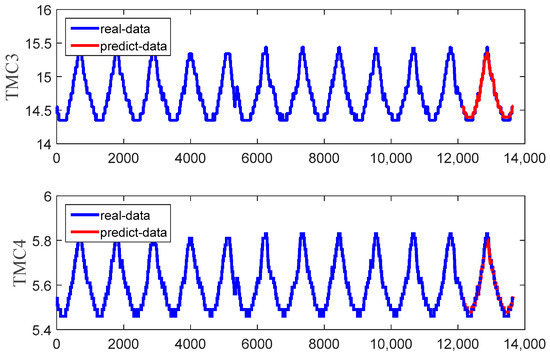

Figure 15 shows the predicted and real value curves of our model for TMC3 and TMC4. The samples obtained by the sliding window were input into the trained model for prediction, and a single predicted value was obtained each time. The predicted values were obtained by combining the predicted values for each sample. The prediction trajectory was formed using an iteratively trained model. To better represent the prediction results, the curve is enlarged, as shown in Figure 16, on the same dataset as in Figure 15. Moreover, the same dataset was used to compare the predictions of our method with those of classical algorithms, as shown in Figure 17 and Figure 18, which intuitively show each degree of deviation through the prediction curves of all algorithms and the real curves for TMC3 and TMC4. Evidently, our algorithm was superior to the other algorithms. Therefore, the proposed model is effective and feasible for accurately predicting satellite operations.

5. Conclusions

To identify abnormalities early and predict a satellite’s operational status, this study proposed an attention-BiLSTM model with correlation telemetry. The BiLSTM prediction model connected to the attention mechanism can determine the importance of the information at each input time, and the training efficiency of the model can be improved. The HKNN-MI method was applied to select relevant telemetry variables from multiple variables in the satellite telemetry data. The superiority of the proposed model over the RNN, LSTM, and BiLSTM models was verified using a dataset from the power system of the FY3E meteorological satellite. The experimental results indicated that the proposed model achieved state-of-the-art results in the prediction of satellite operations.

Further research will be conducted to improve upon the existing methods to achieve a unified model for feature selection and prediction and obtain more accurate results based on larger datasets. The application of this method to real-time operation data from satellites rather than historical datasets will also be investigated, for which the occurrence of satellite anomalies can be predicted in advance. At the same time, we also need to consider whether the algorithm is set on the satellite or the ground system. Suppose the response time for faults is extremely high. In that case, the application of satellite may be more suitable, as it can monitor the status of the satellite in real-time. However, the resources on satellite are limited, and the model needs to be optimized to adapt to the limitations of energy, computing power, and storage space. The ground system can utilise more abundant resources to handle more complex tasks. In addition, the ground system is easier to maintain and update, which helps maintain the long-term stable operation of the system. The maintenance cost of a satellite is high, and once deployed, the system must operate autonomously as much as possible. Therefore, we will consider experimental applications on ground systems.
