Article

T-Large Granular Lymphocytic Leukemia with Hepatosplenic T-Cell Lymphoma? A Rare Case of Simultaneous Neoplastic T-Cell Clones Highlighted by Flow Cytometry and Review of Literature

by
Rossana Libonati
1,†,
Michela Soda
1,†,
Teodora Statuto
1,*,
Luciana Valvano
1,*,
Fiorella D’Auria
2,
Giovanni D’Arena
3,
Giuseppe Pietrantuono
4,
Oreste Villani
4,
Giovanna Rosaria Mansueto
4,
Simona D’Agostino
4,
Massimo Dante Di Somma
5,
Alessia Telesca
1 and
Rocchina Vilella
1
1
Laboratory of Clinical Research and Advanced Diagnostics, Centro di Riferimento Oncologico della Basilicata (IRCCS-CROB), 85028 Rionero In Vulture, Italy
2
Laboratory of Clinical Pathology, Centro di Riferimento Oncologico della Basilicata (IRCCS-CROB), 85028 Rionero In Vulture, Italy
3
Immunohematology and Transfusional Medicine, “S. Luca” Hospital, ASL Salerno, 84078 Vallo della Lucania, Italy
4
Hematology and Stem Cell Transplantation Unit, Centro di Riferimento Oncologico della Basilicata (IRCCS-CROB), 85028 Rionero in Vulture, Italy
5
Anatomical Pathology Department, Centro di Riferimento Oncologico della Basilicata (IRCCS-CROB), 85028 Rionero in Vulture, Italy
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Biomedicines 2024, 12(5), 993; https://doi.org/10.3390/biomedicines12050993
Submission received: 28 March 2024 / Revised: 16 April 2024 / Accepted: 23 April 2024 / Published: 30 April 2024
(This article belongs to the Special Issue Recent Advances in Lymphoma)

Abstract

:
Lymphoproliferative diseases are a heterogeneous set of malignant clonal proliferations of lymphocytes. Despite well-established diagnostic criteria, the diagnosis remains difficult due to their variety in clinical presentation and immunophenotypic profile. Lymphoid T-cell disorders are less common than B-cell entities, and the lack of a clear immunophenotypic characteristic makes their identification hard. Flow cytometry turned out to be a useful tool in diagnosing T-cell disorders and to resolve complicated cases, especially if the number of analyzable neoplastic cells is small. We present a case of a 55-year-old man with simultaneous lymphoproliferative neoplastic T-cell clones, one αβ and the other γδ, identified and characterized by flow cytometry (FC), exploiting the variable expression intensity of specific markers. However, the patient’s rapid decline made it impossible to define a differential diagnosis in order to confirm the identity of the γδ clone, which remains uncertain. This case is added to the few other cases already documented in the literature, characterized by the co-existence of T-large granular lymphocytic leukemia (T-LGLL)-αβ and T-LGLL-γδ/Hepatosplenic T-cell lymphoma (HSTCL). Our case underlines the key role of sensitive diagnostic tools in the assessment of potential relationship between the diagnosis, prognosis, and treatment in the two pathologies.

1. Introduction

T-large granular lymphocytic leukemia is a rare (2% to 5% in Western countries) chronic lymphoproliferative disorder of cytotoxic lymphocytes, usually characterized by an indolent clinical course [1]. According to the World Health Organization (WHO) [2,3], a clonal expansion of large granular lymphocytes (LGLs, 0.5 × 109/L compared to 2 × 109/L previously), persistent for more than six months, is required to diagnose T-LGLL [4]. The median age at diagnosis is 60 years, without sex predilection, even if in women the diagnosis is more often made at a young age [5].
At the time of diagnosis, T-LGLL is often associated with autoimmune disorders and asymptomatic cytopenia, specifically chronic neutropenia, which causes recurrent infection. Despite the B symptoms being rare, they may occur in 20–30% of the cases related to fatigue. Other hematological disorders that can arise in T-LGL leukemia are anemia, including transfusion-dependent anemia (6–22%), pure red aplasia (8–19%) and hemolytic anemia, and thrombocytopenia with a low incidence. Notably, one-quarter of patients have splenomegaly, whereas hepatomegaly or lymphadenopathy are rare [1,6].
Diagnosis is based on (i) cytological identification (blood smear) of LGLs characterized by large size (15–18 μm in diameter) with abundant cytoplasm containing notable azurophilic granules and a round or reniform nucleus with mature chromatin, (ii) flow cytometry of peripheral blood (PB), and (iii) clonality of T-cell receptor (TCR) rearrangement [7,8].
In this report, we described a case of a patient referred to our center with a diagnosis of T-LGLL in 2018, who presented atypical pathological clinical features with the co-existence of two T-cells neoplastic clone, one TCR α/β+ and the other TCR γ/δ+.

2. Material and Methods

In this section, only the analysis performed in our Institute is described (year 2018).

2.1. Flow Cytometry

Bone marrow aspirate (BMA) and ascitic liquid sample were evaluated by Flow Cytometry as reported in our previous study of 354 patients [9]. The obtained data were analyzed by using Kaluza Software Version 2.1 (Beckman Coulter, Brea, CA, USA): “rare event”, such as B cells, Natural killer (NK) cells, and NKT-like cells, display function was used favoring the visualization of small subpopulations. For recognition of the smaller subpopulations, cells clustered by specific markers were identified, providing a sufficient denominator of relevant events in the lymphocytes gate (about 15,000 events). An antigen was considered positive when it was at least 20% expressed. In our assays, any debris, dead cells, and clumps or doublets were excluded using forward scatter -Height (FSC-H) by FSC-Area (FSC-A) parameters (Figure 1A, gate “singlets”). CD45+ lymphocytes were gated on CD45 versus side scatter dot plot on “singlets” (Figure 1B).
From the lymphocytes gate, B cells (CD19+) (Figure 1C), NK cells (CD3− CD16+ CD56+; Figure 1D), and total T-cells (CD3+; Figure 1E) were sequentially identified. From the total T-cells gate, CD8+CD3+ cytotoxic T-cells (Tc) and CD4+CD3+ T helper cells (Th) were identified (Figure 1F). Immunophenotyping of pathological Tc and normal T-cells was assessed using a complete panel of T markers: CD7, CD5 (Figure 1G,H), CD10 (Figure 1I), CD57 (Figure 1M–O), TCR αβ, and TCR γδ (Figure 1P). The study of TCR gene repertoire analysis was performed using TCRVβ repertoire kit (IOTest® Beta Mark, Beckman Coulter), showing the clonality of αβ clone (Figure 1Q).

2.2. Morphology and Immunohistochemistry (IHC)

Atypical lymphoid cells were detected on BMA smear and May–Grünwald–Giemsa-stained. For morphological analysis, a BM biopsy (BMB), fixed in formalin, decalcified, and paraffin-embedded, was stained with hematoxylin and eosin. When there was no morphological indication of malignant cells, the morphology was considered negative. Positive results were classified as clear lymphoma infiltration or paratrabecular lymphoid aggregation. Non-paratrabecular small lymphoid aggregates were regarded as inconclusive. Moreover, BMB sections were analyzed by using Dako Cytomation Autostainer (Agilent, Santa Clara, CA, USA) and Dako Artisan Staining System with a panel of monoclonal antibodies against B and T cell antigens: anti-CD4, CD8, CD79α, CD20, CD3, and CD57 (Immunohistochemical images of bone marrow biopsy not available.)

3. Results

3.1. November 2014–February 2018 (Other Institute)

Clinical history. This presentation begins with a 55-year-old Caucasian man with severe anemia (hemoglobin value 6 g/dL) and remarkable macrocytosis, not correlated with paroxysmal nocturnal hemoglobinuria (PNH), in November 2014 in another center. (PNH is certainly not the first cause of severe macrocytic anemia. Macrocytosis is mostly caused by alcoholism, vitamin B12 and folate deficiencies, medications, hypothyroidism, or liver disease. Less common etiologies include reticulocytosis, leukemia, myelodysplastic or myeloproliferative syndrome, and primary bone marrow failure syndromes.) The patient’s medical history included acute pancreatitis, cholecystectomy, renal failure, arterial hypertension, cerebral hemorrhage, and absolute lymphocytosis (6600 lymphocytes/mm3) developed five years earlier.
Flow cytometric analyses. The predominant lymphocytes population in PB was CD3+ (98%) of which 86% CD8+, 8% CD4+, and 7% NK-T. An aberrant T-cell population both in PB (CD3+CD8+CD2CD5CD7) and in BM aspirate (CD45+CD3+CD8+CD4CD2+CD5+CD7+/−CD57+CD10+CD1aTCR+) was also identified.
Morphology and IHC. The PB smear showed small-size granulated lymphocytes, some of these with hand mirror morphology. The preserved granulocytic differentiation and the absence of myeloid and lymphoid blasts in PB had ruled out the hypothesis of acute myeloid leukemia (AML). BMB showed a hypercellular marrow with diffuse atypical lymphoid infiltrate (CD20+ in clusters and CD3++, CD4+/− −, CD8+, CD57+/− interstitial) accounting for 80% of the overall cellularity. The erythropoiesis process was reduced, with an excess of E1 and E2 population. The megakaryocytopoiesis and granulocytopoiesis were well represented, with a rise of eosinophils. In addition, splenomegaly and lymphadenopathy (abdominal lymph nodes diameter max 1.5 cm) were revealed.
Diagnosis, treatment, and progression. All findings were consistent with the diagnosis of T-LGLL that was confirmed in 2015. Treatment with vitamin B12 and folate was performed without response. Subsequently, a cycle of CHOP (cyclophosphamide + doxorubicin + vincristine + prednisolone) plus methotrexate (MTX) was given but ineffective.
In July 2015, the patient was treated with cyclophosphamide (CPA, 100 mg/day) and prednisone (PDN, 50 mg/day). After 2 months, the therapeutic regimen had to be changed with cyclosporine (CyA), exhibiting a positive clinical response up to June 2017, when the anemia appeared again. Moreover, due to the occurrence of edema and ascites, the chelation and immunosuppressive therapy were suspended. The patient developed chronic hepatopathy (HBV and HCV were negative) and renal failure caused by splenomegaly, which induced squashed of the left kidney. (In our patient case, the only liver disorder investigated is chronic hepatopathy confirmed by serological tests: HBV negative and HCV negative. Although it has been reported that EBV infection can cause HSTCL, the presence of EBV has not been investigated in patient’s serum.)
In October 2017, FC of PB confirmed the presence of a neoplastic T-cell population, with the same immunophenotype seen at diagnosis except for CD2 (now +) and CD5 (now +/−). In addition, CD16 and CD56 expression were also evaluated resulting in CD16+dim and CD56, respectively.
In February 2018, neutropenia, anemia, hypocalcemia, and increase level of creatinine, azotemia, direct bilirubin, alkaline phosphatase, and gamma glutamyl-transferase were observed. As a result of this worsening, treatment with cyclosporine was suspended to be replaced with cyclophosphamide (100 mg/day).

3.2. April 2018–June 2018 (Our Institute)

In April 2018, the patient was admitted to our institute.
Flow cytometric analyses. FC analysis of BMA showed the presence of two aberrant clones compared to normal Tc population (CD3+CD8+CD4CD5HDCD7HDCD57+CD10α/β+, HD: high density), one α/β and the other γ/δ, accounting for 4% and 7.54% of total viable cells, respectively.
The two pathological clones were easily identified by using the multiparametric flow cytometric acquisition (6 fluorescences) that revealed the different expression intensities only for the two co-expressed surface antigens, CD5 and CD7, compared to normal Tc. In detail, the T-LGL α/β clone was identified as CD5LDCD7LD (LD: low density), while the T-LGL γ/δ clone was identified as CD5CD7ID (ID: intermediate density). TCR gene repertoire analysis was performed using FC, revealing that the pathological α/β T cell clone was TCR Vβ 21.3 (encoded by the TRBV11-2 gene) restricted. Specifically, 23.85% of the total T cells were clonal with a frequency ≥10 times higher than its normal limit (mean percentage of expression: 2.38%) [10]. The phenotype data and the gating strategy were reported in Figure 1A–Q. Due to the exacerbation of ascites, a paracentesis was executed. An aliquot of ascitic fluid was analyzed through FC, highlighting the presence of the same neoplastic clones.
Morphology and IHC. Figure 2 reports a representative image of atypical medium-large activated lymphocytes with indented horseshoe (or kidney-shaped) nuclei, copious cytoplasm, and azurophilic granules detected on BMA smear (May–Grünwald–Giemsa-stain).
BMB and BMA revaluation was performed revealing a widespread lymphocytic infiltrate, characterized by medium-large size and abundant cytoplasm, with phenotype CD3+CD8+CD4CD57+CD20CD79a accounting for 25–30% of the overall cellularity. In detail, the major lymphocyte population (28% of the viable cells) in BMA was CD3+CD16/CD56 (96.3%) of which 86.3% CD8+.
Treatment and development. After a month of CHOP-based chemotherapy, the patient began the palliative care and died in June 2018.

4. Discussion

Large granular lymphocyte leukemia (LGLL) is a rare chronic lymphoproliferative disorder characterized by clonal expansion of T or NK cytotoxic cells in the peripheral blood, spleen, and bone marrow. The heterogeneity of clinical, phenotypical, and genotypic features makes diagnosis and treatment difficult [11].
LGL leukemia of mature T cells is the most common subtype and accounts for approximately 85% of cases. T-LGL cells exhibit a post-thymic effector-memory phenotype: CD3+TCRαβ+CD8+CD5dim and or CD7dimCD27CD28CD45RA+D45ROCD62LCD57+ with a variable expression of CD16, CD56, KIRs, and CD94/NKG2, indicating that these cells are late-stage fully differentiated cytotoxic T-lymphocytes [6,11,12]. Although the most common phenotype is CD4CD8+, in a few cases a CD4 positive variant has been described, with or without expression of CD8 [4]. In addition, about 10–15% of T-LGLs express TCR γδ that shares several clinical and morphologic features with the more common TCR αβ subtype [13]. In a rare subgroup of patients, a CD4/CD8 double negative phenotype and TCR γδ+ have also been reported [4,14].
In this report, we have described a challenging case of T-LGLL that presented to our center with typical as well as rare clinical features. Specifically, the patient had an absolute lymphocytosis, massive infiltration of the leukemic cells in the BM, splenomegaly, and lymphadenopathies. At the onset of the disease, the leukemic cells exhibited the following phenotypes: CD45+CD3+CD8+CD2+CD5+CD7+/−CD57+CD10+CD4CD1aTCR+, which changed during the course of the disease (Table 1).
Specifically, in 2018, a BMA revaluation identified the co-presence of two clones, one αβ and the other γδ, which differed from them in CD5 and CD7 expression levels. Moreover, TCR gene repertoire analysis revealed the Vβ 21.3 restriction of α/β T-cell clones that was described in fewer than 5% of cases documented in the literature [7]. In this rare case, multiparametric and high-sensitivity flow cytometry was effective in discriminating two T-cell clones with different TCR rearrangements as well as varied CD5 and CD7 marker expression intensities. The data demonstrate how flow cytometry is a useful tool in the diagnosis of T-cell lymphoproliferative disorders because it can not only better characterize T-cell neoplasms but also resolve some extremely complicated cases, particularly those involving multiple neoplastic populations.
At the current stage of knowledge, only nine cases with mixed αβ/γδ T-cell LGL clones have been documented, but only for some of them (Table 2) are immunophenotypic (Table 3) features available [15,16,17,18].
Our identification of the mixed αβ/γδ phenotype supports the recent notion by which T-cell repertoire is more dynamic and heterogeneous in T-LGLL [19]. Neff et al. in 4 patients with T-LGLL not only described the simultaneous presence of 2 phenotypically different clones (αβ and γδ), but also their biologic course in response to the therapy showing that the clone switch was correlated with therapeutic success [15]. However, in the absence of TCR αβ and/or γδ expression assessment at diagnosis, in our case we could not advance the hypothesis of clonal T-LGLs drift that would explain the partial and/or no response to the therapy.
In daily practice, a small subset of patients also showed overlapping features between T-LGLL and γδ hepatosplenic T-cell lymphoma, making their diagnosis difficult, especially when splenectomy is not performed, and histology of spleen or liver are not available for analysis [20]. Notably, as reported in two cases by OK et al., a typical misleading situation is the presence of aggressive T-LGLL and HSTCL [21]. HSTCL is a rare and aggressive extranodal type of T-cell non-Hodgkin lymphoma (1%) that usually arises in adolescents and young adults, with a median age of 35 years (male to female ratio is about 9:1) [22,23].
In HSTCL, the lymphoma cells are typically double negative (CD4CD8) even if a subset of cases are CD8+, positive for CD3, CD2, CD7, and negative for CD1a and CD5. CD56 is expressed in the majority of cases, whereas CD57 is usually negative [21,24]. Commonly, cancer T cells express the TCR γδ (75%) followed by TCR αβ (25%); however, about 5% are TCR-silent [2].
In Table 4, we summarize the clinical features of T-LGLL and HSTCL compared to our cases.
Yabe et al., comparing the diagnostic criteria of HSTCL and γδ T-LGL leukemia in 42 patients, revealed that features of absence of splenomegaly, lymphocytes with azurophilic granules, and variable expression of CD5, CD8, CD57, granzyme B, and TCR-αβ were significantly more common in γδ T-LGLL that in HSTCL cases [20]. However, our patient showed some clinical and pathological features common to HSTCL diagnosis such as splenomegaly, lymphoma cells expression of TCR γδ, lack of CD5, and elevated alkaline phosphatase [22]. Detection of cytogenetic aberrations are usually useful for differentiating T-LGLL from HSTCL since isochromosome 7q and trisomy 8 are the most prevalent chromosomal abnormalities associated with HSTCL, but atypical for T-LGLL [27]. In our case, the cytogenetic analysis was not performed given that it is not required by clinical practice. Therefore, the co-presence of the two neoplastic disorders could not be established. (It is likely that the two clones identified in this patient case may have originated from a single clone, which is difficult to document based on the patient’s clinical history.)

5. Conclusions

The initial splenomegaly, not subsequently detectable due to the abundant ascites, and the aggressive course of the disease led us to suppose that our patient represented a rare case of concomitant T-LGLL (αβ clone) and HSTCL (γδ clone). However, the patient’s rapid worsening made us unable to perform key analysis to validate the potential HSTCL nature of the γδ clone. As a result, the case remains ambiguous, emphasizing the importance of using differential diagnostic approaches (cytogenetic, molecular, and morphological analyses) to distinguish the two malignances, which are frequently overlapping, in order to select the best therapeutic option and enhance the prognosis.

Author Contributions

Conceptualization, A.T. and R.V.; Data curation, T.S., L.V., F.D. and R.V.; Formal analysis, R.L., M.S., T.S., L.V., F.D., A.T. and R.V.; Investigation, R.L., M.S., T.S., L.V., A.T. and R.V.; Methodology, R.L., M.S., T.S., L.V., F.D., A.T. and R.V.; Supervision, G.D., G.P., O.V., G.R.M., S.D. and M.D.D.S.; Validation, G.D.; Writing—original draft, R.L., M.S., A.T. and R.V.; Writing—review and editing, T.S. and L.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Italian Minister of Health—Ricerca Corrente 2024.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki, and approved by the Comitato Etico Unico Regionale per la Basilicata (protocol code 20140040750).

Informed Consent Statement

Written informed consent has been obtained from the patient to publish this paper.

Data Availability Statement

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Park, S.H.; Lee, Y.J.; Kim, Y.; Kim, H.K.; Lim, J.H.; Jo, J.C. T-large granular lymphocytic leukemia. Blood Res. 2023, 58, S52–S57. [Google Scholar] [CrossRef]
  2. Alaggio, R.; Amador, C.; Anagnostopoulos, I.; Attygalle, A.D.; de Oliveira Araujo, I.B.; Berti, E.; Bhagat, G.; Borges, A.M.; Boyer, D.; Calaminici, M.; et al. The 5th edition of the World Health Organization Classification of Haematolymphoid Tumours: Lymphoid Neoplasms. Leukemia 2022, 36, 1720–1748. [Google Scholar] [CrossRef] [PubMed]
  3. Campo, E.; Jaffe, E.S.; Cook, J.R.; Quintanilla-Martinez, L.; Swerdlow, S.H.; Anderson, K.C.; Brousset, P.; Cerroni, L.; de Leval, L.; Dirnhofer, S.; et al. The International Consensus Classification of Mature Lymphoid Neoplasms: A report from the Clinical Advisory Committee. Blood 2022, 140, 1229–1253. [Google Scholar] [CrossRef] [PubMed]
  4. Drillet, G.; Pastoret, C.; Moignet, A.; Lamy, T.; Marchand, T. Large granular lymphocyte leukemia: An indolent clonal proliferative disease associated with an array of various immunologic disorders. Rev. Med. Interne 2023, 44, 295–306. [Google Scholar] [CrossRef] [PubMed]
  5. Rahul, E.; Ningombam, A.; Acharya, S.; Tanwar, P.; Ranjan, A.; Chopra, A. Large granular lymphocytic leukemia: A brief review. Am. J. Blood Res. 2022, 12, 17–32. [Google Scholar] [PubMed]
  6. Schreiber, J.; Pichler, A.; Kornauth, C.; Kaufmann, H.; Staber, P.B.; Hopfinger, G. T-Cell Large Granular Lymphocyte Leukemia: An Interdisciplinary Issue? Front. Oncol. 2022, 12, 805449. [Google Scholar] [CrossRef] [PubMed]
  7. Giudice, V.; D’Addona, M.; Montuori, N.; Selleri, C. The Value of Flow Cytometry Clonality in Large Granular Lymphocyte Leukemia. Cancers 2021, 13, 4513. [Google Scholar] [CrossRef] [PubMed]
  8. Gaudio, F.; Masciopinto, P.; Bellitti, E.; Musto, P.; Arcuti, E.; Battisti, O.; Cazzato, G.; Solombrino, A.; Laddaga, F.E.; Specchia, G.; et al. Molecular Features and Diagnostic Challenges in Alpha/Beta T-Cell Large Granular Lymphocyte Leukemia. Int. J. Mol. Sci. 2022, 23, 13392. [Google Scholar] [CrossRef] [PubMed]
  9. Statuto, T.; Valvano, L.; Calice, G.; Villani, O.; Pietrantuono, G.; Mansueto, G.; D’Arena, G.; Vita, G.; Lalinga, V.; Possidente, L.; et al. Cytofluorimetric and immunohistochemical comparison for detecting bone marrow infiltration in non-Hodgkin lymphomas: A study of 354 patients. Leuk. Res. 2020, 88, 106267. [Google Scholar] [CrossRef] [PubMed]
  10. Feng, B.; Jorgensen, J.L.; Hu, Y.; Medeiros, L.J.; Wang, S.A. TCR-Vbeta flow cytometric analysis of peripheral blood for assessing clonality and disease burden in patients with T cell large granular lymphocyte leukaemia. J. Clin. Pathol. 2010, 63, 141–146. [Google Scholar] [CrossRef] [PubMed]
  11. Semenzato, G.; Calabretto, G.; Barilà, G.; Gasparini, V.R.; Teramo, A.; Zambello, R. Not all LGL leukemias are created equal. Blood Rev. 2023, 60, 101058. [Google Scholar] [CrossRef]
  12. Lamy, T.; Moignet, A.; Loughran, T.P. LGL Leukemia: From Pathogenesis to Treatment. Blood 2017, 129, 1082–1094. [Google Scholar] [CrossRef]
  13. Chen, Y.H.; Chadburn, A.; Evens, A.M.; Winter, J.N.; Gordon, L.I.; Chenn, A.; Goolsby, C.; Peterson, L. Clinical, Morphologic, Immunophenotypic, and Molecular Cytogenetic Assessment of CD4–/CD8– γδ T-Cell Large Granular Lymphocytic Leukemia. Am. J. Clin. Pathol. 2011, 136, 289–299. [Google Scholar] [CrossRef] [PubMed]
  14. O’Keefe, C.L.; Plasilova, M.; Wlodarski, M.; Risitano, A.M.; Rodriguez, A.R.; Howe, E.; Young, N.S.; His, E.; Maciejewski, J.P. Molecular Analysis of TCR Clonotypes in LGL: A Clonal Model for Polyclonal Responses. J. Immunol. 2004, 172, 1960–1969. [Google Scholar] [CrossRef] [PubMed]
  15. Neff, J.L.; Rangan, A.; Jevremovic, D.; Nguyen, P.L.; Chiu, A.; Go, R.S.; Chen, D.; Morice, W.G.; Shi, M. Mixed-phenotype large granular lymphocytic leukemia: A rare subtype in the large granular lymphocytic leukemia spectrum. Hum. Pathol. 2018, 81, 96–104. [Google Scholar] [CrossRef] [PubMed]
  16. Barilà, G.; Teramo, A.; Calabretto, G.; Vicenzetto, C.; Gasparini, V.R.; Pavan, L.; Leoncin, M.; Vedovato, S.; Frigo, A.C.; Facco, M.; et al. Affiliations expandStat3 mutations impact on overall survival in large granular lymphocyte leukemia: A single-center experience of 205 patients. Leukemia 2020, 34, 1116–1124. [Google Scholar] [CrossRef]
  17. Ai, K.; Li, M.; Wu, P.; Deng, C.; Huang, X.; Ling, W.; Xu, R.; Geng, S.; Sun, Q.; Weng, J.; et al. Concurrence of Myelodysplastic syndromes and large granular lymphocyte leukemia: Clinicopathological features, mutational profile and gene ontology analysis in a single center. Am. J. Cancer Res. 2021, 11, 1616–1631. [Google Scholar] [PubMed]
  18. Pflug, N.; Littauer, A.; Beverungen, D.; Sretenovic, A.; Wahnschaffe, L.; Braun, T.; Dechow, A.; Jungherz, D.; Otte, M.; Monecke, A.; et al. Case Report: Large Granular Lymphocyte Leukemia (LGLL)—A Case Series of Challenging Presentations. Front. Oncol. 2022, 11, 775313. [Google Scholar] [CrossRef] [PubMed]
  19. Clemente, M.J.; Wlodarski, M.W.; Makishima, H.; Viny, A.D.; Bretschneider, I.; Shaik, M.; Bejanyan, N.; Lichtin, A.E.; Hsi, E.D.; Paquette, R.L.; et al. Clonal drift demonstrates unexpected dynamics of the T-cell repertoire in T-large granular lymphocyte leukemia. Blood 2011, 118, 4384–4393. [Google Scholar] [CrossRef] [PubMed]
  20. Yabe, M.; Medeiros, L.J.; Wang, S.A.; Tang, G.; Bueso-Ramos, C.E.; Jorgensen, J.L.; Bhagat, G.; Chen, W.; Li, S.; Young, K.H.; et al. Distinguishing Between Hepatosplenic T-cell Lymphoma and γδ T-cell Large Granular Lymphocytic Leukemia. Am. J. Surg. Pathol. 2017, 41, 82–93. [Google Scholar] [CrossRef] [PubMed]
  21. Ok, C.Y.; Yin, C.C.; Yabe, M.; Bueso-Ramos, C.E.; Miranda, R.N.; Medeiros, L.J.; Konoplev, S.N. Lymphoma with features intermediate between aggressive T-Large Granular Lymphocytic Leukemia and Hepatosplenic T-Cell Lymphoma: A diagnostic dilemma? Clin. Lymphoma Myeloma Leuk. 2014, 14, e95–e100. [Google Scholar] [CrossRef] [PubMed]
  22. Pro, B.; Allen, P.; Behdad, A. Hepatosplenic T-cell lymphoma: A rare but challenging entity. Blood 2020, 136, 2018–2026. [Google Scholar] [CrossRef] [PubMed]
  23. Chowdhury, Z.; Khonglah, Y.; Raphael, V.; Kalita, P.; Das, U. Hepatosplenic T Cell Lymphoma: Diagnostic Conundrum. Int. J. Hematol. Oncol. Stem Cell Res. 2022, 16, 66–73. [Google Scholar] [CrossRef] [PubMed]
  24. Yabe, M.; Medeiros, L.J.; Tang, G.; Wang, S.A.; Ahmed, S.; Nieto, Y.; Hu, S.; Bhagat, G.; Oki, Y.; Patel, K.P.; et al. Prognostic factors of hepatosplenic T-cell lymphoma (HSTCL): A clinicopathologic, immunophenotypic, and cytogenetic analysis of 28 patients. Am. J. Surg. Pathol. 2016, 40, 676–688. [Google Scholar] [CrossRef] [PubMed]
  25. Vinh An, D.T.; Anh, L.L.; Tung, N.T. T-Cell Large Granular Lymphocytic Leukemia: A First Case Report Diagnosed by Flow Cytometry in Vietnam. Cureus 2021, 13, e20249. [Google Scholar] [CrossRef]
  26. Yabe, M.; Miranda, R.N.; Medeiros, L.J. Hepatosplenic T-cell Lymphoma: A review of clinicopathologic features, pathogenesis, and prognostic factors. Hum Pathol. 2018, 74, 5–16. [Google Scholar] [CrossRef] [PubMed]
  27. Gorodetskiy, V.; Probatova, N.; Sidorova, Y.; Kupryshina, N.; Obukhova, T.; Vasilyev, V.; Ryzhikova, N.; Sudarikov, A. The non-leukemic T cell large granular lymphocytic leukemia variant with marked splenomegaly and neutropenia in the setting of rheumatoid arthritis-felty syndrome and hepatosplenic T cell lymphoma mask. Am. J. Blood Res. 2021, 11, 227–237. [Google Scholar] [PubMed]

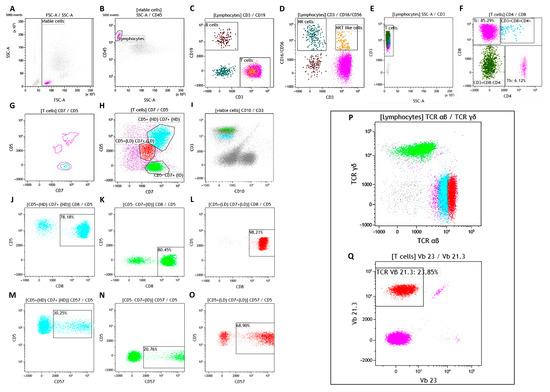

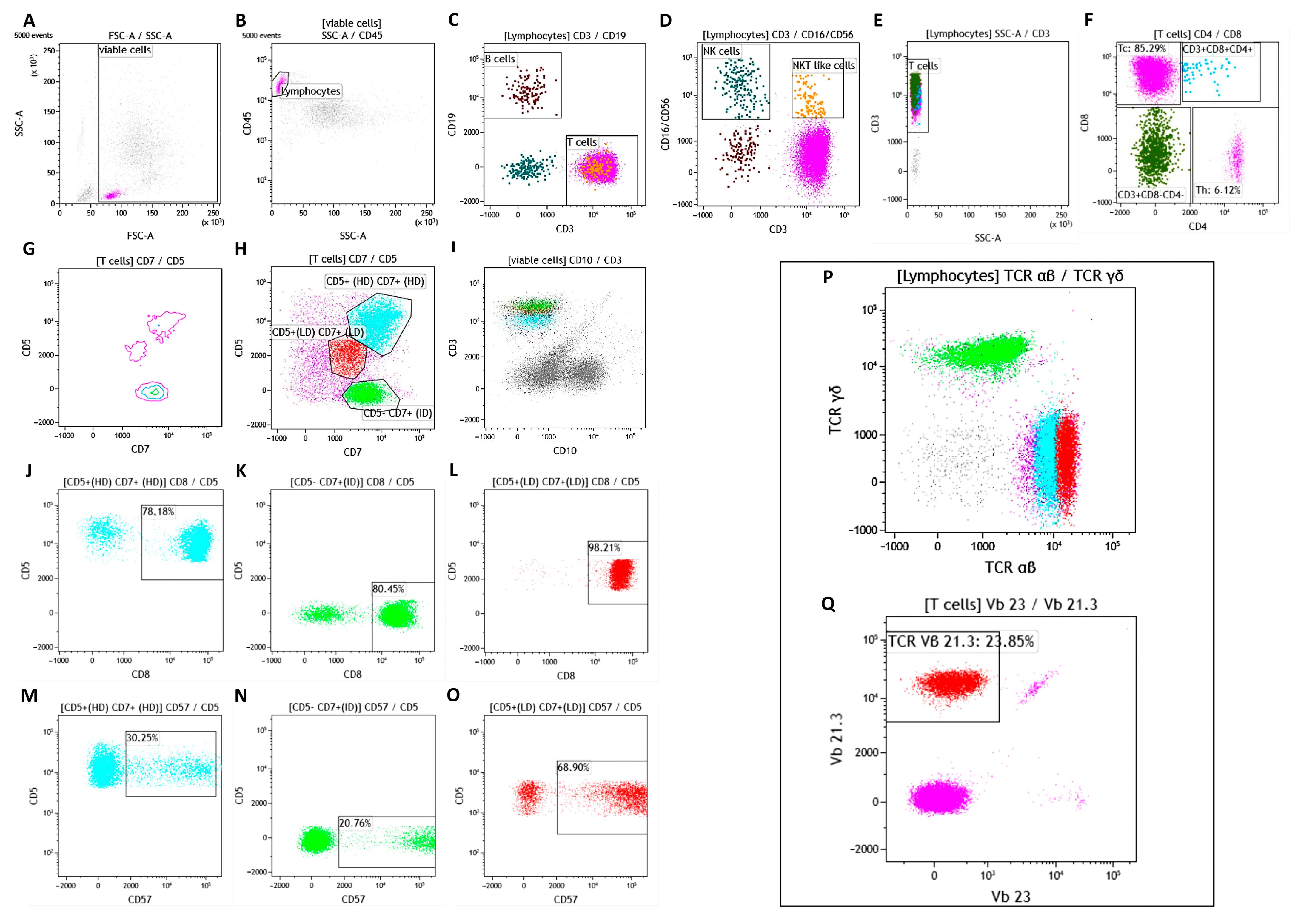

Figure 1. Immunophenotyping analysis of the bone marrow aspirate carried out in our Institute. Any debris, dead cells, and clumps or doublets were excluded by using the FSC-A vs. SSC-A parameters (gate viable cells) (A). CD45+ lymphocytes (purple gate) were gated on CD45 vs. the SSC-A dot plot (B). B-cell lymphocytes, NK cells, NK-T cells, and T cells (red-purple, petrol-green, orange, and purple gates, respectively) were identified from the lymphocytes gate (C,D). Gating strategy based on CD3 vs. CD8 expression was used to identified different T cells subset (E,F): Cytotoxic T-cells (Tc, purple gate), CD3+CD4+CD8+ lymphocytes (light-blue gate); CD3+CD4CD8 lymphocytes (dark-green gate), and helper T-cells (Th, purple gate). The variable intensity of CD7 vs. CD5 expression (G,H), gated on T cells, and the CD10 expression (I) were used to detect the normal cells (CD5+HDCD7+HDCD10, cyan gate) and the two pathological populations CD5CD7+IDCD10 (green gate) and CD5+CD7+LDCD10 (red gate), respectively. The (JO) dot plots report the percentage expression of CD8 and CD57 vs. CD5 evaluated in the three populations. TCR αβ and γδ expression was evaluated gating lymphocytes population (P). The (Q) dot plot shows the TCR restriction analysis.
Figure 1. Immunophenotyping analysis of the bone marrow aspirate carried out in our Institute. Any debris, dead cells, and clumps or doublets were excluded by using the FSC-A vs. SSC-A parameters (gate viable cells) (A). CD45+ lymphocytes (purple gate) were gated on CD45 vs. the SSC-A dot plot (B). B-cell lymphocytes, NK cells, NK-T cells, and T cells (red-purple, petrol-green, orange, and purple gates, respectively) were identified from the lymphocytes gate (C,D). Gating strategy based on CD3 vs. CD8 expression was used to identified different T cells subset (E,F): Cytotoxic T-cells (Tc, purple gate), CD3+CD4+CD8+ lymphocytes (light-blue gate); CD3+CD4CD8 lymphocytes (dark-green gate), and helper T-cells (Th, purple gate). The variable intensity of CD7 vs. CD5 expression (G,H), gated on T cells, and the CD10 expression (I) were used to detect the normal cells (CD5+HDCD7+HDCD10, cyan gate) and the two pathological populations CD5CD7+IDCD10 (green gate) and CD5+CD7+LDCD10 (red gate), respectively. The (JO) dot plots report the percentage expression of CD8 and CD57 vs. CD5 evaluated in the three populations. TCR αβ and γδ expression was evaluated gating lymphocytes population (P). The (Q) dot plot shows the TCR restriction analysis.
Biomedicines 12 00993 g001
Figure 2. BM aspirate smear. The black arrows highlight the large granular lymphocytes, characterized by medium-large sizes, abundant cytoplasm containing azurophilic granules, and round to reniform hyperchromatic nuclei, with prominent nucleoli (original magnification ×100).
Figure 2. BM aspirate smear. The black arrows highlight the large granular lymphocytes, characterized by medium-large sizes, abundant cytoplasm containing azurophilic granules, and round to reniform hyperchromatic nuclei, with prominent nucleoli (original magnification ×100).
Biomedicines 12 00993 g002
Table 1. Immunophenotype and its evolution during the pathological course.
Table 1. Immunophenotype and its evolution during the pathological course.
Antigen
TCRCD3CD4CD8CD2CD5CD7CD10CD45CD16CD56CD57CD1aVβ Restriction
2014PB + +
BM aspirate++++++/−++ +
2017PB + ++/− + dim
2018BM aspirateαβ++ LDLD + * Vβ 21.3
γδ++ ID +/− ** not applicable
* CD57 expression was evaluated on the entire TCR α/β aberrant population (CD3+CD8+CD5LDCD7LDCD10 CD57+; 68.9%). ** CD57+: 20.7%; CD57: 79.3%.
Table 2. Comparison of clinical and biological features between our patient and 7 cases with a mixed αβ/γδ T-cell LGL clones reported in the literature.
Table 2. Comparison of clinical and biological features between our patient and 7 cases with a mixed αβ/γδ T-cell LGL clones reported in the literature.
Our CaseCase 1
[15]
Case 2
[15]
Case 3
[15]
Case 4
[15]
Case 5
[15]
Case 6
[18]
Case 7
[17]
Patient Characteristics and Clinical Findings
Age (year)/sex55/M79/M67/F68/M72/F73/F69/M47/M
SplenomegalyYesNoNoNoYesYesYesNA
LymphadenopathyYesNANANANANANANA
AutoimmunityNoNoNoPolymyalgia rheumaticaMixed connective tissue diseaseMixed connective tissue diseaseUlcerative colitis; Positive Coombs testNA
Hepatic disordersChronic hepatopathy (HBV neg, HCV neg)NANANANANANoNA
Other neoplasmNoProstate carcinomaNoPCNB-cell lymphomaCLL; PCNNoMDS-MLD
Hematologic findings
AnemiaYesYesNoYesYesNoYesYes
Hb value (g/dL)61012.710.410.11310.97.5
LymphocytosisYesYesNoYesYesYesYesNo
NeutropeniaYesNoYesNoNoYesYesYes
ThrombocytopeniaNoNoNoNoYesNoNoYes
Morphologic and molecular features
BM involvement (%)80% (2014);
35–40% (2018)
40%10%30%50%20%NA63%
TCR gene rearrangementClonalClonalClonalClonalClonalClonalNoClonal
Therapy and Clinical course
TherapyCHOP + MTX;
CPA + PDN;
CyA
MTX;
CPA + PDN
NoneCPACPAPDN + GCSF + HCQMTX;
Fludarabine;
PDN;
CyA;
Prednisolone
NA
Clinical outcomeDiedNo response; progressive cytopeniasProgressive neutopeniaCR for 5 years;
then recurrence anemia
CR for 3 years;
then recurrence thrombocytopenia and lymphocytosis
PRCRNA
Abbreviations: CLL, chronic lymphocytic leukemia; CR, complete response; GCSF: granulocyte-colony stimulating factor; HBV, human hepatitis B virus; HCV, human hepatitis C virus; HCQ, hydroxychloroquine; MDS-MLD, myelodysplastic syndromes with multilineage dysplasia; NA, not available; PCN, plasma cell neoplasm; PR, partial response.
Table 3. Comparison of immunophenotypic profile between our patient and 6 cases with a mixed αβ/γδ T-cell LGL clones reported in the literature, where available.
Table 3. Comparison of immunophenotypic profile between our patient and 6 cases with a mixed αβ/γδ T-cell LGL clones reported in the literature, where available.
Antigen
TCRCD3CD8CD2CD5CD7CD16CD57CD94KIR
Restriction

Restriction
%
Lym
Ref.
Our caseαβ++ dimdim + Vβ 21.318.5
γδ++ +/− + 26.5
Case 1αβ++ dim++ 77[15]
γδdim dimdim++/− CD158a 14
Case 2αβ++ dim+/− 21
γδ+ dim+/−++/−+/− 32
Case 3αβ++ dim+/−+/−+/− 85
γδ+ dim+/−++/− CD158b 5
Case 4αβ++ +/−+/− Vβ13.211
γδ+ dimdimdim+/−+ 71
Case 5αβ++ +/−+/− 67
γδ+dim ++ 5
Case 6
(PB)
αβ++ dimdim 74[18]
γδ+ + 16
Table 4. Comparison of clinical and biological features between our case and T-LGLL, HSTCL malignances.
Table 4. Comparison of clinical and biological features between our case and T-LGLL, HSTCL malignances.
Case Report (Years)T-LGLLHSTCL
Patient Characteristics and Clinical Findings
Age (year)/sex55/M45–75/No predilection [8,25]35/M < F [21,26]
Initial symptomsNoFatigue (20–30%), Infection (15–39%), Asymptomatic cytopenia, Autoimmune disorders (15–40%), B symptoms (20–30%) [1,6]B symptoms, cytopenia [22]
SplenomegalyYes (since 2014)Yes (25–50%) [1]Yes (97–100%) [22]
LymphadenopathyYes (since 2014)Yes (very rare) [1]Non common (15%) [21]
AutoimmunityNoYes (15–40%) [8]:
Lupus erythematosus, RA, Sjögren’s syndrome, autoimmune thyroid disorders, coagulopathy, and IBM [1,8]
Non common (2–27%) [22]
Hepatic disordersChronic hepatopathy (HBV neg, HCV neg; since 2017)Hepatomegaly (very rare) [1]Hepatomegaly (40–80%) [22]
Hypertensionarterial (since 2017)pulmonary artery hypertension [1]NA
Hematologic findings
AnemiaYes (since 2014)Yes (10–30%) [6]Yes (73–84%) [22]
Hb value (g/dL)6<11 (24–40%) [8]
<8 (6–22%) [8]
NA
Lymphocytosis Yes (since 2009)Yes (50%) [6] Non common [26]
NeutropeniaYes (2018)Yes (50%) [1,8]Yes (36–85%) [22]
ThrombocytopeniaNoYes (<25%) [6]Yes (45–95%) [22]
Morphologic features
PB lymphocytesSmall granulated, some of these hand mirrorLarge and granulated [1,6,8,22]Small, intermediate, or large devoid of azurophilic granules [22]
BM involvement (%) 80% (2014)
35–40% (2018)
<50% [1]Yes (% NA)
Splenic involvementNAYesYes [22]
Molecular and genetic data
TCR gene rearrangementClonalClonal [21]Clonal [21]
Genomic featuresNAGene mutations in JAK/STAT pathway: STAT3 (30–40%), STAT5b (2%) [6,8]Isochromosome 7q (25–70%) trisomy 8 (8–53%) [22]
Gene mutations in JAK/STAT pathway: STAT3 (9–9.5%), STAT5B (31–33%) [26]
Therapy and Clinical course
TherapyCHOP + MTX (2014),
CPA + PDN (2014–2015 and since march 2018),
CyA (2015–February 2018),
CHOP (April–May 2018)
MTX; CPA (50–100 mg per day, OR), CyA (3 mg/kg per day orally), Purina analogs (second line therapy) [1]CHOP/CHOP-like regimens; CPA/PDN followed by allogeneic or autologous transplantation [22]
Clinical courseDied (June 2018)Indolent [1,8]Aggressive
Abbreviations: Hb, hemoglobin; IBM, inclusion body myositis; JAK/STAT, Janus kinases/signal transducer and activator of transcription; OR, orally; RA, rheumatoid arthritis.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Libonati, R.; Soda, M.; Statuto, T.; Valvano, L.; D’Auria, F.; D’Arena, G.; Pietrantuono, G.; Villani, O.; Mansueto, G.R.; D’Agostino, S.; et al. T-Large Granular Lymphocytic Leukemia with Hepatosplenic T-Cell Lymphoma? A Rare Case of Simultaneous Neoplastic T-Cell Clones Highlighted by Flow Cytometry and Review of Literature. Biomedicines 2024, 12, 993. https://doi.org/10.3390/biomedicines12050993

AMA Style

Libonati R, Soda M, Statuto T, Valvano L, D’Auria F, D’Arena G, Pietrantuono G, Villani O, Mansueto GR, D’Agostino S, et al. T-Large Granular Lymphocytic Leukemia with Hepatosplenic T-Cell Lymphoma? A Rare Case of Simultaneous Neoplastic T-Cell Clones Highlighted by Flow Cytometry and Review of Literature. Biomedicines. 2024; 12(5):993. https://doi.org/10.3390/biomedicines12050993

Chicago/Turabian Style

Libonati, Rossana, Michela Soda, Teodora Statuto, Luciana Valvano, Fiorella D’Auria, Giovanni D’Arena, Giuseppe Pietrantuono, Oreste Villani, Giovanna Rosaria Mansueto, Simona D’Agostino, and et al. 2024. "T-Large Granular Lymphocytic Leukemia with Hepatosplenic T-Cell Lymphoma? A Rare Case of Simultaneous Neoplastic T-Cell Clones Highlighted by Flow Cytometry and Review of Literature" Biomedicines 12, no. 5: 993. https://doi.org/10.3390/biomedicines12050993

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
