Recycling of Rhenium from Superalloys and Manganese from Spent Batteries to Produce Manganese(II) Perrhenate Dihydrate

by
Katarzyna Leszczyńska-Sejda
*,
Arkadiusz Palmowski
,
Michał Ochmański
,
Grzegorz Benke
,
Alicja Grzybek
,
Szymon Orda
,
Karolina Goc
,
Joanna Malarz
and
Dorota Kopyto
Łukasiewicz Research Network—Institute of Non-Ferrous Metals, Sowińskiego 5, 44-100 Gliwice, Poland
*
Author to whom correspondence should be addressed.
Recycling 2024, 9(3), 36; https://doi.org/10.3390/recycling9030036
Submission received: 27 March 2024 / Revised: 25 April 2024 / Accepted: 26 April 2024 / Published: 30 April 2024
(This article belongs to the Special Issue Emerging Technologies in the Hydrometallurgical Recycling of Critical Metals)
Browse Figures
Versions Notes

Abstract

:
This work presents the research results on the development of an innovative, hydrometallurgical technology for the production of manganese(II) perrhenate dihydrate from recycled waste. These wastes are scraps of Ni-based superalloys containing Re and scraps of Li–ion batteries containing Mn—specifically, solutions from the leaching of black mass. This work presents the conditions for the production of Mn(ReO4)2·2H2O. Thus, to obtain Mn(ReO4)2·2H2O, manganese(II) oxide was used, precipitated from the solutions obtained after the leaching of black mass from Li–ion batteries scrap and purified from Cu, Fe and Al (pH = 5.2). MnO2 precipitation was carried out at a temperature < 50 °C for 30 min using a stoichiometric amount of KMnO4 in the presence of H2O2. MnO2 precipitated in this way was purified using a 20% H2SO4 solution and then H2O. Purified MnO2 was then added alternately with a 30% H2O2 solution to an aqueous HReO4 solution. The reaction was conducted at room temperature for 30 min to obtain a pH of 6–7. Mn(ReO4)2·2H2O precipitated by evaporating the solution to dryness was purified by recrystallization from H2O with the addition of H2O2 at least twice. Purified Mn(ReO4)2·2H2O was dried at a temperature of 100–110 °C. Using the described procedure, Mn(ReO4)2·2H2O was obtained with a purity of >99.0%. This technology is an example of the green transformation method, taking into account the 6R principles.

1. Introduction

Rhenium appears extremely rarely in nature, only in a dispersed state, mainly in molybdenite, columbite and copper-bearing shales [1]. Manganese, on the other hand, is the twelfth-most abundant metal in the Earth’s crust, occurring mainly in the form of oxides, carbonates and silicates. It is the most common heavy metal after iron [2,3,4].
The chemical properties of rhenium determine its applications, mainly in the production of superalloys but also in catalysis [5,6]. Rhenium is a heavy metal with a high melting point (>3180 °C), significant density (21.0 g/cm3), high hardness (Mohs 7), high strength, thermal and chemical resistance and can also be easily shaped by plastic processing. It is characterized by the highest modulus of elasticity of all refractory metals, −420 GPa [1,3,7].
Manganese, on the other hand, is a hard, silvery and brittle metal with a pink luster. It is widely used as an additive in steel, lowering its melting point and improving its mechanical properties. It is pyrophoric when crushed. Manganese is in huge demand around the world due to its numerous and diverse applications, mainly in the production of steel and high-capacity batteries [2,8,9].
The world’s annual production of rhenium is up to 75 tons, the vast majority of which is recovered from so-called primary raw materials, and only ~8 tons are produced from recycling [1,10,11]. The main manufacturers of rhenium from recycling are countries such as the USA, Canada, Germany, Czechia and Poland [1,12]. Rhenium recycling was much greater in 2014–2015, generating 13 tons/year. Rhenium is manufactured as a side product during the production of other elements both from primary or secondary resources, for example, during the recovery of Co and Ni from superalloys scraps. Consequently, the production of rhenium is influenced by the demand for other metals like cobalt and nickel. Currently, on the metals market, cobalt is considered a critical material in most of the world [13,14,15]. In contrast, nickel is a strategic material and therefore sought after, mainly due to the development of the battery industry [16,17].
However, the world annual production of manganese is not comparable to rhenium, as it constitutes ~6.2 million tons. South Africa is the world’s largest manufacturer of manganese, accounting for 33.5% of its global production. It should also be noted that most of the mining of manganese is concentrated in the Kalahari Desert, which is believed to contain over 70% of the world’s resources of this metal. Manganese is recycled mainly from iron and steel scraps; a small amount of it is recycled from aluminum beverage cans. The recycling rate is 37%, and the efficiency is estimated at 53% [18,19,20].
This publication concerns the preparation of manganese(II) perrhenate dihydrate. Manganese and rhenium share many of the chemical characteristics of transition metals, including multiple valency, the ability to form stable complex ions, paramagnetism and catalytic properties. However, in many aspects, rhenium is chemically more similar to technetium than to manganese [21,22]. For this reason, Mn(ReO4)2∙2H2O has potential for use in the production of alloys, catalysts or in electrical components [23].
There are not many reports in the literature about the combination of rhenium and manganese and, consequently, about Mn(ReO4)2∙2H2O. There are several reports on the preparation, properties and use of manganese(II) perrhenate and its hydrates.
In 1949, W. T. Smith and G. E. Maxwell described the synthesis of manganese(II) perrhenate dihydrate, which was obtained as a result of the reaction of manganese(II) carbonate or manganese(II) hydroxide with perrhenic acid. This publication also specified the physicochemical properties of the above-mentioned compound, such as solubility, density and freezing point [24].
In 1969, H. G. Mayfield, Jr. and W. E. Bull described the process of forming the complexes of manganese(II) perrhenate with pyridine [25].
However, the synthesis of manganese(II) perrhenate from manganese(IV) oxide, metallic manganese and rhenium(VI) oxide has been patented and described in patent no. US 4027004A. It also explains the properties of the obtained manganese(II) perrhenate, which allows it to be used in electrical components [23].
In 1981, K.V. Ovchinnikov and his team investigated the thermal decomposition of manganese(II) perrhenate in vacuum [26].
In 1997, Charles Torardi and his team presented the magnetic properties of anhydrous manganese(II) perrhenate in a publication. This compound was found to have antiferromagnetic properties. It was also determined that anhydrous manganese(II) perrhenate has trigonal symmetry [27].
A. Butz, G. Miehle, H. Paulus, P. Strauss and H. Fuess, in 1998, researched the crystallographic structure of manganese(II) perrhenate in dihydrate and anhydrous forms and published the results of the dihydrate dehydration process. This compound was obtained as a result of the reaction of manganese(II) carbonate with perrhenic acid. The process was carried out in a temperature range of 50–60 °C in the presence of carbon dioxide [28].
In Z. Für Krist. -New Cryst. Struct., in the same year, an article was published presenting the results of research on the crystallographic structure of Mn(ReO4)2(H2O)2. The compound was obtained as a result of the reaction of manganese(II) carbonate with perrhenic acid [29].
A work about [Mn(H2O)2](ReO4)2 was also published by J. Hetmańczyk and Ł. Hetmańczyk These studies were conducted using spectroscopic methods. The authors presented the dynamics of H2O ligands and a perrhenate anion in the [Mn(H2O)2](ReO4)2 molecule at the moment of phase transition, as well as the crystallographic structure and thermal properties of the above-mentioned compounds. These compounds were obtained as a result of the reaction of manganese(II) carbonate with perrhenic acid [30].
In 2021, B.C. Gong, H.C. Yang, J.F. Zhang, K. Liu and Z.Y. Lu conducted research in which they found that manganese(II) perrhenate, which has a wavy layered structure, doped with electrons exhibits ferromagnetic properties. They also determined that this compound can be a so-called van der Walls magnetic material, which means that it can be used for research on magnetism and in spintronics [31].
In 2020, in OSTI.GOV, a detailed crystallographic analysis of manganese(II) perrhenate was described. It showed that Mn(ReO4)2 crystallizes in a trigonal space group and its structure is two-dimensional [32].
The objective of this study was to produce manganese(II) perrhenate dihydrate exclusively from two waste streams that, to the knowledge of the authors, have not been previously reported in the literature. Furthermore, the innovative method involves handling all waste materials, solid and liquid, to eliminate any loss of components and the need for further processing. This waste-free technology enables the production of high-purity manganese(II) perrhenate dihydrate, a valuable material for future novel applications in alloys, catalysts and electrical components. It is also in agreement with the principles of sustainable development and green transformation, and importantly, it meets the 6R principles in all six areas (rethink, refuse, reduce, reuse, repair and recycle) [33].

2. Results and Discussion

2.1. Recovery of Manganese from Post-Leaching Solutions of Li–ion Battery Scrap and Analysis of the Obtained MnO2

Manganese precipitation tests were carried out using the post-leaching solutions of Li–ion battery scrap. Before the main precipitation of manganese, the solution was purified from Cu and then from Al and Fe. Copper was precipitated using 1 mole of iron in the form of metallic Fe powder for each mole of copper in the solution, which takes around 45 min with filtration. After filtering the precipitate, 30% H2O2 solution and then aqueous 20%NaOH solution were added over 30 min until the pH 5.2 was obtained. Neutralization was carried out at a temperature not exceeding 50 °C, and after obtaining the desired pH, the reaction was conducted for 30 min in the obtained conditions. After that time, the precipitated aluminum–iron sludge was filtered to obtain a solution that was sent for the manganese recovery tests. Table 1 lists the compositions of all the solutions, and Figure 1 shows (a) losses of valuable metals in the purification processes (Li, Mn, Co and Ni) and (b) efficiency of the precipitation of pollutants (Cu, Fe and Al).
As can be seen in Figure 1, the losses of valuable metals (Li, Mn, Co and Ni) did not exceed 2% for each component, while the precipitation efficiencies of impurities, such as Cu, Fe and Al, were 99.84%, 99.97% and 99.96%, respectively.
In the next stage, the purified solution was sent for the manganese precipitation tests. Precipitation was carried out using a stoichiometric amount of KMnO4, and the resulting mixture was intensively stirred for 60 min at room temperature. After this time, the precipitate was vacuum-filtered, washed (with solutions of sulfuric acid and water) and analyzed. The solution from the filtration was directed to the recovery of other metals (Ni, Co and Li).
In this way, manganese(II) oxides were obtained, with the compositions depending on the purification stage listed in Table 2. No significant losses of Ni, Li and Co were observed during the process. Cobalt and nickel losses, associated with MnO2 precipitation, were reduced by proposing a recycling of the solutions resulting from the purification. For the selected manganese(II) oxide, after all purification steps, XRD analysis was performed (Figure 2). During the research, a waste management method was developed (Figure 3). SEM analysis was performed for the purified with 20% H2SO4 manganese(II) oxide—Figure 4.
The purification of MnO2 with 20% H2SO4 solution allowed to reduce the level of impurities below 0.20 wt% of each metal. Thus, MnO2 was obtained, in which the amount of individual impurities such as Co, Ni, and Fe was (wt%): 0.20, 0.16 and <0.01, respectively (Table 2).
As can be seen in Figure 2, XRD analysis confirmed the possibility of producing MnO2 using the described conditions, as the obtained diffractogram shows only the crystalline form of MnO2. The form of the diffractogram indicates a large amount of the amorphous phase.
The obtained MnO2 precipitate was contaminated with cobalt and nickel but did not contain iron. After purification with a 20% H2SO4 solution, a product free of the above-mentioned elements was obtained. It was the substrate for the production of manganese(II) perrhenate.

2.2. Precipitation and Characterization of the Obtained Manganese(II)Perrhenate Dihydrate

The production of manganese(II) perrhenate dihydrate was carried out according to the reaction (1)
MnO2 + H2O2 + 2HReO4 = Mn(ReO4)2 + 2H2O + O2
Purified MnO2 (weighing 10 g) was added alternately with a 30% H2O2 solution (50 cm3 of hydrogen peroxide for each 10 g of manganese(II) oxide) to the aqueous solutions of perrhenic acid with the concentrations of 18.0 or 295.0 g/dm3 of Re. The tests were carried out at room temperature. In this way, a solution with the pH ranging from 6 to 7 was obtained. After reaching the pH, the solution was stirred for 90 min and successively filtered from the unreacted residue. The resulting solutions were directed to the evaporation to dryness, which was carried out at a temperature < 50 °C with an addition of 30% H2O2 solution using 15 cm3 of hydrogen peroxide for every 50 g of rhenium. Evaporation tests were also carried out to obtain the first crystals. The crude wet sludge precipitated in this way was combined and sent to the cyclic purification stage. A 30 g portion of crude manganese(II) perrhenate dihydrate was used in the tests. Purification was carried out using recrystallization from water with an addition of 15 cm3 of 30% aqueous H2O2 solution for every 50 g of Re in the precipitate and successively evaporated to obtain the first crystals. Four purification cycles were carried out. The results of the obtained tests are presented in Table 3 and Table 4. Figure 5 and Figure 6 illustrate the influence of the used rhenium concentration on the precipitation efficiency of the obtained manganese(II) perrhenate dihydrate and the influence of purification cycles on the purification efficiency of the obtained compound.
With the use of perrhenic acid with the rhenium concentrations of 18 and 295 g/dm3 both, similar Mn(ReO4)2·2H2O precipitation efficiencies were obtained using both precipitation methods. The efficiencies were high, for example, over 92%, while using the evaporation to dryness method. Therefore, the choice of acid concentration for the technology in industry will result from the scale of the production, the amount of waste solutions and the price of energy and will be analyzed at each stage of the technology implementation.
The use of the second stage of purification allows to obtain Mn(ReO4)2·2H2O of satisfactory purity, i.e., 9.29% of Mn, 62.9% of Re, 0.10% of Co and Ni and <0.01% of Fe.
In this way, 15.20 g of wet manganese(II) perrhenate dihydrate was obtained, which was dried at 100–110 °C until a constant weight was reached. Thus, manganese(II) perrhenate dihydrate weighing 14.54 g with a purity > 99% was obtained. XRD analysis was performed for this compound—Figure 7.
As can be seen in the diffractogram (Figure 7), a crystalline form of Mn(ReO4)2·2H2O was obtained using the described conditions. This diffraction pattern also does not show any amorphous phases and substances.
For this Mn(ReO4)2·2H2O, its solubility was also determined. The test results are presented in Table 5.
The determined solubilities of Mn(ReO4)2·2H2O obtained at various temperature values are consistent with the literature data [24,34]. Each test using the gravimetric method was repeated three times, giving consistent results on the solubility of manganese(II) perrhenate dihydrate. Standard deviations were calculated and are included in Table 5.
The analysis of the conducted research on the precipitation of Mn(ReO4)2·2H2O showed that this compound can be obtained using purified MnO2, adding it alternately with the 30% H2O2 solution (50 cm3 of hydrogen peroxide for each 10 g of manganese(II) oxide) to the aqueous solution of perrhenic acid. The reaction should be carried out at room temperature for 30 min until a pH 6–7 is obtained. Mn(ReO4)2·2H2O, precipitated by evaporating the solution to dryness, should be purified by recrystallization from water with the addition of H2O2 at least twice. The purified Mn(ReO4)2·2H2O should be dried at 100–110 °C.
Based on the described research, this new, innovative, hydrometallurgical technology was developed for obtaining manganese(II) perrhenate dihydrate that was produced entirely from waste, i.e., superalloy scrap and Li–ion batteries. The next stage of the research will be to find a real application of manganese(II) perrhenate dihydrate in the catalytic, battery and defense industries. Research will be carried out on the possibility of obtaining manganese(II) perrhenate dihydrate with dedicated physicochemical properties, e.g., grain size below 100 nm.

3. Materials and Methods

3.1. Materials

Perrhenic acid, used in this research, was obtained by leaching the superalloy scrap (Figure 8) with a mixture of acids with an addition of oxidants. The compositions of the materials are shown in Table 6 [35,36]. In this way, a solution was obtained containing 1.1 g/dm3 of Re and mainly nickel but also cobalt, chromium and aluminum. This solution was directed to the sorption of rhenium using a weakly basic ion exchange resin A170 (Purolite, King of Prussia, PA, USA, hydroxide form). The solution obtained after the sorption of rhenium was directed to the recovery of valuable metal components (Ni and Co), while rhenium absorbed in the ion exchange resin was eluted with an aqueous ammonia solution (25%, Chempur, Piekary Śląskie, Poland, p.a.). Ammonium perrhenate was crystallized from the obtained ammonia eluate, which was then dissolved in water and directed to the sorption of ammonium ions using a strongly acidic cation exchange resin C160 (Purolite, USA, hydrogen form) [37,38]. The post-sorption solution, containing perrhenic acid, was sent to the concentration stage, or manganese(II) perrhenate was obtained directly from it. Figure 9 shows the laboratory equipment used in the preparation of perrhenic acid using the method described above. Perrhenic acid used in the conducted research differed in rhenium concentration. The first type came directly from the ion exchange process and was not concentrated. The second type of perrhenic acid was first concentrated and then used to obtain manganese(II) perrhenate dihydrate.
In this way, two types of perrhenic acid were obtained, containing (1) 18.0 g/dm3 of Re and <0.0001% of Ca, K, Mg, Cu, Na, Mo, Ni, Pb, Fe, NH4+, Bi, Zn, W, As and Al each and (2) 295.0 g/dm3 of Re; <0.0005% of K; <0.0002% of NH4+; and <0.0001% of Ca, Mg, Cu, Na, Mo, Ni, Pb, Fe, Bi, Zn, W, As and Al each [38].
The solutions obtained after the leaching of the black mass from Li–ion batteries were used as the source of manganese—Table 7. Battery masses for the leaching process were obtained as a result of using the technology developed and patented by Łukasiewicz-IMN [39,40].
After leaching, a solution with the composition of 2.50 g/dm3 of Al, 25.60 g/dm3 of Co, 2.56 g/dm3 of Li, 6.54 g/dm3 of Mn, 2.50 g/dm3 of Cu, 8.20 g/dm3 of Ni and 1.80 g/dm3 of Fe was obtained, which was directed to the MnO2 precipitation tests.
The following materials and reagents were used in this research: sulfuric acid (95%, Chempur, Piekary Śląskie, Poland, p.a.), aqueous solution of hydrogen peroxide (30%, P.P.H. Stanlab, Lublin, Poland, p.a.), demineralized water (<2 μS/cm, Łukasiewicz-IMN, Gliwice, Poland), sodium hydroxide (>98% Stanlab, Poland, p.a.), KMnO4 (99% P.P.H. Stanlab, Lublin, Poland, p.a.) and Fe dust (>98%, Chempur, Piekary Śląskie, Poland, p.a.).

3.2. Analyses

All analyses were performed at the Łukasiewicz Research Network—Institute of Non-Ferrous Metals, mainly at the Centre for Analytical Chemistry (Gliwice, Poland).
The rhenium content in manganese(II) perrhenate and perrhenic acid was determined by thin-layer X-ray fluorescence spectrometry using an X-ray fluorescence spectrometer (ZSX Primus, Rigaku, Tokyo, Japan).
Ammonium ions in the aqueous solutions of perrhenic acid were determined by a distillation method with titration after distillation—the Nessler method.
The following instrumental techniques were used to determine the concentrations of Mn, Li, Cu, Mo, Pb, Bi, Zn, W, As, Al, Mg, Ca, K, Mg, Na, Fe, Co and Ni: GFAAS (graphite furnace atomic absorption spectroscopy; Z-2000, HITACHI, Tokyo, Japan), ICP-OES (inductively coupled plasma-optical emission spectroscopy; ULTI-MA 2, HORIBA Jobin-Ivon, Kyoto, Japan), ICP-MS (inductively coupled plasma-mass spectroscopy; Nexion, PerkinElmer, Waltham, MA, USA), FAAS, (flame atomic absorption spectrometry; THERMO SOLAAR S4, Thermo Fisher Scientific, Waltham, MA, USA, equipped with a flame module—deuterium background and correction) and ICP-OES (Optima 5300V, Perkin Elmer, Waltham, MA, USA).
XRD analyses were also performed at the Łukasiewicz Research Network—Institute of Non-Ferrous Metals, Centre of Functional Materials (Gliwice, Poland). The diffraction patterns were prepared using a Rigaku MiniFlex 600 XRD diffractometer equipped with an X-ray tube with a wavelength of 1.5406 Å, a D/TeX silicon strip detector and a Soller slit with a high resolution of 2.5” on the primary and scattered beam, calibrated using NIST SRM (Standard Reference Material) 640d Si powder.
SEM analyses were also performed at the Łukasiewicz Research Network—Institute of Non-Ferrous Metals, Centre of Advanced Materials Technologies, using a high-resolution Zeiss Gemini 1525 scanning electron microscope, equipped with a Quantax xFlash®6 Bruker Nano X-ray spectrometer.
For the precipitated and purified manganese(II) perrhenate dihydrate, its solubility was measured using a gravimetric method. Figure 10 shows the used laboratory equipment. The excess amount of salt was dissolved in water with a conductivity of 0.06 μS in a thermostated reactor with a heating jacket with a working capacity of 0.5 × 10−3 m3. The saturated solution was stirred for 4 h using a magnetic stirrer at a constant temperature. The temperature was controlled using a Huber Ministat CC-K6 thermostat (accuracy +/−0.02 °C). After stabilization, a sample of the saturated solution was taken using a syringe equipped with a filter with a pore diameter of 0.22 μm. In order to avoid crystallization during sample collection, the filter and syringe were heated to a temperature 5 °C higher than the solution temperature. The sample was dried in a laboratory dryer at 30 °C. The solubility of manganese(II) perrhenate was calculated based on the mass difference. The experiments were carried out for four temperature values, i.e., 0 °C, 10 °C, 20 °C and 30 °C. Each measurement was repeated three times.

4. Conclusions

This work showed that with the use of manganese(II) oxide, precipitated from the post-leaching solutions of the black mass from Li–ion batteries, after prior purification from Cu, Fe, and Al (pH = 5.2)—respectively, steps 1 and 2—Mn(ReO4)2·2H2O can be obtained. MnO2 precipitation should be carried out at a temperature not exceeding 50 °C for 30 min using a stoichiometric amount of KMnO4—step 3. The precipitated MnO2 should be washed using a 20% solution of sulfuric acid and then water—steps 4 and 5. Purified MnO2 should be added alternately with a 30% H2O2 solution (50 cm3 of hydrogen peroxide for each 10 g of manganese(II) oxide) to an aqueous solution of perrhenic acid. The reaction should be carried out at room temperature for 30 min to obtain a pH of 6–7—step 6. Mn(ReO4)2·2H2O precipitated by evaporating the solution to dryness—step 7—should be purified by recrystallization from water with the addition of H2O2 a minimum of two times—step 8. The purified Mn described (ReO4)2·2H2O should be dried at a temperature of 100–110 °C—step 9. Using the described procedure, Mn(ReO4)2·2H2O with a purity > 99.0% and with a good precipitation efficiency can be obtained. A complete diagram of the entire developed technology is shown in Figure 11.
Figure 11 shows the diagram of the developed method in its entirety, with all the recirculation possibilities and indication of the so-called auxiliary operations. The blue line shows the recycling of sludge formed after the neutralization of perrhenic acid to prevent the loss of manganese and rhenium. The purple line represents the recirculation of the solutions resulting from the purification of Mn(ReO4)2·2H2O to minimize the losses of rhenium and manganese. The orange line shows the recycling of the solutions from MnO2 purification to minimize the manganese loss.

5. Patents

Part of the results of the work presented in this publication is the material submitted for patenting in the Patent Office of the Republic of Poland on 22 March 2024 entitled Sposób otrzymywania dwuwodnego renianu(VII) manganu(II) z roztworów pochodzących z ługowania masy czarnej baterii Li–ion (English title: Method of obtaining manganese(II) perrhenate dihydrate from the post-leaching solutions of the black mass from Li–ion batteries).

Author Contributions

Conceptualization, K.L.-S., M.O., A.P., S.O. and G.B.; methodology, K.L.-S., M.O., G.B. and D.K.; validation, K.L.-S., D.K., J.M. and M.O.; investigation, J.M., M.O., A.P. and S.O.; resources, K.L.-S., G.B., D.K., M.O. and A.P.; data curation, K.L.-S., A.G., G.B., M.O., A.P. and D.K.; writing—original draft preparation, K.L.-S., S.O. and A.G.; writing—review and editing, K.L.-S., K.G. and A.G.; visualization, K.L.-S., J.M., K.G. and M.O.; supervision, G.B., D.K. and K.L.-S.; project administration, K.L.-S.; funding acquisition, K.L.-S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Norwegian Financial Mechanism 2014–2021—Small Grant 2020 NOR/SGS//RenMet/0049/2020-00 (11/PE/0146/21), entitled Innovative hydrometallurgical technologies for the production of rhenium compounds from recycled waste materials for catalysis, electromobility, aviation and defense industry.

Data Availability Statement

Data available on request due to restrictions of privacy. The data presented in this study are available on request from the corresponding author. The data are not publicly available due to patent application and project contract.

Acknowledgments

The authors would like to express their thanks for the paid quantitative chemical analyses carried out in the Łukasiewicz Research Network—Institute of Non-Ferrous Metals, Centre of Analytical Chemistry and for the XRD qualitative analyses conducted in the Łukasiewicz Research Network—Institute of Non-Ferrous Metals, Centre of Functional Materials (especially Łukasz Hawełek) and Centre of Advanced Materials Technologies.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses or interpretation of the data; in the writing of the manuscript or in the decision to publish the results.

References

  1. Roskill. Rhenium: Outlook to 2029, 11th ed.; Roskill Information Services Ltd.: London, UK, 2019; ISBN 978-1-910-92279-8. [Google Scholar]
  2. Howe, P.; Dobson, S. Manganese and Its Compounds: Environmental Aspects; World Health Organization: Geneva, Switzerland, 2005. [Google Scholar]
  3. Kemmitt, R.D.W.; Peacock, R.D. The Chemistry of Manganese, Technetium and Rhenium; Pergamon Press: Oxford, UK, 1975; ISBN 0-08-018870-2. [Google Scholar]
  4. Leszczyńska-Sejda, K.; Majewski, T.; Benke, G.; Piętaszewski, J.; Anyszkiewicz, K.; Michałowski, J.; Chmielarz, A. Production of High-Purity Ammonium Perrhenate for W-Re-Ni-Fe Heavy Alloys. J. Alloys Compd. 2012, 513, 347–352. [Google Scholar] [CrossRef]
  5. Huang, M.; Zhu, J. An Overview of Rhenium Effect in Single-Crystal Superalloys. Rare Met. 2016, 35, 127–139. [Google Scholar] [CrossRef]
  6. Leszczynska-Sejda, K.; Benke, G.; Malarz, J.; Ciszewski, M.; Kopyto, D.; Piatek, J.; Drzazga, M.; Kowalik, P.; Zemlak, K.; Kula, B. Rhenium(VII) Compounds as Inorganic Precursors for the Synthesis of Organic Reaction Catalysts. Molecules 2019, 24, 1451. [Google Scholar] [CrossRef] [PubMed]
  7. Shabalin, I.L. Ultra-High Temperature Materials I; Springer: Dordrecht, The Netherlands, 2014; ISBN 978-94-007-7587-9. [Google Scholar]
  8. Lee, Y.K.; Han, J. Current Opinion in Medium Manganese Steel. Mater. Sci. Technol. 2015, 31, 843–856. [Google Scholar] [CrossRef]
  9. Xie, C.; Li, T.; Deng, C.; Song, Y.; Zhang, H.; Li, X. A Highly Reversible Neutral Zinc/Manganese Battery for Stationary Energy Storage. Energy Environ. Sci. 2020, 13, 135–143. [Google Scholar] [CrossRef]
  10. Shen, L.; Tesfaye, F.; Li, X.; Lindberg, D.; Taskinen, P. Review of Rhenium Extraction and Recycling Technologies from Primary and Secondary Resources. Miner. Eng. 2021, 161, 106719. [Google Scholar] [CrossRef]
  11. Xu, D.; Zheng, S.; Chen, P.; Wei, B.; Zhang, J.; Cheng, J. Recycling of Rhenium from W–Re-Alloyed Scraps by a Pyrometallurgical Method. J. Sustain. Metall. 2022, 8, 148–155. [Google Scholar] [CrossRef]
  12. Yagi, R.; Okabe, T.H. Review: Rhenium and Its Smelting and Recycling Technologies. Int. Mater. Rev. 2024, 69, 142–177. [Google Scholar] [CrossRef]
  13. Nansai, K.; Nakajima, K.; Kagawa, S.; Kondo, Y.; Shigetomi, Y.; Suh, S. Global Mining Risk Footprint of Critical Metals Necessary for Low-Carbon Technologies: The Case of Neodymium, Cobalt, and Platinum in Japan. Environ. Sci. Technol. 2015, 49, 2022–2031. [Google Scholar] [CrossRef]
  14. Li, B.M.; Lu, J. Cobalt in Lithium-Ion Batteries. Science 2020, 367, 979–980. [Google Scholar] [CrossRef]
  15. Botelho Junior, A.B.; Stopic, S.; Friedrich, B.; Tenório, J.A.S.; Espinosa, D.C.R. Cobalt Recovery from Li-ion Battery Recycling: A Critical Review. Metals 2021, 11, 1999. [Google Scholar] [CrossRef]
  16. Xu, J.; Lin, F.; Doeff, M.M.; Tong, W. A Review of Ni-Based Layered Oxides for Rechargeable Li-Ion Batteries. J. Mater. Chem. A 2017, 5, 874–901. [Google Scholar] [CrossRef]
  17. Cui, Z.; Manthiram, A. Thermal Stability and Outgassing Behaviors of High-Nickel Cathodes in Lithium-Ion Batteries. Angew. Chem. -Int. Ed. 2023, 62, e202307243. [Google Scholar] [CrossRef] [PubMed]
  18. Beukes, N.J.; Swindell, E.P.W.; Wabo, H. Manganese Deposits of Africa. Episodes 2016, 39, 285–317. [Google Scholar] [CrossRef]
  19. Gutzmer, J.; Du Plooy, A.P.; Beukes, N.J. Timing of Supergene Enrichment of Low-Grade Sedimentary Manganese Ores in the Kalahari Manganese Field, South Africa. Ore Geol. Rev. 2012, 47, 136–153. [Google Scholar] [CrossRef]
  20. Keller, A.; Hlawitschka, M.W.; Bart, H.J. Manganese Recycling of Spent Lithium Ion Batteries via Solvent Extraction. Sep. Purif. Technol. 2021, 275, 119166. [Google Scholar] [CrossRef]
  21. Rouschias, G. Recent Advances in the Chemistry of Rhenium. Chem. Rev. 1974, 74, 531–566. [Google Scholar] [CrossRef]
  22. Darab, J.G.; Smith, P.A. Chemistry of Technetium and Rhenium Species during Low-Level Radioactive Waste Vitrification. Chem. Mater. 1996, 8, 1004–1021. [Google Scholar] [CrossRef]
  23. Sleight, A.W. Rhenium Oxides of Types MReO4 and M’2ReO6. U.S. Patent 40,270,04A, 31 May 1977. [Google Scholar]
  24. Smith, W.T.; Maxwell, G.E. The Salts of Perrhenic Acid. II. The Iron Family and Manganese. J. Am. Chem. Soc. 1949, 71, 578–580. [Google Scholar] [CrossRef]
  25. Mayfield, H.G., Jr.; Bull, W.E. Perrhenato Complexes of Bivalent Cations. Inorganica Chim. Acta 1969, 3, 676–680. [Google Scholar] [CrossRef]
  26. Ovchinnikov, K.V.; Nikolaev, E.N.; Semenov, G.A. Thermal Decomposition of Perrhenates of Cr(3), Mn, Fe(3), Co and Ni in Vacuum. Zh. Obs. Khim. 1981, 50, 485–488. [Google Scholar]
  27. Torardi, C.; Reiff, W.M.; Dodrill, B.C.; Vogt, T. Layered 3-D Ferromagnets AND Antiferromagnets, M2+(ReO4)2 (M=Mn, Fe, Co, Ni, Cu): Importance of Dipolar Interactions. Solid-State Chem. Inorg. Mater. 1997, 453, 399–403. [Google Scholar] [CrossRef]
  28. Butz, A.; Miehe, G.; Paulus, H.; Strauss, P.; Fuess, H. The Crystal Structures of Mn(ReO4)2·2H2O and of the Anhydrous PerrhenatesM(ReO4)2 of Divalent Manganese, Cobalt, Nickel, and Zinc. J. Solid State Chem. 1998, 138, 232–237. [Google Scholar] [CrossRef]
  29. Mujica, C. Crystal Structure of Díaquabis (Perrhenato) Manganese(II). Z. Für Krist. -New Cryst. Struct. 1998, 213, 229. [Google Scholar]
  30. Hetmańczyk, J.; Hetmańczyk, Ł. Dynamics of H2O Ligands and ReO4− Anions at the Phase Transition in [Mn(H2O)2](ReO4)2 Studied by Complementary Spectroscopic Methods. J. Raman Spectrosc. 2018, 49, 298–311. [Google Scholar] [CrossRef]
  31. Gong, B.C.; Yang, H.C.; Zhang, J.F.; Liu, K.; Lu, Z.Y. Inducing High-Tc Ferromagnetism in the van DerWaals Crystal Mn(ReO4)2 via Charge Doping: A First-Principles Study. Phys. Rev. B 2021, 104, 075133. [Google Scholar] [CrossRef]
  32. osti.gov. Available online: https://www.osti.gov/biblio/1205969 (accessed on 21 August 2023).
  33. Maťová, H.; Kaputa, V.; Triznová, M. Forestry and Forestry Based Industry Implications Digitalisation and Circular Economy: Forestry and Forestry Based Industry Implications; WoodEMA, i.a, Zagreb; Union of Scientists of Bulgaria: Sofia, Bulgaria, 2019; ISBN 9789543970421. [Google Scholar]
  34. Borisova, L.V.; Ermakov, A.N. Analytical Chemistry of Elements—Analytical Chemistry of Rhenium; Publishing House Nauka: Moscow, Russia, 1974. [Google Scholar]
  35. Leszczyńska-Sejda, K.; Benke, G.; Kopyto, D.; Majewski, T.; Drzazga, M. Production of High-Purity Anhydrous Nickel(II) Perrhenate for Tungsten-Based Sintered Heavy Alloys. Materials 2017, 10, 448. [Google Scholar] [CrossRef] [PubMed]
  36. Leszczyńska-Sejda, K.; Benke, G.; Kopyto, D.; Drzazga, M.; Ciszewski, M. Application of Ion Exchange for Preparation of Selected Metal Perrhenates—Precursors for Superalloy Production. Metals 2019, 9, 201. [Google Scholar] [CrossRef]
  37. Benke, G.; Anyszkiewicz, K.; Hac, D.; Litwinionek, K.; Leszczyńska-Sejda, K. Progress in the Methods of Recovering Rhenium from Copper Metallurgy. Przem. Chem. 2006, 85, 793–797. [Google Scholar]
  38. Leszczyńska-Sejda, K.; Benke, G.; Chmielarz, A.; Krompiec, S.; Michalik, S.; Krompiec, M. Synthesis of Perrhenic Acid Using Ion Exchange Method. Hydrometallurgy 2007, 89, 289–296. [Google Scholar] [CrossRef]
  39. Lewandowski, D.; Kozłowski, J.; Mikłasz, W. Sposób Recyklingu Baterii Wtórnych. PL 240110 B1, 2017. Available online: https://worldwide.espacenet.com/patent/search/family/063854944/publication/PL240110B1?q=PL%20240110%20B1 (accessed on 29 January 2024).
  40. Lewandowski, D.; Kozłowski, J.; Potempa, M. Recycling of Li-Ion Batteries with the Application of Mechanical and Pyrometallurgical Methods. World Metall. -Erzmetall 2020, 73, 123–127. [Google Scholar]
Recycling 09 00036 g001

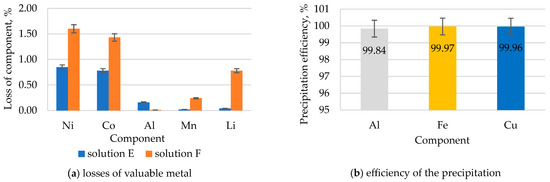

Figure 1. Results of the solution purification tests from Cu, Fe and Al.
Figure 1. Results of the solution purification tests from Cu, Fe and Al.
Recycling 09 00036 g001
Recycling 09 00036 g002

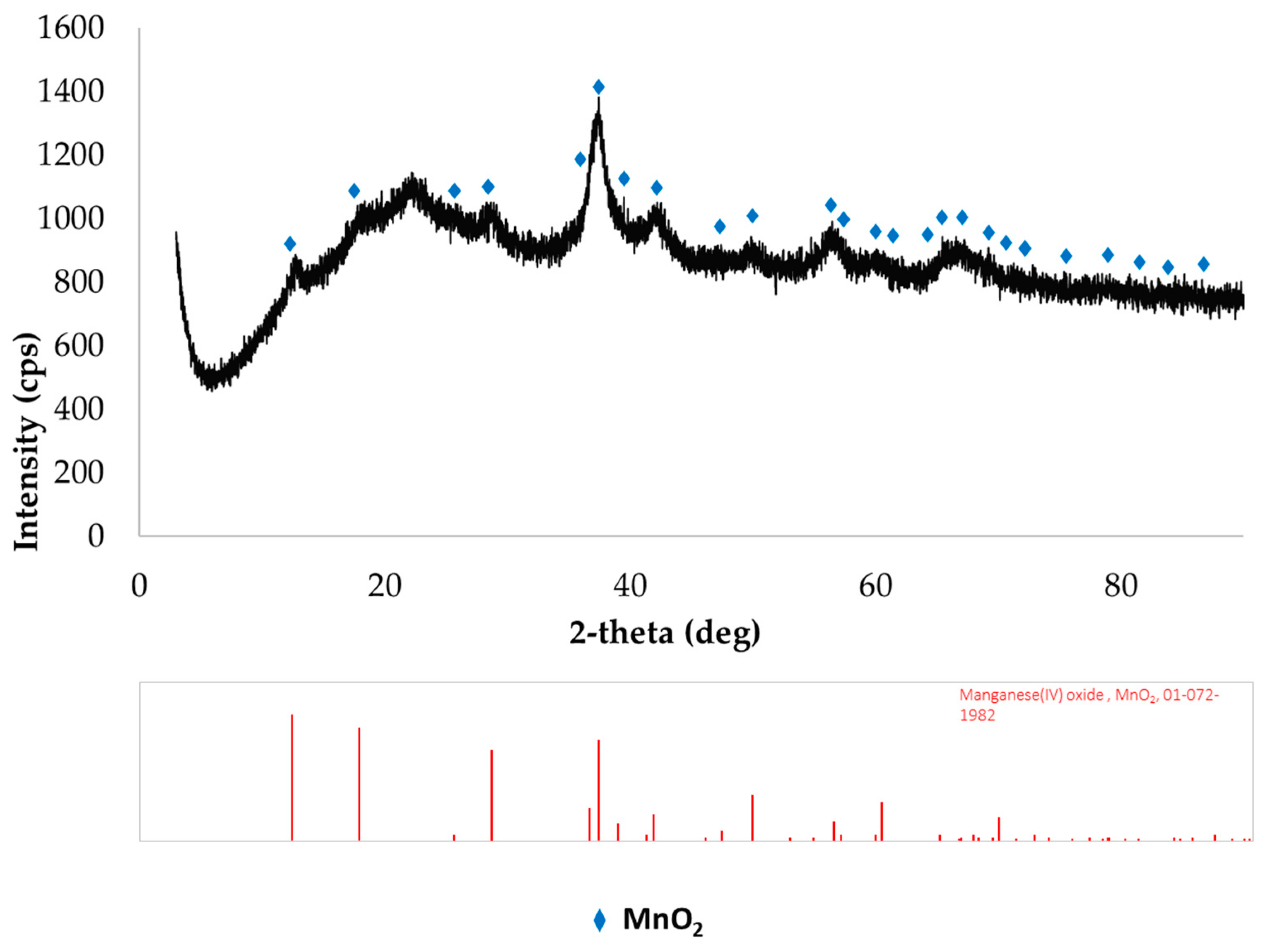

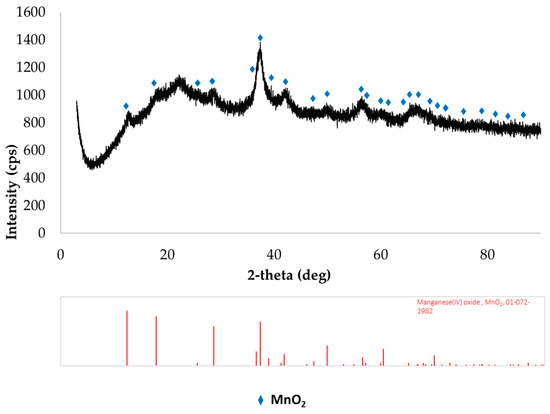

Figure 2. XRD pattern of the purified MnO2 (purified with 20% H2SO4).
Figure 2. XRD pattern of the purified MnO2 (purified with 20% H2SO4).
Recycling 09 00036 g002
Recycling 09 00036 g003

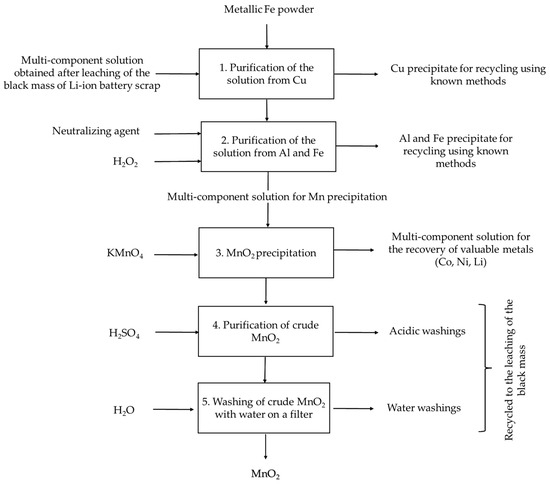

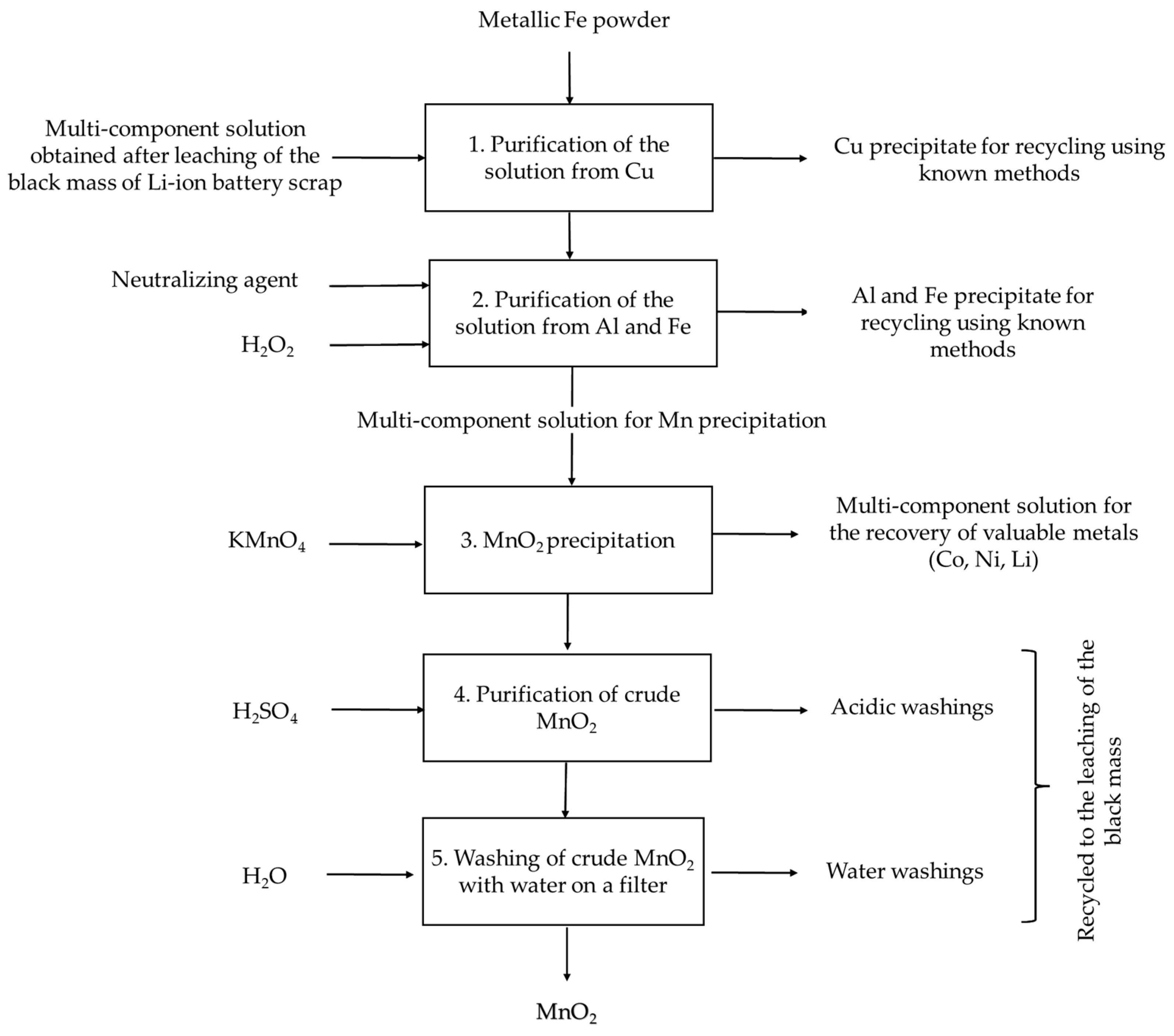

Figure 3. Scheme of MnO2 precipitation from the post-leaching solutions of the black mass from Li–ion batteries.
Figure 3. Scheme of MnO2 precipitation from the post-leaching solutions of the black mass from Li–ion batteries.
Recycling 09 00036 g003
Recycling 09 00036 g004

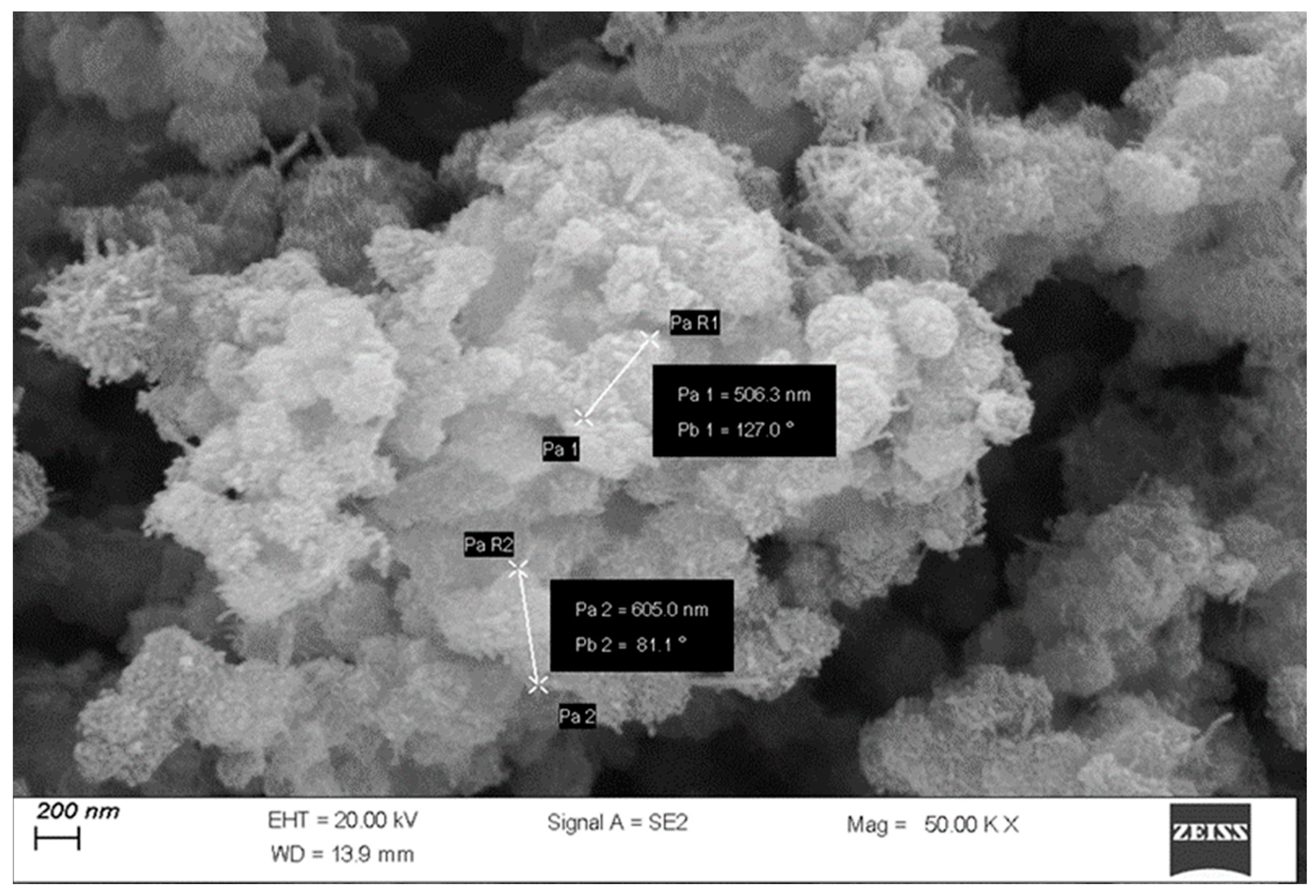

Figure 4. SEM analysis of the purified MnO2.
Figure 4. SEM analysis of the purified MnO2.
Recycling 09 00036 g004
Recycling 09 00036 g005

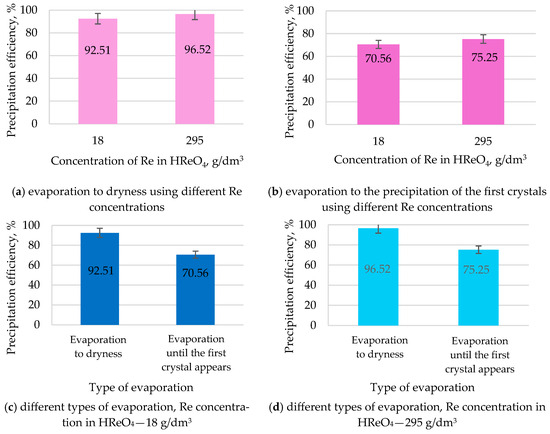

Figure 5. Results of the influence of the Re concentration in HReO4 and the evaporation method on the efficiency of Mn(ReO4)2·2H2O precipitation.
Figure 5. Results of the influence of the Re concentration in HReO4 and the evaporation method on the efficiency of Mn(ReO4)2·2H2O precipitation.
Recycling 09 00036 g005
Recycling 09 00036 g006

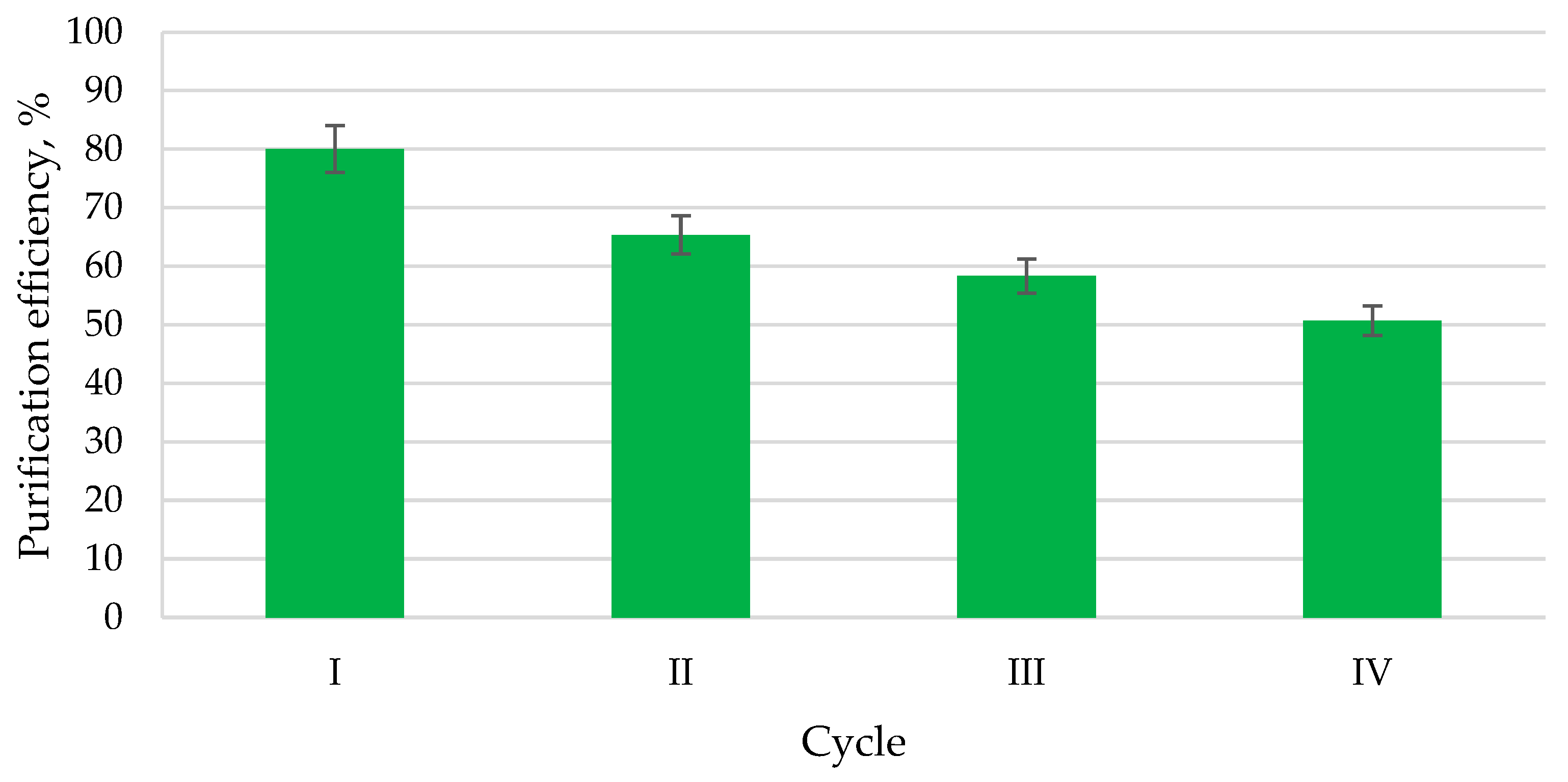

Figure 6. Results of the influence of the cyclic purification of Mn(ReO4)2·2H2O on the efficiency of the purification of this compound.
Figure 6. Results of the influence of the cyclic purification of Mn(ReO4)2·2H2O on the efficiency of the purification of this compound.
Recycling 09 00036 g006
Recycling 09 00036 g007

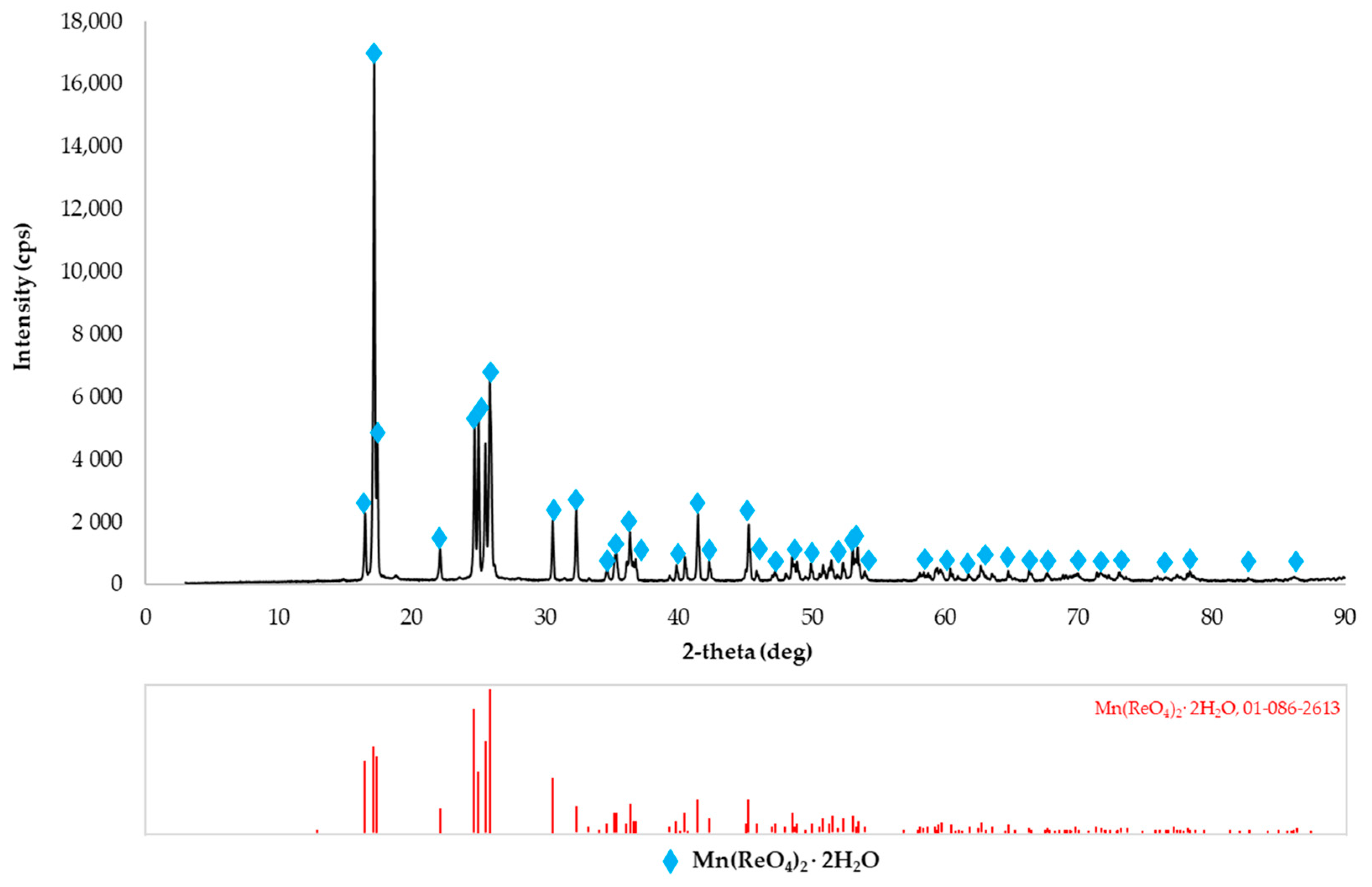

Figure 7. XRD pattern of Mn(ReO4)2·2H2O, after four purification cycles.
Figure 7. XRD pattern of Mn(ReO4)2·2H2O, after four purification cycles.
Recycling 09 00036 g007
Recycling 09 00036 g008

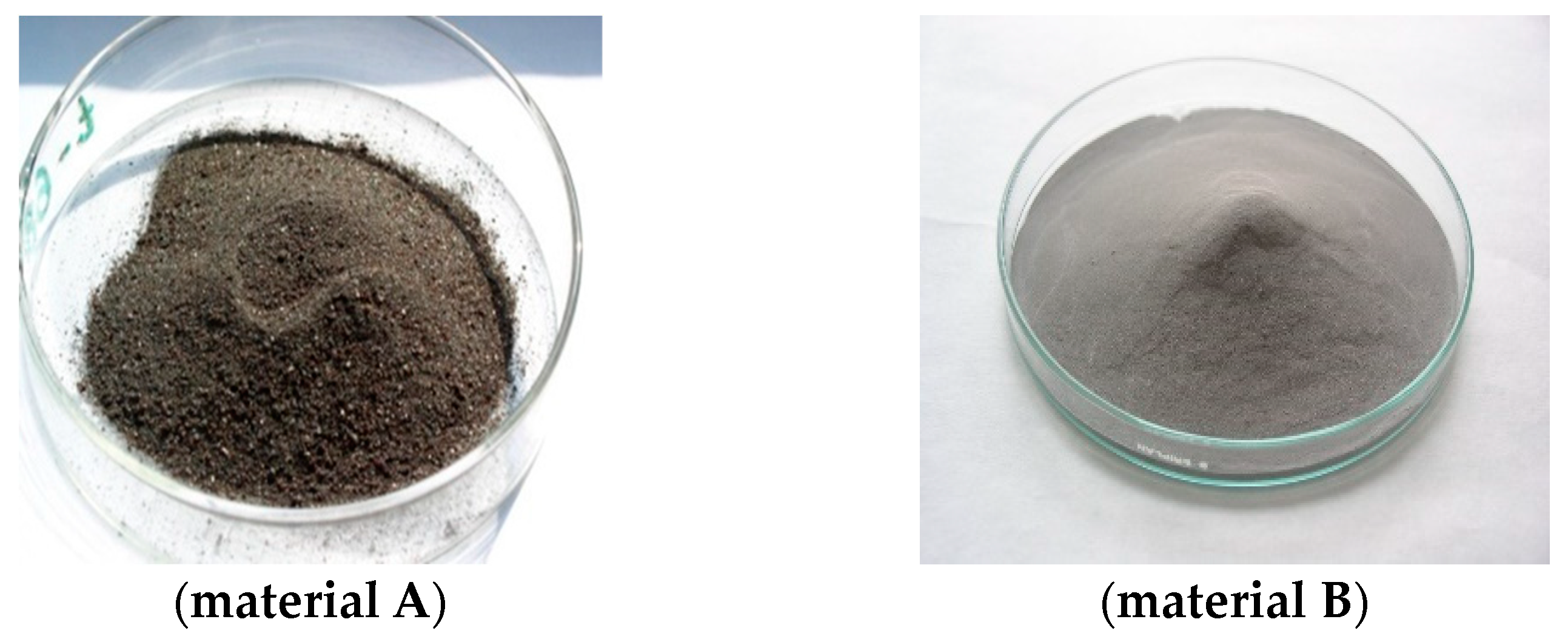

Figure 8. Pictures of the crushed superalloy scrap used in the research.
Figure 8. Pictures of the crushed superalloy scrap used in the research.
Recycling 09 00036 g008
Recycling 09 00036 g009

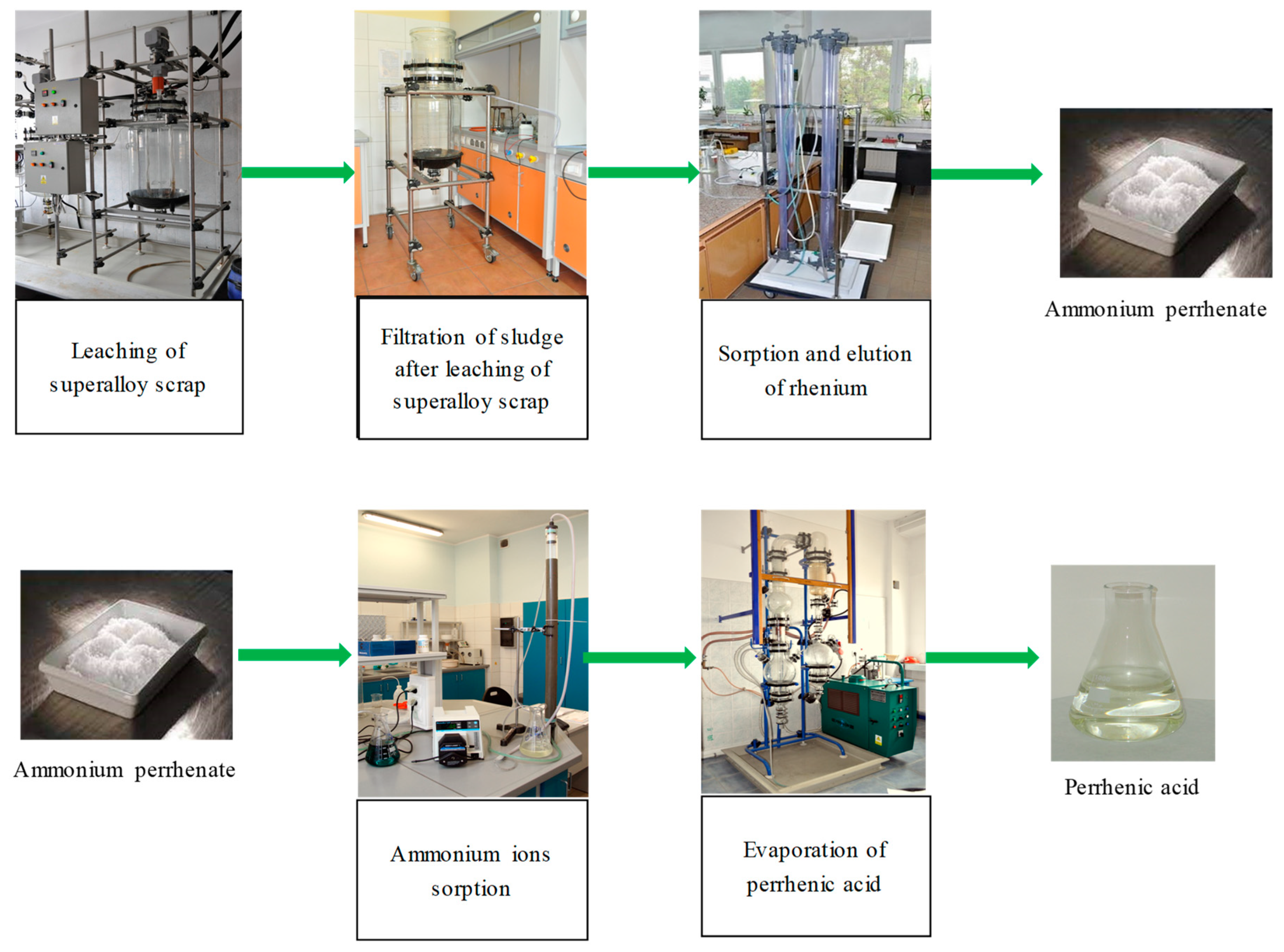

Figure 9. Scheme of obtaining perrhenic acid from the superalloy scrap.
Figure 9. Scheme of obtaining perrhenic acid from the superalloy scrap.
Recycling 09 00036 g009
Recycling 09 00036 g010

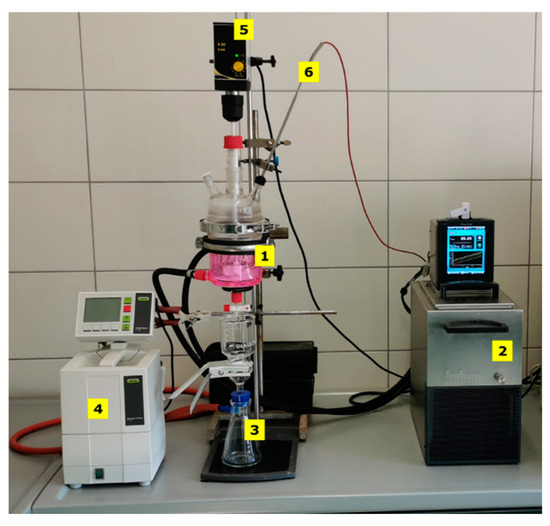

Figure 10. The equipment for determining the solubility of Mn(ReO4)2·2H2O: (1) reactor with the heating jacket; (2) heating and cooling thermostat; (3) vacuum filtration kit; (4) vacuum pump; (5) mechanical stirrer; (6) thermocouple.
Figure 10. The equipment for determining the solubility of Mn(ReO4)2·2H2O: (1) reactor with the heating jacket; (2) heating and cooling thermostat; (3) vacuum filtration kit; (4) vacuum pump; (5) mechanical stirrer; (6) thermocouple.
Recycling 09 00036 g010
Recycling 09 00036 g011

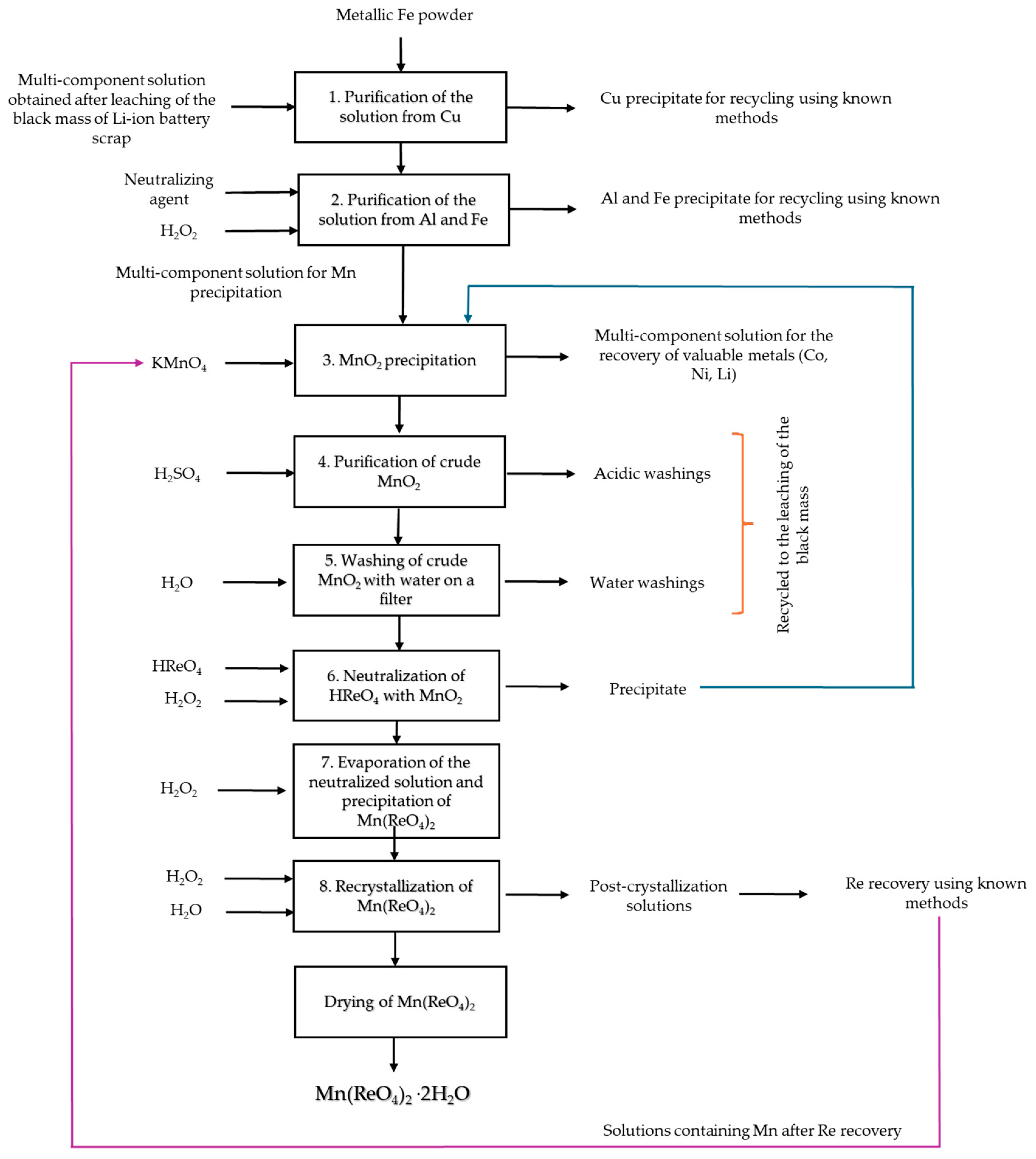

Figure 11. Diagram of the entire Mn(ReO4)2·2H2O production technology from waste.
Figure 11. Diagram of the entire Mn(ReO4)2·2H2O production technology from waste.
Recycling 09 00036 g011
Table 1. Composition of the solutions obtained in the purification tests.
Table 1. Composition of the solutions obtained in the purification tests.
Type of SolutionVolume, dm3Concentration, g/dm3
NiCoAlMnLiFeCu
after leaching10.08.2025.602.506.542.561.802.50
after Cu precipitation (E)9.658.4226.322.596.782.654.14<0.01
after Fe and Al
precipitation (F)		10.127.9124.74<0.016.452.51<0.01<0.01
Table 2. Compositions of the obtained manganese(II) oxides.
Table 2. Compositions of the obtained manganese(II) oxides.
Type of
MnO2 		Composition, wt%
MnCoNiFe
crude56.104.140.90<0.01
purified with 1% H2SO453.303.550.67<0.01
purified with 20% H2SO455.900.200.16<0.01
Table 3. Results of Mn(ReO4)2·2H2O precipitation.
Table 3. Results of Mn(ReO4)2·2H2O precipitation.
Concentration of Re in HReO4, g/dm3Volume of HReO4, dm3Efficiency of Mn(ReO4)2·2H2O Precipitation, %Composition in Crude Mn(ReO4)2·2H2O, wt%
MnReCoNiFe
18.02.3892.519.3162.300.550.120.02
70.56 *9.2262.300.540.08<0.01
295.00.1596.529.5464.300.510.13<0.01
75.25 *9.5864.100.550.130.02
* Research conducted to the precipitation of the first crystals.
Table 4. Mn(ReO4)2·2H2O purification results.
Table 4. Mn(ReO4)2·2H2O purification results.
Number of the CycleMass of
Mn(ReO4)2·2H2O, g		Precipitation
Efficiency of Mn(ReO4)2·2H2O *,
%		Composition in Crude Mn(ReO4)2·2H2O, wt%
MnReCoNiFe
030.0-9.4163.250.540.16<0.01
I24.080.09.2962.950.150.10<0.01
II19.665.39.2962.950.100.10<0.01
III17.558.39.2962.950.100.10<0.01
IV15.250.79.2962.950.100.10<0.01
* Efficiency calculated in relation to the initial mass of crude Mn(ReO4)2·2H2O.
Table 5. Mn(ReO4)2·2H2O solubility test results.
Table 5. Mn(ReO4)2·2H2O solubility test results.
Temperature, °CSolubility of
Mn(ReO4)2·2H2O,
%		Standard Deviation
031.50.09
1028.20.10
2022.70.22
3020.50.16
Table 6. Compositions of the superalloy scrap used in the research.
Table 6. Compositions of the superalloy scrap used in the research.
MaterialComposition, wt%
ReNiCoCrAlFe
A1.7843.326.504.7014.501.30
B1.1037.9019.509.1013.900.08
Table 7. Compositions of the black mass from Li–ion batteries used in the research.
Table 7. Compositions of the black mass from Li–ion batteries used in the research.
MaterialComposition, wt%
NiCoAlMnLiFeCu
C6.5032.002.005.452.501.902.03
D12.7017.002.7910.022.702.101.78
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Leszczyńska-Sejda, K.; Palmowski, A.; Ochmański, M.; Benke, G.; Grzybek, A.; Orda, S.; Goc, K.; Malarz, J.; Kopyto, D. Recycling of Rhenium from Superalloys and Manganese from Spent Batteries to Produce Manganese(II) Perrhenate Dihydrate. Recycling 2024, 9, 36. https://doi.org/10.3390/recycling9030036

AMA Style

Leszczyńska-Sejda K, Palmowski A, Ochmański M, Benke G, Grzybek A, Orda S, Goc K, Malarz J, Kopyto D. Recycling of Rhenium from Superalloys and Manganese from Spent Batteries to Produce Manganese(II) Perrhenate Dihydrate. Recycling. 2024; 9(3):36. https://doi.org/10.3390/recycling9030036

Chicago/Turabian Style

Leszczyńska-Sejda, Katarzyna, Arkadiusz Palmowski, Michał Ochmański, Grzegorz Benke, Alicja Grzybek, Szymon Orda, Karolina Goc, Joanna Malarz, and Dorota Kopyto. 2024. "Recycling of Rhenium from Superalloys and Manganese from Spent Batteries to Produce Manganese(II) Perrhenate Dihydrate" Recycling 9, no. 3: 36. https://doi.org/10.3390/recycling9030036

Article Metrics

Back to TopTop
