Communication

N-Acetylglutamic Acid Enhances Tolerance to Oxidative and Heat Stress in Humulus lupulus

by
Takeshi Hirakawa
* and
Kazuaki Ohara
Kirin Central Research Institute, Kirin Holdings Company, Ltd., 26-1, Muraoka-Higashi 2, Fujisawa 251-8555, Kanagawa, Japan
*
Author to whom correspondence should be addressed.
Horticulturae 2024, 10(5), 484; https://doi.org/10.3390/horticulturae10050484
Submission received: 11 March 2024 / Revised: 25 April 2024 / Accepted: 6 May 2024 / Published: 8 May 2024
(This article belongs to the Special Issue Biostimulants and Plant Elicitors to Mitigate the Effect of Biotic and Abiotic Stress, Volume II)
Browse Figures
Versions Notes

Abstract

:
Humulus lupulus (hop) is a necessary material in beer brewing because its female inflorescences (called hop cones) give a floral aroma, bitterness and foam stability to beer. Various aspects of growth conditions in the cultivation area, especially temperature, strongly affect the yield and quality of hop cones. Recent estimates suggest that climate change accompanied by global warming is negatively impacting hop production, with high temperatures reducing the expression of genes that regulate beneficial secondary metabolites in hops. This underscores the need for techniques to enhance hop tolerance to high temperatures. This study explores the potential of N-acectylglutamic acid (NAG), a non-proteinogenic amino acid, to confer hops with tolerance against oxidative and heat stress by suppressing ROS accumulation. Exogenous NAG treatment activated the expression of HlZAT10/12 and HlHSFA2, which are putative homologues considered master regulators in response to oxidative and heat stress in Arabidopsis thaliana (Arabidopsis). Additionally, histone acetylation, a histone modification associated with transcriptional activation, was increased at these stress-responsive genes in the NAG-treated hops. These findings reveal NAG as a potential chemical compound to mitigate hop production reduction caused by high temperatures and suggest the conservation of epigenetic modification-mediated regulation of gene expression in response to environmental stresses in hops.

1. Introduction

Humulus lupulus L. (hop), a diploid, perennial, dioecious and climbing plant belonging to the Cannabaceae family, and is cultivated in cold climate areas globally [1]. The female inflorescence of hops is recognised as the ‘hop cone’ and is formed by multiple bracts, with bracteoles surrounded by a strig. In the base of bracteoles, glandular trichomes (GTs), also known as lupulin glands, comprising basal cell, stalk and secretory cells, can biosynthesise and store various specialised secondary metabolites, such as prenylflavonoids (xanthohumol and demethylxanthohumol), essential oils (myrcene, α-humulene and β-caryophyllene) and bitter acids (α-acid [humulone] and β-acid [lupulone]) [2,3]. These secondary metabolites derived from hop cones give a floral aroma, bitterness and foam stability to beer, thus hops are used as an essential material in beer brewing.
Climate change, accompanied by global warming, has recently been estimated to impair the quality and yield of hops. This is because hops are cultivated in restricted areas, limited to small regions with suitable environmental conditions [4]. Temperature–yield correlation analysis over past decades reveals that high temperatures during the summer, coinciding with the hop growth period, have negatively affected the production of hop cones and their α-acid content in the Czech Republic, which, along with Germany, is one of the major hop production areas [5]. The combined analysis of meteorological measurements and projection models predicts that global warming, resulting in a 1.4 °C temperature increase, will induce early ripening of hop cones. This is expected to trigger hop yield reduction, accompanied by decreased α-acid content, in both the Czech Republic and Germany [6]. Furthermore, high temperatures cause reduced expression of various genes regulating secondary metabolite biosynthesis, with a marked decrease observed in the valerophenone synthase gene, which plays a crucial role in bitter acid production [7]. These results highlight the need to develop strategies to counteract the detrimental effects of high temperatures on hop cultivation. However, fundamental research on hop plants remains insufficient, and the molecular mechanisms by which hops respond to stress remain incompletely elucidated.
Among techniques to enhance tolerance against environmental stresses, including high temperatures, chemical priming shows promise in plants. This method involves treating plants with functional chemical compounds to improve the stress response. It offers effective crop yield maintenance without genetic engineering amid climate changes [7]. For example, the amino acid γ-aminobutyric acid (GABA), whose content increases under high temperatures, modulates the expression of heat shock proteins (HSPs) and photosynthesis activity. This induces heat stress tolerance in Actinidia chinensis (kiwifruit) and Agrostis stolonifera (creeping bentgrass) [8,9,10]. Exogenous treatment with β-aminobutyric acid (BABA), an isomer of GABA, restores inhibited growth following heat stress in Arabidopsis thaliana (Arabidopsis) and Brassica rapa by upregulating abscisic acid-related genes and maintaining photosynthesis activity under high temperatures, respectively [11,12]. Furthermore, the activation of the response to misfolding proteins by ethanol enhances tolerance to heat stress in Arabidopsis and Lactuca sativa (lettuce) [13].
Under field conditions, high temperatures exacerbate negative effects on plants in conjunction with other environmental factors, particularly high light stress. This results in oxidative stress in plants, primarily reducing photosynthesis activity. High temperatures themselves induce oxidative stress by disrupting the ROS equilibrium in chloroplasts and mitochondria. This implies that chemical priming, activating the response to both oxidative and heat stress in hops, could effectively enhance growth under high temperatures. Previously, we found that exogenous treatment with N-acetylglutamic acid (NAG), a non-proteinogenic amino acid, confers heat and oxidative stress tolerance in Arabidopsis and Oryza sativa (rice), with improvements in heat- and oxidative-stress-responsive genes observed following the deposition of histone acetylation, which is an epigenetic modification closely related to gene activation [14,15]. Based on this finding, this study examined NAG effectiveness in alleviating heat and oxidative stress in hops.

2. Materials and Methods

2.1. Plant Materials and Growth Conditions

Humulus lupulus cv. ‘Saaz’ and ‘Hersbrucker’ were used as materials in this study. In vitro hop plants were established as previously described [16]. Stem explants were isolated from plants and sterilised with 70% (v/v) ethanol and 1% (v/v) sodium hypochlorite for 1 min and 5 min, respectively. After three washes with sterilised water, the explants were transferred to a 1/2 Murashige and Skoog (MS) medium containing 2% (w/v) glucose, 0.01 ppm benzyl adenine and 0.8% (w/v) agar at pH 5.8. The samples were moved into an incubator set at 20 °C with a 16 h light/8 h dark photoperiod. After 3 weeks, developed axillary buds with explants were transferred to a 1/2 MS medium containing 2% glucose and 0.8% agar to establish the in vitro plants.

2.2. Measurement of Chlorophyll Content

To measure the chlorophyll content of hop leaves, leaves of 1.5-month-old hop plants were treated with 0.5 mM NAG (Tokyo, Japan, Chemical Industry Co., Ltd.) in a 1/2 MS liquid medium containing 2% glucose (pH 5.8) for 24 h. After incubation, 5 μM methyl viologen (MV, Signa-Aldrich, St. Louis, MO, USA) was added to this medium, and the leaves of cv. ‘Saaz’ and ‘Hersbrucker’ were incubated in the medium for 48 h or 96 h, respectively. Three leaves were subjected to 1 mL N, N’-dimethylformamide (DMF) in 1.5 mL tubes at 4 °C for 24 h. The absorbance of the extraction liquid was measured at 646.8 nm and 663.8 nm on an NP80 spectrophotometer (Implen, Munich, Germany). Total chlorophyll amounts were calculated using the following formula: Chl a + b (μM) = 19.43 A646.8 + 8.05 A663.8. Each chlorophyll content (μM/mg) was determined relative to the chlorophyll content of leaves treated without NAG or MV. The values are presented as means and SEMs. Statistical analyses were conducted using Tukey’s test. Sample sizes (n) and p-values are presented in the figure legends.

2.3. DAB Staining and Nitro Blue Tetrazolium Staining

For 3,3′-diaminobenzidine (DAB) and nitro blue tetrazolium (NBT) staining of hop leaves, leaves of 1.5-month-old hop plants (cv. ‘Saaz’) were treated with 0.5 mM NAG in a 1/2 MS liquid medium containing 2% glucose for 24 h. After incubation, 5 μM MV was added to this medium, and the leaves were incubated in the medium for 24 h. In heat stress assay, the leaves treated with 0.5 mM NAG for 24 h were incubated at 44 °C for 2 h. In DAB staining, three leaves were placed in a 1 mL DAB staining solution (peroxidase stain DAB kit, Nacalai, Kyoto, Japan) in 1.5 mL tubes, and then gently shaken in the dark for 2 h. The DAB-stained leaves were incubated in a DAB bleaching solution (60% ethanol, 20% acetic acid and 20% glycerol) and boiled at 95 °C for 15 min to remove the colour of chlorophyll. In NBT staining, three leaves were transferred to a 1 mL NBT staining solution (0.05% NBT, 50 mM potassium phosphate at pH 7.0) in 1.5 mL tubes for 30 min in the dark. The NBT-stained leaves were incubated in an NBT bleaching solution (96% ethanol, 4% acetic acid) to remove the colour of chlorophyll. Samples mounted with 50% glycerol were observed using an SZX16 (EVIDENT) equipped with a DP23 digital camera (EVIDENT). The experiment was conducted using three biological replicates.

2.4. Trypan Blue Staining

For trypan blue staining of hop leaves, leaves of 1.5-month-old hop plants (cv. ‘Saaz’) were treated with 0.5 mM NAG in a 1/2 MS liquid medium containing 2% glucose for 24 h. After incubation, 5 μM MV was added to this medium, and the leaves were incubated in the medium for 24 h. In trypan blue staining, three leaves were placed in a 1 mL trypan blue solution (Nacalai) in 1.5 mL tubes, followed by boiling at 95 °C for 1 h to stain dead cells. Trypan blue-stained leaves mounted with 50% glycerol were observed using an SZX16 equipped with a DP23 digital camera. The experiment was conducted using three biological replicates.

2.5. Measurement of Electrolyte Leakage

Electrolyte leakage was measured as previously described [17]. The leaves of 1.5-month-old hop plants (cv. ‘Saaz’) were treated with 0.5 mM NAG in a 1/2 MS liquid medium containing 2% glucose for 24 h. Then, the leaves were incubated at 44 °C for 2 h. After incubation, the leaves were infiltrated with 3 mL of deionized water for 10 min under vacuum and then shaken for 2 h. The conductivity (C1) of the leaves was measured using an F-74 conductivity meter with an electrical conductivity cell 3552-10D (HORIBA, Kyoto, Japan). After the deionized water containing the leaves was boiled at 95 °C for 15 min, the samples were cooled to room temperature. The conductivity (C2) of the cooled samples was then measured. The C1/C2 ratio divided by the fresh weight was calculated to determine electrolyte leakage. Electrolyte leakage was determined relative to that of leaves treated without NAG and heat stress. The values are presented as means and SEMs. Statistical analyses were conducted using Tukey’s test. Sample sizes (n) and p-values are presented in the figure legends.

2.6. RNA Extraction and qPCR

Leaves of 1.5-month-old hop plants (cv. ‘Saaz’) were treated with 1 mM NAG in a 1/2 MS liquid medium containing 2% glucose for 2 h. Total RNA was isolated from the leaves using an RNeasy Plant Mini Kit (QIAGEN, Hilden, Germany). RNA extraction was performed according to the manufacturer’s instructions, and genomic DNA was removed using an RNase-free DNase set (QIAGEN). cDNA was synthesised from 1 μg total RNA with a Verso cDNA Synthesis Kit (Thermo Fisher Scientific, Waltham, MA, USA). qPCR analysis was performed using TB Green Premix Ex Taq II (TaKaRa Bio Inc., Shiga, Japan) and Light Cycler 480 (Roche, Basel, Switzerland).
For qPCR, gene-specific primers were constructed using Hopbase (https://hopbase.cgrb.oregonstate.edu/, accessed on 4 July 2022). Amino acid sequences of Arabidopsis ZAT10, ZAT12, HSFA2, AOX1a, APX1 and EF1α were subjected to TBLASTN to search for nucleotide sequences with high homology to these genes, and genes with the highest similarity scores were regarded as putative homologues of these Arabidopsis genes in hops (HlZAT10, HlZAT12, HlHSFA2, HlAOX1s, HlAPX1 and HlEF1α). Experiments were conducted using three biological replicates. The calculation of gene expression in qPCR was conducted by the ΔΔCt method. HlEF1α was used as the internal control for qPCR. Expression in NAG-treated plants was determined relative to that of plants treated without NAG. The values are presented as means and SEMs. Statistical analyses were conducted using the two-tailed Student’s t-test. Sample sizes (n) and p-values are presented in the figure legends. Primers used in qPCR and the annotation of the above putative homologues in hops are listed in Supplementary Table S1.

2.7. Chromatin Immunoprecipitation and qPCR

Chromatin immunoprecipitation (ChIP) was performed as previously described [18]. Five 1.5-month-old hop plants (cv. ‘Saaz’) were treated with 1 mM NAG in a 1/2 MS liquid medium containing 2% glucose for 2 h and fixed with 1% formaldehyde for 15 min, and then formaldehyde was quenched with glycine for 5 min. The fixed samples were ground in liquid nitrogen using a mortar and pestle. Chromatin fragmentation was performed using a Bioruptor® UCD-250 (Cosmo Bio., Ltd., Tokyo, Japan) in power mode H with an on/off cycle of 30 s/60 s, for a total duration of 12 min, on ice. Antibodies were added to the fraction of fragmented chromatins after preclearing, and then the samples were rotated overnight at 4 °C. An anti-H4ac antibody (Merck Millipore: 06-866) was used for immunoprecipitation. For qPCR, gene-specific primers were constructed using Hopbase. Nucleotide sequences of Arabidopsis ZAT10, ZAT12, HSFA2 and ACTIN2 were subjected to TBLASTN to search for nucleotide sequences with high homology to these genes, and contigs containing the sequence with the highest similarity score were regarded as putative homologues of these Arabidopsis genes in hop (HlZAT10, HlZAT12, HlHSFA2 and HlACT2). qPCR analysis was performed using TB Green Premix Ex Taq II (TaKaRa) and Light Cycler 480 (Roche). The experiment was conducted using three biological replicates. The ratio of ChIP input was measured using the ΔΔCt method and normalized to that of control loci to obtain enrichment levels. HlACT2 was used as the control locus. Enrichment levels in NAG-treated plants were determined relative to those in plants treated without NAG. The values are presented as means and SEMs. Statistical analyses were conducted using the two-tailed Student’s t-test. Sample sizes (n) and p-values are presented in the figure legends. The primers used in qPCR and the number of contigs containing the above putative homologues in hops are listed in Supplementary Table S1.

2.8. Prolonged Heat Stress Assay

For the heat stress assay, 1.5-month-old hop plants (cv. ‘Saaz’ and ‘Hersbrucker’) were used as a material. Stem explants with a node were transferred to a 1/2 MS medium containing 2% glucose and 0.8% agar with or without 0.5 mM NAG, and then incubated at 20 °C for 7 days. These samples were incubated at 30 °C and subjected to heat stress conditions. The fresh weight of the aerial parts and shoot lengths of cv. ‘Saaz’ and ‘Hersbrucker’ plants were measured after 14 and 28 days. As ‘Hersbrucker’ has a lower growth rate than ‘Saaz’, ‘Hersbrucker’ plants were subjected to a longer period of heat stress. The fresh weight and shoot length of NAG-treated plants were determined relative to those of plants that were not exposed to NAG. The values are presented as means and SEMs. Statistical analyses were conducted using the two-tailed Student’s t-test. Sample sizes (n) and p-values are presented in the figure legends.

3. Results

3.1. NAG Alleviates Oxidative-Stress-Triggered Chlorosis in Hops

To examine whether NAG could confer oxidative stress tolerance in hops, we observed the response to MV, which is an inducer of oxidative stress in plants, using leaves of tissue-cultured hop plants. We first confirmed that MV could induce the chlorosis and reduction of chlorophyll content in leaves 48 h after its treatment of cv. ‘Saaz’ (Figure 1A). MV-induced chlorosis and reduction of chlorophyll content were repressed in NAG-treated leaves compared to non-NAG-treated leaves (Figure 1B). Subsequently, to explore the potential of NAG in alleviating oxidative stress in another hop cultivar, we examined the leaf phenotype following treatment with both MV and NAG in the ‘Hersbruker’ cultivar. Chlorosis of leaves in the ‘Hersbrucker’ cultivar was observed 96 h after MV treatment (Figure 1C). The contrasting chlorosis induction times between the ‘Saaz’ and ‘Hersbrucker’ cultivars may indicate differing sensitivities to oxidative stress in these cultivars. Exogenous treatment with NAG reduced the frequency of MV-induced chlorosis and decreased chlorophyll content in leaves of hop cv. ‘Hersbruker’ as well as cv. ‘Saaz’, indicating that NAG could alleviate oxidative stress in several hop cultivars (Figure 1D).

3.2. NAG Enhances Expression Levels of Oxidative-Stress-Responsive Genes Associated with Histone Acetylation

Previously, we found that exogenous treatment with NAG enhanced basal tolerance to oxidative stress by increasing the expression levels of oxidative-stress-responsive genes with hyperacetylation under non-stress conditions in Arabidopsis, indicating that homologues of these genes are also activated in NAG-treated hops [14]. The qPCR experiment showed that the expression levels of HlZAT10/12, which had high homology to transcription factor Arabidopsis ZAT10/12, regarded as master regulators in response to oxidative stress in Arabidopsis, increased in NAG-treated plants relative to non-NAG-treated plants (Figure 2A). Additionally, chromatin immunoprecipitation (ChIP)–qPCR analysis confirmed that NAG enhanced the levels of histone H4 acetylation (H4ac) at HlZAT10/12, which indicates that the NAG-induced activation of HlZAT10/12 associated with the upregulation of histone acetylation was conserved in hops as well as Arabidopsis (Figure 2B). Arabidopsis ZAT10/12 increase the expression levels of ROS scavenging genes, alleviating oxidative stress by reducing ROS accumulation [19]. Thus, we examined whether exogenous treatment with NAG reduces ROS accumulation in hops with oxidative stress. The expression of HlAOX1a and HlAPX1, the nucleotide sequences of which were highly similar to those of the ROS-scavenging enzymes Arabidopsis AOX1a and APX1, respectively, functioning downstream of ZAT12, was enhanced in NAG-treated plants compared to that in non-NAG-treated plants (Figure 2C) [19]. DAB and NBT staining revealed the accumulation of H2O2 and O2·−, respectively, in the leaves of MV-treated plants (Figure 2D,E). The frequency of MV-induced H2O2 and O2·− accumulation in the leaves of NAG-treated plants was lower than that in plants without NAG. Moreover, we examined the frequency of cell death in hops treated with MV using trypan blue staining, which enabled the detection of dead cells as blue-stained areas in plants. NAG-treated leaves showed a low frequency of MV-induced dead cells relative to non-NAG leaves (Supplementary Figure S1). Based on these results, NAG may mitigate ROS accumulation upon oxidative stress by basal activation of HlZAT10/12.

3.3. Exogenous Treatment with NAG Confers Heat Stress Tolerance in Hops

Heat stress induces ROS accumulation in plants [20]. Previously, we found that Arabidopsis and rice treated with NAG acquired heat and oxidative stress tolerance, suggesting that NAG can improve high-temperature-impaired growth in hops [14,15]. DAB and NBT staining revealed that NAG treatment reduced H2O2 and O2·− accumulation, respectively, induced by heat stress, compared with the findings in the absence of NAG treatment (Figure 3A,B). To further investigate the ability of NAG to alleviate cellular damage induced by ROS accumulation at high temperatures, we measured electrolyte leakage, which is related to the stability of the cellular membrane and is used as an index of cellular damage, in response to heat stress in hops. Consistent with the aforementioned findings, electrolyte leakage in heated leaves was reduced by NAG treatment compared with that in the absence of NAG exposure (Figure 3C). Next, to confirm whether NAG improved the growth and development of hop plants under high temperatures, we observed the phenotype of NAG-treated plants under prolonged heat stress. Under prolonged high-temperature conditions (30 °C, 14 days), NAG-treated plants exhibited greater fresh shoot weight and length than non-NAG-treated plants (Figure 3D–F). Prolonged heat-stress-induced reductions in fresh weight and shoot length were also repressed in cv. ‘Hersbrucker’ plants treated with NAG (Supplementary Figure S2). Finally, we confirmed that the expression of HlHSFA2, which was isolated as a putative homologue of Arabidopsis HSFA2, mediating transcriptional cascades and activating APX1 in response to heat stress, was increased in NAG-treated hops as detected by qPCR (Figure 3G) [21,22]. NAG-treated hop plants also exhibited higher levels of histone H4ac in HlHSFA2 than non-NAG-treated plants in the ChIP-qPCR experiment (Figure 3H), indicating that exogenous treatment with NAG could confer heat stress tolerance by activating HlHSFA2 mediated by histone acetylation in hops.

4. Discussion

In this study, we found that non-proteinogenic amino acid NAG alleviated damage resulting from oxidative or heat stress by activating stress-responsive genes in hops. NAG is an intermediate synthesised from glutamic acid (Glu) by N-acetylglutamate synthase (NAGS) in arginine biosynthesis in plants, and chemical priming experiments have revealed that Glu-related compounds can alleviate various abiotic stresses, including heat stress, in practical plants [23]. For example, exogenous treatment with Glu, Poly-γ-Glu and BABA ameliorated ROS signalling and improved photosynthesis efficiency under heat stress with enhanced carotenoid biosynthesis in Brassica rapa [11]. GABA application in Helianthus annuus, kiwifruit and creeping bentgrass increased the expression of HSP genes and the activity of antioxidant enzymes, such as superoxide dismutase, in response to heat stress [24,25]. GABA also protected Vigna radiata from heat stress by improving pollen viability and germination and activating antioxidant enzymes [26]. Although transgenic experiments have demonstrated that over-expression of Solanum lycopersicum NAGS1 in Arabidopsis confers tolerance to drought and salinity stress, it had not been demonstrated whether NAG itself could enhance resistance to environmental stresses in plants [27]. Previously, we revealed the ROS scavenging-mediated ameliorating effect of NAG on heat and oxidative stress in Arabidopsis and rice as well as hops for the first time, suggesting that NAG has potential uses in alleviating these stresses in various plant species [14,15].
Recently, a draft genome assembly of the hop has permitted combination analysis of transcriptomics and metabolomics under high-temperature conditions [28,29]. These analyses demonstrated that ROS-scavenging genes are upregulated and Glu-related compounds accumulate in hop plants exposed to high temperatures, and an activated response might be required to maintain the biosynthesis of secondary metabolites, such as bitter acids [28]. We confirmed that NAG increased the expression of putative ROS-scavenging genes HlAOX1a and HlAPX1 in hops. In Arabidopsis, ZAT12 induces basal activation of AOX1a and APX1, and HSFA2 upregulates APX1, conferring heat tolerance [19,22]. Thus, the removal of accumulated ROS is suggested to be necessary for the transcriptional cascade of oxidative and heat stress in plants. We observed using DAB and NBT staining that oxidative and heat-stress-induced H2O2 and O2·− accumulation was lower in NAG-treated leaves than in leaves treated without NAG, (Figure 2D,E and Figure 3A,B). Thus, the repression of ROS accumulation might largely contribute to the effect of NAG in alleviating oxidative and heat stress, and NAG could prevent the inactivation of secondary metabolite biosynthesis by promoting ROS scavenging in hop plants.
We constructed the experimental system of ChIP–qPCR in hops and showed an increase in the levels of histone H4ac at HlZAT10/12 and HlHSFA2, with upregulation of these genes in NAG-treated leaves (Figure 2B and Figure 3G). Exogenous treatment with chemical compounds enhances tolerance to abiotic stresses by activating histone modifications in plants [7]. Among them, acetic acid has been suggested to be used as a substrate for histone H4 acetylation in Arabidopsis, resulting in enhanced drought tolerance with the activation of jasmonic acid-related genes [30]. Furthermore, the acetylation of tRNA by acetyltransferase tmcAL requires acetic acid as a substrate in Bacillus subtilis, indicating that NAG might be used as a donor substrate for acetyl groups in histone acetylation in oxidative- and heat-stress-responsive genes [31].
In Arabidopsis, histone acetylation at the promoter regions of HSFA2 is deposited by histone acetyltransferase GCN5, and GCN5-binding sites are correlated to hyperacetylation and G-box motif (5′-CACGT, G-motif) regarded as a cis element recruiting two families of transcription factors, the basic helix-loop-helix (bHLH) and basic leucine zipper family (bZIP) family [32,33]. G-motifs in the HSFA2 promoter are needed to recruit the transcription factor PIF4, which induces HSFA2 and HSPs expression to enhance heat stress tolerance [34]. Hops have G-motifs in the putative regions of the promoter and first exon of HlHSFA2, and these motifs were conserved between draft genome-constructed cultivars ‘Saaz’ and ‘Cascade’, suggesting that G-motif-mediated change in histone acetylation and transcription state in HSFA2 plays a crucial role in heat stress tolerance across species of hops (Supplementary Figure S3). Under prolonged heat stress, NAG improved the growth of cv. ‘Saaz’ and ‘Hersbrucker’ plants (Figure 3D–F, Supplementary Figure S2). Arabidopsis carrying mutants of the RNA helicase MAC7 and RNA-binding protein MAC9/17, which form the MOS4-associated complex suggested to interact with spliceosome and believed to be required for proper RNA splicing, exhibited low tolerance to prolonged heat stress [35,36]. Growth inhibition in Arabidopsis was also caused by deficiencies in MIP3 and ELM1, which function in mitochondrial fission and ER homeostasis, respectively [37,38]. These findings suggest that proper regulation of RNA splicing and organelle dynamics is required for tolerance to prolonged heat stress in plants, and NAG might confer heat stress tolerance by controlling these phenomena in hops in addition to stress-responsive gene expression.
Beyond responses to environmental stress, epigenetic modification is involved in regulation during gene expression in hops and closely related species. For instance, analysis using methylation-sensitive amplified polymorphism in hops unveiled changes in the level of DNA methylation during development, from in vitro tissue-cultured plants to plants growing in the field, as well as during the regeneration process from callus to explants. DNA methylation plays a role in silencing gene expression and transposon elements [39,40]. Artemisia annua (A. annua), a medicinal plant similar to hops, has GTs and produces secondary metabolites, such as artemisinin, which is used in drugs against malaria. Transposase-Accessible Chromatin using sequencing (ATAC-seq) unveils chromatin accessibility, indicating the extent to which transcription factors can interact with chromatin and reflecting the potential for gene expression. The chromatin accessibility at GT-specific artemisinin biosynthesis genes differed between GT and leaf cells, highlighting the specificity of gene expression in artemisinin biosynthesis [41]. Furthermore, tissue-specific transcriptome analysis in hops revealed that the expression levels of secondary metabolite biosynthesis, including xanthohumol, bitter acid and terpenoids, were significantly elevated in lupulin glands compared to leaves. This implies that epigenetic modifications contribute to tissue-specific expression and the production of secondary metabolites, akin to artemisinin.
Heat and oxidative stress both impose negative impacts, such as high temperature and high light, respectively, on crop yield under field conditions. In hop cultivation, the yield and bitter acid (α-acid) content of hop cones decreased when the temperature in the growth period exceeded the annual norm in the Czech Republic [5]. Climate change accompanied by global warming is also predicted to cause reductions in hop yields and bitter acid content of 4–18% and 20–31%, respectively, by 2050 in Germany, the Czech Republic and Slovenia, whose microthermal climate represents suitable cultivation areas for high-quality aroma hops [6]. Interestingly, the flavour of some hop cultivars differs depending on the production area. The hop cultivar ‘Centennial’ has a tropical flavour in Belgium, but a citrusy and woodier flavour in the US [42]. Due to the location effect, also known as terroir, preserving the yield and quality of hop cones in suitable cultivation areas without relocating production sites due to climate change is crucial. A recent combination analysis of transcriptomics and metabolomics suggests that enhancing tolerance through the upregulation of stress-responsive genes is crucial for mitigating the reduction in secondary metabolite production under severe stress conditions in hops.
In this study, we revealed that exogenous treatment with NAG could enhance basal tolerance to oxidative and heat stress in hops through the activation of the putative transcriptional factors HlZAT10/12 and HlHSFA2, without requiring specific techniques such as genetic engineering. Additionally, our research uncovered the involvement of histone acetylation in the response to oxidative and heat stress, suggesting that epigenetic modification underlies the environmental stress response of hop plants. While further studies are necessary to confirm its effect on hop cones, chemical priming with NAG holds promise as a means to enhance hop production amidst climate change, thereby meeting the demand for high-quality hops in beer brewing.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/horticulturae10050484/s1. Figure S1: N-acetylglutamic acid represses the induction of cell death in hop; Figure S2: N-acetylglutamic (NAG) acid confers heat tolerances in the cultivar ‘Hersbrucker’; Figure S3: cis-element G-motifs in promoter and exon regions of HlHSFA2 in cv. ‘Saaz’ and ‘Cascade’; Table S1: List of primers used in this study.

Author Contributions

Conceptualisation, T.H.; methodology, T.H.; formal analysis, T.H.; investigation, T.H.; writing—original draft preparation, T.H.; writing—review and editing, K.O. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by the Kirin Holdings Company, Ltd.

Data Availability Statement

The data presented in this study are available on reasonable request from the corresponding author.

Acknowledgments

We would like to thank Seia Tanno and Yuki Katayama for experimental assistance on this research.

Conflicts of Interest

T.H. and K.O. are employed by Kirin Holdings Company, Ltd. This study received funding from Kirin Holdings Company, Ltd. The funding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results. All other authors declare no conflict of interest.

References

  1. Rossini, F.; Virga, G.; Loreti, P.; Iacuzzi, N.; Ruggeri, R.; Provenzano, M.E. Hops (Humulus lupulus L.) as a Novel Multipurpose Crop for the Mediterranean Region of Europe: Challenges and Opportunities of Their Cultivation. Agriculture 2021, 11, 484. [Google Scholar] [CrossRef]
  2. Almaguer, C.; Schönberger, C.; Gastl, M.; Arendt, E.K.; Becker, T. Humulus lupulus—A Story That Begs to Be Told. A Review. J. Inst. Brew. 2014, 120, 289–314. [Google Scholar] [CrossRef]
  3. Carbone, K.; Gervasi, F. An Updated Review of the Genus Humulus: A Valuable Source of Bioactive Compounds for Health and Disease Prevention. Plants 2022, 11, 3434. [Google Scholar] [CrossRef] [PubMed]
  4. Potopová, V.; Lhotka, O.; Možný, M.; Musiolková, M. Vulnerability of Hop-Yields Due to Compound Drought and Heat Events over European Key-Hop Regions. Int. J. Climatol. 2021, 41, E2136–E2158. [Google Scholar] [CrossRef]
  5. Donner, P.; Pokorný, J.; Ježek, J.; Krofta, K.; Patzak, J.; Pulkrábek, J. Influence of Weather Conditions, Irrigation and Plant Age on Yield and Alpha-Acids Content of Czech Hop (Humulus lupulus L.) Cultivars. Plant Soil Environ. 2020, 66, 41–46. [Google Scholar] [CrossRef]
  6. Mozny, M.; Trnka, M.; Vlach, V.; Zalud, Z.; Cejka, T.; Hajkova, L.; Potopova, V.; Semenov, M.A.; Semeradova, D.; Büntgen, U. Climate-Induced Decline in the Quality and Quantity of European Hops Calls for Immediate Adaptation Measures. Nat. Commun. 2023, 14, 6028. [Google Scholar] [CrossRef] [PubMed]
  7. Sako, K.; Nguyen, H.M.; Seki, M. Advances in Chemical Priming to Enhance Abiotic Stress Tolerance in Plants. Plant Cell Physiol. 2021, 61, 1995–2003. [Google Scholar] [CrossRef]
  8. Huo, L.; Chen, Y.; Zhang, Y.; Zhang, H.; Wang, H.; Xu, K.; Sun, X. Exogenous γ-Aminobutyric Acid Enhances Heat Tolerance of Kiwifruit Plants by Protecting Photosynthetic System and Promoting Heat Shock Proteins Expression. Ann. Agric. Sci. 2023, 68, 137–147. [Google Scholar] [CrossRef]
  9. Zeng, W.; Hassan, M.J.; Kang, D.; Peng, Y.; Li, Z. Photosynthetic Maintenance and Heat Shock Protein Accumulation Relating to γ-Aminobutyric Acid (GABA)-Regulated Heat Tolerance in Creeping Bentgrass (Agrostis stolonifera). S. Afr. J. Bot. 2021, 141, 405–413. [Google Scholar] [CrossRef]
  10. Balfagón, D.; Gómez-Cadenas, A.; Rambla, J.L.; Granell, A.; de Ollas, C.; Bassham, D.C.; Mittler, R.; Zandalinas, S.I. γ-Aminobutyric Acid Plays a Key Role in Plant Acclimation to a Combination of High Light and Heat Stress. Plant Physiol. 2022, 188, 2026–2038. [Google Scholar] [CrossRef]
  11. Quan, J.; Zheng, W.; Wu, M.; Shen, Z.; Tan, J.; Li, Z.; Zhu, B.; Hong, S.-B.; Zhao, Y.; Zhu, Z.; et al. Glycine Betaine and β-Aminobutyric Acid Mitigate the Detrimental Effects of Heat Stress on Chinese Cabbage (Brassica rapa L. ssp. pekinensis) Seedlings with Improved Photosynthetic Performance and Antioxidant System. Plants 2022, 11, 1213. [Google Scholar] [CrossRef] [PubMed]
  12. Zimmerli, L.; Hou, B.-H.; Tsai, C.-H.; Jakab, G.; Mauch-Mani, B.; Somerville, S. The Xenobiotic Beta-Aminobutyric Acid Enhances Arabidopsis Thermotolerance. Plant J. 2008, 53, 144–156. [Google Scholar] [CrossRef] [PubMed]
  13. Matsui, A.; Todaka, D.; Tanaka, M.; Mizunashi, K.; Takahashi, S.; Sunaoshi, Y.; Tsuboi, Y.; Ishida, J.; Bashir, K.; Kikuchi, J.; et al. Ethanol Induces Heat Tolerance in Plants by Stimulating Unfolded Protein Response. Plant Mol. Biol. 2022, 110, 131–145. [Google Scholar] [CrossRef] [PubMed]
  14. Hirakawa, T.; Tanno, S.; Ohara, K. N-Acetylglutamic Acid Alleviates Oxidative Stress Based on Histone Acetylation in Plants. Front. Plant Sci. 2023, 14, 1165646. [Google Scholar] [CrossRef] [PubMed]
  15. Hirakawa, T.; Tanno, S.; Ohara, K. Exogenous Treatment with N-Acetylglutamic Acid Confers Tolerance to Heat Stress in Plants. Plant Biotechnol. 2024, 41, 71–76. [Google Scholar] [CrossRef]
  16. Hirakawa, T.; Tanno, S. In Vitro Propagation of Humulus lupulus through the Induction of Axillary Bud Development. Plants 2022, 11, 1066. [Google Scholar] [CrossRef] [PubMed]
  17. Cao, W.-H.; Liu, J.; He, X.-J.; Mu, R.-L.; Zhou, H.-L.; Chen, S.-Y.; Zhang, J.-S. Modulation of Ethylene Responses Affects Plant Salt-Stress Responses. Plant Physiol. 2007, 143, 707–719. [Google Scholar] [CrossRef]
  18. Yamaguchi, N.; Winter, C.M.; Wu, M.-F.; Kwon, C.S.; William, D.A.; Wagner, D. PROTOCOLS: Chromatin Immunoprecipitation from Arabidopsis Tissues. Arab. Book 2014, 12, e0170. [Google Scholar] [CrossRef]
  19. Rizhsky, L.; Davletova, S.; Liang, H.; Mittler, R. The Zinc Finger Protein Zat12 Is Required for Cytosolic Ascorbate Peroxidase 1 Expression during Oxidative Stress in Arabidopsis. J. Biol. Chem. 2004, 279, 11736–11743. [Google Scholar] [CrossRef]
  20. Fortunato, S.; Lasorella, C.; Dipierro, N.; Vita, F.; de Pinto, M.C. Redox Signaling in Plant Heat Stress Response. Antioxidants 2023, 12, 605. [Google Scholar] [CrossRef]
  21. Friedrich, T.; Oberkofler, V.; Trindade, I.; Altmann, S.; Brzezinka, K.; Lämke, J.; Gorka, M.; Kappel, C.; Sokolowska, E.; Skirycz, A.; et al. Heteromeric HSFA2/HSFA3 Complexes Drive Transcriptional Memory after Heat Stress in Arabidopsis. Nat. Commun. 2021, 12, 3426. [Google Scholar] [CrossRef]
  22. Li, C.; Chen, Q.; Gao, X.; Qi, B.; Chen, N.; Xu, S.; Chen, J.; Wang, X. AtHsfA2 Modulates Expression of Stress Responsive Genes and Enhances Tolerance to Heat and Oxidative Stress in Arabidopsis. Sci. China C Life Sci. 2005, 48, 540–550. [Google Scholar] [CrossRef]
  23. Winter, G.; Todd, C.D.; Trovato, M.; Forlani, G.; Funck, D. Physiological Implications of Arginine Metabolism in Plants. Front. Plant Sci. 2015, 6, 534. [Google Scholar] [CrossRef] [PubMed]
  24. Abdel Razik, E.S.; Alharbi, B.M.; Pirzadah, T.B.; Alnusairi, G.S.H.; Soliman, M.H.; Hakeem, K.R. γ-Aminobutyric Acid (GABA) Mitigates Drought and Heat Stress in Sunflower (Helianthus annuus L.) by Regulating Its Physiological, Biochemical and Molecular Pathways. Physiol. Plant 2021, 172, 505–527. [Google Scholar] [CrossRef] [PubMed]
  25. Li, Z.; Yu, J.; Peng, Y.; Huang, B. Metabolic Pathways Regulated by γ-Aminobutyric Acid (GABA) Contributing to Heat Tolerance in Creeping Bentgrass (Agrostis stolonifera). Sci. Rep. 2016, 6, 30338. [Google Scholar] [CrossRef]
  26. Priya, M.; Sharma, L.; Kaur, R.; Bindumadhava, H.; Nair, R.M.; Siddique, K.H.M.; Nayyar, H. GABA (γ-Aminobutyric Acid), as a Thermo-Protectant, to Improve the Reproductive Function of Heat-Stressed Mungbean Plants. Sci. Rep. 2019, 9, 7788. [Google Scholar] [CrossRef] [PubMed]
  27. Kalamaki, M.S.; Alexandrou, D.; Lazari, D.; Merkouropoulos, G.; Fotopoulos, V.; Pateraki, I.; Aggelis, A.; Carrillo-López, A.; Rubio-Cabetas, M.J.; Kanellis, A.K. Over-Expression of a Tomato N-Acetyl-L-Glutamate Synthase Gene (SlNAGS1) in Arabidopsis Thaliana Results in High Ornithine Levels and Increased Tolerance in Salt and Drought Stresses. J. Exp. Bot. 2009, 60, 1859–1871. [Google Scholar] [CrossRef] [PubMed]
  28. Eriksen, R.L.; Padgitt-Cobb, L.K.; Townsend, M.S.; Henning, J.A. Gene Expression for Secondary Metabolite Biosynthesis in Hop (Humulus lupulus L.) Leaf Lupulin Glands Exposed to Heat and Low-Water Stress. Sci. Rep. 2021, 11, 5138. [Google Scholar] [CrossRef]
  29. Padgitt-Cobb, L.K.; Kingan, S.B.; Wells, J.; Elser, J.; Kronmiller, B.; Moore, D.; Concepcion, G.; Peluso, P.; Rank, D.; Jaiswal, P.; et al. A Draft Phased Assembly of the Diploid Cascade Hop (Humulus lupulus) Genome. Plant Genome 2021, 14, e20072. [Google Scholar] [CrossRef]
  30. Kim, J.-M.; To, T.K.; Matsui, A.; Tanoi, K.; Kobayashi, N.I.; Matsuda, F.; Habu, Y.; Ogawa, D.; Sakamoto, T.; Matsunaga, S.; et al. Acetate-Mediated Novel Survival Strategy against Drought in Plants. Nat. Plants 2017, 3, 17097. [Google Scholar] [CrossRef]
  31. Taniguchi, T.; Miyauchi, K.; Sakaguchi, Y.; Yamashita, S.; Soma, A.; Tomita, K.; Suzuki, T. Acetate-Dependent tRNA Acetylation Required for Decoding Fidelity in Protein Synthesis. Nat. Chem. Biol. 2018, 14, 1010–1020. [Google Scholar] [CrossRef] [PubMed]
  32. Hu, Z.; Song, N.; Zheng, M.; Liu, X.; Liu, Z.; Xing, J.; Ma, J.; Guo, W.; Yao, Y.; Peng, H.; et al. Histone Acetyltransferase GCN5 Is Essential for Heat Stress-Responsive Gene Activation and Thermotolerance in Arabidopsis. Plant J. 2015, 84, 1178–1191. [Google Scholar] [CrossRef] [PubMed]
  33. Kim, S.; Piquerez, S.J.M.; Ramirez-Prado, J.S.; Mastorakis, E.; Veluchamy, A.; Latrasse, D.; Manza-Mianza, D.; Brik-Chaouche, R.; Huang, Y.; Rodriguez-Granados, N.Y.; et al. GCN5 Modulates Salicylic Acid Homeostasis by Regulating H3K14ac Levels at the 5′ and 3′ Ends of Its Target Genes. Nucleic Acids Res. 2020, 48, 5953–5966. [Google Scholar] [CrossRef] [PubMed]
  34. Yang, J.; Qu, X.; Ji, L.; Li, G.; Wang, C.; Wang, C.; Zhang, Y.; Zheng, L.; Li, W.; Zheng, X. PIF4 Promotes Expression of HSFA2 to Enhance Basal Thermotolerance in Arabidopsis. Int. J. Mol. Sci. 2022, 23, 6017. [Google Scholar] [CrossRef] [PubMed]
  35. Isono, K.; Nakamura, K.; Hanada, K.; Shirai, K.; Ueki, M.; Tanaka, K.; Tsuchimatsu, T.; Iuchi, S.; Kobayashi, M.; Yotsui, I.; et al. LHT1/MAC7 Contributes to Proper Alternative Splicing under Long-Term Heat Stress and Mediates Variation in the Heat Tolerance of Arabidopsis. PNAS Nexus 2023, 2, pgad348. [Google Scholar] [CrossRef] [PubMed]
  36. Endo, N.; Tsukimoto, R.; Isono, K.; Hosoi, A.; Yamaguchi, R.; Tanaka, K.; Iuchi, S.; Yotsui, I.; Sakata, Y.; Taji, T. MOS4-Associated Complex Contributes to Proper Splicing and Suppression of ER Stress under Long-Term Heat Stress in Arabidopsis. PNAS Nexus 2023, 2, pgad329. [Google Scholar] [CrossRef] [PubMed]
  37. Isono, K.; Tsukimoto, R.; Iuchi, S.; Shinozawa, A.; Yotsui, I.; Sakata, Y.; Taji, T. An ER-Golgi Tethering Factor SLOH4/MIP3 Is Involved in Long-Term Heat Tolerance of Arabidopsis. Plant Cell Physiol. 2021, 62, 272–279. [Google Scholar] [CrossRef] [PubMed]
  38. Tsukimoto, R.; Isono, K.; Kajino, T.; Iuchi, S.; Shinozawa, A.; Yotsui, I.; Sakata, Y.; Taji, T. Mitochondrial Fission Complex Is Required for Long-Term Heat Tolerance of Arabidopsis. Plant Cell Physiol. 2022, 63, 296–304. [Google Scholar] [CrossRef] [PubMed]
  39. Peredo, E.L.; Revilla, M.A.; Arroyo-García, R. Assessment of Genetic and Epigenetic Variation in Hop Plants Regenerated from Sequential Subcultures of Organogenic Calli. J. Plant Physiol. 2006, 163, 1071–1079. [Google Scholar] [CrossRef]
  40. Patzak, J.; Henychová, A.; Svoboda, P.; Malířová, I. Assessment of Epigenetic Methylation Changes in Hop (Humulus lupulus) Plants Obtained by Meristem Culture. Czech J. Genet. Plant Breed. 2020, 56, 159–164. [Google Scholar] [CrossRef]
  41. Zhou, L.; Huang, Y.; Wang, Q.; Guo, D. Chromatin Accessibility Is Associated with Artemisinin Biosynthesis Regulation in Artemisia Annua. Molecules 2021, 26, 1194. [Google Scholar] [CrossRef] [PubMed]
  42. Van Holle, A.; Muylle, H.; Haesaert, G.; Naudts, D.; De Keukeleire, D.; Roldán-Ruiz, I.; Van Landschoot, A. Relevance of Hop Terroir for Beer Flavour. J. Inst. Brew. 2021, 127, 238–247. [Google Scholar] [CrossRef]
Horticulturae 10 00484 g001

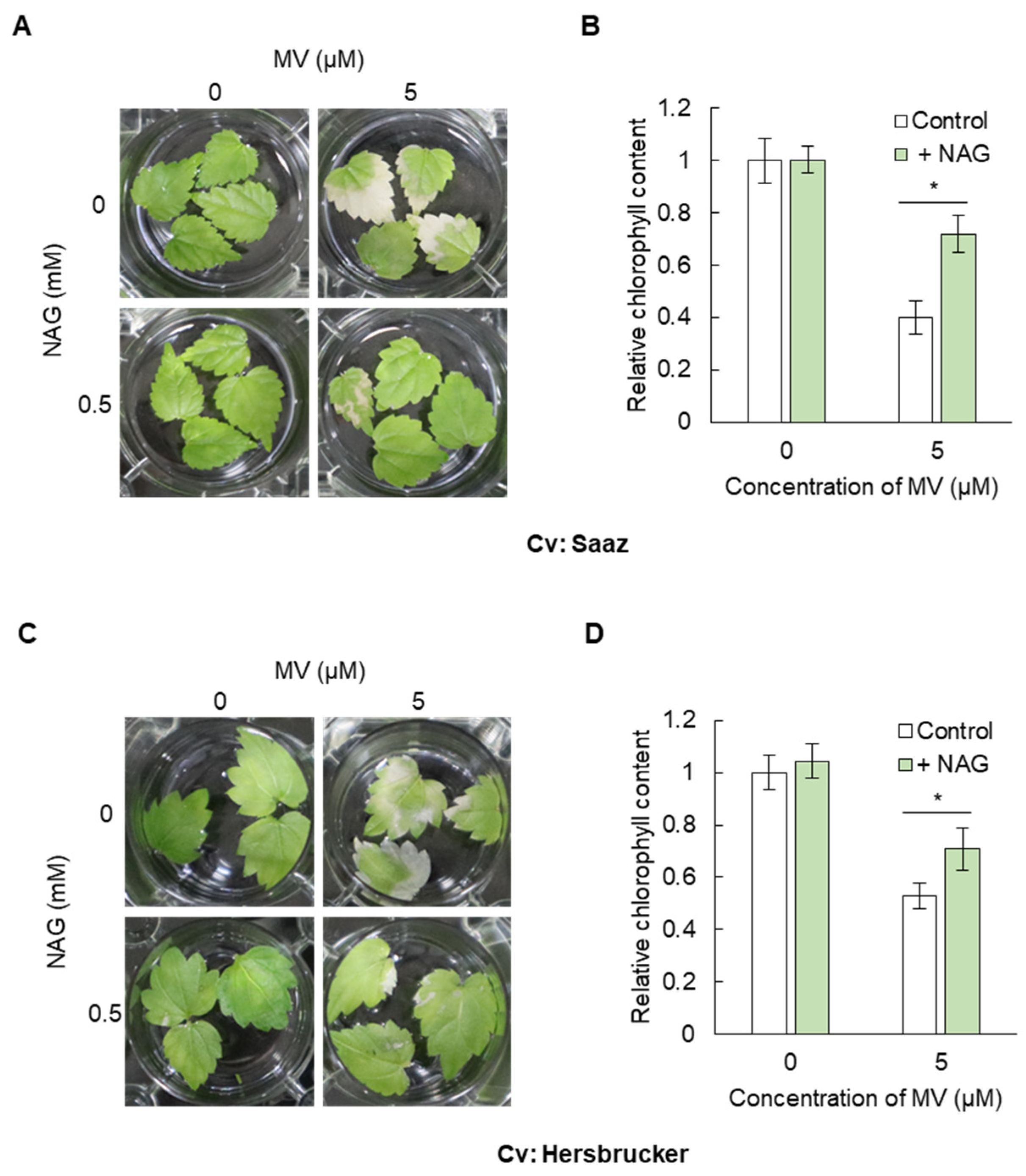

Figure 1. N-acetylglutamic acid (NAG) alleviates oxidative stress by repressing chlorosis in hops. (A) Leaves of hop cv. ‘Saaz’ treated with 0.5 mM NAG for 24 h, with or without 5 μM methyl viologen (MV) for 48 h. (B) Chlorophyll contents of leaves of hop cv. ‘Saaz’ treated with 0.5 mM NAG for 24 h, with and without 5 μM MV for 48 h. Error bars indicate standard error. n = 12. * p < 0.05 (Tukey test). (C) Leaves of hop cv. ‘Hersbruker’ treated with 0.5 mM NAG for 24 h, with or without 5 μM MV for 96 h. (D) Chlorophyll contents of leaves of hop cv. ‘Hersbruker’ treated with 0.5 mM NAG for 24 h, with and without 5 μM MV for 96 h. Error bars indicate standard error. n = 6. * p < 0.05 (Tukey’s test).
Figure 1. N-acetylglutamic acid (NAG) alleviates oxidative stress by repressing chlorosis in hops. (A) Leaves of hop cv. ‘Saaz’ treated with 0.5 mM NAG for 24 h, with or without 5 μM methyl viologen (MV) for 48 h. (B) Chlorophyll contents of leaves of hop cv. ‘Saaz’ treated with 0.5 mM NAG for 24 h, with and without 5 μM MV for 48 h. Error bars indicate standard error. n = 12. * p < 0.05 (Tukey test). (C) Leaves of hop cv. ‘Hersbruker’ treated with 0.5 mM NAG for 24 h, with or without 5 μM MV for 96 h. (D) Chlorophyll contents of leaves of hop cv. ‘Hersbruker’ treated with 0.5 mM NAG for 24 h, with and without 5 μM MV for 96 h. Error bars indicate standard error. n = 6. * p < 0.05 (Tukey’s test).
Horticulturae 10 00484 g001
Horticulturae 10 00484 g002
Figure 2. NAG activates the expression levels of oxidative-stress-responsive genes and reduces ROS accumulation in hops. (A) Expression levels of HlZAT10/12 in leaves of hop cv. ‘Saaz’ treated with or without 1 mM NAG for 2 h. Error bars indicate the standard error. n = 3. ** p < 0.01 (Student’s t-test). (B) Top: Levels of histone H4 acetylation at HlZAT10/12 in leaves treated with or without 1 mM NAG for 2 h. Error bars indicate the standard error. n = 3. * p < 0.05 (Student’s t-test). Bottom: Gene diagrams in ChIP-qPCR analysis. Bold bars and thin bars indicate exon and intron, respectively. Green bars indicate the amplified regions on HlZAT10/12 in qPCR. (C) Expression levels of HlAOX1a and HlAPX1 in leaves of hop cv. ‘Saaz’ treated with or without 1 mM NAG for 2 h. Error bars indicate the standard error. n = 3. * p < 0.05 (Student’s t-test). (D) DAB staining for the detection of H2O2 in leaves of hop cv. ‘Saaz’ treated with 0.5 mM NAG for 24 h, with or without 5 μM MV for 24 h. Stained with brown area indicates the accumulation of H2O2. Three dependent experiments were conducted. Scale bar: 0.5 cm. (E) NBT staining for the detection of O2·− in leaves of hop treated with 0.5 mM NAG for 24 h, with or without 5 µM MV for 24 h. Stained with blue area indicates the accumulation of O2·−. Three dependent experiments were conducted. Scale bar: 0.5 cm.
Figure 2. NAG activates the expression levels of oxidative-stress-responsive genes and reduces ROS accumulation in hops. (A) Expression levels of HlZAT10/12 in leaves of hop cv. ‘Saaz’ treated with or without 1 mM NAG for 2 h. Error bars indicate the standard error. n = 3. ** p < 0.01 (Student’s t-test). (B) Top: Levels of histone H4 acetylation at HlZAT10/12 in leaves treated with or without 1 mM NAG for 2 h. Error bars indicate the standard error. n = 3. * p < 0.05 (Student’s t-test). Bottom: Gene diagrams in ChIP-qPCR analysis. Bold bars and thin bars indicate exon and intron, respectively. Green bars indicate the amplified regions on HlZAT10/12 in qPCR. (C) Expression levels of HlAOX1a and HlAPX1 in leaves of hop cv. ‘Saaz’ treated with or without 1 mM NAG for 2 h. Error bars indicate the standard error. n = 3. * p < 0.05 (Student’s t-test). (D) DAB staining for the detection of H2O2 in leaves of hop cv. ‘Saaz’ treated with 0.5 mM NAG for 24 h, with or without 5 μM MV for 24 h. Stained with brown area indicates the accumulation of H2O2. Three dependent experiments were conducted. Scale bar: 0.5 cm. (E) NBT staining for the detection of O2·− in leaves of hop treated with 0.5 mM NAG for 24 h, with or without 5 µM MV for 24 h. Stained with blue area indicates the accumulation of O2·−. Three dependent experiments were conducted. Scale bar: 0.5 cm.
Horticulturae 10 00484 g002
Horticulturae 10 00484 g003

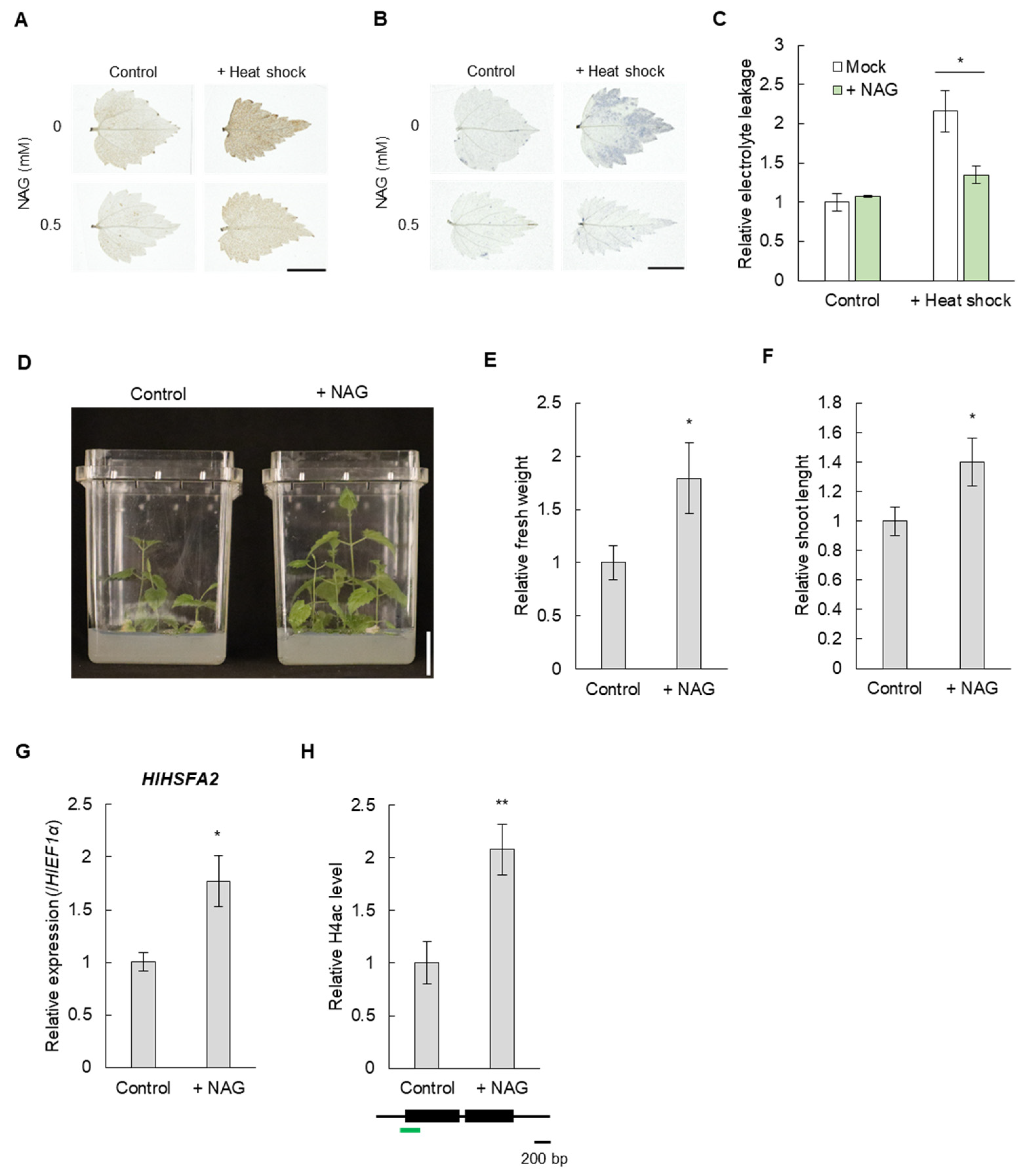

Figure 3. NAG-treated hops show heat stress tolerance. (A) DAB staining to detect H2O2 in the leaves of hop cv. ‘Saaz’ treated with 0.5 mM NAG for 24 h under heat stress (44 °C, 2 h). Brown staining indicates the accumulation of H2O2. Three independent experiments were conducted. Scale bar: 0.5 cm. (B) NBT staining to detect O2·− accumulation in the leaves of hops treated with 0.5 mM NAG for 24 h under heat stress. Blue staining indicates the accumulation of O2·−. Three independent experiments were conducted. Scale bar: 0.5 cm. (C) Electrolyte leakage in hop leaves treated with 0.5 mM NAG for 24 h under heat stress. Error bars indicate the standard error. n = 3. * p < 0.05 (Tukey’s test). (D) Plants of hop cv. ‘Saaz’ treated with 0.5 mM NAG for 7 days under prolonged heat stress conditions (30 °C, 14 days). Scale bar: 2 cm. (E) Fresh weight of aerial parts of plants treated with 0.5 mM NAG for 7 days under prolonged heat stress conditions. The fresh weight of NAG-treated plants was relative to that of the untreated plants. Error bars indicate standard error. n = 17. * p < 0.05 (Student’s t-test). (F) Shoot length of plants treated with 0.5 mM NAG for 7 days under prolonged heat stress. The shoot length of NAG-treated plants is presented relative to that of non-NAG-treated plants. Error bars indicate the standard error. n = 15. * p < 0.05 (Student’s t-test). (G) Expression levels of HlHSFA2 in the leaves of plants treated with or without 1 mM NAG for 2 h. Error bars indicate the standard error. n = 3. * p < 0.05 (Student’s t-test). (H) Top: Levels of histone H4 acetylation at HlHSFA2 in leaves treated with or without 1 mM NAG for 2 h. Error bars indicate the standard error. n = 3. ** p < 0.01 (Student’s t-test). Bottom: Gene diagrams in ChIP–qPCR analysis. Bold bars and thin bars indicate exon and intron, respectively. Green bar indicates the amplified regions of HlHSFA2 in qPCR.
Figure 3. NAG-treated hops show heat stress tolerance. (A) DAB staining to detect H2O2 in the leaves of hop cv. ‘Saaz’ treated with 0.5 mM NAG for 24 h under heat stress (44 °C, 2 h). Brown staining indicates the accumulation of H2O2. Three independent experiments were conducted. Scale bar: 0.5 cm. (B) NBT staining to detect O2·− accumulation in the leaves of hops treated with 0.5 mM NAG for 24 h under heat stress. Blue staining indicates the accumulation of O2·−. Three independent experiments were conducted. Scale bar: 0.5 cm. (C) Electrolyte leakage in hop leaves treated with 0.5 mM NAG for 24 h under heat stress. Error bars indicate the standard error. n = 3. * p < 0.05 (Tukey’s test). (D) Plants of hop cv. ‘Saaz’ treated with 0.5 mM NAG for 7 days under prolonged heat stress conditions (30 °C, 14 days). Scale bar: 2 cm. (E) Fresh weight of aerial parts of plants treated with 0.5 mM NAG for 7 days under prolonged heat stress conditions. The fresh weight of NAG-treated plants was relative to that of the untreated plants. Error bars indicate standard error. n = 17. * p < 0.05 (Student’s t-test). (F) Shoot length of plants treated with 0.5 mM NAG for 7 days under prolonged heat stress. The shoot length of NAG-treated plants is presented relative to that of non-NAG-treated plants. Error bars indicate the standard error. n = 15. * p < 0.05 (Student’s t-test). (G) Expression levels of HlHSFA2 in the leaves of plants treated with or without 1 mM NAG for 2 h. Error bars indicate the standard error. n = 3. * p < 0.05 (Student’s t-test). (H) Top: Levels of histone H4 acetylation at HlHSFA2 in leaves treated with or without 1 mM NAG for 2 h. Error bars indicate the standard error. n = 3. ** p < 0.01 (Student’s t-test). Bottom: Gene diagrams in ChIP–qPCR analysis. Bold bars and thin bars indicate exon and intron, respectively. Green bar indicates the amplified regions of HlHSFA2 in qPCR.
Horticulturae 10 00484 g003
