Bacterial Community Characteristics and Roles in Nitrogen Transformation in Industrial Farming Systems of Litopenaeus vannamei

by
Hongwei Shan
1,
Yulong Du
1,
Tao Li
3,
Fang Wang
1,
Hongyu Li
3 and
Haitao Wang
2,*
1
The Key Laboratory of Mariculture (Ocean University of China), Ministry of Education, Qingdao 266003, China
2
Weihai Wendeng District Marine Development Affairs Center, Weihai 264400, China
3
Guang Dong Haid Group Co., Ltd., Guangzhou 511400, China
*
Author to whom correspondence should be addressed.
J. Mar. Sci. Eng. 2024, 12(5), 787; https://doi.org/10.3390/jmse12050787
Submission received: 3 April 2024 / Revised: 3 May 2024 / Accepted: 6 May 2024 / Published: 8 May 2024
(This article belongs to the Topic Aquatic Environment Research for Sustainable Development)
Browse Figures
Versions Notes

Abstract

:
Industrial farming is one of the main farming systems used for L. vannamei, and it is also the main direction of development in the future. To investigate the role of the bacterial community in nitrogen transformation in industrial L. vannamei farming systems, we studied the concentration of nitrogen compounds, the bacterial community using 16S rRNA sequencing, and nitrogen cycling genes’ abundance using absolute quantitative PCR in aquaculture water (using seawater (WD) and groundwater mixed with seawater (CY)) and analyzed the correlations between them using a person analysis. The results showed that the bacterial α-diversity index (ACE, Shannon, and Sobs) significantly changed during culture in WD but not in CY. Bacterial community species composition analysis and linear discriminant analysis effect size (LEfSe analysis) revealed that Cyanobiaceae and Microbacteriaceae were the dominant bacteria and biomarkers in WD. Vibrionaceae, Ateromonadaceae, Microbacteriaceae, Saprospiraceae, and Cryomorphaceae were the dominant bacteria and biomarkers in CY. A functional annotation of procaryotic taxa (FAPROTAX) analysis revealed that the bacterial community in WD exhibited a greater phototrophic activity at early culture stages, while at the same stage, CY exhibited strong nitrate reduction. A correlation analysis of nitrogen cycling genes and environmental factors revealed that napA, narG, ureC, amoA, and nirK were significantly correlated with the concentrations of total ammonia nitrogen (TAN), nitrite (NO2−-N), nitrate (NO3−-N), and total nitrogen (TN) in WD. In CY, amoA was positively correlated and napA and nirK were negatively correlated with TAN and TN concentrations. A correlation analysis between bacterial abundance and environmental factors revealed that Flavobacteriaceae, Saprospiraceae, Cryomorphaceae, Cyanobiaceae, Halieaceae, and Cyclobacteriaceae were significantly correlated with the concentrations of TAN and NO2−-N. The above results indicated that the bacterial community in industrial shrimp farming systems changed under different conditions, with consequent changes in the abundance of genes being involved in the nitrogen cycle and in this biogeochemical process in the water. Our study facilitates further understanding of microbes and their functions in nitrogen cycling in industrial shrimp farming systems.

1. Introduction

In recent years, the aquaculture industry has flourished, which greatly alleviates the current problem of human protein requirements worldwide. Litopenaeus vannamei is the most farmed crustacean globally because of its high meat yield, strong stress resistance, excellent adaptability to salinity, and low dietary protein. According to farming data provided by the FAO, the worldwide production of L. vannamei in 2020 accounted for 51.7% of the total crustacean production worldwide [1]. In China, L. vannamei is cultured in a variety of models, including industrial farming, higher-place ponds farming, outdoor ponds farming, and shed farming [2]. Among these models, industrial farming is a very popular farming system that has the advantages of a standardized culture process, high culture density, and high output, and it has become one of the most important farming systems in North China.
In highly intensive industrial farming systems, residual feed and accumulated feces can settle in the middle and lower layers of the water. These substances are rich in proteins and other organic matter and are decomposed by heterotrophic bacteria, increasing the concentration of nitrogen compounds in the water [3]. TAN refers to nitrogen-containing compounds in the form of free ammonia (NH3) and ammonium ions (NH4+), which is a toxic nitrogen-containing pollutant in aquaculture water; excessive ammonia nitrogen destroys gill tissue [4,5], affects the transport and metabolism of substances, reduces immunity [6], and increases susceptibility to disease in aquaculture animals [7,8]. Nitrite is another major pollutant in aquaculture water that can damage the granular and semi-granular hemocytes of aquaculture organisms [9,10]. For crustaceans that rely primarily on hemolymph for nonspecific immunity, damage to blood cells often results in reduced immunity and an increased likelihood of death [11].
The transformation of many organic compounds in water is performed thanks to microorganisms [12]. The composition and abundance of these microbes are related to environmental factors, such as temperature [13], dissolved oxygen (DO) [14], and salinity [15], especially the processes of the nitrogen cycle in water, which are mostly carried out by microbes [16]. For example, cyanobacteria can fix nitrogen by immobilizing N2 from the air to ammonia nitrogen for bioenergy use [17]. Mycobacterium tuberculosis is involved in assimilatory nitrate reduction and in ultimately converting nitrate into bacterial proteins [18]. Saprospiraceae is related to nitrate removal by denitrification in aquaculture water [19]. Therefore, to explore the pathway and mechanism underlying nitrogen transformation, identifying the composition and changes in microbes is necessary.
Although microbes play a crucial role in nitrogen transformation in aquaculture systems, relevant research data are still lacking with respect to industrial farming systems. Therefore, in this study, we sampled two industrial farming systems with different water sources; determined the water environmental factors, bacterial community characteristics, and abundances of nitrogen cycling genes in bacterial communities; and conducted a correlation analysis to (1) characterize bacterial communities in cultured water and their succession characteristics, (2) determine relationships between nitrogen cycling genes and environmental factors, and (3) reveal correlations between bacterial abundances and environmental factors. Our study will facilitate further understanding of microbes and their role in nitrogen cycling in the industrial shrimp farming and provide theoretical support for solving the problem of harmful nitrogen compound accumulation through bacterial regulation.

2. Materials and Methods

All experimental procedures were performed following the regulations of the People’s Republic of China on the Administration of Laboratory Animals (http://www.gov.cn/gongbao/content/2011/content_1860757.htm, accessed on 1 September 2022).

2.1. Collection of Water and Shrimp Samples

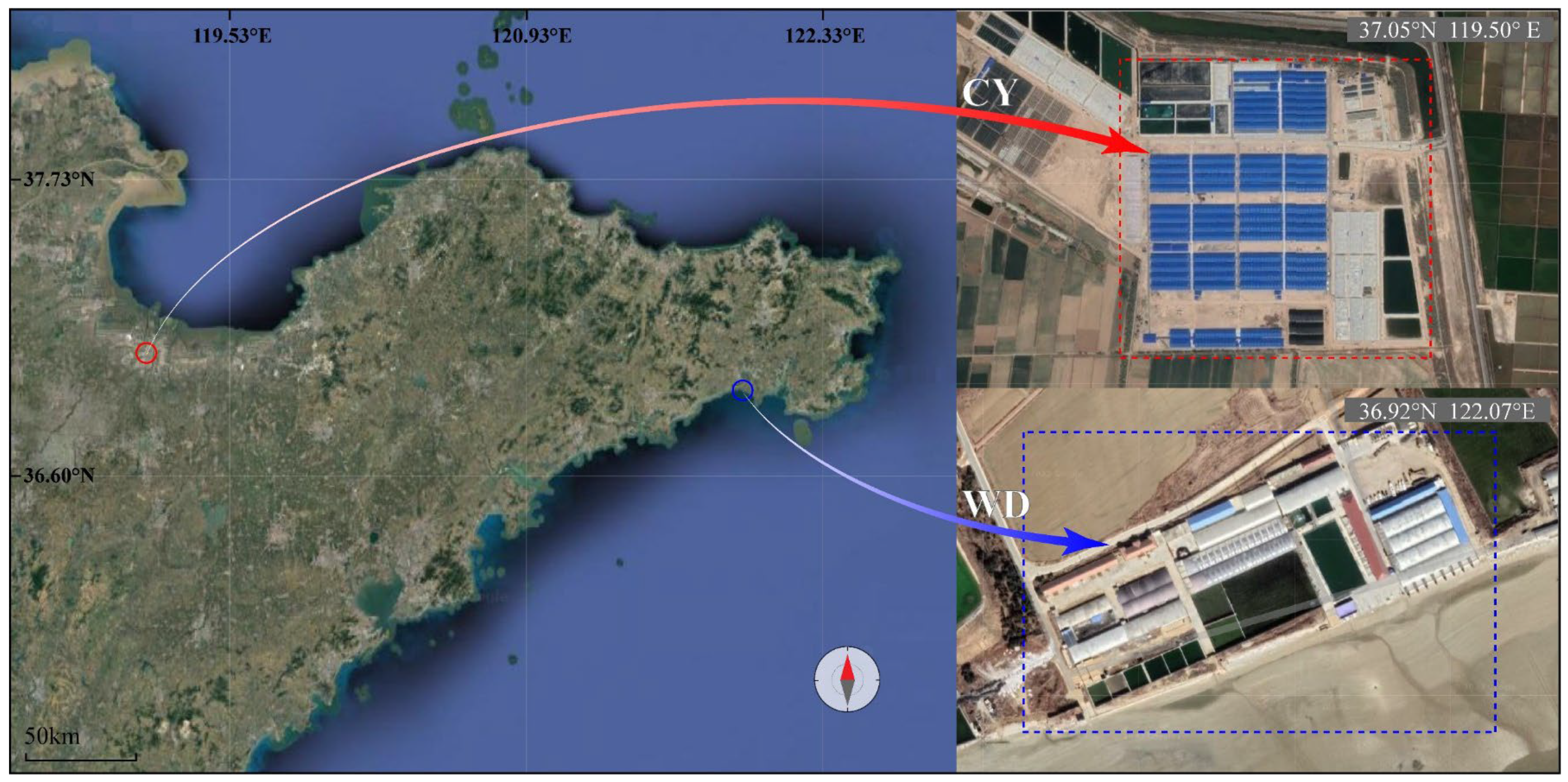

The sampled industrial L. vannamei farming companies in this study were located in Wendeng District, Weihai city, Shandong Province (36.92° N, 122.07° E; hereafter referred to as WD), and Changyi District, Weifang city, Shandong Province (37.05° N, 119.50° E; hereafter referred to as CY). The geographical information of the above two sampling companies is shown in Figure 1. From July to September 2022, 4 ponds were selected for sampling in WD and CY. Water samples were collected in the 1st, 3rd, 5th, 7th, and 9th weeks of shrimp culture and labeled as WD1, WD3, WD5, WD7, and WD9, and CY1, CY3, CY5, CY7, and CY9, respectively.
One liter of water sample was filtered with sterilized mixed-fiber filter membranes (0.22 µm, Shanghai Lichen Bangxi Instrument Technology Co., Ltd., LC-95WD, Shanghai, China) after being collected from each sampling pond. The filtered water was transported back to the laboratory and stored at −20 °C immediately for the determination of the concentrations of total ammonia nitrogen (TAN), nitrite nitrogen (NO2−-N), nitrate nitrogen (NO3−-N), and total nitrogen (TN). The membrane was loaded into a sterilized freezer tube, frozen with liquid nitrogen, and then stored at −80 °C for DNA extraction. The biological length of the cultured shrimp at the same sampling time is shown in Figure S1, and no significant difference was found in shrimp lengths between the two sampling sites at the same time.

2.2. Determination of Physical and Chemical Indices of Water

A thermometer was used to determine the water temperature. A pH meter (Shanghai Lichen Instrument Equipment Co., Ltd., LC-pH-100B, Shanghai, China) was used to determine the water pH. A diopter salinometer (Guangzhou Suwei Electronic Technology Co., Ltd., LS10T, Guangzhou, China) was used to determine the water salinity. A dissolved oxygen (DO) meter (Changchun Leprotactinium Technology Co., Ltd., AZ8403, Changchun, China) was used to determine the DO concentration in the water. The concentration of TAN, NO2−-N, NO3−-N, and TN were determined, following the methods of Chen et al. [20].

2.3. Extraction of 16S rDNA from Bacterial Samples and Illumina Sequencing

DNA was extracted from the water filter membrane with a FastDNA® SPIN kit (MP BiomeDicals, Santa Ana, CA, USA), following the manufacturer’s instructions. After extraction, the concentration and purity of the extracted DNA were determined by a NanoDrop ND2000 (USA), and the integrity of the extracted genomic DNA was assessed by 1% agarose gel electrophoresis. The V3–V4 variable region of the bacterial 16S rRNA was amplified with primers 338F (5′-ACTCCTACGGGAGGCAGCAG-3′) and 806R (5′-ACTCCTACGGGAGGCAGCAG-3′). Then, the amplification products were sent to Shanghai Meiji Biomedical Technology Co., Ltd. (Shanghai, China) for second-generation sequencing using the Illumina MiSeq PE 300 platform.
The original bacterial 16S rRNA sequencing data have been uploaded to the NCBI database, and the accession number is PRJNA1052999. Fastp (https://github.com/OpenGene/Fastp, accessed on 3 January 2023) was used for quality control of the original sequence. Flash (https://ccb.jhu.edu/software/FLASH/index.shtml, accessed on 3 January 2023) was used for paired-end double-end sequence splicing. Usearch (http://www.drive5.com/usearch/, accessed on 3 January 2023) was used for OTU statistical analysis. Uparse (http://www.drive5.com/uparse/, accessed on 3 January 2023) was used to cluster OTU sequences based on similarity (97%). The RDP classifier (https://sourceforge.net/projects/rdp-classifier/, accessed on 3 January 2023) was used for sequence classification annotation. Species classifications were compared with the SILVA138/16s_bacteria database, and the classification confidence was 0.7.

2.4. Absolute Quantitative Determination of Nitrogen Cycling Genes

The absolute abundances of the napA, nirK, nirS, ureC, amoA, narG, and nxrB genes in the WD and CY groups were determined via real-time quantitative PCR. The primer sequences used for PCR are shown in Table 1.
The target gene was amplified using SYBR Green qPCR with a ChamQ SYBR Color qPCR MasterMix (High ROX Premixed) kit (Noweizan, Nanjing, China), following the manufacturer’s instructions. A StepOne Plus Real-Time PCR system (Waltham, MA, USA) was used for the experiment, and every gene holds three technical replicates in each sample. The reaction system was 10 μL, in which the fluorescence reagent (2× ChamQ SYBR Color qPCR Master Mix (High ROX Premixed)) was 5μL, the template DNA was 2 μL, forward and reverse primers were 0.2 μL, respectively, and DEPC H2O was 2.6 μL. The PCR reaction procedure is as follows: pre-denaturation at 95 °C for 20 s; 40 cycles, each consisting of 95 °C for 3 s and 60 °C for 30 s.
The primers and sample DNA were also sent to Shanghai Meiji Biomedical Technology Co., Ltd. (Shanghai, China) to construct a standard plasmid. The standard plasmid was diluted, and a standard curve (R2 > 0.99) was constructed. DEPC H2O was used as the template for the negative control, and no primer dimer crest was found.

2.5. Data Analysis

The original sequences were subjected to quality control, splicing, OTU statistical analysis, sequence annotation, and species classification, and Mothur software (https://www.mothur.org/wiki/download_mothur, version 1.30.2, accessed on 3 January 2023) was used to calculate the α-diversity indices (Sobs, Shannon, Ace). R version 3.3.1 was used for community species composition analysis, β-diversity analysis (principal coordinates analysis (PCoA)), intergroup diversity analysis, and environmental factor correlation analysis (Pearson). Linear discriminant analysis (LDA) was performed based on the taxonomic composition using LEfSe software (http://huttenhower.sph.harvard.edu/LEfSe, version 1.0, accessed on 3 January 2023). The functional prediction of bacterial communities was performed using the FAPROTAX database. The β-diversity distance matrix was calculated using QIIME (http://qiime.org/install/index.html, version 1.9.1, accessed on 3 January 2023), and the differences between groups were tested using the ANOSIM method. The Kruskal-Wallis rank sum test was used to analyze the significance of differences for each group. p < 0.05 was considered as a threshold value to indicate a significant difference.
All data are presented in the form of mean ± standard deviation for each group. SPSS 26.0 software was used to test the significance of the differences of the data in this study. For normally distributed data, we chose a one-way ANOVA to test the significance; if the data conformed to the homogeneity of variance, Tukey’s test was used for post hoc comparisons; otherwise, Tamhane’s T2 test was used. If there was a significant, the nonparametric test and Kruskal-Wallis H test were used. There is a significant difference between the corresponding data when p < 0.05.

3. Results

3.1. Physical and Chemical Measurements

As shown in Table S2, during the sampling, the water temperature in the WD group was 28.1 ± 1.98 °C, the salinity was 29–30, the pH was 7.66 ± 0.29, and the dissolved oxygen concentration was 5.76 ± 0.60 mg/L. In the CY group, the water temperature was 28.5 ± 0.73 ℃, the salinity was 25–26, the pH was 7.98 ± 0.18, and the dissolved oxygen concentration was 5.74 ± 0.20 mg/L.

3.2. α-Diversity of Bacterial Community

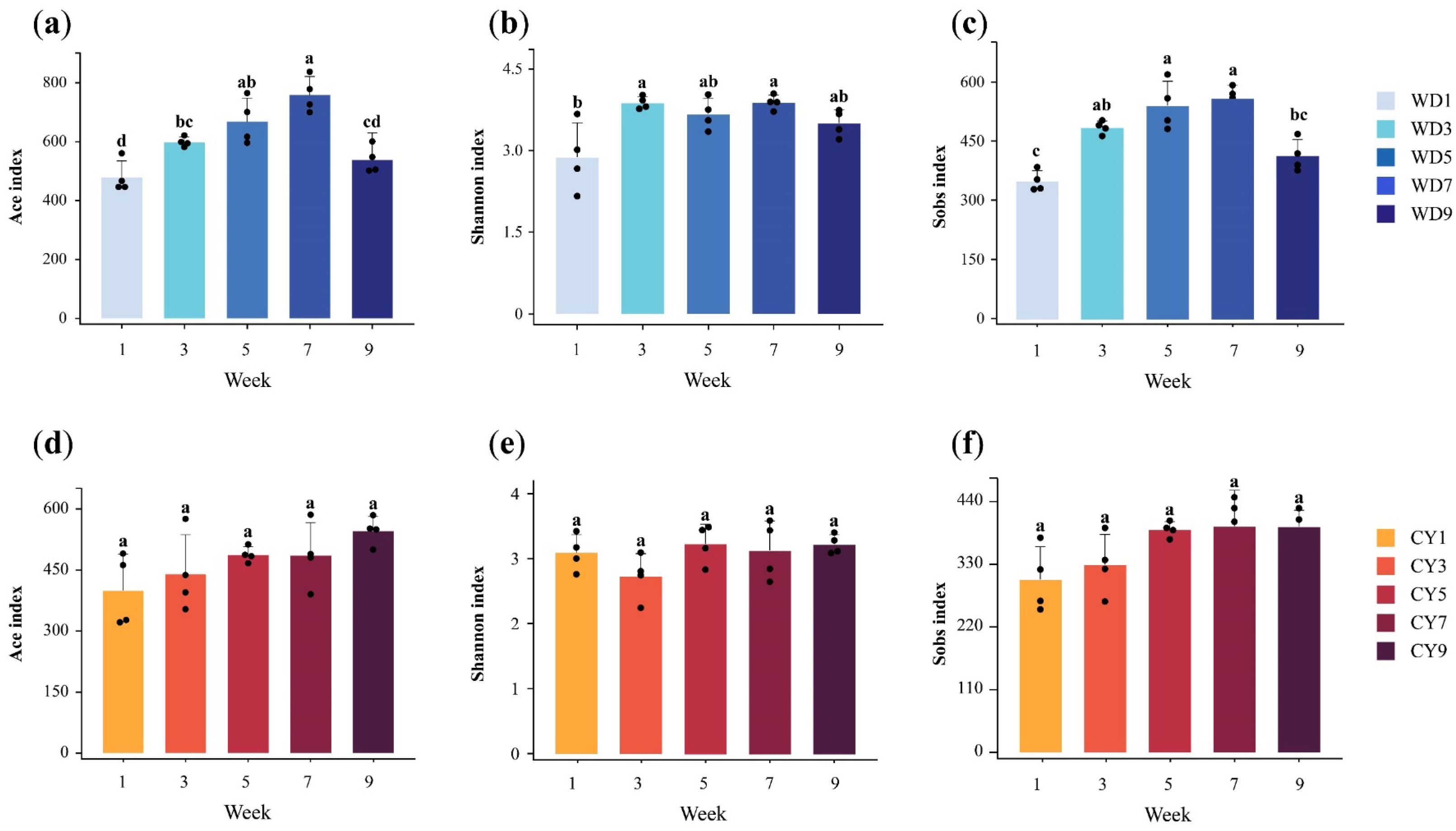

The ACE, Shannon, and Sobs indices of the water bacterial community in the WD group are shown in Figure 2a–c. With the progression of culture, the ACE index first increased and then decreased. The maximum ACE index was observed in WD7, which was significantly greater than that in WD1, WD3, and WD9. The lowest ACE index was observed in WD1 and was significantly lower than that in WD3, WD5, and WD7 (p < 0.05). The Shannon index first increased and then remained stable and was significantly greater in WD3 and WD7 than in WD1 (p < 0.05). The Sobs index first increased and then decreased, and it was significantly greater in WD5 and WD7 than in WD1 and WD9 (p < 0.05).
The ACE, Shannon, and Sobs indices of the water bacterial community in the CY group are shown in Figure 2d–f. The ACE and Sobs indices gradually increased with increasing culture time. The Shannon index was low only in the CY3 samples and remained unchanged at other times. There were no significant differences in the three indices during the culture period (p > 0.05).

3.3. β-Diversity of Bacterial Community

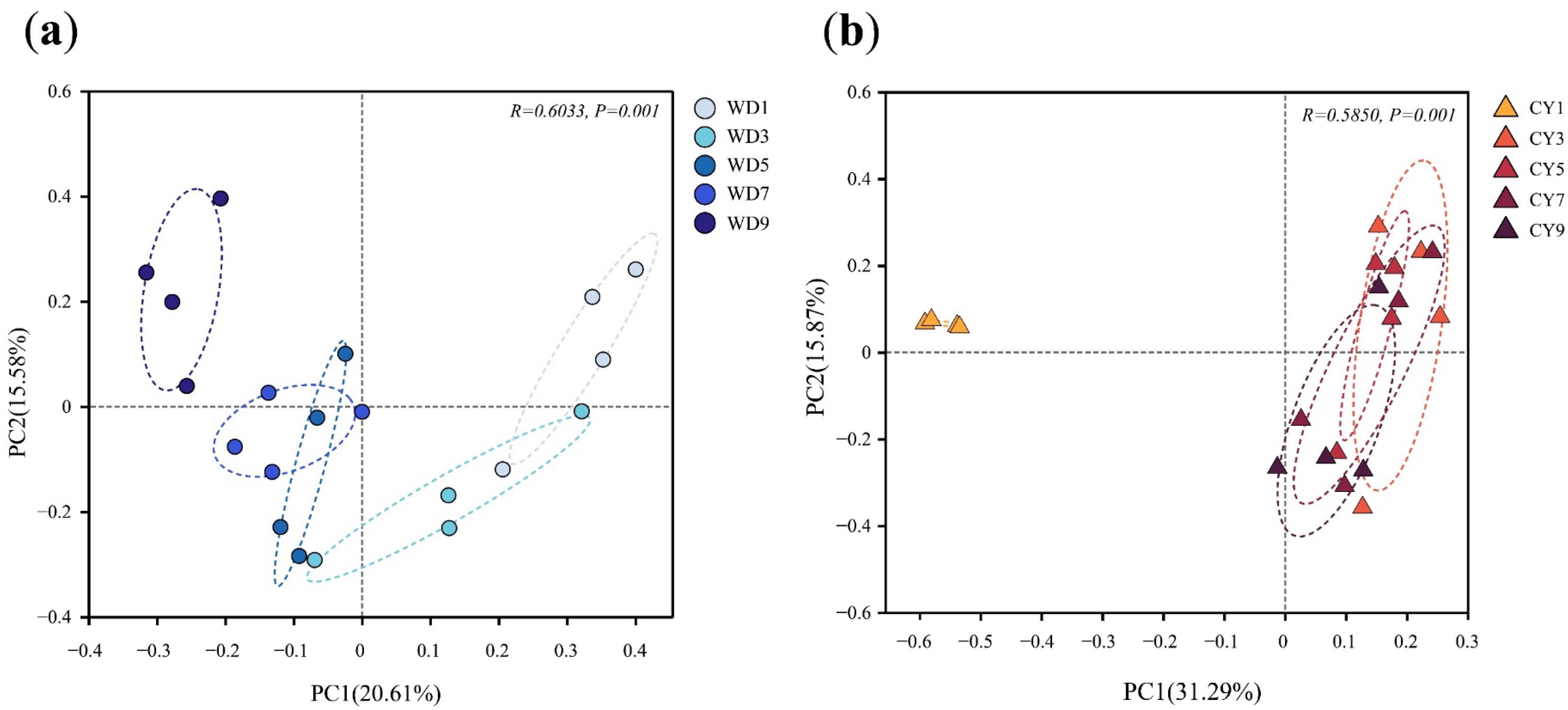

Figure 3a shows the results of the PCoA analysis of the water bacterial community in the WD group. The ANOSIM test yielded R2 = 0.6033, and p = 0.001 means significant differences in bacterial communities during the culture period. Figure 3b shows the results of the PCoA analysis of the water bacterial community in the CY group. The ANOSIM test yielded R2 = 0.5850, and p = 0.001 means significant differences in bacterial communities during the culture period.

3.4. Composition of the Bacterial Community

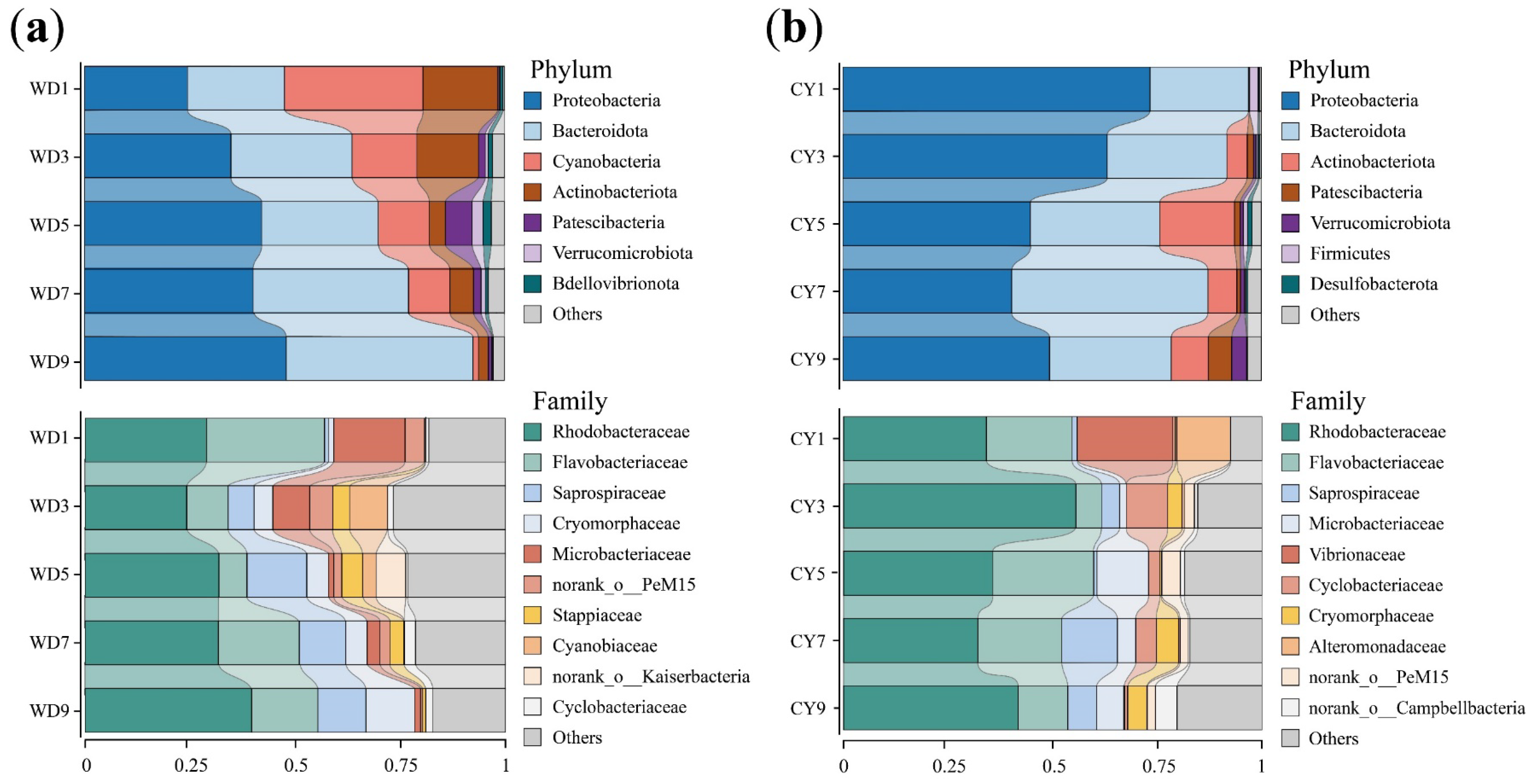

The composition of the bacterial community in the WD group at the phylum level and family level is shown in Figure 4a. The dominant phyla in the WD group included Proteobacteria, Bacteroidetes, cyanobacteria, Actinobacteria, Patescibacteria, Verrucomicrobiota, and Bdellovibrionota. With the progression of culture, the relative abundances of Rhodobacteraceae, Cryomorphaceae, and Saprospiraceae increased, while those of norank_o_PeM15 and Microbacteriaceae gradually decreased. The abundance of Flavobacteriaceae tended to decrease first and then increase, while those of Stappiaceae, Cyanobiaceae, and Cyclobacteriaceae showed the opposite trend.
The composition of the bacterial community of the CY group at the phylum level and family level is shown in Figure 4b. The dominant bacteria in the CY group included Proteobacteria, Bacteroidetes, Actinobacteria, Patescibacteria, and Verrucomicrobiota. With the progression of culture, the relative abundance of Rhodobacteraceae first increased and then remained stable. Flavobacteriaceae first decreased and then remained stable. The relative abundances of Saprospiraceae, Microbacteriaceae, and Cryomorphaceae tended to gradually increase, while that of Cyclobacteriaceae first increased and then decreased. The relative abundances of Vibrionaceae and Alteromonadaceae were high in CY1 at 22.83% and 12.84%, respectively, but decreased and subsequently remained at a low level.

3.5. LEfSe Analysis of Bacterial Community Species Composition

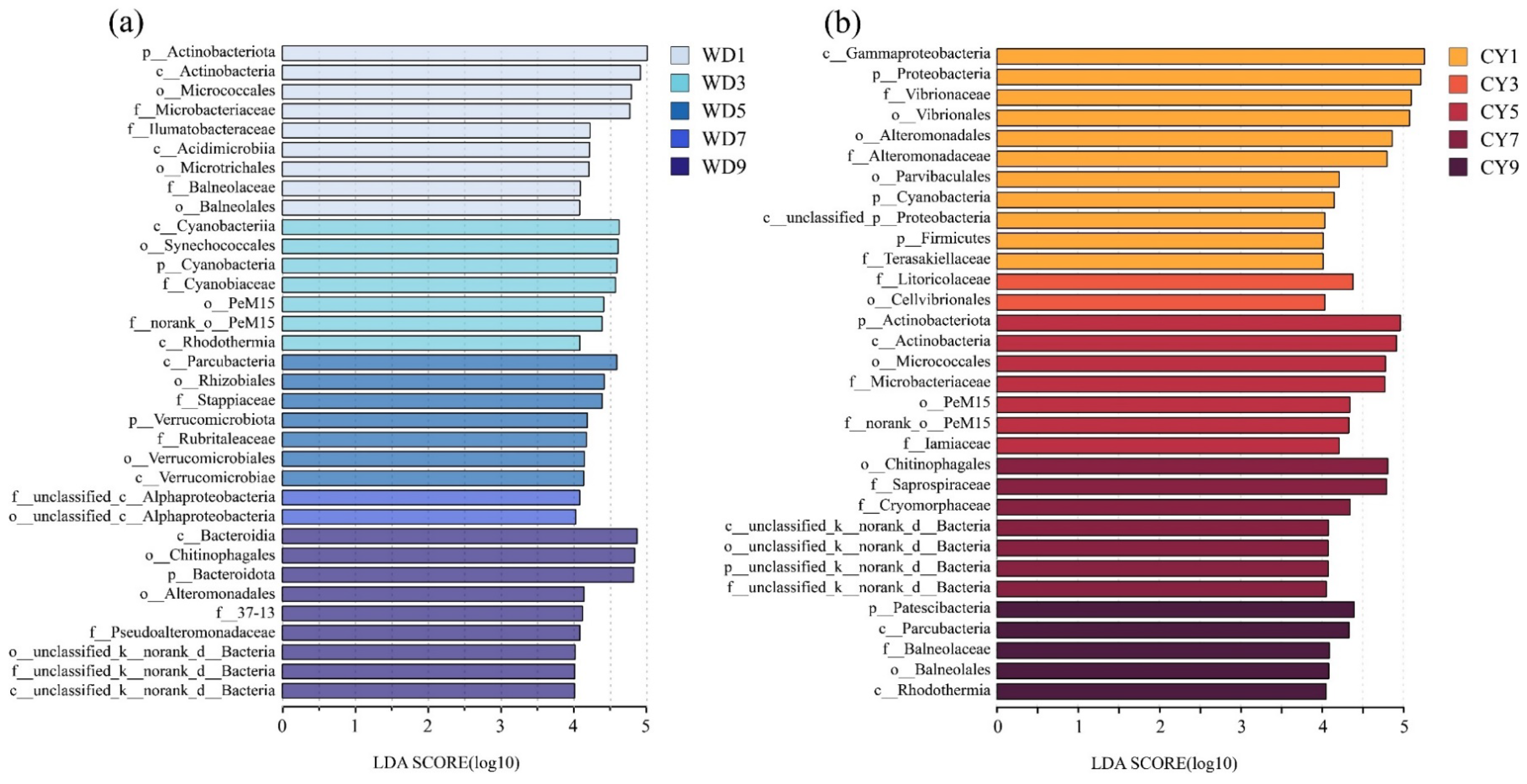

The LEfSe analysis of the bacterial community in the WD group is shown in Figure 5a. The biomarkers of WD1 were Microbacteriaceae, Llumatobacteraceae, Microtrichales, Balneolaceae, and Actinobacteria. The biomarkers of WD3 were Cyanobiaceae, Synechococcales, PeM15, and Rhodothermia. The biomarkers of WD5 were Stappiaceae, Rubritalaceae, and Verrucobacteriales. The biomarkers of WD9 were Chitinophagales and Pseudoalteromonadaceae.
The LEfSe analysis of the bacterial community in the CY group is shown in Figure 5b. The biomarkers of CY1 were Gammaproteobacteria, Vibrionaceae, Ateromonadaceae, Parvibaculale, cyanobacteria, Firmicutes, and Terasakiellaceae. The biomarkers of CY3 were Litoricolaceae and Cellvibrionales; those of CY5 were Microbacteriaceae, PeM15, and Iamiaceae; those of CY7 were Saprospiraceae and Cryomorphaceae; and those of CY9 were Balneolaceae and Rhodothermia.

3.6. Difference Analysis of Bacterial Community

The comparative analysis of bacterial community in the WD group at different sampling times (family level) is shown in Figure 6a. There were significant differences in the relative abundances of Microbacteriaceae and norank_o_PeM15 at different sampling times. Microbacteriaceae in WD1 and WD3 were significantly higher than that in WD5, and norank_o_PeM15 in WD9 was significantly lower than that in other groups (p < 0.05). Figure 6b shows the difference analyses of the bacterial community in the CY group at different sampling times (family level). The abundances of Vibrionaceae and Alteromonadaceae in CY1 were significantly higher than those in the other four groups, and Saprospiraceae in CY7 was significantly higher than that in CY5 (p < 0.05).

3.7. Functional Prediction Analysis of Bacterial Community

Figure 7 shows the results of the FAPROTAX functional prediction analysis of bacterial communities in the WD and CY groups. The results showed that chemoheterotrophy had the highest abundance both in WD and CY, and phototrophs’ abundance in the WD group was higher than that of CY. The abundance of phototrophs in the WD group increased from WD1 to WD5 but remained high only in WD3 and WD5. However, it remained low throughout the whole culture process in the CY group. In addition, the abundance of nitrate reduction function first decreased and then increased in the WD group, while there was a decreasing trend in the CY group. At CY1, all nitrogen reduction functions, including nitrogen respiration, nitrate respiration, nitrite respiration, and nitrate/nitrite/nitrous oxide denitrification in the CY group were higher than those in WD.

3.8. Changes in Functional Genes

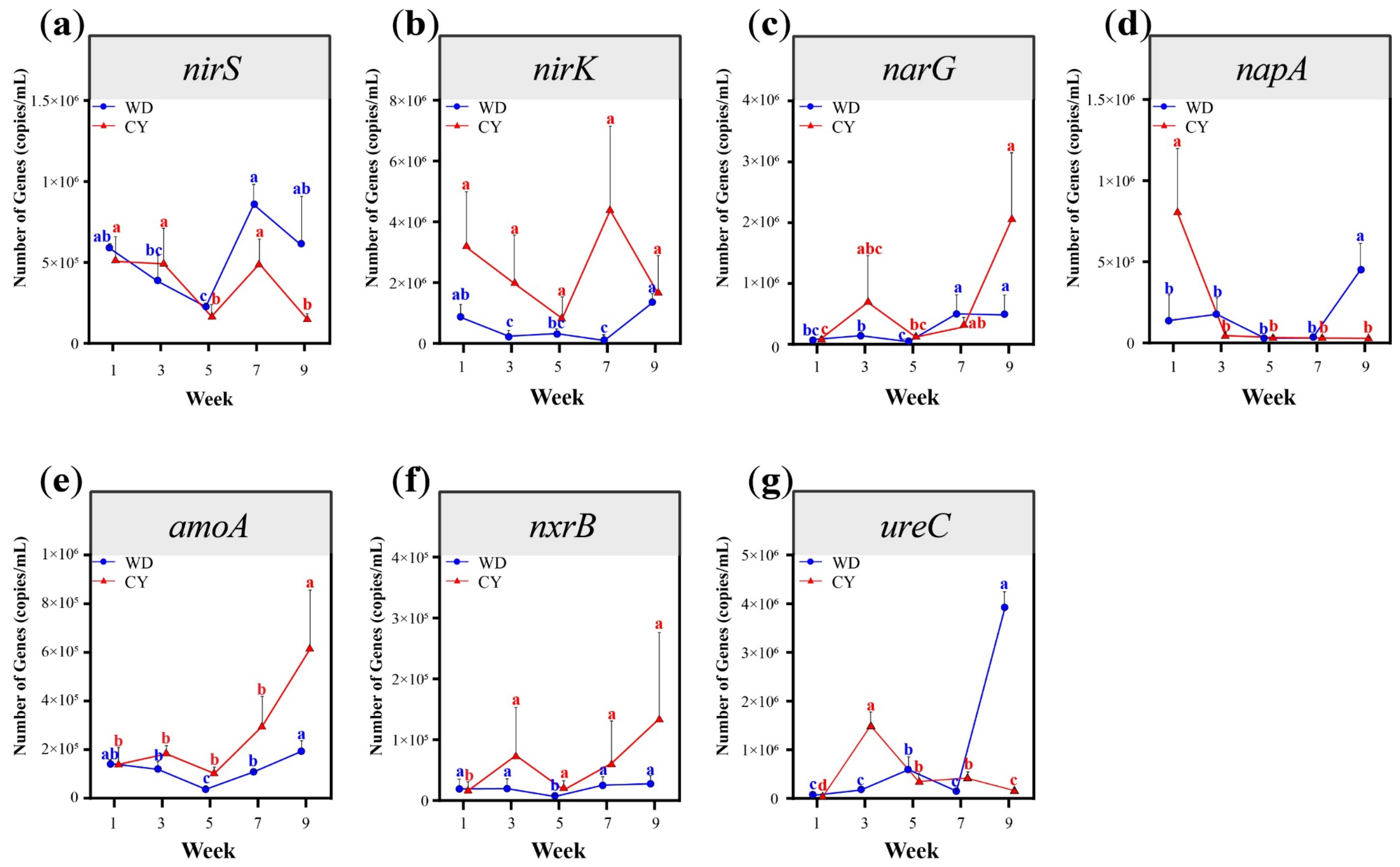

The changes in the abundances of the denitrification genes nirS, narG, and nirK in the WD and CY groups are shown in Figure 8a–c. With the progression of culture, the abundance of nirS gene in the CY group showed a degreasing trend, and the trend was 2.2 × 105~9.8 × 105 copies/mL. The abundance of nirS in the CY group showed a decreasing trend, and they were significantly lower in CY5 and CY7 than those in the samples from other weeks (p < 0.05). nirS in the CY group was always higher than that in WD. The abundance of nirK genes in the WD and CY groups first decreased and then increased. The lowest value was found in WD7 in WD, which was significantly lower than that in WD1 and WD9 (p < 0.05). No significant difference was found in nirK abundance among the CY samples (p > 0.05). The abundances of the narG gene in the WD and CY groups showed an increasing trend, and the abundances between the two groups were similar. In the WD group, the abundances in WD7 and WD9 were significantly higher than those in the other weeks, and the abundance in WD3 was also significantly higher than that in WD5. In the CY group, the abundance of narG in CY9 was significantly higher than that in CY1 and CY5, and that in CY7 was also significantly higher than that in CY1 (p < 0.05).
The changes in the dissimilatory nitrate reduction to ammonium (DNRA) gene napA in the WD and CY groups are shown in Figure 8d. The abundance of napA in the WD group increased, and that in WD9 was significantly higher than that in other weeks (p < 0.05). napA in the CY group showed a decreasing trend, and it was highest in CY1, which was significantly higher than that in the other weeks (p < 0.05).
The changes in the nitrification genes amoA and nxrB in the WD and CY groups are shown in Figure 8e,f, respectively. amoA’s abundance in both the WD and CY groups showed an increasing trend, and the lowest abundance appeared in CY5. In WD, the abundance in WD9 was significantly greater than that in WD3, WD5, and WD7, and the abundances in WD3 and WD7 were also significantly greater than that in WD5. In CY, its abundance in CY9 was significantly greater than in the other weeks (p < 0.05). The abundance of the nxrB gene in the WD group was low, the variation range was small, and the highest abundance was only 2.8 × 104 copies/mL. nxrB in the CY group showed an increasing trend, and the highest abundance was observed in CY9, which was significantly higher than that in CY1 (p < 0.05).
The changes in the ammonification gene ureC in the WD and CY groups are shown in Figure 8g. ureC’s abundance in the WD group increased gradually and reached the highest level in WD9, which was significantly greater than that in the other samples. In CY, it first increased and then decreased. Its abundance in CY3 was significantly higher than in the other samples (p < 0.05).

3.9. Correlation Analysis between Nitrogen Cycling Genes and Environmental Factors

The correlation analysis of nitrogen cycling genes and environmental factors in the WD group is shown in Table 2. The TAN, NO2−-N, NO3−-N, and TN concentrations in WD had significant positive correlations with the abundances of nitrogen cycling genes. Among them, the TAN concentration had significant positive correlations with the abundances of napA, narG, nirK, and ureC; the NO2−-N concentration had significant positive correlations with the amoA, napA, narG, nirK, nirS, and ureC; the NO3−-N concentration had significant positive correlations with amoA, napA, narG, nirK, and ureC; and the TN concentration had significant positive correlations with napA, narG, and ureC (p < 0.05). TOC, C/N, and pH were not significantly correlated with the abundances of nitrogen cycling genes (p > 0.05). T had significant negative correlations with the abundances of amoA, napA, narG, nirK, and ureC, and DO also had significant negative correlations with napA, narG, nirK, and ureC (p < 0.05).
The correlation analysis of nitrogen cycling genes and environmental factors of CY is shown in Table 3. The TAN concentration had significant positive correlations with the abundances of amoA, narG, and nirS and significant negative correlations with napA, nxrB, and nirK (p < 0.05). Concentrations of NO2−-N and NO3−-N had a significant positive correlation with the abundance of nxrB (p < 0.05); the TN concentration had a significant positive correlation with amoA and significant negative correlations with napA and nirK (p < 0.05); TOC had significant positive correlations with the abundances of nirK and ureC (p < 0.05); and the C/N ratio was positively correlated with napA and negatively correlated with ureC (p < 0.05). Moreover, pH and napA’s abundance also had a significantly positive correlation (p < 0.05). T had a significant positive correlation with the abundance of ureC, and DO had significant positive correlations with the abundances of nxrB and nirK (p < 0.05).

3.10. Correlations between Dominant Bacterial Communities and Environmental Factors

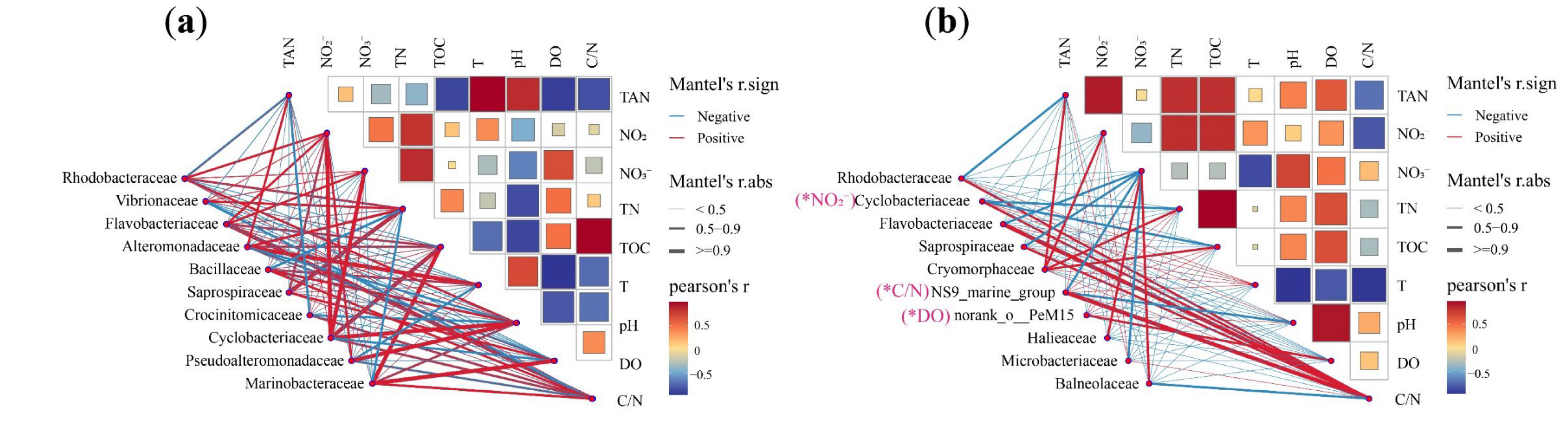

The correlation analysis of water-dominant bacteria and environmental factors in the WD group is shown in Figure 9a–e. In WD1, Flavobacteriaceae had a significant positive correlation with TAN, and Alteromonadaceae had a significant positive correlation with NO3−-N concentration (p < 0.05). In WD3, the abundances of Flavobacteriaceae and Saprospiraceae had significant positive correlations with the NO2−-N concentration (p < 0.05). In WD5, the abundances of Cyanobiaceae and Halieaceae were significantly positively correlated with the NO2−-N concentration (p < 0.05). In WD7, the abundances of Cryomorphaceae and Microbacteriaceae had significant positive correlations with the TAN concentration and TOC (p < 0.05). In WD9, the abundance of Flavobacteriaceae had a significant positive correlation with the NO3−-N concentration and DO, and that of f-37-13 had a significant positive correlation with the NO3−-N concentration and pH (p < 0.05).
The correlation analysis of the water-dominant bacteria and environmental factors in the CY group is shown in Figure 10a–e. In CY3, the abundance of Cyclobacteriaceae had a significantly negative correlation with the NO2−-N concentration. The abundance of the NS9_marine_group had a significantly positive correlation with the C/N ratio, and that of norank_o__PeM15 was significantly positively correlated with DO (p < 0.05). In CY5, the abundance of norank_o__PeM15 showed a significant positive correlation with the TAN concentration and T, and that of Cyclobacteriaceae showed a significant positive correlation with the C/N ratio (p < 0.05). In CY9, the abundances of Rhodobacteraceae showed a significant negative correlation with C/N, that of Flavobacteriaceae showed a significant positive correlation with DO, that of Microbacteriaceae showed a significant positive correlation with NO2−-N, and that of norank_o__PeM15 showed a significant positive correlation with NO3−-N (p < 0.05).

4. Discussion

4.1. Diversity Indices of Bacterial Communities

The α-diversity of bacterial community reflects the species abundance, diversity, and functional potential of a community [27]. It is generally believed that communities with high α-diversity have better functions, can better resist external interference, and can maintain their stability [28,29]. As a measure of α-diversity, the ACE index reflects the individual number and species richness of species in a community. The Shannon index reflects the heterogeneity of the community and the evenness of the species distribution. In this study, the ACE and Shannon indices of the WD and CY groups both increased, indicating that the bacterial community of water in industrial farming systems became more stable with the progression of culture. According to the study of Li et al., the ACE and Shannon indices of bacterial communities in outdoor aquaculture water showed a decreasing trend with the progression of aquaculture [30], which was different from the trend of the corresponding indices in this study. This may be due to the differences in environmental conditions and management strategies between outdoor ponds and breeding plants.
The β-diversity reflects the differences between bacterial communities of different groups [31]. In this study, the WD1 to WD9 samples were dispersed, and there were significant differences among these groups. Except for CY1, the distributions of the samples in the CY group were similar, indicating that the change in water communities in CY was not significantly varied during culture. It is also the same as the message conveyed by the non-significant difference in α-diversity among CY groups. WD used natural seawater for farming, while CY is a mixture of seawater and groundwater. There were natural differences in bacterial species and diversity between the two aquaculture waters: Cyanobiaceae’s abundance was higher in the early stage of WD, while Vibrionaceae and Alteromonadaceae were higher in CY. The initial diversity and species of bacterial communities have a potential influence on the succession and development direction of the bacterial community [27]. The subsequent succession direction of the WD and CY bacterial communities in the water in the present study may be related to this difference.
In addition, in the first few weeks of culture, the dominant bacterial communities of WD and CY differed greatly (Figure S2a–c); however, as the culture progressed, the dominant bacterial families of WD and CY in the same period gradually approached each other (Figure S2d,e). At Weeks 7 and 9, the composition and relative abundance of the dominant bacteria were relatively similar. Management and feeding in aquaculture affect the bacterial community in the culture water [32,33]. The factors that led to similarity of the bacterial communities between the two water types in the later period of culture remain to be further explored.

4.2. Characteristics and Succession of Dominant Bacteria in the Bacterial Community

Microbes are the most important biological factors in the culture environment, and they are also affected by the environment [34,35,36]. In WD, the abundance of Rhodobacteraceae gradually increased, while that of Flavobacteriaceae remained stable. In the CY group, Rhodobacteraceae always maintained a high abundance, while the abundance of Flavobacteriaceae showed a decreasing trend. Members of Rhodobacteraceae are complex and have many nutrient modes, and diverse trophic modes mean that Rhodobacteraceae can use various forms of organic matter [21,37]. Flavobacteriaceae can exploit complex organic matter in water, especially polysaccharides and proteins; decompose these substances; and release energy for growth and reproduction [21,38]. In this research, the abundances of Rhodobacteraceae and Flavobacteriaceae in the CY group almost exceeded 50% throughout the whole culture process. In the WD group, the percentage was slightly lower but not less than 22%. There was sufficient unused organic matter in the culture environment, which may be the reason for the high abundances of Rhodobacteraceae and Flavobacteriaceae in the culture water; their high abundances facilitate the decomposition of organic matter and release carbon and nitrogen that may be utilized by other microbes [21].
Saprospiraceae are dominant bacteria that often appear in water for farming [39]. In this research, Saprospiraceae’s abundance increased in both the WD and CY groups, especially in the middle and late stages of aquaculture. Saprospiraceae are mostly anaerobic or facultative anaerobic bacteria that can participate in multiple denitrification processes, such as nitrate reduction and nitrite reduction, due to functional genes such as narG and nirB [40]. Saprospiraceae also effectively remove ammonia nitrogen and total nitrogen [40,41]. In addition, Saprospiraceae can decompose complex organic compounds, such as proteins [42] and cellulose [43], providing a material basis for other reactions. Therefore, the increase in Saprospiraceae in the WD and CY groups may enhance the denitrification ability of water and promote the release of nitrogen compounds from the water in the form of N2. On the other hand, it may also be conducive to the decomposition of organic matter in water.
Cryomorphaceae can participate in secondary production in the ocean [44] and decompose complex organic matter, which is related to the carbon and nitrogen cycles of water [45]. In the present study, Cryomorphaceae’s abundance in WD and CY tended to increase, which may be conducive to enhancing the DNRA process in water [46]. Notably, Cryomorphaceae in the WD and CY groups exhibited the same trend as that of the corresponding abundance of Saprospiraceae. Studies have shown that members of Cryomorphaceae need a high organic load to support their proliferation [44]. The abundances of both species exhibited the same trend, probably because Saprospiraceae activity provided the carbon needed for the proliferation of Cryomorphaceae. In addition, similar to Saprospiraceae, Microbacteriaceae, which rapidly declined in abundance from CY5 to CY7 (12.31% to 4.40%), also has the potential of heterotrophic nitrification and aerobic denitrification [47,48] and can decompose complex organics [49]. In both the WD and CY groups, the abundance of Saprospiraceae showed an opposite trend to that of Microbacteriaceae, and there may be a competitive relationship between them. The decrease in the abundance of Microbacteriaceae may be related to the increase in the abundance of Saprospiraceae.
Cyanobiaceae are bacterial markers of WD’s early stage, whose abundance was 9.02% in WD3. Cyanobacteria are often considered potential nitrogen-fixing agents in the ocean, converting free nitrogen in the air into a form that can be directly used by organisms [17,50]. Furthermore, the results of functional prediction analysis showed that WD had strong photosynthetic capacity in the early stage. The bacterial community in WD3 had the highest photosynthetic abundance, which was approximately one-third of the chemosynthesis function, and was also consistent with the highest abundance of Cyanobiaceae. The prevalence of cyanobacteria provides more abundant nutrient channels for water and may be conducive to the succession of the bacterial community.
In the CY group, the relative abundances of Vibrionaceae and Alteromonadaceae were high in CY1 (22.83% for Vibrionaceae and 12.84% for Alteromonadaceae). Their abundances rapidly decreased after CY1, especially Vibrionaceae, whose abundance was almost zero. Although some Vibrionaceae species are pathogenic bacteria, members of this family can participate in the water–nitrogen cycle and remove various forms of nitrogen, such as ammonia nitrogen [51] and nitrate nitrogen [52], from the water. Alteromonadaceae species contain key genes involved in the nitrogen cycle, such as amoA, napA, narG, and nirB, and are functional bacteria capable of removing toxic nitrogen compounds such as nitrate [53]. Both Vibrionaceae and Alteromonadaceae have the potential capacity for nitrogen transformation. The result of the functional prediction analysis showed that the abundance of nitrate reduction function was extremely high in CY1 but rapidly decreased after CY1, which was consistent with the rapid decline in the abundances of Vibrionaceae and Alteromonadaceae. Therefore, Vibrionaceae and Alteromonadaceae, which had high relative abundances in CY1, may be involved in nitrate reduction.
The abundances of Vibrionaceae and Alteromonadaceae are associated with the C/N ratio in water. Outbreaks of Vibrionaceae and Alteromonadaceae often lead to a decrease in the C/N ratio in water [54,55]. We measured the C/N ratio of the water samples (Figure S3) and found that the C/N ratio was 16.3 in CY1 and decreased to 2.1 in CY3, and it remained low after CY3. Moreover, the abundances of Vibrionaceae and Alteromonadaceae also remained low, which was the same as the findings of Allers et al. [54].

4.3. Correlations between Nitrogen Cycling Genes and Environmental Factors

Gene abundance reflects the strength of the corresponding process and the speed of the reaction [56]. The results of gene abundance showed that functional gene abundance changed significantly during different culture stages, which may be related to changes in environmental factors during the culture process [34,57]. The ureC and amoA genes participate in the decomposition of nitrogen-containing particulate organic matter and the oxidation of ammonia nitrogen, respectively [12], which are related to the production of inorganic nitrogen compounds in water and the consumption of ammonia nitrogen. The amoA gene in the WD group increased in Weeks 5–7, and ureC first decreased and then increased in Weeks 5–7, which indicated that the consumption of ammonia nitrogen accelerated in Weeks 5–7 and that production slowed. During Weeks 7–9, the generation rate accelerated. The actual changes in ammonia nitrogen concentrations in the WD group at Weeks 7–9 (Figure S4) were also consistent with the trend exhibited by the changes in gene abundance. There was a synchronous relationship between the amoA and ureC genes and changes in the reaction rate and concentration of ammonia nitrogen, which was also consistent with the positive correlation between ureC and TAN concentrations in the WD group in this study.
The nxrB gene is a key gene involved in nitrite oxidation and works with amoA to complete the nitrification reaction [25]. In this study, nxrB in WD and CY exhibited a synergistic trend with that of amoA, which might be caused by the synergistic changes in ammonia-oxidizing bacteria and nitrite-oxidizing bacteria [58]. The narG, nirS, and nirK genes are key genes connected with the denitrification process; narG is involved in the dissimilar reduction of nitrate [59], and nirS and nirK are involved in the reduction of nitrite [60]. The abundance of nirK in both the WD and CY groups was over ten times higher than that of nirS, which means nirK was dominant in the nitrate reduction process in the culture environment [61]. The correlation analysis also indicated that the correlation between nirK and nitrogen-containing compounds was stronger than that between nirS and those compounds. Denitrification is a highly modular process, with almost all stages being performed by different microbes [62], but not all bacterial products can be denitrified.
Studies have shown that denitrification with nirK participation is more difficult to complete the full reaction process than that with nirS participation, and the production of N2O increases [61], which may have adverse effects on the environment. napA is a key gene in the DNRA process. It reduces nitrate and eventually generates ammonia nitrogen in the reaction, which can reduce the loss of nitrogen in water [63]. In both the WD and CY groups, the abundance of napA was relatively low and remained at 104 copies/mL, which was much lower than that of narG, for most of the culture process. These findings indicate that the intensity of denitrification in aquaculture water was greater than that of DNRA and that narG was the main gene involved in nitrate reduction. In addition to nitrogen compounds, T and DO were significantly negatively correlated with many functional genes. T and DO are important environmental factors of aquaculture water, and their impact on water function cannot be ignored [13,64].

4.4. Correlations between Bacterial Communities and Environmental Factors

Farming activities can often cause changes in environmental conditions, such as the C/N ratio, which is generally indicative of detritus and bacterial abundance. Changes in microbes, as the carriers of functional genes, are bound to cause fluctuations in the abundances of functional genes [57]. Correlation analysis between bacterial communities and environmental factors revealed that the dominant bacteria, for example, Flavobacteriaceae, Cryomorphaceae, Saprospiraceae, Microbacteriaceae, Cyanobiaceae, and Halieaceae, were significantly correlated with nitrogen compounds during the culture process. Previous studies have shown that Flavobacteriaceae species have nitrogen cycling genes such as nirK, which are related to nitrite transformation in water [21]. Saprospiraceae species have various functions as they are either aerobic or facultative anaerobic nitrifying bacteria and anaerobic denitrifying bacteria and are the main force in activated sludge biological nitrogen removal equipment [65,66]. In addition, the bacteria in the family Microbacteriaceae can perform heterotrophic nitrification and aerobic denitrification and can form anaerobic vacuoles in an aerobic environment to promote the progression of several anaerobic processes [47]. Halieaceae have the napAB and nirBD genes and have the potential to participate in DNRA processes [67]. These findings agree with the conclusions of the correlation analysis in this study, which indicate that Flavobacteriaceae, Cryomorphaceae, Saprospiraceae, Microbacteriaceae, Cyanobiaceae, and Halieaceae may be the key microbes affecting the concentrations of TAN and NO2−-N in the water.

5. Conclusions

At present, industrial farming is one of the main farming systems used for L. vannamei, and it is also the main direction of development in the future. In this research, the water of two typical L. vannamei aquaculture ponds was collected, the environmental indicators of the water were measured, and the characteristics of the bacterial community and the relationships between bacterial abundance, nitrogen cycling genes, and environmental factors were analyzed. According to the results, there were photosynthetic cyanobacteria in the WD water, and the bacterial community of the CY water had strong denitrification potential in the early stage of culture. The diversity and abundance of bacterial communities in the WD and CY water samples showed different trends. Changes in ammonia nitrogen and nitrate nitrogen in water may be caused by Flavobacteriaceae, Saprospiraceae, Cryomorphaceae, Cyanobiaceae, Halieaceae, and Cyclobacteriaceae. Changes in water environment factors, such as nitrogen concentration, DO concentration, and T, may also lead to the changes in the bacterial community. Our research explored the bacterial groups that play key roles in the nitrogen cycle, deepening our understanding of the rapid increase in ammonia nitrogen and nitrite concentrations in industrial farming systems and providing a theoretical basis for solutions.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jmse12050787/s1. Table S1: The corresponding table of degenerate bases and common bases in the prime; Table S2: The water temperature, salinity, pH, and dissolved oxygen (DO) concentration in the sampling ponds of WD and CY; Table S3: The results of the statistical analysis of the abundance of nitrogen cycling genes in the WD group; Table S4: The results of the statistical analysis of the abundance of nitrogen cycling genes in the CY group; Figure S1: Changes in the body lengths of the shrimps in WD and CY during sampling; Figure S2: The difference analysis of bacterial communities of WD and CY at the same sampling time (family level). (a): Week 1, (b): Week 3, (c): Week 5, (d): Week 7, (e): Week 9; Figure S3: C/N ratio of water in the WD group and CY group during culture; Figure S4: The concentrations of nitrogen compounds in the WD group and CY group. The left Y-axis represents the concentrations of TAN, NO2−N, and NO3−-N; the right is the concentration of TN.

Author Contributions

Writing—original draft preparation, conceptualization, methodology, H.S.; writing—original draft preparation, data curation, Y.D.; methodology, investigation, T.L.; funding acquisition, F.W.; writing—review and editing, investigation, H.L.; writing—review and editing, formal analysis, H.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Yellow River Delta Industry Leading Talents Project (DYRC20200213) and Wendeng Industry University Research Special Expert Project (201902).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data provided in the paper and Supplemental Information are available from the corresponding author upon reasonable request.

Conflicts of Interest

Authors Tao Li and Hongyu Li were employed by the Guang Dong Haid Group Co., Ltd., The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
