Schottky Junctions with Bi@Bi2MoO6 Core-Shell Photocatalysts toward High-Efficiency Solar N2-to-Ammonnia Conversion in Aqueous Phase

by
Meijiao Wang
1,
Guosong Wei
1,
Renjie Li
1,
Meng Yu
1,
Guangbo Liu
2,* and
Yanhua Peng
1,*
1
College of Chemistry and Chemical Engineering, Qingdao University, Qingdao 266071, China
2
Key Laboratory of Biofuels, Qingdao Institute of Bioenergy and Bioprocess Technology, Chinese Academy of Sciences, Qingdao 266101, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2024, 14(9), 780; https://doi.org/10.3390/nano14090780
Submission received: 9 April 2024 / Revised: 27 April 2024 / Accepted: 29 April 2024 / Published: 30 April 2024
Browse Figures
Versions Notes

Abstract

:
The photocatalytic nitrogen reduction reaction (NRR) in aqueous solution is a green and sustainable strategy for ammonia production. Nonetheless, the efficiency of the process still has a wide gap compared to that of the Haber–Bosch one due to the difficulty of N2 activation and the quick recombination of photo-generated carriers. Herein, a core-shell Bi@Bi2MoO6 microsphere through constructing Schottky junctions has been explored as a robust photocatalyst toward N2 reduction to NH3. Metal Bi self-reduced onto Bi2MoO6 not only spurs the photo-generated electron and hole separation owing to the Schottky junction at the interface of Bi and Bi2MoO6 but also promotes N2 adsorption and activation at Bi active sites synchronously. As a result, the yield of the photocatalytic N2-to-ammonia conversion reaches up to 173.40 μmol g−1 on core-shell Bi@Bi2MoO6 photocatalysts, as much as two times of that of bare Bi2MoO6. This work provides a new design for the decarbonization of the nitrogen reduction reaction by the utilization of renewable energy sources.

1. Introduction

Ammonia (NH3) is one of the most essential fundamental industrial chemicals owing to its roles in carbon-free energy storage and the production of fertilizer [1,2,3]. The Haber–Bosch process for industrial synthetic ammonia requires greatly harsh conditions operating at a very high temperature (≈700 K) and very high pressures (≈100 atm), which result in great energy consumption and environment-harmful gas emissions [4,5,6]. Compared to the conventional process, the photocatalytic nitrogen reduction reaction (NRR) in aqueous solution offers a green and sustainable technology for ammonia production, which promotes widespread investigations [7,8,9,10]. However, the efficiency of this process still has a wide gap compared to that of the Haber–Bosch one due to the difficulty of N2 activation and the quick recombination of photo-generated carriers [11,12,13]. The strategies of innovative fabrication for functional material design, including defect and dopant engineering, heterojunction construction by integrating a semiconductor and metal or another semiconductor, reactive crystal facet exposure and so on, have been widely explored [14,15,16,17]. The purpose mainly focuses on the functionality that not only facilitates the separation of photo-excited electrons and holes but also provides more N2 activation sites for solar-to-ammonia conversion.
Among numerous photocatalysts, bismuth molybdate (Bi2MoO6) has been widely employed for photocatalytic nitrogen fixation due to the low cost, environmentally friendly characteristics, excellent thermal and chemical stability and tunable physical and electronic properties [18,19]. As the simplest member of the Aurivillius oxide family, Bi2MoO6 possesses a fascinating structure that is composed of [Bi2O2]2+ slices linking with a corner-sharing structure of MoO6 octahedra [20]. The layered configuration decides the visible light response and facilitates good electron conductivity. However, Bi2MoO6 also faces the same problems as all photocatalysts that are the sluggish transportation and the rapid recombination of photo-generated carriers, which leads to the low photocatalytic efficiency for the NRR. The formation of a Schottky junction by rectifying contact between semiconductors and metals can facilitate the separation of photo-generated carriers and trap the electrons on metals due to the low-lying Fermi level (EF) [21,22]. Thus, tremendous efforts have been devoted to suppressing external electron–hole recombination and maximizing the utilization of incident photons. Some noble metals (Au, Ag, etc.) loading on the Bi2MoO6 surface to form Schottky barriers and excite the localized surface plasmon resonance (LSPR) synchronously has been proven to be an efficient strategy [23,24,25,26,27]. However, the Schottky junctions’ directed charge transfer results in the depletion of electrons at Bi2MoO6, which is disadvantageous for N2 adsorption and activation dominated by electron transfer. In addition, loaded noble metals always become the active centers for concomitant H2 production due to the weak metal hydrogen strength, thereby suppressing the NRR.
Metal bismuth (Bi) is an ideal choice to take the place of noble metals due to its lower cost and strong plasmonic effect [28,29,30]. Most importantly, Bi can be easily self-reduced onto Bi2MoO6 by an in situ solvothermal process with its unique advantages of the intimate interfacial contact between Bi and Bi2MoO6 due to the same containing elements [31,32,33]. Theoretical studies by Norskov and coworkers reported the low HER activity of Bi due to the highest hydrogen binding energy (~0.75 eV) [34]. Moreover, it is found that N2 preferably adsorbs at Bi sites with an end-on bound structure, which suggests favorable N2 adsorption and activation at Bi sites [35,36]. Recently, many investigations have proved that Bi/semiconductors possess obviously enhanced photocatalytic activity in the NRR [37,38]. Huang et al. deposited Bi nanoparticles on BiOBr to construct a Schottky junction and found greatly improved photocatalytic NRR performance in an aqueous reaction [22]. However, the Schottky junction has a limited interface contact as compared with the core-shell structure. In our previous studies, it was found that the formation of core-shell heterojunctions makes obviously enhanced photocatalytic activity [39,40,41]. Therefore, the core-shell Bi@Bi2MoO6 Schottky junction on a highly efficient photocatalytic NRR can be expected.
Herein, a core-shell Bi@Bi2MoO6 microsphere through constructing Schottky junctions is explored as a robust photocatalyst toward N2 reduction to ammonia. Metal Bi self-reduced onto Bi2MoO6 not only spurs the photo-generated electron and hole separation owing to the Schottky junction at the interface of Bi and Bi2MoO6 but also promotes N2 adsorption and activation at Bi active sites synchronously. As a result, the yield of the photocatalytic N2-to-ammonia conversion reaches up to 173.40 μmol g−1 on core-shell Bi@Bi2MoO6 photocatalysts, as much as two times of that of bare Bi2MoO6.

2. Experimental Section

2.1. Materials

All of the chemical reagents involving bismuth nitrate pentahydrate (Bi(NO3)3·5H2O), sodium molybdate dihydrate (Na2MoO4·2H2O), ethylene glycol (EG), ethanol absolute (C2H5OH), sodium hydroxide(NaOH) and ammonium chloride (NH4Cl) are of analytical grade without any additional purification.

2.2. Preparation of Photocatalysts

Synthesis of Bi2MoO6: Bi2MoO6 microspheres were prepared by a simple solvothermal method [24]. Typically, 2.0 mmol of Bi(NO3)3·5H2O and 1.0 mmol of Na2MoO4·2H2O were dissolved in 30 mL of ethylene glycol (EG), respectively. Then, the mixture was stirred vigorously until a clear solution was formed. Subsequently, the sodium molybdate solution was slowly dripped into the bismuth nitrate solution and stirred for 30 min at room temperature. The obtained solution was thermally treated at 160 °C for 8 h in a 100 mL Teflon-lined stainless-steel autoclave. After filtering and thoroughly washing with deionized water and absolute ethanol, the Bi2MoO6 products were obtained by drying the material at 60 °C for 12 h. The product was labeled as BMO.
Synthesis of Bi@Bi2MoO6: Core-shell Bi@Bi2MoO6 materials were prepared using the same process as Bi2MoO6 photocatalysts, apart from the solvothermal reaction time. The reaction times were prolonged to 12 h, 16 h, 20 h, 24 h, 28 h and 32 h to obtain Bi@Bi2MoO6 photocatalysts, labeled as B@BMO-1, B@BMO-2, B@BMO-3, B@BMO-4, B@BMO-5 and B@BMO-6, respectively.

2.3. Characterization of Photocatalysts

The phase compositions of the samples were examined by powder XRD (Smart Lab 3 KW). A scanning electron microscope (SEM) (Sigma500, Carl Zeiss AG, Oberkochen, Germany) and transmission electron microscope (TEM) with an electron acceleration energy of 200 kV (JEM 2100F, JEOL, Tokyo, Japan) were employed to assess the morphology and structure. The chemical states and surface compositions of the samples were determined using an X-ray photoelectron spectrometer (ESCALAB Xi+, Thermo Fisher Scientific, Waltham, MA, USA), and the C 1s peak at 284.8 eV was used as a reference to calibrate the peak positions, and the peaks were fitted using Avantage. The UV-vis absorption spectra were acquired for the dry-pressed disk samples using a Scan UV-vis spectrophotometer, applying pure BaSO4 as the reflectance sample. Time-resolved PL decay curves were obtained using a FLS980 fluorescence lifetime spectrophotometer (Edinburgh Instruments, Edinburgh, UK), and the decay curves were fitted to a triple-exponential model. Inductively coupled plasma mass spectrometry (ICP-MS) was used to determine the metal content.

2.4. Photoelectrochemical Measurements

Photoelectrochemical tests were performed on an electrochemical workstation (Model CHI 760D, CH instruments, Inc., Austin, TX, USA). The workstation was connected to a three-electrode system consisting of a working electrode, a counter electrode (Pt sheet) and a reference electrode (Ag/AgCl). To prepare the working electrode, 10 mg of photocatalysts, 10 μL of Trillatone X-100, 20 μL of acetylacetone and 80 μL of deionized water were ground and mixed well to coat the marked area (1 cm × 1 cm) on a piece of 2 cm × 1 cm FTO glass. The electrode was calcined at 200 °C for 2 h. The transient photocurrent responses were carried out in Na2SO4 aqueous solution under 300 W Xe lamp irradiation without any filters. Electrochemical impedance spectroscopy (EIS) was carried out in the frequency range of 0.005~10000 Hz. The potential (vs. Ag/AgCl) was adjusted to (vs. NHE) by the equation as follows [37]:
E (vs. NHE) = E (vs. Ag/AgCl) + 0.197 V + 0.0591 × pH

2.5. Photocatalytic N2 Fixation Reaction

The photocatalytic N2 reduction reaction was carried out under mild conditions. A total of 10 mg of photocatalyst was dispersed in 25 mL of DI water ultrasonically for 10 min, and then the suspension liquid was transferred to a photocatalytic quartz reactor to catalyze the N2 reduction reaction. The suspension was vigorously stirred in the dark for 30 min, and high-purity N2 (100 mL min−1) was bubbled to eliminate dissolved oxygen and saturate dissolved N2. The 300 W Xe lamp was used as a simulated light source. During the irradiation process, 3 mL of the solution was taken out every 30 min and filtered through a 0.22 µm MCE membrane to remove the photocatalyst. The concentration of ammonia (NH4+) was detected using the indophenol blue method at 655 nm on a UV-Vis spectrophotometer.

2.6. Determination of Ammonia

The amount of NH3 in the reaction solution was determined using the indophenol blue method. Specifically, 2 mL of 1 M NaOH solution was added to the solution containing salicylic acid and sodium citrate. After that, 1 mL of 0.05 M NaClO and 0.2 mL of the C3FeN6Na2O solution (1%wt) were sequentially added to 2 mL reaction solution. Placing at room temperature for 30 min, the NH3 concentration was determined through the standard curve of NH3 using a UV-Vis absorption spectrometer, measuring the absorbance at 655 nm.

3. Results and Discussion

3.1. The Structure of Samples

As a photoactive semiconductor, Bi2MoO6 nanosheets have been prepared for the construction of Schottky junction photocatalysts. In such a reaction system, ethylene glycol is a reducing agent. Through controlling the solvothermal reaction time, Bi3+ ions are in situ reduced to the metal Bi microsphere as a core, while Bi2MoO6 nanosheets are loaded onto the surface of the Bi microsphere as the shell (Figure 1a). The core-shell Bi@Bi2MoO6 composite in situ growth not only solves the problems that resulted from foreign elements but also benefits the formation of an intimate interface between Bi and Bi2MoO6, which would accelerate the separation and transfer of photo-generated electrons and holes, thereby promoting photocatalytic activity. XRD patterns are used to examine the crystalline phase and composition of composites (Figure 1b). The diffraction peaks of pure Bi2MoO6 are perfectly indexed as orthorhombic Bi2MoO6 (PDF 84-0787). For the Bi@Bi2MoO6 composites, additional diffraction peaks which are derived from metal Bi (PDF 85-1329) are obviously discernable, suggesting the successful preparation of Bi@Bi2MoO6 composites. A possible growth mechanism has been proposed as similar as the previous report [42]. Firstly, the hydrolysis reaction of [MoO4]2− into H2MoO4 occurs (Equation (2)). Then, it would react with Bi3+ in the solution to form Bi2MoO6 through an ion-exchange process (Equation (3)), which is the reason why only Bi2MoO6 is observed in the reaction time less than 12 h. By increasing the reaction time, the diffraction characteristic peaks associated with metal Bi (012), (104) and (110) can be clearly observed, and the diffraction peak intensity of metal Bi gradually increases, which indicates that Bi2MoO6 is in situ reduced to metal Bi by ethylene glycol (Equation (4)). The results of XRD confirm our predictions as well as the reaction process.
[MoO4]2− + 2H2O → H2MoO4 + 2OH−
H2MoO4 + 2Bi3+ + 2H2O → Bi2MoO6 + 6H+
Bi2MoO6 + C2H6O2 → 2Bi + C2H2O4 + H2 + H2MoO4
The SEM is used to check the morphology of Bi2MoO6 materials and Bi@Bi2MoO6 composites. As shown in Figure 2a, Bi2MoO6 presents a typical microsphere-like structure with a diameter of 700 nm, which is formed by the accumulation of nanoparticles. For B@BMO-1, nanoparticles become nanosheets due to the Ostwald ripening process, while the morphology still keeps the microsphere structure (Figure 2b). At this stage, the crystal is mainly composed of Bi2MoO6, which agrees well with the results of XRD. Differently, B@BMO-2 exhibits a typical core-shell structure with a smooth sphere as the core and nanosheets as the shell (Figure 2c). According to the results, it can be concluded that the smooth sphere may be the metal Bi and the nanosheets may be the Bi2MoO6 due to the different morphology. Additionally, the longer the reaction time, the bigger the Bi spheres (Figure 2d–g). As shown in Figure 2h, a possible growth process of the Bi@Bi2MoO6 composite is considered, which is in agreement with the results of XRD and reaction equations. The related energy-dispersive X-ray (EDX) elemental mapping measurements are also investigated to determine the element distribution. The results are shown in Figure 2i–l, which indicate that Bi2MoO6 nanosheets are uniformly distributed on the surface of the Bi sphere, further demonstrating the formation of core-shell Bi@Bi2MoO6 composites.
To further determine the core-shell structure of Bi@Bi2MoO6 photocatalysts, the TEM and HRTEM images of Bi2MoO6 materials and Bi@Bi2MoO6 composites are shown in Figure 3. It can be found that pure Bi2MoO6 hierarchical structures are composed of ultrathin nanosheets with a thickness of ~20 nm and diameters in the range of 1~2 μm, which are shown in Figure 3a,b. From the high-magnification TEM images of Bi2MoO6 (Figure 3c), the clear lattice fringes with a spacing of 0.314 nm can be seen, which corresponds to the (131) crystal faces of Bi2MoO6 in the orthogonal phase. Figure 3d shows the TEM images of the B@BMO-4 sample. It can be observed that the very black smooth sphere with a diameter of about 1 μm is the core, and numerous ultrathin nanosheets with a transparent structure are stacked on the surface of the black sphere as the shell, which agrees with the results of the SEM. The results further confirm the successful formation of core-shell Bi@Bi2MoO6 composites. Moreover, the HRTEM images of the region with a green rectangle for the B@BMO-4 composite indicated the well-matched (131) plane of Bi2MoO6 with a lattice spacing of 0.315 and 0.314 nm (Figure 3e,f). The red rectangle for the B@BMO-4 composite corresponds to the (012) lattice plane of metal Bi particles with a lattice spacing of 0.328 nm, which is consistent with the XRD results. The TEM images of the B@BMO-6 sample are shown in Figure 3g,i; it can be found that the morphology of the B@BMO-6 sample is similar to that of B@BMO-4 with the core-shell structure which would have the benefit of photo-generated carrier separation and transfer.
To further understand the chemical compositions of BMO, B@BMO-4 and B@BMO-6, an X-ray photoelectron spectroscopy (XPS) measurement is carried out. As shown in Figure 4a, the surveys of three samples indicate that all the samples consist of Bi, Mo and O elements. All binding energy is calibrated with the C 1s band at 284.8 eV. The high-resolution XPS spectra of Bi 4f are displayed in Figure 4b. The binding energies located at 159.24 and 164.53 eV are attributed to Bi 4f7/2 and Bi 4f5/2, respectively, and no other bands can be observed, which demonstrated the existence of only Bi3+ for BMO samples [43]. Apart from the binding energies located at 159.11 and 164.42 eV that correspond to Bi 4f7/2 and Bi 4f5/2 of Bi3+, there are new two bands at 156.56 and 161.93 eV which are attributed to the metal Bi for B@BMO-4, suggesting the in situ formation of surface-detectable Bi due to the reduction reaction with the increase in reaction time. It can be seen that the intensity of bands at 156.49 and 161.85 eV increases for B@BMO-6, indicating more metal Bi is reduced. The Mo bands are divided into two bands at 232.45 and 235.60 eV assigned to Mo 3d5/2 and Mo 3d3/2, which are assigned to the bands of Mo6+ in Bi2MoO6 [44]. For B@BMO samples, there is a negative shift of about 0.1 eV in Mo 3d spectra as compared to that of BMO. In addition, the two bands of BMO at 231.43 and 234.51 eV are typical of Mo5+ cations, which indicates the introduction of some oxygen vacancies during metal Bi reduction [33]. Moreover, an obviously negative shift in Bi XPS spectra is also observed which suggests a strong interaction between metal Bi and Bi2MoO6 [45]. For the O 1s spectra (Figure 4d), two bands located at 530.01 and 530.81 eV correspond to the lattice and defect oxygen of Bi-O and Mo-O of Bi2MoO6, respectively [46].

3.2. Photoelectrochemical Properties and Photocatalytic N2 to NH3

UV−vis DRS measurement is performed to study the light harvesting capability of the as-synthesized photocatalysts. As displayed in Figure 5a, B@BMO photocatalysts have strong visible light absorption compared with Bi2MoO6 due to the localized surface plasma resonance (LSPR) of metal Bi [47,48]. Pristine Bi2MoO6 has light absorption at 485 nm corresponding to the band gap of 2.56 eV, as shown in Figure 5b [32]. The introduction of metal Bi greatly improves the absorption efficiency for Bi2MoO6, and the colors of B@BMO photocatalysts gradually change from light yellow to dark gray (inset of Figure 5a), also suggesting the improvement in visible light absorption. The Mott–Schottky measurement is usually used to determine the conduction band minimum (CBM) position. The CBM potential of Bi2MoO6 is calculated to be −0.52 V vs. NHE which is about 0–0.2 eV more negative than the flat-band potential and that of Bi@ Bi2MoO6-4 is −0.63 V vs. NHE (Figure 5c). To reveal the charge separation efficiency, a time-resolved technique has been carried out. The electron lifetimes of the fitting results for Bi2MoO6 are 1.078 ns for τ1, 6.897 ns for τ2 and 1.08 ns for average τ, respectively (Figure 5d). In comparison to Bi2MoO6, B@BMO photocatalysts have a longer PL lifetime. For the B@BMO-4 composite, τ1 is 1.623 ns, τ2 is 1.355 ns and average τ is 1.62 ns, respectively. The long lifetime demonstrates that the Schottky junction by the introduction of metal Bi on Bi2MoO6 could effectively spur the charge separation and elongate the carrier lifetime. The measurements of photoelectrochemistry are also performed to further study the charge separation at the interface between Bi and Bi2MoO6. The transient photocurrent responses of BMO and B@BMO composites are presented in Figure 5e. The current densities of all of the samples are near zero in the dark as the reference. Once the light is turned on, a very large pulse can be observed which indicates more electrons produced. The photocurrent generated by pristine Bi2MoO6 is very low (inset of Figure 5e), while the B@BMO composites exhibit enhanced photocurrent density. Also, B@BMO-4 has the highest photocurrent among the B@BMO composites, which demonstrates that more photo-generated electrons are produced in the Schottky junction under irradiation, thereby promoting the efficient separation of core-shell B@BMO photocatalysts. The EIS is shown in Figure 5f by displaying it as Nyquist plots, which can obtain the resistance of the charges through the fitting. The diameter is small which indicates the resistance is small, which indicates an efficient charge transfer from the electrode to the solution due to the Schottky junction. The diameters of B@BMO composites are smaller than that of BMO. The impedance data are obtained through fitting the equivalent circuit. The R1, R2 and CPE represent the resistance of electrode, the resistance of transfer and the double-layer capacitance element, respectively. B@BMO-4 has the lowest R2 of about 45,032 Ω among all B@BMO photocatalysts. The results of the electrochemical measurements indicate that the core-shell Schottky junction not only promotes the separation of electrons on the semiconductor but also accelerates the interfacial transfer from Bi2MoO6 to metal Bi, just like as reported by previous articles [22].
The photoactivities of core-shell Bi@Bi2MoO6 composites for N2-to-ammonia conversion have been investigated using deionized water without any scavenger. The produced NH3 is spectrophotometrically measured based on the indophenol blue method [49]. The amount of ammonia over Bi2MoO6 and core-shell Bi@Bi2MoO6 composites with different contents of metal Bi confirmed by the ICP measurement is shown in Figure 6a. The rate of photocatalytic nitrogen to ammonia on pure Bi2MoO6 is 35.70 μmol g−1 h−1, but the generation rate of ammonia increases to 42.74 μmol g−1 h−1 when metal Bi is self-reduced onto Bi2MoO6 to Bi@ Bi2MoO6 core-shell composites (B@BMO-2) due to the increase in Bi active sites. With the increase in the Bi amount, the efficiency of the N2-to-ammonia conversion also increases and achieves a maximum (86.00 μmol g−1 h−1) when the content of Bi is about 0.17% (B@BMO-4 photocatalyst). While the amount of Bi increases further, the yield of the photocatalytic N2-to-ammonia conversion decreases. The result indicates that the activity of the photocatalytic nitrogen-to-ammonia conversion on Bi@ Bi2MoO6 core-shell composites is not a linearly dependent relationship. There is an optimal value of metal Bi. When more Bi precursors are self-reduced to metal Bi, the amount of Bi2MoO6 would decrease which results in the decrease of light absorption, thus further influencing the photocatalytic N2-to-ammonia conversion. However, when more Bi precursors generate a Bi2MoO6 semiconductor, the amount of Bi is very small which results in the decrease in catalytic reaction due to the lack of more Bi active sites. As a result, the activity of the photocatalytic nitrogen-to-ammonia conversion on Bi@ Bi2MoO6 core-shell composites would present a volcano-type curve. The dependence on the reaction time over the most excellent Bi@Bi2MoO6 composite (B@BMO-4) is also explored. The photocatalytic activity for ammonia conversion presents a remarkably linear enhancement (Figure 6b). Under irradiation, the B@BMO-4 photocatalyst could produce NH3 with a value of 173.40 μmol g−1 for 2 h. A comparison in NH3 production between Bi@ Bi2MoO6 nanospheres and some typical photocatalysts in previous reports has been summarized in Table S1. In order to confirm the source of nitrogen, the blank experiment without any photocatalyst under irradiation has also been carried out, and the result is shown in Figure 6c. It can be seen that there is a trace amount of ammonia detected as the background, which is subtracted when quantifying ammonia production. Furthermore, the other controlled experiments over Bi@Bi2MoO6 composites under different conditions are shown in Figure 6d. Under the condition without the photocatalyst, there is no ammonia detected under N2 and irradiation. Such a scenario is also observed under the conditions of air and Ar atmospheres. However, an obvious enhancement in the photocatalytic N2 reduction reaction can been seen in the Bi@Bi2MoO6 composite under the N2 atmosphere, which indicates that the N element is derived from incoming N2. To further demonstrate the stability of the photocatalyst, a longer cycle test is performed (Figure 6e). The results show that the Bi@Bi2MoO6 composite still has strong photocatalytic nitrogen fixation activity after five cycles (30 min each reaction time). In addition, the crystallinity and morphology of the photocatalyst before and after the reaction are measured (Figure 6f). The results show that the Bi@Bi2MoO6 composite has good stability, indicating that the formation of a core-shell Bi@Bi2MoO6 composite is beneficial in improving the photocatalytic performance of N2 to NH3.

3.3. Mechanism

The absorption wavelength of Bi2MoO6 is approximately 480 nm and that of Bi@ Bi2MoO6-4 is about 635 nm. In addition, the optical band gaps are calculated, and the Mott–Schottky measurements of Bi2MoO6 and Bi@ Bi2MoO6-4 have been performed. From the results, it can be found that the band gap energy of Bi2MoO6 is calculated from the absorption spectrum to be 2.56 eV, which is consistent with previous reports [42]. The band gap value of Bi@ Bi2MoO6-4 is about 1.95 eV, which is narrower than that of Bi2MoO6 owing to the localized surface plasmon resonance of metal Bi. The valence band maximum (VBM) potential of Bi2MoO6 is about 2.04 V vs. NHE using the equation, VBM = CBM − Eg. Similarly, the VBM potential of Bi@ Bi2MoO6-4 is about 1.32 V vs. NHE. According to the results of UV-vis DRS and Mott–Schottky measurements, the schematic diagrams of the energy band arrangement of Bi2MoO6 and Bi@ Bi2MoO6-4 have been shown in Figure 7a.
Currently, there are two different associative N2 hydrogenation pathways, including the distal pathway and alternating pathway which are usually considered [50,51]. Some theoretical investigations reported that N2 favored adsorbing at Bi sites with unsaturated coordination through an end-on bound structure [35]. According to the above results and some investigations, a possible distal pathway mechanism of the photocatalytic N2-to-ammonia conversion over the core-shell Bi@Bi2MoO6 composite has been proposed (Figure 7b). In this distal pathway, N2 adsorbs on metallic Bi with the end-on bound structure. One of the N atoms on the surface is hydrogenated successively until NH3 is formed and released. On the basis of this pathway, only NH3 is produced. Actually, other nitrogen species have not been detected during photocatalytic N2 fixation over Bi@Bi2MoO6 photocatalysts, which further confirms the distal pathway.

4. Conclusions

In this work, a core-shell Bi@Bi2MoO6 photocatalyst through constructing Schottky junctions is explored for N2 reduction to ammonia. Metal Bi not only promotes the photo-generated electron and hole separation owing to the Schottky junction at the interface of Bi and Bi2MoO6 but also improves N2 adsorption and activation at Bi active sites through an end-on bound structure synchronously. As a result, the yield of the photocatalytic N2-to-ammonia conversion reaches up to 173.40 μmol g−1 on core-shell Bi@Bi2MoO6 photocatalysts, as much as two times of that of bare Bi2MoO6. This work provides a new design for the decarbonization of the nitrogen reduction reaction by the utilization of renewable energy sources.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano14090780/s1, Table S1. Comparison of photocatalytic N2 reduction activity on Bi-based photocatalysts. References [22,24,36,43,52,53,54,55,56,57,58,59,60,61,62,63,64,65] are cited in the Supplementary Materials.

Author Contributions

Formal analysis, G.W.; Investigation, M.W. and R.L.; Data curation, M.W. and M.Y.; Supervision, G.L. and Y.P. All authors have read and agreed to the published version of the manuscript.

Funding

The work was supported by the National Natural Science Foundation of China (22005164), the Natural Foundation of Shandong Province (No. BS2015CL002), and Basic Research Project of Qingdao Source Innovation Program Fund (17-1-1-82-jch).

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Huang, Z.; Yang, B.; Zhou, Y.; Luo, W.; Chen, G.; Liu, M.; Liu, X.; Ma, R.; Zhang, N. Tungsten Nitride/Tungsten Oxide Nanosheets for Enhanced Oxynitride Intermediate Adsorption and Hydrogenation in Nitrate Electroreduction to Ammonia. ACS Nano 2023, 17, 25091–25100. [Google Scholar] [CrossRef] [PubMed]
  2. Fu, X.; Pedersen, J.B.; Zhou, Y.; Saccoccio, M.; Li, S.; Salinas, R.; Li, K.; Andersen, S.Z.; Xu, A.; Deissler, N.H.; et al. Continuous-flow electrosynthesis of ammonia by nitrogen reduction and hydrogen oxidation. Science 2023, 379, 707–712. [Google Scholar] [CrossRef] [PubMed]
  3. Zhou, N.; Wang, Z.; Zhang, N.; Bao, D.; Zhong, H.; Zhang, X. Potential-Induced Synthesis and Structural Identification of Oxide-Derived Cu Electrocatalysts for Selective Nitrate Reduction to Ammonia. ACS Catal. 2023, 13, 7529–7537. [Google Scholar] [CrossRef]
  4. Kisch, H. In the Light and in the Dark: Photocatalytic Fixation of Nitrogen into Ammonia and Nitrate at Iron Titanate Semiconductor Thin Films. Eur. J. Inorg. Chem. 2020, 2020, 1376–1382. [Google Scholar] [CrossRef]
  5. Wang, T.; Abild-Pedersen, F. Achieving industrial ammonia synthesis rates at near-ambient conditions through modified scaling relations on a confined dual site. Proc. Natl. Acad. Sci. USA 2021, 118, e2106527118. [Google Scholar] [CrossRef] [PubMed]
  6. Reichle, S.; Felderhoff, M.; Schuth, F. Mechanocatalytic Room-Temperature Synthesis of Ammonia from Its Elements Down to Atmospheric Pressure. Angew. Chem. Int. Ed. 2021, 60, 26385–26389. [Google Scholar] [CrossRef]
  7. Liu, S.; Wang, M.; Ji, H.; Zhang, L.; Ni, J.; Li, N.; Qian, T.; Yan, C.; Lu, J. Solvent-in-Gas System for Promoted Photocatalytic Ammonia Synthesis on Porous Framework Materials. Adv. Mater. 2023, 35, 202211730. [Google Scholar] [CrossRef]
  8. Ren, G.; Zhao, J.; Zhao, Z.; Li, Z.; Wang, L.; Zhang, Z.; Li, C.; Meng, X. Defects-Induced Single-Atom Anchoring on Metal-Organic Frameworks for High-Efficiency Photocatalytic Nitrogen Reduction. Angew. Chem. Int. Ed. 2024, 63, 202314408. [Google Scholar] [CrossRef]
  9. Wu, R.; Gao, S.; Jones, C.; Sun, M.; Guo, M.; Tai, R.; Chen, S.; Wang, Q. Bi/BSO Heterojunctions via Vacancy Engineering for Efficient Photocatalytic Nitrogen Fixation. Adv. Funct. Mater. 2024, 2314051. [Google Scholar] [CrossRef]
  10. Linnik, O.; Kisch, H. On the mechanism of nitrogen photofixation at nanostructured iron titanate films. Photochem. Photobiol. Sci. 2006, 5, 938–942. [Google Scholar] [CrossRef]
  11. Yang, H.; Ren, G.; Li, Z.; Zhang, Z.; Meng, X. Fast Joule heating for transformation of Fe-MIL-125(Ti) to Fe/TiO2 with enhanced photocatalytic activity in N2 fixation. Appl. Catal. B-Environ. Energy 2024, 347, 123795. [Google Scholar] [CrossRef]
  12. Gao, W.; Li, X.; Luo, S.; Luo, Z.; Zhang, X.; Huang, R.; Luo, M. In situ modification of cobalt on MXene/TiO2 as composite photocatalyst for efficient nitrogen fixation. J. Colloid Interface Sci. 2021, 585, 20–29. [Google Scholar] [CrossRef]
  13. Li, X.; Yang, L.; Liu, Q.; Bai, W.; Li, H.; Wang, M.; Qian, Q.; Yang, Q.; Xiao, C.; Xie, Y. Directional Shunting of Photogenerated Carriers in POM@MOF for Promoting Nitrogen Adsorption and Oxidation. Adv. Mater. 2023, 35, 202304532. [Google Scholar] [CrossRef]
  14. Yang, J.; Bai, H.; Guo, Y.; Zhang, H.; Jiang, R.; Yang, B.; Wang, J.; Yu, J.C. Photodriven Disproportionation of Nitrogen and Its Change to Reductive Nitrogen Photofixation. Angew. Chem. Int. Ed. 2020, 60, 927–936. [Google Scholar] [CrossRef] [PubMed]
  15. Kumar, A.; Sharma, M.; Sheoran, S.; Jaiswal, S.; Patra, A.; Bhattacharya, S.; Krishnan, V. Tailoring defects in SrTiO3 by one step nanoarchitectonics for realizing photocatalytic nitrogen fixation in pure water. Nanoscale 2023, 15, 11667–11680. [Google Scholar] [CrossRef]
  16. Pournemati, K.; Habibi-Yangjeh, A.; Khataee, A. TiO2 Quantum Dots/Fe3S4 Heterojunction Nanocomposites for Efficient Ammonia Production through Nitrogen Fixation upon Simulated Sunlight. ACS Appl. Nano Mater. 2024, 7, 2200–2213. [Google Scholar] [CrossRef]
  17. Vu, V.T.; Vu, T.T.H.; Phan, T.L.; Kang, W.T.; Kim, Y.R.; Tran, M.D.; Nguyen, H.T.T.; Lee, Y.H.; Yu, W.J. One-Step Synthesis of NbSe2/Nb-Doped-WSe2 Metal/Doped-Semiconductor van der Waals Heterostructures for Doping Controlled Ohmic Contact. ACS Nano 2021, 15, 13031–13040. [Google Scholar] [CrossRef] [PubMed]
  18. Yang, J.; Li, L.; Xiao, C.; Xie, Y. Dual-Plasmon Resonance Coupling Promoting Directional Photosynthesis of Nitrate from Air. Angew. Chem. Int. Ed. 2023, 62, 202311911. [Google Scholar] [CrossRef]
  19. Liu, Y.; Cheng, M.; He, Z.; Gu, B.; Xiao, C.; Zhou, T.; Guo, Z.; Liu, J.; He, H.; Ye, B.; et al. Pothole-rich Ultrathin WO3 Nanosheets that Trigger N≡N Bond Activation of Nitrogen for Direct Nitrate Photosynthesis. Angew. Chem. Int. Ed. 2019, 58, 731–735. [Google Scholar] [CrossRef]
  20. Ren, W.; Mei, Z.; Zheng, S.; Li, S.; Zhu, Y.; Zheng, J.; Lin, Y.; Chen, H.; Gu, M.; Pan, F. Wavelength-Dependent Solar N2 Fixation into Ammonia and Nitrate in Pure Water. Research 2020, 2020, 3750314. [Google Scholar] [CrossRef]
  21. Xia, P.; Pan, X.; Jiang, S.; Yu, J.; He, B.; Ismail, P.M.; Bai, W.; Yang, J.; Yang, L.; Zhang, H.; et al. Designing a Redox Heterojunction for Photocatalytic “Overall Nitrogen Fixation” under Mild Conditions. Adv. Mater. 2022, 34, 202200563. [Google Scholar] [CrossRef] [PubMed]
  22. Huang, Y.; Zhu, Y.; Chen, S.; Xie, X.; Wu, Z.; Zhang, N. Schottky Junctions with Bi Cocatalyst for Taming Aqueous Phase N2 Reduction toward Enhanced Solar Ammonia Production. Adv. Sci. 2021, 8, 202003626. [Google Scholar] [CrossRef] [PubMed]
  23. Zhang, H.; Zhang, P.; Zhao, J.; Liu, Y.; Huang, Y.; Huang, H.; Yang, C.; Zhao, Y.; Wu, K.; Fu, X.; et al. The Hole-Tunneling Heterojunction of Hematite-Based Photoanodes Accelerates Photosynthetic Reaction. Angew. Chem. Int. Ed. 2021, 60, 16009–16018. [Google Scholar] [CrossRef] [PubMed]
  24. Wang, G.; Huo, T.; Deng, Q.; Yu, F.; Xia, Y.; Li, H.; Hou, W. Surface-layer bromine doping enhanced generation of surface oxygen vacancies in bismuth molybdate for efficient photocatalytic nitrogen fixation. Appl. Catal. B Environ. 2022, 310, 121319. [Google Scholar] [CrossRef]
  25. Xue, X.; Chen, R.; Yan, C.; Hu, Y.; Zhang, W.; Yang, S.; Ma, L.; Zhu, G.; Jin, Z. Efficient photocatalytic nitrogen fixation under ambient conditions enabled by the heterojunctions of n-type Bi2MoO6 and oxygen-vacancy-rich p-type BiOBr. Nanoscale 2019, 11, 10439–10445. [Google Scholar] [CrossRef] [PubMed]
  26. Wu, J.M.; Chen, Y.N. The surface plasmon resonance effect on the enhancement of photodegradation activity by Au/ZnSn(OH)6 nanocubes. Dalton Trans. 2015, 44, 16294–16303. [Google Scholar] [CrossRef] [PubMed]
  27. Wang, D.; Shen, H.; Guo, L.; Wang, C.; Fu, F.; Liang, Y. Ag/Bi2MoO6-x with enhanced visible-light-responsive photocatalytic activities via the synergistic effect of surface oxygen vacancies and surface plasmon. Appl. Surf. Sci. 2018, 436, 536–547. [Google Scholar] [CrossRef]
  28. Dong, X.; Xu, L.; Ma, J.; Li, Y.; Yin, Z.; Chen, D.; Wang, Q.; Han, J.; Qiu, J.; Yang, Z.; et al. Enhanced interfacial charge transfer and photothermal effect via in-situ construction of atom co-sharing Bi plasmonic/Bi4O5Br2 nanosheet heterojunction towards improved full-spectrum photocatalysis. Chem. Eng. J. 2023, 459, 141557. [Google Scholar] [CrossRef]
  29. Fang, M.; Tan, X.; Liu, Z.; Hu, B.; Wang, X. Recent Progress on Metal-Enhanced Photocatalysis: A Review on the Mechanism. Research 2021, 2021, 9794329. [Google Scholar] [CrossRef]
  30. He, W.; Xiong, J.; Tang, Z.; Wang, Y.; Wang, X.; Xu, H.; Zhao, Z.; Liu, J.; Wei, Y. Localized surface plasmon resonance effect of bismuth nanoparticles in Bi/TiO2 catalysts for boosting visible light-driven CO2 reduction to CH4. Appl. Catal. B-Environ. Energy 2024, 344, 123651. [Google Scholar] [CrossRef]
  31. Zhao, D.; Xuan, Y.; Zhang, K.; Liu, X. Highly Selective Production of Ethanol over Hierarchical Bi@Bi2MoO6 Composite via Bicarbonate-Assisted Photocatalytic CO2 Reduction. Chemsuschem 2021, 14, 3293–3302. [Google Scholar] [CrossRef] [PubMed]
  32. Zhao, Z.; Zhang, W.; Sun, Y.; Yu, J.; Zhang, Y.; Wang, H.; Dong, F.; Wu, Z. Bi Cocatalyst/Bi2MoO6 Microspheres Nanohybrid with SPR-Promoted Visible-Light Photocatalysis. J. Phys. Chem. C 2016, 120, 11889–11898. [Google Scholar] [CrossRef]
  33. Xu, F.; Wang, J.; Zhang, N.; Liang, H.; Sun, H. Simultaneously generating Bi quantum dot and oxygen vacancy on Bi2MoO6 nanosheets for boosting photocatalytic selective alcohol oxidation. Appl. Surf. Sci. 2022, 575, 151738. [Google Scholar] [CrossRef]
  34. Greeley, J.; Jaramillo, T.F.; Bonde, J.; Chorkendorff, I.B.; Norskov, J.K. Computational high-throughput screening of electrocatalytic materials for hydrogen evolution. Nat. Mater. 2006, 5, 909–913. [Google Scholar] [CrossRef] [PubMed]
  35. Li, H.; Shang, J.; Ai, Z.; Zhang, L. Efficient Visible Light Nitrogen Fixation with BiOBr Nanosheets of Oxygen Vacancies on the Exposed {001} Facets. J. Am. Chem. Soc. 2015, 137, 6393–6399. [Google Scholar] [CrossRef] [PubMed]
  36. Kok, S.H.W.; Lee, J.; Chong, W.K.; Ng, B.-J.; Kong, X.Y.; Ong, W.J.; Chai, S.-P.; Tan, L.-L. Bismuth-rich Bi12O17Cl2 nanorods engineered with oxygen vacancy defects for enhanced photocatalytic nitrogen fixation. J. Alloys Compd. 2023, 952, 170015. [Google Scholar] [CrossRef]
  37. Lan, M.; Zheng, N.; Dong, X.; Ma, H.; Zhang, X. One-step in-situ synthesis of Bi-decorated BiOBr microspheres with abundant oxygen vacancies for enhanced photocatalytic nitrogen fixation properties. Colloids Surf. A-Physicochem. Eng. Asp. 2021, 623, 126744. [Google Scholar] [CrossRef]
  38. Li, X.; Zhao, C.; Wang, J.; Zhang, J.; Wu, Y.; He, Y. Cu-doped Bi/B2WO6 catalysts for efficient N2 fixation by photocatalysis. Front. Chem. Sci. Eng. 2023, 17, 1412–1422. [Google Scholar] [CrossRef]
  39. Geng, M.; Peng, Y.; Zhang, Y.; Guo, X.; Yu, F.; Yang, X.; Xie, G.; Dong, W.; Liu, C.; Li, J.; et al. Hierarchical ZnIn2S4: A promising cocatalyst to boost visible-light-driven photocatalytic hydrogen evolution of In(OH)3. Int. J. Hydrogen Energy 2019, 44, 5787–5798. [Google Scholar] [CrossRef]
  40. Guo, X.; Peng, Y.; Liu, G.; Xie, G.; Guo, Y.; Zhang, Y.; Yu, J. An Efficient ZnIn2S4@CuInS2 Core–Shell p–n Heterojunction to Boost Visible-Light Photocatalytic Hydrogen Evolution. J. Phys. Chem. C 2020, 124, 5934–5943. [Google Scholar] [CrossRef]
  41. Ren, X.; Liu, F.; Wu, H.; Lu, Q.; Zhao, J.; Liu, Y.; Zhang, J.; Mao, J.; Wang, J.; Han, X.; et al. Reconstructed Bismuth Oxide through in situ Carbonation by Carbonate-containing Electrolyte for Highly Active Electrocatalytic CO2 Reduction to Formate. Angew. Chem. Int. Ed. 2024, 63, e202316640. [Google Scholar] [CrossRef] [PubMed]
  42. Ma, Y.; Jia, Y.; Wang, L.; Yang, M.; Bi, Y.; Qi, Y. Efficient Charge Separation between Bi and Bi0-Bi2MoO6 for Photoelectrochemical Properties. Chem. Eur. J. 2016, 22, 5844–5848. [Google Scholar] [CrossRef] [PubMed]
  43. Ma, T.; Yang, C.; Guo, L.; Soomro, R.A.; Wang, D.; Xu, B.; Fu, F. Refining electronic properties of Bi2MoO6 by In-doping for boosting overall nitrogen fixation via relay catalysis. Appl. Catal. B Environ. 2023, 330, 122643. [Google Scholar] [CrossRef]
  44. Yu, B.; Wu, Y.; Meng, F.; Wang, Q.; Jia, X.; Wasim Khan, M.; Huang, C.; Zhang, S.; Yang, L.; Wu, H. Formation of hierarchical Bi2MoO6/ln2S3 S-scheme heterojunction with rich oxygen vacancies for boosting photocatalytic CO2 reduction. Chem. Eng. J. 2022, 429, 132456. [Google Scholar] [CrossRef]
  45. Li, X.; Dong, Q.; Li, F.; Zhu, Q.; Tian, Q.; Tian, L.; Zhu, Y.; Pan, B.; Padervand, M.; Wang, C. Defective Bi@BiOBr/C microrods derived from Bi-MOF for efficient photocatalytic NO abatement: Directional regulation of interfacial charge transfer via carbon-loading. Appl. Catal. B-Environ. Energy 2024, 340, 123238. [Google Scholar] [CrossRef]
  46. Zhang, L.; Wang, Z.; Hu, C.; Shi, B. Enhanced photocatalytic performance by the synergy of Bi vacancies and Bi0 in Bi0-Bi2MoO6. Appl. Catal. B-Environ. 2019, 257, 117785. [Google Scholar] [CrossRef]
  47. Zhu, Q.; Hailili, R.; Xin, Y.; Zhou, Y.; Huang, Y.; Pang, X.; Zhang, K.; Robertson, P.K.J.; Bahnemann, D.W.; Wang, C. Efficient full spectrum responsive photocatalytic NO conversion at Bi2Ti2O7: Co-effect of plasmonic Bi and oxygen vacancies. Appl. Catal. B Environ. 2022, 319, 121888. [Google Scholar] [CrossRef]
  48. Zhao, X.; Li, J.; Kong, X.; Li, C.; Lin, B.; Dong, F.; Yang, G.; Shao, G.; Xue, C. Carbon Dots Mediated In Situ Confined Growth of Bi Clusters on g-C3N4 Nanomeshes for Boosting Plasma-Assisted Photoreduction of CO2. Small 2022, 18, 202204154. [Google Scholar] [CrossRef]
  49. Qin, D.; Song, S.; Liu, Y.; Wang, K.; Yang, B.; Zhang, S. Enhanced Electrochemical Nitrate-to-Ammonia Performance of Cobalt Oxide by Protic Ionic Liquid Modification. Angew. Chem. Int. Ed. 2023, 62, 202304935. [Google Scholar] [CrossRef]
  50. Shipman, M.A.; Symes, M.D. Recent progress towards the electrosynthesis of ammonia from sustainable resources. Catal. Today 2017, 286, 57–68. [Google Scholar] [CrossRef]
  51. Sun, Y.; Ji, H.; Sun, Y.; Zhang, G.; Zhou, H.; Cao, S.; Liu, S.; Zhang, L.; Li, W.; Zhu, X.; et al. Synergistic Effect of Oxygen Vacancy and High Porosity of Nano MIL-125(Ti) for Enhanced Photocatalytic Nitrogen Fixation. Angew. Chem. Int. Ed. 2023, 63, 202316973. [Google Scholar] [CrossRef] [PubMed]
  52. Chen, X.; Zhang, X.; Li, Y.-H.; Qi, M.-Y.; Li, J.-Y.; Tang, Z.-R.; Zhou, Z.; Xu, Y.-J. Transition metal doping BiOBr nanosheets with oxygen vacancy and exposed {102} facets for visible light nitrogen fixation. Appl. Catal. B Environ. 2021, 281, 119516. [Google Scholar] [CrossRef]
  53. Vesali-Kermani, E.; Habibi-Yangjeh, A.; Diarmand-Khalilabad, H.; Ghosh, S. Nitrogen photofixation ability of g-C3N4 nanosheets/Bi2MoO6 heterojunction photocatalyst under visible-light illumination. J. Colloid Interface Sci. 2020, 563, 81–91. [Google Scholar] [CrossRef] [PubMed]
  54. Sharma, M.; Kumar, A.; Gill, D.; Jaiswal, S.; Patra, A.; Bhattacharya, S.; Krishnan, V. Boosting Photocatalytic Nitrogen Fixation via Nanoarchitectonics Using Oxygen Vacancy Regulation in W-Doped Bi2MoO6 Nanosheets. ACS Appl. Mater. Interfaces 2023, 15, 55765–55778. [Google Scholar] [CrossRef] [PubMed]
  55. Liu, Z.; Luo, M.; Cao, Y.; Meng, L.; Yang, Y.; Li, X. Tuning the electronic properties of Bi2MoO6 by S-doping to boost efficient photocatalytic nitrogen fixation reactions. J. Catal. 2024, 430, 115347. [Google Scholar] [CrossRef]
  56. Zhu, C.; Zhang, L.; Cui, L.; Zhang, Z.; Li, R.; Wang, Y.; Wang, Y.; Fan, C.; Yu, Z.; Liu, J. Fe-Bi dual sites regulation of Bi2O2.33 nanosheets to promote photocatalytic nitrogen fixation activity. J. Colloid Interface Sci. 2024, 661, 46–58. [Google Scholar] [CrossRef] [PubMed]
  57. Wang, H.; Chen, Z.; Shang, Y.; Lv, C.; Zhang, X.; Li, F.; Huang, Q.; Liu, X.; Liu, W.; Zhao, L.; et al. Boosting Carrier Separation on a BiOBr/Bi4O5Br2 Direct Z-Scheme Heterojunction for Superior Photocatalytic Nitrogen Fixation. ACS Catal. 2024, 14, 5779–5787. [Google Scholar] [CrossRef]
  58. Huang, X.; Du, R.; Zhang, Y.; Ren, J.; Yang, Q.; Wang, K.; Ni, Y.; Yao, Y.; Ali Soomro, R.; Guo, L.; et al. Modulating charge oriented accumulation via interfacial chemical-bond on In2O3/Bi2MoO6 heterostructures for photocatalytic nitrogen fixation. J. Colloid Interface Sci. 2024, 664, 33–44. [Google Scholar] [CrossRef]
  59. Dong, Q.; Li, X.; Sun, J.; Zhu, Y.; Liang, X.; Ren, H.; Labidi, A.; Wang, D.; Li, F.; Wang, C. Regulating concentration of surface oxygen vacancies in Bi2MoO6/Bi-MOF for boosting photocatalytic ammonia synthesis. J. Catal. 2024, 433, 115489. [Google Scholar] [CrossRef]
  60. Zhang, G.; Yuan, X.; Xie, B.; Meng, Y.; Ni, Z.; Xia, S. S vacancies act as a bridge to promote electron injection from Z-scheme heterojunction to nitrogen molecule for photocatalytic ammonia synthesis. Chem. Eng. J. 2022, 433, 133670. [Google Scholar] [CrossRef]
  61. Li, H.; Zhang, J.; Deng, X.; Wang, Y.; Meng, G.; Liu, R.; Huang, J.; Tu, M.; Xu, C.; Peng, Y.; et al. Structure and Defect Engineering Synergistically Boost High Solar-to-Chemical Conversion Efficiency of Cerium oxide/Au Hollow Nanomushrooms for Nitrogen Photofixation. Angew. Chem.-Int. Ed. 2024, 63, e202316384. [Google Scholar] [CrossRef] [PubMed]
  62. Bian, X.; Zhao, Y.; Zhang, S.; Li, D.; Shi, R.; Zhou, C.; Wu, L.-Z.; Zhang, T. Enhancing the Supply of Activated Hydrogen to Promote Photocatalytic Nitrogen Fixation. ACS Mater. Lett. 2021, 3, 1521–1527. [Google Scholar] [CrossRef]
  63. Gao, X.; Shang, Y.; Liu, L.; Gao, K. Ag plasmon resonance promoted 2D AgBr-δ-Bi2O3 nanosheets with enhanced photocatalytic ability. J. Alloys Compd. 2019, 803, 565–575. [Google Scholar] [CrossRef]
  64. Yang, J.; Guo, Y.; Jiang, R.; Qin, F.; Zhang, H.; Lu, W.; Wang, J.; Yu, J.C. High-Efficiency “Working-in-Tandem” Nitrogen Photofixation Achieved by Assembling Plasmonic Gold Nanocrystals on Ultrathin Titania Nanosheets. J. Am. Chem. Soc. 2018, 140, 8497–8508. [Google Scholar] [CrossRef]
  65. Jia, H.; Du, A.; Zhang, H.; Yang, J.; Jiang, R.; Wang, J.; Zhang, C.-y. Site-Selective Growth of Crystalline Ceria with Oxygen Vacancies on Gold Nanocrystals for Near-Infrared Nitrogen Photofixation. J. Am. Chem. Soc. 2019, 141, 5083–5086. [Google Scholar] [CrossRef]
Nanomaterials 14 00780 g001

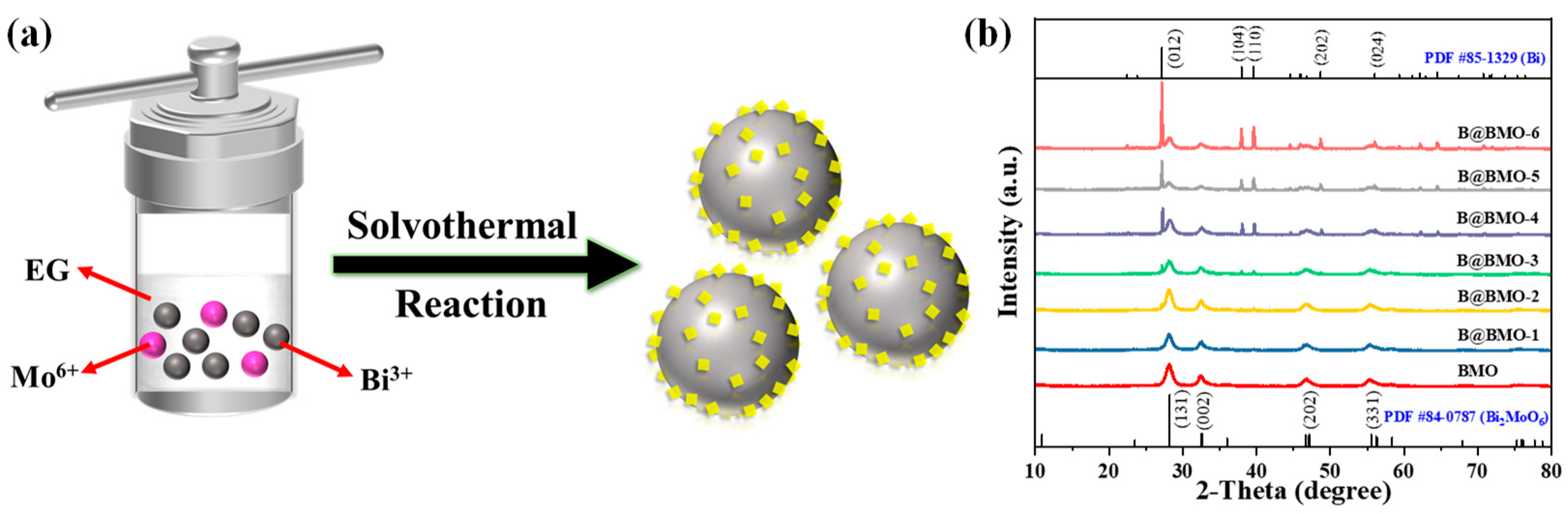

Figure 1. (a) Schematics of preparation of core-shell Bi@Bi2MoO6 composites; (b) XRD patterns of Bi2MoO6 materials and Bi@Bi2MoO6 composites.
Figure 1. (a) Schematics of preparation of core-shell Bi@Bi2MoO6 composites; (b) XRD patterns of Bi2MoO6 materials and Bi@Bi2MoO6 composites.
Nanomaterials 14 00780 g001
Nanomaterials 14 00780 g002

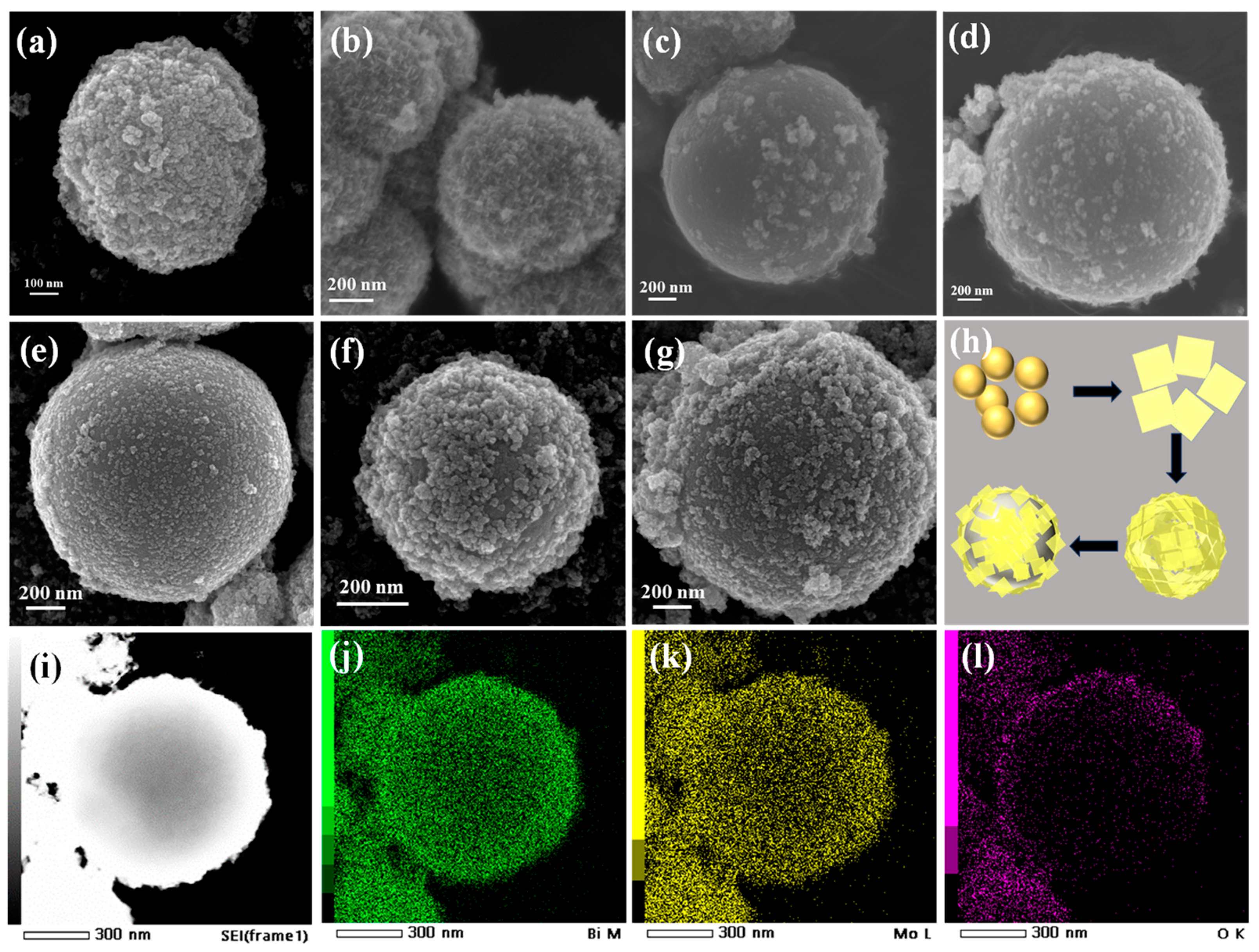

Figure 2. SEM images of BMO (a), B@BMO-1 (b), B@BMO-2 (c), B@BMO-3 (d), B@BMO-4 (e), B@BMO-5 (f) and B@BMO-6 (g), and the schematic diagram of the growth mechanism (h), and the elemental mapping images of Bi, Mo and O for the Bi@Bi2MoO6 composite (i–l).
Figure 2. SEM images of BMO (a), B@BMO-1 (b), B@BMO-2 (c), B@BMO-3 (d), B@BMO-4 (e), B@BMO-5 (f) and B@BMO-6 (g), and the schematic diagram of the growth mechanism (h), and the elemental mapping images of Bi, Mo and O for the Bi@Bi2MoO6 composite (i–l).
Nanomaterials 14 00780 g002
Nanomaterials 14 00780 g003

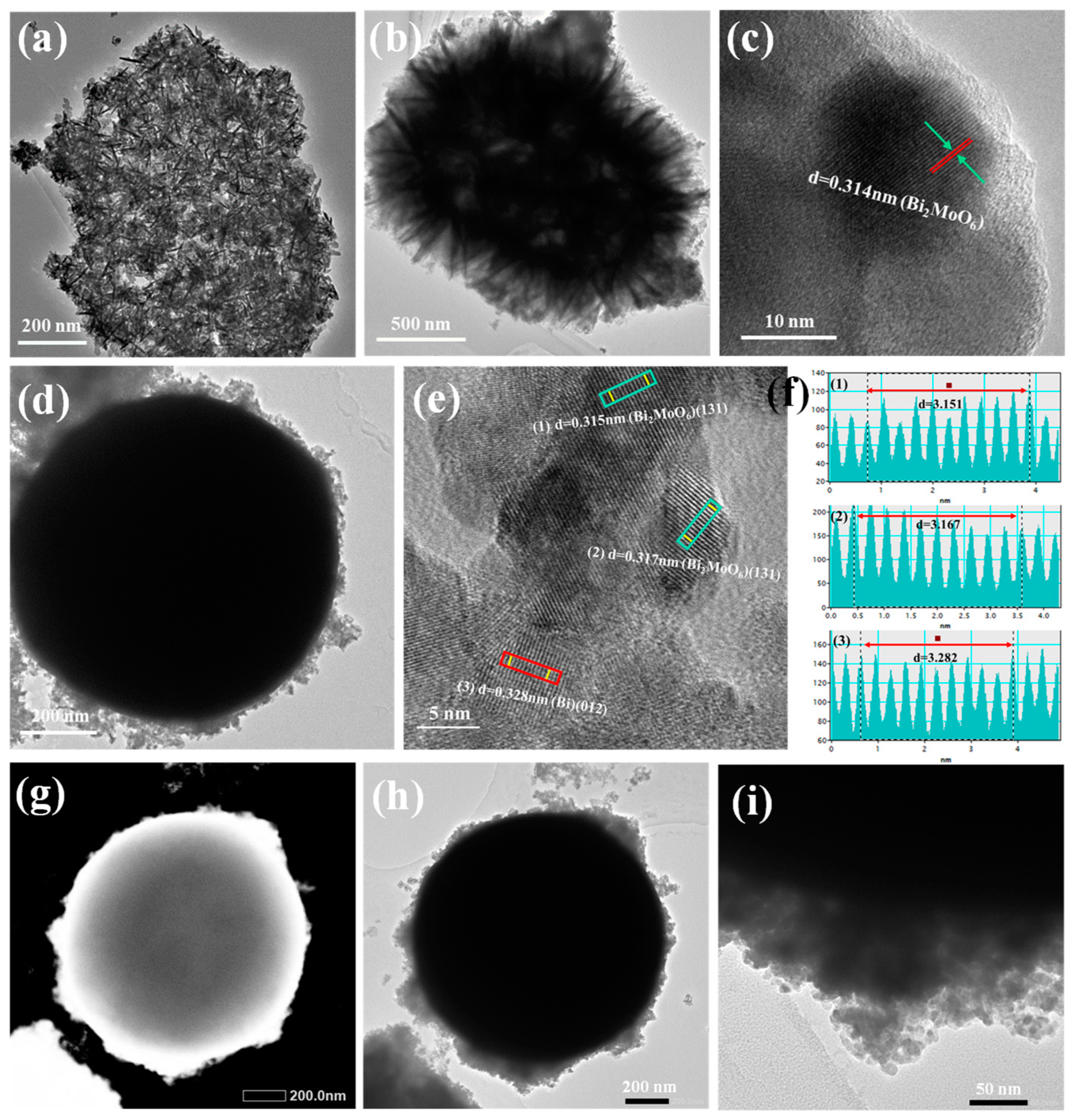

Figure 3. TEM and HRTEM images of BMO (a–c), B@BMO-4 (d–f) and B@BMO-6 (g–i).
Figure 3. TEM and HRTEM images of BMO (a–c), B@BMO-4 (d–f) and B@BMO-6 (g–i).
Nanomaterials 14 00780 g003
Nanomaterials 14 00780 g004

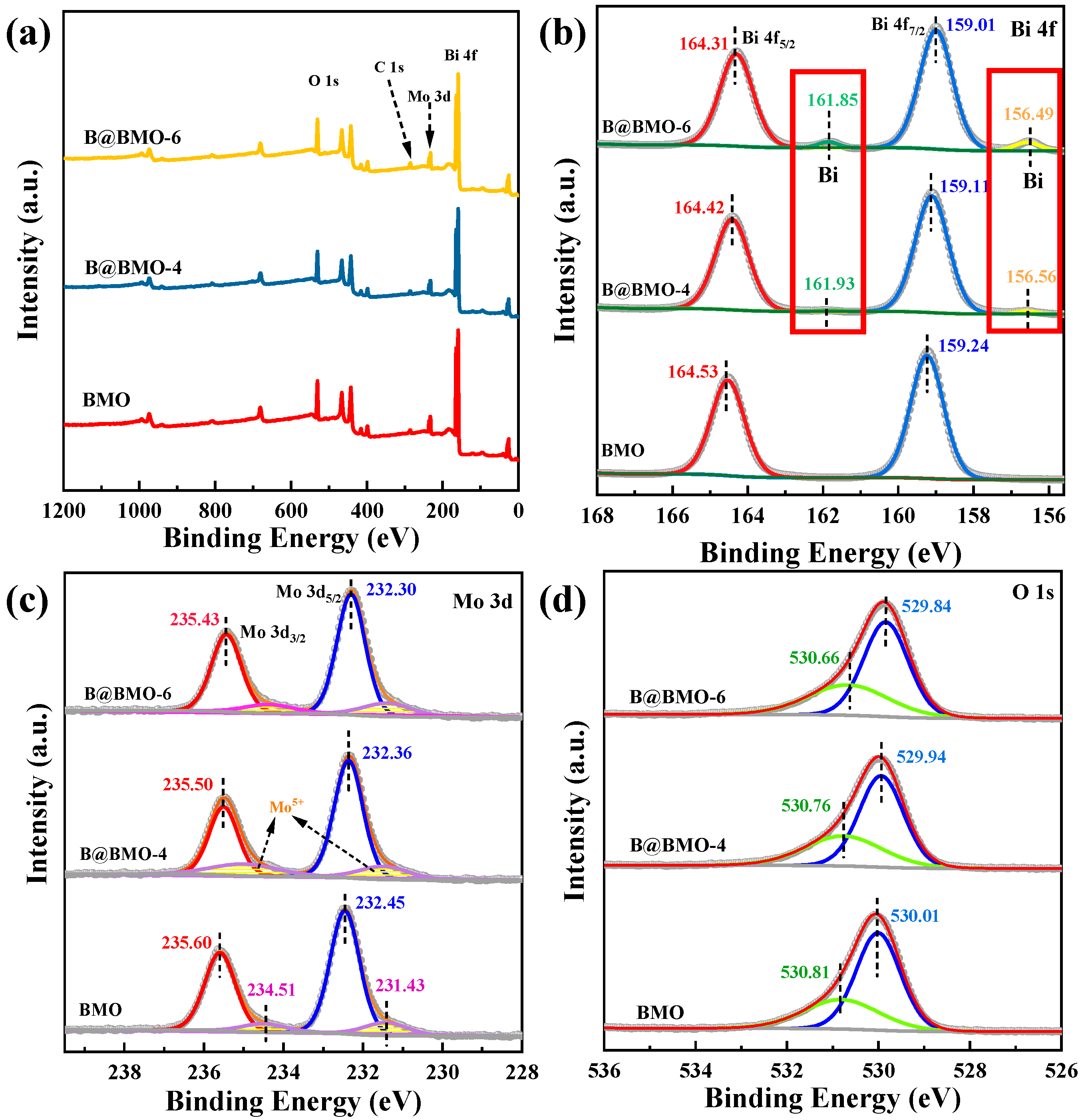

Figure 4. XPS spectra of BMO, B@BMO-4 and B@BMO-6 of survey (a), Bi 4f (b), Mo 3d (c) and O 1s (d).
Figure 4. XPS spectra of BMO, B@BMO-4 and B@BMO-6 of survey (a), Bi 4f (b), Mo 3d (c) and O 1s (d).
Nanomaterials 14 00780 g004
Nanomaterials 14 00780 g005

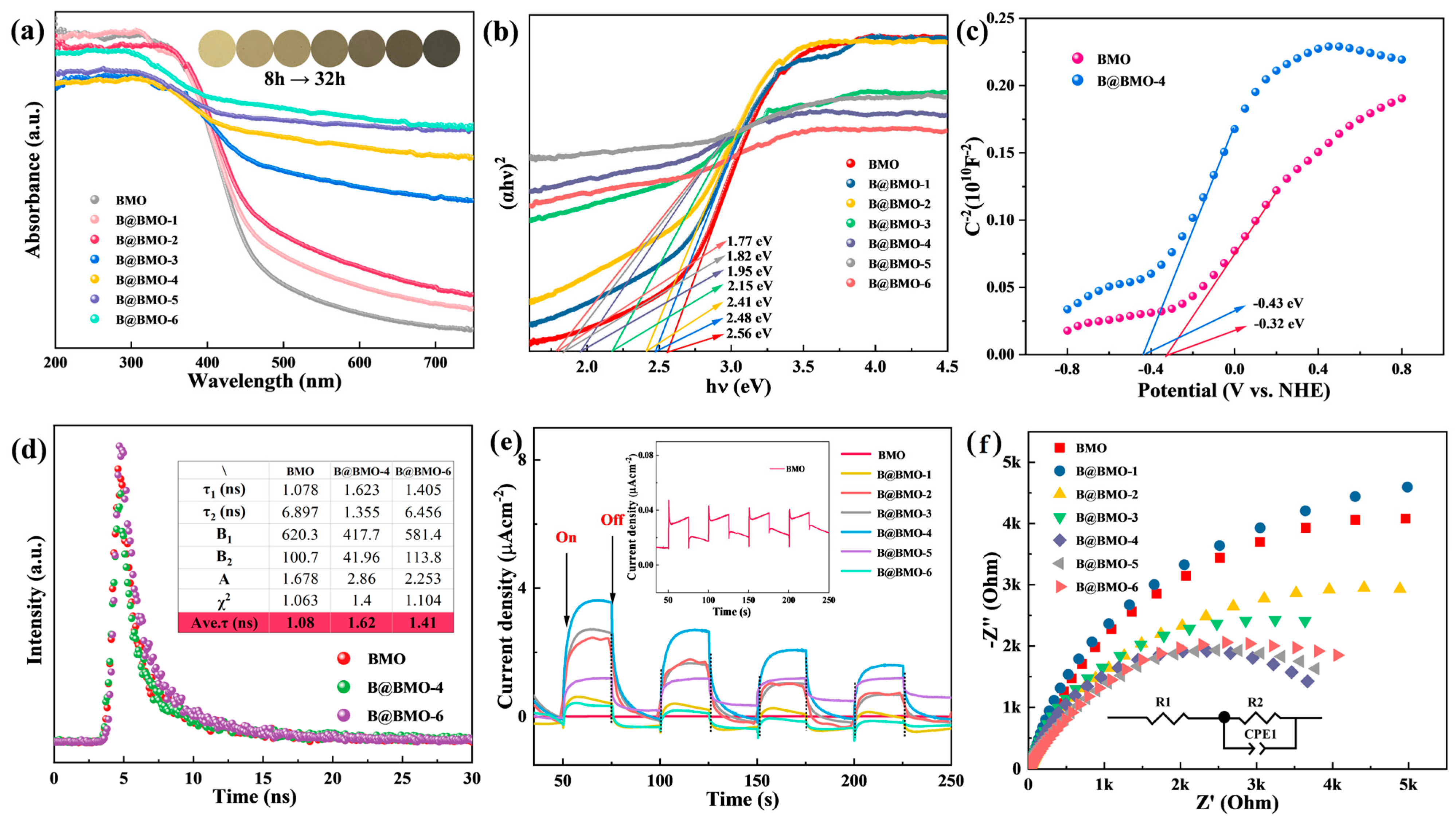

Figure 5. (a) UV-vis diffuse reflectance spectra (DRS), (b) band gaps of all samples, (c) Mott–Schottky curves of BMO and B@BMO-4, (d) time-resolution PL spectra, (e) transient photocurrent response under 300 W Xe lamp, (f) electrochemical impedance spectroscopy (EIS).
Figure 5. (a) UV-vis diffuse reflectance spectra (DRS), (b) band gaps of all samples, (c) Mott–Schottky curves of BMO and B@BMO-4, (d) time-resolution PL spectra, (e) transient photocurrent response under 300 W Xe lamp, (f) electrochemical impedance spectroscopy (EIS).
Nanomaterials 14 00780 g005
Nanomaterials 14 00780 g006

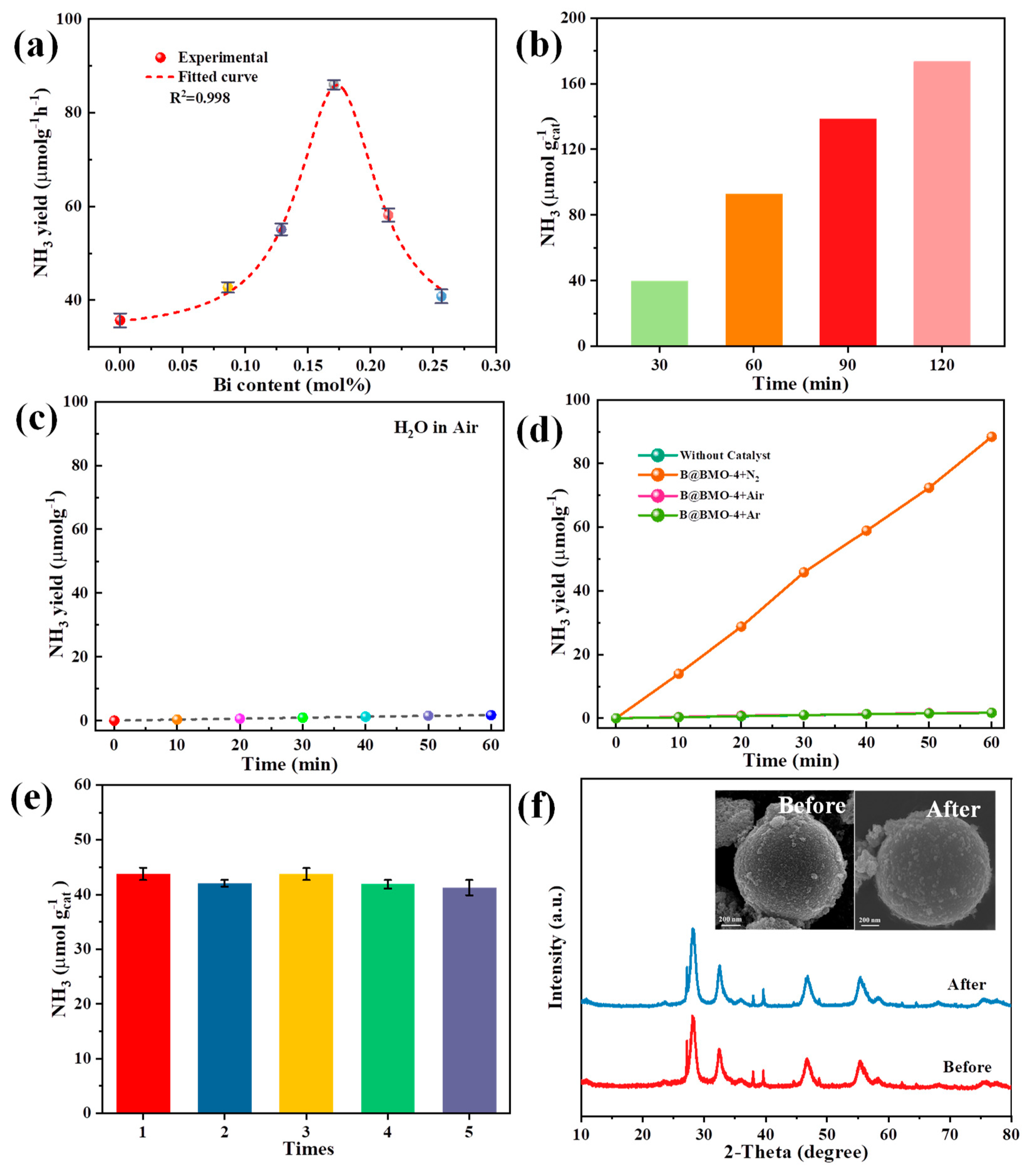

Figure 6. (a) Dependence of photocatalytic ammonia production on metallic Bi in Bi@Bi2MoO6 composites under 300 W Xe lamp irradiation, (b) dependence of photocatalytic ammonia production on reaction time, (c) blank experiment without photocatalyst, (d) controlled experiments for photocatalytic ammonia production over Bi@Bi2MoO6 composites under different conditions, (e) photostability of Bi@Bi2MoO6 photocatalysts for ammonia production and (f) XRD patterns and SEM images of B@BMO-4 before and after photocatalytic ammonia production.
Figure 6. (a) Dependence of photocatalytic ammonia production on metallic Bi in Bi@Bi2MoO6 composites under 300 W Xe lamp irradiation, (b) dependence of photocatalytic ammonia production on reaction time, (c) blank experiment without photocatalyst, (d) controlled experiments for photocatalytic ammonia production over Bi@Bi2MoO6 composites under different conditions, (e) photostability of Bi@Bi2MoO6 photocatalysts for ammonia production and (f) XRD patterns and SEM images of B@BMO-4 before and after photocatalytic ammonia production.
Nanomaterials 14 00780 g006
Nanomaterials 14 00780 g007

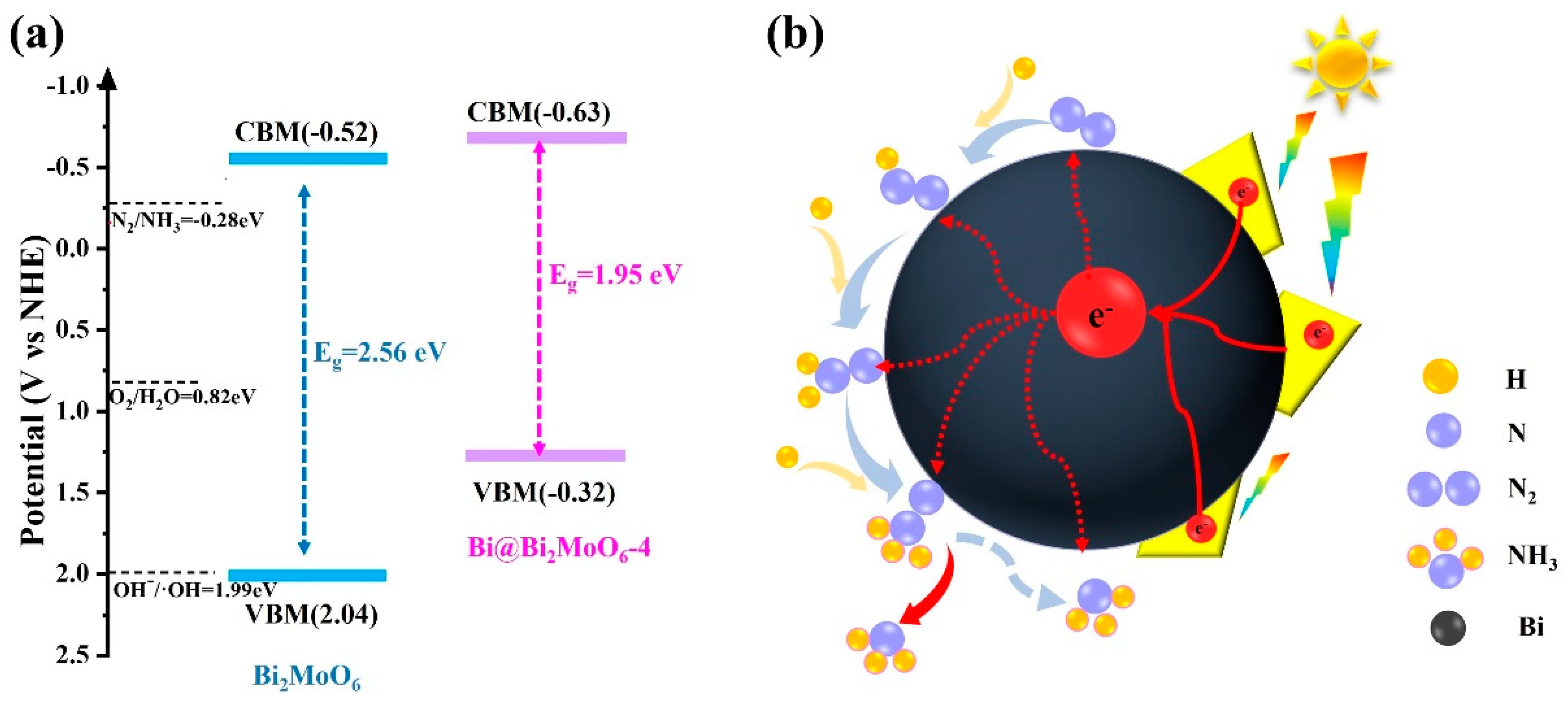

Figure 7. (a) The band structure of Bi2MoO6 and Bi@Bi2MoO6-4; (b) schematics of the photocatalytic N2-to-ammonia conversion over core-shell Bi@Bi2MoO6 photocatalysts.
Figure 7. (a) The band structure of Bi2MoO6 and Bi@Bi2MoO6-4; (b) schematics of the photocatalytic N2-to-ammonia conversion over core-shell Bi@Bi2MoO6 photocatalysts.
Nanomaterials 14 00780 g007
