Informational Entropy of B-ary Trees after a Vertex Cut

1
Technical University of Cluj-Napoca, 103-105 Muncii Bvd, 400641 Cluj-Napoca, Cluj, Romania
2
"Iuliu Haţieganu" University of Medicine and Pharmacy Cluj-Napoca, Department of Medical Informatics and Biostatistics, 6 Louis Pasteur, 400349 Cluj-Napoca, Cluj, Romania
*
Author to whom correspondence should be addressed.
Entropy 2008, 10(4), 576-588; https://doi.org/10.3390/e10040576
Submission received: 24 September 2008 / Revised: 15 October 2008 / Accepted: 27 October 2008 / Published: 3 November 2008

Abstract

:
Together with stars and paths, b-ary trees are one of the most studied acyclic graph structures. As any other structure, a b-ary tree can be seen as containing information. The aim of the present research was to assess through informational entropy the structural information changes in b-ary trees after removal of an arbitrary vertex.
AMS Mathematics Subject Classification:
05C05 (Trees); 37B40 (Topological entropy); 94A17 (Measures of information, entropy); 11T06 (Polynomials)

Graphical Abstract

1. Introduction

B-ary trees are, together with stars and paths, one of the most studied acyclic graph structures. A survey on the available literature showed that almost 20% of papers dealing with graphs deal also with trees. The statistics calculated on trees are used in machine learning [1] and solving of nondeterministic polynomial-time hard (NP-hard) problems [2]. The concept of entropy in conjunction with regular trees was used as measure of similarity between two grammars [3]. Moreover, the information flows in b-ary trees was subject of some theoretical results, including a converse in [4]. General formulas characterizing the random walk in a b-ary tree were obtained in [5]. A general formula giving the number of substructures by their sizes by systematically removal of a vertex in a b-ary tree was also obtained [6].
As any other structure, a tree can be seen as a system that contains information. The aim of the present research was to assess through informational entropy the structural information changes in b-ary trees after removal of an arbitrary vertex.

2. Material

Let T(b,Y) be a regular b-ary tree with Y levels (Figure 1). The removal of an arbitrary vertex applied on a b-ary tree will generate one (when the removal is applied to a leaf), two (when the removal is applied to a root), or three (when the removal is applied to an inside node) sub-graphs.

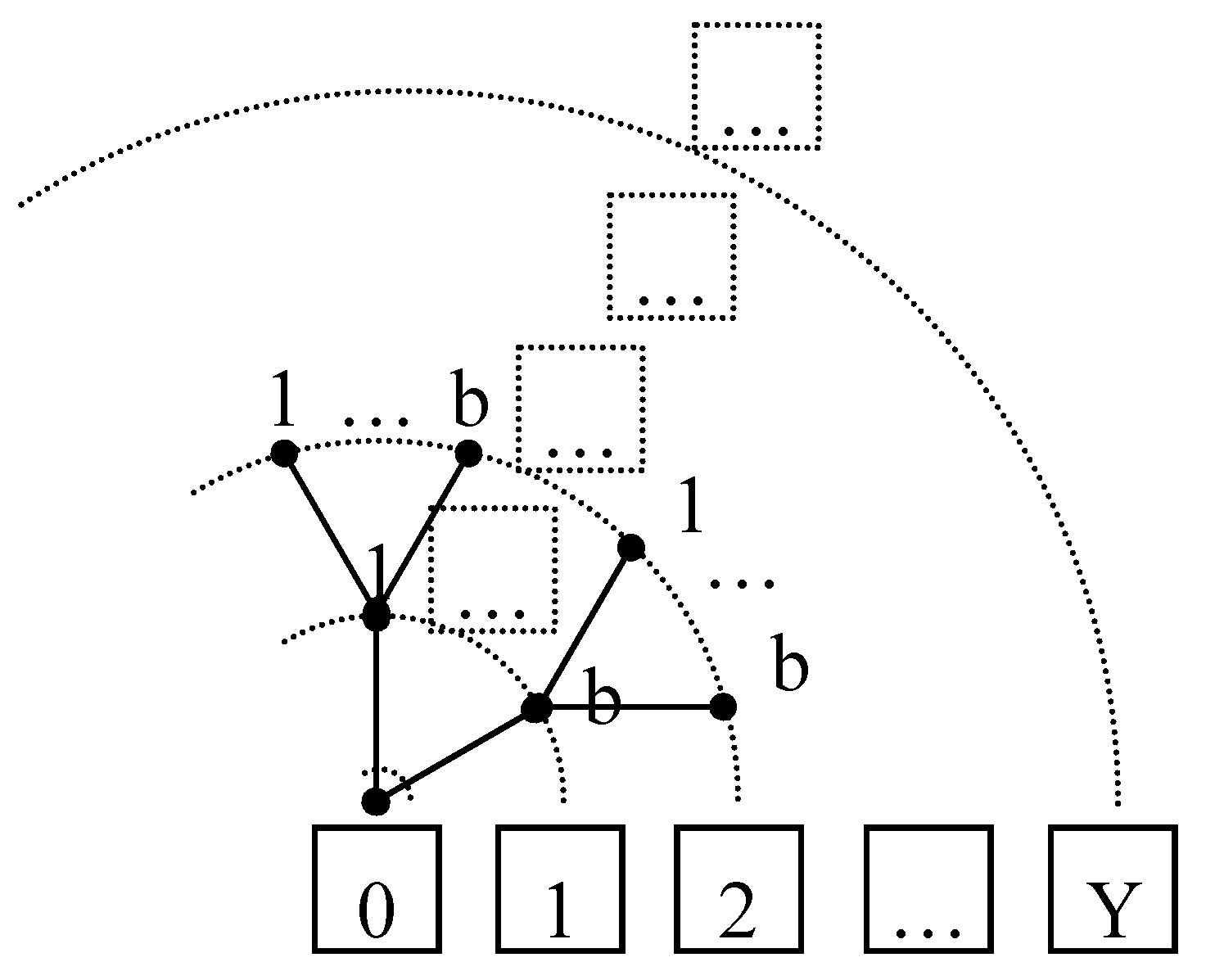

Figure 1. A b-ary tree with Y levels, T(b,Y)
Figure 1. A b-ary tree with Y levels, T(b,Y)
Entropy 10 00576 g001
It is possible to evaluate the number of sub-graphs by removing every vertex from the tree one at a time. A statistical motivation is associated to this procedure. If we are able to obtain the entire population of sub-structures by their sizes after this procedure, then the probability of appearances of a substructure of a given size can be obtained (by dividing its occurrence to the total number of substructures).
It could be said that systematically removal of every vertex is not a usual procedure for a given practical problem. Indeed, but usually in a real application, an issue may be the removal of one vertex when the specification of which one vertex is to be remove is unknown. One example may be a tree network topology (let us say a Regional Internet Registry providing Internet resource allocations). In this case, the assessment of the impact of removing a node is an important issue for projecting the network.
The assumptions applied in the present research were as follows: all vertices and edges in the b-ary tree are present (or available) at the initial moment (before removing the first vertex), the tree is balanced, and the vertices and edges have no precedence/weight one to another. Then we will move from complete characterization of a set (the set of all sub-graphs obtained by removing of an arbitrary vertex of a tree) to an issue of probability (obtaining the appearance probability of a set of a given size). In terms of the entire structure (the tree), the appearance probability of a set of a given size may not be a relevant information but a global parameter which to characterize the tree under the given circumstances (removal of one vertex) could be of interest and was investigated.

3. Method

Entropy is the parameter that characterizes the amount of disorder. Rényi [15] gave a generalization of the entropy through a family of functional for quantifying the diversity, uncertainty or randomness of a system.
Let X be a discrete variable that take the values {x1, …, xn} and p(∙) the probability mass function (gives the probability that a discrete random variable is exactly equal to a value). The Rényi entropy (abbreviated as Hα(X) for any non-negative order α, where α ≥ 0) is given by:
H α ( X ) = 1 1 α log 2 i = 1 n p α ( x i )
Two particular cases of Eq(1) are taken into consideration: α → 1 (or Shannon's entropy [8]), and α = 2 (negative logarithm of Simpson's diversity index D [10] or Onicescu's energy [9]):
H 1 ( X ) = i = 1 n p ( x i ) log 2 ( p ( x i ) ) D ( X ) = i = 1 n p 2 ( x i ) ;   H 2 ( X ) = log 2 D ( X )

4. Results

Let us recall the structure from Figure 1. The following formula (abbreviated as NSSP) describes the number of substructures (coefficient of the X variable) by sizes (power of the X variable) for systematically removal of a vertex from a b-ary tree [6]:
NSSP ( b , Y ) = k = 1 Y b k ( X b Y + 1 k 1 b 1 + X b Y + 1 b Y + 1 k b 1 ) + b Y + 1 1 b 1 X 0
The Eq(3) give the full description of the counts and sizes of substructures for any Y,b>0. The Table 1 presents the substructures and sizes for some particular cases of trees. Note that the coefficient of X0 counts the total number of vertices in the original structure.
Table 1. Substructures obtained by remove of an arbitrary vertex: regular b-ary trees
Table 1. Substructures obtained by remove of an arbitrary vertex: regular b-ary trees
bYFormulaComments
112X0+2X1A graph with two vertices and one edge
1>1(Y+1)X0+2X(XY-1)/(X-1)For b=1 tree degenerates in a path
>11(b+1)X0+b(X+Xb)For Y=1 tree degenerates in a star
b2(b2+b+1)X0+b(Xb+1+Xb2)+b2(X+Xb2+b)Powers of X's may be repeated in the series
Y = number of levels; b = ramification degree of the b-ary tree
By using the Eq(3), we want to find the roots of the following equation:
b Y + 1 k 1 1 = b Y + 1 b Y + 1 k 2   i.e.   1 + b k 2 k 1 = b k 2 + b k 2 ( Y + 1 )
Excluding b=1 (b, Y, k1, and k2 are natural not null numbers; and 1 is also a natural number) the equality Eq(4) can be satisfied just when the only solutions of Eq(5) is for k1=Y+1 (that implying as consequence to have the b=1). The conclusion that can be drawn from here is that for b>1 all terms from Eq(3) are distinct.
Since the problem of occurrences of sub-graphs sizes (no) was solved in the general case for b>1 (no repeats in terms of Eq(3)) we are able to perform the calculations for a given Y and b (note that the problem can be extended to any b and Y less than or equal to a given value):
n o ( b Y + 1 k 1 b 1 ) = coef ( X b Y + 1 k 1 b 1 ) = n o ( b Y + 1 b Y + 1 k b 1 ) = coef ( X b Y + 1 b Y + 1 k b 1 )
in addition, the probability (of observing a structure of a given size in a random cut) is given by:
p ( b Y + 1 k 1 b 1 ) = p ( b Y + 1 b Y + 1 k b 1 ) = b k 2 k = 1 Y b k = b k 1 ( b 1 ) 2 ( b Y 1 )
The replacement of Eq(6) into Eq(1) and Eq(2) leads to the following formulas:
H 1 ( b , Y ) = 2 k = 1 Y b k 1 ( b 1 ) 2 ( b Y 1 ) log 2 ( b k 1 ( b 1 ) 2 ( b Y 1 ) ) = log 2 2 ( b Y 1 ) b 1 b Y + 1 ( Y 1 ) Y b Y + b ( b Y 1 ) ( b 1 ) log 2 b
H 2 ( b , Y ) = log 2 2 k = 1 Y b 2 k 2 ( b 1 ) 2 4 ( b Y 1 ) 2 = log 2 1 2 b Y + 1 b Y 1 b 1 b + 1 = 1 log 2 ( b Y + 1 b Y 1 b 1 b + 1 )
where H1(b,Y) is the Rényi entropy of order 1; H2(b,Y) is the Rényi entropy of order 2 of a b-ary tree T(b,Y) after removal of a vertex, when b>1. The value of 2 is given by the fact that we have equal probabilities for fragments of size (bY+1-k - 1)/(b - 1), and (bY+1 – bY+1-k)/(b - 1) respectively (see Eq(6)).
For b=1 (path) an entry from Table 1 can help us to obtain the values for H1(1,Y)=H1(Y) and H2(1,Y)=H2(Y), respectively:
H 1 ( Y ) = k = 1 Y 2 2 Y log 2 ( 2 2 Y ) = k = 1 Y 1 Y log 2 ( 1 Y ) = log 2 ( Y )
H 2 ( Y ) = log 2 k = 1 Y ( 2 2 Y ) 2 = log 2 1 Y = log 2 ( Y ) = H 1 ( Y )

5. Discussion

In terms of statistics, the random event subject of the investigation was to remove a vertex from a b-ary tree, and the observation was to count the size of a connected structure (the size of a connected structure being the random variable). This statistical experiment allowed obtaining an important informational statistics: entropy and diversity index.
Equations (7)-(10) allow one to compute the values and based on the obtained results, to plot the dependence of the Hx(b,Y) (where x = 1, 2; H1(b,Y) = Rényi entropy of order 1; H2(b,Y) = Rényi entropy of order 2) and D(b,Y) by the number of levels (Y) and ramification degree (b) of the tree. These dependencies ranging from 1 to 20 for Y and b are presented in Figure 2.

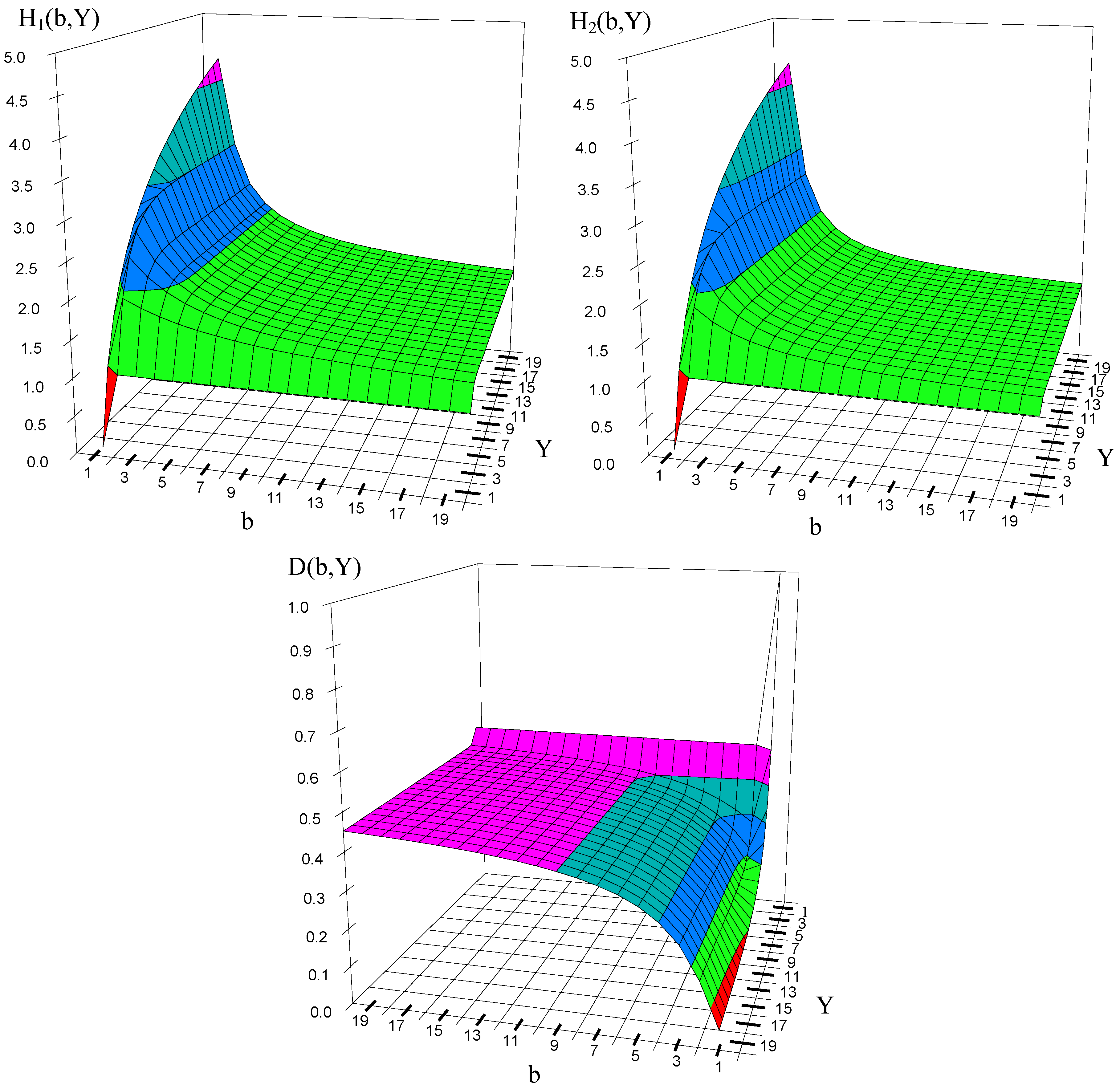

Figure 2. Rényi entropy of order 1 - H1 = H1(b,Y), Rényi entropy of order 2 - H2 = H2(b,Y), and Simpson's diversity index - D = D(b,Y) of a b-ary tree with Y levels after a vertex removal
Figure 2. Rényi entropy of order 1 - H1 = H1(b,Y), Rényi entropy of order 2 - H2 = H2(b,Y), and Simpson's diversity index - D = D(b,Y) of a b-ary tree with Y levels after a vertex removal
Entropy 10 00576 g002
The analysis of the calculated values obtained by applying the formulas for Rényi entropy of order 1 and 2, and of Simpson's diversity index revealed the followings:
÷
For a given value of b (ramification degree of the b-ary tree):
The values of Rényi entropy of order 1 are equal with the values of and Rényi entropy of order 2 for b=1 and 1≤Y≤20.
The distribution of D(b,Y), H1(b,Y) and H2(b,Y) follow a similar pattern for b > 2 and 1≤Y≤20.
Starting with b=4 the values of D(b,Y), H1(b,Y) and H2(b,Y) become a monotone function with the increases of the number of levels. Very small differences were observed for 7≤b≤20.
If the b=1 is excluded from the analysis, the values of D(b,Y) decrease with the increasing of Y while the values of H1(b,Y) and H2(b,Y) increase with increasing of Y (see Figure 3).

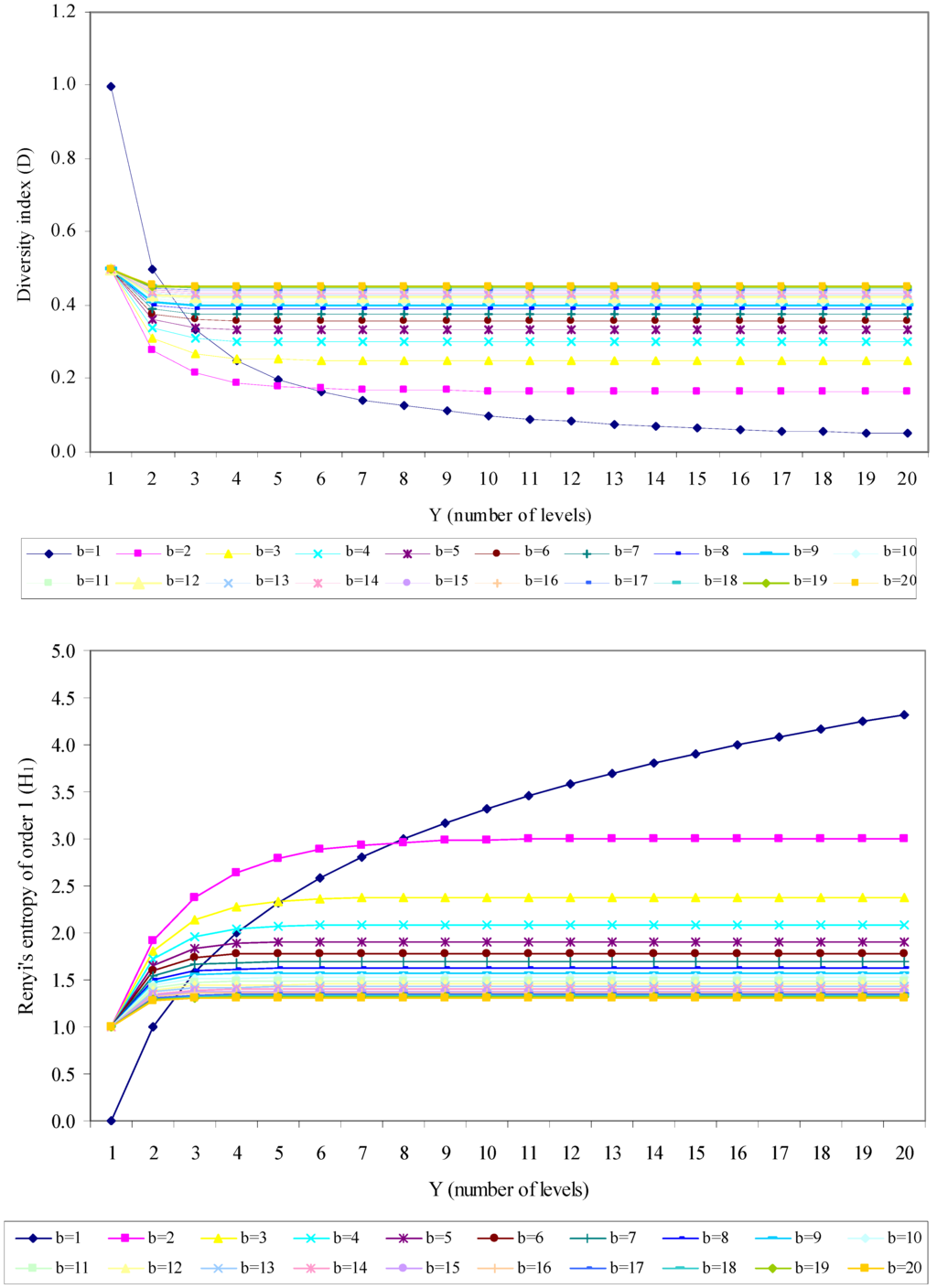

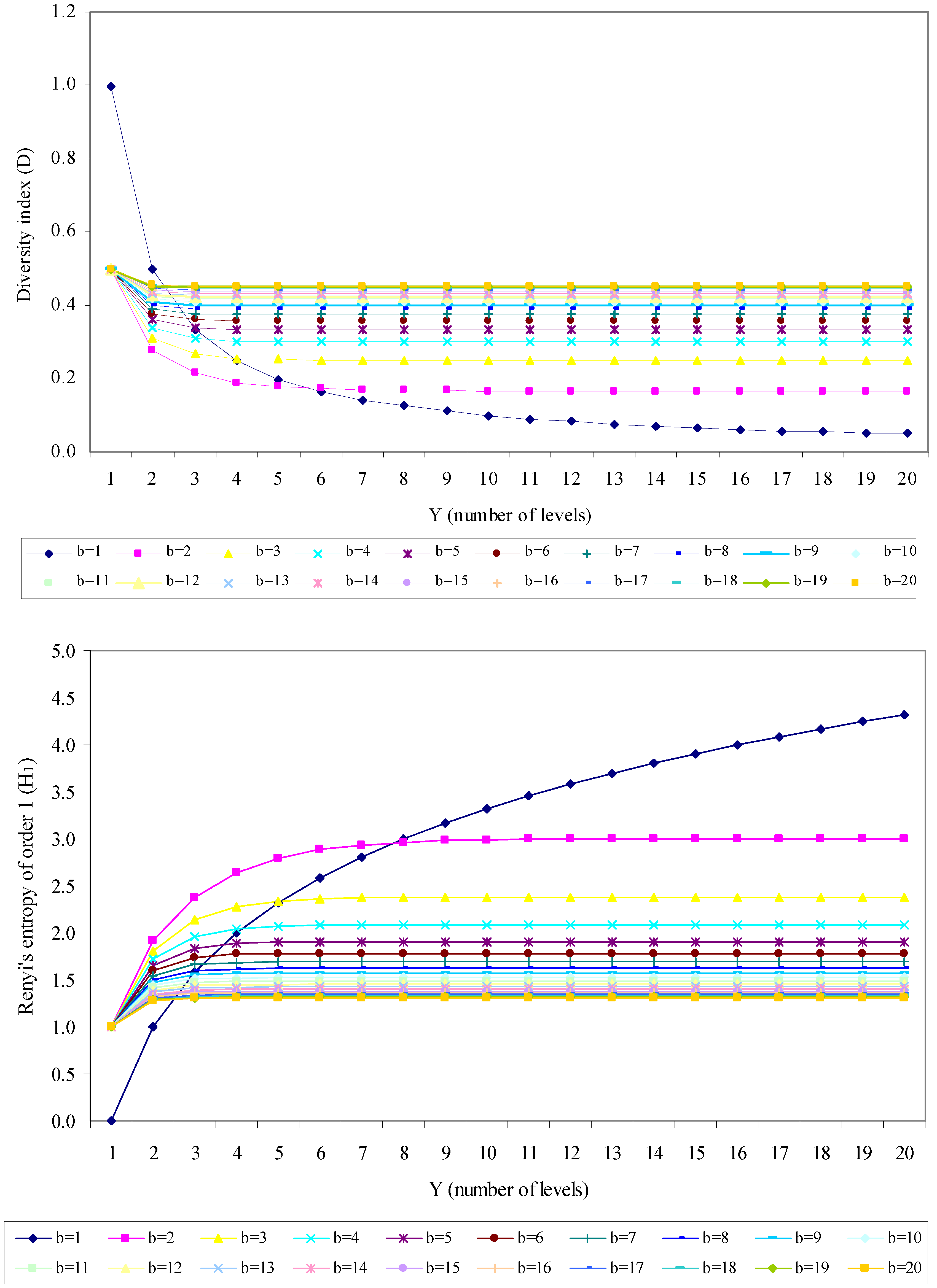

Figure 3. Variation of Simpson's diversity index (D) and Rényi's entropy of order 1 (H1) for a given value of ramification degree
Figure 3. Variation of Simpson's diversity index (D) and Rényi's entropy of order 1 (H1) for a given value of ramification degree
Entropy 10 00576 g003
The maximum value is systematically obtained by b=2 for D(b,Y) and b=20 for H1(b,Y) and H2(b,Y). The D(b,Y) values tend to varied with very small quantities (the differences are not observed at the level of first four decimals) starting with a certain value of Y (D(b,Y): D(2,12), D(3,9), D(4,7), D(5,7), D(6,7), D(7,5), D(8,5), D(9,5), D(10,5), D(≥11,4)). The variation with very small quantities are also observed for H1(b,Y) (H1(2,19); H1(3,12); H1(4,10); H1(5,8); …) and H2(b,Y) (H2(2,18); H2(3,10); H2(4,9); H2(5,8); …).
÷
For a given value of Y (number of levels of the b-ary tree):
For Y=1: the values of D(b,Y) were equal with 0.5 for 2≤b≤20; the values of H1(b,Y) and H2(b,Y) were equal to 1 for 2≤b≤20.
The distribution of D(b,Y) follows a certain pattern for b>2 and 1≤Y≤20. A similar pattern is observed for distribution of H1(b,Y) and H2(b,Y).
The values of D(b,Y) increase with increases of b while the values of H1(b,Y) and H2(b,Y) decrease with increasing of b after an initial increase (see b>2 and Y>8, Figure 4).

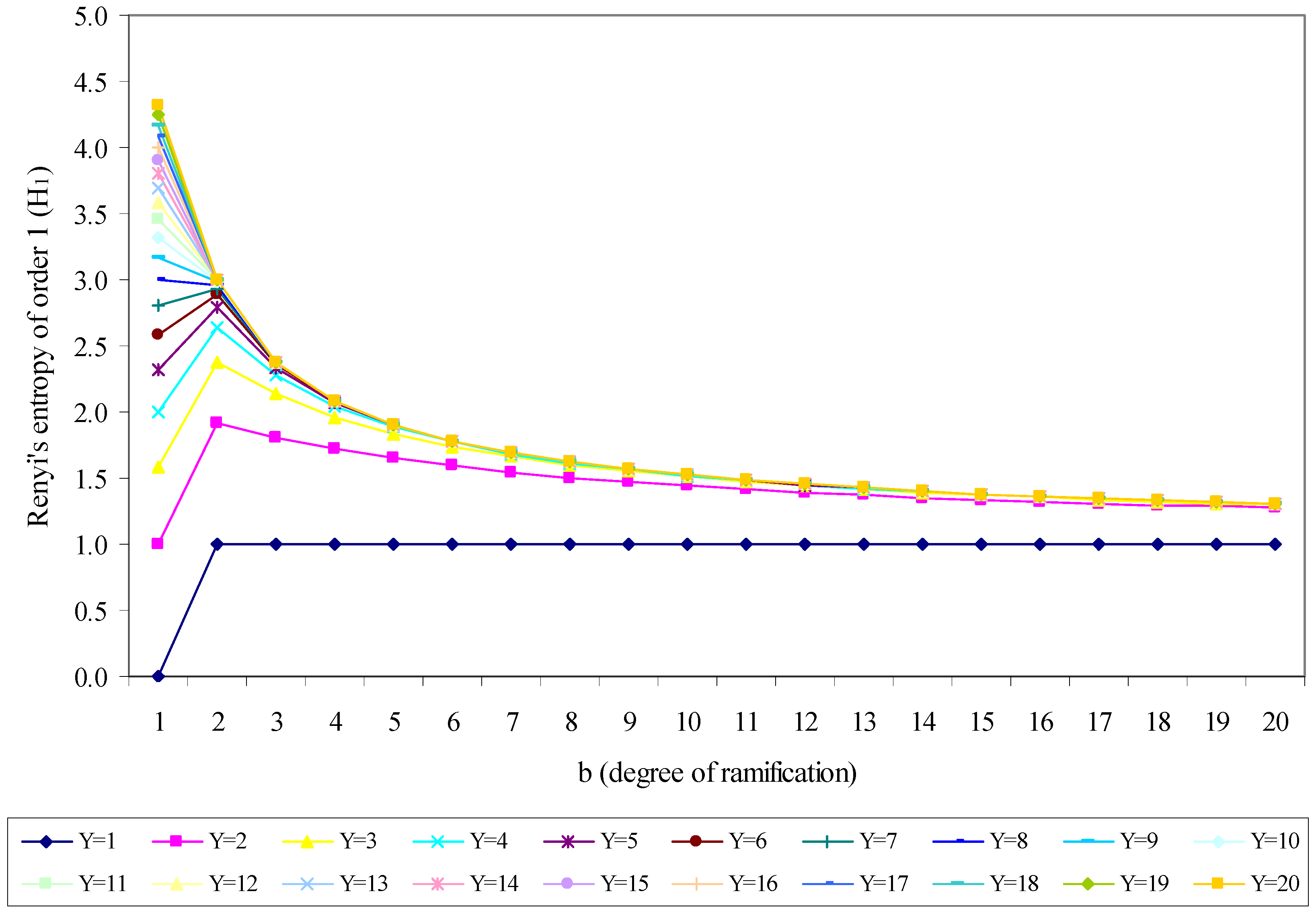

Figure 4. Variation of Rényi's entropy of order 1 (H1) and 2 (H2) for a given value of Y
Figure 4. Variation of Rényi's entropy of order 1 (H1) and 2 (H2) for a given value of Y
Entropy 10 00576 g004
The maximum value of Rényi entropy of order 1 was equal with the maximum value of Rényi entropy of order 2 (4.3219) for T(1,20). With a few exceptions (for T(1,<5)) the values of Rényi entropy were higher than 2 which leads to the conclusion that the most disorder structure were the ones from the path (unary-tree) class (T(1,5), T(1,6), T(1,7), T(1,8), T(1,9), T(1,10), T(1,11), T(1,12), T(1,13), T(1,14), T(1,15), T(1,16), T(1,17), T(1,18), T(1,19), and T(1,20)). The structures become more stable as the degree of the ramification of the b-ary tree increase (structures become more complex). The values of Rényi entropy of order 1 range from 1.2762 to 1.3015 for T(20, 1<Y≤20), and the values of Rényi entropy of order 2 range from 1.1372 to 1.1444 for T(20, 1<Y≤20).
A regression analysis for a give value of levels (Y) was applied in order to identify the relationship between Simpson's diversity index (D(b,Y)) and Rényi entropy of order 1 (H1(b,Y)), and between Rényi entropy of order 1 (H1(b,Y)) and 2 (H2(b,Y)). The obtained results expressed as equations and associated squared correlation coefficients are presented in Table 2. The relative variation (min=0; max=1) of regression equation coefficients from Table 2 for H1 = f(D) and H2 = f(H1) are graphically presented in Figure 5.
Table 2. Substructures by removal of an arbitrary vertex for some regular b-ary trees
Table 2. Substructures by removal of an arbitrary vertex for some regular b-ary trees
YH1 = f(D)H2 = f(H1)
EquationR2 (for 1<b<21)EquationR2 (for 1<b<21)
2-4.68∙D2 - 0.17∙D + 2.320.9999040.77∙H12 - 1.37∙H1 + 1.630.999860
3-1.50∙D2 - 3.50∙D + 3.200.9999480.39∙H12 - 0.45∙H1 + 1.070.999863
40.82∙D2 - 5.58∙D + 3.660.9999300.26∙H12 + 0.08∙H1 + 0.810.999934
52.49∙D2 - 6.94∙D + 3.940.9998550.19∙H12 + 0.13∙H1 + 0.660.999947
63.61∙D2 - 7.83∙D + 4.110.9997380.15∙H12 + 0.25∙H1 + 0.560.999989
74.32∙D2 - 8.37∙D + 4.220.9996140.13∙H12 + 0.32∙H1 + 0.510.999966
84.76∙D2 - 8.71∙D + 4.280.9995110.12∙H12 + 0.36∙H1 + 0.470.999936
95.02∙D2 - 8.90∙D + 4.310.9994360.11∙H12 + 0.38∙H1 + 0.450.999911
105.17∙D2 - 9.02∙D + 4.340.9993870.11∙H12 + 0.40∙H1 + 0.440.999893
115.25∙D2 - 9.08∙D + 4.350.9993570.10∙H12 + 0.41∙H1 + 0.430.999882
125.30∙D2 - 9.12∙D + 4.350.9993400.10∙H12 + 0.41∙H1 + 0.430.999875
135.33∙D2 - 9.14∙D + 4.360.9993300.10∙H12 + 0.41∙H1 + 0.430.999871
145.34∙D2 - 9.15∙D + 4.360.9993240.10∙H12 + 0.41∙H1 + 0.430.999868
155.35∙D2 - 9.16∙D + 4.360.9993210.10∙H12 + 0.42∙H1 + 0.430.999867
165.36∙D2 - 9.16∙D + 4.360.9993190.10∙H12 + 0.42∙H1 + 0.420.999866
175.36∙D2 - 9.16∙D + 4.360.9993180.10∙H12 + 0.42∙H1 + 0.420.999866
185.36∙D2 - 9.16∙D + 4.360.9993180.10∙H12 + 0.42∙H1 + 0.420.999866
195.36∙D2 - 9.16∙D + 4.360.9993170.10∙H12 + 0.42∙H1 + 0.420.999866
205.36∙D2 - 9.16∙D + 4.360.9993170.10∙H12 + 0.42∙H1 + 0.420.999866
coef(D2) = 5.441 - 23.71∙e-Y/2.390.999coef(H12) = 0.1 + 2.9∙e-Y/1.350.997
coef(D) = -9.195 + 23.08∙e-Y/2.140.999coef(H1) = 0.4 - 7.47∙e-Y/1.390.994
Intercept = 4.361 - 5.92∙e-Y/1.870.999Intercept = 0.43 + 3.7∙e-Y/1.770.999
The analysis of the results presented in Table 2 revealed the followings:
÷
Very good relationships in terms of determination coefficient are obtained between Simpson's diversity index and Rényi entropy of order 1, and Rényi entropy of order 1 and 2, respectively.
÷
The relationships are polynomial of second order for both investigated situations ((D(b,Y))- (H1(b,Y)) and (H1(b,Y))-(H2(b,Y)).
÷
The H2(b,Y) = f(H1(b,Y)) obtained slightly better performances in terms of determination coefficients compared with H1(b,Y) = f(D(b,Y)) (the maximum value of R2 = 0.999989 – Y=4 compared with R2 = 0.999948 – Y=3). Moreover, the distribution of the determination coefficient is more narrow for H2(b,Y) = f(H1(b,Y)) (a difference between maximum and minimum of 0.000129) compared to H1(b,Y) = f(D(b,Y)) (a difference between maximum and minimum of 0.000631).

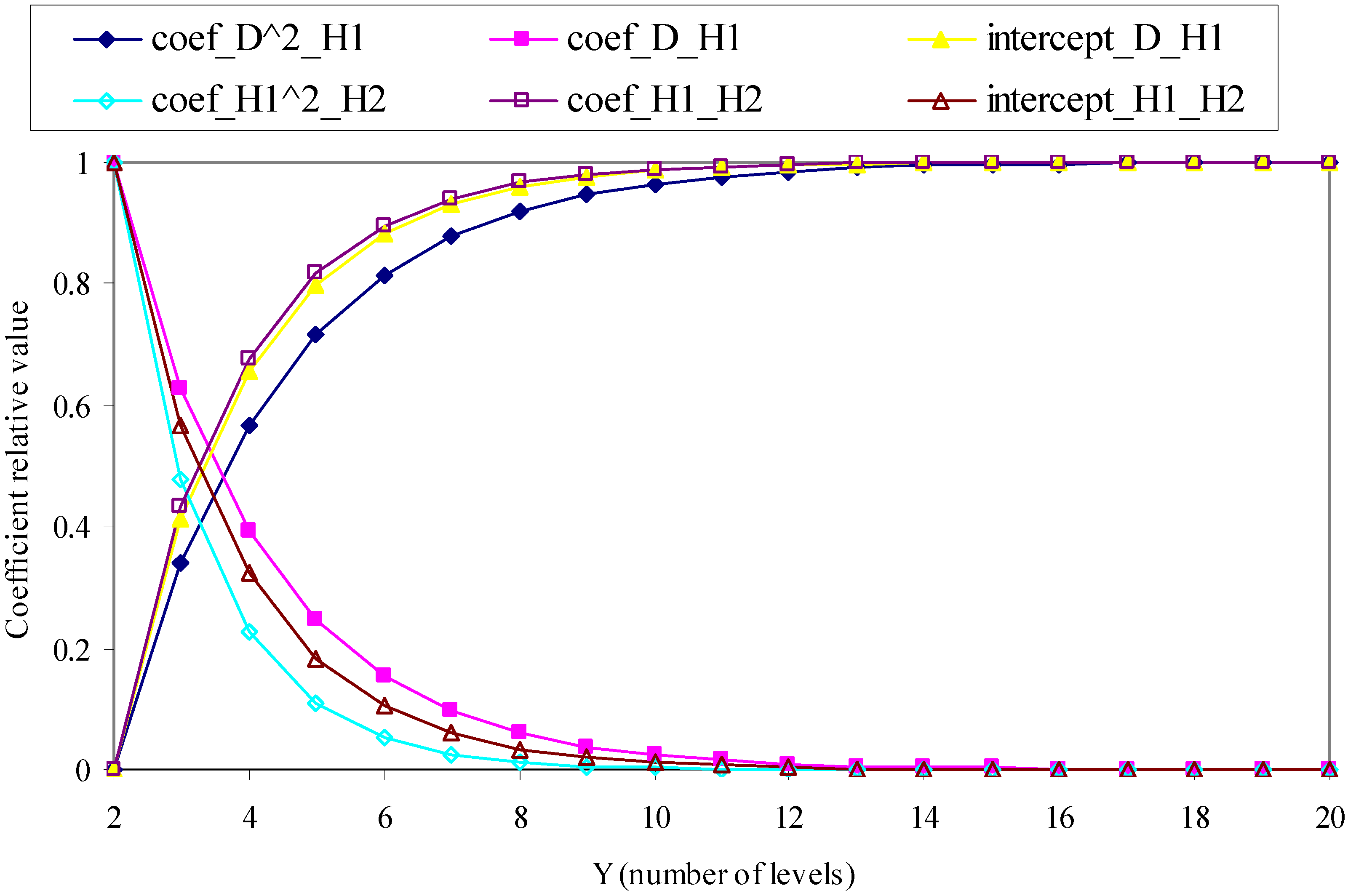

Figure 5. Relative variation (min=0; max=1) of regression equation coefficients from Table 2 for H1 = f(D) and H2 = f(H1)
Figure 5. Relative variation (min=0; max=1) of regression equation coefficients from Table 2 for H1 = f(D) and H2 = f(H1)
Entropy 10 00576 g005
÷
The polynomial of second order dependency of H1(b,Y) by the D(b,Y) revealed to be done by the same equation if the number of decimals are reduced to two for Y ≥ 13.
÷
The polynomial of second order dependency of H2(b,Y) by the H1(b,Y) revealed to be done by the same equation if the number of decimals are reduced to two for Y ≥ 11. Moreover, the determination coefficient of 0.999866 was systematically obtained for Y ≥ 16.
The calculated values of information entropy proved to be negatively correlated for the arbitrary vertex removal from a b-ary tree. The variation of the correlations between these measures of information is graphically presented in Figure 6.
The linear relationship between Rényi's entropy of order 1 (H1) and 2 (H2) of b-ary trees is perfect (equal to 1) for b=1 due to the equality of the values of these two parameters. The analysis of the obtained values of correlation coefficients revealed the followings:
÷
Degree of ramification (b):
r(H1,H2): the minimum as well as the maximum values of correlation coefficient (expressed as absolute values) increase with increasing of ramification degree. Moreover, a certain pattern of variation could be observed.
r(H1,D): the correlation coefficients analysed as absolute value increase with increasing of ramification degree (the range of this variation is wider (0.036699) compared with the narrow variation of r(H1, H2) (0.005394)). The distribution of r(H1,D) follows two patterns according with the value of b (see Figure 7).

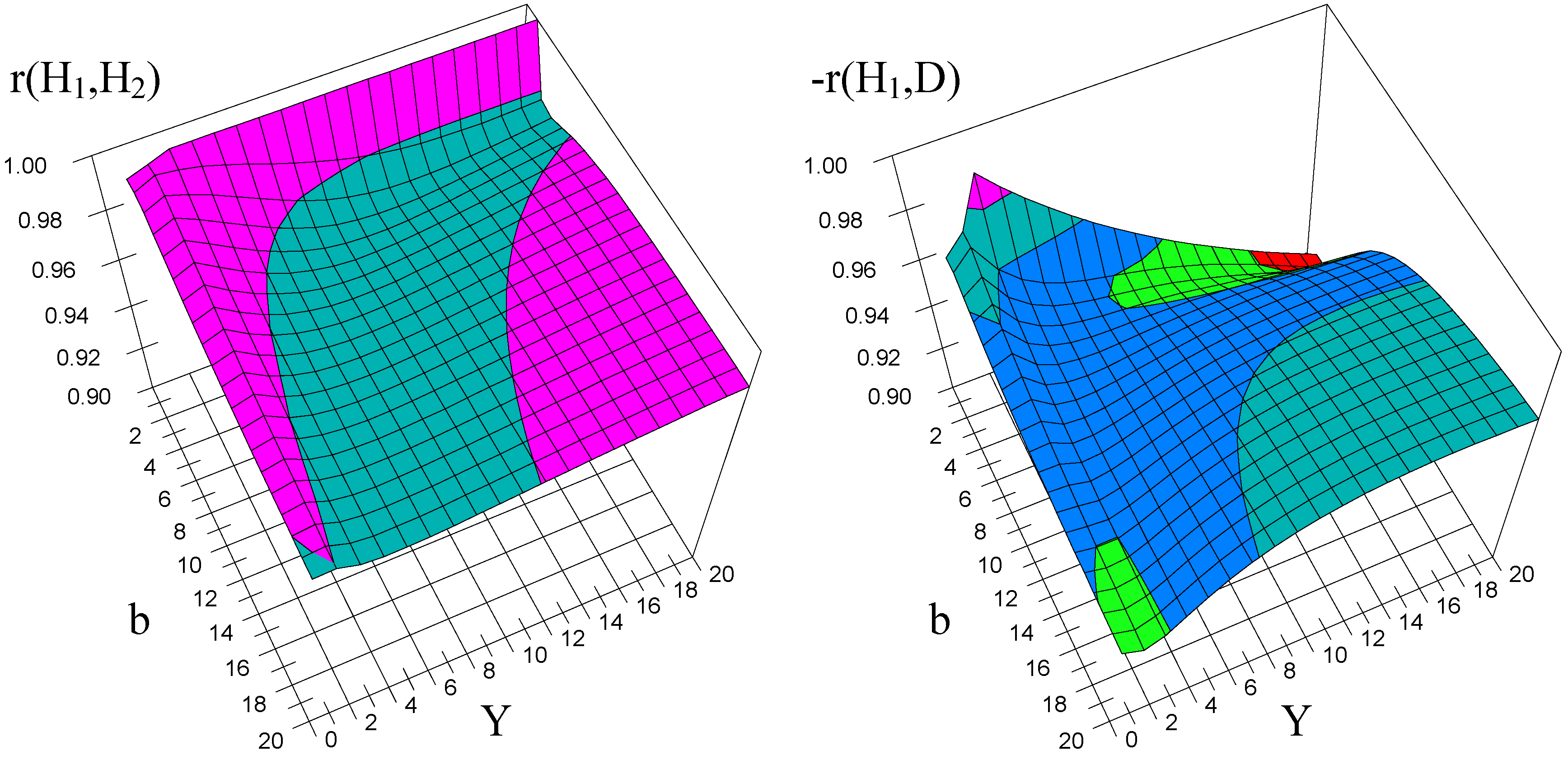

Figure 6. Correlation between Rényi's entropy of order 1 (H1) and 2 (H2), and between Rényi's entropy of order 1 (H1) and Simpson's diversity index (D) of a b-ary tree after a vertex removal
Figure 6. Correlation between Rényi's entropy of order 1 (H1) and 2 (H2), and between Rényi's entropy of order 1 (H1) and Simpson's diversity index (D) of a b-ary tree after a vertex removal
Entropy 10 00576 g006
The correlations between H1 and H2,and between H1 and D were calculated by using the following formula:
r(H1,H2) = r(b,Y) = r([H1(bb,YY)]12264bb≤b;1≤YY≤Y,[H2(bb,YY)]1≤bb≤b;1≤YY≤Y)
where [∙] denotes a matrix having b columns and Y rows.

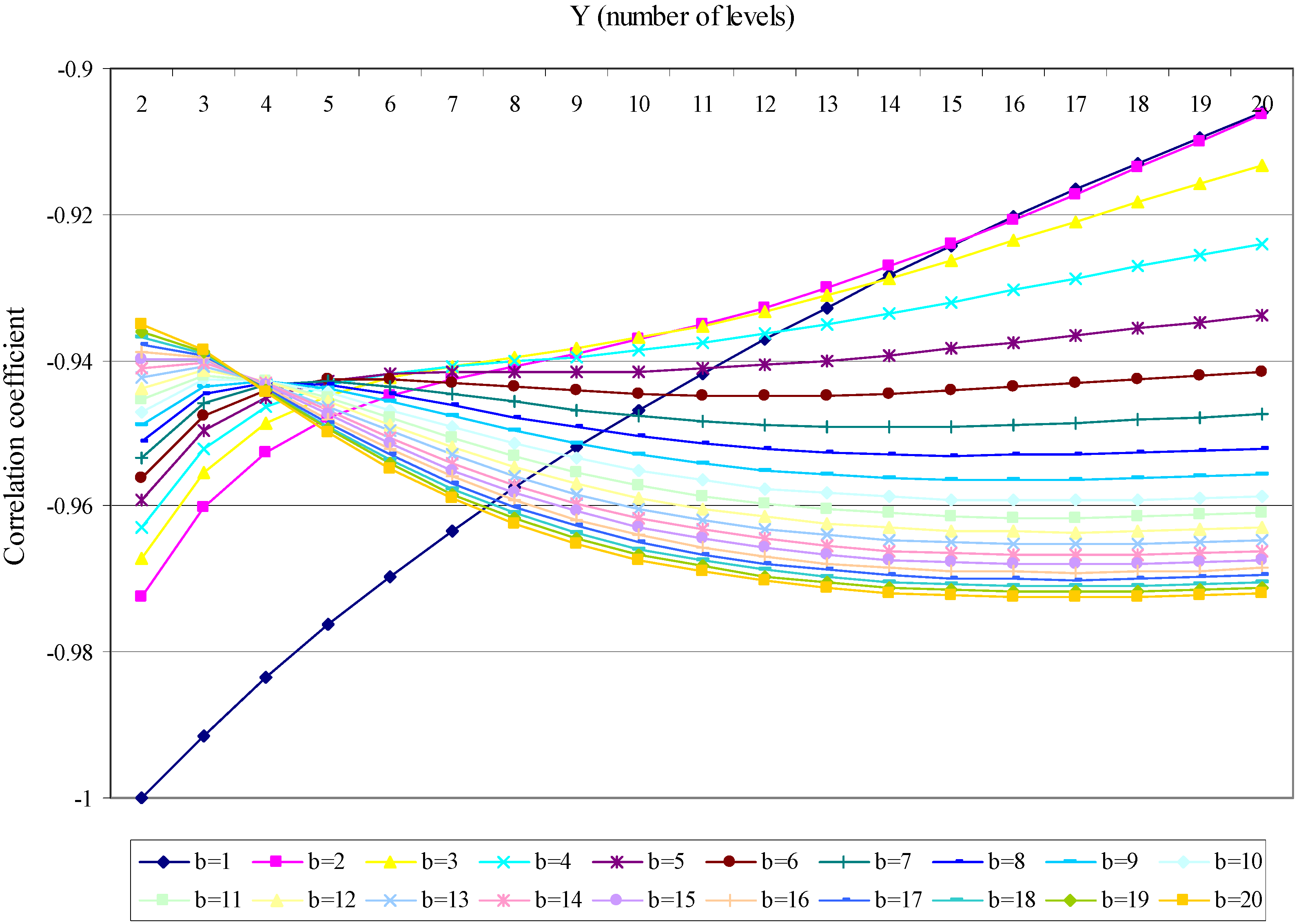

Figure 7. Distribution of r(H1,D) with number of levels (Y)
Figure 7. Distribution of r(H1,D) with number of levels (Y)
Entropy 10 00576 g007
÷
Number of levels (Y):
The minimum and maximum value (expressed as absolute values) increase with number of levels for r(H1,H2) as well as for r(H1,D).
The maximum value of r(H1,H2) is obtained for T(20,20). The highest correlation coefficient of r(H1,D) was also obtained by T(≥16,20).
The absolute values of r(H1,H2) follows a similar pattern for Y≤9 with a slowly decrease until b=6 followed by an increase. For Y>9, the absolute value of correlation coefficients increase with increasing of b.
The variation of the r(H1,D) is presented in Figure 8.
Overall, the correlations coefficients revealed to be good, being always higher than 0.9730 (r(H1,H2) or smaller than -0.8724 (r(H1,D)).
The linear relationships between H1 and H2, as well as between H1 and D became weaker with the increases of the degree of ramification (b) and of the number of levels (Y). The highest correlation expressed as the absolute value was of r(H1,D) = -0.9724 for T(2,2) and of r(H1,H2) = 0.9996 for T(2,2)).

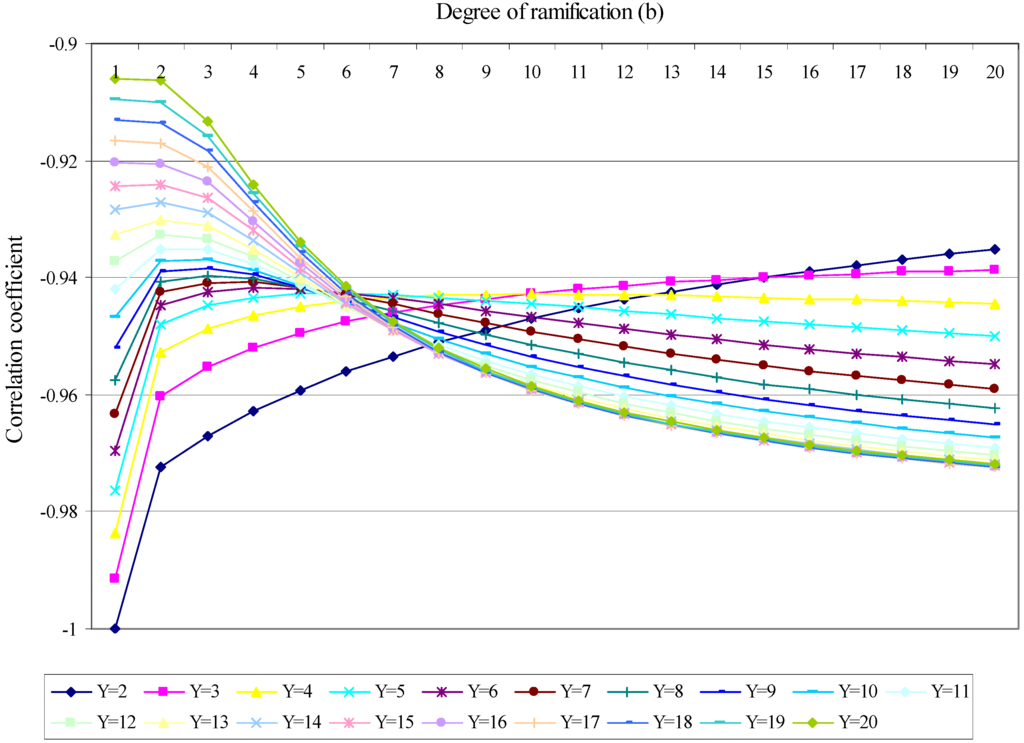

Figure 8. Variation of r(H1,D) with the degree of ramification (b)
Figure 8. Variation of r(H1,D) with the degree of ramification (b)
Entropy 10 00576 g008
The informational entropy computed on tress found its application on pattern recognition [16], clarification on self-similarity properties of river networks [17], characterization of kinetic equation [18], evaluation of comminution process [19], and so on. Moreover, the informational entropy analysis provide the information about the total loss of information of the investigated structure (the maximum entropy of a system correspond to the total loss of information), asymmetry or symmetry as well as about simplicity [20].
The formulas given by Eq(7) and Eq(8) may be used for larger b and Y as approximation formulas when the b-ary tree is not complete (having few gaps), by using an averaged (approximated) value for its number of levels, since few for larger trees may affect in small amount the entire information contained in the tree. Figure 2 and Figure 6 sustain these assumptions; the entropy of the b-ary tree varies very slowly for larger values of b and Y.
As it could be observed, just the balanced b-ary trees were considered in the present research and this could be a limitation of the study due to the possibility to obtain a generalization. The behaviour obtained in this research on balanced b-ary trees will be assessing in further researches on unbalanced trees (note that the unbalanced trees are particular cases).

Conclusions

The values of Rényi entropy of order 1 are equal with the values of and Rényi entropy of order 2 for a value of the ramification degree of a b-ary tree equal to 1. The values obtained by Rényi entropy of order 1 and 2 decreases with the increases of the ramification degree of the b-ary tree. The Rényi entropy of order 1 and 2 increase with the increases of the number of levels for a give value of the ramification degree of a b-ary tree. The relationship between Rényi entropy of order 1 and 2, and between Rényi entropy of order 1 and Simpson's diversity index revealed to be of order two polynomial types rather than of a linear type.

Acknowledgements

The authors wish to thank Dr. Peter Harremoës for his efforts, kindness and patients that help us to improve the manuscript. The research was supported by national research grants (LJ: ID1051/UEFISCSU and SDB: ID0458/UEFISCSU).

References

  1. Carrasco, R. C.; Oncina, J.; Calera-Rubio, J. Stochastic inference of regular tree languages. Mach. Learn. 2001, 44, 185–197. [Google Scholar] [CrossRef]
  2. Hu, Y.; Shi, Z. A subdiffusive behaviour of recurrent random walk in random environment on a regular tree. Probab. Theory. Relat. Fields. 2007, 138, 521–549. [Google Scholar] [CrossRef]
  3. Calera-Rubio, J.; Carrasco, R. C. Computing the relative entropy between regular tree languages. Inform. Process. Lett. 1998, 68, 283–289. [Google Scholar] [CrossRef]
  4. Mossel, E.; Peres, Y. Information flow on trees. Ann. Appl. Probab. 2003, 13, 817–844. [Google Scholar]
  5. Aldous, D. J. Random walk covering of some special trees. J. Math. Anal. Appl. 1991, 157, 271–283. [Google Scholar] [CrossRef]
  6. Jäntschi, L.; Stoenoiu, C. E.; Bolboacă, S. D. A Formula for Vertex Cuts in b-Trees. Int. J. Pure App. Math. 2008, 47, 17–22. [Google Scholar]
  7. Estrada, E.; Hatano, N. Statistical-mechanical approach to subgraph centrality in complex networks. Chem. Phys. Lett. 2007, 439, 247–251. [Google Scholar] [CrossRef]
  8. Shannon, C. E. A Mathematical Theory of Communication. Bell. Syst. Techn. J. 1948, 27, 379-423, 623-656. [Google Scholar] [CrossRef]
  9. Onicescu, O. Energie informationelle. Compt. Rend. Acad. Sci. Paris Ser. 1966, 263, 841–841. [Google Scholar]
  10. Simpson, E. H. Measurement of Diversity. Nature 1949, 163, 688–688. [Google Scholar] [CrossRef]
  11. Bolboacă, S. D.; Pică, E. M.; Cimpoiu, C. V.; Jäntschi, L. Statistical Assessment of Solvent Mixture Models used for Separation of Biological Active Compounds. Molecules 2008, 8, 1617–1639. [Google Scholar] [CrossRef]
  12. Friedman, W. F. The Index of Coincidence and Its Applications in Cryptography; Riverbanks Publication: Geneva, Switzerland, Illinois, USA, 1922; p. 22. [Google Scholar]
  13. Gass, F. Solving a Jules Verne Cryptogram. Mathem. Mag. 1986, 59, 3–11. [Google Scholar] [CrossRef]
  14. Harremoes, P.; Topsoe, F. Inequalities between entropy and index of coincidence derived from information Diagrams. IEEE Trans. Inform. Theory 2001, 47, 2944–2960. [Google Scholar] [CrossRef]
  15. Rényi, A. On measures of information and entropy. In Proceedings of the 4th Berkeley Symposium on Mathematics, Statistics and Probability; 1961; pp. 547–561. [Google Scholar]
  16. Jumarie, G. Informational similarity of graphs in syntactic pattern recognition. Pattern Recogn. Lett. 1994, 15, 1177–1181. [Google Scholar] [CrossRef]
  17. Claps, P.; Fiorentino, M.; Oliveto, G. Informational entropy of fractal river networks. J. Hydrol. 1996, 187, 145–156. [Google Scholar] [CrossRef]
  18. Masiuk, S.; Rakoczy, R. Kinetic equation of grinding process in mixing of granular material using probability density functions, transient operators and informational entropy. Chem. Eng. Process 2008, 47, 200–208. [Google Scholar] [CrossRef]
  19. Otwinowski, H. Energy and population balances in comminution process modelling based on the informational entropy. Powder Technol. 2006, 167, 33–44. [Google Scholar] [CrossRef]
  20. Lin, S-K. Correlation of Entropy with Similarity and Symmetry. J. Chem. Inf. Comput. Sci. 1996, 36, 367–376. [Google Scholar] [CrossRef]
