Next Article in Journal
Toward an Efficient Prediction of Solar Flares: Which Parameters, and How?
Next Article in Special Issue
Physical Properties of High Entropy Alloys
Previous Article in Journal
Optimal Entropy-Based Cooperative Spectrum Sensing for Maritime Cognitive Radio Networks
Previous Article in Special Issue
Searching for Next Single-Phase High-Entropy Alloy Compositions
Article Menu

Export Article

Open AccessArticle
Entropy 2013, 15(11), 5012-5021; doi:10.3390/e15115012

Microstructures and Mechanical Properties of TiCrZrNbNx Alloy Nitride Thin Films

Institute of Nanomaterials, Chinese Culture University, Taipei 111, Taiwan
*
Author to whom correspondence should be addressed.
Received: 20 September 2013 / Revised: 10 November 2013 / Accepted: 13 November 2013 / Published: 18 November 2013
(This article belongs to the Special Issue High Entropy Alloys)
View Full-Text   |   Download PDF [2008 KB, uploaded 24 February 2015]   |

Abstract

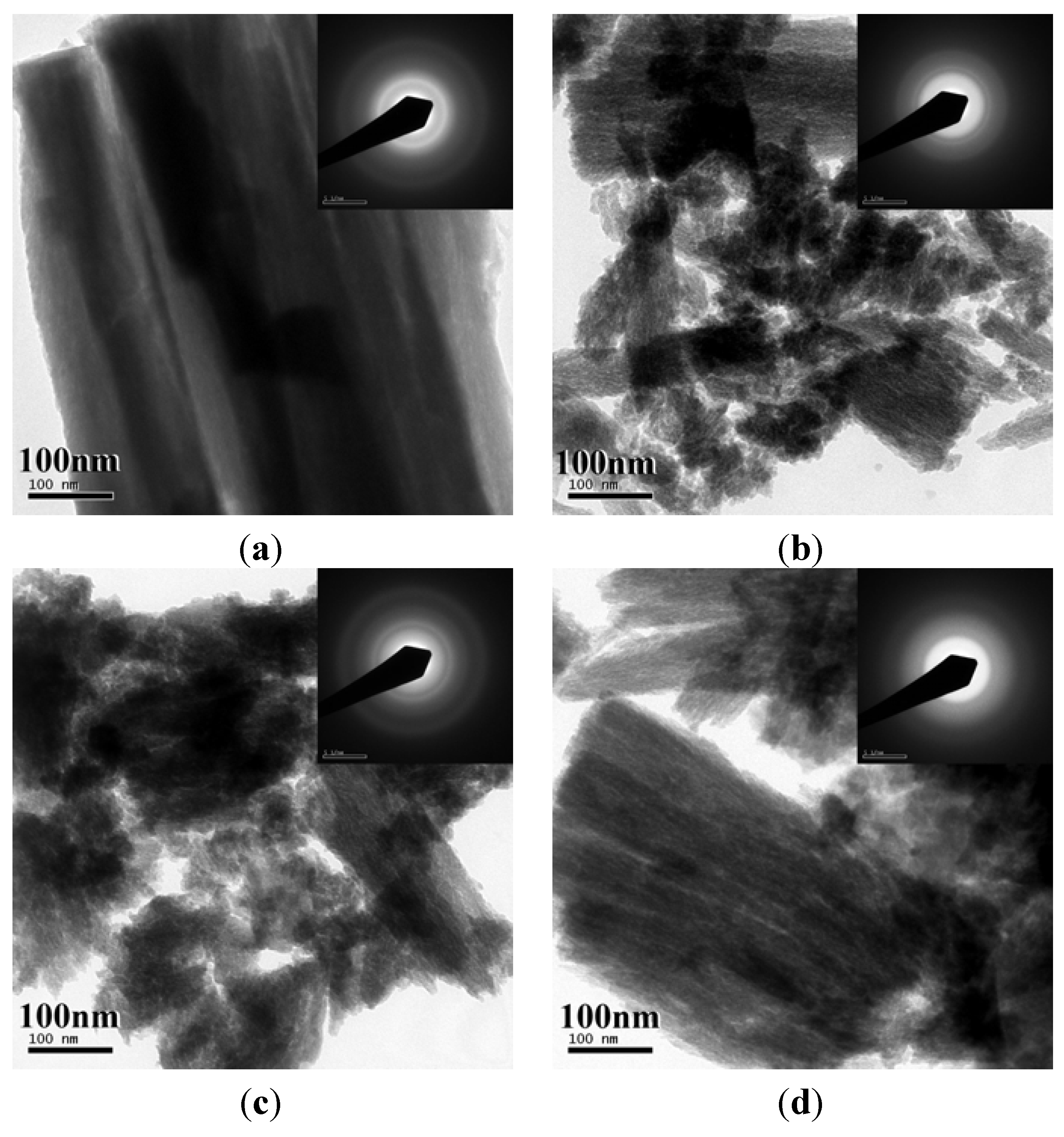

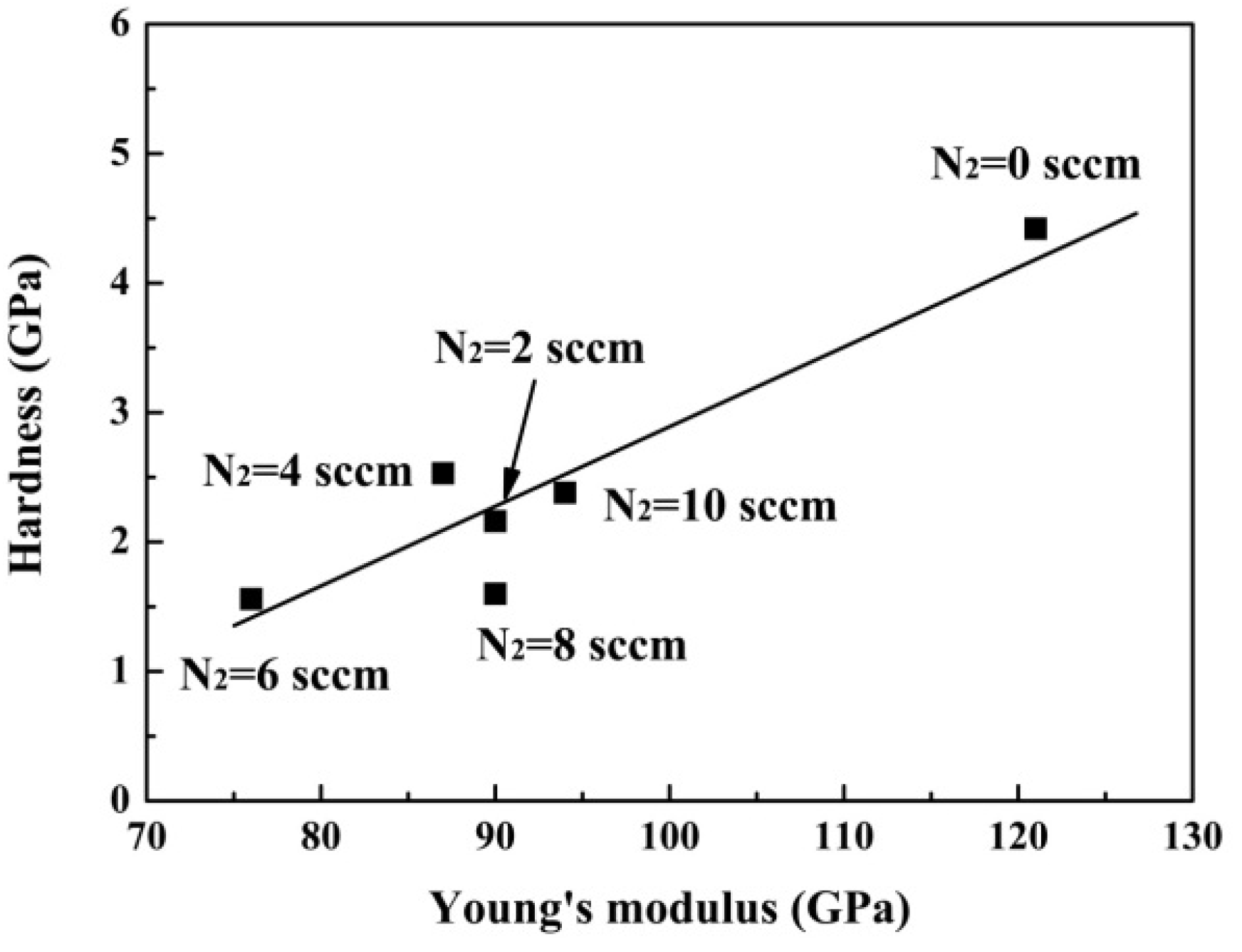

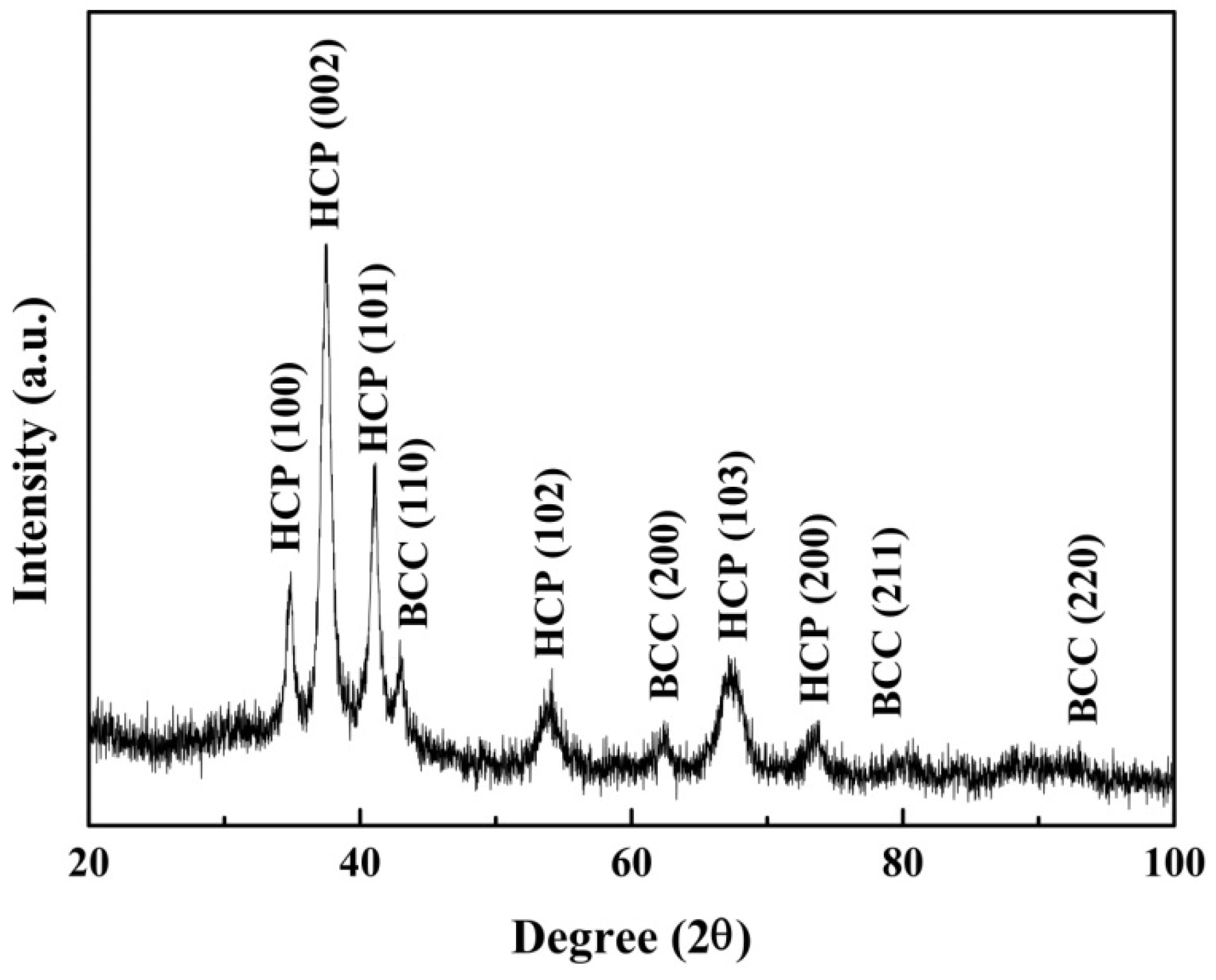

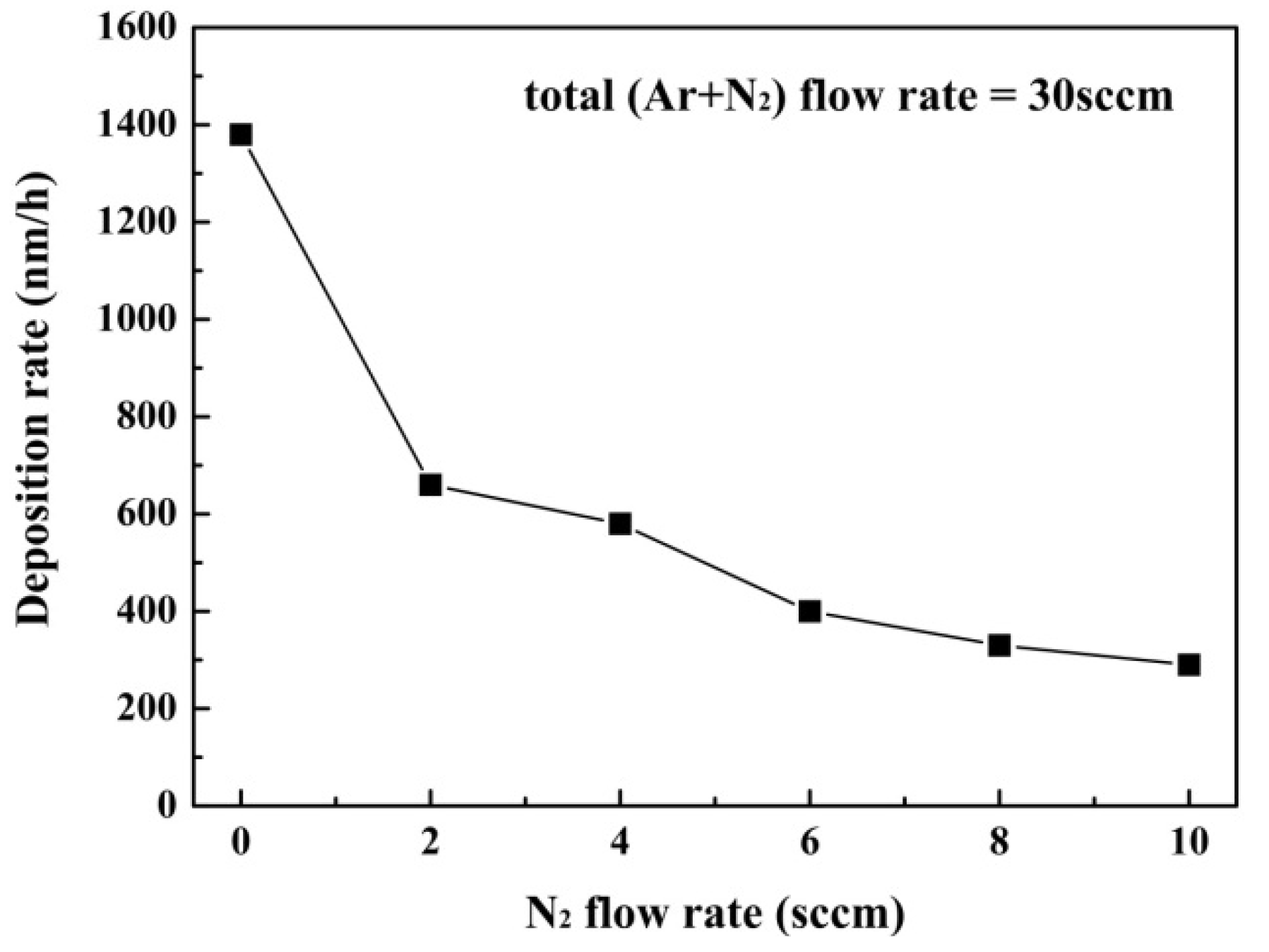

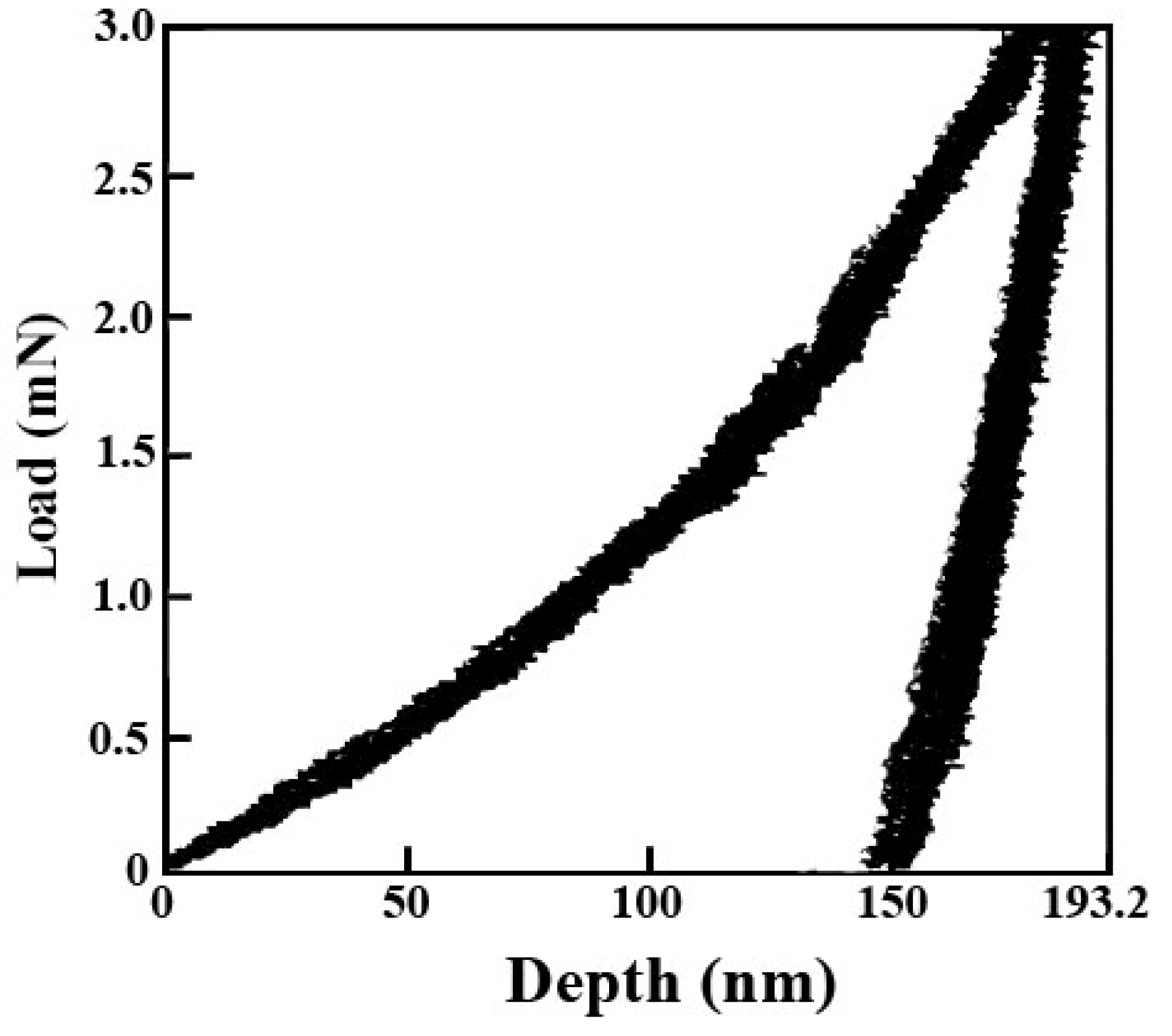

The pure elements Ti, Zr, Cr, Nb were selected to produce an TiCrZrNb alloy target and deposited thin films thereof by a reactive high vacuum DC sputtering process. Nitrogen was used as the reactive gas to deposit the nitride thin films. The effect of nitriding on the properties of the TiCrZrNbNx film was tested by changing the nitrogen ratio of the atmosphere. All of the as-deposited TiCrZrNbNx nitride films exhibited an amorphous structure. The film thickness decreases by increasing the N2 flow rate, because the Ar flow rate decreased and the target was poisoned by nitrogen. The hardness and Young’s modulus were also measured by a nano-indenter. The hardness and Young’s modulus of the TiCrZrNbNx nitride films were all lower than those of a TiCrZrNb metallic film. View Full-Text
Keywords: TiCrZrNbNx; nitride film; microstructure; deposition rate; hardness; Young’s modulus TiCrZrNbNx; nitride film; microstructure; deposition rate; hardness; Young’s modulus
This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Tsau, C.-H.; Chang, Y.-H. Microstructures and Mechanical Properties of TiCrZrNbNx Alloy Nitride Thin Films. Entropy 2013, 15, 5012-5021.

Show more citation formats Show less citations formats

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Entropy EISSN 1099-4300 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
