Article

Proteasome and NF-κB Inhibiting Phaeophytins from the Green Alga Cladophora fascicularis

1
State Key Laboratory of Natural and Biomimetic Drugs, Peking University, Beijing 100083, P.R. China
2
Institute of Oceanology, Chinese Academy of Sciences, Qingdao 266071, P.R. China
3
Analytic and Testing Center, Beijing Normal University, Beijing 100073, P.R. China
*
Author to whom correspondence should be addressed.
Molecules 2007, 12(3), 582-592; https://doi.org/10.3390/12030582
Submission received: 18 February 2007 / Revised: 18 March 2007 / Accepted: 21 March 2007 / Published: 21 March 2007

Abstract

:
Chemical examination of the green alga Cladophora fascicularis resulted in the isolation and characterization of a new porphyrin derivative, porphyrinolactone (1), along with five known phaeophytins 2-6 and fourteen sterols and cycloartanes. The structure of 1 was determined on the basis of spectroscopic analyses and by comparison of its NMR data with those of known phaeophytins. Compounds 1-6 displayed moderate inhibition of tumor necrosis factor alpha (TNF-α) induced nuclear factor-κB (NF-κB) activation, while 2 and 4 displayed potential inhibitory activity toward proteasome chymotripsin-like activation. The primary structure-activity relationship was also discussed.

Introduction

The genus Cladophora (Cladophoraceae) is a group of filamentous green algae that grows widely in eutrophic wastewater and marine intertidal zones. Previous chemical investigations indicated that Cladophora mainly containing sterol derivatives [1,2,3]. Terpenes [4] from C. vagabunda in Black Sea and a brominated diphenyl ether from C. fascicularis [5] were also reported. In the course of our investigation of chemical diversity and the bioactive compounds from marine plants, the green alga C. fascicularis was collected from shallow seawater along the coastline of Qingdao, China. The EtOH extract showed moderate cytotoxicity against human tumor cell lines, including Hela and LH-1210 (inhibition rates of 92% and 85% per 20 μg/mL, respectively). Chromatography of this extract resulted in the isolation of six phaeophytin derivatives 1-6, along with eight steroids and six cycloartanes. In this paper, we report the structural elucidation of the new phaeophytin derivative porphyrinolactone (1), and the inhibitory effects of compounds 1-6 against proteasome chymotripsin-like and TNF-α-induced NF-κB activation.

Results and Discussion

Extensive chromatography of EtOH extract of marine alga C. fascicularis resulted in the isolation and characterization of six phaeophytins 1-6 (Figure 1), along with fourteen known steroids and cycoartanes. Porphyrinolactone (1) was determined as a new paeophytin derivative, while 2 to 6 were identified as 20-chlorinated (132-S)-hydroxyphaeophytin A (2), (132-S)-hydroxyphaeophytin B (3) and A (5), and (132-R)-hydroxyphaeophytin B (4) and A (6) through spectroscopic analyses and by comparison of their NMR data with literature values [6,7]. Compound 2 was isolated from Nature for the first time, and its incomplete NMR data [8] was fully assigned through extensive 2D NMR spectroscopic analyses. Compounds 3-6 were previously isolated from liverwort and hornwort and reported to possess cytostatic and antibacterial activities [9].

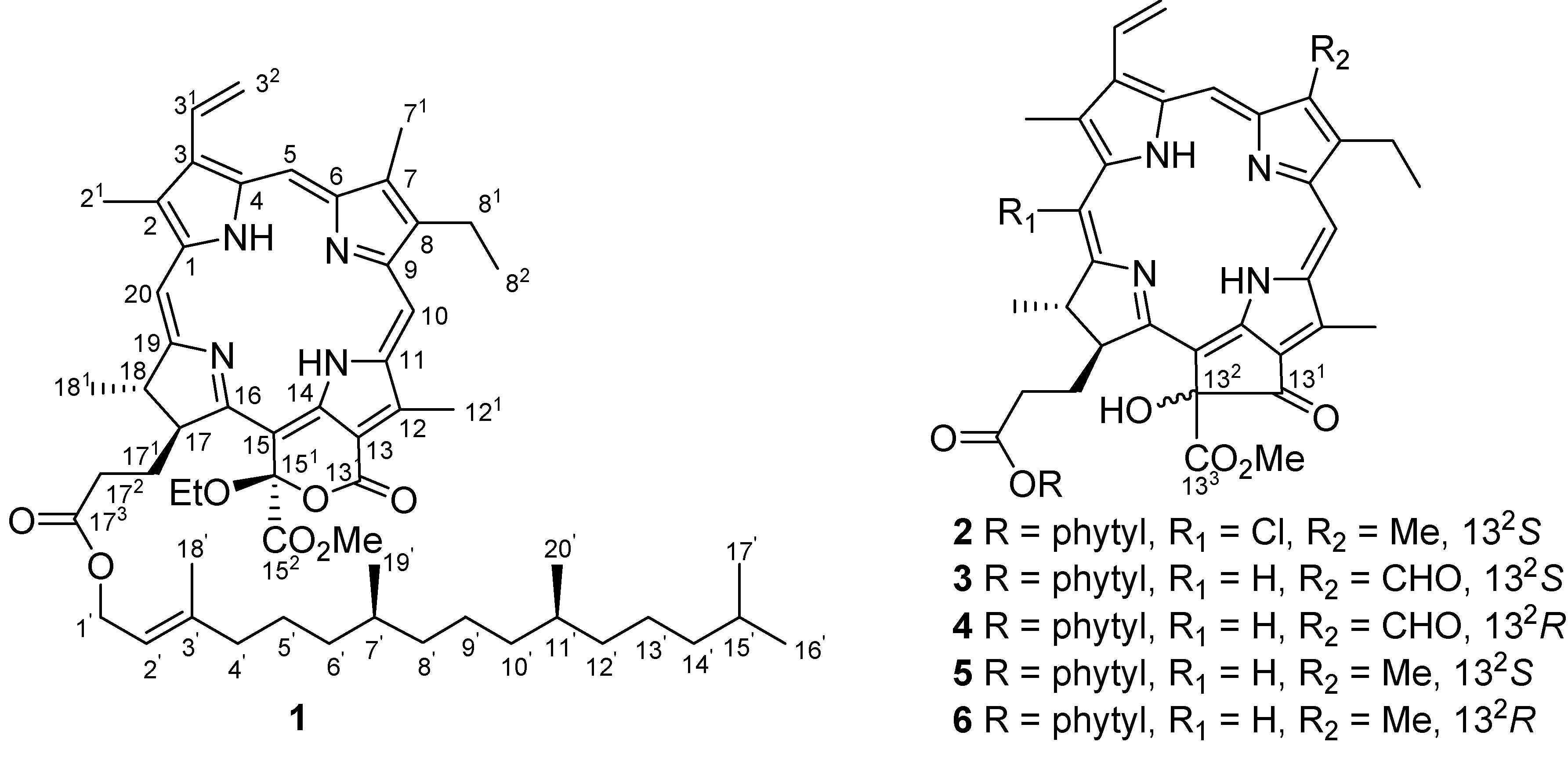

Figure 1. Structures of compounds 1-6.
Figure 1. Structures of compounds 1-6.
Molecules 12 00582 g001
Porphyrinolactone (1) was isolated as a brown-red amorphous solid, and its molecular formula was determined as C57H78N4O7 by HRFABMS (m/z 931.5943, calcd. 931.5958), indicating 21 degrees of unsaturation. The IR absorptions at 3343, 1741, and 1603 cm-1 and the UV bands at 224, 302, 400, 499, 529, 612, and 668 nm were characteristic of a porphyrin-based ester. In the 1H-NMR spectrum, three unusual downfield-shifted olefinic protons at δH 9.55 (s), 9.78 (s), and 8.75 (s) were characteristic of H-5, H-10, and H-20 of porphyrin nucleus. The 1H-NMR signals observed at δH 3.47 (s, H3-21), 3.29 (s, H3-71), and 3.94 (s, H3-121) for three olefinic methyl groups, and the proton resonances at δH 8.02 (dd, J = 11.5, 17.5 Hz, H-31), 6.36 (dd, J = 2.3, 17.5 Hz, H-32a), and 6.20 (dd, J = 2.3, 11.5 Hz, H-32b) for a mono-substituted vinyl group corresponded to those of phaeophytin A and its derivatives [7,10]. The 1H- and 13C-NMR data of 1 closely resembled those of 132-hydroxyphaeophytin A, expect for ring E, where 1 present a conjugated carbonyl carbon at δC 161.4 (s) and a quaternary carbon at δC 106.3 (s, C-151) instead of the resonances at δC 192.0 (s) and 89.1 (s) for the corresponding carbons of the former. The NMR data, in association with the degrees of unsaturation, allowed us to establish a conjugated δ-lactone structure, that was supposed to be formed between C-131-C-132 bond at ring E of 132-hydroxyphaeophytin A via oxidation and ring cleavage. An additional ethoxy group was identified from the 1H resonances at δH 4.36 (q, J = 7.0 Hz, H2-1”) and 1.60 (t, J = 7.0 Hz, H3-2”) and the respective carbons at δC 62.4 (t) and 15.6 (q). This ethoxy group was deduced to be positioned at C-132 based on the HMBC correlation between H2-1” and C-151. In addition, a phytyl moiety was confirmed by extensive 2D NMR (DQFCOSY, HMQC, and HMBC) spectroscopic data analyses, and this unit was connected to the carbonyl carbon C-173 to form an ester according to the HMBC correlation. The configuration of C-151 was determined to be R, based on the downfield shift of H-17 (δH 4.82), in contrast with δH 4.16 ppm for the S configuration, as concluded by Nakatani [9]. The stereochemistry of ring D was assumed to be 17S and 18S as in “normal” phaeophytins, which was supported by 90o dihedral angle between vicinal protons H-17 (δH 4.82, d) and H-18 (δH 4.45, q) for trans orientation, and the NOE correlations between H-17 and H3-181 (δH 1.62, d) and the methoxy protons at δH 3.60 (s). The δ-lactone of 1 was supposedly be generated from phaeophytin A as a precursor via an allomerization pathway (Scheme 1) [10]. The ethoxy group was assumed to be introduced as an artifact during the EtOH extraction process.

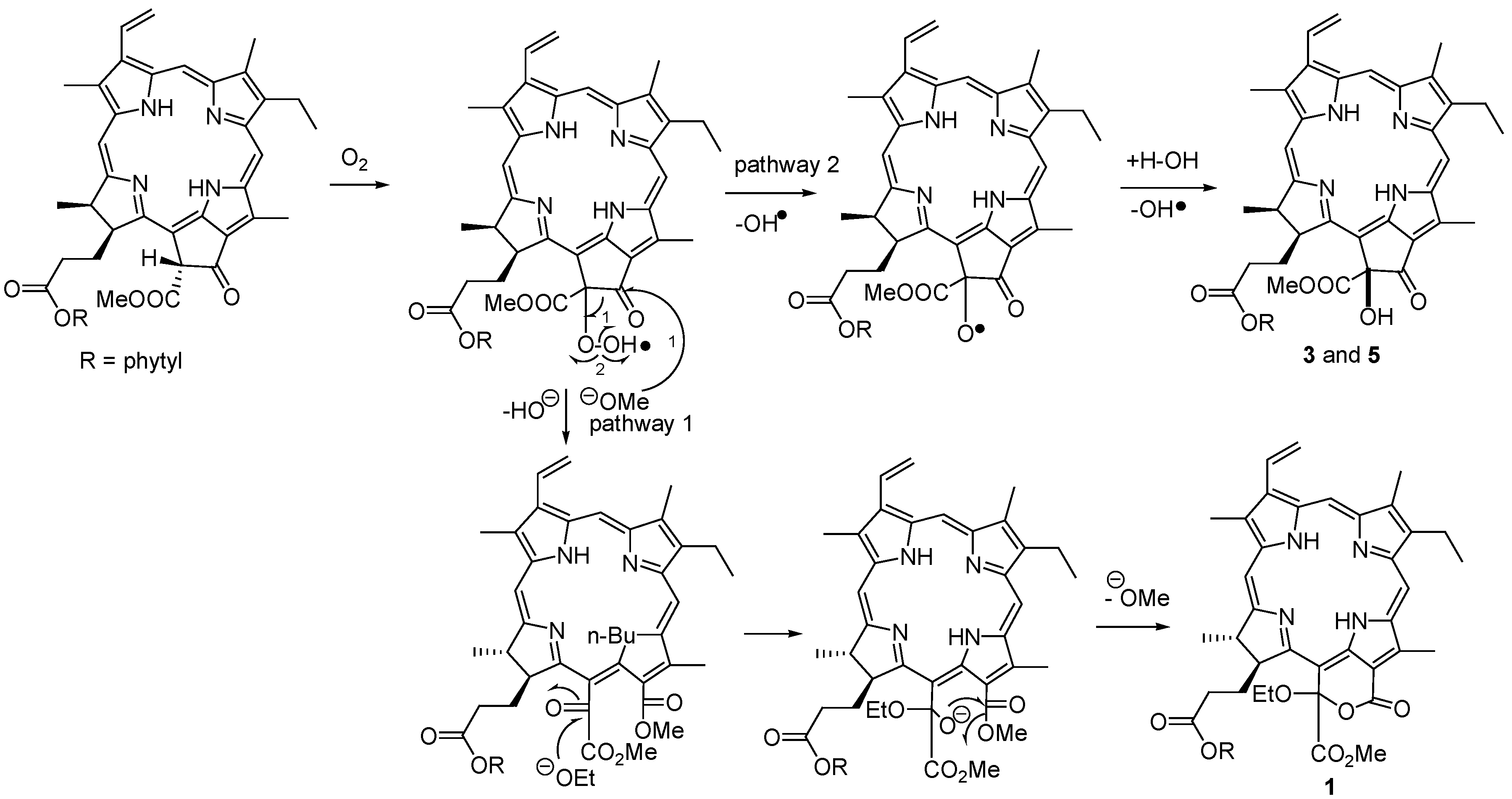

Scheme 1. Hypothetical biotransformation from phaeophytin A to 1.
Scheme 1. Hypothetical biotransformation from phaeophytin A to 1.
Molecules 12 00582 g004
The remaining known compounds were identical to sterols β-sitosterol [11], β-sitosterol-7-one [11], ergosta-5,24(28)-dien-3β-ol [11], ergosta-5,24(28)-dien-3β-ol-7-one [11], fucosterol [12], saringo- sterol [12], 24(28)epoxystigmast-5-dien-3β-ol [12], and 24-hydroperoxy-28-vinyl-cholesterol [12], while the six cycloartanes were consistent with 24-hydroperoxy-cycloart-25-en-3β-ol [13,14], cycloart-25-en-3β, 24-diol [15], 25-hydroperoxycycloart-23-en-3β-ol [13], cycloart-23-en-3β, 25-diol [13,14], cycloart-23,25-dien-3β-ol [16], and cycloart-24-en-3β-ol [13,14]. These compounds were identified by directly comparison of their spectroscopic data with literature values. The cycloartane-type derivatives were obtained for the first time from marine algae.
Previous reports had indicated that pheophorbide possessed the capability to interfere with NF-κB activation [17]. In this study, we tested compounds 1-6 for their in vitro inhibitory effects against NF-κB translocation activated by TNF-α (tumor necrosis factor alpha) under condition so as to avoid illumination by HCS. Results are shown in Figure 2.

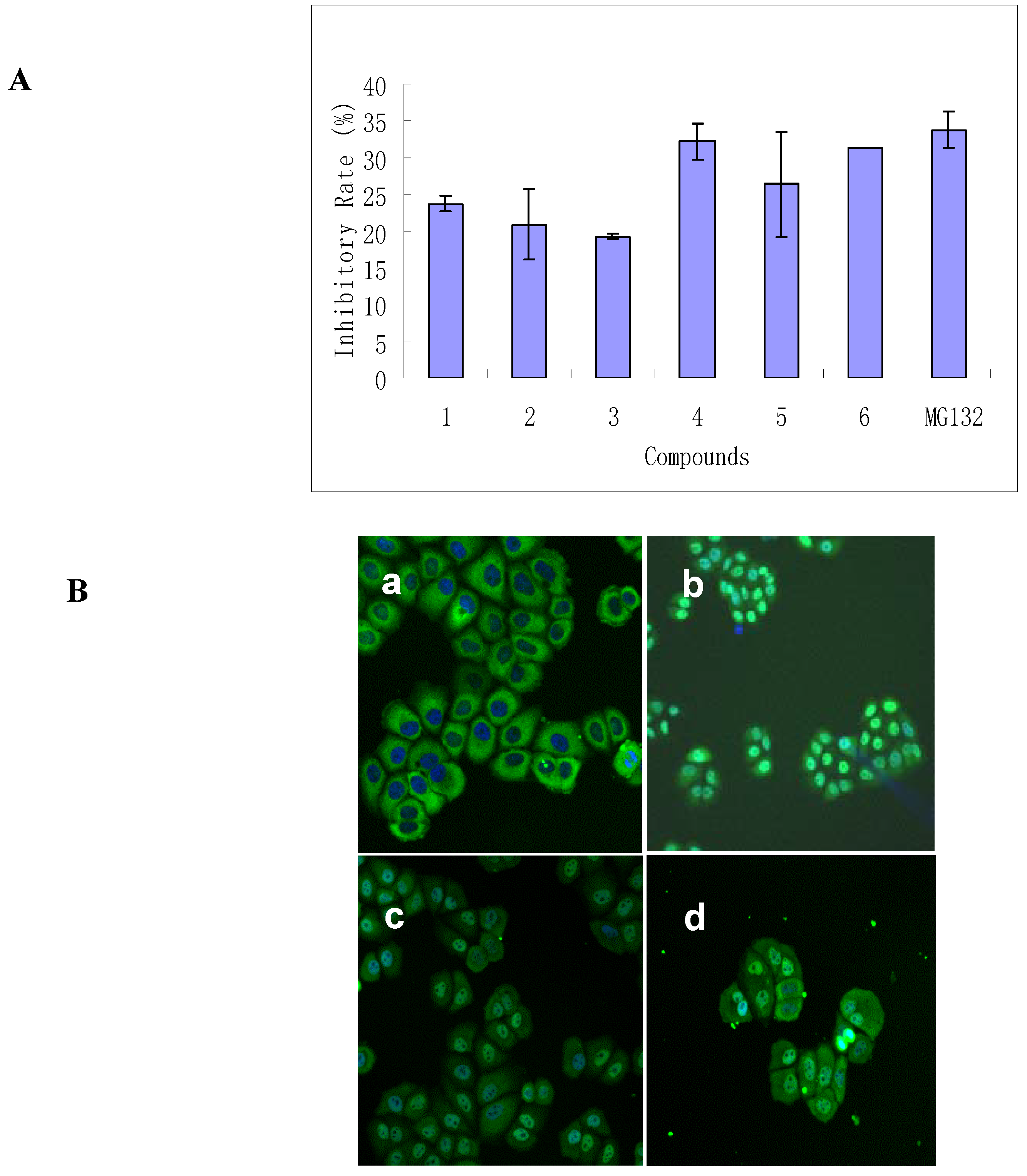

Figure 2. Inhibitory effect of 1-6 on TNF-α- induced NF-κB activation in HeLa cells. A. Percentage of inhibitory rate of NF-κB activation induced by 50 ng/ml of TNF-α in HeLa cells after treatment with of 1-6 (50 μM for each). MG132 (5 μM) was used as a positive control. B. Composite imagines of HeLa cells treated with DMSO (0.1%) (a), TNF-α (50 ng/ml) (b), TNF-α (50 ng/ml) + 4 (10 μM) (c); TNF-α (50 ng/ml) + 4 (50 μM) (d).
Figure 2. Inhibitory effect of 1-6 on TNF-α- induced NF-κB activation in HeLa cells. A. Percentage of inhibitory rate of NF-κB activation induced by 50 ng/ml of TNF-α in HeLa cells after treatment with of 1-6 (50 μM for each). MG132 (5 μM) was used as a positive control. B. Composite imagines of HeLa cells treated with DMSO (0.1%) (a), TNF-α (50 ng/ml) (b), TNF-α (50 ng/ml) + 4 (10 μM) (c); TNF-α (50 ng/ml) + 4 (50 μM) (d).
Molecules 12 00582 g002
Compounds 1-6 exhibited significant inhibitory effects on the activation of NF-κB (Figure 2A), while 4 and 6 showed potential suppression with inhibition rates that were comparable with the value of MG132 (a positive control for NF-κB translocation). In parallel, the morphological changes of NF-κB translocation indicated by immunofluorescence staining (Figure 2B) showed an inhibitory effect of 4 on TNF-α-induced NF-κB translocation in a dose-dependent manner. In cells treated with solvent control (Figure 2Ba), most of the fluorescence staining for NF-κB are in the cytoplasm and rare NF-κB staining in nuclei area. When stimulating the cells with the TNF-α alone (Figure 2Bb), NF-κB staining significantly increased in nuclei area, suggesting that NF-κB translocated from cytoplasm into the nucleus. However, HeLa cells were treated with 4 by using the dosages of 10 and 50 μM (Figure 2Bc,d), NF-κB translocation induced by TNF-α was inhibited dose-dependently. This result provided a new evidence to support the suggestion that the cytotoxic effect of chlorophyll derivatives can occur through mechanisms other than phytodynamic action [18].In order to understand the molecular mechanism of 1-6 on the inhibitory effect of NF-κB translocation, we examined their effect on proteasome ChT-L activity (Figure 3) by using an in vitro enzymatic activity assay. Compounds 2 and 4 showed a remarkable inhibitory effect on proteasome ChT-L activity (inhibitory rates among 70-73.5%), while 3 exhibited moderate activity. The primary bioassay result implied that paeophytin b type (3-4) showed stronger inhibition toward to proteasome ChT-L than that of paeophytin a type (5-6), indicating the aldehyde functionality at C-7 plays a key role in the inhibitory effect. Comparison of inhibitory activity between epimers 3 and 4, and between 5 and 6, revealed that a 132-S configuration gave stronger inhibition than that of 132-R. The 20-chlorinated 132-S paeophytin A (2) increased the inhibitory effect by comparison with the data of 132-S paeophytin A. This was the first time phaeophytins were reported to inhibit proteasome ChT-L activity, but the present data could not provide evidence to explain the relationship of inhibitory effects between NF-κB and ChT-L, although the proteasome inhibition is related to NF-κB inhibition.

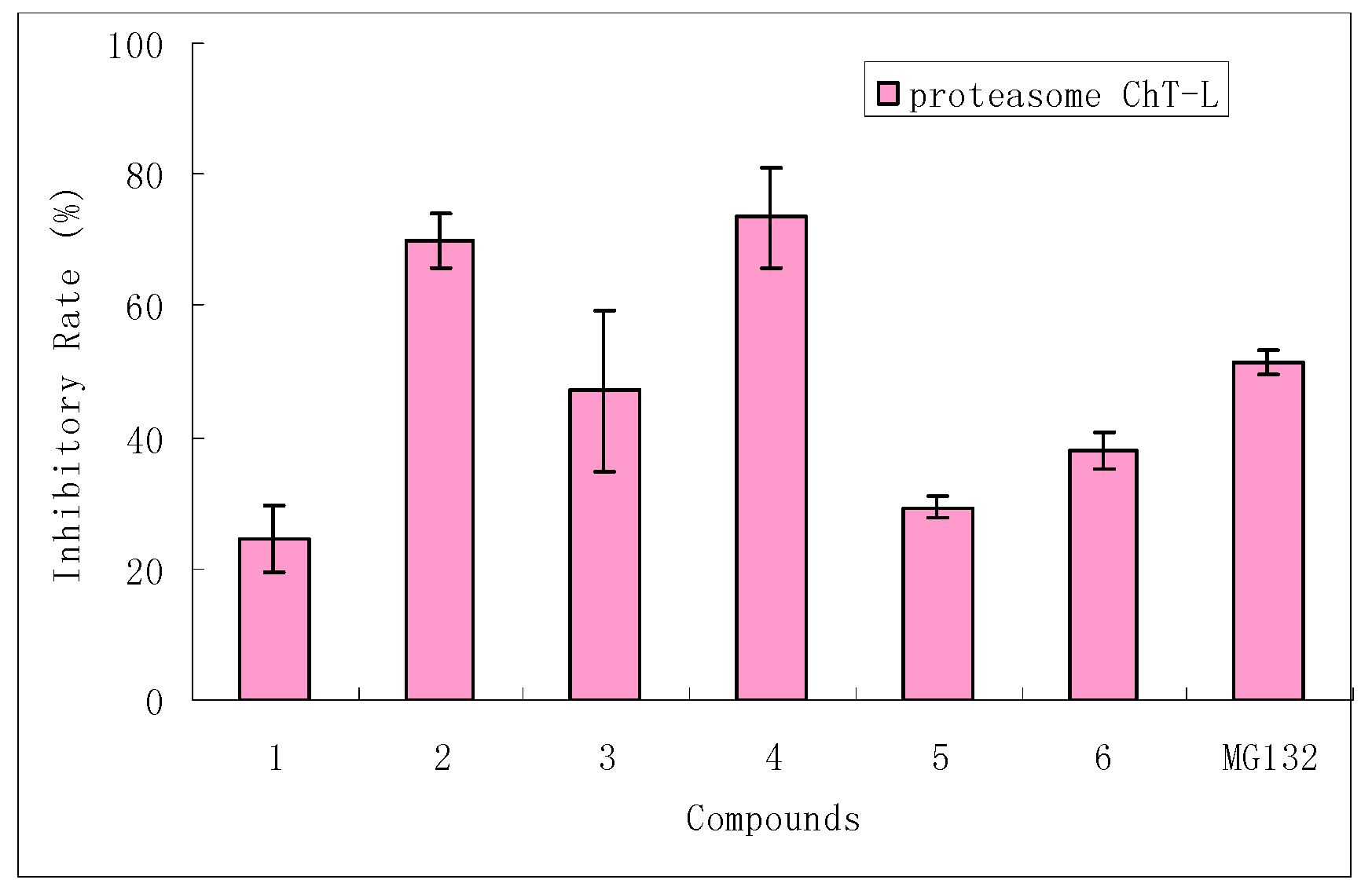

Figure 3. Effect of 1-6 on 20S proteasome ChT-L activity. 20S proteasome was incubated with compounds 1-6 (50 μM of each) and fluorogenic peptide (100 μM) in 100 μL of 20 mM Tris-HCl (pH 7.8), at 37 ºC for 1 hour. The proteasome ChT-L activity was assayed after addition of specific substrate. MG132 (1.0 μM) was used as a positive control. Data were measured by means of ± SD from three independent experiments.
Figure 3. Effect of 1-6 on 20S proteasome ChT-L activity. 20S proteasome was incubated with compounds 1-6 (50 μM of each) and fluorogenic peptide (100 μM) in 100 μL of 20 mM Tris-HCl (pH 7.8), at 37 ºC for 1 hour. The proteasome ChT-L activity was assayed after addition of specific substrate. MG132 (1.0 μM) was used as a positive control. Data were measured by means of ± SD from three independent experiments.
Molecules 12 00582 g003
The ubiquitin-proteasome pathway (UPP) is a major nonlysosomal system responsible for intracellular protein degradation in eukaryotic cells [19]. The key proteins modulated by the proteasome are those involving in the affection of inflammatory processes, cell cycle regulation, and gene expression. Proteasome inhibition is a potential treatment option for cancer and inflammatory conditions [20,21], NF-κB is a crucial transcription factor mediated by immune responses and cellular growth. It is regulated by interaction with an inhibitor protein named inhibitor of κB (IκB). In quiescent cells, NF-κB presents in the cytoplasm and binds to its inhibitor IκB. When a cell is stimulated by stress, growth factors, radiation, etc; IκB could be phosphorylated and degraded by the UPP, freeing NF-κB to translocate to the nucleus where it activates transcription. Proteasome inhibition could stabilize IκB-NF-κB complex making the NF-κB inactive [22]. Thereby, the NF-κB signaling pathway is an important target of proteasome inhibitors for the prevention and treatment drugs against cancer and inflammation. Moreover, NF-κB constitutive activity is one of the most important reasons that leading the MRD (multidrug resistance) of tumor cells [23]. Thus, the inhibitor of proteasome and NF-κB activities will be a promising candidate for new anti-inflammation or anticancer drug, especially for MRD tumour cells.

Experimental

General

IR spectra were recorded on a Perkin-Elmer Nicol FT-50X spectrometer. UV spectra were measured on a UV-VIS spectrophotometer 756MC. 1H-, 13C-NMR and 2D NMR spectra were recorded on Bruker Avance-500 FT NMR or Varian INOVA 500 MHz spectrometers, and chemical shifts were referenced to the solvent CDCl3 as internal standard. FABMS spectra were measured on a Bruker FTICR APEXII mass spectrometer while HRFABMS were measured on a Bruker Daltonics. Inc. APEX-II FTPICRMS. Column chromatography was carried with silica gel (200-300 mesh), and HF254 silica gel for TLC was obtained from Qingdao Marine Chemistry Co. Ltd., Qingdao, China. Sephadex LH-20 (18-110 μm) was provided by Pharmacia Co.

Algal material

The green alga Clodophora fascicularis was collected in shallow seawater along the coastline of Qingdao, China, in November 2003. The algal species was identified by Professor Baoren Lu from the Institute of Oceanology, Chinese Academy of Science (CAS). A voucher specimen (no. 20031101) is deposited at the Institute of Oceanology Chemistry Department of Marine Algae.

Extraction and isolation

Air-dried C. fascicularis (6.5 kg) was percolated with EtOH under room temperature for one week. The EtOH extract was concentrated in vacuo to afford a dark green residue (308.0 g). This residue was suspended in water and then partitioned successively with petroleum ether, EtOAc, and n-BuOH. The petroleum ether fraction (40.0 g) was subjected to silica gel column chromatography eluting with a 100:1 to 1:1 gradient of petroleum ether-EtOAc. The collection was monitored by TLC to obtain 20 fractions F1-F20. F10 (80 mg) was subjected to Sephadex LH-20 column chromatography with an 4:1 MeOH-H2O eluant to afford 1 (6.0 mg), 2 (6.0 mg), and saringosterol (11.0 mg). F13 (50.0 mg) was separated by Sephadex LH-20 column chromatography eluting with (4:1) MeOH-H2O to yield 5 (20.0 mg), 6 (15.0 mg), 24-hydroperoxy-28-vinylcholesterol (21.0 mg) and 24-hydroperoxycycloart-25- en-3β-ol (7.0 mg), respectively. F14 (200 mg) was treated in the same manner as F13 on a Sephadex LH-20 column chromatography to give a main fraction which was further purified on a silica gel column with 8:1 petroleum ether-acetone as eluant to afford 3 (4.0 mg), 4 (4.5 mg), β-sitosterol (31 mg), β-sitosterol-7-one (5.6 mg), and 25-hydroperoxycycloart-23-en-3β-ol (15.0 mg). F8 (70 mg) was further chromatographed on a silica gel column and eluted with 20:1 petroleum ether-acetone to afford fucosterol (30.0 mg), 24(28)epoxystigmast-5-dien-3β-ol (15.0 mg) and cycloart-25-en-3β, 24-diol (5.6 mg). F9 (180 mg) was chromatographed on a silica gel column in the same manner as F-8 to afford ergosta-5,24(28)-dien-3β-ol-7-one (11.0 mg). F17 (150.0 mg) was repeatedly separated by silica gel column chromatography eluting with 4:1 petroleum ether-acetone to yield ergosta-5,24(28)-dien-3β-ol (9.0 mg), cycloart-23-en-3β,25-diol (15.0 mg), cycloart-23,25-dien-3β-ol (2.5 mg), and cycloart-24- en-3β-ol (4.0 mg).

Chemical and physical data of porphyrinolactone (1)

Brown-red amorphous powder; IR (KBr) νmax 3343, 2955, 2925, 2855, 1741, 1603, 1460, 1378, 1250, 1162, 1086 cm-1; UV (MeOH) λmax 224, 302, 400, 499, 529, 612, 668 nm; FABMS m/z 931 [M+1]+; HRFABMS m/z 931.5958 (calcd for C57H79N4O7, 931.5943); 1H- and 13C-NMR data, see Table 1.

Chemical and physical data of 20-chloro-(132-S)-hydroxyphaeophytin A (2)

Brown-green amorphous powder; IR (KBr) νmax 3367, 2955, 2923, 2852, 1740, 1715, 1608, 1461, 1223, 1159, 1107 cm-1; UV (MeOH) λmax 218, 300, 412, 513, 544, 617, 676 nm; FABMS m/z 921 [M + 1] +; HRFABMS m/z 943.5160 (calcd for C55H73ClN4O6Na, 943.5110). 1H- and 13C-NMR data, see Table 1.
Table 1. 1H- and 13C-NMR data of compounds 1 and 2 (500/125 MHz, respectively, in CDCl3; δ in ppm, J in Hz).
Table 1. 1H- and 13C-NMR data of compounds 1 and 2 (500/125 MHz, respectively, in CDCl3; δ in ppm, J in Hz).
No.Compound 1Compound 2
CHCH
1141.3 s 137.9 s
2131.6 s 132.2 s
2112.1 q3.47 s17.1 q3.64 s
3136.3 s 139.9 s
31129.0 d8.02 dd 11.5, 17.5129.5 d8.00 dd 11.5, 17.5
32122.7 t6.20 dd 2.3, 17.5
6.36 dd 2.3, 11.5
125.0 t6.22 dd 2.3, 17.5
6.34 dd 2.3, 11.5
4135.1 s 133.7 s
599.5 s9.55 s99.9 d9.72 s
6156.0 s 154.1 s
7136.1 s 137.3 s
7111.3 q3.29 s11.3 q3.32 s
8145.5 s 144.9 s
8119.6 t3.76 q 7.019.5 t3.77 q 7.0
8217.6 q1.73 t 7.017.4 q1.74 t 7.0
9150.0 s 152.1 s
10104.1 d9.78 s103.8 d9.72 s
11139.1 s 139.5 s
12131.4 s 131.0 s
12112.5 q3.94 s12.4 q3.78 s
13112.2 s 128.1 s
131161.4 s 191.8 s
132 89.3 s
133 172.8 s
14136.3 s 149.0 s
15101.5 s 108.3 s
151106.3 s
152169.1 s
16167.8 s 162.9 s
1753.9 d4.82 d 7.051.8 d4.20 d 7.5
17132.2 t1.90 m; 2.62 m31.6 t1.92 m; 2.60 m
17232.5 t2.21 m; 2.48 m30.8 t2.20 m; 2.46 m
173173.2 s 173.5 s
1850.0 d4.45 q 7.050.0 d4.89 q 7.0
18122.6 q1.62 d 7.019.7 q1.50 d 7.0
19171.8 s 171.2 s
2094.0 d8.75 s106.4s
1’61.3 t4.43 d 7.061.6 t4.62 d 7.0
2’117.8 d5.16 t 7.0117.8 d5.26 t 7.0
3’142.6 s 142.8 s
4’39.8 t1.90 m39.8 t1.88 m
5’24.8 t1.60 m; 1.72 m24.8 t1.62 m; 1.70 m
6’36.6 t1.00 m; 1.20 m36.6 t1.00 m; 1.20 m
7’32.6 d1.30 m32.6 d1.32 m
8’37.4 t1.03 m; 1.26 m37.3 t1.03 m; 1.26 m
9’24.81.28 m25.0 t1.28 m
10’36.7 t1.26 m37.3 t1.26 m
11’32.6 d1.30 m32.8 d1.30 m; 1.26 m
12’37.3 t1.03 m; 1.26 m37.2 t1.03 m; 1.26 m
13’24.4 t1.60 m24.4 t1.60 m
14’39.4 t1.15 m39.3 t1.15 m
15’28.0 d1.51 m27.9 d1.50 m
16’22.7 q0.87 d 6.822.7 q0.87 d 6.8
17’22.6 q0.87 d 6.822.6 q0.87 d 6.8
18’16.2 q1.56 s16.3 q1.66 s
19’19.6 q0.76 d 6.519.6 q0.84 d 6.5
20’19.7 q0.82 d 6.519.7 q0.83 d 6.5

Detection of NF-kB activity

HCS (high-content screening) was used to detect data on multiple parameters in single cells as well as in populations of cells [24], aiming to measure the inhibitory effects of compounds on TNF-α-induced NF-κB activation, i.e. nuclear translocation of NF-κB. The HeLa cells were seeded in 96-well microplates and incubated in 24 h for fluorescence detection (Costar 3603) at 5×104 cells/well (100 μL/well). Exponentially growing cells were exposed to 50 μM of compounds 1-6 or PBS (untreated control) and N-carbobenzoxyl-Leu-Leu-leucinal (MG132, 5 μM, positive control), respectively, for 60 min. Afterwards, TNF-α (50 ng/mL, R&D Co.) was added and samples were kept in additional 30 min. The procedure including cell fixation, permeabilization and staining for imaging analysis was prepared according to the manufacturer’s instructions for the NF-κB activation kit (HitKit K01-0001-01, Cellomics). The Cytoplasm to Nucleus Translocation BioApplication (software) is capable of measuring the activation and/or translocation of one target at a time at the single cell level. It analyzes images obtained from the HCS Readers (KineticScan™ Reader, Cellomics) and measures differences and ratios of fluorescence intensities between two sub-cellular compartments: the cytoplasm and the nucleus. In Channel 1, nuclei (DNA) stained with the fluorescent dye Hoechst 33342 defines the nuclear region called Circ. In Channel 2 (the target channel), NF-κB is stained with the second antibody conjugated with the fluorophore Alexa Fluor 488 [25]. An annular region called Ring is defined in the cytoplasm beyond the nuclear (i.e., Circ) region. The size of the Circ and Ring masks in the target channel can be adjusted appropriately so that the Circ and Ring masks approximate a measure of the nuclear and cytoplasm concentration of the target respectively. The output feature MEAN_CircRingAvgIntenDiffCh2 is an indicator of activation/translocation of macromolecules between the nucleus and the cytoplasm in the target channel at the cell level. This feature reports the difference in average pixel intensity between the Circ and Ring mask regions, so it is selected to calculate the inhibitory rate of the compounds on NF-κB activity, and the rate is expressed as a percentage of negative control. All samples were performed at least duplicate and run in triplicate.

Detection for proteasome ChT-L activity

The enzymatic activity of the proteasome was assayed using fluorogenic peptides Suc-Leu-leu-Val-Tyr-AMC [Suc (succinyl) and AMC (7-amido-4-methylcoumarin) were obtained from SIGMA] for chymotryptic-like (ChT-L) activity [26]. 20S proteasome (1.0 μg) was purified from human erythrocytes and then incubated with compounds 1-6 (50 μM of each) and fluorogenic peptides (100 μM) in 20mM Tris-HCl (100 μL, pH 7.8) at 37ºC for 1 h, respectively. The fluorescence of released 7-amido-4-methylcoumarin (AMC) was measured by a spectrofluorimeter (Fluostar OPTIMA, BMG Germany) at excitation/emission wavelengths of 380/440 nm. MG132 (1.0 μM), a known inhibitor of proteasome ChT-L activity and 0.1% DMSO were used as positive and solvent control, respectively. By comparison with the fluorescence of solvent control, an inhibition rate for each compound was calculated. All samples were prepared at least in duplicate and run in triplicate. The bioassays mentioned above were performed under the conditions to avoid illumination.

Acknowledgements

This study was supported by grants from NSFC (No. 30672607), the National Hi-Tech Projects (2006AA09Z446, 2006DFA31100), China Uni-PhD Base Project (20060001149) and the International Cooperation Projects of BMBF-CNCBD. We would like to thank Prof. P. Lin of Xia Men University for identification of the plant material and Professor Bao Ren Lu for the identification of the algae.

References

  1. Duperon, R.; Thiersault, M.; Duperon, P. Occurrence of Steryl Glycosides and Acylated Steryl Glycosides in Some Marine Algae. Phytochemistry 1983, 22, 535–538. [Google Scholar] [CrossRef]
  2. Napoli, L.; Magno, S.; Mayol, L.; Novellino, E. Sterol Composition of Some Mediterranean Green Algae. Phytochemistry 1982, 21, 1993–1994. [Google Scholar] [CrossRef]
  3. Aknin, M.; Moellet-Nzaou, R.; Kornprobst, J. M.; Gaydou, E. M.; Samb, A.; Miralles, J. Sterol Composition of Twelve Chlorophyceae from the Senegalese Coast and Their Chemotaxonomic Significance. Phytochemistry 1992, 31, 4167–4169. [Google Scholar] [CrossRef]
  4. Elenkov, I.; Georgieva, T.; Dadjieva, P.; Dimitrova, S.; Dimitrova-Konaklieva, S.; Popov, S. Terpenoids and Sterols in Cladophora vagabunda. Phytochemistry 1995, 38, 457–459. [Google Scholar] [CrossRef]
  5. Koniyoshi, M.; Yamada, K.; Higa, T. Biologically Active Diphenyl Ether from the Green Alga Cladophora fascicularis. Experientia 1985, 41, 523–524. [Google Scholar] [CrossRef]
  6. Matsuo, A.; Ono, K.; Hamasaki, K.; Nozaki, H. Phaeophytins from A Cell Suspension Culture of the Liverwort Plagiochila ovalifolia. Phytochemistry 1996, 42, 427–430. [Google Scholar] [CrossRef] [PubMed]
  7. Buchanan, M. B.; Hashimoto, T.; Asakawa, Y. Phytyl Esters and Phaeophytins from the Hornwort Megaceros flagellaris. Phytochemistry 1996, 41, 1373–1376. [Google Scholar] [CrossRef]
  8. Senge, M.; Senger, H. Enzymic meso-Chlorination of Chlorphylls Using Chloroperoxidase. Biochim. Biophys. Acta 1989, 977, 177–186. [Google Scholar] [CrossRef]
  9. Nakatani, Y.; Ourisson, G.; Beck, J. P. Chemistry and Biochemistry of Chinese Drugs. VII Cytostatic Pheophytins from Silkworm Excreta and Derived Photocytotoxic Pheophorbides. Chem. Pharm. Bull. 1981, 29, 2261–2269. [Google Scholar]
  10. Hynninen, P. H.; Hyvaerinen, K. Tracing the Allomerization Pathways of Chlorophylls by 18O-Labeling and Mass Spectrometry. J. Org. Chem. 2002, 67, 4055–4061. [Google Scholar] [CrossRef] [PubMed]
  11. Riccardis, F.; Luigi, M. Marine Sterols. Side-Chain-Oxygenated Sterolds, Possibly of Abiotic Origin, from the New Caledonian Sponge Stelodoryx chlorophylla. J. Nat. Prod. 1993, 56, 282–287. [Google Scholar]
  12. Tang, H.; Yi, Y.; Yao, X.; Zhou, D.; Lu, T.; Jiang, Y. Studies on the Bioactive Steroid Constituents form Sargassum carpophllum. Chin. Pharm. J. 2002, 37, 262–265. [Google Scholar]
  13. Cabrera, C. M.; Seldes, A. M. Hydroperoxycycloartanes from Tillandsia recurvata. J. Nat. Prod. 1995, 58, 1920–1924. [Google Scholar] [CrossRef]
  14. Cabrera, C. M.; Gallo, M.; Seldes, A. M. Cycloartane Derivatives from Tillandsia usneoides. J. Nat. Prod. 1996, 59, 343–347. [Google Scholar] [CrossRef]
  15. Greca, M. D.; Fiorentino, A.; Monaco, P.; Previtera, L. Cycloartane Triterpenes from Juncus effusus. Phytochemistry 1994, 35, 1017–1022. [Google Scholar] [CrossRef]
  16. Li, G.; Wang, J.; Li, N.; Li, X. Cycloartane Triterpenoids from the Pericarp of Sphaerophysa salsula DC. J. Shengyang Pharma. Univ. 2003, 20, 252–254. [Google Scholar]
  17. Heinrich, M.; Bork, P. M.; Schmitz, L.; Rimpler, H.; Frei, B.; Sticher, O. Pheaophorbide A from Solanum diflorum Interferes with NF-κB Activation. Planta Med. 2001, 67, 156–157. [Google Scholar] [CrossRef] [PubMed]
  18. Cheng, H.; Wang, H.; Ito, J.; Bastow, K. F.; Tachibana, Y.; Nakanishi, Y.; Xu, Z.; Luo, T.; Lee, K. Cytotoxic Pheophorbide-Related Compounds from Clerodendrum calamitosum and C. cyrtophyllum. J. Nat. Prod. 2001, 64, 915–919. [Google Scholar] [CrossRef]
  19. Kisselev, A.F.; Goldberg, A. L. Proteasome Inhibitors: from Research Tools to Drug Candidates. Chem. Biol. 2001, 8, 739–758. [Google Scholar] [CrossRef] [PubMed]
  20. Elliott, P. J.; Zollner, T. M.; Boehncke, W. H. Proteasome Inhibition: A New Anti-Inflammatory Strategy. J. Mol. Med. 2003, 81, 235–245. [Google Scholar] [PubMed]
  21. Adams, J. Proteasome Inhibition: A Novel Approach to Cancer Therapy. Trends Mol. Med. 2002, 8S, 49–54. [Google Scholar] [CrossRef]
  22. Adams, J. The Proteasome: Structure, Function, and Role in the Cell. Cancer Treat Rev. Suppl 1 2003, 29, 3–9. [Google Scholar] [CrossRef]
  23. Um, J. H.; Kang, C. D.; Lee, B. G.; Kim, D. W.; Chung, B. S.; Kim, S. H. Increased and Correlated Nuclear Factor-Kappa B and Ku Autoantigen Activities are Associated with Development of Multidrug resistance. Oncogene 2001, 20, 6048–6056. [Google Scholar]
  24. Giuliano, K. A.; Dunlay, D. R. L.; Gough, A.; Volosky, J. M.; Zock, J.; Pavlakis, G. N.; Taylor, D. L. High-Content Screening: A New Approach to Easing Key Bottlenecks in the Drug Discovery Process. J. Biomol. Screen. 1997, 2, 249–259. [Google Scholar] [CrossRef]
  25. Vakkila, J.; DeMarco, R. A.; Lotze, M. T. Imaging Analysis of STAT1 and NF-κB Translocation in Dendritic Cells at the Single Cell Level. J. Immuno. Methods 2004, 294, 123–134. [Google Scholar] [CrossRef]
  26. Bo, X.; Monsarrat, B.; Gairin, J. E.; Girbal-Neuhauser, E. Effect of Ajoene, A Natural Antitumor Small Molecule, on Human 20S Proteasome Activity in Vitro and in Human Leukemic HL-60 Cells. Fundam. Clin. Pharmacol. 2004, 18, 171–180. [Google Scholar] [CrossRef] [PubMed]
  • Sample availability: Samples are available from the authors
