Synthesis and Characterization of 5,10,15,20-Tetra[3-(3-trifluoromethyl)phenoxy] Porphyrin

Abstract

The newly synthesized 5,10,15,20-tetra[3-(3-trifluoromethyl)phenoxy] porphyrin, TTFMPP, has been characterized using mass spectroscopy, ¹H-, ¹³C- and ¹⁹F- NMR, MALDI-TOF mass spectrometry, UV-Vis and fluorescence spectrophotometry, and cyclic voltammetry. The NMR confirmed the structure of the compound and the mass spectrum was in agreement with the proposed molecular formula. The UV-Vis absorption spectrum of TTFMPP shows characteristic spectral patterns similar to those of tetraphenyl porphryin, with a Soret band at 419 nm and four Q bands at 515, 550, 590, and 648 nm. Protonation of the porphyrin with TFA resulted in the expected red shift of the Soret band. Excitation at 419 nm gave an emission at 650 nm. The quantum yield of the porphyrin was determined to be 0.08. Cyclic voltammetry was used to determine the oxidation and reduction potentials of the new porphyrin. Two quasi-reversible one-electron reductions at –1.00 and –1.32 V and a quasi-reversible oxidation at 1.20 V versus the silver/silver chloride reference electrode with tetrabutylammonium tetrafluoroborate as the supporting electrolyte in methylene chloride were observed.

Introduction

Porphyrins are molecules that are being vigorously pursued in many areas of research [1,2,3,4,5,6,7,8,9,10,11,12,13]. It has been shown that these molecules are of importance in many applications including, but not limited to, sensors [1,2,3,4,5,6,7], optical memories [8,9,10], and photocatalysis [11,12,13]. Many of these applications take advantage of the ability of porphyrins to undergo fast electron transfer. For example, electron transfers have been shown to take place on a picosecond time scale in photosynthesis [14]. Also, of importance to many of these applications is the region of the spectrum in which the molecules absorb. Porphyrins are known to have intense absorptions exhibited by the high extinction coefficients of the Soret and Q-bands of these molecules between 400 nm and 700 nm. The absorptions of porphyrins are somewhat tunable by choice of substituents.

The focus of this research involves the synthesis of a new porphyrin with a trifluoromethylphenoxy group substituted in the meso position. This electron withdrawing substituent should afford the porphyrin different electronic properties than compounds previously synthesized. The synthesis of this molecule and its characterizations are reported in this paper. The molecule has been structurally characterized by mass spectrometry and NMR. The electronic structure and properties of the chromophore have been investigated using electronic absorption spectroscopy, fluorescence spectroscopy and cyclic voltammetry.

Results and Discussion

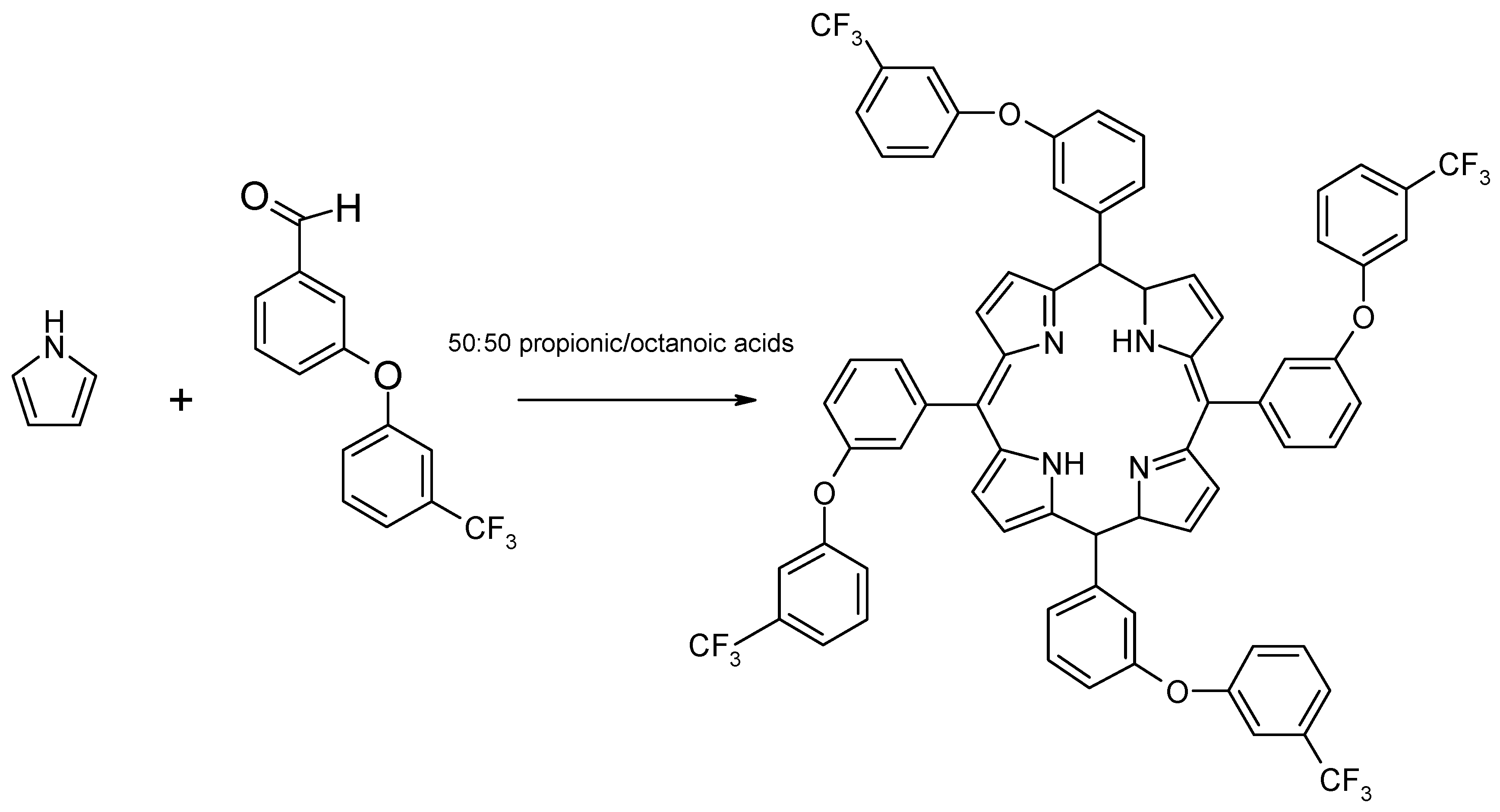

5,10,15,20-Tetra[3-(3-trifluoromethyl)-phenoxy] porphyrin, TTFMPP, was prepared from pyrrole and 3-[3-(trifluoromethyl)phenoxy]benzaldehyde using a 50:50 mixture of propionic and octanoic acids as the solvent (Scheme 1).

This solvent system was found by Lindsey and coworkers to work better than the normal acetic acid method used by Adler and many others in preparation of porphyrins [15,16]. Porphyrins are usually produced in low yields and TTFMPP was no exception. The overall yield of the reaction was 10%. The composition was verified by obtaining the exact mass using MALDI-TOF mass spectrometry. The measured mass, 1254.2 a.m.u., was in excellent agreement with the calculated value of 1255.3 a.m.u. The newly prepared TTFMPP was further characterized by ¹H-, ¹³C- and ¹⁹F-NMR, UV-Visible spectrophotometry and fluorescence spectroscopy.

Nuclear Magnetic Resonance Spectroscopy

The sample was analyzed using ¹H-, ¹³C- and ¹⁹F-NMR. A ¹³C-¹H correlation was done using a heteronuclear chemical shift correlation experiment: XHCORRD.AUR. In addition, a heteronuclear multiple bond correlation was done to locate the quarternary carbons of the compound. Nuclear Overhauser Effect (NOE) results were consistent with the proposed structure.

¹H-NMR studies of porphyrins reveal the aromatic nature of the porphyrin macrocycle. A diamagnetic ring current deshields protons outside the macrocycle from the external magnetic field. β-pyrrole and meso protons are included in this category of protons. The macrocycle is made up of two pyrrole units and two pyrrolenine units. The pyrrole units have an aromatic sextet of electrons. The pyrrolenine units have only five pi electrons. To compensate for this shortage of pi electrons in the pyrrolenine, an electron is pulled from the meso carbons. So, meso carbons have a tendency to be electron deficient and thus the meso protons are shifted further downfield than the β-protons. The same diamagnetic ring current that deshields the protons on the outside of the macrocycle shields the protons on the inside of the macrocycle from the external magnetic field. Thus, the N-H protons are shifted upfield, even farther than the tetramethylsilane (TMS) peak [17]. The numbering of the protons is shown in Figure 1.

The diamagnetic ring current of this porphyrin deshields the β-pyrrole protons of this porphyrin, thus, we expect to find the signal for this proton downfield of most of the other protons. Also, it is expected that it will appear as a singlet with integral of eight protons. Three singlets appear in the spectrum downfield: H₂ at 9.04 ppm, H₃ at 8.03 ppm, and H₇ at 7.66 ppm. The integration of these peaks gives eight, four and four protons, respectively. Thus, the β-proton, H₂, of this porphyrin is given the assignment of 9.04 ppm. The singlet at 8.03 ppm is assigned to H₃ and the one at 7.66 ppm is assigned to H₇. These assignments are consistent with the NOE data. The remaining singlet is at -2.71 ppm. Due to the shielding experienced by the N-H proton, H₁, it was expected that it would be shifted far upfield and thus it was assigned to this peak. The integration of this peak is two protons, which is consistent with this assignment.

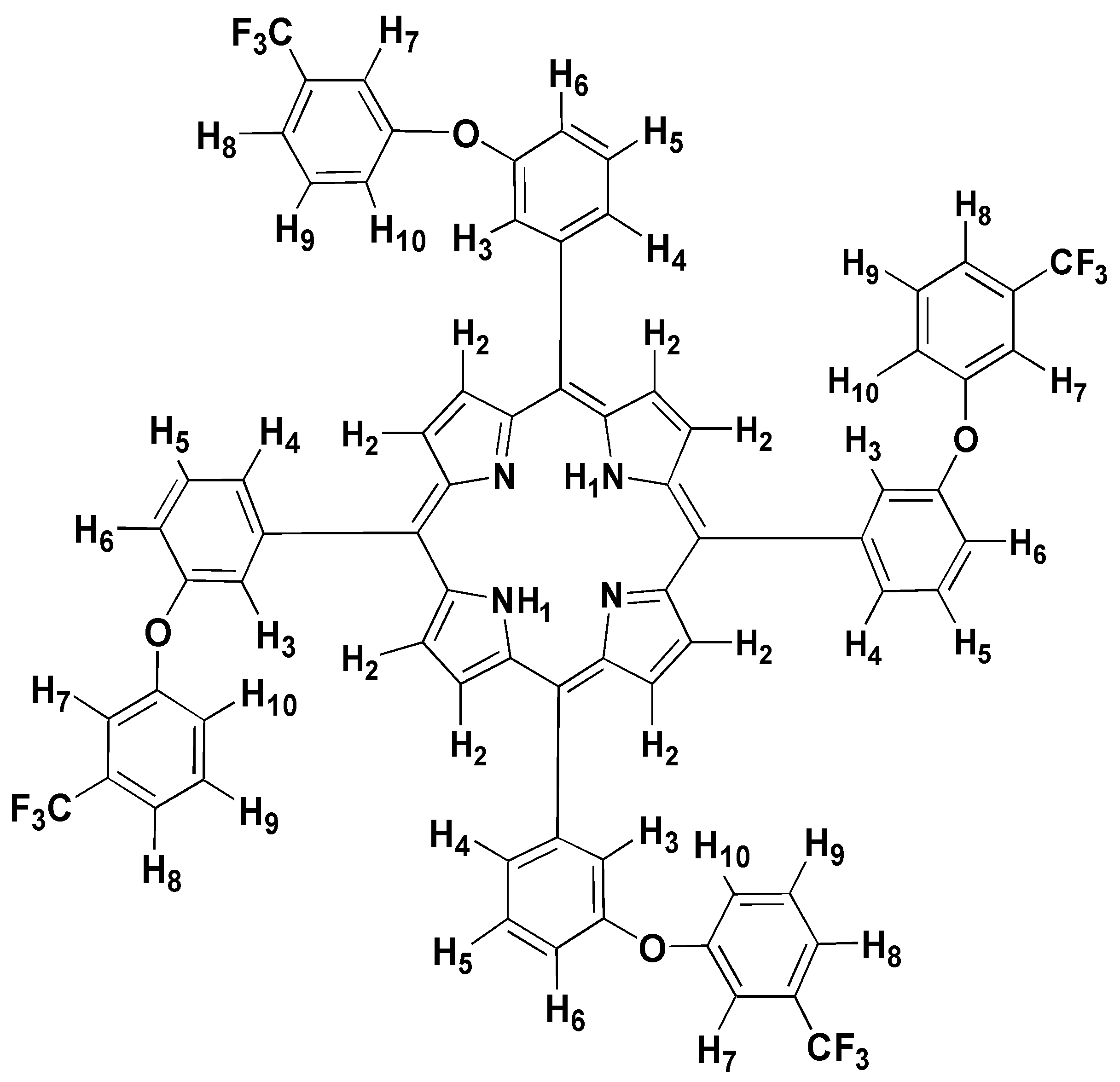

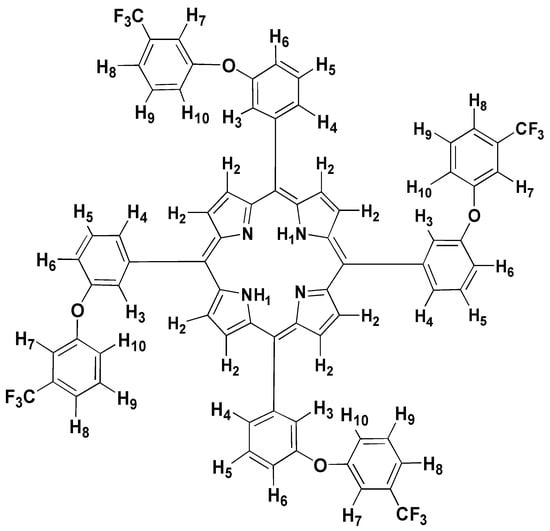

This structure contains four chemically nonequivalent sets of protons which should each appear as a doublet in the spectrum. Indeed, such doublets are observed at 8.14, 7.58, 7.51, and 7.44 ppm and are assigned to protons H₄, H₆, H₁₀ and H₈, respectively. According to the NOE data, there are through space interactions of the proton at 8.14 ppm with the protons exhibiting peaks at 9.04 ppm and 7.86 ppm consistent with assignment to H₄. The peak at 7.51 is assigned to H₁₀. This assignment is in agreement with NOE experiments which show that the proton with chemical shift of 7.51 ppm interacts with the protons that exhibit chemical shifts of 8.03 ppm (H₃) and 9.04 ppm (H₂). The remaining two doublets at 7.44 ppm and 7.58 ppm are assigned to H₈ and H₆, respectively. H₆ is expected to be farther downfield due to the nearby electronegative oxygen atom.

One triplet is observed in the spectrum at 7.86 ppm, and is assigned to H₅. There is a dd observed at 7.54 ppm which is assigned to H₉. The integration of each of the peaks in this spectrum confirms these assignments. A summary of the ¹H-NMR for the chemical shifts and multiplicities are given in

Table 1. Chemical shifts and multiplicities of protons on TTFMPP in chloroform-d.

Chloroform- d
	Multiplicity	Chemical Shift (ppm)
H1	s	-2.71
H2	s	9.04
H3	s	8.03
H4	d	8.14
H5	t	7.86
H6	d	7.58
H7	s	7.66
H8	d	7.44
H9	dd	7.54
H10	d	7.51

. In

Table 2. ¹H-NMR Nuclear Overhauser Effect experimental data.

Proton Irradiated (δ, ppm)	# of enhanced Hydrogen	ppm	% enhancement
H2 (9.04)	H3	8.03	1.6
	H4	8.14	1.4
	H7	7.66	0.7
	H10	7.51	0.3
H4 (8.14)	H2	9.04	0.9
	H5	7.86	1.2
H3 (8.03)	H2	9.04	0.9
	H7	7.66	1.0
	H10	7.51	0.5
H7 (7.66)	H3	8.03	1.0

, the assignments of the irradiated protons and the corresponding enhancements of the protons are listed for the NOE experiment.

¹³C-NMR peaks were assigned from the corresponding spectrum, from data obtained in the ¹³C-¹H correlation and from data of a heteronuclear multiple bond correlation. The ¹³C assignments are given in

Table 3. Summary of ¹³C-NMR assignments.

Carbon	Peak (ppm) Main data used in assigning peak	Carbon	Peak (ppm) Main data used in assigning peak
C-H2	131.16 (13C at 318K)	C-H10	121.89 (13C-1H correlation)
C-H3	125.71 (13C-1H correlation)	CF3	124.40 (13C)
C-H4	130.69 (13C-1H correlation)	C-CF3	132.62 (q) (13C)
C-H5	128.28 (13C-1H correlation)	Meso C	119.25 (HMBC)
C-H6	118.84 (13C-1H correlation)	C-meso C	144.07 (13C)
C-H7	115.57 (d) (13C-1H correlation)	H3-C-C*-C-H6	155.06 (HMBC)
C-H8	119.98 (d) (13C-1H correlation)	H7-C-C*-C- H10	158.02 (HMBC)
C-H9	130.51 (13C-1H correlation)

. The expected splitting due to the fluorine atoms in the molecules was observed. A single peak in the ¹⁹F-NMR spectrum was expected and was observed at -62.08 ppm for the CF₃.

Electronic absorption spectra of 5,10,15,20-tetra[3-(3-trifluoromethyl)-phenoxy] porphyrin

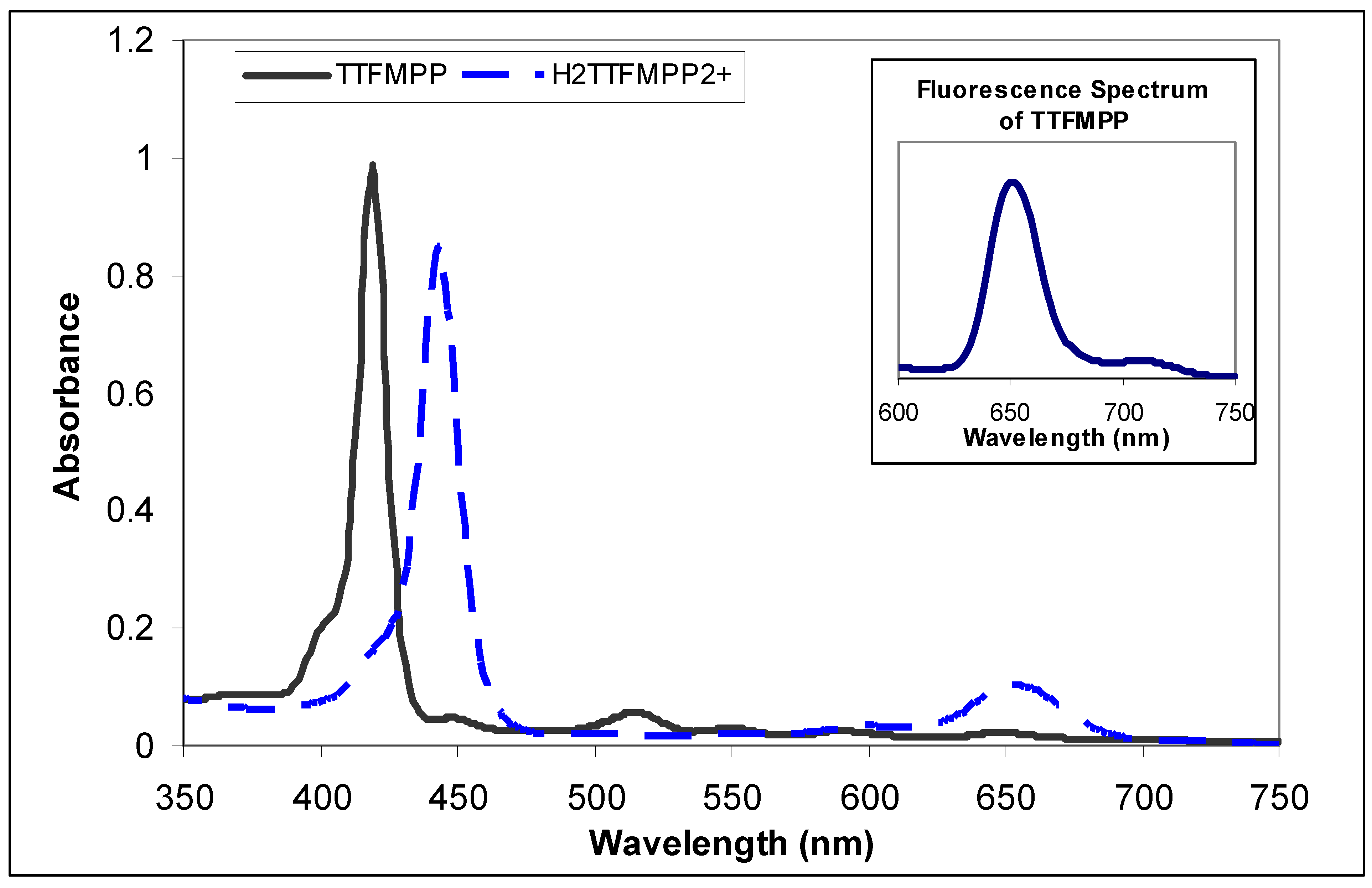

The electronic absorption spectrum for TTFMPP is given in Figure 2 and is similar to that of all porphyrins. There is an intense absorption at 419 nm, the Soret band and Q bands are observed at 515, 550, 590, and 648 nm. A series of solutions were prepared of varying concentrations of TTFMPP in CHCl₃. The concentrations ranged from 2.7 x 10^–5 to 1.6 x 10^–6M. UV-vis spectra were taken for each of the solutions. The purpose of these experiments was to elucidate the extinction coefficient of the Soret band for the porphyrin as well as the different Q bands and to determine if Beer’s Law was obeyed. Some compounds at high concentrations tend to aggregate and changes in the extinction coefficient are observed [18]. No systematic shifts in peak positions were observed and the extinction coefficients for the Soret band and the Q bands are very high. This porphyrin displays an extinction coefficient of 3 x 10⁵ cm^-1M^-1 for the Soret band at 419 nm. Four Q bands are observed at 515, 550, 590, and 648 nm with extinction coefficients given as 1 x 10⁴ cm^-1M^-1, 6 x 10³ cm^-1M^-1, 5 x 10³ cm^-1M^-1, and 7 x 10³ cm^-1M^-1, respectively.

To investigate this porphyrin further, it was protonated using trifluoroacetic acid and the electronic absorption spectrum obtained. The formation of the dication results in a red shift in the Soret band the magnitude of which has been shown to increase with increasing electron withdrawing nature of meso substituents[19]. This shift is due to an increase in the conjugation of the molecule and hence a decrease in the energy required for the π → π^* transition. The spectrum of the dication is given in Figure 2.

Fluorescence Measurements

Excitation at 419 nm of TTFMPP gave an emission line at 650 nm. The fluorescence quantum yield, Φ_F, was determined to be 0.08 at room temperature for chloroform solutions of TTFMPP by a relative method using TPP in CHCl₃ as a standard having Φ_F=0.11 as reported in the literature [20]. The fluorescence spectrum is given in Figure 2.

Cyclic Voltammetry of 5,10,15,20-Tetra[3-(3-trifluoromethyl)phenoxy] Porphyrin

Substitution of the meso positions with an electron withdrawing group is expected to shift the reduction and oxidation potentials. The potentials are a significant attribute affecting the electron transfer and thus the usefulness of the porphyrin in many applications. Therefore, it is important to characterize the electrochemical behavior of this chromophore. Many studies have been carried out to study the oxidation and reduction of porphyrins. Often, these studies are used for comparison with new chromophores. The reduction of TTFMPP was measured in CH₂Cl₂ with 0.1M tetrabutylammonium tetrafluoroborate as the supporting electrolyte. Two successive, quasi-reversible one electron reductions were observed at –1.00 V and –1.32 V versus the Ag/AgCl electrode. To compare, literature values for tetraphenyl porphyrin were reported in CH₂Cl₂ with tetrabutylammonium hexafluorophosphate as the supporting electrolyte to be –1.11 V and –1.52 V versus the Ag/AgCl electrode [21]. As expected, with the addition of the electron withdrawing group, the reduction potentials are not as low as those for TPP without the electron withdrawing groups. The addition of the electron withdrawing groups facilitates the reduction of the porphyrin. It is also expected to make the porphyrin harder to oxidize. This was observed as the oxidation potential of TTFMPP was found to be 1.20 V versus the Ag/AgCl electrode. The corresponding oxidation of TPP was reported in the literature to be 1.03 V versus the Ag/AgCl electrode [21]. Trends observed in the oxidation and reduction potentials are consistent with the nature of the porphyrin. That is, the electron withdrawing group in TTFMPP enhanced reduction and inhibits oxidation.

Conclusions

In summary, we present the first report of the synthesis and characterization of 5,10,15,20-tetra[3-(3-trifluoromethyl)phenoxy] porphyrin. The absorption spectrum of TTFMPP showed a characteristic spectral pattern similar to those of other porphyrins. The trends in oxidation and reduction of this compound expected with introduction of electron withdrawing groups in the meso position were observed. The result of the exact mass analysis was in agreement with the proposed formulation and the ¹H-, ¹³C- and ¹⁹F-NMR confirmed the structure. This compound and its metal complexes are being studied further for usefulness in applications involving electron transfer.

Experimental

General

Pyrrole, 3-[3-(trifluoromethyl)phenoxy]benzaldehyde, propionic acid and octanoic acid used in the synthesis of TTFMPP were purchased from Aldrich Chemical Company and used as received. Solvents used for synthesis or NMR measurements were used as received. Spectroscopic grade chloroform and anhydrous methylene chloride were obtained from Aldrich Chemical Company and was used for electronic absorption experiments and cyclic voltammetry. Tetrabutylammonium tetrafluoroborate was purchased from Fisher Scientific Company and used as received. Ultraviolet-visible (UV-vis) absorption spectra for the base TTFMPP were recorded on a Hewlett Packard 8451A spectrophotometer. UV-Vis absorption spectra for the metallated TTFMPP complexes were recorded on a Jasco V-530. Matrix assisted laser desorption ionization time of flight mass spectroscopic analysis was carried out on a VG Auto Spec instrument. All nuclear magnetic resonance (NMR) spectra for the base TTFMPP were recorded on a Bruker AM360 or Bruker AM500 spectrometer at approximately 298K. The Nuclear Overhauser Effect experiments were carried out at 313K on the Bruker AM500 spectrometer with CDCl₃ as the solvent. The chemical shifts are reported in parts per million (δ) with respect to an internal reference peak of residual undeuterated solvent (that is, 7.24 ppm for CHCl₃ in CDCl₃) or TMS. Fluorescence spectra were obtained using a Jasco FP-6300 spectrofluorimeter. Cyclic voltammograms (CVs) were recorded using a computer linked EG&G Princeton Applied Research Potentiostat VersaStat II equipped with Power Suite 2.35.2 Electrochemical software. The CVs were obtained in a cell with a glassy carbon working electrode, a platinum wire counter electrode, and a saturated Ag/AgCl in KCl as the reference electrode. The measurements were taken in a nitrogen enriched atmosphere. The porphyrin solution was 1.3 x 10^-3 M in a 0.1 M solution of tetrabutyl-ammonium tetrafluoroborate in methylene chloride. Potentials are reported versus a Ag/AgCl electrode and not corrected for liquid junction potentials. Deaeration of the solution was achieved by passing a stream of nitrogen through the solution.

Synthesis of 5,10,15,20-tetra[3-(3-trifluoromethyl)phenoxy] porphyrin

A single necked 250 mL round bottomed flask fitted with a reflux condenser was charged with octanoic acid (60 mL) and propionic acid (60 mL). To this solvent mixture, 3-[3-(trifluoromethyl)phenoxy]benzaldehyde (2.66 g, 0.010 mol) was added. This mixture was heated with stirring. When the 3-[3-(trifluoromethyl)phenoxy]benzaldehyde was dissolved the solution was colorless. To this solution, pyrrole (0.678 g, 0.010 mol) was added, giving an amber colored solution. This was brought to reflux, and kept at this temperature for 60 minutes. This solution was allowed to cool for 30 minutes and the electronic absorption spectrum was measured. After cooling, the solution was added to a 500 mL separatory funnel followed by chloroform (120 mL) and 1M NaHCO₃ (120 mL). The mixture was gently rotated until the acids were neutralized. The solution was then left in the funnel overnight to allow complete separation of the two layers. The bottom layer containing the crude porphyrin was collected, evaporated to dryness and purified using column chromatography (dry silica gel, 70-230 mesh, eluent: 13:1 mixture of chloroform and methanol) to give 2.96 g (2.4x10^-3 moles) of pure compound. The overall reaction yield was 10%. UV (CHCl₃) [λ, nm (ε, cm^-1M^-1)]: 419 (1.31x10⁵), 515 (7.5x10³), 550 (3.25x10³), 590 (2.61x10³); ¹H-NMR (500.13 MHz): 9.04 (s, 8H, H₂), 8.14 (d, 4H, H₄), 8.03 (s, 4H, H₃), 7.86 (t, 4H, H₅), 7.66 (s, 4H, H₇), 7.58 (d, 4H, H₆), 7.54 (dd, 4H, H₉), 7.51 (d, 4H, H₁₀), 7.44 (d, 4H, H₈), -2.71 (s, 2H, NH₁) ¹³C-NMR: 158.02, 155.06, 146.59 (broad), 144.07, 132.64 (q, ²J_CF = 33 Hz), 131.16 (broad), 130.69, 13.51, 128.28, 125.71, 124.40 (CF₃, ¹J_CF=273 Hz), 121.89, 119.98 (³J_CF = 3.4Hz), 119.25, 118.84, 115.57 (³J_CF = 3.0 Hz); ¹⁹F-NMR (338.86 MHz, CDCl₃): -62.08 ppm, (s, CF₃); MALDI-TOF Mass Spectroscopy: calculated for C₇₂H₄₂N₄F₁₂O₄: 1255.3 a.m.u.; observed: 1254.2 a.m.u.
