Review

Asymmetric Synthesis of Naturally Occuring Spiroketals

Department of Chemistry, Indian Institute of Technology Guwahati, Guwahati 781039, India
*
Author to whom correspondence should be addressed.
Molecules 2008, 13(8), 1942-2038; https://doi.org/10.3390/molecules13081942
Submission received: 21 July 2008 / Revised: 22 August 2008 / Accepted: 22 August 2008 / Published: 28 August 2008
(This article belongs to the Special Issue Spiro Compounds)

Abstract

:
Spiroketals are widely found as substructures of many naturally occurring compounds from diverse sources including plants, animals as well as microbes. Naturally occurring spiroketals are biologically active and most of them are chiral molecules. This article aims at reviewing the asymmetric synthesis of biologically active spiroketals for last 10 years (1998-2007).

1. Introduction

Spiroketals occur in Nature as subunits of miscellaneous natural products and are found in microbes, fungi, plants, insects and marine organisms. Spiroketals are cyclic ketals in which two rings are joined by a single atom, the spiro atom, and the two ketal oxygens flanking the spiro atom, each belonging to one of the rings. The spiroketal ring system exists in a wide variety of natural products of varying complexity. Most of the naturally occurring spiroketals are biologically active compounds [1,2,3], such as, for example, the reveromycins [4, 5], which contains spiroketal skeletons, and are inhibitors of the mitogenic activity of epidermal growth factor. Similarly, the cephalostatins are highly potent cell growth inhibitors [6, 7]. Moreover, the telomerase-inhibiting activity of griseorhodin and rubromycin is attributed to the presence of a spiroketal moiety in these natural products [8, 9]. Various spiroketals from insects are volatile, simple molecules and act as pheromones [10]. Over years, these natural products have become important synthetic targets not only for the challenges they present but also because of their pharmacological importance.
The major challenge frequently encountered in the asymmetric synthesis of spiroketals is the stereoselective assembly of the spirocyclic structure with a linking carbon atom, which usually is a sterogenic centre but can easily isomerize under mild acidic conditions. On the other hand the advantage is that most of the natural products possess the thermodynamically favored configuration and conformation of the spirocentre thus favoring ring closure under equilibrium conditions [11].

2. Asymmetric Total Synthesis of Natural Spiroketals

2.1 Enantioselective Total Synthesis of Okaspirodiol

Okaspirodiol (1) was isolated as a secondary metabolite from Streptomyces species Gö TS 19 [12]. Okaspirodiol readily isomerizes under mild acidic conditions to three additional isomers: 1a, 1b, and 1c (Figure 1). The six membered rings of all isomers possess a chair-like conformation with a sterically favored equatorial methyl group. Structures 1 and 1a, both having (S)-configuration at C-5, benefit from two anomeric effects because of the axial-quasi-axial arrangement of the spiro C-O bonds, and therefore are more stable than the other two (R)-configured isomers 1b and 1c. On the other hand, natural product 1 is thermodynamically less stable than 1a, most probably due to the cis relationship between C-3 and C-4 substituents in 1. The hydrogen bond between C-4 hydroxyl group and O-6 also makes 1 and 1a more stable.

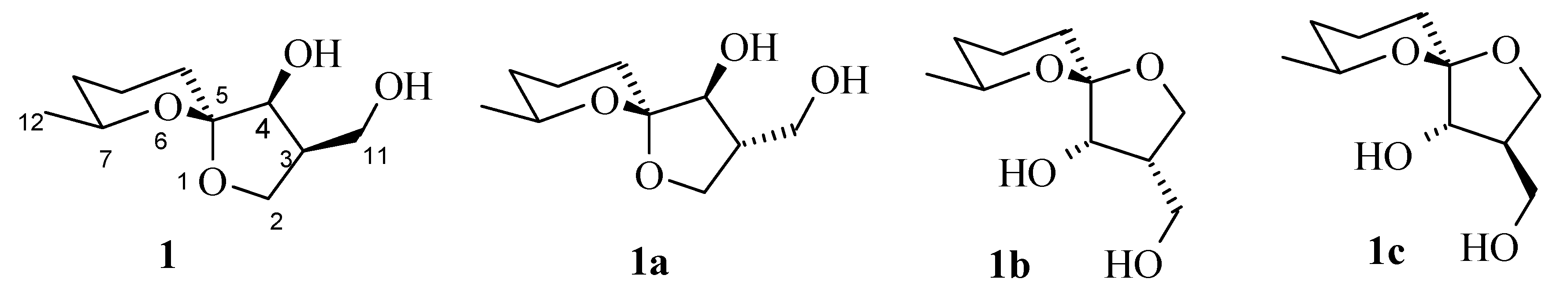

Figure 1. Structures of compounds 1, 1a-1c.
Figure 1. Structures of compounds 1, 1a-1c.
Molecules 13 01942 g001
From the above discussions it is deduced that total synthesis of 1 from a spirocyclisation of an acyclic or monocyclic precursor under equilibrium conditions might be possible. Bender et al. have reported the total synthesis of okaspirodiol [12]. In this total synthesis, addition of a lithiated terminal alkyne bearing protected hydroxyl group to a lactone followed by hydrogenation of the triple bond and ring closure strategy is used [13,14]. The retrosynthetic pathway is shown in Scheme 1.

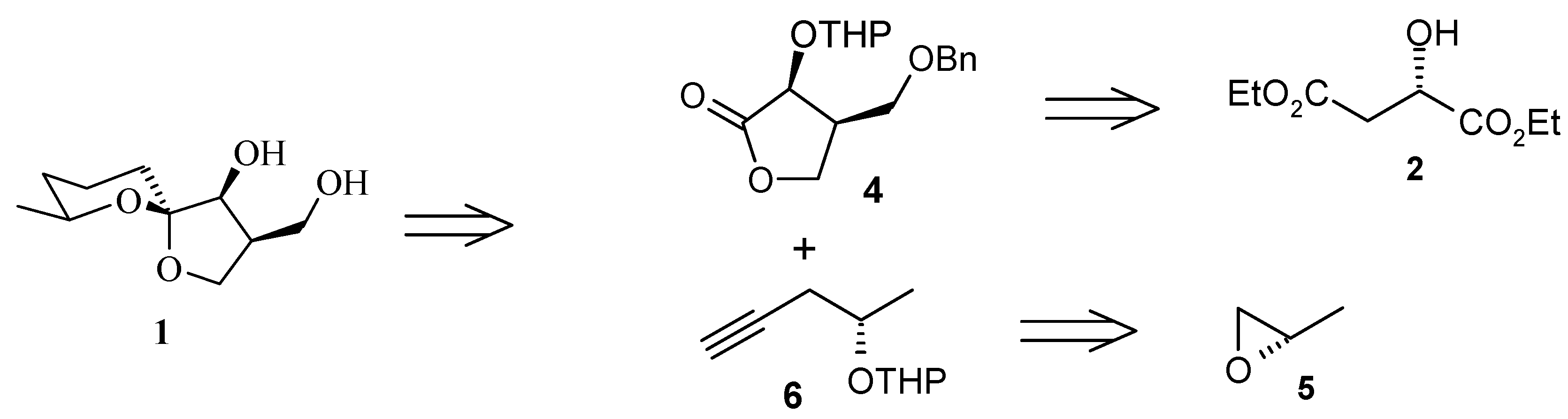

Scheme 1. Retrosynthetic analysis of okaspirodiol.
Scheme 1. Retrosynthetic analysis of okaspirodiol.
Molecules 13 01942 g004
Both the fragments 4 and 6 are prepared separately according to known procedures and then combined in a later stage of the synthesis. Fragment 4 is prepared in eight steps and 53% overall yield starting from (S)-diethyl malate (2), according to known procedures (Scheme 2) [15, 16]. Similarly, fragment 6 is prepared from (S)-propylene oxide (5) in three straightforward transformations giving the desired THP-protected, (S)-configured alkynol 6 in 58% overall yield [17]. Compound 6 is then lithiated and added to the lactone 4. The crude product 7 is treated with methanolic HCl to give the acetal 8, which is obtained as a single diastereomer with an (R)-configured anomeric carbon. Hydrogenation with Rh/Al2O3 led to incomplete conversions, which resulted in the formation of the tricyclic diacetal 10 as a side product after cyclization [18]. This can be overcome using the Adams catalyst (PtO2) in ethyl acetate, with carefully monitoring of the reaction by TLC to prevent the hydrogenation of the phenyl ring. During this process cyclization takes place to give the desired compound 9 as a single isomer. Finally, hydrogenolysis of the benzyl ether furnishes okaspirodiol.

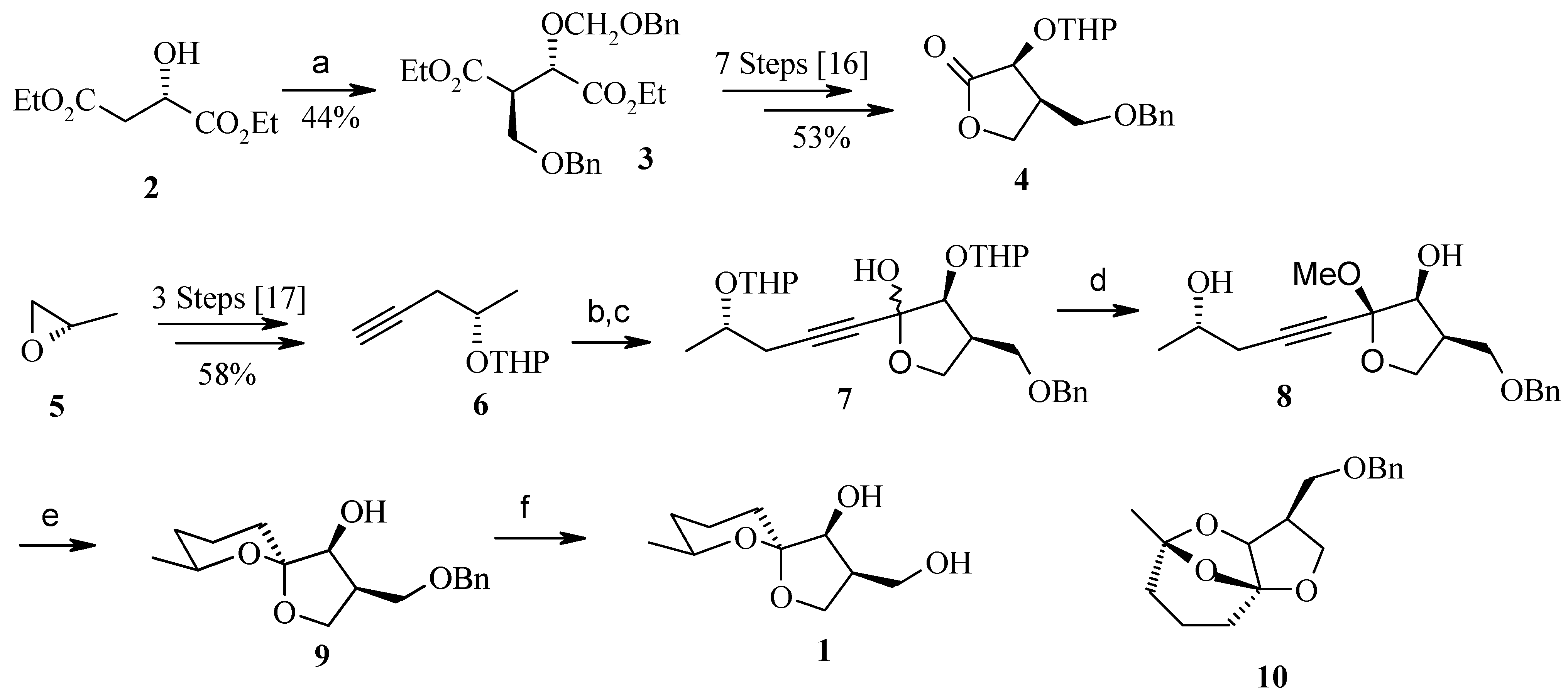

Scheme 2. Synthesis of okaspirodiol.
Scheme 2. Synthesis of okaspirodiol.
Molecules 13 01942 g005
Reagents and conditions: (a) LDA, ClCH3OBn, 44%; (b) MeLi, Et2O, 0 oC (c) 4, Et2O, 0 oC to rt; (d) HCl, MeOH, rt, 1h; (e) i) H2, Rh/Al2O3, MeOH, rt, ii) HCl, MeOH, rt or i)H2, PtO2, EtOAc, rt, ii) CSA, CH2Cl2, rt; (f) H2, Pd/C, MeOH, rt, 82%.

2.2. Enantiospecific synthesis of the heparanase inhibitor (+)-trachyspic acid and its stereoisomer from a common precursor.

Trachyspic acid was isolated from the culture broth of Talaromyces trachyspermu SANK 12191 and was identified as a potent inhibitor of heparanase, with an IC50 of 36µM [19]. Heparanase is an endo-β-glucuronidase that cleaves the heparin sulfate (HS) side chains of proteoglycans that are found on cell surfaces and as a major constituent of the extracellular matrix (ECM) and basement membrane surrounding cells [20].
Rizzacasa and his coworkers have reported the enantiospecific synthesis of (+)-trachyspic acid and its stereoisomer [21]. The synthesis is based on the author’s previous synthesis of (-)-trachyspic acid [22]. The retrosynthetic pathway of (-)-trachyspic acid is shown in Scheme 3. (-)-Trachyspic acid can be synthesized from the lactol precursor 11 by acid hydrolysis of the dioxalane and spirocyclisation of the resulting aldehyde, followed by lactol acetylation and ozonolysis of the terminal alkenes. Lactol 11 in turn can be synthesized from vinyl bromide 13 and lactone 12 that can be obtained from the 2-deoxy-D-ribose derivative 14. Stereochemistry at C-3 is obtained by an Ireland-Claisen rearrangement performed on 14 in the presence of a β-leaving group [23]. On the other hand vinyl bromide 13 can be obtained from dimethyl malonate (15).

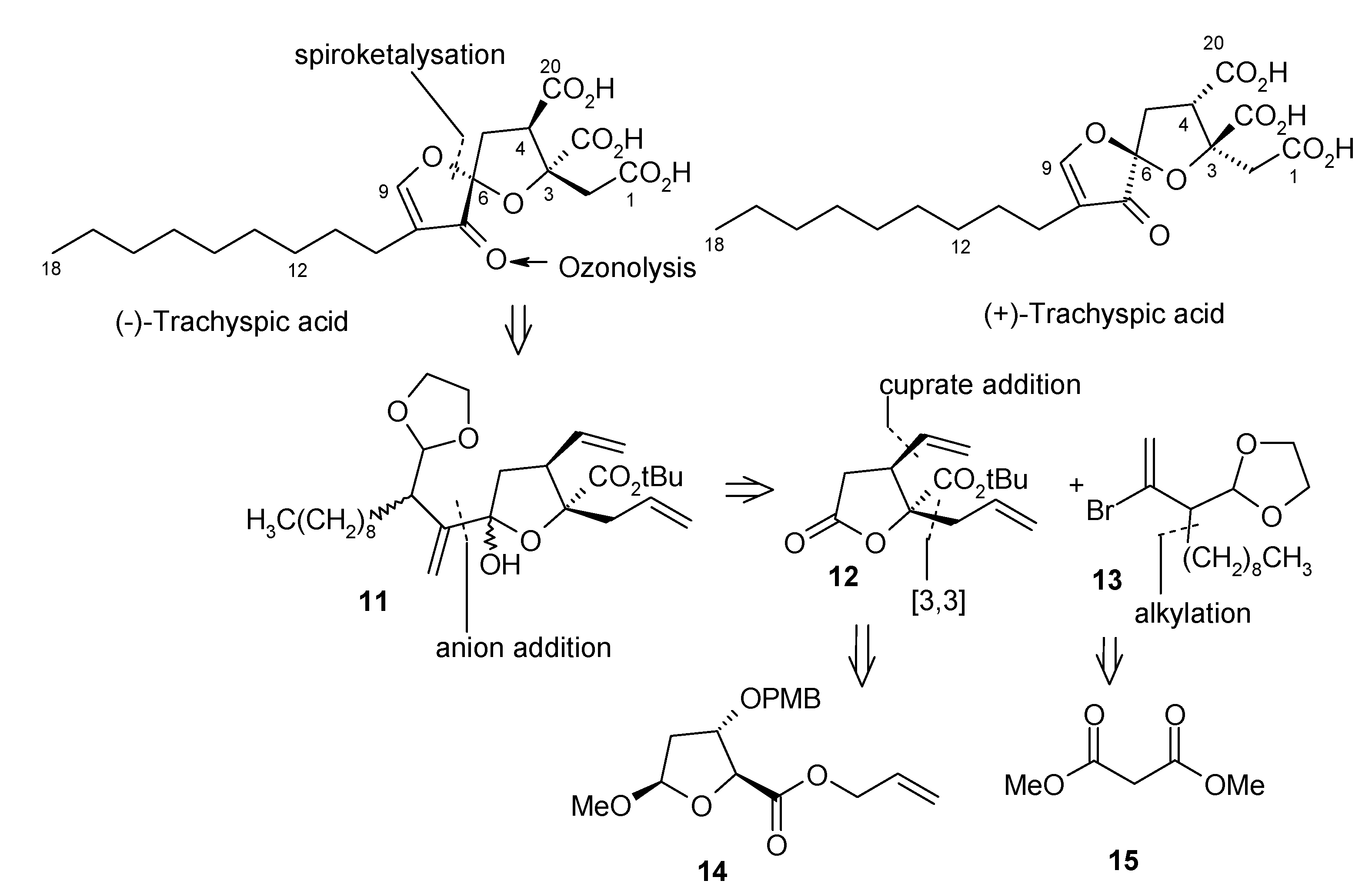

Scheme 3. Retrosynthetic analysis of (-)-trachyspic acid.
Scheme 3. Retrosynthetic analysis of (-)-trachyspic acid.
Molecules 13 01942 g006
The fragment 14 is prepared as the corresponding p-methoxybenzyl (PMB) ether from known alcohol 16 in good yield in four steps (Scheme 4) [24]. Ireland-Claisen rearrangement of 14 followed by hydrolysis and esterification gives the t-butyl ester 18 as a single isomer [23].
The Claisen adduct is subjected to acid hydrolysis to afford a lactol, and then is oxidized to the lactone 19. Lactone 19 is converted to the α,β-unsaturated lactone 20, which is subjected to conjugate addition with vinylmagnesium bromide in the presence of CuI and Me2S to give two-alkene isomers 21 and 12, with a slight preference for isomer 21, which turned out to have the incorrect relative stereochemistry [25]. This is confirmed by the conversion of 12 into the crystalline tri-tert-butylester 22 by double ozonolysis, oxidation and ester formation.
Alkylation of dimethylmalonate 15 followed by reduction and monoprotection give the tert-butyl-diphenylsilyl (TBDPS) ether 25 [26, 27]. Oxidation of the primary alcohol in 25 and Corey-Fuchs extension yields alkyne 26 [28]. From 26 the vinyl bromide 13 is obtained in four steps (Scheme 5).
Lithiation of 13 and then treatment with lactone 22 affords the lactol 11 along with some starting lactone 22. Acid induced cyclisation and acetylation of 11 followed by ozonolysis affords the desired α,β-unsaturated spiroketal isomers 29 and 30, in a ratio of approximately 9:1 [29]. Treatment of 29 with TFA then gives (-)-ent-trachyspic acid (Scheme 6).

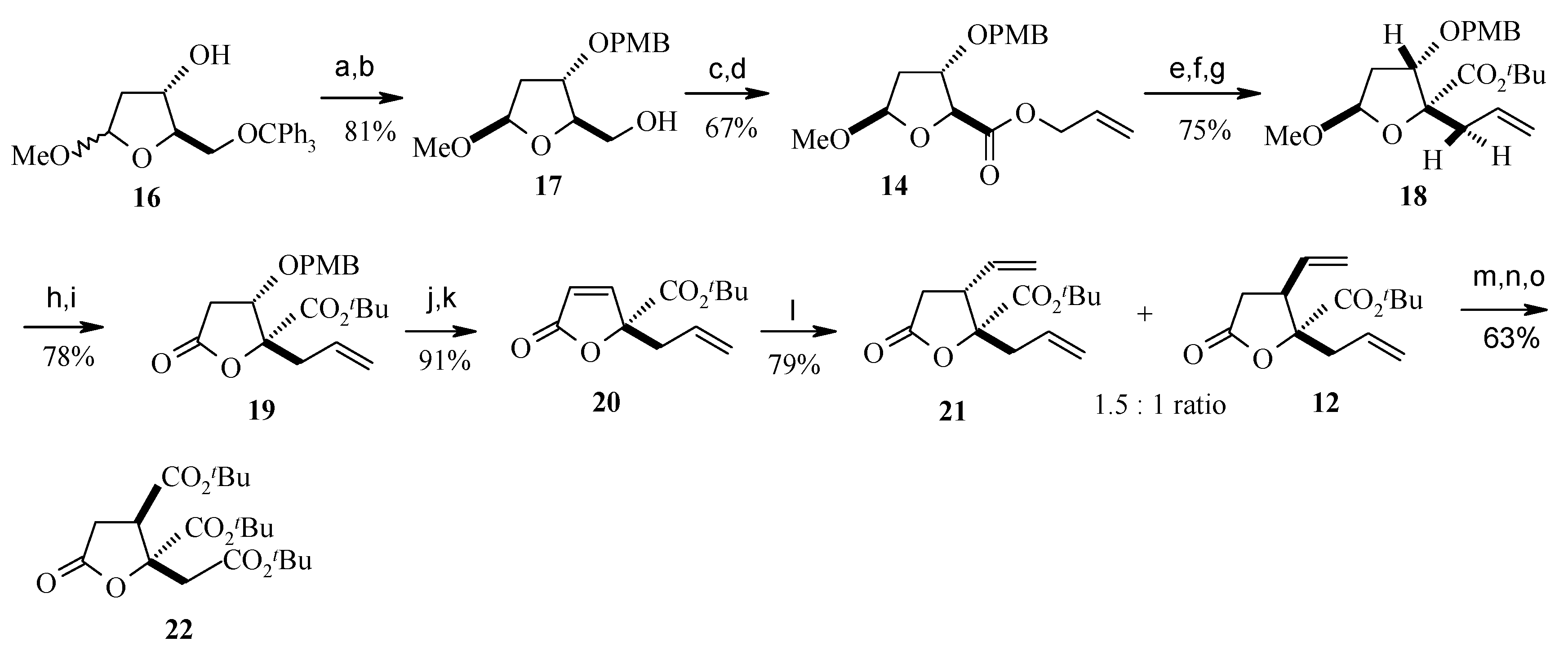

Scheme 4. Synthesis of fragment 22.
Scheme 4. Synthesis of fragment 22.
Molecules 13 01942 g007
Reagents and conditions: (a) NaH, PMBCl; (b) HCl, MeOH, 81%; (c) NaOCl, NaClO2, TEMPO; (d) DCC, DMAP, allyl alcohol, 67%; (e) TMSCl-NEt3, LDA, THF-HMPA, -95 oC; (f) aq. NaOH; (g) N,N’-diisopropyl-O-tert-butylisourea, 75%; (h) HCl; (i) PCC, 78%; (j) DDQ; (k) MsCl, Py, 91%; (l) CuI, vinylMgBr, Me2S, -45 oC, 79%; (m) O3, Me2S; (n) NaClO2, NaH2PO4; (o) N,N’-diisopropyl-O-tert-butylisourea, 63%.

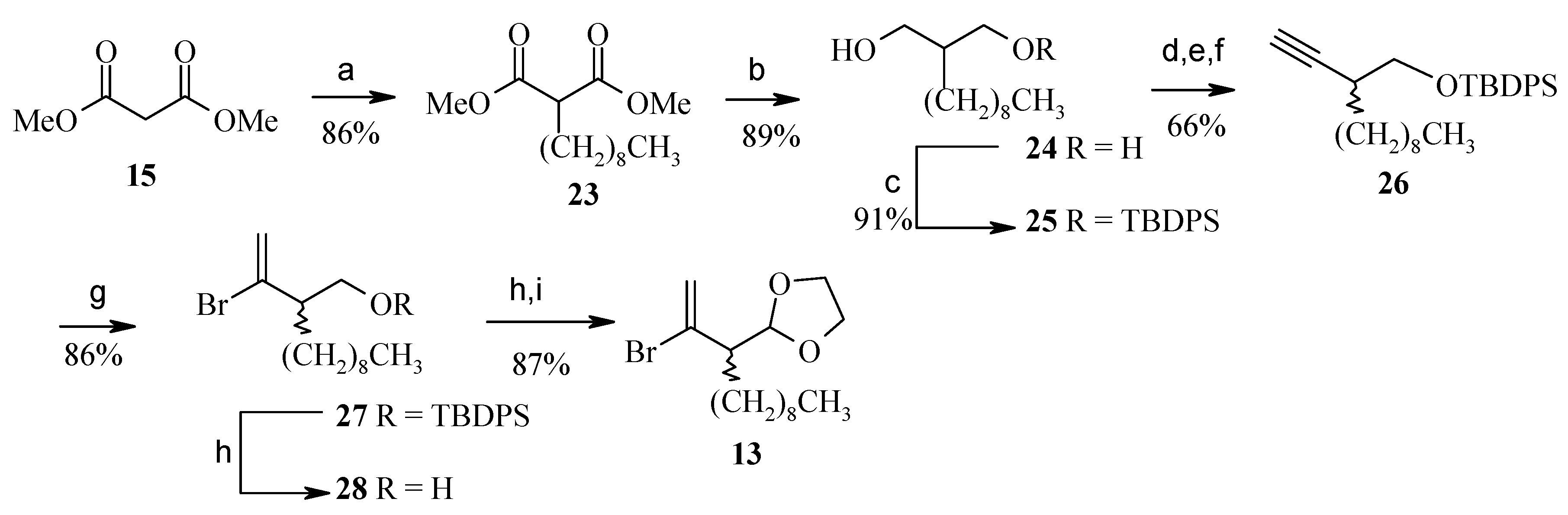

Scheme 5. Synthesis of fragment 13.
Scheme 5. Synthesis of fragment 13.
Molecules 13 01942 g008
Reagents and conditions: (a) NaOMe, nonyl bromide, MeOH, reflux, 86%; (b) LiAlH4, 0 oC, 89%; (c) NaH, TBDPSCl, 91%; (d) Dess-Martin reagent, (e) Ph3P, CBr4, 0 oC; (f) BuLi, -78 oC, 66%; (g) B-Br-9-BBN, AcOH, 0 oC, 86%; (h) TBAF, 100%; (i) Dess-Martin reagent; (j) p-TsOH, HOCH2CH2OH, benzene, 87%.

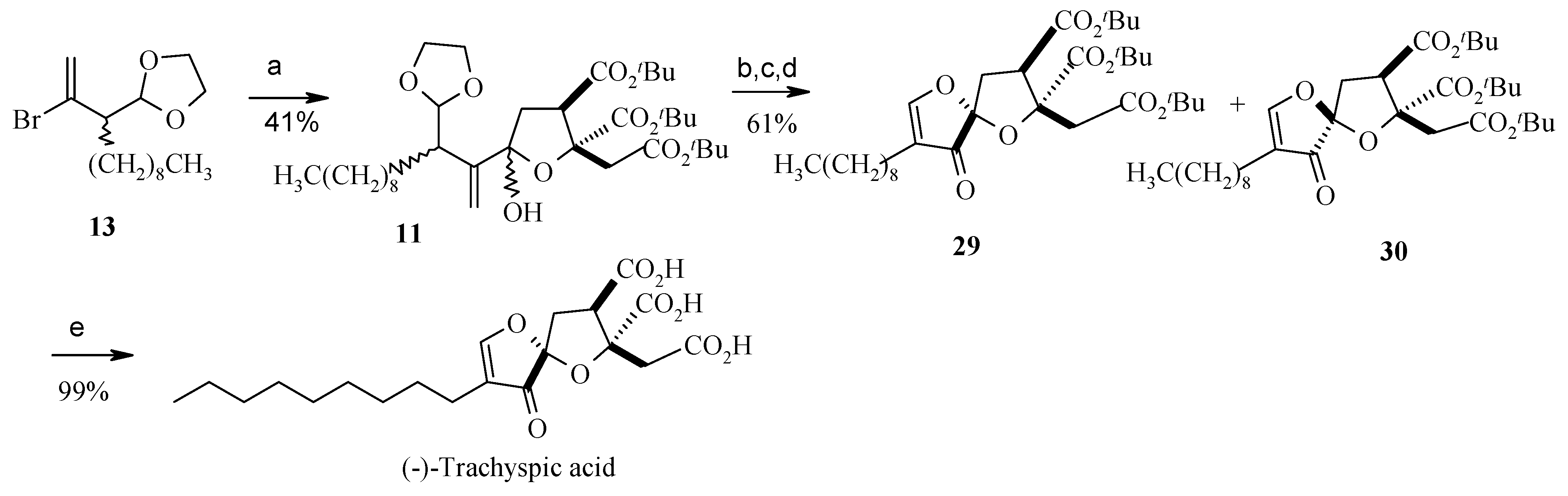

Scheme 6. Total synthesis of (-)-trachyspic acid.
Scheme 6. Total synthesis of (-)-trachyspic acid.
Molecules 13 01942 g009
Reagents and conditions: (a) t-BuLi, Et2O-hexene, -78 oC, lactone 22; THF, 41%; (b) 3 M HClO4, THF; (c) Ac2O, DMAP, Py; (d) O3, NaHCO3, Me2S, 61%; (e) TFA, CH2Cl2, 99%.
For the synthesis of the enantiomer (+)-trachyspic acid, the lactone ent-22 is used. This can be obtained from the same deoxy-D-ribose derivative 16 used for the synthesis of 22. As the stereochemistry at C-4 is responsible for the stereochemistry of Ireland-Claisen rearrangement product at C-3, the inverted stereogenic center at C-4 in the precursor 31 would allow for the introduction of the 3R stereochemistry required for the production of the natural (+)-trachyspic acid (Scheme 7).

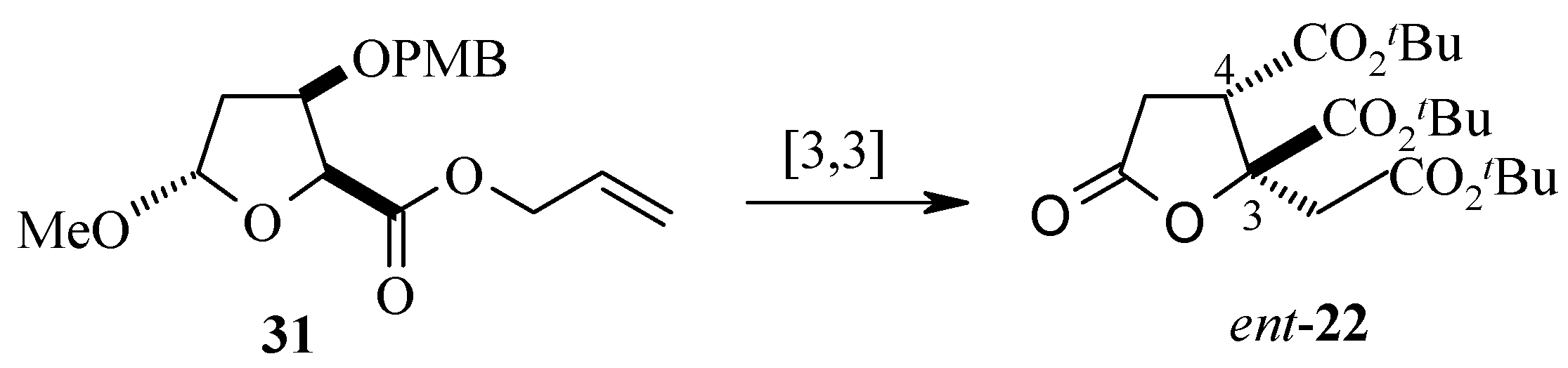

Scheme 7. Proposed synthesis of ent-22.
Scheme 7. Proposed synthesis of ent-22.
Molecules 13 01942 g010

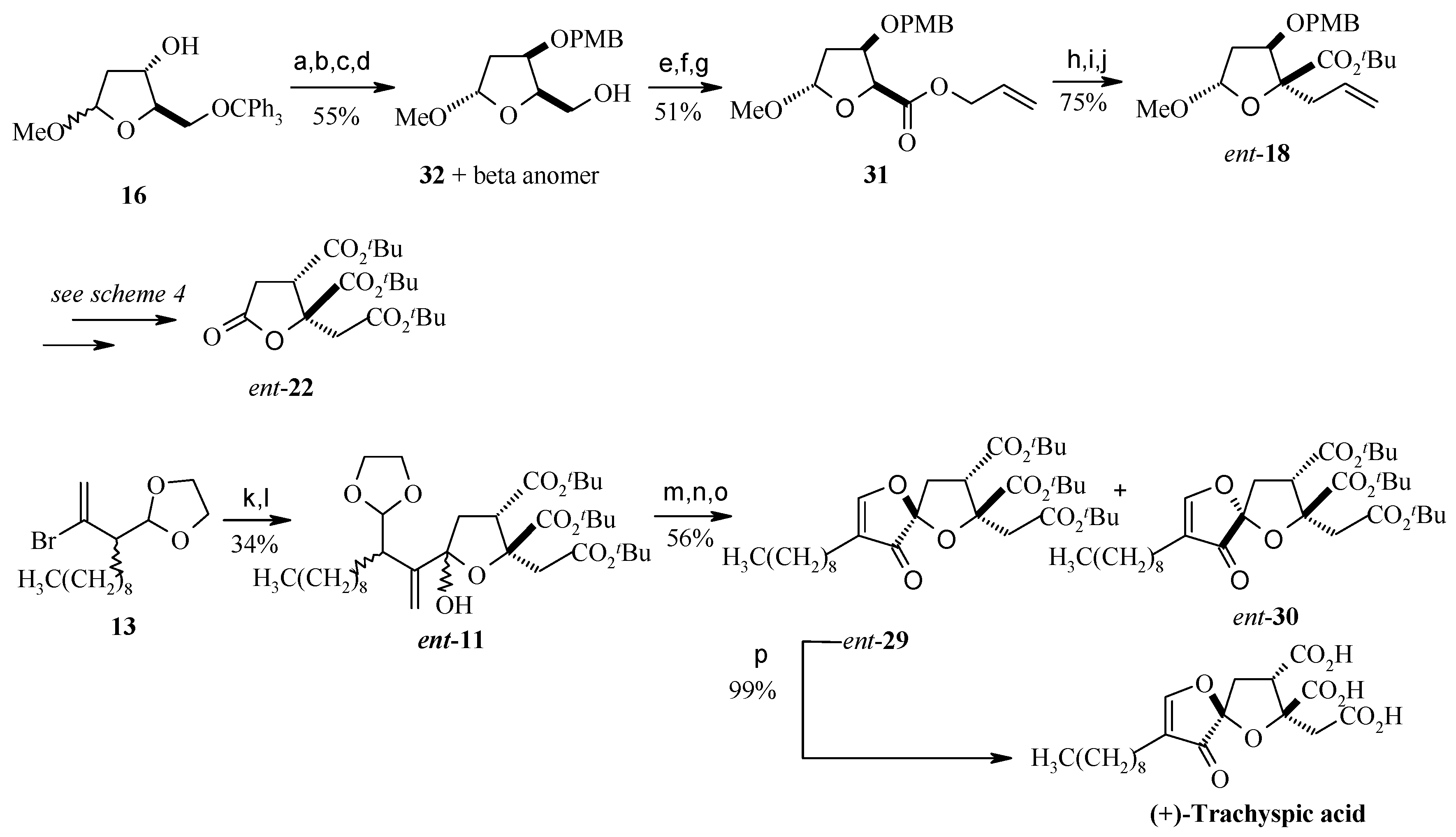

Scheme 8. Synthesis of ent-22 and (+)-trachyspic acid.
Scheme 8. Synthesis of ent-22 and (+)-trachyspic acid.
Molecules 13 01942 g011
Reagents and conditions: (a) Ph3P, DIAD, p-NO2C6H4CO2H; (b) K2CO3, MeOH; (c) NaH, PMBCl; (d) 10% HCl-MeOH; (e) Dess-Martin reagent; (f) Ag2O, KOH; (g) DCC, DMAP, allyl alcohol, 51%; (h) TMSCl-NEt3, LDA, THF-HMPA, -95 oC; (i) aq. NaOH; (j) N,N’-diisopropyl-O-tert-butylisourea, 75%; (k) t-BuLi, Et2O-hexane, -78 oC; (l) lactone ent-22, THF, 34%; (m) 3M HClO4, THF; (n) Ac2O, DMAP, Py; (o) O3, NaHCO3, Me2S, 56%; (p) TFA, CH2Cl2, 99%.
Modified Mitsunobu inversion of 16 and subsequent methanolysis, benzylation and trityl group hydrolysis affords 32, along with the corresponding β-anomer [30]. Oxidation of 32 and subsequent esterification gives allyl ester 31, which is subjected to Ireland-Claisen rearrangement and esterification to give ent-18. Repetition of the same sequence as done for 18 eventually gives ent-22. Addition of the anion derived from 13 to ent-22 gives a mixture of lactols, which on acid induced cyclisation and ozonolysis gives the spiroketals ent-29 and ent-30. Deprotection of ent-29 with TFA affords (+)-trachyspic acid (Scheme 8).

2.3. Enantioselective total synthesis of the anti-Helicobacter pyroli agent (+)-spirolaxine methyl ether.

Spirolaxine and spirolaxine methyl ether are isolated from cultures of Sporotrichum laxum and phanerochaetepruinosum [31]. They have the inhibitory activity against the micro-aerophilic Gram-negative bacterium Helicobacter pylori and are therefore useful compounds for the treatment of gastroduodenal disorders and the prevention of gastric cancer. Spirolaxine methyl ether contain a 5,7-dimethoxyphthalide nucleus linked to a 6,5-spiroacetal group by a five-membered methylene chain.

2.3.1 Brimble Synthesis

Brimble and her coworkers described the first enantioselective total synthesis of (+)-spirolaxine methyl ether [32]. The retrosynthetic pathway is shown in Scheme 9. This analysis shows that it is a union of aldehyde 33 and sulfone 34 by a modified Julia olefination. The phthalide aldehyde 33 can be obtained from lactonisation of 35, whereas the sulfone fragment 34 can be accessed from the protected trihydroxy ketone 36. Ketone 36 can be prepared from lithium acetylide 38 and aldehyde 37. The (R) stereochemistry is obtained by using commercially available (R)-acetylide. The aldehyde 37 can be prepared from (L)-aspartic acid (39).

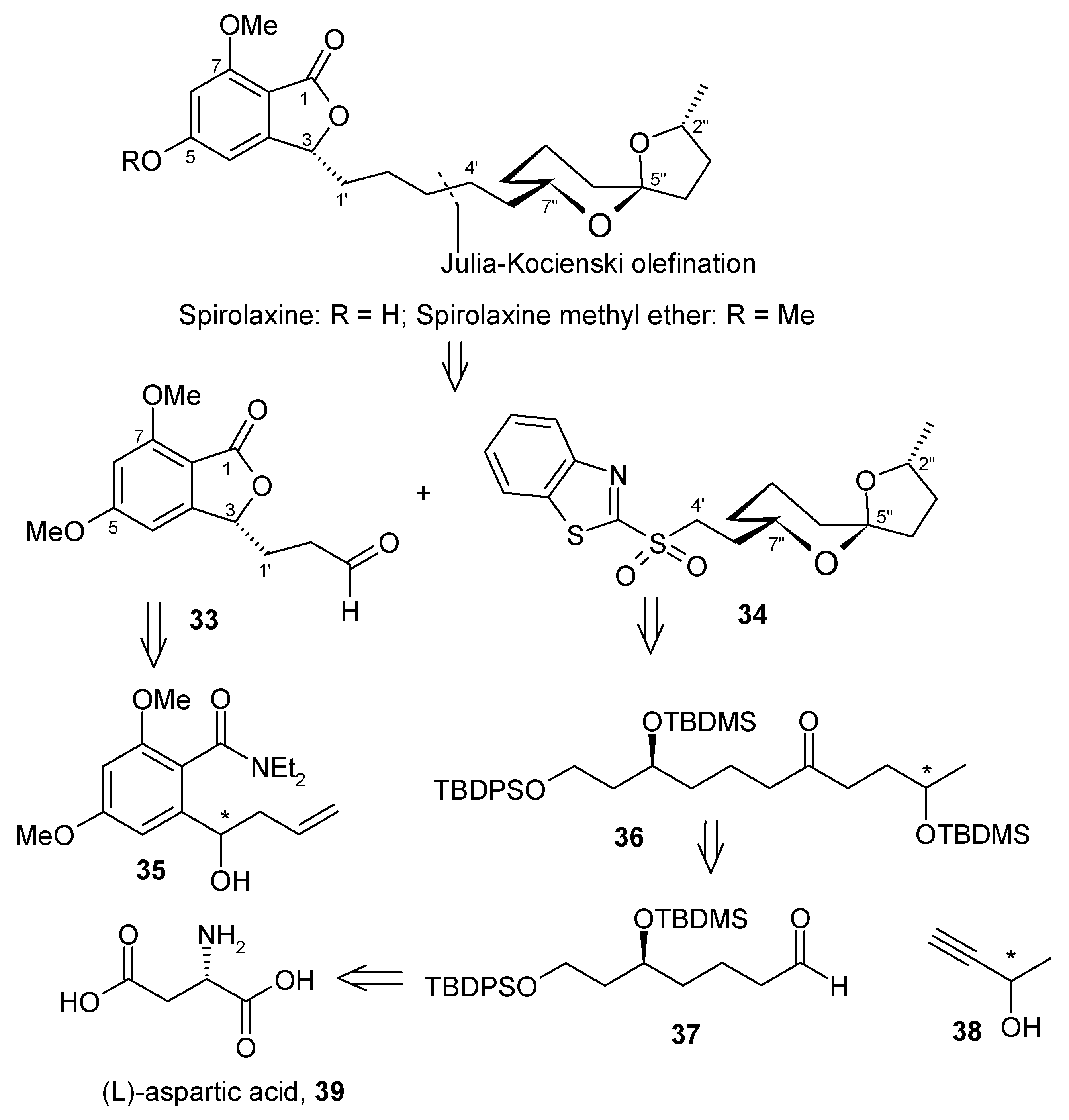

Scheme 9. Retrosynthetic analysis of (+)-spirolaxine methyl ether.
Scheme 9. Retrosynthetic analysis of (+)-spirolaxine methyl ether.
Molecules 13 01942 g012
Synthesis of (3R)-aldehyde 33 is achieved by initial synthesis of (R)-homoallyl alcohol from phthalide aldehyde 40 via titanium (+)-BINOL mediated asymmetric synthesis [33]. Regioselective bromination of the aromatic ring and subsequent diethylcarbamate formation followed by cyclisation gives compound 44, which on hydroboration and oxidation provides the desired phthalide aldehyde 33 (Scheme 10).

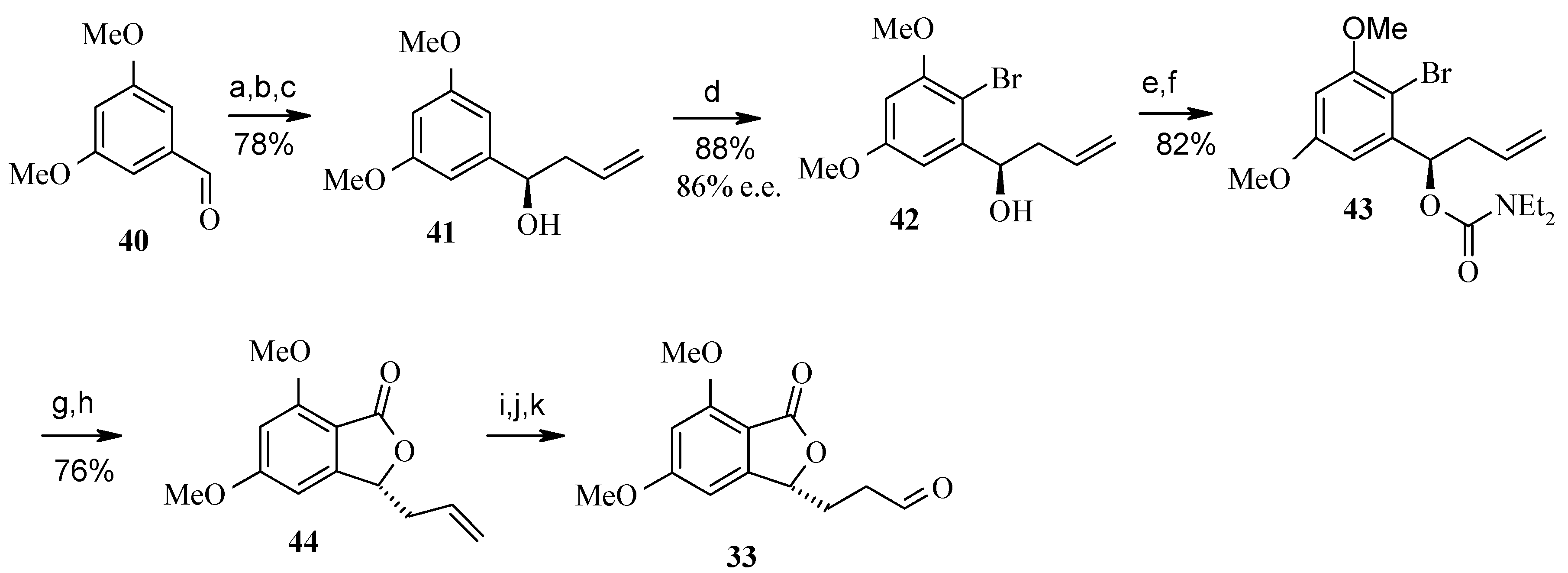

Scheme 10. Synthesis of phthalide aldehyde 33.
Scheme 10. Synthesis of phthalide aldehyde 33.
Molecules 13 01942 g013
Reagents and conditions: (a) TiF4, (+)-BINOL; (b) allyltrimethylsilane,CH2Cl2-MeCN (97:3), -20 oC; (c) n-Bu4NF, 78%; (d) NBS, CHCl3,88%; (e) NaH, THF, 0 oC; (f) N,N’-diethylcarbamoyl chloride, 82%; (g) t-BuLi, THF, -78 oC; (h) p-toluenesulfonic acid, 20 oC, 76%; (i) BH3.SMe2, THF, 0 oC; (j) NaOH, H2O, H2O2, 56%; (k) PCC, Celite, 0 oC, 72%.
The (S)-stereochemistry of the aldehyde 37 is installed in four steps by using (R)-epoxide 46, which provides the (S)-stereochemistry at C-7 of the spiroacetal ring. The epoxide 46 is obtained from L-aspartic acid (39). Similarly, lithium (R)-acetylide 48 can be used to form C-2 of the spiroacetal ring with the desired (R)-stereochemistry [34]. Thus addition of aldehyde 37 to lithium acetylide 48 at –78 oC in the presence of lithium bromide provides alcohol 49 [35]. Oxidation of the alcohol to ketone followed by reduction of the acetylene, affords the protected trihydroxy ketone 50. Deprotection of the tert-butyldimethylsilyl ethers with camphorsulfonic acid also assists the spirocyclization, which on deprotection of the tert-butyldiphenylsilyl ether with tetrabutylammonium fluoride gives spiroacetal 51. The spiroacetal 51 is the major thermodynamically favored isomer due to its stabilization by the anomeric effect. The side chain alcohol is then converted to sulfone 34, which is then treated with phthalide aldehyde 33 to give olefin by using heterocycle-activated modified Julia olefination reaction [36, 37]. Finally the olefin is carefully hydrogenated to give the spirolaxine methyl ether (Scheme 11).

2.3.2. Dallavalle Synthesis

Dallavalle and his coworkers have synthesized (+)-spirolaxine methyl ether by condensing phosphonate 52 and aldehyde 53 as shown in Scheme 12 [38]. In this case the spiroketal system is achieved by an oxidative cyclisation of hydroxyalkyl-substituted tetrahydropyran 55. The tetrahydropyran 55 itself is prepared from Prins cyclisation reaction, which gives all-cis stereochemistry [39].
The (R)-stereochemistry at C-7” of the spiroketal moiety is installed by synthesizing optically pure homoallylic (R)-alcohol 60 having side chains for the condensation with phosphonate 52. This compound is prepared from the reaction of aldehyde 58 and β-allyldiisopinocampenylborane 59 [40]. Aldehyde 58 is prepared from diol 56 by protection, deprotection and oxidation sequence from a known procedure by Brown (Scheme 13). The required stereochemistry at C-2” is obtained from the hemiacetal of 4-(R)-hydroxypentanal 61. Titanium tetrachloride mediated Prins cyclisation between 60 and 61 affords the 2,6-disubstituted-4-chlorotetrahydropyran 62 with the desired configuration [41].

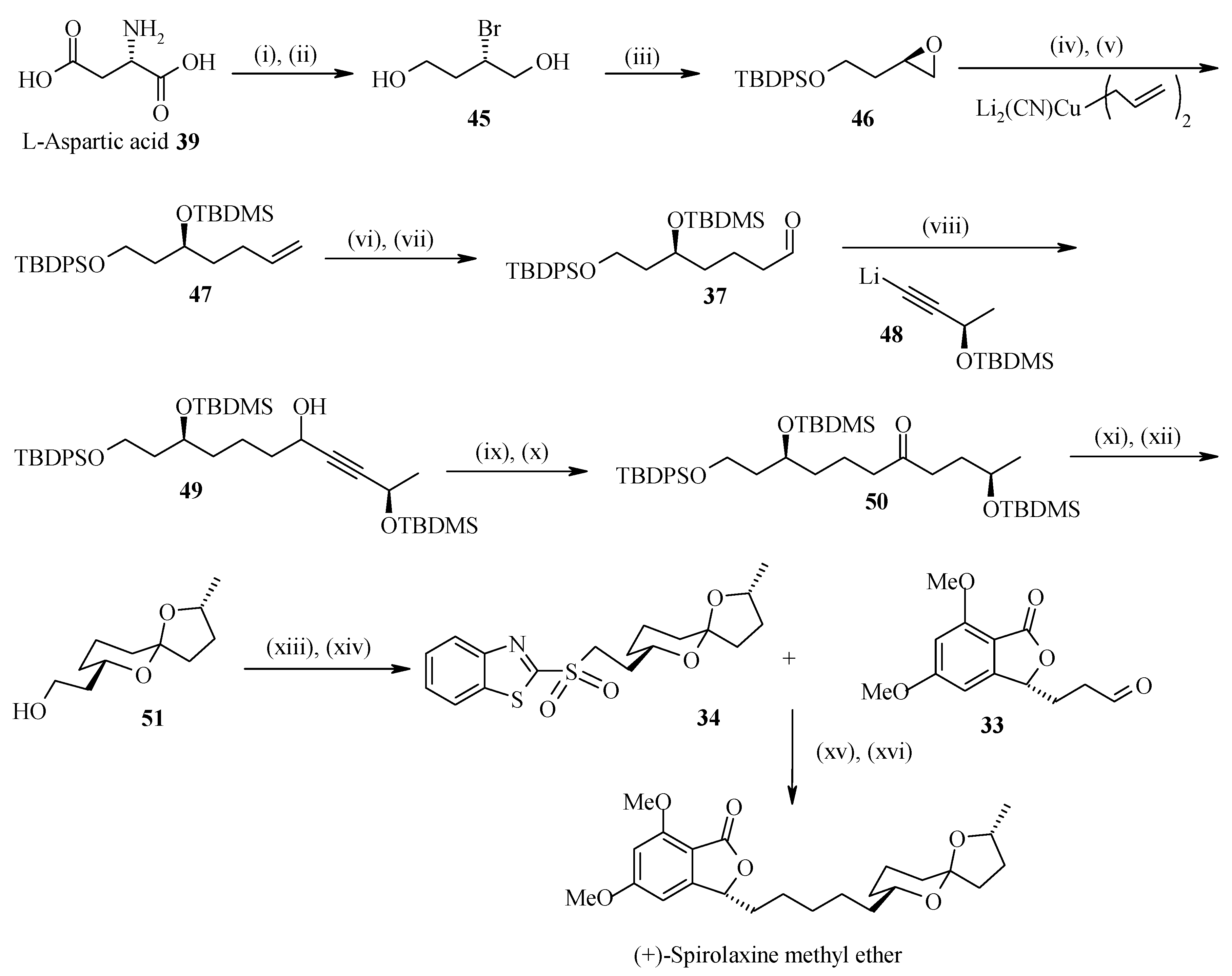

Scheme 11. Total synthesis of (+)-spirolaxine methyl ether.
Scheme 11. Total synthesis of (+)-spirolaxine methyl ether.
Molecules 13 01942 g014
Reagents and conditions: (i) NaNO2, KBr, H2SO4, 0 oC, 2h, 92%; (ii) BH3.SMe2, THF, 0 oC then MeOH, 97%; (iii) NaH (2equiv.), THF, 0 oC then TBDMSCl, 82%; (iv) Cuprate, THF, -78 oC, 2h, 90%; (v) TBDMSCl, imidazole, DMAP, CH2Cl2, 98%; (vi) BH3.SMe2, THF, 0 oC, NaOH, H2O2, 83%; (vii) Dess-Martin periodinane, pyridine, CH2Cl2, 86%; (viii) LiBr, THF, -78 oC, 76%; (ix) TPAP, NMO, CH2Cl2, 78%; (x) H2, PtO2, THF, 6h, 95%; (xi) CSA, CH2Cl2, 85%; (xii) TBAF, THF, 0 oC, 83%; (xiii) DEAD, Ph3P, 2-mercaptobenzothiazole; (xiv) m-CPBA, CH2Cl2, 51% over two steps; (xv) LDA, THF, -78 oC then aldehyde 33; (xvi) PtO2, H2, THF, 2h, 40% over two steps.

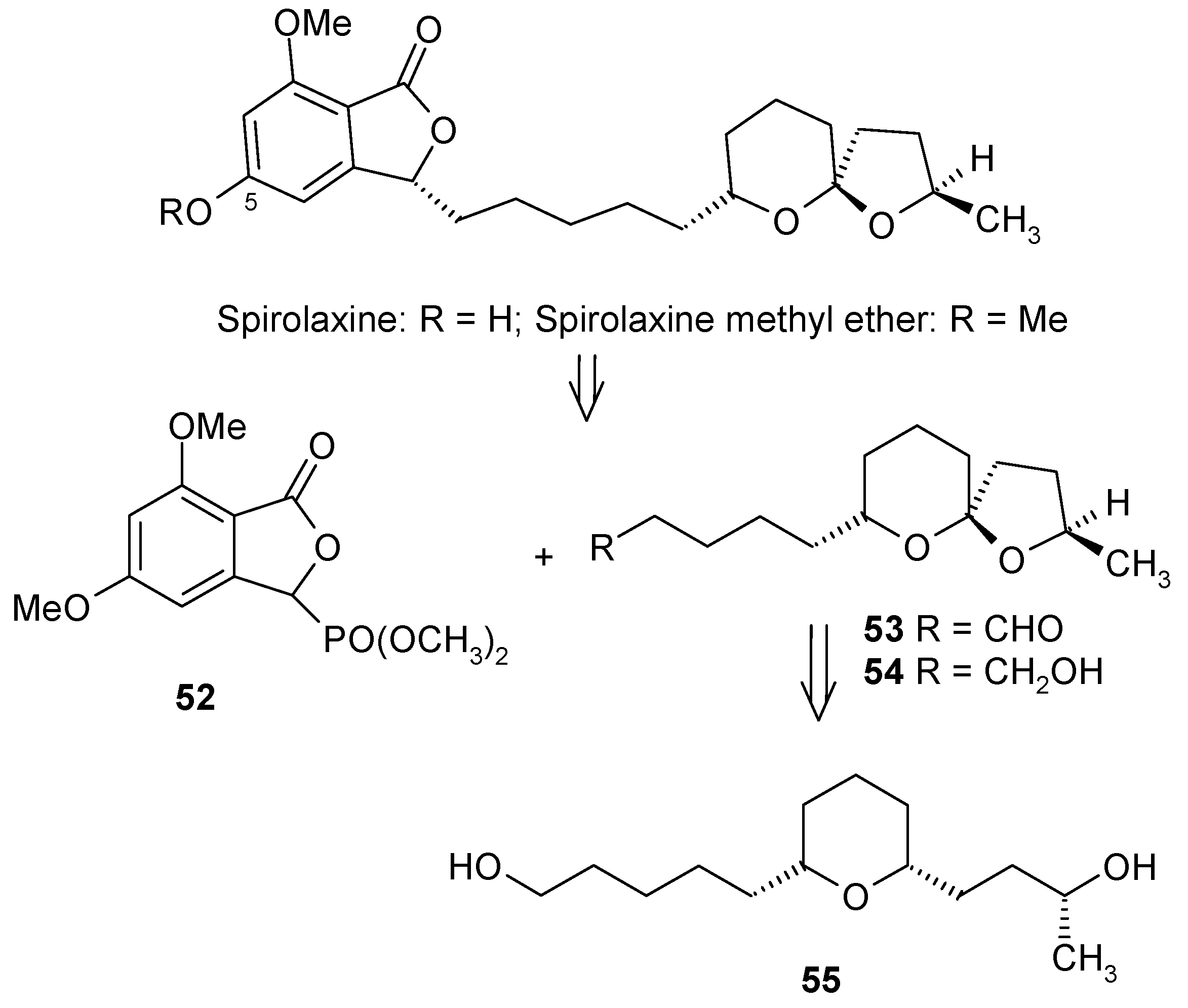

Scheme 12. Retrosynthetic analysis of (+)-spirolaxine methyl ether.
Scheme 12. Retrosynthetic analysis of (+)-spirolaxine methyl ether.
Molecules 13 01942 g015

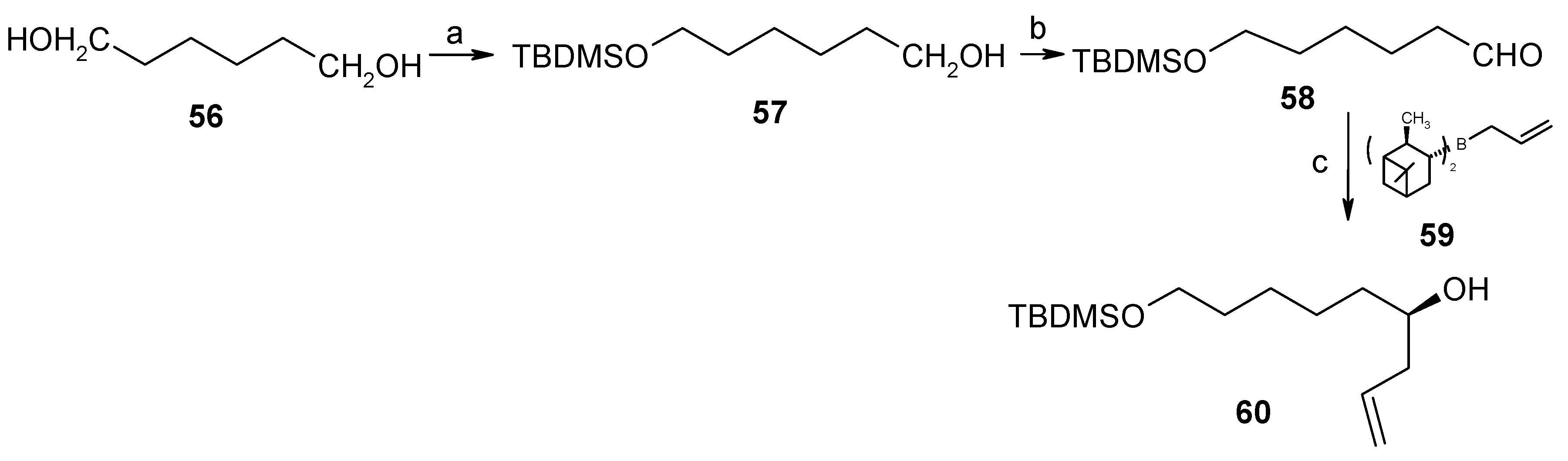

Scheme 13. Synthesis of homoallylic (R)-alcohol 60.
Scheme 13. Synthesis of homoallylic (R)-alcohol 60.
Molecules 13 01942 g016
Reagents and conditions: (a) TBDMSCl, Et3N, DMAP, THF, rt, 18h, 57%, (b) NaOCl, Polymer supported TEMPO, KBr, CH2Cl2, rt, 6h, 100%, (c) (i) 59, -78 oC, 1h, then 1h at rt, (ii) NaOH, H2O2 (35%), 1h of reflux, 82%.
Reductive dechlorination and oxidative cyclisation gives the desired spiroketal 54 with low yield (21%). This is overcome by selectively protecting the primary alcoholic group and subsequent oxidative cyclisation to give spiroketal 64 (Scheme 14). Deprotection of the hydroxyl group of 64 and subsequent oxidation gives aldehyde 53 for condensation with phosphonate 52. The phosphonate 52 is prepared by a literature procedure [42]. Condensation of phosphonate 52 with aldehyde 53 affords alkene 65 as a mixture of E/Z isomers. Finally the synthesis is completed by reduction of double bond using Pd/C as a catalyst, which led to a mxture of two stereoisomers from which the (+)–spirolaxine methyl ether is separated by preparative HPLC.

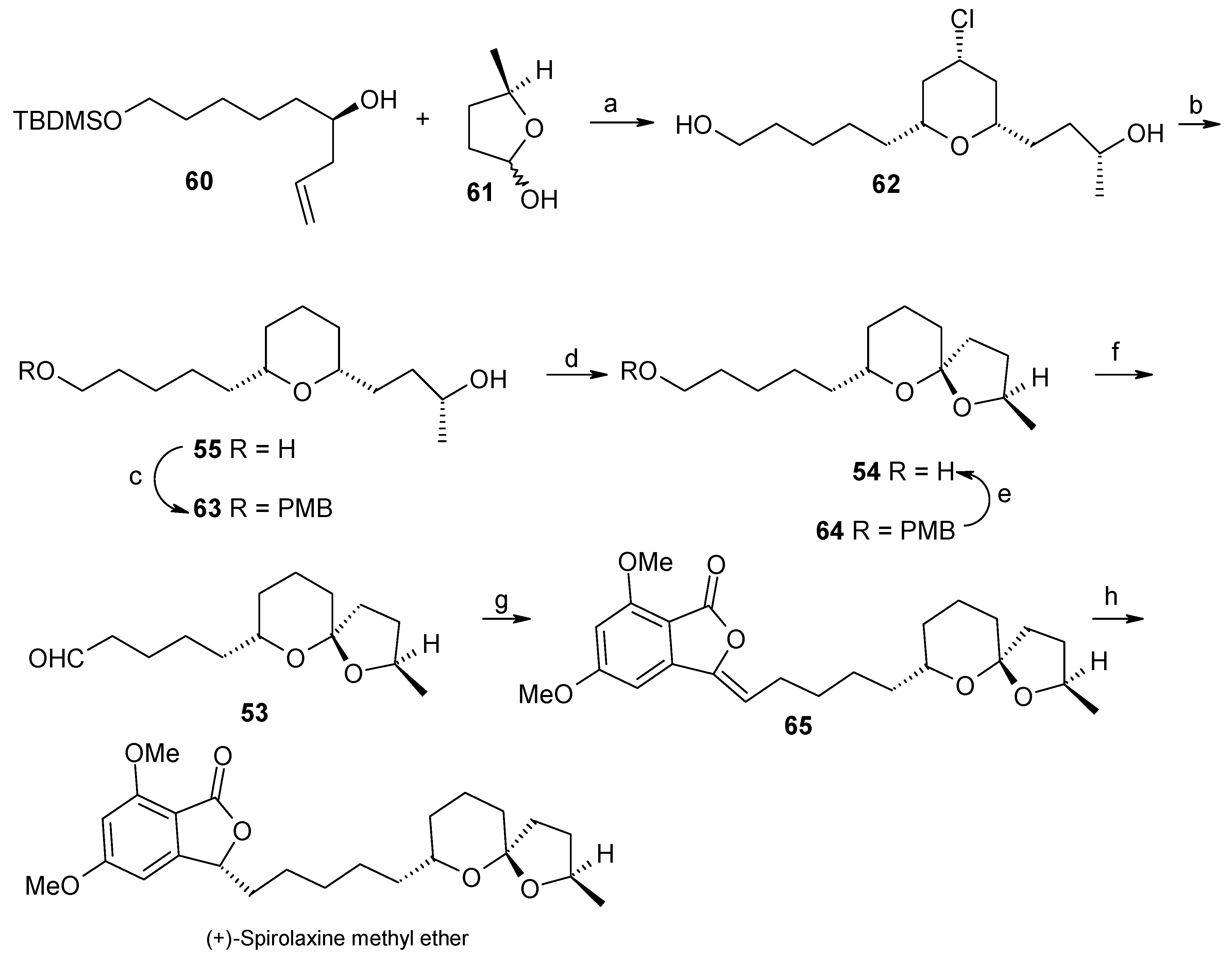

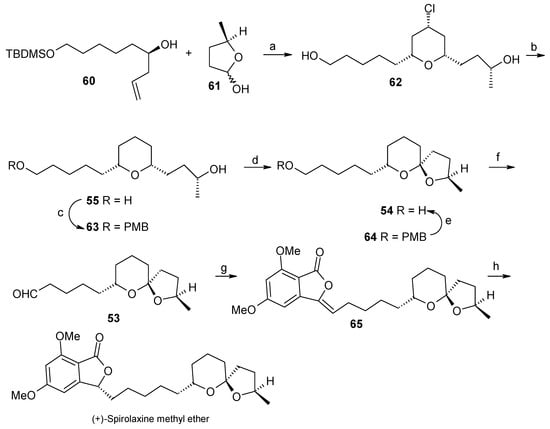

Scheme 14. Total synthesis of (+)-spirolaxine methyl ether.
Scheme 14. Total synthesis of (+)-spirolaxine methyl ether.
Molecules 13 01942 g017
Reagents and conditions: (a) TiCl4, CH2Cl2, -70 oC, 4h, then –20 oC, 1h, 63%, (b) NaBH4, DMSO, 130 oC, 8h, 96%, (c) PMBCl, NaH, DMF, rt, 3 days, 50%, (d) HgO, I2, hv, cyclohexane, 9h, 68%, (e) CAN, CH3CN/H2O, rt, 2h, 68%, (f) TEMPO, KBr, NaOCl, 3h, 100%, (g), 52, NaH, THF, rt, 24h, 62%, (h) 10% Pd/C, AcOH, 4h, 45%.

2.3.3. Phillips Synthesis

Philips and coworkers applied cyclopropanol-based strategy for the subunit coupling as shown in Scheme 15 [43]. The synthesis starts with the coupling of readily available olefin 68 with commercially available (R)-γ-valerolactone (67) to give cyclopropanol 66, according to the Kulinkovich cyclopropanation reaction [44]. Subsequent ring opening and deprotection gives spiroketal 51, which is then transformed into its bromide 70. Next, the bromide 70 is coupled with olefin 44 obtained from 40 by Brimble procedure (Scheme 16), using the alkyl-alkyl Suzuki coupling reported by Fu to give directly (+)-spirolaxine methyl ether (Scheme 17) [32, 45].
In all three approaches the coupling of two moieties, phthalide and spiroketal, gives the final products. The Brimble synthesis is longer than the Dallavalle and Phillips ones. The former consisting of 21 total steps, whereas the Dallavalle and Phillips syntheses consist of only 11 and 10 steps, respectively. The coupling of two moieties having all stereocenters makes these syntheses modular in nature, which opens up the utilization of these approaches for the synthesis of other diastereomers of spirolaxine methyl ether, paving the way for synthesis of analogs of these natural products for structure-activity studies.

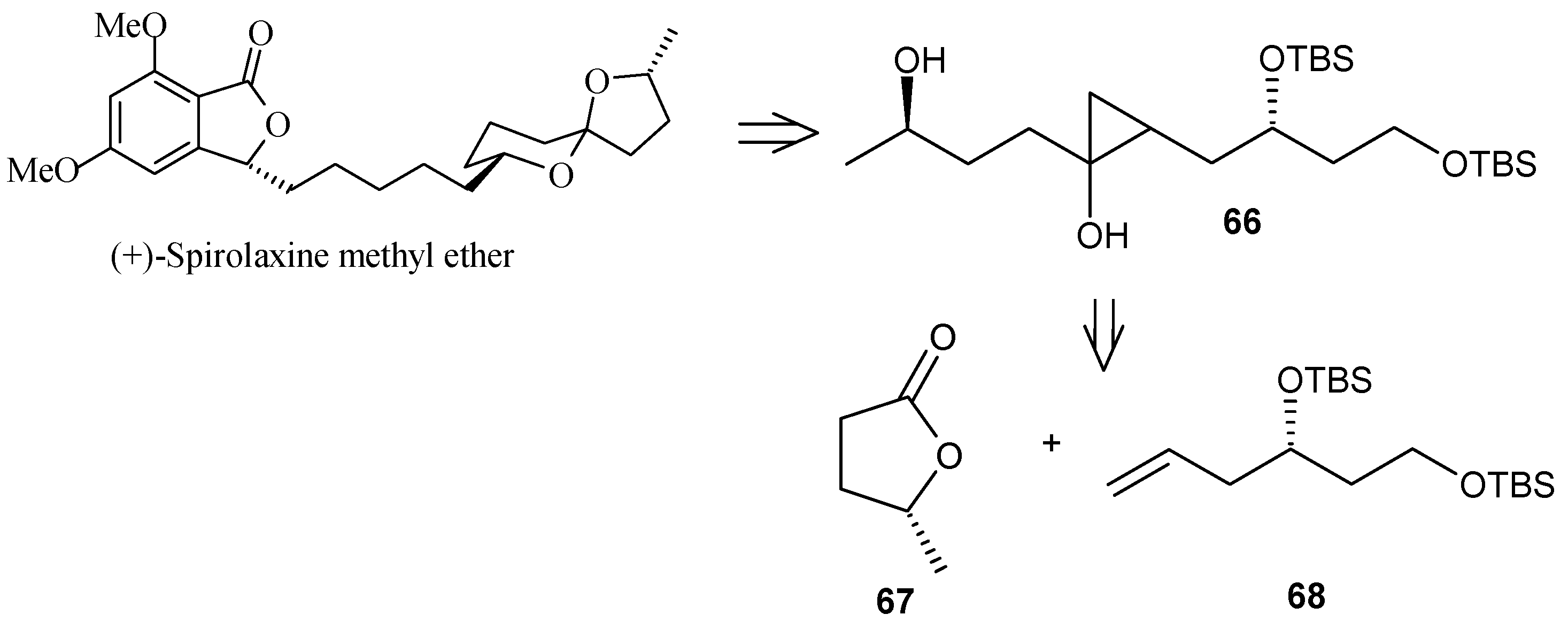

Scheme 15. Retrosynthetic analysis of (+)-spirolaxine methyl ether.
Scheme 15. Retrosynthetic analysis of (+)-spirolaxine methyl ether.
Molecules 13 01942 g018

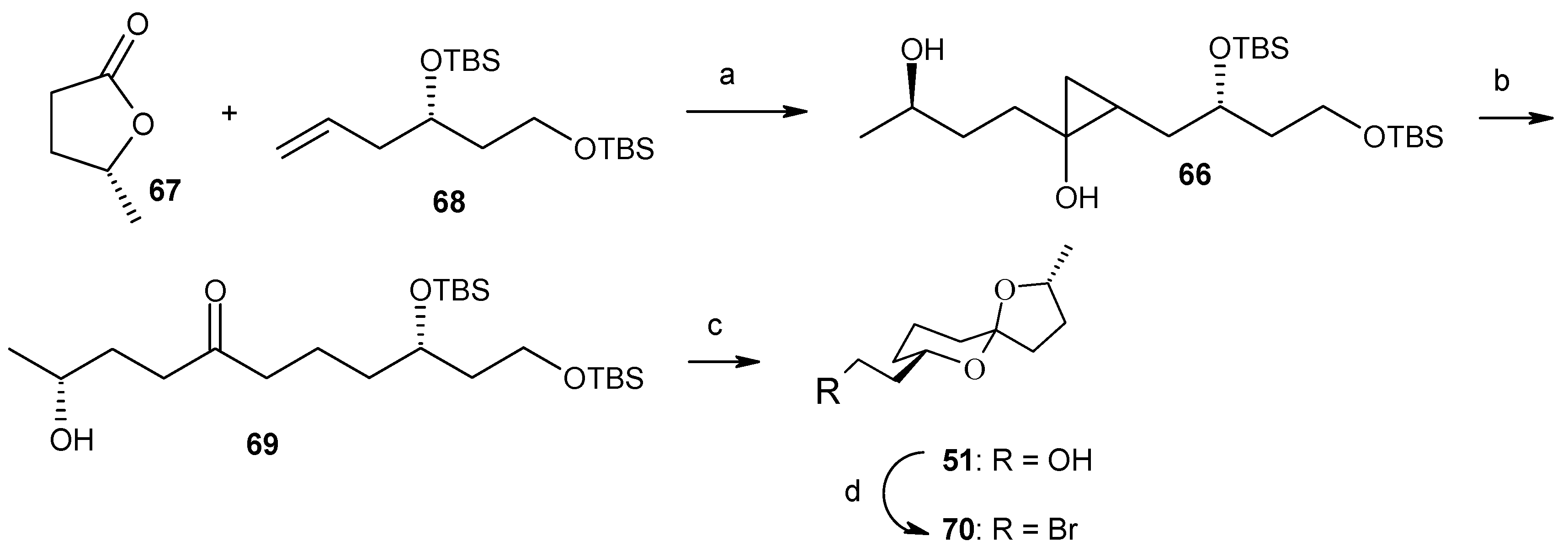

Scheme 16. Synthesis of spiroketal bromide 70.
Scheme 16. Synthesis of spiroketal bromide 70.
Molecules 13 01942 g019
Reagents and conditions: (a) c-C6H11MgBr, Ti(i-PrO)4, toluene, 92%; (b) Fe(NO3)3, Bu3SnH, DMF, 75%; (c) HF, MeCN, 89%; (d) NBS, Ph3P, CH2Cl2, 99%.

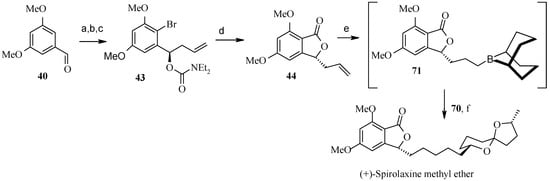

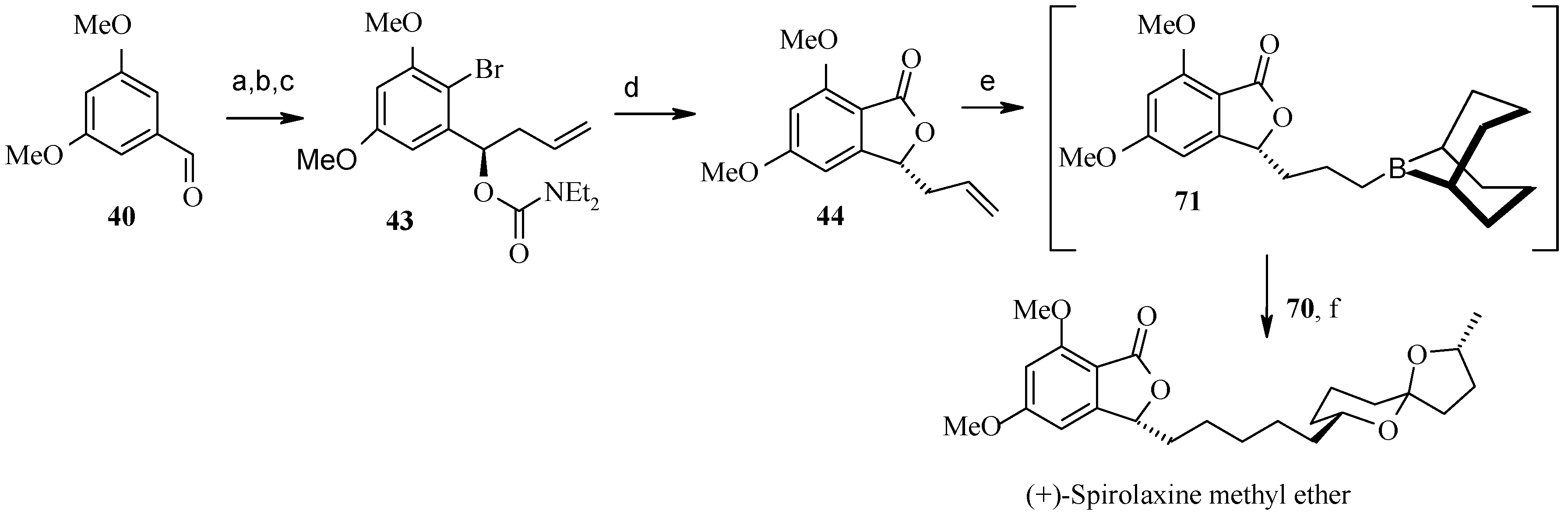

Scheme 17. Total synthesis of (+)-spirolaxine methyl ether.
Scheme 17. Total synthesis of (+)-spirolaxine methyl ether.
Molecules 13 01942 g020
Reagents and conditions: (a) (-)-Ipc2B(allyl), Et2O, 75% (b) NBS, CHCl3, 80%; (c) NaH, Et2NCOCl, THF, 82%; (d) t-BuLi, THF, p-TsOH, 79%; (e) 9-BBN, THF; (f) 70, aq. Cs2CO3, Pd(OAc)2, Cy3P, dioxane, 40 oC, 79%.

2.4. Synthesis of anti-Helicobacter pylori agents CJ-12,954 and CJ-13,014

Dekker et al. isolated seven 5,7-dimethoxyphthalide antibiotics with specific anti-Helicobacter pylori activity from the basidiomycete Phanerochaete velutina CL6387 and out of these two more potent compounds were CJ-12,954 and its C-5” epimer CJ-13,014 (Figure 2) [46]. These are structurally related to the two helicobactericidal compounds spirolaxine and spirolaxine methyl ether [31].

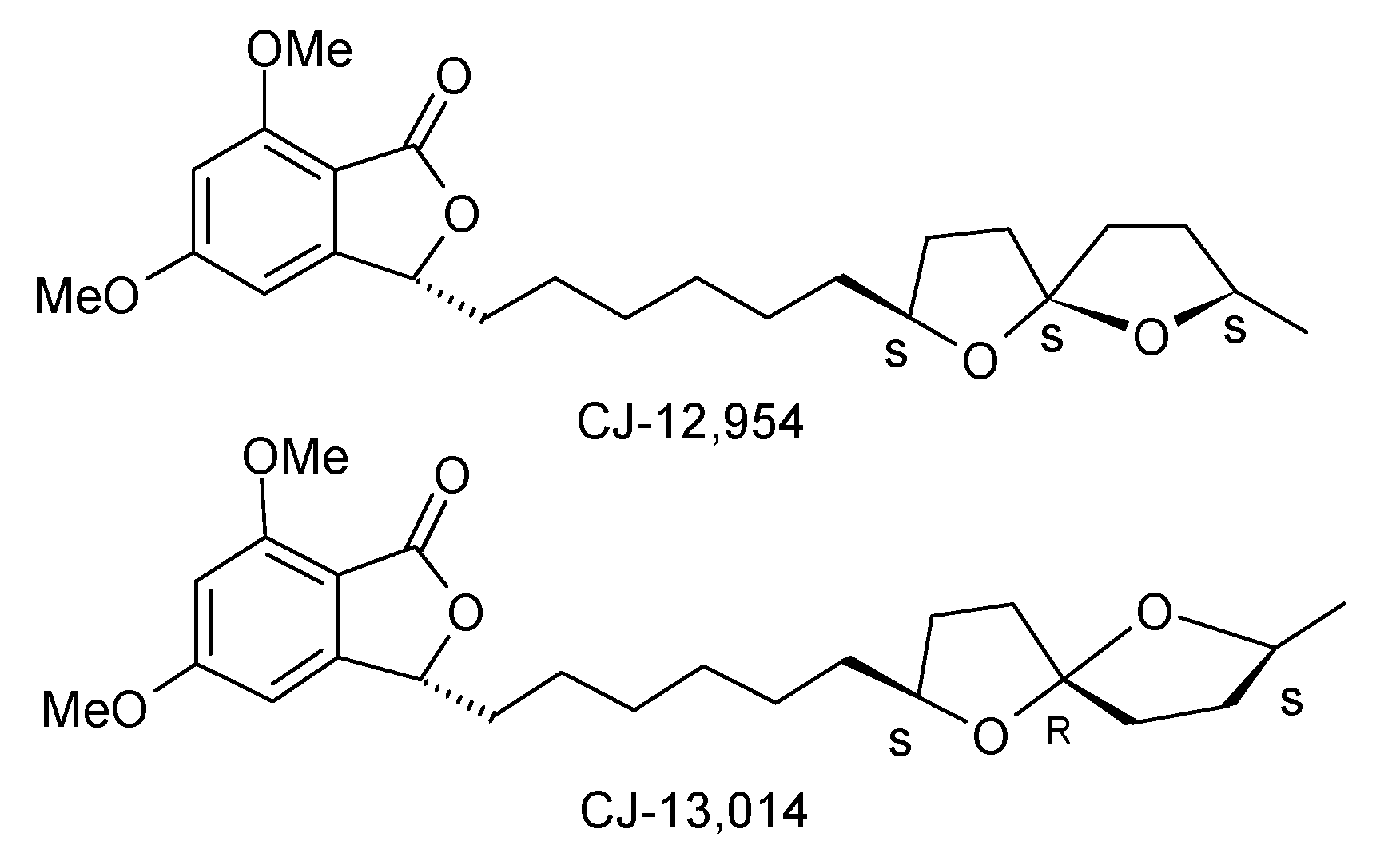

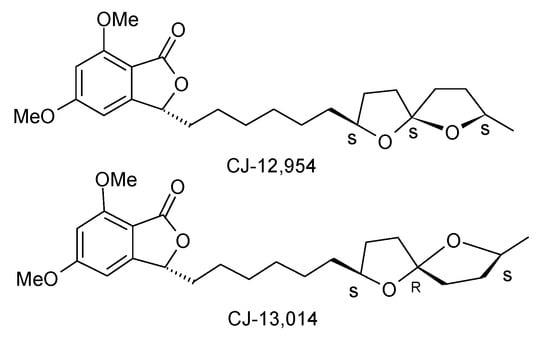

Figure 2. Structures of compounds CJ-12,954 and CJ-13,014.
Figure 2. Structures of compounds CJ-12,954 and CJ-13,014.
Molecules 13 01942 g002
Brimble et al. first synthesized the anti-helicobacter pylori agents CJ-12,954 and CJ-13,014 based on the union of hetercycle-activated spiroacetal-containing sulfone fragment with a phthalide-containing aldehyde fragment [47]. The key step in this synthesis is a modified Julia olefination of phthalide aldehyde and heterocycle-activated sulfones.

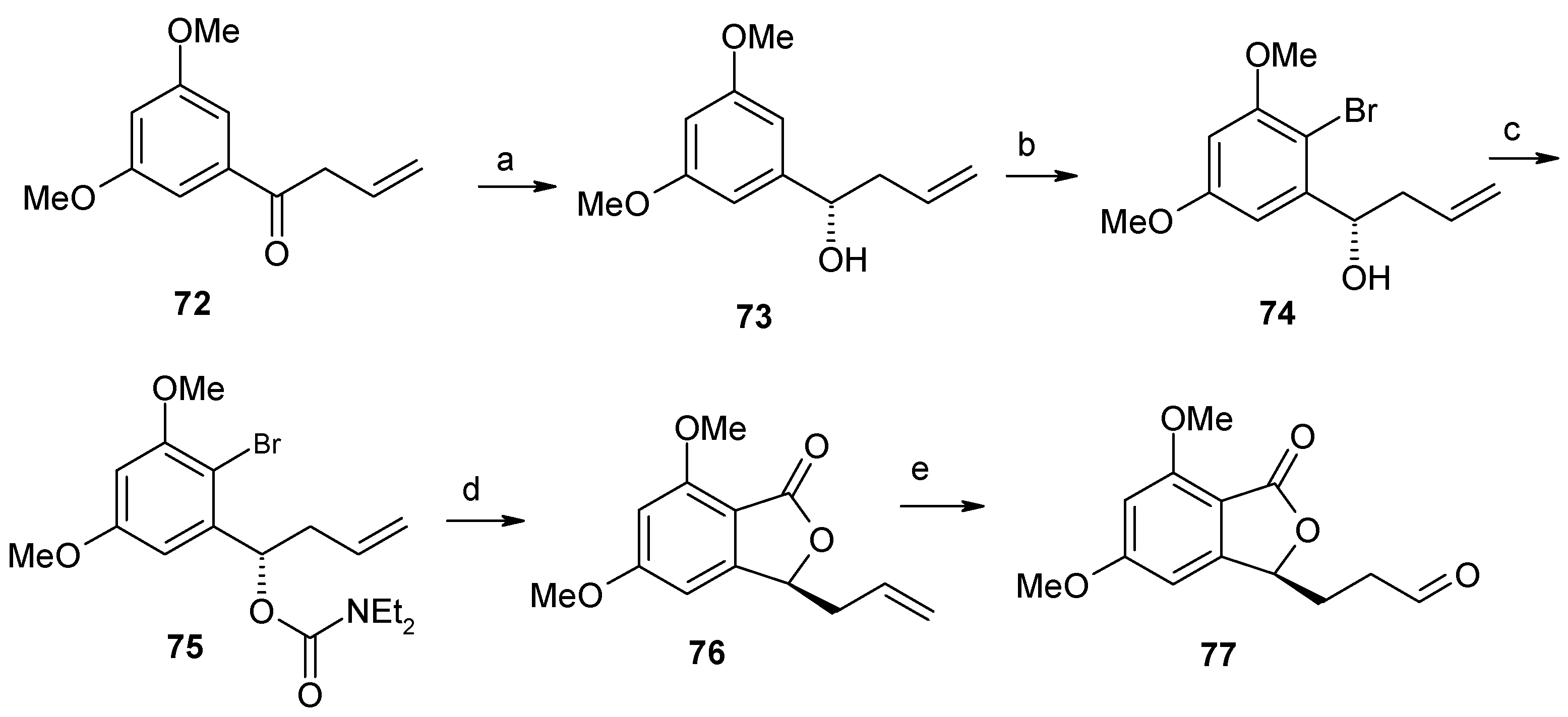

Scheme 18. Synthesis of phthalide aldehyde 77.
Scheme 18. Synthesis of phthalide aldehyde 77.
Molecules 13 01942 g021
Reagents and conditions: (a) (R)-MeCBS, BH3-SMe2, 15 min, then THF, 2h, 92%, 94% ee; (b) NBS, NH4OAc, Et2O, 24h, 90%; (c) NaH, THF, 0 oC, then N,N-diethylcarbamoyl chloride, 90%, (d) t-BuLi, THF, -78 oC, 2h, then CSA, 20 oC, 12h, 70%, (e) 2-methyl-2-butene, BH3-SMe2, THF, 0 oC, then MeOH, NaOH, 30% H2O2, 71%; (f) TPAP, NMO, CH2Cl2, MS4A, 6h, 20 oC, 72%.
At first the ketone 72 is reduced asymmetrically to give compound 73 with (S)-configuration [48]. This on regioselective bromination, diethylcarbamate formation and then lactonisation gives compound 76, which on hydroboration and subsequent oxidation affords the aldehyde 77 (Scheme 18).
Next, the (S)-configuration at C-2” and C-7” is installed from (S)-homoallylic alcohol 79 and lithium (S)-acetylide derived from 82. Alcohol 79 is obtained from asymmetric reduction of aldehyde 78 [49]. Compound 79 is converted to aldehyde 81 by protection, hydroboration and oxidation steps.

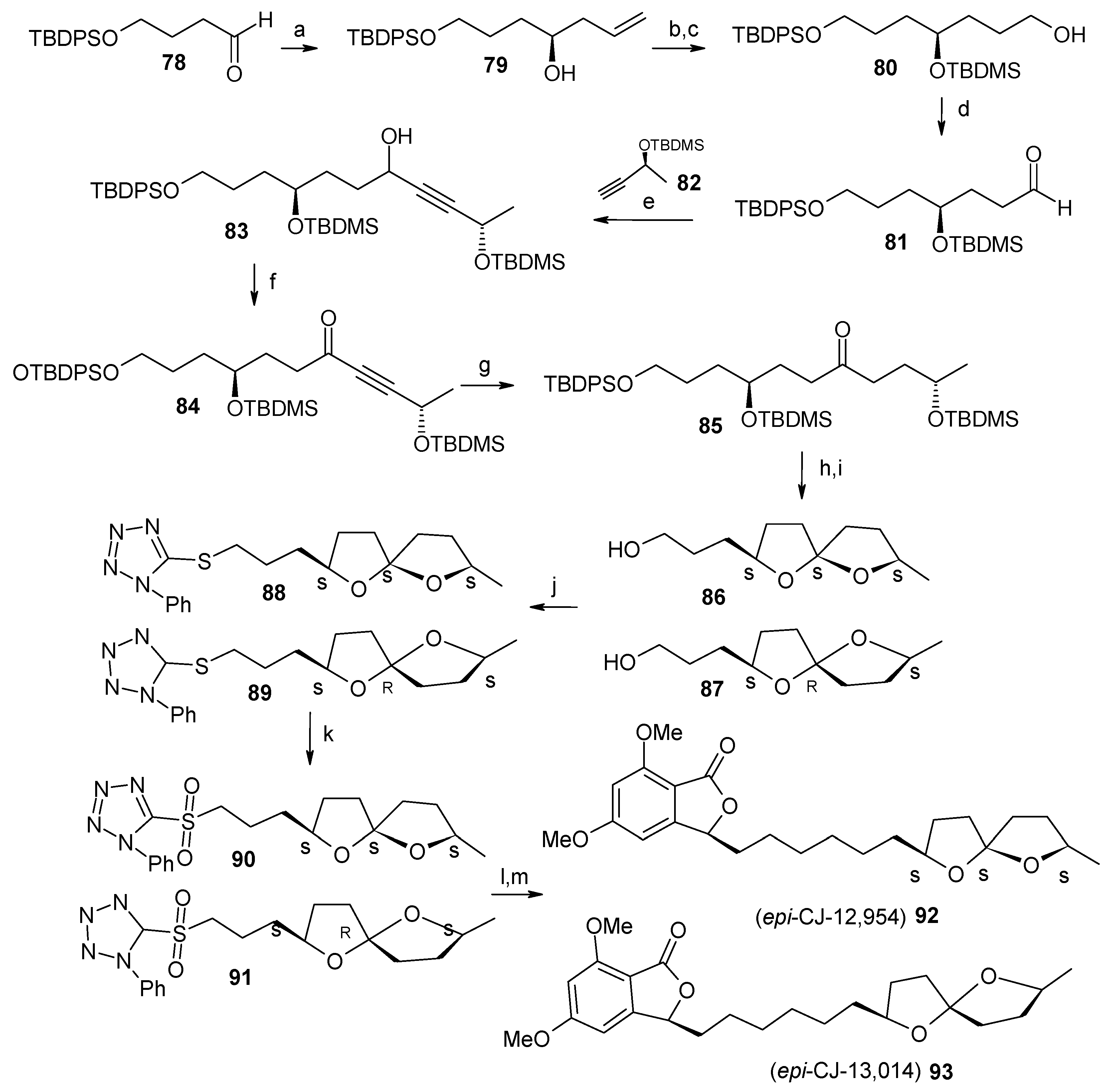

Scheme 19. Synthesis of epi-CJ-12,954 and epi-CJ-13,014.
Scheme 19. Synthesis of epi-CJ-12,954 and epi-CJ-13,014.
Molecules 13 01942 g022
Reagents and conditions: (a) allyl bromide, Mg, (+)-β-diisopinocamphenylmethoxyborane, Et2O, -78 oC, 82%, 94% ee: (b) TBDMSCl, imidazole, DMAP, CH2Cl2, 20 oC, 12h, 90%; (c) 2-methyl-2-butene, BH3-SMe2, 0 oC, 76%; (d) Dess-Martin periodinane, Py, CH2Cl2, 20 oC, 77%, (e) 82, n-BuLi, LiBr, THF, -78 oC, then 81, 84%; (f) TPAP, NMO, MS4A, CH2Cl2, 20 oC, 94%; (g) H2, PtO2, K2CO3, THF-MeOH (1:1), 94%, (h) CSA, CH2Cl2, 20 oC, 4h, 93%; (i) TBAF, CH2Cl2, 20 oC, 3h, 77%; (j) 1-phenyl-1H-tetrazole-5-thiol, Ph3P, DEAD, 78%; (k) m-CPBA, NaHCO3, 71%; (l) KHMDS, THF, -78 oC then 77, 84%, (m) H2, PtO2, K2CO3, THF-MeOH (1:1), 85%.
Reaction of aldehyde 81 with lithium acetylide 82, followed by oxidation with TPAP and NMO affords ketone 84, which is then selectively reduced to saturated ketone 85 using PtO2 as a catalyst (Scheme 19). Ketone 85 is then subjected to spirocyclisation with camphorsulfonic acid to give two anomeric compounds 86 and 87 as an inseparable 1:1 mixture. Heterocycle-activated modified Julia olefination of 88 and 89 with aldehyde 77 affords spiroacetals 92 and 93 after hydrogenation over PtO2 [50].
NMR spectroscopy reveals that the stereochemistry at C-3 in these two compounds is opposite to that of natural products. The opposite stereochemistry at C-3 is obtained by performing Julia reaction with the known compound 33 to give olefins, which on subsequent reduction affords natural compounds CJ-12,954 and CJ-13,014 (Scheme 20) [32].

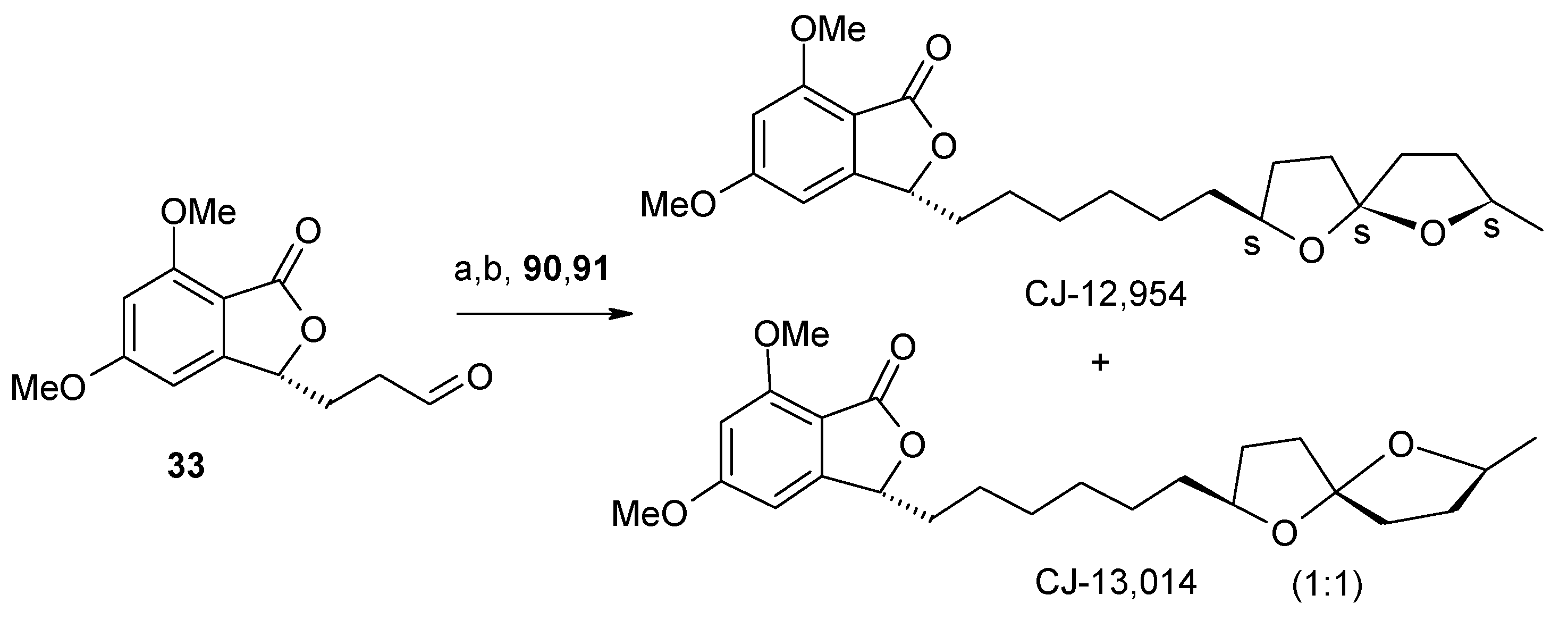

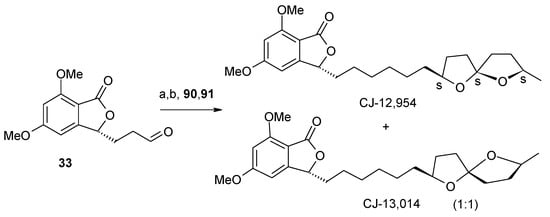

Scheme 20. Total synthesis of anti-Helicobacter pylori agents CJ-12,954 and CJ-13,014.
Scheme 20. Total synthesis of anti-Helicobacter pylori agents CJ-12,954 and CJ-13,014.
Molecules 13 01942 g023
Reagents and conditions: (a) 90, 91 (1:1), KHMDS, THF, -78 oC, then 33, 76%; (b) H2, PtO2, K2CO3, THF-MeOH (1:1), 90%.

2.5. Enantioselective Synthesis of aculeatins A, B, D and 6-epi-aculeatin D

The aculeatins A and B are two epimeric spiroacetals isolated from the terrestrial plant species Amomum aculeatum Roxb. (fam. Zingiberaceae) [51]. These compounds are found to display antiprotozoal activity against some Plasmodium and Trypanosoma species. In addition they show antibacterial activity and are cytotoxic against the KB cell line. The aculeatins A-D represent a novel type of natural compounds containing an unusual 1,7-dioxadispiro[5.1.5.2]pentadecane system.

2.5.1. Falomir Synthesis

Falomir and his coworkers described the enantioselective synthesis of spiroketals Aculeatin A, B, D and epi-D [51]. The retrosynthetic pathway for aculeatins A and B is shown in Scheme 21. This synthesis is based on the phenolic oxidation of an appropriately substituted ketone 94 and subsequent spirocyclisation. The ketone can be obtained from protected triol 95, which in turn is accessible from aldol condensation of 96 and 97, whereas 96 can be obtained by asymmetric allylation of suitably protected aldehyde 98.
The synthesis starts with asymmetric allylation of 3-(p-benzyloxyphenyl)propanal 99 using the chiral allylborane prepared from allylmagnesium bromide and (-)-DIP-Cl [(-)-diisopinocamphenyl-chloroborane] leading to homoallyl alcohol 100 with 96%ee [52,53].

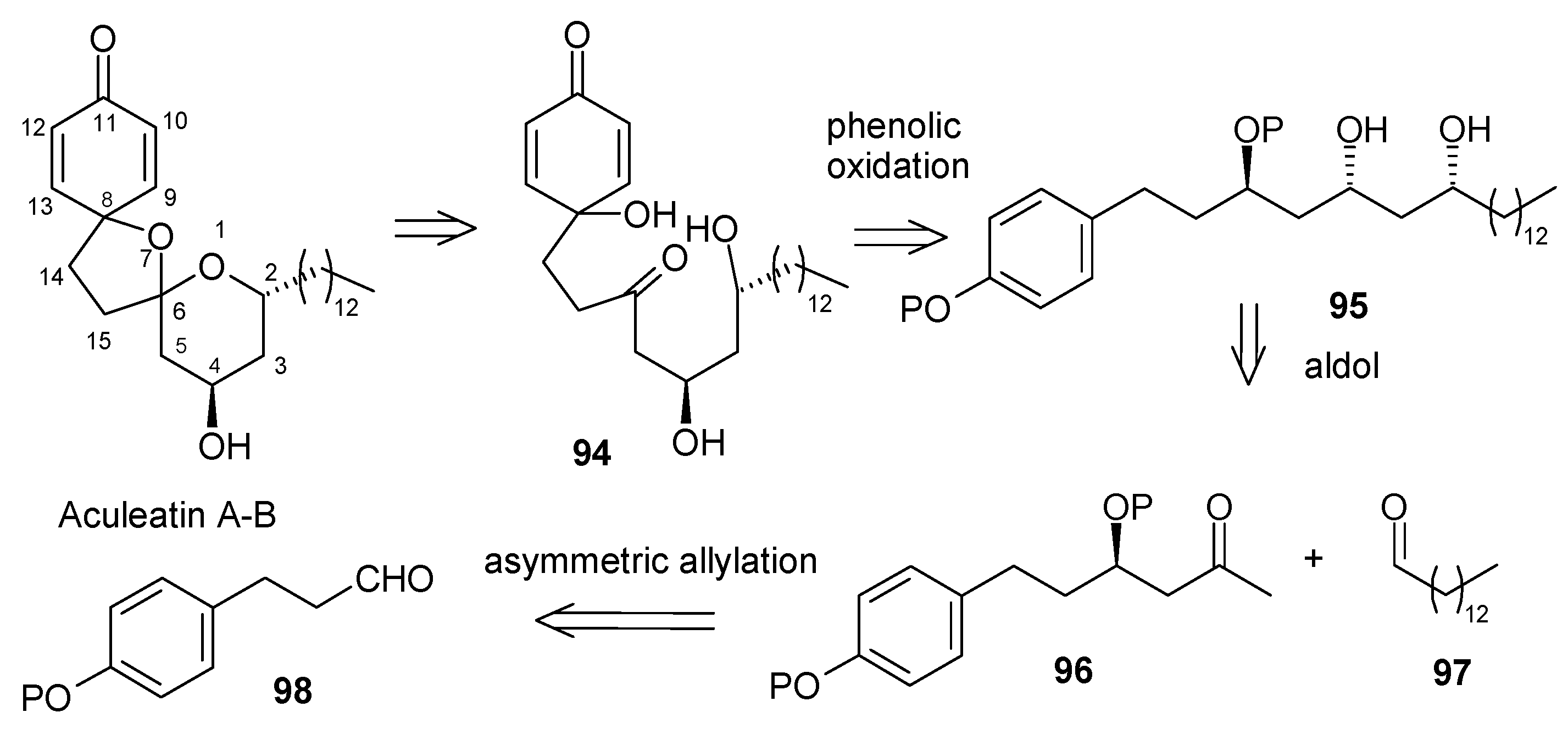

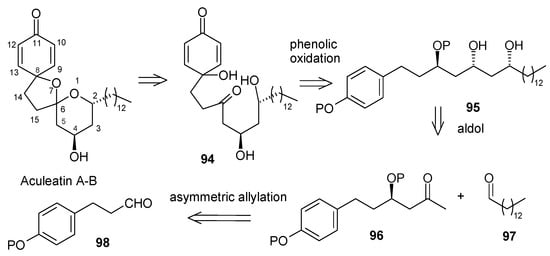

Scheme 21. Retrosynthetic analysis of aculeatins A-B.
Scheme 21. Retrosynthetic analysis of aculeatins A-B.
Molecules 13 01942 g024

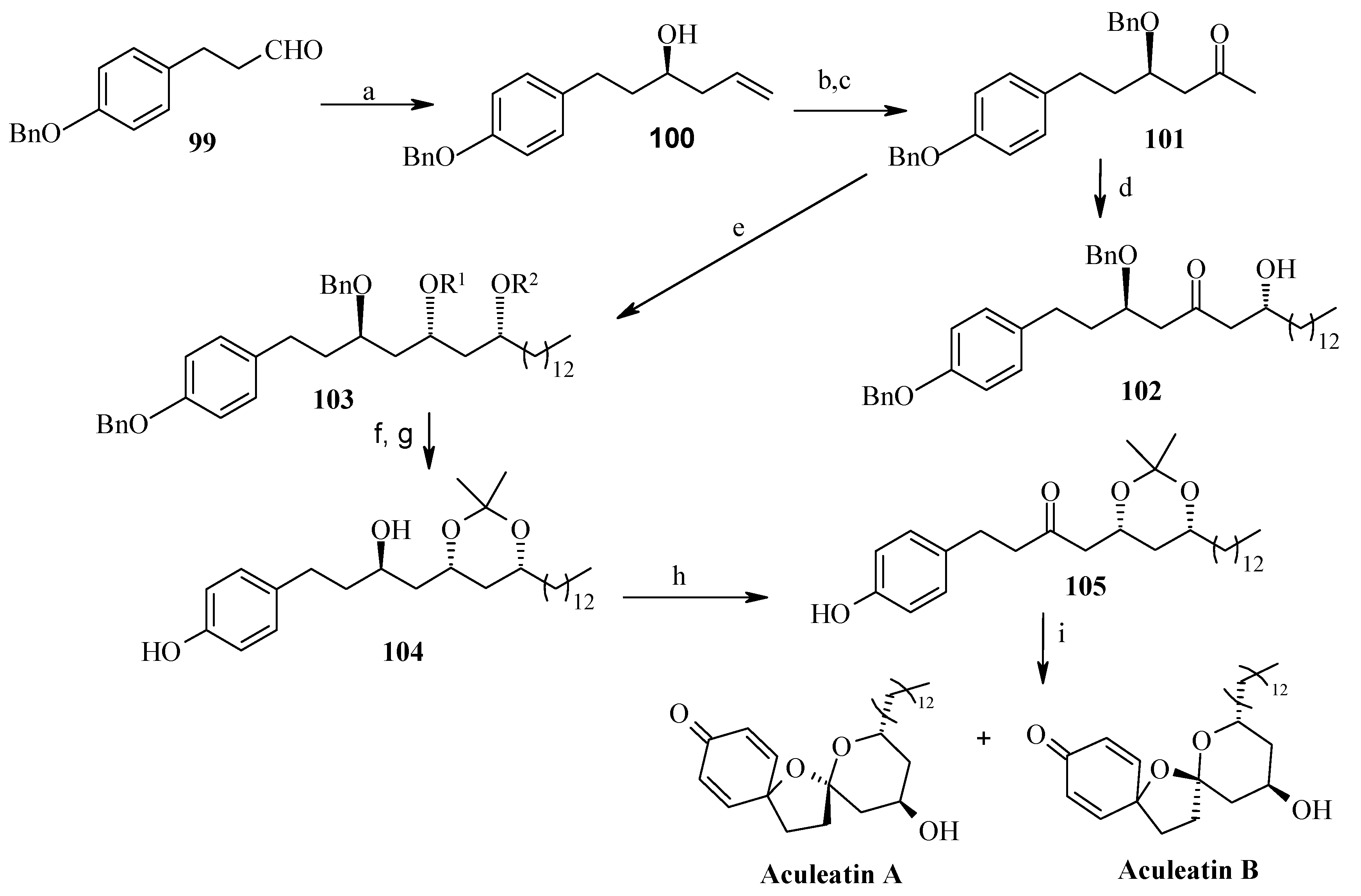

Scheme 22. Total synthesis of aculeatins A-B.
Scheme 22. Total synthesis of aculeatins A-B.
Molecules 13 01942 g025
Reaction conditions: (a) allylBIpc2 from (-)-Ipc2BCl and allylmagnesium bromide, Et2O, 3h, -90 oC; (b) NaH, THF then BnBr, rt, 85% overall from starting material (c) PdCl2, CuCl2, aq. DMF, O2, 2days, 75%; (d) Bu2BOTf, EtNiPr2, CH2Cl2, -78 oC, 1h, followed by addition of n-tetradecanal, 3h, -78 oC, 70%; (e) Bu2BOTf, EtNiPr2, CH2Cl2, -78 oC, 1h, followed by addition of n-tetradecanal, 3h, -78 oC, then LiBH4, 2h, -78 oC, 65% overall; (f) 2,2-dimethoxypropane, CSA (cat), Me2CO, rt. 1d, 72%; (g) H2, (1 atm.) 10% Pd/C, EtOAc, rt, 6h, 70%; (h) (COCl)2, DMSO, CH2Cl2, -78 oC, then Et3N, -78 oC to 0 oC, 87%; (i) PhI(OOCCF3)2, Me2CO-H2O (9:1), rt, 24h, 65% overall, 5.5:1 mixture of aculeatins A and B.
Benzylation and Wacker oxidation followed by boron aldol reaction of allyl alcohol 100 provides the desired aldol 102 as a single disastereomer [54,55,56]. The aldol is then reduced in situ to the monobenzylated anti, syn-1,3,5-triol 103 with LiBH4. Protection of the two free hydroxyl groups as an acetonide, followed by hydrogenolytic debenzylation affords 104, which on Swern oxidation furnishes ketone 105. The ketone 105 is then subjected to hydrolytic cleavage of the acetonide moiety but the yield of expected β,δ-dihydroxy ketone is low (< 35%). The treatment of acetonide 104 with phenyliodonium bis(trifluoroacetate) not only causes the desired phenolic oxidation, but also acetonide hydrolysis and subsequent spiroacetalization (Scheme 22) [57,58]. This cleanly gives a 5.5:1 mixture of two optically active products with spectral properties identical to those reported for aculeatins A and B.

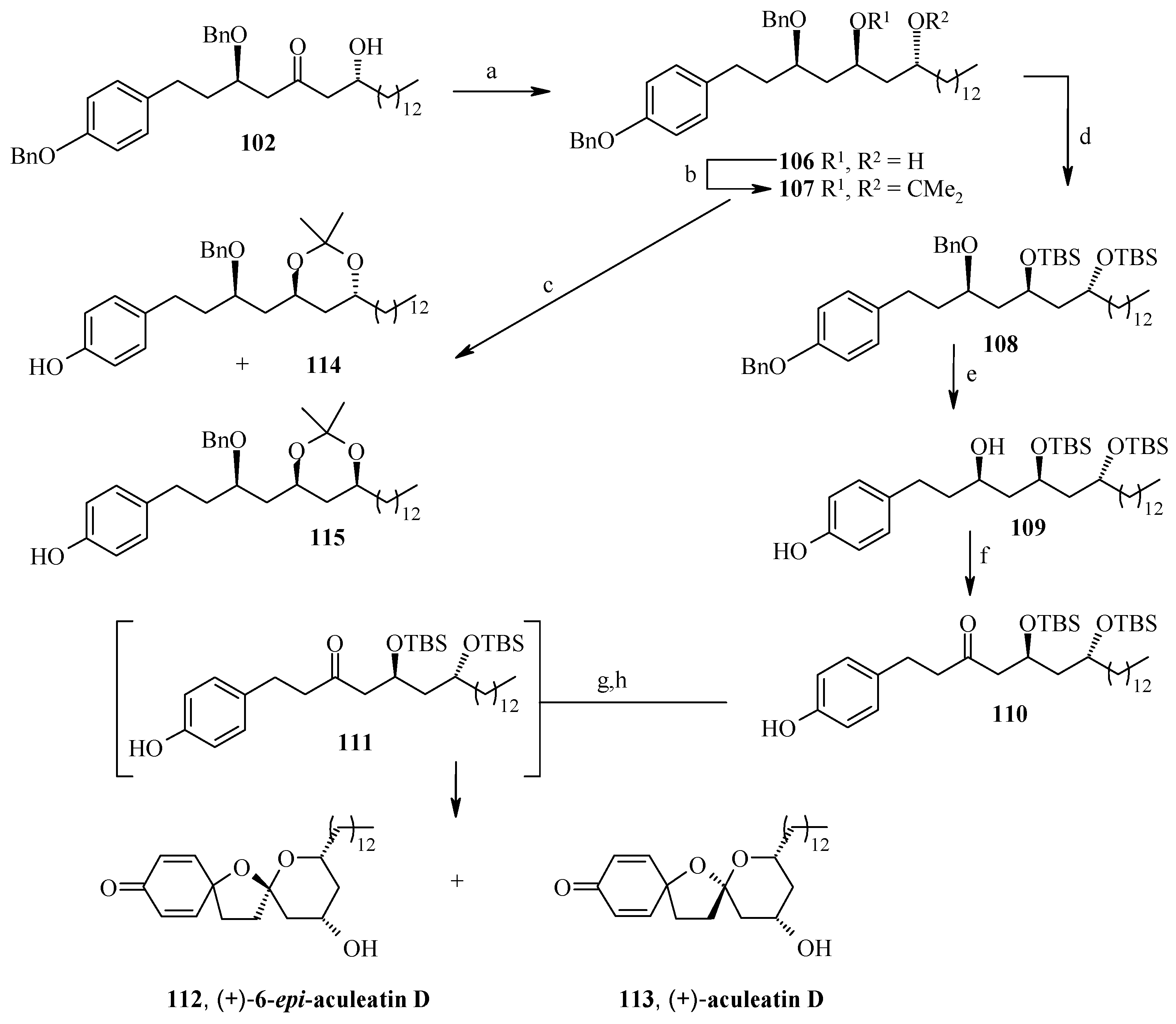

Scheme 23. Total synthesis of (+)-aculeatin D and (+)-6-epi-aculeatin D.
Scheme 23. Total synthesis of (+)-aculeatin D and (+)-6-epi-aculeatin D.
Molecules 13 01942 g026
Reaction conditions: (a) TABH, AcOH-MeCN, -30 oC, 12h, 86%; (b) 2,2-dimethoxypropane, CSA (cat), Me2CO, rt, 12h, 89%; (c) H2, (1 atm), 10% Pd/C, EtOAc, rt, 6h, 40%; (d) TBSOTf, 2,6-lutidine, CH2Cl2, heat, 91%; (e) H2, (1 atm), 10% Pd/C, EtOAc, rt, 15 min, 74%; (f) (COCl)2, DMSO, CH2Cl2, -78 oC, then Et3N, -78 oC to 0 oC, 81%; (g) TASF, DMF, 0 oC, 90 min, then rt, 4h; (h) PHI(OOCCF3)2, Me2CO-H2O (9:1), rt, 30 min, 77% over two steps, 2.7:1 mixture of aculeatin D (minor) and 6-epi-aculeatin D (major).
The synthesis of aculeatin D and 6-epi-aculeatin D is achieved by inversion of configuration at C-4. Thus, aldol 102 is stereoselectively reduced with TABH to afford the expected anti-1,3-diol 106 [59]. In this case the free hydroxyl groups of 106 are not protected as an acetonide because it gives unwanted rearranged acetonide 115 as major product under the hydrolytic conditions (Scheme 23). This problem can be solved by double silylation of diol 106 with TBSOTf, and subsequent hydrogenolysis to give compound 109. Swern oxidation and desilylation of 109 under mild conditions with TASF affords the diol 111 [60], which is subjected to oxidative spiroacetalization with PhI(OCOCF3)2 to yield a 2.7:1 mixture of compounds 113 (minor) and 112 (major), without any 4-hydroxycyclohexa-2,5-dienone formation. Compounds 113 and 112 displays physical and spectral features identical to those reported for natural aculeatin D and 6-epi-aculeatin D.

2.5.2. Chandrasekhar Synthesis of aculeatins A and B

Chandrasekhar et al. have synthesized aculeatin A and B via a tethered oxa-Michael approach [61]. The retrosynthetic pathway is shown in Scheme 24, where 4-benzyloxyphenyl acetylene 118 and tetradecanal (119) are the starting materials. The allylic alcohol 120 is synthesized from aldehyde 119 using a Maruoka allylation [62]. This compound is then converted to unsaturated ester 121 by ozonolysis and subsequent two-carbon homologation and is used for the tethered intramolecular oxa-Michael reaction to install the second stereocenter. Thus, reaction of 121 with benzaldehyde and potassium tert-butoxide affords benzylidene acetal 122 with 95% diastereoselectivity favouring the more stable syn-isomer [63]. Acetal 122 is then converted to Weinreb amide 117, which upon treatment with lithiated 4-benzyloxyphenylacetylene 118 affords fragment alkynone 116.

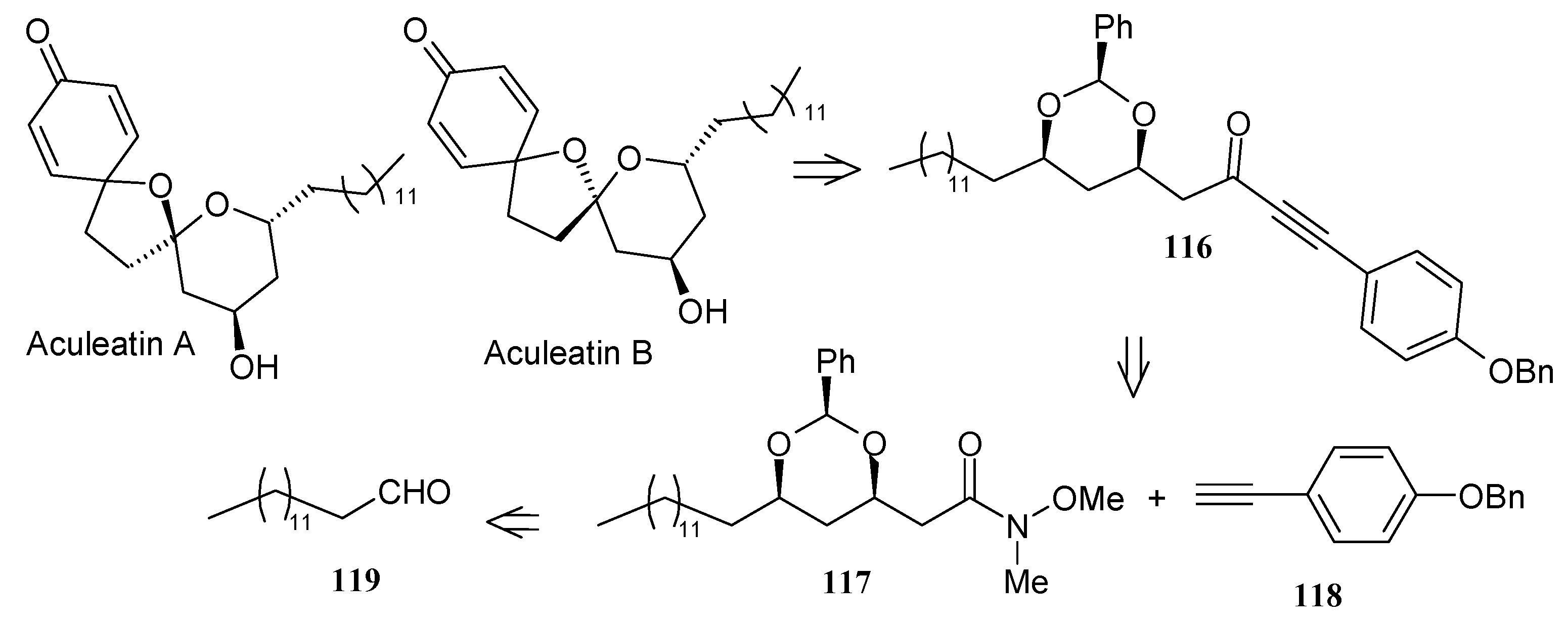

Scheme 24. Retrosynthetic analysis of aculeatins A-B.
Scheme 24. Retrosynthetic analysis of aculeatins A-B.
Molecules 13 01942 g027
Catalytic hydrogenation of 116 gives intermediate 124, which on treatment with phenyliodonium (III) bis(trifluoroacetate) (PIFA) affords aculeatins A and B as a 5:2 mixture, which can be separated by column chromatography (Scheme 25) [64].
Scheme 25. Total synthesis of (+)-aculeatin D and (+)-6-epi-aculeatin D.
Scheme 25. Total synthesis of (+)-aculeatin D and (+)-6-epi-aculeatin D.
Molecules 13 01942 g028
Reagents and conditions: (a) (S,S)-1 (10 mol %), Bu3SnCH2CH=CH2, CH2Cl2, -15 oC to 0 oC, 24h, 86%, (b) (i) O3, CH2Cl2, -78 oC, 45 min, then Ph3P, (ii) Ph3P=CHCO2Et, CH2Cl2, rt, 2 h, 80% (for two steps), (c) PhCHO, t-BuOK, THF, 0 oC, 45 min, 69%, (d) LiOH, THF-H2O (3:1), 0 oC, to rt, 4h, 91%, (e) NH(Me)(OMe).HCl, DCC, Et3N, DMAP, CH2Cl2, 0 oC to rt, 90%, (f) n-BuLi, 118, THF, -78 oC to –22 oC, 75%, (g) Pd/C, H2, EtOAc, rt, (h) PhI(OOCCF3)2, Me2CO-H2O (9:1), rt, 10 min, 52% (two steps), 2.5:1 mixture of aculeatins A and B.

2.5.3. Wong Synthesis

Wong and co-workers have synthesized aculeatins A, B, D and 6-epi-aculeatin D using a Mukaiyama aldol condensation as a key reaction [65]. The retrosynthesis reveals that the required fragments 125 and 126 can be obtained from homochiral β-alkoxy aldehyde 127 and enolsilane 128 in a diastereodivergent process (Scheme 26).
Several hydroxy-protected aldehydes 127 were prepared starting from alcohol 129 using Nokami’s enantioselective crotylation, protection and oxidation sequence (Scheme 27) [66, 67]. On the other hand the enolsilane 128 is synthesized from ketone 133. It was observed that the aldol reaction of 128 and aldehyde 127 having a PMB protecting group proceeded with a good 1,3-anti induction (dr = 92:08) to give anti product, whereas with bulky silyl ether dramatically reduce the 1,3-anti induction. For TBS ether the anti/syn ratio is 60:40 and for TPS and TIPS there is no 1,3-induction.

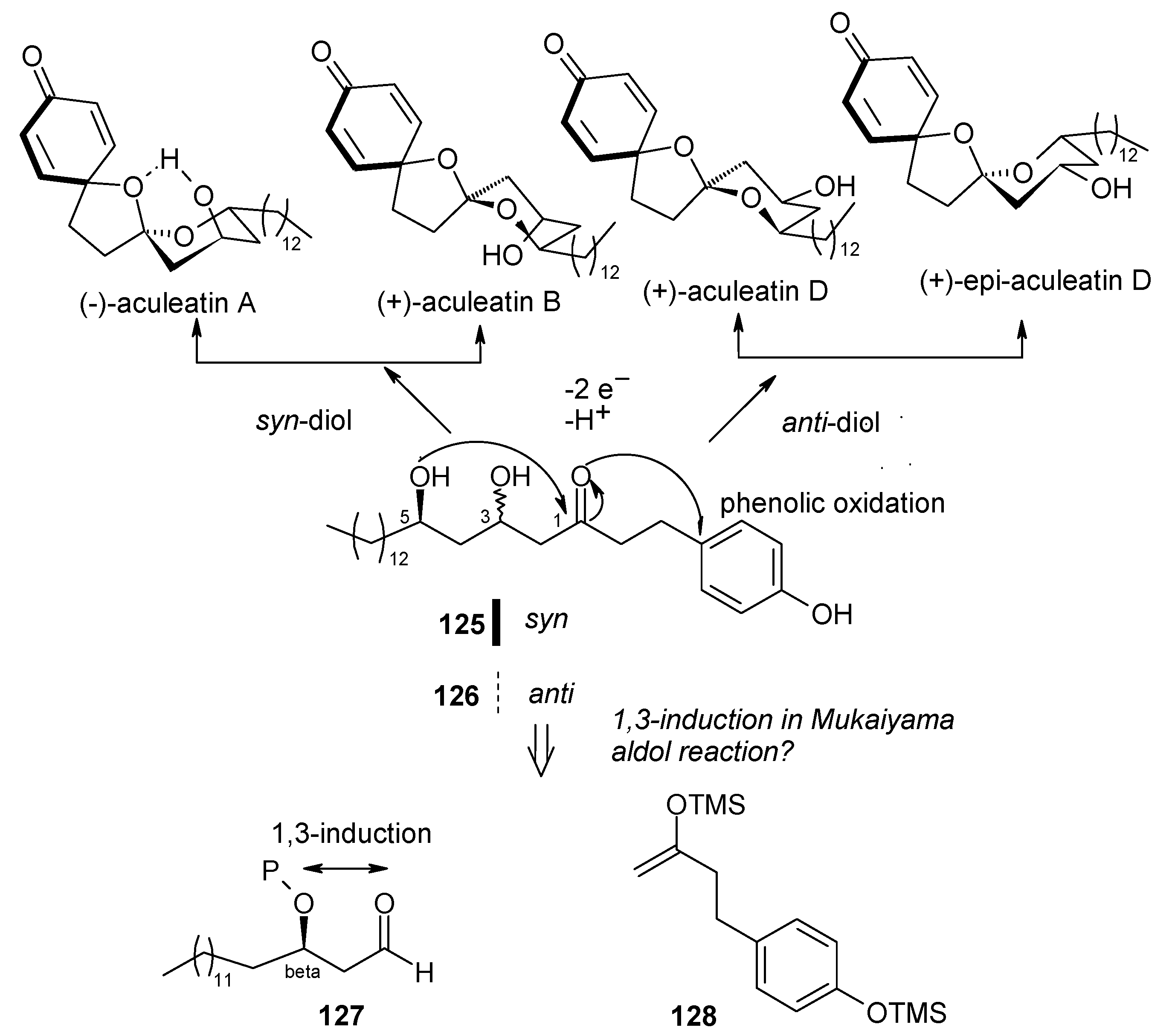

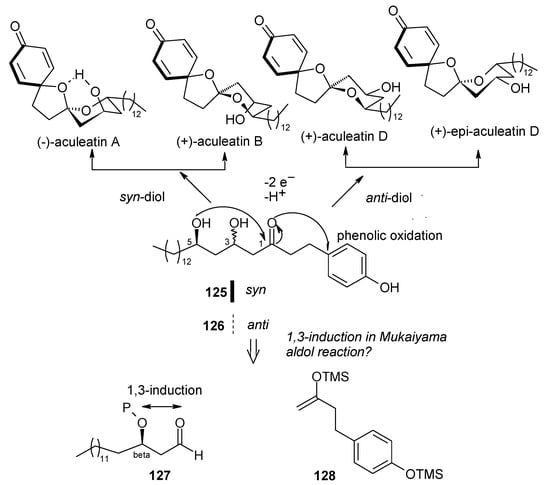

Scheme 26. Retrosynthetic analysis of aculeatins A, B, D and 6-epi-aculeatin D.
Scheme 26. Retrosynthetic analysis of aculeatins A, B, D and 6-epi-aculeatin D.
Molecules 13 01942 g029

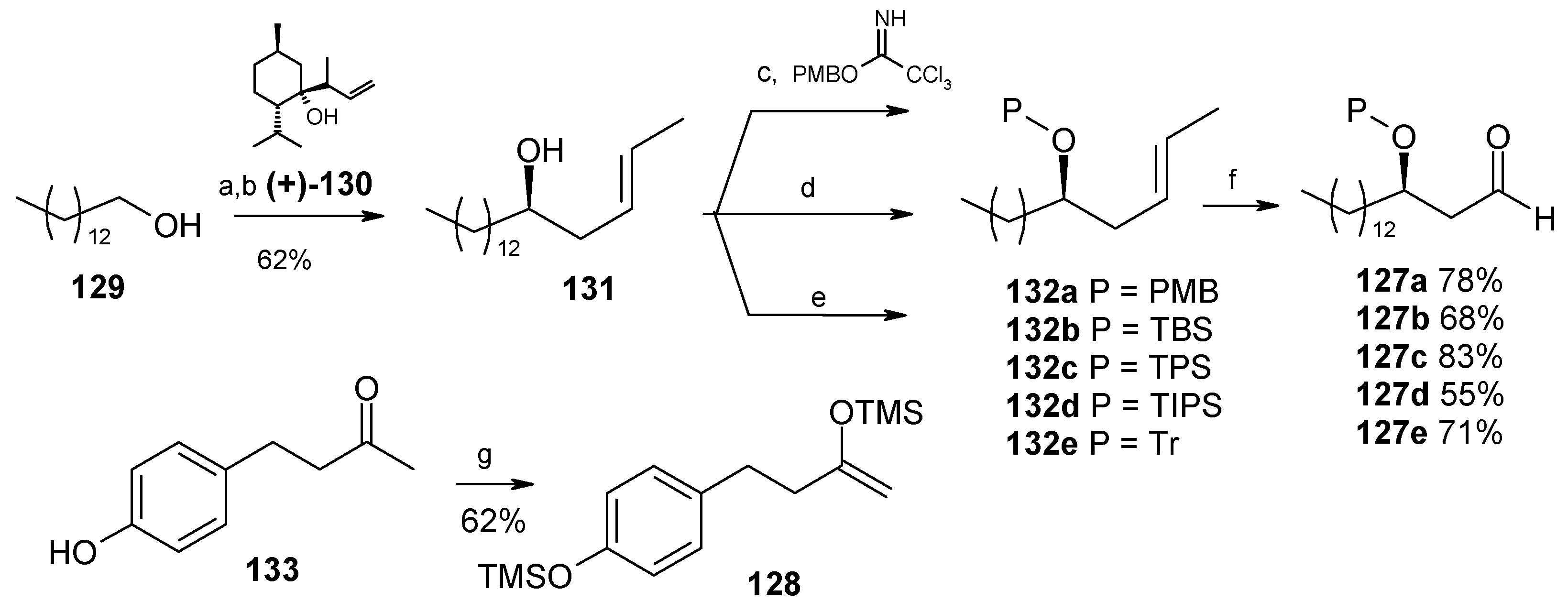

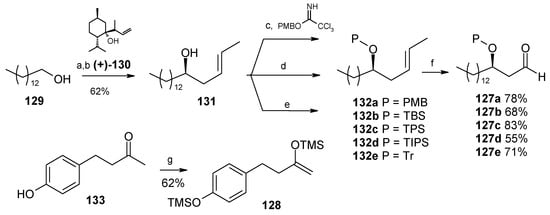

Scheme 27. Synthesis of fragment 128.
Scheme 27. Synthesis of fragment 128.
Molecules 13 01942 g030
Reagents and conditions: (a) PCC; (b) (+)-130, p-TsOH, CH2Cl2, 62%; (c) CSA, CH2Cl2; (d) R3SiCl, imidazole; (e) TrCl, Et3N, CH2Cl2; (f) NMO, OsO4, NaIO4; (g) LDA, THF, -78 oC, TMSCl, 62%.
During aldol reaction two compounds 125 and (+)-134 are isolated. Here the aldol product 125 does not cyclise due to the strong hydrogen bonding whereas product (+)-134 is formed from the cyclisation of anti isomer 126, which lack of hydrogen bonding (Scheme 28). Next the compounds 125 and 134 are converted to methoxy-protected ketals 135 and 136 (Scheme 29). Finally the compounds 125, 134, 135 and 136 are subjected to spirocyclisation in different conditions to give aculeatins A, B, D and 6-epi-aculeatin D. For all spirocyclisation water is an important medium. Thus, oxidation of 3,5-syn-diol ketone 125 with PIFA generates the reactive phenoxonium cation 137, which is responsible for further spirocyclisation via oxocarbonium ion 138 to give (-)aculeatin A and B with 48% and 34% respectively (Scheme 30).

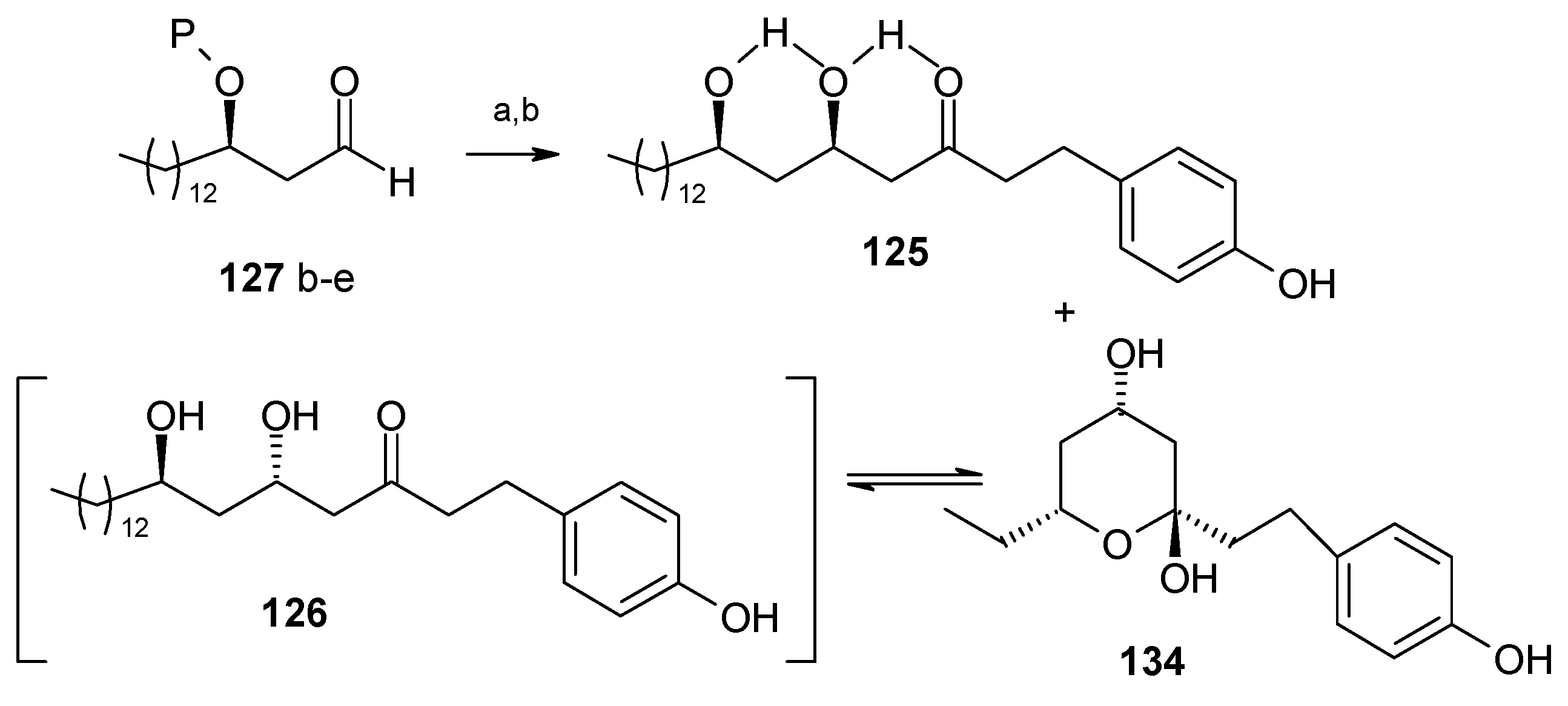

Scheme 28. Synthesis of fragments 125 and 126.
Scheme 28. Synthesis of fragments 125 and 126.
Molecules 13 01942 g031
Reagents and conditions: (a) 128, BF3.Et2O, -78 oC, CH2Cl2; (b) Bu4NF, THF.

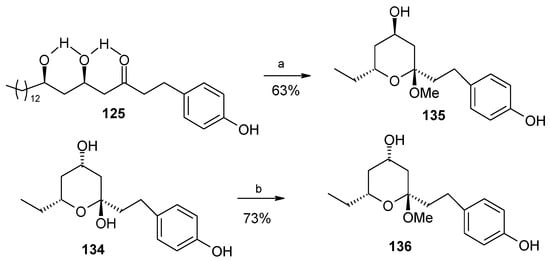

Scheme 29. Synthesis of methoxy-protected ketals 135 and 136.
Scheme 29. Synthesis of methoxy-protected ketals 135 and 136.
Molecules 13 01942 g032
Reagents and conditions: (a) MeOH, reflux, 16h; (b) MeOH, reflux, 5h

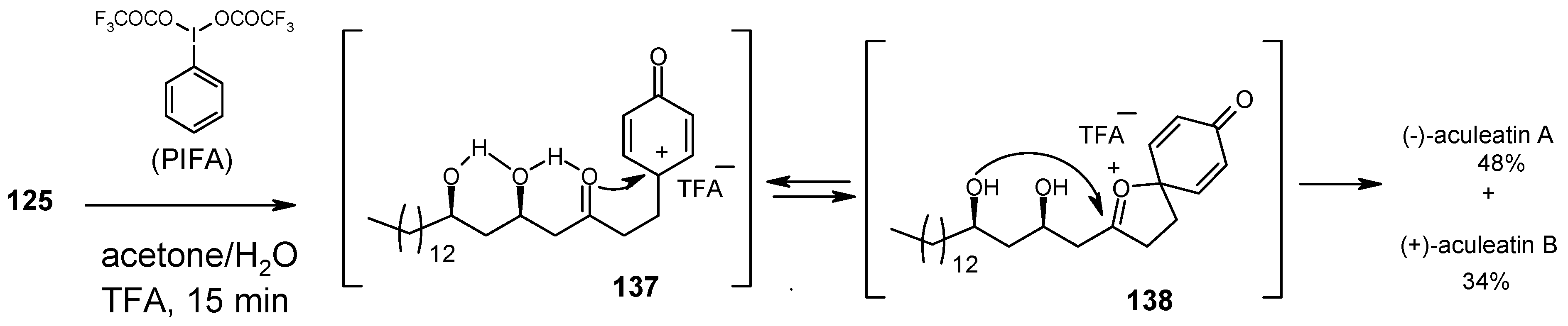

Scheme 30. Total synthesis of aculeatin A-B.
Scheme 30. Total synthesis of aculeatin A-B.
Molecules 13 01942 g033
On the other hand the ketals 134-136 when treated with PIFA afforded aculeatin A and 6-epi-aculeatin D and aculeatin B and D via pathways 1-2 (Scheme 31). The phenoxonium cation 139 can be trapped by an intramolecular OR group 139a (R =H, path 1), rather than a less nucleophilic oxygen atom from the methoxy group in 139b (R = Me, path 2), forming aculeatin A or 6-epi-aculeatin D. The quenching the phenoxonium cation by water leads to intermediates p-quinols 140a and 140b which after SN2 reaction gives aculeatin B and D (Scheme 31).

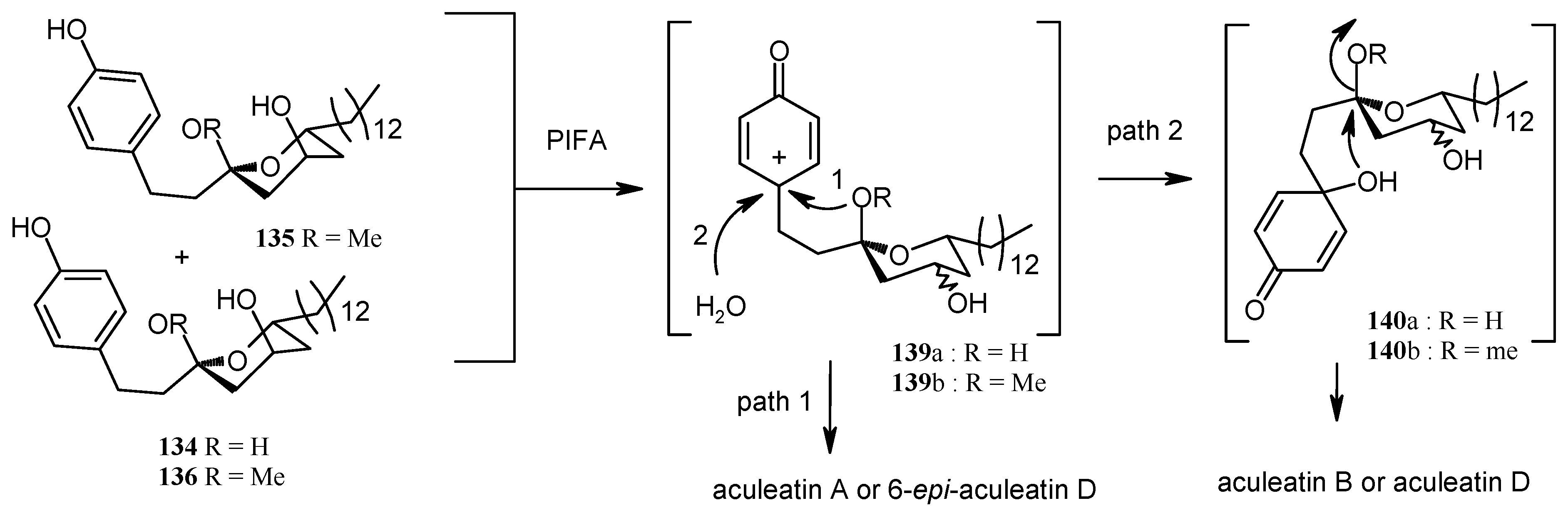

Scheme 31. Total synthesis of aculeatin A, B, D and 6-epi-aculeatin D.
Scheme 31. Total synthesis of aculeatin A, B, D and 6-epi-aculeatin D.
Molecules 13 01942 g034
In summary all three methods utilize the same phenolic oxidation strategy for the construction of spiroketal moiety of aculeatins A, B and D. The Falomir and Wong groups applied the asymmetric aldol reaction to introduce the stereocenters whereas Chandrasekhar's group adopted the tethered oxa-Michael approach. All the three approaches are short and completed within 6-8 steps.

2.6. Enantioselective Total synthesis of (+)-Aigialospirol

Isaka reported the isolation of (+)-aigialospirol, which was obtained after an extended fermentation of the marine fungus Aigialus parvus BCC 5311 that was found in the mangrove Ascomycete [68]. (+)-Aigialospirol possesses potent antimalarial and anticancer properties [69,70].

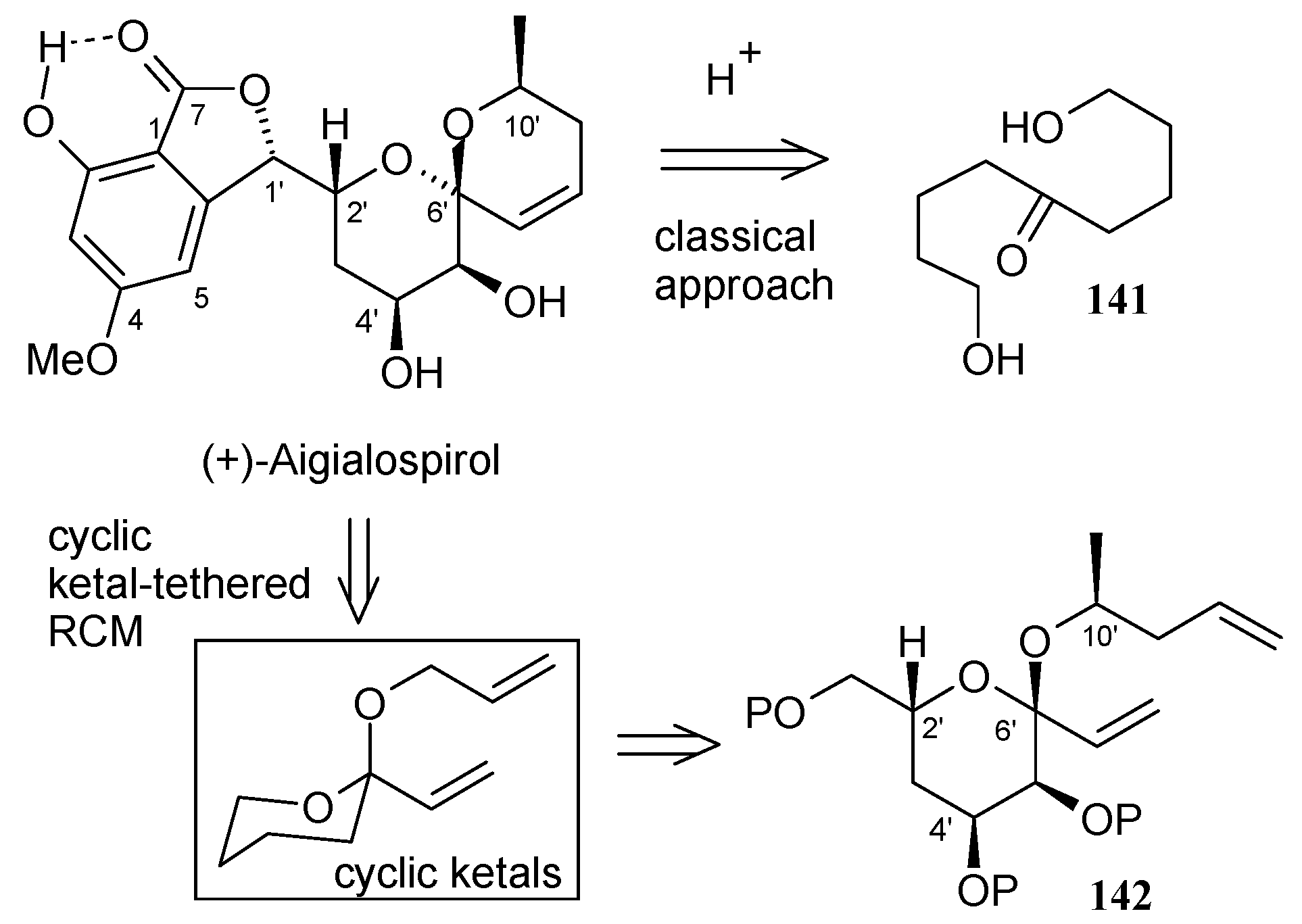

Scheme 32. Retrosynthetic analysis of (+)-aigialospirol.
Scheme 32. Retrosynthetic analysis of (+)-aigialospirol.
Molecules 13 01942 g035
Hsung and coworkers have reported the synthesis of (+)-aigialospirol by using a cyclic ketal-tethered ring-closing metathesis (RCM) strategy [71]. The retrosynthetic analysis is shown in Scheme 32. It reveals that the synthesis of unit 142 is the key step in the total synthesis.

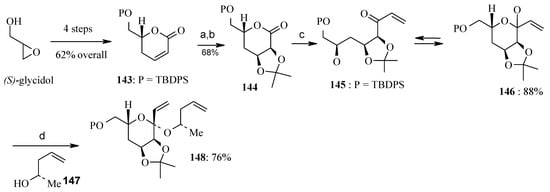

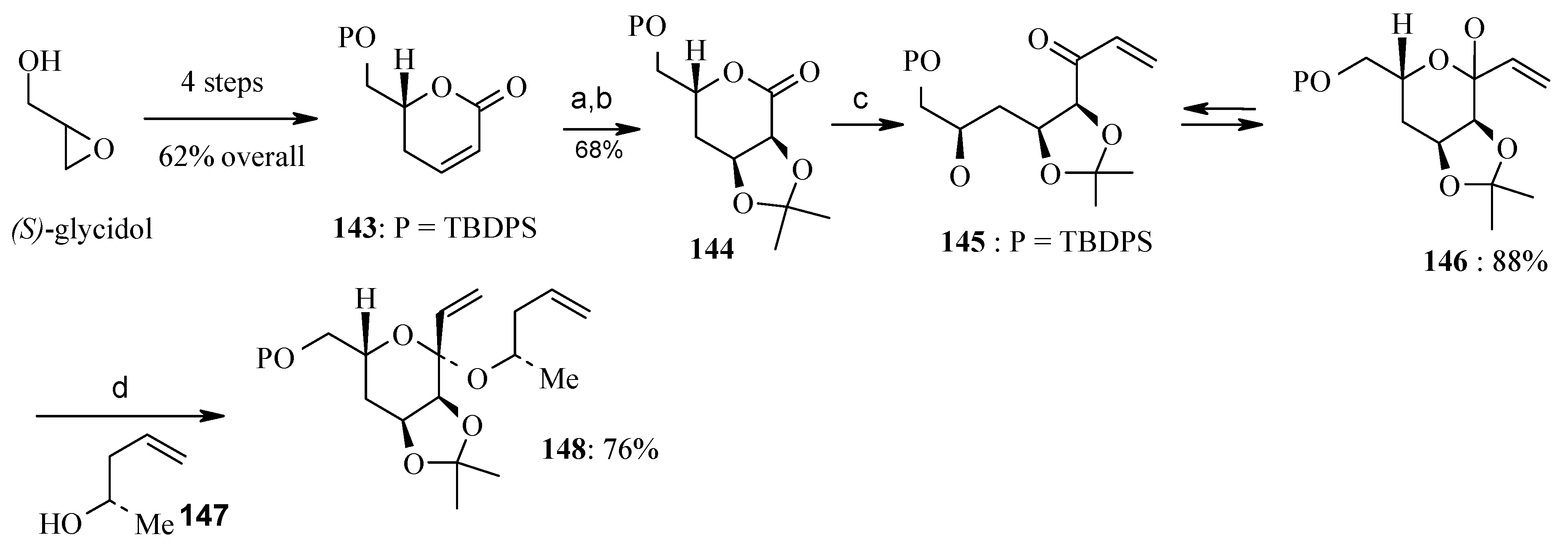

Scheme 33. Synthesis of key cyclic ketal 148.
Scheme 33. Synthesis of key cyclic ketal 148.
Molecules 13 01942 g036
Reagents and conditions: (a) 6.0 mol% OsO4, NMO, Me2CO/H2O, rt; (b) p-TsOH, (CH3)2C(OMe)2; Me2CO, rt, 68%; (c) CH2=CHMgBr, Et2O, -78 oC; (d) 147, Tf2NH, 4Aº, CH2Cl2, -78 oC.
The unit dihydro-α-pyrone 143 for the synthesis of key unit 142 is prepared from (S)-glycidol, which provides the required stereochemistry at C-2’ in 62% yield over four steps (Scheme 33) [72]. The compound 143 on dihydroxylation followed by acetonide formation gives δ-lactone 144, which on treatment with vinyl Grignard gives an equilibrating mixture of vinyl ketone 145 and lactol 146 [73]. The key intermediate 148 is achieved from the lactol-ketone mixture and the chiral homoallylic alcohol 147 by treatment with TF2NH (Scheme 33) [74, 75].
The cyclic ketal 148 is subjected to ring-closing metathesis employing Grubb’s first generation catalyst to give 149 [76]. The acetonide group is removed under acidic conditions which also completely epimerize the spiroketal center to the desired C-6’ stereocenter, as confirmed by NOE and X-ray structure of diol 150 (Scheme 34).
Scheme 34. Cyclic ketal-tethered RCM and C-6’ epimerization.
Scheme 34. Cyclic ketal-tethered RCM and C-6’ epimerization.
Molecules 13 01942 g037
Reagents and conditions: (a) Grubbs’ Gen-1, toluene; (b) p-TsOH, MeOH, rt.

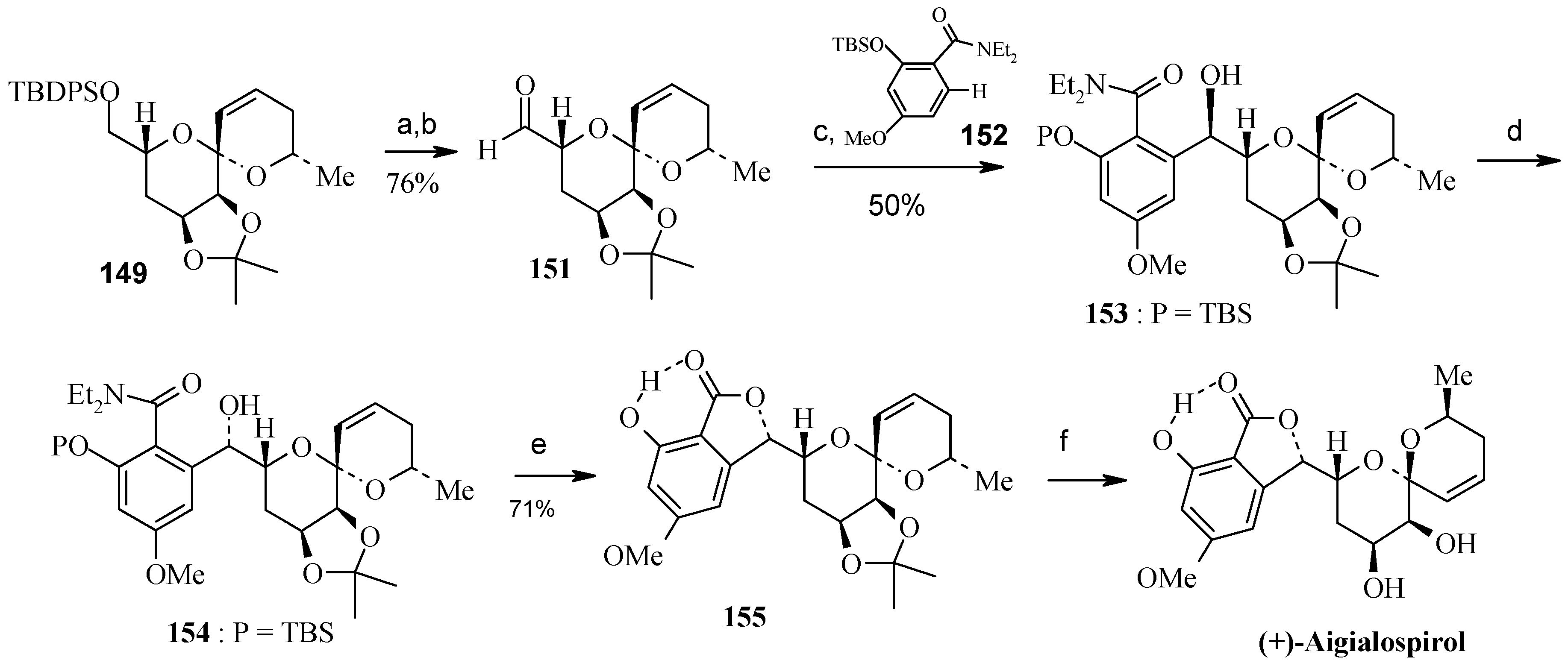

Scheme 35. Total synthesis of (+)-aigialospirol.
Scheme 35. Total synthesis of (+)-aigialospirol.
Molecules 13 01942 g038
Reagents and conditions: (a) TBAF, THF, rt; (b) TEMPO, BAIB, CH2Cl2, rt, 76%; (c) s-BuLi, TMEDA, THF, -78 oC, 50%; (d) w/silica gel; (e) KOH, MeOH/H2O/THF, rt; (f) p-TsOH, MeOH, rt, 53%.
Desilylation and oxidation of 149 gives aldehyde 151 and subsequent addition of the aryl lithium intermediate, generated via a Snieckus' directed ortho-metallation of amide 152 affords a readily separable mixture of alcohols 153 and 154 with an isomeric ratio 1:1.4 [77, 78]. Both 153 and 154 lead to the same lactone 155 (with loss of the TBS group) (Scheme 35). Lactone 155 is hydrolyzed to give (+)-aigialospirol concomitant with C-6’ epimerization.

2.7. Enantioselective Synthesis of 2,7-Dimethyl-1,6-dioxaspiro[4.6]undecane and 2,7-diethyl-1,6-dioxaspiro[4.6]undecane using functionalized nitroalkane synthons

The vast majority of spiroketal pheromones fall either into spiro[5.5]- or spiro[4.4]- or spiro [4.6] groups of which the spiro [4.6] group are relatively rare.
Scheme 36. Total synthesis of 2,7-dimethyl-1,6-dioxaspiro[4.6]undecane and 2,7-diethyl-1,6-dioxaspiro[4.6]undecane.
Scheme 36. Total synthesis of 2,7-dimethyl-1,6-dioxaspiro[4.6]undecane and 2,7-diethyl-1,6-dioxaspiro[4.6]undecane.
Molecules 13 01942 g039
Reagents and conditions: (a) HO(CH2)2OH, benzene, 80 oC; (b) MVK, amberlyst-A21; (c) 2N HCl, Me2CO; (d) Baker’s yeast, glucose, H2O, rt; (e) NaOH, 10% H2SO4.
Saikia et al. [79] developed a short enantioselective synthesis of both 2,7-dimethyl-1,6-dioxaspiro[4.6] undecane [(2S, 5R, 7S)-162a] and 2,7-diethyl-1,6-dioxaspiro[4.6]undecane [(2S,5R,7S)-162b], the pheromones produced by Andrena Haemorrhoa [80] (2 isomers) and Andrena wilkella [81] (2 isomers), respectively. 7-Nitroheptan-2-one (157a) and 8-nitrooctan-3-one (157b) are prepared by refluxing (+)-156a and (+)-156b, respectively, in anhydrous benzene with anhydrous CuSO4 adsorbed on silica gel [82]. The dioxolane 158a/158b obtained from 157a/157b is treated with methyl vinyl ketone (MVK) and amberlyst A-21 resin at room temperature and in absence of solvent giving the Michael adduct (+)-159a/159b, which on heating with 5% HCl gives the unsymmetrical 1,9-diketone (+)-160a/160b in 95%/ 92.5% yield as a gum. Bioreduction of (+)-160a/160b with baker yeast affords the diol (2S, 10S)-161a/161b in 55%/67% yield (Scheme 36). The (S,S) stereochemistry has been assigned to the newly generated alcohol functionality at C-2 and C-10 in 161a/161b based on the observations made by Occhiato et al. that baker's yeast reduction of symmetrical diketones having two carbonyl groups in 1,4- or more distant positions occurs independently on the two oxo groups and in such compounds the bioreduction affords (S,S) diols according to Prelog’s rule [83]. In this case also the unsymmetrical diketone 160a/160b after bioreduction gives (S,S)-diols (2S, 10S)-161a. Treatment of 161a and 161b with NaOH in ethanol and then with the two-layer system, dilute H2SO4/hexane affords (2S,5R,7S)-162a and 162b respectively.

2.8. A ketal-tethered RCM strategy towards the synthesis of spiroketal related natural products Synthesis of a simple insect pheromone

Hsung and co-workers have used ketal-tethered ring closing metathesis (RCM) for a short total synthesis of an adrena bee pheromone (Scheme 37) [84, 85, 86]. The synthesis starts with the dihydropyranpyran 164. Addition of its 2-lithiated intermediate to crotyl bromide followed by the ketal formation using allyl alcohol and PPTS affords ketal 166 in 30% overall yield with modest diastereo-selectvity (dr 4:1) [87].

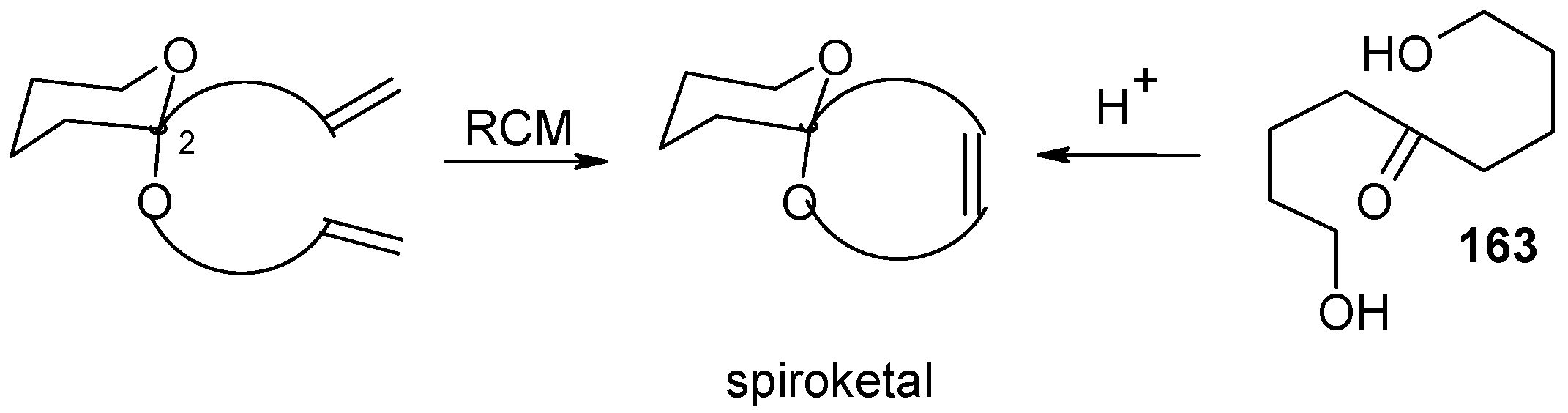

Scheme 37. Ketal tethered RCM: Synthesis of spiroketal.
Scheme 37. Ketal tethered RCM: Synthesis of spiroketal.
Molecules 13 01942 g040
Application of RCM to ketal 166 using the Grubb’s generation-I Ru-catalyst 167 leads to the formation of spiroketal 168, which on subsequent hydrogenation provides the bee pheromone 169 (Scheme 38) [88,89].

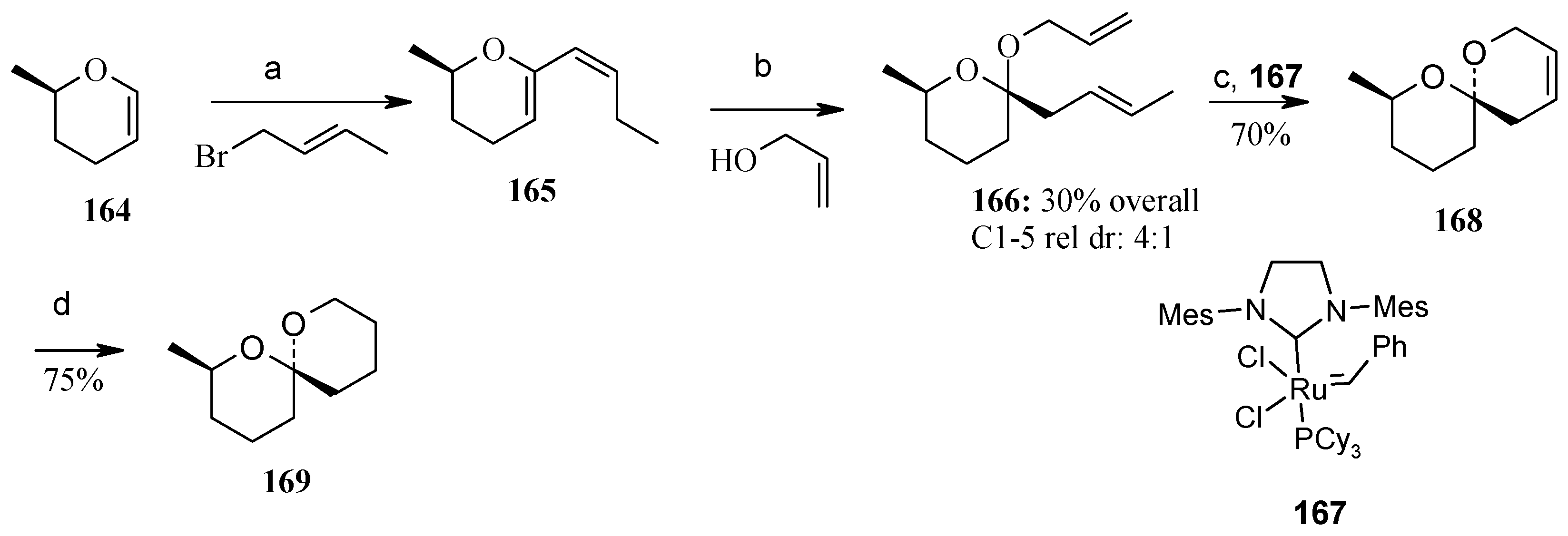

Scheme 38. Total synthesis of insect pheromone 169.
Scheme 38. Total synthesis of insect pheromone 169.
Molecules 13 01942 g041
Reagents and conditions: (a) t-BuLi, THF, -78 oC, rt; (b) PPTS, CH2Cl2; (c) Grubbs Gen-1, 167, 73%; (d) H2, Pd/C, EtOAc, 75%.

2.9. Total Synthesis of Reveromycin-A

Reveromycin A is a member of a family of compounds isolated from the soil actinomycete Steptomyces sp [90]. Reveromycin A is a potent inhibitor (IC50 0.7μg mL-1) of the mitogenic activity of epidermal growth factor (EGF) in a mouse keratinocyte. In addition, reveromycin A exhibits antifungal activity (MIC) 2.0 μg mL-1, pH 3) [90]. Recently, reveromycin A has been identified as a specific inhibitor of Saccharomyces cerevisiae isoleucyl-tRNA synthetase (IleRS) using yeast genetics and biochemical studies [91].

2.9.1. Rizzacasa Synthesis

Rizzacasa and his coworkers reported a total synthesis of (-)-reveromycin A using a Lewis acid catalyzed inverse electron demand hetero-Diels-Alder (HDA) strategy to construct the challenging spiroketal moiety of this molecule [92]. The retrosynthetic disconnection is shown in Scheme 39.

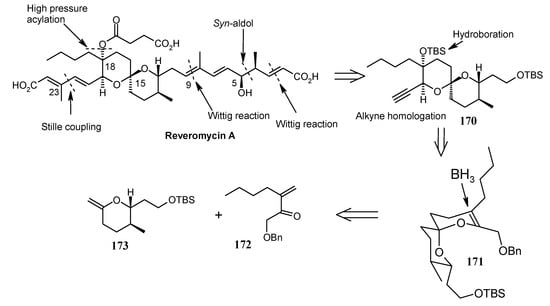

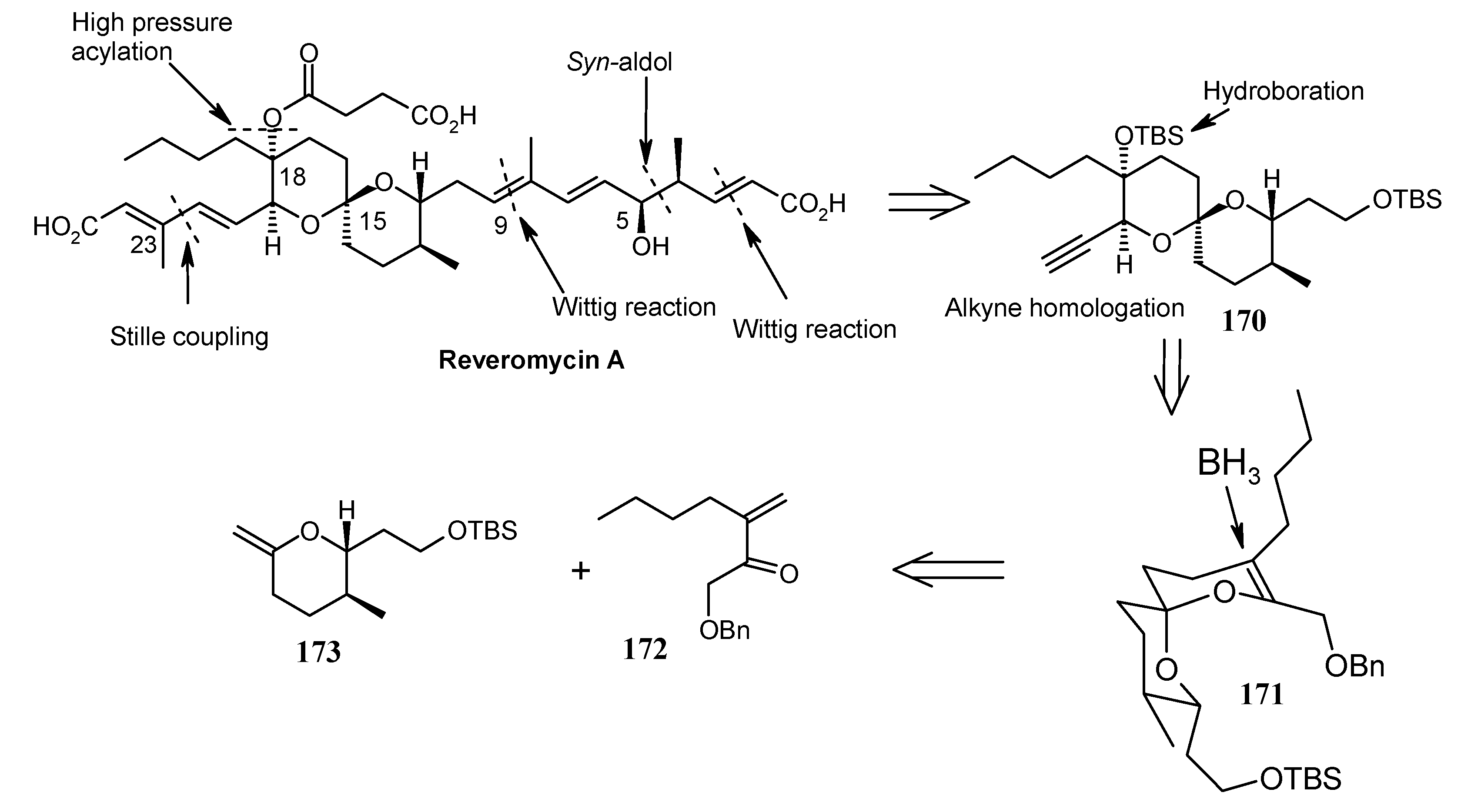

Scheme 39. Retrosynthetic analysis of reveromycin A.
Scheme 39. Retrosynthetic analysis of reveromycin A.
Molecules 13 01942 g042
It is revealed that spiroketal 170 is the core unit, which can be obtained from unsaturated spiroketal 171 by regio and stereoselective hydroboration followed by alkyne homologation. Unit 171 in turn can be obtained by an inverse electron demand hetero Diels-Alder reaction between 172 and 173 [93]. This reaction will fix the stereochemistry at the spiro center by an axial approach of the carbonyl oxygen in the HDA transition state [94]. The strereochemistry at C-18 and C-19 can be set by hydroboration and oxidation sequence to circumvent the thermodynamic lability of the spiroketal present in reveromycin A.

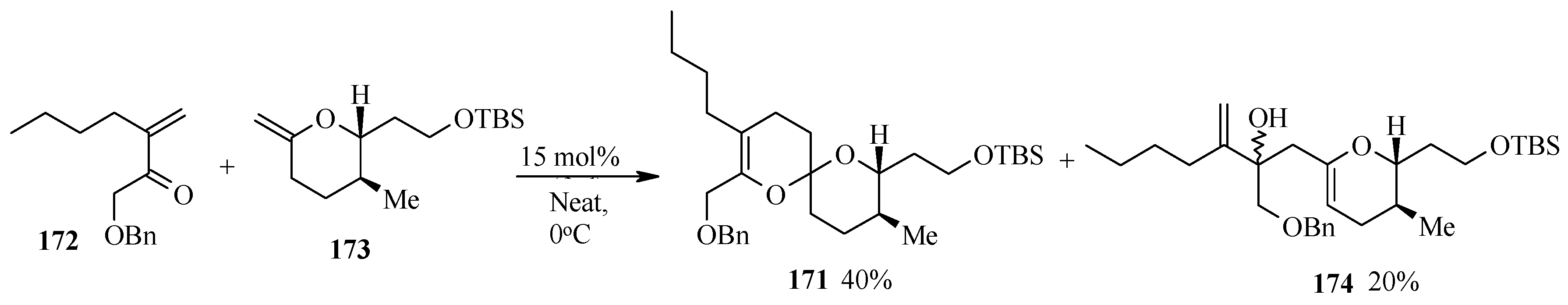

Scheme 40. Synthesis of unsaturated spiroketal fragment 171.
Scheme 40. Synthesis of unsaturated spiroketal fragment 171.
Molecules 13 01942 g043
Thus, hetero-Diels Alder reaction between dianophile 173 and diene 172 in presence of 15 mol % Eu(fod)3 affords the desired spiroketal 171 as one diastereoisomer, along with the byproduct diastereomeric mixture 174, resulting from an ene reaction (Scheme 40). The compound 171 on hydroboration followed by oxidation affords the tertiary alcohol 175 as a single isomer. Compound 176 is obtained by protection, deprotection sequence.
Oxidation of 176 and alkyne formation following the Bestmann protocol gives compound 170 [95]. Compound 177, prepared from 170 in four steps (Scheme 41), is then converted to 178 by a reduction and oxidation sequence (Scheme 42). This, after aldol reaction with 179 gives the desired syn-propionate 180, which when exposed to NaBH4 gives the diol 181 after reductive cleavage of auxiliary group [96].

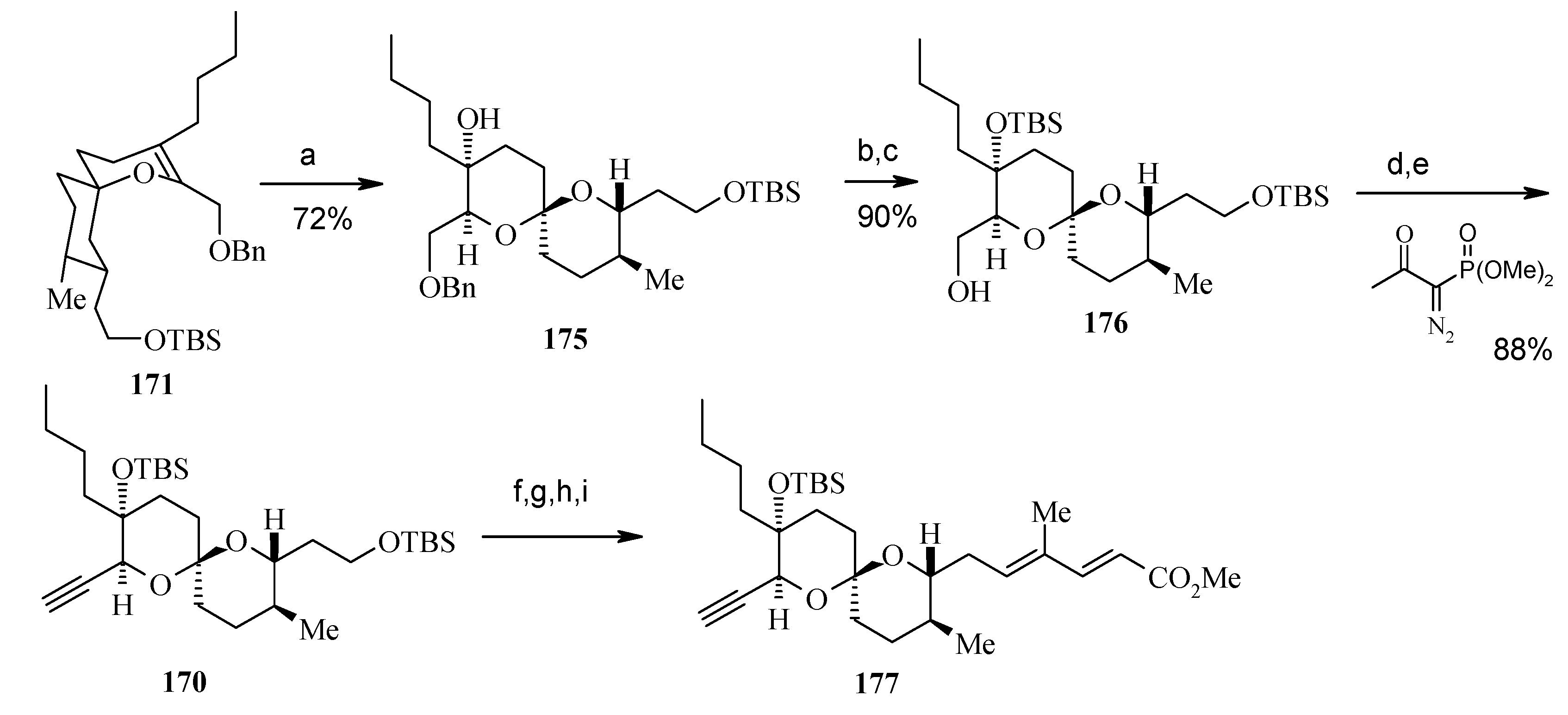

Scheme 41. Synthesis of spiroketal 177.
Scheme 41. Synthesis of spiroketal 177.
Molecules 13 01942 g044
Reagents and conditions: (a) BH3.THF, H2O2, NaOH, 72%; (b) TBSOTf, 2,6-lutidine; (c) H2, Pd(OH)2, 90%; (d) DMP; (e) MeOH, K2CO3, 88%; (f) TBAF, THF, rt; (g) DMP; (h) Ph3=C(Me)CHO; (i) Ph3P=CHCO2Me, 70%.

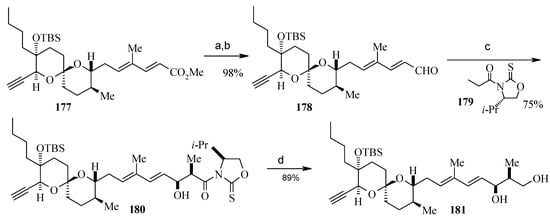

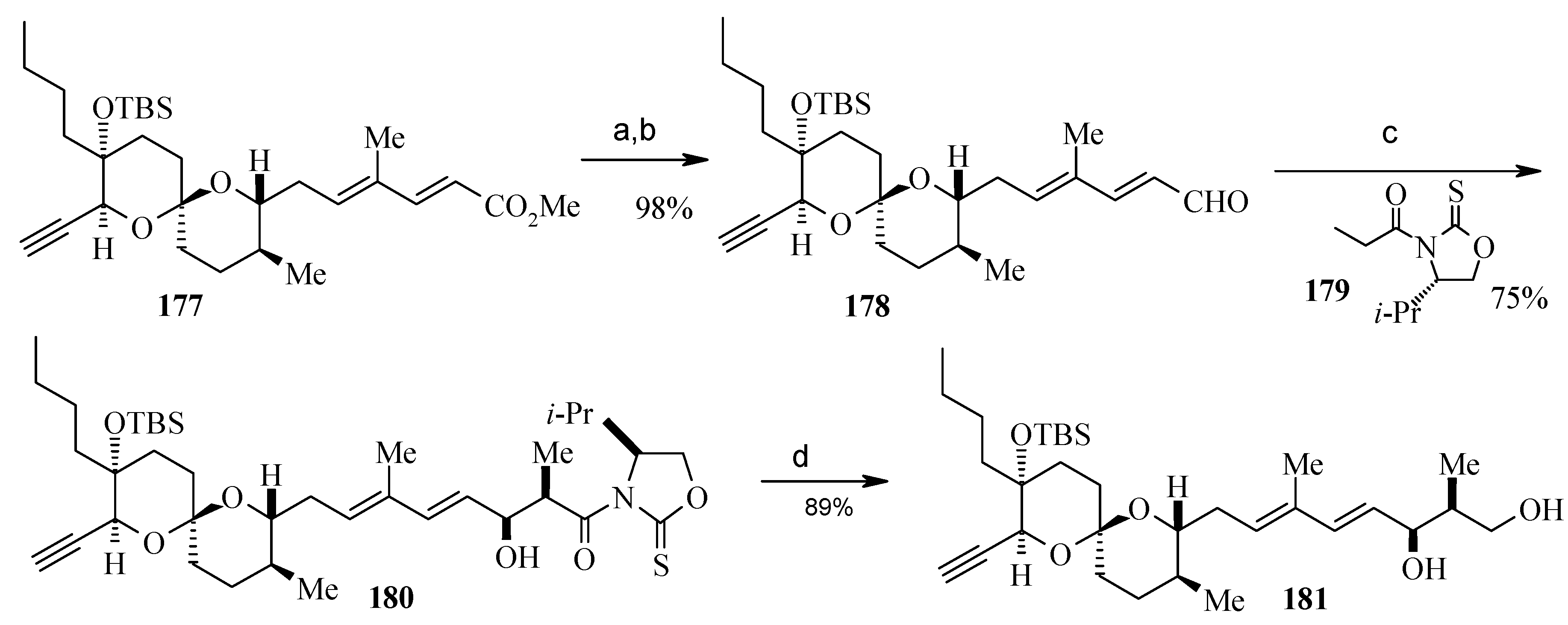

Scheme 42. Synthesis of spiroketal 181.
Scheme 42. Synthesis of spiroketal 181.
Molecules 13 01942 g045
Reagents and conditions: (a) DIBALH; (b) DMP; (c) Sn(OTf)2, N-ethylpiperidine; (d) NaBH4, THF, H2O, 89%.

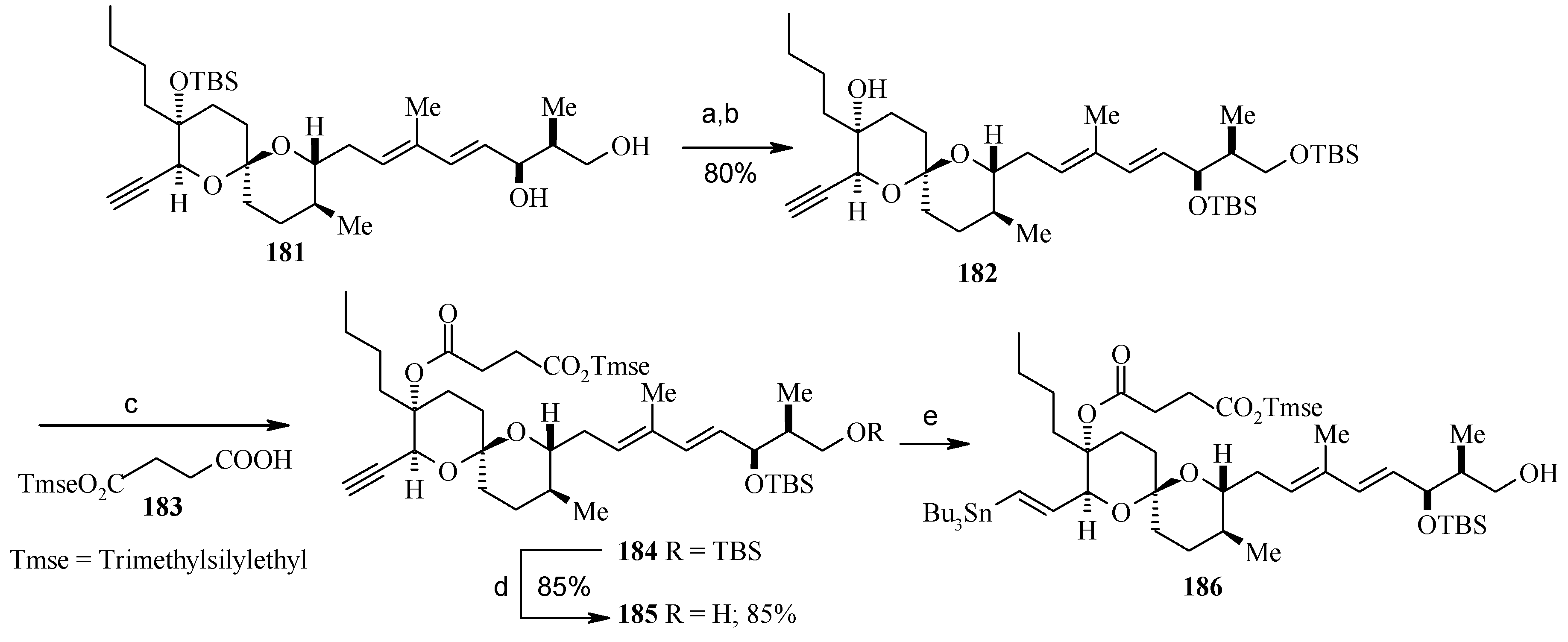

Scheme 43. Synthesis of vinyl stannane 186.
Scheme 43. Synthesis of vinyl stannane 186.
Molecules 13 01942 g046
Reagents and conditions: (a) TBAF, 50 oC; (b) TBSCl, imidazole; (c) 183, 0.4 Gpa, DCC, DMAP, CH2Cl2, 95%; (d) HF.Py., Py, THF, 85%; (e) Bu3SnH, Pd(Ph3P)2Cl2.
Scheme 44. Total synthesis of reveromycin A, 190.
Scheme 44. Total synthesis of reveromycin A, 190.
Molecules 13 01942 g047
Reagents and conditions: (a) 187, Pd2(dba)3, TFP, NMP, 60 oC, 78%; (b) DMP; (c) Ph3P=CHCO2Tmse, 64%; (d) TBAF, DMF, 94%.
Deprotection of the C-18 TBS ether and selective primary/secondary alcohol protection yields bis-TBS ether 182 (Scheme 43) whose hindered tertiary alcohol is acylated at higher pressure using the Shimizu and Nakata procedure to give ester 184 [97]. Selective deprotection of the primary alcohol in 184 and subsequent hydrostannylation of the alkyne in 185 gives the vinyl stannane 186 [98]. Finally, Stille coupling between stannane 186 and vinyl iodide 187 affords the required tetraene 188 along with a small amount of 22E-isomer. Oxidation of the free primary alcohol of 187 and then Wittig reaction affords the fully protected reveromycin A, 189, which on deprotection gives reveromycin A, 190 in high yield (Scheme 44) [99].

2.9.2. Shimizu and Nakata Synthesis

Shimizu and Nakata have synthesized the reveromycin A by stereocontrolled intermolecular spirocyclisation of an appropriately substituted ketone [100]. The retrosynthetic analysis of the reveromycin A is shown in Scheme 45. The spiroketal 191 can be obtained from ketone 194, which in turn can be obtained from Weinreb amide 195 and alkyne 196.

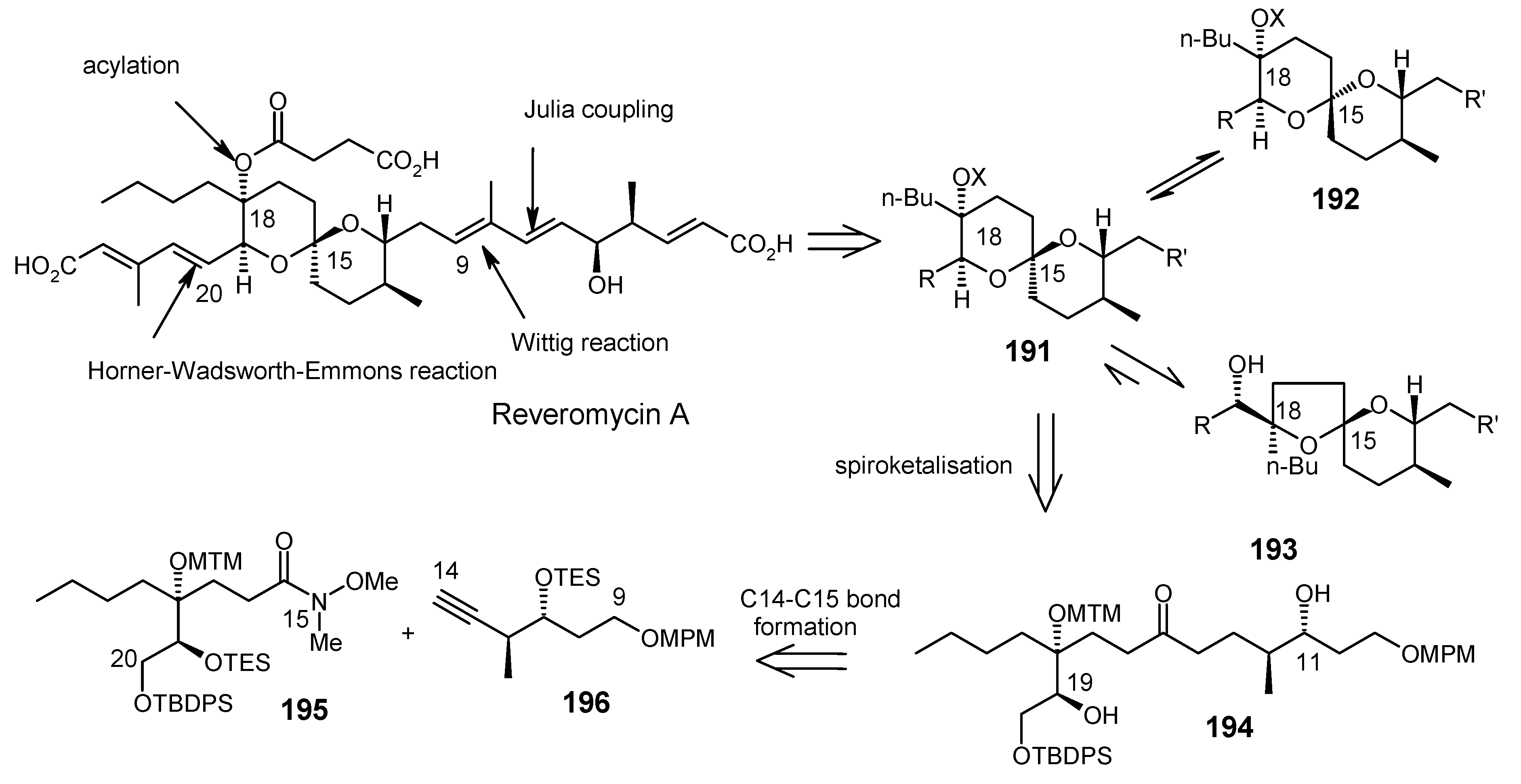

Scheme 45. Retrosynthetic analysis of the reveromycin A.
Scheme 45. Retrosynthetic analysis of the reveromycin A.
Molecules 13 01942 g048
The spiroketal core unit 197 is prepared by condensation of Weinreb amide 195 and lithiated alkyne 196 followed by hydrogenation (Scheme 46). Selective deprotection of two TES groups furnishes the spiroketals 198 and 199. The MTM group of 198 is deprotected and then acylated at higher pressure to give 203 [101].

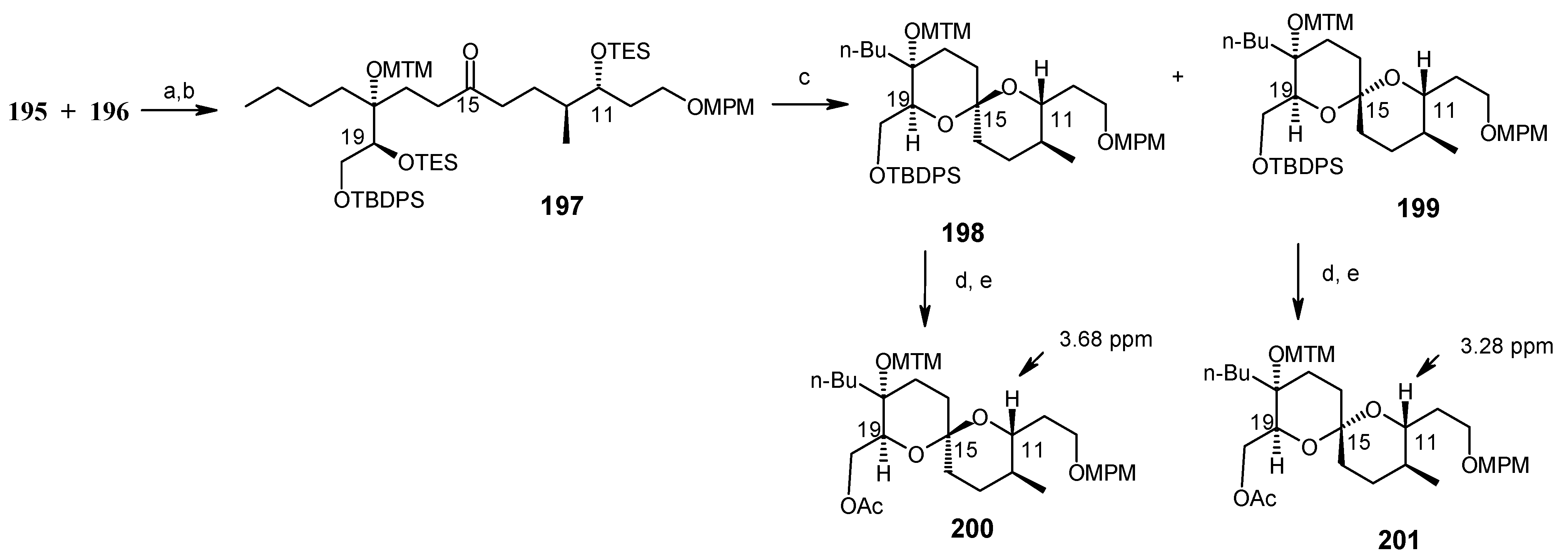

Scheme 46. Synthesis of spiroketals 198 and 199.
Scheme 46. Synthesis of spiroketals 198 and 199.
Molecules 13 01942 g049
Reagents and conditions: (a) n-BuLi, THF, 0 oC to rt ,93%, (b) H2, Pd/C, EtOAc, rt, 99%, (c) CSA, CHCl3, MeOH, 0 oC to rt, (198, 54%; 199, 27%), (d) TBAF, THF, rt, (e) Ac2O, Py, CH2Cl2, rt ,98%, two steps).
Scheme 47. Synthesis of spiroketal 205.
Scheme 47. Synthesis of spiroketal 205.
Molecules 13 01942 g050
Reagents and conditions: (a) MeI, NaHCO3, Me2CO, H2O, 60 oC, 96%, (b) mono-allyl succinate, DCC, DMAP, CH2Cl2, 1.5 Gpa, rt, 24h, 83%, (c) HF.Py-Py (1:4), THF, rt, 92%, (d) Dess-Martin periodinane, MS4A, CH2Cl2, rt, (e) diethyl (2E)-3-allyloxycarbonyl)-2-methylprop-2-enylphosphonate, LHMDS, HMPA, THF, -78 to 0 oC, 82%, two steps; 22E:22Z = 14:1); (f) DDQ, CH2Cl2, H2O, rt, 89%.

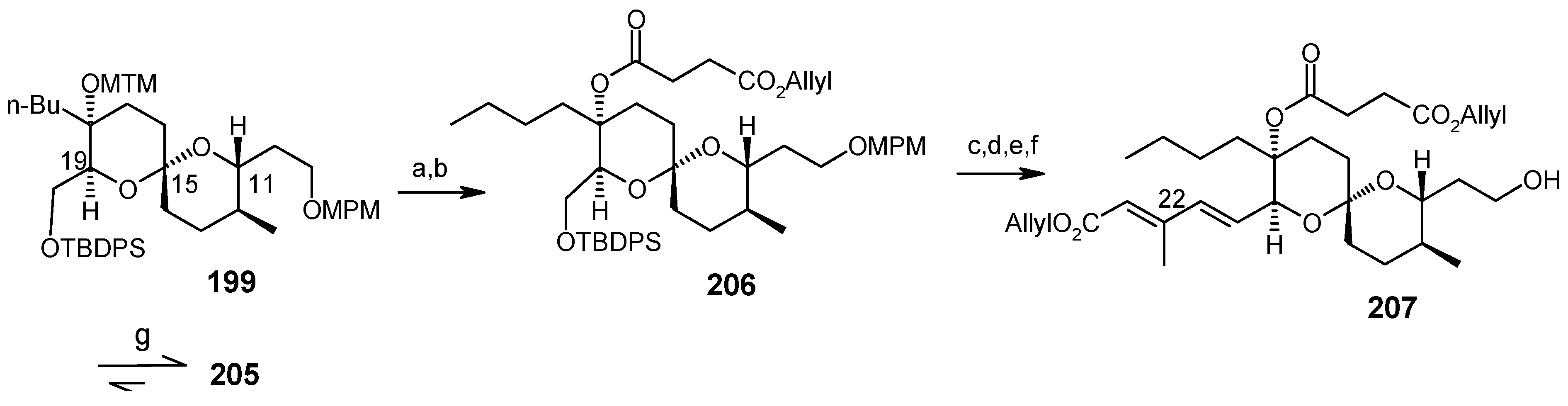

Scheme 48. Conversion of spiroketal 199 to 205.
Scheme 48. Conversion of spiroketal 199 to 205.
Molecules 13 01942 g051
Reagents and conditions: (a) MeI, NaHCO3, Me2CO, H2O, 60 oC (91%), (b) mono-allyl succinate, DCC, DMAP, CH2Cl2, 1.5 Gpa, rt, 24h (76%), (c) HF.Py-Py (1:4), THF, rt, (95%), (d) Dess-Martin periodinane, MS4A, CH2Cl2, rt, (e) diethyl (2E)-3-allyloxycarbonyl)-2-methylprop-2-enylphosphonate, LHMDS, HMPA, THF, -78 to 0 oC (88%, two steps; 22E:22Z = 50:1); (f) DDQ, CH2Cl2, H2O, rt (88%), (g) 0.1 equiv. CSA, CHCl3, MeOH, rt, 24 h, 2 times repeated (19, 82%; 21, 8%).
Deprotection of silyl group, followed by Dess-Martin oxidation and a Horner-Wadsworth-Emmons reaction gives the desired (20E, 22E)-dienoic esters 204, along with its (20E, 22Z)-isomer, with a ratio of 14:1. Deprotection of MPM from 204 yields 205 (Scheme 47). The unnatural spiroketal 199 is then converted to 207 using the same reaction sequence as earlier (198→204). Epimerisation of 207 with CSA in CHCl3-MeOH gives 205 (Scheme 48). Finally the molecule is synthesized using four important reactions, namely a Dess-Martin oxidation, a Wittig olefination, a modified Mitsunobu reaction and a Julia olefination, as shown in Scheme 49 [102, 103].

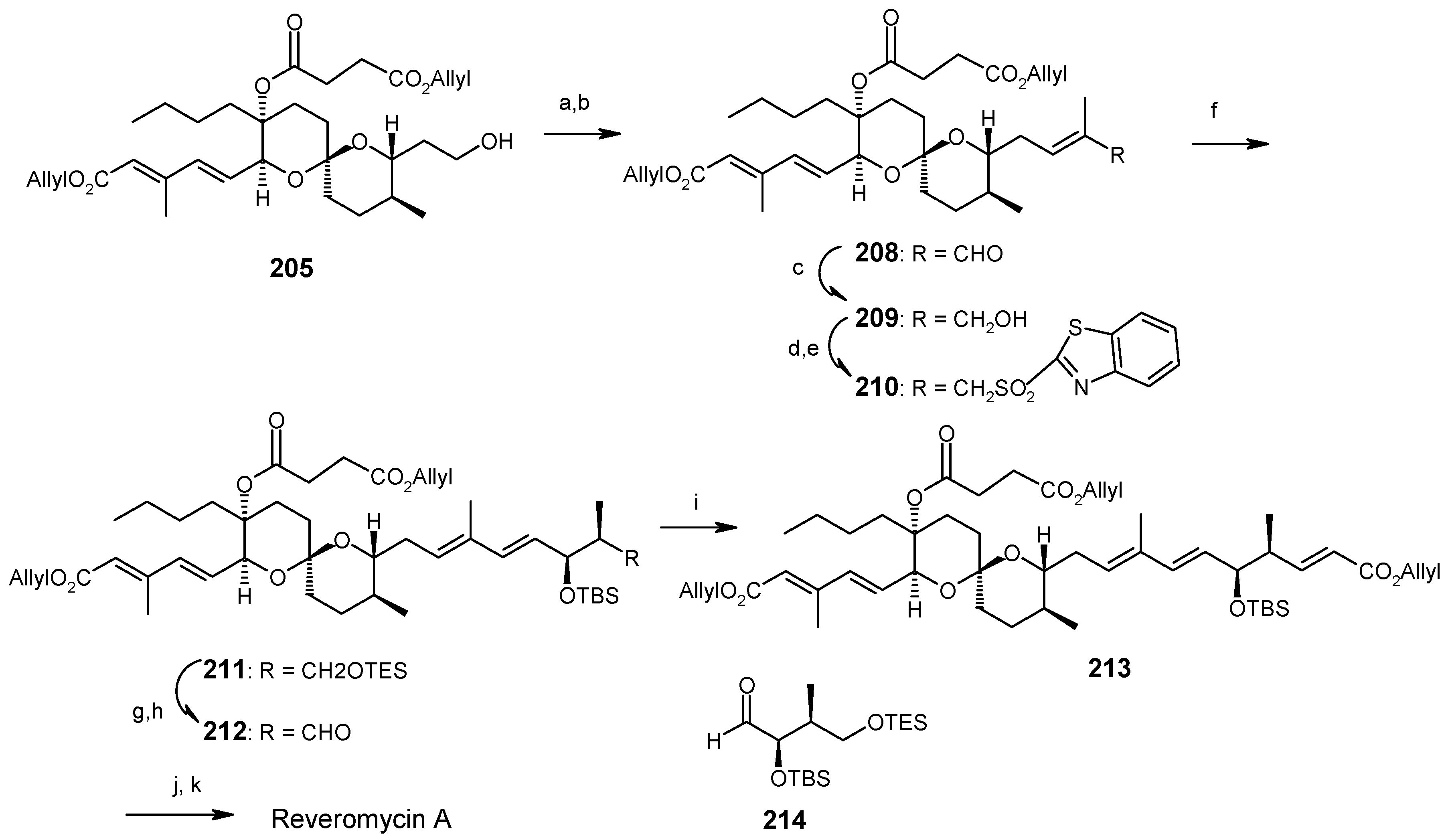

Scheme 49. Total synthesis of reveromycin A.
Scheme 49. Total synthesis of reveromycin A.
Molecules 13 01942 g052
Reagents and conditions: (a) Dess-Martin periodinane, MS4A, CH2Cl2, rt, (b) Ph3P=C(Me)CHO, toluene, 110 oC, (88%, two steps), (c) Zn(BH4)2, Et2O, 0 oC, 99%; (d) 2-mercaptobenzenzothiazole, n-Bu3P, TMAD, benzene, 5 oC to rt, 87%; (e), Mo7O24(NH4)6.4H2O, H2O, EtOH, 0 oC to rt, 79%; (f) LHMDS, 214, THF, -78 oC, to rt (90%), (g) PPTS, CHCl3, MeOH, 0 oC, (h) Dess-Martin periodinane, MS4A, CH2Cl2, rt (91%), (i) Ph3P=CHCO2allyl, toluene, 80 oC, (98%); (j) Pd(Ph3P)4, Ph3P, pyrrolidine, CH2Cl2, 0 oC to rt, (k) TBAF.3H2O, DMF, rt (71%, two steps).
The two approaches for the synthesis of reveromycin A differ in their spiroketal synthesis. The Rizzacasa group applied the Lewis acid catalyzed inverse electron demand hetero-Diels-Alder (HAD) reaction followed by hydroboration/oxidation sequence for spiroketal synthesis whereas the Shimizu and Nakata group utilized the acid mediated spiroketalisation of suitably fuctionalized keto alcohol. In both the cases side products decreases the yield of the spiroketal moiety. The advantage of the Rizzacasa synthesis is that it avoids the use of large number of different protecting groups because the synthesis of core spiroketal unit is based on hetero-Diels-Alder strategy. It is also shorter (23 steps) than the Shimizu and Nakata approach (27 steps).

2.10. Total synthesis of (-)-Reveromycin B

Reveromycin B, like Reveromycin A is a member of a novel family of bioactive spiroketal-containing natural product isolated from a soil actinomycete belonging to the Streptomyces genus [90]. This is an inhibitor of the mitogenic activity of epidermal growth factor (EFG) and may represent a new class of antitumor agents [104].

2.10.1. Rizzacasa Synthesis

Rizzacasa and coworkers describes a novel, convergent, and stereoselective total synthesis of (-)-reveromycin B [105]. The retrosynthetic analysis is shown in Scheme 50. This analysis reveals that intermediate 215 is the key unit for the synthesis of (-)-reveromycin B. Other side chain units can be synthesized by Pd(0)-mediated cross coupling, acylation, Wittig and syn-aldol reaction, as shown in Scheme 50. Spiroketal unit 215 can be obtained from hetero-Diels-Alder reaction [106].

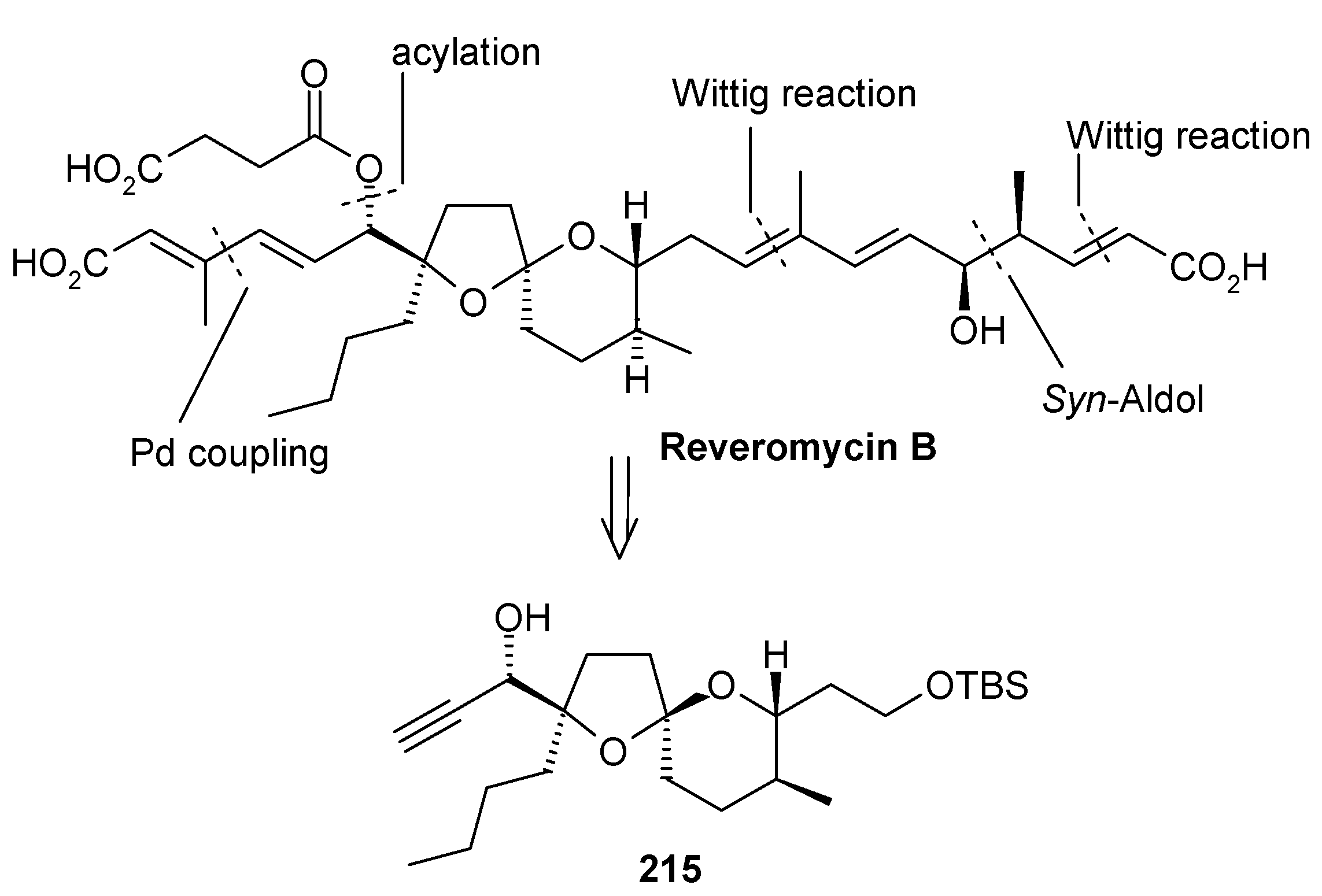

Scheme 50. Retrosynthetic analysis of (-)-reveromycin B.
Scheme 50. Retrosynthetic analysis of (-)-reveromycin B.
Molecules 13 01942 g053

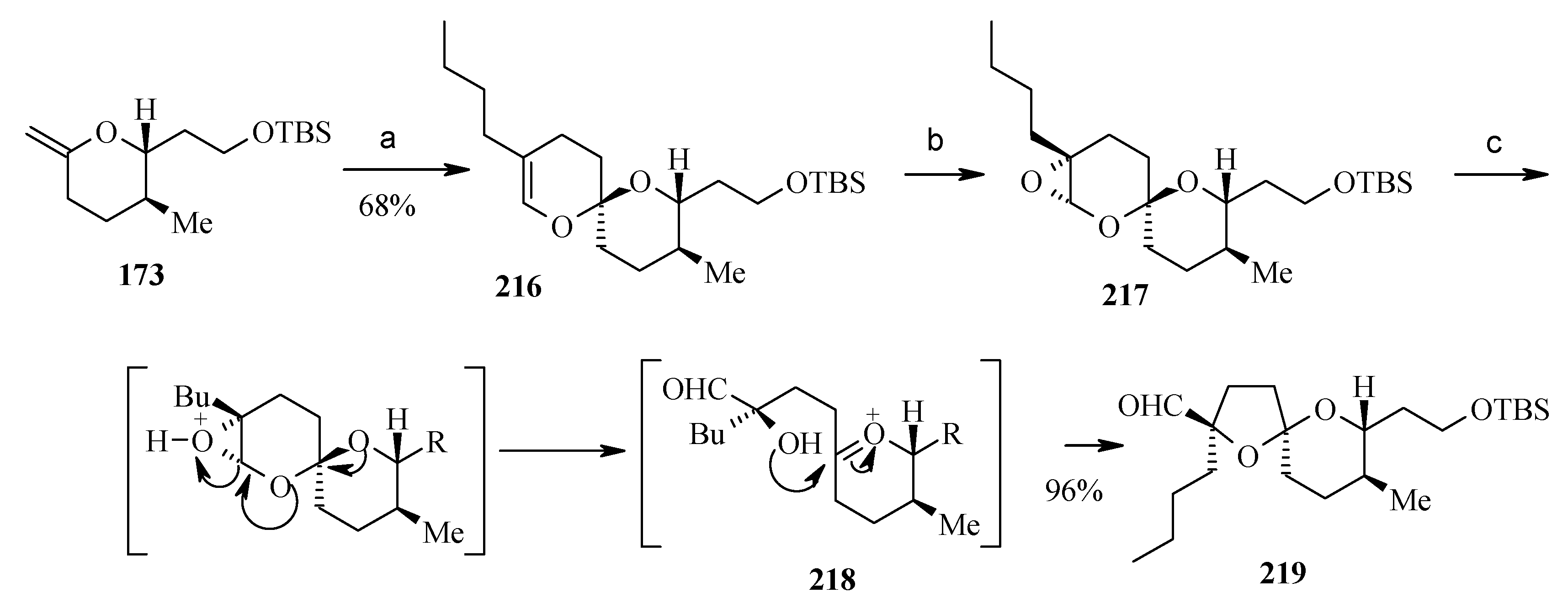

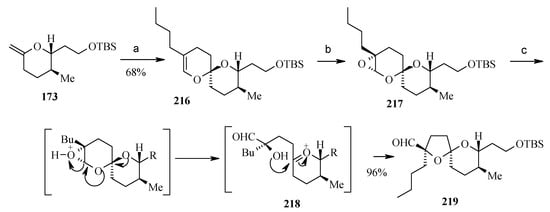

Scheme 51. Synthesis of spiroketal 219.
Scheme 51. Synthesis of spiroketal 219.
Molecules 13 01942 g054
Reagents and conditions: (a) Butylacrolein, K2CO3, 110 oC; (b) dimethyldioxirane, CH2Cl2, 0 oC; (c) CSA, CH2Cl2, rt.
The synthesis of reveromycin B can be illustrated by a [4+2] cycloaddition reaction between the methylenepyran 173 and butylacrolein in the presence of K2CO3. The reaction proceeds smoothly at a slightly higher temperature (110 oC) than reported previously to give the 6,6-spiroketel 216 in good yield as one diastereoisomer (Scheme 51) [83, 106]. Epoxidation of the resulting enol ether 216 with dimethyldioxirane provides the labile epoxide 217, which rearranges to thermodynamically most stable 5,6-spiroketal 219 with the desired C-18 stereochemistry in 219 upon treatment with CSA [107].
Addition of lithium trimethylsilylacetylide to aldehyde 219 affords the alkyne 220 with the incorrect stereochemistry at C-19 as the only product, which on oxidation followed by reduction of the resultant ketone with L-Selectride and removal of the TMS group affords the desired alcohol 221 as a 9:1 mixture [106]. This is then converted to alcohol 222 by a protection, deprotection sequence (Scheme 52).

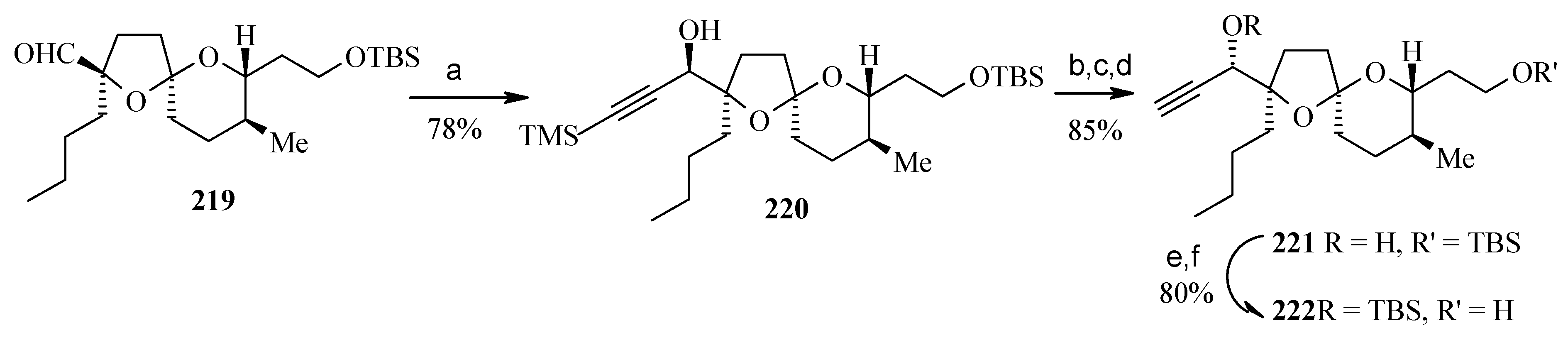

Scheme 52. Conversion of spiroketal 219 to 222.
Scheme 52. Conversion of spiroketal 219 to 222.
Molecules 13 01942 g055
Reagents and conditions: (a) TMSC≡CLi, THF, -78 oC, 78%; (b) Dess-Martin reagent, CH2Cl2; (c) L-selectride, THF, -78 oC; (d) K2CO3, MeOH, rt, 85%; (e) TBSOTf, 2,6-lutidine, CH2Cl2, -40 oC; (f) HF.Py/Py, THF, rt, 80%.

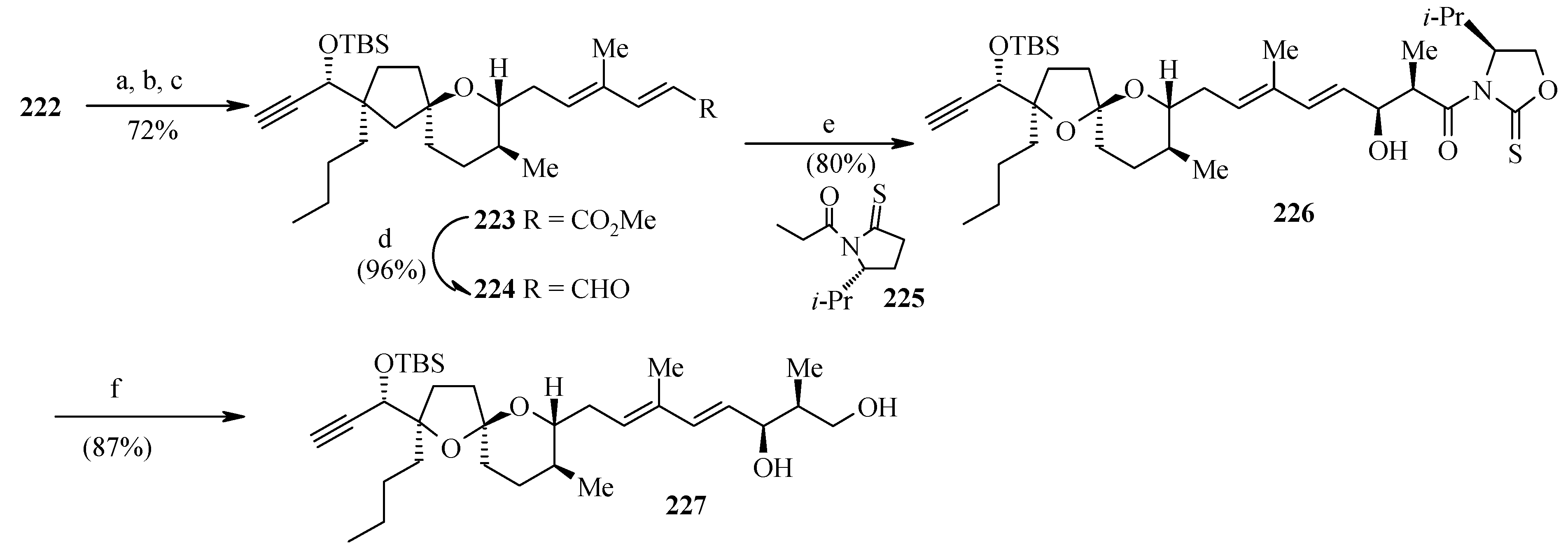

Scheme 53. Conversion of 222 to 227.
Scheme 53. Conversion of 222 to 227.
Molecules 13 01942 g056
Reagents and conditions: (a) Dess-Martin periodinane, CH2Cl2; (b) Ph3P=C(Me)CHO, C6H5Cl, 100 oC, 72h; (c) Ph3P=CHCO2Me, benzene, reflux, 24h; (d) (i) DIBALH, CH2Cl2, -78 oC; (ii) Dess-Martin periodinane, Py, CH2Cl2; (e) oxazolidine-2-thione 225, Sn(OTf)2, N-ethylpiperidine, CH2Cl2, -55 oC, then aldehyde 224, -78 oC; (f) NaBH4, THF, H2O.
Oxidation of 222 and sequential Wittig reactions give the desired diene ester 223 in good overall yield. Reduction of ester 223 followed by oxidation affords the labile aldehyde 224. The stereochemistry at C-4 and C-5 is installed by tin mediated asymmetric aldol reaction of 224 with 1,3- oxazolidine-2-thione 225 as chiral auxiliary. The resulting aldol product 226 is then converted to free alcohol 227 after removal of the chiral auxiliary group (Scheme 53).

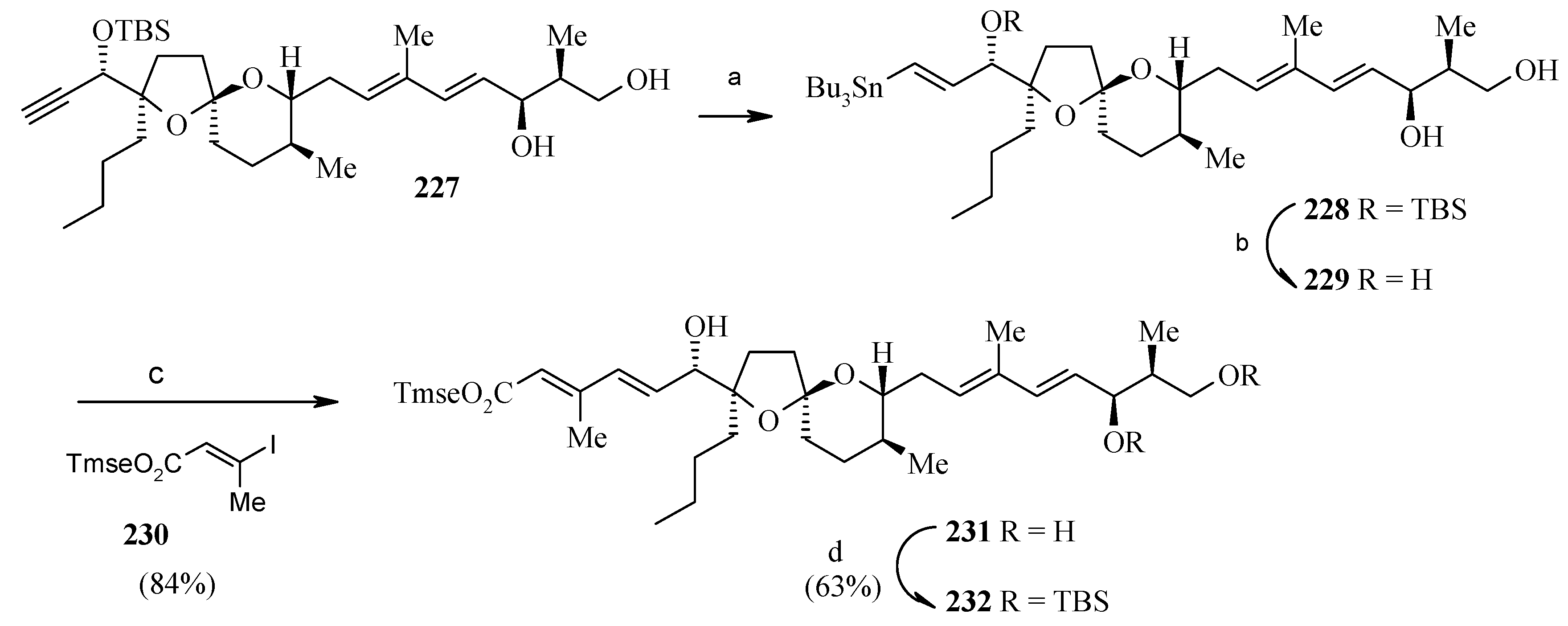

Scheme 54. Synthesis of spiroketal 232 from 227.
Scheme 54. Synthesis of spiroketal 232 from 227.
Molecules 13 01942 g057
Reagents and conditions: (a) Bu3SnH, cat. (Ph3P)2PdCl2, CH2Cl2, 0 oC, 1h; (b) TBAF, THF, 50 oC, 16h; (c) cat. Pd2(dba)2, THF, NMP, 60 oC, 30 min; (d) TBSCl, imidazole, DMF, 50 oC, 3h; Tmse= -CH2CH2SiMe3.

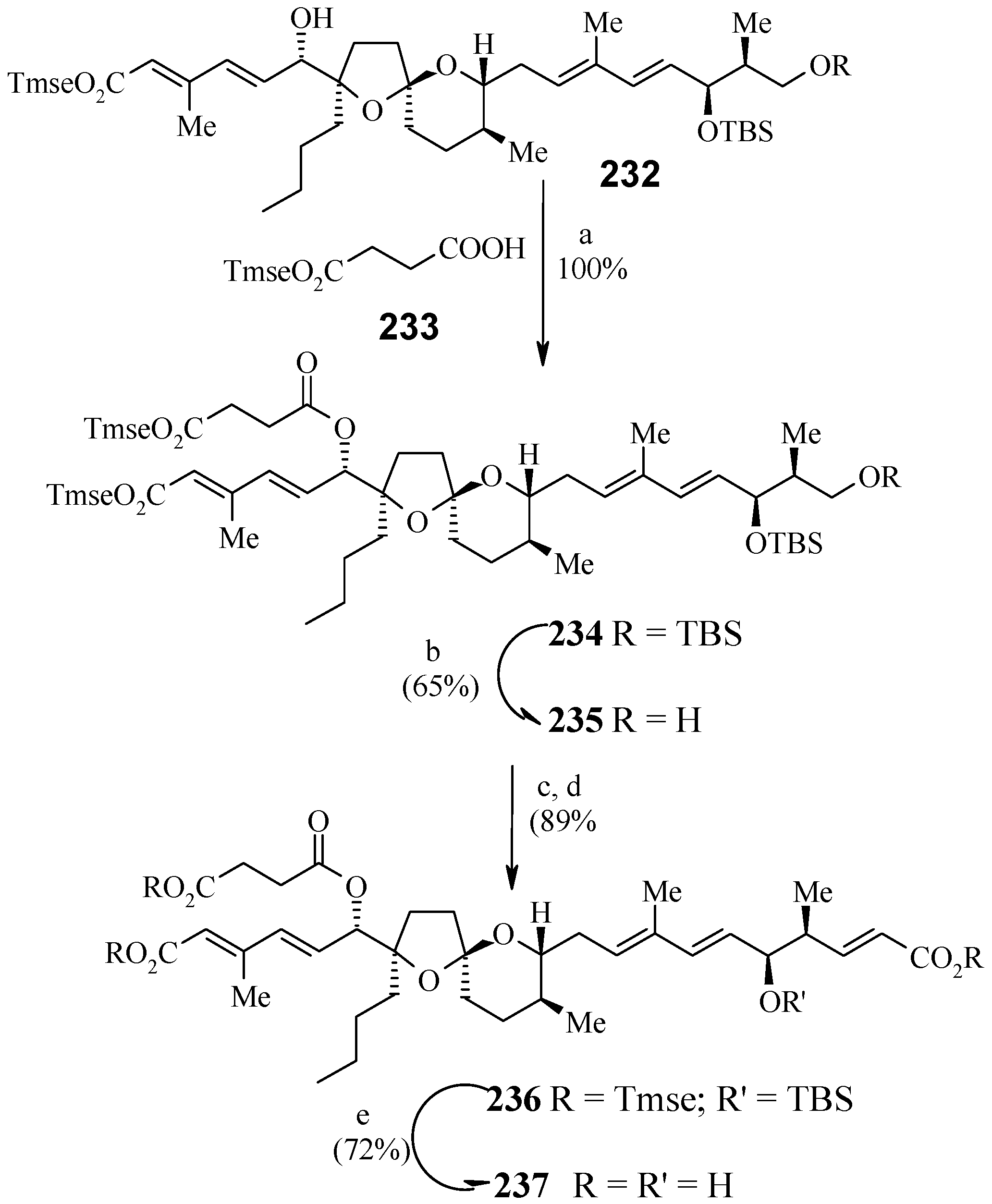

Scheme 55. Total synthesis of reveromycin B.
Scheme 55. Total synthesis of reveromycin B.
Molecules 13 01942 g058
Reagents and conditions: (a) DCC, cat.DMAP, 35 oC, 24h; (b) HF.Py/Py, THF, rt., 7h; (c) Dess-Martin periodinane, Py, CH2Cl2, rt, 1h; (d) Ph3P=CHCO2Tmse, CH2Cl2, rt, 24h; (e) TBAF, DMF, rt, 48h.
The diol 227 is converted to stannate 228 by palladium-catalyzed hydrostannylation [108]. Removal of the hindered C-19 OTBS group furnishes triol 229, which is subjected to Stille cross-coupling with the vinyl iodide 230 under conditions reported by Farina to give tetraene 231 in excellent yield (Scheme 54) [109,110]. It is observed that the C-19 OTBS group is important for hydrostannylation, whereas Stille coupling is most effective with a free hydroxy group at C-19. The primary and secondary hydroxyl groups of 231 are silylated and then esterified to yield ester 234 [111]. Removal of primary TBS group in 234 followed by oxidation and subsequent Wittig reaction gives protected reveromycin B, 236, which upon deprotection of all protecting groups afford reveromycin B (237, Scheme 55).

2.10.2. Theodorakis Synthesis

Theodorakis and coworkers have synthesized reveromycin B using Negishi and Kishi-Nozaki coupling reactions [112]. The retrosynthetic analysis of the molecule reveals that iodides 238, 239 and alkyne 240 are the main units for the construction of the reveromycin 239. Alkyne 240 further can be disconnected to unit 241 and 242 as shown in Scheme 56.

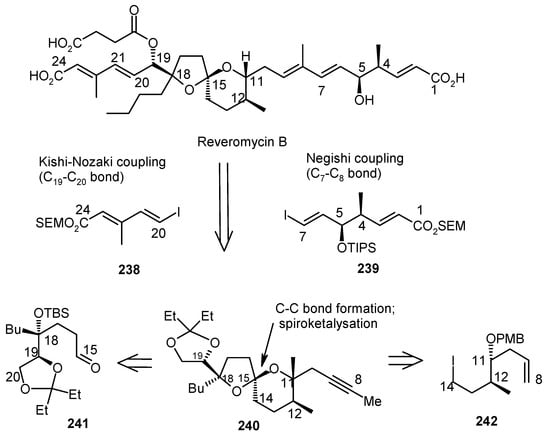

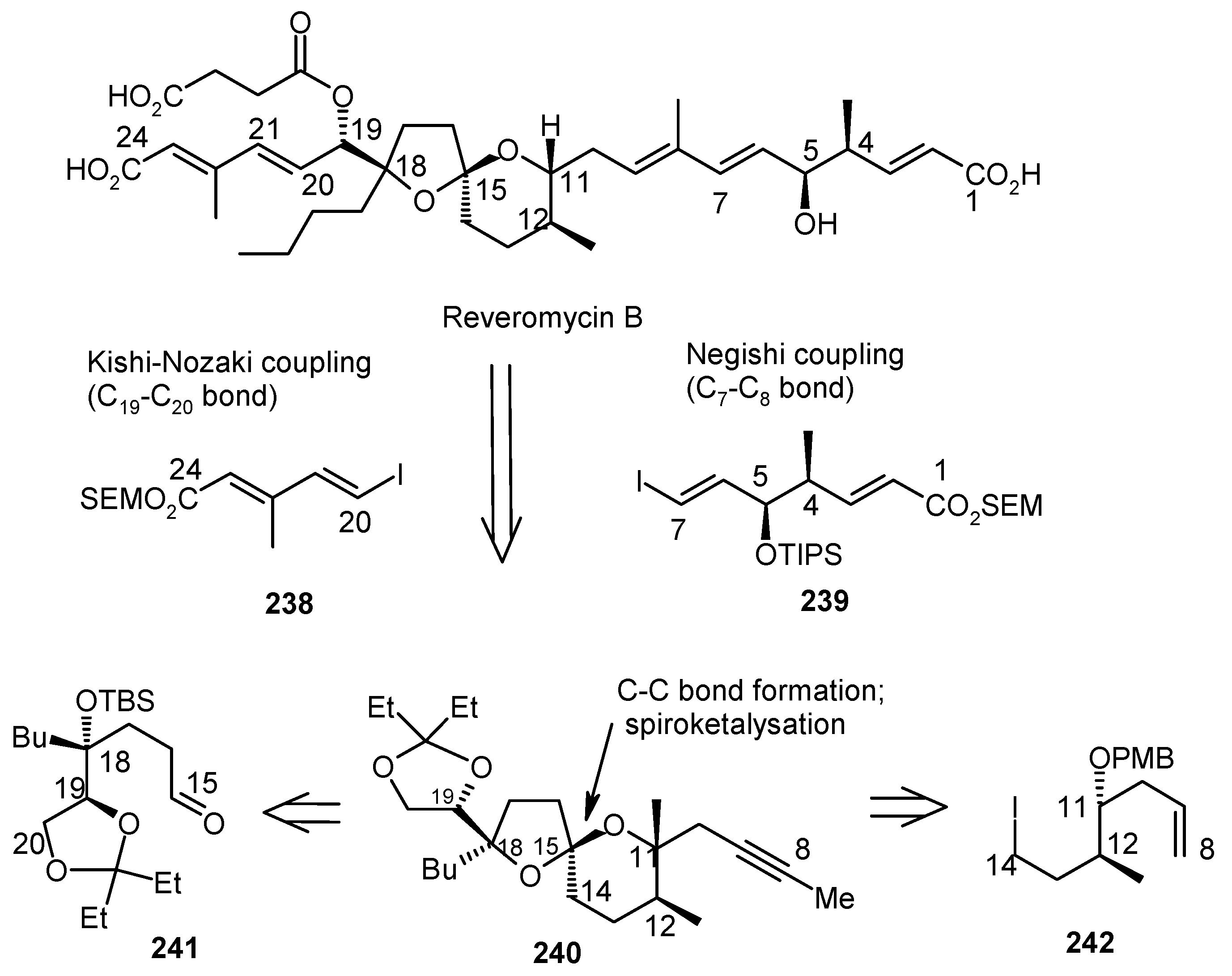

Scheme 56. Retrosynthetic analysis of (-)-reveromycin B.
Scheme 56. Retrosynthetic analysis of (-)-reveromycin B.
Molecules 13 01942 g059
Fragment 240 is prepared from aldehyde 241 and iodide 242. Lithiation of iodide 242 and then addition to aldehyde 241 results alcohol, which in turn is oxidized to ketone 243. Deprotection of 243 affords spiroketal 244, whose structure was determined from its known triacetate 245 [113]. Compound 244 is then converted to the required alkyne unit 240 by ozonolysis and subsequent Corey-Fuchs reaction (Scheme 57) [114].
The fragment 239 is prepared from aldehyde 246 using Evan’s asymmetric aldol reaction and subsequent transformations (Scheme 58) [115].

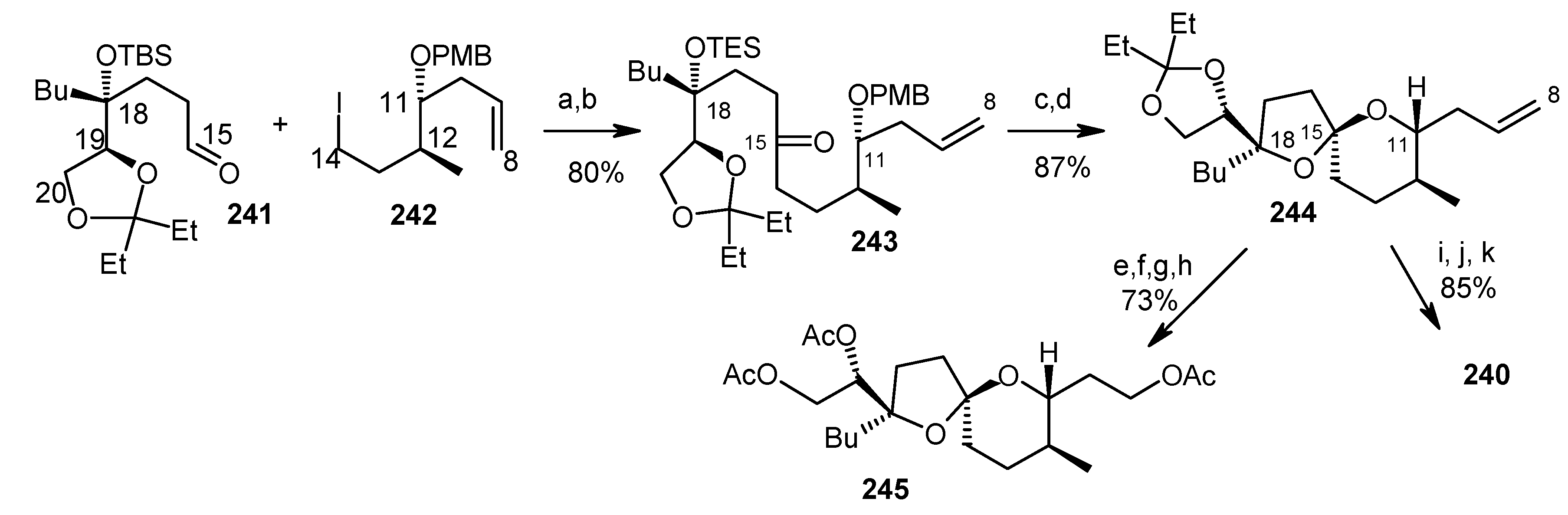

Scheme 57. Synthesis of alkyne fragment 240.
Scheme 57. Synthesis of alkyne fragment 240.
Molecules 13 01942 g060
Reagents and conditions: (a) 1.0 equiv. of 242, 2.1 equiv. t-BuLi, -78 oC, Et2O, 0.5 h, then 1.4 equiv. of 241, 0.5 h, 84%, (b) 1.2 equiv. Dess-Martin periodinane, CH2Cl2, 25 oC, 1h, 95%, (c) 1.5 equiv. TBAF.THF, THF, 50 oC, 2h, (d) 1.5 equiv. DDQ, wet CH2Cl2, 15 min, 25 oC, 87% (over two steps), (e) 0.1 equiv. CSA, CH2Cl2, 0 oC, 3h, 97%, (g) O3, CH2Cl2, -78 oC, then 5.0 equiv. NaBH4, MeOH, 25 oC, 1h, 97%, (h) 1.5 equiv. Ac2O, 3 equiv. Py, CH2Cl2, 25 oC, 15 min, 97%, (i) O3, CH2Cl2, -78 oC, then 1.5 equiv. Ph3P, (j) 5 equiv CBr4, 10 equiv HMPT, THF, -30 oC, 30 min, 89% (over two steps), (k) 2.1 equiv, BuLi, THF, -78 oC to –20 oC, 20 min, then 5 equiv MeI, -78 oC, 2h, 95%.

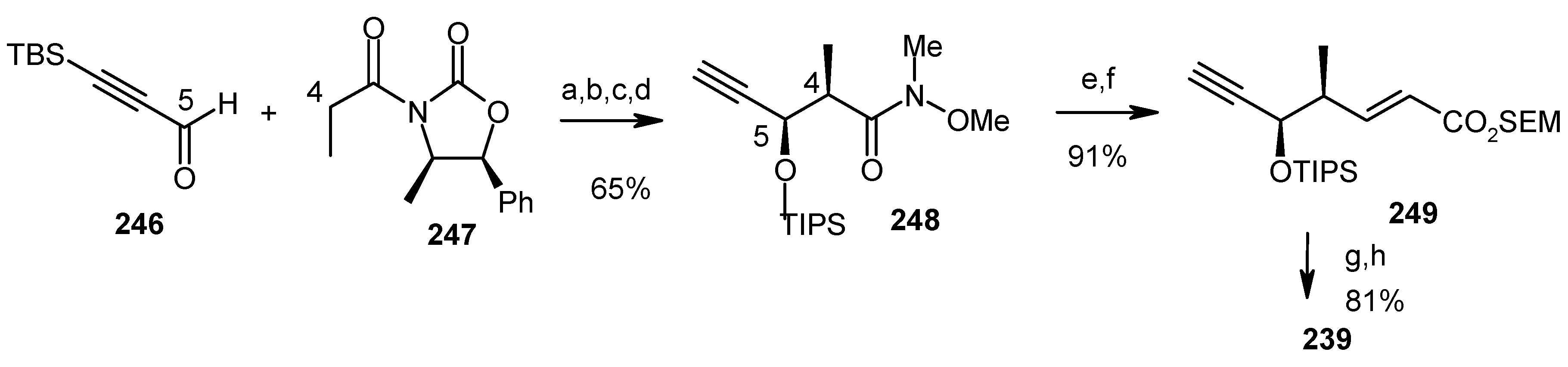

Scheme 58. Synthesis of iodide fragment 239.
Scheme 58. Synthesis of iodide fragment 239.
Molecules 13 01942 g061
Reagents and conditions: (a) 1.0 equiv 12, 1.0 equiv Bu2BOTf, 1.2 equiv Et3N, then 1.3 equiv 243, CH2Cl2, ‑78 oC, 2h, 80%, (b) 9.0 equiv. AlMe3, 9.0 equiv MeO-NHMe.HCl, THF, -30 to 0 oC, 2h, (c) 2.0 equiv. TBAF.SiO2, THF, 25 oC, 3h, (d) 1.5 equiv TIPSOTf, 3.0 equiv 2,6-lutidine, CH2Cl2, 25 oC, 15 min, 81% (over 3 steps), (e) 2.5 equiv DIBALH, THF, -78 oC, 0.5h, (f) 2.5 equiv Ph3P=CH-CO2SEM, CH2Cl2, 25 oC, 15h, 91% (over two steps), (g) 0.02 equiv, (Ph3P) 2PdCl2, 1.5 equiv, Bu3SnH, benzene, 5 oC, 10 min, 91%, (h) I2, CH2Cl2, 0 oC, 5 min, 90%.
Next, units 239 and 240 are connected using a modified Negishi coupling to give compound 250 [116,117]. Deprotection followed by oxidative cleavage of 250 affords aldehyde 251, which is connected with iodide 238 using a Kishi-Nozaki coupling to give alcohol 252 [118]. The alcohol 252 is then esterified and finally deprotected to give the target reveromycin B (Scheme 59).

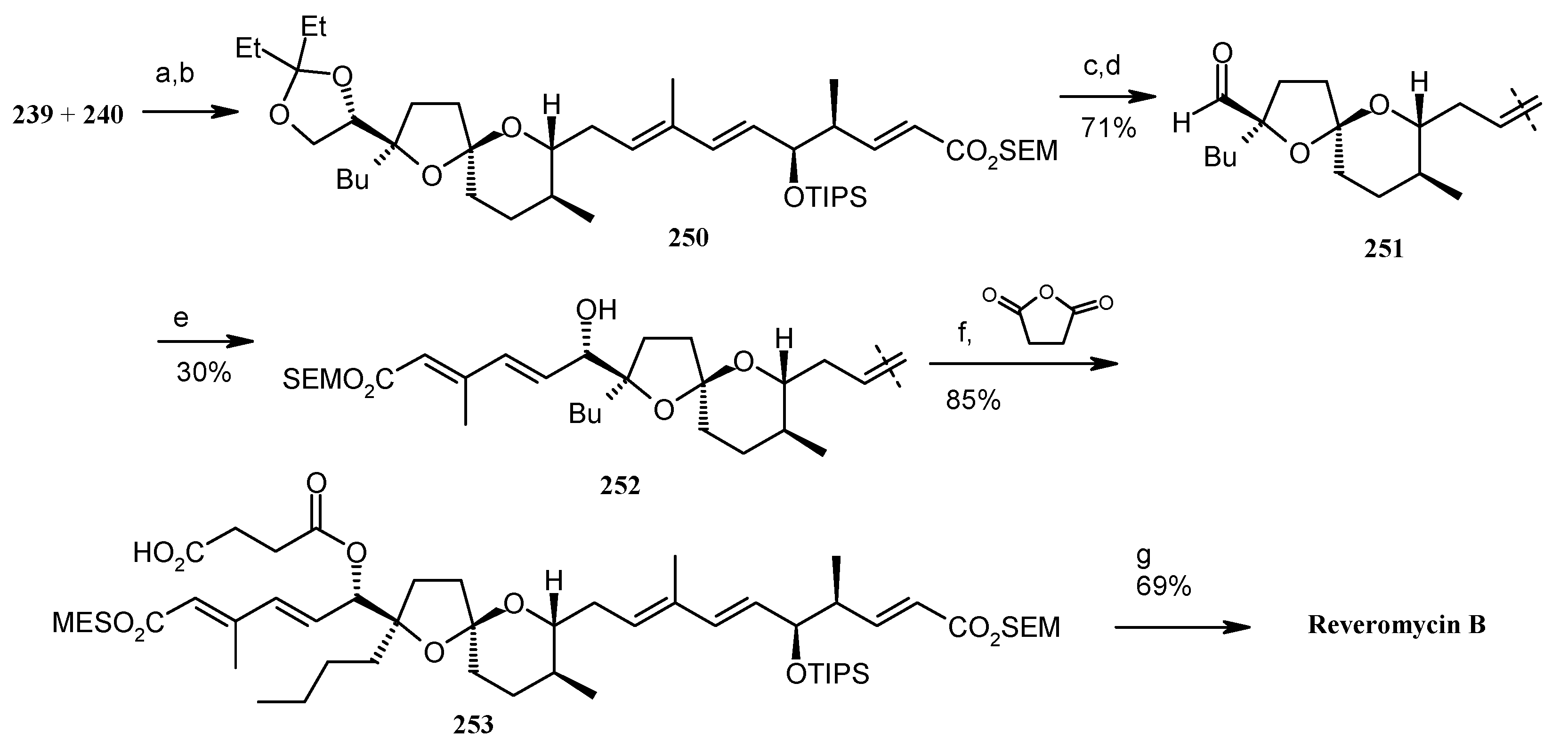

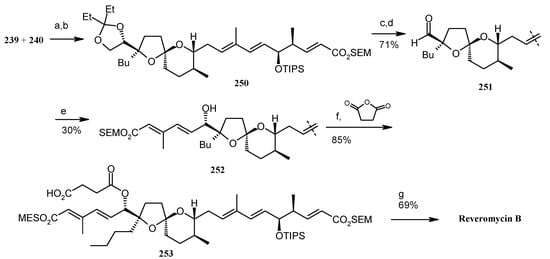

Scheme 59. Total synthesis of reveromycin B.
Scheme 59. Total synthesis of reveromycin B.
Molecules 13 01942 g062
Reagents and conditions: (a) 1.0 equiv C, 2.0 equiv Cp2ZrHCl, THF, 50 oC, 2h, (b) 3.0 equiv ZnCl2, THF, 5 min, 25 oC, then 1.1 equiv 239, 0.05 equiv (Ph3P)4Pd, THF, 2h, 25 oC, 84%, (c) 3.0 equiv PPTS, MeOH, 3h, 40 oC, 75%, (d) 6.0 equiv NaIO4, THF.H2O (2:1), 2h, 0 oC, 95%, (e) 4.0 equiv 238, 24 equiv CrCl2, (with 0.5 equiv NiCl2), DMF, 25 oC, 3h, 65% (1.2:1 ratio at C-19), (f) 10 equiv succinic anhydride, 12 equiv DMAP, 25 oC, 3h, 85%, (g) 10 equiv TBAF.THF, THF, 2h, 25 oC, 69%.

2.10.3. Shimizu-Nakata Synthesis

Shimizu and Nakata have also reported a stereoselective synthesis of reveromycin B [119]. Scheme 60 shows the retrosynthetic analysis of the molecule, which reveals that a one pot Julia olefination between sulfone 254 and aldehyde 255, followed by Wittig reaction, leads to the right part of the polyolefinic side chain. On the other hand, the left part of the molecule can be obtained from Horner-Wardsworth-Emmons reaction of phosphonate 256, followed by esterification. The spiroketal can be synthesized by coupling reaction between Weinreb amide 260 and alkyne 261.
The Weinreb amide is prepared from known epoxide 262. Epoxide 262 is converted to tetrahydrofuran 263, which on protection and oxidation using RuCl3-NaIO4 affords lactone 265 (Scheme 61) [120]. Amination of lactone 265 with Me2AlCl-MeNHOMe·HCl gives Weinreb amide 266, which is converted to desired amide 260 after silylation and acetylation [121]. The alkyne 261 is prepared from known alcohol 268 in four steps as shown in Scheme 62 [113].
The coupling of Weinreb amide 260 and alkyne 261 is effected by n-BuLi to give the spiroketal core 259 after hydrogenation (Scheme 63). Selective deprotection of TES, TBS and MTM groups and spiroketalysation affords compound 271, which after deprotection/protection followed by acetylation gives compound 273. Deprotection of silyl group followed by oxidation affords aldehyde 274, which is subjected to Horner-Wadsworth-Emmons reaction with phosphonate 256 to give a mixture of dienoic esters with a ratio of 7:3. Esterification of this mixture with acid 257 provides the desired (20E,22E)- 275, along with the 20E,22Z isomer, with a 14:1 ratio.
The component 255 is prepared using an Evans asymmetric aldol reaction, as shown in Scheme 64 [122]. Deprotection of the MPM group in 275 followed by oxidation gives aldehyde 280, which on Wittig reaction and subsequent reduction affords alcohol 282, which is converted to sulfone 254 by Mitsunobu reaction followed by oxidation [103]. Julia reaction of 254 with 255 affords (6E, 8E)-diene 283, which is converted to aldehyde 284 in two steps (Scheme 65). Wittig reaction of 284 affords ester 285, which after removal of TES and allyl protecting groups provide revermycin B [123].

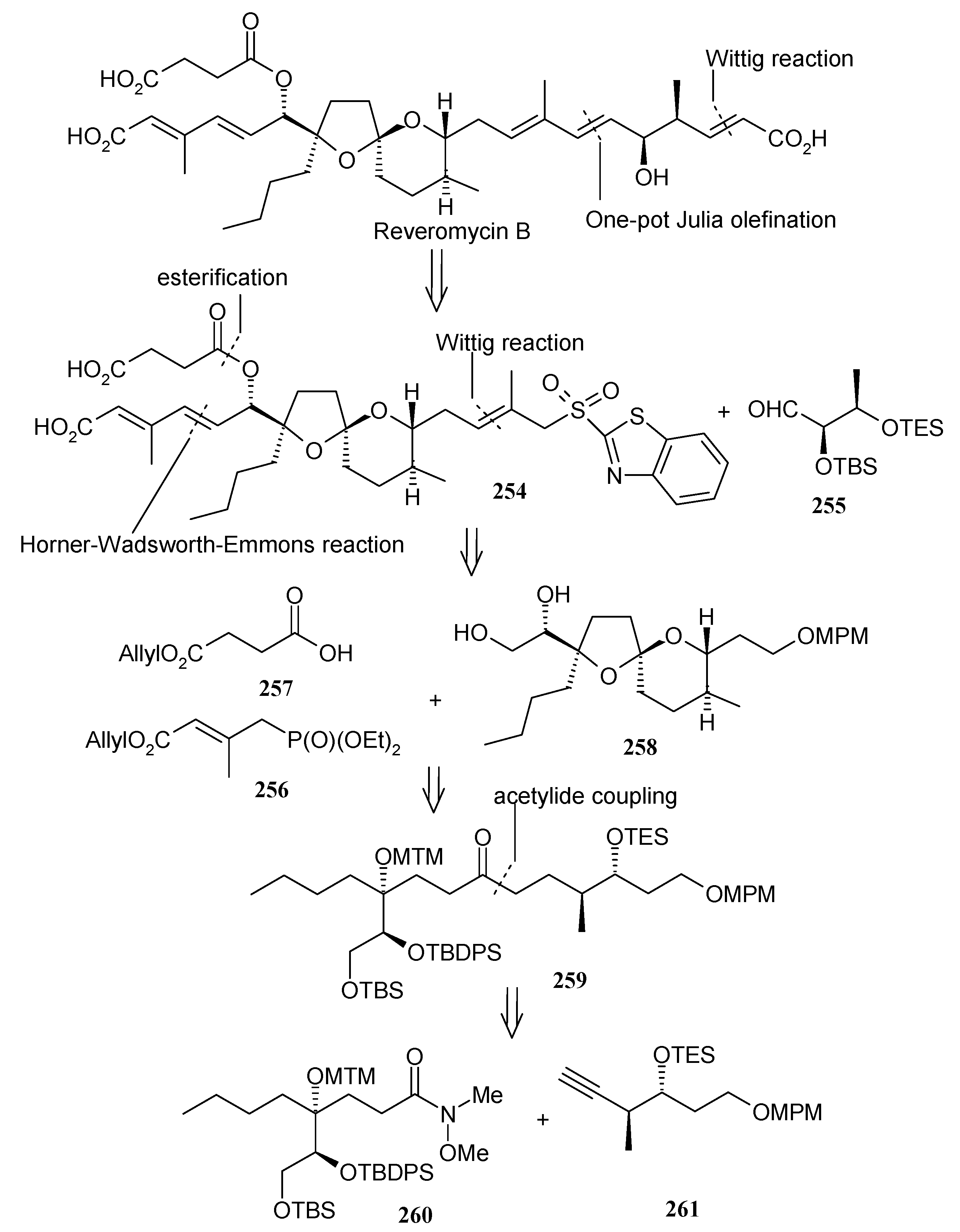

Scheme 60. Retrosynthetic analysis of reveromycin B.
Scheme 60. Retrosynthetic analysis of reveromycin B.
Molecules 13 01942 g063

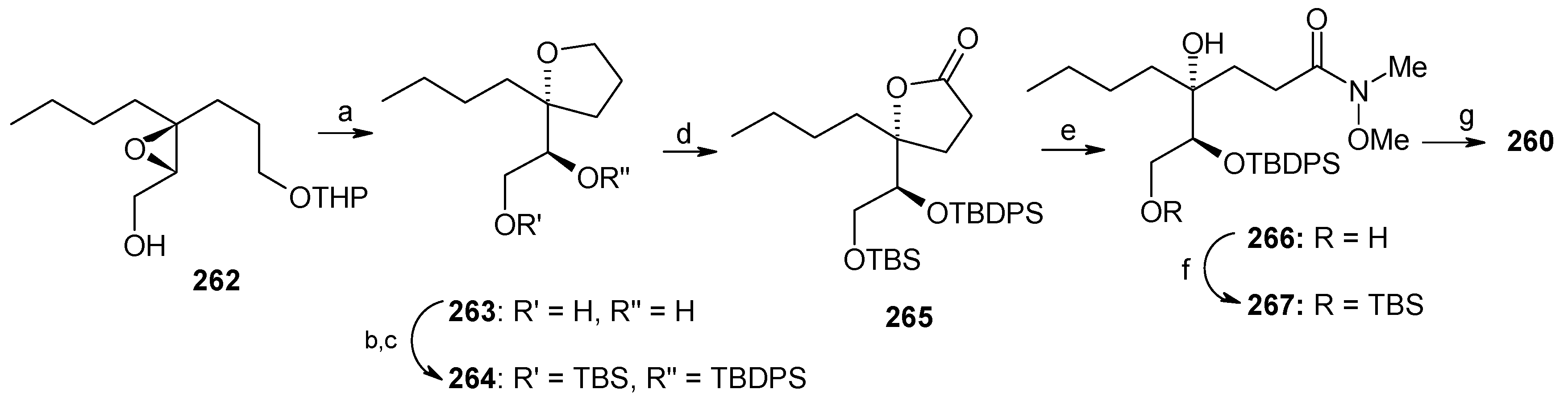

Scheme 61. Synthesis of Weinreb amide 260.
Scheme 61. Synthesis of Weinreb amide 260.
Molecules 13 01942 g064
Reagents and conditions: (a) AcOH, THF, H2O, rt, TsOH, MeOH, rt (88%), (b) TBSCl, Et3N, DMAP, DMF, 0 oC to rt, 96%; (c) TBDPSOTf, lutidine, CH2Cl2, 0 oC to rt, 95%; (d) RuCl3, NaIO4, CH3CN, CCl4, phosphate buffer (pH 8), rt, 92%; (e) Me2AlCl, MeNHOMe.HCl, CH2Cl2, 0 oC to rt; (f) TBSCl, imidazole, DMAP, DMF, 0 oC to rt (65% 2 steps); (g) DMSO, Ac2O, rt (94%).

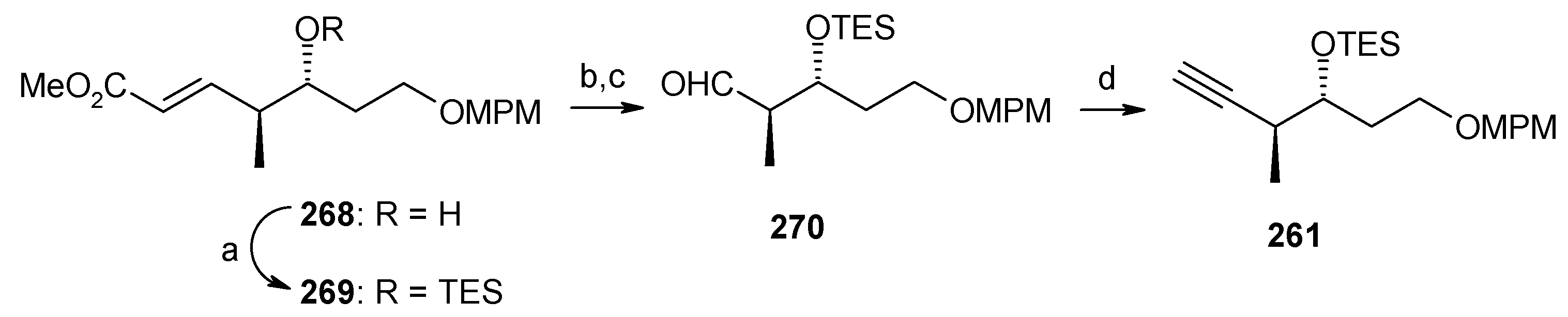

Scheme 62. Synthesis of alkyne fragment 261.
Scheme 62. Synthesis of alkyne fragment 261.
Molecules 13 01942 g065
Reagents and conditions: (a) TESCl, imidazole, DMAP, DMF, 0 oC to rt, 96%; (c) OsO4, NMO, Me2CO, H2O, 97%; (d), TMSCHN2, n-BuLi, THF, -78 oC to 0 oC, 70%.

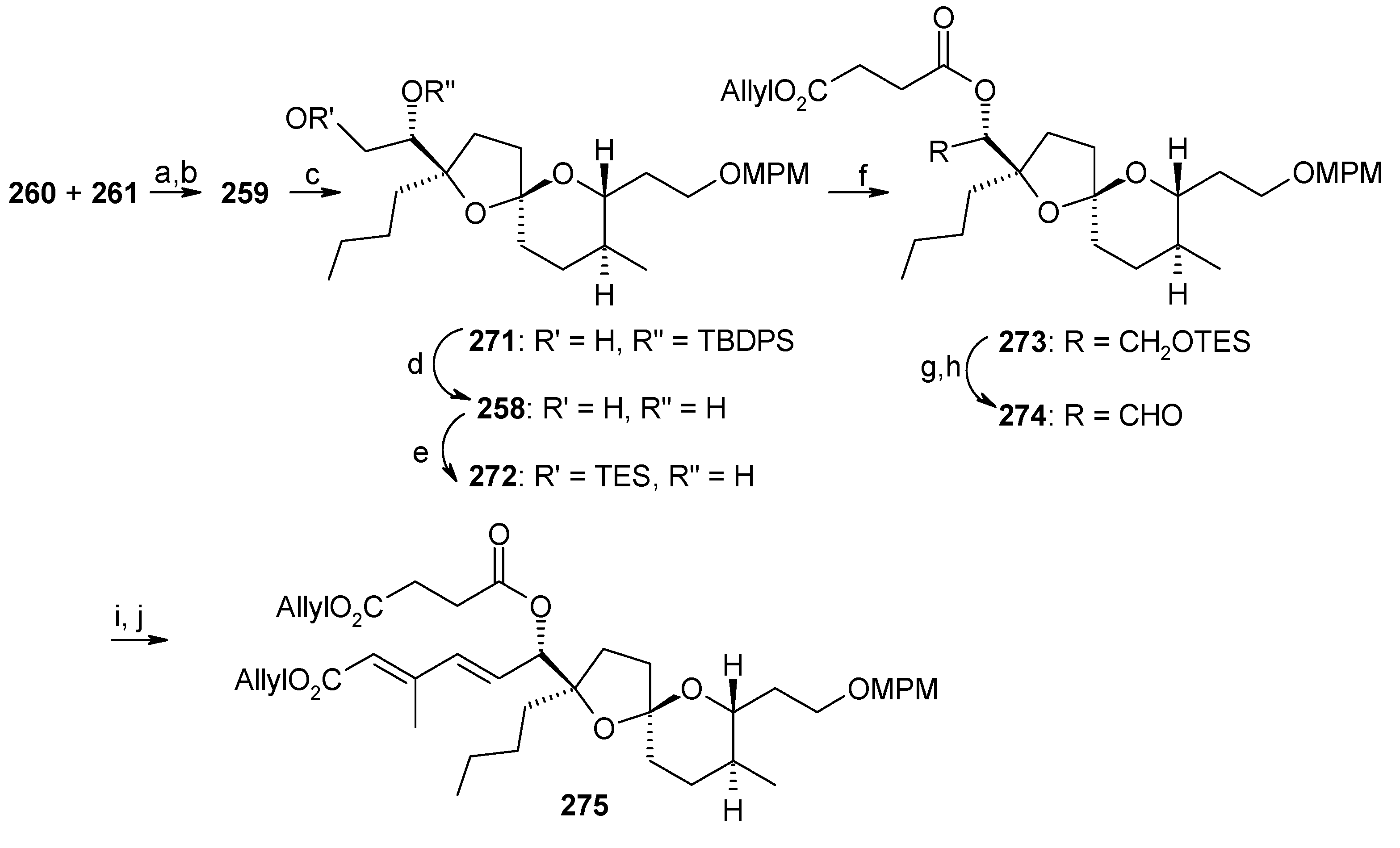

Scheme 63. Synthesis of spiroketal 275.
Scheme 63. Synthesis of spiroketal 275.
Molecules 13 01942 g066
Reagents and conditions: (a) n-BuLi, THF, 0 oC, (b) Pd/C, H2, EtOAc, rt, 94%, (c) TsOH, CHCl3, EtOH, 0 oC to rt (83%), (d) TBAF, THF, rt, (86%), (e) TESCl, Et3N, CH2Cl2, 0 oC, (f) 257, DIC, DMAP, CH2Cl2, rt, 98%; (g) PPTS, CHCl3, MeOH, 0 oC, 92%; (h) TPAP, NMO, CH2Cl2, rt, 93%; (i) 256, LiHMDS, THF, HMPA, -78 oC to rt; (j) 257, DIC, DMAP, CH2Cl2, rt 77%, 2 steps.
Scheme 64. Synthesis of aldehyde 255.
Scheme 64. Synthesis of aldehyde 255.
Molecules 13 01942 g067
Reagents and conditions: (a) n-Bu2BOTf, iPr2NEt, crotonaldehyde, CH2Cl2, -78 oC to rt, 86%; (b) TBSOTf, lutidine, CH2Cl2, 0 oC, 100%; (c) NaBH4, THF, H2, rt, 87%; (d) TESCl, imidazole, DMF, 0 oC to rt, 100%; (e) OsO4, NMO, Me2CO, H2O, rt, 82%, (f) Pb(OAc)4, toluene, rt, 97%.

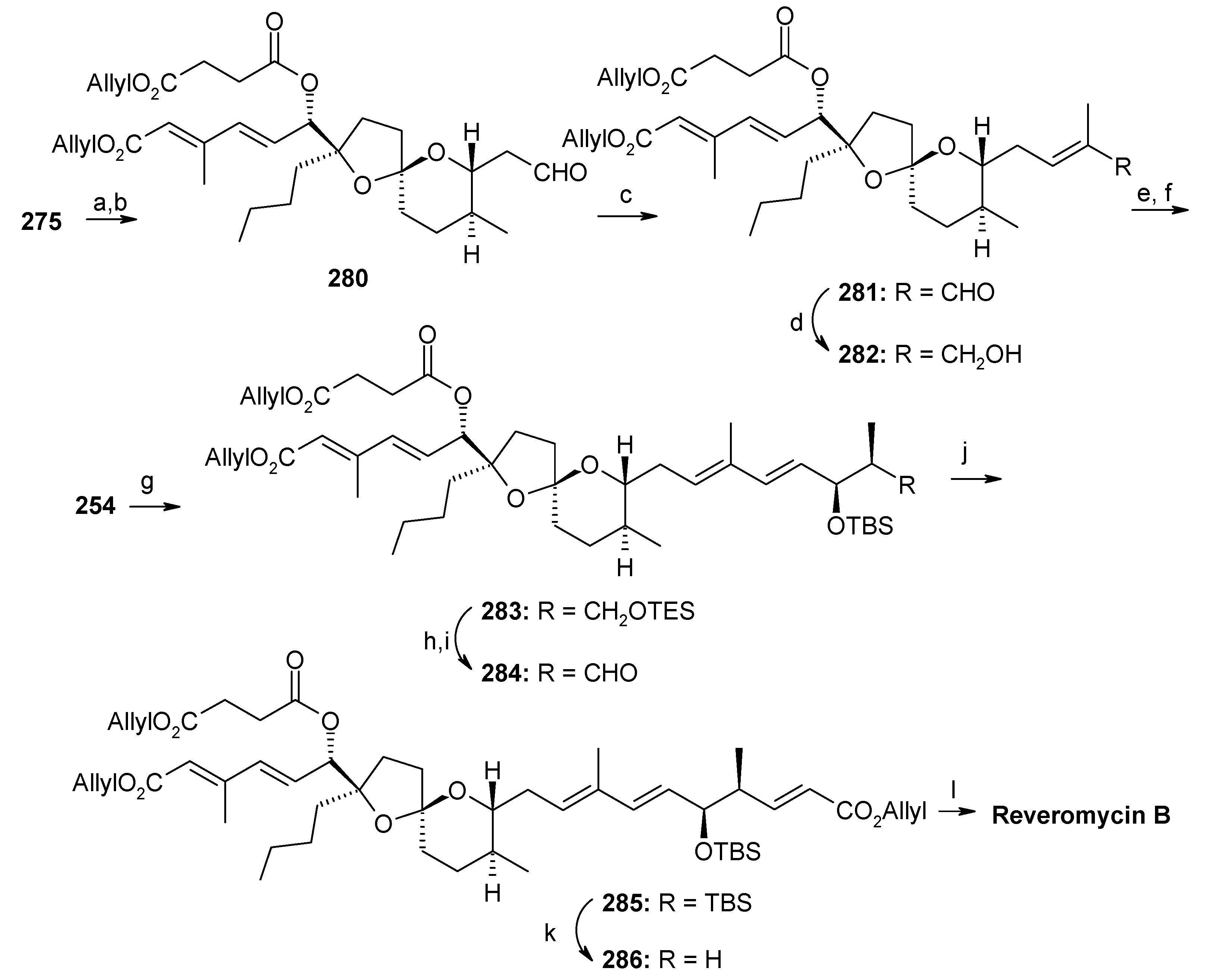

Scheme 65. Total synthesis of reveromycin B.
Scheme 65. Total synthesis of reveromycin B.
Molecules 13 01942 g068
Reagents and conditions: (a) DDQ, CH2Cl2, H2O, rt, 91%; (b) SO3.Py, Et3N, CH2Cl2, DMSO, 0 oC, to rt, 99%; (c) Ph3P=C(Me)CHO, toluene, 110 oC, 93%, (d) Zn(BH4)2, Et2O, 0 oC; (e) 2-mercaptobenzothiazole, Ph3P, DEAD, THF, rt; (f) Mo7O24(NH4)6.4H2O, H2O2, EtOH, 0 oC to rt, 79%; (g) LiHMDS, 255, THF, -78 oC to 0 oC, 56%; (h) PPTS, CHCl3, MeOH, 0 oC, 95%; (i) Dess-Martin periodinane, CH2Cl2, rt, 90%; (j) Ph3P=CHCO2(allyl), toluene, 80 oC, 98%; (k) HF.Py, THF, 0 oC, to rt, 78%; (l) Pd2(dba)3.CHCl3, n-Bu3P, HCO2H, Et3N, 1,4-dioxane, 50 oC, 62%.
Among the three approaches for the synthesis of reveromycin B, the Theodorakis synthesis is the shortest route, consisting of total 21 linear steps and the Shimizo-Nakata synthesis, with 39 steps, the longest one. On the other hand, Rizzacasa completed it in 25 steps. Rizzacasa uses the hetero-Diels-Alder reaction, followed by oxidation and subsequent acid-induced ring contraction strategy for construction of the 5,6-spiroketal unit in high yield. Another feature of this synthesis is that only the TBS ether protecting group is used throughout the synthesis. The spiroketal units in the Theodorakis and Shimizu-Nakata syntheses are achieved from spiroketalization of suitably substituted keto alcohols.

2.11. Total synthesis of (+)-bistramide C

The bistramides were isolated from the marine ascidian Lissoclinum bistratum [124]. Bistramides gained importance due to their attractive biological properties, including antiproliferative effects [125], sodium channel blockage [126], and unique protein kinase Cδ activation [127]. Wipf and coworkers have described the convergent total synthesis of the marine natural product (+)-bistramide C [128].

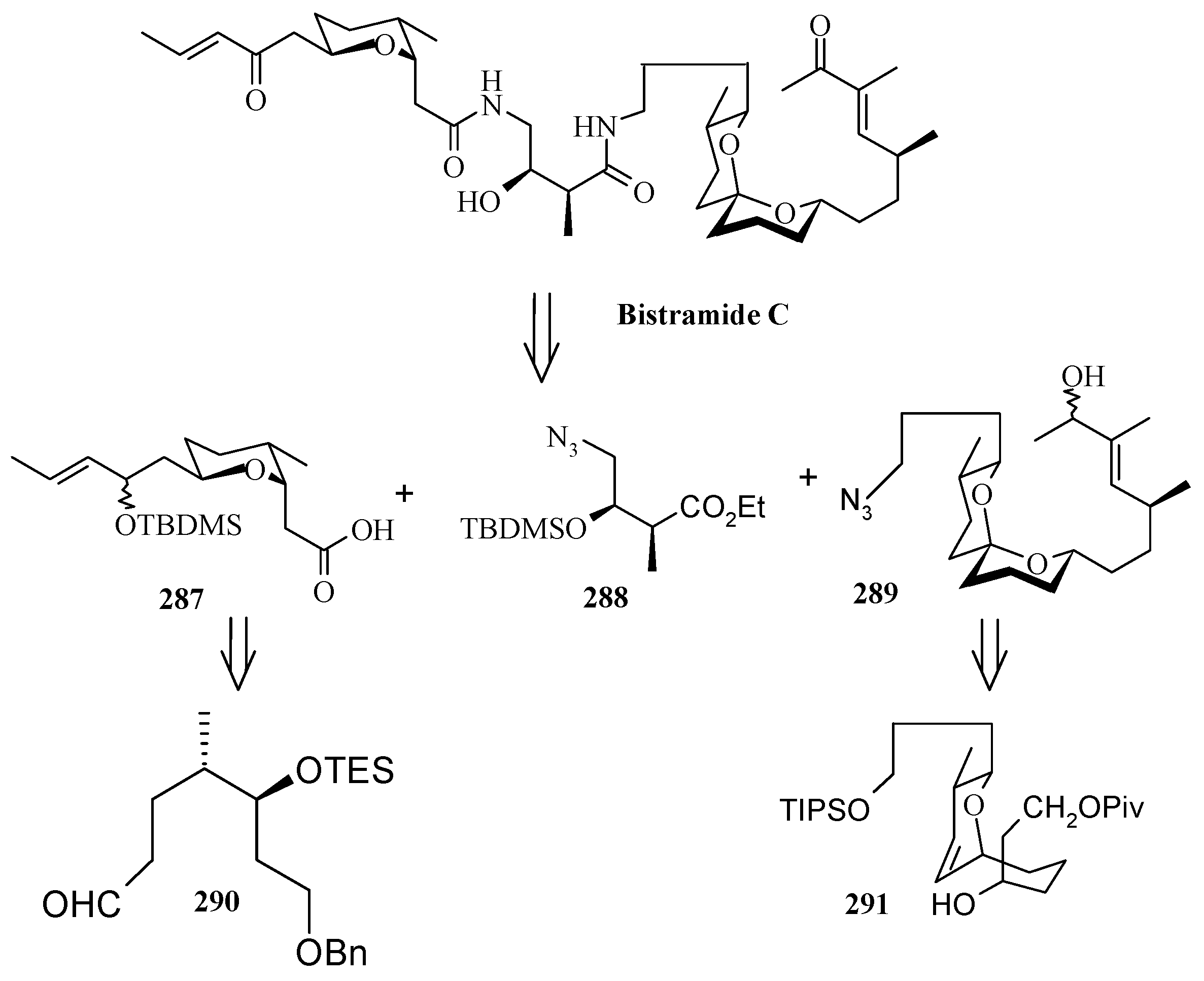

Scheme 66. Retrosynthetic analysis of (+)-bistramide C.
Scheme 66. Retrosynthetic analysis of (+)-bistramide C.
Molecules 13 01942 g069

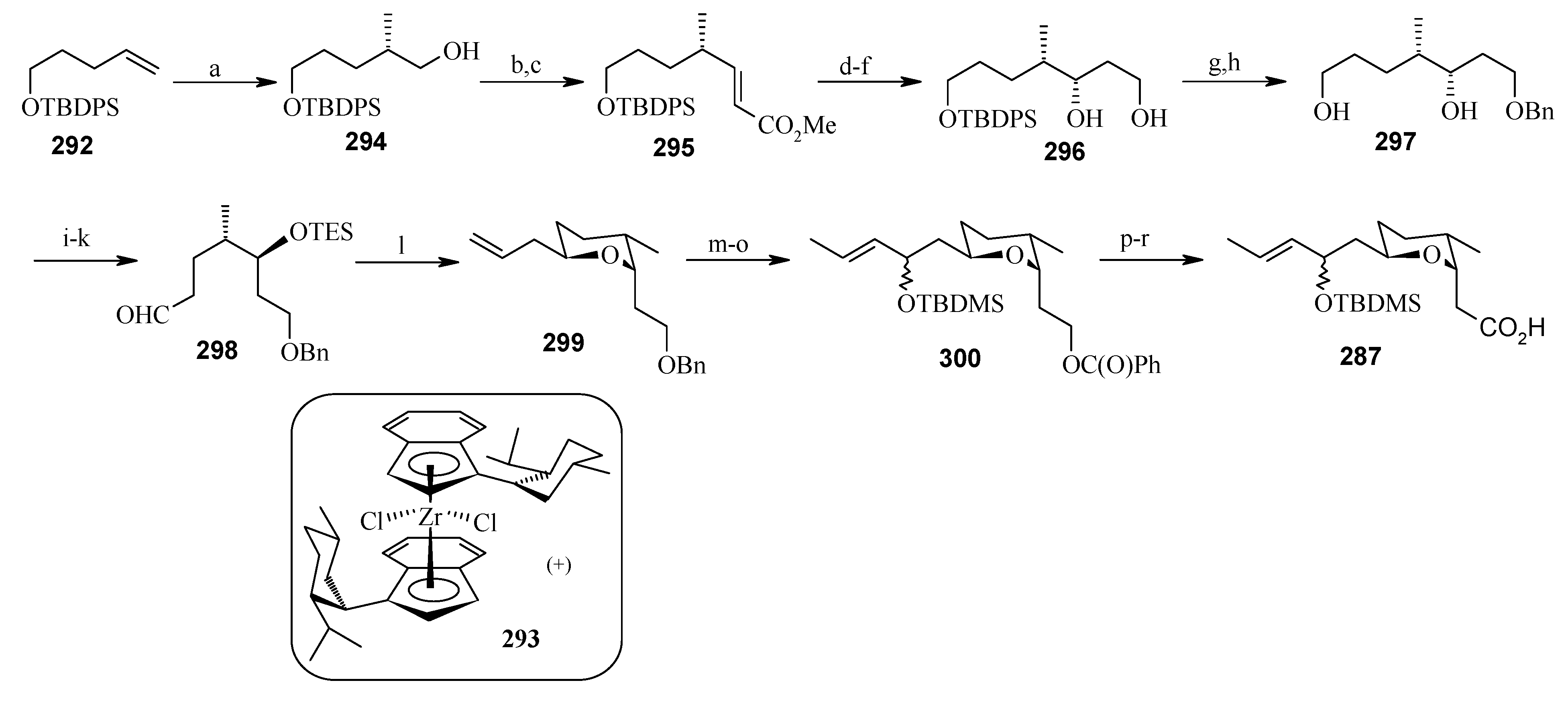

Scheme 67. Synthesis of pyran fragment 287.
Scheme 67. Synthesis of pyran fragment 287.
Molecules 13 01942 g070
Reagents and conditions: AlMe3 (4.3 equiv.), 293 (2.8 mol%), MAO (1.5 equiv), CH2Cl2, 3-5 oC, 15h; then O2, -20 oC to rt, 78%; (b) NaOCl, TEMPO, KBr, NaHCO3/Na2CO3, CH2Cl2, 0 oC, 3h, 92%; (c) trimethyl-phosphonoacetate, DBU, LiCl, CH3CN, 0 oC to rt, 6h, 91%; (d) DIBALH, CH2Cl2, -78 oC, 2h, 98%; (e) TBHP, D-(-)-DIPT, Ti(O-iPr)4, 4 Å MS, CH2Cl2, -20 oC, 15h, 96%; (f) Red-Al, toluene, -78 oC to rt, 13h, quant.; (g) NaH, THF, 0 oC to rt, 15h, 98%; (h) TBAF, THF, 0 oC to rt, 15h, 98%; (i) TES-OTf, 2,6-lutidine, CH2Cl2, 0 oC, 30 min, quant; (j) H2O, AcOH, THF (1:3:10), 0 oC to rt, 4h, 79%; (k) Dess-Martin periodinane, NaHCO3, CH2Cl2, 0 oC to rt, 2h, 81%; (l) allyl-TMS, BiBr3 (cat), CH3CN, rt, 23h, 72%; (m) O3/O2, methyl pyruvate, CH2Cl2, -78 oC, 30 min; then PPh3, -78 oC to rt, 16h, 60-65%; (n) trans-2-propenyl bromide, t‑BuLi, Et2O, -78 oC (45 min) to 0 oC to –78 oC then addition to 100 oC solution of aldehyde in Et2O; (o) TBDMS-Cl, imidazole, CH2Cl2, 0 oC to rt, 21h, 82%; (p) NaOMe, MeOH/THF, 0 oC to rt, 24h, 90%; (q) Dess-Martin periodinane, NaHCO3, CH2Cl2, 0 oC, to rt, 1h; (r) NaH2PO4·H2O, 2-methyl-2-butene, t-BuOH, rt. 1h, 67%.
The retrosynthetic analysis of the molecule is shown in Scheme 66. The basic units of the molecules are 287, 288 and 289. Azide coupling connects all three units. The pyran is prepared from aldehyde 290, whereas the spiroketal is synthesized from alcohol 291. Fragment 287 is prepared starting from 292 (Scheme 67) [129]. Erker’s chiral zirconocene 293 is used to synthesize the β-methylated alcohol 294 with 83% ee. Oxidation followed by a Horner–Wadsworth–Emmons reaction provides enoate 295, which after reduction to alcohol is subjected to Sharpless asymmetric epoxidation. The resulting epoxy alcohol is converted to diol 296, of which the primary alcohol is selectively protected as a benzyl ether and then desilylated to give 297. Compound 297 is then converted to aldehyde 298 after protection/deprotection and oxidation sequences. Aldehyde 298 is converted to trans-2,6-substituted tetrahydropyran 299 with a >5:1 diastereomeric ratio using Evans’ methodology [130]. Oxidation of 299 with ozone, followed by in situ reduction with Ph3P transforms the benzyl ether into the benzoate ester and the allyl group into the aldehyde, which upon treatment with propenyl lithium provides the secondary allylic alcohol as a >10:1 mixture of epimers. The allylic alcohol is then converted to the requisite carboxylic acid fragment 287 after protection/deprotection and two-step oxidation sequence.

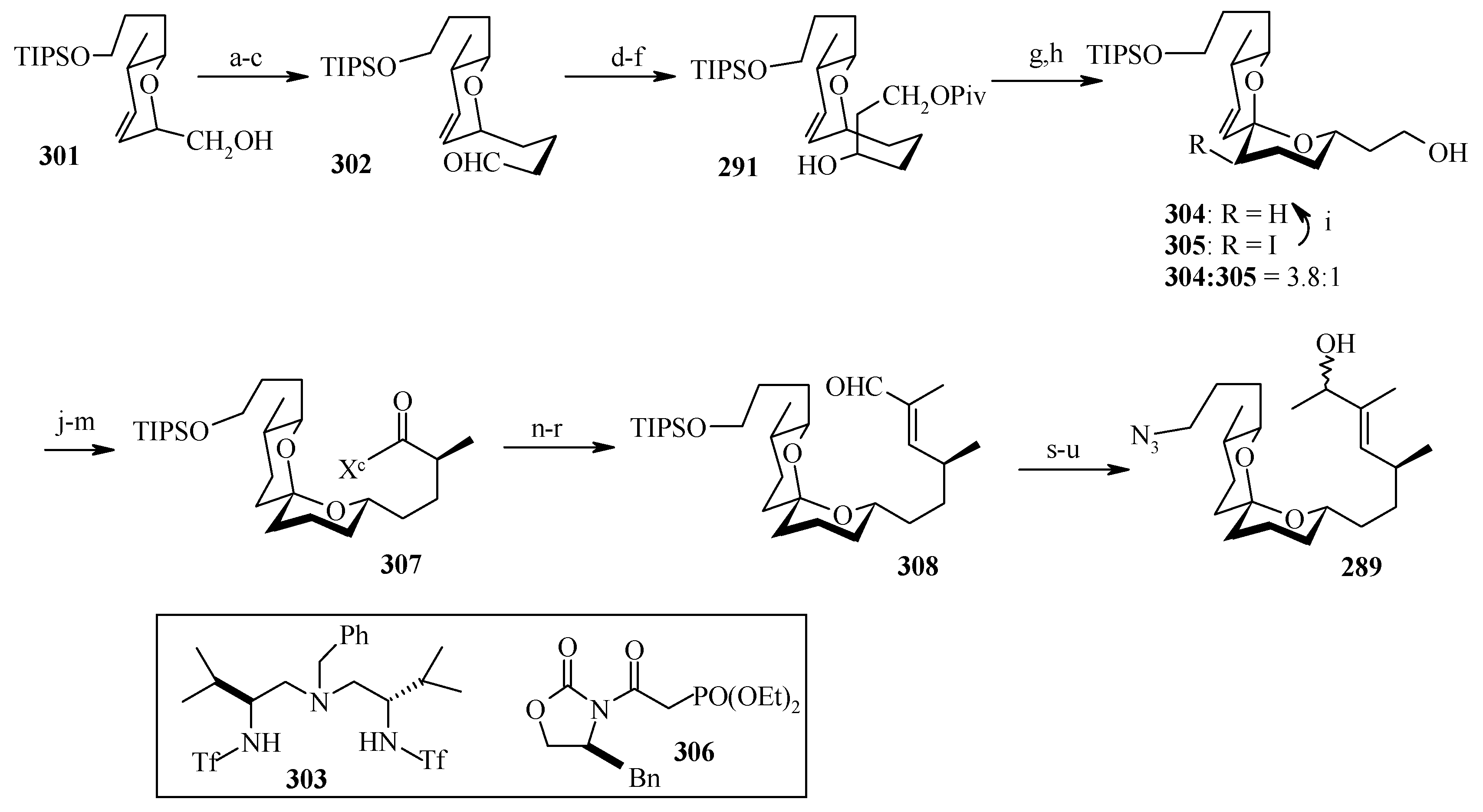

Scheme 68. Synthesis of spiroketal fragment 289.
Scheme 68. Synthesis of spiroketal fragment 289.
Molecules 13 01942 g071
Reagents and conditions: (a) Tf2O, pyridine, CH2Cl2, -45 oC to 0 oC, 45 min; then (CH2CHCH2)2CuCNLi2 (1.5 equiv), THF, -78 to –60 oC, 4h, 79%; (b) 9-BBN, THF, 0 oC to rt, 14h; then 0.5 M NaOH, 30% H2O2, 0 oC to rt, 65%; (c) Dess-Martin periodinane, CH2Cl2, 0 oC to rt, 1h, 77%; (d) 303 (30 mol%), AlMe3, acetyl bromide, (iPr)2NEt, CH2Cl2, -50 oC, 20h; (e) LAH, Et2O, 0 oC to rt, 75 min, 88%; (f) pivaloyl chloride, Py, rt, 24h, 83%; (g) PhI(OAc)2, I2, CCl4, hν, rt, 2h; (h) LAH, Et2O, 0 oC to rt, 26%; (i) (n-Bu)3SnH, AIBN, 80 oC, 14h, 94%; (j) PCC, NaOAc, CH2Cl2, rt, 1.5h, 84%; (k) 174, (iPr)2NEt, LiCl, THF, 12h, 87%; (l) Pt/C, H2, MeOH, rt, 1.5h, 79%; (m) NaHMDS, MeI, THF, -78 oC, 4.5h, 67%; (n) LiBH4, EtOH, Et2O, -25 oC to 0 oC (2.5h) to 5 oC, (12h), 77%; (o) Dess-Martin periodinane, CH2Cl2, rt, 25 min, 77%; (p) EtO2CC(Me)=PPh3, toluene (degassed), rt, 10d; (q) LAH, THF, 0 oC to rt., 2h, 68%; (r) Dess-Martin periopdinane, 0 oC to rt, 70 min, 93%, (s) MeMgBr, Et2O, 0 oC, 93%; (t) TBAF, THF, 0 oC to rt, 18h, quant.; (u) Ms2O, (iPr)2NEt, CH2Cl2, 0 oC to rt, 1h, then NaN3, DMF, 70 oC, 48h, 49%.
The spiroketal fragment 289 is prepared from the D-glucal derivative 301 [131], which is converted to the primary triflate and then chain extended by allyl cuprate (Scheme 68) [132]. The terminal olefin of the resulting compound is converted to the key aldehyde intermediate 302 by selective hydroboration followed by Dess–Martin oxidation. The (S)-configured stereocenter at the bistramide C-31 is installed by Nelson’s acyl halide-aldehyde condensation method [133]. Thus, the condensation of acetyl bromide and 302 under this condition affords β-lactone with excellent diastereoselectivity (>95% de), which is converted to spiroketal precursor 291 after reduction and pivaloylation of primary alcohol.
The precursor 291 is then oxidatively cyclised in the presence of iodobenzenediacetate and iodine to give a mixture of partially iodinated spiroketals 304 and 305 upon irradiation with a 250 W tungsten lamp [134]. Reductive removal of the pivaloate and oxidation of the primary alcohol to the aldehyde, the α,β-unsaturated oxazolidinone is obtained via a Horner–Wadsworth–Emmons reaction with phosphonate 306 [135]. Catalytic hydrogenation of both alkenes with Pt/C followed by Evans methylation gives 307 [115]. Reductive removal of the chiral auxiliary in 307 followed by oxidation of the intermediate alcohol leads to the aldehyde, which upon Wittig reaction, followed by reduction of the resultant enoate with lithium aluminium hydride and oxidation of the allylic alcohol affords 308. Finally, the key azide fragment 289 is obtained by Grignard reaction, deprotection of silyl group, and selective mesylation of the 1o alcohol followed by an SN2-displacement of the crude mesylate with sodium azide.
Scheme 69. Total synthesis of (+)-bistramide C.
Scheme 69. Total synthesis of (+)-bistramide C.
Molecules 13 01942 g072
Reagents and conditions: (a) LiOH.H2O, EtOH, 0 oC to rt, 15h; (b) TIPS-Cl, NEt3. THF/DMF (1:1), 0 oC, 30 min, 82%; (c) H2 (1 atm), Pd/C, THF, rt, 3.5h; (d) 287, PyBOP, Et3N, CH2Cl2, rt, 16h; (e) TBAF, (0.1 M), THF, 0 oC, 25 min, 86%; (f) 289, Ph3P (1.0 Mol in THF), H2O, THF (degassed), rt, 41h, then 180, PyBOP, (iPr)2NEt, DMF, rt, 47h, 58%; (g) PPTS, MeOH, rt; 48h; (h) Dess-Martin periodinane (15wt% in CH2Cl2), CH2Cl2, 0 oC to rt, 1h, 77%.
The γ-amino carboxylate 288, obtained from D-malic acid, is converted to azide 309 via saponification of the ethyl ester and temporary re-protection of the resultant carboxylic acid as the TIPS ester in two-steps. The azide 309 is reduced to amine and then condensed with acid 287 to give the desired C-13 amide, which is then deprotected to give carboxylic acid 310. The spiroketal azide 289 is converted to amine and the crude amine is treated with 310, followed by PyBOP and Hunig’s base. Finally, global deprotection under mildly acidic conditions followed by selective oxidation of the two allylic alcohols provides (+)-bistramide C (Scheme 69).

2.12. Total synthesis of Attenol A

Novel bicyclic triols, attenols A and B, were isolated from the Chinese bivalve Pinna attenuata [136]. These attenols exhibited moderate cytotoxicity against P388 cells. Attenol A differs from the attenol B in that the former contains a [5,4] spiroketal moiety and the later contains a dioxa-bicyclo[3.2.1]octane unit. Attenols are highly functionalized, asymmetric molecules, and their preparation poses interesting challenges to synthetic organic chemists.

2.12.1. Weghe and Eustache Synthesis

Weghe et al. have reported a synthesis of attenol A using silicon tethered coupling metathesis [137]. The retrosynthetic analysis of the attenol A shows that the spiroketal moiety 311 can be obtained from ketone diol 312, which in turn can be accessed from silicon tethered ring-closing metathesis of fragments 314 and 316. Fragment 314 is prepared from (tert-butyl-diphenylsiloloxy)-acetaldehyde 315 [138]. On the other hand the fragment 316 is prepared from known diepoxide 319 via C2-symmetric diol 318 (Scheme 70) [139].
Thus, reaction of allylmagnesium bromide/cuprous iodide with diepoxide 319 affords the diol 318, which is converted to monoprotected alcohol 321. In this stage one of the olefin should be protected while other should be subjected to allylic oxidation to provide anchor for the silicon tether. The free alcohol and olefin are protected by converting them to cyclic ether 322a and 322b [140]. Selenium dioxide oxidation of 322a,b affords the allylic alcohols 323a,b (Scheme 71).

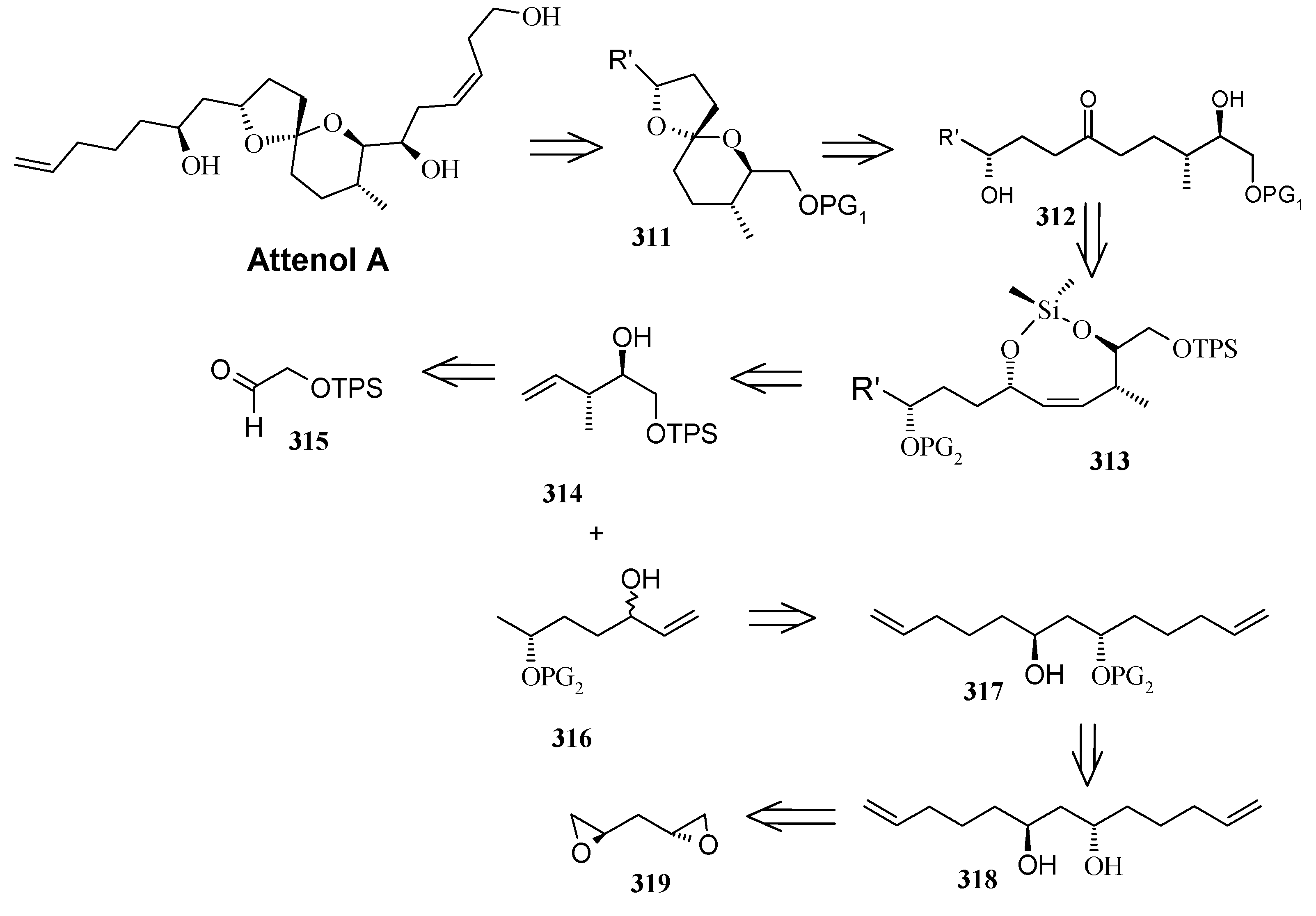

Scheme 70. Retrosynthetic analysis of attenol A.
Scheme 70. Retrosynthetic analysis of attenol A.
Molecules 13 01942 g073

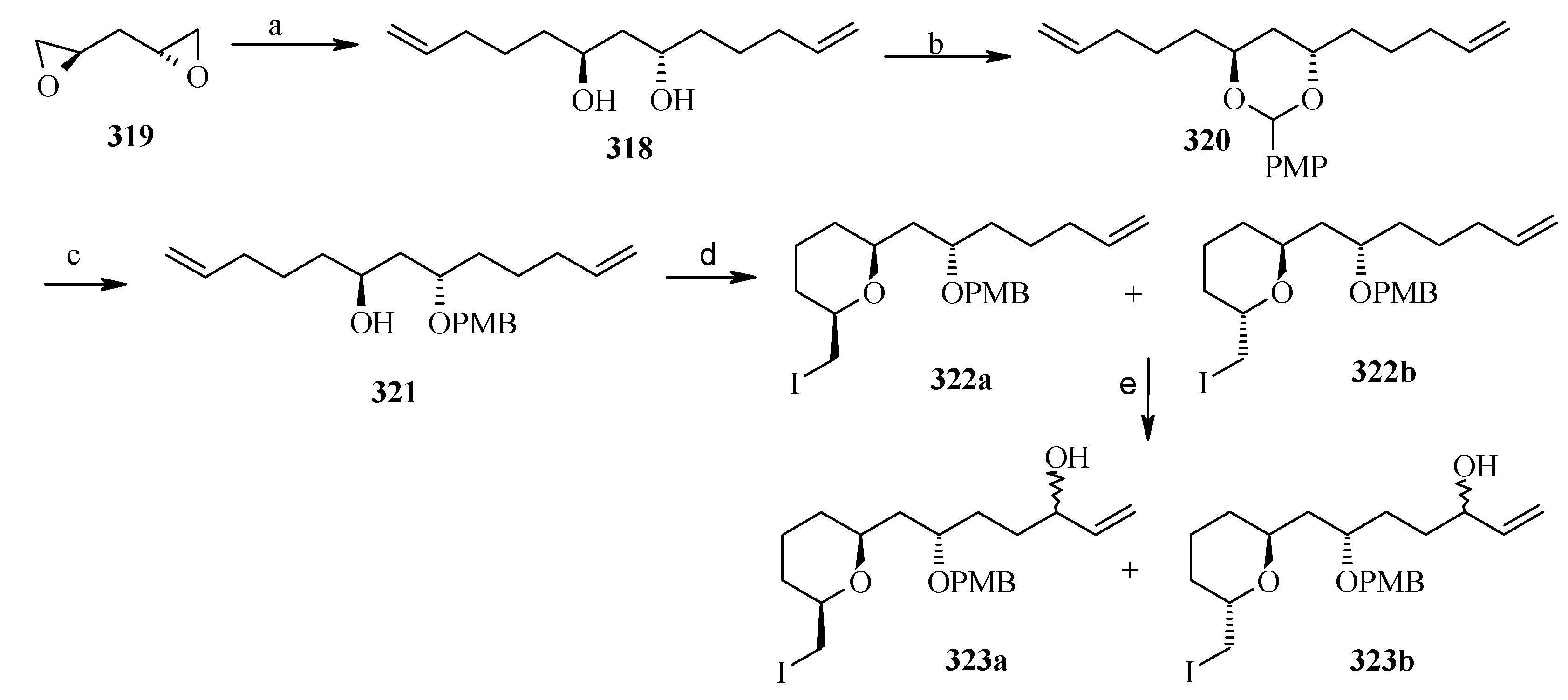

Scheme 71. Synthesis of allylic alcohols 323a, b from diepoxide 319.
Scheme 71. Synthesis of allylic alcohols 323a, b from diepoxide 319.
Molecules 13 01942 g074
Reagents and conditions: (a) CH2=CHCH2CH2MgBr/CuI, THF, -40 oC, 3.5h, 88%; (b) PMPCH(OMe)2, CSA (cat), CH2Cl2, 16h, 20 oC, 88%; (c) NaBH3CN, CF3COOH, DMF, 0 oC, 10h, 76%; (d) NIS, K2CO3, CH2Cl2, 20 oC, 80%; (e) SeO2/TBHP. CH2Cl2, 20 oC, 12days, 68%.

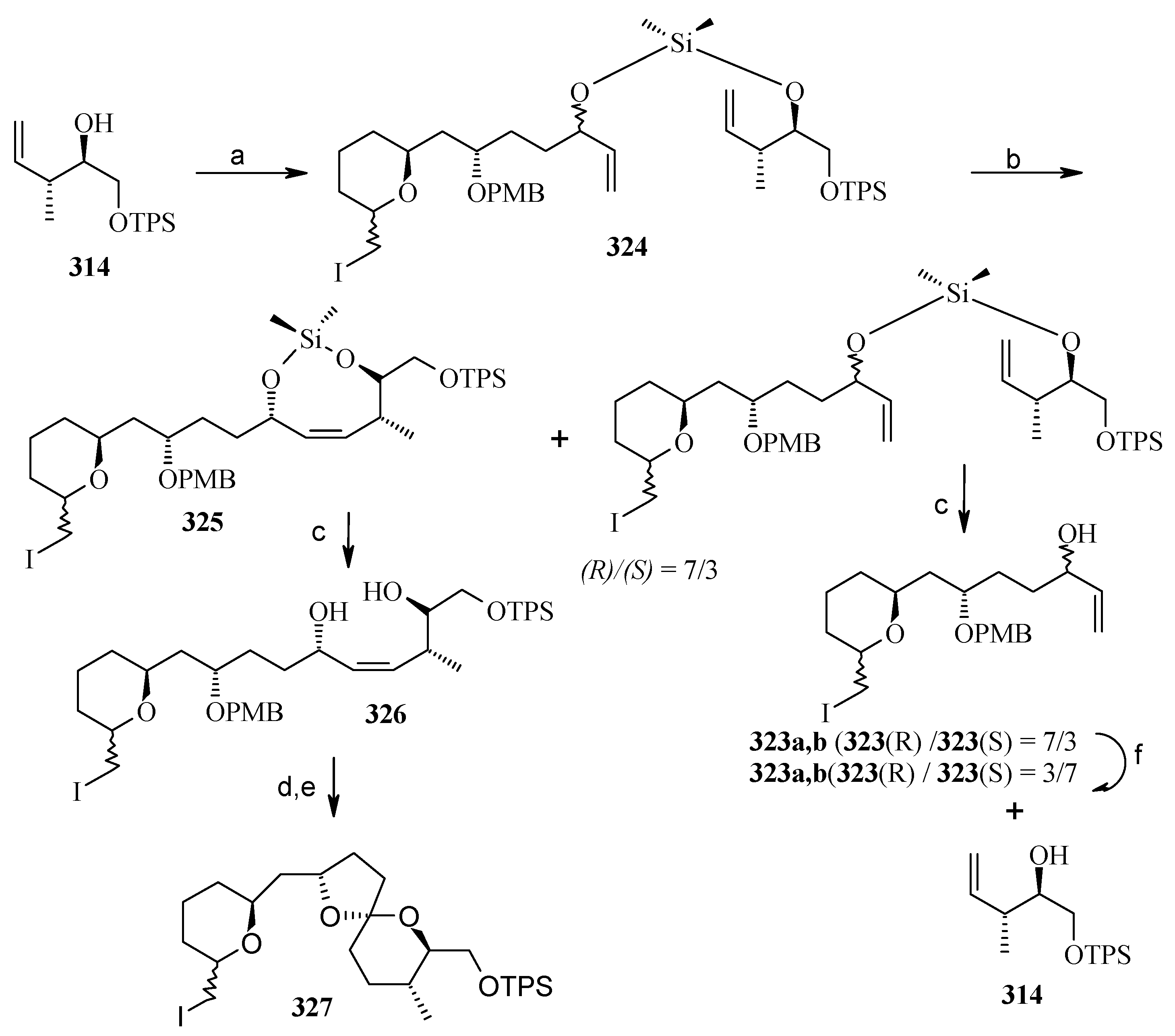

Scheme 72. Synthesis of spiroketal 327 from fragment 314.
Scheme 72. Synthesis of spiroketal 327 from fragment 314.
Molecules 13 01942 g075
Reagents and conditions: (a) (i) BuLi, THF, -78 oC, 10 min, then Me2SiCl2 (excess), 78 to 20 oC, 1h; (ii) 323a,b, imidazole, THF, 20 oC, 16h, 92%; (b) [Mo], benzene, 20 oC, 24h; (c) TFA, THF, MeOH, 20 oC, 24h, 22% (326, 2 steps), 30% (323, 2steps), 45% (323, 2 steps); (d) MnO2 (30 equiv), EtOAc, rt, 24h; (e) (i) H2, Pd/C, EtOAc, rt, 4h, (ii) DDQ, CH2Cl2, H2O, 20 oC, 30 min, 72% (3 steps); (f) (i) p-NO2BzCOOH, Ph3P, DEAD, -20 oC, 2h, (ii) NaOH, EtOH, 0 oC to 20 oC, 2h, 80% (2 steps).
Reaction of dichlorodimethylsilane with fragments 314 and 323a,b affords the silylketal 324, which is subjected to ring closing metathesis reaction using the molybdenum complex A as catalyst.
Molecules 13 01942 i001
Two isomers with (S)-configuration at C-11 are formed out of four possible isomers along with some starting material. The unreacted silyl ether is cleaved to provide 314 and 323a,b that are recirculated to increase the yield (Scheme 72). Cleavage of the silyl group followed by oxidation of allylic alcohol, reduction of the conjugated double bond and removal of the PMB protecting group affords the ketal 327. Ketal 327 is converted to aldehyde 329 in two steps and then condensed with stannyl derivative of (E)-5-(4-methoxybenzyloxy)-pent-2-en-1-ol to give 330 as a 6:4 mixture, which was separated by chromatography. Regenerating the terminal olefin and C-OH-6 by treatment with butyllithium and the deprotection of PMB group affords attenol A (Scheme 73).

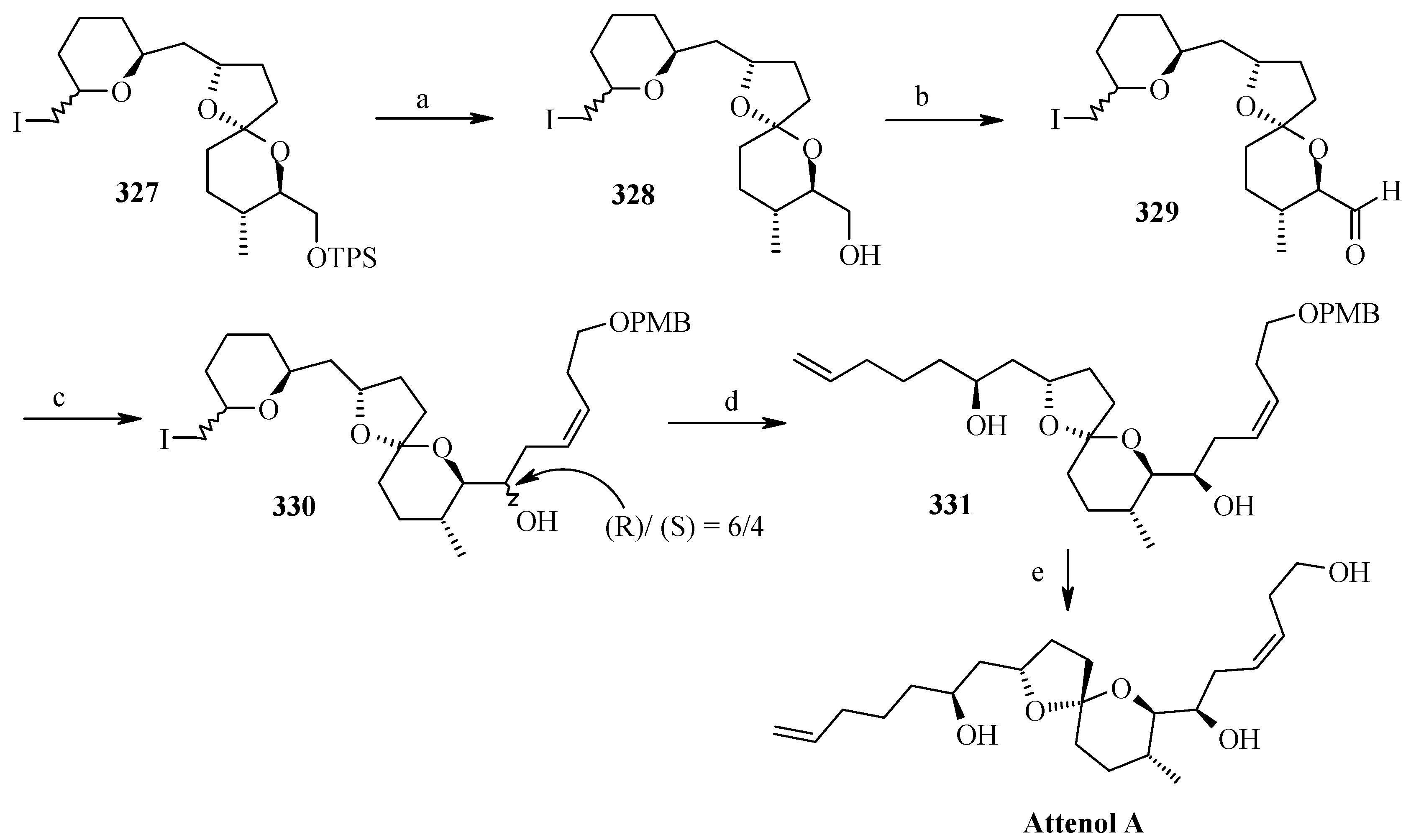

Scheme 73. Total synthesis of attenol A.
Scheme 73. Total synthesis of attenol A.
Molecules 13 01942 g076
Reagents and conditions: (a) TBAF (1.2 equiv), THF, 20 oC, 24h, 80%; (b) Dess-Martin periodinane, pyridine, CH2Cl2, 20 oC, 2.5 h; (c) (E)-Bu3Sn-CH2CH=CHCH2CH2OPMB, SnCl4, CH2Cl2, -78 oC (330 (R)) 35% and (S-330) 30% (2 steps); (d) BuLi (3 equiv), -78 oC, 3h, 60% (25% 330 recovered); (e) DDQ, CH2Cl2, H2O, 20 oC, 30 min, 60%.

2.12.2. D. Enders Synthesis

Enders et al. have provided a short enantioselective total synthesis of attenol A based on asymmetric alkylation of SAMP-hydrazones as well as a Sharpless asymmetric dihydroxilation as key steps [141].
The retrosynthetic analysis is shown in Scheme 74. It reveals that the key dithiane unit 332 can be cyclised to give attenol A after dethoketalysation and acid catalyzed spiroketalization. The unit 332 can be prepared from 333 and 334. Compounds 333 and 334 can be prepared by asymmetric alkylation using the SAMP-hydrazone methodology [142].

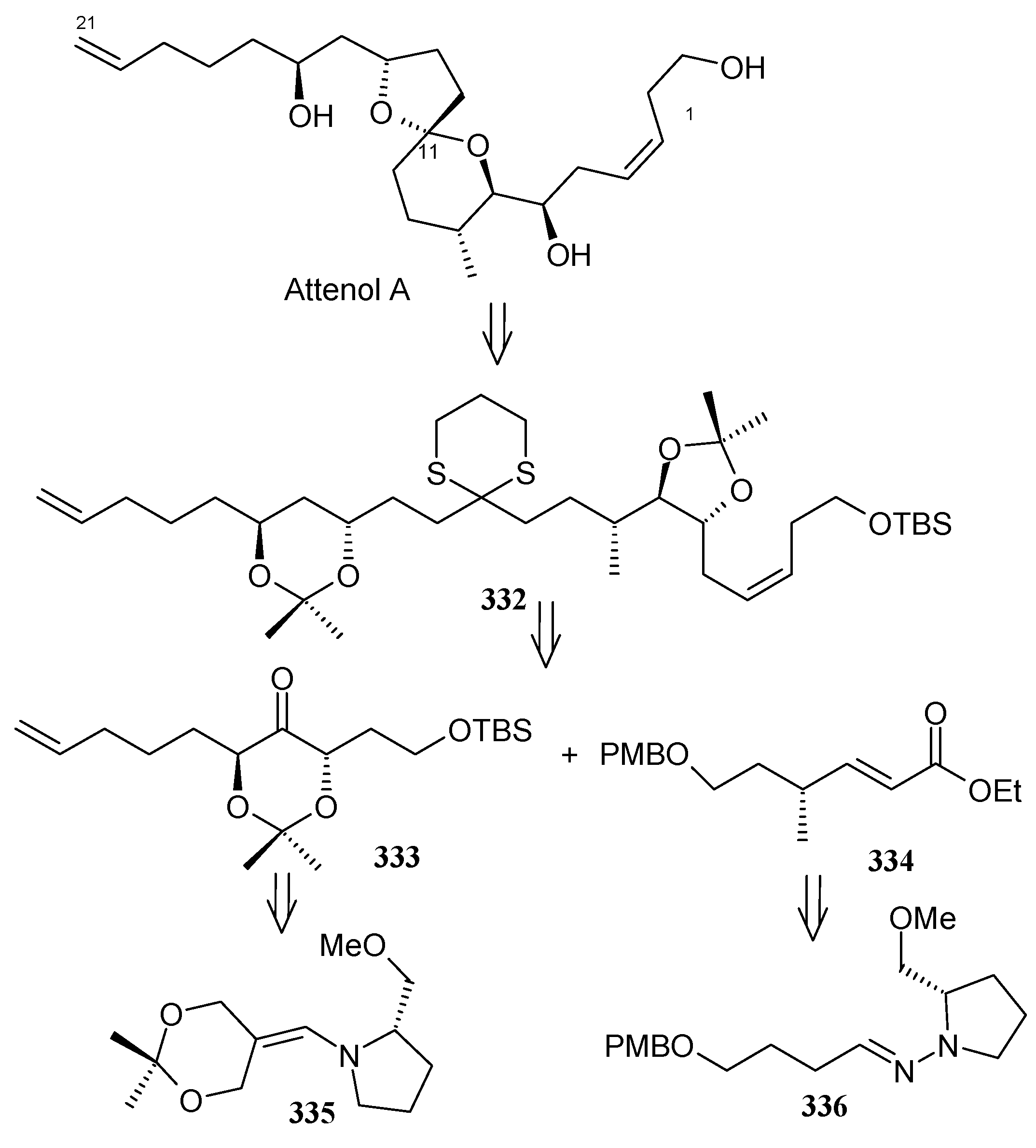

Scheme 74. Retrosynthetic analysis of attenol A.
Scheme 74. Retrosynthetic analysis of attenol A.
Molecules 13 01942 g077
The anti-2,2-dimethyl-1,3-dioxan-5-one 333 is prepared from 2,2-dimethyl-1,3-dioxan-5-one SAMP-hydrazone 335. The alkylation of 335 with (2-bromoethoxy)-tert-butyldimethylsilane and 5-bromopent-1-ene affords 337, which on deprotection of the hydrazone gives 333. Compound 333 is converted to alcohol 339 via xanthate 338 (Scheme 75). The alcohol 339 is converted to its iodide 340. Next the aldehyde 341 is converted to its hydrazone 336 by reacting with SAMP. Methylation with MeI affords 342 with 96% de. Ozonolysis of the hydrazone followed by Wittig reaction gives unit 334, which is subjected to Sharpless asymmetric dihydroxilation to give a mixture of diastereomers 343 [143]. The cis-diol is protected as its acetonide and the ester group is reduced to alcohol. The resulting alcohol is converted to triflate 345 and then treated with lithiated tert-butyl-3-ynylozxydimethylsilane to give alkyne 346. The compound 346 is then converted to 347 by reduction, deprotection and iodination (Scheme 76).

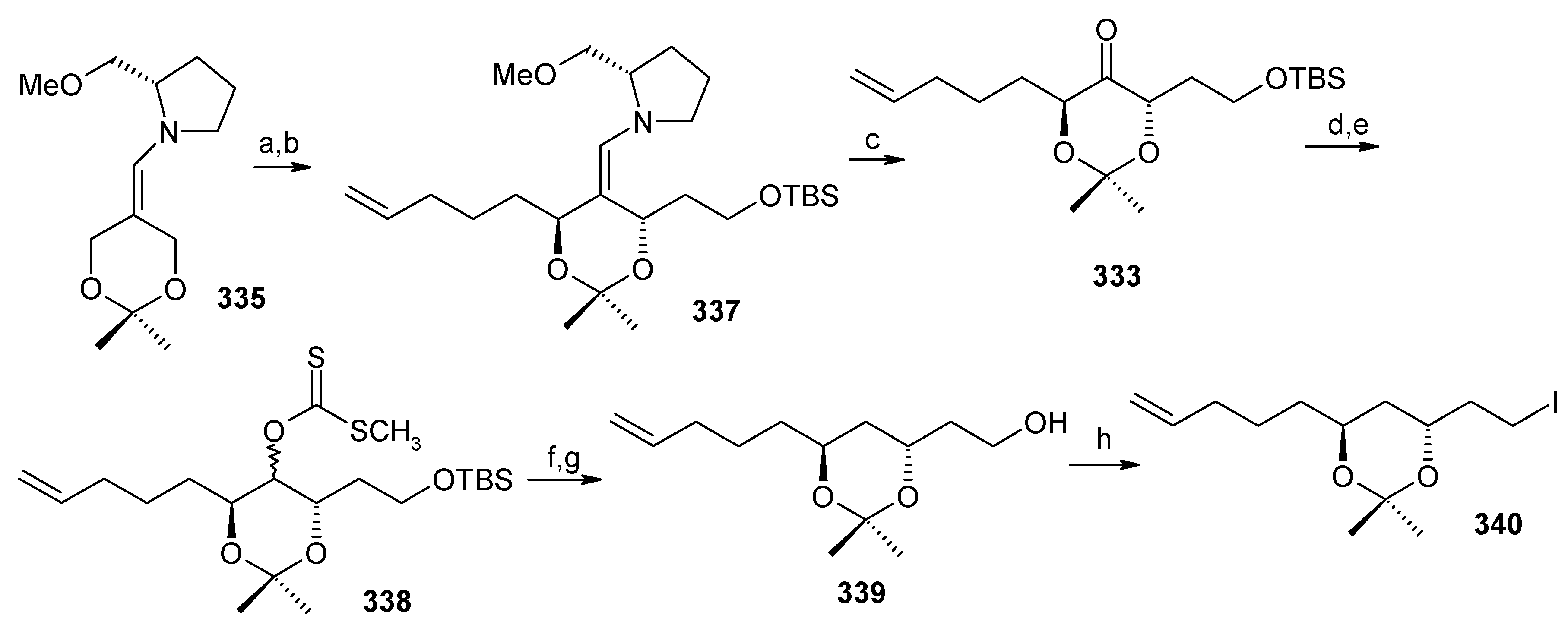

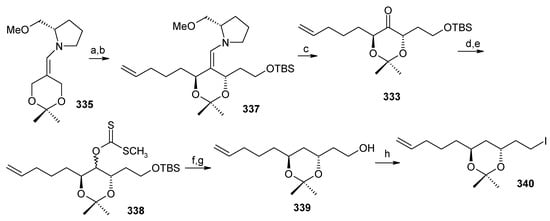

Scheme 75. Synthesis of iodide 340.
Scheme 75. Synthesis of iodide 340.
Molecules 13 01942 g078
Reagents and conditions: (a) t-BuLi, THF, -78 oC, then (2-bromoethoxy)-tert-butyldimethylsilane, -100 oC to 25 oC; (b) t-BuLi, THF, -78 oC, then 5-bromopent-1-ene, -100 oC, to 25 oC; (c) oxalic acid, Et2O, 25 oC, 75%; (d) NaBH4, MeOH, 0 oC; (e) NaH, THF, CS2, MeI, 0 oC, to 25 oC, 96%; (f) Bu3SnH, AIBN, toluene, reflux; (g) TBAF, THF, 25 oC, 91%; (h) Ph3P, imidazole, I2, Et2O/CH3CN, 0 oC, 94%.

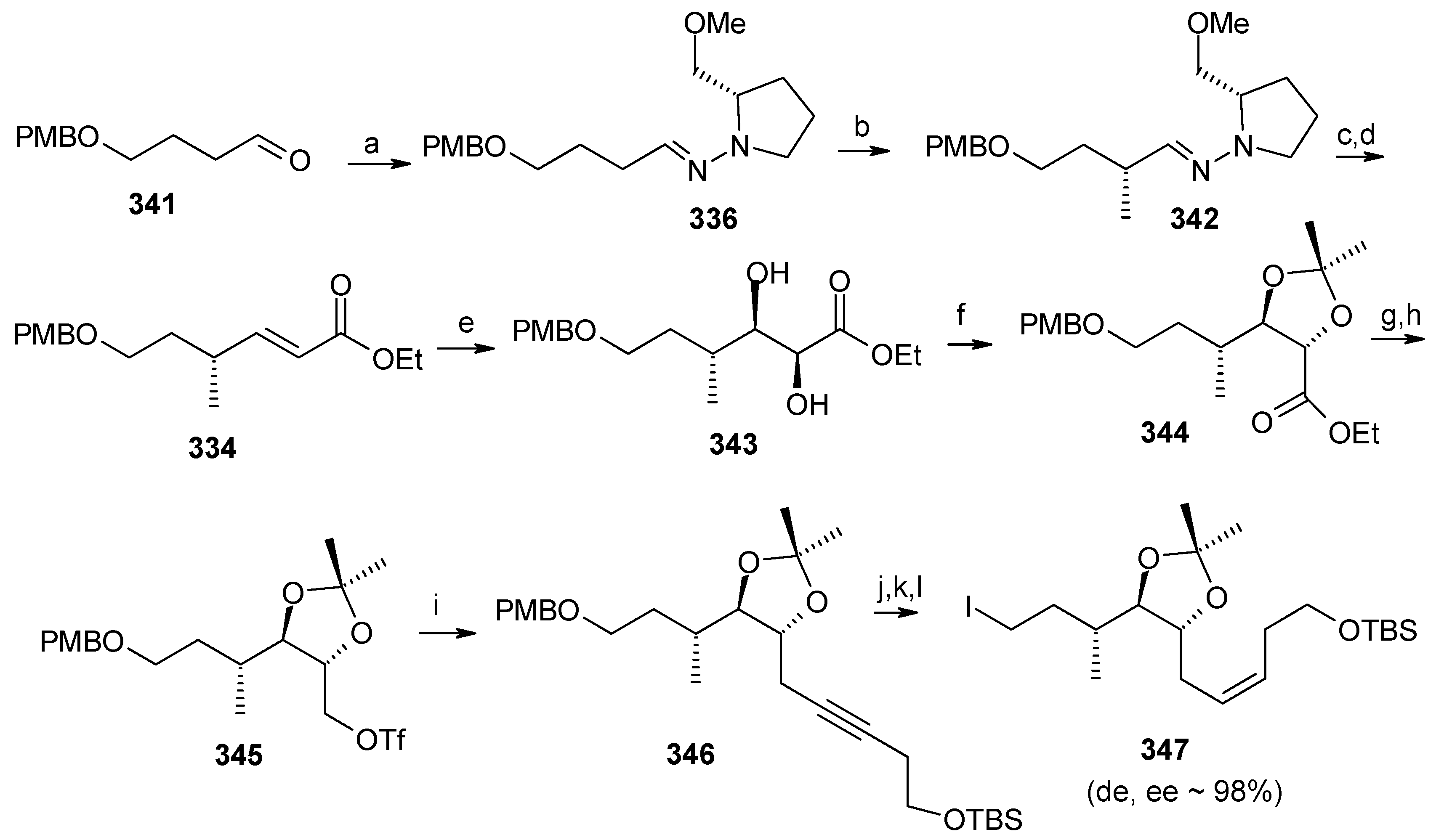

Scheme 76. Synthesis of iodide 347.
Scheme 76. Synthesis of iodide 347.
Molecules 13 01942 g079
Reagents and conditions: (a) SAMP, Et2O, 0 oC to 25 oC, 95%; (b) LDA, THF, 0 oC, then MeI, -120 oC to 25 oC, 86%; (c) O3, CH2Cl2, -78 oC; (d) Ph3PCHCO2Et, CH2Cl2, 25 oC, 71%; (e) AD-mix β, MeSO2NH2, t-BuOH:H2O = 1:1, 0 oC, 96%; (f) 2,2-DMP, PTSA, 25 oC, 94%; (g) LAH, Et2O, 0 oC, 95%; (h) Tf2O, 2,6-di-tert-butyl-4-methylpyridine, CH2Cl2, -40 oC to –30 oC; (i) tert-butylbut-3-ynyloxydimethylsilane, t-BuLi, THF, DMPU, -78 oC, then 345, -78 oC to 25 oC, 89%; (j) H2, Lindlar catalyst, MeOH, 25 oC, 94%; (k) DDQ, CH2Cl2, 25 oC, 99%; (l) Ph3P, imidazole, I2, Et2O/CH3CN, 0 oC, 83%.

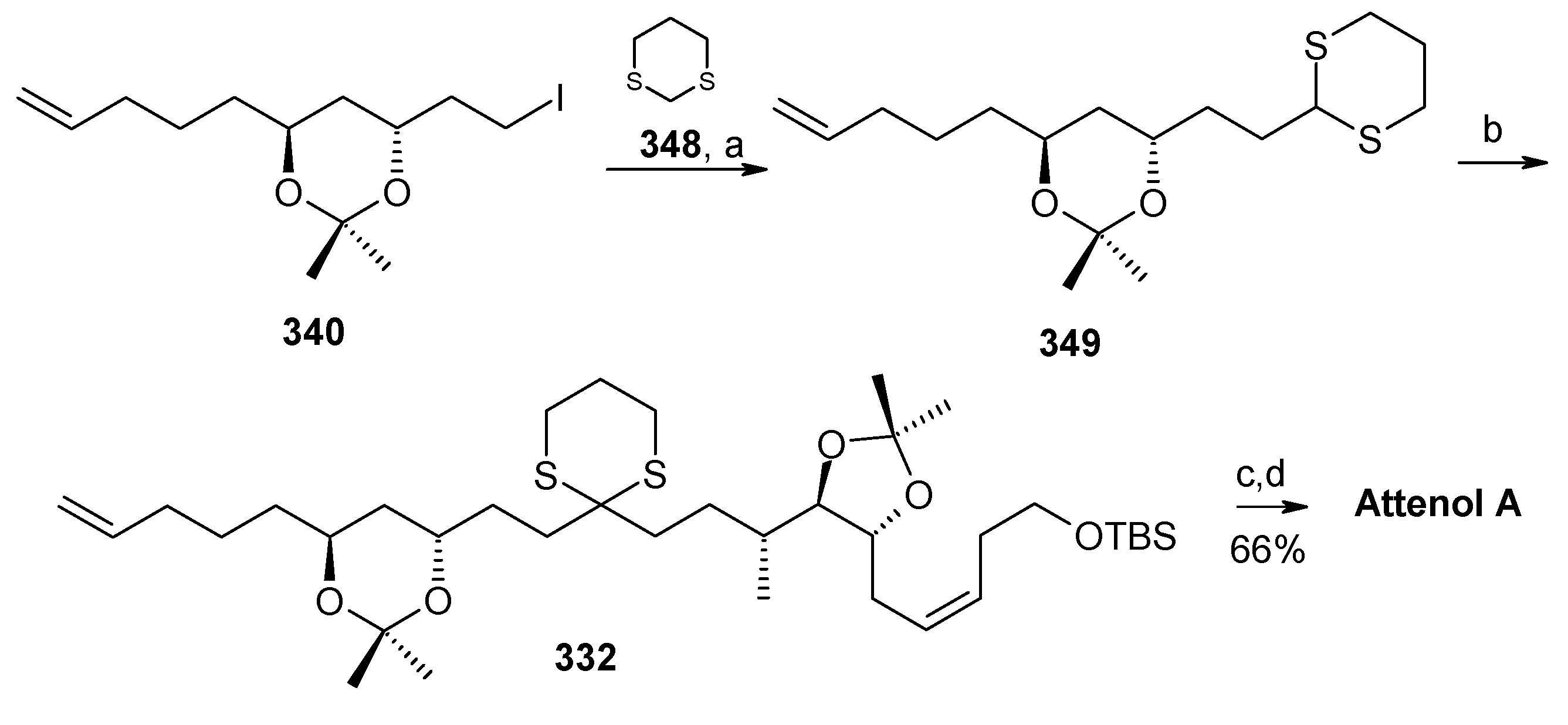

Scheme 77. Total synthesis of attenol A.
Scheme 77. Total synthesis of attenol A.
Molecules 13 01942 g080
Reagents and conditions: (a) 348, t-Buli, THF, DMPU, -78 oC, 96%; (b) t-BuLi, THF, HMPA, -78 oC, then 347, -78 oC to 25 oC, 84%; (c) CuO, CuCl, aq. Me2CO, (d) PTSA, MeOH, 25 oC, 66% over two steps.
The iodide 340 is treated with dithiane 348 to give 349, which is then subjected to a second alkylation with iodide 347 to afford the key intermediate 332 (Scheme 77). Finally, the copper catalysed hydrolysis of dithiane and acid catalyzed ketal formation gives attenol A as a major compound, along with minor amounts of attenol B.

2.12.3. Suenaga and Uemura Synthesis

Suenaga, Uemura and coworkers have synthesized attenol A by using diastereoselective hydroboration, coupling with lithium acetylide, Lindlar reduction and acid catalysed acetal formation [144]. The disconnection of the molecule reveals that ketone 350, which can be obtained from Julia reaction between fragments 351 and 352, is the key intermediate. Fragment 352 can be obtained from disubstituted alcohol 353 and alkyne 354 (Scheme 78).
The synthesis of fragment 352 starts with 2,3-O-isopropylidene-D-threitol 355. Monosilylation of 355 followed by oxidation gives aldehyde 356, which is converted to ketone 357 in two steps (Scheme 79). Wittig reaction of 357 followed by diastereoselective hydroboration with 9-BBN and oxidation with H2O2 provides alcohol 359 (α/β=8/1) with (R) stereochemistry at C-8. Oxidation of 359 followed by Horner-Emmons reaction affords conjugated ester 360 and hydrogenation of which gives saturated ester 361. Reduction of ester 361 to alcohol and then protection of alcohol as p-methoxybenzyl ether followed by desilylation of TBS group affords alcohol 353. The alcohol 353 is converted to triflate and then coupled with 4-tert-butyldimethylsilyloxy-1-butyne to give alkyne 363. Reduction of 363 with Lindlar catalyst affords cis-olefin 364 of which MPM group is removed to give alcohol 365. Dess-Martin oxidation of 365 affords the aldehyde fragment 352.
Synthesis of fragment 351 is started with alkylation of dithiane with 5-bromo-1-pentene (366) to give olefin 367. The second alkylation of dithiane with (R)-benzylglycidyl ether provides hydroxy ketone 368 after removal of dithiane group. Hydroxyketone 368 is then subjected to stereoselective reduction with tetramethylammonium triacetoxy-borohydride affords anti-diol 369 (88%) along with minor amounts of syn-diol (10%) [145].

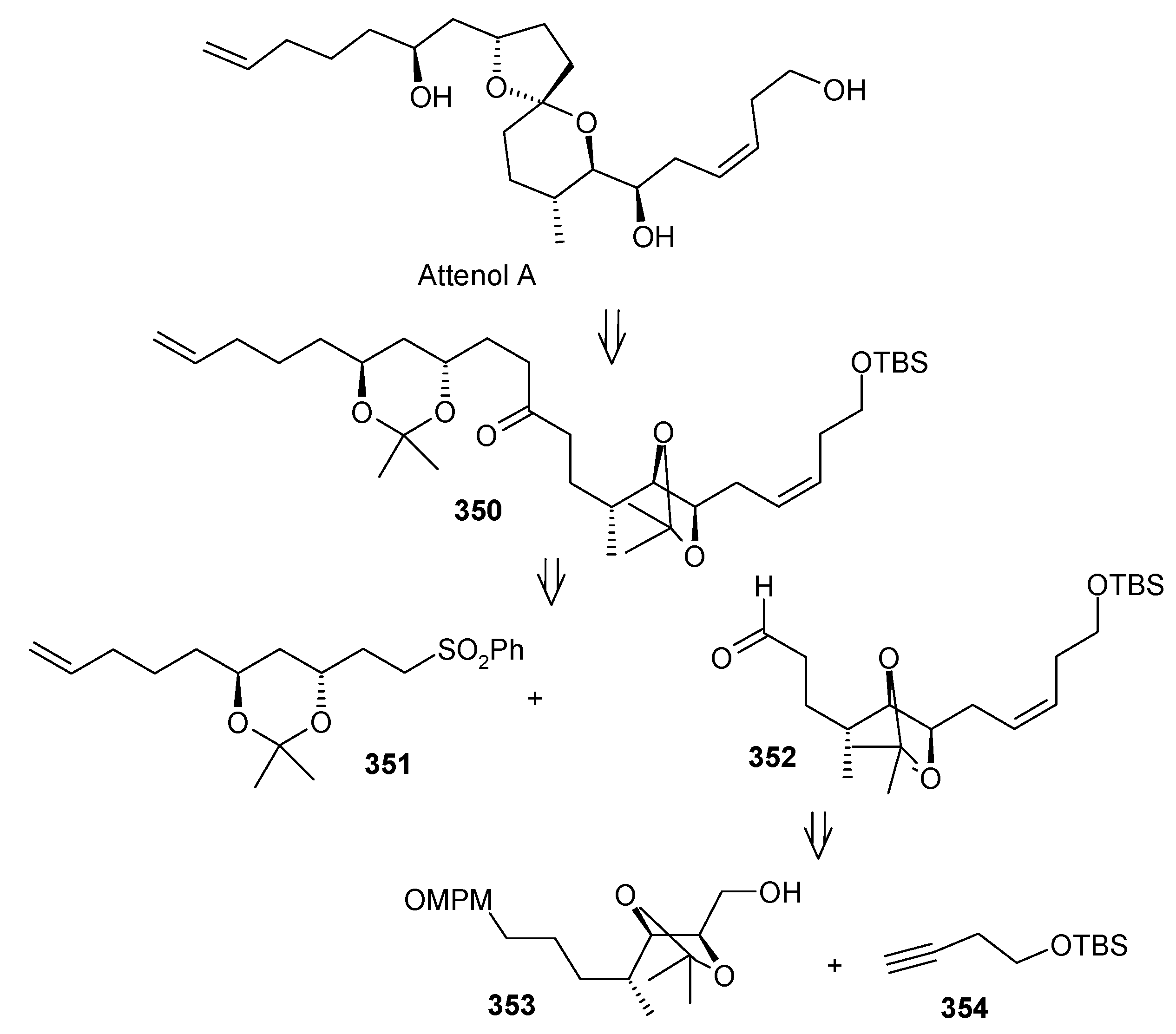

Scheme 78. Retrosynthetic analysis of attenol A.
Scheme 78. Retrosynthetic analysis of attenol A.
Molecules 13 01942 g081

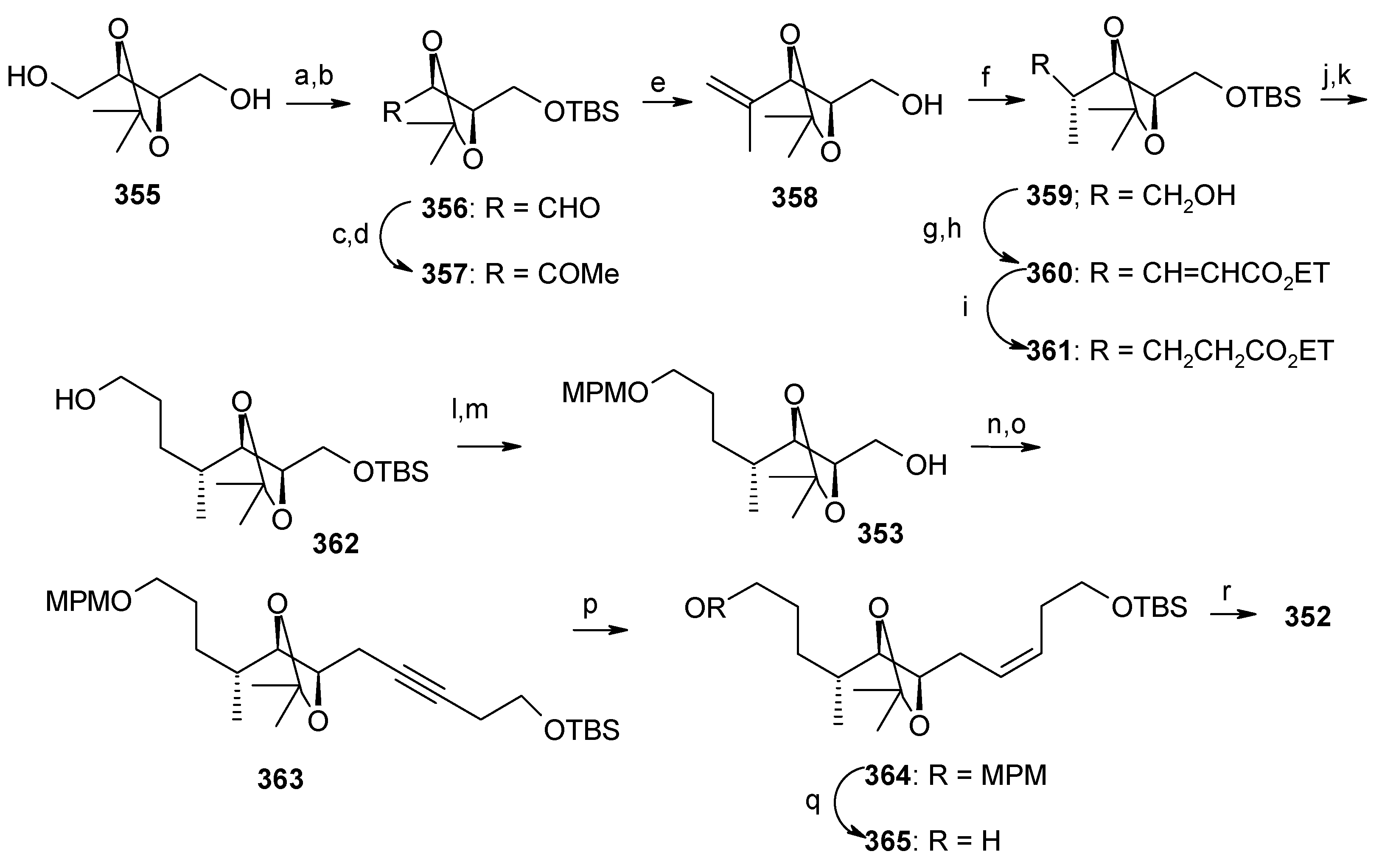

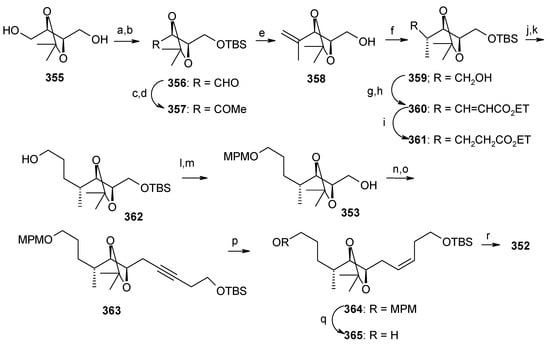

Scheme 79. Synthesis of right hand frgment 352.
Scheme 79. Synthesis of right hand frgment 352.
Molecules 13 01942 g082
Reagents and conditions: (a) TBSCl, NaH, DME, 0 oC, to rt; (b) (COCl)2, DMSO, CH2CL2, -78 oC, then Et3N, -78 oC to rt; (c) MeLi, CuI, Et2O, -78 oC to 0 oC; (d) (COCl)2, DMSO, Et3N, -78 oC to 0 oC; (e) Ph3PCH3Br, BuLi, -40 oC to 0 oC; (f) 9-BBN, THF, 0 oC to rt, then H2O2, NaOAc, aq.; (g) Dess-Martin periodinane, CH2Cl2, rt; (h) (EtO)2P(O)CH2CO2Et, t-BuOK, THF, -78 oC to 0 oC; (i) H2, 5%, Rh-Al2O3, EtOAc, rt; (j) DIBALH, CH2Cl2, -78 oC; (k) NaBH4, EtOH, 0 oC; (l) MPMCl, NaH, DMF, -20 oC; (m) Bu4NF, THF, rt; (n) Tf2O, 2,6-di-tert-butyl-4-methylpyridine, CH2Cl2, -20 oC; (o) 4-tert-butyldimethylsiloloxy-1-butyne, BuLi, HMPA, THF, -78 oC, then triflate, -35 oC, to rt; (p) H2, Lindlar cat., MeOH, rt; (q) DDQ, CH2Cl2, t-BuOH-phosphate buffer(pH 6); (r) Dess-Martin periodinane, CH2Cl2, rt.

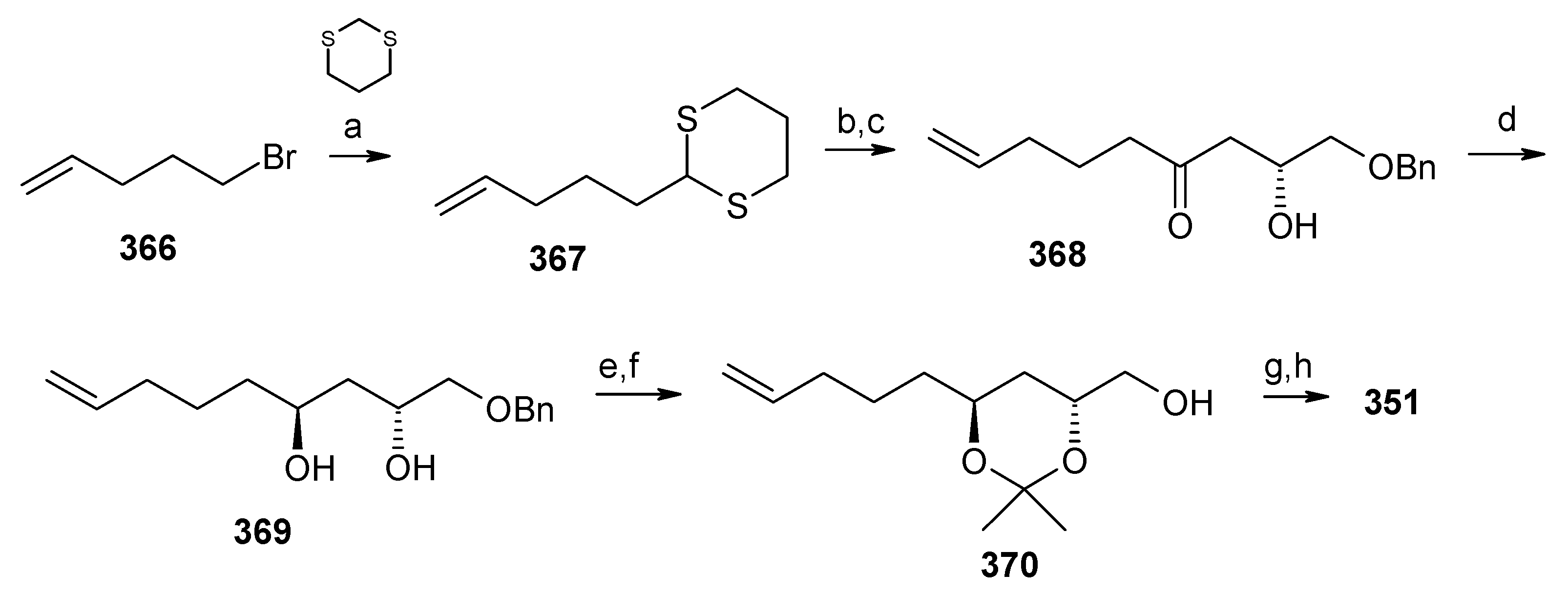

Scheme 80. Synthesis of left hand fragment 351.
Scheme 80. Synthesis of left hand fragment 351.
Molecules 13 01942 g083
Reagents and conditions: (a) BuLi, THF, -78 oC to rt, (b) BuLi, (R)-benzylglycidyl ether, THF, -78 oC to rt; (c) CuCl2, CuO, Me2CO-H2O, rt; (d) Me4NHB(OAc)3, MeCN-AcOH, -40 to –30 oC; (e) Me2C(OMe)2, CSA, Me2CO, rt; (f) Na, liq NH3, THF, -78 oC; (g) p-TsCl, Py, 0 oC; (h) MeSO2Ph, BuLi, THF, reflux.
Acetonide protection of diol 369 followed by deprotection of benzyl group furnishes alcohol 370, which is converted to fragment 351 after tosylation followed by reaction with methyl phenyl sulfone (Scheme 80). The Julia reaction of fragments 351 and 352 followed by oxidation and reduction gives ketone 350 the key intermediate for the synthesis of attenol A. Finally the spiroketalisation is achieved by deprotecting with PPTS in methanol in one step (Scheme 81).
Scheme 81. Total synthesis of attenol A.
Scheme 81. Total synthesis of attenol A.
Molecules 13 01942 g084
Reagents and conditions: (a) 351, BuLi, THF, -78 oC, then 352, -78 oC; (b) Dess-Martin periodinane, Py, CH2Cl2, rt; (c) 5% Na-Hg, Na2HPO4, MeOH, 0 oC; (d) PPTS, MeOH, rt.

2.12.4. Rychnovsky Synthesis

Recently Rychnovosky et al. have reported the total synthesis of attenol A using a reductive cyclisation approach [146]. This reductive cyclisation strategy facilitates the stereoselective assembly of nonanomeric spiroacetals [147]. The advantage of this strategy over the traditional spiroacetal syntheses is that it gives rise to a single nonanomeric stabilized [5.4]-spiroacetal, which equilibrates under acidic conditions to the more stable anomeric epimer [147]. As a result both epimers can be accessed from the same intermediate.
The retrosynthetic pathway is shown in Scheme 82, which reveals that the right hand side chain can be obtained by a vinyl cuprate addition to spiroketal unit 371, obtained from non-anomeric spiroketal 372 by acid treatment. The unit 372 can be obtained from reductive lithiation of cyanoacetal 373, which in turn can be obtained from spiroorthoester 374. Spiroester 374 can be prepared from chiral molecules 375 and 376.

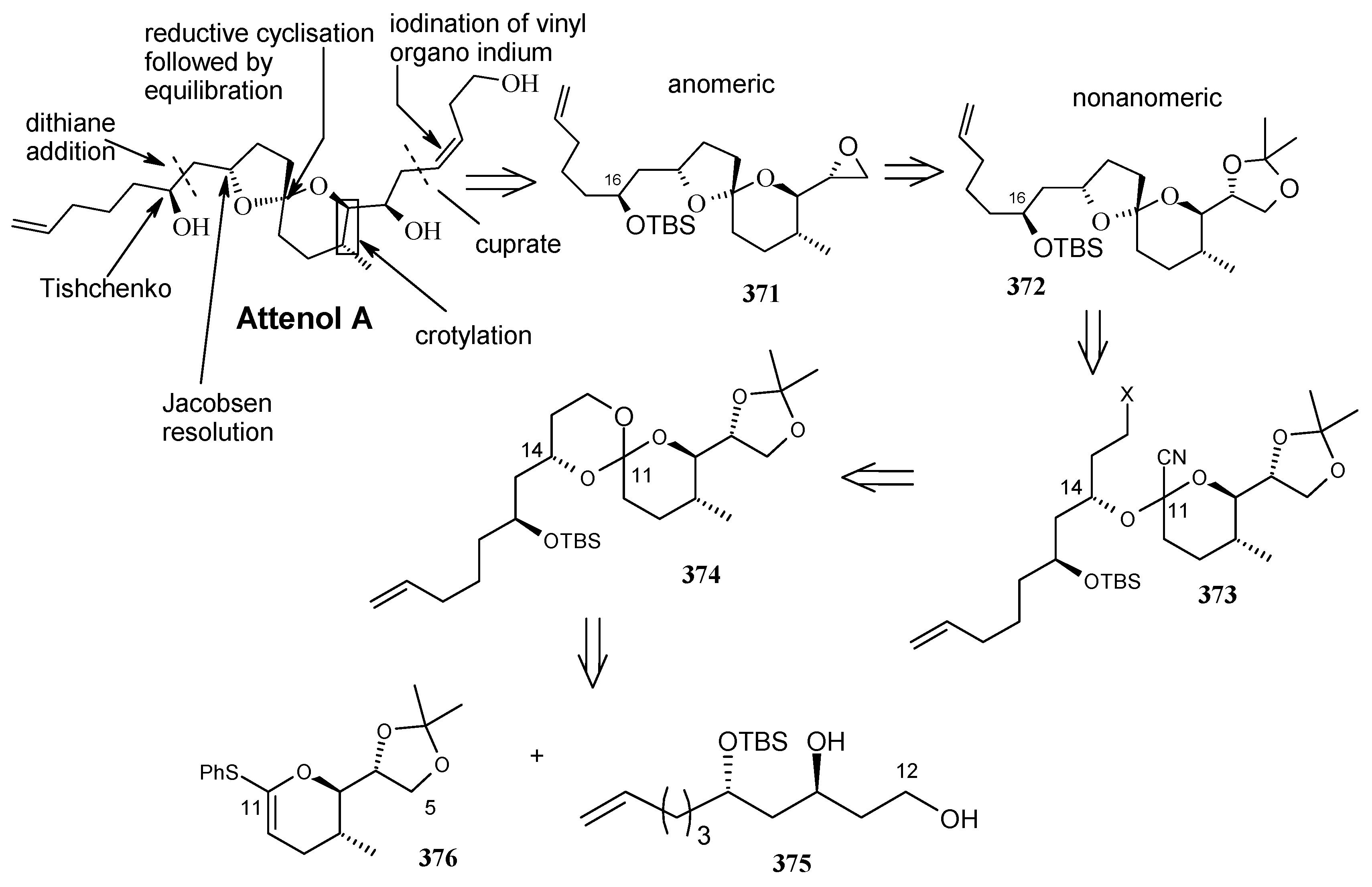

Scheme 82. Retrosynthetic analysis of attenol A.
Scheme 82. Retrosynthetic analysis of attenol A.
Molecules 13 01942 g085
The preparation of diol 375 starts with optically pure epoxide 378, obtained by Jacobson resolution [148]. Epoxide 378 is treated with lithiated dithiane 377 to give alcohol 379, which upon hydrolysis with aqueous MeI affords hydroxyketone 380. Reduction of ketone 380 using Schneider’s conditions at –78 oC gives desired anti ester 381 with good stereoselectivity (98:2) [149]. Ester 381 is converted to diol 375 after protection and deprotection sequence (Scheme 83).

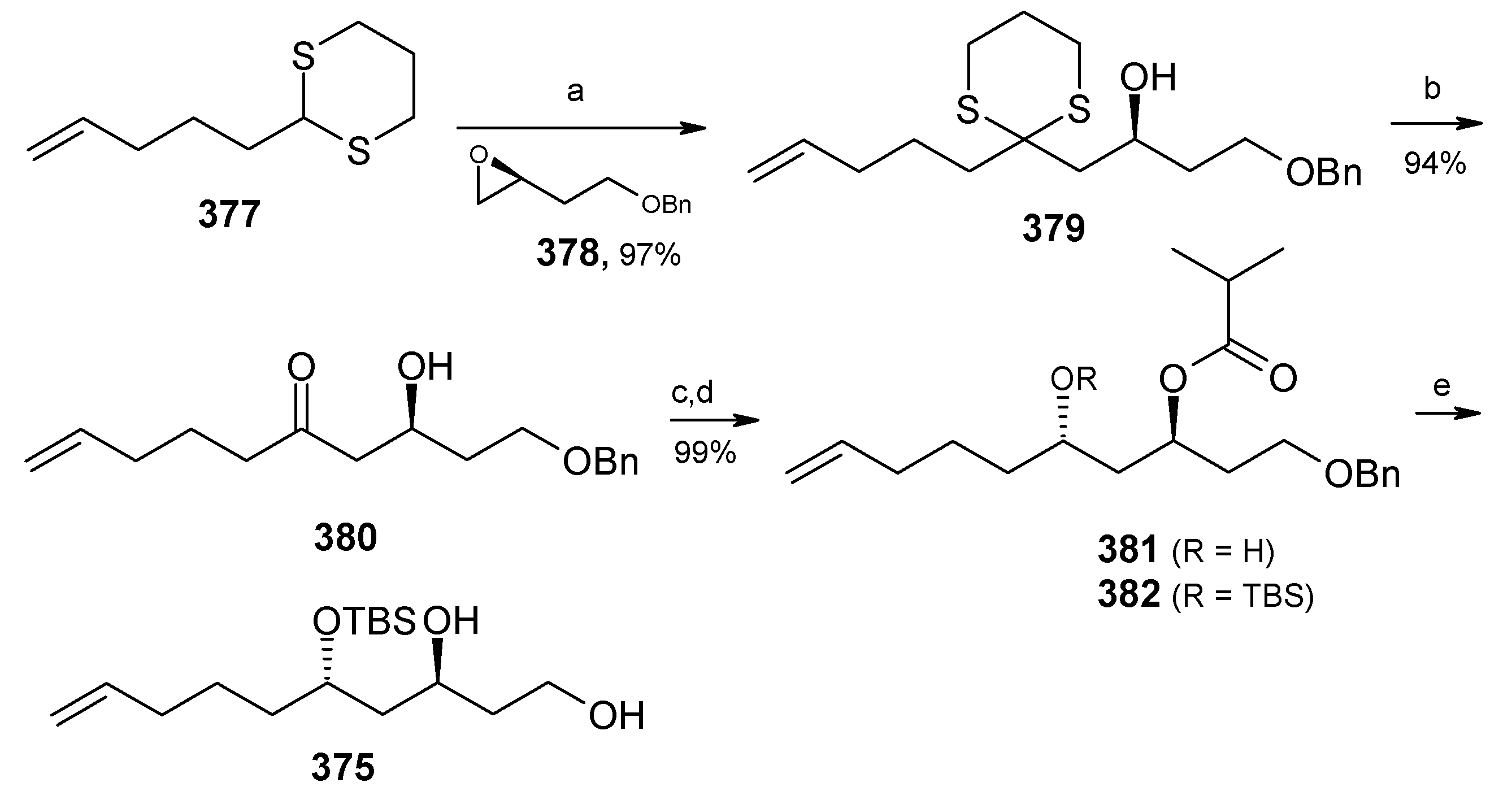

Scheme 83. Synthesis of diol 375.
Scheme 83. Synthesis of diol 375.
Molecules 13 01942 g086
Reagents and conditions: (a) n-BuLi, 378, 97%; (b) CaCO3, MeI, MeCN/H2O, 94%; (c) Zr(O-t-Bu)4, i‑PrCHO, 83%, 98:2 dr; (d) TBSOTf, 99%; (e) MeLi, THF/NH3/ Li(0), 92-99%.

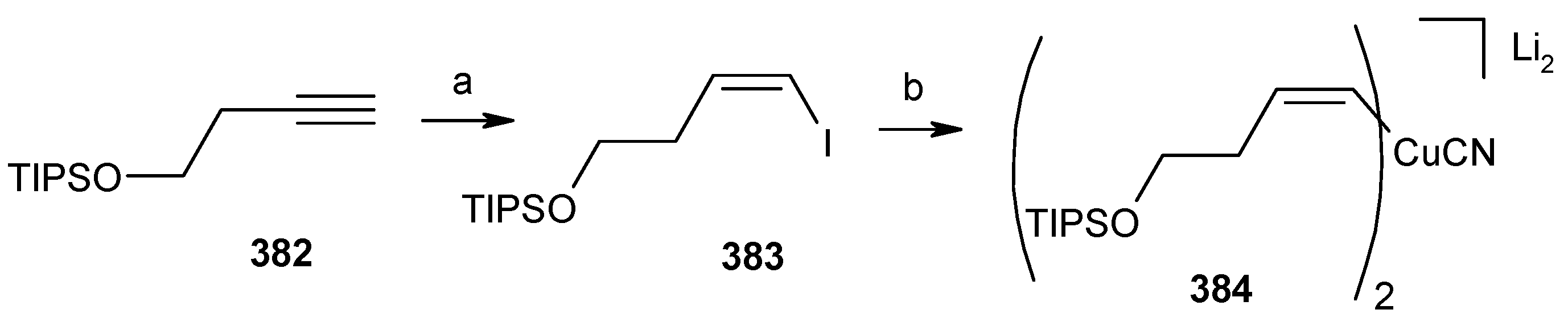

Scheme 84. Synthesis of organocuprate 384.
Scheme 84. Synthesis of organocuprate 384.
Molecules 13 01942 g087
Reagents and conditions: (a) InCl3, Et3B, I2, 83%; (b) n-BuLi, CuCN.
Next the right hand side chain unit vinyl cuprate 384 is prepared from alkyne 382 in two steps (Scheme 84) [150]. Thioketene acetal 376 is prepared starting from homoallylic alcohol 385. Alcohol 385 is converted to vinyl ester 386, which upon treatment with Grubbs’ second generation catalyst and subsequent hydrogenation gives lactone 388 [151]. Desired thioketene acetal 376 is obtained after application of Koscienski’s Ni(0) protocol (Scheme 86) [152].
The thioketene acetal 376 is coupled with diol 375 to give orthoester 374, which is subjected to ring opening with BF3.Et2O and TMSCN to give alcohol 390 as a single diastereomer [147]. The alcohol 390 is then converted to phosphate ester 391 (Scheme 85) [153].
The phosphate ester 391 is reductively cyclised with lithium di-tert-butylbiphenylide (LiDBB) to give nonanomeric spiroacetal 372 as a major product along with anomeric spiroacetal 392 and 393 as minor products (Scheme 87) [154].

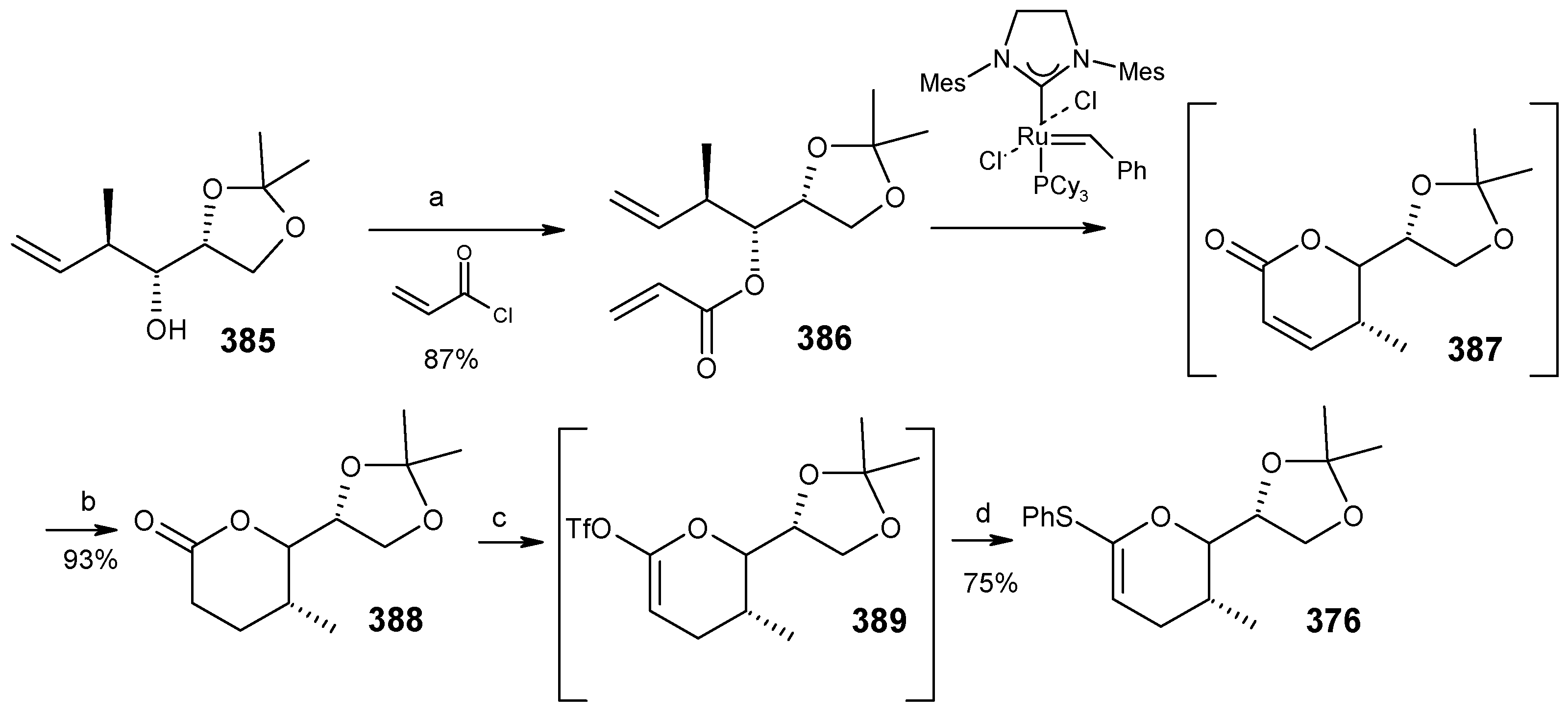

Scheme 85. Synthesis of thioketene aceatal 376.
Scheme 85. Synthesis of thioketene aceatal 376.
Molecules 13 01942 g088
Reagents and conditions: (a) (iPr)2NEt, DMAP, 87%; (b) H2, 100 psi, 93%; (c) KHMDS, PhN(Tf)2; (d) Ni(0), PhSNa, 75%.

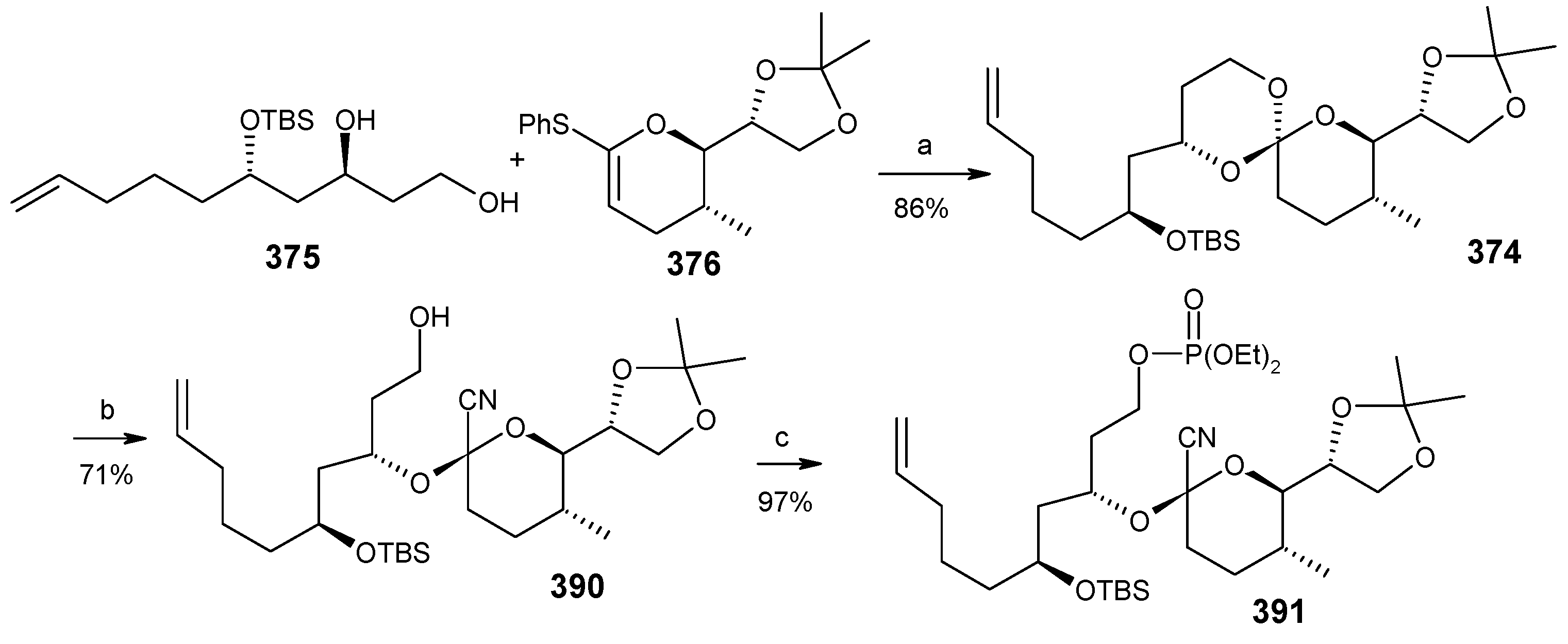

Scheme 86. Synthesis of phosphate ester 391.
Scheme 86. Synthesis of phosphate ester 391.
Molecules 13 01942 g089
Reagents and conditions: (a) CSA, 86%; (b) BF3.Et2O, TMSCN, 71%; (c) (EtO)2P(O)Cl, 97%.
Scheme 87. Reductive cyclisation of 391.
Scheme 87. Reductive cyclisation of 391.
Molecules 13 01942 g090
The nonanomeric spiroacetal 372 is treated with PPTS in methanol to bring about equilibrium conditions to give anomeric spiroacetal 392 along with 393. The spiroacetal 392 is then epoxidized using the Sharpless-Moffat protocol to give epoxide 371 [155]. The epoxide 371 is treated with vinyl cuprate 384 to afford alcohol 394. Finally, the TIPS silyl group is removed to furnish the natural product attenol A (Scheme 88).

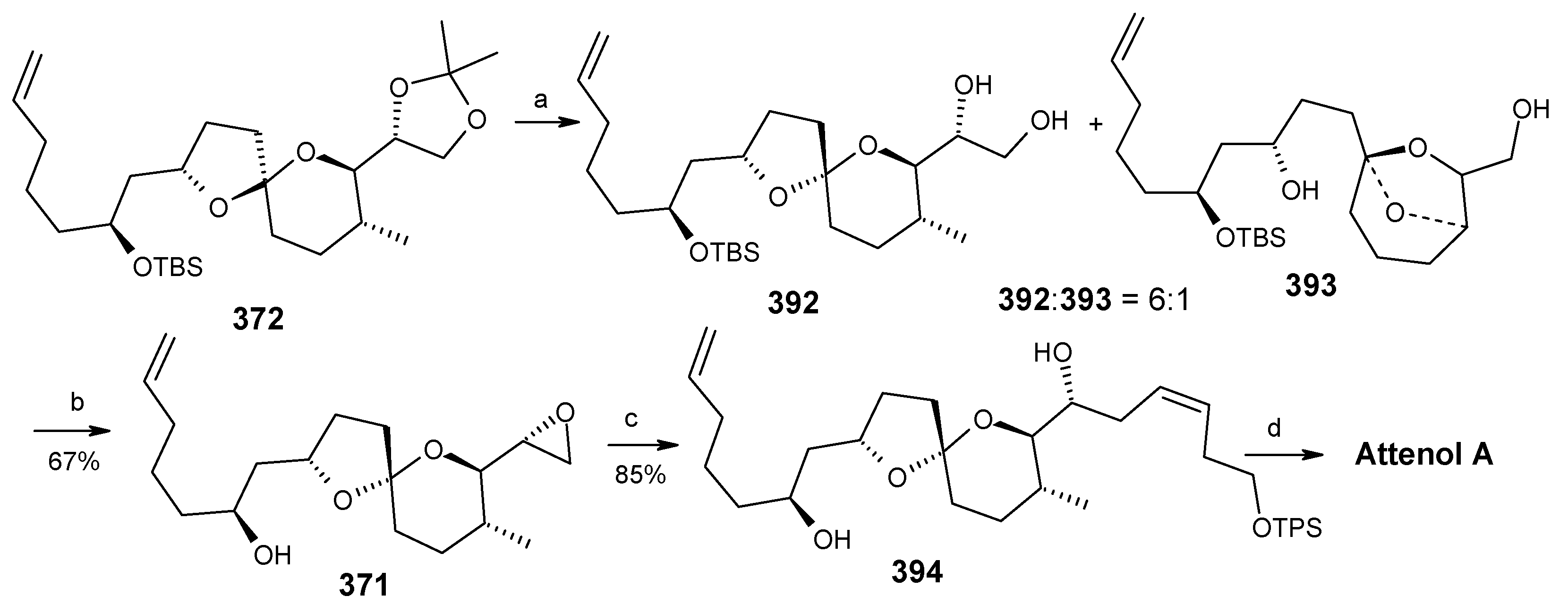

Scheme 88. Total synthesis of attenol A.
Scheme 88. Total synthesis of attenol A.
Molecules 13 01942 g091
Reagents and conditions: (a) PPTS, MeOH; (b) (i) PPTS, MeC(OMe)3, (ii) AcBr, (iii) MeOH, K2CO3, 67%; (c) Cuprate 384, 87%; (d) TBAF.
The Weghe and Eustache approach utilizes silicon tethered coupling metathesis for the synthesis of spiroketal unit. Although the synthesis was completed in 15 steps, it suffers from low yield in the metathesis step. Enders and Suenaga/Uemura, on the other hand, use an acid catalyzed spirocyclisation strategy for spiroketal synthesis from suitably protected keto alcohol. They completed the synthesis in 15 and 22 steps with 19% and 16.4% overall yield, respectively. Rychnovsky achieved the synthesis of attenol A in 13 (longest linear sequence) steps with 21.4% overall yield. This is a more efficient route than previously reported methods. An important feature of this synthesis is that it uses the nontraditional reductive cyclisation approach for construction of anomeric spiroacetal unit. This is the first report for isolation of an anomeric spiroacetal from reductive cyclisation reaction.

2.13. Stereoselective Total Synthesis of Bistramide A

Bistramides, A-D and K, constitute a novel class of bioactive marine natural products that were isolated from the marine ascidian Lissoclinum bistratum [126]. It is also believed that bistramide A can inhibit nucleotide exchange by stabilizing the closed actin conformation [156]. These promising biological activities of bistramide A have manifested it as a potential candidate for anticancer therapy. The bistramide A skeleton consists of a substituted tetrahydropyran and spiroketal subunit connected by a central γ-amino acid linker.

2.13.1. Yadav Synthesis

Yadav et al. have reported the total synthesis of bistramide A in which the construction of the spiroketal unit is achieved by hydrolysis of dialkylated tosylmethyl isocyanide derivative derived via alkylation of TosMIC with suitably substituted halohydrin derivatives [157].

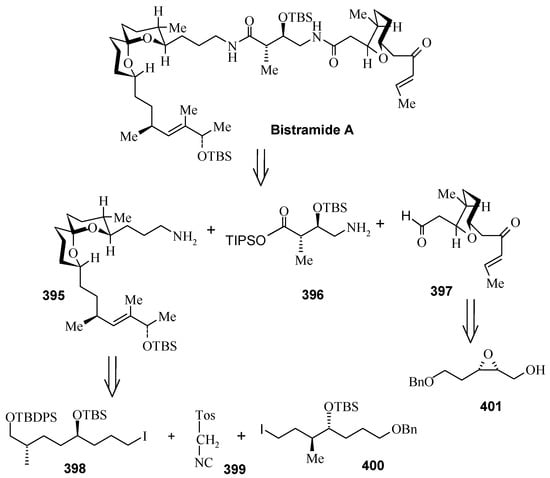

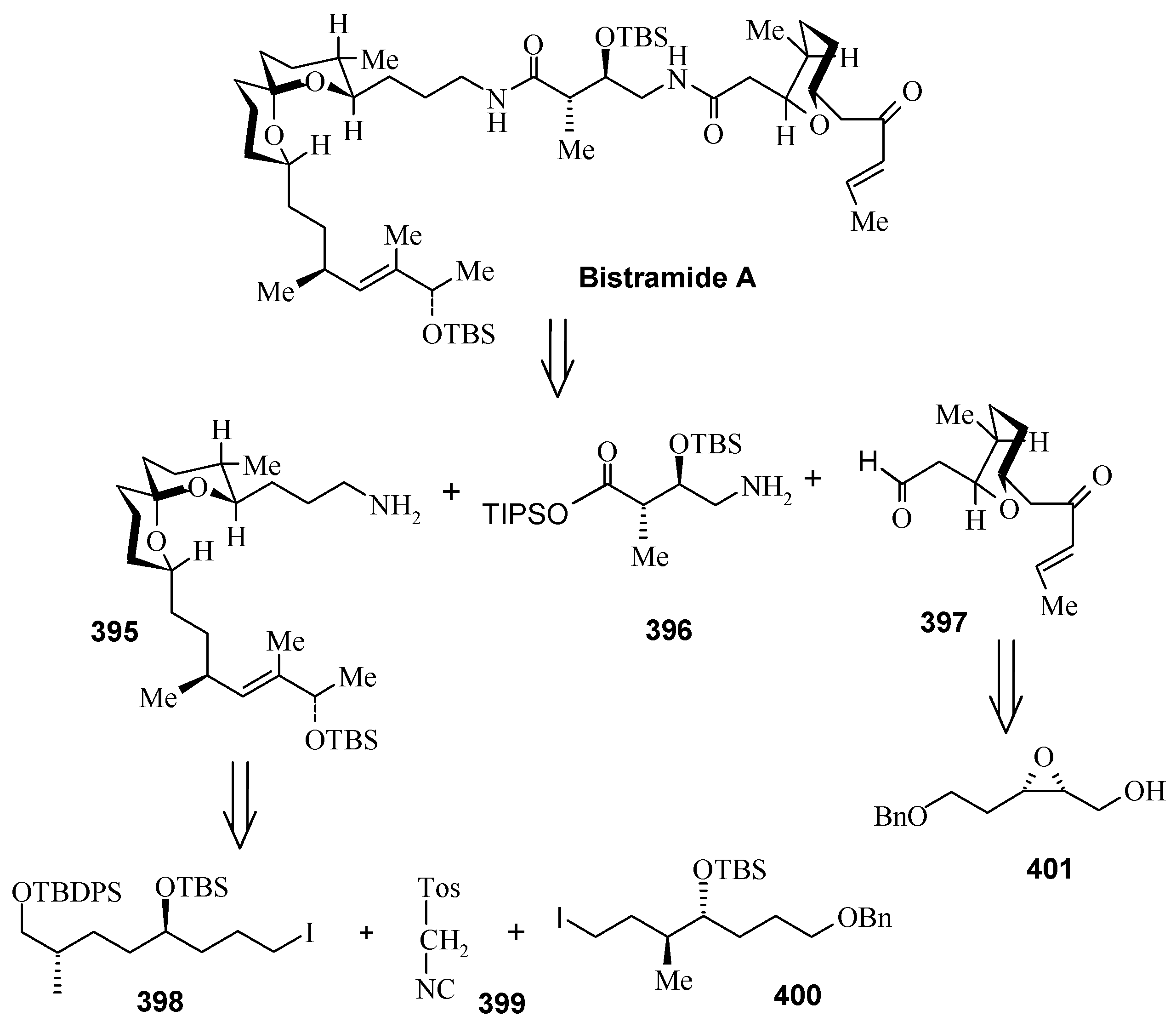

Scheme 89. Retrosynthetic analysis of bistramide A.
Scheme 89. Retrosynthetic analysis of bistramide A.
Molecules 13 01942 g092
The retrosynthetic analysis of the molecule is shown in Scheme 89. It shows that the molecule is composed of three units; spiroketal fragment 395, γ-amino acid fragment 396 and pyran fragment 397. Fragment 395 can be obtained from 399 by alkylation of iodides 398 and 400 (Scheme 89).
The synthesis of unit 400 starts with allyl alcohol 402. Alcohol 402 is converted to lactone 403 over three steps [158,159]. The lactone 403 is reduced to the corresponding diol with LiAlH4 (82%) of which the primary hydroxyl group of the diol is protected as its pivalate ester and the secondary hydroxyl group as TBS ether to furnish 404. Deprotection of the pivalate ester and subsequent treatment with iodine and triphenylphosphine affords iodo compound 400 (Scheme 90).

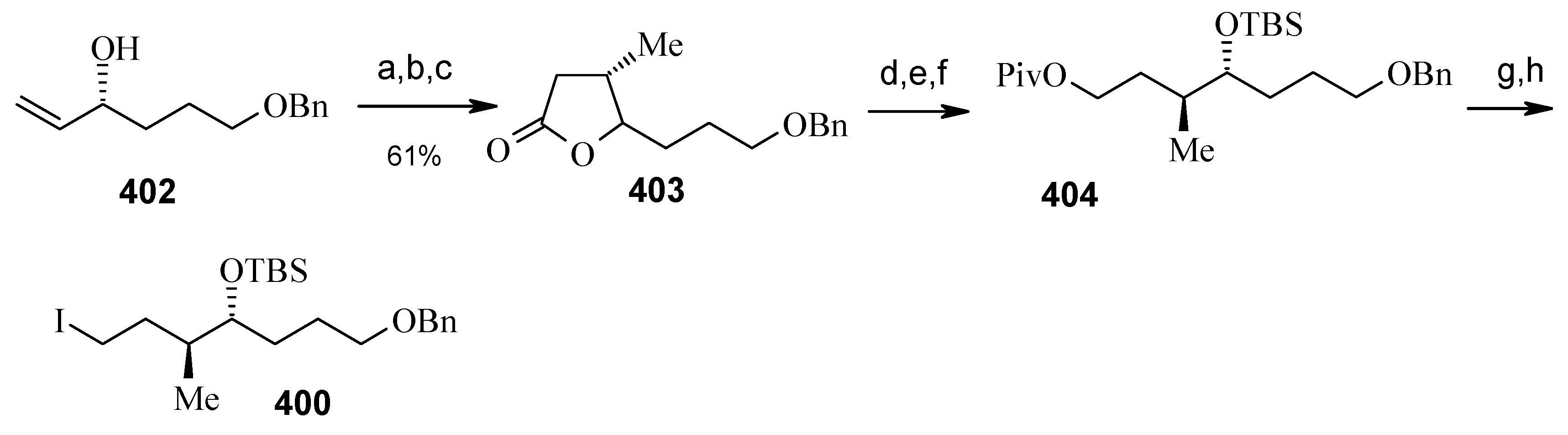

Scheme 90. Synthesis of iodide fragment 400.
Scheme 90. Synthesis of iodide fragment 400.
Molecules 13 01942 g093
Reagents and conditions: (a) CH2=CHOEt, NBS, CH2Cl2; (b) Bu3SnH, AIBN, benzene; (c) Jones reagent, Me2CO, 61%; (d) LiAlH4, Et2O, 82%; (e) PivCl, Et3N, CH2Cl2, 86%; (f) TBSOTf, 2,6-lutidine, CH2Cl2, 97%; (g) DIBALH, toluene, -78 oC, 88%; (h) I2, Ph3P, imidazole, THF, 94%.
Compound 398 is synthesized starting from dithiane 405 [160]. Reaction of lithiated dithiane 405 with epoxide 406 affords an alcohol, which is protected as its TBS ether to give 407. Removal of dithiane as well as benzyl group with Raney-nickel under a H2 atmosphere affords the primary alcohol, which is converted into corresponding iodo compound 398 (Scheme 91).

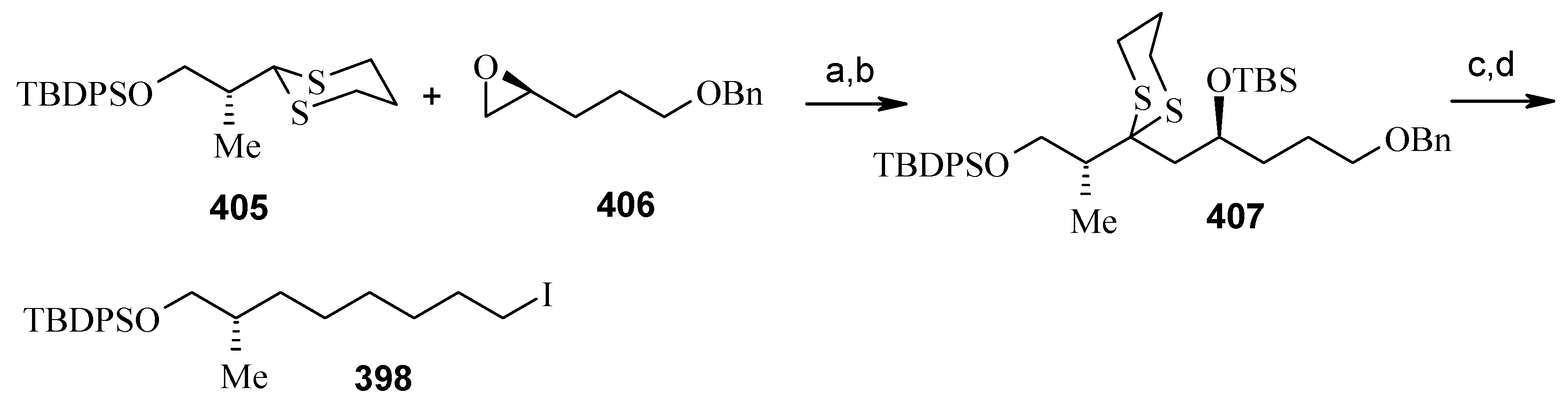

Scheme 91. Synthesis of iodide fragment 398.
Scheme 91. Synthesis of iodide fragment 398.
Molecules 13 01942 g094
Reagents and conditions: (a) n-BuLi, THF, -20 oC to rt, 72%; (b) TBSOTf, 2,6-lutidine, CH2Cl2, 96%; (c) Raney Ni, H2, EtOH, 75%; (d) I2, Ph3P, imidazole, THF, 90%.
Synthesis of spiroketal fragment 395 of bistramide A starts with TosMIC 399 (Scheme 92). Dialkylation of TosMIC 399 with iodo compounds 400 and 398 in the presence of n-BuLi affords dialkylated product, which on treatment with aq. HF affords spiroketal 409 (85%) [161]. Compound 409 is converted to an α,β-unsaturated ketone 410 using Swern oxidation and Horner-Wadsworth-Emmons olefination [162]. The ketone 410 is reduced with Corey’s chiral oxazaborolidine to afford allyl alcohol, which is protected as TBS ether to give 411 [163]. The compound 411 is converted to spiroketal fragment 395 in three steps [164].
Scheme 92. Synthesis of spiroketal fragment 395.
Scheme 92. Synthesis of spiroketal fragment 395.
Molecules 13 01942 g095
Reagents and conditions: (a) n-BuLi, HMPA, THF, -78 oC to rt, 90%; (b) n-BuLi, HMPA, THF then 398, -78 oC to rt, 83%; (c) aq. HF, MeOH, THF, 85%; (d) (COCl)2, DMSO, Et3N, CH2Cl2, -78 oC; (e) MeCOCH(Me)P(OEt)2, Ba(OH)2, THF, 63%; (f) (R)-CBS, catecholborane, toluene, 93%; (g) TBSOTf, 2,6-lutidine, CH2Cl2, 91%; (h) Na, NH3 (l), THF, 89%; (i) Ph3P, (C6H5O)2P(O)N3, DIAD, THF, 85%; (j) PMe3, THF/H2O.
The γ-amino acid fragment 396 is synthesized as shown in Scheme 93. The anti aldol adduct 414 obtained from previously reported procedure is converted into the corresponding Weinreb amide 415 after protecting the free hydroxyl group as TBS ether [165,166].

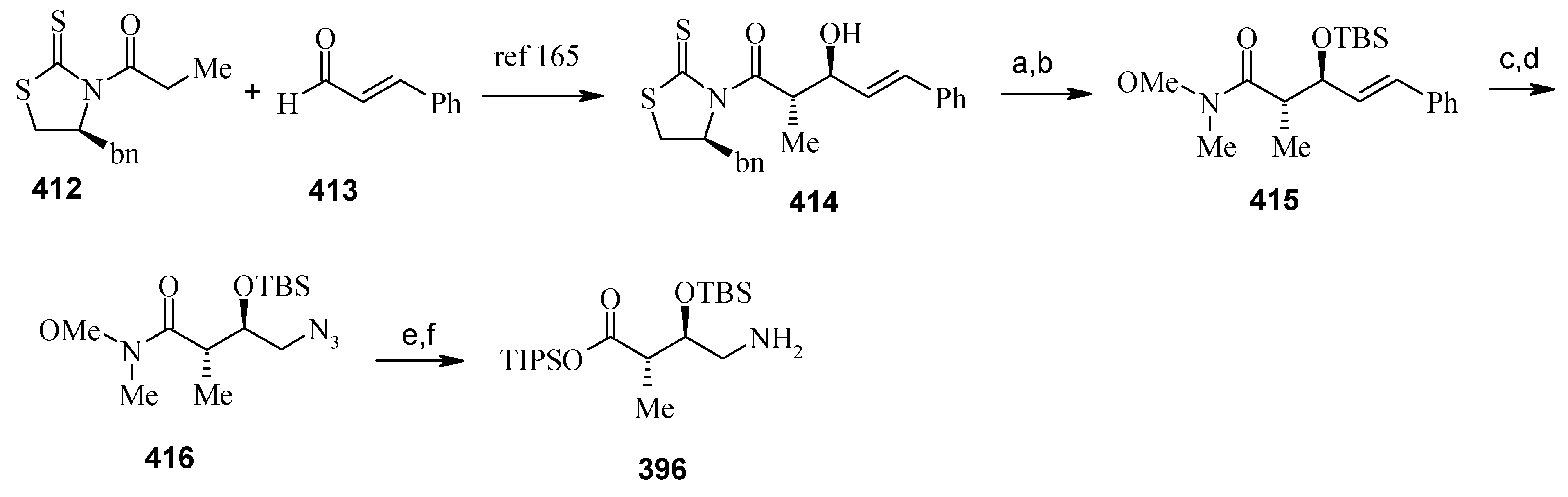

Scheme 93. Synthesis of γ-amino acid fragment 396.
Scheme 93. Synthesis of γ-amino acid fragment 396.
Molecules 13 01942 g096
Reagents and conditions: (a) MeO(H)NMe.HCl, imidazole, CH2Cl2, 84%; (b) TBSOTf, 2,6-lutidine, CH2Cl2, 95%; (c) O3, CHCl3, Ph3P, MeOH, NaBH4, 75%; (d) Ph3P, (C6H5O)2P(O)N3, DIAD, THF, 80%; (e) (i) KOtBu, THF, H2O, (ii) TIPSOTf, CH2Cl2, Et3N, 72%; (f) H2, Pd/C, THF.
Ozonolysis of 415 followed by reduction with NaBH4 affords a primary alcohol, which is then converted into the corresponding azide 416 by using (PhO)2P(O)N3 under Mitsunobu conditions. The azide 416 is then converted into γ-amino acid fragment 396 in three steps.

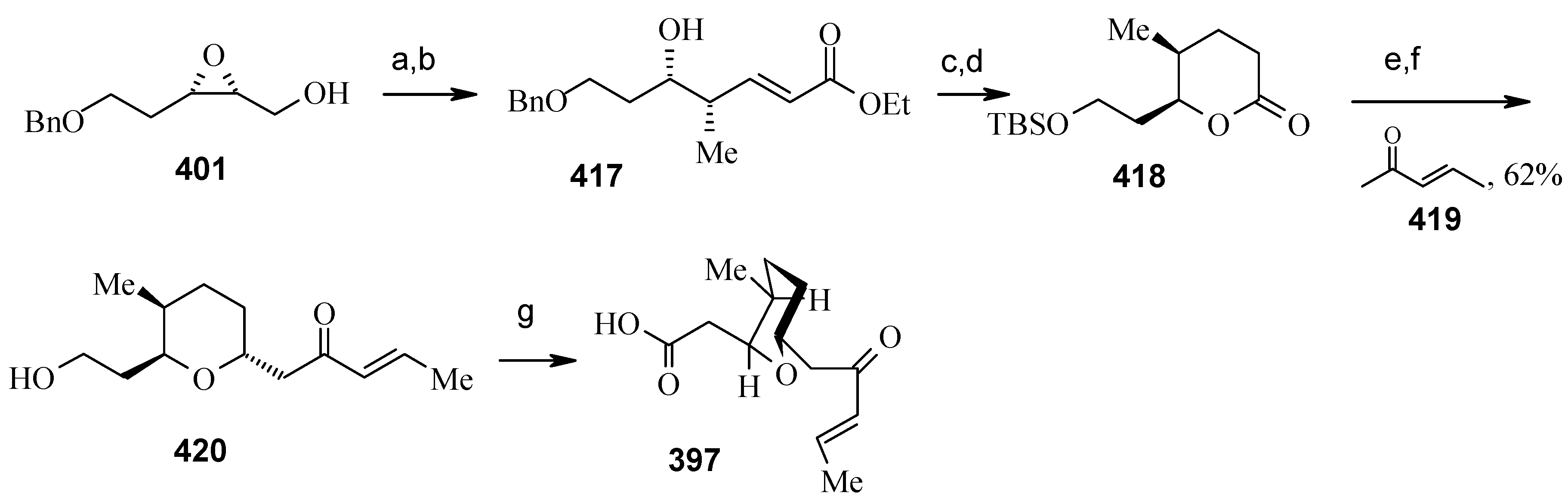

Scheme 94. Synthesis of pyran fragment 397.
Scheme 94. Synthesis of pyran fragment 397.
Molecules 13 01942 g097
Reagents and conditions: (a) (i) (COCl)2, DMSO, Et3N, CH2Cl2, (ii) Ph3PCHCO2Et, benzene, 90%; (b) Me3Al, CH2Cl2, H2O, 92%; (c) (i) Raney Ni, H2, EtOH, (ii) PPTS, CH2Cl2, 78%; (d) TBSCl, imidazole, CH2Cl2, 93%; (e) DIBALH, CH2Cl2, Py, DMAP, Ac2O, 78%; (f) TMSOTf, Et3N, CH2Cl2, 419, 62%; (g) H5IO6/CrO3, MeCN.
Synthesis of pyran fragment 397 starts with known cis epoxy alcohol 401, which is converted in two steps to the γ,δ-epoxy acrylate, which in turn is subjected to reaction with Me3Al following Miyashita’s protocol to furnish the syn product 417 regio- and stereoselectively [167,168].
Treatment of 417 with Raney-nickel gives a mixture of hydroxyl ester and lactone, the hydroxy ester on treatment with PPTS affords the lactone exclusively [169]. The free hydroxyl group of lactone is protected as TBS ether to give compound 418. The lactone 418 is converted to acetate following the Rychnovsky’s protocol, which upon treatment with ketone 419 affords 420. Oxidation of 420 gives the pyran fragment 397 (Scheme 94) [170].

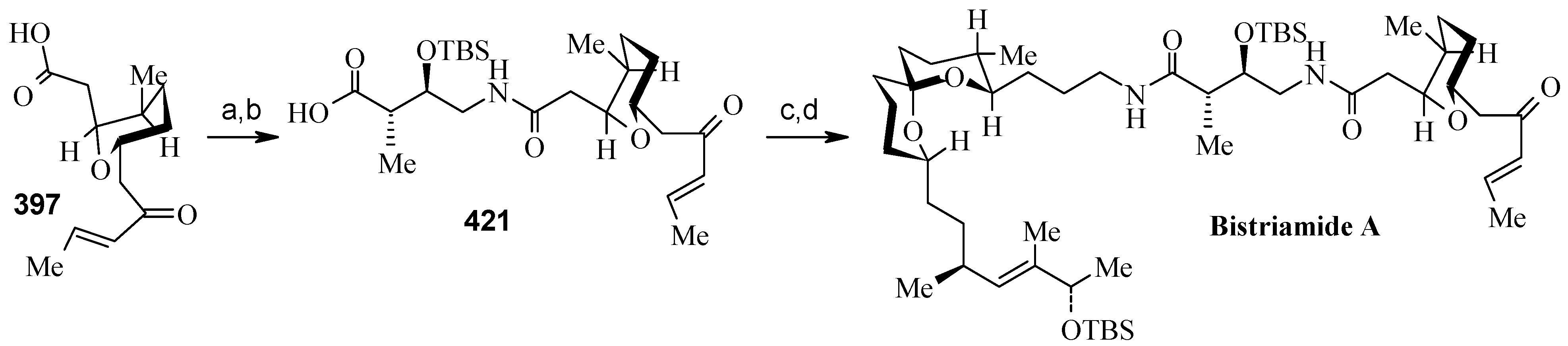

Scheme 95. Total synthesis of bistramide A.
Scheme 95. Total synthesis of bistramide A.
Molecules 13 01942 g098
Reagents and conditions: (a) PyBOP, Et3N, CH2Cl2, 396, 62%; (b) TBAF, THF, 89%; (c) PyBOP, DIPEA, DMF, 395, 65%; (d) PPTS, MeOH, 79%.
Finally all three fragments 395, 396, and 397 are coupled to obtain bistramide A (Scheme 95). Coupling of tetrahydropyran subunit 397 and amine 396 in the presence of PyBOP gives TIPS ester, which is selectively deprotected with TBAF to afford acid 421. Finally, peptide coupling of acid 421 with amine 395 leads to the formation of silyl protected bistramide and removal of the silyl protecting group with PPTS affords bistramide A [164].

2.13.2. Kozmin Synthesis

Kozmin et al. have synthesized bistramide A using a flexible and convergent strategy [171]. In this synthesis the molecule is disconnected into three fragments: spiroketal fragment 422, amino acid fragment 423 and pyran fragment 424, as shown in Scheme 96. The spiroketal unit can be synthesized from polyol 425, which in turn can be synthesized from strained cyclopropene acetal 428 and homoallyl alcohol 427 and 429 by sequential ring opening/cross-metathesis.

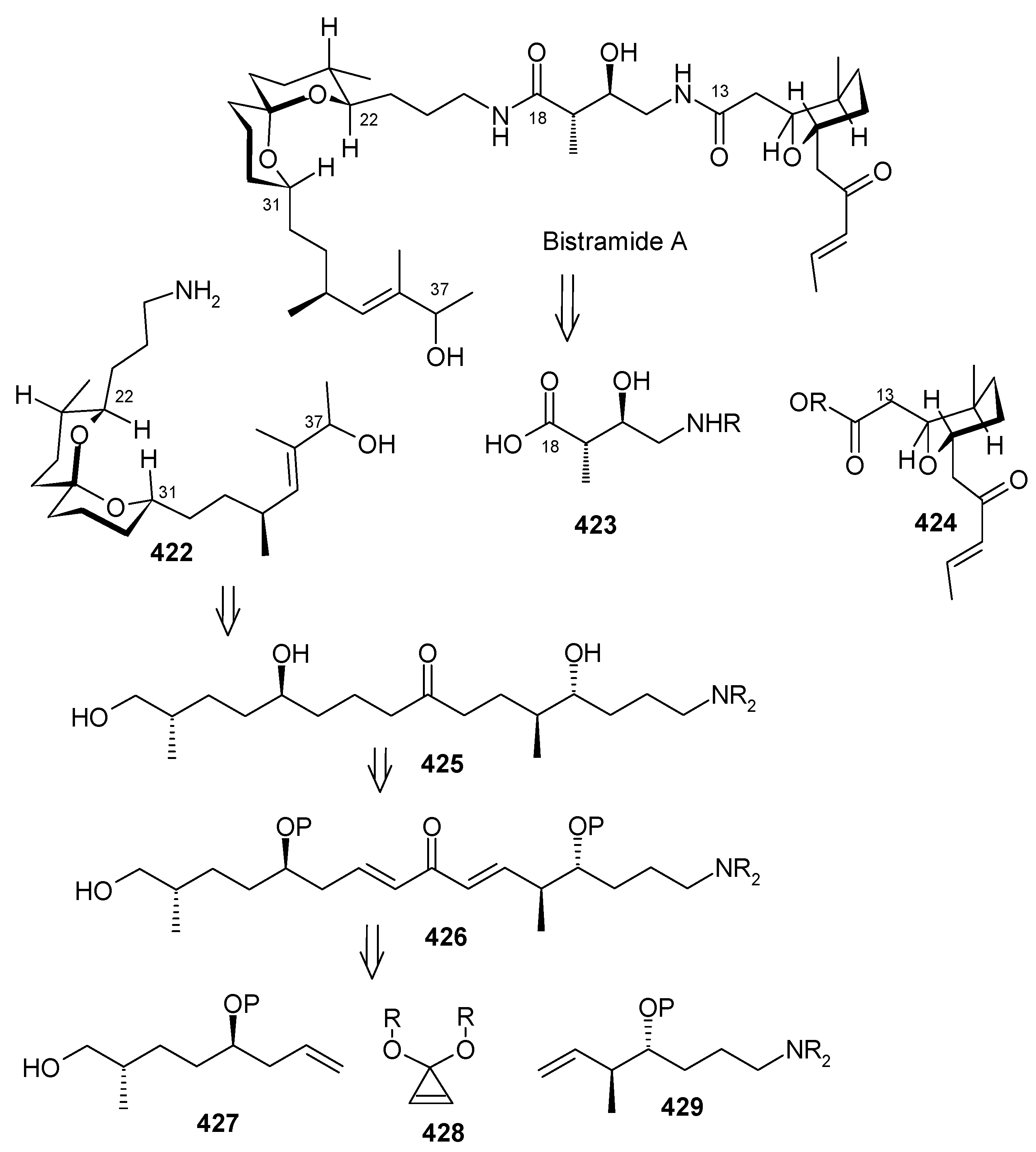

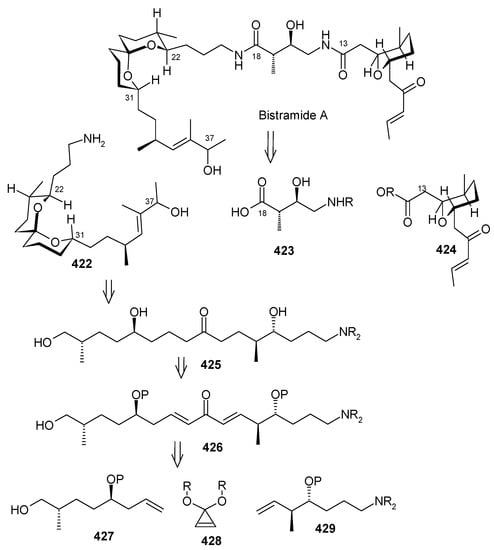

Scheme 96. Retrosynthetic analysis bistramide A.
Scheme 96. Retrosynthetic analysis bistramide A.
Molecules 13 01942 g099
The synthesis of spiroketal fragment 422 starts with ring opening metathesis of cyclopropene acetal 431 with alkene 430 [172]. Removal of the acetal under acidic conditions affords dienone 432, which after a second metathesis with 433 gives the desired cross-metathesis product 434 [173]. Treatment of 434 with hydrogen in the presence of Pd (OH)2/C reduces the double bond and deprotects the benzyl group at the same time to give a saturated hydroxyketone, which on oxidation affords spiroketal 435. The complete synthesis of fragment 422 is accomplished by Cr-mediated olefination, Itsuno-Corey reduction, and phthalimide deprotection (Scheme 97) [174,175].

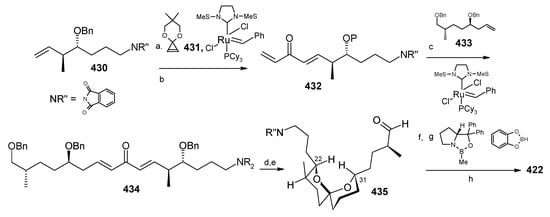

Scheme 97. Synthesis of spirioketal fragment 422.
Scheme 97. Synthesis of spirioketal fragment 422.
Molecules 13 01942 g100
Reagents and conditions: (a) 431, Grubbs catalyst, benzene, 60 oC; (b) 1M H2SO4, MeCN, 63%; (c) 433, Grubbs catalyst, 68%; (d) H2, Pd(OH)2/C; (e) Dess-Martin reagent, 53%; (f) CrCl2/THF, CH3COCBr2CH3; (g) boron reagent; (h) MeNH2, MeOH, 65 oC, 40%.
Scheme 98. Synthesis of Amino acid fragment 423.
Scheme 98. Synthesis of Amino acid fragment 423.
Molecules 13 01942 g101
Reagents and conditions: (a) trans-CH3CH=CHCH2Blpc2; (b) Me2C(OMe)2, PPTS; (c) RuCl3, NaIO4; (d) 3M HCl, EtOAc; (e) FmocOSu, dioxane-H2O, 25%.

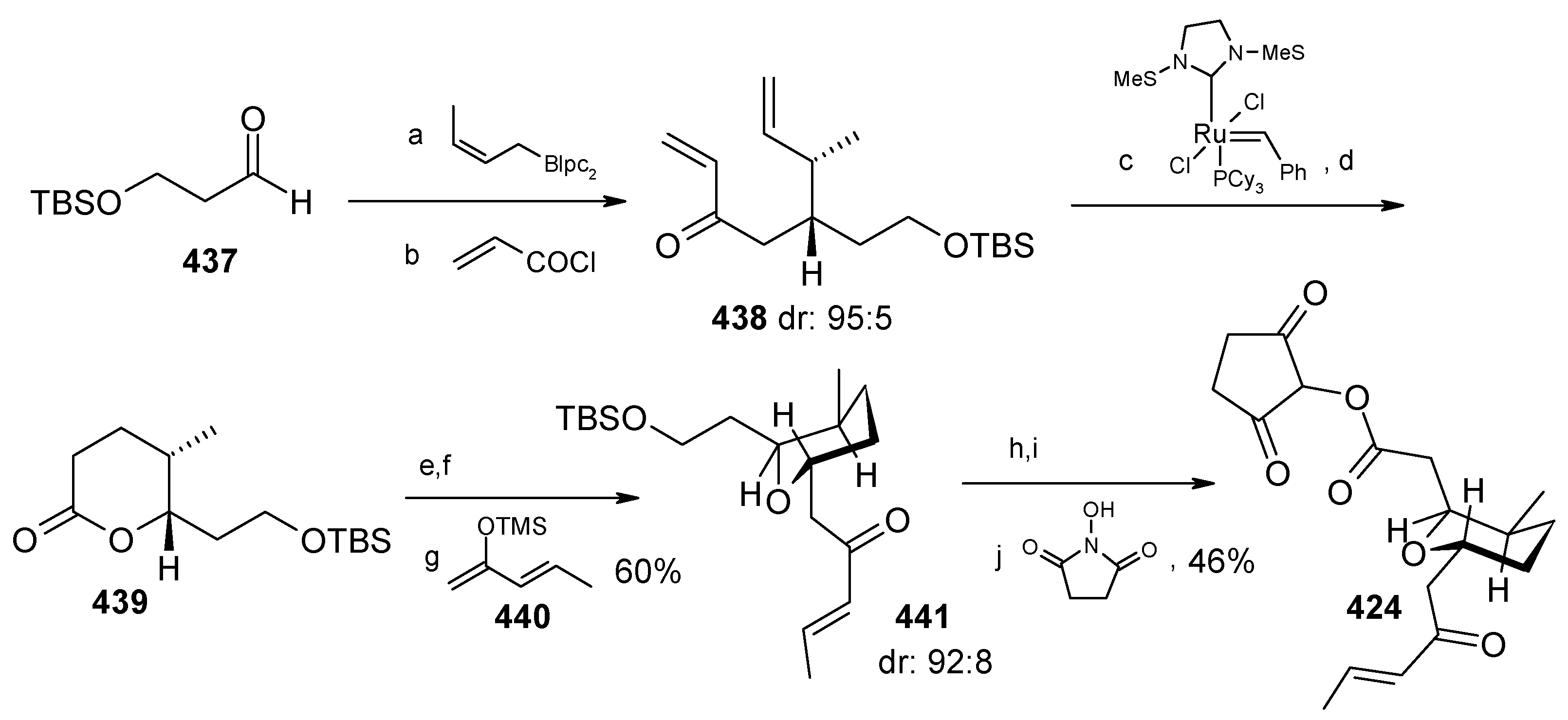

Scheme 99. Synthesis of pyran fragment 424.
Scheme 99. Synthesis of pyran fragment 424.
Molecules 13 01942 g102
Reagents and conditions: (a) cis-CH3CH=CHCH2Blpc2; (b) CH2=CHCOCl, Et3N, DMAP, 55%; (c) Grubbs catalyst; (d) H2, Pd/C, 72%; (e) DIBALH, CH2Cl2; (f) Ac2O, Py; (g) 440, ZnCl2, 60%; (h) HF, MeCN; (i) H5IO6, CrO3; (j) DCC, THF, 46%.

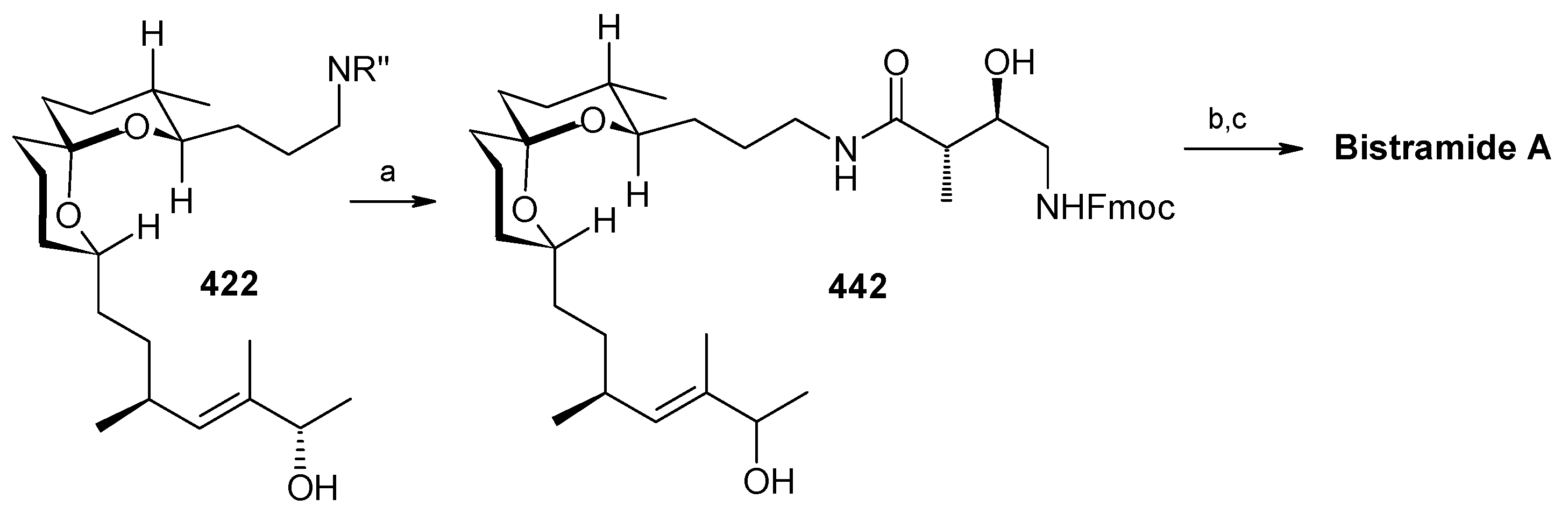

Scheme 100. Total synthesis of bistramide A.
Scheme 100. Total synthesis of bistramide A.
Molecules 13 01942 g103
Reagents and conditions: (a) 423, PyBOP, DMF, 85%; (b) Et3N, DMF; (c) 424, DMF, 20 oC.
The amino acid fragment 423 is prepared in five steps starting with Brown crotylboration of aldehyde 436 as shown in Scheme 98 [176]. Similarly, synthesis of pyran fragment 424 starts with the Brown crotylboration of aldehyde 437, followed by acylation with acryloyl chloride to give diene 438 (Scheme 99). Ring closing-metathesis followed by hydrogenation affords lactone 439, which is converted to lactol by DIBALH reduction and then to acetate. The resulting acetate is converted to C-glycoside after reaction with silyl dienol ether 440 to give desired enone 441 with good efficiency and diastereoselectivity (dr: 92:8). The enone 441 is then converted to desired fragment 424 in three steps. Finally, the coupling of three fragments 422, 423, and 424 affords bistramide A as shown in Scheme 100. It starts with PyBOP-mediated condensation of primary amine 422 with Fmoc-protected amino acid fragment 423 to give 442, which on deprotection of Fmoc, followed by reaction with fragment 424 affords the target.

2.13.3. Crimmins Synthesis

Crimmins et al. have reported a convergent, enatioselective total synthesis of bistramide A [177]. In this approach the molecule is disconnected into three fragments: pyran 443, carboxylic acid 444 and spiroketal fragment 445 (Scheme 101).

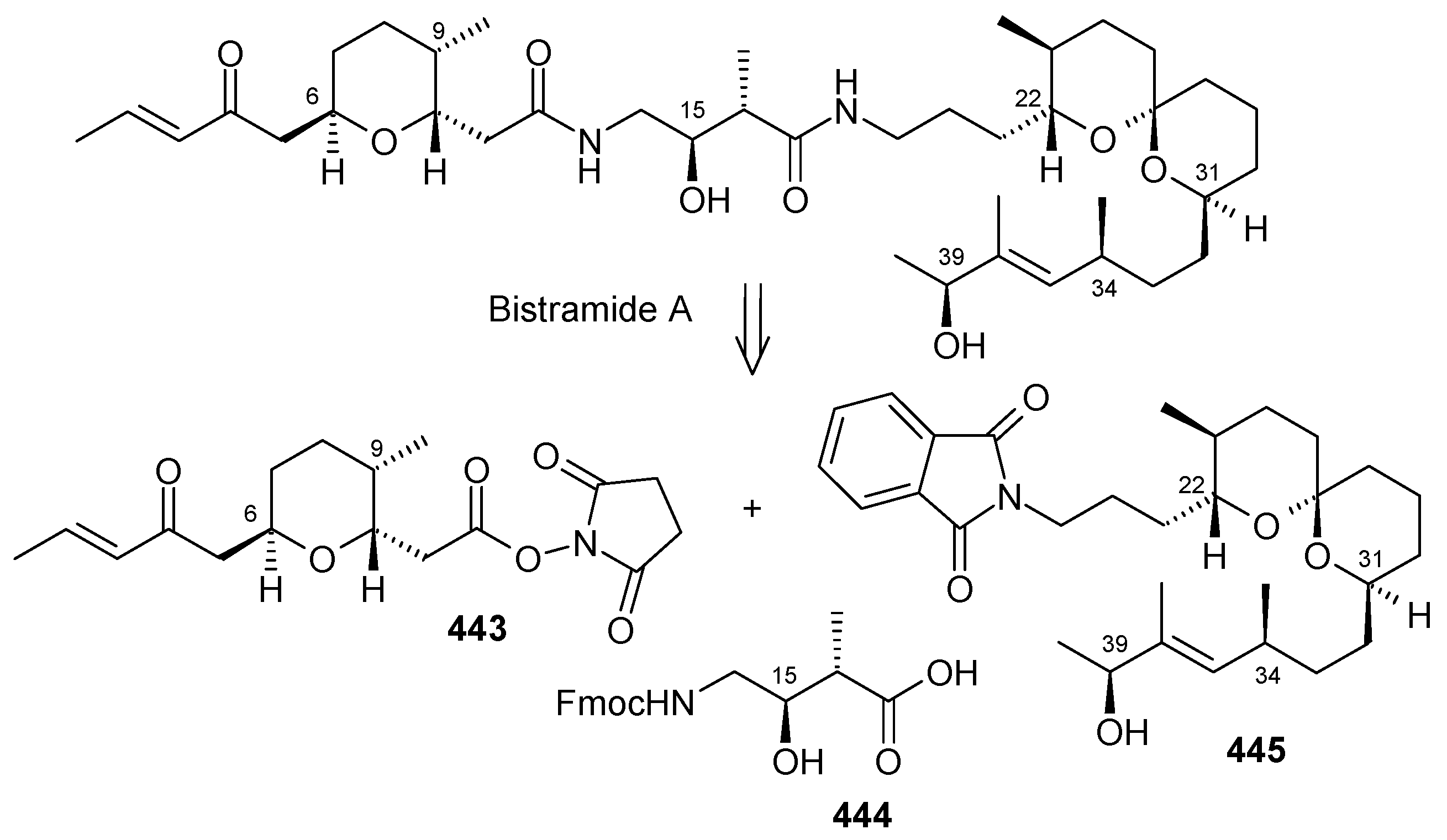

Scheme 101. Retrosynthetic analysis bistramide A.
Scheme 101. Retrosynthetic analysis bistramide A.
Molecules 13 01942 g104
The synthesis of pyran fragment starts with aldehyde 446, which on aldol condensation with chlorotitanium enolate of N-propionyl thiazolidinethione 447 affords aldol product 448 with excellent diastereoselectivity (98:2 dr) [178]. Removal of chiral auxiliary followed by Wittig reaction gives ester 449. Hydrogenation of olefin and subsequent lactonisation followed by reductive acetylation yields acetate 450 as a mixture of anomers (7:1). The acetate 450 is converted to pyran fragment 443 in four steps (Scheme 102).

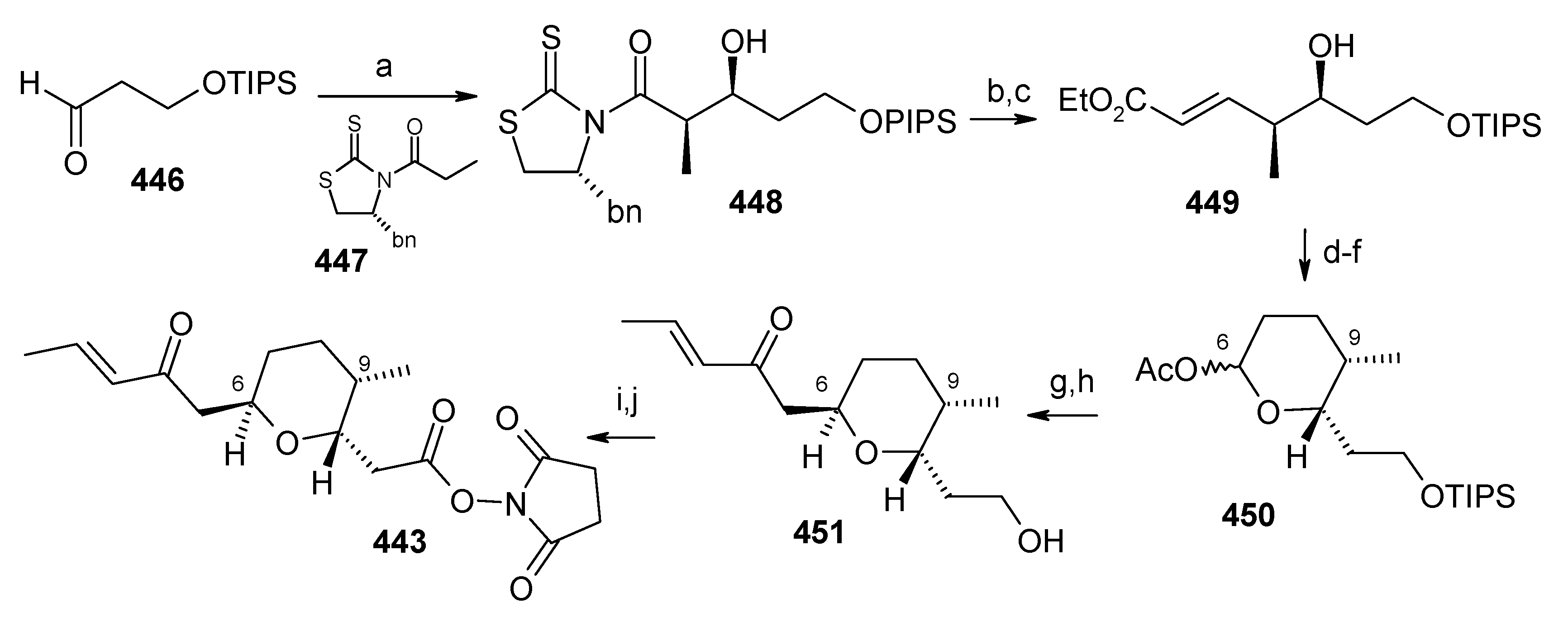

Scheme 102. Synthesis of pyran fragment 443.
Scheme 102. Synthesis of pyran fragment 443.
Molecules 13 01942 g105
Reagents and conditions: (a) TiCl4, NMP, (-)-sparteine, CH2Cl2, -78 oC, 447, 87%, (b) i-Bu2AlH, THF, -78 oC, (c) Ph3P=CHCO2Et, CH2Cl2, 78%, (d) H2, Raney Ni, EtOH, (e) PPTS, CH2Cl2, 40 oC, 81%, (f) i-Bu2AlH, Py, DMAP, Ac2O, CH2Cl2, –78 to –20 oC 96%, (g) Et3N, TMSOTf, 3-penten-2-one, CH2Cl2, 0 oC, then 78 oC, then acetate 450, 87%, 9:1 dr, (h) H2SiF6, MeCN, 0 oC, 75%, (i) H5IO6/CrO3, MeCN, 77%, (j) N-hydroxysuccinimide, EDC.HCl, CH2Cl2, 100%.
Preparation of carboxylic acid fragment 444 starts with allyl alcohol 452. Sharpless epoxidation of 452 followed by treatment with lithium dimethylcuprate affords 1,3-diol 453 along with the unwanted 1,2-diol in a ratio of 6:1.

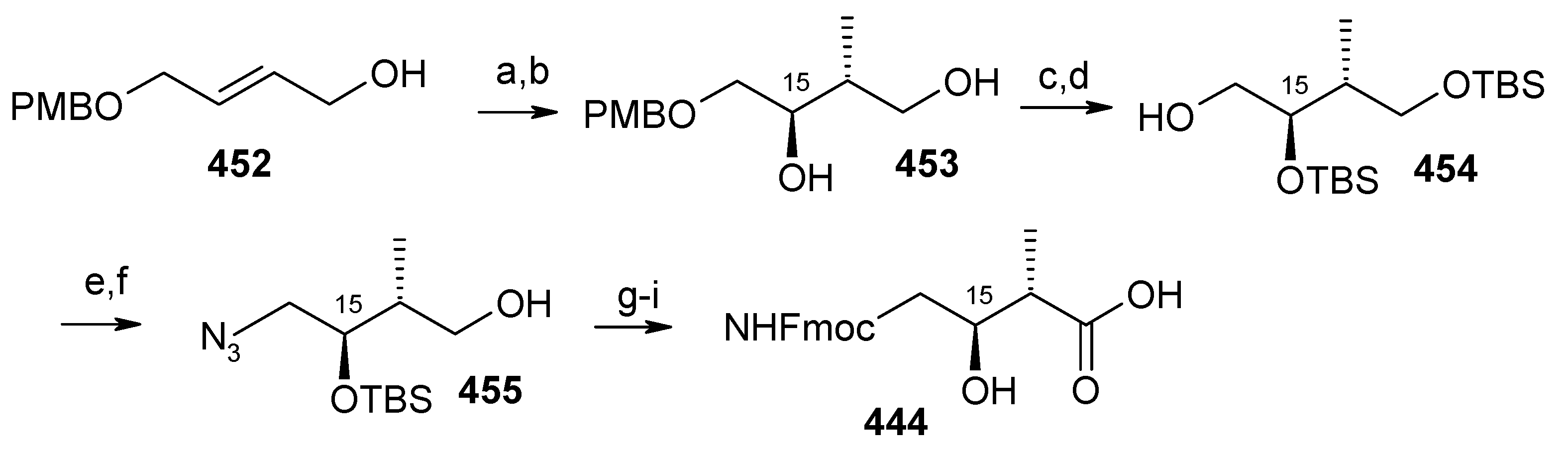

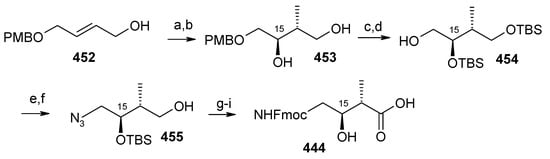

Scheme 103. Synthesis of carboxylic acid fragment 444.
Scheme 103. Synthesis of carboxylic acid fragment 444.
Molecules 13 01942 g106
Reagents and conditions: (a) L-(+)-DET, Ti(Oi-Pr)4, t-BuOOH, CH2Cl2, MS4A, -20 oC, 95%, 98% ee, (b) Me2CuLi, Et2O, -50 to 25 oC, 6:1 of 1,3- to 1,2-diol; NaIO4, H2O, 71%, (c) TBSOTf, 2,6-lutidine, CH2Cl2, 0 oC, 97%, (d) DDQ, pH 7 buffer, CH2Cl2, 0 oC, 98%, (e) DEAD, Ph3P, (PhO)2PON3, THF, 0 oC, 90%, (f) CSA, MeOH, CH2Cl2, 0 oC, 85%, (g) Pd/C, Fmoc-Osu, THF, 70%.
The minor 1,2-diol is removed by treating the mixture with sodium metaperiodate to give 1,3-diol 453. The diol 453 is converted to 454 in a two-step protection/deprotection sequence. Mitsunobu reaction with diphenylphosphoryl azide converted compound 454 to an azide, which on reaction with CSA affords alcohol 455. Oxidation of primary alcohol, deprotection of TBS ether and reduction of azide to amine followed by in situ acylation gives carboxylic fragment 444 (Scheme 103).
Synthesis of spiroketal fragment starts with the asymmetric glycolate alkylation of sodium enolate of amide 456 with allyl iodide to give allylated acyl oxazolidinone, which after removal of chiral auxiliary followed by oxidation of the resulting primary alcohol under Swern condition affords aldehyde 457. Modified Julia olefination of the aldehyde 457 with sulfone 458 yields diene 459 as a mixture (60:40) [36]. Diene 459 is subjected to a cross metathesis reaction with methyl acrylate to give unsaturated methyl ester, which on hydrogenation followed by acidification yields lactone 460. Lactone 460 on treatment with lithiated alkyne 461 affords keto alcohol, which on hydrogenation with hydrogen in presence of palladium yields trihydroxy alcohol, which immediately cyclised to give spiroketal 462.

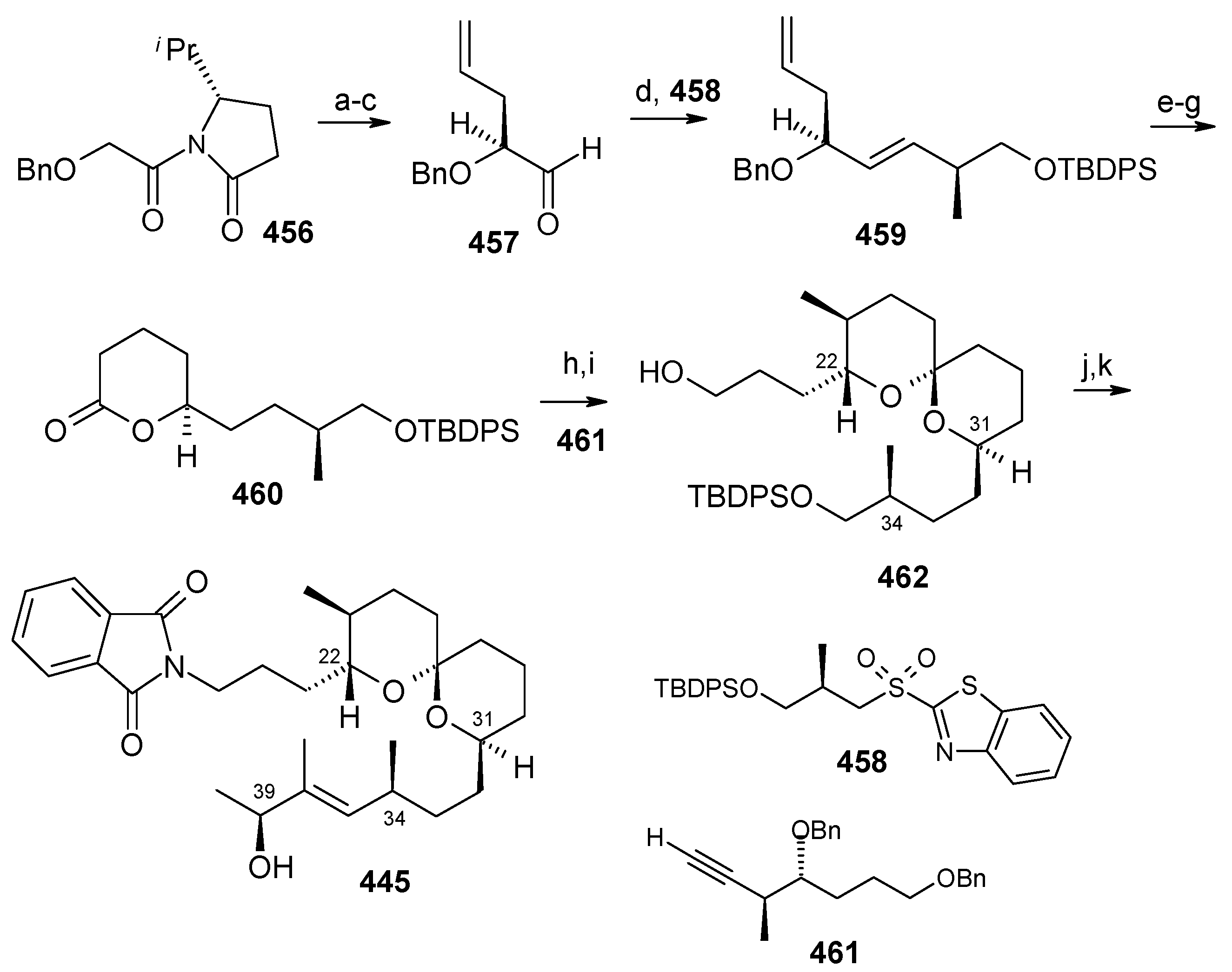

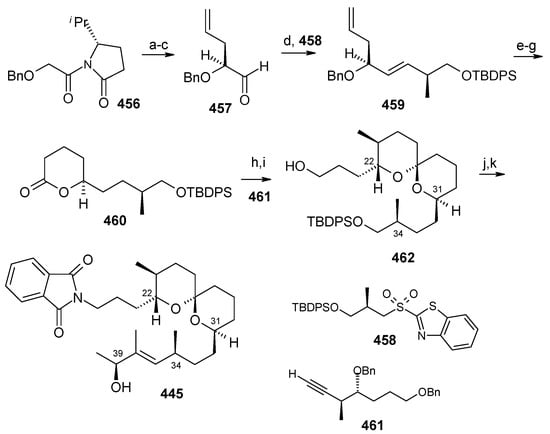

Scheme 104. Synthesis of spiroketal fragment 445.
Scheme 104. Synthesis of spiroketal fragment 445.
Molecules 13 01942 g107
Reagents and conditions: (a) NaHMDS, allyl iodide, THF, toluene, -78 to –45 oC, 81%, (b)LiBH4, MeOH, Et2O, 98%, (c) Et3N, DMSO, (COCl)2, CH2Cl2, -78 to –25 oC, 98%, (d) LiHMDS, THF, sulfone 458, -78 to –20 oC, 87%, (e) Cl2(Cy3P)(Imes)Ru=CHPh, methyl acrylate, CH2Cl2, 40 oC, 87%, (f) H2, Pd/C, EtOAc, (g) p-TSA, benzene, 80 oC, 70%, (h) alkyne 461, n-BuLi, -78 oC, (i) H2, Pd/C, MeOH, EtOAc, 83%, (j) Ph3P, DEAD, phthalimide, THF, 0 oC, (k) HF.Py., THF, 84%, (l) Dess-Martin periodinane, CH2Cl2, Py. 92%, (m) Ba(OH)2, THF, MeCOCH(Me)P(O)(OEt)2, 58%, (n) (R )-CBS, catecholborane, toluene, -78 oC, 65%, 98:2 dr.
The spiroketal 462 is then converted under Mitsunobu conditions to its phthalimide derivative, which after TBDPS deprotection gives an alcohol (Scheme 104). Oxidation of the alcohol to an aldehyde followed by Horner-Wadsworth-Emmons olefination installs the E-olefin. The stereoselective reduction of ketone by Corey’s oxazoborolidine affords spiroketal fragment 445 with desired C-39 stereochemistry [175]. Finally, the condensation of three units 443, 444 and 445 affords bistramide A. Removal of phthalidide group from 445 by methylamine, PyBOP-mediated condensation with acid 444, affords amide 463. Deprotection of Fmoc group and then treatment with ester 443 establishes the final structure (Scheme 105).

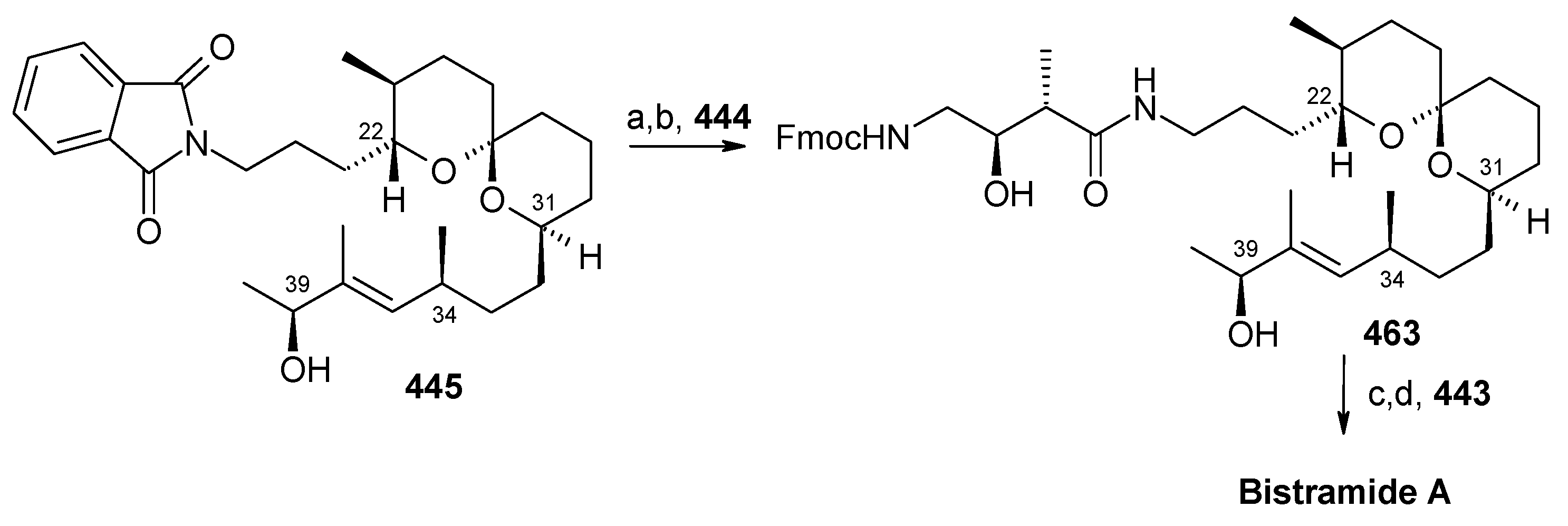

Scheme 105. Total synthesis of bistramide A.
Scheme 105. Total synthesis of bistramide A.
Molecules 13 01942 g108
Reagents and conditions: (a) MeOH, MeNH2, 65 oC, (b) PyBOP, 444, DIEA, DMF, 88%, (c) Et2NH, DMF, (d) 443, DMF, 82%.

2.13.4. Panek Synthesis

Panek et al. have reported a total synthesis of bistramide A using three different organosilane reagents [179]. The retrosynthetic analysis of the molecule is shown in Scheme 106.

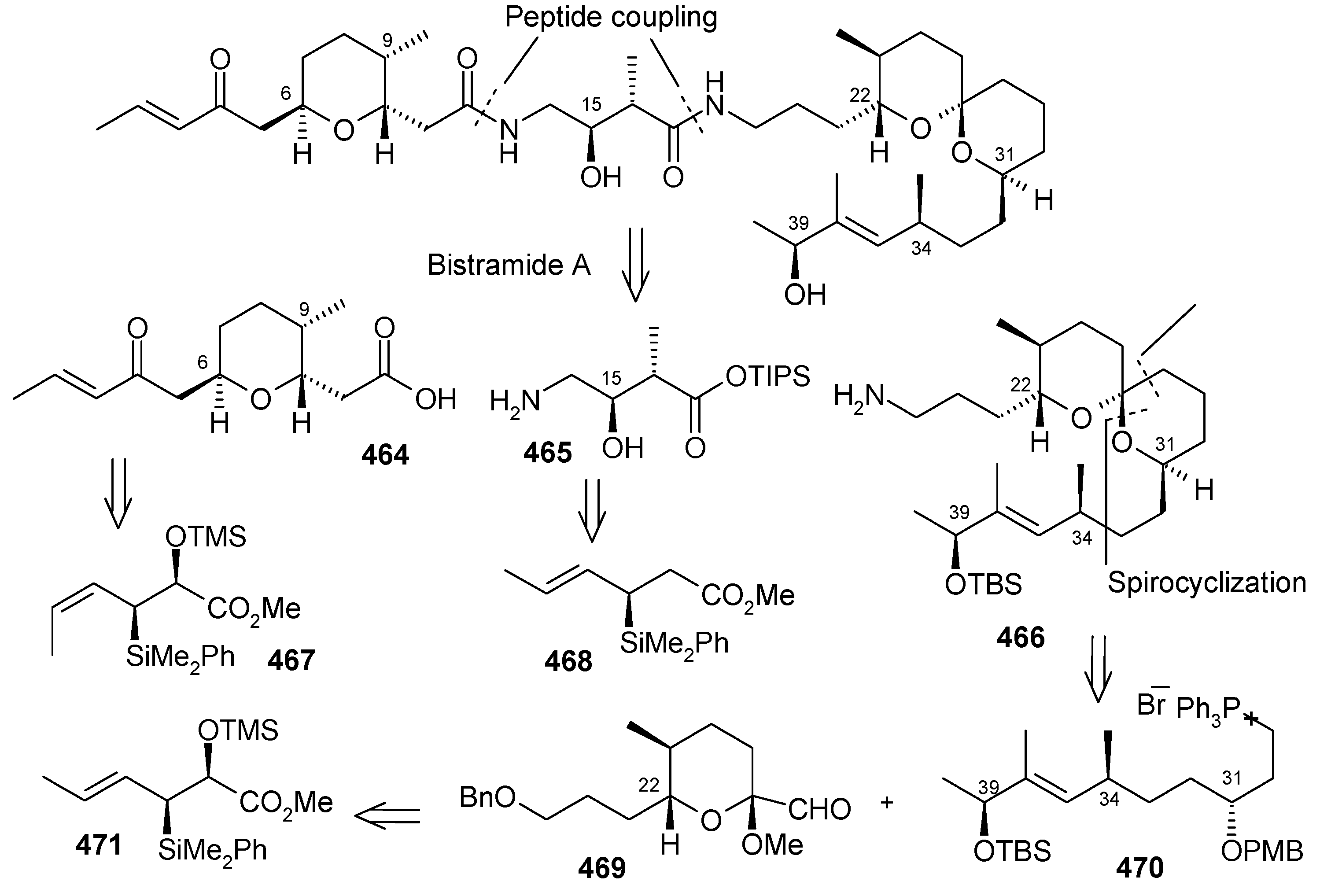

Scheme 106. Retrosynthetic analysis of bistramide A.
Scheme 106. Retrosynthetic analysis of bistramide A.
Molecules 13 01942 g109
It reveals that three units, pyran 464, γ-amino acid 465 and spiroketal 466 constitute the molecule. Pyran unit 464 can be prepared from (Z)-crotylsilane reagent 467, whereas the γ-amino acid 465 can be obtained from (R)-silane reagent 468. On the other hand the spiroketal unit can be accessible from pyran 469 and phosphonium salt 470. Tetrahydropyran 469 in turn can be obtained from crotyl silane 471.
The γ-amino acid 465 is prepared starting from known homoallylic alcohol 472 (Scheme 107). Protection of alcohol as its silyl ether, ozonolysis followed by reduction/protection affords alcohol 473. Deprotection of benzyl ether and then azide formation followed by selective silyl ether deprotection affords the desired alcohol 474, which after oxidation/protection and reduction sequence gives the γ-amino acid 465.

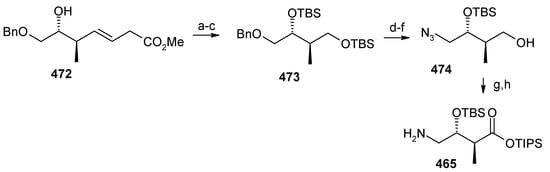

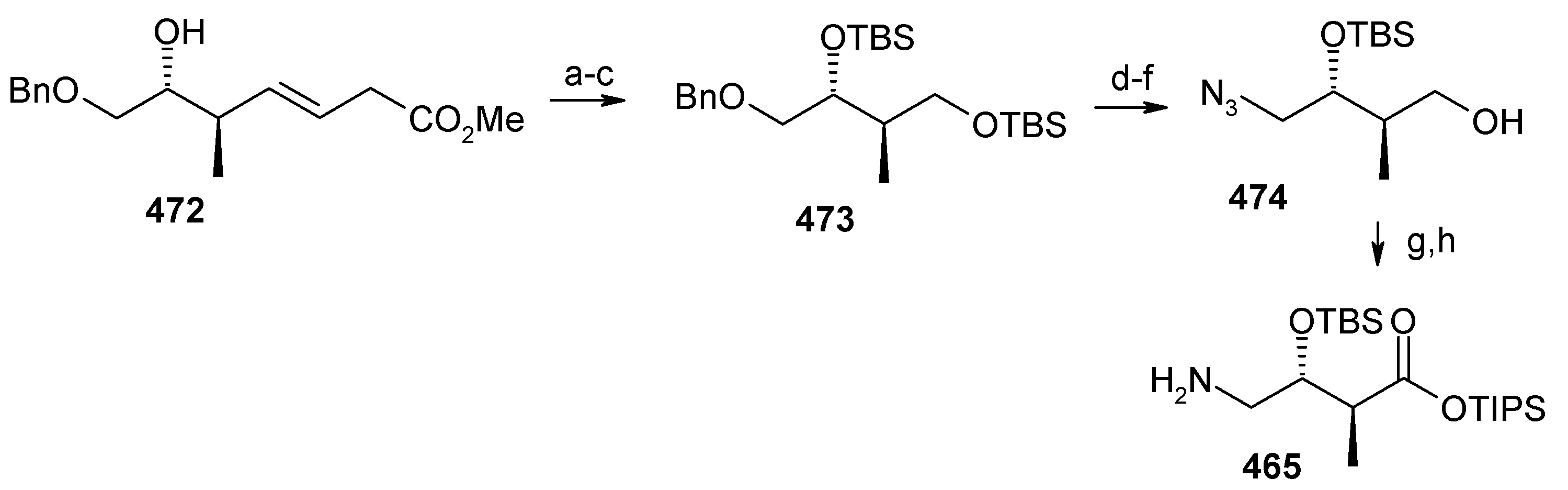

Scheme 107. Synthesis of γ-amino acid fragment 465.
Scheme 107. Synthesis of γ-amino acid fragment 465.
Molecules 13 01942 g110
Reagents and conditions: (a) TBSOTf, 2,6-lutidine, CH2Cl2, 99%, (b) O3, MeOH, Py, NaBH4, 92%, (c) TBSCl, imidazole, DMF 99%, (d) H2, Pd/C, EtOAc, 84%, (e) Ph3P, DIAD, THF, (C6H5O)2P(O)N3, 93%, (f) CSA, MeOH, CH2Cl2, 90%, (g) (i) NaOCl, NaClO2, TEMPO, (ii) TIPSCl, CH2Cl2, Et3N, 76%, (h) H2, Pd/C, THF.
Synthesis of fragment 470 begins with 475 obtained from (S)-1,2,3-butanetriol. Wittig reaction followed by reduction of olefin and deprotection of benzyl ether with Raney nickel affords a primary alcohol, which upon oxidation under Swern condition affords the aldehyde. The resulting aldehyde is then converted to α,β-unsaturated ketone 478.

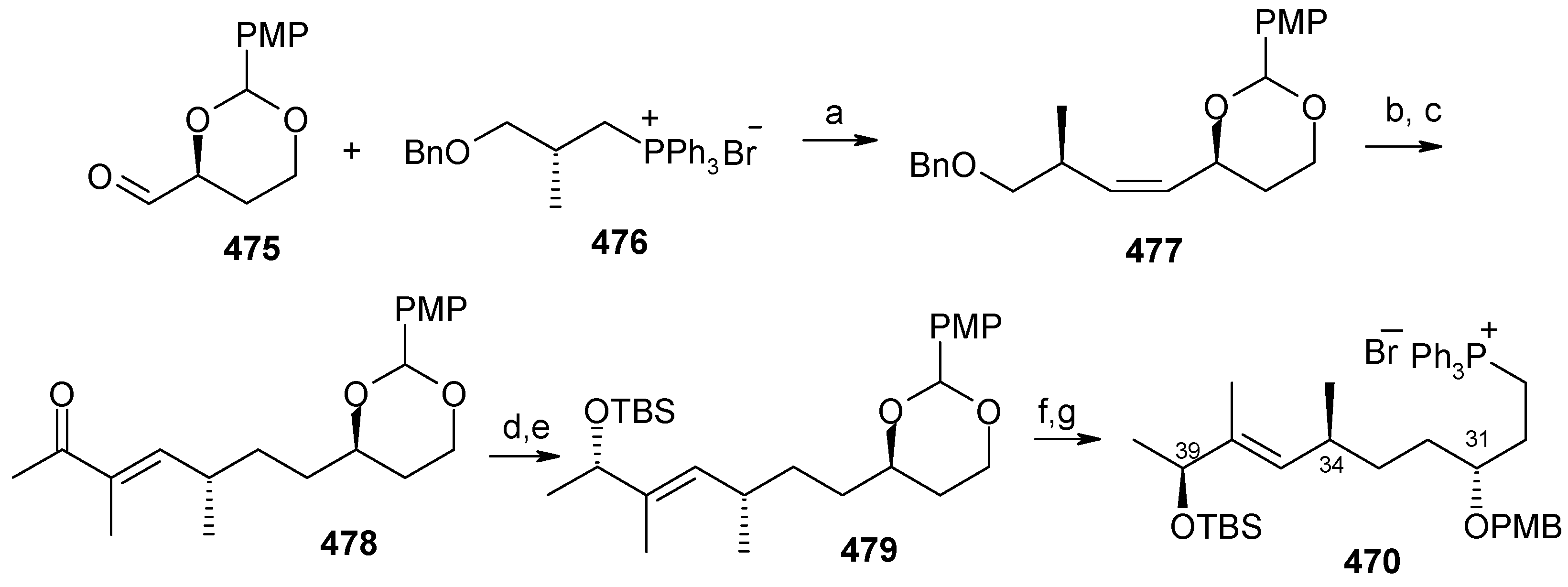

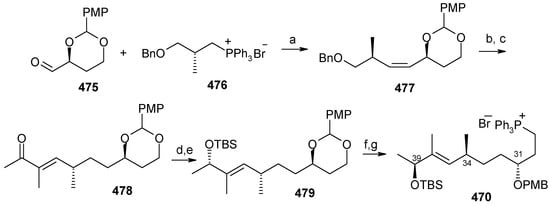

Scheme 108. Synthesis of phosphonium salt fragment 470.
Scheme 108. Synthesis of phosphonium salt fragment 470.
Molecules 13 01942 g111
Reactions and conditions: (a) n-BuLi, THF, 0 oC, 70%, (E:Z=10:1, (b) H2, Raney Ni, EtOH, 78%, (c) (i) (COCl)2, DMSO, Et3N, CH2Cl2, (ii) MeCOCH(Me)P(O)(OEt)2, Ba(OH)2, THF, 63%, (d) (R )-CBS, catecholborane, toluene, 88%, (e) TBSOTf, 2,6-lutidine, CH2Cl2, 86%, (f) DIBALH, THF, 98%, (g) CBr4, Ph3P, 2,6-lutidine, CH2Cl2, 97%, (g) Ph3P, 2,6-lutidine, MeCN, 96%.
The ketone is then reduced to alcohol using Corey’s chiral oxazaborolidine and protected as a TBS ether to give 479, which is converted to phosphonium salt 470 in three steps (Scheme 108) [163]. Synthesis of spiroketal unit 466 is starts with [4+2] cycloaddition of syn-(E)-crotylsilane 471 with aldehyde 480 to give endocyclic dihydropyran 481, which is isomerised to conjugated dihydropyran 482 using tetrabutylammonium hydroxide [180,181]. The dihydropyran 482 is converted to its methyl glycoside and then to aldehyde 469. Olefination of aldehyde 469 with phosphonium salt 470 affords (Z)-alkene 483 as a single isomer. Selective reduction of C28-C29 olefin of 483 followed by deprotection of PMB ether under DDQ conditions affords spiroketal 484 without formation of 485. Deprotection of benzyl ether followed by conversion of alcohol to azide and subsequent amine formation affords the spiroketal fragment 466 (Scheme 109).
Scheme 109. Synthesis of spiroketal fragment 466.
Scheme 109. Synthesis of spiroketal fragment 466.
Molecules 13 01942 g112
Reagents and conditions: (a) TMSOTf, CH2Cl2, BnO(CH2)3CHO, 480, -50 oC, 97%, dr=20:1; (b) n-Bu4NOH, THF, 96%; (c) CSA, MeOH, 81%, (d) DIBALH, Et2O, 94%; (e) n-BuLi, 470, THF, 0 oC, 86%; (f) (Ph3P)3RhCl, benzene, 75%; (g) Ph3P, DIAD, (C6H5O)2P(O)N3, THF, 86%; (h) PMe3, THF, H2O.

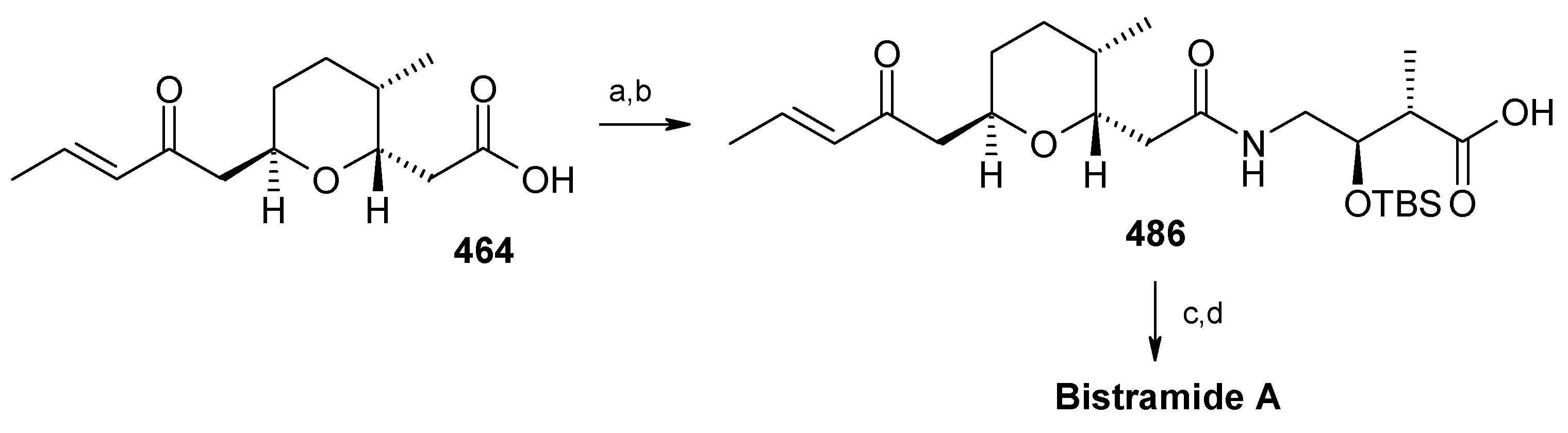

Scheme 110. Total synthesis of bistramide A.
Scheme 110. Total synthesis of bistramide A.
Molecules 13 01942 g113
Reagents and conditions: (a) PyBOP, Et3N, CH2Cl2, 465, 61%; (b) TBAF, THF, 92%; (c) PyBOP, DIPEA, DMF, 466, 72%; (d) PPTS, MeOH, 61%.
Finally the three units 464, 465 and 466 are coupled to furnish bistramide A. Coupling of fragments 464 with 465 is effected by the PyBOP peptide coupling reagent. The resulting coupled product is treated with fluoride ion to deprotect the TIPS, which permit the second peptide coupling of acid 486, and amine fragment 466 to give the silyl protected bistramide A (Scheme 110). Deprotection of silyl group affords bistramide A.
Among the four approaches for the synthesis of bistramide A, the Crimmins method is the shortest one. The advantage of this synthesis is that spirocyclisation from a keto alcohol takes place spontaneously in a neutral medium with high yield (83% in two steps). Similarly in the Kozmin synthesis the spirocyclisation from a keto alcohol also takes place spontaneously in a neutral media affording single diastereomer with good yield (53% in two steps). The Yadav group constructed the spiroketal unit by hydrolysis of dialkylated tosylmethyl isocyanide derivative derived via alkylation of TosMIC with suitably substituted halohydrin derivatives (85% yield). Panek, on the other hand utilizes the oxidative spirocyclisation for the construction of spiroketal unit with good yield (76%).

2.14. Asymmetric Total Synthesis of (-)-Spirofungin A and (+)-Spirofungin B

Spirofungins A and B are novel polyketide-type antifungal antibiotics isolated from Streptomyces Violaceusniger [182]. Structurally, they are related to reveromycins, antibiotics produced by another Streptomyces strain [183,184,185,186].

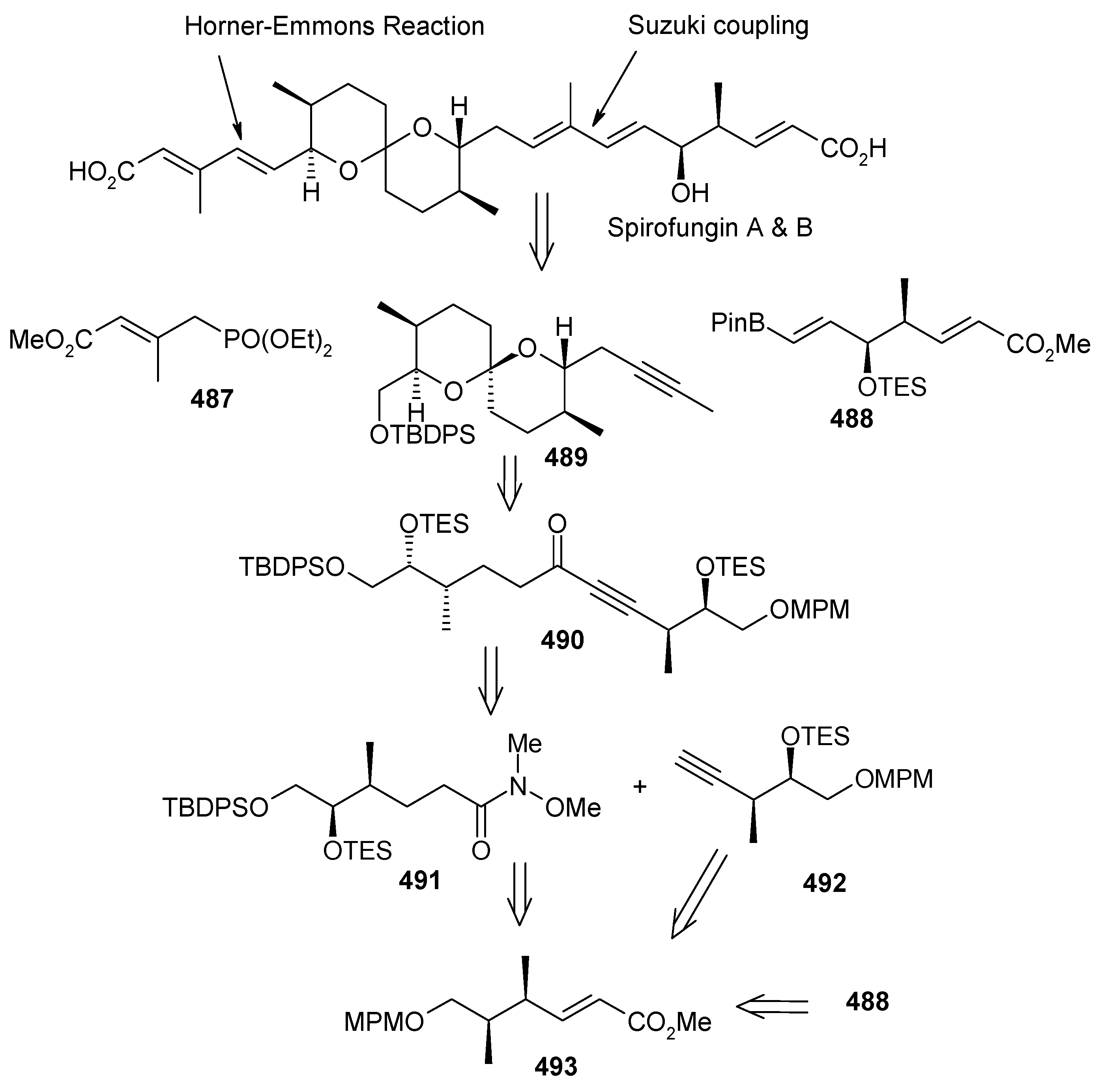

Scheme 111. The retrosynthetic analysis of (-)-spirofungin A and (+)-spirofungin B.
Scheme 111. The retrosynthetic analysis of (-)-spirofungin A and (+)-spirofungin B.
Molecules 13 01942 g114
Shimizu and his coworkers have reported the first asymmetric total synthesis of natural spirofungins A and B starting from a common intermediate 493 [187]. The retrosynthetic analysis of the molecule reveals that the left and right side chain can be attached by Horner-Emmons and Suzuki coupling respectively. The spiroketal unit 489 can be obtained from ketone 490, which in turn can be obtained from Weinreb amide 491 and alkyne 492. Both alkyne 492 and amide 491 can be achieved from common intermediate 493 (Scheme 111).

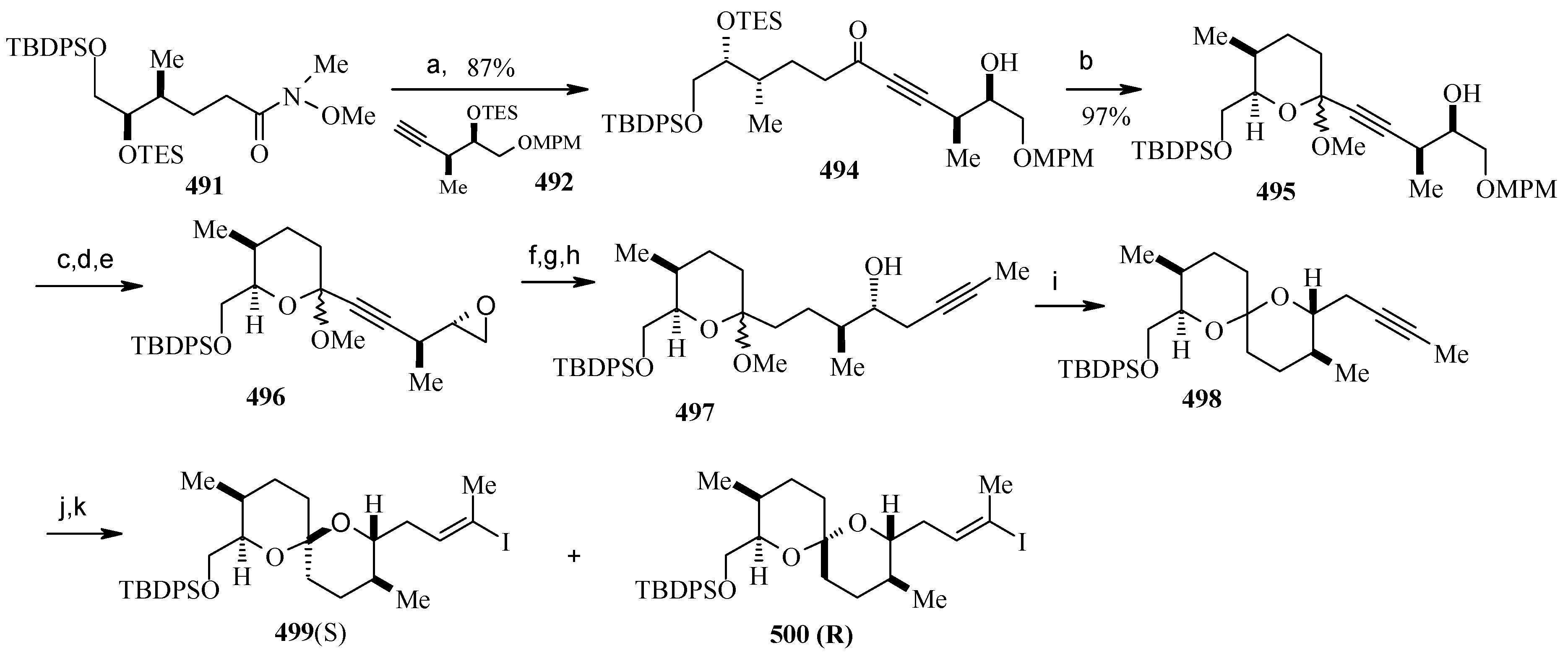

Scheme 112. Synthesis of spiroketals 499 and 500.
Scheme 112. Synthesis of spiroketals 499 and 500.
Molecules 13 01942 g115
Reagents and conditions: (a) 492, LHMDS, THF, 0 oC to rt, 87%; (b) PPTS, MeOH, rt, 97%; (c) MsCl, Py, 0 oC to rt, 99%; (d) DDQ, CH2Cl2-MeOH, rt; (e) K2CO3, MeOH, rt, 86%; (f) H2, Pd/C, EtOAc, rt; (g) PPTS, MeOH, rt, 81%; (h) Propyne, n-BuLi, BF3.Et2O, THF, -78 oC; (i) PPTS, MeOH, rt, 93%; (j) Cp2ZrHCl, benzene, 50 oC, I2, 0 oC; (k) TBAF, THF, rt, 75%.
The synthesis of spiroketal unit is shown in Scheme 112. The Weinreb amide 491 is coupled with lithiated alkyne 492 to give ketone 494. Selective deprotection of TES group by PPTS in methanol furnishes the methyl ketal alkynol 495. Next the alcohol is converted to its mesylate, which is then treated with DDQ to remove MPM. The resulting alcohol on treatment with K2CO3 provides the epoxide 496 with inversion of configuration at C-11. Hydrogenation of the alkyne followed by reaction with PPTS affords the saturated ketal as a single isomer, which is then converted to alkyne 497 by treating with propyne and n-BuLi in the presence of BF3.OEt2 [188]. Spiroketalization of 497 is achieved by treating with PPTS, which is converted to a mixture of iodides. Deprotection of the resulting iodide affords separable alcohols 499 (S-isomer) and 500 (R-isomer).
Next, the 1-alkenylboronic acid pinacol ester 488 is prepared starting from the common precursor 493 (Scheme 113), whch is silylated with TBSCl, followed by cleavage of the MPM group with DDQ, to afford the alcohol, which is oxidized using Dess-Martin periodinane to provide 501. The aldehyde 501 is converted to iodide 502 as the (E)-stereoisomer [189]. The synthesis of 488 from 502 is achieved by palladium catalyzed cross coupling [190].

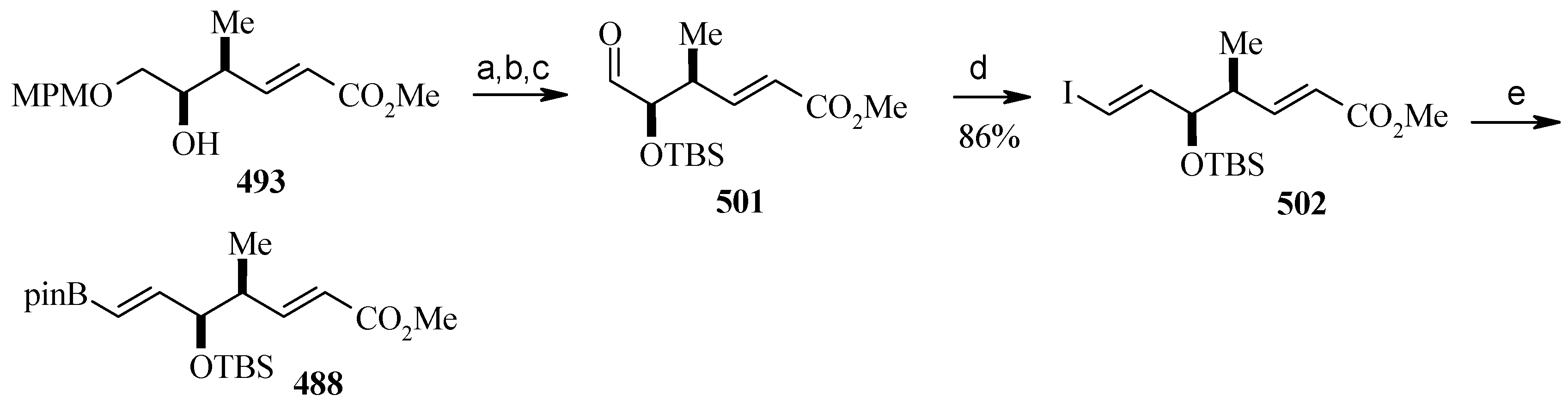

Scheme 113. Synthesis of the 1-alkenylboronic acid pinacol ester 488.
Scheme 113. Synthesis of the 1-alkenylboronic acid pinacol ester 488.
Molecules 13 01942 g116
Reagents and conditions: (a) TBSCl, imidazole, DMF, rt; (b) DDQ, CH2Cl2-H2O, rt, 97%; (c) Dess-Martin periodinane, CH2Cl2, rt, 98%; (d) CHI3, CrCl2, THF, 0 oC to rt, 86%; (e) pin2B2, KOPh, PdCl2,(PPh3)2, toluene, 50 oC.
The final total synthesis of spirofungin A and B is shown in Scheme 114. Dess-Martin oxidation of 499 give an aldehyde, which is subjected to the Horner-Emmons reaction with (EtO)2P(O)CH2C(Me)=CHCO2Me, to give the desired (20E,-22E)-dienoic esters 503 [191]. The ester 503 is then condensed with side chain 488 using Pd(0)-mediated diene synthesis developed by Suzuki and co-workers to afford 505, while retaining the original configuration of both 503 and 488. [192].

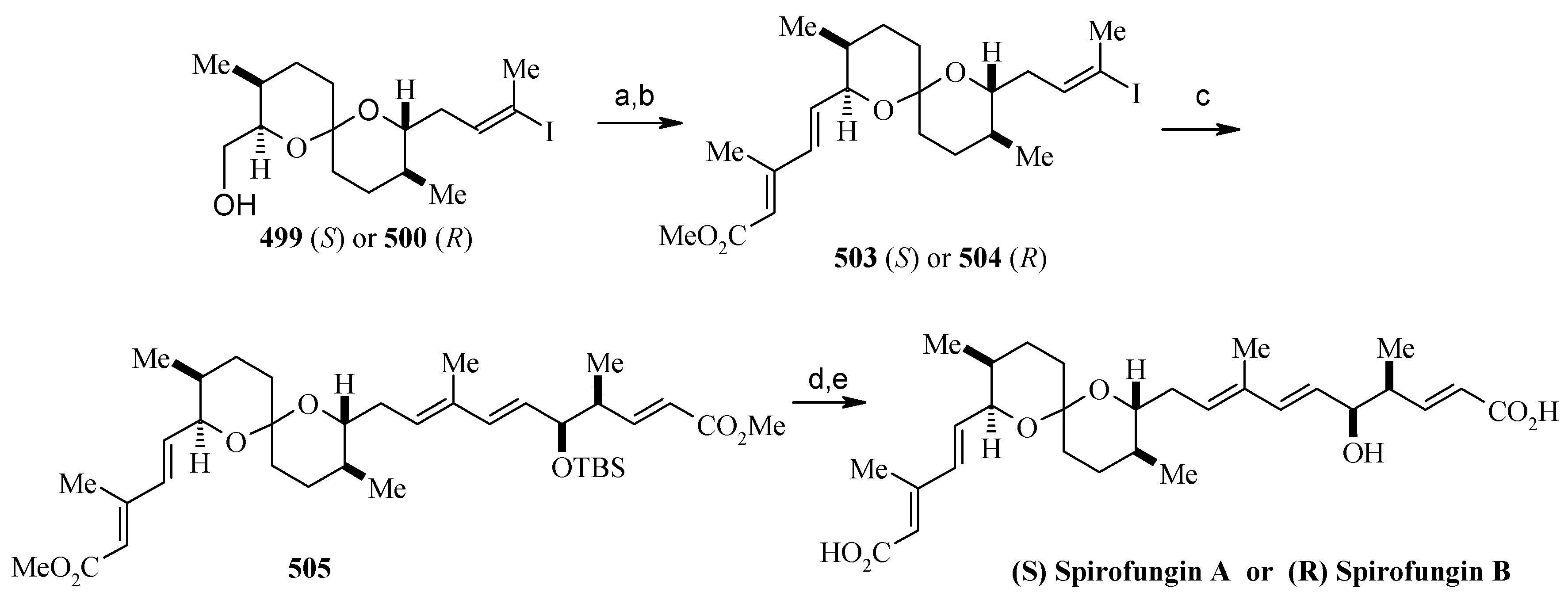

Scheme 114. Total synthesis of (-)-spirofungin A and (+)-spirofungin B.
Scheme 114. Total synthesis of (-)-spirofungin A and (+)-spirofungin B.
Molecules 13 01942 g117
Reagents and conditions: (a) Dess-Martin periodinane, CH2Cl2, rt; (b) 487, LHMDS, THF-HMPA, -78 oC; (c) 488, Pd(PPh3)4, TlOEt, THF, rt; (d) LiOH, THF-MeOH-H2O, rt; (e) TBAF, DMPU, rt.
Hydrolysis of the two-ester groups in 505 with LiOH in THF-MeOH-H2O followed by deprotection of the TBS group with TBAF in DMPU give (-)-spirofungin A. The synthesis of (+)-spirofungin B, is achieved from 500 using the same reaction sequence as spirospongin A. The synthesis is completed in 31 longest linear steps with 7.9% and 5.2% overall yield respectively.

2.15. Total Synthesis of (+)-Calyculin A and (-)-Calyculin B

Caliculins A and B are naturally occurring spiroketal isolated from the marine Discodermia calyx and potent serine-threonine protein phosphatase (PP1 and PP2A) inhibitors with remarkable cell membrane permeability [193]. Evans, Masamune and Yokokawa reported the synthesis of (+)-caliculin A and its antipode (-)-caliculin A [194,195,196]. Amos B. Smith, III, et al. disclosed the total synthesis of (+)-caliculin A and the first total synthesis of (-)-calyculin B in 1998 [197].
The approach is based on a common intermediate, which provide both calyculin A, and B. The retrosynthetic pathway is presented in Scheme 115. Disconnections at the C-2 and C-8 olefins lead to phosphonate 506. Disconnection of 507 at the C-25 olefin reveals substrates 508, which can be obtained from vinyl bromide 510 with epoxide 511, and 509, available from furan 512 and lactam 513 (Scheme 115).

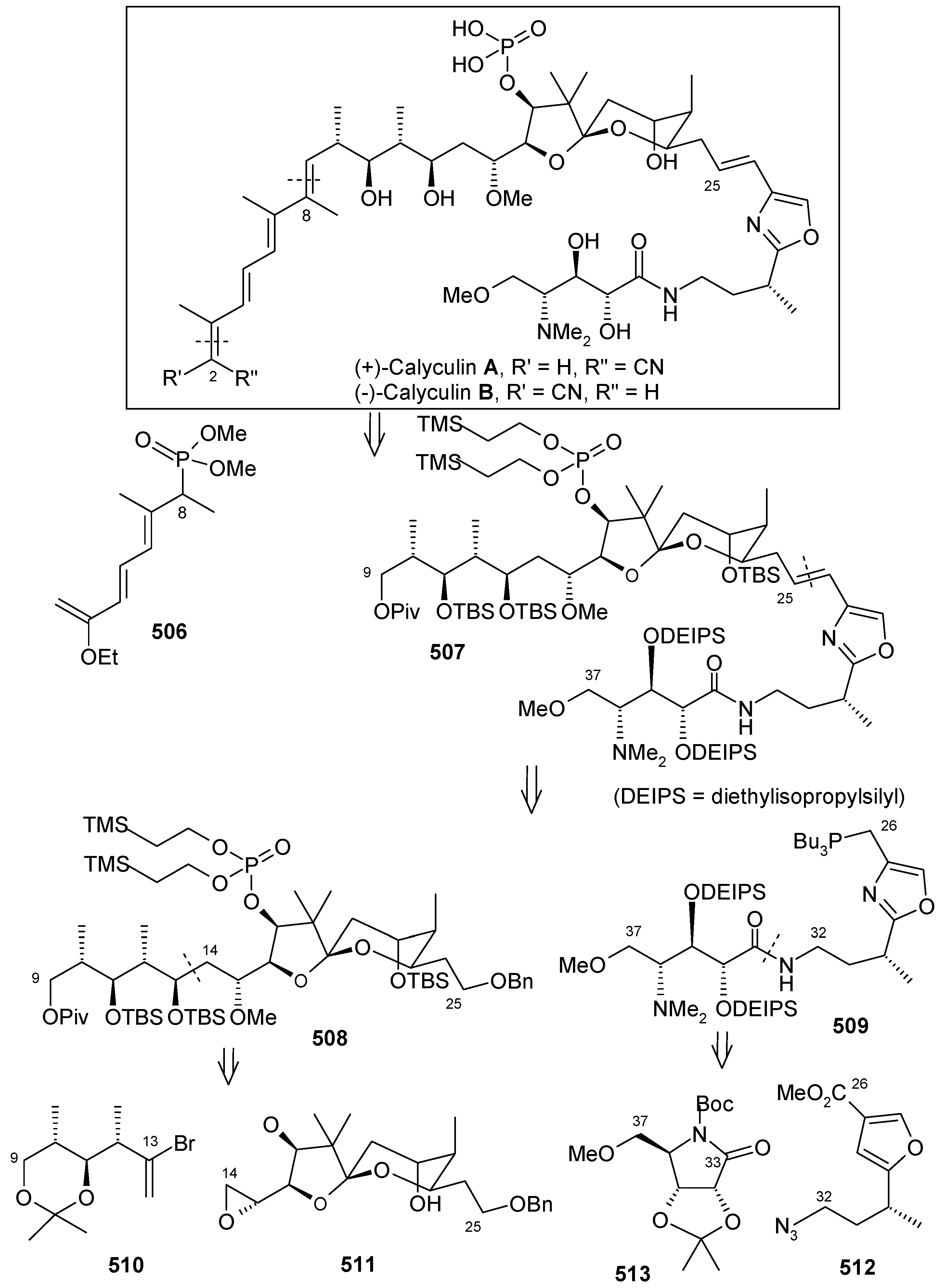

Scheme 115. Retrosynthetic analysis of (+)-calyculin A and (-)-calyculin B.
Scheme 115. Retrosynthetic analysis of (+)-calyculin A and (-)-calyculin B.
Molecules 13 01942 g118
Phosphonate 506 is prepared starting from an organozinc via a Suzuki [198] one-pot-three- component triene synthesis (Scheme 116). Thus, Pd-catalyzed coupling of organizinc 514, (E)-bromovinyl boronate 515 and vinyl iodide 517 furnishes the desired triene 518, which after methylation affords phosphonate 506 [198].
Scheme 116. Synthesis of phosphonate fragment 506.
Scheme 116. Synthesis of phosphonate fragment 506.
Molecules 13 01942 g119
Reagents and conditions: (a) 515, Pd(Ph3P)4; (b) 517, Ag2O, H2O, reflux, 64%; (c) n-BuLi, MeI, 84%.
Synthesis of unit 510 starts with desilylation of the Roush crotylboration product (+)-519, followed by 1,3-acetonide formation and a modified Wacker oxidation protocol to furnish ketone 520 [199]. The resulting ketone is converted to enol triflate and then reacted with a mixed stannylcuprate, to give stannane which upon bromodestannylation leads to the acyl anion equivalent (+)-510 (Scheme 117) [200, 201].

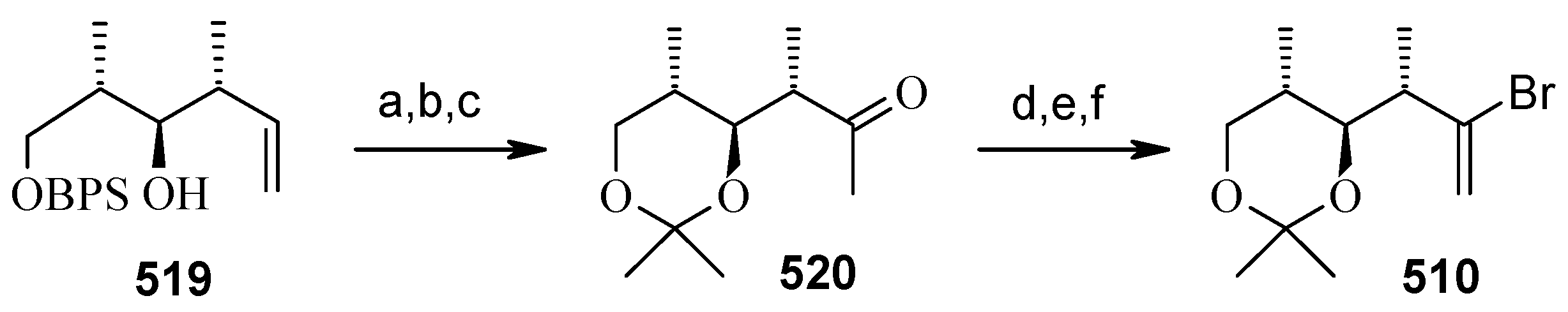

Scheme 117. Synthesis of vinyl bromide fragment 510.
Scheme 117. Synthesis of vinyl bromide fragment 510.
Molecules 13 01942 g120
Reagents and conditions: (a) TBAF, THF; (b) Me2C(OMe)2, TsOH; (c) Cu(OAc)2, PdCl2, O2, aq. AcNMe2, 83%; (d) KHMDS, PhNTf2, 97%; (e) (Th)CuCNLi, Bu3SnLi, 76%; (f) NBS, 88%.

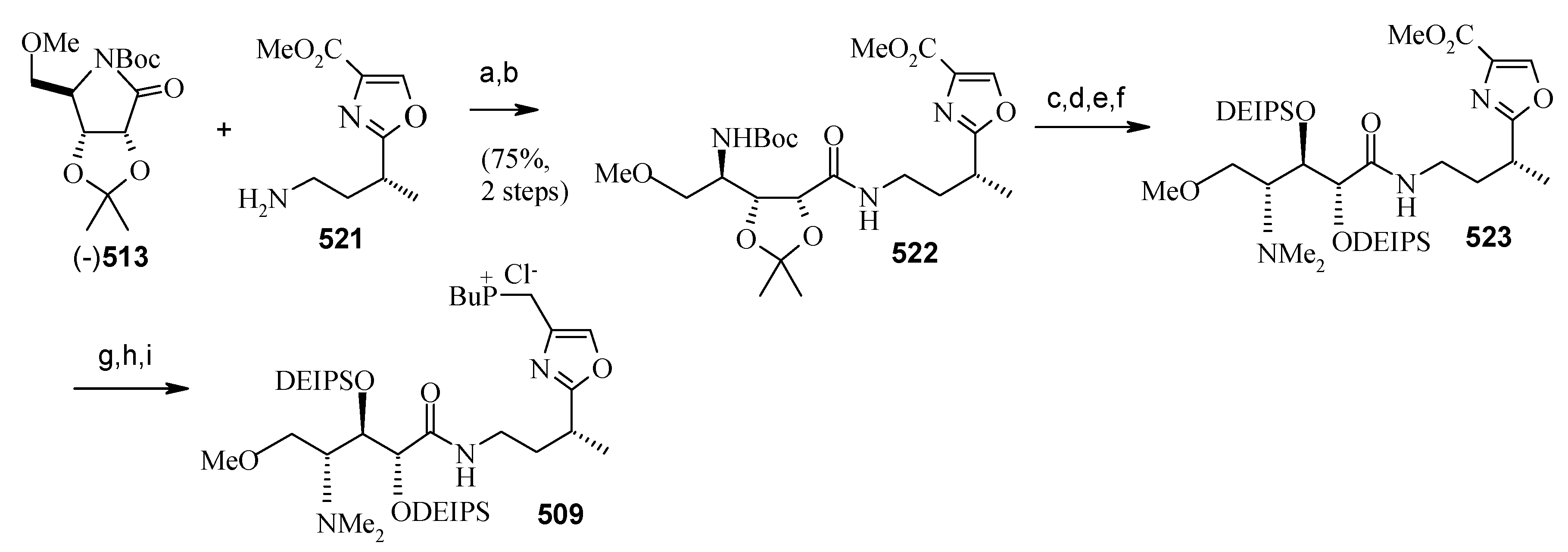

Scheme 118. Synthesis of Wittig reagent 509.
Scheme 118. Synthesis of Wittig reagent 509.
Molecules 13 01942 g121
Reagents and conditions: (a) LiOH, H2O/THF; (b) DECP, Et3N, 521; (c) TMSOTf, 2,6-lutidine; (d) HCHO, NaBH3CN; (e) HCl, MeOH; (f) DEIPSOTf, 2,6-lutidine, 50%, 4 steps; (g) LAH, 89%; (h) MsCl, Et3N, BnEt3NCl, 79%; (i) PBu3, 23 oC, MeCN, THF, 95%.
The preparation of the 509 starts with lactam (-)-513. Hydrolysis of lactam (-)-513, [202] and subsequent coupling with amine 521, obtained via Lindlar reduction of azide (-)512, [203] affords amide (+)-522, which on deprotection, reductive methylation of the C-36 amine, and interchange of acetonide group with bis-diethylisopropylsilyl ether affords (+)523 [204]. Finally (+)-523 is converted to Wittig reagent (+)-509 in three steps, reduction, chlorination and salt formation (Scheme 118).

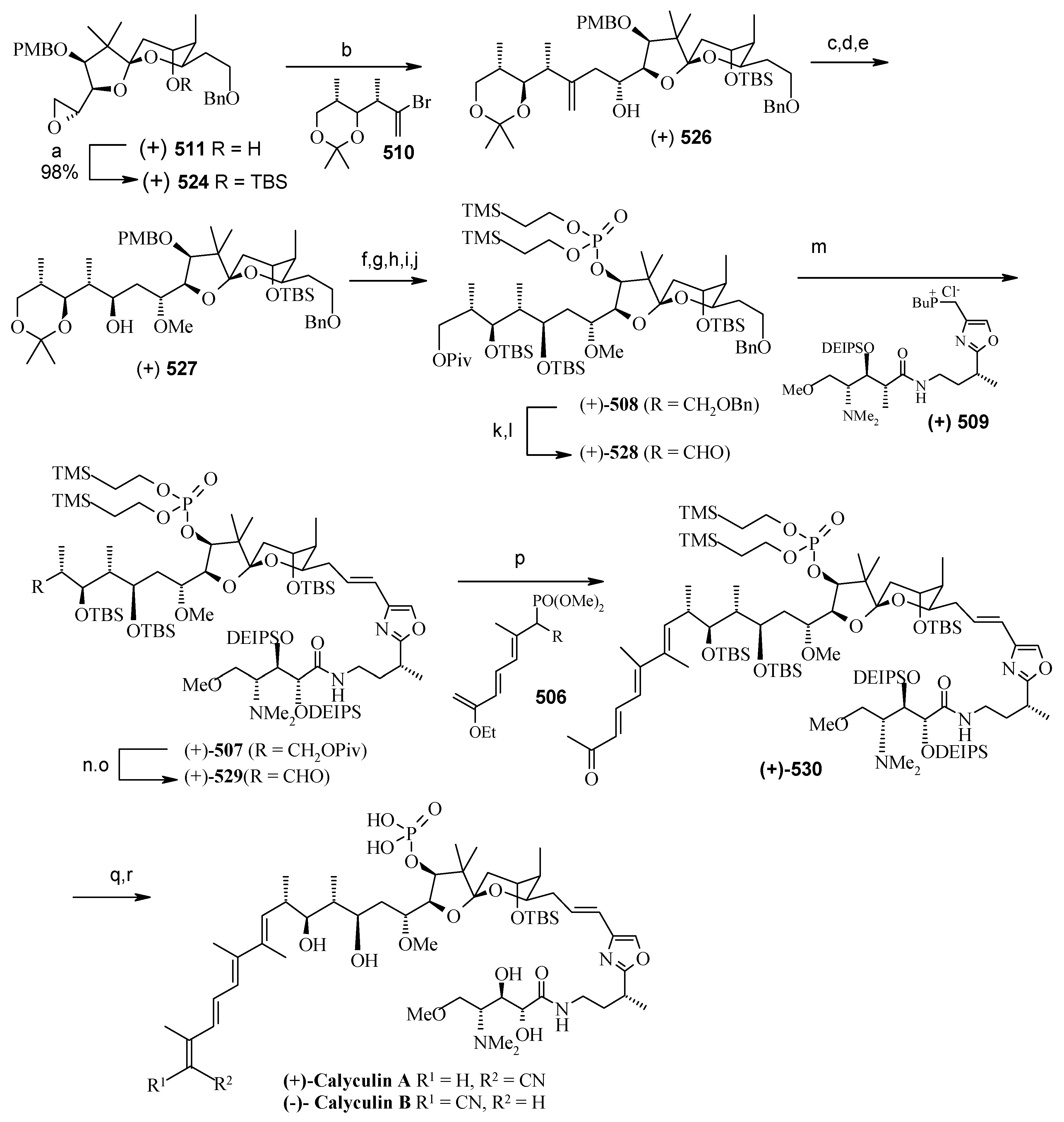

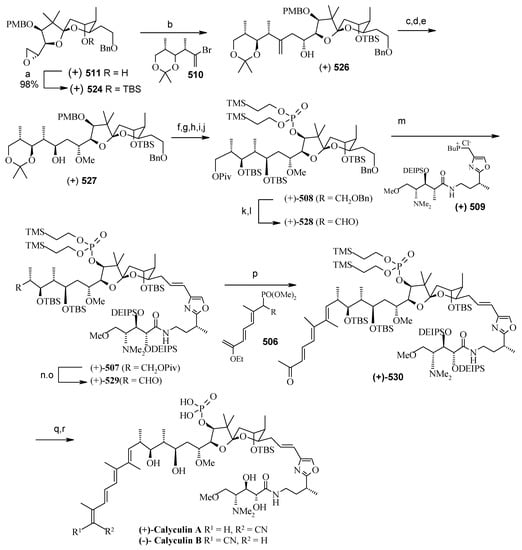

Scheme 119. Total synthesis of (+)-calyculin A and (-)-calyculin B.
Scheme 119. Total synthesis of (+)-calyculin A and (-)-calyculin B.
Molecules 13 01942 g122
Reagents and conditions: (a) TBSCl, Et3N, 98%; (b) 510, t-BuLi, (Th)CuCNLi, 525, 83%; (c) KHMDS, MeI, 96%; (d) OsO4, NMO, NaIO4, 87%; (e) DIBALH, 84%; (f) HO(CH2)3OH, PPTS, 64%; (g) PiVCl, Py; (h) TBSOTf, 2,6-lutidine, 93% in two steps; (i) DDQ, H2O, 92%; (j) PCl3, Py, TMS(CH2)2OH, H2O2, 91%; (k) H2, Pd/C, EtOH; (l) TPAP, NMO, CH2Cl2, 84%; (m) (+)-509, LiHMDS, DMF, 0 oC, 83%, 9:1; (n) DIBALH, -78 oC, CH2Cl2, 87%; (o) TPAP, NMO, CH2Cl2, 84%; (p) 506, n-BuLi, THF, -78 oC, 0.5 N aq. HCl workup, 92%, 15:1 E:Z at C-8; (q) TMSCH2CN, n-BuLi, -78 oC, 1.7:1 E/Z, 94%; ( r) HF, MeCN, H2O.
Finally, union of all fragments leads to the natural products calyculin A and B (Scheme 119). The unit (+)-511, obtained from Smith’s previous work [206], is protected as its corresponding silyl ether (+)-524, which is then treated with the vinyl thienylcuprate derived from 525 and 510 to furnish (+)-526 [205]. Methylation of the hydroxy group, followed by olefin cleavage and selective reduction of the resulting ketone with DIBALH affords the β alcohol (+)-527. Fragment (+)-508 is obtained afterprotective group exchange, PMB removal and phosphorylation employing the Evans protocol [207].
Hydrogenolysis of (+)-508, TPAP oxidation and Wittig olefination with (+)-509 provides (+)-507 (E/Z = 9:1) [208, 209]. The pivaloate moiety is removed and the alcohol oxidized to an aldehyde, which is then subjected to Horner-Emmons olefination reaction with phosphonate 506, to furnish trienone (+)-530. Finally Peterson olefination (Me3SiCH2CN, n-BuLi, -78 oC) affords protected calyculins A and B (1:1.7). Separation of two isomers and treatment with HF acid gives pure calyculin A and caliculin B (Scheme 119).

2.16. Asymmetric synthesis of spiroacetal 2,2,8-trimethyl-1,7-dioxaspiro[5.5]undecane found in rove beetles (Ontholestes murinus)

In 1990, Huth and Dettner [210] first reported the presence of 2,2,8-trimethyl-1,7-dioxaspiro[5.5]undecane in the defensive secretion of Ontholestes murinus (L.). Kitching and his coworkers have described an asymmetric total synthesis of this compound [211], based on hydrazone alkylation with the (R)-iodide 532, followed by an oxymercuration-deprotection-cyclisation sequence as shown in Scheme 120. The hydrazone 531 is first alkylated with iodide 532 to give the (6S,8R)-enantiomer 533, which is then treated with silica in hexane-ether to furnish the ketone 534 in good yield (83%). The compound 534 is first converted to a tertiary alcohol by oxymercuration and then deprotected and finally cyclised to give 2,2,8-trimethyl-1,7-dioxaspiro[5.5]undecane [(6S,8R)-535] (Scheme 120).

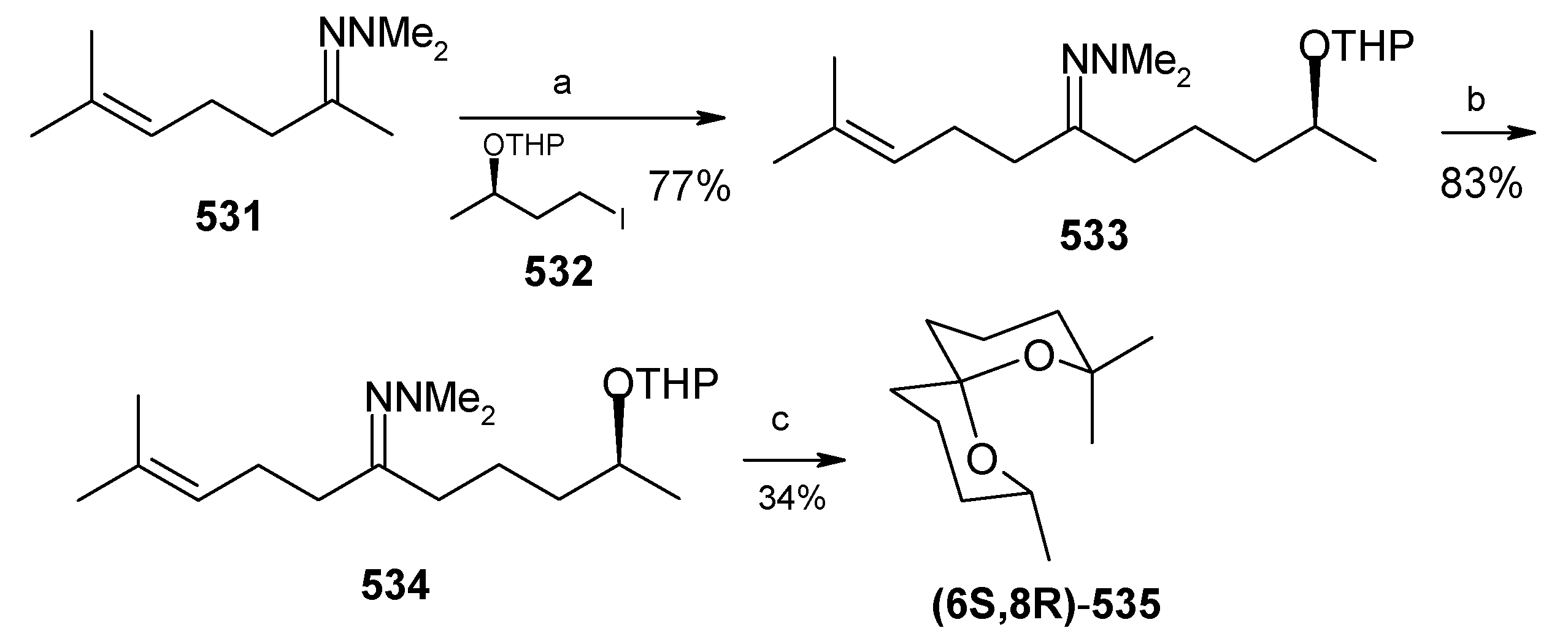

Scheme 120. Total synthesis of spiroacetal 2,2,8-trimethyl-1,7-dioxaspiro[5.5]undecane.
Scheme 120. Total synthesis of spiroacetal 2,2,8-trimethyl-1,7-dioxaspiro[5.5]undecane.
Molecules 13 01942 g123
Reagents and conditions: (a) (i) LDA, THF, -78 oC, (ii) 532, 77%; (b) (i) SiO2, hexane-ether, 83%; (c) (i) Hg(OAc)2, THF-H2O, (ii) BnN+Et3Cl-. NaBH4, NaOH-H2O-CH2Cl2, 34%.

2.17. Total Synthesis of (+)-Saponaceolide B

Saponaceolide B was isolated by Bernardi and coworkers from the Northern Italian mushroom Tricholoma saponaceum and it possess antitumor activity in 60 human cancer cell lines [212, 213]. Trost and coworkers first reported the asymmetric synthesis of (+)-saponaceolide B in 1999 [214]. The retrosynthetic analysis is shown in Scheme 121 and it consists of three units 536, 537 and 538. The central unit 538 is crucial in this synthesis, as the cis configuration at C-2 and C-6 is thermodynamically less stable than the corresponding trans one.

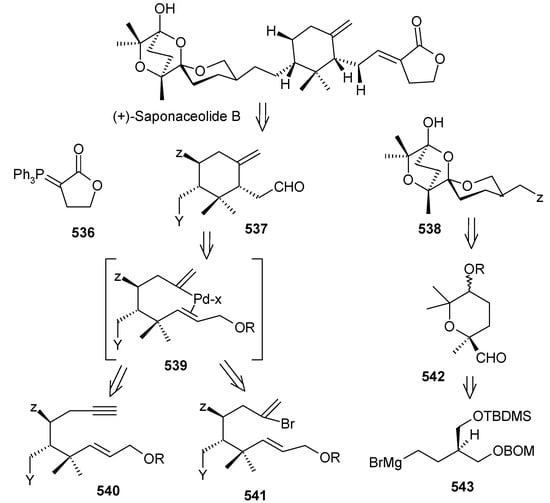

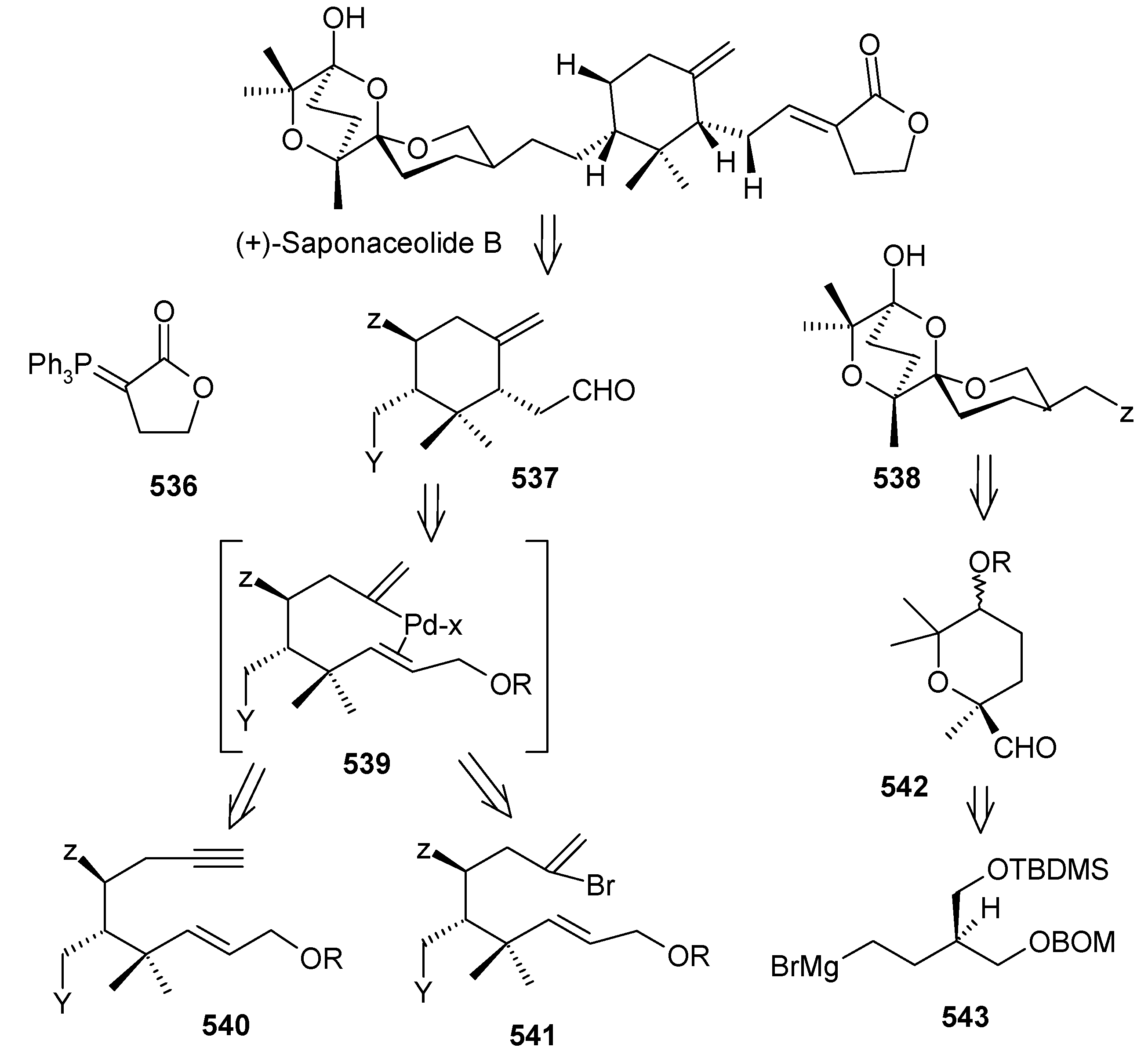

Scheme 121. Retrosynthetic analysis of (+)-saponaceolide B.
Scheme 121. Retrosynthetic analysis of (+)-saponaceolide B.
Molecules 13 01942 g124
Synthesis of the spiroketal portion is started with known (R)-acetate 544 and known geraniol epoxide (547a). The Grignard reagent 543 is prepared from hydroxy acetate 544. The acetate and hydroxyl group of the compound 544 are transformed into TBDMS and BOM ethers to make the compound compatible for formation of the Grignard reagent 543.

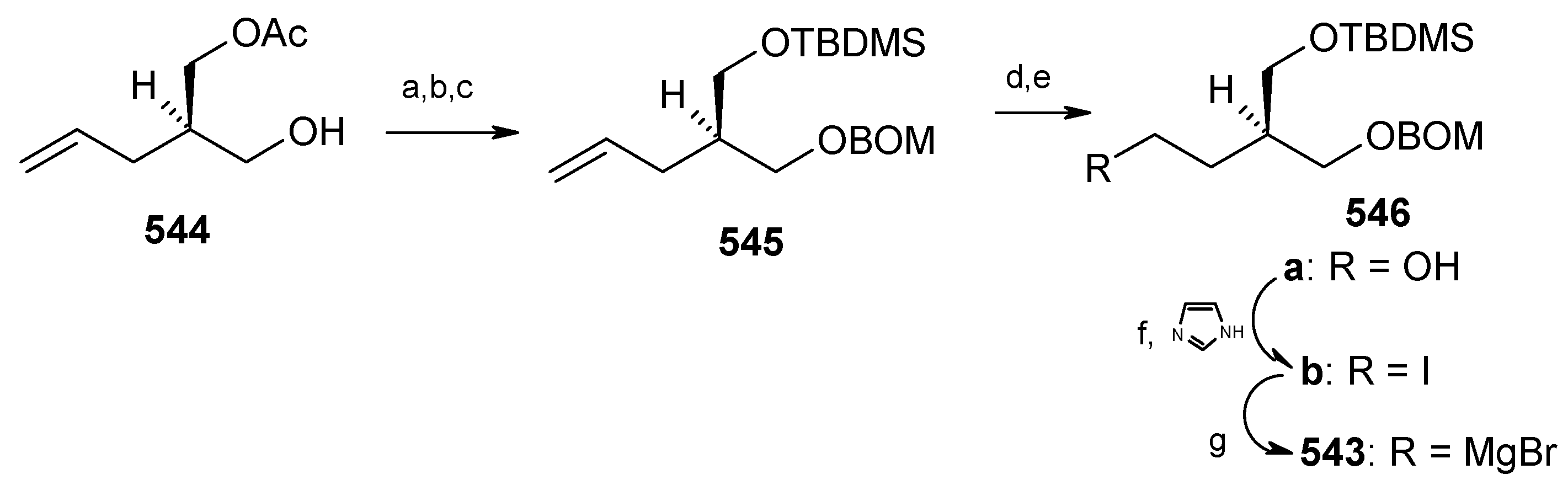

Scheme 122. Synthesis of Grignard reagent 543.
Scheme 122. Synthesis of Grignard reagent 543.
Molecules 13 01942 g125
Reagents and conditions: (a) BOMC, EtN(iPr)2, CH2Cl2; (b) K2CO3, MeOH; (c) TBDMSCl, Et3N, CH2Cl2; (d) O3, CH3OH, CH2Cl2, -78 oC, (e) NaBH4; (f) Ph3P, I2; (g) t-BuLi, MgBr2.

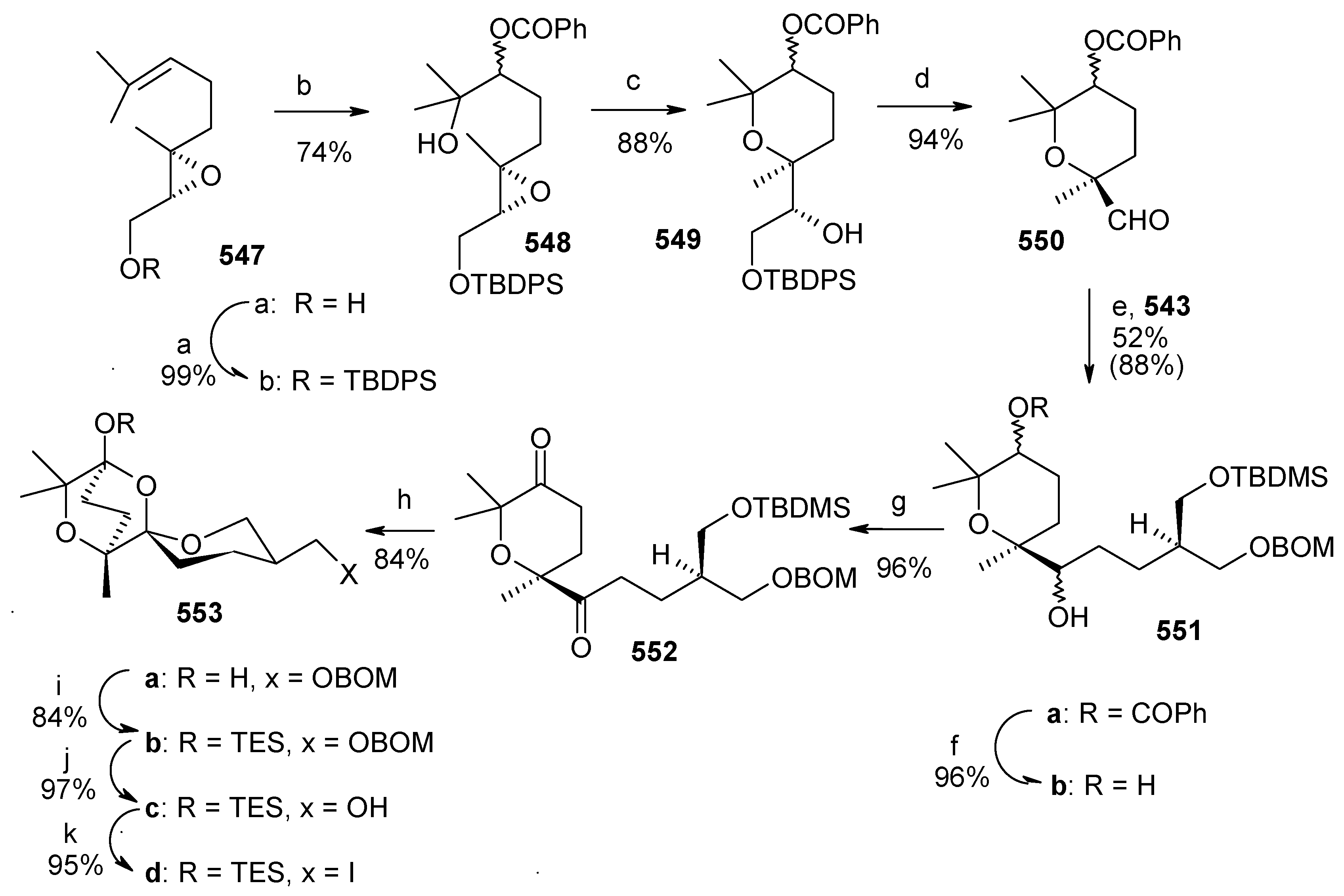

Scheme 123. Synthesis of spiroketals 553a-d.
Scheme 123. Synthesis of spiroketals 553a-d.
Molecules 13 01942 g126
Reagents and conditions: (a) TBDPSCl, CH2Cl2, Et3N, -20 oC to rt; b) 5 ml% OsO4, NMO, C5H5N, tert-C4H9OH, THF; then PhCO2H, DCC, DMAP, CH2Cl2, rt; c) CSA, CH2Cl2, -15 oC to rt; d) TBAF, THF, rt, then NaIO4, THF, H2O, 0 oC; e) Et2O, -78 oC; f) K2CO3, CH3OH, rt; g) TPAP, NMO, 4-Å MS, CH2Cl2, rt; h) 1 N aq. HCl, THF, rt; I) TESOSO2CF3, 2,6-lutidine, CH2Cl2, 0 oC; j) H2, 10% Pd/C, C2H5OAc; k) Ph3P, I2, imidazole, Et2O, CH3CN, 0 oC.
Oxidative cleavage of 545 with ozone followed by reduction with borohydride gives alcohol 546, which is then converted to the corresponding iodide. The Grignard reagent is prepared by iodide-lithium exchange followed by addition of magnesium bromide (Scheme 122).
The aldehyde 550, is synthesized from geraniol epoxide 547 via 548 and 549 as described by Vidari et al., followed by oxidative cleavage (Scheme 123) [215]. The aldehyde 550 is reacted with Grignard reagent 543 to give Grignard product 551a in good yield. Selective hydrolysis of 551a followed by double oxidation with tetrapropylammonium perruthenate (TPAP) produces the diketone 552. Spiroketalysation of 552 with 1 N HCl furnishes the desired spiroketal skeleton 553a. The acyclic stereochemistry of diketone 552 directs the folding to place the alkoxymethyl group in an equatorial position. Manipulation of functional groups on 553a provides the iodide 553d for the coupling stage.
The coupling of fragments 537 and 538 is based on alkylation of sulfone-stabilized anion. The sulfone 554b is obtained from the corresponding alcohol 554a by sulfide displacement followed by oxidation [216]. The alkylation is done by treating 554b and 553d with butyl lithium. Treatment of the resulting alkylated product 555 with sodium amalgam gives desulfonylation product 556 along with some elimination product 557. Wittig reaction between 556 and stabilized Wittig reagent 558 gives a mixture of E:Z olefins 559 with a ratio 13:1; the major isomer being the E isomer. This is confirmed by proton NMR as the major isomer shows a lower field shift (δ = 6.70), compared to the minor one (δ = 6.19). The final compound (+)-Saponaceolide B (560) is obtained by desilylation with tetrabutyl ammonium fluoride (Scheme 124).

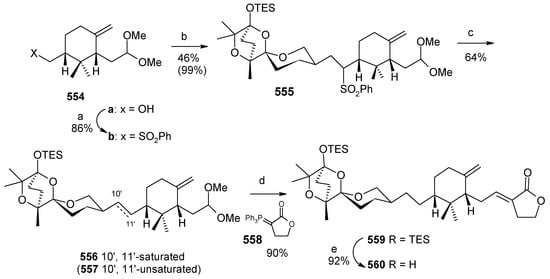

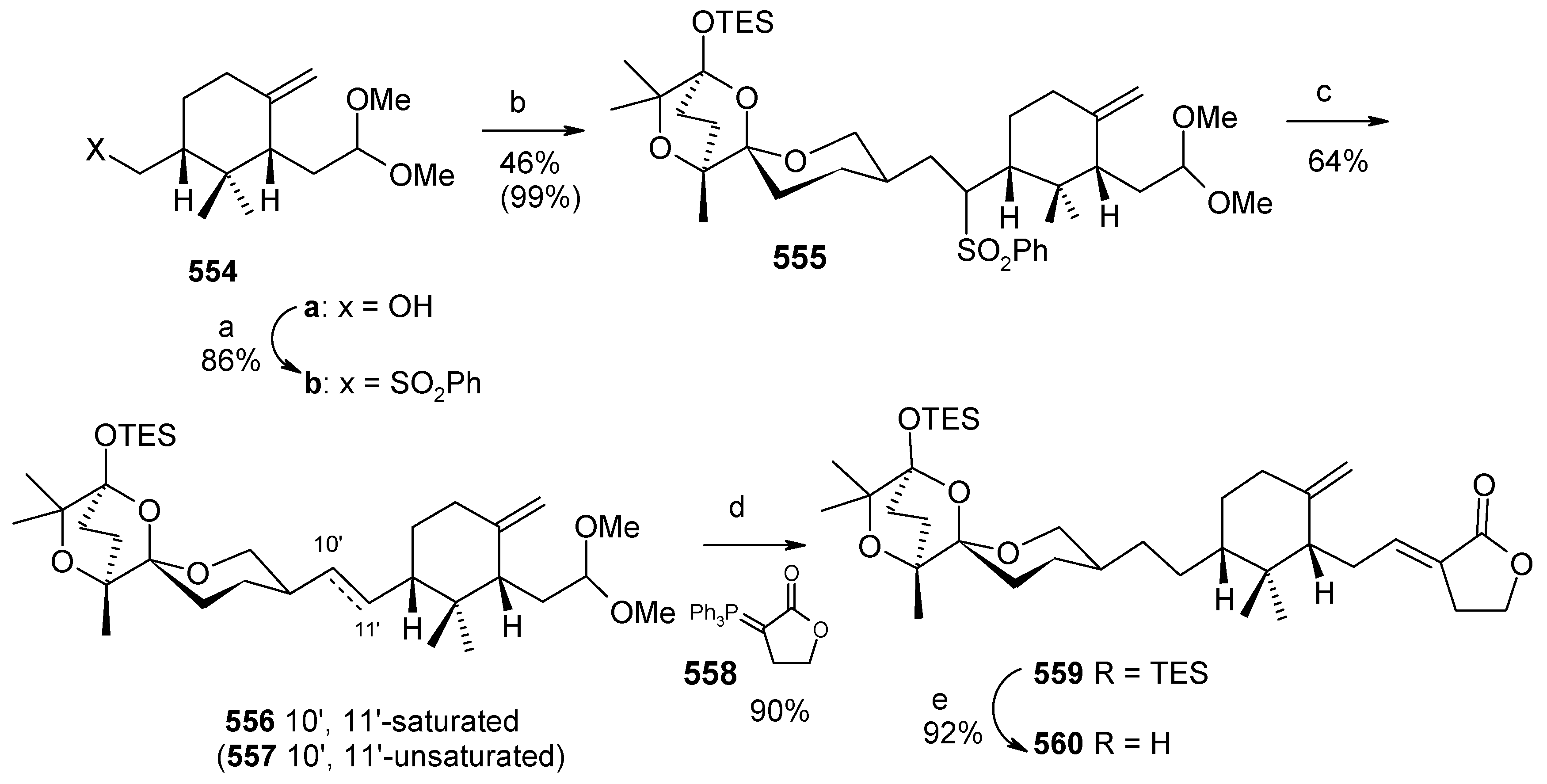

Scheme 124. Total synthesis of (+)-saponaceolide B.
Scheme 124. Total synthesis of (+)-saponaceolide B.
Molecules 13 01942 g127
Reagents and conditions: (a) (C4H9)3P, PhSSPh, PhH, rt then TPAP, NMO, 4-Å MS, CH3CN, 0 oC; b) n-BuLi, THF, HMPA, 553d, -55 to –30 oC; c) 5% Na(Hg), NaH2PO4, CH3OH, -15 oC; d) CF3CO2H, THF, H2O, rt, then 558, CH2Cl2, rt; e) TBAF, HOAc, THF, rt.

2.18. Enantiospecific total synthesis of (-)-Talaromycins C and E

Talaromycins (A-G) are naturally occurring spiroketal mycotoxins produced by the fungus Talaromyces stipitatus. Talaromycin C and E were isolated and identified by Lynn et al. [217]. The total asymmetric syntheses of Talaromycins C and E were reported by Izquierdo and coworkers [218]. The same group presented enantiospecific synthesis of talaromycins A and B in which D-fructose is used as a chiral starting material [219]. From the retrosynthetic analysis it is evident that talaromycins A, B, and 9-epi-A-G could be transformed into the corresponding talaromycins C-E and D-F by simply inverting the configuration at C-4. Thus, the four later talaromycins could be prepared from the common 1,2,3,4,5-pentadeoxy-3-C-hydroxymethyldec-6-ulose intermediate 561, depending on the C-3 configuration (Scheme 125).
The synthesis of talaromycins C and E is based on the synthesis of first racemic alcohol 3RS-561, and then diastereomeric enzymatic resolution to desired 3S-561 components. The attempt to make 3S-561 component by enzymatic desymmetrization of 2-ethyl-1,3-propanediol was unsuccessful, since it gives only 3R-561, although different enzymes are used [220]. Synthesis of 561 is started with 1-O-benzyl-2-ethyl-3-iodopropanol (563), which is converted to its phosphonium salt 564. Treatment of 564 with diacetone D-fructose aldehyde in the presence of tert-butoxide gives both 3-C-(benzyloxymethyl)-1,2,3,4,5-pentadeoxy-6,7:8,9-di-O-isopropylidene-β-D-gluco- and–D-manno-dec-4-ene-6-ulo-6,10-pyranose 566 as a mixture of E and Z isomers, which is subsequently hydrogenated to give 3RS-561 (89% yield) (Scheme 126). The compound 3RS-561 is then treated with vinyl acetate in the presence of Chirazyme(R) L-2, c.-f., C2 to afford the corresponding acetate 3S-567, along with unreacted 3R-561 (Scheme 127).

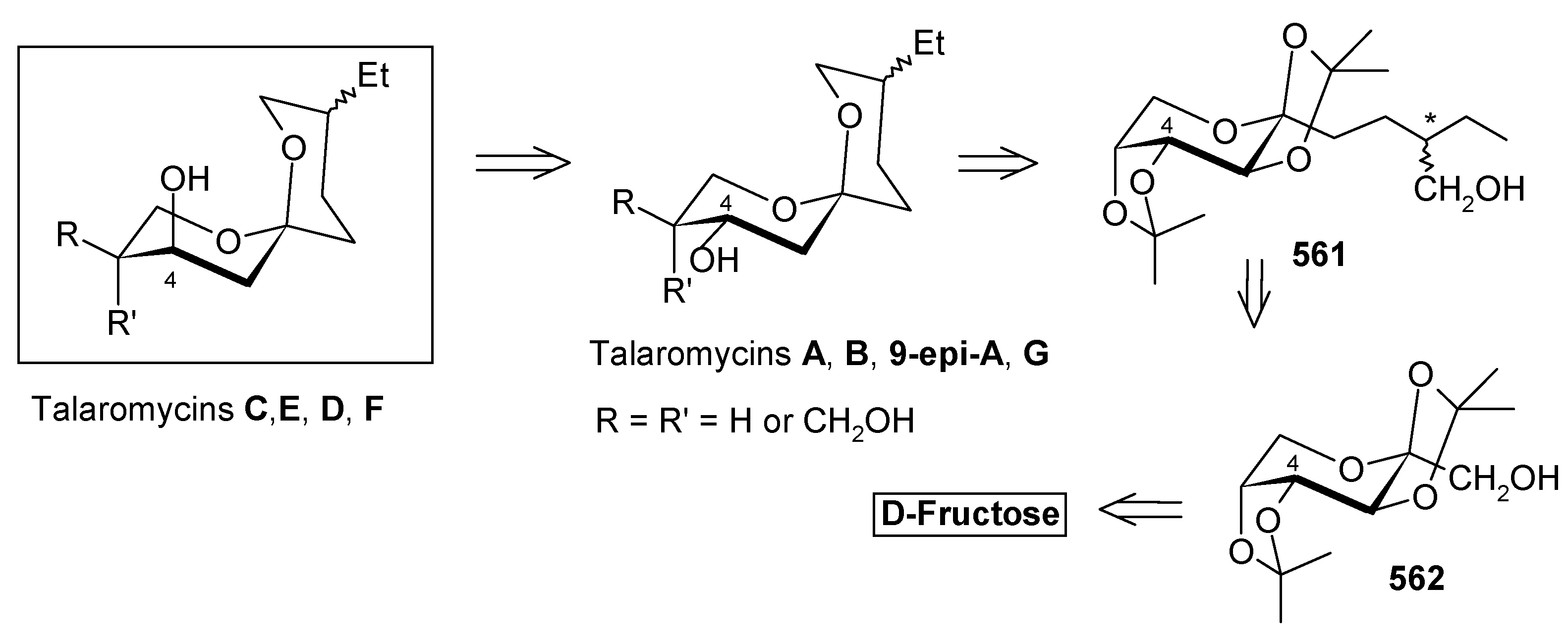

Scheme 125. Retrosynthetic analysis of (-)-talaromycins C and E.
Scheme 125. Retrosynthetic analysis of (-)-talaromycins C and E.
Molecules 13 01942 g128
The determination of the diastereomeric excess of either compound by GLC was unsuccessful, even on a capillary β-DEX(R) 325 column and therefore they were subjected to spiroketalysation by treating with acetone/sulfuric acid to give spiroketals (3R,4S,5S,6R,9R)- and (3R,4S,5S,6R,9S)-9-ethyl-3,4-isopropylidenedioxy-1,7-dioxaspiro[5.5]undecane (568 and 569). The result was not sattisfactory since the diastereomeric excess is small. Therefore, the partial enzymatic hydrolysis of 3RS-561 is also performed which gives a better diastereomeric excess [218]. This may be due to the larger size or the hydrophobicity of the substituent at the stereocenter.

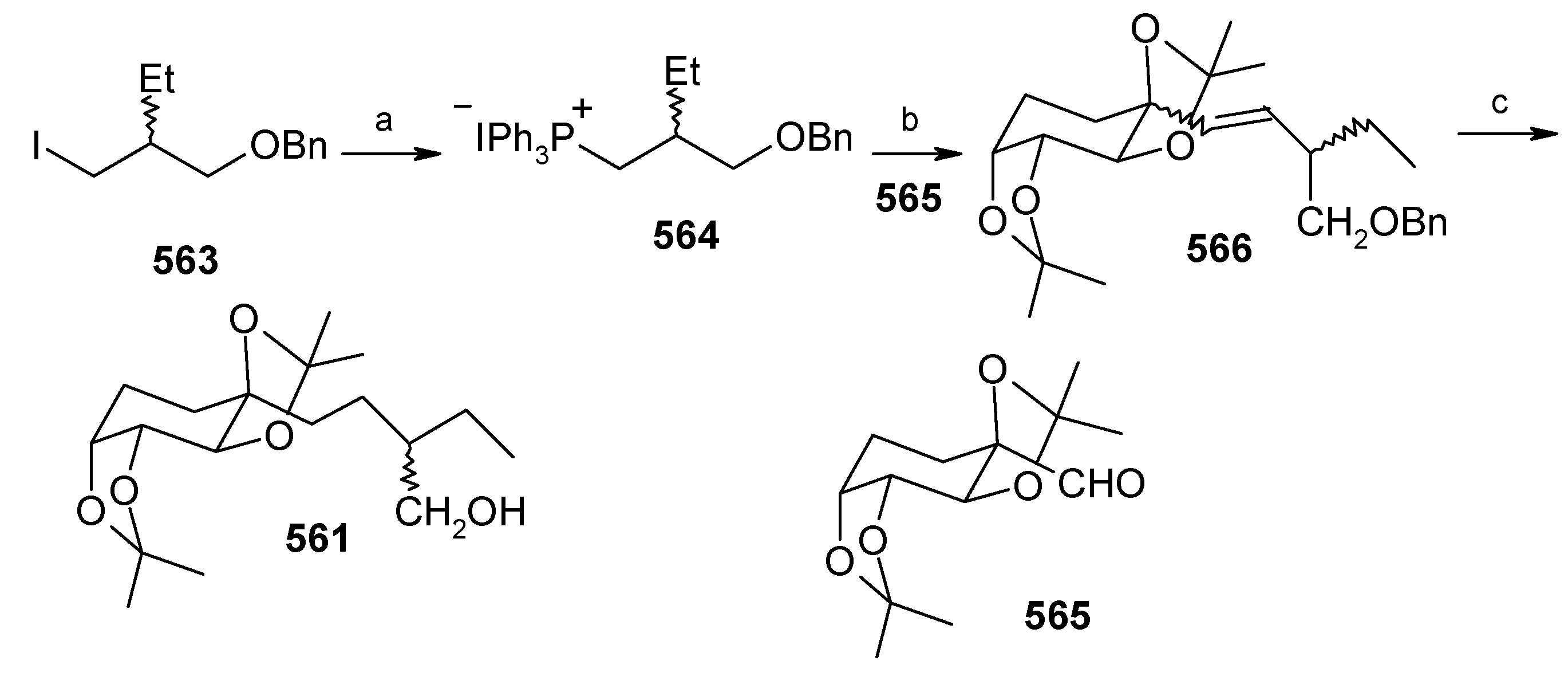

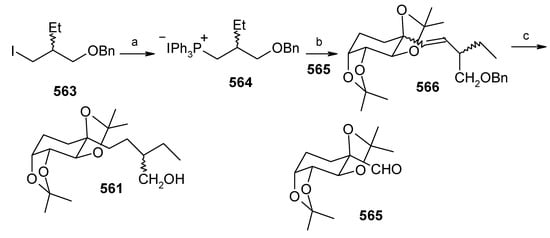

Scheme 126. Synthesis of intermediate 561.
Scheme 126. Synthesis of intermediate 561.
Molecules 13 01942 g129
Reagents and conditions: (a) Ph3P, toluene, heat; (b) 565, KtOBu, THF; (c) Pd/C, H2, MeOH.
Compound 568 is deoxygenated through its 5-O-xanthate with a modified Barton procedure [221] 570, to afford 571, which is subjected to hydrolysis by a reported procedure [219] to give diol 572 (Scheme 128). Compound 572 is converted to its n-dibutylstannylene derivative 573, which is then regioselectively silylated at C-4 to give 574. Oxidation of 574 with PCC affords the corresponding ketone 575, which is coupled with methylenetriphenylphosphorane to afford 576. Hydroboration followed by oxidation of 576 gives an unresolved mixture (3:7 ratio) of 4-O-silylated talaromycins B, 577 and A, 578, which are separated as their benzoyl derivatives 579 and 580 respectively.

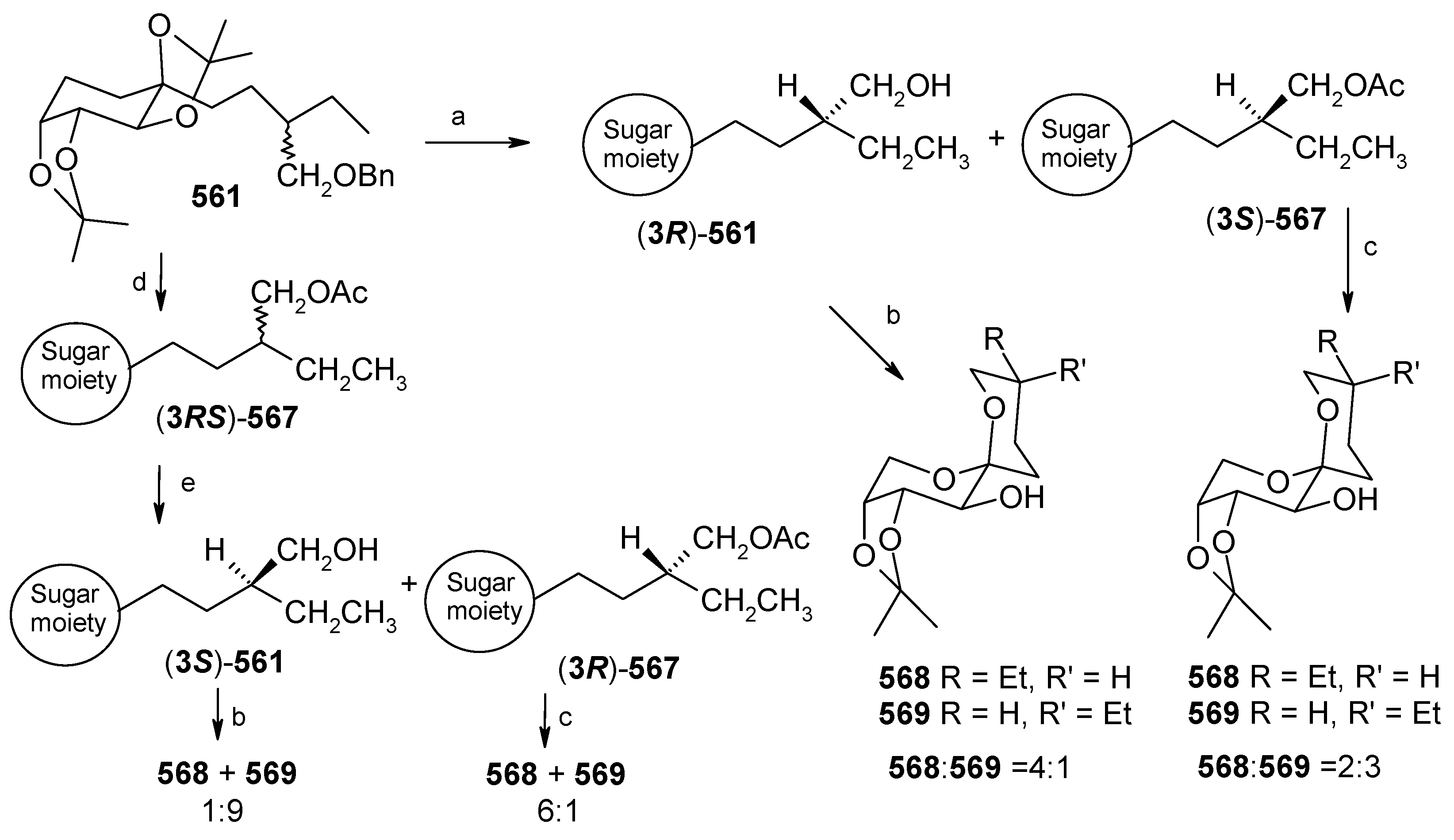

Scheme 127. Diastereomeric resolution of 561.
Scheme 127. Diastereomeric resolution of 561.
Molecules 13 01942 g130
Reagents and conditions: (a) Chirazyme® L-2, c-f., C2/vinyl acetate; (b) Me2CO/ H+; (c) (i) NaOMe, MeOH, (ii) Me2CO/ H+; (d) Ac2O, CH2Cl2, Et3N, DMAP; (e) Chirazyme®L-2, c-f., C2/buffer (pH = 7) rt.

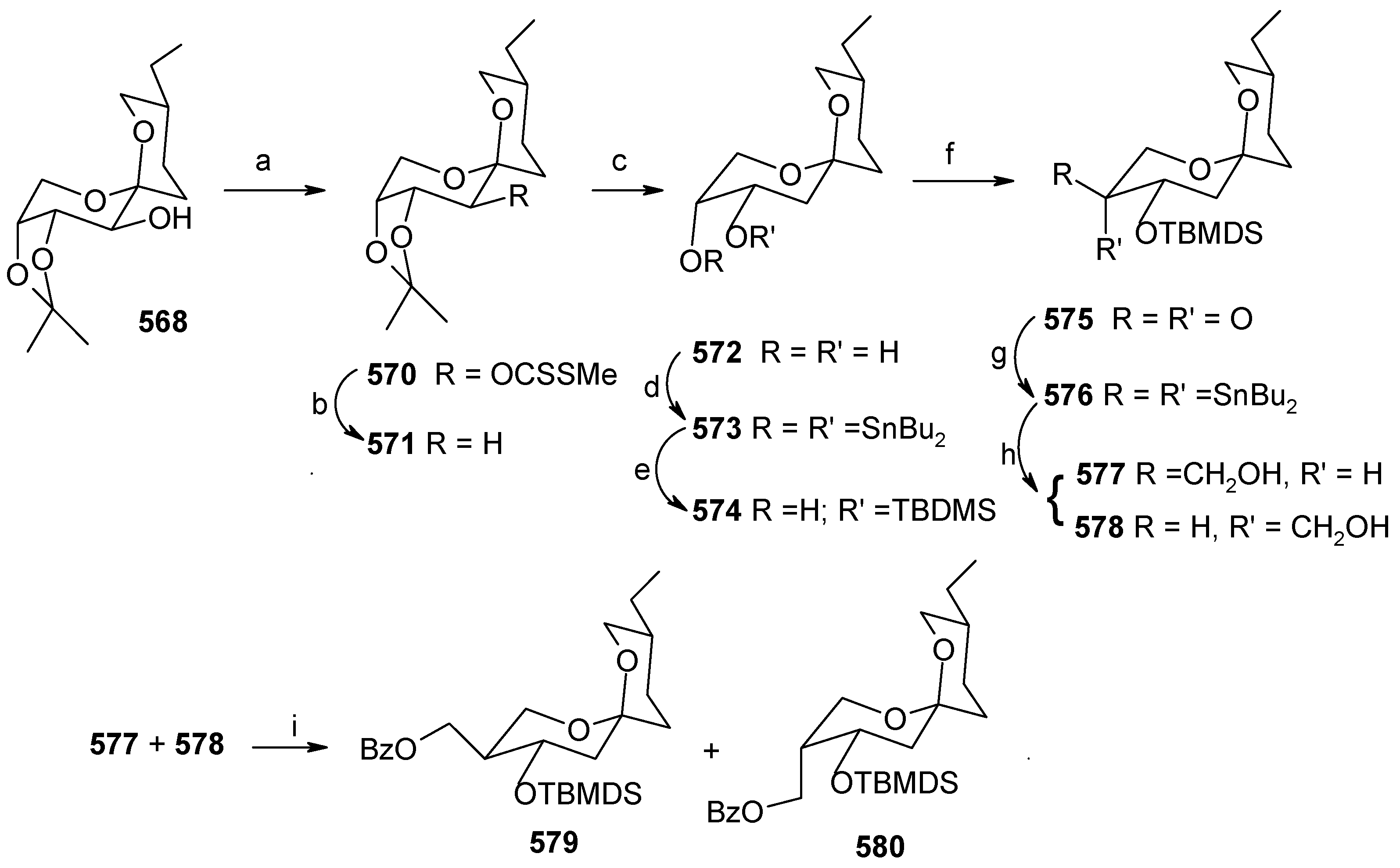

Scheme 128. Synthesis of protected (-)-talaromycins B (579) and A (580).
Scheme 128. Synthesis of protected (-)-talaromycins B (579) and A (580).
Molecules 13 01942 g131
Reagents and conditions: (a) NaH/THF/imidazole/CS2/MeI; b) H3PO4/dioxane/H2O/Et3N/AIBN; c) AcOH/H2O/50 oC/ 1h; d) nBu2SnO/MeOH; e) TBDMSCl/dioxane; f) PCC/CH2Cl2/NaOAc/MS 4Å; g) NaCH2SOCH3/Ph3PCH3Br/DMSO; h) BH3-SMe2/THF, then NaOH/H2O2; I) BzCl/Et3N/CH2Cl2.

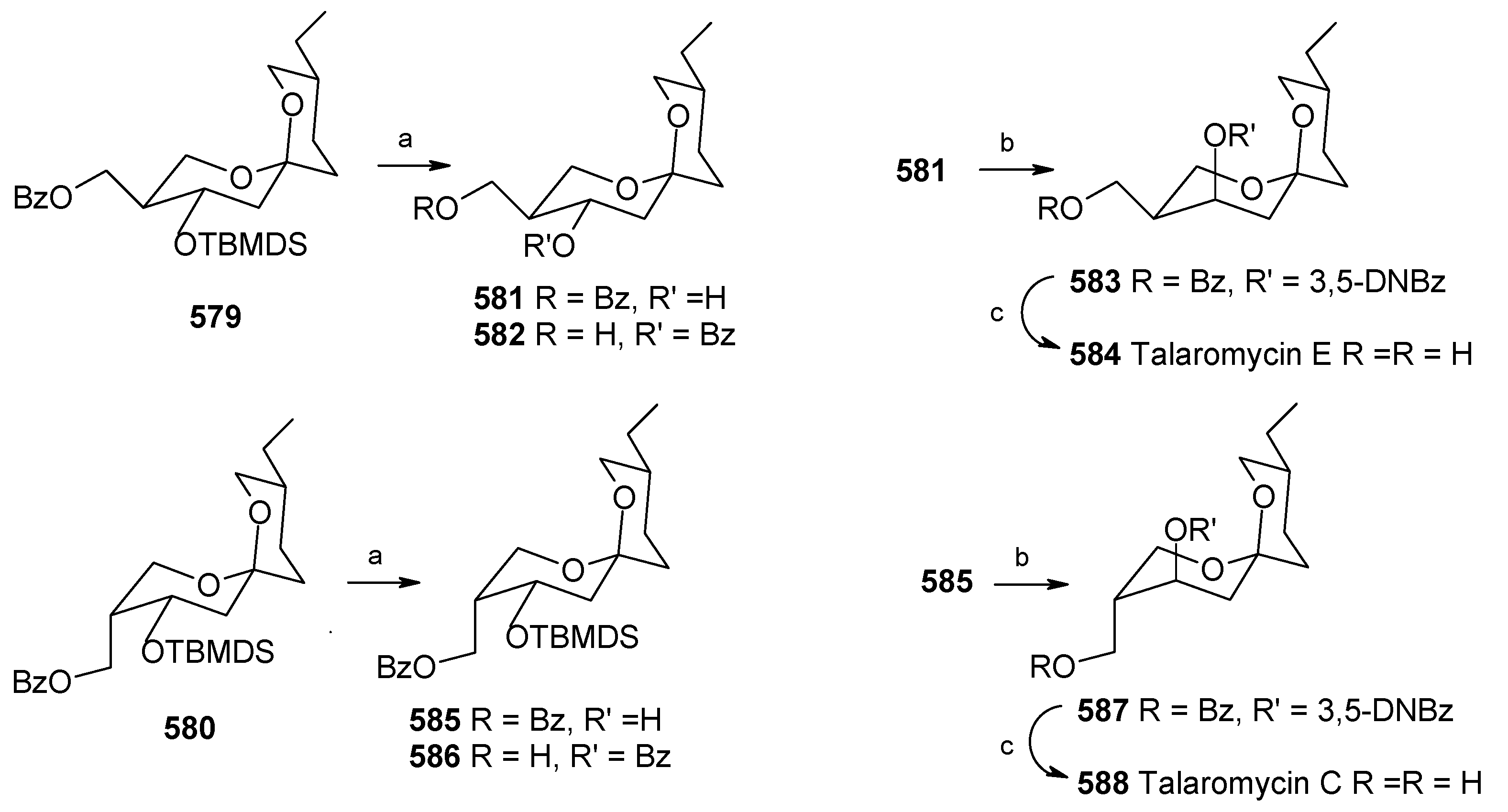

Scheme 129. Total synthesis of (-)-Talaromycins C and E.
Scheme 129. Total synthesis of (-)-Talaromycins C and E.
Molecules 13 01942 g132
Reagents and conditions: (a) n-Bu4NF.3H2O, THF; (b) Ph3P, 3,5-dinitrobenzoic acid, DEAD, rt; (c) NaOMe, MeOH.
Desilylation of 579 and 580 with tetrabutyl ammonium fluoride affords compounds 581 and 585 along with minute amount of their corresponding 12-O to 4-O benzoyl migrated compounds 582 and 586 respectively. Inversion of configuration at C-4 of both the compounds 581 and 585 by Mitsunobu reaction affords 583 and 587. Finally, Zemplen deacetylation of 583 and 587 gives the expected molecules (-)-talaromycin E, 584 (72%) and C, 588 (86%), respectively (Scheme 129).

2.19. Total synthesis of Siphonarin B and Dihydrosiphonarin B

Siphonarin B is an unusual γ-pyrone polypropionate, containing a characteristic spiroacetal ring, which was first isolated by Faulkner and Ireland and their co-workers from the marine molluscus, Siphonaria zelandica and S. atra, collectected on the coast of New South Wales, Australia [222]. Dihydrosiphonarin B was obtained from a siphonariid collection made in Hawaii [223]. Paterson et al. have reported the total synthesis of siphonarin B and dihydrosiphonarin B (Figure 3) [223].

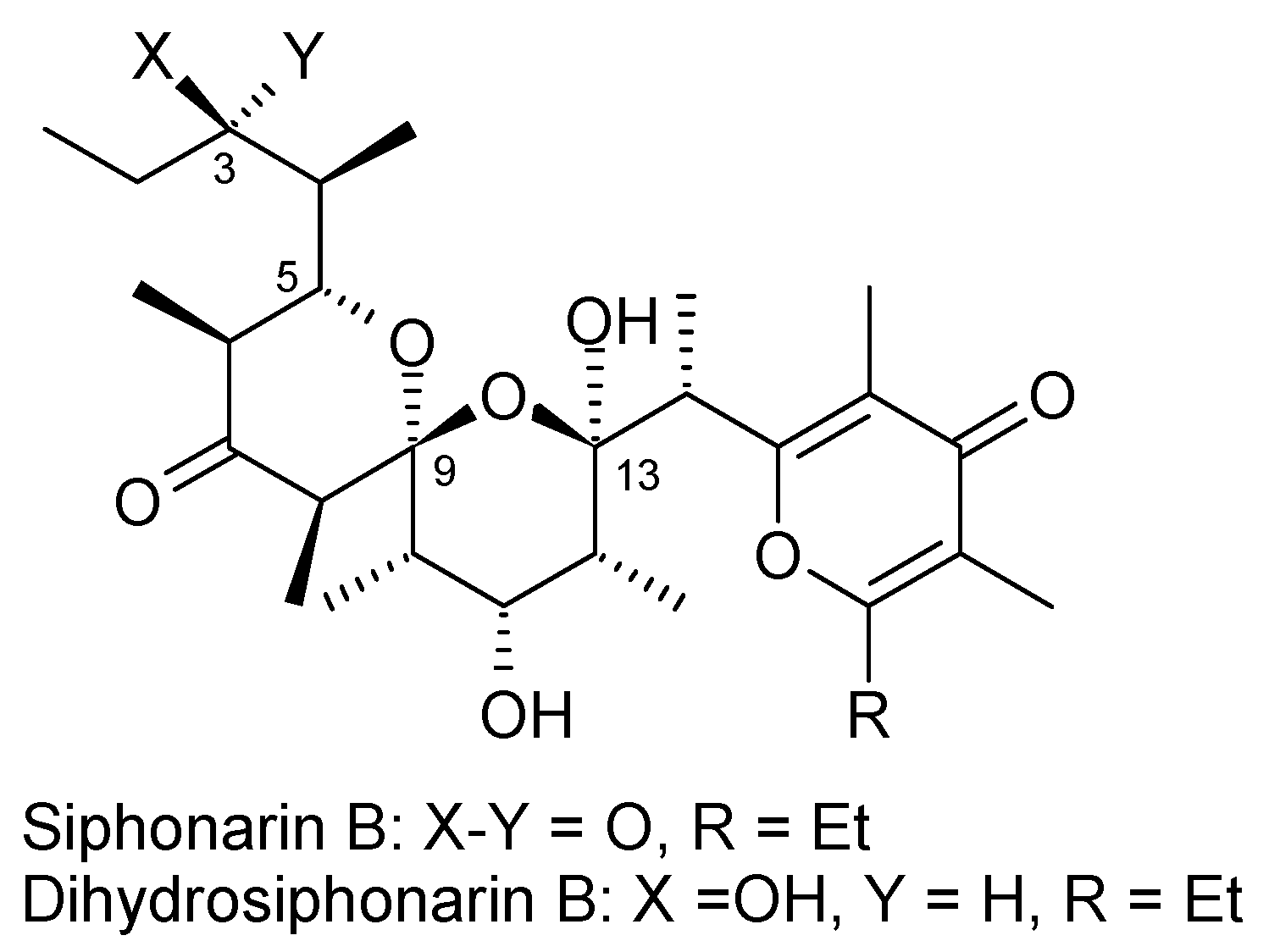

Figure 3. Structures of Siphonarin B and Dihydrosiphonarin B.
Figure 3. Structures of Siphonarin B and Dihydrosiphonarin B.
Molecules 13 01942 g003
The retrosynthetic pathway of siphonarin B reveals that the triketones 589 (C1-C21) and 592 (C3-C21) are protected acyclic precursors. There are two approaches starting from precursors 589 and 592. The first approach is based on the assumption that C8-C9 aldol coupling between ketone 590 and aldehyde 591 followed by oxidation of the 9-OH and 13-OH and the release of the 5-OH to initiate a cascade to deliver the spiro-bis-acetal ring system (Scheme 130).

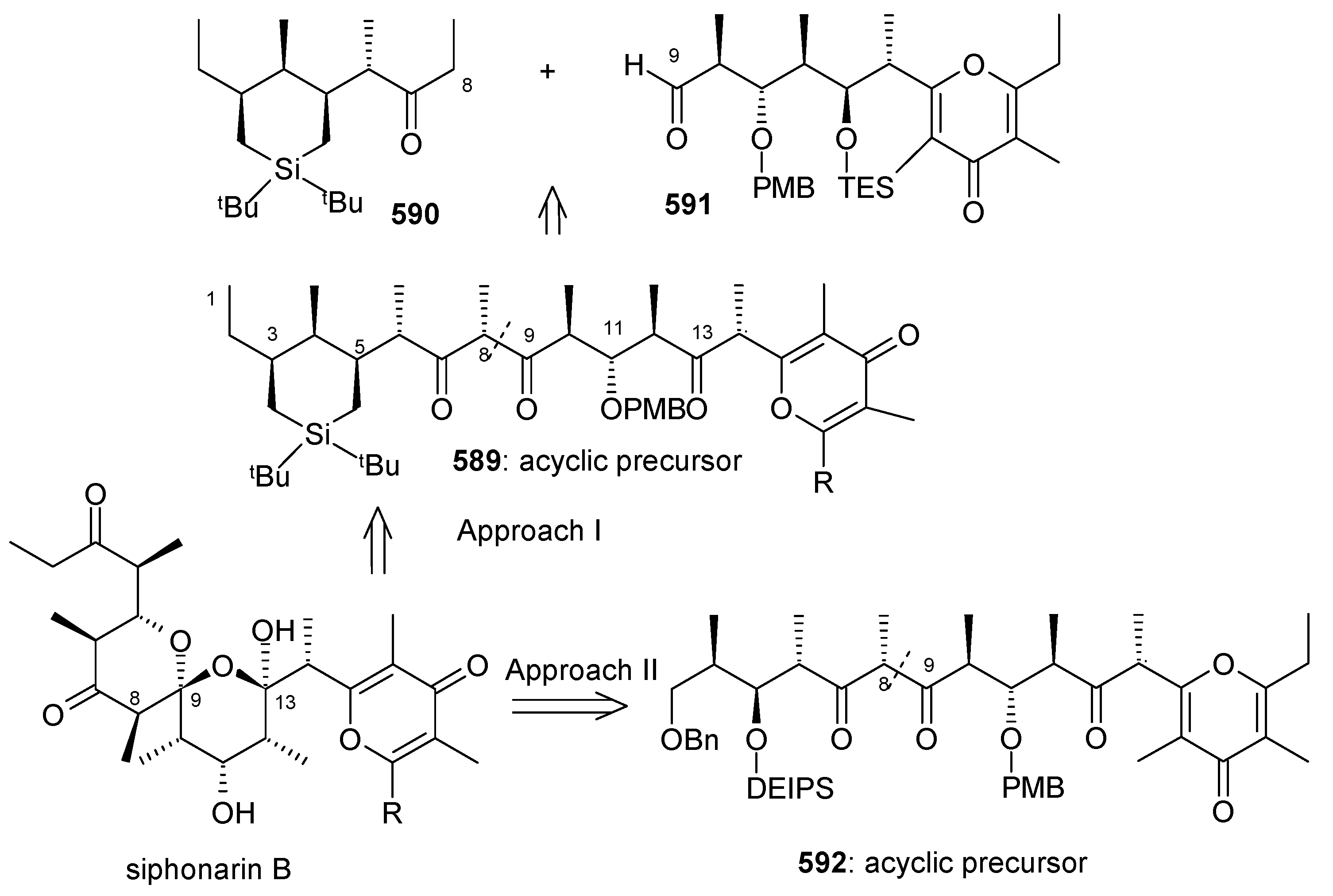

Scheme 130. Retrosynthetic analysis of siphonarin B.
Scheme 130. Retrosynthetic analysis of siphonarin B.
Molecules 13 01942 g133
The preparation of ketone 590 starts with an asymmetric aldol condensation between 3-pentanone 593 and (E)-2-methyl-2-pentenal using (-)-Ipc2BOTf [224]. The resulting product 594 is reduced to 1,3-syn diol 595 using the Narasaka protocol, followed by silyl protection; hydroboration and Dess-Martin oxidation gives compound 590 [225] (Scheme 131). The aldehyde component 591 is obtained from the diol 596 by a sequence of bis-TES protection, selective cleavage, and Dess-Martin oxidation (Scheme 131).
The aldol condensation between 590 and 591 is carried out using Sn(OTf)2/Et3N leading to a mixture of adducts 597 (ca. 60:40 ds in favor of the 6,8-syn-8,9-syn isomer). The syn product is subjected to selective deprotection of TES and the Dess-Martin oxidation to give triketone 589. Deprotection of cyclic silyl ether using HF·pyridine gives hemiacetal 598 instead of spirocyclisation. After oxidative removal of PMB ether lead to the spiroacetal 599 accompanied by epimerisation at C‑8. This acetal ring is stabilized by a double anomeric effect, and alkyl substituent at equatorial position.
Attempt to isomerise the compound 599 using several acidic conditions to generate 3-epi-dihydrosiphonarin 600 is failed (Scheme 131). Since the first approach is failed a modified precursor 592 is used for the synthesis of siphonarin B and dihydrosiphonarin B. In this approach the preparation of 592 is started with aldol condensation between ketone 601 and propionaldehyde followed by reduction by LiBH4 to give 1,3 diol 602 (95:5 ds).

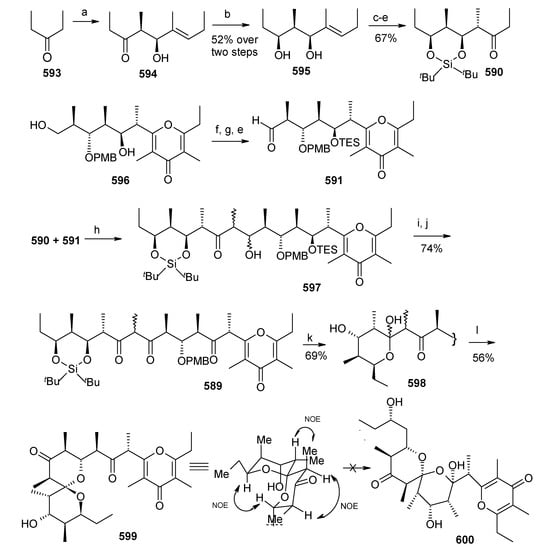

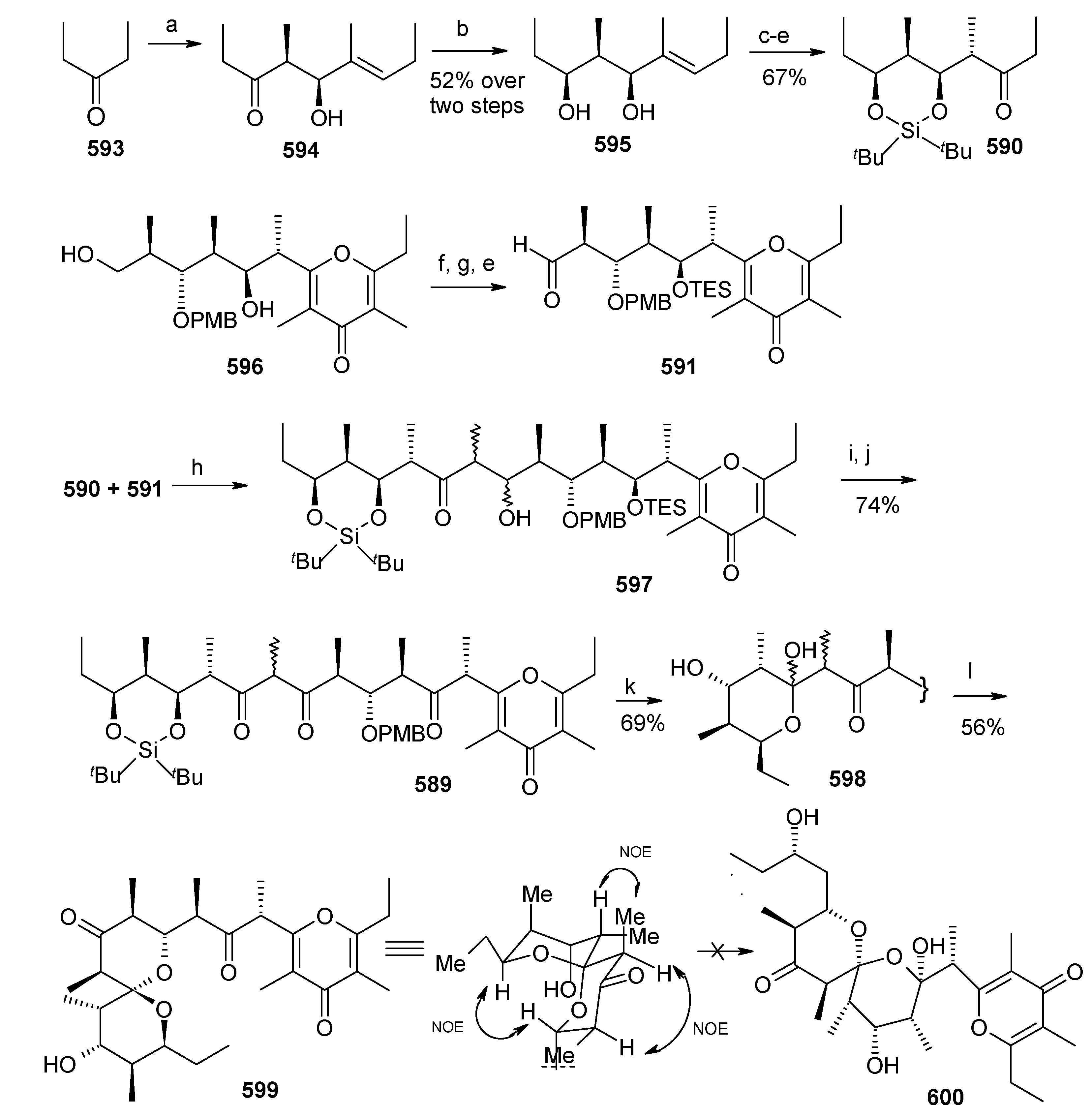

Scheme 131. Synthesis of ketone 590, aldehyde 591 and spiroacetal 599.
Scheme 131. Synthesis of ketone 590, aldehyde 591 and spiroacetal 599.
Molecules 13 01942 g134
Reagents and conditions: a) (E)-2-methyl-2-pentenal, (-)-Ipc2BOTf, iPr2NEt, CH2Cl2; b) n-Bu2BOMe, THF/MeOH, LiBH4; c) t-Bu2Si(OTf)2, 2,6-lutidine, CH2Cl2; d) Thexylborane, THF, H2O2, NaOH; e) Dess-Martin periodinane, CH2Cl2; f) TESOTf, 2,6-lutidine, CH2Cl2, g) AcOH/THF/H2O; h) Sn(OTf)2, Et3N, CH2Cl2; I) PPTS, MeOH/CH2Cl2; j) (COCl)2, DMSO, CH2Cl2; Et3N; k) HF.Py/Py, THF; l) DDQ, CH2Cl2/pH 7 buffer.
Protection of diol 602 with DEIPSCl followed by selective deprotection of less hindered silyl ether to alocohol and then oxidation of free alcohol to ketone gives compound 603. Similarly bis-TMS protection of diol 596 followed by selective cleavage of the primary silyl ether and the Dess- Martin oxidation affords the γ-pyrone aldehyde 604, which is subjected to react with the Sn(II) enolate of ketone 603 to give a mixture of aldol adduct 605 (ca. 73:27 ds in favor of the 6,8-syn-8,9-syn isomer).

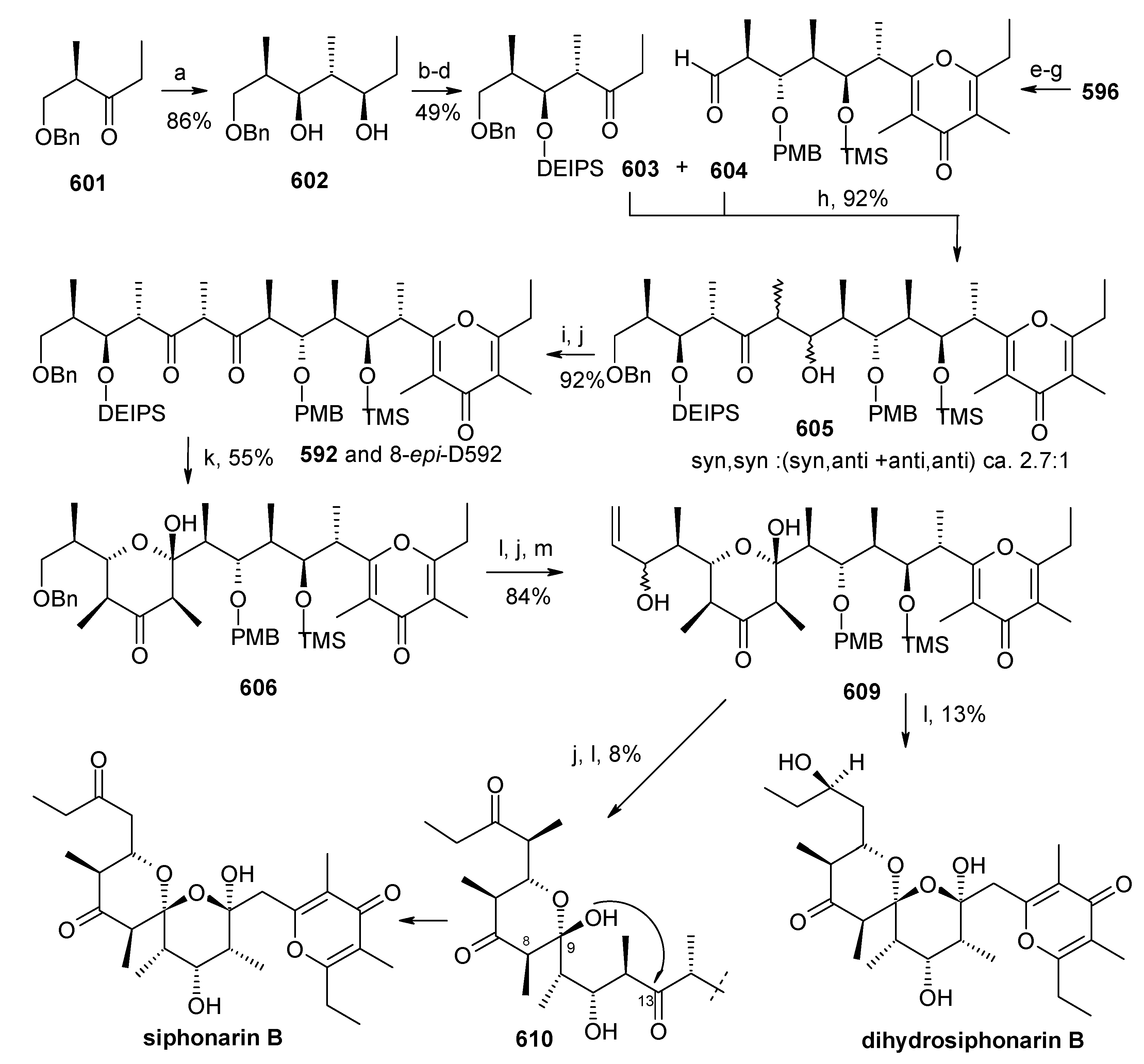

Scheme 132. Total synthesis of siphonarin B and dihydrosiphonarin B.
Scheme 132. Total synthesis of siphonarin B and dihydrosiphonarin B.
Molecules 13 01942 g135
Reagents and conditions: a) (c-Hex)2BCl, Et3N, Et2O, EtCHO; LiBH4; b) DEIPSCl, imidazole, DMF; c) PPTS, MeOH/CH2Cl2; d) Dess-Martin periodinane, CH2Cl2; e) TMSOTf, 2,6-lutidine, CH2Cl2, f) K2CO3, MeOH; g) Dess-Martin periodinane, Py, CH2Cl2; h) Sn(OTf)2, Et3N, CH2Cl2; i) PPTS, MeOH/CH2Cl2; j) (COCl)2, DMSO, CH2Cl2, Et3N; k) HF.Py/Py, THF; l) Pd/C, H2, EtOH; m) NiCl2/CrCl2 (5% NiCl2), H2C=CHI, DMF.
Selective deprotection of the TES ether, followed by double Swern oxidation gives the desired triketone 592 (and its C-8 epimer, ca. 2.7:1; 92%). Desilylation of cyclic silyl ether lead to the formation of six membered hemiacetal 606, in which all the alkyl substituents in the equatorial position. This hemiacetal 606 is very sensitive to mild acid or bases and exposure to these resulted in a retro-Claisen reaction, producing the baconipyrone ester 607 (Scheme 133). On the other hand hydrogenolysis of the benzyl and PMB ethers lead to the desired thermodynamically favorable spiro-bis-acetal core 608 where all the alkyl substituents are equatorially oriented with anomeric stabilysation at the C-9 and C-13 acetal centers. This indicates that mild reaction conditions and work up procedures are crucial for the remaining synthesis of siphonarin B. Therefore, the benzyl group is removed under controlled conditions (H2, Pd/C, EtOH) with retension of the PMB ether, followed by Swern oxidation of the resulting primary alcohol to give the labile aldehyde which is immediately subjected to Kishi-Nozaki coupling to give a mixture (ca. 2.5:1) of allylic alcohol 609 in 84% yield [226,227]. The compound 609 is subjected to Swern oxidation to give enone, which is then selectively reduced to saturated ketone with concomitant removal of the PBM ether. Interestingly this step also furnished the desired spirocyclisation through hemiacetalization between the 9-OH and the C-13 ketone in 610, leading to isolation of (+)-siphonarin B. Similarly dihydrosiphonarin B is obtained by catalytic hydrogenation of the major epimer at C-3 in 609 (Scheme 132).

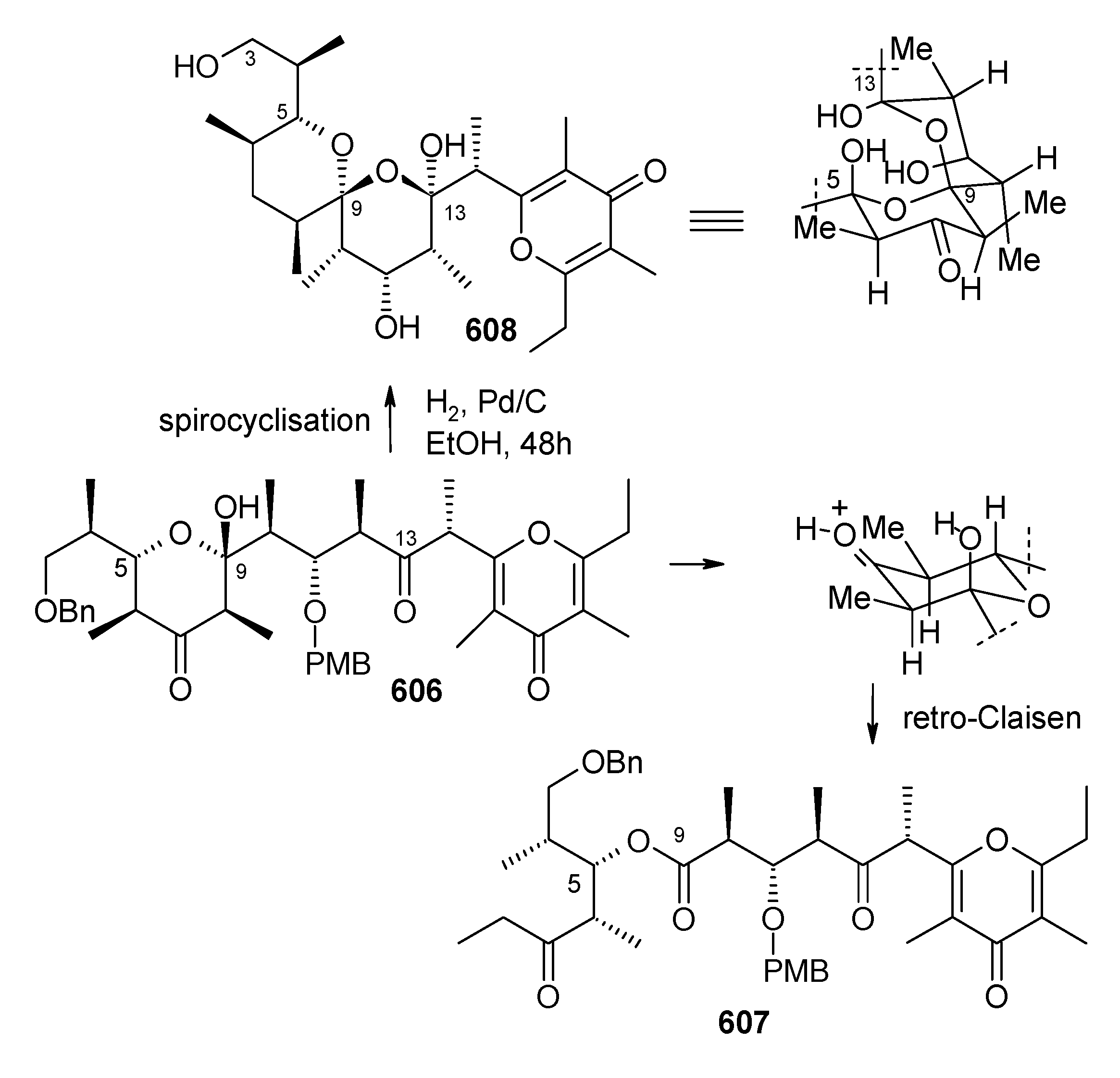

Scheme 133. Generation of spirocyclic core of the siphonarins.
Scheme 133. Generation of spirocyclic core of the siphonarins.
Molecules 13 01942 g136

Conclusions

One of the purposes of this review is to attract the attention of the synthetic chemists to the total asymmetric synthesis of naturally occurring spiroketals. Asymmetric synthesis of twenty-seven natural products having spiroketal unit have been presented.

References and Notes

  1. Perron, F.; Albizati, K. F. Chemistry of spiroketals. Chem. Rev. 1989, 89, 1617–1661. [Google Scholar]
  2. Mead, K. T.; Brewer, B. N. Strategies in spiroketal synthesis revisited: Recent applications and advances. Curr. Org. Chem. 2003, 7, 227–256. [Google Scholar]
  3. Brimble, M. A.; Furkert, D. P. Chemistry of bis-spiroacetal systems: Natural products, synthesis and stereochemistry. Curr. Org. Chem. 2003, 7, 1461–1484. [Google Scholar] [CrossRef]
  4. Koshino, H.; Takahashi, H.; Osada, H.; Isono, K. Reveromycins, new inhibitors of eukaryotic cell growth. J. Antibiot. 1992, 45, 1420–1427. [Google Scholar]
  5. Shimizu, T.; Machida, K.; Furuya, K.; Osada, H.; Nakata, T. Chemical modification of reveromycin A and its biological activities. Bioorg. Med. Chem. Lett. 2002, 12, 3363–3366. [Google Scholar] [CrossRef]
  6. Pettit, G. R.; Inoue, M.; Kamano, Y.; Herald, D. L.; Arm, C.; Dufresne, C.; Christie, N. D.; Schmidt, J. M.; Doubek, D. L.; Krupa, T. S. Antineoplastic agents. 147. Isolation and structure of the powerful cell growth inhibitor cephalostatin1. J. Am. Chem. Soc. 1998, 120, 2006–2007. [Google Scholar]
  7. Muller, I. M.; Dirsch, V. M.; Rudy, A.; Lopez-Anton, N.; Pettit, G. R.; Vollmar, A. M. Cephalostatin 1 inactivates Bcl-2 by hyperphosphorylation independent of M-phase arrest and DNA damage. Mol. Pharmacol. 2005, 67, 1684–1689. [Google Scholar] [CrossRef]
  8. Ueno, T.; Takahashi, H.; Oda, M.; Mizunuma, M.; Yokoyama, A.; Goto, Y.; Mizushina, Y.; Sakaguchi, K.; Hayashi, H. Inhibition of human telomerase by rubromycins: Implication of spiroketal system of the compounds as an active moiety. Biochemistry 2000, 39, 5995–6002. [Google Scholar] [CrossRef]
  9. Li, A.; Piel, J. Gene cluster from a marine streptomyces encoding the biosynthesis of the aromatic spiroketal polyketide griseorhodin A. Chem. Biol. 2002, 9, 1017–1026. [Google Scholar] [CrossRef]
  10. Francke, W.; Kitching, W. Spiroacetals in insects. Curr. Org. Chem. 2001, 5, 233–251. [Google Scholar] [CrossRef]
  11. Exceptions were reported, e.g.: Stok, J. E.; Lang, C.-S.; Schwartz, B. D.; Fletcher, M. T.; Kitching, W.; de Voss, J. J. Carbon hydroxylation of alkyltetrahydropyranols: A paradigm for spiroacetal biosynthesis in Bactrocera sp. Org. Lett. 2001, 3, 397–400. [Google Scholar] references [1] and [10]
  12. Bender, T.; Schuhmann, T.; Magull, J.; Grond, S.; Zezschwitz, P. Comprehensive study of okaspirodiol: characterization, total synthesis, and biosynthesis of a new metabolite from streptomyces. J. Org. Chem 2006, 71, 7125–7132. [Google Scholar] [CrossRef]
  13. Philips, C.; Jacobson, R.; Abrahams, B.; Williams, H. J.; Smith, L. R. Useful route to 1,6-dioxaspiro[4.4]nonane and 1,6-dioxaspiro[4.5]decane derivatives. J. Org. Chem. 1980, 45, 1920–1924. [Google Scholar] [CrossRef]
  14. Hayes, P.; Fletcher, M. T.; Moore, C. J.; Kitching, W. Synthesis and absolute stereochemistry of a constitutionally new spiroacetal from an insect. J. Org. Chem. 2001, 66, 2530–2533. [Google Scholar] [CrossRef]
  15. Hungerbuhler, E.; Naef, R.; Wasmuth, D.; Seebach, D.; Loosli, H. R.; Wehrli, A. Synthesis of optically active 2-methyl- and 2-methyl-1,6-dioxaspiro[4.4] nonane and –[4.5] decane pheromones from common chiral precursor. Helv. Chim. Acta. 1980, 63, 1960–1970. [Google Scholar] [CrossRef]
  16. Ueki, T.; Kinoshita, T. Stereoselective synthesis and structure of butalactin and lactone II isolated from Streptomyces species. Org. Biomol. Chem. 2004, 2, 2777–2785. [Google Scholar] [CrossRef]
  17. White, J. D.; Somers, T. C.; Reddy, G. N. Degradation and absolute configurational assignment to C34-botryococcene. J. Org. Chem. 1992, 57, 4991–4998. [Google Scholar] [CrossRef]
  18. Phillips, C.; Jacobsen, R.; Abrahams, B.; Williams, H. J.; Smith, L. R. Useful route to 1,6-dioxaspiro[4.4]nonane and 1,6-dioxaspiro[4.5]decane derivatives. J. Org. Chem. 1980, 45, 1920–1924. [Google Scholar] [CrossRef]
  19. Shiozawa, H.; Takahashi, M.; Takatsu, T.; Kinishita, T.; Tanazawa, K.; Hosoya, T.; Furuya, K.; Takahashi, S.; Furihata, K.; Seta, H. Trachyspic acid, a new metabolite produced by talaromyces trachyspermus, that inhibits tumor cell heparanase: Taxonomy of the producing strain, fermentation, isolation, structural elucidation, and biological activity. J. Antibiot. 1995, 48, 357–362. [Google Scholar] [CrossRef]
  20. For a recent review see: Neta, I.; Micheal, E.; Israel, V. Regulation, function and clinical significance of heparanase in cancer metastasis and angiogenesis. Int. J. Biochem. Cell Biol. 2006, 38, 2018–2039. [Google Scholar] [CrossRef]
  21. Zammit, S.C.; Ferro, V.; Hammond, E.; Rizzacasa, M. A. Enantiospecific synthesis of the heparanase inhibitor (+)-trachyspic acid and stereoisomers from a common precursor. Org. Biomol. Chem. 2007, 5, 2826–2834. [Google Scholar] [CrossRef]
  22. Zammit, S.C.; White, J. M. Rizzacasa, Enantiospecific synthesis of (–)-trachyspic acid. Org. Biomol. Chem. 2005, 3, 2073. [Google Scholar] [CrossRef]
  23. Di Florio, R.; Rizzacasa, M. A. Synthesis of 2,2-disubstituted furanoid natural products: Total synthesis of sphydrofuran. J. Org. Chem. 1998, 63, 8595–8598. [Google Scholar] [CrossRef]
  24. Giuliano, R. M.; Villani, F. J., Jr. Stereoselectivity of addition of organometallic reagents to pentodialdo-1,4-furanoses: Synthesis of L-axenose and D-evermicose from a common intermediate. J. Org. Chem. 1995, 60, 202–211. [Google Scholar] [CrossRef]
  25. Kingsbury, C. L.; Sharp, K. S.; Smith, R. A. J. Effects of dimethyl sulfide on the reaction of dibutylcopper reagents with α,β-unsaturated ketones. Tetrahedron 1999, 55, 14693–14700. [Google Scholar] [CrossRef]
  26. Laschober, R.; Stadlbauer, W. Synthesis of 3-heptyl- and 3-nonyl-2,4(1H,3H)-quinolinediones. Liebigs Ann. Chem. 1990, 11, 1083–1086. [Google Scholar]
  27. McDougal, P. G.; Rico, J. G.; Oh, Y.; Condon, B. D. A convenient procedure for the monosilylation of symmetric 1,n-diols. J. Org. Chem. 1986, 51, 3388–3390. [Google Scholar] [CrossRef]
  28. Corey, E. J.; Fuchs, P. L. A synthetic method for formyl→ethynyl conversion. Tetrahedron Lett. 1972, 13, 3769–3772. [Google Scholar] [CrossRef]
  29. Hirai, K.; Ooi, H.; Esumi, T.; Iwabuchi, Y.; Hatakeyama, S. Total synthesis of (±)-trachyspic acid and determination of the relative configuration. Org. Lett. 2003, 5, 857–859. [Google Scholar] [CrossRef]
  30. Martin, S. F.; Dodge, J. A. Efficacious modification of the mitsunobu reaction for inversions of sterically hindered secondary alcohols. Tetrahedron Lett. 1991, 32, 3017–3020. [Google Scholar] [CrossRef]
  31. Deffieux, G.; Baute, R.; Baute, M.-A.; Neven, A. A new metabolite produced by the fungus corticium caeruleum (sehrad.ex.Fr.) Fr. (Aphyllophorales): Cortciolic acid, isolation and chemical structure. C. R. Hebd. Seances Acad. Sci. Ser. D 1979, 288, 647–649. [Google Scholar]
  32. Robinson, J. E.; Brimble, M. A. The first enantioselective total synthesis of the anti-Helicobacter pylori agent (+)-spirolaxine methyl ether. Chem. Commun. 2005, 1560–1562. [Google Scholar] [CrossRef]
  33. Gauthier, D. R., Jr.; Carreira, E. M. Catalytic, enantioselective addition of allylsilanes to aldehydes: generation of a novel, reactive TiIV complex from TiF4. Angew. Chem., Int. Ed. 1996, 35, 2363–2365. [Google Scholar] [CrossRef]
  34. Cotterill, A. S.; Gill, M.; Gimenez, A.; Milanovic, N. M. Pigments of fungi. Part 38. Synthesis of austrocorticinic acid and (S)-(–)-austrocorticin; absolute stereochemistry of natural austrocorticin. J. Chem. Soc. Perkin Trans. 1 1994, 1, 3269–3276. [Google Scholar]
  35. The effect of LiBr on acetylide addition reactions has been noted: Van Rijn, P. E.; Mommers, S.; Visser, R. G.; Verkruijsse, H. D.; Brandsma, L. An efficient one-spot procedure for methyl ethers derived from tertiary acetylenic alcohols: strong influence of lithium bromide upon the coupling between propynyl lithium and cyclopentanone or cyclohexanone. Synthesis 1981, 459–460. [Google Scholar]
  36. Blakemore, P. R. The modified Julia olefination: alkene synthesis via the condensation of metallated heteroarylalkylsulfones with carbonyl compounds. J. Chem. Soc. Perkin Trans. 1 2002, 2563–2585. [Google Scholar] [CrossRef]
  37. Ley, S. V.; Humphries, A. C.; Eick, H.; Downham, R.; Ross, A. R.; Boyce, R. J.; Pavey, J. B. J.; Pietruszka, J. Total synthesis of the protein phosphatase inhibitor okadaic acid. J. Chem. Soc., Perkin Trans. 1 1998, 3907–3912. [Google Scholar]
  38. Nannei, R.; Dallavalle, S.; Merlini, L.; Bava, A.; Nasini, G. Synthesis of (+)-spirolaxine methyl ether. J. Org. Chem. 2006, 71, 6277–6280. [Google Scholar] [CrossRef]
  39. Arundale, E.; Mikeska, L. A. The olefin-aldehyde condensation. The Prins reaction. Chem. Rev. 1952, 52, 505–555. [Google Scholar] [CrossRef]
  40. Brown, H. C.; Jadhav, P. K. Asymmetric carbon-carbon bond formation via β-allyldiisopino-camphenylborane. Simple synthesis of secondary homoallylic alcohols with excellent enantiomeric purities. J. Am. Chem. Soc. 1983, 105, 2092–2093. [Google Scholar] [CrossRef]
  41. Coppi, L.; Ricci, A.; Taddei, M. Lewis acid-mediated condensation of alkenols and aldehydes. A selective synthesis of tetrahydropyrans and oxepanes. J. Org. Chem. 1988, 53, 911–913. [Google Scholar] [CrossRef]
  42. Dallallavalle, S.; Merlini, L.; Nannei, R.; Nasini, G.; Bava, A. A synthetic approach to sporotricale methylether. Synlett 2005, 17, 2676–2678. [Google Scholar]
  43. Keaton, K. A.; Phillips, A. J. Cyclopropanol-based strategy for subunit coupling: Total synthesis of (+)-spirolaxine methyl ether. J. Org. Lett. 2007, 9, 2717–2719. [Google Scholar] [CrossRef]
  44. Kulinkovich, O. G.; de Meijere, A. 1,n-Dicarbanionic titanium intermediates from mono-carbanionic organometallics and their application in organic synthesis. Chem. Rev. 2000, 100, 2789–2834. [Google Scholar] [CrossRef]
  45. Netherton, M. R.; Dai, C.; Neuschutz, K.; Fu, G. C. Room-temperature alkyl-alkyl Suzuki cross-coupling of alkyl bromides that possess beta hydrogens. J. Am. Chem. Soc. 2001, 123, 10099–100100. [Google Scholar] [CrossRef]
  46. Dekker, K. A.; Inagaki, T.; Gootz, T. D.; Kaneda, K.; Nomura, E.; Sakakibara, T.; Sakemi, S.; Sugie, Y.; Yamauchi, Y.; Yoshikawa, N.; Kojima, N. CJ-12,954 and its congeners, new anti-Helicobacter pylori compounds produced by Phanerochaete velutina: fermentation, isolation, structural elucidation and biological activities. J. Antibiot. 1997, 50, 833–839. [Google Scholar] [CrossRef]
  47. Brimble, M. A.; Bryant, C. J. Synthesis of the spiroacetal-containing anti-Helicobacter pylori agents CJ-12,954 and CJ-13,014. Chem. Commun. 2006, 4506–4508. [Google Scholar] [CrossRef]
  48. Corey, E. J.; Bakshi, R. K.; Shibata, S.; Chen, C.-P.; Singh, V. K. A stable and easily prepared catalyst for the enantioselective reduction of ketones. Applications to multistep syntheses. J. Am. Chem. Soc. 1987, 109, 7925–7926. [Google Scholar]
  49. Freeman, F.; Kim, D. S. H. L.; Rodriguez, E. Preparation of 1,4-diketones and their reactions with bis(trialkyltin) or bis(triphenyltin) sulfide-boron trichloride. J. Org. Chem. 1992, 57, 1722–1727. [Google Scholar] [CrossRef]
  50. Blakemore, P. R. The modified Julia olefination: alkene synthesis via the condensation of metallated heteroarylalkylsulfones with carbonyl compounds. J. Chem. Soc. Perkin Trans. 1 2002, 2563–2585. [Google Scholar]
  51. lvarez-Bercedo, P.; Falomir, E.; Carda, M.; Marco, J. A. Enantioselective synthesis and absolute configurations of aculeatins A, B, D and 6-epi-aculeatin D. Tetraherdon 2006, 62, 9641–9649. [Google Scholar]
  52. Ronald, R. C.; Wheeler, C. J. Synthesis of the simple flavonoid broussonin A. J. Org. Chem. 1984, 49, 1658–1660. [Google Scholar] [CrossRef]
  53. For review see: Ramachandran, P.V. Pinane-based versatile “allyl” boranes. Aldrichimica Acta 2002, 35, 23–35. [Google Scholar]
  54. Tsuji, J. Comprehensive Organic Synthesis; Trost, B. M., Fleming, I., Winterfeldt, E., Eds.; Pergamon: Oxford, UK, 1993; Vol. 7, pp. 449–468. [Google Scholar]
  55. Cowden, C. J.; Paterson, I. Organic Reactions; Paquette, L. A., Ed.; Wiley: New York, USA, 1997; Vol. 51, pp. 1–200. [Google Scholar]
  56. The addition step of the enolborane of β-alkoxy methyl ketone 101 to n-tetradecanal takes place with complete stereoselectivity, which reflects a high anti-1,5-induction. Paterson, I.; Gibson, K. R.; Oballa, R. M. Remote, 1,5-anti stereoinduction in the boron-mediated aldol reactions of β-oxygenated methyl ketones. Tetrahedron Lett. 1996, 37, 8585–8588. [Google Scholar] [CrossRef]
  57. Wong, Y-S. Synthesis of (±)-aculeatins A and B. Chem. Commun. 2002, 686–687. [Google Scholar] [CrossRef]
  58. Moriarty, R. M. Organohypervalent iodine: Development, applications, and future directions. J. Org. Chem. 2005, 70, 2893–2903. [Google Scholar] [CrossRef]
  59. Evans, D. A.; Chapman, K. T.; Carreira, E. M. Directed reduction of β-hydroxy ketones employing tetramethylammonium triacetoxyborohydride. J. Am. Chem. Soc. 1988, 110, 3560–3578. [Google Scholar] [CrossRef]
  60. Scheidt, K. A.; Chen, H.; Follows, B. C.; Chemler, S. R.; Coffey, D. S.; Roush, W. R. Tris(dimethylamino)sulfonium difluorotrimethylsilicate, a mild reagent for the removal of silicon protecting groups. J. Org. Chem. 1998, 63, 6436–6437. [Google Scholar] [CrossRef]
  61. Chandrasekhar, S.; Rambabu, C.; Shyamsunder, T. Total synthesis of aculeatins A and B via a tethered oxa-Michael approach. Tetrahedron Lett. 2007, 48, 4683–4685. [Google Scholar] [CrossRef]
  62. Hanawa, H.; Hashimoto, T.; Maruoka, K. Bis(((S)-binaphthoxy)(isopropoxy)titanium) oxide as a μ-oxo-type chiral Lewis acid: application to catalytic asymmetric allylation of aldehydes. J. Am. Chem. Soc. 2003, 125, 1708–1709. [Google Scholar] [CrossRef]
  63. Evans, D. A.; Gouchet-Prunet, J. A. Diastereoselective synthesis of protected syn 1,3-diols by base-catalyzed intramolecular conjugate addition of hemiacetal-derived alkoxide nucleophiles. J. Org. Chem. 1993, 58, 2446–2453. [Google Scholar] [CrossRef]
  64. Zhadankin, V. V.; Stang, P. J. Recent developments in the chemistry of polyvalent iodine compounds. Chem. Rev. 2002, 102, 2523–2584. [Google Scholar] [CrossRef]
  65. Peuchmaur, M.; Wong, Y.-S. Diastereoconvergent strategies for the synthesis of homochiral aculeatins. J. Org. Chem. 2007, 72, 5374–5379. [Google Scholar] [CrossRef]
  66. Nokami, J.; Ohga, M.; Nakamoto, H.; Matsubara, T.; Hussain, I.; Kataoka, K. The first and highly enantioselective crotylation of aldehydes via an allyl-transfer reaction from a chiral crotyl-donor. J. Am. Chem. Soc. 2001, 123, 9168–9169. [Google Scholar] [CrossRef]
  67. Wiseman, J. M.; McDonald, F. E.; Liotta, D. C. 1-Deoxy-5-hydroxysphingolipids as new anticancer principles: An Efficient Procedure for stereoselective syntheses of 2-amino-3, 5-diols. Org. Lett. 2005, 7, 3155–3157. [Google Scholar] [CrossRef]
  68. Vongvilai, P.; Isaka, M.; Kittakoop, P.; Prasert Srikitikulchai, P.; Kongsaeree, P.; Thebtaranonth, Y. Ketene acetal and spiroacetal constituents of the marine fungus Aigialus parvus BCC 5311. J. Nat. Prod. 2004, 67, 457–460. [Google Scholar] [CrossRef]
  69. Isaka, M.; Suyarnsestakorn, C.; Tanticharoen, M.; Kongsaeree, P.; Thebtaranonth, Y. Aigialomycins A-E, New resorcylic macrolides from the marine mangrove fungus Aigialus parvus. J. Org. Chem. 2002, 67, 1561–1566. [Google Scholar] [CrossRef]
  70. Tanaka, H.; Nishida, K.; Sugita, K.; Yoshioka, T. Antitumor efficacy of hypothemycin, a new Ras-signaling inhibitor. Jpn. J. Cancer Res. 1999, 90, 1139–1145. [Google Scholar] [CrossRef]
  71. Figueroa, R.; Hsung, R. P.; Guevarra, C. C. An enantioselective total synthesis of (+)-Aigialospirol. Org. Lett. 2007, 9, 4857–4859. [Google Scholar] [CrossRef]
  72. Hansen, T. V. Synthesis of (R)-(−)-argentilactone. Tetrahedron: Asymmetry 2002, 13, 547–550. [Google Scholar] [CrossRef]
  73. Khalaf, J. K.; Datta, A. Stereoselective route to the ezoaminuroic acid core of the ezomycins. J. Org. Chem. 2005, 70, 6937–6940. [Google Scholar] [CrossRef]
  74. Sakakura, A.; Suzuki, K.; Nakano, K.; Ishihara, K. Chiral 1,1'-binaphthyl-2,2'-diammonium salt catalysts for the enantioselective Diels-Alder reaction with –acyloxyacroleins. Org. Lett. 2006, 8, 2229–2232. [Google Scholar] [CrossRef]
  75. Ko, C.; Hsung, R. P. An unusual stereoselectivity in the anomeric substitution with carbamates promoted by HNTf2. Org. Biomol. Chem. 2007, 7, 431–434. [Google Scholar]
  76. Trnka, T. M.; Grubbs, R. H. The development of L2X2Ru=CHR olefin metathesis catalysts: An organometallic success story. Acc. Chem. Res. 2001, 34, 18–29. [Google Scholar] [CrossRef]
  77. Snieckus, V. Directed ortho metalation. Tertiary amide and O-carbamate directors in synthetic strategies for polysubstituted aromatics. Chem. Rev. 1990, 90, 879–933. [Google Scholar] [CrossRef]
  78. Selles, P.; Lett, R. Convergent stereospecific synthesis of C292 (or LL-Z1640-2), and hypothemycin. Part 1. Tetrahedron Lett. 2002, 43, 4621–4625. [Google Scholar] [CrossRef]
  79. Bez, G.; Bezbarua, M. S.; Saikia, A. K.; Barua, N. C. Short enantioselective syntheses of both 2,7-dimethyl-1,6-dioxaspiro[4.6]undecane and 2,7-diethyl-1,6-dioxaspiro[4.6]undecane using functionalized nitroalkane synthons. Synthesis 2000, 4, 537–540. [Google Scholar]
  80. Francke, W.; Reith, W.; Bergstrom, G.; Tengoe, J. Pheromone bonquet of the mandibular glands in adrenahaemorrhoa F (Hym., Apoida). Z. Naturforsch. Teil C 1981, 36, 928–932. [Google Scholar]
  81. Bergstroem, G.; Tengoe, J.; Reith, W.; Francke, W. Multicomponent mandibular gland secretions in three species of Andrena bees (Hym., Apoida). Z. Naturforsch., C, J. Biosci. 1982, 37C, 1124–1129. [Google Scholar]
  82. Saikia, A. K.; Hazarika, M. J.; Barua, N. C.; Bezbarua, Maitreyee, S.; Sharma, R. P.; Ghosh, A. C. Direct synthesis of keto nitroaliphatics via retro-Henry reaction of cyclic 2-nitroalcohols by anhydrous copper sulfate adsorbed on silica gel. A short synthesis of (±)-phoracantholide I. Synthesis 1996, 981–985. [Google Scholar]
  83. Occhiato, E. G.; Guranna, A.; Descrlo, F.; Scarpi, D. Baker’s yeast reduction of prochiral γ-nitroketones.II. straightforward enantioselective synthesis of 2,7-dimethyl-1,6-dioxaspiro[4.4]nonanes. Tetrahedron: Asymmetry 1995, 6, 2971–2976. [Google Scholar] [CrossRef]
  84. Ghosh, S. K.; Hsung, R. P.; Wang, J. Ketal-tethered ring-closing metathesis. An unconventional approach to constructing spiroketals and total synthesis of an insect pheromone. Tetrahedron Lett. 2004, 45, 5505–5510. [Google Scholar] [CrossRef]
  85. Tengoe, J.; Bergstroem, G.; Borg-Karlson, A. K.; Groth, I.; Francke, W. Volatile compounds from cephalic secretions of females in two cleptoparacite bee genera, Epeolus (Hym., Anthophoridea) and Coelioxys (Hym.’ Megachilidae). Z. Naturforsch., C, J. Biosci. 1982, 37, 376–380. [Google Scholar]
  86. Isaksson, R.; Liljefors, L.; Reinholdsson, P. Preparative separation of the enantiomers of trans,trans- and cis,trans-2,8-dimethyl-1,7-dioxaspiro[5.5]undecane, main pheromone components of Adrena bees, by liquid chromatography on triacetycellulose. J. Chem. Soc. Chem. Commun. 1984, 137–138. [Google Scholar]
  87. Boeckman, R. K., Jr.; Bruza, K. J. A simplified isoquinoline synthesis. Tetrahedron 1981, 37, 39–97. [Google Scholar]
  88. Ballini, R.; Bosica, G.; Schaafstra, R. Nitroketones in organic synthesis: a new short synthesis of racemic trans 2-methyl-1,7-dioxaspiro[5.5]undecane, trans, trans-and trans, cis-2,78-dimethyl-1,7-dioxaspiro[5.5]undecane by Henry reaction. Liebig Ann. chem. 1994, 1235–1237. [Google Scholar] [CrossRef]
  89. Weber, G. F.; Hall, S. S. The chemistry of 2-alkoxy-3, 4-dihydro-2H-pyrans. 7. Effect of substituents on the reactivity of various alkyl- and phenyl-substituted 3, 4-dihydro-2H-pyrans with tert-butyl hypochlorite. J. Org. Chem. 1979, 44, 364–368. [Google Scholar] [CrossRef]
  90. Takahashi, H.; Osada, H.; Koshino, H.; Kudo, T.; Amano, S.; Shimizu, S.; Yoshihama, M.; Isono, K. Reveromycins, new inhibitors of eukaryotic cell growth. J. Antibiot. 1992, 45, 1409–1413. [Google Scholar] [CrossRef]
  91. Miyamoto, Y.; Machida, K.; Mizunuma, M.; Emoto, Y.; Sato, N.; Miyahara, K.; Hirata, D.; Usui, T.; Takahashi, H.; Osada, H.; Miyakawa, T. Identification of saccharomyces cerevisiae isoleucyl-tRNA synthetase as a target of the G1-specific inhibitor reveromycin A. J. Biol. Chem. 2002, 277, 28810–28814. [Google Scholar] [CrossRef]
  92. Sous, M. E.; Ganame, D.; Tregloan, P. A.; Rizzacasa, M. A. Total synthesis of (-)-reveromycin A. Org. Lett. 2004, 6, 3001–3004. [Google Scholar] [CrossRef]
  93. Bednarski, M.; Danishefsky, S. J. Mild Lewis acid catalysis: tris(6,6,7,7,8,8,8- heptafluoro-2,2-dimethyl-3,5-octanedionato)europium-mediated hetero-Diels-Alder reaction. J. Am. Chem. Soc. 1983, 105, 3716–3717. [Google Scholar] [CrossRef]
  94. Cuzzupe, A. N.; Hutton, C. A.; Lilly, M. J.; Mann, R. K.; Rizzacasa, M. A.; Zammit, S. C. Total synthesis of (-)-reveromycin B. Org. Lett. 2000, 2, 191–194. [Google Scholar] [CrossRef]
  95. Dess, D. B.; Martin, J. C. A useful 12-I-5 triacetoxyperiodinane (the Dess-Martin periodinane) for the selective oxidation of primary or secondary alcohols and a variety of related 12-I-5 species. J. Am. Chem. Soc. 1991, 113, 7277–7287. [Google Scholar] [CrossRef]
  96. Nagao, Y.; Hagiwara, Y.; Kumagi, T.; Ochiai, M.; Inoue, T.; Hashimoto, K.; Fujita, E. New C-4-chiral 1, 3-thiazolidine-2-thiones: excellent chiral auxiliaries for highly diastereo-controlled aldol-type reactions of acetic acid and α,β-unsaturated aldehydes. J. Org. Chem. 1986, 51, 2391–2393. [Google Scholar] [CrossRef]
  97. Cuzzupe, A. N.; Hutton, C. A.; Lilly, M. J.; Mann, R. K.; McRae, K. J.; Rizzacasa, M. A.; Zammit, S. C. Total synthesis of the epidermal growth factor inhibitor (-)-reveromycin B. J. Org. Chem. 2001, 66, 2382–2393. [Google Scholar] [CrossRef]
  98. Zhang, H. X.; Guibe, F.; Balavoine, G. Palladium- and molybdenum-catalyzed hydrostannation of alkynes. A novel access to regio- and stereodefined vinylstannanes. J. Org. Chem. 1990, 55, 1857–1867. [Google Scholar] [CrossRef]
  99. Hungerbuhler, E.; Seebach, D.; Wasmuth, D. Enantiomerically pure synthetic building blocks with four C-atoms and two or three functional groups from β -hydroxybutanoic, malic, and tartaric acids. Helv. Chim. Acta 1981, 64, 1467–1487. [Google Scholar] [CrossRef]
  100. Shimizu, T.; Masuda, T.; Hiromoto, K.; Nakata, T. Total synthesis of reveromycin A. Org. Lett. 2000, 2, 2153–2156. [Google Scholar] [CrossRef]
  101. Shimizu, T.; Kobayashi, R.; Ohmori, H.; Nakata, T. Synthesis of dicarboxylic monoesters with cyclic anhydrides under high pressure. Synlett 1995, 650–652. [Google Scholar]
  102. Tsunoda, T.; Yamamiya, Y.; Yumi Kawamura, Y.; Itô, S. Mitsunobu acylation of sterically congested secondary alcohols by N,N,N’,N’-tetramethylazodicarboxamide-tributylphosphine reagents. Tetrahedron Lett. 1995, 36, 2529–2530. [Google Scholar] [CrossRef]
  103. Baudin, J. B.; Hareau, G.; Julia, S. A.; Ruel, O. Stereochemistry of the olefin formation from anti and syn heterocyclic β-hydroxy sulfones. Bull. Soc. Chim. Fr. 1993, 130, 336–357. [Google Scholar]
  104. McRae, K. J.; Rizzacasa, M. A. Synthetic Studies toward the reveromycins: Asymmetric synthesis of the spiroketal segment of reveromycin B. J. Org. Chem. 1997, 62, 1196–1197. [Google Scholar] [CrossRef]
  105. Cuzzupe, A. N.; Hutton, C. A.; Lilly, M. J.; Mann, R. K.; Rizzacasa, M. A.; Zammit, S. C. Total synthesis of (-)-reveromycin B. Org. Lett. 2000, 2, 191–192. [Google Scholar] [CrossRef]
  106. McRae, K. J.; Rizzacasa, M. A. Synthetic studies toward the reveromycins: Asymmetric synthesis of the spiroketal segment of reveromycin B. J. Org. Chem. 1997, 62, 1196–1197. [Google Scholar] [CrossRef]
  107. Murray, R. W.; Jeyaraman, R. J. Dioxiranes: synthesis and reactions of methyldioxiranes. J. Org. Chem. 1985, 50, 2847–2853. [Google Scholar] [CrossRef]
  108. Zhang, H. X.; Guibe, F.; Balavoine, G. Palladium- and molybdenum-catalyzed hydrostannation of alkynes. A novel access to regio- and stereodefined vinylstannanes. J. Org. Chem. 1990, 55, 1857–1867. [Google Scholar] [CrossRef]
  109. LeNoble, W. J. The configurations of some substituted β-haloacyrlic acids. J. Am. Chem. Soc. 1961, 83, 3897–3899. [Google Scholar] [CrossRef]
  110. Farina, V.; Krishnan, B. Large rate accelerations in the Stille reaction with tri-2-furylphosphine and triphenylarsine as palladium ligands: mechanistic and synthetic implications. J. Am. Chem. Soc. 1991, 113, 9585–9595. [Google Scholar] [CrossRef]
  111. Guzzo, P. R.; Miller, M. J. Catalytic, Asymmetric synthesis of the carbacephem framework. J. Org. Chem. 1994, 59, 4862–4867. [Google Scholar] [CrossRef]
  112. Drouet, K. E.; Theodorakis, E. A. Enantioselective total synthesis of reveromycin B. J. Am. Chem. Soc. 1999, 121, 456–457. [Google Scholar] [CrossRef]
  113. Shimizu, T.; Kobayashi, R.; Osaka, K.; Osada, H.; Nakata, T. Synthetic studies on reveromycin A: Stereoselective synthesis of the spiroketal system. Tetrahedron Lett. 1996, 37, 6755–6758. [Google Scholar] [CrossRef]
  114. Corey, E. J.; Fuchs, P. L. A synthetic method for formyl→ethynyl conversion (RCHO→RC Molecules 13 01942 i002CH or RC Molecules 13 01942 i002CR′). Tetrahedron Lett. 1972, 3769–3772. [Google Scholar] [CrossRef]
  115. Evans, D. A.; Ennis, M. D.; Mathre, D. J. Asymmetric alkylation reactions of chiral imide enolates. A practical approach to the enantioselective synthesis of alpha.-substituted carboxylic acid derivatives. J. Am. Chem. Soc. 1982, 104, 1737–1739. [Google Scholar] [CrossRef]
  116. Negishi, E.; Okukado, N.; King, A. O.; Van, Horn, D. E.; Spiegel, B. I. Selective carbon-carbon bond formation via transition metal catalysts. 9. Double metal catalysis in the cross-coupling reaction and its application to the stereo- and regioselective synthesis of trisubstituted olefins. J. Am. Chem. Soc. 1978, 100, 2254–2256. [Google Scholar]
  117. Panek, J. S.; Hu, T. Stereo- and Regiocontrolled synthesis of branched trisubstituted conjugated dienes by palladium(0)-catalyzed cross-coupling reaction. J. Org. Chem. 1997, 62, 4912–4913. [Google Scholar] [CrossRef]
  118. Kishi, Y. Applications of nickel(II)/chromium(II)-mediated coupling reactions to natural products syntheses. Pure Appl. Chem. 1992, 64, 343–350. [Google Scholar] [CrossRef]
  119. Masuda, T.; Osaka, K.; Shimizu, T.; Nakata, T. Total synthesis of reveromycin B. Org. Lett. 1999, 1, 941–944. [Google Scholar] [CrossRef]
  120. Carlsen, P. H. J.; Katsuki, T.; Martin, V. S.; Sharpless, K. B. A greatly improved procedure for ruthenium tetroxide catalyzed oxidations of organic compounds. J. Org. Chem. 1981, 46, 3936–3938. [Google Scholar] [CrossRef]
  121. Shimizu, T.; Osaka, K.; Nakata, T. Reactions of perfluoro-1-chloro-2-trimethylsilylcyclobutene. Tetrahedron Lett. 1997, 38, 1685–2688. [Google Scholar] [CrossRef]
  122. Evans, D. A.; Bartoli, J.; Shih, T. L. Enantioselective aldol condensations. 2. erythro-selective chiral aldol condensations via boron enolates. J. Am. Chem. Soc. 1981, 103, 2127–2129. [Google Scholar]
  123. Tsuji, J.; Minami, I.; Shimizu, I. Preparation of 1-alkenes by the palladium-catalyzed hydrogenolysis of terminal allylic carbonates and acetates with formic acid-triethylamine. Synthesis 1986, 623–627. [Google Scholar]
  124. Gouiffes, D.; Moreau, S.; Helbecque, N.; Bernier, J. L.; Henichart, J. P.; Barbin, Y.; Laurent, D.; Verbist, J. F. Proton nuclear magnetic study of bistramide A, a new cytotoxic drug isolated from Lissoclinum Bistratum Sluiter. Tetrahedron 1988, 44, 451–459. [Google Scholar] [CrossRef]
  125. Riou, D.; Roussakis, C.; Robillard, N.; Biard, J. F.; Verbist, J. F. Bistramide A-induced irreversible arrest of cell proliferation in a non-small-cell bronchopulmonary carcinoma is similar to induction of terminal maturation. Biol. Cell. 1993, 77, 261–264. [Google Scholar]
  126. Sauviat, M. P.; Gouiffes-Barbin, D.; Ecault, E.; Verbist, J. F. Blokage of sodium channels by bistramide A in voltage-clamped frog skeletal muscle fibres. Biochim. Biophys. Acta 1992, 1103, 109–114. [Google Scholar] [CrossRef]
  127. Freya, M. R.; Leontieva, O.; Watters, D. J.; Black, J. D. Stimulation of protein kinase C-dependent and -independent signaling pathways by bistratene A in intestinal epithelial cells. Biochem. Pharm. 2001, 61, 1093–1100. [Google Scholar] [CrossRef]
  128. Wipf, P.; Hopkins, T. D. Total synthesis and structure validation of (+)-bistramide C. Chem. Commun. 2005, 3421–3423. [Google Scholar]
  129. Novak, T.; Tan, Z.; Liang, B.; Negishi, E. All-catalytic, efficient, and asymmetric synthesis of α,ω-diheterofunctional reduced polypropionates via "One-Pot" Zr-catalyzed asymmetric carboalumination-Pd-catalyzed cross-coupling tandem process. J. Am. Chem. Soc. 2005, 127, 2838–2839. [Google Scholar] [CrossRef]
  130. Evans, P. A.; Cui, J.; Gharpure, S. J.; Hinkle, R. J. Stereoselective construction of cyclic ethers using a tandem two-component etherification: Elucidation of the role of bismuth tribromide. J. Am. Chem. Soc. 2003, 125, 11456–11457. [Google Scholar] [CrossRef]
  131. Wipf, P.; Uto, Y.; Yoshimura, S. Total synthesis of a stereoisomer of bistramide C and assignment of configuration of the natural product. Chem. Eur. J. 2002, 8, 1670–1681. [Google Scholar] [CrossRef]
  132. Lipshutz, B. H. Elworthy, Intermolecular couplings between vinyl triflates and allylic cuprates: a mild and rapid atypical route to 1,4-dienes. J. Org. Chem. 1990, 55, 1695–1696. [Google Scholar] [CrossRef]
  133. Nelson, S. G.; Peelen, T. J.; Wan, Z. Catalytic asymmetric acyl halide-aldehyde cyclocondensations. A strategy for enantioselective catalyzed cross aldol reactions. J. Am. Chem. Soc. 1999, 121, 9742–9743. [Google Scholar]
  134. Dorta, R. L.; Martin, A.; Salazar, J. A.; Suarez, E.; Prange, T. An enantioselective synthesis of D-(-)-2-amino-5-phosphonopentanoic acid. J. Org. Chem. 1998, 63, 2251–2261. [Google Scholar]
  135. Broka, C. A.; Ehrler, J. Enantioselective total syntheses of bengamides B and E. Tetrahedron Lett. 1991, 32, 5907–5910. [Google Scholar] [CrossRef]
  136. Tanaka, N.; Suenaga, K.; Yamada, K.; Shu-zhen Zheng, S.-Z.; Chen, H.-S.; Daisuke Uemura, D. Isolation and structures of attenols A and B. Novel bicyclic triols from the chinese bivalve Pinna attenuata. Chem. Lett. 1999, 1025–1026. [Google Scholar]
  137. Weghe, P. V. de.; Aoun, D.; Boiteau, J.-G.; Eustache, J. Silicon tether-aided coupling metathesis: Application to the synthesis of attenol A. Org. Lett. 2002, 4, 4105–4108. [Google Scholar] [CrossRef]
  138. Oikawa, M.; Ueno, T.; Oikawa, H.; Ichihara, A. Total synthesis of tautomycin. J. Org. Chem. 1995, 60, 5048–5068. [Google Scholar] [CrossRef]
  139. Rychnovsky, S. D.; Griesgraber, G.; Zeller, S.; Skalitzky, D. J. Optically pure 1,3-diols from (2R,4R)- and (2S,4S)-1,2:4,5-diepoxypentane. J. Org. Chem. 1991, 56, 5161–5169. [Google Scholar] [CrossRef]
  140. Jung, M. E.; Karama, U.; Marquez, R. Conversion of homoallylic alcohols with alkene protection to the corresponding methyl ketones. J. Org. Chem. 1999, 64, 663–665. [Google Scholar] [CrossRef]
  141. Enders, D.; Lenzen, A. Asymmetric total synthesis of attenol A and B. Synlett 2003, 2185–2187. [Google Scholar] [CrossRef]
  142. Job, A.; Janeck, C. F.; Bettray, W.; Peters, R.; Enders, D. The SAMP-/RAMP-hydrazone methodology in asymmetric synthesis. Tetrahedron 2002, 58, 2253–2329. [Google Scholar] [CrossRef]
  143. Kolb, H. C.; VanNieuwenhze, M. S.; Sharpless, K. B. Catalytic asymmetric dihydroxylation. Chem. Rev. 1994, 94, 2483. [Google Scholar] [CrossRef]
  144. Suenaga, K.; Araki, K.; Sengoku, T.; Uemura, D. Enantioselective synthesis of attenols A and B. Org. Lett. 2001, 3, 527–529. [Google Scholar] [CrossRef]
  145. Posner, G. H.; Weitzberg, M.; Hamill, T. G.; Asirvatham, E.; Cun-heng, H.; Clardy, J. Asymmetric michael additions of ester enolates to enantiomerically pure vinylic sulfoxides: synthesis of 3-substituted glutarate esters in high enantiomeric purity. Tetrahedron 1986, 42, 2919–2929. [Google Scholar] [CrossRef]
  146. La Cruz, T. E.; Rychnovsky, S. D. A reductive cyclisation approach to attenol A. J. Org. Chem. 2007, 72, 2602–2611. [Google Scholar] [CrossRef]
  147. Takaoka, L. R.; Buckmelter, A. J.; La Cruz, T. E.; Rychnovsky, S. D. Rational synthesis of contra-thermodynamic spiroacetals by reductive cyclizations. J. Am. Chem. Soc. 2005, 127, 528–529. [Google Scholar] [CrossRef]
  148. Schaus, S. E.; Brandes, B. D.; Larrow, J. F.; Tokunaga, M.; Hansen, K. B.; Gould, A. E.; Furrow, M. E.; Jacobsen, E. N. Highly selective hydrolytic kinetic resolution of terminal epoxides catalyzed by chiral (salen)CoIII complexes. Practical synthesis of enantioenriched terminal epoxides and 1,2-diols. J. Am. Chem. Soc. 2002, 124, 1307–1315. [Google Scholar] [CrossRef]
  149. Schneider, C.; Klapa, K.; Hansch, M. Zr (Ot-Bu) 4-catalyzed Tishchenko reduction of β-hydroxy ketones. Synlett 2005, 91–95. [Google Scholar] [CrossRef]
  150. Takami, K.; Yorimitsu, H.; Oshima, K. Trans-Hydrometalation of Alkynes by a Combination of InCl3 and DIBALH: One-pot access to functionalized (Z)-alkenes. Org. Lett. 2004, 4, 2993–2995. [Google Scholar]
  151. Louie, J.; Bielawski, C. W.; Grubbs, R. H. Tandem Catalysis: The sequential mediation of olefin metathesis, hydrogenation, and hydrogen transfer with single-component Ru complexes. J. Am. Chem. Soc. 2001, 123, 11312–11313. [Google Scholar] [CrossRef]
  152. Milne, J. E.; Kocienski, P. J. A Synthesis of α-lithiated enol ethers from α-arenesulfinyl enol ethers: Ni(0)- and Pd(0)-catalysed coupling of enol triflates and phosphates derived from lactones with sodium arenethiolates gives α-arenesulfanyl enol ethers. Synthesis 2003, 584–592. [Google Scholar]
  153. Calaza, M. I.; Hupe, E.; Knochel, P. Highly anti-Selective SN2' Substitutions of chiral cyclic 2-iodo-allylic alcohol derivatives with mixed zinc-copper reagents. Org. Lett. 2003, 5, 1059–1061. [Google Scholar] [CrossRef]
  154. Guijarro, D.; Mancheno, B.; Yus, M. Direct transformation of trialkyl phosphates into organolithium compounds by a DTBB-catalysed lithiation. Tetrahedron 1994, 50, 8551–8558. [Google Scholar] [CrossRef]
  155. Kolb, H. C.; Sharpless, K. B. A simplified procedure for the stereospecific transformation of 1,2-diols into epoxides. Tetrahedron 1992, 48, 10515–10530. [Google Scholar] [CrossRef]
  156. Statsuk, A. V.; Bai, R.; Baryza, J. L.; Verma, V. A.; Hamel, E.; Wender, P. A.; Kozmin, S. A. Actin is the primary cellular recepter of bistramide A. Nat. Chem. Biol. 2005, 1, 383–388. [Google Scholar]
  157. Yadav, J. S.; Chetia, L. Stereoselective total synthesis of bistramide A. Org. Lett. 2007, 9, 4587–4589. [Google Scholar] [CrossRef]
  158. Yadav, J. S.; Joyasawal, S.; Dutta, S. K.; Kunwar, A. C. Stereoselective synthesis of the ABCD ring framework of azaspiracids. Tetrahedron Lett. 2007, 48, 5335–5340. [Google Scholar] [CrossRef]
  159. Yadav, J. S.; Gadgil, V. R. Effect of substituents on radical induced cyclization of bromoacetals of 3-hydroxyhexa-1,5-dienes. J. Chem. Soc. Chem. Commun. 1989, 1824–1825. [Google Scholar] [CrossRef]
  160. Smith, A. B., III; Condon, S. M.; McCauley, J. A.; Leazer, J. L., Jr.; Leahy, J. W.; Maleczka, R. E., Jr. A unified total synthesis of the immunomodulators (-)-rapamycin and (-)-27-demethoxy-rapamycin: Construction of the C (21-42) Perimeters. J. Am. Chem. Soc. 1997, 119, 947–961. [Google Scholar] [CrossRef]
  161. Yadav, J. S.; Gadgil, V. R. TosMIC in the preparation of spiroacetals: synthesis of pheromone components of olive fruit fly. Tetrahedron Lett. 1990, 31, 6217–6218. [Google Scholar] [CrossRef]
  162. Paterson, I.; Yeung, K. S.; Smaill, J. B. The Horner-Wordsworth-Emmons reaction in natural product synthesis: Expedient construction of complex (E)-enones using barium hydroxide. Synlett. 1993, 774–776. [Google Scholar] [CrossRef]
  163. Corey, E. J.; Helal, C. J. Reduction of carbonyl compounds with chiral oxazaborolidine catalysts: A new paradigm for enantioselective catalysis and a powerful new synthetic method. Angew. Chem. Int. Ed. Engl. 1998, 37, 1986–2012. [Google Scholar] [CrossRef]
  164. Lowe, J. T.; Wrona, I. E.; Panek, J. S. Total synthesis of bistramide A. Org. Lett. 2007, 9, 327–330. [Google Scholar] [CrossRef]
  165. Evans, D. A.; Downey, C. W.; Shaw, J. T.; Tedrow, J. S. Magnesium halide-catalyzed anti-aldol reactions of chiral N-acylthiazolidinethiones. Org. Lett. 2002, 4, 1127–1130. [Google Scholar] [CrossRef]
  166. Basha, A.; Lipton, M.; Weinreb, S. M. A mild, general method for conversion of esters to amides. Tetrahedron Lett. 1977, 18, 4171–4172. [Google Scholar] [CrossRef]
  167. Schomaker, J. M.; Pulgam, V. R.; Borhan, B. Synthesis of diastereomerically and enantiomerically pure 2,3-disubstituted tetrahydrofurans using a sulfoxonium ylide. J. Am. Chem. Soc. 2004, 126, 13600–13601. [Google Scholar] [CrossRef]
  168. Miyashita, M.; Hoshino, M.; Yoshikoshi, A. Stereospecific methylation of γ, δ-epoxy acrylates by trimethyl aluminum: a method for the iterative construction of polypropionate chains. J. Org. Chem. 1991, 56, 6483–6485. [Google Scholar] [CrossRef]
  169. Crimmins, M. T.; DeBaillie, A. C. Enantioselective total synthesis of bistramide A. J. Am. Chem. Soc. 2006, 128, 4936–4937. [Google Scholar] [CrossRef]
  170. Kopecky, D. J.; Rychnovsky, S. D. Improved procedure for the reductive acetylation of Acyclic esters and a new synthesis of ethers. J. Org. Chem. 2000, 65, 191–198. [Google Scholar] [CrossRef]
  171. Statsuk, A. V.; Liu, D.; Kozmin, S. A. Synthesis of bistramide A. J. Am. Chem. Soc. 2004, 126, 9546–9547. [Google Scholar] [CrossRef]
  172. Bringer, P.; Muller, B. R.; Mynott, R. Vinylcarbene complexes of titanocene. Angew. Chem., Int. Ed. Engl. 1989, 28, 610–611. [Google Scholar] [CrossRef]
  173. Scholl, M.; Ding, S.; Lee, C. W.; Grubbs, R. H. Synthesis and Activity of a New Generation of Ruthenium-Based Olefin Metathesis Catalysts Coordinated with 1,3-Dimesityl-4,5-dihydroimidazol-2-ylidene Ligands. Org. Lett. 1999, 1, 953–956. [Google Scholar] [CrossRef]
  174. Barma, D. K.; Kundu, A.; Zhang, H. M.; Mioskowski, C.; Falck, J. R. (Z)-α -Haloacrylates: An exceptionally stereoselective preparation via Cr(II)-mediated olefination of aldehydes with trihaloacetates. J. Am. Chem. Soc. 2003, 125, 3218–3219. [Google Scholar] [CrossRef]
  175. Corey, E. J.; Helal, C. J. Reduction of carbonyl compounds with chiral oxazaborolidine catalysts: A new Paradigm for enantioselective catalysis and a powerful new synthetic method. Angew. Chem. Int. Ed. Engl. 1998, 37, 1986–2012. [Google Scholar] [CrossRef]
  176. Brown, H. C.; Bhat, K. S. Enantiomeric Z- and E-crotyldiisopinocampheylboranes. Synthesis in high optical purity of all four possible stereoisomers of β-methylhomoallyl alcohols. J. Am. Chem. Soc. 1986, 108, 293. [Google Scholar] [CrossRef]
  177. Crimmins, M. T.; DeBaillie, A. C. Enantioselective total synthesis of bistramide A. J. Am. Chem. Soc. 2006, 128, 4936–4937. [Google Scholar] [CrossRef]
  178. Crimmins, M. T.; King, B. W.; Tabet, E. A.; Chaudhary, K. Asymmetric Aldol Additions: Use of titanium tetrachloride and (-)-sparteine for the soft enolization of N-acyl oxazolidinones, oxazolidinethiones, and thiazolidinethiones. J. Org. Chem. 2001, 66, 894–902. [Google Scholar] [CrossRef]
  179. Lowe, J. T.; Wrona, I. E.; Panek, J. S. Total synthesis of bistramide A. Org. Lett. 2007, 9, 327–330. [Google Scholar] [CrossRef]
  180. Huang, H.; Panek, J. S. Stereoselective synthesis of functonalized dihydropyrans via a formal [4+2]-annulation of chiral crotylsilanes. J. Am. Chem. Soc. 2000, 122, 9836. [Google Scholar] [CrossRef]
  181. Cloarec, J.-M.; Charette, A. B. Highly efficient two-step synthesis of C-sp3-centered geminal diiodides. Org. Lett. 2004, 6, 4731–4734. [Google Scholar] [CrossRef]
  182. Holtzel, A.; Kempter, C.; Metzger, J. W.; Jung, G.; Groth, I.; Fritz, T.; Fiedler, H.-P. Spirofungin, a new antifungal antibiotic from Streptomyces violaceusniger. J. Antibiot. 1998, 51, 699–707. [Google Scholar] [CrossRef]
  183. Takahashi, H.; Osada, H.; Koshino, H.; Kudo, T.; Amano, S.; Shimizu, S.; Yoshihama, M.; Isono, K. Revermycins, new inhibitors of eukaryotic cell growth. J. Antibiot. 1992, 45, 1409–1413. [Google Scholar] [CrossRef]
  184. Takahashi, H.; Osada, H.; Koshino, H.; Sasaki, M.; Onose, R.; Nakakoshi, M.; Yoshihama, M.; Isono, K. Revermycins, new inhibitors of eukaryotic cell growth. J. Antibiot. 1992, 45, 1414–1419. [Google Scholar] [CrossRef]
  185. Koshino, H.; Takahashi, H.; Osada, H.; Isono, K. Reveromycins, new inhibitors of eukaryotic cell growth. J. Antibiot. 1992, 45, 1420–1427. [Google Scholar] [CrossRef]
  186. Ubukata, M.; Koshino, H.; Osada, H.; Isono, K. Absolute configuration of reveromycin A, an inhibitor of the signal transduction of epidermal growth factor. J. Chem. Soc., Chem. Commun. 1994, 1877–1878. [Google Scholar]
  187. Shimizu, T.; Satoh, T.; Murakoshi, K.; Sodeoka, M. Asymmetric total synthesis of (-)-spirofungin A and (+)-spirofungin B. Org. Lett. 2005, 7, 5573–5576. [Google Scholar] [CrossRef]
  188. Yamaguchi, M.; Hirao, I. An efficient method for the alkynylation of oxiranes using alkynyl boranes. Tetrahedron Lett. 1983, 24, 391–394. [Google Scholar] [CrossRef]
  189. Takai, K.; Nitta, K.; Utimoto, K. Simple and selective method for aldehydes (RCHO) Molecules 13 01942 i003 (E) -haloalkenes (RCH:CHX) conversion by means of a haloform-chromous chloride system. J. Am. Chem. Soc. 1986, 108, 7408–7410. [Google Scholar] [CrossRef]
  190. Takagi, J.; Takahashi, K.; Isiyama, T.; Miyaura, N. Palladium-catalyzed cross-coupling reaction of bis(pinacolato)diboron with 1-alkenyl halides or triflates: convenient synthesis of unsymmetrical 1,3-dienes via the borylation-coupling sequence. J. Am. Chem. Soc. 2002, 124, 8001–8006. [Google Scholar] [CrossRef]
  191. Corey, E. J.; Katzenellenbogen, J. A.; Roman, S. A.; Gilman, N. W. Stereospecific synthesis of a biologically active dehydro derivative of the C18-juvenile hormone of cecropia. New routes to a key C12-intermediate. Tetrahedron Lett. 1971, 21, 1821–1824. [Google Scholar]
  192. Miyaura, N.; Suginome, H.; Suzuki, A. A stereospecific synthesis of conjugated (E,Z)- and (Z,Z)-alkadienes by a palladium-catalyzed cross-coupling reaction of 1-alkenylboranes with 1-alkenyl bromides. Tetrahedron Lett. 1981, 22, 127–130. [Google Scholar] [CrossRef]
  193. Kato, y.; Kusetani, N.; Matsunaga, S.; Hashimoto, K.; Furuya, T. Bioactive marine metabolites. Part 16. Calyculin A. A novel antitumor metabolite from the marine sponge discodermia calyx. J. Am. Chem. Soc. 1986, 108, 2780–2781. [Google Scholar] [CrossRef]
  194. Evans, D. A.; Gage, J. R.; Leighton, J. L. Total synthesis of (+)-calyculin A. J. Am. Chem Soc. 1992, 114, 9434–9453. [Google Scholar] [CrossRef]
  195. Tanimoto, N.; Gerritz, S. W.; Sawabe, A.; Noda, T.; Filla, S. A.; Masamune, S. The synthesis of naturally occurring (-)-calyculin A. Angew. Chem. Int. Ed. Engl. 1994, 33, 673–675. [Google Scholar] [CrossRef]
  196. Yokokawa, F.; Hamada, Y.; Shioiri, T. Total synthesis of calyculin A: Construction of the C(9)-C(37) fragment. J. Chem. Soc., Chem. Commun. 1996, 871–872. [Google Scholar] [CrossRef]
  197. Smith, A. B., III; Friestad, G. K.; Duan, J. J.-W.; Barbosa, J.; Hull, K. G.; Iwashima, M.; Qiu, Y.; Spoors, P. G.; Bertounesque, E.; Salvatore, B. A. Total synthesis of (+)-calyculin A and (-) calyculin B. J. Org. Chem. 1998, 63, 7596–7597. [Google Scholar] [CrossRef]
  198. Hyuga, S.; Chiba, Y.; Yamashina, N.; Hara, S.; Suzuki, A. (E)-(2-Bromoethenyl)dibromoborane. A New precursor for (E)-1, 2-disubstituted ethenes. Chem. Lett. 1987, 1757–1760. [Google Scholar]
  199. Roush, W. R.; Palkowitz, A. D.; Ando, K. Acyclic diastereoselective synthesis using tartrate ester-modified crotylboronates. Double asymmetric reactions with α-methyl chiral aldehydes and synthesis of the C(19)-C(29) segment of rifamycin S. J. Am. Chem. Soc. 1990, 112, 6348–6359. [Google Scholar] [CrossRef]
  200. McMurry, J. E.; Scott, W. J. A method for the regiospecific synthesis of enol triflates by enolate trapping. Tetrahedron Lett. 1983, 24, 979–782. [Google Scholar] [CrossRef]
  201. Piers, E.; Tillyer, R. D. Dilithium (trimethylstannyl)(2-thienyl)(cyano)cuprate, a synthetically useful higher-order cuprate reagent. J. Org.Chem. 1988, 53, 5366–5369. [Google Scholar] [CrossRef]
  202. Smith, A. B., III; Salvatore, B. A.; Hull, K. G.; Duan, J. J.-W. Calyculin synthetic studies. 2. Stereocontrolled assembly of the C (9)-C(13) dithiane and C(26)-C(37) oxazole intermediates. Tetrahedron Lett. 1991, 32, 4859–4862. [Google Scholar] [CrossRef]
  203. Salvatore, B. A.; Smith, A. B., III. Calyculin synthetic studies. 3. Enantiomeric purity determination for the C(26)–C(32) oxazole segment via the silks-odom 77Se NMR method. Tetrahedron Lett. 1994, 35, 1329–1330. [Google Scholar] [CrossRef]
  204. Toshima, K.; Tatsuta, K.; Kinoshita, M. Total synthesis of elaiophylin (Azalomycin B). Bull. Chem. Soc. Jpn. 1988, 61, 2369–2381. [Google Scholar] [CrossRef]
  205. Lipshutz, B. H.; Sengupta, S. Organocopper reagents: substitutions, conjugate addition, carbo/metallocupration and other reactions. Org. React. 1992, 41, 135–631. [Google Scholar]
  206. Smith, A. B., III; Iwashima, M. Calyculin synthetic studies. 4. Remarkable reversal of diastereo-selectivity in payne epoxidation of vinyl spiroketal intermediates. Tetrahedron Lett. 1994, 35, 6051–6052. [Google Scholar] [CrossRef]
  207. Ley, S. V.; Norman, J.; Griffith, W. P.; Marsden, S. P. Tetrapropylammonium perruthenate, Pr4N+RuO4-, TPAP: A catalytic oxidant for organic synthesis. Synthesis 1994, 639–666. [Google Scholar]
  208. Zhao, Z.; Scarlato, G. R.; Armstrong, R. W. Synthesis of trans-4-alkenyl oxazoles. Tetrahedron Lett. 1991, 32, 1609–1612. [Google Scholar] [CrossRef]
  209. Yamakado, Y.; Ishiguro, M.; Ikeda, N.; Yamamoto, H. Stereoselective carbonyl-olefination via organosilicon compounds. J. Am. Chem. Soc. 1981, 103, 5568–5570. [Google Scholar] [CrossRef]
  210. Huth, A.; Dettner, K. Defense chemicals from abdominal glands of 13 rove beetle species of subtribe staphylinina (Coleoptera: Staphylinidae, Staphylininae). J. Chem. Ecol. 1990, 16, 2691–2711. [Google Scholar] [CrossRef]
  211. Zhang, H.; Fletcher, M. T.; Dettner, K.; Francke, W.; Kitching, W. Synthesis and absolute stereochemistry of spiroacetals in rove beetles (Coleoptera: Staphylinidae). Tetrahedron Lett. 1999, 40, 7851–7854. [Google Scholar] [CrossRef]
  212. Bernardi, M. D.; Garlaschelli, L.; Toma, L.; Vidari, G.; Finzi, P. V. Fungal metabolites XXVI: The structure of saponaceolides B, C and D, new C-30 terpenoids from Tricholoma saponaceum. Tetrahedron 1991, 47, 7109–7116. [Google Scholar] [CrossRef]
  213. Vidari, G.; Lanfranchi, G.; Sartori, P.; Serra, S. Saponaceolides: differential cytotoxicity and enantioselective synthesis of the right-hand lactone moiety. Tetrahedron: Asymmetry 1995, 06, 2977–2990. [Google Scholar] [CrossRef]
  214. Trost, B. M.; Corte, J. R. Total synthesis of (+)-saponaceolide B. Angew. Chem. Int. Ed. 1999, 38, 3664–3666. [Google Scholar] [CrossRef]
  215. Vidari, G.; Franzini, M.; Garlaschelli, L.; Maronati, A. diastereoselective synthesis of the saponaceolide tricyclic spiroketal substructure. Tetrahedron Lett. 1993, 34, 2685–2688. [Google Scholar] [CrossRef]
  216. Guertin, K. R.; Kende, A. S. Chemoselective catalytic oxidation of sulfides to sulfones with tetrapropylammonium perruthenate (TPAP). Tetrahedron Lett. 1993, 34, 5369–5372. [Google Scholar] [CrossRef]
  217. Lynn, D. G.; Phillips, N. J.; Hutton, W. C.; Shabanowitz, J.; Fennell, D. I.; Cole, R. J. Talaromycins: application of homonuclear spin correlation maps to structure assignment. J. Am. Chem. Soc. 1982, 104, 7319–7322. [Google Scholar] [CrossRef]
  218. Izquierdo, I.; Plaza, M. T.; Rodríguez, M.; Tamayo, J. A. Hexulose derivatives and lipase-mediated diastereomeric resolution in the enantiospecific total synthesis of (-)-talaromycins C and E. Eur. J. Org. Chem. 2002, 309–317. [Google Scholar]
  219. Izquierdo, I.; Plaza, M. T. An enantiospecific synthesis of (−)-talaromycins A and B from D-fructose. Carbohydr. Res. 1990, 205, 293–304. [Google Scholar] [CrossRef]
  220. Izquierdo, I.; Plaza, M. T.; Rodríguez, M.; Tamayo, J. A. Chiral building-blocks by chemoenzymatic desymmetrization of 2-ethyl-1,3-propanediol for the preparation of biologically active natural products. Tetrahedron: Asymmetry 1999, 10, 449–455. [Google Scholar] [CrossRef]
  221. Barton, D. H. R.; Jang, D. O.; Jaszberenyi, J. C. Hypophosphorous acid and its salts: New reagents for radical chain deoxygenation, dehalogenation and deamination. Tetrahedron Lett. 1992, 33, 5709–5712. [Google Scholar] [CrossRef]
  222. Hochlowski, J. E.; Coll, J. C.; Faulkner, D. J.; Biskupiak, J. E.; Ireland, C. M.; Zheng, Q.; He, C.; Clardy, J. Novel metabolites of four Siphonaria species. J. Am. Chem. Soc. 1984, 106, 6748–6750. [Google Scholar] [CrossRef]
  223. Paterson, I.; Chen, D. Y.-K.; Franklin, A. S. Total synthesis of siphonarin B and dihydrosiphonarin B. Org. Lett. 2002, 4, 391–394. [Google Scholar] [CrossRef]
  224. Paterson, I.; Goodman, J. M.; Lister, M. A.; Schumann, R. C.; McClure, C. K.; Norcross, R. D. Enantio- and diastereoselective aldol reactions of achiral ethyl and methyl ketones with aldehydes: the use of enol diisopinocamphenylborinates. Tetrahedron 1990, 46, 4663–4684. [Google Scholar] [CrossRef]
  225. Narasaka, K.; Pai, F. C. Stereoselective reduction of β hydroxyketones to 1, 3-diols highly selective 1,3-asymmetric induction via boron chelates. Tetrahedron 1984, 40, 2233–2238. [Google Scholar] [CrossRef]
  226. Takai, K.; Taghashira, M.; Kuroda, T.; Oshima, K.; Utimoto, K.; Nozaki, H. Reactions of alkenylchromium reagents prepared from alkenyl trifluoromethanesulfonates (triflates) with chromium(II) chloride under nickel catalysis. J. Am. Chem. Soc. 1986, 108, 6048–6050. [Google Scholar] [CrossRef]
  227. Jin, H.; Uenishi, J.-I.; Christ, W. J.; Kishi, Y. Catalytic effect of nickel(II) chloride and palladium(II) acetate on chromium(II)-mediated coupling reaction of iodo olefins with aldehydes. J. Am. Chem. Soc. 1986, 108, 5644–5646. [Google Scholar] [CrossRef]
  • Sample Availability: Not available

Share and Cite

MDPI and ACS Style

Raju, B.R.; Saikia, A.K. Asymmetric Synthesis of Naturally Occuring Spiroketals. Molecules 2008, 13, 1942-2038. https://doi.org/10.3390/molecules13081942

AMA Style

Raju BR, Saikia AK. Asymmetric Synthesis of Naturally Occuring Spiroketals. Molecules. 2008; 13(8):1942-2038. https://doi.org/10.3390/molecules13081942

Chicago/Turabian Style

Raju, B. Rama, and Anil K. Saikia. 2008. "Asymmetric Synthesis of Naturally Occuring Spiroketals" Molecules 13, no. 8: 1942-2038. https://doi.org/10.3390/molecules13081942

Article Metrics

Back to TopTop
