Evaluation of Photoluminescence Properties of Some Poly(ethylene glycol) – Supported Coumarin Derivatives

1
Dipartimento Farmaco Chimico Tecnologico, Università degli Studi di Cagliari, Via Ospedale 72, 09124 Cagliari, CA, Italy
2
Dipartimento di Fisica- Università degli Studi di Cagliari, S.P. n°8- 09042 Monserrato (Cagliari), Italy
*
Authors to whom correspondence should be addressed.
Molecules 2009, 14(3), 1044-1055; https://doi.org/10.3390/molecules14031044
Submission received: 4 February 2009 / Revised: 26 February 2009 / Accepted: 2 March 2009 / Published: 5 March 2009
(This article belongs to the Special Issue Coumarins and Xanthones)

Abstract

:
The immobilization of some coumarin derivatives on modified poly(ethylene glycol)s is reported and the influence of the polymeric support on the photoluminescence activity of the compounds is discussed. Upon ultraviolet excitation, the derivatives showed coumarin - related emission properties whose peak position and efficiency depended on the loading of the polymer and on the mesomeric effects of the substituents.

Graphical Abstract

Introduction

Growing interest in coumarin chemistry was sparked by the discovery of their versatility in a large number of applications. Over the last few decades, in fact, several polycyclic compounds containing at least one coumarinic unit have been isolated from natural products and a lot of derivatives have been synthesized and investigated especially for their biological (anti-HIV, antibacterial, anti-hyperproliferative, anticoagulant) [1,2] and photophysical (as fluorescent tags and fluoroprobes) [3,4,5] properties.
Few examples of coumarins supported on polymers were previously reported in the literature, with the aim of investigating their photophysical characteristics such as the photodimerization and the photocleveage of the coumarinic nucleus [5] or in an attempt to harvest and transfer solar radiation energy [4,6]. The photodimerization effect was successfully used to reversibly control the release of guest molecules trapped within coumarin modified mesoporous silica [8]. Besides, due to its major applications in the optoelectronic field as UV-blue emitters, silylated coumarin dyes [9] and coumarin-containing poly(fluorenediylvinylene)s [10] were synthesized to obtain a solid state and in solution polymer-light emitting devices.
In this respect, the immobilization of the coumarinic nucleus on water-soluble supports could represent a promising approach, especially useful in optoelectronic applications. Consequently, we report herein the immobilization of some coumarin derivatives on modified poly(ethyleneglycol)s of suitable molecular weight by using ether bond anchoring, with the aim of avoiding coumarin solubility problems and an investigation of their photoluminescence properties, which are fundamental aspects in pharmaceutical applications [11].

Results and Discussion

An important restriction to the clinical use of some coumarin derivatives is related to their poor water solubility which, sometimes, has hampered further testing and development [12]. In an attempt to solve these problems, we have recently synthesized 4-methylcoumarin derivatives analogous to compounds 6, 9, 14 and 17, by using, for the first time, the soluble support approach applied to the von Pechmann reaction [13]. In the same way, we succeeded in the preparation of some other PEG-coumarins, based on naturally occurring phenols [14].
We focused our attention on poly(ethylene glycol)s [(PEG)s] since they are non-toxic, inexpensive, generally soluble in a wide variety of solvents, commercially available and easy to functionalize, also offering many advantages over non-soluble polymeric supports. Moreover, when the molecular weight of the support is ≥ 2,000, the PEG - supported molecule system can be readily isolated as a pure product by precipitation /filtration, without using any other purification technique [15].
Due to these features, PEG chemistry has shown broad based applications, which may be in large part ascribed to the use of PEG-conjugates to deliver drugs, oligonucleotides or enzymes [16]. It is well known, for example, that the use of coumarins in the phototherapy of many skin diseases, is due to their ability to undergo electronic transitions when UVA-irradiated, working as photosensitizer drugs [17,18]. Thus, the maintenance of the optical properties of the polymer-supported coumarin is a mandatory task which can be successfully investigated by UV fluorescence spectroscopy [19,20,21,22,23,24,25,26,27].
In the research presented herein, the commercially available coumarins 7-hydroxy-4-methyl- coumarin (3), 7-hydroxy-4-methyl-8-nitrocoumarin (4) and 7-hydroxy-8- methoxy-4-methylcoumarin (5) have been immobilized on the previously mesylated polymeric supports 1 and 2 (Scheme 1).

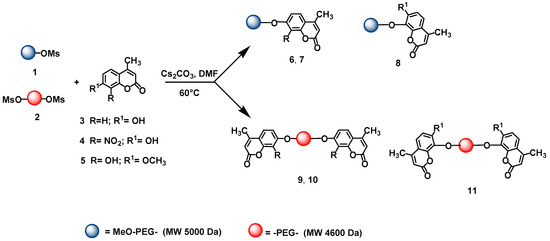

Scheme 1. Immobilization of coumarins 3, 4 and 5.
Scheme 1. Immobilization of coumarins 3, 4 and 5.
Molecules 14 01044 g004
In some derivatives we inserted a spacer [28,29,30,31] between the support and the coumarin to test its possible influence on the photoluminescence properties of the anchored coumarin (Scheme 2).

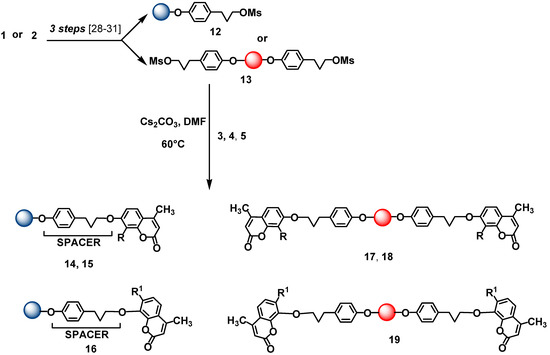

Scheme 2. Immobilization of coumarins 3, 4 and 5 in the presence of a spacer.
Scheme 2. Immobilization of coumarins 3, 4 and 5 in the presence of a spacer.
Molecules 14 01044 g005
Photoluminescence (PL) experiments have been carried out on all the synthesized compounds, investigating their emission properties by exciting the solid samples at 337 nm, because it is well known that 7-hydroxy-4-methylcoumarin displays an absorption band in the 300-400 nm range peaking at about 320 nm and PL features in the near UV-visible region [32]. The PL spectra of PEG-coumarins 3 and 5, excited at 337 nm, together with the spectrum of a standard reference (a 5 x 10-4 M solution of 7-diethylamino-4-methylcoumarin in methanol, QE = 0.73, ref-1) are reported in Figure 1, while in Table 1 peak positions, full width at half maximum (fwhm) and quantum efficiency (QE) are listed. As shown, coumarins’ PL spectra display different features; in fact, we have a peak at 392 nm with a fwhm of 33 nm for compound 3, while compound 5 shows a peak at 425 nm and a fwhm of 80 nm. The PL spectrum of 4 is not reported because no PL signal was detected under the selected excitation wavelength.
As a general rule, the emission properties of coumarins depend on the environmental conditions [9,32,33]. In particular, the luminescence of the 7-hydroxy-4-methylcoumarin (3) is centred at about 385 nm in neutral and slightly acidic solution and it is associated to the neutral molecule. On the contrary, the PL peak shows a bathochromic shift at about 455 nm in basic environments because of the anionic structure of the compound. Otherwise, under acidic conditions and in the presence of water, the zwitterionic exciplex emits at about 480 nm and in strongly acidic solutions the emission peak of the cationic form is at about 420 nm [9,32]. To a better understanding of the reported features, the PL spectrum of a methanol 7x10-4 M solution of 3 is reported in Figure 1 (ref-2).
Figure 1. PL spectra of references (ref-1 and ref-2) and coumarin samples (3 and 5).
Figure 1. PL spectra of references (ref-1 and ref-2) and coumarin samples (3 and 5).
Molecules 14 01044 g001
The spectrum of ref-2 can be interpreted as the combination of the neutral and anionic ground state emissions. By comparison the PL band detected for 3 can be related to the neutral molecule. On the contrary, no similar characterization of the fluorescence for 5 was found in literature so that we could not verify the possible contributions of different chemical forms of 5 to the PL feature. The expected red-shift of the fluorescence of 5 compared to 3, is associated to the presence of a strong electron-donor methoxyl group in 7-position, whose effect is improved by the mesomeric effect of the hydroxyl group in 8-position [32,34].
As compared to quantum efficiency of the references (Table 1), the powder samples have a reduced quantum yield due to the concentration quenching effect typically observed in highly concentrated solution or solid state samples. In addition, it has been previously reported that the concentration effect can cause a red-shift of the emissions [35]. Thus, it can be hypothesized a concentration effect in the double-loaded samples. Conversely, the anchoring procedure does not affect the emission efficiency of PEG-supported coumarins since their QE is comparable to the QE of the parent coumarin.
Table 1. Spectral characteristics of references and coumarin derivatives excited at 337 nm.
Table 1. Spectral characteristics of references and coumarin derivatives excited at 337 nm.
SAMPLEλem (nm)fwhm (nm)QE (%)
ref-14536270
ref-23885755
33923313
5430748
63978211
84351500.4
94426017
114411300.6
143967414
164632400.2
17447648
194881600.1
Moreover, spectra and data reported in Figure 2 and in Table 1, show that 6 and 14 single-loaded derivatives present broadened and slightly red-shifted PL bands with respect to the emission features of the parent coumarin 3. According to the attributions previously reported, 6 and 14 PL features can be assigned to the emission of the neutral and anionic form of the coumarin. A larger red shift is observed in the double-loaded derivatives 9 and 17 which can be ascribed to the concentration effect.
PL spectra of compounds 8, 11, 16 and 19 are shown in Figure 3. As reported in Table 1, the peak position shifts bathocromatically up to 488 nm in compound 19, whereas the fwhm is larger than that of the parent coumarin 5, also with a greatly reduced emission efficiency. Both the effects could be explained by a different electronic distribution related to the presence of the O-PEG chain instead of the OH group in the 8-position. In these samples the electron-donor effect of the methoxyl group is the feature that mainly affects the electronic density distribution. In this respect, a red-shift of the absorption and emission bands should be expected and an increase of the detected QE should be observed by exciting the samples with a less energetic wavelength.

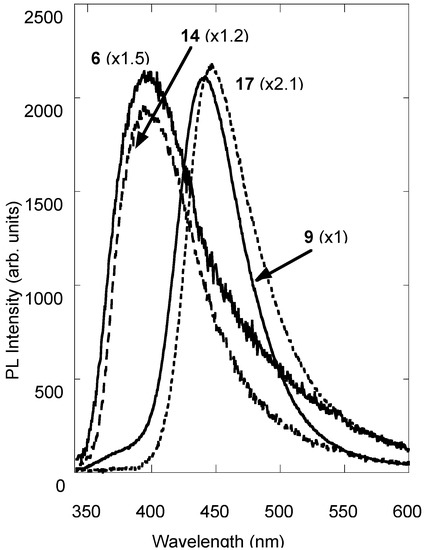

Figure 2. PL spectra of 7-hydroxy-4-methylcoumarin (3) derivatives (6, 9, 14 and 17).
Figure 2. PL spectra of 7-hydroxy-4-methylcoumarin (3) derivatives (6, 9, 14 and 17).
Molecules 14 01044 g002

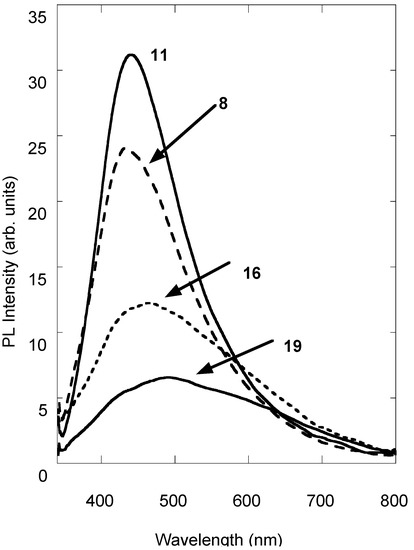

Figure 3. PL spectra of 8-hydroxy-7-methoxy-4-methylcoumarin derivatives (8, 11, 16 and 19).
Figure 3. PL spectra of 8-hydroxy-7-methoxy-4-methylcoumarin derivatives (8, 11, 16 and 19).
Molecules 14 01044 g003
Indeed, PL spectra recorded upon 365 nm excitation (Hg lamp) showed an enhancement of the efficiency (Table 2) and a red-shift of the emission band at about 485 nm.
Table 2. Spectral characteristics of 5 and 8, 11, 16 and 19 excited at 365 nm (RQE = relative quantum efficiency measured with respect to 5).
Table 2. Spectral characteristics of 5 and 8, 11, 16 and 19 excited at 365 nm (RQE = relative quantum efficiency measured with respect to 5).
SAMPLEλem (nm)RQE (%)
5433100
848516
1148617
164828
194926
However, as previously discussed, the presence of different chemical forms of 5 with different spectral properties cannot be excluded. In addition, by comparing 3 and 5 derivatives, two different effects can be evidenced: 1) reduction of the emission efficiency compounds 8, 11, 16 and 19 with respect to the parent 5 coumarin (roughly one order of magnitude) whereas 3 derivatives show comparable QE; 2) no evident red-shift of PL emission of the double loaded derivatives 9 and 17 if compared to the single loaded 6 and 14 whereas a progressive red-shift of the PL in 5 derivatives is observed. Beyond the different electronic distribution, the anchoring of the PEG chain in the 8-position may also cause the excited coumarin to access different non-radiative decay paths leading to a less efficient emission and reducing, even completely, the extent of the concentration effect. In fact, the main photophysical features of coumarins can be interpreted as the emission from an intramolecular charge-transfer (ICT) excited state and a non-radiative decay related to the rotation of the emitting functionality at the 7-position. The latter mechanism, called twisted intramolecular CT (TICT), depends on the structure of the coumarin, the solvent polarity and the viscosity [33]. A detailed study of the absorption and emission properties of 5 as a function of the environmental conditions (i.e. pH of the solution and viscosity) is now under investigation.
Concerning 4 and its derivatives 7, 10, 15 and 18, no PL signal was recorded by exciting at 337 nm. In fact, the lack of emission under the applied experimental conditions was expected, since N-related groups usually cause a red-shift of the absorption and emission features of coumarin samples (R = NH2) and are responsible of quenching effects (R = NO2) [32,36]. Even by exciting at larger wavelength (the 365 nm line of Hg lamp) no PL signal was recorded. Further measurements are in progress to characterize the optical features of the selected nitro-coumarin and its derivatives.
A final comment pertains the photodimerization effect, which is typically observed in coumarin derivatives [34]. The laser power (of about 1 mW) and the irradiation time (few minutes) of the reported experiments are not sufficient to observe the cited effect. Indeed, the detected PL intensities do not decrease during the measurements, as expected if dimers were formed.
Lastly, we have also verified that neither the support (PEG) nor the spacer contribute to the optical properties reported. As a consequence, the non UV-absorbing properties of our PEG-modified supports (at least at the excitation wavelength of 337.1 nm) could also represent an interesting option to carry out photochemical reactions under liquid phase conditions.

Conclusions

In conclusion, we have succeeded in supporting some coumarin derivatives on PEG using an ether bond to anchor the coumarin onto the polymer, instead of the more often used ester linkage. Our aim, in fact, was to prepare a very stable system able to also resist drastic chemical or physical experimental conditions. The photoluminescence activity of the synthesized powders were investigated by exciting in the UV region. The resulting species still showed coumarin related photoluminescence properties, allowing a possible biological application of the supported systems.
As predicted, all the compounds are easily dissolvable in a wide variety of solvents, water included, more than the pure coumarins and this could be an important and intriguing feature for a pharmaceutical application. Moreover, the PEG-conjugation technique could represent a valid way to improve the biological properties of the linked molecules, since the pegylated - coumarin systems could probably act as prodrugs, so improving the pharmacokinetics of the biologically active anchored molecule. In particular, the investigation of the spacer influence on the pharmacological activity of the pegylated-coumarins could be of great interest, as recently discussed for many other PEG-drug conjugates [16,37].

Experimental

General

All PEG samples (Aldrich and Fluka) were melted under vacuum at 90 °C for about 45 min before use, to remove any trace of moisture. After reaction, the crude mixture was concentrated under vacuum to eliminate the solvent, added up by few mL of CH2Cl2 and then centrifuged to eliminate the excess of insoluble coumarin. The obtained solution was poured into Et2O (50 mL per g of polymer) and cooled at 0 °C. The resulting suspension was filtered through a sintered glass filter and the obtained solid was repeatedly washed on the filter with pure Et2O. All samples have been crystallized from isopropyl alcohol to eventually eliminate the excess of the polar reagents or the byproducts. It is well known, in fact, that PEGs, as a result to their helical structure, show a strong propensity to crystallize [38,39]. The yields of PEG-supported compounds were determined by weight, and their purity was confirmed by 1H-NMR analysis in CDCl3 performed by a Varian 300 MHz using tetramethylsilane as internal standard and with a pre-saturation of the methylene signals of the polymeric support at 3.60 ppm. In recording the NMR spectra, a relaxation delay of 6 sec and an acquisition time of 4 sec were used to ensure complete relaxation and accuracy of integration. Coumarin compounds 3, 4 and 5 were commercially available (Aldrich, Lancaster).
PL measurements were carried out by exciting the samples with the 337.1 nm wavelength of a pulsed N2 laser (PRA Laser inc., mod. LN100C). The excitation pulse duration was 300 ps, the mean power was 1 mW and the repetition rate 60 Hz. The PL signal was gathered by a photonic multichannel spectral analyzer (Hamamatsu PMA-11) in the 300-800 nm spectral range with a spectral bandwidth of 1 nm. The reported spectra are recorded applying a short wavelength cutoff filter (WG345) and corrected for the optical transfer function of the system. A quantitative estimation of the quantum efficiency (QE) of the samples was obtained by comparison with a standard reference (ref-1) [32]. A 10% error on the estimated QE was allowed. Some derivatives were investigated also with the 365 nm line of a Hg lamp and recorded with a GG400 short wavelength cutoff filter. PL measurements were carried out in front face configuration in order to minimize reabsorption effects [40].

General procedure to immobilize coumarins 3, 4 and 5

Compounds 6-8 and 14-16: To a solution of 1 (0.98 mmol, previously dried under vacuum) in dry DMF (15 mL), Cs2CO3 (2.94 mmol) and commercial 3, 4 or 5 (2.94 mmol) were added and the reaction mixture was stirred at 60 °C in nitrogen atmosphere for 48 h. After reaction, the mixture was filtered and the filtrate evaporated to dryness. The obtained crude product, dissolved in a few mL of CH2Cl2, was centrifuged to eliminate the excess of insoluble 3, 4 or 5. Compounds 6-8 and 14-16 were obtained as pure products by using the precipitation-filtration technique (see General).
Compounds 9-11 and 17-19: These compounds were prepared from 2 (1.05 mmol), 3, 4 or 5 (6.30 mmol) and Cs2CO3 (6.30 mmol) in dry DMF (20 mL), following the same procedure as for compounds 6-8 and 14-16.

Analytical details for compounds 619

Compound 6: Yield: 85%; 1H-NMR ppm: 2.40 (s, 3H), 3.36 (s, 3H), 6.25 (s, 1H), 6.35 (s, 1H), 6.82 (d, 3J = 8.50 Hz, 1H), 7.60 (d, 3J = 8.50 Hz, 1H); Compound 7: Yield: 79%; 1H-NMR ppm: 2.42 (s, 3H), 3.36 (s, 3H), 6.20 (s, 1H), 6.95 (d, 3J = 8.20 Hz, 1H), 7.91 (d, 3J = 8.20 Hz, 1H); Compound 8: Yield: 83%; 1H-NMR ppm 2.38 (s, 3H), 3.40 (s, 3H), 3.75 (s, 3H), 6.21 (s, 1H), 6.73 (d, 3J = 7.98 Hz, 1H), 7.41 (d, 3J = 7.98 Hz, 1H); Compound 14: Yield: 77%; 1H-NMR ppm: 1.64 (m, 2H), 2.51 (s, 3H), 2.70 (t, 3J = 7.40 Hz, 2H), 3.36 (s, 3H), 3.92 (t, 3J = 6.70 Hz, 2H), 6.18 (s, 1H), 6.30 (s, 1H), 6.81 (m, 2H), 6.88 (m, 3H), 7.50 (d, 3J = 8.41, 1H); Compound 15: Yield: 74%; 1H-NMR ppm: 1.77 (m, 2H), 2.40 (s, 3H), 2.67 (m, 2H), 3.36 (s, 3H), 4.12 (t, 3J = 6.50 Hz, 2H), 6.18 (s, 1H), 6.72 (m, 2H), 6.94 (m, 3H), 7.88 (d, 3J = 8.17 Hz, 1H); Compound 16: Yield: 75%; 1H-NMR ppm: 1.81 (m, 2H), 2.40 (s, 3H), 2.62 (t, 3J = 7.22 Hz, 2H), 3.36 (s, 3H), 3.75 (s, 3H), 4.20 (t, 3J = 6.70 Hz, 2H), 6.18 (s, 1H), 6.48 (d, 3J = 8.30 Hz, 2H), 6.73 (d, 3J = 8.85 Hz, 1H), 6.98 (d, 3J = 8.30 Hz, 2H), 7.43 (d, 3J = 8.85 Hz, 1H); Compound 9: Yield: 87%; 1H-NMR ppm: 2.45 (s, 6H), 6.21 (s, 2H), 6.48 (s, 2H), 6.90 (d, 3J = 8.45 Hz, 2H), 7.65 (d, 3J = 8.45 Hz, 2H); Compound 10: Yield: 80%; 1H-NMR ppm: 2.51 (s, 6H), 6.38 (s, 2H), 7.02 (d, 3J = 8.20 Hz, 2H), 7.84 (d, 3J = 8.20 Hz, 2H); Compound 11: 1H-NMR ppm: 2.36 (s, 6H), 3.83 (s, 6H), 6.17 (s, 2H), 6.70 (d, 3J = 8.01 Hz, 2H), 7.51 (d, 3J = 8.01 Hz, 2H); Compound 17: Yield: 76%; 1H-NMR ppm: 1.58 (m, 4H), 2.42 (s, 6H), 2.74 (t, 3J = 7.65 Hz, 4H), 4.00 (t, 3J = 6.81 Hz, 4H), 6.16 (s, 2H), 6.30 (s, 2H), 6.75 (m, 4H), 6.89 (m, 6H), 7.47 (d, 3J = 8.44, 2H); Compound 18: Yield: 73%; 1H-NMR ppm: 1.89 (m, 4H), 2.44 (s, 6H), 2.60 (m, 4H), 4.25 (t, 3J = 6.62 Hz, 4H), 6.14 (s, 2H), 6.68 (m, 4H), 7.02 (m, 6H), 7.94 (d, 3J = 8.11 Hz, 2H); Compound 19: Yield: 75%; 1H-NMR ppm: 2.01 (m, 4H), 2.49 (s, 6H), 2.70 (t, 3J = 7.14 Hz, 4H), 3.71 (s, 6H), 4.15 (t, 3J = 6.74 Hz, 4H), 6.20 (s, 2H), 6.50 (d, 3J = 8.15 Hz, 4H), 6.75 (d, 3J = 8.90 Hz, 2H), 7.00 (d, 3J = 8.15 Hz, 4H), 7.48 (d, 3J = 8.90 Hz, 2H).

References and Notes

  1. Marshall, M.E.; Kervin, K.; Benefield, C.; Umerani, A.; Albainy-Jenei, S.; Zhao, Q.; Khazaeli, M.B. Growth-inhibitory Effects of Coumarin (1,2-benzopyrone) and 7-Hydroxycoumarin on Human Malignant Cell Lines in Vitro. J. Cancer Res. Clin. Oncol. 1994, 120, 3–10. [Google Scholar] [CrossRef]
  2. Tanaka, T.; Kumamoto, T.; Ishikawa, T. Enantioselective Total Synthesis of Anti HIV-1 Active (+)-Calanolide A through a Quinine-catalyzed Asymmetric Intramolecular Oxo-Michael Addition. Tetrahedron Lett. 2000, 41, 10229–10232. [Google Scholar] [CrossRef]
  3. Erk, C.; Gocmen, A.; Bulut, M. The Synthesis of Novel Macrocycles, Part V. The Coumarin Crown Ethers and Cation Binding with Fluorescence Spectra. Supramol. Chem. 1999, 11, 49–56. [Google Scholar]
  4. Trenor, S.R.; Shultz, A.R.; Love, B.J.; Long, T.E. Coumarins in Polymers: From Light Harvesting to Photo-Cross-Linkable Tissue Scaffolds. Chem. Rev. 2004, 104, 3059–3078. [Google Scholar]
  5. Trenor, S.R.; Love, B.J.; Long, T.E. Photoreversible Chain Extension of Poly(ethylene glycol). Macromol. Chem. Phys. 2004, 205, 715–723. [Google Scholar]
  6. Delzenne, G.A.; Laridon, U. 36th Congress International de Chimie Industrielle. 1967, 3, 373. [Google Scholar]
  7. Serin, J.; Schultze, X.; Adronov, A.; Frechet, J.M.J. Synthesis and Study of the Absorption and Luminescence Properties of Polymers Containing Ru(BpyMe2)32+ Chromophores and Coumarin Laser Dyes. Macromolecules 2002, 35, 5396–5404. [Google Scholar]
  8. Mal, N.K.; Fujiwara, M.; Tanaka, Y. Photocontrolled Reversible Release of Guest Molecules from Coumarin-modified Mesoporous Silica. Nature 2003, 421, 350–353. [Google Scholar]
  9. Suratwala, T.; Gardlund, Z.; Davidson, K.; Uhlmann, D.R.; Watson, J.; Peyghambarian, N. Silylated Coumarin Dyes in Sol−Gel Hosts. 1. Structure and Environmental Factors on Fluorescent Properties. Chem. Mater. 1998, 10, 190–198. [Google Scholar]
  10. Barberis, V.P.; Mikroyannidis, J.A.; Cimrova, V. Coumarin-containing Poly(fluorine-diylvinylene)s: Synthesis, Photophysics and Electroluminescence. J. Polym. Sci.: Part A Polym. Chem. 2006, 44, 5750–5762. [Google Scholar]
  11. Zarebska, Z.; Waszkowska E.; Caffieri, S.; Dall’Acqua, F. PUVA (psoralen+UVA) Photochemotherapy: Processes Triggered in the Cells. Il Farmaco 2000, 55, 515–520. [Google Scholar] [CrossRef]
  12. Yu, D.L.; Suzuki, M.; Xie, L.; Morris-Natschke, S.L.; Lee, K.H. Recent Progress in the Development of Coumarin Derivatives as Potent anti-HIV Agents. Med. Res. Rev. 2003, 23, 322–345. [Google Scholar] [CrossRef]
  13. Tocco, G.; Begala, M.; Delogu, G.; Meli, G.; Picciau, C.; Podda, G. Soluble Polymer-supported Synthesis of 4-Methyl coumarin on Modified Poly(ethylene glycol)s. Synlett 2005, 8, 1296–1300. [Google Scholar]
  14. Tocco, G.; Fais, A.; Meli, G.; Begala, M.; Podda, G.; Fadda, M.B.; Corda, M.; Attanasi, O.A.; Filippone, P.; Berretta, S. PEG-immobilization of Cardol and Soluble Polymer-Supported Synthesis of Some Cardol–coumarin Derivatives: Preliminary Evaluation of Their Inhibitory Activity on Mushroom Tyrosinase. Bioorg. Med. Chem. Lett. 2009, 19, 36–39. [Google Scholar] [CrossRef]
  15. Dickerson, T.J.; Reed, N.N.; Janda, K.D. Soluble polymers as Scaffolds for Recoverable Catalysts and Reagents. Chem. Rev. 2002, 102, 3325–3243. [Google Scholar] [CrossRef]
  16. Greenwald, R.B. PEG drugs: an overview. J. Control. Release 2001, 74, 159–171. [Google Scholar]
  17. Dall’Acqua, F.; Vedaldi, D. CRC Handbook of Organic Photochemistry and Photobiology; CRC Press: Boca Raton, FL, USA, 1995. [Google Scholar]
  18. Dalla Via, L.; Marciani Magno, S. Photochemotherapy in the Treatment of Cancer. Curr. Med. Chem. 2001, 8, 1405–1418. [Google Scholar]
  19. Wolfbeis, O.S. Optical Sensors; Springer-Verlag: Heidelberg, Germany, 2004. [Google Scholar]
  20. Mohr, G.J. Chromo- and Fluororeactands: Indicators for Detection of Neutral Analytes by Using Reversible Covalent-Bond Chemistry. Chem. Eur. J. 2004, 10, 1082–1090. [Google Scholar] [CrossRef]
  21. Pu, L. Fluorescence of Organic Molecules in Chiral Recognition. Chem. Rev. 2004, 104, 1687–1716. [Google Scholar] [CrossRef]
  22. Martinez-Manez, R.; Sancenon, F. Fluorogenic and Chromogenic Chemosensors and Reagents for Anions. Chem. Rev. 2003, 103, 4419–4476. [Google Scholar] [CrossRef]
  23. Wiskur, S.L.; Ait-Haddou, H.; Anslyn, E. V.; Lavigne, J. Teaching Old Indicators new Tricks. J. Acc. Chem. Res. 2001, 34, 963–972. [Google Scholar] [CrossRef]
  24. Desvergne, J.-P.; Czarnik, A.W. Chemosensors of Ion and Molecular Recognition; Kluwer Academic Press: Dordrecht, the Netherlands, 1997. [Google Scholar]
  25. de Silva, A.P.H.; Gunaratne, Q.; Gunnlaugsson, T.; Huxley, A.J.M.; McCoy, C.P.; Rademacher, J.T.; Rice, T.E. Signaling Recognition Events with Fluorescent Sensors and Switches. Chem. Rev. 1997, 97, 1515–1566. [Google Scholar] [CrossRef]
  26. Czarnik, A.W. Fluorescent Chemosensors for Ion and Molecule Recognition; ACS Symposium Series No. 538; American Chemical Society: Washington DC, USA, 1993. [Google Scholar]
  27. Valeur, B. Topics in Fluorescence Spectroscopy, Vol. 4: Probe Design and Chemical Sensing; Lakowicz, J.R., Ed.; Plenum Press: New York, USA, 1994. [Google Scholar]
  28. Annunziata, R.; Benaglia, M; Cinquini, M.; Cozzi, F.; Tocco, G. A Poly(ethylene glycol)-Supported Quaternary Ammonium Salt: an Efficient, Recoverable, and Recyclable Phase-Transfer Catalyst. Org. Lett. 2000, 2, 1737–1739. [Google Scholar]
  29. Reger, T.S.; Janda, K.D. Polymer-Supported (Salen)Mn Catalysts for Asymmetric Epoxidation: a Comparison between Soluble and Insoluble Matrices. J. Am. Chem. Soc. 2000, 122, 6929–6934. [Google Scholar] [CrossRef]
  30. Benaglia, M.; Danelli, T.; Pozzi, G. Synthesis of Poly(ethylene glycol)-supported Manganese Porphyrins: Efficient, Recoverable and Recyclable Catalysts for Epoxidation of Alkenes. Org. Biomol. Chem. 2003, 1, 454–456. [Google Scholar] [CrossRef]
  31. Anyanuwu, U.K.; Venkataraman, D. Effect of Spacers on the Activity of Soluble Polymer Supported Catalysts for the Asymmetric Addition of Diethylzinc to Aldehydes. Tetrahedron Lett. 2003, 44, 6445–6448. [Google Scholar]
  32. Schäfer, F.P. Topics in Applied Physics, vol. 1, Dye Lasers; Schäfer, F.P., Ed.; Springer-Verlag: Berlin, Germany, 1990. [Google Scholar]
  33. Jones, G., II; Jackson, W.R.; Choi, C. Solvent Effects on Emission Yield and Lifetime for Coumarin Laser Dyes. Requirements for a Rotatory Decay Mechanism. J. Phys. Chem. 1985, 89, 294–300. [Google Scholar] [CrossRef]
  34. Wheelock, C. The Fluorescence of Some Coumarins. Am. Chem. Soc. 1959, 81, 1348–1352. [Google Scholar]
  35. Krasovitskii, B.M.; Bolotin, B.M. Organic Luminescent Materials; VCH: Weinheim, Germany, 1988. [Google Scholar]
  36. Takadate, A.; Masuda, T.; Murata, C.; Shibuya, M.; Isobe, A. Structural Features for Fluorescing Present in Methoxycoumarin Derivatives. Chem Pharm. Bull. 2000, 48, 256–260. [Google Scholar]
  37. Veronese, F.M.; Morpurgo, M. Bioconjugation in Pharmaceutical Chemistry. Il Farmaco 1999, 54, 497–516. [Google Scholar] [CrossRef]
  38. Harris, J.M. Poly(Ethylene Glycol) Chemistry: Biotechnical and Biomedical Applications. Harris, J.M., Ed.; Plenum Press: New York, USA, 1992. [Google Scholar]
  39. Zhao, X.Y.; Metz, W.A.; Sieber, F.; Janda, K.D. Expanding on the purification methodology of polyethylene glycol (PEG) bound molecules: The synthesis of 3,5-pyrazolidinediones. Tetrahedron Lett. 1998, 39, 8433–8436. [Google Scholar]
  40. Del Monte, F.; Levy, D. Formation of Fluorescent Rhodamine B J-Dimers in Gel-Glasses Induced by the Adsorption Geometry on the Silica Surface. J. Phys. Chem. B 1998, 102, 8036–8041. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of all the compounds are available from the authors.
