Silica Bonded S-Sulfonic Acid: A Recyclable Catalyst for the Synthesis of Quinoxalines at Room Temperature

by
Khodabakhsh Niknam
*,
Dariush Saberi
and
Maleki Mohagheghnejad
Department of Chemistry, Faculty of Sciences, Persian Gulf University, Bushehr 75169, Iran
*
Author to whom correspondence should be addressed.
Molecules 2009, 14(5), 1915-1926; https://doi.org/10.3390/molecules14051915
Submission received: 26 March 2009 / Revised: 27 April 2009 / Accepted: 30 April 2009 / Published: 22 May 2009
Browse Figures
Versions Notes

Abstract

:
The reaction of 3-mercaptopropylsilica (MPS) and chlorosulfonic acid in chloroform afforded silica bonded S-sulfonic acid (SBSSA), which was used as a catalyst for the room temperature synthesis of quinoxaline derivatives from 1,2-diamino compounds and 1,2-dicarbonyl compounds. The catalyst could be recycled and reused several times without any loss of efficiency.

Graphical Abstract

1. Introduction

In recent years, the search for environmentally benign chemical processes or methodologies has received much attention, and the development of heterogeneous catalysts for fine chemical synthesis has become a major area of research. The potential advantages of these materials over homogeneous systems (simplified recovery and reusability, the potential for incorporation in continuous reactors and micro reactors) could lead to novel environmentally benign chemical procedures for academia and industry [1]. From this viewpoint, a catalytic reaction is a valuable process because the use of stoichiometric reagents that are often toxic poses inherent limitations regarding product purification and waste management from both economical and environmental viewpoints [2]. Application of solid acids in organic transformation has an important role, because they have many advantages such as ease of handling, decreased reactor and plant corrosion problems, and more environmentally safe waste disposal procedures [3,4,5,6,7,8]. It is clear that green chemistry requires the use of environmentally benign reagents and solvents, and it is very crucial to recover and reuse the catalyst. One way to overcome the problem of recyclability of the traditional acid catalysts is to chemically anchor their reactive centers onto an inorganic solid carrier with large surface area to create new organic–inorganic hybrid catalysts [9]. In this type of solids, the reactive centers are highly mobile, similar to homogeneous catalysts and at the same time, they have the advantage of recyclability like heterogeneous catalysts. In this view, several types of solid sulfonic acid functionalized silica (both amorphous and ordered) have been synthesized and applied as an alternative to traditional sulfonic acid resins and homogeneous acids in catalyzing chemical transformations [3,10,11]. Despite the attractiveness of these reagents, to the best of our knowledge, there is no report on the application of these catalysts in quinoxaline synthesis. Following the line of our studies on the design and application of solid catalysts in chemical transformations [12,13,14,15,16], we wish to describe herein, the preparation of silica bonded S-sulfonic acid (SBSSA) as illustrated in Scheme 1, which was then used as catalyst for the synthesis of quinoxaline derivatives.
Molecules 14 01915 g002 550

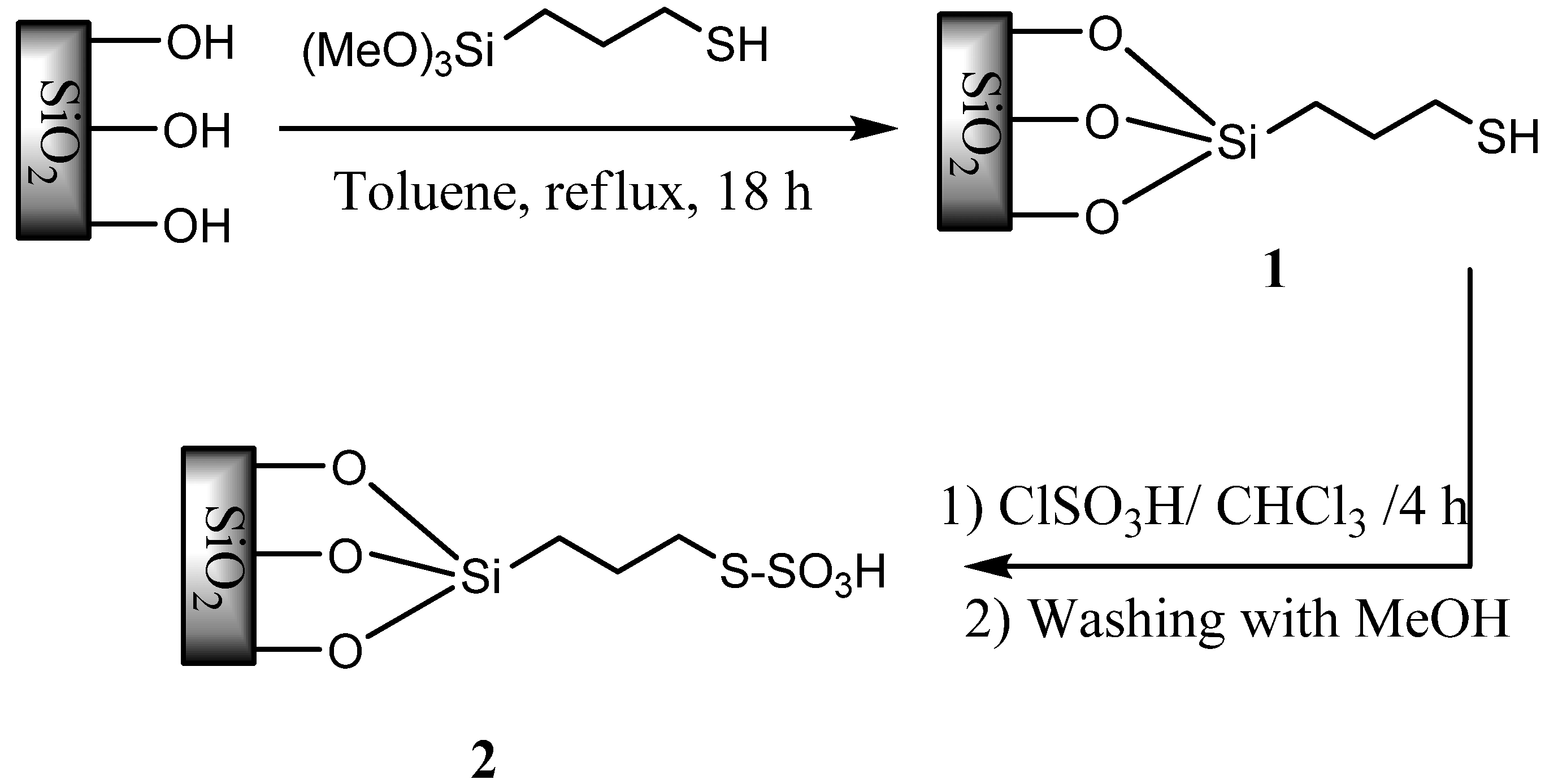

Scheme 1. Preparation of silica bonded S-sulfonic acid (SBSSA).
Scheme 1. Preparation of silica bonded S-sulfonic acid (SBSSA).
Molecules 14 01915 g002
The preparation of quinoxaline and its derivatives plays an important role in organic synthesis [17,18]. These compounds constitute an important class of benzoheterocycles displaying a broad spectrum of biological activities, which have made them privileged structures in pharmacologically active compounds [19,20]. They have also been used as building blocks in the synthesis of organic semiconductors [21], rigid subunits in macrocyclic receptors or for molecular recognition [22], and as chemically controllable switches [23]. In general, these compounds can be produced via the condensation in organic solvents of 1,2-diamines with 1,2-dicarbonyl compounds under refluxing conditions with 34–85% yields for 2–12 h [24]. However, most of the traditional processes suffer from a variety of disadvantages such as pollution, high cost, poor chemical yields, requirements for long reaction times, and tedious work-up procedures, which limit their use as environmentally benign processes.
Some progress on the synthesis of quinoxaline derivatives has been reported in the literature, for example: the Bi-catalyzed oxidative coupling reaction [25], a tandem oxidation process using Pd(OAc)2 or RuCl2–(PPh3)3–TEMPO [26], and MnO2 [27], heteroannulation of nitroketene N,S-arylaminoacetals with POCl3 [28], cyclization of α-arylimino oximes compounds under refluxing condition in acetic anhydride [29]. Also, there are recent reports on the condensation of o-phenylene diamines and 1,2-dicarbonyl compounds in the presence of PbO [30], Zn[(L)-proline] in HOAc [31], copper chloride [32], montmorillonite K-10 [33], ([Hbim]BF4) [34], metal hydrogen sulfates [35], and oxalic acid [36].
In connection with our studies on the preparation and applications of solid acids in organic transformations [12,13,14,15,16], we were interested in finding a simple and efficient method for the synthesis of quinoxaline derivatives under mild conditions using silica bonded S-sulfonic acid (SBSSA) as a catalyst (Scheme 2).
Molecules 14 01915 g003 550

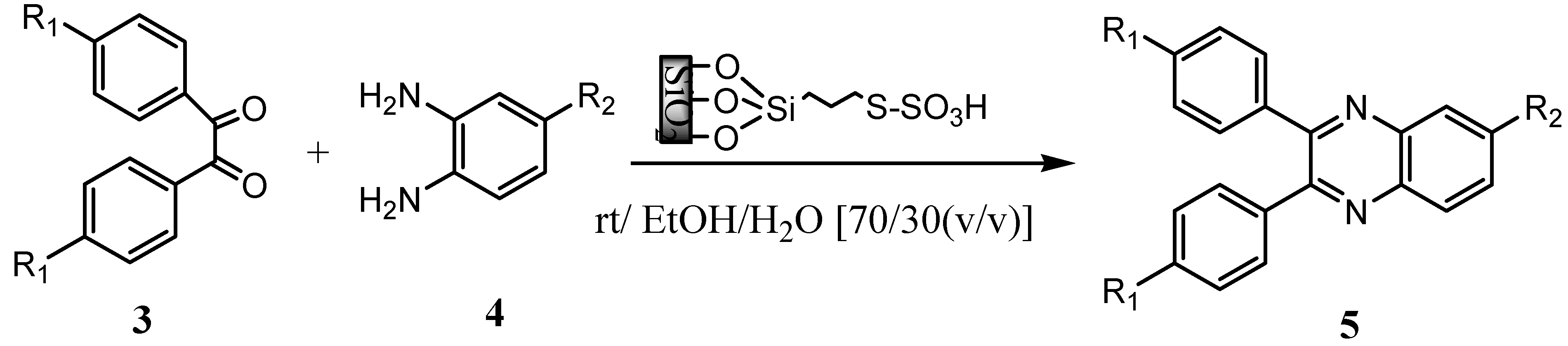

Scheme 2. Synthesis of quinoxaline derivatives catalyzed by silica bonded S-sulfonic acid.
Scheme 2. Synthesis of quinoxaline derivatives catalyzed by silica bonded S-sulfonic acid.
Molecules 14 01915 g003

2. Results and Discussion

To begin this work the condensation reaction between benzil and o-phenylenediamine was employed as the model reaction to screen the best conditions (Table 1). As shown in the Table, condensation reaction in a mixture of ethanol/water [70/30 (v/v)] gave the best results in terms of time and yield, so we chose this solvent system for environmental acceptability.
Table
Table 1. The influence of the solvent on the condensation reaction of o-phenylenediamine (1 mmol) and 1,2-dibenzylketone (1 mmol) catalyzed by SBSSA (3.4 mol%, 0.1 g).
Table 1. The influence of the solvent on the condensation reaction of o-phenylenediamine (1 mmol) and 1,2-dibenzylketone (1 mmol) catalyzed by SBSSA (3.4 mol%, 0.1 g).
EntrySolventThe amount of catalyst (g)Time (min)Yield (%)a
1H2O0.124040
2EtOH0.11297
3CHCl30.16063
4CH2Cl20.16059
5EtOH/ H2O [30/ 70 (v/v)]0.14088
6EtOH/ H2O [50/ 50 (v/v)]0.13090
7EtOH/ H2O [70/ 30 (v/v)]0.1596
8EtOH/ H2O [70/ 30 (v/v)]0.032575
9EtOH/ H2O [70/ 30 (v/v)]0.052090
10EtOH/ H2O [70/ 30 (v/v)]0.15596
aIsolated yield.
The effect of catalyst loading on the condensation reaction between benzil and o-phenylenediamine was also studied. This results show clearly that SBSSA is an effective catalyst for this condensation. Although this condensation could be accomplished with a lower catalyst loading 0.03 g of SBSSA, 0.1 g (3.4 mol%) of SBSSA per mmol of dicarbonyl compound was deemed optimum in terms of reaction time and isolated yield (Table 1, entries 7-10). The scope and generality of the present method was then further demonstrated by the condensation at room temperature of various 1,2-diaryldiketones with o-phenylenediamine derivatives using the optimized conditions {3.4 mol%, 0.1 g of SBSSA in EtOH/H2O [70/30 (v/v)]} and the results are presented in Table 2. The reaction proceeds very cleanly at this temperature and was free of side products.
Table
Table 2. Synthesis of quinoxaline derivatives catalyzed by SBSSA at room temperature.
Table 2. Synthesis of quinoxaline derivatives catalyzed by SBSSA at room temperature.
EntryDicarbonyl compoundDiamineProductTime(min)Yields(%)a
5a Molecules 14 01915 i001 Molecules 14 01915 i002 Molecules 14 01915 i003 596
5b Molecules 14 01915 i001 Molecules 14 01915 i004 Molecules 14 01915 i005 895
5c Molecules 14 01915 i001 Molecules 14 01915 i006 Molecules 14 01915 i0071090
5d Molecules 14 01915 i001 Molecules 14 01915 i008 Molecules 14 01915 i009 20090
5e Molecules 14 01915 i001 Molecules 14 01915 i010 Molecules 14 01915 i011 1591
5f Molecules 14 01915 i001 Molecules 14 01915 i012 Molecules 14 01915 i013 2090
5g Molecules 14 01915 i014 Molecules 14 01915 i002 Molecules 14 01915 i015 22093
5h Molecules 14 01915 i016 Molecules 14 01915 i002 Molecules 14 01915 i017 3085
5i Molecules 14 01915 i016 Molecules 14 01915 i004 Molecules 14 01915 i018 3585
5j Molecules 14 01915 i019 Molecules 14 01915 i002 Molecules 14 01915 i020 594
5k Molecules 14 01915 i019 Molecules 14 01915 i004 Molecules 14 01915 i021 792
5l Molecules 14 01915 i022 Molecules 14 01915 i002 Molecules 14 01915 i023 695
5m Molecules 14 01915 i022 Molecules 14 01915 i004 Molecules 14 01915 i024 892
5n Molecules 14 01915 i022 Molecules 14 01915 i006 Molecules 14 01915 i025 1591
5o Molecules 14 01915 i026 Molecules 14 01915 i002 Molecules 14 01915 i027 2093
5p Molecules 14 01915 i028 Molecules 14 01915 i006 Molecules 14 01915 i029 1591
aIsolated yield.
It can easily be seen that the condensation reaction proceeded smoothly in the chosen solvent system and gave reasonable good to excellent yields, ranging from 85% to 96%. In the case of 1,2-diketones, either electron-withdrawing or electron-donating substituents (R1 = OMe, Cl, Br) on the aromatic ring gave slightly longer reaction times in comparison with R1= H (Table 2, entries 5g-i, 5o). However, for substituents on o-phenylenediamine (R2), electron-donating substituents (such as Me) reacted in shorter reaction times in comparison with electron-withdrawing groups (such as NO2). So, the order of the reactivity for condensation reaction was found to be: H > CH3 > Cl > NO2 (Table 2).
The possibility of recycling the catalyst was examined. For this reason, the room temperature reaction of o-phenylenediamine and benzyl was studied in EtOH/H2O [70/30 (v/v)] in the presence of SBSSA. When the reaction was complete, the mixture was filtered, the residue was washed with warm ethanol and recycled catalyst was reused in the next reaction. No appreciable loss of catalytic activity was observed after twelve cycles (Figure 1).
Molecules 14 01915 g001 550

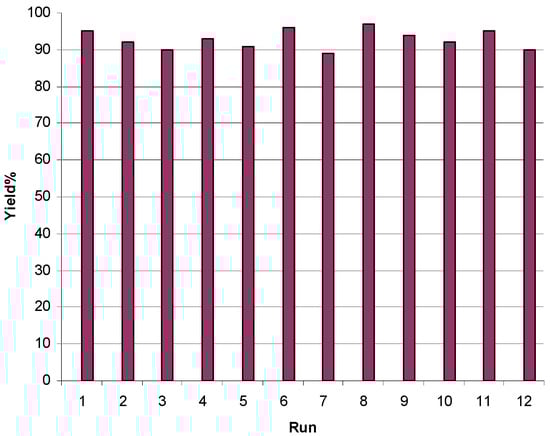

Figure 1. Recyclability of SBSSA (0.1 g) in the condensation reaction of o-phenylenediamine (1 mmol) with 1,2-dibenzylketone (1 mmol) at room temperature. Reaction time = 5 min.
Figure 1. Recyclability of SBSSA (0.1 g) in the condensation reaction of o-phenylenediamine (1 mmol) with 1,2-dibenzylketone (1 mmol) at room temperature. Reaction time = 5 min.
Molecules 14 01915 g001
The proposed mechanism for the condensation reaction of 1,2-diamines with 1,2-dicarbonyl compounds in the presence of SBSSA is shown in Scheme 3.
Molecules 14 01915 g004 550

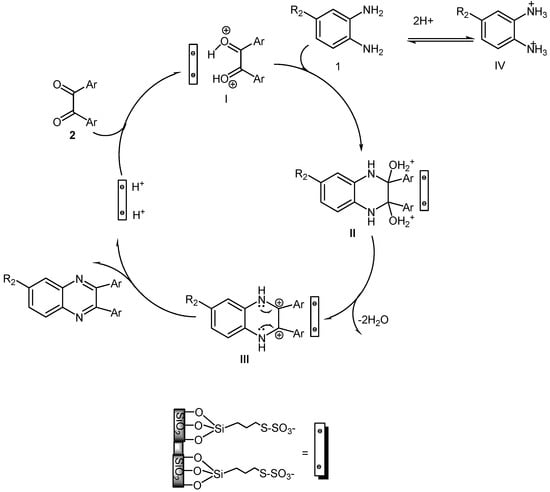

Scheme 3. Proposed mechanism for the condensation reaction of 1,2-diamines with 1,2-dicarbonyl compounds catalyzed by SBSSA.
Scheme 3. Proposed mechanism for the condensation reaction of 1,2-diamines with 1,2-dicarbonyl compounds catalyzed by SBSSA.
Molecules 14 01915 g004
The reaction is assumed to follow the regular mechanism of acid-catalyzed condensation reactions [26], with SBSSA acting as an acid in the protonation of the diketone and also playing a role in promoting the dehydration to give a carbocationic intermediate as shown in Scheme 3: (i) coordination of a 1,2-dicarbonyl onto acid sites from SBSSA, followed by (ii) the nucleophilic attack on the carbonyl C providing intermediate I, (iii) dehydration to give a carbocation intermediate and (iv) elimination of a proton to give the quinoxaline product.

3. Experimental Section

3.1. General

Chemicals were purchased from Fluka, Merck and Aldrich. IR spectra were run on a Shimadzu Infra Red Spectroscopy FT-IR-8000. The 1H and 13C NMR was run on Bruker Avance (DRX 500 MHz and 400 MHz) instruments in CDCl3. Results are reported in ppm. Melting points were recorded on a SMP1 Melting Point apparatus in open capillary tubes and are uncorrected. Reaction progress was followed by TLC using silica gel SILG/UV 254 plates. Measurements of surface area and pore size distribution were made using the Brunauer–Emmet–Teller (BET) method in a Quanta Sorb machine. The products were characterized by comparison of their spectral and physical data with those reported in literature [25,26,27,28,29,30,31,32,33,34,35,36]. 3-Mercapto-propylsilica (1, MPS) was prepared according to the previous report [3].

3.2. Catalyst Preparation

To a magnetically stirred mixture of 3-mercaptopropylsilica (1, 5 g) in CHCl3 (20 mL), chlorosulfonic acid (1.00 g, 9 mmol) was added dropwise at 0 ˚C during 2 h. After the addition was complete, the mixture was stirred for 2 h until all HCl was removed from reaction vessel. The mixture was then filtered, washed with methanol (30 mL) and dried at room temperature to give the silica bonded functionalized sulfonic acid 2 (SBSSA) as a cream powder (5.22 g). Sulfur content of the samples by conventional elemental analysis was 16.12%. Typically a loading at ca. 0.35 mmol/g is obtained. On the other hand, when the washed SBSSA was placed in an aqueous NaCl solution, the solution pH dropped virtually instantaneously to pH ≈ 1.85, as ion exchange occurred between protons and sodium ions (proton exchange capacity: 0.34 mmol/g of SBSSA. Also, a BET surface area of 435 m2g-1 and a total pore volume 0.63 cm3g-1 were measured for the catalyst.

3.3. General procedure for the synthesis of quinoxalines

To a stirred solution of 1,2-phenylenediamine (1 mmol) and dicarbonyl compound (1 mmol) in EtOH/H2O (70/30 v/v) (2 mL) was added SBSSA (3.4 mol%, 0.1 g) and stirred at room temperature. The reaction was followed by TLC. After completion of the reaction, the mixture was filtered, and the remaining was washed with warm ethanol in order to separate catalyst. Then water (20 mL) was added to the filtrate, and was allowed to stand at room temperature for 1 h. During this time, crystals of the pure product were formed which were collected by filtration and dried. For further purification if needed, the products recrystallized from hot ethanol.
2,3-Diphenylquinoxaline (5a): mp 126-127 ˚C (lit.[31] 128-129 ˚C); 1H-NMR (500 MHz) δ: 7.40 (m, 6H), 7.58 (m, 4H), 7.83 (m, 2H), 8.23 (d, 2H, J= 8.0 Hz); 13C-NMR (125 MHz) δ: 128.70, 129.23, 129.65, 130.28, 130.37, 139.54, 141.68, 153.91.
6-Methyl-2,3-diphenylquinoxaline (5b): mp 116-117 ˚C (lit.[31] 117-118 ˚C); 1H-NMR (500 MHz) δ: 2.64 (s, 3H), 7.35 (m, 6H), 7.54 (m, 4H), 7.63 (d, 1H, J= 8.5 Hz), 8.03 (s, 1H), 8.14 (d, 1H, J= 8.5 Hz); 13C-NMR (125 MHz) δ: 22.01, 127.69, 128.31, 128.52, 128.88, 128.98, 129.89, 129.94, 132.68, 138.55, 138.68, 139.48, 140.81, 141.02, 152.47, 153.07.
6,7-Dimethyl-2,3-diphenylquinoxaline (5c): mp 172-174 ˚C (lit.[37] 172 ˚C); 1H-NMR (500 MHz) δ: 2.52 (s, 6H), 7.31-7.33 (m, 6H), 7.50 (dd, 4H, J1= 7.6 Hz, J2= 1.6 Hz), 7.92 (s, 2H); 13C-NMR (125 MHz) δ: 20.84, 128.61, 128.66, 128.93, 130.27, 139.84, 140.66, 140.92, 152.93.
6-Nitro-2,3-diphenylquinoxaline (5d): mp 192-193 ˚C (lit.[31] 193-194 ˚C); 1H-NMR (400 MHz) δ: 7.42 (m, 6H), 7.58 (m, 4H), 8.32 (d, 1H, J= 8.0 Hz), 8.57 (m, 1H), 9.10 (s, 1H); 13C-NMR (100 MHz) δ: 124.41, 126.74, 129.54, 129.61, 130.80, 130.93, 130.99, 131.07, 131.90, 139.17, 139.23, 141.07, 144.70, 148.96, 156.80, 157.43.
6-Chloro-2,3-diphenylquinoxaline [17] (5e): mp 115-116 ˚C; 1H-NMR (500 MHz) δ: 7.36-7.44 (m, 6H), 7.56-7.57 (m, 4H), 7.74 (dd, 1H, J1= 8.9 Hz, J2= 2.3 Hz), 8.14 (d, 1H, J= 8.9 Hz), 8.22 (d, 1H, J= 2.3 Hz); 13C-NMR (125 MHz) δ: 128.52, 128.76, 129.46, 129.54, 130.25, 130.29, 130.87, 131.37, 136.08, 139.11, 139.18, 140.15, 141.92, 154.03, 154.71.
2,3-Diphenyl-4a,5,6,7,8,8a-hexahydroquinoxaline (5f): mp 167-169 ˚C (lit.[37] 167 ˚C); 1H-NMR (500 MHz) δ: 1.46-1.50 (m, 2H), 1.67-1.70 (m, 2H), 1.93-1.96 (m, 2H), 2.54-2.57 (m, 2H), 2.88-2.90 (m, 2H), 7.25-7.29 (m, 4H), 7.31-7.34 (m, 2H), 7.42-7.44 (m, 4H); 13C-NMR (125 MHz) δ: 25.87, 33.956, 59.95, 128.45, 128.55, 129.88, 138.23, 160.10.
2,3-Bis(4-chlorophenyl)quinoxaline (5g): mp 195-196 ˚C (lit.[31] 195-196 ˚C); 1H-NMR (500 MHz) δ: 7.39 (dt, 4H, J1= 8.5 Hz, J2= 2.0 Hz), 7.51 (dt, 4H, J1= 8.5 Hz, J2= 2.0 Hz), 7.83 (dd, 2H, J1= 6.3 Hz, J2= 3.4 Hz), 8.20 (dd, 2H, J1= 6.3 Hz, J2= 3.4 Hz); 13C NMR (125 MHz) δ: 129.15, 129.63, 130.79, 131.61, 135.78, 137.69, 141.67, 152.34.
2,3-Bis(4-methoxyphenyl)quinoxaline (5h): mp 148-150 ˚C (lit.[36] 148-150 ˚C); 1H-NMR (400 MHz) δ: 3.84 (s, 6H), 6.85 (d, 4H, J= 8.6 Hz), 7.47 (d, 4H, J= 8.6 Hz), 7.68 (m, 2H), 8.19 (m, 2H).
2,3-Bis(4-methoxyphenyl)-6-methylquinoxaline (5i): mp 129-131 ˚C (lit.[36] 129-131 ˚C); 1H-NMR (400 MHz) δ: 1.58 (s, 3H), 3.88 (s, 6H), 6.65 (d, 4H, J= 8.6 Hz), 7.05 (d, 4H, J= 8.6 Hz), 7.61 (d, 1H, J= 8.5 Hz), 7.90 (s, 1H), 8.09 (d, 1H, J= 8.5 Hz).
Dibenzo[a,c]phenazine (5j): mp 223-225 ˚C (lit.[38] 224.8-225.7 ˚C); 1H-NMR (400 MHz) δ: 7.51-7.66 (m, 6H), 8.10-8.13 (m, 2H), 8.33 (d, 2H, J= 8.0 Hz), 9.18 (d, 2H, J= 8.1 Hz); 13C-NMR (100 MHz) δ: 124.01, 127.35, 129.01, 130.51, 130.81, 131.41, 133.23, 143.23, 143.51.
11-Methyldibenzo[a,c]phenazine [35] (5k): mp 208-210 ˚C; 1H-NMR (400 MHz) δ: 2.46 (s, 3H), 7.46-7.58 (m, 5H), 7.85 (s, 1H), 7.97 (d, 1H, J= 8.0 Hz), 8.32 (d, 2H, J= 8.0 Hz), 9.13-9.16 (m, 2H); 13C-NMR (100 MHz) δ: 23.20, 123.95, 127.15, 127.29, 128.92, 129.10, 130.01, 131.07, 131.20, 131.45, 131.49, 132.87, 133.06, 133.45, 141.41, 141.81, 142.72, 143.27, 143.29.
Acenaphtho[1,2-b]quinoxaline (5l): mp 238-240 ˚C (lit.[38] 239.5-241.3 °C); 1H-NMR (400 MHz) δ: 7.55-7.65 (m, 4H), 7.89 (d, 2H, J= 8.4 Hz), 8.00-8.20 (m, 2H), 8.21 (d, 2H, J= 6.8 Hz); 13C-NMR (100 MHz) δ: 122.96, 129.78, 130.36, 130.59, 130.74, 131.10, 132.92, 137.60, 142.39, 155.19.
9-Methylacenaphtho[1,2-b]quinoxaline [35] (5m): mp >300 ˚C; 1H-NMR (500 MHz) δ: 2.60 (s, 3H), 7.55 (d, 1H, J= 8.25 Hz), 7.79 (t, 2H, J= 7.5 Hz), 7.95 (s, 1H), 8.03-8.07 (m, 3H), 8.35 (t, 2H, J = 6.3 Hz); 13C-NMR (125 MHz) δ: 22.19, 121.97, 122.12, 129.01, 129.03, 129.21, 129.53, 129.60, 129.75, 130.39, 131.72, 132.44, 136.68, 140.06, 140.10, 141.73, 153.76, 154.48.
9,10-Dimethylacenaphtho[1,2-b]quinoxaline (5n): mp 304-306 ˚C (lit.[36] 304-306 ˚C); 1H-NMR (400 MHz) δ: 2.51 (s, 6H), 7.78 (m, 2H), 7.89 (s, 2H), 8.03 (m, 2H), 8.34 (m, 2H); 13C-NMR (100 MHz) δ: 20.3, 121.5, 127.8, 128.0, 128.6, 128.9, 129.1, 139.5, 140.0, 148.5, 153.3.
2,3-Bis(4-bromophenyl)quinoxaline (5o): mp 192-194 ˚C (lit.[34] 194-195 ˚C); 1H-NMR (500 MHz) δ: 7.41 (dt, 4H, J1= 8.5 Hz, J2= 2.0 Hz), 7.51 (dt, 4H, J1= 8.5 Hz, J2= 2.0 Hz), 7.79 (dd, 2H, J1= 6.5 Hz, J2= 3.5 Hz), 8.15 (dd, 2H, J1= 6.5 Hz, J2= 3.5 Hz); 13C-NMR (125 MHz) δ: 124.13, 129.64, 130.84, 131.86, 132.12, 138.12, 141.68, 152.34.
6,7-Dimethyl-2-phenylquinoxaline (5p): mp 127-129 ˚C (lit.[32] 128-129 ˚C); 1H-NMR (500 MHz) δ: 2.55 (s, 6H), 7.55 (t, 1H, J= 7.1 Hz), 7.59 (t, 2H, J= 7.1 Hz), 7.89 (s, 1H), 7.95 (s, 1H), 8.21 (d, 2H, J = 7.2 Hz), 9.26 (s, 1H); 13C-NMR (125 MHz) δ: 20.75, 20.78, 127.80, 128.59, 129.10, 129.48, 130.24, 137.58, 140.50, 141.02, 141.18, 141.66, 142.83, 151.42.

4. Conclusions

In summary, this work shows that silica bonded S-sulfonic acid, prepared from commercially available and relatively cheap starting materials by a simple transformation, efficiently catalyzes the room temperature condensation reactions between 1,2-diamino compounds and 1,2-dicarbonyl compounds to give quinoxaline derivatives in good to excellent yield. It could also be recovered and reused for more than twelve reaction cycles without noticeable loss of reactivity.

Acknowledgements

We are thankful to Persian Gulf University Research Council for partial support of this work and Dr. Mohammad Reza Shamsaddini for his helpful comments, and also, Dr Mohammad Reza Hormozi Nezhad for running and explanation of BET.
  • Sample Availability: Samples of the compounds are available from the authors.

References and Notes

  1. Choudhary, D.; Paul, S.; Gupta, R.; Clark, J.H. Catalytic properties of several palladium complexes covalently anchored onto silica for the aerobic oxidation of alcohols Green Chem. 2006, 8, 479–482. [Google Scholar]
  2. Ferreira, P.; Phillips, E.; Rippon, D.; Tsang, S.C. Catalytic oxidation of alcohols using molecular oxygen mediated by poly(ethylene glycol)-supported nitroxyl radicals. Appl. Catal. B Environmen. 2005, 61, 206–211. [Google Scholar] [CrossRef]
  3. Karimi, B.; Khalkhali, M. Solid silica-based sulfonic acid as an efficient and recoverableinterphase catalyst for selective tetrahydropyranylation ofalcohols and phenols. J. Mol. Catal. A Chem. 2005, 232, 113–117. [Google Scholar] [CrossRef]
  4. Karimi, B.; Zareyee, D. Design of a Highly Efficient andWater-Tolerant Sulfonic AcidNanoreactor Based on Tunable Ordered Porous Silica for the von PechmannReaction. Org. Lett. 2008, 10, 3989–3992. [Google Scholar] [CrossRef]
  5. Salehi, P.; Zolfigol, M.A.; Shirini, F.; Baghbanzadeh, M. Silica Sulfuric Acid and Silica Chloride as Efficient Reagents for Organic Reactions. Curr. Org. Chem. 2006, 10, 2171–2189. [Google Scholar] [CrossRef]
  6. Niknam, K.; Zolfigol, M.A. 1,3-Dihalo-5,5-dimethylhydantoin/NaNO2as an Efficient Heterogeneous System for theN-Nitrosation of N,N-Dialkylamines under Mild Conditions. J. Iran. Chem. Soc. 2006, 3, 59–63. [Google Scholar] [CrossRef]
  7. Niknam, K.; Karami, B.; Zolfigol, M.A. Silica sulfuric acid promoted aromatization of 1,2-dihydroquinolinesby using NaNO2 as oxidizing agent under mild andheterogeneous conditions. Catal. Commun. 2007, 8, 1427–1430. [Google Scholar] [CrossRef]
  8. Nikłam, K.; Zolfigol, M.A.; Chehardoli, G.; Dehghanian, M. Tribromoisocyanuric Acid and DABCO-Br as EfficientCatalysts for the Silylation of Hydroxyl Groups withHexamethyldisilazane. Chin. J. Catal. 2008, 29, 901–906. [Google Scholar] [CrossRef]
  9. Corma, A.; Garcia, H. Lewis Acids as Catalysts in Oxidation Reactions: From Homogeneous toHeterogeneous Systems. Chem. Rev. 2002, 102, 3837–3892. [Google Scholar] [CrossRef]
  10. Wilson, K.; Lee, A.F.; Macquarrie, D.J.; Clark, J.H. Structure and reactivity of sol–gel sulphonic acid silicas. Appl. Catal. A 2002, 228, 127–133. [Google Scholar] [CrossRef]
  11. Melero, J.A.; Grieken, R.V.; Morales, G. Advances in the Synthesis and Catalytic Applications of Organosulfonic-Functionalized Mesostructured Materials. Chem. Rev. 2006, 106, 3790–3812. [Google Scholar] [CrossRef]
  12. Niknam, K.; Zolfigol, M.A.; Khorramabadi-Zad, A.; Zare, R.; Shayegh, M. Silica sulfuric acid as an efficient and recyclable catalyst for themethoxymethylation of alcohols under solvent-free conditions. Catal. Commun. 2006, 7, 494–498. [Google Scholar] [CrossRef]
  13. Niknam, K.; Zolfigol, M.A.; Sadabadi, T.; Nejati, A. Preparation of Indolylmethanes Catalyzed by Metal Hydrogen Sulfates. J. Iran. Chem. Soc. 2006, 3, 318–322. [Google Scholar] [CrossRef]
  14. Niknam, K.; Zolfigol, M.A.; Sadabadi, T. Ca(HSO4)2 Mediated Conversion of Alcohols into N-Substituted Amides underHeterogeneous Conditions: A Modified Ritter Reaction. J. Iran. Chem. Soc. 2007, 4, 199–204. [Google Scholar] [CrossRef]
  15. Niknam, K.; Zolfigol, M.A.; Hossieninejad, Z.; Daneshvar, N. Efficient Synthesis of 3,4-Dihydropyrimidin-2(1H)-one UsingMetal Hydrogen Sulfates M(HSO4)n as Catalyst underSolvent-Free Conditions. Chin. J. Catal. 2007, 28, 591–595. [Google Scholar] [CrossRef]
  16. Niknam, K.; Zolfigol, M.A.; Dehghani, A. Friedlander Quinoline Synthesis Catalyzedby M(HSO4)n (M=Al, Mg, Ca) under Solvent-Free Conditions. Heterocycles 2008, 75, 2513–2521. [Google Scholar] [CrossRef]
  17. Shivaji, V.M.; Sastry, M.N.V.; Wang, C.C.; Ching-Fa, Y. Molecular iodine: a powerful catalyst for the easy and efficient synthesis of quinoxalines. Tetrahedron Lett. 2005, 46, 6345–6348. [Google Scholar] [CrossRef]
  18. Hui, X.; Desrivot, J.; Bories, C.; Loiseau, P.M.; Franck, X.; Hocquemiller, R.; Figadere, B. Synthesis and antiprotozoal activity of some new synthetic substituted quinoxalines. Bioorg. Med. Chem. Lett. 2006, 16, 815–820. [Google Scholar] [CrossRef]
  19. Sakata, G.; Makino, K.; Kurasama, Y. Recent Progress in the Quinoxaline Chemistry. Synthesis and Biological Activity. Heterocycles 1988, 27, 2481–2515. [Google Scholar] [CrossRef]
  20. Seitz, L.E.; Suling, W.J.; Reynolds, R.C. Synthesis and Antimycobacterial Activity of Pyrazine and QuinoxalineDerivatives. J. Med. Chem. 2002, 45, 5604–5606. [Google Scholar] [CrossRef]
  21. Dailey, S.; Feast, J.W.; Peace, R.J.; Sage, I.C.; Till, S.; Wood, E.L. Synthesis and device characterisation of side-chain polymer electrontransport materials for organic semiconductor applications. J. Mater. Chem. 2001, 11, 2238–2243. [Google Scholar] [CrossRef]
  22. Mizuno, T.; Wei, W.H.; Eller, L.R.; Sessler, J.L. Phenanthroline Complexes Bearing Fused Dipyrrolylquinoxaline AnionRecognition Sites: Efficient Fluoride Anion Receptors. J. Am. Chem. Soc. 2002, 124, 1134–1135. [Google Scholar] [CrossRef]
  23. Crossley, J.C.; Johnston, L.A. Laterally-extended porphyrin systems incorporating a switchable unit. Chem. Commun. 2002, 1122–1123. [Google Scholar] [CrossRef]
  24. Brown, D.J. Quinoxalines: supplement II. In The Chemistry of Heterocyclic Compounds; Taylor, E.C., Wipf, P., Eds.; John Wiley & Sons: Hoboken, NJ, USA, 2004. [Google Scholar]
  25. Antoniotti, S.; Donach, E. Direct and catalytic synthesis of quinoxaline derivatives from epoxides and ene-1,2-diamines. Tetrahedron Lett. 2002, 43, 3971–3973. [Google Scholar] [CrossRef]
  26. Robinson, R.S.; Taylor, R.J.K. Quinoxaline Synthesis from a-Hydroxy Ketones via a Tandem Oxidation Process Using Catalysed Aerobic Oxidation. Synlett. 2005, 1003–1005. [Google Scholar]
  27. Raw, S.A.; Wilfred, C.D.; Taylor, R.J.K. Tandem oxidation processes for the preparation of nitrogen-containing heteroaromatic and heterocyclic compounds. Org. Biomol. Chem. 2004, 2, 788–796. [Google Scholar] [CrossRef]
  28. Venkatesh, C.; Singh, B.; Mahata, P.K.; Ha, H.; Junjappa, H. Heteroannulation of Nitroketene N,S-Arylaminoacetals with POCl3: A Novel Highly Regioselective Synthesisof Unsymmetrical 2,3-Substituted Quinoxalines. Org. Lett. 2005, 7, 2169–2172. [Google Scholar] [CrossRef]
  29. Xekoukoulotakis, N.P.; Hadjiantonious, M.C.P.; Maroulis, A.J. Synthesis of quinoxalines by cyclization of a-arylimino oximes of a-dicarbonyl compounds. Tetrahedron Lett. 2000, 41, 10299–10302. [Google Scholar] [CrossRef]
  30. Kotharkar, S.A.; Shinde, D.B. Lead Oxide (PbO) Mediated Synthesis of Quinoxaline. J. Iran. Chem. Soc. 2006, 3, 267–271. [Google Scholar] [CrossRef]
  31. Heravi, M.M.; Tehrani, M.H.; Bakhtiari, K.; Oskooie, H.A. Zn[(L)proline]: A powerful catalyst for the very fast synthesis ofquinoxaline derivatives at room temperature. Catal. Commun. 2007, 8, 1341–1344. [Google Scholar] [CrossRef]
  32. Cho, C.S.; Oh, S.G. Copper-catalyzed oxidative cyclization of α-hydroxyketone with o-phenylenediamines leading to quinoxalines. J. Mol. Catal. A Chem. 2007, 276, 205–210. [Google Scholar] [CrossRef]
  33. Huang, T.K.; Wang, R.; Shi, L.; Lu, X.X. Montmorillonite K-10: An efficient and reusable catalystfor the synthesis of quinoxaline derivatives in water. Catal. Commun. 2008, 9, 1143–1147. [Google Scholar] [CrossRef]
  34. Portewar, T.M.; Ingale, S.A.; Srinivasan, K.V. Efficient Synthesis of Quinoxalines in the IonicLiquid 1-n-Butylimidazolium Tetrafluoroborate([Hbim]BF4) at Ambient Temperature. Synth. Commun. 2008, 38, 3601–3612. [Google Scholar] [CrossRef]
  35. Niknam, K.; Zolfigol, M.A.; Tavakoli, Z.; Heydari, Z. Metal Hydrogen Sulfates M(HSO4)n: As Efficient Catalysts for the Synthesis of Quinoxalines in EtOH at Room Temperature. J. Chin. Chem. Soc. 2008, 55, 1373–1378. [Google Scholar]
  36. Hasaninejad, A.; Zare, A.; Mohammadizadeh, M.R.; Shekouhy, M. Oxalic acid as an efficient, cheap, and reusable catalyst for the preparation of quinoxalines via condensation of 1,2-diamines with α-diketones at room temperature. ARKIVOC 2008, xiii, 28–35. [Google Scholar]
  37. Mohsenzadeh, F.; Aghapoor, K.; Darabi, H.R. Benign Approaches for the Microwave-assisted Synthesis of Quinoxalines. J. Braz. Chem. Soc. 2007, 18, 297–303. [Google Scholar]
  38. Markgraf, J.H.; Katt, R.J. Strained Heterocyclic Systems. VI. Basicities of Some Quinoxalines. J. Org. Chem. 1972, 37, 717–718. [Google Scholar] [CrossRef]
