Iodoarylation of Arylalkynes with Molecular Iodine in the Presence of Hypervalent Iodine Reagents

Department of Chemistry and Applied Chemistry, Faculty of Science and Engineering, Saga University, Honjo-machi, Saga, 840-8502, Japan
*
Author to whom correspondence should be addressed.
Molecules 2009, 14(9), 3132-3141; https://doi.org/10.3390/molecules14093132
Submission received: 6 August 2009 / Revised: 18 August 2009 / Accepted: 24 August 2009 / Published: 24 August 2009
(This article belongs to the Special Issue Organic Iodine Chemistry)

Abstract

:
Iodoarylation of arylacetylenes was performed using a simple reagent system composed of molecular iodine and [bis(benzoyloxy)iodo]benzene. Most arylacetylenes efficiently underwent the iodoarylation reaction with electron-rich arenes to give trans 1,1-diaryl-2-iodoethene adducts regio- and stereoselectively. As an exception, the iodoarylation of p-methoxyphenylacetylene resulted in a mixture of E- and Z-isomers of the corresponding product.

Graphical Abstract

1. Introduction

Alkenyl halides, especially iodides, are synthetically useful compounds and have attracted considerable attention of organic chemists because the iodo group is useful for further elaboration by subjecting the iodoalkene units to metal-catalyzed cross-coupling reactions [1,2,3]. However, direct iodination of alkenes to iodoalkanes using molecular iodine (I2) is generally impractical because of the low reactivity of iodine.
We have found that the iodination reaction of aromatic compounds with I2 proceeds smoothly in the presence of potassium peroxodisulfate (K2S2O8) as an oxidant to give iodoarenes in good yields [4]. To further explore the use of I2, we extended the iodination reaction of arenes to iodoarylation of alkynes with arenes. It was assumed that an alkyne would be activated by iodine to form a bridged iodonium ion which would then undergo electrophilic substitution with an arene. However, there are no reports in which molecular iodine is used as an iodine source for the iodoarylation of alkynes. Recently, Barluenga et al. reported the iodoarylation of arenes using bis(pyridine)iodonium(I) tetrafluroborate as an iodine source [5]. This reagent is commercially available, but very expensive, and its preparation requires the use of toxic mercury oxide [6]. Therefore, a convenient, safe, and simple iodine reagent for the iodoarylation of alkynes is strongly required. Preliminarily, we have found that the iodoarylation of alkynes proceeds effectively in the presence of a simple reagent system: I2 and a hypervalent iodine species like PhI(OCOPh)2 [7]. Herein we report the details on the iodoarylation of alkynes with the reagent system consisting of molecular iodine and hypervalent iodine compounds. The results demonstrate a convenient and simple carbon-carbon bond formation process between electron rich arenes and aryl-substituted alkynes using molecular iodine in the presence of hypervalent iodine reagents.

2. Results and Discussion

Molecular iodine and hypervalent iodine compounds have witnessed a large growth in recent years [8,9,10,11,12,13,14,15,16,17,18,19,20]. In the present study we confined our attention to the formation of carbon-carbon bonds between arenes and aryl-substituted alkynes in the presence of molecular iodine and hypervalent iodine reagents. Initially, the present work concentrated on the efficiency of the formation of a carbon-carbon bond between pentamethylbenzene (1a) and p-methylphenylacetylene (2) in the presence of I2 and (diacetoxyiodo)benzene, PhI(OAc)2 (Scheme 1). PhI(OAc)2 is one of the most widely available commercial hypervalent iodine compounds and has been widely used in organic synthesis [8,9], making it the first choice among hypervalent iodine reagents tested .

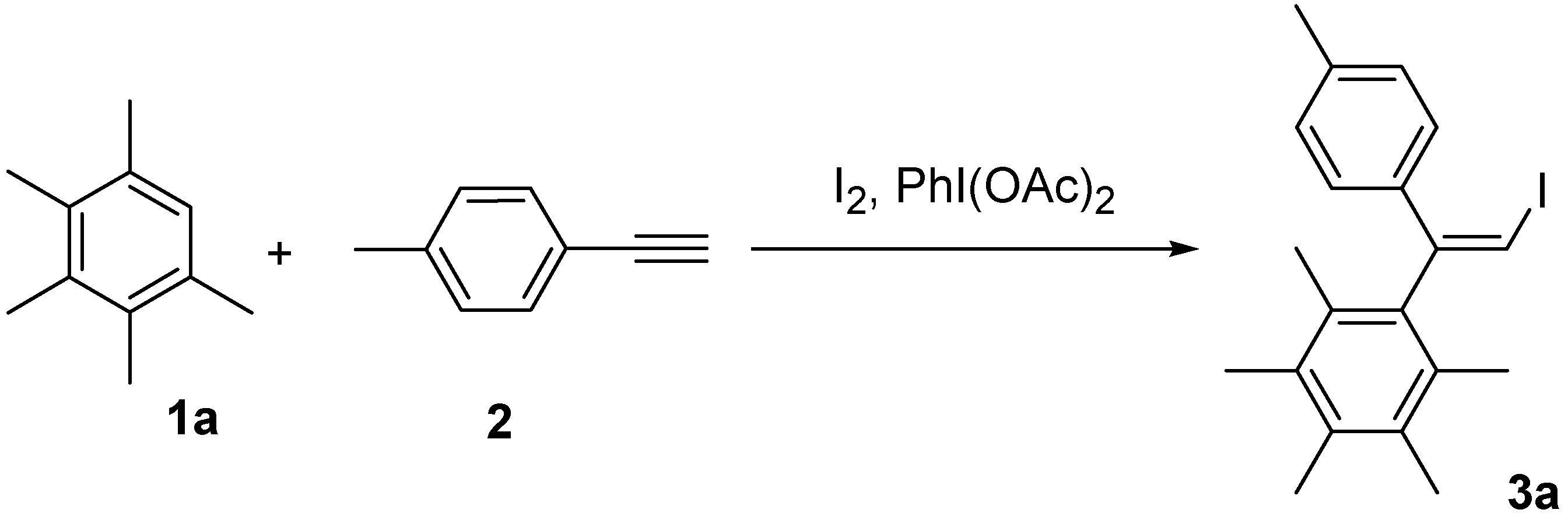

Scheme 1. Reaction of alkyne 2 with arene 1a.
Scheme 1. Reaction of alkyne 2 with arene 1a.
Molecules 14 03132 g001

2.1. Optimization of Reaction Conditions

To optimize the reaction conditions the reaction of 1a and 2 using I2 in the presence of PhI(OAc)2 was investigated (Table 1). The iodoarylation reaction occurred in different solvent systems: 1,2-dichloroethane (DCE), AcOH, and MeCN to give 1-iodo-2-(4-methylphenyl)-2-(pentamethylphenyl)-ethene (3a; Entries 1-3). MeCN (Entry 3) gave the best results. Increasing the amount of 1a resulted in a better yield of 3a (Entry 4). Elevation of the reaction temperature also improved the yield of 3a (Entry 5). The best overall result (78% yield) was obtained by the reaction at 82 oC using 10 equivalents of 1a (Entry 6). The reaction in EtOAc instead of MeCN resulted in a low yield (13%) of product 3a (Entry 7).
Table 1. Optimization of reaction conditions for the reaction of 1a and 2 in the presence of PhI(OAc)2.
Table 1. Optimization of reaction conditions for the reaction of 1a and 2 in the presence of PhI(OAc)2.
Entry1a (mmol)PhI(OAc)2 (mmol)Solvent (Amt.)Temp. (oC)Time (h)Yield of 3a (%)*
111.25DCE (2 mL)452812
253AcOH (2 mL)604823
31.53MeCN (2 mL)604831
453MeCN (2 mL)604852
553MeCN (4 mL)785667
6103MeCN (4 mL)826578
7103EtOAc (4 mL)786513
Reaction conditions: 1a, 2 (1 mmol), I2 (1.25 mmol), PhI(OAc)2 and solvent. * Isolated yield based on 2.
To improve the yield of iodoarylation product 3a, we further examined the effect of different [bis(acyloxy)iodo]benzenes, PhI(OH)OTs, and AgOCOPh on the iodoarylation reaction. Several [bis(acyloxy)iodo]benzenes were prepared from benzoic acid, m- and p-chlorobenzoic acids, p-nitro-benzoic acid, p-toluic acid, and p-anisic acid, according to the literature method [21]. The results are given in Table 2. PhI(OCOPh)2 showed the highest activity among all other reagents, giving the product 3a in 86% yield (Entries 1-6). [Bis(4-nitrobenzoyloxy)iodo]benzene also gave 3a in good yield (80%), but we chose [bis(benzoyloxy)iodo]benzene as the activator because of the ready availability of benzoic acid. Koser’s salt, PhI(OH)OTs, and silver benzoate show little effect in the iodoarylation reaction (Entries 7 and 8).
Table 2. Effect of hypervalent iodine reagents on the reaction of 1a with 2.
Table 2. Effect of hypervalent iodine reagents on the reaction of 1a with 2.
EntryHypervalent iodine reagent Yield of 3a (%)
1PhI(OCOPh)2 86
2[Bis( m-chlorobenzoyloxy)iodo]benzene78
3[Bis( p-chlorobenzoyloxy)iodo]benzene65
4[Bis( p-nitrobenzoyloxy)iodo]benzene80
5[Bis( p-methylbenzoyloxy)iodo]benzene74
6[Bis( p-methoxybenzoyloxy)iodo]benzene70
7PhI(OH)OTs33a,b
8AgOCOPh12c
Reaction conditions: 1a (10 mmol), 2 (1 mmol), I2 (1.25 mmol), a hypervalent iodine regent (3 mmol), MeCN (6 mL), 82 °C, and 65 h. a Iodoarylation product 3a was contaminated with hydroarylation product. b The reaction was conducted by using 1a (3 mmol) in MeCN (4 mL) at 45 °C for 28 h. c 1a (2 mmol), 2 (1 mmol), I2 (1 mmol), AgOCOPh (1 mmol), MeCN (2 mL), 40 °C and 36 h.

2.2. Scope of the iodoarylation reaction using I2 and PhI(OCOPh)2

The iodoarylation reaction of p-methylphenylacetylene (2) in the presence of PhI(OCOPh)2 was examined with different electron-rich arenes 1 (Scheme 2 and Table 3). The results of the reactions showed that the reaction with electron-rich arenes gave iodoarylation products in good yields. In particular the electron rich arene mesitylene (1b) gave iodoarylation product 3b in high yield (Entry 1). The reaction with durene (1c) and bromomesitylene (1d) gave iodoarylation products 3c and 3d in 56 and 42% yields, respectively (Entries 2 and 3). The reaction with p-xylene (1e) gave a low yield of iodoarylation product 3e (Entry 4).
Scheme 2. Reaction of alkyne 2 with arenes 1.
Scheme 2. Reaction of alkyne 2 with arenes 1.
Molecules 14 03132 g002
Table 3. The reaction of alkyne 2 with arenes 1 in the presence of PhI(OCOPh)2.
Table 3. The reaction of alkyne 2 with arenes 1 in the presence of PhI(OCOPh)2.
EntryAreneTime (h)ProductIsolated yield (%)
1Mesitylene (1b)653b75
2Durene (1c)673c56
3Bromomesitylene (1d)723d42a
4p-Xylene (1e)723e33a
Reaction conditions: Arene 1 (10 mmol), p-methylphenylacetylene (2, 1 mmol), I2 (1.25 mmol), PhI(OCOPh)2 (3 mmol), MeCN (6 mL), and 82 °C. a A mixture of E- and Z-isomers.
Next, we examine the reaction of phenylacetylene (4) with different electron-rich arenes 1 under the same reaction conditions as used for 2 (Scheme 3). The results are given in Table 4. The reaction of arenes such as 1a-1c gave iodoarylation products 5a-5c in good yields (Entries 1-3). Moderately activated arenes 1d and 1e showed a very low reactivity, giving low yields (32 and 24%) of iodoarylation products 5d and 5e, respectively.

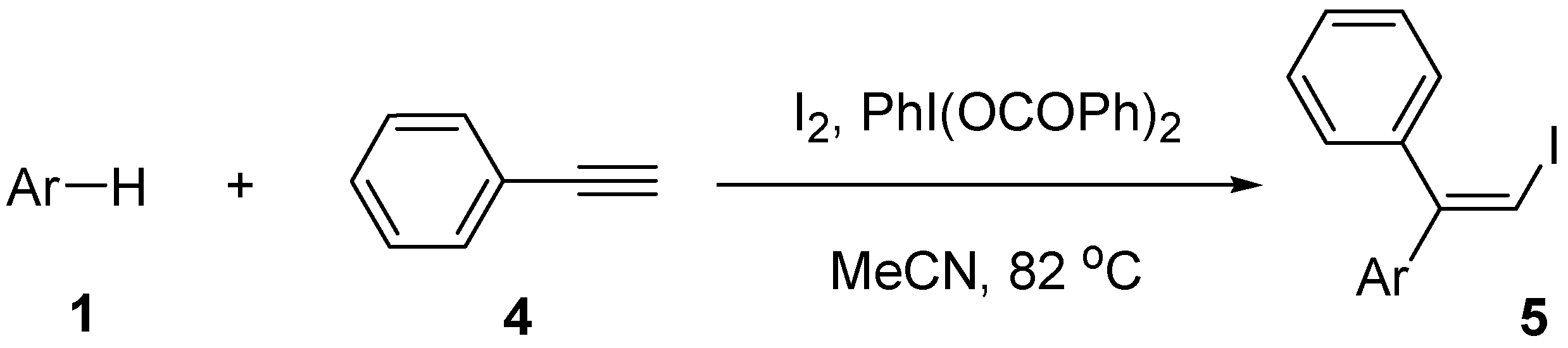

Scheme 3. Reaction of alkyne 4 with arenes 1.
Scheme 3. Reaction of alkyne 4 with arenes 1.
Molecules 14 03132 g003
Table 4. The reaction of alkyne 4 with arenes 1 in the presence of PhI(OCOPh)2.
Table 4. The reaction of alkyne 4 with arenes 1 in the presence of PhI(OCOPh)2.
EntryAreneTime (h)ProductIsolated yield (%)
11a655a71
21b705b61
31c735c59
41d765d32
51e725e24
Reaction conditions: Arene 1 (10 mmol), phenylacetylene 4 (1 mmol), I2 (1.25 mmol), PhI(OCOPh)2 (3 mmol), and MeCN (6 mL) at 82 °C.
The iodoarylation reaction of arylacetylenes with arenes proceeded regio- and stereospecifically to give a single isomer of the possible E- and Z-1,1-diaryl-2-iodoethenes 3 and 5. We attempted to determine the stereochemistry of iodoarylation product 3a by NOE experiments, but only a small enhancement (3%) of the vinylic proton was observed when the ortho methyl proton was irradiated. This may be attributed to the deviation of the pentamethylphenyl ring from the olefinic plane. Next, we estimated the chemical shift of the vinylic proton according to the literature [22] and compared it with the observed value. The calculation of the chemical shift concerning the vinylic proton for iodoethenes 3 and 5 gives 6.51 ppm for the E isomer and 6.84 ppm for the Z isomer. In the 1H-NMR spectra of 3 and 5, a singlet peak of the vinylic proton was observed at the range of 6.30–6.55 ppm. Therefore, the stereochemistry of iodoethenes 3 and 5 is considered to be E. This is in accord with the results obtained by Barluenga et al. [5].
The reaction of an internal alkyne, diphenylacetylene (6), with arenes 1 was further examined under the above reaction conditions (Scheme 4). The reaction of electron rich arenes such as 1a and 1b with 6 yielded the expected iodoarylation products 7a and 7b, but the yields were low (14 and 8%, respectively). The low yield of the reaction may be attributable to the low reactivity of diphenylacetylene.
Scheme 4. Reaction of alkyne 6 with arenes 1.
Scheme 4. Reaction of alkyne 6 with arenes 1.
Molecules 14 03132 g004
Moreover, we examined the reaction of electron-rich p-methoxyphenylacetylene (8) with arenes 1 (Scheme 5). The results are shown in Table 5. The reaction of electron-rich arenes 1a-1c gave iodoarylation products 9 in good yields (Entries 1-3). Moderately activated arenes such as 1d and 1e showed a low reactivity and the yields were 32 and 16%, respectively. In the case of arylacetylene 8, the iodoarylation reaction lost its stereospecificity to give a mixture of E- and Z-isomers of iodoethenes 9. This behavior is different from that observed in the cases of other arylacetylenes 2 and 4.
Scheme 5. Reaction of alkyne 8 with arenes 1.
Scheme 5. Reaction of alkyne 8 with arenes 1.
Molecules 14 03132 g005
Table 5. The reaction of alkyne 8 with arenes 1 in the presence of PhI(OCOPh)2.
Table 5. The reaction of alkyne 8 with arenes 1 in the presence of PhI(OCOPh)2.
Entry Arene Time (h) ProductaIsolated yield (%)
11a729a75
21b729b63
31c739c62
41d769d32
51e769e16
Reaction conditions: Arene 1 (10 mmol), alkyne 8 (1 mmol), I2 (1.25mmol), PhI(OCOPh)2 (3 mmol), and MeCN (6 mL) at 82 °C. a Products 9 were obtained as a mixture of E- and Z-isomers.
Finally, we examine the reaction of p-fluorophenylacetylene (11) with arenes 1 under the above reaction conditions. The results are given in Table 6. The reaction with electron-rich arenes 1a-1c gave iodoarylation products 12 in good yields (Entries 1-3). The similar reaction of 1d and 1e resulted in low yields (27 and 23%, respectively) of products 12. Arylacetylene 11 showed a similar behavior to 2 and 4 to undergo stereospecific iodoarylation reaction.
Scheme 6. Reaction of alkyne 11 with arenes 1.
Scheme 6. Reaction of alkyne 11 with arenes 1.
Molecules 14 03132 g006
Table 6. The reaction of alkyne 11 with arenes 1 in the presence of PhI(OCOPh)2.
Table 6. The reaction of alkyne 11 with arenes 1 in the presence of PhI(OCOPh)2.
EntryArHTime (h) ProductIsolated yield (%)
11a7212a69
21b7212b67
31c7312c56
41d7612d27
51e7612e23
Reaction conditions: Arene 1 (10 mmol), p-fluorophenylacetylene 11 (1 mmol), I2 (1.25 mmol), PhI(OCOPh)2 (3 mmol), and MeCN (6 mL) at 82 °C.
No iodoarylation reaction occurred in the case of 1-hexyne and 3-butyn-2-one, suggesting that this iodoarylation reaction is applicable only to relatively electron-rich alkynes.

2.3. Mechanistic consideration

The proposed mechanism of the iodoarylation reaction of arylacetylenes is shown in Scheme 7. Initially iodine reacts with PhI(OCOPh)2 to form a hypoiodite, IOCOPh [23,24], which actually undergoes iodination of an arylacetylene. The in situ-generated IOCOPh adds the arylacetylene to give a cyclic iodonium benzoate. In most cases, the cyclic iodonium form is stable compared with an open vinyl cation due to a significant neighboring participation of iodo group [25]. However, the open vinyl cation governs the reaction process in the case of p-methoxyphenylacetylene, where the vinyl cation is strongly stabilized by p-methoxyphenyl group and exists as the open form. The cyclic iodonium ion undergoes aromatic electrophilic substitution with an electron-rich arene to afford an iodoarylation product stereoselectively. The presence of the cyclic iodonium ion causes trans addition giving the stereochemically defined product. On the other hand, the open vinyl cation has a linear sp-hybridized structure and can react with an arene at both sides of the vacant p orbital. Accordingly, in the case of p-methoxyphenylacetylene, a mixture of E- and Z-isomers is formed. Benzoate anion can trap a proton generated by aromatic electrophilic substitution and prevent the reaction from occurring by protonation.

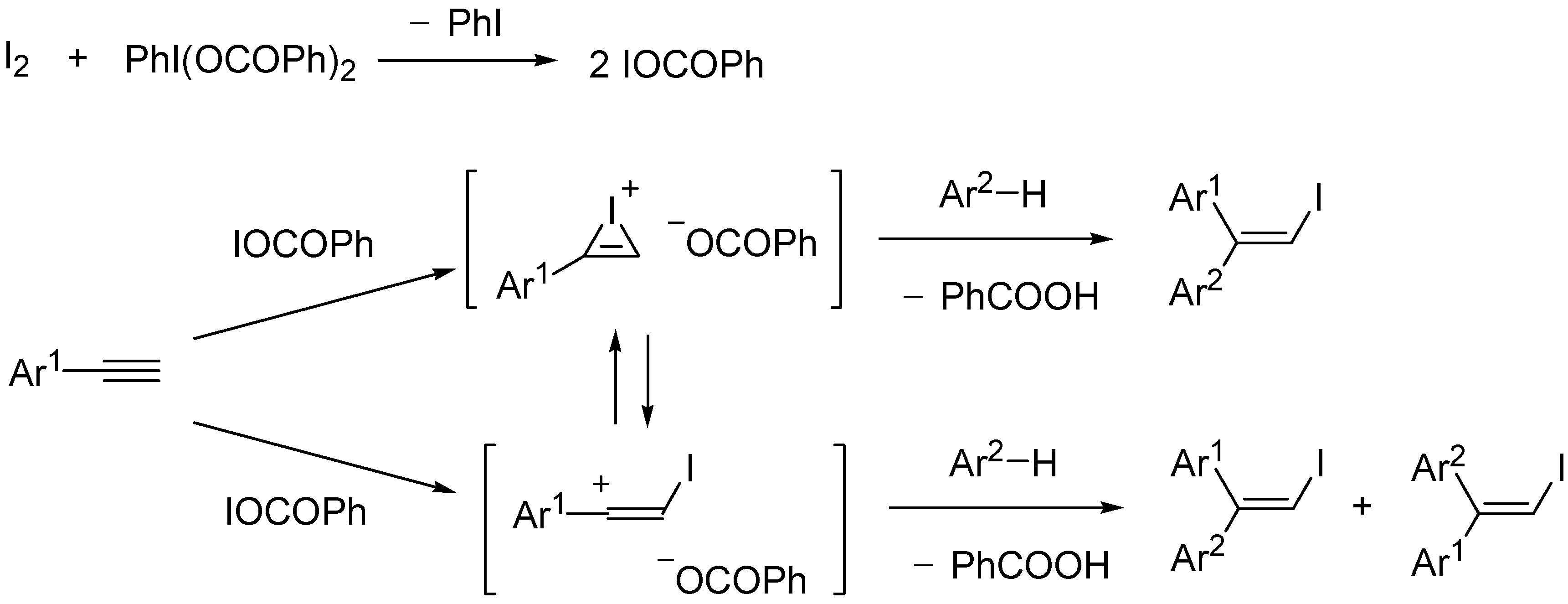

Scheme 7. Proposed mechanism of iodoarylation reaction of alkynes.
Scheme 7. Proposed mechanism of iodoarylation reaction of alkynes.
Molecules 14 03132 g007

3. Conclusions

We have demonstrated that arylacetylenes undergo iodoarylation reaction in the presence of a simple reagent system composed of I2 and PhI(OCOPh)2. The iodoarylation reaction of most arylacetylenes with electron-rich arenes proceeds regio- and stereoselectively to give trans 1,1-diaryl-2-iodoethene adducts in good to high yields. In the case of p-methoxyphenylacetylene, the iodoarylation reaction affords a mixture of E- and Z-isomers of 1,1-diaryl-2-iodoethenes 9. The procedure involves a simple and convenient reagent system and provides synthetically valuable iodoalkenes.

4. Experimental

4.1. General

All solvents and starting materials were used as received without further purification unless otherwise indicated. 1H-NMR (300 MHz) and 13C-NMR (75 MHz) were recorded on a JEOL JNM-Al 300 FT-NMR spectrometer in CDCl3 solution (TMS as an internal standard). Melting points were measured with a YANACO micro melting apparatus and are uncorrected. Column chromatographic separations were carried out using silica gel as the stationary phase. Pre-coated plates (silica gel 60 F254, MERCK) were used for TLC examination. All [bis(acyloxy)iodo]benzenes were prepared using a literature procedure [21]. Elemental analysis was performed by the Service Center of the Elementary Analysis of Organic Compounds, Faculty of Science, Kyushu University.

4.2. General procedure for the iodoarylation of alkynes

A mixture of an arene (10 mmol), an arylacetylene (1 mmol), I2 (1.25 mmol), PhI(OCOPh)2 (3 mmol) and MeCN (6 mL) was placed in a 25 mL round-bottom flask. The reaction mixture was stirred for about 5 min at room temperature and then refluxed at 82 ºC with stirring until the completion of the reaction. The reaction mixture was dissolved in CH2Cl2, (20 mL) and water (20 mL) was added to the CH2Cl2 solution. The mixture was then washed with 1M aqueous sodium thiosulphate solution to remove the unreacted iodine. The aqueous reaction mixture was extracted with CH2Cl2 (4 × 10 mL) and the CH2Cl2 extract was dried over anhydrous sodium sulfate. Finally, the solvent was removed under reduced pressure below 40 ºC. Individual pure compounds were isolated from the reaction mixture by column chromatography on silica gel using hexane and CH2Cl2 as eluent. Data of 1,1-diaryl-2-iodoethenes 3a-e, 5a-e, and 12a-e were previously reported in the literature [7].
1-Iodo-2-(pentamethylphenyl)-1,2-diphenylethene (7a): Pale yellow crystalline solid; mp 194.5-197 °C; 1H-NMR δ: 7.44-6.99 (m, 10H, ArH), 2.20 (s, 6H, 2xMe), 2.08 (s, 3H, Me), 2.03 (s, 6H, 2xMe); 13C-NMR δ: 149.34, 144.94, 144.66, 137.66, 133.88, 132.35, 130.48, 129.37, 128.35, 127.64, 127.40, 127.31, 100.50, 18.80, 16.67, 16.49 (one peak overlapped); Anal. calcd. for C25H25I: C, 66.38; H, 5.57. Found: C, 66.34, H, 5.59.
1-Iodo-1,2-diphenyl-2-(2,4,6-trimethylphenyl)ethene (7b): Pale yellow crystalline solid; mp 154-156 °C; 1H-NMR δ: 7.42-7.06 (m, 10H, ArH), 6.64 (s, 2H, ArH), 2.16 (s, 6H, 2x Me), 2.13 (s, 3H, Me); 13C-NMR δ: 147.55, 144.50, 144.19, 137.29, 136.77, 135.40, 129.52, 128.93, 128.39, 127.66, 127.60, 127.56, 127.42, 101.39, 20.92, 20.75; HRMS-EI: m/z calcd. for C23H21I [M]+: 424.0688; found: 424.0689.
1-Iodo-2-(4-methoxyphenyl)-2-(pentamethylphenyl)ethene (9a): Pale yellow crystalline solid; mp 110-111.5 °C; a mixture of E- and Z-isomers (92:8); 1H-NMR δ: 7.42 (d, J = 9.0 Hz, ArH), 7.14 (d, J = 9.0 Hz, ArH), 7.02 (s, =CH), 6.82 (d, J = 9.0 Hz, ArH), 6.76 (d, J = 9.0 Hz, ArH), 6.24 (s, =CH), 3.78 (s, OMe), 3.76 (s, OMe), 2.28 (s, Me), 2.23 (s, 2xMe), 2.19 (s, 2xMe), 2.14 (s, Me), 2.04 (s, 2xMe); 13C- NMR δ: 159.29, 159.01, 152.24, 150.80, 139.69, 138.94, 134.20, 132.68, 132.46, 132.09, 131.34, 130.45, 130.30, 130.18, 129.52, 127.65, 113.84, 113.07, 79.28, 75.80, 55.20, 55.14, 18.06, 17.60, 16.94, 16.89, 16.80, 16.58; HRMS-EI: m/z calcd. for C20H23IO [M]+: 406.0794; found: 406.0791.
1-Iodo-2-(4-methoxyphenyl)-2-(2,4,6-trimethylphenyl)ethene (9b): Pale yellow highly viscous liquid; a mixture of E- and Z-isomers (87:13); 1H-NMR δ: 7.36-6.76 (m, ArH and =CH), 3.77 (s, 2xOMe), 2.33 (s, Me), 2.27 (s, Me), 2.21 (s, 2xMe), 2.06 (s, 2xMe); HRMS-EI: m/z calcd. for C18H19IO [M]+: 378.0481; found: 378.0479.
1-Iodo-2-(4-methoxyphenyl)-2-(2,3,5,6-tetramethylphenyl)ethene (9c): Pale yellow crystalline solid; mp 108-110 °C; a mixture of E- and Z-isomers (51:49); 1H-NMR δ: 7.36-6.77 ( m, ArH and =CH), 3.78 (s, 2xOMe), 2.25 (s, 2xMe), 2.21 (s, 2xMe), 2.14 (s, 2xMe), 1.99 (s, 2xMe); 13C-NMR δ: 159.37, 159.06, 157.94, 151.51, 144.75, 141.42, 134.16, 133.68, 133.40, 131.69, 131.05, 130.91, 130.83, 130.51, 130.15, 127.59, 113.89, 113.12, 79.04, 55.22, 55.16, 20.12, 20.11, 16.47, 15.82; HRMS-EI: m/z calcd. for C19H21IO [M]+: 392.0637; found: 392.0637.
1-(3-Bromo-2,4,6-trimethylphenyl)-2-iodo-1-(4-methoxyphenyl)ethene (9d): Pale yellow highly viscous liquid; a mixture of E- and Z-isomers (58:42); 1H-NMR δ: 7.81-6.68 ( m, ArH and =CH), 3.86 (s, OMe), 3.79 (s, OMe), 2.45 (s, Me), 2.38 (s, Me), 2.37 (s, Me), 2.21 (s, Me), 2.16 (s, Me), 2.01 (s, Me); HRMS-EI: m/z calcd. for C18H18BrIO [M]+: 455.9586; found: 455.9583.
1-(2,5-Dimethylphenyl)-2-iodo-1-(4-methoxyphenyl)ethene (9e): Pale yellow highly viscous liquid; a mixture of E- and Z-isomers (60:40), 1H-NMR δ: 7.76-6.73 (m, ArH and =CH), 3.86 (s, OMe), 3.79 (s, OMe), 2.33 (s, Me), 2.32 (s, Me), 2.21 (s, 2xMe); 13C-NMR δ: 159.08, 157.55, 157.22, 144.44, 143.91, 139.27, 136.44,135.76, 131.30, 130.55, 130.43, 129.98, 129.93, 129.02, 128.78, 128.39, 113.40, 110.02, 85.30, 77.21, 56.33, 55.20, 20.97, 19.14, 19.09, 17.74; HRMS-EI: m/z calcd. for C17H17IO [M]+: 364.0324; found: 364.0327.
  • Sample Availability: Samples of the compounds 3a-e, 5a-e, 9a-e and 12a-e are available from the authors.
