Review

Chemistry of the M (M=Fe, Ca, Ba)-Se-H2O Systems at 25 °C

1
Institute of Multidisciplinary Research for Advanced Materials (IMRAM), Tohoku University, 1,1 Katahira, 2-chome, Aobaku, Sendai 980-8577, Japan
2
Graduate School of Student, Tohoku University, Currently Ebra Co. Ltd., Tokyo, Japan
3
New Industry Creation Hatchery Center Tohoku University, Aoba, Aramaki, Aobaku, Sendai 980-8579, Japan
*
Author to whom correspondence should be addressed.
Molecules 2009, 14(9), 3567-3588; https://doi.org/10.3390/molecules14093567
Submission received: 28 July 2009 / Revised: 18 August 2009 / Accepted: 11 September 2009 / Published: 14 September 2009
(This article belongs to the Special Issue Selenium and Tellurium Chemistry)

Abstract

:
The chemistry of the M (M=Fe, Ca, Ba)-Se-H2O systems at 25 °C is reviewed based on our previous papers. In this paper, the phase equilibria in the Fe(III)-Se(IV)-H2O, Ca-Se(IV,VI)-H2O and Ba-Se(IV,VI)-H2O systems at 25 °C are discussed. Then, the three-stage process for removal of selenium from industrial waste water [Se(IV,VI) < 1,500 mg/L] containing sulfuric acid was introduced. This seems to be a promising process for selenium removal from acidic sulfate waste water containing high concentration levels of selenium to below 0.1 mg/L.

1. Introduction

Selenium, atomic number 34, is a member of the Group16 elements together with oxygen, sulfur, tellurium and polonium. The most relevant oxidation states of selenium in aqueous solution are −2, 0, +4 and +6. Selenium(-II) species (H2Se, HSe and Se2−) are fairly rapidly oxidized to elemental selenium in air. Both selenium(IV) species (H2SeO3, HSeO3and SeO32−) and selenium(VI) species (H2SeO4, HSeO4 and SeO42−) are predominant in aqueous solutions, depending on the oxidation-reduction potential and pH of the solution.
Selenium is also a significant component in ores such as chalcopyrite, galena and pyrite. In smelting of copper and lead, the majority of selenium is concentrated in the anode slime formed during electrolytic refining of copper, but significant quantities are followed in the sludge accumulating in sulfuric acid plants and in the electrostatic precipitator dust collected during the processing of ores and concentrates. These three intermediate products have been processed for recovering some valuable metals and selenium by the pyrometallurgical and/or hydrometallugical processes. The selenium-containing waste waters resulting from these processes should be treated in an environmentally acceptable manner. Five detailed reviews of the work on the removal of selenium(IV) and selenium(VI) from waste water were published by Koren et al. [1], Kapoor et al. [2], Mirza and Ramachandran [3] and Hata et al. [4] and Twidwell et al. [5], in which most works cited deal with precipitation, coprecipitation, adsorption, ion exchange, reverse osmosis elimination, chemical reduction and biological reduction of selenium entities. These processes are applicable to the removal of selenium(IV) from waste water, but not very effective to remove selenium(VI) under mild conditions. Hydrazine can reduce selenium(VI) to elemental selenium only in hot and concentrated sulfuric acid solution [6]. Although some anaerobic bacteria are capable of reducing selenium(VI) to elemental selenium[7,8,9,10,11], a weakness of this technique is that it requires days rather than minutes for the reduction.
An aqueous chemistry of selenium is closely related to the treatment of selenium-bearing waste waters and the hydrometallurgical processing of selenium-bearing intermediates. In this paper the chemistry of the M (M=Fe, Ca, Ba)-Se-H2O systems at 25 °C is reviewed based on our papers [12,13,14], and then a three-stage process for removal of selenium from industrial waste water [Se(IV,VI) < 1,500 mg/L) containing sulfuric acid to below 0.1 mg/L is discussed [15,16]. The BaSO4 method used in the second stage allows removal of selenium(VI) to a level of around 2 mg/L. In order to remove selenium(VI) below 0.1 mg/L, a modification of the reduction method of selenium(VI) to elemental selenium by ferrous hydroxide in alkaline solution developed by Murphy [17] was successful, and furthermore, the use of the polyamine-type weakly basic ion exchange resin (Eporasu K-6) was attempted.

2. Chemistry of the M (M=Fe, Ca, Ba)-Se-H2O Systems at 25 °C

2.1. Equilibrium in the Fe(III)-Se(IV)-H2O System [12]

The Fe2O3-SeO2-H2O system is interesting in relation to the removal of selenium(IV) from hydrometallurgical solutions by the precipitation with certain ferric species. Selenious acid solutions suspended with the starting precipitate, i.e., amorphous ferric selenite, were mechanically shaken in an air bath kept at 25 °C for three months to allow equilibrium to be established between the solid and liquid phases. The results from the analysis of solutions, wet residues and precipitates (dried in vacuum) for 30 different runs were converted to weight percent values to enable the construction of the ternary phase diagram for the Fe2O3-SeO2-H2O system, which is shown in Figure 1. In this figure, the compositions of solution, wet residue and precipitate are given by ○, ● and Δ, respectively. The graphical procedure based on the wet residue method proves the existence of two solid phases of Fe(HSeO3)3 and Fe2(SeO3)3∙5H2O indicated by the points A and B. At the invariant point C (Fe2O3 = 0.02 wt%, SeO2 = 52.4 wt%), the two solid phases are in equilibrium. Point D (SeO2 = 74.7 wt%) represents a saturated solution of selenious acid and is the equilibrium point between Fe(HSeO3)3 and solid selenious acid. The Fe2O3 concentration of the liquid phase is very low, and it is approximately 0.02 wt%, even at the invariant point C.
The X-ray diffraction (XRD) patterns for compound A, Fe(HSeO3)3, did not match with any compound in the International Center for Diffraction Data (ICDD) Cards, whereas the XRD patterns for compound B was similar to that in the data for the mineral mandarinoite, Fe2(SeO3)3∙4H2O, which is quoted in the ICCD Card No. 29–718. However, the chemical analysis of the solid phase of compound B indicated that the ferric selenite had a hydration number of 5, i.e., it is a pentahydrate rather than being mandarinoite. Also, the differential thermal analysis and thermogravimetric analysis conformed that a hydration number was 5.
Figure 2 is a dual plot of Fe(III)/Se(IV) mole ratio in the solid phase and the log concentration data for the solution phase, both versus pH. These plots express the stability and solubility regions for ferric selenite as function of pH at 25 °C. It is clear from Figure 2(a) that Fe2(SeO3)3.5H2O is stable in the pH range 0.1 to 2.5 which was considered in our work. Figure 2(b) shows that the iron concentration in solution in equilibrium with Fe2(SeO3)3∙5H2O has a minimum value of 6.0 × 10−5 mol/L at pH 2.2, while the selenium concentration decreases monotonously with an increase in pH. Hence, it may be concluded that selenium(IV) in solution containing ferric ion is basically removed in the form of Fe2(SeO3)3∙5H2O compound under moderate conditions.

2.2. Equilibrium in the Fe(III)-Se(VI)-H2O System

The formation of ferric selenate at moderate temperature has been not reported. Only the XRD data for Fe2(SeO4)3∙9H2O which was synthesized from an aqueous solution of Fe and selenic acid by slow evaporation over a period of several months are listed in the ICDD Card No.45 – 544.

2.3. Equilibrium in the Ca-Se(IV)-H2O and Ca-Se(VI)-H2O Systems [13]

In the hydrometallurgical and mining waste water processes, calcium hydroxide and calcium carbonate have often been used as a neutralizing agent or pH adjustor. Sulfate ion is usually removed as CaSO4∙2H2O (gypsum) in nonferrous hydrometallurgy. Since selenium has similar properties to sulfur, it is possible for selenium to co-precipitate with gypsum. Also, selenium with sulfur may be incorporated into the sludge produced in the waste gas-desulfurization stage. The Ca-Se(IV)-H2O and Ca-Se(VI)-H2O systems are closely related to the treatment of selenium-contaminated process liquors in these hydrometallurgical applications and to the mineralogy relating to the occurrence of any calcium selenites and calcium selenates.
Selenious acid solutions containing a suspension of CaO were held under mild shaking for one month at 25 °C. The original analytical data for the solutions, wet residues and precipitates are presented graphically in Figure 3 as the ternary phase diagram for the CaO-SeO2-H2O system. It is obvious from this graphical procedure that two compounds, Ca(HSeO3)2∙H2O and CaSeO3∙H2O, denoted by A and B, exist. Also, the chemical analysis of three precipitates obtained at around pH = 12.0 gave a mole ratio of Ca/Se(IV) of 2.0, corresponding to the Ca2SeO3(OH)2∙2H2O species with CaO = 40.47 wt%, SeO2 = 40.04 wt% and H2O = 19.49 wt% (given by C). In this system, there are three invariant points. The first invariant point lies at point D (CaO = 2.1 wt%, SeO2 = 8.6 wt%) where Ca(HSeO3)2∙H2O and CaSeO3∙H2O coexist. The second point lies at point E (CaO = 0.06 wt%, SeO2 = 0.003 wt%) where CaSeO3∙H2O and Ca2SeO3(OH)2∙2H2O coexist. The third point lies at point F (CaO = 0.08 wt%, SeO2∙= 0.00004 wt%) where Ca2SeO3(OH)2·2H2O and Ca(OH)2 coexist. Point G (SeO2 = 74.7 wt%) represents a saturated solution of selenious acid. The stable regions are bounded for Ca(HSeO3)2∙H2O by ADG, for CaSeO3∙H2O by BED and for Ca2SeO3(OH)2∙2H2O by CFE.
The XRD patterns for compounds A and B formed in high and low selenious acid solutions were identical to those in ICCD Cards No. 36 – 467 for Ca(HSeO3)2∙H2O and No. 35 – 883 for CaSeO3∙H2O, respectively. However, the XRD patterns for compound C, Ca2SeO3(OH)2∙2H2O, formed in alkaline solutions could not matched with any patterns in the ICCD Cards.
Figure 4 shows the stability and solubility regions for calcium selenites as function of pH at 25 °C. It is noted from Figure 4(a) that Ca(HSeO3)2∙H2O with Ca/Se(IV) mole ratio of 0.5 is stable at pH below 3.5, CaSeO3∙H2O with Ca/Se(IV) mole ratio of 1.0 in the pH range 3.5 to 12.3 and Ca2SeO3(OH)2∙2H2O with Ca/Se(IV) mole ratio of 2.0 in the pH range 12.3 to 12.5. In this system, there are three invariant points at pH 3.5, 12.3 and 12.5, at each point, two solids phases, Ca(HSeO3)2∙H2O and CaSeO3∙H2O, CaSeO3∙H2O and Ca2SeO3(OH)2∙2H2O, and Ca2SeO3(OH)2∙2H2O and Ca(OH)2 coexist. Figure 4(b) shows that the calcium concentration in solutions in equilibrium with the calcium selenites has a minimum value of 1.1 × 10−3 mol/L at pH 10.6, while the selenium(IV) concentration has a minimum value of 4.4 × 10−5 mol/L at pH 12.5 where Ca2SeO3(OH)2∙2H2O is in equilibrium with the solution of high calcium concentration. It should be noted that this lowest concentration for selenium (IV) (3.5 mg/L) is still much higher than the limit of industrial waste water regulation for selenium (0.1 mg/L) as specified by most regulatory authorities.
A ternary phase diagram for the CaO-SeO3-H2O system at 25 °C is shown in Figure 5. In this equilibrium experiment, selenate acid solution (which was prepared by dissolving H2SeO3 in distilled water) was used as the starting material.
The diagram proves the existence of three compounds given by A, B and C. Also, the chemical analysis of three precipitates obtained at around pH = 12.0 showed a mole ratio of Ca/Se(V) of 2.0 corresponding to the Ca2SeO4(OH)2 with CaO = 43.62 wt%, SeO3 = 49.38 wt% and H2O = 7.00 wt% (given by D). From these results, it can be seen that there are four calcium selenates which are represented by the formulae CaSe2O7, CaSeO4, CaSeO4∙2H2O and Ca2SeO3(OH)2 and four invariant points, given by the points E (CaO = 0.09 wt%, SeO3 = 66.62 – 67.93 wt%), F (CaO = 0.09 wt%, SeO3 = 65.55 wt%), G (CaO = 2.20 wt%, 4.70 wt%) and H (CaO = 0.99 wt%, SeO3 = 1.95 wt%).
The XRD patterns for compound C are in fair agreement with that in ICCD Card No.40–235 for CaSeO4∙2H2O. On the other hand, the XRD data for three compounds A, B, and D, that is, CaSe2O7, CaSeO4 and Ca2SeO4(OH)2 are not listed in the ICCD Cards.
Figure 6 shows the stability and solubility regions for calcium selenates as function of pH at 25 °C. It is noted from Figure 6 (a) that CaSeO4∙2H2O having Ca/Se(VI) mole ratio of 1.0 is stable over the wide range of pH, while Ca2SeO4(OH) having Ca/Se(VI) mole ratio of 2.0 is stable in the very narrow range of pH 11.8 to 12.2. Also, this diagram shows two invariant points where CaSeO4∙2H2O and Ca2SeO3(OH)2 coexist at pH 12.0 and Ca2SeO3(OH)2 and Ca(OH)2∙H2O coexist at pH 12.2. As shown in Figure 6(b), the calcium concentration in solutions in equilibrium with CaSeO4.2H2O keeps constant at 0.42 mol/L in the pH range 0.6 to 12.0 and then decreases to 0.14 mol/L. The selenium(VI) concentration slightly decreases with increasing pH from 0.6 to 1.4 and then remains constant at same value of calcium concentration in the same pH range. A further increase in pH leads again to a decreased selenium(VI) concentration until it is reached to 11.1 g/L (0.14 mol/L).

2.4. Equilibrium in the Ba-Se(IV)-H2O and Ba-Se(VI)-H2O Systems [14]

A knowledge of the chemistry of the systems Ba-Se(IV)-H2O and Ba-Se(VI)-H2O is very important to the removal of selenium from wastewaters in an environmentally acceptable manner and sometimes selenium is recovered from process liquors by the precipitation of barium selenite and barium selenate.
Figure 7 shows a ternary phase diagram for the BaO-SeO3-H2O system at 25 °C. In this equilibrium experiment, Ba(OH)2∙8H2O was used as the starting material. The diagram indicates the existence of two solid phases of BaSe2O5 and BaSeO3, given by the points A and B. At the invariant point C (BaO = 0.56 wt%, SeO2 = 0.83 wt%), these two solid phases are in equilibrium. Point D (SeO2 = 74.7 wt%) represents a saturated solution of selenious acid.
The XRD patterns for compound A, BaSe2O5, formed in high selenious acid solutions could not be matched to any in the ICCD Cards, while the XRD patterns for compound B formed in low selenious acid solution were identical to that in ICCD Card No.8 – 268 for BaSeO3.
The stability and solubility regions for barium selenites as a function of pH at 25 °C are shown in Figure 8. The plot in Figure 8(a) indicates that BaSe2O5 having Ba/Se(IV) mole ratio = 1/2 is stable at pH below 4.6 and BaSeO3 having Ba/Se(IV) = 1/1 in the pH range 4.6 to 13.7. Furthermore, the system Ba-Se(IV)-H2O has two invariant points at pH 4.6 where BaSe2O5 and BaSeO3 coexist and at pH 13.7 where BaSeO3 and Ba(OH)2.H2O coexist. Figure 8(b) shows that the barium concentration in solutions in equilibrium with the barium selenites has a minimum value of 2.9 × 10−4 mol/L at pH 9.8, whereas the selenium(IV) concentration has an extremely low value of 1.3 × 10−4 mol/L in the pH range 13.5 to 13.7 where BaSeO3 is in equilibrium with the solution of high barium concentration. It is noted that this lowest concentration for selenium (IV) (10 mg/L) is much higher than the limit of industrial wastewater regulation for selenium (0.1 mg/L).
Figure 9 shows a ternary phase diagram for the system BaO-SeO3-H2O at 25 °C. It is obvious from this diagram that two compounds, indicated by A and B, can be identified. These are represented by the formulae BaSe2O7 and BaSeO4. At the invariant point C where the two solid phases are in equilibrium, the liquid has a low concentration of BaO between 0.40 and 0.47 wt% and a high concentration of SeO3 between 75.53 and 77.30 wt%.
The XRD pattern for compound A, BaSe2O7, could not be identified in the ICCD, whereas the XRD patterns for compound B were matched with that in ICCD Card No.15–374 for BaSeO4.
Figure 10 shows the stability and solubility regions for barium selenates as function of pH at 25 °C. It is noted from Figure 10(a) that BaSeO4 having Ba/Se(VI) mole ratio = 1/1 is stable over the wide range of pH and at the invariant point of pH 13.7, BaSeO4 and Ba(OH)2∙H2O coexist. As shown in Figure 10(b), the barium concentration in solution in equilibrium with BaSeO4 increases with an increase in pH and then remains constant at 2 × 10−3 mol/L in the pH range 5.4 to 10.9 and increases again until the solution is saturated with Ba(OH)2∙H2O. The selenium(VI) concentration reversely decreases with an increase in pH and then remains constant at 1 × 10−3 mol/L in the same pH range (5.4–10.9) as well as barium. A further increase in pH leads again to a decreased selenium(VI) concentration until it is reached to about 16 mg/L. This lowest concentration of selenium (VI) is much higher than the limit of industrial wastewater regulation for selenium (0.1 mg/L).

3. Conditional Free Energies of Formation for Calcium Selenites and Selenates, and Barium Selenites and Selenates

Thermodynamic data are very useful for the design of the treatment of waste waters and hydrometallurgical processing. From the solubility data described above, the solubility products for calcium selenites and selenates, and barium selenites and selenates were calculated, and conditional free energies of formation were estimated from the average of solubility products obtained as follows:
  • ΔfGφ298.15 CaSeO3∙H2O = −284.2 kcal/mol (−1189.1 kJ/mol)
  • ΔfGφ298.15 Ca2SeO3(OH)2∙2H2O = −556.9 kcal/mol (−2330.1 kJ/mol).
  • ΔfGφ298.15 CaSeO4∙2H2O = −352.7 kcal/mol (−1475.6 kJ/mol)
  • ΔfGφ298.15 Ca2SeO4(OH)2 = −453.1 kcal/mol (−1895.9 kJ/mol)
  • ΔfGφ298.15 BaSeO3= −230.6 kcal/mol (−964.7 kJ/mol).
  • ΔfGφ298.15 BaSeO4= −249.0 kcal/mol (−1041.8 kJ/mol).
They are not standard state values because there is no allowance for Ca-Se(IV,VI) species or Ba-Se(VI,VI) complexes in the thermodynamic calculation; however, they may be available as conditional values. Here, the solubility product constant for Fe2(SeO3)3∙5H2O cannot be calculated, as thermodynamic data for the ferric selenite complex as FeHSeO32+ proposed by Hamada [18], which is very stable in an aqueous solution containing ferric ion [15], is lacking. Also, the solubility product constant for calcium selenites and selenates, and barium selenites which exist in high acid solutions cannot be treated in the same way as the low solubility compounds.

4. Removal of Selenium from Industrial Waste Water

For protection of the environment from pollution, it has been of the greatest interest to engineers treating selenium-bearing materials to remove selenium from process liquors of high selenium concentration and industrial effluents of low selenium concentration to a value lower than the limit set by industrial waste water regulations (0.1 mg/L). Many published techniques are available for the removal of selenium(IV) from waste water, but they are not very effective for selenium(VI) or costly. In this paper, the removal of selenium(IV) and selenium(VI) from aqueous solution (Se < 1,500 mg/L) containing sulfuric acid by the following three-stage process has been proposed based on the experimental results.
  • Removal of selenium(IV) as ferric selenite and sulfate ion as calcium sulfate
  • Removal of selenium(VI) as barium selenate and sulfate ion as barium sulfate
  • Removal of selenium(VI) by reduction-precipitation of selenium(VI) to elemental selenium with ferrous hydroxide or by adsorption of selenium(VI) on the polyamine-type weakly basic ion exchange resin (Eporasu K-6).

4.1. Removal of Selenium with Ferric Species [15]

The residual concentration of selenium(IV) in solution is shown against the solution pH in Figure 11. In this figure, the residual concentration of selenium(VI) in solution after neutralizing the Na2SeO4-Fe2(SO4)3 solution is also shown. At a mole ratio of Fe(III)/Se(IV) of 0.67 corresponding to the theoretical ratio for Fe2(SeO3)3·5H2O, the residual concentration of selenium(IV) in the solution has a minimum value of 55 mg/L at pH 3.1. At Fe(III)/Se(IV) mole ratio in the starting solution of 10, the concentration of selenium(IV) is reduced to a level around 0.3 mg/L in the pH range 3.5 to 7.0 by the coprecipitation with ferric hydroxide. In reverse at below pH of 2.9, the residual concentration of selenium(IV) in the solution at a mole ratio of Fe(III)/Se(IV) of 10 is higher than that at a mole ratio of 0.67. This indicates that the dissolved ferric selenite complex is very stable in an aqueous solution containing a large amount of ferric ion. On the other hand, the concentration of selenium(VI) is reduced a very little at pH range 3.0 to 4.0 even at very high mole ratio of Fe(III)/Se(VI) of 10. This means that there is not ferric selenate compound in the Fe(III)-Se(VI)-H2O system at moderate conditions. Hence, selenium(VI) in waste water must be removed by other techniques than the precipitation with ferric hydroxide.

4.2. Removal of Selenium as Barium Selenate [15]

In order to determine the limit of the removal of selenium(VI) by the BaSeO4 method, the effect of Ba/Se(VI) mole ratio in the starting solution on the removal of selenium(VI) at pH 6 was determined, and is shown in Figure 12, in which the initial concentration of selenium(VI) was 0.01 M. An increase in Ba/Se(VI) mole ratio in the starting solution leads to a drastic decrease in concentration of selenium(VI) and a terminal concentration of selenium(VI) levels of around 2 mg/L at Ba/Se(VI) mole ratio above 2.5. It is to be noted that this concentration is still above the maximum contaminant level for selenium in waste water (0.1 mg/L) and the further removal of selenium(VI) is required.
The process liquors resulting from the hydrometallurgical treatments of the anode slime formed during electrolytic refining of copper usually contain large amounts of selenium and sulfuric acid. In the first stage of the process under consideration, calcium oxide is added to such solutions for adjusting pH of the solution to precipitate selenium(IV) with iron(III) species and for removing sulfate ion to a level of 0.01 M as calcium sulfate. The removal of selenium(VI) from the 0.01 M Se(VI) – 0.01 M H2SO4 solution was determined at different concentrations of residual barium, and is shown in Figure 13. In this figure, the results for the 0.001 M and 0.01 M Se(VI) solutions are also presented. It is obvious that the concentration of selenium(VI) remaining in solution is governed by the concentration of coexisting barium ion, independently of the initial concentration of selenium(VI) and the presence of sulfate ion in the starting solution.

4.3. Removal of Selenium(VI) by Reduction-Precipitation of Selenium(vi) to Elemental Selenium with Ferrous Hydroxide [15]

In 1988 Murphy [17] developed a new method for removing selenium(VI) from waste water based on the reduction of selenium(VI) to elemental selenium by ferrous hydroxide in alkaline solution. The stoichiometric equation in the presence of excess ferrous hydroxide is given by:
Na2SeO4 + 9Fe(OH)2 → Se + 3Fe3O4 + 2NaOH + 8H2O
and magnetite is the predominant iron product. As the ratio of ferrous hydroxide to selenate decreases, maghemite is predominantly produced according to the following equation:
Na2SeO4 + 6Fe(OH)2 → Se + 3Fe2O3 + 2NaOH + 5H2O
In 1990, the use of this method was attempted to remove selenium(VI) from precious metals tailing pond water by Lien et al. [19]. It was found that an addition of a large amount of ferrous sulfate corresponding to a Fe(II)/Se(VI) mole ratio of about 1,800 is required to lower the selenium(VI) concentration from 4 mg/L to below 0.1 mg/L. This large dosage of ferrous sulfate may be the result of a significant drop in the reactivity of ferrous hydroxide with dissolved oxygen from air. In our work, the reduction of selenium(VI) with ferrous hydroxide was performed in an atmosphere of nitrogen to avoid the presence of oxygen in the reaction suspension. As described above, the minimal dosage of ferrous salts holds the key of the success of the process for reduction of selenium(VI) with ferrous hydroxide. If oxygen is dissolved in the solutions, the oxidation of iron(II) would also take place in alkaline solution. In the Fe(II)/Se(VI) mole ratio range of 10 to 50, the effect of oxygen on the removal of selenium(VI) was determined at an initial selenium(VI) concentration of 5 mg/L, pH 9.0 (where selenium(VI) is reduced most favorably), 70 °C and reaction time of 15 minutes, and is shown in Figure 14. The decrease in concentration of selenium by a normal progress of the reaction of selenium(VI) with ferrous hydroxide is observed in the oxygen-free solution degassed with nitrogen, but as predicted above, the dissolved oxygen from air leads to significant suppression of removal of selenium. Specially, this effect is most remarkable when air was bubbled into the solution. This means that in the air-bubbling solution the efficient amount of ferrous hydroxide for the reduction of selenium(VI) is diminished by a rapid progress of the oxidation of iron(II) by fully supplying oxygen into the solution and consequently the reduction reaction proceeds more slowly than in the solution exposed to air.
In the removal of selenium from industrial effluents of low selenium concentration, the first and second stages in three-stage process considered in our work are not always required, if selenium(IV) contained in the effluents is effectively removed together with selenium(VI) by reduction with ferrous hydroxide. The effect of Fe(II)/Se(IV) mole ratio on the removal of selenium(IV) of an initial concentration of 50 mg/L at pH 9.0 in an atmosphere of nitrogen was determined. Here, the reaction time was 60 minutes. The reduction-precipitation of selenium(IV) to elemental selenium proceeds in the same manner at 25 °C and 70 °C, and results in a sufficiently low concentration of selenium at Fe(II)/Se(IV) mole ratio of 4. This value corresponds to the stoichiometric ratio in the reaction given by Equation (3). It should be concluded that in an atmosphere of nitrogen, selenium(IV) levels as low as 0.1 mg/L can be achieved by adding small amounts of almost stoichiometric amount of ferrous salts, independently of reduction temperature:
Na2SeO3 + 4Fe(OH)2 → Se + 2Fe2O3 + 2NaOH + 3H2O
In the same manner, the removal of selenium(VI) was determined, and is shown in Figure 15. Differently from selenium(IV) removal, a rise in temperature significantly accelerates the reduction of selenium(VI). At 25 °C even at a high mole ratio of Fe(II)/Se(VI) of 50 the selenium concentration of 0.1 mg/L is not attained, but at 70 °C selenium can be removed to a level lower than 0.1 mg/L at a ratio of 20. In our work, the similar trends were obtained for the removal of selenium(VI) at an initial concentration of 5 mg/L.

4.4. Removal of Selenium(iv,vi) from Solution Containing Sulfuric Acid by Three-Stage Process Using by Reduction-Precipitation of Selenium(vi) to Elemental Selenium with Ferrous Hydroxide in the Third Stage [15]

The operation conditions and the main reactions for each stage in the process proposed in our work were described already. The three-stages, precipitation of ferric selenite and calcium sulfate, precipitation of barium selenate and barium sulfate and reduction-precipitation of selenium(VI) to elemental selenium with ferrous hydroxide were combined for the removal of selenium(IV,VI) from solution containing sulfuric acid. This process was modeled with the feed solution of 0.01 M ( = 790 mg/L) in Se(IV), 0.01 M ( = 790 mg/L) in Se(VI) and 10 g/L in H2SO4.
At the first stage, after 5 mL of 0.5 M Fe2(SO4)3 solution (corresponds to a mole ratio of Fe(III)/total Se of 0.5) was added into 500 mL of the feed solution, the solution was neutralized to pH of 3.5 with calcium hydroxide and held with stirring at 25 °C for one hour. The typical analytical data for solutions of six runs are listed in Table 1, which indicates that the majority of selenium(IV) is removed as ferric selenite and a small amount of selenium(VI) is also removed. Sulfate ion may be removed to a level of 10−1.6 mol/L (= 2.5 g/L), calculated from data for calcium concentration (0.5 g/L) and solubility product of 10−4.4 for calcium sulfate.
At the second stage, 1.0 M BaCl2 solution of various volumes was added into the filtrates containing selenium(IV) of 10 mg/L and selenium(VI) of 740 mg/L from the first stage and the pH of solutions was adjusted to 6 and held with stirring at 25 °C for two hours. As shown in Table 2, selenium(IV) remaining in the solution from the first stage solution can be removed to a very low level as barium selenite (BaSeO3) by addition of a large excess of BaCl2. Selenium(VI) can be removed to a level of 100 mg/L when the barium concentration in solution was kept at about 50 mg/L. Furthermore, for removing selenium(VI) to a level of 10 mg/L the residual concentration of barium is required to be about 500 mg/L.
At the third stage, the two filtrates containing 4.7 mg/L and 51 mg/L selenium from the second stage were treated by dissolving ferrous sulfate of weights corresponding to mole ratios of 50 at 25 °C and 20 at 70 °C in an atmosphere of nitrogen and then by adjusting pH of solution to 9.0. Table 3 shows the analytical data for solutions after the reduction-precipitation with ferrous hydroxide for one hour. In both cases, the reduction of selenium(VI) as well as selenium(IV) with ferrous hydroxide is possible to remove selenium to below 0.1 g/L from the liquor from the second stage except the case which the filtrate containing 51 mg/L selenium(VI) was treated at Fe(II)/Se(VI) mole ratio of 50 and at 25 °C. Also, barium is precipitated with sulfate ion from ferrous sulfate added.

5. Adsorption of Selenium(VI) on Polyamine – Type Weakly Basic Ion Exchange Resin [16]

5.1. Adsorption of Selenium(VI) in Batch Experiments

The adsorption capacity of weakly basic ion exchange resin is generally affected by hydroxyl ion in solution. The adsorption capacity of the resin (Eporasu K-6) was determined as a function of pH for selenium(VI) by batch experiments, and is shown in Figure 16. Here, selenium(VI) concentration in the starting solution was 60 mg/L. The amount of selenium(VI) adsorbed by the resin jumps up as soon as a stable species in solution changes from HSeO4 to SeO42− by a rise in pH and has a high value of 46 g/L-R over a wide pH range of 3 to 12. At pH 13 a decrease in adsorption is observed. This may be attributed to the depression of ionization of the functional group of the resin due to a large amount of hydroxyl ion in solution. From these results, it is noted that selenium(VI) can be effectively absorbed on the resin over a wide pH range than selenium(IV).
Waste waters often contain significant quantities of various anions such as SO42−and Cl. Specially, since SO42− has chemical similarity to SeO42−, a competitive adsorption reaction may take place between SeO42− and SO42−. The influence of SO42−and Cl on the adsorption of selenium(VI) on the resin was determined by adding various amounts of Na2SO4 or NaCl to the selenium(VI) solution of 60 mg/L at pH 6.0, and is shown in Figure 17. In the coexistence of SO42−, the amount of selenium(VI) adsorbed on the resin starts to decrease from SO42−/SeO42− mole ratio of 0.3 and shows a decrease of 50 percent at mole ratio of 2. In the coexistence of Cl, the amount of selenium(VI) adsorbed starts to decrease at Cl/SeO42− mole ratio of 3 and shows a decrease of 50 percent at mole ratio of 20. These indicate that the adsorption of the resin is in order of SeO42− > SO42− ≥ Cl, but SO42− in waste water must be removed prior to use of the resin for removing SeO42− because of competitive adsorption.

5.2. Adsorption of Se(VI) in Column Experiments

Selenium(VI) concentrations of 10, 25 and 60 mg/L in the feed solution (pH = 6.0) were passed through the resin bed (7.6 mmφ × 110 mm) packed in the column at space velocities of 10. As shown in Figure 18, after selenium(VI) starts to be detected in the effluent, the selenium(VI) concentration in effluent leaked out curves gently up with an increase in effluent volume at selenium(VI) concentration of 10 mg /L in the feed solution, while jumps sharply up at both 25 and 60 mg/L. The amount of selenium(VI) adsorbed on the resin calculated from a permissible effluent volume for disposal is 65.1 g/L-R for selenium(VI) concentration of 10 mg /L in the feed solution, 62.5 g/L-R for 25 mg/L and 54.4 g/L-R for 60 mg/L, which indicates that it is not advisable to use the resin for removing a high level of selenium(VI).
In order to find a suitable eluent of selenium(VI) absorbed, batch experiments were carried out for hydrochloric acid and sodium hydroxide solutions of various concentrations. Here, the resin loaded by selenium(VI) at 46 g/L-R was contacted with the eluents for three hours. As shown in Figure 18, in hydrochloric acid solution the amount of selenium(IV) adsorbed by the resin decreases sharply to 6g/L-R with a slight increase in acidity and then still continues to decrease marginally as the acidity increases. In sodium hydroxide solution, the amount of selenium(IV) adsorbed decreases gradually with an increase in basicity and then stays at around 13 g/L-R over NaOH concentration range above 1.0 mol/L. These suggests that hydrochloric acid solution will acts more effectively as an eluent of selenium(VI) from the resin than sodium hydroxide solution.
The cycles of adsorption and elution of selenium(VI) were repeated three times. A decrease in loading capacity caused by recycling the resin was not observed and selenium(VI) was eluted from the resin with relatively small volumes of 1 M HCl (22 L/L-R), which indicate that the resin can be used repeatedly for the removal of selenium(VI) from waste water.

5.3. Removal of Selenium(IV,VI) from Solution Containing Sulfuric Acid by Three-Stage Process Using by Adsorption of Selenium(VI) on the Polyamine-Type Weakly Basic Ion Exchange Resin (Eporasu K-6) in the Third Stage

As noted previously, in the third stage, the remaining selenium(VI) is removed to a lower concentration than 0.1 mg/L by reduction-precipitation of selenium(VI) to elemental selenium with ferrous hydroxide at pH 9 at 70 °C in an atmosphere of nitrogen. However, this process requires very strict conditions to effectively remove selenium(VI). Replacement of the ferrous hydroxide reduction process with the adsorption process using the polyamine-type weakly basic ion exchange resin (Eporasu K-6) yields a simplified selenium removal process which is shown in Figure 19. This process seems to be promising to remove selenium from high concentration levels of selenium(IV) and selenium(VI) in acidic sulfate waste water to below 0.1 mg/L.

6. Conclusions

In this paper, the chemistry of the M (M = Fe, Ca, Ba)-Se-H2O systems at 25 °C was described and the process for the removal of selenium from the industrial waste water was proposed. In order to develop a simpler and easier process, the compounds of lower solubility or the other reactions should be determined by further investigations.

References

  1. Koren, D.W.; Gould, W.D.; Lortie, L. Selenium Removal from Waste Water. In Water Processing Recycling in Mining and Metallurgical Industries; CIM: Edmonton, Alberta, Canada, 1992; pp. 171–182. [Google Scholar]
  2. Kapoor, A.; Tanjore, S.; Viraraghavan, T. Removal of Selenium from Water and Wastewater. Int. J. Environ. Stud. 1995, 49, 137–147. [Google Scholar] [CrossRef]
  3. Mirza, A.H.; Ramachandran, V. Removal of Arsenic and Selenium from Wastewaters - A Review. In Second International Symposium on Extraction and Processing for the Treatment and Minimization of Wastes, Scottsdale, Arizona, USA, October 27–30, 1996; Ramachandran, V., Nesbitt, C.C., Eds.; TMS: Warrendale, PA, USA, 1996; pp. 563–582. [Google Scholar]
  4. Hata, R.; Nishimura, N.; Umetsu, Y. Removal of Selenium from Copper Anode Slimes and Waste Water. Ryusan to kogyo 1997, 50, 155–163. [Google Scholar]
  5. Twidwell, L.G.; McCloskey, J.; Miranda, P.; Gale, M. Technologies and Potential Technologies for Removing Selenium from Process and Wastewater. Proceedings REWAS’99-Global Symposium on Recycling, Waste Treatment and Clean Technology, San Sebastian, Spain, September 5–9, 1999; Gaballah, I., Hager, J., Solozaral, R., Eds.; TMS: Warrendale, PA, USA, 1999; pp. 1645–1656. [Google Scholar]
  6. Simizu, S.; Hasegawa, N.; Yoshioka, A.; Iwahori, S. Elimination of Selenium in Effluent from Precious Metals Refinery. In Second International Symposium on Extraction and Processing for the Treatment and Minimization of Wastes, Scottsdale, Arizona, USA, October 27–30, 1996; Ramachandran, V., Nesbitt, C.C., Eds.; TMS: Warrendale, PA, USA, 1996; pp. 205–214. [Google Scholar]
  7. Altringer, P.B.; Larsen, D.M.; Gardner, K.R. Bench Scale Process Development of Selenium Removal from Waste Water Using Facultative Bacteria. International Symposium on Biohydrometallurgy, Jackson Hole, Wyoming, USA, August 13–18, 1989; Salley, J., McCready, R.G.L., Wilchlacz, P.L., Eds.; pp. 643–657. [Google Scholar]
  8. Lortie, L.; Gould, W.D.; Tajan, S.; McCready, R.G.L.; Cheng, K. Reduction of Selenate and Selenite to Elemental Selenium by a Pseudomonas stutzeri isolate. Appl. Environ. Microbiol. 1992, 58, 4042–4044. [Google Scholar] [PubMed]
  9. Barnes, J.M.; McNew, E.B.; Polman, J.K.; McCune, J.H.; Torma, A.E. Selanate Reduction by Pseudomonas-Stutzeri. In Mineral Bioprocessing, Santa Barbara, California, USA, June 16–12, 1991; Smith, R.W., Misra, M., Eds.; TMS: Warrendale, PA, USA, 1991; pp. 367–375. [Google Scholar]
  10. Oremland, R.S.; Hollibaugh, J.T.; Maest, A.S.; Presse, T.S.; Miller, L.G.; Culbertson, C.W. Selanete Reduction to Elemental Selenium by Anaerobic Bacteria in Sediments and Culture: Biogeochemical Significance of a Novel Sulfate-Independent Respiration. App. Environ. Microbiol. 1989, 55, 2333–2343. [Google Scholar]
  11. Fujita, M.; Ike, M.; Nishimoto, S.; Takahashi, K.; Kashiwa, M. Isolation and Characterization of Novel Selenate-Reducing Bacterium, Bacillus sp. SF-1. J. Ferment. Bioeng. 1997, 83, 517–522. [Google Scholar] [CrossRef]
  12. Nishimura, T.; Hata, R.; Umetsu, Y. Phase Equilibria in the Fe2O3-SeO2-H2O System. Hydrometallurgy 2005, 79, 110–120. [Google Scholar] [CrossRef]
  13. Nishimura, T.; Hata, R. Chemistry of the Ca-Se(IV)-H2O and Ca-Se(VI)-H2O Systems at 25 °C. Hydrometallurgy 2007, 89, 346–356. [Google Scholar] [CrossRef]
  14. Hata, R.; Nishimura, T.; Umetsu, Y. Solubility and Stability Regions of Barium Selenites and Barium Selenates in Aqueous Solution at 25 °C. Can. Met. Quart. 2004, 43, 57–65. [Google Scholar] [CrossRef]
  15. Nishimura, T.; Hata, R.; Umetsu, Y. Removal of Selenium from Industrial Waste Water. In Minor Elements 2000: Processing and Environmental Aspects of As, Sb, Se, Te, and Bi; Young, C., Ed.; SEM: Littleton, CO, USA, 2000; pp. 355–362. [Google Scholar]
  16. Nishimura, T.; Hashimoto, H.; Nakayama, M. Removal of Selenium(VI) from Aqueous Solution with Polyamine-type Weakly Basic Ion Exchange Resin. Separ. Sci. Technol. 2007, 42, 3155–3167. [Google Scholar] [CrossRef]
  17. Murphy, A.P. Removal of Selenate from Water by Chemical Reduction. Ind. Eng. Chem. Res. 1988, 27, 187–191. [Google Scholar] [CrossRef]
  18. Hamada, S.; Ishikawa, Y.; Shirai, T. Composition and Stability of Fe(III)-Se(IV) Complex. Nippon Kagaku Zasshi 1965, 86, 74–78. [Google Scholar] [CrossRef]
  19. Lien, R.H.; Dinsdale, B.E.; Gardner, K.R.; Altringer, P.B. Chemical and Biological Cyanide Destruction and Selenium Removal from Precious Metals Tailings Pond Water. In EPD Congress’90, Anaheim, California, USA, February 19-22, 1990; Gaskell, D.R., Ed.; TMS: Warrendale, PA, USA, 1990; pp. 323–339. [Google Scholar]
Sample Availability: Samples of the compounds are available from authors.

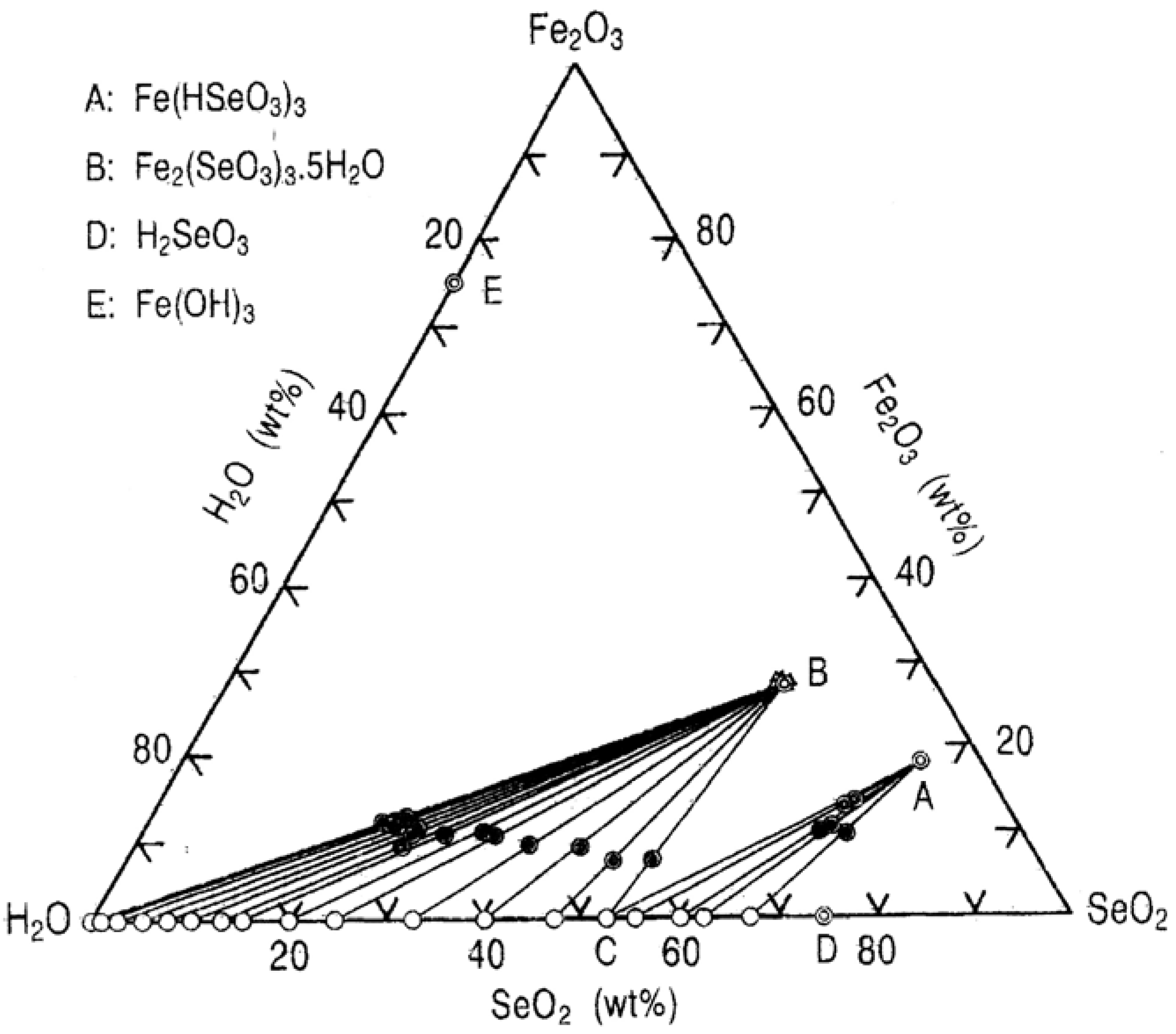

Figure 1. Ternary phase diagram for the Fe2O3-SeO2-H2O System at 25 °C.
Figure 1. Ternary phase diagram for the Fe2O3-SeO2-H2O System at 25 °C.
Molecules 14 03567 g001

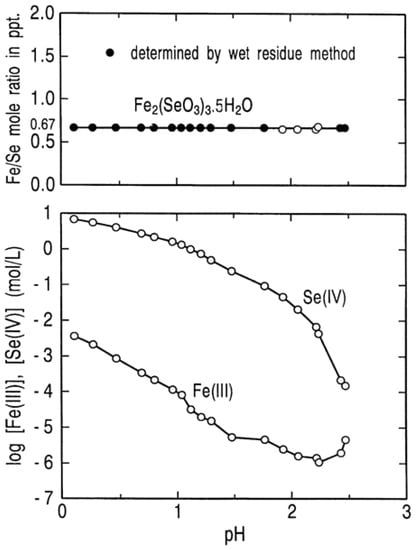

Figure 2. Stability and solubility regions for ferric selenite as a function of pH at 25 °C.
Figure 2. Stability and solubility regions for ferric selenite as a function of pH at 25 °C.
Molecules 14 03567 g002

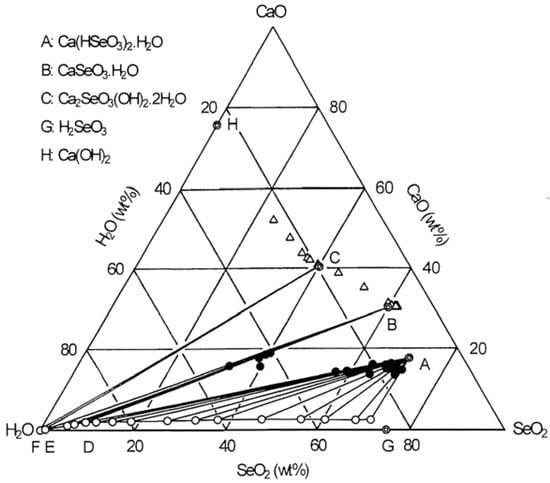

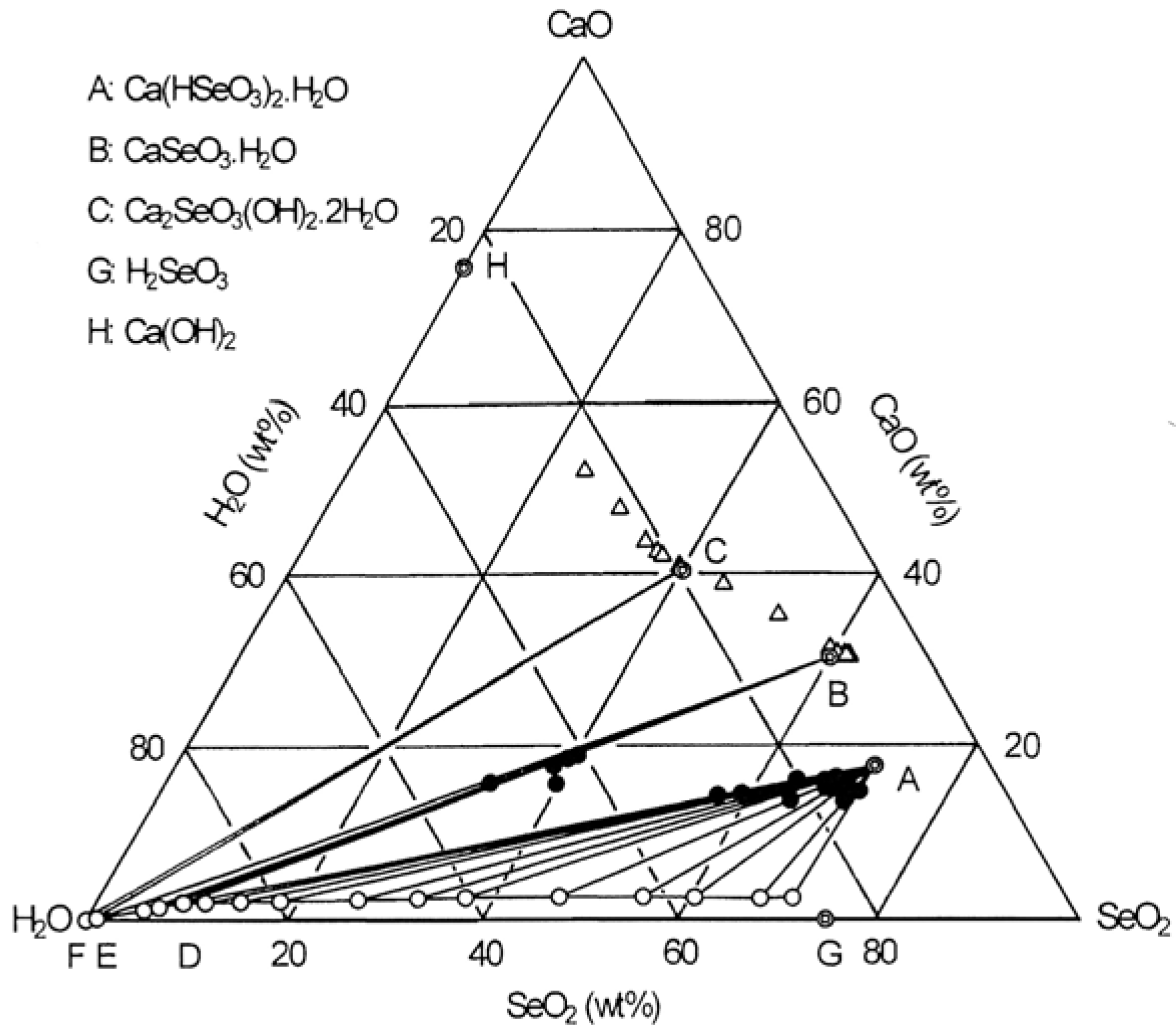

Figure 3. Ternary phase diagram for the CaO-SeO2-H2O system at 25 °C.
Figure 3. Ternary phase diagram for the CaO-SeO2-H2O system at 25 °C.
Molecules 14 03567 g003

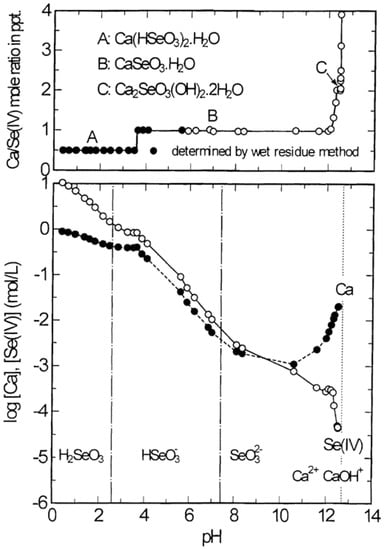

Figure 4. Stability and solubility regions for calcium selenites as a function of pH at 25 °C.
Figure 4. Stability and solubility regions for calcium selenites as a function of pH at 25 °C.
Molecules 14 03567 g004

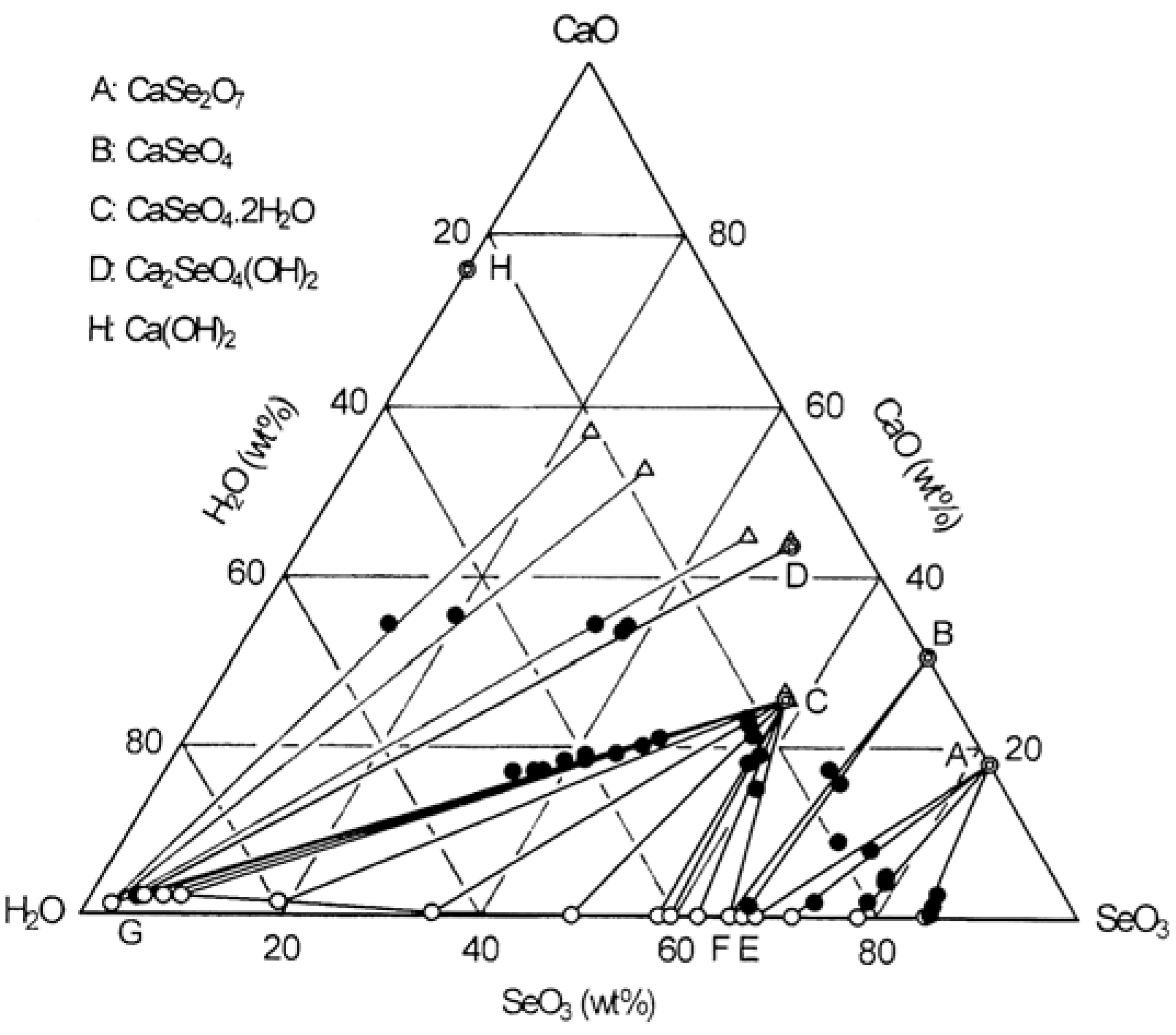

Figure 5. Ternary phase diagram for the CaO-SeO3-H2O system at 25 °C.
Figure 5. Ternary phase diagram for the CaO-SeO3-H2O system at 25 °C.
Molecules 14 03567 g005

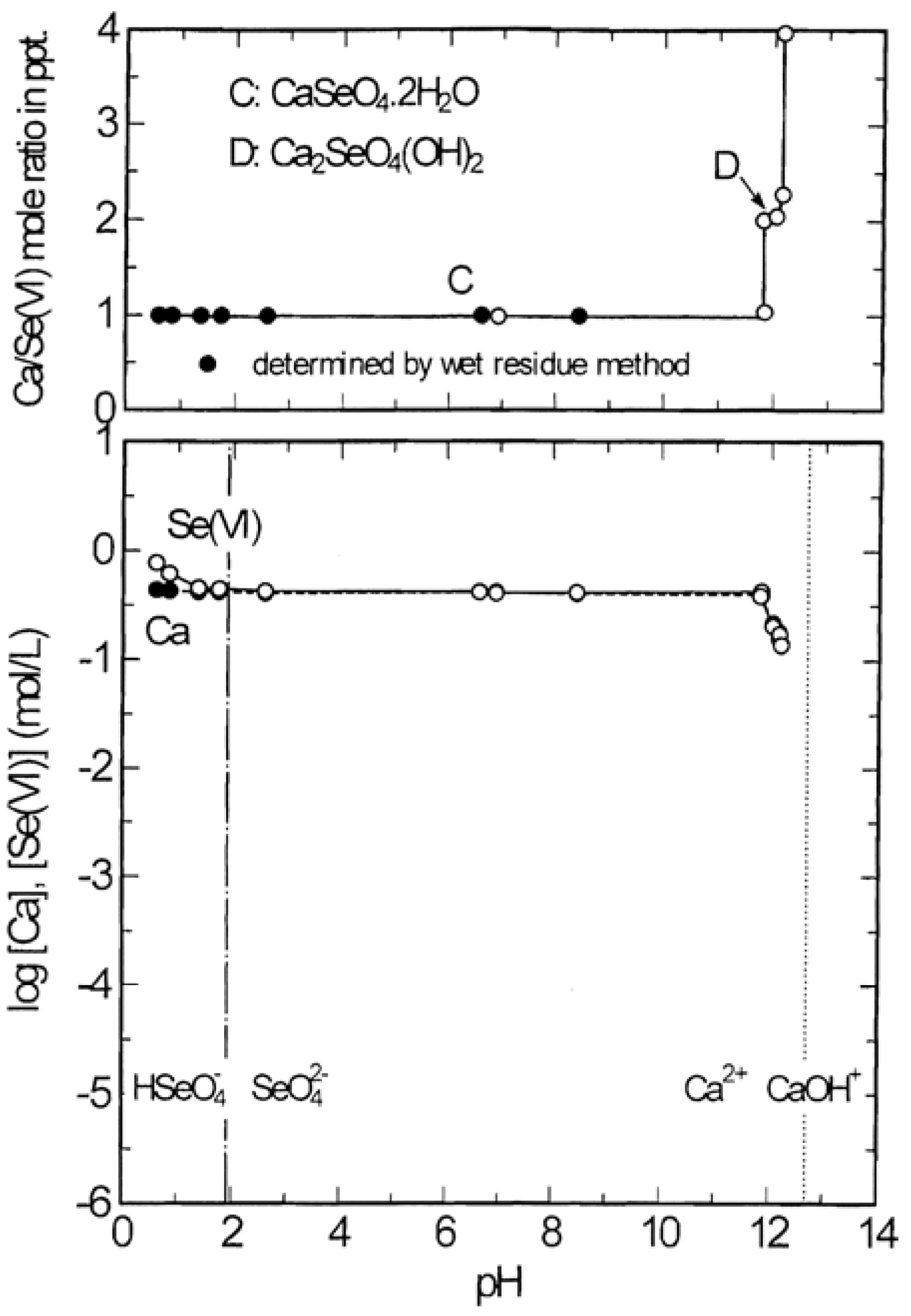

Figure 6. Stability and solubility regions for calcium selenates as a function of pH at 25 °C.
Figure 6. Stability and solubility regions for calcium selenates as a function of pH at 25 °C.
Molecules 14 03567 g006

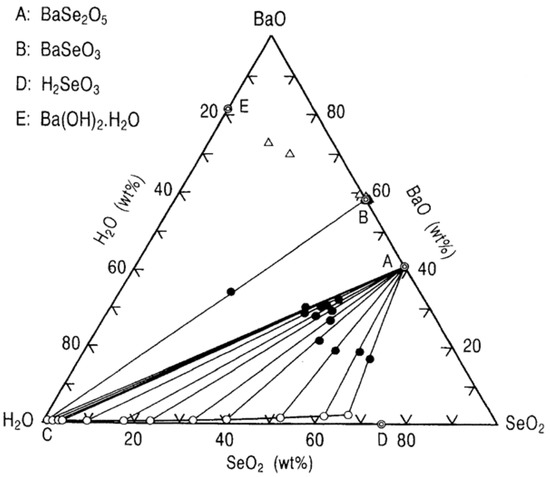

Figure 7. Ternary phase diagram for the BaO-SeO2-H2O system at 25 °C.
Figure 7. Ternary phase diagram for the BaO-SeO2-H2O system at 25 °C.
Molecules 14 03567 g007

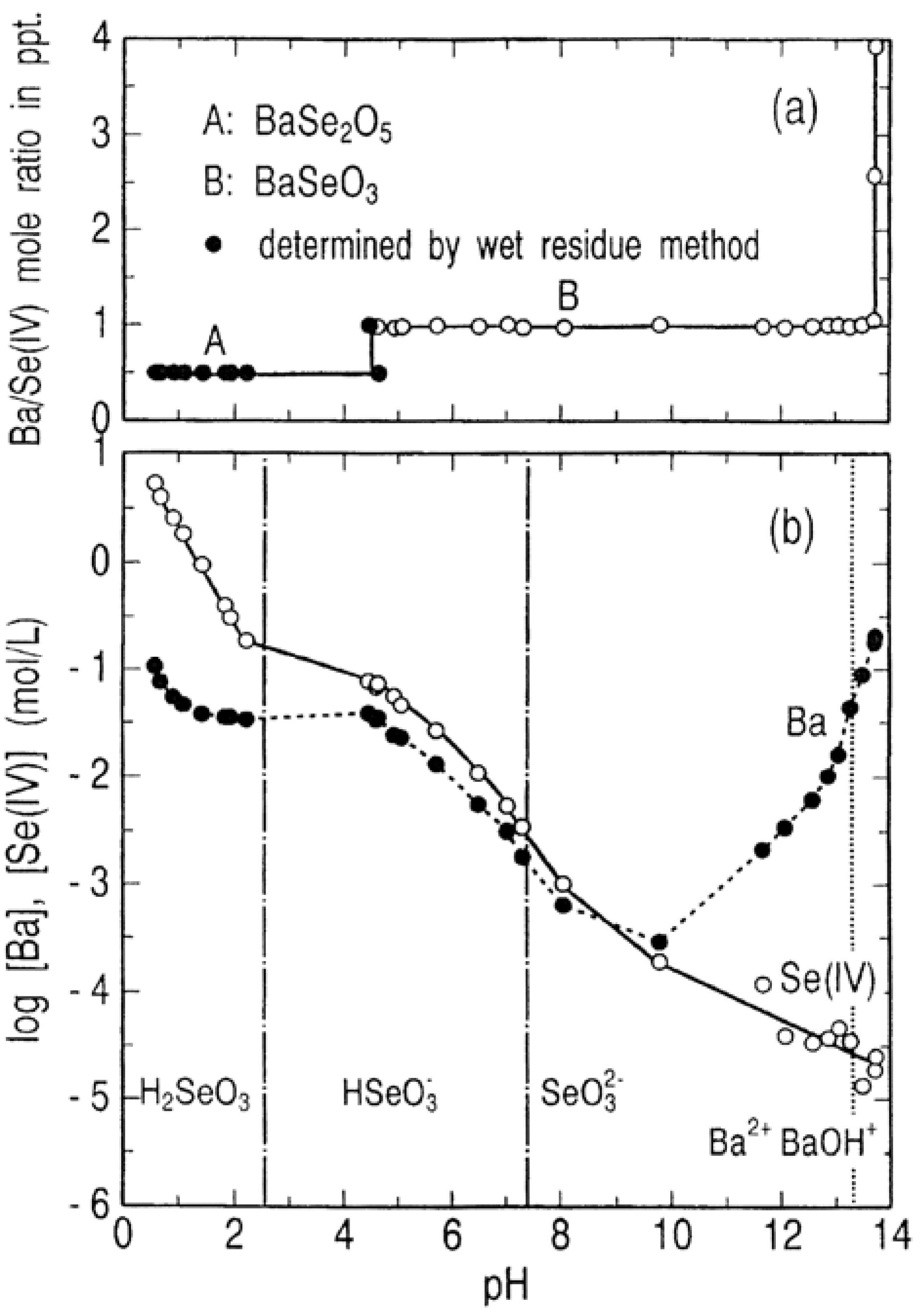

Figure 8. Stability and solubility regions for barium selenites as a function of pH at 25 °C.
Figure 8. Stability and solubility regions for barium selenites as a function of pH at 25 °C.
Molecules 14 03567 g008

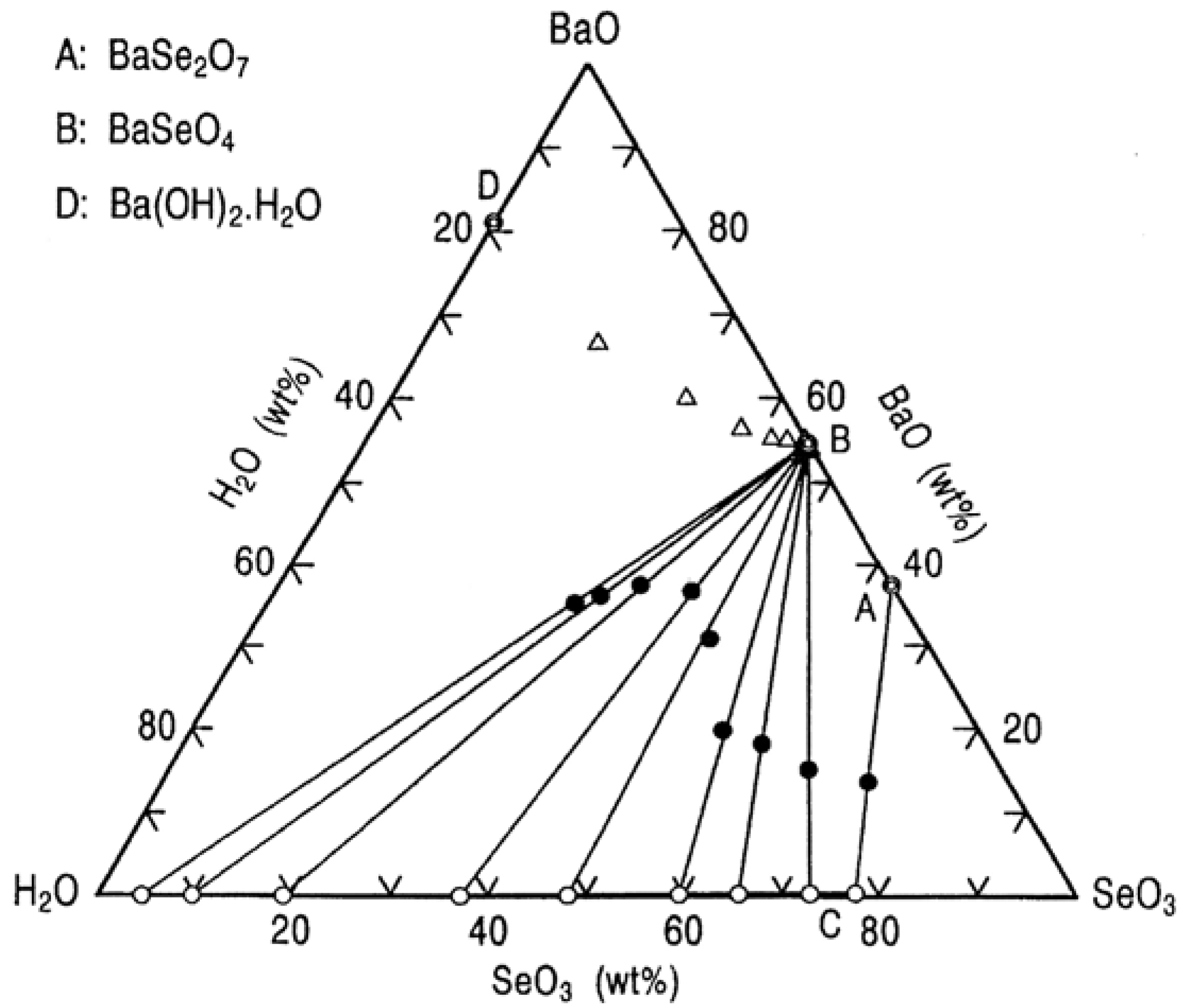

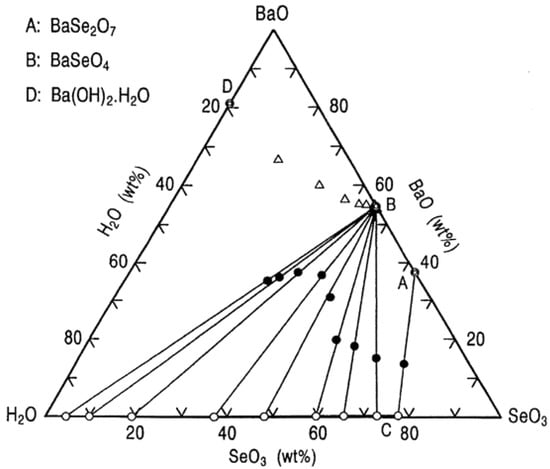

Figure 9. Ternary phase diagram for the BaO-SeO3-H2O system at 25 °C.
Figure 9. Ternary phase diagram for the BaO-SeO3-H2O system at 25 °C.
Molecules 14 03567 g009

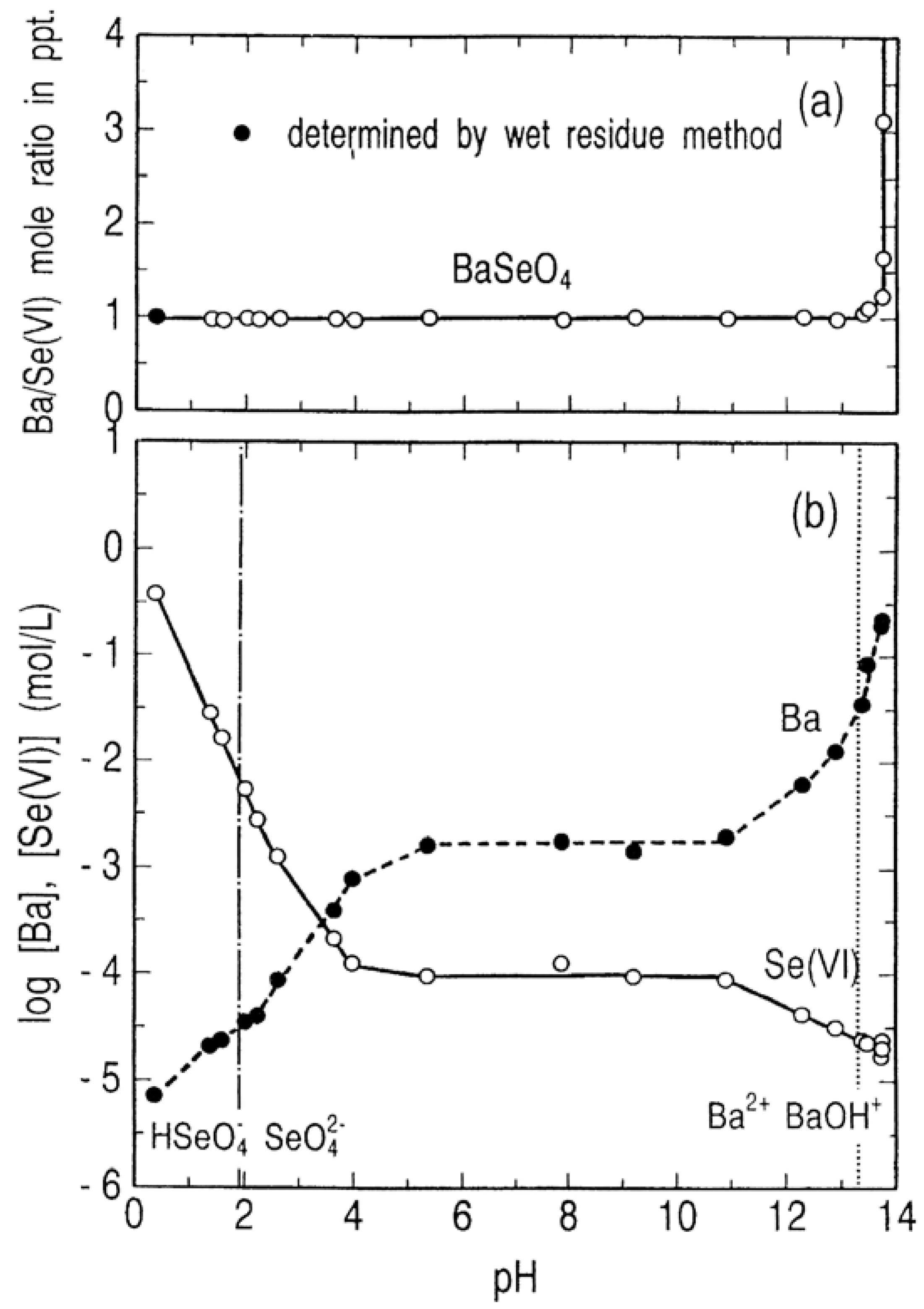

Figure 10. Stability and solubility regions for barium selenates as a function of pH at 25 °C.
Figure 10. Stability and solubility regions for barium selenates as a function of pH at 25 °C.
Molecules 14 03567 g010

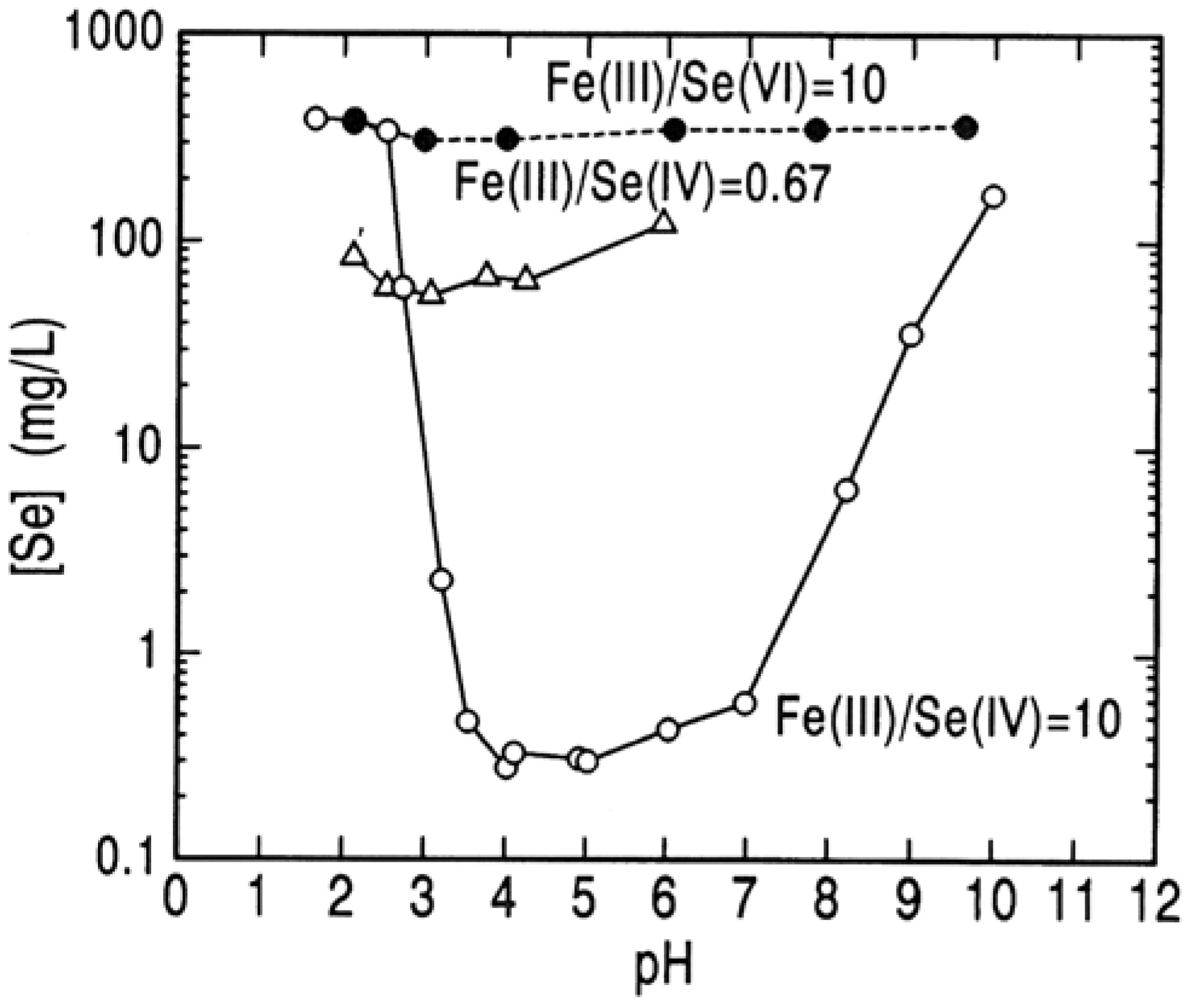

Figure 11. Removal of selenium(IV) and selenium(VI) by precipitation with ferric species at different pH. [Se]o = 0.005 M ( = 395 mg/L); 25 °C; 2 hours.
Figure 11. Removal of selenium(IV) and selenium(VI) by precipitation with ferric species at different pH. [Se]o = 0.005 M ( = 395 mg/L); 25 °C; 2 hours.
Molecules 14 03567 g011

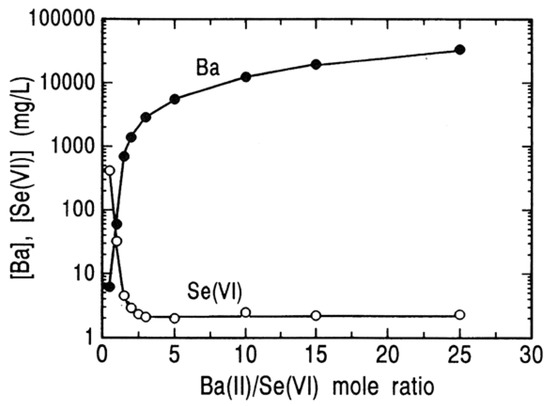

Figure 12. Residual concentrations of barium and selenium(VI) after precipitation of BaSO4 at different mole ratio of Ba(II)/Se(VI) in the starting solution. [Se(VI)]o = 0.01 M; pH = 6; 25 °C; 24 hours.
Figure 12. Residual concentrations of barium and selenium(VI) after precipitation of BaSO4 at different mole ratio of Ba(II)/Se(VI) in the starting solution. [Se(VI)]o = 0.01 M; pH = 6; 25 °C; 24 hours.
Molecules 14 03567 g012

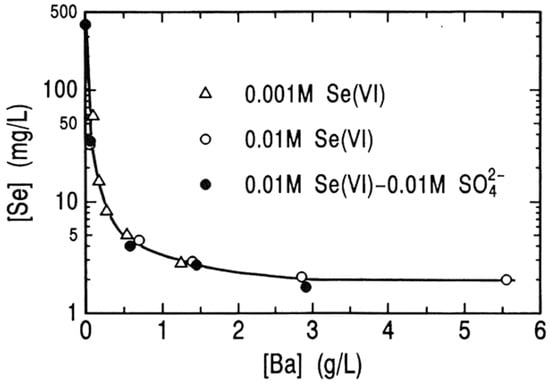

Figure 13. A plot of the residual selenium(VI) concentration versus the residual barium concentration after precipitation of BaSO4 from the solutions with and without sulfate ion. pH = 6; 25 °C; 24 hours.
Figure 13. A plot of the residual selenium(VI) concentration versus the residual barium concentration after precipitation of BaSO4 from the solutions with and without sulfate ion. pH = 6; 25 °C; 24 hours.
Molecules 14 03567 g013

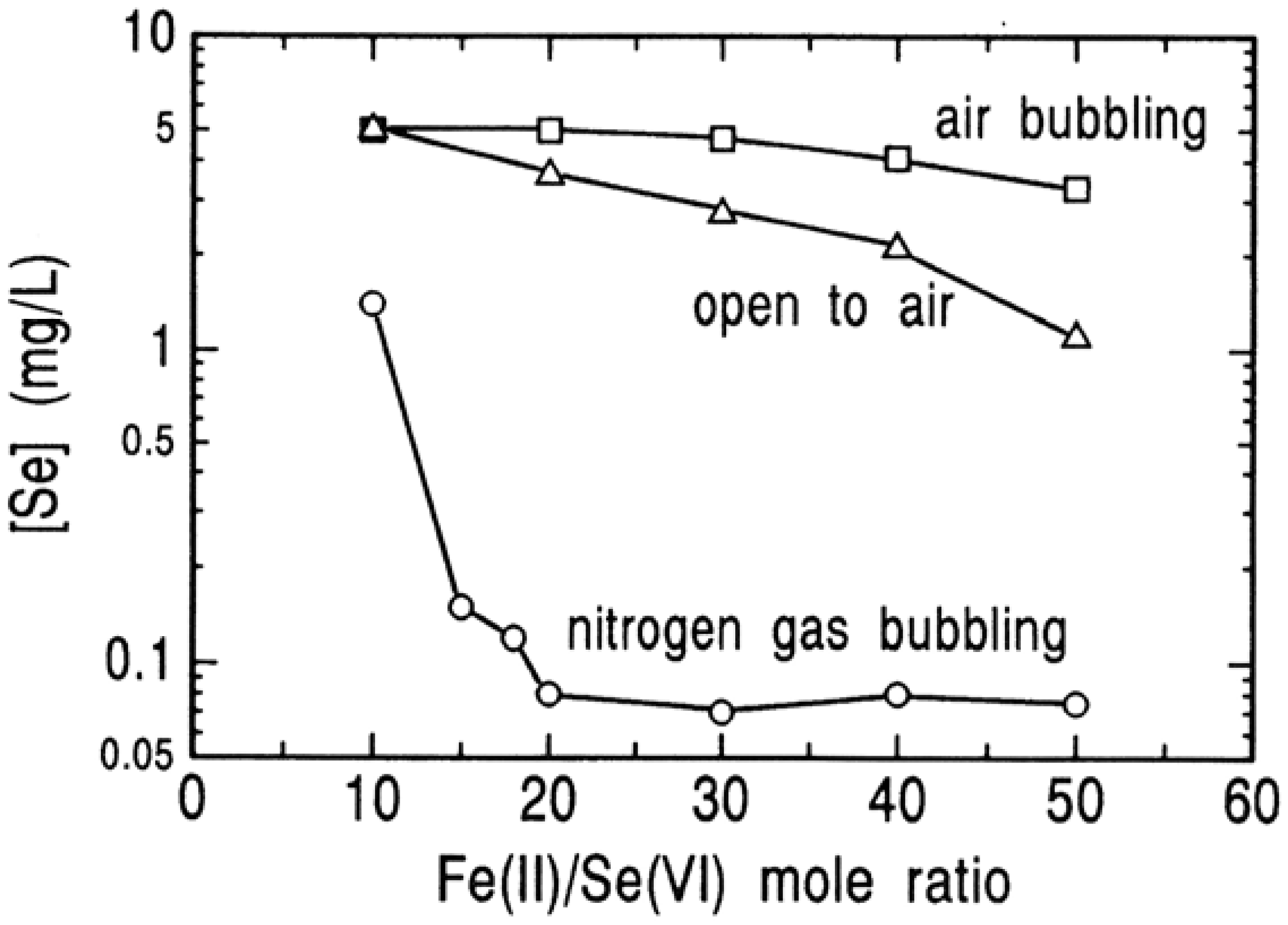

Figure 14. Removal of selenium(VI) by reduction with ferrous hydroxide under different atmospheres. [Se(VI)]o = 5 mg/L; pH = 9.0; 70 °C; 15 min.
Figure 14. Removal of selenium(VI) by reduction with ferrous hydroxide under different atmospheres. [Se(VI)]o = 5 mg/L; pH = 9.0; 70 °C; 15 min.
Molecules 14 03567 g014

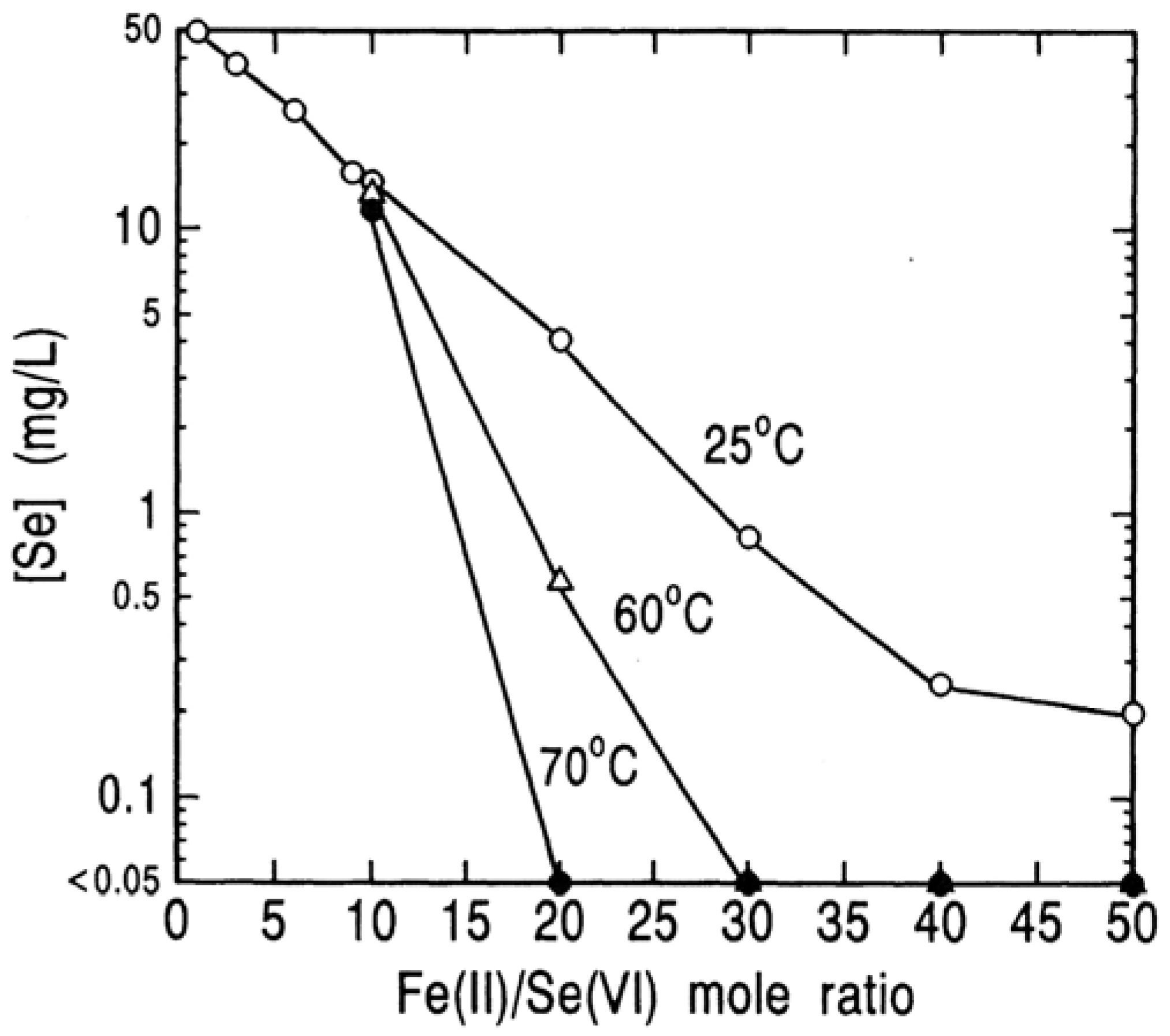

Figure 15. Effect of Fe(II)/Se(VI) mole ratio on removal of selenium(VI) by reduction with ferrous hydroxide in an atmosphere of nitrogen. [Se(VI)]o = 50 mg/L; pH = 9.0; 70 °C; 1 hour.
Figure 15. Effect of Fe(II)/Se(VI) mole ratio on removal of selenium(VI) by reduction with ferrous hydroxide in an atmosphere of nitrogen. [Se(VI)]o = 50 mg/L; pH = 9.0; 70 °C; 1 hour.
Molecules 14 03567 g015

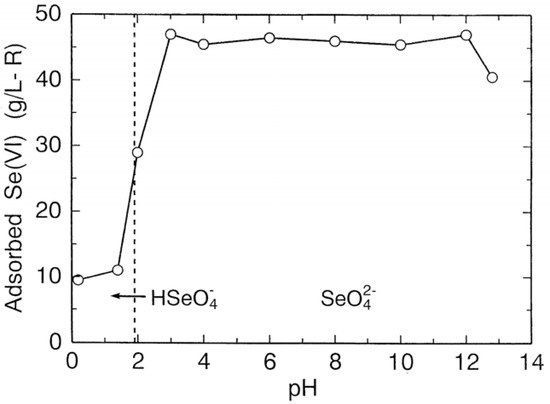

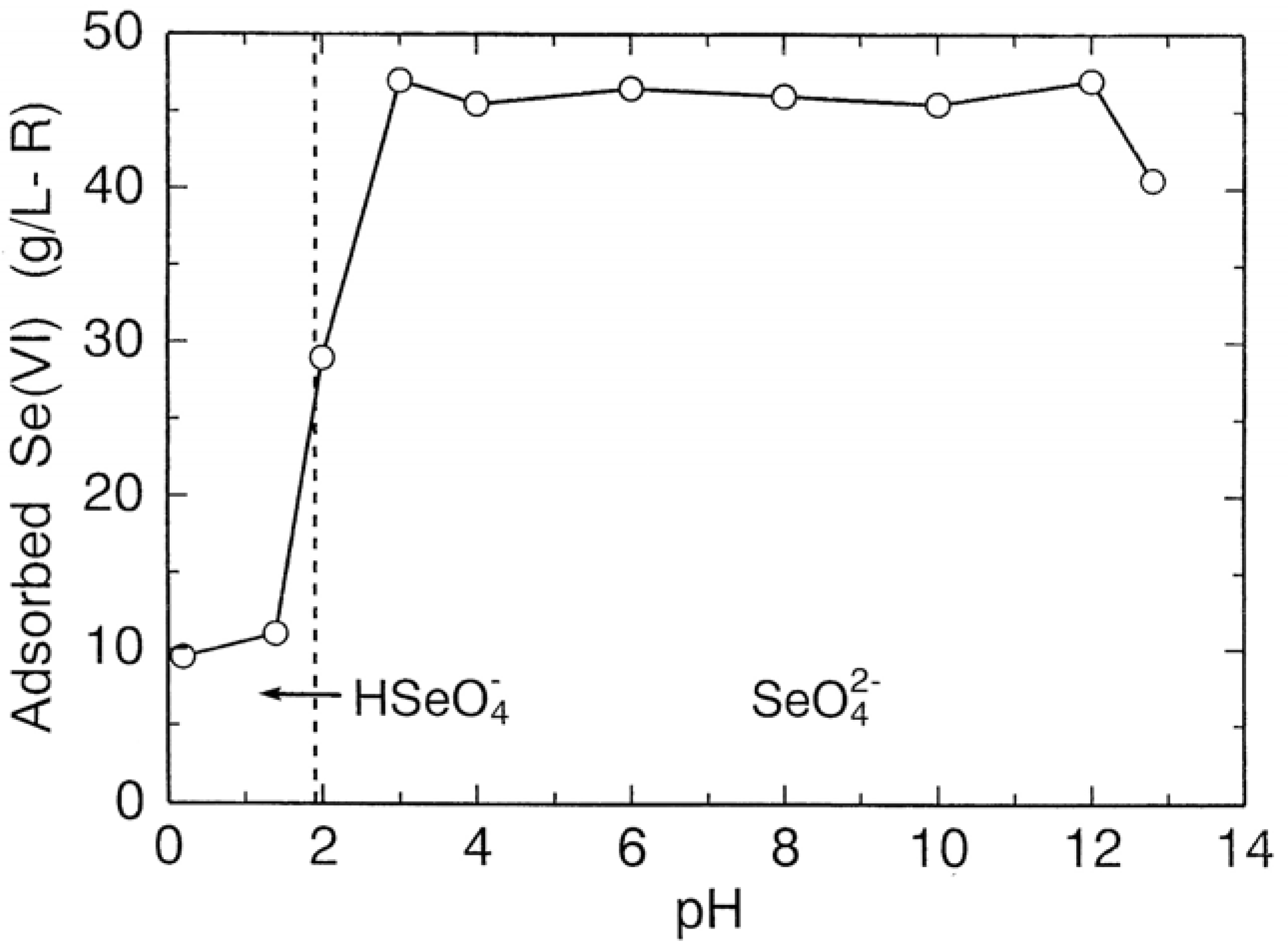

Figure 16. Effect of pH on adsorption of selenium(VI) on resin.
Figure 16. Effect of pH on adsorption of selenium(VI) on resin.
Molecules 14 03567 g016

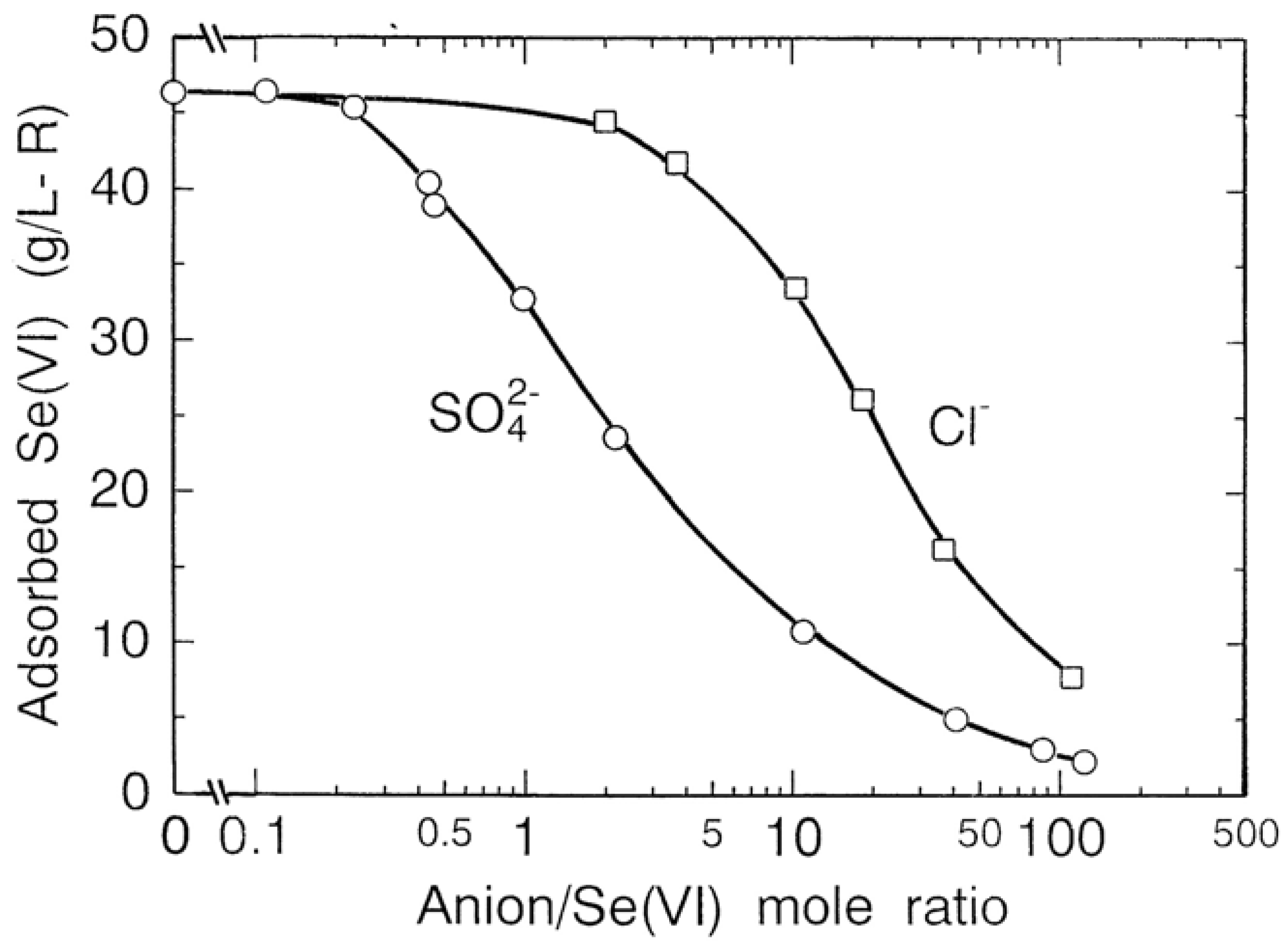

Figure 17. Effect of coexisting anion on adsorption of selenium(VI) on resin.
Figure 17. Effect of coexisting anion on adsorption of selenium(VI) on resin.
Molecules 14 03567 g017

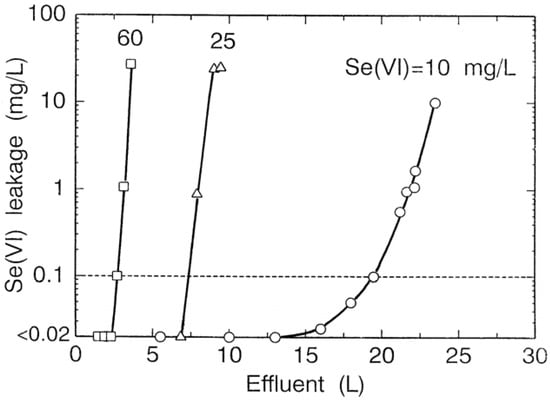

Figure 18. Breakthrough curves of selenium(VI) at different concentration of selenium(VI). pH = 6.0; bed volume of resin = 5.0 mL; SV = 10.
Figure 18. Breakthrough curves of selenium(VI) at different concentration of selenium(VI). pH = 6.0; bed volume of resin = 5.0 mL; SV = 10.
Molecules 14 03567 g018

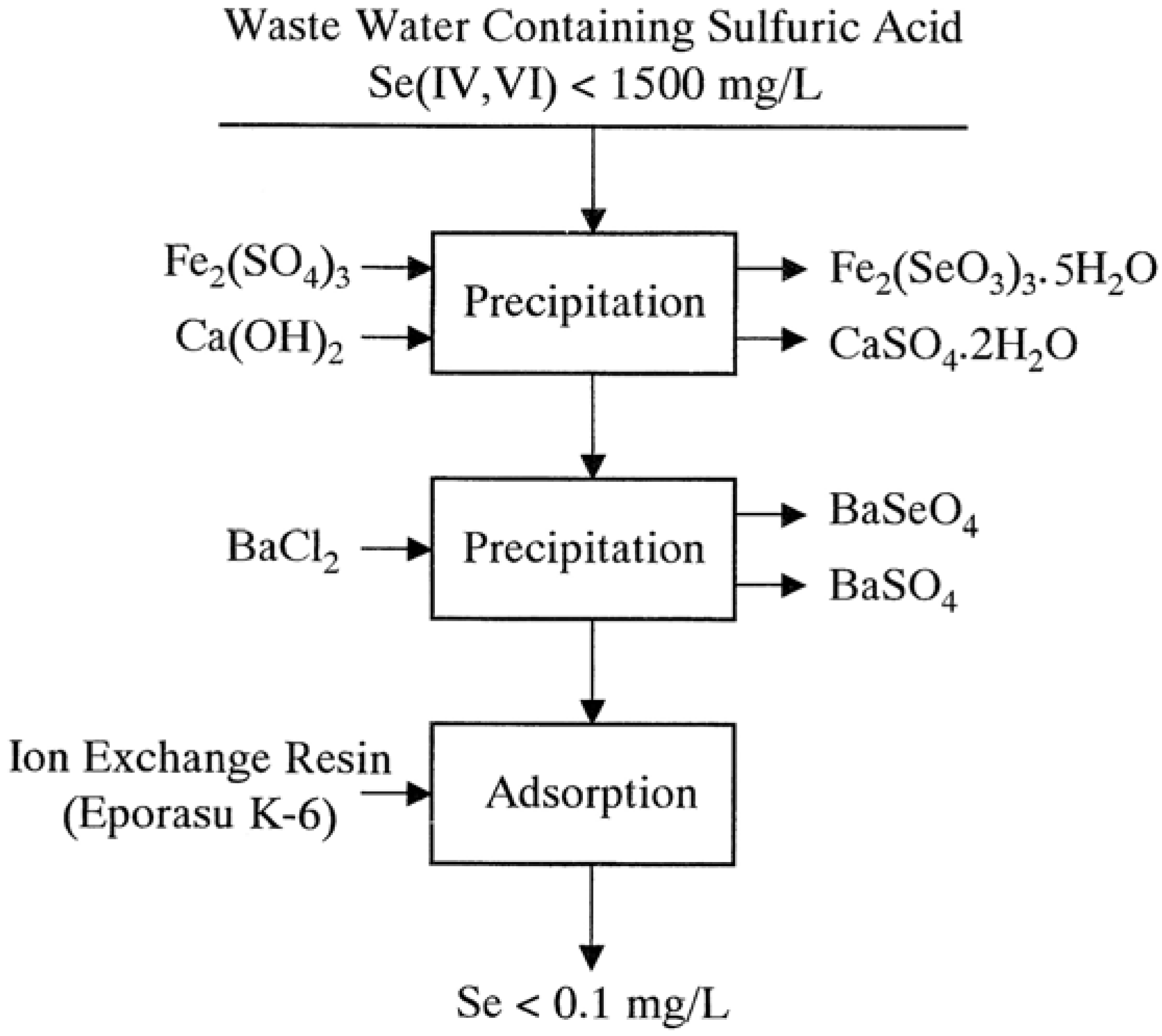

Figure 19. Flowsheet of process for removal of selenium from industrial waste water.
Figure 19. Flowsheet of process for removal of selenium from industrial waste water.
Molecules 14 03567 g019
Table 1. Typical analysis of filtrate from the first stage (mg/L).
Table 1. Typical analysis of filtrate from the first stage (mg/L).
Total SeSe(IV)Se(VI)Fe(III)Ca
754117431.4595
Table 2. Analysis of filtrates from the second stage.
Table 2. Analysis of filtrates from the second stage.
BaCl2 added(mol/L)Total Se(mg/L)Se(IV)(mg/L)Se(VI)(mg/L)Ba(mg/L)
0.034144.3410< 0.02
0.0351020.3510243
0.035510.2751106
0.048.90.188.7608
0.0454.70.054.71150
0.053.4 < 0.053.41860
0.0751.7 < 0.051.75180
Table 3. Analysis of filtrates from the third stage (mg/L).
Table 3. Analysis of filtrates from the third stage (mg/L).
ConditionTotal Se Se(IV)Se(VI)Ba Fe
Feed4.70.054.71150< 0.02
Fe(II)/Se mole ratio = 50 & T = 25 °C0.05< 0.050.05657< 0.02
Fe(II)/Se mole ratio = 20 & T = 70 °C0.06< 0.050.06631< 0.02
Feed510.2751106< 0.02
Fe(II)/Se mole ratio = 50 & T = 25 °C0.1< 0.050.1< 0.02 3.8
Fe(II)/Se mole ratio = 20 & T = 70 °C0.05< 0.050.05< 0.02 < 0.02

Share and Cite

MDPI and ACS Style

Nishimura, T.; Hata, R.; Hasegawa, F. Chemistry of the M (M=Fe, Ca, Ba)-Se-H2O Systems at 25 °C. Molecules 2009, 14, 3567-3588. https://doi.org/10.3390/molecules14093567

AMA Style

Nishimura T, Hata R, Hasegawa F. Chemistry of the M (M=Fe, Ca, Ba)-Se-H2O Systems at 25 °C. Molecules. 2009; 14(9):3567-3588. https://doi.org/10.3390/molecules14093567

Chicago/Turabian Style

Nishimura, Tadahisa, Ryosuke Hata, and Fumihiko Hasegawa. 2009. "Chemistry of the M (M=Fe, Ca, Ba)-Se-H2O Systems at 25 °C" Molecules 14, no. 9: 3567-3588. https://doi.org/10.3390/molecules14093567

Article Metrics

Back to TopTop
