Article

The Knoevenagel-Doebner Reaction on 1,2-O-(2,2,2-Trichloroethylidene) Derivatives of D-Gluco- and D-Manno- furanose †

1
Chemistry Department, Faculty of Science, Ege University, Bornova, İzmir 35100, Turkey
2
Chemistry Department, Faculty of Arts and Sciences, Celal Bayar University, Campus of Muradiye, Manisa 45030, Turkey
*
Author to whom correspondence should be addressed.
Initial data was presented at the 11th International Electronic Conference on Synthetic Organic Chemistry, ECSOC-11, 1-30 November 2007, paper a007.
Molecules 2010, 15(11), 7724-7731; https://doi.org/10.3390/molecules15117724
Submission received: 8 October 2010 / Revised: 25 October 2010 / Accepted: 28 October 2010 / Published: 29 October 2010

Abstract

:
The synthesis of new α,β-unsaturated furanuronic acid derivatives of α-gluco- (3), β-gluco- (6) and β-manno-chloraloses (9) via a convenient one pot procedure using the Knoevenagel-Doebner reaction approach are described. The dialdofuranose derivatives were reacted with malonic acid under Knoevenagel-Doebner reaction conditions and (E)-α,β-unsaturated furanuronic acid derivatives were obtained.

1. Introduction

In Organic Chemistry the well-known Knoevenagel reaction is defined by condensation of an aldehyde or ketone with compounds possessing active methylene groups such as malonic esters, or malononitrile to yield an α,β-unsaturated carboxylate products [1]. If the condensation reaction is set up in the presence of catalytic amounts of piperidine in a basic organic solvent such as pyridine, it is called the “Doebner modification of Knoevenagel reaction” or the “Knoevenagel-Doebner reaction or condensation” [2,3]. A trans- or E-α,β-unsaturated carboxylic acid is obtained as a decarboxylation product when malonic acid is heated in pyridine [2,3]. These type of condensation reactions also have been used in carbohydrate chemistry in order to extend sugar chains [4,5,6,7].
The Knoevenagel reaction can afford different types of compounds, depending on the acidic or basic catalysis employed. The condensation of unprotected reducing sugars with 1,3-dicarbonylic compounds under acidic conditions was reported in 1956 by Gonzalez [8]. The ZnCl2-catalyzed Knoevenagel reaction in alcoholic solvents has been used recently as the first step of the syntheses of a cytotoxic compound, of selective inhibitors of L-fucosidases of E- and P-selectin ligands, of glyco- and peptidomimetics, and of furan amino acid analogs of D- and L-serine. The so-called “Garcia Gonzalez reaction” was reinvestigated in order to improve yields using milder conditions such as CeCl3, InCl3, Sc(OTf)3, FeCl3, and scandium cation-exchanged montmorillonite [9].
The Knoevenagel condensation under basic conditions was first investigated with D-glucosamine chlorhydrate as the sugar. The reaction was extended to aldose and carbon nucleophiles such as barbituric acids and pentane-2,4-dione. When barbituric acids were used unprotected sugars gave C-glycosyl barbiturates. Reaction of pentoses or hexoses with Meldrum’s acid in DMF gave the unsaturated lactone. The condensation of pentane-2,4-dione with unprotected sugars in alkaline aqueous media was explored by the group of Lubineau. The condensation product of xylose with pentane-2,4-dione using NaOH, when reduced gave an activator of glycosaminoglycans biosynthesis used in cosmetic skincare products such as L’Oreal’s Pro-XylaneTM [9].
The aldehydo-derivatives of monosaccharides readily react with malonic acid in pyridine in the presence of piperidine catalyst [4]. The Knoevenagel-Doebner reaction of open-chain and protected monosaccharides is known in the literature [4,10,11,12,13,14]. For instance, 2,3-dehydro-2,3-dideoxyaldonic acids of starting monosaccharides were obtained via Knoevenagel-Doebner condensation of free L-arabinose, D-xylose and D-galactose with malonic acid [10]. Furthermore, the condensation products of protected monosaccharides such as aldehydo-1,2;3,4-di-O-isopropylidene-α-D-galacto-1,6-hexadialdo-1,5-pyranose [11] and 2,4-O-ethylidene-D-erythrose and threose [12] were reported.
Knoevenagel-Doebner syntheses have also been performed with the monomethyl ester of malonic acid and unsaturated chain-extended monosaccharide products were thus obtained. When 2,3-O-iso-propylidene-D-glyceraldehyde and 2,3;4,5-di-O-isopropylidene-D-arabinose were used as a starting materials, methyl trans-2,3-dideoxy-4,5-O-isopropylidene-D-glycero-pent-2-enoate [13] and methyl trans-2,3-dideoxy-4,5;6,7-di-O-isopropylidene-D-arabino-hept-2-enoate [14] were formed, respectively, under very mild conditions.
Chloralose was firstly synthesized by Arthur Heffter in 1889 from the condensation of D-glucose and trichloroacetaldehyde (chloral) in the presence of an acid catalyst [15]. While two optical isomers were obtained α-glucochloralose (1) (α-chloralose) and β-glucochloralose (4) (β-chloralose) from the reaction of D-glucose with chloral, only β-isomers were obtained in the syntheses of β-xylochloralose [16] from D-xylose, β-arabinochloralose [17] from D-arabinose, β-galactochloralose [18] from D-galactose, β-mannochloralose (7) [19] from D-mannose via the same synthetic procedure.
Chloraloses are furanose-type cyclic acetals of pentoses and hexoses containing a 1,2-O-trichloro-ethylidene ring. Although, trichloroethylidene rings are highly stable under acidic and mildly basic conditions [19], they are unstable in strong bases such as a potassium tert-butoxide. The HCl elimination from trichloroethylidene ring of a chloralose with a strong base such as alkoxides gives a cyclic ketene acetal [17,19,20]. The trichloroethylidene group can be removed by hydrogenation with Raney nickel followed by acidic hydrolysis [21].
Trichloroethylidene acetals such as α-chloralose (1) [(R)-1,2-O-(2,2,2-trichloroethylidene)-α-D-glucofuranose] are potential biologically active compounds [22]. α-Chloralose was used in humans till the early part of the twentieth century [23]. Recently, it has been widely used as a bird repellent, a rodenticide, and in neuroscience and veterinary medicine as an anesthetic and sedative [22,23,24,25]. It has been characterized as a molecule which has potent central nervous system activity and evaluated in human and animal models for its therapeutic properties [26,27]. It is an anesthetic that exerts minimal cardiovascular depression, little change in blood pressure and no change or only a small reduction in heart rate, thus it is widely used in animals [28].
In addition to the well-known effects of chloraloses, arabinochloralose has been used as an intermediate compound for the development of new antituberculosis drugs in pharmaceutical research [29]. Spiro-endoperoxide chloraloses [30,31] and aminochloraloses [32] were synthesized and investigated antimicrobial activity against some microorganisms.

2. Results and Discussion

α,β-Unsaturated carboxylic acid-containing sugar derivatives 3, 6, and 9 were synthesized from compounds 1, 4, and 7, respectively, as shown in Scheme 1. The structure of the Knoevenagel-Doebner condensation products 3, 6, and 9 was confirmed by using spectral methods (FTIR, 1H- and 13C-NMR). In the FT-IR spectrum of the new dialdofuranose compound 8, the bands corresponding to the –OH and C=O are observed at 3,493 cm-1 and 1,737 cm-1, respectively. The aldehyde proton of this compound appeared as a singlet at 9.65 ppm in the 1H-NMR spectrum, and the carbonyl group peak appeared at 201.8 ppm in the 13C-NMR spectrum.
In the IR spectra of compounds 3, 6, and 9 a broad OH absorption (stretching) band at 3,218, 3,453 and 3,446 cm-1, typical C=O absorption bands at 1,718, 1,702 and 1,693 cm-1 and characteristic C=C bands at 1,662, 1,668 and 1,658 cm-1 appeared, respectively. The –OH stretching bands of the carboxylic acid moieties were displayed at 3,481, 3,453 and 3,537 cm-1.
The 1H-NMR and 13C-NMR spectral data of compounds 3, 6, and 9 are listed in Table 1. The hydroxyl and carboxylic acid group protons appeared as singlets at 5.48, 5.55, 5.76 ppm and 12.32, 12.42, 12.50 ppm, respectively. The large coupling constants (15.6 to 16.0 Hz) between 5-H and 6-H prove the formation of the E-isomer [33].
Long range couplings (1.2 to 2.0 Hz) were observed between H-4 and H-6 of the Doebner products. For compound 3, this finding was previously explained as a result of a twisted conformation of the furanose ring causing the endo-trichloromethyl group to approach the 4-H hydrogen hence shifting it downfield [20,21].
The 13C-NMR spectra of compounds 3, 6, and 9 are also consistent with the proposed structures, exhibiting two double bond carbon signals (123.3-141.9; 142.2-124.5; 143.7-123.8 ppm) and a carbonyl carbon signal (168.1, 167.2, 167.2 ppm) (Table 2). The positive ion mode APCI-MS analysis of compound 3 gave molecular ion peaks at m/z 317/319/321 (18 %) (3 × chlorine isotopic pattern), 353/355/357/359 [[M + H]+ + Cl], 100 %, (4 × chlorine isotopic pattern), as the base peak groups.
A two pot alternative synthesis of similar compounds has been reported previously [27,31,33]. Hence, now we report synthesis of α,β-unsaturated furanuronic acid derivatives via a more facile one pot procedure using the Knoevenagel-Doebner reaction approach. This study is the first report of the synthesis of (E)-α,β-unsaturated furanuronic acid derivatives of α-gluco-, β-gluco- and β-manno- chloralose.

3. Experimental

3.1. General

Melting points were measured with a Gallenkamp electrotermal melting point apparatus in capillary tubes and are uncorrected. 1H-NMR (400 MHz) and 13C-NMR (100 MHz) spectra were recorded on a Varian AS 400 NMR spectrometer. APCI positive polarity (30 eV) mass spectra were recorded on Agilent 1100 (LC-MSD) mass spectrometer. IR spectra were recorded on Perkin Elmer Spectrum 100 FTIR Spectrometer. Optical rotation measurements were carried out on an Rudolph Research Analytical Autopol II digital polarimeter. TLC and column chromatography were performed on precoated aluminium plates (Merck 5554) and silica gel 60 (Merck 7734), respectively. All solvent removals were carried out under reduced pressure. Compound 1 was commercially available from Sigma-Aldrich Corp. and contained 4 as an impurity. Compound 4 is soluble in cold methanol, but 1 is not, and thus, impurities of 4 in the crude 1 were removed with cold methanol. Compound 4 was purchased from Sigma-Aldrich Corp. and purified via crystallization from boiling methanol. Syntheses of (R)-1,2-O-(2,2,2-trichloroethylidene)-α-D-xylo-1,4-furanodialdose (2) from 1, (S)-1,2-O-(2,2,2-trichloroethylidene)-α-D-xylo-1,4-furanodialdose (5) from compound 4 were performed according to the literature via periodate oxidation reaction [31,33]. Compound 7 was synthesized from D-mannose and chloral according to the literature procedure [19].
5,6-Dideoxy-(R)-1,2-O-(2,2,2-trichloroethylidene)-α-D-xylo-hept-5-(E)-eno-1,4-furanuronic acid (3). A solution of compound 2 (7.00 g, 0.024 mol) in pyridine (50 mL) was mixed with malonic acid (12.48 g, 0.12 mol) and piperidine (0.5 mL). The solution was stirred at 60 ºC for 30 minutes and completion of the reaction was monitored with TLC (toluene/MeOH, 8:2). The reaction mixture was poured into a 1:1 H2O/HCl solution (200 mL). The acidic solution was extracted with CH2Cl2 (3 × 100 mL). Then the organic phase was dried with Na2SO4 and solvent was removed under reduced pressure. The residue was purified via column chromatography on silica gel using CH2Cl2:CH3OH (95:5) as an eluent. Compound 3 was obtained as a white solid after recrystallisation from CH2Cl2. (3.25 g, 42%); m.p. 150-151 ºC; [ α ] D 22 : -77.9 (c 0.51 in CH3OH); IR cm-1 (KBr): 3,481 (-COOH), 3,218 (-OH), 1,718 (C=O), 1,662 (C=C); 1H-NMR δ (CDCl3): 7-H 12.32 (s, 1H), 5-H 6.75 (dd, 1H, J5,6 = 15.6 Hz), 1-H 6.10 (d, 1H, J1,2 = 3.9 Hz), 6-H 5.98 (dd, 1H), OH 5.48 (s, 1H), HA 5.43 (s, 1H), 2-H 4,68 (d, 1H), 3-H 4.23 (d, 1H, J3,4 = 3.1 Hz), 4-H 5.00 (ddd, 1H, J4,5 = 5.5 Hz); 13C-NMR δ (CDCl3): 168.1 (COOH), 141.9, 123.3 (5-C, 6-C), 107.8, 105.9 (1-C, CHCl3), 97.2 (CCl3), 87.8, 81.8, 75.4 (2-C, 3-C, 4-C); MS m/z 318 [M + H]+, 18 %, 317/319/321 (3 × chlorine isotopic pattern), 353/355/357/359 [[M + H]+ + Cl], 100 %, (4 x chlorine isotopic pattern). Anal. Calcd. for C9H9Cl3O6: C, 33.83; H, 2.84. Found: C, 33.92; H, 2.83.
5,6-Dideoxy-(S)-1,2-O-(2,2,2-trichloroethylidene)-α-D-xylo-hept-5-(E)-eno-1,4-furanuronic acid (6). Synthesized from 5 (1 g, 3.60 mmol) by the same procedure described for 3. White solid, yield: 0.725 g (63%); m.p. 210-212 ºC (dec.); [ α ] D 26 : -290.7 (c 0.86 in CH3OH); IR cm-1 (KBr): 3,453 (-OH and -COOH), 1,702 (C=O), 1,668 (C=C); 1H-NMR δ (DMSO-d6): 7-H 12.42 (bs, 1H), 5-H 6.75 (dd, 1H, J4,5 = 5.6 Hz, J5,6 = 15.8 Hz), 1-H 6.28 (d, 1H, J1,2 = 3.6 Hz), 6-H 5.98 (dd, 1H, J4,6 = 1.2 Hz), HA 5.85 (s, 1H), OH 5.55 (bs, 1H), 4-H 4.76 (m, 1H), 2-H 4,75 (d, 1H), 3-H 4.19 (bs, 1H); 13C-NMR δ (DMSO-d6): 167.2 (COOH), 143.8, 123.8 (5-C, 6-C), 109.4, 105.9 (1-C, CHCl3), 100.4 (CCl3), 82.3, 79.0, 75.9 (2-C, 3-C, 4-C); Anal. Calcd. for C9H9Cl3O6: C, 33.83; H, 2.84. Found: C, 33.07; H, 2.52.
(R)-1,2-O-(2,2,2-trichloroethylidene)-β-D-lyxo-1,4-furanodialdose (8). The 1,4-furanodialdose derivative were synthesized according to previous literature [19]. A solution of compound 7 (5.00 g, 16.15 mmol) in methanol (160 mL) was mixed with an aqueous solution of NaIO4 (4.02 g, 19.23 mmol). TLC analysis showed that the synthesis of (R)-1,2-O-(2,2,2-trichloroethylidene)-β-D-lyxo-1,4-furanodialdose was completed in 3.5 hours at room temperature. Reaction mixture was filtered, the filtrate was concentrated under reduced pressure and extracted with CH2Cl2 (4 × 150 mL). The organic phase was dried over anhydrous Na2SO4 and then evaporated to afford dialdofuranose 8 (3.55 g, 79 %) as a pure white amorphous powder, m.p. 115-117 ºC (dec.); [ α ] D 26 : 0.11 (c 0.17 in CH3OH); IR cm-1 (KBr): 3,493 (-OH), 1,737 (C=O); 1H-NMR δ (DMSO-d6): 5-H 9.65 (s, 1H), 1-H 6.13 (d, 1H, J1,2 = 3.6 Hz), HA 5.54 (s, 1H), OH 6.10 (bs, 1H), 2-H 4.81 (dd, 1H, J2,3 = 3.6 Hz), 3-H and 4-H 4.60 (m, 2H). 13C-NMR δ (DMSO-d6): 201.8 (CHO), 109.4, 106.6 (1-C, CHCl3), 100.1 (CCl3), 84.1, 82.2, 73.9 (2-C, 3-C, 4-C); Anal. Calcd. for C7H7Cl3O5: C, 30.30; H, 2.54. Found: C, 29.83; H, 2.27.
5,6-Dideoxy-(R)-1,2-O-(2,2,2-trichloroethylidene)-β-D-lyxo-hept-5-(E)-eno-1,4-furanuronic acid (9). Synthesized from 8 (1 g, 3.60 mmol) by the same procedure described for 3. White solid, yield: 0.83 g (72 %); m.p. 195-197 ºC; [ α ] D 26 : -171.6 (c 1.02 in CH3OH); IR cm-1 (KBr): 3,537 and 3,446 (-OH and -COOH), 1,693 (C=O), 1,658 (C=C); 1H-NMR δ (DMSO-d6): 7-H 12.50 (s, 1H), 5-H 6.75 (dd, 1H, J4,5 = 5.6 Hz, J5,6 = 16.0 Hz), 1-H 6.14 (d, 1H, J1,2 = 3.6 Hz), 6-H 5.99 (dd, 1H, J4,6 = 1.6 Hz), HA 5.92 (s, 1H), OH 5.76 (bs, 1H), 3-H 4.84 (dd, 1H, J3,4 = 4.4 Hz), 2-H 4,39 (dd, 1H, J2,3 = 3.6 Hz), 4-H 3.73 (m, 1H); 13C-NMR δ (DMSO-d6): 167.2 (COOH), 143.7, 123.8 (5-C, 6-C), 109.4, 105.6 (1-C, CHCl3), 100.4 (CCl3), 82.3, 79.0, 75.9 (2-C, 3-C, 4-C); Anal. Calcd. for C9H9Cl3O6: C, 33.83; H, 2.84. Found: C, 33.20; H, 2.54.

4. Conclusions

In the present work, the one-pot synthesis of three new potentially biological active furanuronic acid derivatives based on the 1,2-O-(2,2,2-trichloroethylidene) unit from via a Knoevenagel-Doebner reaction of the corresponding trichloroethylidene pentadialdofuranose was achieved. The spectroscopic data of the condensation products indicate the formation of only E-isomers of the carbon-carbon double bonds.

References

  1. Knoevenagel, E. Condensation von Malonsäure mit Aromatiachen Aldehyden durch Ammoniak und Amine. Ber. Dtsch. Chem. Ges. 1898, 31, 2596–2619. [Google Scholar] [CrossRef]
  2. Doebner, O. Ueber die der Sorbinsäure homologen, ungesättigten Säuren mit zwei Doppelbindungen. Ber. Dtsch. Chem. Ges. 1902, 35, 1136–1136. [Google Scholar] [CrossRef]
  3. Laue, T.; Planges, A. Named Organic Reactions, 2nd ed.; John Wiley & Sons Ltd.: West Sussex, England, 2005; pp. 176–179. [Google Scholar]
  4. Györgydeák, Z.; Pelyvás, I.F. Monosaccharide Sugars Chemical Synthesis by Chain Elongation, Degradation, and Epimerization; Academic Press: San Diego, CA, USA, 1998; pp. 82–94. [Google Scholar]
  5. López-Aparicio, F.J.; López-Herrera, F.J.; Sanchez Ballesteros, J. Some applications of the Knoevenagel reaction in the carbohydrate field. Carbohydr. Res. 1979, 69, 55–70. [Google Scholar] [CrossRef]
  6. López-Aparicio, F.J.; Cubero, I.I.; Portal-Olea, M.D. The Knoevenagel-Doebner reaction in the synthesis of branched-chain sugar derivatives. Carbohydr. Res. 1982, 103, 158–164. [Google Scholar] [CrossRef]
  7. Butcher, M.E.; Lee, J.B. Seven membered ring sugars. Applications of Knoevenagel type reactions to sugars. Tetrahedron Lett. 1974, 15, 2663–2664. [Google Scholar] [CrossRef]
  8. García-González, F. Reactions of monosaccharides with α-ketoesters. Adv. Carbohydr. Chem. 1956, 11, 97–143. [Google Scholar]
  9. Scherrmann, M.C. Knoevenagel Reaction of Unprotected Sugars. Top. Curr. Chem. 2010, 295, 1–18. [Google Scholar] [PubMed]
  10. Kochetkov, N.K.; Dmitriev, B.A. New route to higher sugars. Tetrahedron 1965, 21, 803–815. [Google Scholar] [CrossRef]
  11. Tronchet, J.M.J.; Massoud, M.A.M. Analogues de la lincomycine. I. Allongement de la chaîne du di-O-isopropylidène-1,2:3,4-α-D-galacto-hexodialdopyrannose-1,5. Helv. Chim. Acta 1979, 62, 1632–1639. [Google Scholar] [CrossRef]
  12. Fernández, M.V.; López-Herrera, F.J.; Cobos, T.L.; Escribano, G.P. Knoevenagel-Doebner condensations with 2,4-O-ethylidene-D-erythrose and threose. Carbohydr. Res. 1983, 118, 286–291. [Google Scholar] [CrossRef]
  13. López-Herrera, F.J.; Pino-Gonzalez, M.S. A synthesis of 2-deoxy-3-O-methyl-1,4-aldonolactones. Tetrahedron 1986, 42, 6033–6038. [Google Scholar] [CrossRef]
  14. López-Herrera, F.J.; Pino-Gonzalez, M.S. The Knoevenagel-Doebner reaction on 2,3-O-isopropylidene derivatives of d-ribo and d-manno-furanose. Carbohydr. Res. 1986, 152, 283–291. [Google Scholar] [CrossRef]
  15. Heffter, A. Ueber die Einwirkung von Chloral auf Glucose. Ber. Dtsch. Chem. Ges. 1889, 22, 1050–1051. [Google Scholar] [CrossRef]
  16. Goodhue, L.D.; White, A.; Hixon, R.M. Structure of the chloraloses. Beta-xylochloralose. J. Am. Chem. Soc. 1930, 52, 3191–3195. [Google Scholar] [CrossRef]
  17. Salman, Y.G.; Makinabakan, Ö.; Yüceer, L. Tricyclic ortho ester formation from trichloro-ethylidene acetals of sugars via ketene acetals. Tetrahedron Lett. 1994, 35, 9233–9236. [Google Scholar] [CrossRef]
  18. Anıl, H.; Yüceer, L.; Yüceer, T. 1,2-O-Trichloroethylidene-α-D-galactofuranose. Carbohydr. Res. 1983, 123, 153–156. [Google Scholar] [CrossRef]
  19. Salman, Y.G.; Kök, G.; Yüceer, L. Tricyclic furanoid dichloroacetyl orthoesters of D-mannose from 1,2-O-trichloroethylidene-β-D-mannofuranose. Carbohydr. Res. 2004, 339, 1739–1745. [Google Scholar] [CrossRef] [PubMed]
  20. Ay, K.; Çetin, F.; Yüceer, L. The Wittig-cyclization procedure: acid promoted intramolecular formation of 3-C-branched-chain 3,6-anhydro furano sugars via 2′-oxopropylene derivatives. Carbohydr. Res. 2007, 342, 1091–1095. [Google Scholar] [CrossRef] [PubMed]
  21. Forsén, S.; Lindberg, B.; Silvander, B.-G. Trichloroethylidene derivatives of D-Glucose. Acta Chem. Scand. 1965, 19, 359–369. [Google Scholar] [CrossRef]
  22. Zosimo-Landolfo, G.; Tronchet, J.M.J. New α-chloralose derivatives. Farmaco 1999, 54, 852–853. [Google Scholar] [CrossRef]
  23. Krasowski, M.D. Contradicting a Unitary Theory of General Anesthetic Action: A history of Three Compounds from 1901 to 2001. Bull. Anesth. Hist. 2003, 21, 1–8. [Google Scholar] [CrossRef]
  24. Kintz, P.; Jamey, C.; Mangin, P. Trichloroethanol is not a metabolite of alpha chloralose. Int. J. Legal Med. 1996, 108, 191–193. [Google Scholar] [CrossRef] [PubMed]
  25. Balis, G.U.; Monroe, R.R. The pharmacology of Chloralose. Psychopharmacologia 1964, 6, 1–30. [Google Scholar] [CrossRef] [PubMed]
  26. Segev, G.; Yas-Natan, E.; Shlosberg, A.; Aroch, I. Alpha-chloralose poisoning in dogs and cats: A retrospective study of 33 canine and 13 feline confirmed cases. Vet. J. 2006, 172, 109–113. [Google Scholar] [CrossRef] [PubMed]
  27. Aburto-Luna, V.; Meza-Leo´n, R.-L.; Berne`s, S. (R)-3,4,5-Trideoxy-5,6-didehydro-1,2-O-(2,2,2-trichloroethylidene)-α-D-glucofuranose-6,3-carbolactone: a new derivative of α-chloralose. Acta Cryst. 2008, E64, o1784. [Google Scholar] [CrossRef] [PubMed]
  28. Wang, K.; Zheng, C.; Wu, C.; Gao, M.; Liu, Q.; Yang, K.; Ellsworth, K.; Xu, L.; Wu, J. α-Chloralose diminishes oscillations in rat hippocampal slices. Neurosci. Lett. 2008, 441, 66–71. [Google Scholar] [CrossRef] [PubMed]
  29. Bamhaoud, T.; Sanchez, S.; Prandi, J. 1,2,5-ortho esters of D-arabinose as versatile arabinofuranosidic building blocks. Concise synthesis of the tetrasaccharidic cap of the lipoarabinomannan of Mycobacterium tuberculosis. J. Chem. Commun. 2000, 8, 659–660. [Google Scholar]
  30. Oskay, M.; Yenil, N.; Ay, K. Antimicrobial Activity of Stable Spiro-Endoperoxides by Sunlight-Mediated Photooxygenation of 1,2-O-Alkylidene-5(e)-eno-5,6,8-trideoxy-α-d-xylo-oct-1,4-furano-7-uloses. W. Appl. Sci. J. 2008, 4, 720–723. [Google Scholar]
  31. Çetin, F.; Yenil, N.; Yüceer, L. Stable spiro-endoperoxides by sunlight-mediated photooxygenation of 1,2-O-alkylidene-5(E)-eno-5,6,8-trideoxy-α-D-xylo-oct-1,4-furano-7-uloses. Carbohydr. Res. 2005, 340(17), 2583–2589. [Google Scholar] [CrossRef] [PubMed]
  32. Yenil, N.; Ay, E.; Ay, K.; Oskay, M.; Maddaluno, J. Synthesis and antimicrobial activities of two novel amino sugars derived from chloraloses. Carbohydr. Res. 2010, 345, 1617–1621. [Google Scholar] [CrossRef] [PubMed]
  33. Yenil, N.; Yüceer, L. 1,2-O-Trichloroethylidene acetal group protected 3,5-dieno-1,4-furanose derivatives. Carbohydr. Res. 2003, 338, 2013–2016. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are available from the authors.

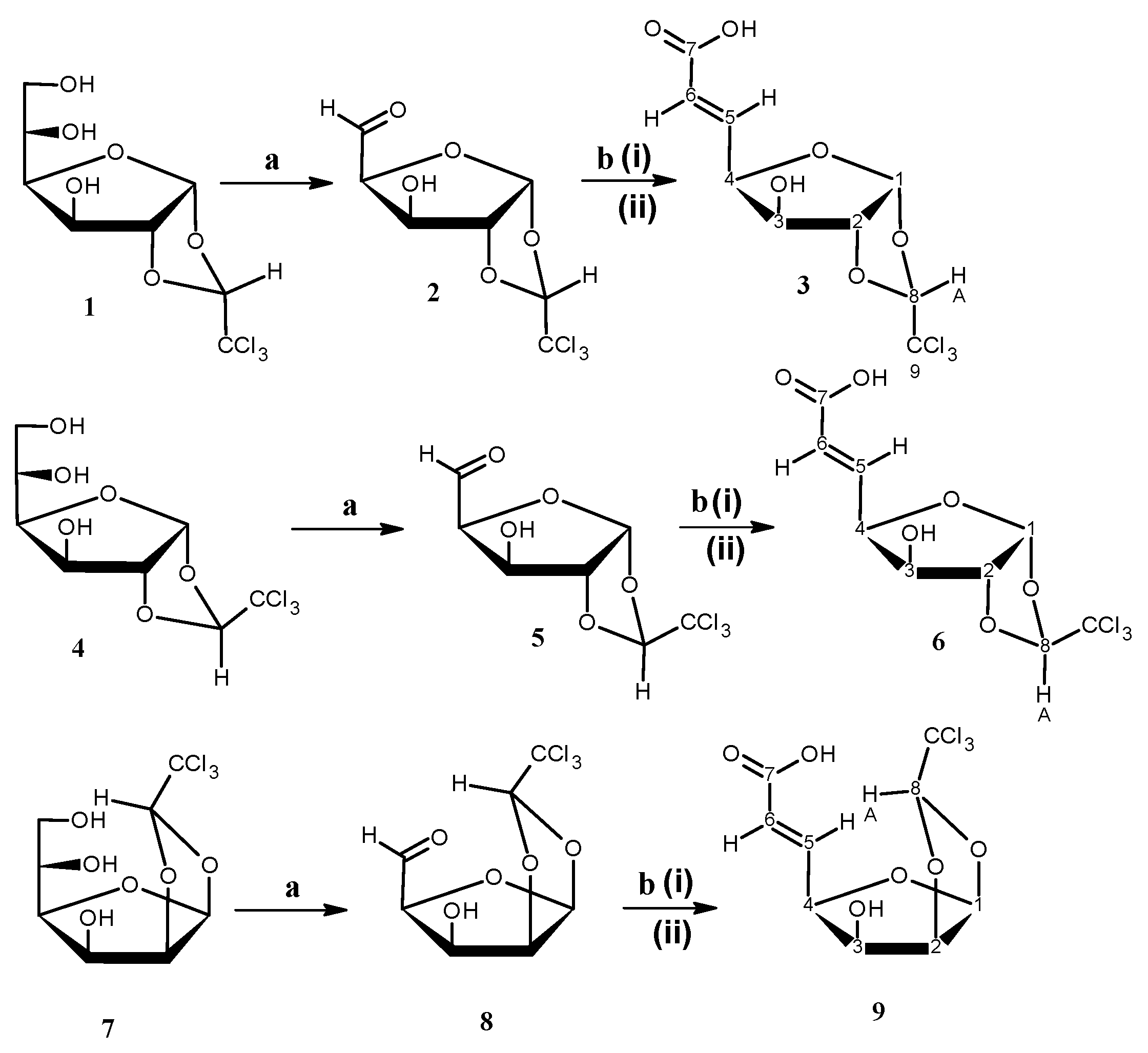

Scheme 1. (a) NaIO4 in MeOH-H2O; (b) i. CH2(COOH)2 in piperidine cat. in pyridine at 60 ºC, ii. 6 N HCl.
Scheme 1. (a) NaIO4 in MeOH-H2O; (b) i. CH2(COOH)2 in piperidine cat. in pyridine at 60 ºC, ii. 6 N HCl.
Molecules 15 07724 sch001
Table 1. The 1H-NMR (400 MHz) chemical shifts (δ ppm) and JH,H values (Hz) of Knoevenagel-Doebner condensation products of chloraloses.
Table 1. The 1H-NMR (400 MHz) chemical shifts (δ ppm) and JH,H values (Hz) of Knoevenagel-Doebner condensation products of chloraloses.
Comp.1-HHA2-H3-H4-H5-H6-H7-HOH
36.10 d,
J1,2= 3.9 Hz
5.43 s4.68 d4.23 d,
J3,4 = 3.1 Hz
5.00 ddd,
J4,5 = 5.5 Hz,
J4,6 = 2.0 Hz
6.75 dd,
J5,6 = 15.6 Hz
5.98 dd12.32 s5.48 s
66.28 d,
J1,2= 3.6 Hz
5.85 s4.75 d4.19 bs4.76 m6.75 dd,
J5,6 = 15.8 Hz,
J4,5 = 5.6 Hz
5.98 dd,
J4,6 = 1.2 Hz
12.42 bs5.55 bs
96.14 d,
J1,2= 3.6 Hz
5.92 s4.39 dd,
J2,3 = 3.6 Hz
4.84 dd,
J3,4 = 4.4 Hz
3.73 m6.75 dd,
J4,5 = 5.6 Hz,
J5,6 = 16.0 Hz
5.99 dd,
J4,6 = 1.6 Hz
12.50 s5.76 bs
Table 2. The 13C-NMR (100 MHz) chemical shifts (δ ppm) of Knoevenagel-Doebner condensation products of chloraloses.
Table 2. The 13C-NMR (100 MHz) chemical shifts (δ ppm) of Knoevenagel-Doebner condensation products of chloraloses.
Comp.COOH5-C, 6-C1-C, CHCCl3,CCl32-C, 3-C, 4-C
3168.1141.9, 123.3107.1, 105.997.287.8, 81.8, 75.4
6167.2142.2, 124.5108.7, 106.6100.488.2, 81.1, 75.7
9167.2143.7, 123.8109.4, 105.6100.482.3, 79.0, 75.9
