Article

Synthesis and Crystal Structure of Novel Sulfone Derivatives Containing 1,2,4-Triazole Moieties

Key Laboratory of Green Pesticide and Agriculture Bioengineering, Ministry of Education, Research and Development Center for Fine Chemicals, Guizhou University, Guiyang 550025, China
*
Author to whom correspondence should be addressed.
Molecules 2010, 15(2), 766-779; https://doi.org/10.3390/molecules15020766
Submission received: 5 November 2009 / Revised: 25 January 2010 / Accepted: 29 January 2010 / Published: 3 February 2010

Abstract

:
Some 3-(Substituted methylthio)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole derivatives were synthesized in six steps starting from easily accessible gallic acid. The resulting sulfides were then catalytically oxidized to the title sulfones with H2O2. The products were obtained in high yield under mild conditions and practically devoid of any by-products. The structures were confirmed by elemental analysis, IR, 1H- and 13C-NMR spectral data. Furthermore, a detailed X-ray crystallography structural analysis of model triazole 7g was carried out.

1. Introduction

Organic compounds incorporating heterocyclic ring systems continue to attract considerable interest due to their wide range of biological activities. In this context, heterocyclic compounds bearing 1,2,4-triazole scaffolds find wide application both in medicinal chemistry as antibacterial [1], antimicrobial [2], antidepressant [3], antiinflammatory [4], antiviral [5], and human antifungal [6] agents, and in agricultural science as potent fungicides [7], herbicides [8] and insecticides [9]. A large number of sulfur-containing 1,2,4-triazoles are known for their biological activities [10,11,12] and the corresponding sulfone analogues are encountered in a large number of patents and chemical literature describing extensive commercial applications [13]. Based on our earlier observation that certain appropriately substituted 2-sulfonyl-5-(3,4,5-trimethoxyphenyl)-1,3,4-thiadiazole and 2-sulfonyl-5-(3,4,5-trimethoxyphenyl)-1,3,4-oxadiazole derivatives possessed good bioactivity [14], we undertook the synthesis of some additional triazole derivatives from naturally occurring gallic acid [15], and evaluated them for their bioactivity profile after subtle structural modification. The synthetic routes to the sulfides 6 and title sulfones 7 are depicted in Scheme 1. The structures of all the compounds were verified by the IR, NMR, and elemental analysis. Furthermore, 3-(3-methoxybenzylsulfonyl)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole (7g) was subjected to detailed investigation by X-ray crystallography.

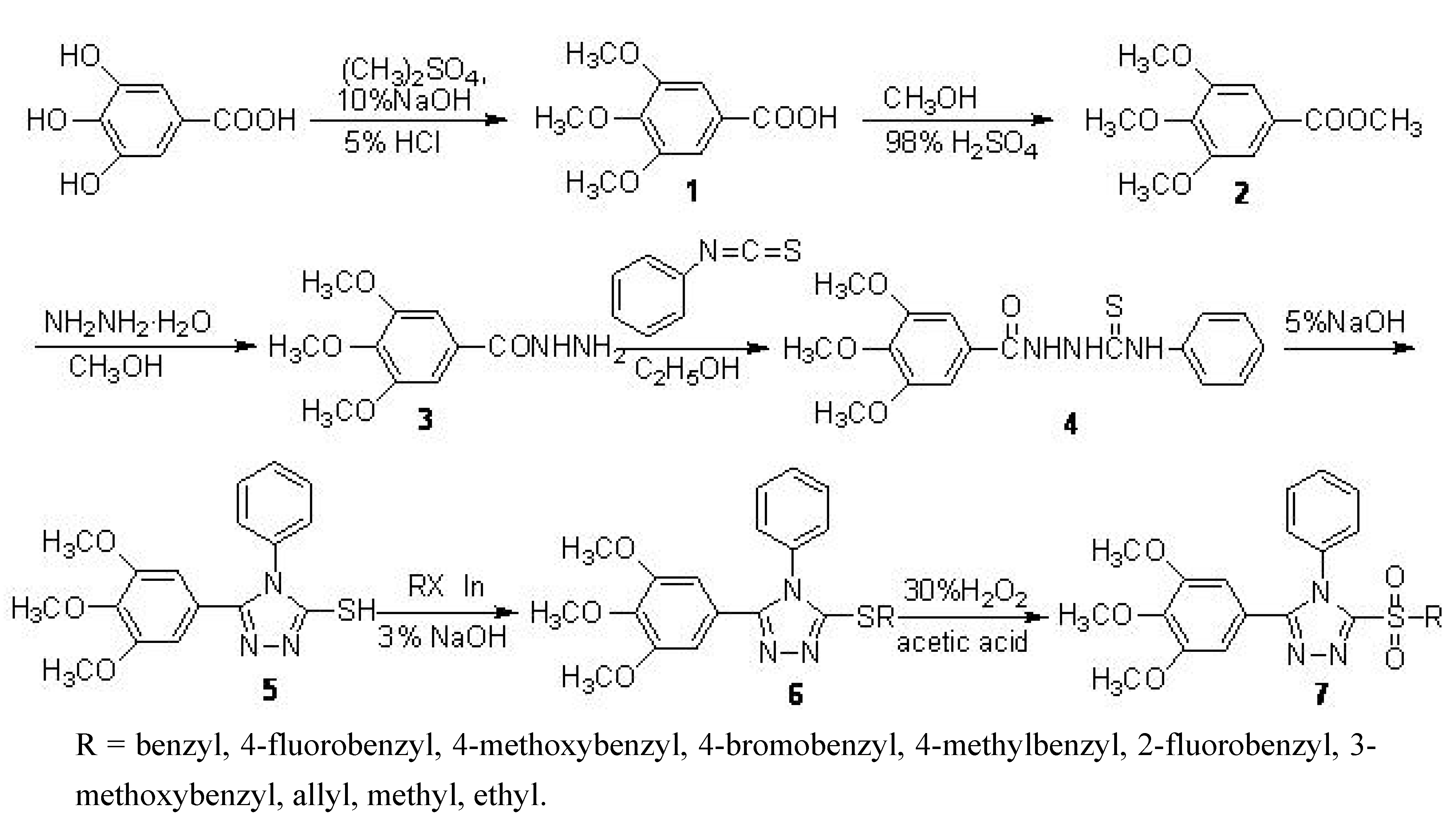

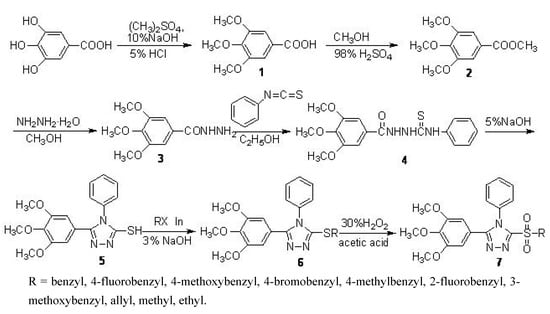

Scheme 1. Reagents and conditions: synthetic route to title compounds 6 and 7.
Scheme 1. Reagents and conditions: synthetic route to title compounds 6 and 7.
Molecules 15 00766 g003

2. Results and Discussion

2.1. Chemistry

3,4,5-Trimethoxybenzhydrazide (3) was synthesized from the starting material gallic acid through etherification, esterification and hydrazidation. The compound 3 was then converted into 4 by reaction with 1-isothiocyanatobenzene in ethanol. Cyclization of this intermediate with sodium hydroxide under reflux conditions afforded 4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole-3-thiol (5). Subsequently, this triazole analogue was converted to the thioether derivatives 6 in a thioetherification reaction with suitable halides (RX) catalyzed by indium or indium trichloride [16]. Treatment of the sulfides with H2O2 catalyzed by sodium tungstate finally produced the title heterocyclic sulfone derivatives 7. Although the electron rich thioether can be oxidized to sulfone by a variety of agents such as m-CPBA [17], CH3CO3H [18], halogen derivatives NaClO [19], H5IO6 [20], transition metal derivatives e.g., manganese (iv) oxide [21] and KMnO4 [22], none of them seem to match the advantages offered by aqueous hydrogen peroxide, which is an ideal environmentally-friendly waste-avoiding oxidant with water being the only theoretical by-product of the reaction. Moreover, due to its high solubility in water and many organic solvents, it is very attractive as an oxidant for solution-phase reactions. Compared to other reagents, aqueous hydrogen peroxide is readily available, cheap, and is associated with easy handling, storage and transportation. This prompted us to compare the efficacy of H2O2 against other agents e.g. NaClO, KMnO4, m-CPBA, and the results are provided in Table 1.
Table 1. Effect of different oxidizing agents for the synthesis of 7a. *
Table 1. Effect of different oxidizing agents for the synthesis of 7a. *
EntryOxidantCatalystMolar ratio (Sub:Oxid)SolventYield (%)
1m-CPBA(NH4)6Mo7O241:3chloroform28
2KMnO4-1:2glacial acetic acid0
3NaClO-1:4water0
4H2O2Al2O31:4glacial acetic acid45
5H2O2-1:4glacial acetic acid48
6H2O2Na2WO4·2H2O1:4glacial acetic acid55
* 0.43 mmol of intermediate 6a, 12 mL of solvent, the reaction time for entries 1-3 was 70 min, for entries 4-6 was 40 min; all the reactions were conducted at 45 °C.
It could be easily observed that amongst all the oxidizing agents, H2O2 afforded the highest yield of the product (Table 1, Entries 4–6). Since some Lewis acid metal catalysts possessing vacant orbitals e.g. Sc(OTf)3 [23], Fe(III)-and Mn(III)-meso-tetraarylporphyrin [24], (NH4)2MoO4 [25] and methyltrioxorhenium(VII) (CH3ReO3, abbreviated as MTO) [26] are known to catalyze certain oxidative reactions, the role of catalysts Al2O3, (NH4)2MoO4, and Na2WO4·2H2O was studied in selected cases. The yield of sulfone was found to be considerably lower with the oxidant m-CPBA in the presence of the catalyst (NH4)2MoO4 (Entry 1) and practically negligible for the uncatalyzed reactions using oxidants KMnO4 and NaClO, respectively (Entries 2 and 3). When the oxidation with hydrogen peroxide was executed in the presence of catalysts Al2O3 and Na2WO4·2H2O, the later exhibited much superior activity compared to the former (Entries 4 and 6). This is indeed in line with the observation noted by Sato et al. [27] who reported an effective conversion of diaryl sulfides into sulfones by the oxidant hydrogen peroxide in the presence of the catalyst sodium tungstate. Having established the role of the oxidant H2O2 and the catalyst Na2WO4·2H2O, a systematic study of the effect of reaction parameters e.g., reaction temperature, time, solvent, molar ratio (substrate: oxidant) and the amount of catalyst was undertaken for optimization of the reaction. The results for the synthesis of 7a are summarized in Table 2.
First, the effect of amount of the oxidant was studied. As the molar ratio of the reagents (substrate: hydrogen peroxide) was varied at 55 °C (Table 2, Entries 1–4), a maximum yield of 88% was noticed with a molar ratio of 1:6 (Table 2, Entry 2). On increasing the temperature from 45 °C to 50 °C and then 55 °C, the corresponding yields obtained were 77.0%, 84% and 88% (Table 2, Entries 5, 6, and 2) respectively. When the temperature was further increased to 60 °C and 70 °C, no improvement but rather a slight lowering in the yield (Table 2, Entries 7–8) was observed.
Table 2. Optimization of reaction conditions for the synthesis of 7a.*
Table 2. Optimization of reaction conditions for the synthesis of 7a.*
EntryMolar ratio Sub:OxiT/°CTime/minSolventYield (%)
11:55550glacial acetic acid74
21:65550glacial acetic acid88
31:75550glacial acetic acid83
41:85550glacial acetic acid64
51:64550glacial acetic acid77
61:65050glacial acetic acid84
71:66050glacial acetic acid82
81:67050glacial acetic acid77
91:65540glacial acetic acid70
101:65570glacial acetic acid84
111:65550acetonitrile16
121:65550toluene70
131:65550acetone0
141:65550ethanol0
151:65550DMF41
* Reaction conditions: 0.43 mmol of intermediate 6a, 12 mL of solvent, oxidant was H2O2, catalyst was Na2WO4·2H2O.
Next, in order to obtain ideal reaction time, the reaction was also carried out for 40 min and 70 min (Entries 9 and 10), but the most suitable time was found to be 50 min (Entry 2). Amongst the different solvents examined, yields were found to be significantly lower in N,N-dimethylformamide (DMF), acetonitrile and toluene as compared to glacial acetic acid, while practically no product was observed in acetone and ethanol (Table 2, Entries 2 and 11–15). The ability of glacial acetic acid to serve both as a proton donor and a miscible cosolvent for organic/aqueous phase might account for this observation. Based on these results, the optimal conditions for the synthesis of sulfone are established with a molar ratio of (substrate:oxidant) 1:6 in glacial acetic acid at 55 °C for 50 min. As may be seen from Table 3, using optimal conditions, the compounds 7a-7i were obtained in high yields (80–92%).
Table 3. Yields of compound 7 under optimized conditions.
Table 3. Yields of compound 7 under optimized conditions.
EntryCompoundRYield (%)
17abenzyl88
27b4-fluorobenzyl85
37c4-methoxybenzyl89
47d4-bromobenzyl88
57e4-methylbenzyl80
67f2-fluorobenzyl89
77g3-methoxybenzyl92
87hallyl89
97imethyl88

2.2. Crystal Structure Analysis of 7g

The crystal data and summary of data collection and structure refinement of 7g are given in Table 4. Selected bond lengths and angles are given in Table 5. The molecular structure of compound 7g is shown in Figure 1 and the packing of the molecule in crystal lattice is illustrated in Figure 2.
Table 4. Crystal data and summary of data collection and structure refinement.
Table 4. Crystal data and summary of data collection and structure refinement.
CompoundC25H25N3O6S
Formula weight495.54
Crystal system, Space groupTriclinic, p-1
a(nm)0.74510(10)
b(nm)1.17850(16)
c(nm)1.39007(19)
α(°)80.593(5)
β(°)89.492(5)
γ(°)88.471(5)
Volume(nm3)1.2038(3)
Formula units 2
Calculated density(Mg/m3)1.367
F(000)520
Absorption correction Semi-empirical frome quivalents
Refinement method Full-matrix least-squares on F2
Data/restraints/parameters4536/0/316
Goodness-of-fit on F21.062
Final R indices[I>2σ(I)]R1 = 0.0426, ωR1 = 0.1103
Rindices(all data)R1 = 0.0574, ωR1 = 0.1192
Table 5. Crystal data and summary of data collection and structure refinement.
Table 5. Crystal data and summary of data collection and structure refinement.
Length(nm)Angle(°)
C(1)-O(1)0.1429(3)C(7)-C(8)-C(10)119.60(16)
C(4)-O(1)0.1362(2)N(1)-C(10)-N(3)110.30(14)
C(4)-C(9)0.1395(2)N(1)-C(10)-C(8)126.10(15)
C(5)-O(2)0.1374(2)N(3)-C(10)-C(8)123.59(15)
C(6)-C(7)0.1383(2)N(2)-C(11)-N(3)111.96(15)
C(8)-C(10)0.1480(2)N(2)-C(11)-S(1)125.30(13)
C(10)-N(1)0.1312(2)N(3)-C(11)-S(1)122.63(13)
C(10)-N(3)0.1376(2)C(17)-C(12)-C(13)121.50(17)
C(11)-N(2)0.1304(2)C(17)-C(12)-N(3)118.90(16)
C(11)-N(3)0.1367(2)C(13)-C(12)-N(3)119.59(16)
C(11)-S(1)0.1785(17)C(19)-C(18)-S(1)109.60(13)
C(12)-C(17)0.1376(3)C(20)-C(19)-C(24)120.28(17)
C(12)-C(13)0.1377(3)C(20)-C(19)-C(18)120.36(18)
C(12)-N(3)0.1453(2)C(24)-C(19)-C(18)119.35(17)
C(16)-C(17)0.1382(3)C(10)-N(1)-N(2)107.69(14)
C(18)-C(19)0.1514(2)C(11)-N(2)-N(1)106.23(14)
C(18)-S(1)0.1777(19)C(11)-N(3)-C(10)103.83(14)
C(19)-C(20)0.1382(3)C(11)-N(3)-C(12)127.11(14)
C(20)-C(21)0.1388(3)C(10)-N(3)-C(12)129.06(14)
C(22)-C(23)0.1392(3)O(4)-S(1)-O(5)118.34(11)
C(23)-O(6)0.1366(2)O(4)-S(1)-C(18)110.62(10)
C(25)-O(6)0.1419(3)O(5)-S(1)-C(18)109.92(10)
N(1)-N(2)0.1396(2)O(4)-S(1)-C(11)106.08(9)
O(4)-S(1)0.1425(16)O(5)-S(1)-C(11)108.40(9)
O(5)-S(1)0.1427(16)C(18)-S(1)-C(11)102.14(8)

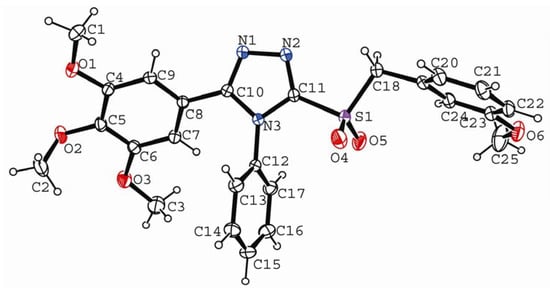

Figure 1. The molecular structure of 7g.
Figure 1. The molecular structure of 7g.
Molecules 15 00766 g001

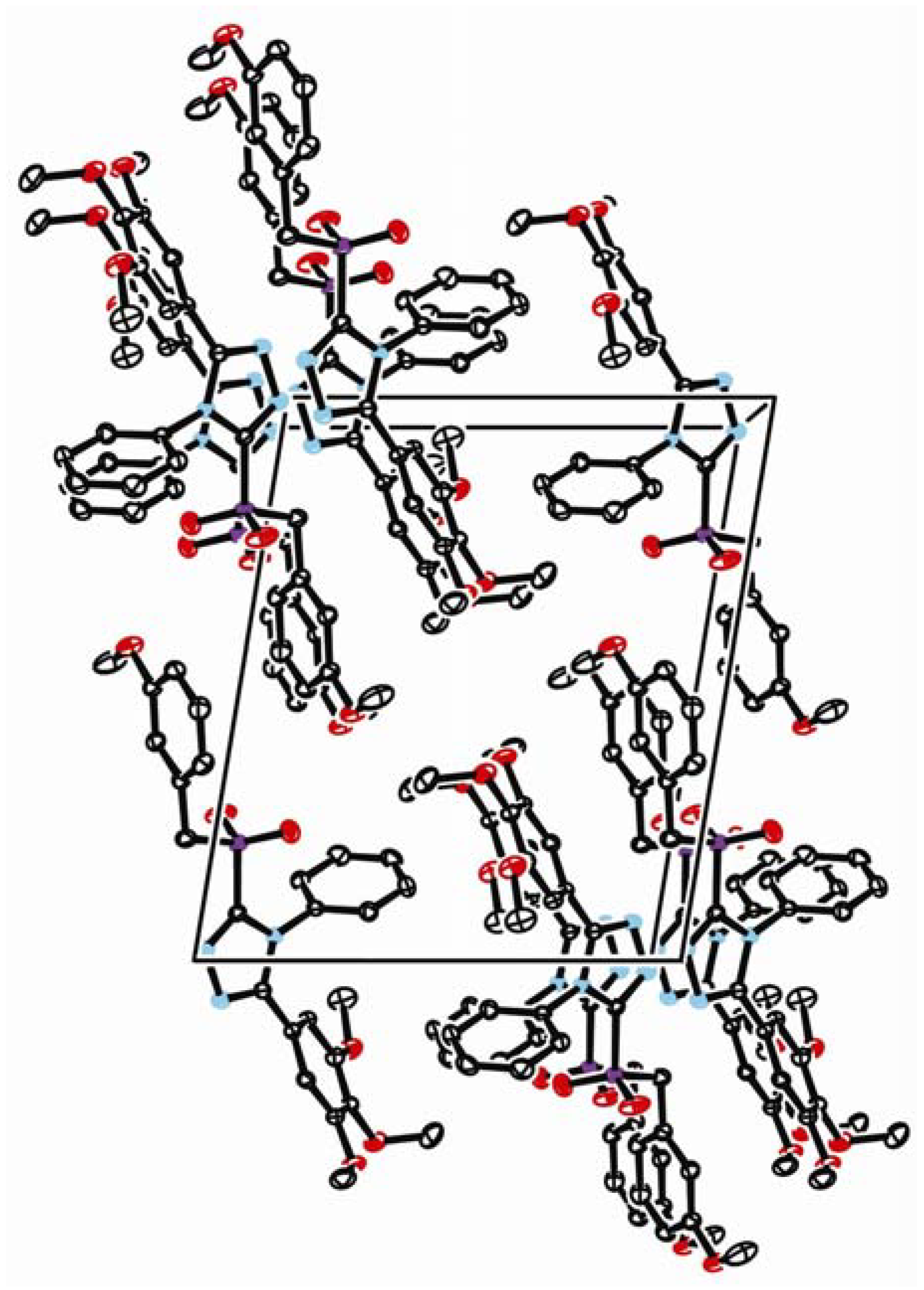

Figure 2. The packing of the molecule in crystal lattice of 7g.
Figure 2. The packing of the molecule in crystal lattice of 7g.
Molecules 15 00766 g002
From the bond length data it can be observed that the bond length of N(1)-N(2) is 0.1396 nm, which is shorter than the normal single N-N bond length (0.1450 nm). The bond lengths of 0.1376 nm and 0.1367 nm for N(3)-C(10) and N(3)-C(11), respectively, are shorter than normal single N-C bond length (0.1470 nm) and hence indicative of some double bond character. Again, the N(1)-C(10) (0.1312 nm) and the N(2)-C(11) (0.1304 nm) bond lengths are significantly closer to that of a typical C=N bond (0.134 nm). The N-C and N=C bonds near the phenyl ring are longer than the symmetrical bonds present near the sulfone presumably due to the conjugation of the phenyl with the triazole ring. The bond lengths observed in the 1,2,4-tirazole ring are in agreement with those found in other related studies [28,29]. The bond angle of C(10)-N(1)-N(2) is 107.69(14)° and C(11)-N(2)-N(1) is 106.23(14)°. The bond angle values further confirm the presence of delocalization in the triazole ring.
In the title compound, three phenyl rings (p3) are situated at different orientations with the triazole ring (p1). The dihedral angle between p1 and the 3,4,5-trimethoxyphenyl moiety (p2) is 42.53°, p1 and p3 is 75.25°, p1 and 4-methoxyphenyl (p4) is 79.29°. p2 , p3 and p4 are torsional leading to a steady system. In the crystal structure, C-H⋯π supramolecular interactions occur between adjacent molecules with C(1)-H1B⋯p4 angle of 155.30°, H1B⋯p4 distance of 0.27375 nm, C(1)⋯p4 distance of 0.3632(3) nm, C(3)-H3C⋯p1 angle of 128.81°, H3C⋯p1 distance of 0.30359 nm, C(3)⋯p1 distance of 0.3714(3) nm, C(14)-H14⋯p2 angle of 155.46°, H14⋯p4 distance of 0.26964 nm and C(14)⋯p2 distance of 0.3563(2) nm. In the solid state, the above mentioned hydrogen bonds that connect the molecules through a three dimensional network presumably stabilize the crystal structure.

3. Experimental

3.1. General

Unless otherwise stated, all the reagents and reactants were purchased from commercial suppliers; melting points were determined on a XT-4 binocular microscope (Beijing Tech Instrument Co., China) and are uncorrected; the 1H-NMR and 13C-NMR spectra were recorded on a JEOL ECX 500 NMR spectrometer at room temperature operating at 500 MHz for 1H-NMR and 125 MHz for 13C-NMR by using CDCl3 as the solvent and TMS as an internal standard; infrared spectra were recorded in KBr on a Bruker VECTOR 22 spectrometer; elemental analysis was performed on an Elemental Vario-III CHN analyzer. The course of the reactions was monitored by TLC; analytical TLC was performed on silica gel GF254; column chromatographic purification was carried out using silica gel. The carbothiamide (4) was prepared as described in the literature from gallic acid as the starting material through esterification and hydrazidation [30].

3.2. Preparation of 4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole-3-thiol (5) [16]

A solution of compound 4 (2.39 g, 6.62 mmol) in 2 mol/L aqueous sodium hydroxide (5 mL, 10.0 mmol) was heated under reflux for 8 h. After cooling to room temperature, the solution was acidified with dilute hydrochloric acid. The precipitate was filtered off, washed with water, dried and recrystallized from ethanol to afford a white solid; yield 70.0%; m.p. 185–186 °C.

3.3. Preparation of 3-(substituted methylthio)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazoles 6

A mixture of 4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole-3-thiol (5) (0.54 g, 1.57 mmol), 2.6% aqueous NaOH solution (1.57 mmol) and water (20 mL) was stirred at room temperature for 5 min; then the appropriate halides (1.57 mmol) and InCl3 (0.34 g, 0.157 mmol) were added and the solution was further stirred for an additional 5 h. The mixture was filtered and the resulting crude solid was washed with 5% Na2CO3 solution and distilled water, dried under vacuum, and recrystallized from methanol and water (v/v = 3:1) to afford the pure compounds 6.
3-(Benzylthio)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole (6a): This compound was obtained as a white solid; yield 88%; m.p. 136–138 °C (lit [16] 139–141 °C); 1H-NMR: δ 3.61 (s, 6H, 3,5-di-CH3O), 3.82 (s, 3H, 4-CH3O), 4.47 (s, 2H, CH2S), 6.63 (s, 2H, 3,4,5-trimethoxybenzyl-H), 7.14-7.49 (m, 10H, Ar-H); 13C-NMR: δ 37.43, 55.91, 60.97, 105.16, 121.75, 127.66, 127.81, 128.72, 129.31, 129.97, 130.06, 134.59, 136.57, 139.08, 152.53, 153.09, 154.61.
3-(4-Fluorobenzylthio)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole (6b): white solid, yield 85%; m.p. 88–90 °C; IR (KBr cm-1): ν 1587, 1521, 1487, 1462, 1431 (C=N and C=C of rings), 698 (C-S-C); 1H-NMR: δ 3.59 (s, 6H, 3,5-di-CH3O), 3.82 (s, 3H, 4-CH3O), 4.43 (s, 2H, CH2S), 6.64 (s, 2H, 3,4,5-trimethoxybenzyl-H), 7.14-7.50 (m, 9H, Ar-H); 13C-NMR: δ 36.43, 55.91, 60.97, 105.25, 121.65, 127.61, 128.82, 130.01, 130.07, 130.68, 133.64, 134.53, 135.39, 139.22, 152.03, 153.11, 154.71; Anal. Calcd. for C24H22FN3O3S(451.51): C 63.84%, H 4.91%, N 9.31%. Found: C 63.68%, H 4.72%, N 9.26%.
3-(4-Methoxybenzylthio)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole (6c): white solid, yield 94%; m.p. 135-136 °C (lit [16] 140–142 °C); 1H-NMR: δ 3.61 (s, 6H, 3,5-di-CH3O), 3.71 (s, 3H, 4-CH3O of 4-methoxybenzyl), 3.82 (s, 3H, 4-CH3O), 4.50 (s, 2H, CH2S), 6.64 (s, 2H, 3,4,5-trimethoxy-benzyl-H), 7.28-7.56 (m, 9H, Ar-H); 13C-NMR: δ 35.33, 55.31, 55.87, 55.94, 105.25, 113.62, 114.72, 121.76, 128.83, 129.71, 130.02, 134.67, 138.09, 139.12, 152.41, 153.19, 154.65, 159.71;
3-(4-Bromobenzylthio)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole (6d): white solid, yield 88%; m.p. 165–167 °C; IR (KB, cm-1): ν 1587, 1508, 1498, 1463, 1425 (C=N and C=C of rings), 705 (C-S-C); 1H-NMR: δ 3.60 (s, 6H, 3,5-di-CH3O), 3.82 (s, 3H, 4-CH3O), 4.42 (s, 2H, CH2S), 6.63 (s, 2H, 3,4,5-trimethoxybenzyl-H), 7.13–7.50 (m, 9H, Ar-H); 13C-NMR: δ 36.49, 55.91, 60.97, 105.26, 121.64, 121.76, 127.61, 130.01, 130.07, 131.02, 131.79, 134.53, 135.93, 139.24, 152.09, 153.11, 154.72; Calcd. for C24H22BrN3O3S(512.42): C 56.25%, H 4.33%, N 8.20%. Found: C 56.16%, H 4.39%, N 8.30%.
3-(4-Methylbenzylthio)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole (6e): white solid, yield 91.2%; m.p. 150–152 °C; IR (KBr cm-1): ν 1587, 1512, 1487, 1458, 1429 (C=N and C=C of rings), 705 (C-S-C); 1H-NMR: δ 2.31 (s, 3H, 4-CH3 of 4-methylbenzyl), δ: 3.60 (s, 6H, 3,5-di-CH3O), 3.82 (s, 3H, 4-CH3O), 4.45 (s, 2H, CH2S),6.64 (s, 2H, 3,4,5-trimethoxybenzyl-H), 7.08-7.48 (m, 9H, Ar-H); 13C-NMR: δ 21.23, 37.10, 55.91, 60.97, 105.27, 121.80, 127.68, 129.22, 129.40, 129.90, 130.01, 133.43, 134.65, 137.59, 139.15, 152.71, 153.09, 154.56; Anal. Calcd. for C25H25N3O3S (447.55): C 67.09%, H 5.63%, N 9.39%. Found: C 67.20%, H 5.48%, N 9.42%.
3-(2-Fluorobenzylthio)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole (6f): white solid, yield 89%; m.p. 88–90 °C; IR (KBr cm-1): ν 1587, 1521, 1487, 1462, 1431 (C=N and C=C of rings), 698 (C-S-C); 1H-NMR: δ 3.60 (s, 6H, 3,5-di-CH3O), 3.82 (s, 3H, 4-CH3O), 4.51 (s, 2H, CH2S), 6.64 (s, 2H, 3,4,5-trimethoxybenzyl-H), 7.00-7.51 (m, 9H, Ar-H); 13C-NMR: δ 30.47, 55.91, 60.97, 105.26, 115.63, 121.73, 124.12, 124.29, 127.64, 129.99, 130.06, 131.65, 134.55, 139.20, 152.34, 153.10, 154.71, 160.10, 162.07; Anal. Calcd. for C24H22FN3O3S (451.51): C 63.84%, H 4.91%, N 9.31%. Found: C 63,68%, H 4.72%, N 9.26%.
3-(3-Methoxybenzylthio)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole (6g): white solid, yield 78.0%; m.p. 140–141 °C (lit [16] 145–147 °C); 1H-NMR: δ 3.59 (s, 6H, 3,5-di-CH3O), 3.74 (s, 3H, 3-CH3O of 3-methoxybenzyl), 3.80 (s, 3H, 4-CH3O), 4.43 (s, 2H, CH2S), 6.64 (s, 2H, 3,4,5-trimethoxy-benzyl-H), 7.28-7.48 (m, 9H, Ar-H); 13C-NMR: δ 37.43, 55.32, 55.87, 55.90, 105.23, 113.69, 114.72, 121.76, 127.63, 129.94, 130.02, 134.57, 138.00, 139.12, 152.45, 153.09, 154.65, 159.79.
3-(Allylthio)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole (6h): white solid, yield 82.0%; m.p. 97–98 °C (lit [16] 102–104 °C); 1H-NMR: δ 3.60 (s, 6H, 3,5-di-CH3O), 3.82 (s, 3H, 4-CH3O), 3.91 (s, 2H, CH2S), 5.14-5.32 (m, 2H, C=CH2), 5.96–5.60 (m, 1H, HC=C), 6.64 (s, 2H, 3,4,5-trimethoxybenzyl-H), 7.27–7.56 (m, 5H, Ar-H); 13C-NMR: δ 35.56, 55.88, 61.03, 105.23, 119.22, 121.76, 127.74, 130.00, 130.11, 132.65, 134.66, 139.07, 152.30, 153.05, 154.67.
3-(Methylthio)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole (6i): white solid, yield 76.0%. mp 102–104 °C (lit [16] 114–116 °C); 1H-NMR: δ 2.73 (s, 3H, CH3S), 3.60 (s, 6H, 3,5-di-CH3O), 3.82 (s, 3H, 4-CH3O), 6.64 (s, 2H, 3,4,5-trimethoxybenzyl-H), 7.27-7.55 (m, 5H, Ar-H); 13C-NMR: δ 14.86, 55.94, 61.01, 105.26, 121.80, 127.55, 130.05, 130.14, 134.65, 139.08, 153.08, 153.83, 154.77.

3.4. General procedure for the preparation of title compounds 7

To a three-necked 100 mL flask equipped with a magnetic stirrer was added 3-(substituted methylthio)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole (0.43 mmol), acetic acid (10 mL) and Na2WO4·2H2O (0.007 g, 0.022 mmol). The resulting mixture was stirred for 5 min, and then 30% H2O2 (0.29 g, 2.58 mmol) was slowly added into the system, heated to 55 °C and the reaction was continued for 50 min. After cooling to room temperature, the mixture was neutralized by 5% sodium hydroxide to a pH of 7.0, extracted with chloroform (3 × 30 mL), dried over anhydrous magnesium sulfate, and separated on silica column with ethyl acetate /petroleum ether (v/v = 1:3) to give pure products 7.
3-(Benzylsulfonyl)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole (7a): white solid, yield 88.6%; m.p. 152–153 °C; IR (KBr cm-1): ν 1587, 1519, 1496, 1473, 1458 (C=N and C=C of rings), 1342, 1147 (SO2); 1H-NMR: δ 3.59 (s, 6H, 3,5-di-CH3O), 3.82 (s, 3H, 4-CH3O), 4.86 (s, 2H, CH2SO2), 6.62 (s, 2H, 3,4,5-trimethoxybenzyl-H), 6.99–7.49 (m, 10H, Ar-H); 13C-NMR: δ 55.91, 60.90, 61.73, 105.88, 120.00, 125.95, 127.63, 128.92, 129.34, 129.58, 130.47, 131.76, 133.35, 139.92, 152.23, 153.11, 155.82; Anal. Calcd. for C24H23N3O5S (465.52): C 61.92%, H 4.98%, N 9.03%. Found: C 62.01%, H 4.51%, N 9.05%.
3-(4-Fluorobenzylsulfonyl)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole (7b): white solid, yield 85.0%; m.p. 152–153 °C; IR (KBr cm-1): ν 1585, 1521, 1496, 1473, 1458 (C=N and C=C of rings), 1338, 1158 (SO2); 1H-NMR: δ 3.60 (s, 6H, 3,5-di-CH3O), 3.83 (s, 3H, 4-CH3O), 4.87 (s, 2H, CH2SO2), 6.64 (s, 2H, 3,4,5-trimethoxybenzyl-H), 7.15-7.52 (m, 9H, Ar-H); 13C-NMR: δ 56.00, 60.76, 61.00, 105.97, 119.93, 124.58, 127.69, 129.20, 129.81, 130.68, 133.15, 133.33, 135.80, 139.94, 152.27, 153.23, 156.05; Anal. Calcd. for C24H22FN3O5S (483.51): C 59.62%, H 4.59%, N 8.69%. Found: C 59.91%, H 4.96%, N 8.86%.
3-(4-Methoxybenzylsulfonyl)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole (7c): white solid, yield 89.0%; m.p. 182–184 °C; IR (KBr cm-1): ν 1585, 1517, 1496, 1473, 1458 (C=N and C=C of rings), 1334, 1147 (SO2); 1H-NMR: δ 3.61 (s, 6H, 3,5-di-CH3O), 3.71 (s, 3H, 4-CH3O of 4-methoxybenzyl), 3.87 (s, 3H, 4-CH3O), 4.82 (s, 2H, CH2SO2), 6.64 (s, 2H, 3,4,5-trimethoxybenzyl-H), 7.04-7.51 (m, 9H, Ar-H); 13C-NMR: δ 55.80, 60.45, 60.92, 105.94, 115.60, 120.85, 122.90, 127.91, 129.64, 130.04, 130.98, 131.70, 133.01, 135.01, 139.80, 153.26, 153.41, 160.64; Anal. Calcd. for C25H25N3O6S (495.55): C 60.59%, H 5.08%, N 8.48%. Found: C 60.70%, H 5.04%, N 8.55%.
3-(4-Bromobenzylsulfonyl)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole (7d): white solid, yield 88.0%; m.p. 172–173 °C; IR (KBr cm-1): ν 1585, 1520, 1498, 1479, 1458 (C=N and C=C of rings), 1332, 1145(SO2); 1H-NMR: δ 3.60 (s, 6H, 3,5-di-CH3O), 3.83 (s, 3H, 4-CH3O), 4.85 (s, 2H, CH2SO2), 6.64 (s, 2H, 3,4,5-trimethoxybenzyl-H), 7.14-7.52 (m, 9H, Ar-H); 13C-NMR: δ 55.91, 60.76, 60.91, 105.90, 119.84, 123.94, 125.04, 127.59, 129.72, 130.60, 132.10, 133.24, 133.35, 139.88, 152.16, 153.15, 155.98; Anal. Calcd. for C24H22BrN3O5S (544.42): C 52.95%, H 4.07%, N 7.72%. Found: C 53.35%, H 4.29%, N 7.52%.
3-(4-Methylbenzylsulfonyl)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole (7e): white solid, yield 80.2%; m.p. 181–183 °C; IR (KBr cm-1): ν 1587, 1514, 1498, 1475, 1454 (C=N and C=C of rings), 1334, 1143 (SO2); 1H-NMR: δ 2.35 (s, 3H, 4-CH3 of 4-methylbenzyl), 3.60 (s, 6H, 3,5-di-CH3O), 3.82 (s, 3H, 4-CH3O), 4.83 (s, 2H, CH2SO2), 6.63 (s, 2H, 3,4,5-trimethoxybenzyl-H), 7.04-7.51 (m, 9H, Ar-H); 13C-NMR: δ 21.35, 55.99, 61.00, 60.99, 61.48, 105.95, 120.14, 122.83, 127.75, 129.68, 130.53, 131.70, 133.48, 139.50, 140.04, 152.44, 153.18, 155.88; Anal. Calcd. for C25H25N3O5S (479.55): C 62.61%, H 5.25%, N 8.76%; Found: C 62.61%, H 4.76%, N 8.52%.
3-(2-Fluorobenzylsulfonyl)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole (7f): white solid. yield 89.0%; m.p. 153–154 °C; IR (KBr cm-1): ν 1587, 1519, 1496, 1477, 1460 (C=N and C=C of rings), 1323, 1153 (SO2); 1H-NMR: δ 3.61 (s, 6H, 3,5-di-CH3O), 3.83 (s, 3H, 4-CH3O), 4.97 (s, 2H, CH2SO2), 6.67 (s, 2H, 3,4,5-trimethoxybenzyl-H), 7.09-7.54 (m, 9H, Ar-H); 13C-NMR: δ 54.94, 56.02, 60.99, 106.04, 113.71, 115.95, 116.12, 120.05, 124.62, 127.79, 130.70, 131.68, 133.44, 139.78, 152.52, 153.23, 156.16, 160.98, 162.97; Anal. Calcd. for C24H22FN3O5S (483.51): C 59.62%, H 4.59%, N 8.69%. Found: C 59.50%, H 4.54%, N 8.30%.
3-(3-Methoxybenzylsulfonyl)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole (7g): white solid, yield 92.8%; m.p. 153–155 °C; IR (KBr cm-1): ν 1598, 1514, 1492, 1471, 1460(C=N and C=C of rings), 1321, 1124(SO2); 1H NMR (CDCl3, 500 MHz): δ 3.59 (s, 6H, 3,5-di-CH3O), 3.73 (s, 3H, 3-CH3O of 3- methoxybenzyl), 3.82 (d, 3H, 4-CH3O), 4.81 (s, 2H, CH2SO2),6.62 (s, 2H, 3,4,5-trimethoxy benzyl-H), 6.83-7.50 (m, 9H, Ar-H); 13C NMR (CDCl3, 125 MHz): δ 55.41, 55.99, 60.98, 61.96, 105.96, 115.76, 116.49, 120.10, 124.05, 127.74, 129.60, 129.97, 130.51, 133.42, 140.04, 153.18, 155.94, 159.96; Anal. Calcd. for C25H25N3O6S (495.55): C 60.59%, H 5.08%, N 8.48%. Found: C 60.56%, H 5.43%, N 8.87%.
3-(Allylsulfonyl)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole (7h): white solid, yield 89.5%; m.p. 132–134 °C; IR (KBr cm-1): ν 1589, 1518, 1496, 1479, 1456 (C=N and C=C of rings), 1325, 1145 (SO2); 1H-NMR: δ 3.591 (s, 6H, 3,5-di-CH3O), 3.82 (s, 3H, 4-CH3O), 4.33 (s, 2H, CH2SO2), 5.51-5.55 (m, 2H, C=CH2), 5.89-5.95 (m, 1H, HC=C), 6.65 (s, 2H, 3,4,5-trimethoxybenzyl-H), 7.42-7.56 (m, 5H, Ar-H); 13C-NMR: δ 55.98, 59.52, 61.00, 105.94, 120.05, 122.90, 126.81, 127.87, 129.97, 130.79, 133.45, 140.00, 152.50, 153.19, 156.01; Anal. Calcd. for C20H21N3O5S (415.46): C 57.82%, H 5.09%, N 10.11%. Found: C 57.52%, H 5.38%, N 10.45%.
3-(Methylsulfonyl)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole (7i): white solid, yield 80.2%; m.p. 141–143 °C, IR (KBr cm-1): ν 1587, 1514, 1498, 1475, 1454 (C=N and C=C of rings), 1334, 1143 (SO2), 1H-NMR: δ 3.49 (s, 3H, CH3-SO2), 3.59 (s, 6H, 3,5-di-CH3O), 3.81 (s, 3H, 4-CH3O), 6.64 (s, 2H, 3,4,5-trimethoxybenzyl-H), 7.41-7.54 (m, 5H, Ar-H); 13C-NMR: δ 43.02, 55.99, 60.97, 106.01, 119.99, 127.81, 130.03, 130.81, 133.40, 140.09, 153.22, 153.60, 156.22; Anal Calcd. for C18H19N3O5S (389.43): C 55.52%, H 4.92%, N 10.79%. Found: C 55.32%, H 4.61%, N 10.84%.

3.5. X-ray structure determination of 7g

A crystal of the title compound with dimensions of 0.20 mm × 0.22 mm × 0.18 mm was mounted on a Bruker SM ART Apex area-detector diffractometer with a graphite-monochromated Mo-Ka radiation(λ = 0.071073 nm) by using an φ-ω scan mode at 293(2) K in the range of 1.48 ≤ θ ≤ 25.99. A total of 12566 reflections were collected, of which 4536 were independent (Rint = 0.0318) and 3543 were observed with I > 2σ(I). The calculations were performed with SHELXS-97 program [31] and the empirical absorption corrections were applied to all intensity data. The non-hydrogen atoms were refined anisotropically. The hydrogen atoms were determined with theoretical calculations and refined isotropically. The final full-matrix least-squares refinement gave R = 0.0426 and ωR = 0.1103 (ω = l/[σ2(Fo2) + (0.0607P)2 + 0.0212P], where P = (Fo2 + 2Fc2)/3). S = 1.033, (Δσ)max/(e.nm-3) = 174, (Δσ)min/(e.nm-3) = -353. Crystallographic data (excluding structure factors) for the structure have been deposited with the Cambridge Crystallographic Data Center as supplementary publication No. CCDC 703877. These data can be obtained free of charge from the CCDC via www.ccdc.cam.ac.uk/ data_request/cif.

4. Conclusions

In the present study, a mild and effective method for the preparation of novel sulfone derivatives containing 1,2,4-triazole moieties was undertaken using gallic acid as the starting material. The key step of the oxidation from thioether to the corresponding sulfone was optimized. The method has some salient features such as faster reaction rates, high yields and environmental friendliness. The synthesized compounds were characterized by spectral data (1H-NMR, 13C-NMR, IR) and elemental analysis. Furthermore, 3-(3-methoxybenzylsulfonyl)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole (7g) was investigated by X-ray crystallographic analysis. In the solid state, a three dimensional hydrogen bond network within the molecule presumably imparts stability to the crystal lattice.

Acknowledgements

We are grateful to the National Natural Science Foundation of China (Nos. 20962005, 20762002) for supporting the project.
  • Samples Availability: Samples of the compounds are available from the authors.

References and Notes

  1. Tehranchian, S.; Akbarzadeh, T.; Fazeli, M.R.; Jamalifar, H.; Shafiee, A. Synthesis and antibacterial activity of 1-[1,2,4-triazol-3-yl] and 1-[1,3,4-thiadiazol-2-yl]-3-methylthio-6,7-dihydro benzo[c]thiophen-4(5H)ones. Bio. Med. Chem. Lett. 2005, 15, 1023–1025. [Google Scholar] [CrossRef]
  2. Karabasanagouda, T.; Adhikari, A.V.; Shetty, N.S. Synthesis and antimicrobial activities of some novel 1,2,4-triazolo[3,4-b]-1,3,4-thiadiazoles and 1,2,4- triazolo[3,4-b]-1,3,4-thiadiazines carrying thioalkyl and sulphonyl phenoxy moieties. Eur. J. Med. Chem. 2007, 42, 521–529. [Google Scholar] [CrossRef]
  3. Kane, J.M.; Dudley, M.W.; Sorensen, S.M.; Miller, F.P. 2,4-dihydro-3H-1,2,4-triazole -3-thiones as potential antidepressant agents. J. Med. Chem. 1988, 31, 1253–1258. [Google Scholar] [CrossRef]
  4. Mullican, M.D.; Wilson, M.W.; Connor, D.T.; Kostlan, C.R.; Schrier, D.J.; Dyer, R.D. Design of 5-(3,5-di-tert-butyl-4-hydroxyphenyl)-1,3,4-thiadiazoles, -1,3,4-oxadiazoles, and -1,2,4-triazoles as orally active, nonulcerogenic antiinflammatory agents. J. Med. Chem. 1993, 36, 1090–1099. [Google Scholar] [CrossRef]
  5. Yaseen, A.Al-S.; Mohammad, N.Al-D.; Najim, A.Al-M. Synthesis, antitumor and antiviral properties of some 1,2,4-triazole derivatives. Il Farmaco 2004, 59, 775–783. [Google Scholar] [CrossRef]
  6. Sun, Q.Y.; Xu, J.M.; Cao, Y.B.; Zhang, W.N.; Wu, Q.Y.; Zhang, D.Z.; Zhang, J.; Zhao, H.Q.; Jing, Y.Y. Synthesis of novel triazole derivatives as inhibitors of cytochrome P450 14α-demethylase (CYP51). Eur. J. Med. Chem. 2007, 42, 1226–1233. [Google Scholar] [CrossRef]
  7. Chen, Q.; Zhu, X.L.; Jiang, L. Synthesis, antifungal activity and CoMFA analysis of novel1,2,4-triazolo[1,5-a]pyrimidine derivatives. Eur. J. Med. Chem. 2008, 43, 595–603. [Google Scholar] [CrossRef]
  8. Crispino, G.A.; Goudar, J.S. Process for the preparation of a triazolinone herbicide. US Pat. 6 268 506, 2001. [Chem. Abstr. 2001, 130, 282075]. [Google Scholar]
  9. Song, B.A.; Hu, D.Y.; Zheng, S.; Huang, R.M.; Yang, S.; Huang, J. Synthesis and bioacttvity of phosphorodithioate compounds containing 1,2,4-triazole. Chi. J. Org. Chem. 2001, 21, 524–529. [Google Scholar]
  10. Matsuoa, A.; Negoroa, T.; Seo, T.; Kitao, Y.; Shindoa, M.; Segawab, H.; Miyamoto, K. Inhibitory effect of JTP-59557, a new triazole derivative, on intestinal phosphate transport in vitro and in vivo. Eur. J. Pharm. 2005, 517, 111–119. [Google Scholar] [CrossRef]
  11. Nasser, S.A.M. Khalil. Efficient synthesis, structure, and antimicrobial activity of some novel N-and S-β-d-glucosides of 5-pyridin-3-yl-1,2,4-triazoles. Carbohydr. Res. 2006, 341, 2187–2199. [Google Scholar]
  12. Ulusoy1, N.; Ates, Ö.; Kucukba- smac, Ö.; Kiraz, M.; Yeğenoğlu, Y. Synthesis, characterization, and evaluation of antimicrobial activity of Some 1,2,4-Triazole derivatives bearing an antipyryl moiety. Mon. Für Chem. 2003, 134, 465–474. [Google Scholar]
  13. Tseng, C.H. Herbicidal triazolecarboxamines. WO Pat. 9 309 100, 1993. [Chem. Abstr. 1993, 119, 249954]. [Google Scholar]
  14. Chen, C.J.; Song, B.A.; Yang, S.; Xu, G.F.; Bhadury, Pinaki S.; Jin, L.H.; Hu, D.Y.; Li, Q.Z.; Liu, F.; Xue, W.; Lu, P.; Chen, Z. Synthesis and antifungal activities of 5-(3,4,5-trimethoxyphenyl)-2-sulfonyl-1,3,4-thiadiazole and 5-(3,4,5-trimethoxyphenyl)-2-sulfonyl-1,3,4-oxadiazole derivatives. Bio. Med. Chem. 2007, 15, 3981–3989. [Google Scholar]
  15. Jin, L.H.; Chen, J.; Song, B.A.; Chen, Z.; Yang, S.; Li, Q.Z.; Hu, D.Y.; Xu, R.Q. Synthesis, structure, and bioactivity of N’-substituted benzylidene-3,4,5-trimethoxybenzohydrazide and 3-acetyl-2-substituted phenyl-5-(3,4,5-trimethoxyphenyl)-2,3-dihydro-1,3,4-oxadiazole derivatives. Bio. Med. Chem. Lett. 2006, 16, 5036–5040. [Google Scholar] [CrossRef]
  16. Yang, S.; Liu, J.; Song, B.A.; Jin, L.H.; Hu, D.Y. Indium trichloride-mediated facile synthesis of 3-(substitutedmethylthio)-4-phenyl-5-(3,4,5-trimethoxyphenyl)-4H-1,2,4-triazole in water. Chin. J. Chem. 2006, 24, 1263–1266. [Google Scholar] [CrossRef]
  17. Chaeuk, I.; Chul, B.Y.; Jung, S.O.; Sang, B.Y. Synthesis of 6-[1-[4-(benzoxazol-2-yl)thiobuthyl] -l,2,3-triazole-4-yl]methylenepenam as β-lactamase inhibitors. Arch. Pharm. Res. 1977, 20, 647–651. [Google Scholar]
  18. Paquette, L.A.; Carr, R.V.C. Phenyl vinyl sulfone and sulfoxide. Org. Synth. Coll. 1990, 7, 453–456. [Google Scholar]
  19. Jong, L.I.; Abbott, N.L. A chemodegradable surfactant system based on oxidation of disulfide bonds using hypochlorite. Langmuir 2000, 16, 5553–5561. [Google Scholar] [CrossRef]
  20. Barton, D.; Li, W.; Smith, J.A. Binuclear manganese complexes as catalysts in the selective and efficient oxidation of sulfides to sulfones. Tetrahedron Lett. 1998, 39, 7055–7058. [Google Scholar] [CrossRef]
  21. Herszage, J.; Afonso, M.D.S. Mechanism of hydrogen sulfide oxidation by manganese(IV) oxide in aqueous Solutions. Langmuir 2003, 19, 9684–9692. [Google Scholar] [CrossRef]
  22. Block, E.; Corey, E.R.; Penn, R.E.; Renken, T.L.; Sherwin, P.F. 1,3-Dithietane. J. Am. Chem. Soc. 1976, 98, 5715–5717. [Google Scholar] [CrossRef]
  23. Matteucci, M.; Bhalay, G.; Bradley, M. Mild and highly chemoselective oxidation of thioethers mediated by Sc(OTf)3. Org. Lett. 2003, 5, 235–237. [Google Scholar] [CrossRef]
  24. Marques, A.; Marin, M.; Ruasse, M.F. Hydrogen peroxide oxidation of mustard-model sulfides catalyzed by iron and manganese tetraarylporphyrines. oxygen transfer to sulfides versus H2O2 dismutation and catalyst breakdown. J. Org. Chem. 2001, 66, 7588–7595. [Google Scholar] [CrossRef]
  25. Palomo, C.A. A process for the preparation of pantoprazole and intermediates therefor. WO Pat. 0 228 852, 2002. [Chem. Abstr. 2002, 136, 294832]. [Google Scholar]
  26. Brown, K.N.; Espenson, J.H. Stepwise oxidation of thiophene and its derivatives by hydrogen peroxide catalyzed by methyltrioxorhenium(VII). Inorg. Chem. 1996, 35, 7211–7216. [Google Scholar]
  27. Sato, K.; Hyodo, M.; Aoki, M.; Zheng, X.Q.; Noyori, R. Oxidation of sulfides to sulfoxides and sulfones with 30% hydrogen peroxide under organic solvent-and halogen-free conditions. Tetrahedron 2001, 57, 2469–2476. [Google Scholar]
  28. Zhou, S.N.; Zhang, L.X.; Zhang, A.J.; Sheng, J.S.; Zhang, H.L. Synthesis and crystal structure of novel schiff bases derived from 3-(2-ethoxyphenyl)-4-amino-5-mercapto-4H-1,2,4-triazole. J. Heterocycl. Chem. 2007, 44, 1019–1022. [Google Scholar] [CrossRef]
  29. Yang, J.G.; Pan, F.Y. Synthesis and crystal structure of 3-(2-hydroxybenzly)-4-(4-hydroxybenzylideneamino)-1H-1,2,4-triazole-5-thione and its antibacterial activities. Chin. J. Struct. Chem. 2005, 24, 1403–1407. [Google Scholar]
  30. Song, B.A.; Chen, C.J.; Yang, S.; Jin, L.H.; Xue, W.; Zhang, S.M.; Zou, Z.H.; Hu, D.Y.; Liu, G. Synthesis, structure and antitumor activity of 2-alkylthio-5-(3,4,5-trimethoxyphenyl)-1,3,4-thiadiazole compounds. Acta Chim. Sinica 2005, 63, 1720–1726. [Google Scholar]
  31. Sheldrick, G.M. SHELX-97; University of Gǒttingen: Gǒttingen, Germany, 1997. [Google Scholar]
