Regioselective Suzuki-Miyaura Reaction: Application to the Microwave-promoted Synthesis of 4,7-Diarylquinazolines

by
Youssef Kabri
,
Pierre Verhaeghe
,
Armand Gellis
and
Patrice Vanelle
*
Laboratoire de Pharmacochimie Radicalaire, Faculté de Pharmacie, Universités d’Aix-Marseille I, II et III - UMR CNRS 6264 , Laboratoire Chimie Provence, 27 Boulevard Jean Moulin, 13385 Marseille cedex 05, France
*
Author to whom correspondence should be addressed.
Molecules 2010, 15(5), 2949-2961; https://doi.org/10.3390/molecules15052949
Submission received: 24 March 2010 / Revised: 8 April 2010 / Accepted: 21 April 2010 / Published: 27 April 2010
Browse Figures
Versions Notes

Abstract

:
New diarylquinazolines displaying pharmaceutical potential were synthesized in high yields from 4,7-dichloro-2-(2-methylprop-1-enyl)-6-nitroquinazoline by using microwave-promoted regioselective Suzuki-Miyaura cross-coupling reactions.

Graphical Abstract

Introduction

In 1979, Suzuki and Miyaura introduced organoboron reagents into the realm of cross-coupling chemistry, by demonstrating a palladium-catalyzed reaction of 1-alkenylboranes with aryl and alkynyl halides [1,2]. Since its discovery, this reaction, which is now referred to as the Suzuki-Miyaura reaction, has seen significant advancement and has become one of the most powerful carbon-carbon bond forming methods in organic synthesis [3,4,5,6]. The process has important advantages including functional group compatibility, low toxicity of reagents and intermediates, easy availability of boron derivatives, high thermal stability and good tolerance toward oxygen and aqueous solvents. Recently, organic chemists have turned their work to the application of this reaction to the synthesis of more complex molecules, by using successive Suzuki-Miyaura cross coupling reactions with substrates containing two or more possible reactive sites. One of the solutions to obtain the desired cross-coupling products in a selective manner, by assembling such multi-functionalized compounds, is to favor one of the possible reaction sites [7,8]. Herein, we will describe a regioselective method based on the modulation of the reaction conditions.
Quinazoline is an important molecular scaffold due to the large variety of pharmacological properties associated with derivatives based on this heterocyclic system [9]. Especially, their importance as selective anticancer chemotherapy agents appears unparalleled and attracts the attention of many pharmaceutical research teams worldwide [10,11,12,13]. Focusing on quinazoline substrates, our group also quite recently described the preparation of new 2-substituted-quinazoline derivatives which exhibit original antiplasmodial properties [14,15,16].
In other respects, microwaves, as a non-conventional source of energy, have become a very popular and useful technology in organic chemistry [17]. The main attraction of using microwaves is the possibility of achieving short reaction times in cleaner systems [18,19,20], even under solventless conditions [21,22]. Microwave irradiation is a simple, rapid and effective method for transferring energy to a polar reaction medium [23]. Consequently, microwave irradiation has been widely applied in organic synthesis, including C-C cross-coupling reactions [24,25].
In continuation of the recent Suzuki-Miyaura monocoupling reactions which we presented in the original 2-(2-methylprop-1-enyl)-6-nitroquinazoline series [26], we investigated the synthesis of a series of new biarylsubstituted-quinazolines, via a regioselective Suzuki-Miyaura cross coupling reaction. It was already known in literature [27,28] that the quinazoline C4 position is quite electrophilic. We therefore investigated the possibility of using 4,7-dichloro-2-(2-methylprop-1-enyl)-6-nitroquinazoline (5) with various arylboronic acids, aiming at preparing dissymmetric biaryl-substituted quinazolines, taking into account that chlorinated aromatic carbon atoms, at position α of a nitro group, also display a high reactivity when involved in palladium-catalyzed coupling reactions [29].

Results and Discussion

The synthesis of the starting material, 4,7-dichloro-2-(2-methylprop-1-enyl)-6-nitroquinazoline (5), is presented in Scheme 1. The global synthesis strategy was developed in our research group for the preparation of closely related analogs [30]. Compound 5 was obtained from commercial 2-amino-4-chlorobenzonitrile in good yield after five steps, under microwave irradiation. The first step is the condensation between 2-amino-4-chlorobenzonitrile and chloroacetyl chloride, followed by intramolecular cyclisation, to give product 2 in 67% yield [31]. Then, nitration at the 6 position gave the expected product 3 (74% yield), followed by a SRN1 reaction with the lithium salt of 2-nitropropane [32,33] leading to the ethylenic derivative 4 (76% yield). Finally, a microwave-assisted chlorination reaction using phosphorus oxychloride in the presence of N,N-diethylaniline gave product 5, bearing two chlorine atoms in positions 4 and 7 (87% yield).
Molecules 15 02949 g001 550

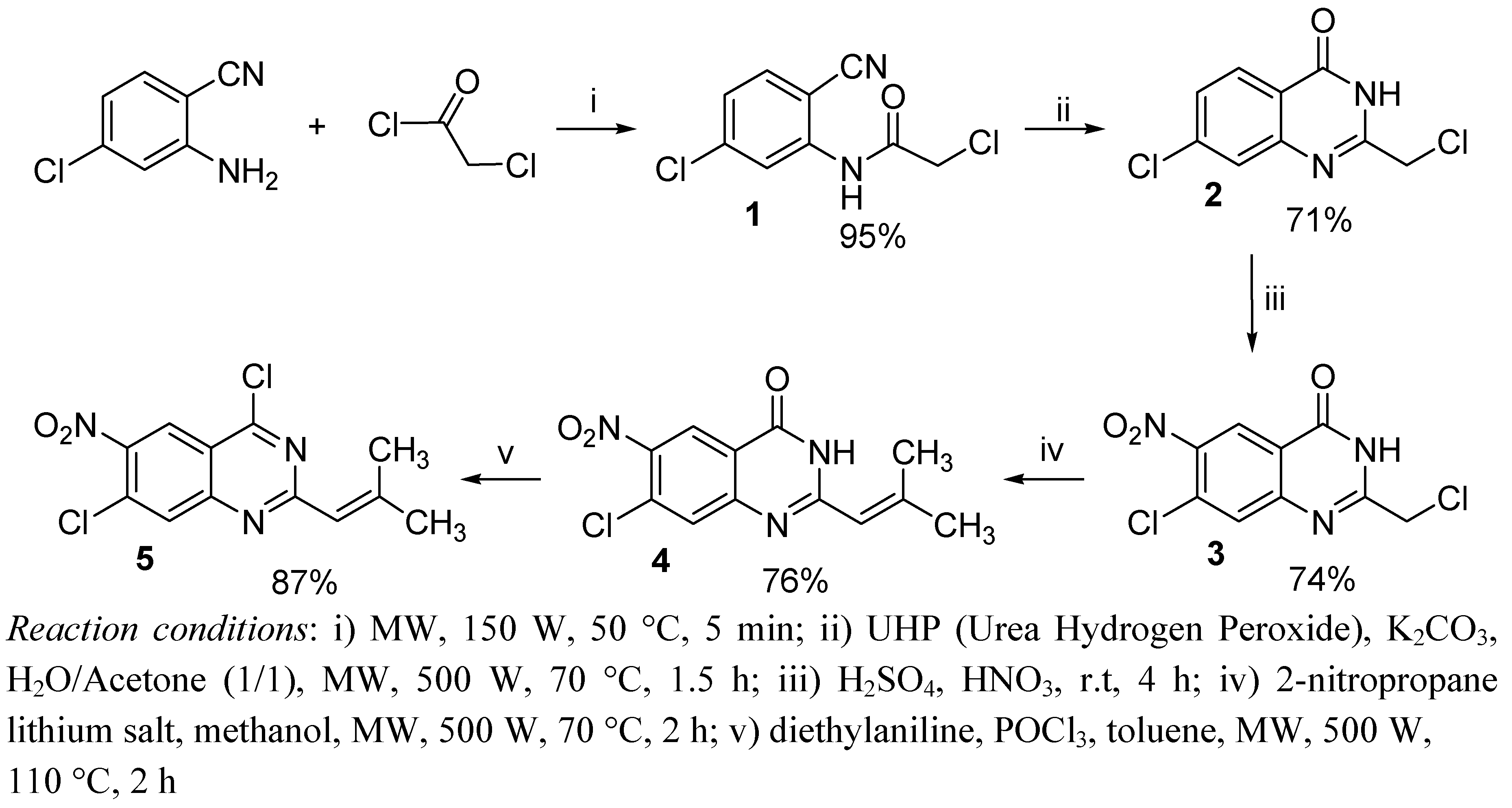

Scheme 1. Synthesis of starting material 5.
Scheme 1. Synthesis of starting material 5.
Molecules 15 02949 g001
The 4,7-dichloro-2-(2-methylprop-1-enyl)-6-nitroquinazoline (5) was engaged in a double Suzuki-Miyaura coupling study with the purpose of identifying reaction conditions which would provide regioselectivity between the 4 and 7 chlorinated positions of the quinazoline ring (Scheme 2). We started by using 4 equiv. of 4-methoxyphenylboronic acid, 4 equiv. of Na2CO3 and 2.5 mol % of Pd(PPh3)4. As suggested by Connolly and co-workers [34], a DME/ethanol (9:1, v/v) mixture was used as solvent and the reaction was heated with microwave irradiation.
Molecules 15 02949 g002 550
Scheme 2. Regioselective Suzuki-Miyaura reaction.
Scheme 2. Regioselective Suzuki-Miyaura reaction.
Molecules 15 02949 g002
Under such conditions, only the double-coupled compound 7a was obtained, in 70% yield, as presented in Table 1 (Entry 1), showing that both positions were reactive as regards of the Suzuki-Miyaura reaction.
To minimize double coupling and substitute at the 4-position selectively, we decreased the amount of arylboronic acid. Using 1.5 equiv. of 4-methoxyphenylboronic acid (Entry 2), some selectivity appeared, the reaction mixture containing both the monosubstituted product 6a (45% yield) and the disubstituted product 7a (15% yield). However, a complete selectivity was observed with 1.2 equiv. of 4-methoxyphenylboronic acid. The monosubstituted product 6a was then obtained in good yield (68%, Entry 3). This result indicates the possibility of achieving a selective coupling reaction at the C4 position, while preventing the chlorinated C7 position from reacting. The monocoupling at the 4-position was checked by NOESY spectrum, where a strong correlation between H-5 (8.65 ppm) and H-2’ (7.77 ppm) was observed.
Table
Table 1. Regioselective Suzuki-Miyaura coupling reaction.
Table 1. Regioselective Suzuki-Miyaura coupling reaction.
EntryArylboronic acid Aryl-Equiv. of Boronic acidYield % (6/7)
14-MeO-Ph-4.00 / 70
24-MeO-Ph-1.545 / 15
34-MeO-Ph-1.268 / 0
44-Cl-Ph-4.00 / 67
54-Cl-Ph-2.042 / 13
64-Cl-Ph-1.563 / 0
73-CF3-Ph-1.548 / 0
85-CH3-2-thienyl-2.072 / 0
95-CH3-2-thienyl-1.561 / 0
103-NO2-Ph-2.055 / 0
113-NO2-Ph-1.543 / 0
Reaction conditions: Pd(PPh3)4 (2.5 mol %), Na2CO3 (3-4 equiv), DME/ethanol (9:1), MW 300 W, 80 °C, 3 h
Starting from this initial encouraging result, the influence of both electron-withdrawing and electron-donating substituents on arylboronic acids was investigated next. The reactions with 1.5 equiv. of 4-chlorophenylboronic or 3-trifluoromethylphenylboronic acid provided the monosubstituted products 6b or 6c in 63 and 48% yields, respectively (Entries 6 and 7). The reaction of 5 with 3-nitro-phenylboronic acid offered lower reactivity in comparison with the reaction of 5 with 4-methoxy-phenylboronic acid but higher regioselectivity, especially when 2 equiv. of arylboronic acid were used (Entry 10), leading to the monosubstituted product 6e in 55% yield. A possible explanation for the lower reactivity and good regioselectivity observed when using 3-nitro or 3-trifluorophenylboronic acid and 5-methylthiophen-2-ylboronic acid could result from the chelation of the Lewis basic heteroatoms to the palladium intermediate. Such chelation could be retarding the rate of the reductive elimination step [35]. By using the preceding best conditions for the double coupling reaction, defined for the preparation of compounds 7a and 7b, three more symmetric diarylquinazolines 7f-h were synthesized in good yields (Table 2).
Table
Table 2. Double Suzuki-Miyaura coupling reaction extensions in optimal conditions.
Table 2. Double Suzuki-Miyaura coupling reaction extensions in optimal conditions.
EntryAryl-ProductYield %
1Ph-7f85
24-F-Ph-7g71
32-Tolyl-7h65
Reaction conditions: arylboronic acid (4 equiv.), Pd(PPh3)4 (2.5 mol %), Na2CO3 (4 equiv.), DME/ethanol (9:1), MW 300 W, 80 °C, 3 h
In order to achieve the second coupling reaction at the C7 position of monosubstituted product 6a, and obtain dissymmetric diarylquinazolines, we started by using 2 equiv. of arylboronic acid, 3 equiv. of Na2CO3, 2.5 mol % of Pd(PPh3)4 and a refluxing mixture of DME/ethanol (9:1, v/v). After 3 h, under microwave irradiation, starting material 6a and the diarylsubstituted product 8 were obtained in a 1:1 ratio (27% yield), indicating the lack of reactivity of the C7 quinazoline position under such reaction conditions, probably due to the insufficient solubility of 6a in the reaction mixture.
We then proceeded to modify the operating procedure. The DME/ethanol solvent mixture was changed for a DMF/ethanol (9:1) mixture which was refluxed under microwave irradiation (Scheme 3). After 3 h, all the starting material was consumed. A series of dissymmetric diarylquinazolines 8-16 was thus synthesized in good yields via this optimized coupling reaction between 6a or 6b and various arylboronic acids, as indicated in Table 3.
Molecules 15 02949 g003 550
Scheme 3. Cross coupling reaction at position 7.
Scheme 3. Cross coupling reaction at position 7.
Molecules 15 02949 g003
Table
Table 3. Suzuki-Miyaura reactions between monosubstituted products 6a or 6b and various arylboronic acids.
Table 3. Suzuki-Miyaura reactions between monosubstituted products 6a or 6b and various arylboronic acids.
EntryAryl 1Aryl 2ProductYield %
14-MeO-Ph-4-Cl-Ph-855
24-MeO-Ph-Ph-964
34-MeO-Ph-4-F-Ph-1043
44-MeO-Ph-2-Tolyl-1150
54-MeO-Ph-3-CF3-Ph-1257
64-Cl-Ph-4-MeO-Ph-1354
74-Cl-Ph-Ph-1462
84-Cl-Ph-4-F-Ph-1557
94-Cl-Ph-2-Tolyl-1658
Reaction conditions: arylboronic acid (2 equiv.), Pd(PPh3)4 (2.5 mol %), Na2CO3 (3 equiv.), DMF/ethanol (9 : 1), MW 300 W, 150 °C, 3 h

Experimental

General

Melting points were determined on a Büchi B-540 apparatus and are uncorrected. Elemental analyses were performed by the Microanalyses Center of the University of Aix-Marseille 3, France. Both 1H- and 13C-NMR spectra were determined on a Bruker ARX 200 spectrometer. The 1H chemical shifts are reported as ppm downfield from tetramethylsilane (Me4Si), and the 13C chemical shifts were referenced to the solvent peak: CDCl3 (76.9 ppm) or DMSO-d6 (39.5 ppm). Solvents were dried by conventional methods. The following adsorbent was used for column chromatography: silica gel 60 (Merck, particle size 0.063-0.200 mm, 70-230 mesh ASTM). TLC was performed on 5 cm × 10 cm aluminium plates coated with silica gel 60F-254 (Merck) in an appropriate solvent.

Microwave instrumentation

Multimode reactor: ETHOS Synth Lab station and MicroSYNTH Lab terminal 1024 (Ethos start, Milestone Inc.). The multimode microwave has a twin magnetron (2 × 800 W, 2.45 GHz) with a maximum delivered power of 1,000 W in 10 W increments (pulsed irradiation). Built-in magnetic stirring (Teflon-coated stirring bar) was used in all operations. During experiments, time, temperature and power were measured with the “easy WAVE” software package. The temperature was measured throughout the reaction and evaluated by an infrared detector or a optical fiber (ATC-FO 300).

Synthesis

2-Chloro-N-(5-chloro-2-cyanophenyl)acetamide (1) [36] and 7-chloro-2-(chloromethyl)quinazolin-4(3H)-one (2) [31] were prepared as previously described.

7-Chloro-2-(chloromethyl)-6-nitroquinazolin-4(3H)-one (3)

To a solution of 7-chloro-2-(chloromethyl)quinazolin-4(3H)-one (2, 3 g, 13.1 mmol) in concentrated sulfuric acid (40 mL), fuming nitric acid (3.26 mL) was added dropwise at 0 °C. The reaction mixture was stirred at rt for 4 h, poured into crushed ice (100 mL). A precipitate appeared and was filtered, washed with water (3 × 20 mL) and dried in a vacuum drying oven (dessicator cabinet). Recrystallization from propan-2-ol gave 2.66 g. of the title compound. Yield 74%; yellow solid, mp 241 °C. 1H-NMR (200 MHz, DMSO-d6): δ = 8.69 (1H, s), 8.07 (1H, s), 4.59 (2H, s); 13C-NMR (50 MHz, DMSO-d6): δ = 160.3, 157.0, 151.2, 145.3, 130.9, 130.2, 124.4, 120.7, 43.0; Anal. calcd. for C9H5Cl2N3O3: C, 39.44; H, 1.84; N, 15.33 %. Found: C, 39.24; H, 1.85; N, 15.26 %.

7-Chloro-2-(2-methylprop-1-enyl)-6-nitroquinazolin-4(3H)-one (4)

7-Chloro-2-(chloromethyl)-6-nitroquinazolin-4(3H)-one (3, 1 g, 3.65 mmol) was added to a solution of the lithium salt of 2-nitropropane (1.37 g, 14.6 mmol) in methanol (40 mL). The reaction mixture was irradiated in a microwave oven, at 70 °C, for 2 h at a power of 500 W. After evaporation of methanol, the residue was dissolved in ethyl acetate (50 mL) and washed with water (3 × 100 mL). The organic layer was dried over magnesium sulphate and the solvent was removed under vacuum. A yellow solid was obtained, which was recrystallized from propan-2-ol to give 7-chloro-2-(2-methylprop-1-enyl)-6-nitro-quinazolin-4(3H)-one (4) (0.78 g, yield 76%); yellow solid, mp 267 °C. 1H‑NMR (200 MHz, DMSO-d6): δ = 8.61 (1H, s), 7.88 (1H, s), 6.06 (1H, s), 2.34 (3H, s), 1.98 (3H, s); 13C-NMR (50 MHz, DMSO-d6): δ = 160.6, 155.9, 155.1, 152.2, 143.9, 130.7, 129.8, 124.5, 119.6, 116.9, 28.3, 21.2; Anal. calcd. for C12H10ClN3O3: C, 51.53; H, 3.60; N, 15.02 %. Found: C, 51.54; H, 3.64; N, 14.92 %.

4,7-Dichloro-2-(2-methylprop-1-enyl)-6-nitroquinazoline (5)

7-Chloro-2-(2-methylprop-1-enyl)-6-nitroquinazolin-4(3H)-one (4, 0.5 g, 1.79 mmol) was dissolved in toluene (40 mL). Diethylaniline (0.86 mL, 5.37 mmol) and phosphorus oxychloride (0.33 mL, 3.58 mmol) were added. The mixture was heated to 110 °C in the microwave oven irradiating with 500 W for 2 h. After cooling and hydrolysis with 100 mL of water, the mixture was extracted with dichloromethane (3 × 50 mL). The combined organic extracts were washed with water (3 × 100 mL), dried over magnesium sulphate and evaporated. Purification by column chromatography [silica gel, eluent: dichloromethane/petroleum ether (1/2)] afforded 0.46 g of 4,7-dichloro-2-(2-methylprop-1-enyl)-6-nitro-quinazoline (5) which recrystallized from propan-2-ol. Yield 87%; brown solid, mp 105 °C. 1H-NMR (200 MHz, CDCl3): δ = 8.69 (1H, s), 8.10 (1H, s), 6.52 (1H, s), 2.42 (3H, s), 2.09 (3H, s); 13C-NMR (50 MHz, CDCl3): δ = 164.3, 162.3, 155.0, 152.2, 146.0, 132.3, 131.3, 123.8, 123.4, 119.1, 28.8, 21.1; Anal. calcd. for C12H9Cl2N3O2: C, 48.34; H, 3.04; N, 14.09 %. Found: C, 48.42; H, 3.16; N, 13.83 %.

General procedure of the monocoupling and symmetric double coupling Suzuki-Miyaura reaction

4,7-Dichloro-2-(2-methylprop-1-enyl)-6-nitroquinazoline (5, 0.2 g, 0.67 mmol), and tetrakis(tri-phenylphosphine) palladium(0) (2.5 mol %) were dissolved in DME (20 mL) under nitrogen and stirred for 1 h at rt. Arylboronic acid (1.2 to 2 equiv. for monocoupling, 4 equiv. for symmetric double coupling) in ethanol (2 mL) and sodium carbonate (0.21 g, 2.01 mmol: monocoupling, 0.28 g, 2.68 mmol: symmetric double coupling) were added. The mixture was placed in the microwave oven irradiating with 300 W, heating to 80 °C for 3 h. After addition of water (50 mL), the solution was extracted into dichloromethane (3 × 50 mL). The organic layer was washed with water (3 × 100 mL), dried over sodium sulphate and evaporated. The crude product was purified by column chromatography [silica gel, eluent: petroleum ether/ethyl acetate (5%)] and recrystallized from propan-2-ol.
7-Chloro-4-(4-methoxyphenyl)-2-(2-methylprop-1-enyl)-6-nitroquinazoline (6a). Yield 68%; yellow solid, mp 180 °C. 1H-NMR (200 MHz, CDCl3): δ = 8.65 (1H, s), 8.14 (1H, s), 7.77 (2H, d, J = 8.6 Hz), 7.12 (2H, d, J = 8.6 Hz), 6.66 (1H, s), 3.93 (3H, s), 2.45 (3H, s), 2.09 (3H, s); 13C-NMR (50 MHz, CDCl3): δ = 168.6, 164.5, 162.1, 152.6, 145.2, 131.8, 131.2, 130.9, 128.3, 125.7, 124.5, 117.8, 114.7, 55.6, 28.6, 21.0; Anal. calcd. for C19H16ClN3O3: C, 61.71; H, 4.36; N, 11.36 %. Found: C, 61.49; H, 4.39; N, 11.26 %.
7-Chloro-4-(4-chlorophenyl)-2-(2-methylprop-1-enyl)-6-nitro quinazoline (6b). Yield 63%; yellow solid, mp 199 °C. 1H-NMR (200 MHz, CDCl3): δ = 8.54 (1H, s), 8.22 (1H, s), 7.74 (2H, d, J = 8.5 Hz), 7.60 ( 2H, d, J = 8.5 Hz), 6.69 (1H, s), 2.45 (3H, s), 2.11 (3H, s); 13C-NMR (50 MHz, CDCl3): δ = 168.2, 164.4, 153.9, 152.1, 145.5, 137.7, 134.2, 131.4, 131.2, 129.5, 125.0, 124.1, 117.7, 28.8, 21.2; Anal. calcd. for C18H13Cl2N3O2: C, 57.77; H, 3.50; N, 11.23%. Found: C, 57.54; H, 3.56; N, 11.08 %.
7-Chloro-2-(2-methylprop-1-enyl)-6-nitro-4-(3-(trifluoromethyl) phenyl)quinazoline (6c). Yield 48%; brown solid, mp 151 °C. 1H-NMR (200 MHz, CDCl3): δ = 8.48 (1H, s), 8.18 (1H, s), 8.07 (1H, s), 7.95-7.88 ( 2H, m), 7.79-7.72 (1H, m), 6.66 (1H, s), 2.45 (3H, s), 2.11 (3H, s); 13C-NMR (50 MHz, CDCl3): δ = 167.6, 164.7, 153.2, 152.7, 145.6, 136.8, 132.9, 131.9, 131.8, 131.3, 129.6, 127.5, 126.7, 124.6, 124.4, 123.6, 117.7, 28.6, 21.0; Anal. calcd. for C19H13ClF3N3O2: C, 55.96; H, 3.21; N, 10.30 %. Found: C, 55.85; H, 3.22; N, 10.14 %.
7-Chloro-2-(2-methylprop-1-enyl)-4-(5-methylthiophen-2-yl)-6-nitro quinazoline (6d). Yield 72%; yellow solid, mp 172 °C. 1H-NMR (200 MHz, CDCl3): δ = 8.99 (1H, s), 8.08 (1H, s), 7.67 (1H, d, J = 3.9 Hz), 6.97 (1H, d, J = 3.9 Hz), 6.57 (1H, s), 2.62 (3H, s), 2.45 (3H, s), 2.09 (3H, s); 13C NMR (50 MHz, CDCl3): δ = 164.3, 160.9, 152.9, 152.8, 148.2, 145.2, 137.9, 132.8, 131.3, 131.0, 127.7, 124.9, 124.2, 116.5, 28.7, 21.1, 15.8; Anal. calcd. for C17H14ClN3O2S: C, 56.74; H, 3.92; N, 11.68 %. Found: C, 56.64; H, 4.01; N, 11.48 %.
7-Chloro-2-(2-methylprop-1-enyl)-6-nitro-4-(3-nitrophenyl)quinazoline (6e). Yield 55%; brown solid, mp 197 °C. 1H-NMR (200 MHz, CDCl3): δ = 8.68 (1H, s), 8.52-8.47 (2H, m), 8.24 (1H, s), 8.09 (1H, d, J = 7.6 Hz), 7.87-7.79 (1H, m), 6.70 (1H, s), 2.46 (3H, s), 2.12 (3H, s); 13C-NMR (50 MHz, CDCl3): δ = 166.7, 164.6, 154.1, 152.5, 148.8, 145.7, 137.6, 135.4, 131.7, 131.6, 130.2, 125.5, 124.8, 124.2, 124.1, 117.5, 28.8, 21.2; Anal. calcd. for C18H13ClN4O4: C, 56.19; H, 3.41; N, 14.56 %. Found: C, 56.16; H, 3.47; N, 14.35 %.
4,7-Bis(4-methoxyphenyl)-2-(2-methylprop-1-enyl)-6-nitroquinazoline (7a). Yield 70%; yellow solid, mp 175 °C. 1H-NMR (200 MHz, CDCl3): δ = 8.58 (1H, s), 8.07 (1H, s), 7.84 (2H, d, J = 8.8 Hz), 7.37 (2H, d, J = 8.9 Hz), 7.14 (2H, d, J = 8.8 Hz), 7.00 (2H, d, J = 8.9 Hz), 6.72 (s, 1H), 3.94 (3H, s), 3.87 (3H, s), 2.46 (3H, s), 2.10 (3H, s); 13C-NMR (50 MHz, CDCl3): δ = 168.4, 164.0, 161.9, 160.2, 152.4, 147.5, 140.1, 131.8, 131.2, 129.2, 128.8, 128.7, 124.8, 124.1, 118.2, 116.1, 114.6, 114.5, 55.6, 55.4, 28.5, 20.9; Anal. calcd. for C26H23N3O4: C, 70.73; H, 5.25; N, 9.52 %. Found: C, 70.23; H, 5.35; N, 9.48 %.
4,7-Bis(4-chlorophenyl)-2-(2-methylprop-1-enyl)-6-nitroquinazoline (7b). Yield 67%; yellow solid, mp 233 °C. 1H-NMR (200 MHz, CDCl3): δ = 8.56 (1H, s), 8.08 (1H, s), 7.79 (2H, d, J = 8.4 Hz), 7.62 (2H, d, J = 8.4 Hz), 7.47 (d, 2H, d, J = 8.5 Hz), 7.35 (2H, d, J = 8.5 Hz), 6.72 (1H, s), 2.46 (3H, s), 2.11 (3H, s); 13C-NMR (50 MHz, CDCl3): δ = 168.4, 163.7, 153.7, 151.5, 147.2, 140.0, 137.7, 135.4, 134.7, 134.4, 131.3, 129.5, 129.3, 129.2, 124.0, 123.9, 118.3, 28.8, 21.2; Anal. calcd. for C24H17Cl2N3O2: C, 64.01; H, 3.81; N, 9.33 %. Found: C, 63.57; H, 3.80; N, 9.17 %.
2-(2-Methylprop-1-enyl)-6-nitro-4,7-diphenylquinazoline (7f). Yield 85%; yellow solid, mp 176 °C. 1H-NMR (200 MHz, CDCl3): δ = 8.58 (1H, s), 8.08 (1H, s), 7.86-7.81 (2H, m), 7.65-7.61 (3H, m), 7.51-7.41 (5H, m), 6.71 (1H, s), 2.46 (3H, s), 2.10 (3H, s); 13C-NMR (50 MHz, CDCl3): δ = 169.2, 164.1, 152.2, 151.7, 147.4, 140.7, 136.5, 136.3, 131.7, 130.8, 130.0, 129.1, 128.9, 127.8, 124.7, 124.1, 118.5, 28.5, 20.9; Anal. calcd. for C24H19N3O2: C, 75.57; H, 5.02; N, 11.02 %. Found: C, 75.36; H, 5.02; N, 10.95 %.
4,7-Bis(4-fluorophenyl)-2-(2-methylprop-1-enyl)-6-nitroquinazoline (7g). Yield 71%; yellow solid, mp 193 °C. 1H-NMR (200 MHz, CDCl3): δ = 8.55 (1H, s), 8.06 (1H, s), 7.89-7.82 (2H, m), 7.44-7.29 (4H, m), 7.22-7.14 (2H, m), 6.70 (1H, s), 2.46 (3H, s), 2.11 (3H, s); 13C-NMR (50 MHz, CDCl3): δ = 168.0, 164.4, 164.1, 163.2, 152.2, 152.1, 147.2, 139.8, 132.4, 132.3, 132.2, 132.0, 131.8, 129.8, 129.6, 124.5, 123.9, 118.3, 116.6, 116.3, 116.1, 115.9, 28.6, 20.9; Anal. calcd. for C24H17F2N3O2: C, 69.06; H, 4.11; N, 10.07 %. Found: C, 68.89; H, 4.33; N 9.90 %.
2-(2-Methylprop-1-enyl)-6-nitro-4,7-bis(2-tolyl)quinazoline (7h). Yield 65%; yellow solid, mp 161 °C. 1H-NMR (200 MHz, CDCl3): δ = 8.25 (1H, s), 7.97 (1H, s), 7.53-7.35 (5H, m), 7.33-7.28 (2H, m), 7.24-7.16 (1H, m), 6.70-7.72 (1H, m), 2.44 (3H, m), 2.26 (3H, s), 2.18 (3H, s), 2.08 (3H, m); 13C-NMR (50 MHz, CDCl3): δ = 170.9, 164.2, 152.1, 151.7, 147.3, 141.1, 136.5, 136.2, 135.5, 135.4, 132.1, 131.2, 130.2, 130.0, 129.6, 128.7, 128.3, 126.1, 125.9, 124.7, 123.9, 119.7, 28.6, 20.9, 20.1, 20.0; Anal. calcd. for C26H23N3O2: C, 76.26; H, 5.66; N, 10.26 %. Found: C, 75.88; H, 5.74; N, 10.12 %.

General procedure of dissymmetric coupling Suzuki-Miyaura reaction of the 7-position

7-Chloro-4-arylquinazoline (6, 0.54 mmol), and tetrakis(triphenylphosphine) palladium(0) (2.5 mol %) were dissolved in DMF (30 mL) under nitrogen and stirred for 1 h at rt. Arylboronic acid (2 equiv., 1.08 mmol) in ethanol (2 mL) and sodium carbonate (3 equiv., 1.62 mmol) were added. The mixture was placed in the microwave oven irradiating with 300 W, heating to 150 °C for 3 h. After addition of water (50 mL), the solution was extracted into dichloromethane (3 × 50 mL). The organic layer was washed with water (3 × 100 mL), dried over sodium sulphate and evaporated. The crude product was purified by column chromatography [silica gel, eluent: petroleum ether/ethyl acetate (10%)] and recrystallized from propan-2-ol.
7-(4-Chlorophenyl)-4-(4-methoxyphenyl)-2-(2-methylprop-1-enyl)-6-nitroquinazoline (8). Yield 55%; yellow solid, mp 186 °C. 1H-NMR (200 MHz, CDCl3): δ = 8.66 (1H, s), 8.01 (1H, s), 7.83 (2H, d, J = 8.7 Hz), 7.46 (2H, d, J = 8.5 Hz), 7.36 (2H, d, J = 8.5 Hz), 7.14 (2H, d, J = 8.7 Hz), 6.69 (1H, s), 3.94 (3H, s), 2.46 (3H, s), 2.10 (3H, s); 13C-NMR (50 MHz, CDCl3): δ = 168.6, 164.1, 162.1, 152.4, 151.9, 146.8, 139.4, 135.1, 131.9, 131.6, 129.2, 128.6, 124.7, 118.5, 114.7, 55.6, 28.6, 21.0; Anal. calcd. for C25H20ClN3O3: C, 67.34; H, 4.52; N, 9.42 %. Found: C, 67.54; H, 4.67; N, 9.34 %.
4-(4-Methoxyphenyl)-2-(2-methylprop-1-enyl)-6-nitro-7-phenyl quinazoline (9). Yield 64%; yellow solid, mp 165 °C. 1H-NMR (200 MHz, CDCl3): δ = 8.63 (1H, s), 8.02 (1H, s), 7.83 (2H, d, J = 8.9 Hz), 7.49-7.41 (5H, m), 7.13 (2H, d, J = 8.9 Hz), 6.67 (1H, s), 3.93 (3H, s), 2.45 (3H, s), 2.09 (3H, s); 13C- NMR (50 MHz, CDCl3): δ = 168.4, 164.1, 162.0, 152.5, 151.1, 147.2, 140.5, 136.7, 131.8, 131.7, 128.9, 128.8, 128.7, 127.8, 124.9, 124.3, 118.4, 114.6, 55.6, 28.5, 20.9; Anal. calcd. for C25H21N3O3: C, 72.98; H, 5.14; N, 10.21 %. Found: C, 72.70; H, 5.17; N, 10.06 %.
7-(4-Fluorophenyl)-4-(4-methoxyphenyl)-2-(2-methylprop-1-enyl)-6-nitroquinazoline (10). Yield 43%; yellow solid, mp 180 °C. 1H-NMR (200 MHz, CDCl3): δ = 8.64 (1H, s), 8.03 (1H, s), 7.84 (2H, d, J = 8.7 Hz), 7.44-7.37 (2H, m), 7.22-7.12 (4H, m), 6.70 (1H, s), 3.94 (3H, s), 2.46 (3H, s), 2.10 (3H, s); 13C-NMR (50 MHz, CDCl3): δ = 168.9, 163.6, 163.2, 162.2, 151.5, 147.2, 139.8, 132.4, 131.9, 130.9, 129.8, 129.6, 128.5, 124.5, 124.0, 118.3, 116.3, 115.8, 114.7, 55.6, 28.7, 21.1; Anal. calcd. for C25H20FN3O3: C 69.92; H, 4.69; N, 9.78 %. Found: C, 68.63; H, 4.89; N, 9.74 %. HRMS-FAB: m/z [M + H]+ calcd. for C25H20FN3O3: 429.1489; Found: 429.1561.
4-(4-Methoxyphenyl)-2-(2-methylprop-1-enyl)-6-nitro-7-o-tolyl quinazoline (11). Yield 50%; yellow solid, mp 191 °C. 1H-NMR (200 MHz, CDCl3): δ = 8.60 (1H, s), 8.02 (1H, s), 7.83 (2H, d, J = 8.8 Hz), 7.35-7.28 (4H, s), 7.13 (2H, d, J = 8.8 Hz), 6.67 (1H, s), 3.93 (3H, s), 2.45 (3H, s), 2.43 (3H, s), 2.09 (3H, s); 13C-NMR (50 MHz, CDCl3): δ = 168.3, 164.1, 161.9, 152.6, 150.8, 147.4, 140.5, 138.9, 133.7, 131.8, 131.6, 129.7, 128.9, 127.7, 124.9, 124.2, 118.3, 114.6, 55.6, 28.5, 21.3, 20.8; Anal. calcd. for C26H23N3O3: C, 73.39; H, 5.45; N, 9.88 %. Found: C, 72.87; H, 5.64; N, 9.65 %.
4-(4-Methoxyphenyl)-2-(2-methylprop-1-enyl)-6-nitro-7-(3-(trifluoro methyl)phenyl)quinazoline (12). Yield 57%; yellow solid, mp 116 °C. 1H-NMR (200 MHz, CDCl3): δ = 8.73 (1H, s), 7.99 (1H, s), 7.84 (2H, d, J = 8.8 Hz), 7.73-7.67 (2H, m), 7.64-7.55 (2H, m), 7.13 (2H, d, J = 8.8 Hz), 6.66-6.67 (1H, m), 3.93 (3H, s), 2.46 (3H, m), 2.08 (3H, m); 13C-NMR (50 MHz, CDCl3): δ = 168.5, 164.4, 162.0, 152.7, 151.6, 146.3, 139.0, 137.7, 132.1, 131.8, 131.3, 131.1, 129.2, 128.6, 125.4, 124.9, 124.8, 124.7, 123.8, 118.6, 114.6, 55.5, 28.5, 20.9; Anal. calcd. for C26H20F3N3O3: C, 65.13; H, 4.20; N, 8.76 %. Found: C, 65.00; H, 4.12; N 8.52 %.
4-(4-Chlorophenyl)-7-(4-methoxyphenyl)-2-(2-methylprop-1-enyl)-6-nitroquinazoline (13). Yield 54%; yellow solid, mp 173 °C. 1H-NMR (200 MHz, CDCl3): δ = 8.46 (1H, s), 8.07 (1H, s), 7.78 (2H, d, J = 8.4 Hz), 7.61 (2H, d, J = 8.4 Hz), 7.37 (2H, d, J = 8.6 Hz), 7.01 (2H, d, J = 8.6 Hz), 6.69 (1H, s), 3.87 (3H, s), 2.45 (3H, s), 2.10 (3H, s); 13C-NMR (50 MHz, CDCl3): δ = 169.0, 163.4, 162.7, 160.6, 152.2, 148.1, 141.4, 137.9, 134.4, 131.4, 129.6, 129.5, 129.3, 129.1, 127.9, 123.5, 117.9, 114.6, 55.4, 29.0, 21.4; Anal. calcd. for C25H20ClN3O3: C, 67.34; H, 4.52; N, 9.42 %. Found: C, 66.90; H, 4.58; N, 9.19 %.
4-(4-Chlorophenyl)-2-(2-methylprop-1-enyl)-6-nitro-7-phenyl quinazoline (14). Yield 62%; yellow solid, mp 204 °C. 1H-NMR (200 MHz, CDCl3): δ = 8.53 (1H, s), 8.10 (1H, s), 7.79 (2H, d, J = 8.4 Hz), 7.61 (2H, d, J = 8.4 Hz), 7.49-7.41 (5H, m), 6.71 (1H, s), 2.45 (3H, s), 2.11 (3H, s); 13C-NMR (50 MHz, CDCl3): δ = 167.9, 164.1, 152.4, 151.9, 147.5, 140.9, 137.3, 136.4, 134.8, 131.9, 131.3, 129.4, 128.9, 127.8, 124.6, 123.6, 118.2, 28.6, 20.9; Anal. calcd. for C24H18ClN3O2: C, 69.31; H, 4.36; N, 10.10 %. Found: C, 68.91; H, 4.46; N, 9.94 %.
4-(4-Chlorophenyl)-7-(4-fluorophenyl)-2-(2-methylprop-1-enyl)-6-nitro quinazoline (15). Yield 57%; yellow solid, mp 211 °C. 1H-NMR (200 MHz, CDCl3): δ = 8.54 (1H, s), 8.11 (1H, s), 7.79 (2H, d, J = 8.5 Hz), 7.62 (2H, d, J = 8.5 Hz), 7.44-7.37 (2H, m), 7.23-7.14 (2H, m), 6.74 (1H, s), 2.46 (3H, s), 2.12 (3H, s); 13C-NMR (50 MHz, CDCl3): δ = 168.1, 164.1, 163.2, 152.6, 152.1, 147.3, 139.9, 137.5, 134.6, 132.4, 131.7, 131.3, 129.7, 129.6, 129.5, 124.4, 123.8, 118.3, 116.3, 115.9, 28.7, 21.1; Anal. calcd. for C24H17ClFN3O2: C, 66.44; H, 3.95; N, 9.69 %. Found: C, 66.28; H, 4.11; N, 9.53 %.
4-(4-Chlorophenyl)-2-(2-methylprop-1-enyl)-6-nitro-7-o-tolyl quinazoline (16). Yield 58%; yellow solid, mp 192 °C. 1H-NMR (200 MHz, CDCl3): δ = 8.49 (1H, s), 8.08 (1H, s), 7.79 (2H, d, J = 8.4 Hz), 7.61 (2H, d, J = 8.4 Hz), 7.35-7.28 (4H, m), 6.70 (1H, s), 2.45 (3H, s), 2.43 (3H, s), 2.10 (3H, s); 13C- NMR (50 MHz, CDCl3): δ = 167.7, 164.1, 152.4, 151.5, 147.6, 140.8, 139.0, 137.2, 134.8, 133.4, 131.7, 131.2, 129.7, 129.4, 127.6, 124.7, 123.4, 118.1, 28.5, 21.3, 20.9; Anal. calcd. for C25H20ClN3O2: C, 69.85; H, 4.69; N, 9.77 %. Found: C, 69.21; H, 4.81; N, 9.52 %.

Conclusions

We have reported herein an efficient and regioselective access to symmetric and dissymmetric 4,7-diarylquinazolines by using the Suzuki-Miyaura reaction on the 4,7-dichloroquinazoline derivative 5, under microwave irradiation. The regioselectivity was controlled by modifying both the amount of arylboronic acid used and the nature of the reaction medium. This method opens the way to a general synthesis of bis-functionalized quinazolines, skeletons of great interest for designing biologically active compounds.

Acknowledgments

This work was supported by the CNRS and the University of Aix-Marseille II. The authors thank V. Remusat for the 1H- and 13C-NMR spectra recording and G. Lanzada for his technical support.
  • Sample Availability: Samples of the compounds are available from the authors.

References and Notes

  1. Miyaura, N.; Yamada, K.; Suzuki, A. A new stereospecific cross-coupling by the palladium-catalyzed reaction of 1-alkenylboranes with 1-alkenyl or 1-alkynyl halides. Tetrahedron Lett. 1979, 20, 3437–3440. [Google Scholar] [CrossRef]
  2. Miyaura, N.; Suzuki, A. Stereoselective synthesis of arylated (E)-alkenes by the reaction of alk-1-enylboranes with aryl halides in the presence of palladium catalyst. J. Chem. Soc. Chem. Commun. 1979, 866–867. [Google Scholar] [CrossRef]
  3. Miyaura, N.; Suzuki, A. Palladium-Catalyzed Cross-Coupling Reactions of Organoboron Compounds. Chem. Rev. 1995, 95, 2457–2483. [Google Scholar] [CrossRef]
  4. Miyaura, N. Organoboron Compounds. Top. Curr. Chem. 2002, 219, 11–59. [Google Scholar] [CrossRef]
  5. Suzuki, A.; Brown, H.C. Organic Syntheses via BoranesVolume 3: Suzuki coupling; Aldrich Chemical Company: Milwaukee, WI, USA, 2003. [Google Scholar]
  6. Suzuki, A. Recent advances in the cross-coupling reactions of organoboron derivatives with organic electrophiles, 1995–1998. J. Organomet. Chem. 1999, 576, 147–168. [Google Scholar]
  7. Handy, S. T.; Sabatini, J.J. Regioselective Dicouplings: Application to Differentially Substituted Pyrroles. Org. Lett. 2006, 8, 1537–1537. [Google Scholar] [CrossRef]
  8. Tikad, A.; Routier, S.; Akssira, M.; Leger, J.-M.; Jarry, C.; Guillaumet, G. New Efficient Route to Dissymmetric 2,4-Di(het)aryl-pyrido[3,2-d]pyrimidines via Regioselective Cross-Coupling Reactions. Org. Lett. 2007, 9, 4673–4676. [Google Scholar] [CrossRef]
  9. Michael, J.P. Quinoline, quinazoline and acridone alkaloids. Nat. Prod. Rep. 1999, 16, 697–709. [Google Scholar] [CrossRef]
  10. Sirisoma, N.; Kasibhatla, S.; Pervin, A.; Zhang, H.; Jiang, S.; Willardsen, J.A.; Anderson, M.B.; Baichwal, V.; Mather, G.G.; Jessing, K.; Hussain, R.; Hoang, K.; Pleiman, C.M.; Tseng, B.; Drewe, J.; Cai, S.X. Discovery of 2-Chloro-N-(4-methoxyphenyl)-N-methylquinazolin-4-amine (EP128265, MPI-0441138) as a Potent Inducer of Apoptosis with High In Vivo Activity. J. Med. Chem. 2008, 51, 4771–4779. [Google Scholar]
  11. Foote, K.M.; Mortlock, A.A.; Heron, N.M.; Jung, F.H.; Hill, G.B.; Pasquet, G.; Brady, M.C.; Green, S.; Heaton, S.P.; Kearney, S.; Keen, N.J.; Odedra, R.; Wedgea, S.R.; Wilkinsona, R.W. Synthesis and SAR of 1-acetanilide-4-aminopyrazole-substituted quinazolines: Selective inhibitors of Aurora B kinase with potent anti-tumor activity. Bioorg. Med. Chem. Lett. 2008, 18, 1904–1909. [Google Scholar]
  12. Barlaam, B.; Acton, D.G.; Ballard, P.; Bradbury, R.H.; Cross, D.; Ducray, R.; Germain, H.; Hudson, K.; Klinowska, T.; Magnien, F.; Ogilvie, D.J.; Olivier, A.; Ross, H.S.; Smith, R.; Trigwell, C.B.; Vautier, M.; Wright, L. Neutral 5-substituted 4-indazolylaminoquinazolines as potent, orally active inhibitors of erbB2 receptor tyrosine kinase. Bioorg. Med. Chem. Lett. 2008, 18, 1799–1803. [Google Scholar]
  13. Chandrika, P.M.; Yakaiah, T.; Ram Rao, A.R.; Narsaiah, B.; Reddy, N.C.; Sridhar, V.; Rao, J.V. Synthesis of novel 4,6-disubstituted quinazoline derivatives, their anti-inflammatory and anti-cancer activity (cytotoxic) against U937 leukemia cell lines. Eur. J. Med. Chem. 2008, 43, 846–852. [Google Scholar]
  14. Verhaeghe, P.; Azas, N.; Gasquet, M.; Hutter, S.; Ducros, C.; Laget, M.; Rault, S.; Rathelot, P.; Vanelle, P. Synthesis and antiplasmodial activity of new 4-aryl-2-trichloromethylquinazolines. Bioorg. Med. Chem. Lett. 2008, 18, 396–401. [Google Scholar]
  15. Verhaeghe, P.; Azas, N.; Hutter, S.; Castera-Ducros, C.; Laget, M.; Dumètre, A.; Gasquet, M.; Reboul, J.-P.; Rault, S.; Rathelot, P.; Vanelle, P. Synthesis and in vitro antiplasmodial evaluation of 4-anilino-2-trichloromethylquinazolines. Bioorg. Med. Chem. 2009, 17, 4313–4322. [Google Scholar] [CrossRef]
  16. Kabri, Y.; Azas, N.; Dumètre, A.; Hutter, S.; Laget, M.; Verhaeghe, P.; Gellis, A.; Vanelle, P. Original quinazoline derivatives displaying antiplasmodial properties. Eur. J. Med. Chem. 2010, 45, 616–622. [Google Scholar]
  17. Dallinger, D.; Kappe, C.O. Microwave-Assisted Synthesis in Water as Solvent. Chem. Rev. 2007, 107, 2563–2591. [Google Scholar] [CrossRef]
  18. Gong, Y.; He, W. Direct Synthesis of Unprotected 4-Aryl Phenylalanines via the Suzuki Reaction under Microwave Irradiation. Org. Lett. 2002, 4, 3803–3805. [Google Scholar] [CrossRef]
  19. Arvela, R.K.; Leadbeater, N.E. Microwave-Promoted Heck Coupling Using Ultralow Metal Catalyst Concentrations. J. Org. Chem. 2005, 70, 1786–1790. [Google Scholar] [CrossRef]
  20. Gellis, A.; Boufatah, N.; Vanelle, P. Rapid microwave-promoted synthesis of new sulfonylmethylbenzothiazoles in water. Green Chem. 2006, 8, 483–487. [Google Scholar] [CrossRef]
  21. Villemin, D.; Caillot, F. Microwave mediated palladium-catalysed reactions on potassium fluoride/alumina without use of solvent. Tetrahedron Lett. 2001, 42, 639–642. [Google Scholar] [CrossRef]
  22. Varma, R.S. Solvent-free accelerated organic syntheses using microwaves. Pure Appl. Chem. 2001, 73, 193–198. [Google Scholar] [CrossRef]
  23. Cvengros, A.; Toma, S.; Marque, S.; Loupy, A. Synthesis of phosphonium salts under microwave activation — Leaving group and phosphine substituents effects. Can. J. Chem. 2004, 82, 1365–1371. [Google Scholar] [CrossRef]
  24. He, P.; Haswell, S.J.; Fletcher, D.I. Microwave-assisted Suzuki reactions in a continuous flow capillary reactor. Appl. Catal. A Gen. 2004, 274, 111–114. [Google Scholar] [CrossRef]
  25. Genov, M.; Almorin, A.; Espinet, P. Microwave assisted asymmetric Suzuki-Miyaura and Negishi cross-coupling reactions: Synthesis of chiral binaphthalenes. Tetrahedron Asymmetry 2007, 18, 625–627. [Google Scholar] [CrossRef]
  26. Kabri, Y.; Gellis, A.; Vanelle, P. Synthesis of original 2-substituted 4-arylquinazolines by microwave-irradiated Suzuki-Miyaura cross-coupling reactions. Eur. J. Org. Chem. 2009, 4059–4066. [Google Scholar]
  27. Mangalagiu, I.; Benneche, T.; Undheim, K. Trialkylalanes in palladium-catalyzed chemo- and regioselective alkylations. Tetrahedron Lett. 1996, 37, 1309–1312. [Google Scholar] [CrossRef]
  28. Li, H.; Wang, Y.; McMillen, W.T.; Chatterjee, A.; Toth, J.E.; Mundla, S.R.; Voss, M.; Boyer, R.D.; Sawyer, J.S. A concise synthesis of quinazolinone TGF-β RI inhibitor through one-pot three-component Suzuki–Miyaura/etherification and imidate–amide rearrangement reactions. Tetrahedron 2007, 63, 11763–11770. [Google Scholar]
  29. Littke, A.F.; Fu, G.C. Palladium-Catalyzed Coupling Reactions of Aryl Chlorides. Angew. Chem. Int. Ed. 2002, 41, 4176–4211. [Google Scholar] [CrossRef]
  30. Kabri, Y.; Gellis, A.; Vanelle, P. Microwave-assisted synthesis in aqueous medium of new quinazoline derivatives as anticancer agent precursors. Green Chem. 2009, 11, 201–208. [Google Scholar] [CrossRef]
  31. Tworowski, D.; Matsievitch, R. Preparation of piperazine derivatives for treatment of sexual disorders. PCT Int. Appl. WO 2007110868, 2007. [Chem. Abstr. 2007, 147, 427370]. [Google Scholar]
  32. Crozet, M.P.; Gellis, A.; Pasquier, C.; Vanelle, P.; Aune, J.-P. Electron transfer reactivity in 5-nitrouracil series. Tetrahedron Lett. 1995, 36, 525–528. [Google Scholar]
  33. Gellis, A.; Vanelle, P.; Kaafarani, M.; Benakli, K.; Crozet, M.P. Synthèse et réactions SRN1 en série 5-nitrothiazole. Tetrahedron 1997, 53, 5471–5484. [Google Scholar]
  34. Conolly, D.J.; Lacey, P.M.; Mc Carthy, M.; Saunders, C.P.; Carroll, A.-M.; Goddard, R.; Guiry, P.J. Preparation and Resolution of a Modular Class of Axially Chiral Quinazoline-Containing Ligands and Their Application in Asymmetric Rhodium-Catalyzed Olefin Hydroboration. J. Org. Chem. 2004, 69, 6572–6589. [Google Scholar] [CrossRef]
  35. Pedzisa, L.; Vaughn, I.W.; Pongdee, R. Suzuki–Miyaura cross-coupling of α-phosphoryloxy enol ethers with arylboronic acids. Tetrahedron Lett. 2008, 49, 4142–4144. [Google Scholar] [CrossRef]
  36. Eichenberger, T.; Ruch, T. Bulk dyeing of polymeric material with polycyclic compounds, and the dyes used. Eur. Pat. Appl. EP 763538, 1997. [Google Scholar]
