Review

The 9-Phenyl-9-fluorenyl Group for Nitrogen Protection in Enantiospecific Synthesis

Laboratory of Organic Chemistry, Department of Chemistry, Aalto University, School of Science and Technology, PO Box 16100, Kemistintie 1, FI-00076 Aalto, Finland
*
Author to whom correspondence should be addressed.
Molecules 2010, 15(9), 6512-6547; https://doi.org/10.3390/molecules15096512
Submission received: 12 August 2010 / Revised: 13 September 2010 / Accepted: 14 September 2010 / Published: 17 September 2010
(This article belongs to the Special Issue Protecting Group in Organic Synthesis)

Abstract

:
One of the biggest challenges in asymmetric synthesis is to prevent racemization of enantiopure starting materials. However, at least some of the enantiopurity is lost in most of the existing reactions used in synthetic organic chemistry. This translates into unnecessary material losses. Naturally enantiopure proteinogenic amino acids that can be transformed into many useful intermediates in drug syntheses, for example, are especially vulnerable to this. The phenylfluoren-9-yl (Pf) group, a relatively rarely used protecting group, has proven to be able to prevent racemization in α-amino compounds. This review article showcases the use of Pf-protected amino acid derivatives in enantiospecific synthesis.

Graphical Abstract

1. Introduction

Of the 20 natural proteinogenic amino acids, 19 are chiral, and being readily commercially available, they are potentially useful educts for enantiospecific synthesis. Typically the nitrogen atom needs to be protected to allow further manipulations of the carboxylic acid center. Common nitrogen protecting groups include removable alkyl groups such as benzyl and substituted benzyl groups, or more frequently carbamates such as tert-butyl, benzyl or fluorenylmethyl carbamates (Boc, Cbz and Fmoc, respectively). Common nitrogen protecting groups do not fare well in guarding the enantiomeric purity of α-chiral amino carbonyl compounds, because they fail to shield the acidic α-proton from removal. Surprisingly little attention has been paid to the fact that most of the chemistry emanating from these valuable chiral pool educts often leads to the destruction of significant amounts of the chiral information and even under carefully controlled conditions some erosion of enantiopurity is observed. The 9-phenylfluoren-9-yl (Pf) group has proven to be an outstanding choice for protecting the α-center of the amino acid derivatives against epimerization and some 250 papers and patents have been published on the chemistry of the Pf group acting as a protecting group on nitrogen. Rather than offering a comprehensive review, we have selected representative references to highlight the pros and cons of the chemistry based on Pf protection.

2. The Phenylfluorenyl Group

2.1. Generalities

Structurally the phenylfluorenyl (Pf) group resembles the trityl protecting group. Trityl groups were first used to protect amines instead of t-butyl and phenylmethyl carbamates (Fmoc, Boc, Cbz) in order to protect the α-center, and N-trityl amino compounds were observed to retain their enantiopurity with >90% ee [1]. However, the resulting tritylamines are acid labile, thus rendering them of limited use, and alternative protecting groups of similar size were needed. The Pf group, known to be solvolytically >6,000 times more acid stable than trityl [2] entered the picture in the 1980s [3].
The strength of the Pf group lies in its sterically demanding size that protects the α-center. It has been calculated that in an N-Pf α-amino acid derivative, the steric bulk of the Pf group forces the compound to adopt a conformation in which the dihedral angle between the carbonyl group and the α-hydrogen is ~ 0° or 180° [4]. In cyclic compounds the Pf group drives the α-hydrogen into an equatorial position [5]. (Figure 1 and Figure 2)

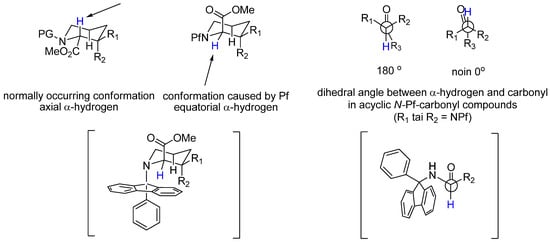

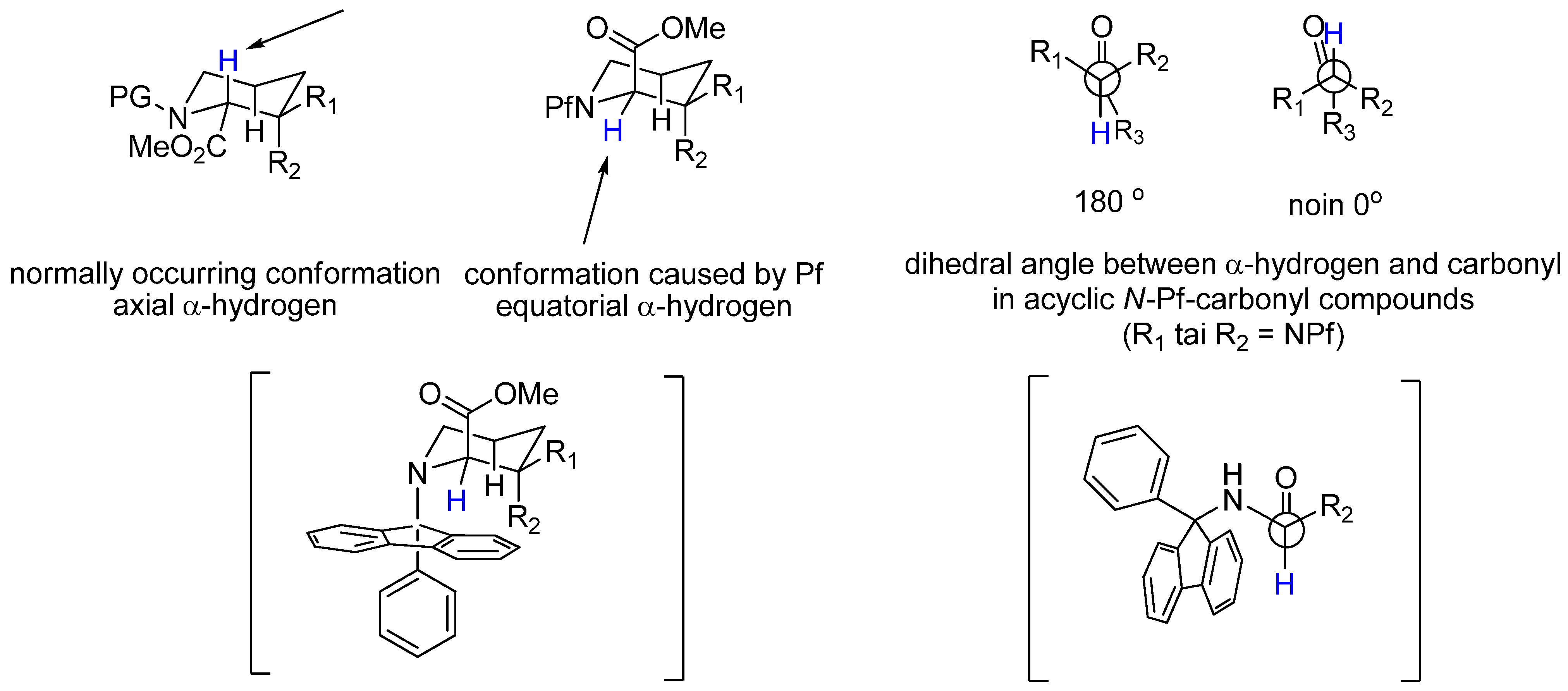

Figure 1. Conformational analysis of cyclic and acyclic compounds.
Figure 1. Conformational analysis of cyclic and acyclic compounds.
Molecules 15 06512 g001

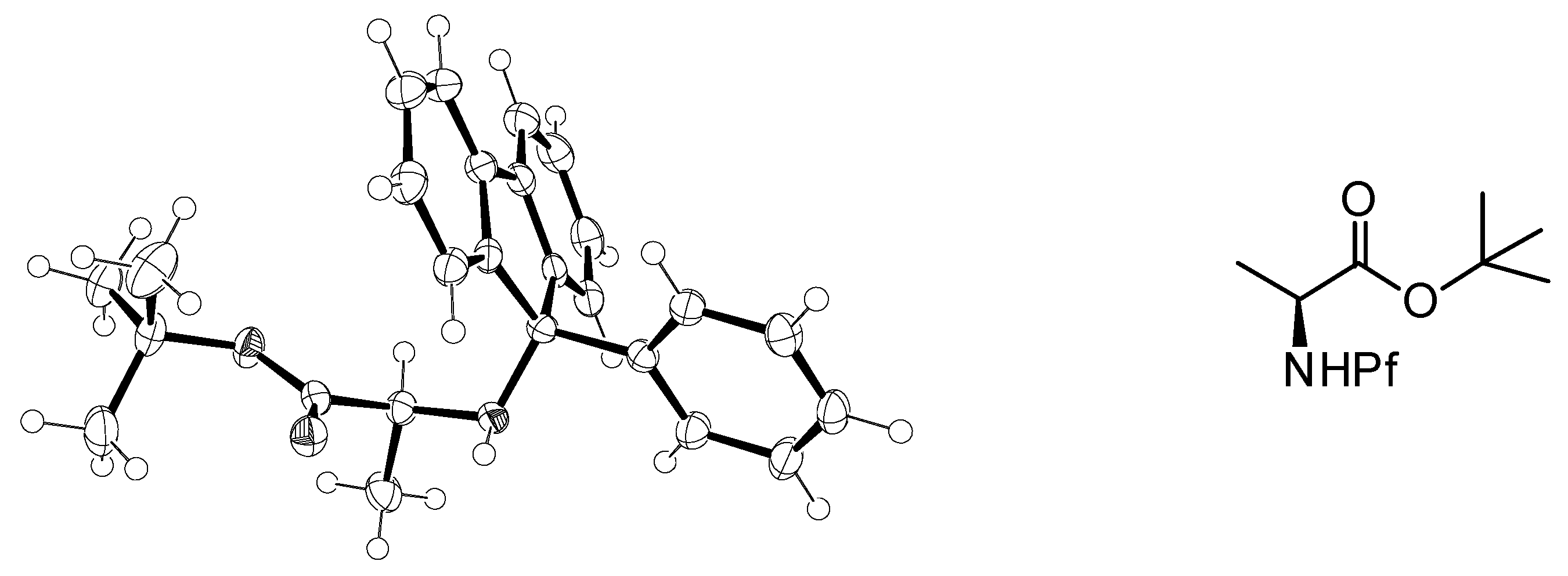

Figure 2. Crystal structure of N-Pf alanine tert-butyl ester [6].
Figure 2. Crystal structure of N-Pf alanine tert-butyl ester [6].
Molecules 15 06512 g002
Not only the steric bulk of the Pf group, but also stereoelectronics may play a role in its ability to protect the α-center. For example in the case of esters, this could be further explained as follows: the most favorable conformation for deprotonation is one in which the α-hydrogen-carbon bond lies in a plane orthogonal to the plane of the carbonyl system, allowing for maximum orbital overlap as the α-carbon rehybridizes from sp3 to sp2. However, the α-proton and the carbonyl group in N-Pf-protected esters are nearly coplanar. Thus the rate of α-deprotonation would be stereoelectronically retarded in any ester for which such a conformation is highly favored.
According to crystal structure analyses the α-ester group and the fluorenyl ring are in close contact. This is strongly supported by the fact that the proton NMR shows a methyl ester resonance at 2.92 ppm (an unusually upfield chemical shift). So, achieving a stereoelectronically favorable conformation during deprotonation would require the ester group to rotate into the region of space occupied by the Pf group, resulting in allylic strain in the enolate-like transition state. This has been observed in the context with the alkylation of N-Pf-L-glutamate [7].
The racemization of N-Pf-compounds could be considered very unlikely after further investigating the stability in basic conditions. In strongly basic conditions the Pf anion can act as a leaving group giving rise to an imine (Scheme 1). This elimination occurs faster/easier than the inversion and reprotonation of the anion [5].

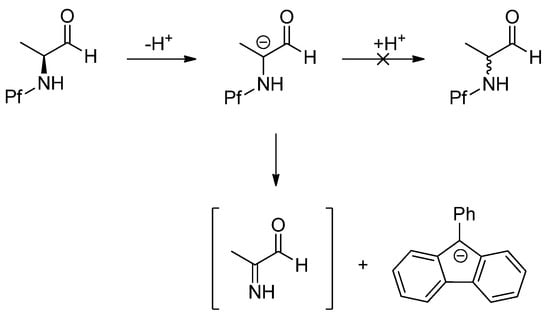

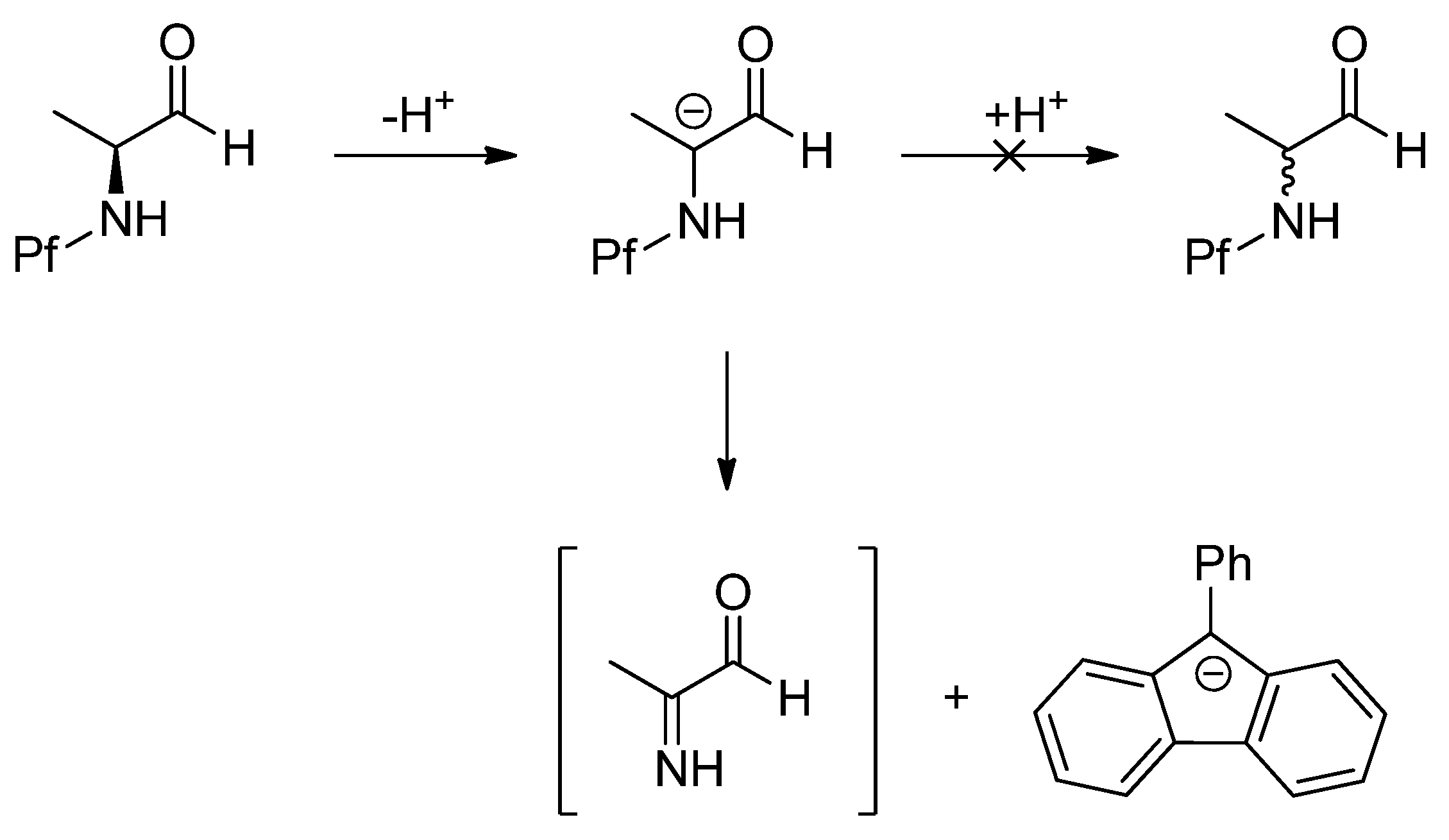

Scheme 1. The decomposition of N-Pf amino aldehyde in basic conditions.
Scheme 1. The decomposition of N-Pf amino aldehyde in basic conditions.
Molecules 15 06512 g015

2.2. Phenylfluorenylation

Phenylfluorenylation was originally carried out by modifying and applying the existing method for making N-trityl compounds [3], which is still the most widely used. This traditional method utilizes 9-bromo-9-phenylfluorene (PfBr, 1). The protection is based on improving Br’s role as a leaving group with halogenophilic lead nitrate. The amino acid can be used free as such, when it has to be temporarily protected with TMSCl. It is also possible to use the corresponding methyl ester HCl salt 2. (Scheme 2) Phenylfluorenylation is slow, taking several days, but the reaction is robust and the yields are generally good [8].

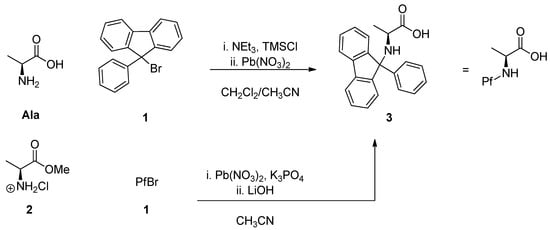

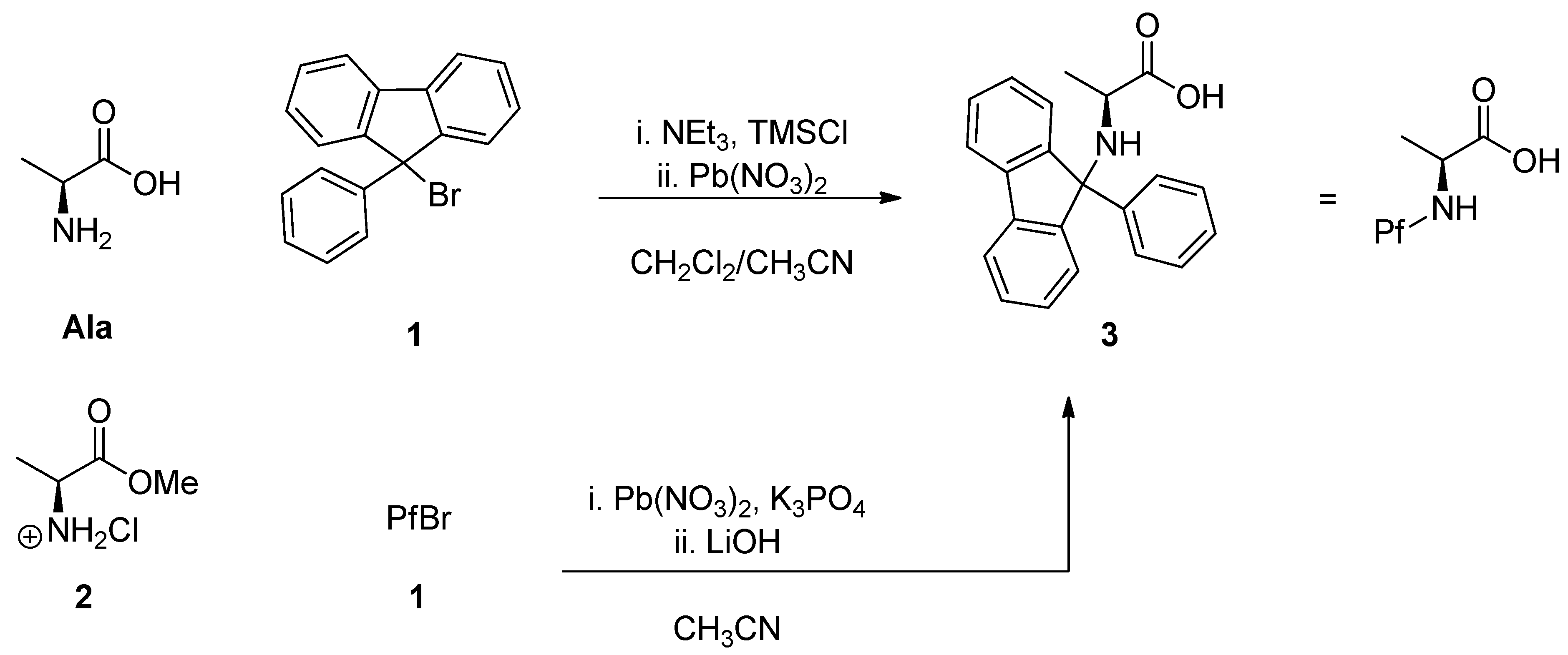

Scheme 2. Traditional phenylfluorenylation [8].
Scheme 2. Traditional phenylfluorenylation [8].
Molecules 15 06512 g016

2.3. Cleavage of Pf from nitrogen

The Pf group is usually removed by hydrogenolysis [9] and solvolysis under strongly acidic conditions [5]. It can also be removed by lithium or sodium in ammonia solution [10], by TMSOTf in the presence of triethyl silane [11] or by iodine in methanol [12].

2.4. Phenylfluorenyl cation

Phenyfluorenyl cations have been made from fluorenol with strong acids such as sulphonic or triflic acid. In solution the cations are deep red and with an absorption maximum at λmax = 494 nm. Quenching the cation with methanol forms Pf methyl ether as the main product [13].

3. The Phenylfluorenyl Group in Synthesis

The Pf group has been used as a protecting group for nitrogen atoms exclusively in amino acids. It maintains the configurational integrity of the α-amino compounds during different kinds of C-C forming reactions. Enolization and alkylation [14], Wittig and aldol reactions [15], as well as Grignard addition [14] of N-Pf-amino carbonyl compounds are examples of reactions where the enantiomeric purity is preserved. Actually this applies to all examples presented in this review, although it is not mentioned in the form of ee’s (>99.9%) later on.

3.1. Amino aldehydes

Carbamate protected amino aldehydes are versatile intermediates in the synthesis of polyfunctional amino acids, peptide analogues, sphingolipids and aminosugars. They are configurationally unstable and racemize, even upon rapid chromatography on silica gel [16]. The enantiomeric purity is usually not maintained in nucleophilic additions. Trityl-protected amino aldehydes are less prone to racemization than carbamate protected ones, but they are extremely acid labile, even under mildly acidic conditions. N-Pf-Amino aldehydes are configurationally stable when subjected to both additions and flash chromatography [5].
N-Pf-Amino aldehydes can be prepared from amino acids by reducing the ester to the alcohol with LiAlH4 and then oxidizing it to aldehyde by Swern oxidation [17]. Another option is to form an isoxazolidide and reduce it to the aldehyde with LiAlH4 [5]. Preparation of aldehydes is outlined in Scheme 3.

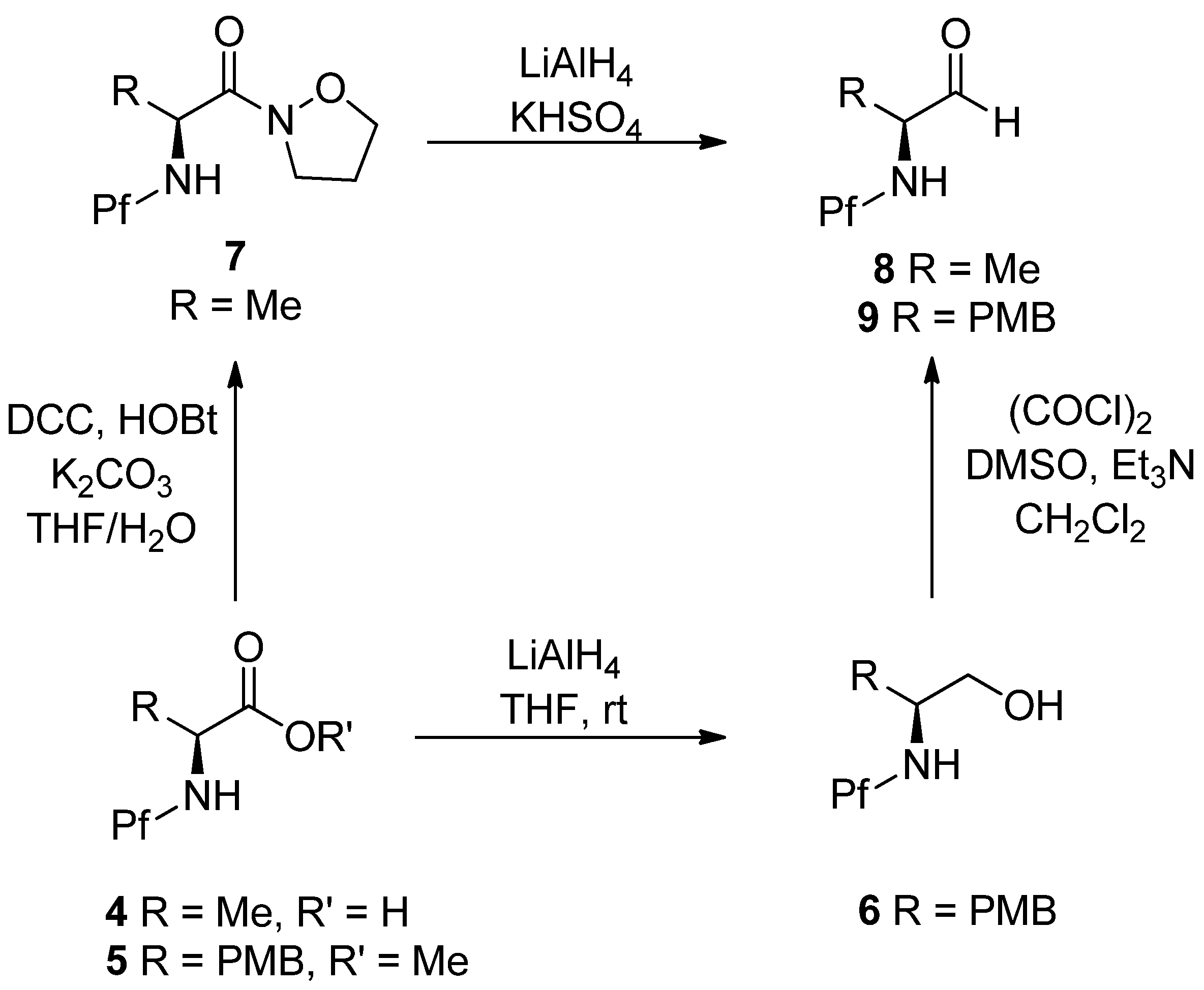

Scheme 3. Preparation of amino aldehydes.
Scheme 3. Preparation of amino aldehydes.
Molecules 15 06512 g017
Grignard, Wittig and aldol additions of N-Pf-amino aldehydes are outlined in Scheme 4. It is worth noticing that these reactions are not diastereoselective [5].

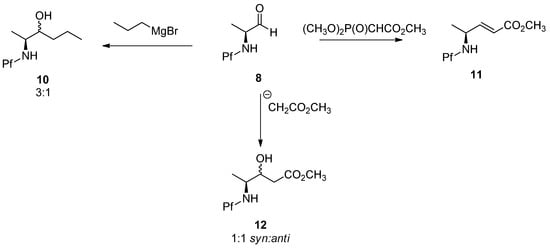

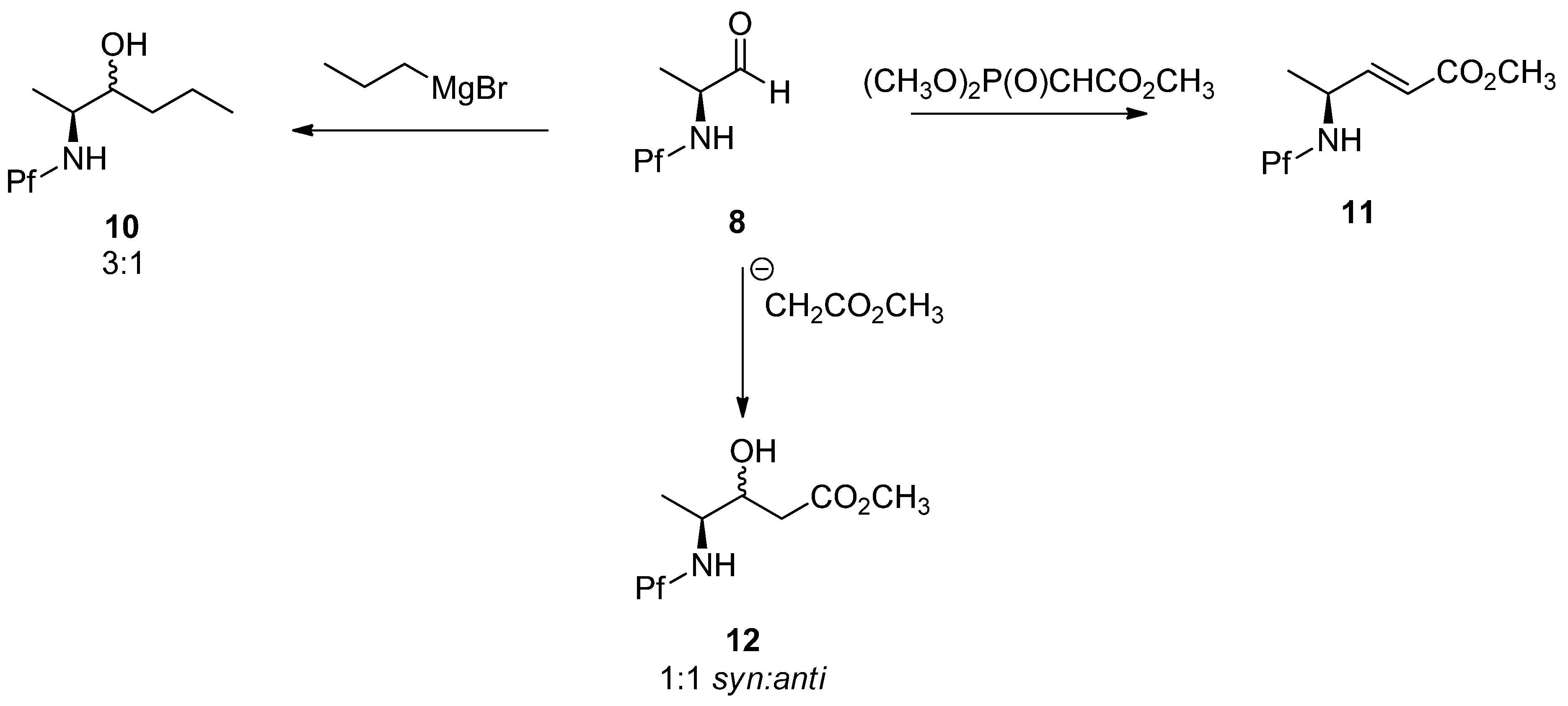

Scheme 4. Grignard, Wittig and aldol addition of N-Pf-amino aldehydes.
Scheme 4. Grignard, Wittig and aldol addition of N-Pf-amino aldehydes.
Molecules 15 06512 g018

3.2. Amino ketones

N-Pf-Amino ketones can be prepared by nucleophilic addition either to a carboxylic ester [18], an aldehyde [14], an oxazolidinone [19] or an isoxazolidide [10]. However, the most widely used routes, presumably because of their good yields compared to others, are via an aldehyde or an oxazolidinone. A secondary alcohol is formed in the addition to an aldehyde and it needs to be further oxidized (Scheme 5).

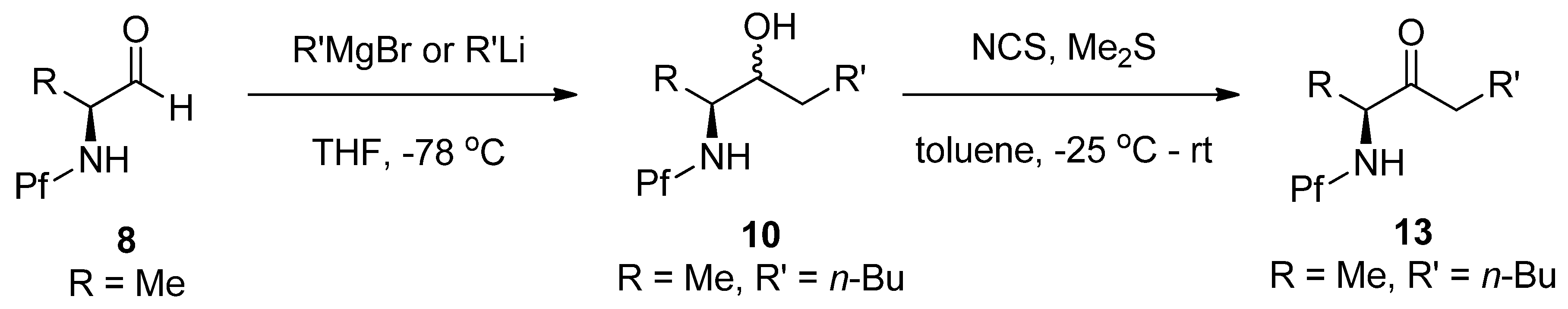

Scheme 5. Ketone formation by nucleophilic addition to aldehyde [14].
Scheme 5. Ketone formation by nucleophilic addition to aldehyde [14].
Molecules 15 06512 g019
The advantage of proceeding through the oxazolidinone is the temporary full protection of nitrogen. The ketone can be formed by treatment with an alkyl lithium, for example. The corresponding Grignard reaction leads to N-alkylated product, presumably through an iminium ion intermediate [19](Scheme 6).

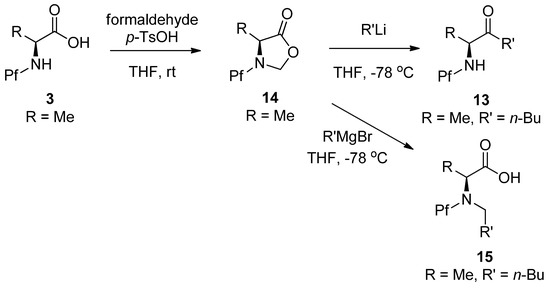

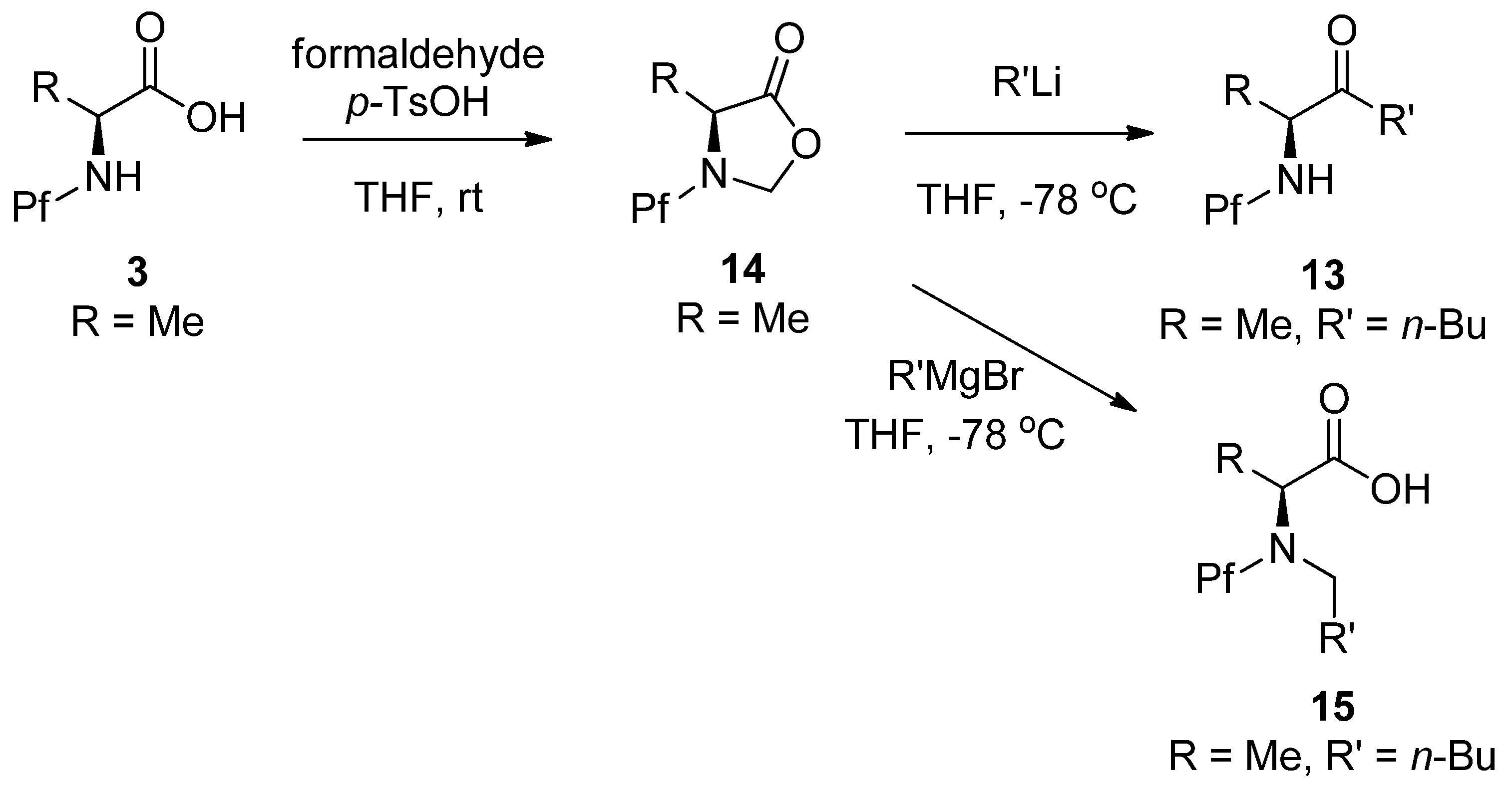

Scheme 6. A method for preparation of N-Pf amino ketones through an oxazolidinone intermediate.
Scheme 6. A method for preparation of N-Pf amino ketones through an oxazolidinone intermediate.
Molecules 15 06512 g020

4. Enolization and Alkylation

Enolization and alkylation are important reactions in synthesis, especially if they can be performed regioselectively. α-Amino ketones possess two enolizable positions (Figure 3), often leading to poor selectivity in their alkylations. Amide- and carbamate protected aminoketones are easily alkylated at the α-carbon, which is often undesired. Their regioselective enolization in the α’-carbon is possible by kinetic control using LDA as the base.

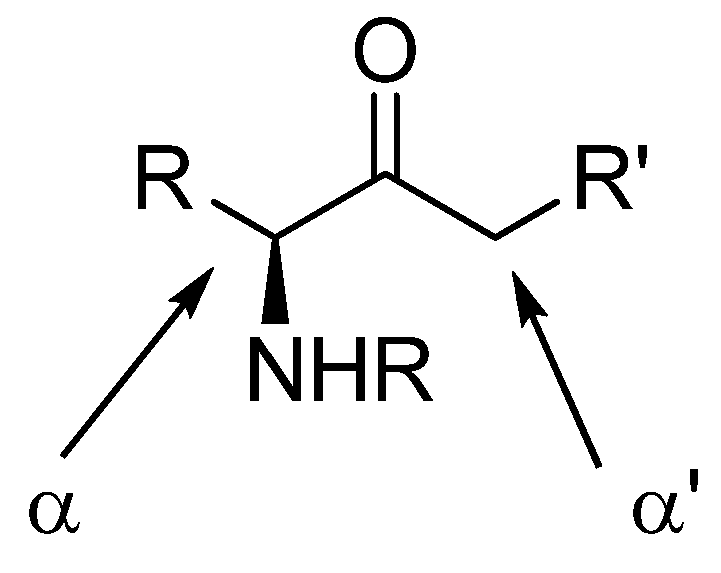

Figure 3. Easily enolizable positions in amino ketones.
Figure 3. Easily enolizable positions in amino ketones.
Molecules 15 06512 g003
Pf directs the regioselectivity of enolization and alkylation in both cyclic and acyclic compounds. The Pf protected amino ketones are deprotonated and alkylated solely at α’-carbon. This feature of the Pf group has been most widely utilized. Enolization is commonly performed with KHMDS as a base and alkyl halides as electrophiles [14].

4.1. Stereoselectivity of alkylation

In general, the diastereoselectivity in alkylations of N-Pf-amino compounds is poor. The main product in the alkylation in Scheme 7 is syn, with up to 5:1 selectivity. It should be noted that the diastereoselectivity is dependent on the base, enolate cation and electrophile [14]. In spite of its size, the Pf group does not contribute to the selectivity.

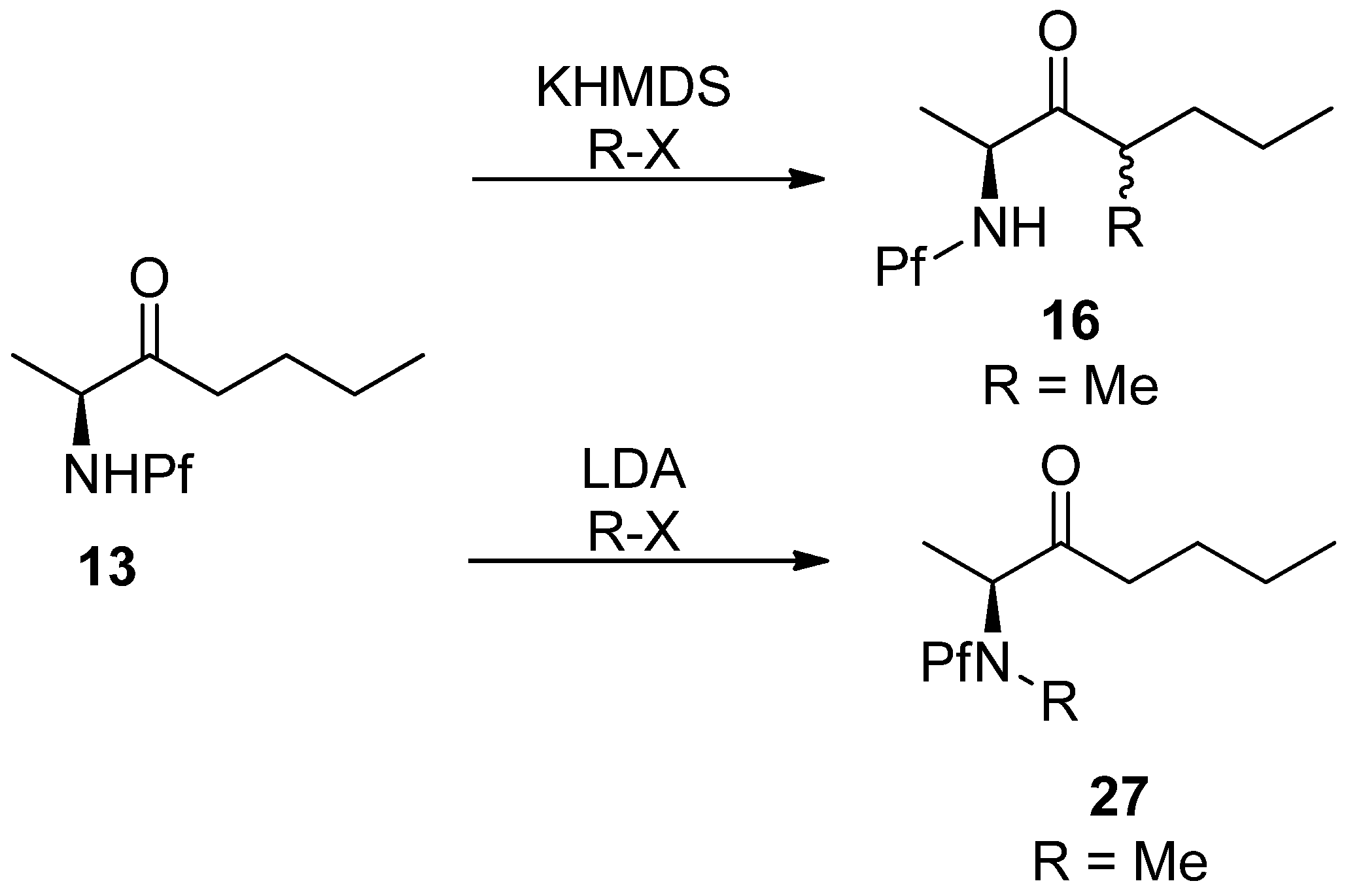

Scheme 7. Regioselectivity of amino ketones is due to the base.
Scheme 7. Regioselectivity of amino ketones is due to the base.
Molecules 15 06512 g021
The syn-selectivity of this alkylation can be explained by two transition state models. In the chelation model the nitrogen atom and the enolate oxygen atom are coplanar because of the electrostatic interaction with the K+-cation. In the other model the amino and methyl groups are gauche to the enolate oxygen. The electrophile approaches from the less hindered face, which forms the syn isomer in the chelation model and anti isomer in the non-chelated model. The chelated model is assumed to be more stable, because the steric interactions (allylic A1,3-strain) between the α- and vinyl protons and methyl and oxygen are small. (Scheme 8)

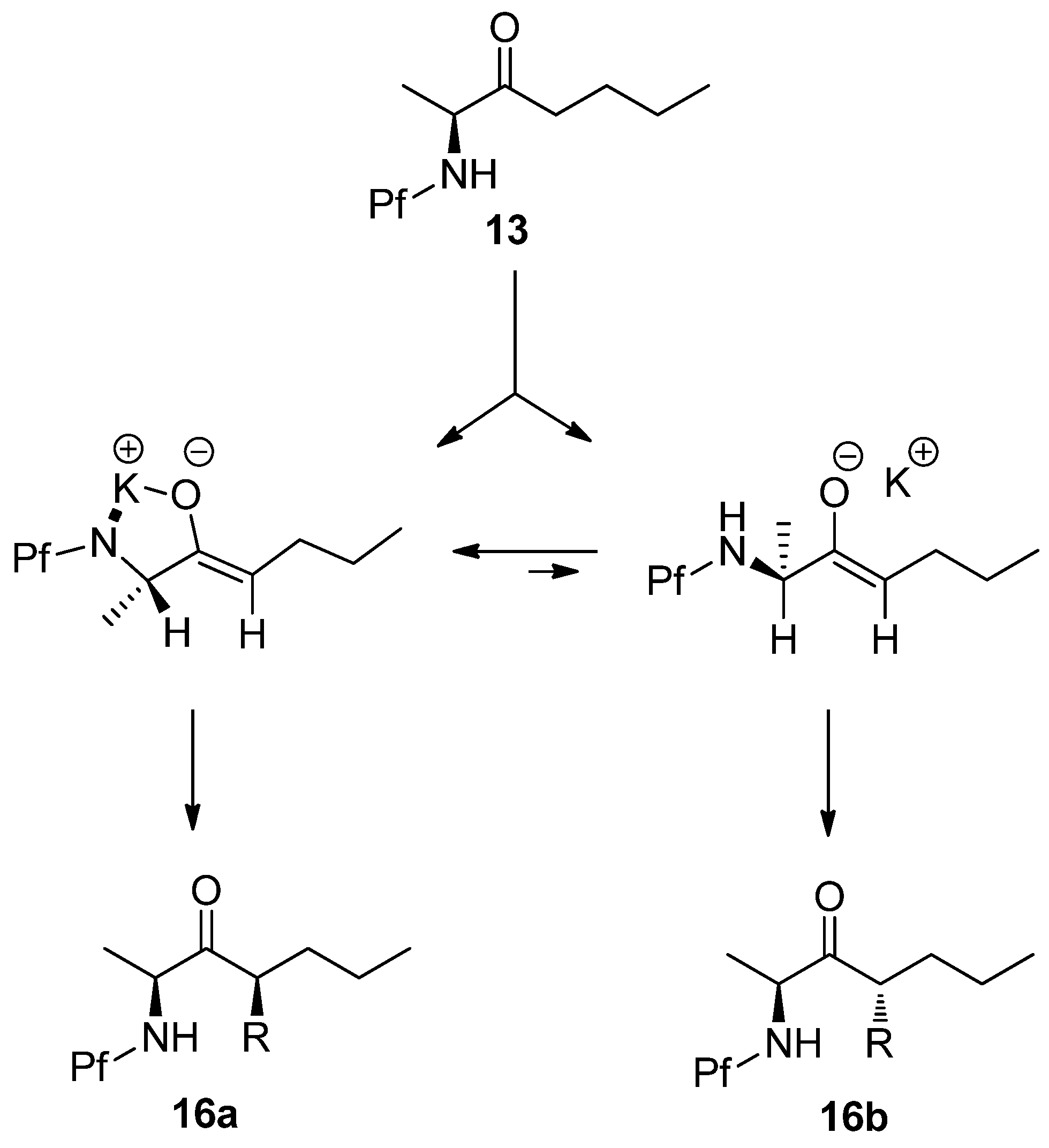

Scheme 8. Chelation model [14].
Scheme 8. Chelation model [14].
Molecules 15 06512 g022
The influence of electrophiles in diastereoselectivity is presented in Table 1.
Table 1. Diastereoselectivity in regioselective alkylation.
Table 1. Diastereoselectivity in regioselective alkylation.
Alkyl halideTime / hYielda / % dr 16 (a:b)
MeI3942.2:1
BnI6805:1
Allyl bromide6775:1
Methyl α-bromopropanoate8,5382.2:1
a 16a + 16b

4.2. Alkylation of nitrogen and synthesis of pipecolates

The alkylation of nitrogen is often unwanted, but it can be utilized in preparing pipecolates from N-Pf-aspartate (Scheme 9) [3,20]. However, the electrophile must be particularly reactive, such as 3-bromochloropropane (BCP) [21], for N-alkylation to succeed.

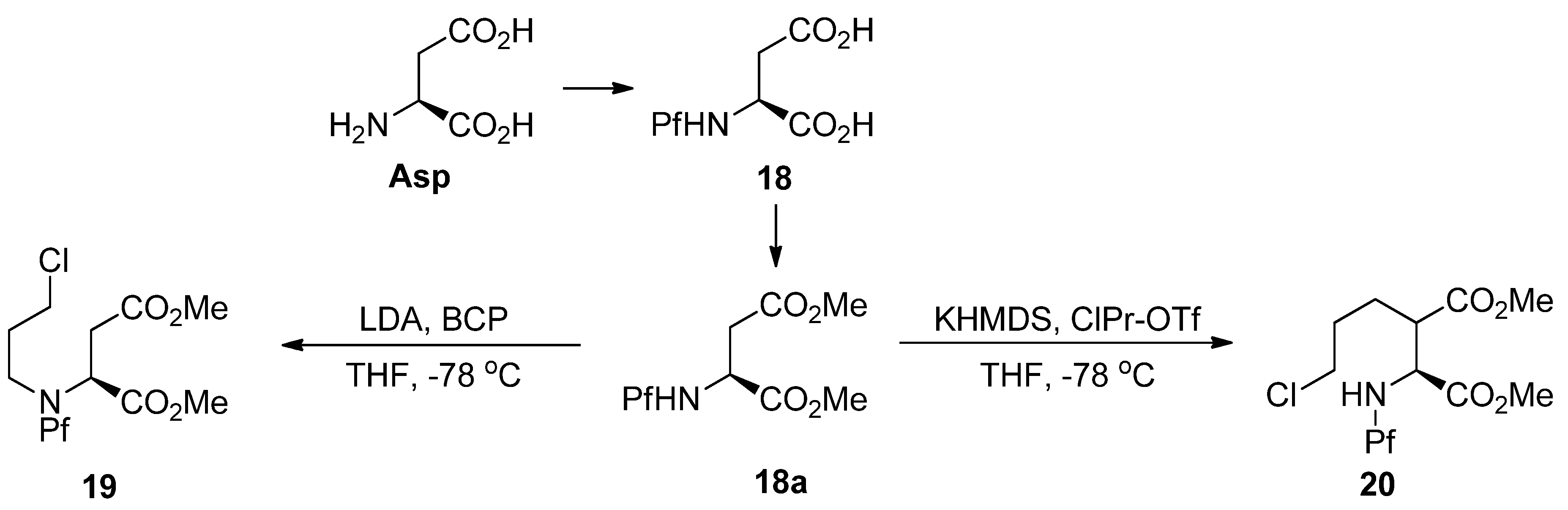

Scheme 9. N- and C-alkylation of L-aspartate methyl ester.
Scheme 9. N- and C-alkylation of L-aspartate methyl ester.
Molecules 15 06512 g023
The pipecolate structure formed in the ring forming reaction is rigid, so it can be alkylated diastereoselectively. The axial benzyl ester shields the upper side of the piperidine ring, which makes the electrophile approach from the lower side (Scheme 10).

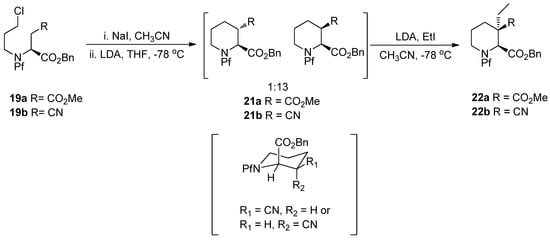

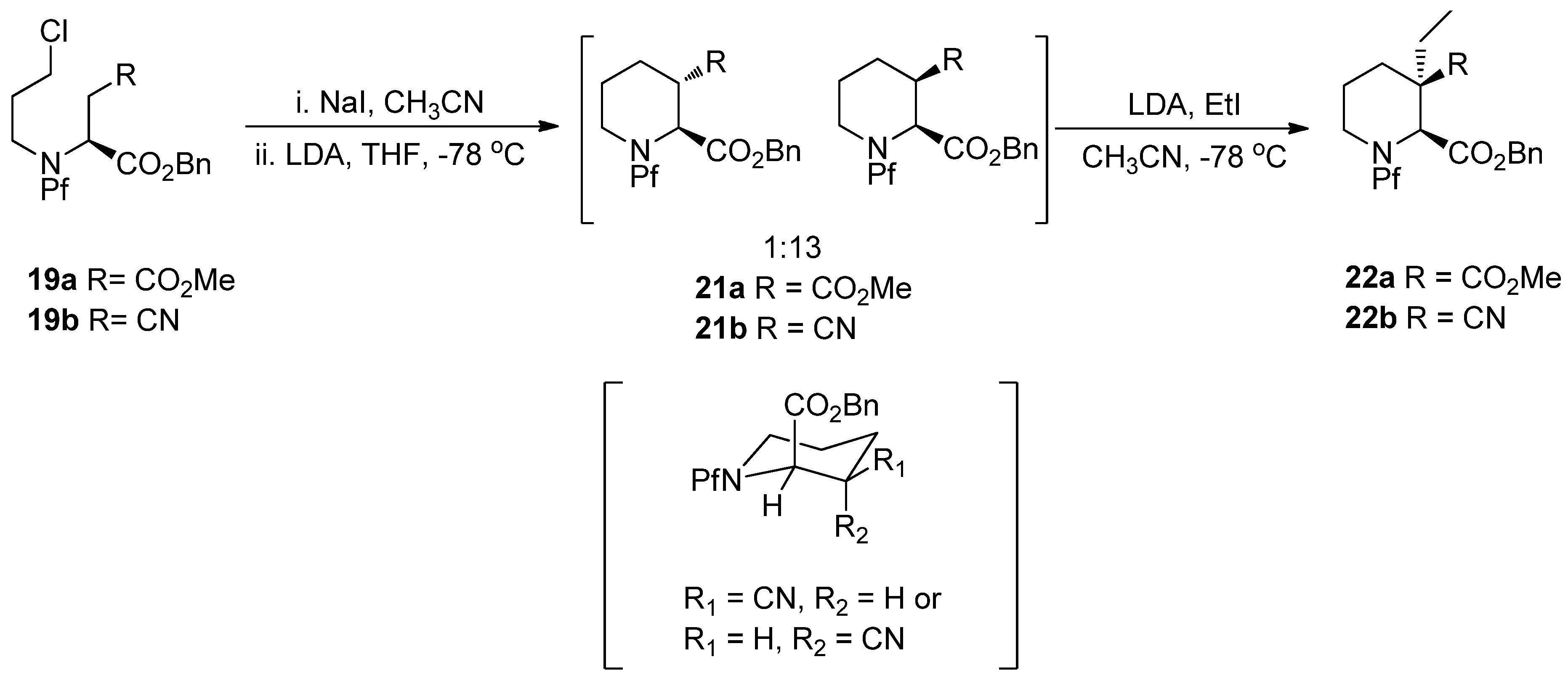

Scheme 10. Alkylation of pipecolates [3].
Scheme 10. Alkylation of pipecolates [3].
Molecules 15 06512 g024

4.3. Aids in alkylation

In some cases the alkylation may need a cosolvent, like DMPU, DMEU or HMPA, to break the enolate complex. For example the alkylation of serine derived oxazolidinone and oxazolidide by lithium and potassium enolates in THF has been helped to go forward with DMEU (Scheme 11). KHMDS yields both mono- and di-alkylated product. LiHMDS gives mainly monoalkylated product [10].

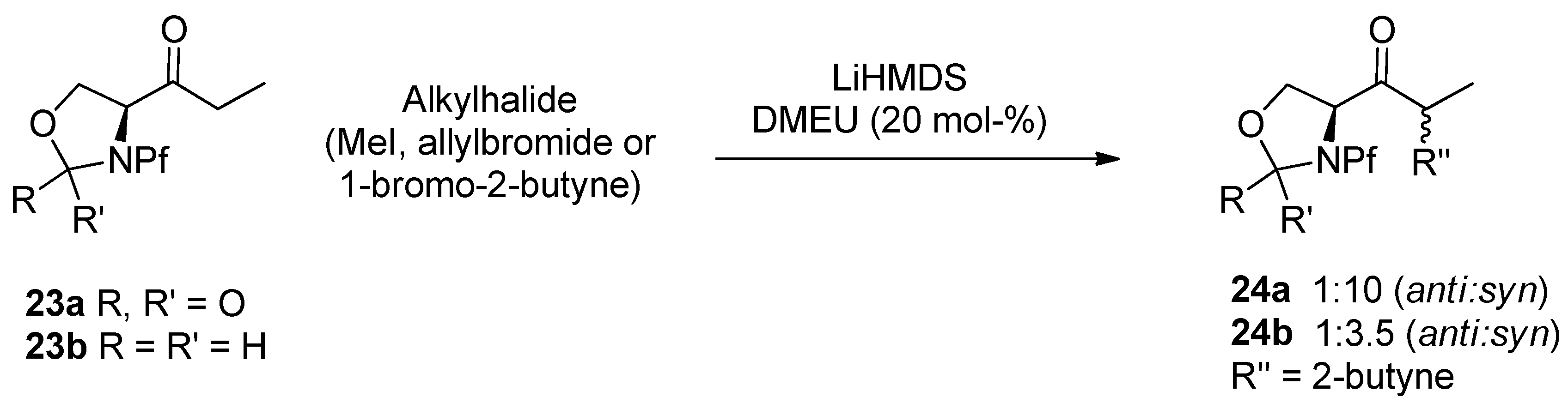

Scheme 11. Alkylation of oxazolidinone and oxazolidide.
Scheme 11. Alkylation of oxazolidinone and oxazolidide.
Molecules 15 06512 g025

5. Alkylation of L-Aspartate and L-Glutamate

Enolization and alkylation of L-aspartate at the β-carbon is a robust and a straightforward reaction [22]. In this particular case, the Pf group has been reported to protect both the α- and β-centers from racemization. Diastereoselectivity of the alkylation is not good and cannot be explained unambiguously. An almost 1:1 mixture is generally formed, but excellent selectivities can also be achieved. For dialkylation, the Pf protecting group has recently been used as a directing group in the synthesis of polytheonamide B [23].

5.1. Stereoselectivity of alkylation of L-aspartate

Improving the stereoselectivity of alkylation of N-Pf-aspartate ester enolates has been attempted by fully protecting the nitrogen. The highest stereoselectivity (50:1 syn:anti/anti:syn) has been achieved by diprotecting the nitrogen with Pf and Bn [24]. In that case the selectivity is determined so that KHMDS gives dominantly the anti- while LiHMDS gives the syn-product. The impact. of the electrophiles on selectivity are presented in Table 2.
Table 2. Alkylation of N-Pf-Bn-D-aspartate.
Table 2. Alkylation of N-Pf-Bn-D-aspartate.
Molecules 15 06512 i001
ElectrophileKHMDS, -23 °CLiHMDS, -23 °CLiHMDS, -78 °C
26 (a:b)26 (a:b)26 (a:b)
Allyl iodide1:1023:1-
MeI2:1>50:1>50:1
BnBr>1:50>50:1>50:1
It has been shown by trapping the enolate formed in the reaction with TMSCl that potassium and lithium bases form different enolates. Potassium base forms a Z-enolate and a cyclic chelated transition state. The anti product arises when the electrophile approaches from the less hindered face opposite to the Pf group. Lithium enolate has a E-geometry so it can not chelate. The electrophile approaches from the less hindered face and the product is syn (Figure 4) [24].

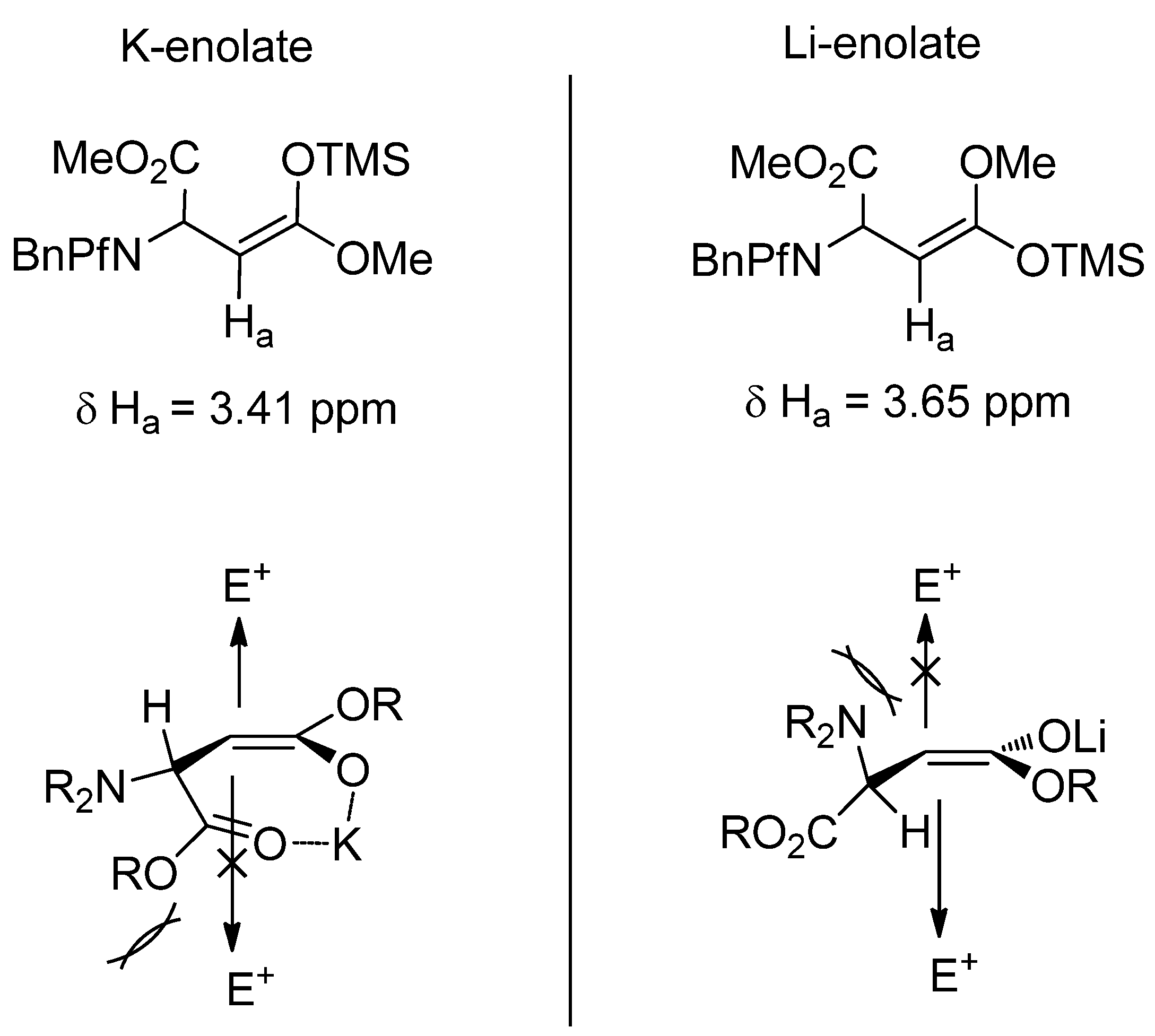

Figure 4. Silyl ketene acetals of potassium and lithium enolates, and the geometries that affect the stereoselectivity of alkylation.
Figure 4. Silyl ketene acetals of potassium and lithium enolates, and the geometries that affect the stereoselectivity of alkylation.
Molecules 15 06512 g004

5.2. Hydroxylation and amination of L-aspartate

Hydroxylation (Table 3) and amination of N-Pf-aspartate enolates have shown that stereoselectivity is dependent on interactions of many factors. The stereogenic center is affected by the enolate geometry, counter cation, reaction conditions, cosolvent, electrophile and the ionization degree of the amino group [25].
Table 3. Hydroxylation of L-aspartate methyl ester.
Table 3. Hydroxylation of L-aspartate methyl ester.
Molecules 15 06512 i002
18aBase (mol %)Cosolvent27 (a:b)Yield 27 (%)a
1KHMDS (180)-3:190
2LHMDS (300)-1:865
3LDA (300)-2:145
4LTMP (180)-1:222
5LHMDS (300)DMPU8:192
6LHMDS (300)HMPA11:174
7LHMDS (300)DME1:2.570
8LHMDS (300)TMEDA1:880
9LHMDS (300)PMDET1:575
10KHMDS (180)18-crown-6-
11LHMDS (300)12-crown-4-
12n-BuLi (100) / LHMDS (300)-1:2060
13n-BuLi (100) / LHMDS (300)HMPA2:195
a Yield (%) mixture of epimers
The use of Davis’ reagent as the hydroxylating agent gives a 1:1 mixture of diastereomers under all conditions examined. N-Pf-Aspartate tert-butyl ester and free acid react with poor selectivity. Enolates generated with LiHMDS do not react at all with MoOPH [25].
The selectivity has been explained by mechanistic studies. The enolate is presumably in equilibrium with an open and a chelated form, in which the Pf group is in an equatorial position. Cosolvents like DMPU and HMPA that coordinate strongly to metals prefer the open form, as well as K+ as the countercation. Poorly coordinating ligands like HMDS, THF or n-BuLi as the base, prefer the chelated form. Hard, neutral cosolvents such as HMPA and DMPU form stronger complexes with Li+ than neutral softer bases such as DME, TMEDA or PMDET [25] (Figure 5). An electrophile such as MoOPH that does not complex with the enolate metal cation, approaches from the less hindered face. Ligands that make too strong complexes with the counter cation of the enolate form a naked enolate that does not react.

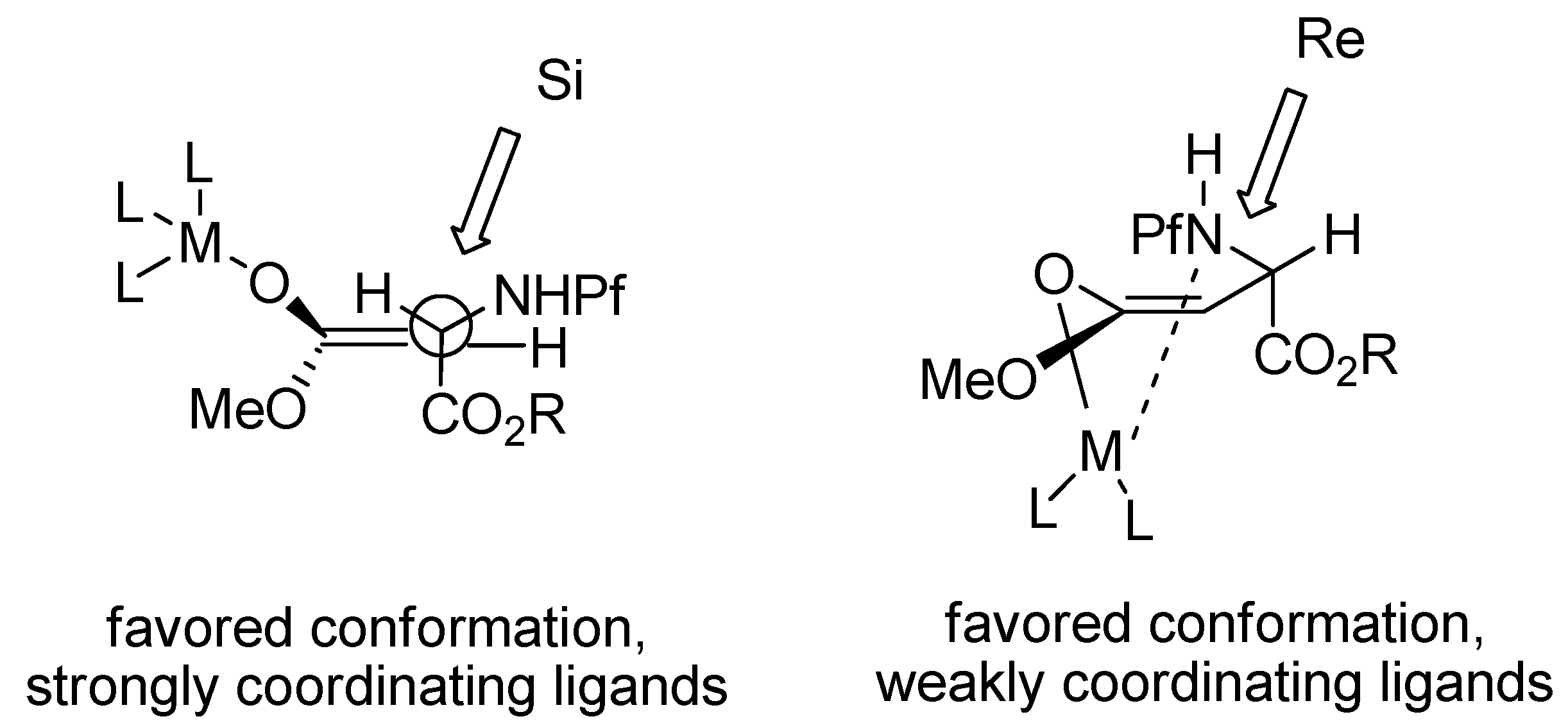

Figure 5. Transition state models for enolates.
Figure 5. Transition state models for enolates.
Molecules 15 06512 g005
The stereoselectivity of amination is poor, at least when DTBAD or DBAB are used. With these reagents in the conditions described in Table 3, a 1:1 mixture of diastereomers is formed in nearly every case. However, the diastereomers can be easily separated by crystallization, and epimerized to the other isomer. Entry 6 (Table 3) with DTBAD as the electrophile is an exception, where diastereoselectivity is as high as 30:1 (anti:syn). In all cases the major isomer in amination is anti [25].

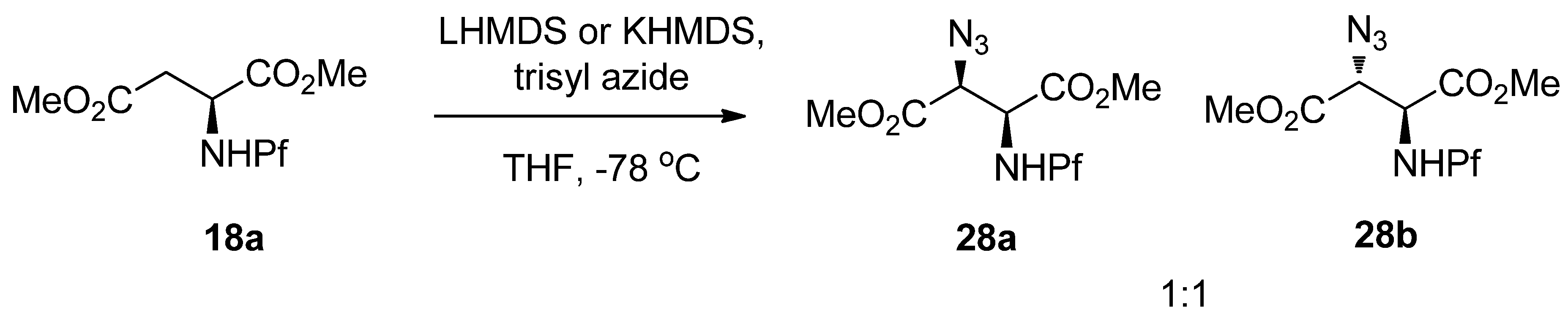

Scheme 12. Amination of N-Pf-aspartate dimethyl ester.
Scheme 12. Amination of N-Pf-aspartate dimethyl ester.
Molecules 15 06512 g026

5.3. Substituted prolines from L-glutamate

The regioselective enolization and alkylation of L-glutamic acid have been used in enantiospecific synthesis of 4-substituted prolines (Scheme 13). The anti:syn stereoselectivity in this alkylation varies from 1:2 to 1:3 [26].

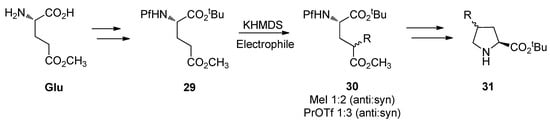

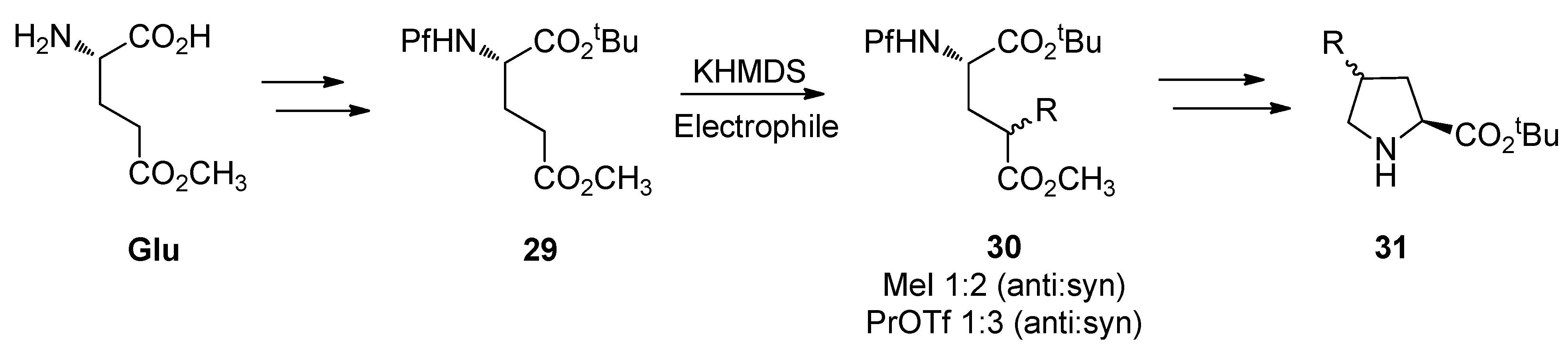

Scheme 13. Synthesis of 4-substituted prolines.
Scheme 13. Synthesis of 4-substituted prolines.
Molecules 15 06512 g027
The stereo center in γ-methyl glutamate 30 can be epimerized to increase the proportion of the major syn isomer, but the diastereomeric ratio of the anti and syn isomers could not be inverted. The effect of base in the epimerization is presented in Table 4.
Table 4. Epimerization of γ-methyl glutamate.
Table 4. Epimerization of γ-methyl glutamate.
Molecules 15 06512 i003
BaseTemperature / °CTime / h30 (a:b)
KHMDS-780.71:3
LDA-780.71:2.3
BMDAa-7821:6.5
NaOMe20201:2.7
a BMDA = bromomagnesium diisopropylamide

5.3.1. Alkylation of hydroxyproline

N-Pf-Hydroxyproline can be oxidized to corresponding ketone (Scheme 14), that can be further regioselectively enolized and alkylated. The stereoselectivity is again due to both the base and the electrophile [27] and the effects of bases and electrophiles on the stereoselectivity of the alkylation are presented in Table 5.

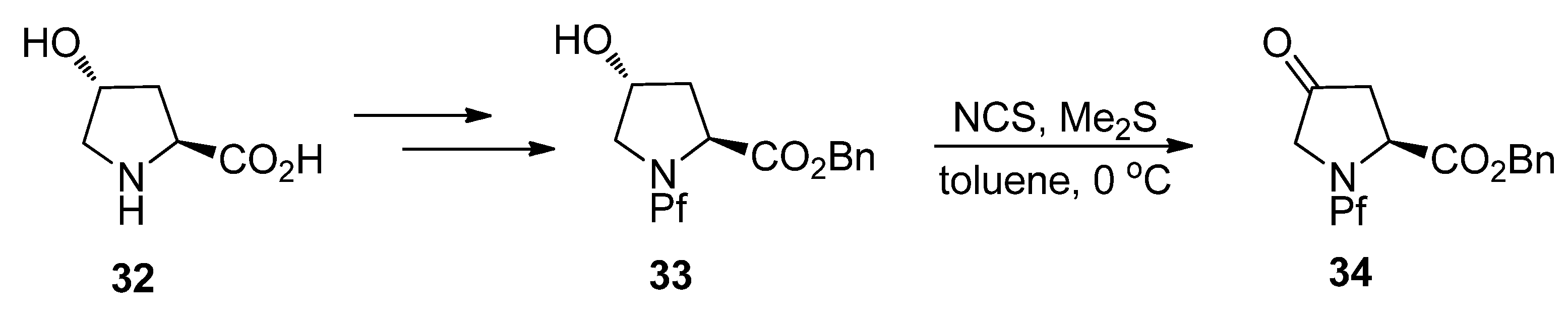

Scheme 14. Oxidation of hydroxyproline 32.
Scheme 14. Oxidation of hydroxyproline 32.
Molecules 15 06512 g028
Table 5. Alkylation of N-Pf-proline ketone and its stereoselectivity [27].
Table 5. Alkylation of N-Pf-proline ketone and its stereoselectivity [27].
Molecules 15 06512 i004
34Base (Mol %)RX (mol %)Yield 35 (%) (b:a)Yield 36 (%)
1NaHMDS (140)MeI (500)65 (3:1)14
2KHMDS (200)MeO2CCH2Br (220)81 (1:2)-
3NaHMDS (140)H2C=CHCH2I (500)54 (>6:1)5
4KHMDS (280)PhCH2Br (300)24 (1:1)2
5KHMDS (400)MeI (1000)-82
6KHMDS (400)EtO2CCH2I (1000)-52
7KHMDS (400)H2C=CHCH2I (1000)-69
8KHMDS (400)PhCH2Br (670)-29
N-Pf-Proline ketone 34a can be hydroxylated regio- and stereoselectively into alcohol 37 and finally into all cis-dihydroxyproline 38 [28] (Scheme 15).

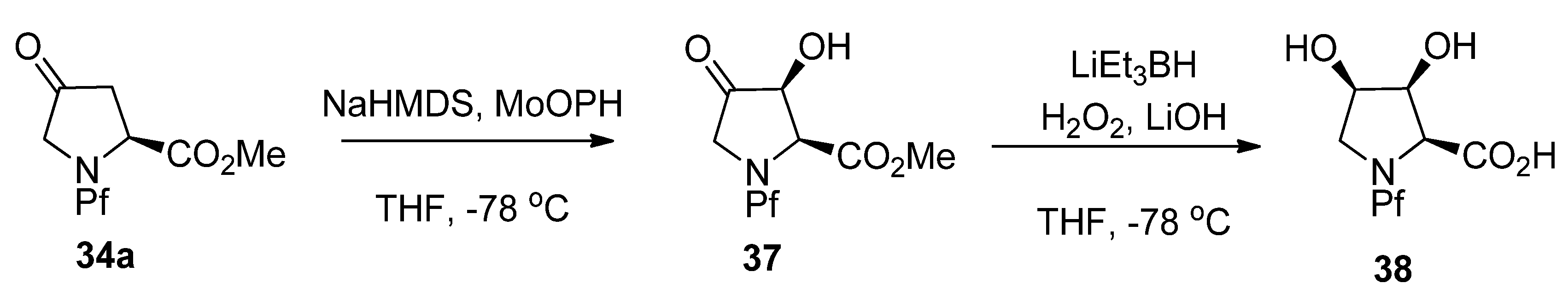

Scheme 15. Synthesis of N-Pf-dihydroxyproline.
Scheme 15. Synthesis of N-Pf-dihydroxyproline.
Molecules 15 06512 g029
The above-presented regioselective enolization of N-Pf-proline ketone can also be utilized in the synthesis of 4-substituted-3,4-didehydroprolines [29]. Here the ketone is transformed into the corresponding enol triflate, which is then coupled to a suitable substituent (Table 6).
Similar enolisation protocols have been utilised in the synthesis of kainic acid derivatives [30,31].
Table 6. Synthesis of 4-substituted-3,4-didehydroprolines.
Table 6. Synthesis of 4-substituted-3,4-didehydroprolines.
Molecules 15 06512 i005
39R ConditionsYield 40 (%)
1CO2HCO/KOAcDMF, rt, 66 h87
2CO2MeCO/MeOHDMF, reflux, 2 h81
3PhPhSnMe3THF, reflux, 16 h60
4MeSnMe4THF, reflux, 48 h5-50
5 Molecules 15 06512 i006Bu3SnCH=CHSnBu3THF, reflux, 48 h40

6. Reduction and Oxidation of N-Pf-amino Compounds

Ketones, triple bonds and esters present in N-Pf-amino compounds can be reduced to alcohols, alkenes and aldehydes without removing the Pf protection. However, it should be remembered that the Pf group is readily hydrogenolyzed in Pd/C-hydrogenation and it is not stable under acidic ester hydrolysis. It is often possible to perform the hydrogenolysis of the Pf group and protection with Boc in the same step, effectively changing the protecting group to Boc in one operation.

6.1. Hydride reductions

In the hydride reduction of the carbonyl in N-Pf-dimethyl proline ketone, the stereochemistry of the product is due to reducing agent. LiAlH4 and NaBH4 lead to different products, although with poor diastereoselectivity [27].

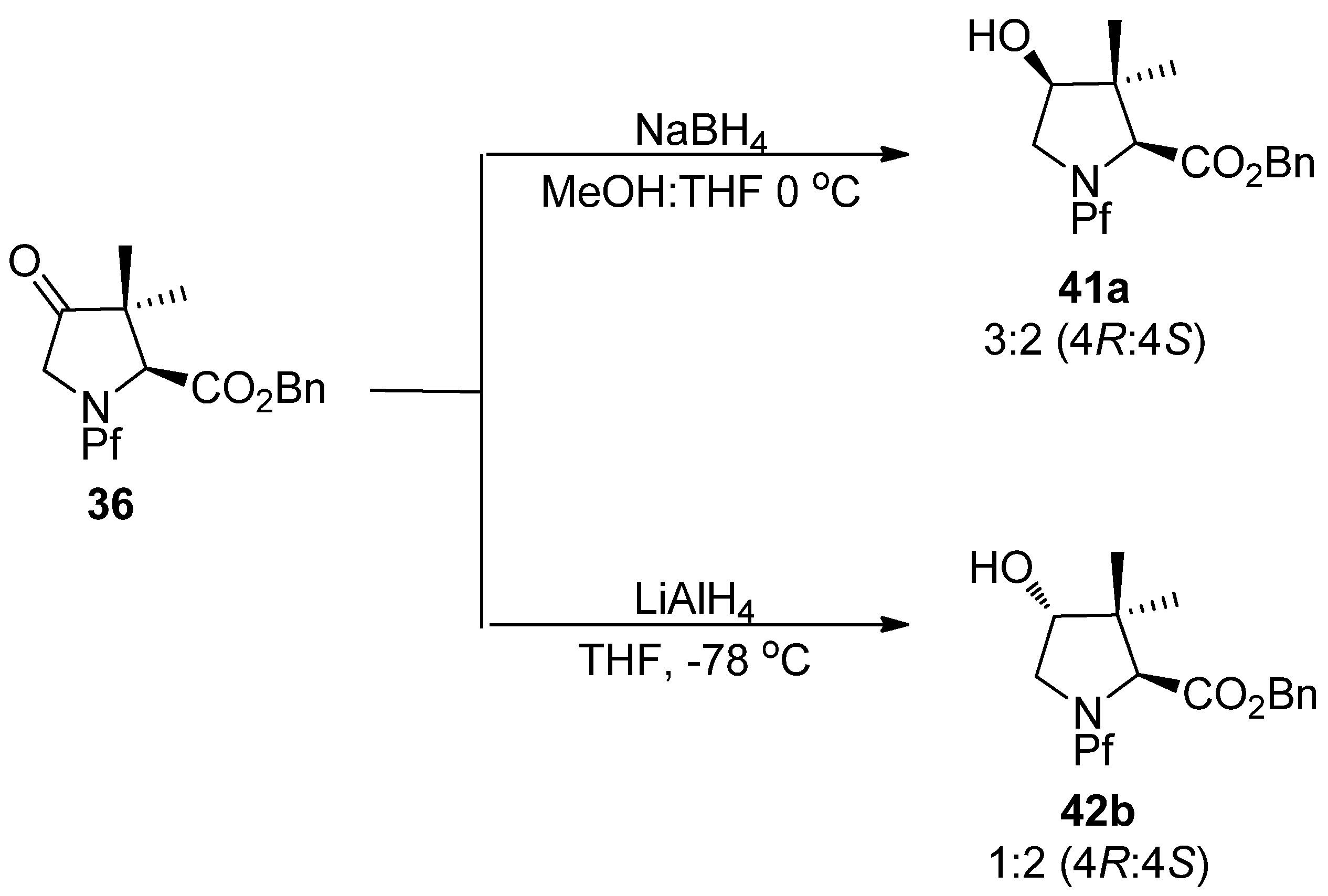

Scheme 16. Selectivity in the reduction of substituted prolines.
Scheme 16. Selectivity in the reduction of substituted prolines.
Molecules 15 06512 g030
N-Pf-D-Tyrosine was used in the synthesis of (+)-anisomycin [32]. The pyrrolidine structure in the target molecule was formed by using both hydride and palladium-catalyzed reductions in addition to Swern oxidation. No epimerization was observed and the Pf stayed intact (Scheme 17).

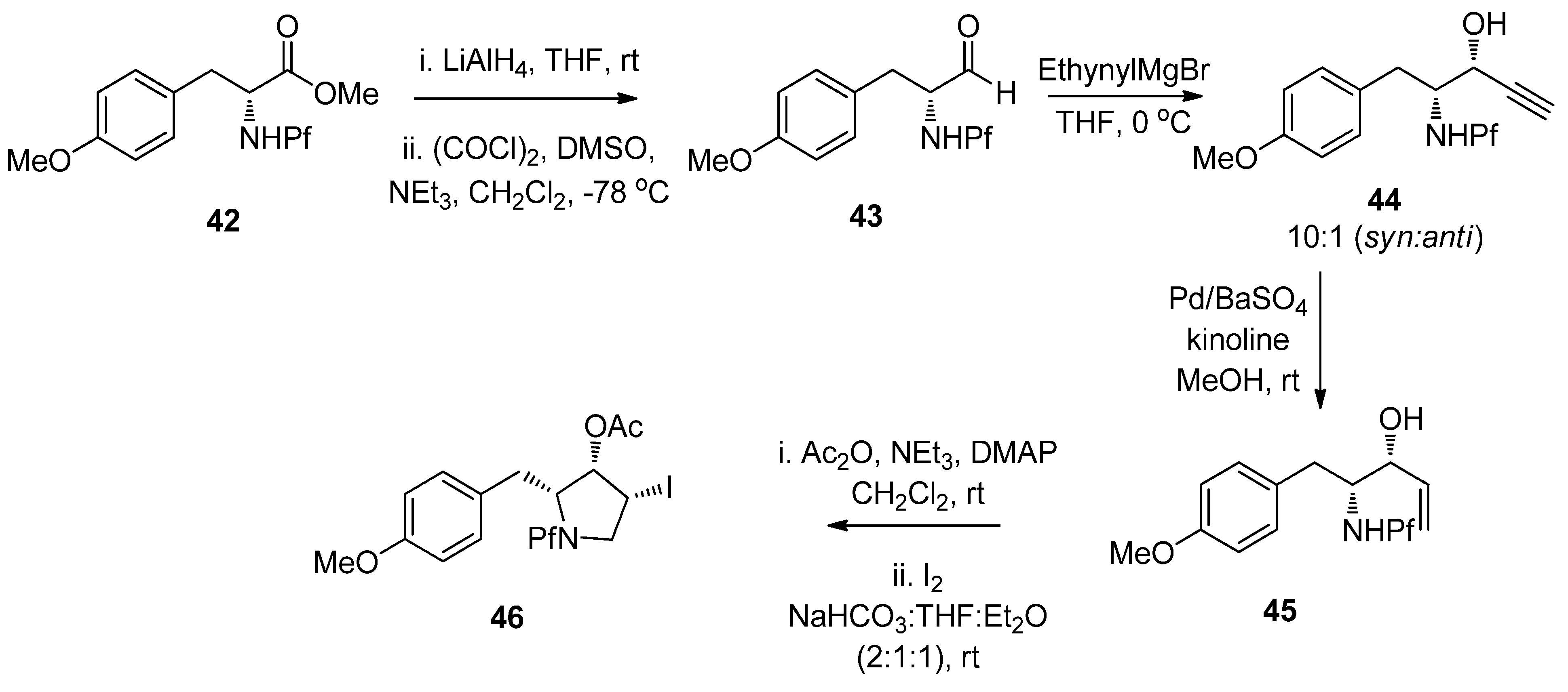

Scheme 17. Synthesis of (+)-anisomycin.
Scheme 17. Synthesis of (+)-anisomycin.
Molecules 15 06512 g031
The main product in the Grignard reaction is syn, which can be explained by chelation controlled Cram-model (Figure 6). The steric bulk of the Pf group might be the cause of syn-selectivity (syn:anti 10:1). In the transition state the nucleophile attacks from the less hindered face opposite to the Pf amine.

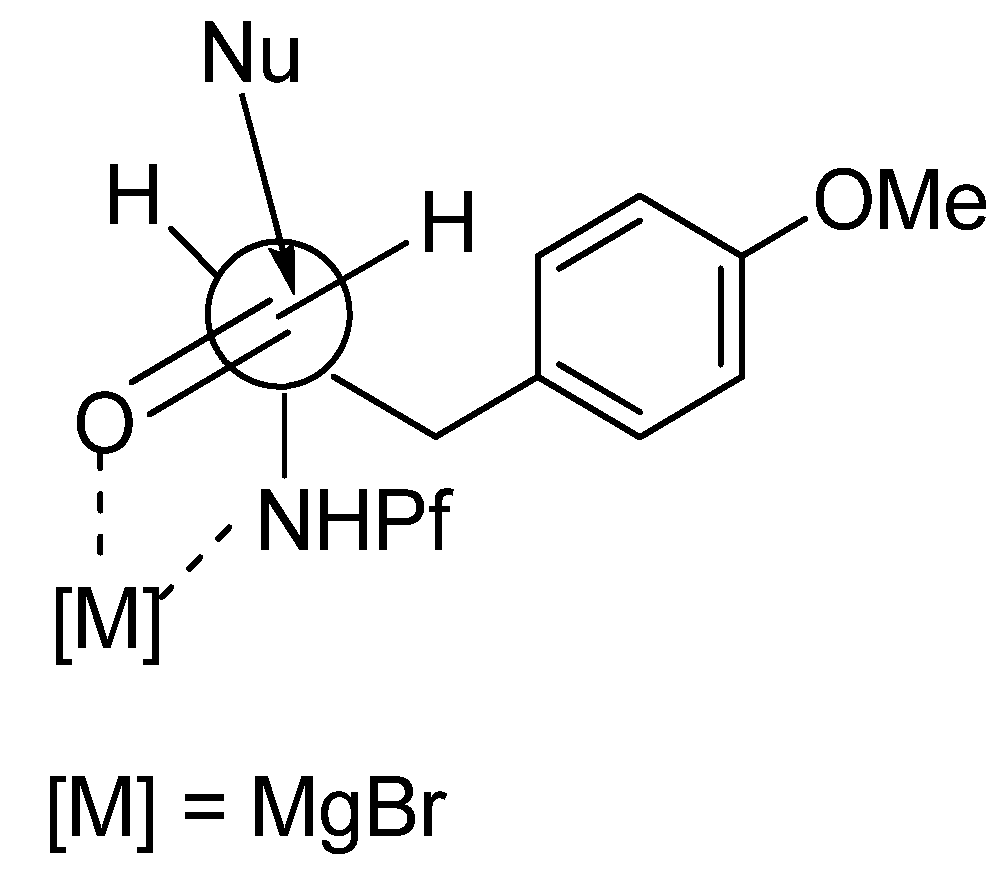

Figure 6. The transition state of syn-selectivity in Grignard-reaction.
Figure 6. The transition state of syn-selectivity in Grignard-reaction.
Molecules 15 06512 g006
The pyrrolidine ring is formed from the alcohol derived acetates by iodination of the double bond in compound 45. The stereoselectivity of the iodination is without a doubt due to the steric hindrance posed by the Pf group. An epi-iodinium ring is formed on the less hindered side of the double bond regardless of the spatial arrangement of the acetate (Scheme 18).

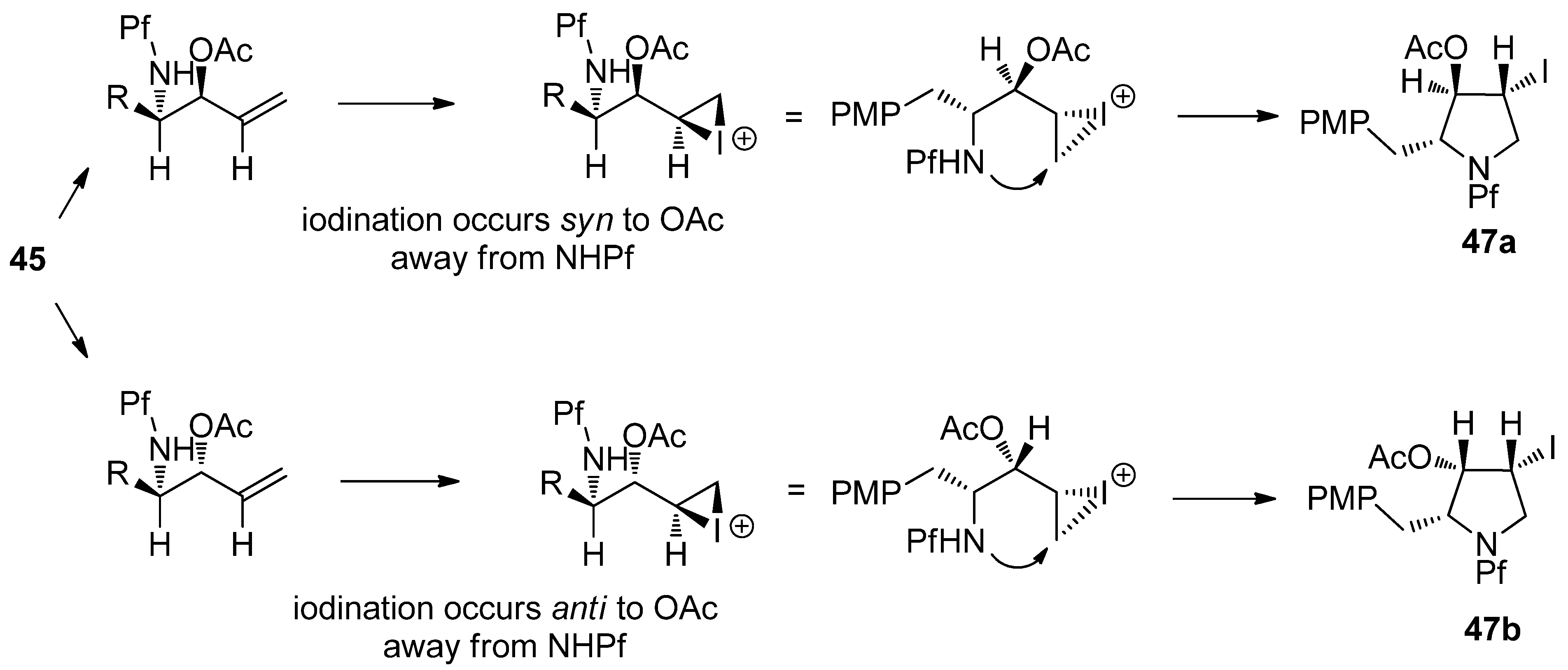

Scheme 18. Proposed mechanism for the stereoselective iodoamination.
Scheme 18. Proposed mechanism for the stereoselective iodoamination.
Molecules 15 06512 g032
Anisomycins have been made by a related reaction sequence, in which the same allyl alcohol intermediate is utilized [32]. In the previous synthesis the stereochemistry of the product (syn) was determined in the addition step to aldehyde 9, but in this case it can be directed to form either anti or syn. The addition is carried out by Gringard reaction with vinyl magnesium bromide, in which a diastereomeric mixture of alcohols 45 is formed. The alcohol mixture is oxidized to allylic ketone 48 by Swern oxidation. The formed ketone can be reduced stereoselectively. Results concerning the relation between the conditions and the stereochemistry of the product are presented in Table 7.
As can be seen, the best stereo- and regioselectivity is attained with (S)-BINAL that favours the anti-product. By Felkin-Ahn-model predicted syn-product is formed with BH3.(CH3)2S. According to the polar Felkin-Ahn-model the most electron withdrawing group is placed where the largest substituent is according to classical FA-model.

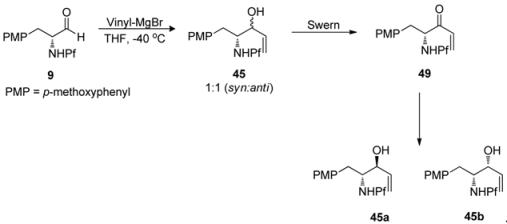

Table 7. Effect of the conditions and reagents in the stereoselectivity of the reduction.
Table 7. Effect of the conditions and reagents in the stereoselectivity of the reduction.
Molecules 15 06512 i007
49ReagentConditions45 (a:b)Yield 45 (%)
1BH3-(CH3)2SToluene, -78 °C1:991
2(S)-BINALTHF, -78 °C>95:189
3(R)-BINALTHF, -78 °C1:682
4NaBH4THF, -10 °C a
5DIBAL-HTHF, -78 °C a
6L-SelectrideTHF, -78 °C1:545
7KS-SelectrideTHF, -78 °C1:638
8Red-AlTHF, -40 °C1:820
a: product that arises from 1,4-addition
The main product is formed when the nucleophile approaches the C-H bond in a Bürgi-Dunitz angle from the less hindered side. This decreases the energy of the transition state (Figure 7). Simple hydride reducing agents such as NaBH4 and DIBAL-H favor 1,4-reduction instead of 1,2-reduction [32].

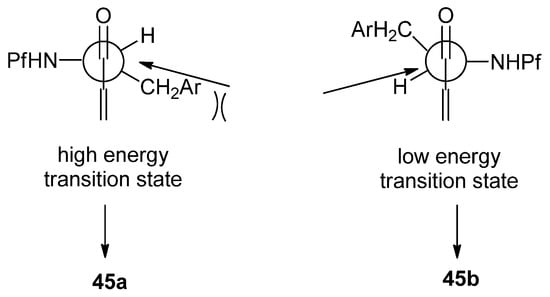

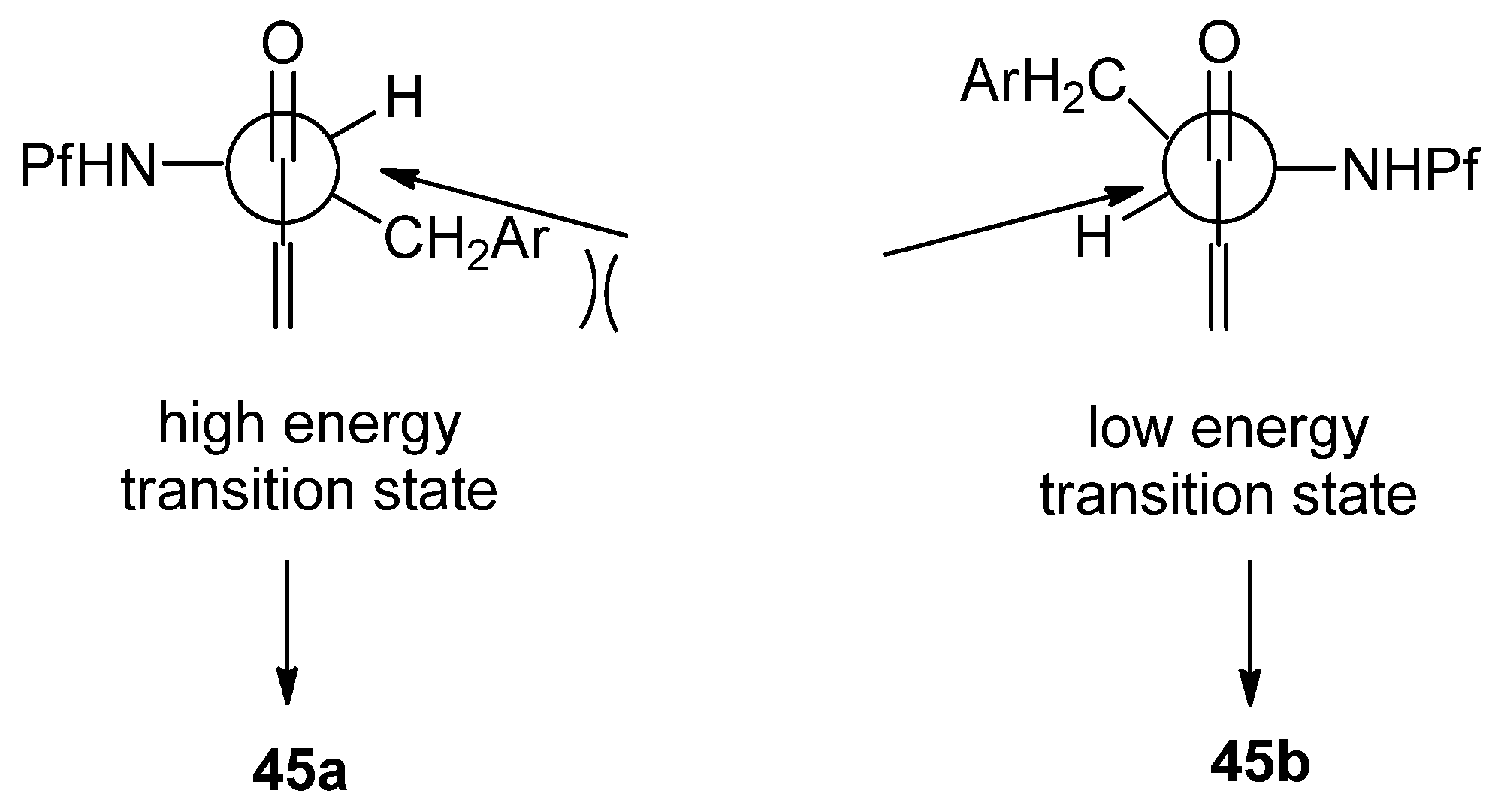

Figure 7. Comparison of Felkin-Ahn model in selective reduction.
Figure 7. Comparison of Felkin-Ahn model in selective reduction.
Molecules 15 06512 g007

6.2. Reductive amination

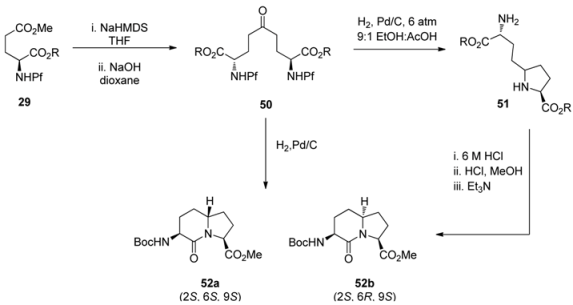

Reductive amination was the key step in the synthesis of indolizidinone amino acids [33]. The Pf group was hydrogenolyzed from the Claisen condensation product 50, originally formed by regioselective enolization of N-Pf-glutamic acid 29. The hydrogenolysis was followed by ring closure to 51 and further cyclization to lactams 52a,b. The diastereoselectivity of the reductive amination is due to the pressure of hydrogen gas and the acid used (Table 8).
Table 8. The effect of hydrogen pressure and the acid on the diastereomeric ration in reductive amination.
Table 8. The effect of hydrogen pressure and the acid on the diastereomeric ration in reductive amination.
Molecules 15 06512 i008
51H2 pressure/atmAcidYield 52a (%)Yield 52b (%)dr (46a:46b)
11TFA412265:35
26TFA521084:16
311TFA54690:10
416 M HCl452267:33
566 M HCl64889:11
6116 M HCl66396:4

6.3. Dihydroxylation

In general, dihydroxylation of allylic amines is not stereoselective, on which the Pf group has no impact. The dihydroxylation of N-Pf-amino alkene 53 with KMnO4 or OsO4 forms a mixture of diastereomers [4].

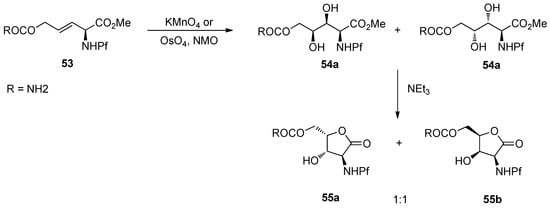

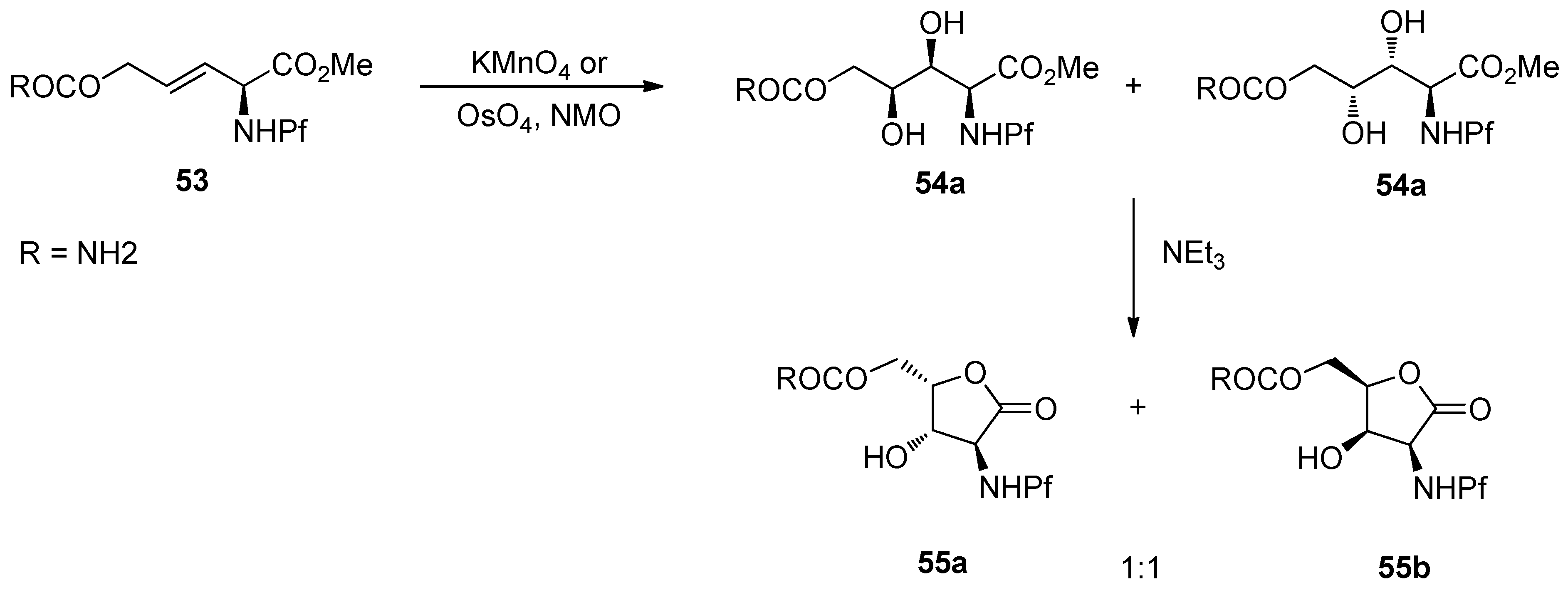

Scheme 19. Dihydroxylation of N-Pf-amino alkene.
Scheme 19. Dihydroxylation of N-Pf-amino alkene.
Molecules 15 06512 g033
With the Sharpless DHQ- and DHQD-ligands the diastereoselectivity is improved only to 2:1 and 1:2.6 (55a:b). If a similar alkene 56 is subjected to conjugate addition, a mixture of different products is formed dependent on the temperature and other conditions. Considering the structures of the products, one can note that C-C-bond forming reaction is slow and the Pf protected nitrogen is reactive towards intramolecular electrophiles [4].

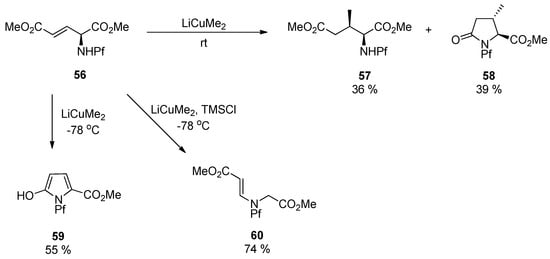

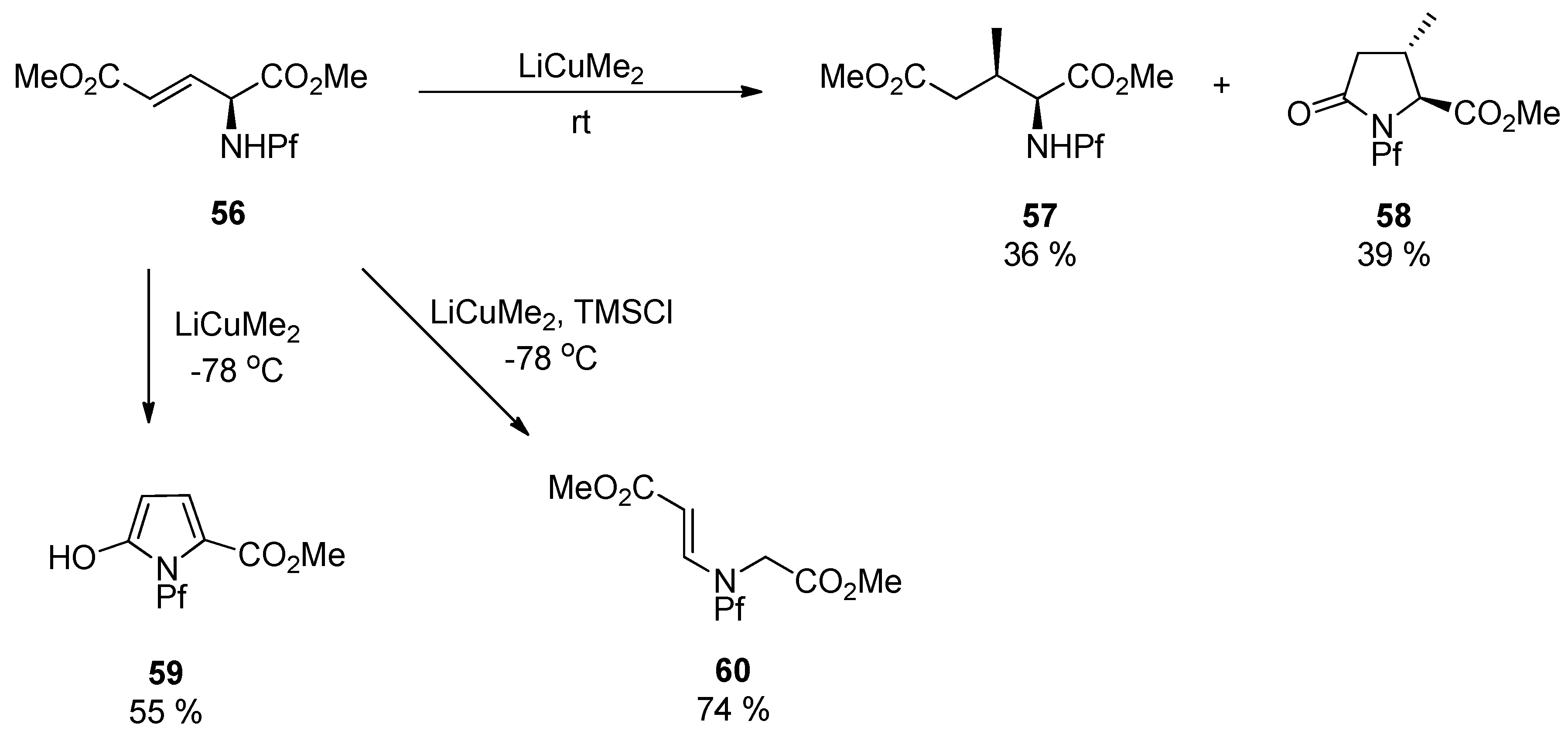

Scheme 20. Conjugate addition and the products.
Scheme 20. Conjugate addition and the products.
Molecules 15 06512 g034

7. Pf in Ring Forming Reactions

7.1. Intramolecular ring formation

L-N-Pf-Hydroxy asparagine methyl ester can be used, for example, in the synthesis of aziridine structure that is present in bioactive mitomycins [34]. Depending on the conditions an azetidine is formed as a side product (Table 9). Anti N-Pf-Hydroxy aspartate methyl ester is cyclized to a four-membered ring only and not at all to aziridine (Scheme 21).

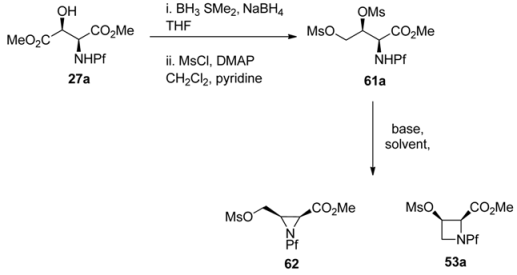

Table 9. Intramolecular cyclization of N-Pf-aspartate to aziridine or azetidine [34].
Table 9. Intramolecular cyclization of N-Pf-aspartate to aziridine or azetidine [34].
Molecules 15 06512 i009
61aBase, solventT / °C62:63
1Et3N, THFRefluxNo reaction
2Et3N, DMF804:1
3Et3N-LiClO4, DMF927:1
4Et3N-LiClO4, THFReflux25:1
5LiClO4, s-collidine, dioxane75100:0

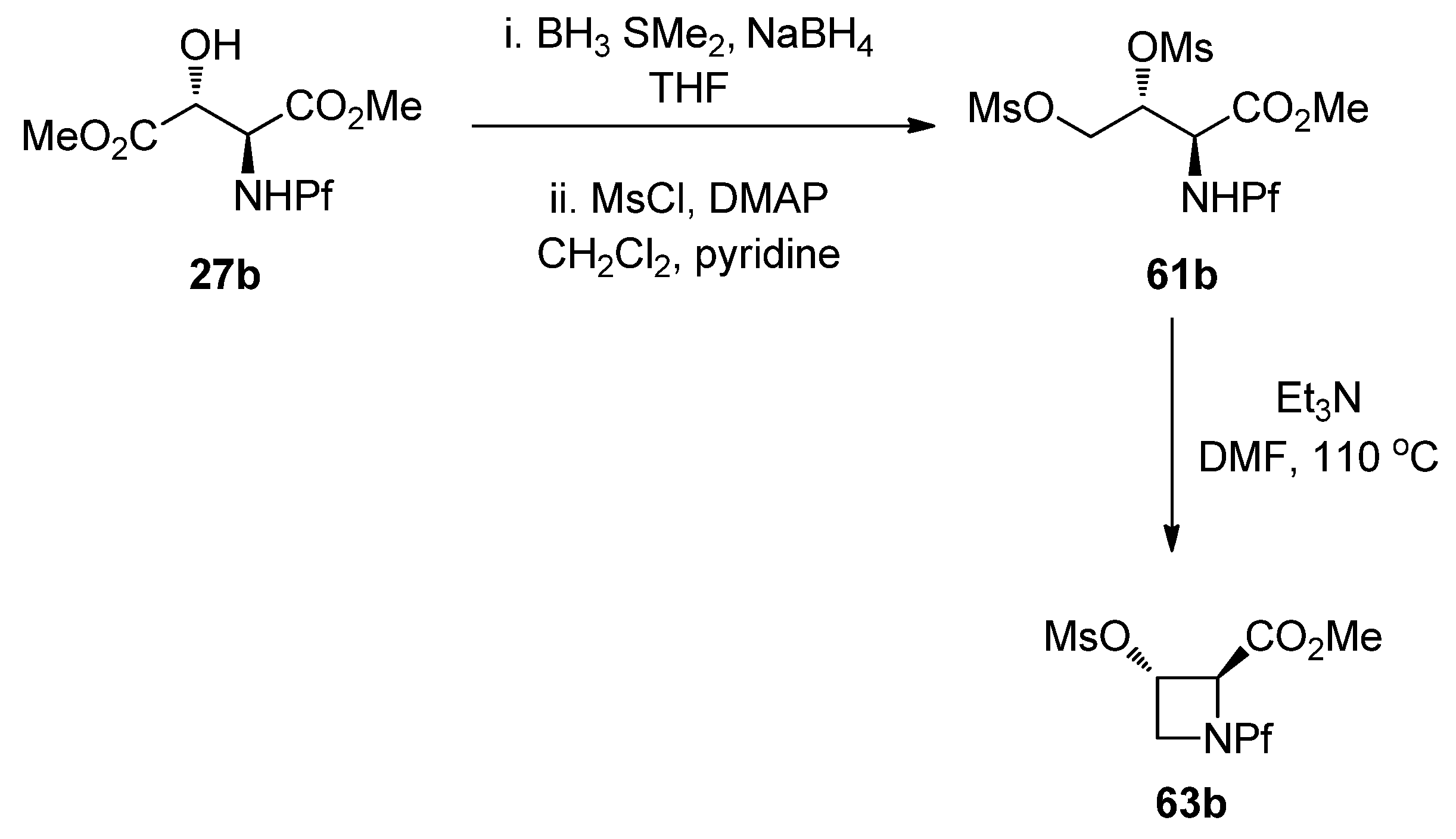

Scheme 21. Ring formation from anti-N-Pf-hydroxyaspartate methyl ester.
Scheme 21. Ring formation from anti-N-Pf-hydroxyaspartate methyl ester.
Molecules 15 06512 g035
The stereochemistry of the starting material has an effect on the outcome of the reaction. That can be explained by Newman projections that illustrate the contribution of the Pf groups size to the more favored conformation (Figure 8). The cyclization of dimesylate 61a to aziridine proceeds presumably through a staggered conformation since the eclipsed conformation has two unfavorable interactions, namely CO2Me-OMs and NHPf-CH2OMs. In the case of dimesylate 61b, the cyclization is forced to proceed through the eclipsed conformation, since there are unfavorable interactions in the staggered conformation, namely Pf-CH2OMs or Pf-carboxymethyl.

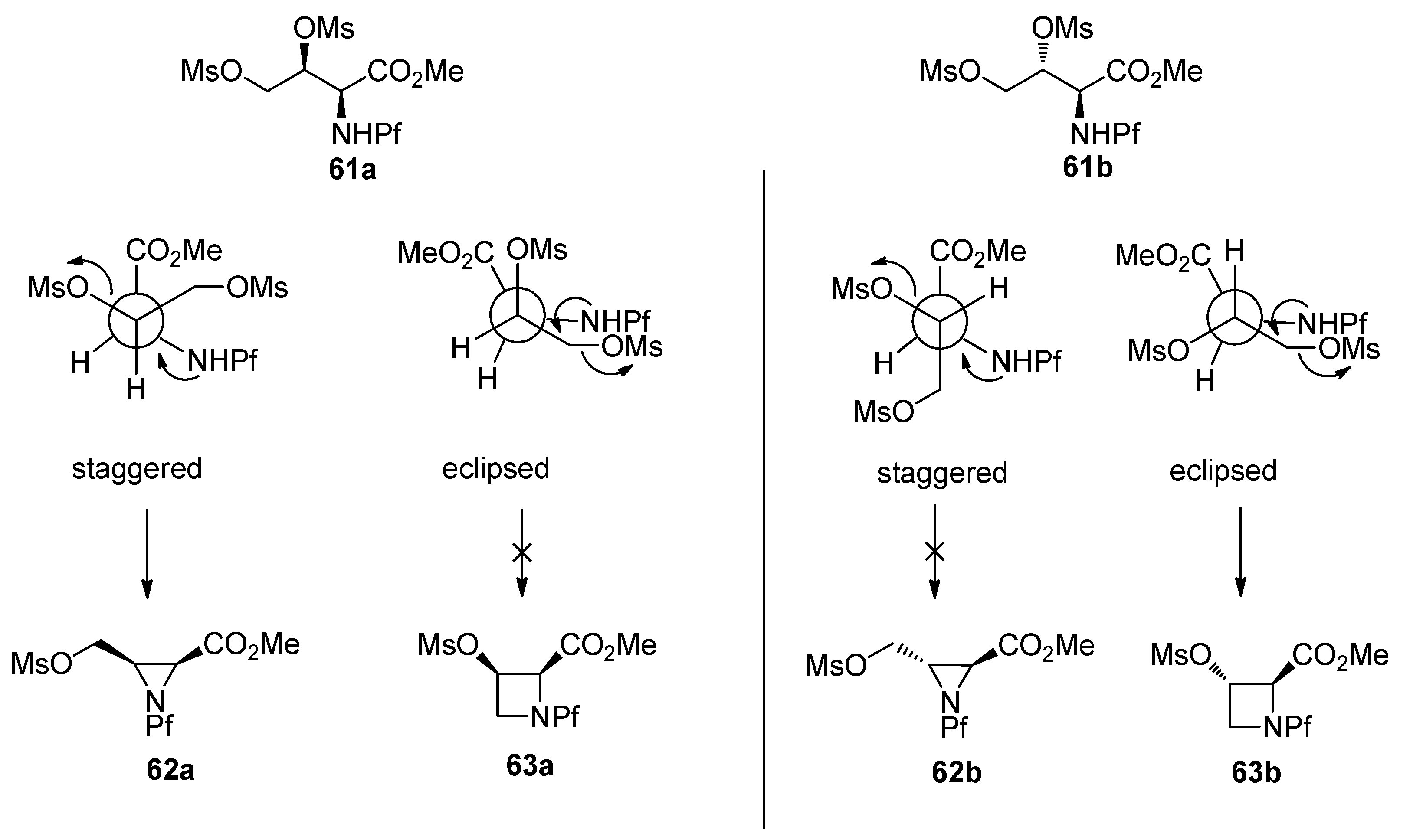

Figure 8. Newman-projections that explain the differences in stereoselectivity.
Figure 8. Newman-projections that explain the differences in stereoselectivity.
Molecules 15 06512 g008
Pf can be removed by hydrogenation (H2, 50 psi, Pd/C) without opening the ring structure. Removal of protection from Bn-protected aziridine leads normally to ring opening.

7.2. Formation of indanones by metal-halogen-exchange

Cyclization of N-Pf-bromophenylalanine is the key step in the synthesis of indanones (Scheme 22) [35].

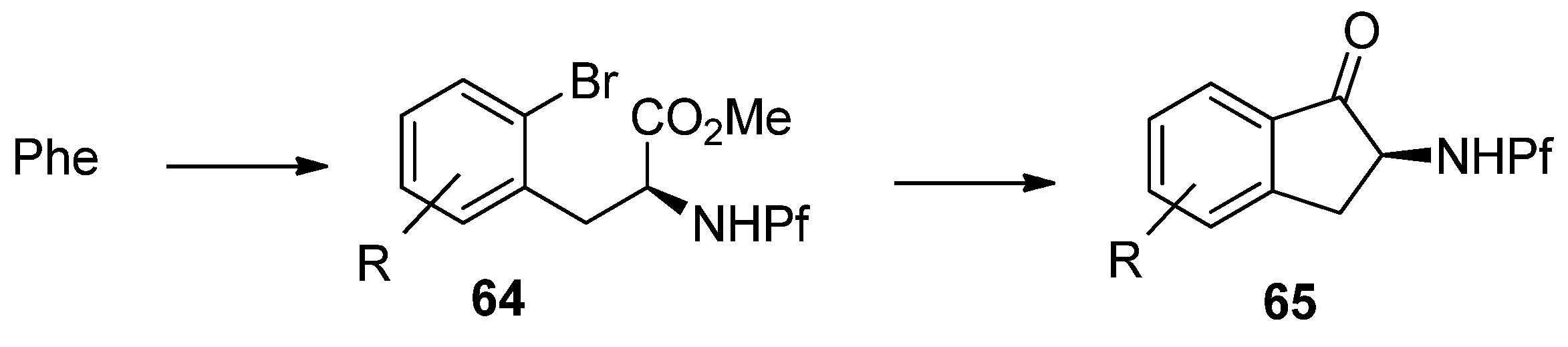

Scheme 22. Synthesis of indanones from N-Pf-bromophenylalanine derivatives.
Scheme 22. Synthesis of indanones from N-Pf-bromophenylalanine derivatives.
Molecules 15 06512 g036
The reaction is based on metal-halogen-exchange, in which the electrophilic halogen is displaced with a nucleophilic metal. However, treating the starting material with excess n-BuLi does not lead to the desired product, but to indanol and starting material (Scheme 23).

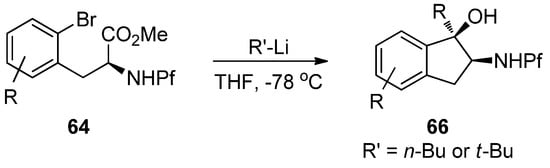

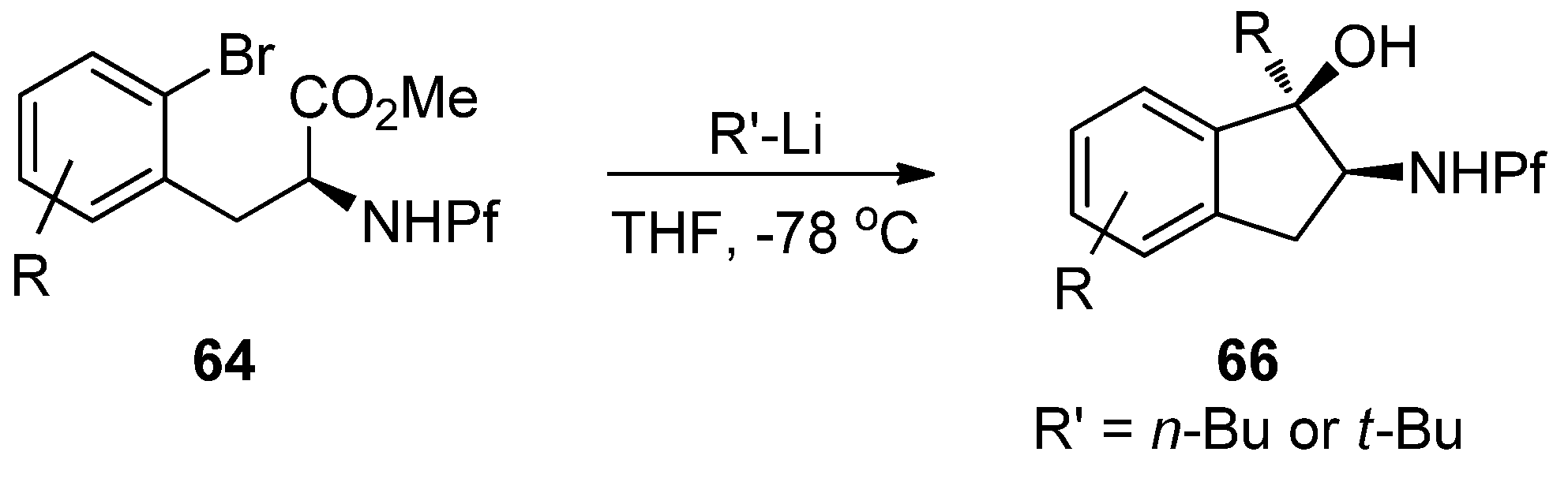

Scheme 23. Treating starting material with excess BuLi.
Scheme 23. Treating starting material with excess BuLi.
Molecules 15 06512 g037
One problem in the reaction is the free proton on nitrogen. The product is not formed at all if a stoichiometric amount of n-BuLi is used. On the other hand, a mixture of different products is formed if a free acid is used.
According to these observations it can be concluded, that deprotonation of N-Pf-amine occurs faster than metal-halogen exchange or nucleophilic addition to ester. The desired product is achieved by protecting the amine as oxazolidinone (Scheme 24) [35].

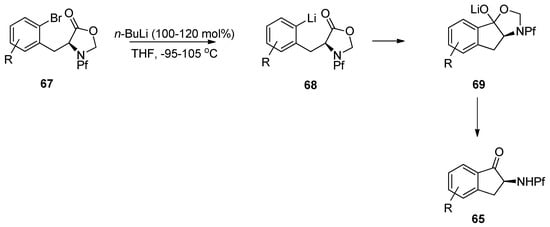

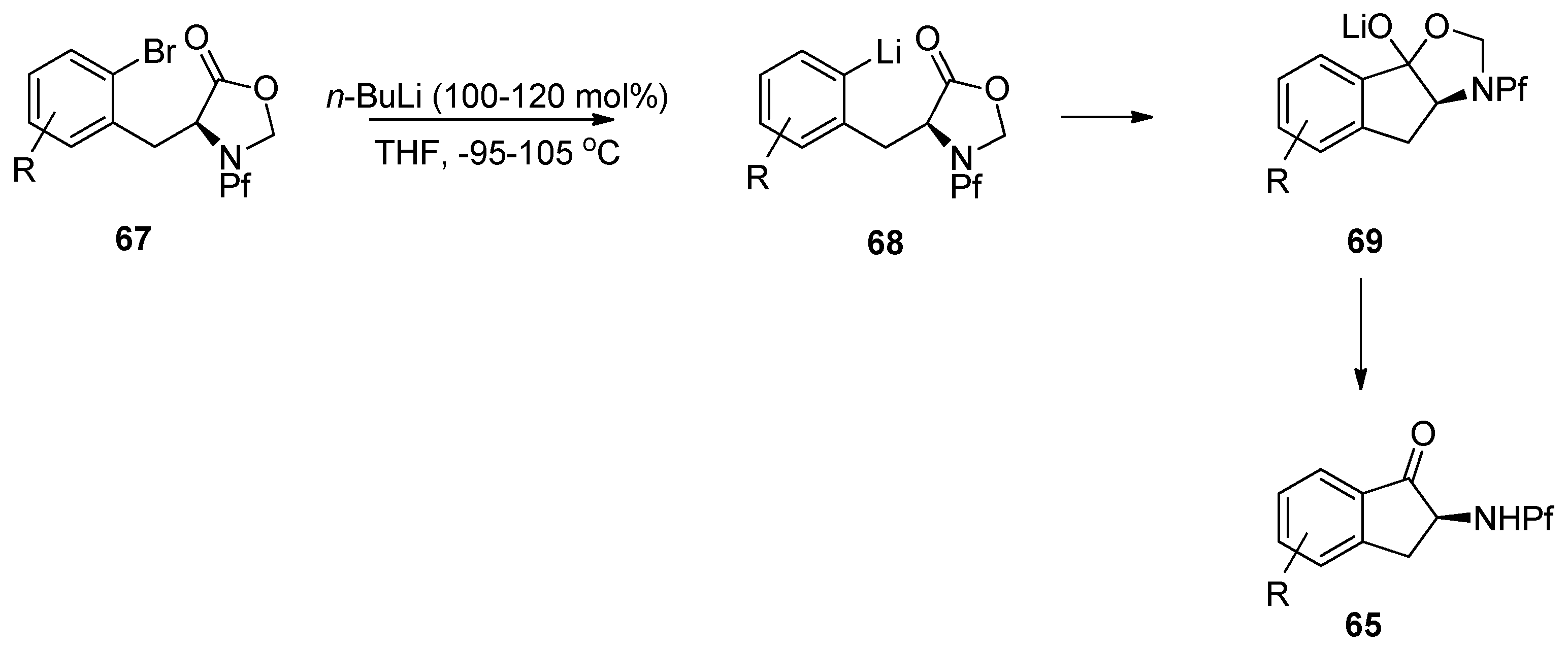

Scheme 24. The successful synthesis of indanones through intramolecular cyclization of N-Pf-bromophenylalanine.
Scheme 24. The successful synthesis of indanones through intramolecular cyclization of N-Pf-bromophenylalanine.
Molecules 15 06512 g038

7.3. Cyclic sulfamidates as protection for amines

Alkylation of the amine present in derivatives of α-amino compounds and intramolecular cyclizations are often unwanted side reactions. The nucleophilicity of the nitrogen atom in N-Pf compounds can be reduced by fully protecting it. This protection can be temporary when it is necessary for a single reaction step to succeed, but it can also be used in the whole path and removed at the end of the sequence.
Derivatives of serine are often used as oxazolidinones 23a or oxazolidines 23b because of its hydroxyl group [10,15], which protects the nitrogen as well. In some cases the hydroxyl is protected as benzyl ether [9]. Asparagine acids have been diprotected with Pf and benzyl, which has even proven to improve the stereoselectivity of the alkylation. Alanine is often protected as isoxazolidinone 7 (Figure 9) [36].

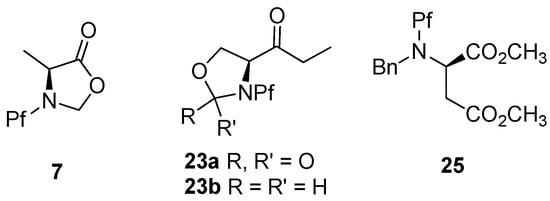

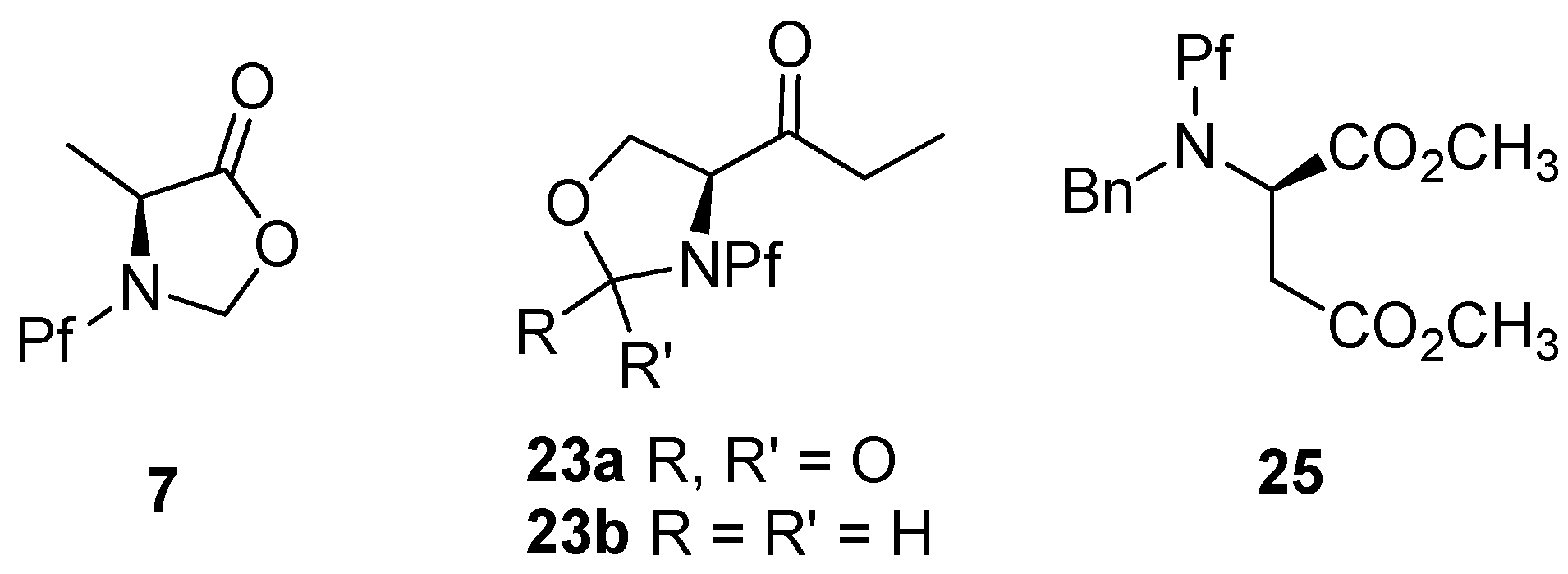

Figure 9. The most common ways of double protecting the nitrogen present in N-Pf-amino compounds.
Figure 9. The most common ways of double protecting the nitrogen present in N-Pf-amino compounds.
Molecules 15 06512 g009
Cyclic sulfamidates have been made from N-Pf-serine and N-Pf-homoserine (Figure 10), and they have been used in the preparation of substituted amino acids [37,38,39].

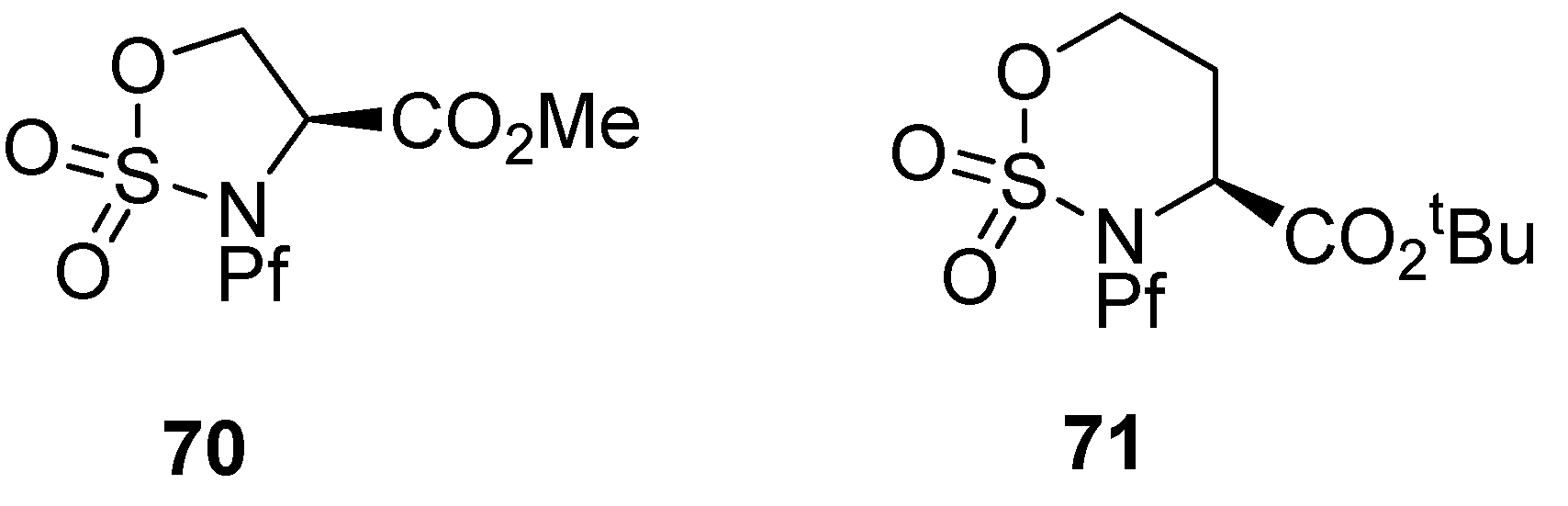

Figure 10. Cyclic sulfamidates derived from N-Pf-serine and N-Pf-homoserine.
Figure 10. Cyclic sulfamidates derived from N-Pf-serine and N-Pf-homoserine.
Molecules 15 06512 g010
Sulfamidate is formed from the free alcohol of serine or homoserine methyl ester by thionyl chloride and metal catalyzed oxidation (Scheme 25) [37].

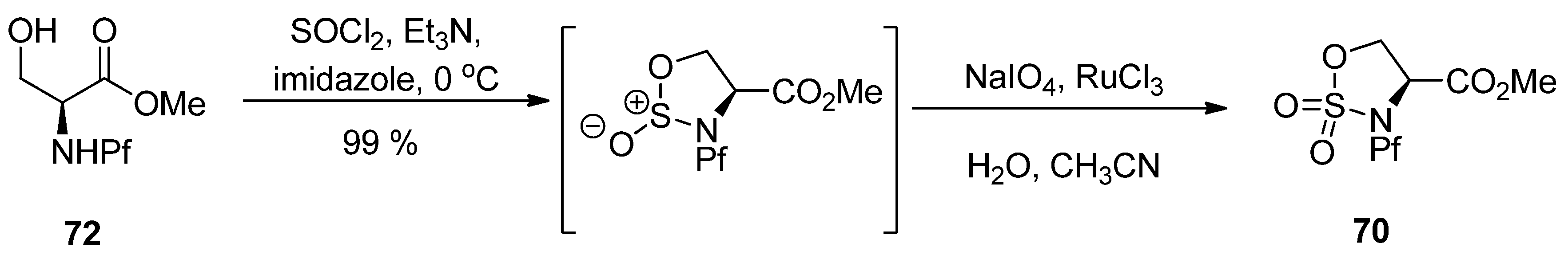

Scheme 25. Formation of N-Pf-serine derived sulfamidate.
Scheme 25. Formation of N-Pf-serine derived sulfamidate.
Molecules 15 06512 g039
Sulfamidates are electrophiles and can be reacted with different nucleophiles. Ring opening by β-ketoester leads to racemic γ-acyl amino acid 72 in addition to side product 73 (Table 10).

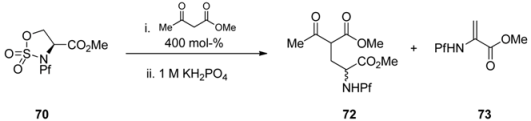

Table 10. Addition of β-ketoester to sulfamidate 70 [37].
Table 10. Addition of β-ketoester to sulfamidate 70 [37].
Molecules 15 06512 i010
70ConditionsYield 72 (%) Yield 73 (%)
1K2CO3, DMF, rt, 3 d-100
2K2CO3, THF, rt, 3 d30-
3Cs2CO3, THF, rt, 5 d 100
4K3PO4, DME, rt, 18 h43-
5NaH, THF, 60 °C, 6 h51-
6NaH, DME, 60 °C, 4 h67
A proposed mechanism for the racemization is shown in Scheme 26.

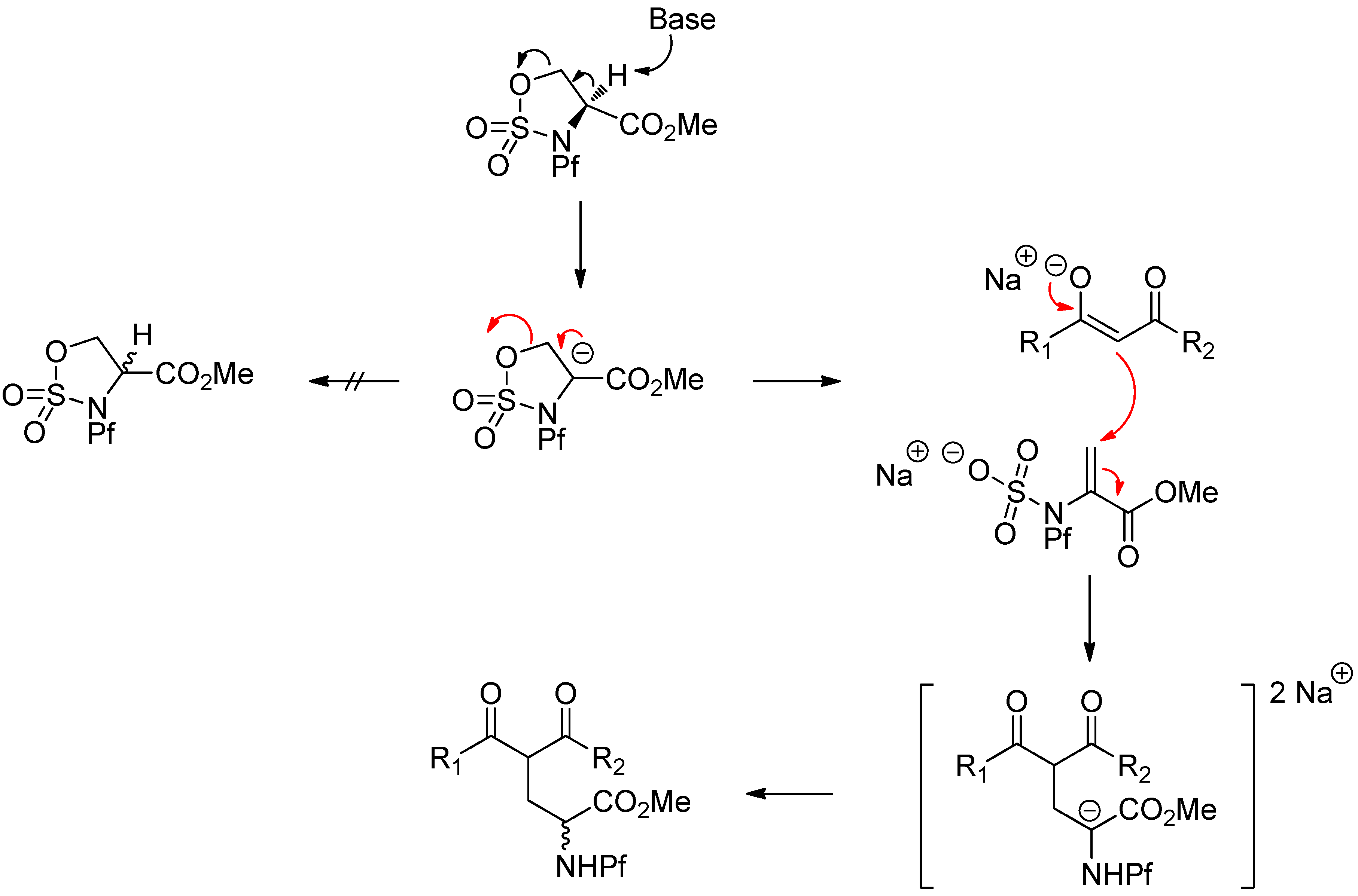

Scheme 26. Proposed mechanism for the ring opening that leads to racemization.
Scheme 26. Proposed mechanism for the ring opening that leads to racemization.
Molecules 15 06512 g040
Homoserine derived N-Pf-sulfamidate has been observed to be in chair conformation, typical also with similar cyclic sulfamidates [40]. The CO2R group is axial as in the corresponding pipecolates [21] (Scheme 27).

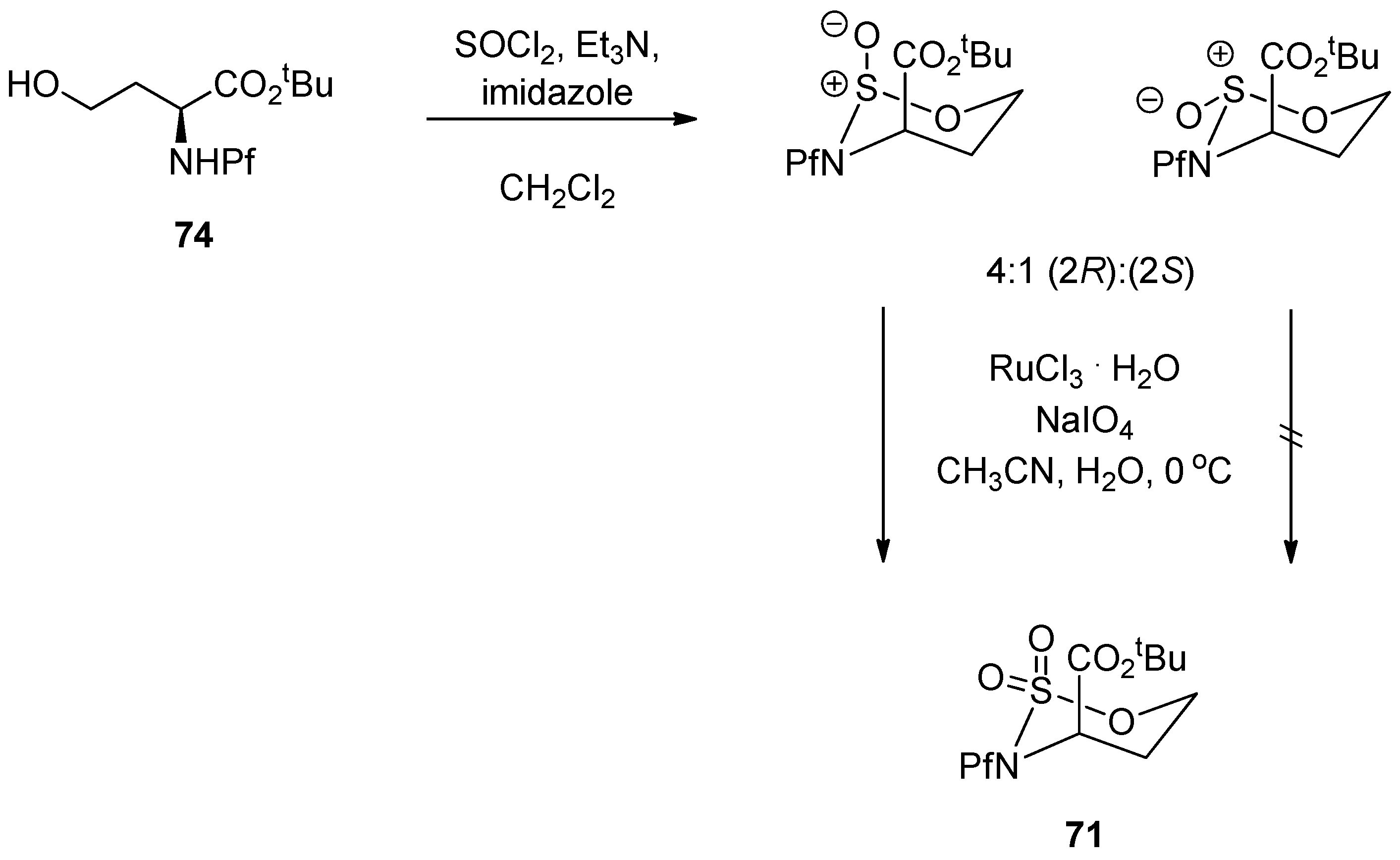

Scheme 27. Preparation of N-Pf-homoserine tert-butyl ester sulfamidate and its conformation.
Scheme 27. Preparation of N-Pf-homoserine tert-butyl ester sulfamidate and its conformation.
Molecules 15 06512 g041
Table 11. Conditions affecting the nucleophilic addition to sulfamidate [37].
Table 11. Conditions affecting the nucleophilic addition to sulfamidate [37].
Molecules 15 06512 i011
71NucleophileConditionsYield 75 (%)
1NaN3DMF, 60 °C, 24 h83
2imidazoleNaH, DMF, 60 °C, 24 h50
3imidazoleDMF, 60 °C, 24 h56
4imidazoleCH3CN, 75 °C, 30 h65
5morpholineNaH, DMF, 60 °C, 24 h85
6morpholineCH3CN, 75 °C, 30 h95
7piperidineDMF, 60 °C, 24 h80
8piperidineCH3CN, 75 °C, 30 h90
9PhNH2CH3CN, 75 °C, 30 h85
12PhSHNaH, DMF, 60 °C, 24 h56
13PhSHCH3CN, 75 °C, 30 h0
Boc-protected sulfamidate 76 is more reactive towards nucleophiles than the corresponding Pf-protected sulfamidate 71 [41]. This enhanced reactivity is thought to arise partly from the inductive electron withdrawing effect of the N-substituent and partly from the different conformations that N-Boc and N-Pf compounds adopt. The N-Boc compound 76 has a preference for twisted boat, whereas the N-Pf derivative 71 favors chair comformation (Figure 11) [41].

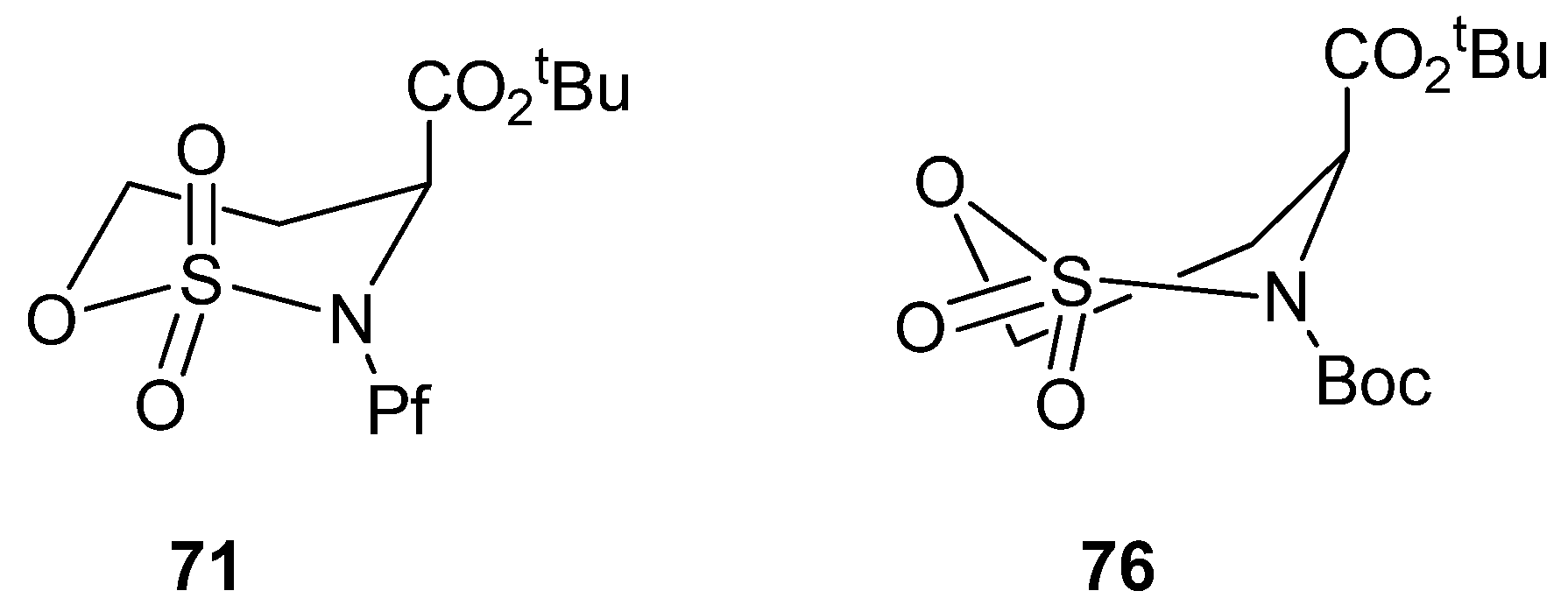

Figure 11. Conformations of N-Pf sulfamidate and N-Boc sulfamidate.
Figure 11. Conformations of N-Pf sulfamidate and N-Boc sulfamidate.
Molecules 15 06512 g011

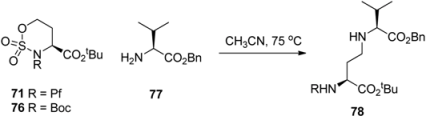

Table 12. Differences in reactivities of N-Pf and N-Boc-sulfamidates in nucleophilic addition [38].
Table 12. Differences in reactivities of N-Pf and N-Boc-sulfamidates in nucleophilic addition [38].
Molecules 15 06512 i012
SulfamideSolventConversion (%)Yield 78 (%)Time/h
76MeCN99953
76CHCl399605
71MeCN997228
71CHCl3202073

8. Metal Catalyzed Reactions and Couplings

There are some published examples where N-Pf-amino aldehydes have been used in metal-catalyzed couplings. Here are presented Horner-Wadsworth-Emmons and [3+3]-coupling to titanium homoenolates as examples.

8.1. Horner-Wadsworth-Emmons

Horner-Wadsworth-Emmons (HWE) is a coupling reaction that has been used in the synthesis of certain sphingosine derivatives using N-Boc-amino acid derived β-ketophosphonates [42]. It also works with the corresponding N-Pf-compounds [6] (Scheme 28).

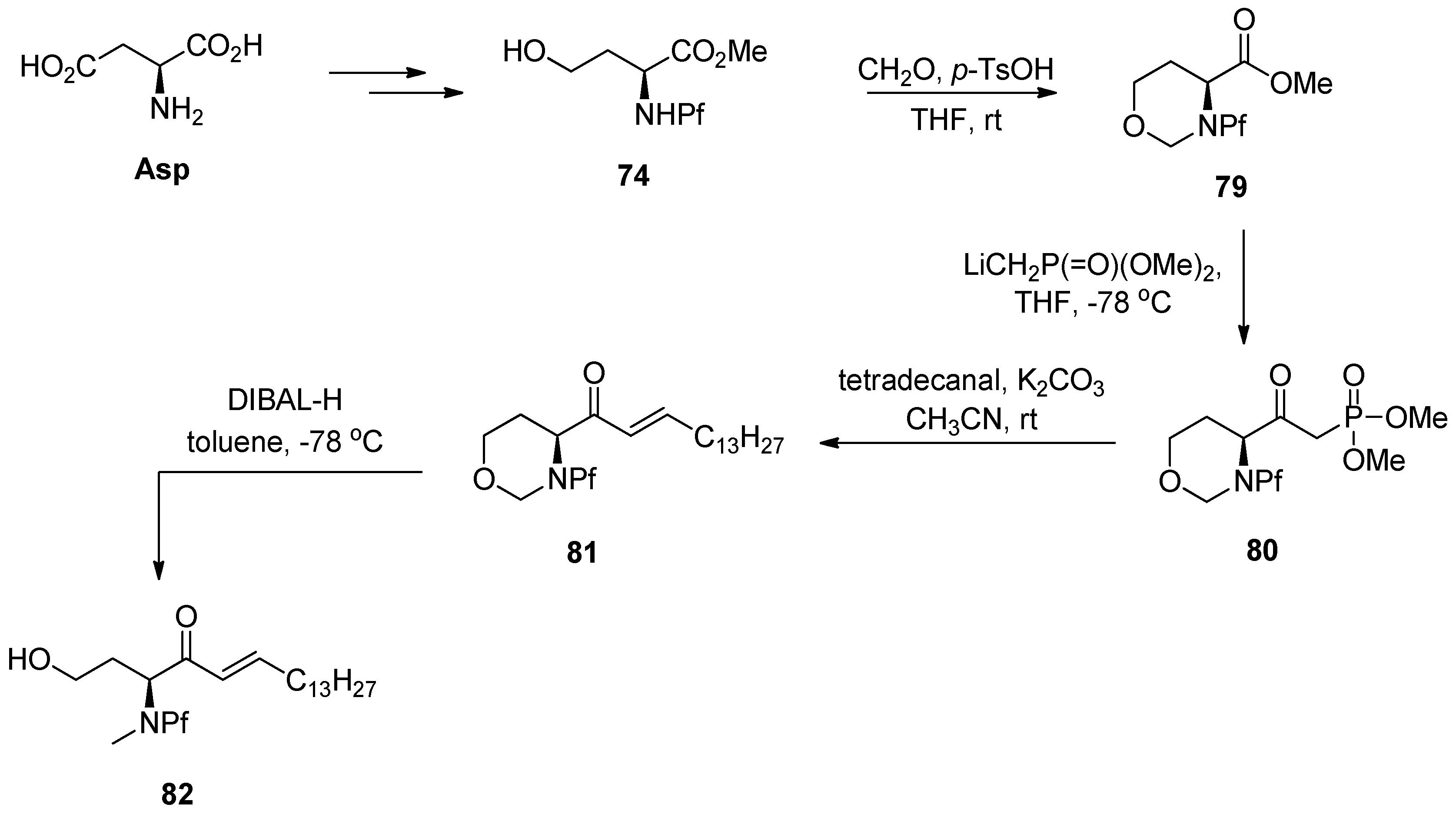

Scheme 28. HWE.
Scheme 28. HWE.
Molecules 15 06512 g042
In this study certain crystal structures of N-Pf-compounds were determined. The crystal structure of compound 79 is presented in Figure 12. It can be observed that the phenyl group of Pf is almost perpendicular to the fluorene. The same phenomenon is true for both cyclic and acyclic compounds. During this study it became arguable that the axial position of the electronegative α-substituent in cyclic compounds might be due to the anomeric-like effect it experiences [6]. This would explain the equatorial position of the hydrogen more accurately than the original explanation [5].

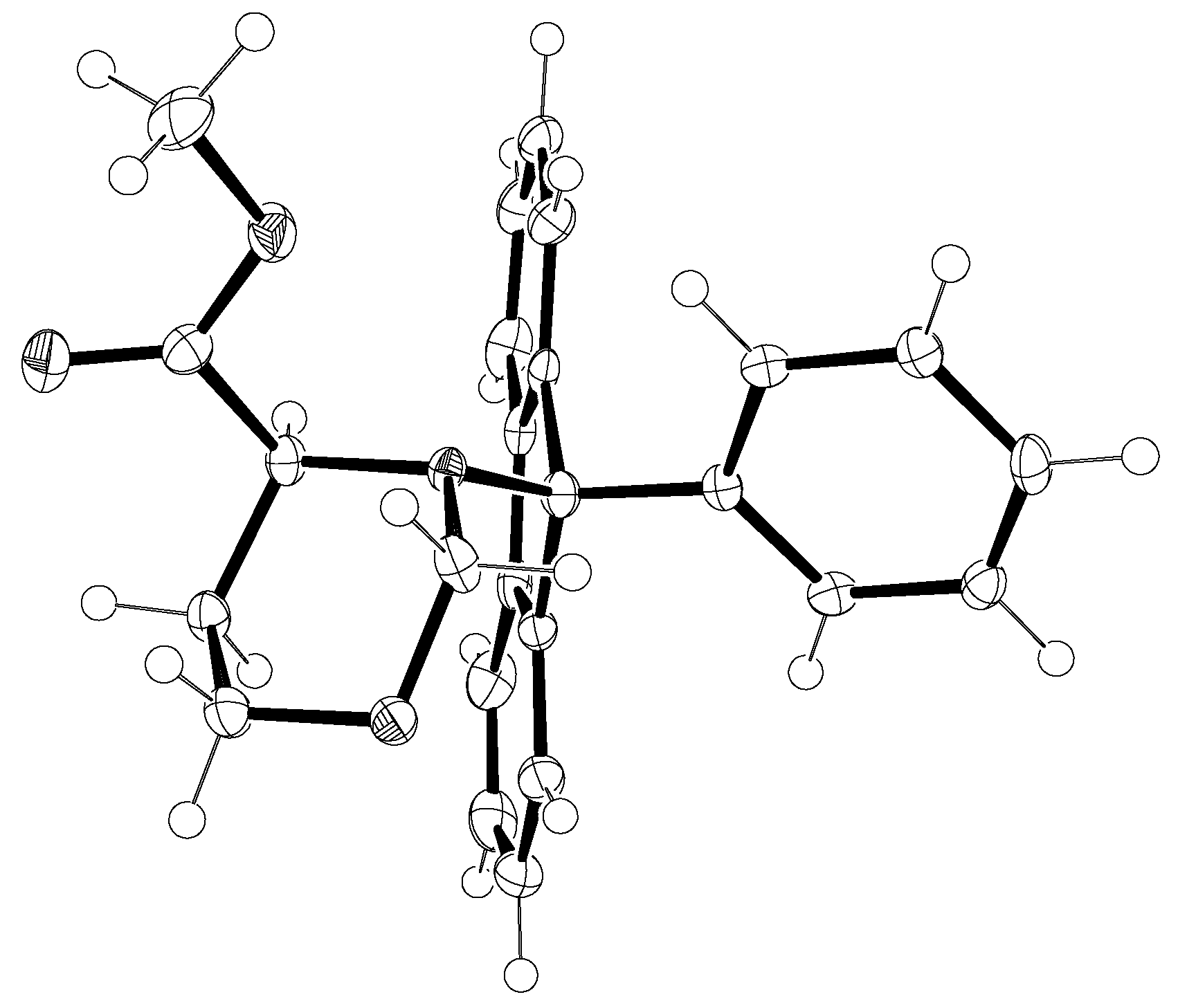

Figure 12. The crystal structure of compound 79.
Figure 12. The crystal structure of compound 79.
Molecules 15 06512 g012

8.2. [3+3]-Titanium homoenolate coupling

The [3+3]-coupling of titanium homoenolates 83 to N-Pf-O-Bn-serinal 84 is an example of the less common additions to aldehydes (Scheme 29). The diastereoselectivity of the reaction is in accordance with the previously modeled anti-selectivity of the nucleophilic addition to N,N-dibenzylserinal [9].

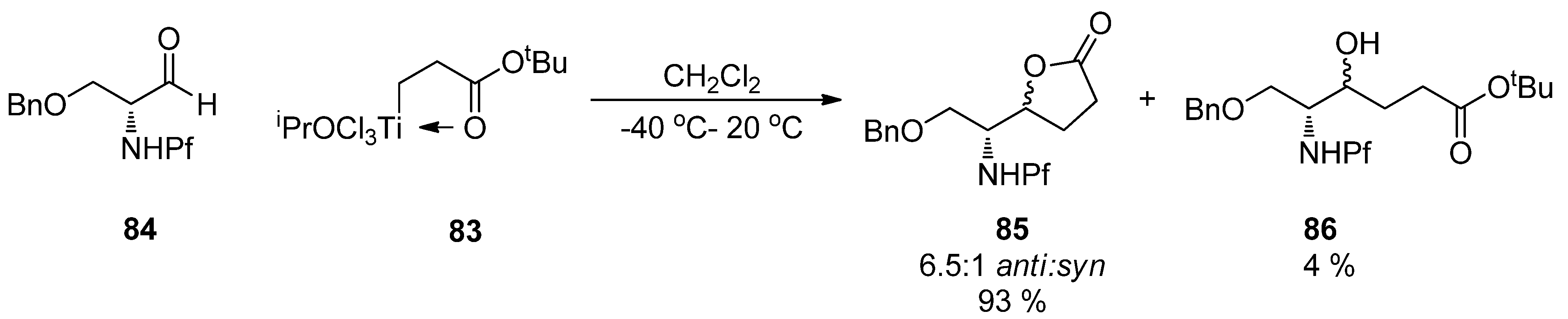

Scheme 29. The coupling of N-Pf-O-Bn-serinal 84 and titanium homoenolate 83.
Scheme 29. The coupling of N-Pf-O-Bn-serinal 84 and titanium homoenolate 83.
Molecules 15 06512 g043

8.3. N-Pf-Amino acids as ligands in the Zn-catalyzed addition to aldehydes

It is very rare to use the Pf protected amino compounds as ligands in metal-catalyzed reactions. N-Pf-amino alcohols have been used as chiral ligands in secondary alcohol forming zinc-catalyzed additions to aldehydes (Table 13) [36]. A syn configuration in the ligand gives the S-product, while anti ligands give the R-product. The proposed mechanism for the catalytic cycle begins with the complexation of diethyl zinc and the ligand (Figure 13). The Pf group is supposed to act as a conformational lock for this amino alkoxide complex. This leads to the formation of a di-zinc complex, which undergoes intramolecular ethyl migration to give a catalyst-product –complex. Ferrocenyl, γ- and δ-amino alcohols and chiral piperazines have been used before in this reaction [36].

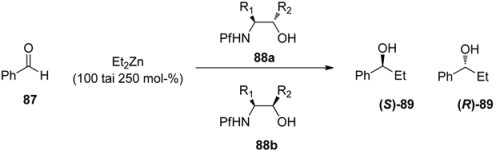

Table 13. N-Pf-Amino alcohol ligands in Et2Zn-catalyzed addition to benzaldehyde.
Table 13. N-Pf-Amino alcohol ligands in Et2Zn-catalyzed addition to benzaldehyde.
Molecules 15 06512 i013
ExperimentLigand 88 (3 mol-%)R1R2% eeConfiguration of the product
1aMePh76S
2bMePh29R
3aMeFerrocenyl76S
4bMeFerrocenyl17R
5aMeNaphtyl40S
6bMeNaphtyl66S
7aMet-Bu97S
8bMet-Bu14S
9aMePh3C90S
10bMePh3C18S

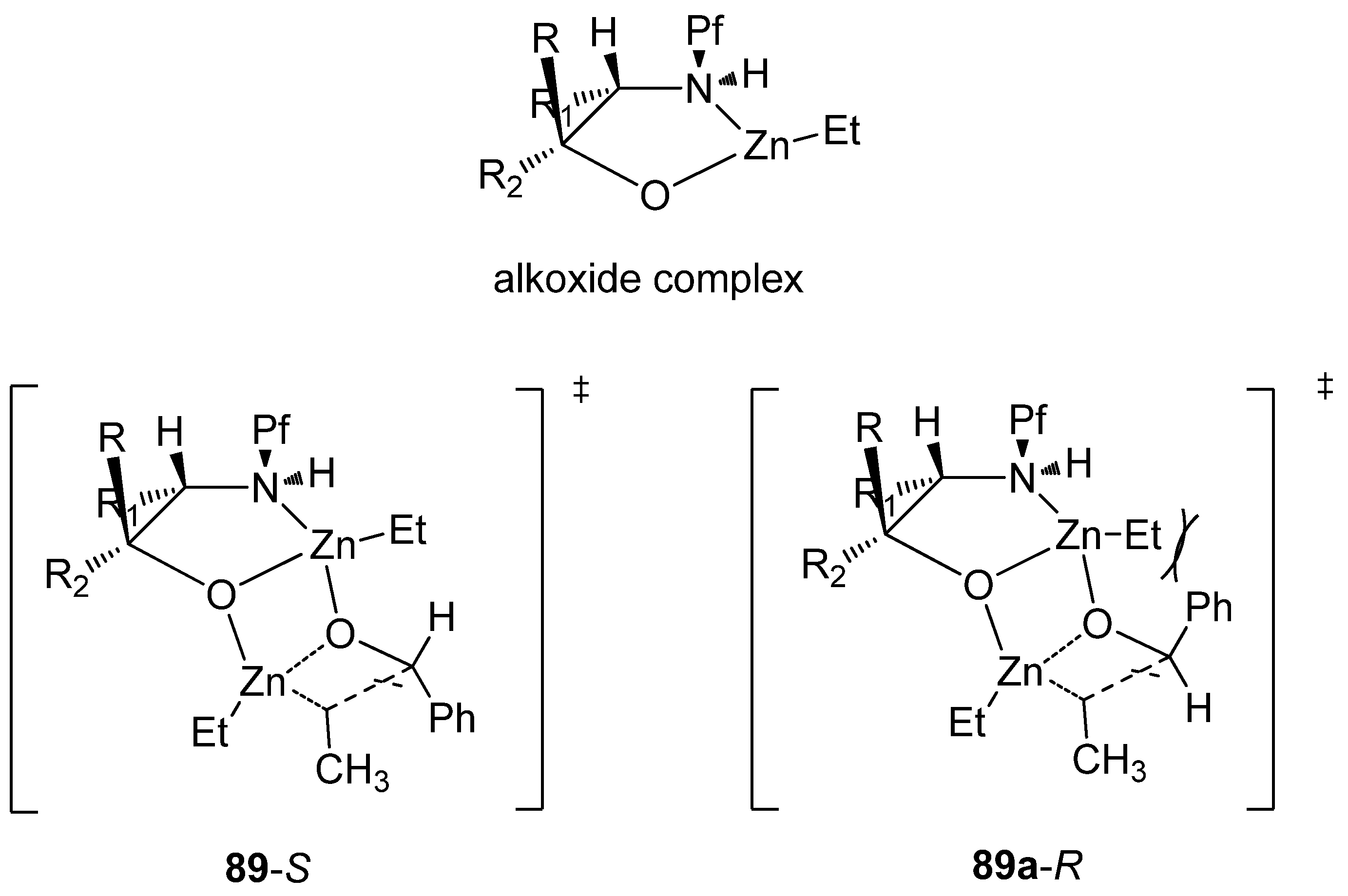

Figure 13. The assumed complexes.
Figure 13. The assumed complexes.
Molecules 15 06512 g013

8.4. Selective hydrolysis of esters with zinc bromide

tert-Butyl esters can be selectively hydrolyzed to free acids with ZnBr2 in the presence of a Pf protected amine [43]. N-Boc and N-trityl amino compounds hydrolyze to free amines in the same conditions in contrast to N-Pf-compounds (Scheme 30).

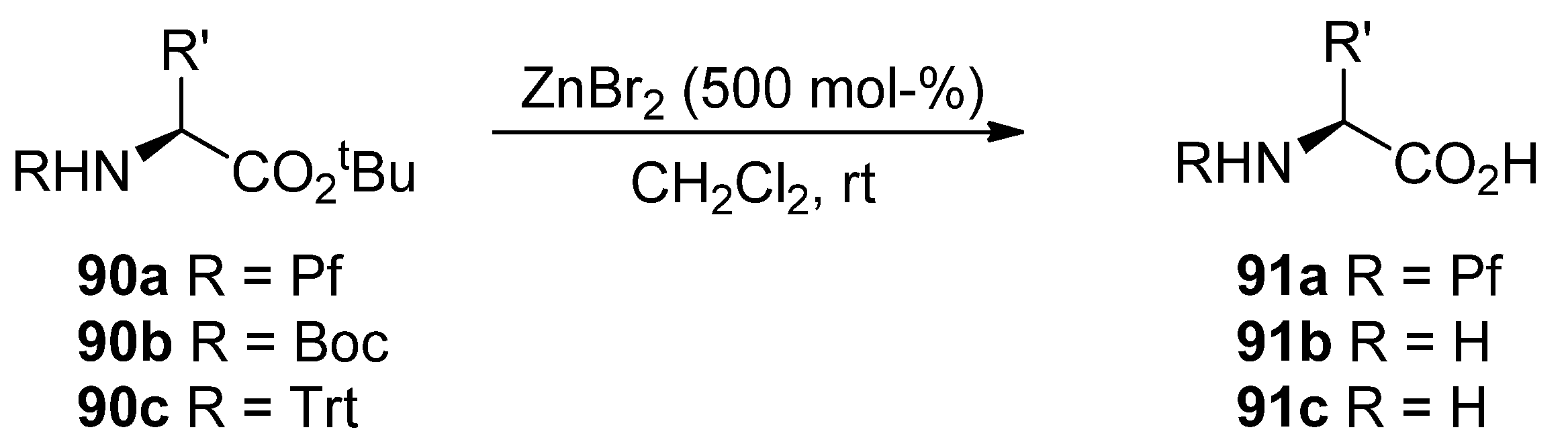

Scheme 30. Hydrolysis of tert-butyl esters present in N-protected amino acids.
Scheme 30. Hydrolysis of tert-butyl esters present in N-protected amino acids.
Molecules 15 06512 g044
tert-Butyl ester in the α-position of compound 29b can be selectively hydrolyzed with ZnBr2 (Scheme 31).

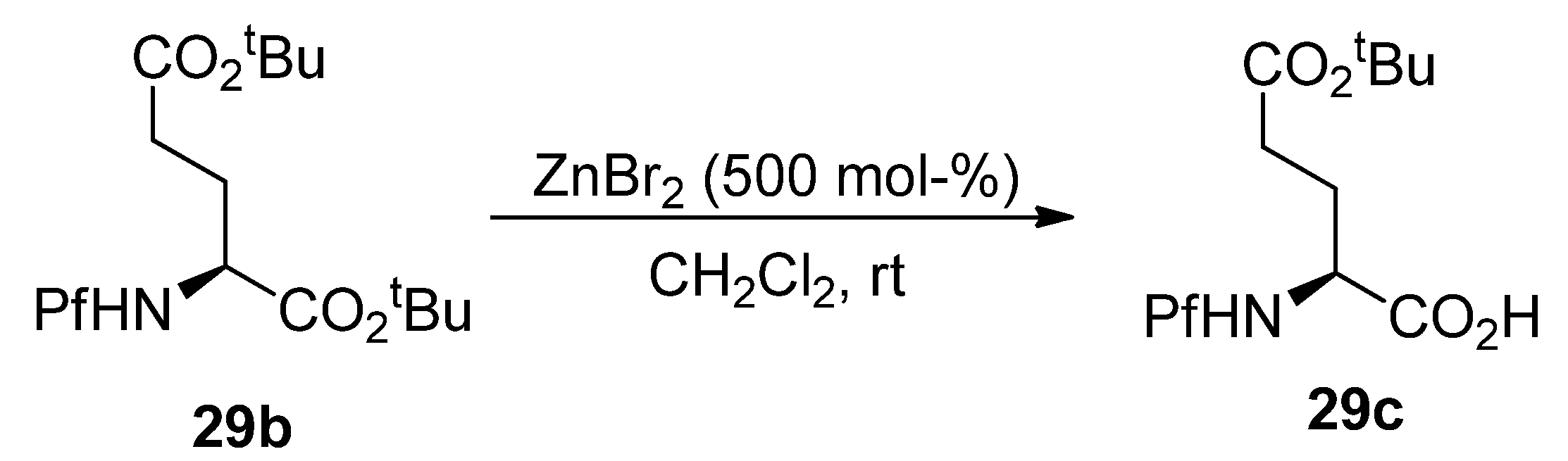

Scheme 31. Selective hydrolysis of α-tert-butyl ester.
Scheme 31. Selective hydrolysis of α-tert-butyl ester.
Molecules 15 06512 g045

9. Phenylfluorenyl in Total Synthesis

Many enantiospecific syntheses have been possible thanks to the regioselective enolization and alkylation of N-Pf-amino compounds. This reaction sequence has been applied in the total syntheses of dipeptides [44], (+)-pilocarpine [45], (-)-kainic acid [46] and pipecolates such as (+)-vincamines [20], for example. Also achiral compounds, such as prodigiosin [47] have been synthesized using the Pf-protecting group.
Variously functionalized L-asparagine derivatives have been used as starting materials in particularly many cases. It is common that alkylation is followed by ester hydrolysis, which has often turned out to be problematic. For example, Pf is cleaved by the usual acidic ester hydrolysis. For this reason Pf is typically used only in the early steps to direct enolization and to avoid racemization. After the critical phase it is changed to a more familiar protecting group such as Boc.

9.1. (+)-Vincamine

The synthesis of the pipecolate structure 22b is one of the first examples in which Pf has been used as a protecting group [3]. Regioselective enolization was unsuccessful with carbamate protection, therefore trityl protection was investigated. However, trityl amines were not usable because of their acid lability, and that is why Pf-protection was tried. The pipecolate structure has been used in the total syntheses of apovincamine [3] and later vincamine [20].
(+)-Vincamine (92), an alkaloid that has an influence on brain’s blood circulation, is used in nootropic memory enhancing purposes. There are several routes to racemic vincamine, and it can be synthesized enantiopure from L-asparagine [20]. The details of the synthesis of pipecolates was presented in Section 4.2 (synthesis of piperidine and alkylation of pipecolate) (Scheme 32).

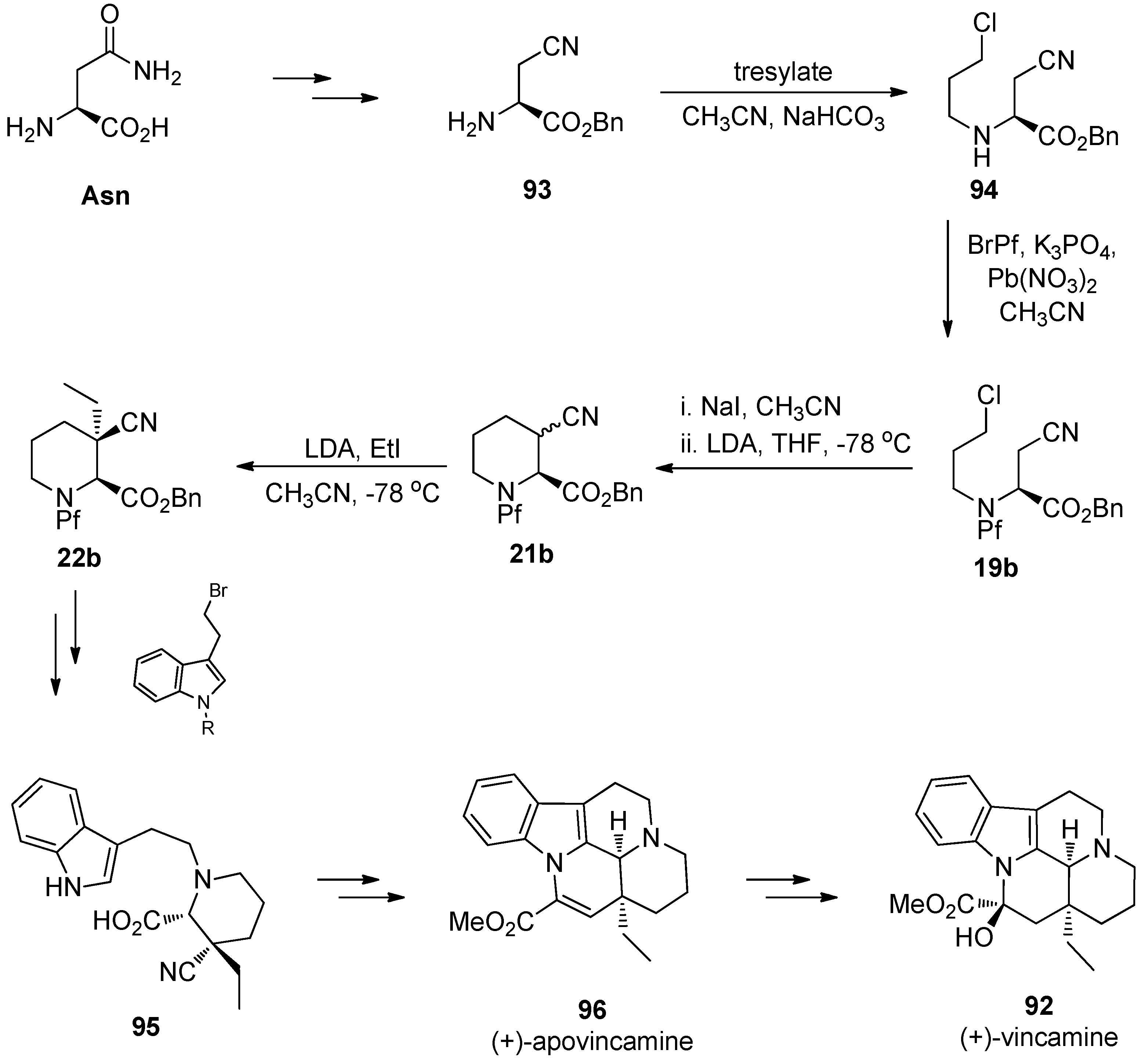

Scheme 32. The synthesis of (+)-vincamine.
Scheme 32. The synthesis of (+)-vincamine.
Molecules 15 06512 g046

9.2. (+)-Pilocarpine

Pilocarpine (97), an alkaloid isolated from tropical American Pilocarpus shrubs, is a muscarinic receptor agonist. It is used as a parasympathomamimetic compound towards glaucoma and xerostomia. There are several syntheses for racemic pilocarpine, and it can be made enantiopure from L-asparagine [45]. N-Pf-Protected asparagine 18a is alkylated, converted from amino acid to bromo acid to finally form an α,β-disubstituted succinate 98 and further the product.

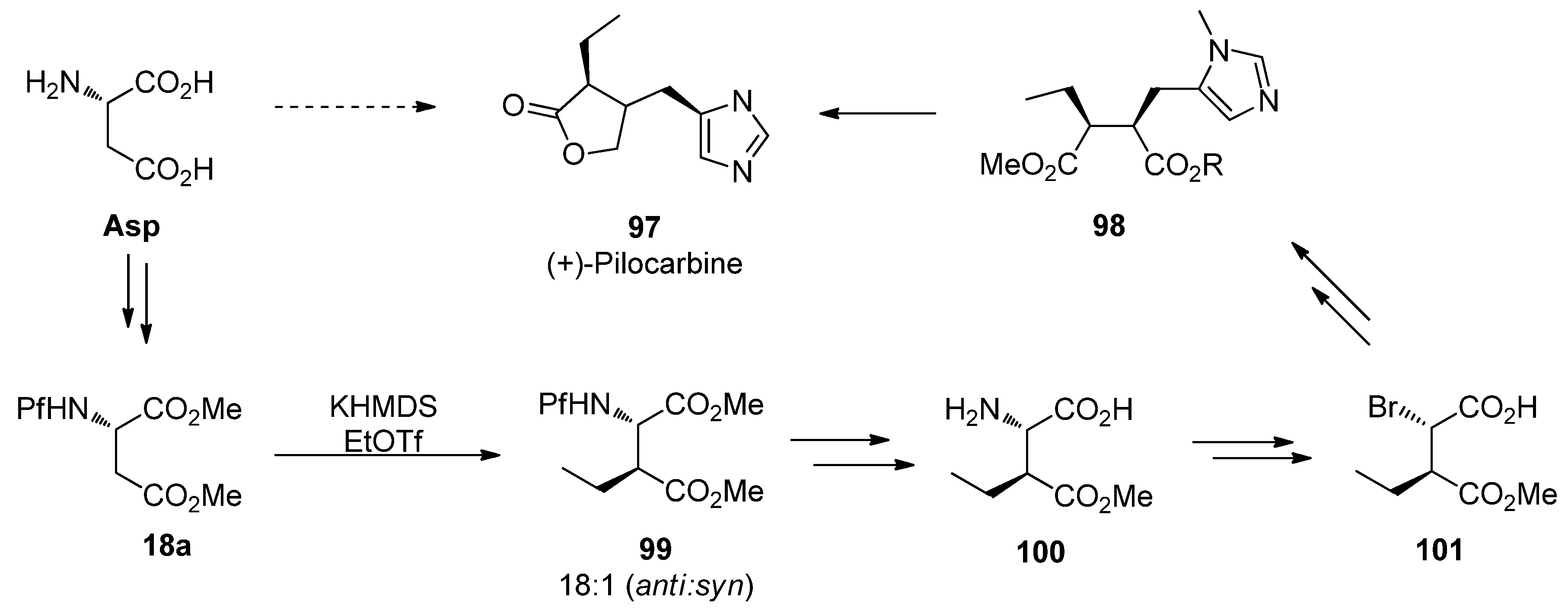

Scheme 33. The synthesis of (+)-pilocarpine.
Scheme 33. The synthesis of (+)-pilocarpine.
Molecules 15 06512 g047

9.3. (-)-Kainic acid

Kainic acid (102) is a marine natural product belonging to the group of kainoids, glutamate analogs, that exhibits a wide range of biological activities. Kainoids are believed to have an influence on nervous system and they have been discovered to be useful also as insecticides. In this synthesis of kainic acid an inexpensive trans-hydroxy-L-proline is used as the starting material. The key step is diastereoselective alkylation of a keto derivative of N-Pf-hydroxyproline 33, which is followed by stereoselective reduction of the keto function. In this synthesis, Pf is used solely in these steps and then replaced with a benzyloxycarbonyl (Cbz) in order to facilitate the upcoming cuprate substitution, which ultimately leads to the desired product [46].

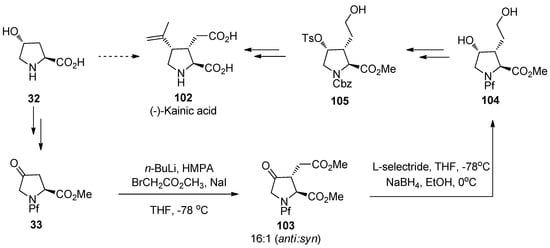

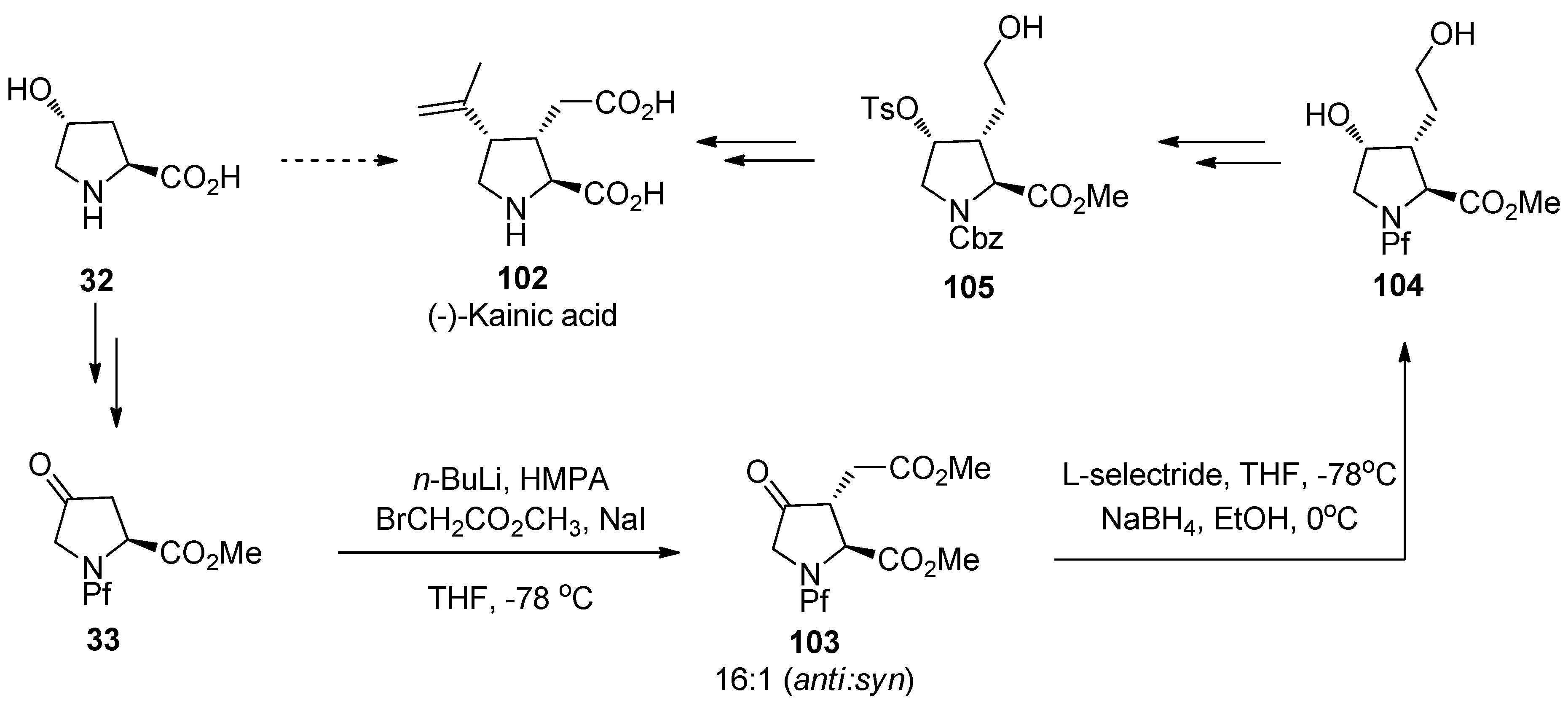

Scheme 34. The synthesis of (-)-kainic acid.
Scheme 34. The synthesis of (-)-kainic acid.
Molecules 15 06512 g048

9.4. γ-Lactams from dipeptides

Lactams are conformational constraints in peptide skeletons and are effective structural tools for probing the active conformation of bioactive peptides. In the same way, altering their structure gives more information about how the conformation affects on biological activity.

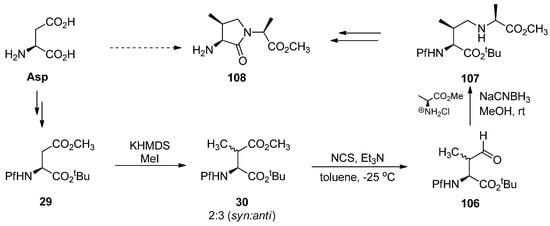

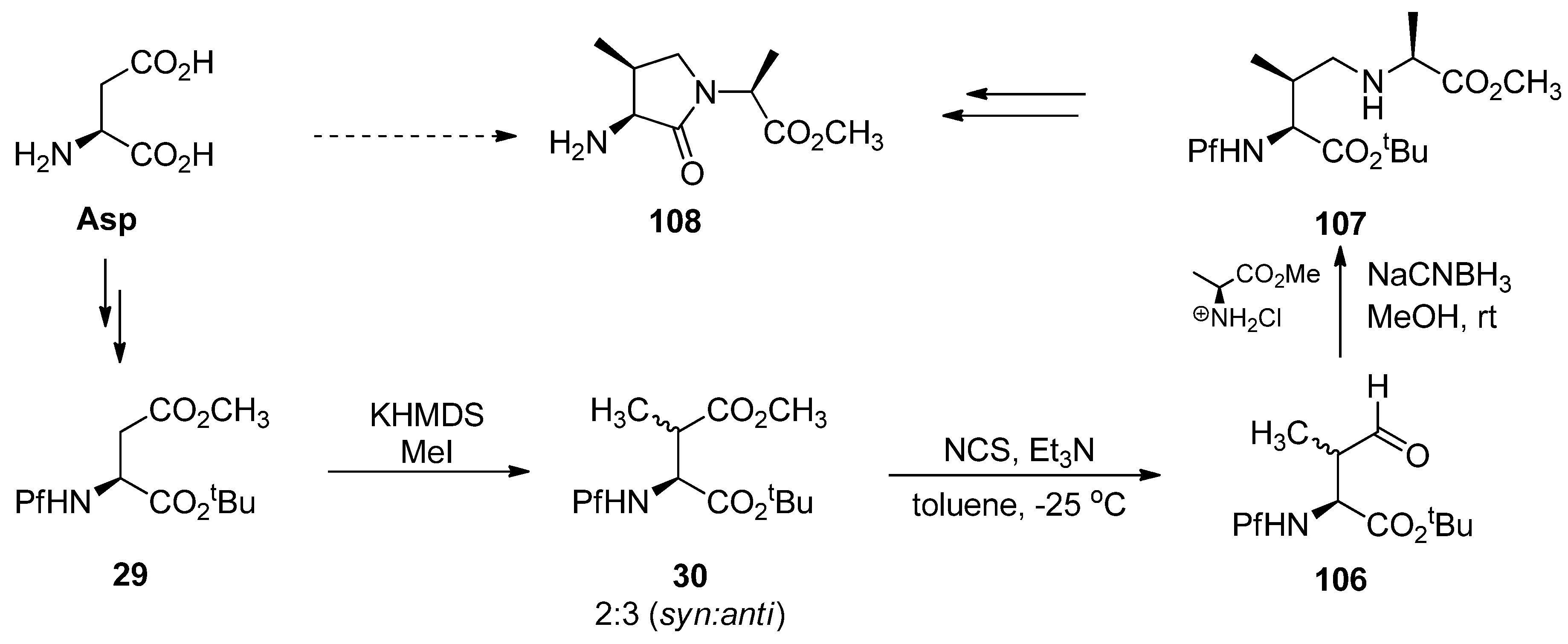

Scheme 35. Synthesis of γ-lactam dipeptides.
Scheme 35. Synthesis of γ-lactam dipeptides.
Molecules 15 06512 g049
Different kinds of dipeptides leading to γ-lactams have been made enantiopure from N-Pf-L-asparagine. Synthesis exploits the well-known feature of Pf of preventing enolization at the α-carbon of this diester 29 that enables regioselective alkylation. It also protects the α-tert-butyl ester from reduction. Pf-protection is, however, changed after it had served its above-mentioned function because it does not tolerate the acidic conditions needed to cleave tert-butyl ester [44].

10. Phenylfluorenyl Derivatives

Modifications of the core structure of Pf, and how they might effect on the characteristics of Pf as a protecting group, have not been studied. Different halogen-, alkyl- or aryl-substituted fluorenyl compounds have been made and examined in different contexts [48,49,50], but using Pf-related structures as protecting groups for nitrogen is very rare. The only known Pf-derivative used in synthesis is p-bromo phenylfluorenyl (BrPf) (Figure 14), that has been made to make it easier to remove Pf under mildly acidic conditions [51].

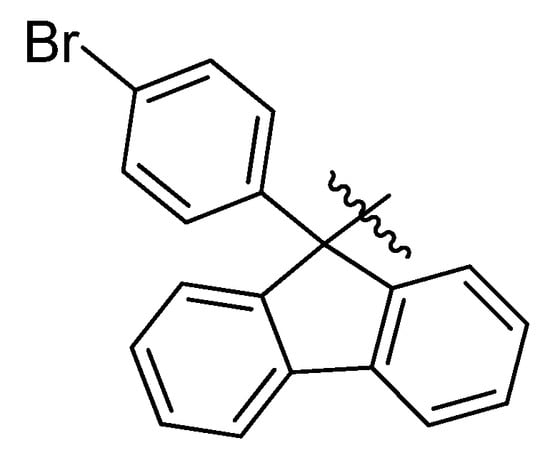

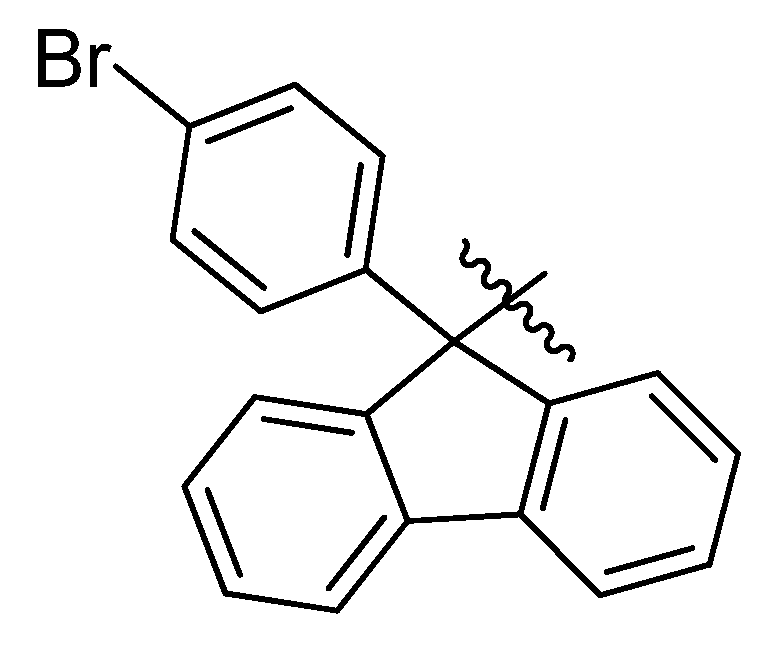

Figure 14. p-Bromophenylfluorenyl.
Figure 14. p-Bromophenylfluorenyl.
Molecules 15 06512 g014
The removal of BrPf has two phases. First, BrPf is activated by palladium-catalyzed amination between the aryl bromine and morpholine. The p-aminophenylfluorenyl compound that is formed forms a more stable cation than Pf-cation, and it can be removed under mildly acidic conditions. It can also be removed selectively in the presence of tert-butyl esters and carbamates. This works also the other way around, so that tert-butyl esters and carbamates can be removed selectively in the presence of BrPf (Scheme 36) [51].

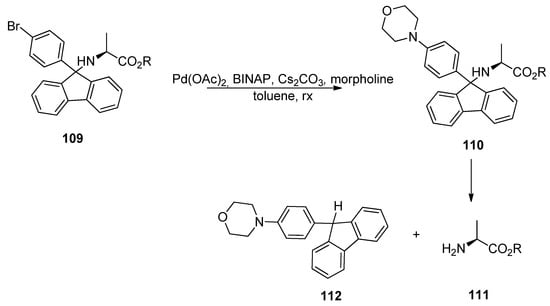

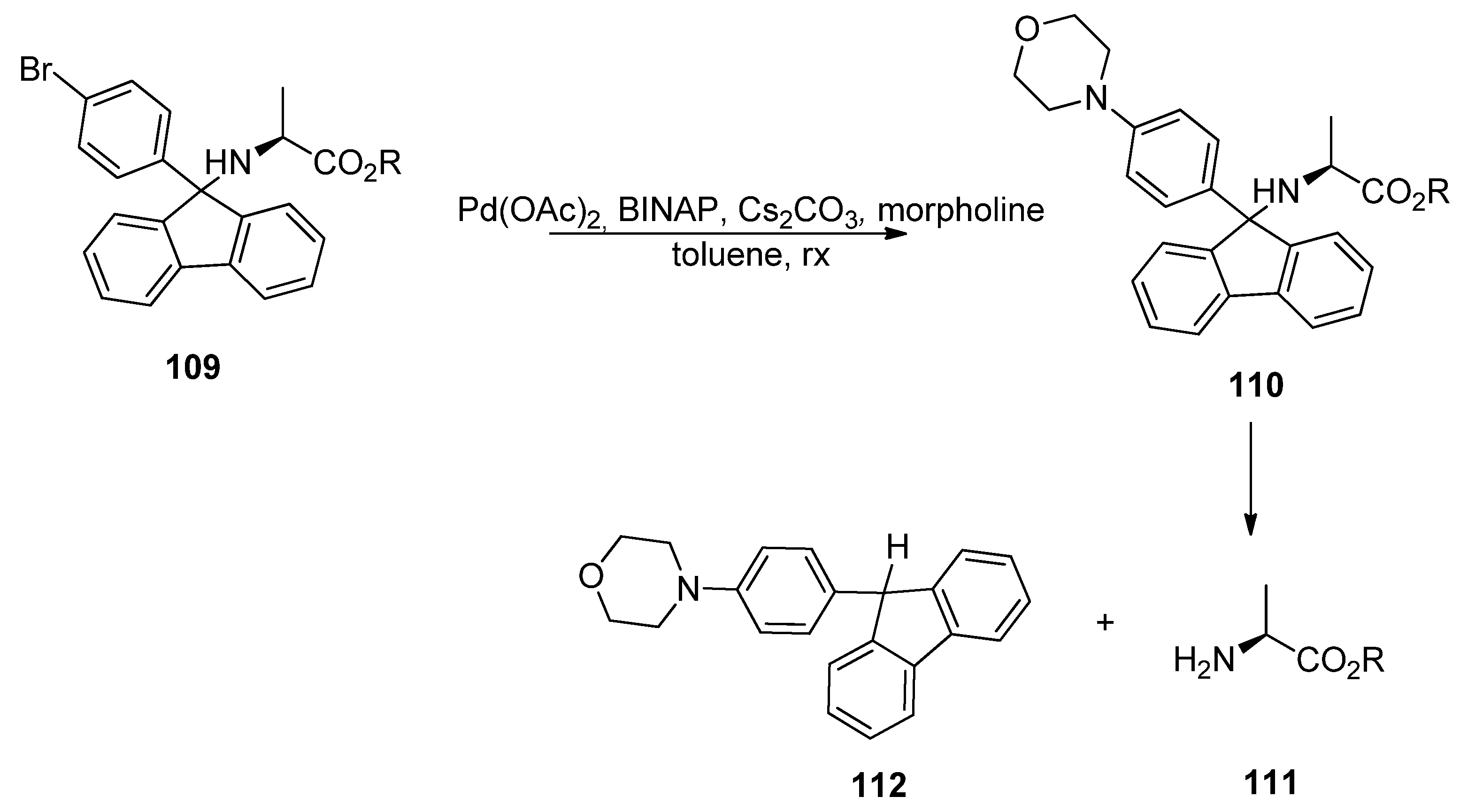

Scheme 36. Palladium-catalyzed cross-coupling in the removal of BrPf.
Scheme 36. Palladium-catalyzed cross-coupling in the removal of BrPf.
Molecules 15 06512 g050

11. Phenylfluorenyl on Solid Support

Solid phase organic synthesis is a useful tool for making large libraries of molecules. The substrate is temporarily bound to a polymeric resin, which is removed at the end of the reaction sequence. The intermediate resin bound products can be filtered from the solutions and there is no need for a separate purification. Reactions are usually driven to completion by using excess reagents. Slowness is the most common disadvantage of heterogenic reactions [52].
Synthetic strategies based on solid supported reagents are also becoming more common in the synthesis of small molecules. There is a so called linker between the polymer and the first building block, to which the molecule is attached and by the help of which the polymer can be removed. There exist several different linkers to amines, but they are usually sensitive to strong bases, acids or conditions in organometallic reactions, which constricts their use. Trityl linkers have been used to attach amines, carboxylic acids and alcohols.
Pf as a protecting group for α-amino carbonyls has proven its utility in liquid phase synthesis. Its possibilities in solid phase synthesis have been examined [53,54,55] and it can act as a linker in the syntheses of alkaloids, heterocycles and amino acids. Structurally stable Pf-protected amino compounds on solid support are a valuable source in the building of chiral amino compounds libraries. Pf-linker can be made from BrPf, for example (Scheme 37).

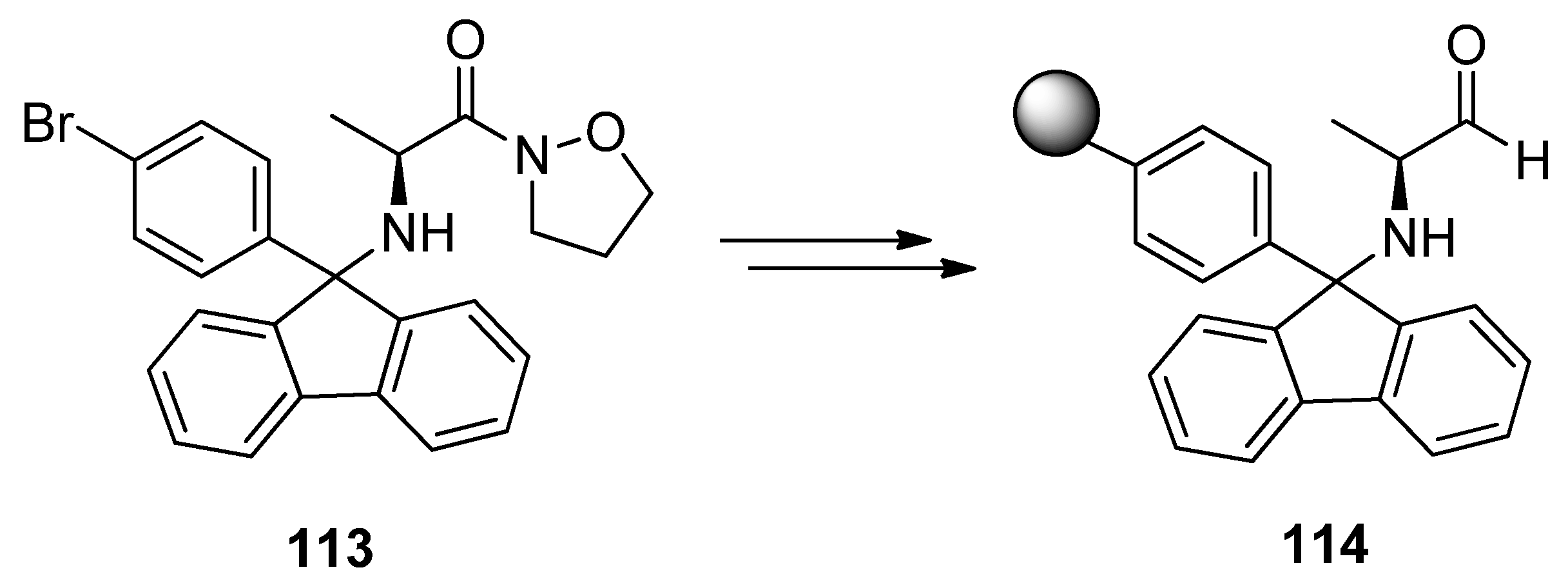

Scheme 37. Pf-linker from BrPf.
Scheme 37. Pf-linker from BrPf.
Molecules 15 06512 g051

12. Conclusions

The phenylfluorenyl group has been proven to reliably protect the α-center in amino carbonyl compounds against epimerisation. It is especially useful in regioselective reactions such as enolization and alkylation. Despiet its steric bulk, it does not seem to have a significant influence on the diastereoselectivity of these or any other reactions. Very little is actually known about the Pf groups real steric and/or electronic effects or possibilities in synthesis. Much remains to be explored, especially to learn more about the characteristics of its derivatives in terms of stability, diastereoselectivity and the protection of the amine itself. At this point the Pf group is, though, unique in its way to allow a chemist to efficiently protect the usually stereochemically vulnerable α-center of α-amino acids and ketones against epimerization.
  • Sample Availability: Not available.

References

  1. Dellaria, J.F., Jr.; Maki, R.G. The enantio- and diastereoselective synthesis of the first phosphostatine derivative. Tetrahedron Lett. 1986, 27, 2337–2340. [Google Scholar] [CrossRef]
  2. Bolton, R.; Chapman, N.B.; Shorter, J. Kinetics of Solvolysis of 9-Aryl-9-chlorofluorenes and Related Compounds in Ethanol-Acetone, in Ethanol, or in Methanol. J. Chem. Soc. 1964, 1895–1906. [Google Scholar]
  3. Christie, B.D.; Rapoport, H. Synthesis of Optically Pure Pipecolates from L-Asparagine. Application to the Total Synthesis of (+)-Apovincamine through Amino Acid Decarbonylation and Iminium Ion Cyclization. J. Org. Chem. 1985, 50, 1239–1246. [Google Scholar] [CrossRef]
  4. Paz, M.M.; Sardina, F.J. Enantiomerically pure dimethyl (2S)-N-(9-phenylfluoren-9-yl)-3,4-didehydroglutamate as chiral educt. Chirospecific synthesis of (+)-5-O-carbamoylpolyoxamic acid and 3-alkylglutamates. J. Org. Chem. 1993, 58, 6990–6995. [Google Scholar] [CrossRef]
  5. Lubell, W.D.; Rapoport, H. Configurational Stability of N-Protected α-Amino Aldehydes. J. Am. Chem. Soc. 1987, 109, 236–239. [Google Scholar] [CrossRef]
  6. Sauerland, S.J.K.; Castillo-Meléndez, J.A.; Nättinen, K.; Rissanen, K.; Koskinen, A.M.P. Enantioselective synthesis of homo-sphingosine derivatives from L-aspartic acid. Synthesis 2010, 757–763. [Google Scholar]
  7. Humphrey, J.M.; Bridges, R.J.; Hart, J.A.; Chamberlin, A.R. 2,3-Pyrrolidinedicarboxylates as Neurotransmitter Conformer Mimics: Enantioselective Synthesis via Chelation-Controlled Enolate Alkylation. J. Org. Chem. 1994, 59, 2467–2472. [Google Scholar]
  8. Jamison, T.F.; Rapoport, H. (S)-N-(9-phenylfluoren-9-yl)alanine and (S)-dimethyl N-(9-phenylfluoren-9-yl)aspartate. Org. Synthesis 1993, 71, 226–235. [Google Scholar]
  9. Campbell, J.A.; Lee, W.K.; Rapoport, H. Chirospecific Syntheses of Precursors of Cyclopentane and Cyclopentene Carboxylic Nucleosides by [3+3]-Coupling and Transannular Alkylation. J. Org. Chem. 1995, 60, 4602–4616. [Google Scholar]
  10. Lubell, W.D.; Jamison, T.F.; Rapoport, H. N-(9-Phenylfluoren-9-yl)-α-amino Aldehydes as Chiral Educts for the Synthesis of Optically Pure 4-Alkyl-3-hydroxy-2-amino Acids. Synthesis of the C-9 Amino Acid MeBmt Present in Cyclosporin. J. Org. Chem. 1990, 55, 3511–3522. [Google Scholar] [CrossRef]
  11. Hurt, C.R.; Lin, R.H.; Rapoport, H. Enantiospecific Synthesis of (R)-4-Amino-5-oxo-1,3,4,5-tetrahydrobenz[cd]indole, an Advanced Intermediate Containing the Tricyclic Core of the Ergots. J. Org. Chem. 1999, 64, 225–233. [Google Scholar] [CrossRef]
  12. Kim, J.H.; Lee, W.S.; Yang, M.S.; Lee, S.G.; Park, K.H. A Novel Method for Deprotection of N-9-Phenylfluoren-9-yl Group Using Iodine Catalyst: Simple Synthesis of (2S,3R,4R)-3,4-Dihydroxyproline. Synlett 1999, 614–616. [Google Scholar]
  13. Mladenova, G.; Chen, L.; Rodriquez, C.F.; Siu, K.W.M.; Johnston, L.J.; Hopkinson, A.C.; Lee-Ruff, E. Studies of 9-Fluorenyl Carbocations. Intramolecular Hydride Migration in a Substituted 9-Fluorenyl Carbocation. J. Org. Chem. 2001, 66, 1109–1114. [Google Scholar]
  14. Lubell, W.D.; Rapoport, H. α-Amino acids as chiral educts for asymmetric products. Alkylation of N-phenylfluorenyl .alpha.-amino ketones. Synthesis of optically pure α-alkyl carboxylic acids. J. Am. Chem. Soc. 1988, 110, 7447–7455. [Google Scholar]
  15. Lubell, W.; Rapoport, H. Surrogates for Chiral Aminomalondialdehyde. Synthesis of N-(9-Phenylfluoren-9-yl)serinal and N-(9-Phenylfluoren-9-yl)vinylglycinal. J. Org. Chem. 1989, 54, 3824–3831. [Google Scholar] [CrossRef]
  16. Stanfield, C.F.; Parker, J.E.; Kanellis, P. Preparation of protected amino alcohols: A comparative study. J. Org. Chem. 1981, 46, 4797–4798. [Google Scholar] [CrossRef]
  17. Chang, K.-T.; Jang, K.C.; Park, H.-Y.; Kim, Y.-K.; Park, K.H.; Lee, W.S. Diastereoselective Iodoamidation of 3-Acetoxybut-1-enylamines: Synthesis of 3-acetoxy-4-iodo-2-(p-Methoxybenzyl)pyrrolidines. Heterocycles 2001, 55, 1173–1179. [Google Scholar] [CrossRef]
  18. Hansford, K.A.; Dettwiler, J.E.; Lubell, W.D. One-Pot Synthesis of Homoallylic Ketones from the Addition of Vinyl Grignard Reagent to Carboxylic Esters. Org. Lett. 2003, 5, 4887–4890. [Google Scholar]
  19. Paleo, M.R.; Calaza, M.I.; Sardina, F.J. Enantiospecific Synthesis of N-(9-Phenylfluoren-9-yl)-α-amino Ketones. J. Org. Chem. 1997, 62, 6862–6869. [Google Scholar]
  20. Gmeiner, P.; Feldman, P.L.; Chu-Moyer, M.Y.; Rapoport, H. An efficient and practical total synthesis of (+)-vincamine from L-aspartic acid. J. Org. Chem. 1990, 55, 3068–3074. [Google Scholar] [CrossRef]
  21. Feldman, P.; Rapoport, H. Synthesis of Optically Pure Δ4-Tetrahydroquinolinic Acids and Hexahydroindolo[2,3-a]quinolizines from L-Aspartic Acid. Racemization on the Route to Vindoline. J. Org. Chem. 1986, 51, 3882–3890. [Google Scholar] [CrossRef]
  22. Dunn, P.J.; Häner, R.; Rapoport, H. Stereoselective Synthesis of 2,3-Diamino Acids. 2,3-Diamino-4-phenylbutanoic Acid. J. Org. Chem. 1990, 55, 5017–5025. [Google Scholar] [CrossRef]
  23. Inoue, M.; Shinohara, N.; Tanabe, S.; Takahashi, T.; Okura, K.; Itoh, H.; Mizoguchi, Y.; Iida, M.; Lee, N.; Matsuoka, S. Total synthesis of the large non-ribosomal peptide polytheonamide B. Nat. Chem. 2010, 2, 280–285. [Google Scholar] [CrossRef]
  24. Humphrey, J.M.; Bridges, R.J.; Hart, J.A.; Chamberlin, A.R. 2,3-Pyrrolidinedicarboxylates as Neurotransmitter Conformer Mimics: Enantioselective Synthesis via Chelation-Controlled Enolate Alkylation. J. Org. Chem. 1994, 59, 2467–2472. [Google Scholar]
  25. Fernández-Megía, E.; Paz, M.M.; Sardina, F.J. On the Stereoselectivity of the Reaction of N-(9-Phenylfluoren-9-yl)aspartate Enolates with Electrophiles. Synthesis of Enantiomerically Pure 3-Hydroxy-3-methylaspartates. J. Org. Chem. 1994, 59, 7643–7652. [Google Scholar] [CrossRef]
  26. Koskinen, A.M.P.; Rapoport, H. Synthesis of 4-Substutited Prolines as Conformationally Constrained Amino Acid Analogues. J. Org. Chem. 1989, 54, 1859–1866. [Google Scholar]
  27. Sharma, R.; Lubell, W.D. Regioselective Enolization and Alkylation of 4-Oxo-N-(9-phenylfluoren-9-yl)proline: Synthesis of Enantiopure Proline-Valine and Hydroxyproline-Valine-Chimeras. J. Org. Chem. 1996, 61, 202–209. [Google Scholar] [CrossRef]
  28. Blanco, M.-J.; Sardina, F.J. Enantiospecific and Stereoselective Synthesis of Polyhydroxylated Pyrrolidines and Indolizidines from trans-4-Hydroxy-L-proline. J. Org. Chem. 1996, 61, 4748–4755. [Google Scholar] [CrossRef]
  29. Koskinen, A.M.P.; Schwerdtfeger, J.; Edmonds, J. A simple route to 4-substituted-3,4-didehydroprolines. Mechanistic probes for the inhibition of prolyl-4-hydroxylase. Tetrahedron Lett. 1997, 38, 5399–5402. [Google Scholar] [CrossRef]
  30. Gill, P.; Lubell, W.D. Synthesis of Enantiopure Arylkainoids: Preparation of (2S)-Δ3-4-Phenylkainic Acid. J. Org. Chem. 1995, 60, 2658–2659. [Google Scholar] [CrossRef]
  31. Rondeau, D.; Gill, P.; Chan, M.; Curry, K.; Lubell, W.D. Synthesis and pharmacology of new enantiopure Δ3-4-arylkainoids. Bioorg. Med. Chem. Lett. 2000, 10, 771–773. [Google Scholar] [CrossRef]
  32. Kim, J.H.; Curtis-Long, M.J.; Seo, W.D.; Ryu, Y.B.; Yang, M.B.; Park, K.H. Stereodivergent Syntheses of Anisomycin Derivatives from D-Tyrosine. J. Org. Chem. 2005, 70, 4082–4087. [Google Scholar]
  33. Lombart, H.-G.; Lubell, W.D. Rigid Diopeptide Mimetics: Efficient Synthesis of Enantiopure Indolizidinone Amino Acids. J. Org. Chem. 1996, 61, 9437–9446. [Google Scholar] [CrossRef]
  34. Fernández-Megía, E.; Montaos, M.A.; Sardina, F.J. A Short, Efficient, and Stereoselective Procedure for the Synthesis of cis-3-Hydroxymethyl-aziridine-2-carboxylic Acid Derivatives, Important Intermediates in the Synthesis of Mitomycinoids. J. Org. Chem. 2000, 65, 6780–6783. [Google Scholar]
  35. Paleo, M.R.; Castedo, L.; Domínguez, D. Synthesis of 2-[N-(9-Phenylfluoren-9-yl)amino]-1-indanones by Anionic Cyclization of Phenylalanine-Derived Oxazolidinones. J. Org. Chem. 1993, 58, 2763–2767. [Google Scholar] [CrossRef]
  36. Paleo, M.R.; Cabeza, I.; Sardina, F.J. Enantioselective Addition of Diethylzinc to Aldehydes Catalyzed by N-(9-Phenylfluoren-9-yl) β-Amino Acids. J. Org. Chem. 2000, 65, 2108–2113. [Google Scholar] [CrossRef]
  37. Wei, L.; Lubell, W.D. Racemization in the Use of N-(9-(9-Phenylfluorenyl))Serine-Derived Cyclic Sulfamidates in the Synthesis of δ-Keto α-Amino Carboxylates and Prolines. Org. Lett. 2000, 2, 2595–2598. [Google Scholar] [CrossRef]
  38. Atfani, M.; Wei, L.; Lubell, W.D. N-(9-(9-Phenylfluorenyl))homoserine-Derived Cyclic Sulfamidates: Novel Chiral Educts for the Synthesis of Enantiopure γ-Substituted α-Amino Acids. Org. Lett. 2001, 3, 2965–2968. [Google Scholar] [CrossRef]
  39. Wei, L.; Lubell, W.D. Scope and limitations in the use of N-(PhF)serine derived cyclic sulfamidates for amino acid synthesis. Can. J. Chem. 2001, 79, 94–104. [Google Scholar]
  40. Lohray, B.B. Cyclic sulfites and cyclic sulfates: Epoxide like synthons. Synthesis 1992, 1035–1052. [Google Scholar] [CrossRef]
  41. Galaud, F.; Blankenship, J.W.; Lubell, W.D. Crystal structure analysis and reactivity of N-Alkyl and N-Acyldioxathiazinanes. Heterocycles 2008, 76, 1121–1131. [Google Scholar] [CrossRef]
  42. Koskinen, P.M.; Koskinen, A.M.P. Total Synthesis of Sphingosine and its Analogues. Meth. Enzymol. 1999, 311, 458–479. [Google Scholar]
  43. Kaul, R.; Brouillette, Y.; Sajjadi, Z.; Hansford, K.A.; Lubell, W.D. Selective tert-Butyl Ester Deprotection in the Presence of Acid Labile Protecting Groups with Use of ZnBr2. J. Org. Chem. 2004, 69, 6131–6133. [Google Scholar] [CrossRef]
  44. Wolf, J.-P.; Rapoport, H. Conformationally constrained peptides. Chirospecific synthesis of 4-alkyl-substituted γ-lactam-bridged dipeptides from L-aspartic acid. J. Org. Chem. 1989, 54, 3164–3173. [Google Scholar]
  45. Dener, J.M.; Zhang, L.-H.; Rapoport, H. An effective chirospecific synthesis of (+)-pilocarpine from L-aspartic acid. J. Org. Chem. 1993, 58, 1159–1166. [Google Scholar] [CrossRef]
  46. Poisson, J.-F.; Orellana, A.; Greene, A.E. Stereocontrolled Synthesis of (−)-Kainic Acid from trans-4-Hydroxy-L-proline. J. Org. Chem. 2005, 70, 10860–10863. [Google Scholar]
  47. Jolicouer, B.; Lubell, W.D. Prodigiosin synthesis with electron rich 2,2'-bipyrroles. Can. J. Chem. 2008, 86, 213–218. [Google Scholar] [CrossRef]
  48. Nakamura, M.; Nakamura, N.; Oki, M. Restricted Rotation Involving the Tetrahedral Carbon. XX. Barriers to Rotation and 13C NMR spectra of 9-(2-Alkylphenyl)fluorene Derivatives. Bull. Chem. Soc. Japan 1977, 50, 2986–2990. [Google Scholar] [CrossRef]
  49. Cozens, F.L.; Mathivanan, N.; McClelland, R.A.; Steenken, S. Reactivities of 9-arylfluoren-9-yl and 1-[4-(dimethylamino)phenyl]ethyl cations in water and trifluoroethanol studied by laser flash photolysis. J. Chem. Soc, Perkin Trans. 1992, 2, 2083–2090. [Google Scholar]
  50. Meyers, C.Y.; Hou, Y.; Lutfi, H.G.; Saft, H.L. The First Reported Halogenation of a tert-Butyl Group with HCl or HBr in CHCl3. Unexpected Differences in the Reactions of HCl, HBr, HI, and HF with sp-9-(o-tert-Butylphenyl)-9-fluorenol. J. Org. Chem. 1999, 64, 9444–9449. [Google Scholar] [CrossRef]
  51. Surprenant, S.; Lubell, W.D. Pentiptycene Chemistry: New Pentiptycene Building Blocks Derived from Pentiptycene Quinones. J. Org. Chem. 2006, 71, 848–851. [Google Scholar] [CrossRef]
  52. Ley, S.V.; Baxendale, I.R. New tools and concepts for modern organic synthesis. Nature Reviews Drug. Disc. 2002, 1, 573–586, Review on solid phase synthesis:. [Google Scholar] [CrossRef]
  53. Gosselin, F.; Betsbrugge, J.V.; Hatam, M.; Lubell, W.D. A Novel Linking-Protecting Group Strategy for Solid-Phase Organic Chemistry with Configurationally Stable α-[N-(Phenylfluorenyl)]amino Carbonyl Compounds: Synthesis of Enantiopure Norephedrines on Solid Support. J. Org. Chem. 1999, 64, 2486–2493. [Google Scholar] [CrossRef]
  54. Brouillette, Y.; Rombouts, J.R.; Lubell, W.D. Solid-Phase Synthesis of 3-Aminopyrrole-2,5-dicarboxylate Analogues. J. Comb. Chem. 2006, 8, 117–126. [Google Scholar] [CrossRef]
  55. Bleicher, K.H.; Lutz, C.; Wüthrich, Y. New phenylfluorenyl based linkers for solid phase synthesis. Tetrahedron Lett. 2000, 41, 9037–9042. [Google Scholar] [CrossRef]

Share and Cite

MDPI and ACS Style

Karppanen, E.J.; Koskinen, A.M.P. The 9-Phenyl-9-fluorenyl Group for Nitrogen Protection in Enantiospecific Synthesis. Molecules 2010, 15, 6512-6547. https://doi.org/10.3390/molecules15096512

AMA Style

Karppanen EJ, Koskinen AMP. The 9-Phenyl-9-fluorenyl Group for Nitrogen Protection in Enantiospecific Synthesis. Molecules. 2010; 15(9):6512-6547. https://doi.org/10.3390/molecules15096512

Chicago/Turabian Style

Karppanen, Essi J., and Ari M. P. Koskinen. 2010. "The 9-Phenyl-9-fluorenyl Group for Nitrogen Protection in Enantiospecific Synthesis" Molecules 15, no. 9: 6512-6547. https://doi.org/10.3390/molecules15096512

Article Metrics

Back to TopTop
