Magnetically Recoverable Magnetite/Gold Catalyst Stabilized by Poly(N-vinyl-2-pyrrolidone) for Aerobic Oxidation of Alcohols

by
Hsiao Wei Chen
1,
Arumugam Murugadoss
2,
T. S. Andy Hor
1,3 and
Hidehiro Sakurai
2,4,*
1
Department of Chemistry, National University of Singapore, 3 Science Drive 3, 117543, Singapore
2
Research Center for Molecular Scale Nanoscience, Institute for Molecular Science, Myodaiji, Okazaki 444-8787, Japan
3
Institute of Materials Research and Engineering, Agency for Science, Technology and Research, 3 Research Link, S117602, Singapore
4
PRESTO, Japan Science and Technology Agency, Tokyo 102-0075, Japan
*
Author to whom correspondence should be addressed.
Molecules 2011, 16(1), 149-161; https://doi.org/10.3390/molecules16010149
Submission received: 1 December 2010 / Revised: 16 December 2010 / Accepted: 28 December 2010 / Published: 29 December 2010
(This article belongs to the Special Issue Homogeneous Catalysis)
Browse Figures
Versions Notes

Abstract

:
Fe3O4:PVP/Au nanocomposite synthesized via a two-step procedure was tested as a quasi-homogenous alcohol oxidation catalyst. It was found that the nanocomposite was able to carry out aerobic oxidation of alcohols in water at room temperature. Studies show rapid magnetic recoverability and reusability characteristics.

1. Introduction

In recent years, energy has become an important concern, leading to the desire for better, more efficient catalysts to replace current industrial processes [1,2]. These days, sustainability and environmental friendliness are key elements to consider in the realm of catalysis. While catalysis is an important process for the development of starting materials, fine chemicals and pharmaceuticals, green catalysis requires the synthesis of environmentally benign catalysts which can be easily removed from the reaction media and recycled many times with very high efficiency [3].
Since Haruta’s breakthrough discovery of oxide-supported Au nanocluster (Au NC) catalysts for CO oxidation at low temperatures [4,5], interest in gold chemistry in the field of catalysis has grown exponentially [6,7,8,9]. Gold has been shown to be capable catalyzing many organic transformations, some of them uniquely [10,11,12,13,14,15,16], due to the relativistic effect of the element [17] that allows for new modes of catalysis. This meteoric rise in popularity in gold catalysts is reflected in the recent reviews on the trend and future direction of this research field [7,8,9,18,19] and on the recent use of gold catalysts in an atom-economic and chemoselective total synthesis of bryostatin 16 [20].
Au NCs of 1.3 nm to 2 nm in diameter protected by poly(N-vinyl-2-pyrrolidone) (PVP) have been proven to perform aerobic oxidation of alcohols at ambient temperatures [21,22]. Other metal nanoclusters on magnetite have recently been reported to be active, magnetically recoverable and reusable [23,24]. Notably, a nano-ferrite-Pd catalyst [23] has been used in the oxidation of alcohols as well, albeit using H2O2 rather than molecular oxygen as the oxidant. This is encouraging as it indicates that the use of nano-ferrite as the support does not deactivate the supported catalyst towards oxidation catalysis, and the choice of oxidant can be further improved by using molecular oxygen, or even air.
Au NCs have also been successfully attached onto magnetite either in dumbbell-shape fashion [25,26,27] or as a core-shell motif [28,29,30]. It has further been found that such Au NCs on iron oxides can perform aerobic oxidation of amines either as heterogenous catalysts [31,32], or as CO oxidation catalysts [25].
PVP-supported iron oxides are known in the literature [33,34,35], and have also been found to have good dispersity [35], which is potentially important in maintaining the “quasi-homogeneous” property of the composite in relation to the parent Au:PVP system [21,22,36,37,38,39,40,41,42,43,44,45] which has already been established.
Although no clear mechanism has been defined for the oxidation process [46], it has been determined that the size of gold on the surface is not the key issue, but rather the nature of interface [47] and the presence of oxygen in the form of oxides [48].
While there has been some work done with Au NCs stabilized by PVP, Fe3O4 stabilized by PVP and Au nanoparticles on Fe3O4, there is a lack of information where all three elements are present, especially in the field of alcohol oxidation. Our work here aims to address this gap, although the concept of using magnetic nanoparticles as quasi-homogenous catalysis supports has been known [49]. Herein, we describe our attempt to make magnetically recoverable and reusable quasi-homogenous Fe3O4/Au PVP-stabilized catalyst for the aerobic oxidation of alcohols.

2. Results and Discussion

2.1. Catalyst Preparation

The catalyst was prepared by a two-step wet chemical process, whereby the magnetite support stabilized by PVP [50] was first isolated, followed by the addition and reduction of the gold precursor to afford the desired composite catalyst. The magnetite particles were synthesized via a modified literature method [43,51,52], by reduction of a mixture of Fe2+ and Fe3+ ions [51,52] using ammonia solution in the presence of the PVP polymer. Our novel one-pot synthesis is more environmentally friendly than earlier reports, as it can be carried out at lower temperatures [34,35], without the use of organic solvents and surfactants [53,54,55]. In most cases, a much stronger base like sodium hydroxide [35] is used for the reduction of iron salts to the magnetite core was well, and our switch to ammonia as a reductant addresses the waste disposal problems associated with this process.
Magnetic recoverability is one main benefit which led to the development of this system, and as such, the Vibrating Sample Magnetometry (VSM) measurements are of great interest. VSM studies of the support and the composite (Figure 1) show hysteresis loops typical for superparamagnetic particles [56]. The composite Fe3O4:PVP/Au is less magnetic than its corresponding Fe3O4:PVP support, which is unsurprising, given the shielding effect of having gold on the outside of the PVP-stabilized magnetite. With regard to other known synthetic magnetic materials [35,55,56], the Fe3O4:PVP/Au and the Fe3O4:PVP support both show sufficient superparamagnetic behavior, as exhibited by strong magnetic moments of 65.6 and 84.4 e.m.u./g, respectively.
Molecules 16 00149 g001 550
Figure 1. VSM data for the Fe3O4:PVP support and the Fe3O4:PVP/Au composite, conducted at 100K.
Figure 1. VSM data for the Fe3O4:PVP support and the Fe3O4:PVP/Au composite, conducted at 100K.
Molecules 16 00149 g001
Field Emission Scanning Electron Microscope (FESEM) images of Fe3O4:PVP/Au prepared at 275K show large particle sizes [Figure 2(b)] of approximately 80 nm in diameter, which is unsurprising due to the longer chain of the PVP stabilizer used. In this case, PVP(K-90) [50] with an average molecular weight of 360,000 was used, in lieu of the PVP(K-30) of molecular weight 30,000 in the case of Au:PVP [43]. The longer chain of the PVP polymer is evident in the encapsulation layer visible around the particles. A slight, expected increase in the particle size is observed for the composite [Figure 2(b)] compared to the support alone [Figure 2(a)].
Molecules 16 00149 g002 550
Figure 2. (a) FESEM image of the Fe3O4:PVP support at 150,000 times magnification. (b) FESEM image of the Fe3O4:PVP/Au composite at 50,000 times magnification.
Figure 2. (a) FESEM image of the Fe3O4:PVP support at 150,000 times magnification. (b) FESEM image of the Fe3O4:PVP/Au composite at 50,000 times magnification.
Molecules 16 00149 g002
Transmission Electron Microscopy (TEM) images of the Fe3O4:PVP/Au composite [Figure 3(b)] shows inhomogeneity in the coating of Au NCs on the iron support. This is probably because even at low temperatures of 275K, there exists the possibility of the HAuCl4 to be instantaneously reduced by the Fe2+ present within the iron support should the two substances come into contact. Such reductions without the need for a reducing agent are known in the literature [57]. Other Au atoms were probably first pre-coordinated to the PVP before addition of NaBH4 give Au:PVP clusters similar to those of the original system [21,22,36,37,38,39,40,41,42,43,44,45,58]. TEM studies show very few small Au NCs, which is unexpected based on the earlier reported Au:PVP systems [21,22].
Molecules 16 00149 g003 550
Figure 3. (a) TEM image of the Fe3O4:PVP support. (b) TEM image of the Fe3O4:PVP/Au composite.
Figure 3. (a) TEM image of the Fe3O4:PVP support. (b) TEM image of the Fe3O4:PVP/Au composite.
Molecules 16 00149 g003
It was, however, decided to carry on with the catalytic screening based on the absence of a gold Surface Plasmon Resonance (SPR) band around the 520 nm region [59] in the UV-Visible spectrum for this composite. (Figure 4) The presence of such a band would indicate the existence of large nanoclusters of gold in the catalyst, which inevitably give rise to poorer activities [22].
Molecules 16 00149 g004 550

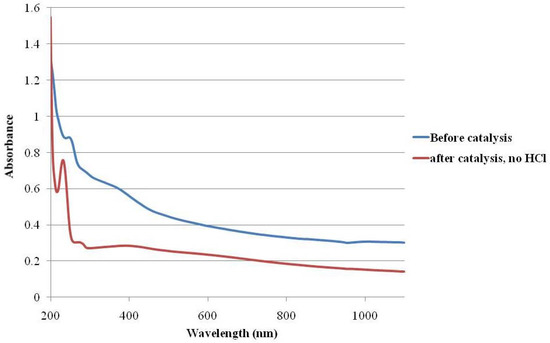

Figure 4. UV-Vis Spectra for Fe3O4:PVP/Au in milliQ water, both before and after the alcohol oxidation, conducted at 300K.
Figure 4. UV-Vis Spectra for Fe3O4:PVP/Au in milliQ water, both before and after the alcohol oxidation, conducted at 300K.
Molecules 16 00149 g004

2.2. Catalytic Screening and Substrate Scope

Fe3O4:PVP/Au was screened against various substrates in aerobic alcohol oxidation. All the reactions were carried out using 2 atom% (per Au) of Fe3O4:PVP/Au, in the presence of 300 mol% of K2CO3 in water under ambient conditions. The results are summarized in Table 1 with the yields with Au:PVP catalyst under the same conditions in parentheses for reference. In the reaction with benzyl alcohol, aerobic oxidation took place giving the mixture of benzaldehyde and benzoic acid in 5% and 94% yields, respectively (Entry 1). Although the reactivity of Fe3O4:PVP/Au was slightly different from that of Au:PVP, which yielded benzoic acid selectively in 98% yield, the Fe3O4:PVP/Au catalyst was found to be of sufficient catalytic activity to monitor with other benzylic alcohols.
As shown in Entry 2, when screened against para-hydroxybenzyl alcohol, the corresponding aldehyde and acid were obtained in 42% and 30% yields, respectively, and a considerable amount of polymers were produced, which was contrary to the result with Au:PVP which gave the selective formation of aldehyde in 91% yield [60]. The Fe3O4:PVP/Au composite also gave the aldehyde as a major product in the reaction with para-methoxybenzyl alcohol (entry 3) in 42% yield, together with the acid in 32% yield. Under the same reaction conditions, exclusive formation of the acid (93% yield) was observed in the Au:PVP-catalyzed reaction.
In contrast, Fe3O4:PVP/Au exhibited comparable reactivity to Au:PVP in the reaction with the substrates with electron-withdrawing group such as para-nitrobenzyl alcohol (entry 4) or cyclic benzyl alcohol such as 1-indanol (Entry 5). In both cases, quantitative yield of the product was obtained under the same reaction conditions.
Table
Table 1. Aerobic alcohol oxidation of various benzyl alcohols by Fe3O4:PVP/Au. Values in parentheses correspond to those for the established Au:PVP catalyst [39].
Molecules 16 00149 i001
Table 1. Aerobic alcohol oxidation of various benzyl alcohols by Fe3O4:PVP/Au. Values in parentheses correspond to those for the established Au:PVP catalyst [39].
Molecules 16 00149 i001
EntryRTime (h)GC Yield (%)
12
1H6594 (98)
2p-OH842a (91)30a (8)
3p-OMe34232 (93)
4p-NO224-99 (99)
51-indanolb0.598 (>99)-
a Isolated yield. The remainder of the substrate was polymerized.b Product is 1-indanone.

2.3. Recoverability and Reusability Characteristics

The recoverability and reusability of the Fe3O4:PVP/Au catalyst is one of its key features. The ease of recoverability is demonstrated in Figure 5. A typical duration for recovery of the Fe3O4:PVP/Au composite is 1 minute. The neodynium magnet used for retrieval has a pull force of over 35 pounds, much more than the usual magnetic stirring bar. Hence, during the reaction, the catalyst remains dispersed in solution as seen in Figure 5(a), even for the catalysis involving para-nitrobenzyl alcohol which has a 24-hour reaction time. Vigorous stirring and the much weaker magnetic field of the stirring bar ensures that the monodispersity is maintained in solution.
The ability to recover the catalyst quickly gives us the option of first recovering the catalyst, followed by neutralization of the reaction mixture only. The neodynium magnet is applied to first magnetically separate the catalyst, and the reaction mixture decanted into another vessel, with washing, before addition of acid is done to neutralize the base used in the catalysis. This solves one of the key problems of the older Au:PVP system, i.e. the aggregation of gold in the presence of acid. InFigure 4, this is exhibited by a lack of growth of an SPR band at the region around 520 nm [59].
Molecules 16 00149 g005 550

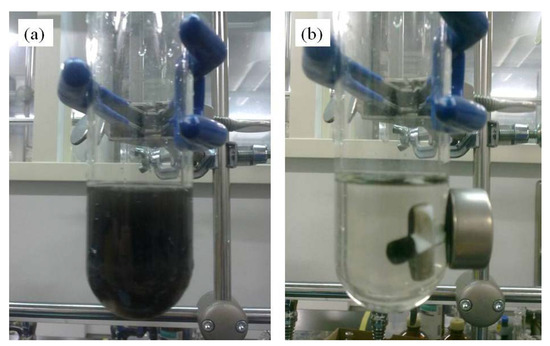

Figure 5. (a) The composite dispersed in water during the reaction. (b) Magnetic recovery of the composite after the reaction, using a strong external neodynium magnet.
Figure 5. (a) The composite dispersed in water during the reaction. (b) Magnetic recovery of the composite after the reaction, using a strong external neodynium magnet.
Molecules 16 00149 g005
Stark and his co-workers reported that carbon-coated cobalt particles exhibit rapid magnetic separation ability due to the strong magnetic saturation [61]. In comparison with Stark’s example, the above Fe3O4:PVP/Au showed slower recovery. This is unsurprising, given the lower magnetic saturation values caused by the use of PVP, which forms a protective film around the magnetic core [Figure 2(a)]. In contrast, this protective film serves to protect the magnetite from oxidation during storage. The samples are stable for 1-2 months at room temperature without having to store them under nitrogen atmosphere.
Table
Table 2. Recoverability studies for the aerobic oxidation of benzyl alcohol by Fe3O4:PVP/Au.
Molecules 16 00149 i002
Table 2. Recoverability studies for the aerobic oxidation of benzyl alcohol by Fe3O4:PVP/Au.
Molecules 16 00149 i002
EntryCycleGC Yield (%)Conversion (%)
12
1159499
2269298
3389098
4488997
5568894
To prove the magnetic recoverability and reusability of the composite, the catalyst was used to oxidize simple benzyl alcohol for 5 cycles. Under the standard conditions of benzyl alcohol oxidation with 2 atom% (per Au) of Fe3O4:PVP/Au, in the presence of 300 mol% of K2CO3 in water under ambient conditions for six hours, it can be concluded that Fe3O4:PVP/Au possesses satisfactory reusability although conversion yield was slightly decreased to 94% after 5 cycles (Table 2). Like other examples [62], the magnetite cores are fairly stable under the reaction conditions, therefore the slight decrease in conversion yield might be due to the aggregation of gold clusters. It is noteworthy that Au:PVP catalysts [39] could not be reused in the reaction with benzyl alcohol because the aggregation of the catalyst by benzoic acid, the product, was unavoidable, causing the drastic deactivation of the catalyst. While the star polymer variant of the system with LCST-type thermosensitiveness [45] gave superior reusability in the oxidation of benzyl alcohol to benzoic acid in >99% conversion over six cycles, the current magnetically recovery system might be easier in practical operation.

3. Experimental

3.1. General

The composites prepared were characterized by VSM, UV-visible (UV-vis) optical spectroscopy, FESEM, and TEM. VSM studies were performed on a LakeShore 7400 calibrated with a Ni Sphere Model 730908 with field applied with a 4-inch magnet across a gap of 1.5 inches. UV-vis absorption spectra were recorded at ambient temperature using a double-beam spectrophotometer (V-670, JASCO). FESEM studies were conducted on a JEOL 6701F Spectrometer. TEM images were recorded at an acceleration voltage of 100 kV (Hitachi H-7500) with a typical magnification of 100,000.

3.2. Preparation of Fe3O4:PVP Support

The Fe3O4:PVP support with various PVP chain lengths can be prepared by the rapid and simultaneous reduction of a FeCl2-FeCl3 (1:2) mixture by NH4OH in an aqueous solution of PVP at 353 K using Schlenk techniques. Specifically, PVP (K-90) (555.5 mg, 5 mmol in monomer units) was added to degassed milliQ water (10 mL) and stirred for 30 minutes at room temperature to obtain an aqueous solution. 2 M FeCl2 in 2 M HCl (125 μL, 0.25 mmol) and 1M FeCl3 in 1M HCl (500 μL, 0.5 mmol) were added and the resulting mixture was stirred slowly at ambient temperature for another 30 mins under inert atmosphere. The temperature was then raised to 353 K and the stirring rate increased. NH4OH (6.25 mL of 0.7 M solution diluted to 40 mL with degassed milliQ) was injected under inert conditions and with vigorous stirring. After a further 1 h of stirring, the resulting hydrosol of Fe3O4:PVP was purified via magnetic decantation three times using 20 mL of degassed milliQ. Finally, the black Fe3O4:PVP solid was dried in vacuo to obtain powders for easy storage.

3.3. Preparation of Fe3O4:PVP/Au Composites

The Fe3O4:PVP/Au composite was prepared by the rapid and simultaneous reduction of a HAuCl4 by NaBH4 in an quasi-homogenous solution of the respective Fe3O4:PVP supports at low temperature using Schlenk techniques. A quasi-homogeneous solution (25 mL) of Fe3O4:PVP (25.0 mg) was prepared by sonication for 45 mins in an ice bath under inert atmosphere. To the solution HAuCl4 (833.4 μL of 50 mM solution, 41.67 mmol) was added at 275 K under vigorous stirring. After stirring for 30 min at 275 K, the aqueous solution of NaBH4 (0.1 M, 2.5 mL) was rapidly injected into the mixture and further stirred for 1 h. The resulting hydrosol of Fe3O4:PVP/Au was dialyzed three times by magnetic decantation. Similarly, the black Fe3O4:PVP/Au solid was dried in vacuo to obtain powders for easy storage.

3.4. General Procedure for Aerobic Oxidation of Benzyl Alcohols

Aerobic oxidation of the alcohol substrate 1 to the corresponding aldehyde 2 was carried out using an organic synthesizer (EYELA, PPS-2510). Changes were made to the earlier process [39] to accommodate the magnetic recovery process, as the Fe3O4:PVP cores are unstable toward mineral acids. Benzyl alcohol (0.25 mmol), K2CO3 (103.6 mg, 0.75 mmol), and H2O (5 mL) were placed into a test tube (Φ = 30 mm). Fe3O4:PVP/Au (15.1 mg, 2 atom %) was first added to degassed milliQ water (10 mL) and sonicated for 45 minutes to obtain a quasi-homogenous solution. This solution was added to the reaction mixture and stirred vigorously at 300 K. The catalyst was separated magnetically using a commercial neodynium magnet for retrieval, and the reaction solution quenched with 1 M HCl (1.5 mL). The products were extracted with ethyl acetate (3x20 mL) and dried in vacuo. The residue was redisssolved in ethyl acetate (30 mL) and a portion (200 μL) of this crude mixture was added to ethyl acetate (1.5 mL) and 6 mM hexadecane (200 μL) as internal standard, to make up the solution analyzed using gas chromatography (Shimadzu, GC-2014). The GC yield was estimated from the calibration curve.

4. Conclusions

To date, this is the only known report on the use of PVP as a stabilizer to support both magnetite and gold nanoclusters to form a composite. The benefit to such a design is the ability to effect the magnetic recoverability of the magnetite and the aerobic catalytic oxidation ability of the nanoclusters while retaining the quasi-homogenous solubility of the parent Au:PVP catalyst. Such a quasi-homogenous catalyst has a larger surface area compared with heterogenous catalysts, as well as better potential in terms of substrate scope as the catalysis can be done in one phase.
In our preliminary catalytic studies, we have found that Fe3O4/Au stabilized by PVP (K-90) show good activity, selectivity and recoverability, despite a lack of small Au NCs (~ 1.3 – 3 nm) seen in the TEM images. This points to two possibilities, one of which is that there are very small, sub-nm clusters responsible for the high activity, which are not visible in the TEM. Another is that the support so greatly enhances activity that it overcomes the size requirement of the gold clusters, similar to heterogenous CO oxidation catalysts.
Compared with our earlier systems, the magnetic recovery process possesses several benefits: one is that the reuse of the catalyst is much easier and more speedy. Another is that the recovery operated before the neutralization of the reaction media can prevent the significant aggregation of the catalyst, which is proceeded under acidic conditions and which causes deactivation of the catalyst.

Acknowledgements

Financial supports from the National University of Singapore (R-143-000-323-112) and a Kiang Ai Kim scholarship to H. W. Chen, and JENESYS funding from JSPS for two overseas attachments in Japan, JSPS fellowship to A. M., and PRESTO-JST to H. S. are gratefully acknowledged. The authors are grateful to Ms N. Kai of IMS for her assistance in TEM analysis, and Ms C. N. Tang and Ms. L. S. Tan of NUS for FESEM and VSM assistance respectively.

References and Notes

  1. Sheldon, R. A. E factors, green chemistry and catalysis: an odyssey. Chem. Commun. 2008, 3352–3365. [Google Scholar] [CrossRef]
  2. Roberts, S. M.; Whittall, J. Preface to Volume 5. In Catalysts for Fine Chemical Synthesis: Regio- and Stereo-Controlled Oxidations and Reductions; Roberts, S.M., Whittall, J., Eds.; John Wiley & Sons Ltd.: Chichester, England, 2007; Volume 5, xix. [Google Scholar]
  3. Astruc, D. Transition-metal Nanoparticles in Catalysis: From Historical Background to the State-of-the Art. In Nanoparticles and Catalysis; Astruc, D., Ed.; Wiley-VCH: Weinheim, Germany, 2008; pp. 1–48. [Google Scholar]
  4. Haruta, M.; Yamada, N.; Kobayashi, T.; Iijima, S. Gold Catalysts Prepared by Coprecipitation for Low-Temperature Oxidation of Hydrogen and of Carbon Monoxide. J. Catal. 1989, 115, 301–309. [Google Scholar]
  5. Haruta, M.; Kobayashi, T.; Sano, H.; Yamada, N. Novel Gold Catalysts for the Oxidation of Carbon-Monoxide at Low Temperature. Chem. Lett. 1987, 2, 405. [Google Scholar]
  6. Sandar, R.; Funston, A.M.; Mulvany, P.; Murray, R.W. Gold Nanoparticles: Past, Present and Future. Langmuir 2009, 25, 13840–13851. [Google Scholar] [CrossRef]
  7. Li, Z.; Brouwer, C.; He, C. Gold-Catalyzed Organic Transformations. Chem. Rev. 2008, 108, 3239–3265. [Google Scholar] [CrossRef]
  8. Arcadi, A. Alternative Synthetic Methods through New Developments in Catalysis by Gold. Chem. Rev. 2008, 108, 3266–3325. [Google Scholar] [CrossRef]
  9. Gorin, D.J.; Sherry, B.D.; Toste, D.F. Ligand Effects in Homogenous Au Catalysis. Chem. Rev. 2008, 108, 3351–3378. [Google Scholar] [CrossRef]
  10. Hashmi, A.S.K.; Schwarz, L.; Choi, J.H.; Frost, T.M. A New Gold-Catalyzed C-C Bond Formation. Angew. Chem. Int. Ed. 2000, 39, 2285–2288. [Google Scholar] [CrossRef]
  11. Fructos, M.R.; Belderrain, T.R.; De Frémont, P.; Scott, N.M.; Nolan, S.P.; Díaz-Requejo, M.M.; Pérez, P.J. A Gold Catalyst for Carbene Transfer Reactions from Ethyl Diazoacetate. Angew. Chem. Int. Ed. 2005, 44, 5284–5288. [Google Scholar]
  12. Sromek, A.W.; Rubina, M.; Gevorgyan, V. 1,2-Halogen Migration in Haloallenyl Ketones: Regiodivergent Synthesis of Halofurans. J. Am. Chem. Soc. 2005, 127, 10500–10501. [Google Scholar] [CrossRef]
  13. Ferrer, C.; Echavarren, A.M. Gold-Catalyzed Intramolecular Reaction of Indoles with Alkynes: Facile Formation of Eight-Membered Rings and an Unexpected Allenylation. Angew. Chem. Int. Ed. 2006, 45, 1105–1109. [Google Scholar] [CrossRef]
  14. Lian, J.J.; Chen, P.C.; Lin, Y.P.; Ting, H.C.; Liu, R.S. Gold-Catalyzed Intramolecular [3+2]-Cycloaddition of Arenyne-Yne Functionalities. J. Am. Chem. Soc. 2006, 128, 11372–11373. [Google Scholar] [CrossRef]
  15. Schwier, T.; Sromek, A.W.; Yap, D.M.L.; Chernyak, D.; Gevorgyan, V. Mechanistically Diverse Copper-, Silver- and Gold-Catalyzed Acyloxy and Phosphatyloxy Migrations: Efficient Synthesis of Heterocycles via Cascade Migration/Cycloisomerization Approach. J. Am. Chem. Soc. 2007, 129, 9868–9878. [Google Scholar] [CrossRef]
  16. Li, Z.; Capretto, D.A.; Rahaman, P.O.; He, C. Gold(III)-Catalyzed Nitrene Insertion into Aromatic and Benzylic C-H Groups. J. Am. Chem. Soc. 2007, 129, 12058–12059. [Google Scholar]
  17. Gorin, D.J.; Toste, F.D. Relativistic Effects in Homogenous Gold Catalysis. Nature 2007, 446, 395–403. [Google Scholar]
  18. Díaz-Requejo, M.M.; Pérez, P.J. Coinage Metal Catalyzed C-H Bond Functionalization of Hydrocarbons. Chem. Rev. 2008, 108, 3379–3394. [Google Scholar] [CrossRef]
  19. Patil, N. T.; Yamamoto, Y. Coinage-Metal Assisted Synthesis of Heterocycles. Chem. Rev. 2008, 108, 3395–3442. [Google Scholar] [CrossRef]
  20. Trost, B.M.; Dong, G. Total Synthesis of Bryostatin 16 Using Atom-Economical and Chemoselective Approaches. Nature 2008, 456, 485–488. [Google Scholar] [CrossRef]
  21. Tsunoyama, H.; Ichikuni, N.; Sakurai, H.; Tsukuda, T. Effect of Electronic Structures of Au Clusters Stabilized by Poly(N-vinyl-2-pyrrolidone) on Aerobic Oxidation Catalysis. J. Am. Chem. Soc. 2009, 131, 7086–7093. [Google Scholar] [CrossRef]
  22. Tsunoyama, H.; Sakurai, H.; Negishi, Y.; Tsukuda, T. Size-Specific Catalytic Activity of Polymer-Stabilized Gold Nanoclusters for Aerobic Alcohol Oxidation in Water. J. Am. Chem. Soc. 2005, 127, 9374–9375. [Google Scholar]
  23. Polshettiwar, V.; Varma, R.S. Nanoparticle-supported and magnetically recoverable palladium (Pd) catalyst: a selective and sustainable oxidation protocol with high turnover number. Org. Biomol. Chem. 2009, 7, 37–40. [Google Scholar] [CrossRef]
  24. Polshettiwar, V.; Varma, R.S. Nanoparticle-Supported and Magnetically Recoverable Ruthenium Hydroxide Catalyst: Efficient Hydration of Nitriles to Amides in Aqueous Medium. Chem. Eur. J. 2009, 15, 1582. [Google Scholar] [CrossRef]
  25. Wang, C.; Yin, H.; Dai, S.; Leow, A.; Sun, S. A General Approach to Nobel Metal-Metal Oxide Dumbbell Nanoparticles and Their Catalytic Application to CO Oxidation. Chem. Mater. 2010, 3277–3282. [Google Scholar]
  26. Yu, H.; Chen, M.; Rice, P.M.; Wang, S.X.; White, R.L.; Sun, S. Dumbbell-like Bifunctional Au-Fe3O4 Nanoparticles. Nano Lett. 2005, 5, 379–382. [Google Scholar] [CrossRef]
  27. Carantu, D.; Cushing, B.L.; Carantu, G.; O’Connor, C.J. Attachment of Gold Nanograins onto Colloidal Magnetite Nanocrystals. Chem. Mater. 2005, 17, 3398–3402. [Google Scholar] [CrossRef]
  28. Pal, S.; Morales, M.; Mukherjee, P.; Srikanth, H. Synthesis and Magnetic Properties of Gold Coated Iron Oxide Nanoparticles. J. Appl. Phys. 2009, 105. 07B504. [Google Scholar] [CrossRef]
  29. Xu, Z.; Hou, Y.; Sun, S. Magnetic Core/Shell Fe3O4/Au and Fe3O4/Au/Ag Nanoparticles with Tunable Plasmonic Properties. J. Am. Chem. Soc. 2007, 129, 8698–8699. [Google Scholar] [CrossRef]
  30. Wang, L.; Luo, J.; Fan, Q.; Suzuki, M.; Suzuki, I.S.; Engelhard, M.H.; Lin, Y.; Kim, N.; Wang, J.Q.; Zhong, C.-J. Monodispersed Core-Shell Fe3O4 at Au Nanoparticles. J. Phys. Chem. B. 2005, 109, 21593–21601. [Google Scholar]
  31. Aschwanden, L.; Panella, B.; Rossbach, P.; Keller, B.; Baiker, A. Magnetically Separable Gold Catalyst for the Aerobic Oxidation of Amines. ChemCatChem 2009, 1, 111–115. [Google Scholar] [CrossRef]
  32. Taarning, E.; Madsen, A.T.; Marchetti, J.M.; Egeblad, K.; Christensen, C.H. Oxidation of Glycerol and Propanediols in Methanol over Heterogenous Catalysts. Green Chem. 2008, 10, 408–414. [Google Scholar] [CrossRef]
  33. Buršik, J.; Košovan, P.; Šubrt, J. Thick Fe2O3, Fe3O4 Films Prepared by the Chemical Solution Deposition Method. J. Sol-gel Sci. Tech. 2006, 39, 85–94. [Google Scholar] [CrossRef]
  34. Lu, X.; Niu, M.; Qiao, R.; Gao, M. Superdispersible PVP-Coated Fe3O4 Nanocrystals Prepared by a “One-Pot“ Reaction. J. Phys. Chem. B 2008, 112, 14390–14394. [Google Scholar] [CrossRef]
  35. Zhang, Z.J.; Chen, X.Y.; Wang, B.N.; Shi, C.W. Hydrothermal Synthesis and Self-Assembly of Magnetite (Fe3O4) Nanoparticles with the Magnetic and Electrochemical Properties. J. Cryst. Growth 2008, 310, 5453–5457. [Google Scholar] [CrossRef]
  36. Kitahara, H.; Sakurai, H. Gold Nanoclusters as a Catalyst for Intramolecular Addition of Primary Amines to Unactivated Alkenes under Aerobic Conditions. Chem. Lett. 2010, 39, 46–48. [Google Scholar] [CrossRef]
  37. Sakurai, H.; Kamiya, I.; Kitahara, H.; Tsunoyama, H.; Tsukuda, T. Aerobic Oxygenation of Benzylic Ketones Promoted by a Gold Nanocluster Catalyst. Synlett 2009, 2, 245–248. [Google Scholar]
  38. Kamiya, I.; Tsunoyama, H.; Tsukuda, T.; Sakurai, H. Lewis Acid Character of Zero-Valent Gold Nanoclusters under Aerobic Conditions: Intramolecular Hydroalkoxylation of Alkenes. Chem. Lett. 2007, 36, 646–647. [Google Scholar] [CrossRef]
  39. Tsunoyama, H.; Tsukuda, T.; Sakurai, H. Synthetic Application of PVP-Stabilized Au Nanocluster Catalyst to Aerobic Oxidation of Alcohols in Aqueous Solution under Ambient Conditions. Chem. Lett. 2007, 36, 212–213. [Google Scholar] [CrossRef]
  40. Sakurai, H.; Tsunoyama, H.; Tsukuda, T. Oxidative Homo-Coupling of Potassium Aryltrifluoroborates Catalyzed by Gold Nanocluster under Aerobic Conditions. J. Organomet. Chem. 2007, 692, 368–374. [Google Scholar] [CrossRef]
  41. H. Tsunoyama, H.; Sakurai, T.; Tsukuda. Chem. Phys. Lett. 2006, 429, 528. [CrossRef]
  42. Sakurai, H.; Tsunoyama, H.; Tsukuda, T. Aerobic Oxidation Catalyzed by Gold Nanoclusters as Quasi-Homogeneous Catalysts: Generation of Hydrogen Peroxide Using Ammonium Formate. Trans. Mater. Res. Soc. Jpn. 2006, 31, 521–524. [Google Scholar]
  43. Tsunoyama, H.; Sakurai, H.; Ichikuni, N.; Negishi, Y.; Tsukuda, T. Colloidal Gold Nanoparticles as Catalyst for Carbon-Carbon Bond Formation: Application to Aerobic Homocoupling of Phenylboronic Acid in Water. Langmuir 2004, 20, 11293–11296. [Google Scholar] [CrossRef]
  44. N. Yagi, N.; Shingo; Aoshima, H.; Kanaoka, S.; Tsunoyama, T.; Tsukuda, N.; Sakurai, H.; N. Yagi, N. Precision Synthesis of Various Thermosensitive Star-Shaped Polymers and Size-Controlled Formation of Reusable Gold Nanoclusters Catalysts. Polymer Preprints 2008, 49, 1054. [Google Scholar]
  45. Kanaoka, S.; Yagi, N.; Fukuyama, Y.; Aoshima, S.; Tsunoyama, H.; Tsukuda, T.; Sakurai, H. Thermosensitive Gold Nanoclusters Stabilized by Well-Defined Vinyl Ether Star Polymers: Reusable and Durable Catalysts for Aerobic Alcohol Oxidation. J. Am. Chem. Soc. 2007, 129, 12060–12061. [Google Scholar]
  46. Liu, Y; Jia, C.J.; Yamazaki, J.; Terasaki, O.; Schüth, F. Highly Active Iron Oxide Supported Gold Catalysts for CO Oxidation: How Small Must the Gold Nanoparticles Be? Angew. Chem. Int. Ed. 2010, 49, 5771–5775. [Google Scholar]
  47. Kawahara, J.; Haruta, M. Au NP-catalysed Propene Oxidation by Dioxygen and Dihydrogen. In Nanoparticles and Catalysis; Astruc, D., Ed.; Wiley-VCH: Weinheim, Germany, 2008; pp. 457–474. [Google Scholar]
  48. Zhu, J.; Carabineiro, S.A.C.; Shan, D.; Faria, J.L.; Zhu, Y.; Figueiredo, J.L. Oxygen activation sites in gold and iron catalysts supported on carbon nitride and activated carbon. J. Catal. 2010, 274, 207–214. [Google Scholar]
  49. Schätz., A.; Reiser, O.; Stark, W.J. Nanoparticles as Semi-Heterogeneous Catalyst Supports. Chem. Eur. J. 2010, 16, 8950–8967. [Google Scholar] [CrossRef]
  50. PVP (K-90) gave the best recoverability and stability characteristics. Detailed discussion will be done elsewhere.
  51. Mandal, M.; Kundu, S.; Ghosh, S.K.; Panigrahi, S.; Sau, T.K.; Yusuf, S.M.; Pal, T. Magnetite Nanoparticles with Tunable Gold or Silver Shell. J. Colloid Interface Sci. 2005, 286, 187–194. [Google Scholar] [CrossRef]
  52. Gu, S.; Onishi, J.; Kobayashi, Y.; Nagao, D.; Konno, M. Preparation and Colloidal Stability of Monodisperse Magnetic Polymer Particles. J. Colloid Interface Sci. 2005, 289, 419–426. [Google Scholar] [CrossRef]
  53. Liu, H.-L.; Ko, S.P.; Wu, J.-H.; Jung, M.-H.; Min, J.H.; Lee, J.H.; An, B.H.; Kim, Y.K. One-Pot Polyol Synthesis of Monosize PVP-Coat Sub-5nm Fe3O4 Nanoparticles for Biomedical Applications. J. Magnetism Magnetic Mater. 2007, 310, e:815–e:817. [Google Scholar]
  54. Lin, C.-R.; Tsai, T.C.; Chung, M.; Lu, S.Z. Synthesis and Characterization of Magnetic Nanoparticles Embedded in Polyvinyl Pyrrolidone Nanofiber Film by Electrospinning Method. J. Appl. Phys. 2009, 105. 07B509. [Google Scholar] [CrossRef]
  55. Wan, J.; Tang, G.; Qian, Y. Room Temperature Synthesis of Single-Crystal Fe3O4 Nanoparticles with Superparamagnetic Property. Appl. Phys. A. 2007, 86, 261–264. [Google Scholar]
  56. Jafari, T.; Simchi, A.; Khakpash, N. Synthesis and Cytotoxicity Assessment of Superparamagnetic Iron–Gold Core–Shell Nanoparticles Coated with Polyglycerol. J. Colloid Interface Sci. 2010, 345, 64–71. [Google Scholar] [CrossRef]
  57. Murugadoss, A.; Chattopadhyay, A. Stabilising Agent Specific Synthesis of Multi-Branched and Spherical Au Nanoparticles by Reduction of AuCl4- by Fe2+ Ions. J. Nanosci. Nanotech. 2007, 7, 1730–1735. [Google Scholar] [CrossRef]
  58. Powder X-ray Diffraction of the Fe3O4:PVP/Au catalyst showed only amorphous data due to the presence of the long-chain polymer, PVP (K-90). In addition, the grinding process on the mortar and pestle during sample preparation caused oxidation of the iron core from Fe3O4 to Fe2O3, based on a colour change, from black to brown. No conclusive data could be obtained on whether the Au NCs are on the Fe3O4 surface or stabilized only by PVP.
  59. Pang, L.L.; Li, J.S.; Jiang, J.H.; Le, Y.; Shen, G.L.; Yu, R.Q. A Novel Detection Method for DNA Point Mutation Using QCM Based on Fe3O4/Au Core/Shell Nanoparticle and DNA Ligase Reaction. Sensors Actuators B 2007, 127, 311–316. [Google Scholar] [CrossRef]
  60. The formation of polymers were also dependent on the type of PVPs and PVP (K-90) was found to minimize the yield of these polymers. The details will be discussed elsewhere.
  61. Grass, R.N.; Athanassiou, E.K.; Stark, W.J. Covalently Functionalized Cobalt Nanoparticles as a Platform for Magnetic Separations in Organic Synthesis. Angew. Chem. Int. Ed. 2007, 46, 4909–4912. [Google Scholar] [CrossRef]
  62. Schätz, A.; Grass, R.N.; Stark, W.J.; Reiser, O. TEMPO Supported on Magnetic C/Co-Nanoparticles: A Highly Active and Recyclable Organocatalyst. Chem. Eur. J. 2008, 14, 8262–8266. [Google Scholar] [CrossRef]
