Article

Optimization of the Conditions for Extraction of Serine Protease from Kesinai Plant (Streblus asper) Leaves Using Response Surface Methodology

1
Department of Food Technology, Faculty of Food Science and Technology, Universiti Putra Malaysia, 43400 UPM Serdang, Selangor, Malaysia
2
Department of Microbiology, Faculty of Biotechnology and Biomolecular Science, Universiti Putra Malaysia, 43400 UPM Serdang, Selangor, Malaysia
3
Department of Pharmaceutical Technology, Faculty of Pharmacy, International Islamic University Malaysia, Kuantan Campus, Bandar Indera Mahkota, 25200 Kuantan, Pahang, Malaysia
*
Author to whom correspondence should be addressed.
Molecules 2011, 16(11), 9245-9260; https://doi.org/10.3390/molecules16119245
Submission received: 19 September 2011 / Revised: 20 October 2011 / Accepted: 24 October 2011 / Published: 3 November 2011

Abstract

:
Response surface methodology (RSM) using a central composite design (CCD) was employed to optimize the conditions for extraction of serine protease from kesinai (Streblus asper)leaves. The effect of independent variables, namely temperature (42.5,47.5, X1), mixing time (2–6 min, X2), buffer content (0–80 mL, X3) and buffer pH (4.5–10.5, X4) on specific activity, storage stability, temperature and oxidizing agent stability of serine protease from kesinai leaves was investigated. The study demonstrated that use of the optimum temperature, mixing time, buffer content and buffer pH conditions protected serine protease during extraction, as demonstrated by low activity loss. It was found that the interaction effect of mixing time and buffer content improved the serine protease stability, and the buffer pH had the most significant effect on the specific activity of the enzyme. The most desirable conditions of 2.5 °C temperature, 4 min mixing time, 40 mL buffer at pH 7.5 was established for serine protease extraction from kesinai leaves.

1. Introduction

Peptide peptides bonds in proteins are cleaved due to the catalyzing function of the spherical structure of protease [1]. The importance of proteases lies in their versatility as agents of many critical biological processes that include the vital functioning of the regulating metabolism, gene expression, pathogenicity, modification of enzymes, and in the hydrolysis of larger proteins to short peptides for transportation and metabolism [2]. With current worldwide sales estimated at US$1 billion, industrial enzymes rank high in commercial potential [3]. Hydrolytic enzymes currently make up 75% of industrial enzymes, and proteases are among the three largest groups [4]. Plant proteases show wide substrate specificity as well as high activity and stability over a wide range of pH and temperature values and in the presence of various metal ions, inhibitors and organic solvents [5]. Such qualities make plant proteases an excellent choice for the food, medical, biotechnology and pharmacology industries [6].
Kesinai (Streblus asper) is a tropical tree indigenous to Malaysia, Philippines, China, and India and many other tropical and sub-tropical countries [7]. It has been reported that the different parts of the plant can be used for various applications. The bark extract, for example, has been used in treating fever, dysentery and gingivitis. The root of the plant has been known to cure ulcers, sinus problems and as an antidote for snake bites [8], while the milky juice of kesinai has also been applied to heal wounds. Apart from all these uses, kesinai leaves are a known rich source of proteases [9].
In the commercial production of enzymes, microorganisms are the primary sources. Presently, 50% of commercial enzymes are sourced from fungi and yeast and 35% from bacteria. The remaining enzyme production, however, is through extraction from plants or animal sources [10]. During enzyme extraction, clarification is applied to eliminate particulate materials from the surrounding liquid (e.g., fermentation medium or buffer). Due to the small size of bacterial cells and small differences between the density of the fermentation medium and these cells, in microbial enzyme production the clarification step is very time consuming. However, large cells such as yeast cells can be obtained by decantation but in contrast; plant residues can simply be separated by centrifugation or filtration [11]. Therefore, kesinai leaves can be utilized as a valuable and cost-effective media source for producing the natural enzyme.
There is no available literature about optimization of serine protease extraction from kesinai leaves using RSM. This study investigates the possibility of a relationship between the extraction conditions and enzymatic properties of serine protease from kesinai leaves and discusses the development of an extraction process by response surface methodology. The main objective of the study is to determine the ideal conditions for serine protease extraction that will provide maximum specific activity, storage stability, temperature and oxidizing agent stability in terms of other responses.

2. Results and Discussions

2.1. Response Surface Analysis

The results of the analysis of variance (ANOVA, which was performed with Fisher’s statistical test for fitting the model relating to the response to independent variables for each response variable, are shown in Table 1 (a–d).
Table 1. Analysis of variance (ANOVA) for response variables (a) Specific activity (b) Storage stability (c) Thermal stability (d) Oxidizing agent stability.
Table 1. Analysis of variance (ANOVA) for response variables (a) Specific activity (b) Storage stability (c) Thermal stability (d) Oxidizing agent stability.
(a)
SourceSSDFMSF-valueProbability > F
Model4062.712885.312.41<0.0001
Residual1120.324252.41
Lack of fit1041.213580.7570.040.0003
Pure error8.230.71
Total5184.5817
R2: 0.989; CV = 4.30; Sum of Squares; DF: Degree of Freedom; MS: Mass Square.
(b)
SourceSSDFMSF-valueProbability > F
Model5360.589595.623.87<0.0001
Residual1076.577153.8
Lack of fit1070.344356.7882.980.0003
Pure error6.2331.56
Total6585.5814
R2: 0.999; CV = 1.48.
(c)
SourceSSDFMSF-valueProbability > F
Model10552.215879.350.98<0.0001
Residual1602.019155.71
Lack of fit989.985482.63215.40.0003
Pure error6.2340.2
Total11387.521
R2: 0.999; CV = 0.92.
(d)
SourceSSDFMSF-valueProbability > F
Model8152.4711679.41.2<0.0001
Residual2314.416171.5
Lack of fit1128.344525.7892.30.0003
Pure error3.4540.6
Total9102.4817
R2: 0.994; CV = 1.92.
The results indicate that quadratic regression models are significant because F-test values for each response variable are less than 0.05 and the values of model F indicate that the response surface models are significant. Furthermore, the lack of fit, which determines the fitness of the model, show a significant F-value for response surface models in the ANOVA tables, therefore, ensuring a satisfactory fit between response surface models and experimental data [12]. Also, the R2 values indicating the high percentage (>90%) of the response variables are explained by the model [13]. In addition, the small value of coefficient variation (CV) implies that the experiments conducted are precise and reliable [14]. The estimated regression coefficient, R2, adjusted R2, as long as p-value of the response surface models is given in Table 2 and Table 3. As shown in these tables, high R2 and adjusted R2 values ranging from 0.994 to 0.999 and 0.955 to 0.995 were obtained for all response variables. The coefficients of the regression equations were calculated using Minitab and the following regression equations were obtained for: (a) specific activity, (b) storage stability, (c) thermal stability and (d) oxidizing agent stability:
  • [a] Specific activity = 162.13+ 44.97 (mixing time)+ 9.67 (buffer content) + 34.79 (pH of buffer)+41.27 (temperature)2+ 7.21 (mixing time)2+ 22.13 (buffer content)2 + 8.31(pH of buffer)2 + 53.15 (mixing time *pH of buffer)
  • [b] Storage stability= 86.38 + 2.50 (mixing time) + 3.25 (buffer content) + 2.57 (pH of buffer) +13 (temperature)2 + 4.65 (mixing time)2+ 7.27 (buffer content)2 +23.27 (pH of buffer)2 +8.12 (mixing time *buffer content) +2.72 (buffer content*pH of buffer)
  • [c] Thermal stability = 82.36 + 3 (mixing time) +16.5 (buffer content) +2.5 (pH of buffer) +11.61 (mixing time)2 + 12.36 (buffer content)2 + 38.5 (pH of buffer)2 + 13.87 (temperature *mixing time) +14.25 (temperature*pH of buffer)
  • [d] Oxidizing agent stability = 79.15+ 5.50 (mixing time) +11.50 (buffer content) +2.57 (pH of buffer) +2.25 (temperature)2 + 14.25 (mixing time) 2 + 14.02 (buffer content)2+ 7.90 (pH of buffer)2 +8.72 (mixing time *buffer content).
In addition, the linear, quadratic and interaction effect of each independent variable on response variables, namely, specific activity (Y1), storage stability (Y2), thermal stability (Y3) and oxidizing agent stability (Y4) are presented in Table 4. From the results shown in Table 4, the main and quadratic effects of mixing time, buffer content, pH of buffer, and the interaction effect of mixing time and buffer content show that there is significant (p < 0.05) effect in most of the response surface models, while the main effect of temperature indicates the least significant (p < 0.05) effect on all the response variables.
Table 2. p-value of each independent variable effect in polynomial response surface model.
Table 2. p-value of each independent variable effect in polynomial response surface model.
Model termp-value of each independent variable
Specific activityStorage stabilityThermal stabilityOxidizing agent stability
X10.1530.4110.1690.131
X20.0020.0020.0010.000
X30.0010.0010.0000.006
X40.0000.0010.0000.001
X120.0140.0200.3270.044
X220.0010.0010.0000.000
X320.0080.0000.0020.000
X420.0000.0010.0000.017
X1X20.2020.0980.0040.502
X1X30.1380.3510.2230.308
X1X40.0810.1230.0000.056
X2X30.1020.0010.1340.000
X2X40.0000.1820.0730.128
X3X40.0920.0020.1880.231
X1, X2 , X3 and X4: The main effect of temperature, mixing time, buffer content and pH of buffer, respectively; X12, X22, X32 and X42: The quadratic effect of temperature, mixing time, buffer content and pH of buffer, respectively; X1X2: The interaction effect of temperature and mixing time; X1X3: The interaction effect of temperature and buffer content; X1X4: The interaction effect of temperature and pH of buffer; X2X3: The interaction effect of mixing time and buffer content; X2X4: The interaction effect of mixing time and pH of buffer; X3X4: The interaction effect of buffer content and pH of buffer.
Table 3. Regression coefficients, R2, adjusted R2 probability values of the response surface models.
Table 3. Regression coefficients, R2, adjusted R2 probability values of the response surface models.
Regression coefficientSpecific activity (Y1, U/mL)Storage stability (Y2, %)Thermal stability (Y3, %)Oxidizing agent stability (Y4, %)
b0162.1386.3882.3679.15
b19.120.571.006.25
b244.972.503.005.50
b39.673.2516.5011.50
b434.792.752.502.75
b1241.2713.001.912.25
b227.214.6511.6114.25
b3222.137.2712.3614.02
b428.3123.273.867.90
b126.711.8313.8710.23
b133.271.012.527.89
b149.1211.4814.2513.26
b2313.268.1210.808.72
b2453.152.680.9715.61
b341.129.271.6012.03
R20.9890.9990.9990.994
R2 (adj.)0.9550.9950.9890.988
Regression (p-value)0.001a0.000a0.001a0.002a
bi: The estimated regression coefficient for the main linear effects. bii: The estimated regression coefficient for quadratic effects. bij: The estimated regression coefficient for the interaction effects. 1: Temperature; 2: Mixing time; 3: buffer content; 4: pH of buffer. a Significant (p < 0.05).
Table 4. F-ratio and p-value for each independent variable effect in the polynomial response surface models.
Table 4. F-ratio and p-value for each independent variable effect in the polynomial response surface models.
Variables Main effectsQuadratic effectsInteraction effects
X1X2X3X4X12X22X32X42X1X2X1X3X1X4X2X3X2X4X3X4
Specific activity (Y1, U/mg)p-value0.1530.002 a0.001 a0.000 a0.014 a0.001 a0.008 a0.000 a0.2020.1380.0810.1020.000 a0.092
F-ratio2.8236.7257.76148.1013.8362.2518.49131.100.662.562.070.033125.444.04
Storage stability (Y2, %)p-value0.4110.002 a0.001 a0.001 a0.020 a0.001 a0.000 a0.001 a0.0980.3510.1230.001a0.1820.002 a
F-ratio0.8214.0662.0960.8453.5897.4181.9030.252.560.081.96107.321.6952.85
Thermal stability (Y3, %)p-value0.1690.001 a0.000 a0.000 a0.3270.000 a0.002 a0.000 a0.004 a0.2230.000 a0.1340.0730.188
F-ratio3.25441.00384.16144.961.36364.04310.81538.24234.091.44265.690.644.411.44
Oxidizing agent stability (Y4, %)p-value0.131 a0.000 a0.006 a0.001 a0.044 a0.000 a0.000 a0.0170.5020.3080.0560.000 a0.1280.231
F-ratio1.44189.0021.1643.0311.28148.59154.0012.390.041.084.96197.962.400.022
X1, X2, X3 and X4: The main effect of temperature, mixing time, buffer content and pH of buffer, respectively.X12, X22 X32 and X42: The quadratic effect of temperature, mixing time, buffer content and pH of buffer, respectively.X1X2: The interaction effect of temperature and mixing time. X1X3: The interaction effect of temperature and buffer content. X1X4: The interaction effect of temperature and pH of buffer. X2X3: The interaction effect of mixing time and buffer content. X2X4: The interaction effect of mixing time and pH of buffer. X3X4: The interaction effect of buffer content and pH of buffer.a significant at (p < 0.05).

2.2. Specific Activity of Seine Protease

The specific activity of serine protease was significantly (p < 0.05) influenced by the main effects of the mixing time, pH of buffer and buffer content, the quadratic effects of all independent variables as well as the interactive effect of mixing time and pH of buffer (Table 4). Equation 1 shows the direct relationship between the specific activity and total activity of the enzyme, thus indicating that a higher level in total activity causes a corresponding increase in the specific activity of the enzyme. From the results it can be seen that the buffer pH has the most significant (p < 0.05) effect on specific activity (Y2) of the enzyme (Table 4). In general, the highest enzyme activity is achieved when the ionisable groups of enzyme are in an appropriate ionic form and a well-maintained active site allows unrestricted access to substrates [15]. Therefore, changes in ionization of enzyme will have a negative effect on the activity of the serine protease. As shown in Figure 1(a), the highest specific activity (Y162.4 U/mg) of serine protease is obtained at pH 7.5, while the activity of the enzyme is decreased at higher and lower pH.

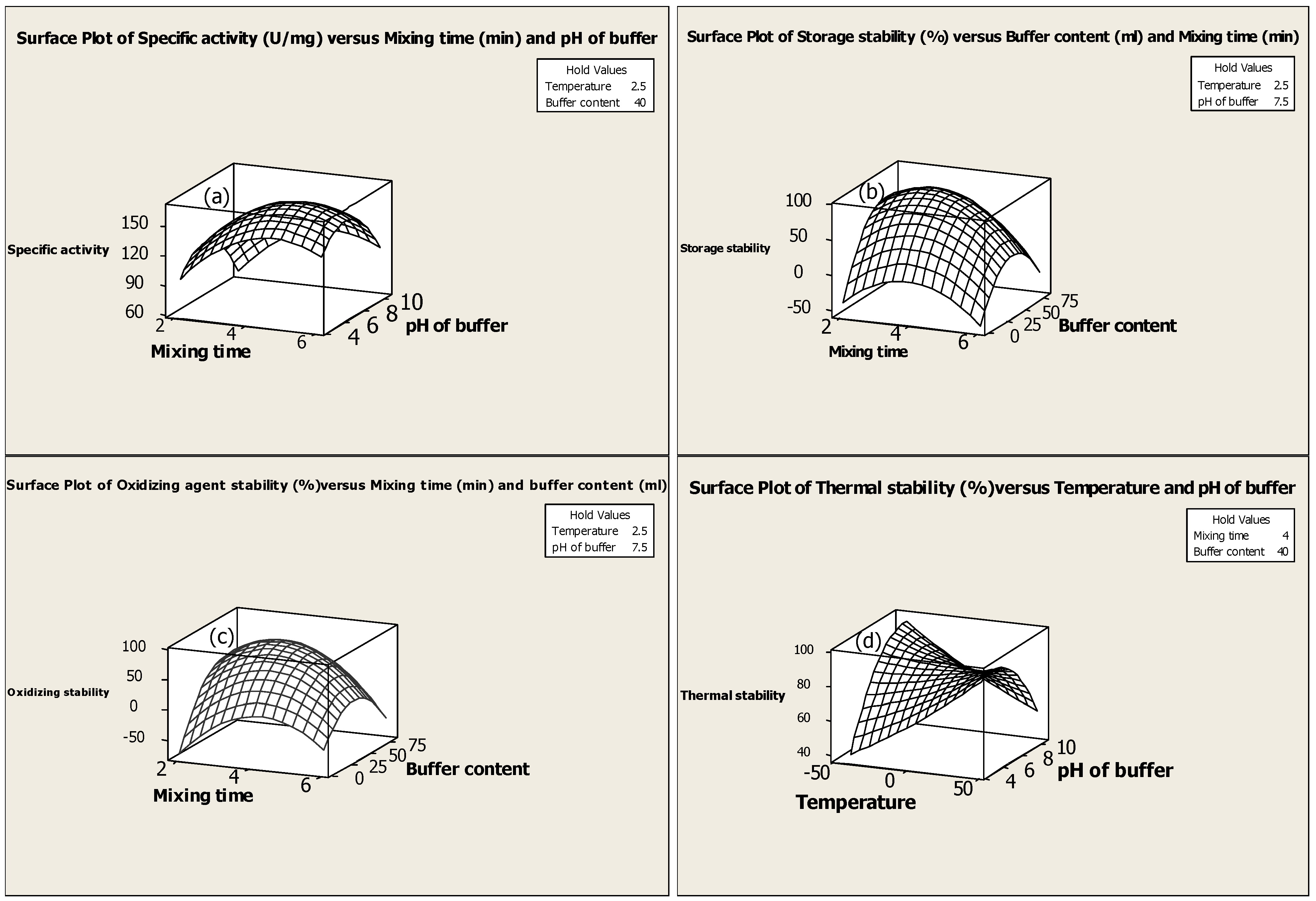

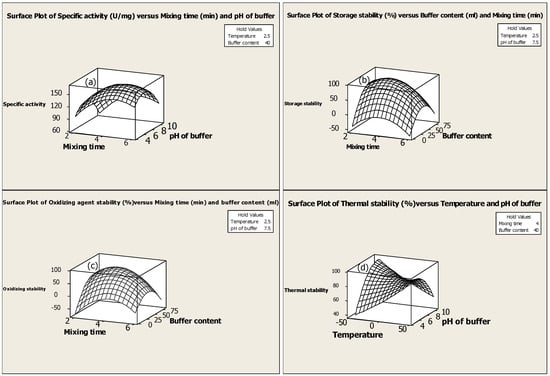

Figure 1. Response surface plots showing the interaction effects of (a) specific activity (b) storage stability and (c) oxidizing agent stability (d) Thermal stability.
Figure 1. Response surface plots showing the interaction effects of (a) specific activity (b) storage stability and (c) oxidizing agent stability (d) Thermal stability.
Molecules 16 09245 g001
The mixing time is also another important parameter for the extraction of enzyme because an inappropriate time could damage the natural structure of the enzyme and cause a decline in enzyme activity. The results indicate that 4 min of mixing time is a suitable time for extraction of serine protease from kesinai leaves. The lower buffer content is not suitable for the extraction of the enzyme because the buffer content is inadequate to penetrate the solid mass. On the other hand, the higher amount of buffer would dilute the solution causing a decrease in the specific activity of the serine protease. Therefore, specific activity of serine protease is significantly increased at 40 mL of sodium phosphate buffer at pH 7.5. In addition, the desirable temperature for serine protease extraction is found to be 2.5 °C, and a higher or lower temperature will result in negative effects on total activity and lead to a decrease in specific activity.

2.3. Storage Stability of Serine Protease

One of the desirable outcomes of extraction optimization is the higher stability of the enzyme during storage, for according to Zhu et al. [16] storage stability can be measured by the total activity of the enzyme. As shown in Table 4, the interaction effects of mixing time and buffer content had the most significant effect (p < 0.05) on storage stability of extracted serine protease. Based on the results, storage stability of serine protease is significantly decreased at 5 min of mixing time, indicating that an inappropriate mixing time can affect the tertiary structure of the protein, thus demonstrating that inappropriate blending time can seriously damage the protein structure in the solution due to the shear forces of the Waring blender. Also, it should be noted that a shorter mixing time (>4 min) is not sufficient for extraction of serine protease from kesinai leaves, as equation 2 showed that the enzyme storage stability has direct correlation with enzyme activity thus when time of mixing is not sufficient total activity of extracted enzyme decreases as the result of decrease in storage stability was observed. The highest serine protease stability (86.8%) of the enzyme is obtained with 4 min of mixing time, which is used for the extraction.
From the results obtained, it is not experimentally feasible to achieve high total enzyme activity as well as storage stability using an excess amount of buffer. The results show that increasing the buffer content above the optimum value will dilute the solution excessively and result in reduced total enzyme activity and storage stability. The findings indicate that the optimum value of buffer content to achieve the highest storage stability is 40 mL of 100 mM sodium hydrogen phosphate at pH 7.5. As shown in Figure 1(b), when the buffer content is increased from 0 to 40 mL, the storage stability is increased but an increase of the buffer content from 40 to 60 mL, results in significantly reduced storage stability. As such, the amount of buffer is one of the crucial factors to be carefully considered in enzyme extraction.

2.4. Thermal Stability of Serine Protease

As mentioned earlier, the thermostability of serine protease was investigated by measuring the residual enzyme activity after incubation at different temperatures from 10 to 95 °C. The results indicated that there was retention of more than 85% activity when the protease was incubated between 10 °C and 70 °C for 1h. Figure 2 shows that any temperature from 75 °C and higher sharply decreases the activity of the extracted serine protease. The molecular structure of the enzyme is an important factor for enzyme stability in relation to temperature. It appears that the structure of the enzyme is compact, thus this enzyme is stronger when the temperature rises. Moreover, statistical prediction indicates that the enzyme is thermostable because the main and quadratic effects of temperature do not show any significant (p < 0.05) effect on thermal stability of kesinai serine protease (Table 4). Thermal stability is desirable because the efficiency of enzymes is markedly enhanced at higher temperatures. Holding time for specific processes can be shortened, thus minimizing undesirable chemical reactions. This is most important in food processing, during which nutrients may be lost during processing at high temperatures. In addition, conducting thermal processes at higher temperatures reduces microbial contamination [17], and the significant (p < 0.05) interaction effect of temperature and pH of buffer is in Figure 1(d).

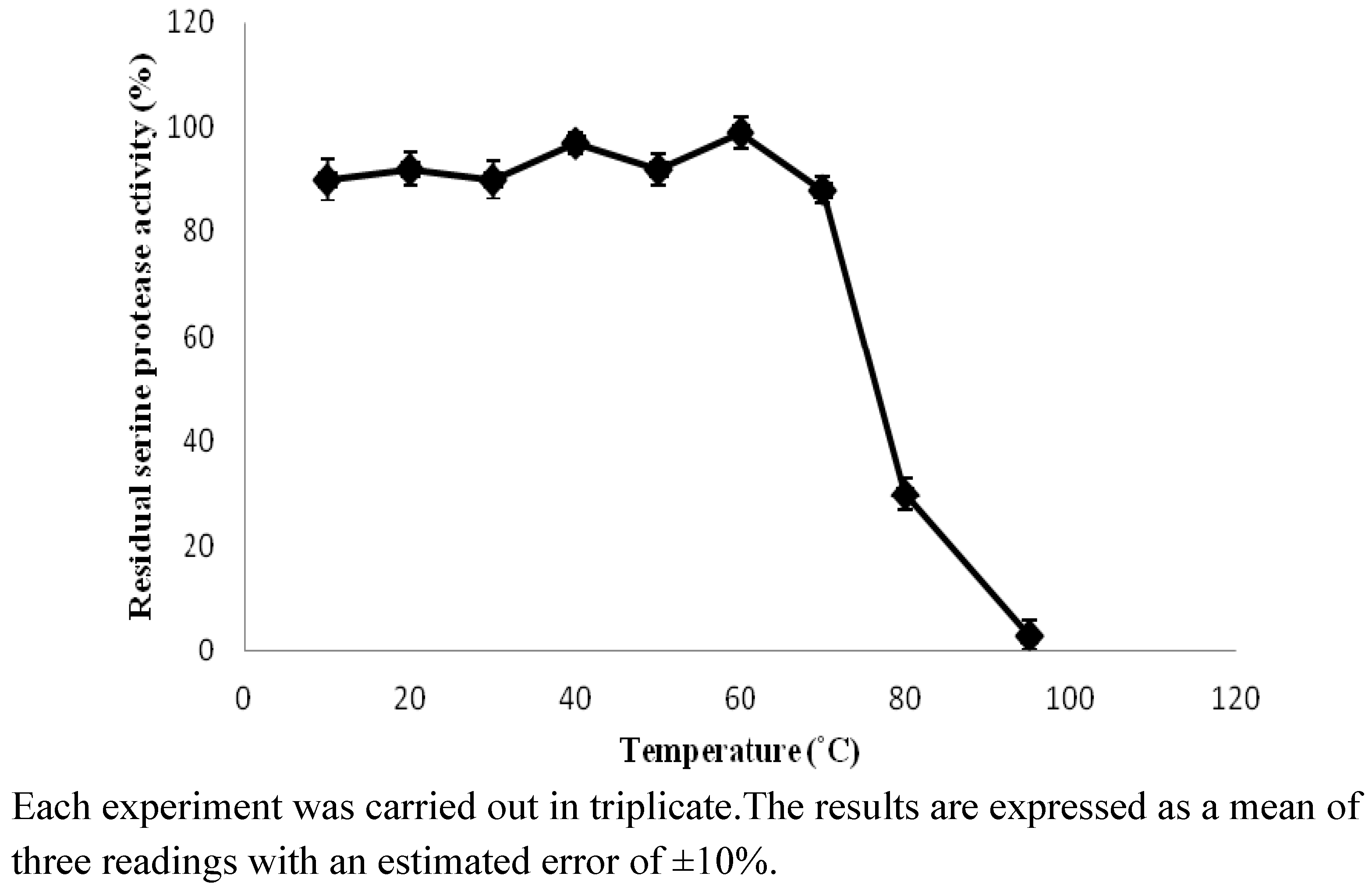

Figure 2. The influence of temperature on stability of kesinai serine protease.
Figure 2. The influence of temperature on stability of kesinai serine protease.
Molecules 16 09245 g002

2.5. Oxidizing Agent Stability of Serine Protease

The main effects of mixing time, buffer content, pH of buffer and the quadratic effects of temperature, mixing time, buffer content and pH of buffer, as well as the interaction effects of mixing time and buffer content, had significant (p < 0.05) effects on the stability of serine protease from kesinai leaves towards oxidizing agents (Table 4). To be a vital component in detergents, for example, a protease must show a high level of compatibility and stability with oxidizing agents which are commonly used in detergent compounds. Therefore, the stability of kesinai serine protease was determined in the presence of H2O2 as one of the most common oxidizing agents used in the detergent industry [18]. Based on the results, 79.3% of serine protease stability was retained after incubation of the enzyme for 1 h at 60 °C in the presence of 5% (v/v) hydrogen peroxide. The high oxidizing agent stability of serine protease was achieved using optimization extraction which provided suitable formation of the enzyme with unrestricted access to substrates.
From the optimization results, the highest oxidizing agent stability of the enzyme is predicted to be at a combined level of 2.5 °C temperature, 4 min mixing time, and 40 mL sodium hydrogen buffer at pH 7.5. Also, the results show that the interaction of mixing time and buffer content has the most significant (p < 0.05) effect on serine protease oxidizing agent stability (Table 4). Figure 1(c) shows how the oxidizing agent stability of serine protease is enhanced when the amount of buffer is increased to 40 mL and mixing time is 4 min. This indicates that using an optimum mixing time of extraction helps to maintain the serine protease structure with unhindered access of the substrate to the active site. Additionally, this amount of buffer has sufficient capacity for extraction of kesinai serine protease and the enzyme, therefore, is oxidizing agent stable when employing optimized extraction.

2.6. Optimization Procedure

The target of optimization is to achieve the best levels of independent variables that result in desirable response goals so the individual and overall optimization procedures were performed to achieve this target. To determine the optimum region, numerical and graphical optimization procedures were employed. Graphical optimization (using 3D surface plot) was employed to determine the optimum region, thus in order to better understand the interaction effect of the graphed independent variables on response variables, graphic 3D surface plots were used to illustrate the reduced response models. The 3D plots were generated within the experimental range by fixing and varying a centre point and two variables. With the aid of the response optimizer, a numerical optimization was performed to determine the exact optimal levels of individual and simultaneous multiple response optimizations in order to achieve the desired response goals. Furthermore, in order to determine the adequacy of the response surface equations, a comparison was made between the experimental data and predicted values from the reduced response regression [19]. The results indicated that the extraction using 40 mL buffer at pH 7.5 at 2.5 °C for 4 min mixing time provided the overall optimum region in terms of all serine protease properties.

2.7. Model Validation

The adequacy of the response surface equations is indicated by a comparison between the experimental value and the predicted data [20]. The comparison is done by generating a fitted-line plot (with experimental values on X-axis and predicted values on Y-axis) for the results obtained, showing how close it is to or how far it deviates from the fitted line. Figure 3a–d show the overall closeness of these variables, thus indicating that the response surface model is adequate for predicting the varied enzymatic properties as functions of the conditions in extraction. Thus, based on the result, the optimum points for temperature, mixing time, buffer content and pH of buffer are 2.5 °C, 4 min, 40 mL at pH 7.5, respectively.

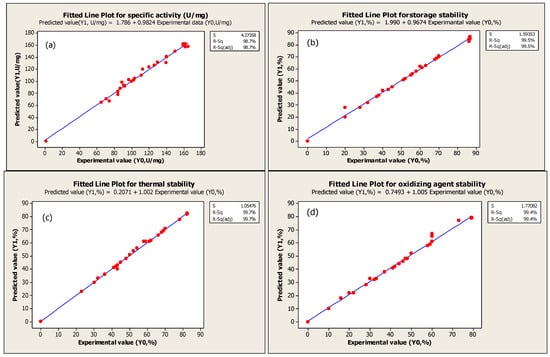

Figure 3. Fitted line plot indicating the closeness between predicted values (Y1) and experimental values (Y0) for specific activity (a), storage stability (b) thermal stability (c), and oxidizing agent stability of serine protease (d).
Figure 3. Fitted line plot indicating the closeness between predicted values (Y1) and experimental values (Y0) for specific activity (a), storage stability (b) thermal stability (c), and oxidizing agent stability of serine protease (d).
Molecules 16 09245 g003

3. Experimental

3.1. Materials

The kesinai (Streblus asper) leaves were obtained from several kesinai plants available at Universiti Putra Malaysia, (Selangor, Malaysia) Science Park. All chemicals and reagents used were analytical grade. Bovine serum albumin (BSA), azocasein and Bradford reagent were supplied by Sigma Chemical Co., (St. Louis, MO, USA). Polyethylene glycol (PEG), trichloroacetic acid (TCA, 99%), di-sodium hydrogen anhydrous, sodium hydrogen phosphate monohydrate, di-potassium hydrogen phosphate and potassium di-hydrogen phosphate, were purchased from Merck (Darmstadt, Germany).

3.2. Serine Protease Extraction

Twenty grams of fresh kesinai leaves were washed with double-distilled water and then blended with 0–80 mL of 100 mM sodium phosphate hydrogen at pH 4.5–10.5 by using a Waring commercial laboratory blender 32BL79 (Torrington, CT, USA) for 2–6 min at high speed and different temperatures (−42.5 to 47.7 °C) (see Table 5). The homogenate was produced by filtration of the crude enzyme sample through a two-layer cheesecloth filter. The filtrate was cooled to 4 °C and centrifuged (Sartorius Model 3–18 k, Sartorius AG, Weender Land Strasse, Gottingen, Germany) at 8,000 rpm for 20 min at 4 °C, after which the supernatant was collected to determine the serine protease activity and protein concentration.
Table 5. Level of independent variables established according to central composite design (CCD).
Table 5. Level of independent variables established according to central composite design (CCD).
Independent variablesIndependent variables level
LowCenterHighAxial (−α)Axial (+α)
Temperature (°C)−202.5+25−42.547.5
Time (min)34526
Buffer content (mL)204060080
pH of buffer67.594.510.5

3.3. Determination of Serine Protease Activity

Protease activity of semi-purified enzyme was estimated according to the method described by Whooley et al. [21]. The proteolytic reaction mixture contained enzyme solution (0.1 mL) and 0.2% (w/v) azo-casein prepared in 100 mM sodium phosphate hydrogen (pH 7.5) buffer (1 mL). The mixture was incubated in a water-bath at 60 °C for 20 min and 30% (w/w) TCA (0.5 mL) was added to stop the reaction. The supernatant was obtained by centrifugation (13,400 rpm, for 10 min) and then filtered through a 0.22 µm film. A spectrophotometer (BioMateTM-3, Thermo Scientific, Alpha Numerix, Webster, NY, USA) at 335 nm was used in the determination of protease activity. The results are expressed as a mean of three readings with an estimated error of ±10%.

3.4. Determination of Protein Concentration

The protein contents of samples were determined using dye binding method as described by Bradford [22] and the BSA was used as standard.

3.5. Determination of Serine Protease Specific Activity

The specific activity of the enzyme was determined by taking the ratio of total activity of serine protease and dividing it by total protein of serine protease [23]:
Specific activity (U/mg) = Total activity (U)/Total protein (mg)

3.6. Determination of Serine Protease Storage Stability

The extracted serine protease was stored for one week at a temperature of 4 °C and the storage stability of the enzyme was measured by the ratio of serine protease activity after storage, to its initial activity and then multiplying the result by 100 (Equation 2) [24]:
Storage stability 100% = (Enzyme activity after storage/Initial enzyme activity) × 100

3.7. Determination of Serine Protease Thermal Stability

Protease thermostability was also studied by incubating it in a 100 mM sodium phosphate buffer (pH 7.5) within a temperature range of 10 to 95 °C. At different intervals of 2, 5, 10, 20, 30, 40, 60 min, samples were removed and the residual proteolytic activity was determined by azo-casein at pH 7.5 and 60 °C, respectively [25].

3.8. Determination of Oxidizing Agent Stability

The effect of the oxidizing agent on protease activity was investigated using H2O2 at a concentration of 5% (v/v). The samples with the presence of H2O2 were incubated for 1 h at 60 °C and the residual protease activity was then tested with azo-casein as previously described [26].

3.9. Statistical Design

Response surface methodology was employed to establish the optimum conditions for extracting serine protease from kesinai leaves. The effect of four independent variables, namely, temperature (−42.5 to +47.5 °C), mixing time (2–6 min), buffer content (0–80 mL) and pH of buffer (4.5–10.5) on specific activity, storage stability, temperature stability, and oxidizing agent stability was investigated using a four factorial central composite design. Consequently, thirty supernatants were extracted from kesinai leaves, based on CCD, including sixteen factorial points, eight axial points (±α) and six center points (Table 5 and Table 6). There was a six-time repetition of the center point to determine the possibility of pure error [27]. The polynomial regression equation presented below was applied to investigate response surface behavior to achieve the response equation (Y).The RSM model is explained below (Equation3):
Y= β0 + Σ βi xi +Σ βii xi2 +Σ βi j xi xj
The equation above shows that response Y is computed by the model, while β0 is a constant; the linear, squared and interaction coefficients are βi, βii and βij respectively. The adequacy of the models was determined using analysis of models, lack of fit test and determination of coefficient (R2) analysis as described by Lee et al. [28] Meanwhile, R2 of at least 0.80 is proof of a good model fit [29] while larger values of absolute t-value and smaller values of p-value indicate that the variables will be more significant (p < 0.05). Furthermore, in order to determine the adequacy of the response surface equations, a comparison was made between the experimental data and predicted values from the reduced response regression [20]. The design matrix of the experiment, the analysis of the data and the optimizing procedure were all done using the Minitab v.14 statistical package (Minitab Inc., State college, PA, USA).

4. Conclusions

In this study, RSM was used to investigate the main and interaction effects of important independent variables for extraction of serine protease from kesinai leaves. The main and quadratic effects of mixing time, buffer content and pH of buffer had significant (p < 0.05) effect on all response variables, thus these independent variables should be kept in all reduced response surface models.
The main and quadratic effects of temperature did not show any significant (p <0.05) effect on thermal stability of the enzyme and thus this enzyme is thermostable. The results indicated that the optimum conditions for serine protease extraction from kesinai leaves was achieved using 2.5 °C of temperature, 4 min of mixing time, and 40 mL of buffer content at pH of 7.5. The optimized conditions caused an increase in specific activity and stability of the serine protease from kesinai leaves. However, enzyme losses could be due to undesirable extraction methods, which may alter the natural morphology of the enzyme. It can be inferred from this present study that the release of specific activity and stability of enzyme can be controlled by appropriate proportions of the extraction variables. In addition, the successful extraction of serine protease from kesinai leaves provides potential commercial possibilities for the industrial extraction of serine protease, from an economic as well as an environmental point of view.
Table 6. Matrix of central composite design (CCD).
Table 6. Matrix of central composite design (CCD).
TreatmentsBlocksTemperature (X1, °C)Mixing time (X2, min)Buffer content (X3, mL)pH of buffer (X4)Specific activity (U/mL)Storage stability (%)Thermal stability (%)Oxidizing agent stability
1 C12.54407.5162.486.882.679.3
21253206.0161.880.473.462.7
31255606.0150.020.030.030.6
41253609.0130.752.062.043.2
51−203606.0120.456.753.361.1
61255209.0140.515.321.229.3
71−203209.010.073.466.152.2
8 C12.54407.5158.980.181.177.7
91−205609.0110.058.838.833.1
101−205206.062.486.442.032.0
11 C22.54407.5162.485.480.679.4
122253606.0105.342.768.042.1
13 C22.54407.5160.086.082.371.3
142255609.067.232.448.042.2
152253209.088.144.278.261.3
162−205606.093.885.832.230.3
172−205209.054.934.842.244.7
182255206.090.114.218.821.3
192−203609.0123.051.063.255.8
202−203206.0132.142.834.123.2
2132.56407.5111.968.071.270.2
2232.5407.574.373.457.168.8
2332.52407.5121.254.573.640.2
243−42.54407.581.486.129.233.4
2532.544010.5122.277.066.651.7
26 C32.54407.5161.972.380.878.7
2732.54404.5101.142.252.454.3
28 C32.54407.5162.186.581.279.1
2932.54807.5115.069.453.856.5
30347.54407.551.323.438.122.0
C center points.

References and Notes

  1. Rao, M.B.; Tanksale, A.M.; Ghatge, M.S.; Deshpande, V.V. Molecular and biotechnological aspects of microbial proteases. Microbiol. Mol. Biol. Rev. 1998, 62, 597–635. [Google Scholar]
  2. Sumantha, A.; Larroche, C.; Pandey, A. Microbiology and industrial biotechnology of food-grade proteases: A perspective. Food Technol. Biotechnol. 2006, 44, 211–220. [Google Scholar]
  3. Godfrey, T.; West, S. Industrial Enzymology; Macmillan Press: London, UK, 1996. [Google Scholar]
  4. Tomar, R.; Kumar, R.; Jagannadham, M.V. A stable serine protease Wrightin from the latex of the plant Wrightia tinctoria (Roxb.) R. Br.: Purification and Biochemical Properties. J. Agric. Food Chem. 2008, 56, 1479–1487. [Google Scholar] [CrossRef]
  5. Haddar, A.; Agrebi, R.; Bougatef, A.; Hmidet, N.; Sellami-Kamoun, A.; Nasri, M. Two detergent stable alkaline serine-proteases from Bacillus mojavensis A21: Purification, characterization and potential application as a laundry detergent additive. Bioresour. Technol. 2009, 100, 3366–3373. [Google Scholar] [CrossRef]
  6. Rai, S.K.; Mukherjee, A.K. Ecological significance and some biotechnological application of an organic solvent stable alkaline serine protease from Bacillus subtilis strain DM-04. Bioresour. Technol. 2009, 100, 2642–2645. [Google Scholar] [CrossRef]
  7. Rastogi, S.; Kulshreshtha, D.K.; Rawat, A.K.S. Streblus asper Lour. (Shakhotaka): A Review of its Chemical, Pharmacological and Ethnomedicinal Propertie. Evid. Based Complement Alternat. Med. 2006, 3, 217–222. [Google Scholar] [CrossRef]
  8. Idris, Y.M.A.; Sipat, A.B.; Shuhaimi, M.; Yazid, A.M. Inhibition of enzymatic browning during the extraction of a milk coagulating protease from Streblus asper (Kesinai). Pak. J. Biol. Sci. 1999, 2, 378–381. [Google Scholar] [CrossRef]
  9. Taweechaisupapong, S.; Choopan, T.; Singhara, S.; Chatrchaiwiwatana, S.; Wongkham, S. In vitro inhibitory effect of Streblus asper leaf-extract on adhesion of Candida albicans to human buccal epithelial cells. J. Ethnopharmacol. 2005, 96, 221–226. [Google Scholar] [CrossRef]
  10. Rolle, R.S. Enzyme applications for agro-processing in developing countries: An inventory of current and potential applications. World J. Microbiol. Biotechnol. 1998, 14, 611–619. [Google Scholar] [CrossRef]
  11. Whittington, R.J.; Marsh, I.; Turner, M.J.; McAllister, S.; Choy, E.; Eamens, G.J.; Marshall, D.J.; Ottaway, S. Rapid Detection of Mycobacterium paratuberculosis in Clinical Samples from Ruminants and in Spiked Environmental Samples by Modified BACTEC 12B Radiometric Culture and Direct Confirmation by IS900 PCR. J. Clin. Microbiol. 1998, 36, 701–707. [Google Scholar]
  12. Hamsaveni, D.R.; Prapulla, S.G.; Divakar, S. Response surface methodological approach for the synthesis of isobutyl isobutyrate. Process Biochem. 2001, 36, 1103–1109. [Google Scholar] [CrossRef]
  13. Khuri, A.I.; Cornell, J.A. Response Surfaces: Design and Analysis; Marcel Decker Inc.: New York, NY, USA, 1987. [Google Scholar]
  14. Box, G.E.P.; Hunter, W.G.; Hunter, J.S. Statistics for Experimenters: An Introduction to Design, Data Analysis and Model Building; John Wiley & Sons: New York, NY, USA, 1987. [Google Scholar]
  15. Marshall, M.R.; Kim, J.; Wei, C.I. Enzymatic Browning in Fruits, Vegetables and Seafoods, 2000. FAO. Available online: http://www.fao.org/ag/ags/agsi/ENZYMEFINAL/Enzymatic%20Browning.html (accessed on 9 July 2006).
  16. Zhu, W.; Cha, D.; Cheng, G.; Peng, Q.; Shen, P. Purification and characterization of a thermostable protease from a newly isolated Geobacillus sp. YMTC 1049. Enzyme Microb. Technol. 2007, 40, 1592–1597. [Google Scholar] [CrossRef]
  17. Zamost, B.L.; Nielsen, H.K.; Starnes, R.L. Thermostable enzymes for industrial applications. J. Ind. Microbiol. Biotechnol. 1991, 8, 71–81. [Google Scholar]
  18. Gupta, R.; Beg, Q.K.; Larenz, P. Bacterial alkaline proteases: Molecular porches and industrial applications. Appl. Microbiol. Biotechnol. 2002, 59, 15–32. [Google Scholar] [CrossRef]
  19. Mirhosseini, H.; Tan, C.P. Response surface methodology and multivariate analysis of equilibrium headspace concentration of orange beverage emulsion as function of emulsion composition and structure. Food Chem. 2009, 115, 324–333. [Google Scholar] [CrossRef]
  20. Montgomery, D.C. Design and Analysis of Experiments; John Wiley & Sons: New York, NY, USA, 2001. [Google Scholar]
  21. Whooley, M.A.; O’Callaghan, J.A.; Mcloughlin, A.J. Effect of substrate on the regulation of exprotease production by Pseudomonas aeruginosa ATCC10145. J. Gen. Microbiol. 1998, 129, 981–988. [Google Scholar]
  22. Bradford, M.M. A rapid and sensitive method for the quantitation of microgram quantities of protein utilizing the principle of protein-dye binding. Anal. Biochem. 1976, 72, 248–254. [Google Scholar] [CrossRef]
  23. Ngo, L.T.A.; Pham, T.L.; Le, V.V.M. Purification of Endopolygalacturonase from submerged culture of Aspergillus awamori L1 using a two-step procedure: Enzyme precipitation and gel filtration. J. Food Res. Int. 2008, 15, 135–140. [Google Scholar]
  24. Li, J.; Jiang, Z.; Wu, H.; Long, L.; Jiang, Y.; Zhang, L. Improving the recycling and storage stability of enzyme by encapsulation in mesoporous CaCO3-alginate composite gel. Compos. Sci. Technol. 2009, 69, 539–544. [Google Scholar] [CrossRef]
  25. Singh, V.K.; Patel, A.K.; Moir, A.J.; Jagannadham, M.V. Indicain, a dimeric serine protease from Morus indica CV. K2. Phytochemistry 2008, 69, 2110–2119. [Google Scholar] [CrossRef]
  26. Hajji, M.; Kanoun, S.; Nasri, M.; Gharsallah, N. Purification and characterization of an alkaline serine-protease produced by a new isolated Aspergillus clavatus ES1. Process Biochem. 2007, 42, 791–797. [Google Scholar] [CrossRef]
  27. Pinheiro, E.S.; Silva, I.M.; Gonzaga, L.V.; Amante, E.R.; Teófilo, R.F.; Ferreira, M.M.; Amboni, R.D. Optimization of extraction of high-ester pectin from passion fruit peel (Passiflora edulis flavicarpa) with citric acid by using response surface methodology. Bioresour. Technol. 2008, 99, 5561–5566. [Google Scholar] [CrossRef]
  28. Lee, J.; Ye, L.; Landen, W.O.; Eitenmiller, R.R. Optimization of an extraction procedure for the quantification of vitamin E in tomato and broccoli using response surface methodology. J. Food Compost. Anal. 2000, 13, 45–57. [Google Scholar] [CrossRef]
  29. Joglekar, A.M.; May, A.T. Product excellence through design of experiments. Cereal Foods Worlds 1987, 32, 857–868. [Google Scholar]
  • Sample Availability: Samples of the compounds kesinai plants are avaliable from authors.

Share and Cite

MDPI and ACS Style

Mehrnoush, A.; Mustafa, S.; Sarker, M.Z.I.; Yazid, A.M.M. Optimization of the Conditions for Extraction of Serine Protease from Kesinai Plant (Streblus asper) Leaves Using Response Surface Methodology. Molecules 2011, 16, 9245-9260. https://doi.org/10.3390/molecules16119245

AMA Style

Mehrnoush A, Mustafa S, Sarker MZI, Yazid AMM. Optimization of the Conditions for Extraction of Serine Protease from Kesinai Plant (Streblus asper) Leaves Using Response Surface Methodology. Molecules. 2011; 16(11):9245-9260. https://doi.org/10.3390/molecules16119245

Chicago/Turabian Style

Mehrnoush, Amid, Shuhaimi Mustafa, Md. Zaidul Islam Sarker, and Abdul Manap Mohd Yazid. 2011. "Optimization of the Conditions for Extraction of Serine Protease from Kesinai Plant (Streblus asper) Leaves Using Response Surface Methodology" Molecules 16, no. 11: 9245-9260. https://doi.org/10.3390/molecules16119245

Article Metrics

Back to TopTop
