Reassignment of the Structures of Products Produced by Reactions of the Product Believed To Be 2-(1-Phenyl-2-Thiocyanatoethylidene)-malononitrile with Electrophiles

Abstract

The reactivity of the product believed to be 2-(1-phenyl-2-thiocyanato-ethylidene)malononitrile toward a variety of electrophilic and nucleophilic reagents is reported.

1. Introduction

Conflicting results have been reported for the structures of the products formed upon reaction of 2-thiocyanatoethanones (1) with active methylene nitriles. In 1986, Abdelrazek et al [1] proposed that reaction of 1a with malononitrile in refluxing ethanol in the presence of catalytic piperidine affords the dicyanomethylidene adduct 2a. Recently a patent described the formation of the thiazole 3a from these substrates under very similar conditions (Scheme 1) [2]. Abdelrazek subsequently [3] reported that 2a could also be produced by reaction of the brominated dicyanomethylidene 4a with potassium thiocyanate, although a detailed procedure for this transformation was not provided. This observation served as evidence against the formation of 3a as the product of the reaction of 1a with malononitrile. Thiazole 3a was also reported to form in the reaction between 1a and malononitrile in presence of KOH [2,4].

2. Results and Discussion

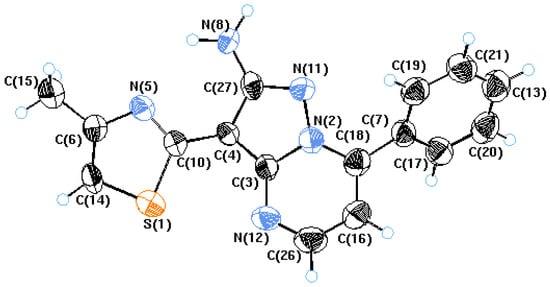

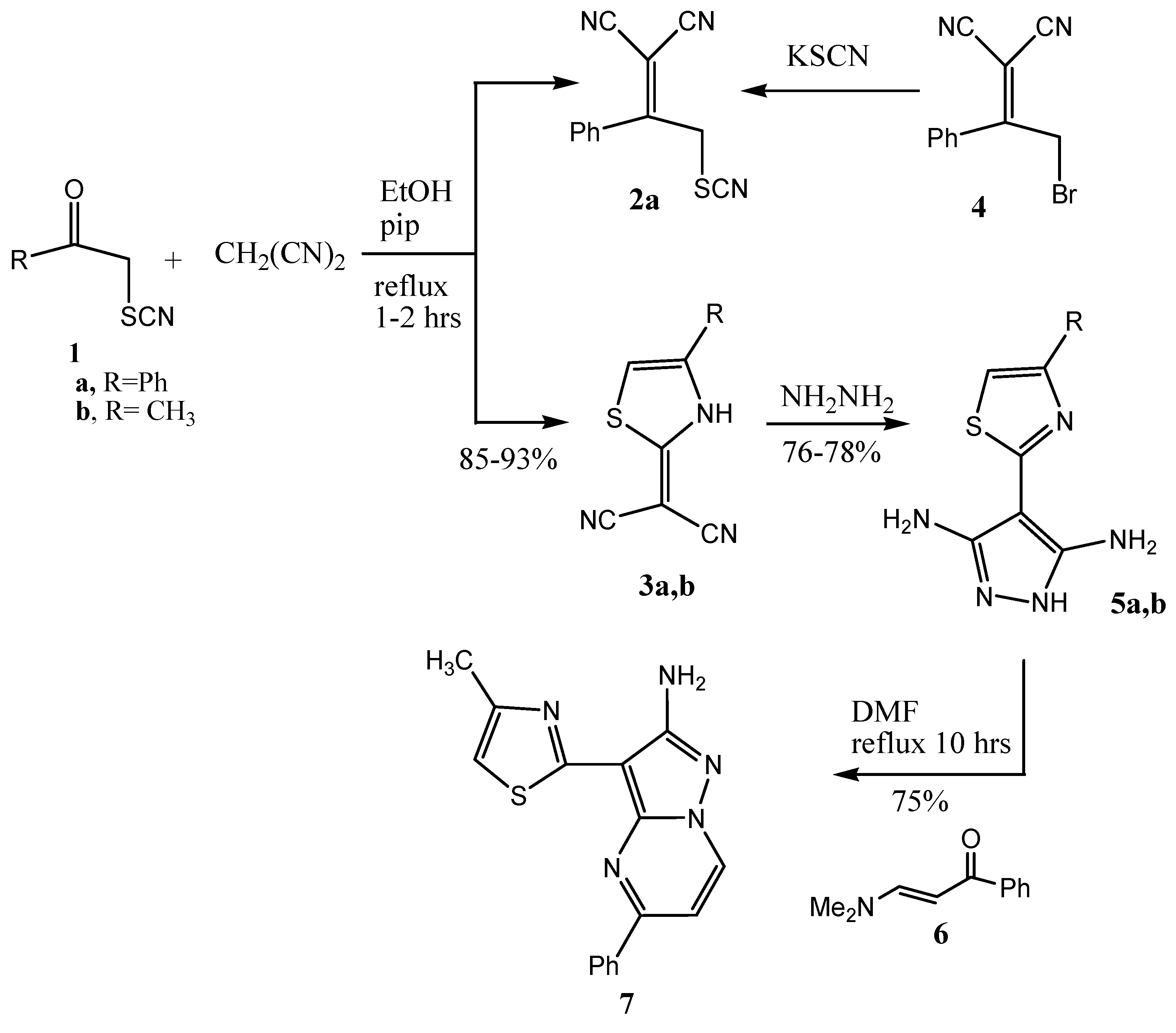

We recently [5] confirmed that in fact the product generated in the reaction of 1b with malononitrile is 3b by X-ray crystallographic analysis of the thiazolylpyrazolo[1,5-a]pyrimidine derivative 7 [6], which was produced via reaction of 3b with hydrazine hydrate to yield the diaminopyrazole 5b and subsequent reaction of 5b with enaminone 6 (Figure 1).

Although the diaminopyrazole 5a, produced by Salah Eldine [4] through the reaction of hydrazine hydrate with 3a, proved to be identical with the substance we produced by reaction of 1a with malononitrile, it was claimed that both 2 and 3 can be formed in this process. Consequently, we thought that a further effort aimed at confirming the structures of 5a,b was in order since Abdelrazek has reported that 2a can be utilized as a precursor in syntheses of several heterocyclic substances. Thus, if 2a is really 3a the structures of products claimed to be formed from 2a in the earlier investigations need to be reassigned [1,3,7,8,9].

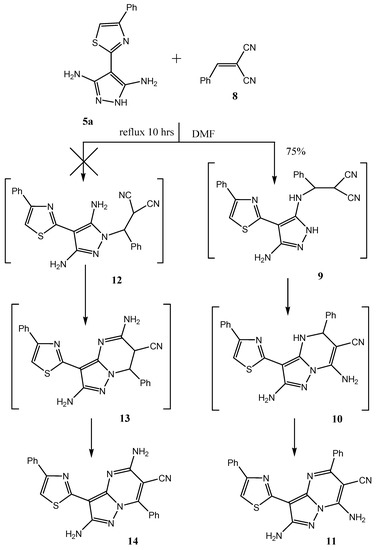

In the current work, we explored the reaction of diaminopyrazole 5a with benzylidenemalononitrile 8. This process generates a product, resulting from sequential addition and molecular hydrogen elimination, that could be assigned as either 11 or 14. These substances would be produced via the respective initially formed adducts 9 or 12 (Scheme 2).

Cyclization of these intermediates would form 10 or 13, which then aromatize to generate 11 or 14, respectively The actual structure of the final product was shown to be compound 11, based on an analysis of ¹⁵N HMBC results. These results showed that the amino nitrogen at δ = 30 ppm is coupled to the bridgehead nitrogen at δ = 211 ppm.

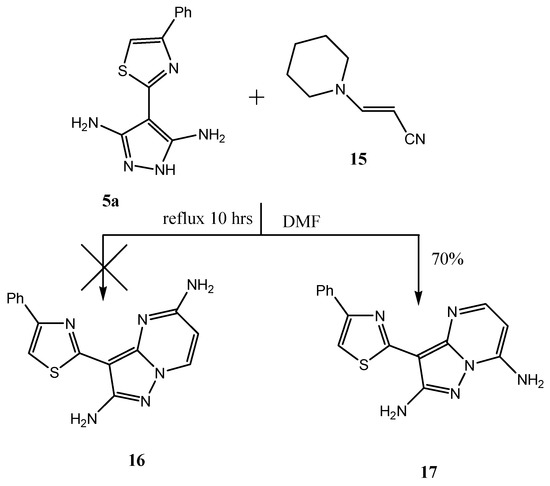

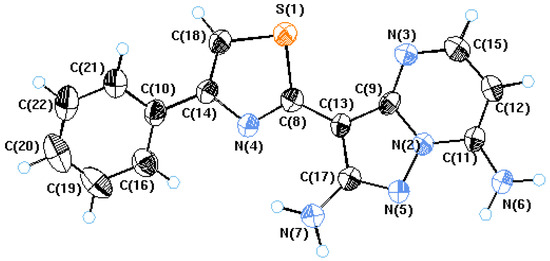

Diaminopyrazole 5a reacts with enaminonitrile 15 to yield the pyrazolo[1,5-a] pyrimidinediamine 17 (Scheme 3). The isomeric adduct 16 was also excluded as the product based on the results of ¹⁵N HMBC and the X-ray crystallographic analyses (Figure 2) [10].

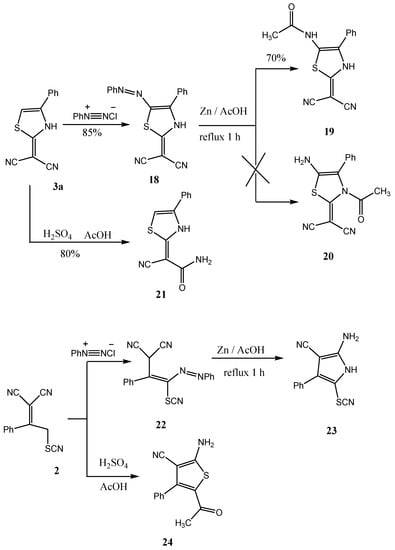

The combined observations made in this investigation confirm the structural assignment of 3a. Moreover, thiazole 3a undergoes a coupling reaction with benzenediazonium chloride to yield the aryldiazo derivative 18. Compound 18 was reduced by treatment with Zn metal in acetic acid to yield the amide 19 rather than the isomeric substance 20. This assignment is based on the absence of amine signals in both the IR and ¹H-NMR spectra of 19. In addition, treatment of 3a with sulfuric acid in acetic acid led to production of the amide 21. Although 21 can exist in either a E- or Z-isomeric form, the E-stereoisomer appears to be generated selectively, as indicated from NOE difference experiments thus irradiating NH at δ = 12.46 ppm has enhanced amide NH₂ at δ = 6.64 ppm and vice versa, such enhancement cannot occur with Z-isomeric. Clearly the claim [3] that pyrrole 23 and thiophene 24 are produced from a substance assumed to be 2 must be subjected to more concrete verification (Scheme 4).

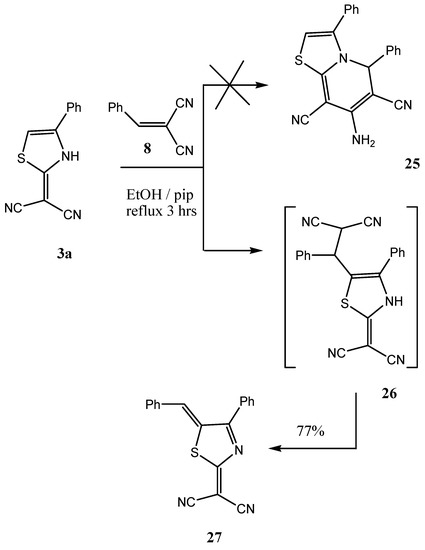

Finally, in an attempt to extend the Salah Eldine [4] reaction of 3a with furfurylidine malononitrile to its reaction with benzylidenemalononitrile 8, only 27 was generated via the intermediacy of adduct 26. The elimination of active methylene carbanions from substances analogous to 26 is well known [11] (Scheme 5).

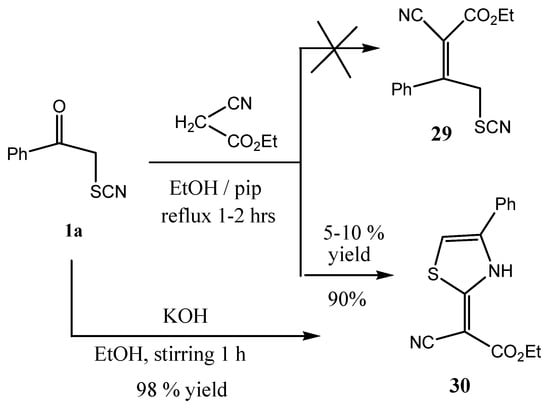

Abdelrazek has also reported [12] that 1-phenyl-2-thiocyanatoethanone (1a) reacts with ethyl cyanoacetate to yield either the alkylidene or the thiazole adducts 29 or 30, respectively. Again, analysis of the reaction mixture formed by carrying out this process under a variety of conditions revealed that 29 was not formed and only 30 was produced when potassium hydroxide was present (Scheme 6).

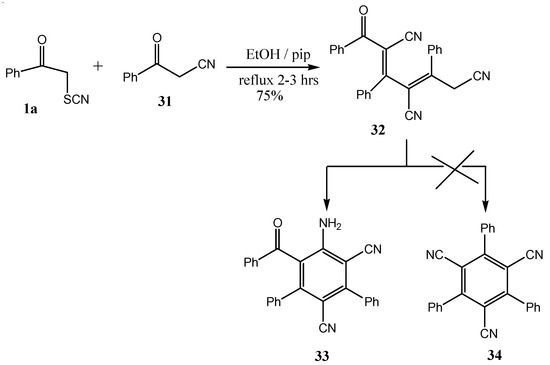

Our attention next shifted to an exploration of condensation reactions of 1a with other active methylene reagents. However, in our hands 1a failed to produce adducts with acetylacetone, ethyl acetoacetate and the malononitrile dimer. under a variety of conditions reactions. Only the self tricondensation of 31 ocurred in the case of reaction of cyanoketone 31 with 1a. Although the tricondensation product is well known, Briel et al. [13] recently assigned structure 32 to this substance. In contrast, Elnagdi et al. [14] have assigned the structure of this product as 33, a substance which in fact can also be formed by cyclization of 32. Again, Abdelrazek [15] has incorrectly claimed that this product is 33. Of course, MS analysis shows that 33 differs from both 32 and 34 (Scheme 7). It is possible that Briel’s structural assignement is correct since heating the tricondensation product with zeolites affords an isomeric product that has been assigned as 33.

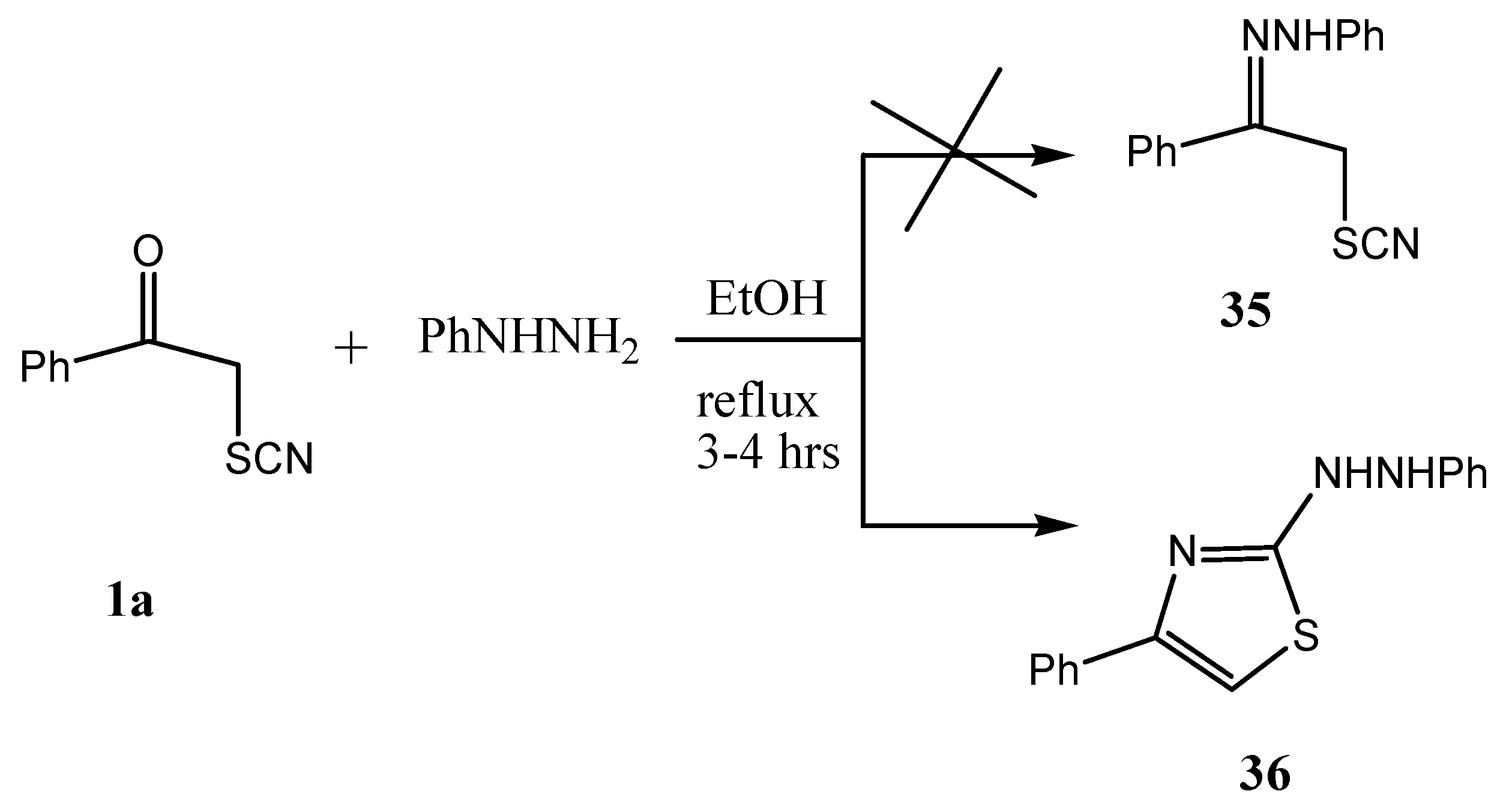

We have also investigated the reactivity of 1a with phenylhydrazine. This reaction has been reported by Abdelrazek et al. [8] to yield the hydrazone 35. In our hands, only the thiazole 36 was isolated from the reaction mixture (Scheme 8).

3. Experimental

3.1. General

Melting points are reported uncorrected and were determined with a Sanyo (Gallaenkamp) instrument. Infrared spectra were recorded using KBr pellets and a Perkin-Elmer 2000 FT–IR instrument. ¹H- and ¹³C-NMR spectra were determined by using a Bruker DPX instrument at 400 MHz for ¹H-NMR and 100 MHz for ¹³C-NMR and either CDCl₃ or DMSO-d₆ solutions with TMS as internal standards. Chemical shifts are reported in δ (ppm). Mass spectra were measured using VG Autospec Q MS 30 and MS 9 (AEI) spectrometer, with the EI (70 EV) mode. Elemental analyses were carried out by using a LEOCHNS-932 Elemental Analyzer.

3.2. General Procedure for the Syntheses of 3a,b

Solutions of malononitrile (0.66 g, 0.01 mol) and α-thiocyanatoketones 1a,b (0.01 mol) in ethanol (15 mL) containing piperidine (5 drops) were stirred at reflux for 1–2 h. (completion assessed by TLC, 1:1 ethyl acetate-petroleum ether). The solid products, isolated by pouring the reaction mixtures into ice-water and subsequent separation by filtration, were crystallized from EtOH to afford green crystals.

2-(4-Phenylthiazol-2(3H)-ylidene)malononitrile (3a). Yield 93%; m.p. 275–276 °C; Anal. calcd. for C₁₂H₇N₃S (225.27): C, 63.98; H, 3.13; N, 18.65; S, 14.23. Found: C, 63.94; H, 3.31; N; 18.45; S, 13.92; IR (KBr): υ_max 3147 (NH), 2210 (CN), 2175 (CN); ¹H-NMR (DMSO): δ, ppm 7.33 (s, 1H, CH), 7.45–7.49 (m, 3H, Ar-H), 7.71–7.72 (m, 2H, Ar-H), 13.23 (br, 1H, NH, D₂O exchangeable); ¹³C-NMR (DMSO): δ, ppm 172.27, 143.70, 130.01, 129.12(2C), 128.92, 127.51 (2C), 127.64, 117.75, 105.93 (2CN). MS: m/z (%) 225 (M⁺, 100), 180 (20), 134 (45), 108 (10), 102 (15), 89 (15), 77 (10).

2-(4-Methylthiazol-2(3H)-ylidene)malononitrile (3b). Yield 85%; m.p. 290–291 °C; Anal. calcd. for C₇H₅N₃S (163.2): C, 51.52; H, 3.09; N, 25.75; S, 19.64. Found: C, 51.26; H, 3.12; N; 25.54; S, 19.27; IR (KBr): υ_max 3160 (NH), 2179 (2CN); ¹H-NMR (DMSO): δ, ppm 2.17 (s, 3H, CH₃), 6.71 (s, 1H, CH), 13.1 (br, 1H, NH, D₂O exchangeable); ¹³C-NMR (DMSO): δ, ppm 170.10, 142.54, 105.93 (2CN), 95.23, 87.68, 16.54. MS: m/z (%) 163 (M⁺, 100), 136 (20), 118 (30), 98 (10), 71 (50).

3.3. General Procedure for the Syntheses of 5a,b

Mixtures of 3a,b (0.01 mol) and hydrazine monohydrate (0.50 g, 0.01 mol) in DMF (10 mL) were stirred at reflux for 20 h. (completion assessed by TLC analysis using ethyl acetate-petroleum ether 1:1). The mixtures were cooled and poured into ice-water. The solid products, collected by filtration, were crystallized from DMF to give light yellow crystals.

4-(4-Phenylthiazol-2-yl)-1H-pyrazole-3,5-diamine (5a). Yield 78%; m.p. 322–323 °C; Anal. calcd. for C₁₂H₁₁N₅S (257.31): C, 56.01; H, 4.31; N, 27.22; S, 12.41. Found: C, 55.80; H, 4.41; N; 26.88; S, 11.99; IR (KBr): υ_max 3372, 3256 (NH₂), 3176, 3112 (NH₂), 3132 (NH); ¹H-NMR (DMSO): δ, ppm 5.39 (br, 4H, 2NH₂, D₂O exchangeable), 7.31–7.46 (m, 3H, Ar-H), 7.75 (s, 1H, CH), 7.96–7.98 (m, 2H, Ar-H), 10.73 (br, 1H, NH, D₂O exchangeable); ¹³C-NMR (DMSO): δ, ppm 166.29, 162.08, 152.30 (2C), 134.31, 128.69 (2C), 127.69, 125.89 (2C), 107.48, 87.97. MS: m/z (%) 257 (M⁺, 100), 226 (10), 200 (5), 134 (35), 128 (10), 90 (10).

4-(4-Methylthiazol-2-yl)-1H-pyrazole-3,5-diamine (5b). Yield 76%; m.p. 330–332 °C; Anal. calcd. for C₇H₉N₅S (195.24): C, 43.06; H, 4.65; N, 35.87; S, 16.42. Found: C, 42.89; H, 4.73; N; 35.60; S, 15.98; IR (KBr): υ_max 3371, 3275 (NH₂), 3255, 3180 (NH₂), 3118 (NH); ¹H-NMR (DMSO): δ, ppm 2.23 (s, 3H, CH₃), 5.62 (br, 4H, 2NH₂, D₂O exchangeable), 6.86 (s, 1H, CH), 10.67 (br, 1H, NH, D₂O exchangeable); ¹³C-NMR (DMSO): δ, ppm 164.33, 161.56, 150.03 (2C), 106.88, 87.68, 16.84. MS: m/z (%) 195 (M⁺, 100), 164 (20), 138 (10), 123 (15), 112 (5), 72 (15).

3.4. Synthesis of 2,7-diamino-5-phenyl-3-(4-phenylthiazol-2-yl)pyrazolo[1,5-a]pyrimidine-6-carbonitrile (11)

A mixture of 5a (2.57 g, 0.01 mol) and benzylidenemalononitrile (8, 1.54 g, 0.01 mol) in DMF (10 mL) was stirred at reflux for 10 h (completion assessed by TLC analysis using ethyl acetate-petroleum ether 1:1 as eluent). The reaction mixture was cooled and poured into ice-water giving a solid which was collected by filtration and crystallized from DMF to give a the product as yellow crystals in a yield of 75%; m.p. 298–300 °C; Anal. calcd. for C₂₂H₁₅N₇S (409.47): C, 64.53; H, 3.69; N, 23.94; S, 7.83. Found: C, 64.61; H, 3.69; N; 23.79; S, 7.59; IR (KBr): υ_max 3430, 3318 (NH₂), 3429, 3315 (NH₂), 2211 (CN); ¹H-NMR (DMSO): δ, ppm 6.85 (br, 2H, NH₂, D₂O exchangeable), 7.35–8.03 (m, 11H, Ar-H, thiazole-H), 8.57 (br, 2H, NH₂, D₂O exchangeable); ¹³C-NMR (DMSO): δ, ppm 195.47, 159.46, 157.98, 152.59, 148.91, 145.21, 137.10, 133.97, 130.37 (2C), 128.77 (2C), 128.70 (2C), 128.38 (2C), 127.89, 125.93, 116.48, 111.39, 92.24, 73.15. MS: m/z (%) 409 (M⁺, 100), 333 (5), 204 (15), 195 (5), 134 (30), 90(5).

3.5. Synthesis of 3-(4-phenylthiazol-2-yl)pyrazolo[1,5-a]pyrimidine-2,7-diamine (17)

A mixture of 5a (2.57 g, 0.01 mol) and 3-(piperidin-1-yl)acrylonitrile (15, 1.36 g, 0.01 mol) in DMF (10 mL) was stirred at reflux for 10 h (completion assessed by TLC analysis using ethyl acetate-petroleum ether 1:1 as eluent). The reaction mixture was cooled and poured into ice-water giving a solid which was collected by filtration and crystallized from DMF to give a the product as yellow crystals in a yield of 70%; m.p. 329–330 °C; Anal. calcd. for C₁₅H₁₂N₆S (308.36): C, 58.43; H, 3.92; N, 27.25; S, 10.40. Found: C, 58.33; H, 3.79; N; 27.20; S, 10.37; IR (KBr): υ_max 3443, 3305 (NH₂), 3355, 3263 (NH₂); ¹H-NMR (DMSO): δ, ppm 6.13 (d, 1H, J = 6 Hz, CH), 6.62 (br, 2H, NH₂, D₂O exchangeable), 7.33–7.47 (m, 3H, Ar-Hs), 7.61 (br, 2H, NH₂, D₂O exchangeable), 7.85 (s, 1H, thiazole-H), 8.01 (m, 2H, Ar-Hs), 8.07 (d, 1H, J = 6 Hz, CH); ¹³C-NMR (DMSO): δ, ppm 160.59, 156.98, 152.22, 149.36, 147.14, 146.94, 134.31, 128.75 (2C), 127.72, 125.90 (2C), 109.66, 89.99, 88.59. MS: m/z (%) 308 (M⁺, 100), 268 (30), 175 (5), 154 (5), 134 (30), 102 (5), 89(5), 77 (5).

3.6. Synthesis of 2-(4-Phenyl-5-phenylazo-3H-thiazol-2-ylidene)malononitrile (18a)

A cold solution of benzenediazonium chloride (0.01 mol) was prepared by adding a solution of sodium nitrite (0.7 g in 10 mL H₂O) to a cold solution of aniline hydrochloride (0.93 g, 0.01 mol of aniline in 5 mL concentrated HC1) with stirring at room temperature. The resulting solution was then added to cold solutions of 3a (2.25 g, 0.01 mol) in ethanol (50 mL) containing sodium acetate (2 g). The reaction mixtures was stirred for 1 h and then filtered. The solid products were crystallized from EtOH to give the products as red crystals, yield 85%; m.p. 198–200 °C; Anal. calcd. for C₁₈H₁₁N₅S (329.38): C, 65.64; H, 3.37; N, 21.26; S, 9.73. Found: C, 65.49; H, 3.51; N; 21.15; S, 9.39; IR (KBr): υ_max 3180 (NH), 2216 (2CN); ¹H-NMR (DMSO): δ, ppm 5.03 (br, 1H, NH, D₂O exchangeable), 7.25–7.60 (m, 8H, Ar-H), 8.22–8.24 (m, 2H, Ar-H); ¹³C-NMR (DMSO): δ, ppm 175.46, 147.29, 138.67, 131.79, 131.47, 130.73 (2C), 130.70 (2C), 129.59 (2C), 128.63 (2C), 127.05, 118.96, 117.71, 115.70 (2CN). MS: m/z (%) 329 (M⁺, 100), 301 (20), 237 (15), 225 (25), 153 (5), 103 (20), 92 (25), 77 (65).

3.7. Synthesis of N-(2-Dicyanomethylene-4-phenyl-2,3-dihydro-thiazol-5-yl)-acetamide (19)

A mixture of 18a (3.29 g, 0.01 mol) and Zn dust (1 g) in AcOH (10 mL) was stirred at reflux for 1 hr (completion assessed by TLC analysis using ethyl acetate-petroleum ether 1:1 as eluent). The reaction mixture was cooled and poured into ice-water giving a solid which was collected by filtration and crystallized from EtOH to give the product as faint green coloured crystals in a yield of 70%; m.p. 335–338 °C; Anal. calcd. for C₁₄H₁₀N₄OS (282.32): C, 59.56; H, 3.57; N, 19.85; S, 11.36. Found: C, 59.61; H, 3.44; N; 19.75; S, 11.42; IR (KBr): υ_max 3057 (NH), 3027 (NH), 2204 (CN), 2178 (CN); ¹H-NMR (DMSO): δ, ppm 2.02 (s, 3H, CH₃), 7.21–7.76 (m, 6H, Ar-Hs, NH, D₂O exchangeable), 10.07 (br, 1H, NH, D₂O exchangeable); ¹³C-NMR (DMSO): δ, ppm 169.86, 169.04, 164.93, 163.14, 128.69, 128.28 (2C), 128.09, 127.89 (2C), 127.73, 119.92, 117.67, 22.39. MS: m/z (%) 282 (M⁺, 60), 257 (20), 240 (100), 215 (85), 180 (10), 148(30), 121 (40), 104 (75), 93 (40), 77 (65), 73 (40).

3.8. Synthesis of 2-cyano-2-(4-phenylthiazol-2(3H)-ylidene)acetamide (21)

A mixture of 3a (2.25 g, 0.01 mol) and H₂SO₄ (3 mL) in AcOH (10 mL) was stirred at reflux for 1 h. The reaction mixture was cooled and poured into ice-water giving a solid which was collected by filtration and crystallized from AcOH to give the product as white coloured crystals a yield of 80%; m.p. 229–231 °C; Anal. calcd. for C₁₂H₉N₃OS (243.28): C, 59.24; H, 3.73; N, 17.27; S, 13.18. Found: C, 59.15; H, 3.58; N; 17.34; S, 13.32; IR (KBr): υ_max 3305, 3236 (NH₂), 3126 (NH), 2184 (CN); ¹H-NMR (DMSO): δ, ppm 6.64 (br, 2H, NH_2, D₂O exchangeable), 7.15 (s, 1H, thiazole-H), 7.43–7.68 (m, 5H, Ar-H), 12.46 (br, 1H, NH, D₂O exchangeable); ¹³C-NMR (DMSO): δ, ppm 169.77, 139.49, 129.37, 129.27, 128.93 (2C), 126.83 (2C), 126.07, 125.22, 118.94, 106.97. MS: m/z (%) 243 (M⁺, 90), 226 (100), 200 (45), 171 (5), 134 (40), 102 (45), 98 (10), 77 (5).

3.9. Synthesis of 2-(5-benzylidene-4-phenylthiazol-2(5H)-ylidene)malononitrile (27)

A mixture of 3a (2.25 g, 0.01 mol) and benzylidenemalononitrile (8, 1.54 g, 0.01 mol) in EtOH (20 mL) in presence of piperidine (1 mL) was stirred at reflux for 3 h. The reaction mixture was cooled and poured into ice-water giving a solid which was collected by filtration and crystallized from EtOH to give the product as faint yellow coloured crystals in a yield of 77%; m.p. 280–282 °C; Anal. calcd. for C₁₉H₁₁N₃S (313.38): C, 72.82; H, 3.54; N, 13.41; S, 10.23. Found: C, 12.94; H, 3.32; N; 13.31; S, 10.19; IR (KBr): υ_max 22.7 (CN), 2179 (CN); ¹H-NMR (DMSO): δ, ppm 5.84 (s, 1H, CH), 7.15–7.42 (m, 10H, Ar-H); ¹³C-NMR (DMSO): δ, ppm 169.07, 141.21, 140.04, 131.24, 130.57, 129.69, 129.21 (2C), 128.91 (2C), 128.45 (2C), 128.21, 127.94, 127.61 (2C), 124.62, 122.00, 117.17. MS: m/z (%) 313 (M⁺, 80), 285 (10), 235 (90), 225 (100), 178 (10), 134 (60), 98 (20).

3.10. Synthesis of ethyl 2-cyano-2-(4-phenylthiazol-2(3H)-ylidene)acetate (30)

Solutions of ethyl cyanoacetate (1.13 g, 0.01 mol) and α-thiocyanatoketone 1a (0.01 mol) in ethanol (15 mL) containing KOH (1 g) were stirred at room temperature for 1–2 h (completion assessed by TLC, 1:1 ethyl acetate- petroleum ether). The solid products, produced by pouring the reaction mixtures into ice-water containing HCl (2 mL) and subsequent separation by filtration, were crystallized from EtOH to give the product as white crystals in a yield of 90 %; m.p. 157–159 °C; Anal. calcd. for C₁₄H₁₂N₂O₂S (272.32): C, 61.75; H, 4.44; N, 10.29; S, 11.77. Found: C, 61.71; H, 4.32; N; 10.18; S, 11.98; IR (KBr): υ_max 3152 (NH), 2211 (CN); ¹H-NMR (DMSO): δ, ppm 1.23 (t, 3H, J = 6 Hz, CH₃), 4.16 (q, 2H, J = 6 Hz, CH₂), 7.15 (s, 1H, thiazole-H), 7.43–7.71 (m, 5H, Ar-H), 12.99 (br, 1H, NH, D₂O exchangeable); ¹³C-NMR (DMSO): δ, ppm 169.23, 166.55, 140.68, 129.31 (2C), 128.75, 128.75 (2C), 127.00, 117.54, 107.49, 62.93, 59.68, 14.55. MS: m/z (%) 272 (M⁺, 90), 226 (100), 200 (50), 172 (10), 153 (5), 134 (50), 102 (40), 89 (10), 77 (10).

3.11. Synthesis of 1-phenyl-2-(4-phenylthiazol-2-yl)hydrazine (36)

A mixture of 1a (1.77 g, 0.01 mol), phenyl hydrazine (1.80 g, 0.02 mol), in EtOH (20 mL) was refluxed for 3–4 h (completion assessed by TLC analysis using ethyl acetate-petroleum ether 1:1 as eluent). The reaction mixture was cooled and poured into ice-water giving a solid which was collected by filtration and crystallized from EtOH to give the product as white crystals in a yield of 75%; m.p. 216–218 °C; Anal. calcd. for C₁₅H₁₃N₃S (267.35): C, 67.39; H, 4.90; N, 15.72; S, 11.99. Found: C, 67.17; H, 4.88; N; 15.58; S, 12.12; IR (KBr): υ_max 3239 (NH), 3089 (NH); ¹H-NMR (DMSO): δ, ppm 6.47–7.61 (m, 11H, Ar-H, thiazole-H), 9.08 (br, 1H, NH, D₂O exchangeable), 12.60 (br, 1H, NH, D₂O exchangeable); ¹³C-NMR (DMSO): δ, ppm 163.35, 147.00, 130.91, 128.94 (2C), 128.54 (2C), 128.01, 127.91, 126.59 (2C), 119.59, 112.59 (2C), 111.19. MS: m/z (%) 267 (M⁺, 100), 234 (5), 207 (5), 175 (15), 148 (5), 117 (70), 93 (50), 77 (10).

4. Conclusions

In conclusion, the results of this study confirm that the substance thought to be 2-(1-phenyl-2-thiocyanatoethylidene)malononitrile (2) is not generated in the reaction of ketone 1a with malononitrile. The product produced in this process is in fact the 2-(thiazol-2(3H)-ylidene)-malononitriles 3a,b. If 2-(1-phenyl-2-thiocyanatoethylidene)-malononitrile (2) was really produced in this reaction, then an exact experimental procedure that would enable a reasonably skilled chemist to repeat the process should be published. Finally, this effort has provided the structures of some products arising from reactions of 3a,b with a variety of electrophilic and nucleophilic reagents.
