Article

Synthesis and In Vitro Protein Tyrosine Kinase Inhibitory Activity of Furan-2-yl(phenyl)methanone Derivatives

1
School of Pharmaceutical Science, Shanxi Medical University, Taiyuan 030001, Shanxi, China
2
State Key Laboratory of Natural and Biomimetic Drugs, Peking University, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Molecules 2011, 16(6), 4897-4911; https://doi.org/10.3390/molecules16064897
Submission received: 27 April 2011 / Revised: 1 June 2011 / Accepted: 7 June 2011 / Published: 14 June 2011
(This article belongs to the Section Medicinal Chemistry)

Abstract

:
A series of novel furan-2-yl(phenyl)methanone derivatives were synthesized, and their structures were established on the basis of 1H-NMR, 13C-NMR and mass spectral data. All the prepared compounds were screened for their in vitro protein tyrosine kinase inhibitory activity and several new derivatives exhibited promising activity, which, in some cases, was identical to, or even better than that of genistein, a positive reference compound. The preliminary structure-activity relationships of these compounds were investigated and are discussed.

1. Introduction

Bromophenols isolated from various marine algae, ascidians and sponges have recently attracted much attention due to their unique structures and varied pharmacological activities, which include antioxidative [1], protein tyrosine kinase (PTK) inhibitory [2], anticancer [3], protein tyrosine phosphatase 1B inhibitory [2], antithrombotic [4], antimicrobial [5], anti-inflammatory [6], enzyme inhibitory [7], cytotoxic [8] and appetite suppressant [9] effects. The core structures of these bromophenols are two benzene rings connected by a methylene or carbonyl group. However, studies on their structure optimization and their corresponding structure-activity relationship (SAR) with PTK inhibitors have been rarely reported, despite the fact that several natural bromophenol compounds [10] and some new derivatives with antimicrobial activities were prepared [5,11].
Protein kinases play an important role as cell function regulators in signal transduction pathways that regulate a number of cellular functions, such as proliferation, growth, differentiation, death and various regulatory mechanisms. A variety of tumor types have dysfunctional growth factor receptor tyrosine kinases, which result in inappropriate mitogenic signaling. PTKs are, therefore, attractive targets in the search for therapeutic agents, not only against cancer, but also in many other diseases [12,13].
A wide range of heterocyclic ring systems has been studied for the development of novel chemical entities as lead molecules in drug discovery. Introduction of appropriate heterocycles into a lead compound is a common strategy during the drug discovery process. It has been found that many common rings, including different heterocyclic and simplified aromatic structures, are important as PTK inhibitors [14]. The encouraging activities of our previously prepared bromophenols [15] prompted us to investigate new analogs involving further modification of five-membered heterocyclic rings, to optimize the SAR that might lead to potent and selective biological activity. The furan ring is a very important bioactive structure that is considered to be a basic building block in the design and synthesis of new drugs. Furan rings are electron-rich systems that are amenable to act as good ligands for metal ions. Furan derivatives that are substituted at the 2- and 5- positions are frequently found in nature. These derivatives show broad-spectrum pharmacological properties [16]. Hence, in this study, we modified the structures of bromophenols by replacement of one benzene ring with a furan ring. The introduction of new substituents and functional groups at various positions on aromatic or heteroaromatic fragments of a potential drug might lead to changes in its molecular shape that allows optimum binding to the receptor, as well as its physicochemical properties that affect drug distribution and metabolism [17,18]. The scaffold was designed in such a way that the benzene ring was connected with heteroaryl system by a carbonyl group, with the hope of attaining superior biological activity. A series of new furan-2-yl(phenyl) methanone derivatives was synthesized by convenient methods to evaluate their biological and PTK inhibitory activities. Finally, the preliminary SARs were investigated.

2. Results and Discussion

Two strategies were adopted to prepare the target compounds. One strategy was Friedel-Crafts acylation of substituted benzene derivatives with the furoyl chloride (Scheme 1, Scheme 2 and Scheme 3), and the other was Friedel-Crafts acylation of furan with substituted benzoyl chloride derivatives (Scheme 4 and Scheme 5).
The synthetic routes of compounds 3a–3d and 4a–4d are shown in Scheme 1. The starting material, furan-2-carboxylic acid, was reacted with dry SOCl2 in the presence of a catalytic amount of N,N-dimethylformamide (DMF) to yield furan-2-carbonyl chloride, which was reacted further with substituted benzene derivatives to yield compound 3. Compound 4 was obtained by treating compound 3 with BBr3.
5-Bromofuran-2-carboxylic acid (5) and 4,5-dibromofuran-2-carboxylic acid (11) were prepared according to the previously described procedures [19,20], which were also used to prepare compounds 7a–7c, 8a–8c, 13 and 14 (Scheme 2 and Scheme 3).

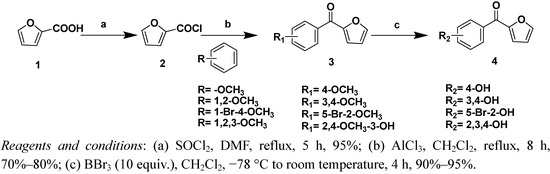

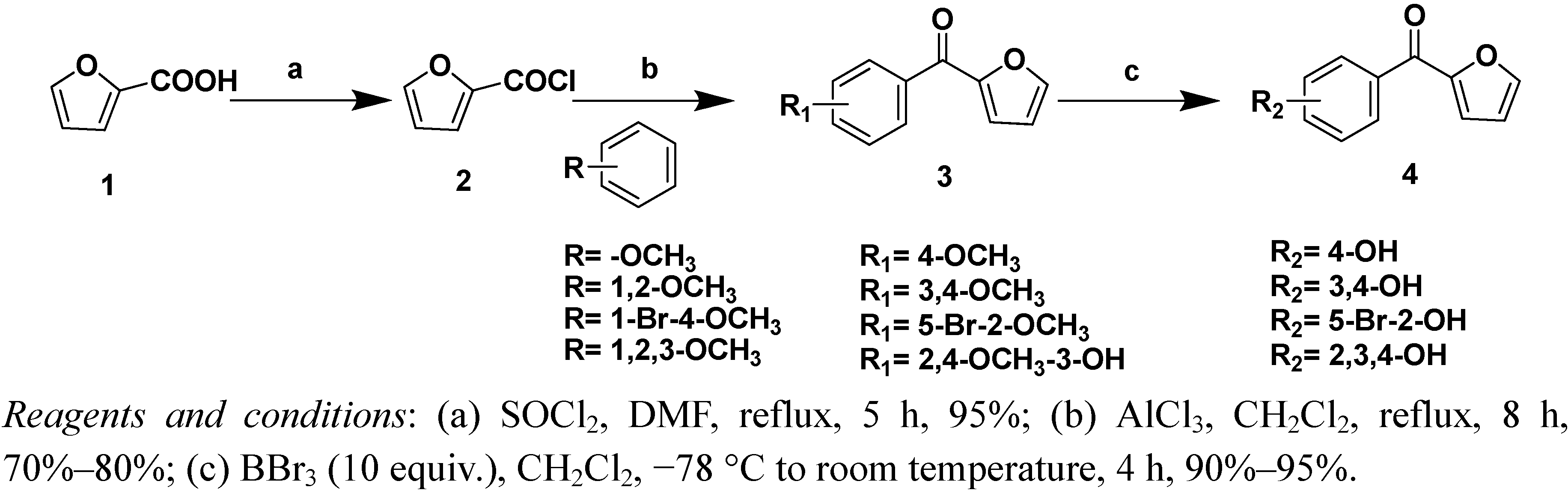

Scheme 1. Syntheis of compounds 3a–3d and 4a–4d.
Scheme 1. Syntheis of compounds 3a–3d and 4a–4d.
Molecules 16 04897 g002

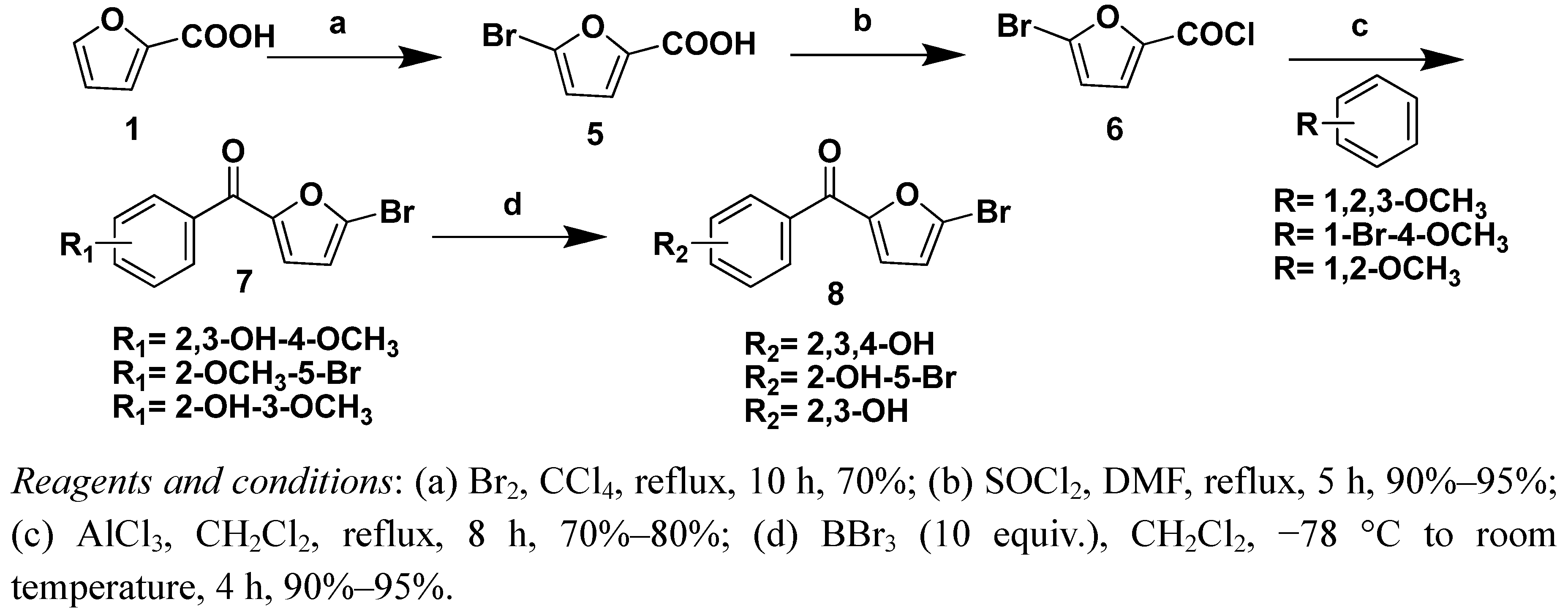

Scheme 2. Syntheis of compounds 7a–7c and 8a–8c.
Scheme 2. Syntheis of compounds 7a–7c and 8a–8c.
Molecules 16 04897 g003

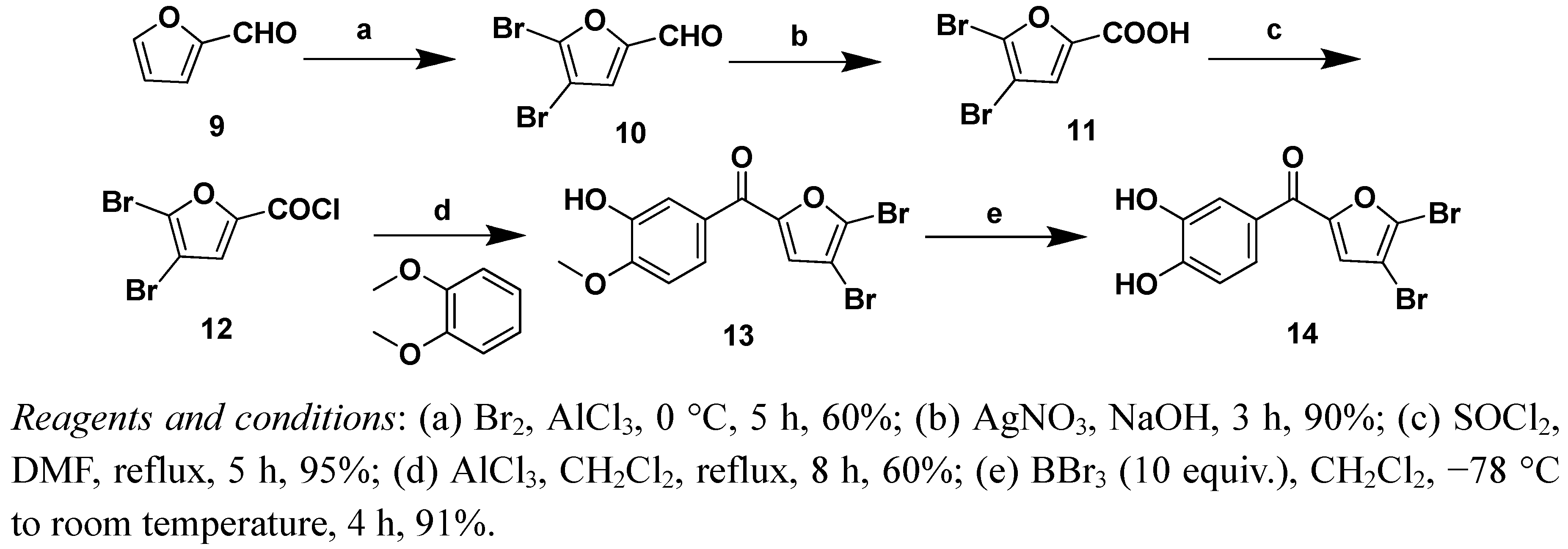

Scheme 3. Syntheis of compounds 13 and 14.
Scheme 3. Syntheis of compounds 13 and 14.
Molecules 16 04897 g004
The synthetic routes to compounds 17a/17b and 18a/18b are illustrated in Scheme 4. Variously substituted benzoic acids 15 (Figure 1) were refluxed in anhydrous SOCl2 to yield acyl chlorides 16, which were reacted with furfural catalyzed by AlCl3. The product was purified by silica gel column chromatography (ligarine/EtOAc 80:20, v/v) to give compound 17, which were treated with BBr3 to give compound 18.

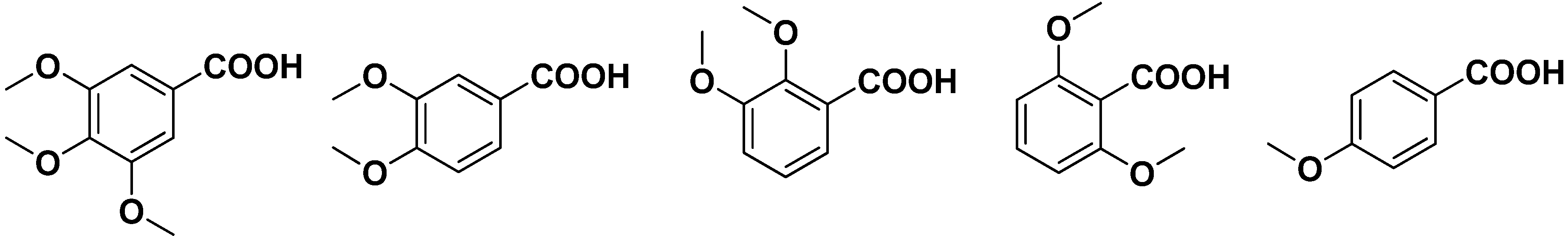

Figure 1. Structures of starting materials 15.
Figure 1. Structures of starting materials 15.
Molecules 16 04897 g001

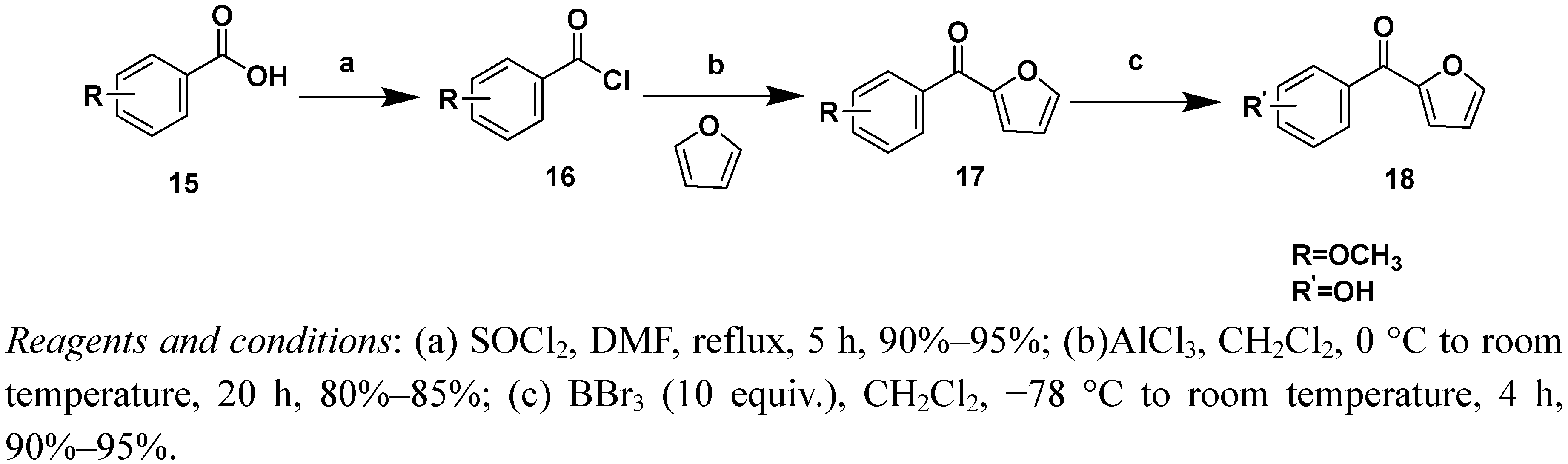

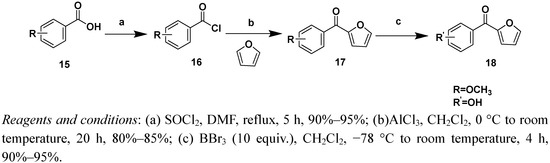

Scheme 4. Syntheis of compounds 17a–17b and 18a–18b.
Scheme 4. Syntheis of compounds 17a–17b and 18a–18b.
Molecules 16 04897 g005

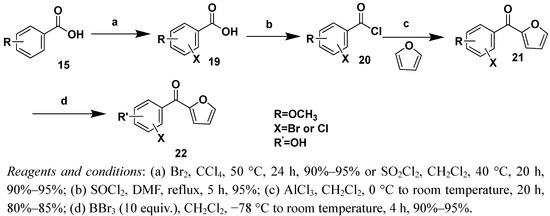

Scheme 5. Syntheis of compounds 21a–21d and 21a–21d.
Scheme 5. Syntheis of compounds 21a–21d and 21a–21d.
Molecules 16 04897 g006
To examine the influence of the number and position of halogen atoms on their bioactivites, chlorination of 15 (Figure 1) with SO2Cl2 or bromination with Br2 provided a good yield of 19. Chloro- and bromo-substituted compounds 21 and 22 were then synthesized according to the second route (Scheme 5). The structures of target compounds are shown in Table 1.
Table 1. Structures of the target new compounds.
Molecules 16 04897 i001
Table 1. Structures of the target new compounds.
Molecules 16 04897 i001
CompoundsSubstituent GroupCompoundsSubstituent Group
3a3,4-OCH34a3,4-OH
3b2,4-OCH3, 3-OH4b2,3,4- OH
3c2-OCH3, 5-Br4c2-OH, 5-Br
3d4-OCH34d4-OH
7a2,3-OH, 4-OCH3, 5’-Br8a2,3,4-OH, 5’-Br
7b2-OCH3, 5-Br, 5’-Br8b2-OH, 5-Br, 5’-Br
7c3-OH, 4-OCH3, 5’-Br8c3,4-OH, 5’-Br
133-OH, 4-OCH3,4’,5’-Br143,4-OH, 4’,5’-Br
17a2,3-OCH318a2,3-OH
17b2,6-OCH318b2,6-OH
21a3-Br, 4-OCH322a3-Br, 4-OH
21b2,6-Br, 3,4,5-OCH322b2,6-Br, 3,4,5-OH
21c2-Cl, 3,4,5-OCH322c2-Cl, 3,4,5-OH
21d2-OH, 3-OCH3, 4,5-Br22d2,3-OH, 4,5-Br

2.1. Results

As shown in Table 2, all of the furan-2-yl(phenyl)methanone derivatives were subjected to the in vitro PTK inhibitory activity testing using the PTK assay, as previously reported [13]. Some of the new derivatives exhibited promising activity, which in some cases, was identical to, or even better than that of genistein, a positive reference compound in the same model. Thus, compounds 4a, 4b, 8a, 8c and 22c exhibited PTK inhibitory activity (IC50 values 4.66, 6.42, 5.31, 2.72 and 4.62 μM, respectively), which was more potent than that of the genistein (IC50 13.65 μM). Compounds 18a, 18b and 22d also displayed moderate PTK inhibitory activity (IC50 values 13.23, 12.65 and 9.56 μM, respectively).
Table 2. PTK inhibitory activity.
Table 2. PTK inhibitory activity.
CompoundsProtein Tyrosine Kinase (PTK) inhibition activity aCompoundsProtein Tyrosine Kinase (PTK) inhibition activity a
3aNA4a4.66
3bNA4b6.42
3cNA4cNA
3dNA4dNA
7aNA8a5.31
7bNA8bNA
7cNA8c2.72
13NA14NA
17aNA18a13.23
17bNA18b12.65
21aNA22aNA
21bNA22bNA
21cNA22c4.62
21dNA22d9.56
a IC50 (μM). Values are means of three experiments; NA, not active at 5 μg/mL. Genistein 13.65 μM.

2.2. SAR Analysis

The results indicated that the number of hydroxyl groups had a great effect on the PTK inhibitory activity. More than one hydroxyl group was essential for the activity, as none of the compounds that had only one hydroxyl group in the phenyl ring showed any activity, whereas those with more than one exhibited high to moderate activity, although the activities did not increase directly with the number of hydroxyl groups. For example, when three hydroxyl groups were present in the phenyl ring, the corresponding activity was lower than that with two hydroxyl groups. Among the hydroxyl substituted derivatives, the three compounds 4a, 18a and 18b with a similar structure that had two hydroxyl groups in the benzene ring had strong to moderate activity. However, they did not show equal activity, which suggested that two substituent hydroxyl groups at appropriate positions in the benzene ring were important to the PTK inhibitory activity of these compounds.
Comparison of the activities of the halogen-substituted derivatives indicated that the halogen atoms in the phenyl ring (22b and 22c) contributed to the PTK inhibitory activity in the order of Cl > Br. However, compound 22b with a fully-substituted phenyl ring showed no activity.
We can conclude that hydroxyl groups on the furan-2-yl(phenyl)methanone backbone are essential for the in vitro PTK inhibitory activity of these compounds, and introduction of a methoxyl group can lead to the disappearance of activity, as all the methoxyl derivatives were inactive. The presence of one or more halogen atoms on the phenyl ring also increases the activity. The number and position of the hydroxyl groups and halogen atoms in the phenyl ring could influence the activity potency.
By comparison of the activity of compounds 4a, 4b, 8a and 8c, we found that the introduction of a Br atom at the C-5 position in the furan ring could increase activity. However, compound 14 showed no activity due to the introduction of another Br atom at the C-4 position in the furan ring of 8c which showed the strongest activity. The results suggest that a Br atom substituted at the C-5 position in the furan ring could enhance the PTK inhibitory activity, but Br atoms substituted at the C-4 position in are inhibitory for such activity.

3. Experimental

3.1. General

Melting points were determined on a XT4A microscopic stage melting point apparatus with an aromatic temperature control system. NMR spectra were recorded on a Bruker-AV400 spectrometer with TMS as an internal standard and DMSO-d6 or CDCl3 as the solvent. Chemical shifts (d values) and coupling constants (J values) were given in ppm and Hz, respectively. ESI mass spectra were obtained on an API QTRAP 3200 LC-MS spectrometer,the high-resolution mass spectra were obtained on a Bruker Daltonics Apex IV 70e FTICR-MS (Varian 7.0T). TLC analysis was carried out on silica gel plates GF254 (Qingdao Haiyang Chemical, China). Silica gel column chromatography was performed with silica gel 60 G (Qingdao Haiyang Chemical). Commercial solvents were used without any pretreatment, whereas dichloromethane was dried by refluxing and distilling over calcium hydride.

3.2. Chemistry

3.2.1. Procedure for the synthesis of 5-bromofuran-2-carboxylic acid 5

Br2 (8 mL) was slowly added to a solution of 2-furancarboxylic acid (1, 14.0 g) in CCl4 (60 mL). The reaction mixture was stirred at 45–50 °C for 24 h. The solvent was then removed under reduced pressure to yield a red solid which was recrystallized from boiling water to give the compound 5.

3.2.2. Procedure for the synthesis of 4,5-dibromofuran-2-carboxylic acid 11

Freshly distilled furfural (10.0 g) was added dropwise with mechanical stirring at 0 °C to aluminum chloride (32.0 g) over a two hour period. Bromine (37.0 g) was then added dropwise at 0 °C over a two hours period, after which stirring was discontinued and the reaction mixture allowed to stand overnight. The reaction was quenched by carefully pouring the mixture into ice (800 mL) and then extracting the aqueous layer three times with ether. The combined organics were washed twice with saturated sodium bicarbonate, once with brine, and dried with anhydrous MgSO4. The solvent was removed under reduced pressure to yield a red oil. Purification using column chromatography on silica (hexanes/ethyl acetate V/V = 1:1 as eluent) yielded compound 10 (13.2 g, Rf = 0.45, 20% ethyl acetate in hexanes) as an orange oil. Next compound 10 (13.2 g), H2O (40.0 mL) and AgNO3 (8.0 g) were added into a flask and the mixture was stirred at room temperature for 4 h. Then the reaction was completed, 6 M hydrochloric acid adjusted to PH to 2~3, and extracting the aqueous layer three times with ethyl acetate. The combined organics were dried with Na2SO4. The solvent was removed under reduced pressure, the solid separated was recrystallized from boiling water to give compound 11.

3.2.3. General procedure for synthesis of compounds 3a–3d, 7a–7c and 13

A solution of 2-furancarboxylic acid (1, 1.0 g) and a catalytic amount of DMF in thionyl chloride (5 mL) was stirred at 80–90 °C for 5 h. After concentration under reduced pressure, furoyl chloride 2 was dissolved in dried CH2Cl2 and reacted with 1,2-dimethoxybenzene (1 mL) catalyzed by AlCl3. The reaction mixture was heated to 50–60 °C for 12 h. After the reaction was completed, the reaction was quenched by carefully pouring the mixture into iced water (100 mL), extracting the aqueous layer three times with CH2Cl2, and drying with anhydrous Na2SO4. The solvent was removed under reduced pressure to yield a yellow oil. The residue was purified by silica gel column chromatography (petroleum ether/EtOAc 80:20, v/v) to give compound 3a as a light yellow solid (1.66 g, 80% yield).
(3,4-Dimethoxyphenyl)(furan-2-yl)methanone (3a). Mol. formula (MW): C13H12O4 (232 g/mol); mp: 98–100 °C; 1H-NMR (CDCl3) δ 7.72 (d, J = 8.4 Hz, 1H, Ph-6-H), 7.67(s, 1H, Ph-2-H), 7.55 (d, J = 1.6 Hz, 1H, 5’-H), 7.22 (d, J = 3.6 Hz, 1H, 3’-H), 6.92 (d, J = 8.4 Hz, 1H, Ph-5-H), 6.57 (d, J = 2.0 Hz, 1H, 4’-H), 3.94 (s, 6H, CH3); 13C-NMR (CDCl3) δ 56.2, 56.2, 110.1, 111.8, 112.0, 119.6, 124.1, 129.9, 146.6, 148.6, 152.6, 153.1, 181.0; ESI-MS (%): m/z = 233 (100) [M+H]+, 255 (100) [M+Na]; HRMS (ESI): Calcd. for [M+H]+: 233.0808; Found: 233.0811.
Furan-2-yl(3-hydroxy-2,4-dimethoxyphenyl)methanone (3b). Mol. formula (MW): C13H12O5 (248 g/mol); light yellow solid; Yield: 75%; mp: 168–170 °C; 1H-NMR (DMSO-d6) δ 8.13 (d, J = 9.2 Hz, 1H, Ph-6-H), 7.73 (d, J =1.6 Hz, 1H, 5’-H), 7.38 (d, J = 3.6 Hz, 1H, 3’-H), 6.64 (dd, J = 3.6 Hz, J = 1.6 Hz, 1H, 4’-H), 6.58 (d, J =9.2 Hz, 1H, Ph-5-H), 3.97, (s, 3H, OCH3), 3.93 (s, 3H, OCH3); 13C-NMR (DMSO-d6) δ 56.1, 60.7, 103.1, 103.2, 112.4, 120.3, 128.2, 136.6, 146.8, 152.2, 158.3, 158.5, 183.9; ESI-MS (%): m/z = 249 (100) [M+H]+; HRMS (ESI): Calcd. for [M+H]+: 249.0758; Found: 249.0759.
(5-Bromo-2-methoxyphenyl)(furan-2-yl)methanone (3c). Mol. formula (MW): C12H9BrO3 (281 g/mol); light yellow solid; Yield: 70%; mp: 66–70 °C; 1H-NMR (CDCl3) δ 7.68 (s, 1H, 5’-H), 7.59 (dd, J = 8.8 Hz, J = 2.8 Hz, 1H, Ph-4-H), 7.54 (d, J = 2.8 Hz, 1H, Ph-6-H), 7.09 (d, J = 4.0 Hz, 1H, 3’-H), 6.91 (d, J = 8.8 Hz, 1H, Ph-3-H), 6.58 (dd, J = 4.0 Hz, J = 2.0 Hz, 1H, 4’-H), 3.98 (s, 3H, OCH3); 13C-NMR (CDCl3) δ 56.1, 112.4, 112.5, 113.4, 120.8, 129.6 , 131.9, 134.7, 147.6, 152.5, 156.5, 181.2; ESI-MS (%): m/z = 281(100) 283 (98.7) [M+H]+ 303 (100) 305 (98.7%) [M+Na].
Furan-2-yl(4-methoxyphenyl)methanone (3d). Mol. formula (MW): C12H10O3 (202 g/mol); light yellow solid;Yield: 80%; mp: 58–60 °C; 1H-NMR (CDCl3) δ 8.06 (s, 1H, Ph-2-H), 8.04 (s, 1H, Ph-6-H), 7.70 (s, 1H, 5’-H), 7.25 (d, J = 3.6 Hz, 1H, 3’-H), 7.01 (s, 1H, Ph-3-H), 6.99 (s, 1H, Ph-5-H), 6.61 (d, J = 3.6 Hz, 1H, 4’-H), 3.90 (s, 3H, OCH3); 13C-NMR (CDCl3) δ 55.5, 112.1, 113.7, 114.1, 119.7, 129.8, 131.7, 132.2, 146.6, 152.7, 163.3, 181.2; ESI-MS (%): m/z = 203 (100) [M+H]+ 225 (100) [M+Na].
(5-Bromofuran-2-yl)(2,3-dihydroxy-4-methoxyphenyl)methanone (7a). Mol. formula (MW): C12H9BrO5 (313 g/mol); light yellow solid; Yield: 70%; mp: 128–130 °C; 1H-NMR (DMSO-d6) δ 11.01 (br s, 1H, OH), 8.83 (br s, 1H, OH), 7.43 (dd, J = 8.8 Hz, J =2.4 Hz, 1H, Ph-6-H), 7.38 (d, J = 3.6 Hz, 1H, 3’-H), 6.93 (d, J = 3.6 Hz, 1H, 4’-H), 6.71 (d, J = 8.8 Hz, 1H, Ph-5-H), 3.88 (s, 3H, OCH3); 13C-NMR (DMSO-d6) δ 56.4, 104.2, 115.4, 122.4, 122.4, 123.3, 129.2, 134.5, 150.1, 153.3, 153.6, 182.0; ESI-MS (%): m/z = 313 (100) 315 (99.1) [M+H]+ 335 (100) 337 (99.1%) [M+Na]; HRMS (ESI): Calcd. for [M + H]+:312.9706; Found: 312.9708.
(5-Bromo-2-methoxyphenyl)(5-bromofuran-2-yl)methanone (7b). Mol. formula (MW): C12H8Br2O3 (360 g/mol); light yellow solid; Yield: 76%; mp: 98–100 °C; 1H-NMR (CDCl3) δ 7.59 (dd, 1H, J = 8.8 Hz, J = 2.4 Hz, Ph-4-H ), 7.53 (d, J = 2.4 Hz, 1H, Ph-6-H), 7.01 (d, J = 3.6 Hz, 1H, 3’-H ), 6.91 (d, J = 8.8 Hz, 1H, Ph-3-H ), 6.53 (d, J =3.6 Hz, 1H, 4’-H ), 3.81 (s, 3H, OCH3 ); 13C-NMR (CDCl3) δ 56.1, 112.6, 113.6, 114.5, 122.5, 128.9, 129.9, 132.0, 135.1, 154.1, 156.6, 179.8; ESI-MS (%): m/z = 359 (51) 361(100) 363 (50) [M+H]+ 381 (51) 383 (100) 385 (50) [M+Na].
(5-Bromofuran-2-yl)(3-hydroxy-4-methoxyphenyl)methanone(7c). Mol. formula (MW): C12H9BrO4 (297 g/mol); light yellow solid; Yield: 72%; mp: 128–130 °C; 1H-NMR (CDCl3) δ 7.67 (s, 1H, Ph-2-H), 7.62 (d, J = 8.4 Hz, 1H, Ph-6-H), 7.32 (d, J = 3.6 Hz, 1H, 3’-H), 7.12 (d, J = 8.4 Hz, 1H, Ph-5-H), 6.50 (d, J = 3.6 Hz, 1H, 4’-H) 3.90 (s, 3H, OCH3); 13C-NMR (CDCl3) δ 56.2, 111.1, 113.8, 118.0, 119.6, 122.1, 123.4, 127.9, 148.6, 152.6, 155.1, 181.0; ESI-MS (%): m/z = 295 (100) 297 (98.9) [M−H]; HRMS (ESI): Calcd. for [M+H]+:296.9757; Found: 296.9768.
(4,5-Dibromofuran-2-yl)(3-hydroxy-4-methoxyphenyl)methanone (13). Mol. formula (MW): C12H8Br2O4 (376 g/mol); light yellow solid; Yield: 60%; mp: 107–109 °C; 1H-NMR (CDCl3) δ 7.66 (d, J = 8.4 Hz, 1H, Ph-5-H), 7.54 (s, 1H, 3’-H), 7.23 (s, 1H, Ph-2-H), 7.02 (d, J = 8.4 Hz, 1H, Ph-6-H), 3.98 (s, 3H, OCH3); 13C-NMR (CDCl3) δ 56.2, 104.3, 111.5, 114.1, 123.2, 124.9, 128.4, 129.0, 146.8, 150.9, 153.6, 180.0; ESI-MS (%): m/z = 373 (51) 375 (100) 377 (50) [M−H]; HRMS (ESI): Calcd. for [M+H]+: 374.8865; Found: 374.8867.

3.2.4.General procedure for the synthesis of compounds 17a and 17b

A solution of 2,3-dimethoxybenzoic acid (2.0 g) and a catalytic amount of DMF in thionyl chloride (5 mL) was stirred at 80–90 °C for 3 h. After concentration under reduced pressure, the acid chloride 16 was dissolved in dried CH2Cl2 and reacted with furan (3 mL) catalyzed by AlCl3. The reaction mixture was stirred at 0 °C for 2 h and then warmed to room temperature and stirred for additional 12 h. After the reaction was completed, the reaction was quenched by carefully pouring the mixture into iced water (100 mL) and the resultant compound was collected by filtration. Then, the filtrate was extracted with CH2Cl2 (3 × 20 mL), and dried with anhydrous Na2SO4. The solvent was removed under reduced pressure to yield a brown oil that was purified by silica gel column chromatography (petroleum ether/EtOAc 80:20, v/v) to give (2,3-dimethoxyphenyl)(furan-2-yl)methanone (17a) as light yellow oil (1.78 g, 70% yield). Molecular formula (MW): C13H12O4 (232 g/mol); 1H-NMR (CDCl3) δ 7.67 (d, 1H, J = 1.0 Hz, 5’-H), 7.15 (dd, 1H, J = 8.0 Hz, J = 7.6 Hz, Ph-5-H), 7.08 (dd, 1H, J = 8.4 Hz, J =1.6 Hz, Ph-4-H), 7.06 (d, J = 3.6 Hz, 1H, 3’-H), 7.02 (dd, 1H, J = 7.6 Hz, J = 1.6 Hz, Ph-6-H), 6.55 (dd, J = 3.6 Hz, J = 2.0 Hz, 1H, 4’-H), 3.92 (s, 3H, OCH3), 3.83 (s, 3H, OCH3); 13C-NMR (CDCl3) δ 56.0, 62.1, 112.3, 114.7, 120.5, 121.1, 123.9, 133.4, 147.1, 147.5, 152.7, 152.8, 182.8; ESI-MS (%): m/z = 233 (100) [M+H]+ 255 (100) ([M+Na].
(2,6-Dimethoxyphenyl)(furan-2-yl)methanone (17b). Mol. formula (MW): C13H12O4 (232 g/mol); light yellow solid; Yield: 85%; mp: 64–66 °C; 1H-NMR (CDCl3) δ 7.87 (d, 1H, J = 1.0 Hz, 5’-H) 7.42 (dd, 1H, J = 8.0 Hz, J = 8.0 Hz, Ph-4-H), 7.08 (d, 1H, J = 8.0 Hz, J = 1.6 Hz, Ph-3-H), 7.06 (d, J = 3.6 Hz, 1H, 3’-H), 7.02 (dd, 1H, J = 8.0 Hz, J = 1.2 Hz, Ph-5-H), 6.55 (dd, J = 3.6 Hz, J = 1.0 Hz, 1H, 4’-H), 3.91 (s, 3H, OCH3), 3.83 (s, 3H, OCH3); 13C-NMR (CDCl3) δ 56.0, 62.5, 112.3, 114.7, 120.5, 121.1, 123.9, 133.3, 147.1, 147.5, 152.7, 152.8, 182.8; ESI-MS (%): m/z = 233 (100) [M+H]+ 255 (100) [M+Na].

3.2.5. General procedure for the synthesis of compounds 21a–21d

Br2 (2 mL) was slowly added to a solution of 4-methoxybenzoic acid (5.0 g) in CCl4 (20 mL). The reaction mixture was stirred at 40–45 °C for 24 h. After concentration under reduced pressure, the residue was re-crystallized from boiling water to give 3-bromo-4-methoxybenzoic acid (19) as white needles. To chlorinate the methoxybenzoic acid, we used SO2Cl2. A solution of 19 (2.0 g) and a catalytic amount of DMF in thionyl chloride (5 mL) was stirred at 80–90 °C for 3 h. After concentration under reduced pressure, the acid chloride 20 was dissolved in dried CH2Cl2 and reacted with furan (3 mL) catalyzed by AlCl3. The reaction mixture was stirred at 0 °C for 2 h and then warmed to room temperature and stirred for an additional 12 h. After the reaction was completed, it was quenched by carefully pouring the mixture into iced water (100 mL) and the resultant compound was collected by filtration. The filtrate was then extracted with CH2Cl2 (3 × 20 mL) and dried with anhydrous Na2SO4. The solvent was removed under reduced pressure to yield a brown oil that was purified by silica gel column chromatography (petroleum ether/EtOAc 80:20, v/v) to give compound 21a as a light yellow solid (1.85 g, 76% yield).
(3-Bromo-4-methoxyphenyl)(furan-2-yl)methanone(21a). Mol. formula (MW): C12H9BrO3 (281 g/mol); mp: 112–114 °C; 1H-NMR (CDCl3) δ 8.30 (d, 1H, J = 2.0 Hz, 5’-H), 8.06 (dd, 1H, J = 8.0 Hz, J = 2.0 Hz, Ph-6-H), 7.93 (s, 1H, Ph-2-H), 7.30 (d, 1H, J = 3.6 Hz, 3’-H), 7.01 (d, 1H, J = 8.0 Hz, Ph-5-H), 6.63 (dd, J =3.6 Hz, J = 2.0 Hz, 1H, 4’-H), 4.00 (s, 3H, OCH3); 13C-NMR (CDCl3) δ 56.5, 111.1, 112.3, 113.7, 120.1, 130.7, 131.7, 134.9, 146.9, 152.3, 159.4, 179.7; ESI-MS (%): m/z = 281(100) 283 (98.7) [M+H]+ 303 (100) 305 (98.7) [M+Na].
(2,6-Dibromo-3,4,5-trimethoxyphenyl)(furan-2-yl)methanone (21b). Mol. formula (MW): C14H12Br2O5 (420 g/mol); light yellow solid; Yield: 85%; mp: 96–98 °C; 1H-NMR (CDCl3) δ 7.71 (d, J = 1.0 Hz, 1H, 5’-H), 7.13 (d, J = 3.6 Hz, 1H, 3’-H), 6.61 (dd, J = 3.6 Hz, J = 1.6 Hz, 1H, 4’-H), 4.01 (s, 9H, OCH3); 13C-NMR (CDCl3) δ 61.2, 61.4, 61.4, 110.1, 112.9, 121.2, 136.0, 148.3, 148.6, 151.0, 151.1, 180.5; ESI-MS (%): m/z = 419 (51) 421 (100) 423 (50) [M+H]+ 441 (51) 443 (100) 445 (50) [M+Na] 457 (51) 459 (100) 461 (50) [M+K].
(2-Chloro-3,4,5-trimethoxyphenyl)(furan-2-yl)methanone(21c). Mol. formula (MW): C14H13ClO5 (297 g/mol); light yellow solid; Yield: 82%; mp: 80–82 °C; 1H-NMR (CDCl3) δ 7.74 (s, 1H, 5’-H), 7.12 (d, J = 3.6 Hz, 1H, 3’-H), 6.80 (s, 1H, Ph-6-H), 6.60 (dd, J = 3.6 Hz, J = 2.0 Hz, 1H, 4’-H), 3.97 (s, 9H, OCH3); 13C-NMR (CDCl3) δ 56.3, 61.3, 61.3, 107.0, 107.8, 112.7, 121.4, 132.9, 145.2, 147.9, 150.3, 152.1, 153.0, 181.5; ESI-MS (%): m/z = 297 (100) 299 (34) [M+H]+ 319 (100) 321 (34) [M+Na] 335 (100) 337 (34) [M+K]; HRMS (ESI): Calcd. for [M+Na]: 319.0344; Found: 319.0343.
(4,5-Dibromo-2-hydroxy-3-methoxyphenyl)(furan-2-yl)methanone (21d). Mol. formula (MW): C12H8Br2O4 (376 g/mol); light yellow solid; Yield: 80%; mp: 102–104 °C; 1H-NMR (DMSO-d6) δ 9.86 (br s, 1H, OH), 8.07 (d, 1H, J = 1.2 Hz, 5’-H), 7.44 (s, 1H, Ph-6-H), 7.20 (d, J = 3.6 Hz, 1H, 3’-H), 6.74 (dd, J = 3.6 Hz, J = 2.0 Hz, 1H, 4’-H), 3.89 (s, 3H, OCH3); 13C-NMR (DMSO-d6) δ 57.0, 111.4, 113.6, 113.6, 117.3, 121.6, 129.6, 144.8, 148.6, 149.5, 151.6, 180.6; ESI-MS (%): m/z = 375 (51) 377 (100) 379 (50) [M+H]+ 397 (51) 399 (100) 401 (50) [M+Na]; HRMS (ESI): Calcd. for [M+Na]: 396.8682; Found: 396.8683.

3.2.6. General procedure for the synthesis of compounds 4a–4d, 8a–8c, 14, 18a–18b and 22a–22d

10% (equiv.) BBr3 (2 mL) was added to a solution of compound 3a (0.5 g) in CH2Cl2 (20 mL). The reaction mixture was stirred at −78 °C for 30 min and then warmed to room temperature and stirred for additional 3.5 h. After the reaction was completed, it was quenched by carefully pouring the mixture into iced water (100 mL), extraction of the aqueous layer three times with EtOAc, washing with 5% NaHSO3 (40 mL) and water (100 mL), and drying with anhydrous Na2SO4. The solvent was removed under reduced pressure to yield a light red solid compound 4a (0.403 g, 91.7% yield).
Synthesis of (3,4-Dihydroxyphenyl)(furan-2-yl)methanone (4a).Mol. formula (MW): C11H8O4 (204 g/mol); mp: 132–134 °C; 1H-NMR (CDCl3) δ 7.58 (d, J = 8.0 Hz, 1H, Ph-5-H), 7.53 (s, 1H, 5’-H), 7.40 (s, 1H, Ph-2-H), 7.10 (d, J = 3.2 Hz, 1H, 3’-H), 6.81 (d, J = 8.0 Hz, 1H, Ph-6-H), 6.46 (s, 1H, 4’-H); 13C-NMR (CDCl3) δ 111.8, 114.9, 116.5, 119.7, 124.0, 129.8, 146.6, 148.9, 152.3, 153.0, 180.1; ESI-MS (%): m/z = 205 (100) [M+H]+; HRMS (ESI): Calcd. for [M+Na]: 227.0315; Found: 227.0310.
Furan-2-yl(2,3,4-trihydroxyphenyl)methanone (4b). Mol. formula (MW): C11H8O5 (220 g/mol); light red solid; Yield: 95%; mp: 168–170 °C; 1H-NMR (DMSO-d6) δ 7.73 (d, J = 1.6 Hz, 1H, 5’-H), 7.64 (d, J = 9.2 Hz, 1H, Ph-6-H), 7.44 (d, J = 3.6 Hz, 1H, 3’-H), 6.78 (dd, J = 3.6 Hz, J = 1.6 Hz, 1H, 4’-H), 6.53 (d, J = 9.2 Hz, 1H, Ph-5-H); 13C-NMR (DMSO-d6) δ 108.6, 113.1, 113.2, 120.9, 123.7, 148.5, 148.7, 151.8, 152.9, 153.3, 183.5; ESI-MS (%): m/z = 219 (100) [M−H]; HRMS (ESI): Calcd. for [M+Na]: 243.0264; Found: 243.0261.
(5-Bromo-2-hydroxyphenyl)(furan-2-yl)methanone (4c). Mol. formula (MW): C11H7BrO3 (267 g/mol); light red solid; Yield: 94%; mp: 88–90 °C; 1H-NMR (DMSO-d6) δ 10.50 (br s, 1H, OH), 8.08 (d, J = 1.0 Hz, 1H, 5’-H), 7.58 (d, J = 2.4 Hz, 1H, Ph-6-H), 7.56 (d, J = 8.4 Hz, 1H, Ph-4-H), 7.26 (d, J = 3.6 Hz, 1H, 3’-H), 6.95 (d, J = 8.4 Hz, 1H, Ph-3-H), 6.76 (dd, J = 3.6 Hz, J = 2.0 Hz, 1H, 4’-H); 13C-NMR (CDCl3) δ 110.3, 113.4, 119.4, 121.7, 127.5, 131.8, 135.5, 149.1, 152.2, 156.0, 181.7; ESI-MS (%): m/z = 265 (100) 267 (98.6) [M−H]; HRMS (ESI): Calcd. for [M+Na]: 288.9471; Found: 288.9473.
Furan-2-yl(4-hydroxyphenyl)methanone (4d). Mol. formula (MW): C11H8O3 (188 g/mol); light red solid; Yield: 95%; mp: 168–170 °C; 1H-NMR (DMSO-d6) δ 10.44 (br s, 1H, OH), 8.07 (d, J = 1 Hz, 1H, 5’-H), 7.89 (s, 1H, Ph-2-H), 7.87 (s, 1H, Ph-6-H), 7.33 (d, J = 3.6 Hz, 1H, 3’-H), 6.93 (s, 1H, Ph-5-H), 6.91 (s, 1H, Ph-3-H), 6.76 (dd, J = 3.6 Hz, J = 2.4 Hz, 1H, 4’-H); 13C-NMR (DMSO-d6) δ 112.9, 115.8, 115.8, 120.3, 128.3, 132.1, 132.1, 148.1, 152.2, 162.4, 180.4; ESI-MS (%): m/z = 187 (100) [M−H]; HRMS (ESI): Calcd. for [M+Na]: 211.0366; Found: 211.0368.
(5-Bromofuran-2-yl)(2,3,4-trihydroxyphenyl)methanone (8a). Mol. formula (MW): C11H7BrO5 (299 g/mol); light red solid; Yield: 95%; mp: 132–134 °C; 1H-NMR (DMSO-d6) δ 7.48 (d, J = 8.8 Hz, 1H, Ph-6-H), 7.43 (d, J = 3.6 Hz, 1H, 3’-H), 6.94 (d, J = 3.6 Hz, 1H, 4’-H), 6.50 (d, J = 8.8 Hz, 1H, Ph-5-H); 13C-NMR (DMSO-d6) δ 182.0, 158.7, 153.3, 153.1, 147.3, 127.2, 123.3, 120.5, 114.8, 112.6, 108.7; ESI-MS (%): m/z = 297 (100) 299 (99) [M−H]; HRMS (ESI): Calcd. for [M+Na]: 320.9369; Found: 320.9374.
(5-Bromo-2-hydroxyphenyl)(5-bromofuran-2-yl)methanone (8b). Mol. formula (MW): C11H6Br2O3 (346 g/mol); light red solid; Yield: 95%; mp: 82–84 °C; 1H-NMR (DMSO-d6) δ 10.46 (br s, 1H, OH), 7.57 (d, J = 8.0 Hz, 1H, Ph-4-H), 7.54 (s, J = 8.0 Hz, 1H, Ph-6-H), 7.25 (d, J = 3.6 Hz, 1H, 3’-H), 6.95 (d, J = 8.0 Hz, 1H, Ph-3-H), 6.90 (d, J = 3.6 Hz, 1H, 4’-H); 13C-NMR (DMSO-d6) δ 110.3, 115.6, 119.4, 123.8, 127.1, 130.0, 131.9, 135.6, 153.4, 155.7, 180.3; ESI-MS (%): m/z = 343 (51) 345 (100) 347 (50) [M−H]; HRMS (ESI): Calcd. for [M+H]+: 344.8736; Found: 344.8742.
(5-Bromofuran-2-yl)(3,4-dihydroxyphenyl)methanone (8c). Mol. formula (MW): C11H7BrO4 (283 g/mol); light red solid; Yield: 95%; mp: 138–140 °C; 1H-NMR (CDCl3) δ 7.54 (d, J = 2.0 Hz, 1H, Ph-2-H), 7.48 (dd, J = 8.4 Hz, J = 1.6 Hz, 1H, Ph-6-H), 7.12 (d, J = 3.6 Hz, 1H, 3’-H), 6.94 (d, J = 8.4 Hz, 1H, Ph-5-H), 6.49 (d, J = 3.6 Hz, 1H, 4’-H); 13C-NMR (CDCl3) δ 118.8, 120.0, 121.3, 126.2, 127.6, 132.7, 133.0, 150.0, 155.4, 158.9, 184.4; ESI-MS (%): m/z = 283 (100) 285 (98.8) [M+H]+; HRMS (ESI): Calcd. for [M+Na]: 304.9420; Found: 304.9420.
(4,5-Dibromofuran-2-yl)(3,4-dihydroxyphenyl)methanone (14). Mol. formula (MW): C11H6Br2O4 (362 g/mol); light red solid; Yield: 91%; mp: 184–186 °C; 1H-NMR (CDCl3) δ 7.53 (s, 1H, Ph-2-H), 7.48 (d, J = 8.0 Hz, 1H, Ph-6-H), 7.18 (s, 1H, 3’-H), 6.95 (d, J = 8.0 Hz, 1H, Ph-5-H); 13C-NMR (CDCl3) δ 104.0, 115.2, 116.5, 121.3, 122.8, 127.7, 128.6, 145.1, 150.9, 158.4, 179.0; ESI-MS (%): m/z = 359 (51) 361 (100) 363 (50) [M−H]; HRMS (ESI): Calcd. for [M+Na]: 382.8531; Found: 382.8533.
(2,3-Dihydroxyphenyl)(furan-2-yl)methanone (18a). Mol. formula (MW): C11H8O4 (204 g/mol); light red solid; Yield: 95%; mp: 64–66 °C; 1H-NMR (DMSO-d6) δ 8.06 (d, 1H, J = 1.0 Hz, 5’-H), 7.30 (d, J = 3.6 Hz, 1H, 3’-H), 7.10 (dd, 1H, J = 8.0 Hz, J = 1.6 Hz, Ph-6-H), 7.06 (dd, 1H, J = 8.4 Hz, J = 2.0 Hz, Ph-4-H), 6.91 (dd, 1H, J = 8.4 Hz, J = 8.0 Hz, Ph-5-H), 6.72 (dd, J = 3.6 Hz, J = 2.0 Hz, 1H, 4’-H); 13C-NMR (DMSO-d6) δ 109.4, 113.1, 113.6, 120.1, 121.5, 130.0, 144.3, 146.8, 149.4, 151.8, 180.9; ESI-MS (%): m/z = 203 (100) [M−H]; HRMS (ESI): Calcd. for [M+Na]: 227.0315; Found: 227.0313.
(2,6-Dihydroxyphenyl)(furan-2-yl)methanone (18b). Mol. formula (MW): C11H8O4 (204 g/mol); light red solid; Yield: 95%; mp: 66–68 °C; 1H-NMR (DMSO-d6) δ 8.08 (d, 1H, J = 1.0 Hz, 5’-H), 7.30 (d, J = 3.6 Hz, 1H, 3’-H), 7.17 (dd, 1H, J = 8.0 Hz, J = 1.6 Hz, Ph-3-H), 7.04 (dd, 1H, J = 8.4 Hz, J = 2.0 Hz, Ph-5-H), 6.81 (dd, 1H, J = 8.4 Hz, J = 8.0 Hz, Ph-4-H), 6.76 (dd, J = 3.6 Hz, J = 2.0 Hz, 1H, 4’-H); 13C-NMR (DMSO-d6) δ 113.2, 119.4, 119.6, 120.5, 121.6, 123.9, 146.5, 147.4, 148.9, 152.2, 184.0; ESI-MS (%): m/z = 203 (100) [M−H]; HRMS (ESI): Calcd. for [M+Na]: 227.0315; Found: 227.0310.
(3-Bromo-4-hydroxyphenyl)(furan-2-yl)methanone (22a). Mol. formula (MW): C11H7BrO3 (267 g/mol); light red solid; Yield: 90%; mp: 100–102 °C; 1H-NMR (DMSO-d6) δ 11.32 (br s, 1H, OH), 8.10 (d, 1H, J = 2.8 Hz, Ph-2-H), 8.09 (d, 1H, J = 2.0 Hz, 5’-H), 7.90 (dd, 1H, J = 8.8 Hz, J = 2.4 Hz, Ph-6-H), 7.40 (d, J = 3.6 Hz, 1H, 3’-H), 7.12 (d, 1H, J = 8.8 Hz, Ph-5-H), 6.79 (dd, J = 3.6 Hz, J = 2.0 Hz, 1H, 4’-H); 13C-NMR (DMSO-d6) δ 110.0, 113.1, 116.5, 120.9, 129.6, 131.1, 134.7, 148.6, 151.9, 158.9, 179.2; ESI-MS (%): m/z = 265 (100) 267 (98.6) [M−H]; HRMS(ESI): Calcd. for [M+Na]: 288.9472; Found: 288.9470.
(2,6-Dibromo-3,4,5-trihydroxyphenyl)(furan-2-yl)methanone (22b). Mol. formula (MW): C11H6Br2O5 (378 g/mol); light red solid; Yield: 93%; mp: 148–150 °C; 1H-NMR (DMSO-d6) δ 9.82 (br s, 2H, OH), 9.58 (br s, 1H, OH), 8.07 (d, J = 1.6 Hz, 1H, 5’-H), 7.13 (d, J = 3.6 Hz, 1H, 3’-H), 6.74 (dd, J = 3.6 Hz, J = 1.6 Hz, 1H, 4’-H); 13C-NMR (DMSO-d6) δ 99.1, 113.6, 113.7, 121.9, 130.9, 136.9, 143.8, 143.8, 149.7, 151.3, 181.4; ESI-MS (%): m/z = 375 (51) 377 (100) 379 (50) [M−H]; HRMS (ESI): Calcd. for [M+H]+: 378.8635; Found: 378.8637.
(2-Chloro-3,4,5-trihydroxyphenyl)(furan-2-yl)methanone (22c). Mol. formula (MW): C11H7ClO5 (255 g/mol); light red solid; Yield: 94%; mp: 150–152 °C; 1H-NMR (DMSO-d6) δ 9.65 (br s, 3H, OH), 9.42 (br s, 3H, OH), 8.07 (s, 1H, 5’-H), 7.14 (d, J = 3.6 Hz, 1H, 3’-H), 6.74 (dd, J = 3.6 Hz, J = 1.6 Hz, 1H, 4’-H), 6.25 (s, 1H, Ph-6-H); 13C-NMR (DMSO-d6) δ 108.1, 113.3, 121.8, 127.8, 137.4, 143.5, 144.5, 146.1, 149.1, 152.2, 181.4; ESI-MS (%): m/z = 253 (100) 255 (33.7) [M−H]; HRMS (ESI): Calcd. for [M+Na]: 276.9874; Found: 276.9876.
(4,5-Dibromo-2,3-dihydroxyphenyl)(furan-2-yl)methanone (22d). Mol. formula (MW): C11H6Br2O4 (362 g/mol); light red solid; Yield: 95%; mp: 138–140 °C; 1H-NMR (DMSO-d6) δ 9.66 (br s, 1H, OH), 9.37 (br s, 1H, OH), 8.07 (s, 1H, 5’-H), 7.40 (s, 1H, Ph-6-H), 7.14 (d, J = 3.6 Hz, 1H, 3’-H), 6.74 (dd, J = 3.6 Hz, J = 2.0 Hz, 1H, 4’-H); 13C-NMR (DMSO-d6) δ 108.1, 109.3, 113.3, 120.0, 121.8, 127.8, 143.5, 144.5, 149.1, 152.2, 181.4; ESI-MS (%): m/z = 359 (51) 361 (100) 363 (50) [M−H]; HRMS (ESI): Calcd. for [M+Na]: 382.8526; Found: 382.8528.

4. Biological Evaluation

4.1. PTK Inhibitory Activity

The activities of PTKs were tested using ELISA. The tyrosine kinase was extracted from brain tissue of rat, and microtiter plates were coated using poly-Glu-Tyr (PGT) as substrates. If the tyrosine residues of PGT were phosphorylated by PTKs, they bound to phospho-specific monoclonal antibody that was labeled specifically with HRP. The absorbance was measured to reflect the activity of PTK.

4.2. Tyrosine Kinase Assay

The phosphorylation assays were performed at 37 °C in a final volume of 40 µL tyrosine kinase. The concentrations of PTKs used to construct calibration curves were as follows: 600, 500, 400, 300, 200 and 100 × 10−7 U/mL for PTK. A concentration of 500 × 10−7/μL was used for each inhibitor. Phosphorylation reactions were initiated with the addition of 40 mM ATP (10 μL) into each vessel, and the plate was incubated at 37 °C for 30 min. After completion of reaction, liquid was decanted and the vessels were washed four times with Tween-PBS. One hundred microliters of blocking solution was added to the vessels and incubated at 37 °C for 30 min. After washing the plate with Tween-PBS, anti-phosphotyrosine (50 μL) was added to the vessels and incubated at 37 °C for 30 min. The reaction liquid was decanted and the remaining solution was removed by rinsing four times with Tween-PBS. One hundred μL of HRP coloring agent was added and incubated at 37 °C for 15 min. The reaction was terminated by addition of 1 N sulfuric acid (100 μL /well). The absorbance of the reaction was measured at 450 nm on a microplate reader.

5. Conclusions

In summary, a number of new furan-2-yl(phenyl) methanone derivatives were synthesized and evaluated for their in vitro PTK inhibitory activity. Several new derivatives exhibited promising activity, which in some cases was identical to, or even stronger than, that of genistein, a positive reference compound.
The results justify further studies on these types of derivatives with significant pharmacological (PTK inhibitory) value.

Acknowledgements

This work was financially supported by the State “Innovative Drugs Development” Key and Technology Major Projects of China (No. 2009ZX09302-003), by the State Key Laboratory of Natural and Biomimetic Drugs, Peking University (No. 20080210), by the Shanxi Foundation for Returning Overseas Scientists, by the Program for the Top Science and Technology Innovation Teams of Higher Learning Institutions of Shanxi, by the Program for the Top Young and Middle-aged Innovative Talents of Higher Learning Institutions of Shanxi Province and by Shanxi Province Foundation Science for Youths (No. 2009021041-1).

References and Note

  1. Li, K.; Li, X.M.; Ji, N.Y.; Wang, B.G. Natural bromophenols from the marine red alga Polysiphonia urceolata (Rhodomelaceae): Structural elucidation and DPPH radical-scavenging activity. Bioorg. Med. Chem. 2007, 15, 6627–6631. [Google Scholar] [CrossRef]
  2. Liu, Q.W.; Xu, H.; Zhang, T.; Fan, X.; Han, L.J. A new compound as PTP1B inhibitor from the red alga Polysiphonia urceolata. Chemistry 2006, 9, 708–710. [Google Scholar]
  3. Han, L.J.; Xun, J.; Shi, J.G.; Yan, X.J.; Zeng, C.K. Isolation and pharmacological activities of bromophenols from Rhodomela confervoides. Chin. J. Oceanol. Limnol. 2005, 23, 226–229. [Google Scholar] [CrossRef]
  4. Shi, D.Y.; Li, J.; Guo, S.J.; Han, L.J. Antithrombotic effect of bromophenol, the alga-derived thrombin inhibitor. J. Biotechnol. 2008, 136S, S577–S588. [Google Scholar]
  5. Oh, K.B.; Lee, J.H.; Lee, J.W.; Yoon, K.M.; Chung, S.C.; Jeon, H.B.; Shin, J.H.; Lee, H.S. Antimicrobial activities of the bromophenols from the red alga Odonthalia corymbifera and some synthetic derivatives. Bioorg. Med. Chem. Lett. 2008, 18, 104–108. [Google Scholar]
  6. Popplewell, W.L.; Northcote, P.T. Colensolide A: A new nitrogenous bromophenol from the New Zealand marine red alga Osmundaria colensoi. Tetrahedron Lett. 2009, 50, 6814–6817. [Google Scholar] [CrossRef]
  7. Wang, W.; Okada, Y.; Shi, H.B.; Wang, Y.Q.; Okuyama, T. Structures and aldose reductase inhibitory effects of bromophenols from the red alga Symphyocladia latiuscula. J. Nat. Prod. 2005, 68, 620–622. [Google Scholar] [CrossRef]
  8. Xu, X.L.; Song, F.H.; Wang, S.J.; Li, S.; Xiao, F.; Zhao, J.L.; Yang, Y.C.; Shang, S.Q.; Yang, L.; Shi, J.G. Dibenzyl bromophenols with diverse dimerization patterns from the brown alga Leathesia nana. J. Nat. Prod. 2004, 67, 1661–1666. [Google Scholar] [CrossRef]
  9. Kurata, K.; Taniguchii, K.; Takashima, K.; Hayash, I.; Suzuki, M. Feeding-deterrent bromophenols from Odonthalia corymbifera. Phytochemistry 1997, 45, 485–487. [Google Scholar]
  10. Abdel-Lateff, A. Chaetominedione, a new tyrosin kinase inhibitor isolated from the algicolous marine fungus Chaetomium sp. Tetrahedron Lett. 2008, 49, 6398–6400. [Google Scholar] [CrossRef]
  11. Oh, K.B.; Lee, J.H.; Lee, J.W.; Yoon, K.M.; Chung, S.C.; Jeon, H.B.; Shin, J.H.; Lee, H.S. Synthesis and antimicrobial activities of halogenated bis(hydroxyphenyl)methanes. Bioorg. Med. Chem. Lett. 2009, 19, 945–948. [Google Scholar]
  12. Traxler, P.; Furet, P. Strategies toward the design of novel and selective protein tyrosine kinase inhibitors. Pharmacol. Ther. 1999, 82, 195–206. [Google Scholar] [CrossRef]
  13. Hori, H.; Nagasawa, H.; Uto, Y.; Ohkura, K.; Kirk, K.L.; Uehara, Y.; Shimamura, M. Design of hypoxia-targeting protein tyrosine kinase inhibitor using an innovative pharmacophore 2-methylene-4-cyclopentene-1,3-dione. Biochim. Biophys. Acta 2004, 1697, 29–38. [Google Scholar] [CrossRef]
  14. Altuntas, T.G.; Olgen, S.; Nebioglu, D.; Akaho, E. A study on the interaction between p60c-Src receptor tyrosine kinase and arylcarboxylic and arylacetic acid derivatives based on docking modes and in vitro activity. Biol. Pharm. Bull. 2004, 27, 61–65. [Google Scholar] [CrossRef]
  15. Zhao, W.Y.; Feng, X.E.; Ban, S.R.; Lin, W.H.; Li, Q.S. Synthesis and biological activity of halophenols as potent antioxidant and cytoprotective agents. Bioorg. Med. Chem. Lett. 2010, 14, 4132–4134. [Google Scholar]
  16. Cui, Z.N.; Li, Y.; Ling, Y.; Huang, J.; Cui, J.R.; Wang, R.Q.; Yang, X.L. New class of potent antitumor acylhydrazone derivatives containing furan. Eur. J. Med. Chem. 2010, 45, 5576–5584. [Google Scholar] [CrossRef]
  17. Patrick, G.L. An Introduction to Medicinal Chemistry, 3rd ed; Oxford University Press: New York, NY, USA, 2005; pp. 271–298. [Google Scholar]
  18. Kumar, D.; Kumar, N.M.; Chang, K.H. Synthesis and anticancer activity of 5-(3-indolyl)-1,3,4-thiadiazoles. Eur. J. Med. Chem. 2010, 45, 4664–4668. [Google Scholar] [CrossRef]
  19. Joule, J.A.; Mills, K. Heterocyclic Chemistry, 4th ed; Blackwell Science Ltd: Oxford, UK, 2000; pp. 335–356. [Google Scholar]
  20. Young, I.S.; Kerr, M.A. Total synthesis of (+)-nakadomarin. J. Am. Chem. Soc. 2007, 129, 1465–1469. [Google Scholar] [CrossRef]
  • Sample Availability: Samples are available from the authors.
