Article

Synthesis of Some Novel Pyrazolo[1,5-a]pyrimidine Derivatives and Their Application as Disperse Dyes

1
Natural Science Department, College of Health Science, Public Authority for Applied Education and Training, Kuwait
2
Chemistry Department, Faculty of Science, Kuwait University, P.O. Box 5969, Safat 13060, Kuwait
*
Author to whom correspondence should be addressed.
Molecules 2011, 16(6), 5182-5193; https://doi.org/10.3390/molecules16065182
Submission received: 1 June 2011 / Revised: 9 June 2011 / Accepted: 15 June 2011 / Published: 22 June 2011
(This article belongs to the Section Organic Chemistry)

Abstract

:
A series of novel monoazo-disperse dyes containing pyrazolo[1,5-a]pyrimidine structures were synthesized starting with the coupling reaction between ethyl cyanoacetate and 4-hydroxybenzenediazonium chloride, followed by treatment of the resulting hydrazone product with hydrazine hydrate. The pyrazolohydrazone 6 is then treated with either 2,4-pentandione and enaminonitrile or aryl-substituted enaminoketones to give the target pyrazolo[1,5-a]pyrimidine dyes 7 and 15a-d. Structural assignments to the dyes were made using NMR spectroscopic methods. A new high temperature method, using microwave heating, was employed to apply these dyes to polyester fibers. Most of the dyed fabrics tested displayed moderate light fastness and excellent washing fastness properties.

1. Introduction

Pyrazole derivatives are important intermediates in organic synthesis and possess a range of interesting biological and antimicrobial properties [1,2,3,4,5,6,7,8]. Their fused pyrimidine derivatives are used as dyes [9,10,11,12,13,14]. In the current study, we prepared new azopyrazolopyrimidine dyes, starting with 3-amino-4-(4-hydroxyphenyl)azo-1H-2-pyrazoline-5-ones and 3-(4-hydroxyphenylazo-1H-2-pyrazoline-5-ones, and applied them to polyester fibers as disperse dyes by using a new high temperature microwave heating method. Microwave irradiation leads to a large increase in dye uptake and dyeing rate, along with a performance of dye leveling and color homogeneity than can be achieved by using conductive heating [15,16,17].

2. Results and Discussion

2.1. Synthesis and Characteristics

Ethyl 2-arylhydrazonocyanoacetate 4 was formed by addition under mild conditions of ethyl cyanoacetate (1) to 4-hydroxybenzenediazonium chloride (2) that readily affords the corresponding hydrazone 3. The existence of this substance in the quininoid form 5 was ruled out based on the results of NOE difference experiments, which showed that irradiation of the two NH signals at 12.1 and 13.0 ppm caused an enhancement of the intensities of the aryl proton resonances at 6.3 and 6.8 ppm, while irradiation of the two OH signals at 9.68 and 9.57 ppm also resulted in an increase in the intensities of the aryl proton peak at 6.8 ppm. Moreover, the 13C-NMR spectrum of 3 shows only two sets of two sp3 carbon signals at 61.7 and 61.2, and 14.20 and 14.0 corresponding to the ethyl group. In addition, the data demonstrate that the hydrazone product exists as a 1:2 equilibrium mixture of syn- (3) and anti-forms (4) (Scheme 1). The major isomer is assumed to have the syn-stereochemistry 4 based on the expectation that its NH proton would be deshielded in the 1H-NMR spectrum as a result of potential hydrogen bonding with the carbonyl ester moiety (cf. Scheme 1).

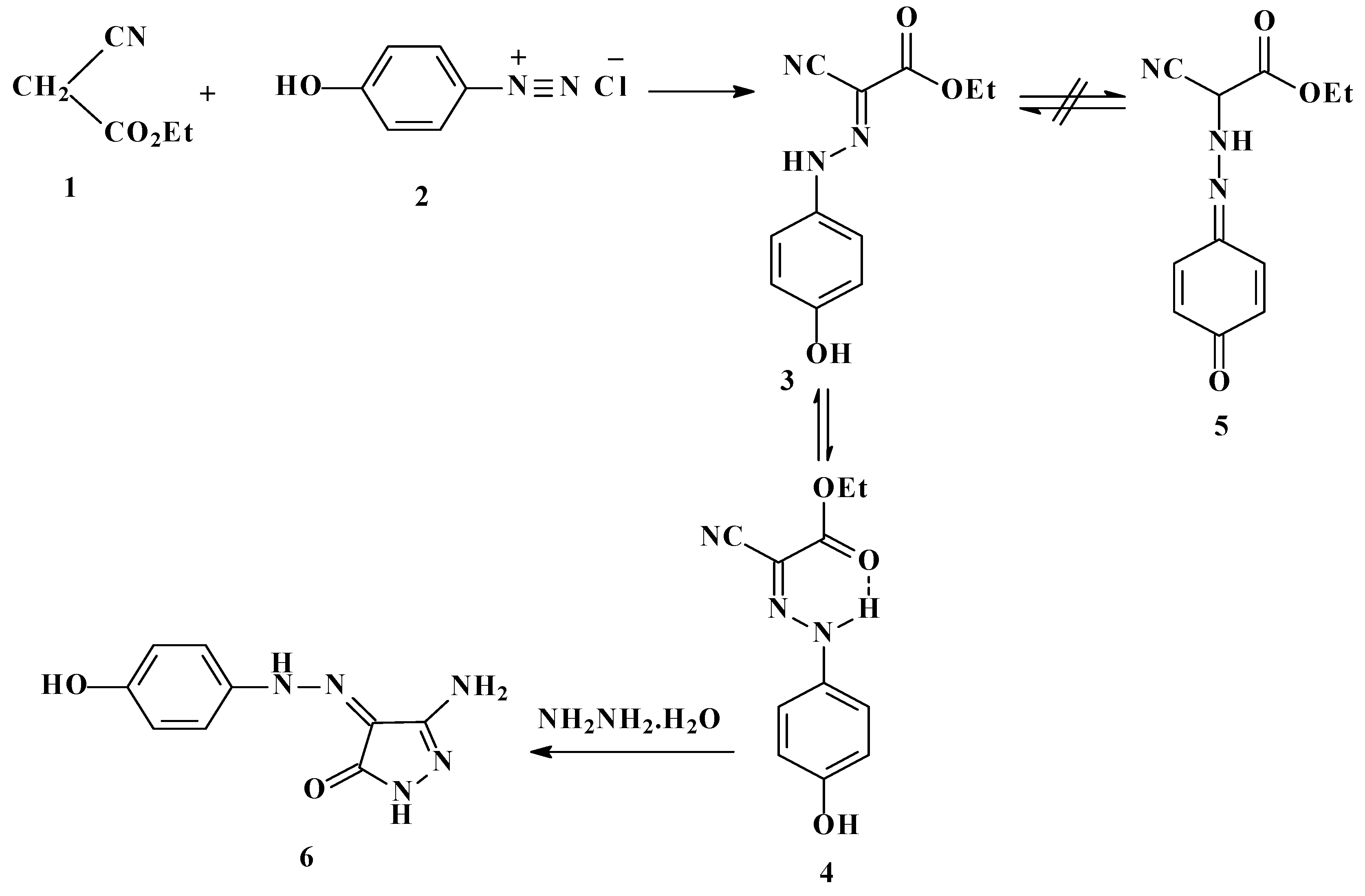

Scheme 1. Preparation of hydroxyphenylhydrazonopyrazolone 6.
Scheme 1. Preparation of hydroxyphenylhydrazonopyrazolone 6.
Molecules 16 05182 g004
Brecknell et al. [18] was able to isolate and characterize both isomers. The predominance of the anti-form of2-phenylhydrazonoacetate was attributed to stereoelectronic effects. Recently Al-Awadi et al. have shown that in similar systems stereoelectronic effects are more important than hydrogen bonding in governing syn-anti ratios [19].
Hydrazone 3 undergoes a smooth reaction with hydrazine hydrate to yield 4-(4-hydroxyphenyl-hydrazonopyrazolone 6. The structure and the chemistry of such compounds have received considerable attention [20,21,22]. We have observed that 6 readily condenses with acetylacetone to yield the pyrazolo[1,5-a]pyrimidine 7, which has the potential of existing in tautomeric form 8. However, the 2D 1H-NMR analysis results indicate that it exists in only one form having the nonquinoidal structure 7 (cf. Scheme 2).

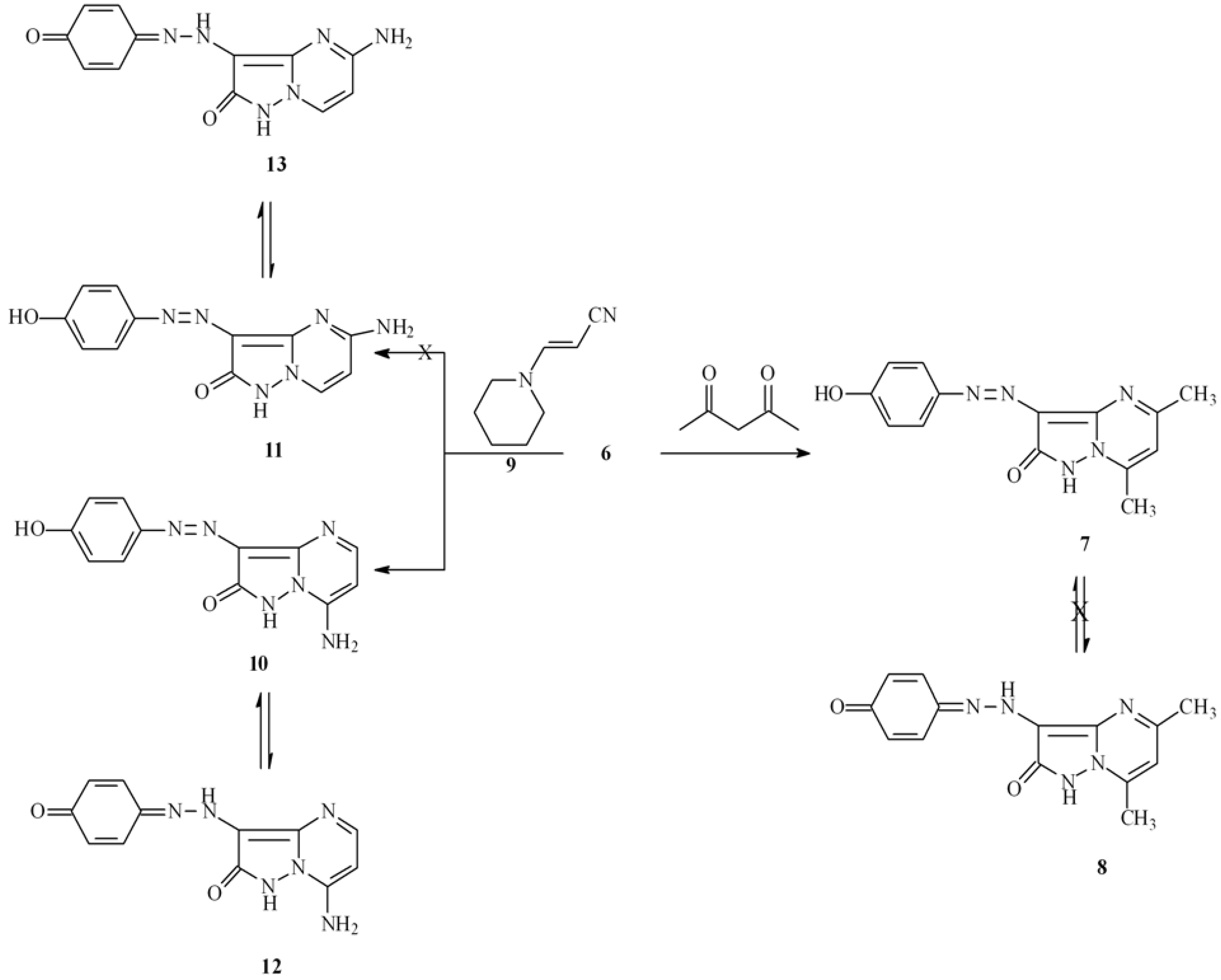

Scheme 2. Synthesis of 3-(4-hydroxyphenylazo)-5,7-dimethylpyrazolo[1,5-a]pyrimidin-2-one(8) and 7-amino-3-(4-hydroxyphenylazo)-pyrazolo[1,5-a]pyrimidin-2-one (12).
Scheme 2. Synthesis of 3-(4-hydroxyphenylazo)-5,7-dimethylpyrazolo[1,5-a]pyrimidin-2-one(8) and 7-amino-3-(4-hydroxyphenylazo)-pyrazolo[1,5-a]pyrimidin-2-one (12).
Molecules 16 05182 g005
The important features of the HMBC 2-D 1H, and 13C signals are shown in Figure 1. H6 at 7.06 ppm correlates with C5 and C7 at 161.2 and 146.4 ppm; H13 at 7.63 ppm correlates with C12 and C15 at 141.5 and 158.4 ppm; H14 at 6.88 ppm correlates with C13 and C15 at 121.6 and 158.4 ppm; H16 at 2.51 ppm correlates with C5 and C7 at 161.2 and 146.4 ppm; and H17 at 2.58 ppm correlates with C6 and C7 at 111.9 and 146.4 ppm.
1H-15N HMBC experiments add further support to the assignment of structure 7, such as the chemical shifts observed for N7a at 210 ppm, N4 at 260 ppm and N12a at 370 ppm, the cross peak correlations for coupling of H6 at 7.06 ppm is also observed with N7a at 210 ppm (3J) (H6, N7a), and N4 at 260 ppm (3J) (H6, N4). Interestingly, coupling of H16 at 2.51 ppm with only N4 at 260 ppm (3J) (H16, N4) is observed, coupling of H17 at 2.58 ppm takes place only with N7a at 210 ppm (3J) (H17, N7a) (Figure 1).

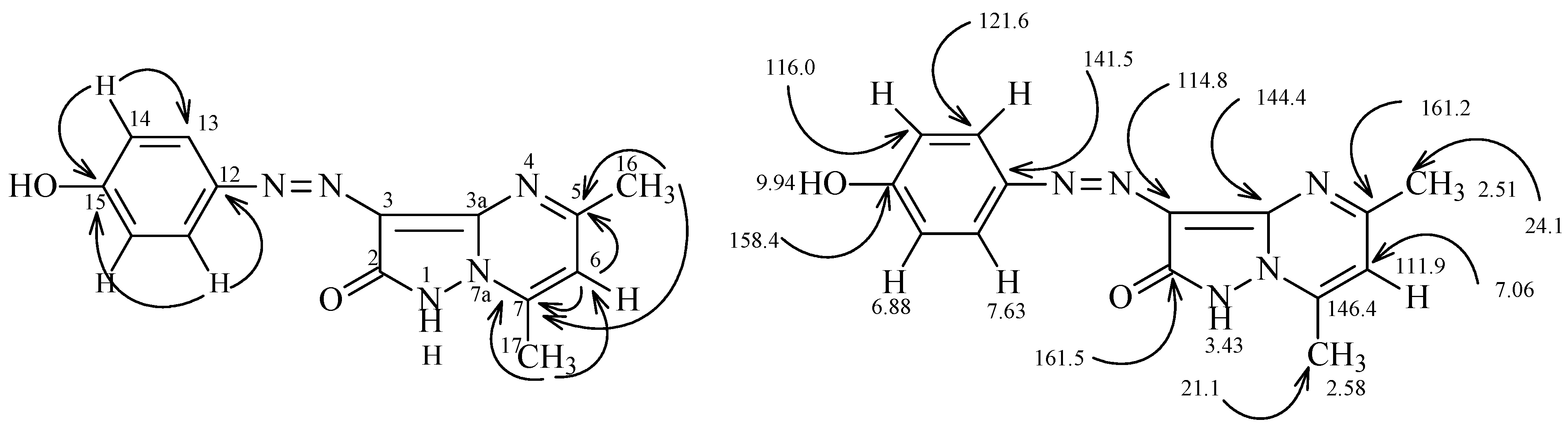

Figure 1. 1H- and 13C-NMR spectroscopy assignments of compound 7.
Figure 1. 1H- and 13C-NMR spectroscopy assignments of compound 7.
Molecules 16 05182 g001
Hydroxyphenylhydrazonopyrazolone 6 also reacts with 2-piperidinylacrylonitrile (9) to yield a product for which structures 10- 13 are possible based on the absence of an amino-proton resonance in their 1H-NMR spectra and a cyano band in the IR spectrum. The assignment of structure 10 was made by H-C correlations in the HMBC 2-D experiments (Figure 2).

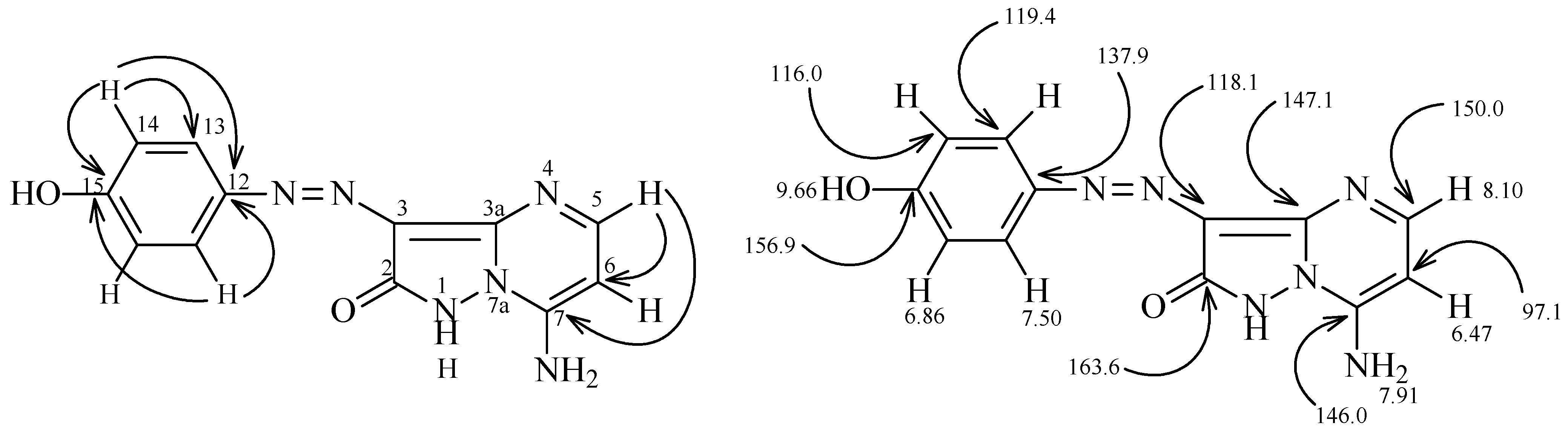

Figure 2. 1H and 13C NMR spectroscopy assignments of compound 10.
Figure 2. 1H and 13C NMR spectroscopy assignments of compound 10.
Molecules 16 05182 g002
The correlations of H5 at 8.10 ppm with C6 and C7 at 97.1 and 146.0 ppm, H13 at 7.51 ppm with C12 and C15 at 137.9 and 156.9 ppm, and H14 at 6.90 with C12, C13 and C15 at 137.9, 119.4 and 156.9 ppm were observed, further structural information came from the results of 1H-15N HMBC experiments, the chemical shifts for N7a and N4 are 198.7 and 234.2 ppm, respectively, cross peak correlations for coupling of the shielded proton H6 at 6.47 ppm takes place with N7a at 198.7 ppm (3J) (H-6, N-7a) and N4 at 234.2 ppm (3J) (H-6, N-4), coupling of the deshielded proton H5 at 8.10 ppm with only N4 at 234.2 ppm (3J) (H-5, N-4) is also observed.
Compound 6 reacts with enaminones 14a-d to yield the corresponding pyrazolo[1,5-a]pyrimidines 15a-d (cf. Scheme 3) whose identities were established by using 2D NMR experiments (Figure 3).

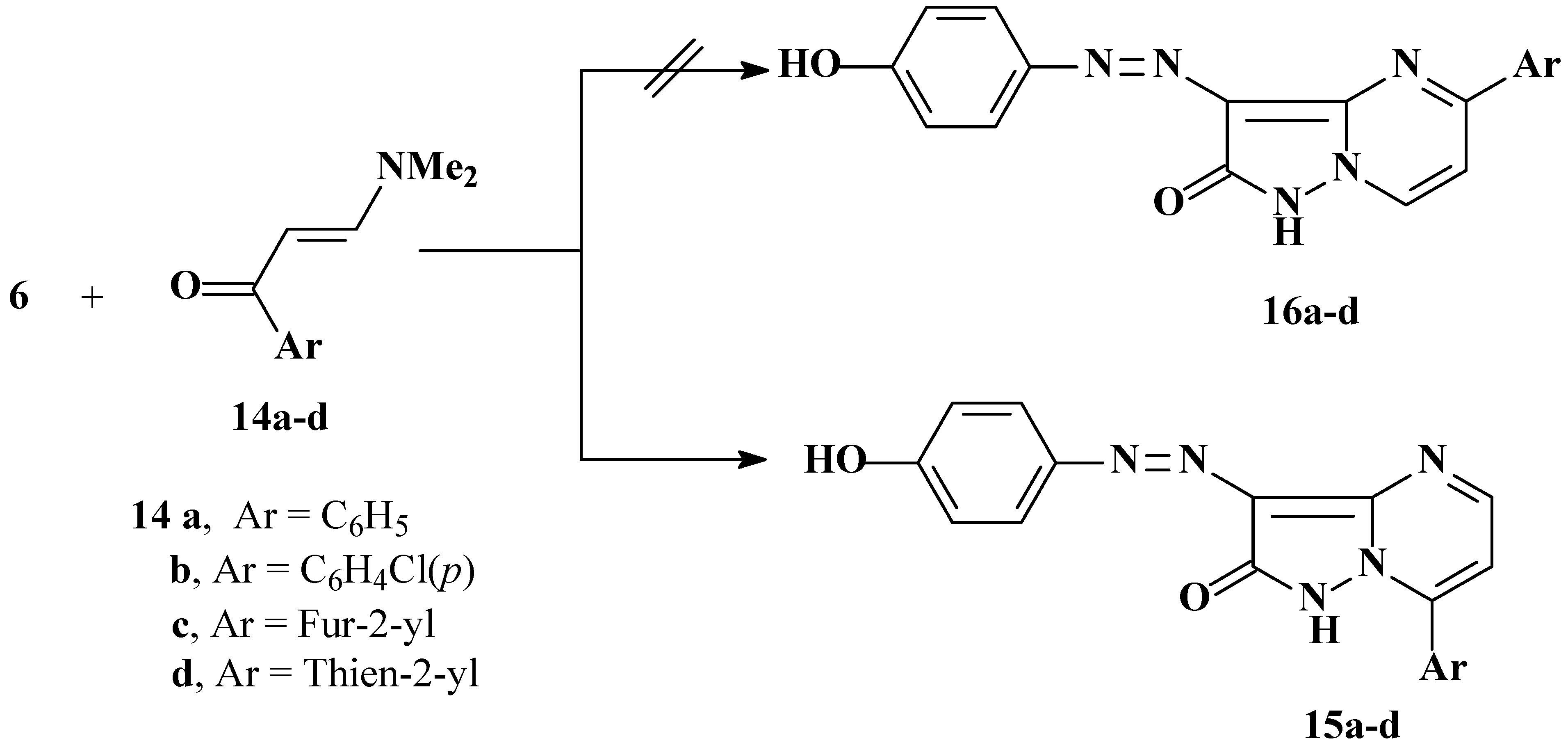

Scheme 3. Synthesis of pyrazolo[1,5-a]pyrimidinone derivatives.
Scheme 3. Synthesis of pyrazolo[1,5-a]pyrimidinone derivatives.
Molecules 16 05182 g006
1H and 13C signal assignments and HMBC 2-D derived H-C correlations for 15a. The important features of the HMBC correlations are the H5 at 8.7 ppm with C7 at 145.0 ppm, H6 at 7.38 ppm with C7 and C8 at 145.0 and 130.1 ppm, H9 at 8.07 ppm with C11 at 131.3 ppm, H10 at 7.64 ppm with C8 at 130.1 pm, H11 at 7.64 ppm with C9 at 129.7 ppm, H13 at 7.71 ppm with C15 at 158.8 ppm, and H14 at 6.90 ppm with C12 at 143.4 ppm.
Figure 3. 1H- and 13C-NMR of compound 15a.
Figure 3. 1H- and 13C-NMR of compound 15a.
Molecules 16 05182 g003
The possible formation of regioisomers 16 in reactions of 6 with enaminones 14a-d is ruled out based on 1H-15N HMBC experimental results. Conclusive data for the structure of 15a include chemical shifts for N7a at 208.7 ppm and N4 at 270.4 ppm. Cross peak correlations for coupling of the shielded proton H6 at 7.39 ppm are observed with N7a at 208.7 ppm (3J) (H6, N7a) and N4 at 270.4 ppm (3J) (H6, N4). Coupling of the deshielded proton H5 at 7.70 ppm with N4 at 270.4 ppm (3J) (H5, N4) only is also observed. The results demonstrate that the phenyl moiety is located at C7 and not at C5.

2.2. Dyeing and Fastness Properties

Arylazopyrazolopyrimidine derivatives 6, 7 and 15a-d were tested as dyes for polyester fibers using the high temperature dyeing method (HT) by employing microwave heating as an energy source. The physical and analytical data for the dyed fibers, given in Table 1 and Table 2, reflect the efficiency of the microwave irradiation, leading to a large increase in dye uptake and dyeing rate along with a performance of dye leveling and color homogeneity.

2.2.1. Color strength

Data in Table 1 reveals that the color strengths (K/S) of dyed polyester fabrics are directly proportional to the amounts of the dyes applied (% o.m.f.). The hues of the fabrics treated with the azo dyes were found to vary from yellowish-orange to dark orange, based on the substitution patterns. Differences in the color strength observed depend on the substitution patterns, ‘auxochromes’, present in the arylazopyrazolopyrimidine disperse dyes referred to as ‘chromogens’ [14,23,24]. Data in Table 1 clearly shows that the magnitude of color strength obtained using dye 15d is much larger than that for 15c.
Table 1. Color strength of dyed polyester using high temperature dyeing method.
Table 1. Color strength of dyed polyester using high temperature dyeing method.
DyeColor shade on polyesterColor strength (K/S) % Dye o.m.f.
1234
6Yellowish-orange1.172.122.472.49
7Pale orange2.193.794.096.96
15aDark orange5.665.957.128.31
15bDark orange5.435.817.9110.04
15cOrange4.404.644.856.01
15dOrange4.084.736.027.06

2.2.2. Wash fastness

Fastness data, obtained by measuring color intensity changes in the dyed fabrics, are given in Table 2. It shows that wash fastness varies with the substitution patterns in the dyes, where an increase occurs when stronger electron-attracting groups are present on the aryl moieties. This might be attributed to the fact that these disperse dyes are mainly dispersed within the pores in the polyester fabrics and are held in their places by different forces including Van der Waal forces. Electron-attracting groups enable stronger Van der Waal forces and also hydrogen bonding with the dyed fabrics that increases their stability to washing.

2.2.3. Light fastness

The light fastness properties of substituted of fabrics treated with the disperse dyes were determined (Table 2). The low light fastness properties observed are most likely result the photochemical reactivity of the arylazopyrazolopyrimidine dyes. Indeed, the results of LCMS monitoring of the photolysate, obtained by irradiation of 3-(4-hydroxyphenylazo)-7-phenylpyrazolo[1,5-a]pyrimidin-2-one (14a), under 16 W low pressure mercurey arc-lamp (254 nm) in acetonitrile for 48 h, supported this finding. Elnagdi et al. [25] observed that 3,4-diarylaminopyrazoles are reactive when treated under reflux with AcOH-H2SO4 mixture.
Table 2. Fastness properties of azo disperse dyes on polyester fabrics, prepared by using high temperature dyeing method.
Table 2. Fastness properties of azo disperse dyes on polyester fabrics, prepared by using high temperature dyeing method.
DyeWash fastness a,bLight fastness
AltSCSW
(1% o.m.f. dyeing)
65552-3
75552
15a5552-3
15b5553
15c4542-3
15d5552
(2% o.m.f. dyeing)
65552-3
75552
15a5552
15b5552-3
15c4542-3
15d5552
(3% o.m.f. dyeing)
65552-3
75552
15a4-554-52
15b4-554-52
15c4542-3
15d4-54-54-52
(4% o.m.f. dyeing)
65552-3
75552
15a5552
15b5552
15c4542
15d4-554-52
a ISO CO2/CO41; b Alt = alteration; SC = staining on cotton; SW = staining on wool.

3. Experimental

3.1. General

All melting points were recorded on a Gallenkamp apparatus and are uncorrected. IR spectra were recorded in KBr disks on a Perkin Elmer System 2000 FT-IR spectrophotometer. 1H- and 13C-NMR spectra were recorded on a Bruker DPX 400 MHz super-conducting NMR spectrometer. Mass spectra were measured on a VG Auto-spec-Q instrument (high resolution, high performance, tri-sector GC/MS/MS) and by LC-MS using an Agilent 1100 series LC/MSD with API-ES/APCI ionization mode. Microanalyses were performed on a LECO CH NS-932 Elemental Analyzer. The microwave oven used is a single mode cavity Explorer Microwave (CEM Corporation, Matthews, NC, USA) and irradiate in heavy-walled Pyrex tube (capacity 10 mL and 80 mL for dyeing). The color strengths (K/S) of the dyed polyester fabrics and the color fastness to light were evaluated at the Dyeing, Printing and Textile Auxiliaries Department, Textile Research Division, National Research Centre, Giza, Egypt.

3.2. General Procedure for the Synthesis of azo Disperse Dyes

Ethyl cyano(4-hydroxyphenylhydrazono)acetate (3). p-Aminophenol (10.9 g, 0.1 M) was dissolved in concentrated HCl (30 m) and water cooled in ice (20 mL) and then NaNO2 (7 g) in water (50 mL) was added in portions. A mixture of ethyl cyanoacetate (10 g, 0.1 M), NaOAc (20 g), ethanol (15 mL) and water (50 mL) was prepared separately and cooled in ice. The diazonium salt solution was added slowly to the second solution, with ice cooling. The cooled mixture was stirred for 0.5 h and filtered to give brown crystals, which were crystallized from alcohol/water to yield 2.0 g (86%) of 3, m.p. 273–274 °C. MS: m/z = 331 (M+, 100%), 238 (50%), 182 (20%). IR: 3432, 3066, 3003, 1623, 1591, 1531, 1461, 1232, 829 cm–1. 1H-NMR (DMSO-d6) 13.02 (s, 1H, NH, syn), 12.16 (s, 1H, NH, anti), 9.68 (s, 1H, OH, syn), 9.57 (s, 1H, OH, anti), 7.36 (d, 2H, J = 7.4 Hz, syn), 7.31 (d, 2H, J = 8.0 Hz, anti), 6.81 (d, 4H, J = 8.0 Hz, syn+anti), 4.30 (q, 2H, syn), 4.24 (q, 2H, anti), 1.32 (t, 3H, syn), 1.28 ppm (t, 3H, anti). 13C-NMR (DMSO-d6) 161.4, 161.3, 155.9, 155.3, 134.2, 133.5, 118.0, 117.9, 116.4, 116.0, 115.9, 112.0, 101.9, 101.4, 61.7, 61.2, 14.2, 14.0 ppm. HRMS = 233.0794, requires C11H11N3O3 233.0794.
5-Amino-4-[(4-hydroxyphenyl)-hydrazono]-2,4-dihydropyrazol-3-one (6). A mixture of 3 (2.33 g, 10 mmol), hydrazine hydrate (2.5 mL) in ethanol (20 mol) was stirred at reflux for 3-4 h. The solvent was removed under vacuum and the formed solid was collected and crystallized from ethanol/water to give 6. Red brown crystals from alcohol, yield 2.6 g (73%), m.p. 263 °C. MS: m/z = 219 (M+, 100%), 126 (10%), 108 (60%). IR: 3472, 3361, 3283, 3165, 3130, 1678, 1626, 1268, 820 cm–1. 1H-NMR (DMSO-d6) 12.90 (br, 1H, NH), 10.45 (s, 1H, NH), 9.50 (br, 1H, OH), 7.37 (d, 2H, J = 8.0 Hz) 6.78 (d, 2H, J = 8.0 Hz) 5.71 ppm (br, 2H, NH2); 13C-NMR (DMSO-d6) 160.7, 158.8, 151.6, 144.9, 143.4, 131.3, 130.0, 129.6, 128.5, 122.4, 115.9, 114.1, 110.6, 115.7 ppm.

General procedure for the synthesis of pyrazolo[1,5-a]pyrimidines 7, 10 and 15a-d

A mixture containing 6 (0.22 g, 10 mmol), and acetylacetone, 2-piperidinylacrylonitrile or enaminones 5a-d (1 mmol) in acetic acid (5 mmol) was irradiated in a microwave oven at 140 °C for 2 min. The mixture was then poured into ice water (50 mL). The formed was collected and crystallized from the appropriate solvent (see below).
3-(4-Hydroxyphenylazo)-5,7-dimethylpyrazolo[1,5-a]pyrimidin-2-one (7). Red crystals from DMF, yield 2.79 g (73%), m.p. 277-278 °C. MS: m/z = 283 (M+, 100%), 190 (90%), 162 (30%). IR: 3458, 3113, 3013, 1620, 1534, 1423, 1250, 1139, 840 cm–1. 1H-NMR (DMSO-d6) 9.94 (s, 1H, OH), 7.63 (dd, 2H, H13J = 7.4, 1.8 Hz), 7.06 (s, 1H, H6), 6.88 (dd, 2H, H14, J = 7.4, 1.8 Hz), 3.43 (br, 1H, NH), 2.58 (s, 3H), 2.51 ppm (s, 3H). 13C-NMR (DMSO-d6) 161.5, 161.2, 158.4, 146.4, 144.4, 141.5, 121.6, 116.0, 114.8, 111.9, 24.0, 16.5 ppm. Anal. Calcd. for C14H13N5O2 (283.3): C 59.36; H 4.63, N 24.72. Found: C 59.30; H 4.57; N 24.71.
7-Amino-3-(4-hydroxyphenylazo)pyrazolo[1,5-a]pyrimidin-2-one (10). Red crystals from DMF, yield 2.79 g (73%), m.p. 273 °C. MS: m/z = 270 (M+, 75%), 177 (35%), 150 (100%). IR: 3353, 3146, 2926, 1649, 1620, 1543, 1444, 1239, 1176, 823 cm–1. 1H-NMR (DMSO-d6) 9.66 (s, 1H, OH), 8.10 (d, 1H, H5, J = 6.0 Hz), 7.91 (br, 2H, NH2), 7.50 (d, 2H, J = 8.0 Hz), 6.86 (d, 2H, J = 8.0 Hz), 6.47 ppm (d, 1H, H6, J = 6.0 Hz). 13C-NMR (DMSO-d6) δ 163.6, 156.9, 150.0, 147.1, 164.0, 137.9, 119.6, 118.1., 116.0, 97.1 ppm. Anal. Calcd. for C12H9N6O2 (269.2): C 53.53; H 3.37, N 31.21. Found: C 53.47; H 3.27; N 31.05.
3-(4-Hydroxyphenylazo)-7-phenylpyrazolo[1,5-a]pyrimidin-2-one (15a). Red crystals from DMF, yield 2.6 g (78%), m.p. 273-274 °C. MS: m/z = 331 (M+, 100%), 238 (50%), 182 (20%). IR: 3432, 3066, 3003, 1623, 1591, 1531, 1461, 1232, 829 cm–1. 1H-NMR (DMSO-d6) 10.02 (s, 1H, OH), 8.70 (d, 1H, H5, J = 4.2 Hz), 8.07 (dd, 2H, H9, J = 7.2, 1.8 Hz), 7.71 (dd, 2H, H13, J = 7.2, 1.8 Hz), 7.64 (m, 3H, H10, H11), 7.38 (d, 1H, H6, J = 4.2 Hz), 6.90 (dd, 2H, H14, J = 7.2, 1.8 Hz), 3.36 ppm (br, 1H, NH). 13C-NMR (DMSO-d6) 161.1, 158.8, 151.7, 145.0, 145.9, 143.4, 131.3, 130.1, 129.7, 128.6, 122.4, 115.9, 114.2, 110.6 ppm. Anal. Calcd. for C18H13N5O2 (331.3): C 65.25; H 3.95; N 21.14. Found: C 64.93; H 3.92; N 21.03.
7-(4-Chlorophenyl)-3-(4-hydroxyphenylazo)pyrazolo[1,5-a]pyrimidin-2-one (15b). Red crystals from DMF, yield 2.7 g (84%), m.p. 285–286 °C. MS: m/z = 365 (M+, 100%), 272 (60%), 149 (25%). IR: 3430, 3227, 3095, 1633, 1596, 1514, 1483, 1445, 1253, 821 cm–1. 1H-NMR (DMSO-d6) 10.02 (s, 1H, OH), 8.71 (d, 1H, J = 4.8 Hz), 8.13 (dd, 2H, J = 7.2, 1.8 Hz), 7.71 (m, 4H), 7.42 (d, 1H, J = 4.8 Hz), 6.89 (dd, 2H, J = 7.2, 1.8 Hz), 3.38 ppm (br, 1H, NH). 13C-NMR (DMSO-d6) 161.0, 158.8, 151.6, 144.9, 144.7, 143.3, 136.1, 131.5, 128.8, 128.6, 122.4, 115.9, 114.2, 110 ppm. Anal. Calcd. for C18H12ClN5O2 (365.8): C 59.11; H 3.31, N 19.15. Found: C 58.78; H 3.32; N 18.90.
7-Furan-2-yl-3-(4-hydroxyphenylazo)pyrazolo[1,5-a]pyrimidin-2-one (15c). Red crystals from DMF, yield 2.7 g (84%), m.p. 291–292 °C. MS: m/z = 321 (M+, 100%), 228 (45%), 172 (15%). IR: 3429, 3109, 3035, 1626, 1594, 1536, 1462, 1238, 1132, 828 cm–1. 1H NMR (DMSO-d6) 10.01 (s, 1H, OH), 8.67 (d, 1H, J = 4.8 Hz), 8.23 (d, 1H, J = 3.6 Hz), 8.15 (d, 1H, J = 3.6 Hz), 7.69 (d, 2H, J = 8.4 Hz), 7.62 (d, 1H, J = 4.8 Hz), 6.95 (m, 1H), 6.89 (d, 2H, J = 8.4 Hz), 3.37 ppm (br, 1H, NH). 13C-NMR (DMSO-d6) 162.1, 158.6, 150.5, 147.9, 145.0, 142.6, 141.9, 134.6, 121.9, 120.9, 115.9, 114.7, 113.6, 105.8 ppm. Anal. Calcd. for C16H11N5O3 (321.3): C 59.81; H 3.45, N 21.80. Found: C 59.78; H 3.34; N 21.81.
3-(4-Hydroxyphenylazo)-7-thiophen-2-yl-pyrazolo[1,5-a]pyrimidin-2-one (15d). Red crystals from DMF, yield 2.6 g (77%), m.p. 284–285 °C. MS: m/z = 337 (M+, 100%), 244 (50%), 188 (20%). IR: 3429, 3104, 3035, 1623, 1592, 1535, 1462, 1238, 1160, 826 cm–1. 1H-NMR (DMSO-d6) 9.99 (s, 1H, OH), 8.62 (d, 1H, J = 4.8 Hz), 8.55 (d, 1H, J = 3.6 Hz), 8.19 (d, 1H, J = 4.8 Hz), 7.98 (d, 1H, J = 4.2 Hz), 7.67 (d, 2H, J = 8.4 Hz), 7.41 (t, 1H, J = 4.2 Hz), 6.89 (d, 2H, J = 8.4 Hz), 3.38 ppm (br, 1H, NH). 13C-NMR (DMSO-d6) 162.6, 158.2, 150.1, 145.5, 140.4, 139.1, 136.2, 133.1, 129.4, 127.8, 121.3, 116.0, 115.7, 108.0 ppm. Anal. Calcd. for C16H11N5O2S (337.4): C 56.96; H 3.29, N 20.76 ; S 9.50. Found: C 56.88; H 3.30; N 20.71 ; S 9.46.

3.3. High Temperature Dyeing Method (HT)

3.3.1. Materials

Scoured and bleached polyester 100% (150 130 g/m2, 70/2 denier) was obtained from El-Shourbagy Co., Egypt. The fabric was treated before dyeing with a solution containing non-ionic detergent (Hostapal CV, Clariant-Egypt, 5 g/L) and sodium carbonate (2 g/L) in a ratio of 50:1 at 60 °C for 30 min, then thoroughly washed with water and air dried at room temperature.

3.3.2. Dyeing

Dyeing of polyester fabrics was carried out at 130 °C for 60 min, under pressure in a microwave oven in a 20:1 liquor ratio and pH 5.5 in the presence of a 1:1 ratio of the dispersing agent sodium lignin sulphonate and the with a 1–4% shade. After dyeing, the fabrics were thoroughly washed and then subjected to a surface reduction cleaning [(5 g NaOH + 6 g sodium hydrosulphite)/L]. The samples were heated in this solution for 10 min. at 60 °C and then thoroughly washed and air-dried.

3.4. Color Measurements and Analyses

3.4.1. Color measurements of the dyed fabrics

The color yields of the dyed samples were determined by using the light reflectance technique performed on a Perkin-Elmer (Lambda 3B) UV/VIS Spectrophotometer. The color strengths, expressed as K/S values, were determined by applying the Kubelka-Mink equation as follows:
K/S = [(1–R) 2 / 2R] – [(1–Ro) 2 / 2Ro]
where R = decimal fraction of the reflectance of the dyed fabric; Ro = decimal fraction of the reflectance of the undyed fabric; K = absorption coefficient; S = scattering coefficient.

3.4.2. Fastness testing

After washing using 2 g/L of the non-ionic detergent Hostapal CV at 80 °C for 15 min, the dyed fabrics were tested, employing ISO standard methods [26]. Wash fastness tests were carried out in accordance with ISO 105-C04 (1989), in which 5 g/L soap and 2 g/L soda ash solution were used at 95 °C for 30 min in the presence of 10 steel balls (liquor ratio 50:1) and color fastness to light (carbon arc), ISO 105-B02 (1988).

4. Conclusions

In summary, a series of novel monoazo disperse pyrazolopyrimidine dyes were synthesized via a sequence involving initial coupling of ethyl cyanoacetate with 4-hydroxybenzenediazonium chlorides. Subsequent treatment with hydrazine hydrate gave the corresponding pyrazolohydrazone that was then treated with either 2,5-pentandione or arylenaminoketones to give the target pyrazolo[1,5-a]pyrimidine dyes. The dyes produced in this manner were then applied to polyester fibers by using HT dyeing conditions and microwave heating. The dyed fabrics, which displayed yellow to yellow brown hues on polyester fibers, have low fastness levels to light and excellent wash fastness.

Acknowledgments

The support of the Public Authority for Applied Education and Training, for finance through project (HS-08-02) and the facilities of AnaLab (SAF) at Kuwait University are gratefully acknowledged.

References

  1. Singh, S.P.; Kumar, D. Reinvestigation of the Reported Synthesis of Naphtho[2’,1’,-4,5]thiazolo[2,3-c][1,2,4]triazepines. Heterocycles 1990, 31, 855–860. [Google Scholar] [CrossRef]
  2. Abdel-Ghany, Y.S. Novel 1,3,4-trisubstituted pyrazole derivatives: design, synthesis and biological evaluation as anti -inflammatory/ antimicrobial agents. Alex. J. Pharm. Sci. 2008, 22, 31–39. [Google Scholar]
  3. Kaymakcioglu, B.K.; Rollas, S.; Korcegez, E.; Aricioglu, F. Synthesis and biological evaluation of new N-substituted-N'-(3,5-di/1,3,5-trimethylpyrazole-4-yl)thiourea/urea derivatives. Eur. J. Pharm. Sci. 2005, 26, 97–103. [Google Scholar] [CrossRef]
  4. Langer, P.; Wuckelt, J.; Doring, M.; Schreiner, P.R.; Gorls, H. Regioselective anionic [3+2] cyclizations of isoxazole, pyrazole and 1,2,4-triazole dinucleophiles: Efficient synthesis of 2,4-dihydroimidazo[4,5-b]quinoxalines, 3H-imidazo[1,2-b]pyrazoles and 5H-imidazo[2,1-c][1,2,4]triazoles. Eur. J. Org. Chem. 2001, 12, 2257–2263. [Google Scholar]
  5. Ho, Y.W.; Wang, I.J. Heterocyclic Monoazo dyes derived from 3-cyano-2(1H)-pyridinethione. Part 2: 2-[[4-(Arylazo)-3,5-disubstituted-pyrazol-1-yl]carbonyl]-thieno[2,3-b]pyridine derivatives. Dye. Pigment. 1995, 29, 295–304. [Google Scholar] [CrossRef]
  6. Jain, R.; Shukla, A. Synthesis of some new derivatives of pyrazolin - 5 - ones. J. Ind. Chem. Soc. 1990, 67, 575–576. [Google Scholar]
  7. Henning, G. Pyrazolone azo dyes. CODEN: GWXXBX DE 2616981 A1 19771027 1977. [Google Scholar]
  8. Schmidt, P.; Druey, J. Chemotherapeutic studies in the heterocyclic series. XIV. Pyrazolo[3,4-d]pyrimidines. Helv. Chim. Acta 1956, 39, 986–991. [Google Scholar] [CrossRef]
  9. Ho, Y.W. Synthesis of some new azo pyrazolo[1,5-a]pyrimidine-thieno[2,3-b]pyridine derivatives and their application as disperse dyes. Dye. Pigment. 2005, 64, 223–230. [Google Scholar] [CrossRef]
  10. Tsai, P.C.; Wang, I.J. A facile synthesis of some new pyrazolo[1,5-a]pyrimidine heterocyclic disazo dyes and an evaluation of their solvatochromic behaviour. Dye. Pigment. 2007, 74, 578–584. [Google Scholar] [CrossRef]
  11. Tsai, P.C.; Wang, I.J. Synthesis and solvatochromic properties of 3,6-bis-hetarylazo dyes derived from pyrazolo[1,5-a]pyrimidine. Dye. Pigment. 2008, 76, 575–581. [Google Scholar] [CrossRef]
  12. Tsai, P.C.; Wang, I.J. Synthesis and solvatochromic properties of some disazo dyes derived from pyrazolo[1,5-a]pyrimidine derivatives. Dye. Pigment. 2005, 64, 259–264. [Google Scholar] [CrossRef]
  13. Karcı, F.; Demirçalı, A. Synthesis of disazo pyrazolo[1,5-a]pyrimidines. Dye. Pigment. 2007, 74, 288–297. [Google Scholar] [CrossRef]
  14. El-Kholy, Y.M.; Abdel-Hafiz, S.A.; Ahmed, S.H. Synthesis and dyeing properties of novel disperse dyes. Part 2: Pyrazole disperse dye derivatives. J. Soc. Dyers Colour. 1998, 114, 45–48. [Google Scholar]
  15. Haggag, K.; Hanna, H.L.; Youssef, B.M.; El-Shimy, N.S. Dyeing Polyester With Microwave Heating Using Disperse Dyestuffs. Am. Dyestuff Rep. 1995, 84, 22–35. [Google Scholar]
  16. El-Apasery, M.A. Solvent-Free One-Pot Synthesis of Some Azo Disperse Dyes under Microwave Irradiation: Dyeing of Polyester Fabrics. J. Appl. Poly. Sci. 2008, 109, 695–699. [Google Scholar] [CrossRef]
  17. El-Apasery, M.A. Synthesis of some azo disperse dyes by the use of focused microwave heating. Pol. J. Appl. Chem. 2006, 50, 75–81. [Google Scholar]
  18. Brecknell, D.J.; Carman, R.M.; Deeth, H.C.; Kibby, J.J. Some simple cyanoformaldehyde phenylhydrazones. Aust. J. Chem. 1969, 22, 1915–22. [Google Scholar] [CrossRef]
  19. El-Dusouqui, O.M.E.; Abdelkhalik, M.M.; Al-Awadi, N.A.; Dib, H.H.; George, B.J.; Elnagdi, M.H. Chemistry of 2-arylhydrazonals: utility of substituted 2-arylhydrazono-3-oxoalkanals as precursors for 3-oxoalkanonitriles, 3-aminoisoxazole and 1,2,3- and 1,2,4-triazoles. J. Chem. Res. 2006, 5, 295–302. [Google Scholar]
  20. Elnagdi, M.H.; Abd Allah, S.O. Reaction with the arylhydrazones of some α-cyano ketones. J. Prakt. Chem. 1973, 315, 1009–1016. [Google Scholar] [CrossRef]
  21. Elgemeie, G.E.H.; Fathy, N.M.; Faddah, L.M.; Ebeid, M.Y.; Elsaid, M.K. Reactions with 3,5-diaminopyrazoles: New routes to pyrazolo[1,5-a]pyrimidines. Arch. Pharm. 1991, 324, 149–152. [Google Scholar] [CrossRef]
  22. Sharaf, M.A.F.; Abd El-Aal, F.A.; Elgemeie, G.E.H.; El-Damaty, A.A. Reactions with diethyl acetonedicarboxylate: Novel synthesis of pyrazolo[3,4-d]pyridazine derivatives. Arch. Pharm. 1991, 324, 585–587. [Google Scholar]
  23. Peters, R.H.; Sumner, H.H. The affinities of vat dyes in relation to their constitutions. J. Soc. Dyers Colour. 1955, 71, 130–138. [Google Scholar]
  24. Andrews, B.A.K.; Blanchard, E.J.; Reinhardt, R.M. Fabric whiteness retention in durable press finishing with citric acid. Text. Chem. Color. 1993, 25, 52–54. [Google Scholar]
  25. Elnagdi, M.H.; Kandeel, E.M.; Zayed, E.M.; Kandil, Z.E. Pyrimidine derivatives and related compounds. VI. A novel synthesis of 3,5-diacetamidopyrazole and of 2-aminopyrazolo[1,5-a]pyrimidines. J. Heterocycl. Chem. 1977, 14, 155–157. [Google Scholar] [CrossRef]
  26. Chrysler, L.P. Methods of Test for Color Fastness of Textiles and Leather, 7th ed; Bradford: London, UK, 1990; pp. 89–94. [Google Scholar]
  • Sample Availability: Samples of the compounds 6, 7, 10 and 15a-d are available from the authors
