Chemo-Enzymatic Synthesis of a Multi-Useful Chiral Building Block Molecule for the Synthesis of Medicinal Compounds

1
Department of Applied Molecular Bioscience, Graduate School of Medicine, Yamaguchi University, 2-16-1 Tokiwadai, Ube 755-8611, Japan
2
Department of Chemistry and Biotechnology, Graduate School of Engineering, Tottori University, 4-101 Koyama-minami, Tottori 680-8552, Japan
*
Authors to whom correspondence should be addressed.
Molecules 2011, 16(8), 6747-6757; https://doi.org/10.3390/molecules16086747
Submission received: 4 July 2011 / Revised: 2 August 2011 / Accepted: 4 August 2011 / Published: 9 August 2011
(This article belongs to the Special Issue Enzyme-Catalyzed Reactions)

Abstract

:
Optical resolution of 2-methyl-2-nitrobut-3-en-1-ol has been accomplished using a “low-temperature lipase-catalyzed transesterification” carried out at −40 °C.

1. Introduction

Chemo-enzymatic reaction protocols are now well recognized as a very useful means to prepare optically active compounds [1,2,3]. 2-Methyl-2-nitrobut-3-en-1-ol (±1) was prepared by a simple method using the nitroaldol reaction for nitroalkenes [4], and it has been expected to become a useful building block for the synthesis of various types of non-natural amino acids (A ~ E) or amino alcohols (F), as illustrated in Scheme 1. However, no one has yet succeeded in preparing optically pure nitro alcohol 1, so preparation of optically active 1 using a practical protocol has thus been strongly desired.
Lipases have wide applicability for various types of substrates [1,2,3,5], however, it is generally not easy to use the lipase-mediated reaction for the kinetic resolution of a primary alcohol like alcohol 1, because the chiral carbon is remote from the reaction point in such a type of compound [2]. Since preparation of chiral compounds that have a quaternary stereocenter is an important challenge for modern organic synthesis, several examples have been demonstrated using enzymatic reactions [6,7,8,9,10,11,12,13]. Herein, we report the establishment of a protocol that affords both enantiomers of 2-methyl-2-nitrobut-3-en-1-ol (1) using a lipase-catalyzed reaction; the “low-temperature lipase-catalyzed reaction” protocol [14,15,16] was shown to be the key technology to accomplish the desired reaction with sufficient enantioselectivity.

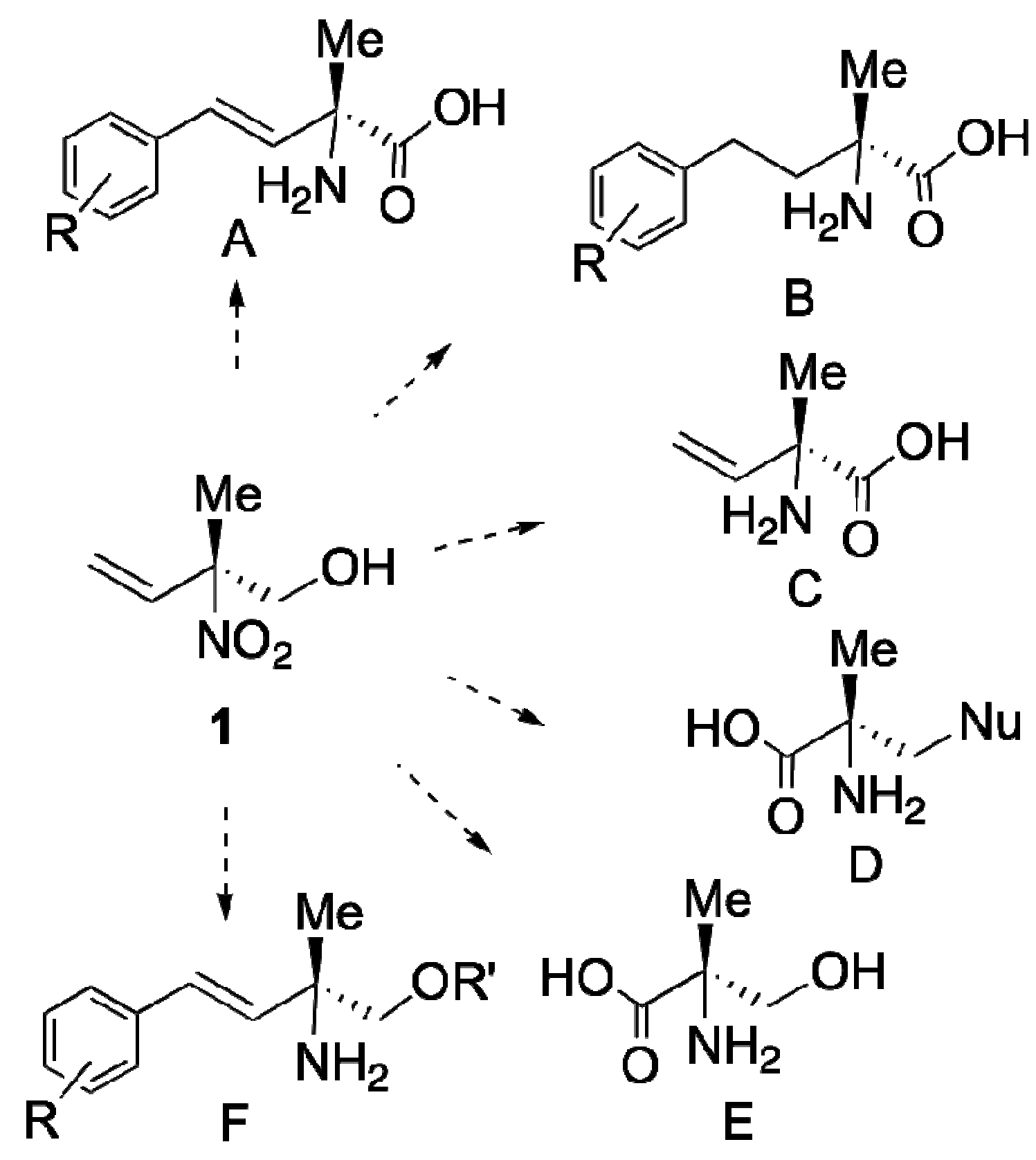

Scheme 1. Multi-useful chiral building block for the synthesis of non natural amino acids and amino alcohols.
Scheme 1. Multi-useful chiral building block for the synthesis of non natural amino acids and amino alcohols.
Molecules 16 06747 g001

2. Results and Discussion

We initially attempted to resolve (±)-1 via lipase-catalyzed transesterification using vinyl acetate as acyl donor in diisopropyl ether (i-Pr2O) under standard reaction temperature at 35 °C (Scheme 2); however, after evaluating commercial lipases, we soon recognized that it would be a very tough task for us to find a suitable enzyme, as we were unsuccessful in finding an appropriate enzyme that could convert 1 to the corresponding acetate with acceptable enantioselectivity. Among the 17 types of commercial enzymes tested, only five lipases PS, SL-25, PL, Novozyme 435 and QLM gave the corresponding acetate, but all with insufficient enantioselectivity. Although lipases QLM and SL-25 gave somewhat better results, the E values [17] of the reactions were 7.2 (QLM) and 6.0 (SL-25), respectively. Since lipase QLM gave the best E value, we next attempted to optimize the reaction condition using lipase QLM as a catalyst.

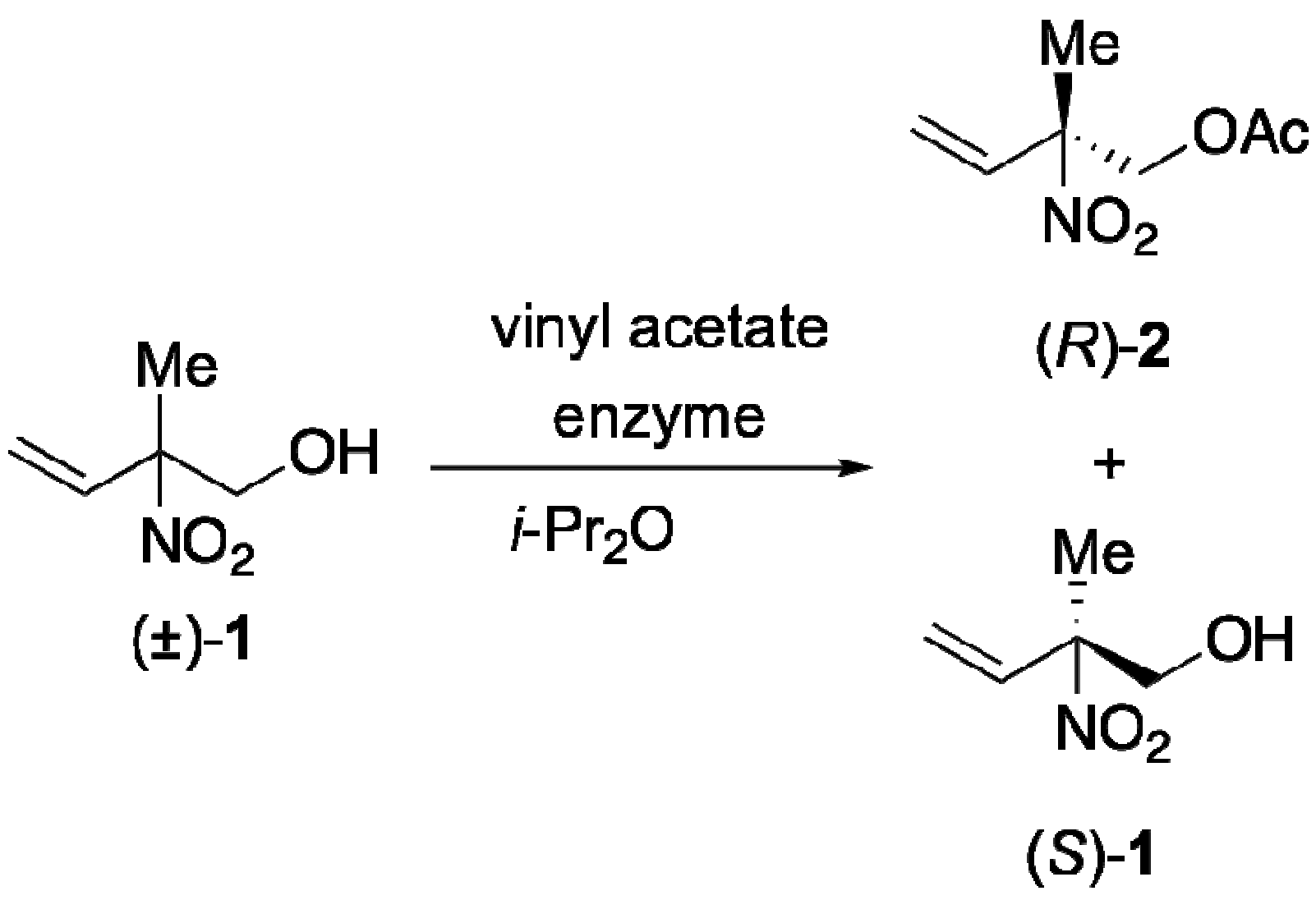

Scheme 2. Kinetic resolution of (±)-1 using an enzymatic reaction.
Scheme 2. Kinetic resolution of (±)-1 using an enzymatic reaction.
Molecules 16 06747 g002
It has long been believed that enantioselectivity of lipase-catalyzed reaction could be explained by the traditional three point attachment rule [2,18]. According to this rule, optimization of a substrate structure or protein engineering of lipases might be essential to control the enantioselectivity of the enzymatic reactions [2].
On the other hand, Ema et al. proposed that the enantioselectivity of the lipase-catalyzed reaction might be determined mainly by kinetic preference due to the conformational requirements and repulsive interaction on the transition state [19,20]. The model allows enhancement of the enantioselectivity of lipase-catalyzed reaction simply by changing the reaction temperature. Sakai and co-workers, in fact, demonstrated that efficient kinetic resolution of primary alcohols was realized using the “low-temperature transesterification method” [14,15,16]. Sakai showed that lipase-catalyzed transesterification of (2,2-dimethyl-1,3-dioxolan-4-yl)methanol in i-Pr2O proceeded even at −40 °C; the E value of the reaction at 30 °C was just 9, while it reached 55 when the reaction was conducted at −40 °C [16]. Therefore we decided to apply “the low-temperature method” to our lipase-catalyzed reaction (Scheme 1, and the results are summarized in Table 1).
Table 1. Results of lipase QLM-catalyzed transesterification of (±)-1.
Table 1. Results of lipase QLM-catalyzed transesterification of (±)-1.
EntryTempTime% ee of acetate (R)-2 a(% yield)% ee of alcohol (S)-1 b (% yield)% conv.E value c
13510 min.54 (35)75 (28)587.2
22025 min.66 (24)35 (53)356.8
3025 min.67 (37)42 (50)397.6
4−2030 min.76 (21)24 (53)249.3
5−4025 min.83 (22)32 (69)2815
6−4026 h58 (44)94 (27)6413
a Determined by HPLC analysis using CHIRALCEL OB-H, hexane/i-PrOH = 19/1, 0.5 mL/min; b Determined by HPLC analysis using CHIRALCEL AD-H, hexane/i-PrOH = 19/1, 0.5 mL/min. c E value was calculated by % ee of (R)-2 (eep) and % ee of (S)-1 (ees). E= ln[(1 − c (1 + eep)) / ln[(1 – c (1 − eep)); here, c means conv. which was calculated by the following formula according to reference [17]: c = ees / (eep + ees).
Lipase QLM-catalyzed transesterification of (±)-1 proceeded very rapidly, and we obtained acetate (R)-2 in 35% yield with 54% ee, and unreacted alcohol (S)-1 was recovered from the reaction mixture in 28% yield with 75% ee after just 10 min of reaction (entry 1). Enantiomeric excess of the product and unreacted substrate were determined by HPLC analysis using a chiral column. A slightly enhanced enantioselectivity was recorded when the reaction was carried out at −20 °C (entry 4), and it finally reached E = 15 at −40 °C (entry 5). Since the reaction rate was very fast, we obtained (R)-2 with 83% ee when the reaction was stopped at 25 min (entry 5), while 94% ee of (S)-1 was obtained after 26 h of reactions (entry 6); no improved enantioselectivity was recorded when the reaction was conducted at −60 °C. Based on the results, we have developed a protocol providing (R)-2 and (S)-1 with high enantiomeric purities as illustrated in Scheme 3.

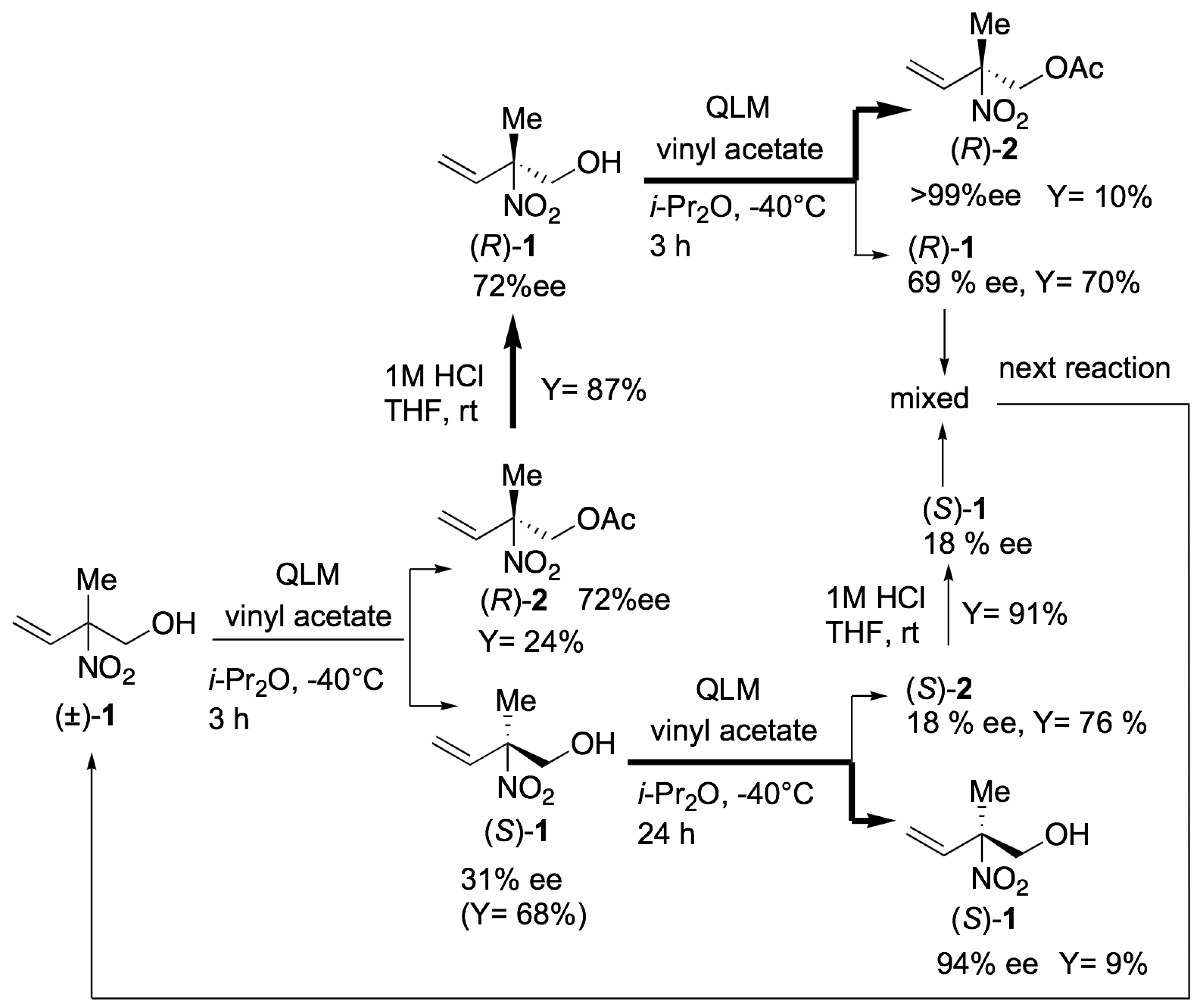

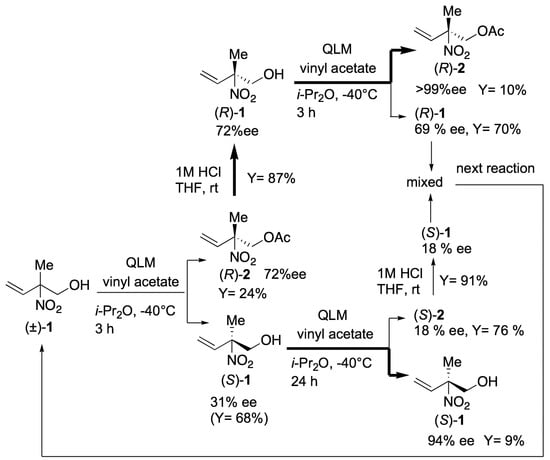

Scheme 3. Protocol of preparation of chiral 1 using “low-temperature lipase-catalyzed transesterification”.
Scheme 3. Protocol of preparation of chiral 1 using “low-temperature lipase-catalyzed transesterification”.
Molecules 16 06747 g003
Racemic (±)-1 was subjected to lipase-QLM-catalyzed transesterification at −40 °C, after being stirred for 3 h, the reaction was stopped and the acetate (R)-2 (72% ee) and alcohol (S)-1 (31% ee) were separated. Enantiomeric purities of (R)-2 and (S)-1 were not sufficient at this stage, so (R)-2 was converted to (R)-1 by acid hydrolysis in 87% yield without any loss of the optical purity. The resulting 72% ee of alcohol (R)-1 was subjected to a second transesterification. After 3 h reaction, optically pure (R)-2 (>99% ee) was obtained in 10% yield (the upper route in Scheme 3). (S)-1 (31% ee) was subjected to a second reaction for 24 h and 94% ee of (S)-1 was obtained in 9% yield (the bottom route in Scheme 3). Although the chemical yield of each reaction was insufficient, this protocol made it possible to provide (R)-2 and (S)-1 with high optical purity. After repeating the process, we succeeded in obtaining multiple grams of (R)-2 and (S)-1 with excellent optical purity (Scheme 3).
Development of efficient means for preparing chiral compounds that have a quaternary chiral center has been a challenging area in the field of synthetic organic chemistry. In particular, it is difficult to achieve this aim by enzymatic reaction because hydrolytic enzymes are usually unable to accept sterically hindered substrates bearing fully substituted quaternary carbons [2]. It should be emphasized that the present “low-temperature lipase-catalyzed reaction” provides a possible solution to this problem.

3. Experimental

3.1. General Procedures

Reagents and solvents were purchased from common commercial sources and used as received or purified by distillation over appropriate drying agents. Reactions requiring anhydrous conditions were carried out under dry argon, freshly distilled solvents, and magnetic stirring. We tested the following commercial lipases: Lipase QL and QLM (Alcaligenes sp., Meito), Lipase SL and SL-25 (Burlholderia cepacia, Meito), Novozyme 435 (Candida antarctica, NOVO), Lipase OF (Candida rugosa lipase, Meito), Lipase PS (Burlholderia cepacia, Amano), Lipase AL (Acromobacter sp., Meito), Lipase PL (Alcaligenes sp, Meito), Lipase A (Aspergillus niger, Amano), Lipase AK (Pseudomonas fluorescens, Amano), Lipase D (Actinomadura sp., Meito), Lipase MY (Candida cylindracea, Amano), Lipase F-AP15 (Rhizopus oryzae, Amano), Lipase AY (Pseudomonas fluorescence), Lipase TL (Pseudomonas stutzeri, Amano), and PPL (Porcine pancreatin lipase, Sigma). Thin layer chromatography was performed with the indicated solvents and Wako gel B-5F. 1H-NMR spectra was recorded on JEOL (500 MHz). 13C-NMR spectra was recorded on JEOL (125, 100MHz). Chemical shifts are expressed in ppm downfield from tetramethylsilane (TMS) in CDCl3 as an internal reference. Optical rotation was measured with a JASCO DIP-370 digital polarimeter. The optical purity was determined by HPLC analysis using CHIRALCEL OB-H and AD-H (Daicel).

3.2. Preparation of 2-methyl-2-nitrobut-3-en-1-ol (±1) (Scheme 4) [4]

Nitroethane (22.6 g, 301 mmol) was reacted with acetaldehyde (25.5 mL, 451 mol) in the presence of 1,8-diazabicyclo[5.4.0]undec-7-ene (DBU) (2.0 mL, 13.3 mmol) at 0 °C and the mixture was stirred for 2 h at rt. The reaction was quenched by addition of 10 mL of 1 M HCl aqueous solution and 100 mL of diethyl ether, then the organic layer was washed with 1 M HCl (3 times) and brine (3 times) and dried over MgSO4. After evaporation, Kugelrohr distillation of the resulting oil gave 3-nitrobut-2-ol (3) (9.24 g, 77.6 mmol) in 26% yield. Nitroalcohol 3 (9.24 g, 77.6 mmol) was treated with acetic anhydride (7.8 mL, 82.5 mmol) in the presence of 5 drops of concd. sulfuric acid and the mixture was stirred at rt for 4 h. To this mixture was added 100 mL of diethyl ether and the resulting organic layer was washed with brine (5 times) and dried over NaSO4. After removal of the solvent by evaporation, the resulting oily product was mixed with sodium acetate (6.49 g, 79.1 mmol) and the acetate removed under reduced pressure at 1.0 Torr at 100 °C. After being cooled to rt, the resulting product was diluted with hexane (100 mL) and the organic layer was washed with water (3 times) and dried over NaSO4. Kugelrohr distillation gave 2-nitrobut-2-ene (4) (3.11 g, 30.8 mmol) in 40% yield. To an acetonitrile (100 mL) solution of 4 (1.10 mg, 10 mmol) was added formaldehyde (1.41 g, 16.4 mmol) and 1,4-diazabicyclo[2.2.2]octane (DABCO) (150 mg, 1.3 mmol) and the mixture was stirred at rt for 24 h, then 1 M HCl (10 mL) and water (50 mL) were added. The mixture was extracted with ethyl acetate and the combined organic layer was washed with brine (3 times) and dried over NaSO4; evaporation and silica gel flash column chromatography (hexane: ethyl acetate = 10:1 to 5:1) then afforded (±)-1 (1.00 g, 8.30 mmol) in 76% yield. 1H-NMR (500 MHz, δ, CDCl3): 6.17–6.11 (1H, dd, J = 17.1 Hz, 6.3 Hz), 5.49 (1H, d, J = 17.1 Hz), 5.43 (1H, d, J = 6.3 Hz), 4.12–4.09 (1H, m), 3.82–3.80 (1H, m), 2.54 (1H, OH, brs) 1.73 (3H, s); 13C-NMR (125 MHz, δ, CDCl3) 134.2, 119.0, 92.0, 67.5, 19.5; IR (neat, cm−1) 3415, 3098, 2997, 2881, 2946, 1732, 1545, 1461, 1419, 1380, 1349, 1059, 944.

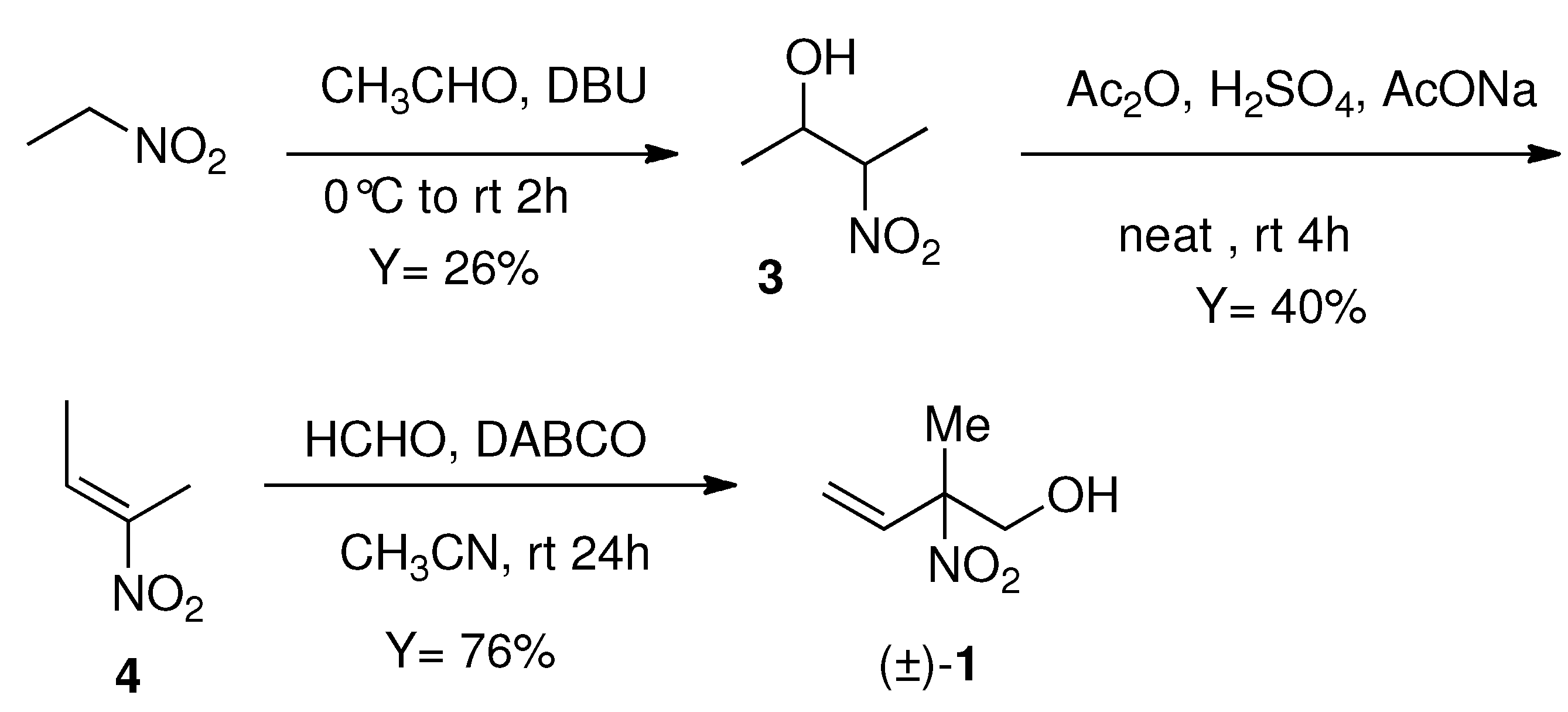

Scheme 4. 2-methyl-2-nitrobut-3-en-ol (±)-1.
Scheme 4. 2-methyl-2-nitrobut-3-en-ol (±)-1.
Molecules 16 06747 g004

3.3. Lipase-Catalyzed Transesterification

To a mixture of (±)-1 [4] (5.00 g, 38.2 mmol) and vinyl acetate (5.2 mL, 57 mmol) in i-Pr2O (200 mL) was added lipase QLM powder (2.5 g) and the mixture was stirred at −40 °C. After stirring for 3 h, the reaction mixture was filtered through a glass sintered filter with a Celite pad to remove the enzyme. The filtrate was evaporated and chromatographed on a silica gel flash column (hexane: ethyl acetate = 10:1 to 5:1) to give (R)-2 (1.59 g, 9.17 mmol, 24%, 72% ee) and (S)-1 (3.40 g, 26.0 mmol, 68%, 31% ee). Optical purity was determined by HPLC analysis on a chiral column. For (R)-2: (CHIRALCEL OB-H, Daicel), hexane/i-PrOH = 19:1, 0.5 mL/ min. Rt of (R)-2 = 22.8 min; Rt of (S)-2 = 25.7 min.; For (S)-1: (CHIRALCEL AD-H, Daicel), hexane/i-PrOH = 19:1, 0.5 mL/ min. Rt of (R)-1 = 23.9 min; Rt of (S)-1 = 27.0 min. (R)-2: 1H-NMR (500 MHz, δ, CDCl3) 6.17–6.12 (1H, dd, J = 17.2 Hz, 6.3 Hz), 5.48 (1H, d, J = 15.3 Hz), 5.45 (1H, d, J = 5.0 Hz), 4.58 (1H, d, J = 11.5 Hz), 4.40 (1H, d, J = 12.0 Hz), 2.01 (3H, s), 1.73 (3H, s); 13C-NMR (125 MHz, δ, CDCl3) 169.9, 133.6, 119.4 89.2, 67.3, 20.5, 19.5; IR (neat, cm−1) 3000, 2955, 2887, 1753, 1550, 1231, 1051. The absolute configuration of (R)-1 was confirmed by comparison with the sign of specific rotation value of (R)-2-amino-2-methyl-4-(4-(heptyloxy)phenyl)butan-1-ol (5) [21,22] ([α]D −14.4 (c 0.03, CHCl3), lit [21] −14.0 (CHCl3)) which was derived from our compound (R)-1 (96% ee). The results agree with the established enantio-favoritism of lipase QL-catalyzed transesterification [23].

3.4. Synthesis of (R)-2-Amino-2-methyl-4-(4-(heptyloxy)phenyl)butan-1-ol ((R)-5) (Scheme 5)

(R)-benzyl (2-methyl-2-nitrobut-3-en-1-yl) carbonate ((R)-6): DMAP (2.45 g, 20.06 mmol) and iPr2NEt (5.1 mL, 30.0 mmol) were added to a solution of (R)-1 (2.62 g, 19.98 mmol, 96% ee) in CH2Cl2 (30 mL). A solution of cbz-Cl (3.5 mL, 24.5 mmol) in CH2Cl2 (10 mL) was added to the solution dropwise. The mixture was stirred at room temperature for 48 h, then poured into 1 M HCl (20 mL). The organic layer was separated and the water layer was extracted with CH2Cl2 (3 × 30 mL). The organic phases were combined and dried over Na2SO4. After filtration, the filtrate was concentrated and the residue was purified by flash chromatography (hexane-EtOAc 3:1) to give (R)-6 in 95% yield (5.05 g) Oil. The enantiomeric excess of (R)-6 was determined by HPLC analysis, tR 23.9 min ((R)-6), tR 27.0 min ((S)-6) [CHIRALCEL AD-H (0.46 cm × 25 cm) (from Daicel Chemical Ind., Ltd.) hexane/i-PrOH, 95/5, 0.5 mL/min] as 96% ee: [α]D +24.8 (c 1.67, CHCl3); 1H-NMR (500 MHz, δ, CDCl3) 7.39–7.34 (m, 5H), 6.11 (dd, J = 17.4, 10.9 Hz, 1H), 5.46 (d, J = 10.9 Hz, 1H), 5.46 (d, J = 17.4 Hz, 1H), 5.16 (s, 2H), 4.69 (d, J = 11.7 Hz, 1H), 4.42 (d, J = 11.7 Hz, 1H), 1.75 (s, 3H); 13C-NMR (126 MHz, δ, CDCl3) 154.43, 134.79, 133.54, 128.87, 128.77, 128.55, 120.00, 89.18, 70.52, 70.35, 19.61; Anal. Calcd. for C13H15NO5: C, 58.86; H, 5.70; N, 5.28. Found: C, 58.75; H, 5.77; N, 5.26.
(R,E)-benzyl (4-(4-(heptyloxy)phenyl)-2-methyl-2-nitrobut-3-en-1-yl) carbonate ((R)-8): A solution of (R)-6 (200.0 mg, 0.754 mmol) in dry CH3CN (4 mL) was purged by N2 and NaOAc (188.0 mg, 2.292 mmol), Pd2dba3 (35.0 mg, 0.038 mmol) and p-C7H15OC6H4N2BF4 (7) [24] (464.0 mg, 1.516 mmol) were added. The resulting mixture was stirred at room temperature for 48 h. The reaction mixture was concentrated and the residue was subjected to flash chromatography (silica gel/hexane-EtOAc 12:1 then 10:1 then 6:1) to give (R)-8 in 63% yield (216.0 mg). [α]D +80.2 (c 0.46, CHCl3). 1H-NMR (500 MHz, δ, CDCl3) 7.41–7.35 (m, 5H), 7.32 (d, J = 8.3 Hz, 2H), 6.86 (d, J = 8.2 Hz, 2H), 6.70 (d, J = 16.0 Hz, 1H), 6.24 (d, J = 16.8 Hz, 1H), 5.17 (s, 2H), 4.80 (d, J = 11.3 Hz, 1H), 4.48 (d, J = 11.0 Hz, 1H), 3.96 (t, J = 6.6 Hz, 2H), 1.85 (s, 3H), 1.82–1.75 (m, 2H), 1.51–1.25 (m, 8H), 0.90 (t, J = 6.8 Hz, 3H); 13C-NMR (126 MHz, δ, CDCl3) 160.10, 154.54, 134.27, 128.86, 128.78, 128.56, 128.48, 121.48, 114.83, 89.30, 70.90, 70.30, 68.16, 31.80, 29.22, 29.08, 26.00, 22.63, 19.89, 14.12; HRMS (ESI M+H) m/z 456.2404. Calcd for C26H34NO5 456.2386.
Preparation of (R)-2-amino-2-methyl-4-(4-(heptyloxy)phenyl)butan-1-ol ((R)-5): (R)-8 (199 mg, 0.0437 mmol) was dissolved in MeOH (3 mL) and Pd-C (10%, 20 mg) was added. The mixture was placed autoclave and stirred at room temperature under hydrogen atomosphere at 5 MPa for 50 h. After filtration, the filtrate was concentrated to give (R)-5 (130 mg) in 97% yield. Absolute configuration of (R)-5 was confirmed by comparison with the sign of specific rotation value of that reported: ([α]D −14.4 (c0.03, CHCl3), lit [21] −14). 1H-NMR (500 MHz, δ, CD3OD) 7.10 (d, J = 8.5 Hz, 2H), 6.80 (d, J = 8.6 Hz, 2H), 3.92 (t, J = 6.4 Hz, 2H), 3.39 (d, J = 10.6 Hz, 1H), 3.36 (d, J = 10.9 Hz, 1H), 2.57 (ddd, J = 2.4, 7.9, 10.2 Hz, 2H), 1.81–1.69 (m, 2H), 1.69–1.58 (m, 2H), 1.52–1.42 (m, 2H), 1.42–1.27 (m, 6H), 1.09 (s, 3H), 0.91 (t, J = 6.4 Hz, 3H); 13C-NMR (126 MHz, δ, CD3OD) 157.36, 134.55, 128.85, 114.12, 69.52, 67.65, 52.42, 41.22, 31.70, 29.19, 29.01, 28.94, 25.86, 22.78, 22.38, 13.15; HRMS (ESI M+H) m/z 413.1642. Calcd for C23H27NO4S 413.1661.

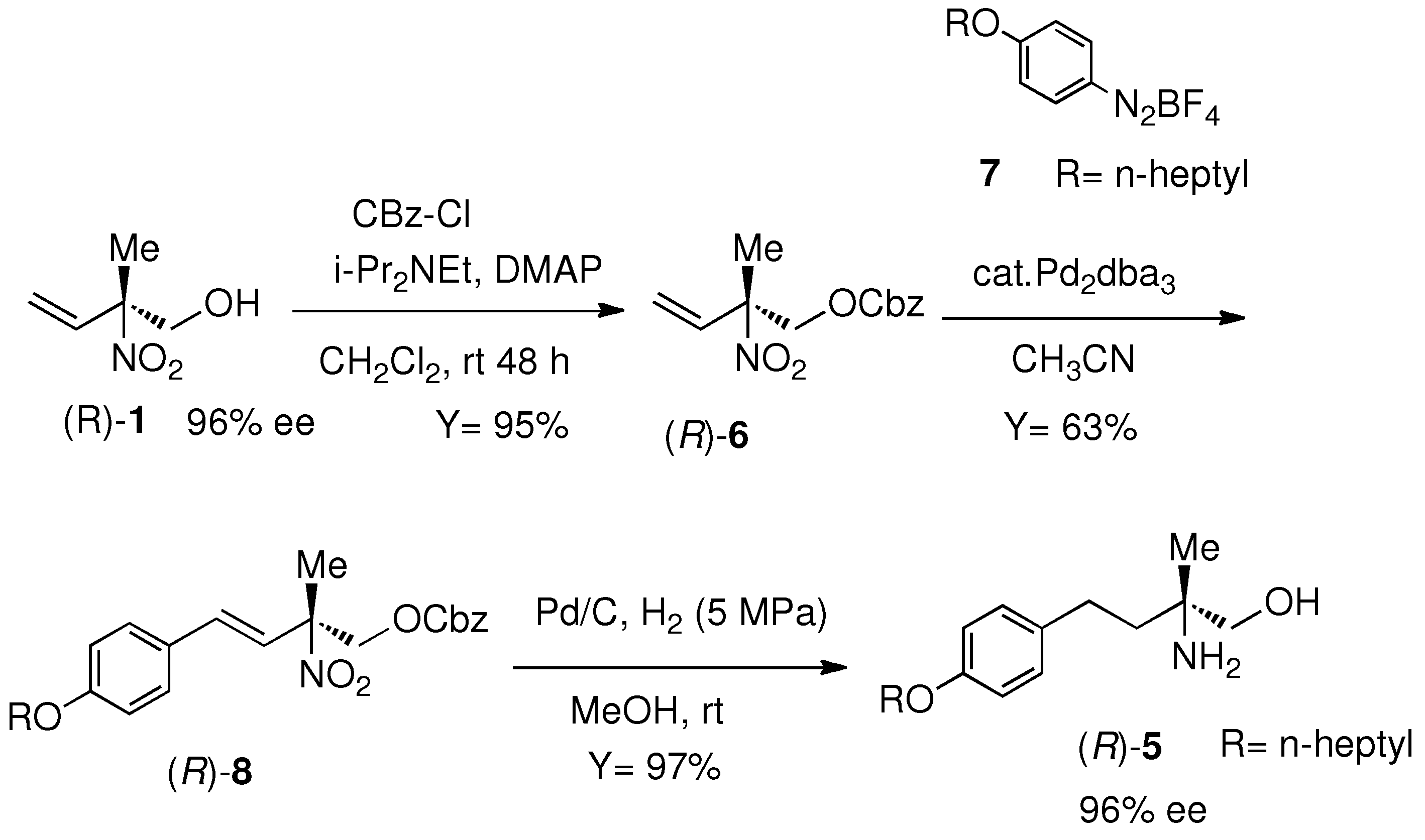

Scheme 5. (R)-2-amino-2-methyl-4-(4-(heptyloxy)phenyl)butan-1-ol (5).
Scheme 5. (R)-2-amino-2-methyl-4-(4-(heptyloxy)phenyl)butan-1-ol (5).
Molecules 16 06747 g005

3.5. Conversion of (R)-2 to (R)-1 by Acid Hydrolysis

To a THF (3.0 mL) solution of (R)-2 (250 mg, 1.44 mmol) was added 1 M aqueous HCl solution (3.0 mL) at rt and the mixture was stirred for 3 h at rt, and then concd. HCl (3.0 mL) was added and the mixture was further stirred for 72 h at rt. The reaction mixture was neutralized carefully with saturated sodium bicarbonate aqueous solution and extracted with dichloromethane. The combined organic layer was dried under MgSO4 and the solvent removed by evaporation. (R)-1 (164 mg, 1.25 mmol) was obtained in 87% yield after silica gel flash column chromatography (hexane: ethyl acetate = 10:1 to 5:1).

3.6. Preparation of Optically Pure (R)-2 (The Upper Route in Scheme 2)

To a mixture of (R)-1 (72% ee, 1.50 g, 8.67 mmol) and vinyl acetate (1.0 mL, 13 mmol) in i-Pr2O (60 mL) was added lipase QLM powder (0.75 g) and the mixture was stirred at −40 °C. After being stirred for 3 h, the reaction mixture was filtered through a glass sintered filter with a Celite pad to remove the enzyme. The filtrate was evaporated and chromatographed on a silica gel flash column (hexane: ethyl acetate = 10:1 to 5:1) to give (R)-2 (150.6 mg, 0.870 mmol, 10%, >99% ee) and (R)-1 (1.05 g, 6.07 mmol, 70%, 69% ee): (R)-2: [α]26D −16.5 (c 0.57, CDCl3), >99% ee.

3.7. Preparation of (S)-1 with High Optical Purity (Bottom Route in Scheme 3)

To a mixture of (S)-1 (31% ee, 3.40 g, 25.9 mmol) and vinyl acetate (3.5 mL, 39 mmol) in i-Pr2O (120 mL) of was added lipase QLM powder (1.70 g) and the mixture was stirred at −40 °C. After being stirred for 24 h, the reaction mixture was filtered through a glass sintered filter with a Celite pad to remove the enzyme. The filtrate was evaporated and chromatographed on a silica gel flash column (hexane: ethyl acetate = 10:1 to 5:1) to give (S)-2 (3.41 g, 19.6 mmol, 76%, 18% ee) and (S)-1 (305.5 mg, 2.33 mmol, 9%, 94% ee): (S)-1: [α]26D +76.8 (c 0.26, CDCl3), 94% ee. (S)-2 was converted to (S)-1 (18% ee) by acid hydrolysis and the resulting (S)-1 (2.34 g) was combined with (R)-1 (1.05 g), which was obtained by the upper route in Scheme 2, to prepare low % ee substrate alcohol 1 (3.39 g, 7.4% ee (R)), then used for the next cycle of the lipase-catalyzed reaction.

4. Conclusions

In summary, we established a convenient protocol to prepare both enantiomers of 2-methyl-2-nitrobut-3-en-1-ol (1) with over 94% ee using lipase-catalyzed transesterification under low temperature reaction conditions. It was possible to apply the reaction protocol to the multi gram scale preparation and we succeeded in preparing the desired compounds easily. Synthetic application of a medicinal compound using optically active 1 is now ongoing in our laboratory.

Acknowledgment

The present work was supported by a Grant-in-Aid for Environmental Research from Tottori Prefecture, Japan.

Conflict of Interest

The authors declare no conflict of interest.

References and Notes

  1. Wong, C.-H.; Whitesides, G.M. Enzymes in Synthetic Organic Chemistry; Elsevier Science Ltd: Pergamon, Oxford, UK, 1994. [Google Scholar]
  2. Faber, K. Biotransformations in Organic Chemistry, 6th ed; Springer-Verlag Berlin: Heidelberg, Germany, 2011. [Google Scholar]
  3. Future Directions in Biocatalysis; Matsuda, T. (Ed.) Elsevier: Amsterdam, The Netherlands, 2007.
  4. Ono, N.; Hamamoto, I.; Kamimura, A.; Kaji, A.; Tamura, R. Reaction of carbanions derived from alpha, BETA-unsaturated nitrocompounds with electrophiles to give alpha, beta-substituted products. Synthesis 1987, 3, 258–260. [Google Scholar]
  5. Itoh, T. Future Directions in Biocatalysis; Matsuda, T., Ed.; Elsevier: Amsterdam, The Netherlands, 2007; Volume Chapter 1, pp. 3–20. [Google Scholar]
  6. Lalonde, J.J.; Bergbreiter, D.E.; Wong, C.-H. Enzymatic kinetic resolution of α-nitro α-methyl carboxylic acids. J. Org. Chem. 1988, 53, 2323–2327. [Google Scholar] [CrossRef]
  7. Im, D.S.; Cheong, C.S.; Lee, S.H. Lipase-catalyzed remote kinetic resolution of quaternary carbon-containing alcohols and determination of their absolute configuration. Bull. Korean Chem. Soc. 2003, 24, 1269–1275. [Google Scholar] [CrossRef]
  8. Im, D.S.; Cheong, C.S.; Lee, S.H. Lipase-catalyzed remote kinetic resolution of arylic nitriles with adjacent quaternary chiral center and the determination of their absolute configuration. J. Mol. Catal. B: Enzym. 2003, 26, 131–143. [Google Scholar] [CrossRef]
  9. Angoli, M.; Barilli, A.; Lesma, G.; Passarella, D.; Riva, S.; Silvani, A.; Danieli, B. Remote stereocenter discrimination in the enzymatic resolution of piperidine-2-ethanol. Short enantioselective synthesis of sedamine and allosedamine. J. Org. Chem. 2003, 68, 9525–9527. [Google Scholar] [CrossRef]
  10. Irimescu, R.; Saito, T.; Kato, K. Enzymatic kinetic resolution of primary alcohols by direct esterification in solvent-free system. J. Mol. Catal. B: Enzym. 2004, 27, 69–73. [Google Scholar] [CrossRef]
  11. Solares, L.F.; Brieva, R.; Quiro, M.; Llorente, I.; Bayodb, M; Gotor, V. Enzymatic resolution of a quaternary stereogenic centre as the key step in the synthesis of (S)-(+)-citalopram. Tetrahedron Asymmetry 2004, 15, 341–345. [Google Scholar] [CrossRef]
  12. Recuero, V.; Ferrero, M.; Gotor-Fernández, V.; Brieva, R.; Gotor, V. Enzymatic resolution of hindered cyanohydrins, key precursors of muscarinic receptor antagonists. Tetrahedron Asymmetry 2007, 18, 994–1002. [Google Scholar] [CrossRef]
  13. Felluga, F.; Ghelfi, F.; Pitacco, G.; Roncaglia, F.; Valentin, E.; Venneri, C.D. Esterase-mediated synthesis of optically active GABA analogues containing a stereogenic all-carbon quaternary carbon atom. Tetrahedron Asymmetry 2010, 21, 2183–2191. [Google Scholar] [CrossRef]
  14. Sakai, T. Future Directions in Biocatalysis; Matsuda, T., Ed.; Elsevier: Amsterdam, The Netherlands, 2007; Volume Chapter 2, pp. 21–50. [Google Scholar]
  15. Sakai, T.; Kawabata, I.; Kishimoto, T.; Ema, T.; Utaka, M. Enhancement of the enantioselectivity in lipase-catalyzed kinetic resolutions of 3-phenyl-2H-azirine-2-methanol by lowering the temperature to −40 °C. J. Org. Chem. 1997, 62, 4906–4907. [Google Scholar] [CrossRef]
  16. Sakai, T.; Kishimoto, I.; Ema, T.; Utaka, M. Low-temperature method for enhancement of enantioselectivity in the lipase-catalyzed kinetic resolutions of solketal and some chiral alcohols. Tetrahedron Lett. 1998, 39, 7881–7884. [Google Scholar]
  17. Chen, C.-S.; Fujimoto, Y.; Girdaukas, G.; Sih, C.J. Quantitative analyses of biochemical kinetic resolutions of enantiomers. J. Am. Chem. Soc. 1982, 104, 7294–7298. [Google Scholar] [CrossRef]
  18. Jones, J.B. Applications of Biochemical Systems in Organic Chemistry; Jones, J.B., Shi, C.J., Perlman, D., Eds.; Wiley: New York, NY, USA, 1976; pp. 1–46. [Google Scholar]
  19. Ema, T.; Kobayashi, J.; Maeno, S.; Sakai, T.; Utaka, M. Origin of the enantioselectivity of lipases explained by a stereo-sensing mechanism operative at the transition state. Bull. Chem. Soc. Jpn. 1998, 71, 443–453. [Google Scholar] [CrossRef]
  20. Ema, T. Rational strategies for highly enantioselective lipase-catalyzed kinetic resolutions of very bulky chiral compounds: Substrate design and high-temperature biocatalysis. Tetrahedron Asymmetry 2004, 15, 2765–2720. [Google Scholar] [CrossRef]
  21. Hinterding, K.; Albert, R.; Cottens, S. First asymmetric synthesis of chiral analogues of the novel immunosuppressant FTY720. Tetrahedron Lett. 2002, 43, 8095–8097. [Google Scholar] [CrossRef]
  22. Nakamura, T.; Tsuji, T.; Iio, Y.; Miyazaki, S.; Takemoto, T.; Nishi, T. Asymmetric synthesis of a,a-disubstituted a-amino alcohol derivatives. Tetrahedron Asymmetry 2006, 17, 2781–2792. [Google Scholar] [CrossRef]
  23. Itoh, T.; Ishida, N.; Mitsukura, K.; Hayase, S.; Ohashi, K. Synthesis of optically active gem-difluorocyclopropanes through a chemo-enzymatic reaction strategy. J. Fluorine Chem. 2004, 125, 775–783. [Google Scholar] [CrossRef]
  24. Felpin, F. X.; Coste, J.; Zakri, C.; Fouquet, E. Preparation of 2-quinolones by sequential Heck Reduction-Cyclization (HRC) reactions by using a multitask palladium catalyst. Chem. Eur. J. 2009, 15, 7238–7245. [Google Scholar] [CrossRef]
  • Samples Availability: Not available.
